OrientDB is a multi-model NoSQL document database that provides both graph and document structures and queries. It supports ACID transactions, schema-full and schema-less modes, HTTP/binary protocols, and allows both SQL-like and native graph queries. OrientDB provides APIs for Java, JRuby and other languages to interface with the database.

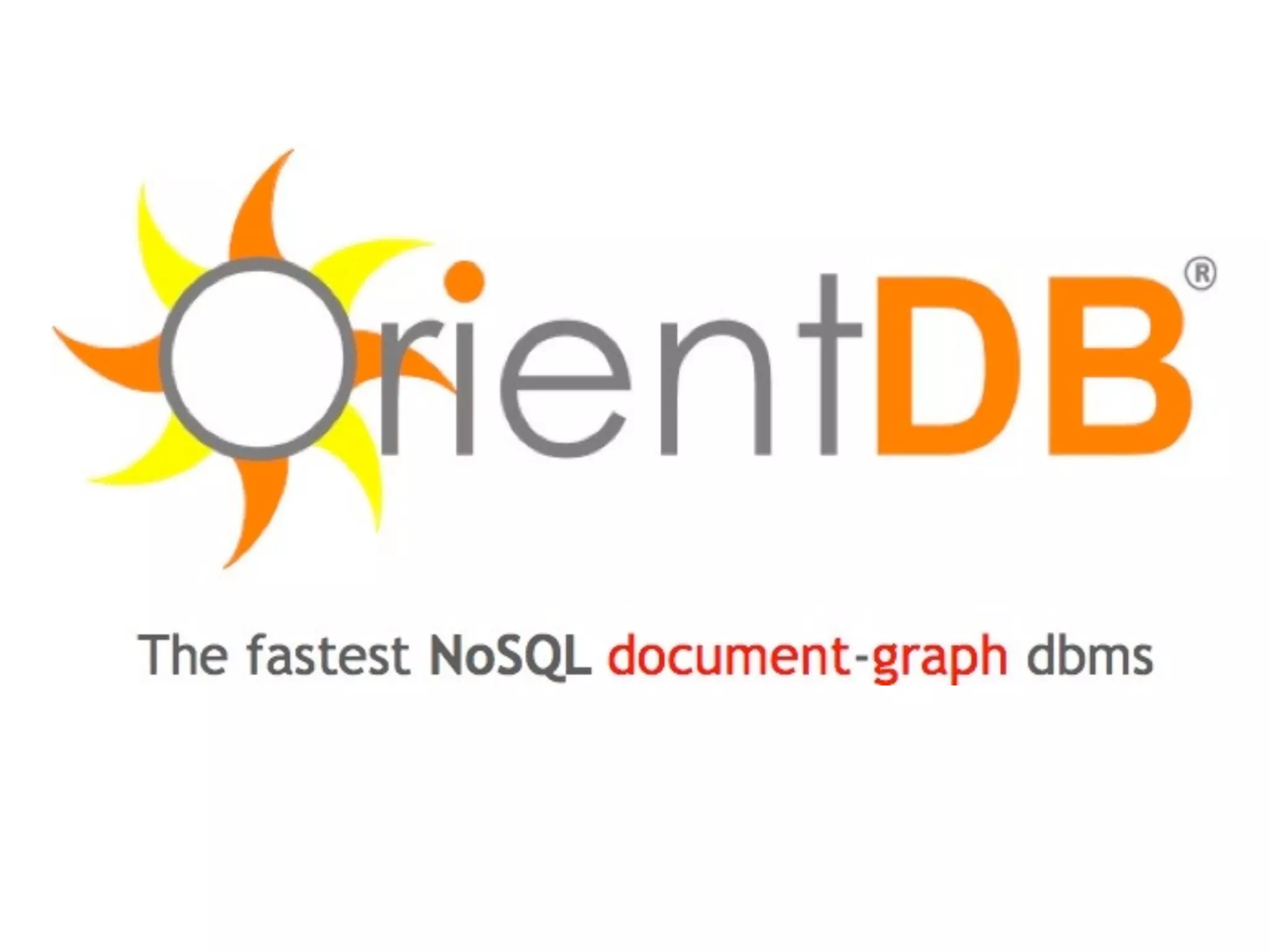

1. OrientDB
The fastest NoSQL
document graph dbms

2. Spiel
• Best of NoSQL
• Best of RDBMS
• New ideas & concepts
Luca Garulli

3. Features
• HTTP / Binary
• REST
• JSON

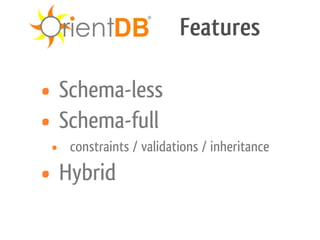

4. Features
• Schema-less
• Schema-full
•constraints / validations / inheritance
• Hybrid

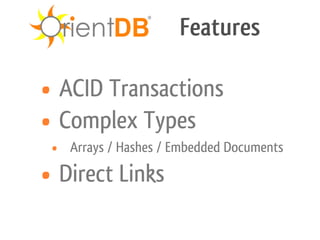

5. Features
• ACID Transactions
••Complex Types
Arrays / Hashes / Embedded Documents
• Direct Links

6. Features
• SQL in NoSQL
• WTH?
• SELECT *
FROM employee
WHERE name
LIKE '%Jay%' AND status = 0

7. JSON
Documents
{
'@rid' = '26:10',
'@class' = 'Developer',
'name' : 'Luca',
'surname' : 'Garulli',
'company' : '19:76'
}

8. Fetch Plan
Invoice
3:100 |
| customer +---------> Customer
|! 5:233
| city! country
+---------> City ---------> Country
|! 11:2! 12:3
| orders
+--------->* [OrderItem OrderItem OrderItem]
[ 8:12! 8:19! 8:23 ]

9. Java
ODocument doc = new ODocument( db,
"Person" );
doc.field( "name", "Luke" );
doc.field( "surname", "Skywalker" );
doc.field( "city", new ODocument
("City" ).fields("name","Rome") );
doc.save();

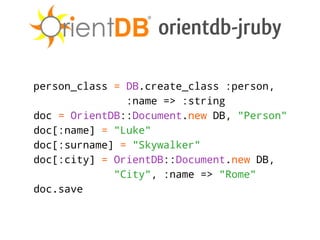

10. orientdb-jruby
person_class = DB.create_class :person,
:name => :string
doc = OrientDB::Document.new DB, "Person"
doc[:name] = "Luke"
doc[:surname] = "Skywalker"
doc[:city] = OrientDB::Document.new DB,
"City", :name => "Rome"
doc.save

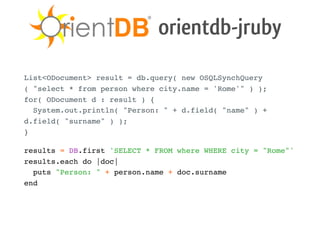

11. orientdb-jruby
List<ODocument> result = db.query( new OSQLSynchQuery
( "select * from person where city.name = 'Rome'" ) );
for( ODocument d : result ) {
System.out.println( "Person: " + d.field( "name" ) +
d.field( "surname" ) );
}
results = DB.first 'SELECT * FROM where WHERE city = "Rome"'
results.each do |doc|
puts "Person: " + person.name + doc.surname
end

12. Queries
• select from Account where
address.city.country.name = 'Italy'
• select from Account where addresses contains
(city.country.name = 'Italy')
• select from Profile where any() like '%Jay%'
• select from Tree where children contains
( married = true )
• select from User where roles containsKey
'shutdown'
• select from Vehicle where @class = 'Car'
• select from Friend where @version > 100

13. Console
ORIENT database v.0.9.23 www.orientechnologies.com Type 'help' to display all the
commands supported.
> connect remote:localhost/demo admin admin Connecting to database
[remote:localhost/demo] with user 'admin'...OK
> select from profile where nick.startsWith('L')
---+--------+--------------------+--------------------+--------------------+
# | REC ID | NICK! | SEX! | AGE |
---+--------+--------------------+--------------------+--------------------+
0 | 10:0 | Lvca | male | 34
1 | 10:3 | Leo | male | 22
2 | 10:7 | Luisa | female | 27
3 item(s) found. Query executed in 0.013 sec(s).
> close Disconnecting from the database [demo]...OK
> quit

14. Web Admin

15. WINNING, DUH!

16. Links
• OrientDB
• orientechnologies.com
• JRuby Client
• github.com/aemadrid/orientdb-jruby
