Introduction to Flux and Functional Data Scripting

Scott Anderson
Sr. Technical Writer & Tech Lead
April 2021
Introduction to Flux &
Functional Data Scripting

© 2021 InfluxData. All rights reserved.
2

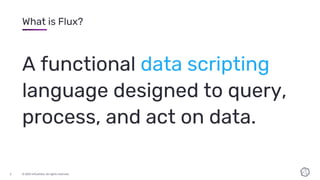

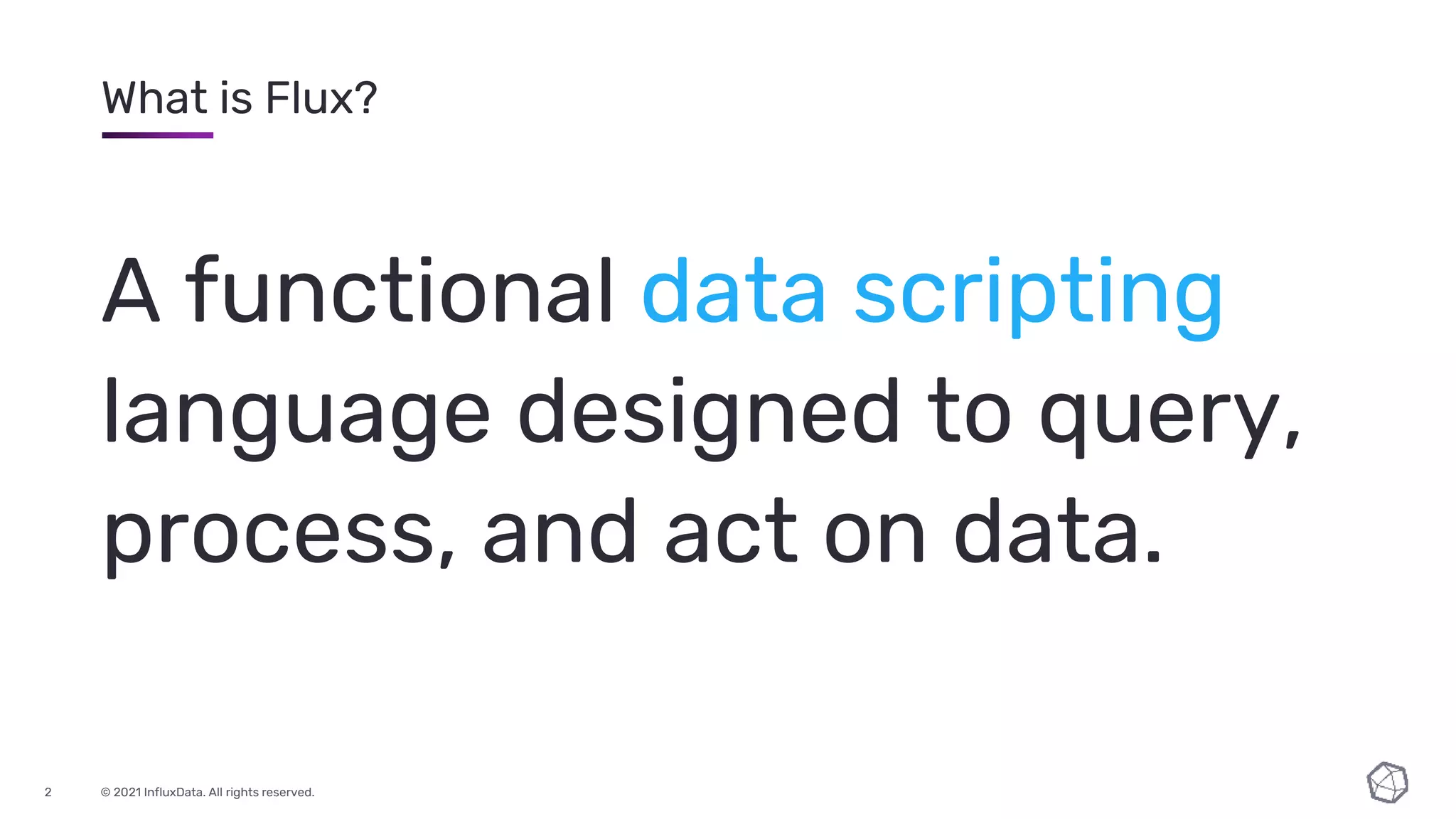

What is Flux?
A functional data scripting
language designed to query,
process, and act on data.

3

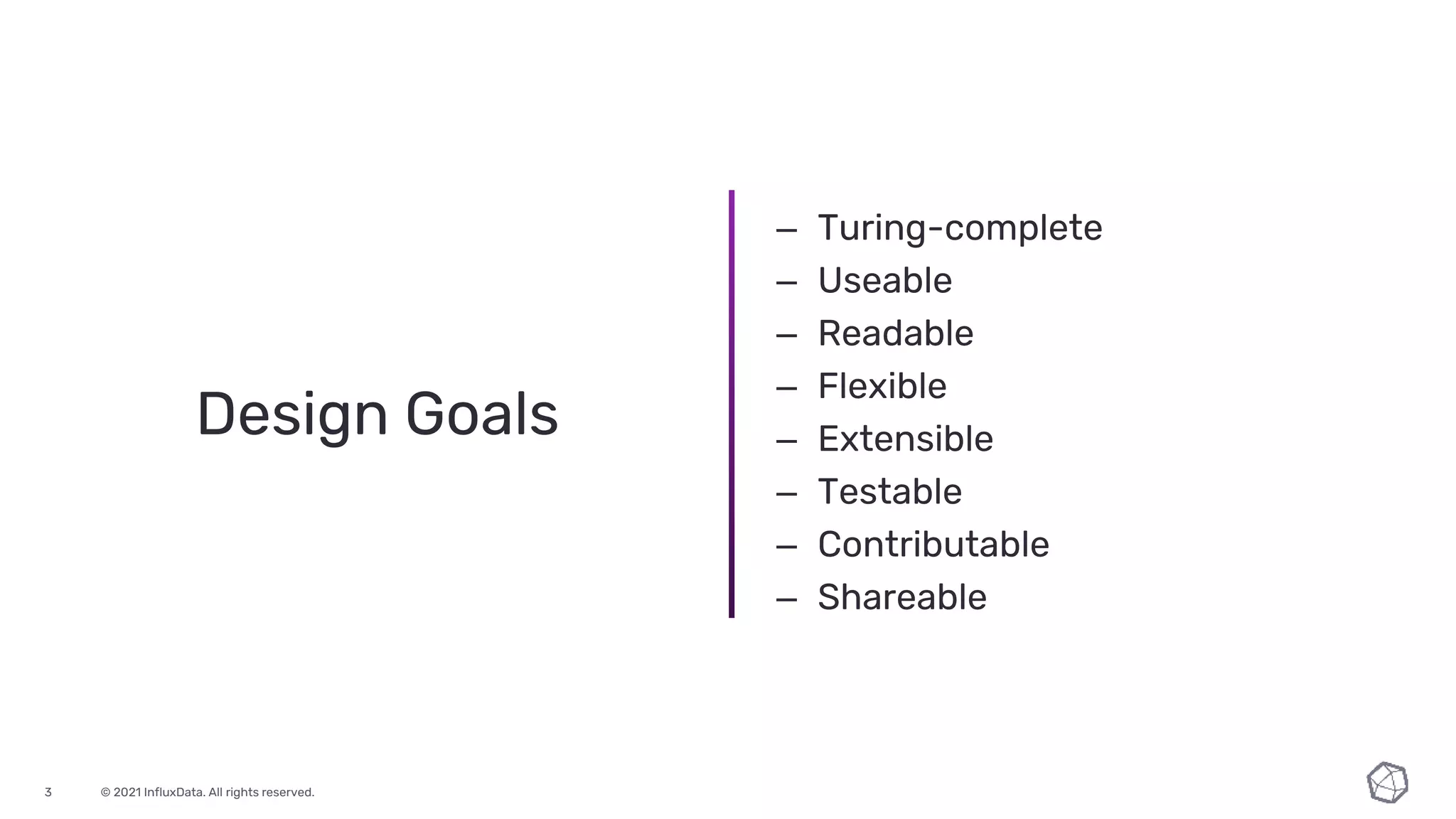

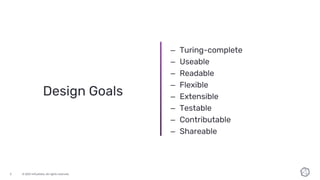

Design Goals
– Turing-complete
– Useable
– Readable
– Flexible
– Extensible
– Testable
– Contributable
– Shareable

4

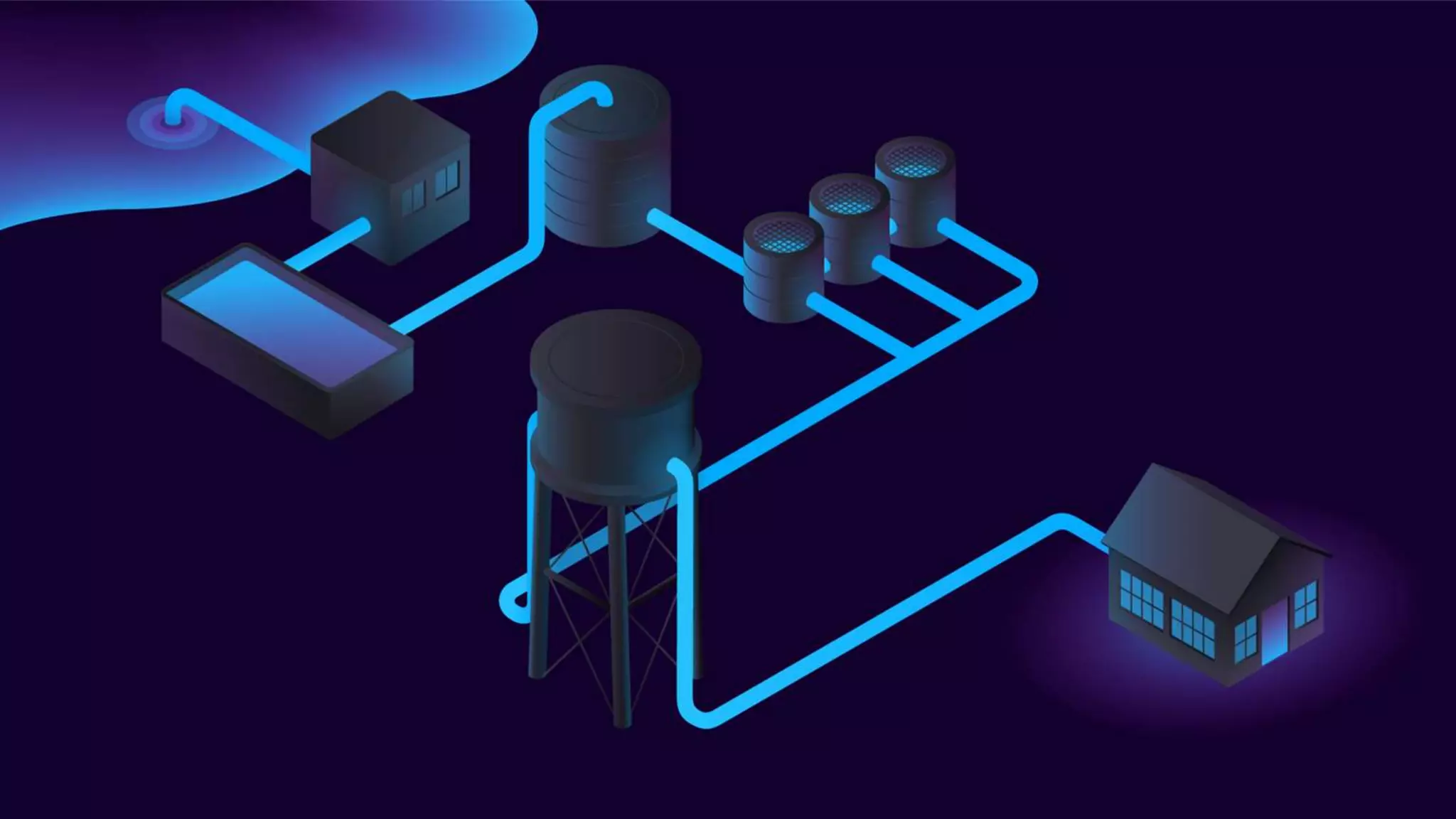

How does
it work?

5 © 2021 InfluxData. All rights reserved.
5

6

7

8

9

10

11

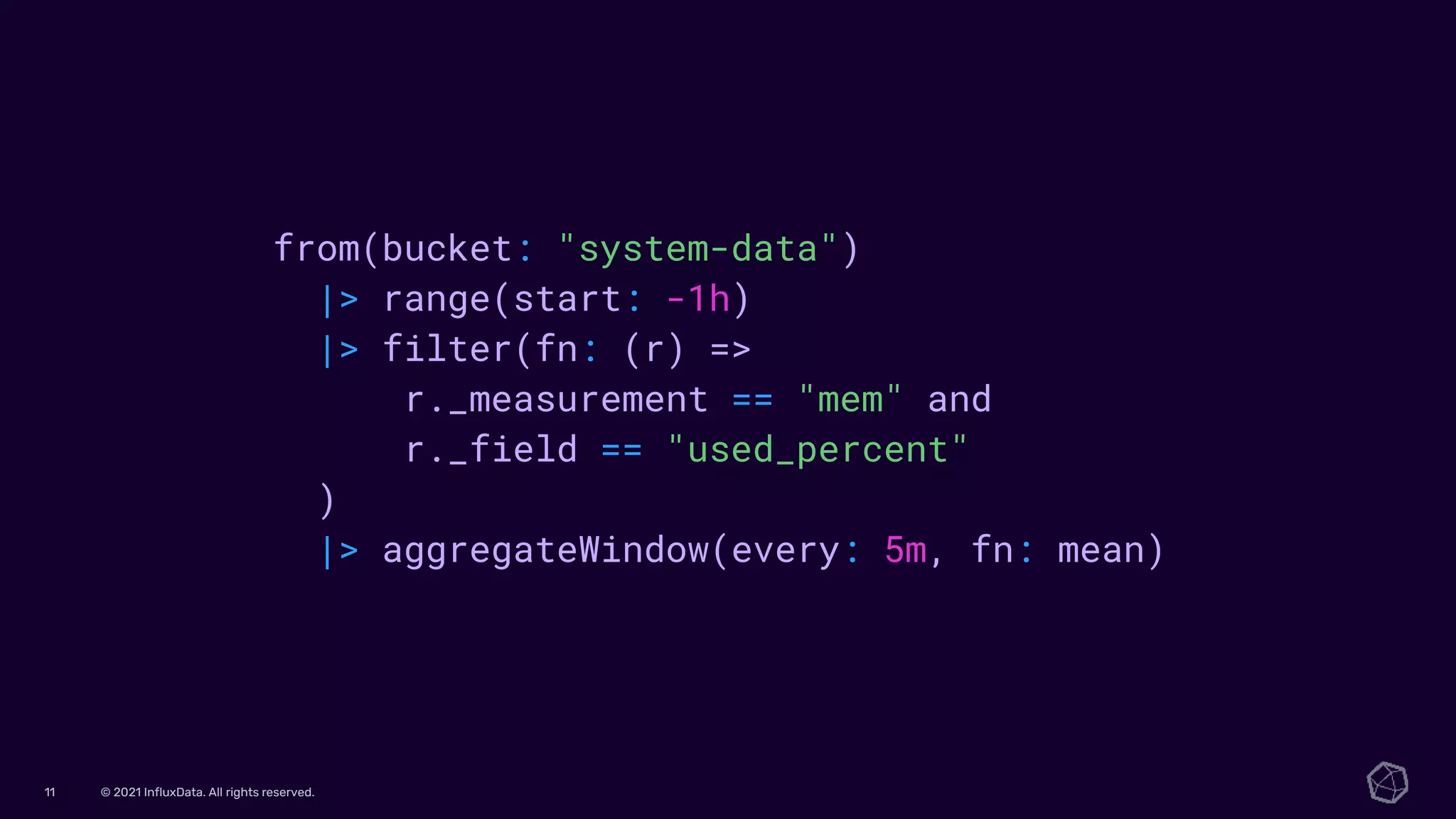

from(bucket: "system-data")
|> range(start: -1h)
|> filter(fn: (r) =>
r._measurement == "mem" and
r._field == "used_percent"
)
|> aggregateWindow(every: 5m, fn: mean)

12
Data
Structure

13

14

15

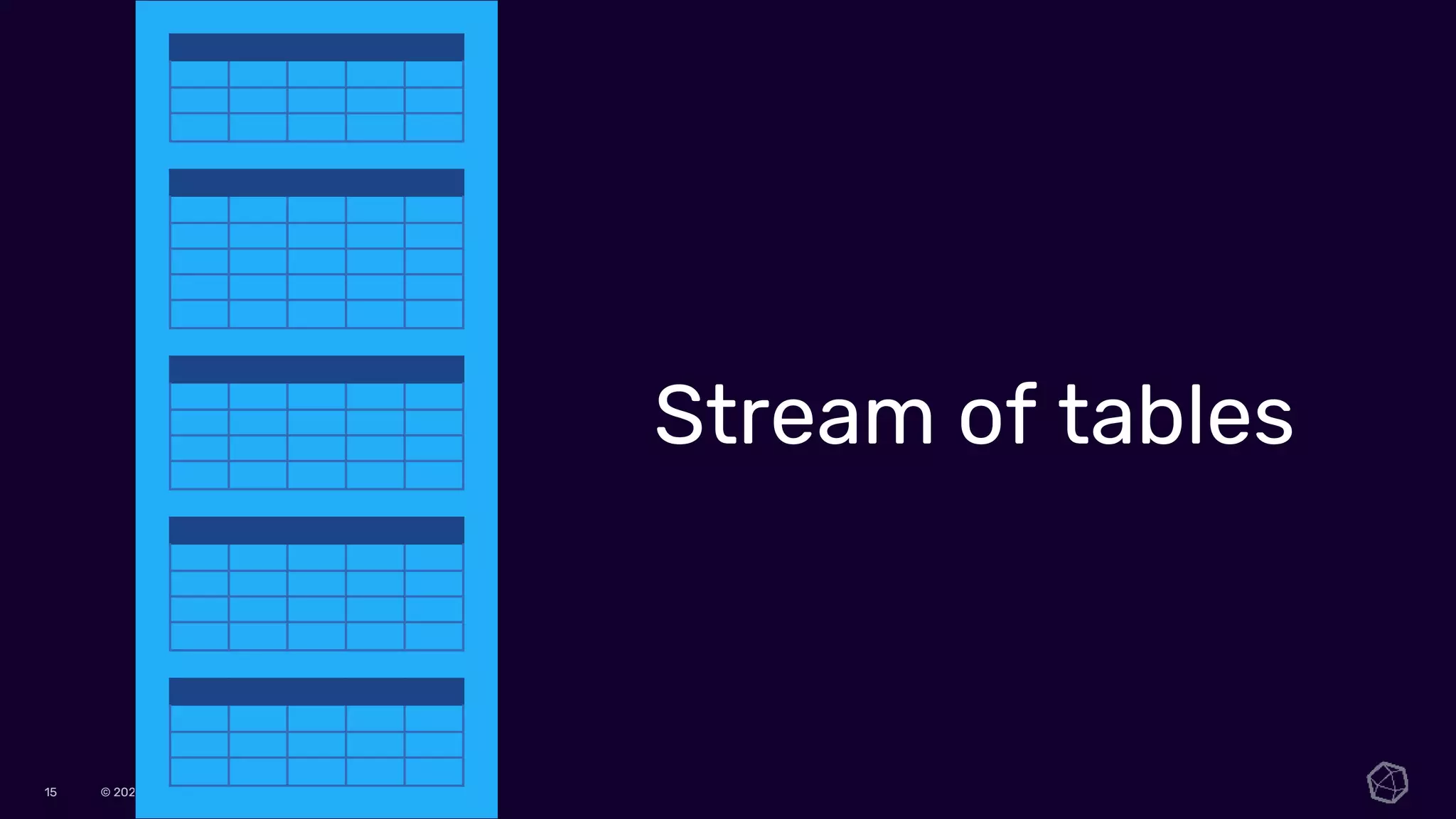

Stream of tables

16

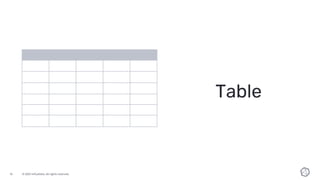

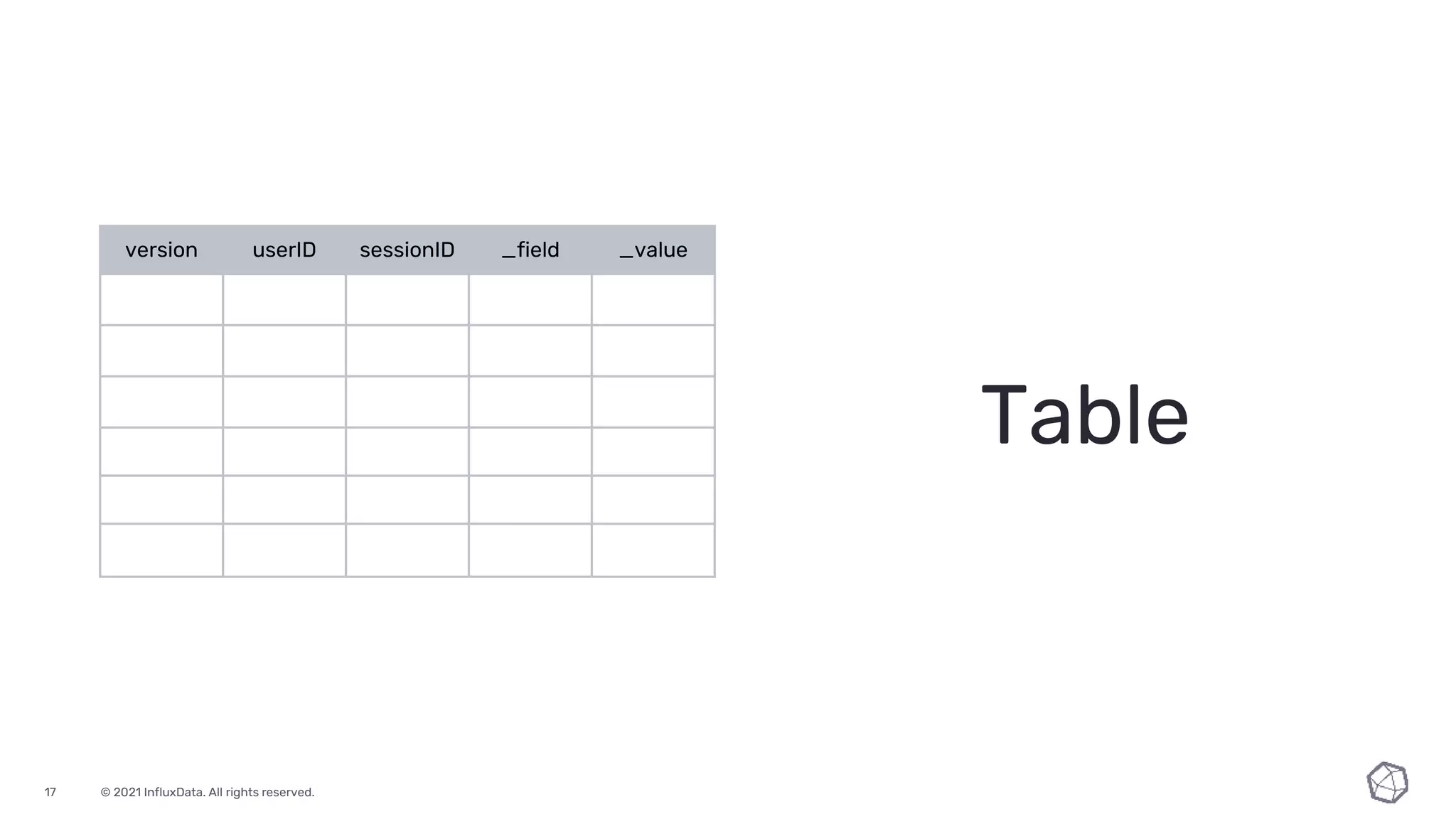

Table

17

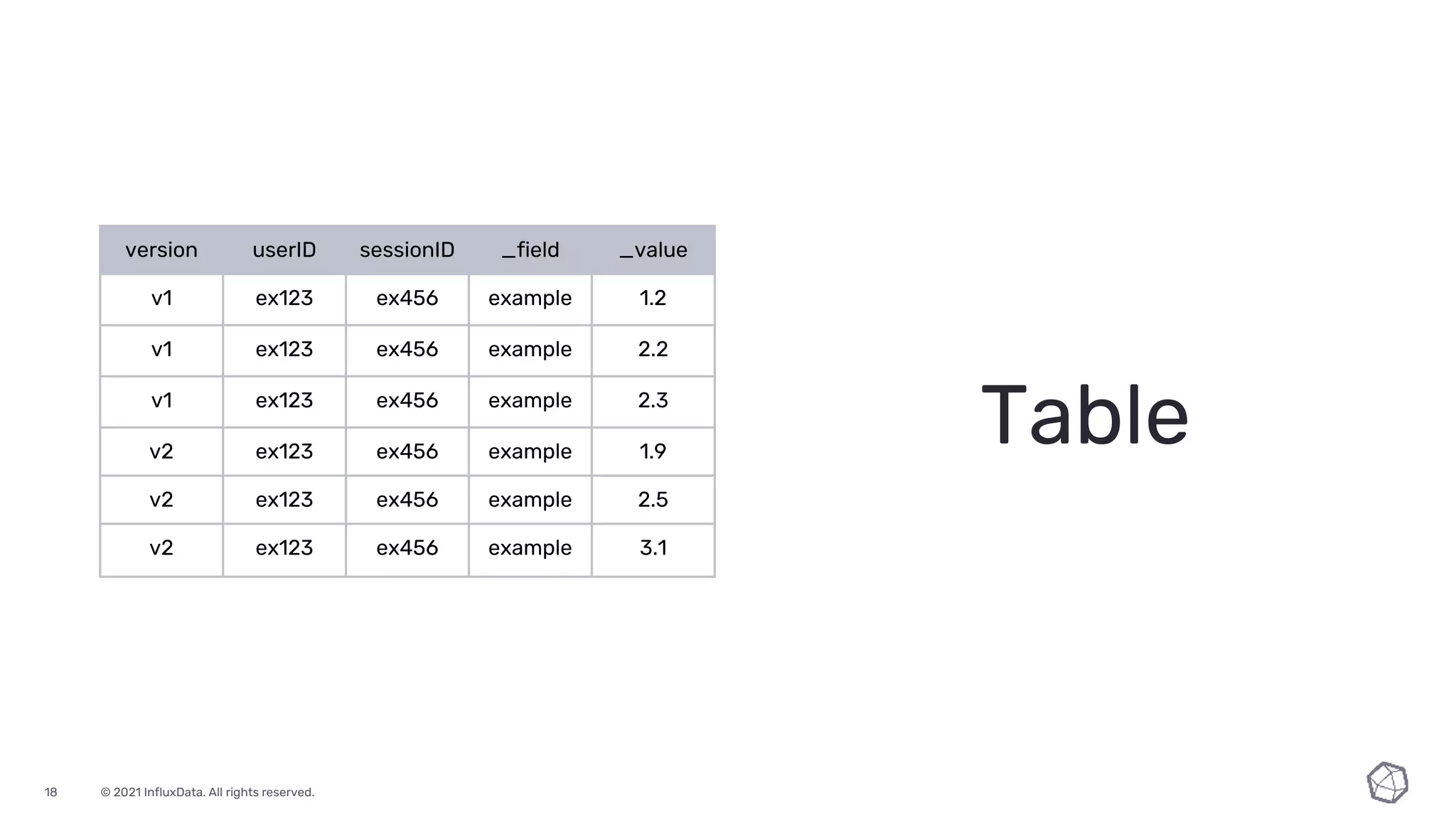

version userID sessionID _field _value
Table

18
v1 ex123 ex456 example 1.2
Table

19

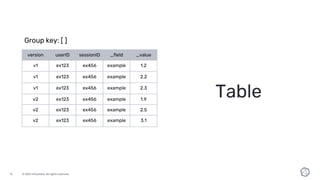

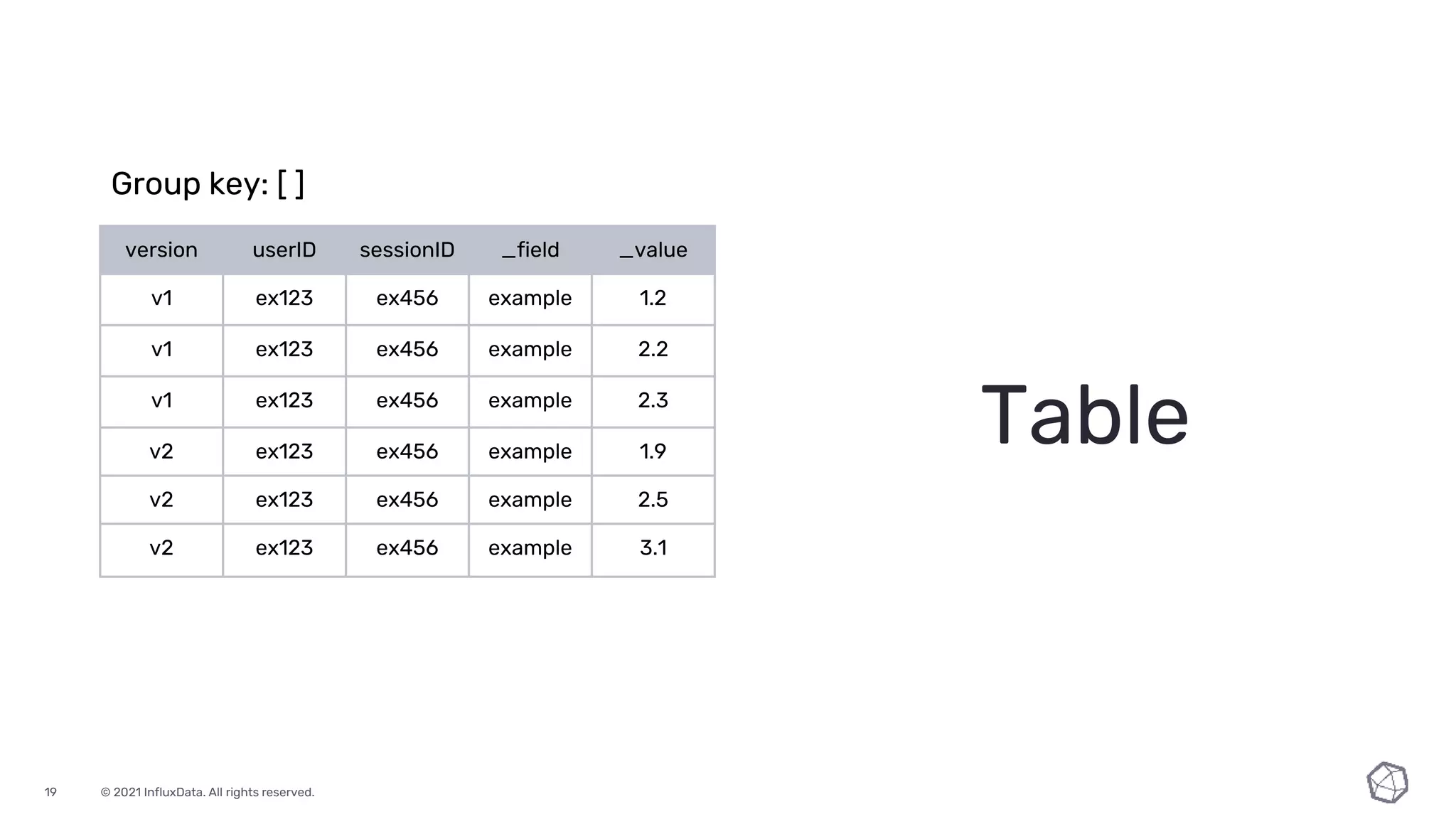

Table
Group key: [ ]

20

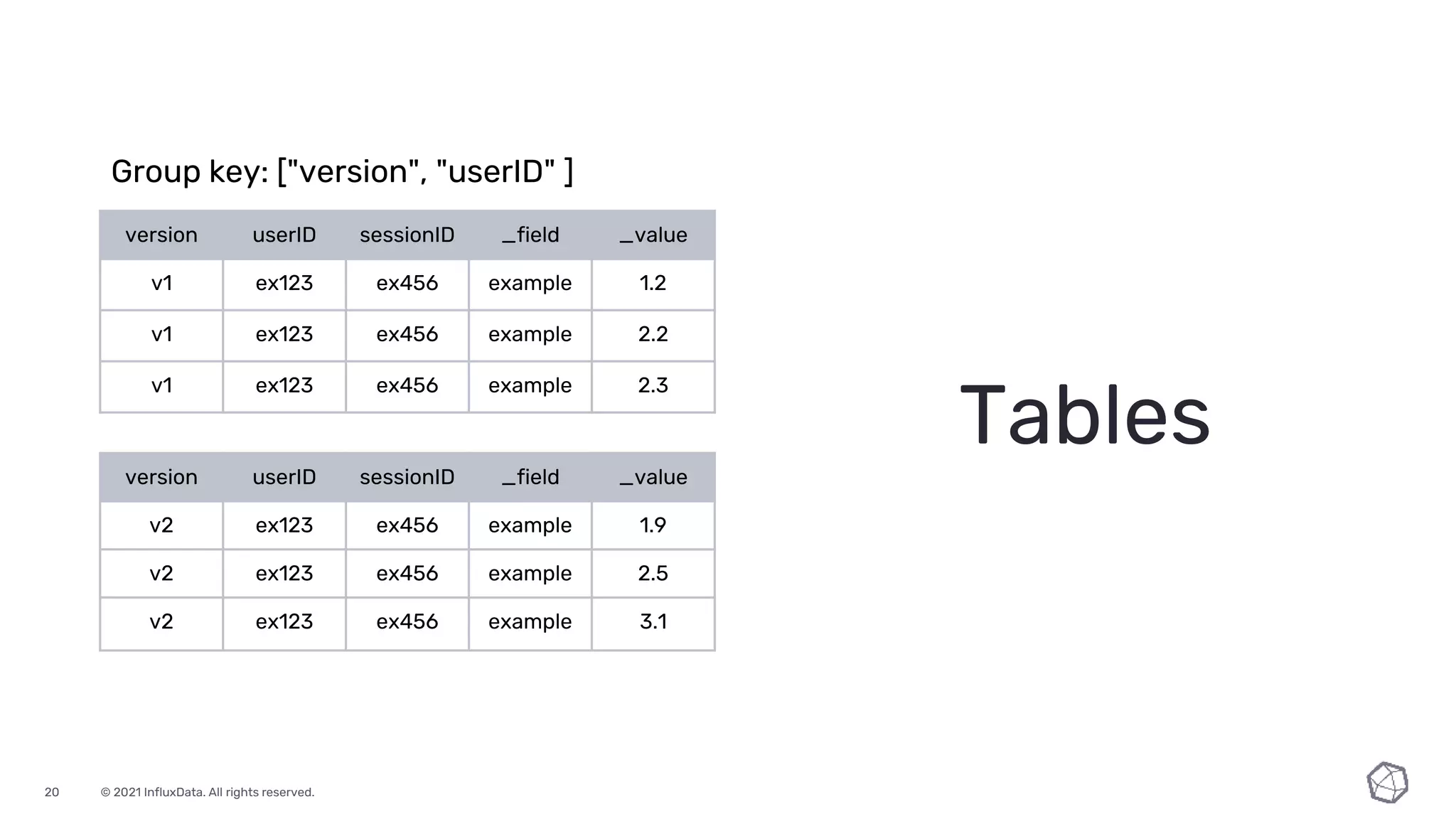

Tables
Group key: ["version", "userID" ]

21

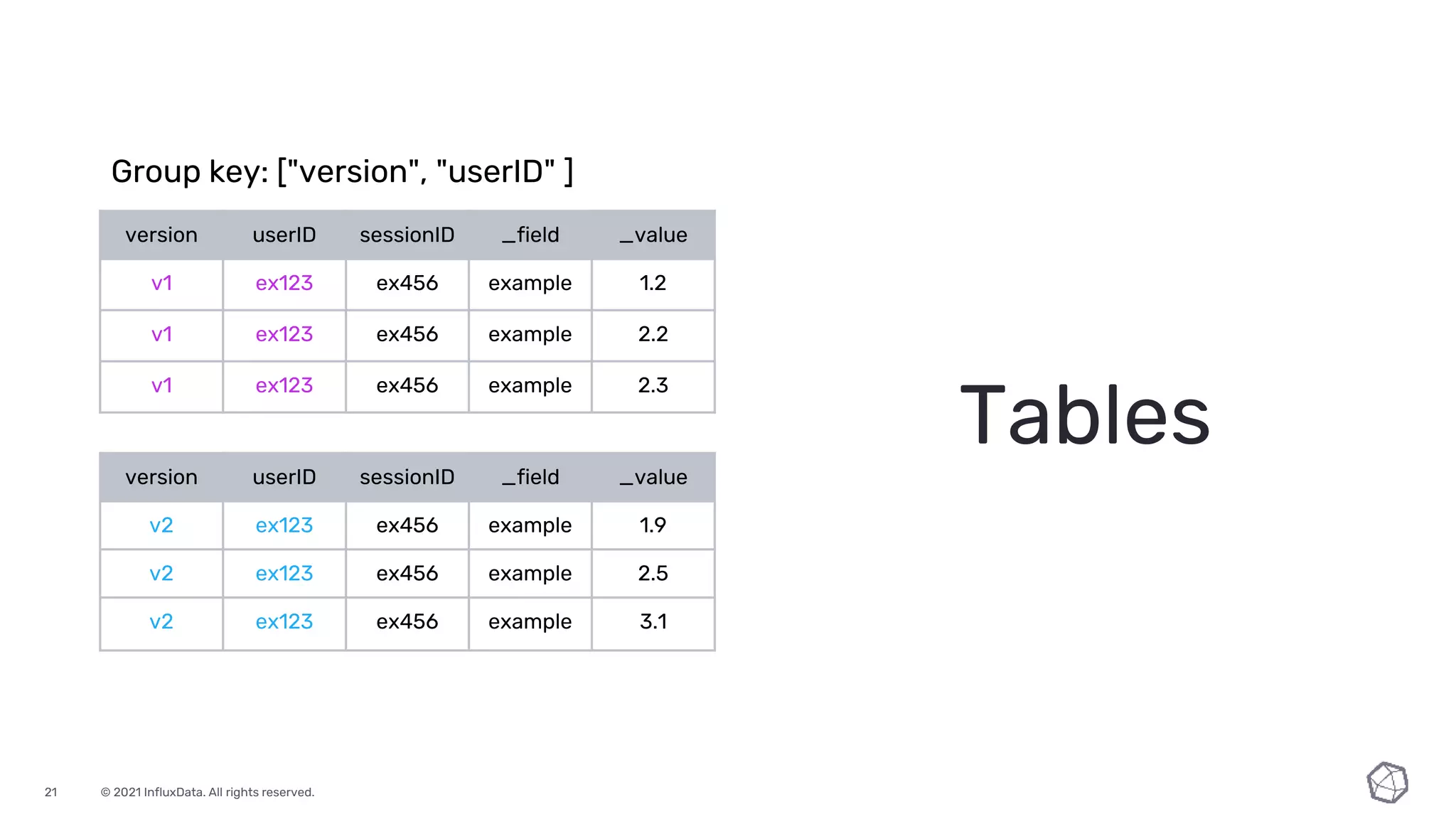

Tables
Group key: ["version", "userID" ]

22

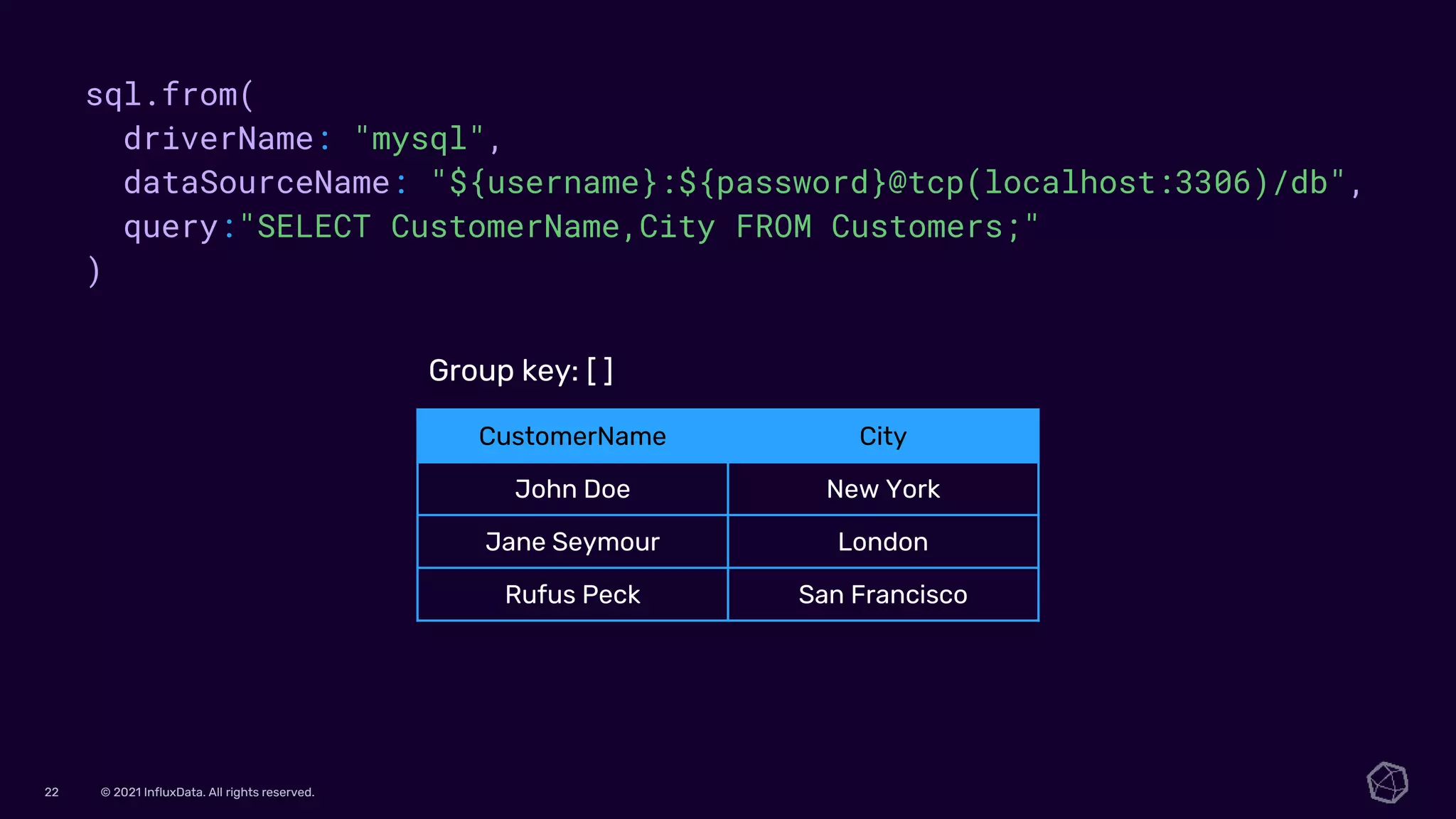

sql.from(
driverName: "mysql",
dataSourceName: "${username}:${password}@tcp(localhost:3306)/db",
query:"SELECT CustomerName,City FROM Customers;"
)
CustomerName City
John Doe New York
Jane Seymour London
Rufus Peck San Francisco
Group key: [ ]

23

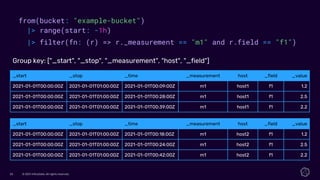

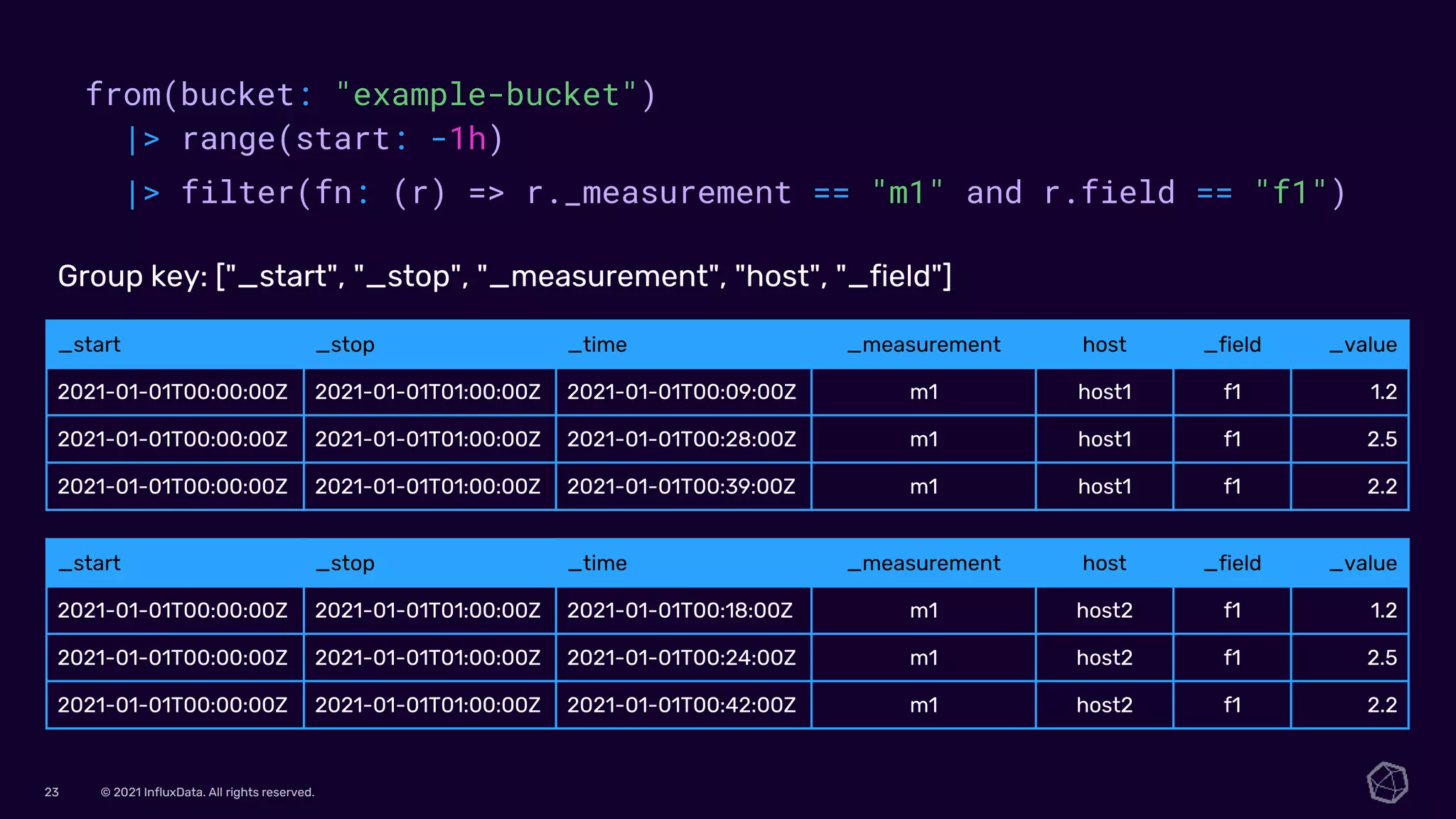

from(bucket: "example-bucket")
|> filter(fn: (r) => r._measurement == "m1" and r.field == "f1")
_start _stop _time _measurement host _field _value
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:09:00Z m1 host1 f1 1.2
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:28:00Z m1 host1 f1 2.5
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:39:00Z m1 host1 f1 2.2
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:18:00Z m1 host2 f1 1.2
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:24:00Z m1 host2 f1 2.5
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:42:00Z m1 host2 f1 2.2
Group key: ["_start", "_stop", "_measurement", "host", "_field"]

24
Flux
Syntax

25

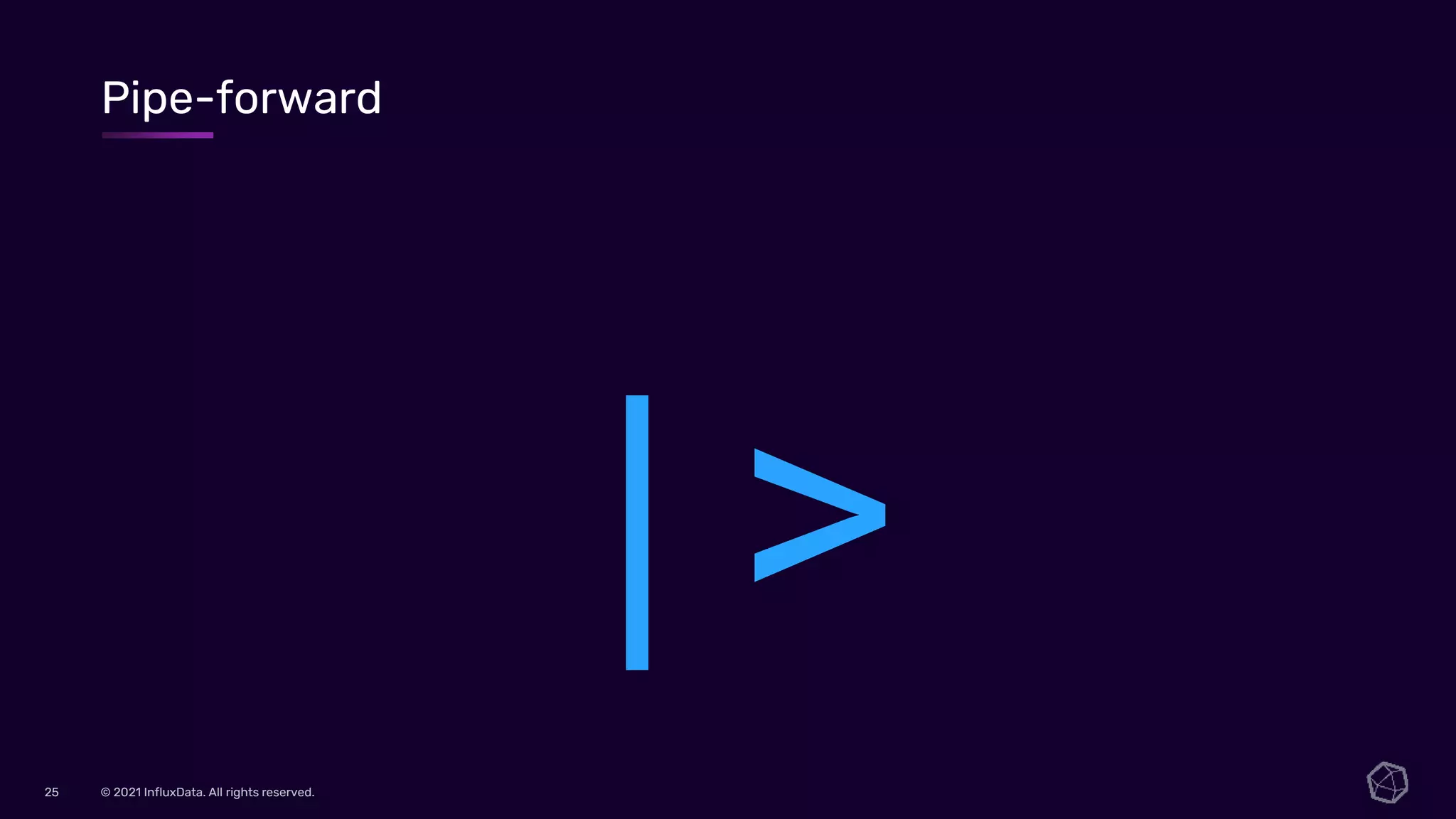

Pipe-forward
|>

26

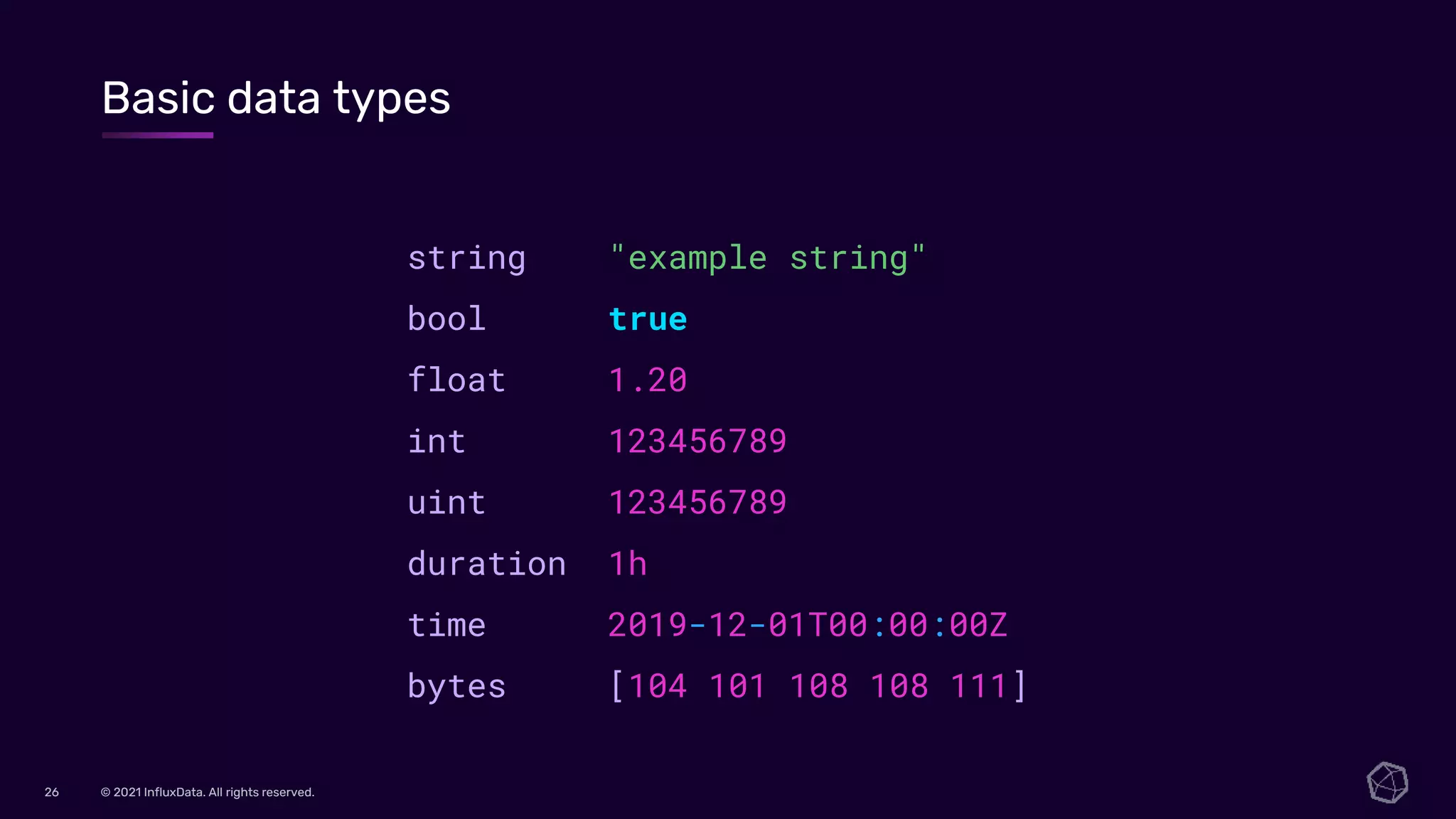

Basic data types
string "example string"
bool true
float 1.20
int 123456789
uint 123456789
duration 1h
time 2019-12-01T00:00:00Z
bytes [104 101 108 108 111]

27
Composite data types
record {key1: "value1", key2: 2.0}
array [12, 34, 56]
dict [1: "foo", 2: "bar"]
function f = (x) => x

28

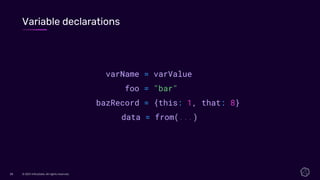

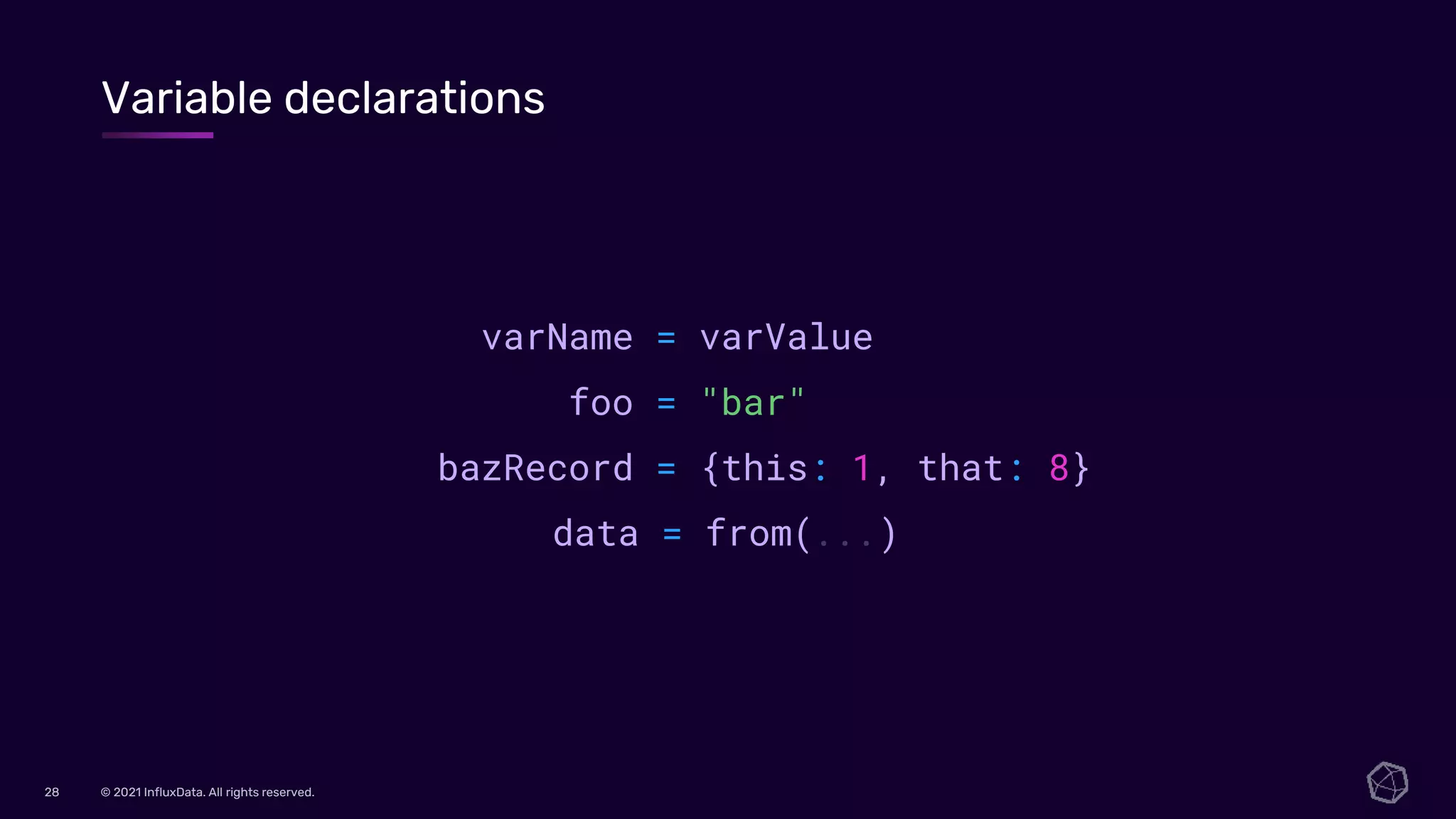

Variable declarations
varName = varValue
foo = "bar"
bazRecord = {this: 1, that: 8}
data = from(...)

29

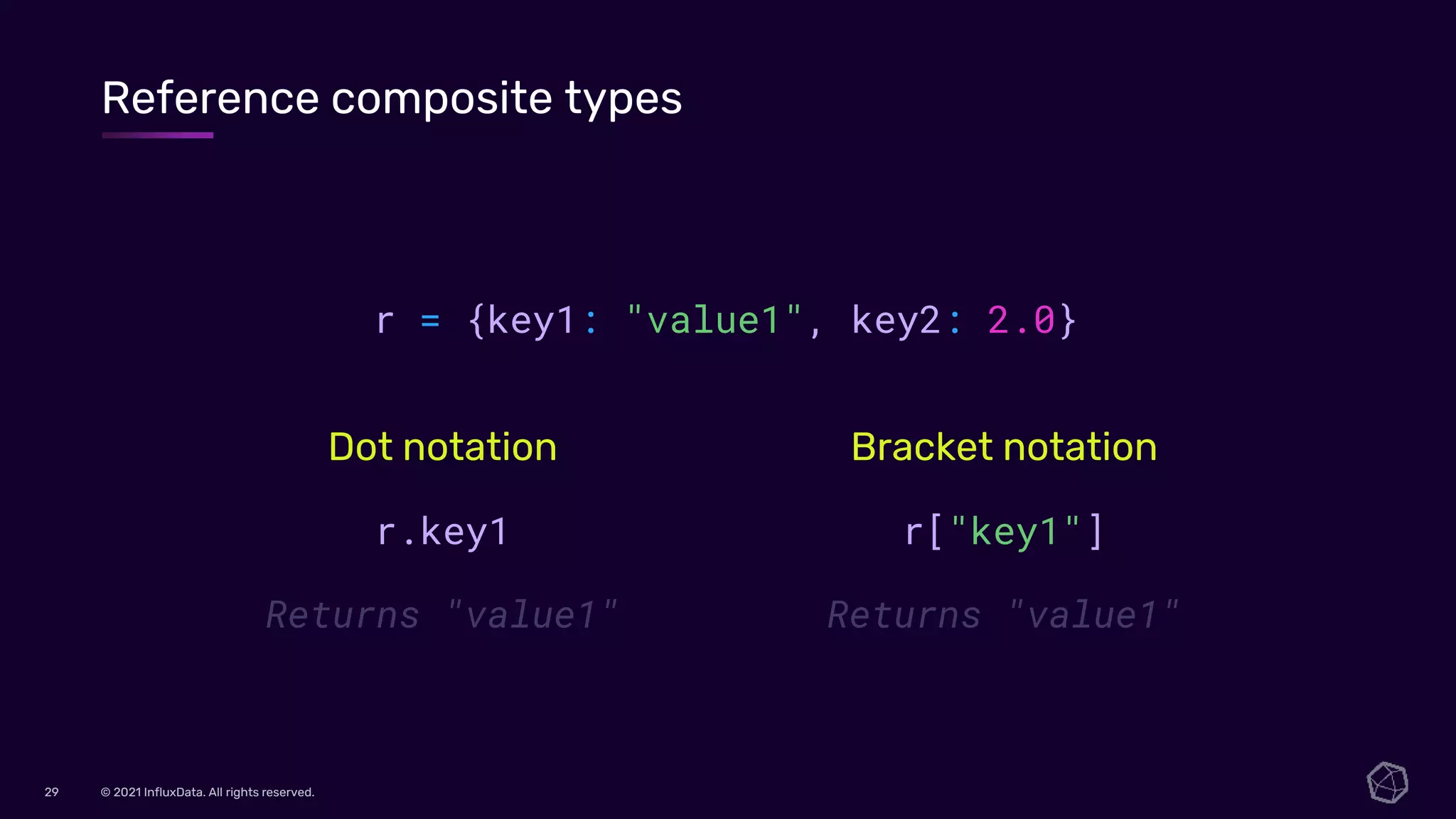

Reference composite types
r = {key1: "value1", key2: 2.0}
Dot notation
r.key1
Returns "value1"
Bracket notation
r["key1"]
Returns "value1"

30

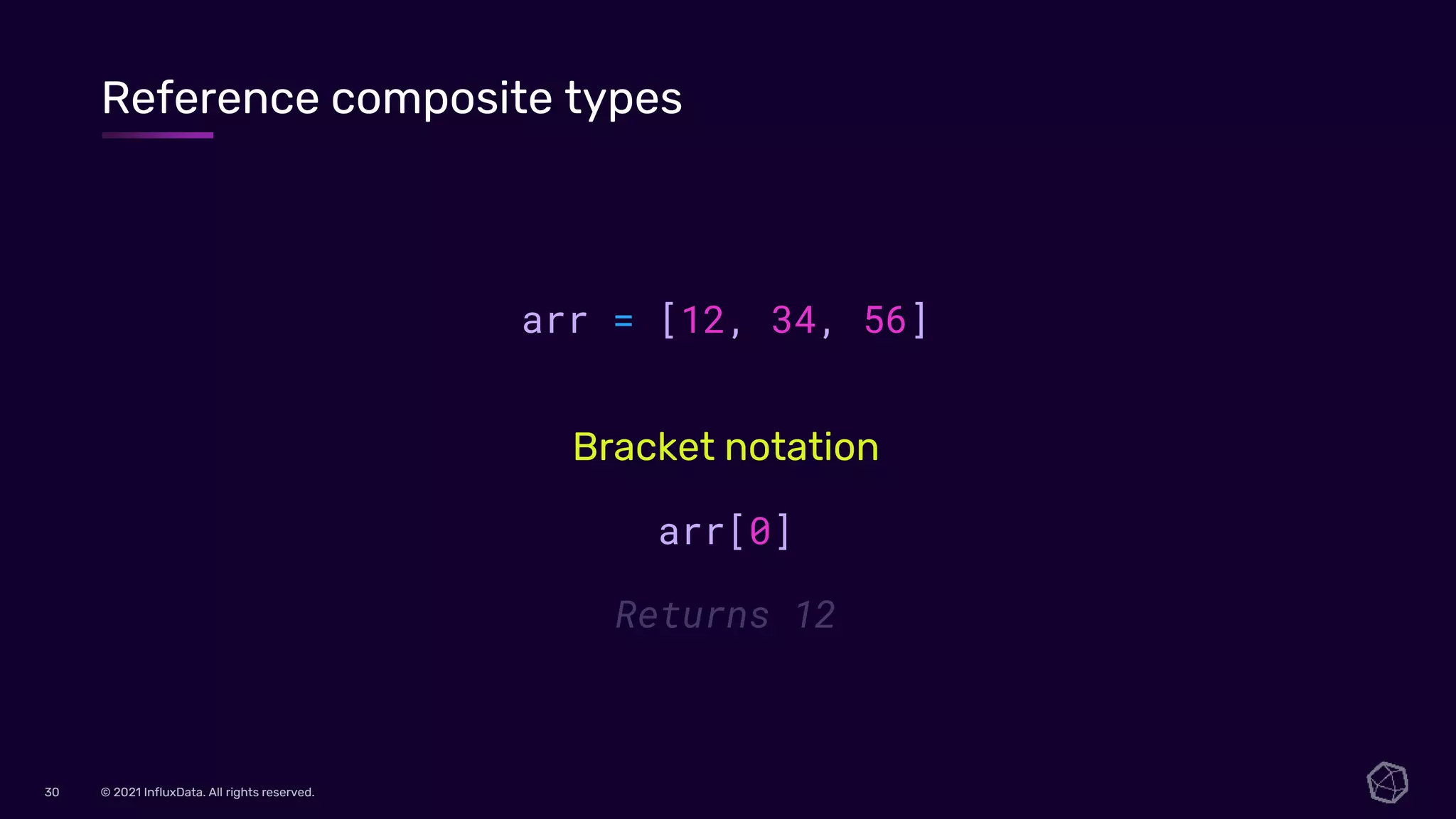

arr = [12, 34, 56]
Bracket notation
arr[0]
Returns 12

31

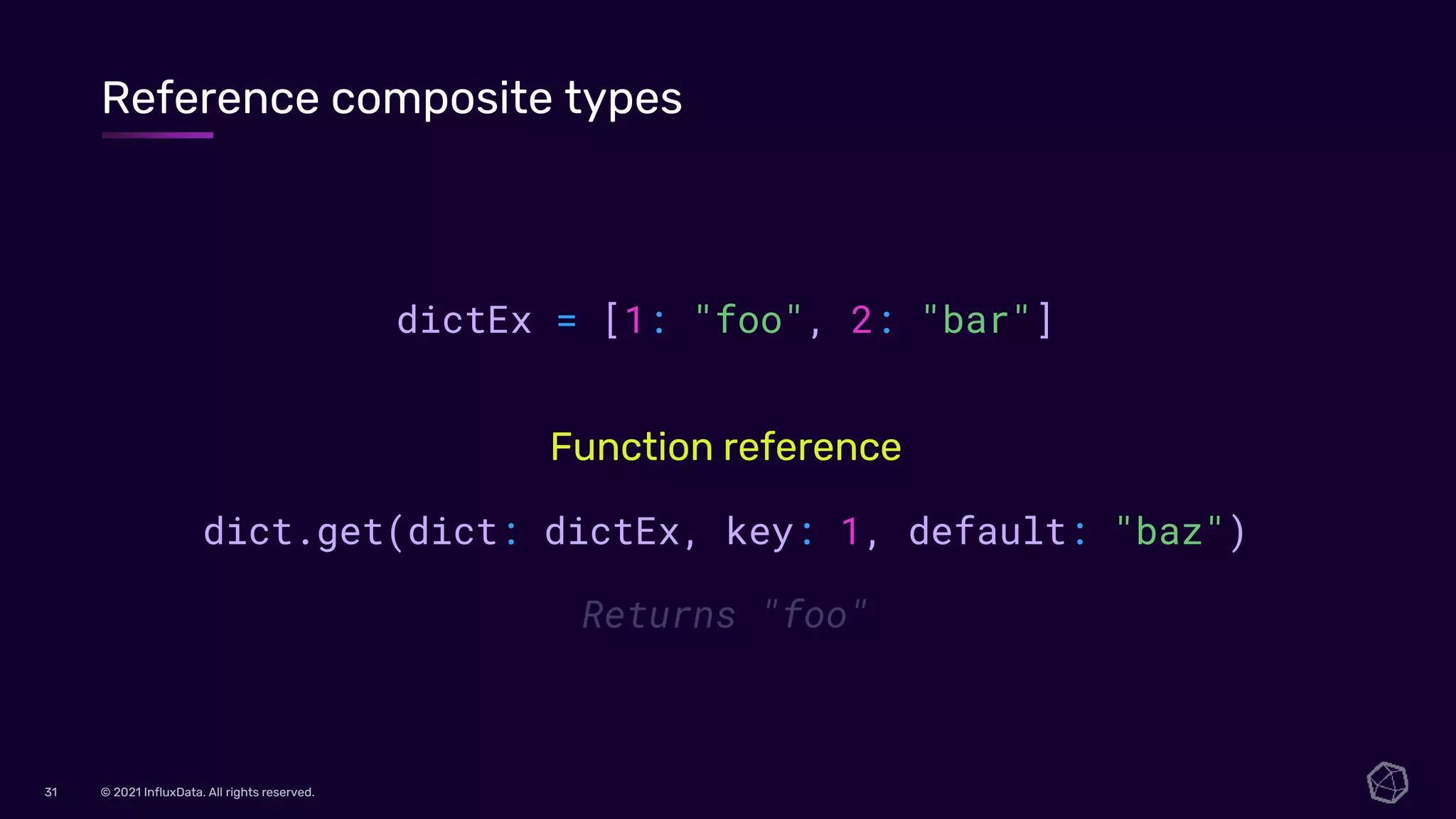

dictEx = [1: "foo", 2: "bar"]
Function reference
dict.get(dict: dictEx, key: 1, default: "baz")
Returns "foo"

32
dictEx = [1: "foo", 2: "bar"]
Function reference
dict.get(dict: dictEx, key: 3, default: "baz")
Returns "baz"

33

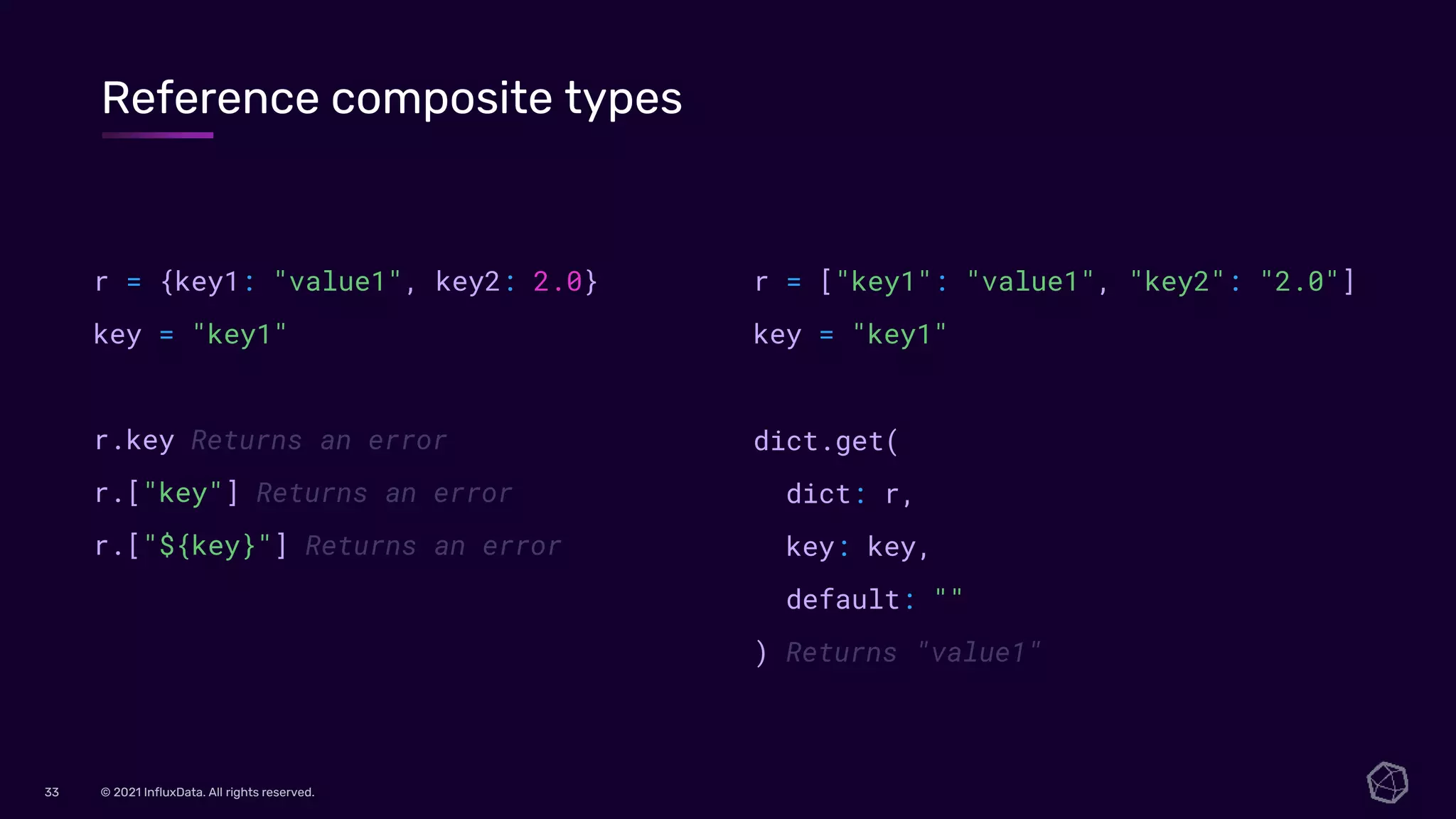

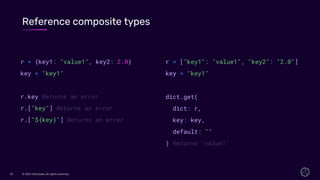

r = {key1: "value1", key2: 2.0}
key = "key1"
r.key Returns an error
r.["key"] Returns an error
r.["${key}"] Returns an error
r = ["key1": "value1", "key2": "2.0"]
key = "key1"
dict.get(
dict: r,
key: key,
default: ""
) Returns "value1"

34

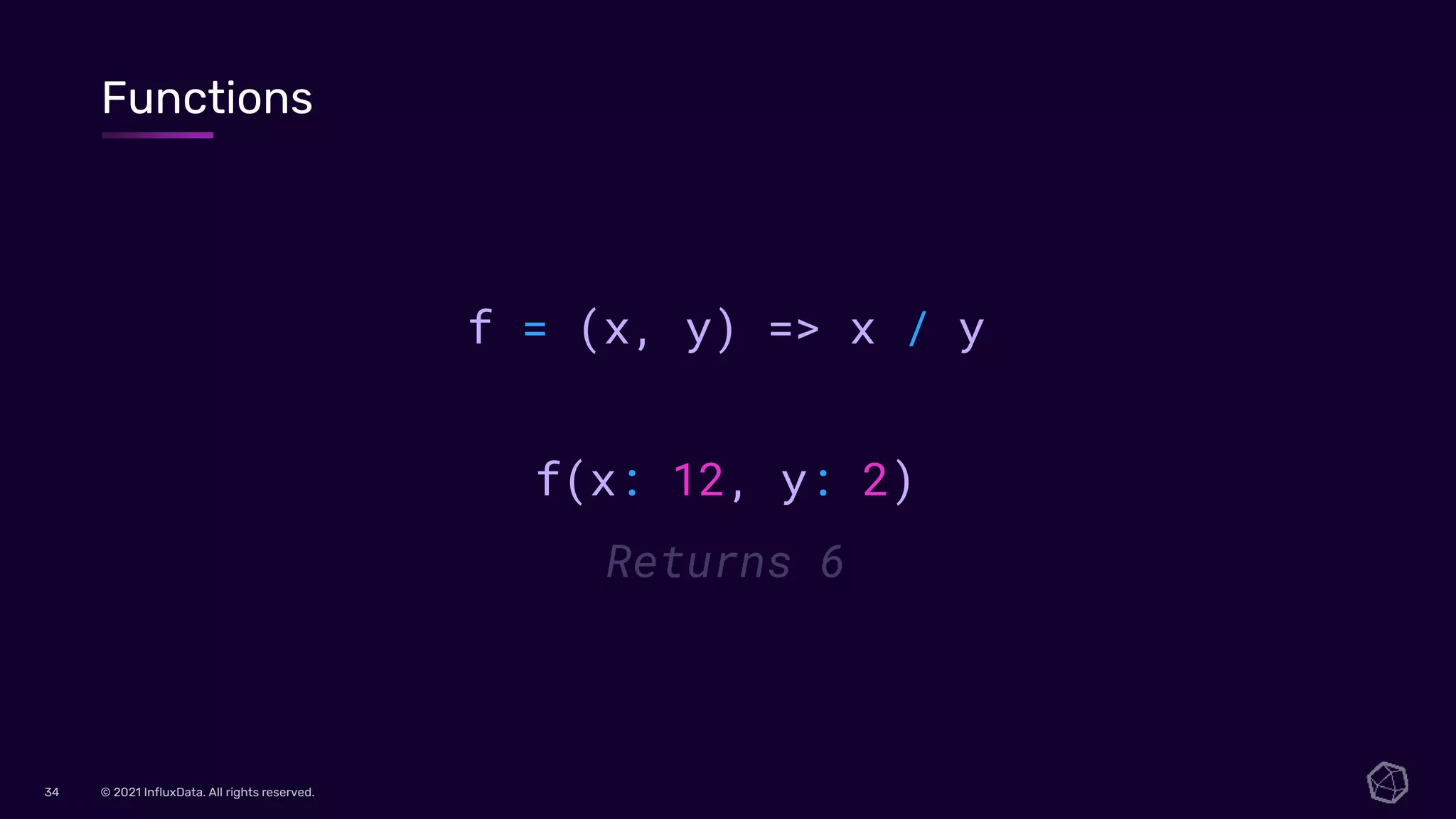

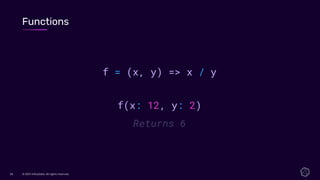

Functions
f = (x, y) => x / y
f(x: 12, y: 2)
Returns 6

35

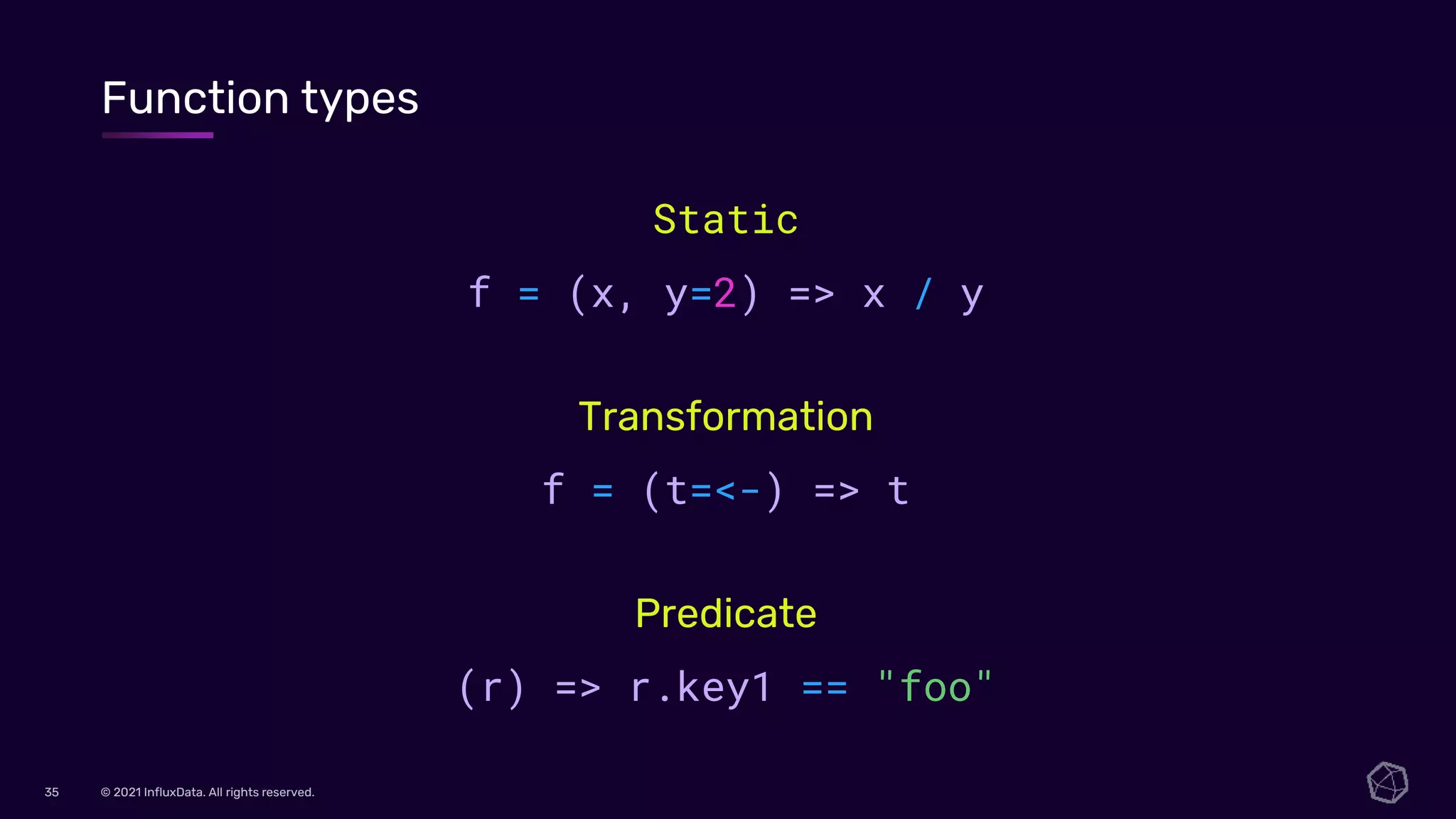

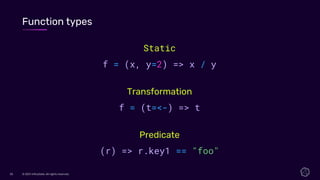

Function types
Static
f = (x, y=2) => x / y
Transformation
f = (t=<-) => t
Predicate
(r) => r.key1 == "foo"

36

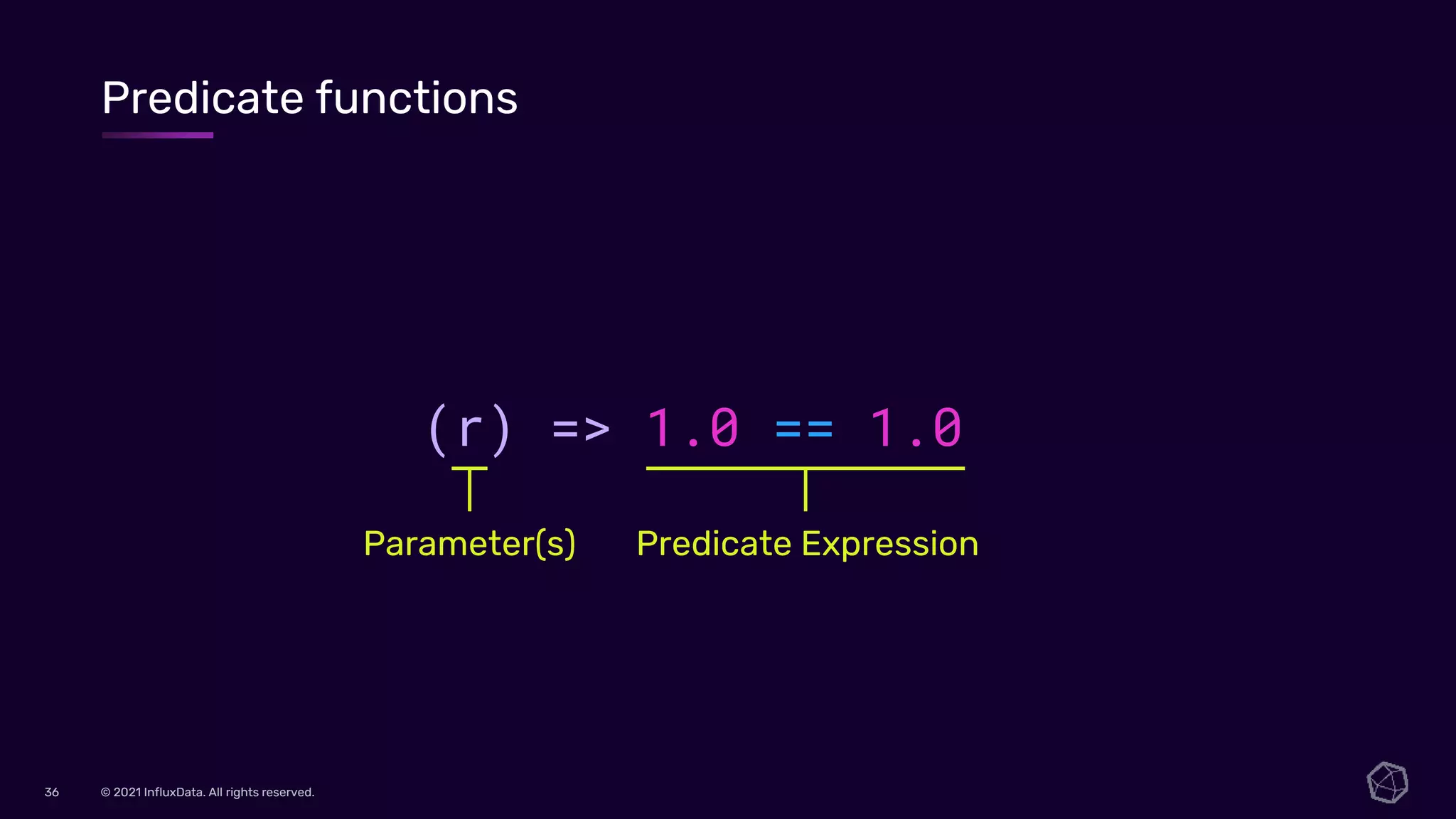

Predicate functions
(r) => 1.0 == 1.0
Parameter(s) Predicate Expression

37

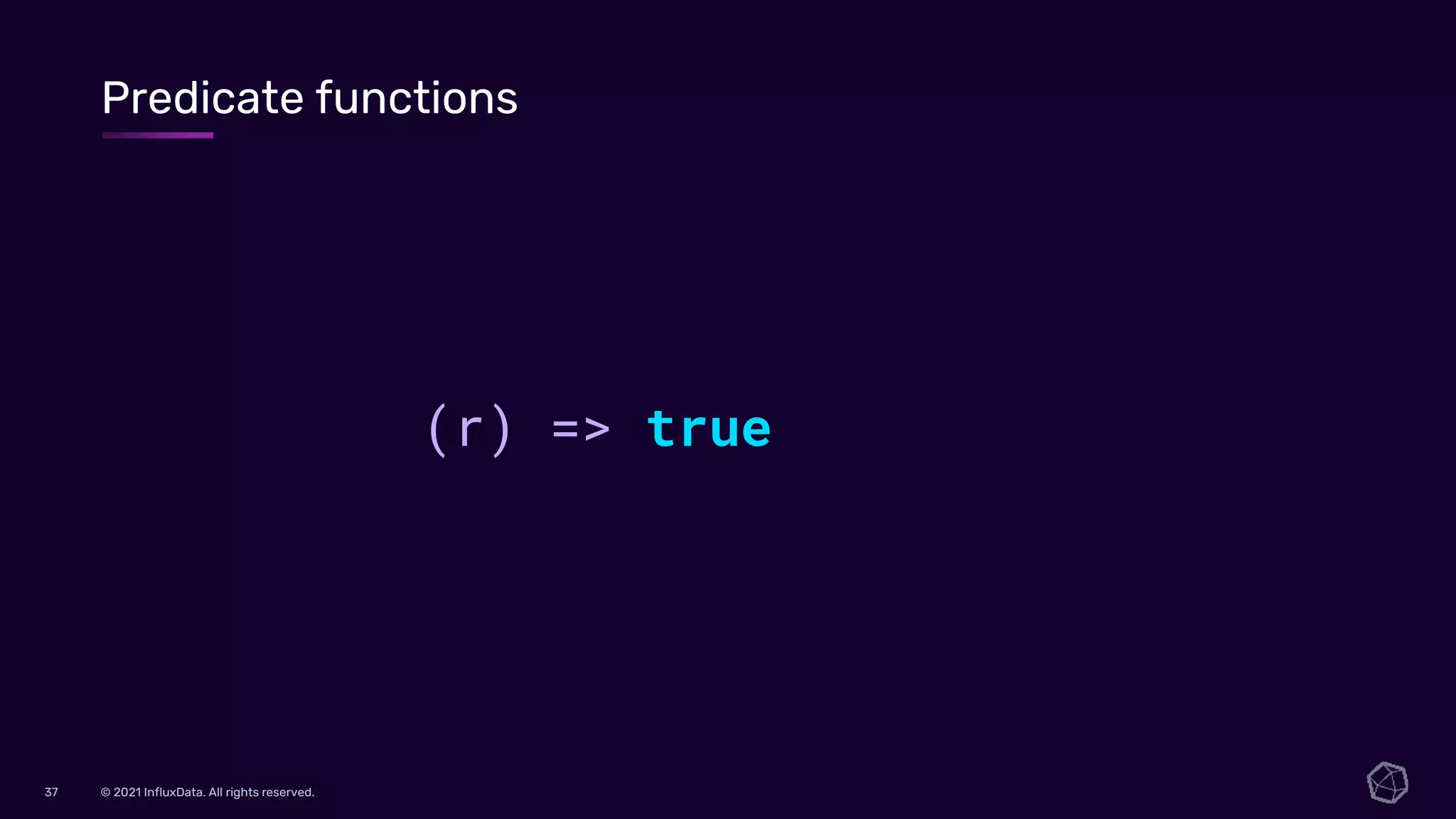

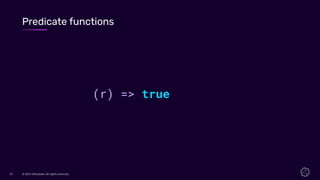

Predicate functions
(r) => true

38

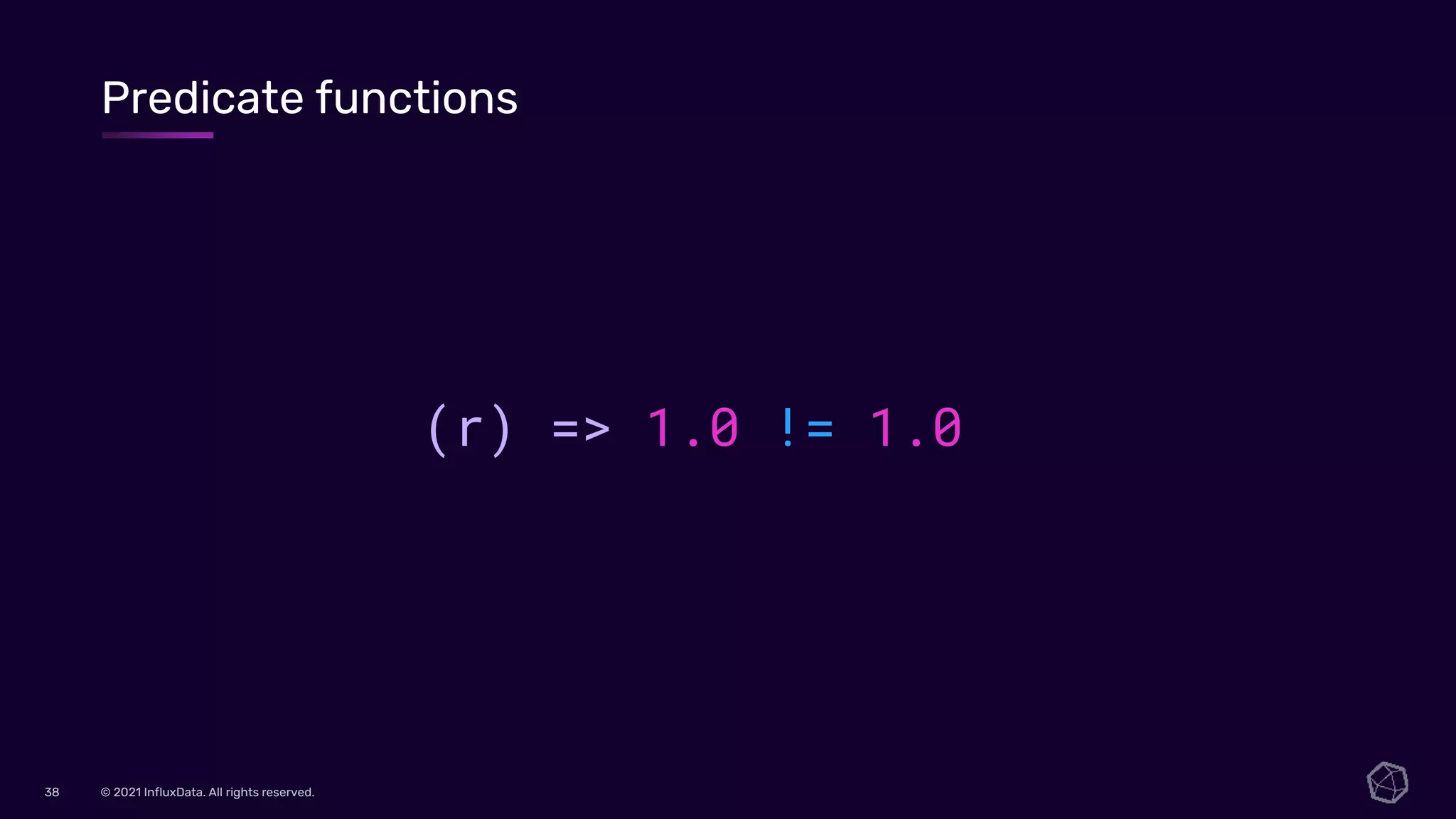

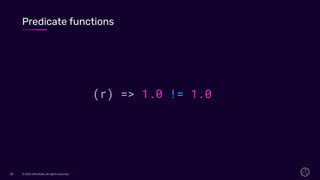

Predicate functions
(r) => 1.0 != 1.0

39

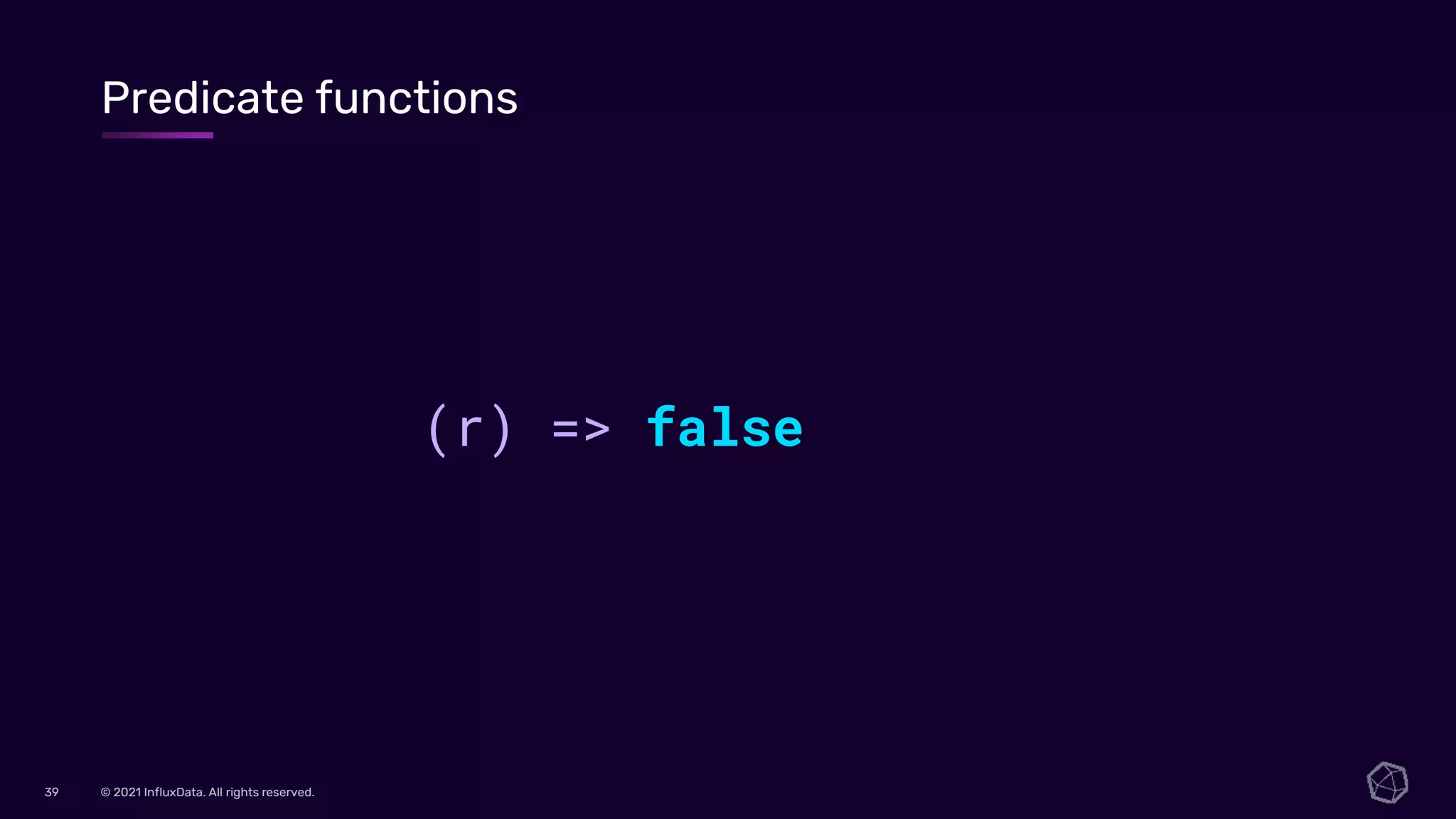

Predicate functions
(r) => false

40
{

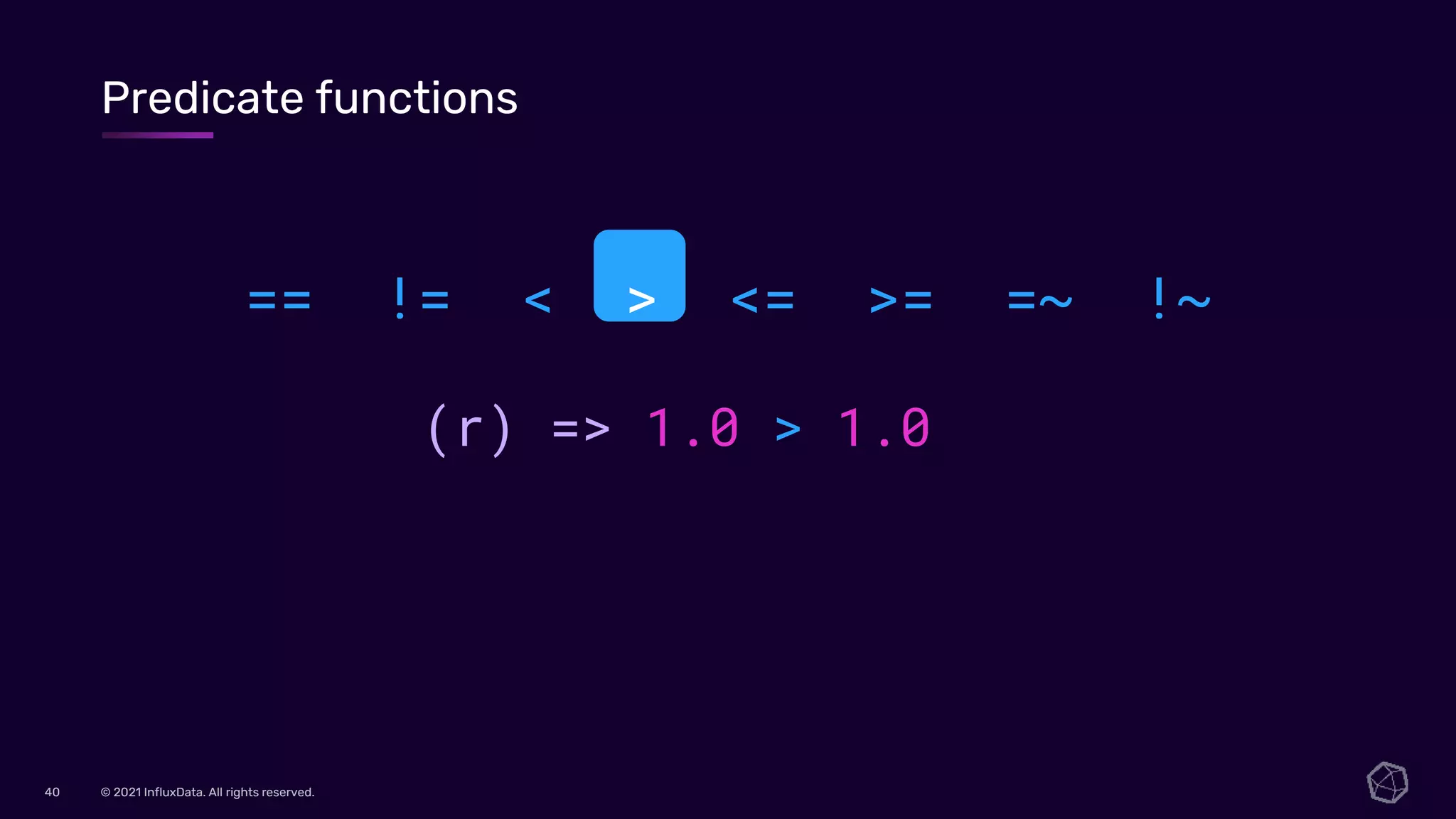

Predicate functions
(r) => 1.0 > 1.0
== != < > <= >= =~ !~

41
Predicate functions
(r) => 1.0 == 1.0 and "foo" != "bar"

42

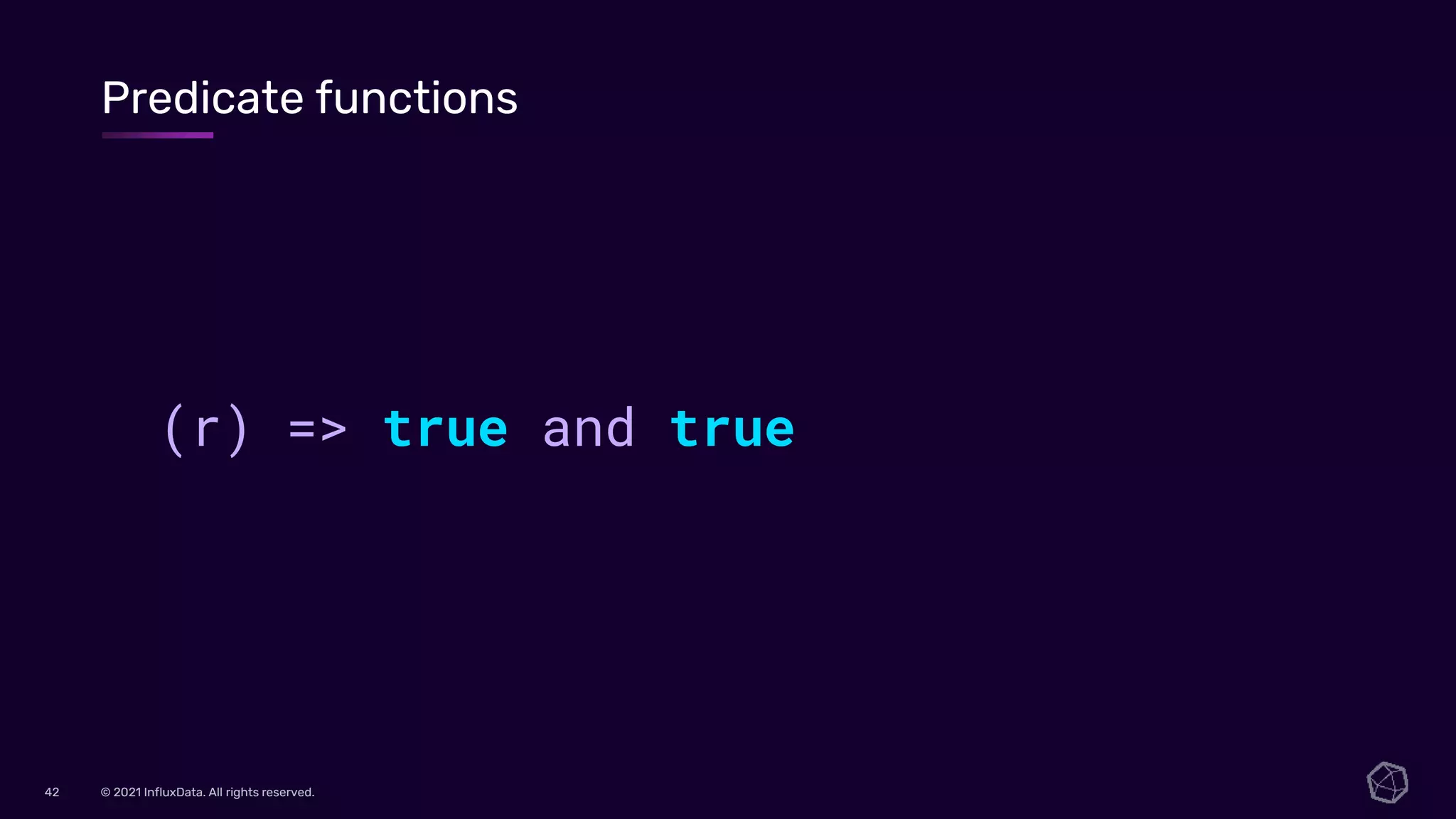

Predicate functions
(r) => true and true

43

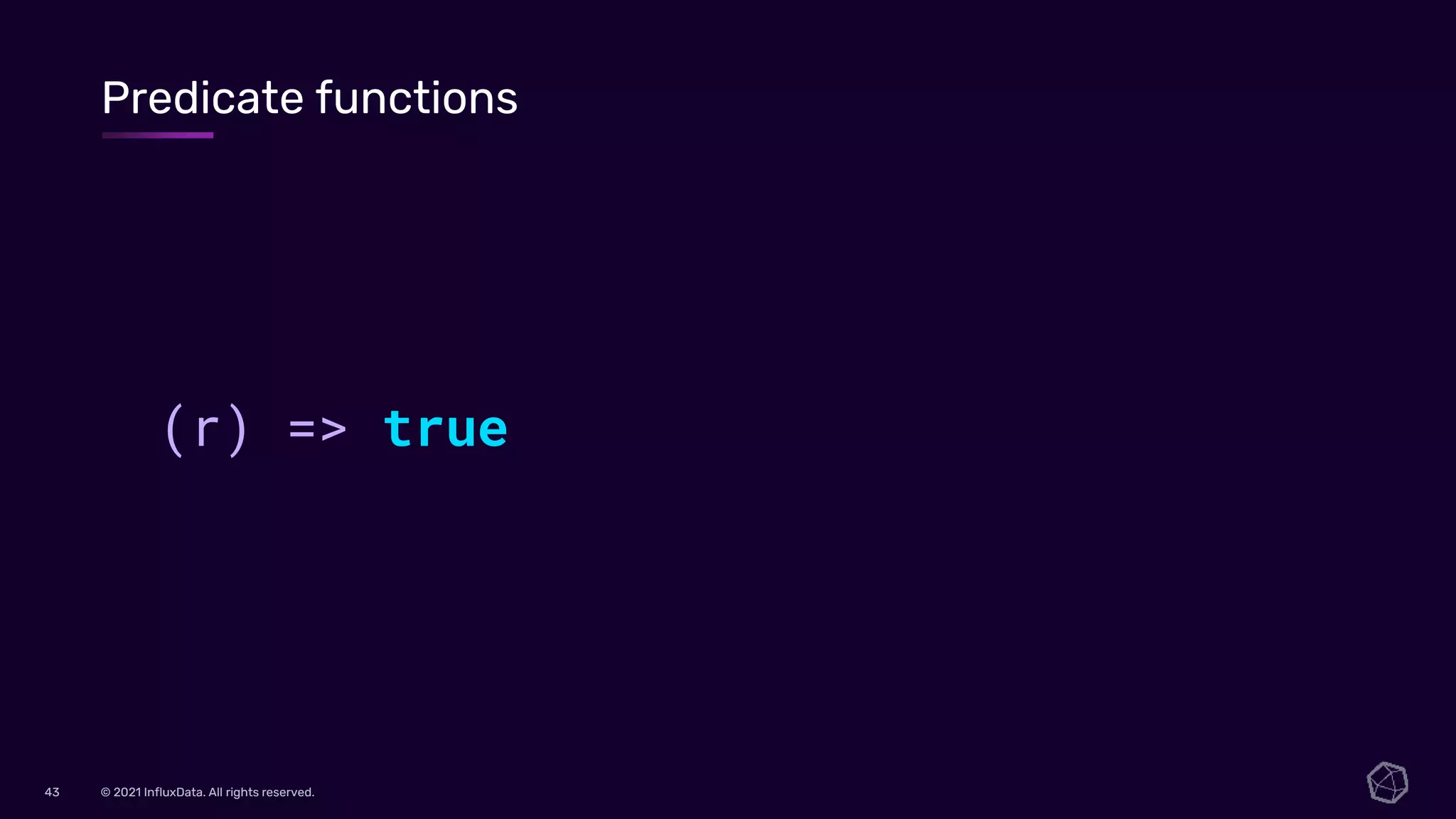

Predicate functions
(r) => true

44

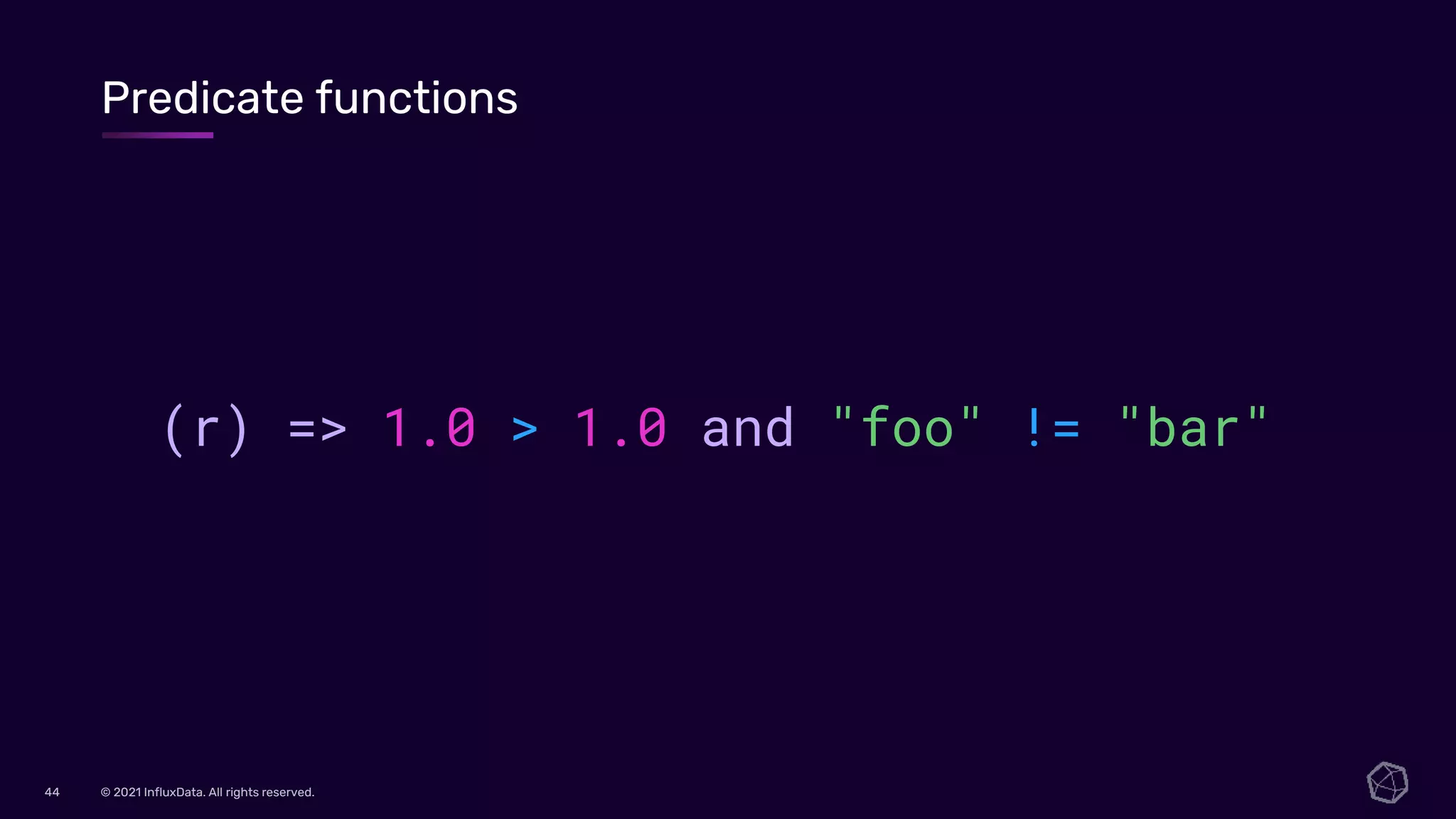

Predicate functions
(r) => 1.0 > 1.0 and "foo" != "bar"

45

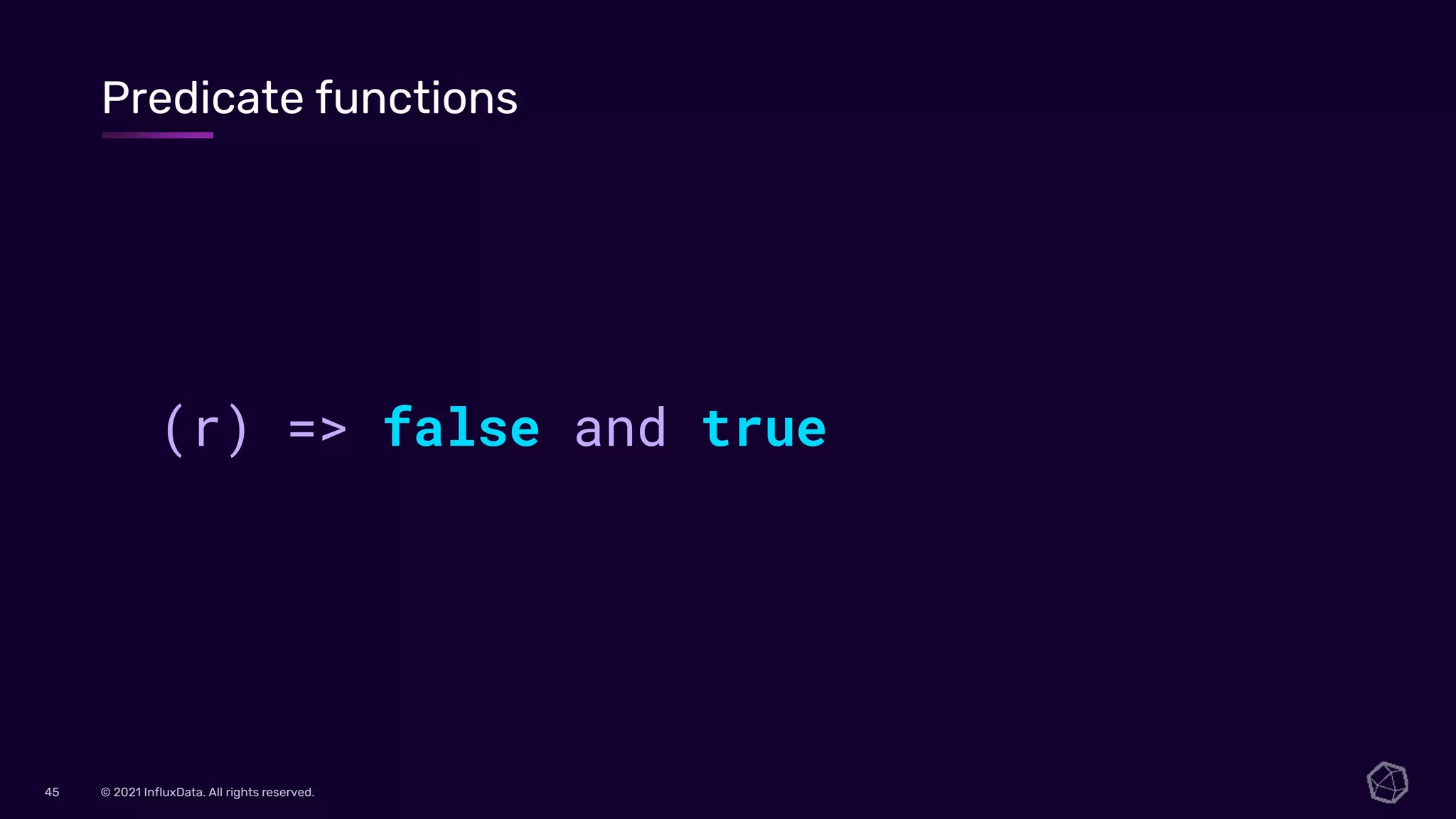

Predicate functions
(r) => false and true

46

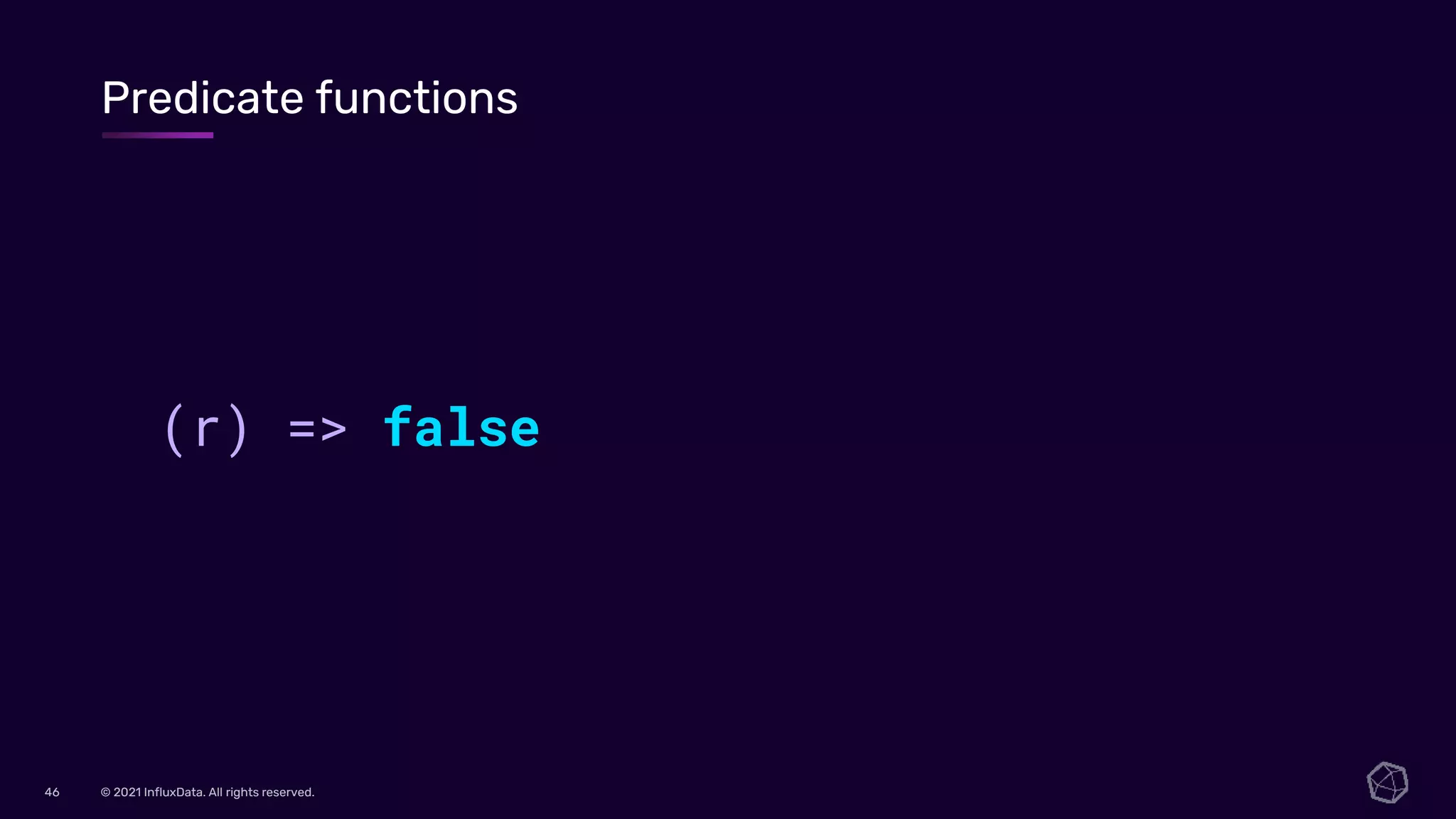

Predicate functions
(r) => false

47

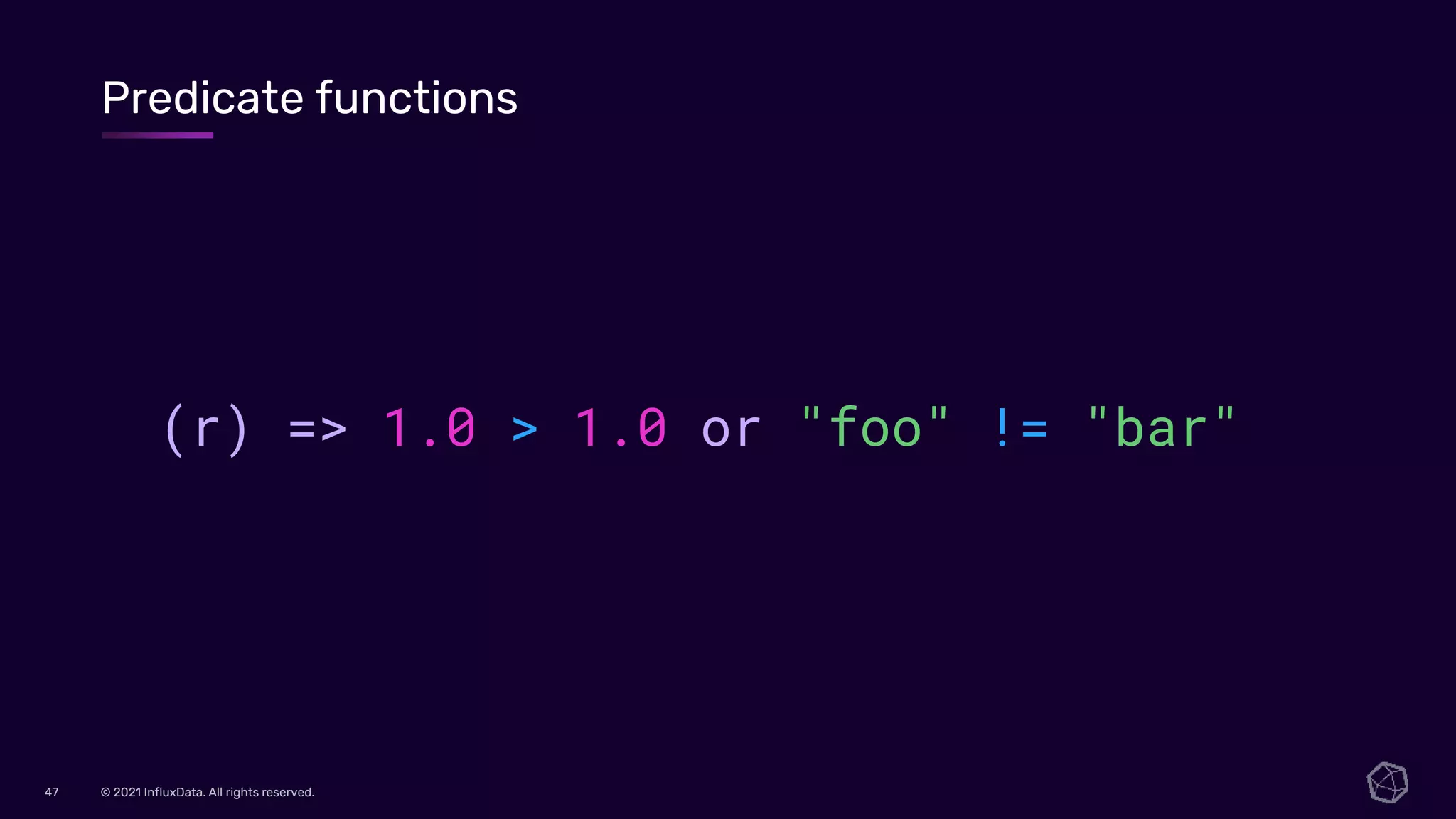

Predicate functions
(r) => 1.0 > 1.0 or "foo" != "bar"

48
Predicate functions
(r) => true

49

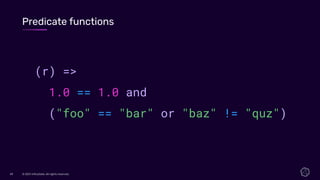

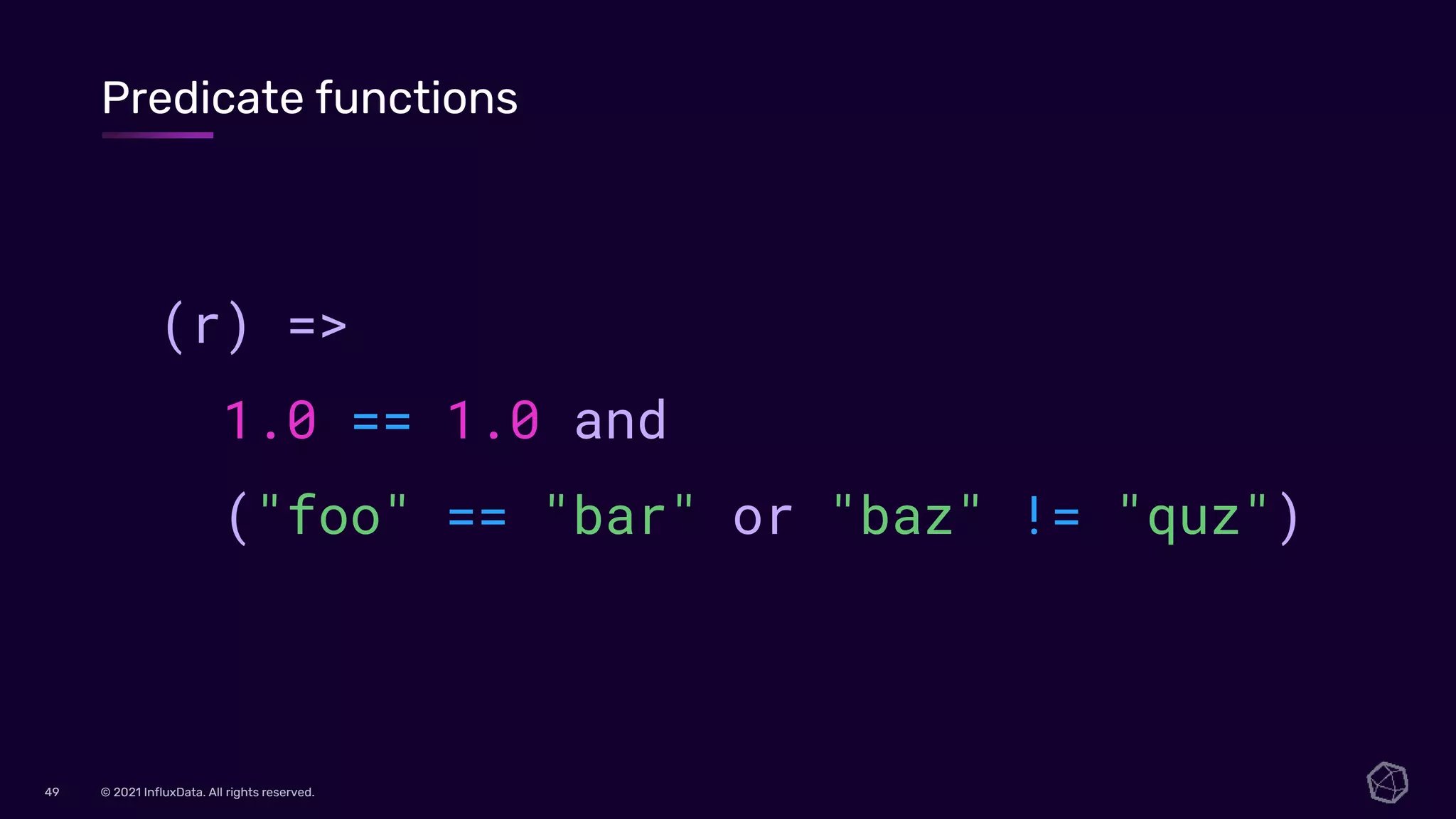

Predicate functions
(r) =>
1.0 == 1.0 and
("foo" == "bar" or "baz" != "quz")

50

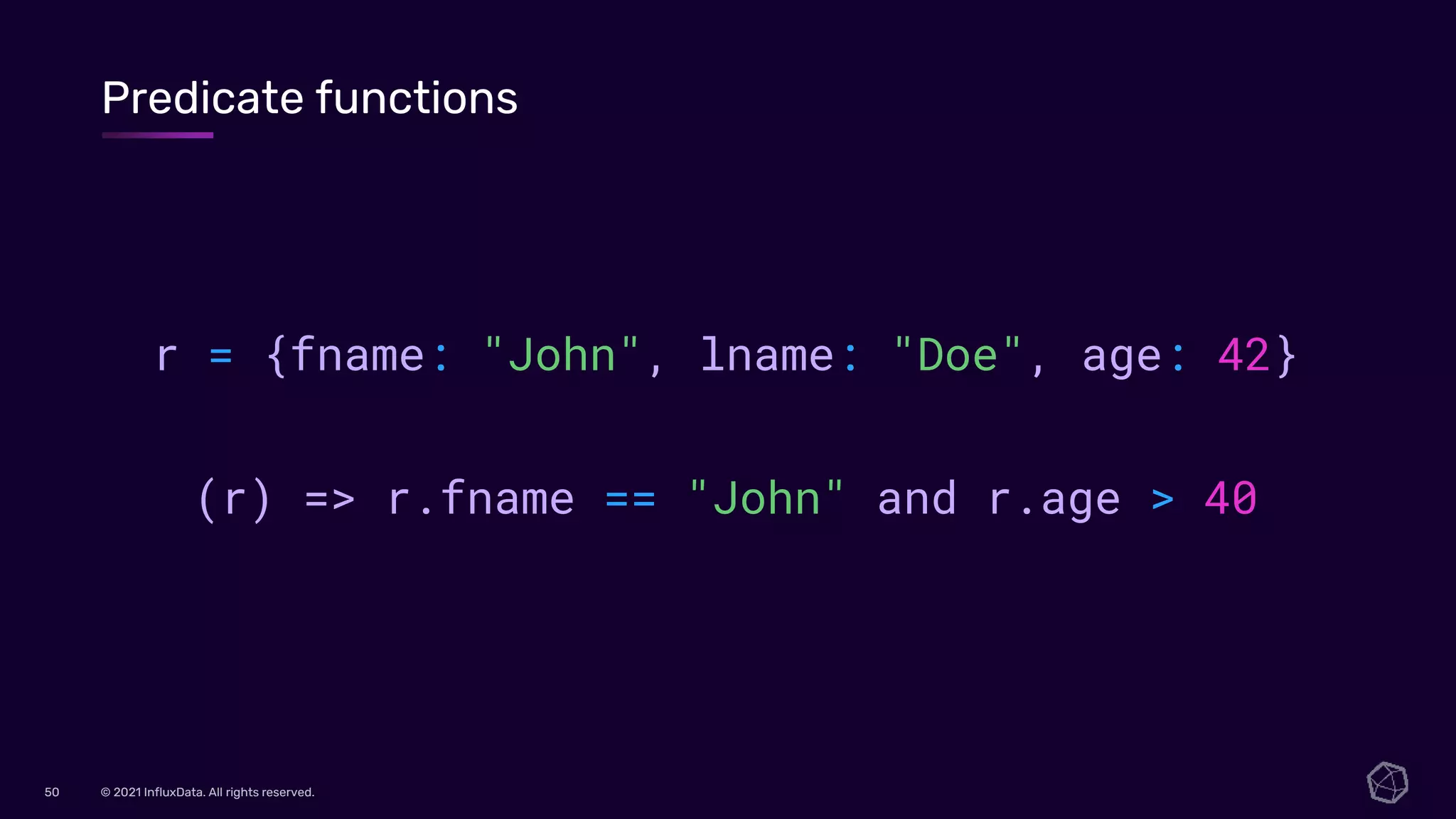

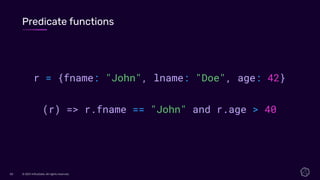

Predicate functions
r = {fname: "John", lname: "Doe", age: 42}
(r) => r.fname == "John" and r.age > 40

51

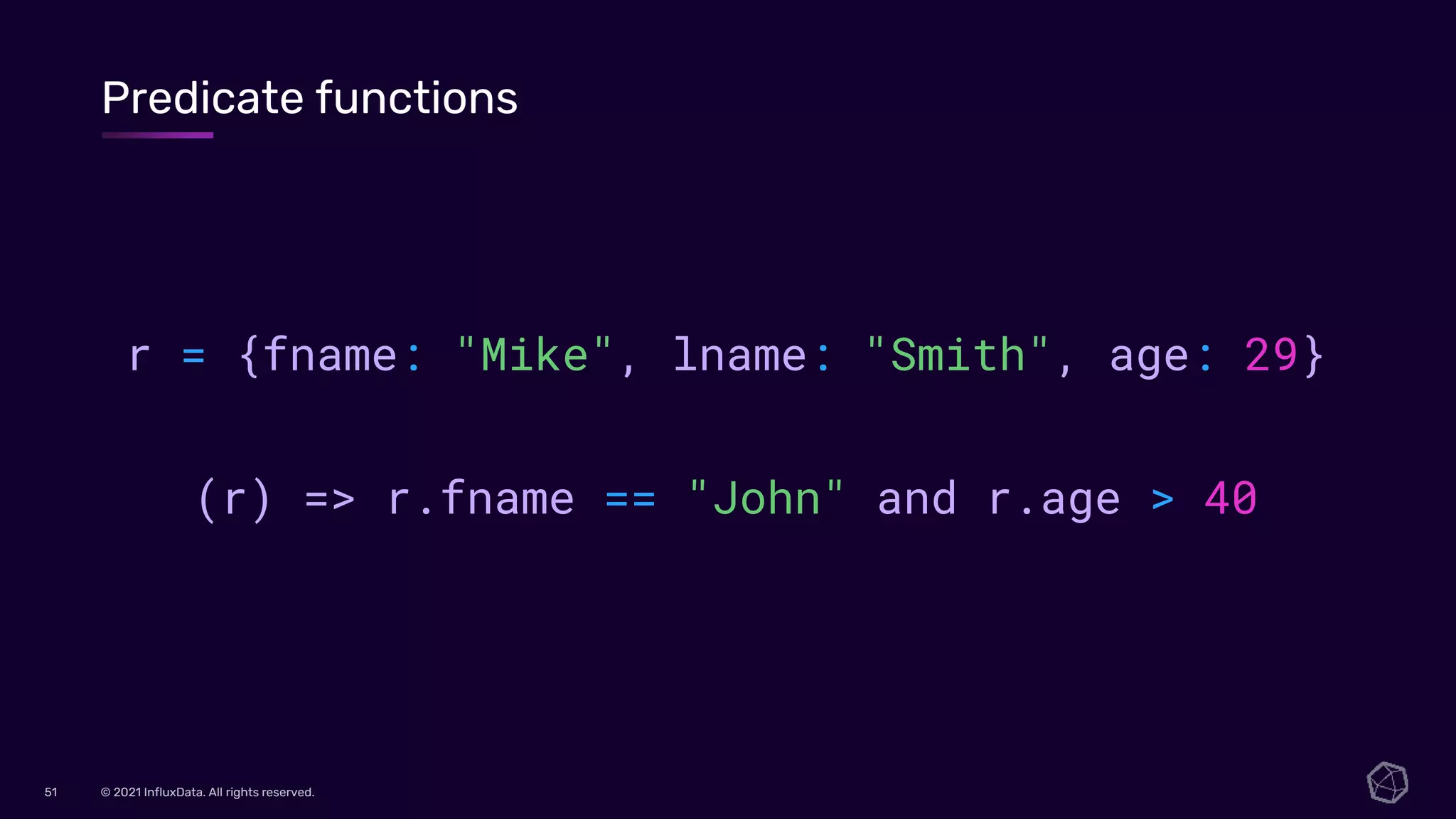

Predicate functions
r = {fname: "Mike", lname: "Smith", age: 29}
(r) => r.fname == "John" and r.age > 40

52
Basic
Query

53

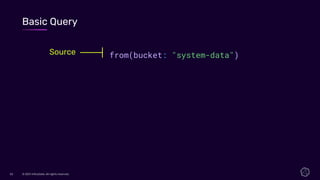

Basic Query
Source

54

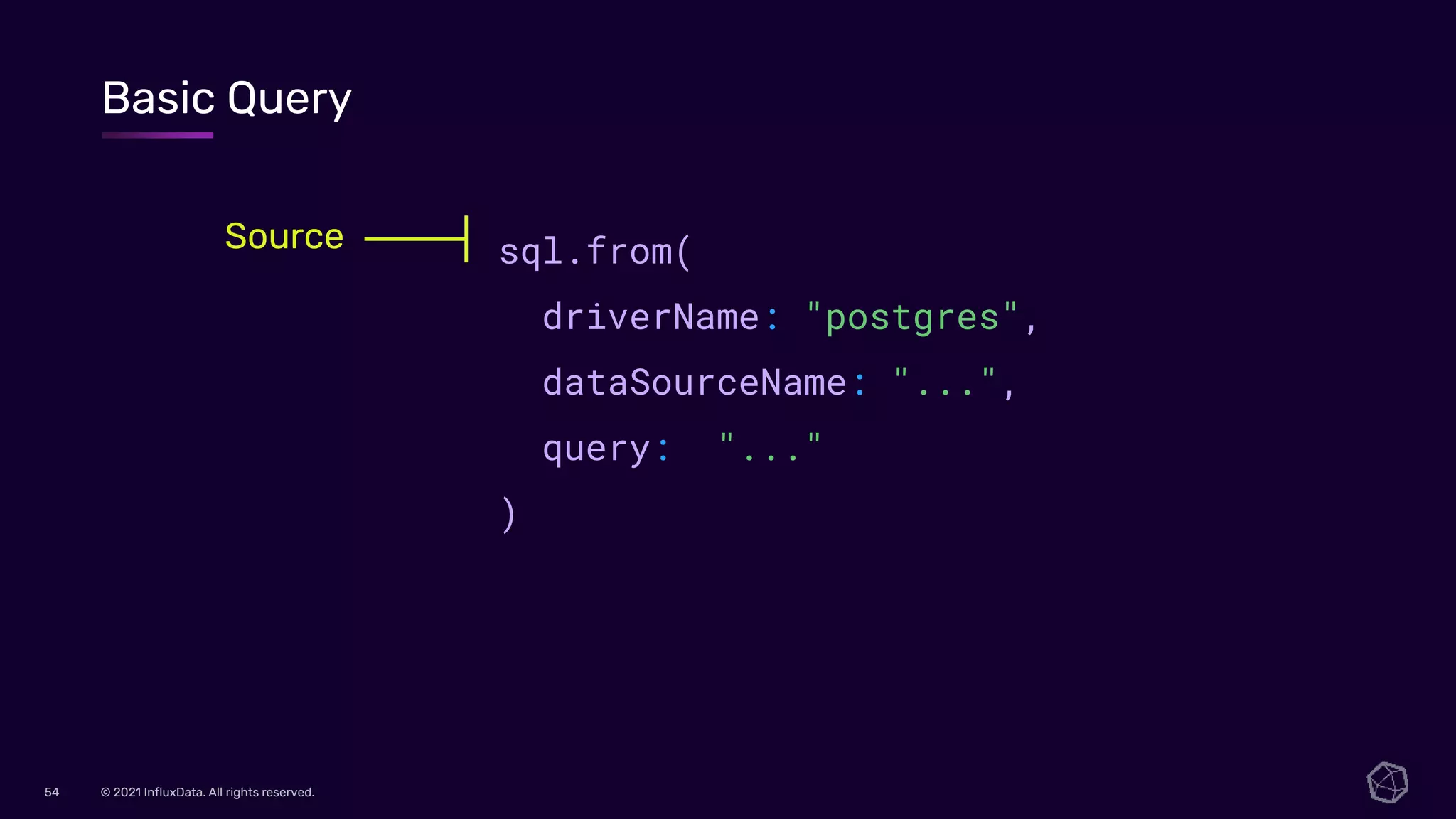

Basic Query
sql.from(
driverName: "postgres",
dataSourceName: "...",
query: "..."
)
Source

55

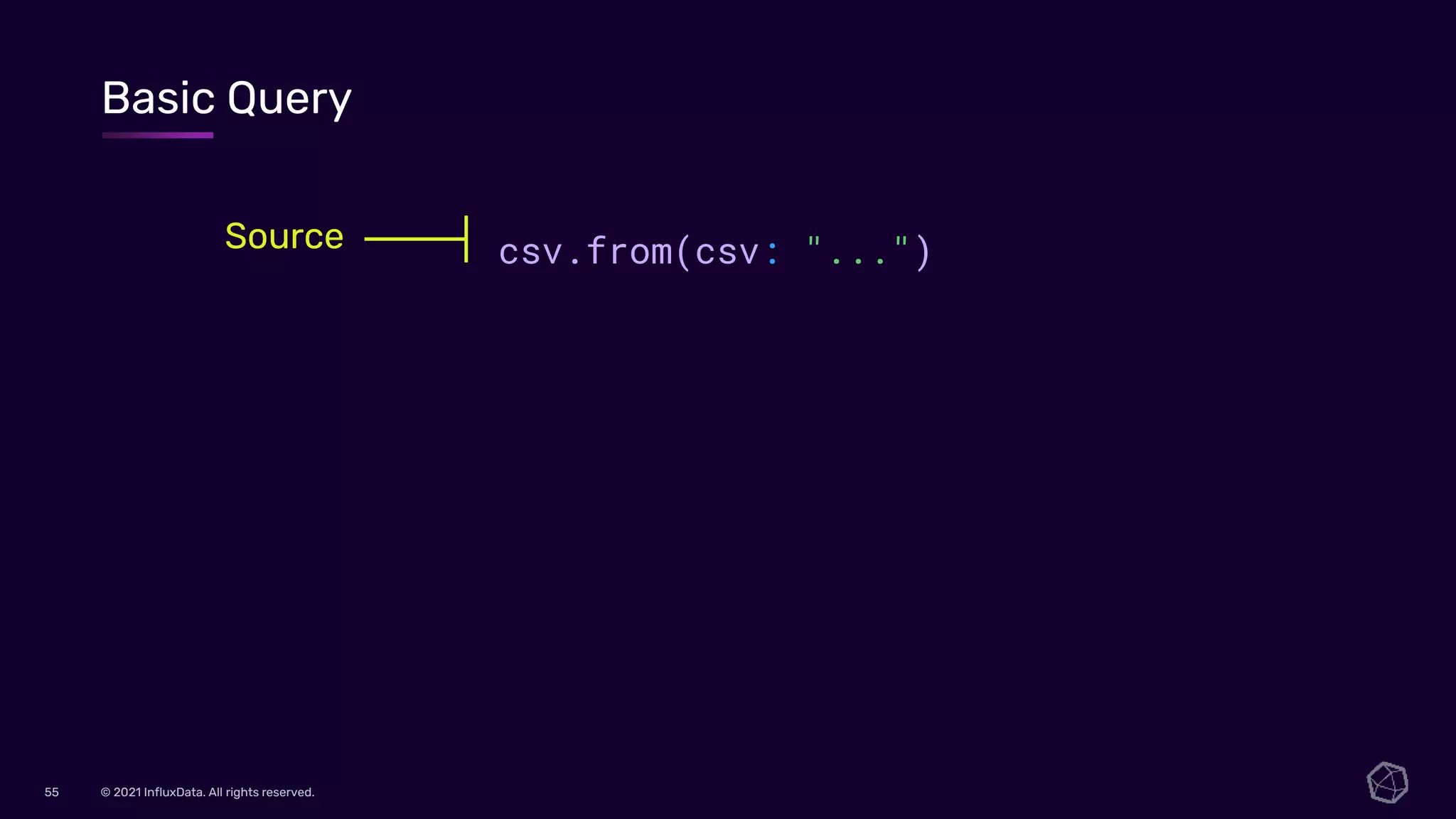

Basic Query
csv.from(csv: "...")
Source

56

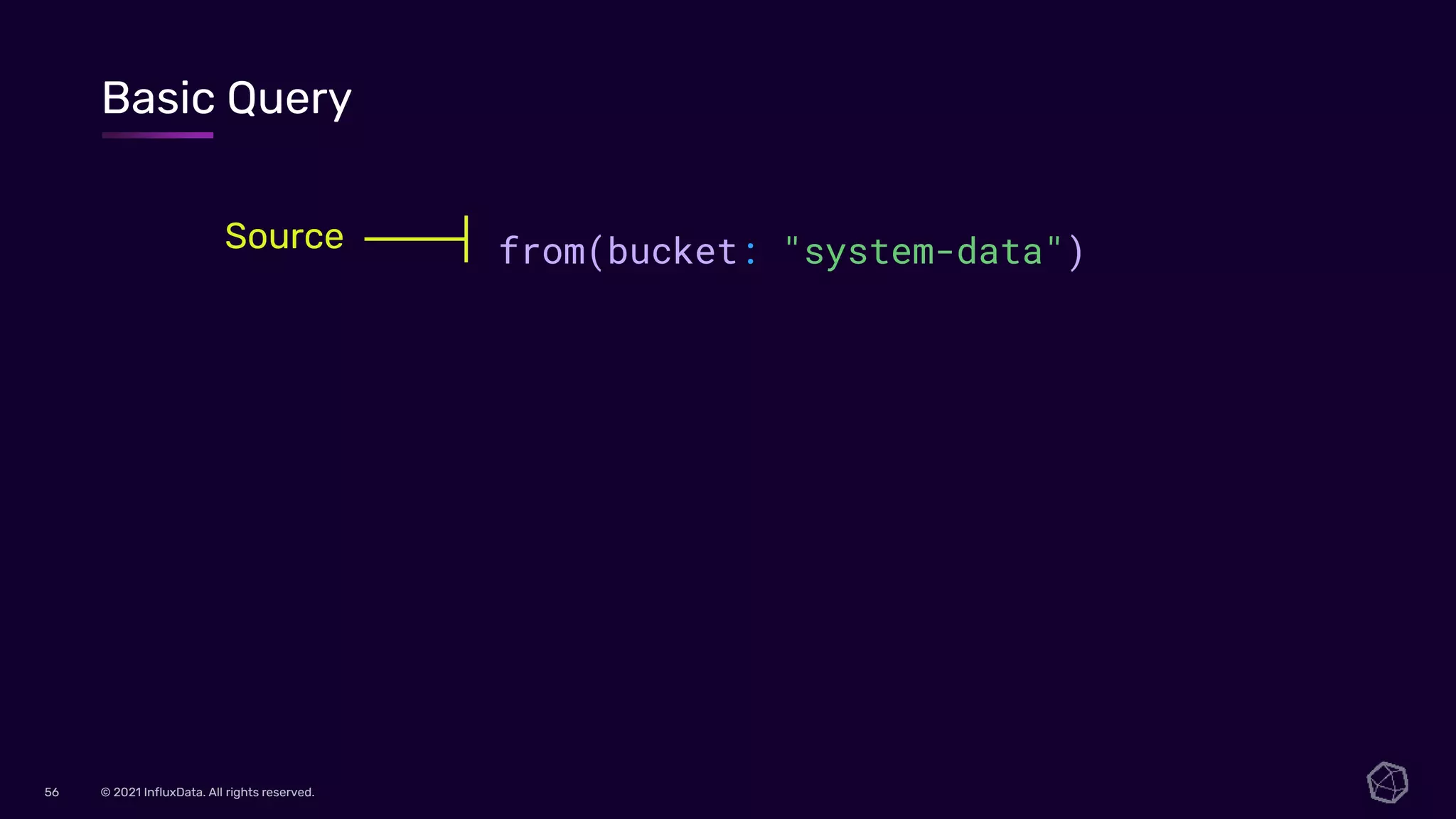

Basic Query
Source

57

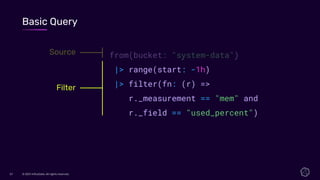

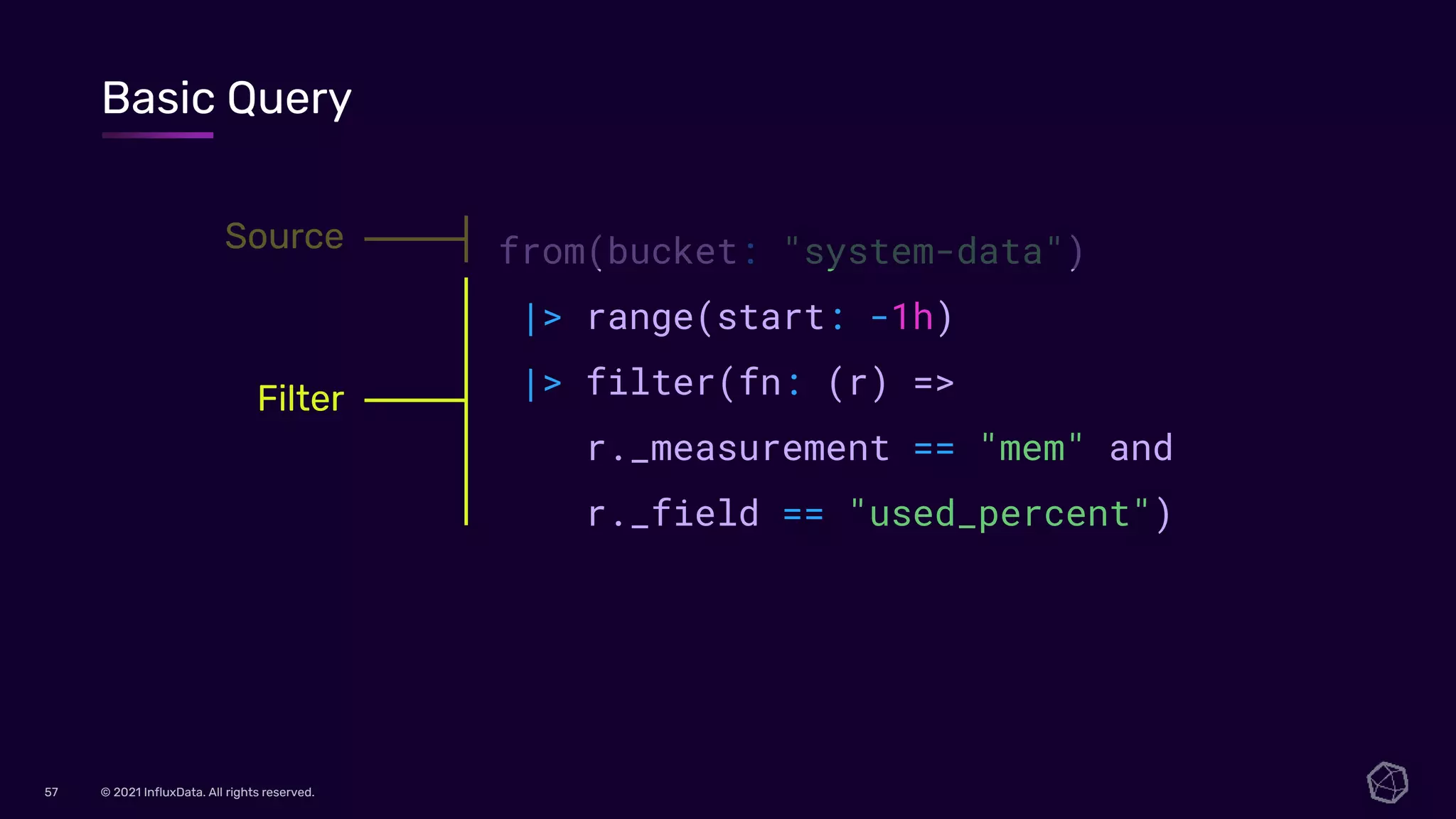

Basic Query
r._field == "used_percent")
Source
Filter

58

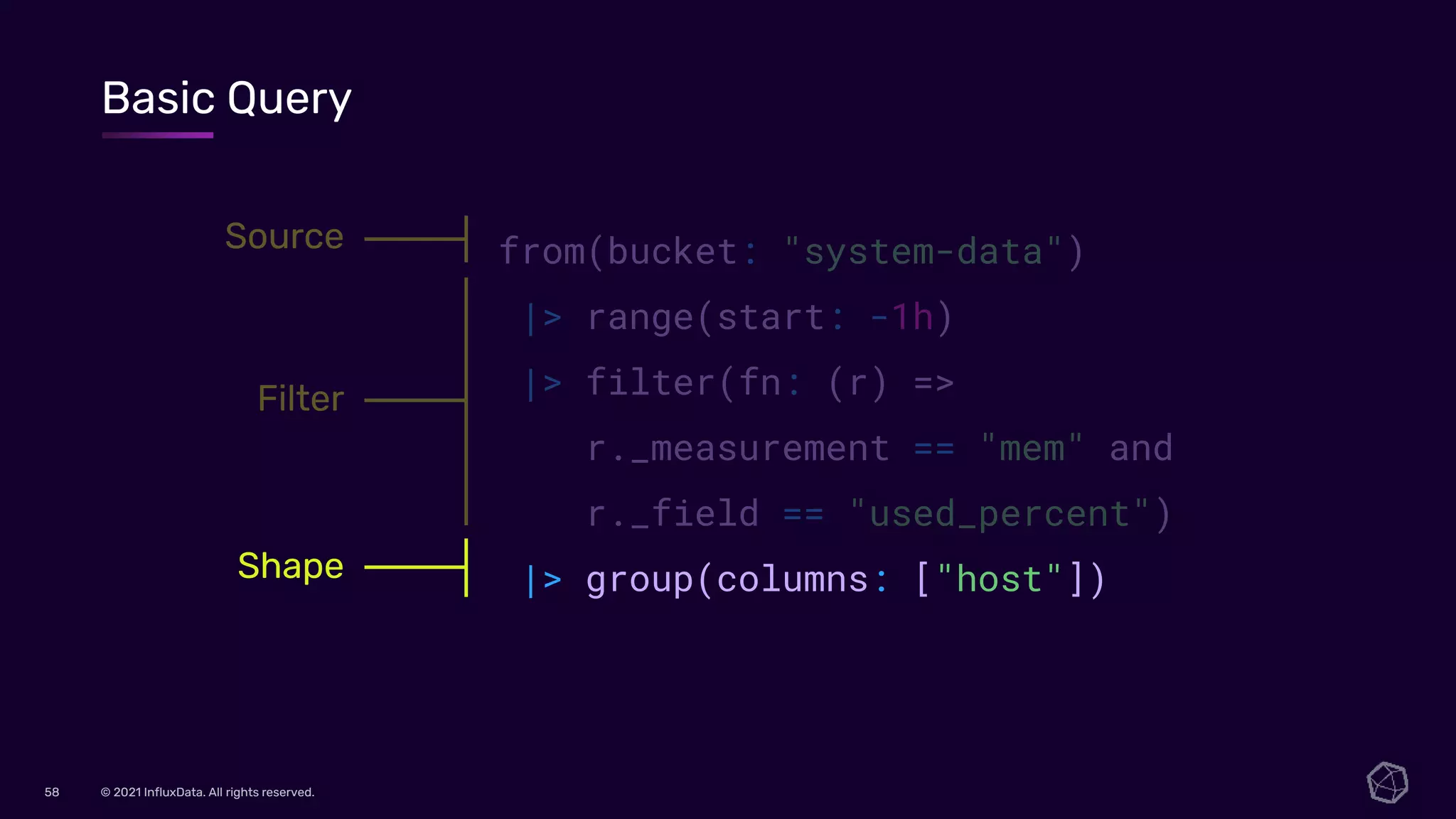

Basic Query
|> group(columns: ["host"])
Source
Filter
Shape

59

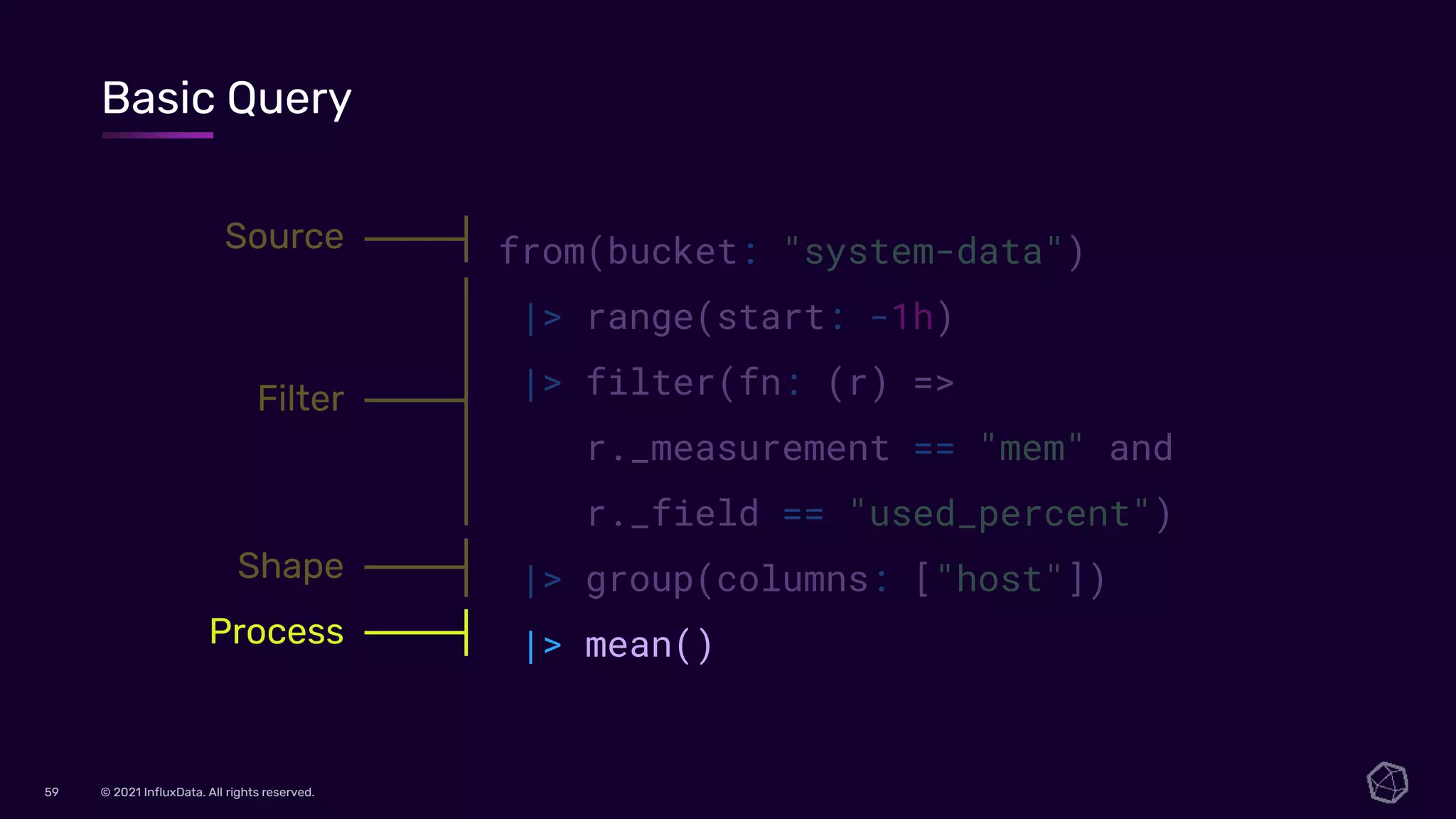

Basic Query
|> mean()
Source
Filter
Shape
Process

60

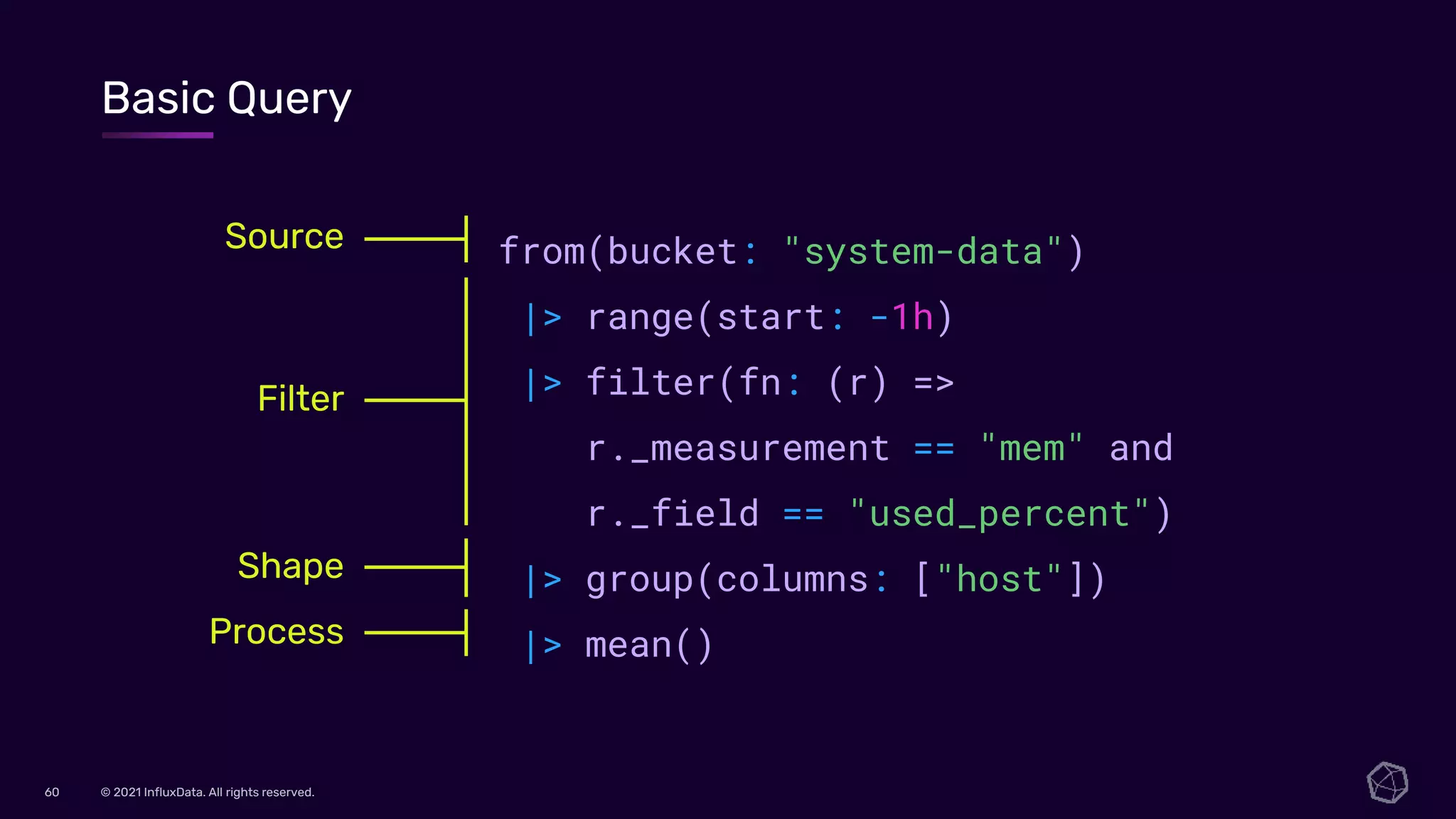

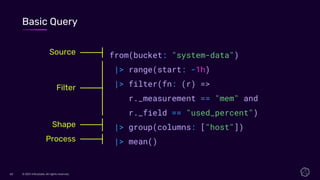

Basic Query
|> mean()
Source
Filter
Shape
Process

61

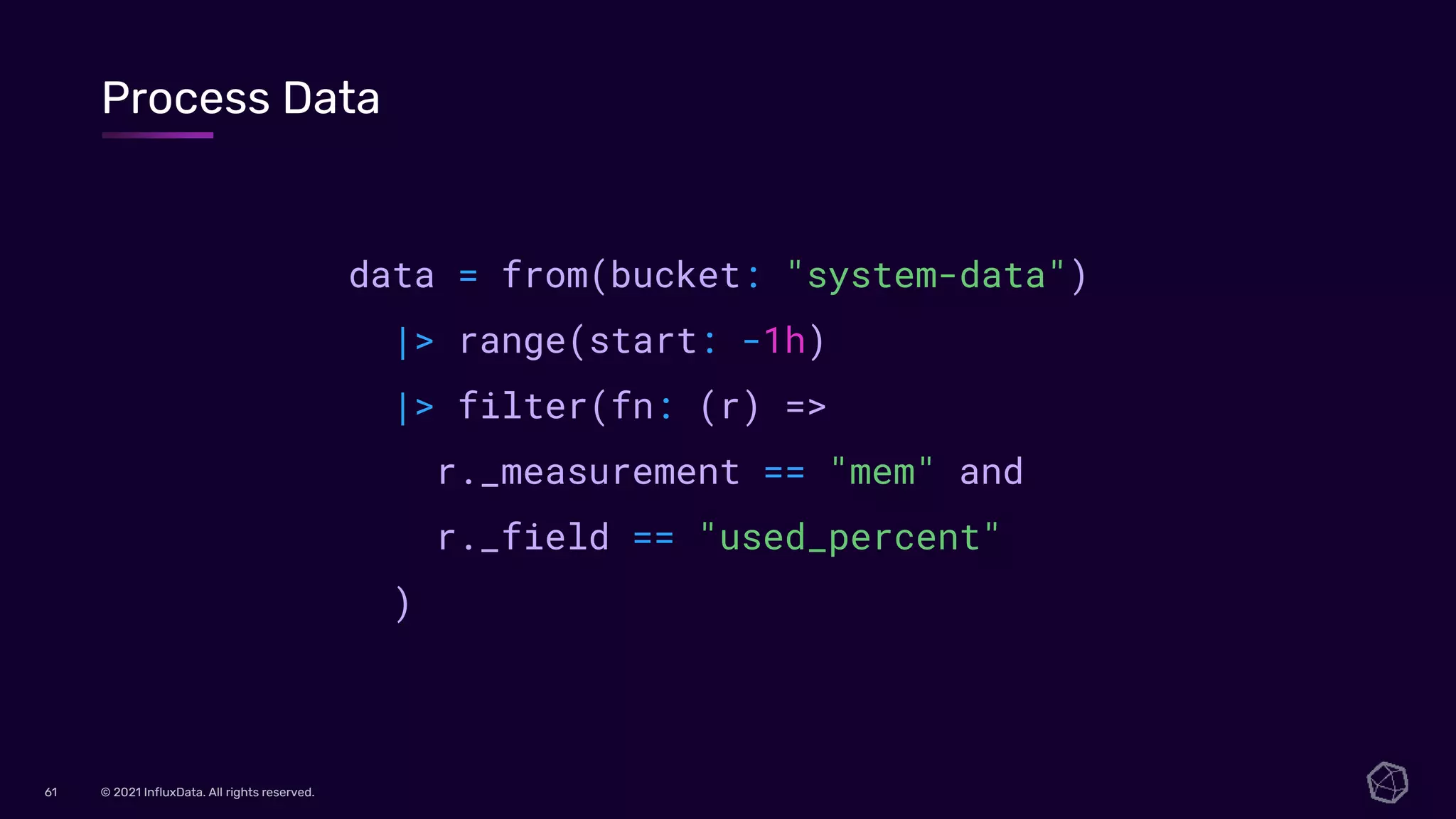

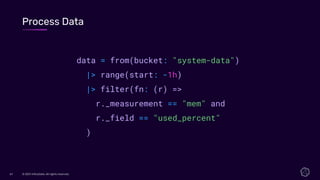

Process Data
data = from(bucket: "system-data")
r._field == "used_percent"
)

62

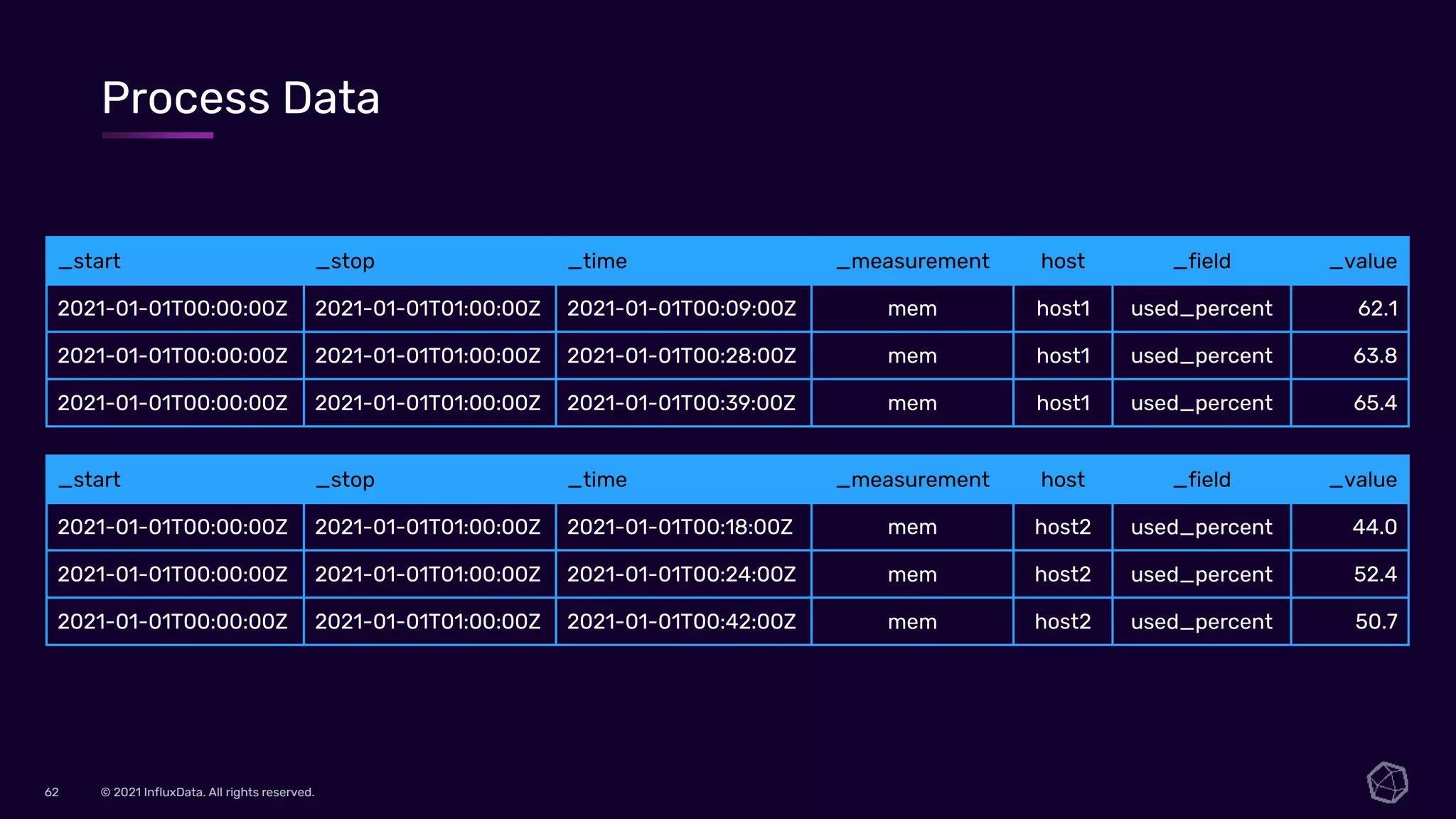

2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:09:00Z mem host1 used_percent 62.1
Process Data

63

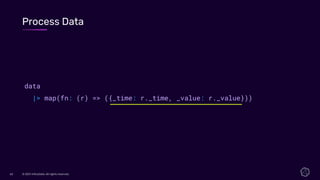

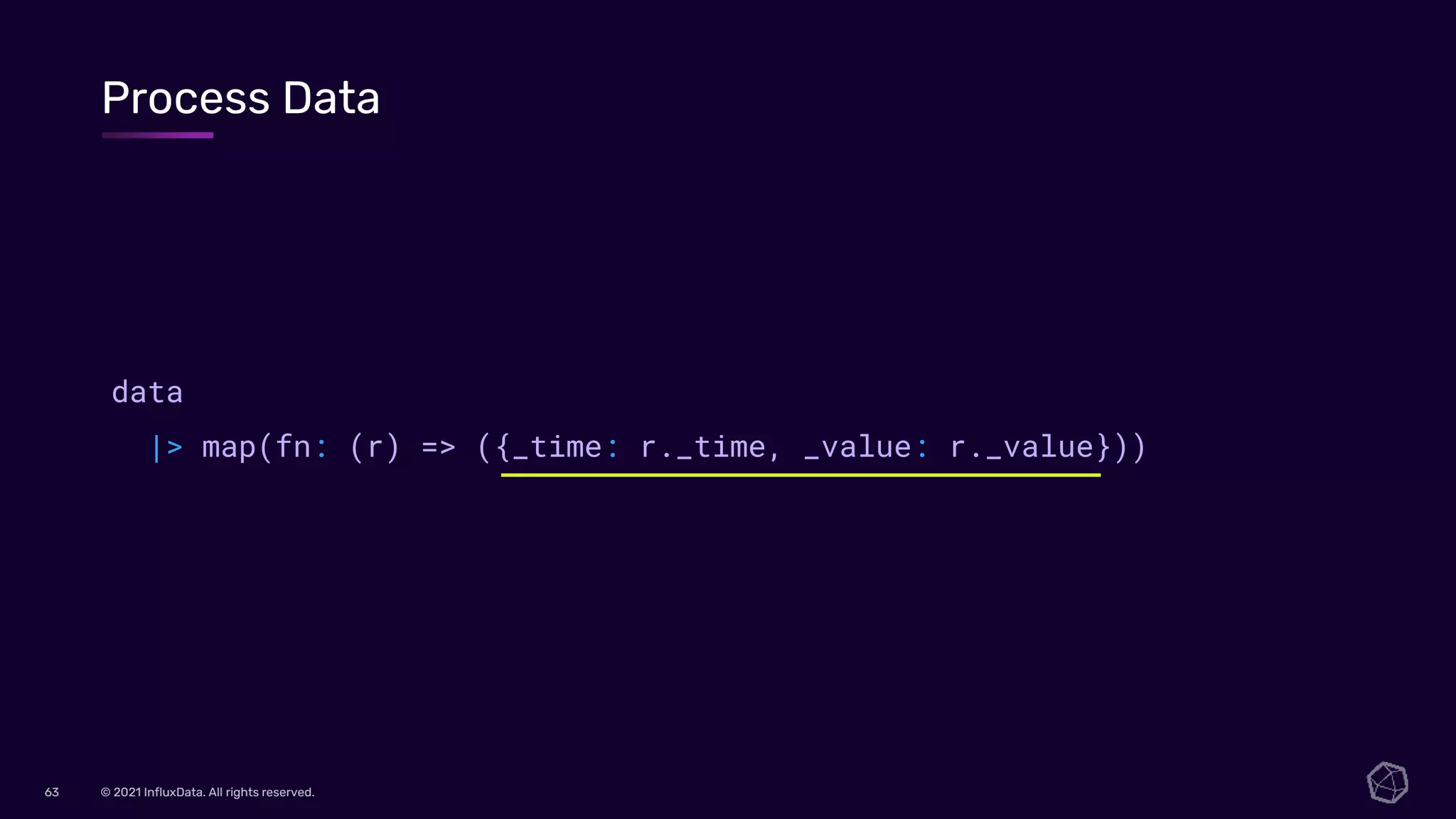

Process Data
data
|> map(fn: (r) => ({_time: r._time, _value: r._value}))

64

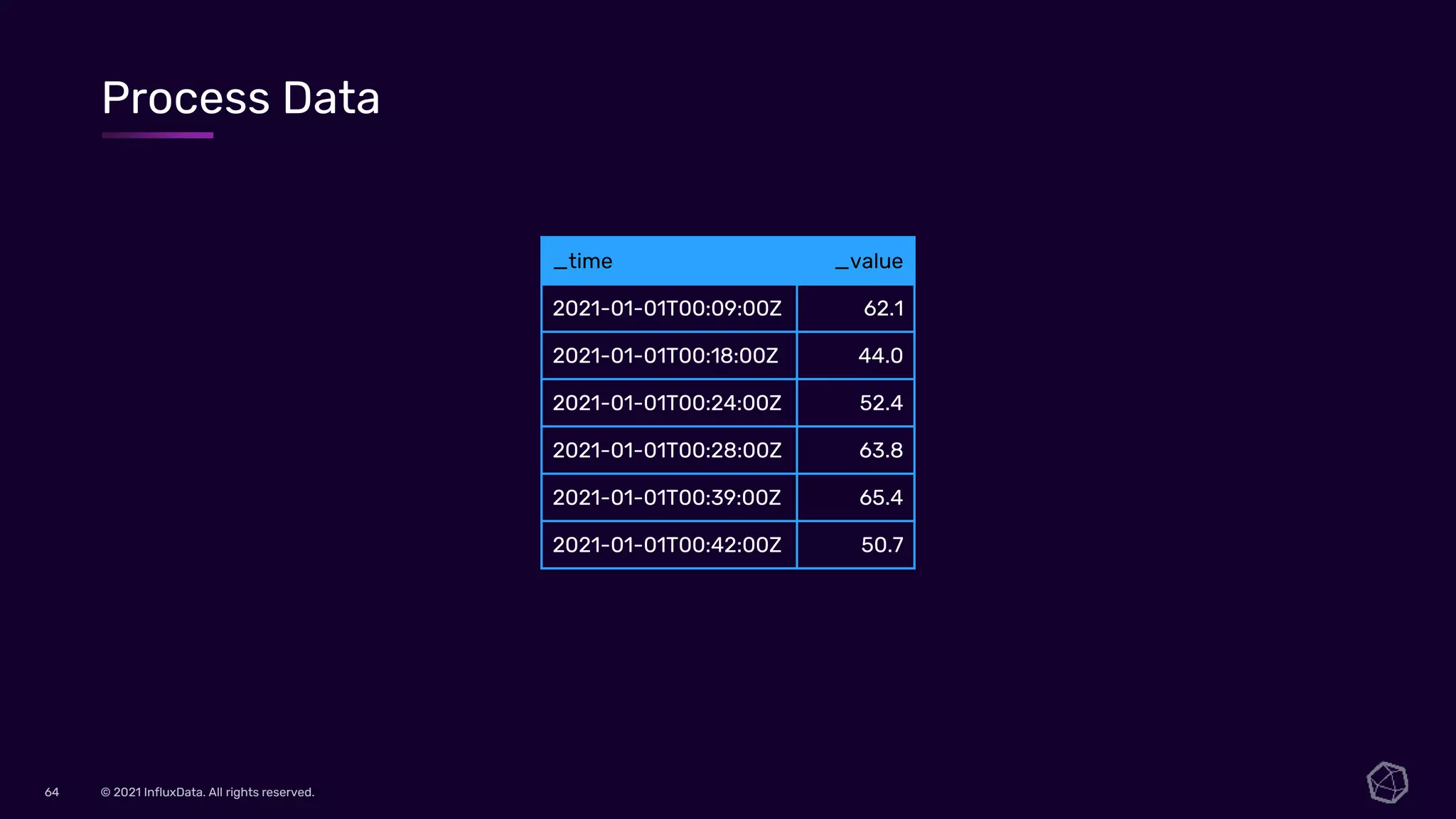

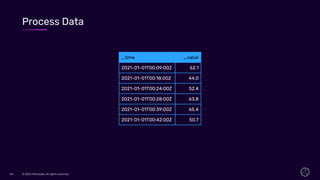

_time _value
2021-01-01T00:09:00Z 62.1
2021-01-01T00:18:00Z 44.0
2021-01-01T00:24:00Z 52.4
2021-01-01T00:28:00Z 63.8
2021-01-01T00:39:00Z 65.4
2021-01-01T00:42:00Z 50.7
Process Data

65

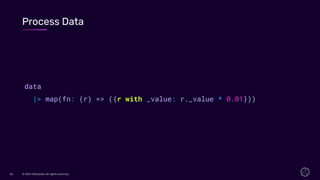

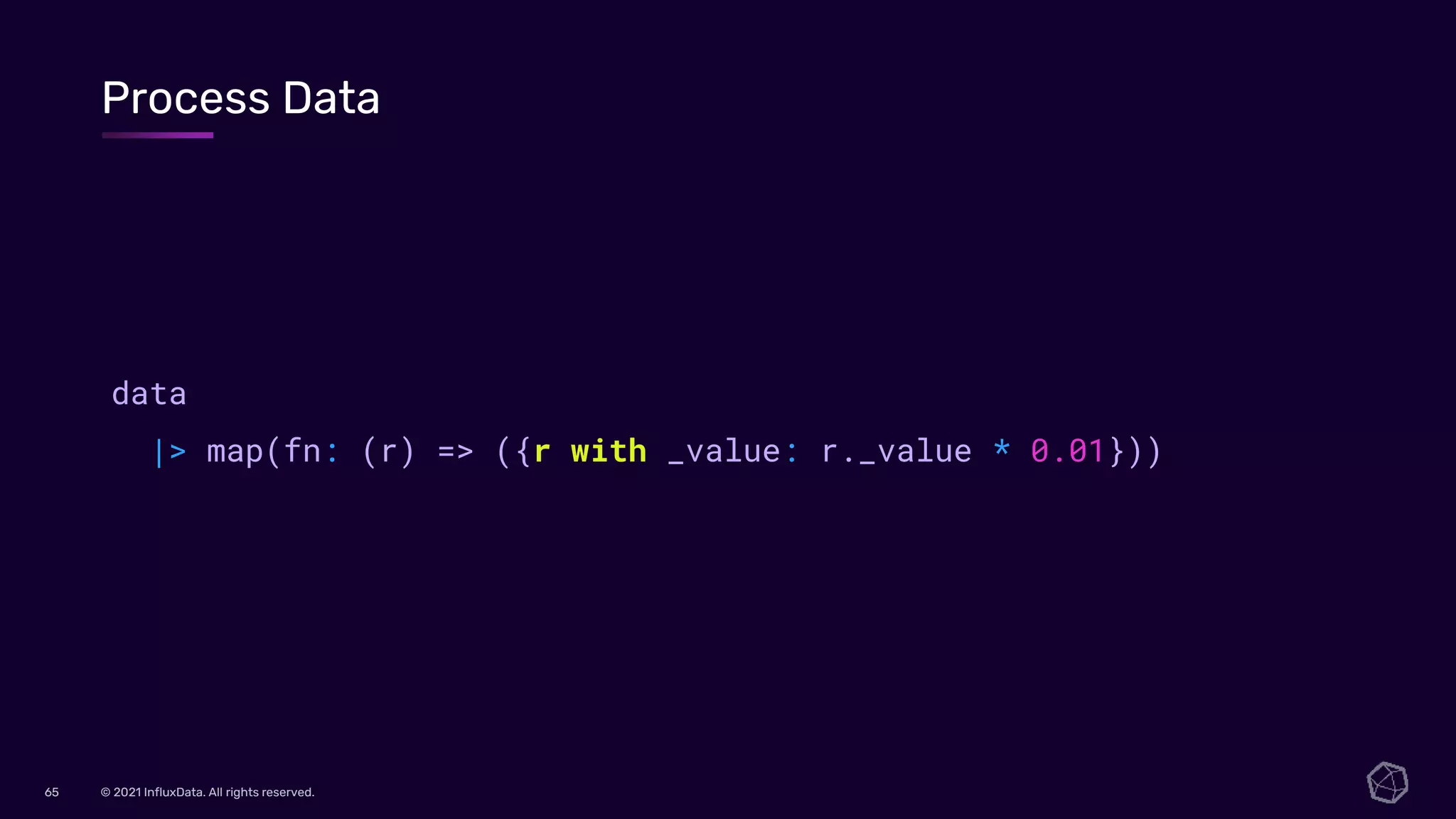

Process Data
data
|> map(fn: (r) => ({r with _value: r._value * 0.01}))

66
Process Data

67

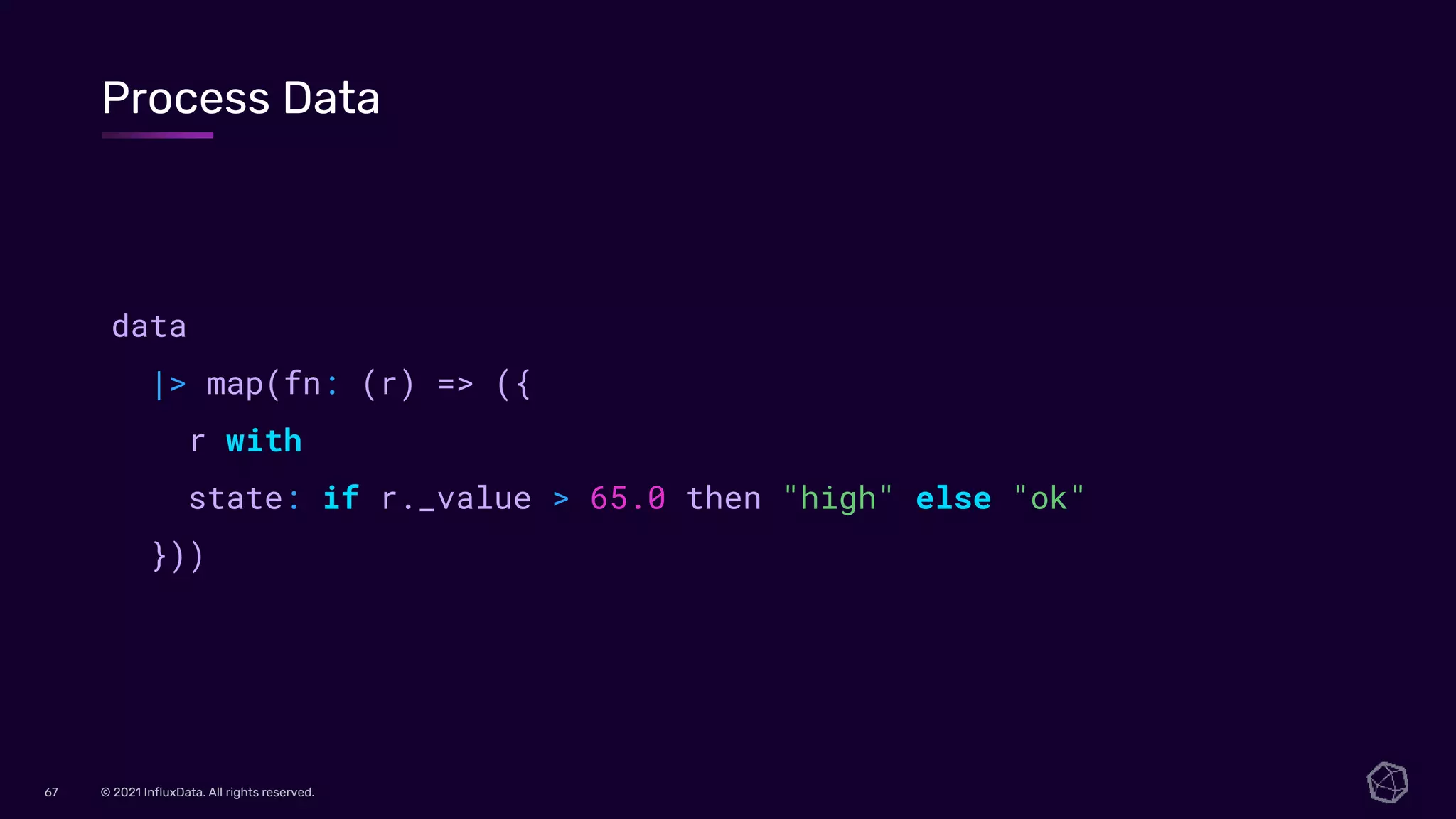

Process Data
data
|> map(fn: (r) => ({
r with
state: if r._value > 65.0 then "high" else "ok"
}))

68

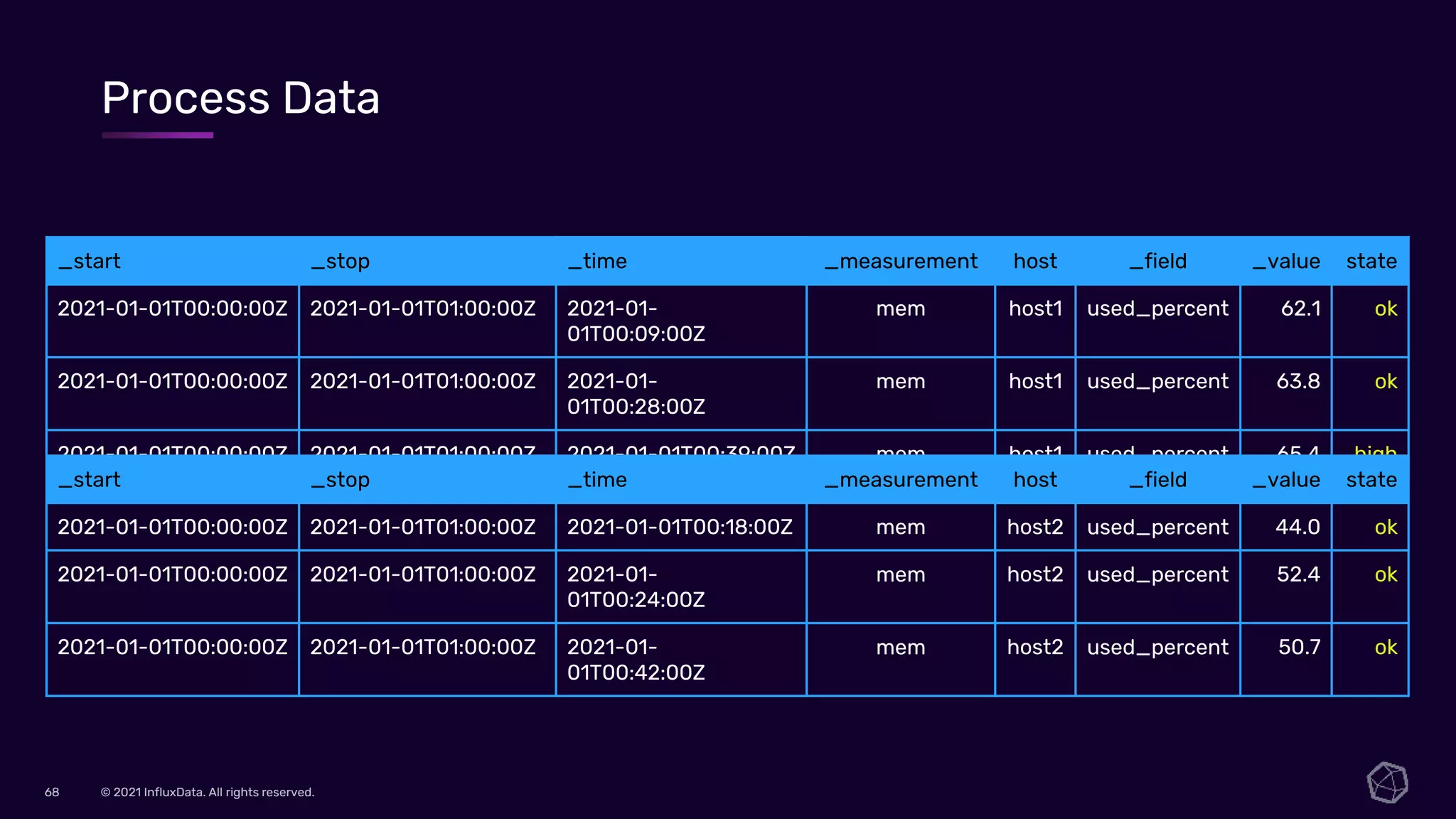

_start _stop _time _measurement host _field _value state
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-
01T00:09:00Z
mem host1 used_percent 62.1 ok
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-
01T00:28:00Z
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:39:00Z mem host1 used_percent 65.4 high
_start _stop _time _measurement host _field _value state
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-01T00:18:00Z mem host2 used_percent 44.0 ok
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-
01T00:24:00Z
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z 2021-01-
01T00:42:00Z
Process Data

69

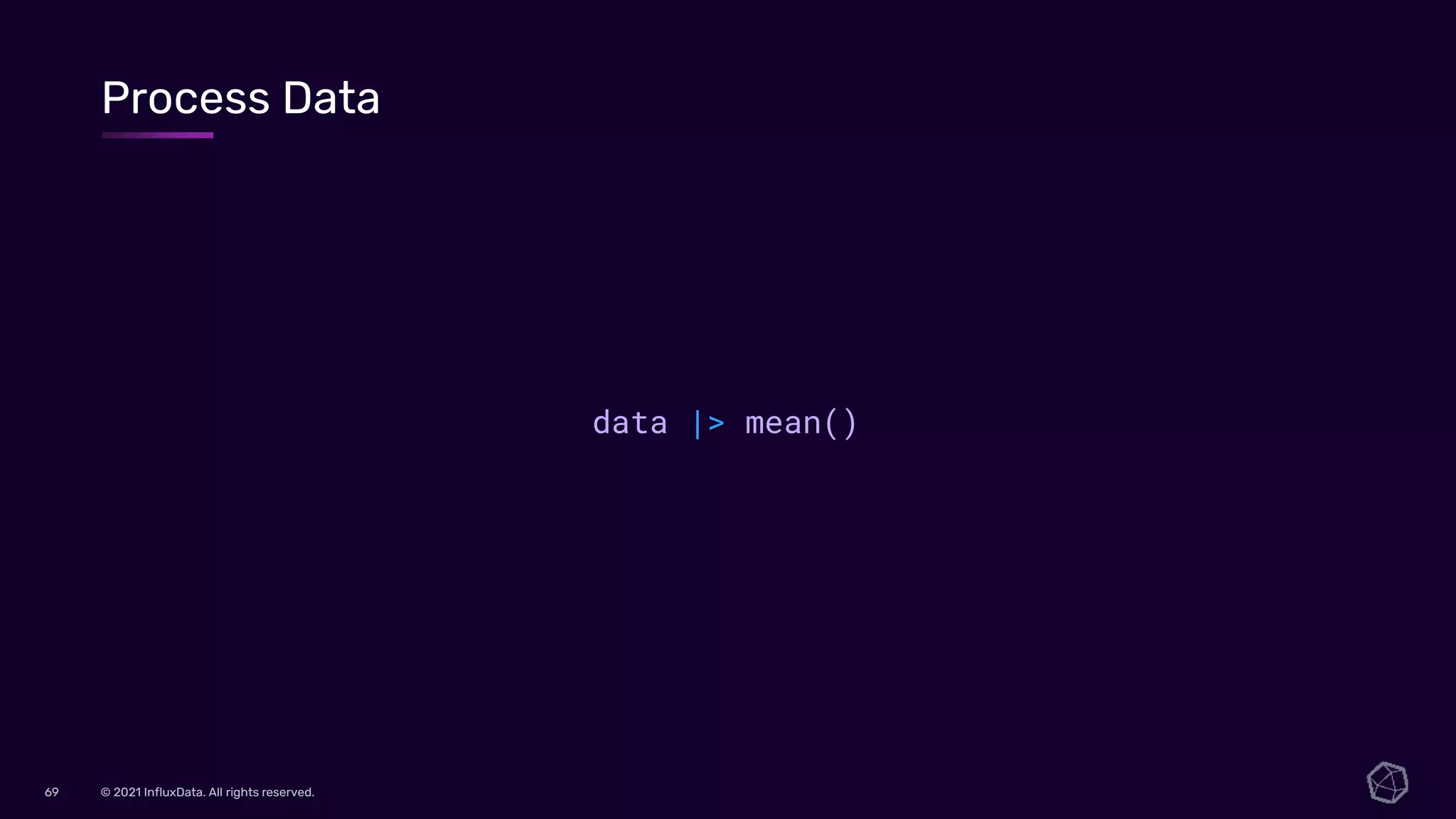

Process Data
data |> mean()

70
|> mean()

71

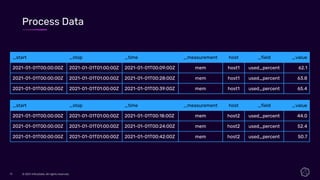

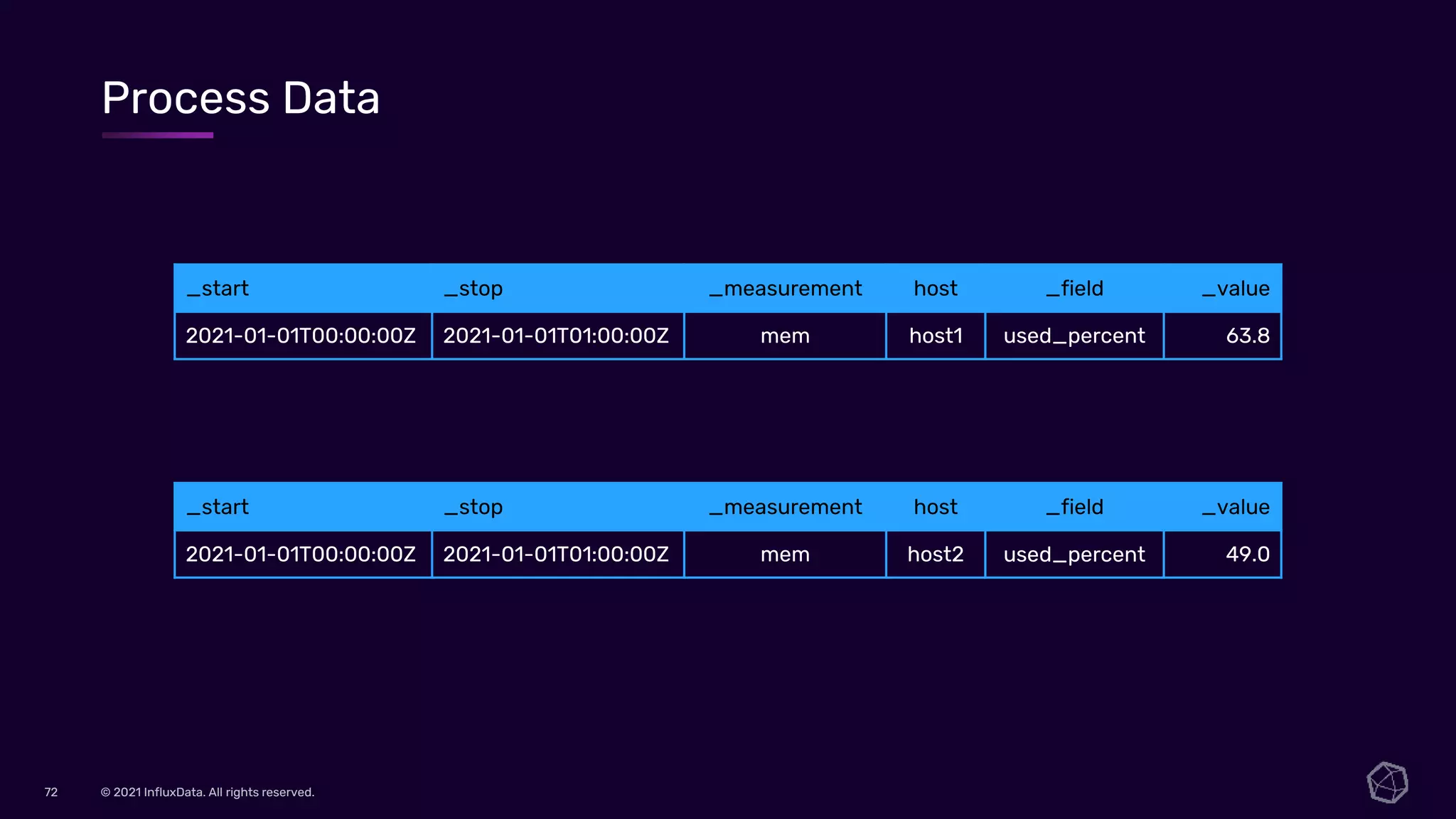

Process Data

72
_start _stop _measurement host _field _value
2021-01-01T00:00:00Z 2021-01-01T01:00:00Z mem host1 used_percent 63.8
Process Data

73
Process Data

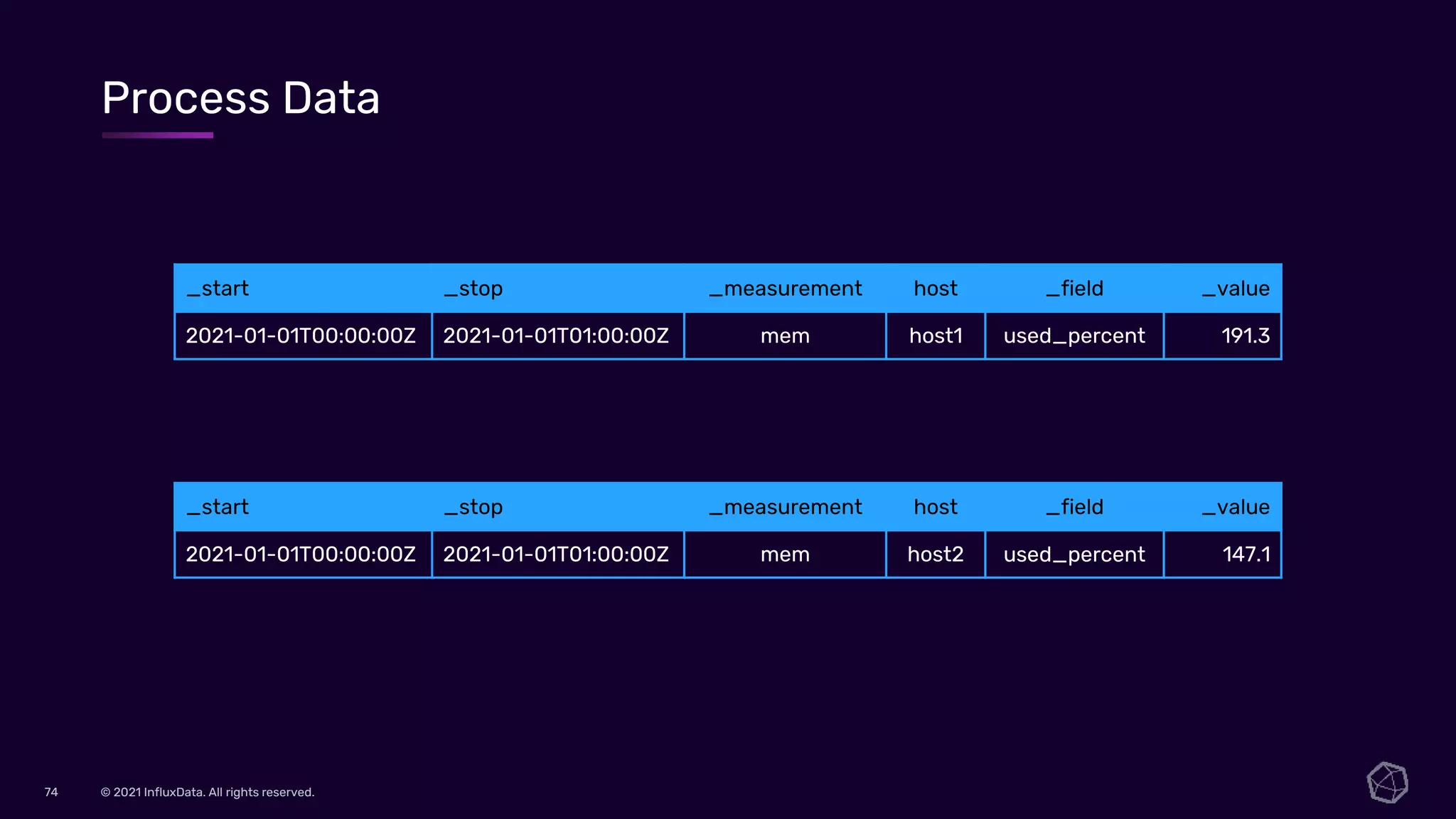

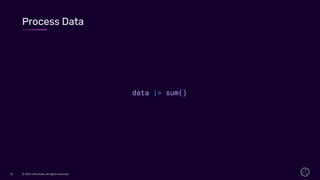

data |> sum()

74
Process Data

75

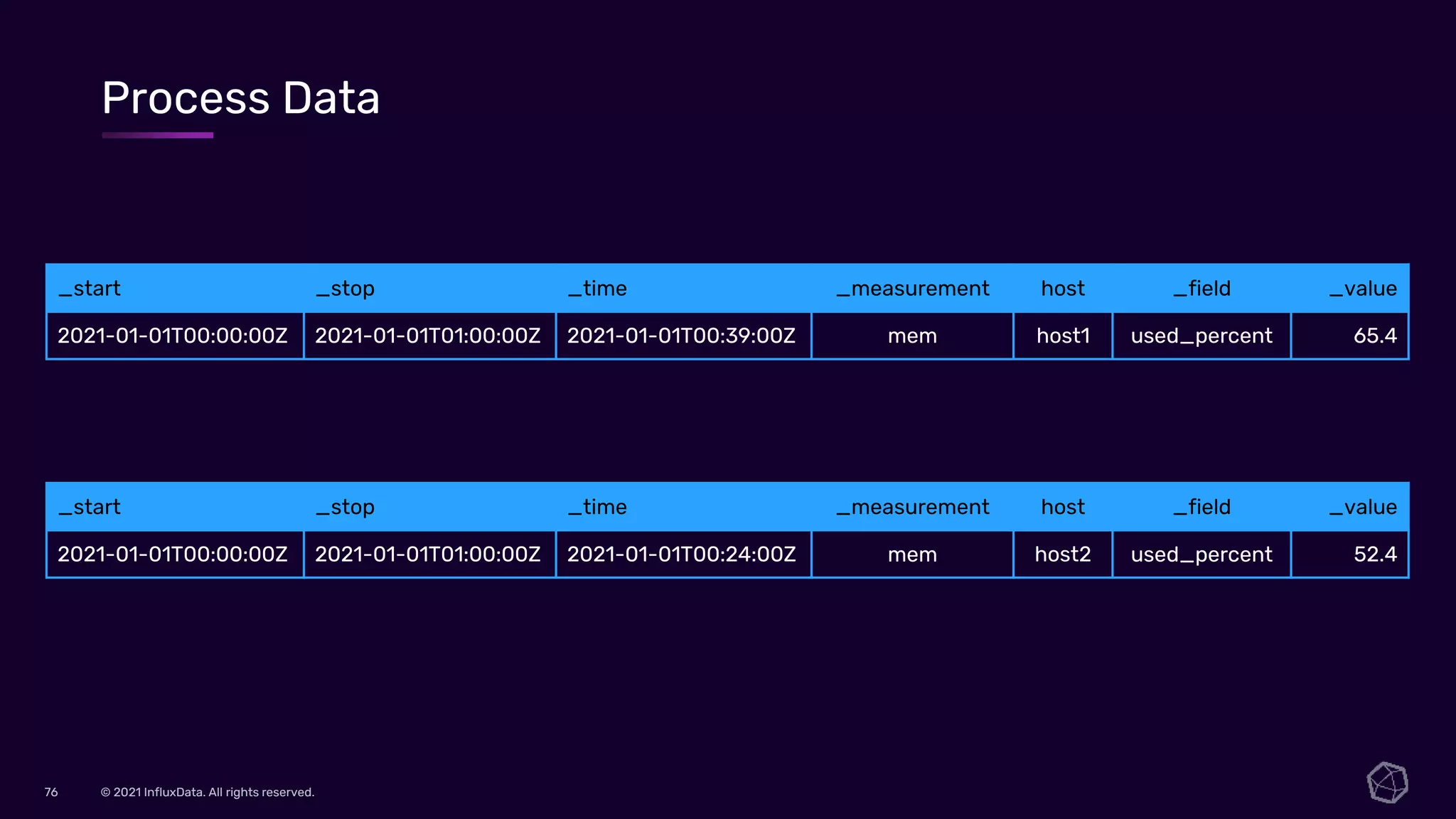

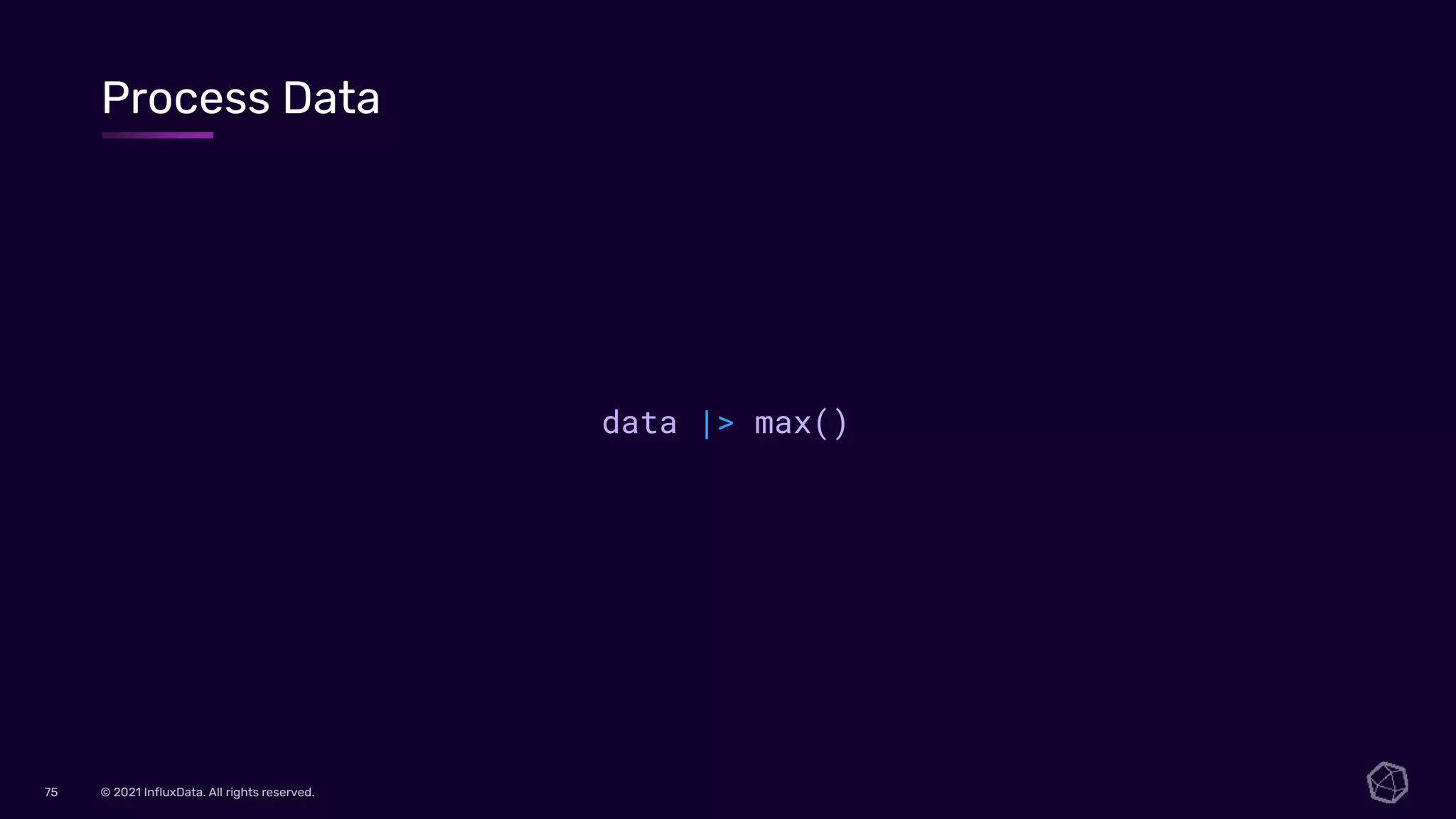

Process Data
data |> max()

76
Process Data

77

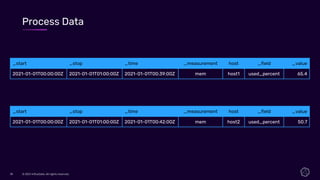

Process Data
data |> last()

78
Process Data

79
Flux in
Practice

80

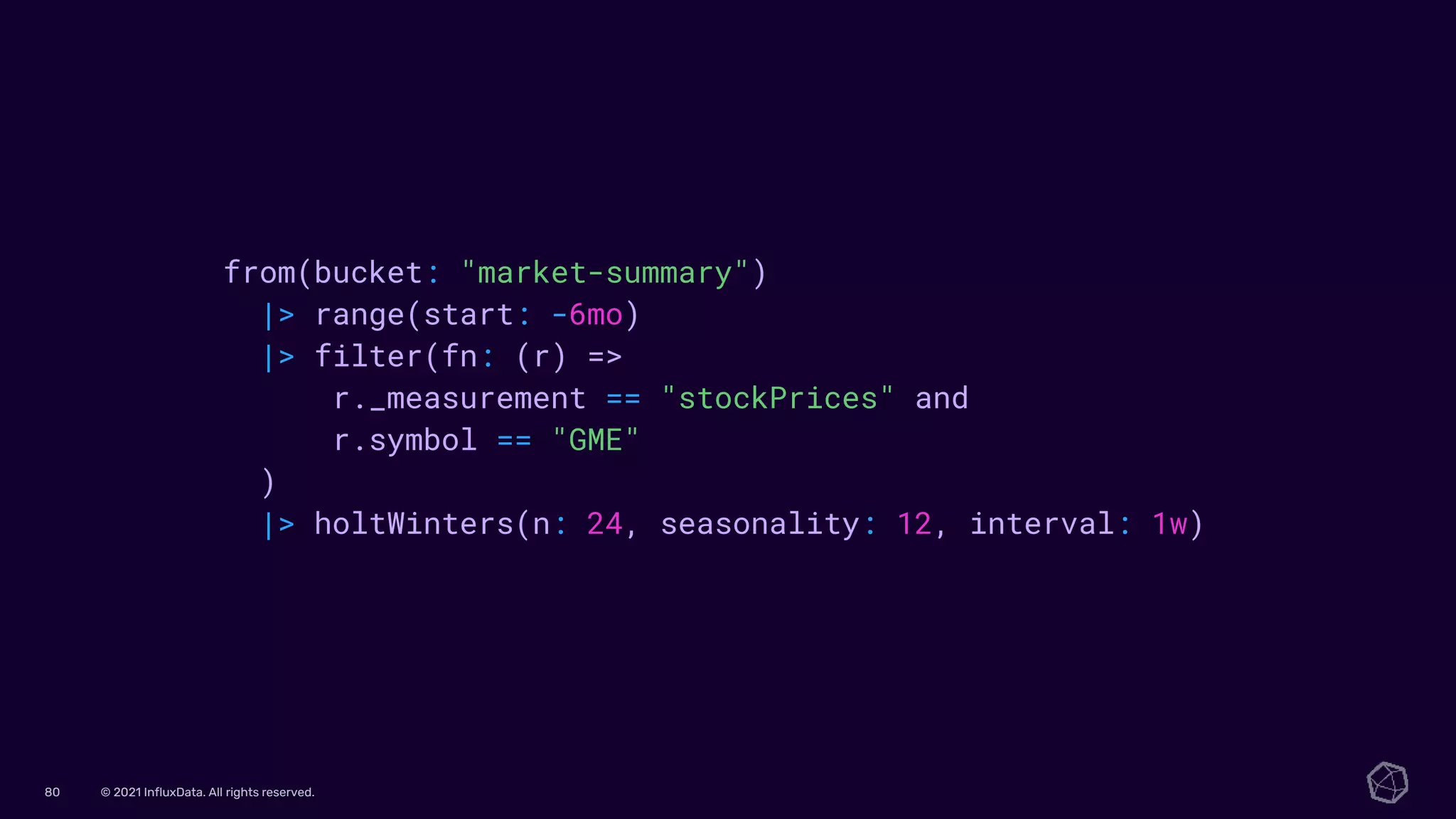

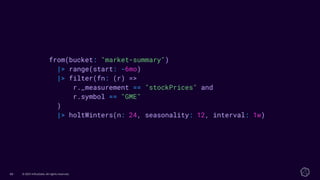

from(bucket: "market-summary")
|> range(start: -6mo)
r._measurement == "stockPrices" and
r.symbol == "GME"
)
|> holtWinters(n: 24, seasonality: 12, interval: 1w)

81

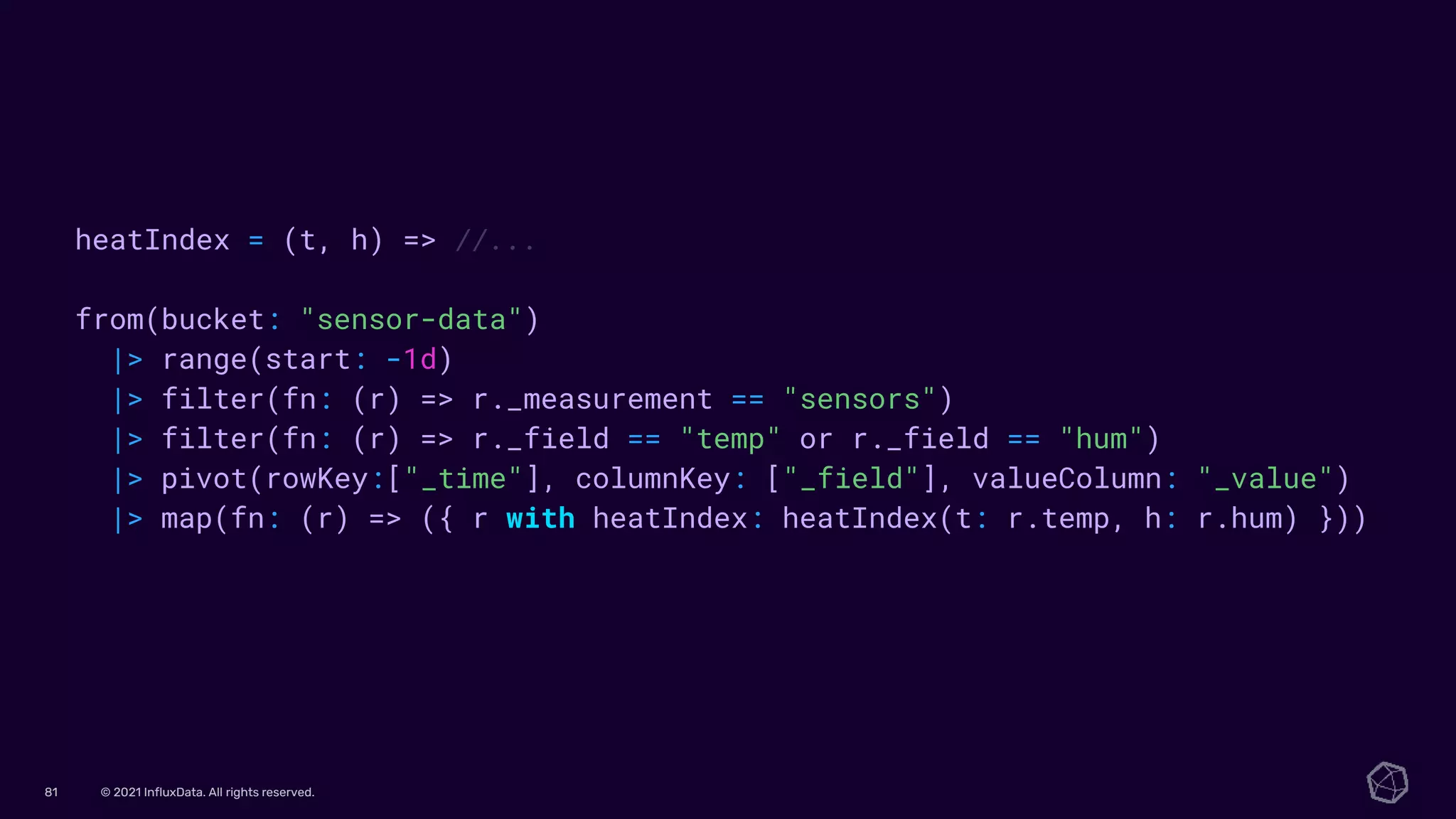

heatIndex = (t, h) => //...
from(bucket: "sensor-data")
|> range(start: -1d)
|> filter(fn: (r) => r._measurement == "sensors")
|> filter(fn: (r) => r._field == "temp" or r._field == "hum")
|> pivot(rowKey:["_time"], columnKey: ["_field"], valueColumn: "_value")
|> map(fn: (r) => ({ r with heatIndex: heatIndex(t: r.temp, h: r.hum) }))

82

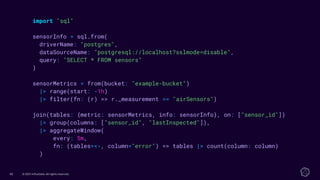

import "sql"
sensorInfo = sql.from(
driverName: "postgres",
dataSourceName: "postgresql://localhost?sslmode=disable",
query: "SELECT * FROM sensors"
)
sensorMetrics = from(bucket: "example-bucket")
|> filter(fn: (r) => r._measurement == "airSensors")
join(tables: {metric: sensorMetrics, info: sensorInfo}, on: ["sensor_id"])
|> group(columns: ["sensor_id", "lastInspected"]),
|> aggregateWindow(
every: 5m,
fn: (tables=<-, column="error") => tables |> count(column: column)
)
