1. Optimize Your VMware SDDC with
IBM Infrastructure
Guilhaume Garcia, IT Architect, Hybrid Cloud, IBM
Axel Westphal, IT Specialist, Storage Solutions, IBM

2. New apps are consolidating
data and capabilities to
engage new audiences
Insight from nontraditional
sources of data are being
infused in business
processes to create new
business moments
New innovations are
composed leveraging digital
services from
a broad ecosystem
New channels
and business models
Digital InnovationReal time insight
driven processes

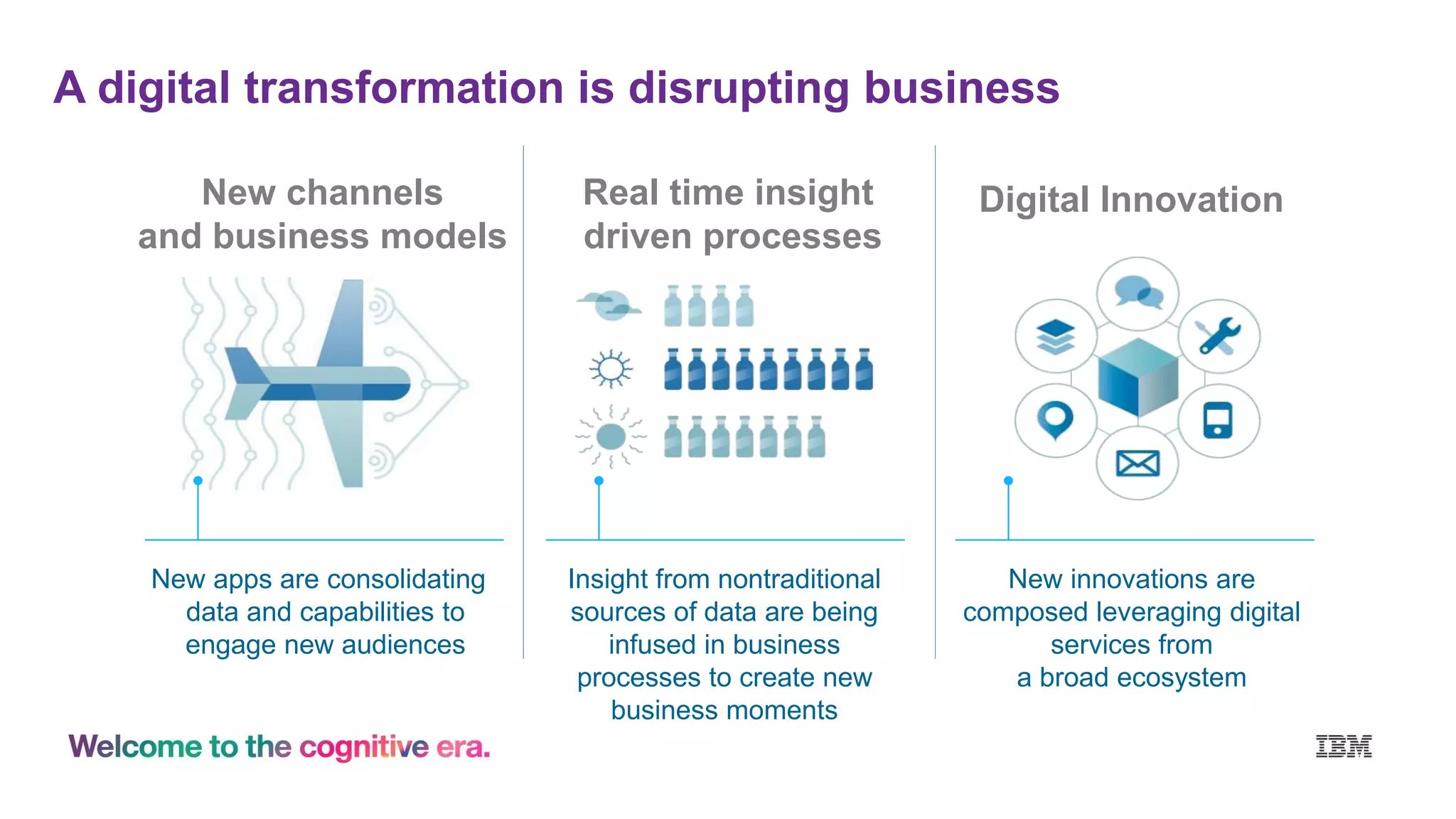

A digital transformation is disrupting business

3. Software-Defined Data Center supports the journey to
hybrid cloud
Software Defined
Data Center
Data Center Fabric
Compute
Software defined compute
(compute hardware
virtualization)
Storage
Software defined storage
Networking
Software defined networking
Environmental
Software defined facilities
Evolution of the data center

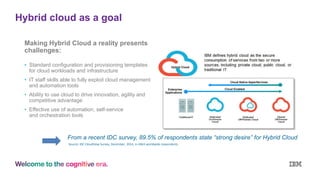

4. Hybrid cloud as a goal
Making Hybrid Cloud a reality presents
challenges:
• Standard configuration and provisioning templates
for cloud workloads and infrastructure
• IT staff skills able to fully exploit cloud management
and automation tools
• Ability to use cloud to drive innovation, agility and
competitive advantage
• Effective use of automation, self-service
and orchestration tools
Source: IDC CloudView Survey, December, 2014, n=3463 worldwide respondents
From a recent IDC survey, 89.5% of respondents state “strong desire” for Hybrid Cloud

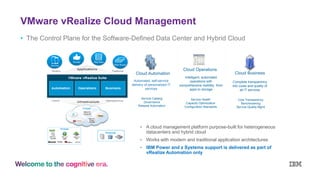

5. Cloud Operations
Intelligent, automated
operations with
comprehensive visibility from
apps to storage
Service Health
Capacity Optimization
Configuration Standards
VMware vRealize Cloud Management
• The Control Plane for the Software-Defined Data Center and Hybrid Cloud
Cloud Automation
Automated, self-service
delivery of personalized IT
services
Service Catalog
Governance
Release Automation
Cloud Business
Complete transparency
into costs and quality of
all IT services
Cost Transparency
Benchmarking
Service Quality Mgmt
• A cloud management platform purpose-built for heterogeneous
datacenters and hybrid cloud
• Works with modern and traditional application architectures
• IBM Power and z Systems support is delivered as part of
vRealize Automation only

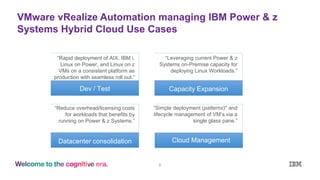

6. VMware vRealize Automation managing IBM Power & z
Systems Hybrid Cloud Use Cases
6
“Leveraging current Power & z
Systems on-Premise capacity for
deploying Linux Workloads.”
“Simple deployment (patterns)* and
lifecycle management of VM’s via a
single glass pane.”
“Reduce overhead/licensing costs
for workloads that benefits by
running on Power & z Systems.”
“Rapid deployment of AIX, IBM i,
Linux on Power, and Linux on z
VMs on a consistent platform as
production with seamless roll out.”
Dev / Test Capacity Expansion
Datacenter consolidation Cloud Management

7. Hybrid cloud environments require speed and
simplified point of control to manage VMs across
multiple platforms
VMware vRealize® Automation™ via OpenStack
API's enables a single point of control for IT
organizations to manage multiple platforms and
cloud infrastructures (both on and off premise)
- Infrastructure as a Service (IaaS) capability
with lifecycle management of VMs for AIX, i
and Linux on PowerVM, Linux on PowerKVM
for IBM Power Systems, Linux on z/VM and
KVM on z for IBM z Systems
- Platform as a Service (PaaS) capability
extended with 250+ IBM CloudBuilder
patterns for implementing IBM and non-IBM
application software
Why IBM Systems for Hybrid Cloud?
IBM Open by Design
Note: *PaaS capability will be available in 2017

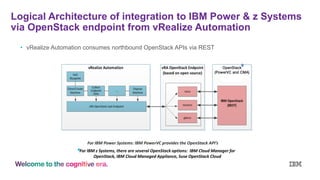

8. Logical Architecture of integration to IBM Power & z Systems
via OpenStack endpoint from vRealize Automation
• vRealize Automation consumes northbound OpenStack APIs via REST
For IBM Power Systems: IBM PowerVC provides the OpenStack API’s
For IBM z Systems, there are several OpenStack options: IBM Cloud Manager for
OpenStack, IBM Cloud Managed Appliance, Suse OpenStack Cloud

9. VMware vRealize Automation Architecture uses IBM PowerVC
and OpenStack to provision workloads to IBM Power & z
Systems
*Note: Cloud Managed Appliance (CMA) @ Liberty for z/VM, Suse OpenStack Cloud 6 for z/VM, IBM Cloud Manager for OpenStack 4.2 for z/VM & 4.3 for KVM
Public Clouds
PowerVM
PowerKVM
zVM KVM on z
PowerVC
vRealize
Automation
CMA*, SOC*,
ICM*
IBM LinuxONE™

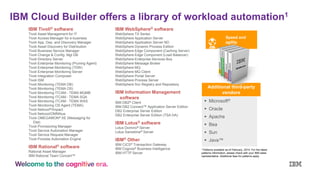

10. IBM Cloud Builder offers a library of workload automation1
IBM WebSphere® software
WebSphere TX Series
WebSphere Application Server
WebSphere Application Server ND
WebSphere Dynamic Process Edition
WebSphere Edge Component (Caching Server)
WebSphere Edge Component (Load Balancer)
WebSphere Enterprise Services Bus
WebSphere Message Broker
WebSphere MQ
WebSphere MQ Client
WebSphere Portal Server
WebSphere Process Server
WebSphere Svc Registry and Repository
IBM Information Management
software
IBM DB2® Client
IBM DB2 Connect™ Application Server Edition
DB2 Enterprise Server Edition
DB2 Enterprise Server Edition (TSA HA)
IBM Lotus® software
Lotus Domino® Server
Lotus Sametime® Server
IBM® Other
IBM CICS® Transaction Gateway
IBM Cognos® Business Intelligence
IBM HTTP Server
Additional third-party
vendors
 Microsoft®
 Oracle
 Apache
 Bea
 Sun
 Java™
IBM Tivoli® software
Tivoli Asset Management for IT
Tivoli Access Manager for e-business
Tivoli App. Dep. and Discovery Manager
Tivoli Asset Discovery for Distribution
Tivoli Business Service Manager
Tivoli Change & Config. Mgt DB
Tivoli Directory Server
Tivoli Enterprise Monitoring (Pruning Agent)
Tivoli Enterprise Monitoring (TDW)
Tivoli Enterprise Monitoring Server
Tivoli Integration Composer
Tivoli ISM
Tivoli Monitoring (TEMA DB)
Tivoli Monitoring (TEMA OS)
Tivoli Monitoring ITCAM - TEMA MQMB
Tivoli Monitoring ITCAM - TEMA SQA
Tivoli Monitoring ITCAM - TEMA WAS
Tivoli Monitoring OS Agent (TEMA)
Tivoli Netcool®/Impact
Tivoli Netcool/OMNIbus
Tivoli OMEGAMON® XE (Messaging for
Dist)
Tivoli Provisioning Manager
Tivoli Service Automation Manager
Tivoli Service Request Manager
Tivoli Process Automation Engine
IBM Rational® software
Rational Asset Manager
IBM Rational Team Concert™
1 Patterns available as of February, 2014. For the latest
patterns information, please check with your IBM sales
representative. Additional fees for patterns apply.
Speed and
agility

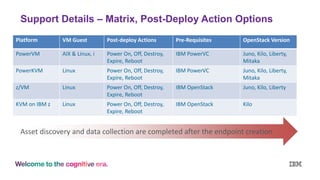

11. Support Details – Matrix, Post-Deploy Action Options
Platform VM Guest Post-deploy Actions Pre-Requisites OpenStack Version
PowerVM AIX & Linux, i Power On, Off, Destroy,
Expire, Reboot
IBM PowerVC Juno, Kilo, Liberty,
Mitaka
PowerKVM Linux Power On, Off, Destroy,
Expire, Reboot
IBM PowerVC Juno, Kilo, Liberty,
Mitaka
z/VM Linux Power On, Off, Destroy,
Expire, Reboot
IBM OpenStack Juno, Kilo, Liberty
KVM on IBM z Linux Power On, Off, Destroy,
Expire, Reboot
IBM OpenStack Kilo
Asset discovery and data collection are completed after the endpoint creation

12. Simplify hybrid cloud management using VMware vRA for
IBM Power Systems, LinuxONE and z Systems
• Increase flexibility and simplify VM management across a heterogeneous hybrid cloud
infrastructure
• Improve efficiency with a singular VMware skill set to manage VMs across multiple
platforms
• Manage multiple endpoints on &off premise via one cloud management platform
• Optimize workload deployment based on application characteristics via a single cloud
management platform

13. What about the data?
37X
increase
in daily mobile
transactions
IOT
30 billion
devices, 2020
6.75 TBs
of data will be
created
per person per day
by 2018
By 2020, >1/3 of data
will live or pass through
the cloud
64% of cloud adopters
are using of hybrid cloud1
1 IDC, “Don’t Get Left Behind - The Business Benefits of Achieving Greater Cloud Adoption.”
13

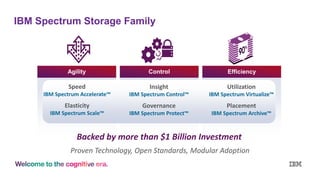

14. IBM Spectrum Storage Family
Agility Control Efficiency
Insight
IBM Spectrum Control™
Governance
IBM Spectrum Protect™
Speed
IBM Spectrum Accelerate™
Elasticity
IBM Spectrum Scale™
Utilization
IBM Spectrum Virtualize™
Placement
IBM Spectrum Archive™
Backed by more than $1 Billion Investment
Proven Technology, Open Standards, Modular Adoption

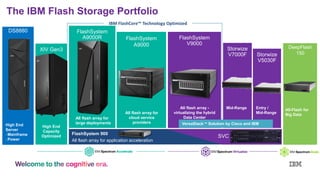

15. DS8880
FlashSystem
A9000
IBM FlashCore™ Technology Optimized
FlashSystem
A9000R FlashSystem
V9000
All flash array -
virtualizing the hybrid
Data Center
All flash array for
cloud service
providers
FlashSystem 900
All flash array for application acceleration
XIV Gen3
High End
Capacity
Optimized
All flash array for
large deploymentsHigh End
Server
- Mainframe
- Power
The IBM Flash Storage Portfolio
Storwize
V7000F
Mid-Range
Storwize
V5030F
Entry /
Mid-Range
All-Flash for
Big Data
DeepFlash
150
VersaStack ™ Solution by Cisco and IBM
SVC

16. Organizations are winning with IBM Storage & VMware
10X
Performance
Improvement
80%
Space Reduction
75%
Lower backup
costs
80%
Faster backups
100X
Faster Analytics
3X
Increase in
VMware Density

17. IBM Spectrum Accelerate
Premier cloud storage platform
• Enterprise-grade storage simply deployed
• Simplicity, with deep features including advanced remote
mirroring
• Delivered on commodity, optimized system, or public
cloud infrastructure
“Spectrum Accelerate is a Tier 1 array that we can use on the
cloud, spin up fast, and we know will be reliable.”
Paul Rafferty, SaaS Infrastructure Architecture Program Lead, Silverpop

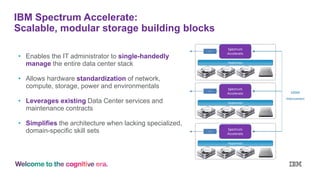

18. IBM Spectrum Accelerate:
Scalable, modular storage building blocks
• Enables the IT administrator to single-handedly
manage the entire data center stack
• Allows hardware standardization of network,
compute, storage, power and environmentals
• Leverages existing Data Center services and
maintenance contracts
• Simplifies the architecture when lacking specialized,
domain-specific skill sets
10GbE
Interconnect
Hypervisor
Spectrum
Accelerate
Spectrum
Accelerate
Spectrum
Accelerate
iSCSI
iSCSI
iSCSI
Hypervisor
Hypervisor

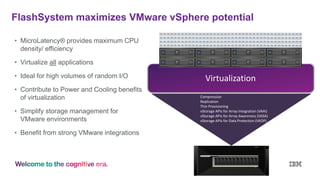

19. FlashSystem maximizes VMware vSphere potential
Virtualization
Compression
Replication
Thin Provisioning
vStorage APIs for Array Integration (VAAI)
vStorage APIs for Array Awareness (VASA)
vStorage APIs for Data Protection (VADP)
• MicroLatency® provides maximum CPU
density/ efficiency
• Virtualize all applications
• Ideal for high volumes of random I/O
• Contribute to Power and Cooling benefits
of virtualization
• Simplify storage management for
VMware environments
• Benefit from strong VMware integrations

20. Spectrum Virtualize & Storwize family + VMware
®
: The
Best Fit for Performance Optimized Storage Virtualization
• Redefine tier 1 performance for
workloads with diverse I/O
patterns with IBM All Flash
Solutions built with Spectrum
Virtualize
• Optimize your data tier with
thin provisioning, snapshots,
and real-time compression
• Integrate with VMware Cloud
Orchestration
Area Integration Value
Management vCenter plug-in • Storage visibility
• Self-service provisioning with controlled delegation
Business
Continuity
SRA for Site
Recovery Manager
• Automated Storage and Host
• Failover
• Failover testing
• Failback
Cloud
Orchestration
vRealize Suite • Orchestrated and automated storage provisioning
using vRealize Automation and vRealize
Orchestrator
Driving efficiency, performance, flexibility
& scale in Hybrid Cloud environments
IBM Storwize V5030F
IBM Storwize V7000F
IBM FlashSystem V9000
AND
IBM SAN Volume Controller
Affordable. FAST.
Feature Rich. Dependable.

21. Disaster Recovery with IBM Spectrum Virtualize and
VMware SRM
vCenter SRM IBM SRA
ESXi
VM
App
VM
App
ESXi
VM
App
VM
App
vCenter SRM IBM SRA
ESXi
VM
App
VM
App
ESXi
VM
App
VM
App
IBM Storwize family or SVC
+ almost 400 industry storage systems
Virtual machines
failover / failback
Remote Mirroring
through IP replication
Low Cost CSP Storage

22. IBM Spectrum Virtualize for DR to Hosted Clouds
Proven, Efficient, Dependable
| 22
IBM Spectrum Virtualize software is the heart of
IBM SAN Volume Controller, IBM Storwize family,
IBM FlashSystem V9000, and VersaStack
• Deployed on over 126,000 Storwize systems
and 54,500 SVC engines
• Managing over 297,000 enclosures of data
• Virtualizing, managing and securing 5.6 exabytes of data
• Exceeding 99.999% availability
• Supporting almost 400 IBM
and non-IBM storage systems
• Now Available as Software Only on x86 Intel Servers!
Enabling clients to do more with less
3x performance with only 5% flash
Up to 63% lower personnel costs
Up to 100% better storage utilization
This educational document is intended for IBM and IBM Business Partner staff only.
Not intended for distribution to clients or other third parties.

23. IBM Spectrum Control Base Integration with VMware
Element Control
VASA VWC
A9000/R
V5000/V7000/V9000 900*
*VASA and VWC only
vRealize
Operations
Management
(vCO)
vRealize
Orchestrator
(vCOC)
vCenter vRealize Cloud
Automation
Software (vCAC)

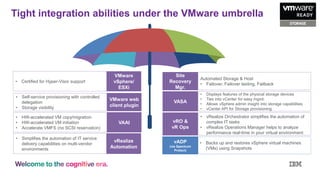

24. VMware
vSphere/
ESXi
• Certified for Hyper-Visor support
Tight integration abilities under the VMware umbrella
• vRealize Orchestrator simplifies the automation of
complex IT tasks
• vRealize Operations Manager helps to analyze
performance real-time in your virtual environment
vRO &
vR Ops
• Self-service provisioning with controlled
delegation
• Storage visibility
VMware web
client plugin
Site
Recovery
Mgr.
Automated Storage & Host
• Failover, Failover testing, Failback
VAAI
• HW-accelerated VM copy/migration
• HW-accelerated VM initiation
• Accelerate VMFS (no SCSI reservation)
• Displays features of the physical storage devices
• Ties into vCenter for easy mgmt.
• Allows vSphere admin insight into storage capabilities
• vCenter API for Storage provisioning
VASA
vRealize
Automation
• Simplifies the automation of IT service
delivery capabilities on multi-vendor
environments
• Backs up and restores vSphere virtual machines
(VMs) using Snapshots
vADP
(via Spectrum
Protect)

25. Thank You!
Q & A
