1. OPENSTACK
STORAGE ARCHITECTURE
Dan Radez
Sr. Software Engineer, Red Hat
dradez@redhat.com
irc: radez

2. Red Hat's Community OpenStack
openstack.redhat.com

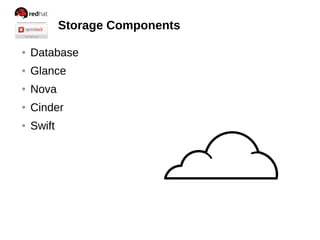

3. Storage Components
●
Database
●
Glance
●
Nova
●
Cinder
●
Swift

4. Component Architecture

5. Database :: MySQL / MariaDB
Store Options
●
Local Storage (no HA)
●
Shared Storage
●
Replicated Storage

6. Database :: MySQL / MariaDB
Local Storage
DB Node

7. Database :: MySQL / MariaDB
Shared Storage
Pacemaker
Active / Passive Failover
FIP: 10.10.10.123
DB Node*
DB Node
Storage
iSCSI or NFS
* MySQL service is running

8. Database :: MySQL / MariaDB
Shared Storage
Pacemaker
Active / Passive Failover
X
FIP: 10.10.10.123
DB Node
DB Node*
Storage
iSCSI or NFS
* MySQL service is running

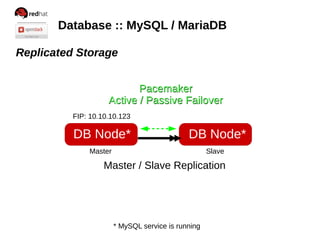

9. Database :: MySQL / MariaDB
Replicated Storage
Pacemaker
Active / Passive Failover
FIP: 10.10.10.123
DB Node*
DB Node*
Master
Slave
Master / Slave Replication
* MySQL service is running

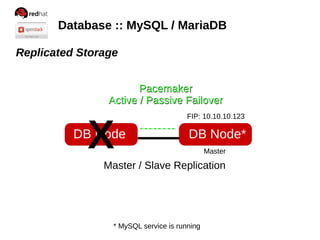

10. Database :: MySQL / MariaDB
Replicated Storage
Pacemaker
Active / Passive Failover
X
DB Node
FIP: 10.10.10.123
DB Node*
Master
Master / Slave Replication
* MySQL service is running

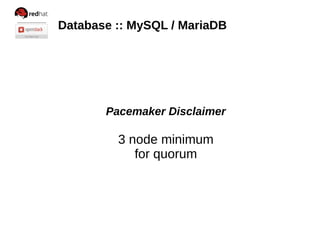

11. Database :: MySQL / MariaDB
Pacemaker Disclaimer
3 node minimum
for quorum

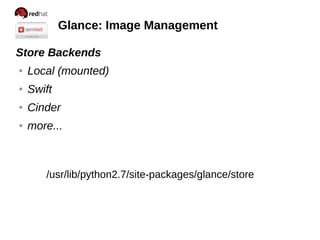

12. Glance: Image Management

13. Glance: Image Management
Store Backends
●
Local (mounted)
●
Swift
●
Cinder
●
more...
/usr/lib/python2.7/site-packages/glance/store

14. Glance: Image Management
Use GlusterFS to back Glance
# yum install -y glusterfs-fuse
# mkdir /srv/openstack
# vim /etc/fstab
gluster1:/openstack /srv/openstack glusterfs defaults,_netdev 0 0
# mount -a
# mkdir -p /srv/openstack/glance/images/
# chown -R glance:glance /srv/openstack/glance/

15. Glance: Image Management
Configure OpenStack
# vim /etc/glance/glance-api.conf
filesystem_store_datadir=/srv/openstack/glance/images/
# vim /etc/glance/glance-cache.conf
filesystem_store_datadir=/srv/openstack/glance/images/
# grep "/var/lib/glance" /etc/glance/*
glance-api.conf:#scrubber_datadir=/var/lib/glance/scrubber
glance-api.conf:#image_cache_dir=/var/lib/glance/image-cache/
glance-cache.conf:#image_cache_dir=/var/lib/glance/image-cache
glance-scrubber.conf:#scrubber_datadir=/var/lib/glance/scrubber
# service openstack-glance-api restart
# service openstack-glance-registry restart

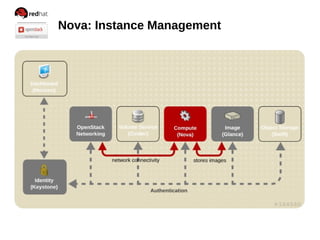

16. Nova: Instance Management

17. Nova: Instance Management
Use GlusterFS to back Nova
# yum install -y glusterfs-fuse
# mkdir /srv/openstack
# vim /etc/fstab
gluster1:/openstack /srv/openstack glusterfs defaults,_netdev 0 0
# mount -a
# mkdir -p /srv/openstack/instances
# chown -R nova:nova /srv/openstack/instances
# vim /etc/nova/nova.conf
instances_path=/srv/openstack/instances
# service openstack-nova-compute restart

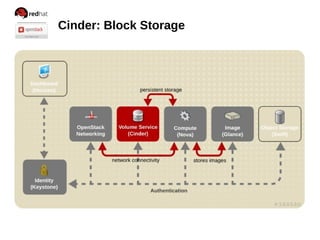

18. Cinder: Block Storage

19. Cinder: Block Storage
Drivers
●
LVM
●
NFS
●
GlusterFS
●
more...
/usr/lib/python2.7/site-packages/cinder/volume/drivers

20. Cinder: Block Storage
Example: Multiple Storage Types
Dependencies
# yum install -y glusterfs-fuse
Configuration
# vim /etc/cinder/shares.conf
gluster1:openstack
gluster2:openstack
(gluster_host.domain.com:gluster_volume_name)

21. Cinder: Block Storage
Configuration
#vim /etc/cinder/cinder.conf
enabled_backends=my_lvm,my_glusterfs
[my_lvm]
volume_group = cinder-volumes
volume_driver = cinder.volume.drivers.lvm.LVMISCSIDriver
volume_backend_name = LVM
[my_glusterfs]
volume_driver = cinder.volume.drivers.glusterfs.GlusterfsDriver
glusterfs_shares_config = /etc/cinder/shares.conf
glusterfs_sparsed_volumes = false
volume_backend_name = GLUSTER

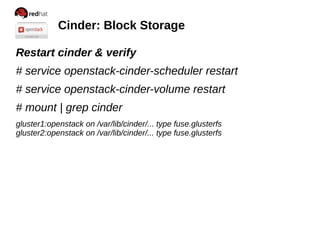

22. Cinder: Block Storage
Restart cinder & verify
# service openstack-cinder-scheduler restart
# service openstack-cinder-volume restart
# mount | grep cinder
gluster1:openstack on /var/lib/cinder/... type fuse.glusterfs
gluster2:openstack on /var/lib/cinder/... type fuse.glusterfs

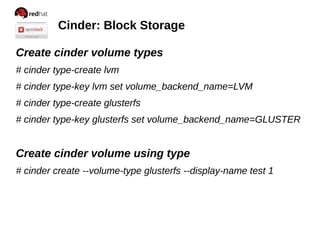

23. Cinder: Block Storage
Create cinder volume types
# cinder type-create lvm
# cinder type-key lvm set volume_backend_name=LVM
# cinder type-create glusterfs
# cinder type-key glusterfs set volume_backend_name=GLUSTER
Create cinder volume using type
# cinder create --volume-type glusterfs --display-name test 1

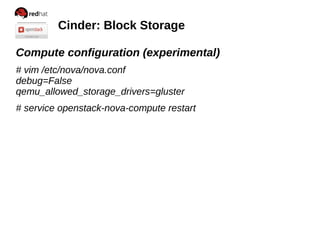

24. Cinder: Block Storage
Compute configuration (experimental)
# vim /etc/nova/nova.conf
debug=False
qemu_allowed_storage_drivers=gluster
# service openstack-nova-compute restart

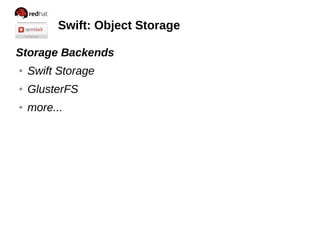

25. Swift: Object Storage

26. Swift: Object Storage
Storage Backends
●
Swift Storage
●
GlusterFS
●
more...

27. Review

28. Resources
●
●
RDO: openstack.redhat.com
https://access.redhat.com/knowledge/docs/enUS/Red_Hat_OpenStack
●
OpenStack.org
●
TryStack.org
●
Puppetlabs.com
●
Djangoproject.com
●
http://radez.fedorapeople.org/TokyoMeetup_slides.pdf
