1. Filesystem as a
service –
OpenStack Cinder
Rushi Agrawal
@rushiagr
1

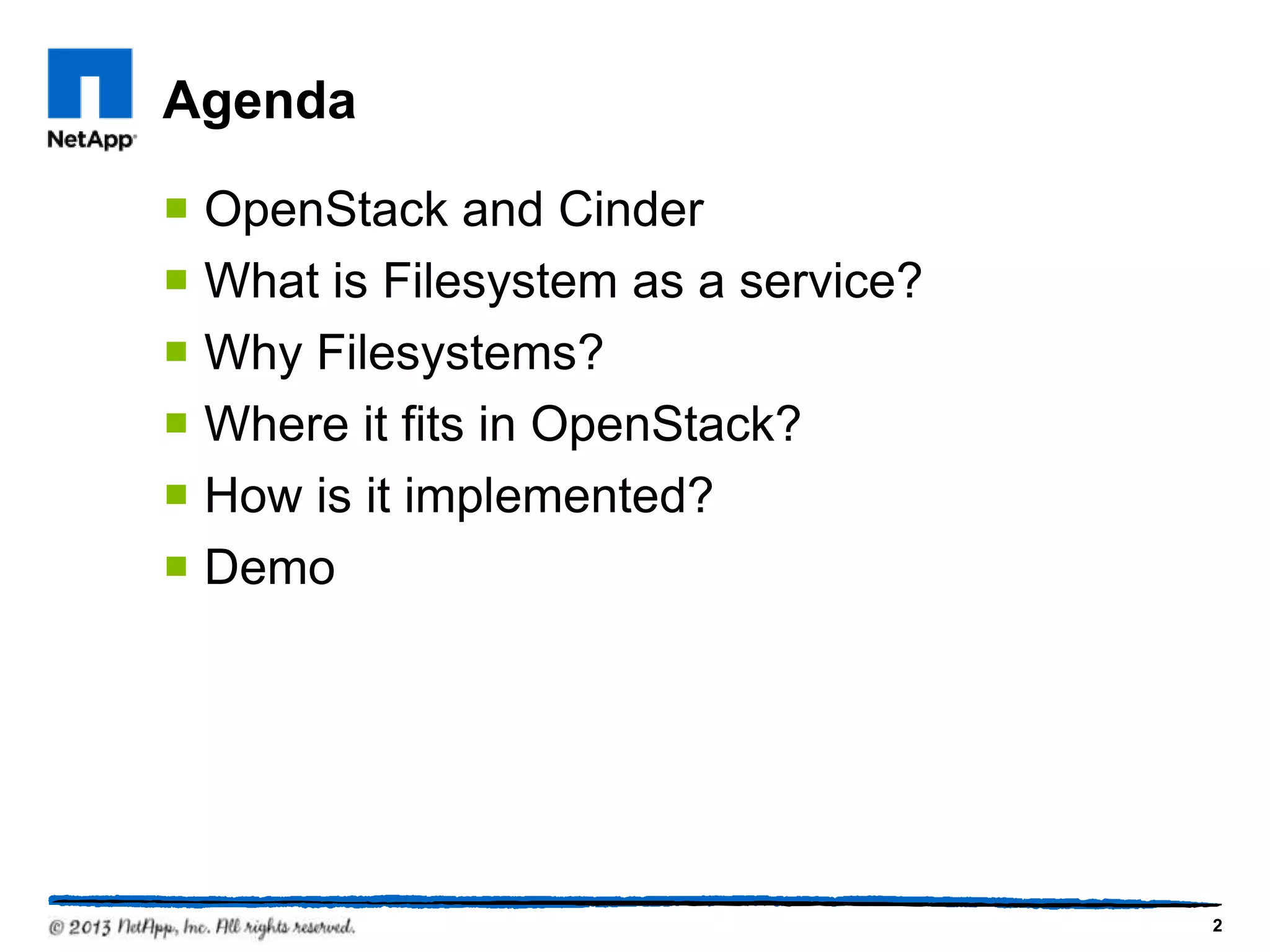

2. Agenda
 OpenStack and Cinder
 What is Filesystem as a service?
 Why Filesystems?
 Where it fits in OpenStack?
 How is it implemented?
 Demo
2

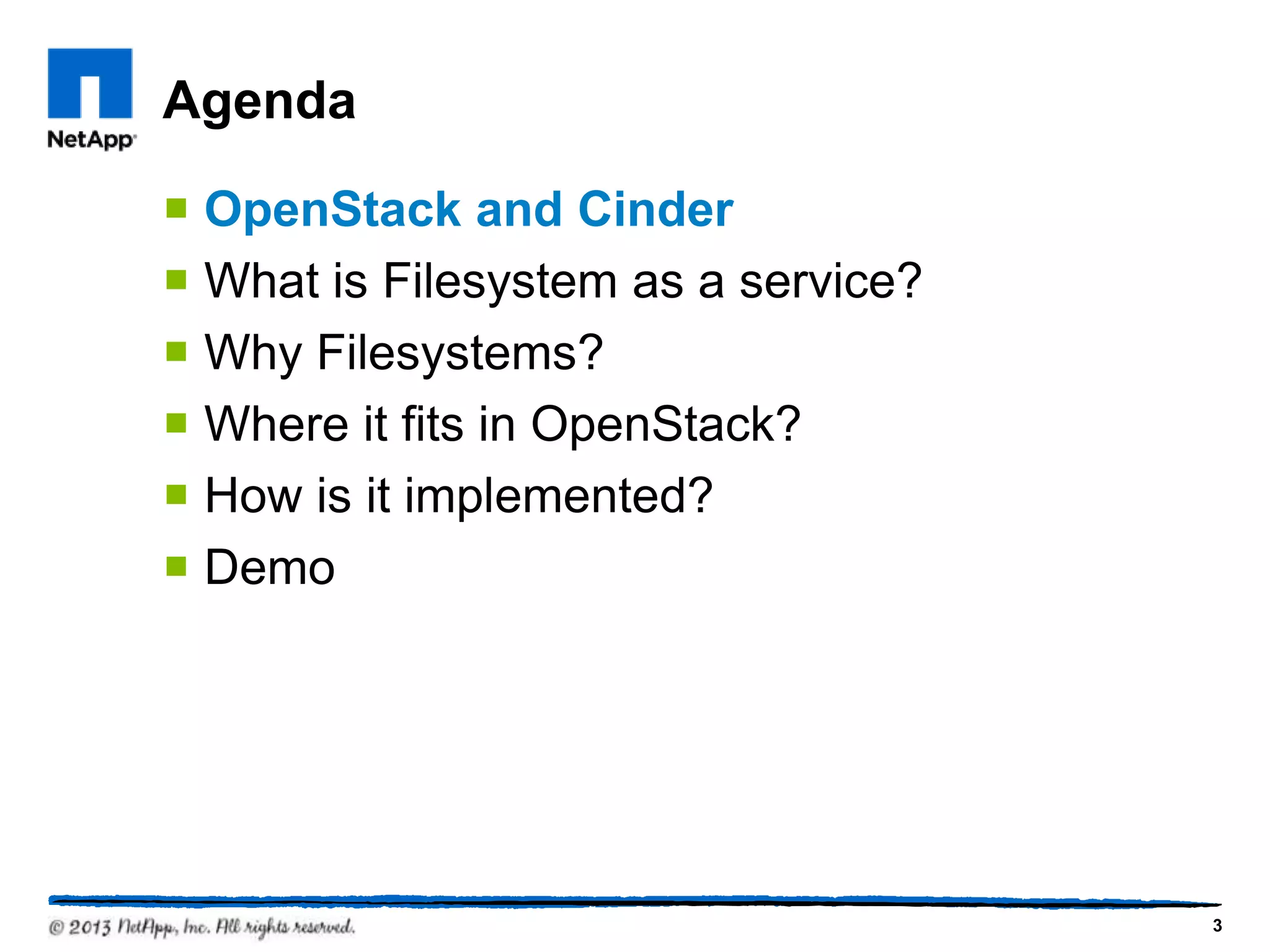

3. Agenda
 OpenStack and Cinder
 What is Filesystem as a service?
 Why Filesystems?
 Where it fits in OpenStack?
 How is it implemented?
 Demo
3

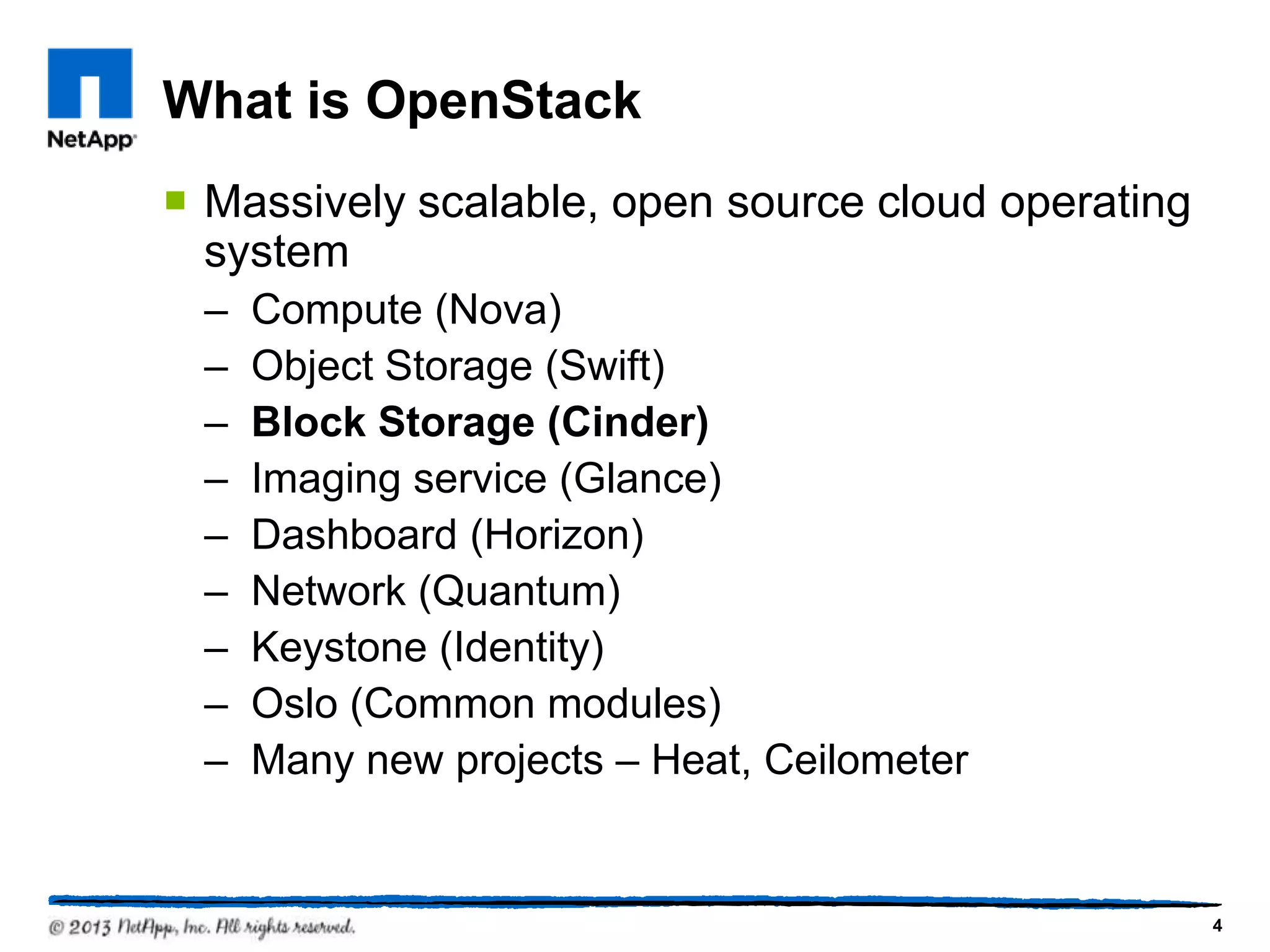

4. What is OpenStack
 Massively scalable, open source cloud operating
system
– Compute (Nova)
– Object Storage (Swift)
– Block Storage (Cinder)
– Imaging service (Glance)
– Dashboard (Horizon)
– Network (Quantum)
– Keystone (Identity)
– Oslo (Common modules)
– Many new projects – Heat, Ceilometer
4

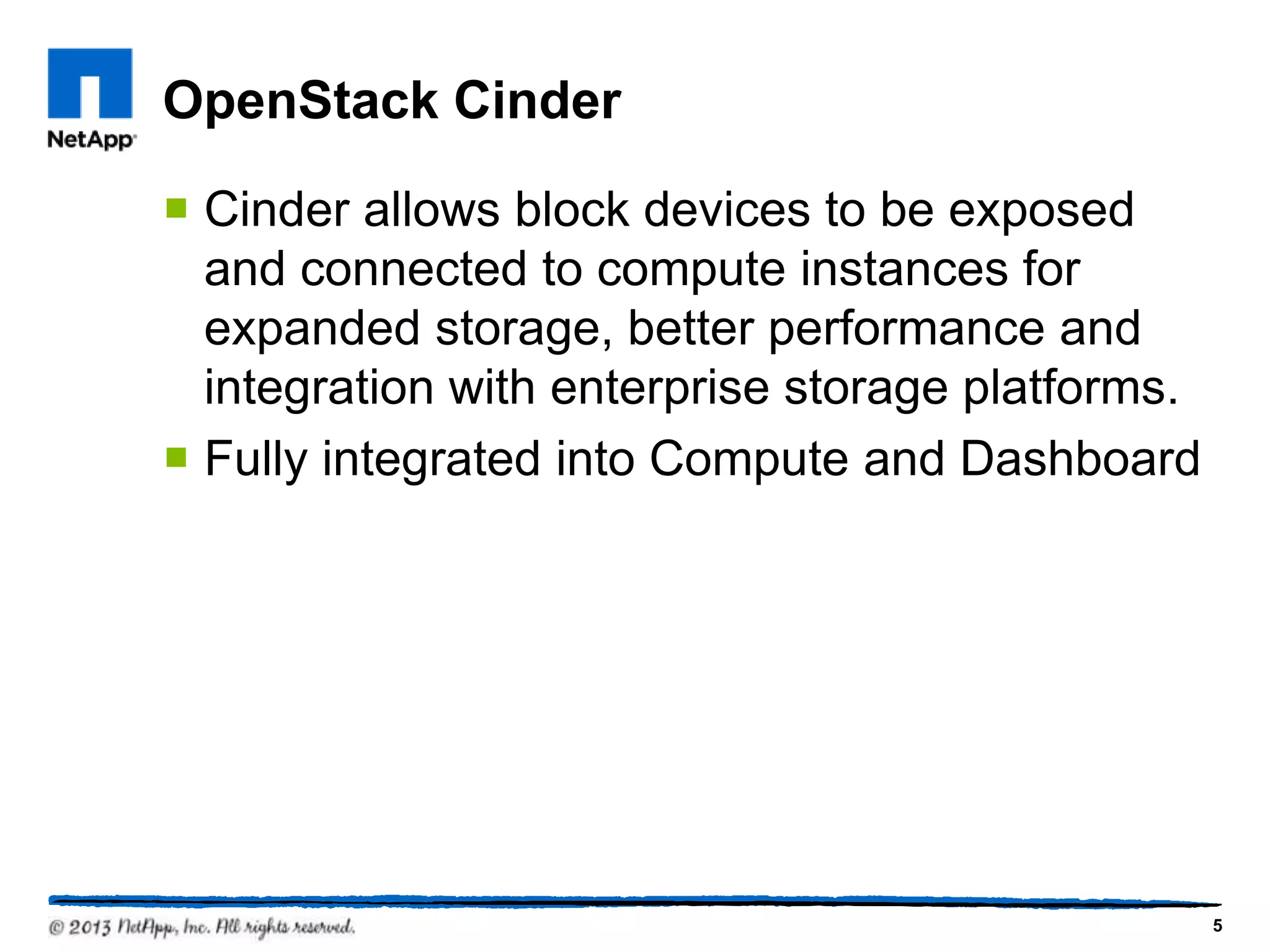

5. OpenStack Cinder
 Cinder allows block devices to be exposed
and connected to compute instances for
expanded storage, better performance and
integration with enterprise storage platforms.
 Fully integrated into Compute and Dashboard
5

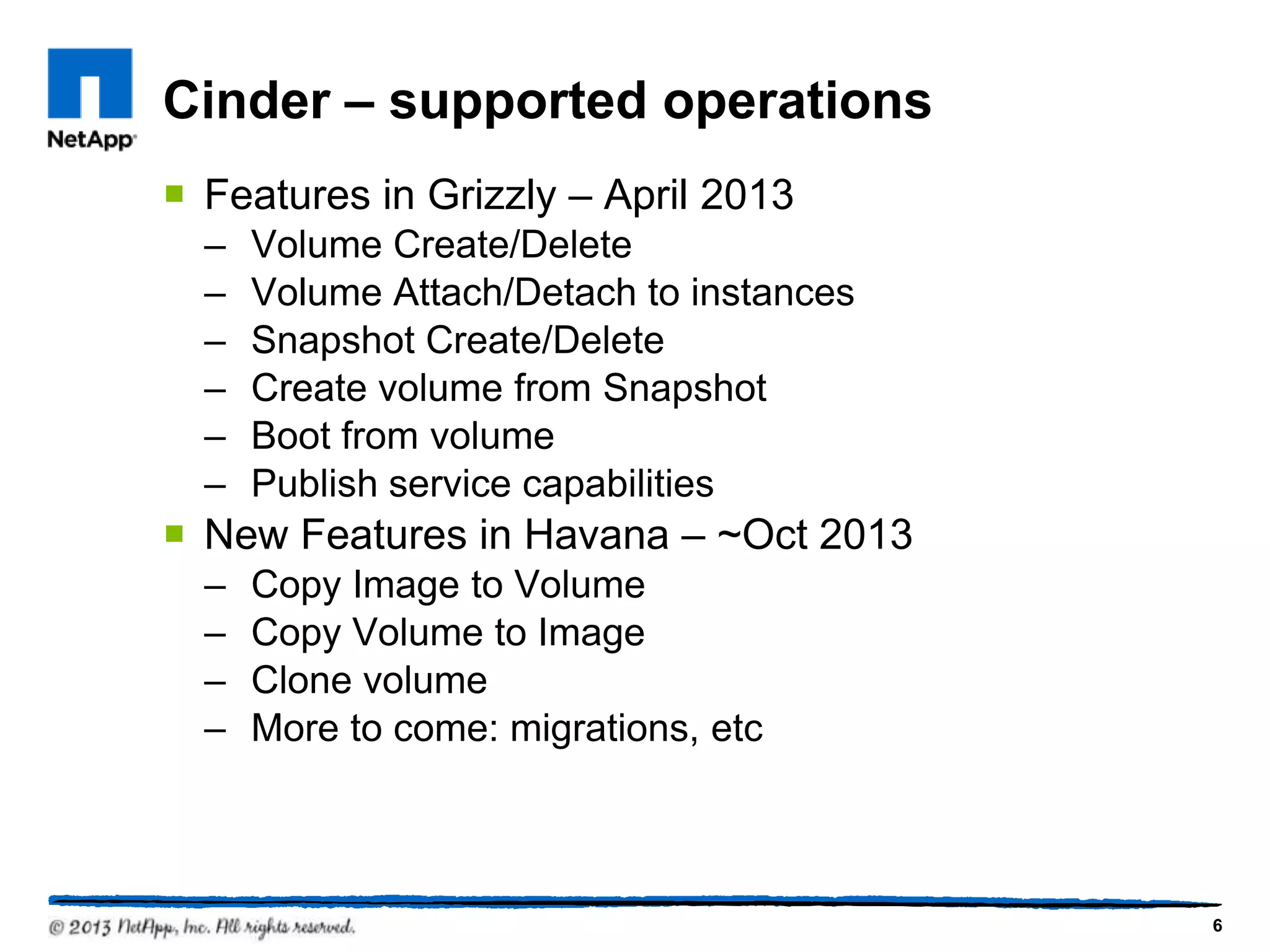

6. Cinder – supported operations
 Features in Grizzly – April 2013
– Volume Create/Delete
– Volume Attach/Detach to instances
– Snapshot Create/Delete
– Create volume from Snapshot
– Boot from volume
– Publish service capabilities
 New Features in Havana – ~Oct 2013
– Copy Image to Volume
– Copy Volume to Image
– Clone volume
– More to come: migrations, etc
6

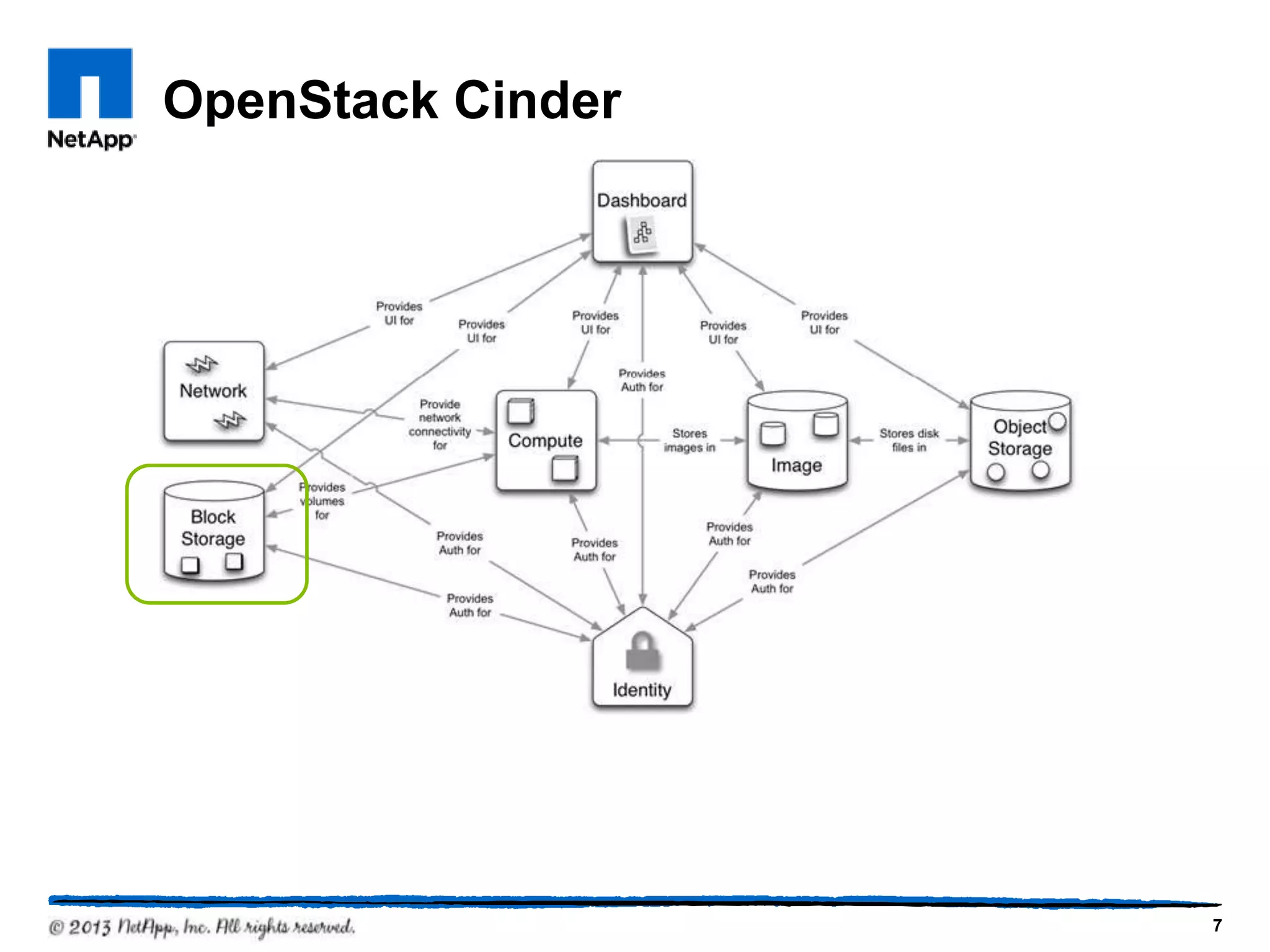

7. OpenStack Cinder
7

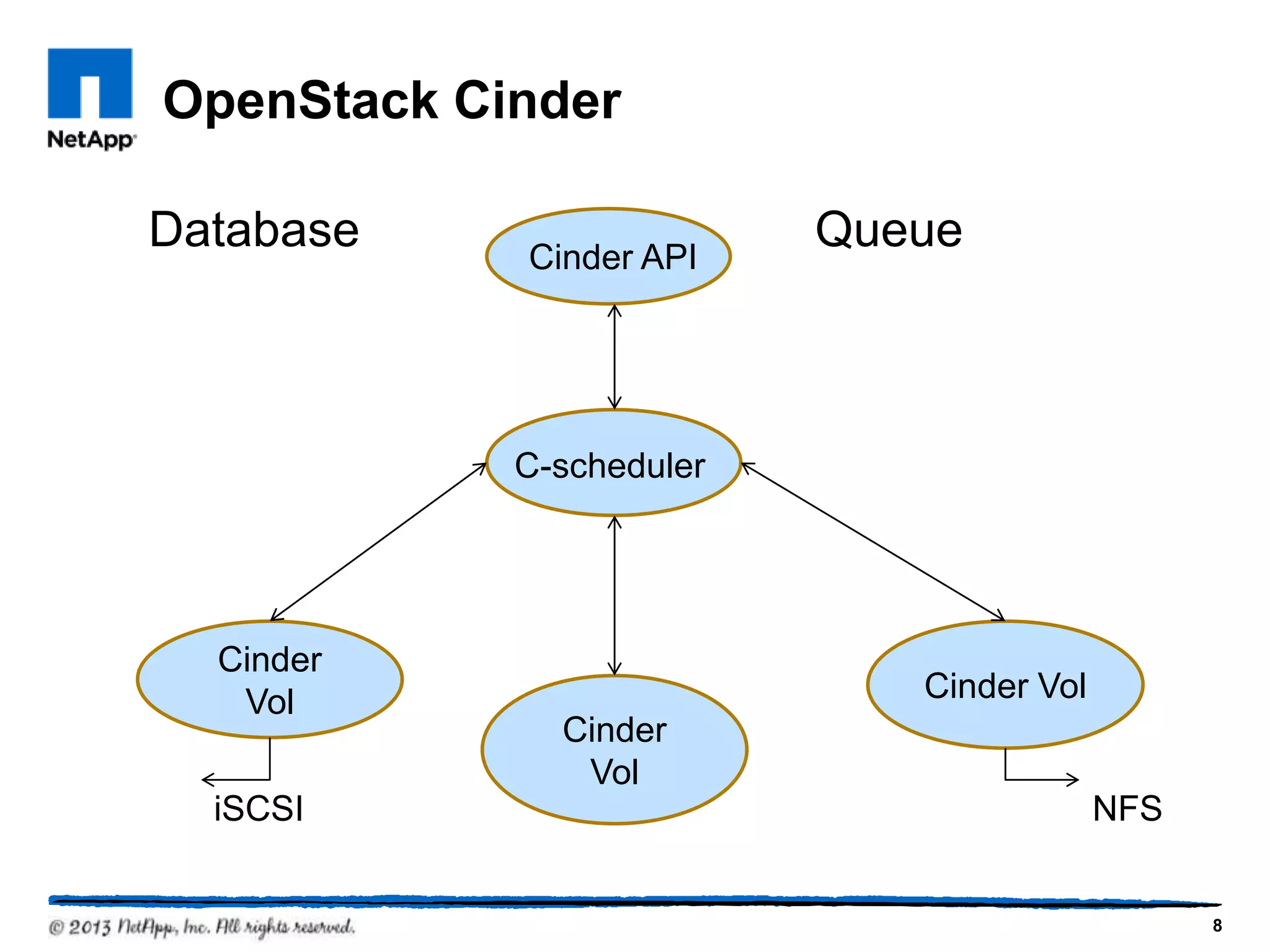

8. OpenStack Cinder
Database Cinder API
Queue
C-scheduler
Cinder
Vol Cinder Vol
Cinder
Vol
iSCSI NFS
8

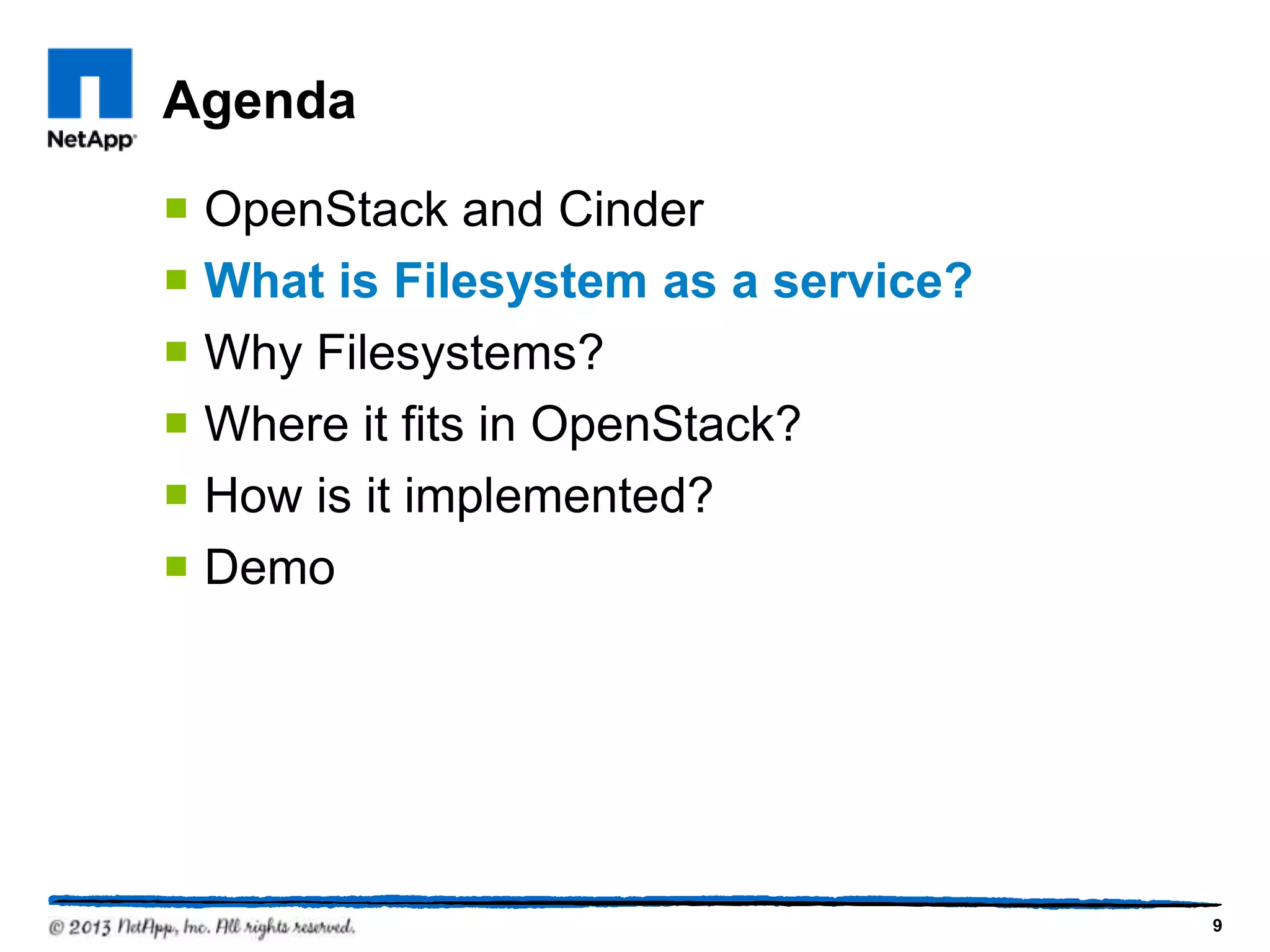

9. Agenda
 OpenStack and Cinder
 What is Filesystem as a service?
 Why Filesystems?
 Where it fits in OpenStack?
 How is it implemented?
 Demo
9

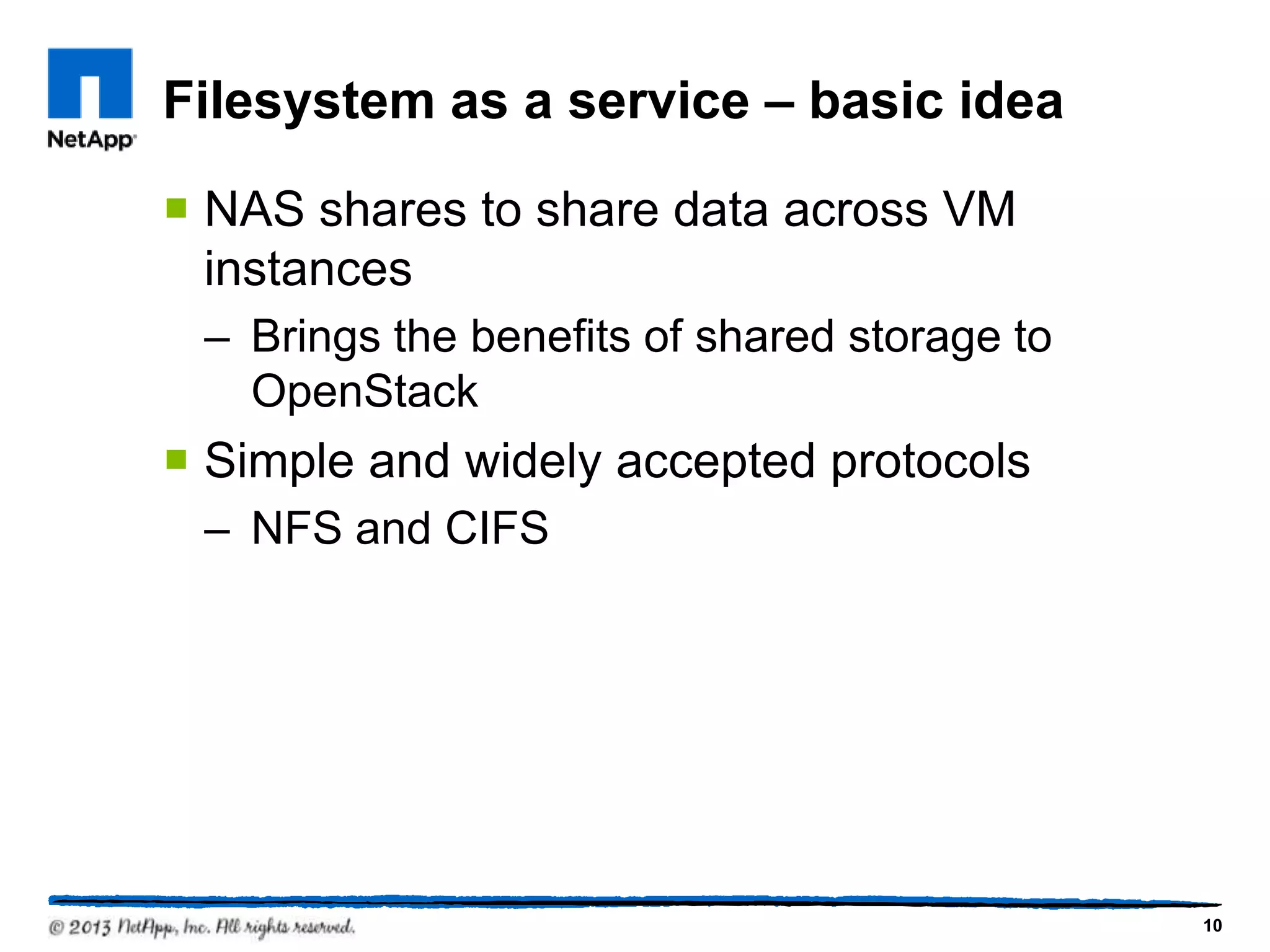

10. Filesystem as a service – basic idea
 NAS shares to share data across VM
instances
– Brings the benefits of shared storage to
OpenStack
 Simple and widely accepted protocols
– NFS and CIFS
10

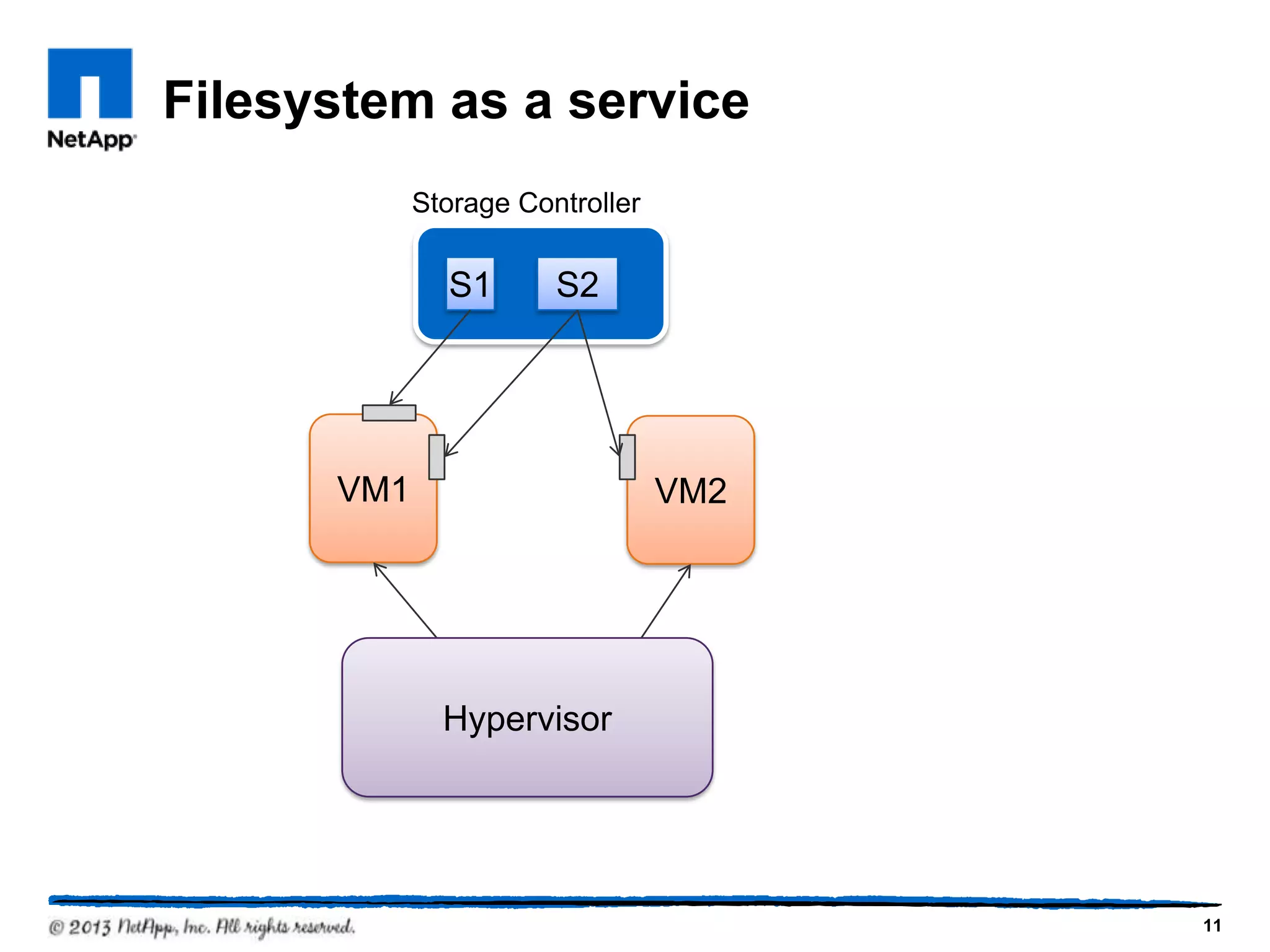

11. Filesystem as a service
Storage Controller
S1 S2
VM1 VM2
Hypervisor
11

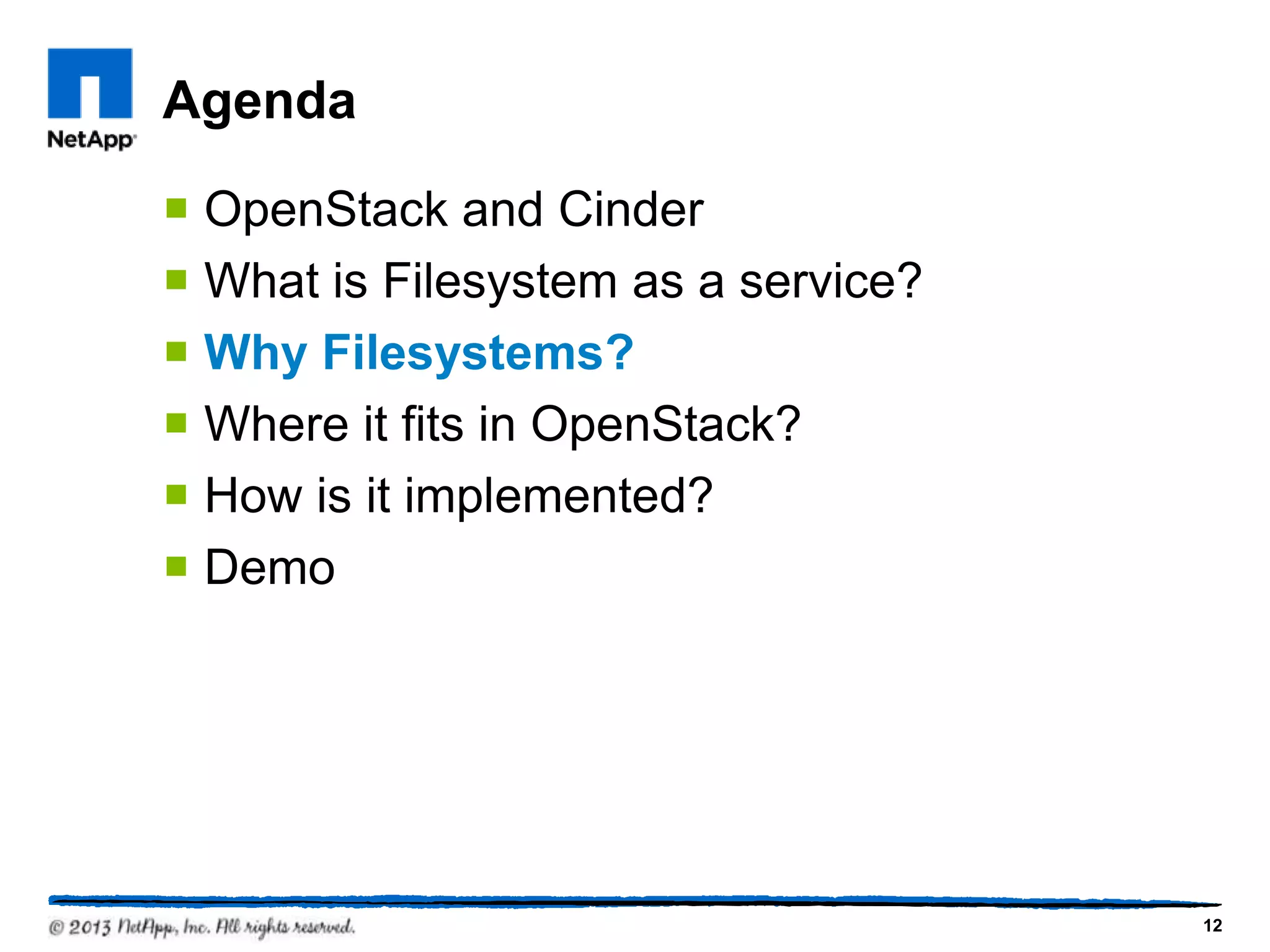

12. Agenda
 OpenStack and Cinder
 What is Filesystem as a service?
 Why Filesystems?
 Where it fits in OpenStack?
 How is it implemented?
 Demo
12

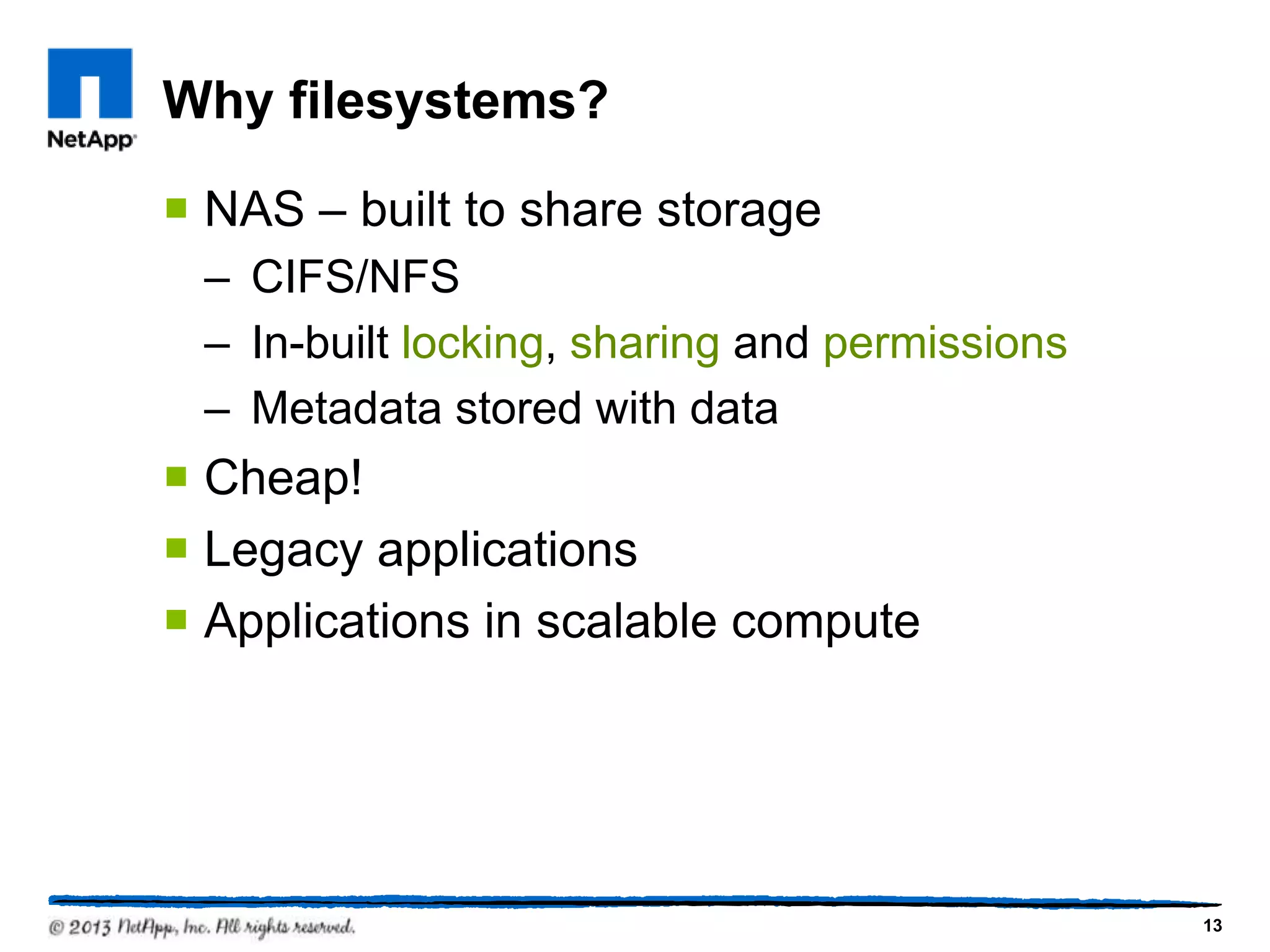

13. Why filesystems?
 NAS – built to share storage
– CIFS/NFS
– In-built locking, sharing and permissions
– Metadata stored with data
 Cheap!
 Legacy applications
 Applications in scalable compute
13

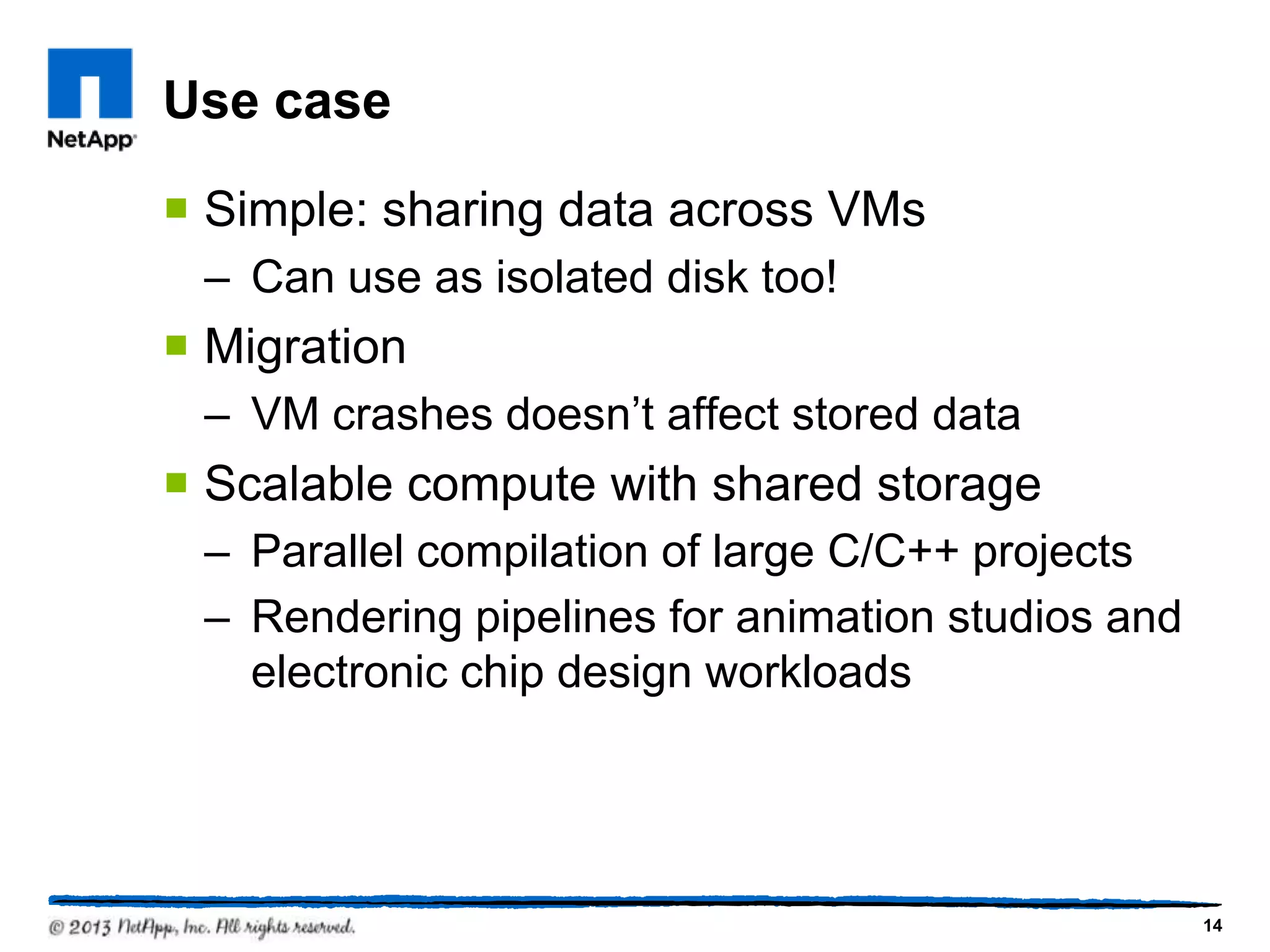

14. Use case
 Simple: sharing data across VMs
– Can use as isolated disk too!
 Migration
– VM crashes doesn’t affect stored data
 Scalable compute with shared storage
– Parallel compilation of large C/C++ projects
– Rendering pipelines for animation studios and
electronic chip design workloads
14

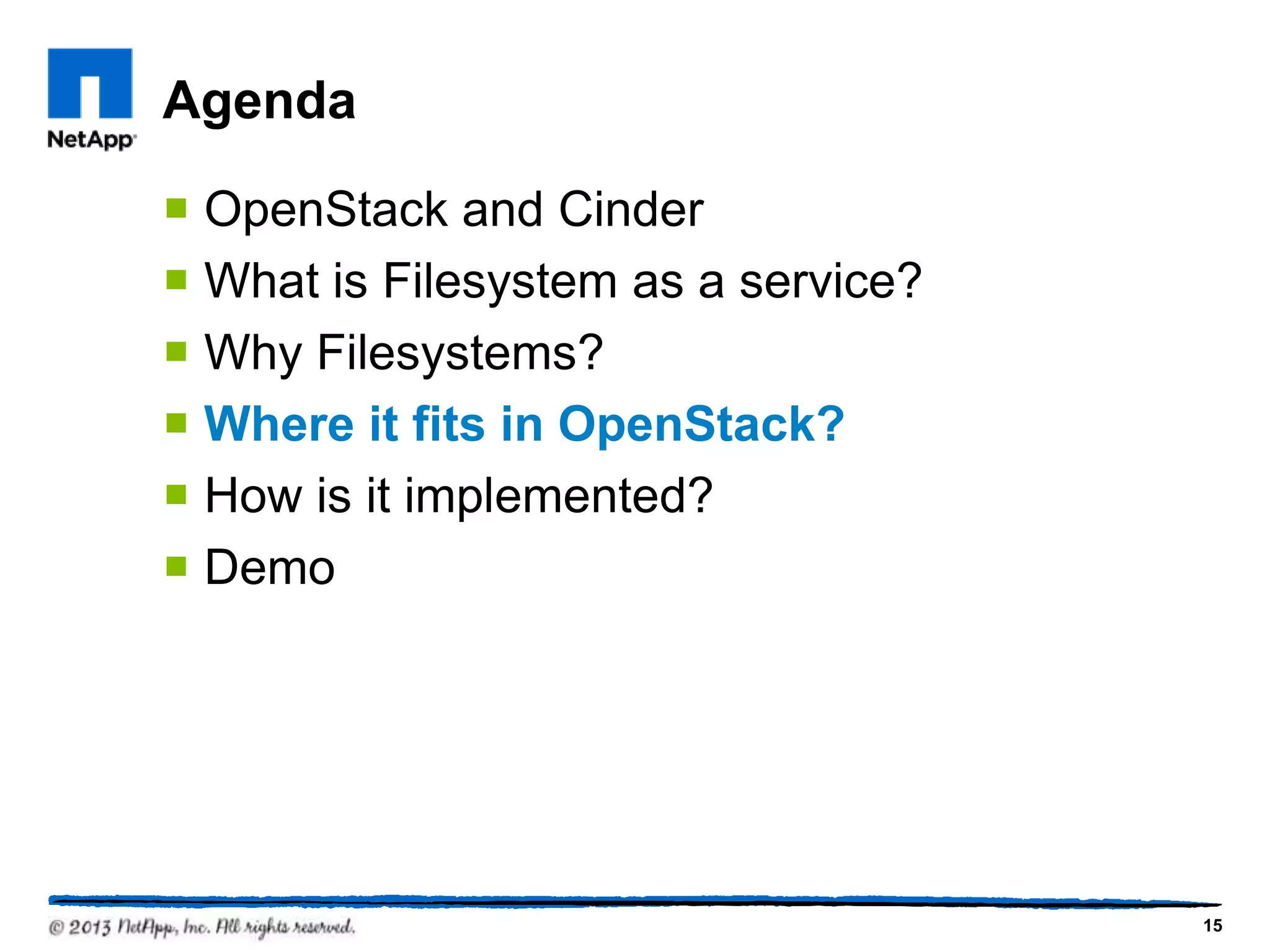

15. Agenda
 OpenStack and Cinder
 What is Filesystem as a service?
 Why Filesystems?
 Where it fits in OpenStack?
 How is it implemented?
 Demo
15

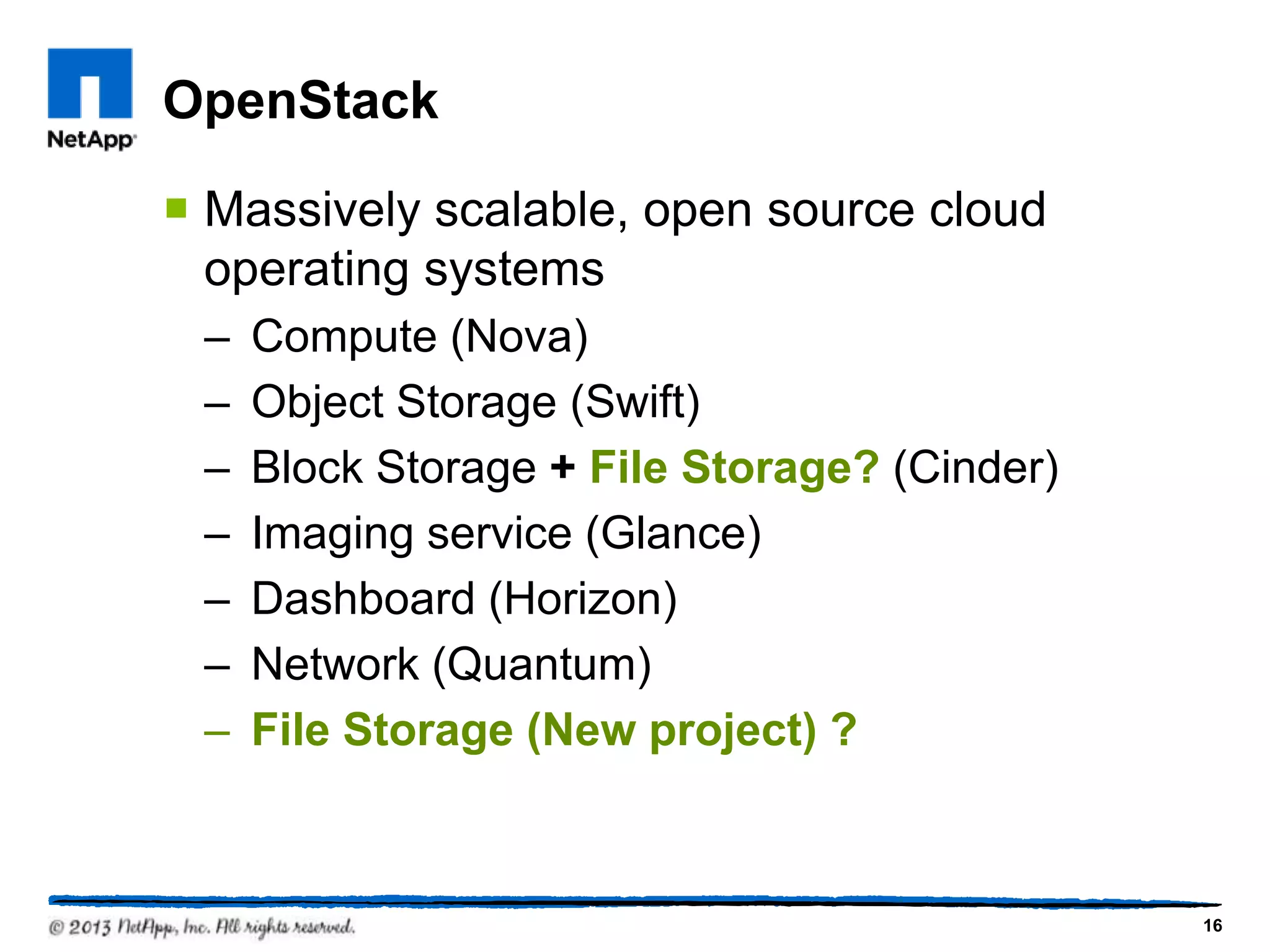

16. OpenStack
 Massively scalable, open source cloud
operating systems
– Compute (Nova)
– Object Storage (Swift)
– Block Storage + File Storage? (Cinder)
– Imaging service (Glance)
– Dashboard (Horizon)
– Network (Quantum)
– File Storage (New project) ?
16

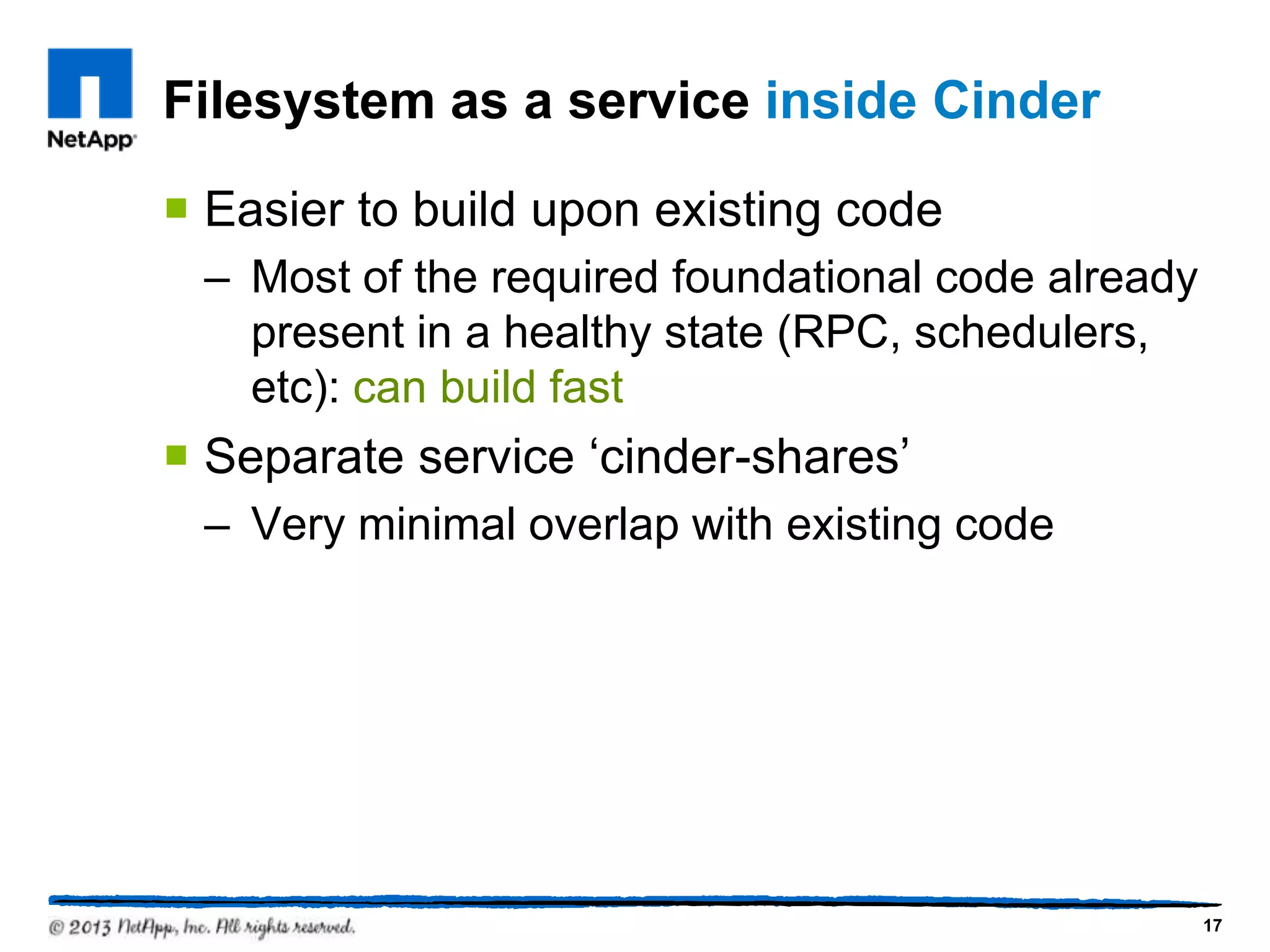

17. Filesystem as a service inside Cinder
 Easier to build upon existing code
– Most of the required foundational code already
present in a healthy state (RPC, schedulers,
etc): can build fast
 Separate service ‘cinder-shares’
– Very minimal overlap with existing code
17

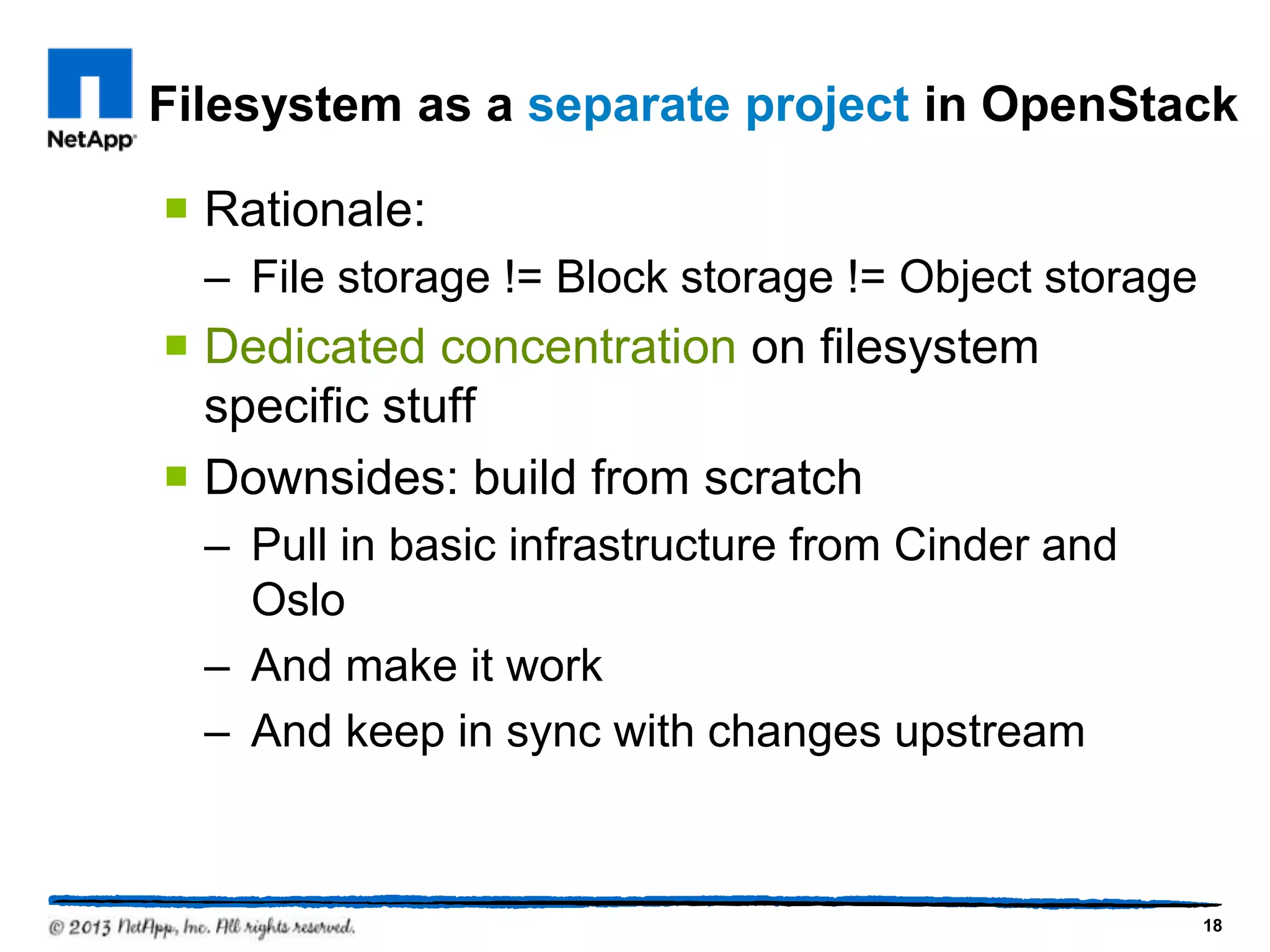

18. Filesystem as a separate project in OpenStack
 Rationale:
– File storage != Block storage != Object storage
 Dedicated concentration on filesystem
specific stuff
 Downsides: build from scratch
– Pull in basic infrastructure from Cinder and
Oslo
– And make it work
– And keep in sync with changes upstream
18

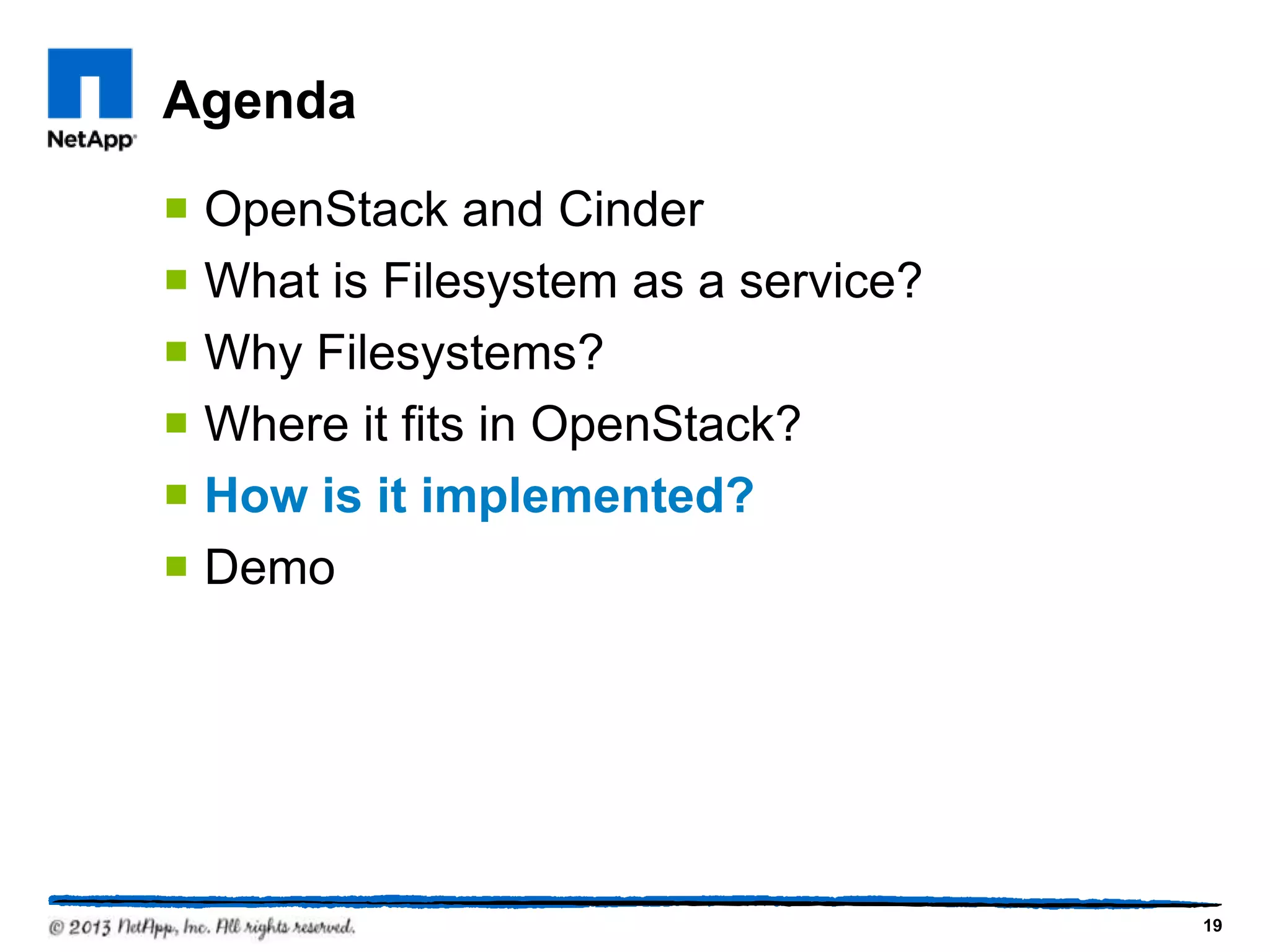

19. Agenda
 OpenStack and Cinder
 What is Filesystem as a service?
 Why Filesystems?
 Where it fits in OpenStack?
 How is it implemented?
 Demo
19

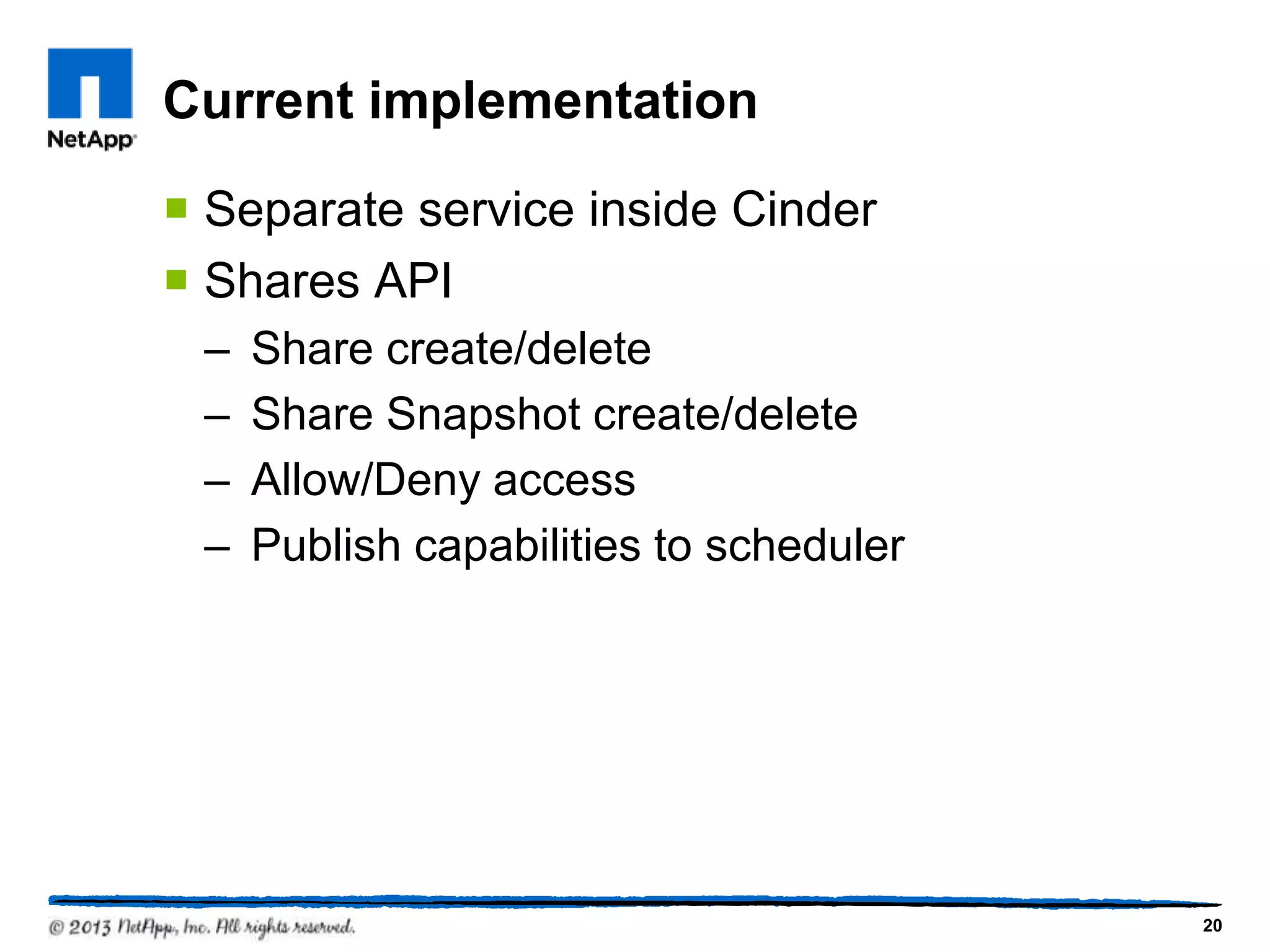

20. Current implementation
 Separate service inside Cinder
 Shares API
– Share create/delete
– Share Snapshot create/delete
– Allow/Deny access
– Publish capabilities to scheduler
20

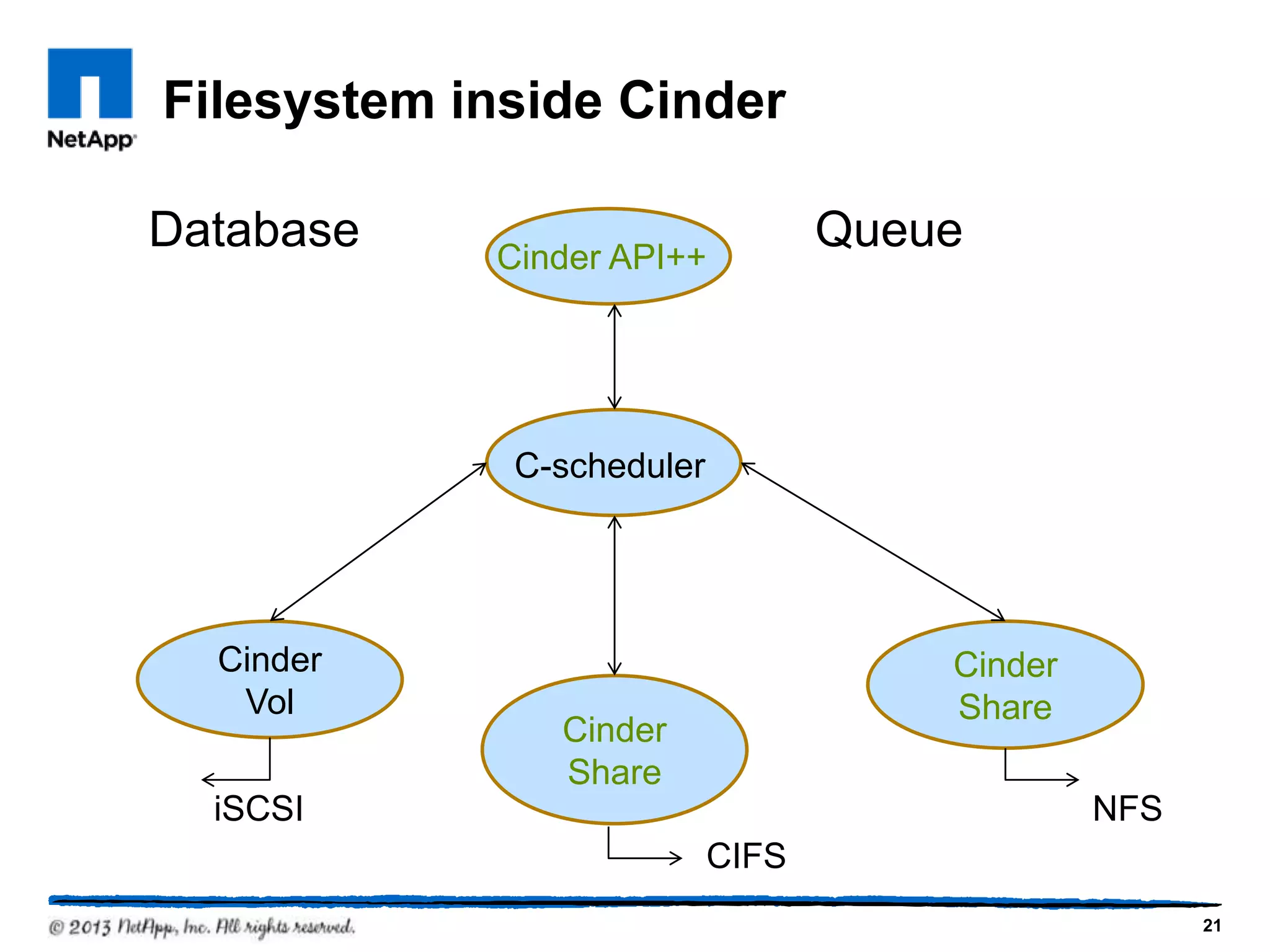

21. Filesystem inside Cinder
Database Cinder API++
Queue
C-scheduler
Cinder Cinder
Vol Share
Cinder
Share
iSCSI NFS
CIFS
21

22. Demo time!
22

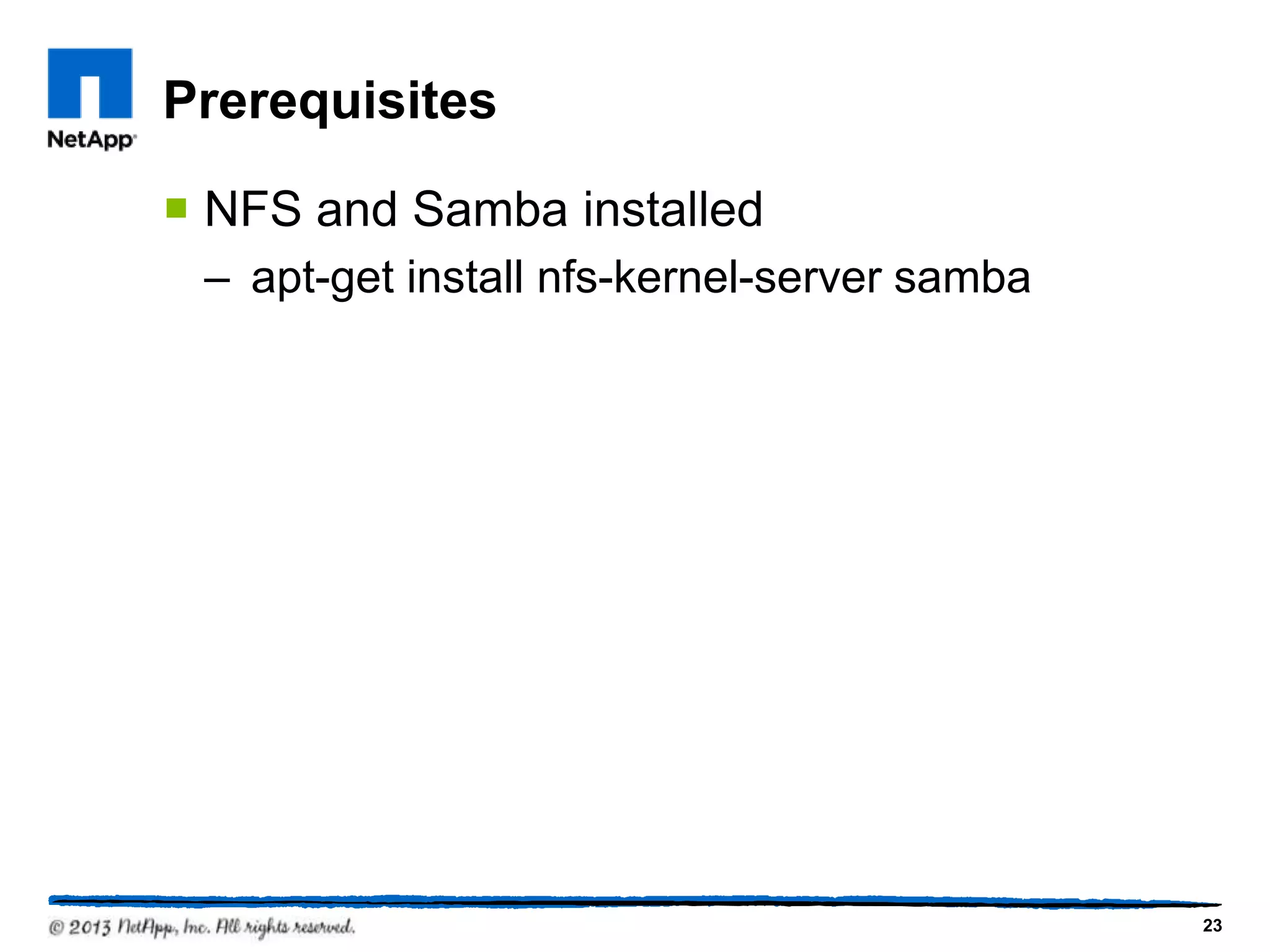

23. Prerequisites
 NFS and Samba installed
– apt-get install nfs-kernel-server samba
23

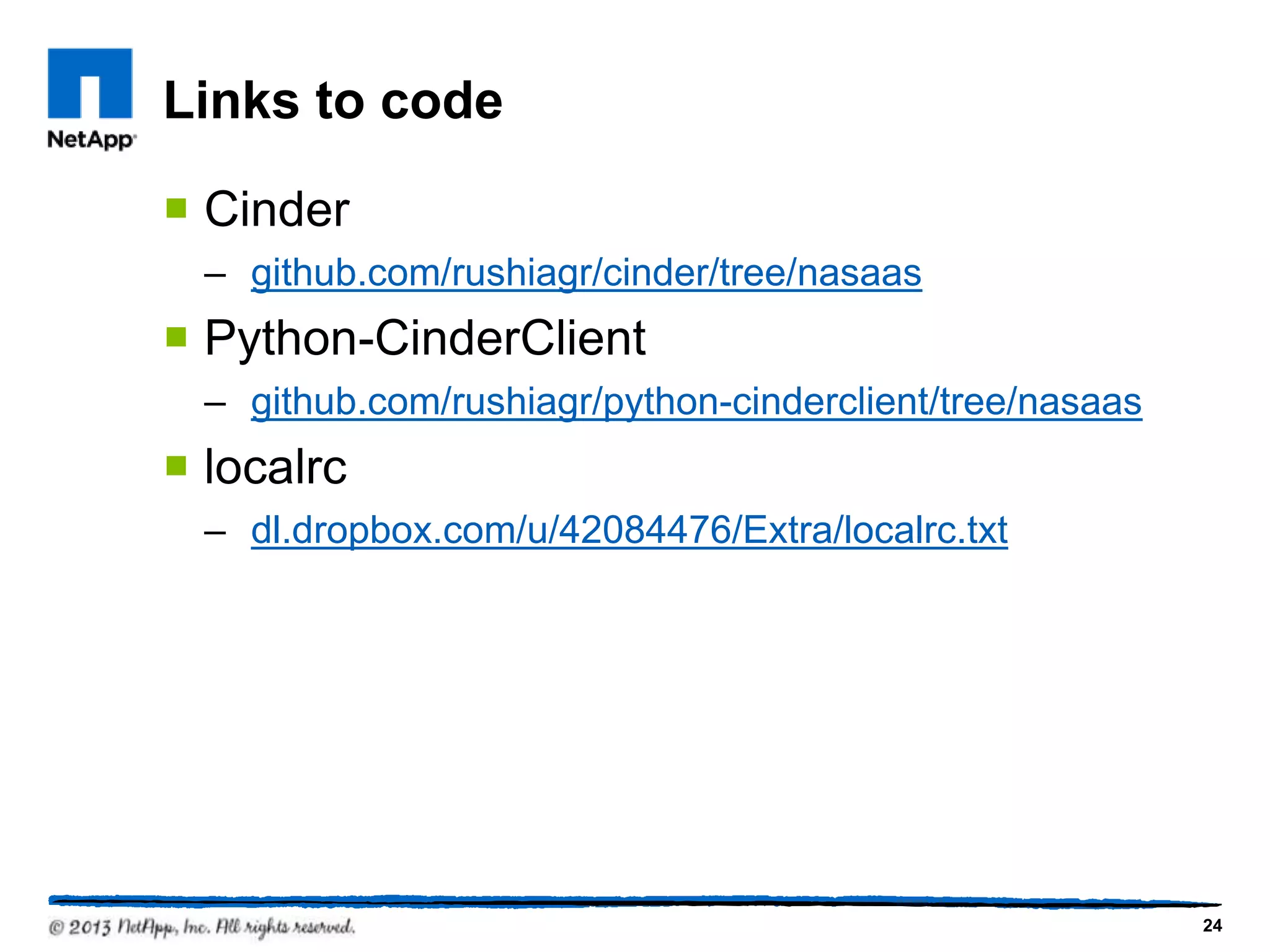

24. Links to code
 Cinder
– github.com/rushiagr/cinder/tree/nasaas
 Python-CinderClient
– github.com/rushiagr/python-cinderclient/tree/nasaas
 localrc
– dl.dropbox.com/u/42084476/Extra/localrc.txt
24

25. Questions?
