You have deployed your application on Kube and now you want to actually do something permanent with it?? You will need STORAGE. This talk will be a good introduction to using storage in Kubernetes. It will cover the use of EmptyDir, HostPath and Persistent Storage options. How to configure and use each type. This talk will also discuss the security features for storage in the open source OpenShift project. Sched Link: http://sched.co/6BcS

3. ○

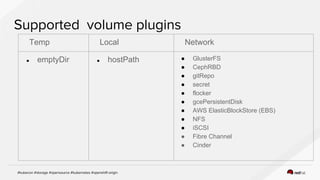

4. Temp Local Network
● emptyDir ● hostPath ● GlusterFS
● CephRBD
● gitRepo
● secret
● flocker
● gcePersistentDisk
● AWS ElasticBlockStore (EBS)
● NFS
● iSCSI
● Fibre Channel
● Cinder

9. ○
○

10. VS.

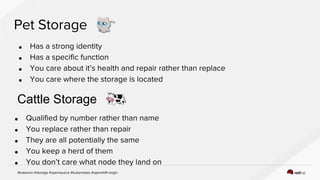

11. Cattle Storage

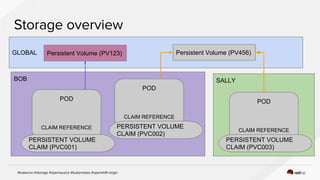

13. SALLYBOB
GLOBAL Persistent Volume (PV123) Persistent Volume (PV456)
POD
CLAIM REFERENCE
PERSISTENT VOLUME
CLAIM (PVC001)
POD
CLAIM REFERENCE
PERSISTENT VOLUME
CLAIM (PVC002)
POD
CLAIM REFERENCE
PERSISTENT VOLUME
CLAIM (PVC003)

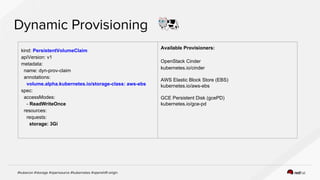

20. kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: dyn-prov-claim
annotations:
volume.alpha.kubernetes.io/storage-class: aws-ebs
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 3Gi
Available Provisioners:
OpenStack Cinder
kubernetes.io/cinder
AWS Elastic Block Store (EBS)
kubernetes.io/aws-ebs
GCE Persistent Disk (gcePD)
kubernetes.io/gce-pd

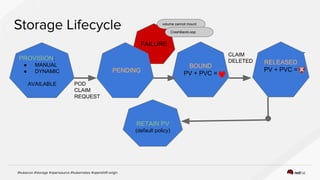

21. PROVISION:
● MANUAL
● DYNAMIC
AVAILABLE
BOUND
PV + PVC =
RELEASED
PV + PVC =
FAILURE
POD
CLAIM
REQUEST
CLAIM
DELETED
PENDING
RETAIN PV
(default policy)
volume cannot mount
CrashBackLoop

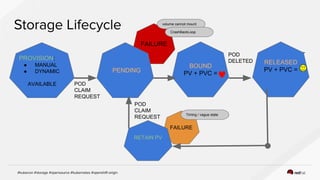

22. PROVISION:
● MANUAL
● DYNAMIC
AVAILABLE
BOUND
PV + PVC =
RELEASED
PV + PVC =
FAILURE
POD
CLAIM
REQUEST
POD
DELETED
PENDING
FAILURE
RETAIN PV
POD
CLAIM
REQUEST
volume cannot mount
CrashBackLoop
Timing / vague state

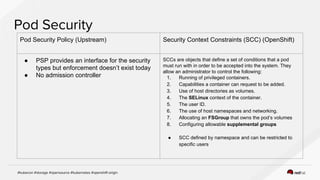

24. Pod Security Policy (Upstream) Security Context Constraints (SCC) (OpenShift)
● PSP provides an interface for the security
types but enforcement doesn’t exist today
● No admission controller
SCCs are objects that define a set of conditions that a pod
must run with in order to be accepted into the system. They
allow an administrator to control the following:
1. Running of privileged containers.
2. Capabilities a container can request to be added.
3. Use of host directories as volumes.
4. The SELinux context of the container.
5. The user ID.
6. The use of host namespaces and networking.
7. Allocating an FSGroup that owns the pod’s volumes
8. Configuring allowable supplemental groups
● SCC defined by namespace and can be restricted to
specific users

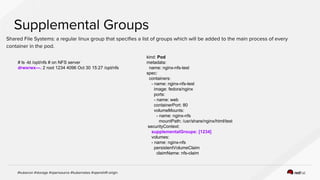

25. # ls -ld /opt/nfs # on NFS server
drwxrwx---. 2 root 1234 4096 Oct 30 15:27 /opt/nfs
kind: Pod
metadata:
name: nginx-nfs-test
spec:
containers:
- name: nginx-nfs-test
image: fedora/nginx
ports:
- name: web
containerPort: 80
volumeMounts:
- name: nginx-nfs
mountPath: /usr/share/nginx/html/test
securityContext:
supplementalGroups: [1234]
volumes:
- name: nginx-nfs
persistentVolumeClaim
claimName: nfs-claim

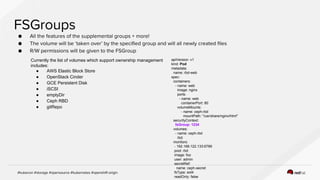

26. Currently the list of volumes which support ownership management
includes:
● AWS Elastic Block Store
● OpenStack Cinder
● GCE Persistent Disk
● iSCSI
● emptyDir
● Ceph RBD
● gitRepo
apiVersion: v1
kind: Pod
metadata:
name: rbd-web
spec:
containers:
- name: web
image: nginx
ports:
- name: web
containerPort: 80
volumeMounts:
- name: ceph-rbd
mountPath: "/usr/share/nginx/html"
securityContext:
fsGroup: 1234
volumes:
- name: ceph-rbd
rbd:
monitors:
- 192.168.122.133:6789
pool: rbd
image: foo
user: admin
secretRef:
name: ceph-secret
fsType: ext4
readOnly: false

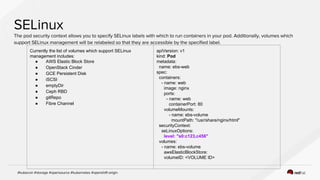

27. Currently the list of volumes which support SELinux
management includes:
● AWS Elastic Block Store
● OpenStack Cinder
● GCE Persistent Disk
● iSCSI
● emptyDir
● Ceph RBD
● gitRepo
● Fibre Channel
apiVersion: v1
kind: Pod
metadata:
name: ebs-web
spec:
containers:
- name: web
image: nginx
ports:
- name: web
containerPort: 80
volumeMounts:
- name: ebs-volume
mountPath: "/usr/share/nginx/html"
securityContext:
seLinuxOptions:
level: "s0:c123,c456"
volumes:
- name: ebs-volume
awsElasticBlockStore:
volumeID: <VOLUME ID>
