TripleO is a collection of OpenStack tools used to deploy a fully functional OpenStack from a minimal OpenStack installation. It leverages tools like Heat, DiskImage Builder, and os-collect-config. DiskImage Builder is used to generate customized virtual machine images with preinstalled packages and configuration templates. Heat templates are then used to deploy the infrastructure using these images and populate configuration files using the templates. This reduces deployment time and complexity compared to traditional configuration management approaches.

1. how to use TripleO
tools for your own
project
Gonéri Le Bouder
Software Engineer
November 3, 2014

2. Myself
● Work @ eNovance, Paris office
● Long term Free Software contributor
● OpenStack contributor since 2013
● blablabla

3. OpenStack and TripleO

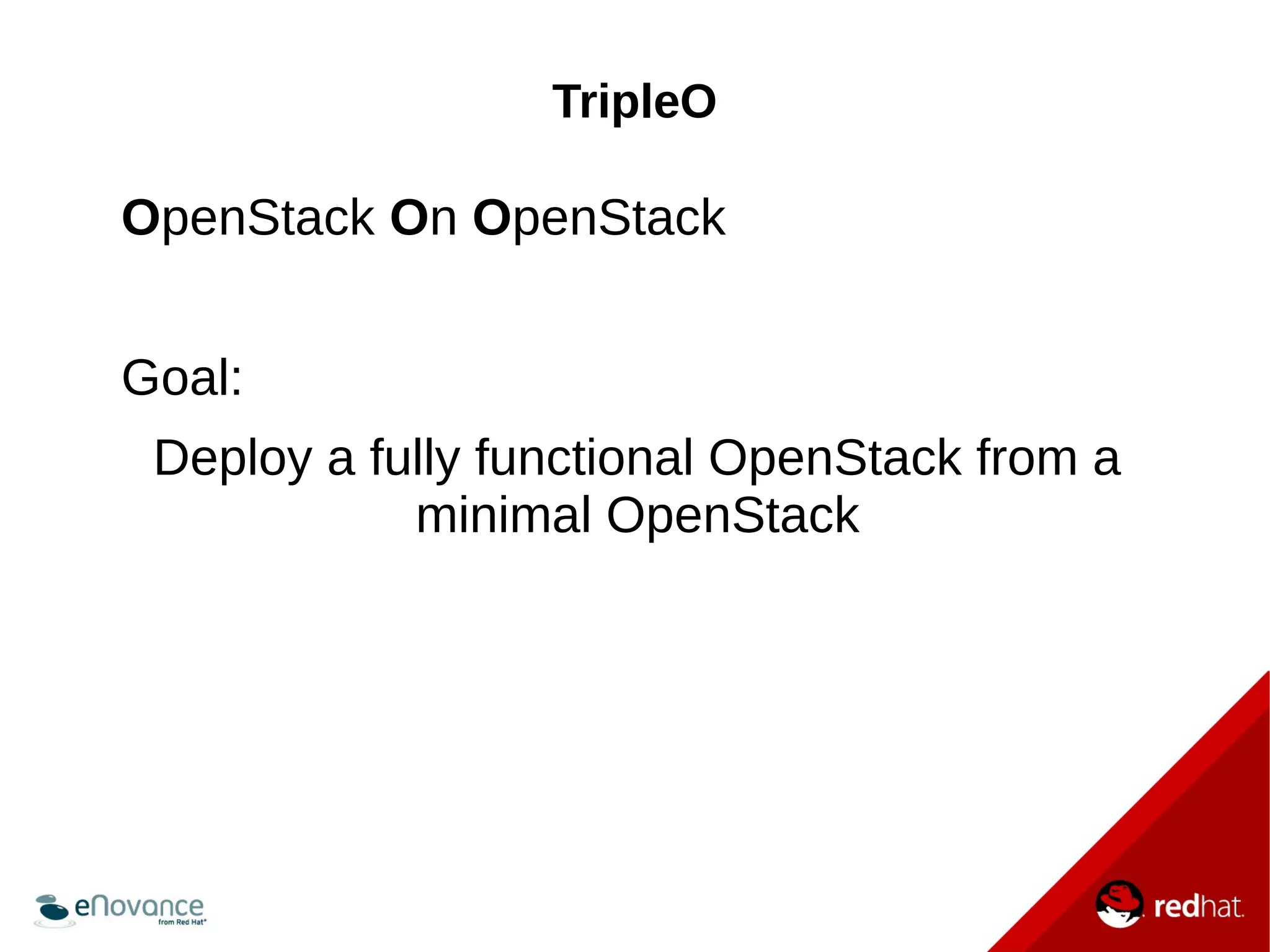

4. TripleO
OpenStack On OpenStack
Goal:
Deploy a fully functional OpenStack from a
minimal OpenStack

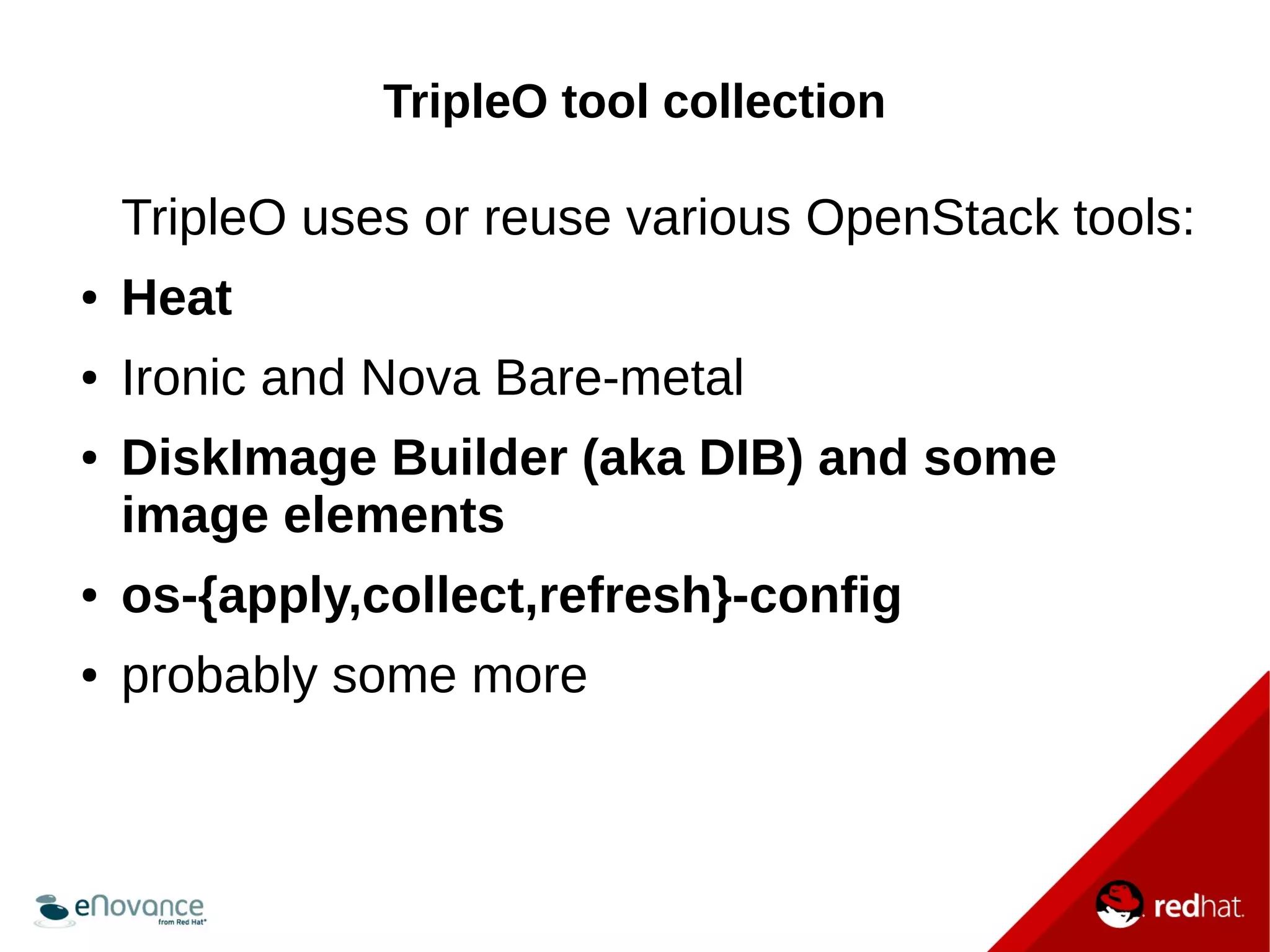

5. TripleO tool collection
TripleO uses or reuse various OpenStack tools:
● Heat
● Ironic and Nova Bare-metal
● DiskImage Builder (aka DIB) and some
image elements
● os-{apply,collect,refresh}-config
● probably some more

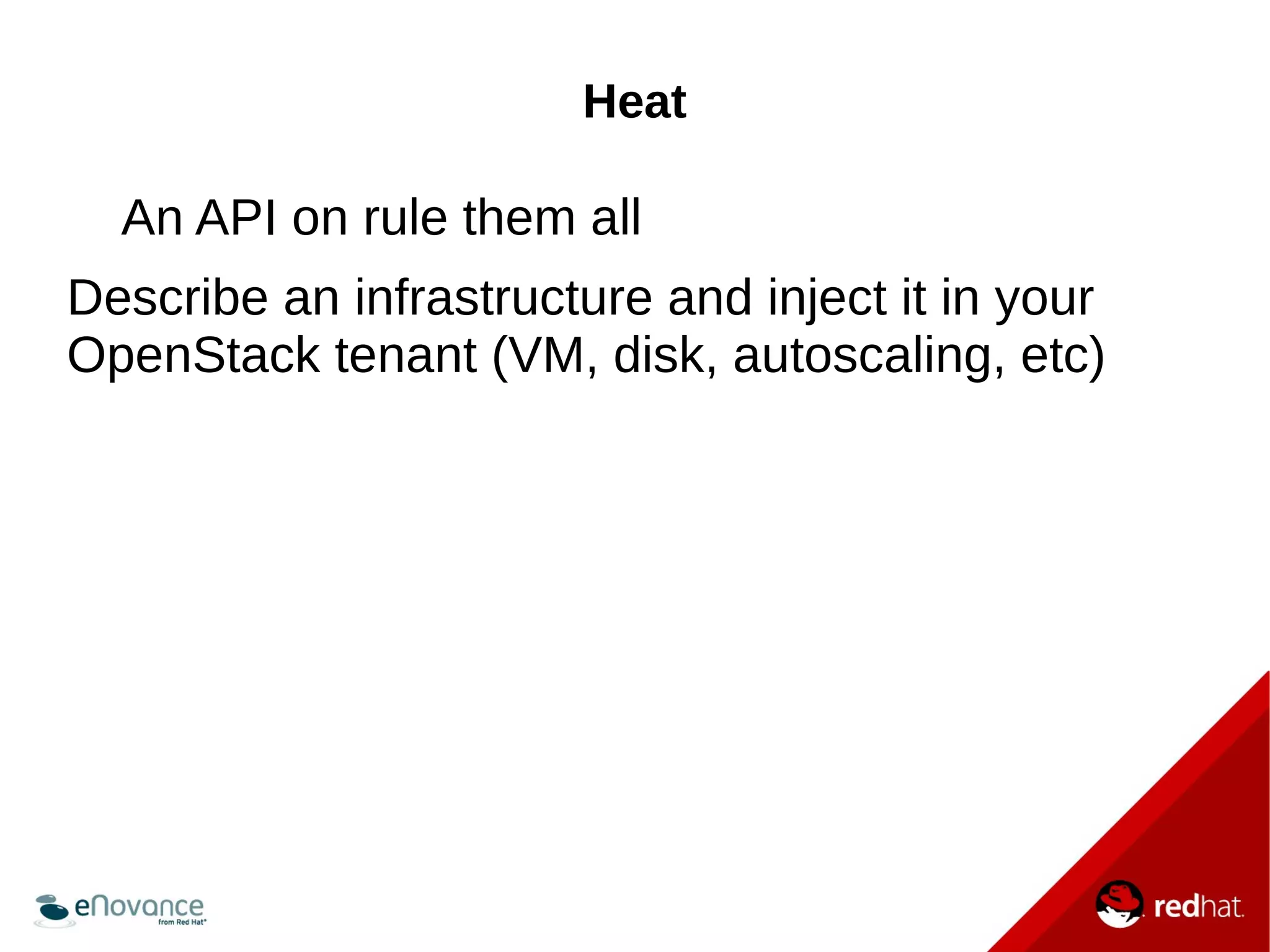

6. Heat
An API on rule them all
Describe an infrastructure and inject it in your
OpenStack tenant (VM, disk, autoscaling, etc)

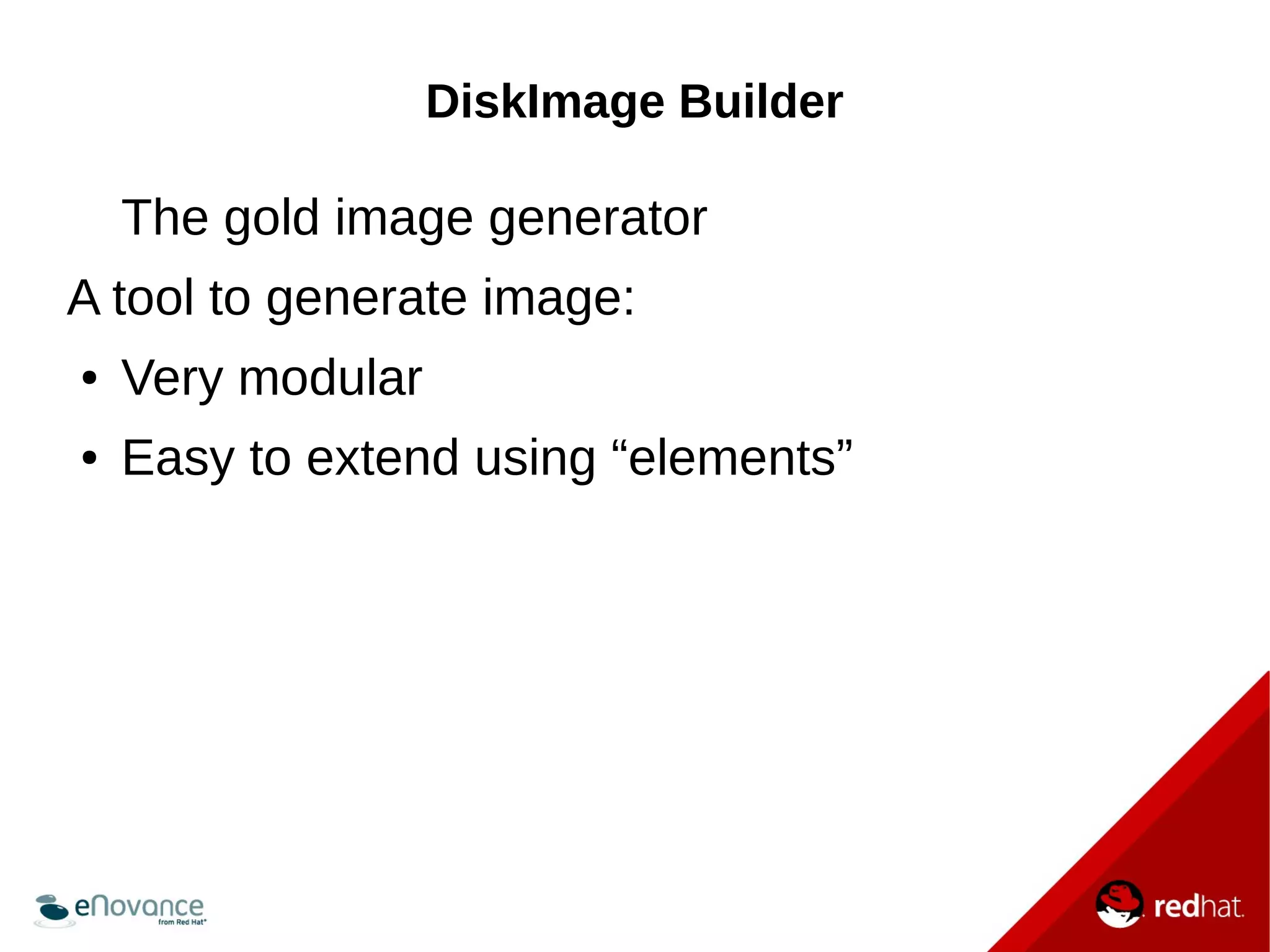

7. DiskImage Builder
The gold image generator
A tool to generate image:
● Very modular
● Easy to extend using “elements”

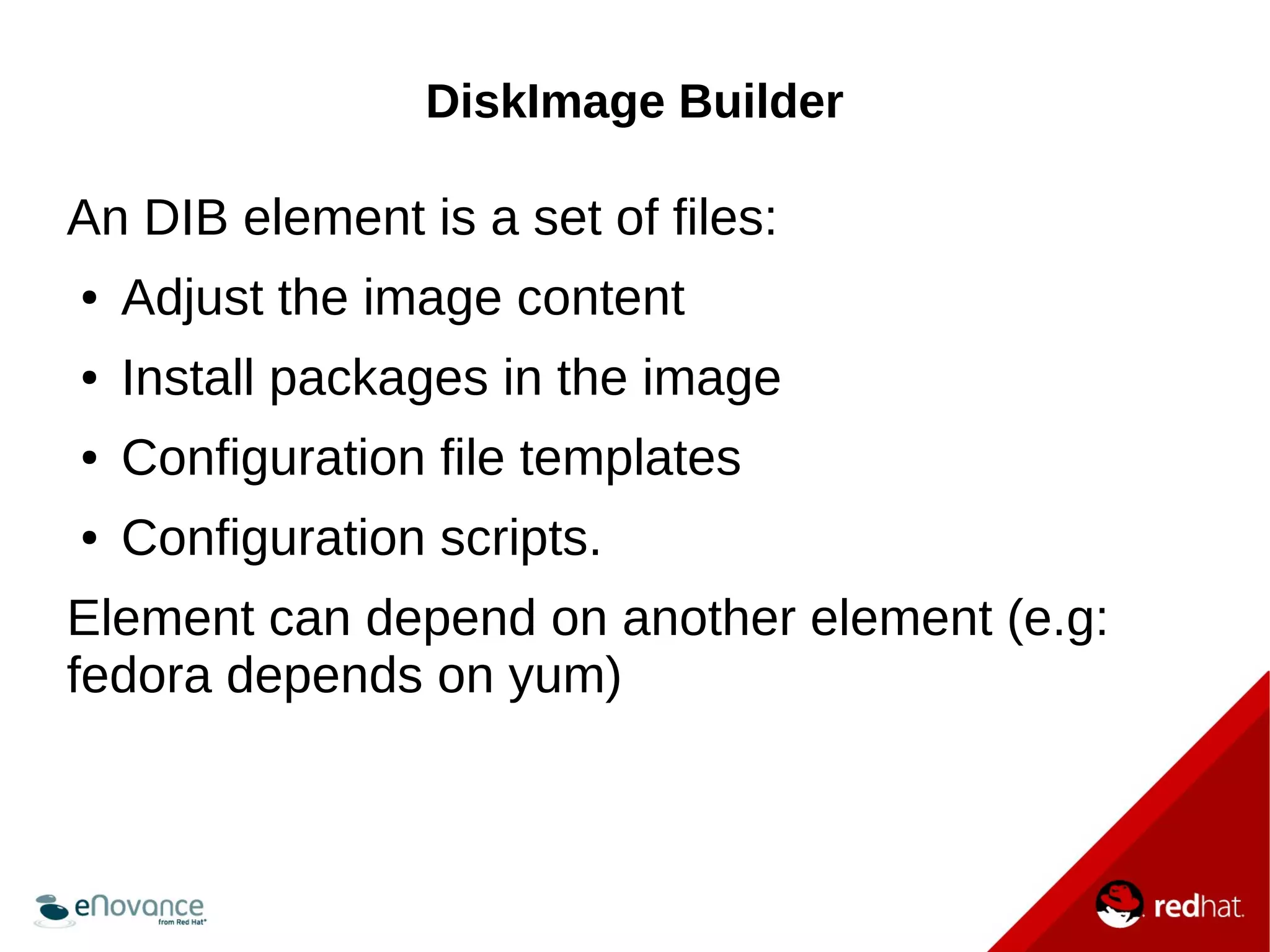

8. DiskImage Builder
An DIB element is a set of files:
● Adjust the image content
● Install packages in the image
● Configuration file templates
● Configuration scripts.
Element can depend on another element (e.g:
fedora depends on yum)

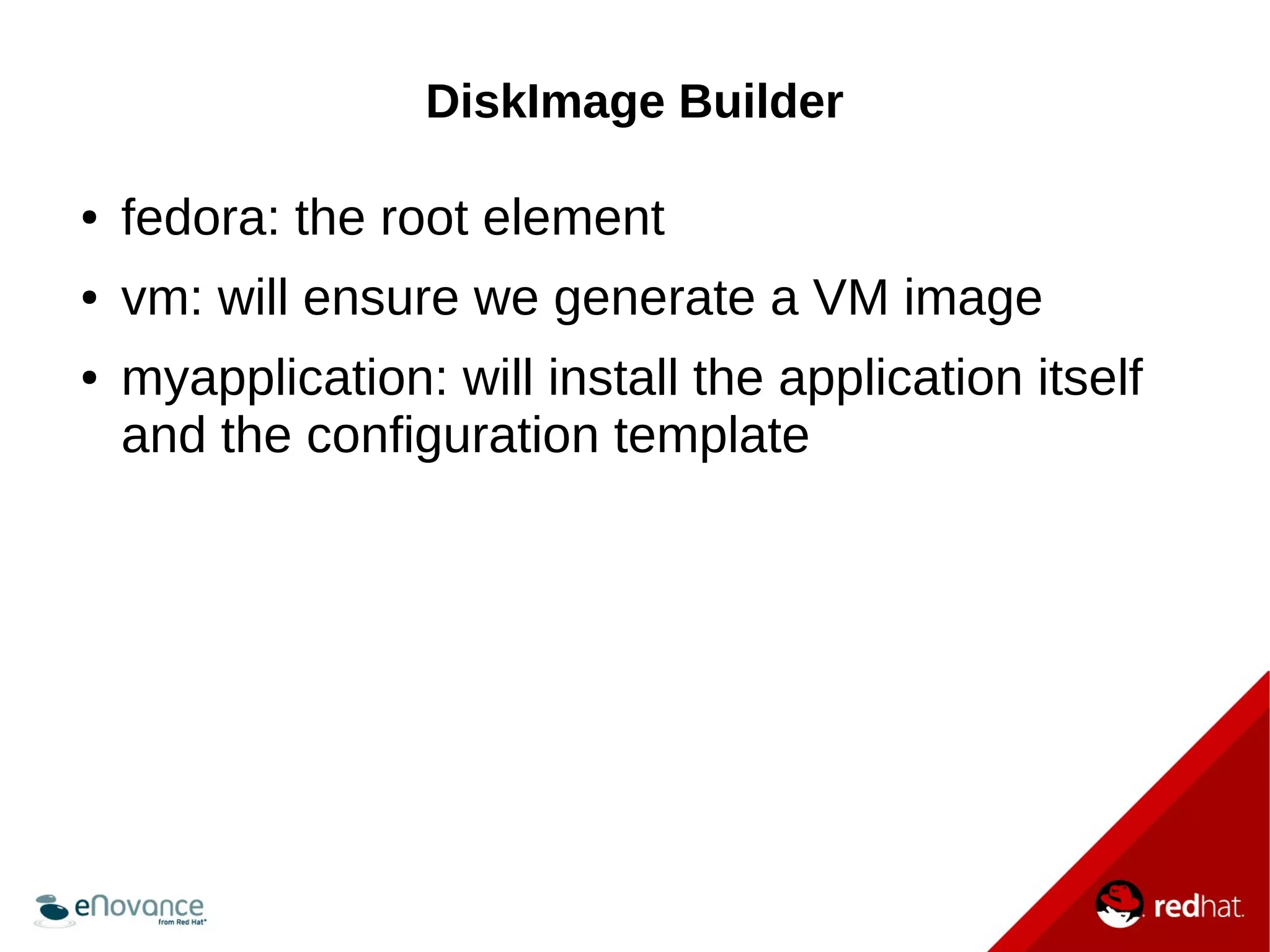

9. DiskImage Builder
● fedora: the root element
● vm: will ensure we generate a VM image
● myapplication: will install the application itself
and the configuration template

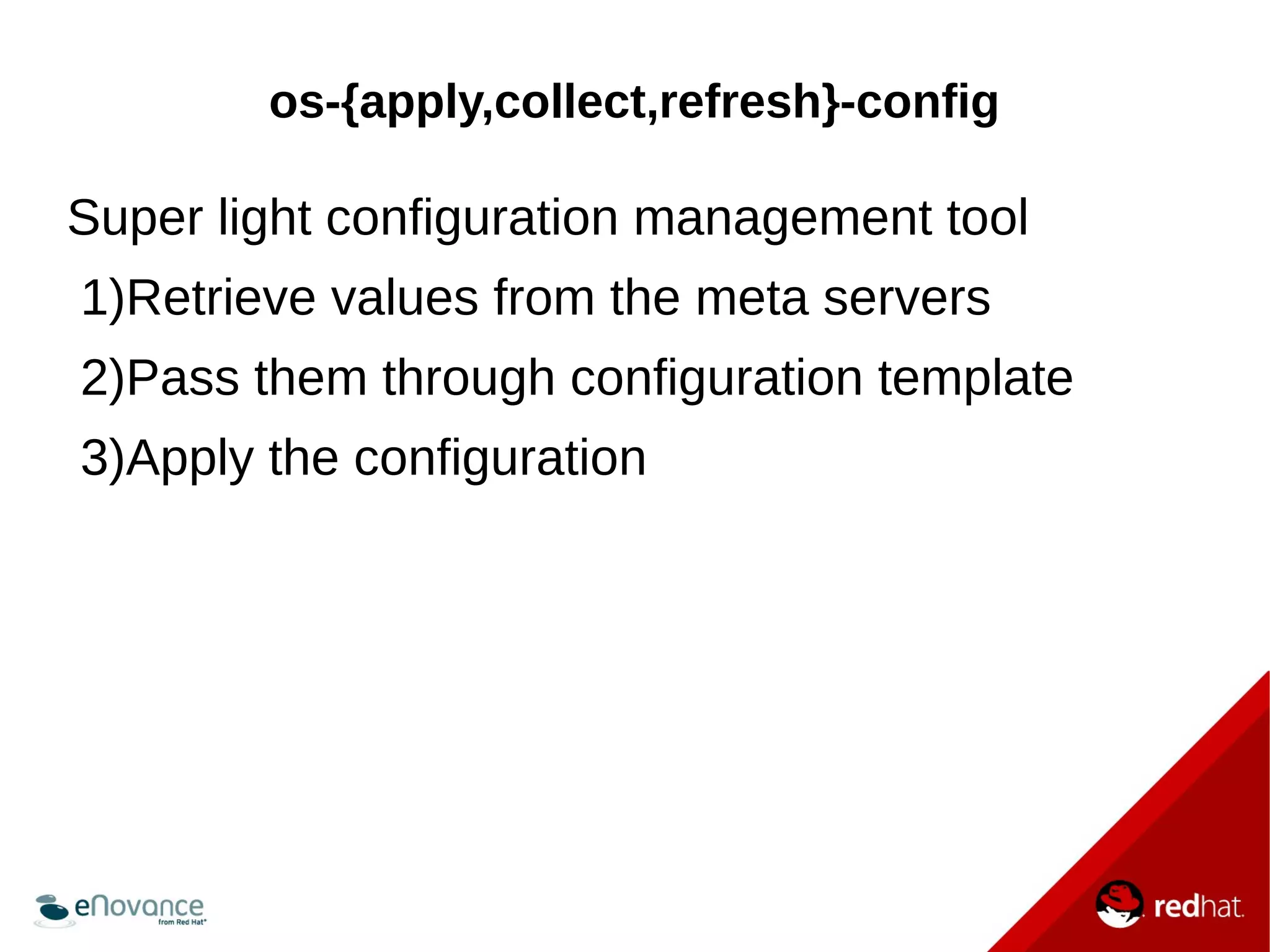

10. os-{apply,collect,refresh}-config
Super light configuration management tool
1)Retrieve values from the meta servers
2)Pass them through configuration template
3)Apply the configuration

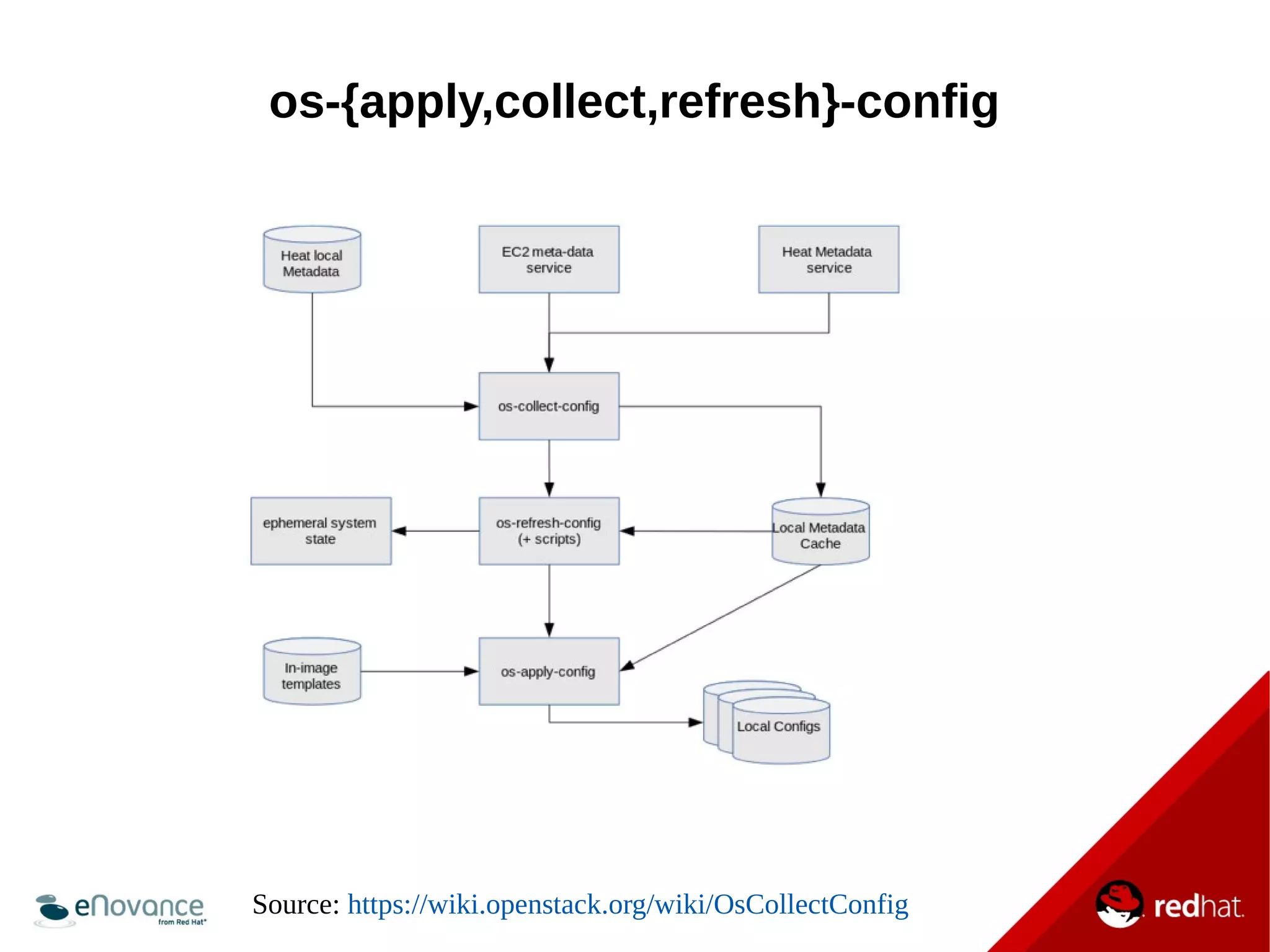

11. os-{apply,collect,refresh}-config
Source: https://wiki.openstack.org/wiki/OsCollectConfig

12. Configuration management:
A New Paradigm

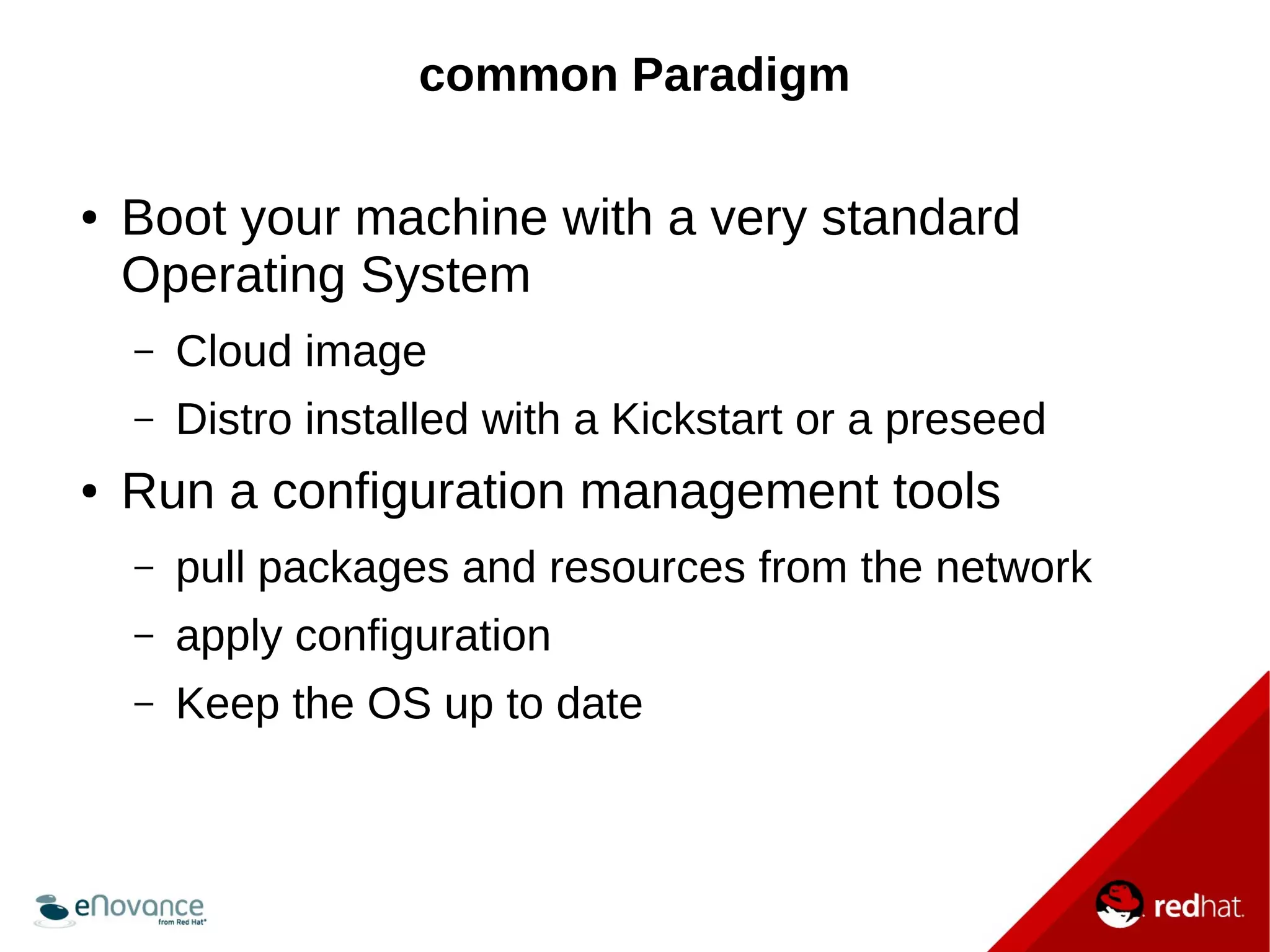

13. common Paradigm
● Boot your machine with a very standard
Operating System
– Cloud image
– Distro installed with a Kickstart or a preseed
● Run a configuration management tools
– pull packages and resources from the network
– apply configuration
– Keep the OS up to date

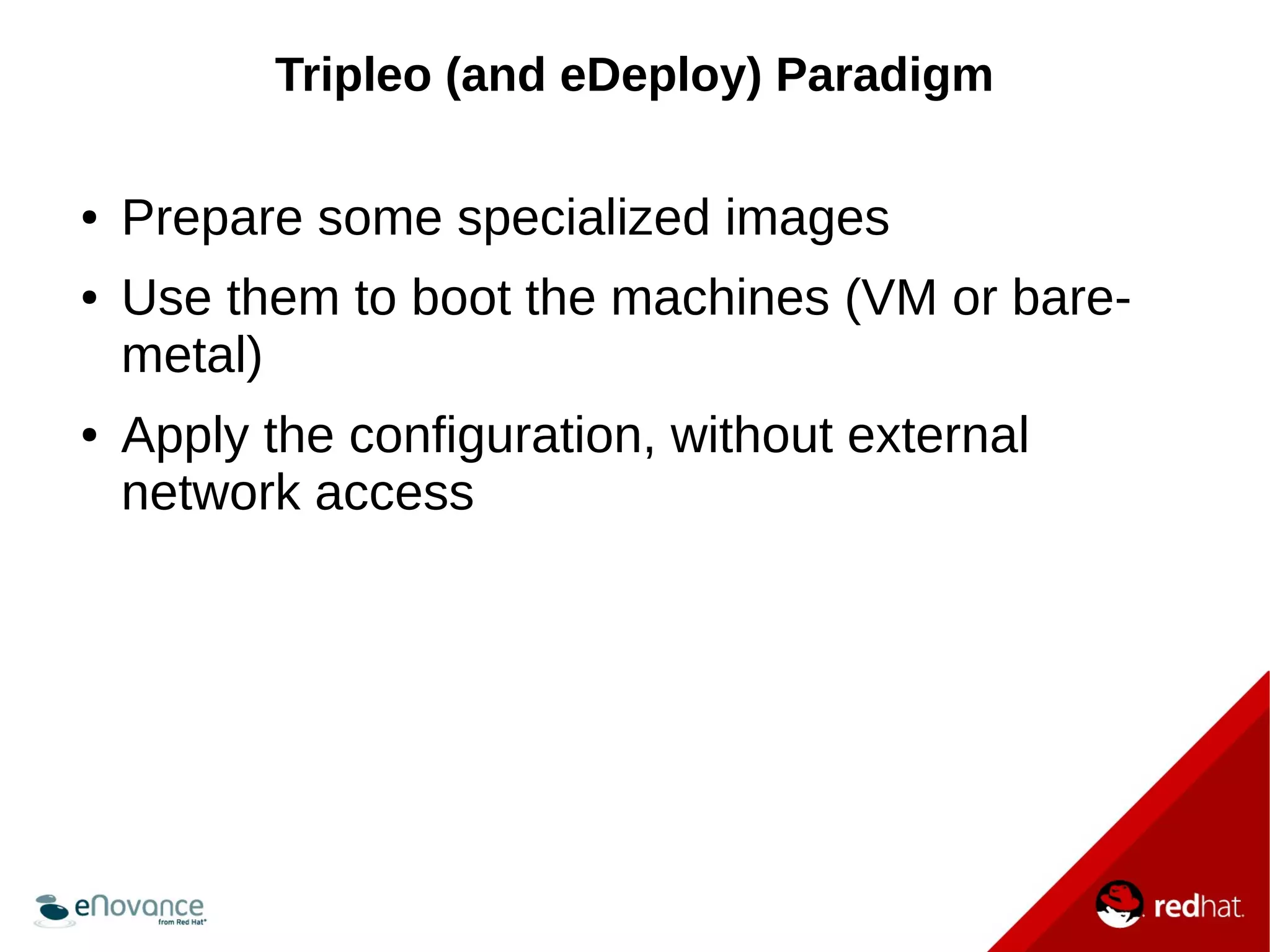

14. Tripleo (and eDeploy) Paradigm
● Prepare some specialized images
● Use them to boot the machines (VM or bare-metal)
● Apply the configuration, without external
network access

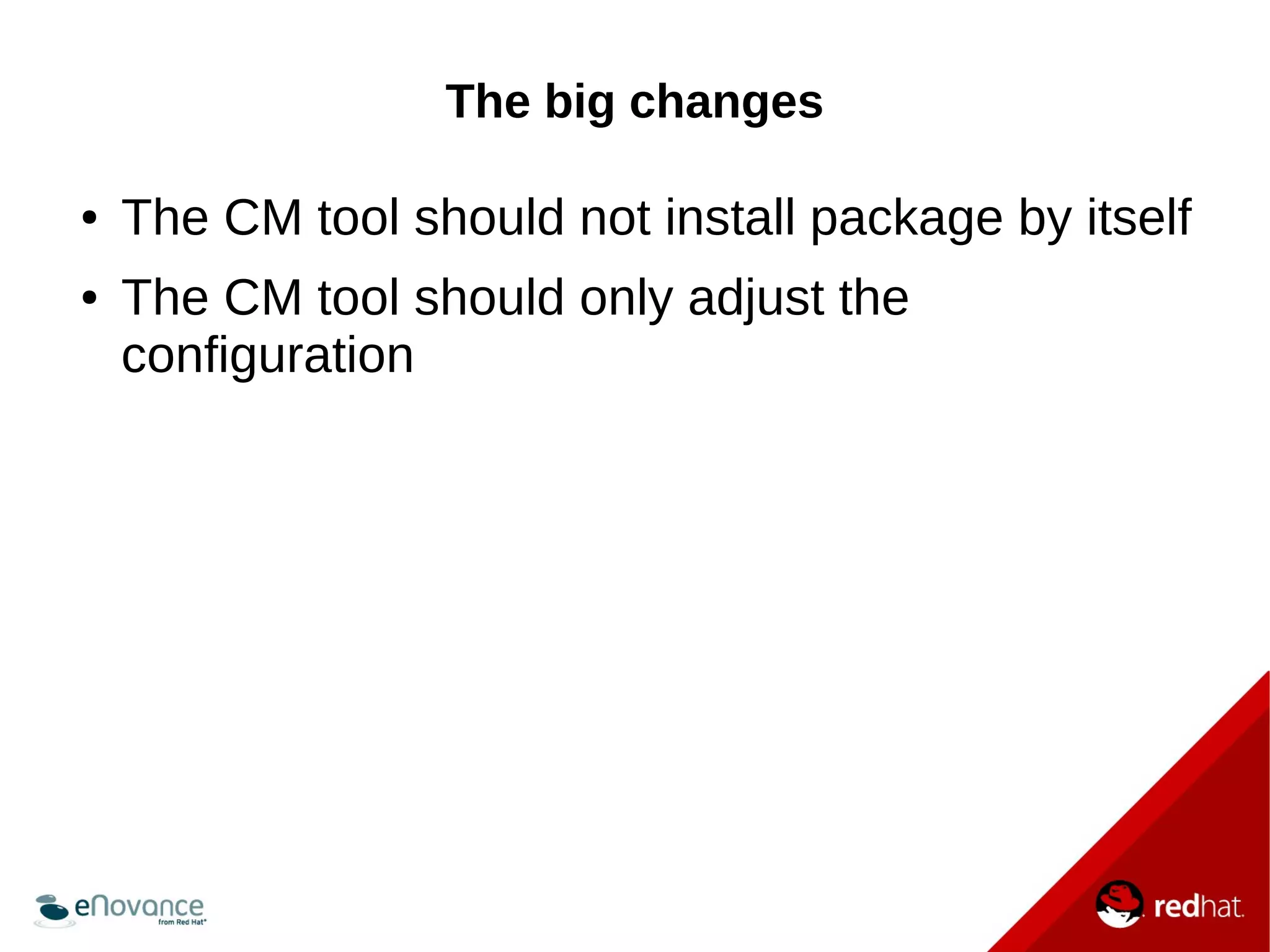

15. The big changes
● The CM tool should not install package by itself
● The CM tool should only adjust the
configuration

16. Example

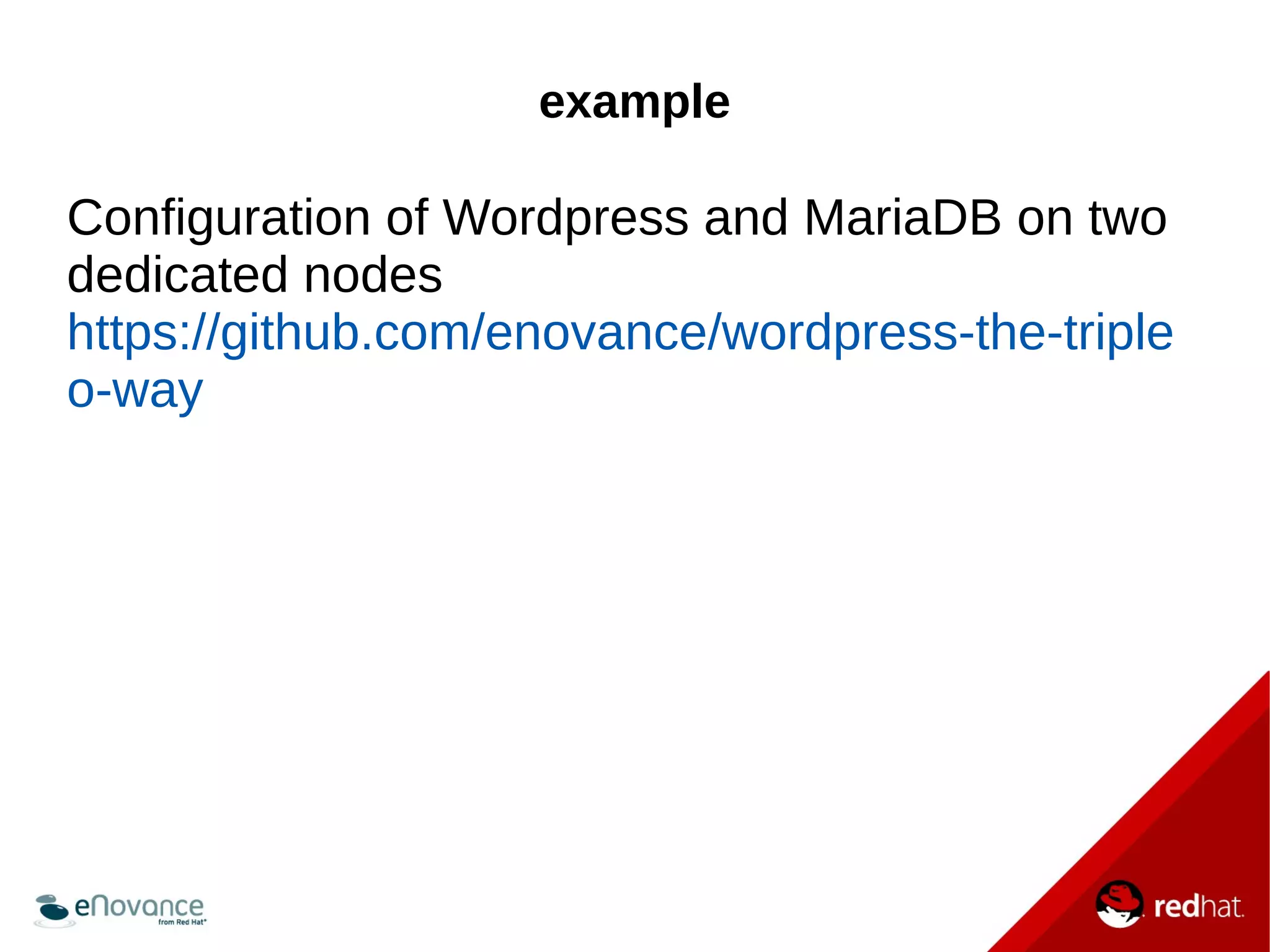

17. example
Configuration of Wordpress and MariaDB on two
dedicated nodes
https://github.com/enovance/wordpress-the-triple
o-way

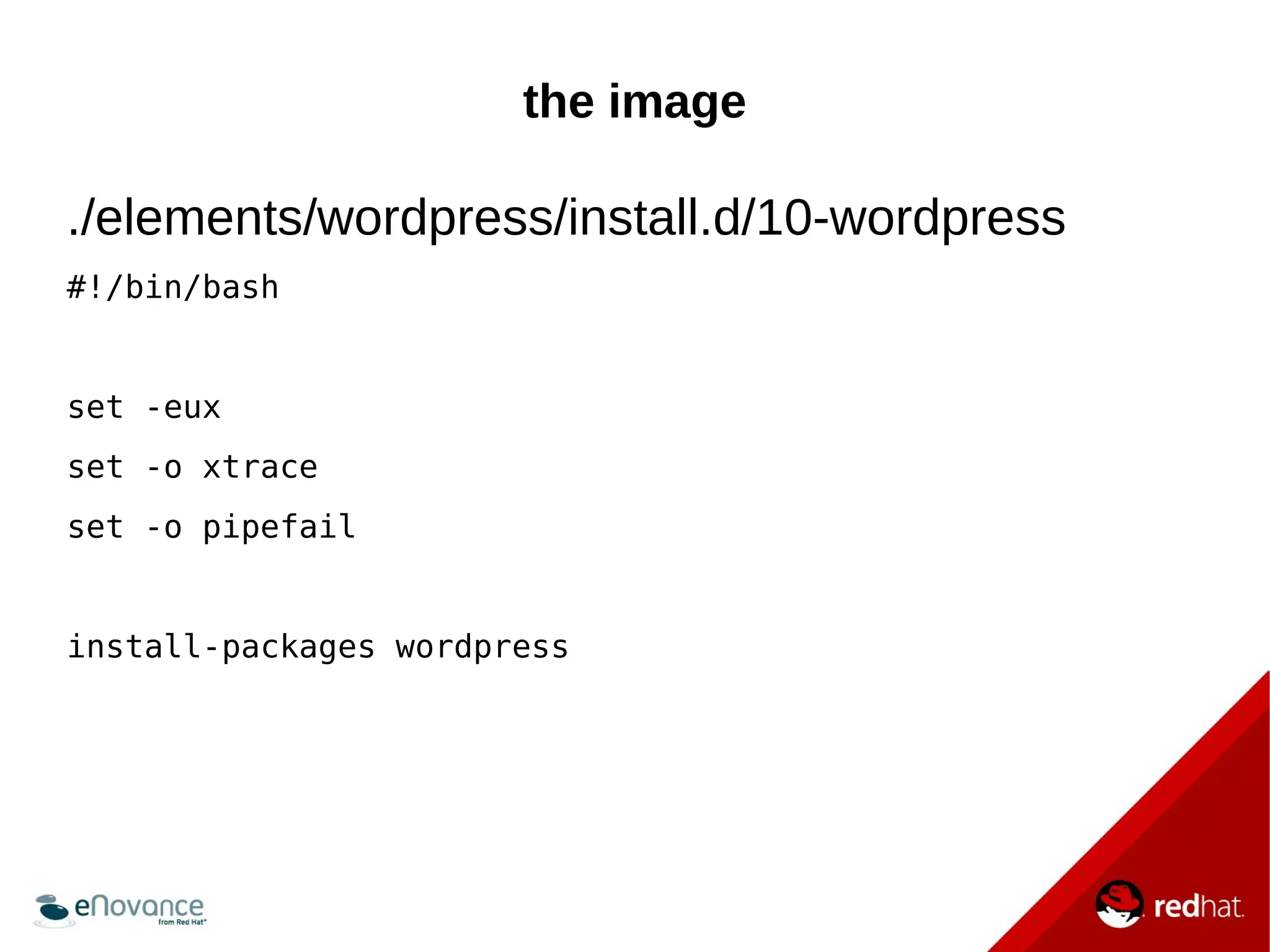

18. the image
./elements/wordpress/install.d/10-wordpress
#!/bin/bash
set -eux
set -o xtrace
set -o pipefail
install-packages wordpress

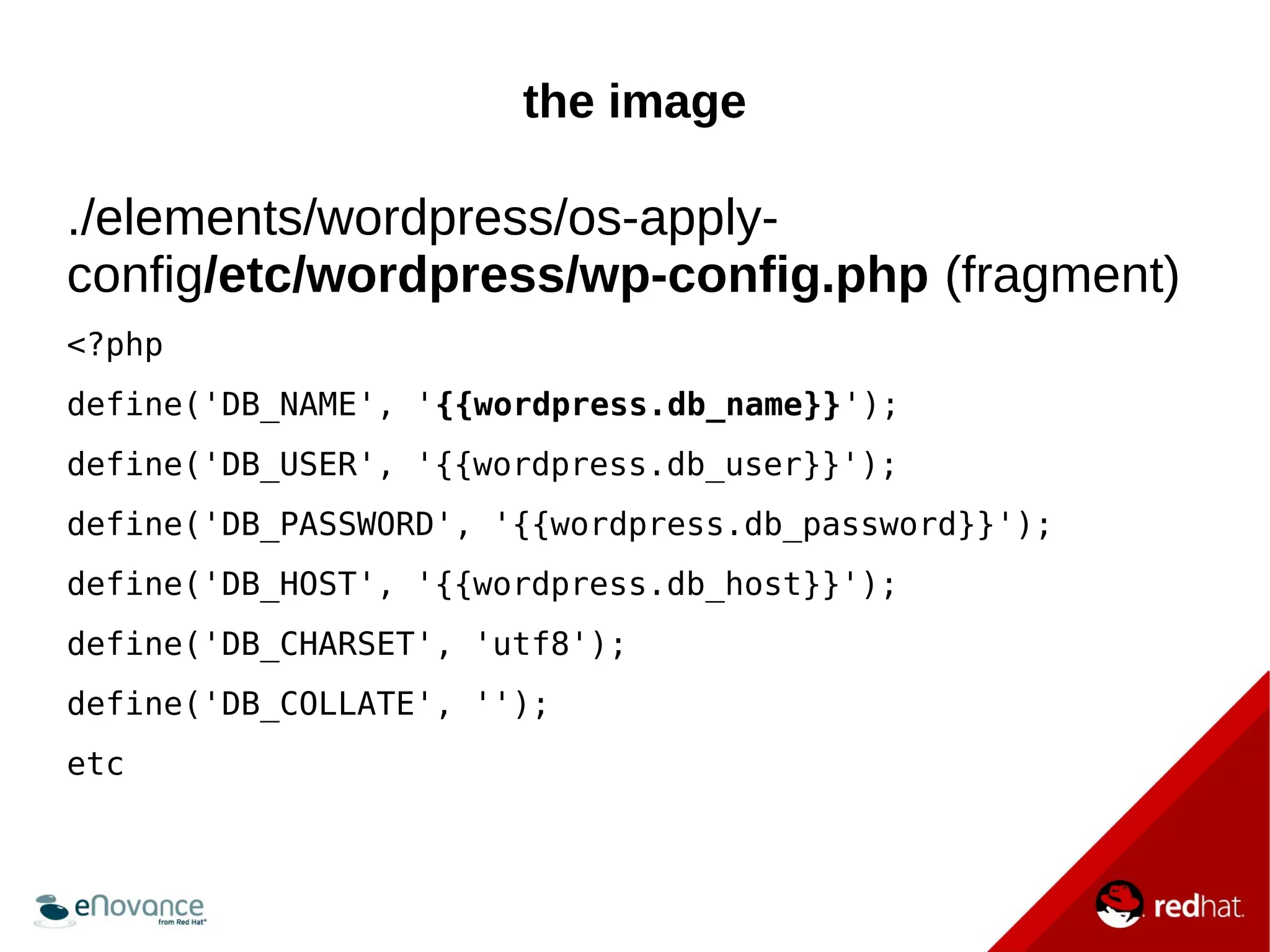

19. the image
./elements/wordpress/os-apply-config/
etc/wordpress/wp-config.php (fragment)
<?php
define('DB_NAME', '{{wordpress.db_name}}');
define('DB_USER', '{{wordpress.db_user}}');
define('DB_PASSWORD', '{{wordpress.db_password}}');
define('DB_HOST', '{{wordpress.db_host}}');
define('DB_CHARSET', 'utf8');
define('DB_COLLATE', '');
etc

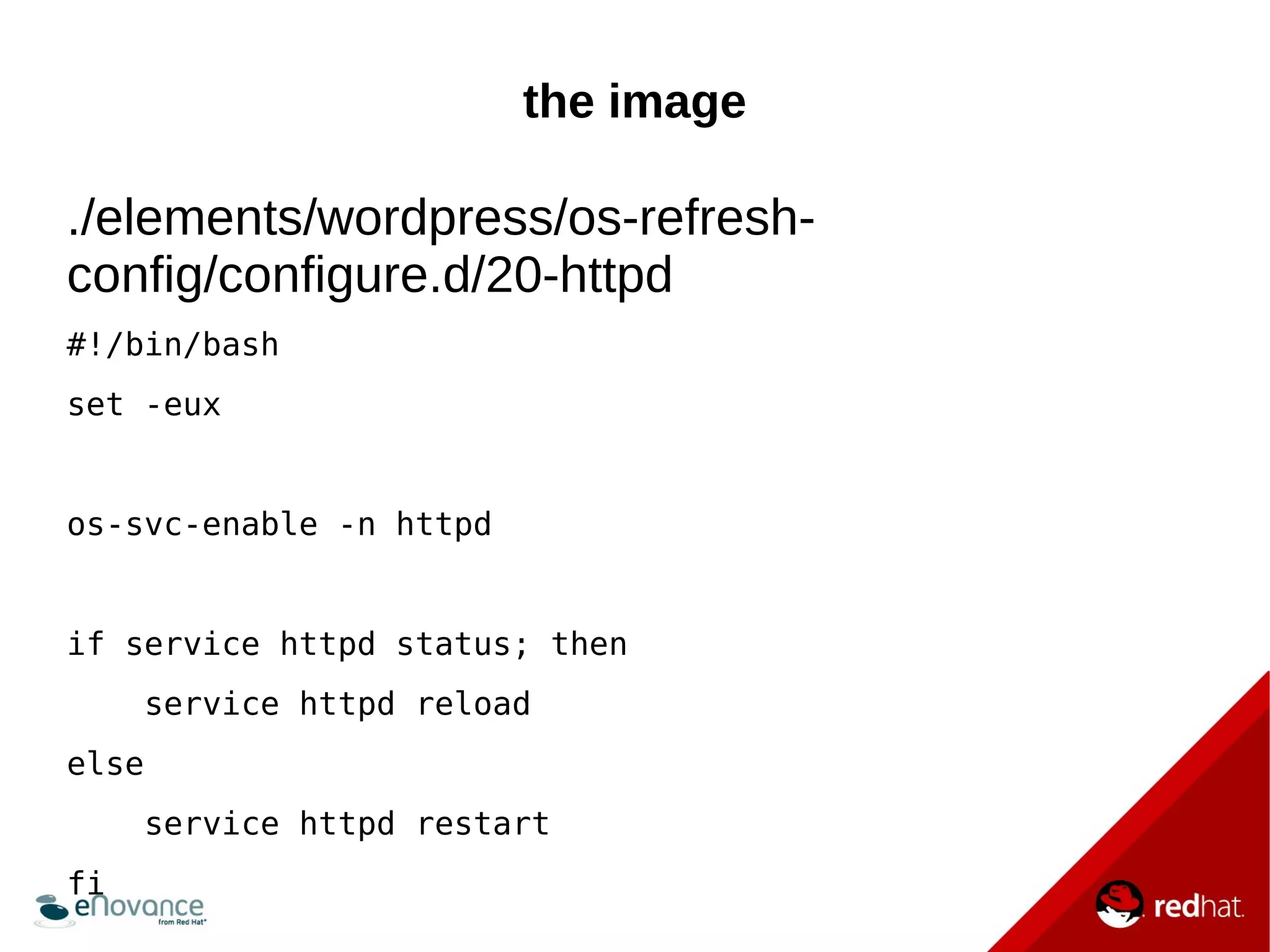

20. the image
./elements/wordpress/os-refresh-config/
configure.d/20-httpd
#!/bin/bash
set -eux
os-svc-enable -n httpd
if service httpd status; then
service httpd reload
else
service httpd restart
fi

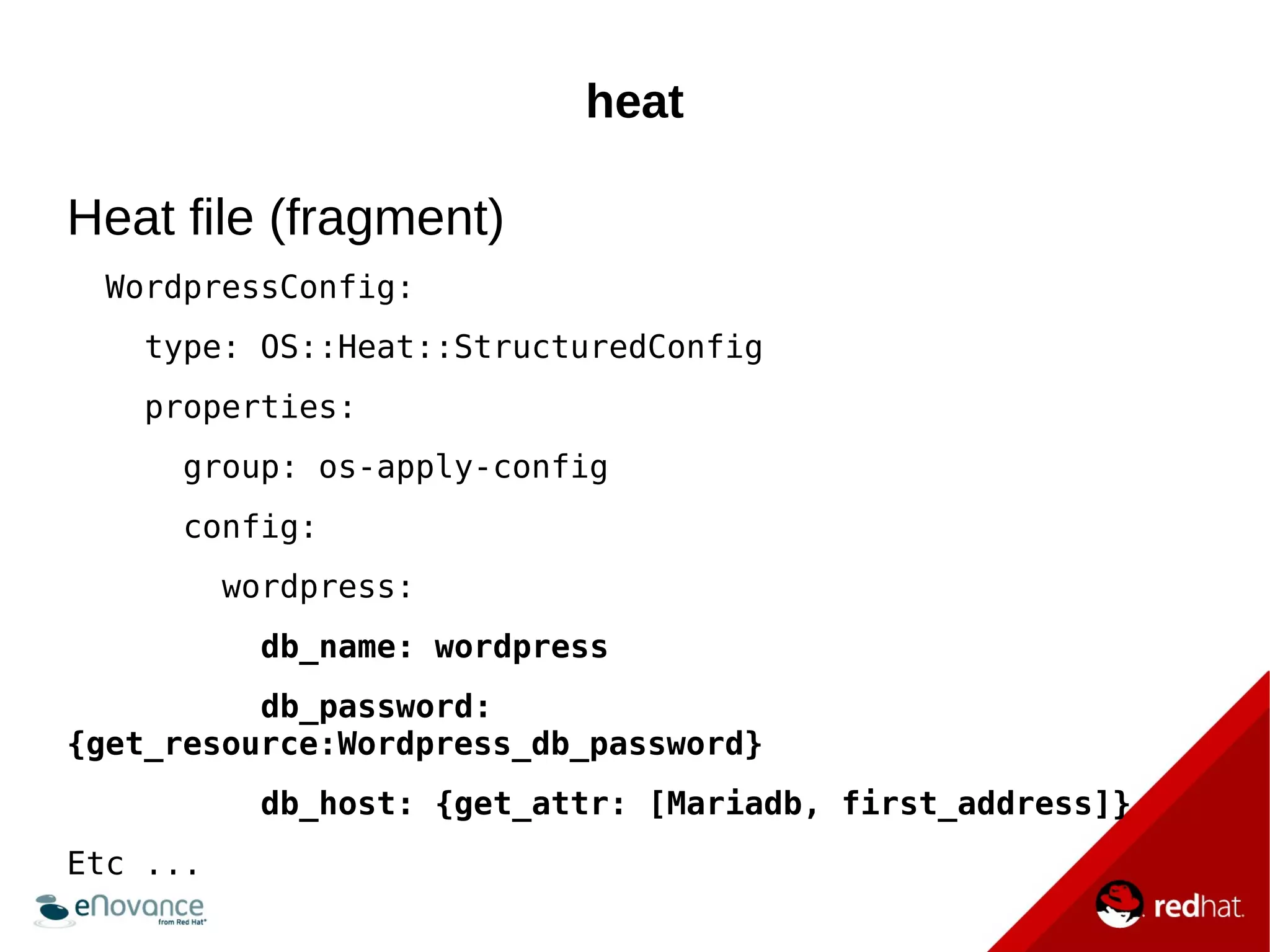

21. heat
Heat file (fragment)
WordpressConfig:
type: OS::Heat::StructuredConfig
properties:
group: os-apply-config
config:
wordpress:
db_name: wordpress
db_password:
{get_resource:Wordpress_db_password}
db_host: {get_attr: [Mariadb, first_address]}
Etc ...

22. Benefits

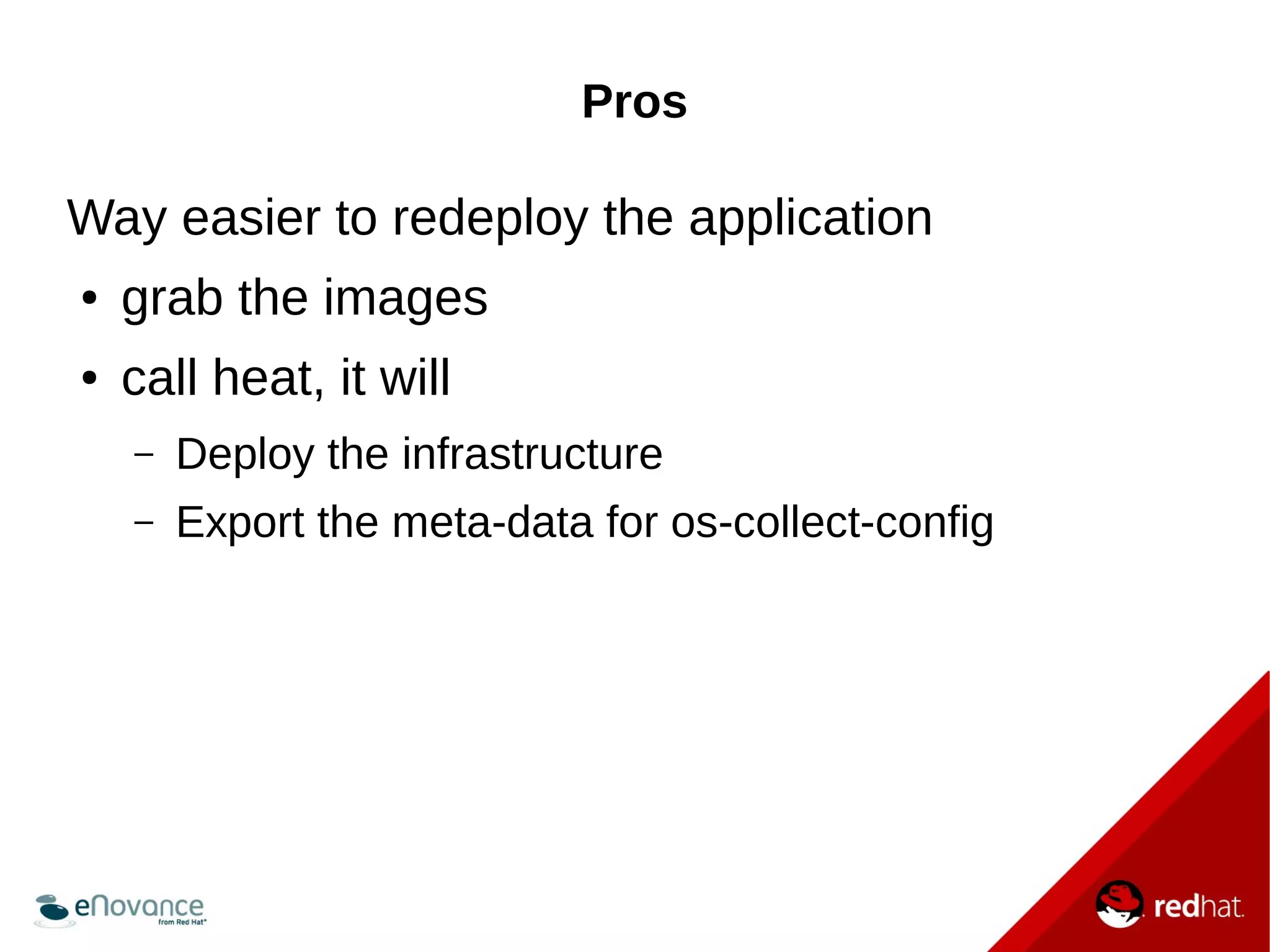

23. Pros
Way easier to redeploy the application
● grab the images
● call heat, it will
– Deploy the infrastructure
– Export the meta-data for os-collect-config

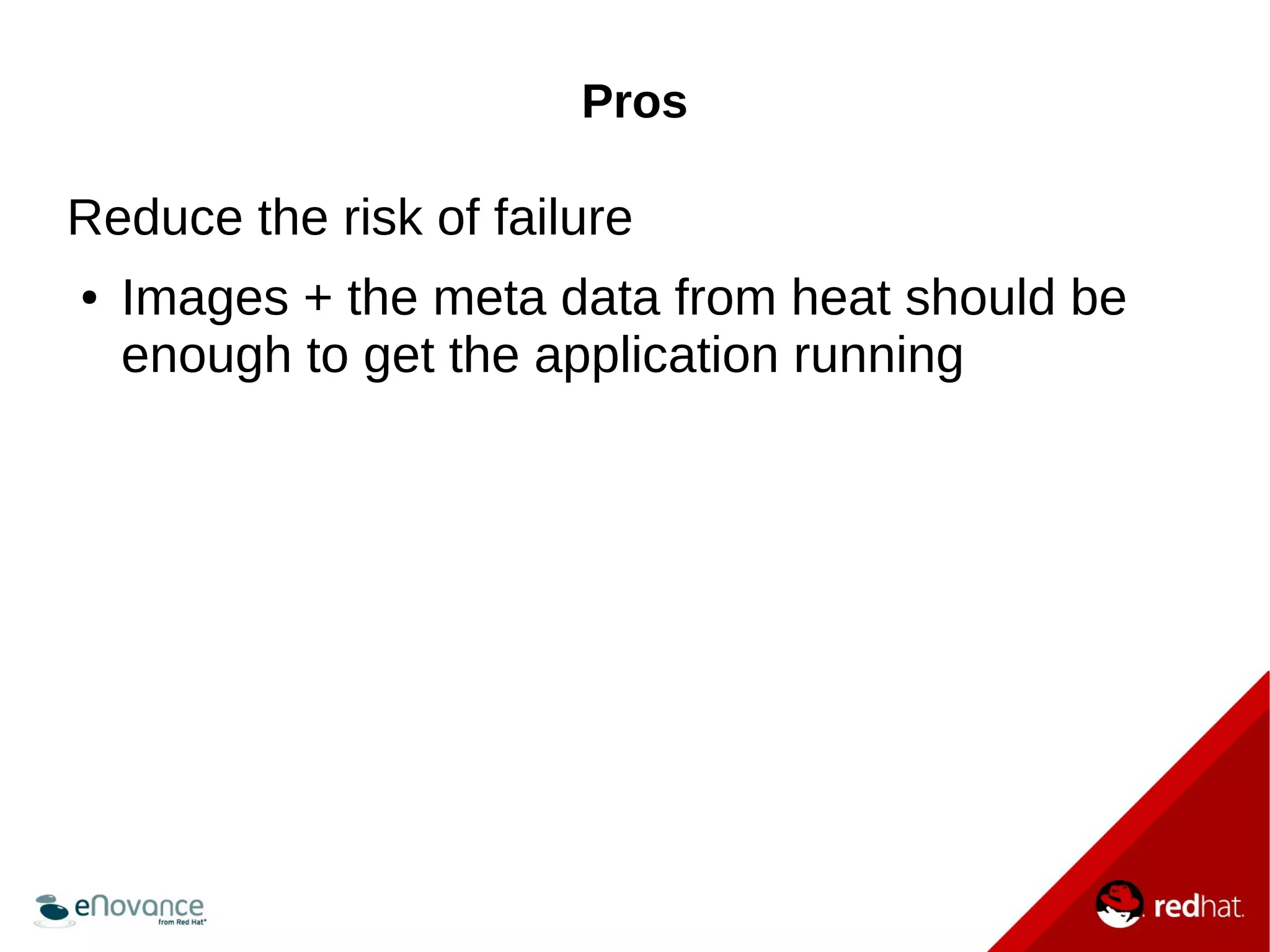

24. Pros
Reduce the risk of failure
● Images + the meta data from heat should be
enough to get the application running

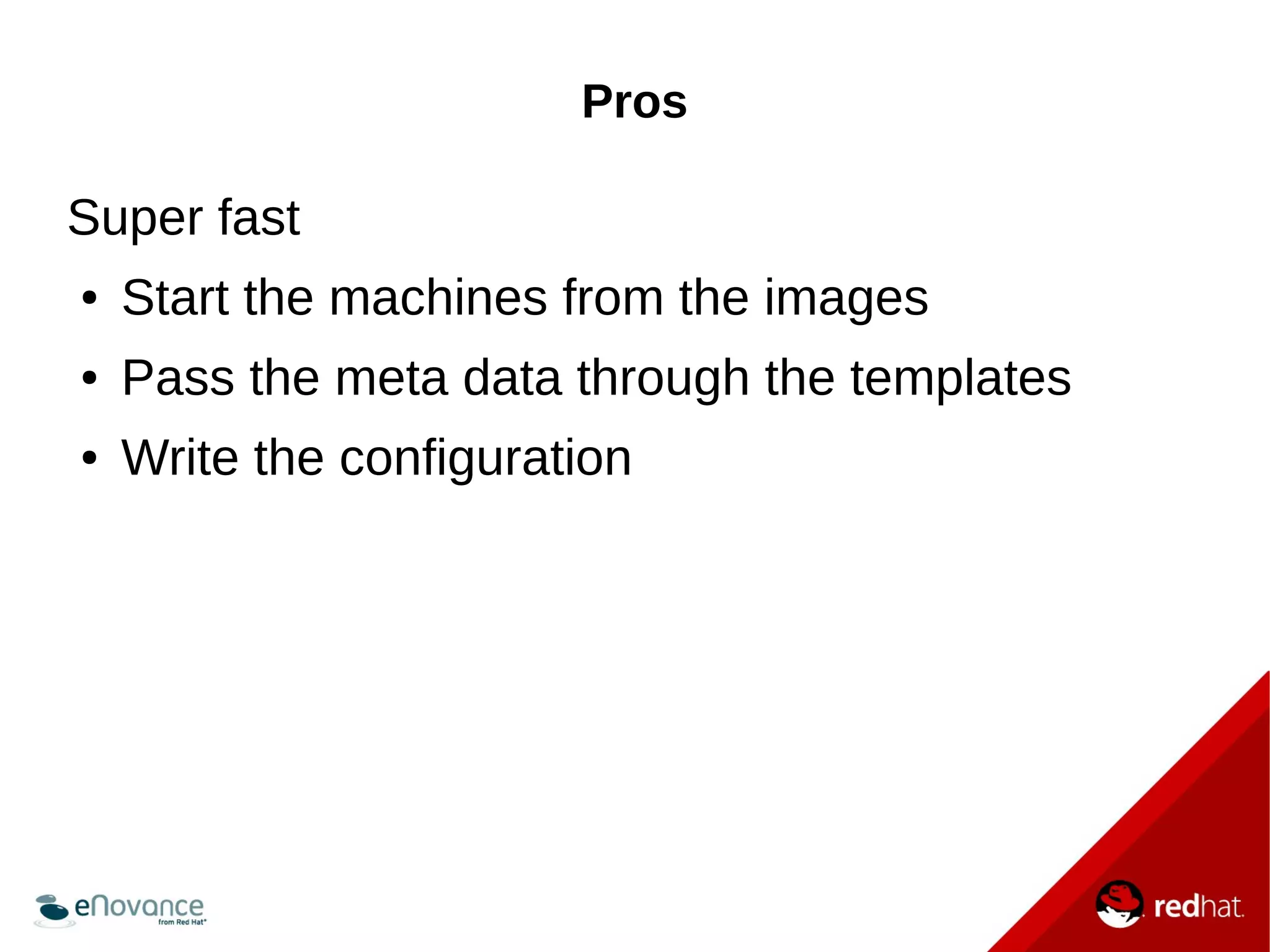

25. Pros
Super fast
● Start the machines from the images
● Pass the meta data through the templates
● Write the configuration

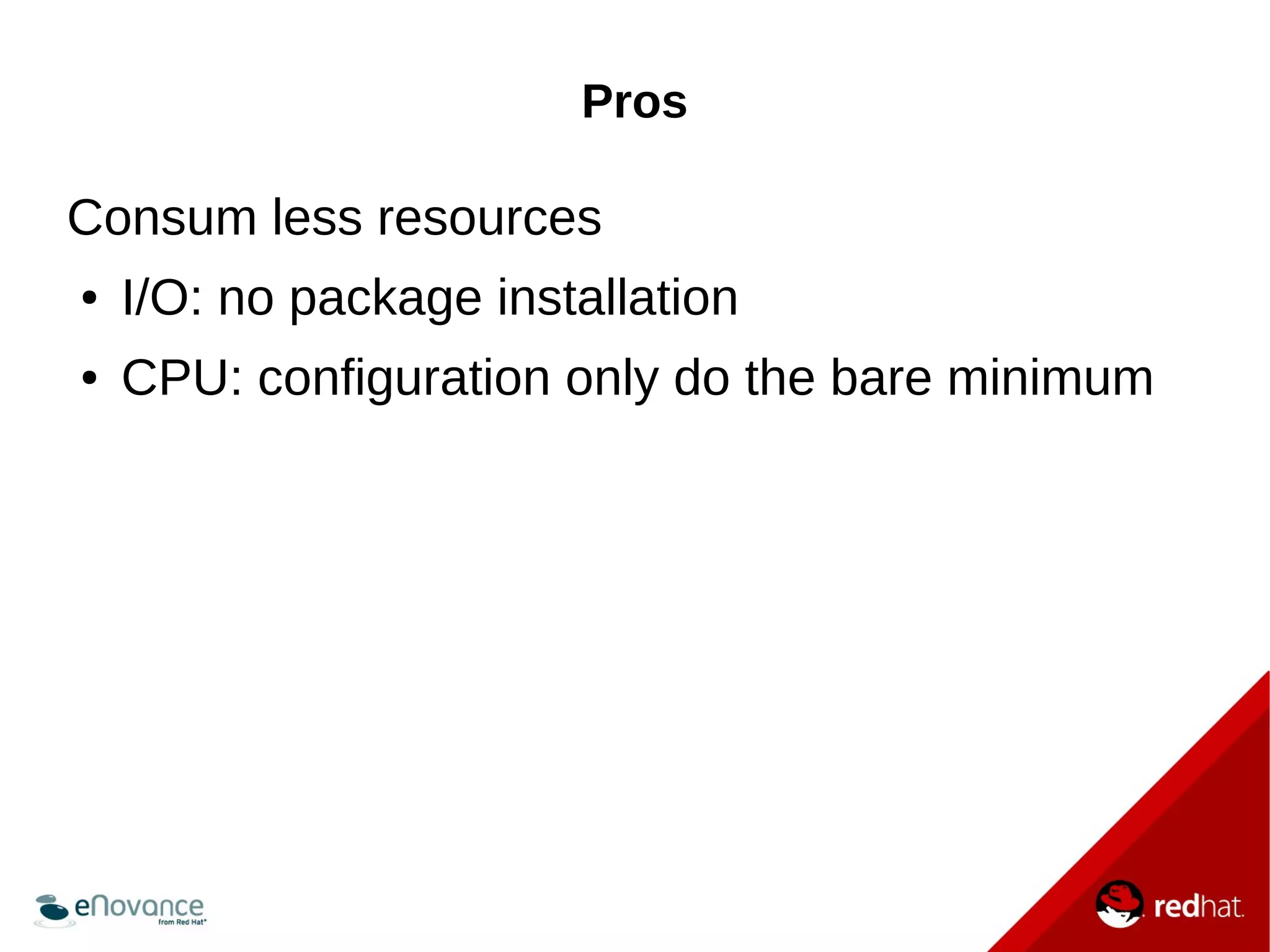

26. Pros
Consum less resources
● I/O: no package installation
● CPU: configuration only do the bare minimum

27. Not the perfect solution

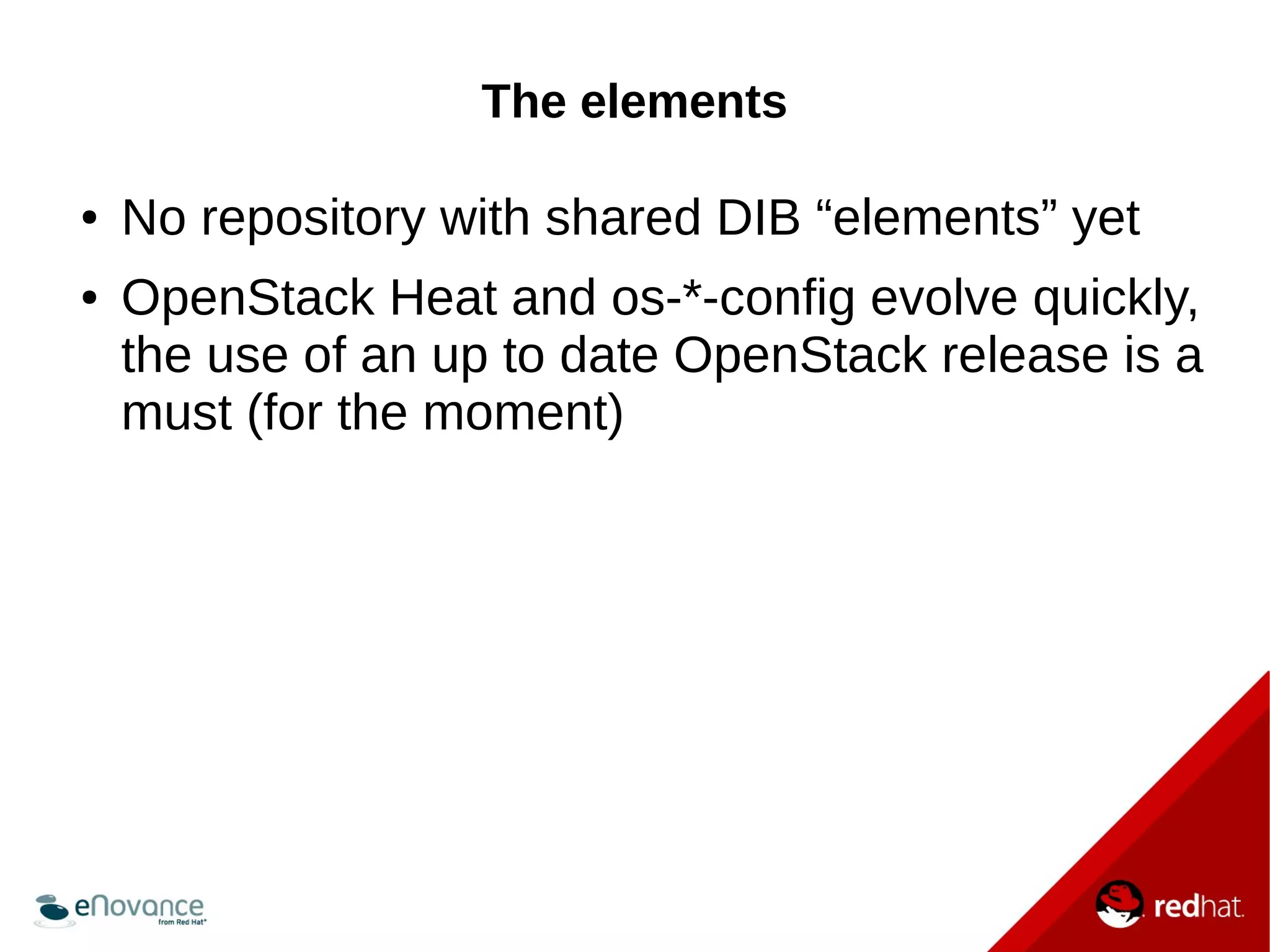

28. The elements
● No repository with shared DIB “elements” yet
● OpenStack Heat and os-*-config evolve quickly,
the use of an up to date OpenStack release is a
must (for the moment)

29. Data
You need a strategy for your data storage
● TripleO use NFS here
● eNovance eDeploy use another upgrade
mechanism
