This document provides an overview of developing applications in Docker. It defines key Docker terminology like Dockerfile, image, and container. It demonstrates how to build an image from a Dockerfile, run containers, and use Dockerfiles to package applications. Tips are given for optimizing images like using lightweight base images, combining commands, and removing temporary files. Volumes are demonstrated as a way to share files between the host and container during development.

1. Developing in Docker

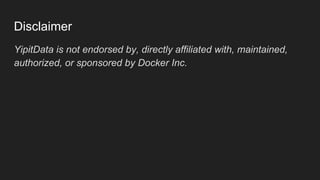

2. YipitData is not endorsed by, directly affiliated with, maintained,
authorized, or sponsored by Docker Inc.
Disclaimer

4. ● Brief terminology
● Running containers
● Dockerfiles & Images
● Tips for development
General Outline

5. ● Dockerfile: Defines the instructions to create an image
● Image: An executable package that contains the resources
needed to run a container
● Container: The result (a process) of executing an image. A
new container is made each time an image is executed
Dockerfile, Images, Containers, .. ?

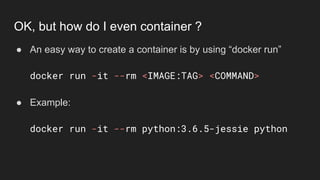

6. ● An easy way to create a container is by using “docker run”
docker run -it --rm <IMAGE:TAG> <COMMAND>
● Example:
docker run -it --rm python:3.6.5-jessie python
OK, but how do I even container ?

7. ● An easy way to create a container is by using “docker run”
docker run -it --rm <IMAGE:TAG> <COMMAND>
OK, but how do I even container ?
Exposes STDIN to the container and
emulates a terminal session. It lets you run
commands within the container

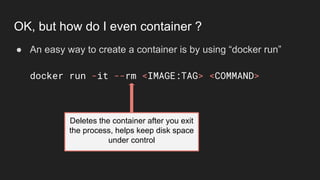

8. ● An easy way to create a container is by using “docker run”
docker run -it --rm <IMAGE:TAG> <COMMAND>
OK, but how do I even container ?
Deletes the container after you exit
the process, helps keep disk space
under control

9. ● There is no concept of “SSH” in docker. But you can access a
shell in a running container using docker exec:
docker exec -it <CONTAINER ID> bash
● You can find the container ID by running:
docker ps
So what about SSH ..

10. Live Demo
Exec into a container

11. ● Exec is helpful during development to debug a container’s state
● When debugging production, you should try to recreate the
error using a fresh container locally
○ Exec is not supported in production
○ “Show Docker CLI” in YAWS is your friend
○ Enable logging to see more details
Don’t exec unless you have to.

13. Check out this sweet Dockerfile ..
FROM python:3.6.7-jessie
COPY app /app
RUN pip install Flask
EXPOSE 8000
CMD ["python", "/app/__init__.py"]

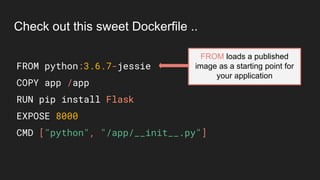

14. FROM python:3.6.7-jessie
COPY app /app
RUN pip install Flask
EXPOSE 8000
CMD ["python", "/app/__init__.py"]
Check out this sweet Dockerfile ..
FROM loads a published
image as a starting point for
your application

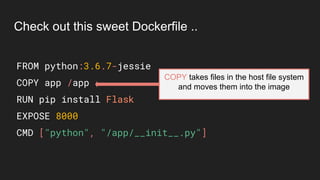

15. FROM python:3.6.7-jessie
COPY app /app
RUN pip install Flask
EXPOSE 8000
CMD ["python", "/app/__init__.py"]
Check out this sweet Dockerfile ..
COPY takes files in the host file system
and moves them into the image

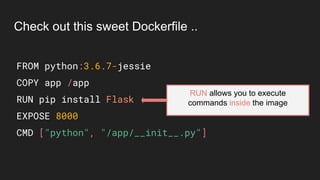

16. FROM python:3.6.7-jessie
COPY app /app
RUN pip install Flask
EXPOSE 8000
CMD ["python", "/app/__init__.py"]
Check out this sweet Dockerfile ..
RUN allows you to execute
commands inside the image

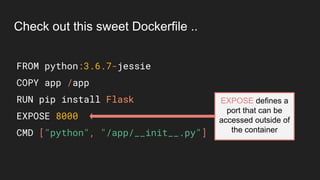

17. EXPOSE defines a
port that can be
accessed outside of
the container
FROM python:3.6.7-jessie
COPY app /app
RUN pip install Flask
EXPOSE 8000
CMD ["python", "/app/__init__.py"]
Check out this sweet Dockerfile ..

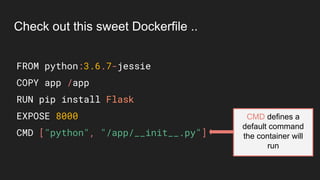

18. FROM python:3.6.7-jessie
COPY app /app
RUN pip install Flask
EXPOSE 8000
CMD ["python", "/app/__init__.py"]
Check out this sweet Dockerfile ..
CMD defines a
default command
the container will
run

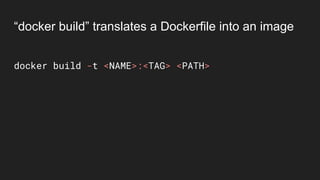

19. docker build -t <NAME>:<TAG> <PATH>
“docker build” translates a Dockerfile into an image

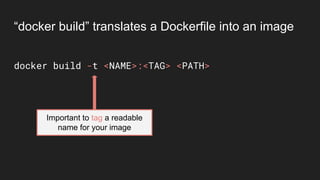

20. docker build -t <NAME>:<TAG> <PATH>
Important to tag a readable
name for your image
“docker build” translates a Dockerfile into an image

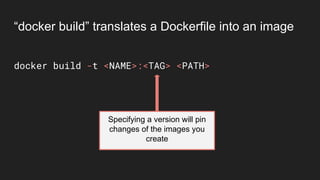

21. docker build -t <NAME>:<TAG> <PATH>
Specifying a version will pin
changes of the images you
create
“docker build” translates a Dockerfile into an image

22. docker build -t <NAME>:<TAG> <PATH>
Path to your Dockerfile
and application code
“docker build” translates a Dockerfile into an image

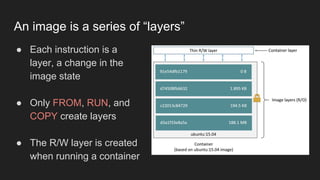

23. ● Each instruction is a
layer, a change in the
image state
● Only FROM, RUN, and
COPY create layers
● The R/W layer is created
when running a container
An image is a series of “layers”

24. ● Ephemeral: Containers are created / destroyed with ease, and
any setup is handled by the image
● Few in Layers: More layers lead to larger image size and longer
build time
● Ordered for caching: The instructions in the Dockerfile are
sequenced to leverage caching. Least likely to change or
longest running instructions should be higher up
The best Dockerfiles are:

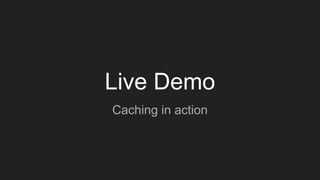

25. Live Demo
Caching in action

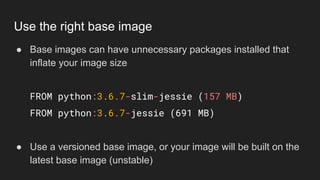

26. ● Base images can have unnecessary packages installed that
inflate your image size
FROM python:3.6.7-slim-jessie (157 MB)
FROM python:3.6.7-jessie (691 MB)
● Use a versioned base image, or your image will be built on the
latest base image (unstable)
Use the right base image

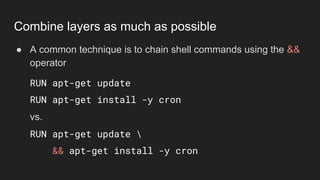

27. ● A common technique is to chain shell commands using the &&
operator
RUN apt-get update
RUN apt-get install -y cron
vs.
RUN apt-get update
&& apt-get install -y cron
Combine layers as much as possible

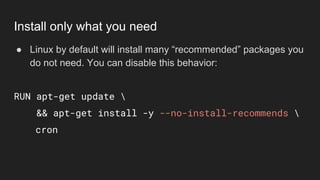

28. ● Linux by default will install many “recommended” packages you
do not need. You can disable this behavior:
RUN apt-get update
&& apt-get install -y --no-install-recommends
cron
Install only what you need

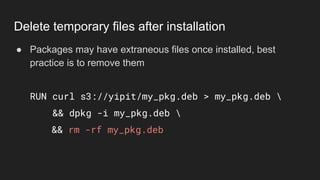

29. ● Packages may have extraneous files once installed, best
practice is to remove them
RUN curl s3://yipit/my_pkg.deb > my_pkg.deb
&& dpkg -i my_pkg.deb
&& rm -rf my_pkg.deb
Delete temporary files after installation

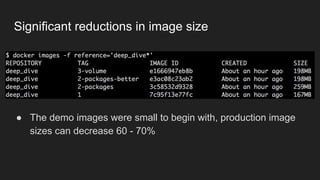

30. ● The demo images were small to begin with, production image
sizes can decrease 60 - 70%
Significant reductions in image size

31. Absolute file path in the host
machine you want to mount
● Volumes mount external (host) files to a container
● You can continue to modify these files and your running
container will be up to date
docker run --rm -it -v <HOST PATH:CONTAINER PATH>
<IMAGE:TAG>
Use volumes to speed up app development

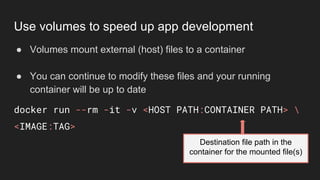

32. ● Volumes mount external (host) files to a container
● You can continue to modify these files and your running
container will be up to date
docker run --rm -it -v <HOST PATH:CONTAINER PATH>
<IMAGE:TAG>
Destination file path in the
container for the mounted file(s)
Use volumes to speed up app development

33. Live Demo
Using volumes

34. ● Two ways to set variables in the Dockerfile, ARG and ENV
● ARG defines a build-time variable that is out of scope once the
image is built
○ Good for secrets only used in setup (ex: localshop)
● ENV sets an environment variable that is in scope during and
after the image is built
Environment variables

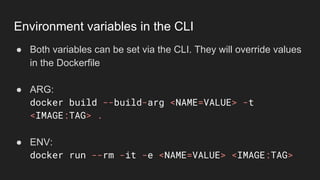

35. ● Both variables can be set via the CLI. They will override values
in the Dockerfile
● ARG:
docker build --build-arg <NAME=VALUE> -t
<IMAGE:TAG> .
● ENV:
docker run --rm -it -e <NAME=VALUE> <IMAGE:TAG>
Environment variables in the CLI

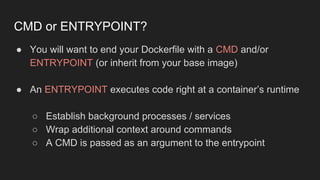

36. ● You will want to end your Dockerfile with a CMD and/or
ENTRYPOINT (or inherit from your base image)
● An ENTRYPOINT executes code right at a container’s runtime
○ Establish background processes / services
○ Wrap additional context around commands
○ A CMD is passed as an argument to the entrypoint
CMD or ENTRYPOINT?

37. Live Demo
Entrypoint

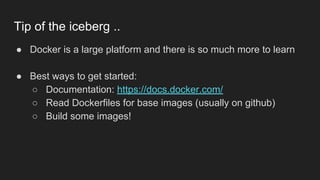

38. ● Docker is a large platform and there is so much more to learn
● Best ways to get started:
○ Documentation: https://docs.docker.com/
○ Read Dockerfiles for base images (usually on github)
○ Build some images!
Tip of the iceberg ..

39. ● Containers improves parity of local development to production
○ The image you build is the image you deploy
○ Far easier to reproduce bugs
● Increases flexibility in your application architecture
○ OS packages easier to manage (no need for brew or chef)
○ Python versioning is simplified (no virtualenv)
But it pays off !

40. Questions?

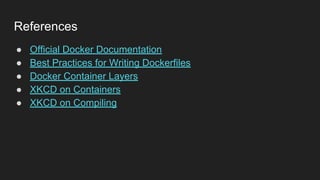

41. ● Official Docker Documentation
● Best Practices for Writing Dockerfiles
● Docker Container Layers
● XKCD on Containers
● XKCD on Compiling
References
