1. Deploying Openstack
With RHEL OSP 7 and Director
Pablo Sanchez
Red Hat OpenStack Specialist
Amsterdam OpenStack Meetup, 2/12/2015

2. About me
Openstack Technical Specialist @ Red Hat
Working with Openstack since Folsom Release
Worked before for Rackspace in the public cloud Ops team
@openpabz

3. Agenda
● What is RHEL OSP-Director
● How we deploy Openstack using it in RH
● Demo

4. RHEL OSP Director
Red Hat's new installation, configuration, and monitoring toolset for RHEL
OSP deployments
Has mechanisms of the following
1. Installing the Installer
2. Identification of the target hosts - the one's we're installing onto
3. Content management for the software to be deployed
4. Defining the topology and configuration of the deployment
5. Bare metal provisioning via automated hardware control
6. Software rollout and configuration management
7. Making modifications to an already director-deployed environment

5. RHEL OSP Director
Uses Openstack Upstream components
TripleO
Ironic
Heat
+
Puppet
Community Version RDO Manager

6. 6

7. 7
1. One or more Management Nodes
“Undercloud”

8. 8
2. Operator Dashboard & CLI interfaces
to configure the infrastructure

9. 9
3. Optional introspection & benchmarking of hardware.
Hardware Discovery

10. 1
0
4. Operator defines the OpenStack control services.

11. 1
1
5. Operator defines the OpenStack resource nodes.

12. 1
2
6. Control service and Resource nodes get provisioned.
“Overcloud”
(Heat -> Nova -> Ironic -> Hardware)

13. 1
3

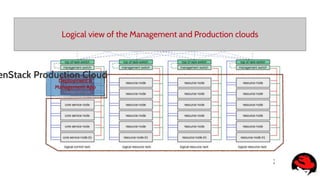

Logical view of the Management and Production clouds
Deployment &
Management App
enStack Production Cloud

14. 1
4
Logical view of the Management and Production clouds
Deployment &
Management App
enStack Production Cloud
“Undercloud”
“Overcloud”

15. 1
5

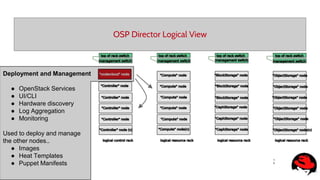

OSP Director Logical View
Deployment and Management
● OpenStack Services
● UI/CLI
● Hardware discovery
● Log Aggregation
● Monitoring
Used to deploy and manage
the other nodes..
● Images
● Heat Templates
● Puppet Manifests

16. 1
6

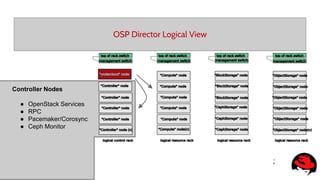

OSP Director Logical View
Controller Nodes
● OpenStack Services
● RPC
● Pacemaker/Corosync
● Ceph Monitor

17. 1
7
OSP Director Logical View
Compute Nodes
● Nova Hypervisor services
● Ceilometer agents

18. 1
8
OSP Director Logical View
CephStorage Nodes
● Ceph OSD
● Can be backend for:
○ Nova
○ Cinder
○ Glance

19. RHEL OSP Director

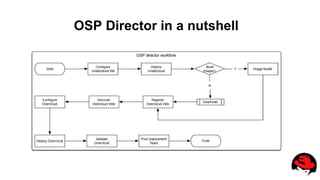

20. OSP Director in a nutshell

22. Undercloud Installation

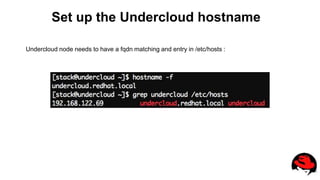

23. Set up the Undercloud hostname
Undercloud node needs to have a fqdn matching and entry in /etc/hosts :

24. Install the Undercloud package

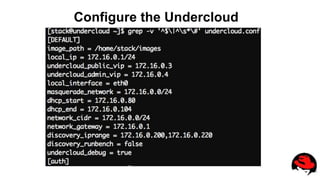

25. Configure the Undercloud

26. Install the Undercloud

27. Undercloud Video

28. Overcloud Installation

29. Download the Overcloud Images

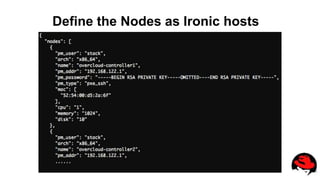

30. Define the Nodes as Ironic hosts

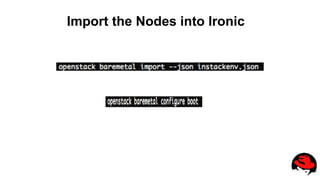

31. Import the Nodes into Ironic

32. Discover the HW of the Nodes

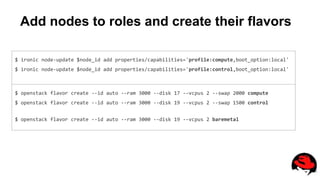

33. Add nodes to roles and create their flavors
$ ironic node-update $node_id add properties/capabilities='profile:compute,boot_option:local'
$ ironic node-update $node_id add properties/capabilities='profile:control,boot_option:local'
$ openstack flavor create --id auto --ram 3000 --disk 17 --vcpus 2 --swap 2000 compute
$ openstack flavor create --id auto --ram 3000 --disk 19 --vcpus 2 --swap 1500 control
$ openstack flavor create --id auto --ram 3000 --disk 19 --vcpus 2 baremetal

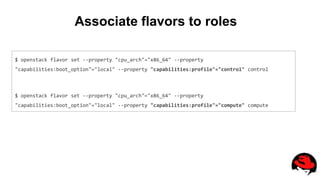

34. Associate flavors to roles
$ openstack flavor set --property "cpu_arch"="x86_64" --property
"capabilities:boot_option"="local" --property "capabilities:profile"="control" control
$ openstack flavor set --property "cpu_arch"="x86_64" --property
"capabilities:boot_option"="local" --property "capabilities:profile"="compute" compute

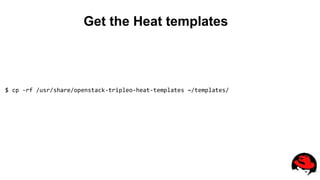

35. Get the Heat templates
$ cp -rf /usr/share/openstack-tripleo-heat-templates ~/templates/

36. Plan your network
Network Subnet VLAN
Provisioning 172.16.0.0/24 Native
Internal API 172.17.1.0/24 101
Tenant 172.17.2.0/24 201
Storage 172.17.3.0/24 301
Storage Management 172.17.4.0/25 401
External 192.168.122.0/24 Native

37. Adapt templates to the env

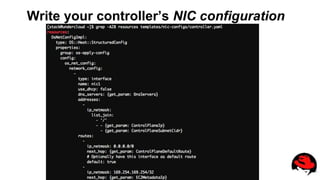

38. Write your controller’s NIC configuration
Heat templates

39. Summary before deploying
What we need
● Undercloud configured and ready
● Nodes discovered and available in Ironic
● Flavors created and nodes matched
● Images downloaded (or created)
● Heat Templates adapted for our environment

40. Let’s deploy the Overcloud
openstack overcloud deploy --templates ~/templates/
--ntp-server 192.168.122.1
--control-flavor control --compute-flavor compute --ceph-storage-flavor ceph
--control-scale 3 --compute-scale 2 --ceph-storage-scale 3
--neutron-tunnel-types vxlan --neutron-network-type vxlan
-e ~/templates/environments/storage-environment.yaml
-e ~/templates/environment.yaml

41. Overcloud Video

42. More details...
● https://access.redhat.com/documentation/en/red-hat-enterprise-linux-openstack-
platform/
● http://docs.openstack.org/developer/tripleo-docs/
● https://www.rdoproject.org/rdo-manager
● psanchez@redhat.com

43. Dankjewel!!
