Enhancing OpenStack FWaaS for real world application
This document discusses enhancing the performance and capabilities of OpenStack's firewall-as-a-service (FWaaS). It proposes improvements to FWaaS performance by validating firewall rules and distributing rules only to relevant routers. It also discusses scheduling firewall rules based on time and enabling logging of firewall packets to help with debugging, threat analysis, and rule tuning. The document outlines integrating firewall logging with OpenStack using IPTables rules and collecting logs in a centralized server for analysis. Finally, it proposes extending the Horizon UI to make firewall logs accessible to tenants.
More Related Content
Similar to Enhancing OpenStack FWaaS for real world application
![[vbrownbag presentation] network_traffic_logging](https://cdn.slidesharecdn.com/ss_thumbnails/vbrownbagpresentationnetworktrafficlogging-160504054059-thumbnail.jpg?width=640&height=640&fit=bounds)
Enhancing OpenStack FWaaS for real world application
- 1. Enhancing OpenStack FWaaS forreal world applications Performance, Logging & Scheduling Sarath Chandra Mekala Chandan Dutta Chowdhury
- 2. Sarath Chandra Mekala •Tech Lead @ Juniper Networks • Works on Neutron Plugins • Over a decade+ of experience with J2EE/NMS • Contributed to Juniper’s FWaaS plugin • Blogs @ sarathblogs.blogspot.in • Likes Gadgets & Photography.
- 3. Chandan Dutta Chowdhury •Tech Lead @ Juniper Networks • Works on Neutron Plugins • DevOPS & Opensource hacker • Contributed to Juniper’s L2, L3 & NSX plugins • Blogs @ chandanduttachowdhury.wordpress.com

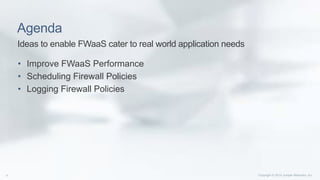

- 4. Agenda • Improve FWaaSPerformance • Scheduling Firewall Policies • Logging Firewall Policies Ideas to enable FWaaS cater to real world application needs
- 5. FWaaS Overview Rule1 Rule2 Rule3 Router 1Router 2 Router 3
- 6.

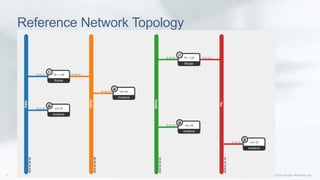

- 7.
- 8. Problem 1: InvalidRules
- 9. Problem 2: UnnecessaryRule Deployment Router 1 Router 2 Router 3 R1 R2 R3R1 R2 R3R1 R2 R3Firewall Policy Firewall
- 10. Overview of FWaaSPerformance Issues • No rule validation • Allows invalid rules to be present • All rules are pushed onto all routers • Unnecessary processing of rules on each router • Affects performance • Potential Security holes
- 11. Solution 1: RuleValidation
- 13. Solution 2: RuleSplit & Distribution
- 14. Solution 2: RuleSplit & Distribution 10 -> 20 30 -> 40 TCP-10-20- allow Firewall Policy Firewall TCP-30-40- allow Any-AnyAny-Any
- 15. Proposed Improvements Validation (InvalidRule Check) • Rule’s Source IP and/or Destination IP do not belong to any of tenant networks (or) • Rule’s Source/Destination IP belong to an existing tenant’s network but the network is yet to be assigned to any router. Performance • All rules are segregated and grouped based on the networks they belong to and allocated to their corresponding routers only.

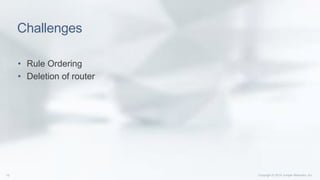

- 16. Challenges • Rule Ordering •Deletion of router
- 17.
- 18. Scheduling Rules • Restrictaccess to: • Web Sites • Web Servers/FTP servers/SSH/RDP e.t.c • Improves productivity • Conserves Bandwidth • Increases ROI
- 19. Scheduling – IPTablesSpec • IPTables on Ubuntu & CentOS supports rule scheduling • Uses UTC for time zone by default • iptables –A <chain> -m time --timestart 09:00 -- timestop 17:00 -weekdays Mon,Tue,Wed,Thu,Fri -j <Action> • -m time : match time • --timestart : Start time • --timestop : End time • --weekdays : Days of the week
- 20. Scheduling – IPTablesSpec • Periodicity: • datestart YYYY[-MM[-DD[Thh[:mm[:ss]]]]] • datestop YYYY[-MM[-DD[Thh[:mm[:ss]]]]] • timestart hh:mm[:ss] • timestop hh:mm[:ss] • monthdays day[,day...] • weekdays day[,day...] • contiguous • Kerneltz
- 21. Scheduling – IPTablesExamples • To match on weekends, use: -m time --weekdays SAT,SUN • To match between a set of days with a specific time interval: -m time --datestart 2015-08-23 T09:00 --datestop 2007-01-01T15:00 • To match on a time interval: -m time --timestart 09:00 --timestop 17:00

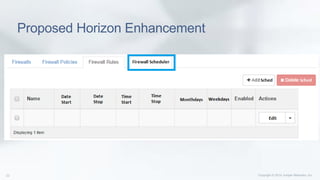

- 22.
- 23.
- 24. Current Firewall implementationin OpenStack • Doesn't provide packet logging • Tenant does not have any knowledge of dropped packets • While deploying new rules in the firewall, there is no way to debug the rule • No way to determine the effectiveness of the firewall rules
- 25. Benefits of EnablingFirewall Logs • Monitoring • Threat Alerting • Threat correlation • Report generation • Troubleshooting packet drops • Fine tuning Rules • Detecting false positives • Detecting false negatives
- 26. Firewall Logging forOpenStack COMPUTE/NETW ORK NODE ROUTER NAMESPACE LOGGING RULE LOG SERVER LOG ANALYSER Firewall Agent ENABLE LOGGING NEUTRON FIREWALL LOGS LOGS ALERTS! REPORTS OPENSTACK TENANT FIREWALL RULES FIREWALL RULES
- 27. Enable Firewall Logswith IPTables rules iptables –A <chain> -m limit –limit <limit> -j LOG --log-prefix <prefix-string> - -log-level <log-level> -J LOG : processed by target LOG that logs packets with syslog --log-prefix : a string to identify the log message --log-level : log level to use with syslog message iptables -A INPUT -j LOG --log-prefix "IPTABES LOG:" -m limit --limit 10/min --log-level 4

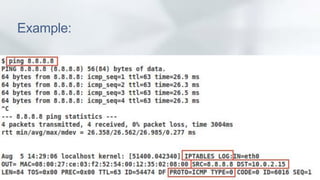

- 28.
- 29. Proposed Horizon Enhancementfor Firewall Logging

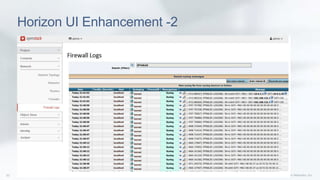

- 30.
- 31. Summary of loggingfeature • Firewall Logs • can help with debugging, threat analysis , Rule fine tuning • Firewall Logging Can be integrated with FWaaS on OpenStack • IPTables provides options to enable packet logging • A centralized server can be introduced to collect and analyze firewall logs • Horizon UI extension can make logs accessible to the tenant
- 32.
- 33.
