RHEL OpenStack Platform director facilitates planning, deployment, and ongoing operations of RHEL OpenStack infrastructure. It provides a complete end-to-end solution for OpenStack business planning, system deployment, and infrastructure operations through APIs, CLI, and a dashboard. TripleO uses OpenStack components like Nova and Heat to deploy OpenStack to bare metal servers, treating hardware deployment like a special hypervisor. RHEL OpenStack Platform director manages both the production OpenStack cloud and the deployment and management "undercloud".

1. RHEL OpenStack Platform director
Overview and Roadmap
Keith Basil
Principal Product Manager, Red Hat

2. ( slide ) previous | next
Keith Basil
2
๏personal
Virginia hare scrambler, plays chess..
๏professional
Red Hat
Cloudscaling,Time Warner Cable,
FederalCloud.com, Cisco and
a couple of startups
๏blended
skype/twitter/github/irc, life: noslzzp

3. ( slide ) previous | next

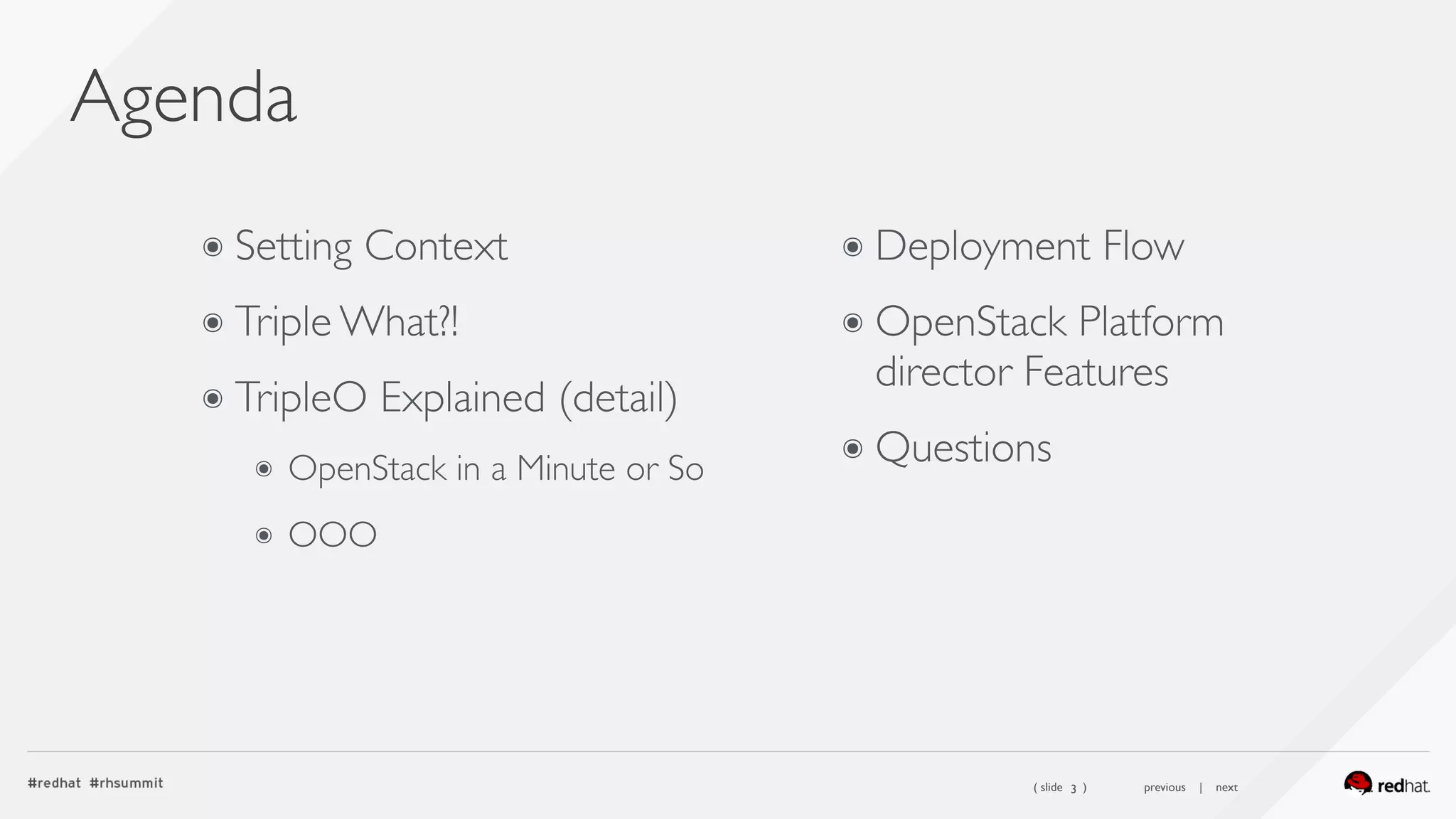

Agenda
3
๏ Setting Context
๏ Triple What?!
๏ TripleO Explained (detail)
๏ OpenStack in a Minute or So
๏ OOO
๏ Deployment Flow
๏ OpenStack Platform
director Features
๏ Questions

4. ( slide ) previous | next
Setting Context
4

5. ( slide ) previous | next

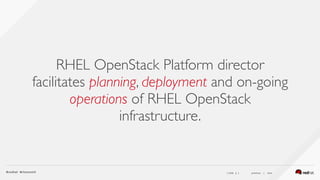

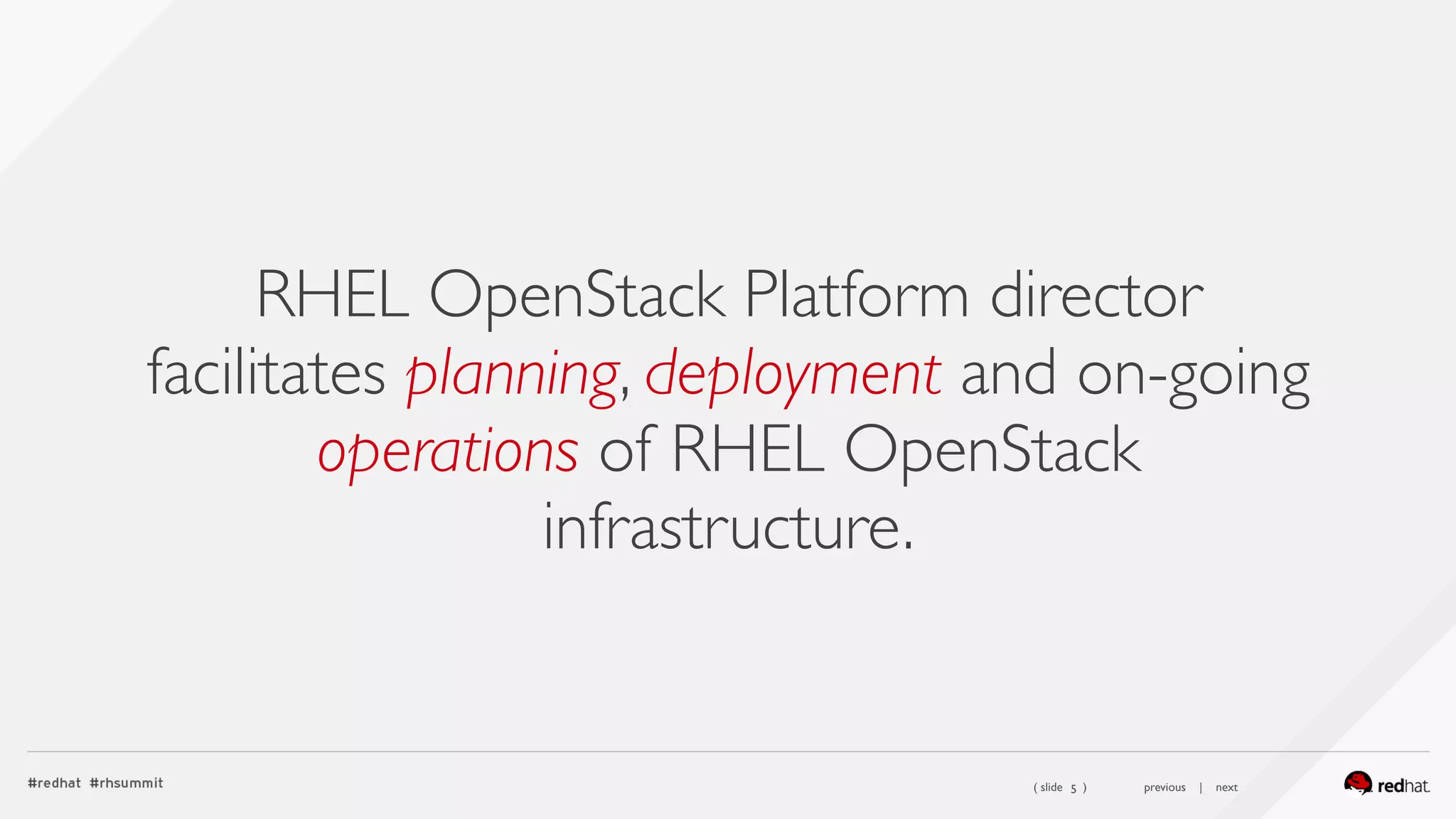

RHEL OpenStack Platform director
facilitates planning, deployment and on-going
operations of RHEL OpenStack
infrastructure.
5

6. ( slide ) previous | next

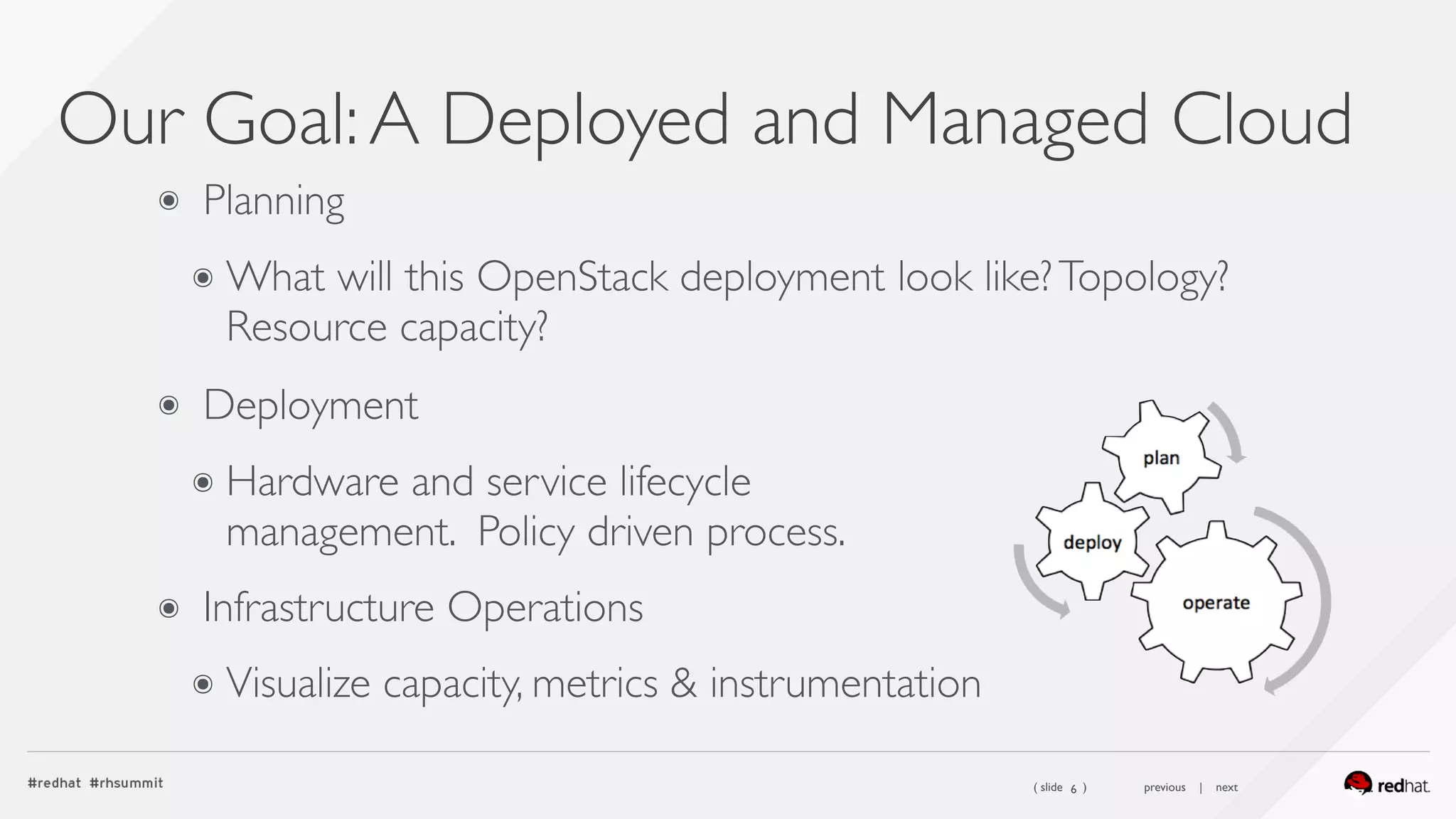

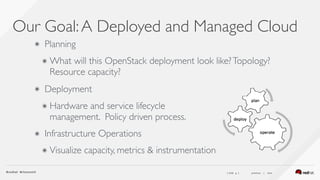

๏ Planning
๏ What will this OpenStack deployment look like?Topology?
Resource capacity?
๏ Deployment
๏ Hardware and service lifecycle
management. Policy driven process.
๏ Infrastructure Operations
๏ Visualize capacity, metrics & instrumentation
Our Goal:A Deployed and Managed Cloud
6

7. ( slide ) previous | next
Today
7

8. ( slide ) previous | next

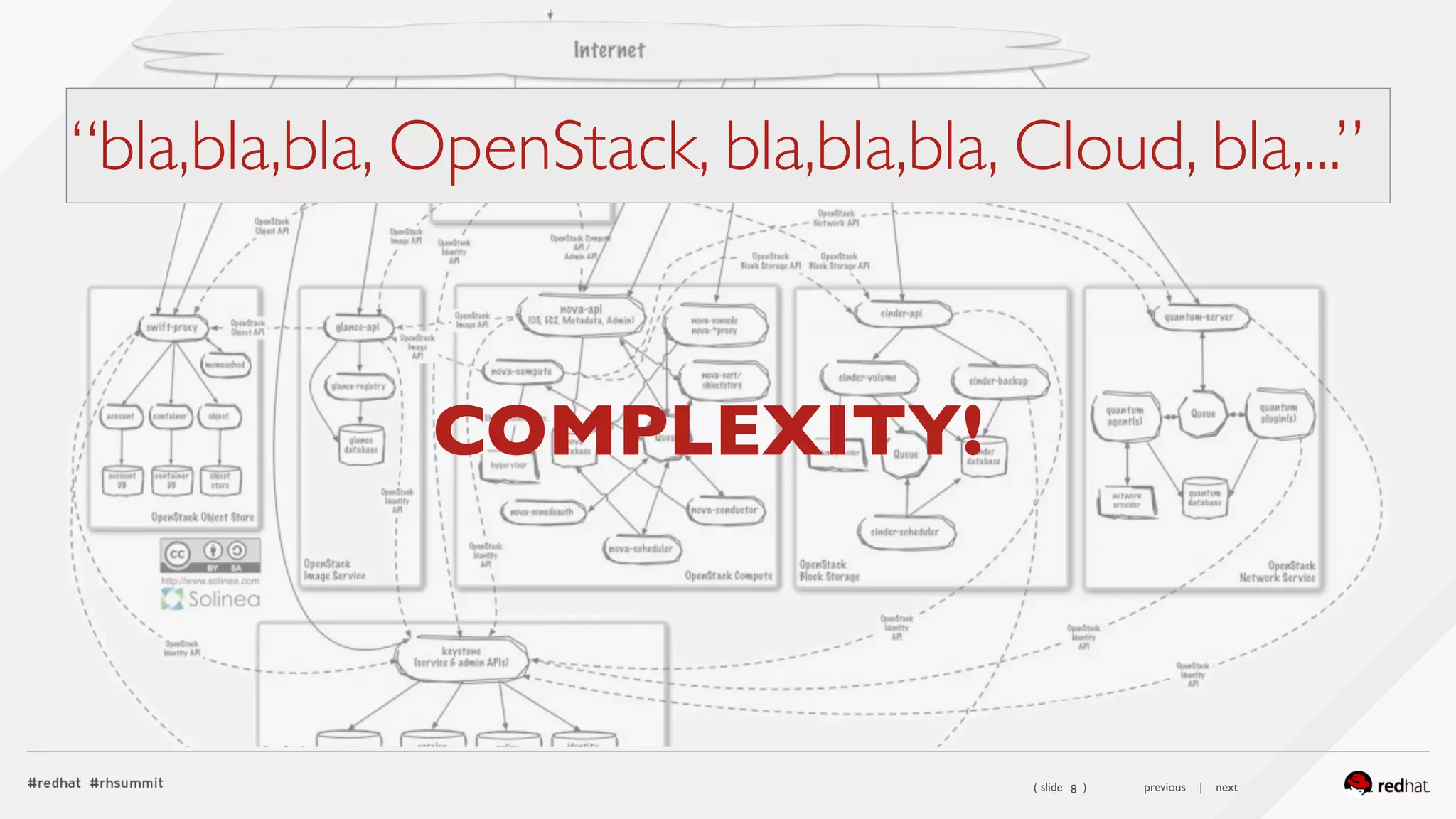

“bla,bla,bla, OpenStack, bla,bla,bla, Cloud, bla,...”
8
COMPLEXITY!

9. ( slide ) previous | next
Where’s the Love?
9
OpenStack Operators
OpenStack Developers
Over 16,000 community members!
138 countries!
Wait, how many operators?
Who cares!,
just +1 my code!

10. ( slide ) previous | next
devOps HerosOperator
Heroes..
need love too..
10
http://sharpwriter.deviantart.com/art/Welcome-to-the-Internet-Please-Follow-me-322248378
http://creativecommons.org/licenses/by-nc-nd/3.0/
Operator headband, BOFH Slayer gun handle and OpenStack unicorn branding added for effect. Not for redistribution.

11. ( slide ) previous | next

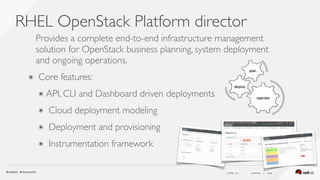

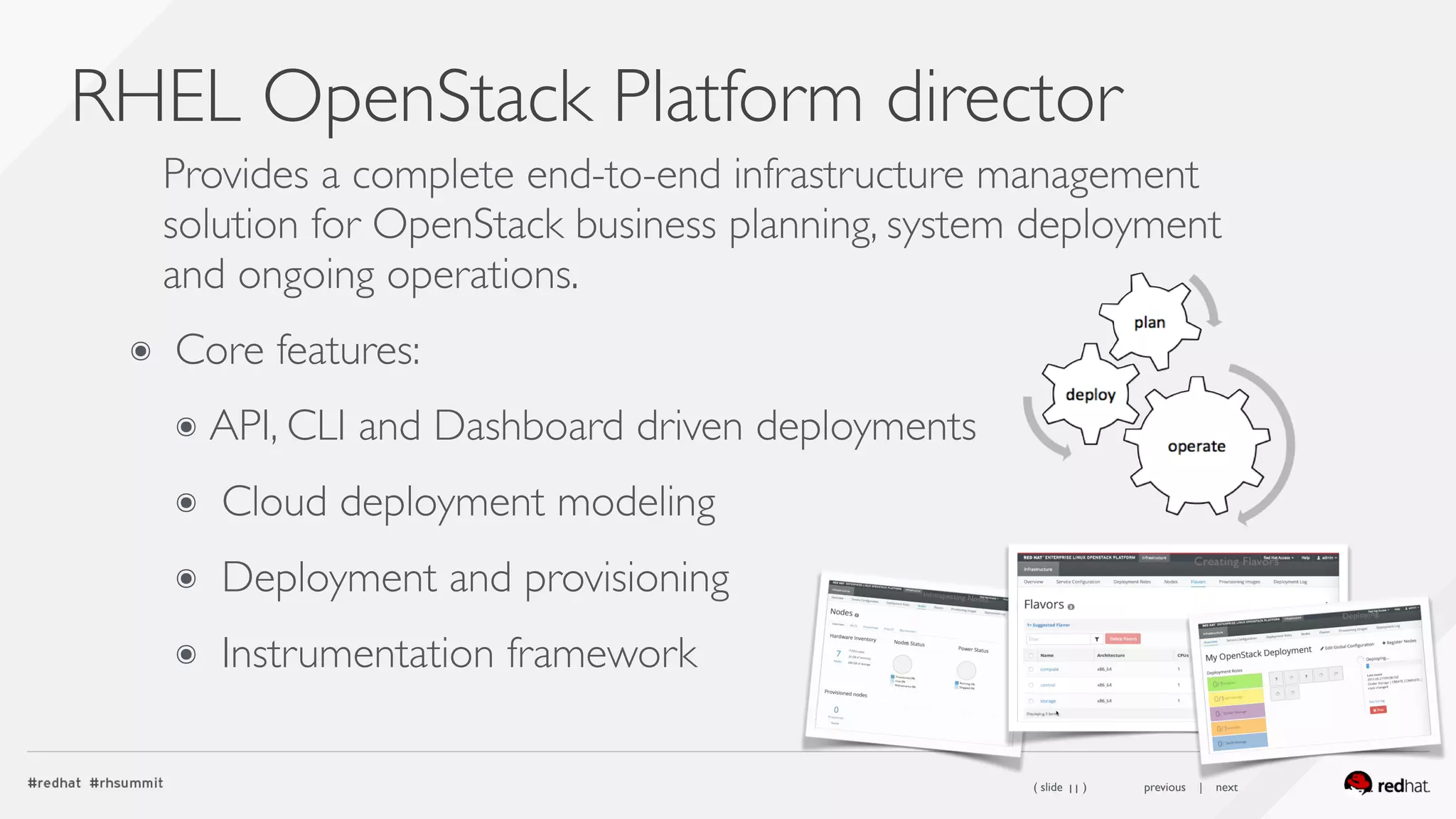

RHEL OpenStack Platform director
11
Provides a complete end-to-end infrastructure management
solution for OpenStack business planning, system deployment
and ongoing operations.
๏ Core features:
๏ API, CLI and Dashboard driven deployments
๏ Cloud deployment modeling
๏ Deployment and provisioning
๏ Instrumentation framework

12. ( slide ) previous | next

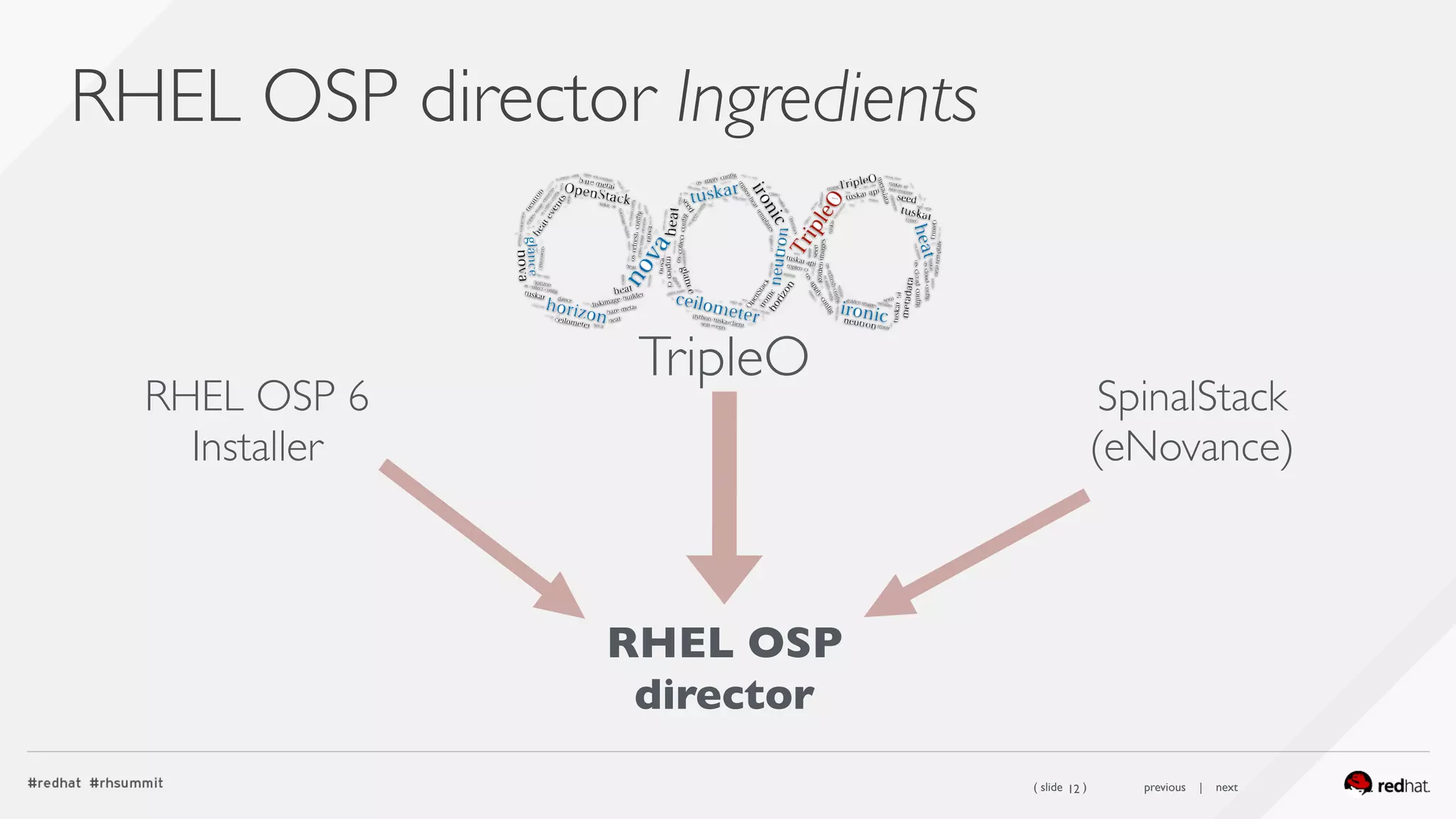

RHEL OSP director Ingredients
12
TripleO
RHEL OSP 6
Installer
SpinalStack
(eNovance)
RHEL OSP
director

13. ( slide ) previous | next
Triple What?!
13

14. ( slide ) previous | next
OpenStack on OpenStack
14
... but let’s ignore the complexity for now.

15. ( slide ) previous | next
Imagine if you will..
15
An OpenStack Deployment and ManagementTool

16. ( slide ) previous | next
AToolset Featuring ...
16
๏ Deploying OpenStack to
bare metal
๏ OpenStack community adopted
๏ Providing visual status of core
services and cloud infrastructure
๏ Offering platform extensibility
๏ Providing integration via well
known APIs
๏ Is cloud operator focused!
๏ Naturally resilient and scalable
An OpenStack Deployment and ManagementTool

17. ( slide ) previous | next
Sounds cool ... more please!
17

18. ( slide ) previous | next
TripleO Explained (more detail)
18

19. ( slide ) previous | next
OpenStack in a Minute or So
19

20. ( slide ) previous | next

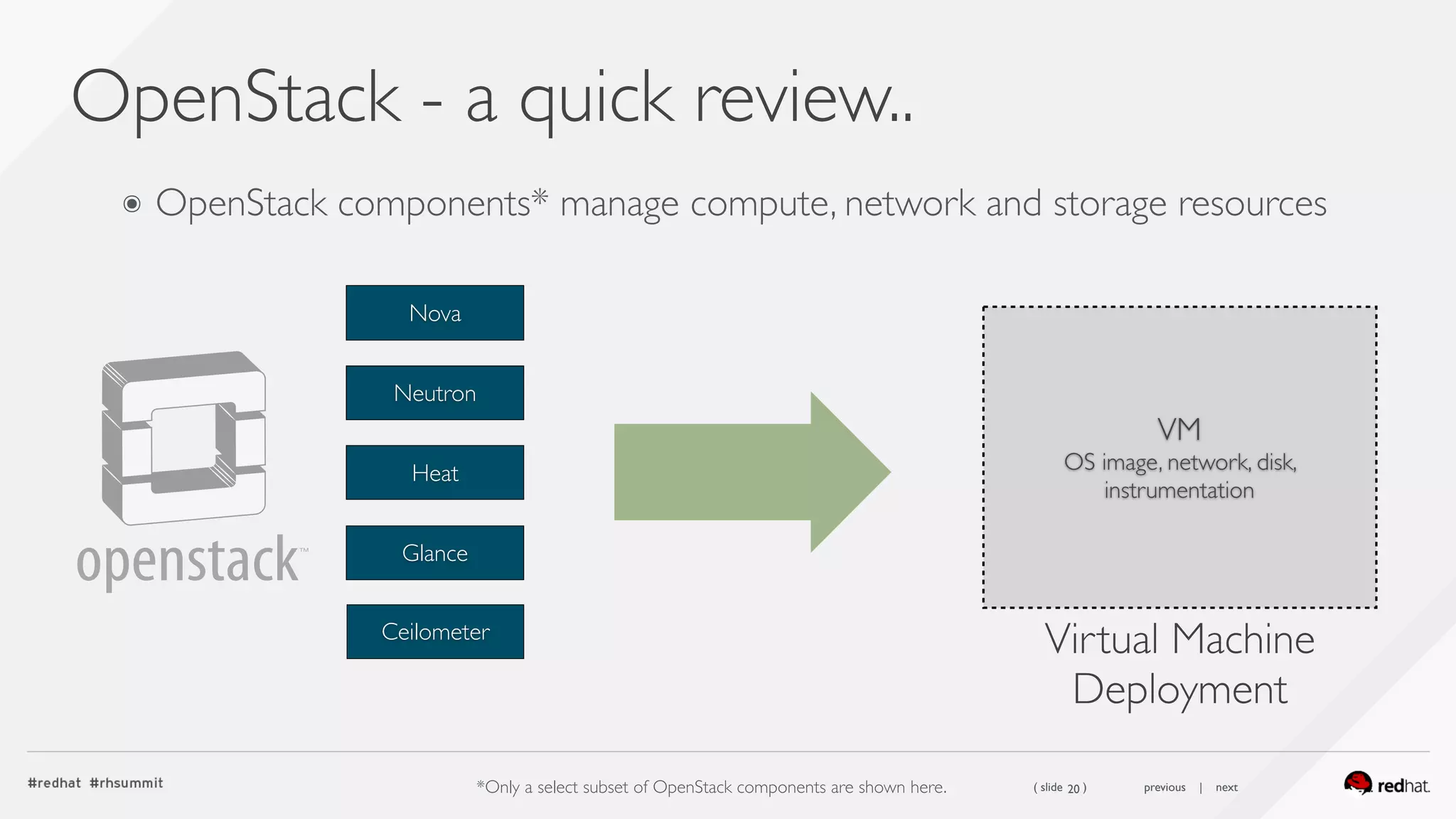

OpenStack - a quick review..
20
Heat
Glance
Neutron
Nova
VM
OS image, network, disk,
instrumentation
Virtual Machine
Deployment
Ceilometer
*Only a select subset of OpenStack components are shown here.
๏ OpenStack components* manage compute, network and storage resources

21. ( slide ) previous | next
OpenStack - Nova, Heat & Ceilometer
21
Heat
Glance
Neutron
Nova
VM
OS image, network, disk,
instrumentation
Virtual Machine
Deployment
Ceilometer

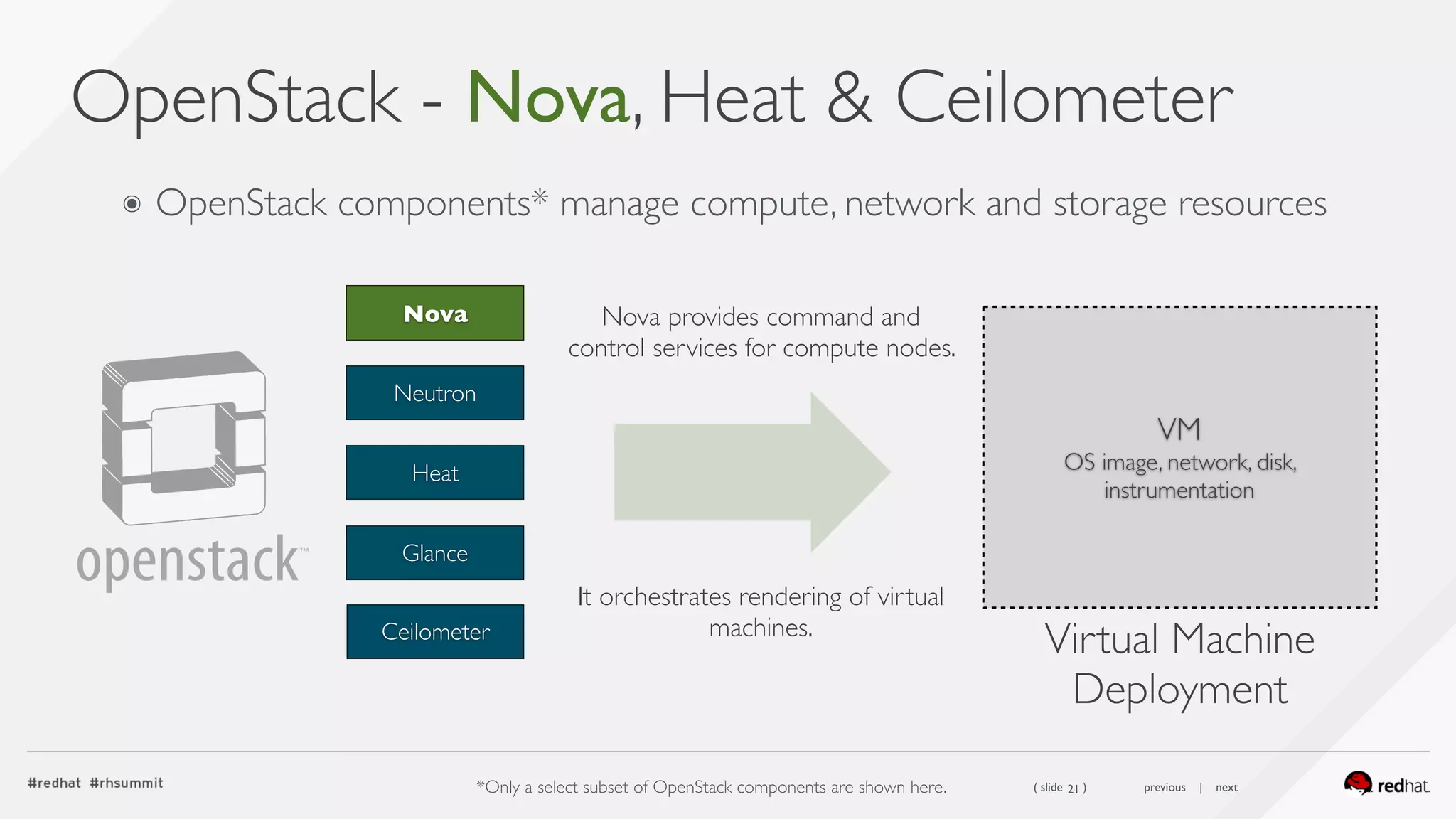

Nova provides command and
control services for compute nodes.
It orchestrates rendering of virtual
machines.
๏ OpenStack components* manage compute, network and storage resources
*Only a select subset of OpenStack components are shown here.

22. ( slide ) previous | next

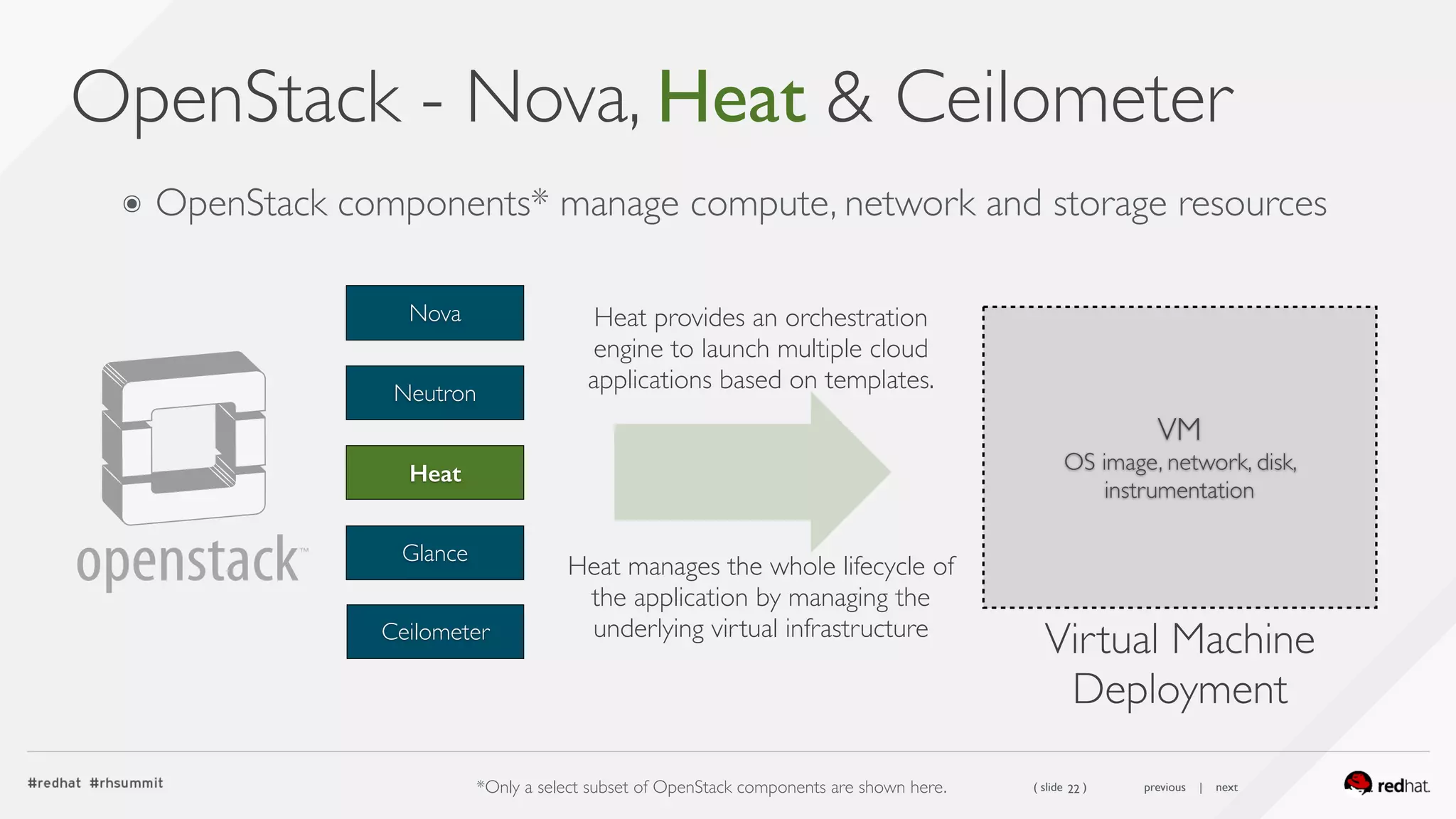

OpenStack - Nova, Heat & Ceilometer
22
Heat
Glance
Neutron
Nova
VM
OS image, network, disk,
instrumentation
Virtual Machine
Deployment
Ceilometer
Heat provides an orchestration
engine to launch multiple cloud
applications based on templates.
Heat manages the whole lifecycle of
the application by managing the
underlying virtual infrastructure
๏ OpenStack components* manage compute, network and storage resources
*Only a select subset of OpenStack components are shown here.

23. ( slide ) previous | next
OpenStack - Nova, Heat & Ceilometer
23
Heat
Glance
Neutron
Nova
VM
OS image, network, disk,
instrumentation
Virtual Machine
Deployment
Ceilometer

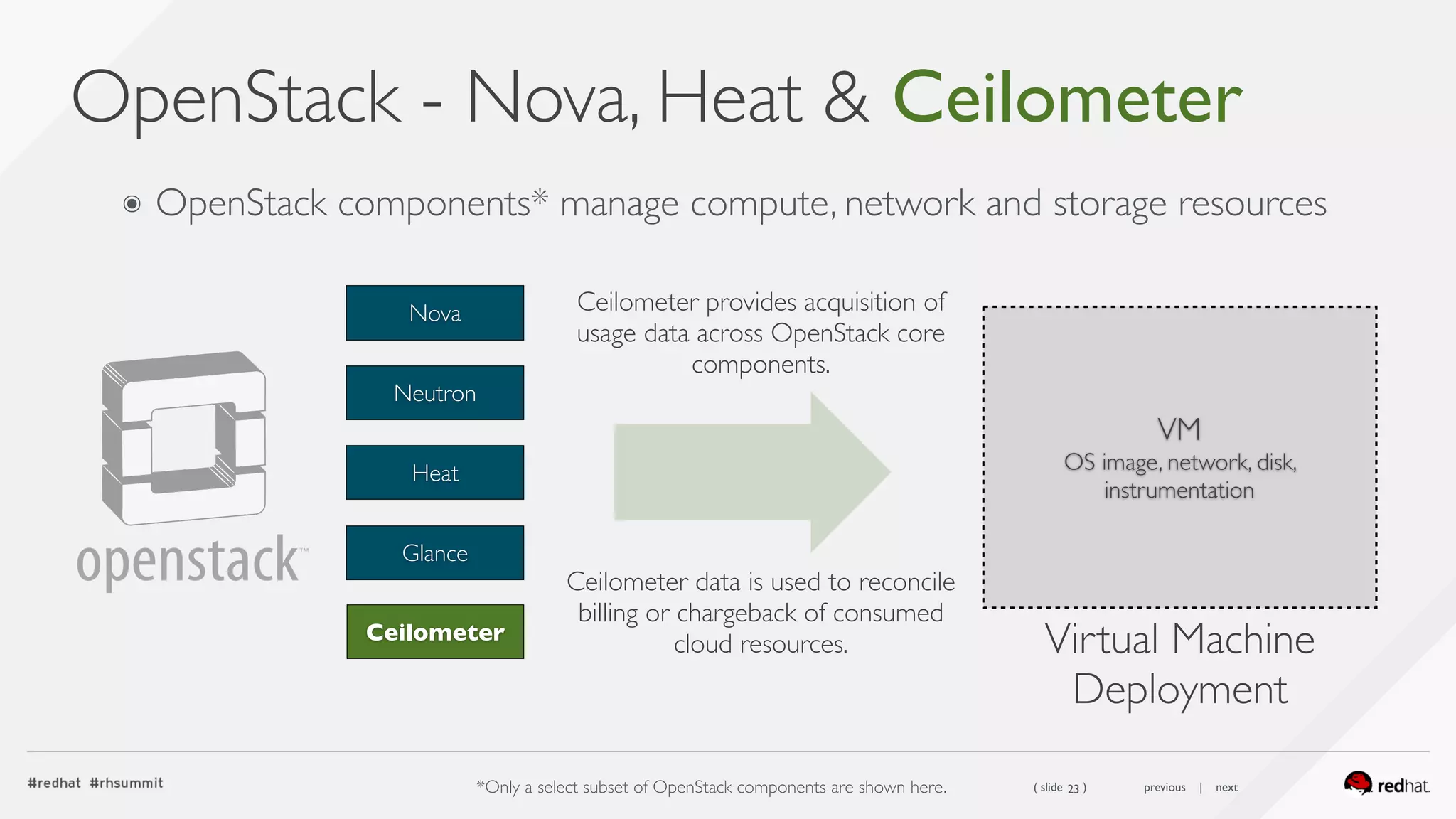

Ceilometer provides acquisition of
usage data across OpenStack core
components.
Ceilometer data is used to reconcile
billing or chargeback of consumed
cloud resources.
๏ OpenStack components* manage compute, network and storage resources
*Only a select subset of OpenStack components are shown here.

24. ( slide ) previous | next
OOO
24

25. ( slide ) previous | next
The Concept ofTripleO
25

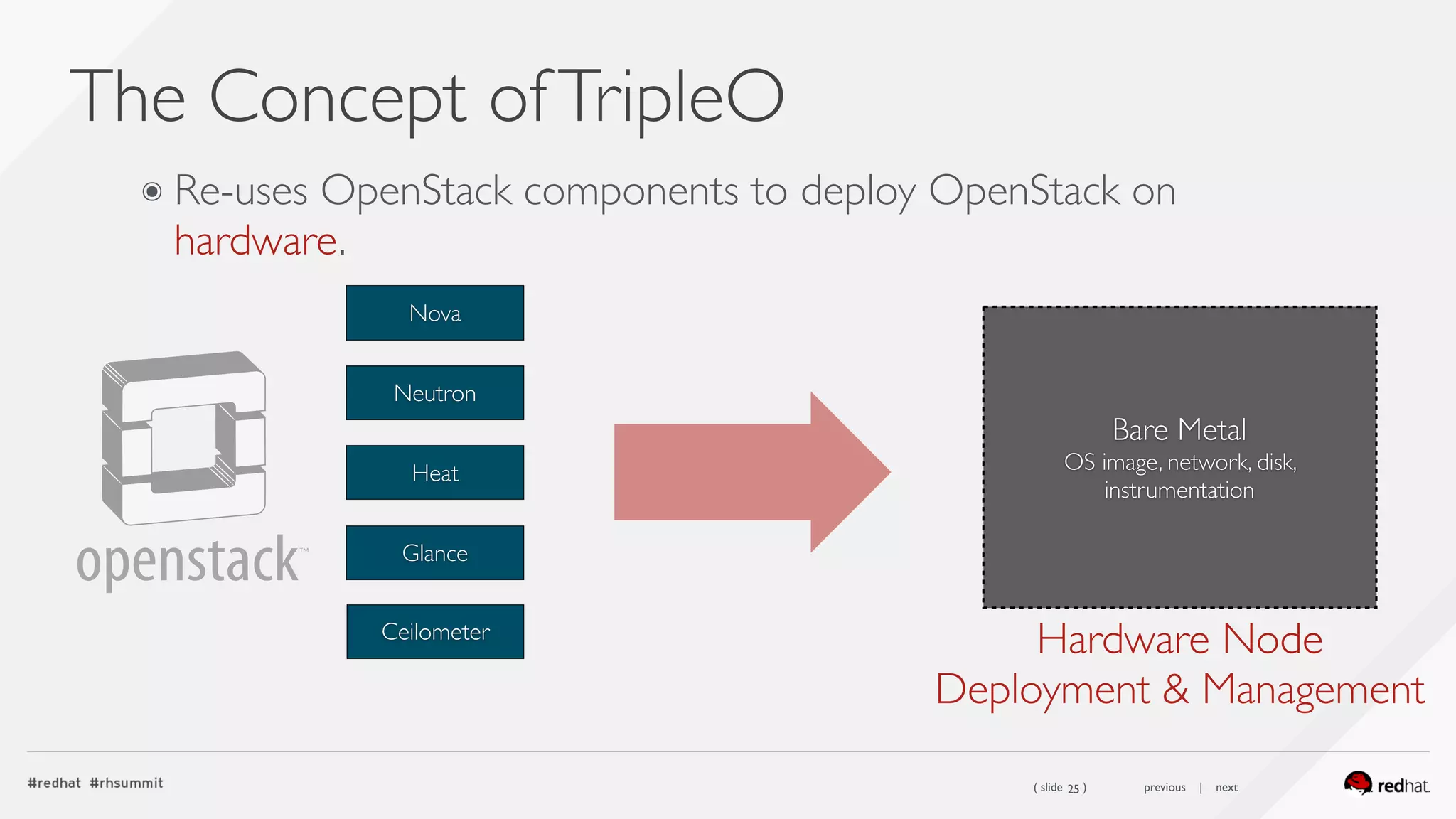

๏ Re-uses OpenStack components to deploy OpenStack on
hardware.
Heat
Glance
Neutron
Nova
Hardware Node
Deployment & Management
Ceilometer
Bare Metal
OS image, network, disk,
instrumentation

26. ( slide ) previous | next
OpenStack - Nova, Heat & Ceilometer
26

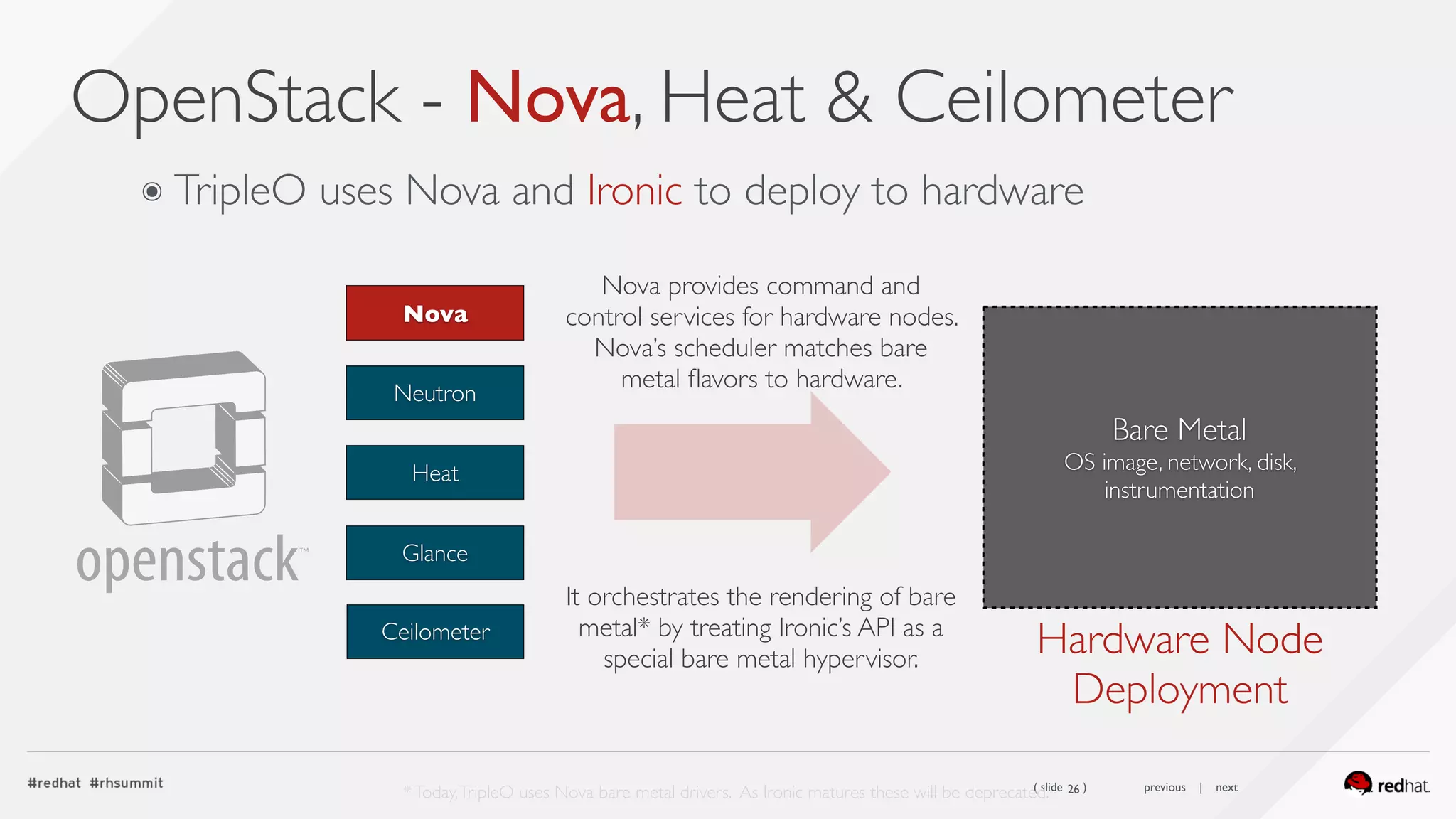

๏ TripleO uses Nova and Ironic to deploy to hardware
Nova provides command and
control services for hardware nodes.
Nova’s scheduler matches bare
metal flavors to hardware.
It orchestrates the rendering of bare
metal* by treating Ironic’s API as a
special bare metal hypervisor.
Heat
Glance
Neutron
Nova
Ceilometer
*Today,TripleO uses Nova bare metal drivers. As Ironic matures these will be deprecated.
Bare Metal
OS image, network, disk,
instrumentation
Hardware Node
Deployment

27. ( slide ) previous | next
OpenStack - Nova, Heat & Ceilometer
27

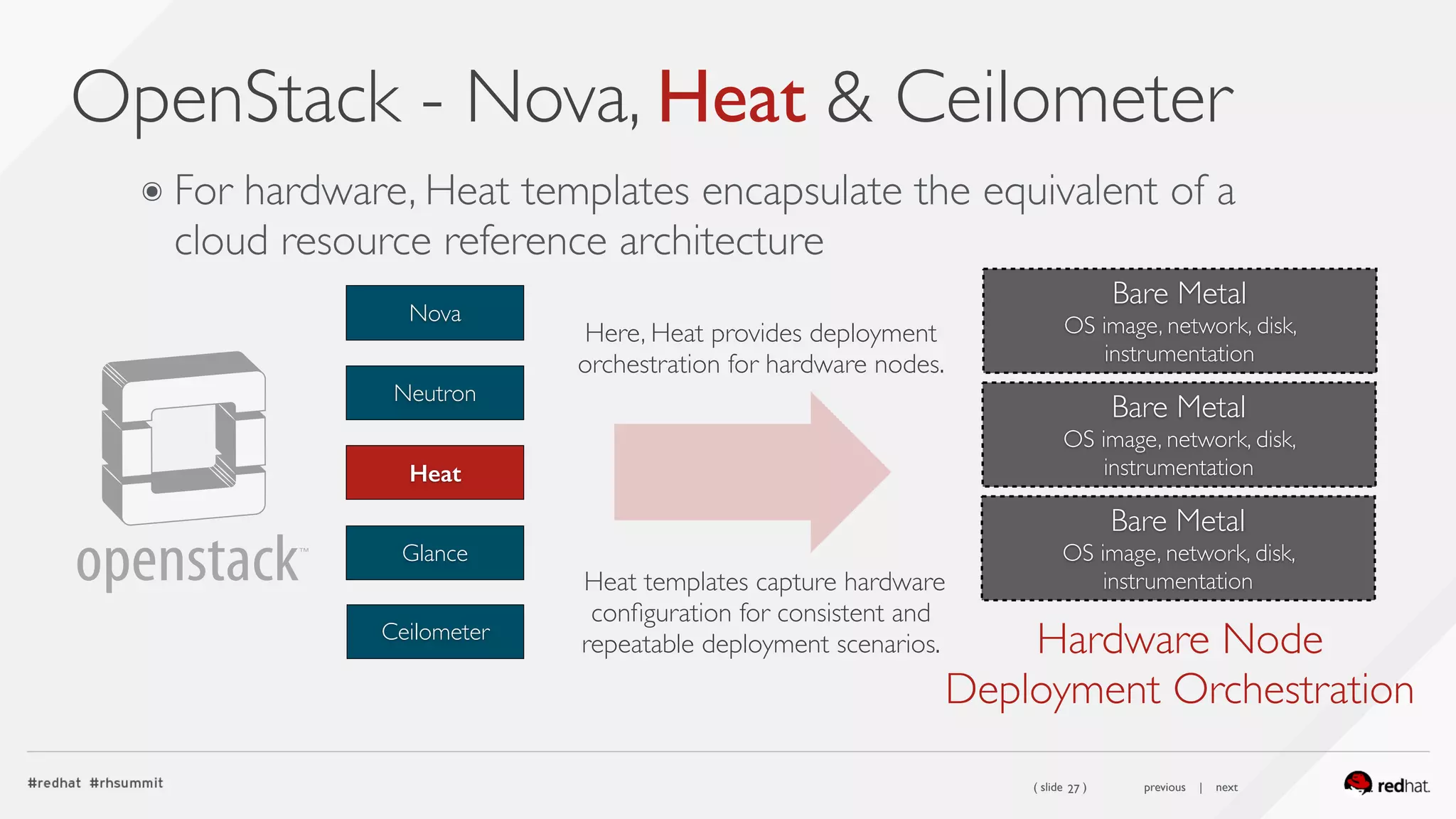

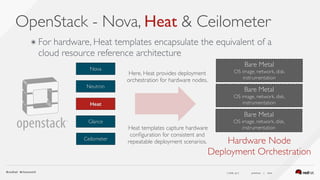

๏ For hardware, Heat templates encapsulate the equivalent of a
cloud resource reference architecture
Here, Heat provides deployment
orchestration for hardware nodes.
Heat templates capture hardware
configuration for consistent and
repeatable deployment scenarios.
Heat
Glance
Neutron
Nova
Ceilometer
Hardware Node
Deployment Orchestration
Bare Metal
OS image, network, disk,
instrumentation
Bare Metal
OS image, network, disk,
instrumentation
Bare Metal
OS image, network, disk,
instrumentation

28. ( slide ) previous | next
OpenStack - Nova, Heat & Ceilometer
28

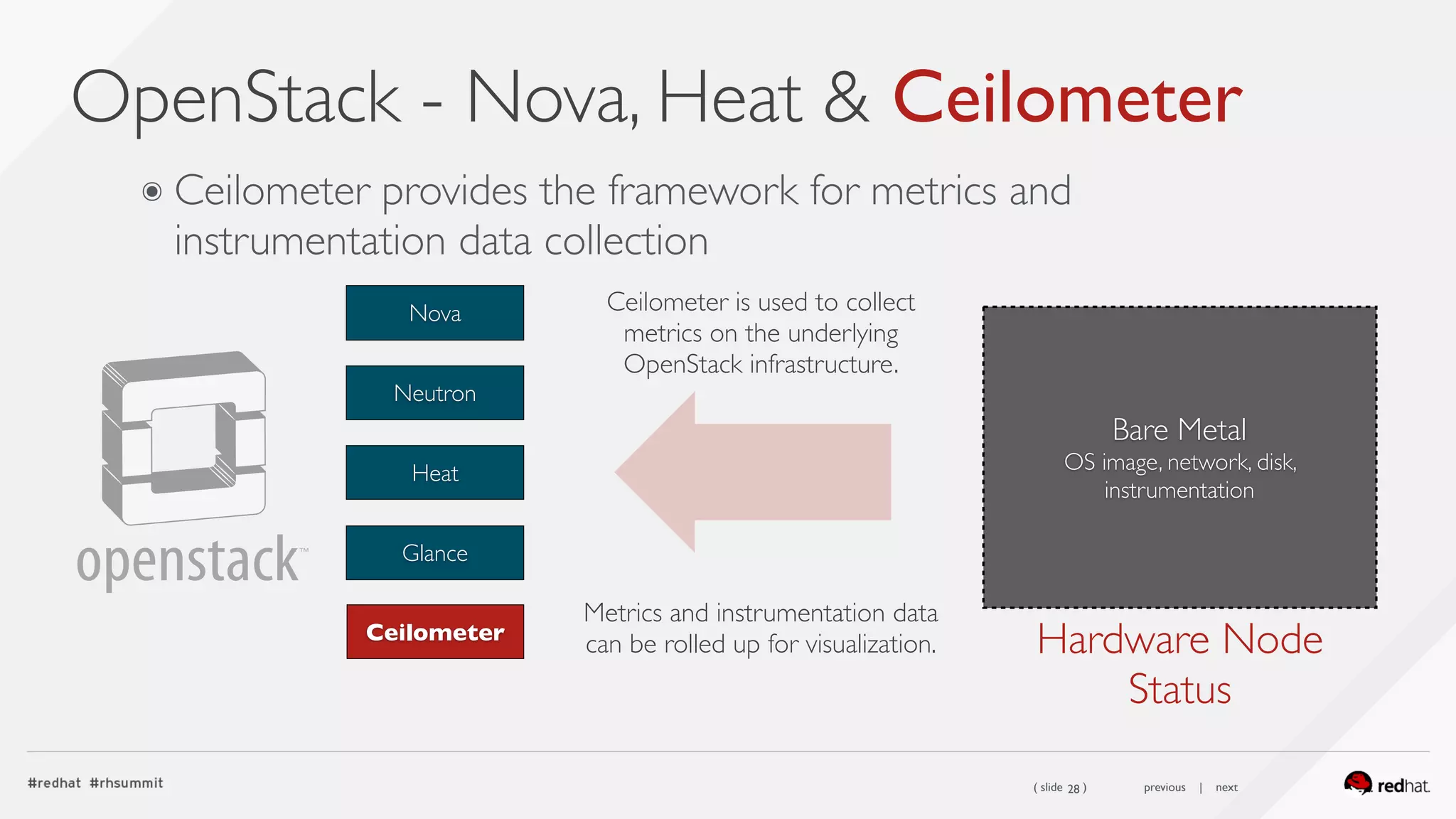

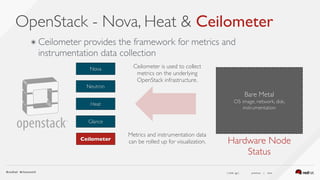

๏ Ceilometer provides the framework for metrics and
instrumentation data collection
Ceilometer is used to collect
metrics on the underlying
OpenStack infrastructure.
Metrics and instrumentation data
can be rolled up for visualization.
Heat
Glance
Neutron
Nova
Ceilometer
Hardware Node
Status
Bare Metal
OS image, network, disk,
instrumentation

29. ( slide ) previous | next
Deployment Flow
29

30. ( slide ) previous | next
RememberThis?
30

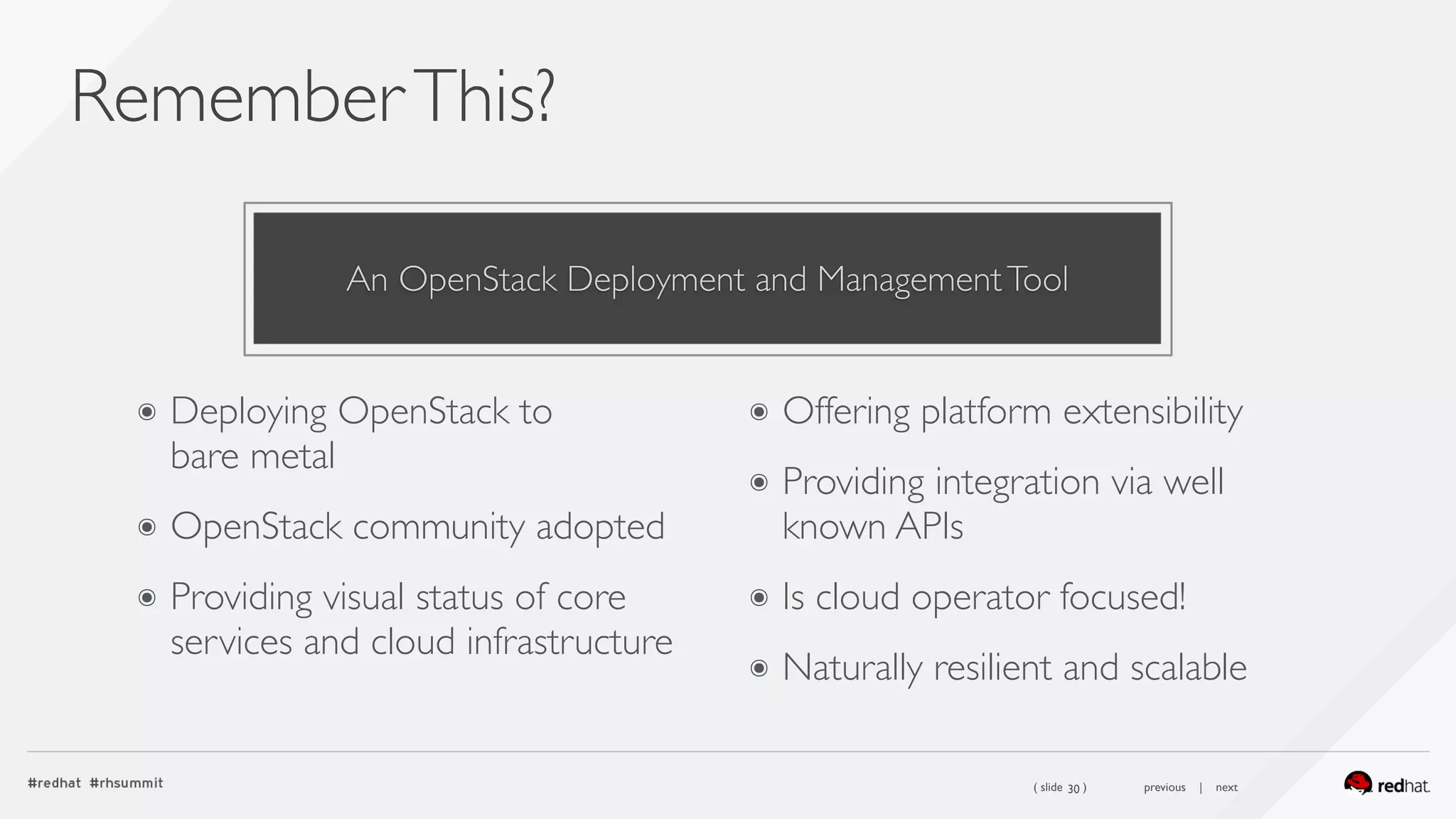

๏ Deploying OpenStack to
bare metal
๏ OpenStack community adopted
๏ Providing visual status of core
services and cloud infrastructure
๏ Offering platform extensibility
๏ Providing integration via well
known APIs
๏ Is cloud operator focused!
๏ Naturally resilient and scalable
An OpenStack Deployment and ManagementTool

31. ( slide ) previous | next
Key Concept:We HaveTwo Clouds
31

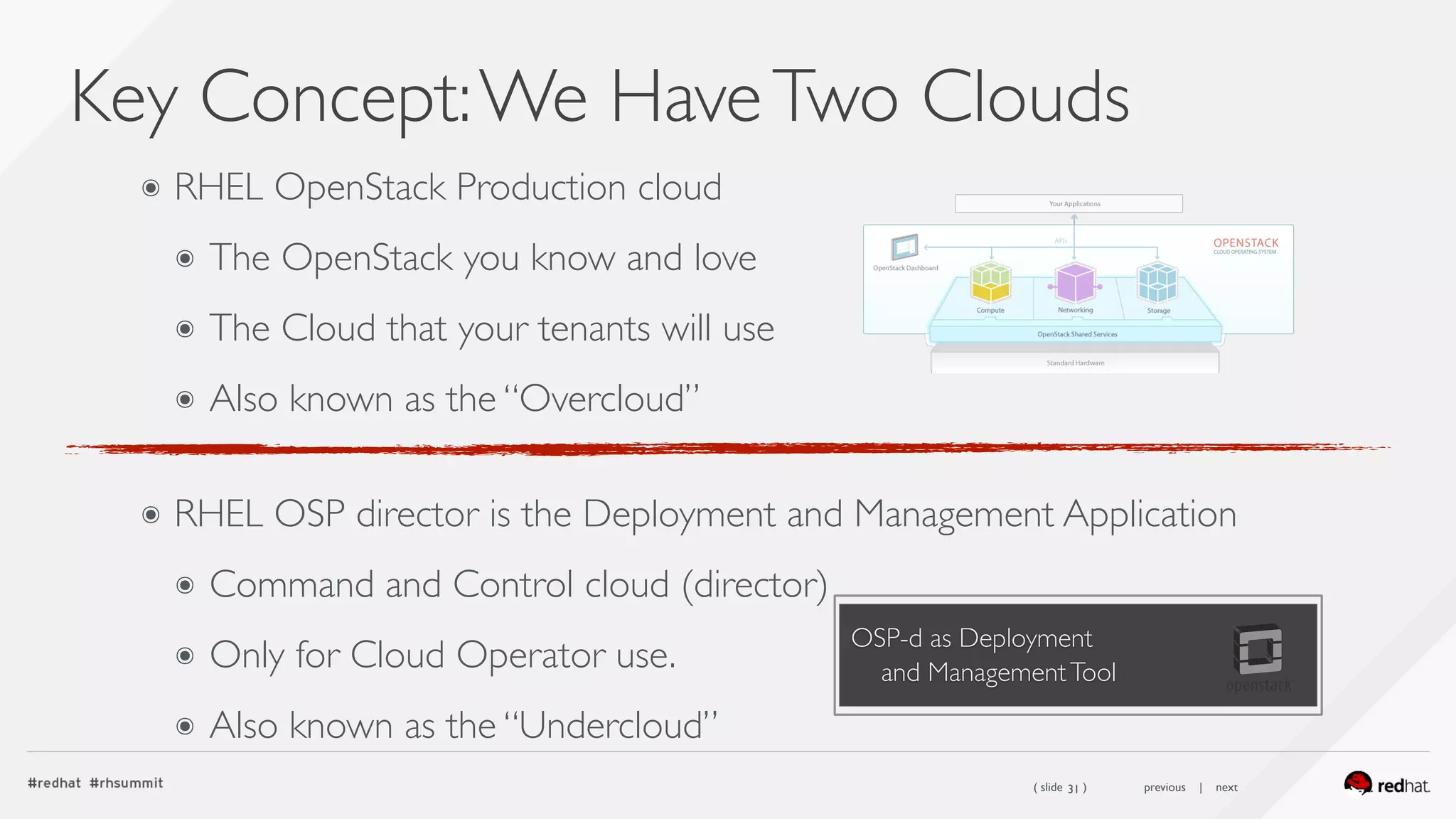

๏ RHEL OpenStack Production cloud
๏ The OpenStack you know and love
๏ The Cloud that your tenants will use
๏ Also known as the “Overcloud”
๏ RHEL OSP director is the Deployment and Management Application
๏ Command and Control cloud (director)
๏ Only for Cloud Operator use.
๏ Also known as the “Undercloud”
OSP-d as Deployment
and ManagementTool

32. ( slide ) previous | next32

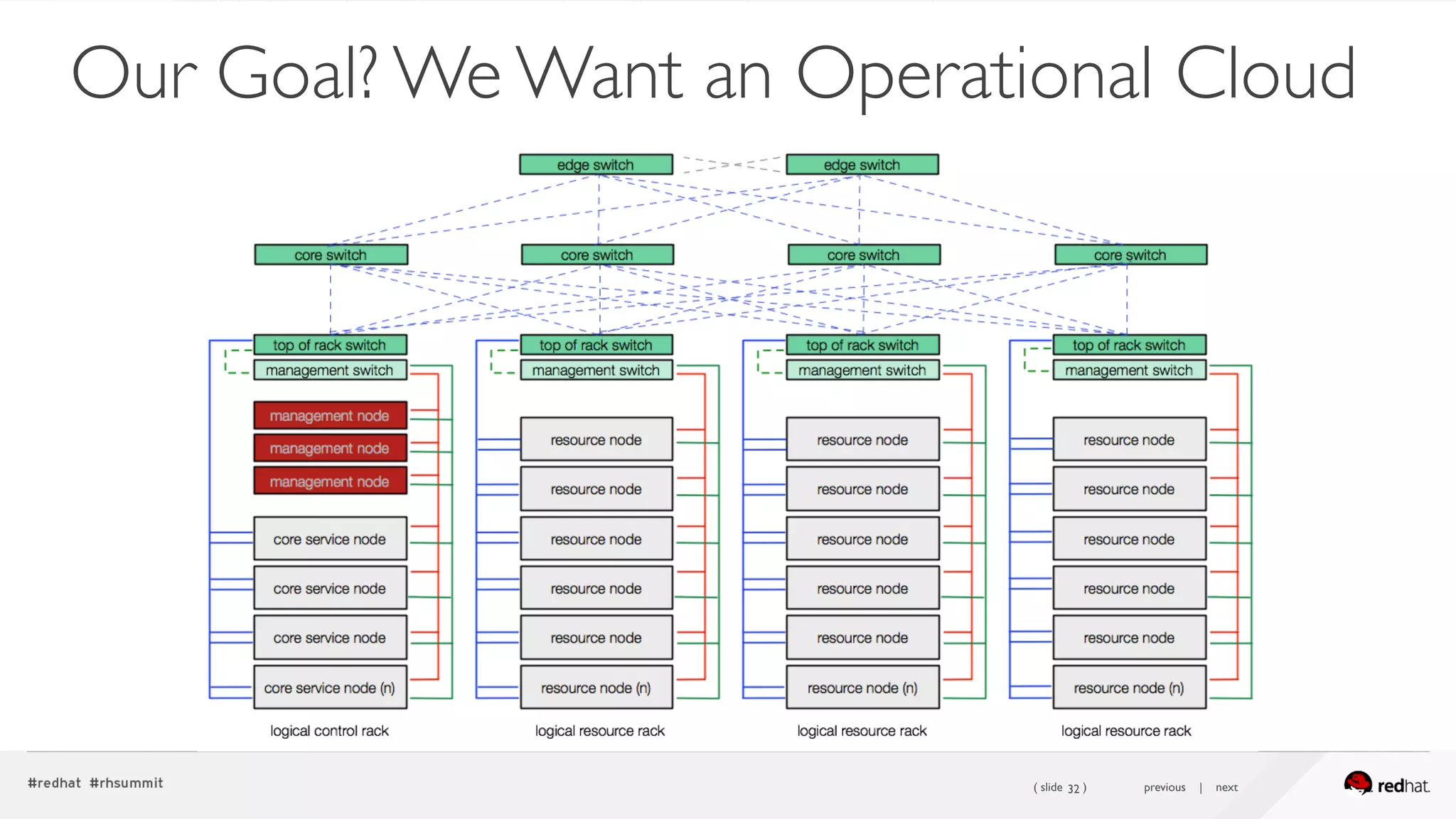

Our Goal? We Want an Operational Cloud

33. ( slide ) previous | next33

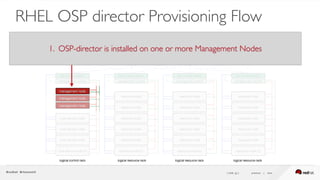

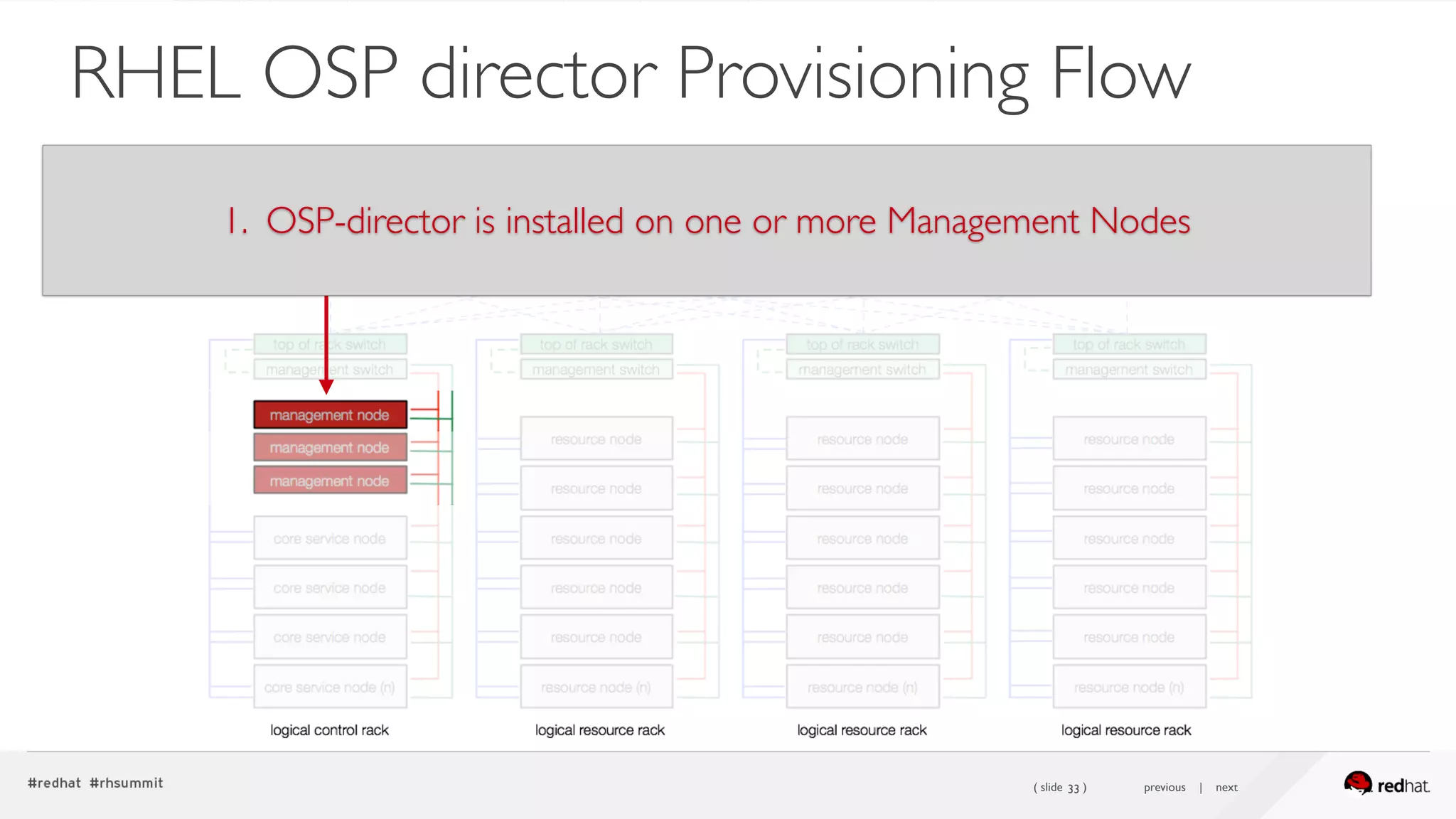

RHEL OSP director Provisioning Flow
1. OSP-director is installed on one or more Management Nodes

34. ( slide ) previous | next34

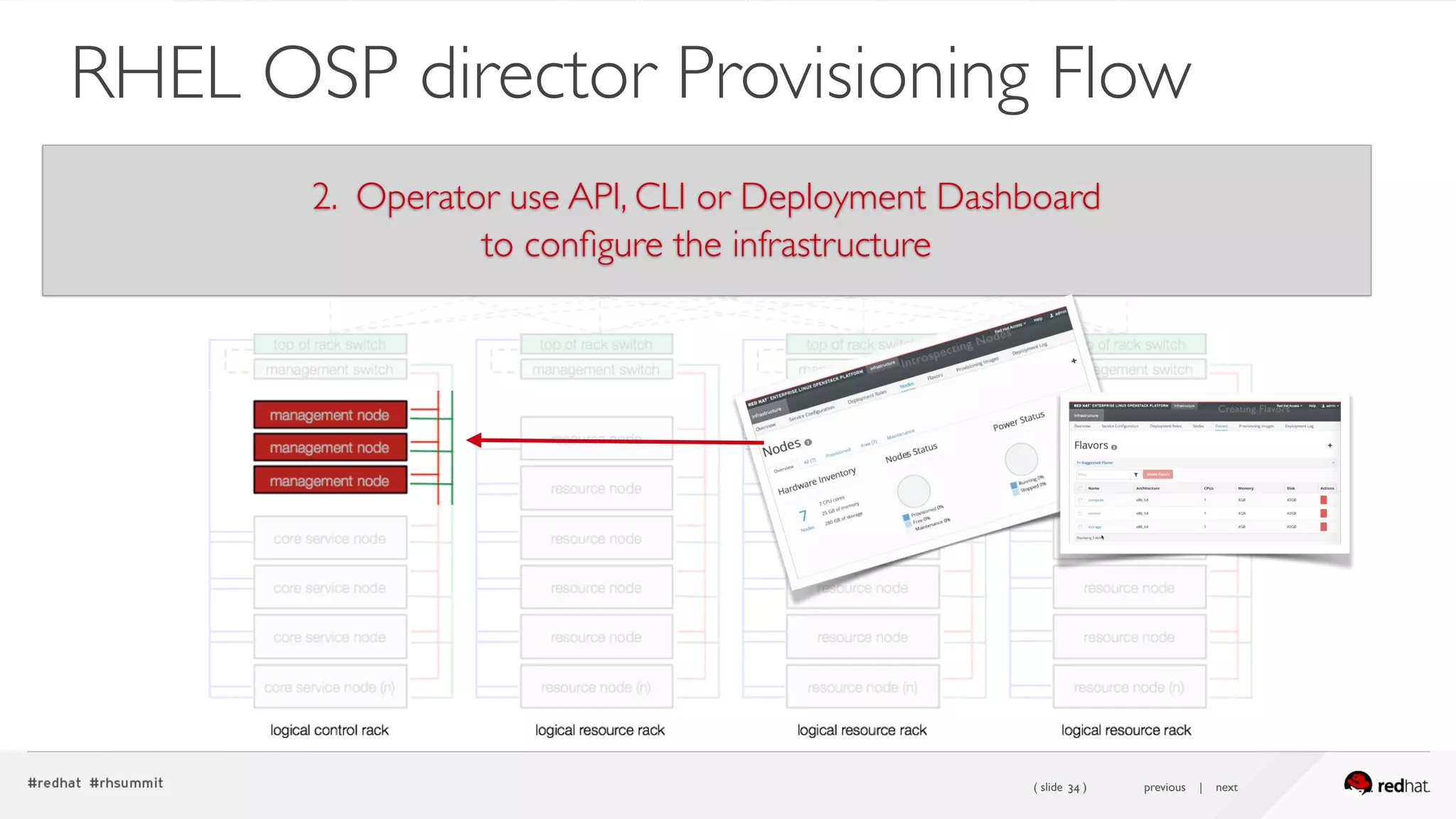

RHEL OSP director Provisioning Flow
2. Operator use API, CLI or Deployment Dashboard
to configure the infrastructure

35. ( slide ) previous | next35

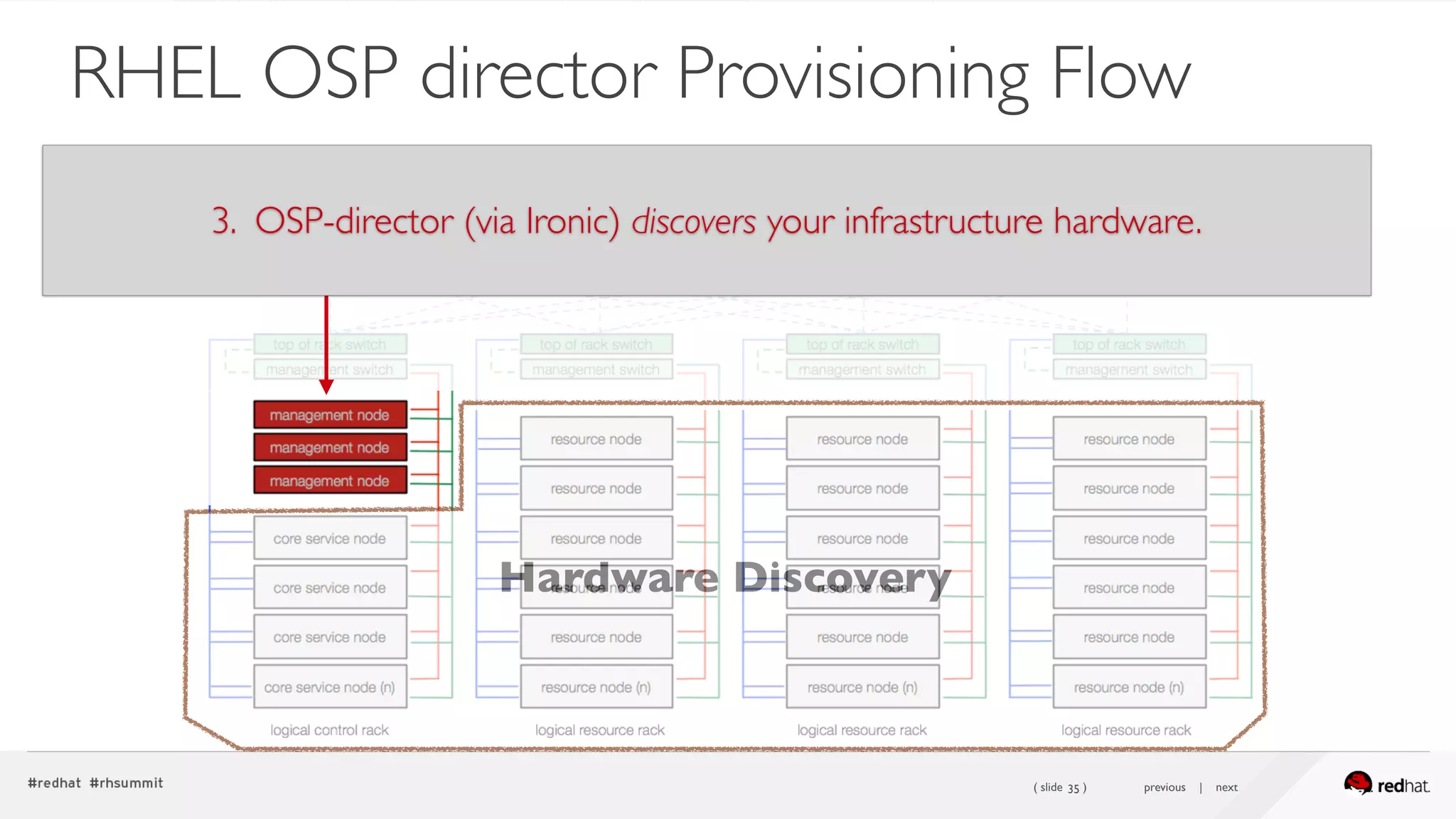

RHEL OSP director Provisioning Flow
3. OSP-director (via Ironic) discovers your infrastructure hardware.
Hardware Discovery

36. ( slide ) previous | next36
RHEL OSP director Provisioning Flow

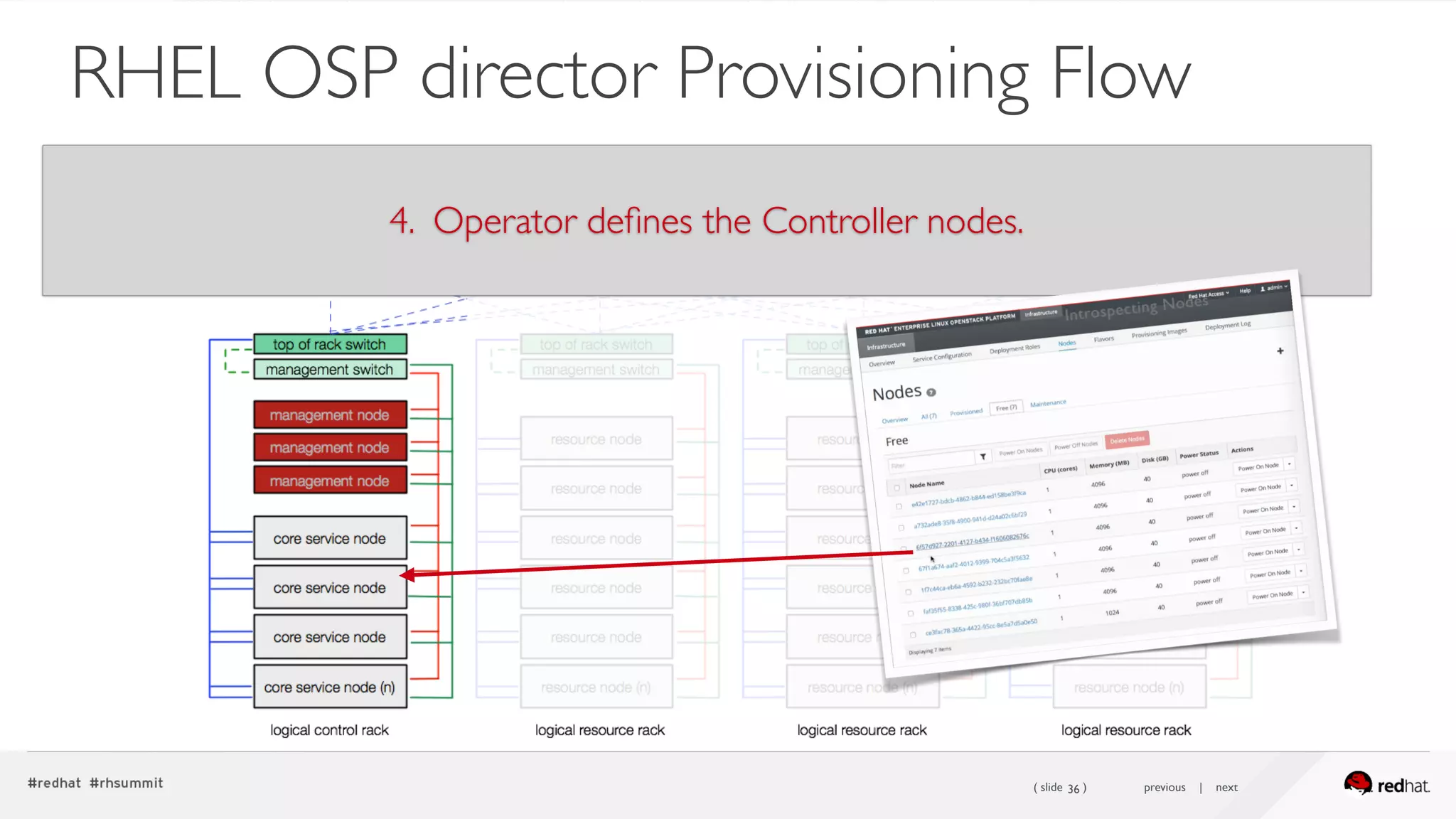

4. Operator defines the Controller nodes.

37. ( slide ) previous | next37
RHEL OSP director Provisioning Flow

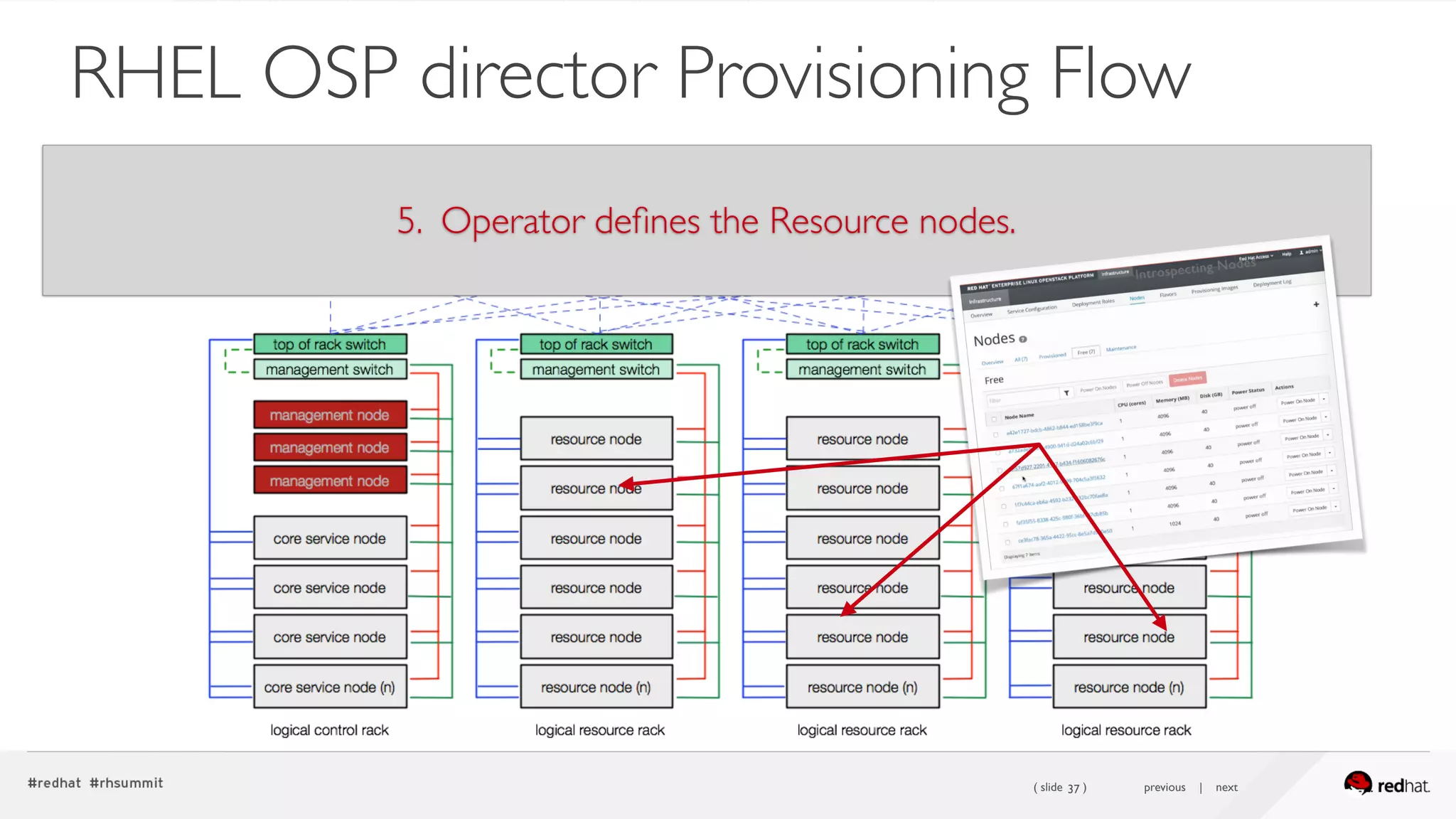

5. Operator defines the Resource nodes.

38. ( slide ) previous | next38

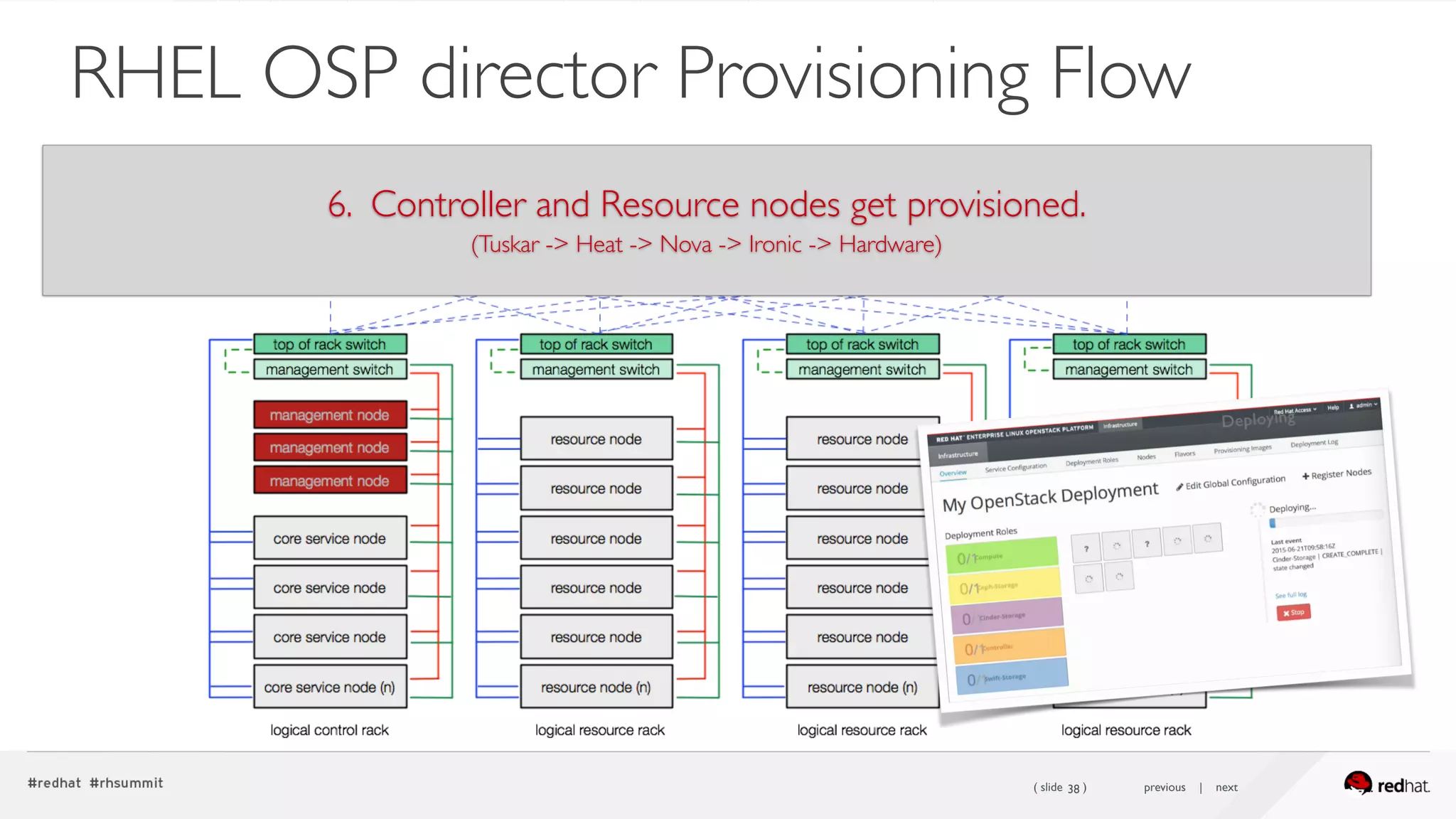

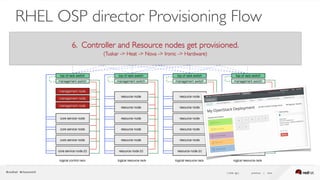

RHEL OSP director Provisioning Flow
6. Controller and Resource nodes get provisioned.
(Tuskar -> Heat -> Nova -> Ironic -> Hardware)

39. ( slide ) previous | next39

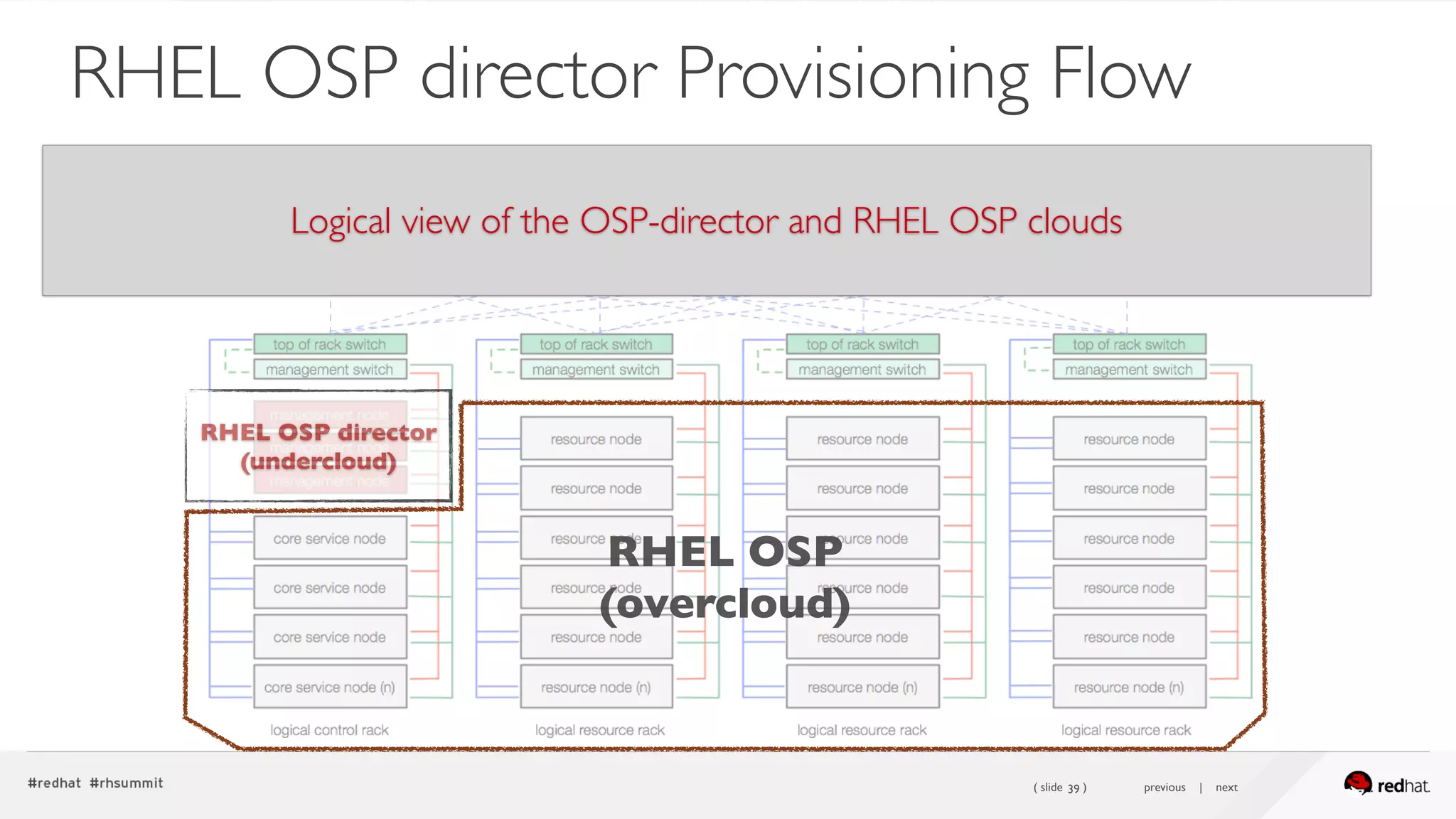

RHEL OSP director Provisioning Flow

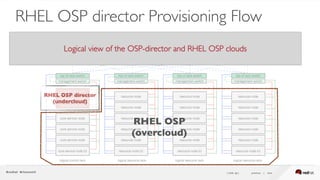

Logical view of the OSP-director and RHEL OSP clouds
RHEL OSP
(overcloud)
RHEL OSP director
(undercloud)

40. ( slide ) previous | next
RHEL OpenStack Platform
director Features
40

41. ( slide ) previous | next

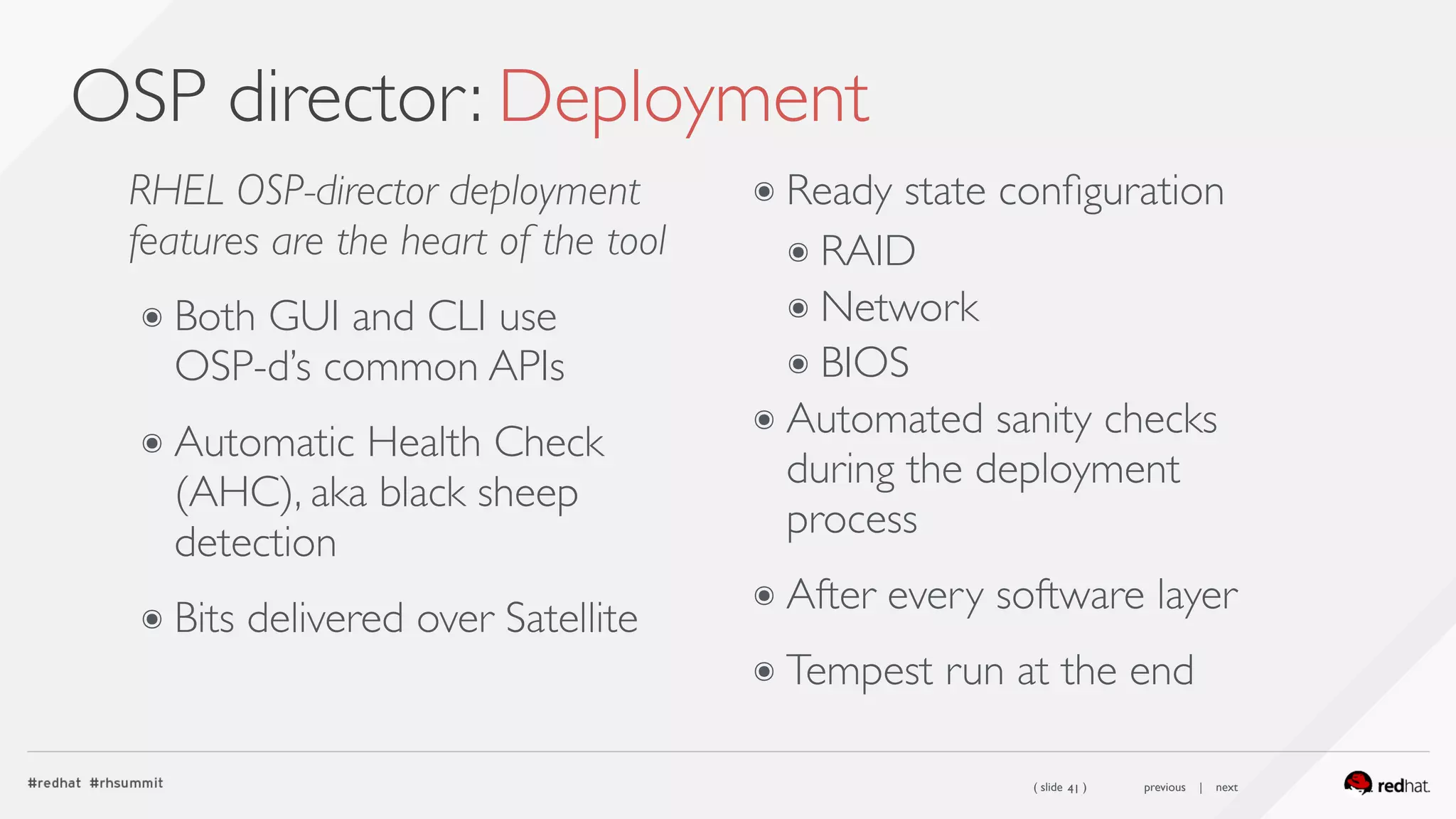

OSP director: Deployment
41
RHEL OSP-director deployment
features are the heart of the tool
๏ Both GUI and CLI use
OSP-d’s common APIs
๏ Automatic Health Check
(AHC), aka black sheep
detection
๏ Bits delivered over Satellite
๏ Ready state configuration
๏ RAID
๏ Network
๏ BIOS
๏ Automated sanity checks
during the deployment
process
๏ After every software layer
๏ Tempest run at the end

42. ( slide ) previous | next

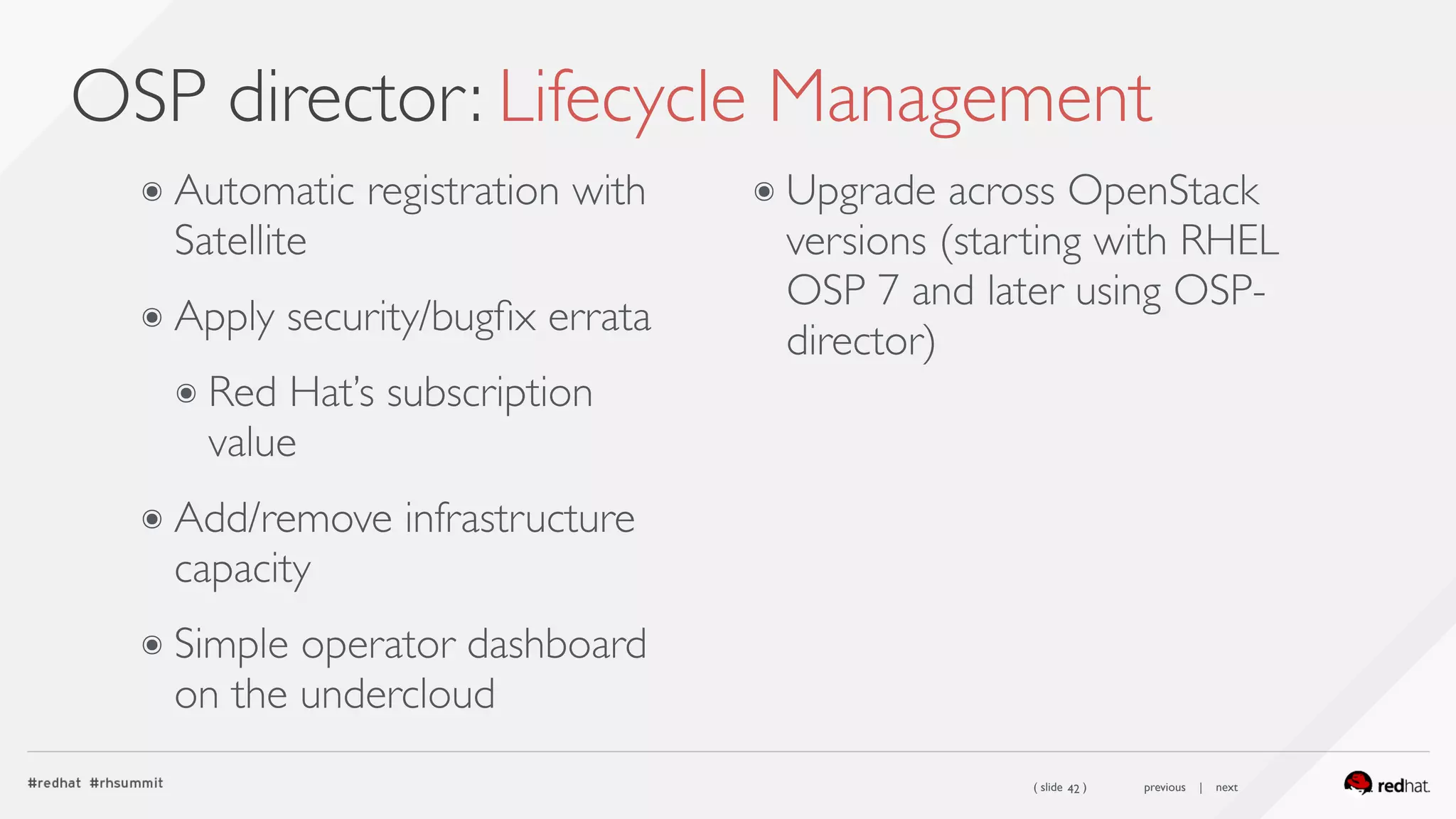

OSP director: Lifecycle Management
42
๏ Automatic registration with
Satellite
๏ Apply security/bugfix errata
๏ Red Hat’s subscription
value
๏ Add/remove infrastructure
capacity
๏ Simple operator dashboard
on the undercloud
๏ Upgrade across OpenStack
versions (starting with RHEL
OSP 7 and later using OSP-
director)

43. ( slide ) previous | next

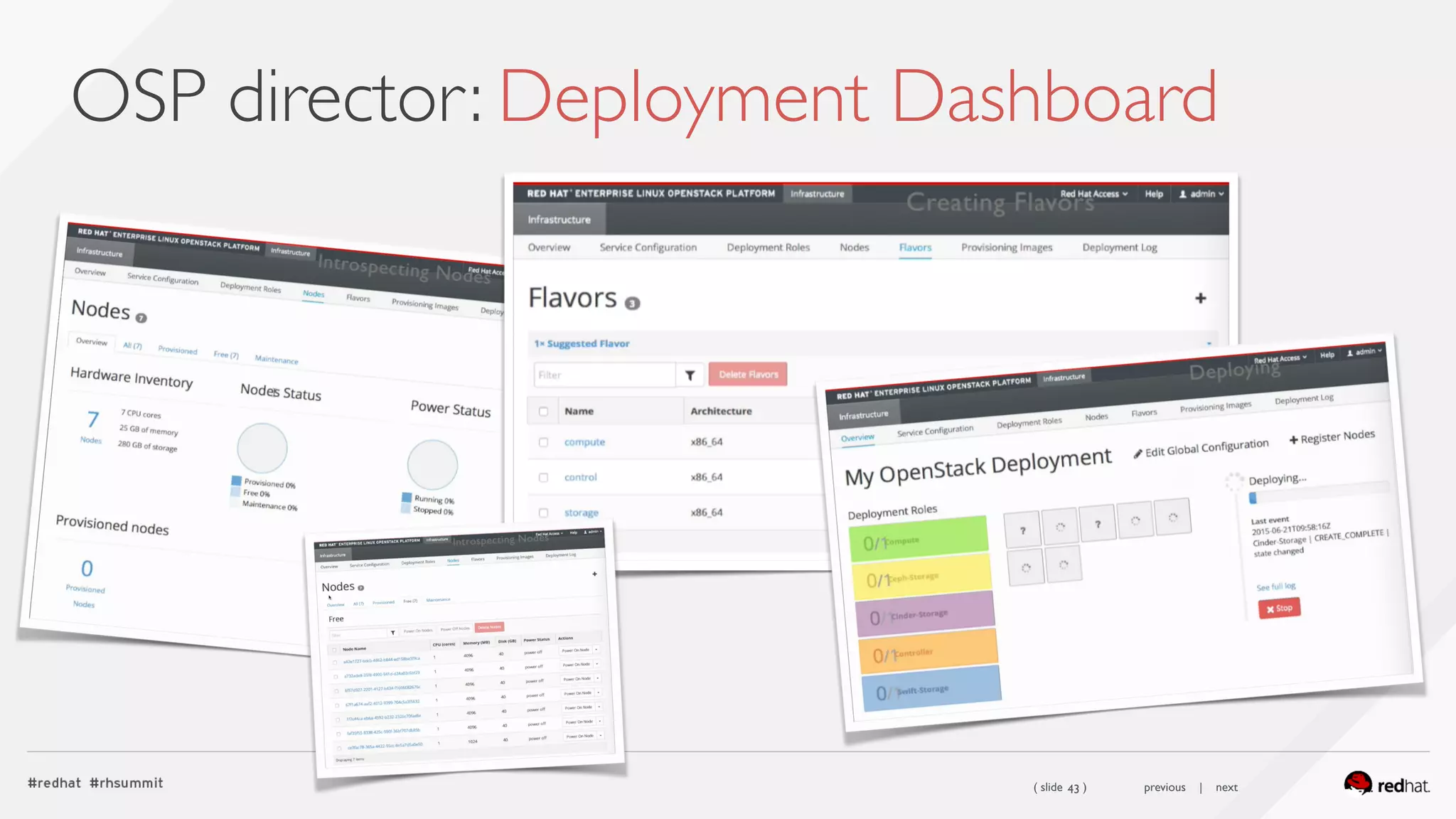

OSP director: Deployment Dashboard
43

44. ( slide ) previous | next

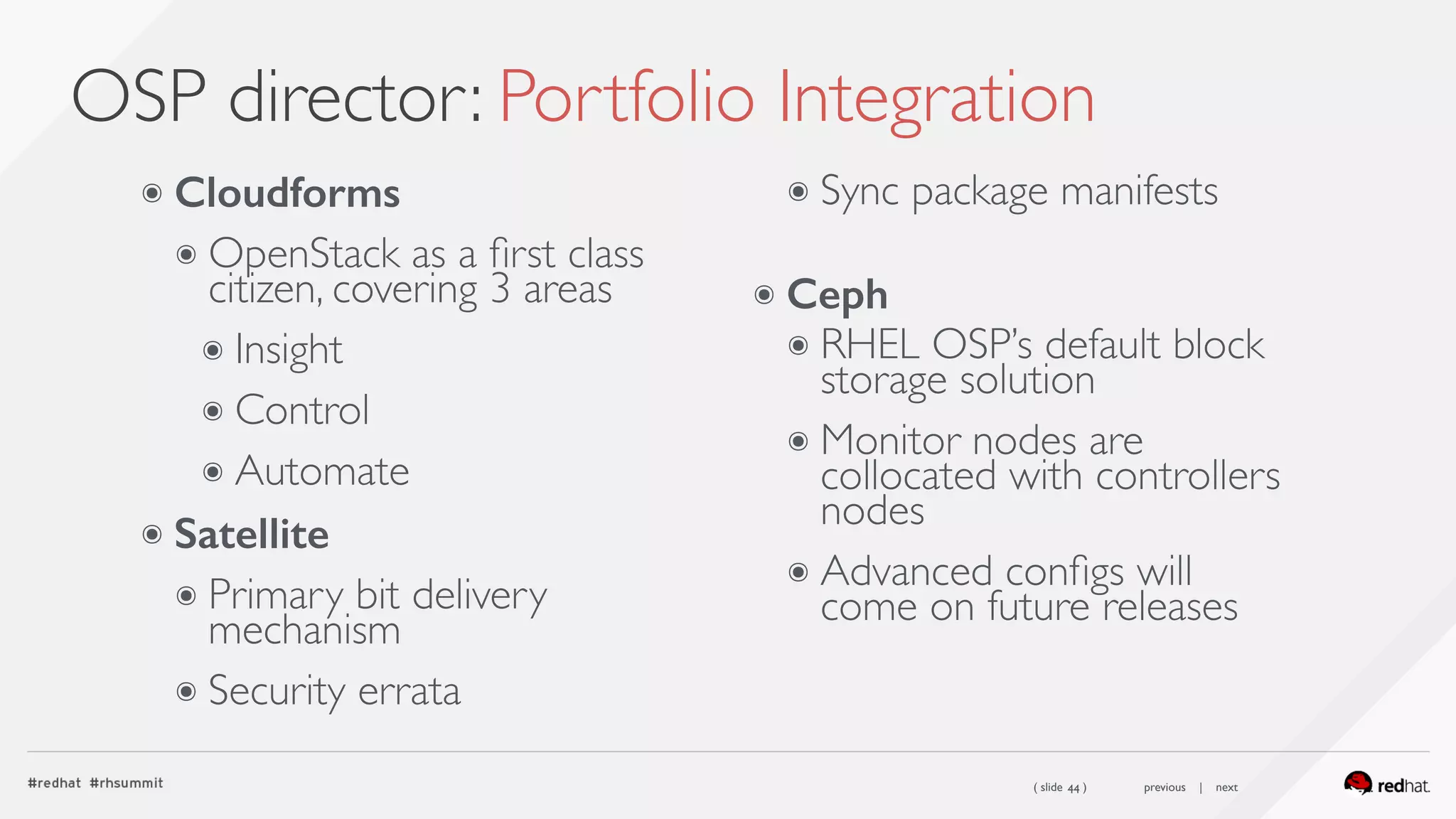

OSP director: Portfolio Integration
44
๏ Cloudforms
๏ OpenStack as a first class
citizen, covering 3 areas
๏ Insight
๏ Control
๏ Automate
๏ Satellite
๏ Primary bit delivery
mechanism
๏ Security errata
๏ Sync package manifests
๏ Ceph
๏ RHEL OSP’s default block
storage solution
๏ Monitor nodes are
collocated with controllers
nodes
๏ Advanced configs will
come on future releases

45. ( slide ) previous | next
OSP director: Partner Integration
45
๏ Support for Ready State configuration via DRAC
๏ BIOS configuration
๏ BIOS updates
๏ RAID configuration
๏ 13g hardware coverage
๏ Integration areas:
๏ Ironic drivers
๏ TripleO HeatTemplates
๏ OpenStack Puppet Modules

46. ( slide ) previous | next

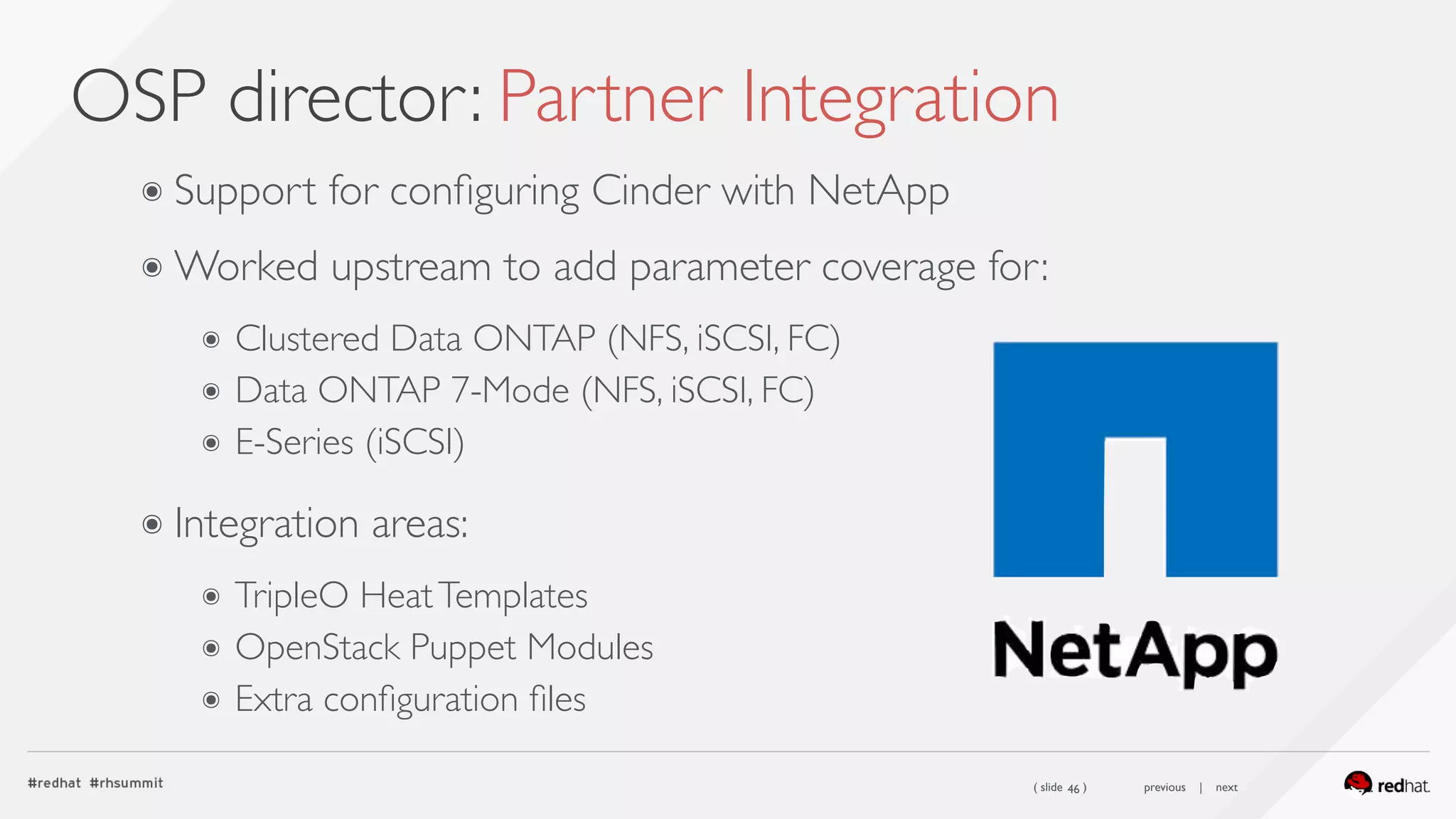

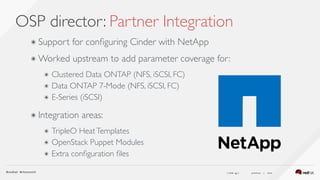

OSP director: Partner Integration
46
๏ Support for configuring Cinder with NetApp
๏ Worked upstream to add parameter coverage for:
๏ Clustered Data ONTAP (NFS, iSCSI, FC)
๏ Data ONTAP 7-Mode (NFS, iSCSI, FC)
๏ E-Series (iSCSI)
๏ Integration areas:
๏ TripleO HeatTemplates
๏ OpenStack Puppet Modules
๏ Extra configuration files

47. ( slide ) previous | next

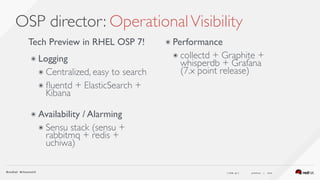

OSP director: OperationalVisibility
47
Tech Preview in RHEL OSP 7!
๏ Logging
๏ Centralized, easy to search
๏ fluentd + ElasticSearch +
Kibana
๏ Availability / Alarming
๏ Sensu stack (sensu +
rabbitmq + redis +
uchiwa)
๏ Performance
๏ collectd + Graphite +
whisperdb + Grafana
(7.x point release)

48. ( slide ) previous | next

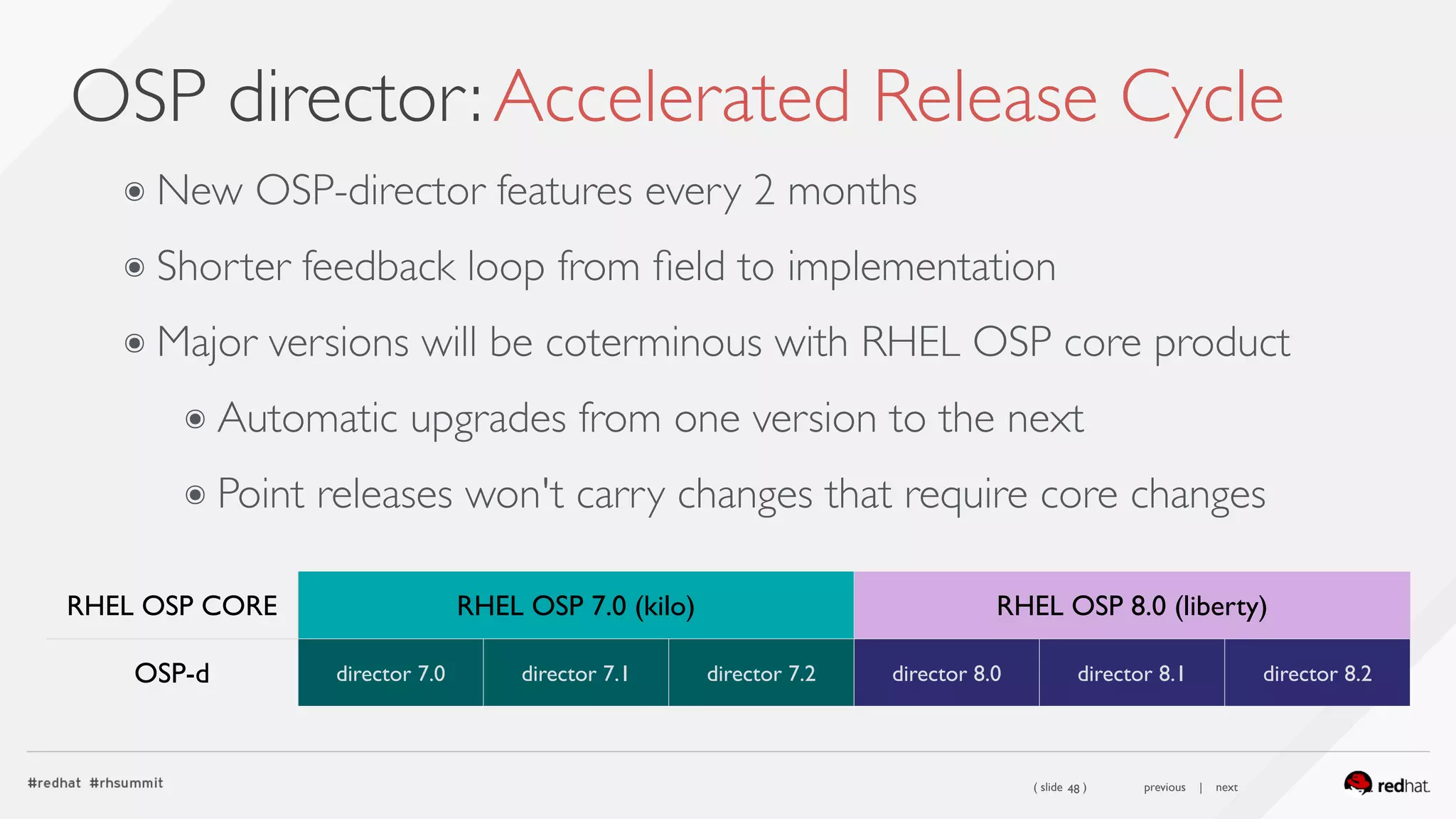

OSP director:Accelerated Release Cycle
48
๏ New OSP-director features every 2 months
๏ Shorter feedback loop from field to implementation
๏ Major versions will be coterminous with RHEL OSP core product
๏ Automatic upgrades from one version to the next
๏ Point releases won't carry changes that require core changes
RHEL OSP CORE RHEL OSP 7.0 (kilo) RHEL OSP 8.0 (liberty)
OSP-d director 7.0 director 7.1 director 7.2 director 8.0 director 8.1 director 8.2

49. ( slide ) previous | next
OpenStack Platform director will be
released with RHEL OSP 7!
49

50. ( slide ) previous | next
Questions?
50
