The document discusses the importance of high availability (HA) and automation tools for successful upgrades in OpenStack environments. Key recommendations include implementing image-based deployment, using efficient automation tools like edeploy, and maintaining a consistent configuration management strategy. The document emphasizes the need for a reproducible upgrade process with minimal downtime and adequate system resources.

1. The importance of HA and automation tools
Frédéric Lepied
Engineering Manager
flepied@redhat.com
Lessons Learned On Upgrades
Senior Software Engineer
emilien@redhat.com
Emilien Macchi

2. Red Hat Cloud Innovation Practice Engineering
Frédéric Lepied: RCIP Engineering manager
Emilien Macchi: installer team / Puppet PTL

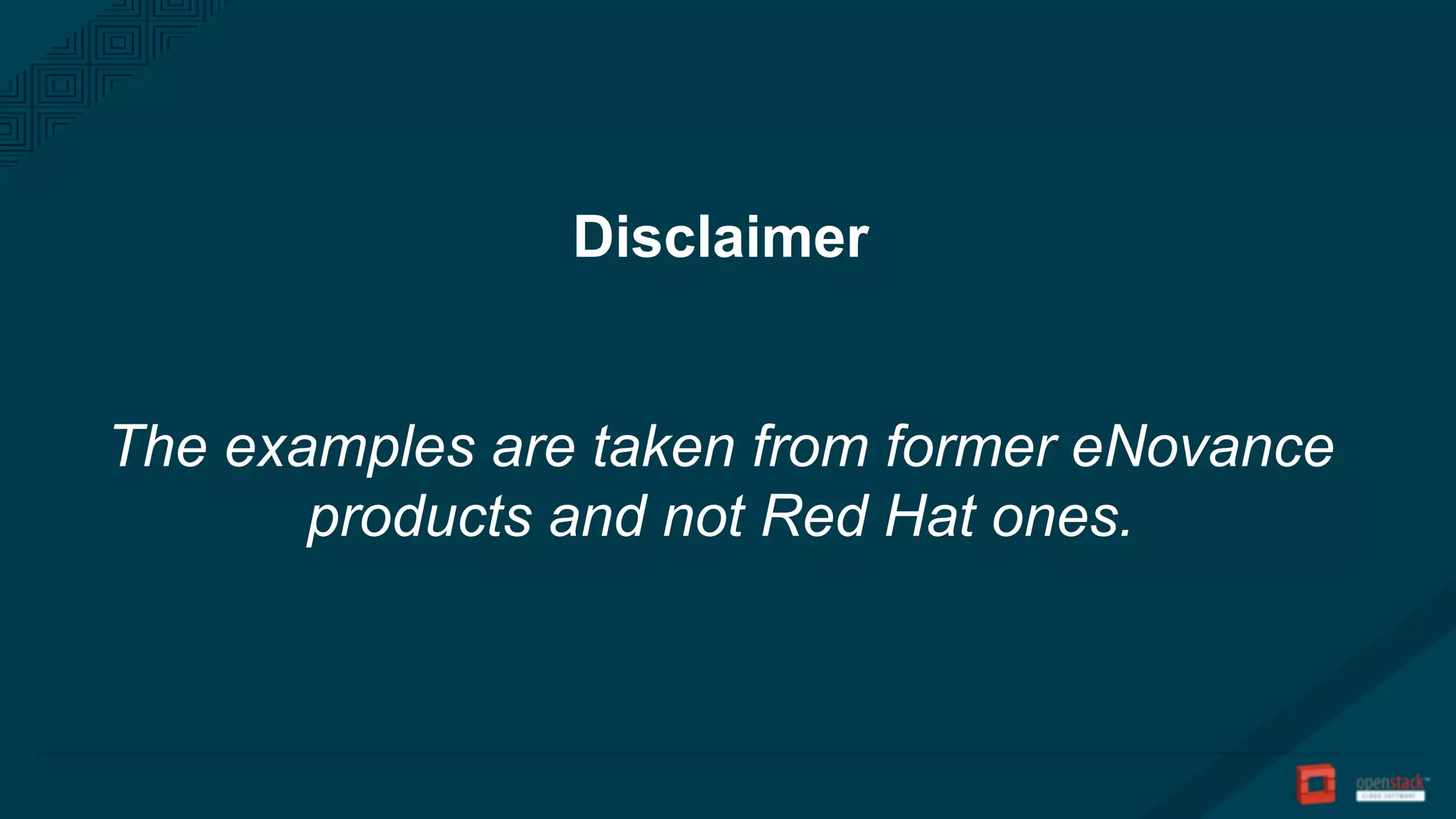

3. Disclaimer
The examples are taken from former eNovance
products and not Red Hat ones.

4. OpenStack is a wonderful place,
but upgrades are not easy.

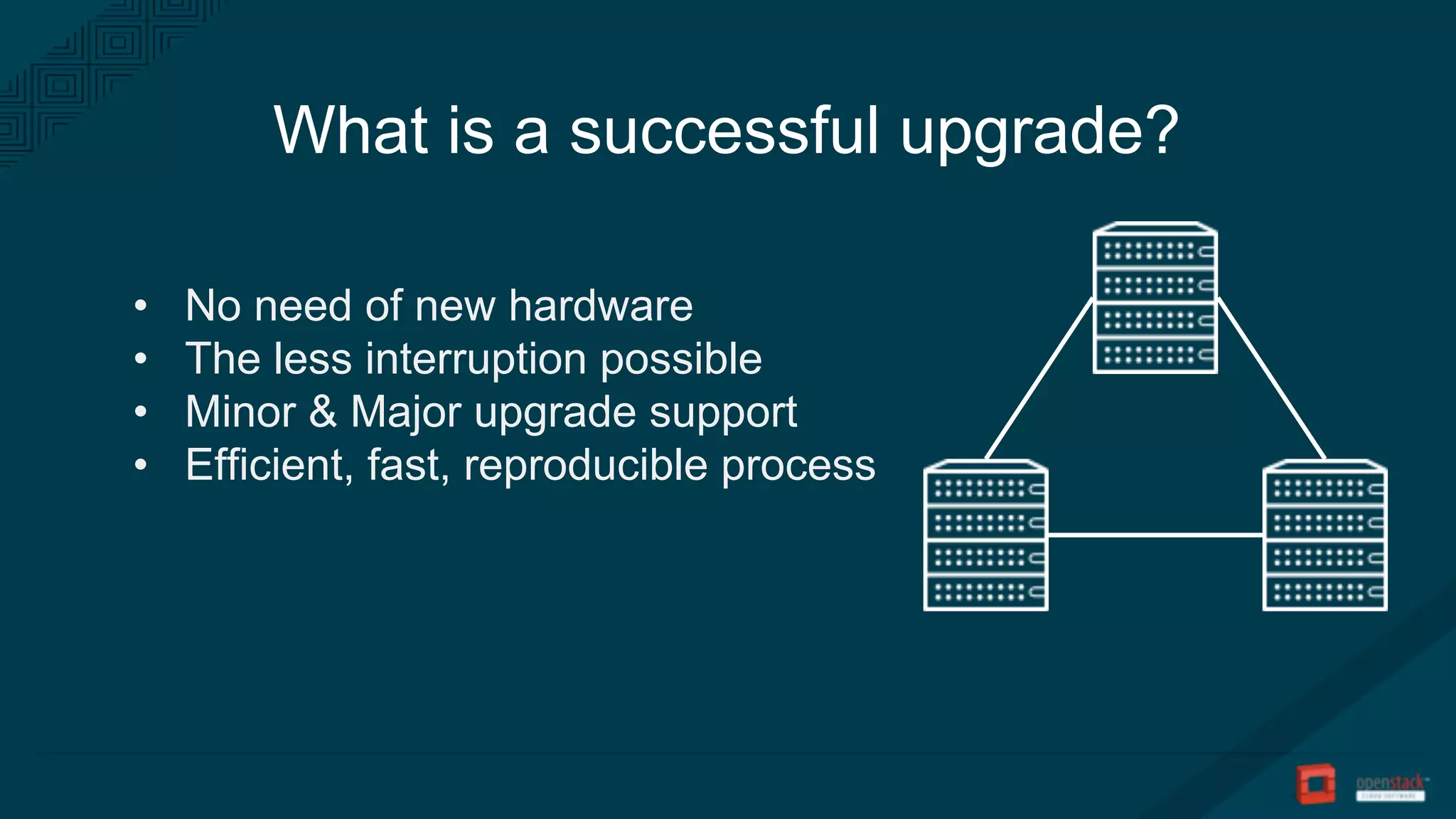

5. What is a successful upgrade?
• No need of new hardware
• The less interruption possible
• Minor & Major upgrade support
• Efficient, fast, reproducible process

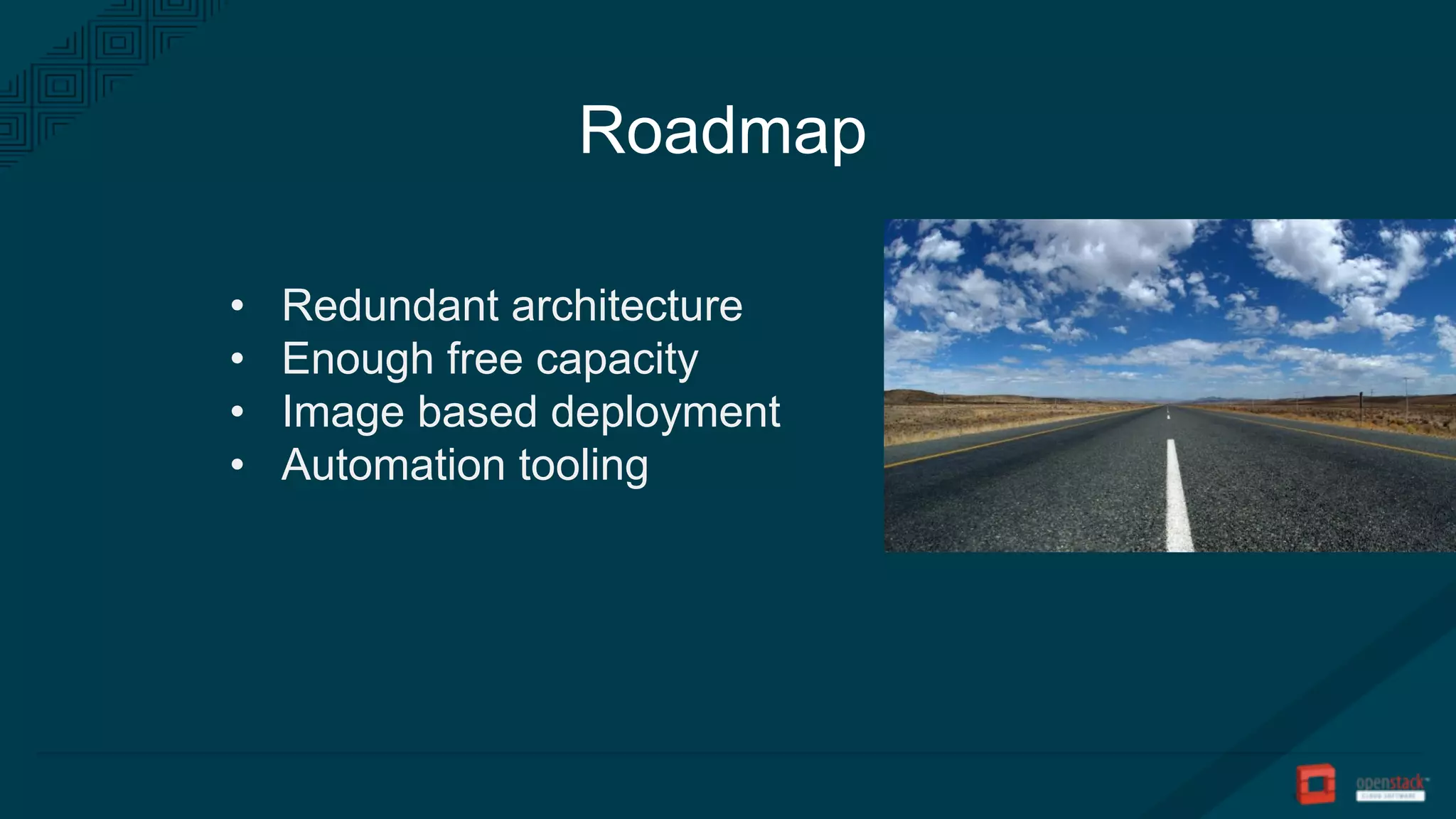

6. Roadmap
• Redundant architecture
• Enough free capacity
• Image based deployment
• Automation tooling

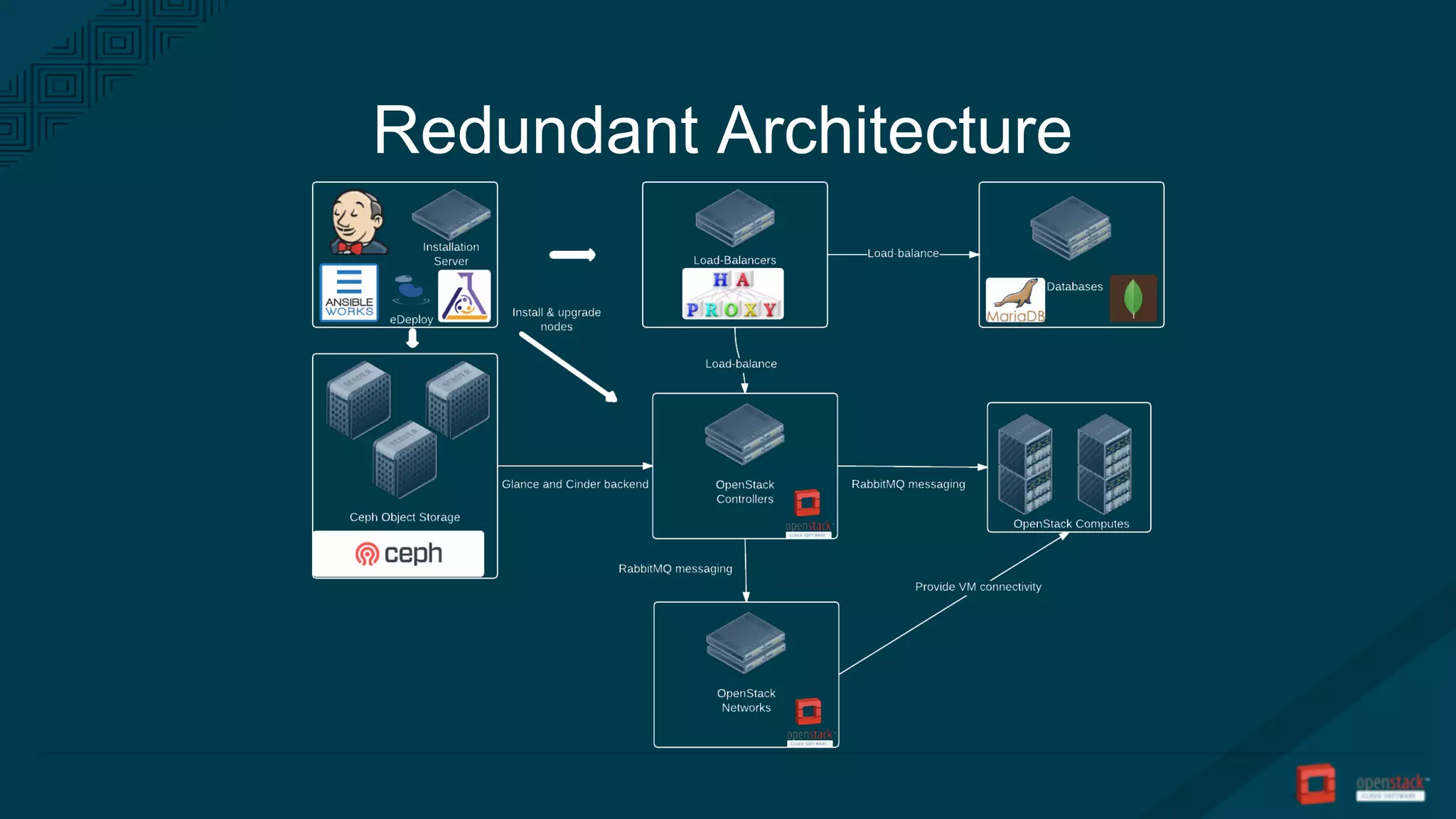

7. Redundant Architecture

8. Enough free capacity
• Have enough compute
resources to migrate instances
• Have some spare in case of
failure

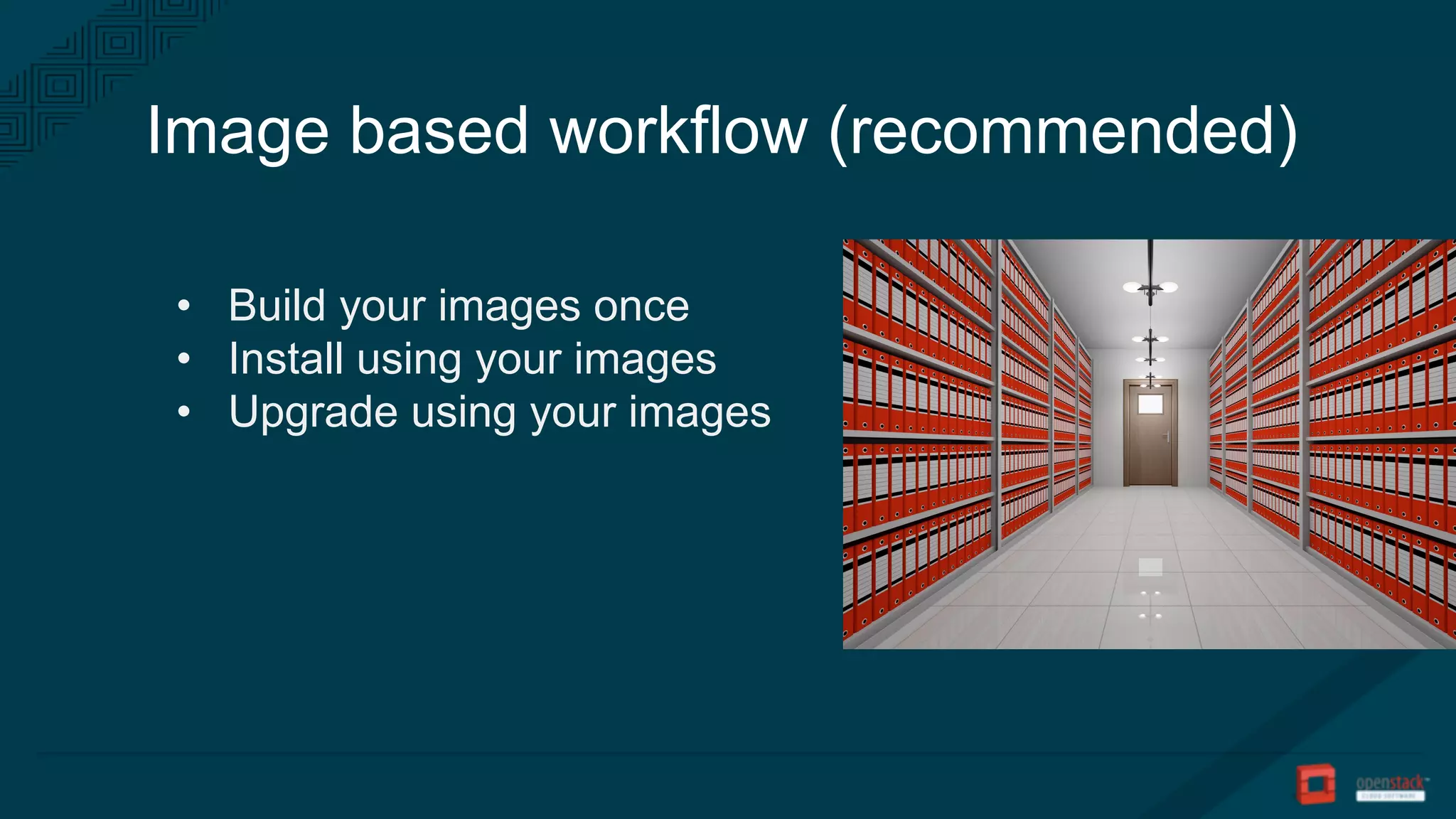

9. Image based workflow (recommended)
• Build your images once
• Install using your images
• Upgrade using your images

10. Build and archive your images
• Build your image in a CI
• Use packaging tools (yum, apt, …)
• Compression & archive
• Stamp with versioning
• Use Cloud Storage (Swift, Ceph)
Image based deployment

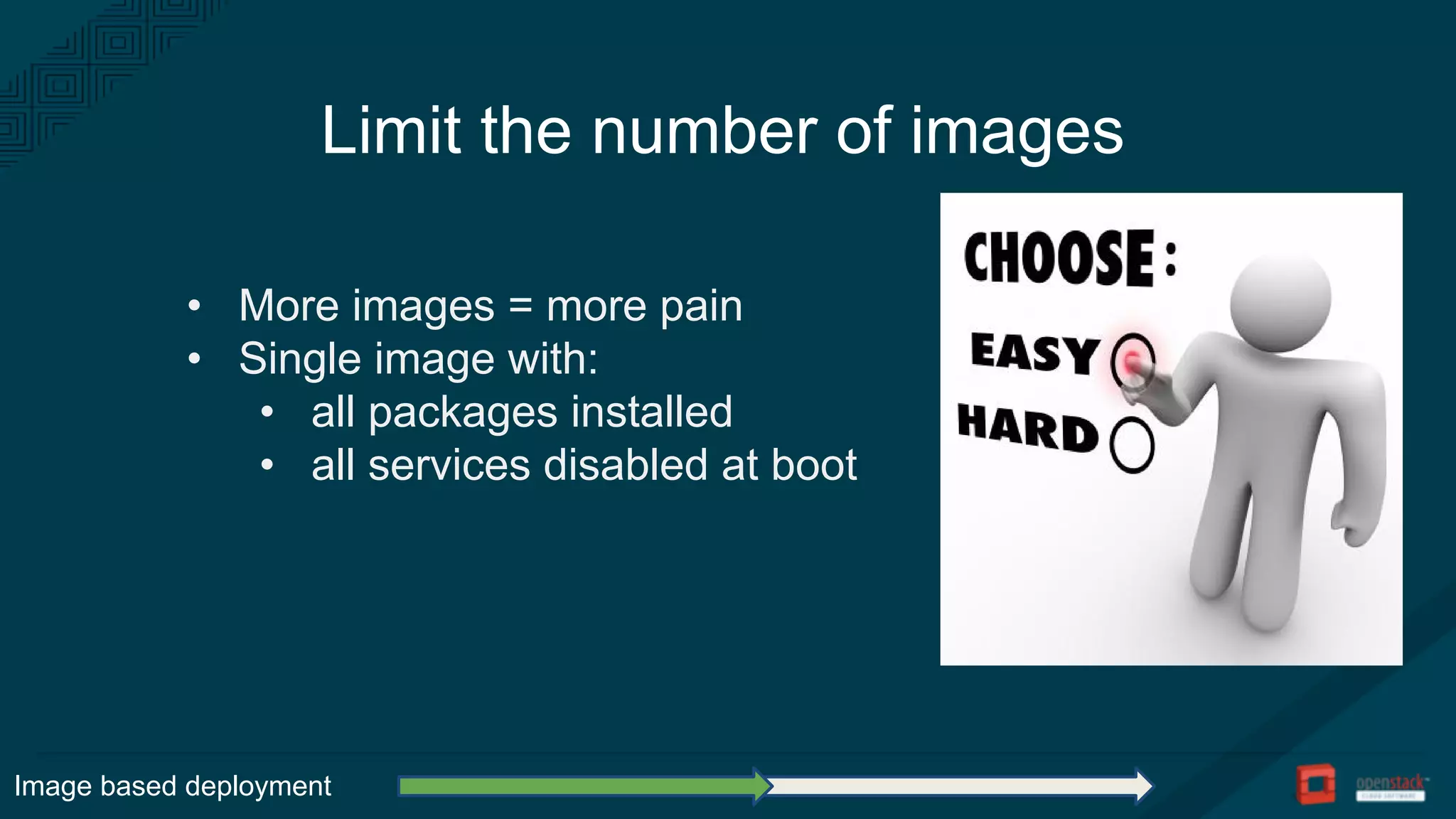

11. Limit the number of images
• More images = more pain
• Single image with:
• all packages installed
• all services disabled at boot
Image based deployment

12. Prohibit packaging tools
• Keep systems:
• consistent
• reproducible
• auditable
• Speed-up configuration
management
• Allow to re-enable the tools
Image based deployment

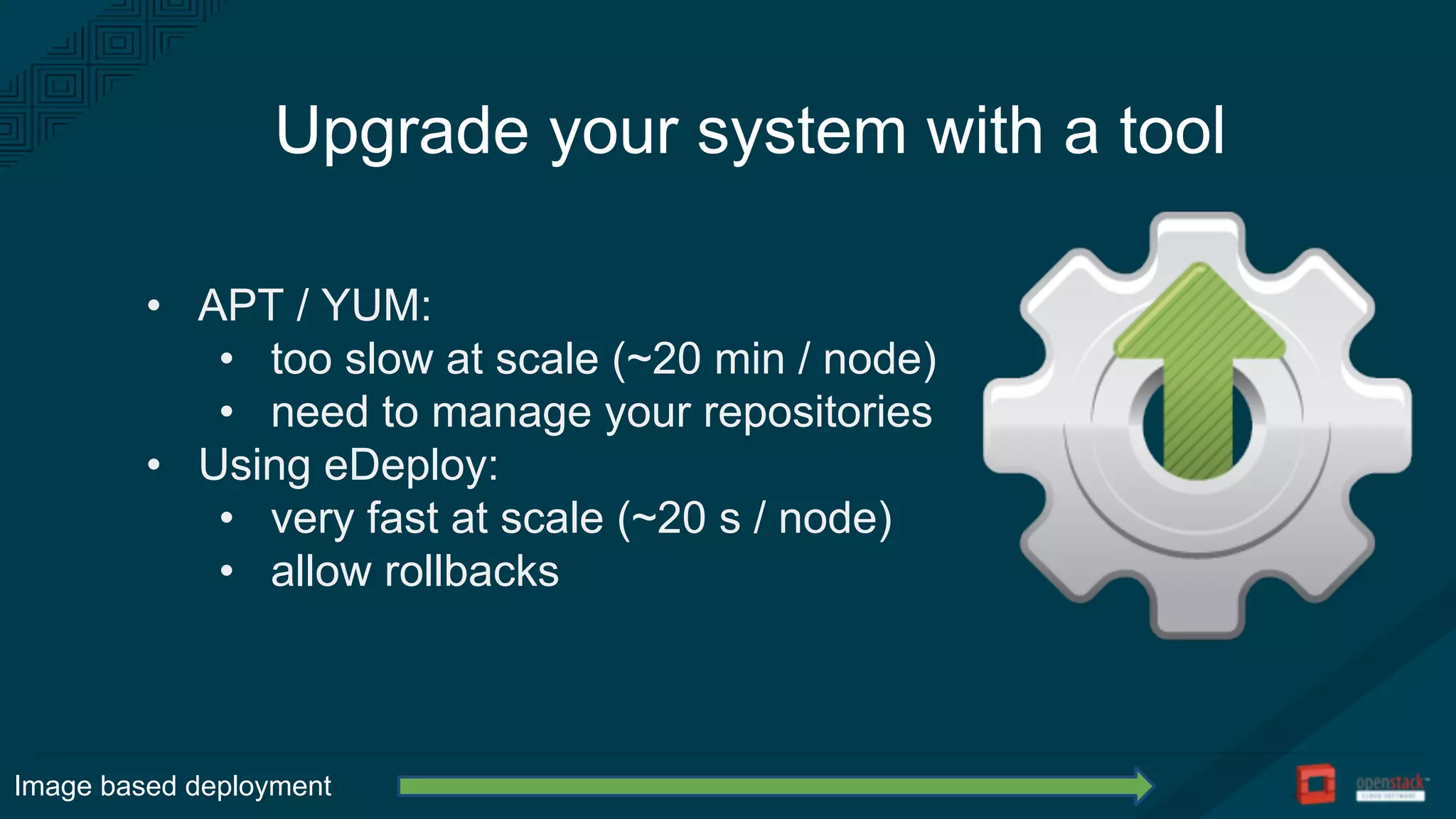

13. Upgrade your system with a tool
• APT / YUM:
• too slow at scale (~20 min / node)
• need to manage your repositories
• Using eDeploy:
• very fast at scale (~20 s / node)
• allow rollbacks
Image based deployment

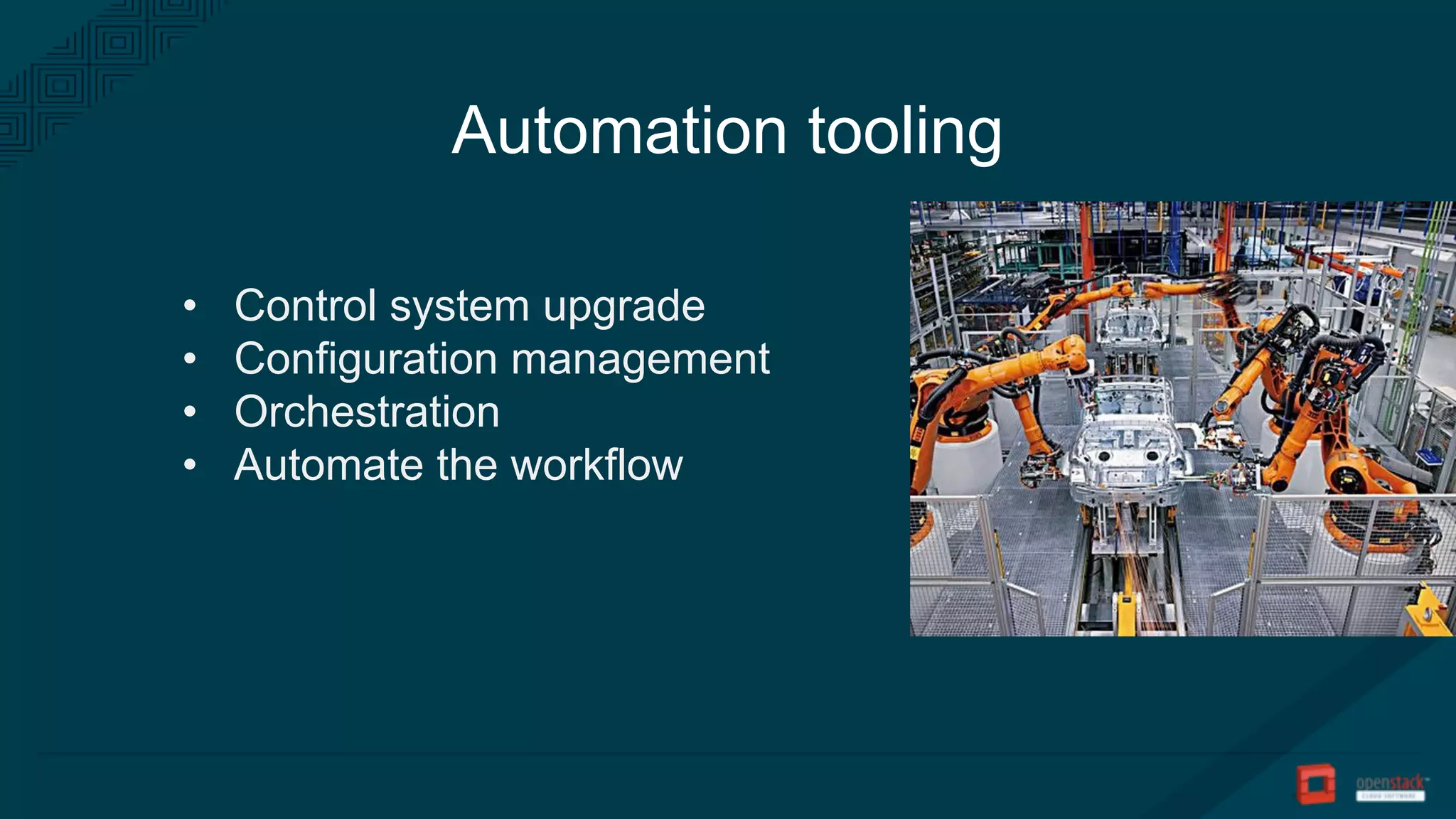

14. Automation tooling
• Control system upgrade
• Configuration management
• Orchestration
• Automate the workflow

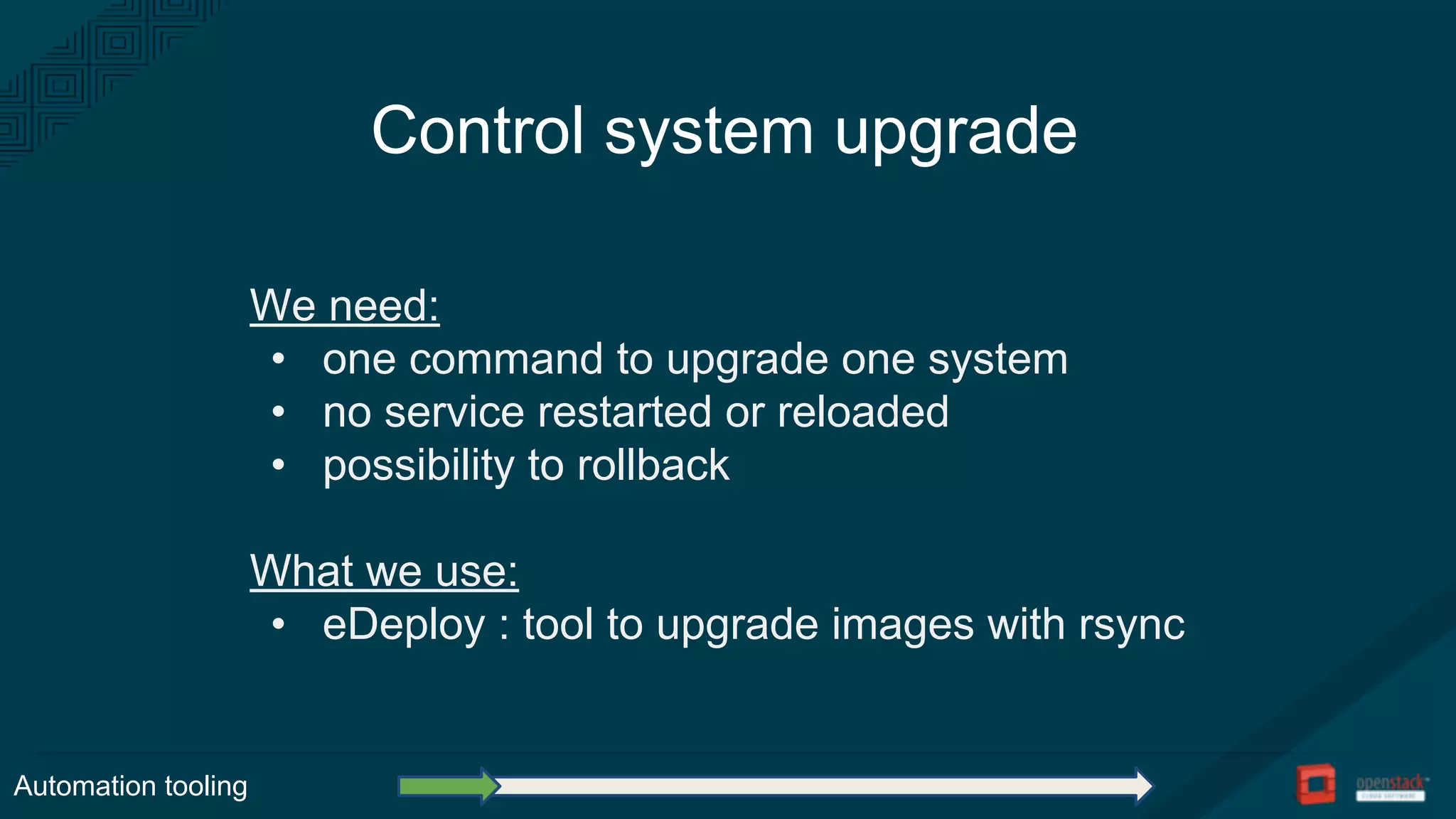

15. Control system upgrade
We need:
• one command to upgrade one system
• no service restarted or reloaded
• possibility to rollback
What we use:
• eDeploy : tool to upgrade images with rsync
Automation tooling

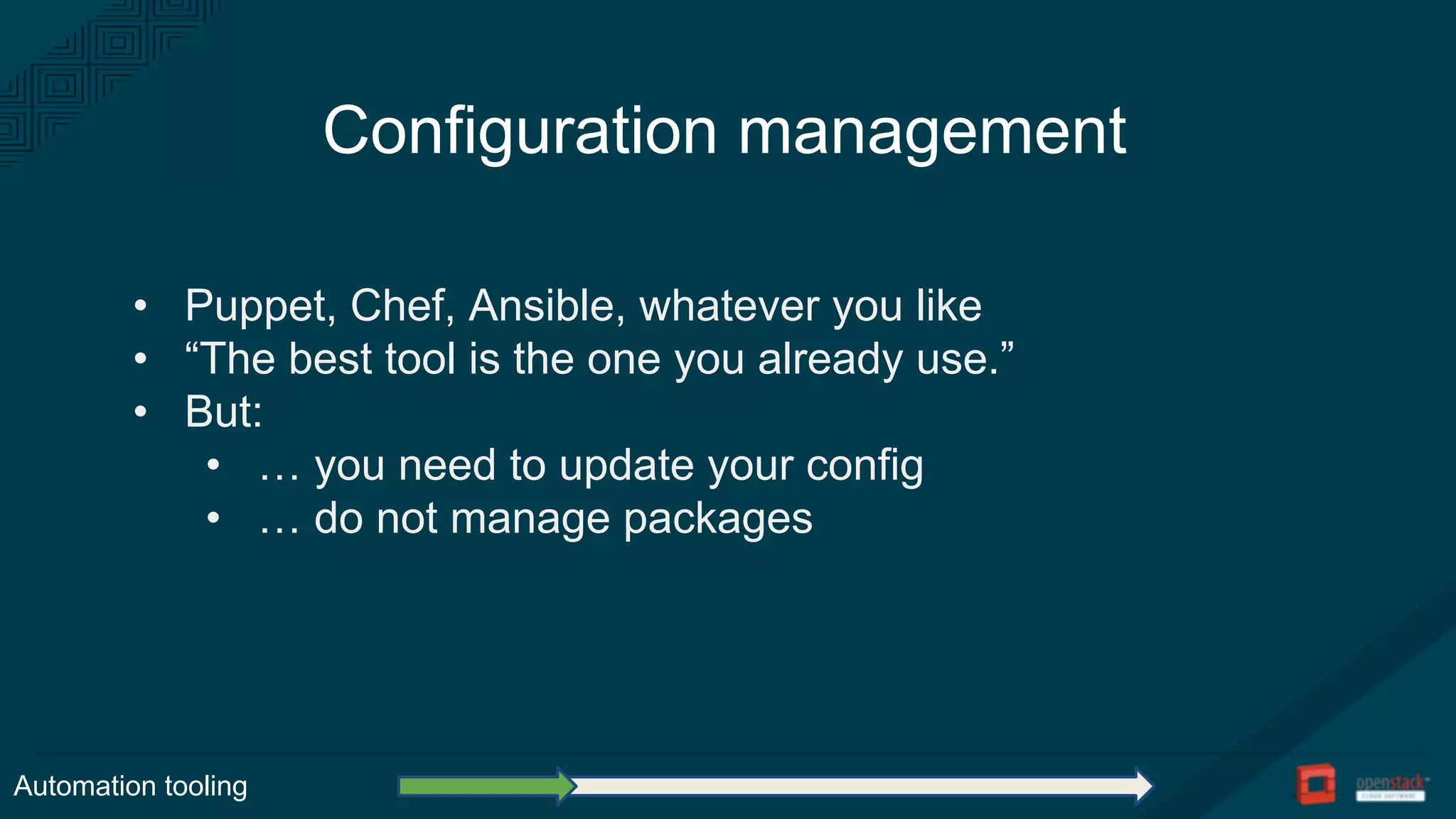

16. Configuration management
• Puppet, Chef, Ansible, whatever you like
• “The best tool is the one you already use.”
• But:
• … you need to update your config
• … do not manage packages
Automation tooling

17. Orchestrator
• Puppet and Chef are good for configuration
• But you need to orchestrate multiple systems:
• restart services in the right order
• upgrade the system at the right time
Automation tooling

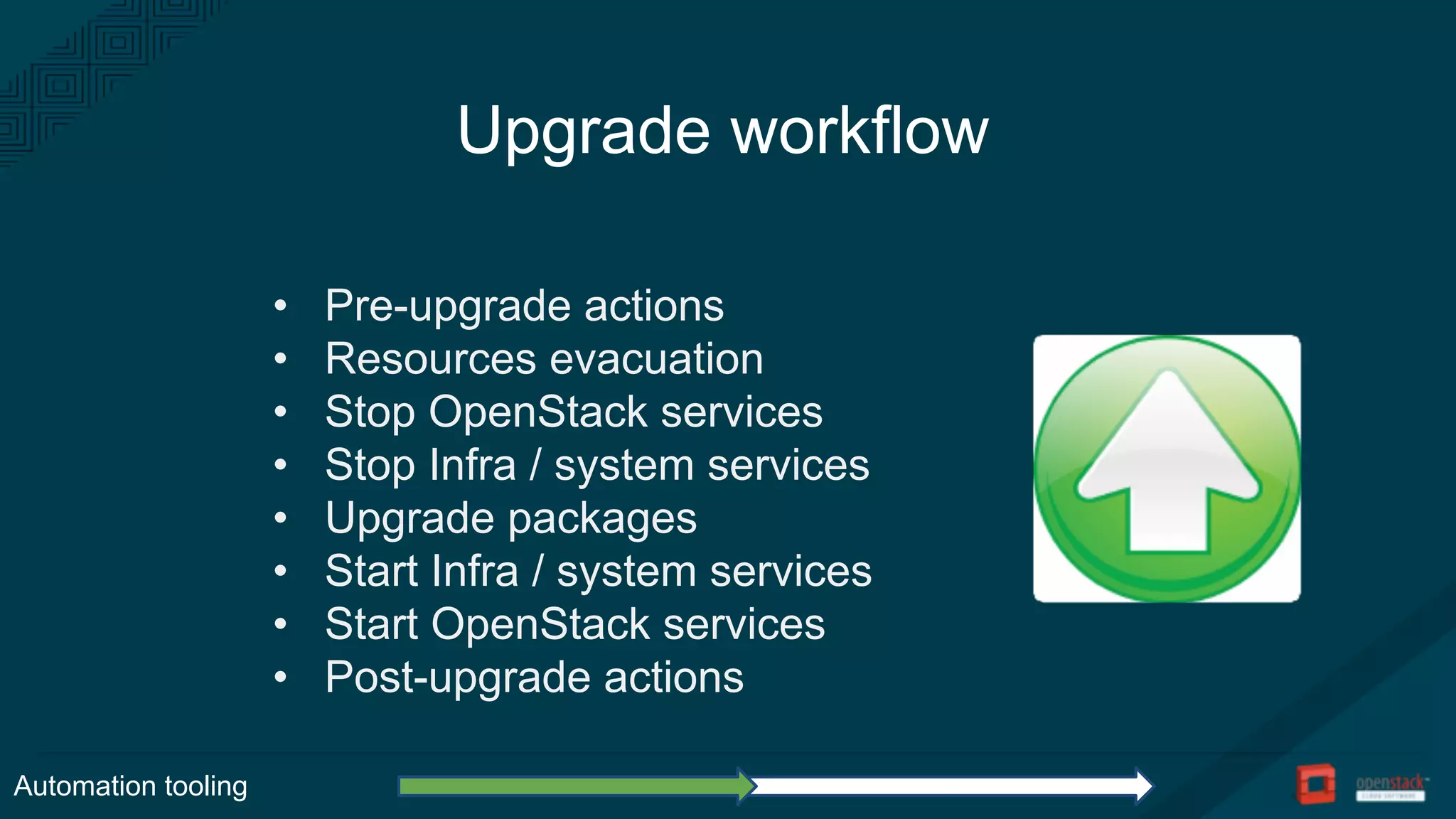

18. Upgrade workflow
Automation tooling
• Pre-upgrade actions
• Resources evacuation
• Stop OpenStack services
• Stop Infra / system services
• Upgrade packages
• Start Infra / system services
• Start OpenStack services
• Post-upgrade actions

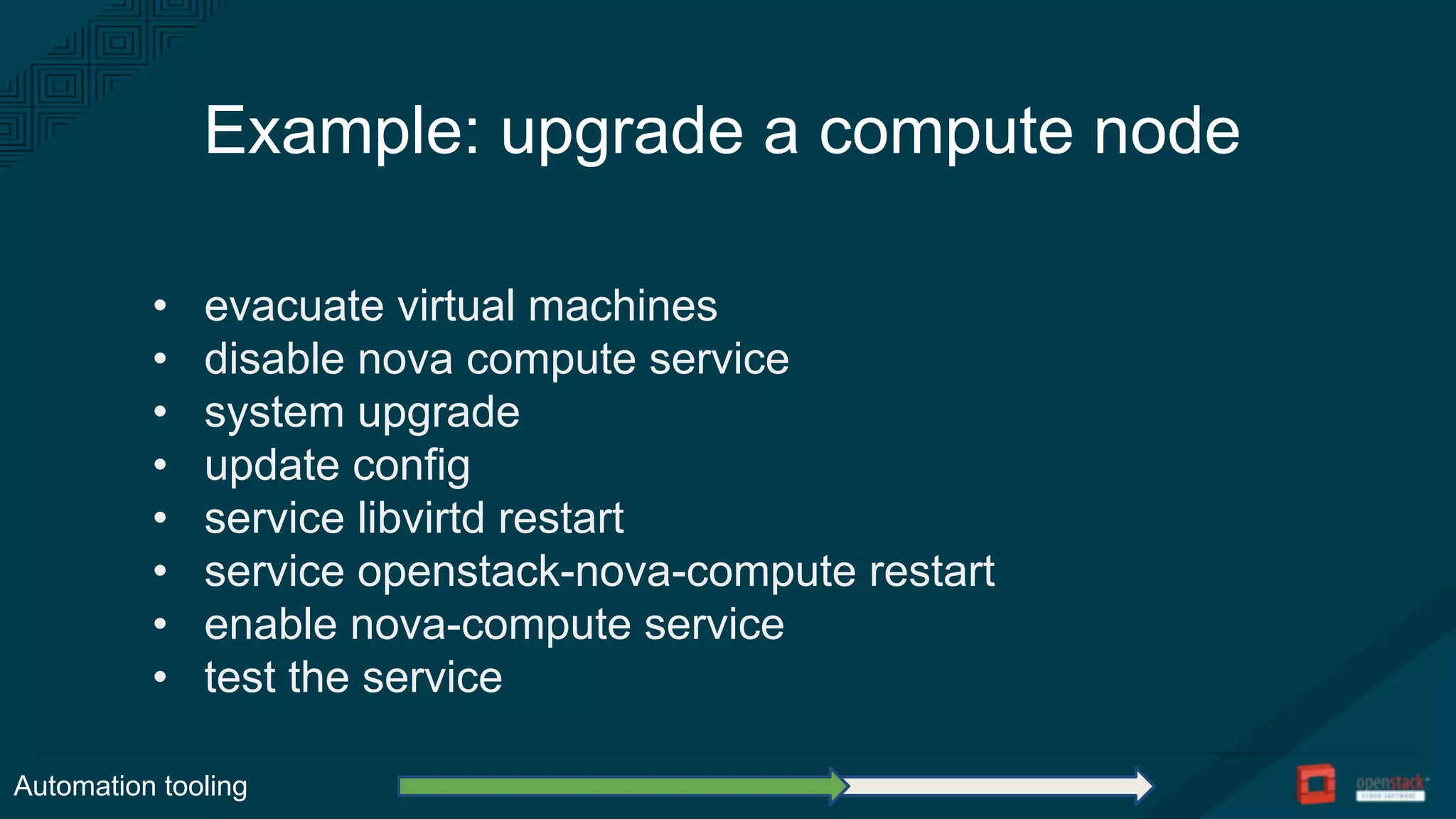

19. Example: upgrade a compute node
• evacuate virtual machines
• disable nova compute service
• system upgrade
• update config
• service libvirtd restart
• service openstack-nova-compute restart
• enable nova-compute service
• test the service
Automation tooling

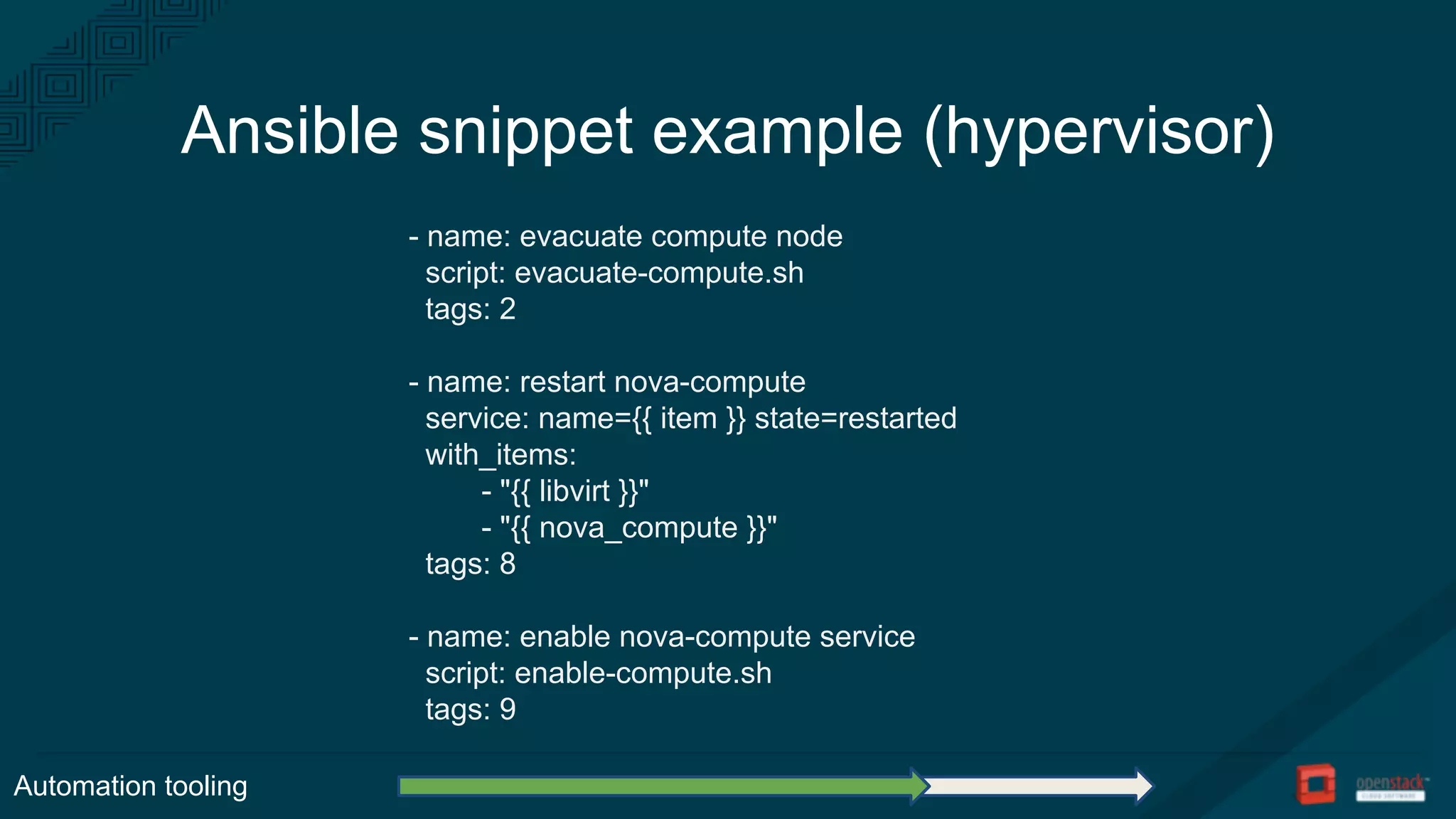

20. Ansible snippet example (hypervisor)
- name: evacuate compute node
script: evacuate-compute.sh
tags: 2
- name: restart nova-compute
service: name={{ item }} state=restarted
with_items:
- "{{ libvirt }}"
- "{{ nova_compute }}"
tags: 8
- name: enable nova-compute service
script: enable-compute.sh
tags: 9
Automation tooling

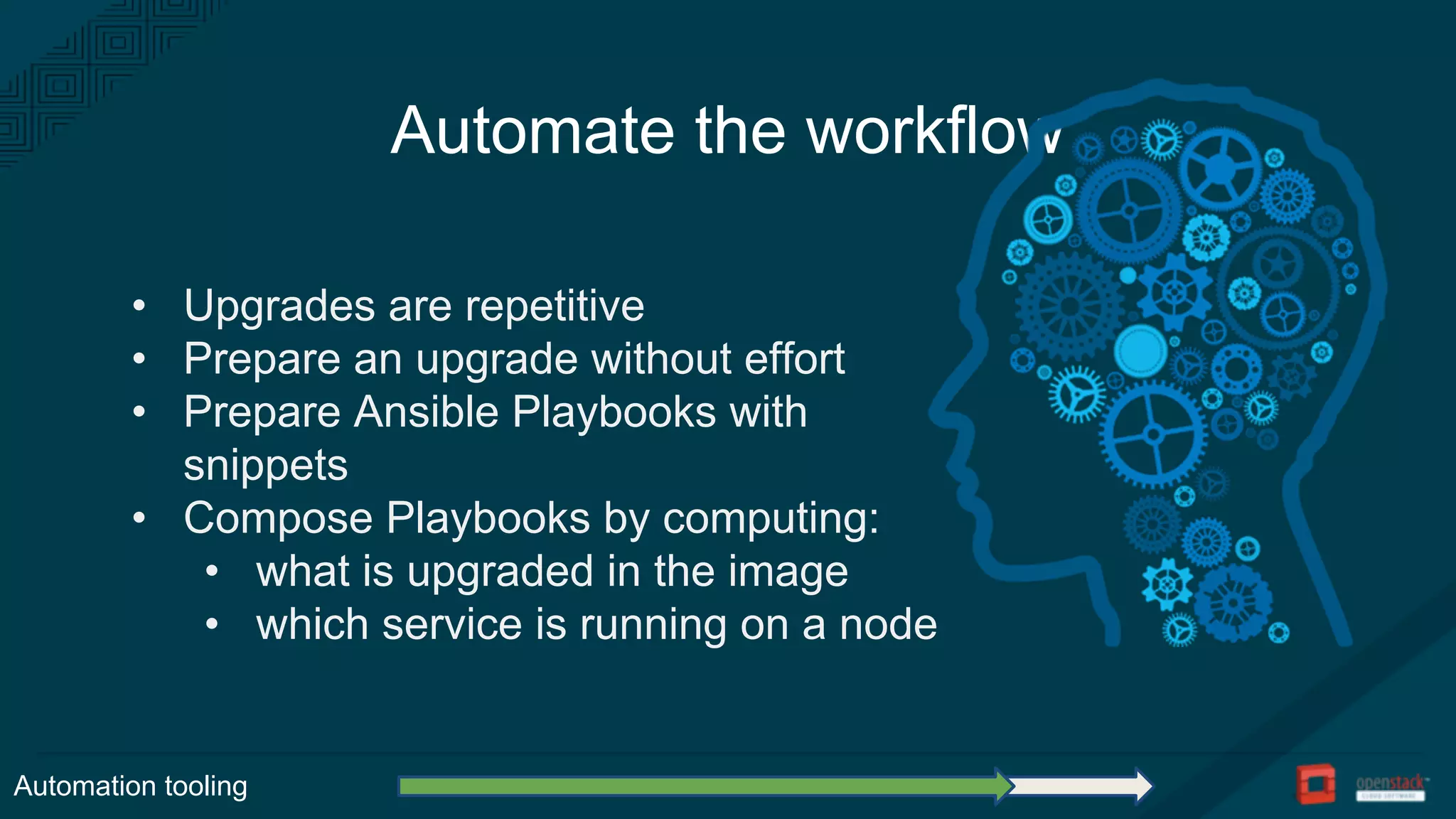

21. Automate the workflow
Automation tooling
• Upgrades are repetitive
• Prepare an upgrade without effort
• Prepare Ansible Playbooks with
snippets
• Compose Playbooks by computing:
• what is upgraded in the image
• which service is running on a node

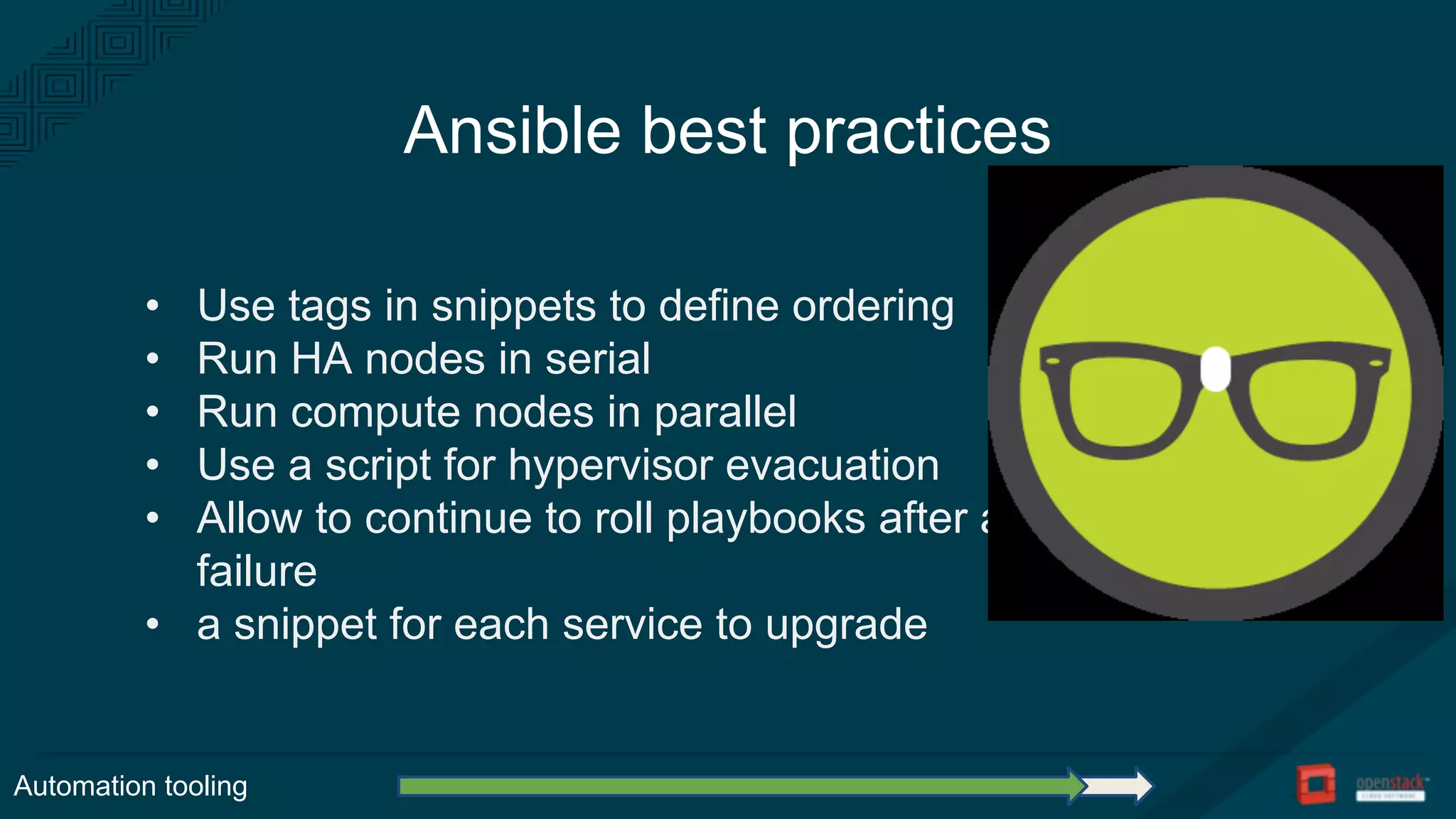

22. Ansible best practices
• Use tags in snippets to define ordering
• Run HA nodes in serial
• Run compute nodes in parallel
• Use a script for hypervisor evacuation
• Allow to continue to roll playbooks after a
failure
• a snippet for each service to upgrade
Automation tooling

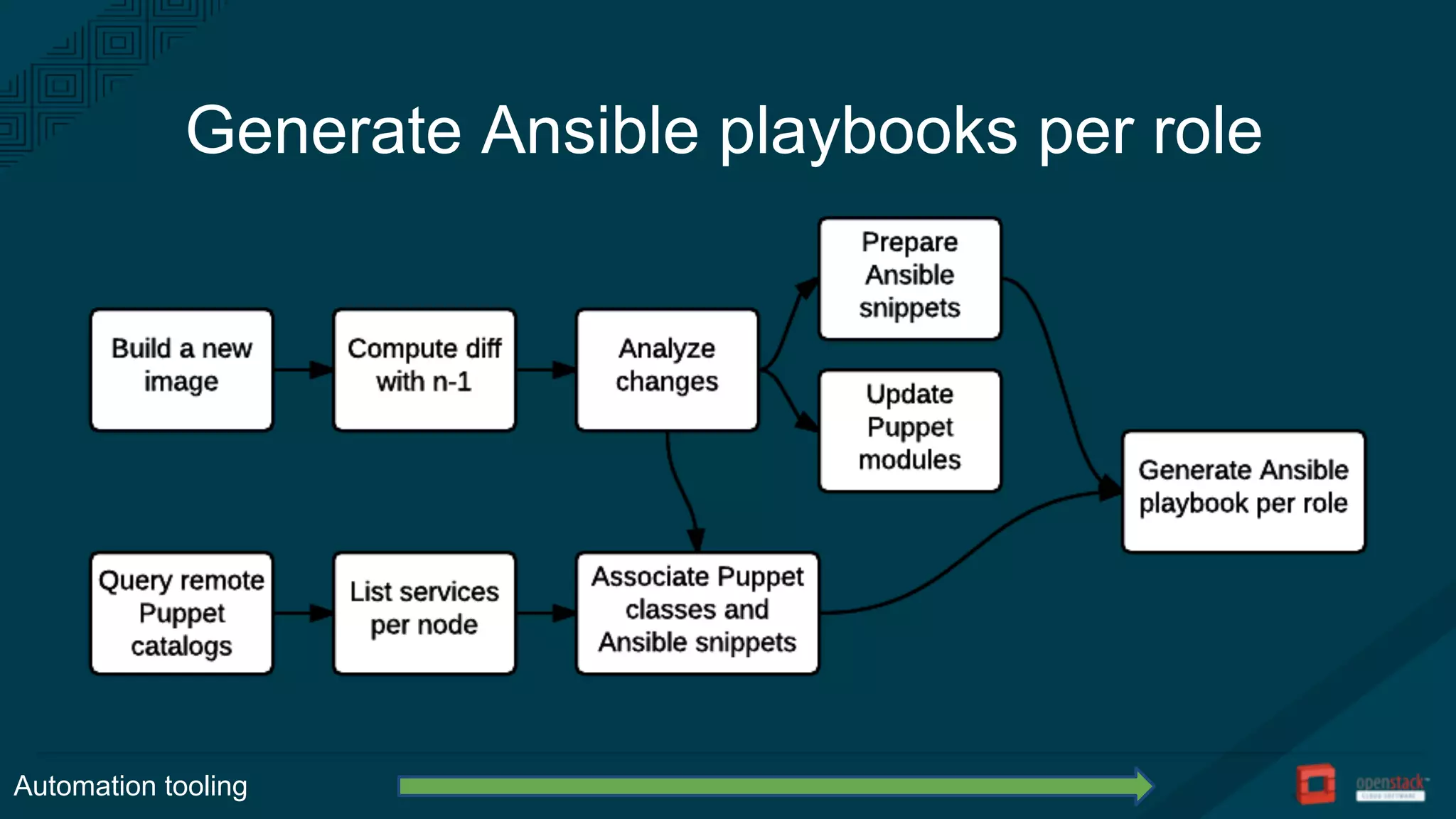

23. Generate Ansible playbooks per role
Automation tooling

24. • Your OpenStack needs HA
• Make sure you have free capacity
• Image based upgrade is a good option
• Orchestration and Configuration Management are key
Conclusion

25. Thank you!
http://tinyurl.com/ansible-snippets
@EmilienMacchi
@flepied
