1. Programming Languages

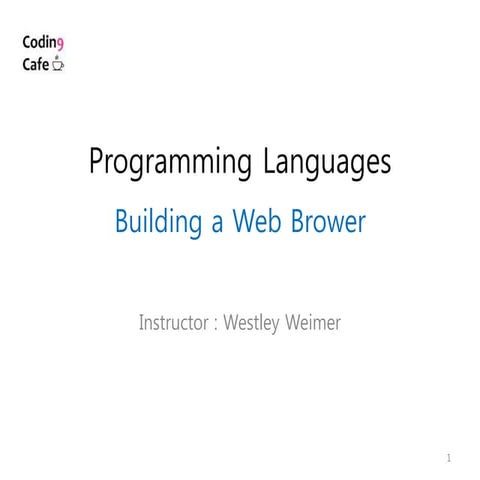

Building a Web Brower
Instructor : Westley Weimer
1

2. 2

3. 3

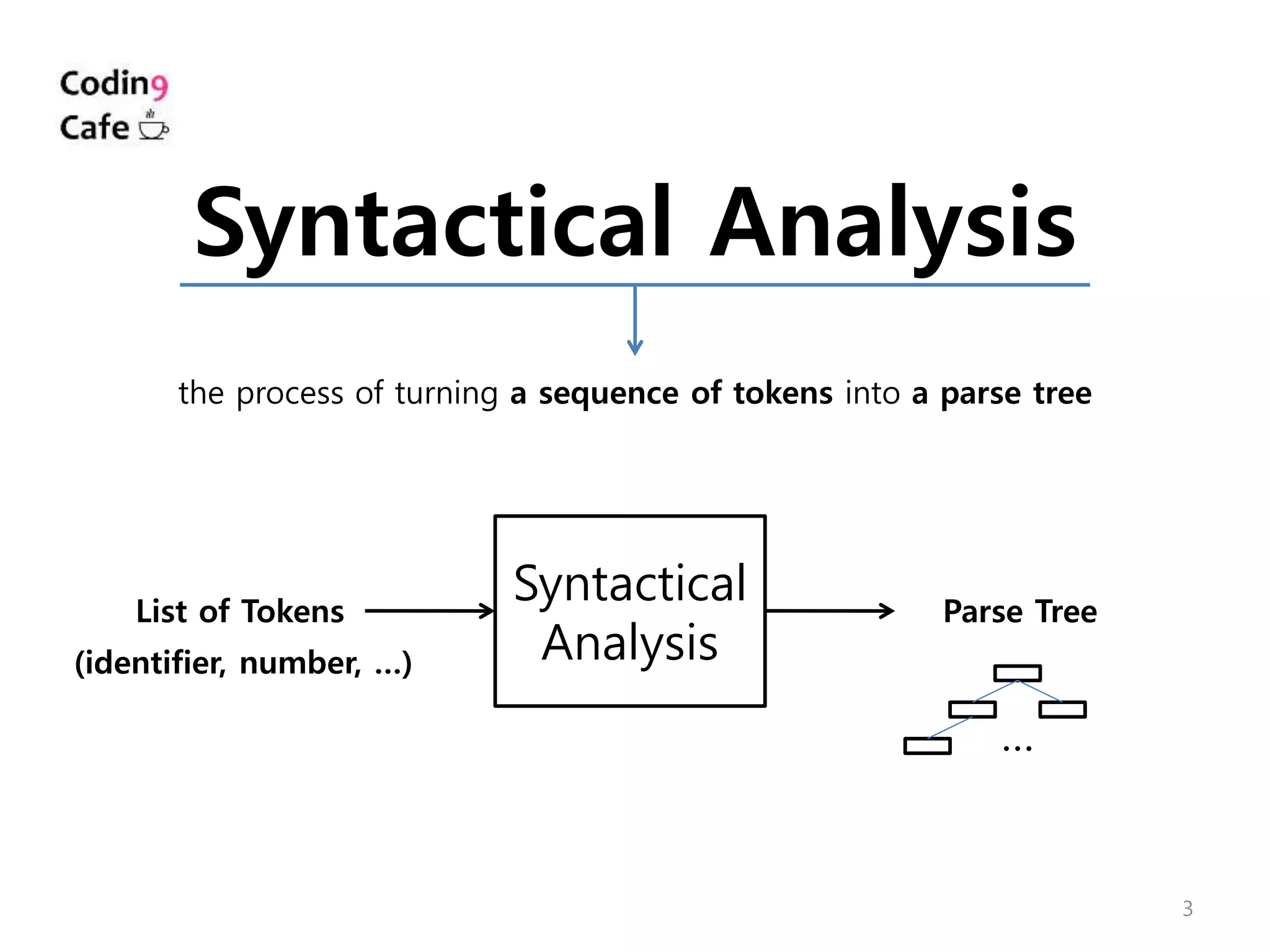

Syntactical Analysis
(identifier, number, …)
Syntactical
Analysis
Parse TreeList of Tokens
∙∙∙
the process of turning a sequence of tokens into a parse tree

4. 4

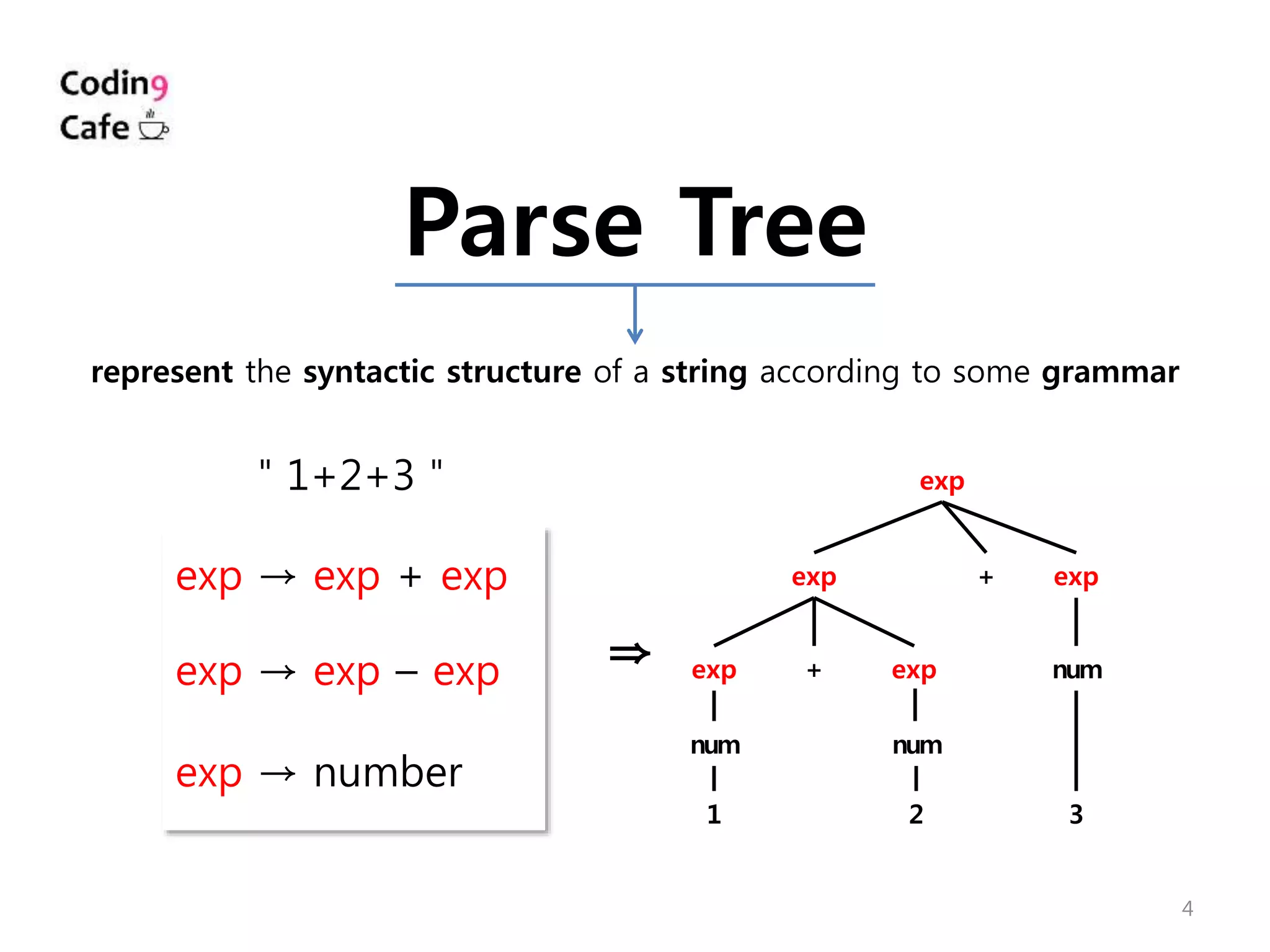

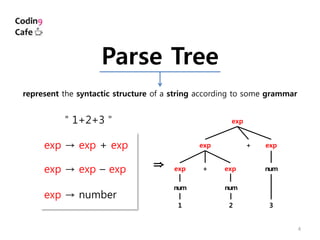

Parse Tree
represent the syntactic structure of a string according to some grammar
＂1+2+3＂
exp → exp + exp
exp → exp – exp
exp → number
exp
exp exp+
exp exp+
num num
num
1 2 3
⇒

5. 5

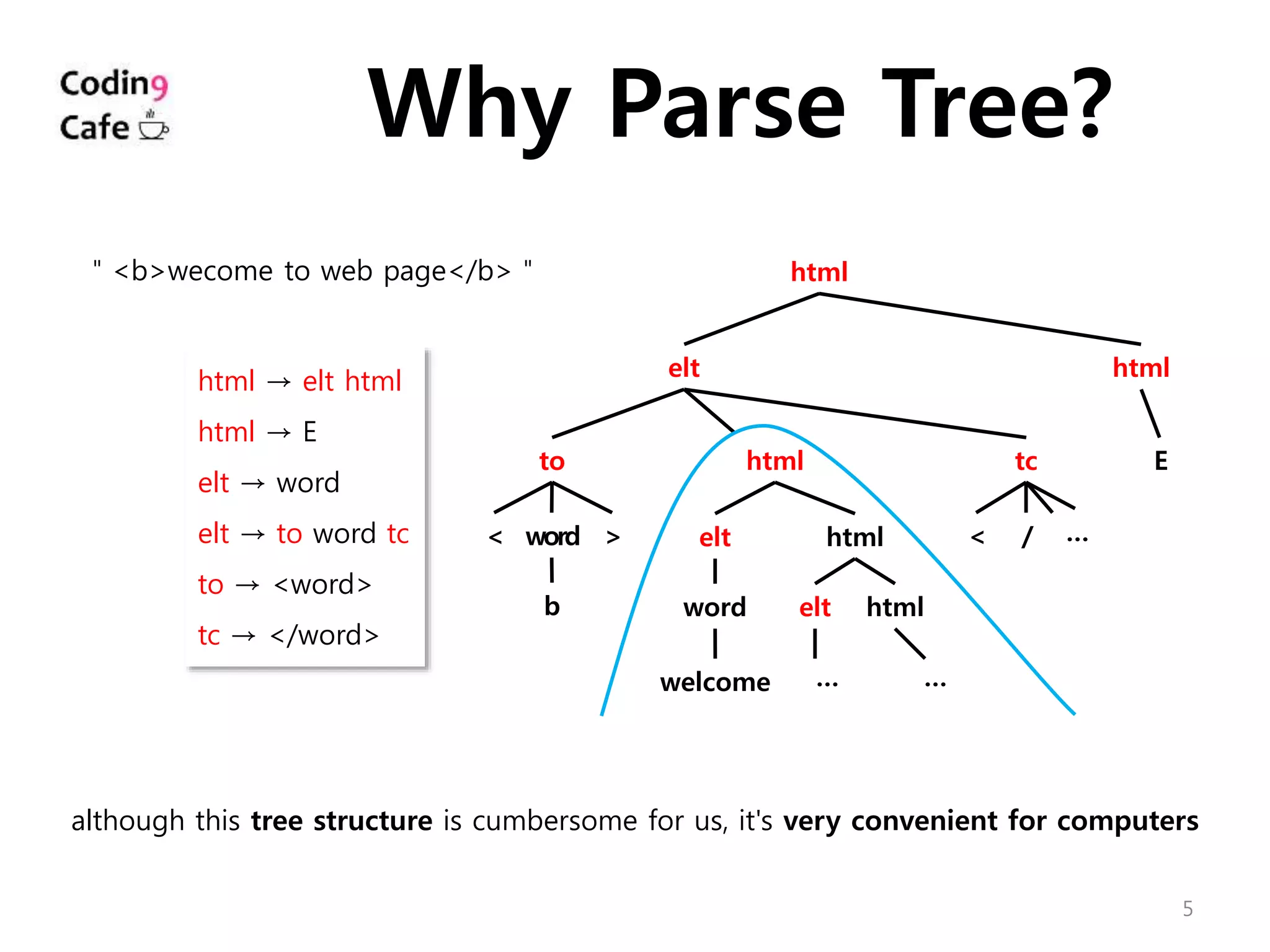

Why Parse Tree?
although this tree structure is cumbersome for us, it's very convenient for computers
＂<b>wecome to web page</b>＂
html → elt html
html → E
elt → word
elt → to word tc
to → <word>
tc → </word>
html
elt html
to tchtml
word
E
b
< > < /elt
word
welcome
html …
elt html
……

6. 6
How Parse Tree?

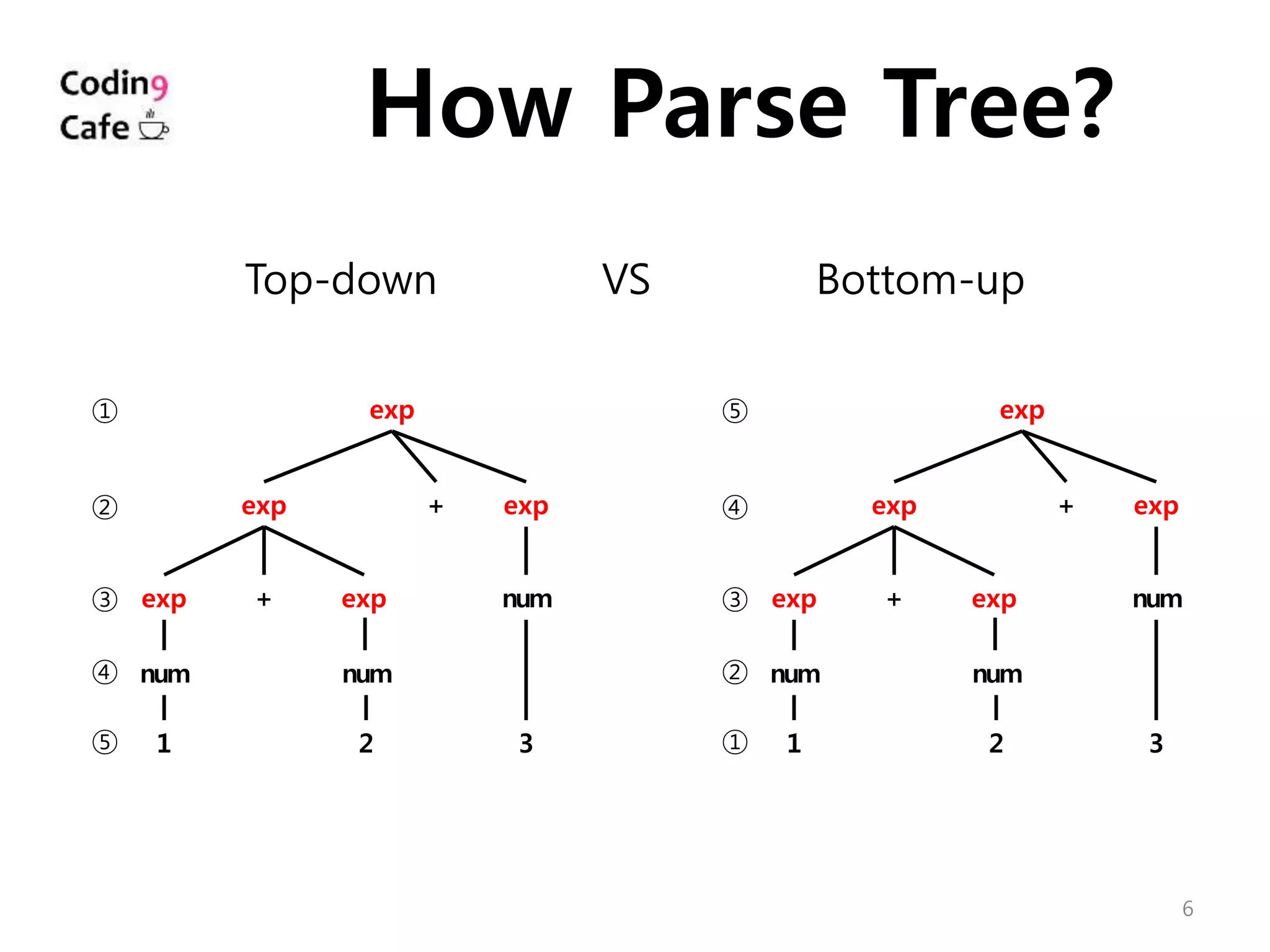

Top-down VS Bottom-up
exp
exp exp+
exp exp+
num num
num
1 2 3
①
②
③
④
⑤
exp
exp exp+
exp exp+
num num
num
1 2 3
⑤
④
③
②
①

7. 7

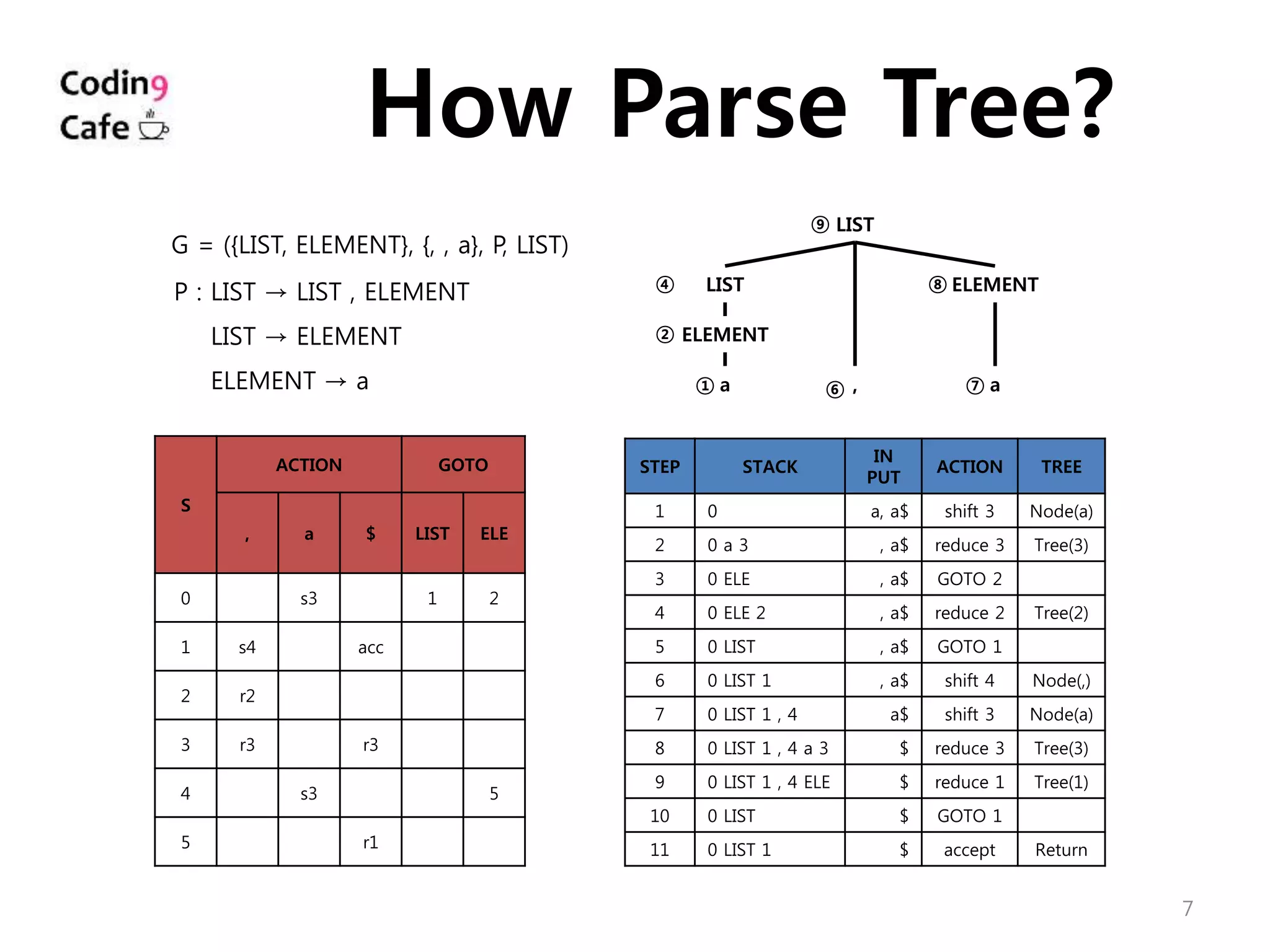

How Parse Tree?
S
ACTION GOTO
, a $ LIST ELE
0 s3 1 2
1 s4 acc
2 r2
3 r3 r3
4 s3 5
5 r1
STEP STACK
IN
PUT
ACTION TREE
1 0 a, a$ shift 3 Node(a)
2 0 a 3 , a$ reduce 3 Tree(3)
3 0 ELE , a$ GOTO 2
4 0 ELE 2 , a$ reduce 2 Tree(2)
5 0 LIST , a$ GOTO 1
6 0 LIST 1 , a$ shift 4 Node(,)
7 0 LIST 1 , 4 a$ shift 3 Node(a)
8 0 LIST 1 , 4 a 3 $ reduce 3 Tree(3)
9 0 LIST 1 , 4 ELE $ reduce 1 Tree(1)
10 0 LIST $ GOTO 1
11 0 LIST 1 $ accept Return
LIST
LIST
ELEMENT
a , a
ELEMENT
①
②
④
⑨
⑧
⑦⑥
G = ({LIST, ELEMENT}, {, , a}, P, LIST)
P : LIST → LIST , ELEMENT
P : LIST → ELEMENT
P : ELEMENT → a

8. 8
exp
exp exp+
exp exp+
num num
num
1 2 3
+
+ 3
1 2

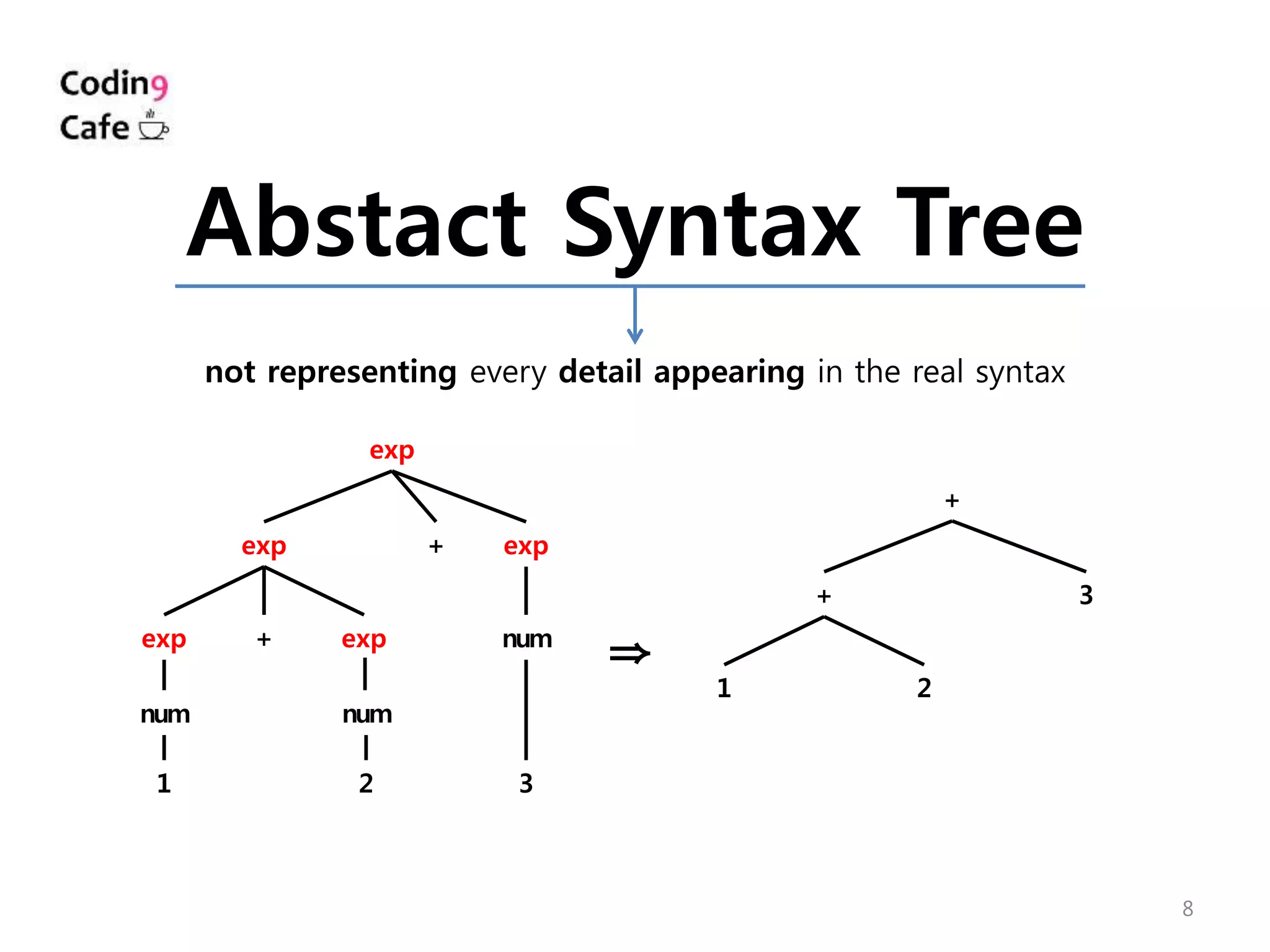

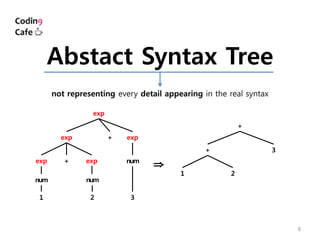

Abstact Syntax Tree
not representing every detail appearing in the real syntax
⇒

9. 9

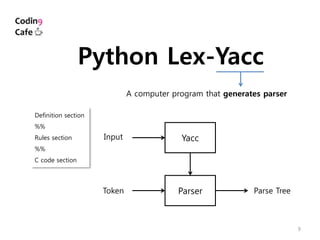

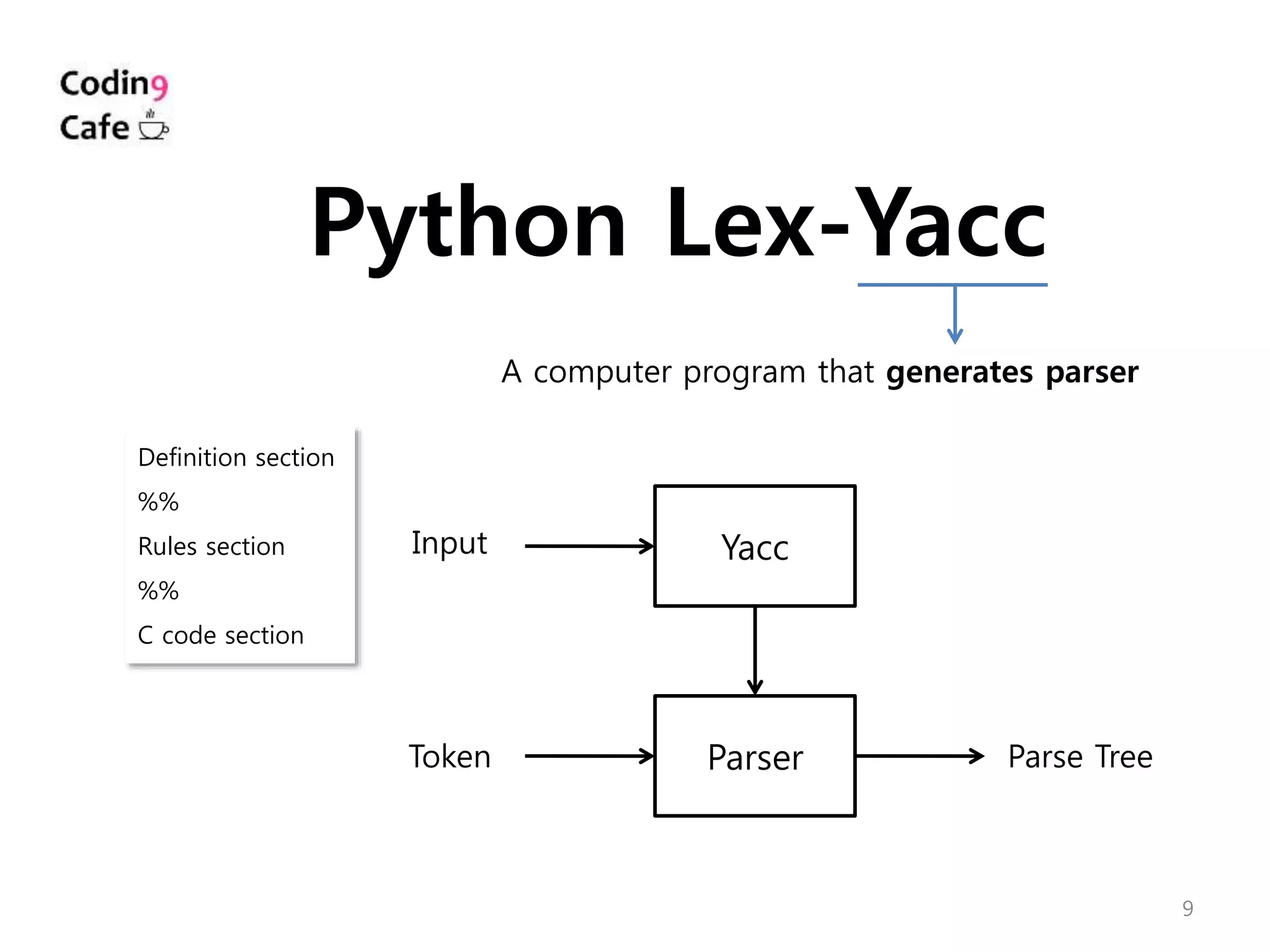

Python Lex-Yacc
A computer program that generates parser
ParserToken Parse Tree
YaccInput
Definition section
%%
Rules section
%%
C code section

10. 10

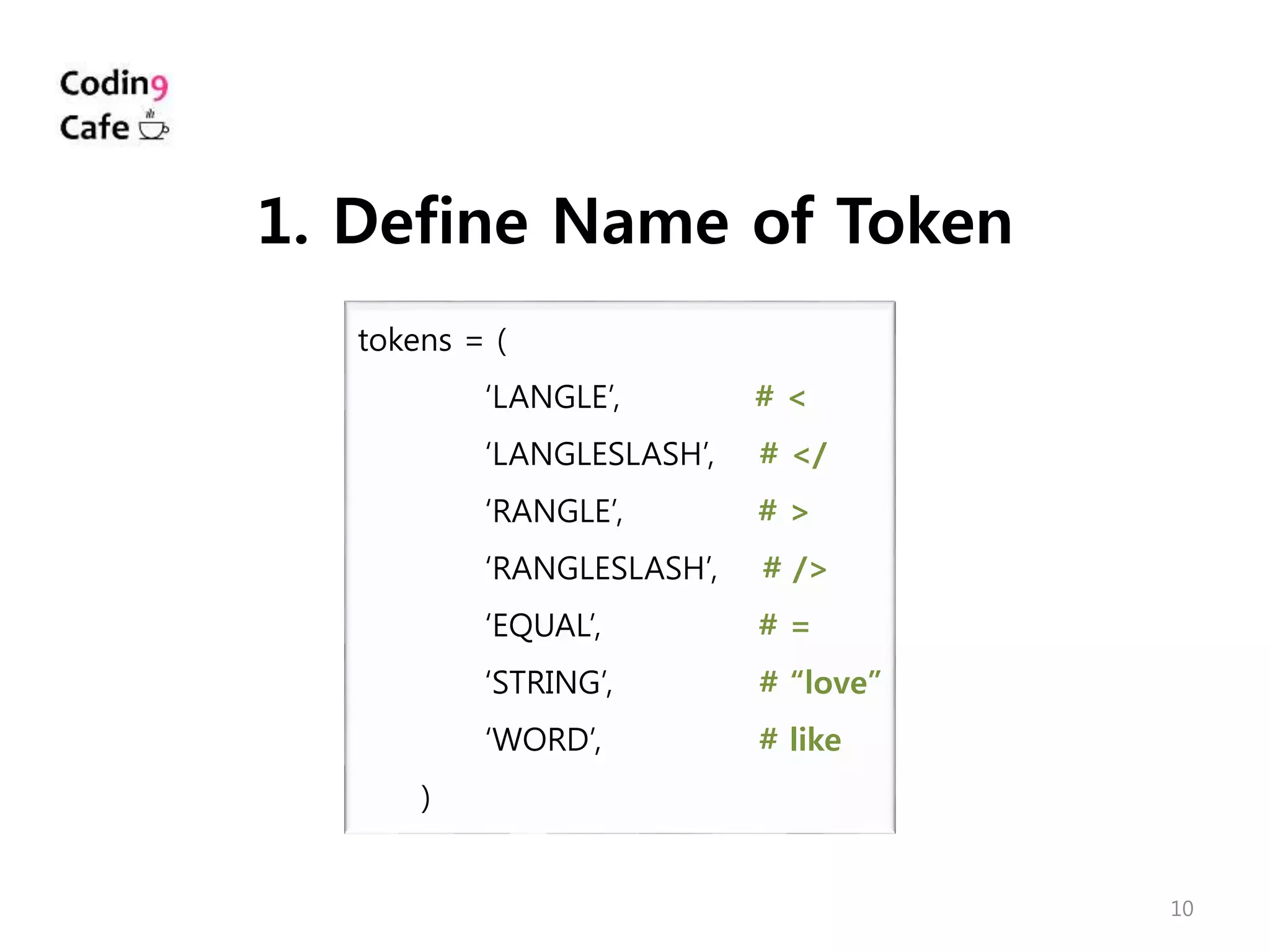

tokens = (
‘LANGLE’, # <
‘LANGLESLASH’, # </
‘RANGLE’, # >
‘RANGLESLASH’, # />
‘EQUAL’, # =
‘STRING’, # “love”
‘WORD’, # like
)
1. Define Name of Token

11. 11
G : exp → number
→ def p_exp_number(p):
’exp : NUMBER’
p[0] = (“number”, p[1])
G : exp → not exp
→ def p_exp_not(p):
’exp : NOT exp’
p[0] = (“not”, p[2])

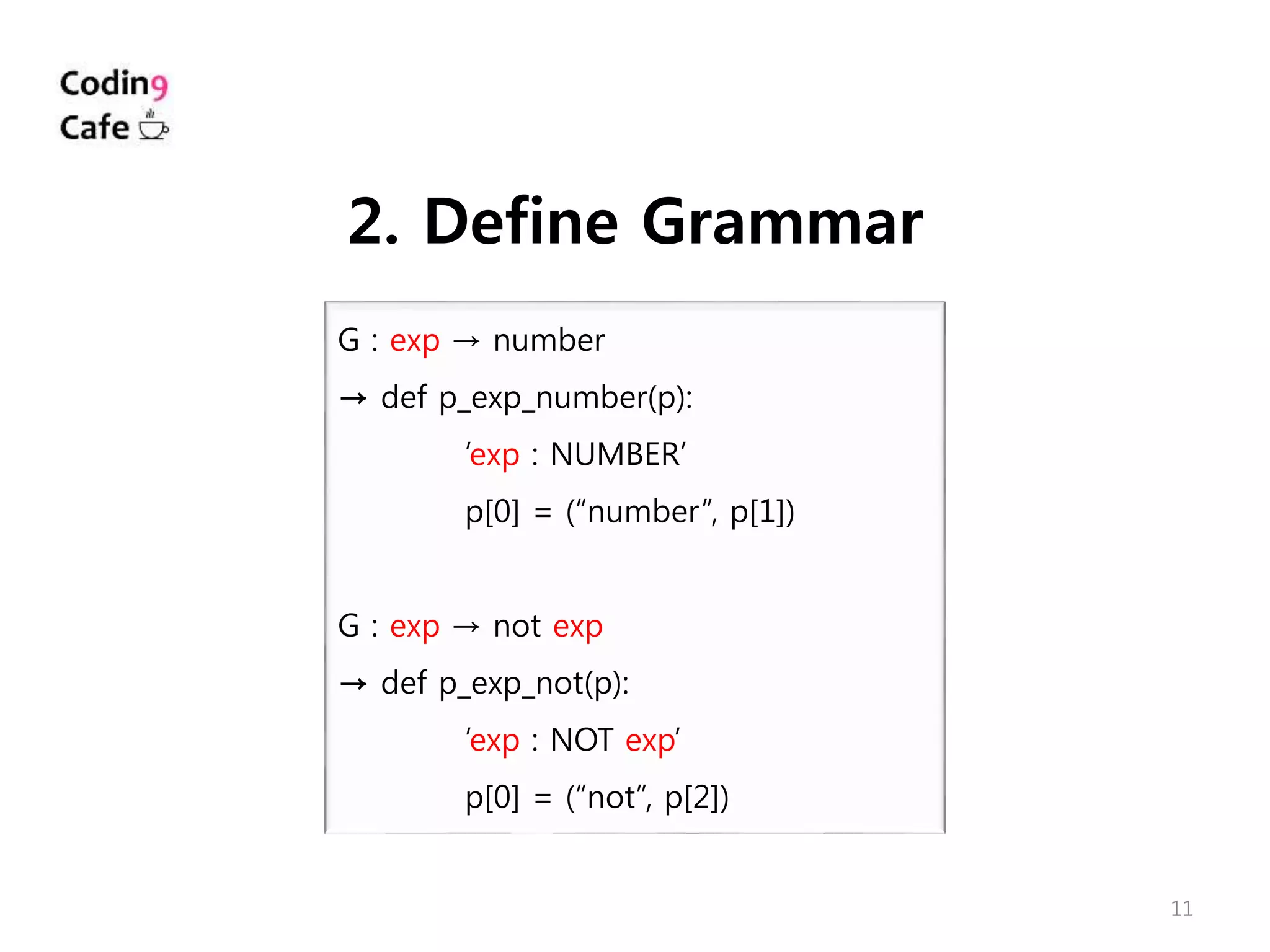

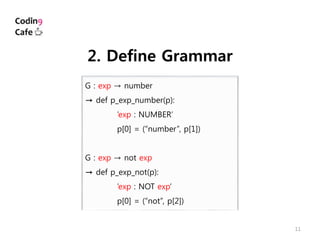

2. Define Grammar

12. 12
→ jslexer = lex.lex()
jsparser = yacc.yacc()
jsast = jsparser.parse(jscode, lexer=jslexer)
print jsast

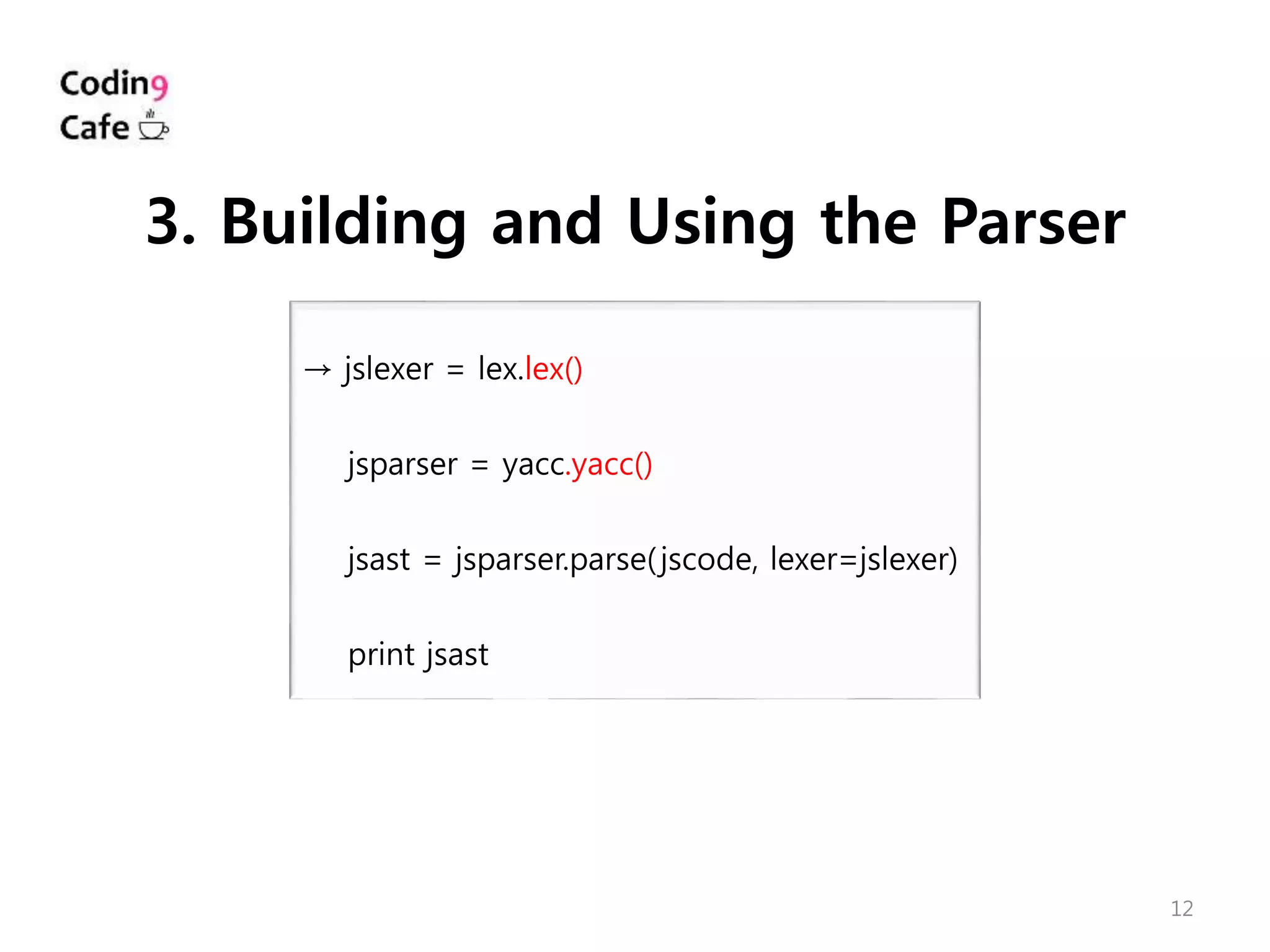

3. Building and Using the Parser

13. 13

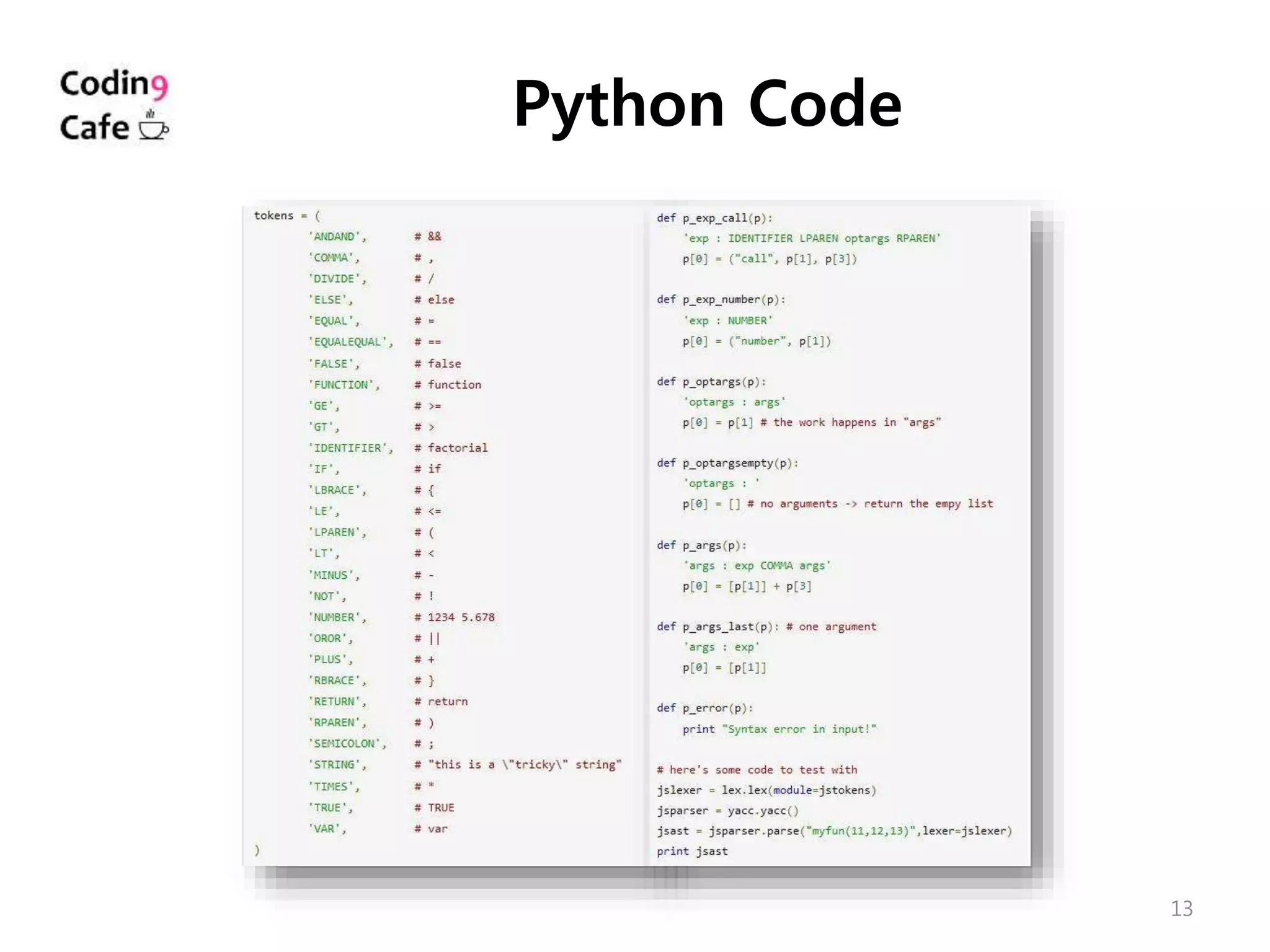

Python Code

14. 14

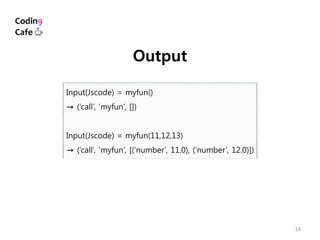

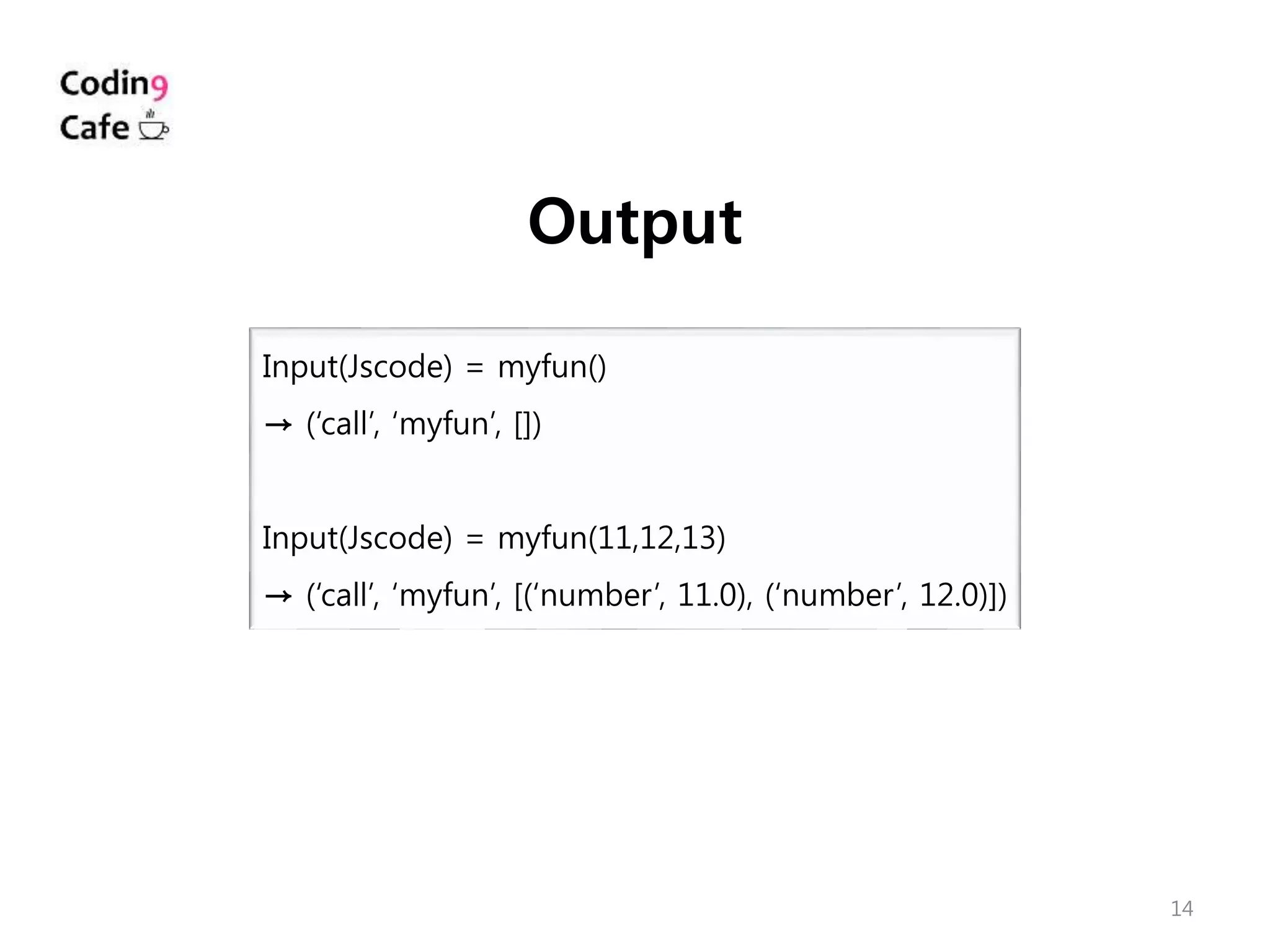

Input(Jscode) = myfun()
→ (‘call’, ‘myfun’, [])
Input(Jscode) = myfun(11,12,13)
→ (‘call’, ‘myfun’, [(‘number’, 11.0), (‘number’, 12.0)])
Output

15. 15
- Changing the starting symbol
- Precedence
- Tracking Line Number
Notice

16. 16
start = ‘arg’
→ def p_exp(p):
‘exp : NUMBER’
def p_arg(p):
’arg : exp’

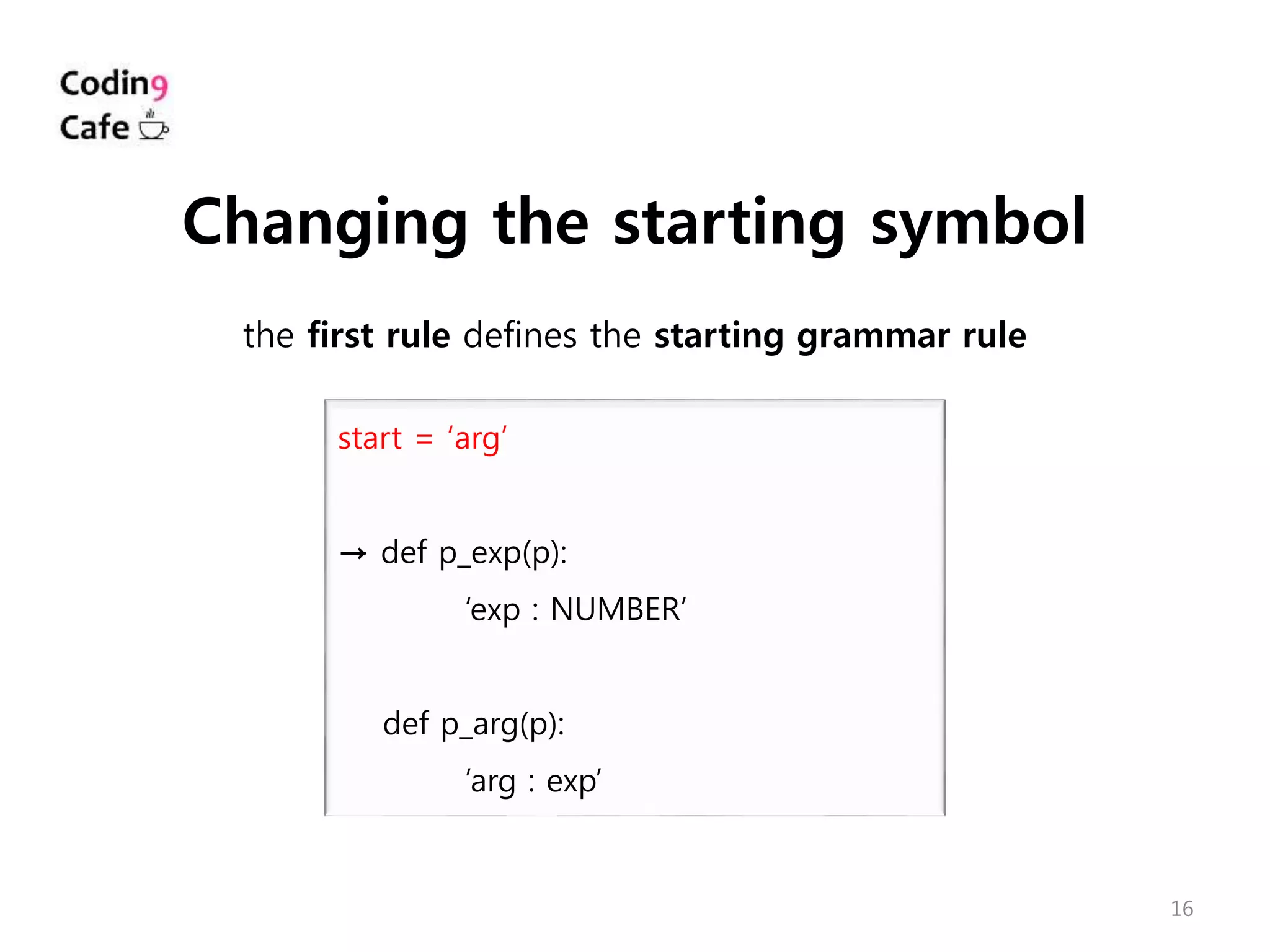

Changing the starting symbol
the first rule defines the starting grammar rule

17. 17
→ 1 - 2 - 3

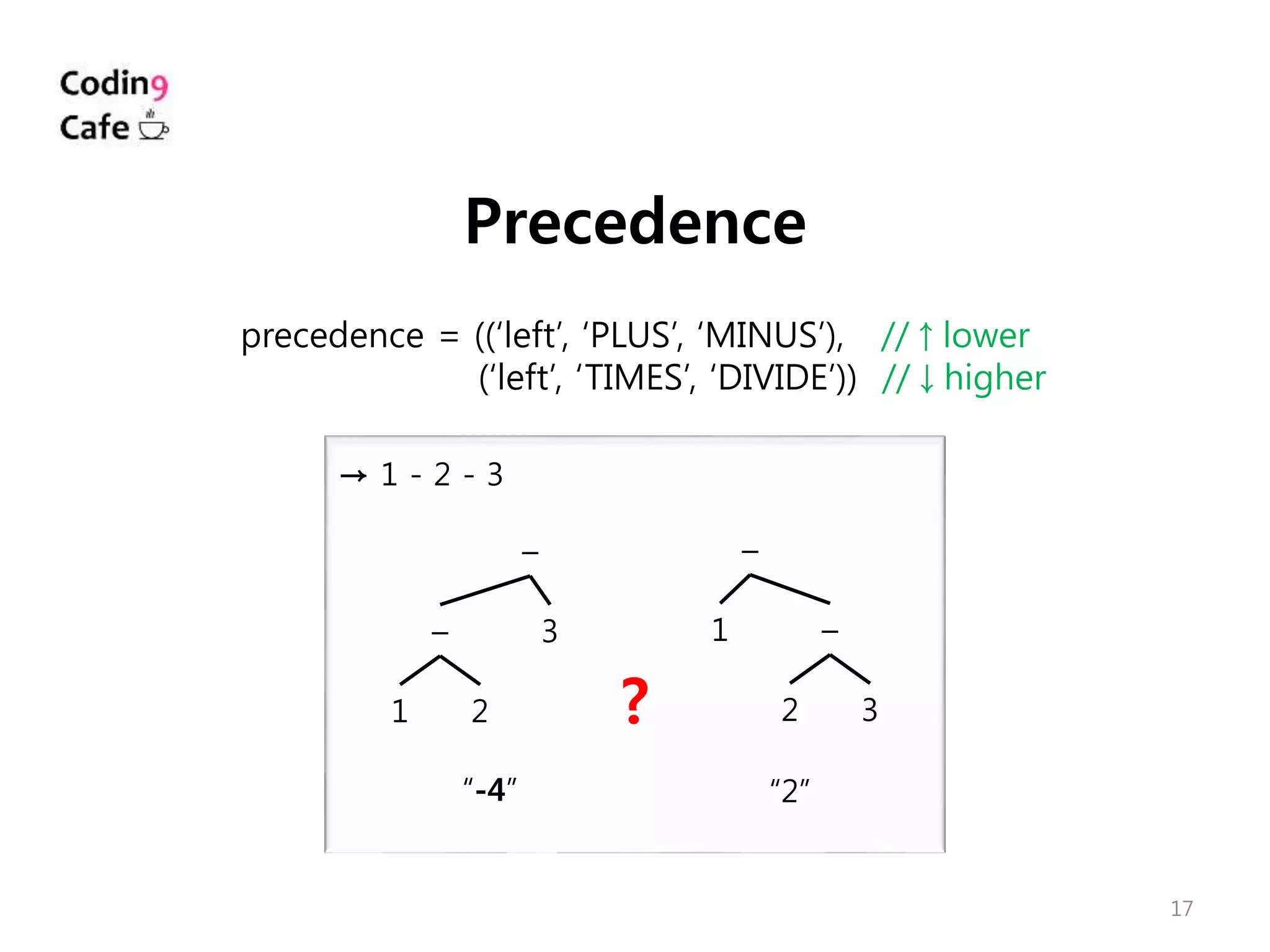

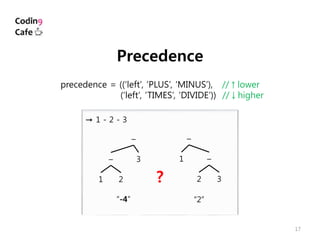

Precedence
precedence = ((‘left’, ‘PLUS’, ‘MINUS’), //↑lower
(‘left’, ‘TIMES’, ‘DIVIDE’)) //↓higher
–
3–
21
–
–1
32?
“-4” “2”

18. 18
→ def p_exp(p)
’exp : exp PLUS exp’
line = p.lineno(2) # line number of the PLUS token
index = p.lexpos(2) # Position of the PLUS token

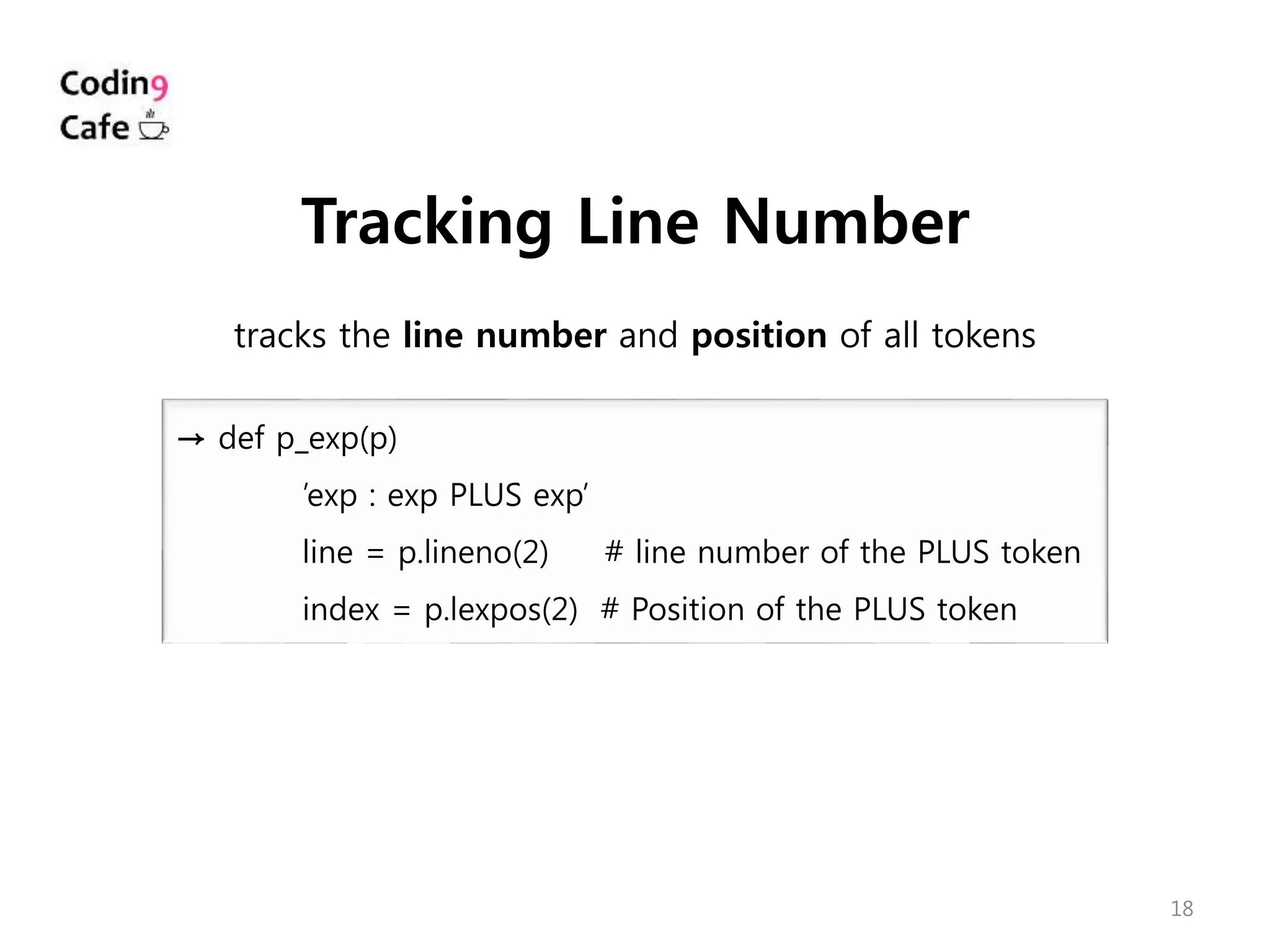

Tracking Line Number
tracks the line number and position of all tokens
