SEPTEMBER 25, 2012 | SLIDE 1
OAuth-as-a-service
                                using ASP.NET Web API
                                and Windows Azure
Maarten Balliauw                Access Control
@maartenballiauw
Technical Consultant Windows Azure
RealDolmen
SEPTEMBER 25, 2012 | SLIDE 2

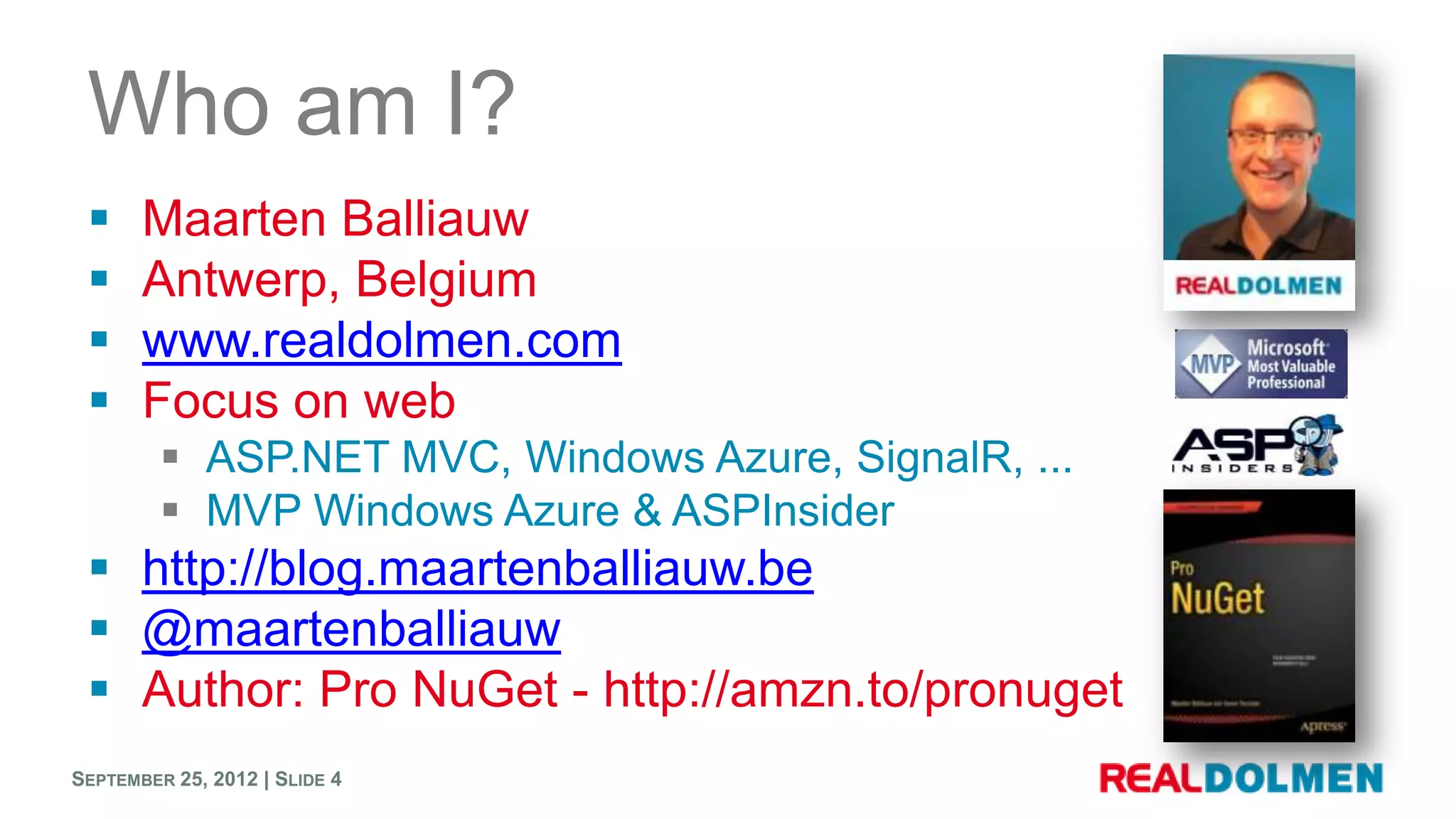

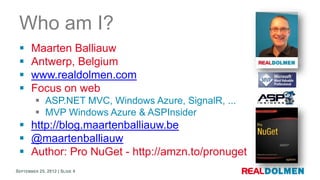

Who am I?
      Maarten Balliauw
      Antwerp, Belgium
      www.realdolmen.com
      Focus on web
          ASP.NET MVC, Windows Azure, SignalR, ...
          MVP Windows Azure & ASPInsider
  http://blog.maartenballiauw.be
  @maartenballiauw
  Author: Pro NuGet - http://amzn.to/pronuget
SEPTEMBER 25, 2012 | SLIDE 4

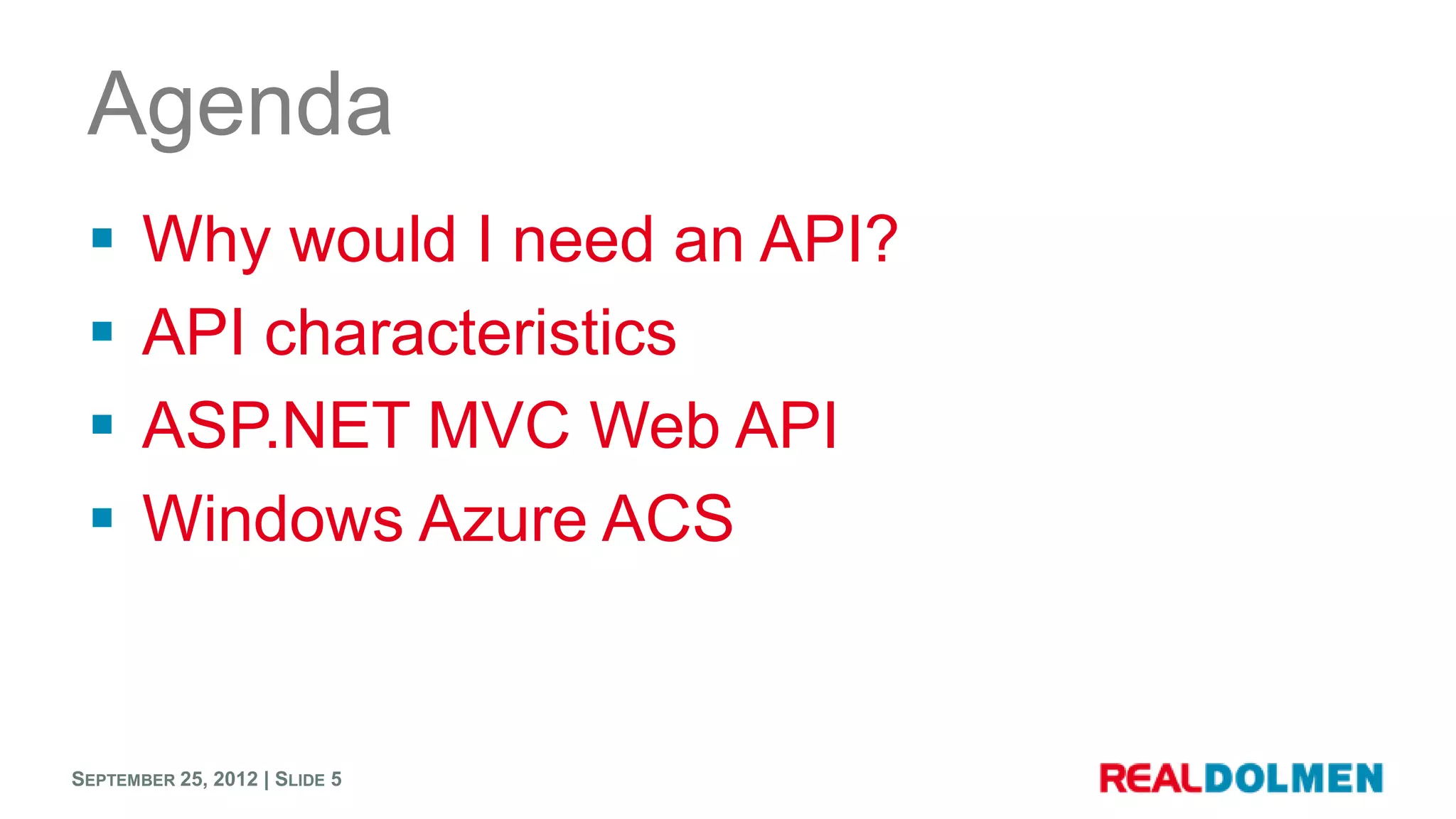

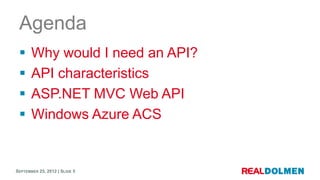

Agenda
      Why would I need an API?
      API characteristics
      ASP.NET MVC Web API
      Windows Azure ACS

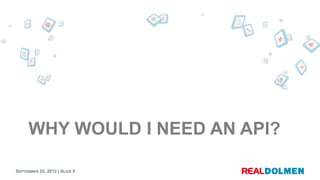

SEPTEMBER 25, 2012 | SLIDE 5

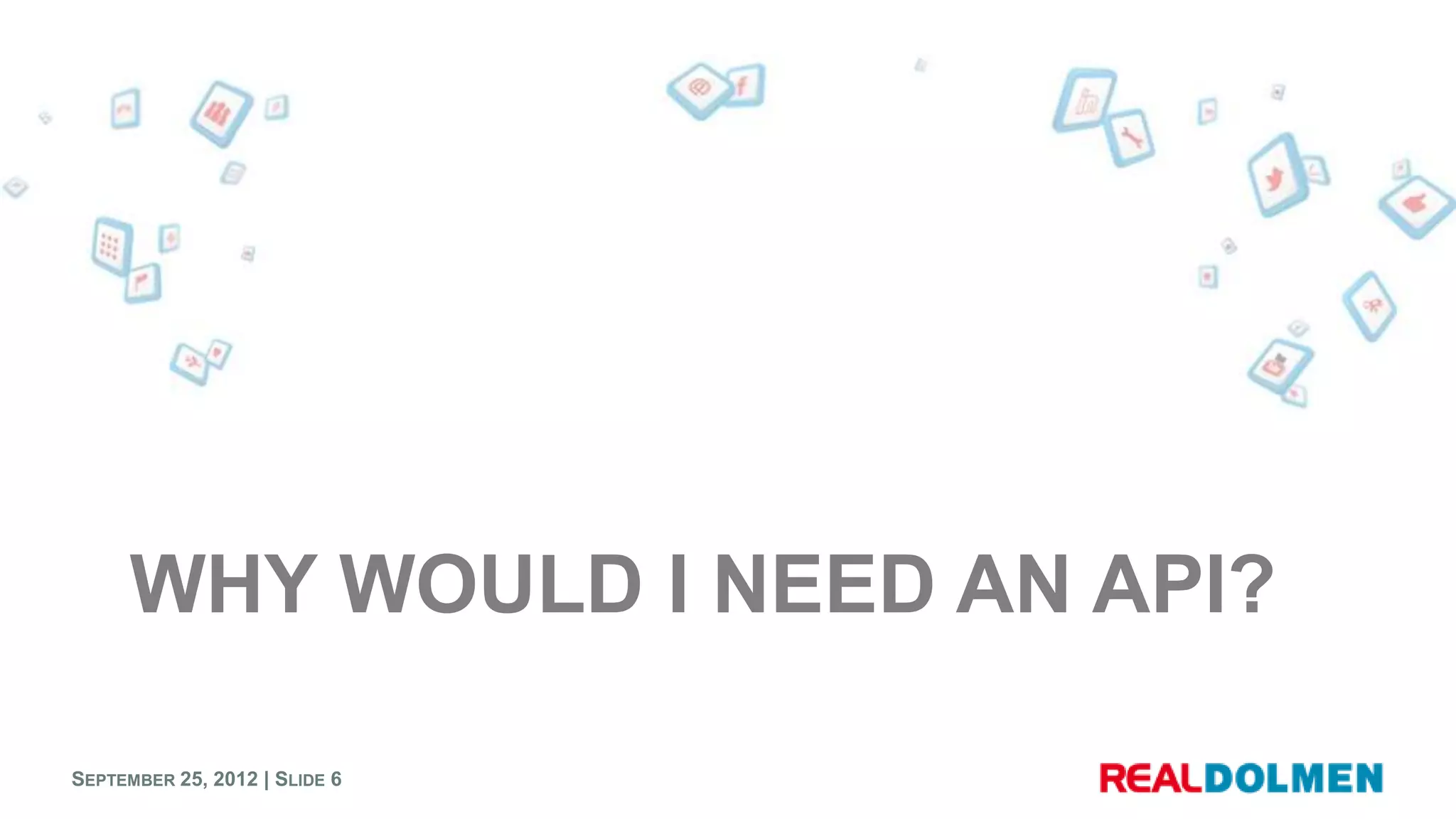

WHY WOULD I NEED AN API?

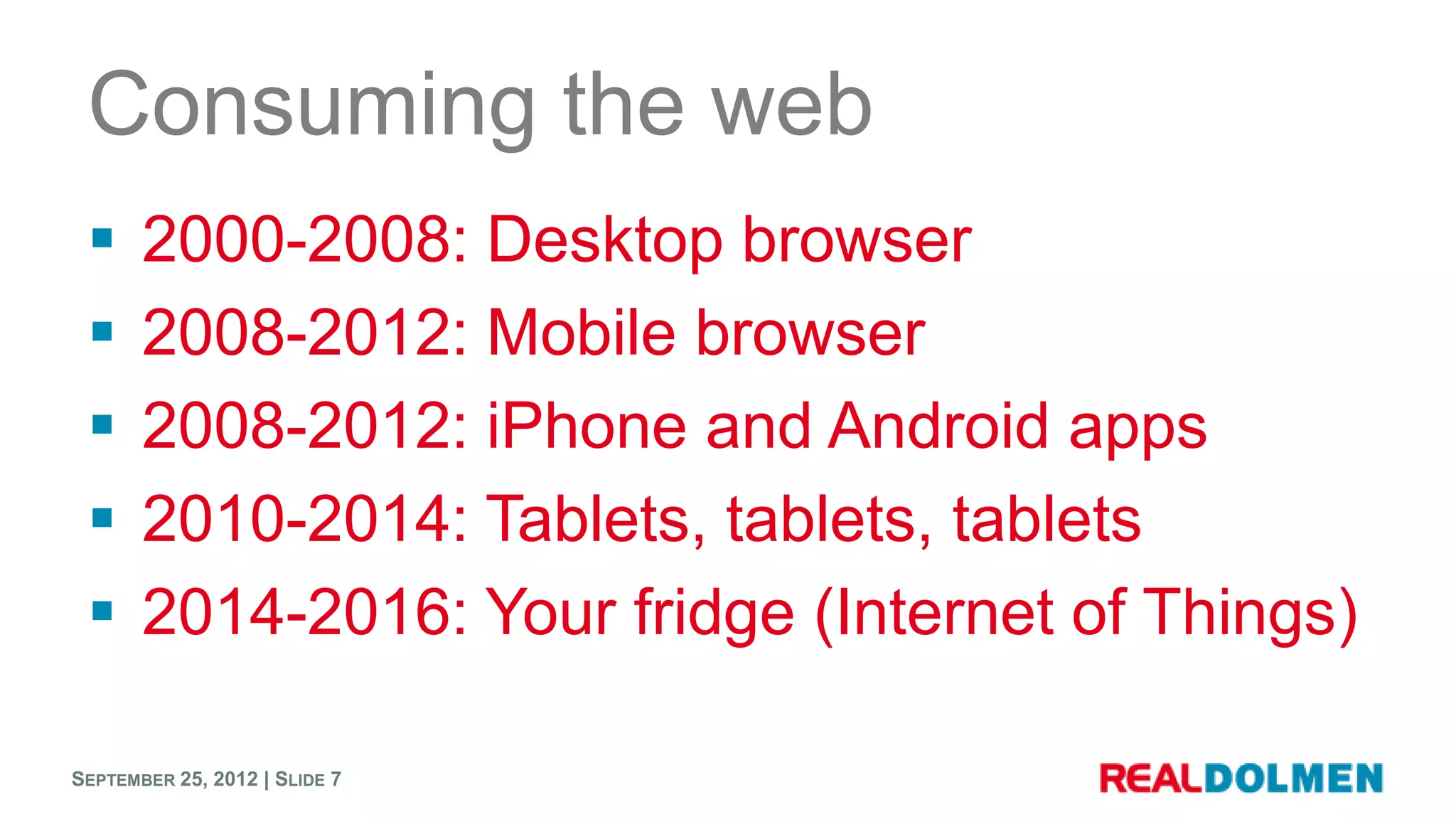

SEPTEMBER 25, 2012 | SLIDE 6

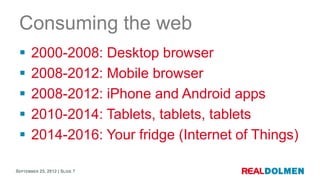

Consuming the web
      2000-2008: Desktop browser
      2008-2012: Mobile browser
      2008-2012: iPhone and Android apps
      2010-2014: Tablets, tablets, tablets
      2014-2016: Your fridge (Internet of Things)

SEPTEMBER 25, 2012 | SLIDE 7
SEPTEMBER 25, 2012 | SLIDE 8

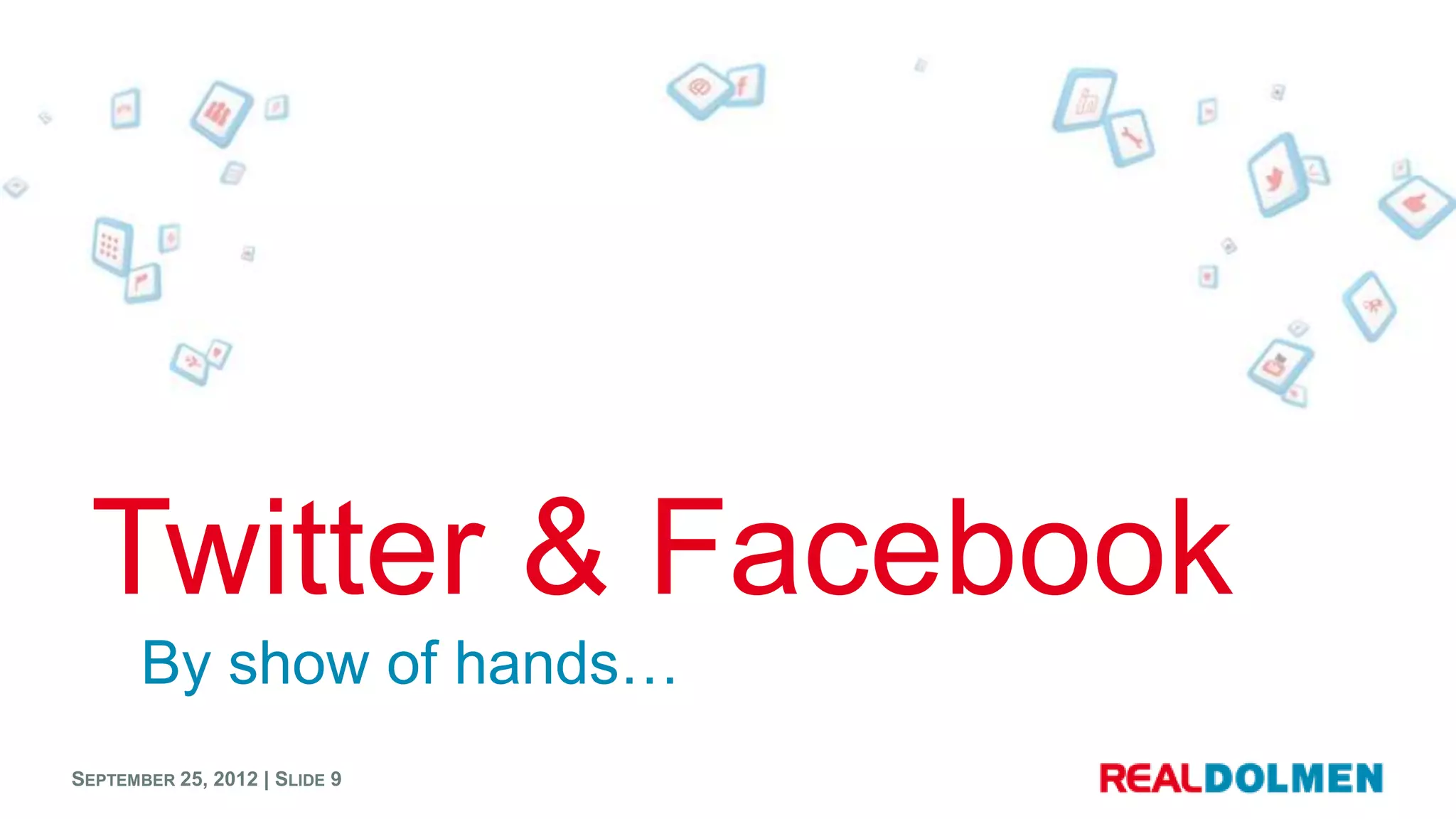

Twitter & Facebook
       By show of hands…
SEPTEMBER 25, 2012 | SLIDE 9

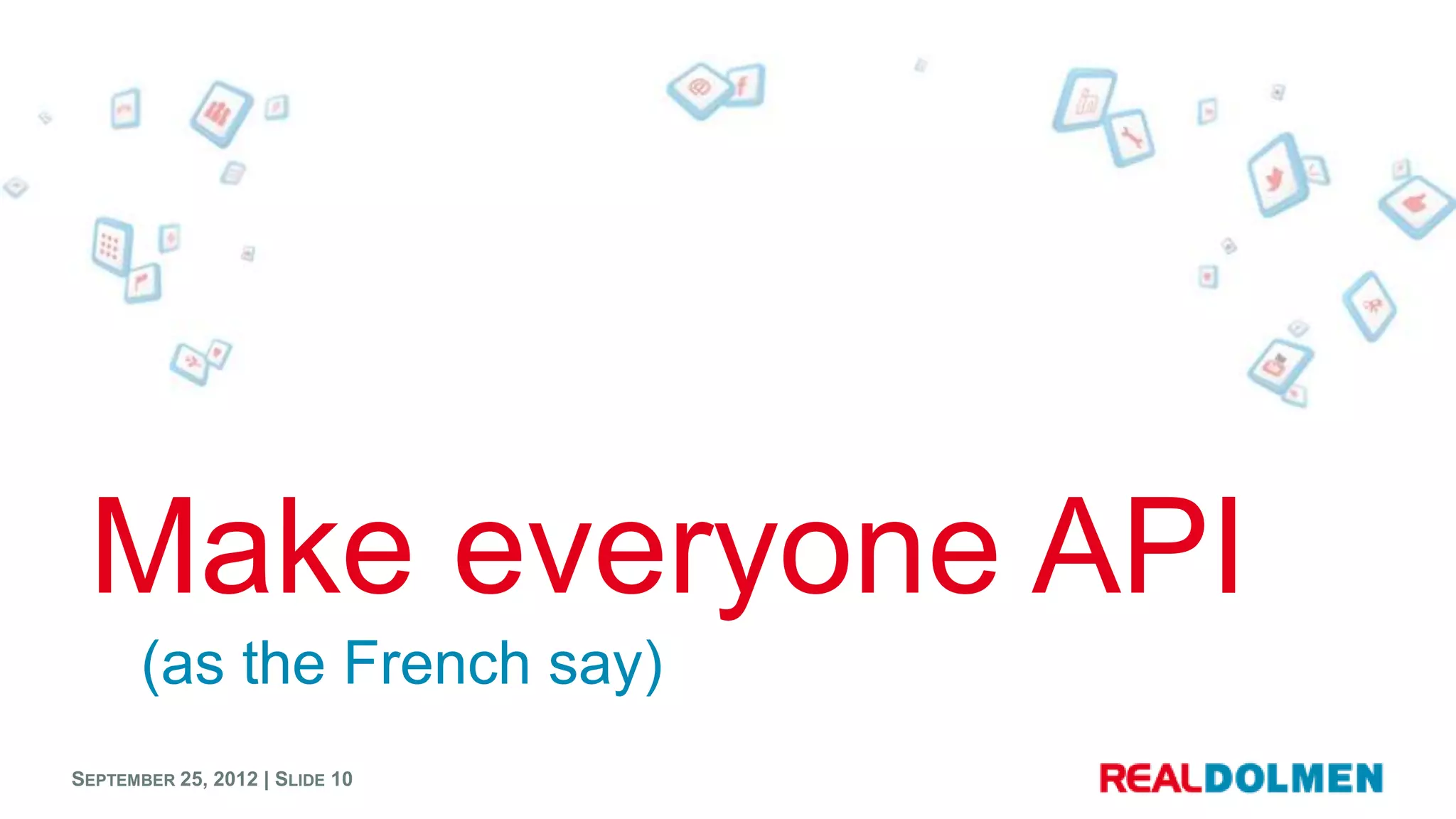

Make everyone API
       (as the French say)

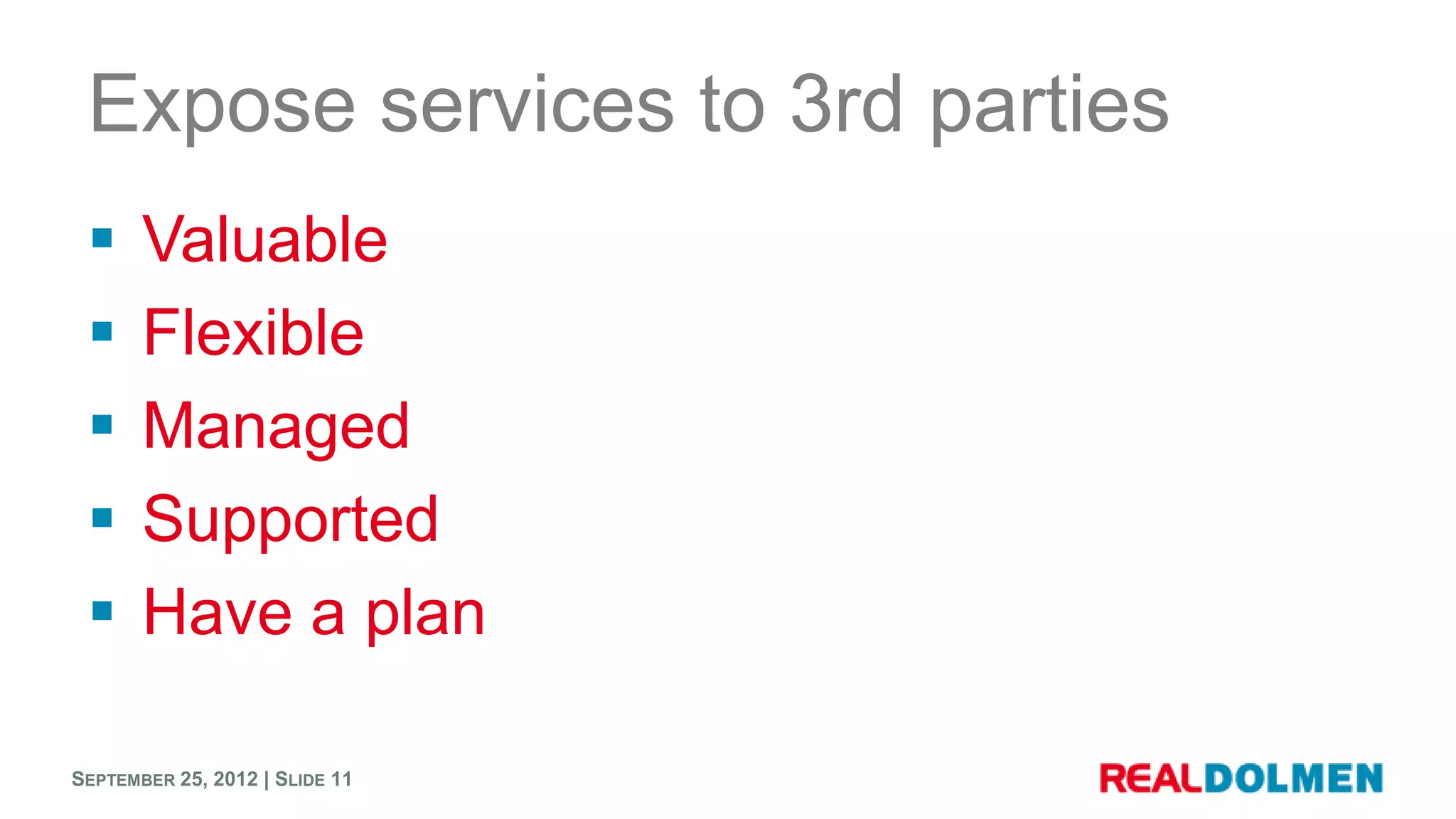

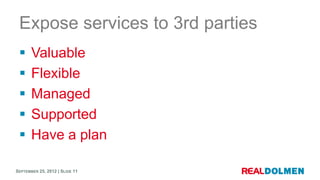

SEPTEMBER 25, 2012 | SLIDE 10
Expose services to 3rd parties
      Valuable
      Flexible
      Managed
      Supported
      Have a plan

SEPTEMBER 25, 2012 | SLIDE 11

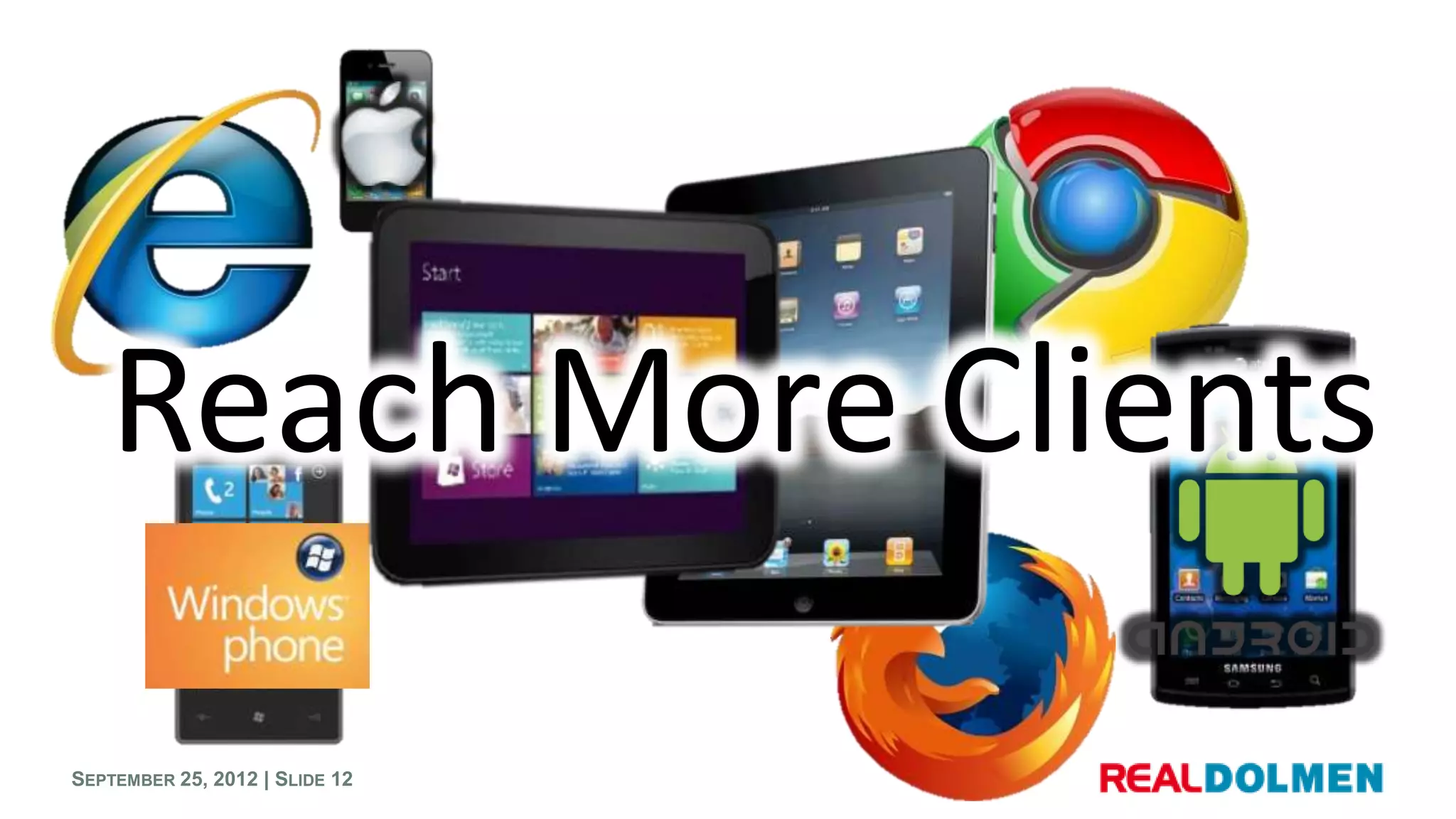

Reach More Clients

SEPTEMBER 25, 2012 | SLIDE 12

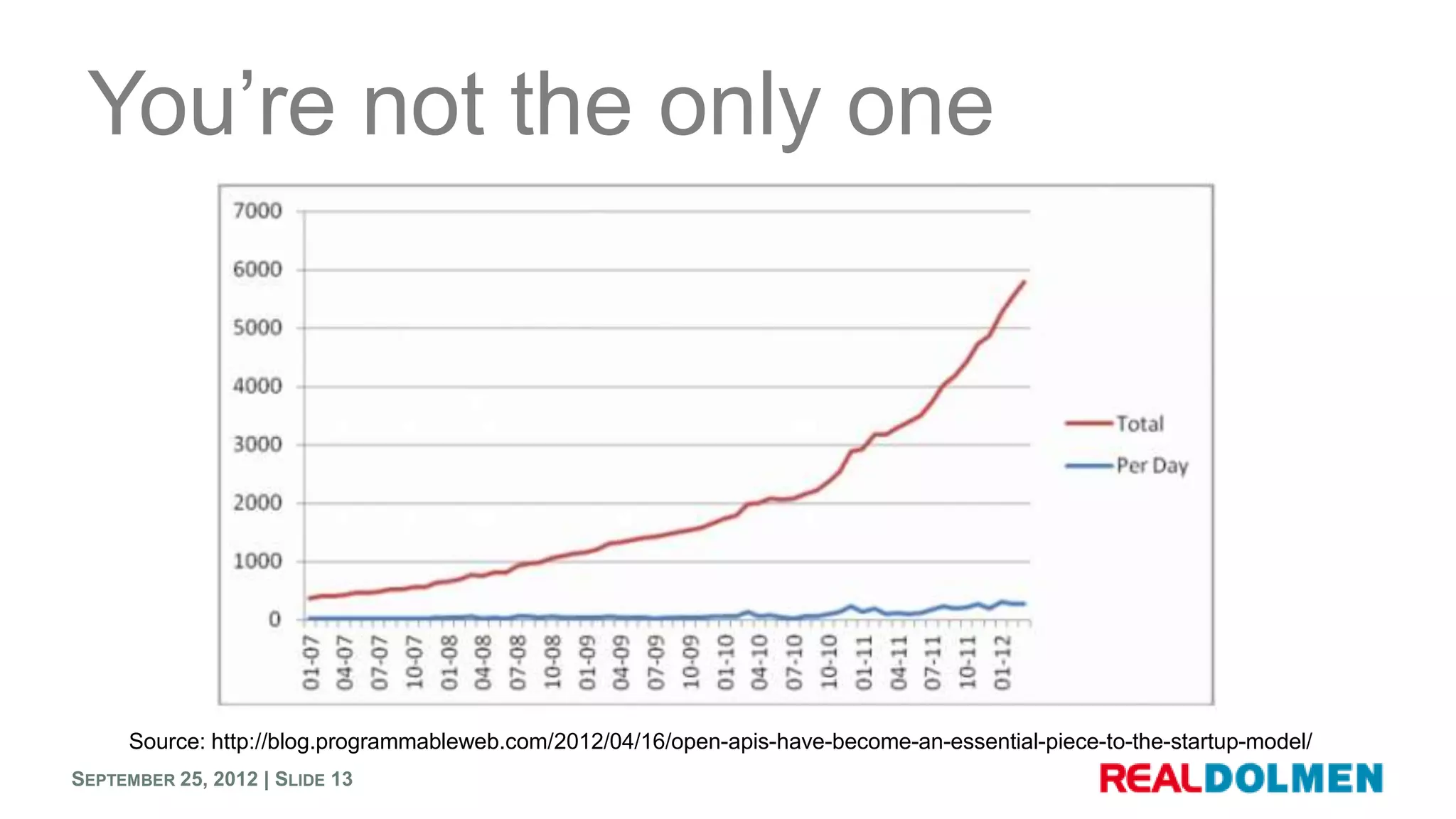

You’re not the only one




     Source: http://blog.programmableweb.com/2012/04/16/open-apis-have-become-an-essential-piece-to-the-startup-model/
SEPTEMBER 25, 2012 | SLIDE 13

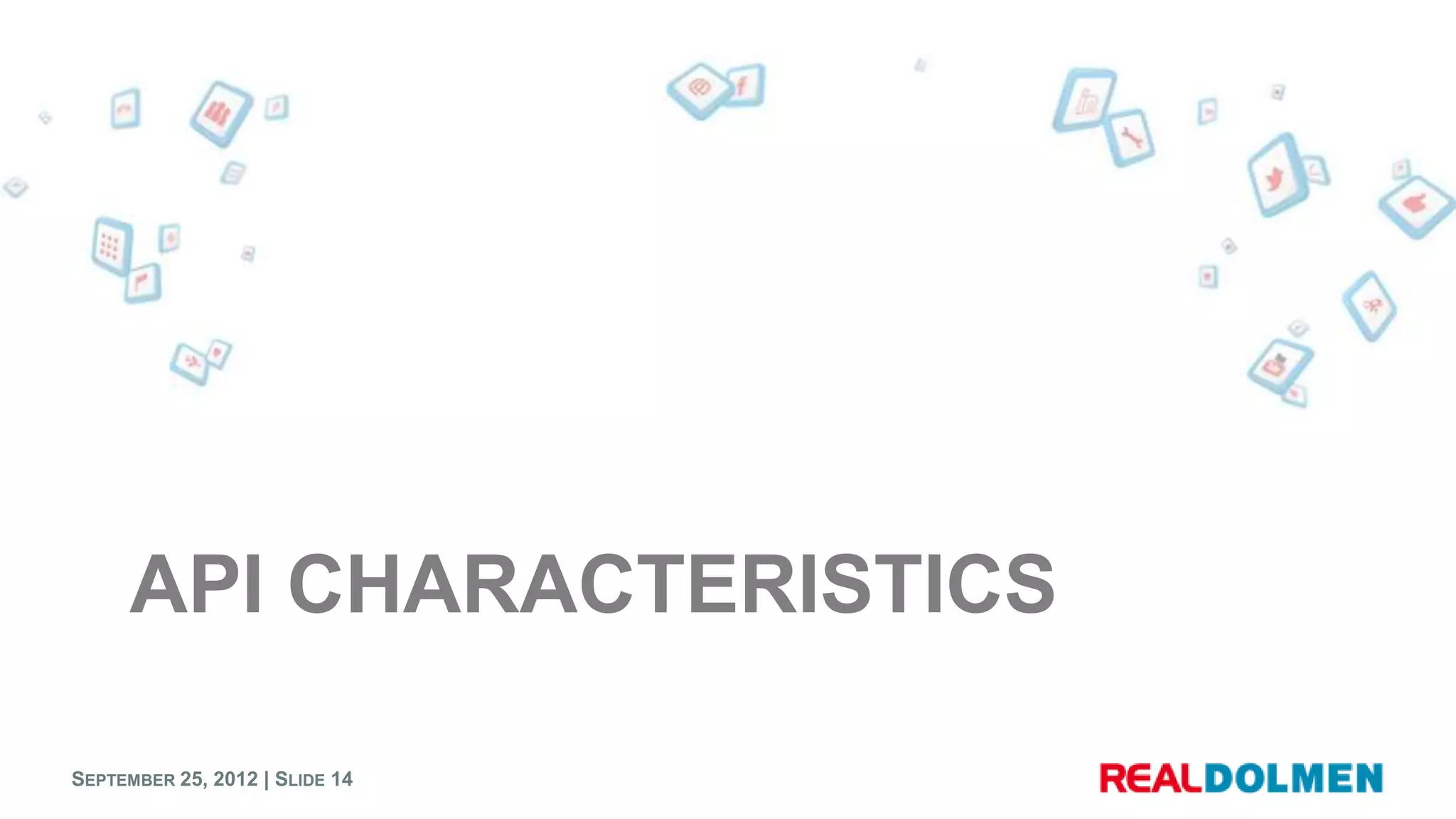

API CHARACTERISTICS

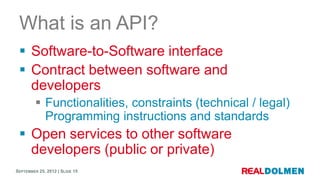

SEPTEMBER 25, 2012 | SLIDE 14

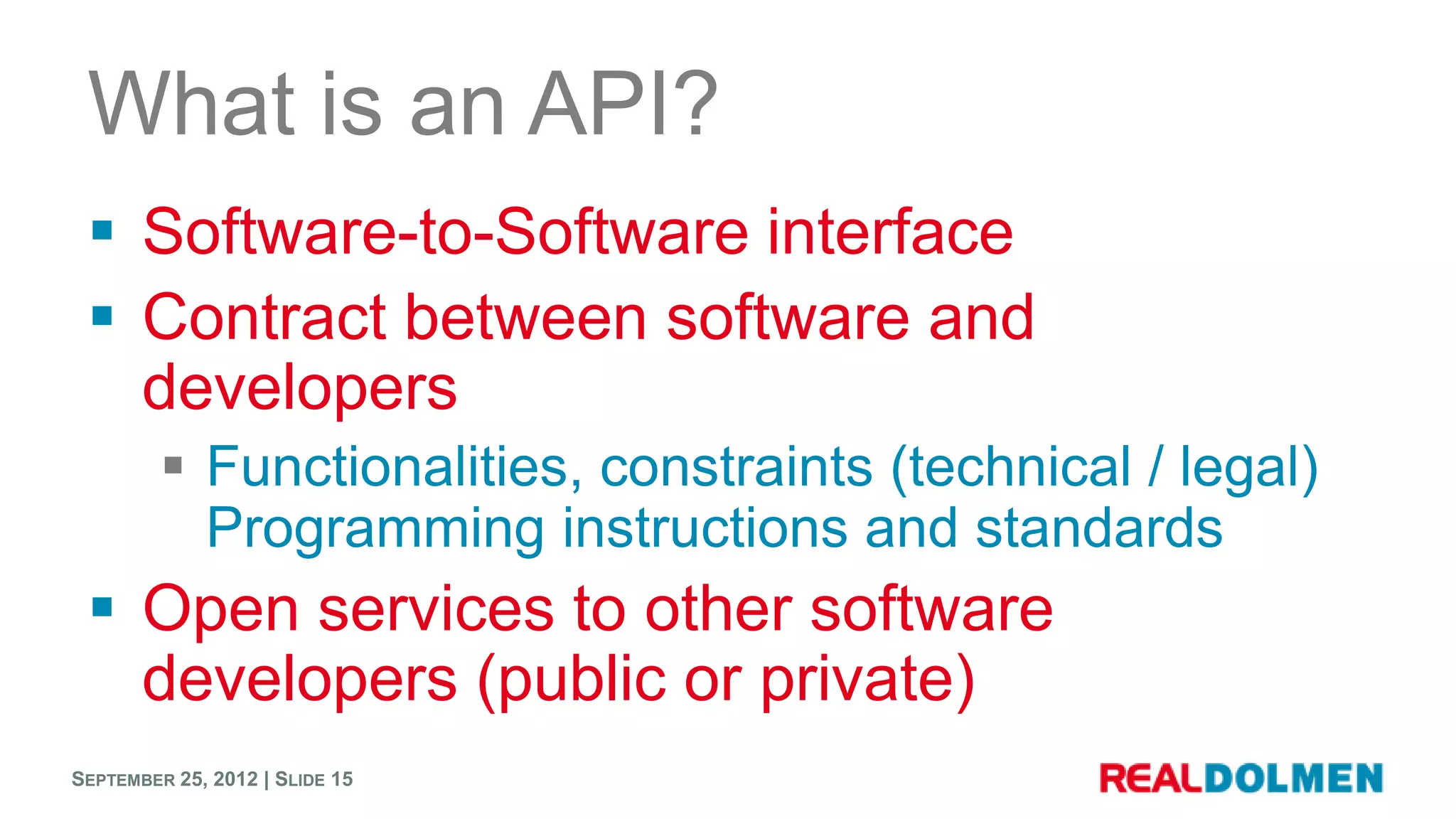

What is an API?
  Software-to-Software interface
  Contract between software and
   developers
          Functionalities, constraints (technical / legal)
           Programming instructions and standards
  Open services to other software
   developers (public or private)

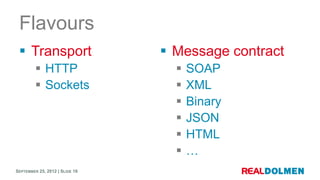

SEPTEMBER 25, 2012 | SLIDE 15

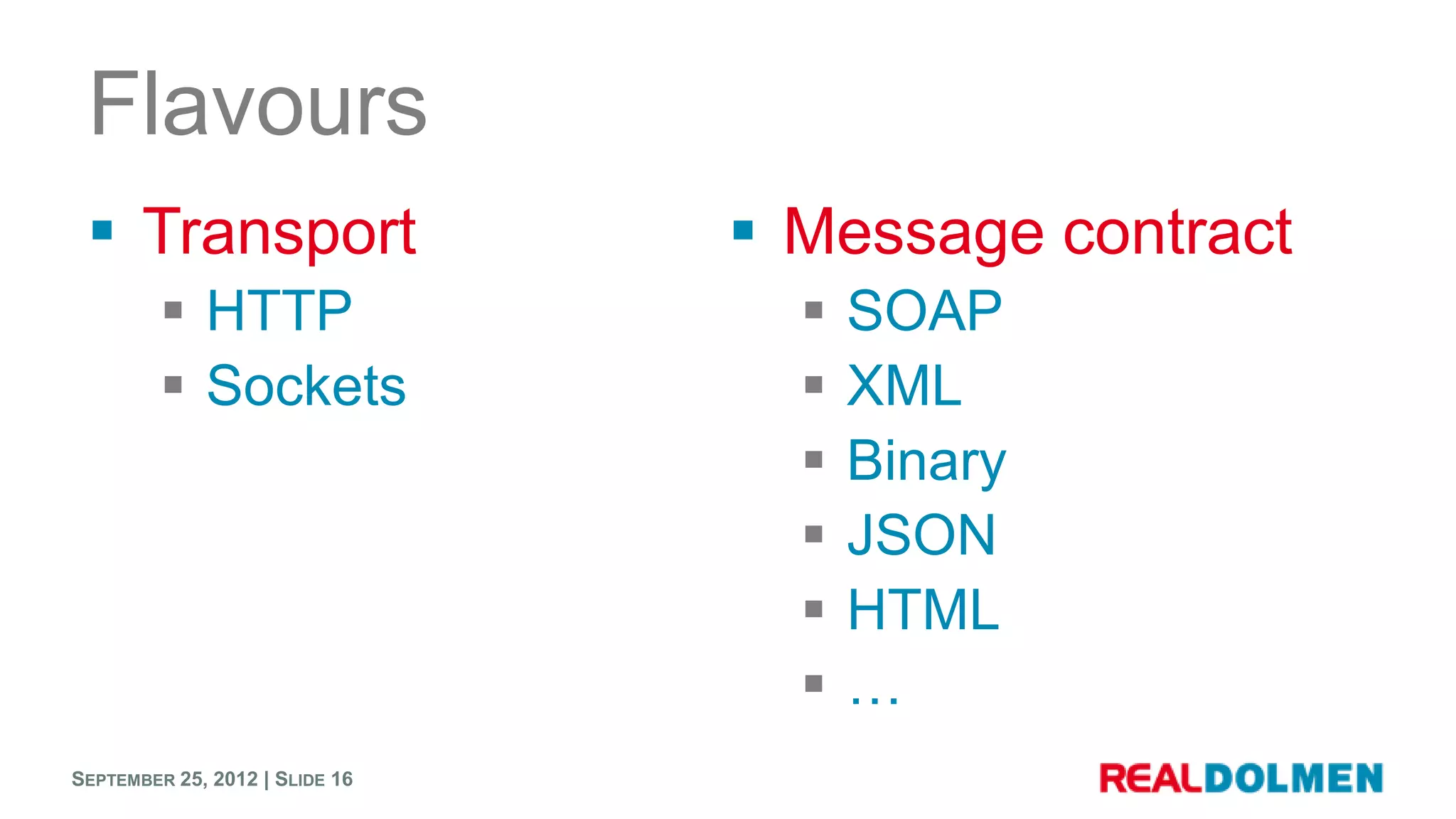

Flavours
  Transport                     Message contract
          HTTP                      SOAP
          Sockets                   XML
                                     Binary
                                     JSON
                                     HTML
                                     …
SEPTEMBER 25, 2012 | SLIDE 16

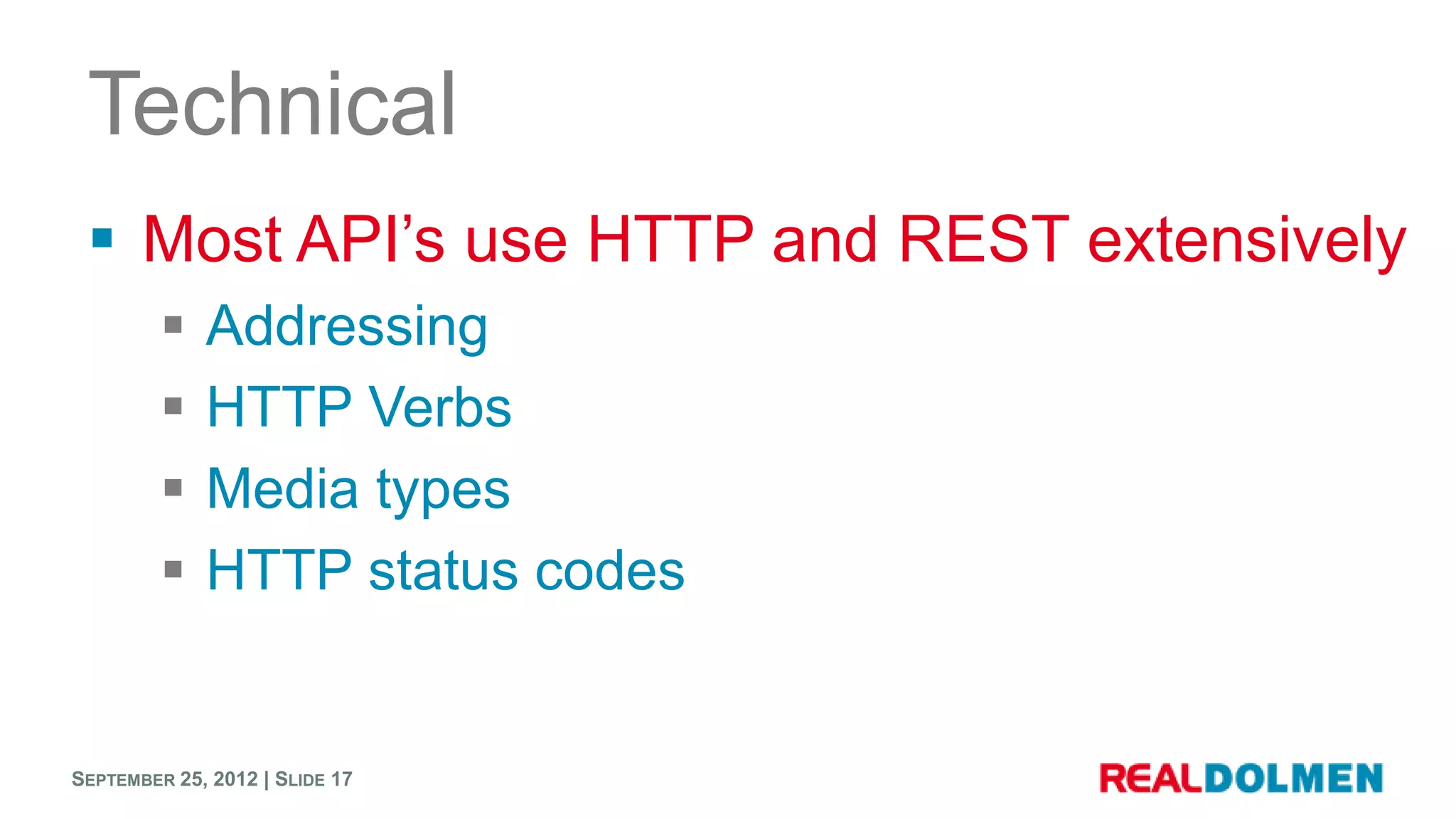

Technical
  Most API’s use HTTP and REST extensively
            Addressing
            HTTP Verbs
            Media types
            HTTP status codes


SEPTEMBER 25, 2012 | SLIDE 17

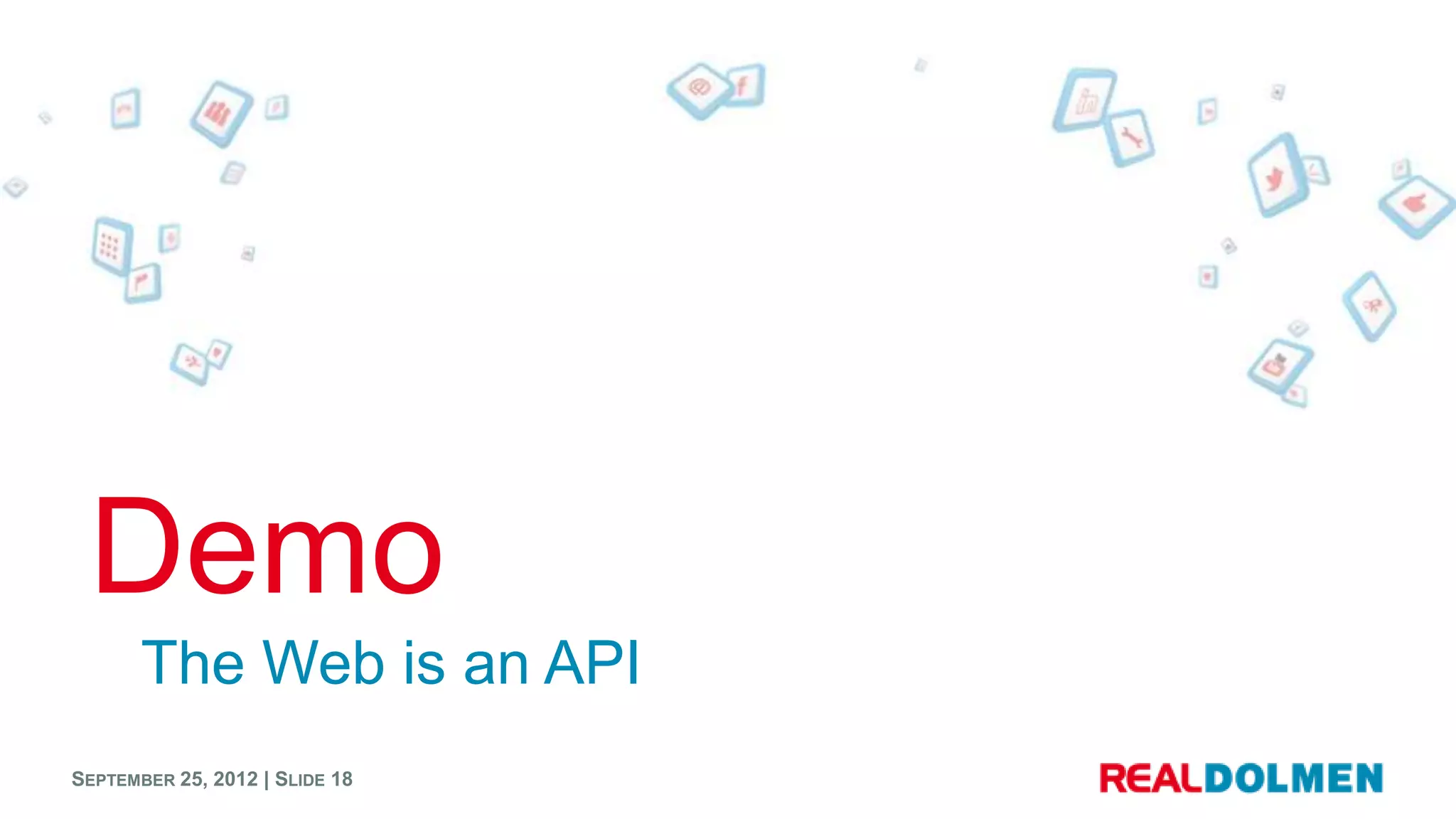

Demo
       The Web is an API
SEPTEMBER 25, 2012 | SLIDE 18

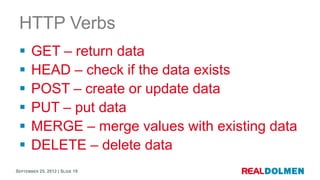

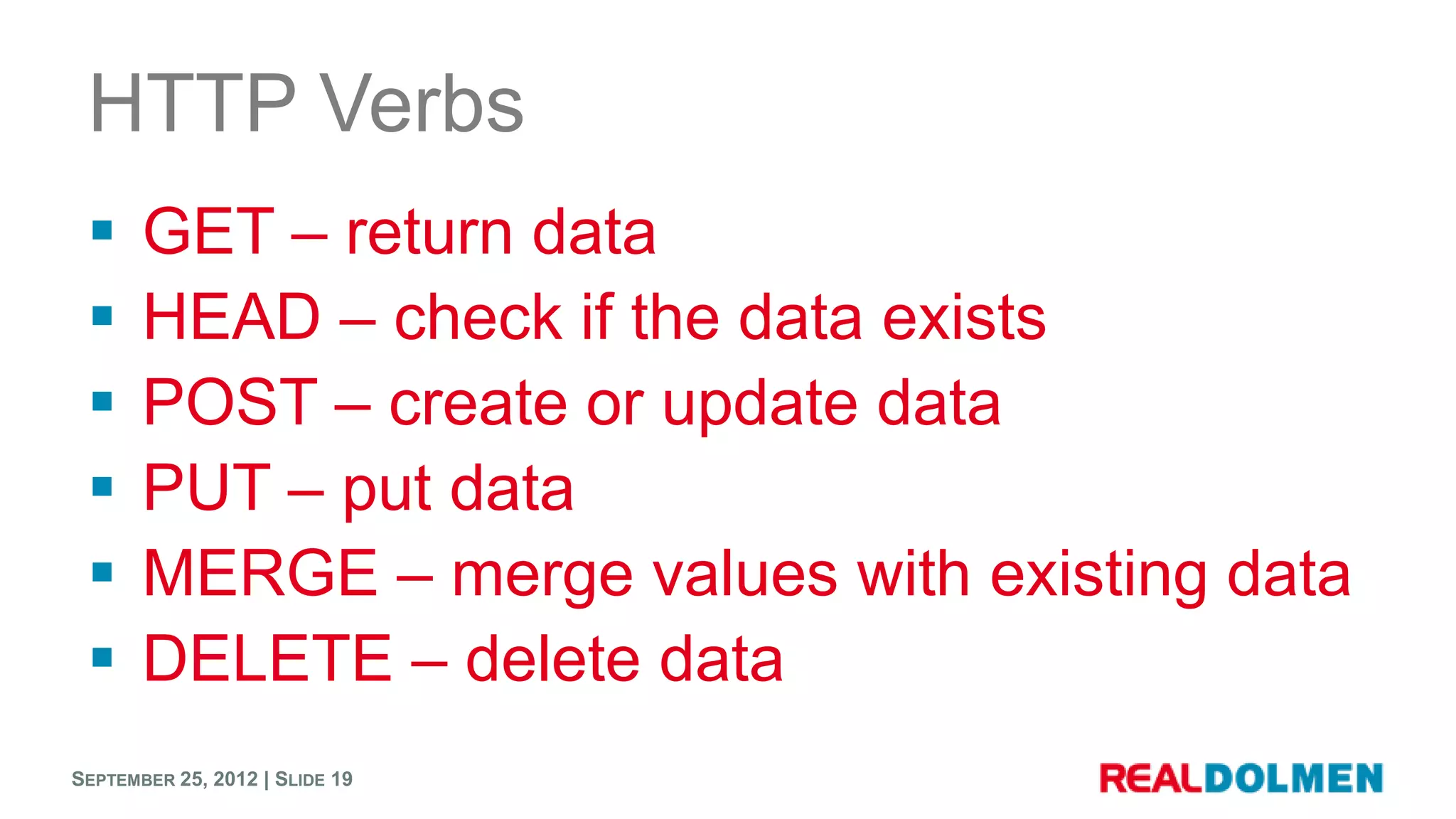

HTTP Verbs
      GET – return data
      HEAD – check if the data exists
      POST – create or update data
      PUT – put data
      MERGE – merge values with existing data
      DELETE – delete data
SEPTEMBER 25, 2012 | SLIDE 19

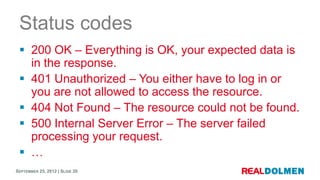

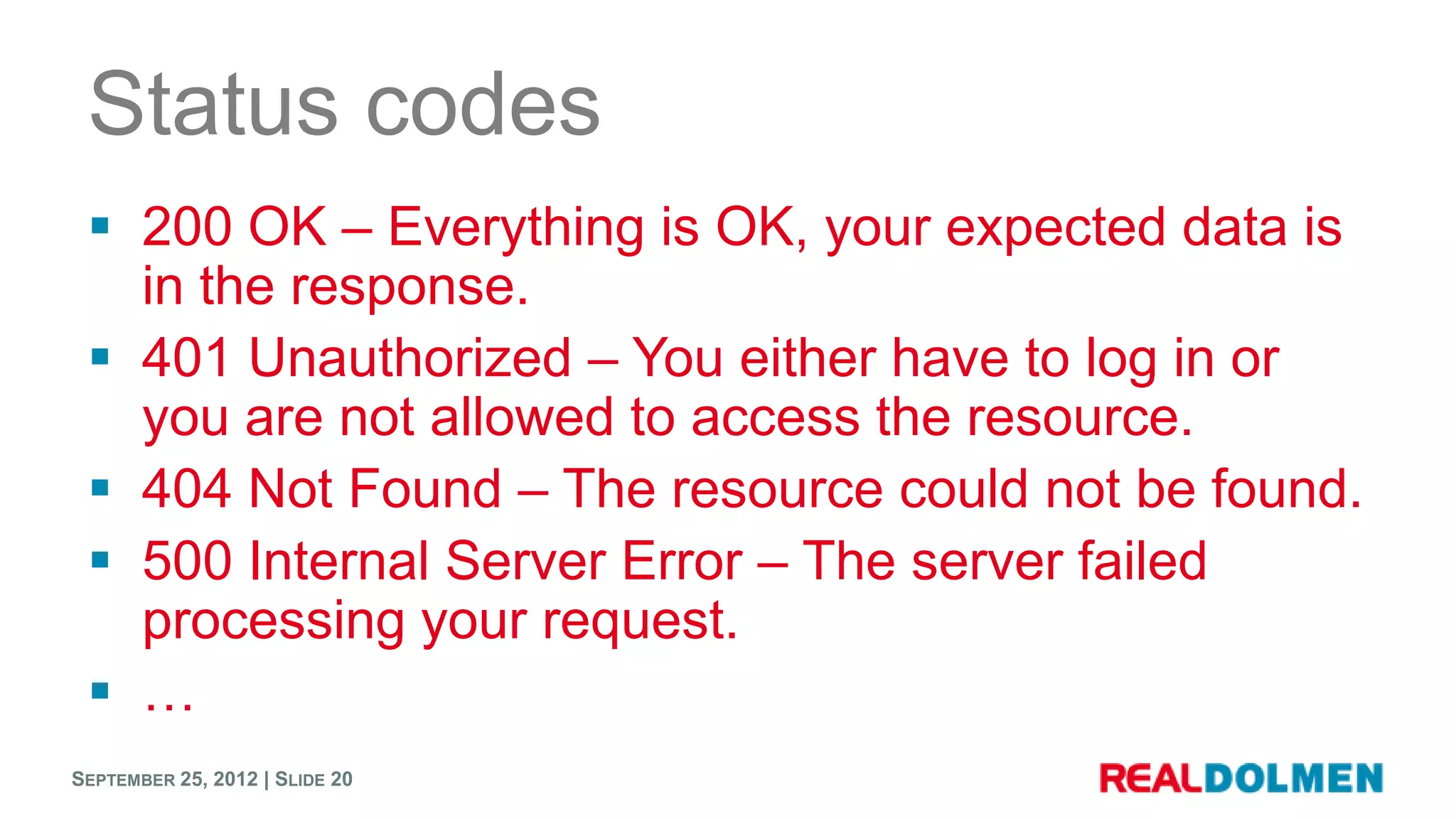

Status codes
  200 OK – Everything is OK, your expected data is
   in the response.
  401 Unauthorized – You either have to log in or
   you are not allowed to access the resource.
  404 Not Found – The resource could not be found.
  500 Internal Server Error – The server failed
   processing your request.
  …
SEPTEMBER 25, 2012 | SLIDE 20
Be detailed!

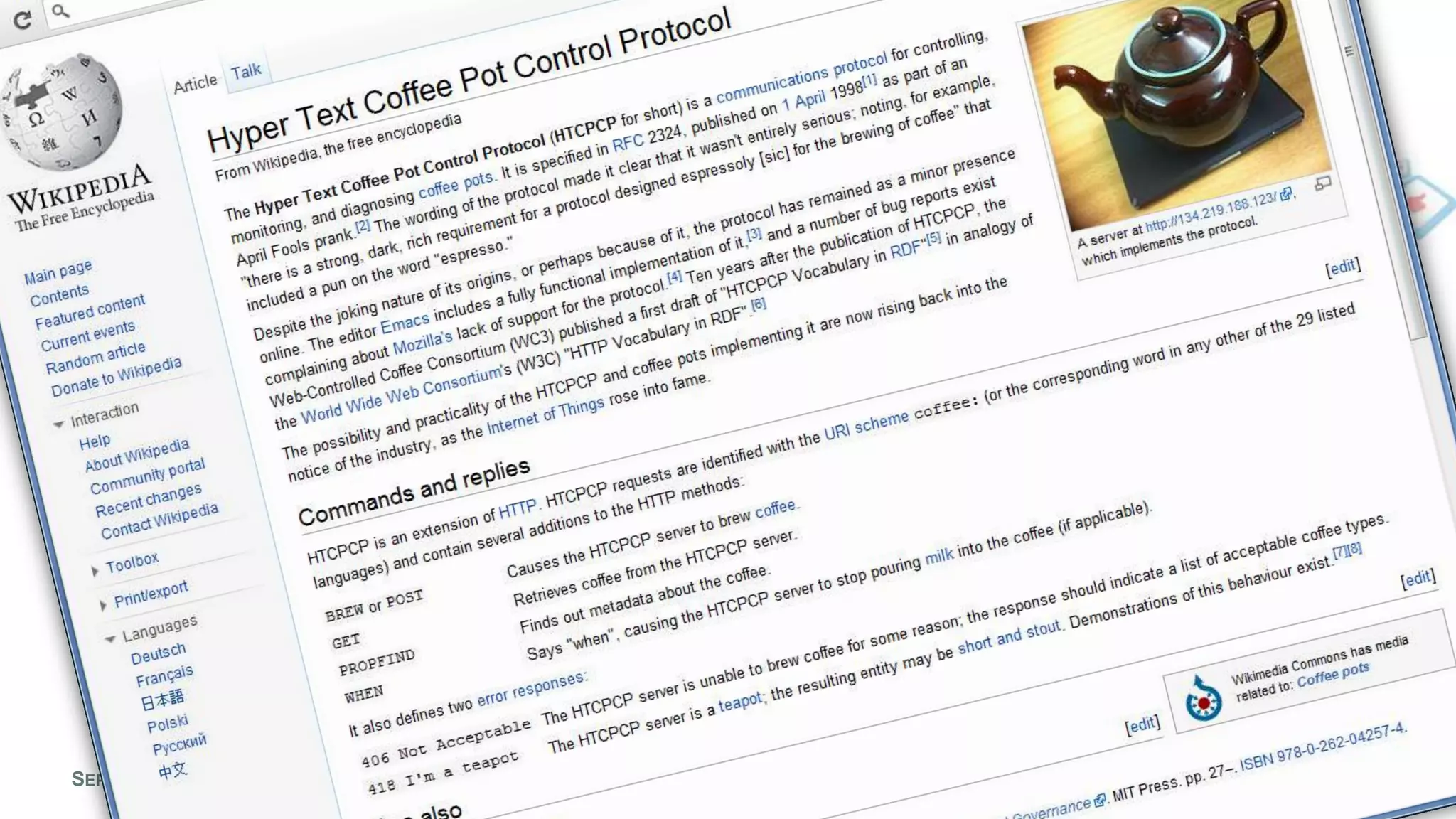

       Think about RFC 2324 (HTCPCP)
SEPTEMBER 25, 2012 | SLIDE 21

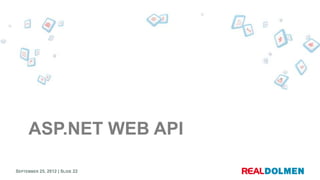

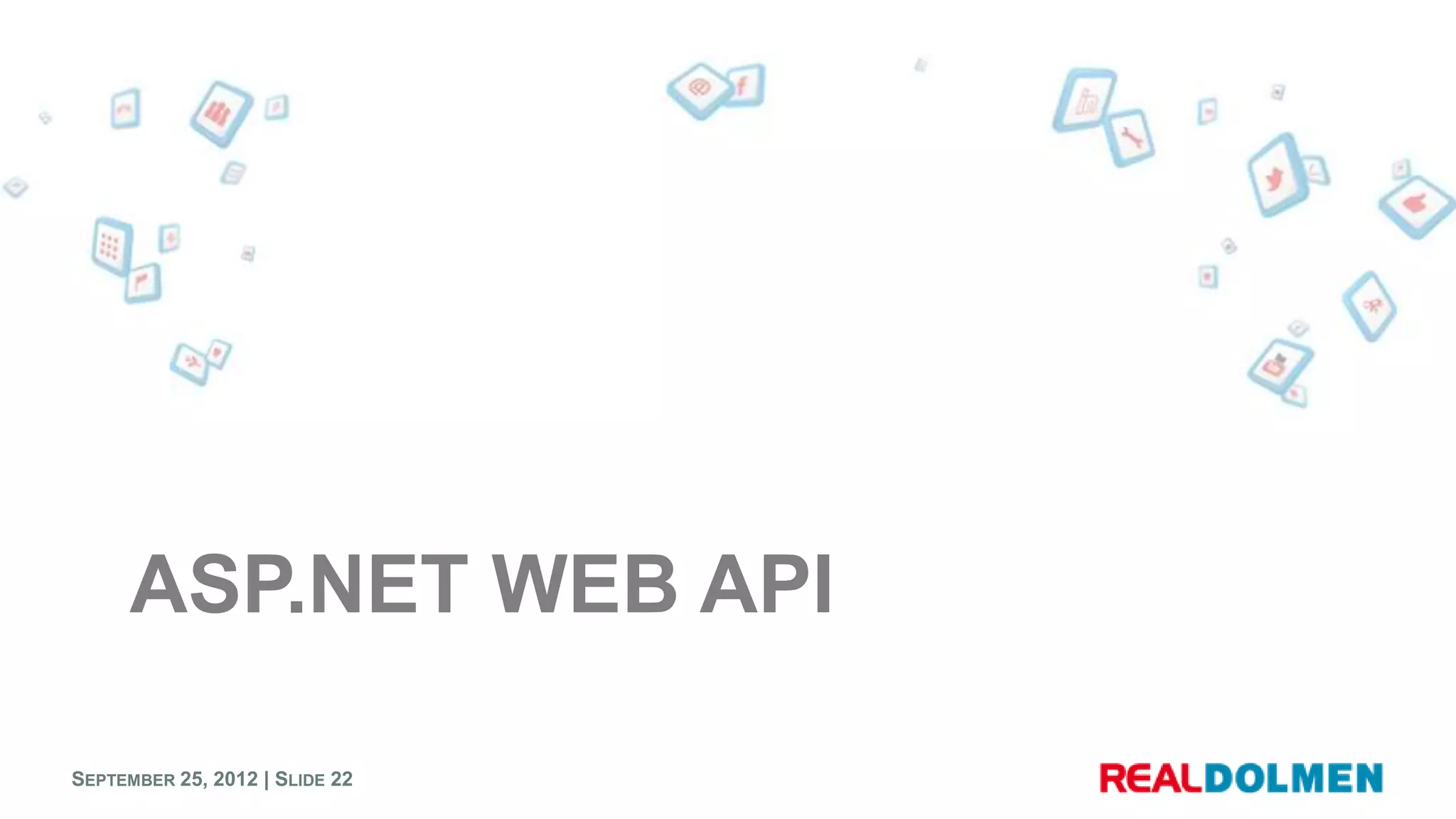

ASP.NET WEB API

SEPTEMBER 25, 2012 | SLIDE 22

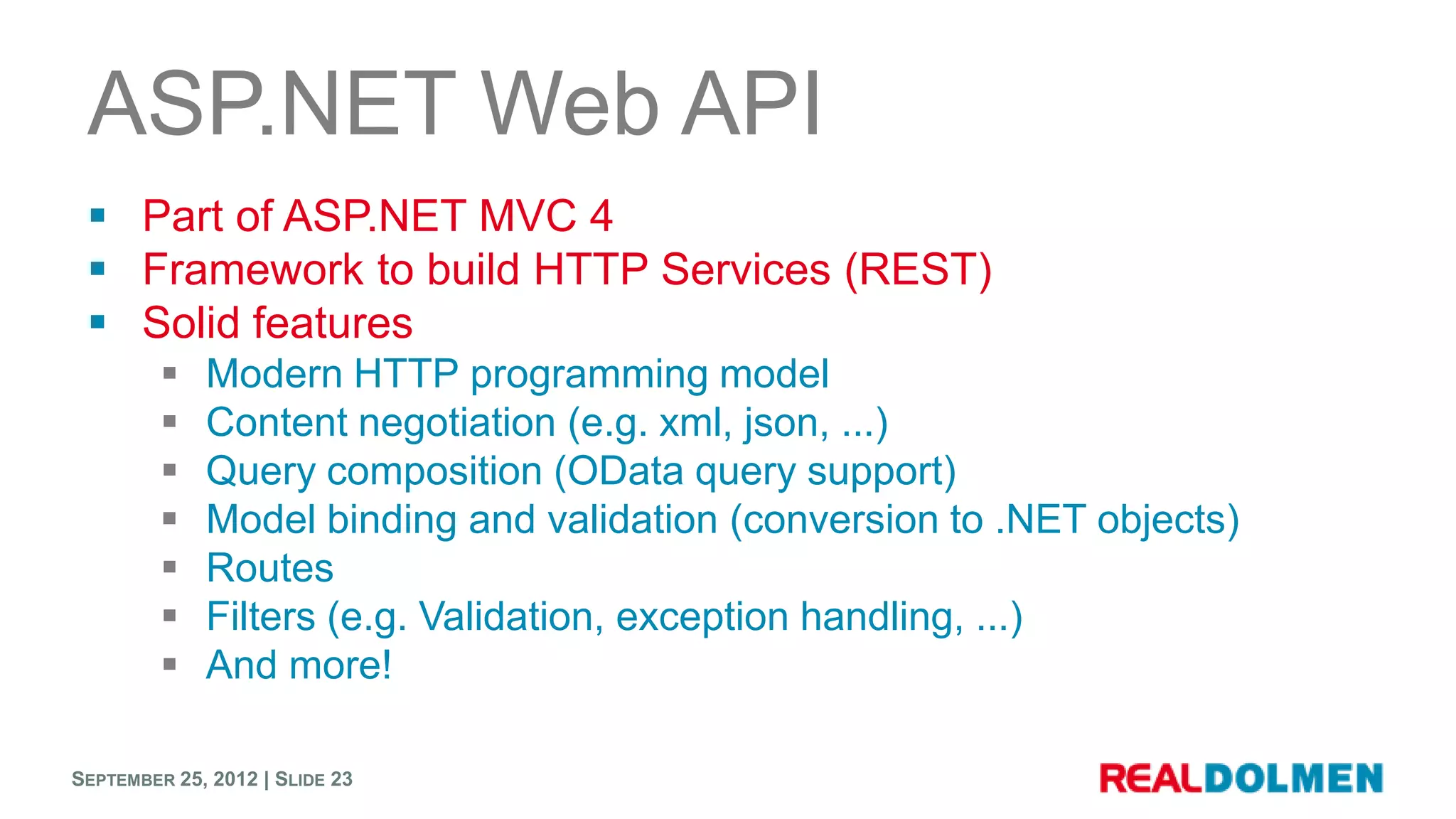

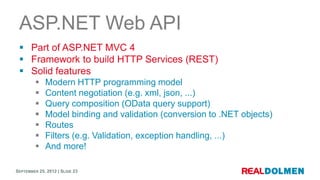

ASP.NET Web API
  Part of ASP.NET MVC 4
  Framework to build HTTP Services (REST)
  Solid features
            Modern HTTP programming model
            Content negotiation (e.g. xml, json, ...)
            Query composition (OData query support)
            Model binding and validation (conversion to .NET objects)
            Routes
            Filters (e.g. Validation, exception handling, ...)
            And more!

SEPTEMBER 25, 2012 | SLIDE 23

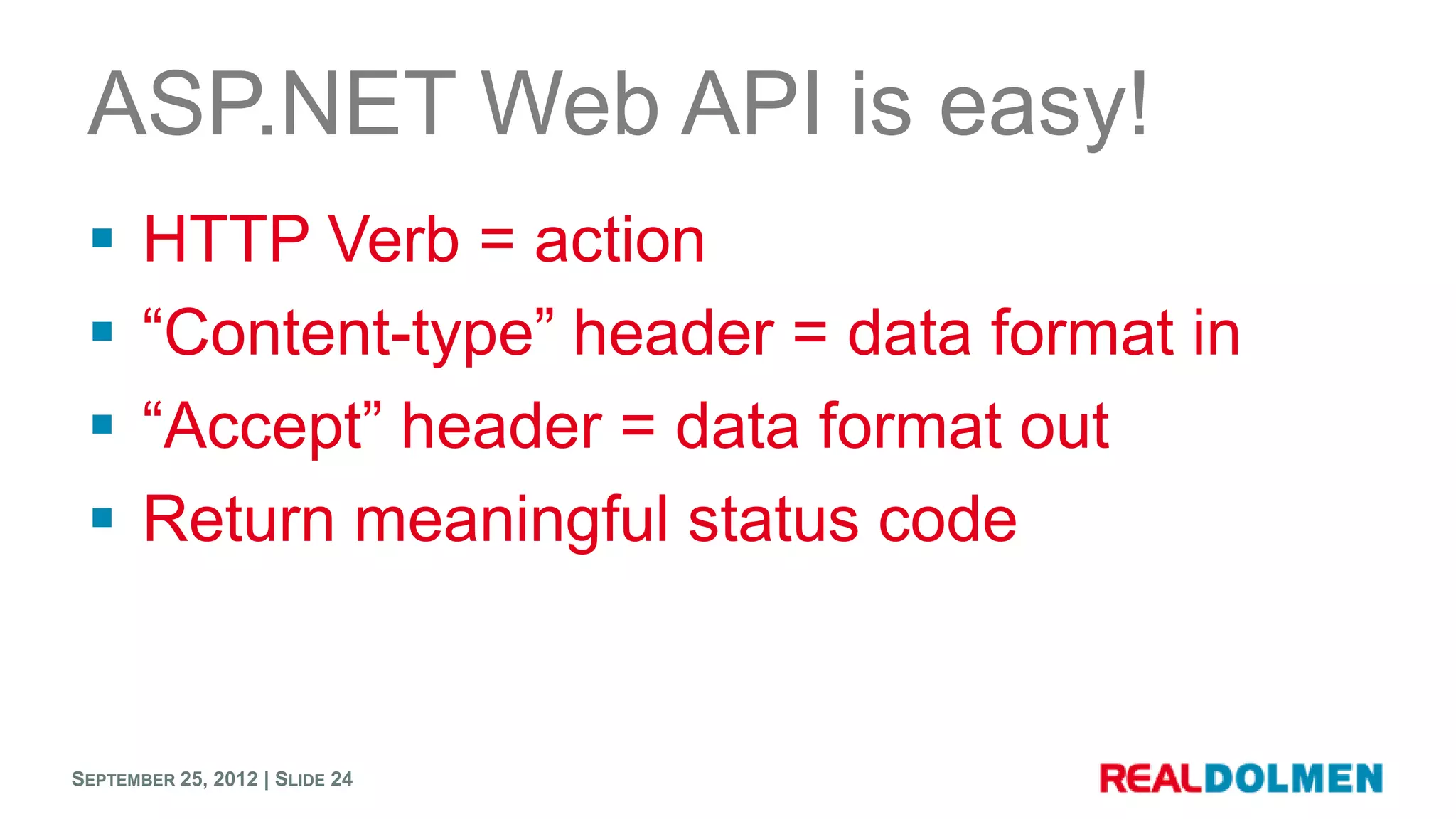

ASP.NET Web API is easy!
      HTTP Verb = action
      “Content-type” header = data format in
      “Accept” header = data format out
      Return meaningful status code


SEPTEMBER 25, 2012 | SLIDE 24

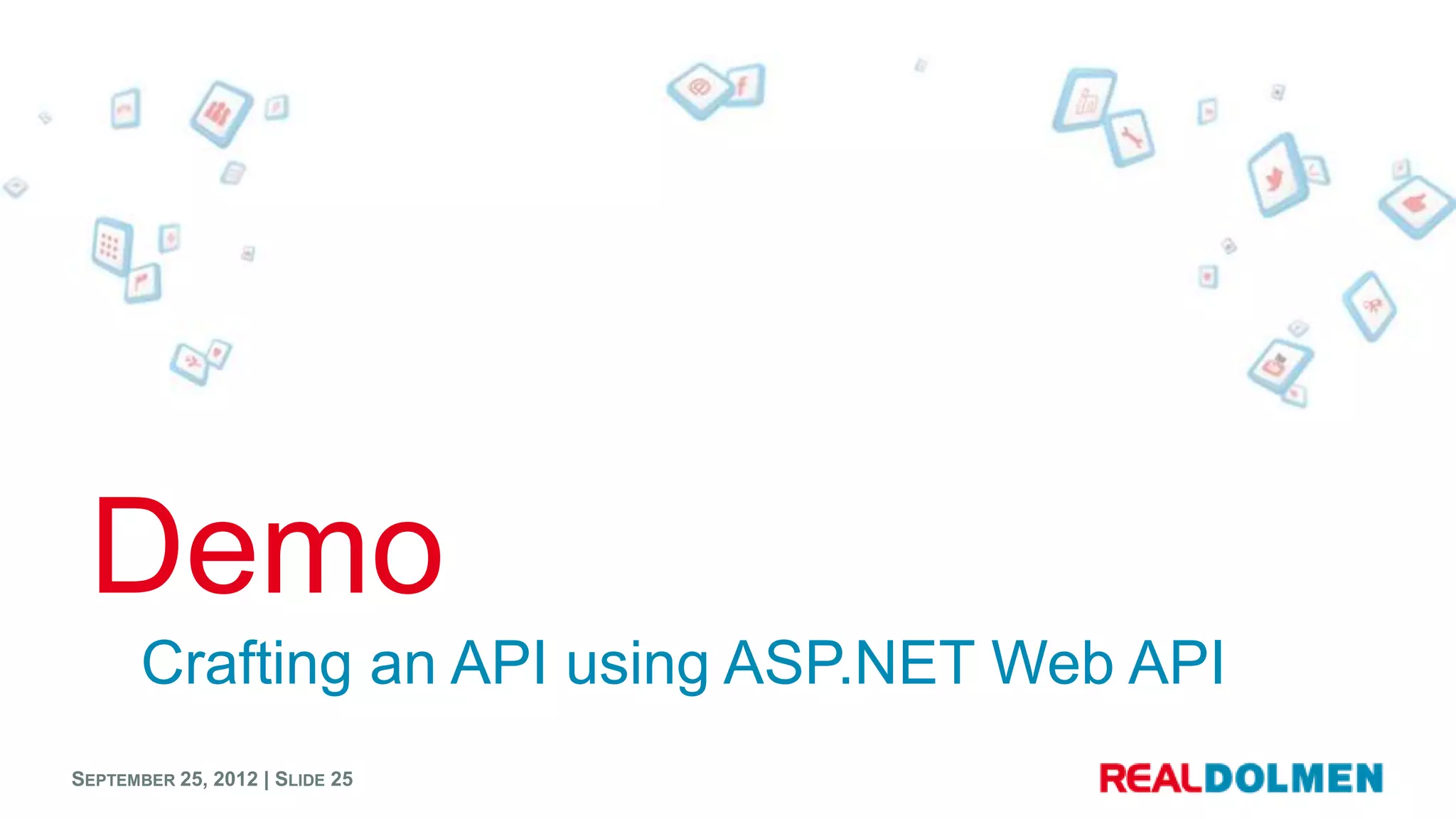

Demo
       Crafting an API using ASP.NET Web API
SEPTEMBER 25, 2012 | SLIDE 25

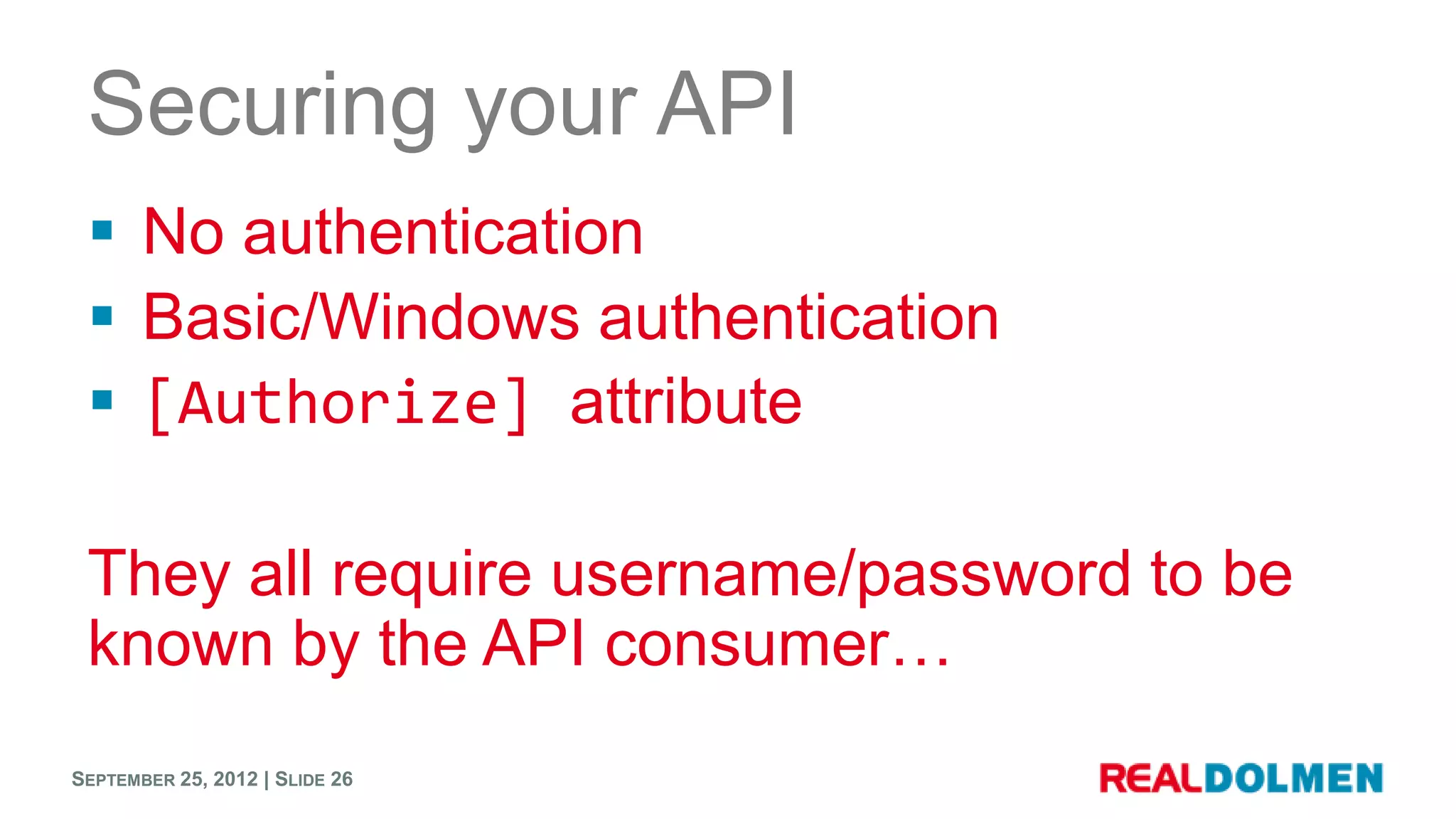

Securing your API
  No authentication
  Basic/Windows authentication
  [Authorize] attribute

 They all require username/password to be
 known by the API consumer…
SEPTEMBER 25, 2012 | SLIDE 26

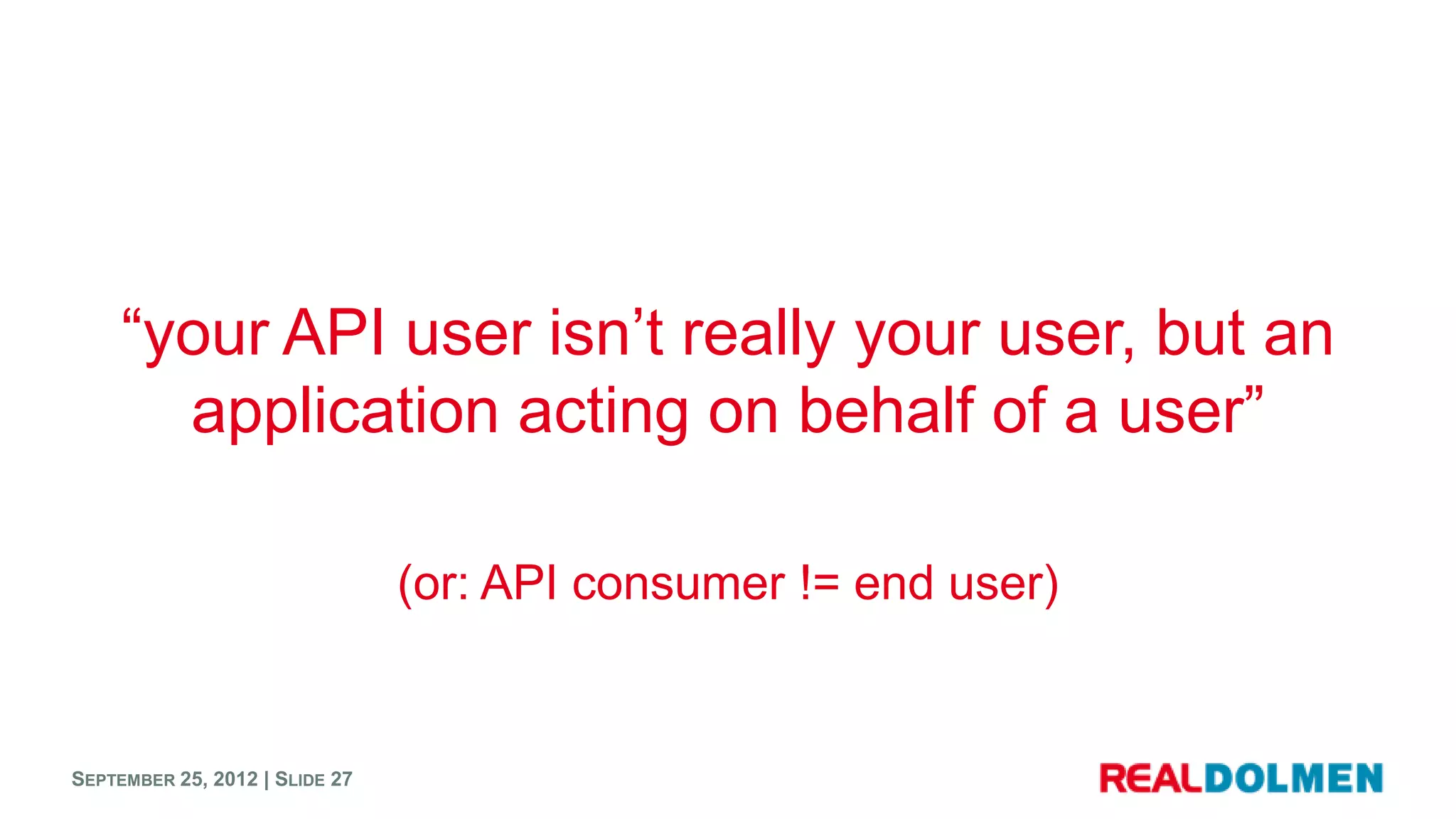

“your API user isn’t really your user, but an
       application acting on behalf of a user”

                                (or: API consumer != end user)


SEPTEMBER 25, 2012 | SLIDE 27

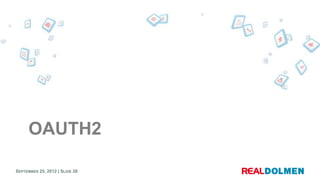

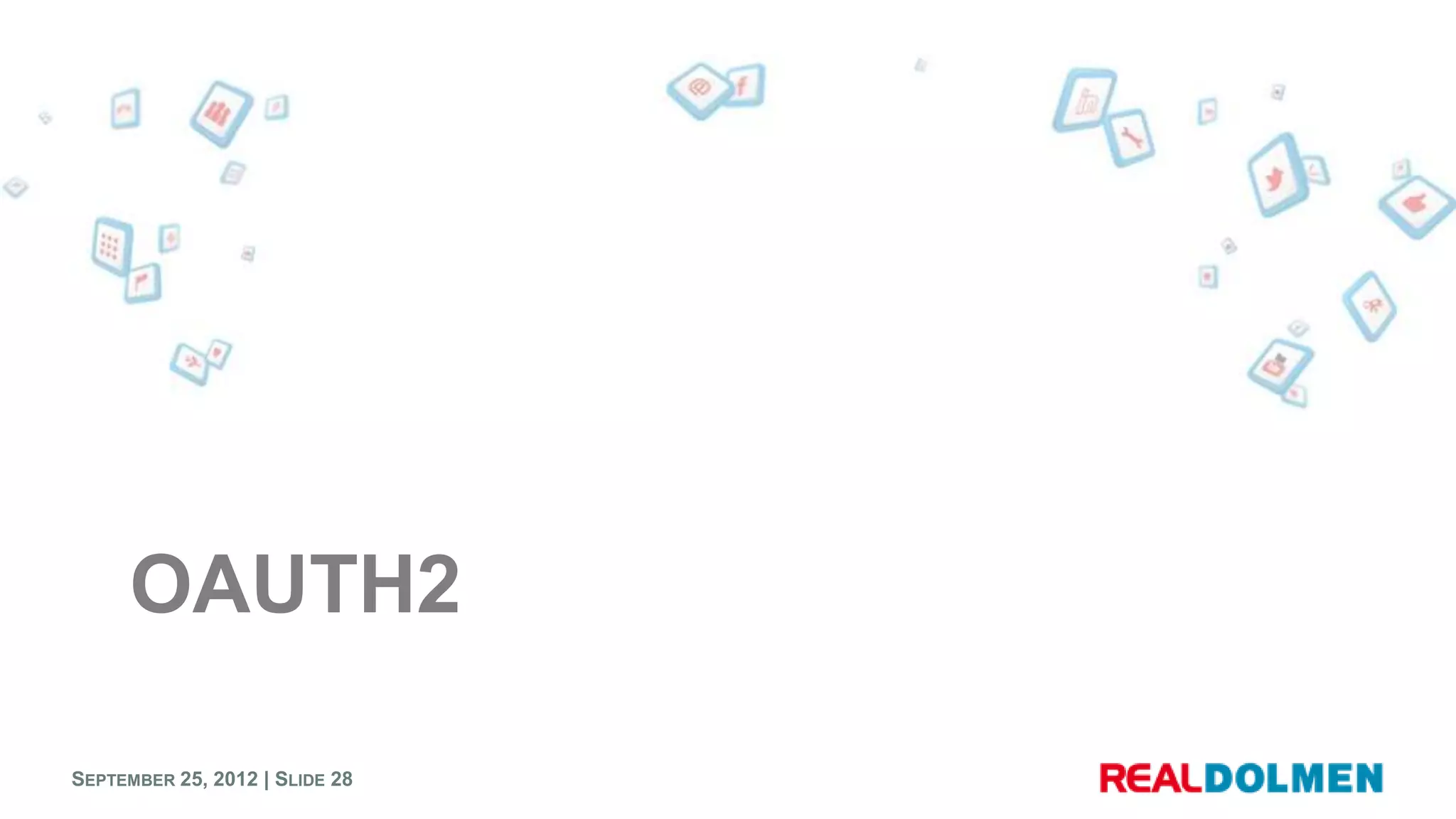

OAUTH2

SEPTEMBER 25, 2012 | SLIDE 28

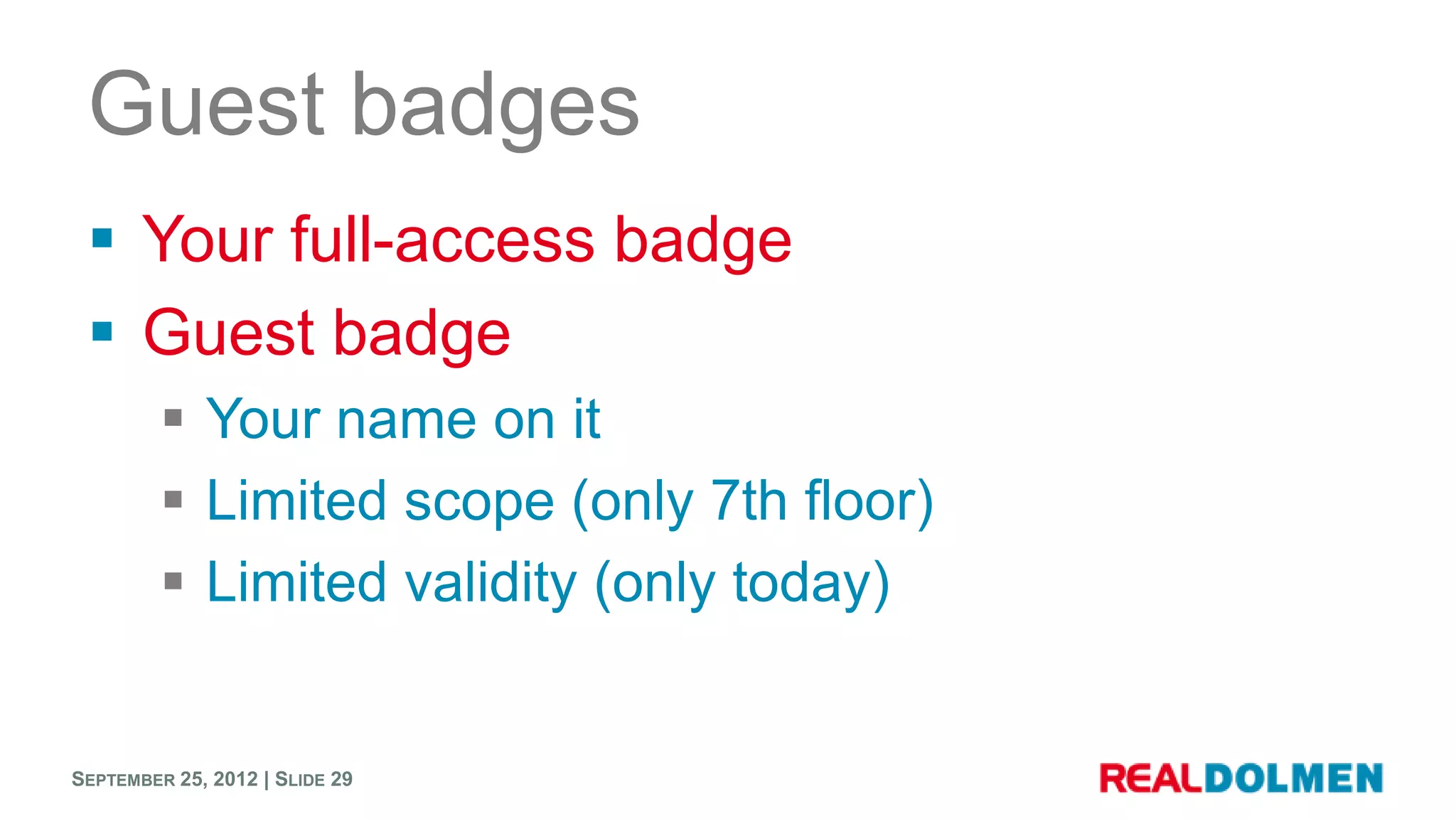

Guest badges
  Your full-access badge
  Guest badge
          Your name on it
          Limited scope (only 7th floor)
          Limited validity (only today)


SEPTEMBER 25, 2012 | SLIDE 29

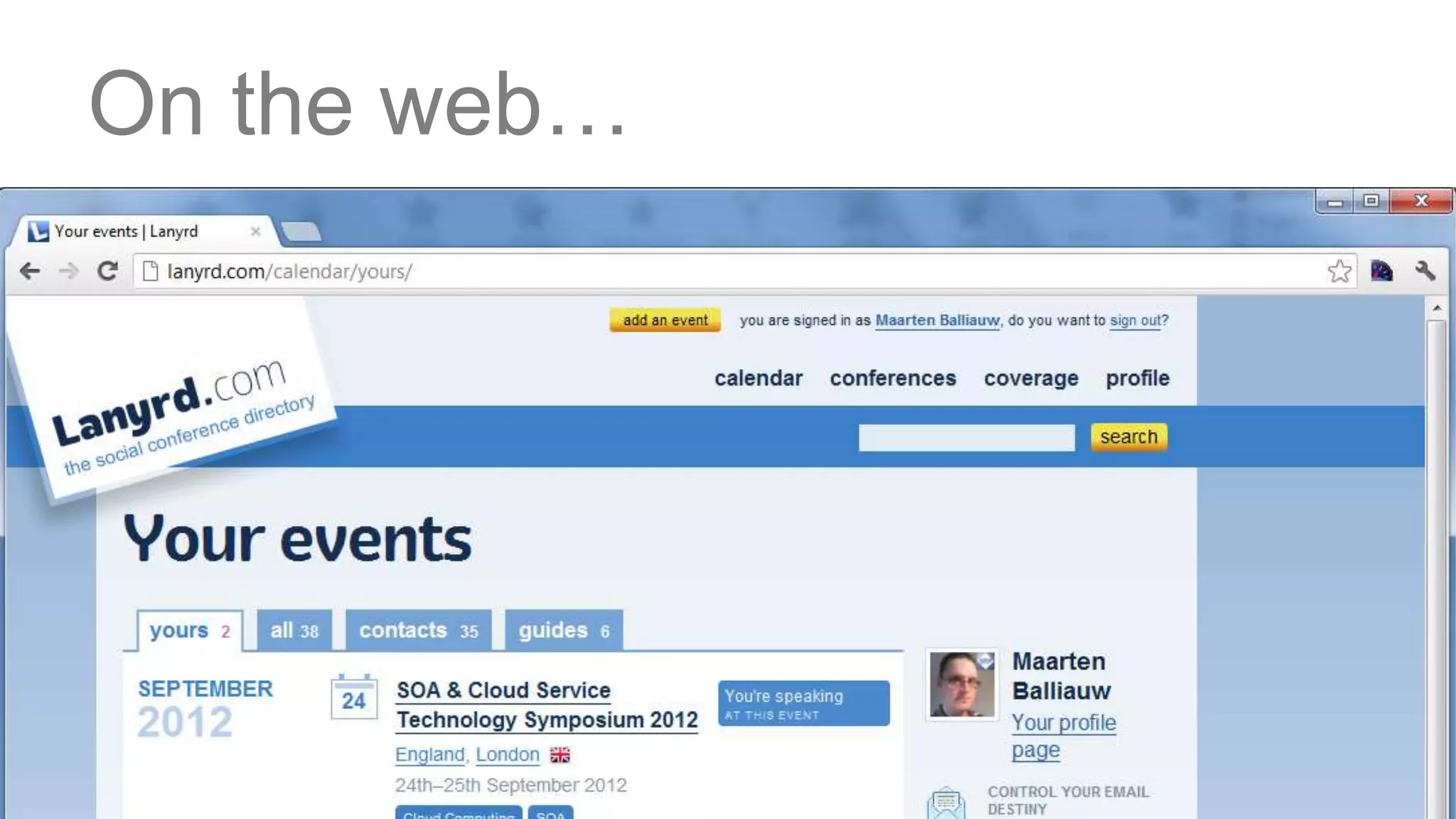

On the web…




SEPTEMBER 25, 2012 | SLIDE 30

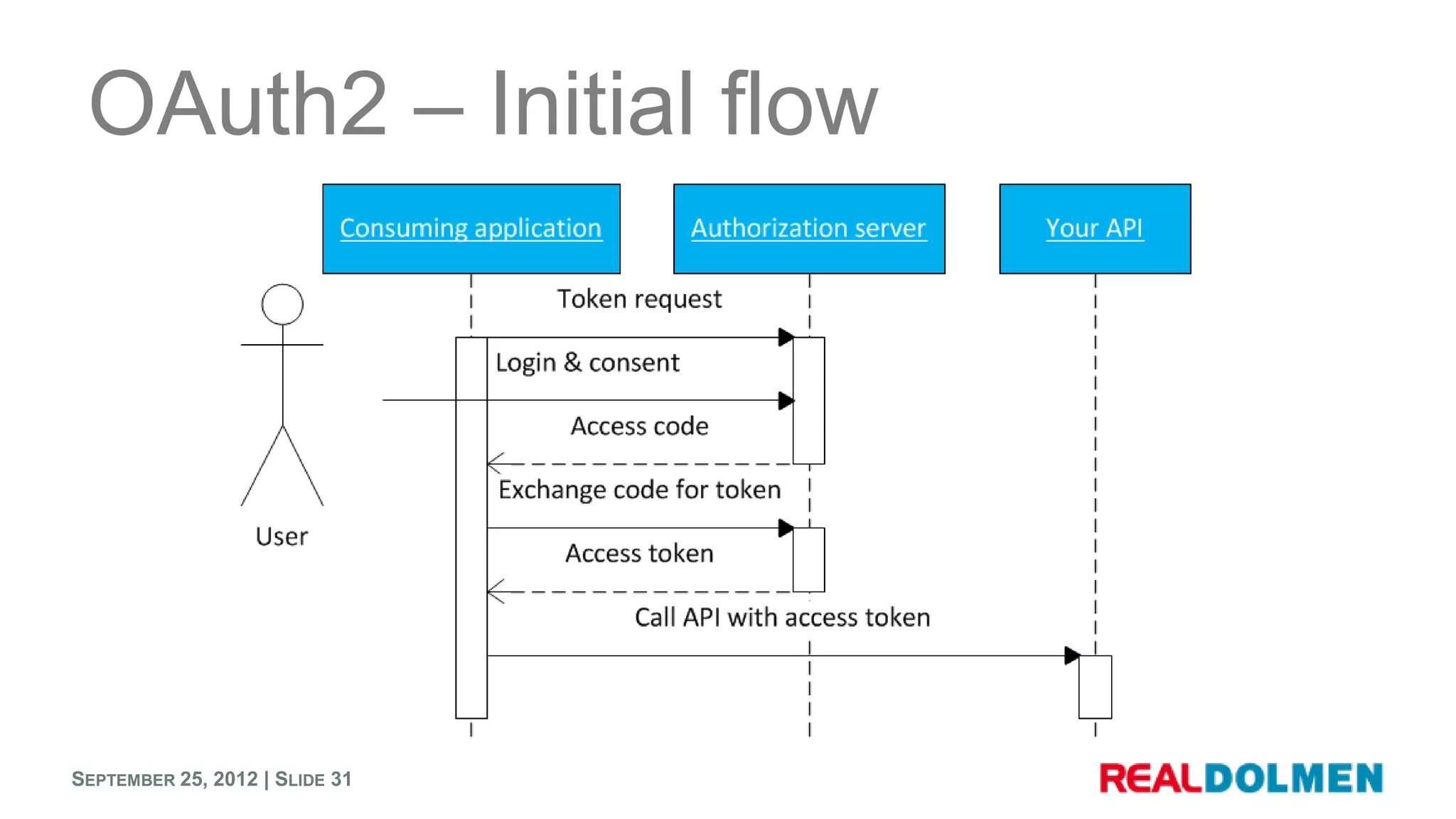

OAuth2 – Initial flow

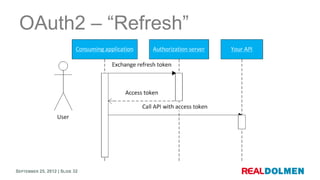

SEPTEMBER 25, 2012 | SLIDE 31
OAuth2 – “Refresh”




SEPTEMBER 25, 2012 | SLIDE 32

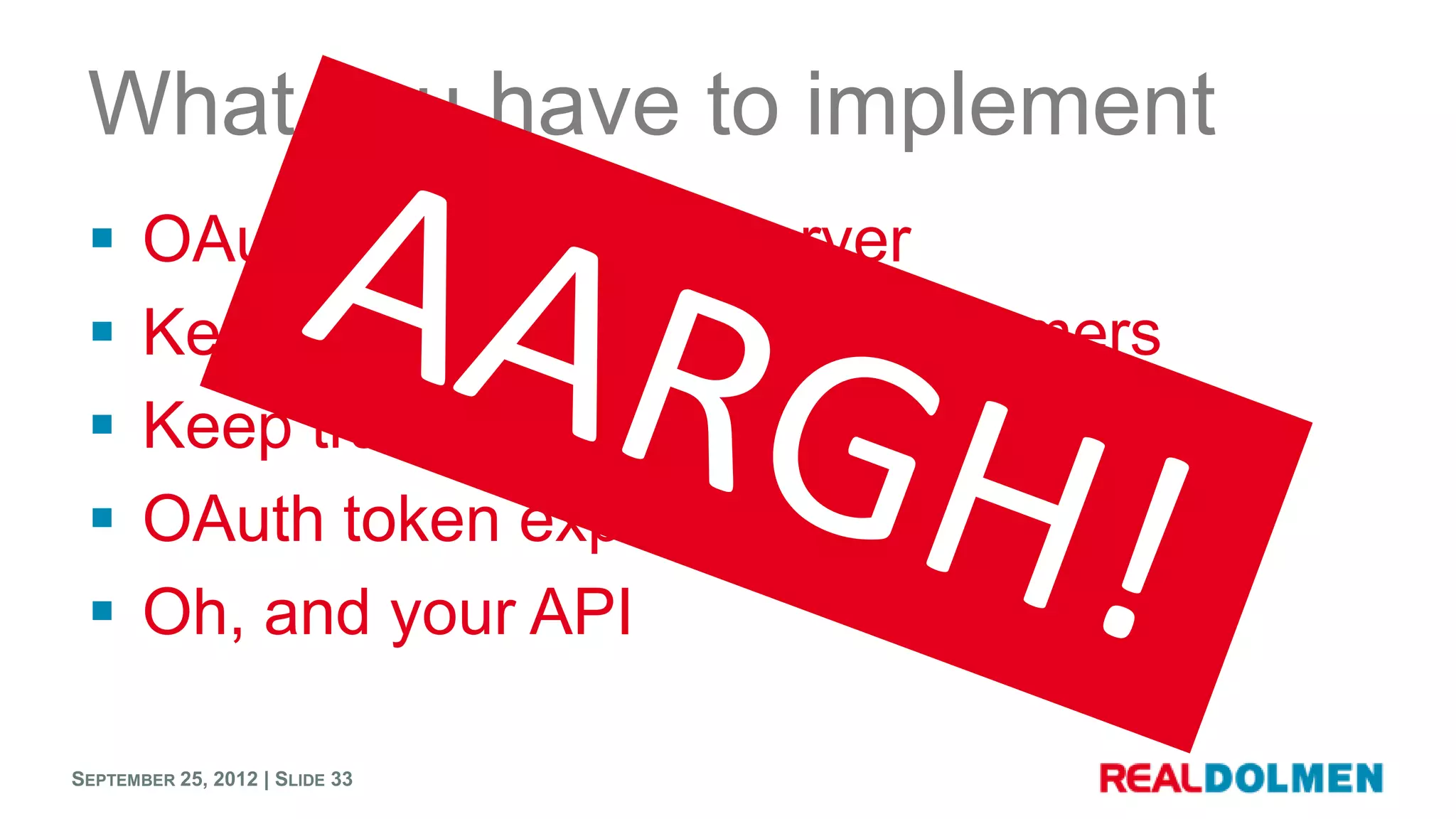

What you have to implement
      OAuth authorization server
      Keep track of supported consumers
      Keep track of user consent
      OAuth token expiration & refresh
      Oh, and your API

SEPTEMBER 25, 2012 | SLIDE 33

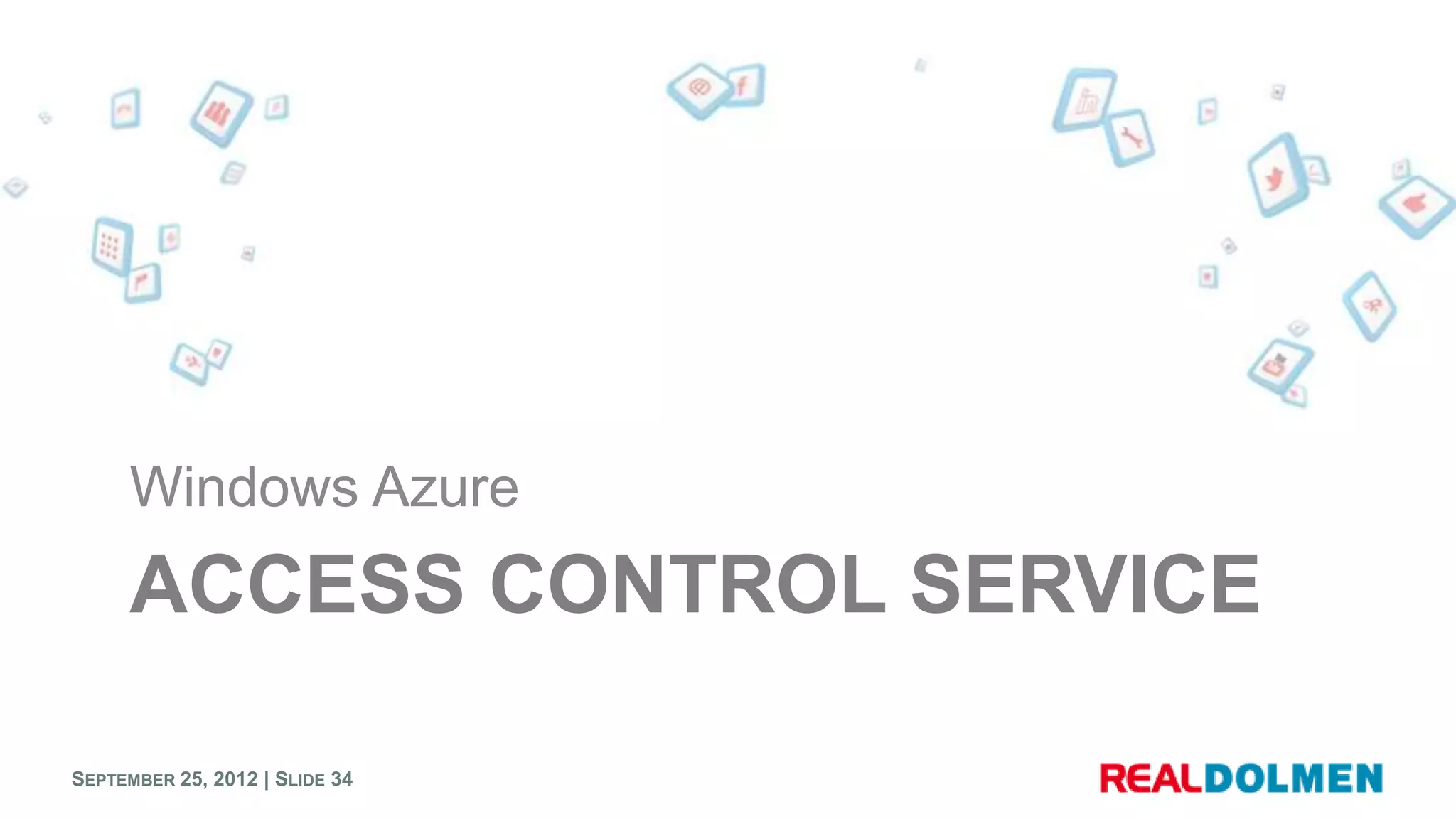

Windows Azure
     ACCESS CONTROL SERVICE

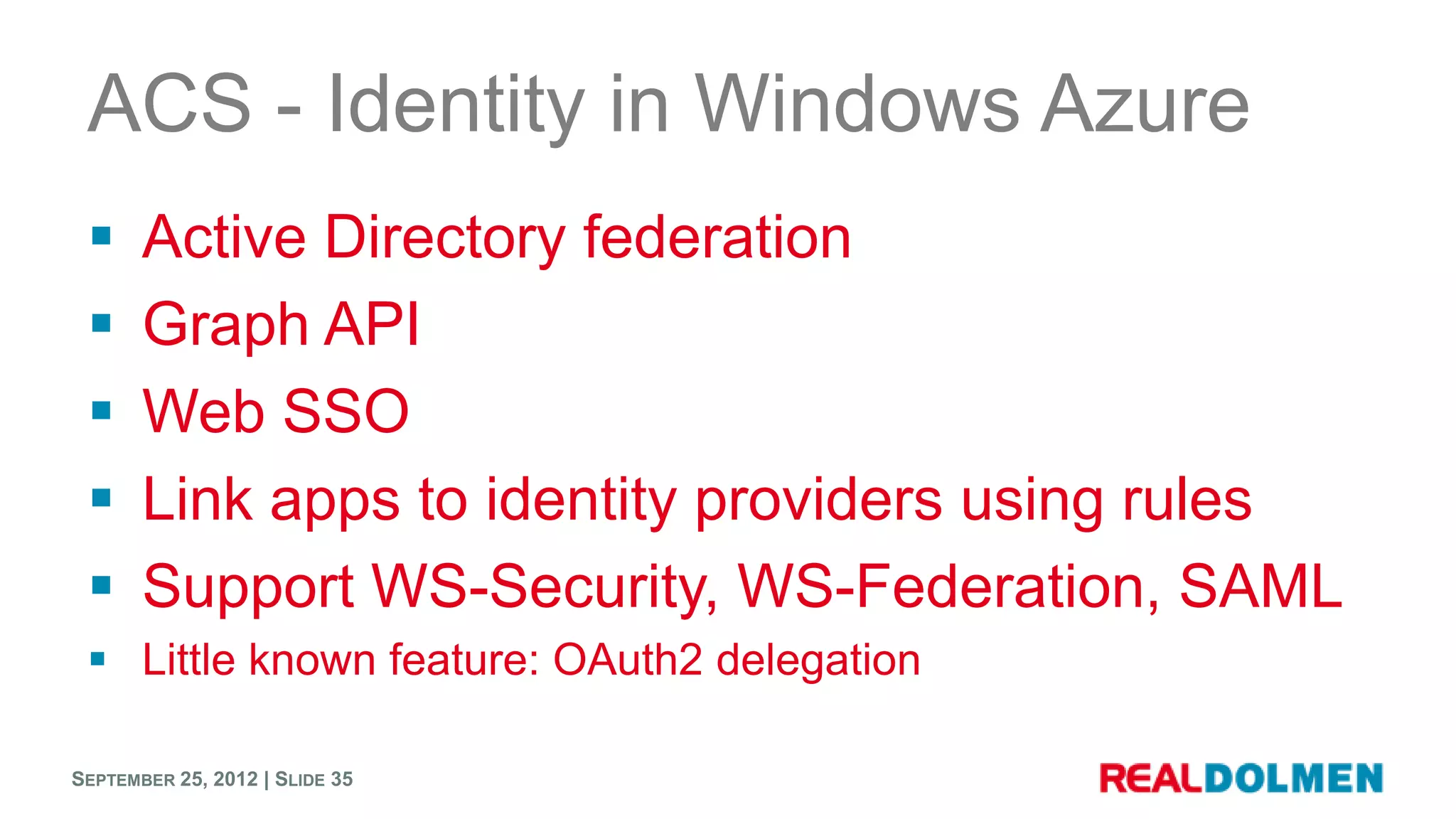

SEPTEMBER 25, 2012 | SLIDE 34

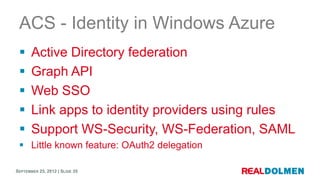

ACS - Identity in Windows Azure
      Active Directory federation
      Graph API
      Web SSO
      Link apps to identity providers using rules
      Support WS-Security, WS-Federation, SAML
  Little known feature: OAuth2 delegation

SEPTEMBER 25, 2012 | SLIDE 35

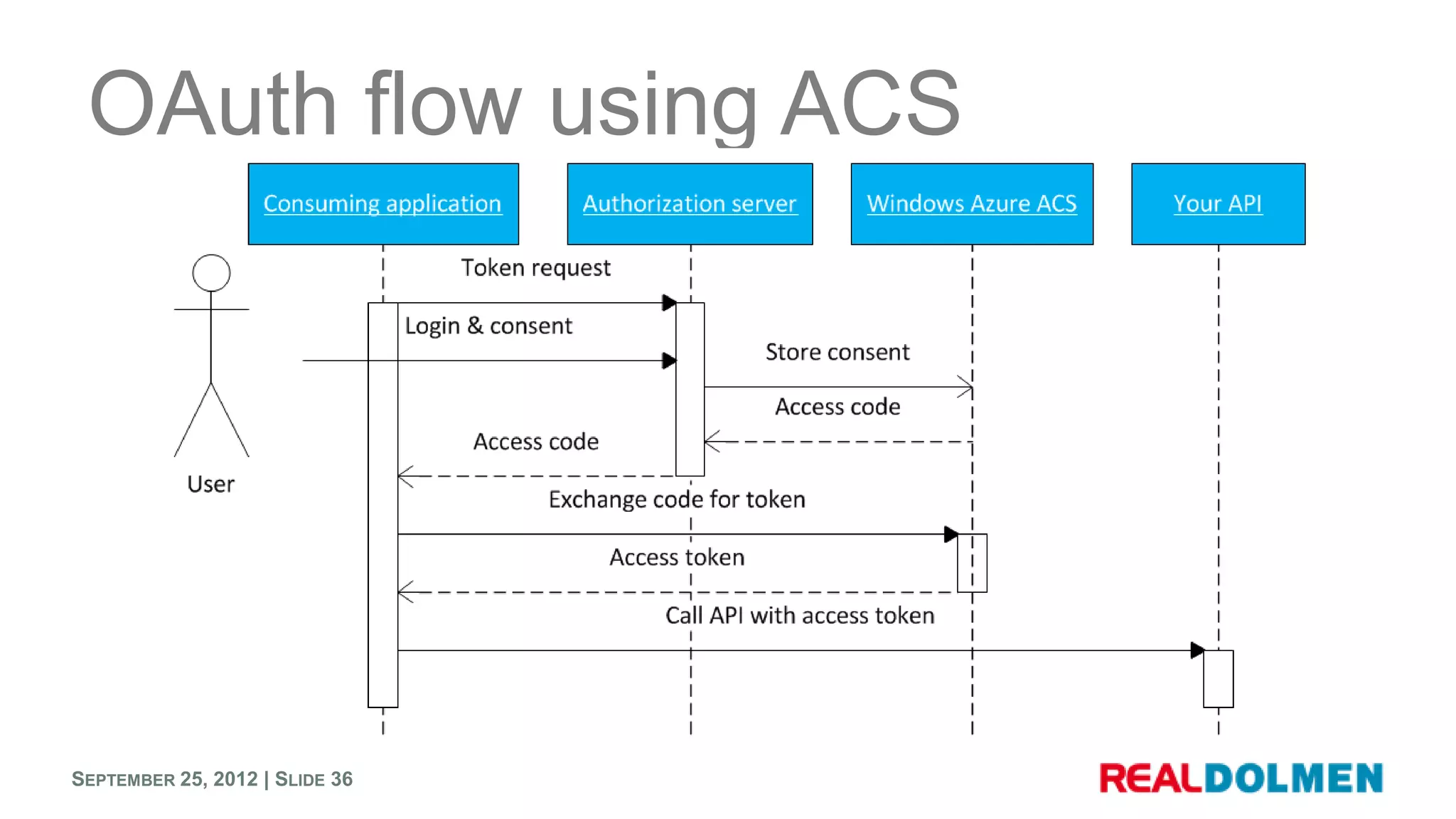

OAuth flow using ACS




SEPTEMBER 25, 2012 | SLIDE 36
Demo (the big one)
       ASP.NET Web API, OAuth2, Windows Azure ACS
SEPTEMBER 25, 2012 | SLIDE 37

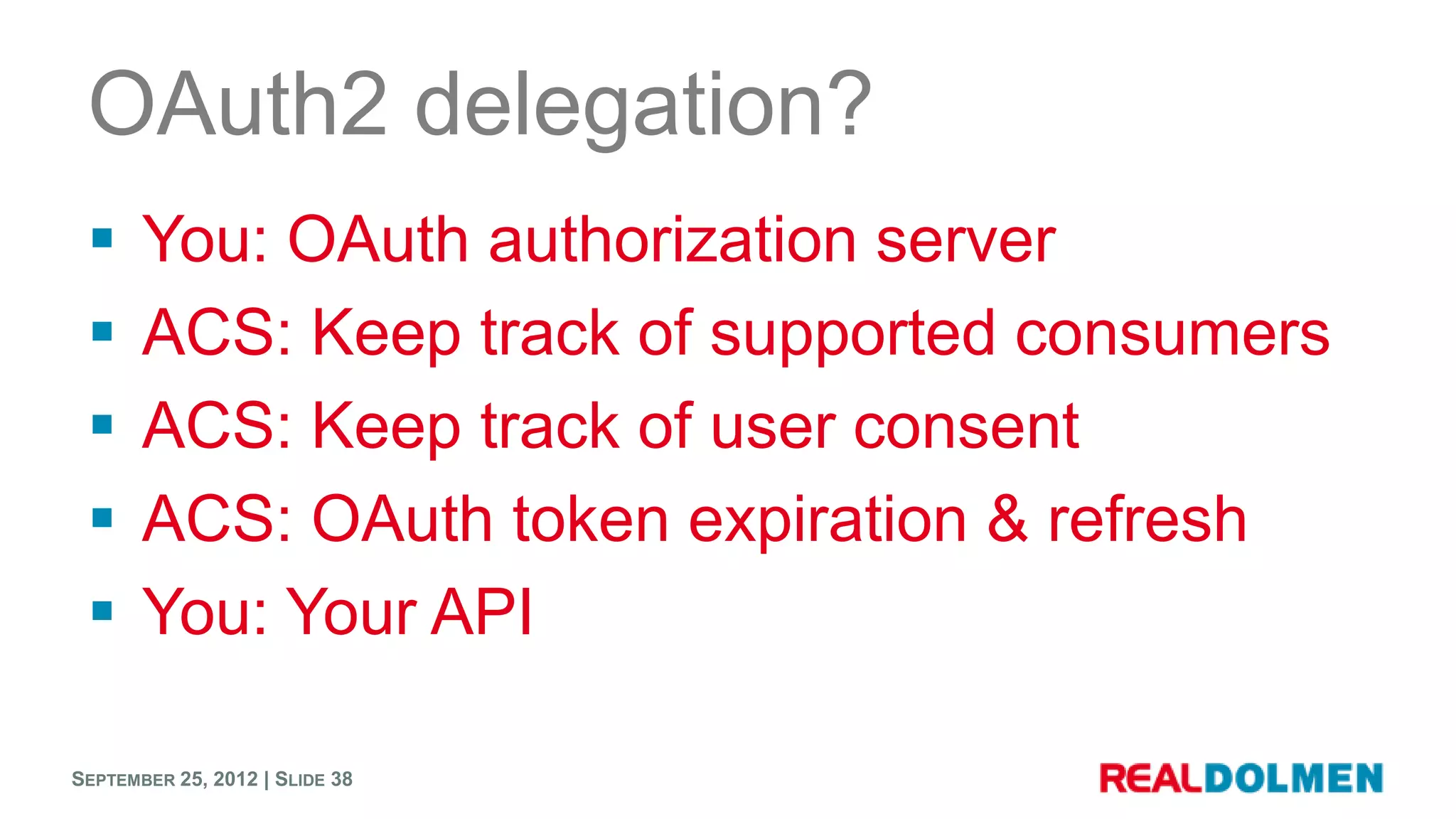

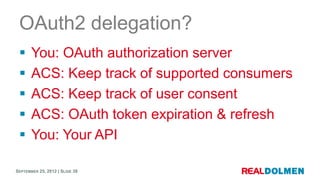

OAuth2 delegation?
      You: OAuth authorization server
      ACS: Keep track of supported consumers
      ACS: Keep track of user consent
      ACS: OAuth token expiration & refresh
      You: Your API

SEPTEMBER 25, 2012 | SLIDE 38
CONCLUSION

SEPTEMBER 25, 2012 | SLIDE 39

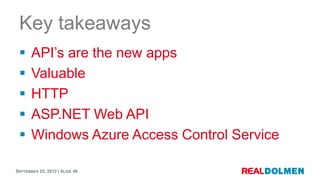

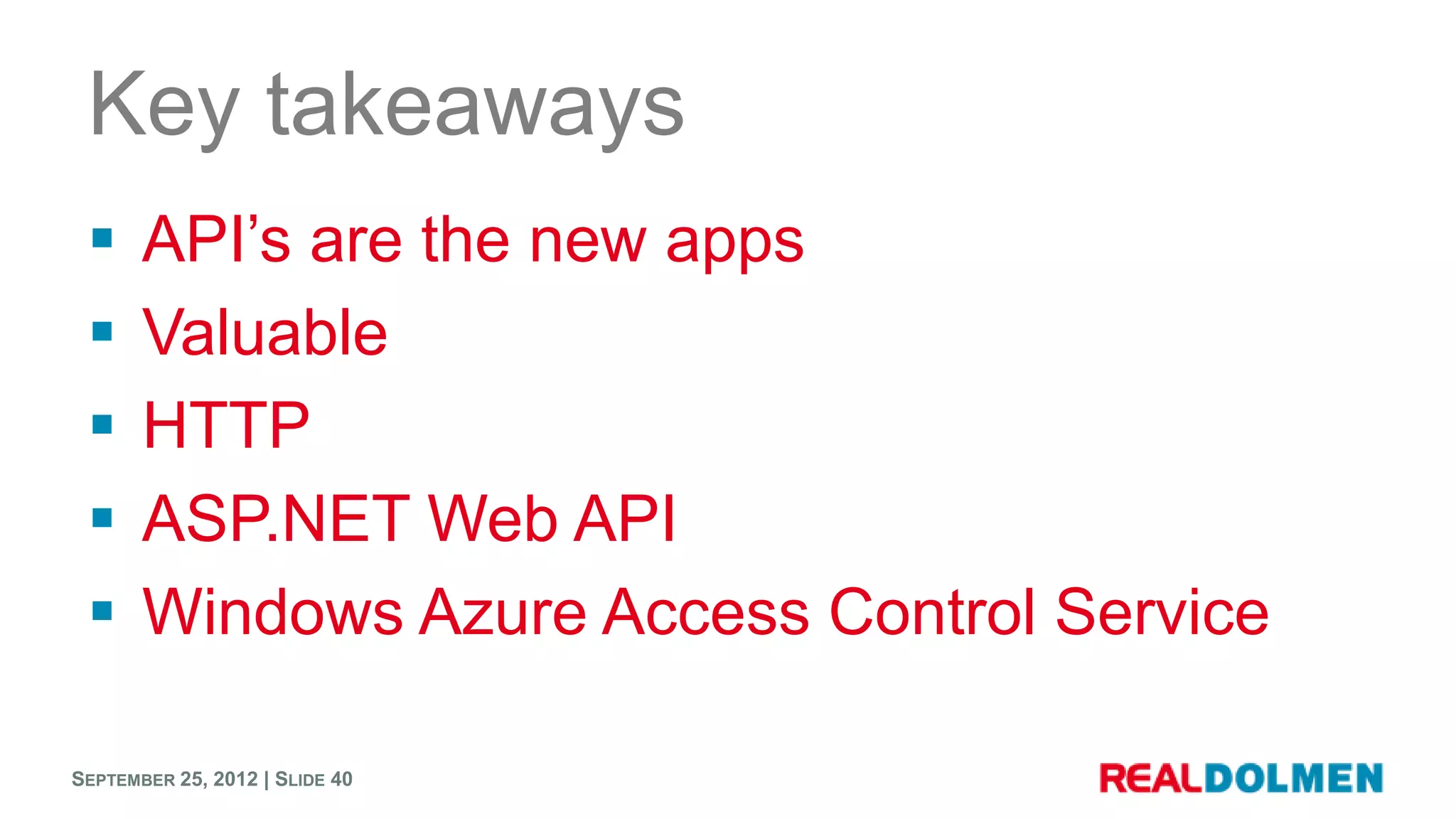

Key takeaways
      API’s are the new apps
      Valuable
      HTTP
      ASP.NET Web API
      Windows Azure Access Control Service

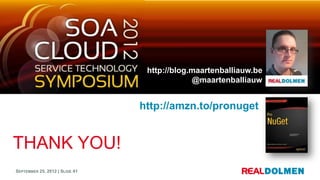

SEPTEMBER 25, 2012 | SLIDE 40
http://blog.maartenballiauw.be
                                             @maartenballiauw


                                http://amzn.to/pronuget


THANK YOU!
