Indexing and searching NuGet.org
with Azure Functions and Search
Maarten Balliauw
@maartenballiauw
“Find this type on NuGet.org”

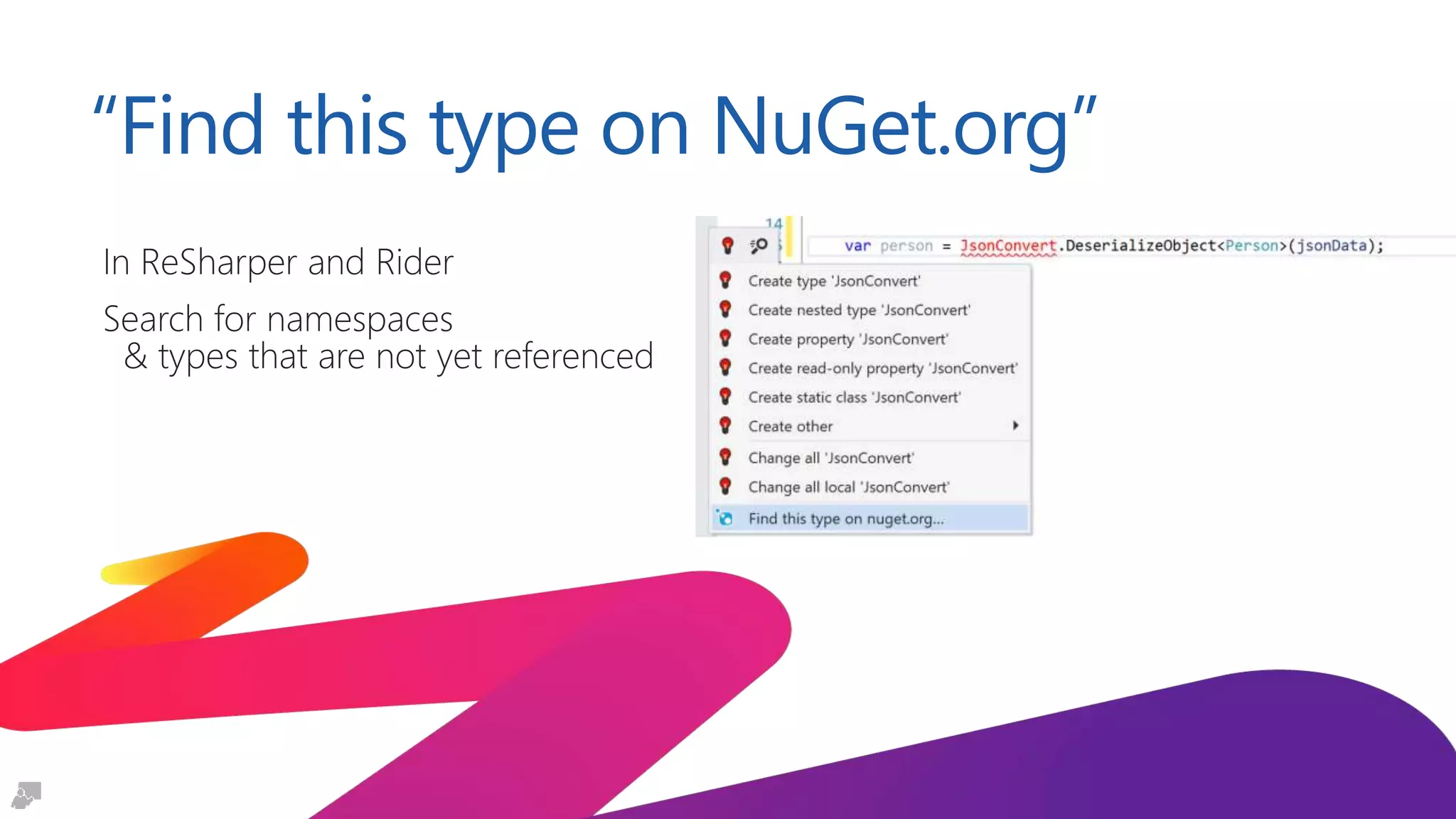

“Find this type on NuGet.org”
In ReSharper and Rider
Search for namespaces
& types that are not yet referenced

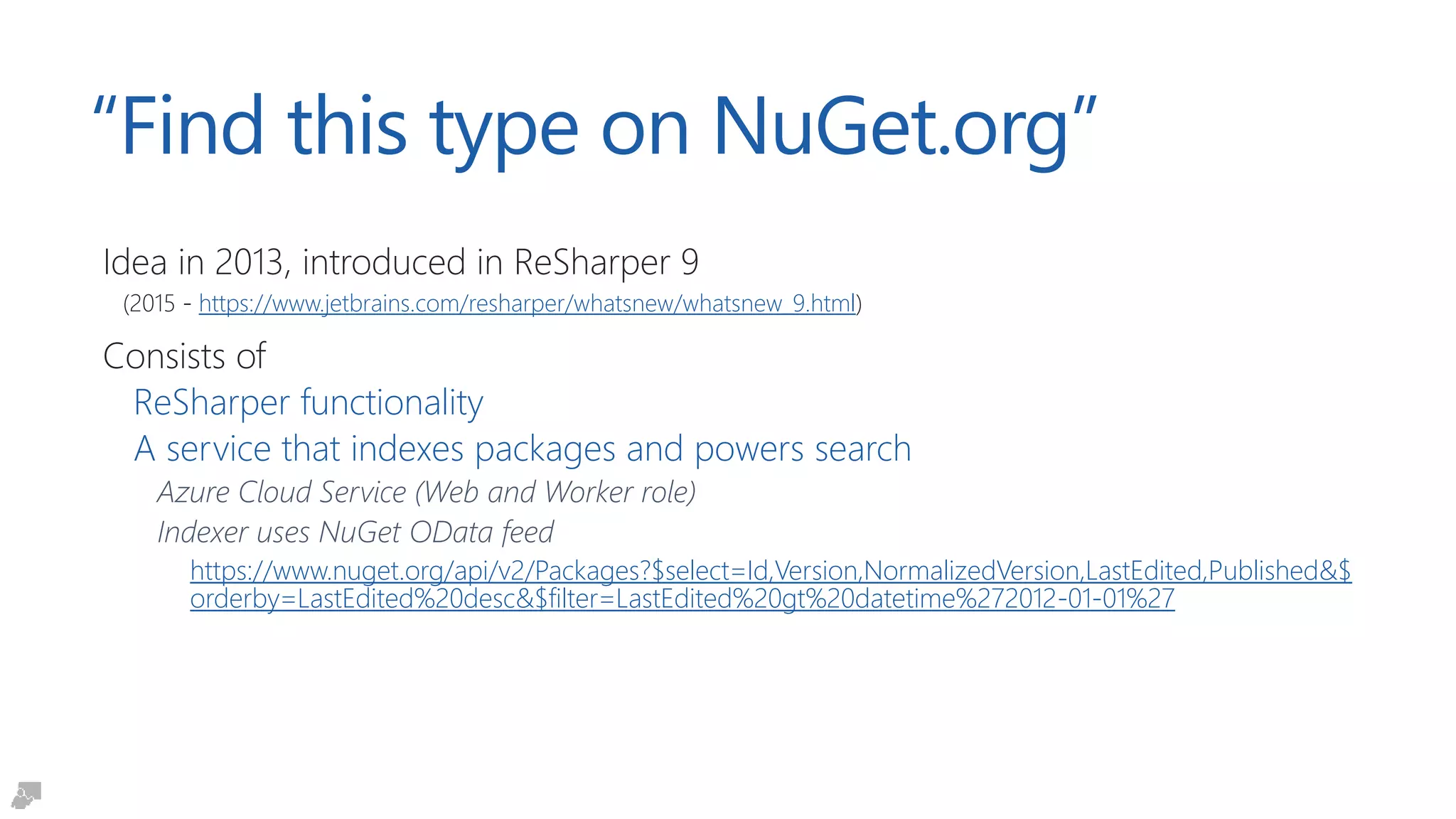

“Find this type on NuGet.org”
Idea in 2013, introduced in ReSharper 9
(2015 - https://www.jetbrains.com/resharper/whatsnew/whatsnew_9.html)
Consists of
ReSharper functionality
A service that indexes packages and powers search
Azure Cloud Service (Web and Worker role)
Indexer uses NuGet OData feed
https://www.nuget.org/api/v2/Packages?$select=Id,Version,NormalizedVersion,LastEdited,Published&$
orderby=LastEdited%20desc&$filter=LastEdited%20gt%20datetime%272012-01-01%27

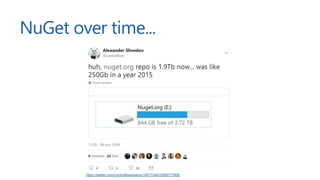

NuGet over time...
https://twitter.com/controlflow/status/1067724815958777856

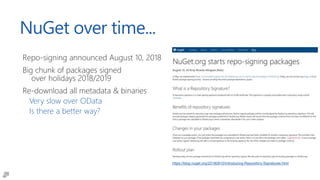

NuGet over time...
Repo-signing announced August 10, 2018
Big chunk of packages signed
over holidays 2018/2019
Re-download all metadata & binaries
Very slow over OData
Is there a better way?
https://blog.nuget.org/20180810/Introducing-Repository-Signatures.html
NuGet server-side API

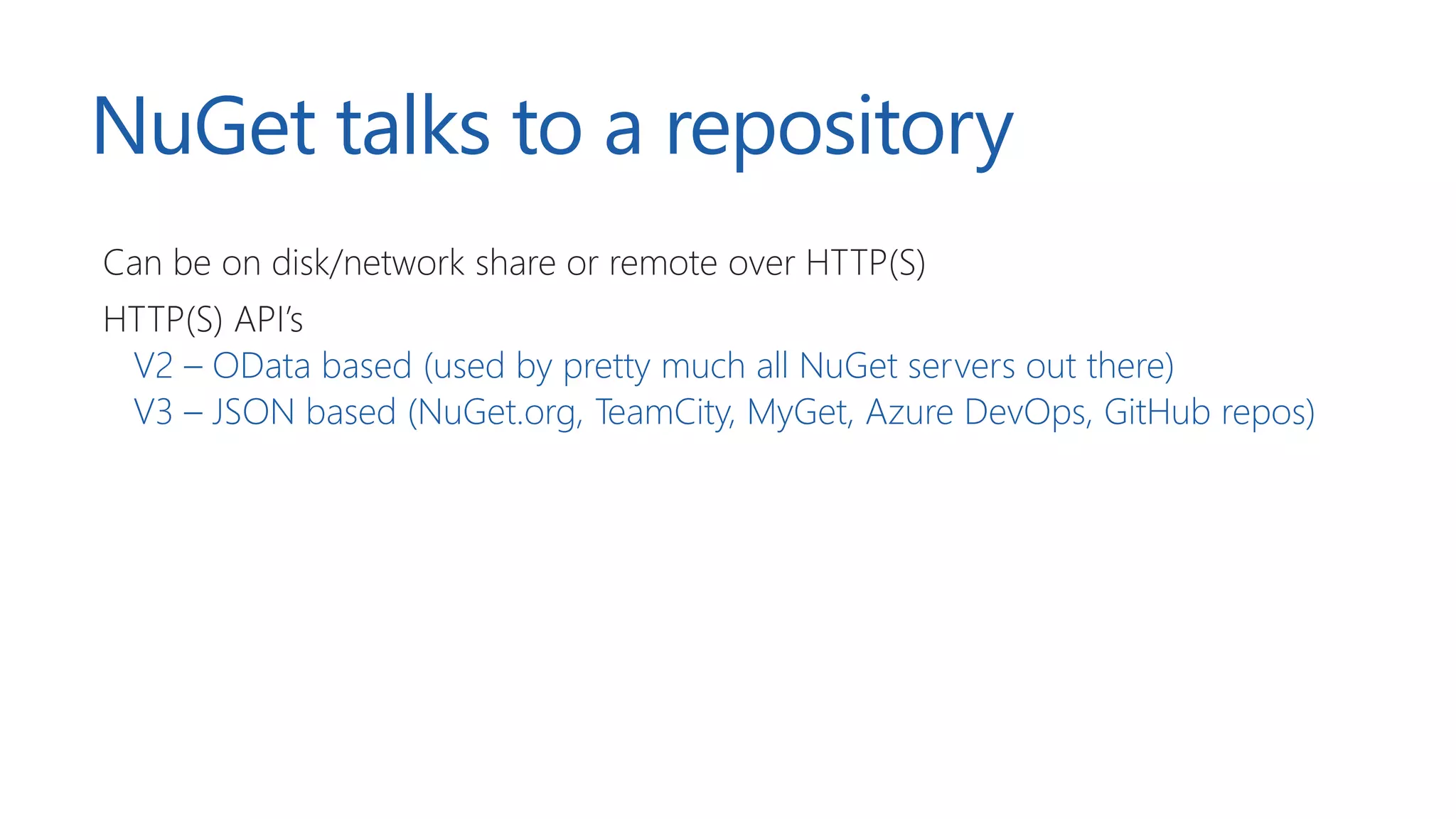

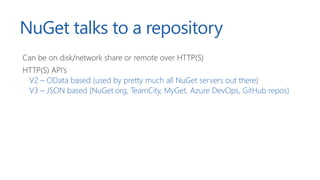

NuGet talks to a repository
Can be on disk/network share or remote over HTTP(S)
HTTP(S) API’s
V2 – OData based (used by pretty much all NuGet servers out there)
V3 – JSON based (NuGet.org, TeamCity, MyGet, Azure DevOps, GitHub repos)

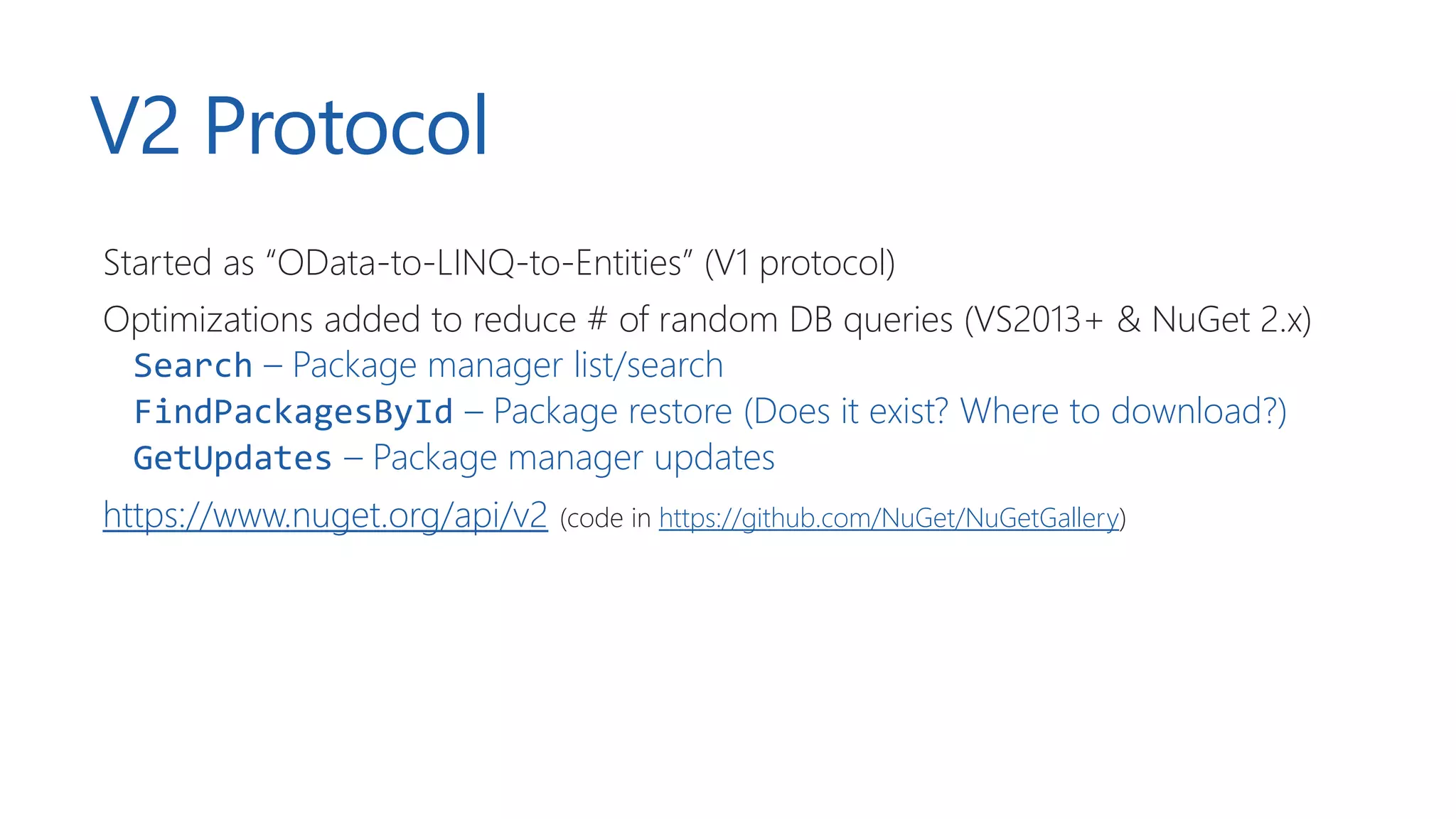

V2 Protocol
Started as “OData-to-LINQ-to-Entities” (V1 protocol)
Optimizations added to reduce # of random DB queries (VS2013+ & NuGet 2.x)
Search – Package manager list/search
FindPackagesById – Package restore (Does it exist? Where to download?)
GetUpdates – Package manager updates
https://www.nuget.org/api/v2 (code in https://github.com/NuGet/NuGetGallery)

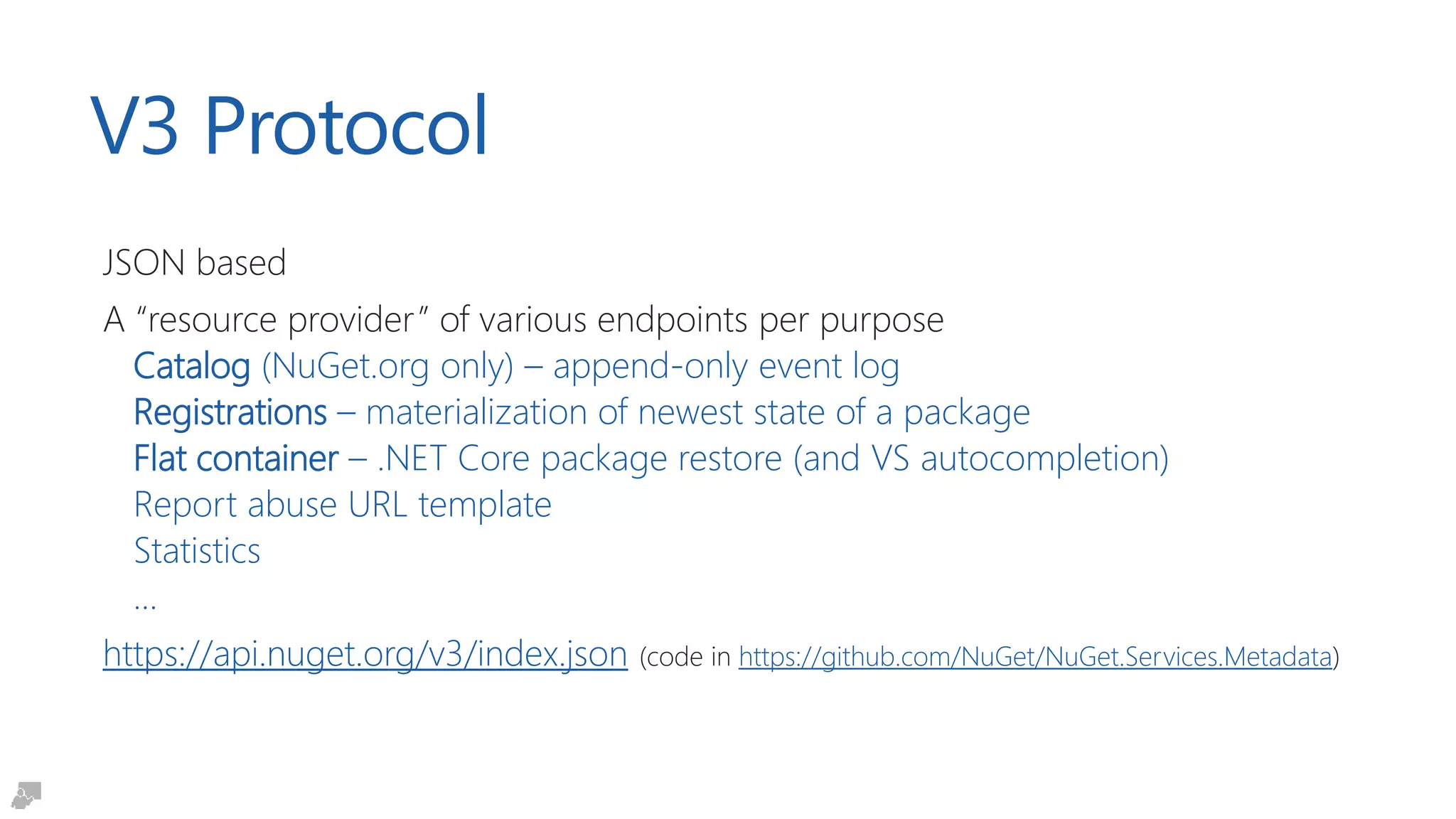

V3 Protocol
JSON based
A “resource provider” of various endpoints per purpose
Catalog (NuGet.org only) – append-only event log
Registrations – materialization of newest state of a package
Flat container – .NET Core package restore (and VS autocompletion)
Report abuse URL template
Statistics
…
https://api.nuget.org/v3/index.json (code in https://github.com/NuGet/NuGet.Services.Metadata)

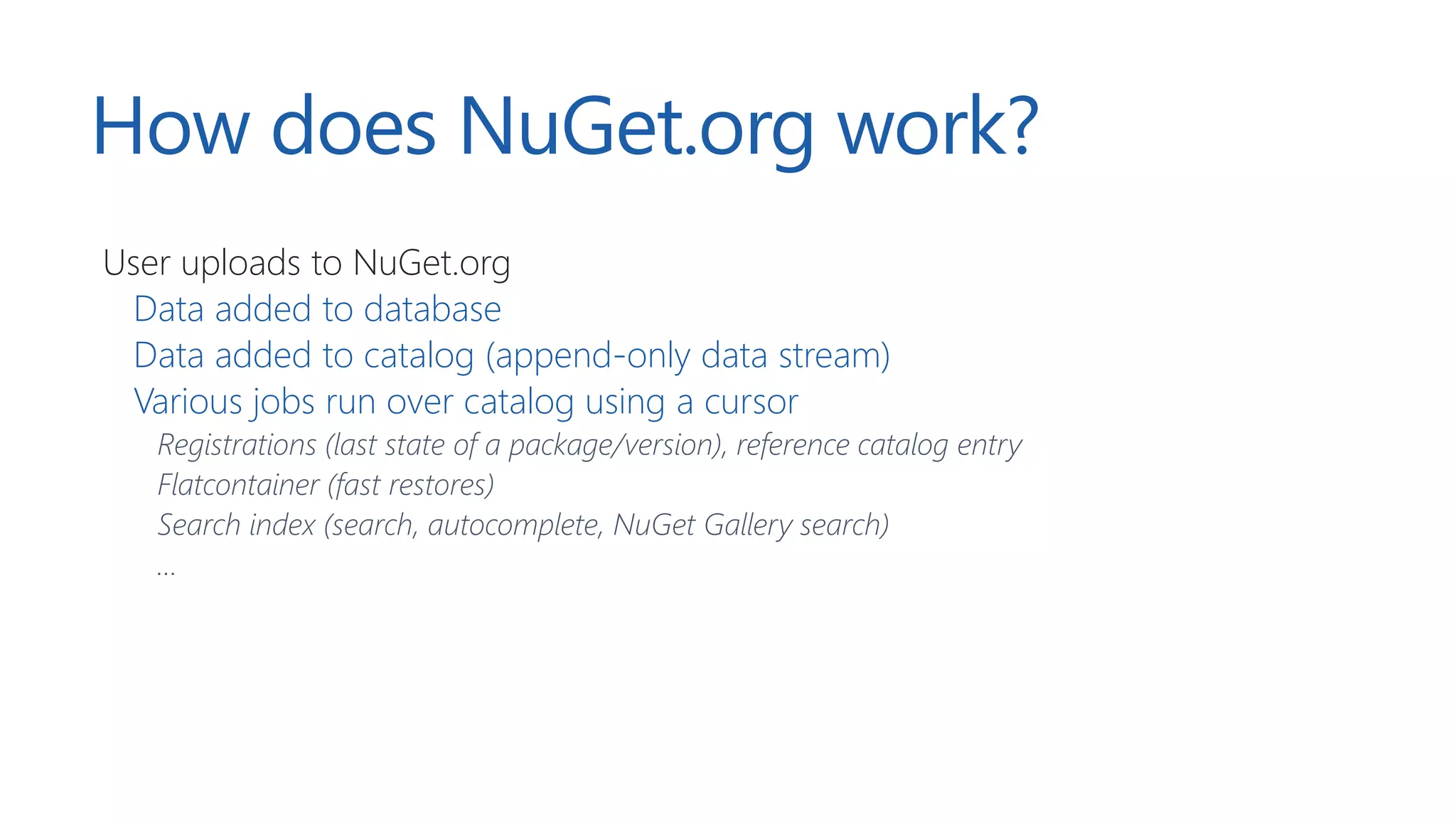

How does NuGet.org work?
User uploads to NuGet.org
Data added to database
Data added to catalog (append-only data stream)
Various jobs run over catalog using a cursor
Registrations (last state of a package/version), reference catalog entry
Flatcontainer (fast restores)
Search index (search, autocomplete, NuGet Gallery search)
…

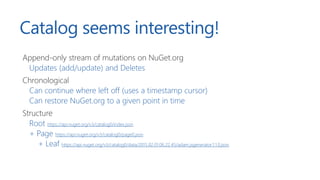

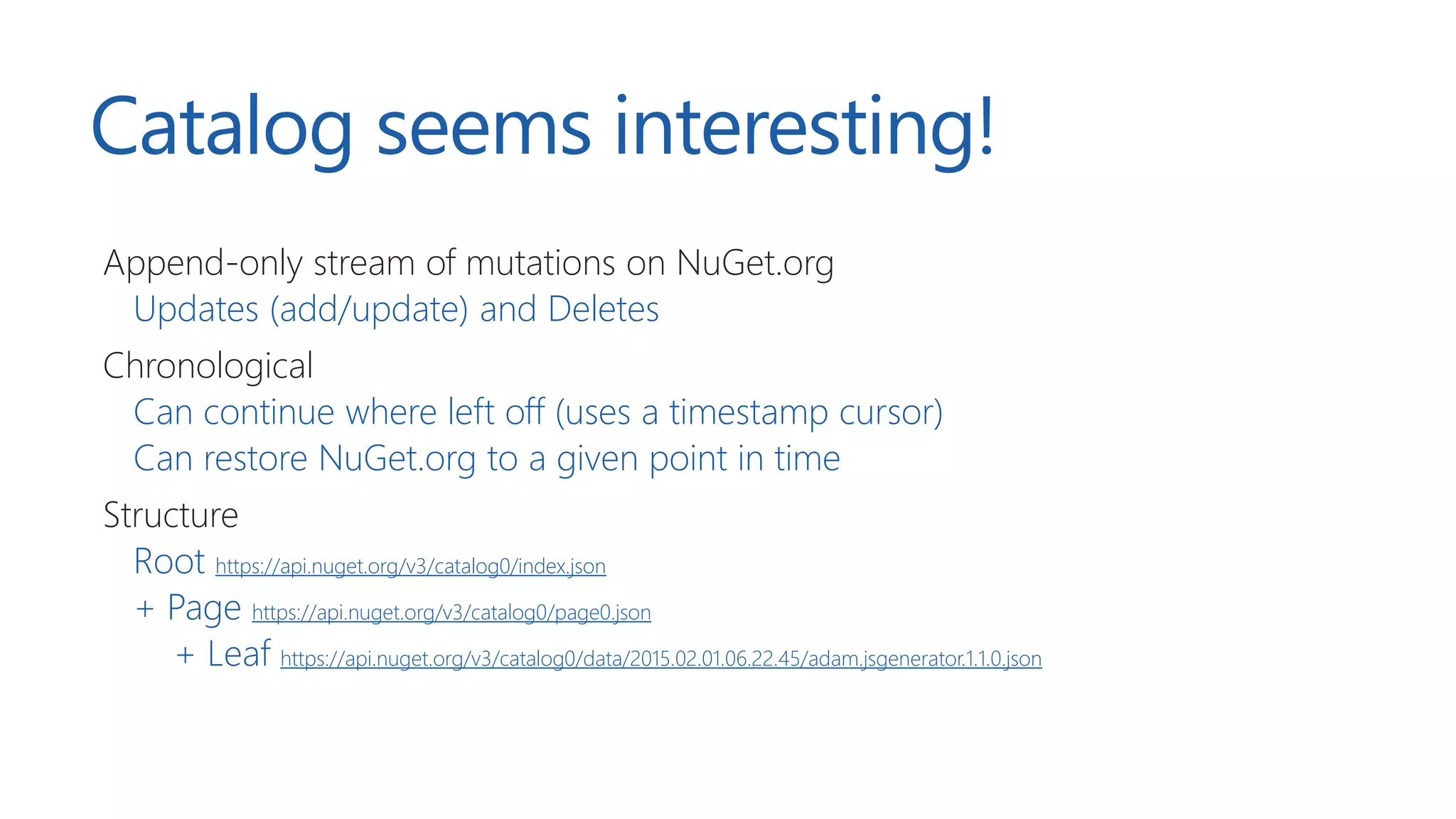

Catalog seems interesting!
Append-only stream of mutations on NuGet.org
Updates (add/update) and Deletes
Chronological
Can continue where left off (uses a timestamp cursor)
Can restore NuGet.org to a given point in time
Structure
Root https://api.nuget.org/v3/catalog0/index.json
+ Page https://api.nuget.org/v3/catalog0/page0.json
+ Leaf https://api.nuget.org/v3/catalog0/data/2015.02.01.06.22.45/adam.jsgenerator.1.1.0.json
NuGet.org catalog
demo

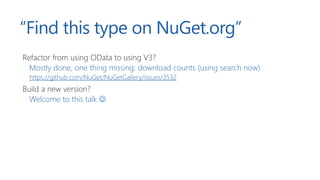

“Find this type on NuGet.org”
Refactor from using OData to using V3?
Mostly done, one thing missing: download counts (using search now)
https://github.com/NuGet/NuGetGallery/issues/3532
Build a new version?
Welcome to this talk 

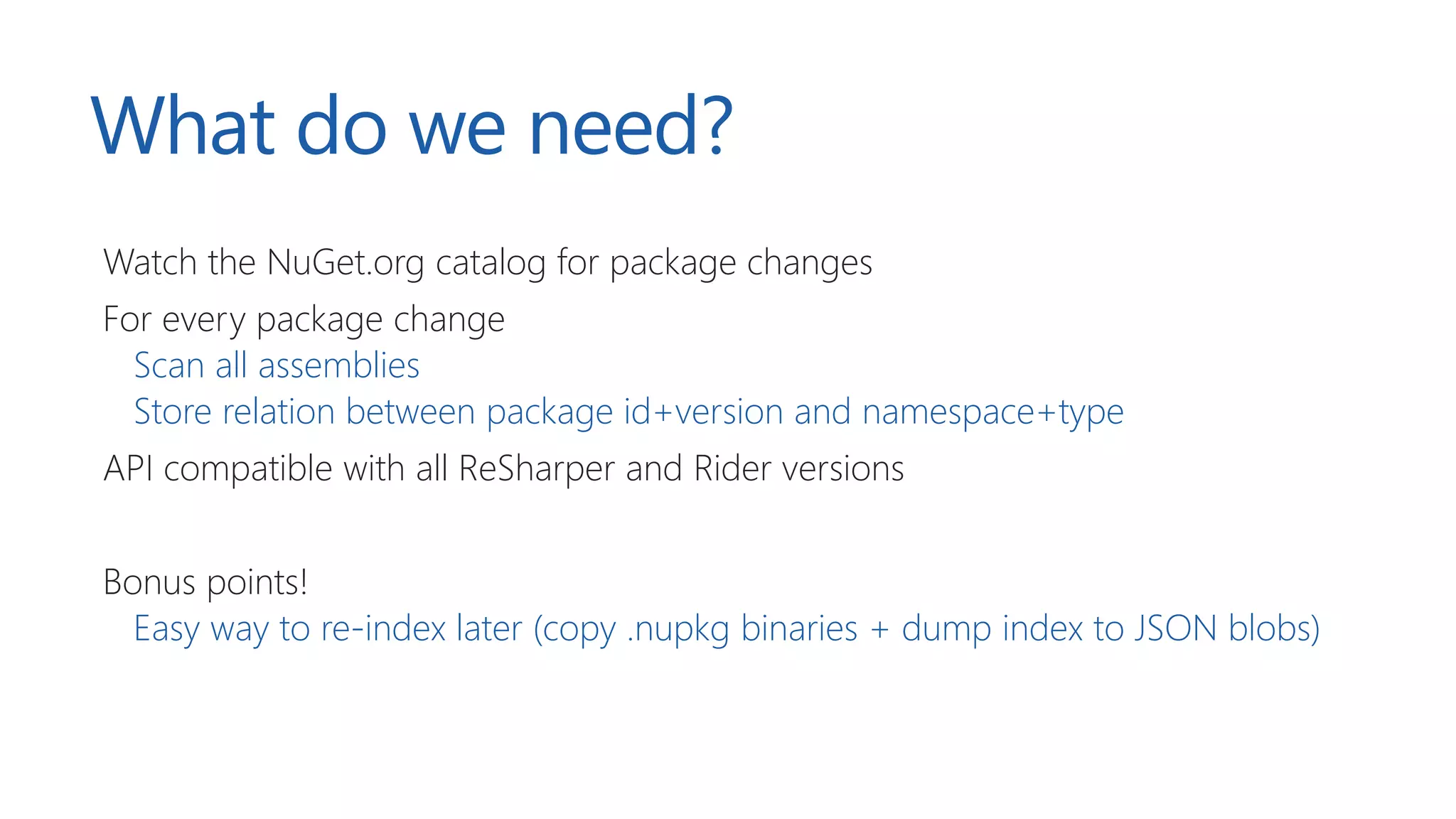

Building a new version
What do we need?
Watch the NuGet.org catalog for package changes
For every package change
Scan all assemblies
Store relation between package id+version and namespace+type
API compatible with all ReSharper and Rider versions
Bonus points!
Easy way to re-index later (copy .nupkg binaries + dump index to JSON blobs)

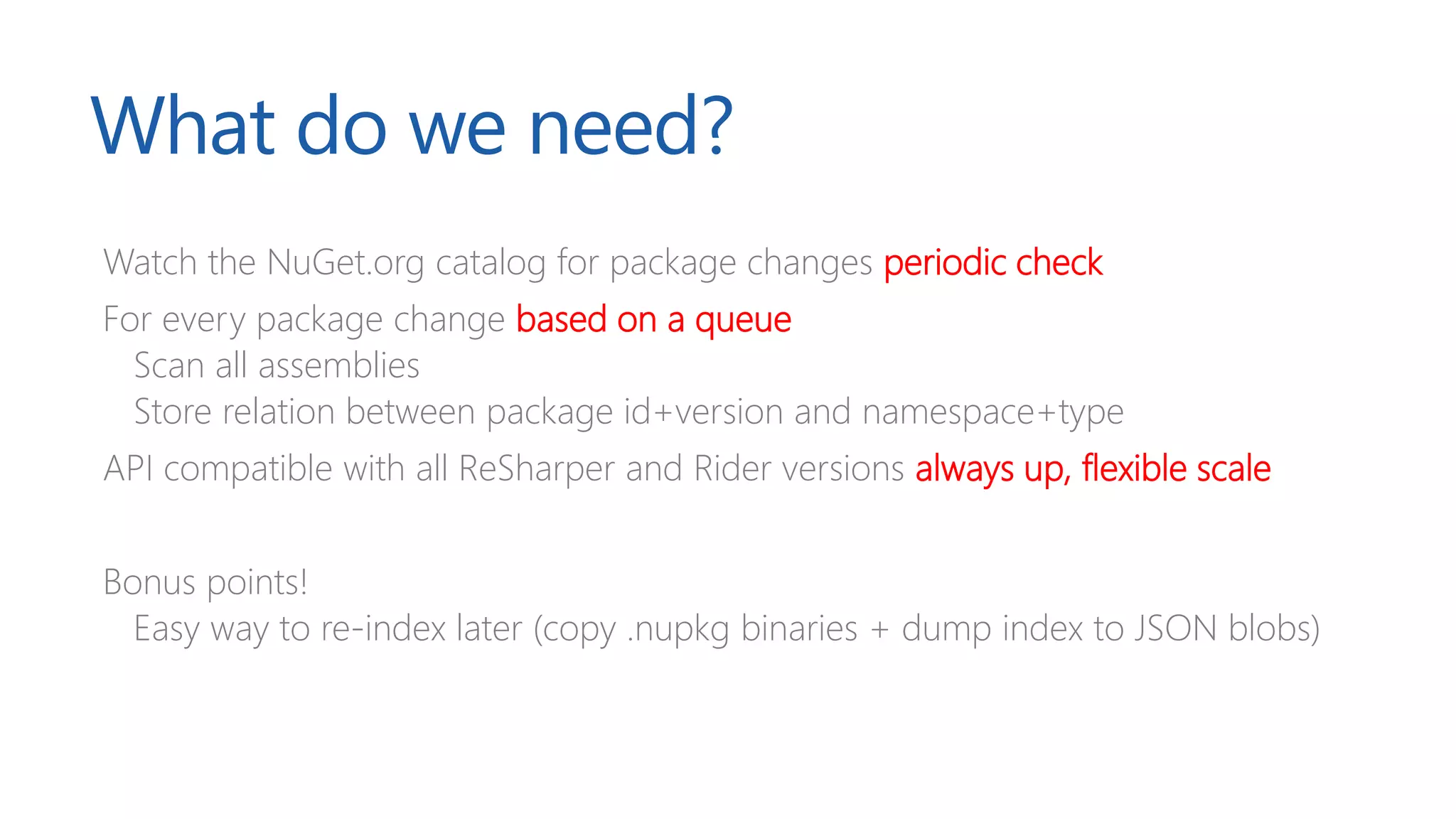

What do we need?
Watch the NuGet.org catalog for package changes periodic check
For every package change based on a queue
Scan all assemblies
Store relation between package id+version and namespace+type
API compatible with all ReSharper and Rider versions always up, flexible scale
Bonus points!
Easy way to re-index later (copy .nupkg binaries + dump index to JSON blobs)

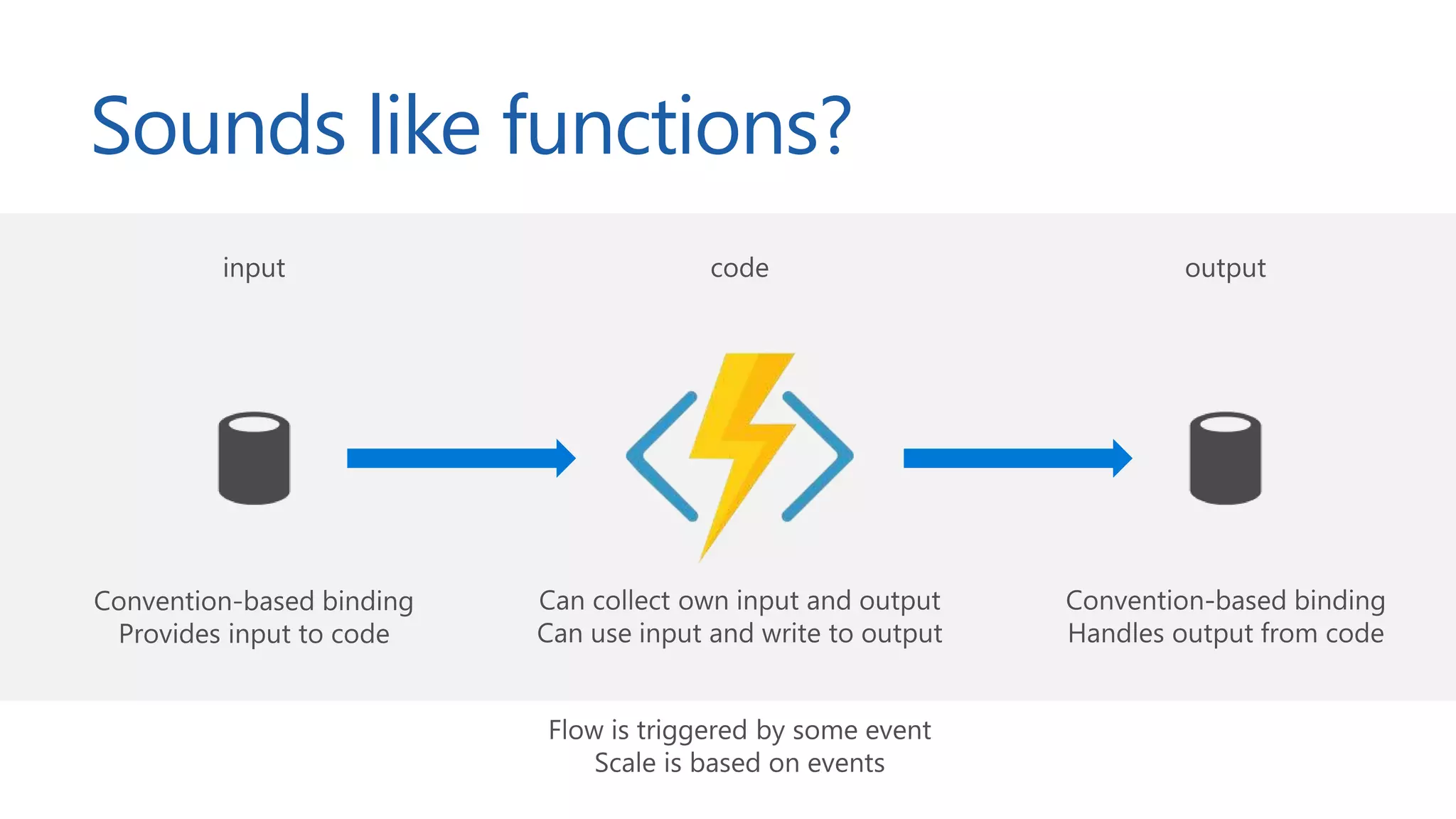

Sounds like functions?

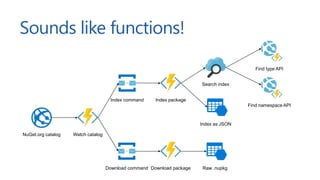

Sounds like functions!
NuGet.org catalog Watch catalog
Index command
Find type API
Find namespace API
Search index
Index package
Raw .nupkg
Index as JSON
Download packageDownload command
Collecting from catalog
demo

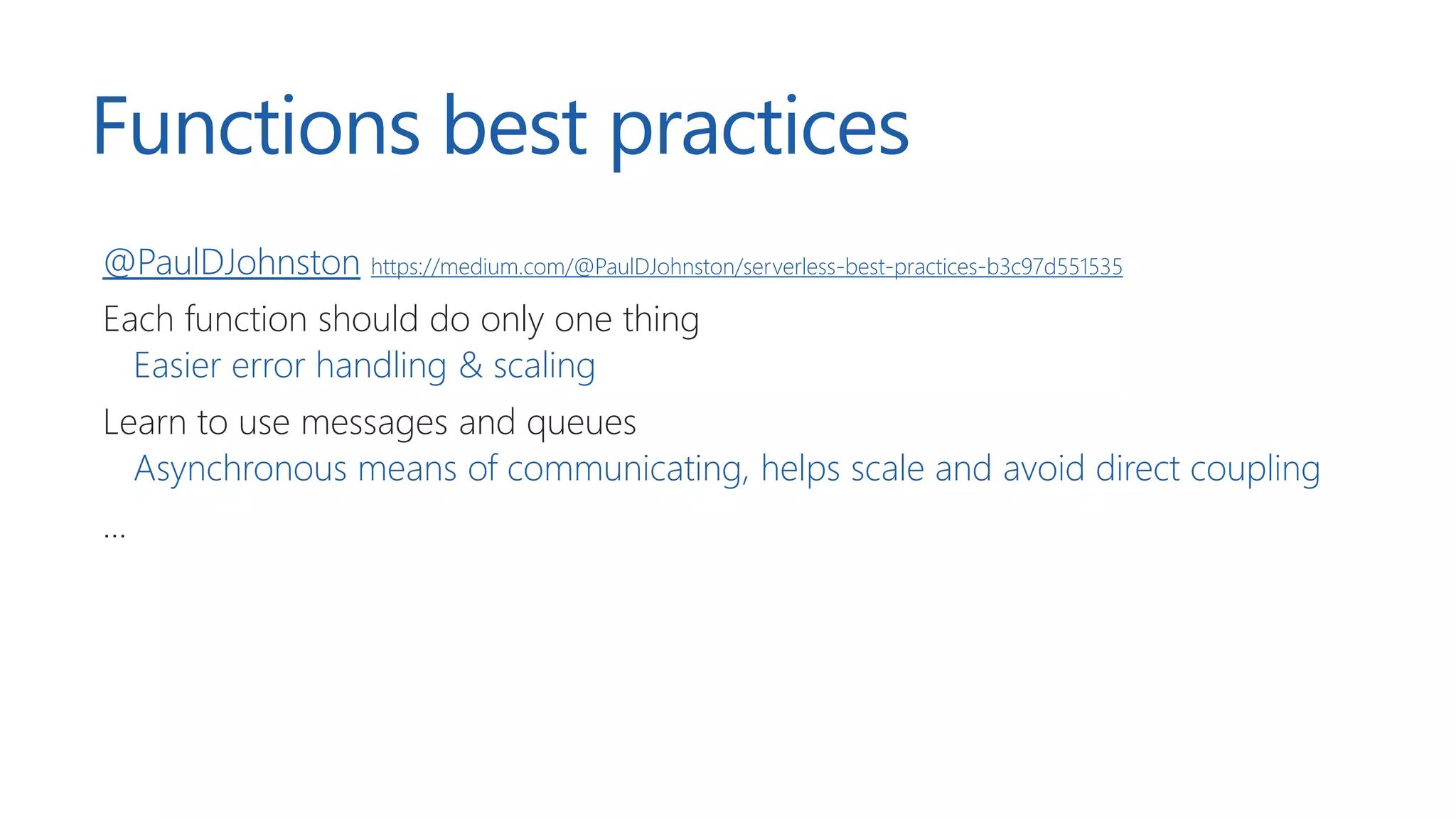

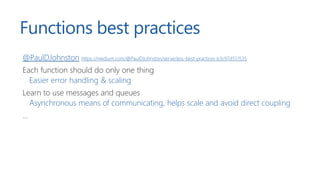

Functions best practices
@PaulDJohnston https://medium.com/@PaulDJohnston/serverless-best-practices-b3c97d551535
Each function should do only one thing
Easier error handling & scaling
Learn to use messages and queues
Asynchronous means of communicating, helps scale and avoid direct coupling
...
Collecting from catalog
(better version)
demo

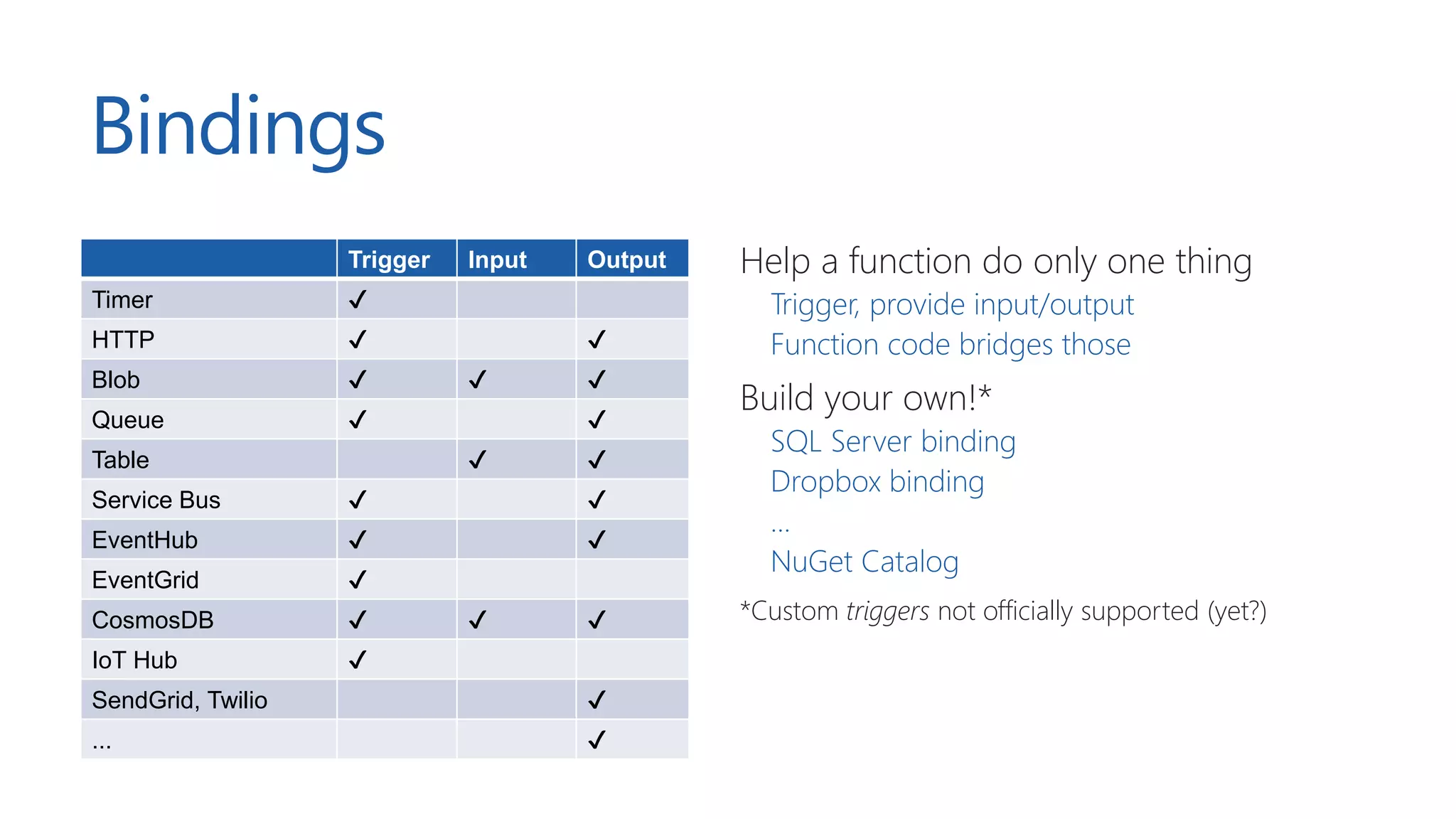

Bindings
Help a function do only one thing
Trigger, provide input/output
Function code bridges those
Build your own!*
SQL Server binding
Dropbox binding
...
NuGet Catalog
*Custom triggers not officially supported (yet?)
Trigger Input Output
Timer ✔
HTTP ✔ ✔
Blob ✔ ✔ ✔
Queue ✔ ✔
Table ✔ ✔
Service Bus ✔ ✔
EventHub ✔ ✔
EventGrid ✔
CosmosDB ✔ ✔ ✔
IoT Hub ✔
SendGrid, Twilio ✔
... ✔
Creating a trigger
binding
demo

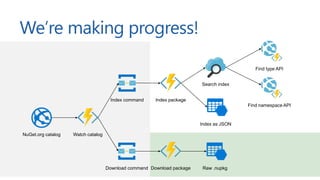

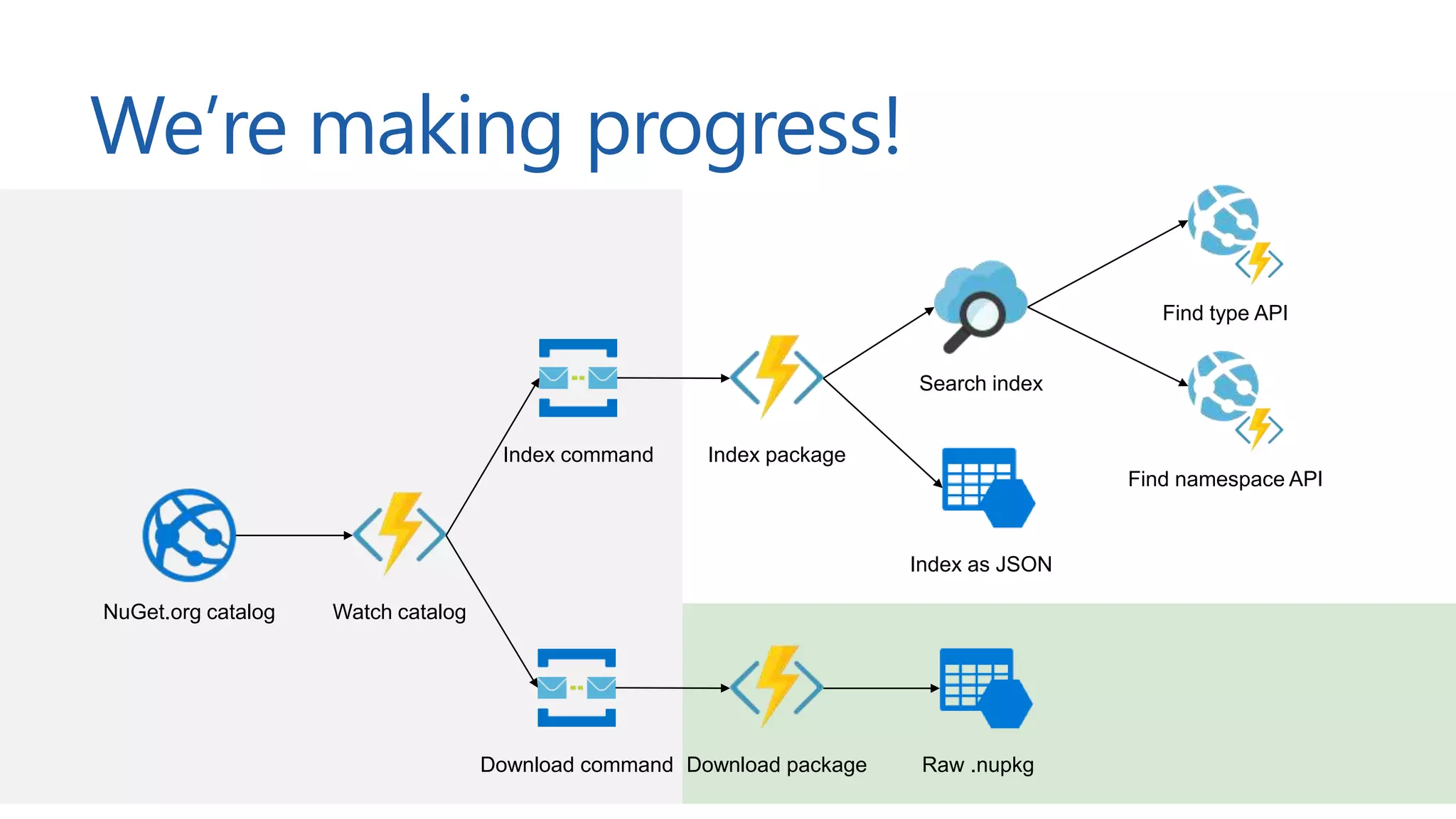

We’re making progress!
NuGet.org catalog Watch catalog
Index command
Find type API
Find namespace API
Search index
Index package
Raw .nupkg
Index as JSON
Download packageDownload command

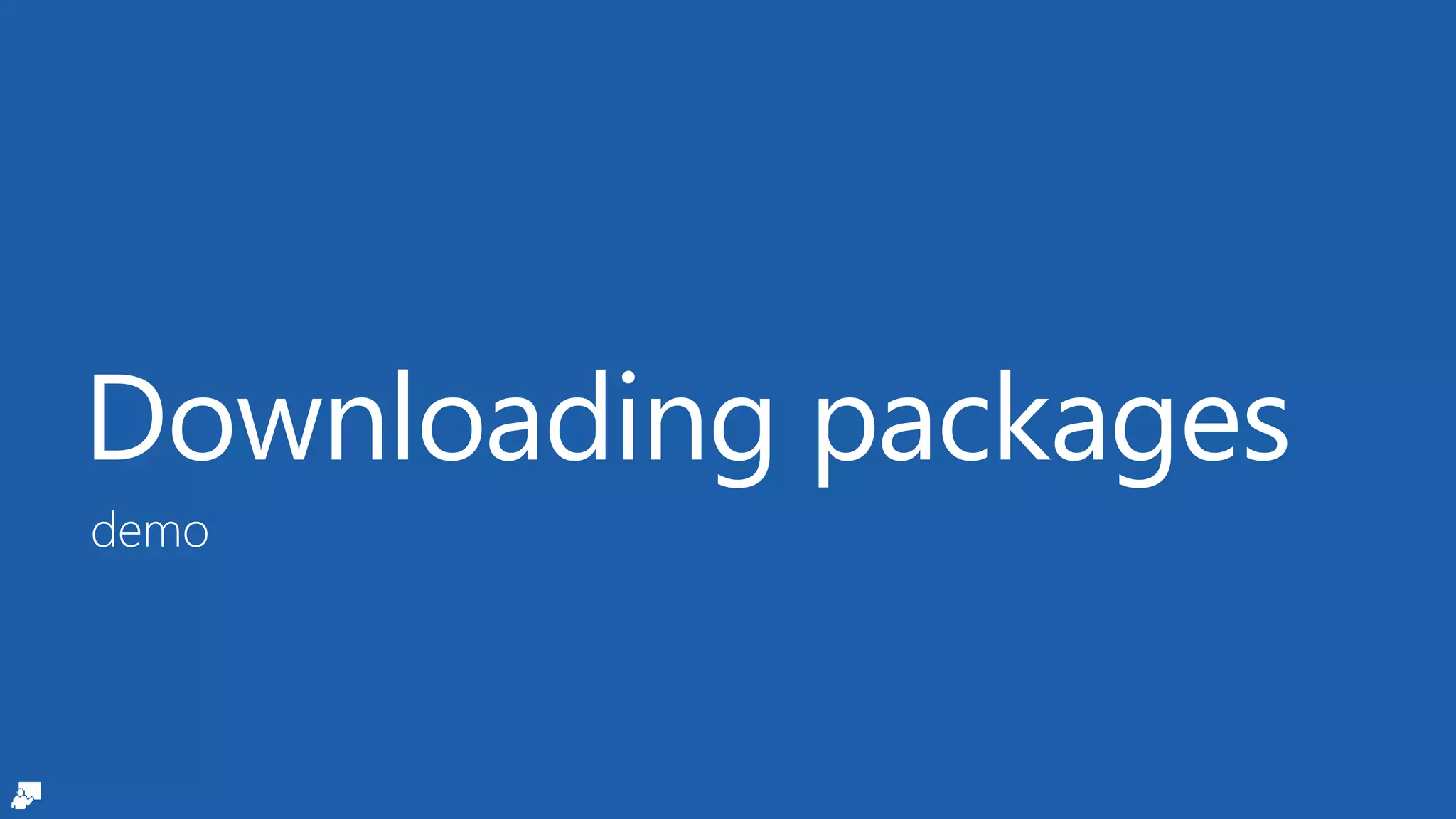

Downloading packages
demo

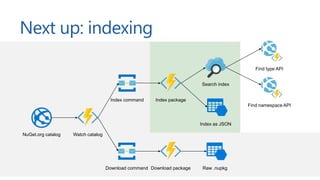

Next up: indexing
NuGet.org catalog Watch catalog
Index command
Find type API
Find namespace API
Search index
Index package
Raw .nupkg
Index as JSON
Download packageDownload command

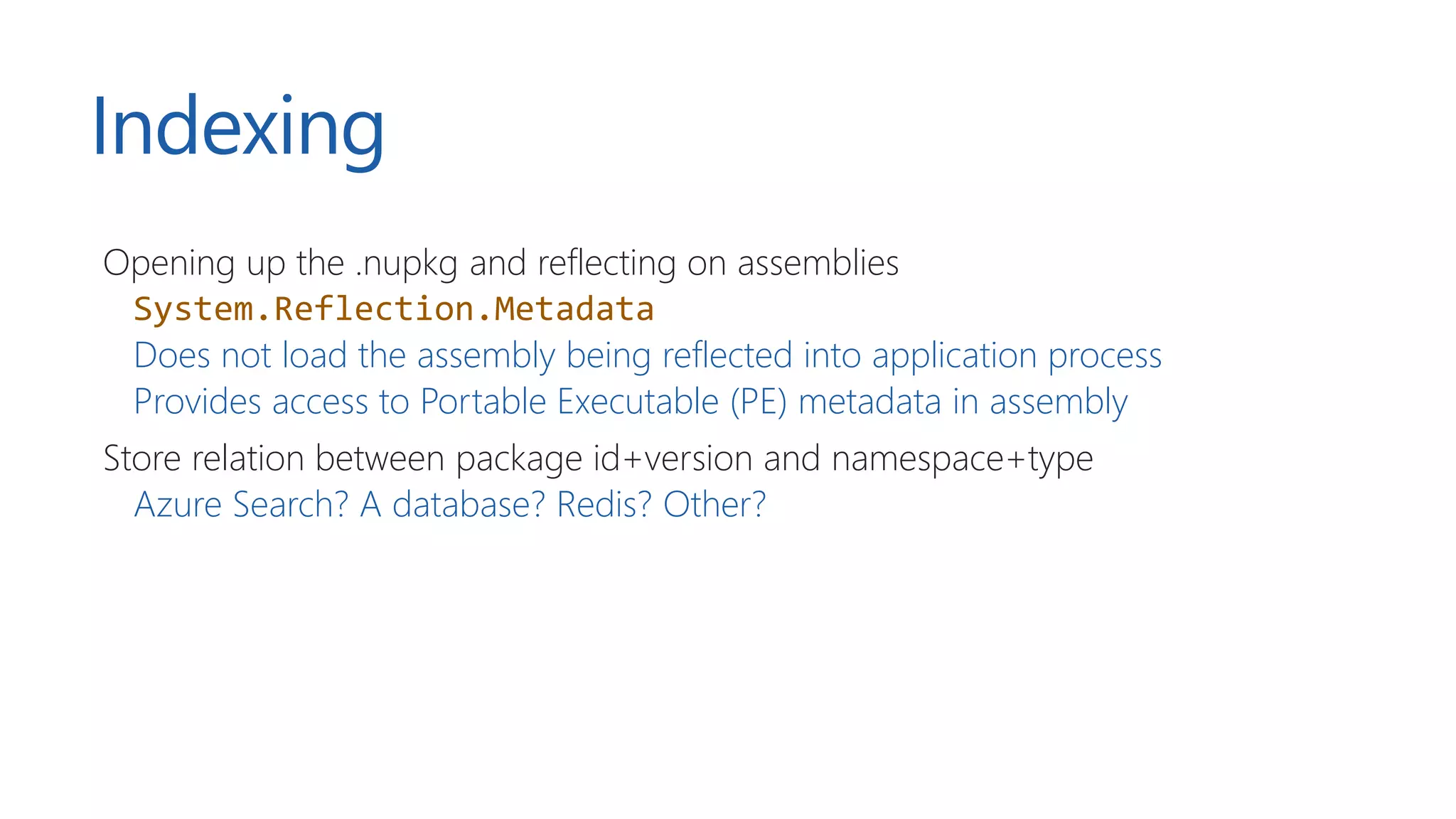

Indexing
Opening up the .nupkg and reflecting on assemblies
System.Reflection.Metadata
Does not load the assembly being reflected into application process
Provides access to Portable Executable (PE) metadata in assembly
Store relation between package id+version and namespace+type
Azure Search? A database? Redis? Other?

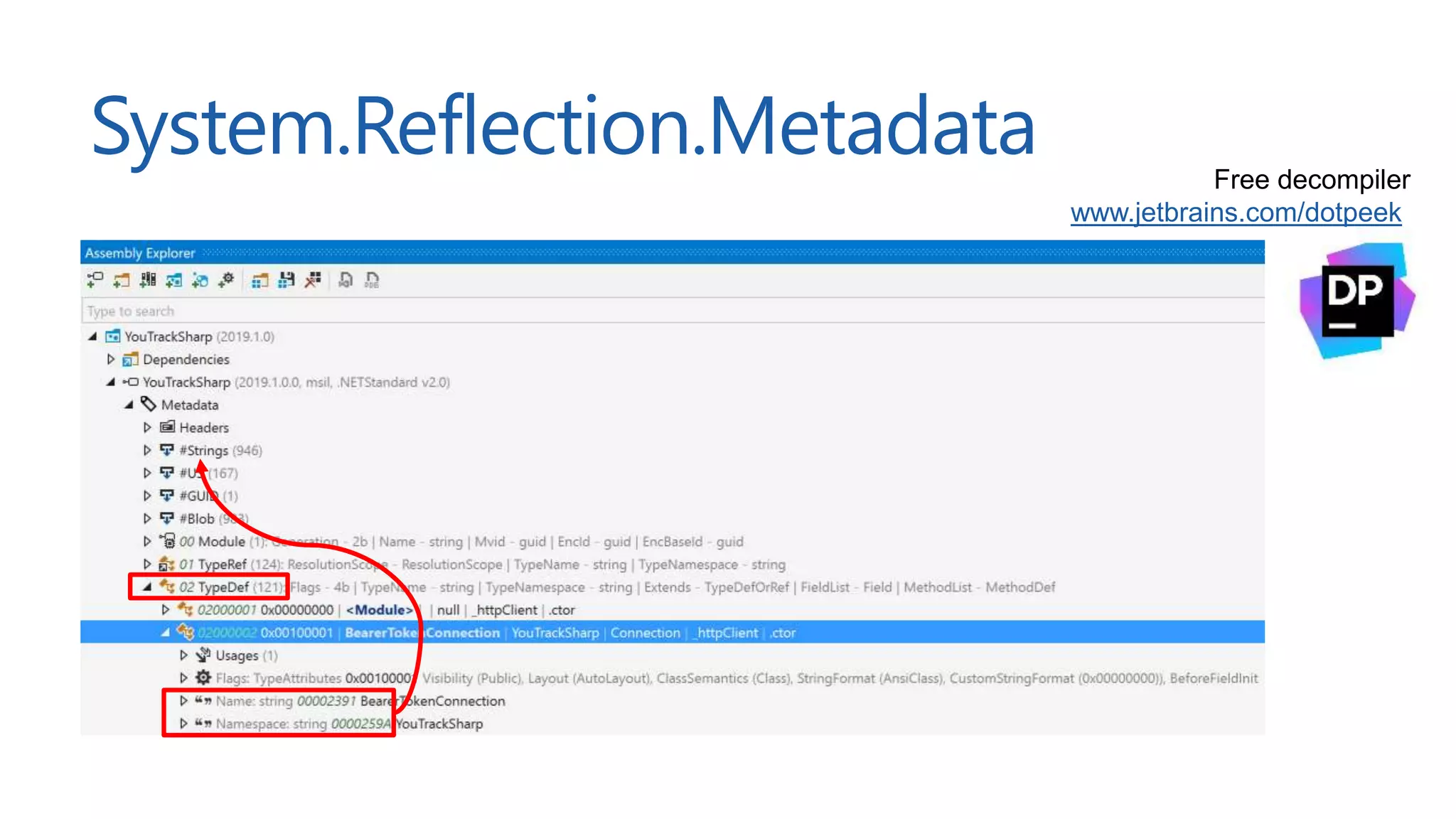

System.Reflection.Metadata Free decompiler
www.jetbrains.com/dotpeek

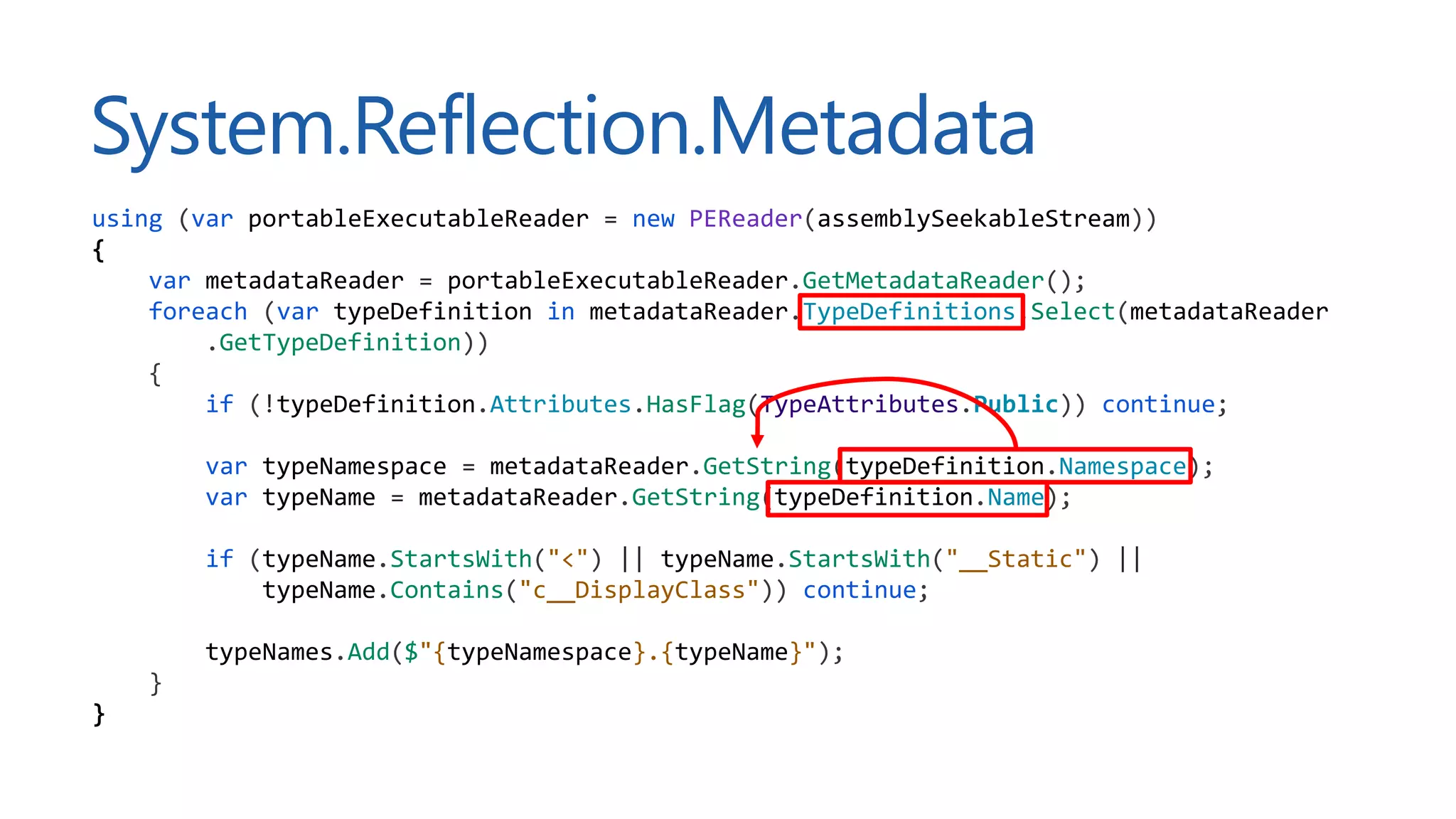

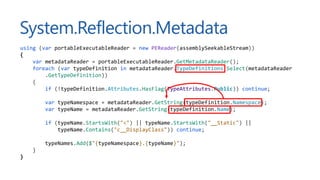

System.Reflection.Metadata
using (var portableExecutableReader = new PEReader(assemblySeekableStream))
{
var metadataReader = portableExecutableReader.GetMetadataReader();
foreach (var typeDefinition in metadataReader.TypeDefinitions.Select(metadataReader
.GetTypeDefinition))
{
if (!typeDefinition.Attributes.HasFlag(TypeAttributes.Public)) continue;
var typeNamespace = metadataReader.GetString(typeDefinition.Namespace);
var typeName = metadataReader.GetString(typeDefinition.Name);
if (typeName.StartsWith("<") || typeName.StartsWith("__Static") ||
typeName.Contains("c__DisplayClass")) continue;
typeNames.Add($"{typeNamespace}.{typeName}");
}
}

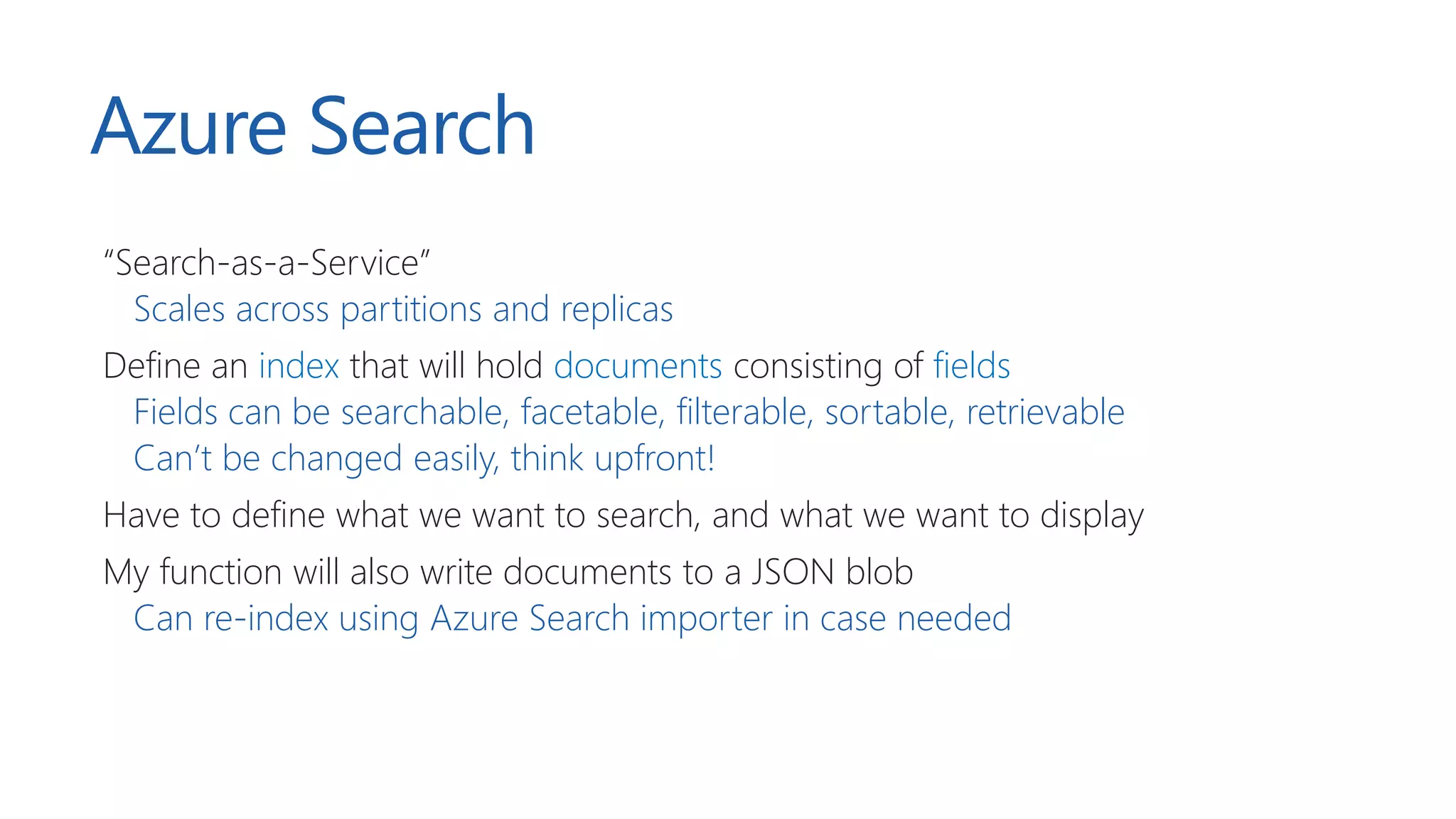

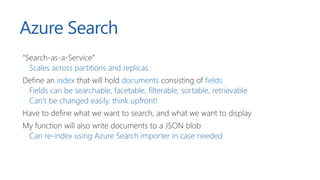

Azure Search
“Search-as-a-Service”
Scales across partitions and replicas
Define an index that will hold documents consisting of fields
Fields can be searchable, facetable, filterable, sortable, retrievable
Can’t be changed easily, think upfront!
Have to define what we want to search, and what we want to display
My function will also write documents to a JSON blob
Can re-index using Azure Search importer in case needed
Indexing packages
demo

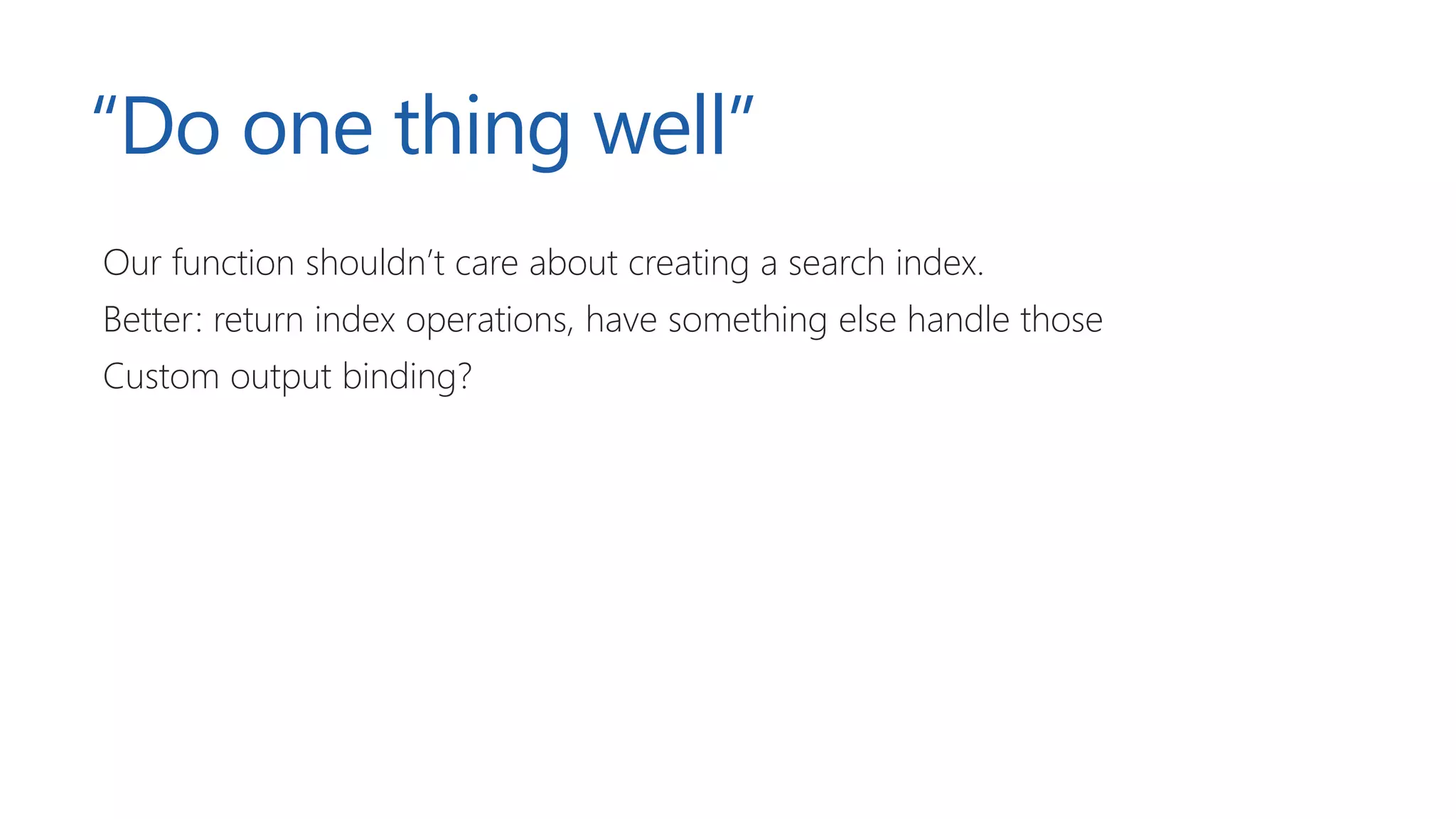

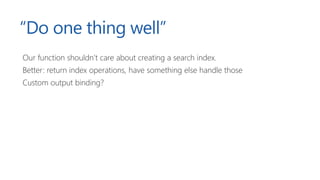

“Do one thing well”
Our function shouldn’t care about creating a search index.
Better: return index operations, have something else handle those
Custom output binding?
Indexing packages
(better version)
demo

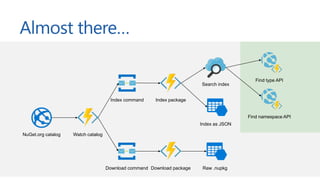

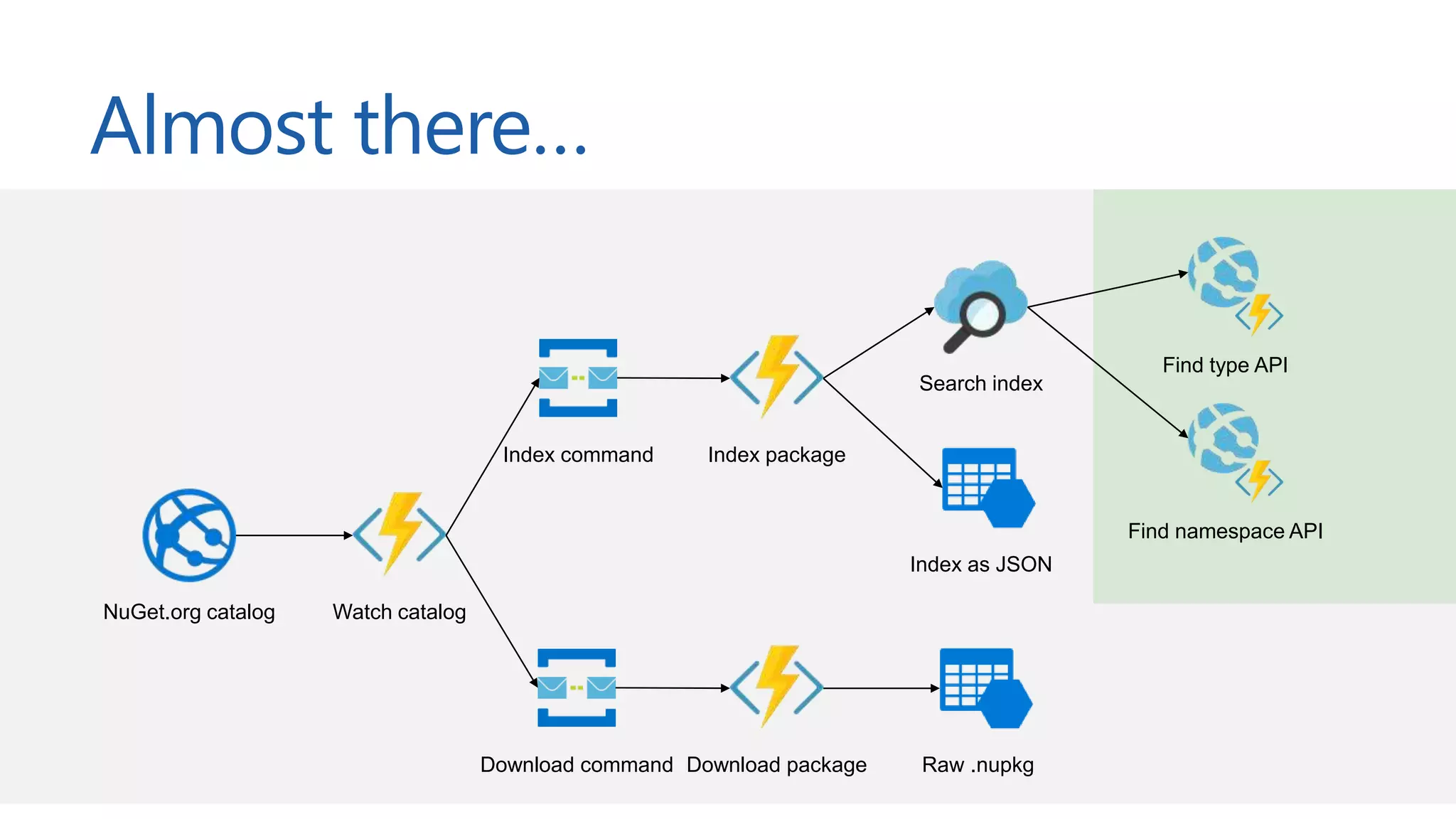

Almost there…
NuGet.org catalog Watch catalog
Index command
Find type API
Find namespace API
Search index
Index package
Raw .nupkg
Index as JSON
Download packageDownload command

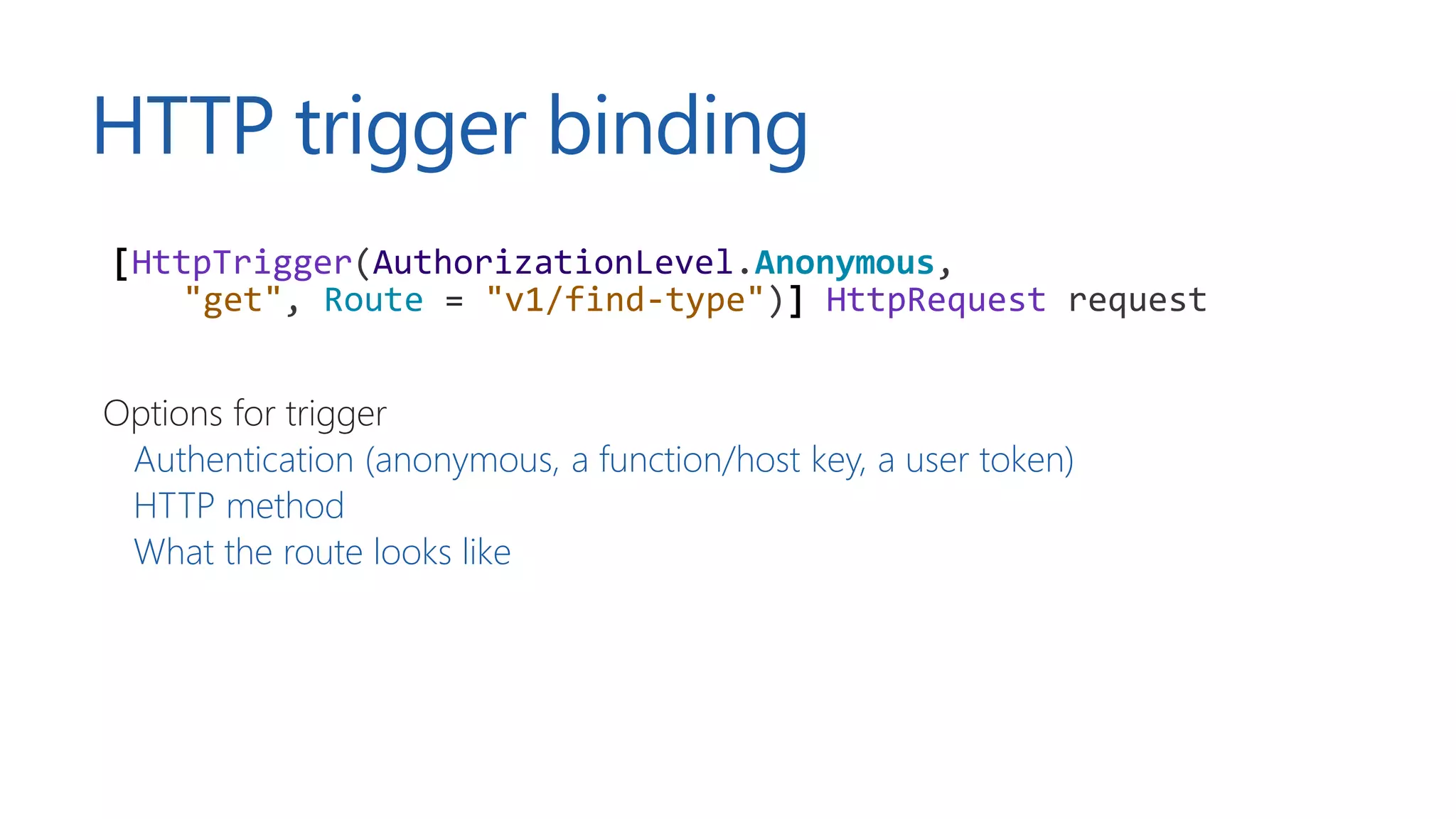

HTTP trigger binding
[HttpTrigger(AuthorizationLevel.Anonymous,
"get", Route = "v1/find-type")] HttpRequest request
Options for trigger
Authentication (anonymous, a function/host key, a user token)
HTTP method
What the route looks like

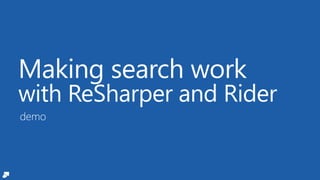

Making search work
with ReSharper and Rider
demo

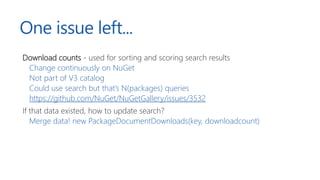

One issue left...
Download counts - used for sorting and scoring search results
Change continuously on NuGet
Not part of V3 catalog
Could use search but that’s N(packages) queries
https://github.com/NuGet/NuGetGallery/issues/3532
If that data existed, how to update search?
Merge data! new PackageDocumentDownloads(key, downloadcount)

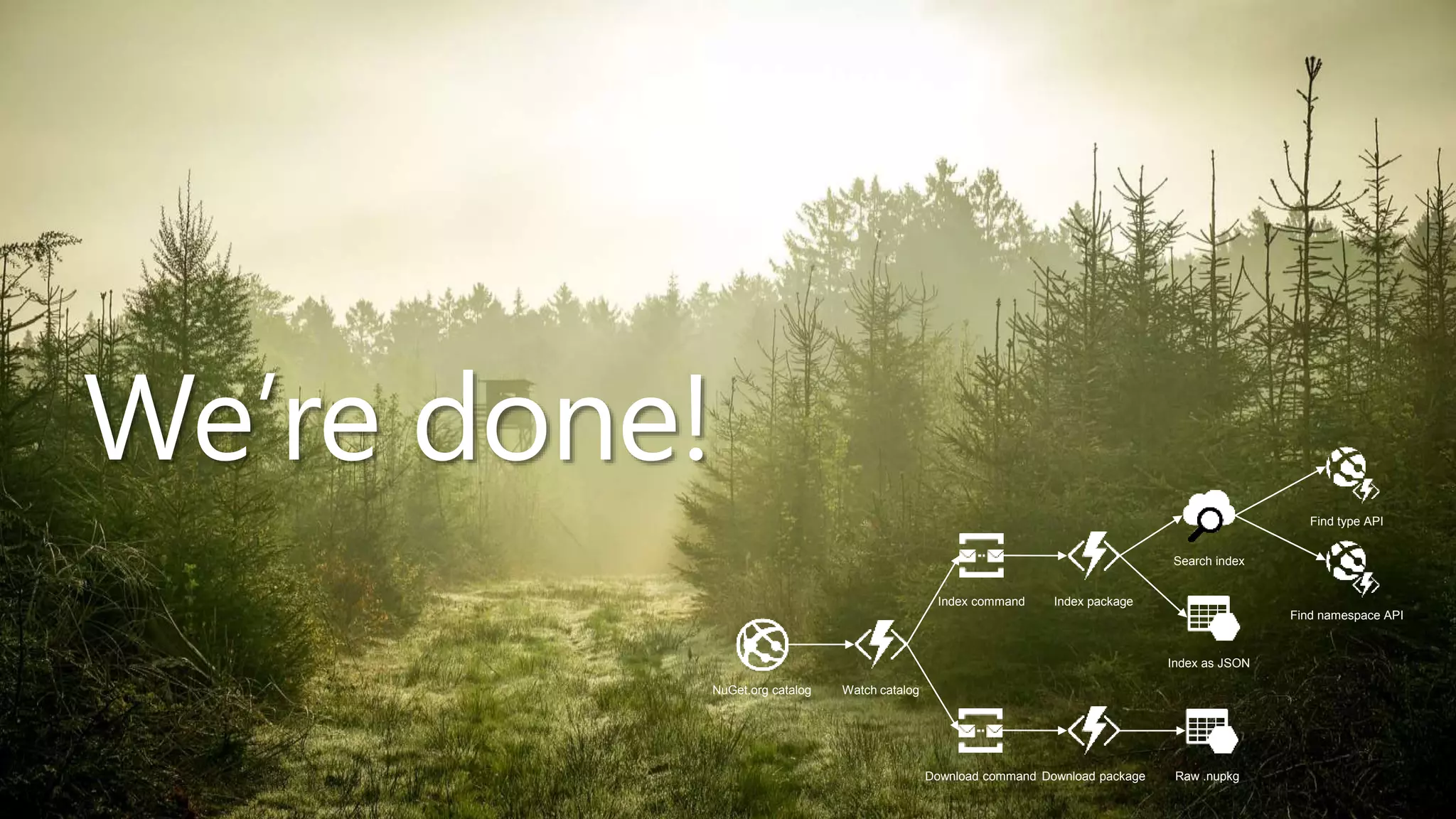

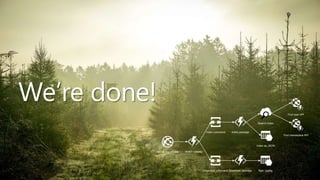

We’re done!
NuGet.org catalog Watch catalog
Index command
Find type API
Find namespace API
Search index
Index package
Raw .nupkg
Index as JSON
Download packageDownload command

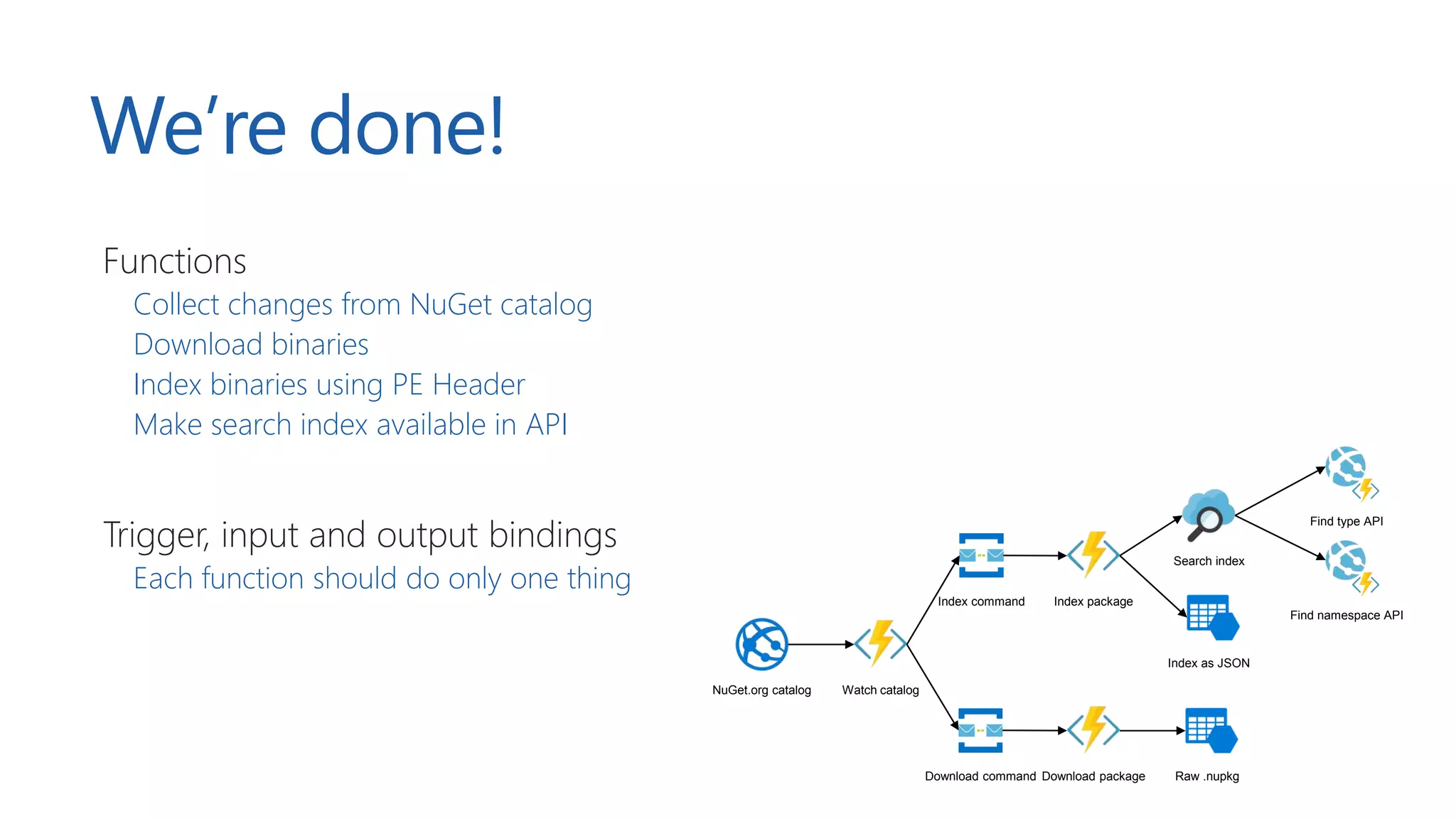

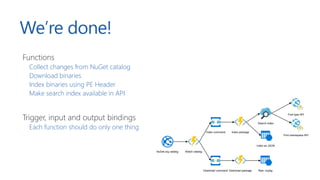

We’re done!
Functions
Collect changes from NuGet catalog
Download binaries
Index binaries using PE Header
Make search index available in API
Trigger, input and output bindings
Each function should do only one thing
NuGet.org catalog Watch catalog
Index command
Find type API
Find namespace API
Search index
Index package
Raw .nupkg
Index as JSON
Download packageDownload command

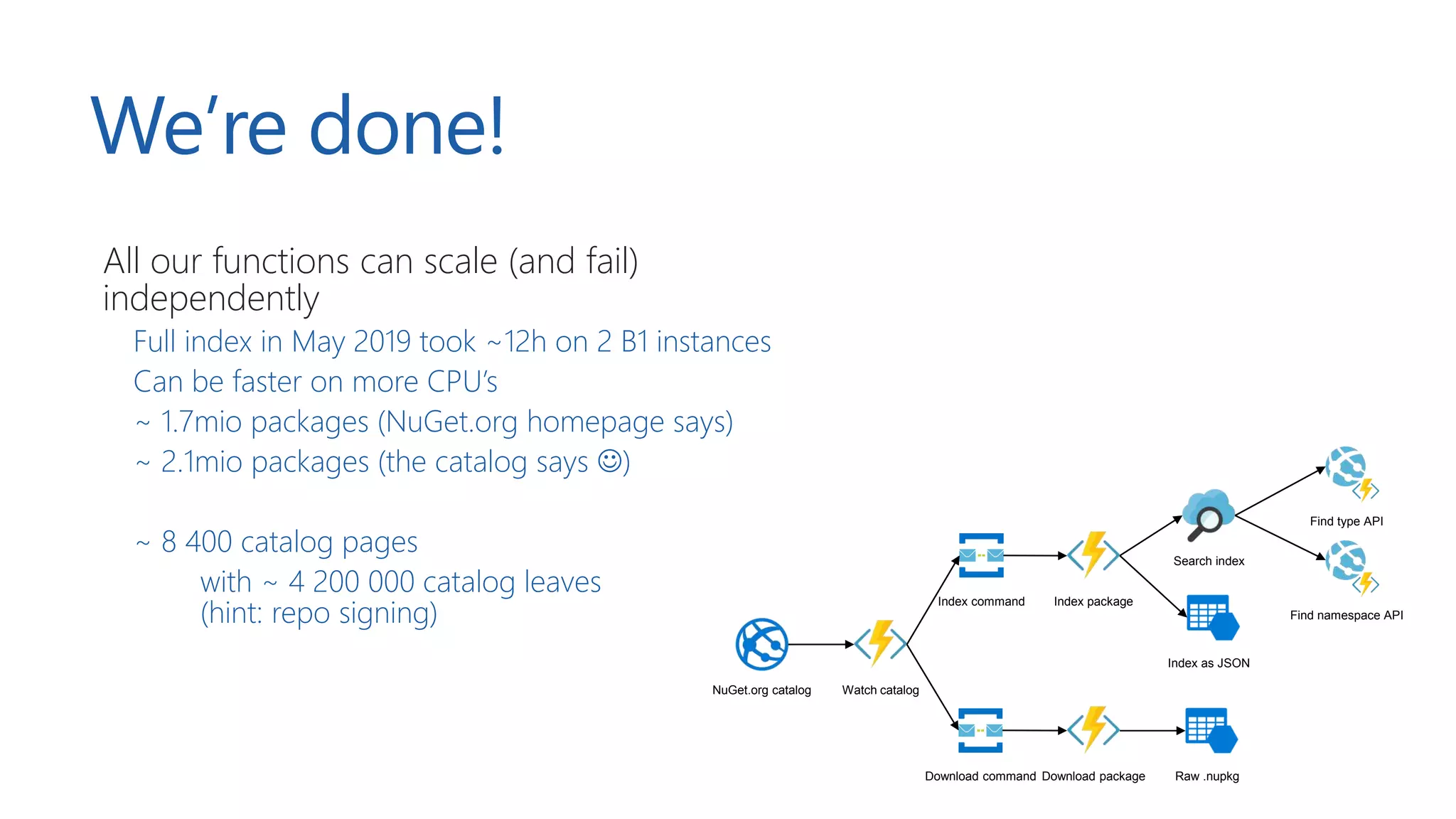

We’re done!
All our functions can scale (and fail)
independently
Full index in May 2019 took ~12h on 2 B1 instances
Can be faster on more CPU’s
~ 1.7mio packages (NuGet.org homepage says)
~ 2.1mio packages (the catalog says )
~ 8 400 catalog pages
with ~ 4 200 000 catalog leaves
(hint: repo signing)
NuGet.org catalog Watch catalog
Index command
Find type API
Find namespace API
Search index
Index package
Raw .nupkg
Index as JSON
Download packageDownload command

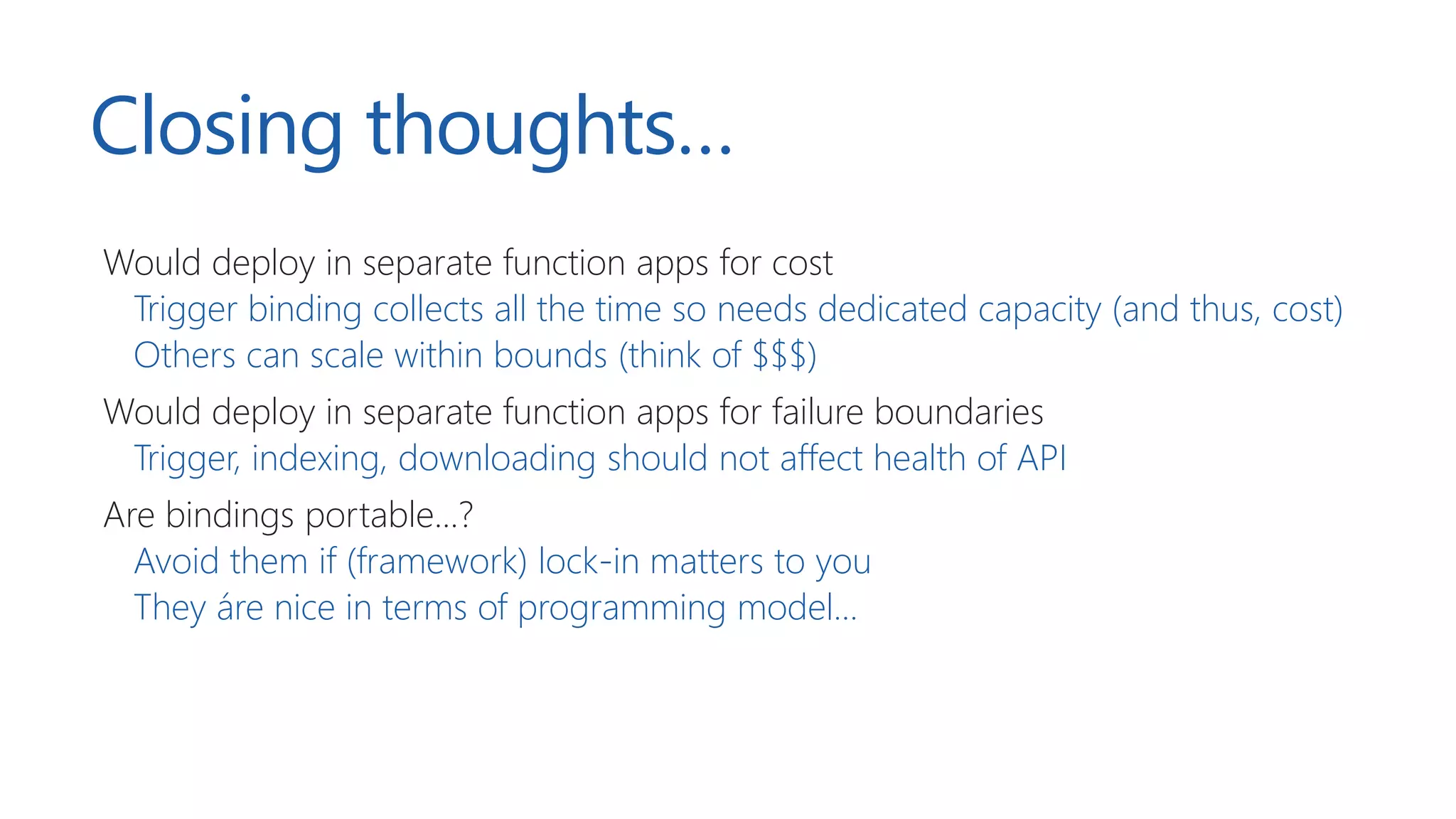

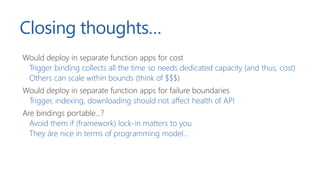

Closing thoughts…
Would deploy in separate function apps for cost
Trigger binding collects all the time so needs dedicated capacity (and thus, cost)
Others can scale within bounds (think of $$$)
Would deploy in separate function apps for failure boundaries
Trigger, indexing, downloading should not affect health of API
Are bindings portable...?
Avoid them if (framework) lock-in matters to you
They áre nice in terms of programming model…
Thank you!
https://blog.maartenballiauw.be
@maartenballiauw

More Related Content

What's hot

Elk stack
Elk stackElk stack
Elk stack
Jilles van Gurp

Logstash-Elasticsearch-Kibana
Logstash-Elasticsearch-KibanaLogstash-Elasticsearch-Kibana
Logstash-Elasticsearch-Kibana
dknx01

Machine Learning in a Twitter ETL using ELK
Machine Learning in a Twitter ETL using ELK Machine Learning in a Twitter ETL using ELK
Machine Learning in a Twitter ETL using ELK
hypto

Monitoring with Graylog - a modern approach to monitoring?
Monitoring with Graylog - a modern approach to monitoring?Monitoring with Graylog - a modern approach to monitoring?
Monitoring with Graylog - a modern approach to monitoring?
inovex GmbH

Customer Intelligence: Using the ELK Stack to Analyze ForgeRock OpenAM Audit ...
Customer Intelligence: Using the ELK Stack to Analyze ForgeRock OpenAM Audit ...Customer Intelligence: Using the ELK Stack to Analyze ForgeRock OpenAM Audit ...
Customer Intelligence: Using the ELK Stack to Analyze ForgeRock OpenAM Audit ...
ForgeRock

Logstash
LogstashLogstash
Logstash
琛琳 饶

Logstash + Elasticsearch + Kibana Presentation on Startit Tech Meetup
Logstash + Elasticsearch + Kibana Presentation on Startit Tech MeetupLogstash + Elasticsearch + Kibana Presentation on Startit Tech Meetup
Logstash + Elasticsearch + Kibana Presentation on Startit Tech Meetup
Startit

From Zero to Production Hero: Log Analysis with Elasticsearch (from Velocity ...
From Zero to Production Hero: Log Analysis with Elasticsearch (from Velocity ...From Zero to Production Hero: Log Analysis with Elasticsearch (from Velocity ...
From Zero to Production Hero: Log Analysis with Elasticsearch (from Velocity ...
Sematext Group, Inc.

Reactive Functional Programming with Java 8 on Android N
Reactive Functional Programming with Java 8 on Android NReactive Functional Programming with Java 8 on Android N
Reactive Functional Programming with Java 8 on Android N
Shipeng Xu

Introduction to ELK
Introduction to ELKIntroduction to ELK
Introduction to ELK
Harshakumar Ummerpillai

elk_stack_alexander_szalonnas
elk_stack_alexander_szalonnaselk_stack_alexander_szalonnas
elk_stack_alexander_szalonnas
Alexander Szalonnas

Retrofit
RetrofitRetrofit
Retrofit
bresiu

Elk
Elk Elk
LogStash in action
LogStash in actionLogStash in action
LogStash in action
Manuj Aggarwal

Experiences in ELK with D3.js for Large Log Analysis and Visualization
Experiences in ELK with D3.js  for Large Log Analysis  and VisualizationExperiences in ELK with D3.js  for Large Log Analysis  and Visualization
Experiences in ELK with D3.js for Large Log Analysis and Visualization
Surasak Sanguanpong

Mobile Analytics mit Elasticsearch und Kibana
Mobile Analytics mit Elasticsearch und KibanaMobile Analytics mit Elasticsearch und Kibana
Mobile Analytics mit Elasticsearch und Kibana
inovex GmbH

Logstash: Get to know your logs
Logstash: Get to know your logsLogstash: Get to know your logs
Logstash: Get to know your logs
SmartLogic

Retrofit
RetrofitRetrofit
Retrofit
Amin Cheloh

The Gradle in Ratpack: Dissected
The Gradle in Ratpack: DissectedThe Gradle in Ratpack: Dissected
The Gradle in Ratpack: Dissected
David Carr

Elastic - ELK, Logstash & Kibana
Elastic - ELK, Logstash & KibanaElastic - ELK, Logstash & Kibana
Elastic - ELK, Logstash & Kibana
SpringPeople


What's hot (20)

Elk stack
Elk stackElk stack
Elk stack

Logstash-Elasticsearch-Kibana
Logstash-Elasticsearch-KibanaLogstash-Elasticsearch-Kibana
Logstash-Elasticsearch-Kibana

Machine Learning in a Twitter ETL using ELK
Machine Learning in a Twitter ETL using ELK Machine Learning in a Twitter ETL using ELK
Machine Learning in a Twitter ETL using ELK

Monitoring with Graylog - a modern approach to monitoring?
Monitoring with Graylog - a modern approach to monitoring?Monitoring with Graylog - a modern approach to monitoring?
Monitoring with Graylog - a modern approach to monitoring?

Customer Intelligence: Using the ELK Stack to Analyze ForgeRock OpenAM Audit ...
Customer Intelligence: Using the ELK Stack to Analyze ForgeRock OpenAM Audit ...Customer Intelligence: Using the ELK Stack to Analyze ForgeRock OpenAM Audit ...
Customer Intelligence: Using the ELK Stack to Analyze ForgeRock OpenAM Audit ...

Logstash
LogstashLogstash
Logstash

Logstash + Elasticsearch + Kibana Presentation on Startit Tech Meetup
Logstash + Elasticsearch + Kibana Presentation on Startit Tech MeetupLogstash + Elasticsearch + Kibana Presentation on Startit Tech Meetup
Logstash + Elasticsearch + Kibana Presentation on Startit Tech Meetup

From Zero to Production Hero: Log Analysis with Elasticsearch (from Velocity ...
From Zero to Production Hero: Log Analysis with Elasticsearch (from Velocity ...From Zero to Production Hero: Log Analysis with Elasticsearch (from Velocity ...
From Zero to Production Hero: Log Analysis with Elasticsearch (from Velocity ...

Reactive Functional Programming with Java 8 on Android N
Reactive Functional Programming with Java 8 on Android NReactive Functional Programming with Java 8 on Android N
Reactive Functional Programming with Java 8 on Android N

Introduction to ELK
Introduction to ELKIntroduction to ELK
Introduction to ELK

elk_stack_alexander_szalonnas
elk_stack_alexander_szalonnaselk_stack_alexander_szalonnas
elk_stack_alexander_szalonnas

Retrofit
RetrofitRetrofit
Retrofit

Elk
Elk Elk
Elk

LogStash in action
LogStash in actionLogStash in action
LogStash in action

Experiences in ELK with D3.js for Large Log Analysis and Visualization
Experiences in ELK with D3.js  for Large Log Analysis  and VisualizationExperiences in ELK with D3.js  for Large Log Analysis  and Visualization
Experiences in ELK with D3.js for Large Log Analysis and Visualization

Mobile Analytics mit Elasticsearch und Kibana
Mobile Analytics mit Elasticsearch und KibanaMobile Analytics mit Elasticsearch und Kibana
Mobile Analytics mit Elasticsearch und Kibana

Logstash: Get to know your logs
Logstash: Get to know your logsLogstash: Get to know your logs
Logstash: Get to know your logs

Retrofit
RetrofitRetrofit
Retrofit

The Gradle in Ratpack: Dissected
The Gradle in Ratpack: DissectedThe Gradle in Ratpack: Dissected
The Gradle in Ratpack: Dissected

Elastic - ELK, Logstash & Kibana
Elastic - ELK, Logstash & KibanaElastic - ELK, Logstash & Kibana
Elastic - ELK, Logstash & Kibana


Similar to CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and Search

Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Maarten Balliauw

Maarten Balliauw "Indexing and searching NuGet.org with Azure Functions and S...
Maarten Balliauw "Indexing and searching NuGet.org with Azure Functions and S...Maarten Balliauw "Indexing and searching NuGet.org with Azure Functions and S...
Maarten Balliauw "Indexing and searching NuGet.org with Azure Functions and S...
Fwdays

.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se....NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
Maarten Balliauw

NuGet beyond Hello World - DotNext Piter 2017
NuGet beyond Hello World - DotNext Piter 2017NuGet beyond Hello World - DotNext Piter 2017
NuGet beyond Hello World - DotNext Piter 2017
Maarten Balliauw

ConFoo - NuGet beyond Hello World
ConFoo - NuGet beyond Hello WorldConFoo - NuGet beyond Hello World
ConFoo - NuGet beyond Hello World
Maarten Balliauw

Let's build Developer Portal with Backstage
Let's build Developer Portal with BackstageLet's build Developer Portal with Backstage
Let's build Developer Portal with Backstage
Opsta

Release 8.1 - Breakfast Paris
Release 8.1 - Breakfast ParisRelease 8.1 - Breakfast Paris
Release 8.1 - Breakfast Paris
Nuxeo

Django deployment with PaaS
Django deployment with PaaSDjango deployment with PaaS
Django deployment with PaaS
Appsembler

OGCE Project Overview
OGCE Project OverviewOGCE Project Overview
OGCE Project Overview
marpierc

Distributed Tracing
Distributed TracingDistributed Tracing
Distributed Tracing
distributedtracing

China Science Challenge
China Science ChallengeChina Science Challenge
China Science Challenge
remko caprio

SgCodeJam24 Workshop
SgCodeJam24 WorkshopSgCodeJam24 Workshop
SgCodeJam24 Workshop
remko caprio

Harnessing the power of Nutch with Scala
Harnessing the power of Nutch with ScalaHarnessing the power of Nutch with Scala
Harnessing the power of Nutch with Scala
Knoldus Inc.

Beyond Wordcount with spark datasets (and scalaing) - Nide PDX Jan 2018
Beyond Wordcount  with spark datasets (and scalaing) - Nide PDX Jan 2018Beyond Wordcount  with spark datasets (and scalaing) - Nide PDX Jan 2018
Beyond Wordcount with spark datasets (and scalaing) - Nide PDX Jan 2018
Holden Karau

Apache Calcite (a tutorial given at BOSS '21)
Apache Calcite (a tutorial given at BOSS '21)Apache Calcite (a tutorial given at BOSS '21)
Apache Calcite (a tutorial given at BOSS '21)
Julian Hyde

Distributed tracing 101
Distributed tracing 101Distributed tracing 101
Distributed tracing 101
Itiel Shwartz

Plugin-based software design with Ruby and RubyGems
Plugin-based software design with Ruby and RubyGemsPlugin-based software design with Ruby and RubyGems
Plugin-based software design with Ruby and RubyGems
Sadayuki Furuhashi

Examiness hints and tips from the trenches
Examiness hints and tips from the trenchesExaminess hints and tips from the trenches
Examiness hints and tips from the trenches
Ismail Mayat

Large Scale Crawling with Apache Nutch and Friends
Large Scale Crawling with Apache Nutch and FriendsLarge Scale Crawling with Apache Nutch and Friends
Large Scale Crawling with Apache Nutch and Friends
lucenerevolution

Large Scale Crawling with Apache Nutch and Friends
Large Scale Crawling with Apache Nutch and FriendsLarge Scale Crawling with Apache Nutch and Friends
Large Scale Crawling with Apache Nutch and Friends
Julien Nioche


Similar to CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and Search (20)

Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...

Maarten Balliauw "Indexing and searching NuGet.org with Azure Functions and S...
Maarten Balliauw "Indexing and searching NuGet.org with Azure Functions and S...Maarten Balliauw "Indexing and searching NuGet.org with Azure Functions and S...
Maarten Balliauw "Indexing and searching NuGet.org with Azure Functions and S...

.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se....NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...

NuGet beyond Hello World - DotNext Piter 2017
NuGet beyond Hello World - DotNext Piter 2017NuGet beyond Hello World - DotNext Piter 2017
NuGet beyond Hello World - DotNext Piter 2017

ConFoo - NuGet beyond Hello World
ConFoo - NuGet beyond Hello WorldConFoo - NuGet beyond Hello World
ConFoo - NuGet beyond Hello World

Let's build Developer Portal with Backstage
Let's build Developer Portal with BackstageLet's build Developer Portal with Backstage
Let's build Developer Portal with Backstage

Release 8.1 - Breakfast Paris
Release 8.1 - Breakfast ParisRelease 8.1 - Breakfast Paris
Release 8.1 - Breakfast Paris

Django deployment with PaaS
Django deployment with PaaSDjango deployment with PaaS
Django deployment with PaaS

OGCE Project Overview
OGCE Project OverviewOGCE Project Overview
OGCE Project Overview

Distributed Tracing
Distributed TracingDistributed Tracing
Distributed Tracing

China Science Challenge
China Science ChallengeChina Science Challenge
China Science Challenge

SgCodeJam24 Workshop
SgCodeJam24 WorkshopSgCodeJam24 Workshop
SgCodeJam24 Workshop

Harnessing the power of Nutch with Scala
Harnessing the power of Nutch with ScalaHarnessing the power of Nutch with Scala
Harnessing the power of Nutch with Scala

Beyond Wordcount with spark datasets (and scalaing) - Nide PDX Jan 2018
Beyond Wordcount  with spark datasets (and scalaing) - Nide PDX Jan 2018Beyond Wordcount  with spark datasets (and scalaing) - Nide PDX Jan 2018
Beyond Wordcount with spark datasets (and scalaing) - Nide PDX Jan 2018

Apache Calcite (a tutorial given at BOSS '21)
Apache Calcite (a tutorial given at BOSS '21)Apache Calcite (a tutorial given at BOSS '21)
Apache Calcite (a tutorial given at BOSS '21)

Distributed tracing 101
Distributed tracing 101Distributed tracing 101
Distributed tracing 101

Plugin-based software design with Ruby and RubyGems
Plugin-based software design with Ruby and RubyGemsPlugin-based software design with Ruby and RubyGems
Plugin-based software design with Ruby and RubyGems

Examiness hints and tips from the trenches
Examiness hints and tips from the trenchesExaminess hints and tips from the trenches
Examiness hints and tips from the trenches

Large Scale Crawling with Apache Nutch and Friends
Large Scale Crawling with Apache Nutch and FriendsLarge Scale Crawling with Apache Nutch and Friends
Large Scale Crawling with Apache Nutch and Friends

Large Scale Crawling with Apache Nutch and Friends
Large Scale Crawling with Apache Nutch and FriendsLarge Scale Crawling with Apache Nutch and Friends
Large Scale Crawling with Apache Nutch and Friends


More from Maarten Balliauw

Bringing nullability into existing code - dammit is not the answer.pptx
Bringing nullability into existing code - dammit is not the answer.pptxBringing nullability into existing code - dammit is not the answer.pptx
Bringing nullability into existing code - dammit is not the answer.pptx
Maarten Balliauw

Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Maarten Balliauw

Building a friendly .NET SDK to connect to Space
Building a friendly .NET SDK to connect to SpaceBuilding a friendly .NET SDK to connect to Space
Building a friendly .NET SDK to connect to Space
Maarten Balliauw

Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Maarten Balliauw

NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
Maarten Balliauw

JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
Maarten Balliauw

Approaches for application request throttling - Cloud Developer Days Poland
Approaches for application request throttling - Cloud Developer Days PolandApproaches for application request throttling - Cloud Developer Days Poland
Approaches for application request throttling - Cloud Developer Days Poland
Maarten Balliauw

Approaches for application request throttling - dotNetCologne
Approaches for application request throttling - dotNetCologneApproaches for application request throttling - dotNetCologne
Approaches for application request throttling - dotNetCologne
Maarten Balliauw

CodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory laneCodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory lane
Maarten Balliauw

ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
Maarten Balliauw

ConFoo Montreal - Approaches for application request throttling
ConFoo Montreal - Approaches for application request throttlingConFoo Montreal - Approaches for application request throttling
ConFoo Montreal - Approaches for application request throttling
Maarten Balliauw

Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Microservices for building an IDE – The innards of JetBrains Rider - TechDays...Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Maarten Balliauw

JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
Maarten Balliauw

DotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NETDotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NET
Maarten Balliauw

VISUG - Approaches for application request throttling
VISUG - Approaches for application request throttlingVISUG - Approaches for application request throttling
VISUG - Approaches for application request throttling
Maarten Balliauw

What is going on - Application diagnostics on Azure - TechDays Finland
What is going on - Application diagnostics on Azure - TechDays FinlandWhat is going on - Application diagnostics on Azure - TechDays Finland
What is going on - Application diagnostics on Azure - TechDays Finland
Maarten Balliauw

ConFoo - Exploring .NET’s memory management – a trip down memory lane
ConFoo - Exploring .NET’s memory management – a trip down memory laneConFoo - Exploring .NET’s memory management – a trip down memory lane
ConFoo - Exploring .NET’s memory management – a trip down memory lane
Maarten Balliauw

Approaches to application request throttling
Approaches to application request throttlingApproaches to application request throttling
Approaches to application request throttling
Maarten Balliauw

Exploring .NET memory management (iSense)
Exploring .NET memory management (iSense)Exploring .NET memory management (iSense)
Exploring .NET memory management (iSense)
Maarten Balliauw

Exploring .NET memory management - JetBrains webinar
Exploring .NET memory management - JetBrains webinarExploring .NET memory management - JetBrains webinar
Exploring .NET memory management - JetBrains webinar
Maarten Balliauw


More from Maarten Balliauw (20)

Bringing nullability into existing code - dammit is not the answer.pptx
Bringing nullability into existing code - dammit is not the answer.pptxBringing nullability into existing code - dammit is not the answer.pptx
Bringing nullability into existing code - dammit is not the answer.pptx

Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...

Building a friendly .NET SDK to connect to Space
Building a friendly .NET SDK to connect to SpaceBuilding a friendly .NET SDK to connect to Space
Building a friendly .NET SDK to connect to Space

Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...

NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...

JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...

Approaches for application request throttling - Cloud Developer Days Poland
Approaches for application request throttling - Cloud Developer Days PolandApproaches for application request throttling - Cloud Developer Days Poland
Approaches for application request throttling - Cloud Developer Days Poland

Approaches for application request throttling - dotNetCologne
Approaches for application request throttling - dotNetCologneApproaches for application request throttling - dotNetCologne
Approaches for application request throttling - dotNetCologne

CodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory laneCodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory lane

ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...

ConFoo Montreal - Approaches for application request throttling
ConFoo Montreal - Approaches for application request throttlingConFoo Montreal - Approaches for application request throttling
ConFoo Montreal - Approaches for application request throttling

Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Microservices for building an IDE – The innards of JetBrains Rider - TechDays...Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Microservices for building an IDE – The innards of JetBrains Rider - TechDays...

JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...

DotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NETDotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NET

VISUG - Approaches for application request throttling
VISUG - Approaches for application request throttlingVISUG - Approaches for application request throttling
VISUG - Approaches for application request throttling

What is going on - Application diagnostics on Azure - TechDays Finland
What is going on - Application diagnostics on Azure - TechDays FinlandWhat is going on - Application diagnostics on Azure - TechDays Finland
What is going on - Application diagnostics on Azure - TechDays Finland

ConFoo - Exploring .NET’s memory management – a trip down memory lane
ConFoo - Exploring .NET’s memory management – a trip down memory laneConFoo - Exploring .NET’s memory management – a trip down memory lane
ConFoo - Exploring .NET’s memory management – a trip down memory lane

Approaches to application request throttling
Approaches to application request throttlingApproaches to application request throttling
Approaches to application request throttling

Exploring .NET memory management (iSense)
Exploring .NET memory management (iSense)Exploring .NET memory management (iSense)
Exploring .NET memory management (iSense)

Exploring .NET memory management - JetBrains webinar
Exploring .NET memory management - JetBrains webinarExploring .NET memory management - JetBrains webinar
Exploring .NET memory management - JetBrains webinar


Recently uploaded

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Albert Hoitingh

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
SOFTTECHHUB

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI
Kumud Singh

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team
ControlCase

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5
DianaGray10

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect
Kari Kakkonen

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
SOFTTECHHUB

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz

Generative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionGenerative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to Production
Aggregage

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity
mikeeftimakis1


Recently uploaded (20)

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5

DevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA ConnectDevOps and Testing slides at DASA Connect
DevOps and Testing slides at DASA Connect

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf

Generative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to ProductionGenerative AI Deep Dive: Advancing from Proof of Concept to Production
Generative AI Deep Dive: Advancing from Proof of Concept to Production

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

Introduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - CybersecurityIntroduction to CHERI technology - Cybersecurity
Introduction to CHERI technology - Cybersecurity


CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and Search

  • 1. Indexing and searching NuGet.org with Azure Functions and Search Maarten Balliauw @maartenballiauw
  • 2. “Find this type on NuGet.org”
  • 3. “Find this type on NuGet.org” In ReSharper and Rider Search for namespaces & types that are not yet referenced
  • 4. “Find this type on NuGet.org” Idea in 2013, introduced in ReSharper 9 (2015 - https://www.jetbrains.com/resharper/whatsnew/whatsnew_9.html) Consists of ReSharper functionality A service that indexes packages and powers search Azure Cloud Service (Web and Worker role) Indexer uses NuGet OData feed https://www.nuget.org/api/v2/Packages?$select=Id,Version,NormalizedVersion,LastEdited,Published&$ orderby=LastEdited%20desc&$filter=LastEdited%20gt%20datetime%272012-01-01%27
  • 6. NuGet over time... Repo-signing announced August 10, 2018 Big chunk of packages signed over holidays 2018/2019 Re-download all metadata & binaries Very slow over OData Is there a better way? https://blog.nuget.org/20180810/Introducing-Repository-Signatures.html
  • 8. NuGet talks to a repository Can be on disk/network share or remote over HTTP(S) HTTP(S) API’s V2 – OData based (used by pretty much all NuGet servers out there) V3 – JSON based (NuGet.org, TeamCity, MyGet, Azure DevOps, GitHub repos)
  • 9. V2 Protocol Started as “OData-to-LINQ-to-Entities” (V1 protocol) Optimizations added to reduce # of random DB queries (VS2013+ & NuGet 2.x) Search – Package manager list/search FindPackagesById – Package restore (Does it exist? Where to download?) GetUpdates – Package manager updates https://www.nuget.org/api/v2 (code in https://github.com/NuGet/NuGetGallery)
  • 10. V3 Protocol JSON based A “resource provider” of various endpoints per purpose Catalog (NuGet.org only) – append-only event log Registrations – materialization of newest state of a package Flat container – .NET Core package restore (and VS autocompletion) Report abuse URL template Statistics … https://api.nuget.org/v3/index.json (code in https://github.com/NuGet/NuGet.Services.Metadata)
  • 11. How does NuGet.org work? User uploads to NuGet.org Data added to database Data added to catalog (append-only data stream) Various jobs run over catalog using a cursor Registrations (last state of a package/version), reference catalog entry Flatcontainer (fast restores) Search index (search, autocomplete, NuGet Gallery search) …
  • 12. Catalog seems interesting! Append-only stream of mutations on NuGet.org Updates (add/update) and Deletes Chronological Can continue where left off (uses a timestamp cursor) Can restore NuGet.org to a given point in time Structure Root https://api.nuget.org/v3/catalog0/index.json + Page https://api.nuget.org/v3/catalog0/page0.json + Leaf https://api.nuget.org/v3/catalog0/data/2015.02.01.06.22.45/adam.jsgenerator.1.1.0.json
  • 14. “Find this type on NuGet.org” Refactor from using OData to using V3? Mostly done, one thing missing: download counts (using search now) https://github.com/NuGet/NuGetGallery/issues/3532 Build a new version? Welcome to this talk 
  • 15. Building a new version
  • 16. What do we need? Watch the NuGet.org catalog for package changes For every package change Scan all assemblies Store relation between package id+version and namespace+type API compatible with all ReSharper and Rider versions Bonus points! Easy way to re-index later (copy .nupkg binaries + dump index to JSON blobs)
  • 17. What do we need? Watch the NuGet.org catalog for package changes periodic check For every package change based on a queue Scan all assemblies Store relation between package id+version and namespace+type API compatible with all ReSharper and Rider versions always up, flexible scale Bonus points! Easy way to re-index later (copy .nupkg binaries + dump index to JSON blobs)
  • 19. Sounds like functions! NuGet.org catalog Watch catalog Index command Find type API Find namespace API Search index Index package Raw .nupkg Index as JSON Download packageDownload command
  • 21. Functions best practices @PaulDJohnston https://medium.com/@PaulDJohnston/serverless-best-practices-b3c97d551535 Each function should do only one thing Easier error handling & scaling Learn to use messages and queues Asynchronous means of communicating, helps scale and avoid direct coupling ...
  • 23. Bindings Help a function do only one thing Trigger, provide input/output Function code bridges those Build your own!* SQL Server binding Dropbox binding ... NuGet Catalog *Custom triggers not officially supported (yet?) Trigger Input Output Timer ✔ HTTP ✔ ✔ Blob ✔ ✔ ✔ Queue ✔ ✔ Table ✔ ✔ Service Bus ✔ ✔ EventHub ✔ ✔ EventGrid ✔ CosmosDB ✔ ✔ ✔ IoT Hub ✔ SendGrid, Twilio ✔ ... ✔
  • 25. We’re making progress! NuGet.org catalog Watch catalog Index command Find type API Find namespace API Search index Index package Raw .nupkg Index as JSON Download packageDownload command
  • 27. Next up: indexing NuGet.org catalog Watch catalog Index command Find type API Find namespace API Search index Index package Raw .nupkg Index as JSON Download packageDownload command
  • 28. Indexing Opening up the .nupkg and reflecting on assemblies System.Reflection.Metadata Does not load the assembly being reflected into application process Provides access to Portable Executable (PE) metadata in assembly Store relation between package id+version and namespace+type Azure Search? A database? Redis? Other?
  • 30. System.Reflection.Metadata using (var portableExecutableReader = new PEReader(assemblySeekableStream)) { var metadataReader = portableExecutableReader.GetMetadataReader(); foreach (var typeDefinition in metadataReader.TypeDefinitions.Select(metadataReader .GetTypeDefinition)) { if (!typeDefinition.Attributes.HasFlag(TypeAttributes.Public)) continue; var typeNamespace = metadataReader.GetString(typeDefinition.Namespace); var typeName = metadataReader.GetString(typeDefinition.Name); if (typeName.StartsWith("<") || typeName.StartsWith("__Static") || typeName.Contains("c__DisplayClass")) continue; typeNames.Add($"{typeNamespace}.{typeName}"); } }
  • 31. Azure Search “Search-as-a-Service” Scales across partitions and replicas Define an index that will hold documents consisting of fields Fields can be searchable, facetable, filterable, sortable, retrievable Can’t be changed easily, think upfront! Have to define what we want to search, and what we want to display My function will also write documents to a JSON blob Can re-index using Azure Search importer in case needed
  • 33. “Do one thing well” Our function shouldn’t care about creating a search index. Better: return index operations, have something else handle those Custom output binding?
  • 35. Almost there… NuGet.org catalog Watch catalog Index command Find type API Find namespace API Search index Index package Raw .nupkg Index as JSON Download packageDownload command
  • 36. HTTP trigger binding [HttpTrigger(AuthorizationLevel.Anonymous, "get", Route = "v1/find-type")] HttpRequest request Options for trigger Authentication (anonymous, a function/host key, a user token) HTTP method What the route looks like
  • 37. Making search work with ReSharper and Rider demo
  • 38. One issue left... Download counts - used for sorting and scoring search results Change continuously on NuGet Not part of V3 catalog Could use search but that’s N(packages) queries https://github.com/NuGet/NuGetGallery/issues/3532 If that data existed, how to update search? Merge data! new PackageDocumentDownloads(key, downloadcount)
  • 39. We’re done! NuGet.org catalog Watch catalog Index command Find type API Find namespace API Search index Index package Raw .nupkg Index as JSON Download packageDownload command
  • 40. We’re done! Functions Collect changes from NuGet catalog Download binaries Index binaries using PE Header Make search index available in API Trigger, input and output bindings Each function should do only one thing NuGet.org catalog Watch catalog Index command Find type API Find namespace API Search index Index package Raw .nupkg Index as JSON Download packageDownload command
  • 41. We’re done! All our functions can scale (and fail) independently Full index in May 2019 took ~12h on 2 B1 instances Can be faster on more CPU’s ~ 1.7mio packages (NuGet.org homepage says) ~ 2.1mio packages (the catalog says ) ~ 8 400 catalog pages with ~ 4 200 000 catalog leaves (hint: repo signing) NuGet.org catalog Watch catalog Index command Find type API Find namespace API Search index Index package Raw .nupkg Index as JSON Download packageDownload command
  • 42. Closing thoughts… Would deploy in separate function apps for cost Trigger binding collects all the time so needs dedicated capacity (and thus, cost) Others can scale within bounds (think of $$$) Would deploy in separate function apps for failure boundaries Trigger, indexing, downloading should not affect health of API Are bindings portable...? Avoid them if (framework) lock-in matters to you They áre nice in terms of programming model…

Editor's Notes

  1. https://pixabay.com
  2. Show feature in action in Visual Studio (and show you can see basic metadata etc.)
  3. Copied in 2017 in VS - https://www.hanselman.com/blog/VisualStudio2017CanAutomaticallyRecommendNuGetPackagesForUnknownTypes.aspx Demo the feed quickly?
  4. Around 3 TB in May 2019
  5. Demo ODataDump quickly
  6. Demo: click around in the API to show some base things
  7. Raw API - click around in the API to show some base things, explain how a cursor could go over it Root https://api.nuget.org/v3/catalog0/index.json Page https://api.nuget.org/v3/catalog0/page0.json Leaf https://api.nuget.org/v3/catalog0/data/2015.02.01.06.22.45/adam.jsgenerator.1.1.0.json Explain CatalogDump NuGet.Protocol.Catalog comes from GitHub CatalogProcessor feches all pages between min and max timestamp My implementation BatchCatalogProcessor fetches multiple pages at the same time and build a “latest state” – much faster! Fetches leaves, for every leaf calls into a simple method Much faster, easy to pause (keep track of min/max timestamp)
  8. LOL input, process, output More serious: events trigger code Periodic check for packages Queue message to index things API request runs a search No server management or capacity planning
  9. Will use storage queues n demo’s to be able to run things locally. Ideally use SB topics or event grid (transactional)
  10. Create a new TimerTrigger function We will need a function to index things from NuGet Timer will trigger every X amount of time Timer provides last timestamp and next timestamp, so we can run our collector for that period Snippet: demo-timertrigger Mention HttpClient not used correctly: not disposed, so will starve TCP connections at some point Go over code example and run it var httpClient = new HttpClient(); var cursor = new InMemoryCursor(timer.ScheduleStatus?.Last ?? DateTimeOffset.UtcNow); var processor = new CatalogProcessor( cursor, new CatalogClient(httpClient, new NullLogger<CatalogClient>()), new DelegatingCatalogLeafProcessor( added => { log.LogInformation("[ADDED] " + added.PackageId + "@" + added.PackageVersion); return Task.FromResult(true); }, deleted => { log.LogInformation("[DELETED] " + deleted.PackageId + "@" + deleted.PackageVersion); return Task.FromResult(true); }), new CatalogProcessorSettings { MinCommitTimestamp = timer.ScheduleStatus?.Last ?? DateTimeOffset.UtcNow, MaxCommitTimestamp = timer.ScheduleStatus?.Next ?? DateTimeOffset.UtcNow, ServiceIndexUrl = "https://api.nuget.org/v3/index.json" }, new NullLogger<CatalogProcessor>()); await processor.ProcessAsync(CancellationToken.None);
  11. Each function should only do one thing! We are violating this.
  12. Go over Approach1 code – Enqueuer class Mention we are using roughly the same code as before Differences are that our function is now no longer doing things itself, instead it’s adding messages to a queue for processing later on That Queue binding is interesting. This is where the input/output comes from. Instead of managing our own queue connection, we let the framework handle all plumbing so we can focus on adding messages. In Indexer, we use the Queue as an input binding, and read messages. We can now scale enqueuing and scaling separately! But are we there yet?
  13. https://github.com/thinktecture/azure-functions-extensibility
  14. Go over Approach2 code Show this is MUCH simpler – trigger binding that provides input, queue output bindign to write that input to a queue Let’s go over what it takes to build a trigger binding NuGetCatalogTriggerAttribute – the data needed for the trigger to work – go over properties and attributes Hooking it up requires a binding configuration – NuGetCatalogTriggerExtensionConfigProvider It says: if you see this specific binding, register it as a trigger that maps to some provider So we need that provider – NuGetCatalogTriggerAttributeBindingProvider Provider is there to create an object that provides data. In our case we need to store the NuGet catalog timestamp cursor, so we do that on storage, and then return the actual binding – NuGetCatalogTriggerBinding In NuGetCatalogTriggerBinding, we have to specify how data can be bound. What if I use a differnt type of object than PackageOperation? What if someone used a node.js or Python function instead of .NET. Need to define the shape of the data our trigger provides. PackageOperationValueProvider is also interesting, this provides data shown in the portal diagnostics CreateListenerAsync is where the actual triger code will be created – NuGetCatalogListener NuGetCatalogListener uses the BatchCatalogProcessor we had previously, and when a package is added or deleted it will call into the injected ITriggeredFunctionExecutor ITriggeredFunctionExecutor is Azure Functions framework specific, but it’s the glue that will clal into our function with the data we provide Note StartAsync/StopAsync where you can add startup/shutdown code ONE THING LEFT THAT IS NOT DOCUMENTED – Startup.cs to register the binding. And since we are in a different class library, also need Microsoft.Azure.WebJobs.Extensions referenced to generate \bin\Debug\netcoreapp2.1\bin\extensions.json As a result our code is now MUCH cleaner, show it again and maybe also show it in action Mention [Singleton(Mode = SingletonMode.Listener)] – we need to ensure this binding only runs single-instance (cursor clashes otherwise). This is due to ho the catalog works, parallel processing is harder to do. But we can fix that by scaling the Indexer later on. Show Approach3 PopulateQueueAndTable Same code, but a bit more production worthy Sending data to two queues (indexing and downloading) Storing data in a table (and yes, violating “do one thing” again but I call it architectural freedom)
  15. Next up will be downloading and indexing. Let’s start with downloading. Grab a copy of the .nupkg from NuGet and store it in a blob Redundancy - no need to re-download/stress NuGet on a re-index
  16. Go over Approach3 code DownloadToStorage uses a QueueTrigger to run whenever a message appears in queue Note no singleton: we can scale this across multiple instances/multiple servers Uses a Blob input binding that provides access to a blob Note the parameters, name of the blob is resolved based on data from other inputs which is prety nifty Our code checks whether it’s an add or a delete, and either downloads+uploads to the blob reference, or delets the blob reference
  17. Next up will be indexing itself. There are a couple of things here…
  18. Go over Approach3 code PackageIndexer uses a QueueTrigger to run whenever a message appears in queue Uses a Blob input binding that provides access to a blob where we can write our indexed entity – will show this later Based on package operation, we will add or delete from the index RunAddPackageAsync has some plumbing, probably too much, to dowload the .nupkg file and store it on disk Note: we store it on disk as we need a seekable stream. So why no memoy stream? Some NuGet packages are HUGE. Find PEReader usage and show how it will index a given package’s public types and namespaces All goes into a typeNames collection. Now: how do we add this info to the index? Show PackageDocument class, has MANY properties First important: the Identifier property has [Key] applied. Azure Search needs a key for teh document so we can retrieve by key, which could be useful when updating existing content or to find a specific document and delete it from the index. Second important: TypeNames is searchable. Also mention “simpleanalyzer”: “Divides text at non-letters and converts them to lower case.” Other analyzers remove stopwords and do other things, this one should be as searchable as possible. Other fields are sometimes searchable, sometimes facetable – a bit of leftover from me thinking about search use cases. The R# API ony searches on typename so could make everything else just retrievable as well. Of course, index is not there by default, so need to create it. We do this when our function is instantiated (static constructor, so only once per launch of our functions) Is this good? Yes, because only once per server instance our function runs on. No because we do it at one point, what if the index is deleted in between and needs to be recreated? Edge case, but a retry strategy could be a good idea... Next, we create our package document, and at one point we add it to a list of index actions, and to blob storage indexActions.Add(IndexAction.MergeOrUpload(packageToIndex)); JsonSerializer.Serialize(jsonWriter, packagesToIndex); Writing to index using batch - var indexBatch = IndexBatch.New(actions); Leftover code from earlier, batch makes no sense for one document, but in case you want to do multiple in one go this is the way. Do beware a batch can only be several MB in size, for this NuGet indexing I can only do ~25 in a batch before payload is too large. That’s… it! Run approach 3 (for last hour) and see functions being hit / packages added to index Go to Azure Search portal as well, show how importer would work in case of fire
  19. Go over Approach3 code PackageIndexerWithCustomBinding is mostly the same code One difference: it uses the [AzureSearchIndex] binding to write add/delete operations to the index instead Go over how it works. Again, an attribute with settings – AzureSearchIndexAttribute Also a configuration that registers the binding as an output binding using BindToCollector – AzureSearchExtensionConfigProvider Now, what’s this OpenType? It’s some sort of dynamic type. If we want to create an AzureSearch output binding, we better support more than just our PackageDocument use case! So we need a collector builder that can create the actual binding implementation based on the real type requested by our function parameter – AzureSearchAsyncCollectorBuilder In AzureSearchAsyncCollectorBuilder, we do that. Very simple bootstrap code in this case, but could be more complex depending on the type of binding you are creating. Our AzureSearchAsyncCollector uses the attribute to check for Azure Search connection details, as well as the type of operation we expect it to handle. Why not all? Well, IAsyncCollector only has Add and Flush. Note: add called manually, flush at function complete – could use flush to send things in a batch... Code itself pretty straightforward. On Add, we add an action to search. With a retry in case the index does not exist – we then create it. Creation code kind of interesting as we use some reflection in case we specify a given type of coument to index. Why? Cause when we do Upserts, we may want to update just one or two properties, and can use a different Dto in that case (but still have the index shaped to the full document shape) Run when time left, but nothing fancy here...
  20. Now we need to make ReSharper talk to our search. We have the index, so that should be a breeze, right?
  21. Go over Web code RunFindTypeApiAsync and RunFindNamespaceAsync Both use “name” as their query parameter to search for RunInternalAsync does the heavy lifting Grabs other parameters Runs search, and collects several pages of results Why is this ForEachAsync there? Search index has multiple versions for every package id, yet ReSharper expects only the latest matching all parameters Azure Search has no group by / distinct by, so need to do this in memory. Doing it here by fetching a maximum number of results and doing the grouping manually. Use the collected data to build result. Add matching type names etc. Example requests: http://localhost:7071/api/v1/find-type?name=JsonConvert http://localhost:7071/api/v1/find-type?name=CamoServer&allowPrerelease=true&latestVersion=false https://nugettypesearch.azurewebsites.net/api/v1/find-type?name=JsonConvert In ReSharper (devenv /ReSharper.Internal, go to NuGet tool window, set base URL to https://nugettypesearch.azurewebsites.net/api/v1/) Write some code that uses JsonConvert / JObject and try it out.
