Approaches for application
request throttling
Maarten Balliauw
@maartenballiauw
3

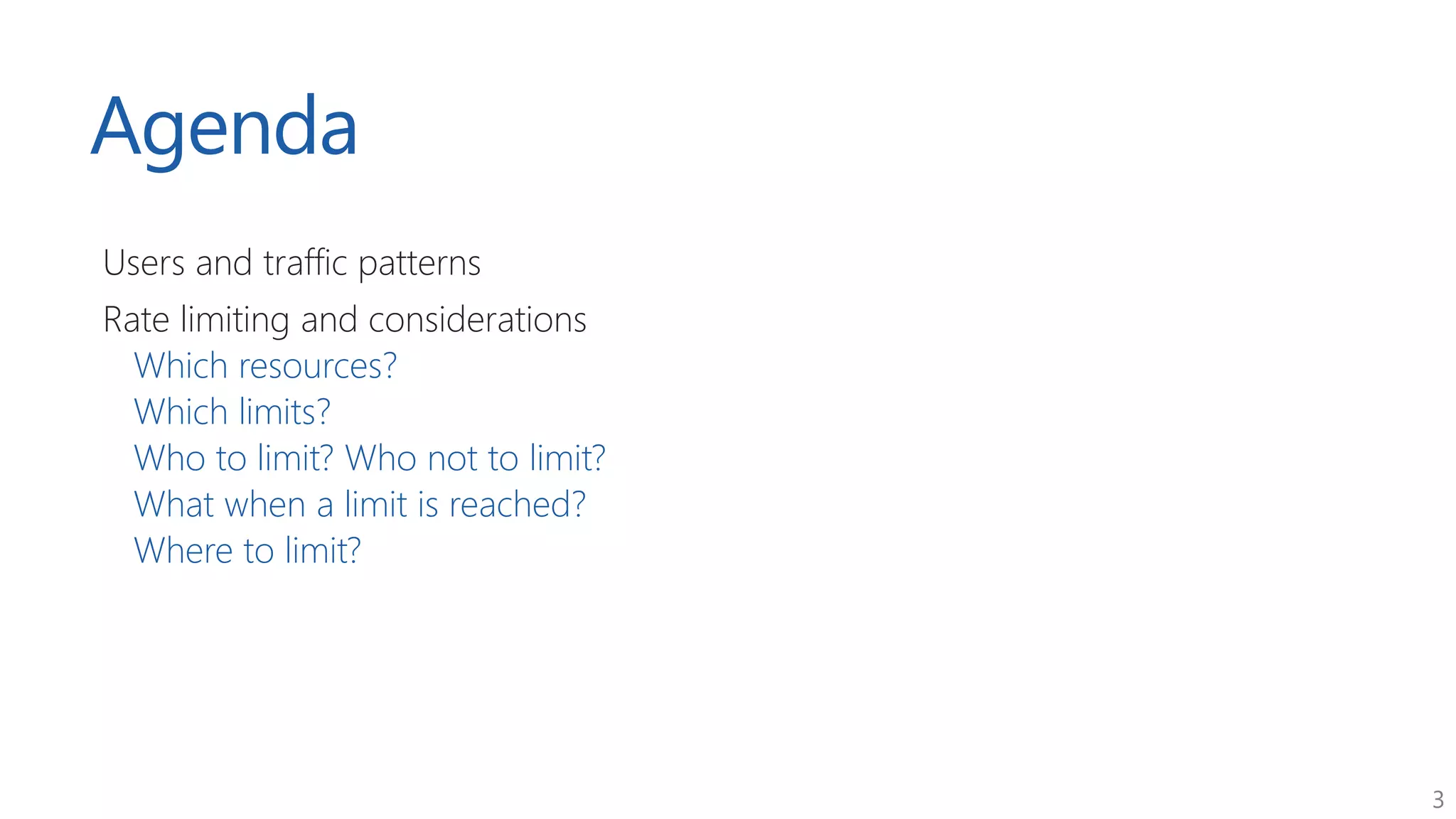

Agenda
Users and traffic patterns
Rate limiting and considerations
Which resources?
Which limits?
Who to limit? Who not to limit?
What when a limit is reached?
Where to limit?
4
Users...
5

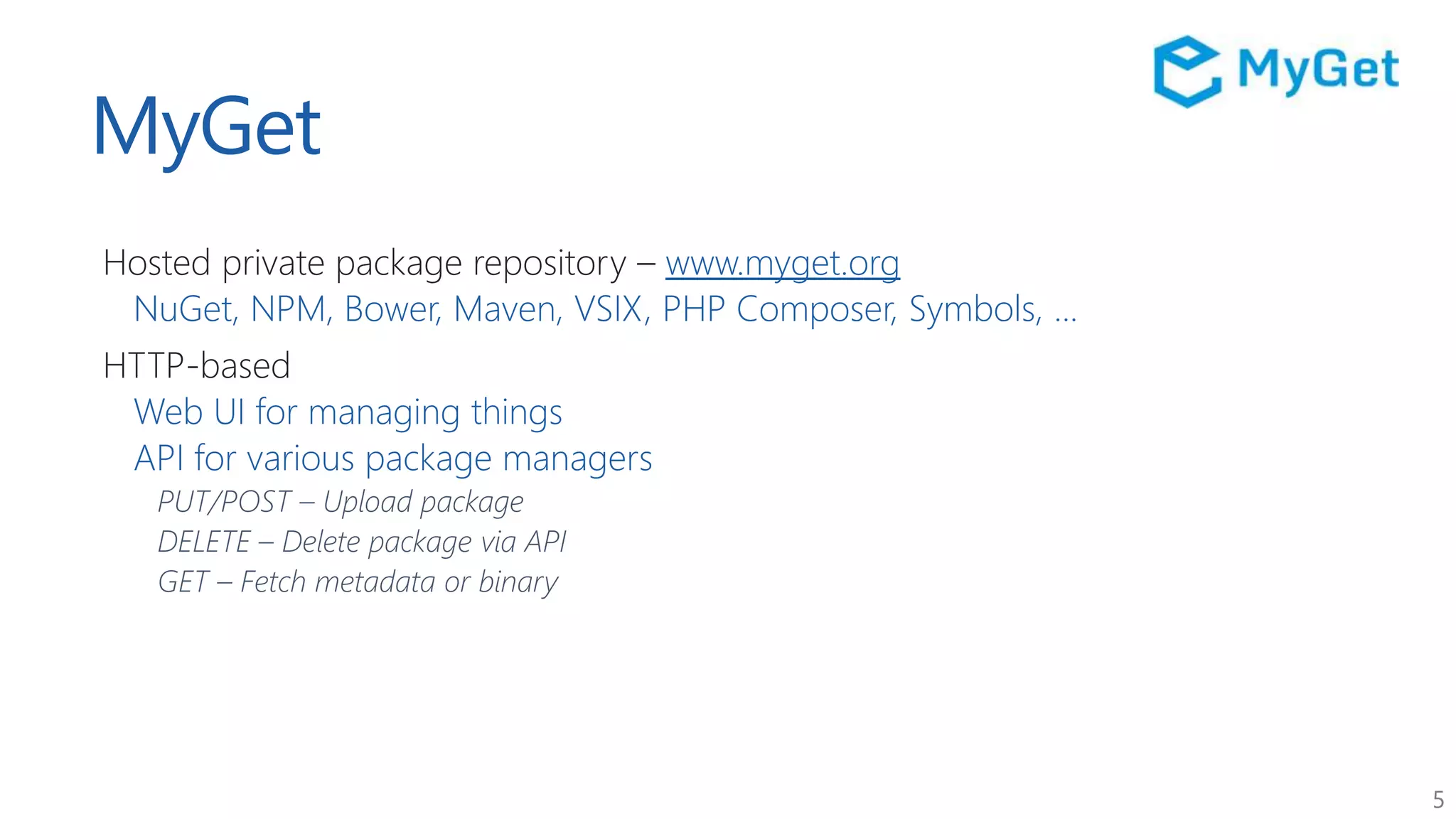

MyGet
Hosted private package repository – www.myget.org
NuGet, NPM, Bower, Maven, VSIX, PHP Composer, Symbols, ...
HTTP-based
Web UI for managing things
API for various package managers
PUT/POST – Upload package
DELETE – Delete package via API
GET – Fetch metadata or binary
6

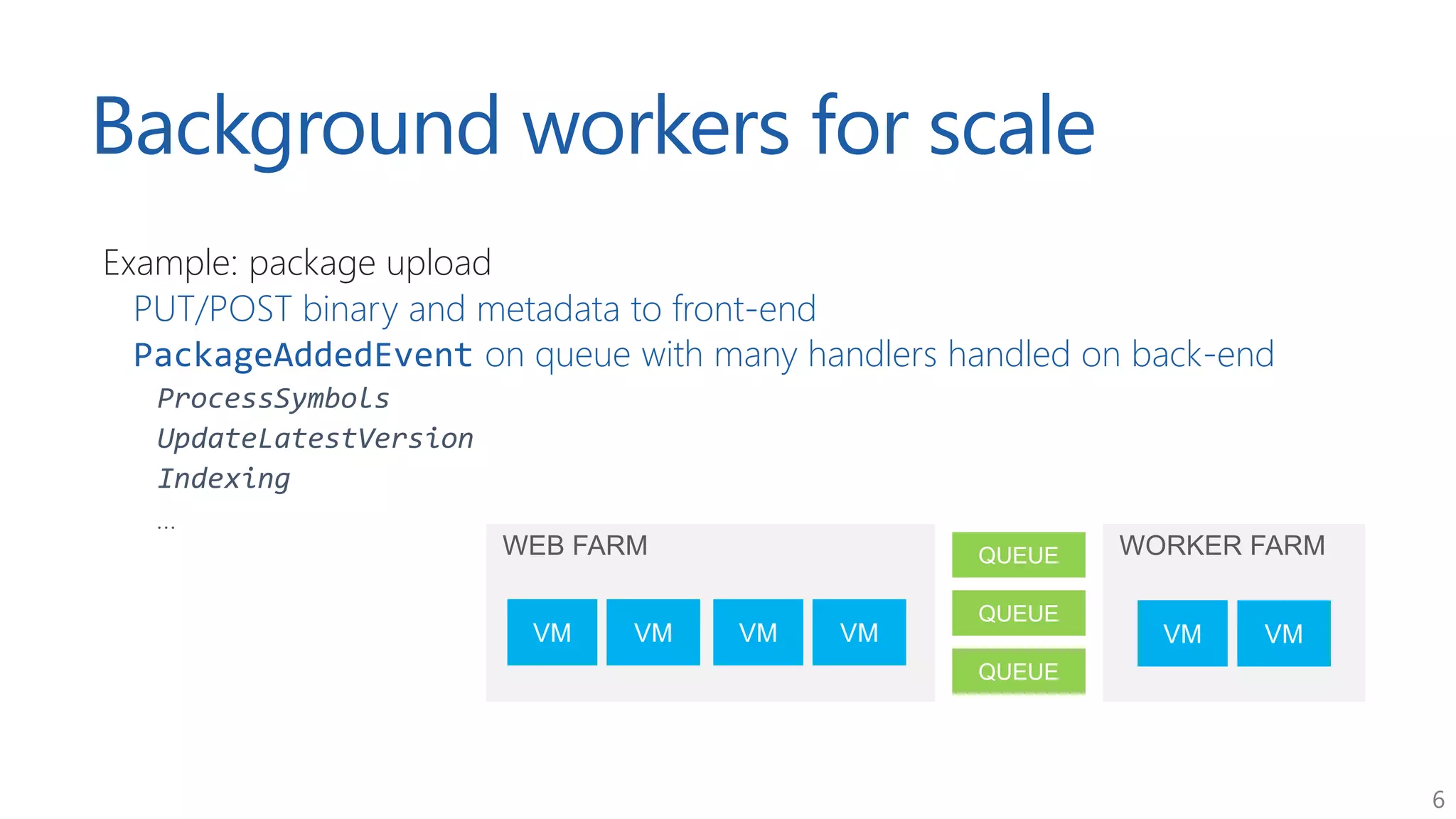

Background workers for scale
Example: package upload
PUT/POST binary and metadata to front-end
PackageAddedEvent on queue with many handlers handled on back-end
ProcessSymbols
UpdateLatestVersion
Indexing
...
7

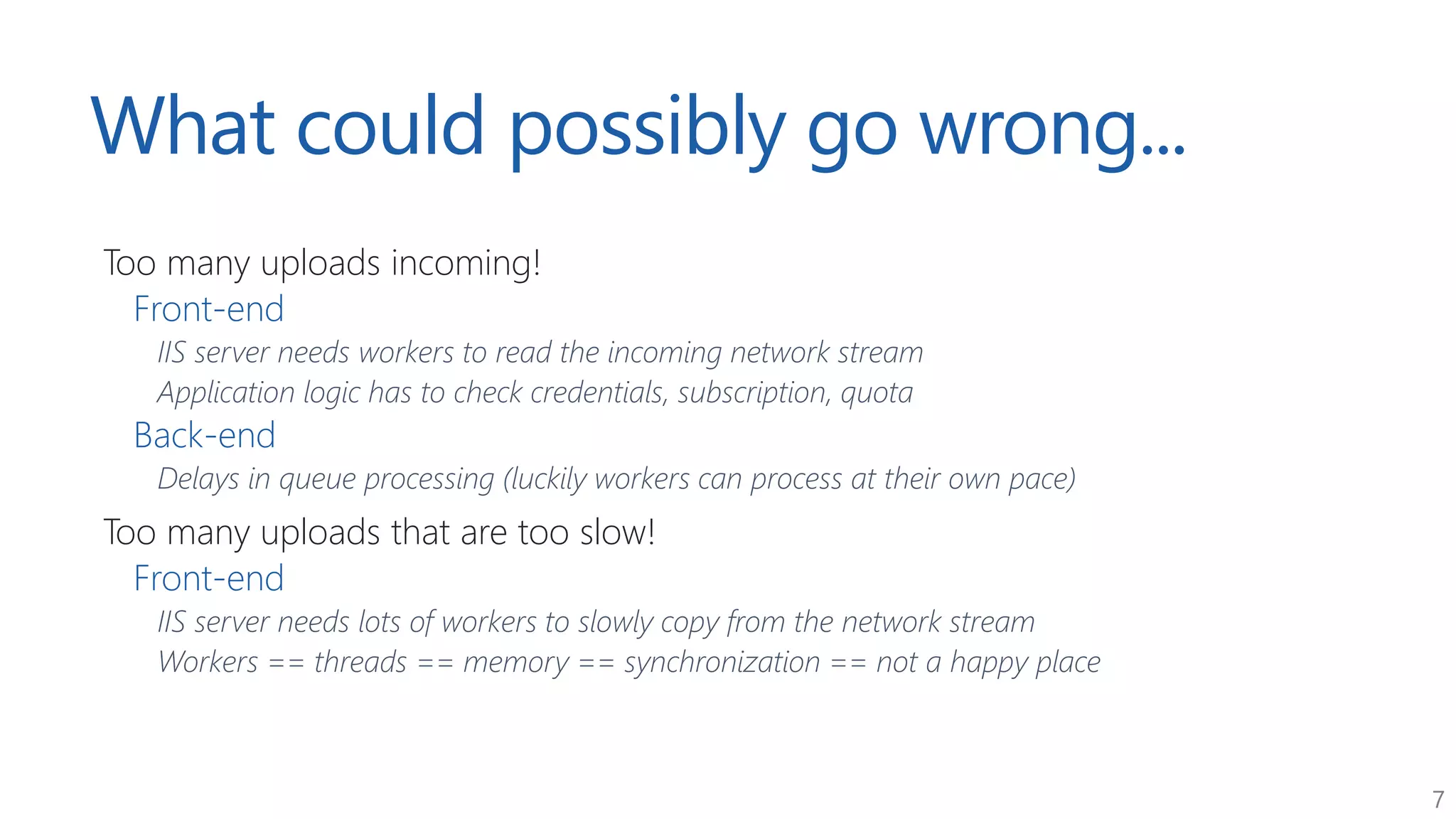

What could possibly go wrong...
Too many uploads incoming!
Front-end
IIS server needs workers to read the incoming network stream
Application logic has to check credentials, subscription, quota
Back-end
Delays in queue processing (luckily workers can process at their own pace)
Too many uploads that are too slow!
Front-end
IIS server needs lots of workers to slowly copy from the network stream
Workers == threads == memory == synchronization == not a happy place
11

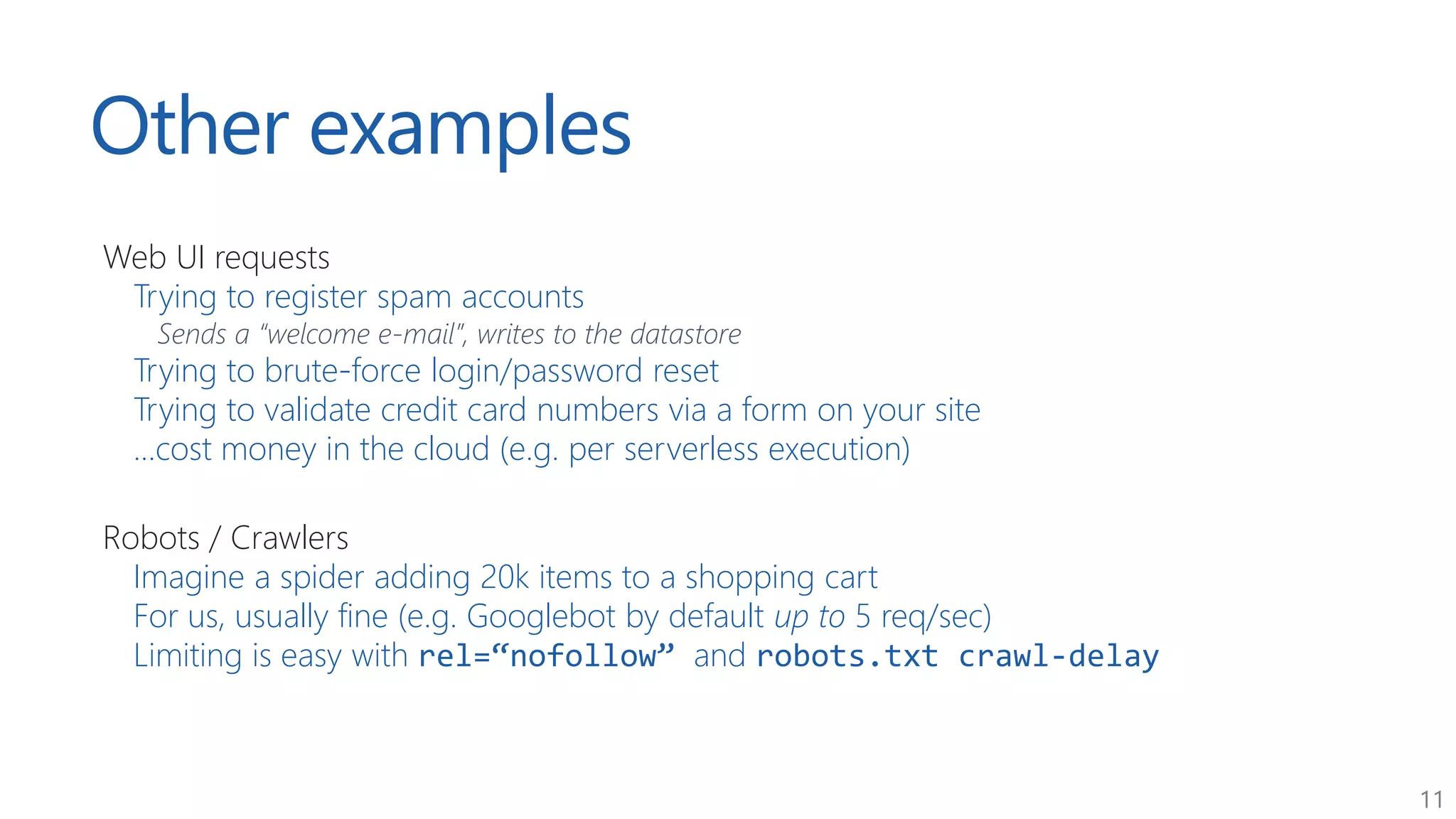

Other examples
Web UI requests
Trying to register spam accounts
Sends a “welcome e-mail”, writes to the datastore
Trying to brute-force login/password reset
Trying to validate credit card numbers via a form on your site
...cost money in the cloud (e.g. per serverless execution)
Robots / Crawlers
Imagine a spider adding 20k items to a shopping cart
For us, usually fine (e.g. Googlebot by default up to 5 req/sec)
Limiting is easy with rel=“nofollow” and robots.txt crawl-delay
12

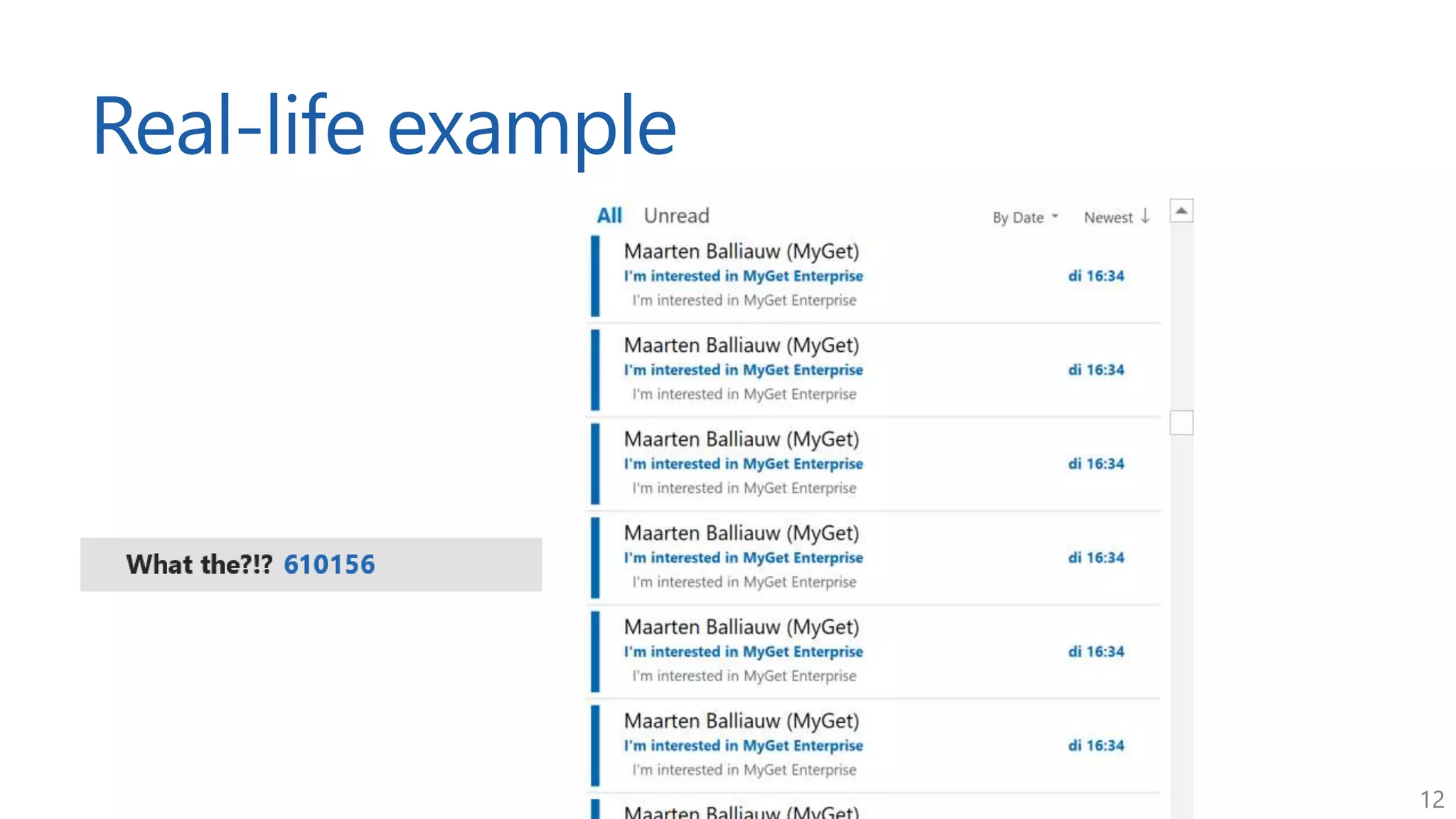

Real-life example
13
Rate limiting!
(or “throttling”)
14

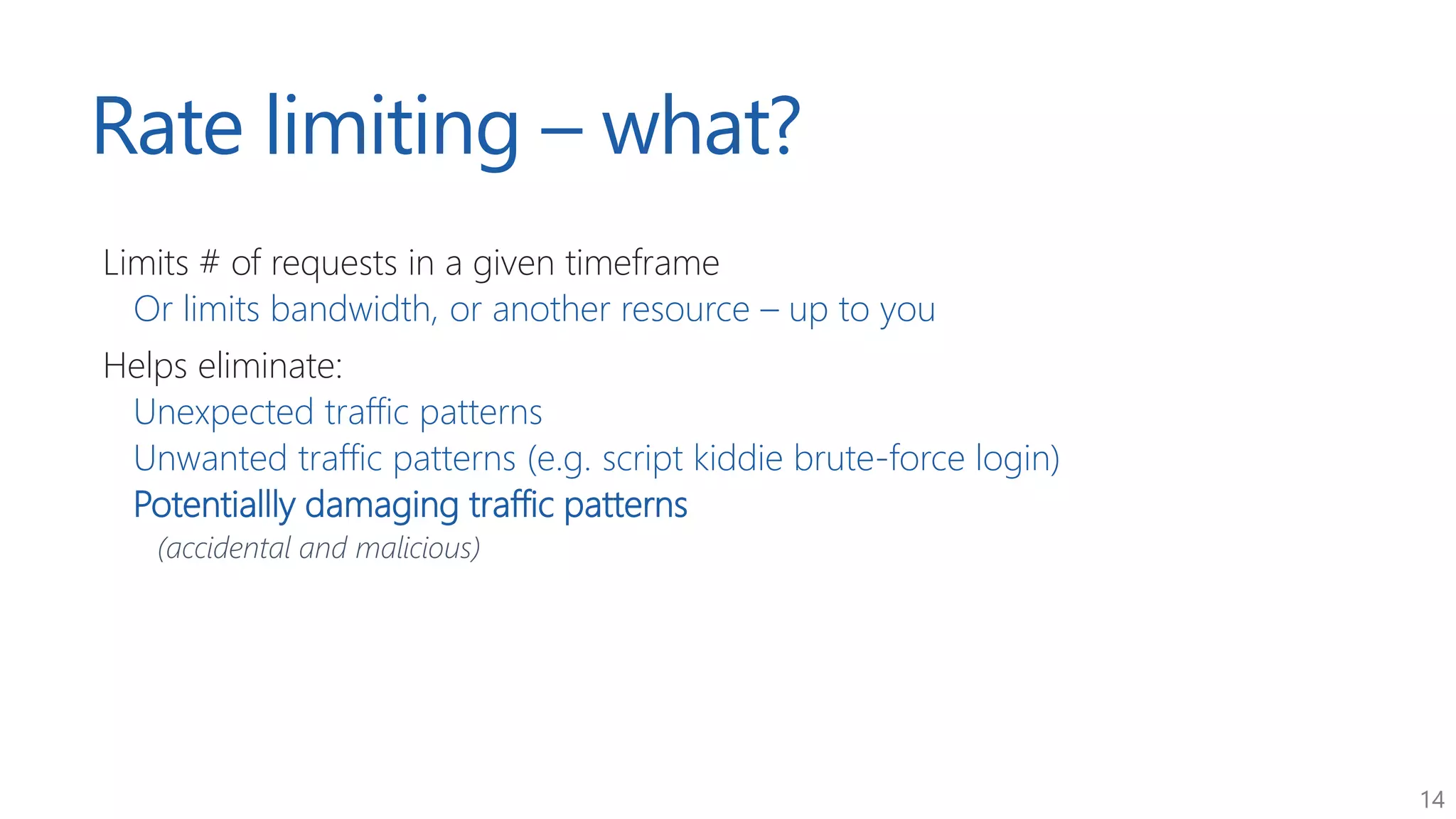

Rate limiting – what?
Limits # of requests in a given timeframe
Or limits bandwidth, or another resource – up to you
Helps eliminate:
Unexpected traffic patterns
Unwanted traffic patterns (e.g. script kiddie brute-force login)
Potentiallly damaging traffic patterns
(accidental and malicious)
15
Rate limit everything.
- Maarten Balliauw
16

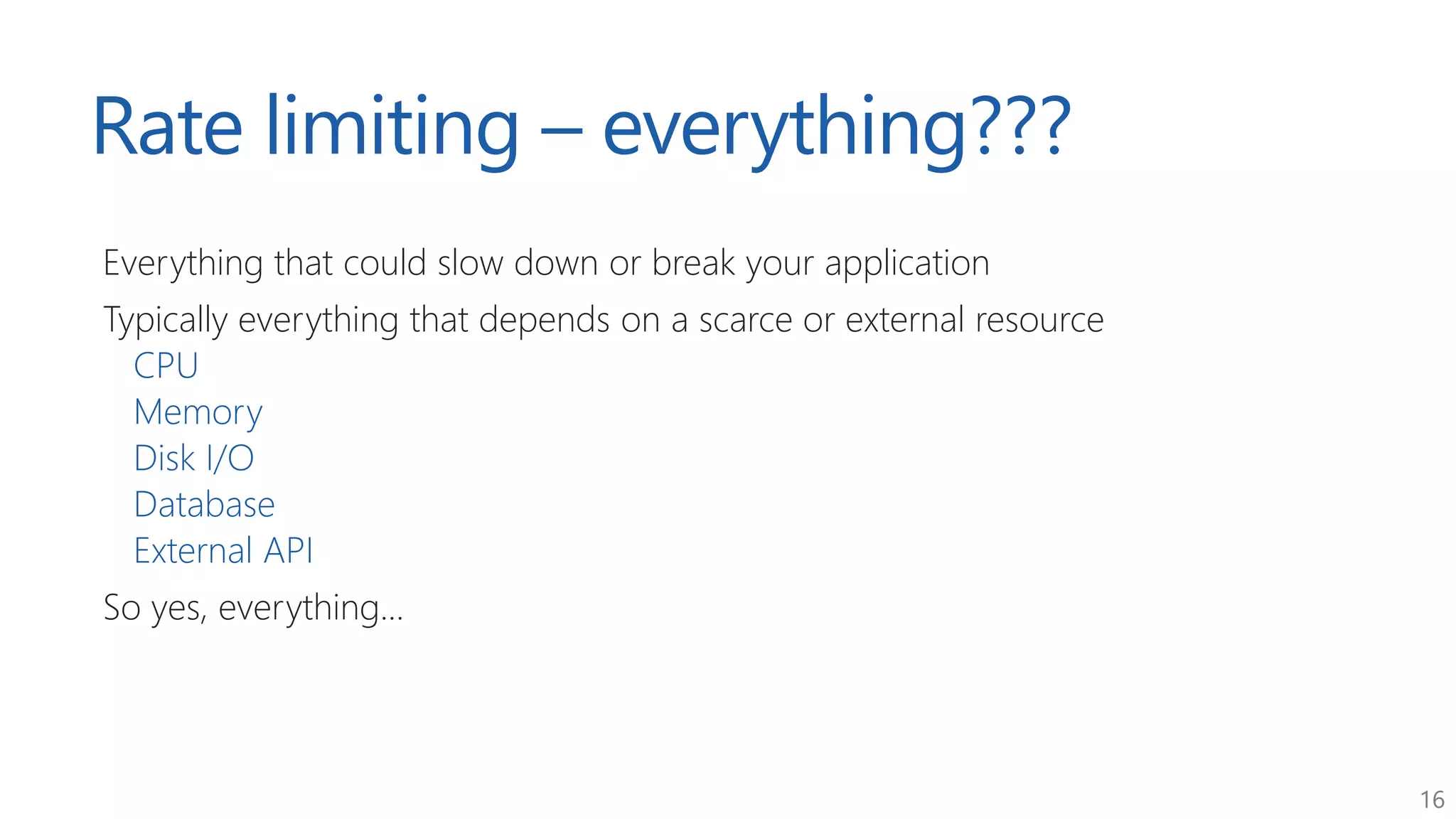

Rate limiting – everything???
Everything that could slow down or break your application
Typically everything that depends on a scarce or external resource
CPU
Memory
Disk I/O
Database
External API
So yes, everything...
17

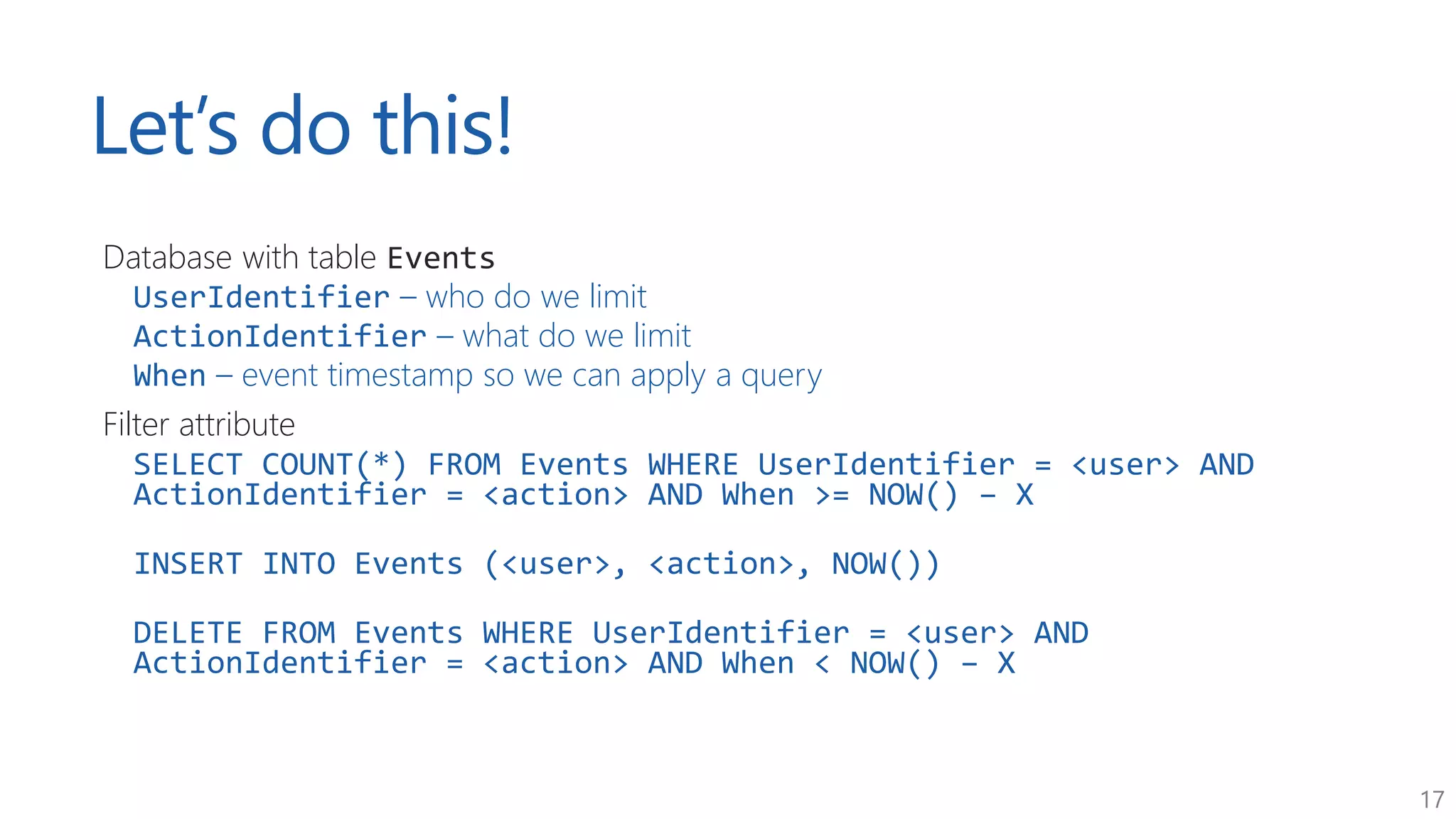

Let’s do this!
Database with table Events
UserIdentifier – who do we limit
ActionIdentifier – what do we limit
When – event timestamp so we can apply a query
Filter attribute
SELECT COUNT(*) FROM Events WHERE UserIdentifier = <user> AND
ActionIdentifier = <action> AND When >= NOW() – X
INSERT INTO Events (<user>, <action>, NOW())
DELETE FROM Events WHERE UserIdentifier = <user> AND
ActionIdentifier = <action> AND When < NOW() – X
18
Let’s do this!
demo
19
Rate measuring
20

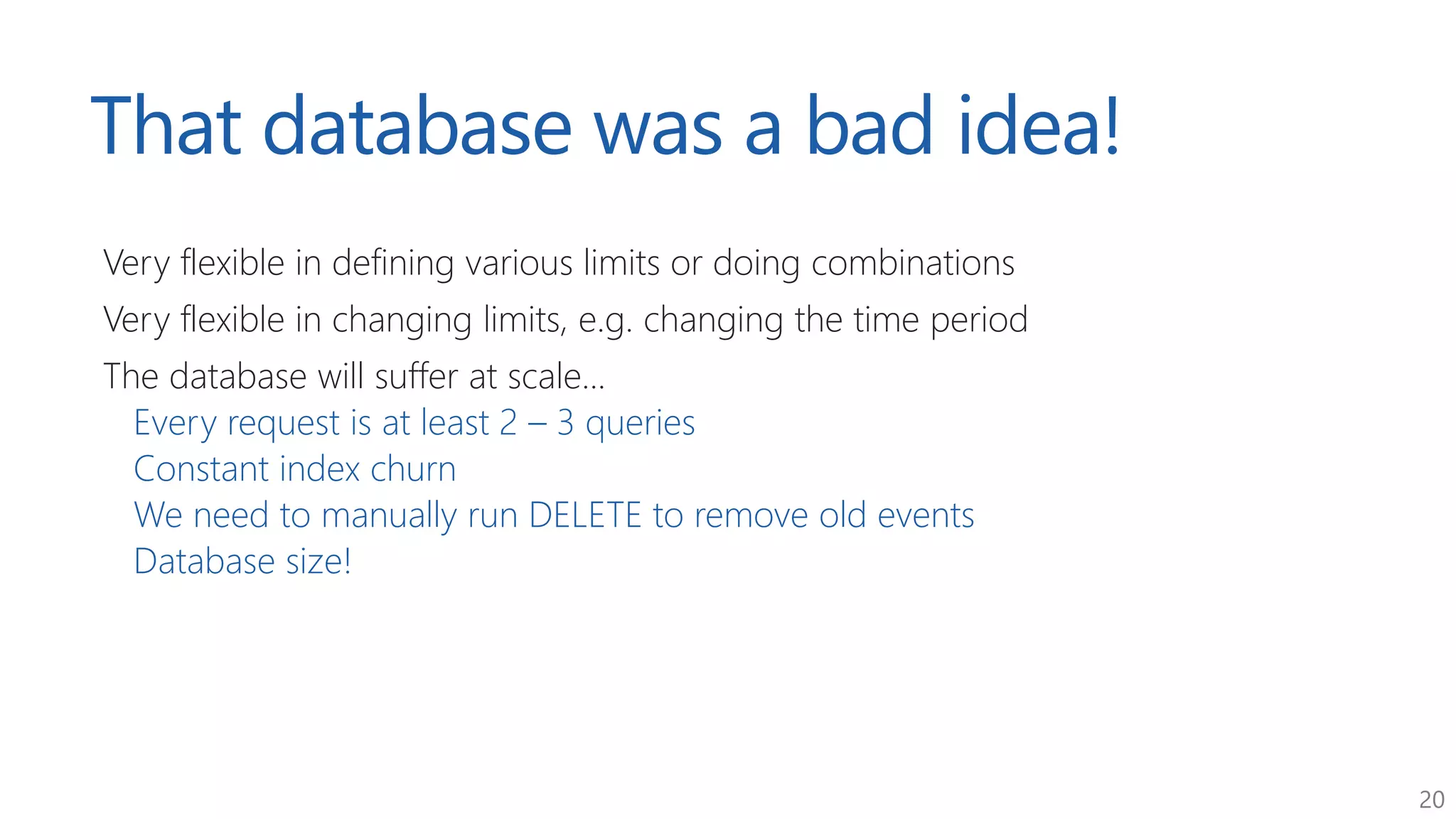

That database was a bad idea!
Very flexible in defining various limits or doing combinations
Very flexible in changing limits, e.g. changing the time period
The database will suffer at scale...
Every request is at least 2 – 3 queries
Constant index churn
We need to manually run DELETE to remove old events
Database size!
21

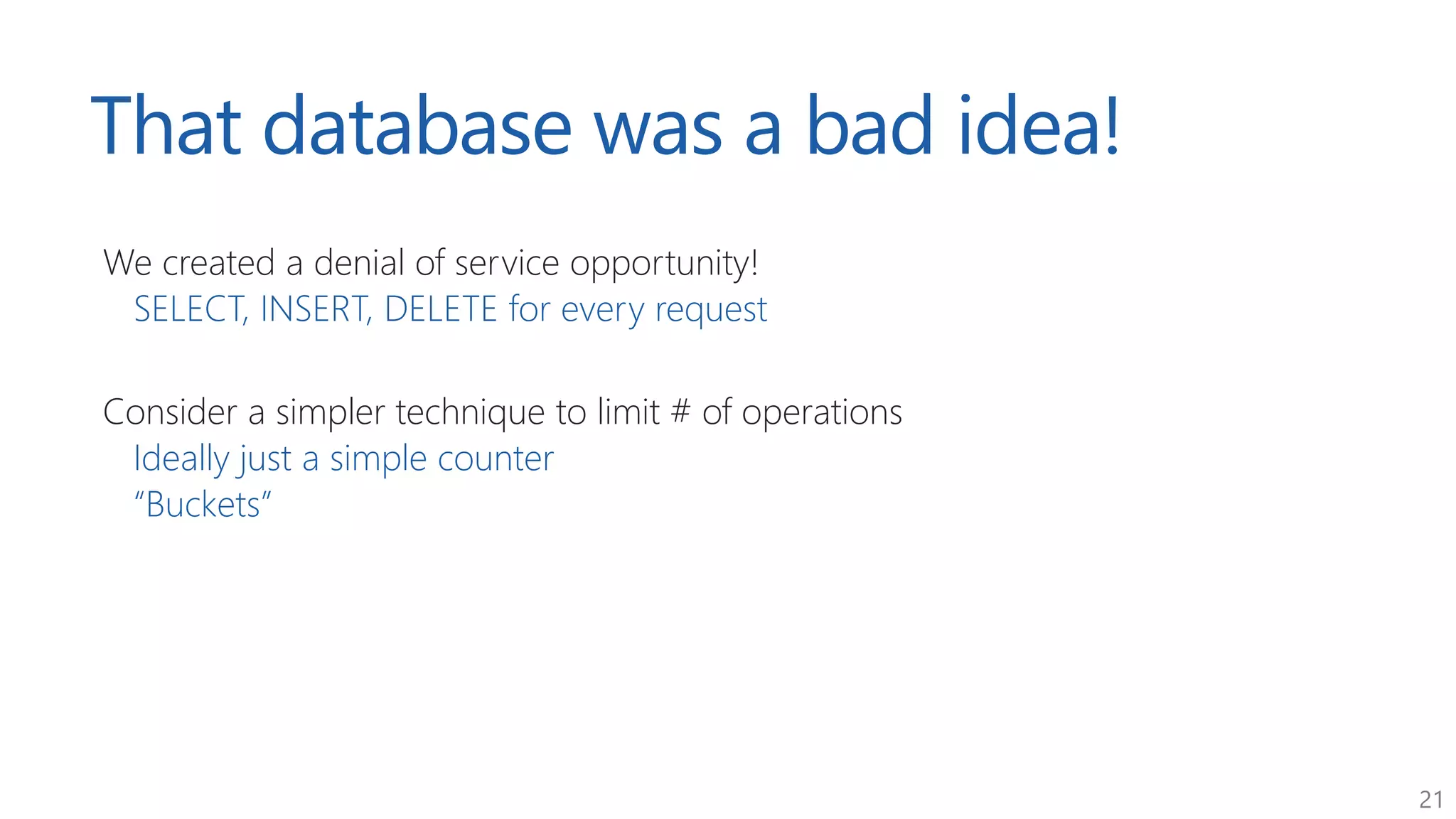

That database was a bad idea!
We created a denial of service opportunity!
SELECT, INSERT, DELETE for every request
Consider a simpler technique to limit # of operations
Ideally just a simple counter
“Buckets”
22

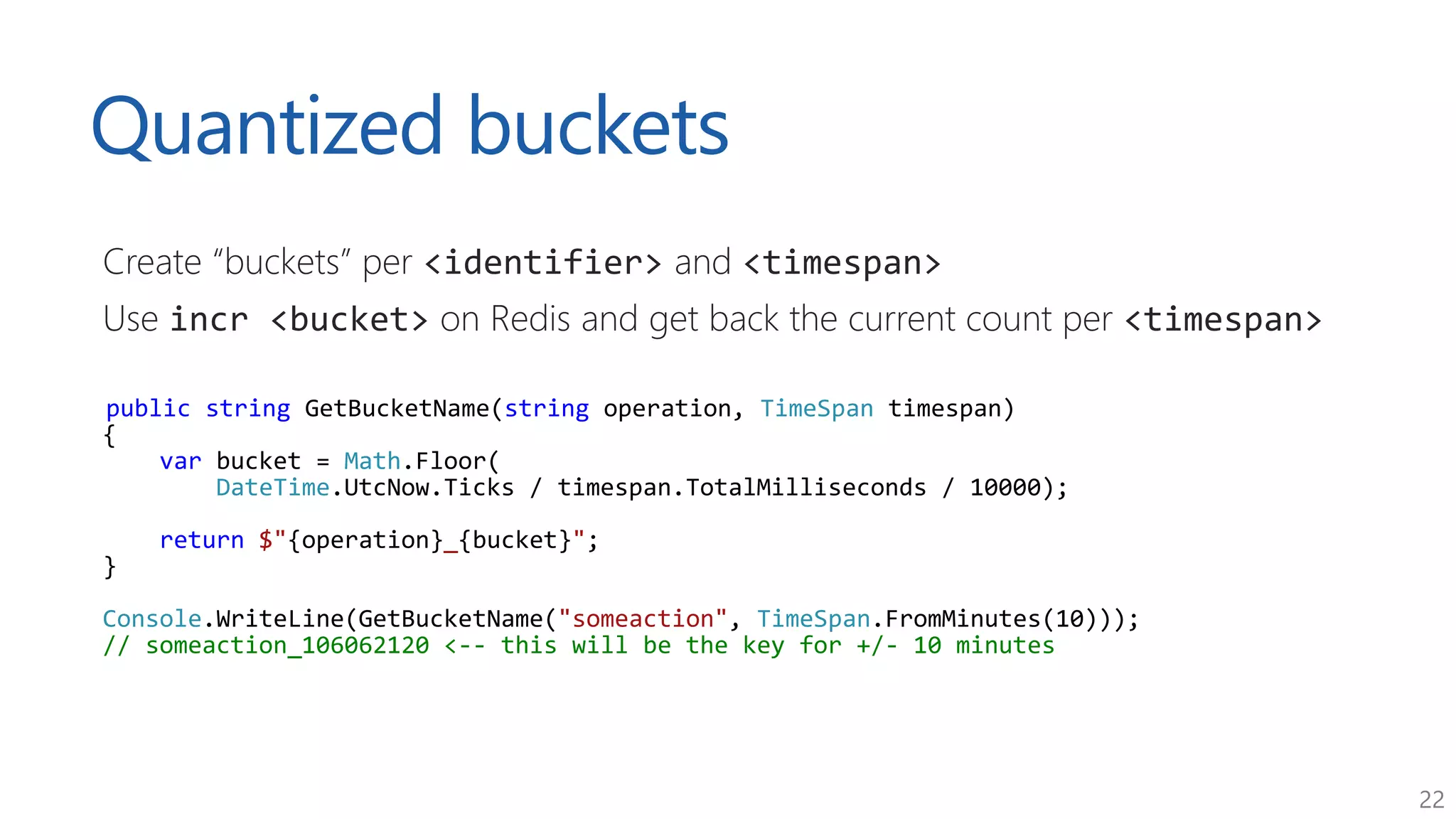

Quantized buckets
Create “buckets” per <identifier> and <timespan>
Use incr <bucket> on Redis and get back the current count per <timespan>
public string GetBucketName(string operation, TimeSpan timespan)
{
var bucket = Math.Floor(
DateTime.UtcNow.Ticks / timespan.TotalMilliseconds / 10000);
return $"{operation}_{bucket}";
}
Console.WriteLine(GetBucketName("someaction", TimeSpan.FromMinutes(10)));
// someaction_106062120 <-- this will be the key for +/- 10 minutes
23

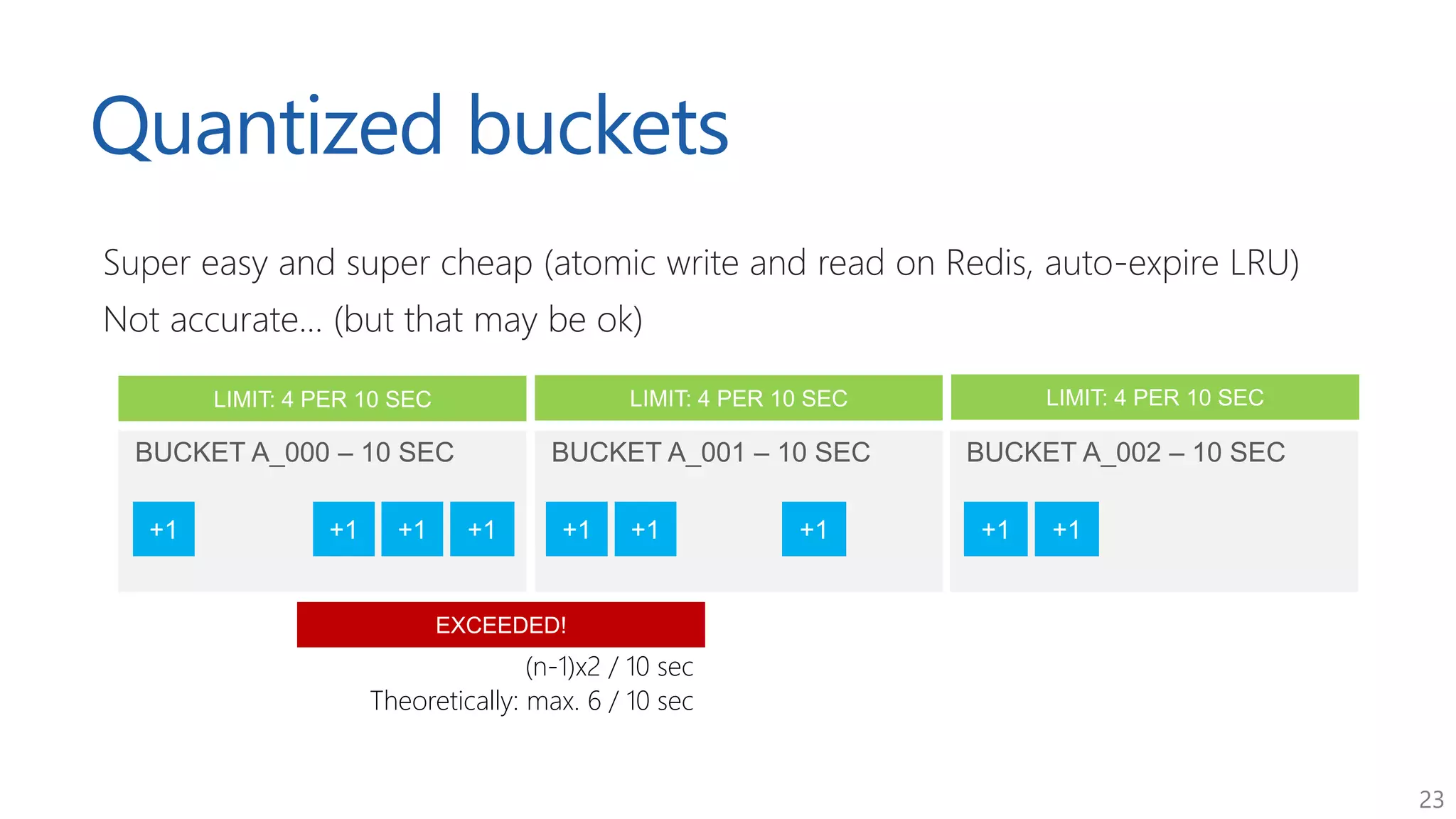

Quantized buckets
Super easy and super cheap (atomic write and read on Redis, auto-expire LRU)
Not accurate... (but that may be ok)
(n-1)x2 / 10 sec
Theoretically: max. 6 / 10 sec
24

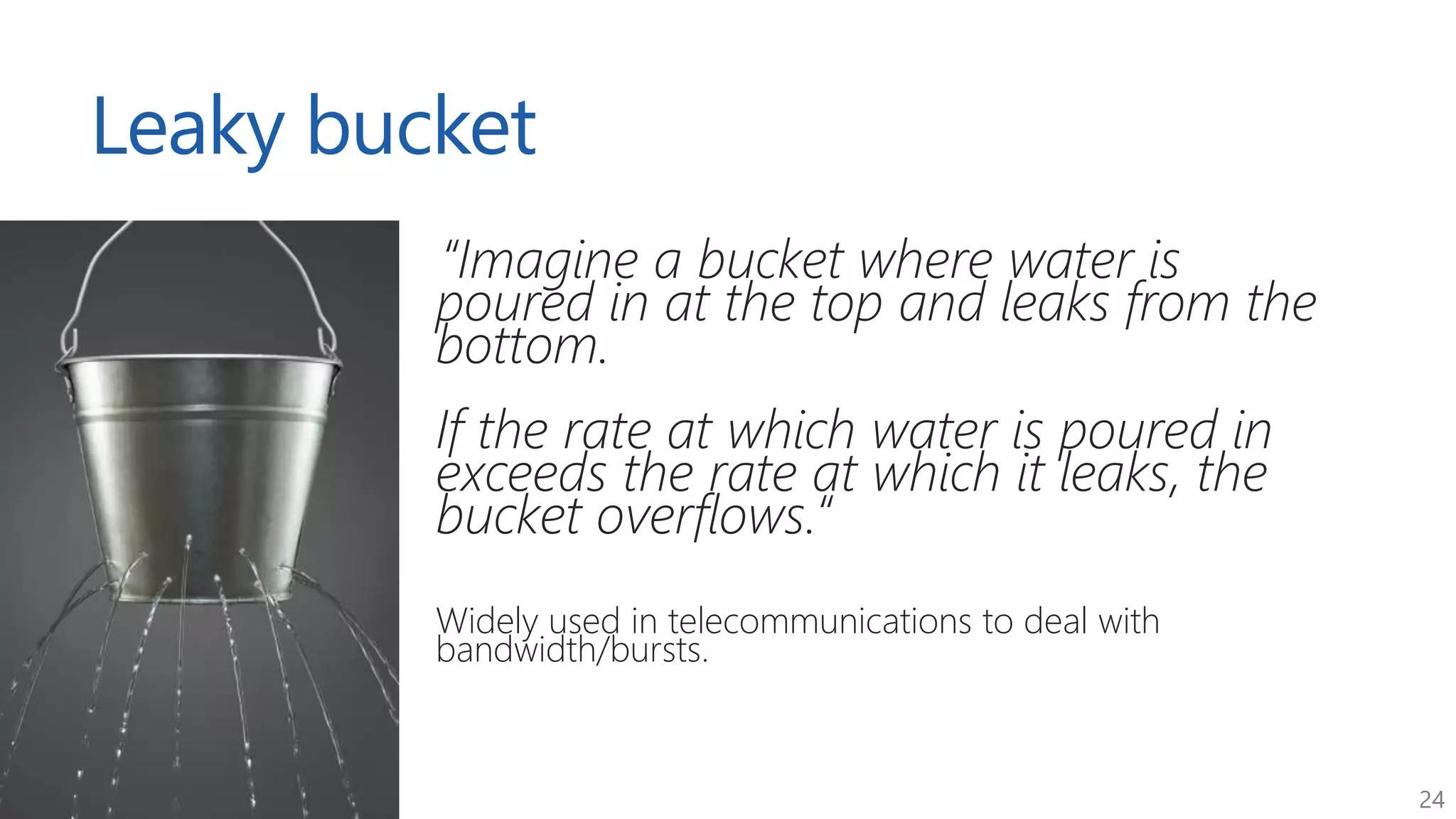

Leaky bucket
“Imagine a bucket where water is
poured in at the top and leaks from the
bottom.
If the rate at which water is poured in
exceeds the rate at which it leaks, the
bucket overflows.“
Widely used in telecommunications to deal with
bandwidth/bursts.
25

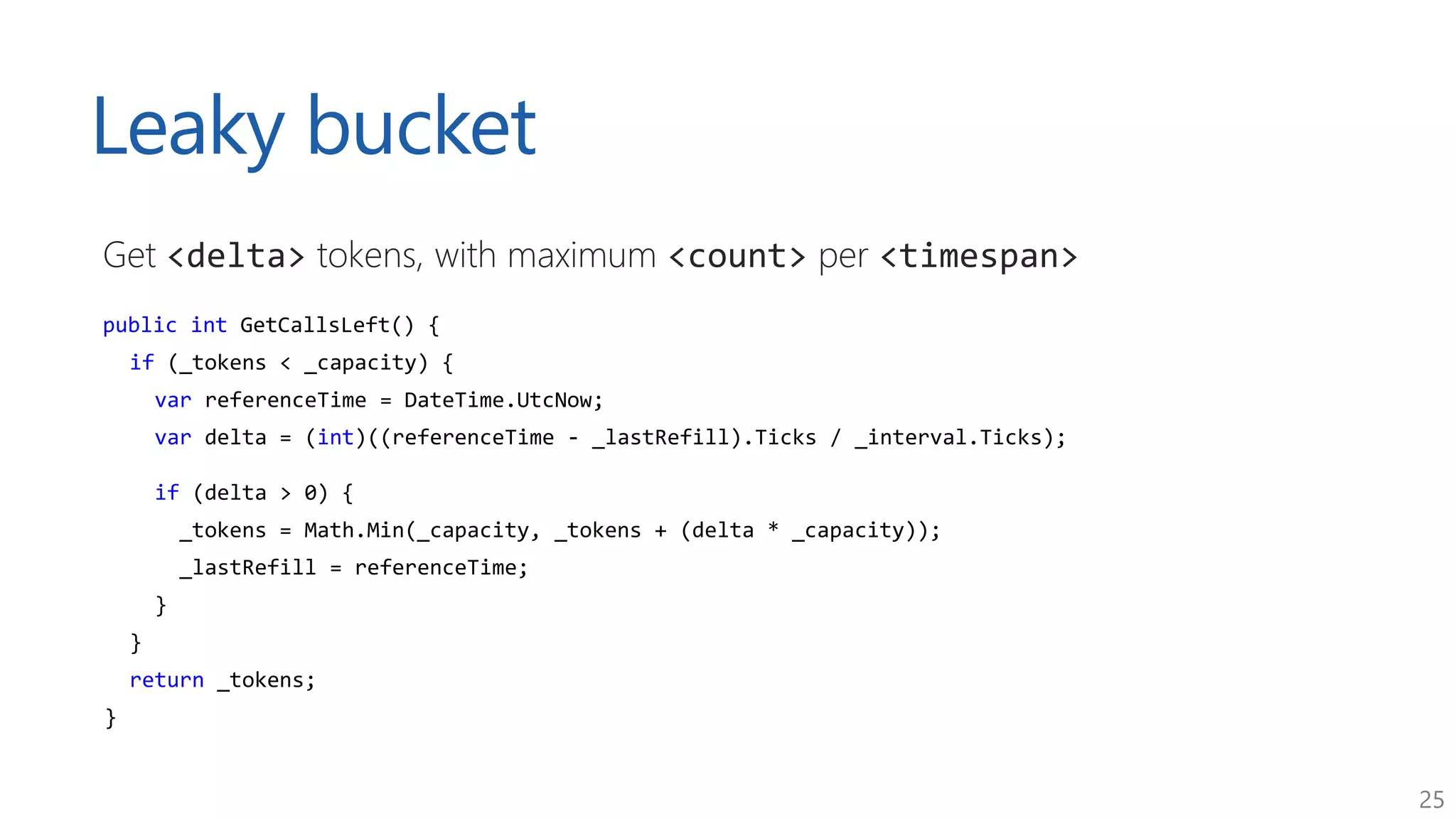

Leaky bucket
Get <delta> tokens, with maximum <count> per <timespan>
public int GetCallsLeft() {
if (_tokens < _capacity) {
var referenceTime = DateTime.UtcNow;
var delta = (int)((referenceTime - _lastRefill).Ticks / _interval.Ticks);
if (delta > 0) {
_tokens = Math.Min(_capacity, _tokens + (delta * _capacity));
_lastRefill = referenceTime;
}
}
return _tokens;
}
27
Cool! That’s it, right?
28
Deciding on limits
29

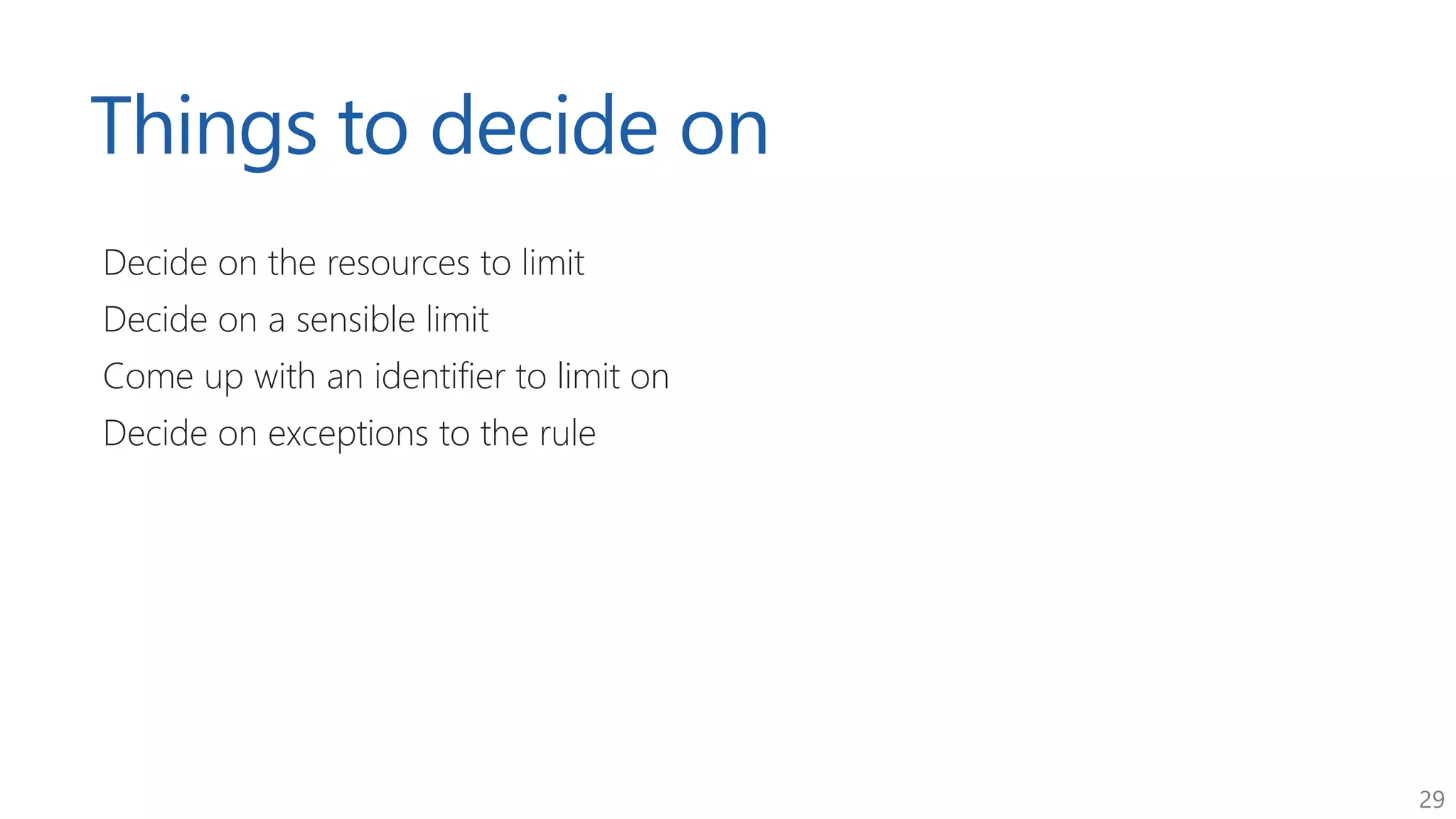

Things to decide on
Decide on the resources to limit
Decide on a sensible limit
Come up with an identifier to limit on
Decide on exceptions to the rule
30

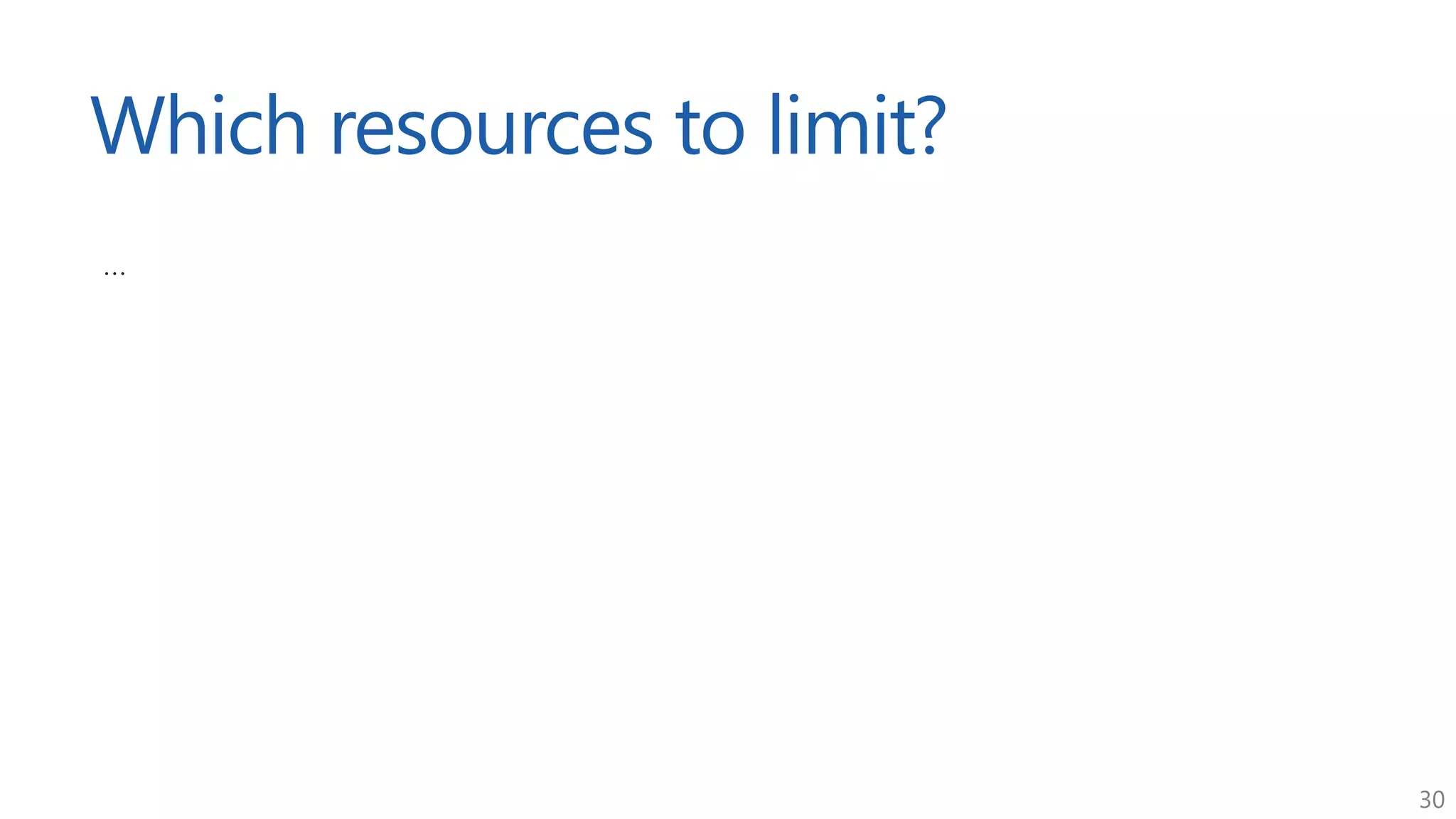

Which resources to limit?
...
31
Rate limit everything.
- Maarten Balliauw
32

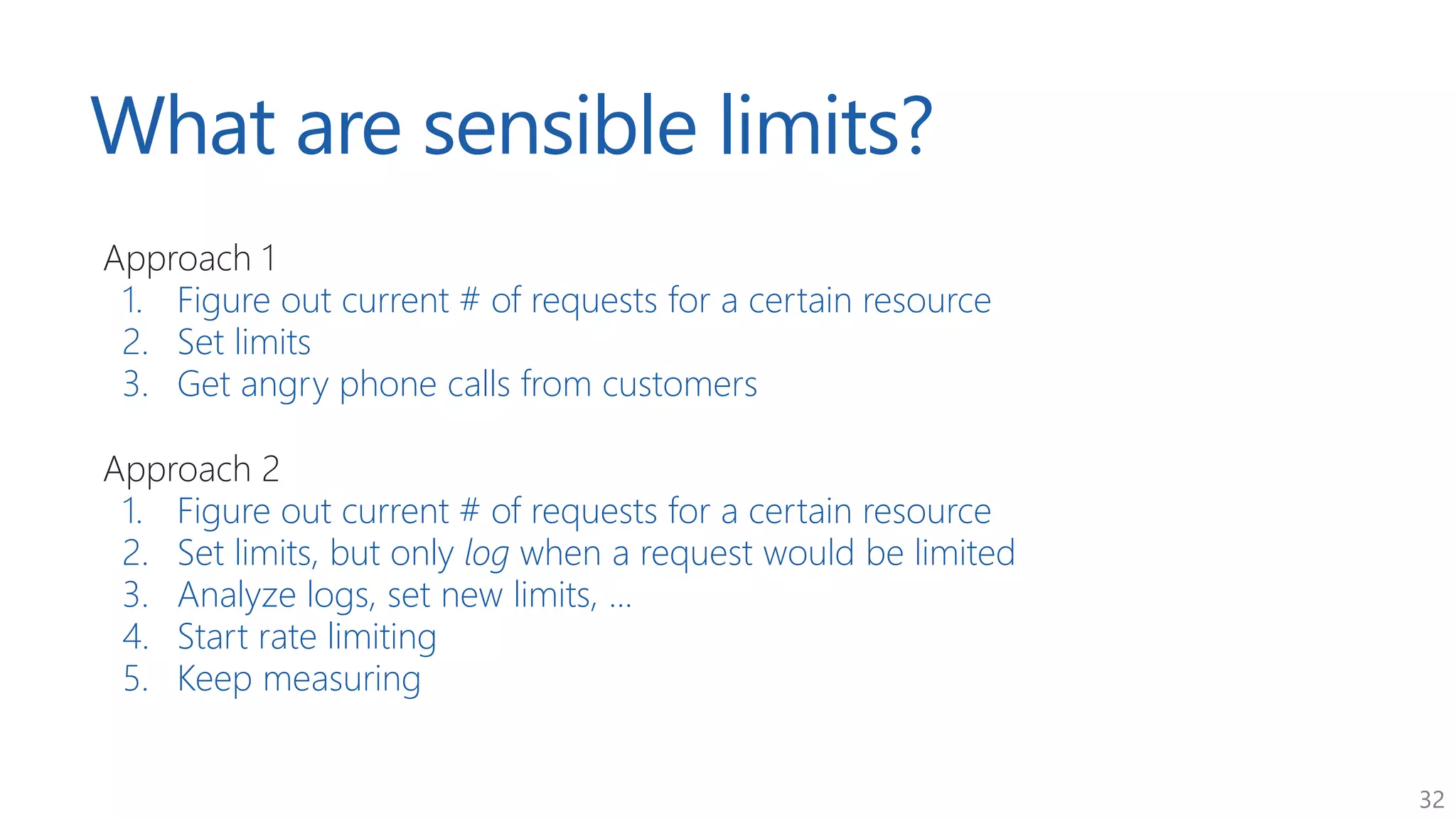

What are sensible limits?
Approach 1
1. Figure out current # of requests for a certain resource
2. Set limits
3. Get angry phone calls from customers
Approach 2
1. Figure out current # of requests for a certain resource
2. Set limits, but only log when a request would be limited
3. Analyze logs, set new limits, ...
4. Start rate limiting
5. Keep measuring
33

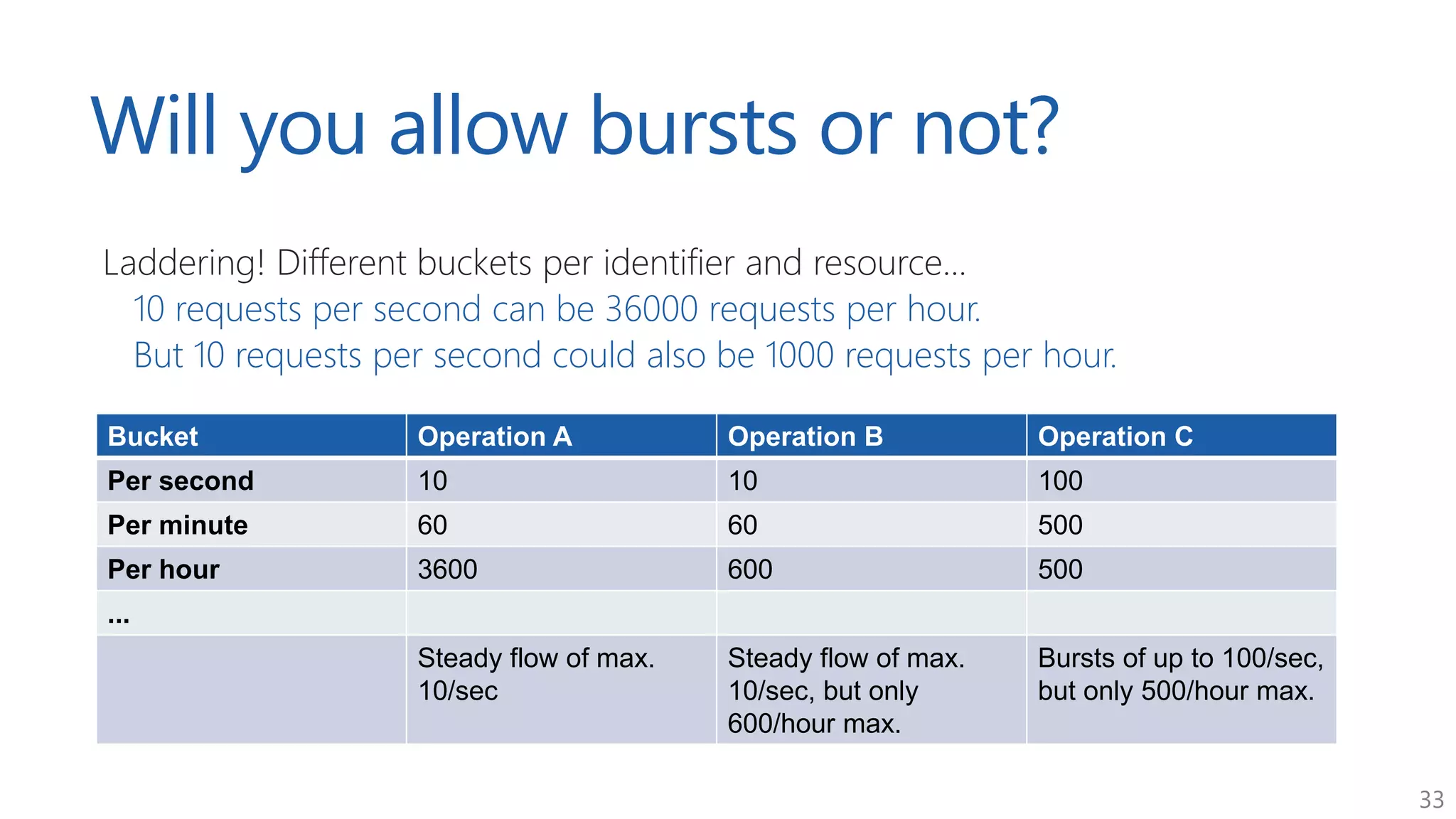

Will you allow bursts or not?
Laddering! Different buckets per identifier and resource...
10 requests per second can be 36000 requests per hour.
But 10 requests per second could also be 1000 requests per hour.
Bucket Operation A Operation B Operation C
Per second 10 10 100
Per minute 60 60 500
Per hour 3600 600 500
...
Steady flow of max.
10/sec
Steady flow of max.
10/sec, but only
600/hour max.
Bursts of up to 100/sec,
but only 500/hour max.
34

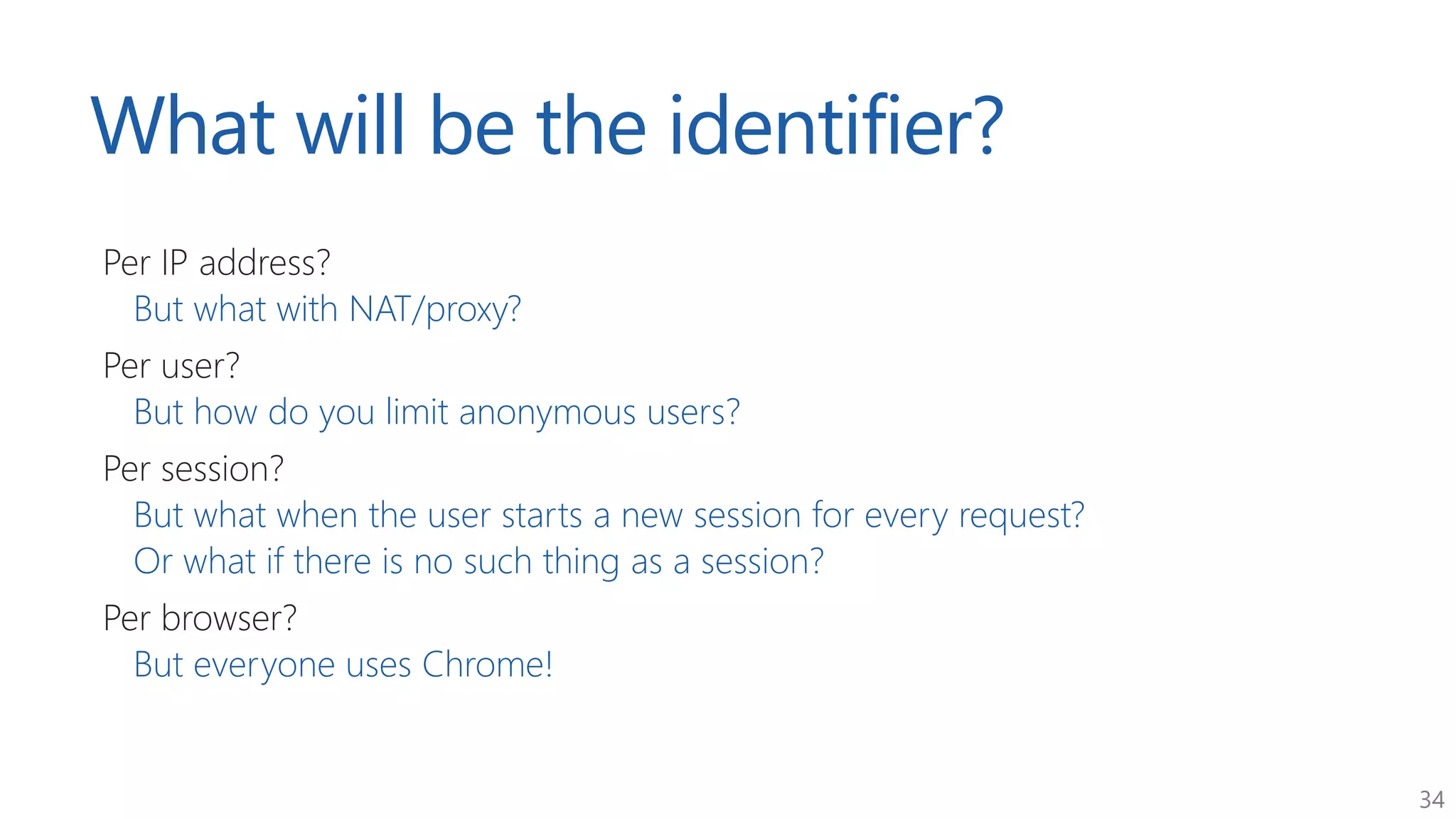

What will be the identifier?
Per IP address?
But what with NAT/proxy?
Per user?
But how do you limit anonymous users?
Per session?
But what when the user starts a new session for every request?
Or what if there is no such thing as a session?
Per browser?
But everyone uses Chrome!
35

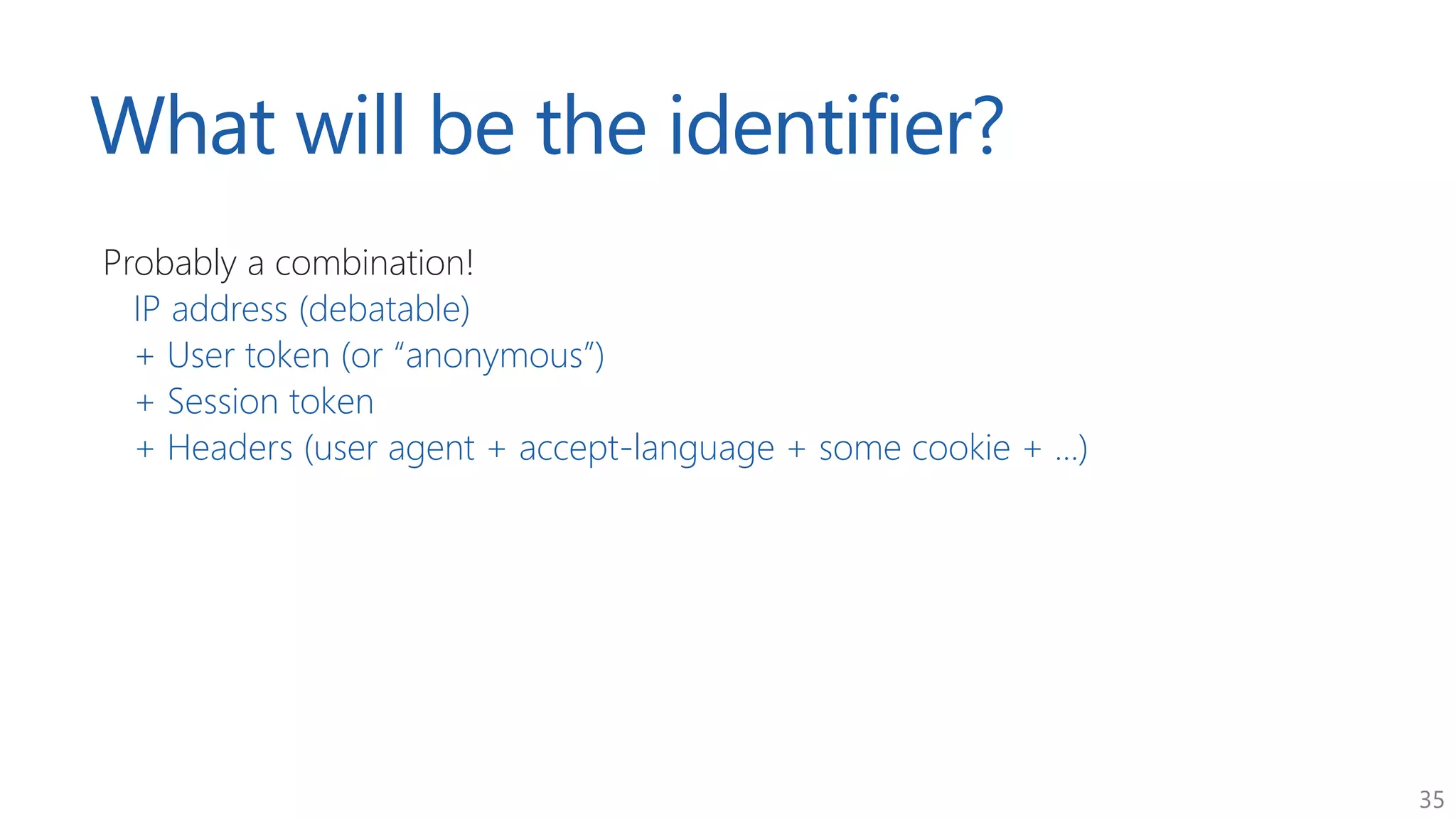

What will be the identifier?
Probably a combination!
IP address (debatable)
+ User token (or “anonymous”)
+ Session token
+ Headers (user agent + accept-language + some cookie + ...)
36

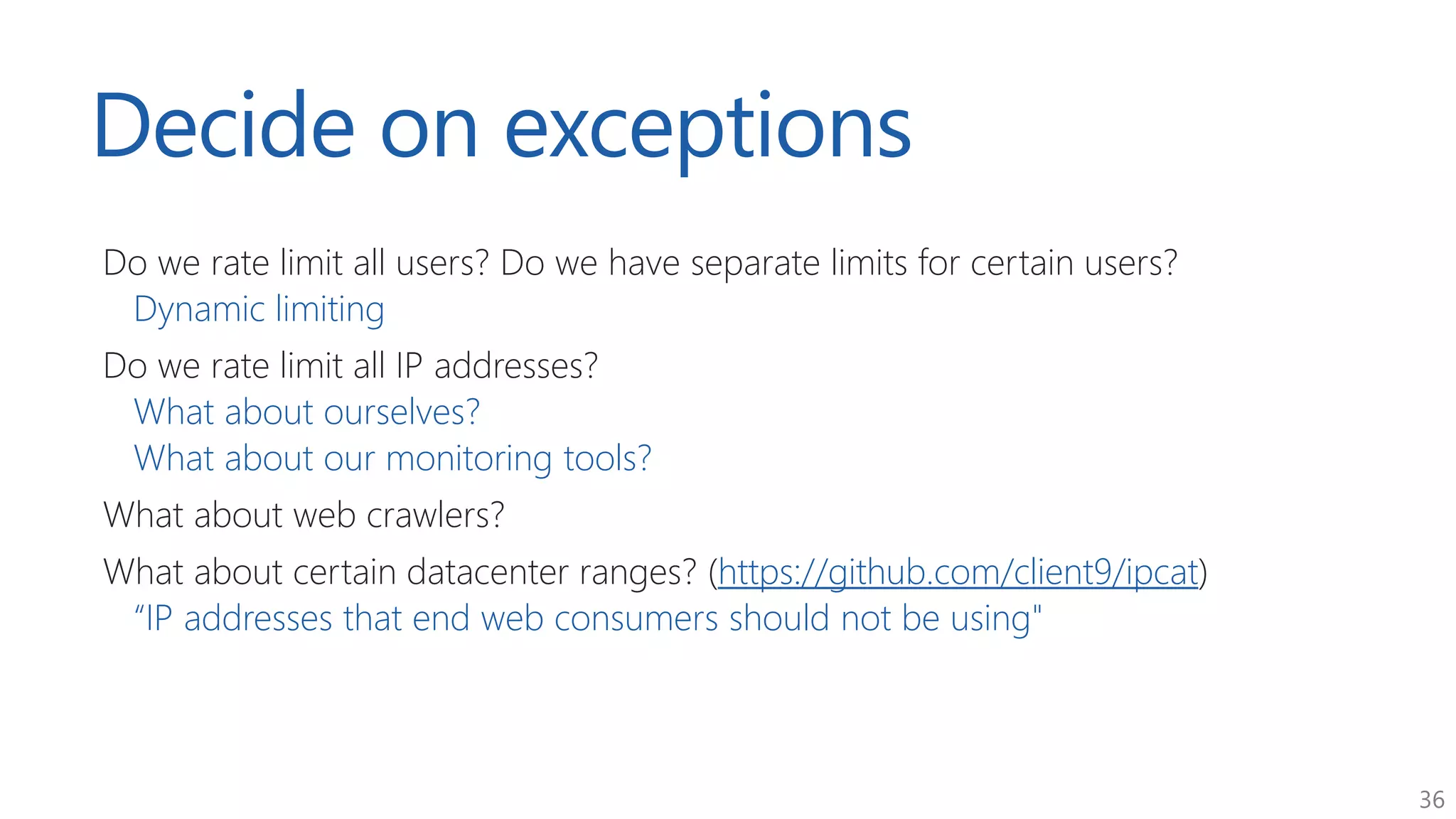

Decide on exceptions
Do we rate limit all users? Do we have separate limits for certain users?
Dynamic limiting
Do we rate limit all IP addresses?
What about ourselves?
What about our monitoring tools?
What about web crawlers?
What about certain datacenter ranges? (https://github.com/client9/ipcat)
“IP addresses that end web consumers should not be using"
37
Responding to limits
38

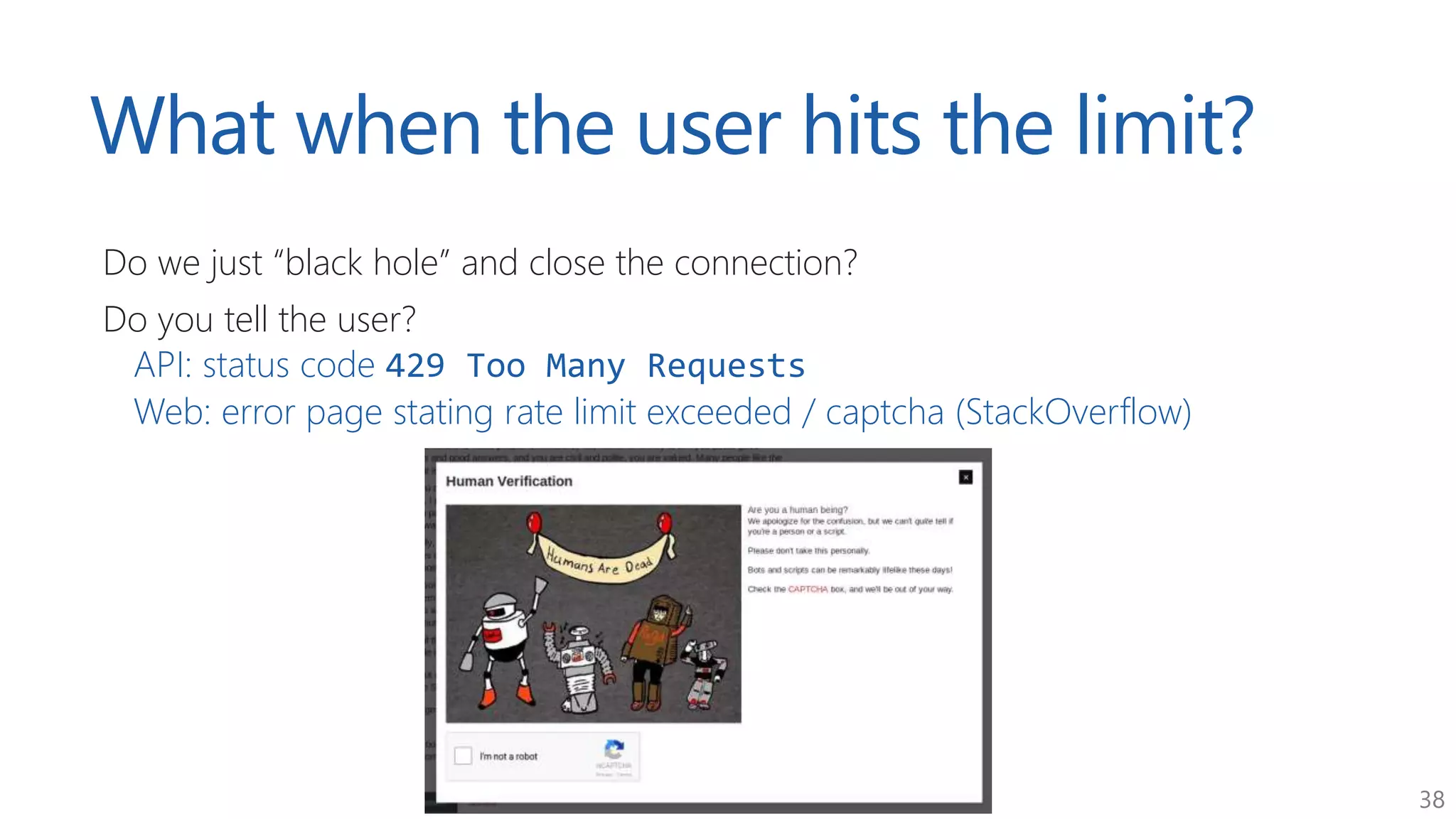

What when the user hits the limit?
Do we just “black hole” and close the connection?
Do you tell the user?
API: status code 429 Too Many Requests
Web: error page stating rate limit exceeded / captcha (StackOverflow)
39

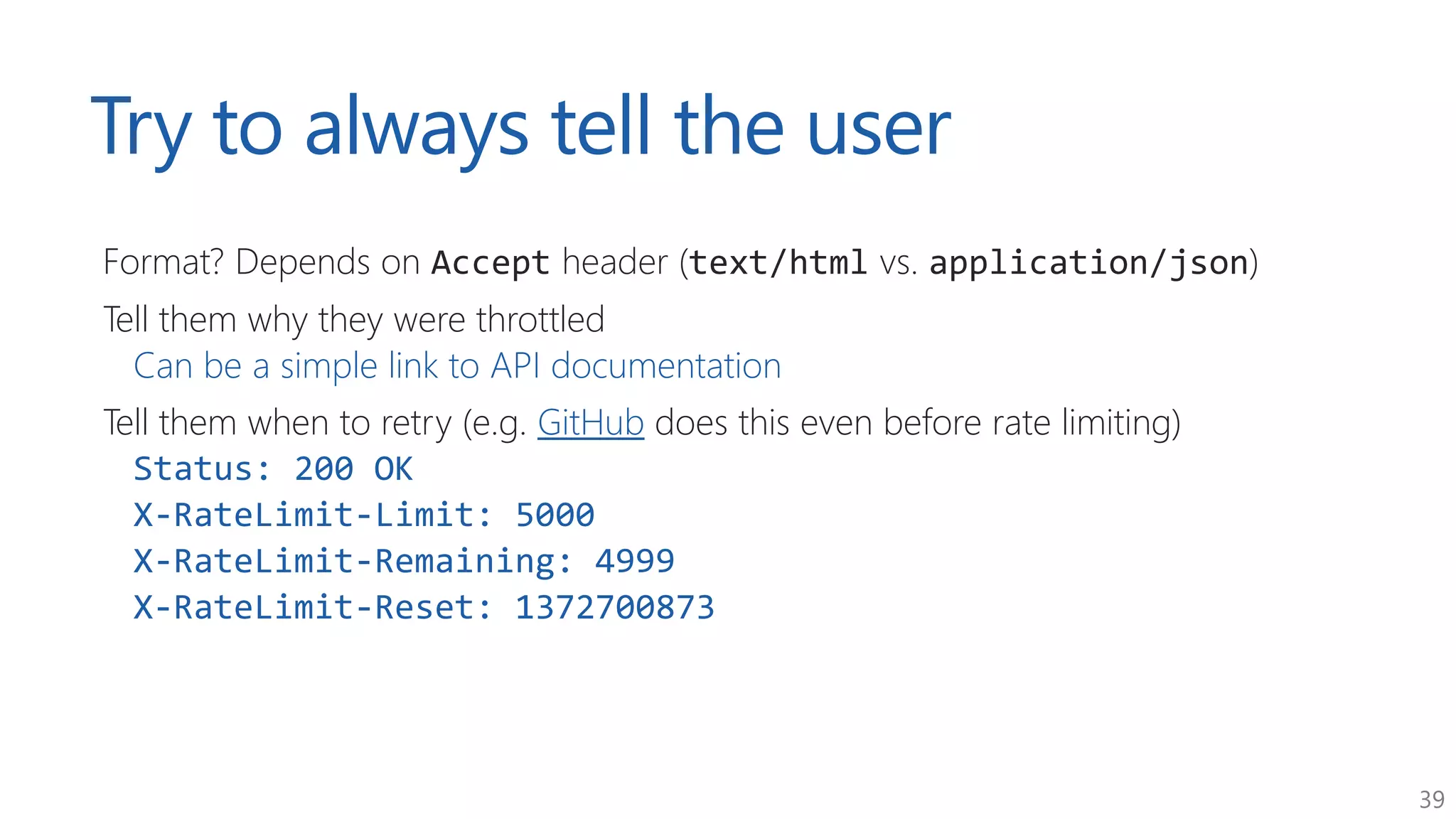

Try to always tell the user
Format? Depends on Accept header (text/html vs. application/json)
Tell them why they were throttled
Can be a simple link to API documentation
Tell them when to retry (e.g. GitHub does this even before rate limiting)
Status: 200 OK
X-RateLimit-Limit: 5000
X-RateLimit-Remaining: 4999
X-RateLimit-Reset: 1372700873
40
Where do we limit?
41

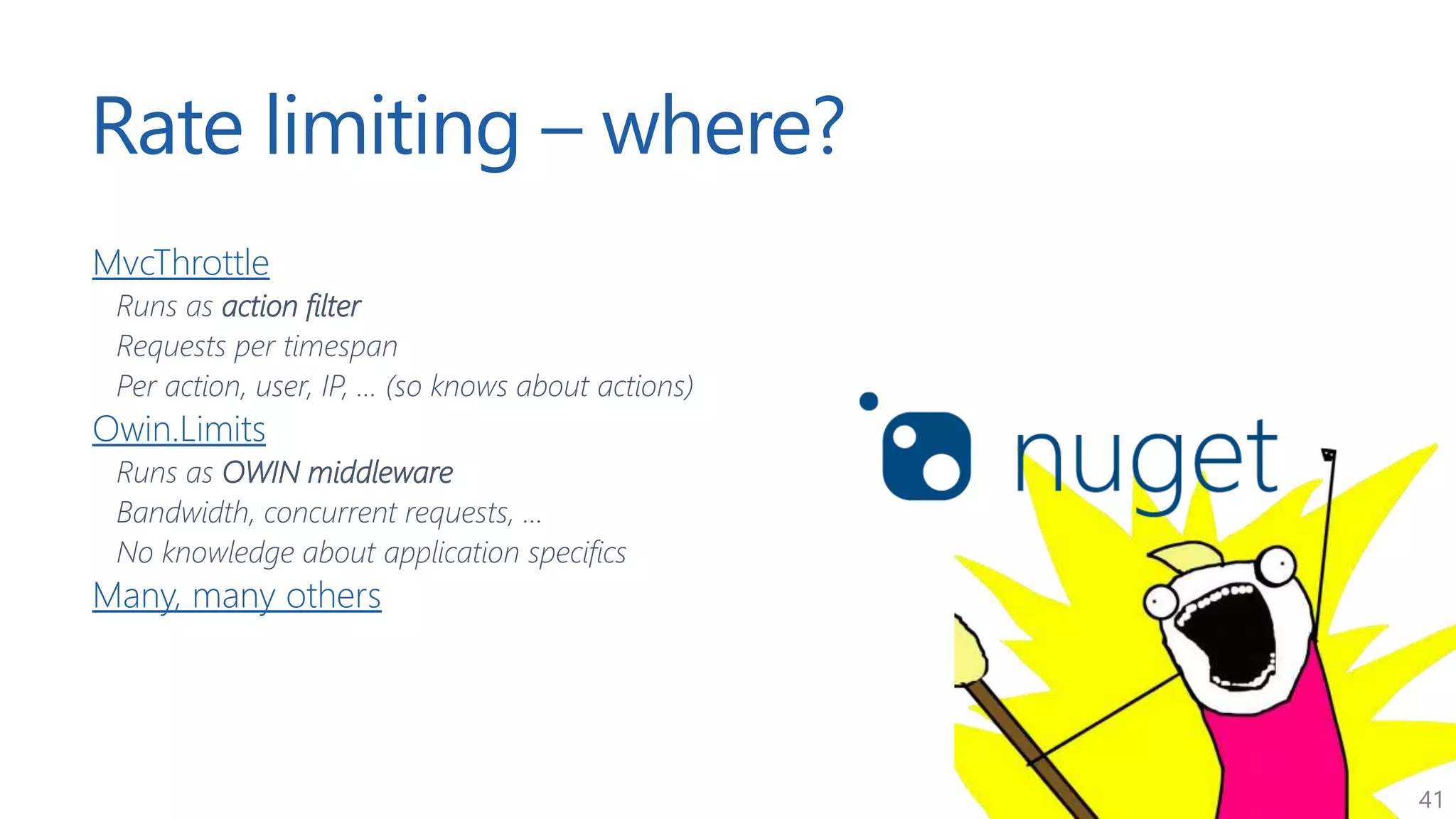

Rate limiting – where?
MvcThrottle
Runs as action filter
Requests per timespan
Per action, user, IP, ... (so knows about actions)
Owin.Limits
Runs as OWIN middleware
Bandwidth, concurrent requests, ...
No knowledge about application specifics
Many, many others
42
MvcThrottle
Demo
43

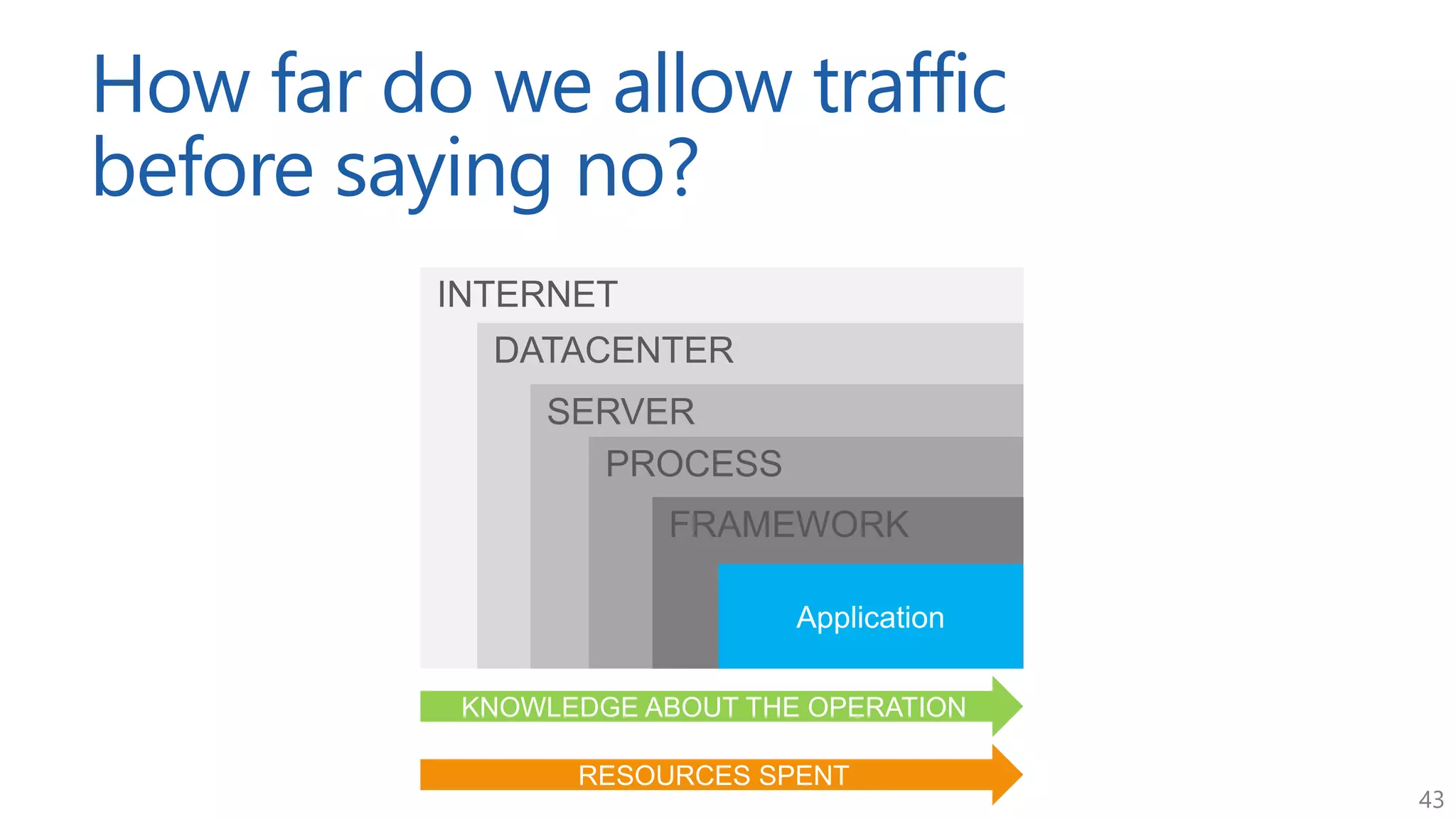

How far do we allow traffic
before saying no?
KNOWLEDGE ABOUT THE OPERATION
RESOURCES SPENT
44

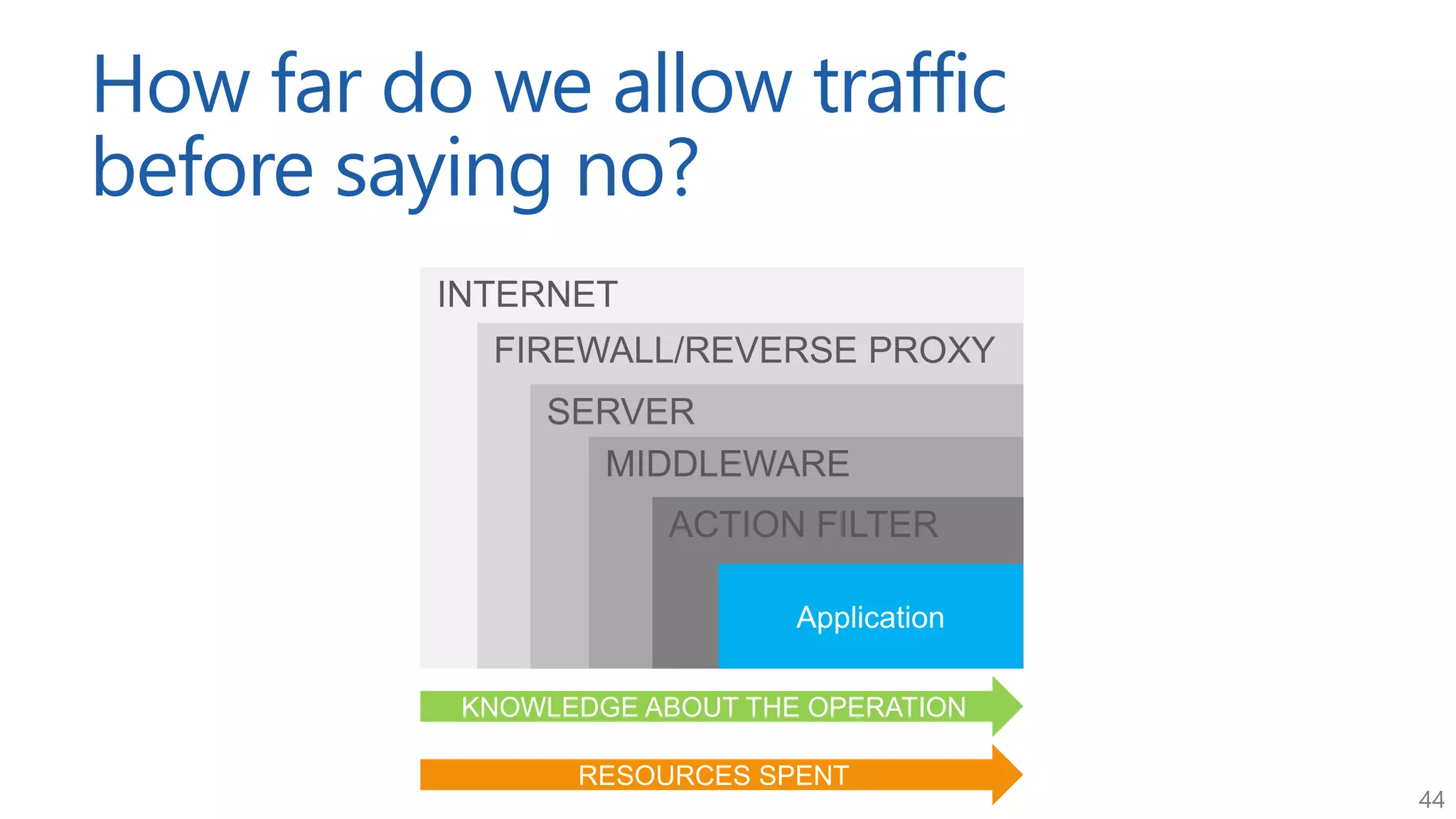

How far do we allow traffic
before saying no?
KNOWLEDGE ABOUT THE OPERATION
RESOURCES SPENT
45

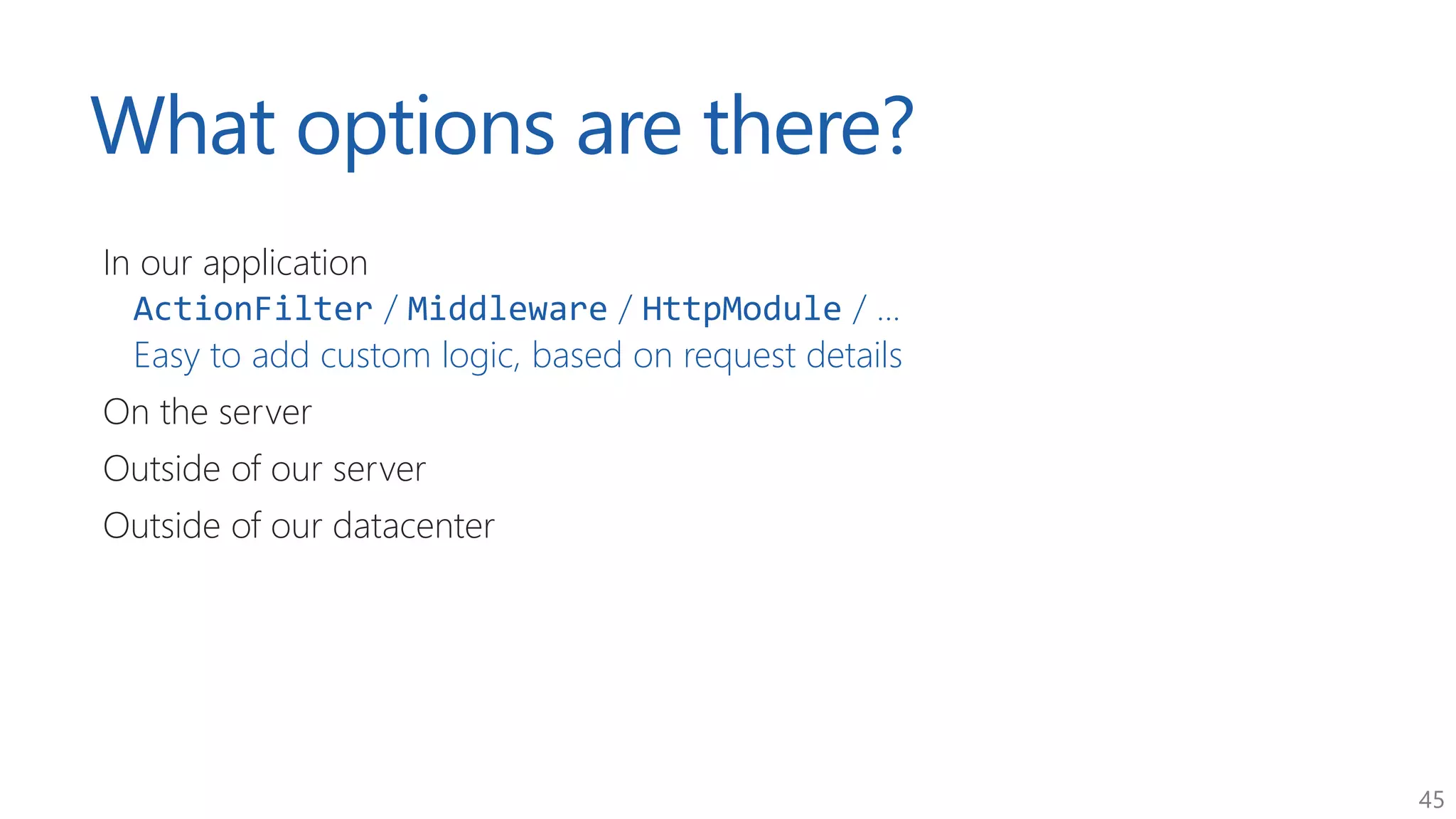

What options are there?
In our application
ActionFilter / Middleware / HttpModule / ...
Easy to add custom logic, based on request details
On the server
Outside of our server
Outside of our datacenter
46

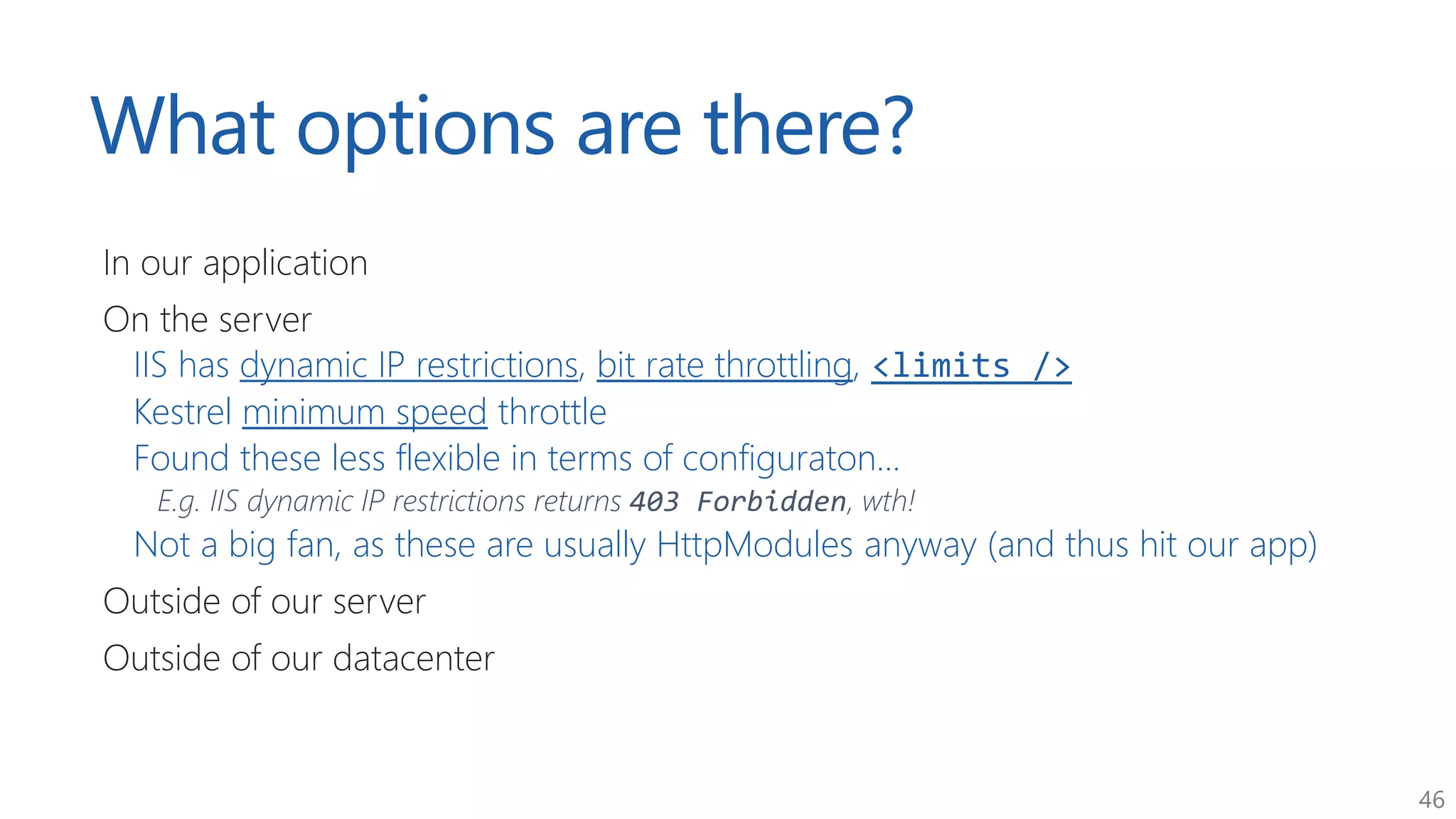

What options are there?
In our application
On the server
IIS has dynamic IP restrictions, bit rate throttling, <limits />
Kestrel minimum speed throttle
Found these less flexible in terms of configuraton...
E.g. IIS dynamic IP restrictions returns 403 Forbidden, wth!
Not a big fan, as these are usually HttpModules anyway (and thus hit our app)
Outside of our server
Outside of our datacenter
47

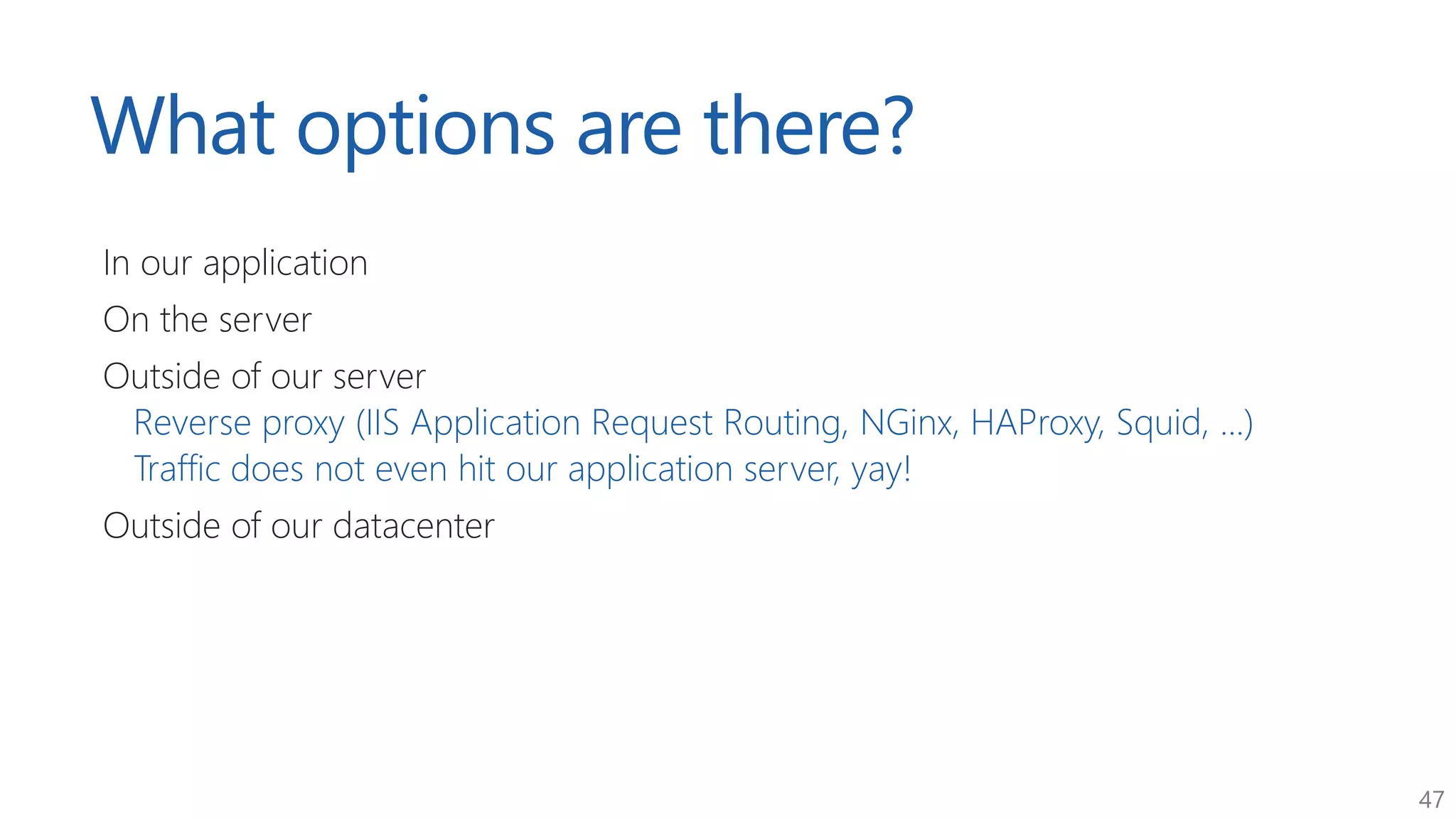

What options are there?
In our application
On the server
Outside of our server
Reverse proxy (IIS Application Request Routing, NGinx, HAProxy, Squid, ...)
Traffic does not even hit our application server, yay!
Outside of our datacenter
48

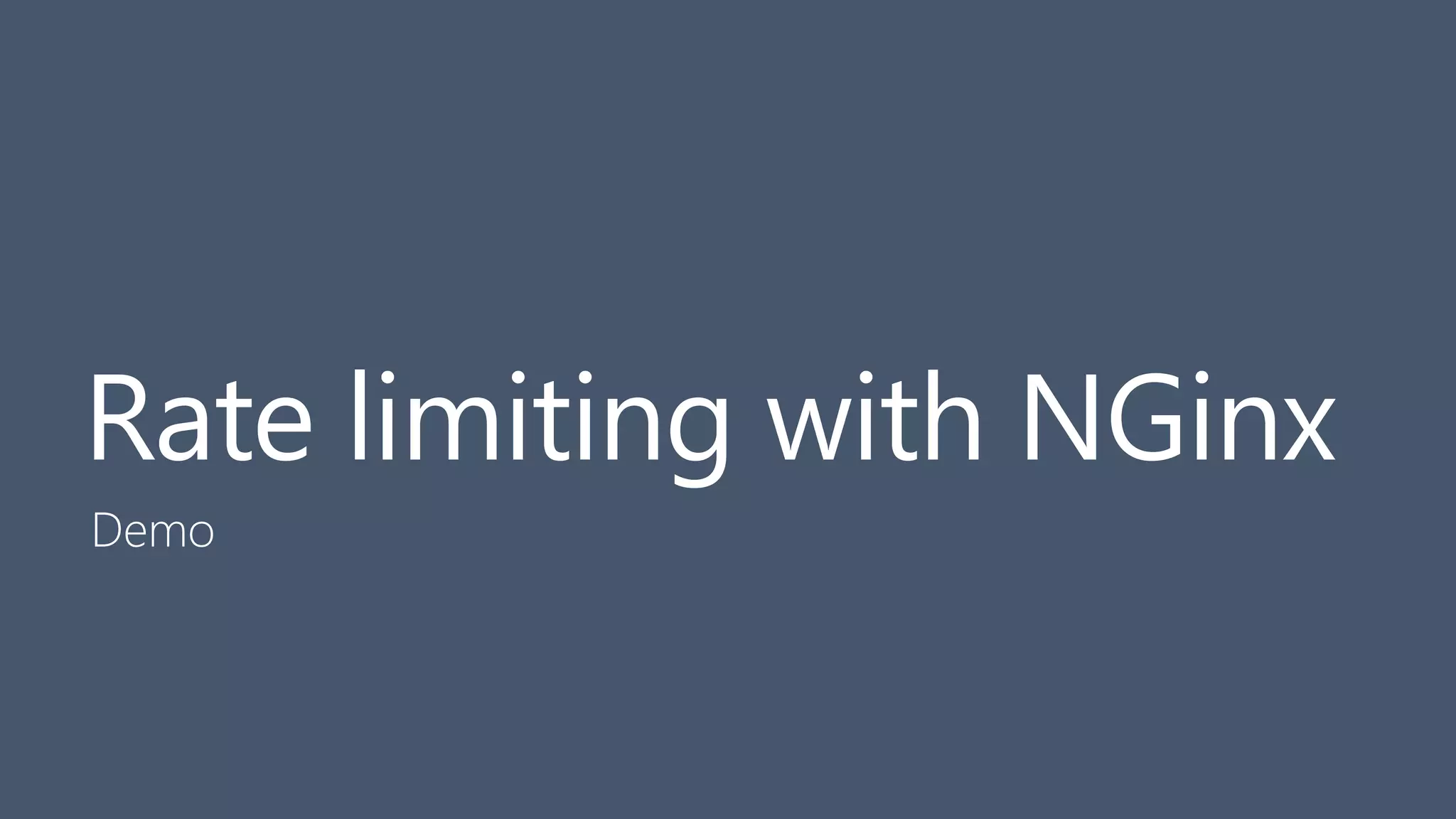

Rate limiting with NGinx
Demo
49

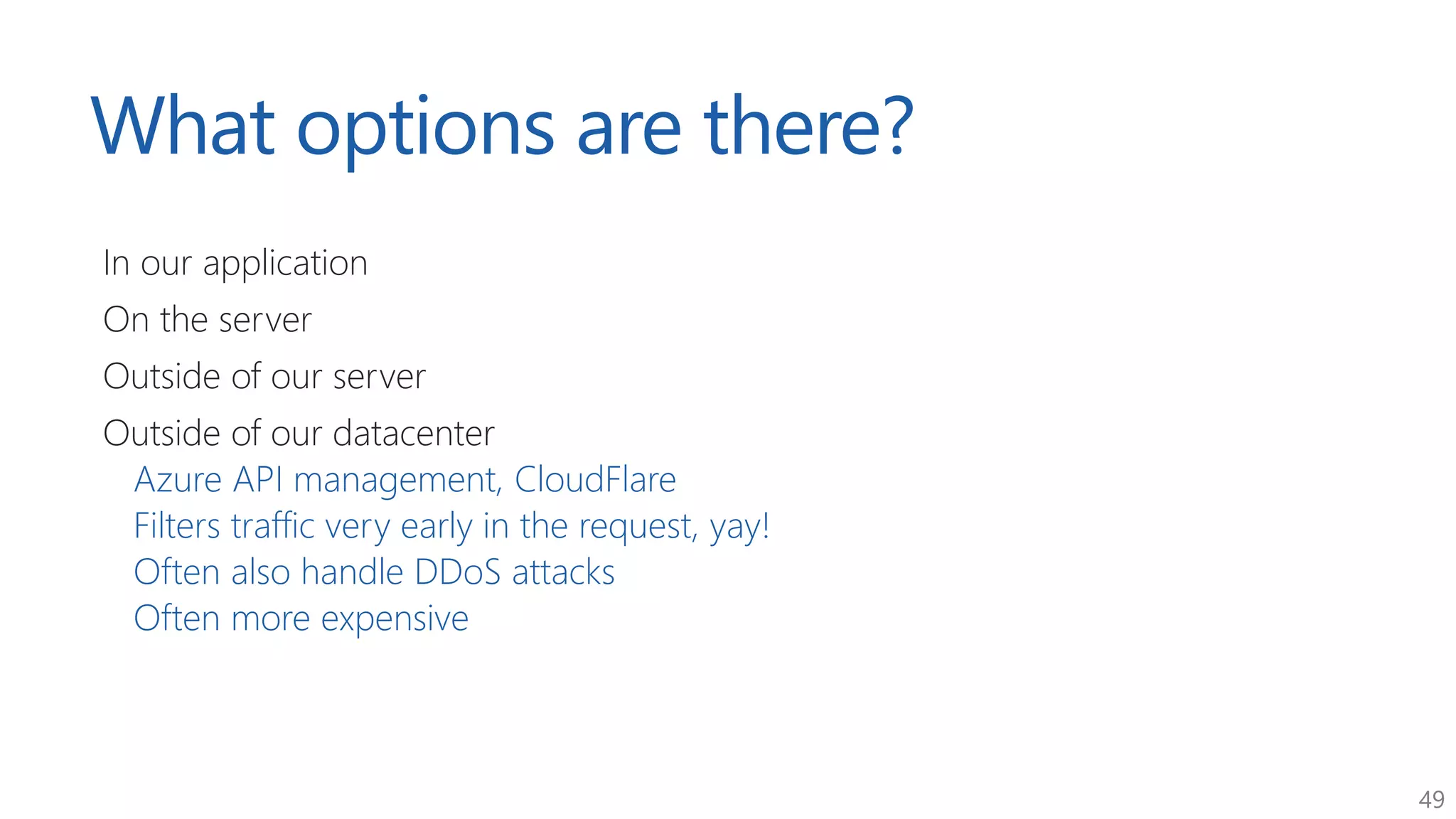

What options are there?
In our application
On the server
Outside of our server
Outside of our datacenter
Azure API management, CloudFlare
Filters traffic very early in the request, yay!
Often also handle DDoS attacks
Often more expensive
50
Rate limiting with
Azure API management
Demo
51
Monitor rate limiting
52

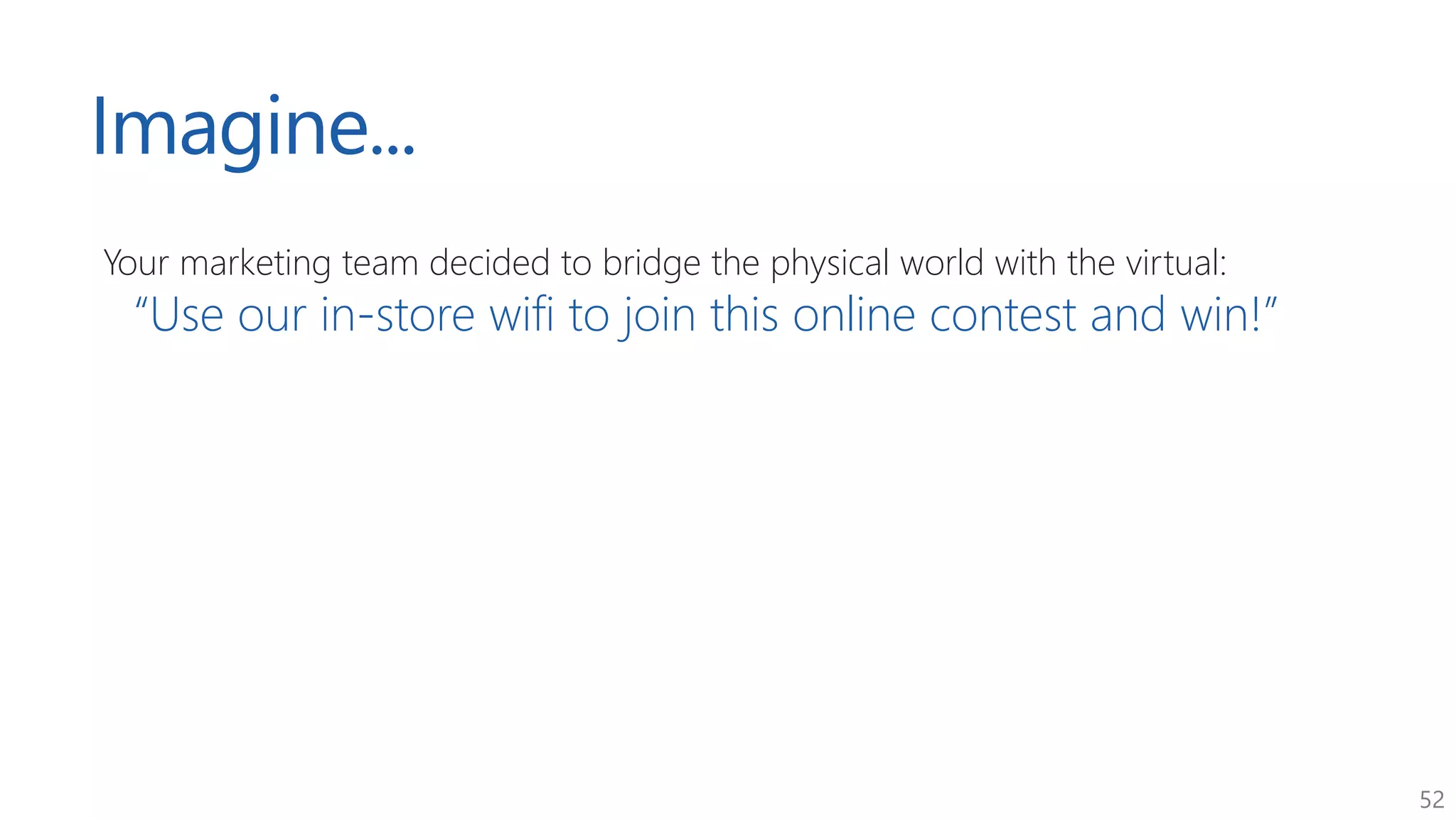

Imagine...
Your marketing team decided to bridge the physical world with the virtual:
“Use our in-store wifi to join this online contest and win!”
53

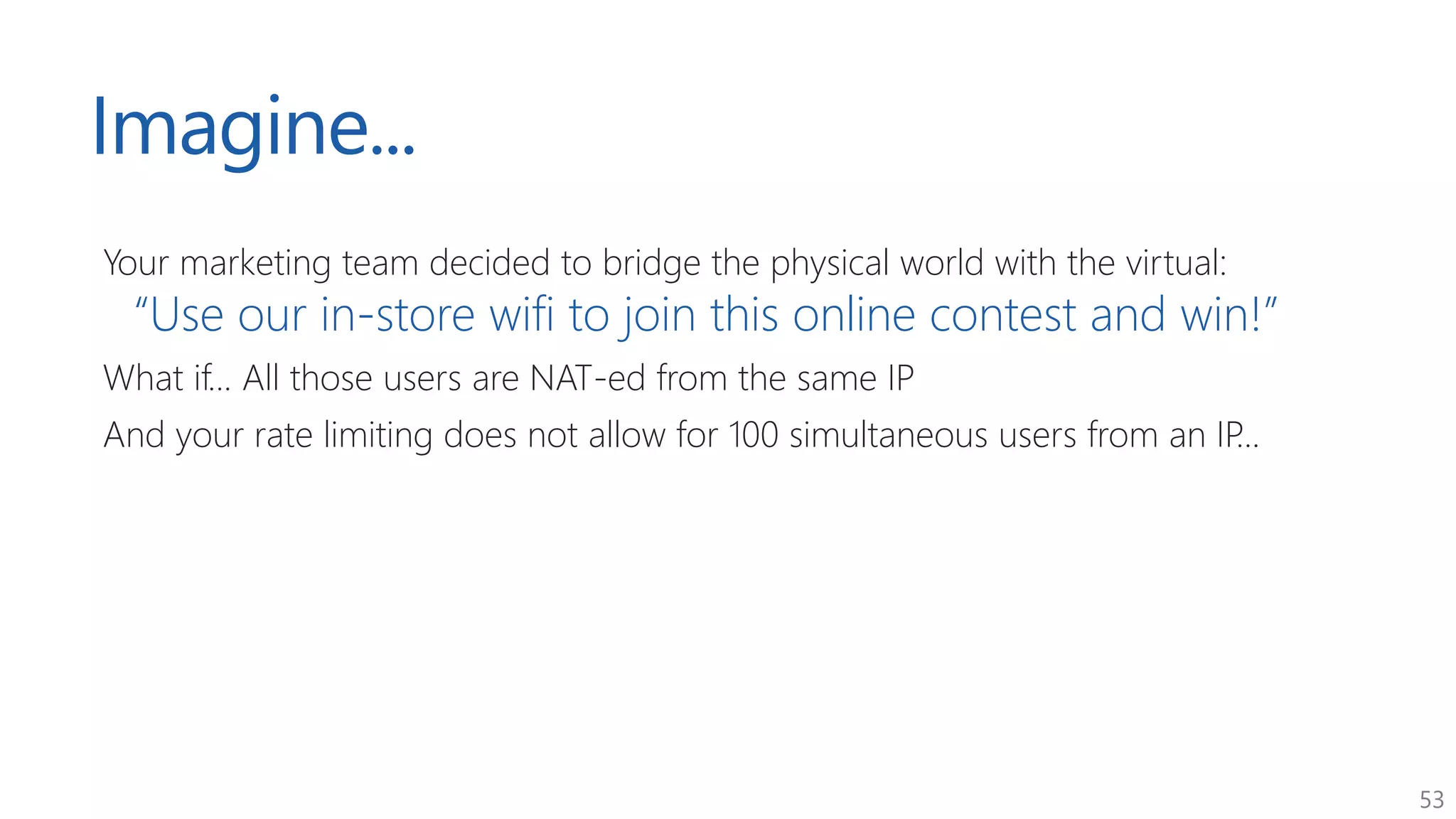

Imagine...
Your marketing team decided to bridge the physical world with the virtual:
“Use our in-store wifi to join this online contest and win!”
What if... All those users are NAT-ed from the same IP
And your rate limiting does not allow for 100 simultaneous users from an IP...
54

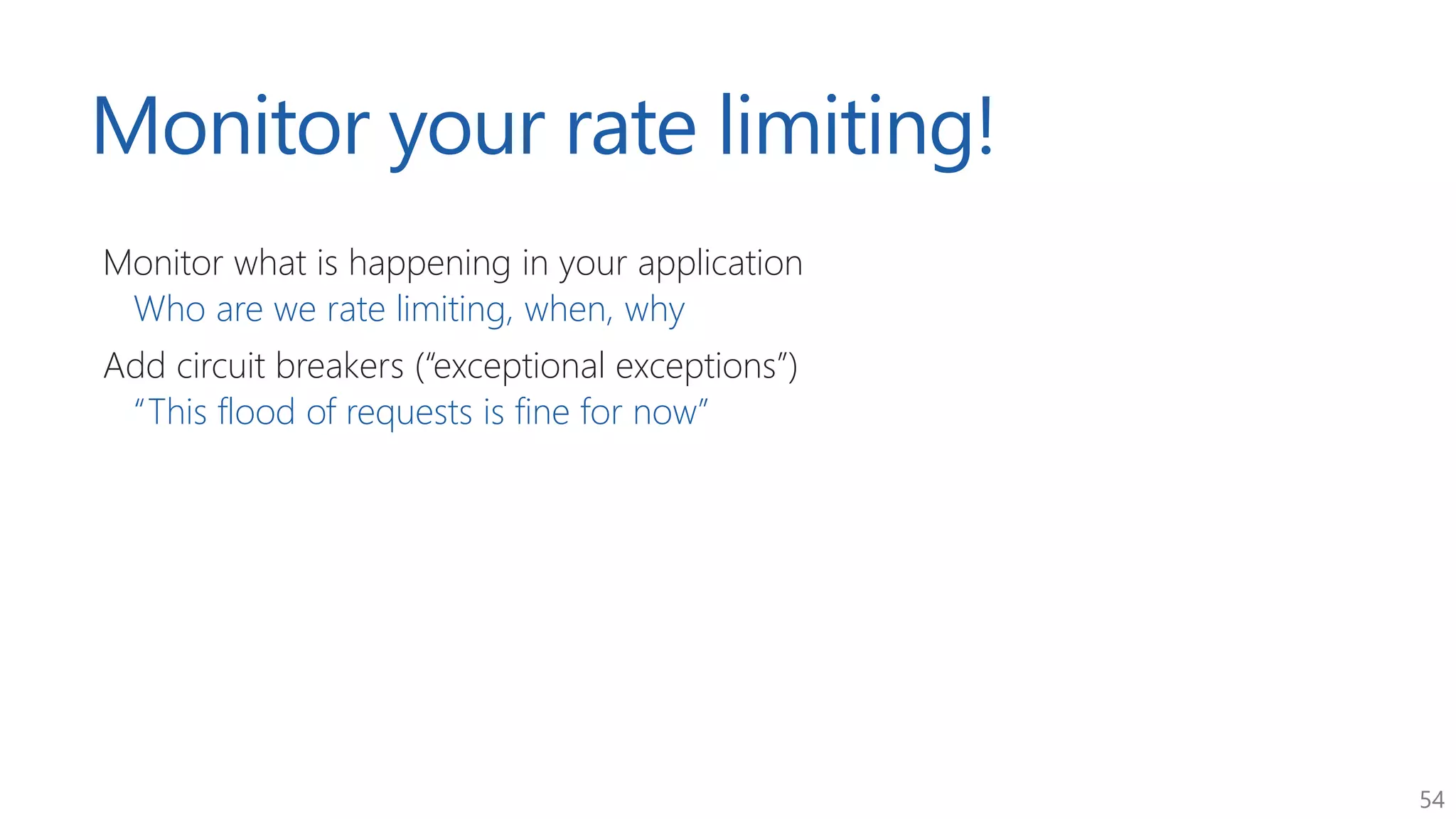

Monitor your rate limiting!
Monitor what is happening in your application
Who are we rate limiting, when, why
Add circuit breakers (“exceptional exceptions”)
“This flood of requests is fine for now”
55
Conclusion
56

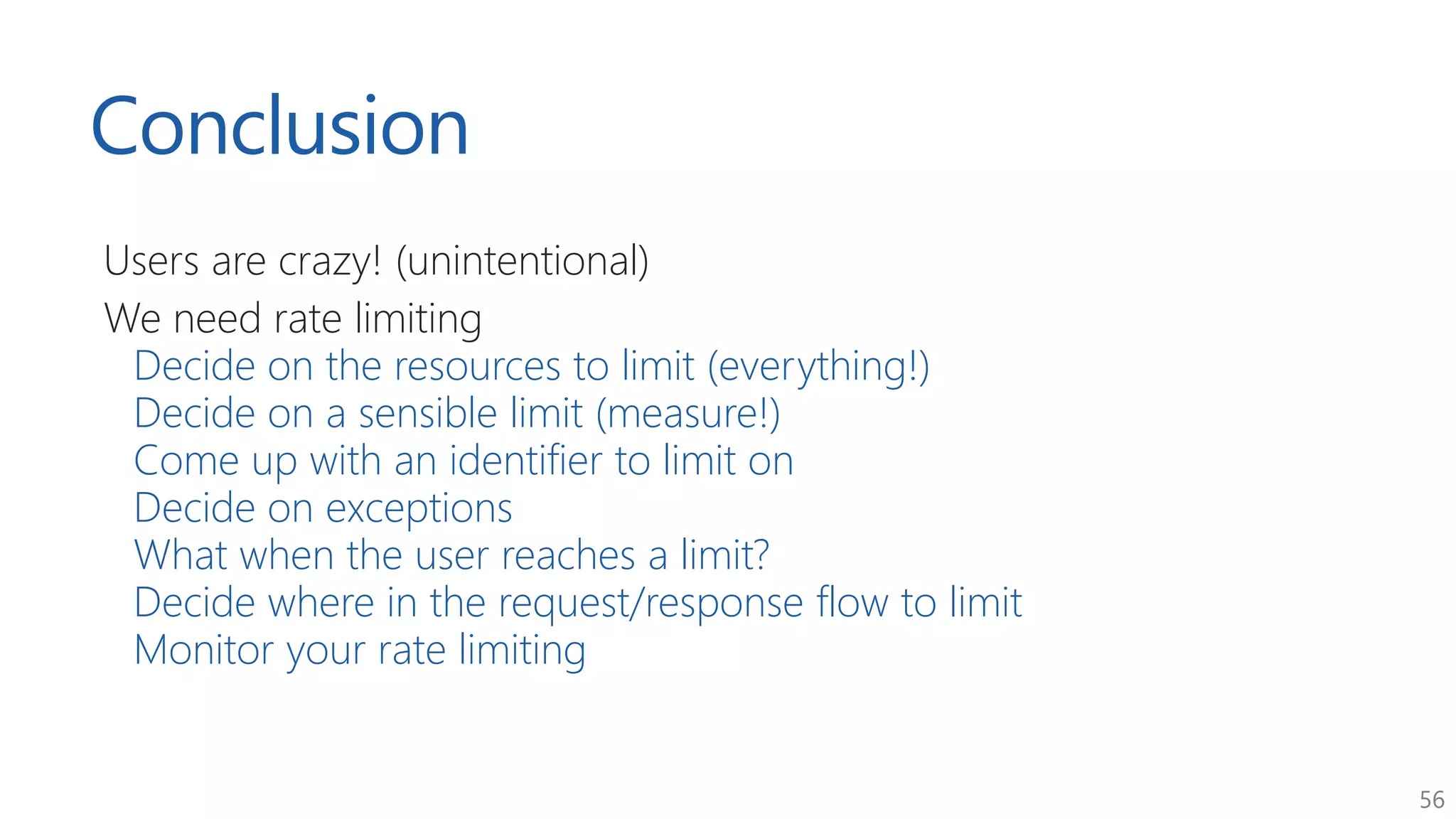

Conclusion
Users are crazy! (unintentional)
We need rate limiting
Decide on the resources to limit (everything!)
Decide on a sensible limit (measure!)
Come up with an identifier to limit on
Decide on exceptions
What when the user reaches a limit?
Decide where in the request/response flow to limit
Monitor your rate limiting
57
Thank you!
https://blog.maartenballiauw.be
@maartenballiauw

More Related Content

What's hot

Building a better web
Building a better webBuilding a better web
Building a better web
Fastly

初探 OpenTelemetry - 蒐集遙測數據的新標準
初探 OpenTelemetry - 蒐集遙測數據的新標準初探 OpenTelemetry - 蒐集遙測數據的新標準
初探 OpenTelemetry - 蒐集遙測數據的新標準
Marcus Tung

Secrets of Top Pentesters
Secrets of Top PentestersSecrets of Top Pentesters
Secrets of Top Pentesters
amiable_indian

Caching the Uncacheable [Long Version]
Caching the Uncacheable [Long Version]Caching the Uncacheable [Long Version]
Caching the Uncacheable [Long Version]
Fastly

Application Metrics (with Prometheus examples)
Application Metrics (with Prometheus examples)Application Metrics (with Prometheus examples)
Application Metrics (with Prometheus examples)
Rafael Dohms

Javaone 2016 - Operational Excellence with Hystrix
Javaone 2016 - Operational Excellence with HystrixJavaone 2016 - Operational Excellence with Hystrix
Javaone 2016 - Operational Excellence with Hystrix
Billy Yuen

Production Readiness Strategies in an Automated World
Production Readiness Strategies in an Automated WorldProduction Readiness Strategies in an Automated World
Production Readiness Strategies in an Automated World
Sean Chittenden

Us 17-krug-hacking-severless-runtimes
Us 17-krug-hacking-severless-runtimesUs 17-krug-hacking-severless-runtimes
Us 17-krug-hacking-severless-runtimes
Ravishankar Somasundaram

Insecure Implementation of Security Best Practices: of hashing, CAPTCHA's and...
Insecure Implementation of Security Best Practices: of hashing, CAPTCHA's and...Insecure Implementation of Security Best Practices: of hashing, CAPTCHA's and...
Insecure Implementation of Security Best Practices: of hashing, CAPTCHA's and...
amiable_indian

Voxxed Vienna 2015 Fault tolerant microservices
Voxxed Vienna 2015 Fault tolerant microservicesVoxxed Vienna 2015 Fault tolerant microservices
Voxxed Vienna 2015 Fault tolerant microservices
Christopher Batey

Introduction to the Emerging JSON-Based Identity and Security Protocols
Introduction to the Emerging JSON-Based Identity and Security ProtocolsIntroduction to the Emerging JSON-Based Identity and Security Protocols
Introduction to the Emerging JSON-Based Identity and Security Protocols
Brian Campbell

Devoxx France: Fault tolerant microservices on the JVM with Cassandra
Devoxx France: Fault tolerant microservices on the JVM with CassandraDevoxx France: Fault tolerant microservices on the JVM with Cassandra
Devoxx France: Fault tolerant microservices on the JVM with Cassandra
Christopher Batey

Black ops of tcp2005 japan
Black ops of tcp2005 japanBlack ops of tcp2005 japan
Black ops of tcp2005 japan
Dan Kaminsky


What's hot (13)

Building a better web
Building a better webBuilding a better web
Building a better web

初探 OpenTelemetry - 蒐集遙測數據的新標準
初探 OpenTelemetry - 蒐集遙測數據的新標準初探 OpenTelemetry - 蒐集遙測數據的新標準
初探 OpenTelemetry - 蒐集遙測數據的新標準

Secrets of Top Pentesters
Secrets of Top PentestersSecrets of Top Pentesters
Secrets of Top Pentesters

Caching the Uncacheable [Long Version]
Caching the Uncacheable [Long Version]Caching the Uncacheable [Long Version]
Caching the Uncacheable [Long Version]

Application Metrics (with Prometheus examples)
Application Metrics (with Prometheus examples)Application Metrics (with Prometheus examples)
Application Metrics (with Prometheus examples)

Javaone 2016 - Operational Excellence with Hystrix
Javaone 2016 - Operational Excellence with HystrixJavaone 2016 - Operational Excellence with Hystrix
Javaone 2016 - Operational Excellence with Hystrix

Production Readiness Strategies in an Automated World
Production Readiness Strategies in an Automated WorldProduction Readiness Strategies in an Automated World
Production Readiness Strategies in an Automated World

Us 17-krug-hacking-severless-runtimes
Us 17-krug-hacking-severless-runtimesUs 17-krug-hacking-severless-runtimes
Us 17-krug-hacking-severless-runtimes

Insecure Implementation of Security Best Practices: of hashing, CAPTCHA's and...
Insecure Implementation of Security Best Practices: of hashing, CAPTCHA's and...Insecure Implementation of Security Best Practices: of hashing, CAPTCHA's and...
Insecure Implementation of Security Best Practices: of hashing, CAPTCHA's and...

Voxxed Vienna 2015 Fault tolerant microservices
Voxxed Vienna 2015 Fault tolerant microservicesVoxxed Vienna 2015 Fault tolerant microservices
Voxxed Vienna 2015 Fault tolerant microservices

Introduction to the Emerging JSON-Based Identity and Security Protocols
Introduction to the Emerging JSON-Based Identity and Security ProtocolsIntroduction to the Emerging JSON-Based Identity and Security Protocols
Introduction to the Emerging JSON-Based Identity and Security Protocols

Devoxx France: Fault tolerant microservices on the JVM with Cassandra
Devoxx France: Fault tolerant microservices on the JVM with CassandraDevoxx France: Fault tolerant microservices on the JVM with Cassandra
Devoxx France: Fault tolerant microservices on the JVM with Cassandra

Black ops of tcp2005 japan
Black ops of tcp2005 japanBlack ops of tcp2005 japan
Black ops of tcp2005 japan


Similar to Approaches for application request throttling - dotNetCologne

ConFoo Montreal - Approaches for application request throttling
ConFoo Montreal - Approaches for application request throttlingConFoo Montreal - Approaches for application request throttling
ConFoo Montreal - Approaches for application request throttling
Maarten Balliauw

Approaches to application request throttling
Approaches to application request throttlingApproaches to application request throttling
Approaches to application request throttling
Maarten Balliauw

VISUG - Approaches for application request throttling
VISUG - Approaches for application request throttlingVISUG - Approaches for application request throttling
VISUG - Approaches for application request throttling
Maarten Balliauw

Expecto Performa! The Magic and Reality of Performance Tuning
Expecto Performa! The Magic and Reality of Performance TuningExpecto Performa! The Magic and Reality of Performance Tuning
Expecto Performa! The Magic and Reality of Performance Tuning
Atlassian

Monitoring as an entry point for collaboration
Monitoring as an entry point for collaborationMonitoring as an entry point for collaboration
Monitoring as an entry point for collaboration
Julien Pivotto

How to get along with HATEOAS without letting the bad guys steal your lunch?
How to get along with HATEOAS without letting the bad guys steal your lunch?How to get along with HATEOAS without letting the bad guys steal your lunch?
How to get along with HATEOAS without letting the bad guys steal your lunch?
Graham Charters

Monitoring your Python with Prometheus (Python Ireland April 2015)
Monitoring your Python with Prometheus (Python Ireland April 2015)Monitoring your Python with Prometheus (Python Ireland April 2015)
Monitoring your Python with Prometheus (Python Ireland April 2015)
Brian Brazil

DockerCon SF 2019 - Observability Workshop
DockerCon SF 2019 - Observability WorkshopDockerCon SF 2019 - Observability Workshop
DockerCon SF 2019 - Observability Workshop
Kevin Crawley

2016 - 10 questions you should answer before building a new microservice
2016 - 10 questions you should answer before building a new microservice2016 - 10 questions you should answer before building a new microservice
2016 - 10 questions you should answer before building a new microservice
devopsdaysaustin

Low latency in java 8 by Peter Lawrey
Low latency in java 8 by Peter Lawrey Low latency in java 8 by Peter Lawrey
Low latency in java 8 by Peter Lawrey
J On The Beach

Timely Year Two: Lessons Learned Building a Scalable Metrics Analytic System
Timely Year Two: Lessons Learned Building a Scalable Metrics Analytic SystemTimely Year Two: Lessons Learned Building a Scalable Metrics Analytic System
Timely Year Two: Lessons Learned Building a Scalable Metrics Analytic System
Accumulo Summit

Measuring CDN performance and why you're doing it wrong
Measuring CDN performance and why you're doing it wrongMeasuring CDN performance and why you're doing it wrong
Measuring CDN performance and why you're doing it wrong
Fastly

AWS re:Invent 2016: Amazon CloudFront Flash Talks: Best Practices on Configur...
AWS re:Invent 2016: Amazon CloudFront Flash Talks: Best Practices on Configur...AWS re:Invent 2016: Amazon CloudFront Flash Talks: Best Practices on Configur...
AWS re:Invent 2016: Amazon CloudFront Flash Talks: Best Practices on Configur...
Amazon Web Services

Lean Enterprise, Microservices and Big Data
Lean Enterprise, Microservices and Big DataLean Enterprise, Microservices and Big Data
Lean Enterprise, Microservices and Big Data
Stylight

Scalable Apache for Beginners
Scalable Apache for BeginnersScalable Apache for Beginners
Scalable Apache for Beginners
webhostingguy

Introduction to Stream Processing
Introduction to Stream ProcessingIntroduction to Stream Processing
Introduction to Stream Processing
Guido Schmutz

Hadoop application architectures - Fraud detection tutorial
Hadoop application architectures - Fraud detection tutorialHadoop application architectures - Fraud detection tutorial
Hadoop application architectures - Fraud detection tutorial
hadooparchbook

Simpler, faster, cheaper Enterprise Apps using only Spring Boot on GCP
Simpler, faster, cheaper Enterprise Apps using only Spring Boot on GCPSimpler, faster, cheaper Enterprise Apps using only Spring Boot on GCP
Simpler, faster, cheaper Enterprise Apps using only Spring Boot on GCP
Daniel Zivkovic

The Heatmap
 - Why is Security Visualization so Hard?
The Heatmap
 - Why is Security Visualization so Hard?The Heatmap
 - Why is Security Visualization so Hard?
The Heatmap
 - Why is Security Visualization so Hard?
Raffael Marty

Building an Observability Platform in 389 Difficult Steps
Building an Observability Platform in 389 Difficult StepsBuilding an Observability Platform in 389 Difficult Steps
Building an Observability Platform in 389 Difficult Steps
DigitalOcean


Similar to Approaches for application request throttling - dotNetCologne (20)

ConFoo Montreal - Approaches for application request throttling
ConFoo Montreal - Approaches for application request throttlingConFoo Montreal - Approaches for application request throttling
ConFoo Montreal - Approaches for application request throttling

Approaches to application request throttling
Approaches to application request throttlingApproaches to application request throttling
Approaches to application request throttling

VISUG - Approaches for application request throttling
VISUG - Approaches for application request throttlingVISUG - Approaches for application request throttling
VISUG - Approaches for application request throttling

Expecto Performa! The Magic and Reality of Performance Tuning
Expecto Performa! The Magic and Reality of Performance TuningExpecto Performa! The Magic and Reality of Performance Tuning
Expecto Performa! The Magic and Reality of Performance Tuning

Monitoring as an entry point for collaboration
Monitoring as an entry point for collaborationMonitoring as an entry point for collaboration
Monitoring as an entry point for collaboration

How to get along with HATEOAS without letting the bad guys steal your lunch?
How to get along with HATEOAS without letting the bad guys steal your lunch?How to get along with HATEOAS without letting the bad guys steal your lunch?
How to get along with HATEOAS without letting the bad guys steal your lunch?

Monitoring your Python with Prometheus (Python Ireland April 2015)
Monitoring your Python with Prometheus (Python Ireland April 2015)Monitoring your Python with Prometheus (Python Ireland April 2015)
Monitoring your Python with Prometheus (Python Ireland April 2015)

DockerCon SF 2019 - Observability Workshop
DockerCon SF 2019 - Observability WorkshopDockerCon SF 2019 - Observability Workshop
DockerCon SF 2019 - Observability Workshop

2016 - 10 questions you should answer before building a new microservice
2016 - 10 questions you should answer before building a new microservice2016 - 10 questions you should answer before building a new microservice
2016 - 10 questions you should answer before building a new microservice

Low latency in java 8 by Peter Lawrey
Low latency in java 8 by Peter Lawrey Low latency in java 8 by Peter Lawrey
Low latency in java 8 by Peter Lawrey

Timely Year Two: Lessons Learned Building a Scalable Metrics Analytic System
Timely Year Two: Lessons Learned Building a Scalable Metrics Analytic SystemTimely Year Two: Lessons Learned Building a Scalable Metrics Analytic System
Timely Year Two: Lessons Learned Building a Scalable Metrics Analytic System

Measuring CDN performance and why you're doing it wrong
Measuring CDN performance and why you're doing it wrongMeasuring CDN performance and why you're doing it wrong
Measuring CDN performance and why you're doing it wrong

AWS re:Invent 2016: Amazon CloudFront Flash Talks: Best Practices on Configur...
AWS re:Invent 2016: Amazon CloudFront Flash Talks: Best Practices on Configur...AWS re:Invent 2016: Amazon CloudFront Flash Talks: Best Practices on Configur...
AWS re:Invent 2016: Amazon CloudFront Flash Talks: Best Practices on Configur...

Lean Enterprise, Microservices and Big Data
Lean Enterprise, Microservices and Big DataLean Enterprise, Microservices and Big Data
Lean Enterprise, Microservices and Big Data

Scalable Apache for Beginners
Scalable Apache for BeginnersScalable Apache for Beginners
Scalable Apache for Beginners

Introduction to Stream Processing
Introduction to Stream ProcessingIntroduction to Stream Processing
Introduction to Stream Processing

Hadoop application architectures - Fraud detection tutorial
Hadoop application architectures - Fraud detection tutorialHadoop application architectures - Fraud detection tutorial
Hadoop application architectures - Fraud detection tutorial

Simpler, faster, cheaper Enterprise Apps using only Spring Boot on GCP
Simpler, faster, cheaper Enterprise Apps using only Spring Boot on GCPSimpler, faster, cheaper Enterprise Apps using only Spring Boot on GCP
Simpler, faster, cheaper Enterprise Apps using only Spring Boot on GCP

The Heatmap
 - Why is Security Visualization so Hard?
The Heatmap
 - Why is Security Visualization so Hard?The Heatmap
 - Why is Security Visualization so Hard?
The Heatmap
 - Why is Security Visualization so Hard?

Building an Observability Platform in 389 Difficult Steps
Building an Observability Platform in 389 Difficult StepsBuilding an Observability Platform in 389 Difficult Steps
Building an Observability Platform in 389 Difficult Steps


More from Maarten Balliauw

Bringing nullability into existing code - dammit is not the answer.pptx
Bringing nullability into existing code - dammit is not the answer.pptxBringing nullability into existing code - dammit is not the answer.pptx
Bringing nullability into existing code - dammit is not the answer.pptx
Maarten Balliauw

Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Maarten Balliauw

Building a friendly .NET SDK to connect to Space
Building a friendly .NET SDK to connect to SpaceBuilding a friendly .NET SDK to connect to Space
Building a friendly .NET SDK to connect to Space
Maarten Balliauw

Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Maarten Balliauw

Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Maarten Balliauw

NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
Maarten Balliauw

JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
Maarten Balliauw

.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se....NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
Maarten Balliauw

CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and S...
CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and S...CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and S...
CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and S...
Maarten Balliauw

NDC Oslo 2019 - Indexing and searching NuGet.org with Azure Functions and Search
NDC Oslo 2019 - Indexing and searching NuGet.org with Azure Functions and SearchNDC Oslo 2019 - Indexing and searching NuGet.org with Azure Functions and Search
NDC Oslo 2019 - Indexing and searching NuGet.org with Azure Functions and Search
Maarten Balliauw

Indexing and searching NuGet.org with Azure Functions and Search - Cloud Deve...
Indexing and searching NuGet.org with Azure Functions and Search - Cloud Deve...Indexing and searching NuGet.org with Azure Functions and Search - Cloud Deve...
Indexing and searching NuGet.org with Azure Functions and Search - Cloud Deve...
Maarten Balliauw

CodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory laneCodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory lane
Maarten Balliauw

ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
Maarten Balliauw

Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Microservices for building an IDE – The innards of JetBrains Rider - TechDays...Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Maarten Balliauw

JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
Maarten Balliauw

DotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NETDotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NET
Maarten Balliauw

What is going on - Application diagnostics on Azure - TechDays Finland
What is going on - Application diagnostics on Azure - TechDays FinlandWhat is going on - Application diagnostics on Azure - TechDays Finland
What is going on - Application diagnostics on Azure - TechDays Finland
Maarten Balliauw

ConFoo - Exploring .NET’s memory management – a trip down memory lane
ConFoo - Exploring .NET’s memory management – a trip down memory laneConFoo - Exploring .NET’s memory management – a trip down memory lane
ConFoo - Exploring .NET’s memory management – a trip down memory lane
Maarten Balliauw

ConFoo - NuGet beyond Hello World
ConFoo - NuGet beyond Hello WorldConFoo - NuGet beyond Hello World
ConFoo - NuGet beyond Hello World
Maarten Balliauw

NuGet beyond Hello World - DotNext Piter 2017
NuGet beyond Hello World - DotNext Piter 2017NuGet beyond Hello World - DotNext Piter 2017
NuGet beyond Hello World - DotNext Piter 2017
Maarten Balliauw


More from Maarten Balliauw (20)

Bringing nullability into existing code - dammit is not the answer.pptx
Bringing nullability into existing code - dammit is not the answer.pptxBringing nullability into existing code - dammit is not the answer.pptx
Bringing nullability into existing code - dammit is not the answer.pptx

Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...
Nerd sniping myself into a rabbit hole... Streaming online audio to a Sonos s...

Building a friendly .NET SDK to connect to Space
Building a friendly .NET SDK to connect to SpaceBuilding a friendly .NET SDK to connect to Space
Building a friendly .NET SDK to connect to Space

Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...
Microservices for building an IDE - The innards of JetBrains Rider - NDC Oslo...

Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...
Indexing and searching NuGet.org with Azure Functions and Search - .NET fwday...

NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...
NDC Sydney 2019 - Microservices for building an IDE – The innards of JetBrain...

JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...
JetBrains Australia 2019 - Exploring .NET’s memory management – a trip down m...

.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se....NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...
.NET Conf 2019 - Indexing and searching NuGet.org with Azure Functions and Se...

CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and S...
CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and S...CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and S...
CloudBurst 2019 - Indexing and searching NuGet.org with Azure Functions and S...

NDC Oslo 2019 - Indexing and searching NuGet.org with Azure Functions and Search
NDC Oslo 2019 - Indexing and searching NuGet.org with Azure Functions and SearchNDC Oslo 2019 - Indexing and searching NuGet.org with Azure Functions and Search
NDC Oslo 2019 - Indexing and searching NuGet.org with Azure Functions and Search

Indexing and searching NuGet.org with Azure Functions and Search - Cloud Deve...
Indexing and searching NuGet.org with Azure Functions and Search - Cloud Deve...Indexing and searching NuGet.org with Azure Functions and Search - Cloud Deve...
Indexing and searching NuGet.org with Azure Functions and Search - Cloud Deve...

CodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory laneCodeStock - Exploring .NET memory management - a trip down memory lane
CodeStock - Exploring .NET memory management - a trip down memory lane

ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...
ConFoo Montreal - Microservices for building an IDE - The innards of JetBrain...

Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Microservices for building an IDE – The innards of JetBrains Rider - TechDays...Microservices for building an IDE – The innards of JetBrains Rider - TechDays...
Microservices for building an IDE – The innards of JetBrains Rider - TechDays...

JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...
JetBrains Day Seoul - Exploring .NET’s memory management – a trip down memory...

DotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NETDotNetFest - Let’s refresh our memory! Memory management in .NET
DotNetFest - Let’s refresh our memory! Memory management in .NET

What is going on - Application diagnostics on Azure - TechDays Finland
What is going on - Application diagnostics on Azure - TechDays FinlandWhat is going on - Application diagnostics on Azure - TechDays Finland
What is going on - Application diagnostics on Azure - TechDays Finland

ConFoo - Exploring .NET’s memory management – a trip down memory lane
ConFoo - Exploring .NET’s memory management – a trip down memory laneConFoo - Exploring .NET’s memory management – a trip down memory lane
ConFoo - Exploring .NET’s memory management – a trip down memory lane

ConFoo - NuGet beyond Hello World
ConFoo - NuGet beyond Hello WorldConFoo - NuGet beyond Hello World
ConFoo - NuGet beyond Hello World

NuGet beyond Hello World - DotNext Piter 2017
NuGet beyond Hello World - DotNext Piter 2017NuGet beyond Hello World - DotNext Piter 2017
NuGet beyond Hello World - DotNext Piter 2017


Recently uploaded

Observability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetryObservability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetry
Eric D. Schabell

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Mydbops

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...
chetankumar9855

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Zilliz

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf
ChristopherTHyatt

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop
CEPTES Software Inc

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024
aakash malhotra

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck
Lidia A.

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus
Zilliz

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
bhumivarma35300

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Kunal Gupta

Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly DetectionAdvanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Bert Blevins

Pigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending PlantPigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending Plant
LINUS PROJECTS (INDIA)

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx
ishalveerrandhawa1

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world
Emerging Tech

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
maigasapphire

Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAIApplying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
ssuserd4e0d2


Recently uploaded (20)

Observability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetryObservability For You and Me with OpenTelemetry
Observability For You and Me with OpenTelemetry

Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - MydbopsScaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops
Scaling Connections in PostgreSQL Postgres Bangalore(PGBLR) Meetup-2 - Mydbops

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama

How to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdfHow to build a generative AI solution A step-by-step guide (2).pdf
How to build a generative AI solution A step-by-step guide (2).pdf

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024

WPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide DeckWPRiders Company Presentation Slide Deck
WPRiders Company Presentation Slide Deck

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

Using LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and MilvusUsing LLM Agents with Llama 3, LangGraph and Milvus
Using LLM Agents with Llama 3, LangGraph and Milvus

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...

High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...
High Profile Girls call Service Pune 000XX00000 Provide Best And Top Girl Ser...

Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptxDublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx
Dublin_mulesoft_meetup_Mulesoft_Salesforce_Integration (1).pptx

Advanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly DetectionAdvanced Techniques for Cyber Security Analysis and Anomaly Detection
Advanced Techniques for Cyber Security Analysis and Anomaly Detection

Pigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending PlantPigging Unit Lubricant Oil Blending Plant
Pigging Unit Lubricant Oil Blending Plant

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world

Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...
Girls Call Churchgate 9910780858 Provide Best And Top Girl Service And No1 in...

Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAIApplying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI
Applying Retrieval-Augmented Generation (RAG) to Combat Hallucinations in GenAI


Approaches for application request throttling - dotNetCologne

  • 1. 1 Approaches for application request throttling Maarten Balliauw @maartenballiauw
  • 2. 3 Agenda Users and traffic patterns Rate limiting and considerations Which resources? Which limits? Who to limit? Who not to limit? What when a limit is reached? Where to limit?
  • 4. 5 MyGet Hosted private package repository – www.myget.org NuGet, NPM, Bower, Maven, VSIX, PHP Composer, Symbols, ... HTTP-based Web UI for managing things API for various package managers PUT/POST – Upload package DELETE – Delete package via API GET – Fetch metadata or binary
  • 5. 6 Background workers for scale Example: package upload PUT/POST binary and metadata to front-end PackageAddedEvent on queue with many handlers handled on back-end ProcessSymbols UpdateLatestVersion Indexing ...
  • 6. 7 What could possibly go wrong... Too many uploads incoming! Front-end IIS server needs workers to read the incoming network stream Application logic has to check credentials, subscription, quota Back-end Delays in queue processing (luckily workers can process at their own pace) Too many uploads that are too slow! Front-end IIS server needs lots of workers to slowly copy from the network stream Workers == threads == memory == synchronization == not a happy place
  • 7. 11 Other examples Web UI requests Trying to register spam accounts Sends a “welcome e-mail”, writes to the datastore Trying to brute-force login/password reset Trying to validate credit card numbers via a form on your site ...cost money in the cloud (e.g. per serverless execution) Robots / Crawlers Imagine a spider adding 20k items to a shopping cart For us, usually fine (e.g. Googlebot by default up to 5 req/sec) Limiting is easy with rel=“nofollow” and robots.txt crawl-delay
  • 10. 14 Rate limiting – what? Limits # of requests in a given timeframe Or limits bandwidth, or another resource – up to you Helps eliminate: Unexpected traffic patterns Unwanted traffic patterns (e.g. script kiddie brute-force login) Potentiallly damaging traffic patterns (accidental and malicious)
  • 11. 15 Rate limit everything. - Maarten Balliauw
  • 12. 16 Rate limiting – everything??? Everything that could slow down or break your application Typically everything that depends on a scarce or external resource CPU Memory Disk I/O Database External API So yes, everything...
  • 13. 17 Let’s do this! Database with table Events UserIdentifier – who do we limit ActionIdentifier – what do we limit When – event timestamp so we can apply a query Filter attribute SELECT COUNT(*) FROM Events WHERE UserIdentifier = <user> AND ActionIdentifier = <action> AND When >= NOW() – X INSERT INTO Events (<user>, <action>, NOW()) DELETE FROM Events WHERE UserIdentifier = <user> AND ActionIdentifier = <action> AND When < NOW() – X
  • 16. 20 That database was a bad idea! Very flexible in defining various limits or doing combinations Very flexible in changing limits, e.g. changing the time period The database will suffer at scale... Every request is at least 2 – 3 queries Constant index churn We need to manually run DELETE to remove old events Database size!
  • 17. 21 That database was a bad idea! We created a denial of service opportunity! SELECT, INSERT, DELETE for every request Consider a simpler technique to limit # of operations Ideally just a simple counter “Buckets”
  • 18. 22 Quantized buckets Create “buckets” per <identifier> and <timespan> Use incr <bucket> on Redis and get back the current count per <timespan> public string GetBucketName(string operation, TimeSpan timespan) { var bucket = Math.Floor( DateTime.UtcNow.Ticks / timespan.TotalMilliseconds / 10000); return $"{operation}_{bucket}"; } Console.WriteLine(GetBucketName("someaction", TimeSpan.FromMinutes(10))); // someaction_106062120 <-- this will be the key for +/- 10 minutes
  • 19. 23 Quantized buckets Super easy and super cheap (atomic write and read on Redis, auto-expire LRU) Not accurate... (but that may be ok) (n-1)x2 / 10 sec Theoretically: max. 6 / 10 sec
  • 20. 24 Leaky bucket “Imagine a bucket where water is poured in at the top and leaks from the bottom. If the rate at which water is poured in exceeds the rate at which it leaks, the bucket overflows.“ Widely used in telecommunications to deal with bandwidth/bursts.
  • 21. 25 Leaky bucket Get <delta> tokens, with maximum <count> per <timespan> public int GetCallsLeft() { if (_tokens < _capacity) { var referenceTime = DateTime.UtcNow; var delta = (int)((referenceTime - _lastRefill).Ticks / _interval.Ticks); if (delta > 0) { _tokens = Math.Min(_capacity, _tokens + (delta * _capacity)); _lastRefill = referenceTime; } } return _tokens; }
  • 24. 29 Things to decide on Decide on the resources to limit Decide on a sensible limit Come up with an identifier to limit on Decide on exceptions to the rule
  • 25. 30 Which resources to limit? ...
  • 26. 31 Rate limit everything. - Maarten Balliauw
  • 27. 32 What are sensible limits? Approach 1 1. Figure out current # of requests for a certain resource 2. Set limits 3. Get angry phone calls from customers Approach 2 1. Figure out current # of requests for a certain resource 2. Set limits, but only log when a request would be limited 3. Analyze logs, set new limits, ... 4. Start rate limiting 5. Keep measuring
  • 28. 33 Will you allow bursts or not? Laddering! Different buckets per identifier and resource... 10 requests per second can be 36000 requests per hour. But 10 requests per second could also be 1000 requests per hour. Bucket Operation A Operation B Operation C Per second 10 10 100 Per minute 60 60 500 Per hour 3600 600 500 ... Steady flow of max. 10/sec Steady flow of max. 10/sec, but only 600/hour max. Bursts of up to 100/sec, but only 500/hour max.
  • 29. 34 What will be the identifier? Per IP address? But what with NAT/proxy? Per user? But how do you limit anonymous users? Per session? But what when the user starts a new session for every request? Or what if there is no such thing as a session? Per browser? But everyone uses Chrome!
  • 30. 35 What will be the identifier? Probably a combination! IP address (debatable) + User token (or “anonymous”) + Session token + Headers (user agent + accept-language + some cookie + ...)
  • 31. 36 Decide on exceptions Do we rate limit all users? Do we have separate limits for certain users? Dynamic limiting Do we rate limit all IP addresses? What about ourselves? What about our monitoring tools? What about web crawlers? What about certain datacenter ranges? (https://github.com/client9/ipcat) “IP addresses that end web consumers should not be using"
  • 33. 38 What when the user hits the limit? Do we just “black hole” and close the connection? Do you tell the user? API: status code 429 Too Many Requests Web: error page stating rate limit exceeded / captcha (StackOverflow)
  • 34. 39 Try to always tell the user Format? Depends on Accept header (text/html vs. application/json) Tell them why they were throttled Can be a simple link to API documentation Tell them when to retry (e.g. GitHub does this even before rate limiting) Status: 200 OK X-RateLimit-Limit: 5000 X-RateLimit-Remaining: 4999 X-RateLimit-Reset: 1372700873
  • 35. 40 Where do we limit?
  • 36. 41 Rate limiting – where? MvcThrottle Runs as action filter Requests per timespan Per action, user, IP, ... (so knows about actions) Owin.Limits Runs as OWIN middleware Bandwidth, concurrent requests, ... No knowledge about application specifics Many, many others
  • 38. 43 How far do we allow traffic before saying no? KNOWLEDGE ABOUT THE OPERATION RESOURCES SPENT
  • 39. 44 How far do we allow traffic before saying no? KNOWLEDGE ABOUT THE OPERATION RESOURCES SPENT
  • 40. 45 What options are there? In our application ActionFilter / Middleware / HttpModule / ... Easy to add custom logic, based on request details On the server Outside of our server Outside of our datacenter
  • 41. 46 What options are there? In our application On the server IIS has dynamic IP restrictions, bit rate throttling, <limits /> Kestrel minimum speed throttle Found these less flexible in terms of configuraton... E.g. IIS dynamic IP restrictions returns 403 Forbidden, wth! Not a big fan, as these are usually HttpModules anyway (and thus hit our app) Outside of our server Outside of our datacenter
  • 42. 47 What options are there? In our application On the server Outside of our server Reverse proxy (IIS Application Request Routing, NGinx, HAProxy, Squid, ...) Traffic does not even hit our application server, yay! Outside of our datacenter
  • 43. 48 Rate limiting with NGinx Demo
  • 44. 49 What options are there? In our application On the server Outside of our server Outside of our datacenter Azure API management, CloudFlare Filters traffic very early in the request, yay! Often also handle DDoS attacks Often more expensive
  • 45. 50 Rate limiting with Azure API management Demo
  • 47. 52 Imagine... Your marketing team decided to bridge the physical world with the virtual: “Use our in-store wifi to join this online contest and win!”
  • 48. 53 Imagine... Your marketing team decided to bridge the physical world with the virtual: “Use our in-store wifi to join this online contest and win!” What if... All those users are NAT-ed from the same IP And your rate limiting does not allow for 100 simultaneous users from an IP...
  • 49. 54 Monitor your rate limiting! Monitor what is happening in your application Who are we rate limiting, when, why Add circuit breakers (“exceptional exceptions”) “This flood of requests is fine for now”
  • 51. 56 Conclusion Users are crazy! (unintentional) We need rate limiting Decide on the resources to limit (everything!) Decide on a sensible limit (measure!) Come up with an identifier to limit on Decide on exceptions What when the user reaches a limit? Decide where in the request/response flow to limit Monitor your rate limiting

Editor's Notes

  1. https://pixabay.com
  2. https://pixabay.com/en/tires-used-tires-pfu-garbage-1846674/
  3. https://pixabay.com/en/tires-used-tires-pfu-garbage-1846674/
  4. Prerequisites: create database and make sure it works! Open demo 01 - DemoLetsDoThis.sln In Startup.cs explain adding EF context and show how EventsContext is built Next, show RateLimitFilter is applied to every request Implementation of RateLimitFilter Uses an identifier for the user (either User.Identity.Username or “anonymous” + IP address) Uses ControllerActionDescriptor to determine controller + action We then check if there are > 5 requests to this resource We always add an event to the DB – DANGEROUS!!! And drop older events Show in Fiddler, requesting: http://localhost:56983/api/hello/maarten
  5. Open MvcThrottle, in project MvcThrottle.Demo Show HomeController, show EnableThrottling attribute Run the application - http://localhost:53048/Home/About – see it in action after a few refreshes Mention we can respond to throttlign depending on the client type! Open MvcThrottleCustomFilter See filterContext.HttpContext.Request.AcceptTypes.Any(accept => accept.Contains("html")) -> custom view result Mention we can filter based on client IP In FilterConfig.cs, there is an IP whitelist of folks we never want to throttle Same goes with user agents Same goes with endpoints The REALLY nice thing: I can enable/disable per action in MVC Show BlogController REALLY NICE, throttling follows my logic The SAD thing: open 04-snapshot I did a load test – non scientific! This thing has low overhead (did a few thousand requests) but still my aplication spent 12% of its time rate limiting requests
  6. Run the nginx docker container from 05-nginx Show a few requests: http://localhost:8080/ proxies MyGet http://localhost:8080/F/googleanalyticstracker/api/v2 proxies a feed A few refreshes of http://localhost:8080/F/googleanalyticstracker/api/v2 get throttled So we proxy our app, and get to rate limit some calls, sweet! Open nginx.conf and go through some boiler-plate: Worker processes and worker connections (typically == to # cores) http section sets up a web server, we can add SSL etc here as well Under server, we define the different resources / just proxies www.myget.org and injects a header /Content proxies and caches (yay added bonus of NGinx) /F/ is where things get interesting – we limit requests to this one using “mylimit” Defines a key, names a zone, names the timespan, names the limit Can mix and match to create key: limit_req_zone $binary_remote_addr$http_authorization zone=mylimit:10m rate=2r/s;
  7. Prerequisites Create Azure API management (!!! Well upfront – takes time !!!) Force-push the 06-apim repo to it git remote add origin .......<new url>....... git push --force --set-upstream origin master Show portal – especially “API” and “PRODUCT” “API” defines API calls. From portal, show we can create this based on a Swagger definition For demo here, created manually and registered /F/* and /* to just pass-through Under products Show anonymous and unlimited Explain the idea of API management is to sell access to your API and allow people to purchase a product to get better/less/… access to an API Anonymous is all I’ll use during the demo Anonymous has policies – show rate limit is 100 per 60 sec From PUBLISHER PORTAL (click), we have a policy for –Feed endpoint as well, which is more strict Show https://ratelimitingdemo.azure-api.net/ is smooth Show a few refreshes of https://shit.azure-api.net/F/googleanalyticstracker/api/v2/  limited Requests that are limited never hit my server
