Nodal points are two specific points on the principal axis of an optical system that produce parallel emergent rays. They are defined as a pair of points with unit positive angular magnification located on the principal axis. Additionally, nodal points are referred to as the center of rotation of the eye.

1. NODAL POINTS:
• Two points located on the principal axis of a lens or
a optical system,that can incident the ray directed
through,one will produce a parallel emergent ray
directedto the other.These points are NODAL
POINTS.

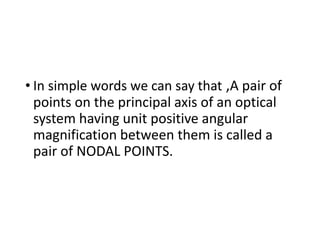

3. • In simple words we can say that ,A pair of
points on the principal axis of an optical
system having unit positive angular
magnification between them is called a
pair of NODAL POINTS.

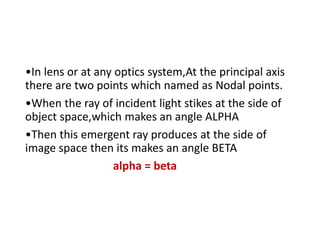

5. •In lens or at any optics system,At the principal axis
there are two points which named as Nodal points.
•When the ray of incident light stikes at the side of
object space,which makes an angle ALPHA
•Then this emergent ray produces at the side of
image space then its makes an angle BETA
alpha = beta

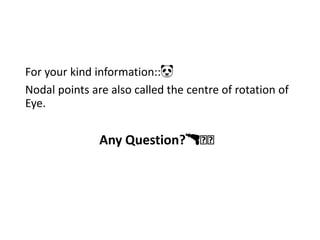

6. For your kind information::🐼
Nodal points are also called the centre of rotation of
Eye.
Any Question?🔫🗡🗡
