Native erasure coding support inside hdfs presentation
- 1. HDFS Erasure Coding Zhe Zhang zhezhang@cloudera.com

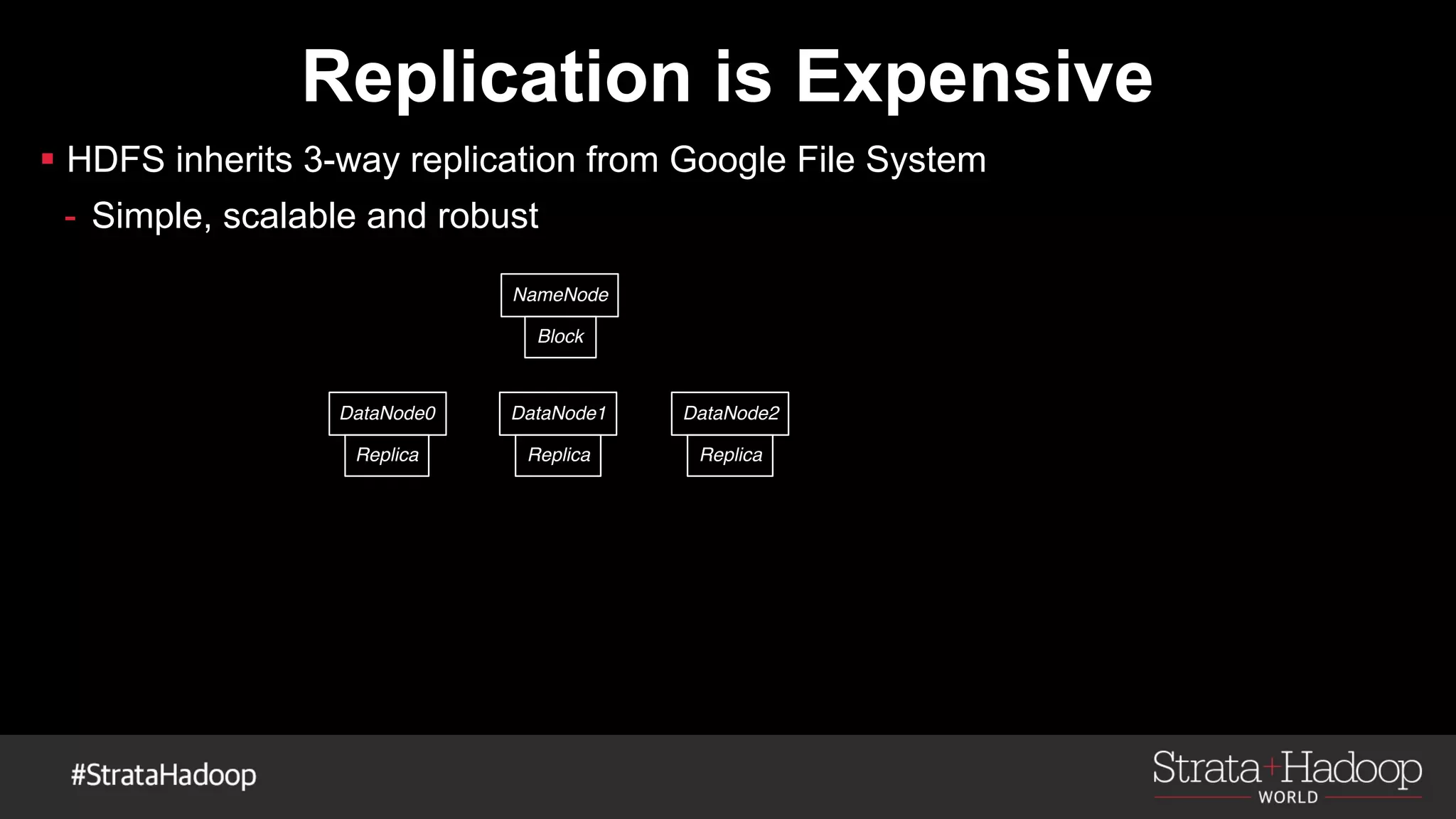

- 3. § HDFS inherits 3-way replication from Google File System - Simple, scalable and robust Replication is Expensive Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica
- 4. § HDFS inherits 3-way replication from Google File System - Simple, scalable and robust § 200% storage overhead Replication is Expensive Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica

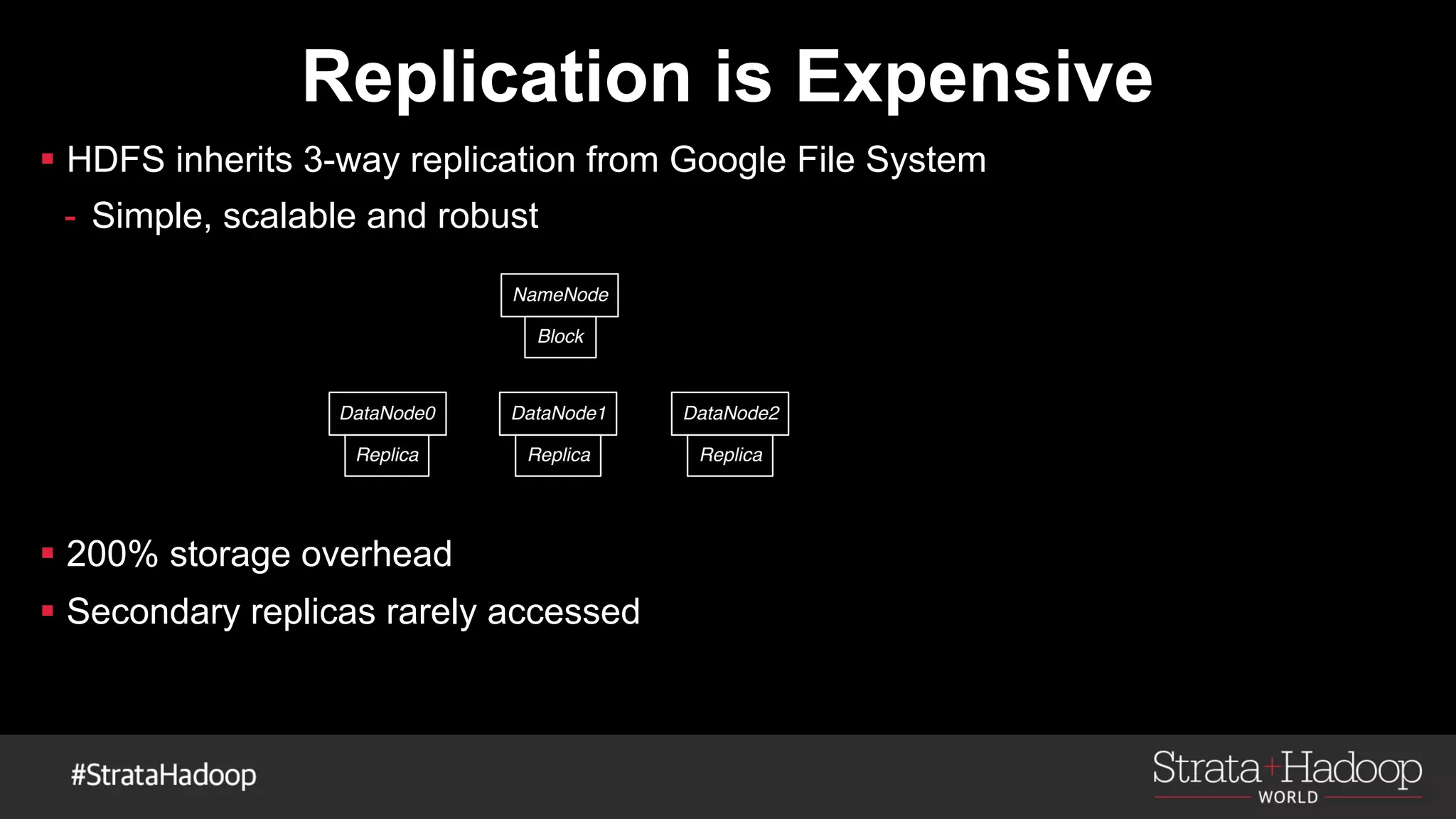

- 5. § HDFS inherits 3-way replication from Google File System - Simple, scalable and robust § 200% storage overhead § Secondary replicas rarely accessed Replication is Expensive Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica
- 6. Erasure Coding Saves Storage

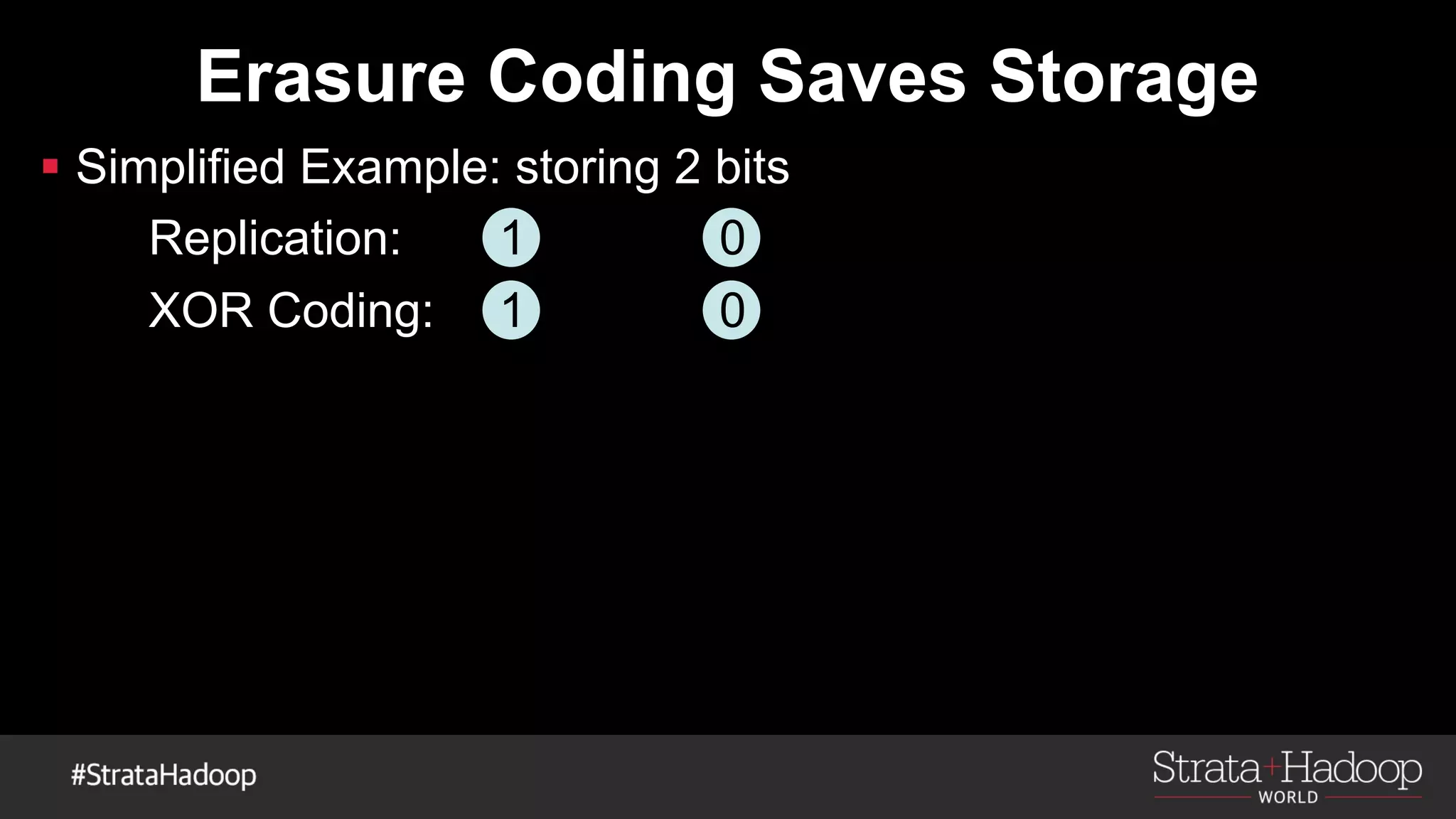

- 7. Erasure Coding Saves Storage § Simplified Example: storing 2 bits 1 0Replication: XOR Coding: 1 0

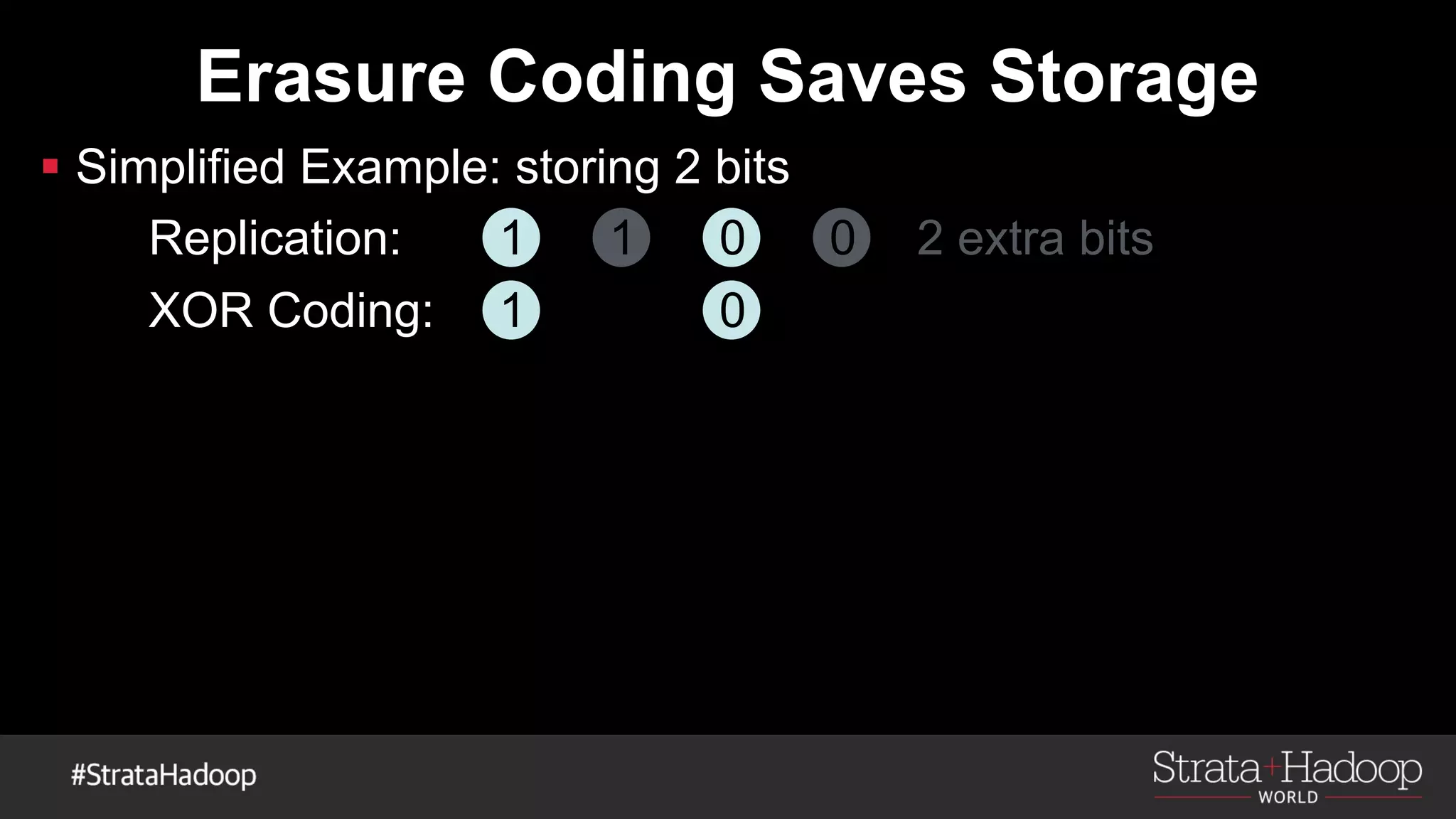

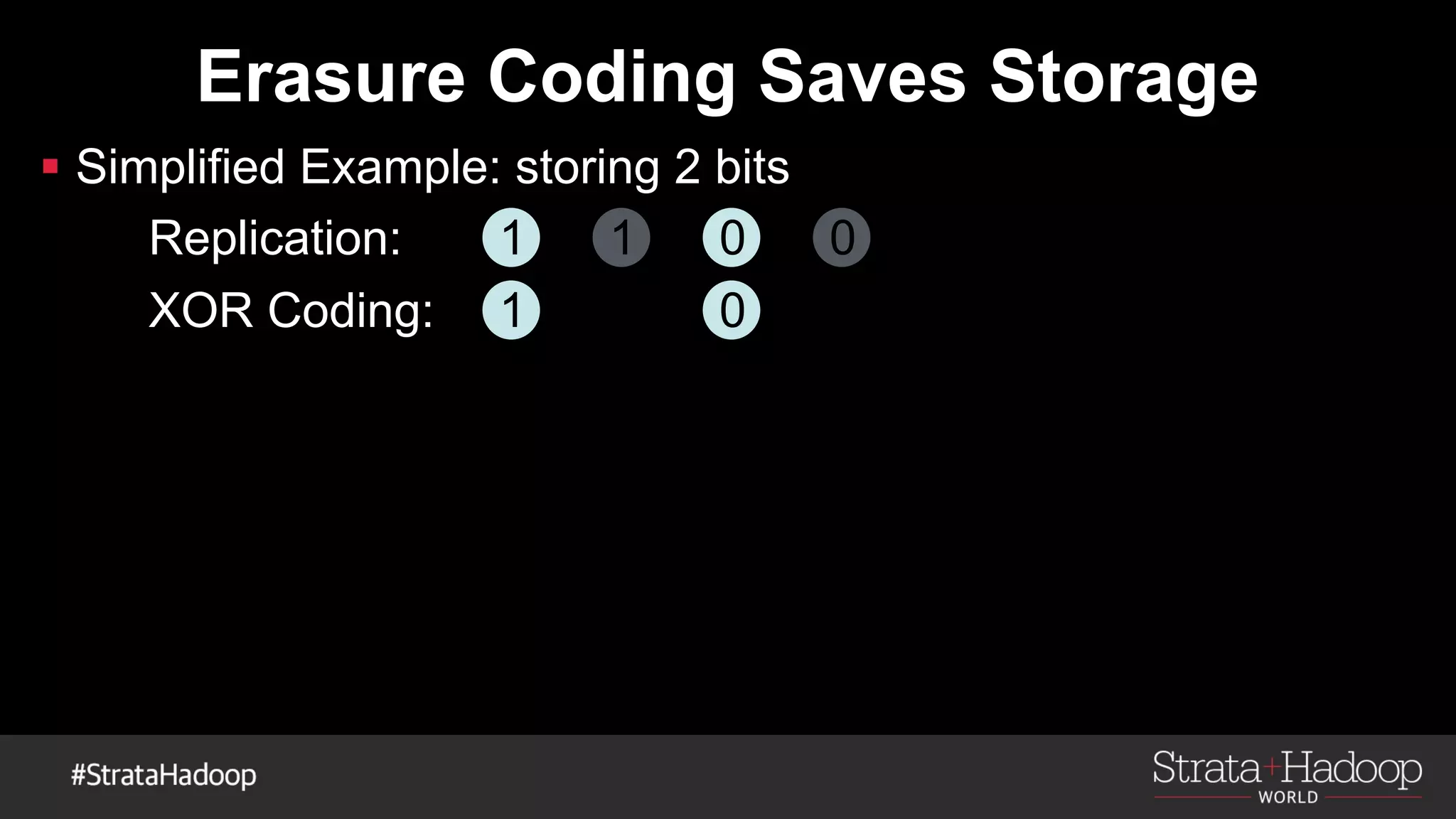

- 8. Erasure Coding Saves Storage § Simplified Example: storing 2 bits 1 01 0Replication: XOR Coding: 1 0
- 9. Erasure Coding Saves Storage § Simplified Example: storing 2 bits 1 01 0Replication: XOR Coding: 1 0 2 extra bits

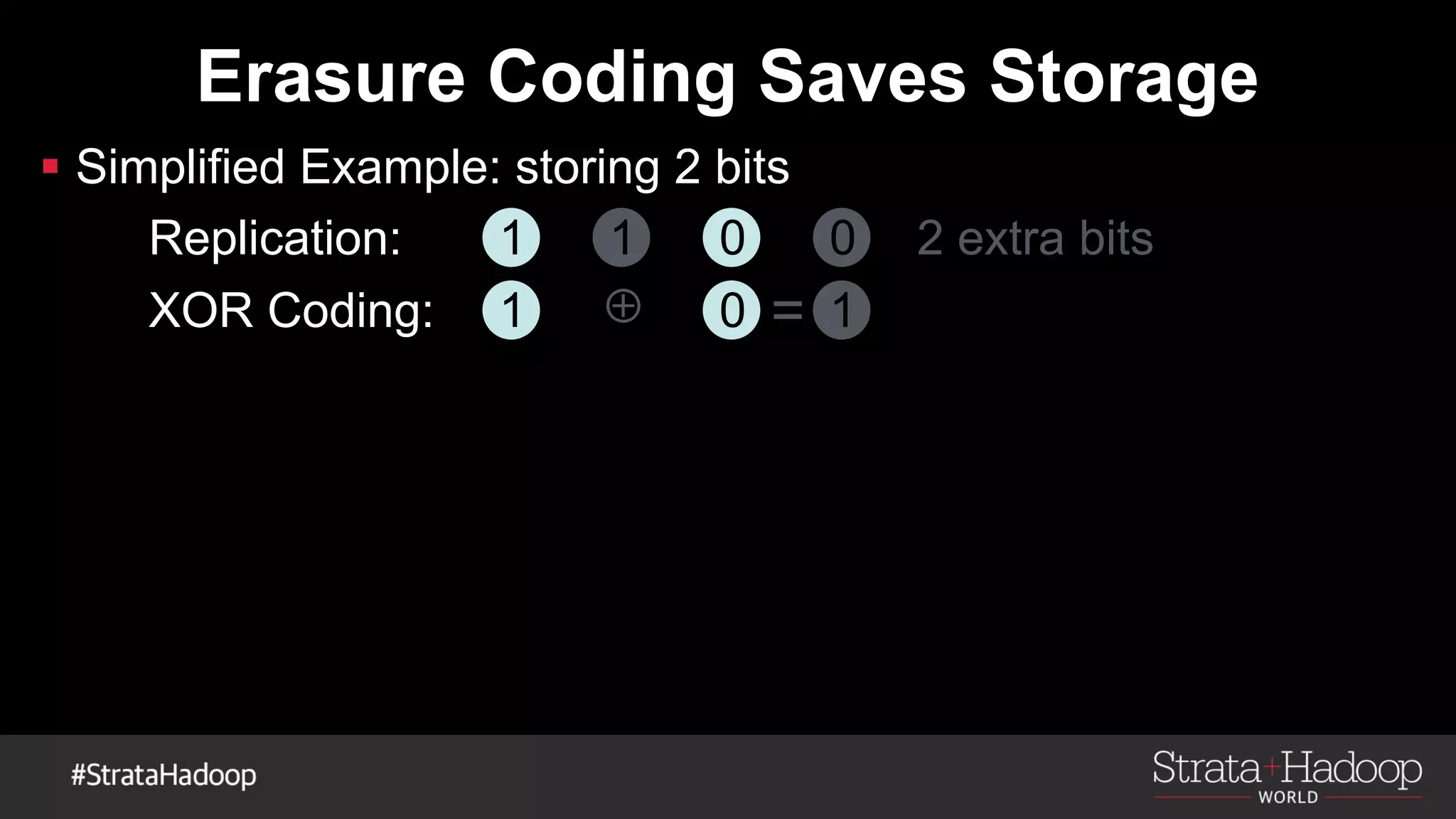

- 10. Erasure Coding Saves Storage § Simplified Example: storing 2 bits 1 01 0Replication: XOR Coding: 1 0⊕ 1= 2 extra bits
- 11. Erasure Coding Saves Storage § Simplified Example: storing 2 bits 1 01 0Replication: XOR Coding: 1 0⊕ 1= 2 extra bits 1 extra bit

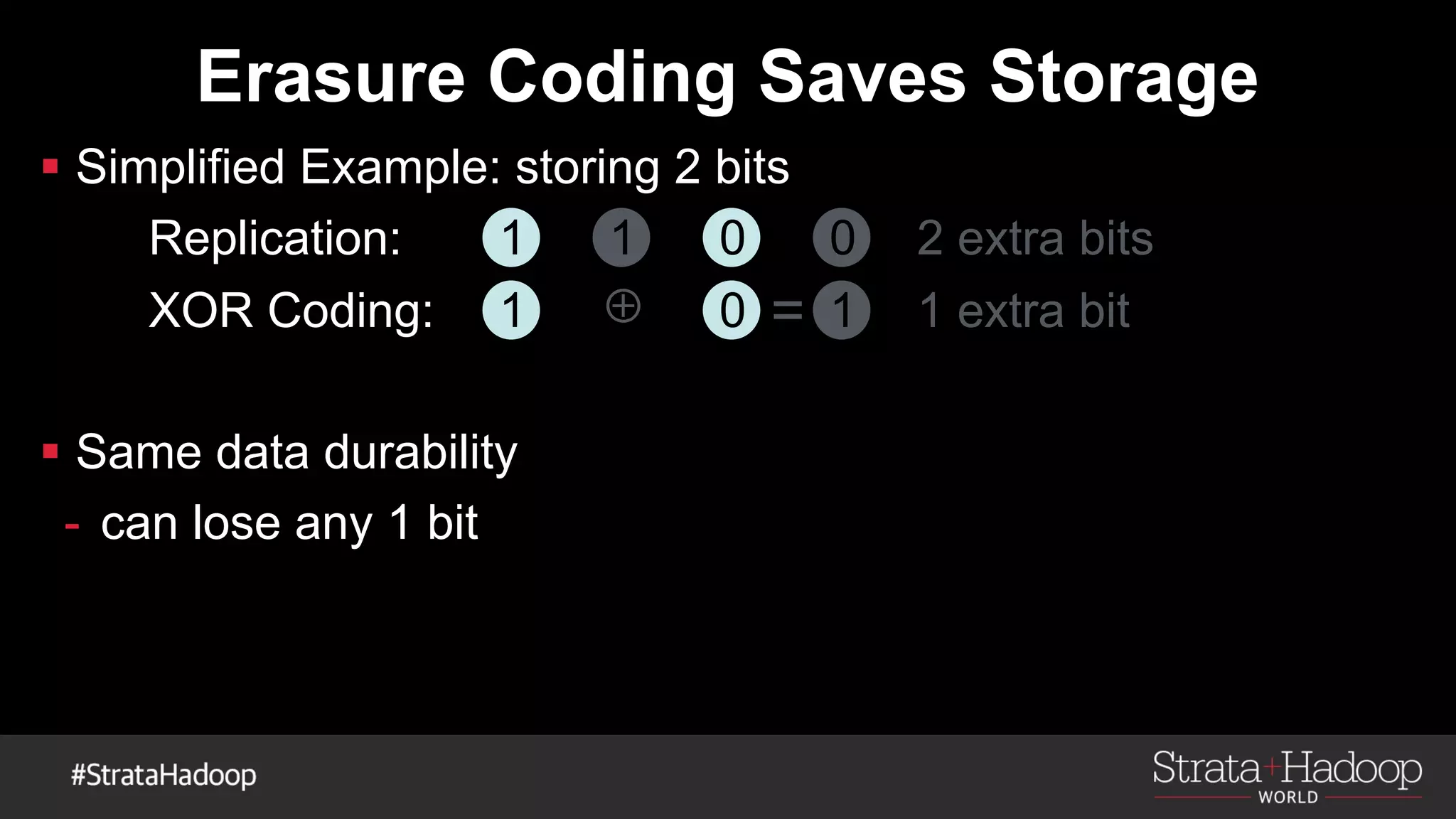

- 12. Erasure Coding Saves Storage § Simplified Example: storing 2 bits § Same data durability - can lose any 1 bit 1 01 0Replication: XOR Coding: 1 0⊕ 1= 2 extra bits 1 extra bit
- 13. Erasure Coding Saves Storage § Simplified Example: storing 2 bits § Same data durability - can lose any 1 bit § Half the storage overhead 1 01 0Replication: XOR Coding: 1 0⊕ 1= 2 extra bits 1 extra bit

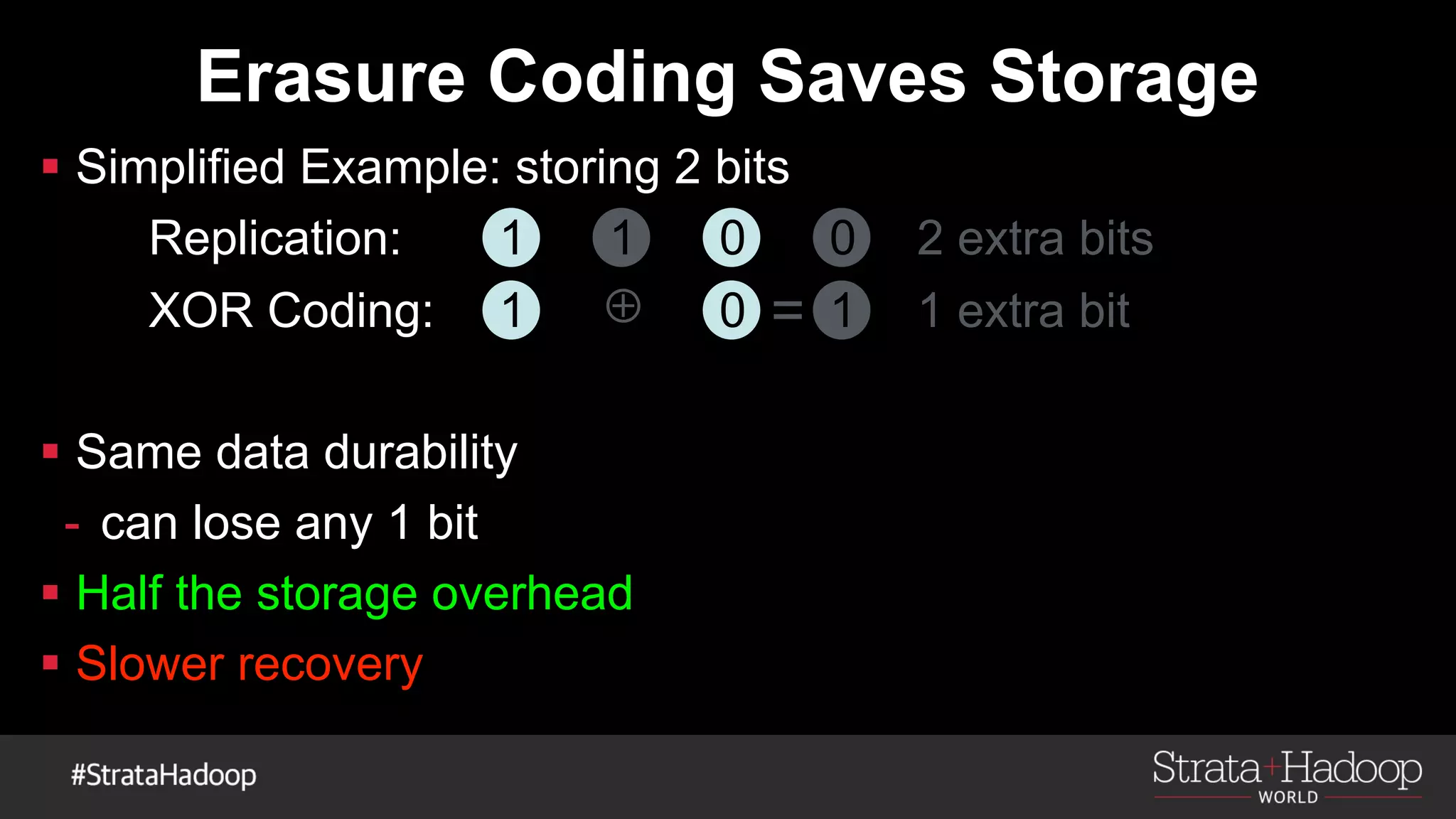

- 14. Erasure Coding Saves Storage § Simplified Example: storing 2 bits § Same data durability - can lose any 1 bit § Half the storage overhead § Slower recovery 1 01 0Replication: XOR Coding: 1 0⊕ 1= 2 extra bits 1 extra bit
- 15. Erasure Coding Saves Storage

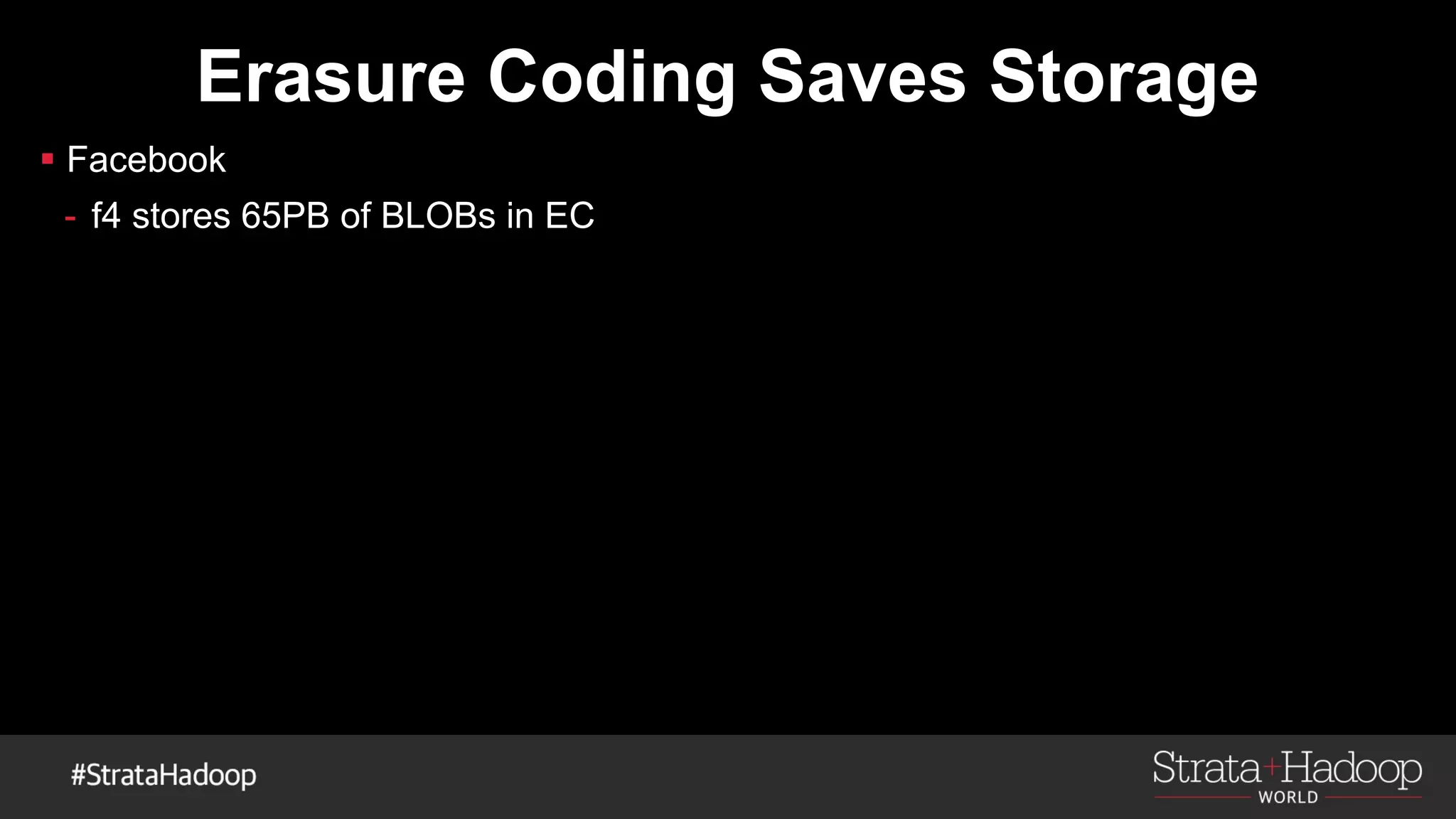

- 16. Erasure Coding Saves Storage § Facebook - f4 stores 65PB of BLOBs in EC

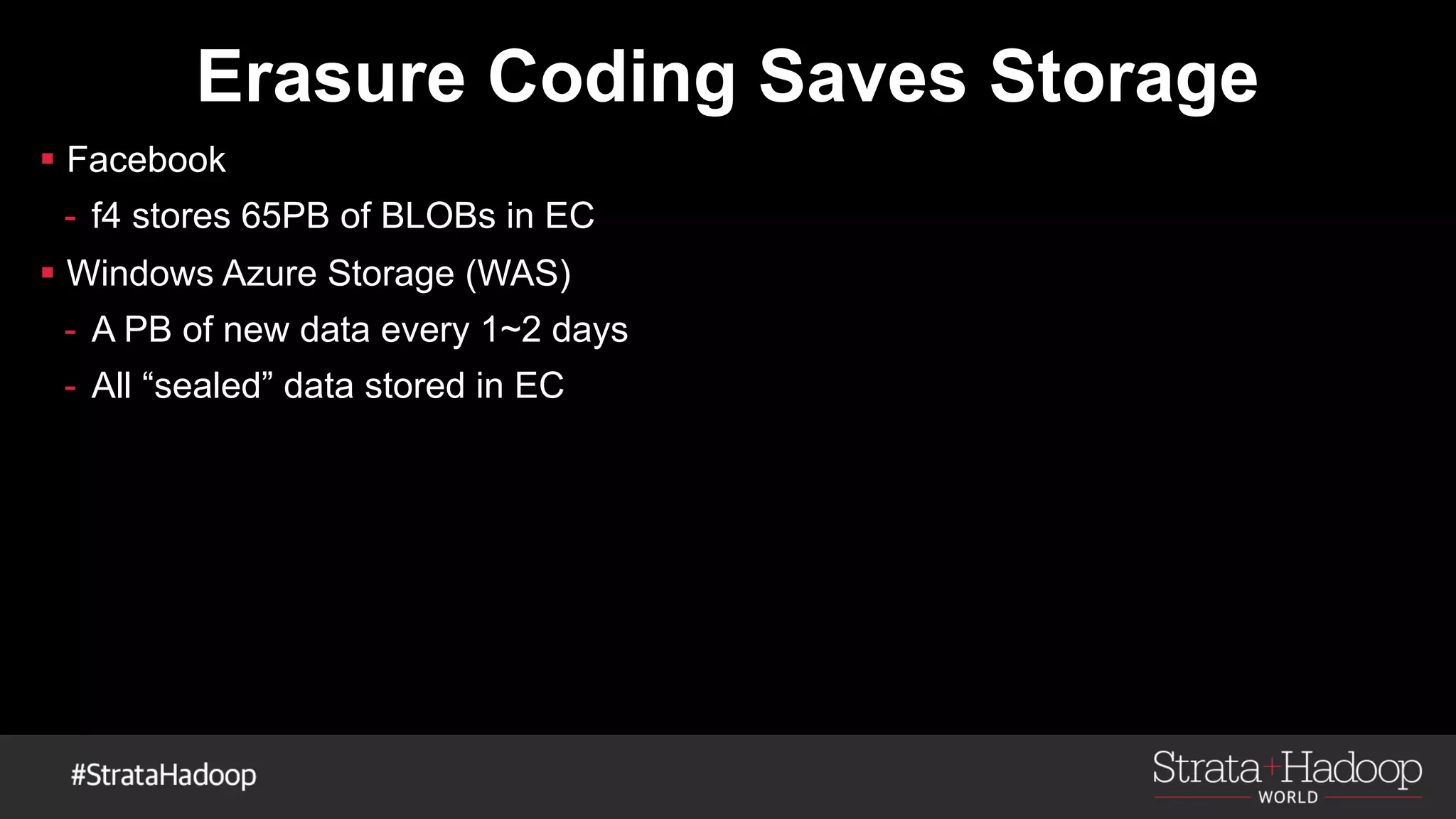

- 17. Erasure Coding Saves Storage § Facebook - f4 stores 65PB of BLOBs in EC § Windows Azure Storage (WAS) - A PB of new data every 1~2 days - All “sealed” data stored in EC

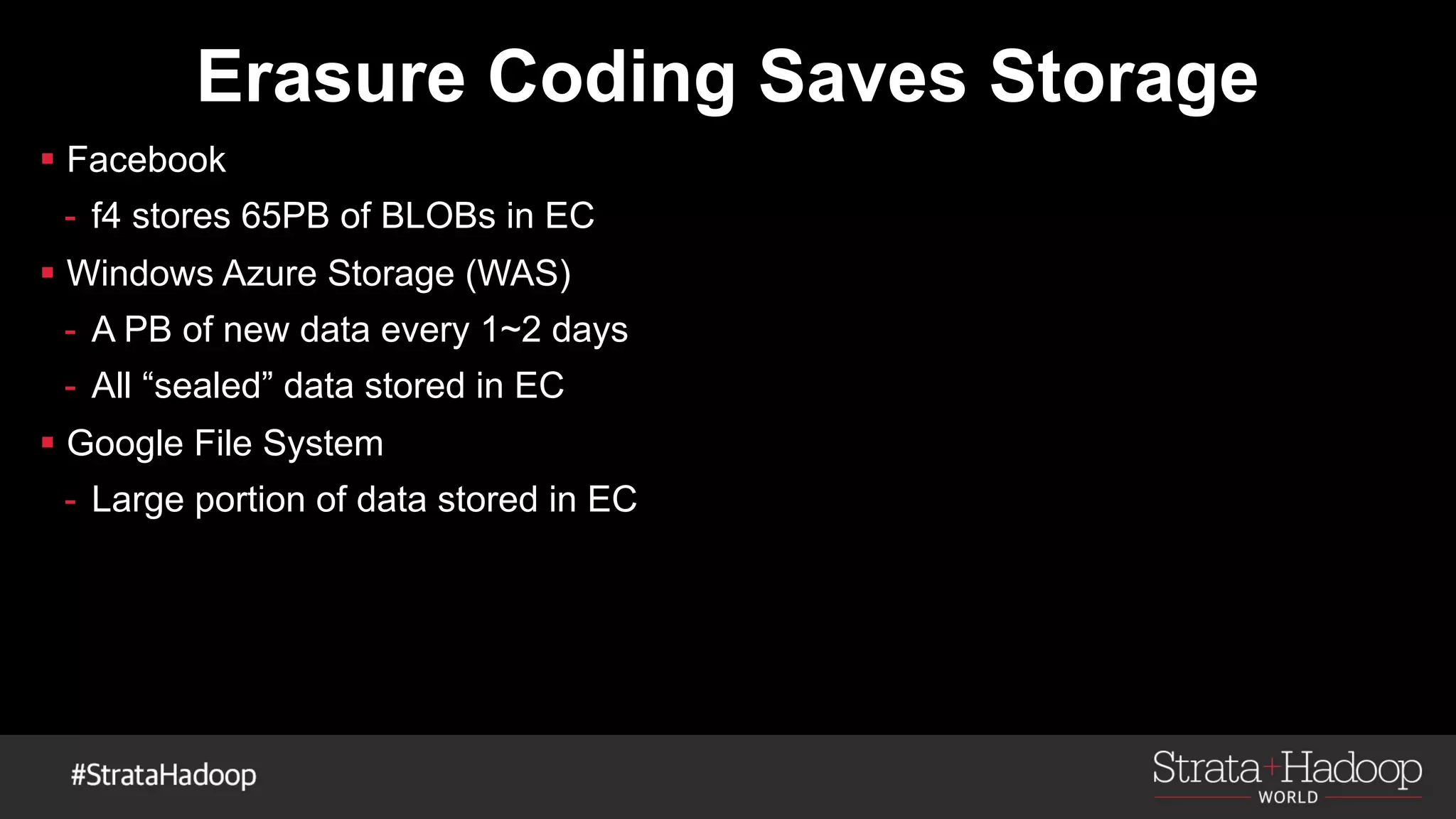

- 18. Erasure Coding Saves Storage § Facebook - f4 stores 65PB of BLOBs in EC § Windows Azure Storage (WAS) - A PB of new data every 1~2 days - All “sealed” data stored in EC § Google File System - Large portion of data stored in EC
- 19. Roadmap

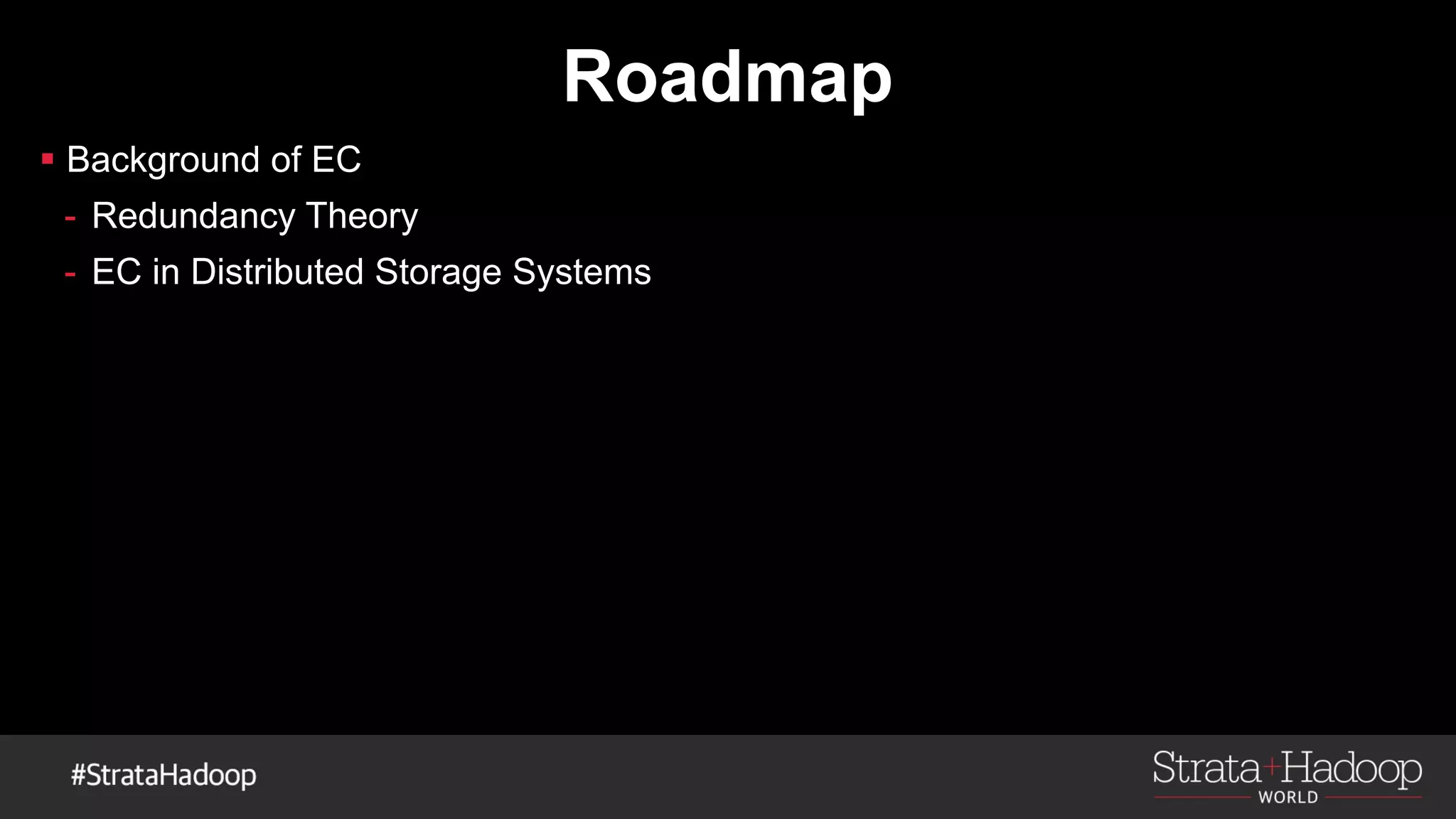

- 20. Roadmap § Background of EC - Redundancy Theory - EC in Distributed Storage Systems

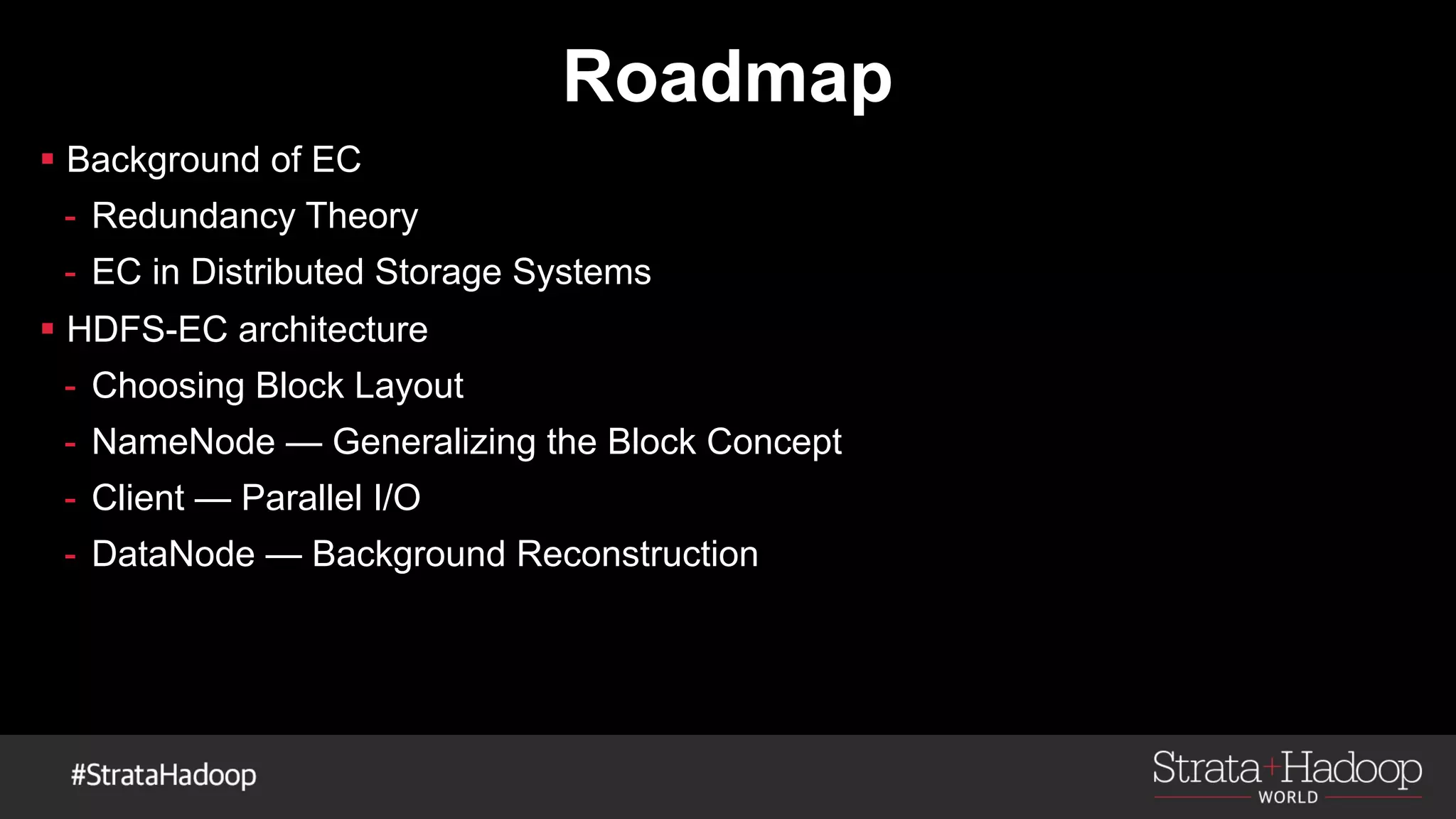

- 21. Roadmap § Background of EC - Redundancy Theory - EC in Distributed Storage Systems § HDFS-EC architecture - Choosing Block Layout - NameNode — Generalizing the Block Concept - Client — Parallel I/O - DataNode — Background Reconstruction
- 22. Roadmap § Background of EC - Redundancy Theory - EC in Distributed Storage Systems § HDFS-EC architecture - Choosing Block Layout - NameNode — Generalizing the Block Concept - Client — Parallel I/O - DataNode — Background Reconstruction § Hardware-accelerated Codec Framework

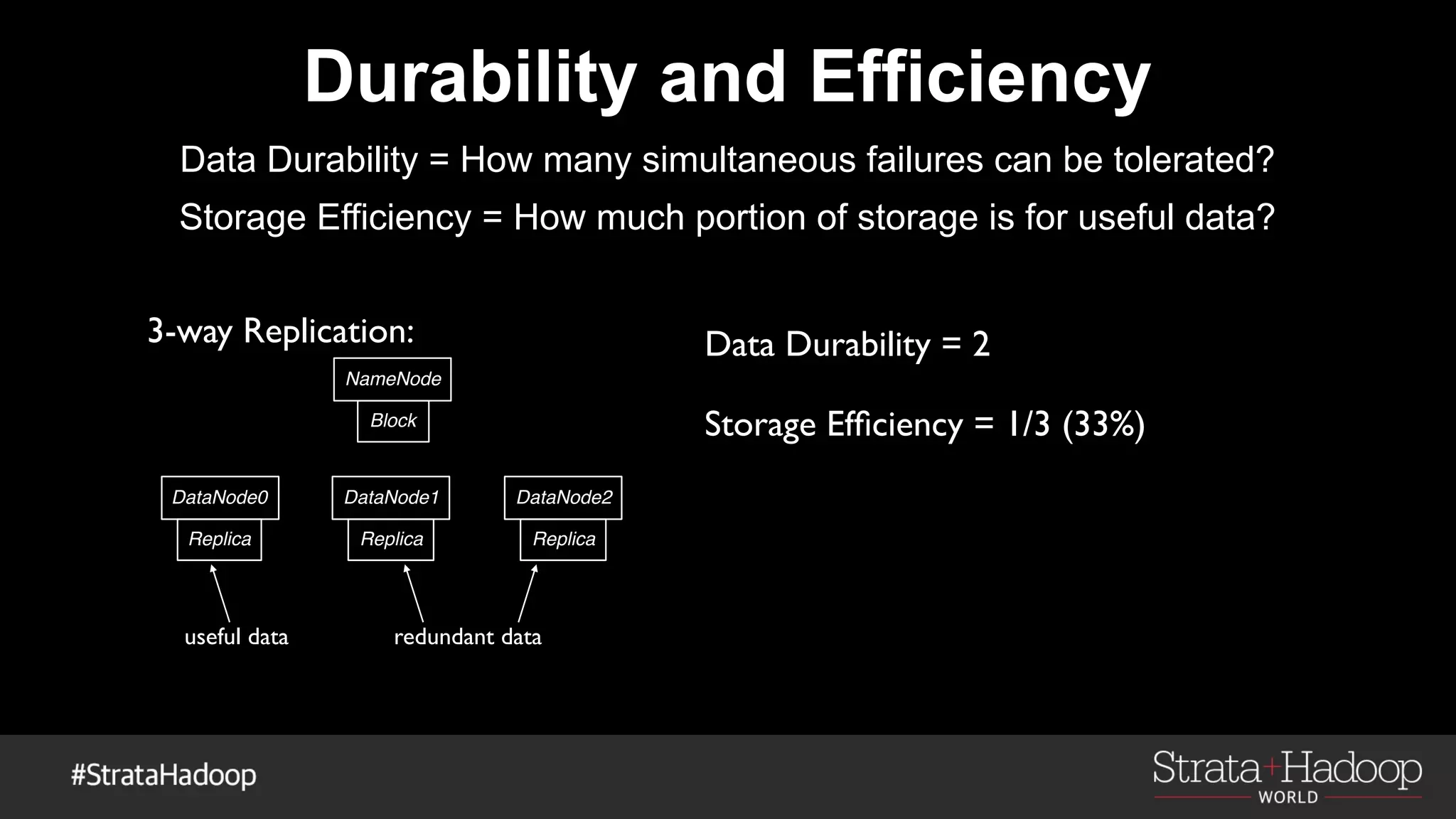

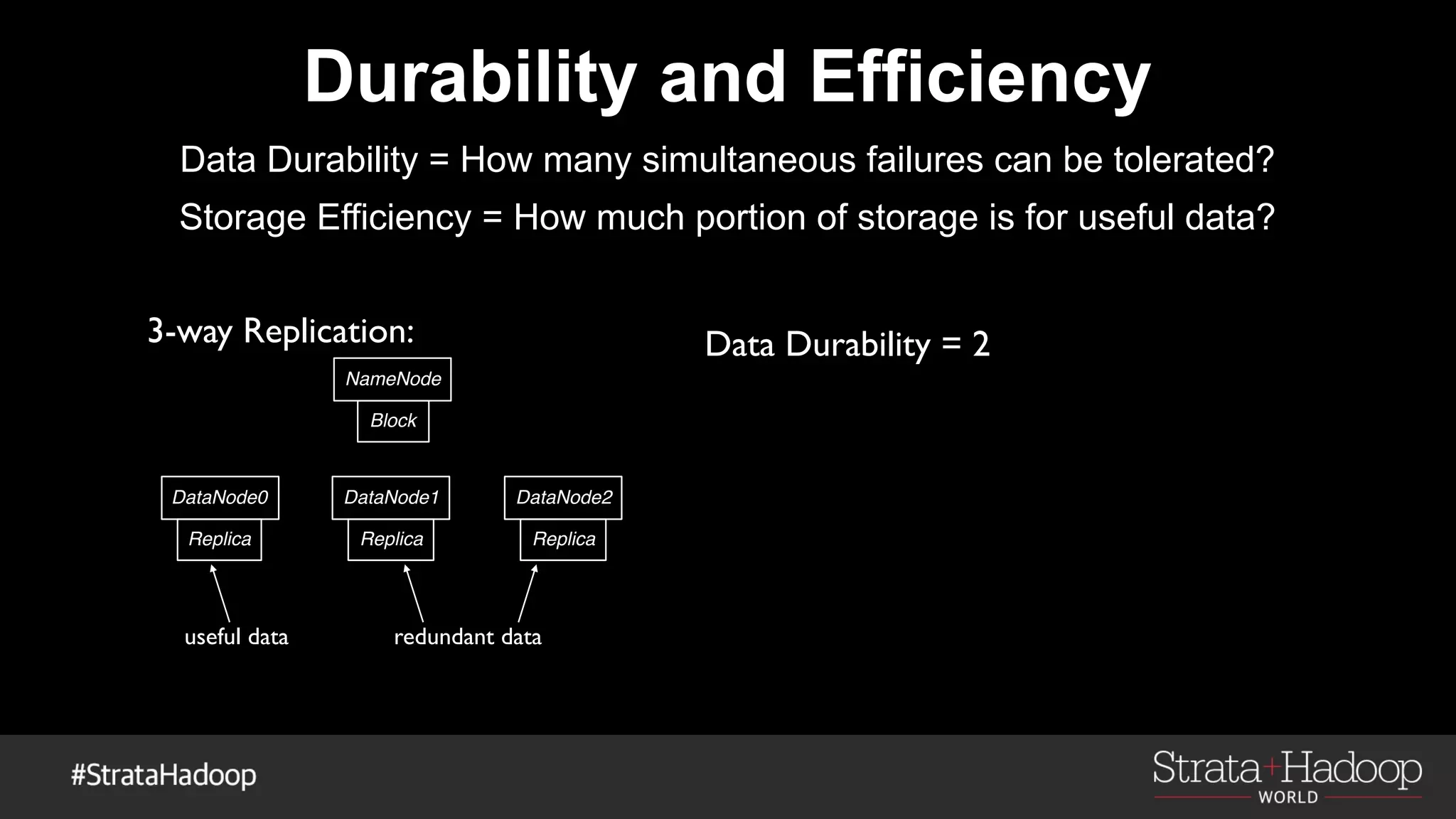

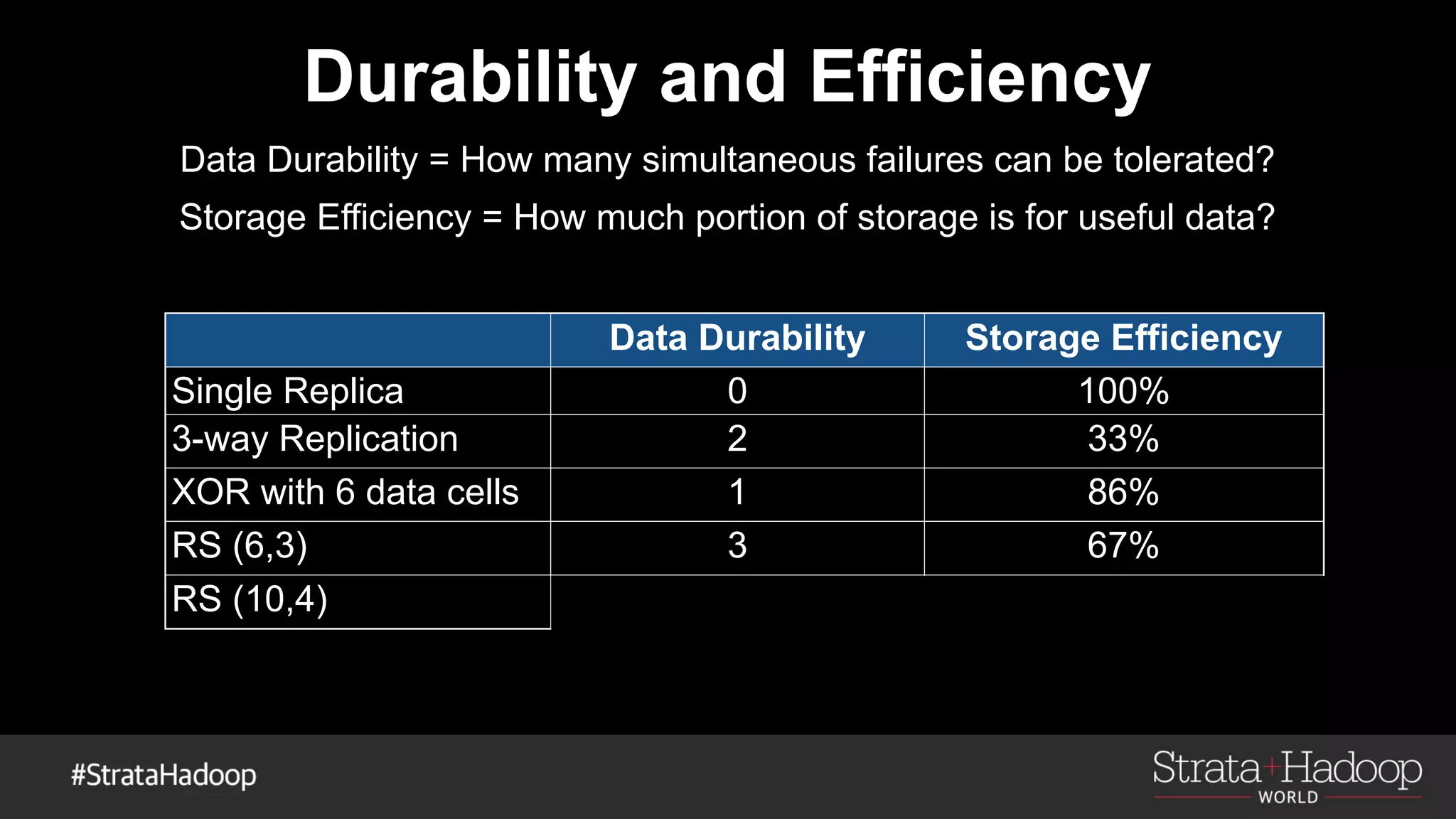

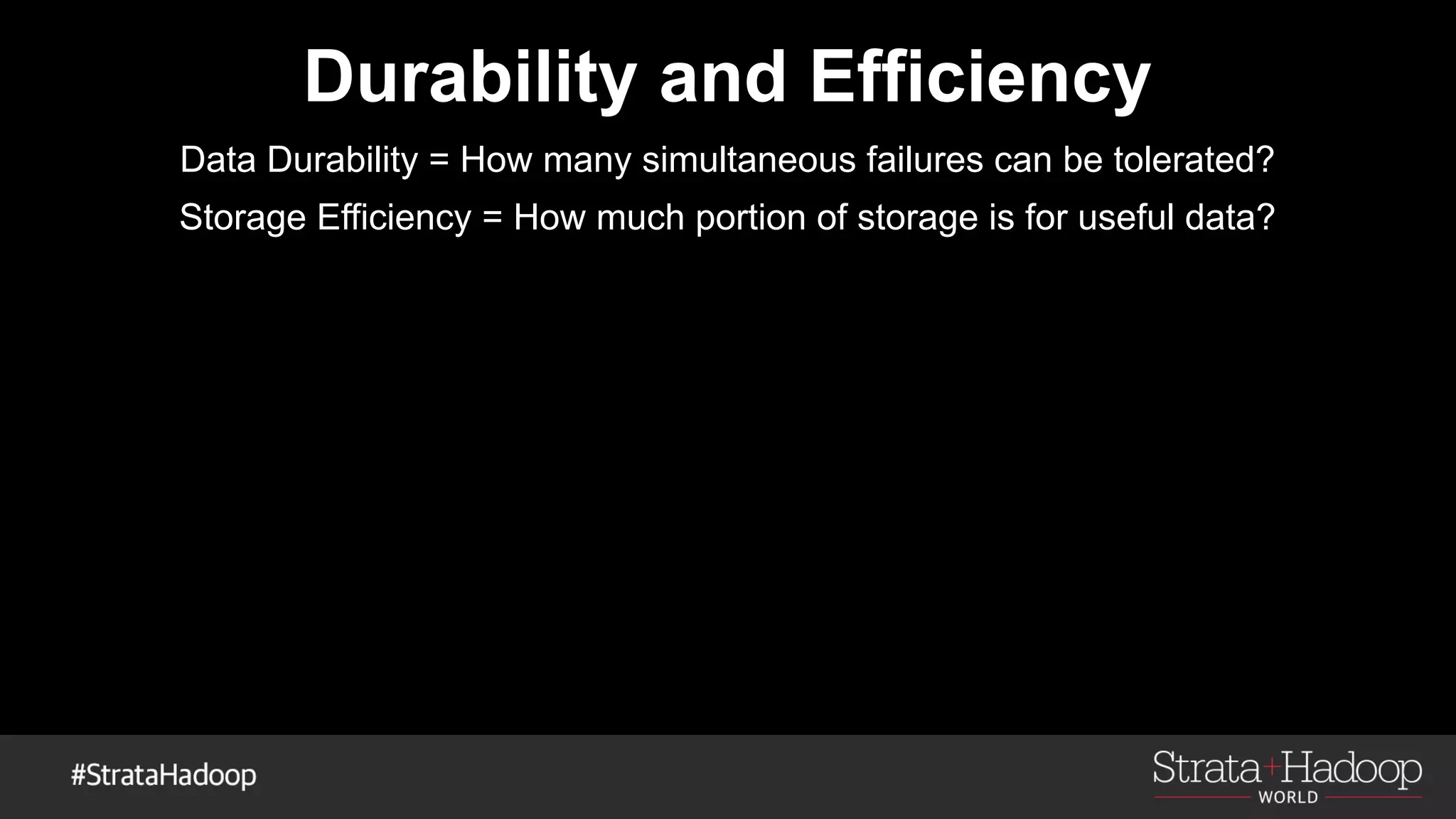

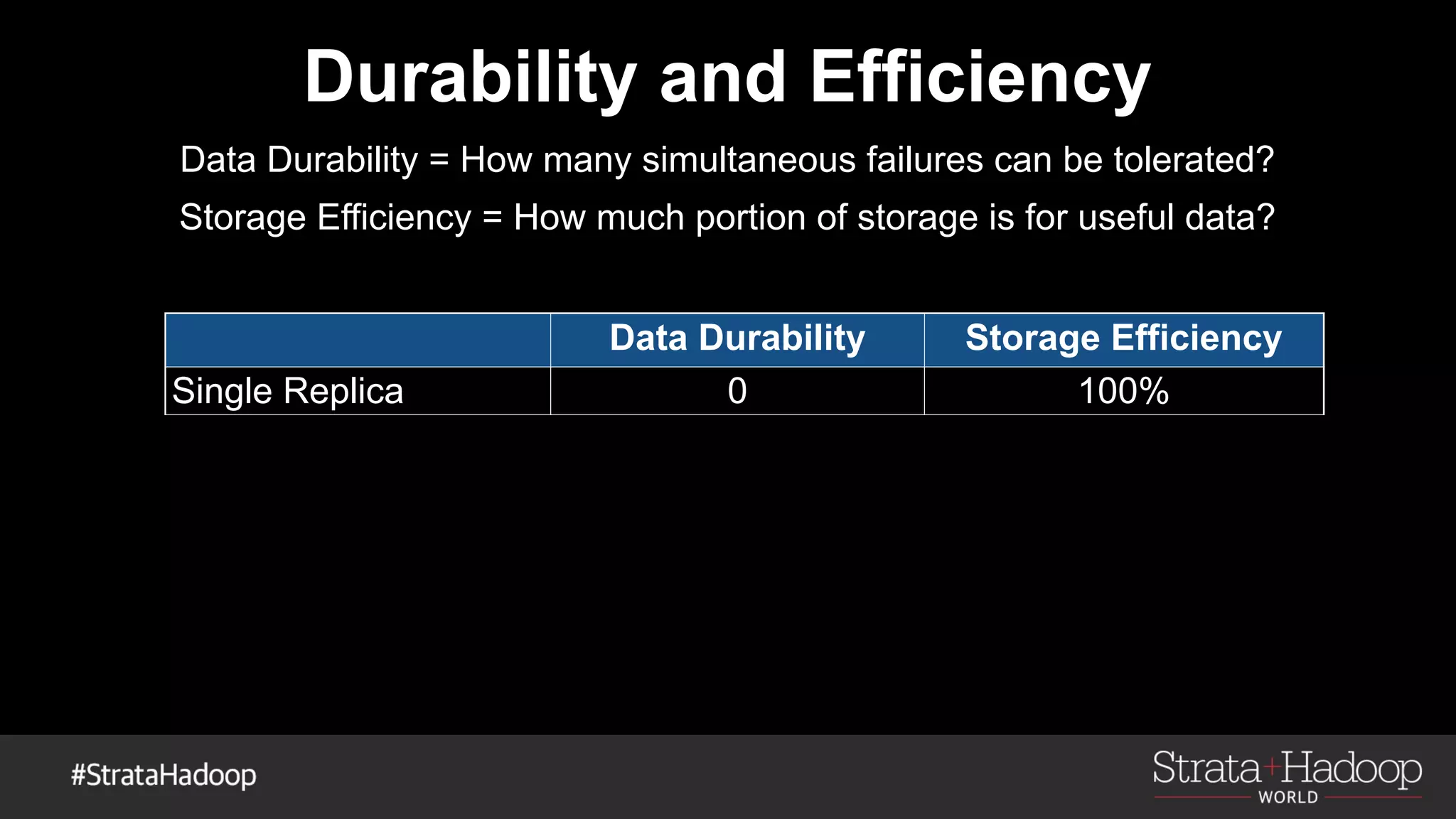

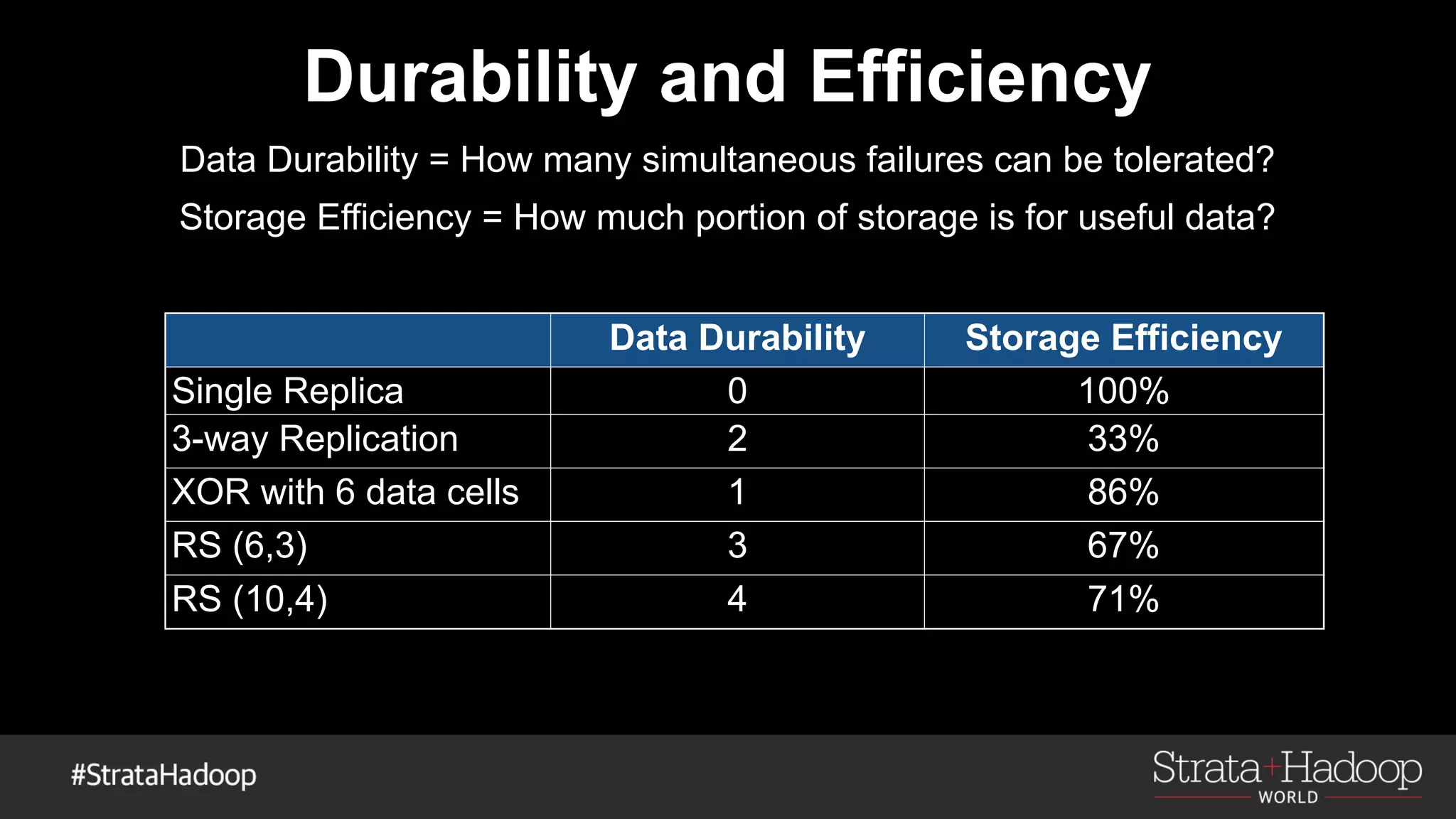

- 23. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data?

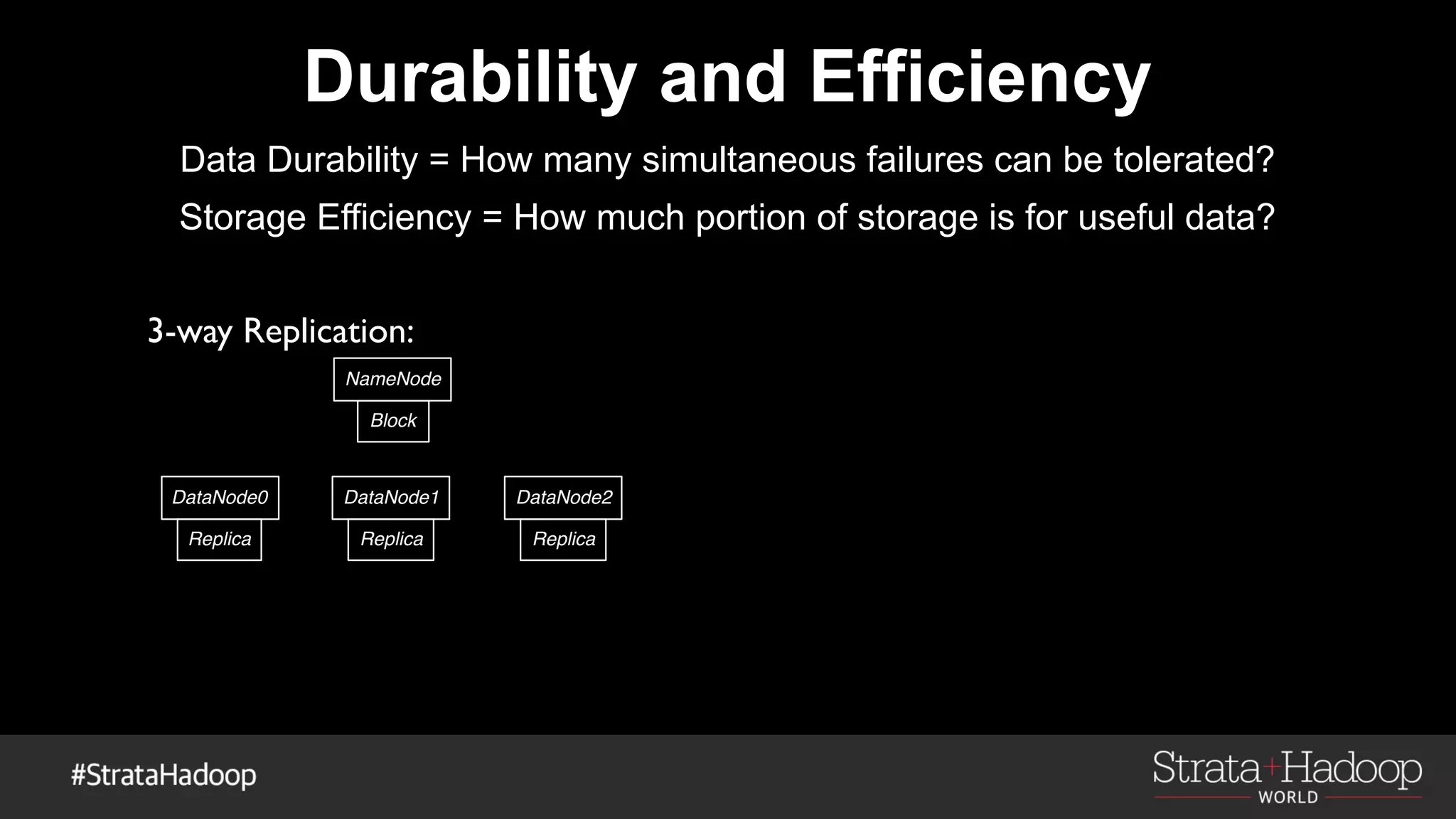

- 24. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica 3-way Replication:

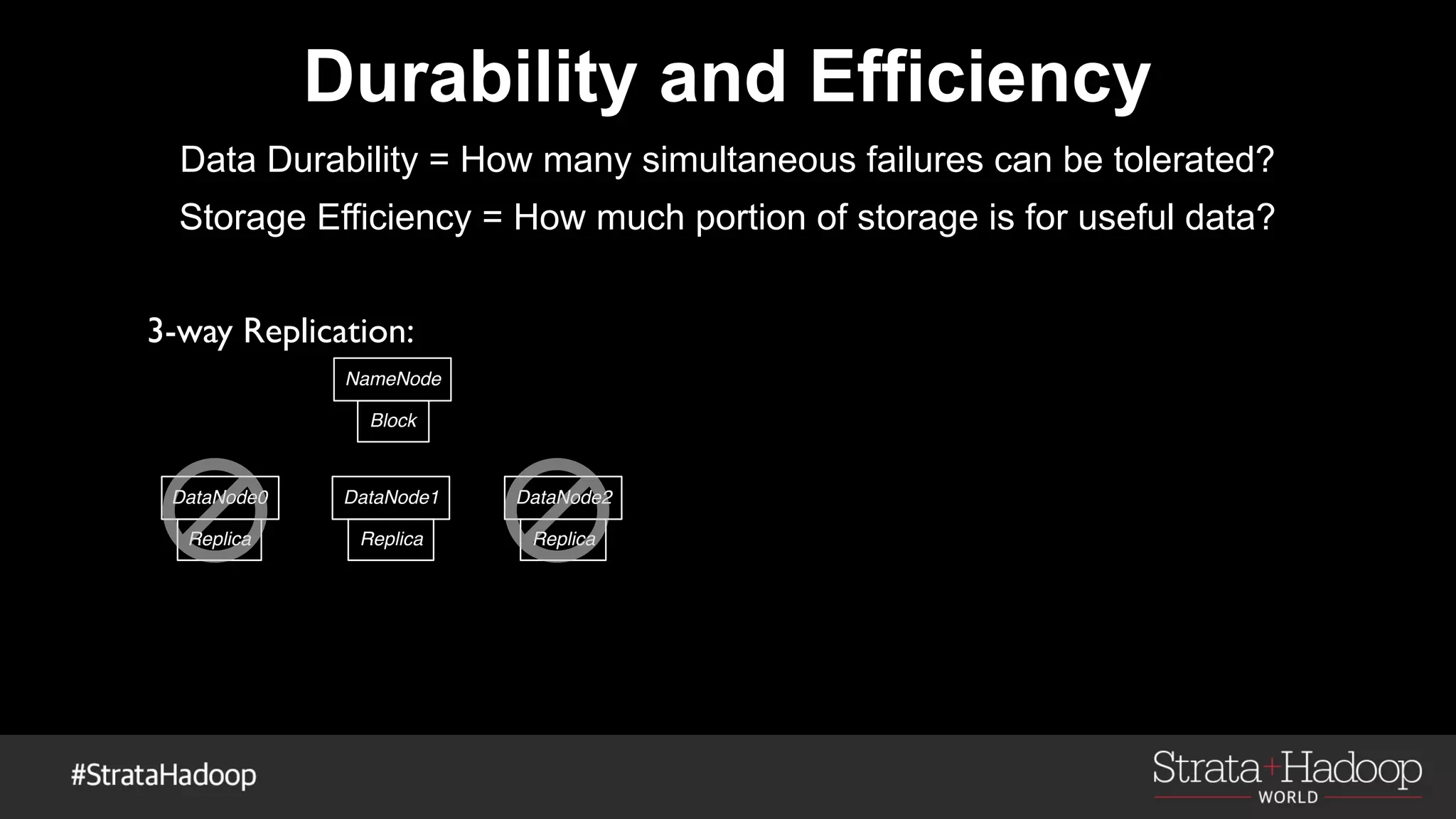

- 25. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica 3-way Replication:

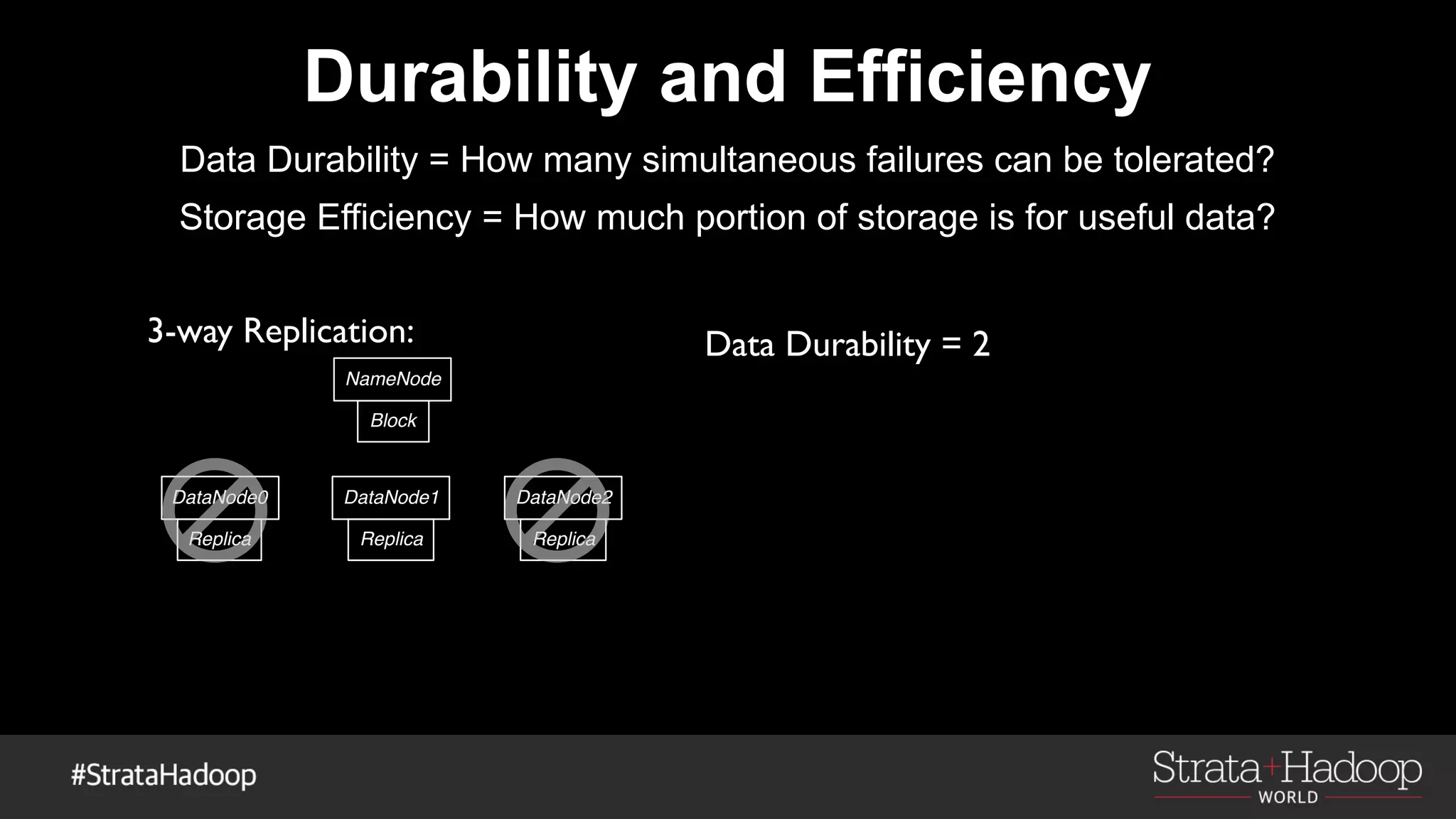

- 26. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica 3-way Replication: Data Durability = 2

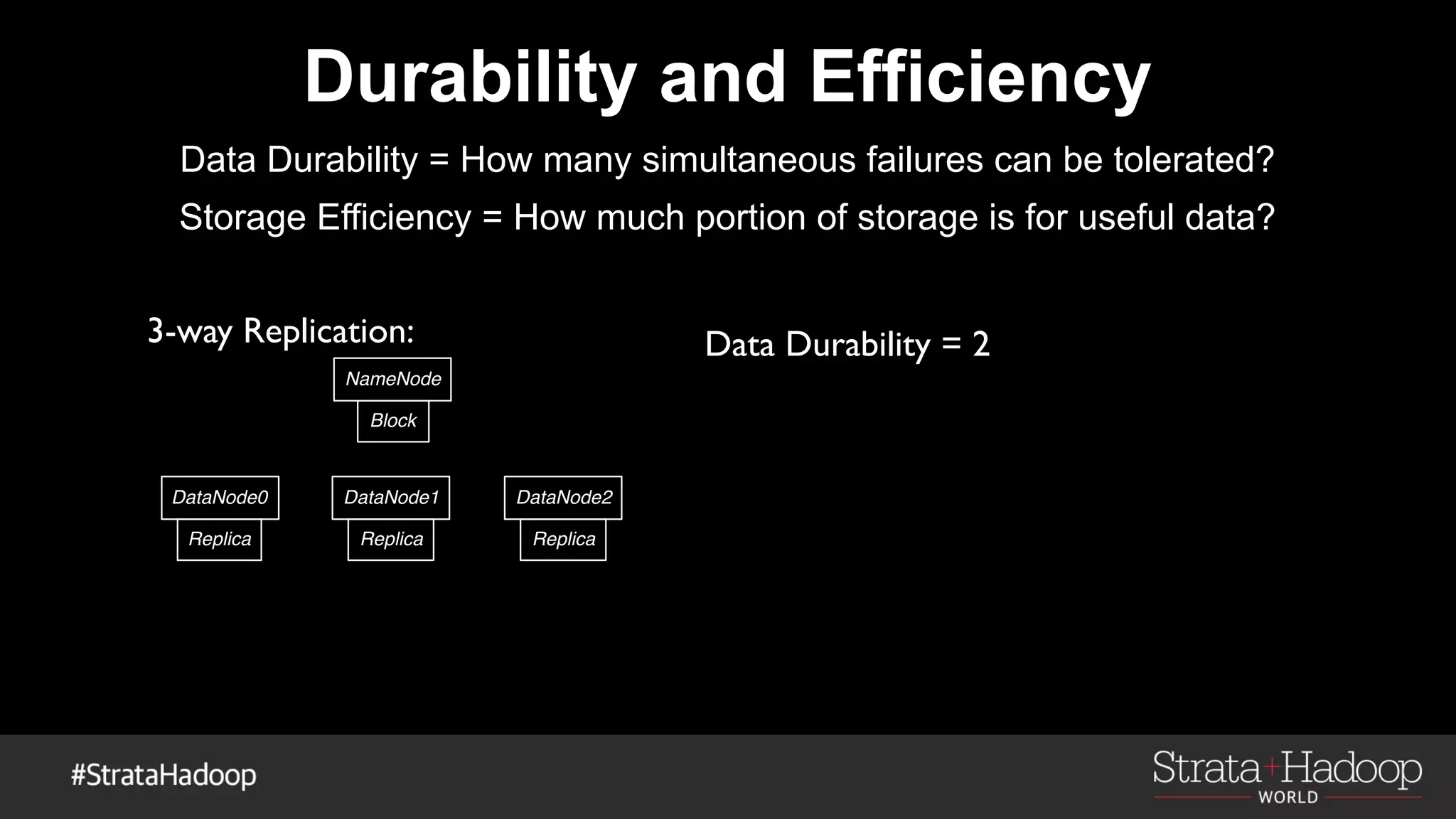

- 27. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica 3-way Replication: Data Durability = 2
- 28. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica useful data 3-way Replication: Data Durability = 2 redundant data
- 29. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Replica DataNode0 DataNode1 DataNode2 Block NameNode Replica Replica useful data 3-way Replication: Data Durability = 2 Storage Efficiency = 1/3 (33%) redundant data
- 30. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data?

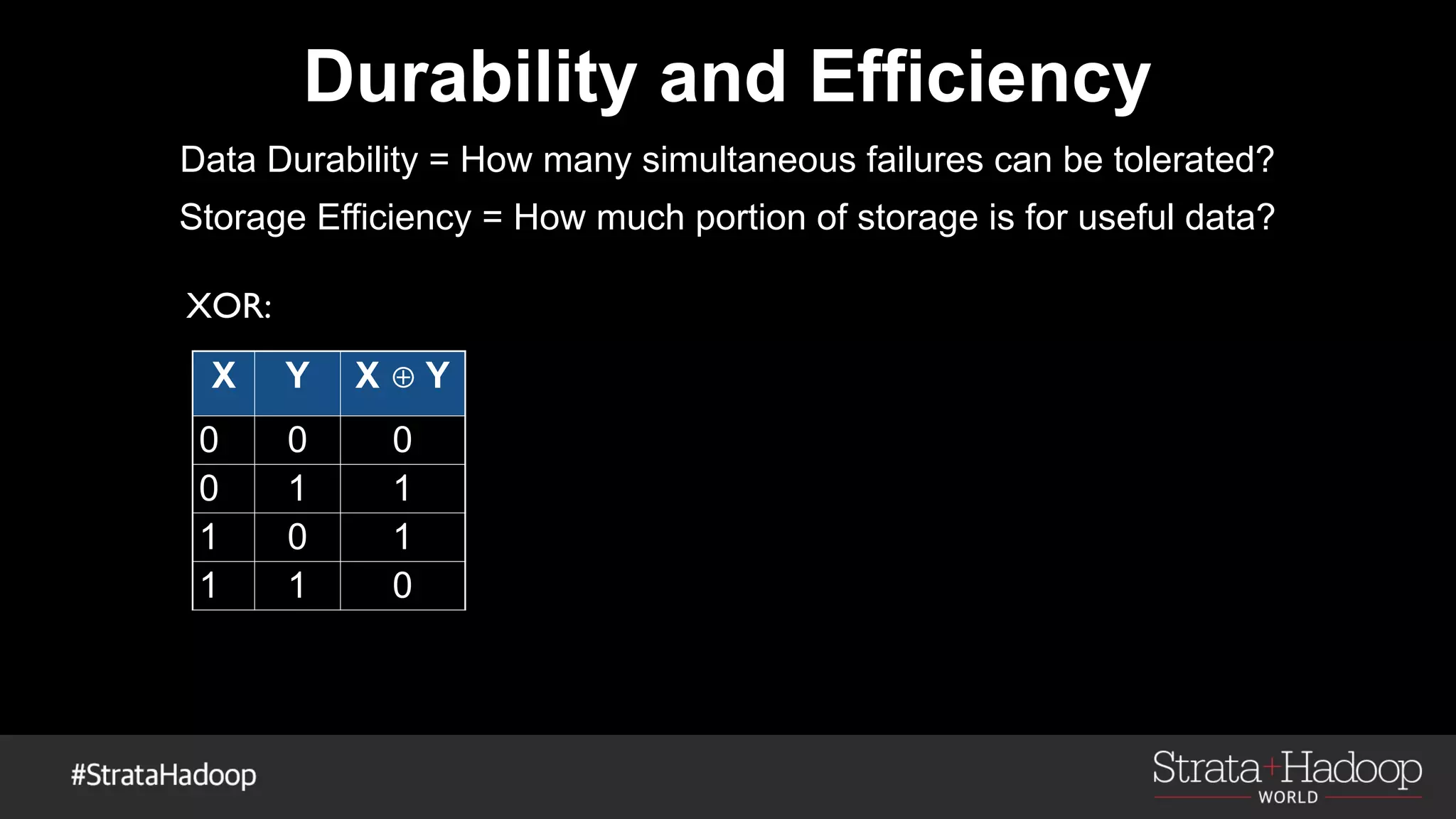

- 31. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? XOR: X Y X ⊕ Y 0 0 0 0 1 1 1 0 1 1 1 0

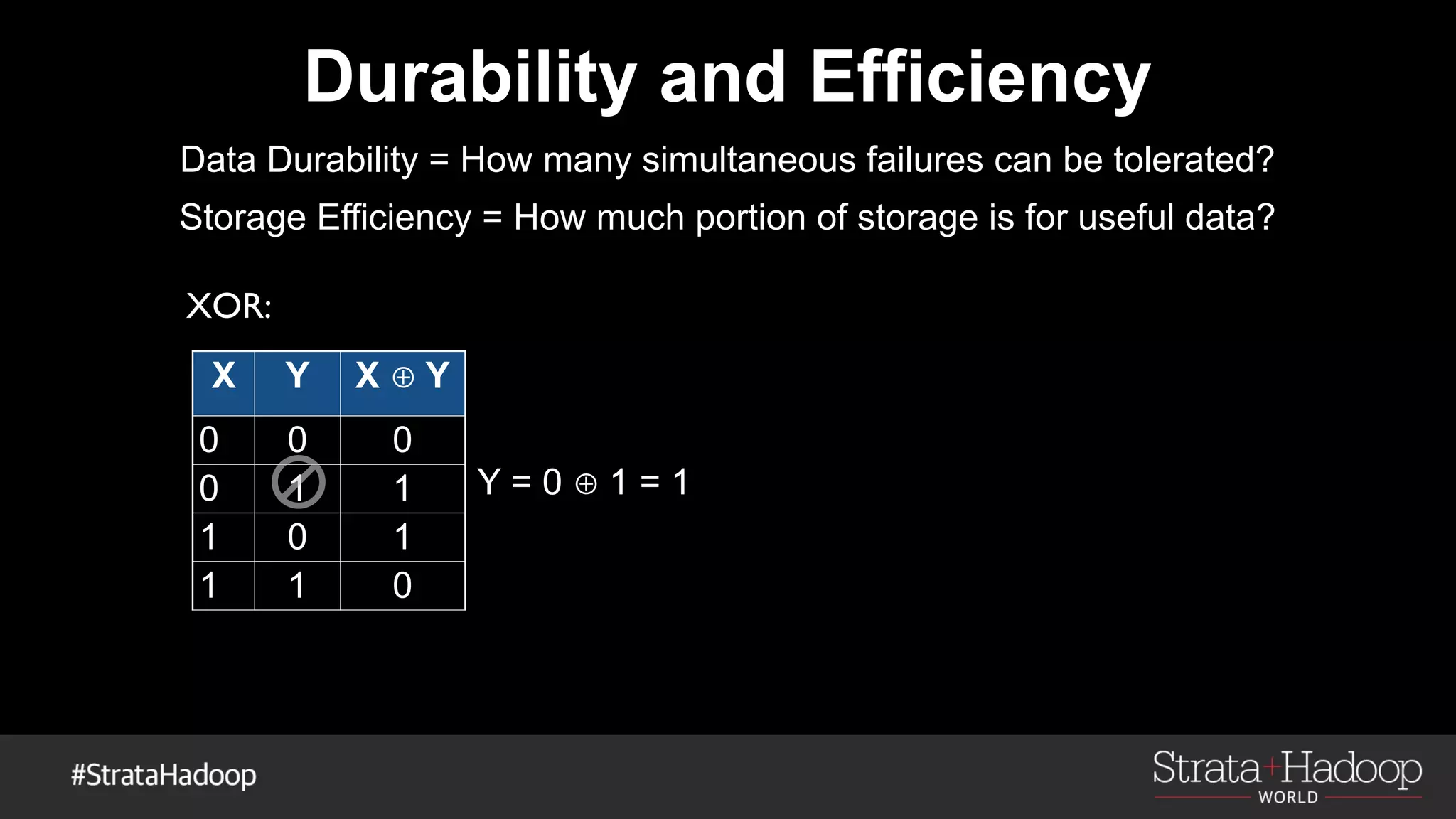

- 32. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? XOR: X Y X ⊕ Y 0 0 0 0 1 1 1 0 1 1 1 0 Y = 0 ⊕ 1 = 1

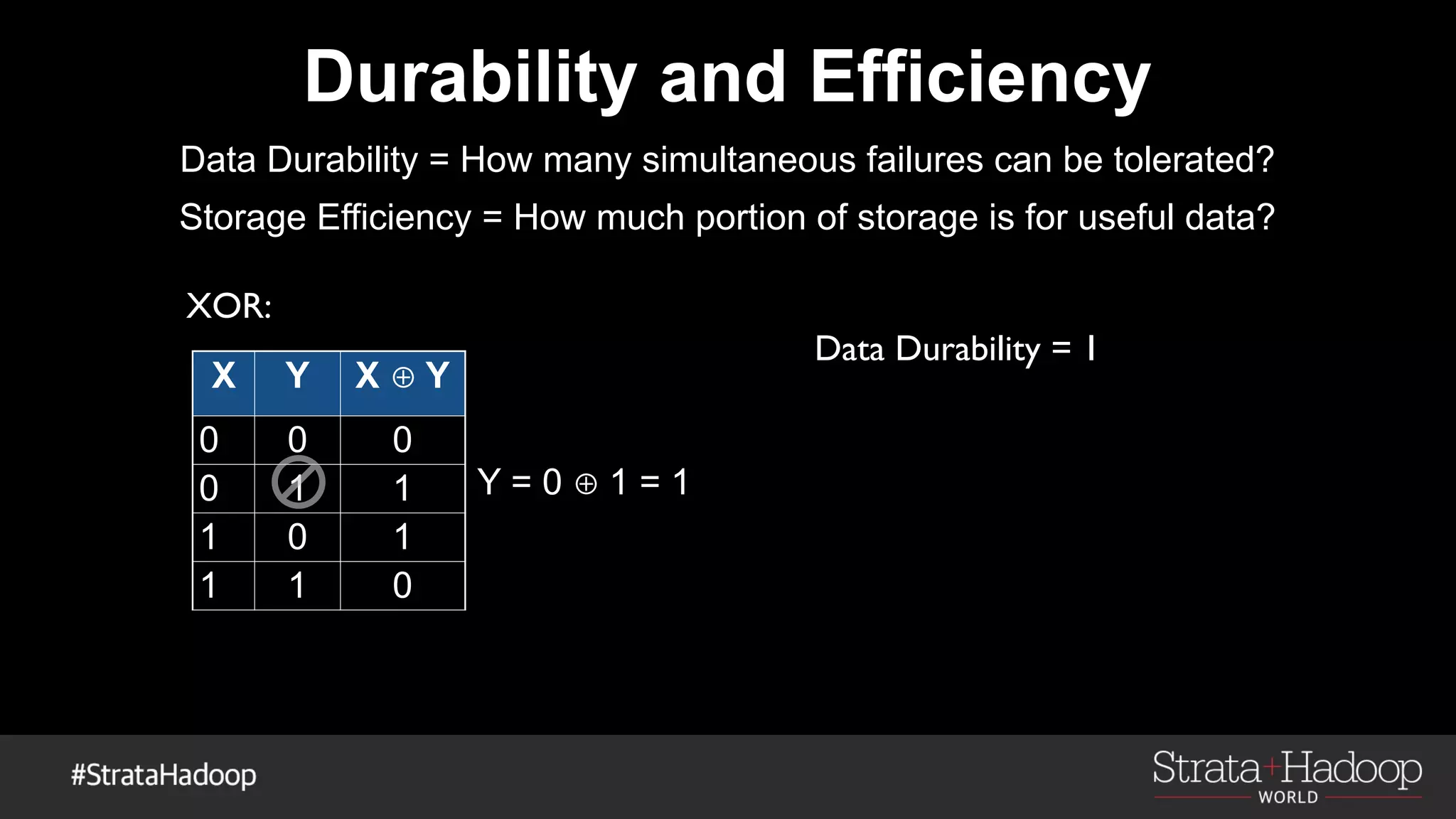

- 33. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? XOR: Data Durability = 1 X Y X ⊕ Y 0 0 0 0 1 1 1 0 1 1 1 0 Y = 0 ⊕ 1 = 1

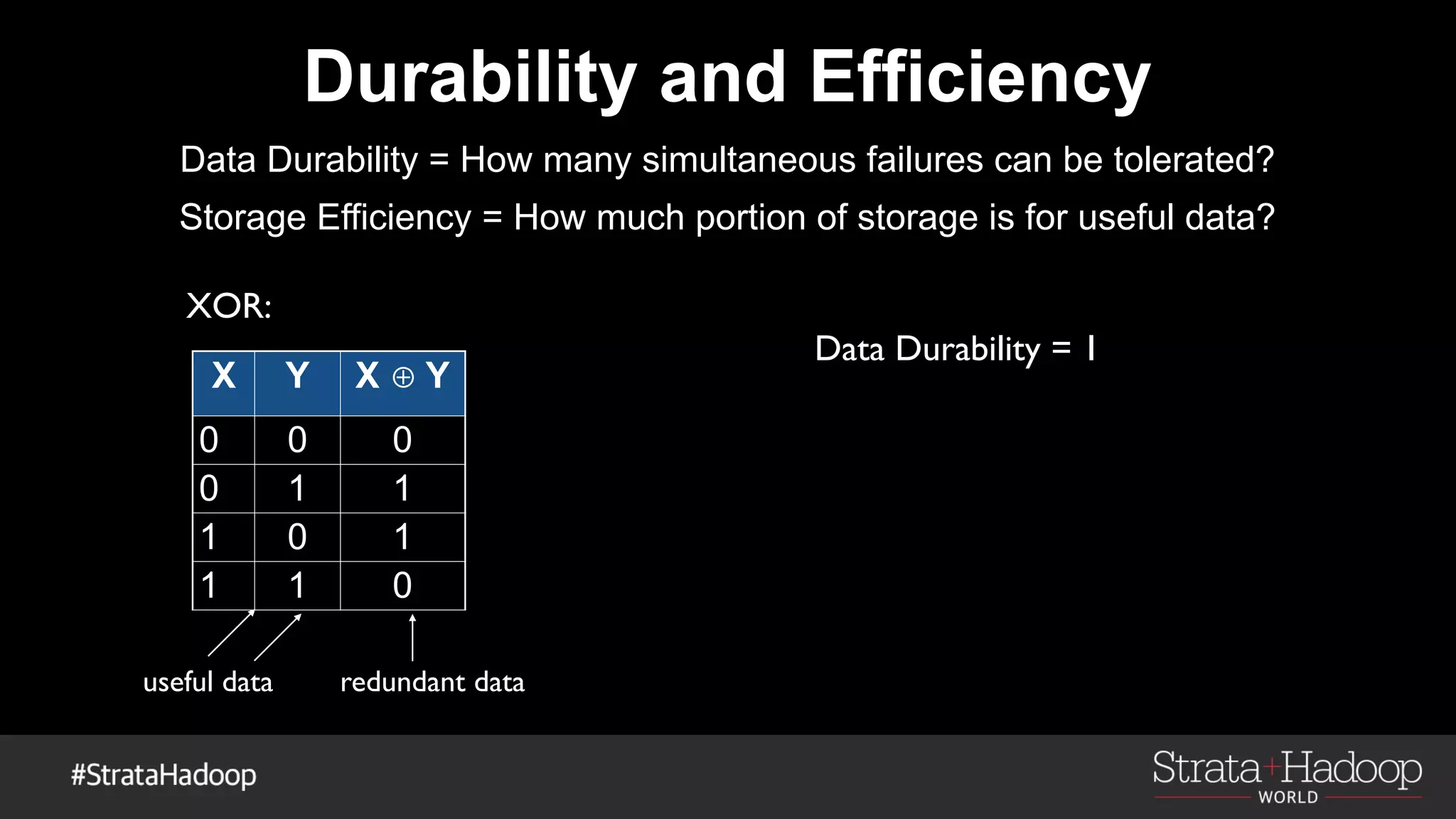

- 34. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? XOR: Data Durability = 1 useful data redundant data X Y X ⊕ Y 0 0 0 0 1 1 1 0 1 1 1 0

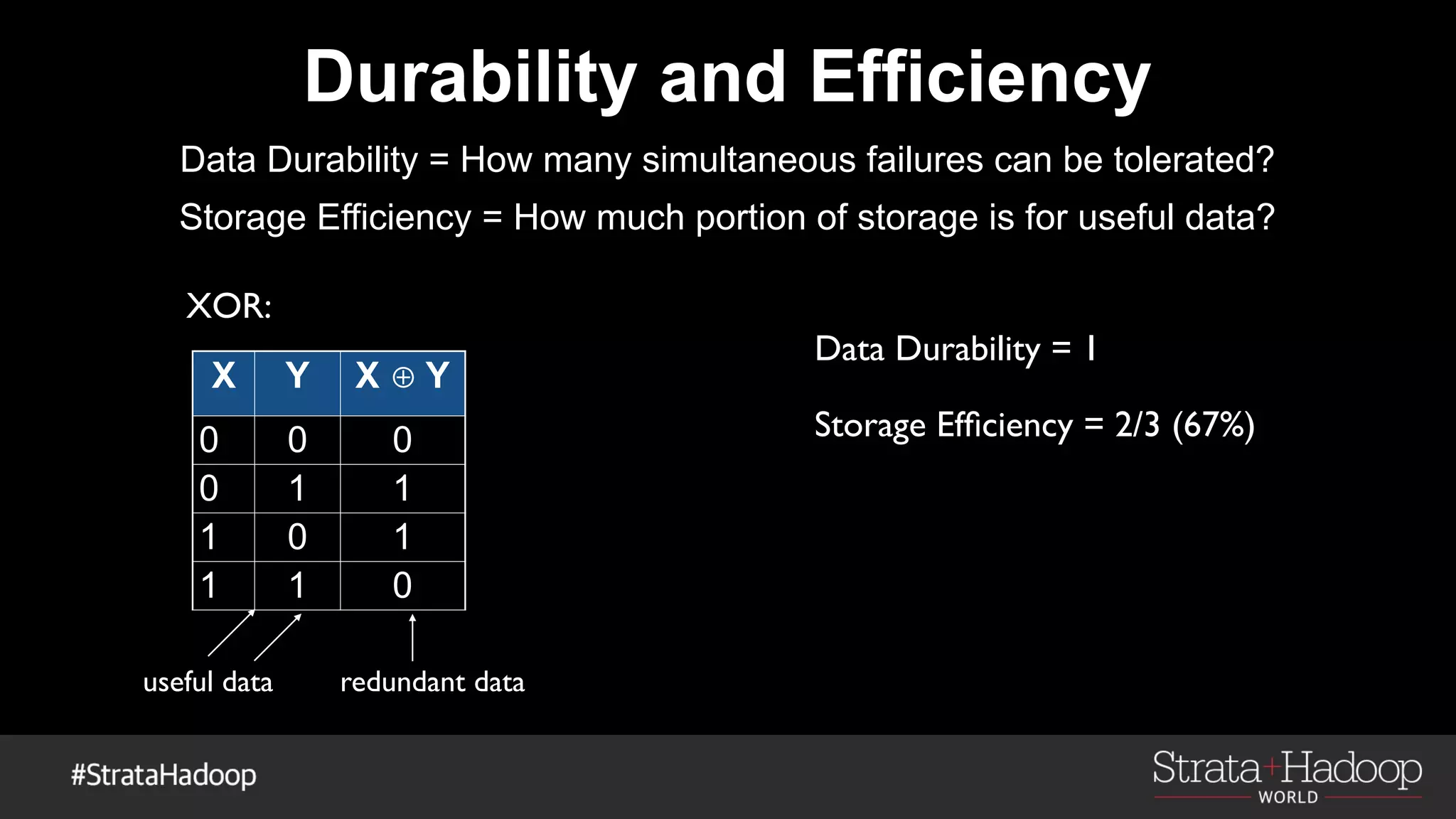

- 35. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? XOR: Data Durability = 1 Storage Efficiency = 2/3 (67%) useful data redundant data X Y X ⊕ Y 0 0 0 0 1 1 1 0 1 1 1 0

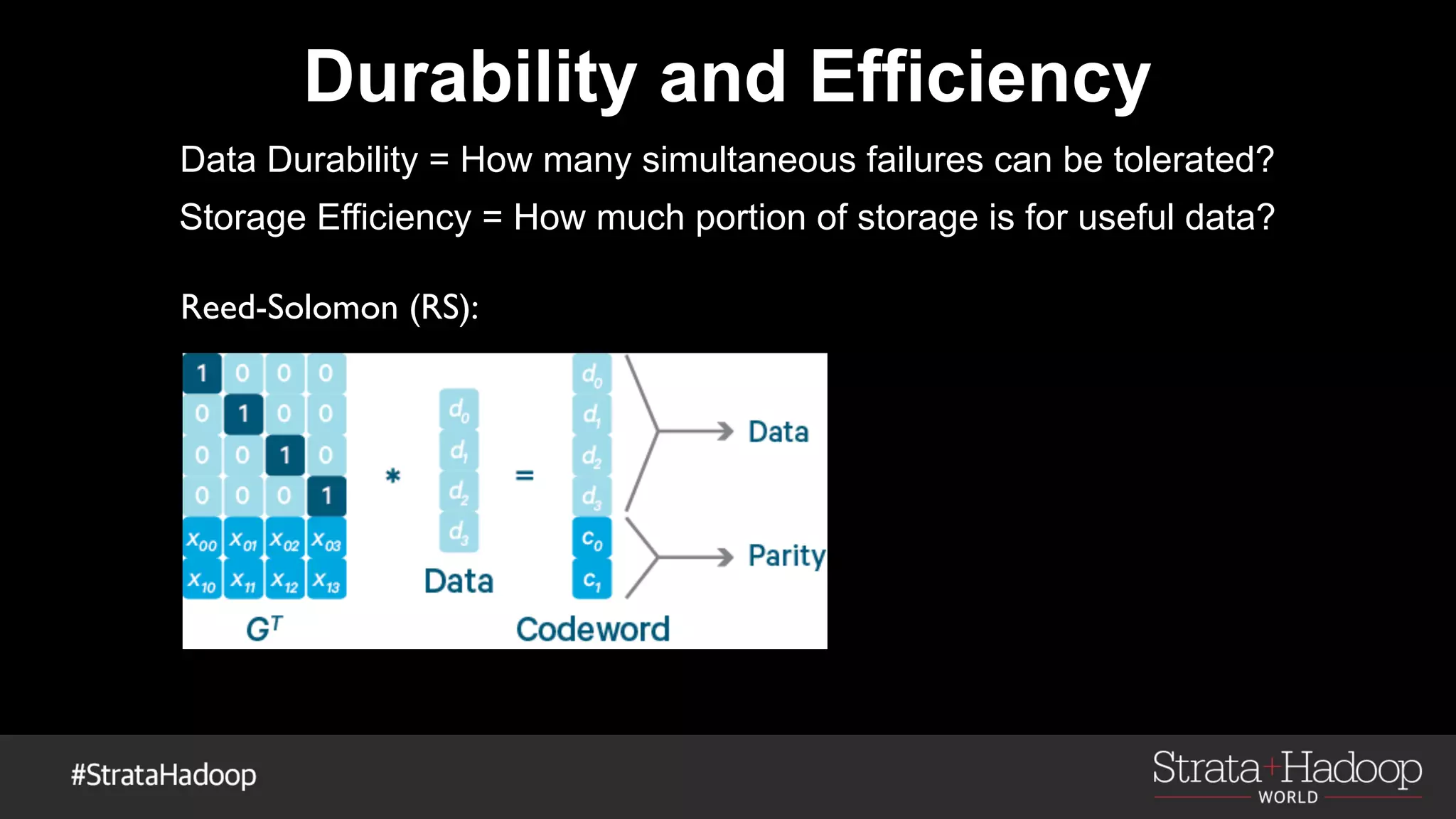

- 36. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Reed-Solomon (RS):

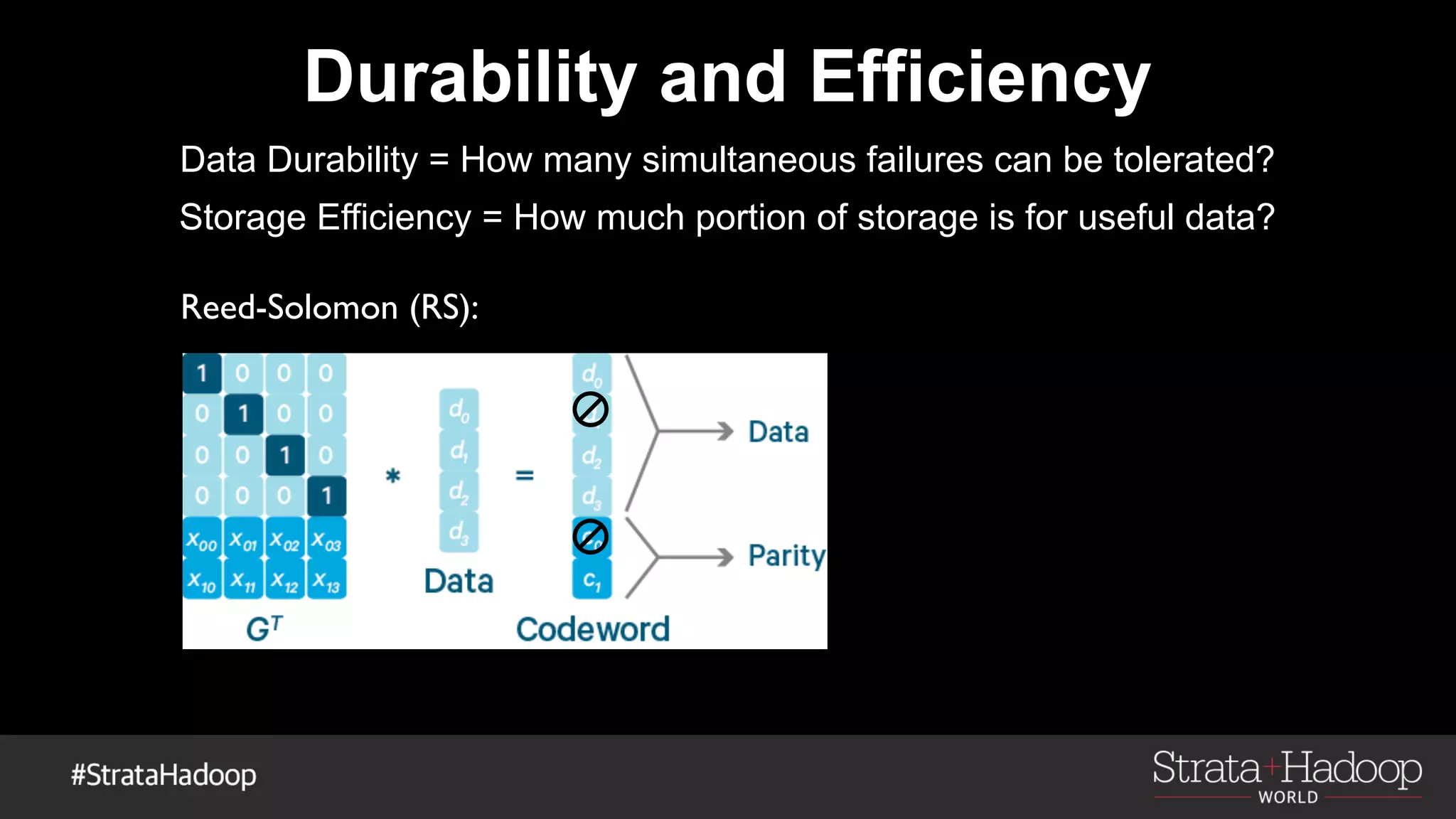

- 37. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Reed-Solomon (RS):

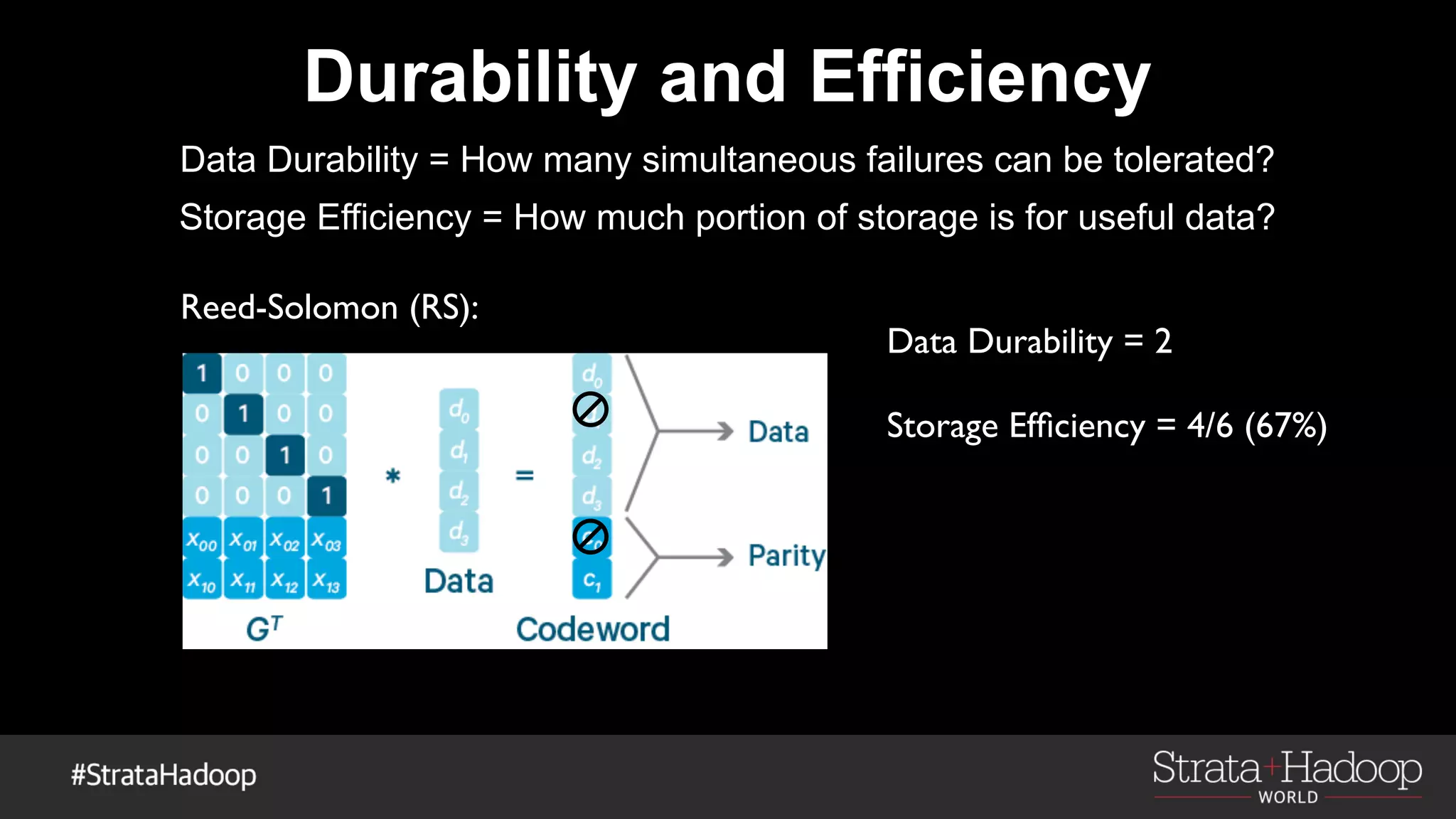

- 38. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Reed-Solomon (RS): Data Durability = 2 Storage Efficiency = 4/6 (67%)

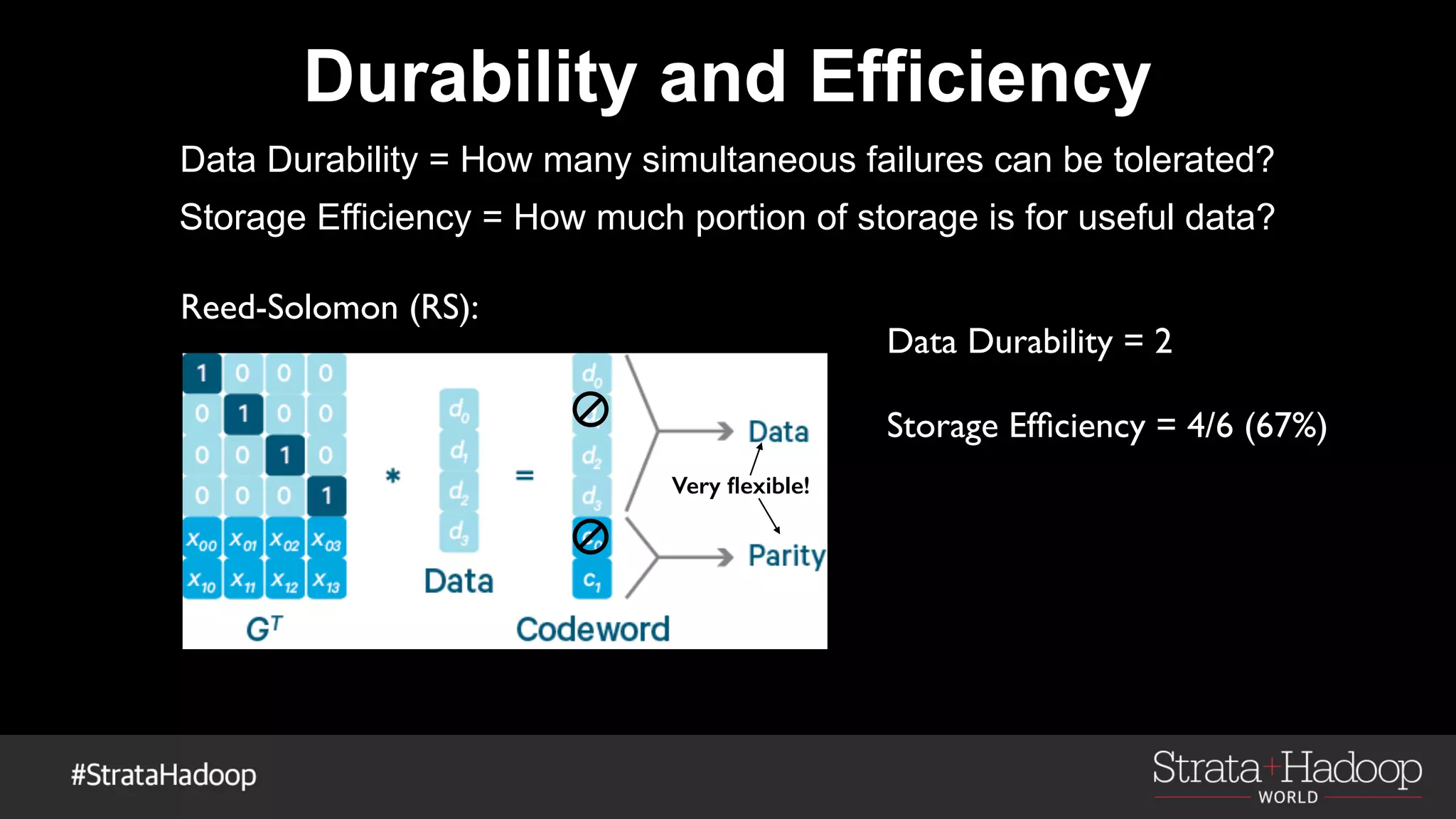

- 39. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Reed-Solomon (RS): Data Durability = 2 Storage Efficiency = 4/6 (67%) Very flexible!
- 40. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data?

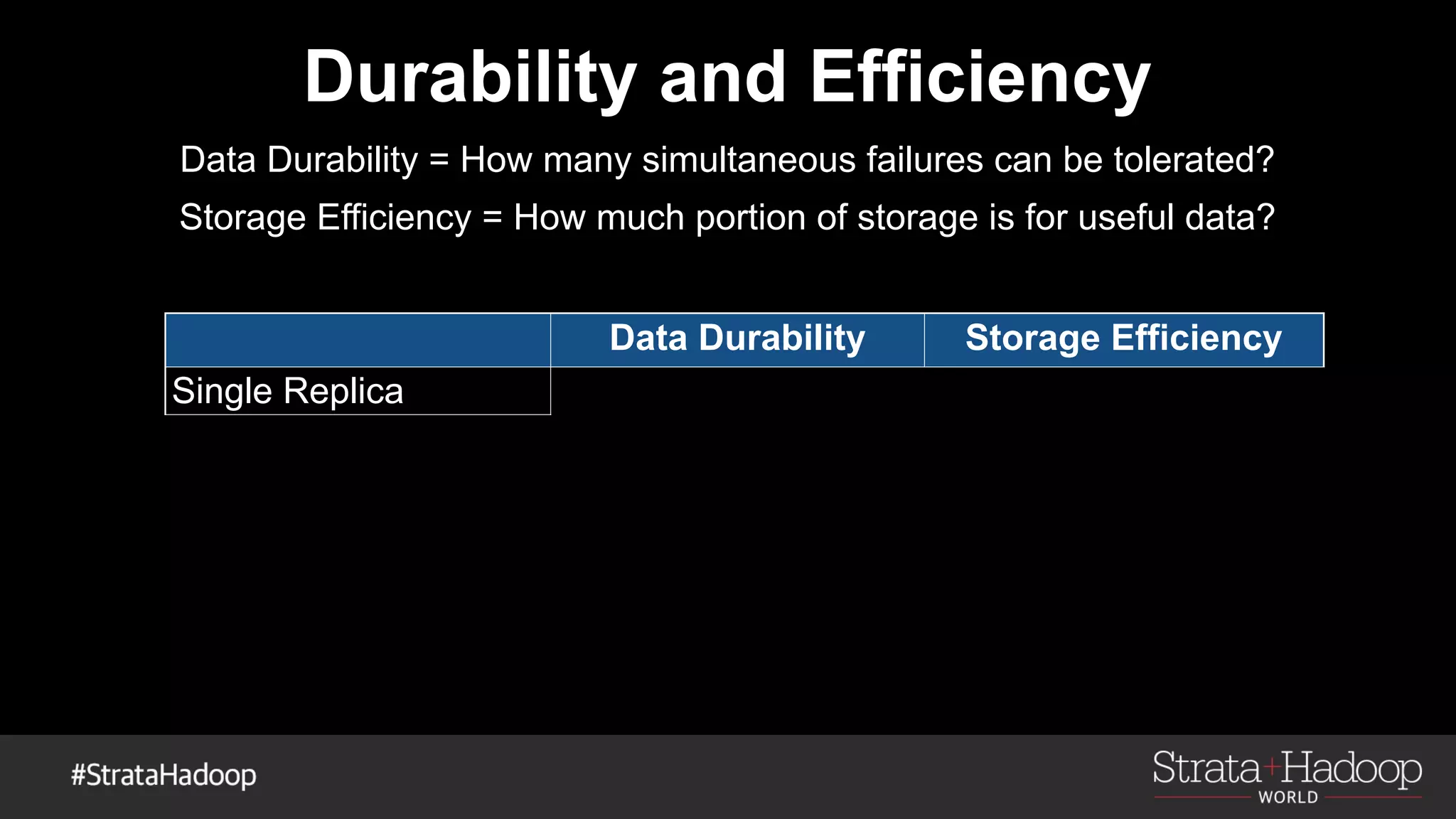

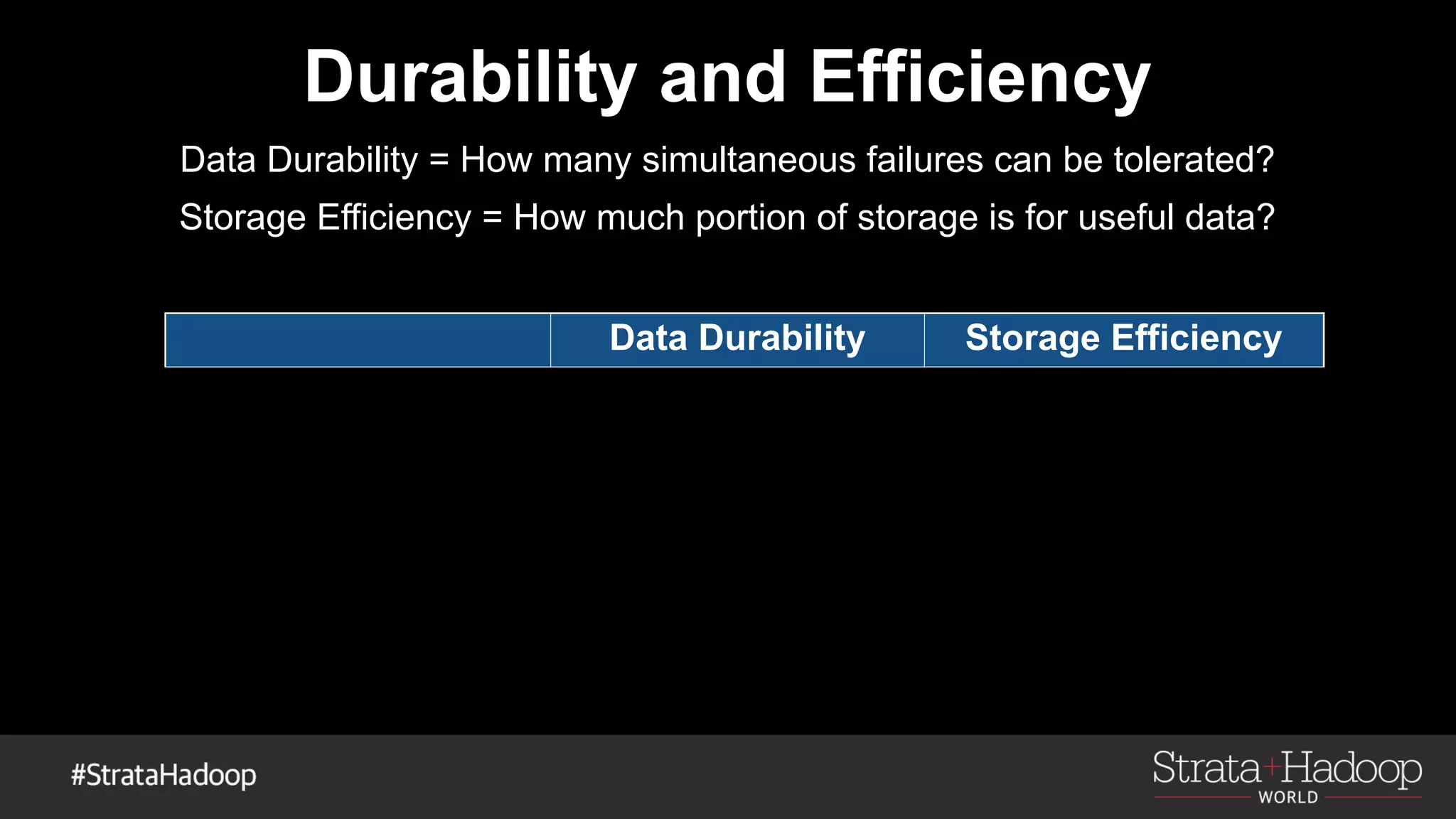

- 41. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency
- 42. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica
- 43. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0
- 44. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100%

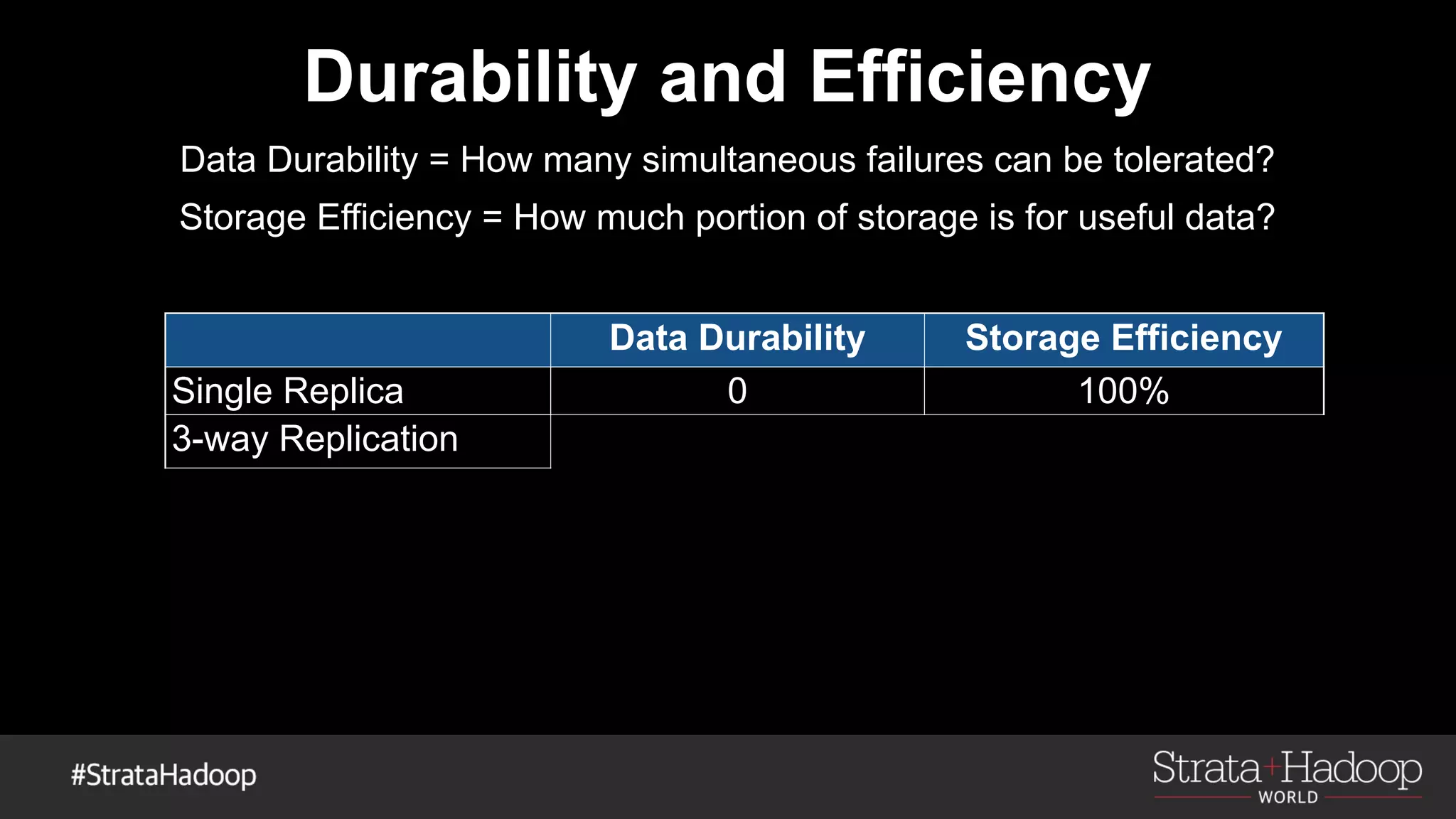

- 45. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication

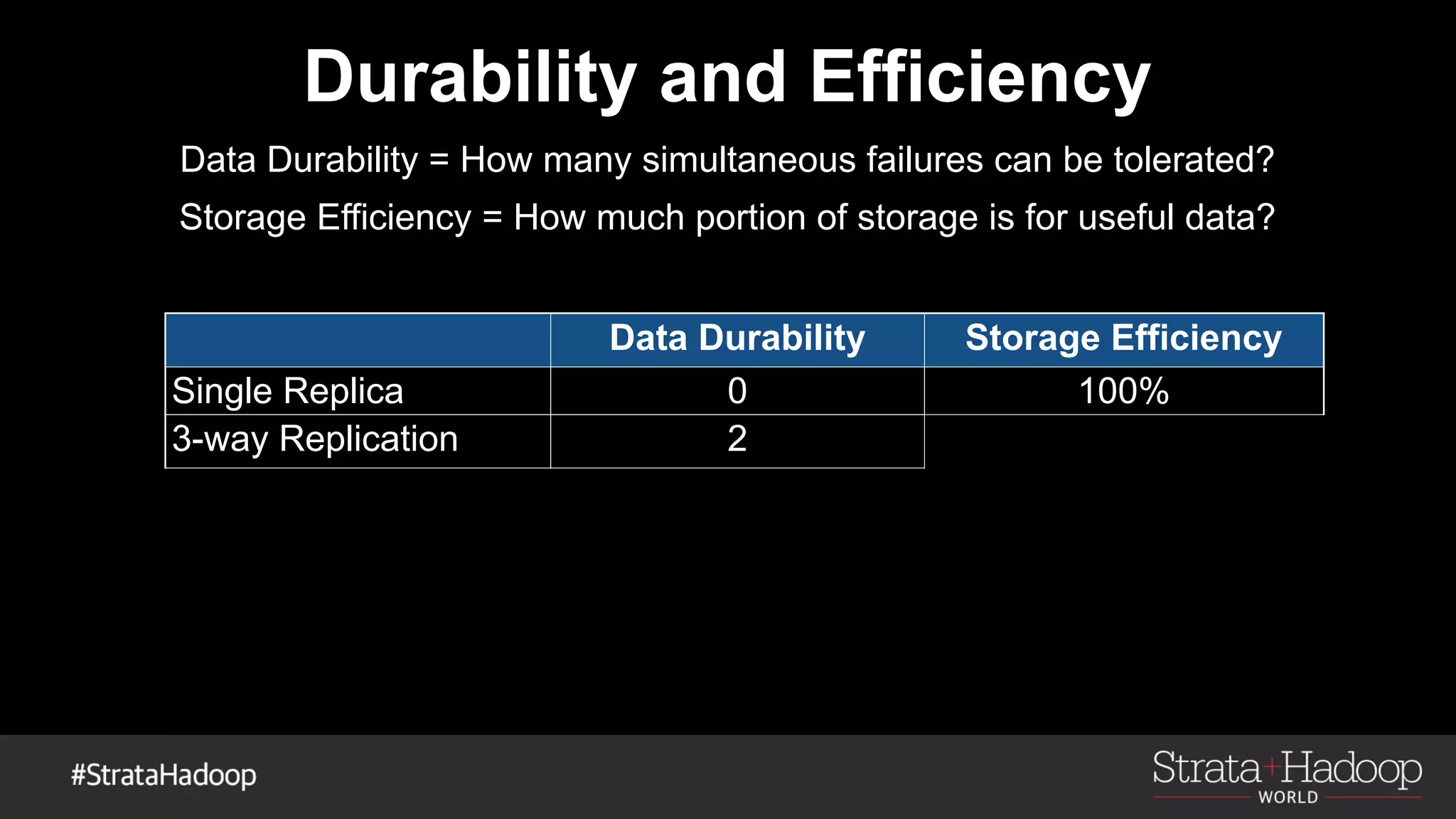

- 46. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2
- 47. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33%

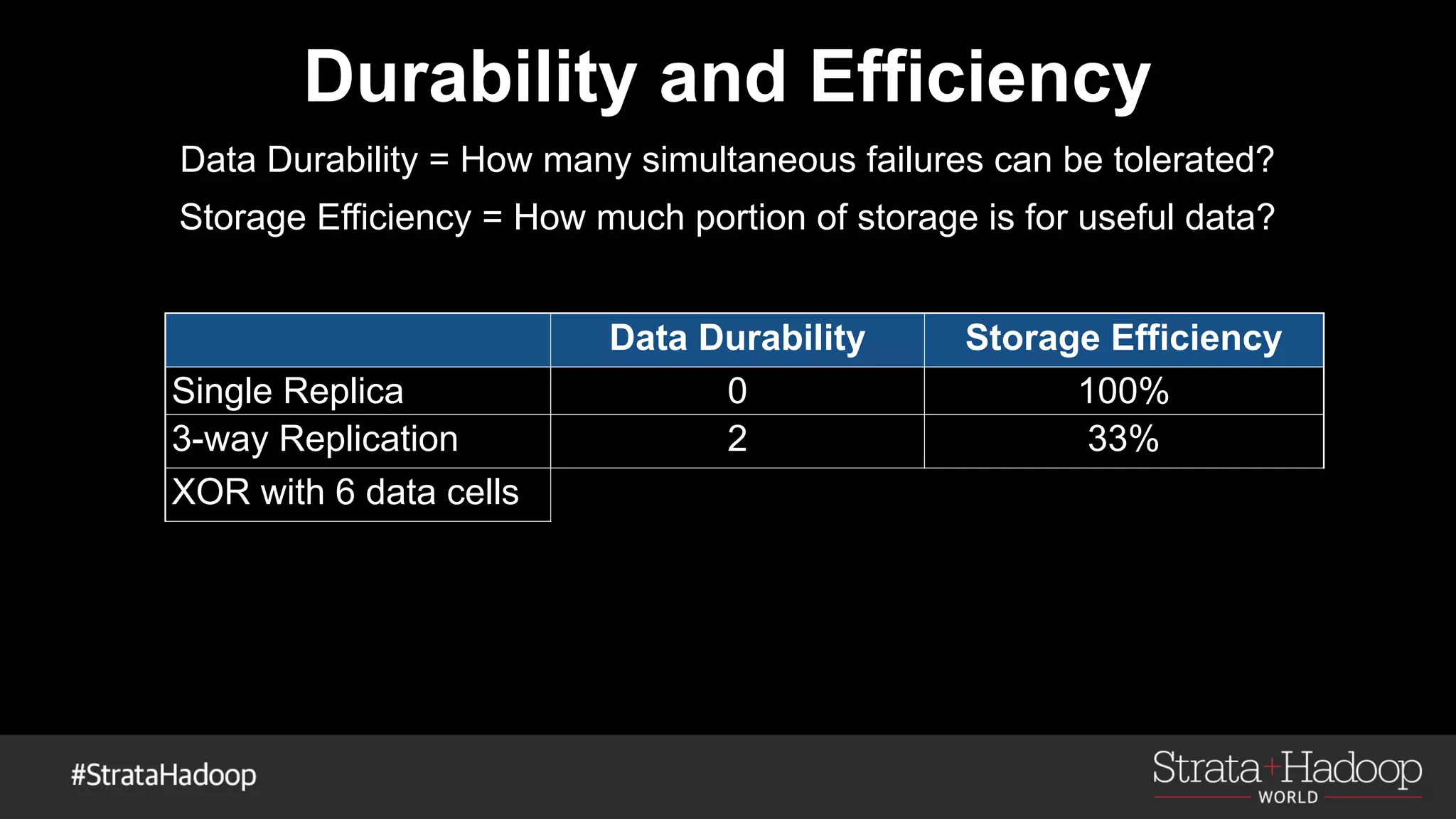

- 48. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells

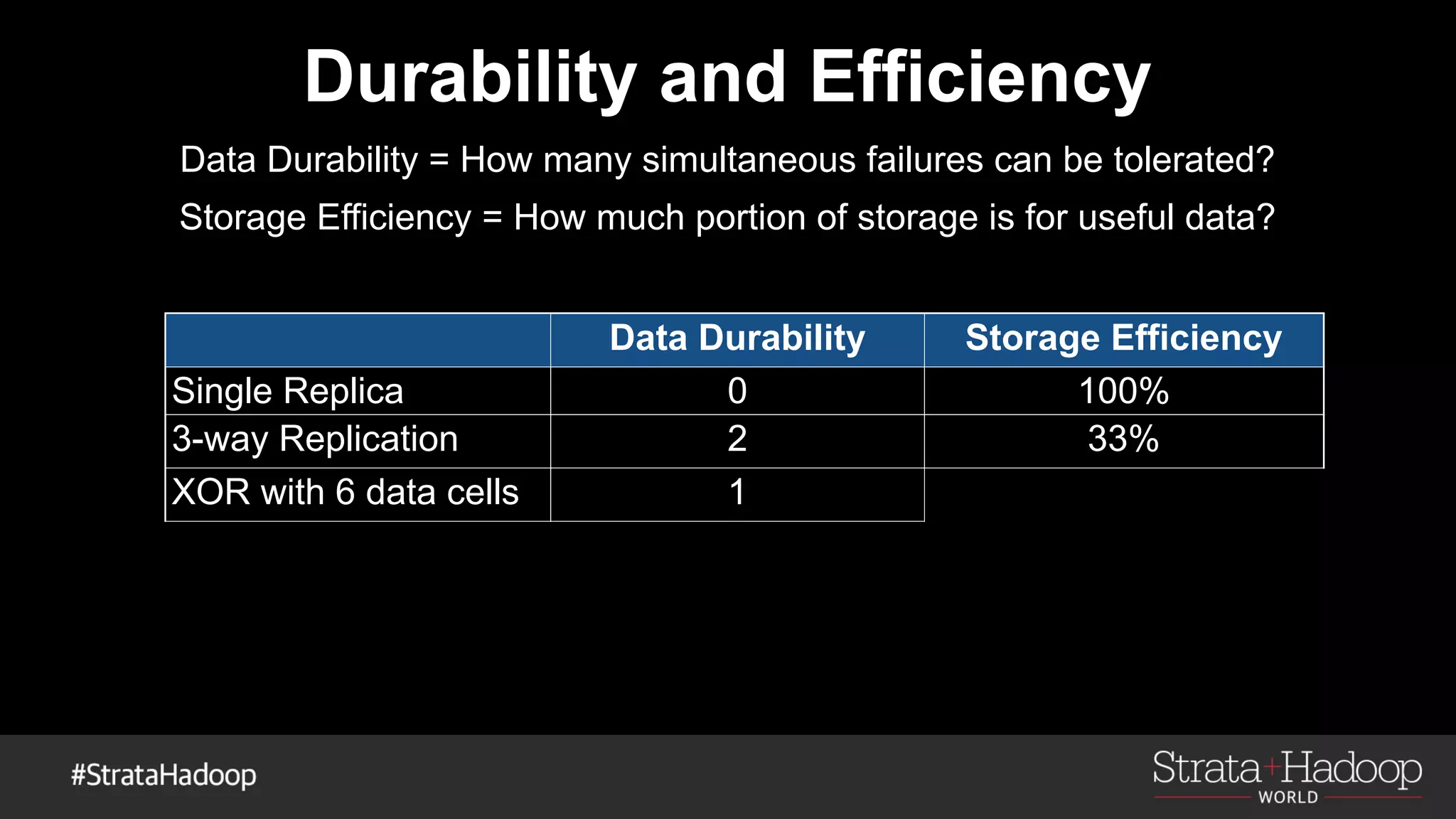

- 49. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells 1

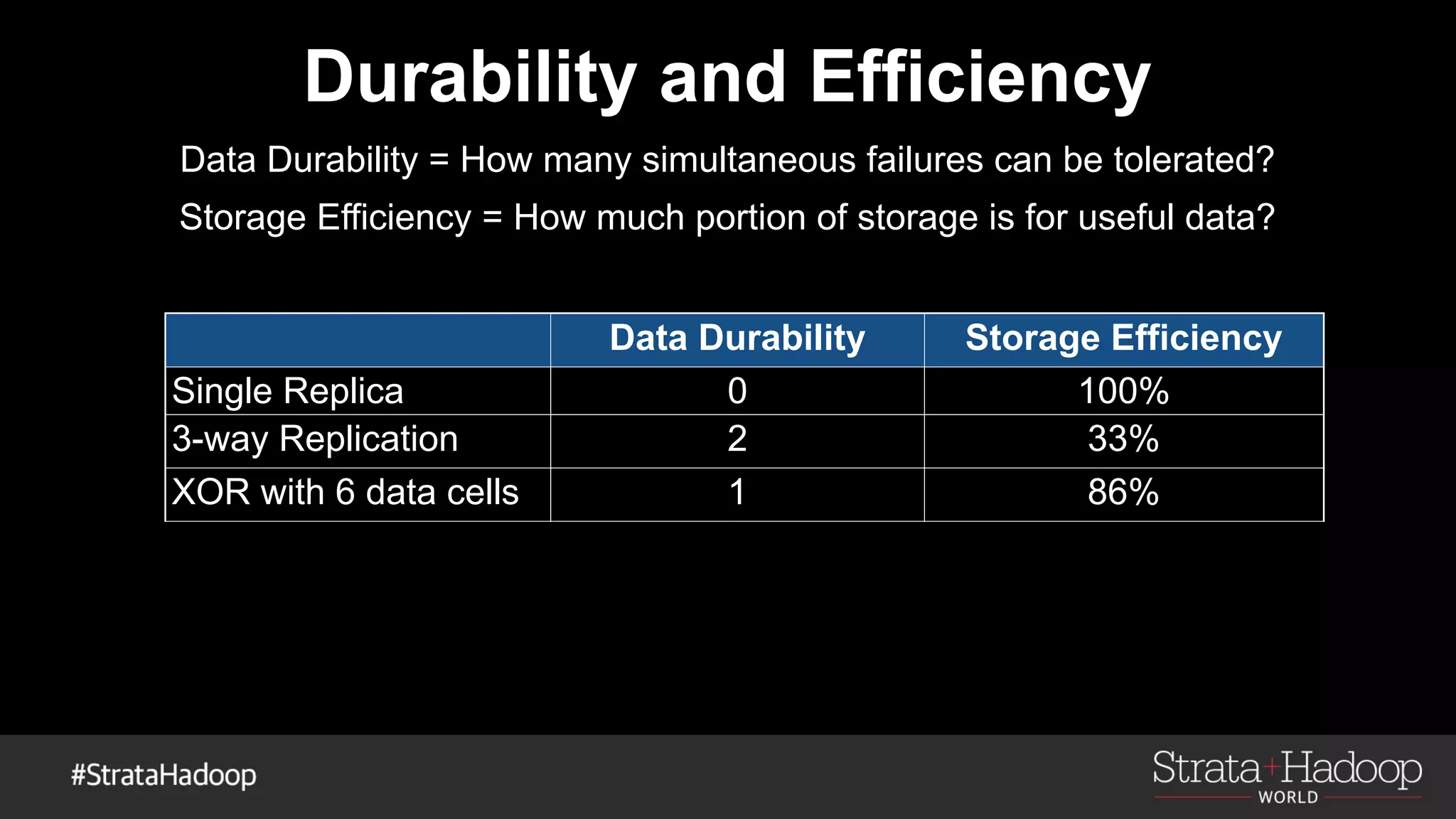

- 50. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells 1 86%
- 51. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells 1 86% RS (6,3)

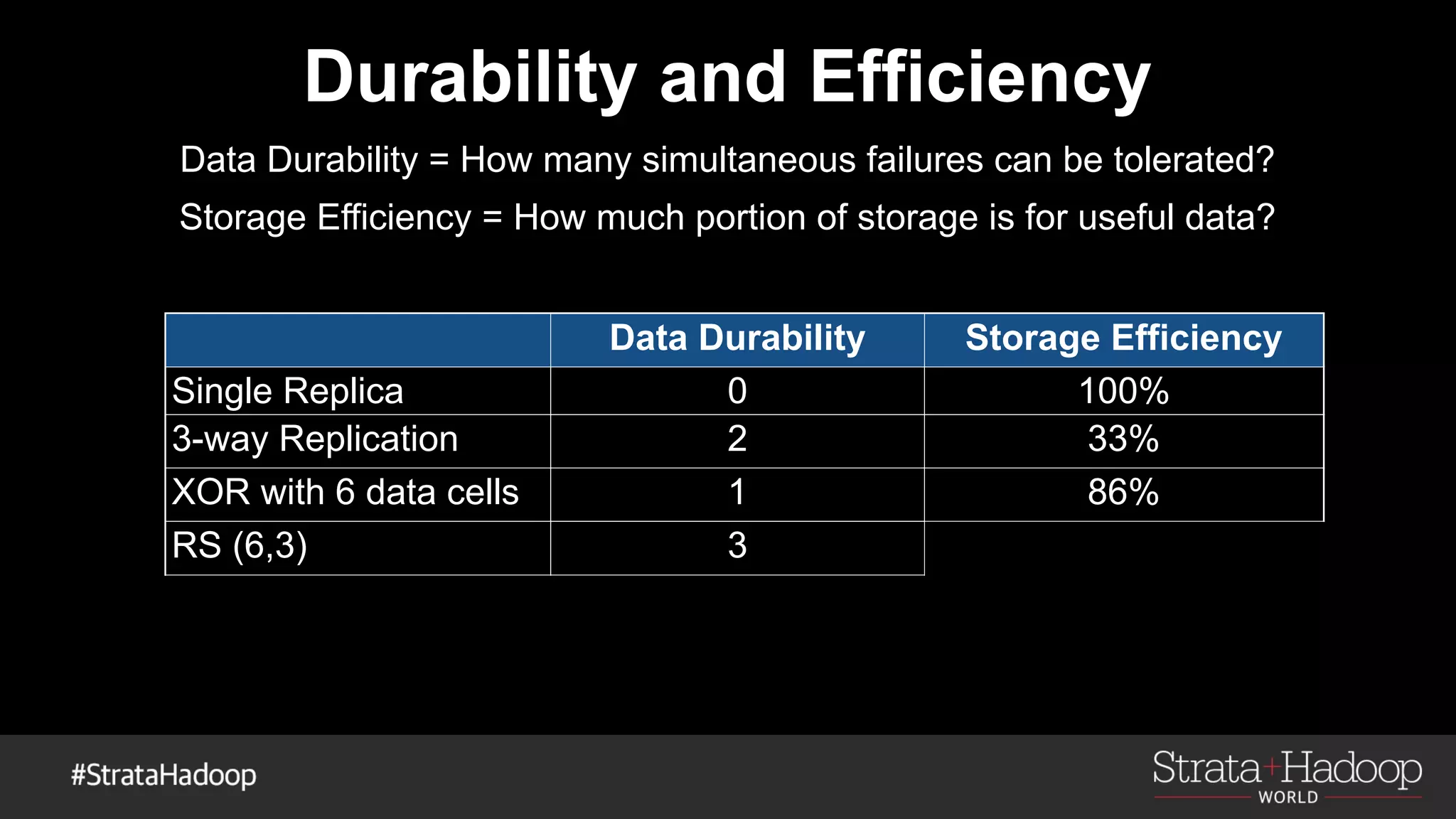

- 52. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells 1 86% RS (6,3) 3

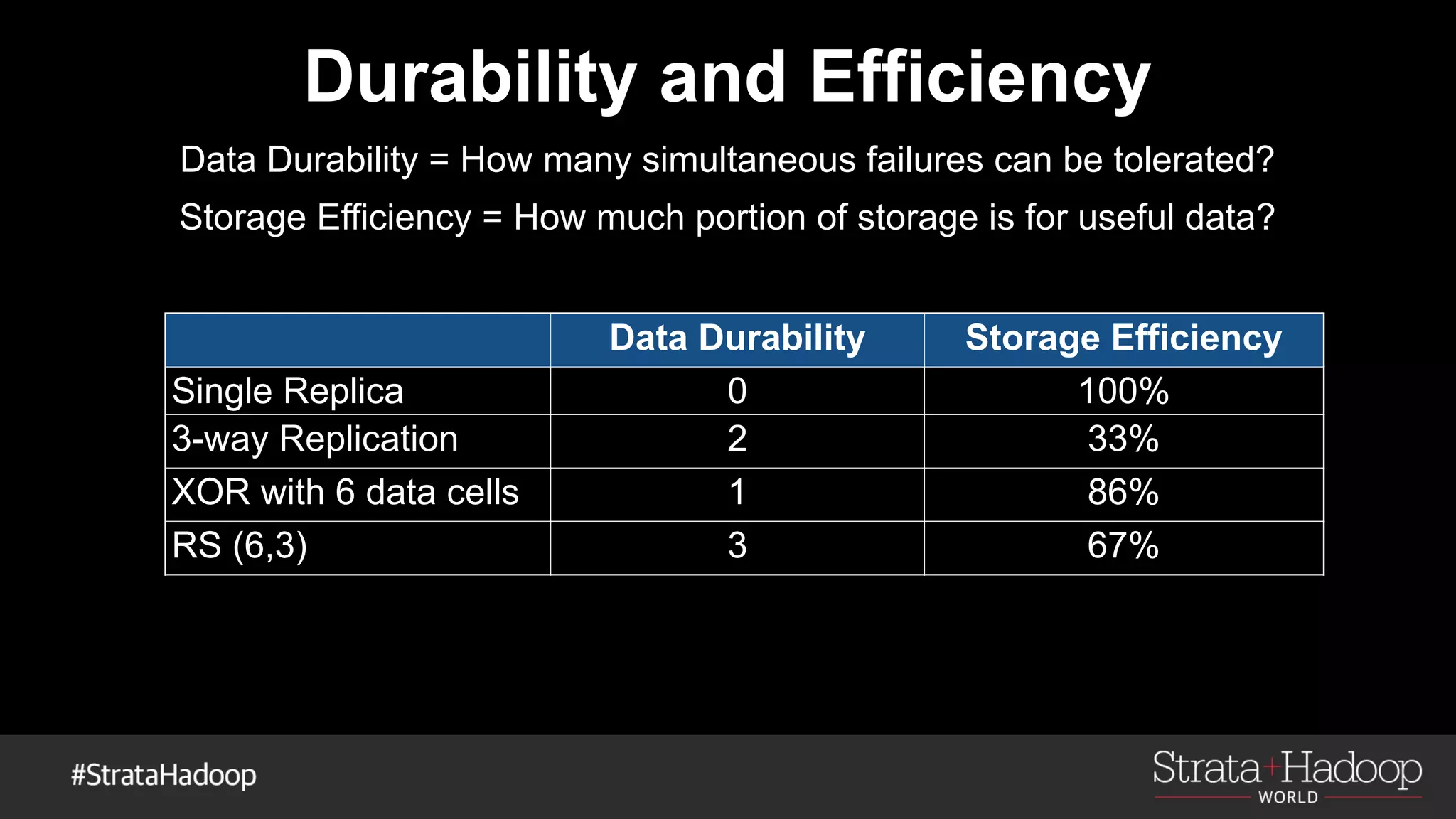

- 53. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells 1 86% RS (6,3) 3 67%

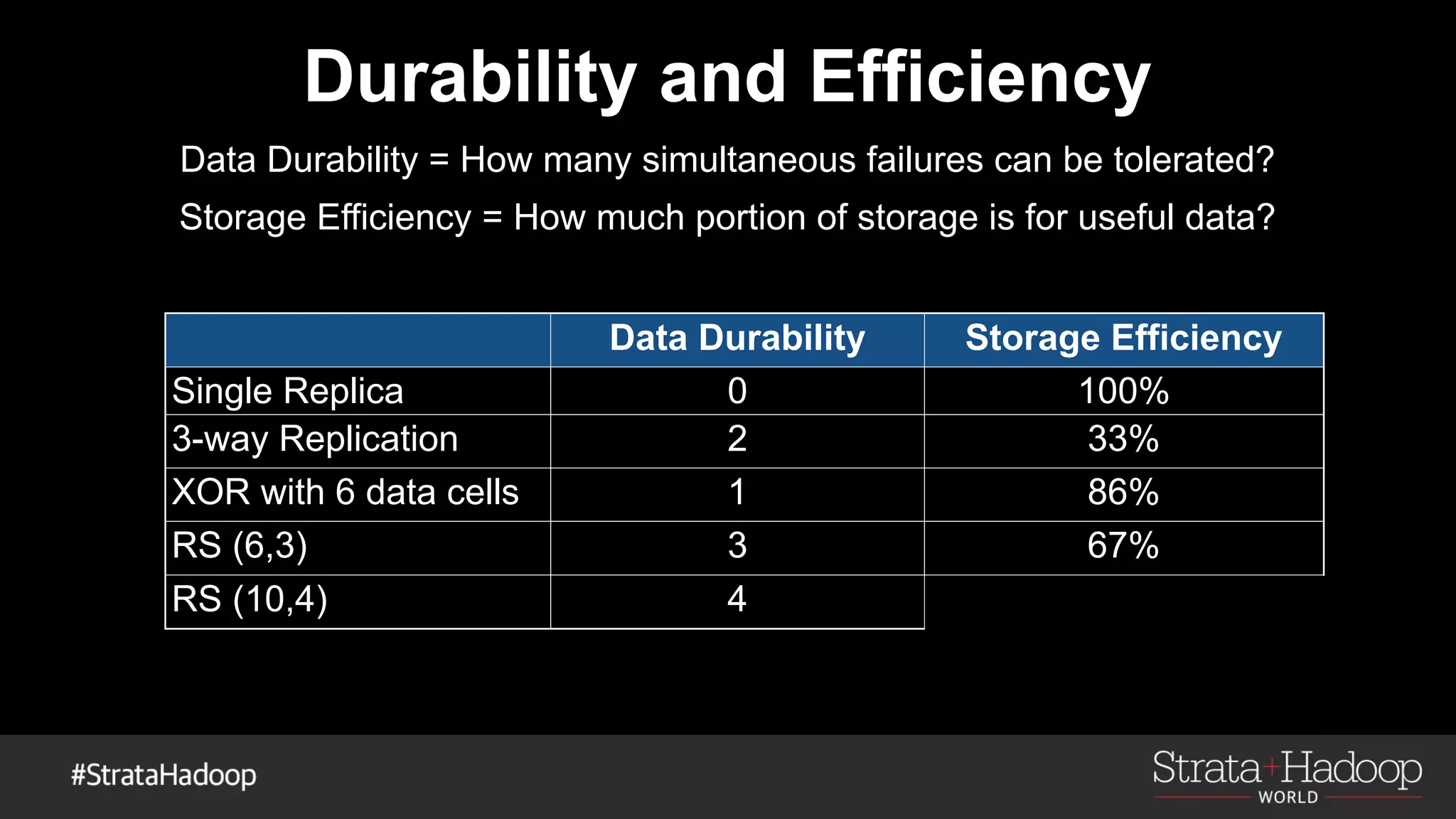

- 54. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells 1 86% RS (6,3) 3 67% RS (10,4)
- 55. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells 1 86% RS (6,3) 3 67% RS (10,4) 4
- 56. Durability and Efficiency Data Durability = How many simultaneous failures can be tolerated? Storage Efficiency = How much portion of storage is for useful data? Data Durability Storage Efficiency Single Replica 0 100% 3-way Replication 2 33% XOR with 6 data cells 1 86% RS (6,3) 3 67% RS (10,4) 4 71%

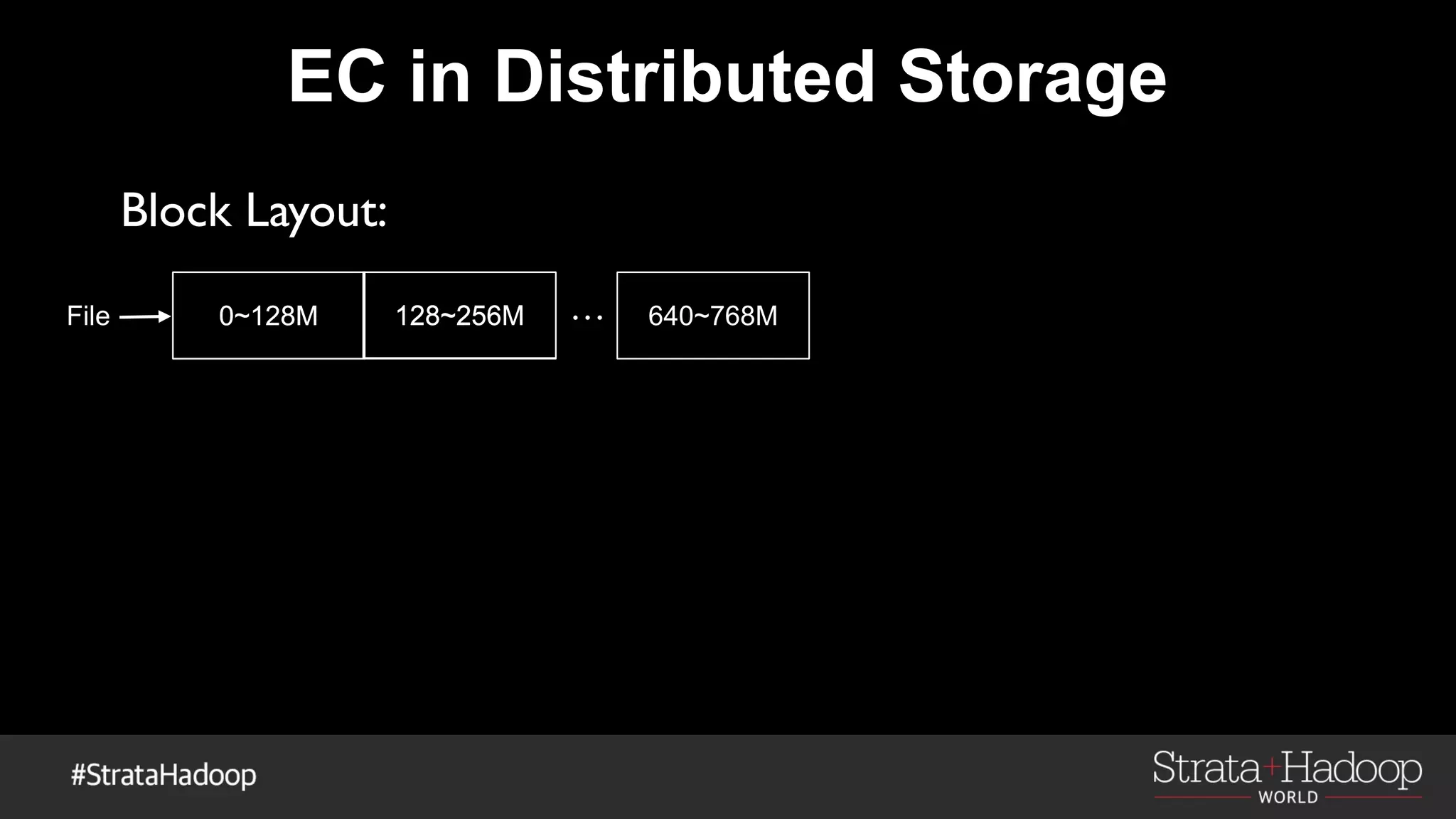

- 57. EC in Distributed Storage Block Layout: 128~256MFile 0~128M … 640~768M0~128M 128~256M

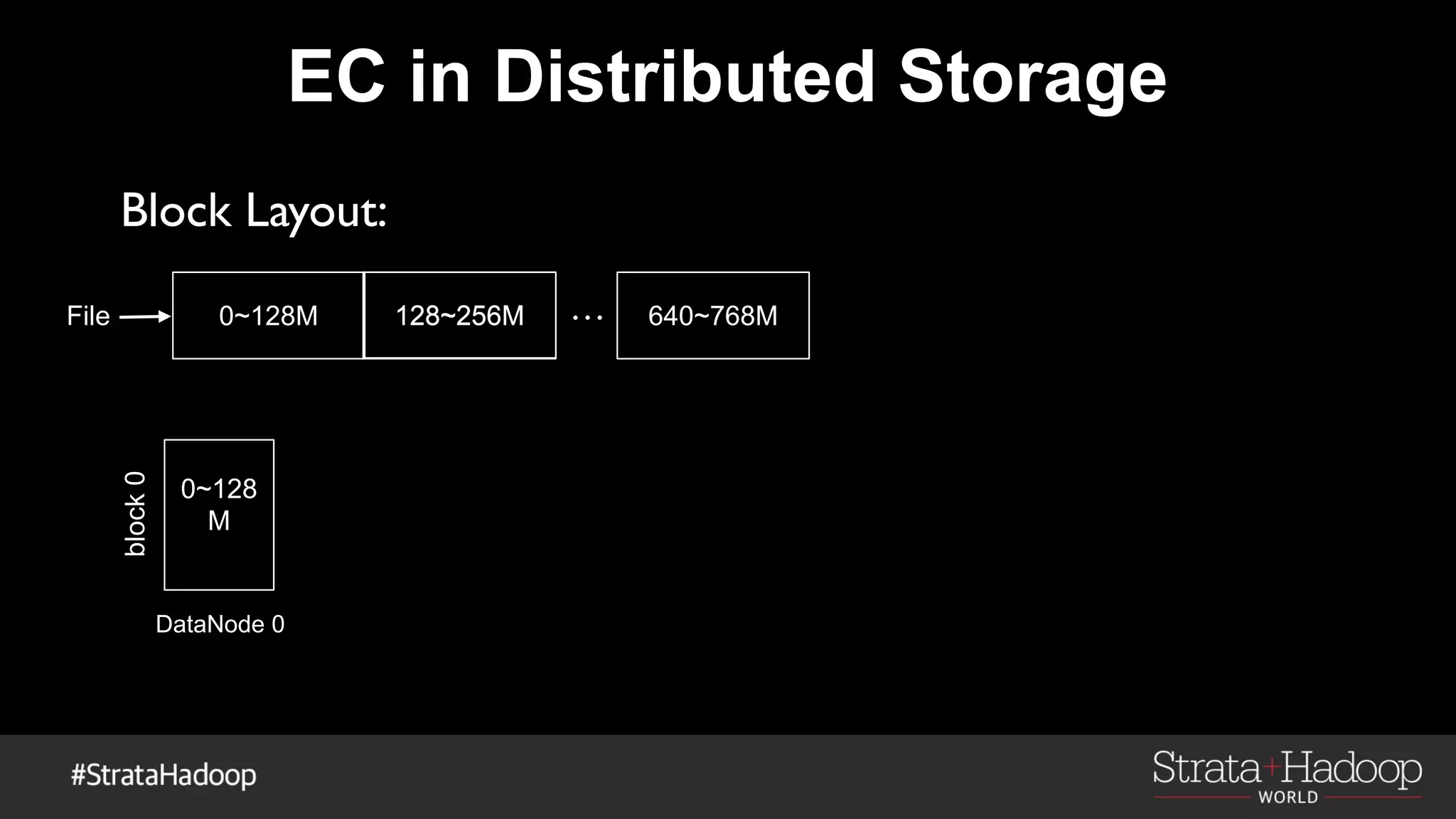

- 58. EC in Distributed Storage Block Layout: 128~256MFile … 640~768M 0~128 M block0 DataNode 0 0~128M 128~256M

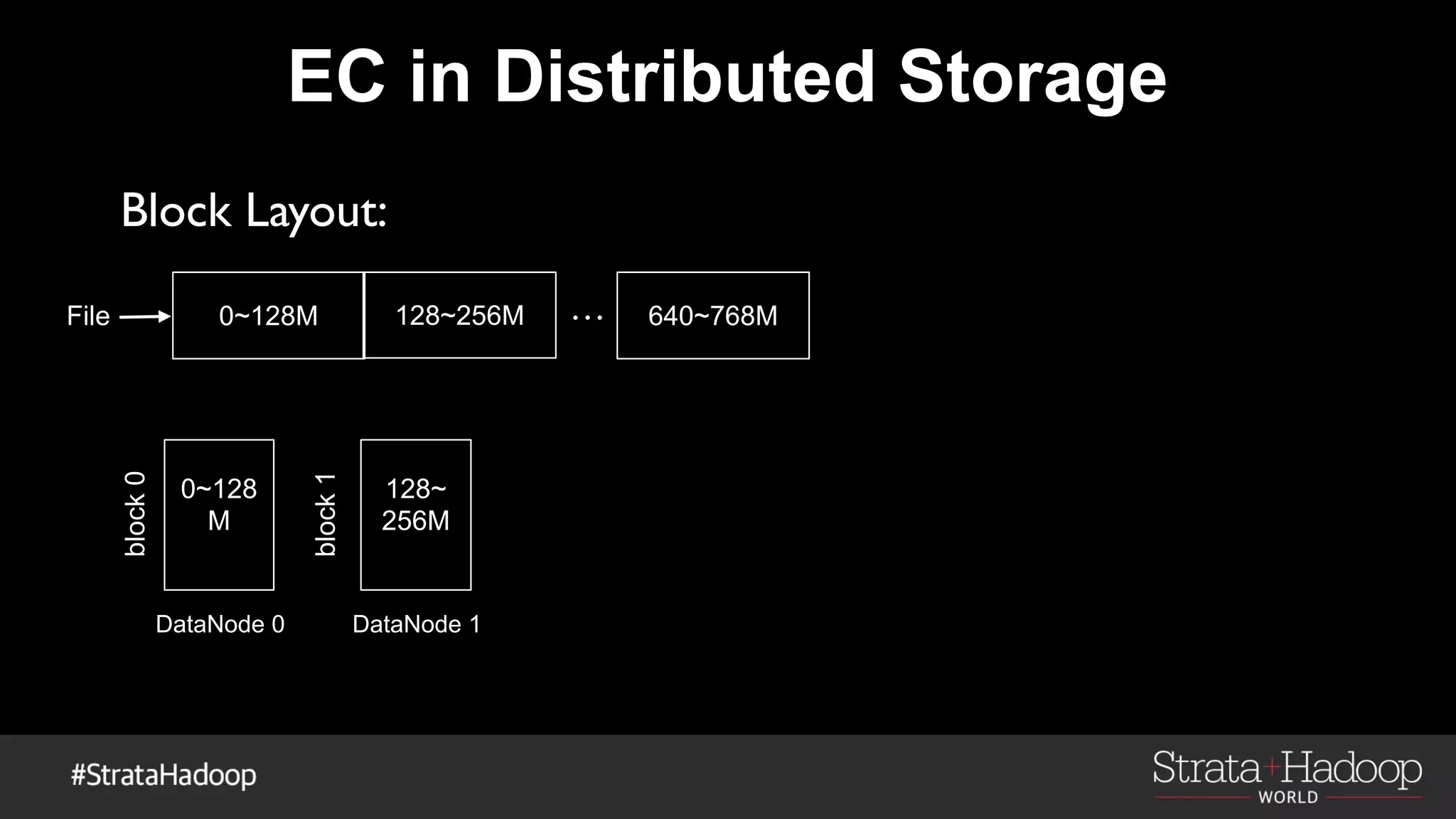

- 59. EC in Distributed Storage Block Layout: File … 640~768M 0~128 M block0 DataNode 0 128~ 256M block1 DataNode 1 0~128M 128~256M

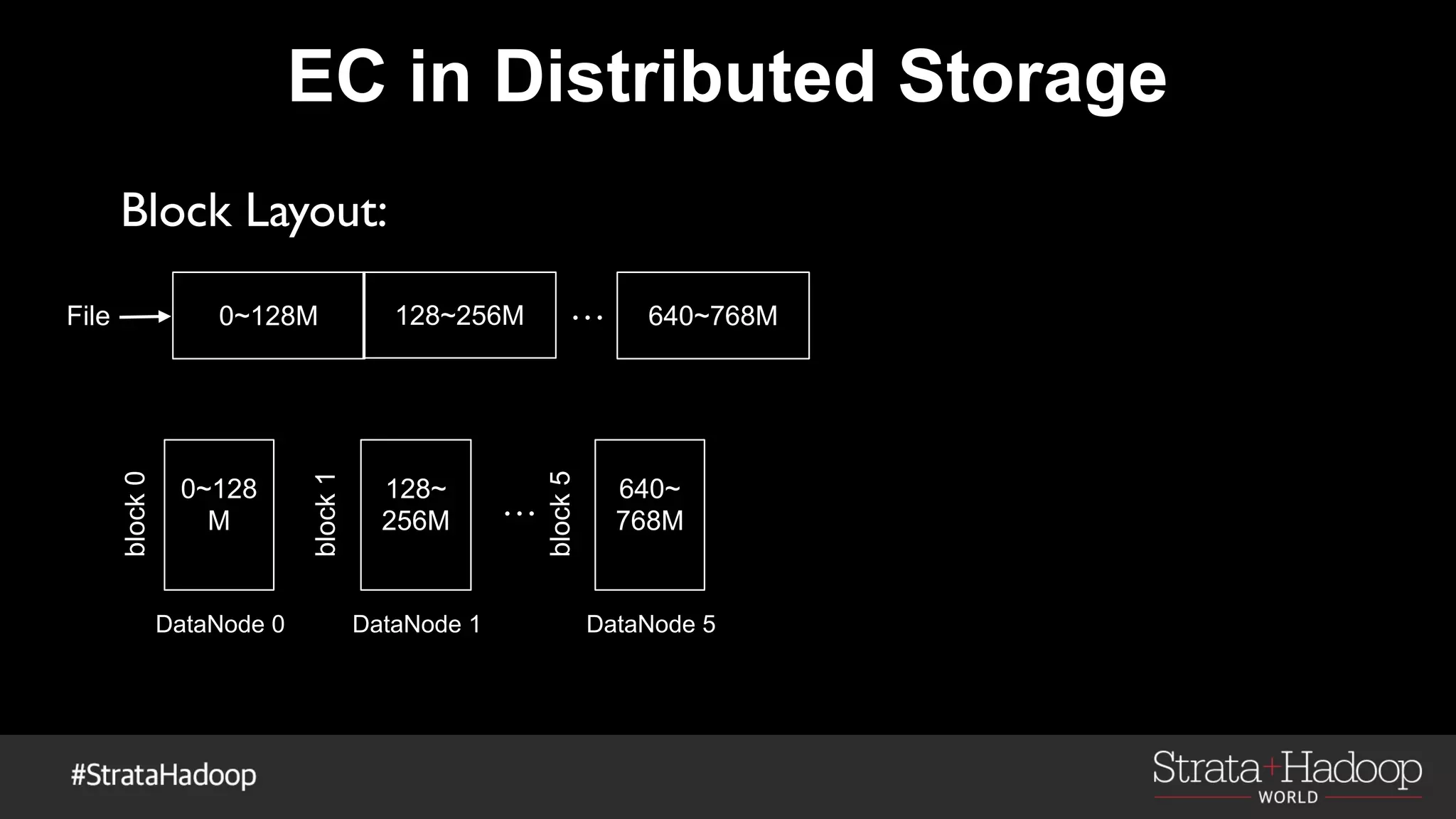

- 60. EC in Distributed Storage Block Layout: File … 640~768M 0~128 M block0 DataNode 0 128~ 256M block1 DataNode 1 0~128M 128~256M … 640~ 768M block5 DataNode 5

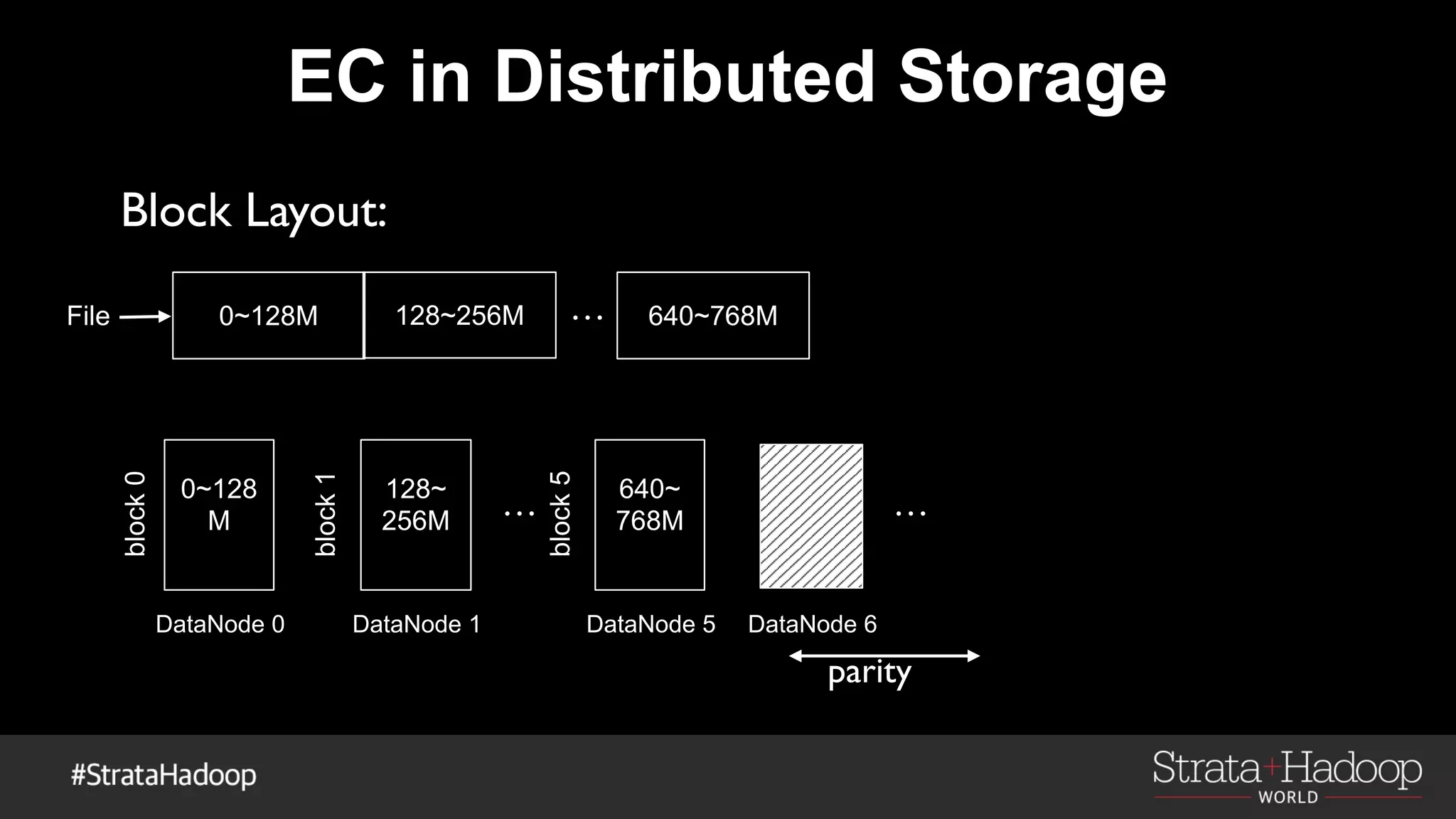

- 61. EC in Distributed Storage Block Layout: File … 640~768M 0~128 M block0 DataNode 0 128~ 256M block1 DataNode 1 0~128M 128~256M … 640~ 768M block5 DataNode 5 DataNode 6 … parity

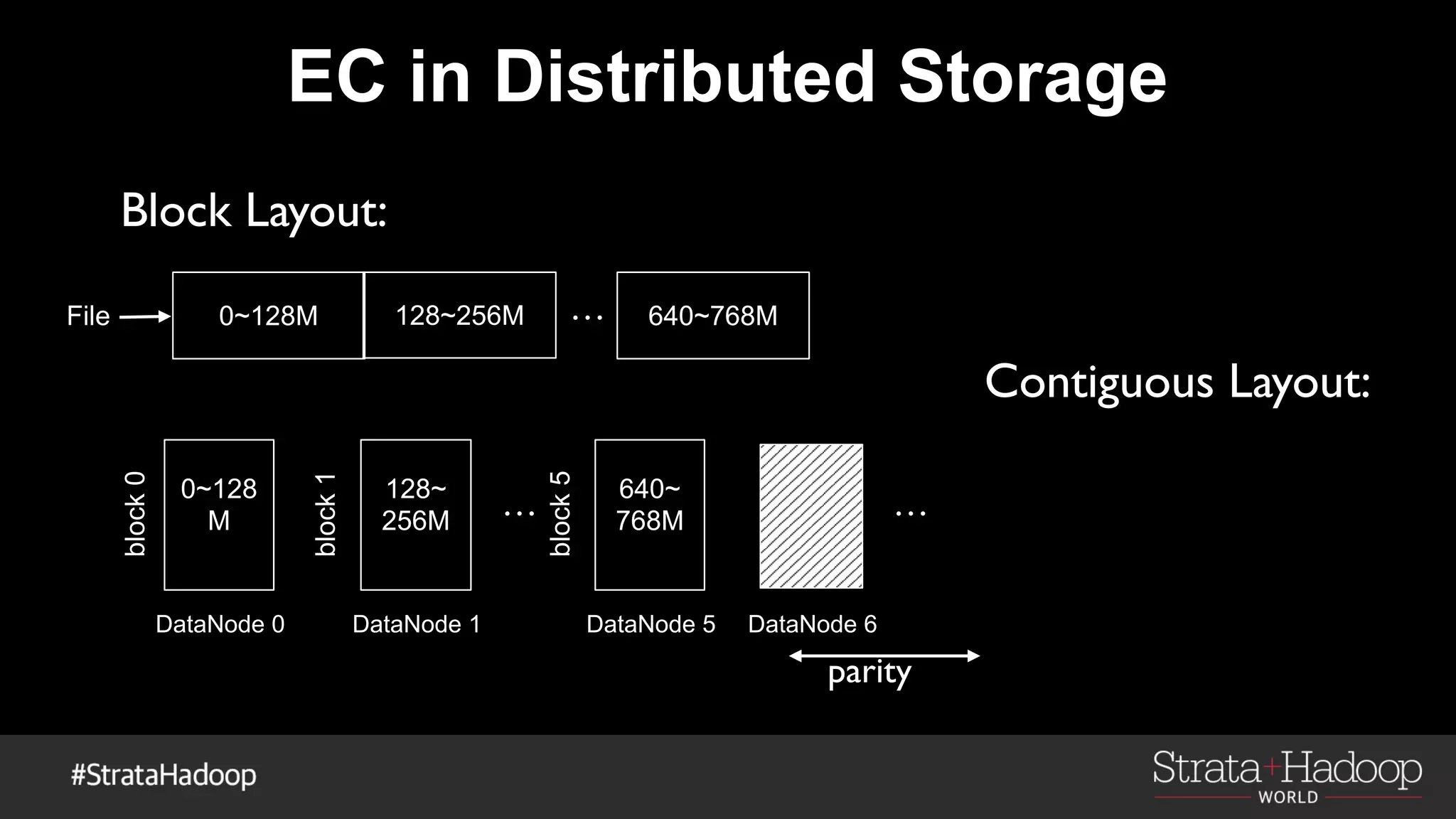

- 62. EC in Distributed Storage Block Layout: File … 640~768M 0~128 M block0 DataNode 0 128~ 256M block1 DataNode 1 0~128M 128~256M … 640~ 768M block5 DataNode 5 DataNode 6 … parity Contiguous Layout:

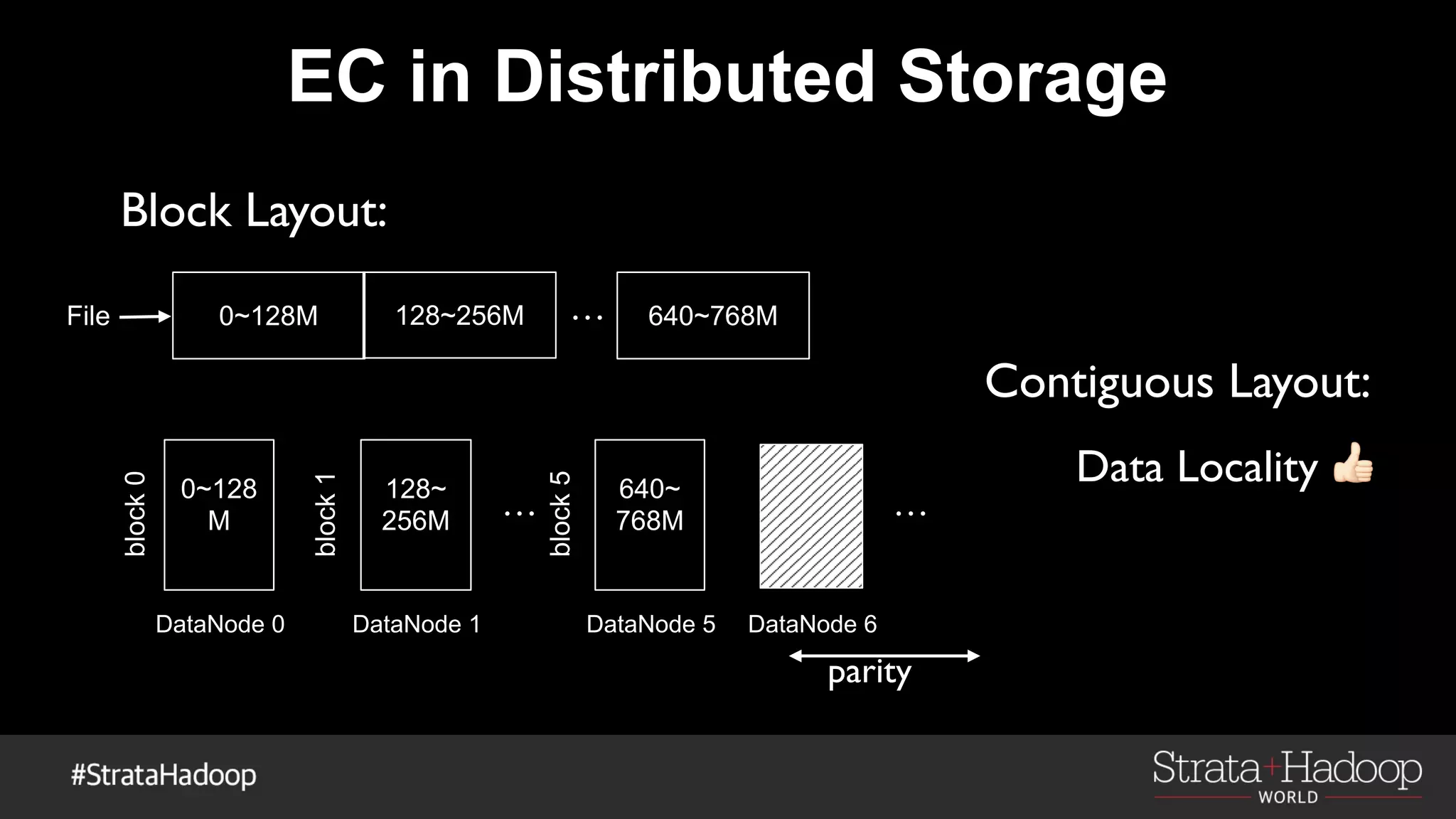

- 63. EC in Distributed Storage Block Layout: Data Locality ! File … 640~768M 0~128 M block0 DataNode 0 128~ 256M block1 DataNode 1 0~128M 128~256M … 640~ 768M block5 DataNode 5 DataNode 6 … parity Contiguous Layout:

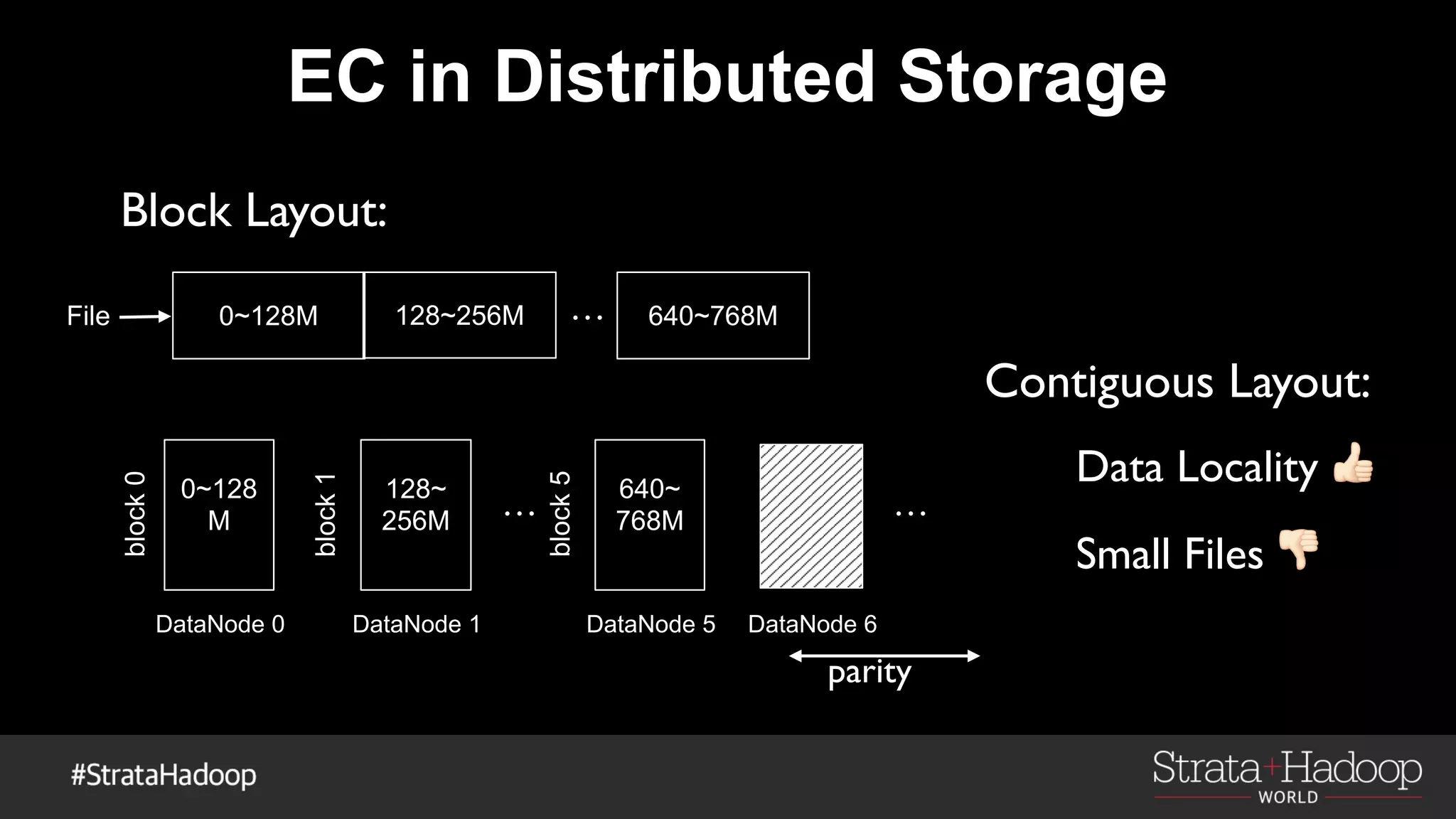

- 64. EC in Distributed Storage Block Layout: Data Locality ! Small Files " File … 640~768M 0~128 M block0 DataNode 0 128~ 256M block1 DataNode 1 0~128M 128~256M … 640~ 768M block5 DataNode 5 DataNode 6 … parity Contiguous Layout:

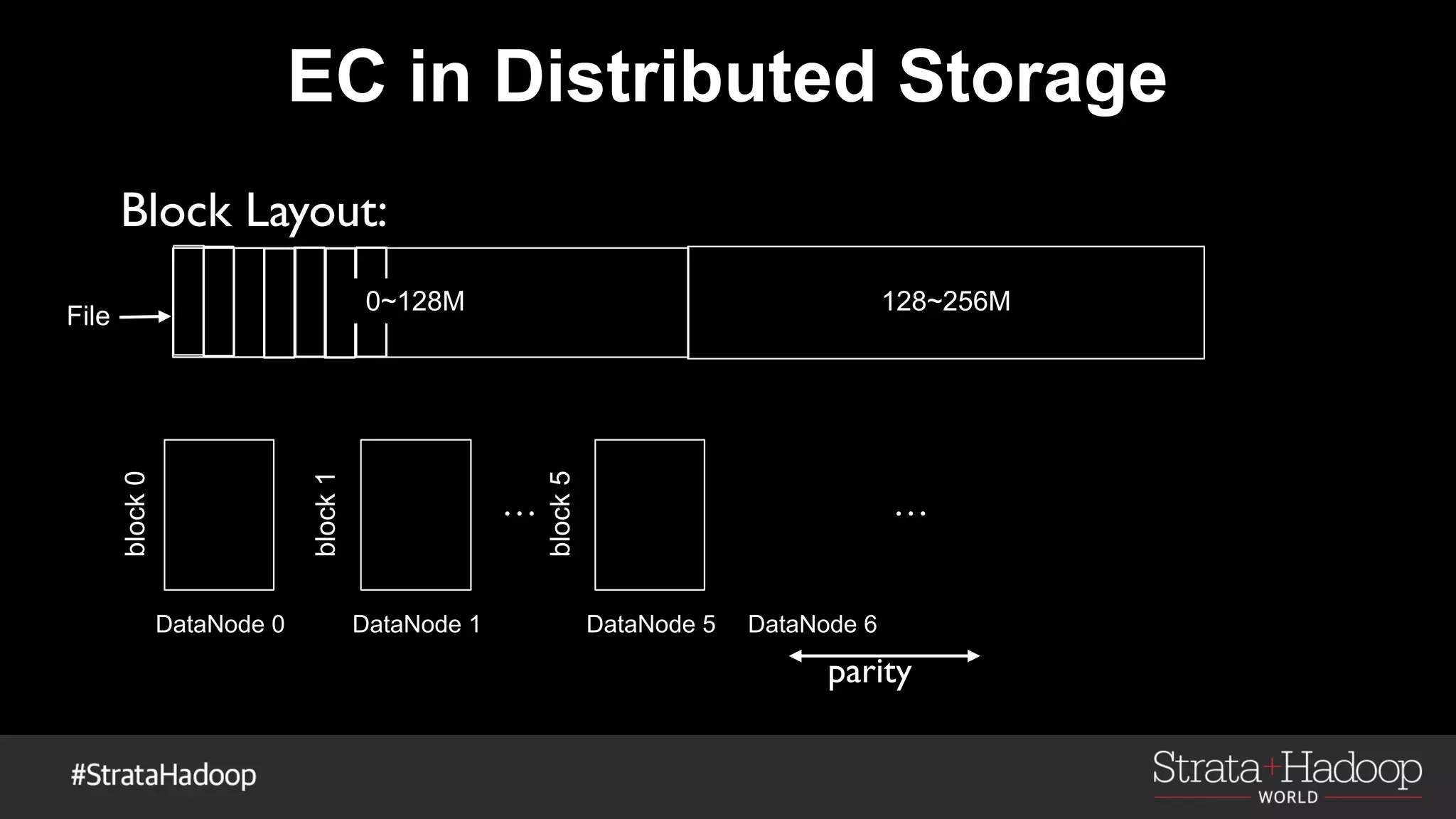

- 65. EC in Distributed Storage Block Layout: File block0 DataNode 0 block1 DataNode 1 … block5 DataNode 5 DataNode 6 … parity 0~128M 128~256M

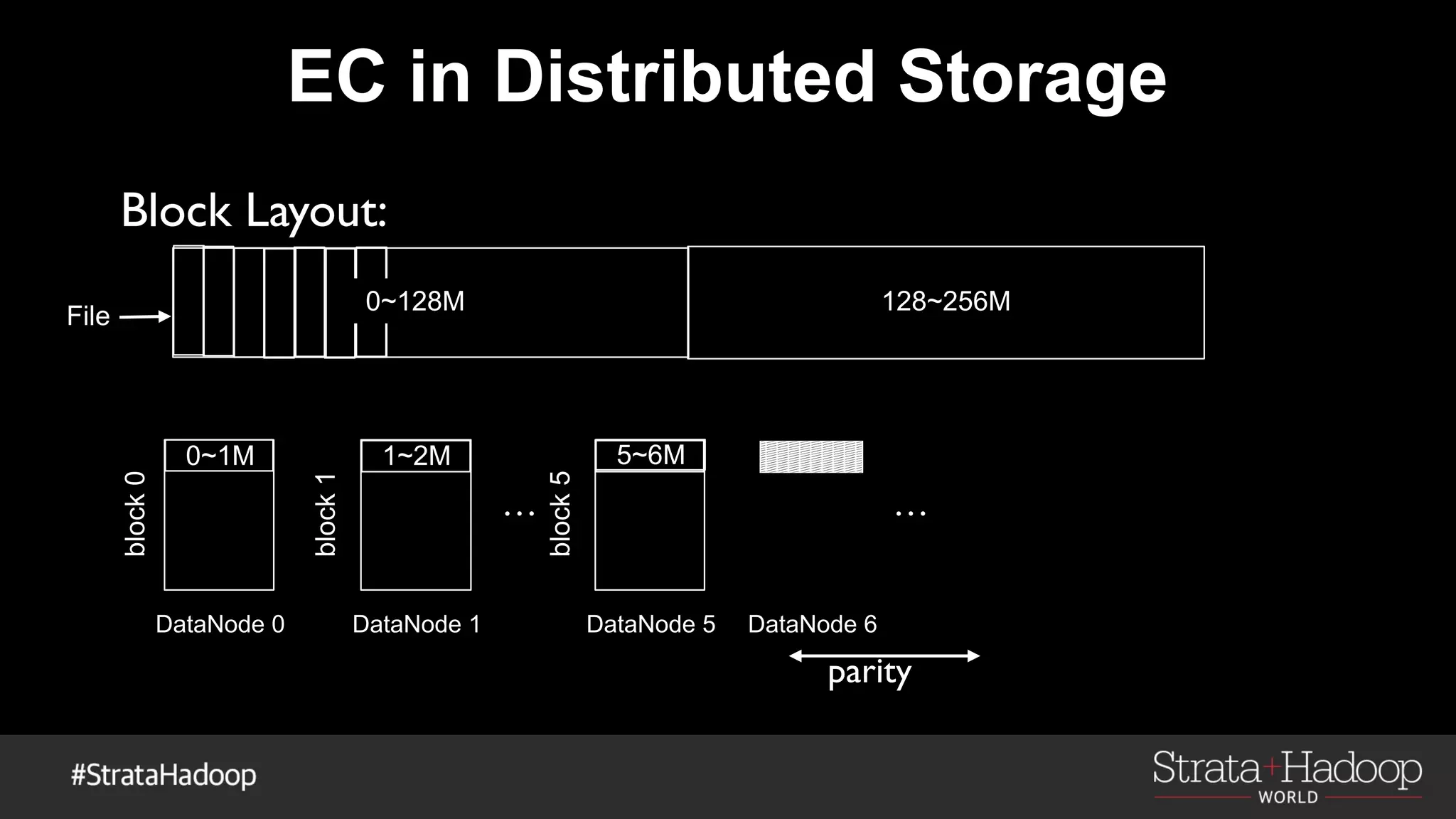

- 66. EC in Distributed Storage Block Layout: File block0 DataNode 0 block1 DataNode 1 … block5 DataNode 5 DataNode 6 … parity 0~1M 1~2M 5~6M 0~128M 128~256M

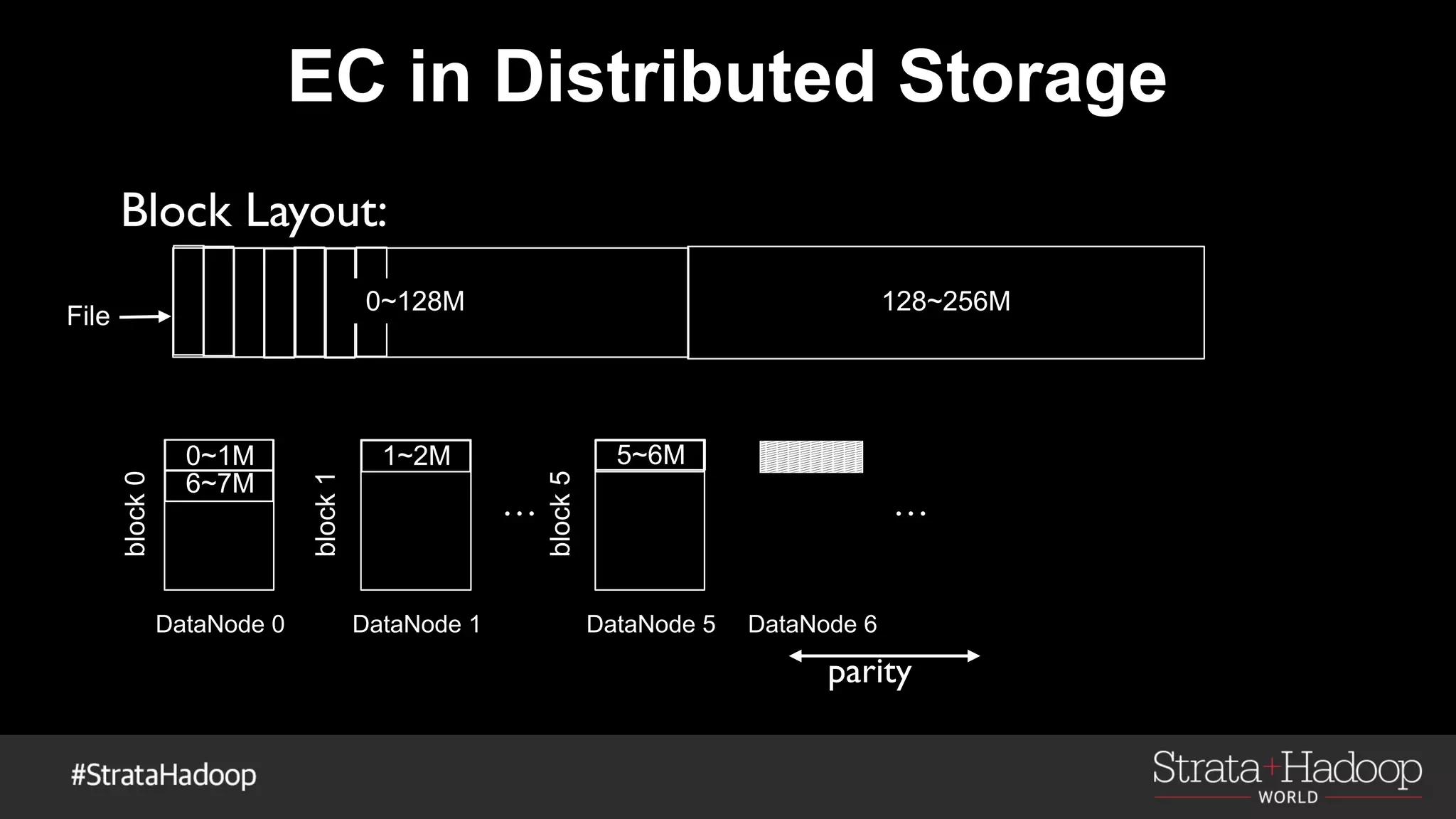

- 67. EC in Distributed Storage Block Layout: File block0 DataNode 0 block1 DataNode 1 … block5 DataNode 5 DataNode 6 … parity 0~1M 1~2M 5~6M 6~7M 0~128M 128~256M

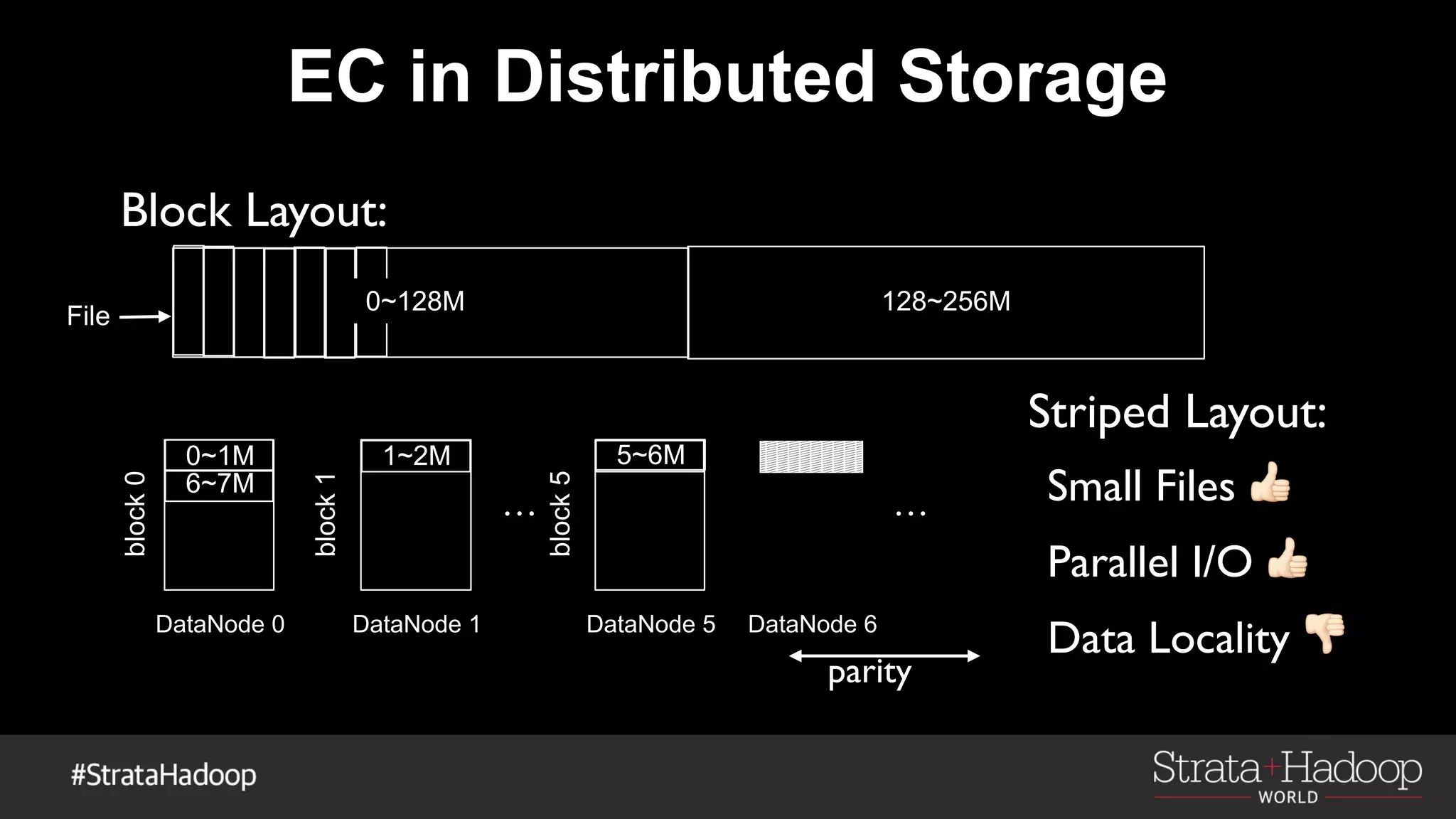

- 68. EC in Distributed Storage Block Layout: File block0 DataNode 0 block1 DataNode 1 … block5 DataNode 5 DataNode 6 … parity Striped Layout: 0~1M 1~2M 5~6M 6~7M Data Locality " Small Files ! Parallel I/O ! 0~128M 128~256M

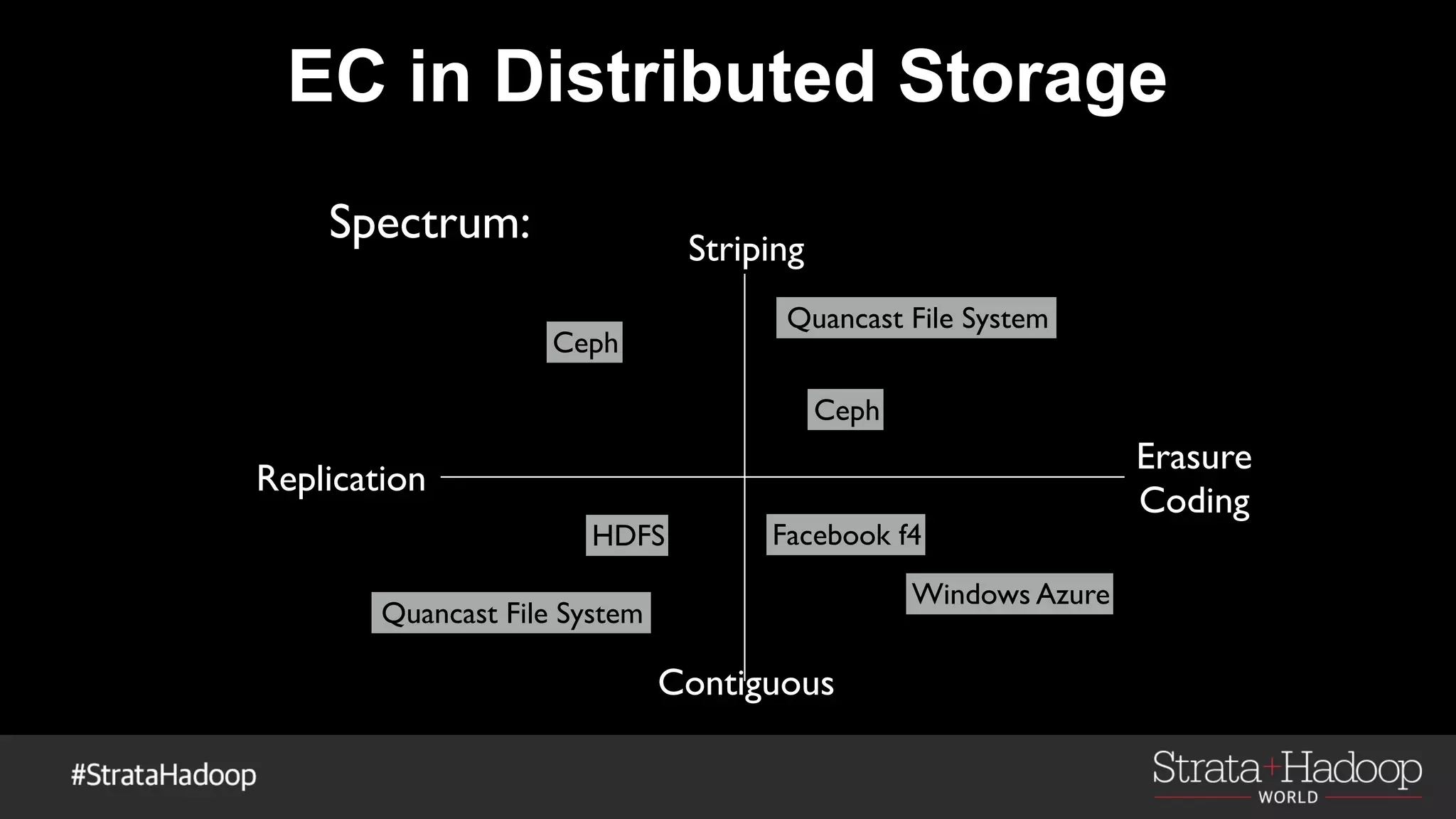

- 69. EC in Distributed Storage Spectrum: Replication Erasure Coding Striping Contiguous Ceph Ceph Quancast File System Quancast File System HDFS Facebook f4 Windows Azure

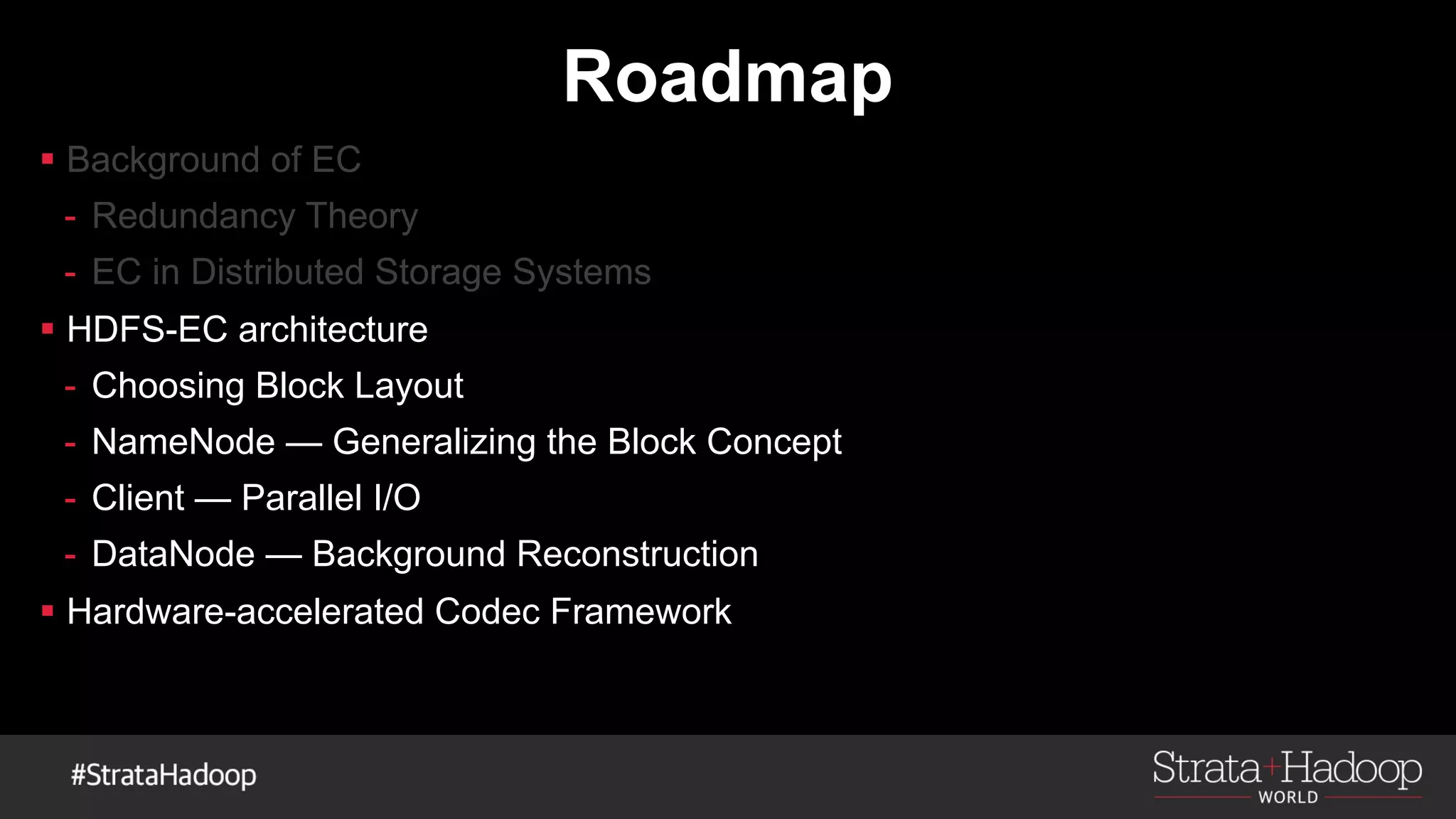

- 70. Roadmap § Background of EC - Redundancy Theory - EC in Distributed Storage Systems § HDFS-EC architecture - Choosing Block Layout - NameNode — Generalizing the Block Concept - Client — Parallel I/O - DataNode — Background Reconstruction § Hardware-accelerated Codec Framework

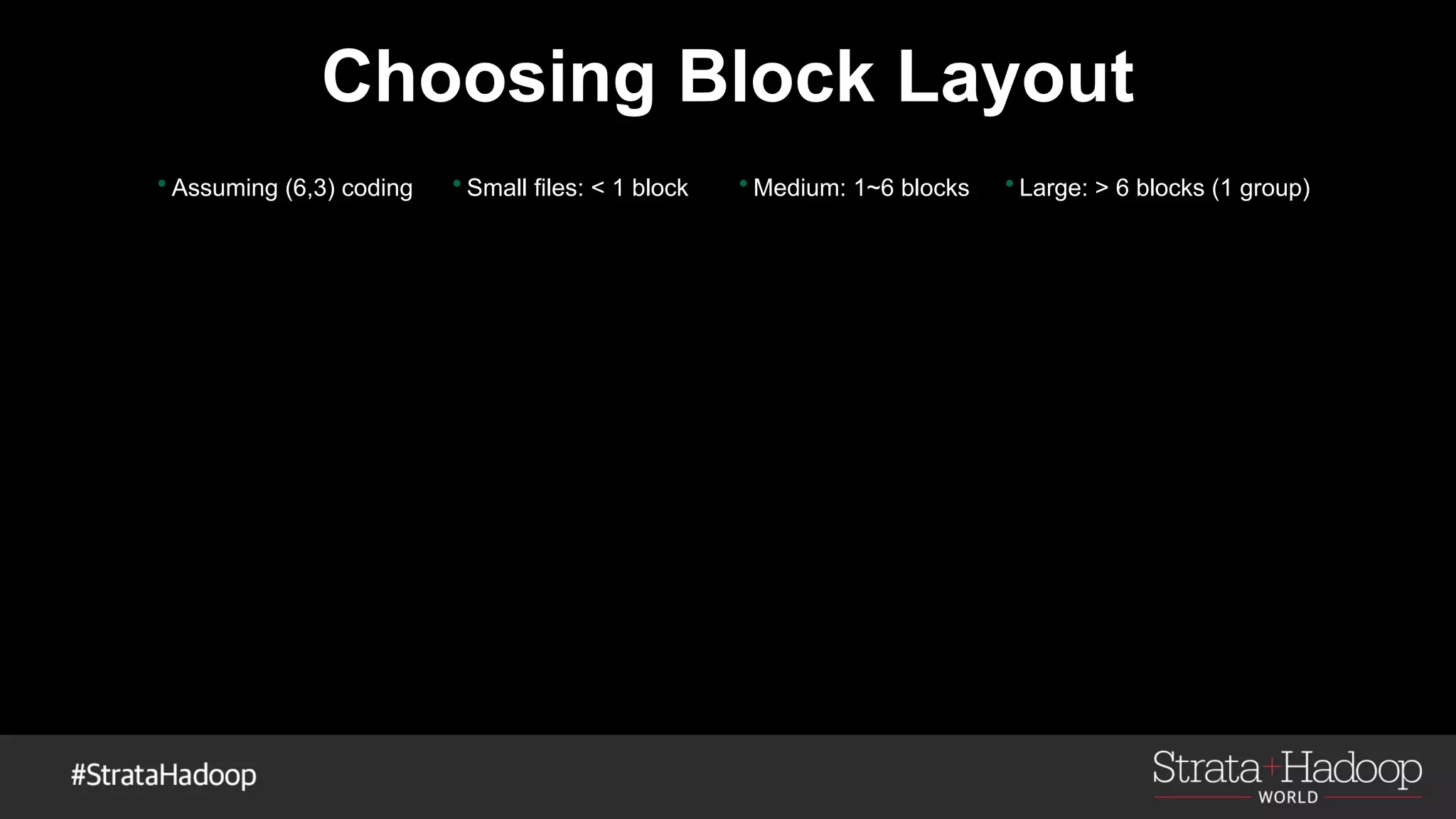

- 71. Choosing Block Layout • Medium: 1~6 blocks• Small files: < 1 block• Assuming (6,3) coding • Large: > 6 blocks (1 group)

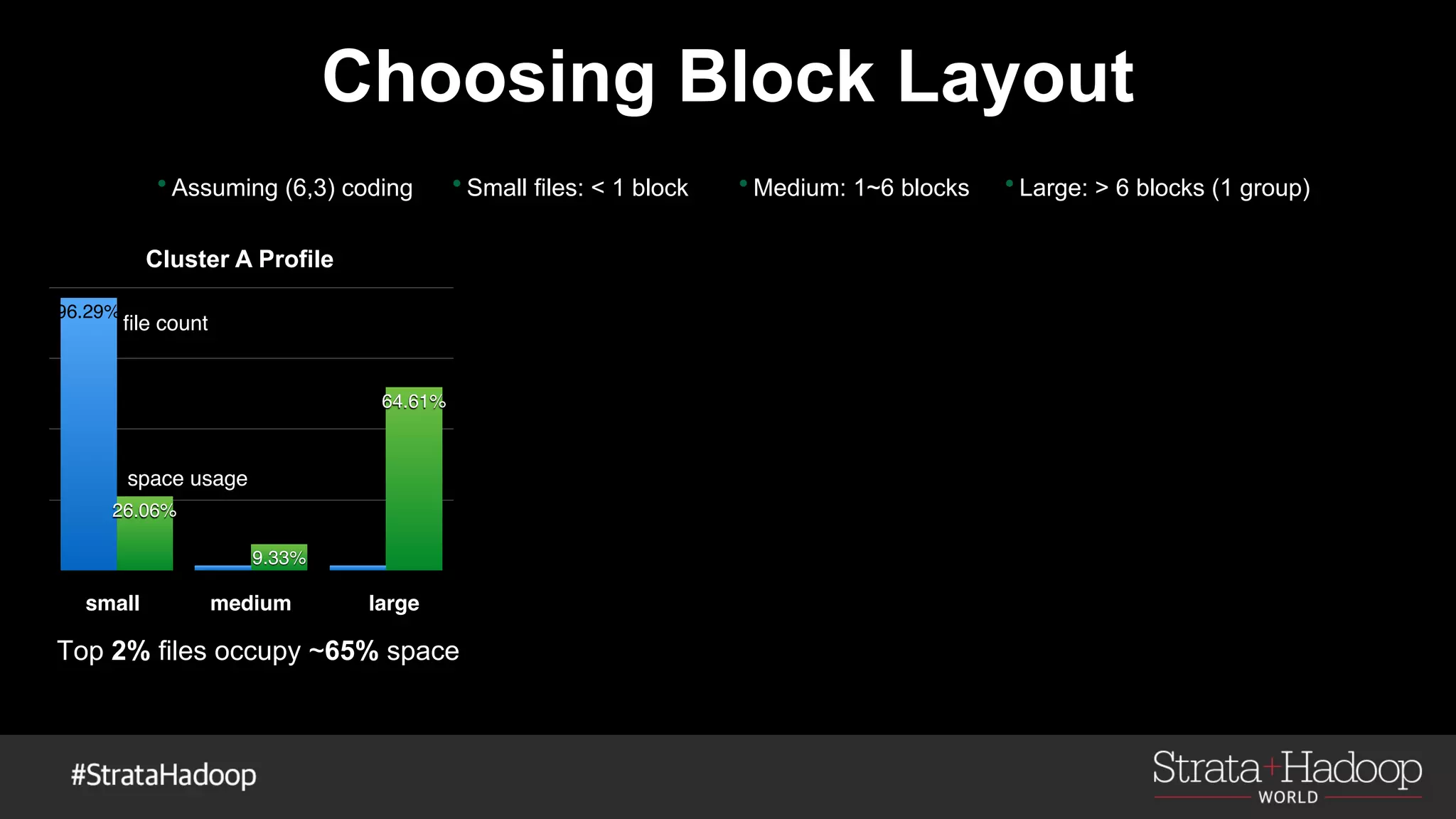

- 72. Choosing Block Layout • Medium: 1~6 blocks• Small files: < 1 block• Assuming (6,3) coding • Large: > 6 blocks (1 group) 64.61% 9.33% 26.06% 1.85%1.86% 96.29% small medium large file count space usage Top 2% files occupy ~65% space Cluster A Profile

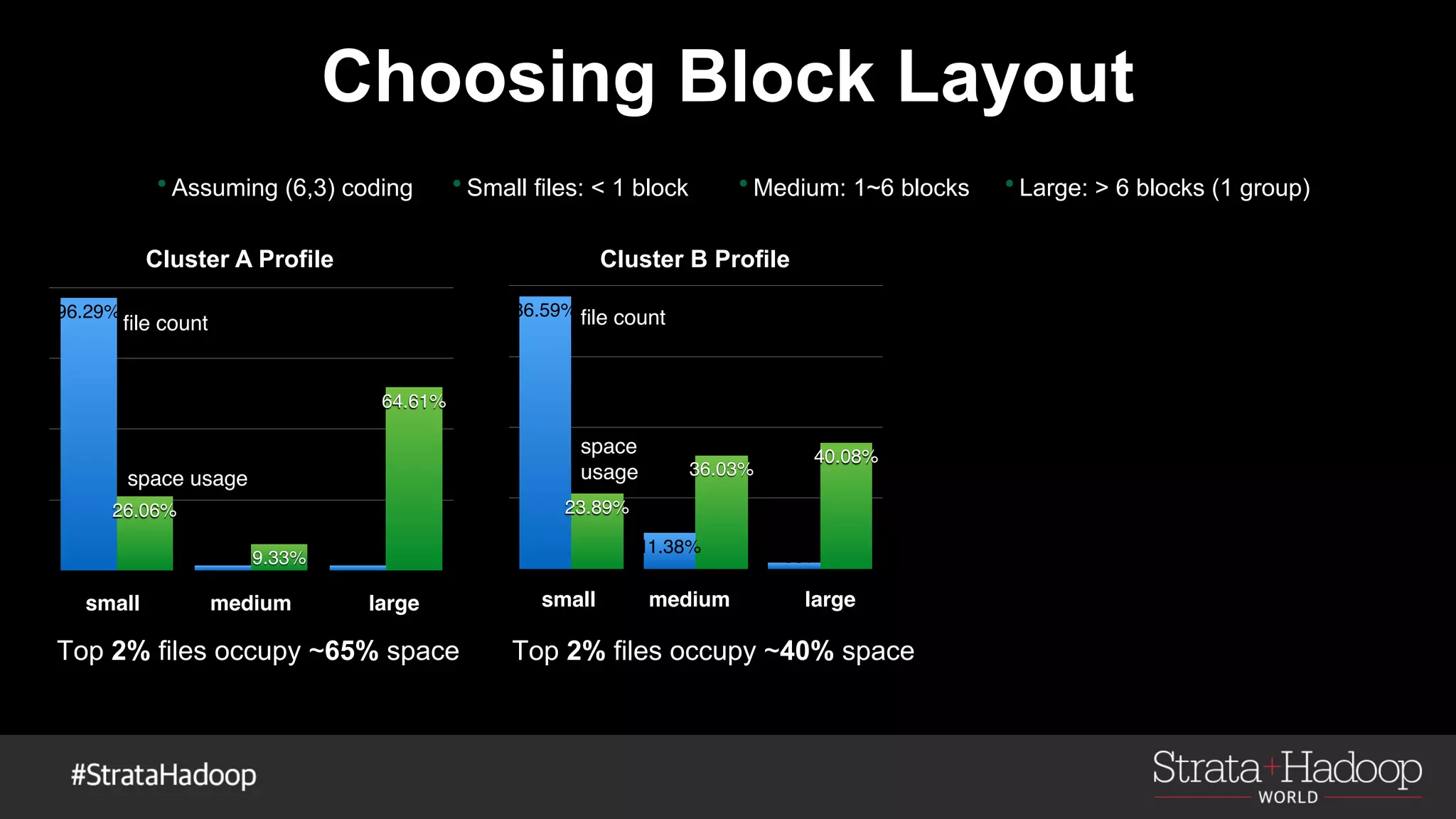

- 73. Choosing Block Layout • Medium: 1~6 blocks• Small files: < 1 block• Assuming (6,3) coding • Large: > 6 blocks (1 group) 64.61% 9.33% 26.06% 1.85%1.86% 96.29% small medium large file count space usage Top 2% files occupy ~65% space Cluster A Profile 40.08% 36.03% 23.89% 2.03% 11.38% 86.59% file count space usage Top 2% files occupy ~40% space small medium large Cluster B Profile

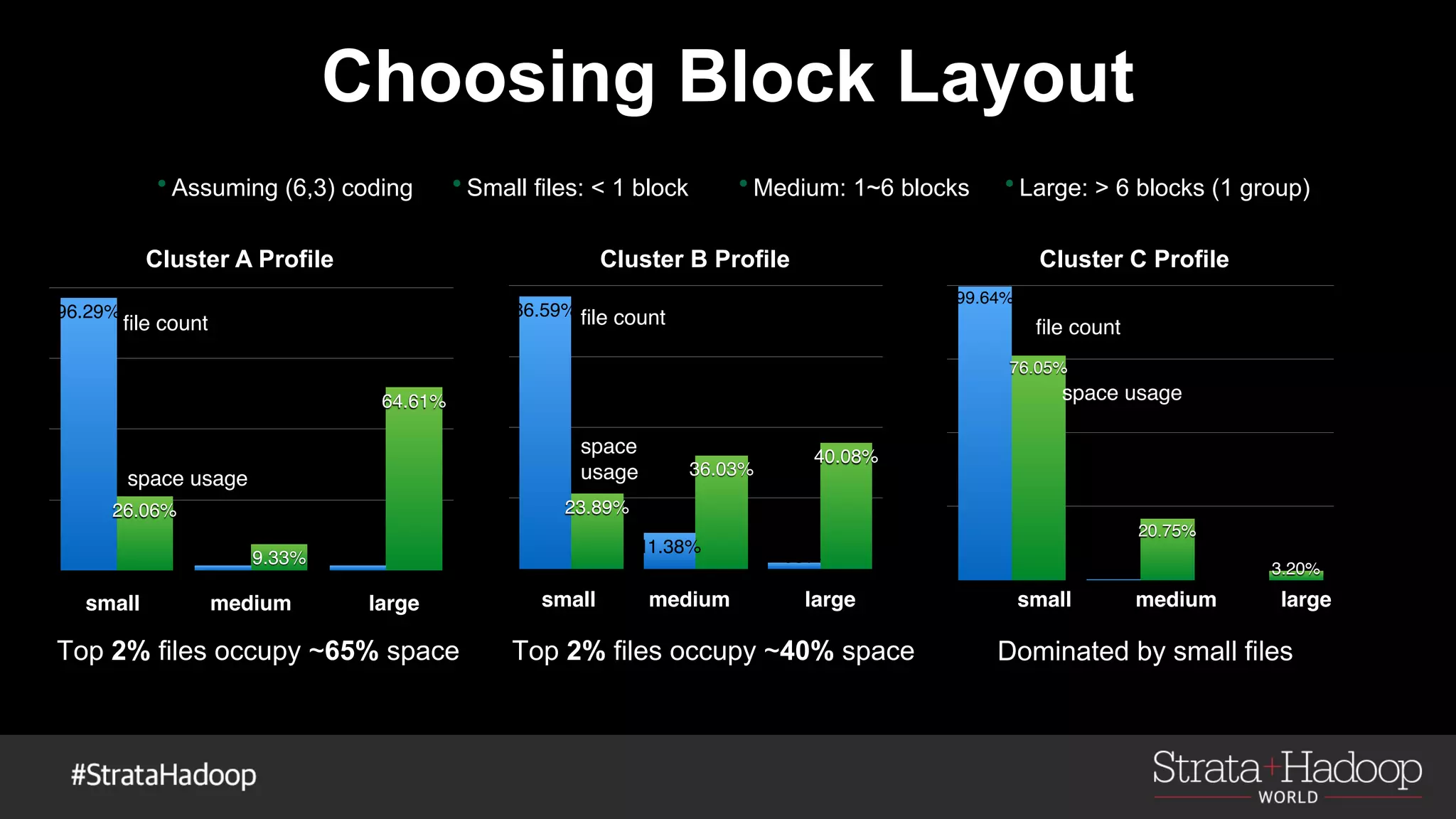

- 74. Choosing Block Layout • Medium: 1~6 blocks• Small files: < 1 block• Assuming (6,3) coding • Large: > 6 blocks (1 group) 64.61% 9.33% 26.06% 1.85%1.86% 96.29% small medium large file count space usage Top 2% files occupy ~65% space Cluster A Profile 40.08% 36.03% 23.89% 2.03% 11.38% 86.59% file count space usage Top 2% files occupy ~40% space small medium large Cluster B Profile 3.20% 20.75% 76.05% 0.00%0.36% 99.64% file count space usage Dominated by small files small medium large Cluster C Profile

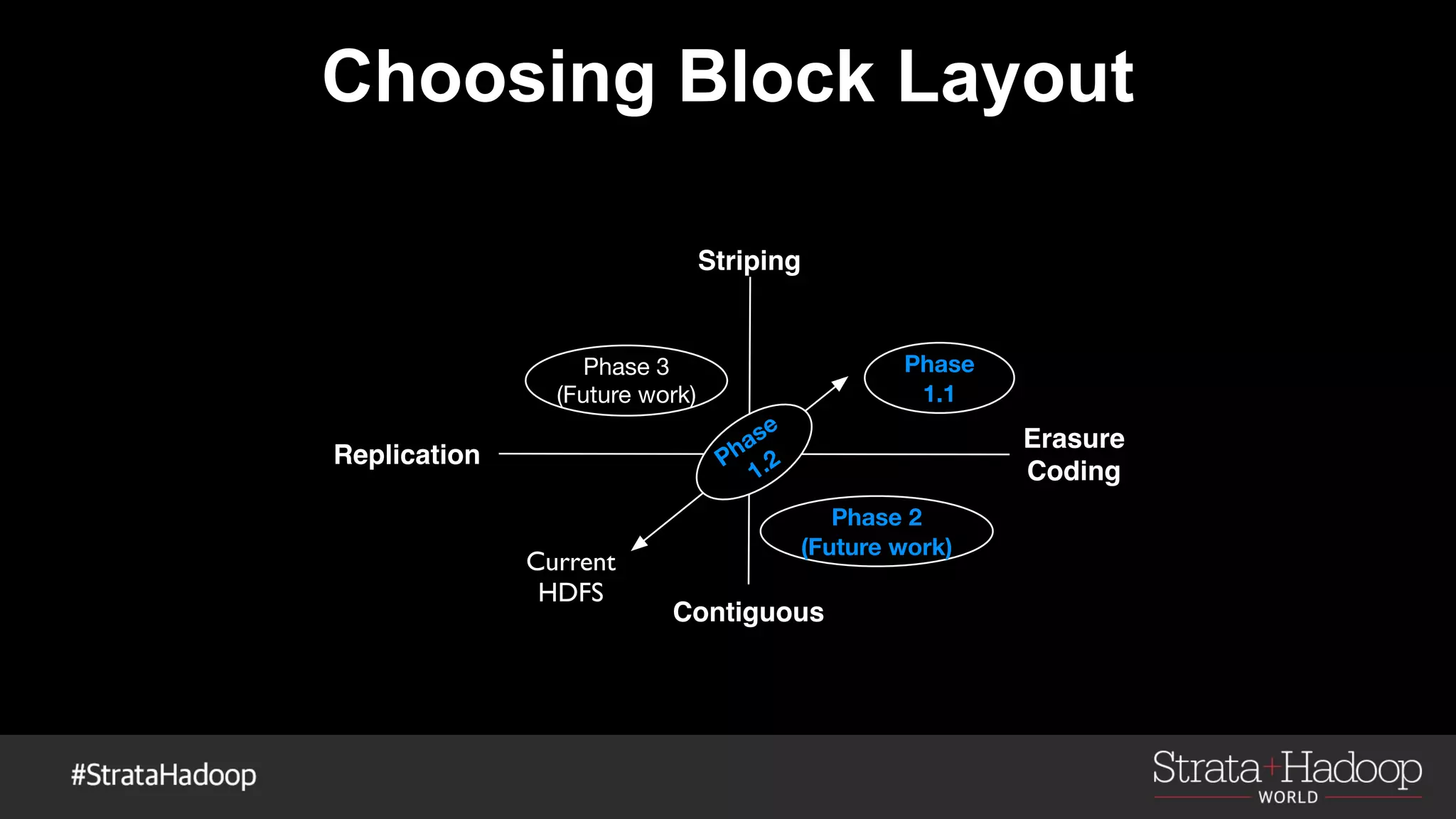

- 75. Choosing Block Layout Striping Contiguous Replication Erasure Coding Phase 1.1 Phase 1.2 Phase 2 (Future work) Phase 3 (Future work) Current HDFS

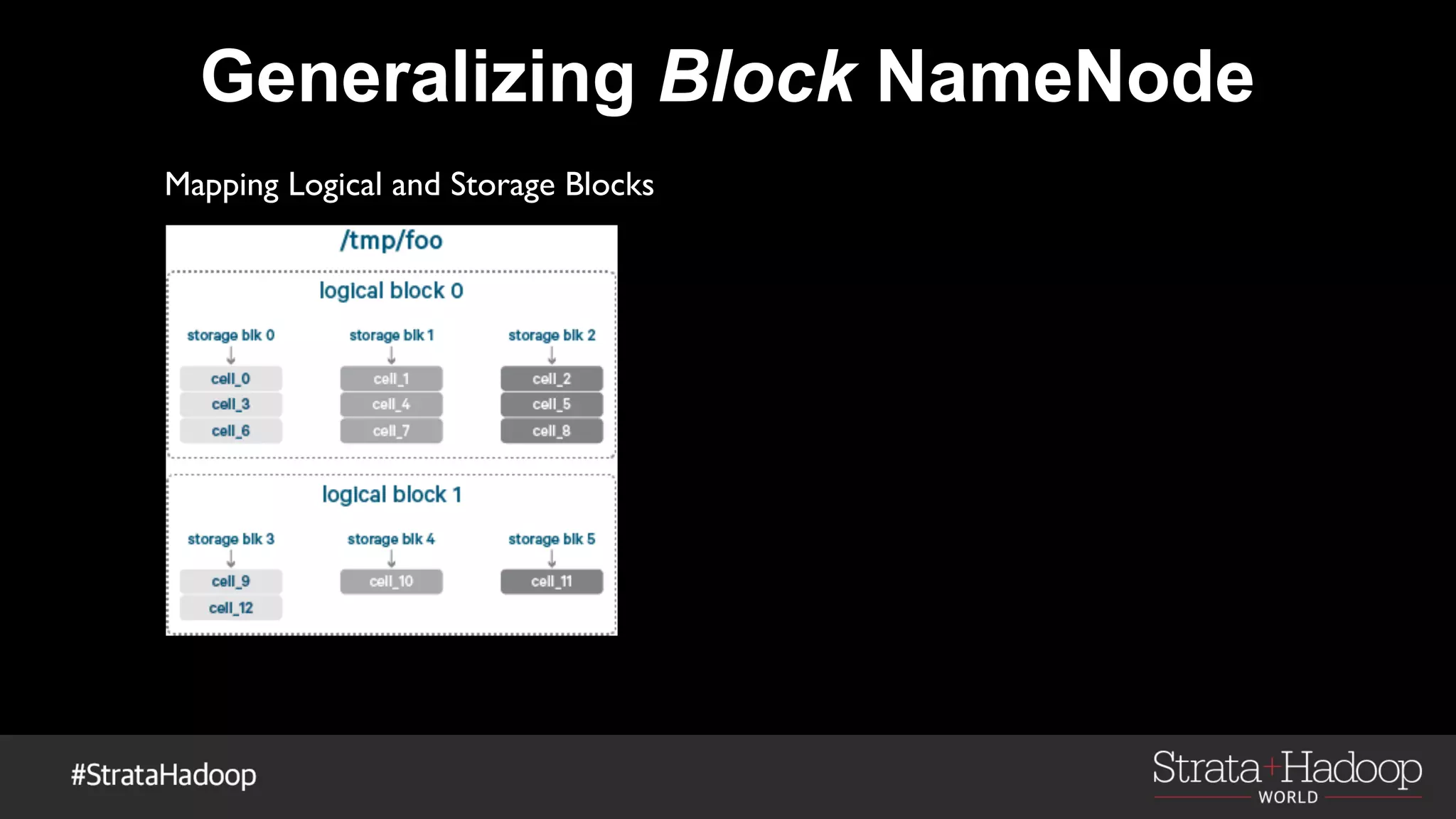

- 77. Generalizing Block NameNode Mapping Logical and Storage Blocks

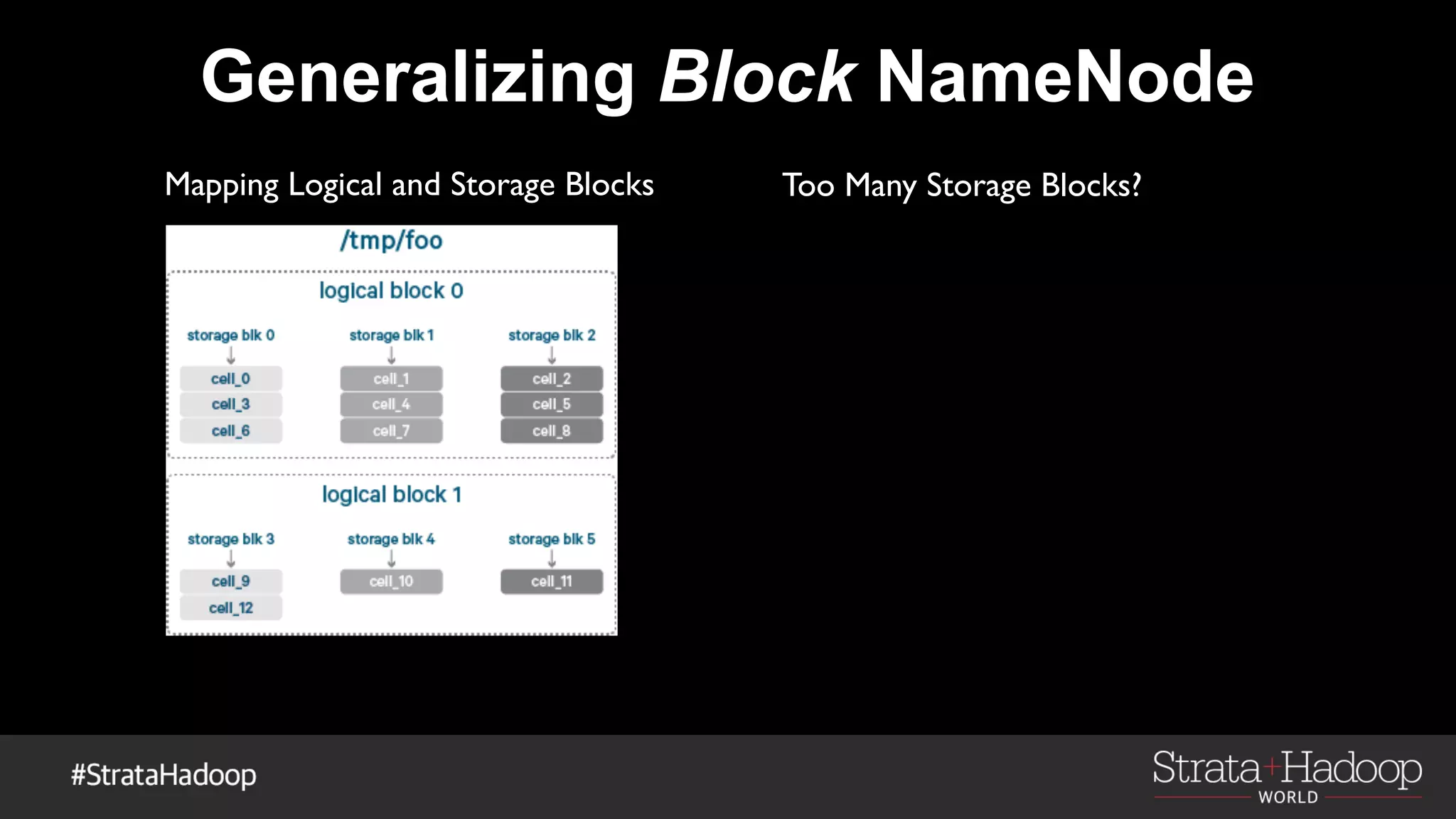

- 78. Generalizing Block NameNode Mapping Logical and Storage Blocks Too Many Storage Blocks?

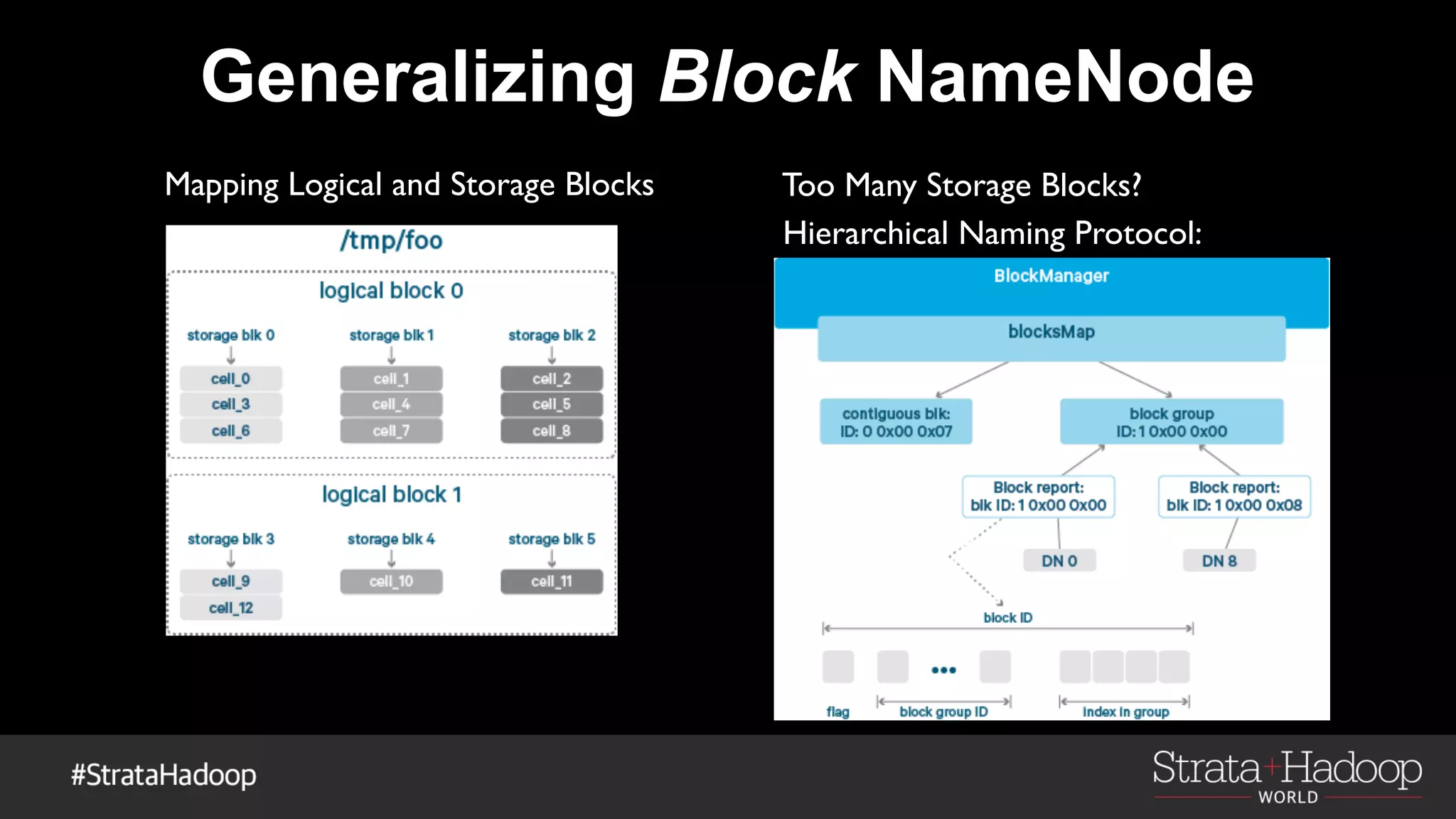

- 79. Generalizing Block NameNode Mapping Logical and Storage Blocks Too Many Storage Blocks? Hierarchical Naming Protocol:

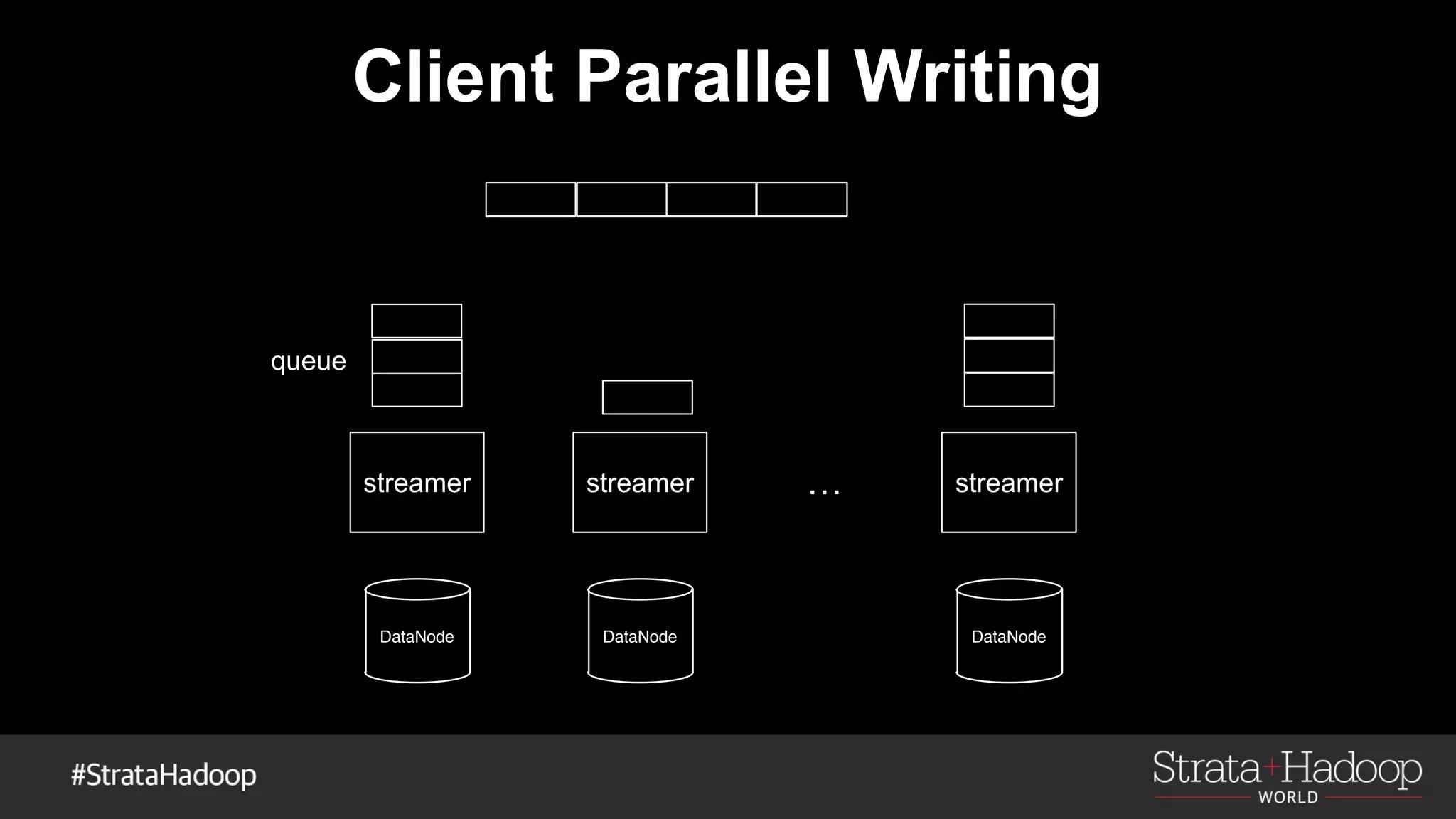

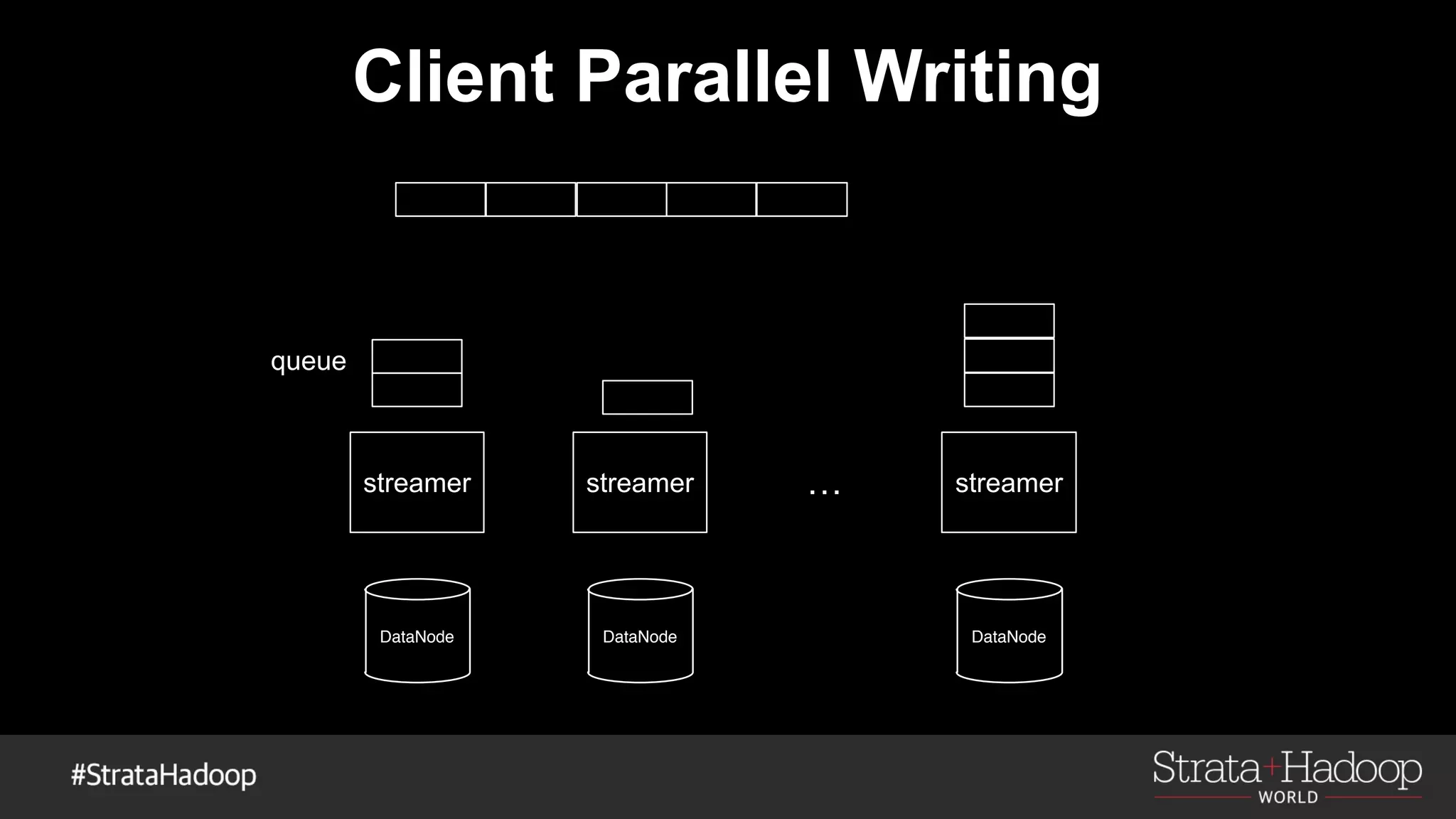

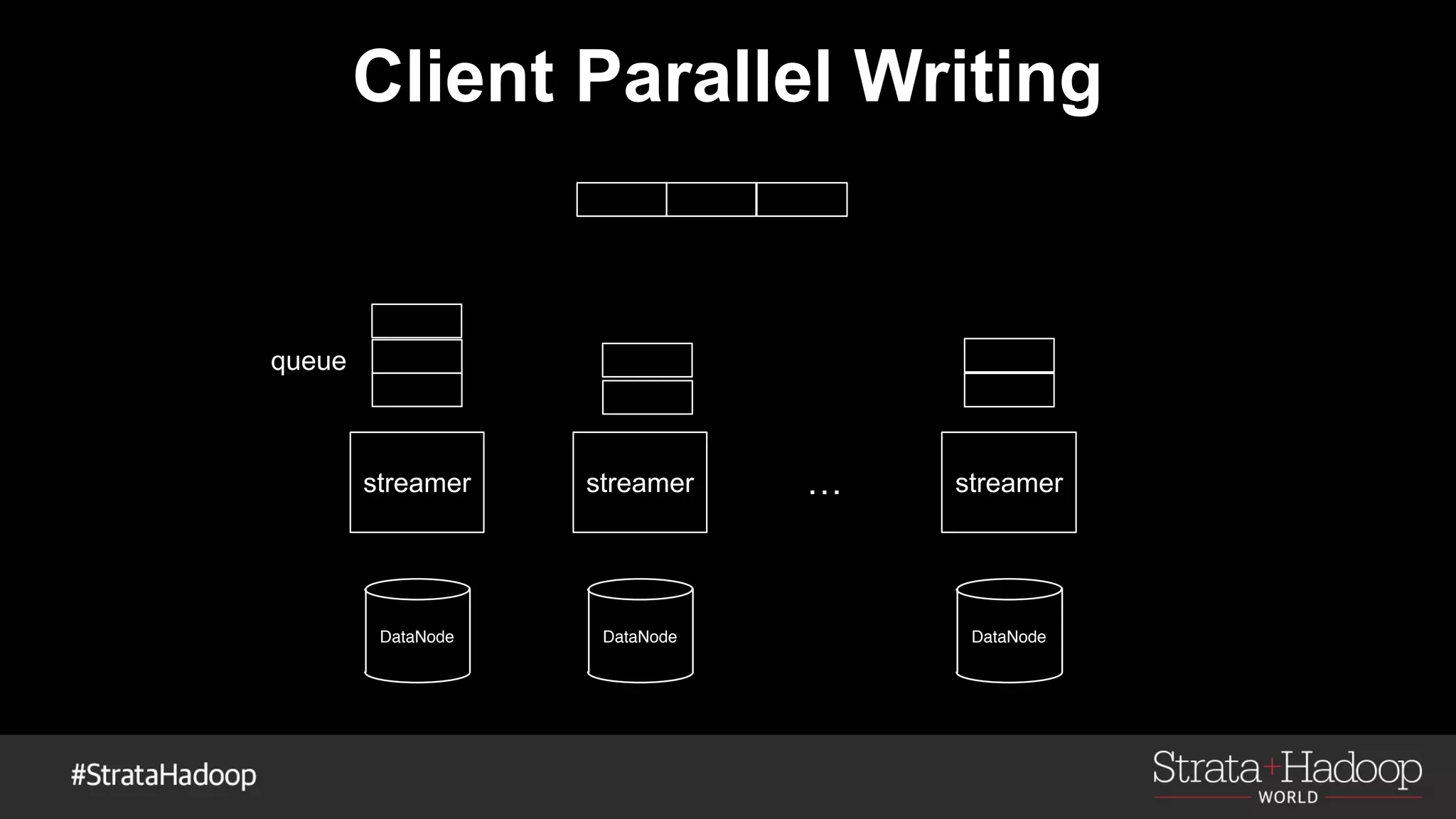

- 80. Client Parallel Writing streamer queue streamer … streamer DataNode DataNode DataNode
- 81. Client Parallel Writing streamer queue streamer … streamer DataNode DataNode DataNode

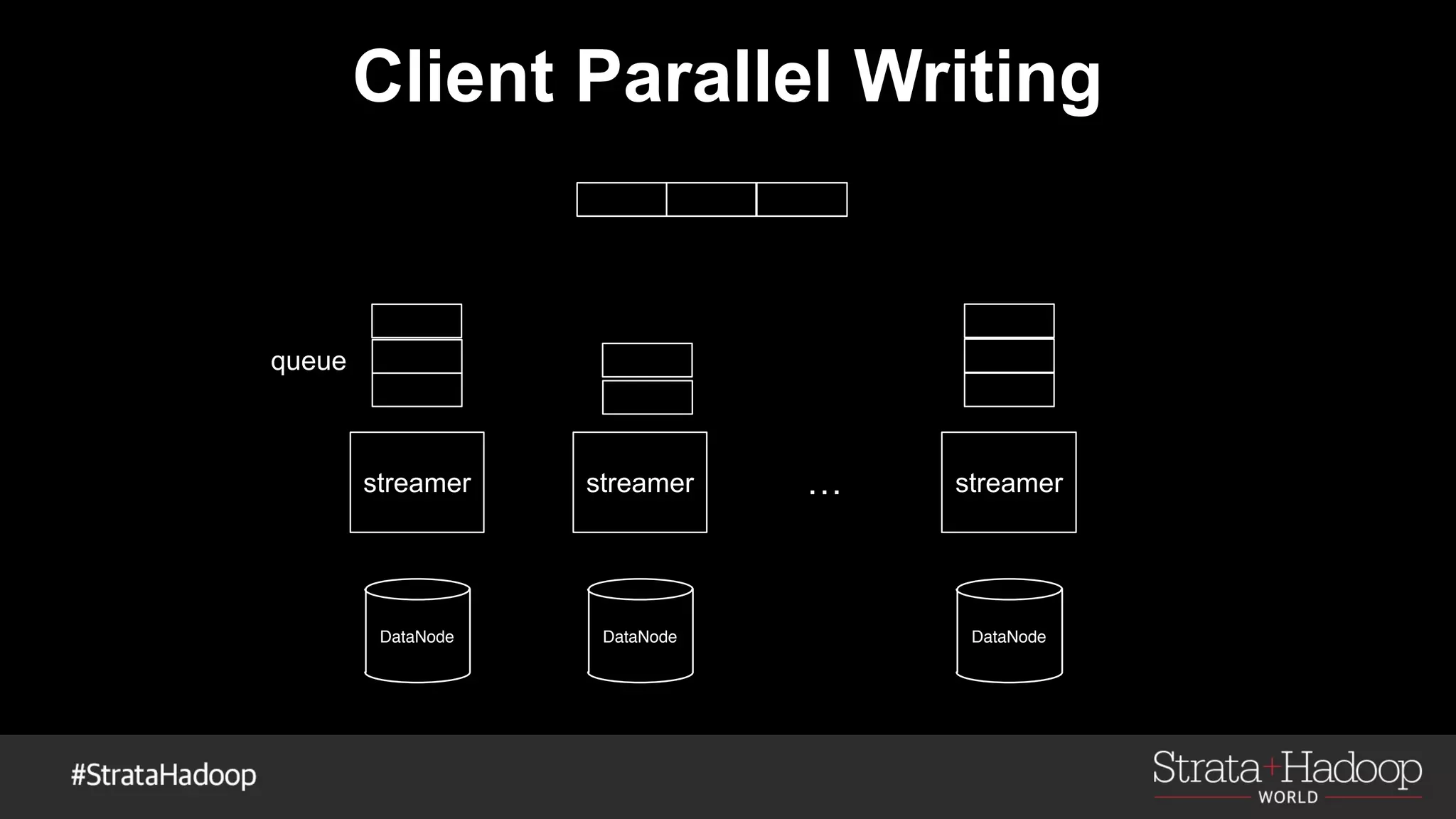

- 82. Client Parallel Writing streamer queue streamer … streamer DataNode DataNode DataNode
- 83. Client Parallel Writing streamer queue streamer … streamer DataNode DataNode DataNode

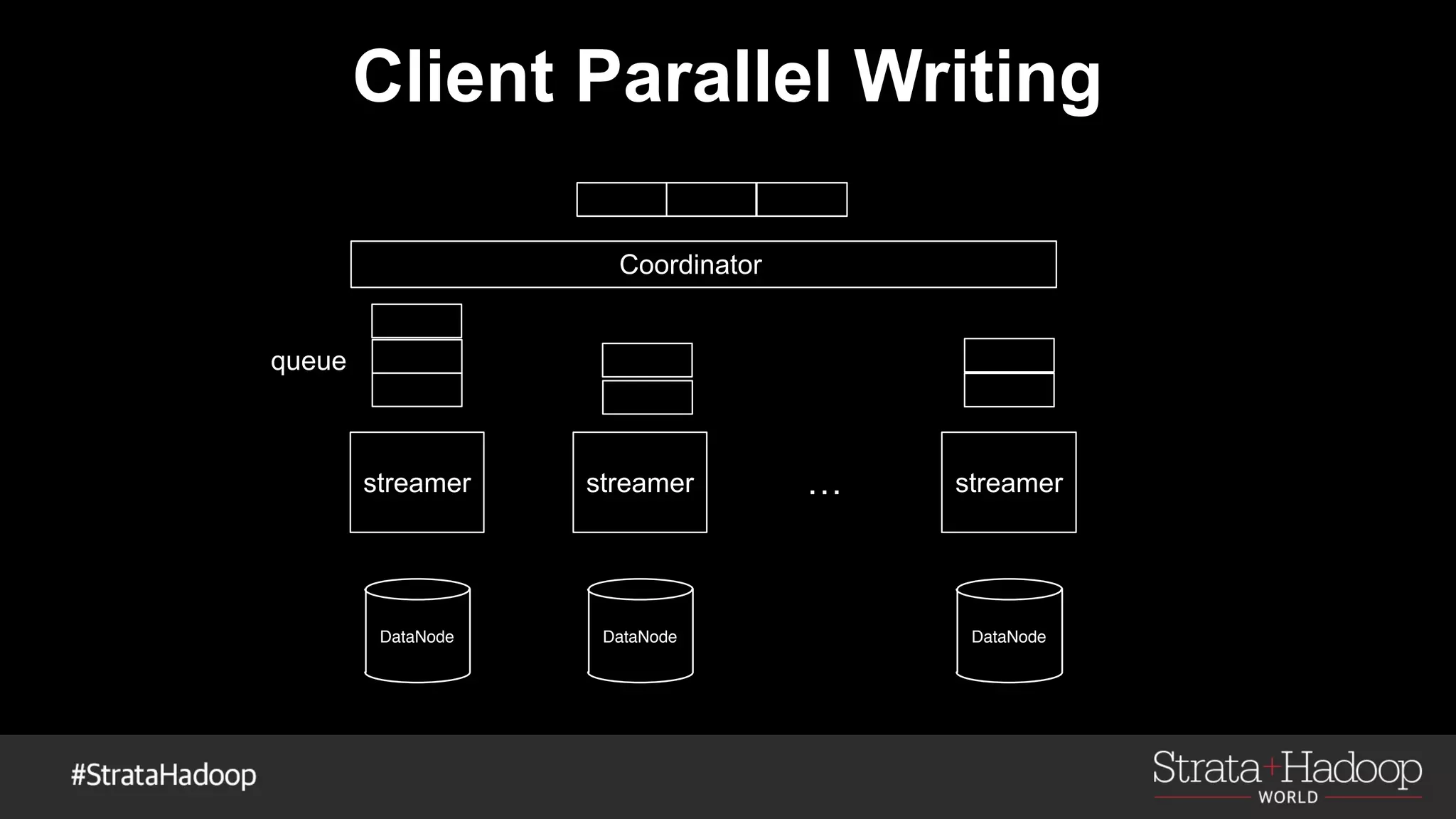

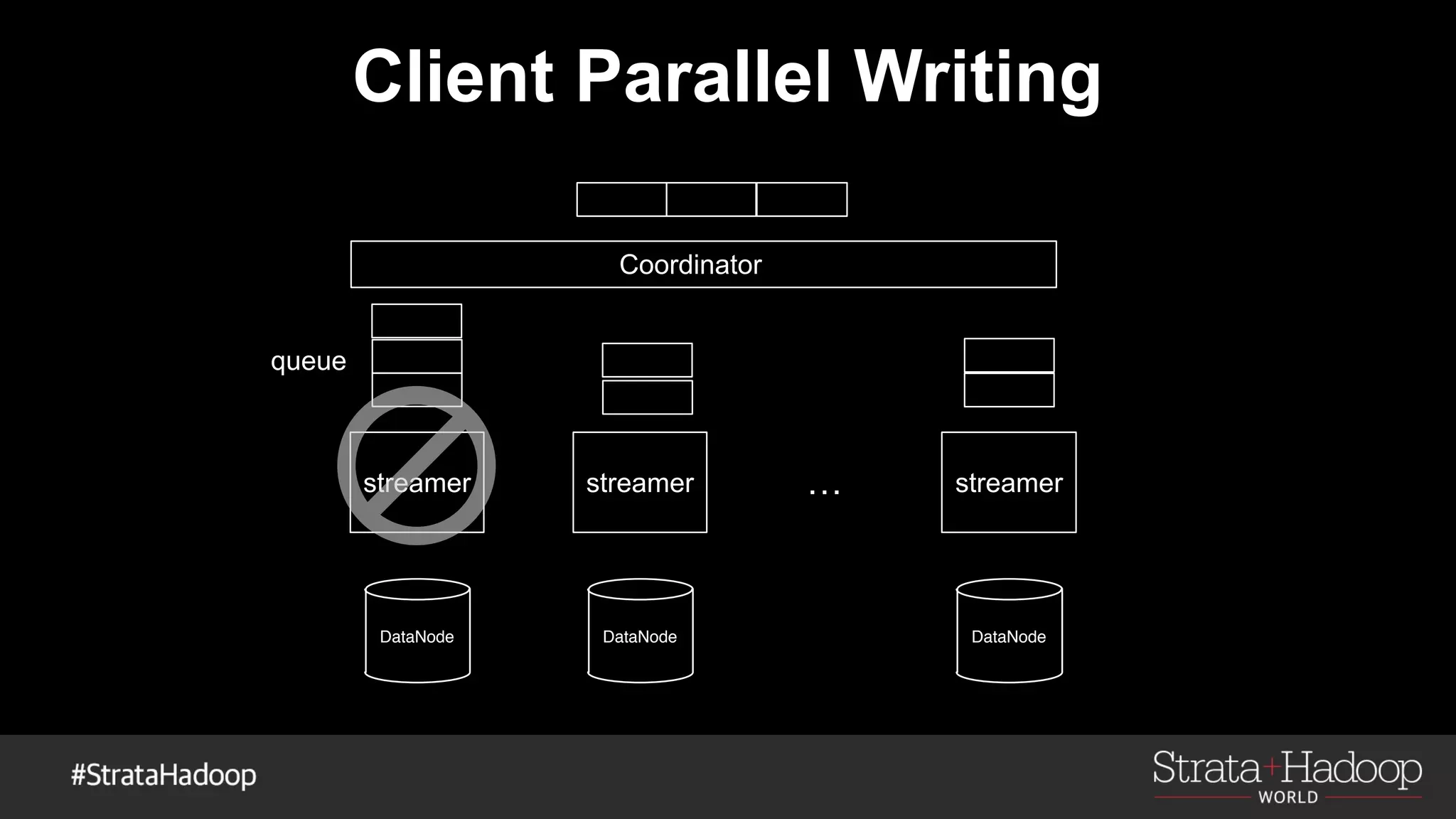

- 84. Client Parallel Writing streamer queue streamer … streamer DataNode DataNode DataNode Coordinator

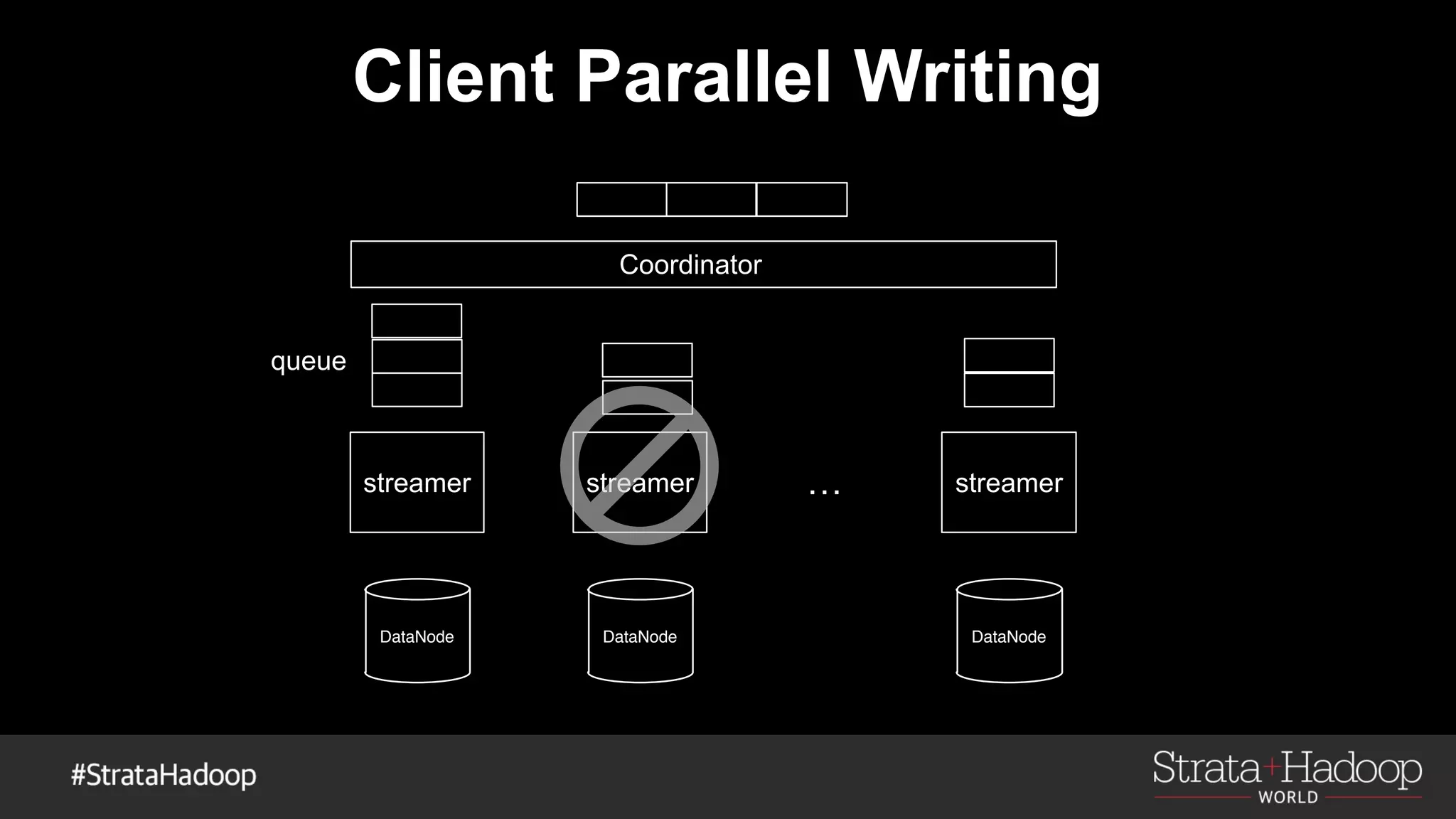

- 85. Client Parallel Writing streamer queue streamer … streamer DataNode DataNode DataNode Coordinator
- 86. Client Parallel Writing streamer queue streamer … streamer DataNode DataNode DataNode Coordinator
- 87. Client Parallel Writing streamer queue streamer … streamer DataNode DataNode DataNode Coordinator

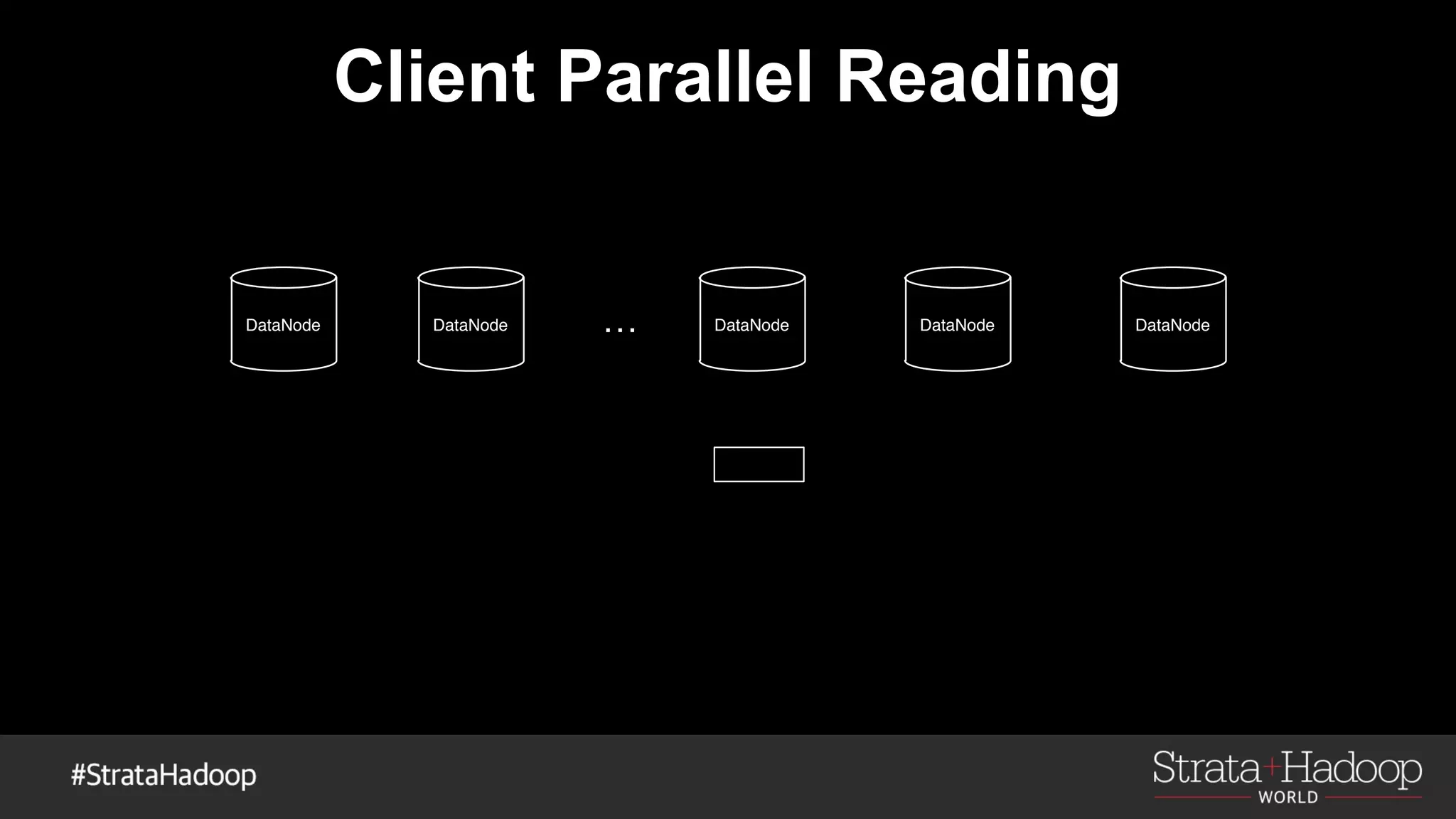

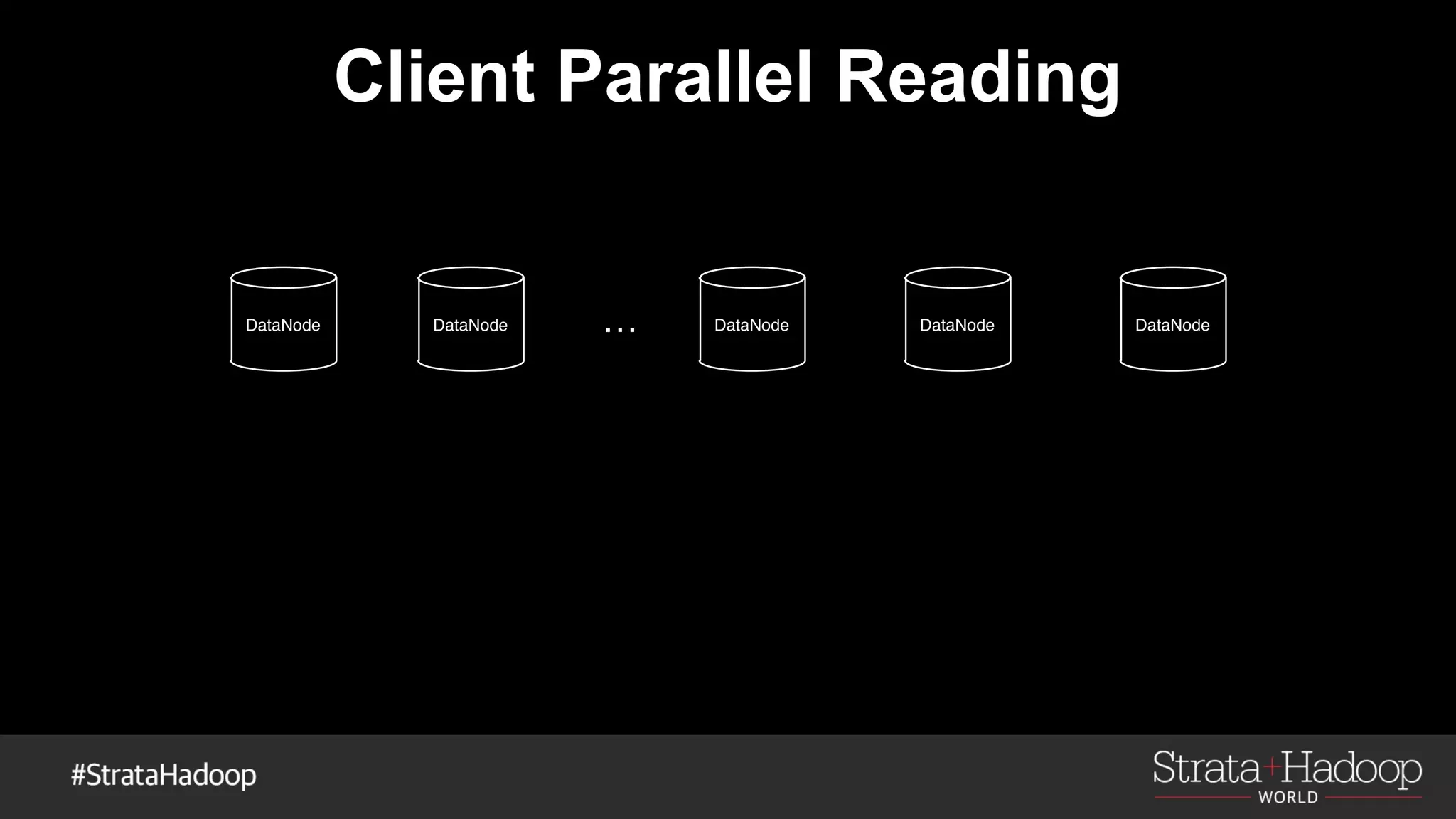

- 88. Client Parallel Reading … DataNodeDataNode DataNode DataNode DataNode
- 89. Client Parallel Reading … DataNodeDataNode DataNode DataNode DataNode

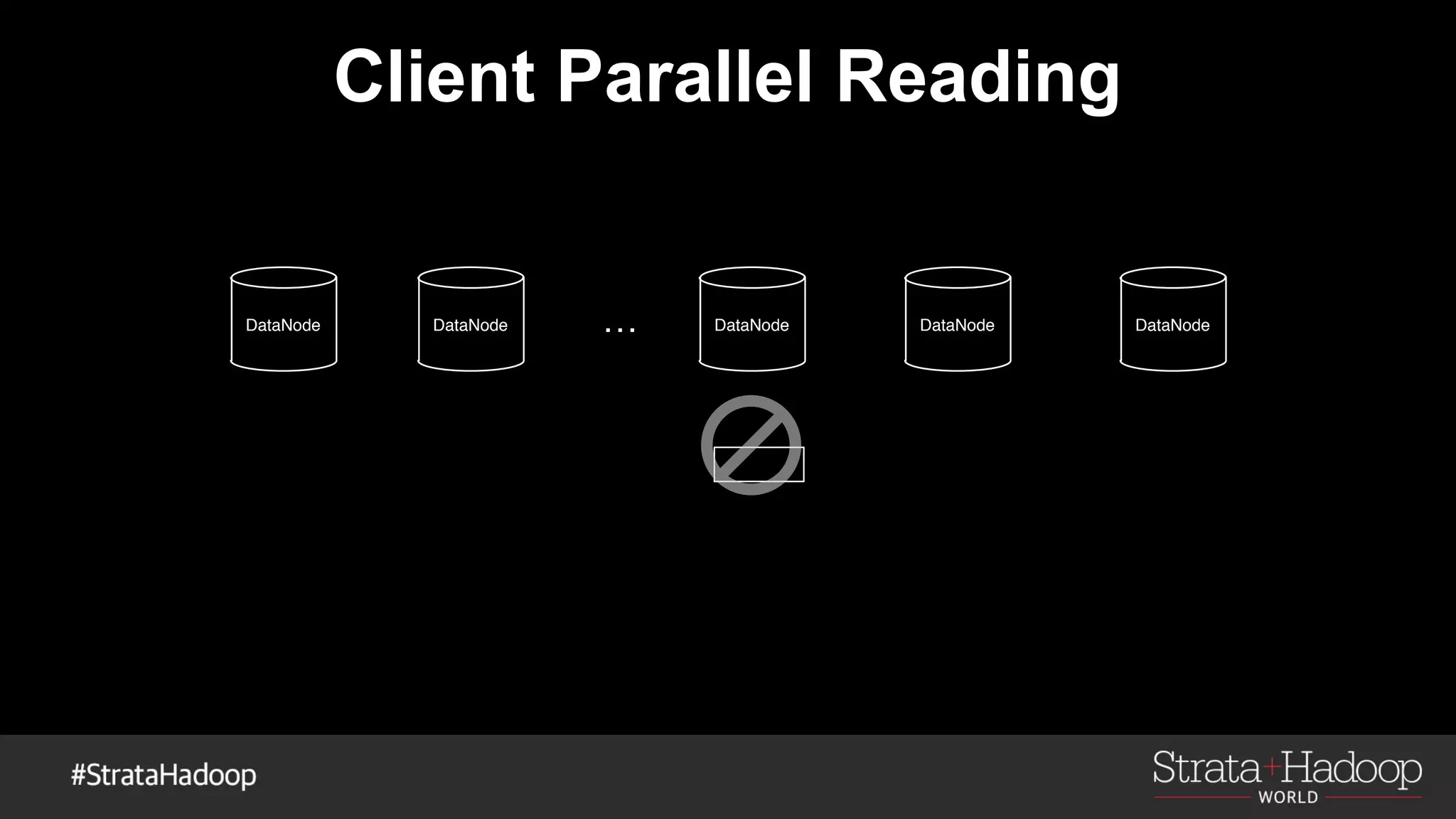

- 90. Client Parallel Reading … DataNodeDataNode DataNode DataNode DataNode

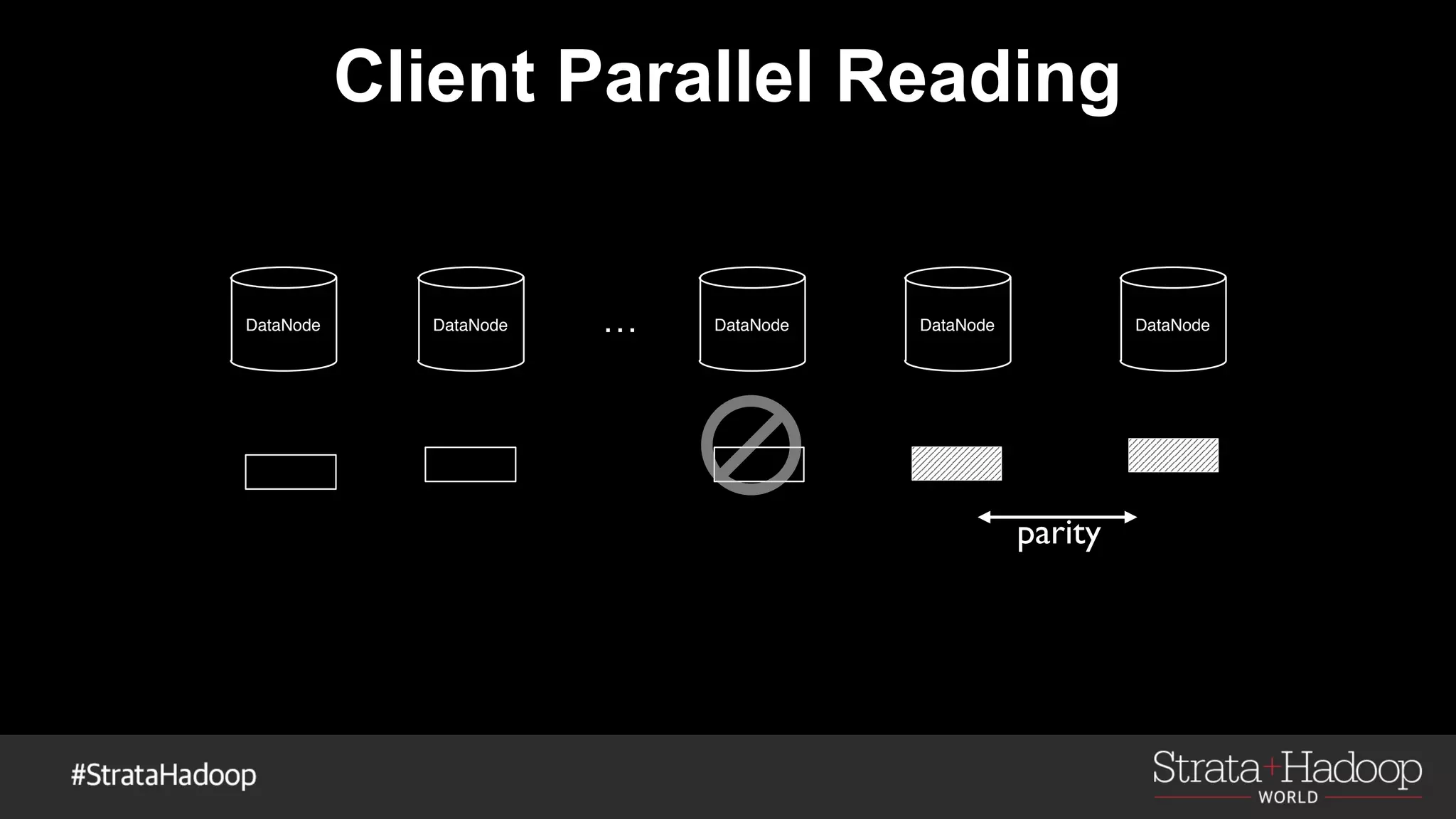

- 91. Client Parallel Reading … DataNodeDataNode DataNode DataNode DataNode parity

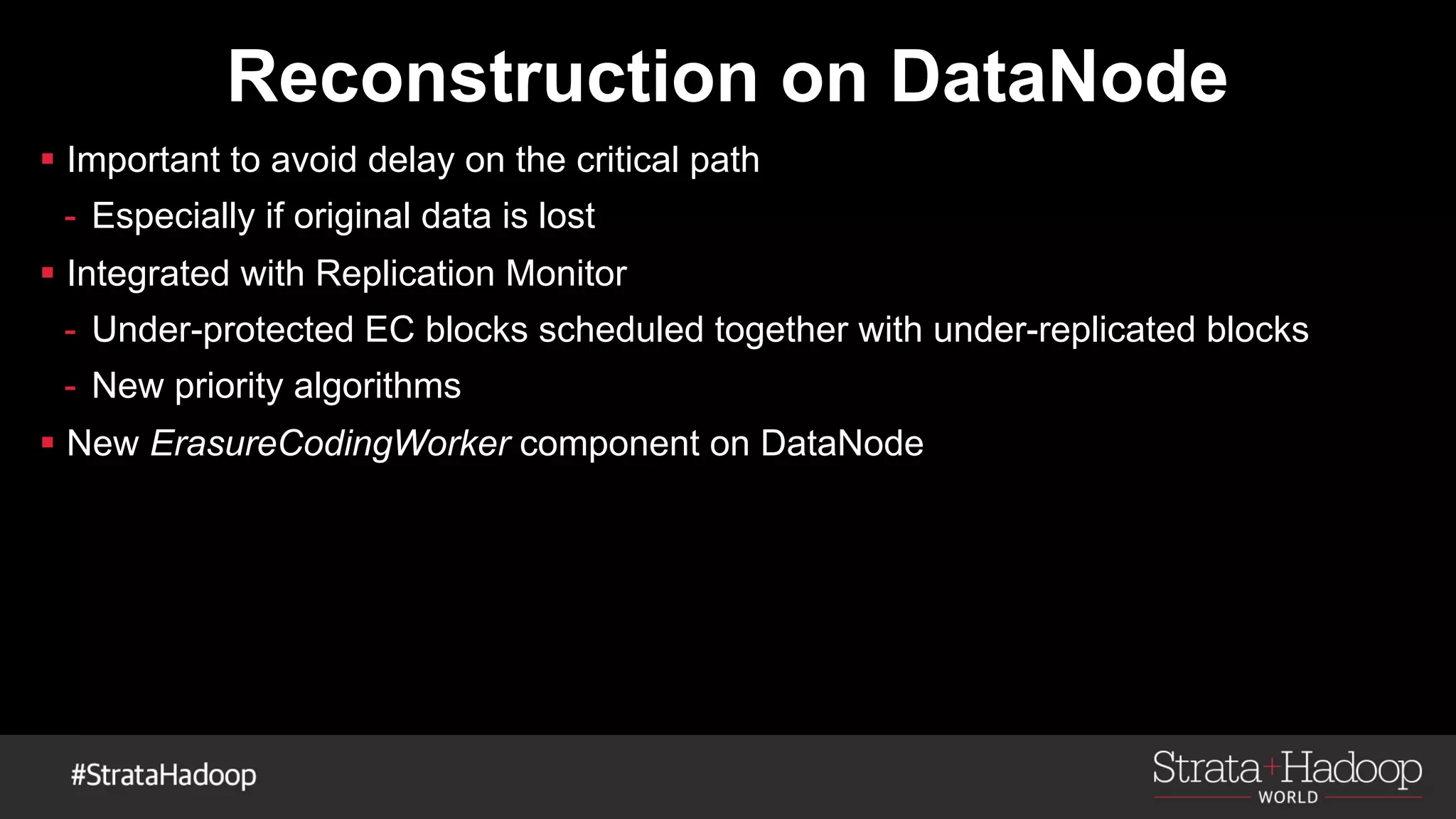

- 92. Reconstruction on DataNode § Important to avoid delay on the critical path - Especially if original data is lost § Integrated with Replication Monitor - Under-protected EC blocks scheduled together with under-replicated blocks - New priority algorithms § New ErasureCodingWorker component on DataNode

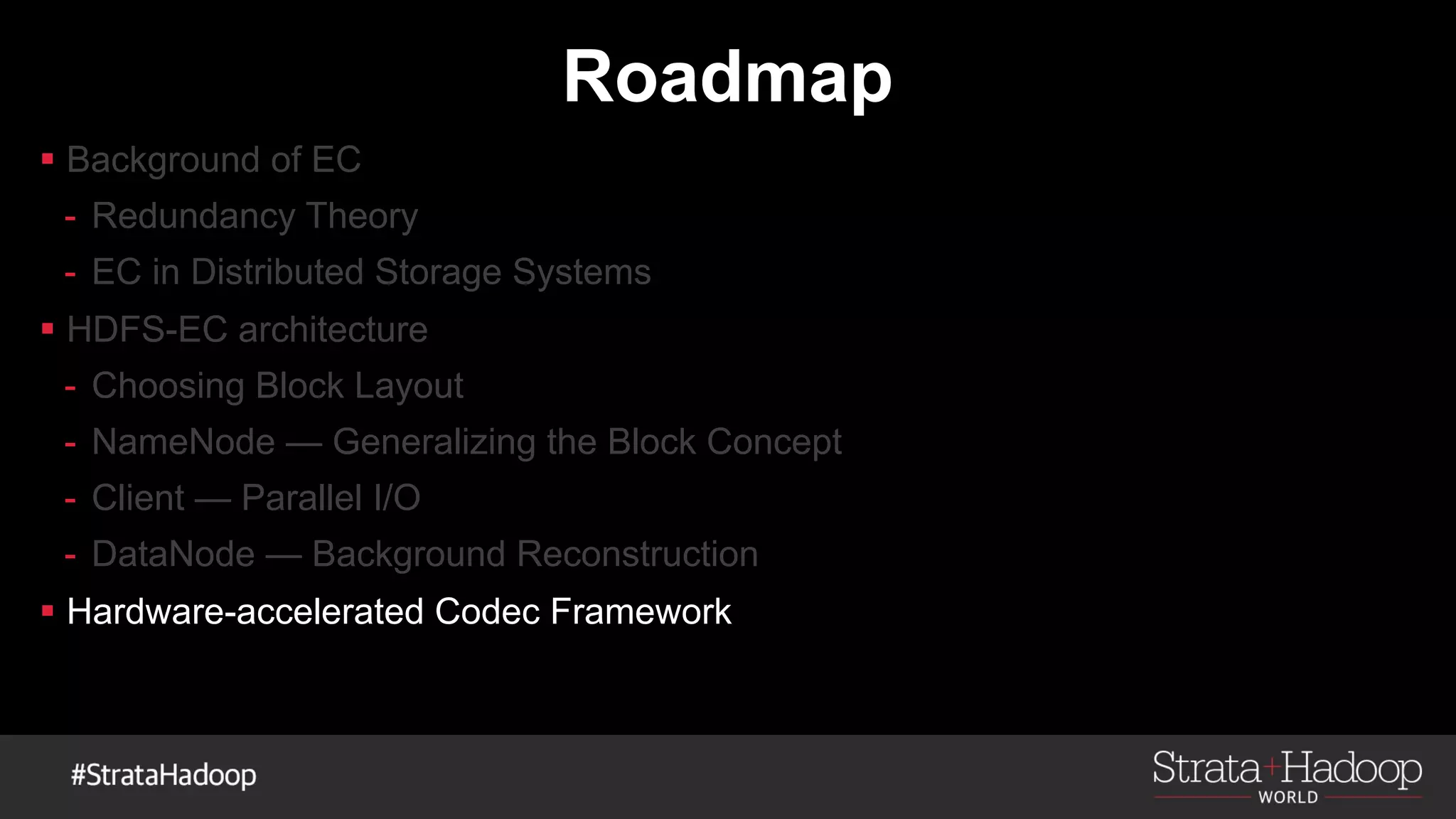

- 93. Roadmap § Background of EC - Redundancy Theory - EC in Distributed Storage Systems § HDFS-EC architecture - Choosing Block Layout - NameNode — Generalizing the Block Concept - Client — Parallel I/O - DataNode — Background Reconstruction § Hardware-accelerated Codec Framework

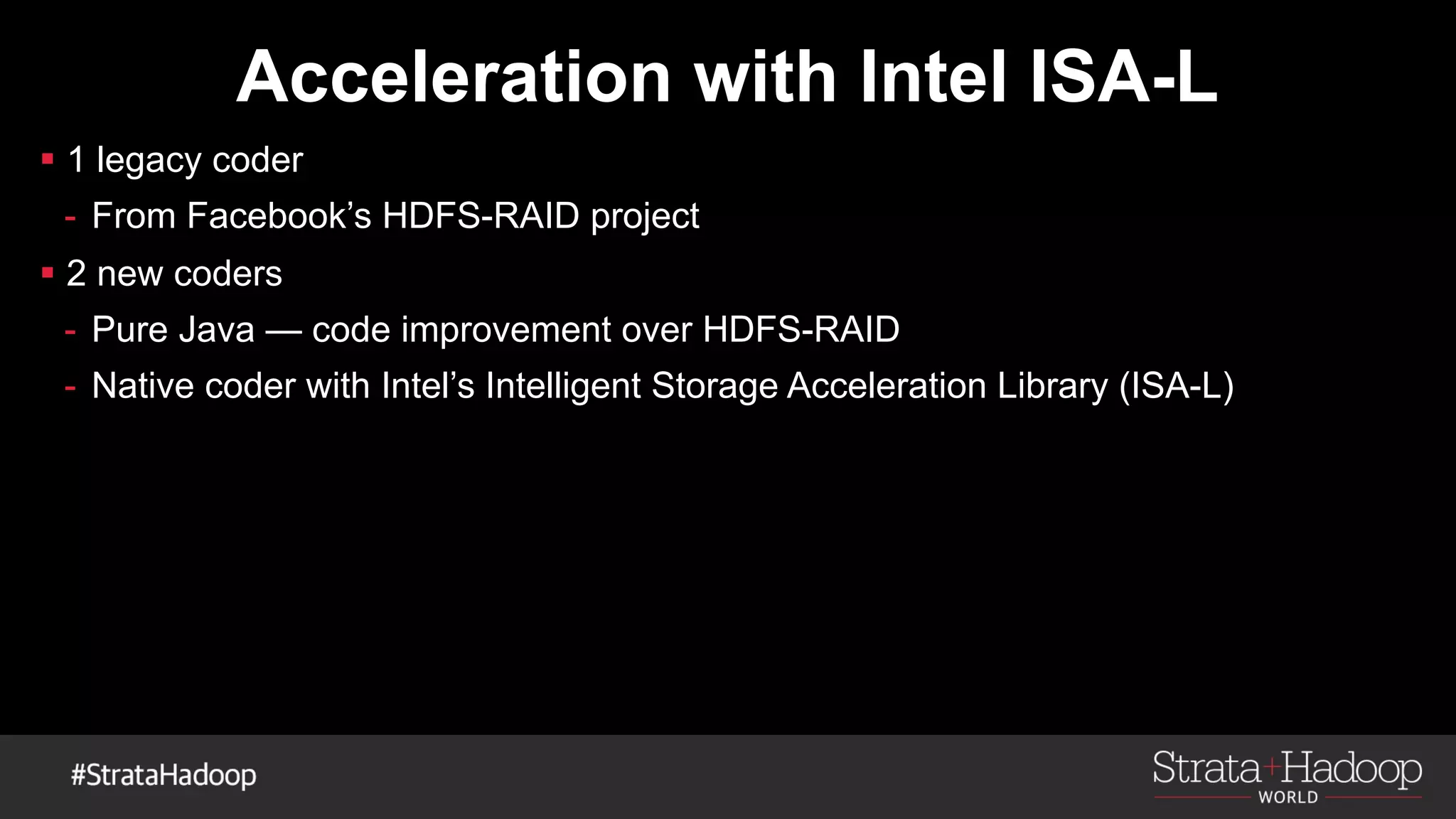

- 94. Acceleration with Intel ISA-L § 1 legacy coder - From Facebook’s HDFS-RAID project § 2 new coders - Pure Java — code improvement over HDFS-RAID - Native coder with Intel’s Intelligent Storage Acceleration Library (ISA-L)

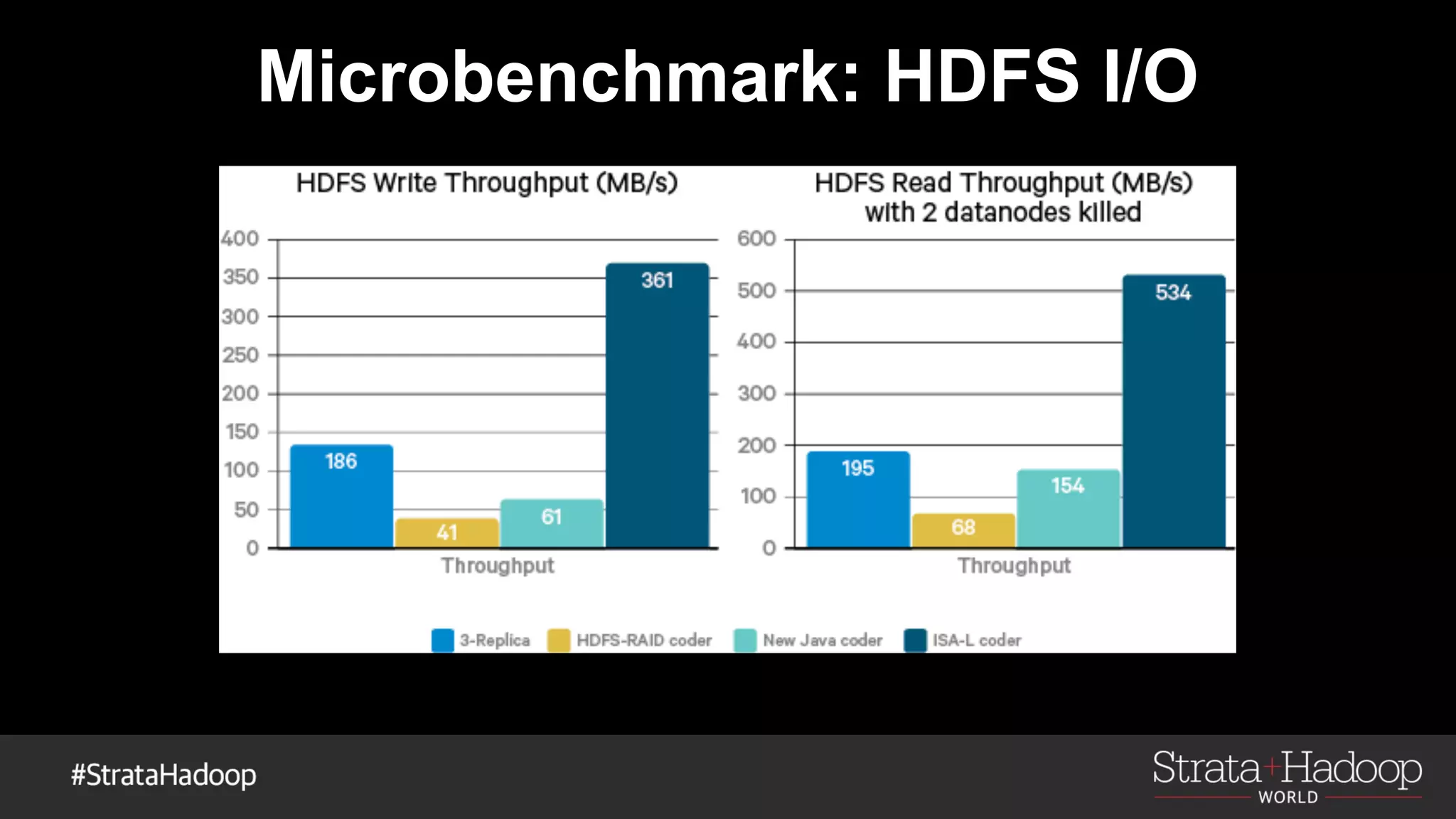

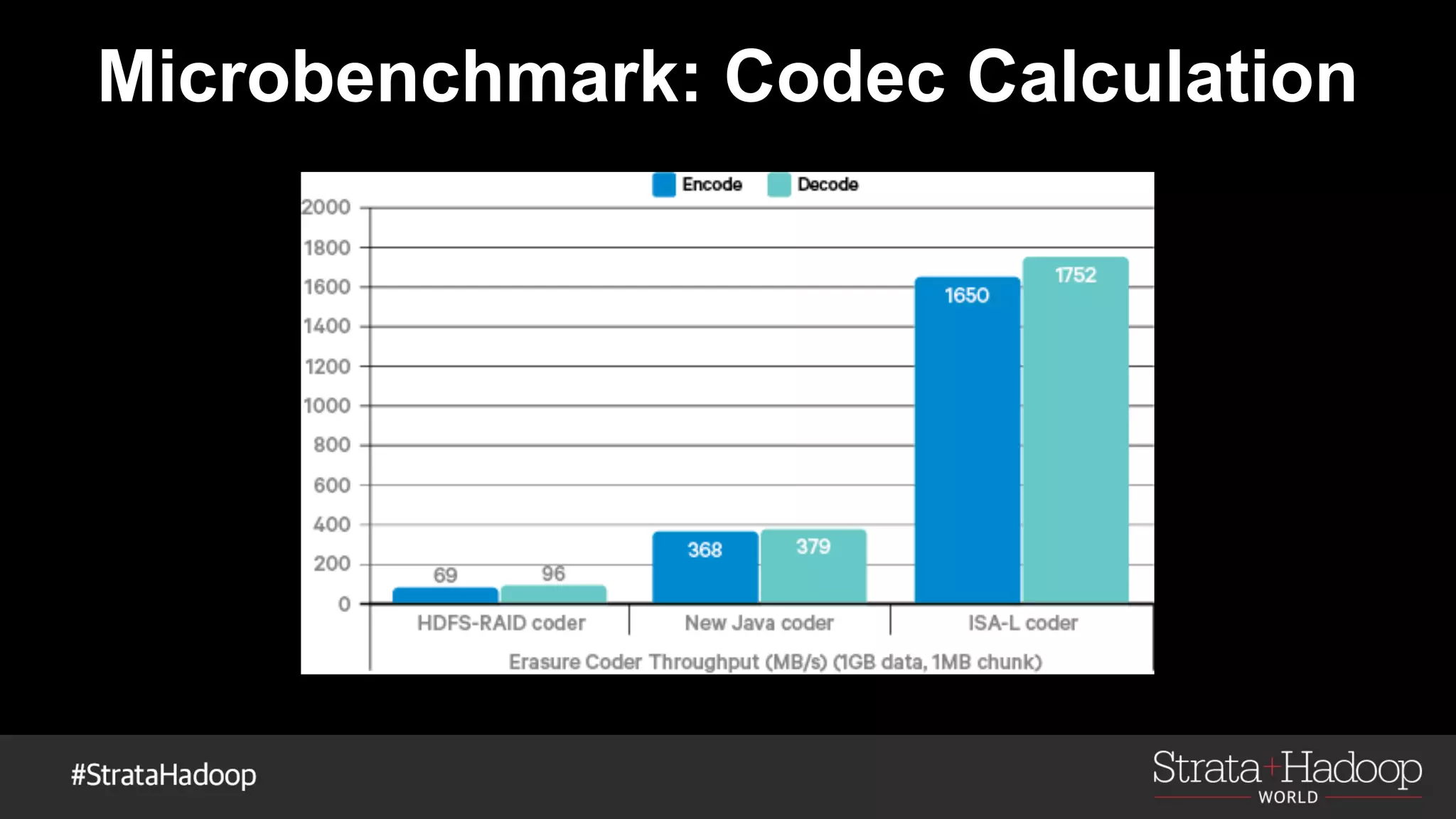

- 97. Conclusion

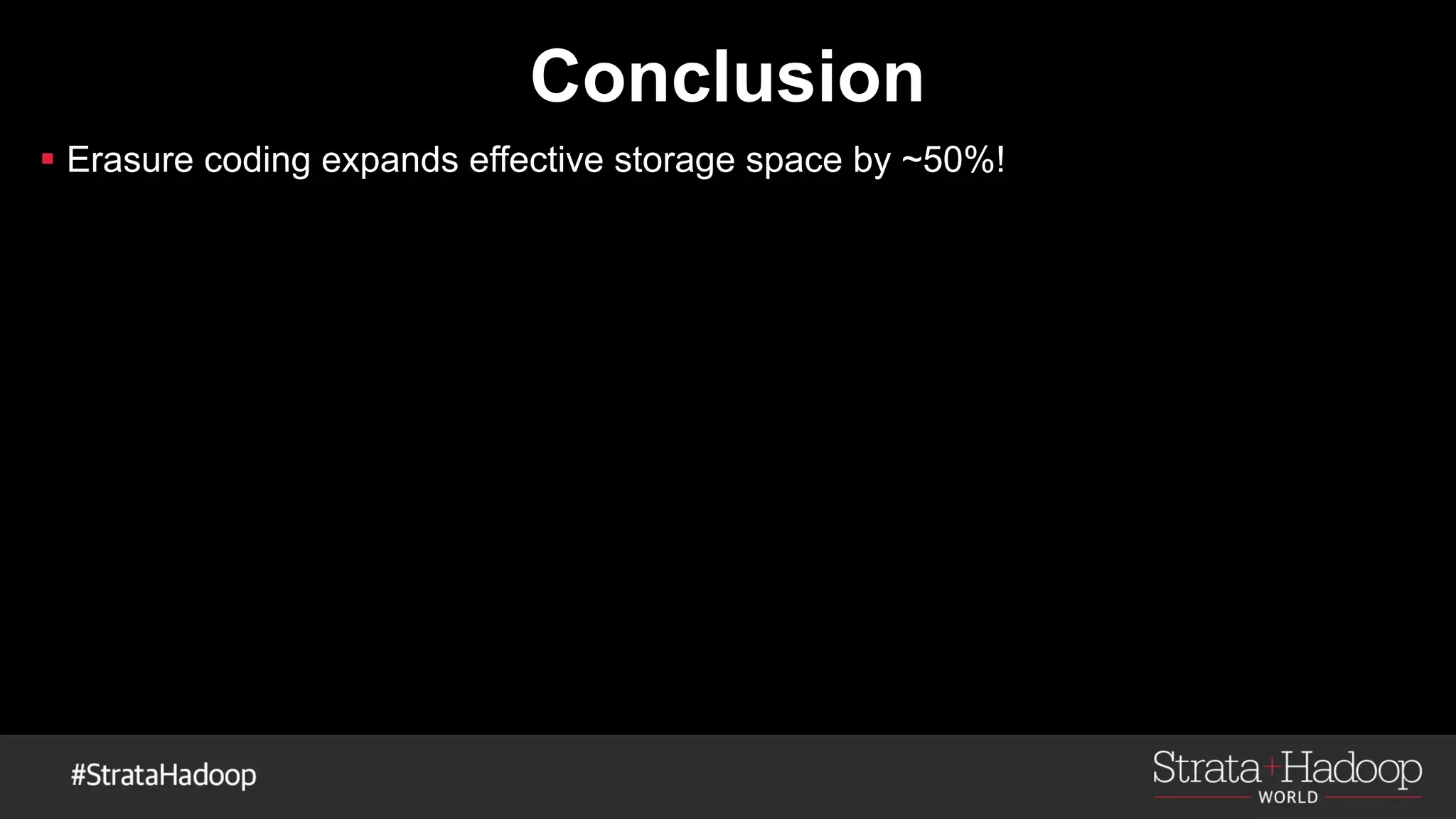

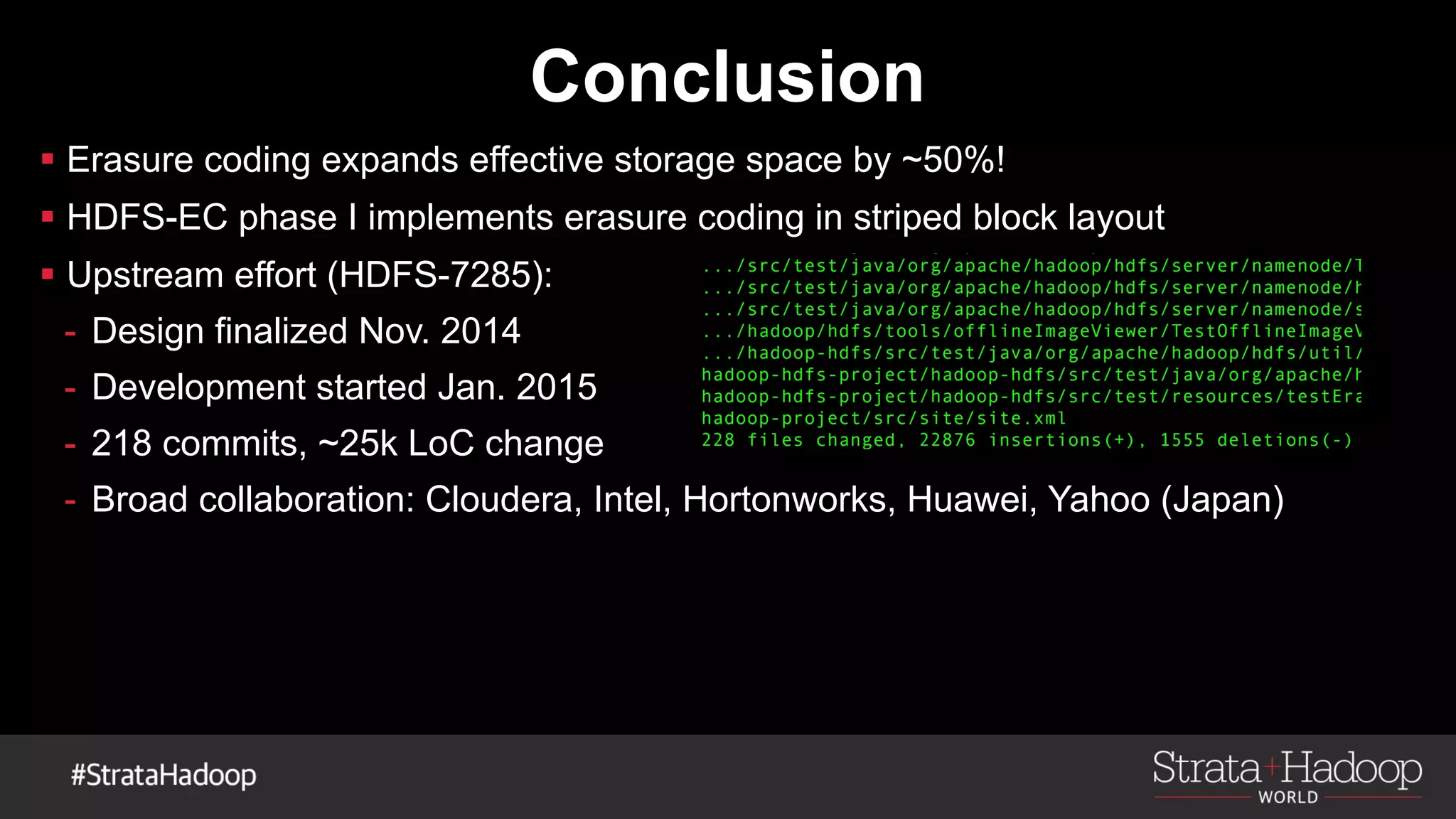

- 98. Conclusion § Erasure coding expands effective storage space by ~50%!

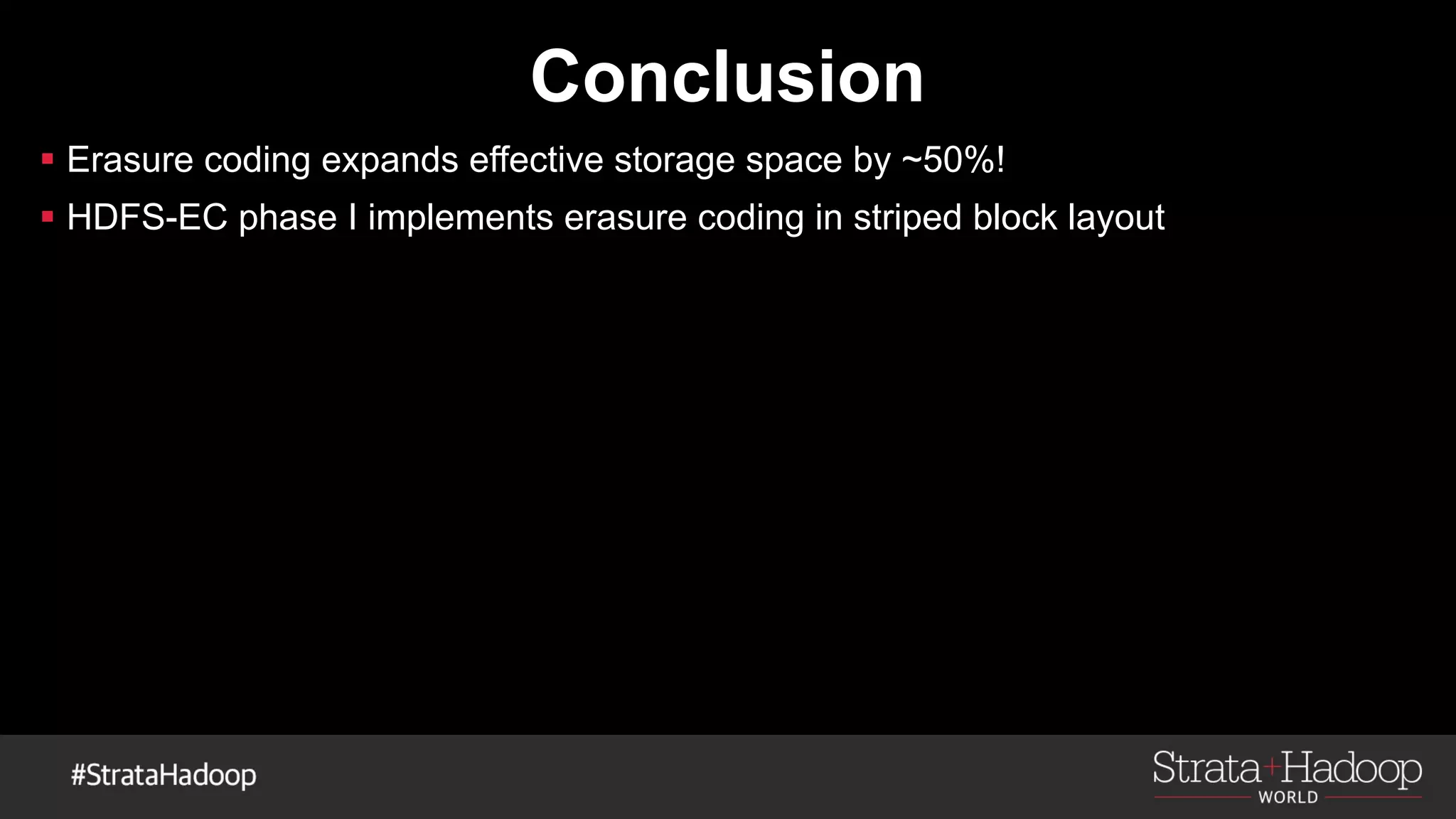

- 99. Conclusion § Erasure coding expands effective storage space by ~50%! § HDFS-EC phase I implements erasure coding in striped block layout
- 100. Conclusion § Erasure coding expands effective storage space by ~50%! § HDFS-EC phase I implements erasure coding in striped block layout § Upstream effort (HDFS-7285): - Design finalized Nov. 2014 - Development started Jan. 2015 - 218 commits, ~25k LoC change - Broad collaboration: Cloudera, Intel, Hortonworks, Huawei, Yahoo (Japan)

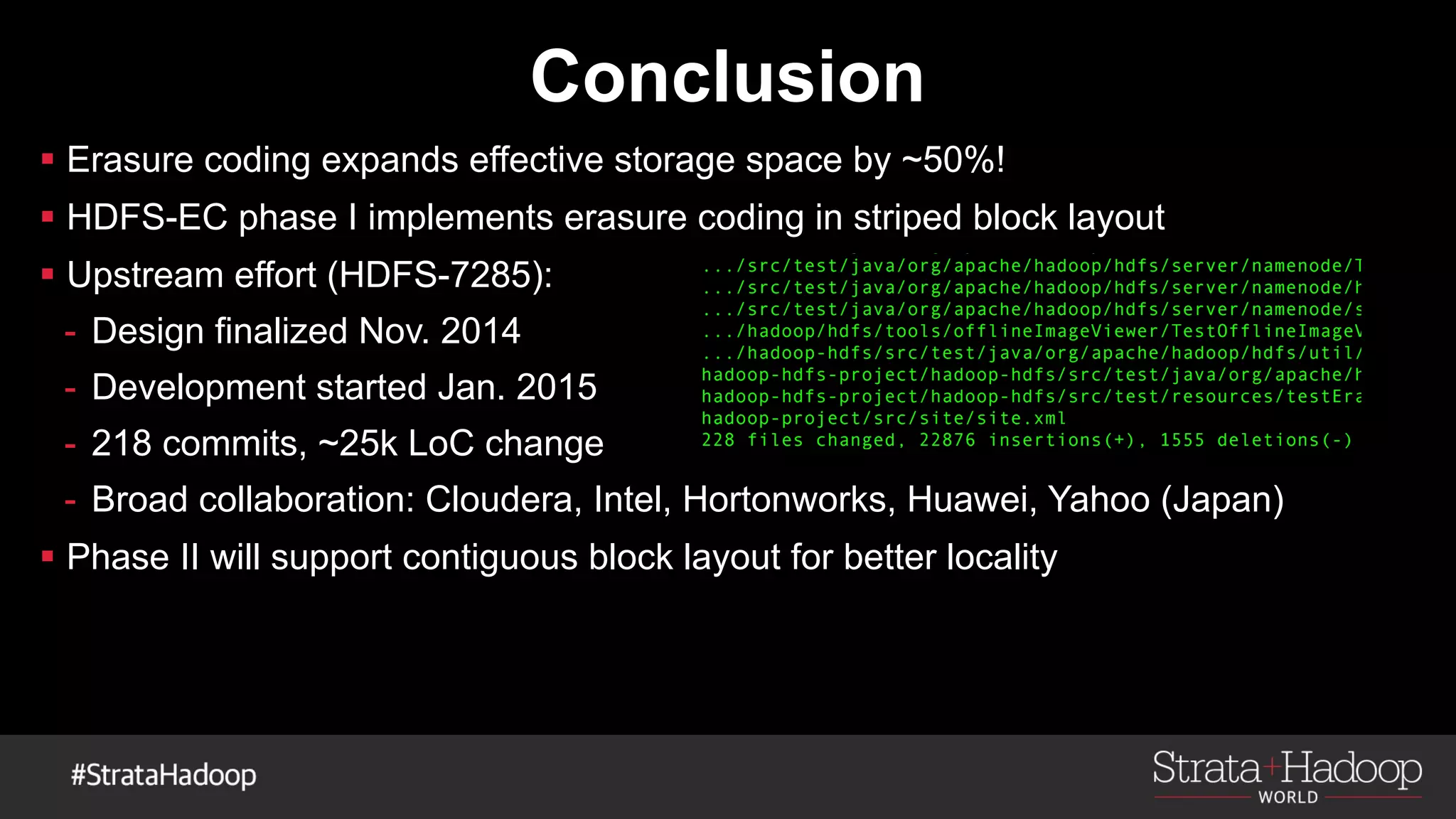

- 101. Conclusion § Erasure coding expands effective storage space by ~50%! § HDFS-EC phase I implements erasure coding in striped block layout § Upstream effort (HDFS-7285): - Design finalized Nov. 2014 - Development started Jan. 2015 - 218 commits, ~25k LoC change - Broad collaboration: Cloudera, Intel, Hortonworks, Huawei, Yahoo (Japan) § Phase II will support contiguous block layout for better locality
- 102. Acknowledgements § Cloudera - Andrew Wang, Aaron T. Myers, Colin McCabe, Todd Lipcon, Silvius Rus § Intel - Kai Zheng, Uma Maheswara Rao G, Vinayakumar B, Yi Liu, Weihua Jiang § Hortonworks - Jing Zhao, Tsz Wo Nicholas Sze § Huawei - Walter Su, Rakesh R, Xinwei Qin § Yahoo (Japan) - Gao Rui, Kai Sasaki, Takuya Fukudome, Hui Zheng

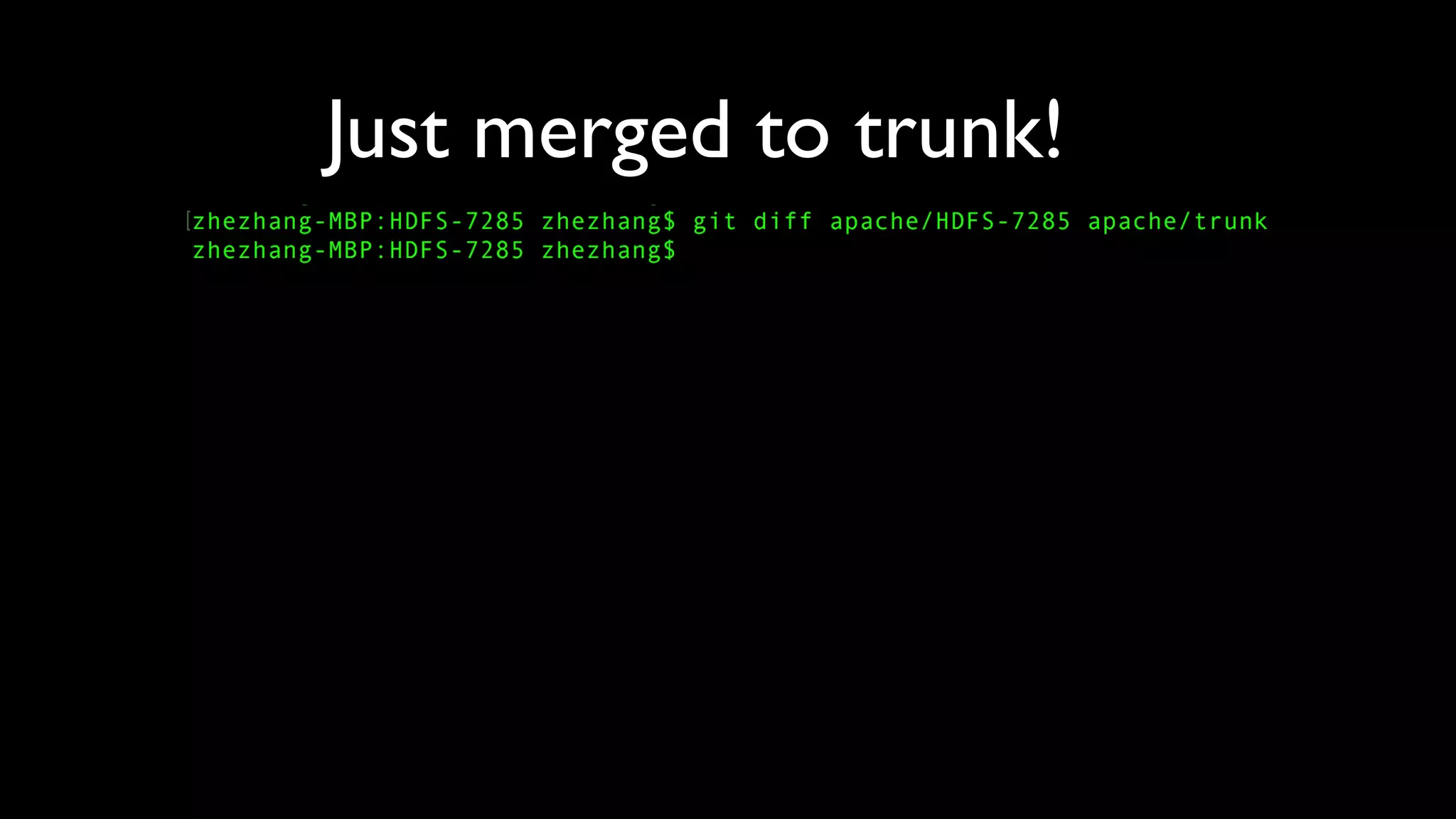

- 103. Just merged to trunk!

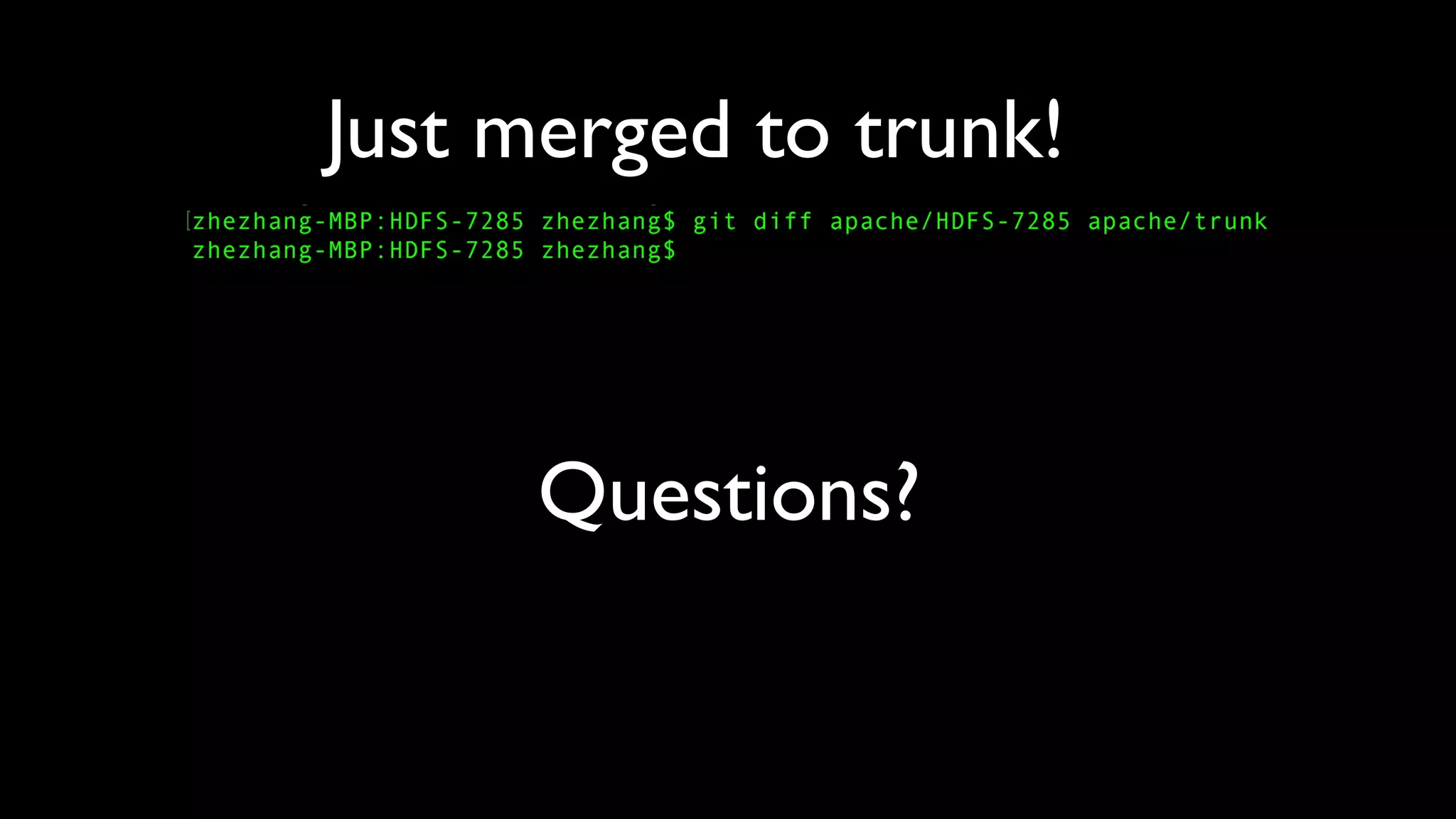

- 104. Questions? Just merged to trunk!
- 105. Questions? Just merged to trunk! Erasure Coding:A type of Error Correction Coding

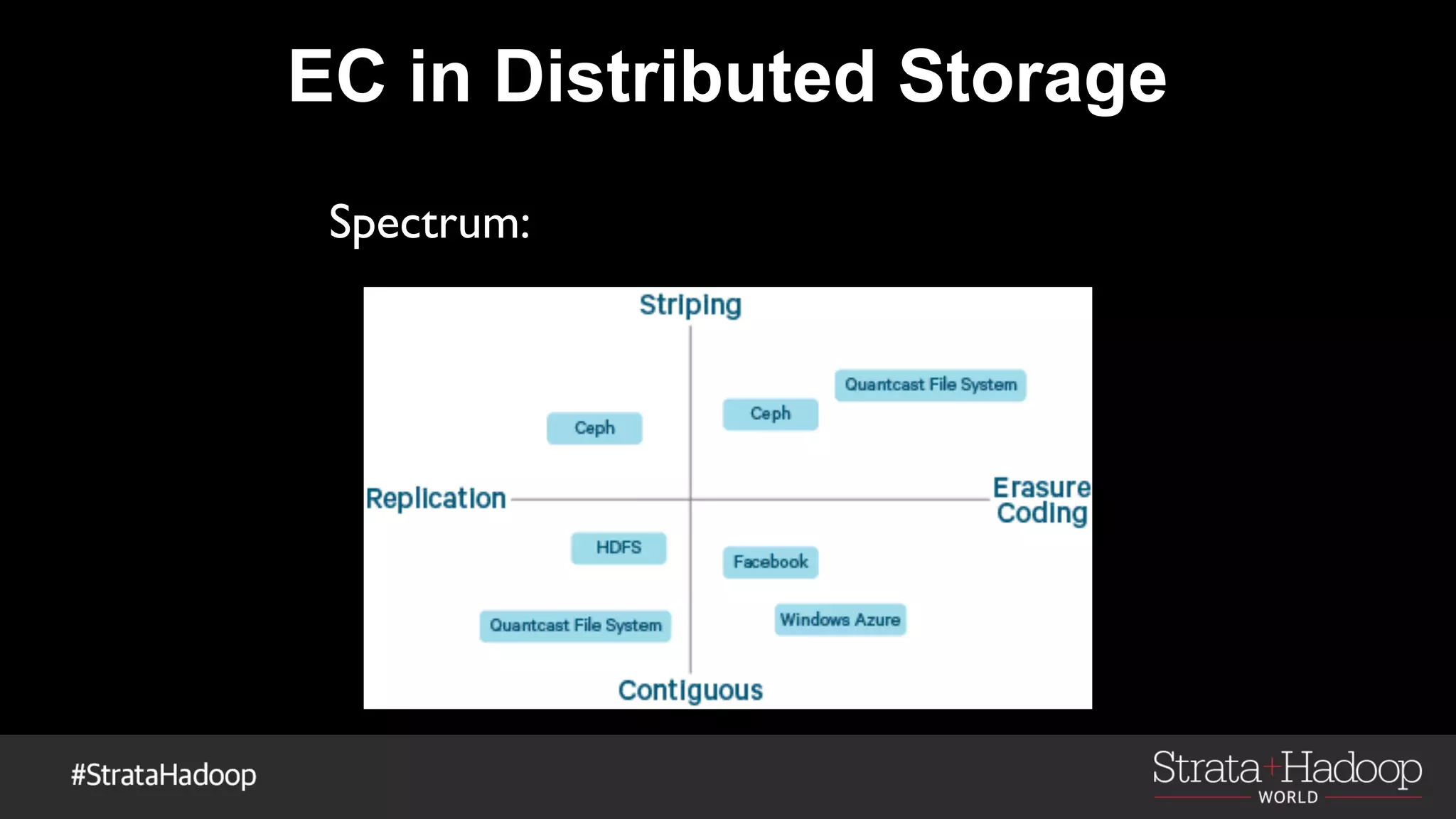

- 106. EC in Distributed Storage Spectrum:

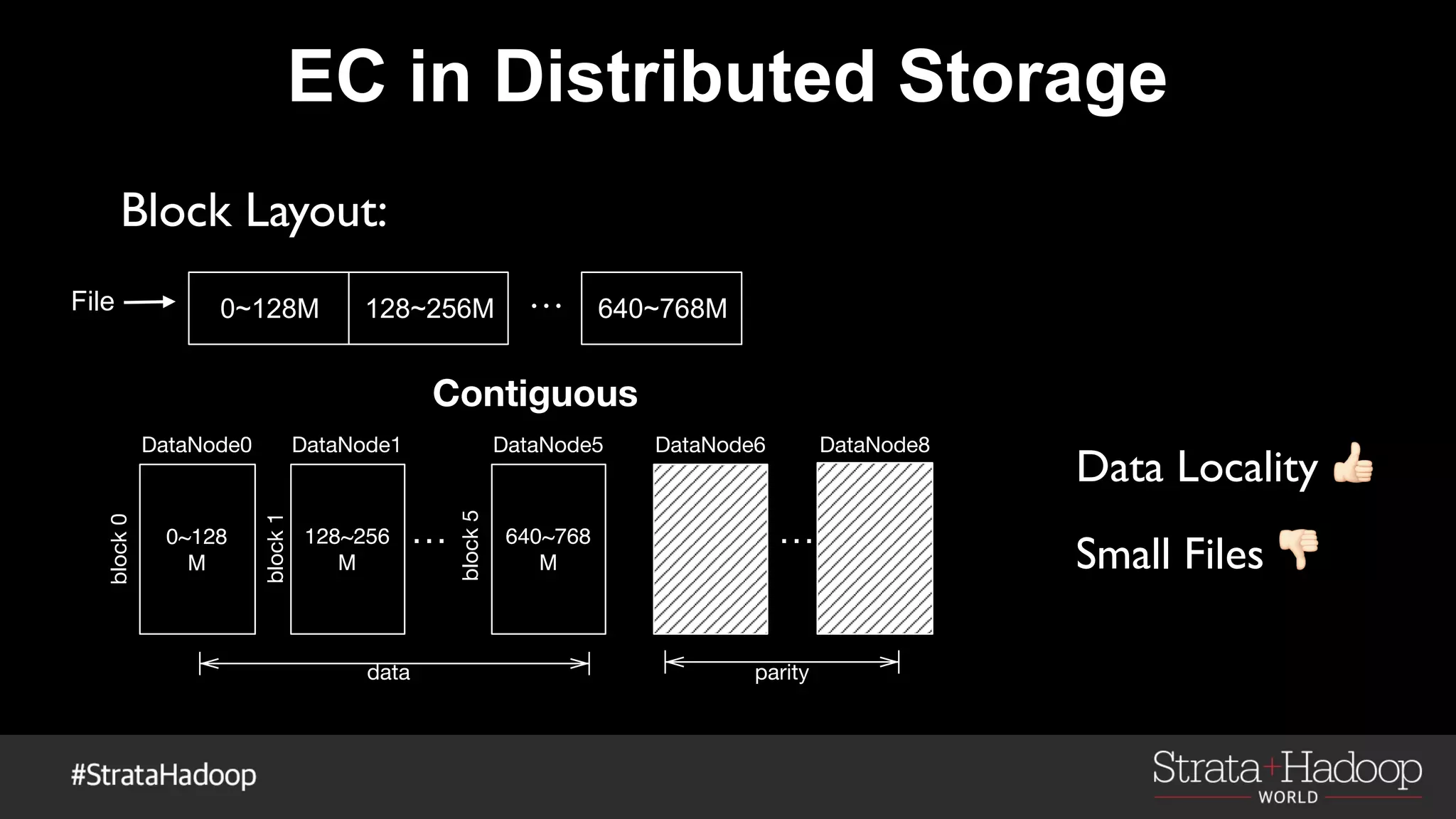

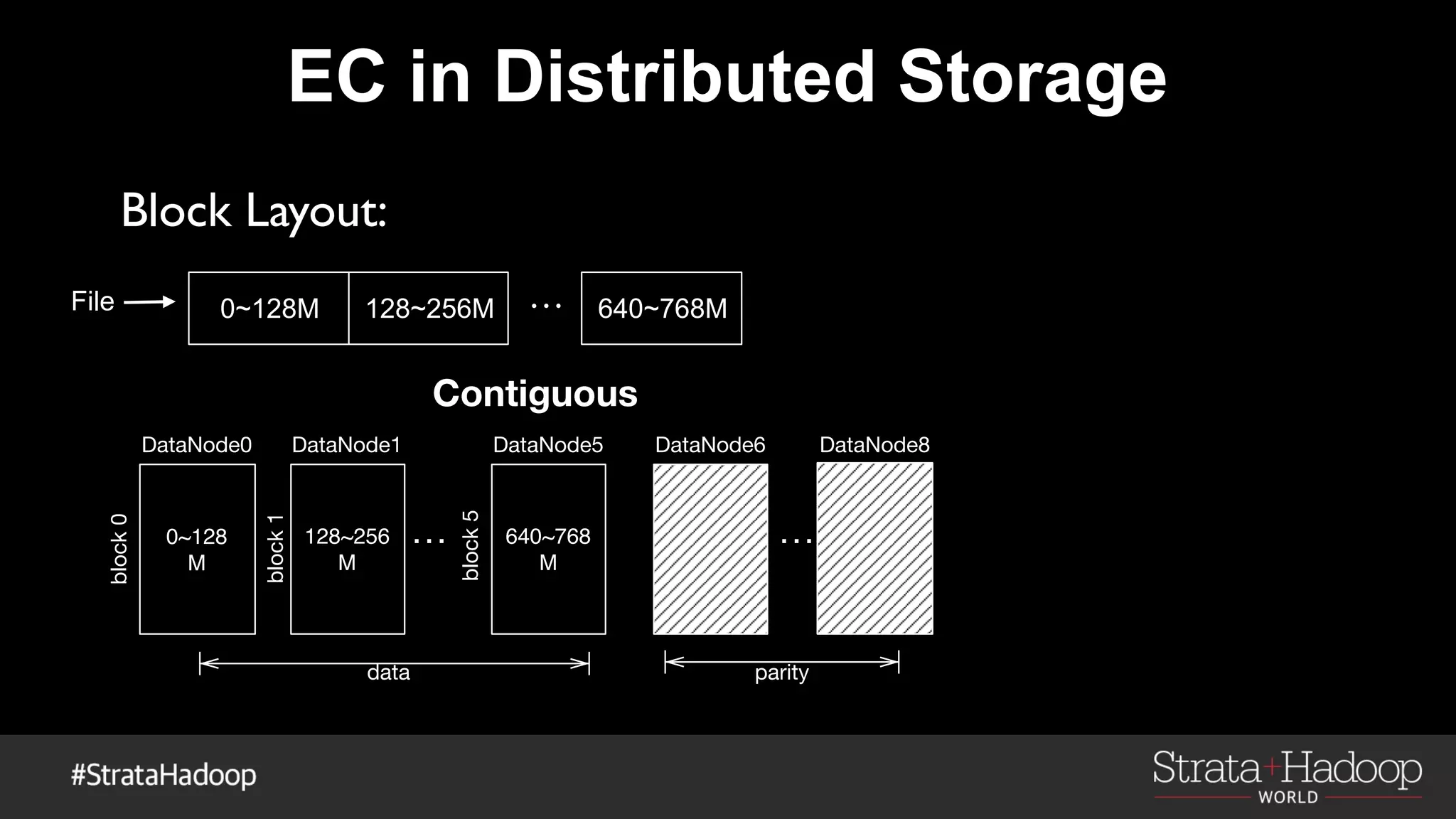

- 107. EC in Distributed Storage 0~128 M 128~256 M DataNode0 block0 block1 … DataNode1 640~768 M DataNode5 block5 Contiguous DataNode6 DataNode8 data parity … Block Layout: 128~256MFile 0~128M … 640~768M

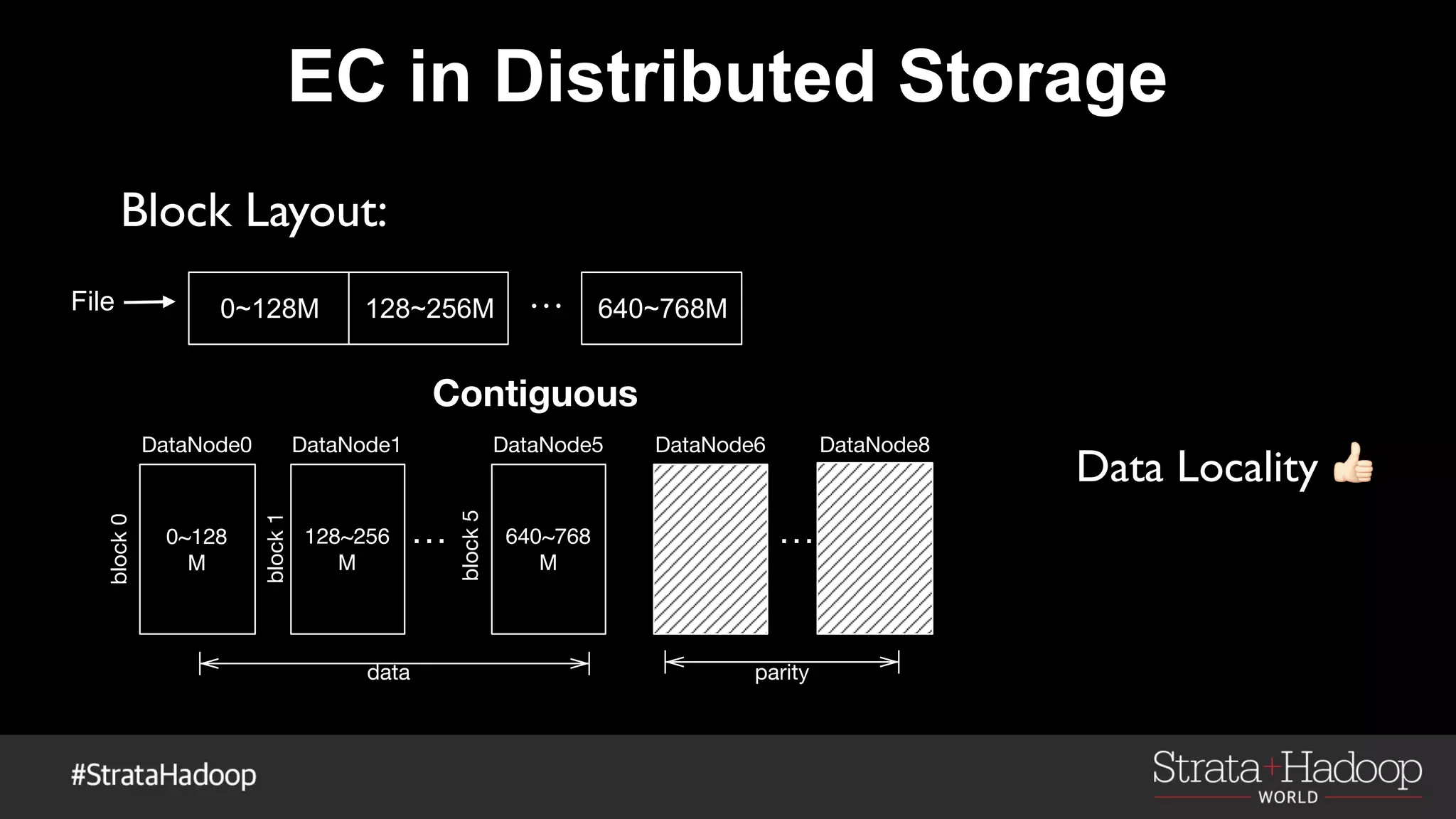

- 108. EC in Distributed Storage 0~128 M 128~256 M DataNode0 block0 block1 … DataNode1 640~768 M DataNode5 block5 Contiguous DataNode6 DataNode8 data parity … Block Layout: Data Locality ! 128~256MFile 0~128M … 640~768M
- 109. EC in Distributed Storage 0~128 M 128~256 M DataNode0 block0 block1 … DataNode1 640~768 M DataNode5 block5 Contiguous DataNode6 DataNode8 data parity … Block Layout: Data Locality ! Small Files " 128~256MFile 0~128M … 640~768M

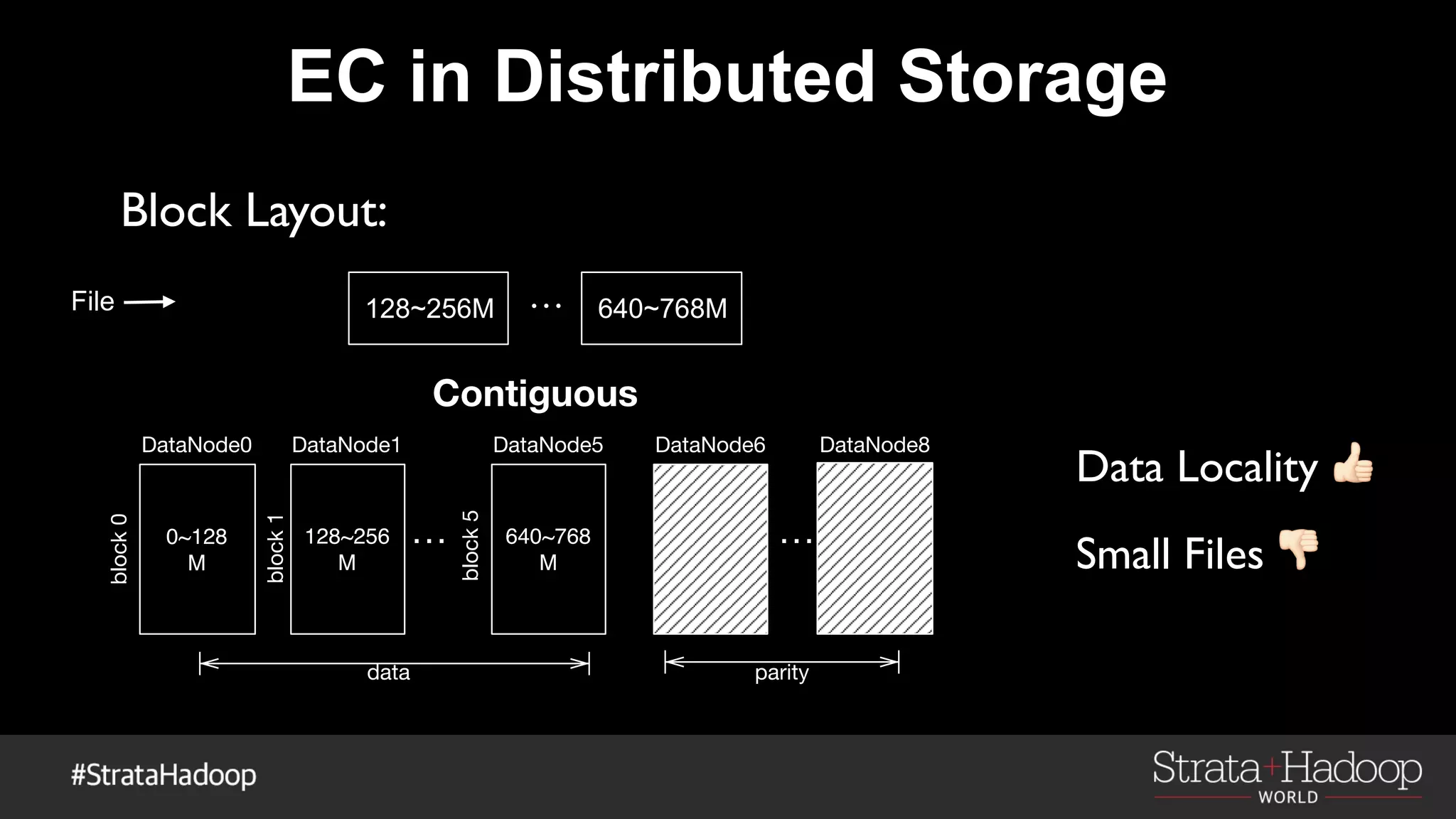

- 110. EC in Distributed Storage 0~128 M 128~256 M DataNode0 block0 block1 … DataNode1 640~768 M DataNode5 block5 Contiguous DataNode6 DataNode8 data parity … Block Layout: Data Locality ! Small Files " 128~256MFile … 640~768M

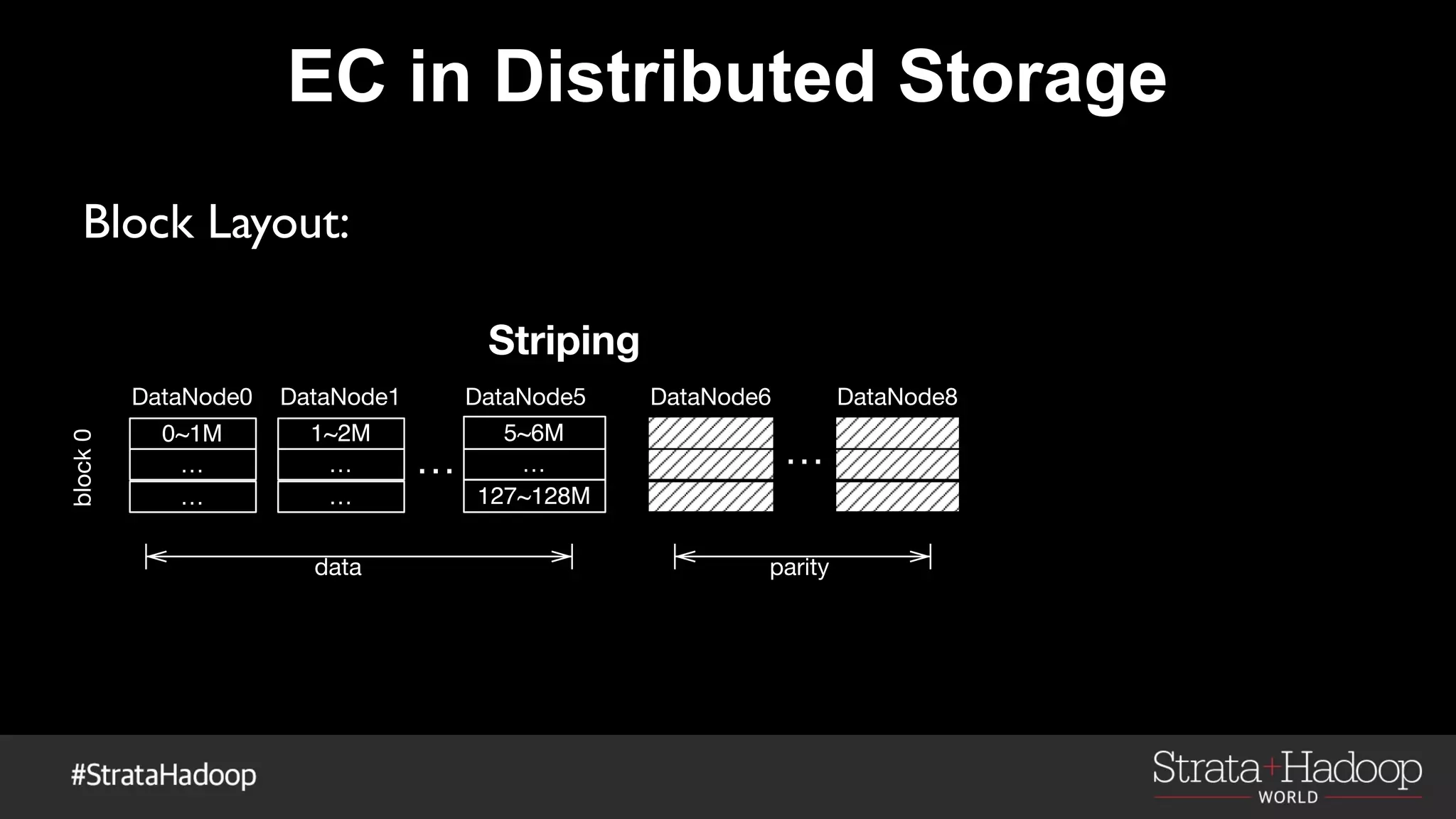

- 111. EC in Distributed Storage 0~1M … … 1~2M … … DataNode0 block0 DataNode1 5~6M … 127~128M DataNode5 Striping DataNode6 DataNode8 data parity …… Block Layout:

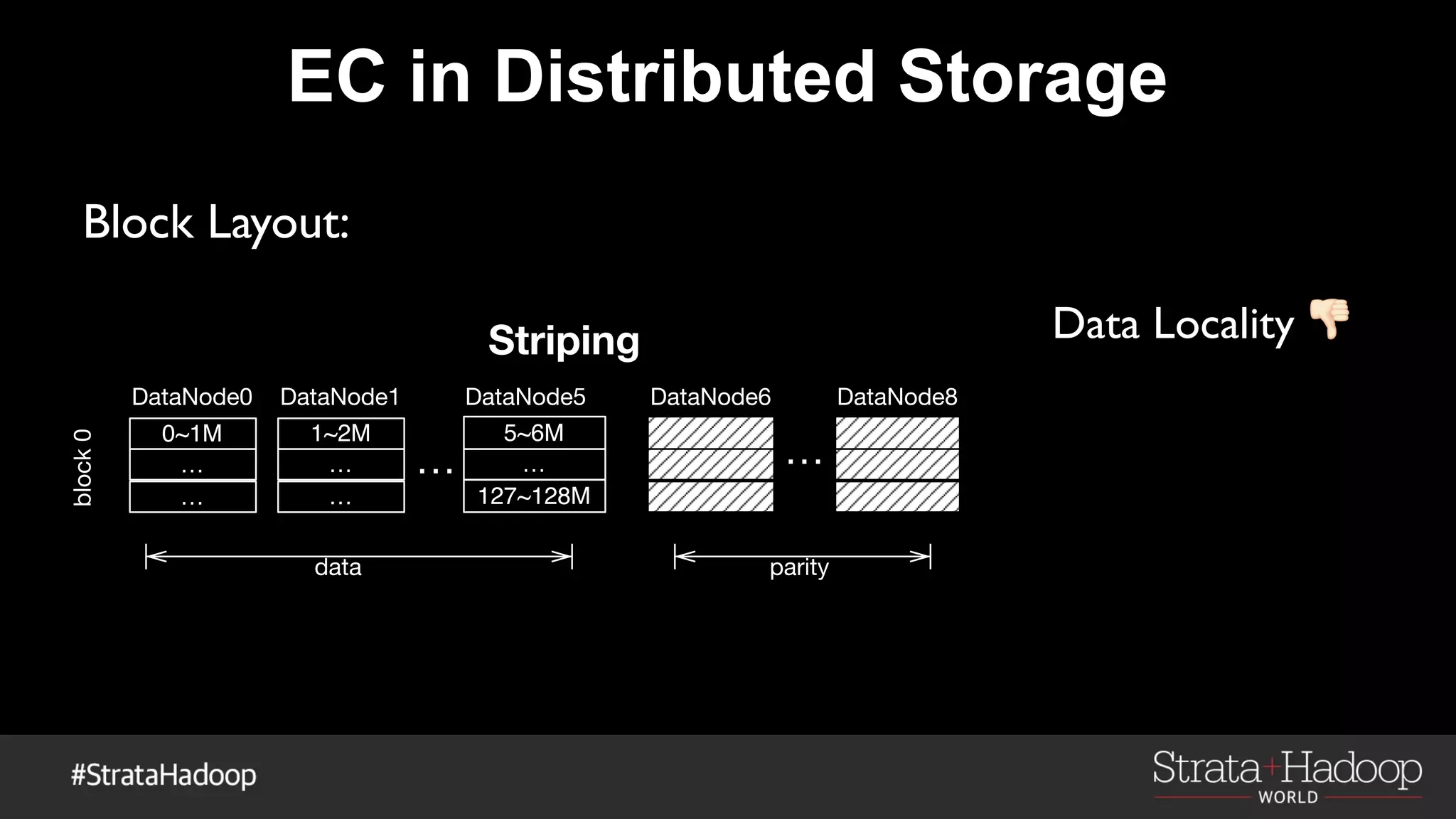

- 112. EC in Distributed Storage 0~1M … … 1~2M … … DataNode0 block0 DataNode1 5~6M … 127~128M DataNode5 Striping DataNode6 DataNode8 data parity …… Block Layout: Data Locality "

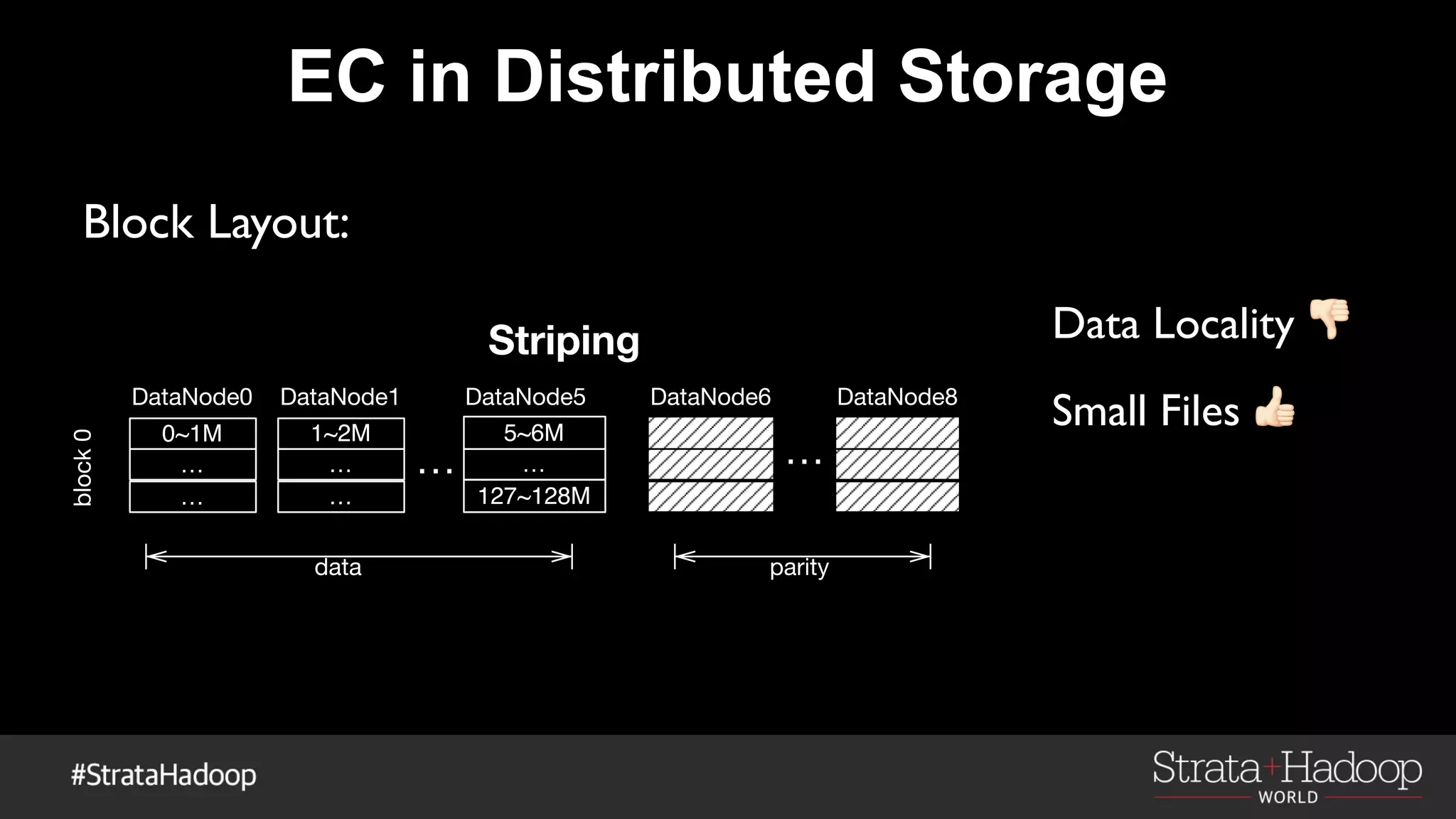

- 113. EC in Distributed Storage 0~1M … … 1~2M … … DataNode0 block0 DataNode1 5~6M … 127~128M DataNode5 Striping DataNode6 DataNode8 data parity …… Block Layout: Data Locality " Small Files !

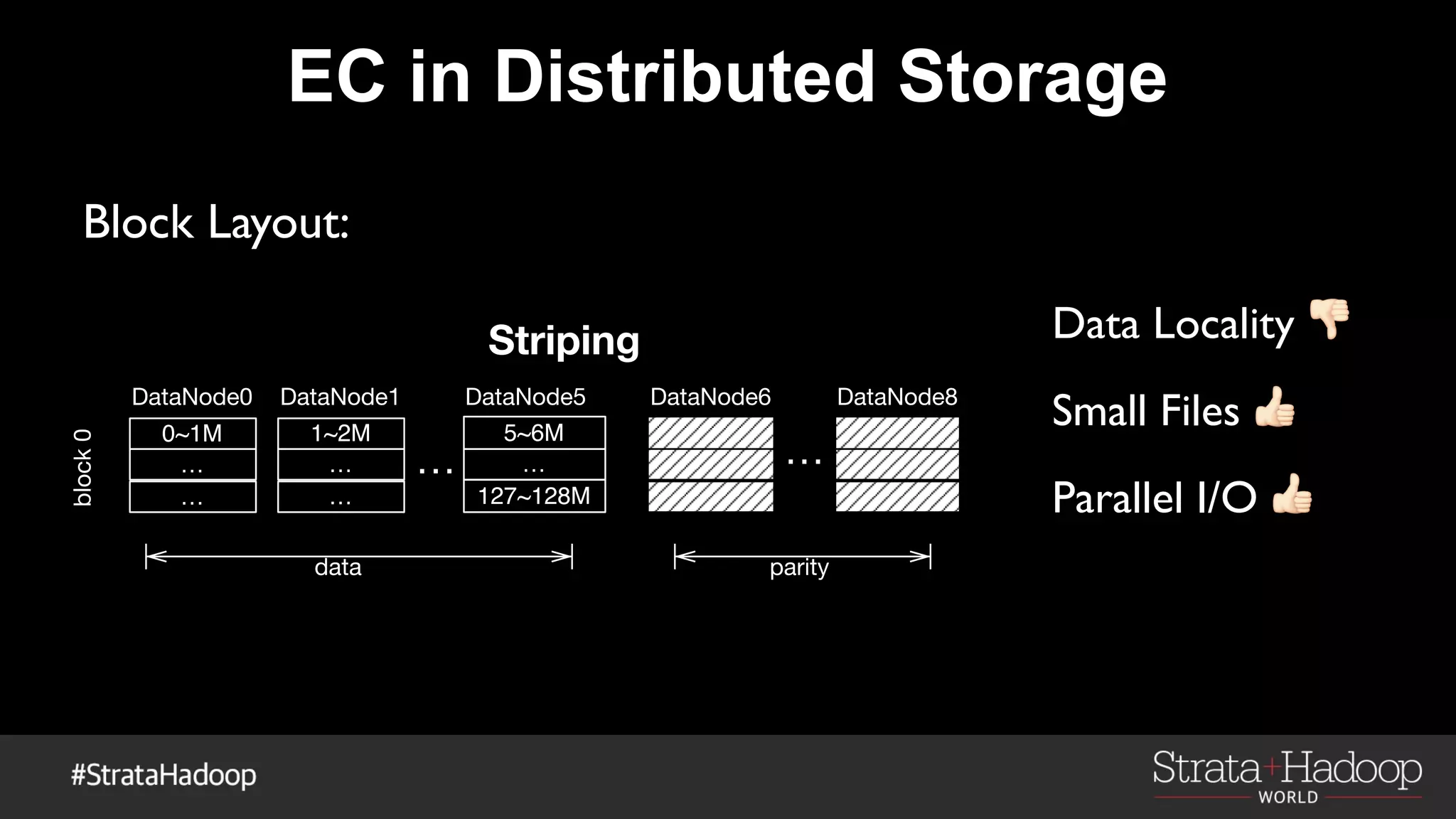

- 114. EC in Distributed Storage 0~1M … … 1~2M … … DataNode0 block0 DataNode1 5~6M … 127~128M DataNode5 Striping DataNode6 DataNode8 data parity …… Block Layout: Data Locality " Small Files ! Parallel I/O !

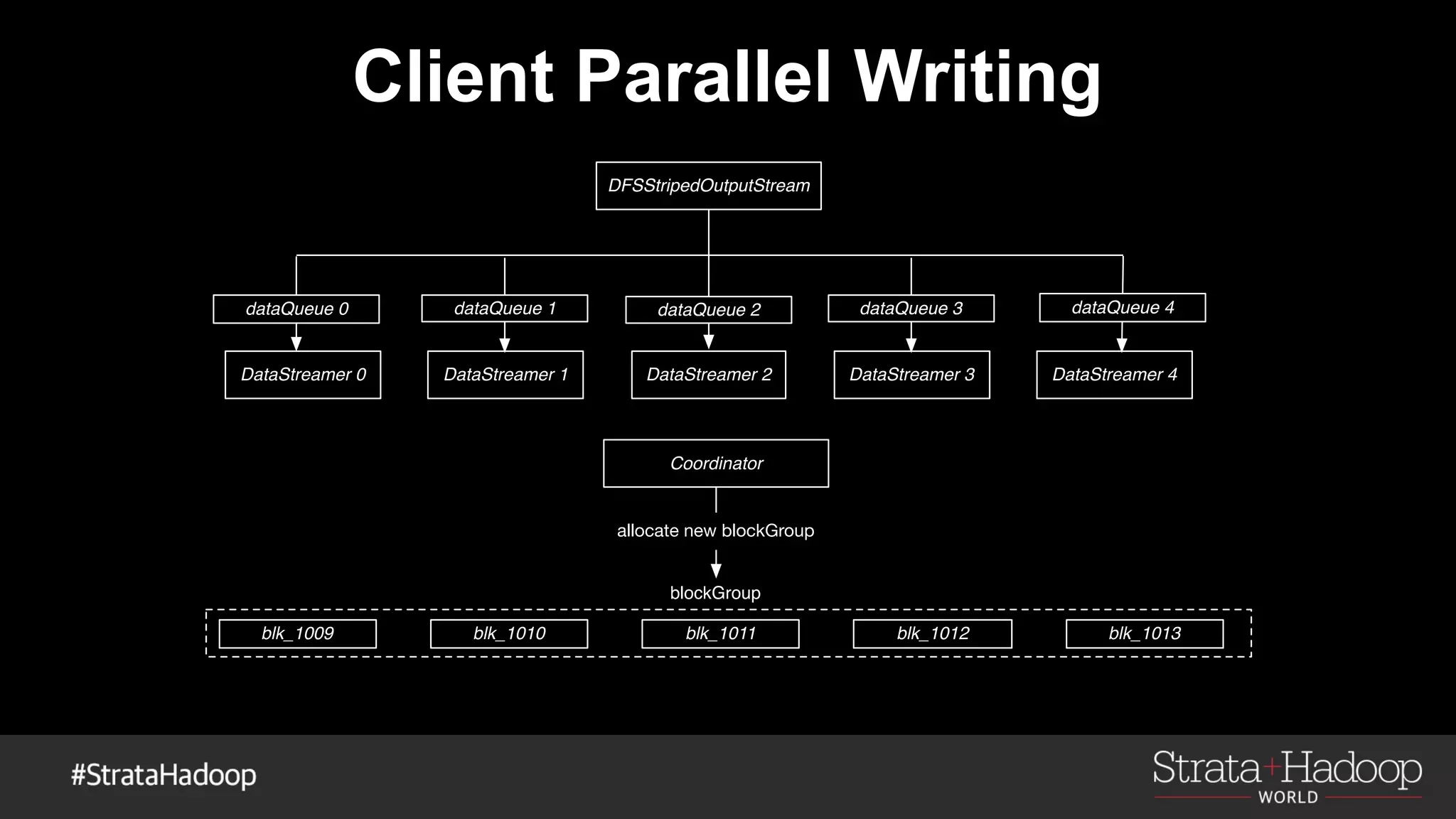

- 115. Client Parallel Writing blockGroup DataStreamer 0 DataStreamer 1 DataStreamer 2 DataStreamer 3 DataStreamer 4 DFSStripedOutputStream dataQueue 0 dataQueue 1 dataQueue 2 dataQueue 3 dataQueue 4 blk_1009 blk_1010 blk_1011 blk_1012 blk_1013 Coordinator allocate new blockGroup

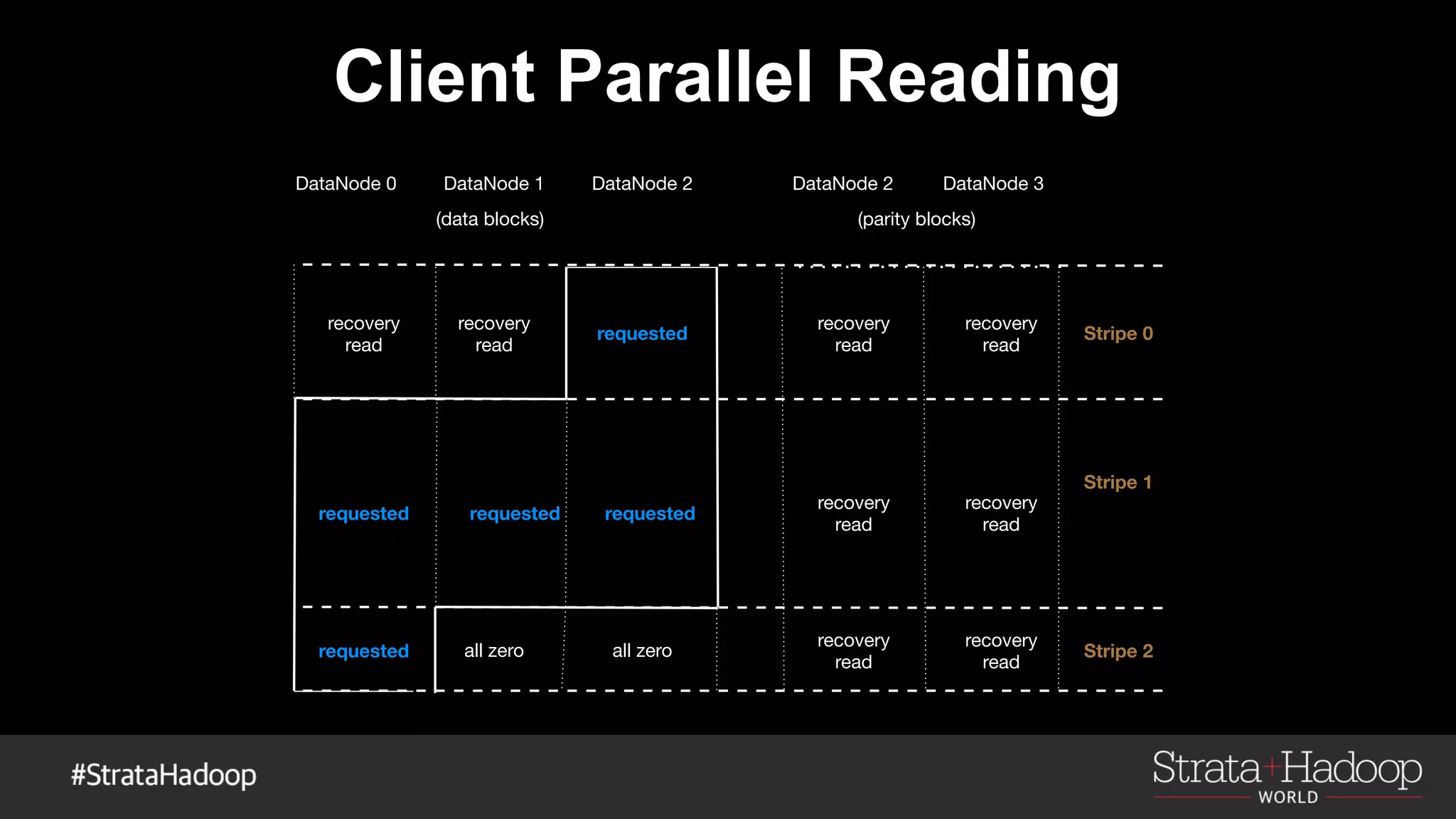

- 116. Client Parallel Reading Stripe 0 Stripe 1 Stripe 2 DataNode 0 DataNode 1 DataNode 2 DataNode 2 DataNode 3 (parity blocks)(data blocks) all zero all zero requested requested requested requested requested recovery read recovery read recovery read recovery read recovery read recovery read recovery read recovery read
