HDFS is a distributed file system designed for storing very large data sets reliably and efficiently across commodity hardware. It has three main components - the NameNode, Secondary NameNode, and DataNodes. The NameNode manages the file system namespace and regulates access to files. DataNodes store and retrieve blocks when requested by clients. HDFS provides reliable storage through replication of blocks across DataNodes and detects hardware failures to ensure data is not lost. It is highly scalable, fault-tolerant, and suitable for applications processing large datasets.

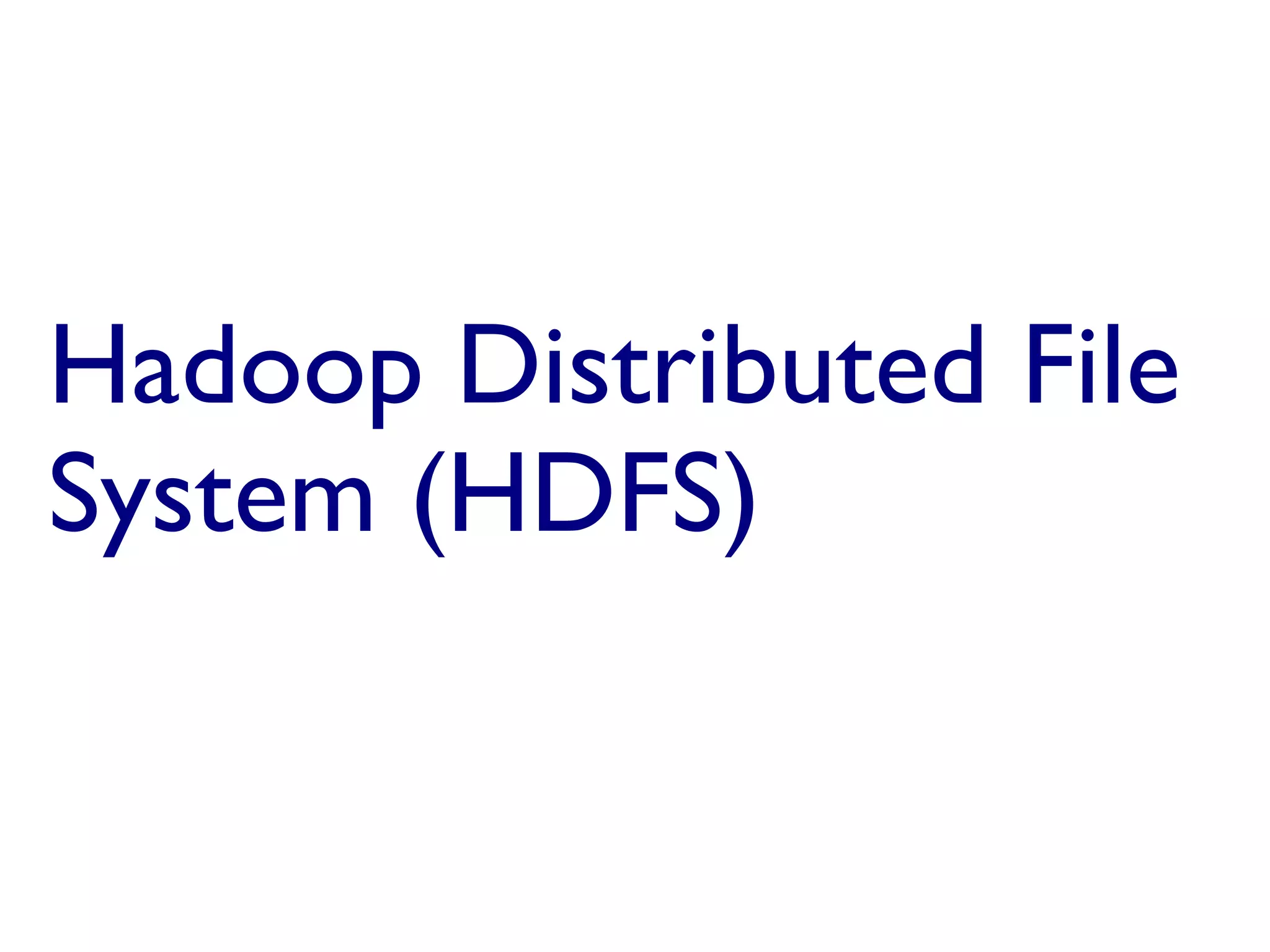

1. Hadoop Distributed File
System (HDFS)
Hadoop Distributed File System (HDFS)

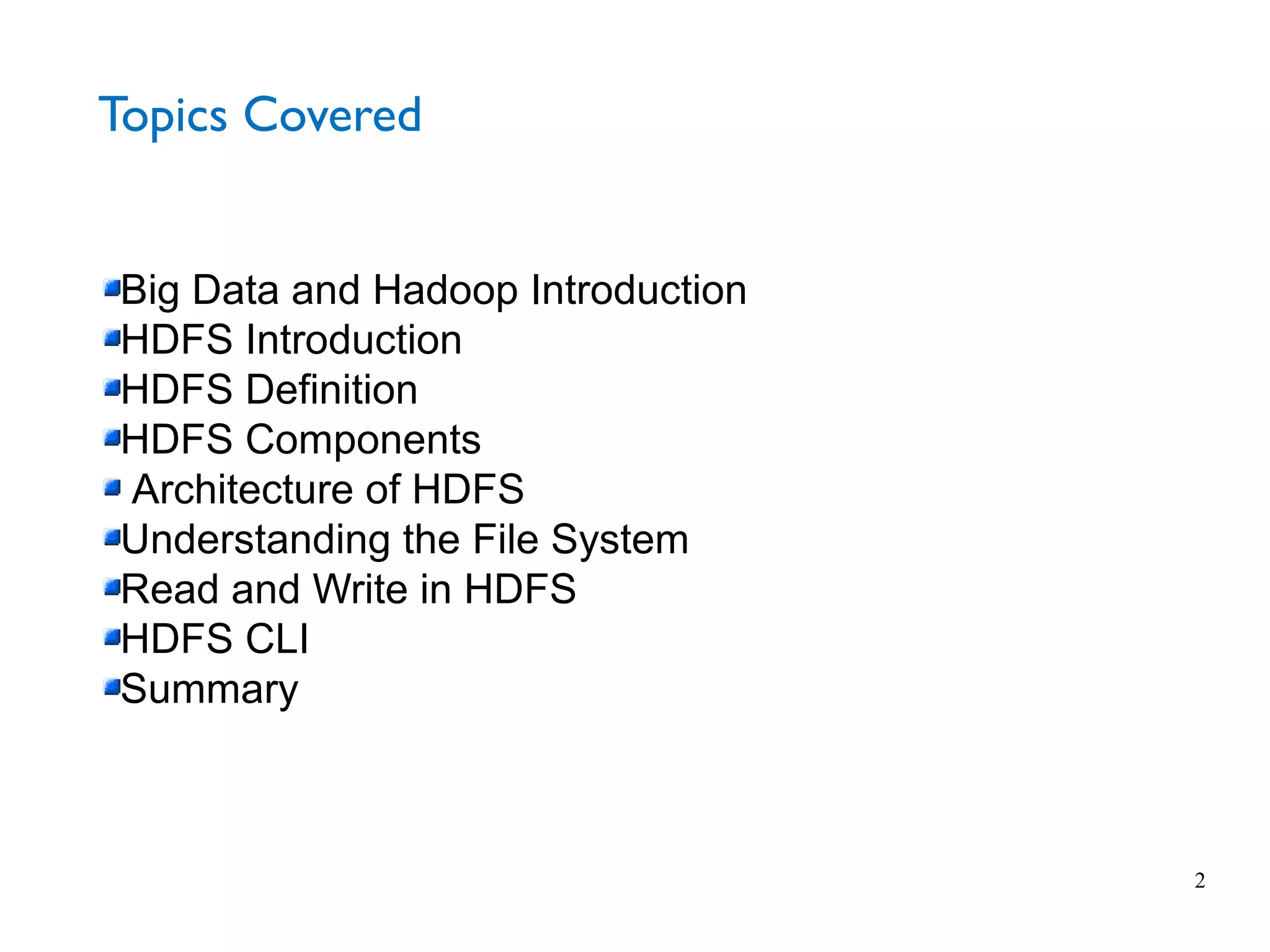

2. Topics Covered
Big Data and Hadoop Introduction
HDFS Introduction
HDFS Definition
HDFS Components
Architecture of HDFS
Understanding the File System
Read and Write in HDFS
HDFS CLI
Summary
2

3. What is Big Data ?
Big Data refers to datasets that grow so large that it is difficult to
capture, store, manage, share, analyze and visualize with the
typical database software tools.
Big Data actually comes in complex, unstructured formats,
mostly everything from web sites, social media and email, to
videos, Data-warehouses and Scientific world.
Four Vs are that make a data so challenging to classified as BIG
DATA are
 Volume Velocity Variety Value
3

4. What is Hadoop?
It is an Apache Software Foundation project
• Framework for running applications on large clusters
• Modeled after Google’s MapReduce / GFS framework
• Implemented in Java
A software platform that lets one easily write and run applications
that process vast amounts of data. It includes:
– MapReduce – offline computing engine
– HDFS – Hadoop distributed file system
Here's what makes it especially useful for:
Scalable: It can reliably store and process petabytes.
Economical: It distributes the data and processing across clusters of
commonly available computers (in thousands).
Efficient: By distributing the data, it can process it in parallel on the nodes
where the data is located.
Reliable: It automatically maintains multiple copies of data and automatically
redeploys computing tasks based on failures.
4

5. Why Hadoop?
Handle partial hardware failures without going down:
− If machine fails, we should be switch over to stand by machine
− If disk fails – use RAID or mirror disk
Fault Tolerance:
 Regular backups
 Logging
 Mirror database at different site
Elasticity of resources:
 Increase capacity without restarting the whole system (PureScale)
 More computing power should equal to faster processing
Result consistency:
 Answer should be consistent (independent of something failing) and returned in
reasonable amount of time
5

6. HDFS -Introduction
●
Hadoop Distributed File System (HDFS)
●
Based on Google File System
●
Google file system was derrived from 'bigfiles' paper authored by
Larry and Sergey in Stanford
●
Hadoop provides a distributed filesystem and a framework for the
analysis and transformation of very large data sets using the
MapReduce paradigm
●
The interface to HDFS is patterned after the Unix filesystem
●
Other distributed file system types are
PVFS,Lustre,GFS,KDFS,FTP,Amazon S3
6

7. HDFS – Goals and Assumptions
●
Hardware Failure
●
Streaming Data Access
●
Large Data Sets
●
Simple Coherency Model
●
“Moving Computation is Cheaper than Moving Data”
●
Portability Across Heterogeneous Hardware and Software
Platforms
7

8. HDFS Definition
– The Hadoop Distributed File System (HDFS) is a distributed file system
designed to run on commodity hardware.
– HDFS is a distributed, scalable, and portable filesystem written in Java
for the Hadoop framework.
– HDFS is the primary storage system used by Hadoop applications.
– HDFS is highly fault-tolerant and is designed to be deployed on low-cost
hardware.
– HDFS provides high throughput access to application data and is
suitable for applications that have large data sets
HDFS consists of following components (daemons)
•HDFS Master “Namenode”
•HDFS Workers “Datanodes”
•Secondary Name Node
8

9. HDFS Components
Namenode:
NameNode, a master server, manages the file system namespace and regulates access to files by clients.
 Meta-data in Memory
– The entire metadata is in main memory
 Types of Metadata
– List of files
– List of Blocks for each file
– List of DataNodes for each block
– File attributes, e.g creation time, replication factor
 A Transaction Log
– Records file creations, file deletions. Etc
Data Node:
DataNodes, one per node in the cluster, manages storage attached to the nodes that they run on
 A Block Server
– Stores data in the local file system (e.g. ext3)
– Stores meta-data of a block (e.g. CRC)
– Serves data and meta-data to Clients
– Block Report
– Periodically sends a report of all existing blocks to the NameNode
 Facilitates Pipelining of Data
– Forwards data to other specified DataNodes 9

10. HDFS Components
Secondary Name Node
– Not used as hot stand-by or mirror node. Failover node is in future release.
– Will be renamed in 0.21 to CheckNode
– Bakup nameNode periodically wakes up and processes check point and updates
the nameNode
– Memory requirements are the same as nameNode (big)
– Typically on a separate machine in large cluster ( > 10 nodes)
– Directory is same as nameNode except it keeps previous checkpoint version in
addition to current.
– It can be used to restore failed nameNode (just copy current directory to new
nameNode)
10

11. HDFS Block
– Large data sets are divide into small chunks for easy processing.
– Default is 64 MB
– Can be increased more to 128 MB
– Reason for this default size and how it effects HDFS
11

12. HDFS Architecture
12

13. HDFS Architecture

14. Understanding the File system
Block placement
• Current Strategy
− One replica on local node
− Second replica on a remote rack
− Third replica on same remote rack
− Additional replicas are randomly placed
• Clients read from nearest replica
Data Correctness
• Use Checksums to validate data
− Use CRC32
• File Creation
− Client computes checksum per 512 byte
− DataNode stores the checksum
• File access
− Client retrieves the data and checksum from DataNode
− If Validation fails, Client tries other replicas 14

15. Understanding the File system
Data pipelining
− Client retrieves a list of DataNodes on which to place replicas of a block
− Client writes block to the first DataNode
− The first DataNode forwards the data to the next DataNode in the Pipeline
− When all replicas are written, the Client moves on to write the next block in file
Rebalancer
– Goal: % of disk occupied on Datanodes should be similar
− Usually run when new Datanodes are added
− Cluster is online when Rebalancer is active
− Rebalancer is throttled to avoid network congestion
− Command line tool
15

16. Read and Write in HDFS
16

17. Read and Write in HDFS...contd
17

18. Read and Write in HDFS...contd
18

19. Read and Write in HDFS..contd
19

20. Read and Write in HDFS...contd
20

21. Read and Write in HDFS...contd
21

22. Read and Write in HDFS
22

23. Read and Write in HDFS
23

24. Read and Write in HDFS
24

25. Read and Write in HDFS
25

26. Read and Write in HDFS
26

27. Read and Write in HDFS
27

28. Read and Write in HDFS
28

29. Read and Write in HDFS
29

30. Read and Write in HDFS
30

31. Read and Write in HDFS
31

32. Read and Write in HDFS
32

33. Read and Write in HDFS
33

34. Command Line interface
– HDFS has a UNIX based command line interface and we have to access this using
HDFS using this CLI.
– HDFS can also be accessed through a web interface but its limit is only for viewing
HDFS contents.
– We will go through this part in detail in Practical sessions.
– Below are few examples of CLI based operations
hadoop fs -mkdir /input
hadoop fs -copyFromLocal input/docs/tweets.txt /input/tweets.txt
hadoop fs -put input/docs/tweets.txt /input/tweets.txt
hadoop fs -ls /input
hadoop fs -rmr /input

35. Resource
● Apache Hadoop Wiki
● Bradhed Lund Website(special thanks for making easy to
understand HDFS in real time)

36. THANK YOU
-by Rohit Kapa
