1. MySQL and
Ceph
2:20pm – 3:10pm
Room 203
MySQL in the Cloud
Head-to-Head Performance Lab
1:20pm – 2:10pm
Room 203

2. WHOIS
Brent Compton and Kyle Bader
Storage Solution Architectures
Red Hat
Yves Trudeau
Principal Architect
Percona

3. AGENDA
MySQL on Ceph MySQL in the Cloud
Head-to-Head Performance Lab
• MySQL on Ceph vs. AWS
• Head-to-head: Performance
• Head-to-head: Price/performance
• IOPS performance nodes for Ceph
• Why MySQL on Ceph
• Ceph Architecture
• Tuning: MySQL on Ceph
• HW Architectural Considerations

4. MySQL on Ceph vs. AWS

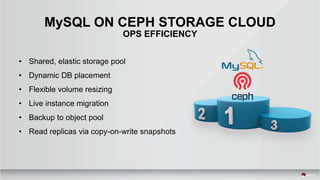

5. • Shared, elastic storage pool
• Dynamic DB placement
• Flexible volume resizing
• Live instance migration
• Backup to object pool
• Read replicas via copy-on-write snapshots
MySQL ON CEPH STORAGE CLOUD
OPS EFFICIENCY

6. MYSQL-ON-CEPH PRIVATE CLOUD
FIDELITY TO A MYSQL-ON-AWS EXPERIENCE
• Hybrid cloud requires public/private cloud commonalities
• Developers want DevOps consistency
• Elastic block storage, Ceph RBD vs. AWS EBS
• Elastic object storage, Ceph RGW vs. AWS S3
• Users want deterministic performance

7. HEAD-TO-HEAD
PERFORMANCE
30 IOPS/GB: AWS EBS P-IOPS TARGET

8. HEAD-TO-HEAD LAB
TEST ENVIRONMENTS
• EC2 r3.2xlarge and m4.4xlarge
• EBS Provisioned IOPS and GPSSD
• Percona Server
• Supermicro servers
• Red Hat Ceph Storage RBD
• Percona Server

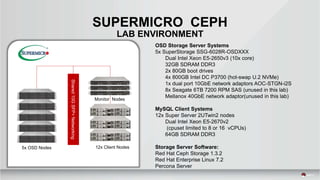

9. OSD Storage Server Systems
5x SuperStorage SSG-6028R-OSDXXX
Dual Intel Xeon E5-2650v3 (10x core)
32GB SDRAM DDR3
2x 80GB boot drives
4x 800GB Intel DC P3700 (hot-swap U.2 NVMe)
1x dual port 10GbE network adaptors AOC-STGN-i2S
8x Seagate 6TB 7200 RPM SAS (unused in this lab)
Mellanox 40GbE network adaptor(unused in this lab)
MySQL Client Systems
12x Super Server 2UTwin2 nodes
Dual Intel Xeon E5-2670v2
(cpuset limited to 8 or 16 vCPUs)
64GB SDRAM DDR3
Storage Server Software:
Red Hat Ceph Storage 1.3.2
Red Hat Enterprise Linux 7.2
Percona Server
5x OSD Nodes 12x Client Nodes
Shared10GSFP+Networking
Monitor Nodes
SUPERMICRO CEPH
LAB ENVIRONMENT

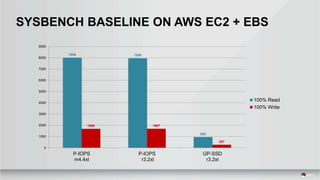

10. 7996 7956
950
1680 1687
267
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
P-IOPS
m4.4xl
P-IOPS
r3.2xl
GP-SSD
r3.2xl
100% Read
100% Write
SYSBENCH BASELINE ON AWS EC2 + EBS

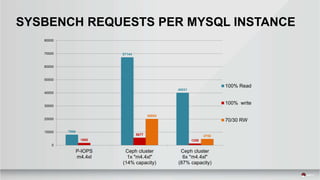

11. 7996
67144
40031
1680
5677
1258
20053
4752
0
10000
20000
30000
40000
50000
60000
70000
80000
P-IOPS
m4.4xl
Ceph cluster
1x "m4.4xl"
(14% capacity)
Ceph cluster
6x "m4.4xl"
(87% capacity)
100% Read
100% write
70/30 RW
SYSBENCH REQUESTS PER MYSQL INSTANCE

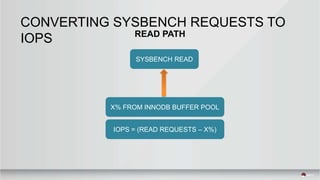

12. CONVERTING SYSBENCH REQUESTS TO
IOPS READ PATH
X% FROM INNODB BUFFER POOL
IOPS = (READ REQUESTS – X%)
SYSBENCH READ

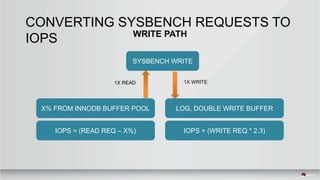

13. CONVERTING SYSBENCH REQUESTS TO
IOPS WRITE PATH
SYSBENCH WRITE
1X READ
X% FROM INNODB BUFFER POOL
IOPS = (READ REQ – X%)
LOG, DOUBLE WRITE BUFFER
IOPS = (WRITE REQ * 2.3)
1X WRITE

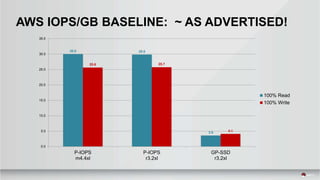

14. 30.0 29.8
3.6
25.6 25.7
4.1
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
P-IOPS
m4.4xl
P-IOPS
r3.2xl
GP-SSD
r3.2xl
100% Read
100% Write
AWS IOPS/GB BASELINE: ~ AS ADVERTISED!

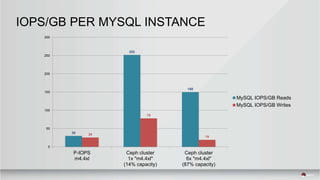

15. IOPS/GB PER MYSQL INSTANCE
30
252
150
26
78
19
0
50
100
150
200
250
300
P-IOPS
m4.4xl
Ceph cluster
1x "m4.4xl"
(14% capacity)
Ceph cluster
6x "m4.4xl"
(87% capacity)
MySQL IOPS/GB Reads
MySQL IOPS/GB Writes

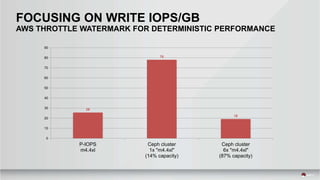

16. FOCUSING ON WRITE IOPS/GB
AWS THROTTLE WATERMARK FOR DETERMINISTIC PERFORMANCE
26
78
19
0
10
20
30
40
50
60
70
80
90
P-IOPS
m4.4xl
Ceph cluster
1x "m4.4xl"
(14% capacity)
Ceph cluster
6x "m4.4xl"
(87% capacity)

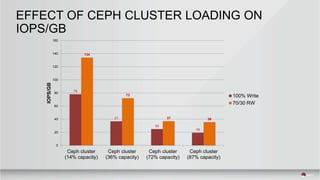

17. EFFECT OF CEPH CLUSTER LOADING ON
IOPS/GB
78
37
25
19
134
72
37 36
0
20
40
60
80
100
120
140
160
Ceph cluster
(14% capacity)
Ceph cluster
(36% capacity)
Ceph cluster
(72% capacity)
Ceph cluster
(87% capacity)
IOPS/GB
100% Write
70/30 RW

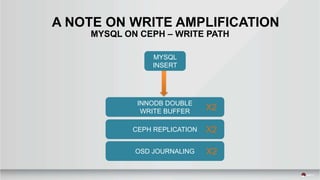

18. A NOTE ON WRITE AMPLIFICATION
MYSQL ON CEPH – WRITE PATH
INNODB DOUBLE
WRITE BUFFER
CEPH REPLICATION
OSD JOURNALING
MYSQL
INSERT
X2
X2
X2

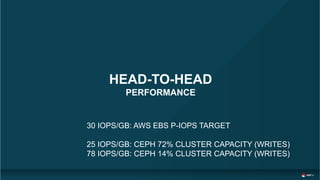

19. HEAD-TO-HEAD
PERFORMANCE
30 IOPS/GB: AWS EBS P-IOPS TARGET
25 IOPS/GB: CEPH 72% CLUSTER CAPACITY (WRITES)
78 IOPS/GB: CEPH 14% CLUSTER CAPACITY (WRITES)

20. HEAD-TO-HEAD
PRICE/PERFORMANCE
$2.50: TARGET AWS EBS P-IOPS STORAGE PER IOP

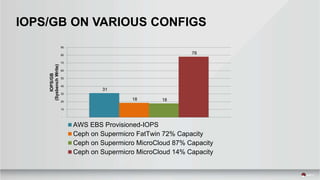

21. IOPS/GB ON VARIOUS CONFIGS
31
18 18
78
-
10
20
30
40
50
60
70
80
90
IOPS/GB
(SysbenchWrite)
AWS EBS Provisioned-IOPS
Ceph on Supermicro FatTwin 72% Capacity
Ceph on Supermicro MicroCloud 87% Capacity
Ceph on Supermicro MicroCloud 14% Capacity

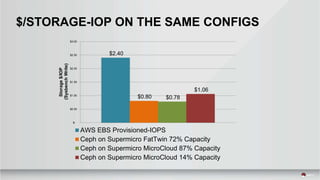

22. $/STORAGE-IOP ON THE SAME CONFIGS
$2.40
$0.80 $0.78
$1.06
$-
$0.50
$1.00
$1.50
$2.00
$2.50
$3.00
Storage$/IOP
(SysbenchWrite)
AWS EBS Provisioned-IOPS
Ceph on Supermicro FatTwin 72% Capacity
Ceph on Supermicro MicroCloud 87% Capacity
Ceph on Supermicro MicroCloud 14% Capacity

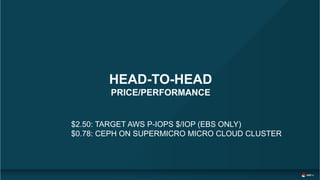

23. HEAD-TO-HEAD
PRICE/PERFORMANCE
$2.50: TARGET AWS P-IOPS $/IOP (EBS ONLY)
$0.78: CEPH ON SUPERMICRO MICRO CLOUD CLUSTER

24. IOPS PERFORMANCE NODES
FOR CEPH

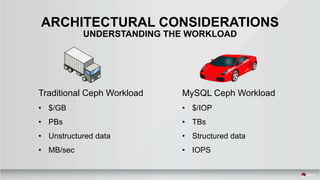

25. ARCHITECTURAL CONSIDERATIONS
UNDERSTANDING THE WORKLOAD
Traditional Ceph Workload
• $/GB
• PBs
• Unstructured data
• MB/sec
MySQL Ceph Workload
• $/IOP
• TBs
• Structured data
• IOPS

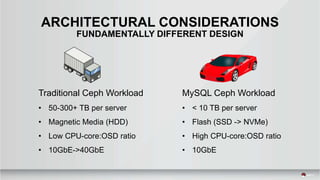

26. ARCHITECTURAL CONSIDERATIONS
FUNDAMENTALLY DIFFERENT DESIGN
Traditional Ceph Workload
• 50-300+ TB per server
• Magnetic Media (HDD)
• Low CPU-core:OSD ratio
• 10GbE->40GbE
MySQL Ceph Workload
• < 10 TB per server
• Flash (SSD -> NVMe)
• High CPU-core:OSD ratio
• 10GbE

27. 18
18
19
6
34 34
36
8
0
5
10
15
20
25
30
35
40
Ceph cluster
80 cores
8 NVMe
(87% capacity)
Ceph cluster
40 cores
4 NVMe
(87% capacity)
Ceph cluster
80 cores
4 NVMe
(87% capacity)
Ceph cluster
80 cores
12 NVMe
(84% capacity)
IOPS/GB
100% Write
70/30 RW
CONSIDERING CORE-TO-FLASH RATIO

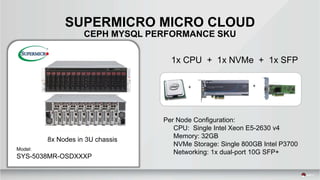

28. 8x Nodes in 3U chassis
Model:
SYS-5038MR-OSDXXXP
Per Node Configuration:
CPU: Single Intel Xeon E5-2630 v4
Memory: 32GB
NVMe Storage: Single 800GB Intel P3700
Networking: 1x dual-port 10G SFP+
+ +
1x CPU + 1x NVMe + 1x SFP
SUPERMICRO MICRO CLOUD
CEPH MYSQL PERFORMANCE SKU

29. SEE US AT PERCONA LIVE!
• Hands on Test Drive: MySQL on Ceph
April 18, 1:30-4:30
• MySQL on Ceph
April 19, 1:20-2:10
• MySQL in the Cloud: Head-to-Head Performance
April 19, 2:20-3:10
• Running MySQL Virtualized on Ceph: Which Hypervisor?
April 20, 3:30-4:20
