Image Forgery Localization by
JPEG Artifact Analysis
Prof. Sebastiano Battiato
Dipartimento di Matematica e Informatica,
Università di Catania
Image Processing LAB – http://iplab.dmi.unict.it
ICT Doctoral School - Trento, May 2017
Artifact and Coding
• File level analysis
– File system analysis: MAC time,Filename, Size
– Format analysis: Image file format, Resolution/color
depth/channels, Compression/coding parameters
• Image analysis:
– Pixel domain: blocking artifacts, error level analysis, JPEG ghosts
– Transform domain: DCT values
• Compression history
– Uncompressed, Single compression
– Double compression (or more)
– Evaluation of compression coefficients (QTs)
– Evaluation of previous compression coefficients (QTs)

30/05/2017
2

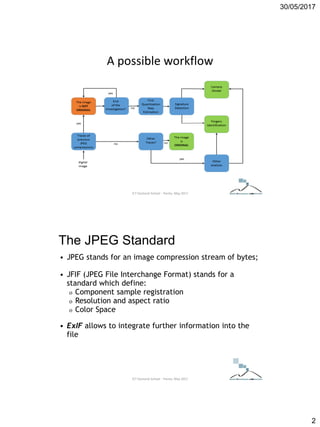

A possible workflow
The JPEG Standard
• JPEG stands for an image compression stream of bytes;
• JFIF (JPEG File Interchange Format) stands for a
standard which define:
o Component sample registration
o Resolution and aspect ratio
o Color Space
• ExIF allows to integrate further information into the
file

30/05/2017
3
JPEG Compression

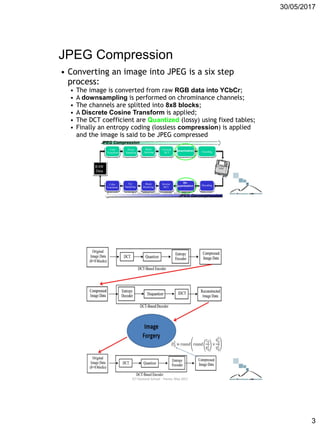

• Converting an image into JPEG is a six step
process:
• The image is converted from raw RGB data into YCbCr;
• A downsampling is performed on chrominance channels;
• The channels are splitted into 8x8 blocks;
• A Discrete Cosine Transform is applied;
• The DCT coefficient are Quantized (lossy) using fixed tables;
• Finally an entropy coding (lossless compression) is applied
and the image is said to be JPEG compressed
Color
Transform
Down-
Sampling
Forward
DCT
Quantization Encoding
Decoding
De-
quantization
Inverse
DCT
Up-
Sampling
RAW
Data
Color
Transform
JPEG Compressed
JPEG Compression
JPEG Decompression
Block
Restoring
Block
Splitting

30/05/2017
4

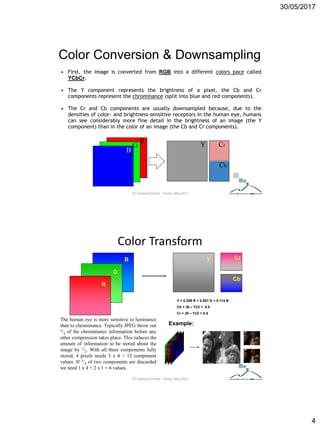

Color Conversion & Downsampling
• First, the image is converted from RGB into a different colors pace called
YCbCr.
• The Y component represents the brightness of a pixel, the Cb and Cr
components represent the chrominance (split into blue and red components).
• The Cr and Cb components are usually downsampled because, due to the
densities of color- and brightness-sensitive receptors in the human eye, humans
can see considerably more fine detail in the brightness of an image (the Y
component) than in the color of an image (the Cb and Cr components).
R
B
G Y Cr
Cb
Color Transform
R
B
G
Y
Cb
Cr
Example:
The human eye is more sensitive to luminance
than to chrominance. Typically JPEG throw out
3/4 of the chrominance information before any
other compression takes place. This reduces the
amount of information to be stored about the
image by 1/2. With all three components fully
stored, 4 pixels needs 3 x 4 = 12 component
values. If 3/4 of two components are discarded
we need 1 x 4 + 2 x 1 = 6 values.
Y = 0.299 R + 0.587 G + 0.114 B
Cb = (B – Y)/2 + 0.5
Cr = (R – Y)/2 + 0.5

30/05/2017
5

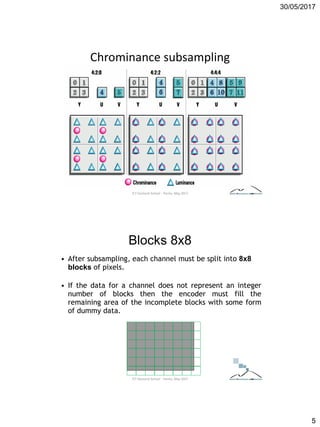

Chrominance subsampling
Blocks 8x8
• After subsampling, each channel must be split into 8x8
blocks of pixels.
• If the data for a channel does not represent an integer
number of blocks then the encoder must fill the
remaining area of the incomplete blocks with some form
of dummy data.

30/05/2017
6

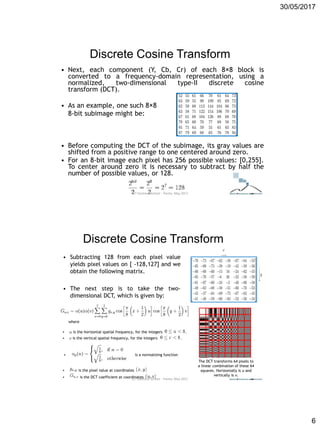

Discrete Cosine Transform
• Next, each component (Y, Cb, Cr) of each 8×8 block is
converted to a frequency-domain representation, using a
normalized, two-dimensional type-II discrete cosine
transform (DCT).
• As an example, one such 8×8
8-bit subimage might be:
• Before computing the DCT of the subimage, its gray values are
shifted from a positive range to one centered around zero.
• For an 8-bit image each pixel has 256 possible values: [0,255].
To center around zero it is necessary to subtract by half the
number of possible values, or 128.
Discrete Cosine Transform
The DCT transforms 64 pixels to
a linear combination of these 64
squares. Horizontally is u and
vertically is v.
• Subtracting 128 from each pixel value
yields pixel values on [ -128,127] and we
obtain the following matrix.
• The next step is to take the two-
dimensional DCT, which is given by:
where
 is the horizontal spatial frequency, for the integers .
 is the vertical spatial frequency, for the integers .
 is a normalizing function
 is the pixel value at coordinates
 is the DCT coefficient at coordinatesICT Doctoral School - Trento, May 2017

30/05/2017
7

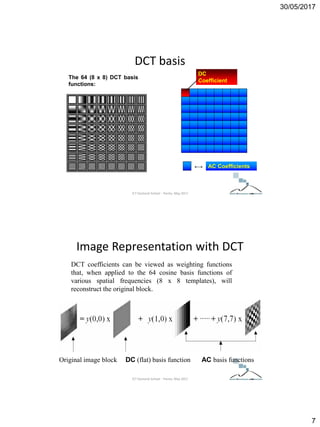

DCT basis
The 64 (8 x 8) DCT basis
functions:
DC
Coefficient
AC Coefficients
Image Representation with DCT
DCT coefficients can be viewed as weighting functions
that, when applied to the 64 cosine basis functions of
various spatial frequencies (8 x 8 templates), will
reconstruct the original block.
Original image block DC (flat) basis function AC basis functions

30/05/2017
8
DCT example

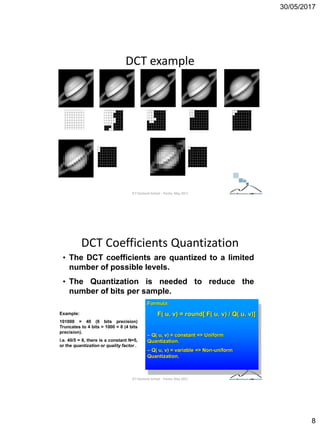

DCT Coefficients Quantization
• The DCT coefficients are quantized to a limited
number of possible levels.
• The Quantization is needed to reduce the
number of bits per sample.
Formula:
F( u, v) = round[ F( u, v) / Q( u, v)]
– Q( u, v) = constant => Uniform
Quantization.
– Q( u, v) = variable => Non-uniform
Quantization.
Example:
101000 = 40 (6 bits precision)
Truncates to 4 bits = 1000 = 8 (4 bits
precision).
i.e. 40/5 = 8, there is a constant N=5,
or the quantization or quality factor .

30/05/2017
9
ICT Doctoral School - Trento,
May 2017

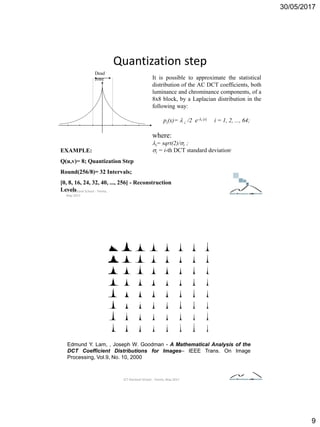

Quantization step
It is possible to approximate the statistical
distribution of the AC DCT coefficients, both
luminance and chrominance components, of a
8x8 block, by a Laplacian distribution in the
following way:
pi(x)=  i /2 e-i |x| i = 1, 2, ..., 64;
where:
i= sqrt(2)/i ;
i = i-th DCT standard deviation;
EXAMPLE:
Q(u,v)= 8; Quantization Step
Round(256/8)= 32 Intervals;
[0, 8, 16, 24, 32, 40, ..., 256] - Reconstruction
Levels
Dead
zone
Edmund Y. Lam, , Joseph W. Goodman - A Mathematical Analysis of the
DCT Coefficient Distributions for Images– IEEE Trans. On Image
Processing, Vol.9, No. 10, 2000

30/05/2017
10

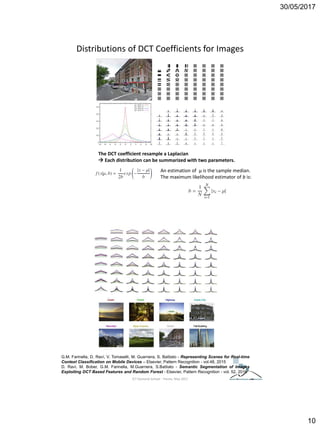

Distributions of DCT Coefficients for Images
An estimation of μ is the sample median.
The maximum likelihood estimator of b is:
The DCT coefficient resample a Laplacian
 Each distribution can be summarized with two parameters.
G.M. Farinella, D. Ravì, V. Tomaselli, M. Guarnera, S. Battiato - Representing Scenes for Real-time
Context Classification on Mobile Devices – Elsevier, Pattern Recognition - vol.48, 2015
D. Ravì, M. Bober, G.M. Farinella, M.Guarnera, S.Battiato - Semantic Segmentation of Images
Exploiting DCT Based Features and Random Forest - Elsevier, Pattern Recognition - vol. 52, 2016

30/05/2017
11

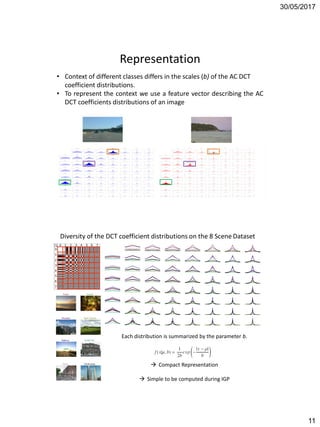

Representation
• Context of different classes differs in the scales (b) of the AC DCT
coefficient distributions.
• To represent the context we use a feature vector describing the AC
DCT coefficients distributions of an image
Each distribution is summarized by the parameter b.
 Compact Representation
 Simple to be computed during IGP
Diversity of the DCT coefficient distributions on the 8 Scene Dataset

30/05/2017
12

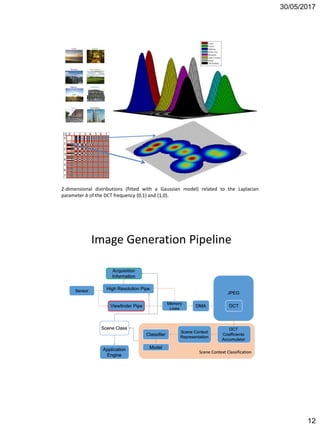

2-dimensional distributions (fitted with a Gaussian model) related to the Laplacian
parameter b of the DCT frequency (0,1) and (1,0).
Image Generation Pipeline

30/05/2017
13

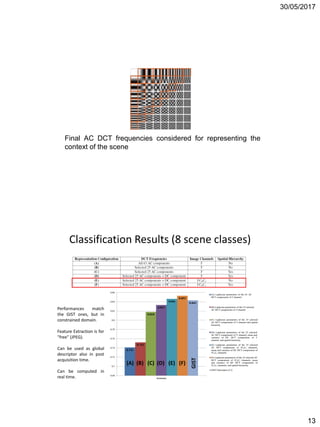

Final AC DCT frequencies considered for representing the
context of the scene
Classification Results (8 scene classes)
(A) (B) (C) (D) (E) (F)
GIST
Performances match
the GIST ones, but in
constrained domain.
Feature Extraction is for
"free" (JPEG).
Can be used as global
descriptor also in post
acquisition time.
Can be computed in
real time.

30/05/2017
14
Proposed
Classification Results (8 scene classes)

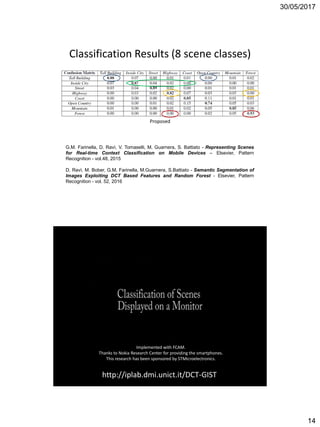

G.M. Farinella, D. Ravì, V. Tomaselli, M. Guarnera, S. Battiato - Representing Scenes
for Real-time Context Classification on Mobile Devices – Elsevier, Pattern
Recognition - vol.48, 2015
D. Ravì, M. Bober, G.M. Farinella, M.Guarnera, S.Battiato - Semantic Segmentation of
Images Exploiting DCT Based Features and Random Forest - Elsevier, Pattern
Recognition - vol. 52, 2016
Implemented with FCAM.
Thanks to Nokia Research Center for providing the smartphones.
This research has been sponsored by STMicroelectronics.
http://iplab.dmi.unict.it/DCT-GIST

30/05/2017
15

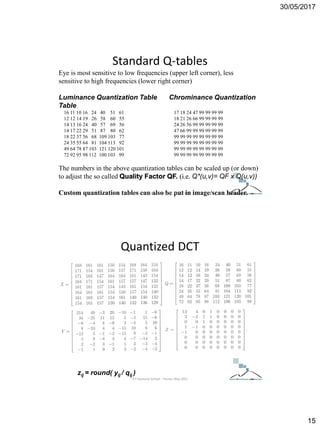

Standard Q-tables
Eye is most sensitive to low frequencies (upper left corner), less
sensitive to high frequencies (lower right corner)
Luminance Quantization Table Chrominance Quantization
Table
16 11 10 16 24 40 51 61 17 18 24 47 99 99 99 99
12 12 14 19 26 58 60 55 18 21 26 66 99 99 99 99
14 13 16 24 40 57 69 56 24 26 56 99 99 99 99 99
14 17 22 29 51 87 80 62 47 66 99 99 99 99 99 99
18 22 37 56 68 109 103 77 99 99 99 99 99 99 99 99
24 35 55 64 81 104 113 92 99 99 99 99 99 99 99 99
49 64 78 87 103 121 120 101 99 99 99 99 99 99 99 99
72 92 95 98 112 100 103 99 99 99 99 99 99 99 99 99
The numbers in the above quantization tables can be scaled up (or down)
to adjust the so called Quality Factor QF. (i.e. Q*(u,v)= QF x Q(u,v))
Custom quantization tables can also be put in image/scan header.ICT Doctoral School - Trento, May 2017
Quantized DCT
zij = round( yij / qij )

30/05/2017
16

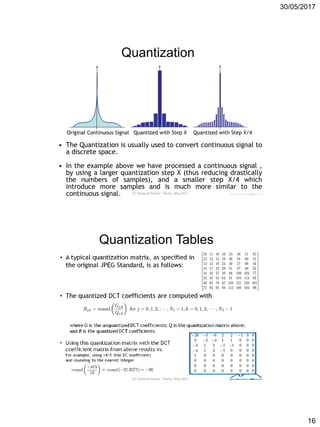

Quantization
• The Quantization is usually used to convert continuous signal to
a discrete space.
• In the example above we have processed a continuous signal ,
by using a larger quantization step X (thus reducing drastically
the numbers of samples), and a smaller step X/4 which
introduce more samples and is much more similar to the
continuous signal.
Original Continuous Signal Quantized with Step X Quantized with Step X/4
Quantization Tables

30/05/2017
17

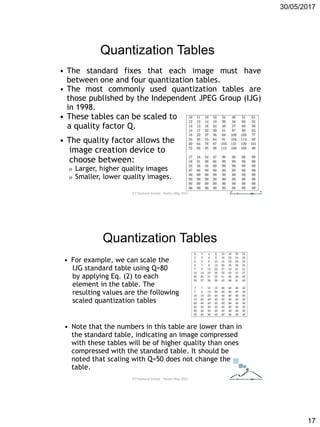

• The standard fixes that each image must have
between one and four quantization tables.
• The most commonly used quantization tables are
those published by the Independent JPEG Group (IJG)
in 1998.
• These tables can be scaled to
a quality factor Q.
• The quality factor allows the
image creation device to
choose between:
o Larger, higher quality images
o Smaller, lower quality images.
Quantization Tables
Quantization Tables
• For example, we can scale the
IJG standard table using Q=80
by applying Eq. (2) to each
element in the table. The
resulting values are the following
scaled quantization tables
• Note that the numbers in this table are lower than in
the standard table, indicating an image compressed
with these tables will be of higher quality than ones
compressed with the standard table. It should be
noted that scaling with Q=50 does not change the
table.

30/05/2017
18

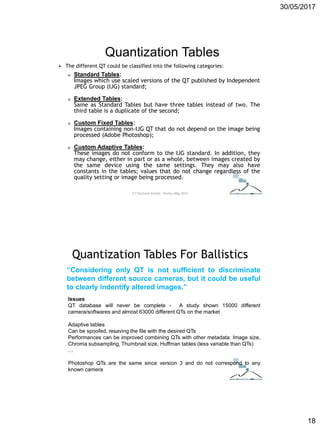

Quantization Tables
• The different QT could be classified into the following categories:
o Standard Tables:
Images which use scaled versions of the QT published by Independent
JPEG Group (IJG) standard;
o Extended Tables:
Same as Standard Tables but have three tables instead of two. The
third table is a duplicate of the second;
o Custom Fixed Tables:
Images containing non-IJG QT that do not depend on the image being
processed (Adobe Photoshop);
o Custom Adaptive Tables:
These images do not conform to the IJG standard. In addition, they
may change, either in part or as a whole, between images created by
the same device using the same settings. They may also have
constants in the tables; values that do not change regardless of the
quality setting or image being processed.
Quantization Tables For Ballistics
“Considering only QT is not sufficient to discriminate
between different source cameras, but it could be useful
to clearly indentify altered images.”
Issues
QT database will never be complete - A study shown 15000 different
camera/softwares and almost 63000 different QTs on the market
Adaptive tables
Can be spoofed, resaving the file with the desired QTs
Performances can be improved combining QTs with other metadata: Image size,
Chroma subsampling, Thumbnail size, Huffman tables (less variable than QTs)
…
Photoshop QTs are the same since version 3 and do not correspond to any
known camera

30/05/2017
19
Most common matrix
• 1513 different
matrices
• 70 camera model
7337 devices (DSC,
Smartphone - tablet)
Thanks to Jerian Martino (from AMPED srl:
http://ampedsoftware.com/company )
Camera Ballistics thorough quantization
tables
ICT Doctoral School - Trento, 2017
Image Forgery Localization by JPEG
Artifact Analysis
The manipulation is detected by analyzing
artifacts introduced by JPEG recompression. Two
main classes can be considered:
• aligned double JPEG (A-DJPG) compression
(i.e., first and second JPEG compression make
use of aligned DCT grids).
• non-aligned double JPEG (NA-DJPG)
compression.

30/05/2017
20
JPEG Analysis
• JPEG Double Quantization Detection (DQD) and Quantization
Step Estimation (QSE) are two fundamental steps in the overall
process.
• DQD and QSE methods by dividing them into categories with
names that recall what is exploited from image data. Thus the
categories are for methods based on:
– Probability distributions on DCT coefficients;
– Benford’s Law;
– Benford’s Fourier Coefficients;
– Neural Networks encoding and classification;
– DCT coefficients comparison;
– SVM classifiers;
– Factor Histogram;
– Considerations on noiseICT Doctoral School - Trento, May 2017

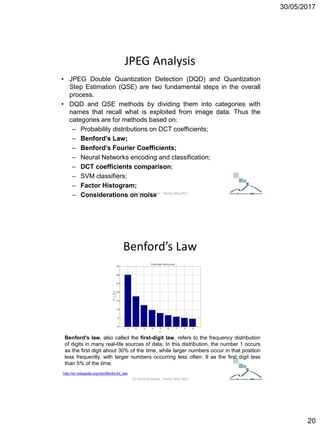

Benford’s Law
Benford's law, also called the first-digit law, refers to the frequency distribution
of digits in many real-life sources of data. In this distribution, the number 1 occurs
as the first digit about 30% of the time, while larger numbers occur in that position
less frequently, with larger numbers occurring less often: 9 as the first digit less
than 5% of the time.
http://en.wikipedia.org/wiki/Benford's_law

30/05/2017
21

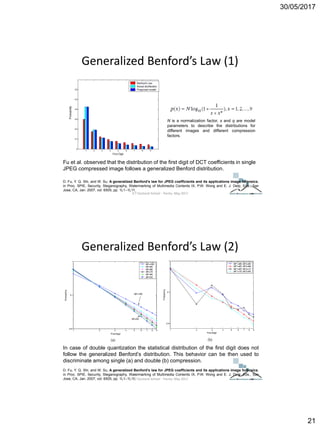

Generalized Benford’s Law (1)
D. Fu, Y. Q. Shi, and W. Su, A generalized Benford’s law for JPEG coefficients and its applications image forensics,
in Proc. SPIE, Security, Steganography, Watermarking of Multimedia Contents IX, P.W. Wong and E. J. Delp, Eds., San
Jose, CA, Jan. 2007, vol. 6505, pp. 1L1–1L11.
Fu et al. observed that the distribution of the first digit of DCT coefficients in single
JPEG compressed image follows a generalized Benford distribution.
N is a normalization factor, s and q are model
parameters to describe the distributions for
different images and different compression
factors.
D. Fu, Y. Q. Shi, and W. Su, A generalized Benford’s law for JPEG coefficients and its applications image forensics,
in Proc. SPIE, Security, Steganography, Watermarking of Multimedia Contents IX, P.W. Wong and E. J. Delp, Eds., San
Jose, CA, Jan. 2007, vol. 6505, pp. 1L1–1L11.
In case of double quantization the statistical distribution of the first digit does not
follow the generalized Benford’s distribution. This behavior can be then used to
discriminate among single (a) and double (b) compression.

30/05/2017
22
B. Li, Y. Shi, and J. Huang, Detecting doubly compressed JPEG images by using mode based first digit features, in
Proc. IEEE 10thWorkshop Multimedia Signal Processing, Oct. 2008, pp. 730–735.
Starting from the method of Fu et al., Li et al. analyze the distribution of the first

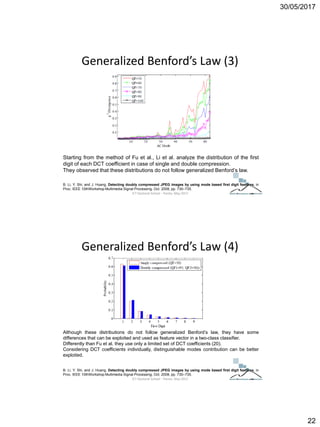

digit of each DCT coefficient in case of single and double compression.
They observed that these distributions do not follow generalized Benford’s law.
B. Li, Y. Shi, and J. Huang, Detecting doubly compressed JPEG images by using mode based first digit features, in
Proc. IEEE 10thWorkshop Multimedia Signal Processing, Oct. 2008, pp. 730–735.
Although these distributions do not follow generalized Benford’s law, they have some
differences that can be exploited and used as feature vector in a two-class classifier.
Differently than Fu et al. they use only a limited set of DCT coefficients (20).
Considering DCT coefficients individually, distinguishable modes contribution can be better
exploited.

30/05/2017
23

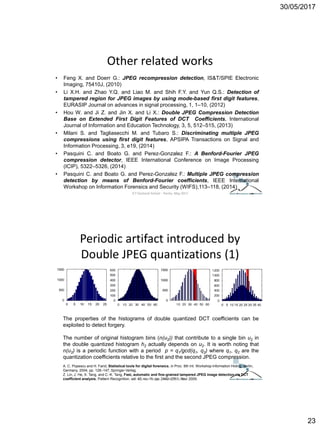

Other related works
• Feng X. and Doerr G.: JPEG recompression detection, IS&T/SPIE Electronic
Imaging, 75410J, (2010)
• Li X.H. and Zhao Y.Q. and Liao M. and Shih F.Y. and Yun Q.S.: Detection of
tampered region for JPEG images by using mode-based first digit features,
EURASIP Journal on advances in signal processing, 1, 1–10, (2012)
• Hou W. and Ji Z. and Jin X. and Li X.: Double JPEG Compression Detection
Base on Extended First Digit Features of DCT Coefficients, International
Journal of Information and Education Technology, 3, 5, 512–515, (2013)
• Milani S. and Tagliasecchi M. and Tubaro S.: Discriminating multiple JPEG
compressions using first digit features, APSIPA Transactions on Signal and
Information Processing, 3, e19, (2014)
• Pasquini C. and Boato G. and Perez-Gonzalez F.: A Benford-Fourier JPEG
compression detector, IEEE International Conference on Image Processing
(ICIP), 5322–5326, (2014)
• Pasquini C. and Boato G. and Perez-Gonzalez F.: Multiple JPEG compression
detection by means of Benford-Fourier coefficients, IEEE International
Workshop on Information Forensics and Security (WIFS),113–118, (2014)
Periodic artifact introduced by
Double JPEG quantizations (1)
A. C. Popescu and H. Farid, Statistical tools for digital forensics, in Proc. 6th Int. Workshop Information Hiding, Berlin,
Germany, 2004, pp. 128–147, Springer-Verlag.
Z. Lin, J. He, X. Tang, and C.-K. Tang, Fast, automatic and fine-grained tampered JPEG image detection via DCT
coefficient analysis, Pattern Recognition, vol. 42, no. 11, pp. 2492–2501, Nov. 2009.
The properties of the histograms of double quantized DCT coefficients can be
exploited to detect forgery.
The number of original histogram bins (n(u2)) that contribute to a single bin u2 in
the double quantized histogram h2 actually depends on u2. It is worth noting that
n(u2) is a periodic function with a period p = q1/gcd(q1, q2) where q1, q2 are the
quantization coefficients relative to the first and the second JPEG compression.

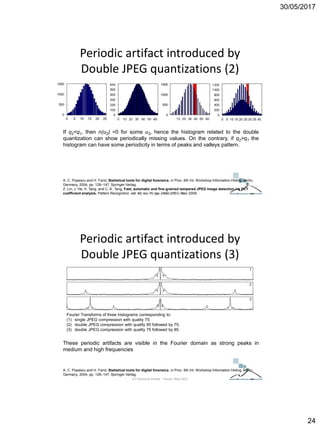

30/05/2017
24
If q2<q1, then n(u2) =0 for some u2, hence the histogram related to the double
quantization can show periodically missing values. On the contrary, if q2>q1 the
histogram can have some periodicity in terms of peaks and valleys pattern.
These periodic artifacts are visible in the Fourier domain as strong peaks in
medium and high frequencies
Fourier Transforms of three histograms corresponding to:
(1) single JPEG compression with quality 75;
(2) double JPEG compression with quality 85 followed by 75;
(3) double JPEG compression with quality 75 followed by 85.

30/05/2017
25

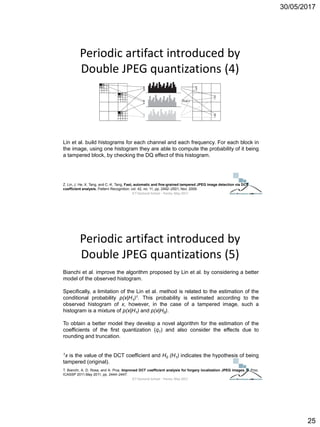

Lin et al. build histograms for each channel and each frequency. For each block in
the image, using one histogram they are able to compute the probability of it being
a tampered block, by checking the DQ effect of this histogram.
T. Bianchi, A. D. Rosa, and A. Piva, Improved DCT coefficient analysis for forgery localization JPEG images, in Proc.
ICASSP 2011,May 2011, pp. 2444–2447.
Bianchi et al. improve the algorithm proposed by Lin et al. by considering a better
model of the observed histogram.
Specifically, a limitation of the Lin et al. method is related to the estimation of the
conditional probability p(x|H1)1. This probability is estimated according to the
observed histogram of x, however, in the case of a tampered image, such a
histogram is a mixture of p(x|H1) and p(x|H0).
To obtain a better model they develop a novel algorithm for the estimation of the
coefficients of the first quantization (q1) and also consider the effects due to
rounding and truncation.
1x is the value of the DCT coefficient and H0 (H1) indicates the hypothesis of being
tampered (original).

30/05/2017
26
Non-aligned double JPEG
(NA-DJPG) compression
• W. Luo, Z. Qu, J. Huang, and G. Qui, “A novel method for detecting cropped and
recompressed image block,” in Proc. ICASSP, 2007, vol. 2, pp. II-217–II-220.
• M. Barni, A. Costanzo, and L. Sabatini, “Identification of cut and paste tampering
by means of double-JPEG detection and image segmentation,” in Proc. ISCAS,
2010, pp. 1687–1690.
• Y.-L. Chen and C.-T. Hsu, “Image tampering detection by blocking periodicity
analysis JPEG compressed images,” in Proc. IEEE 10th Workshop Multimedia Signal
Processing, Oct. 2008, pp. 803–808.
• T. Bianchi and A. Piva, “Detection of nonaligned double JPEG compression based
on integer periodicity maps,” IEEE Trans. Inf. Forensics Security, vol. 7, no. 2, Apr.
2012.
• T. Bianchi, A. Piva, "Image Forgery Localization via Block-Grained Analysis of JPEG
Artifacts", IEEE Transactions on Information Forensics & Security, Volume: 7, Issue:
3 – 2012, pp: 1003 – 1017.

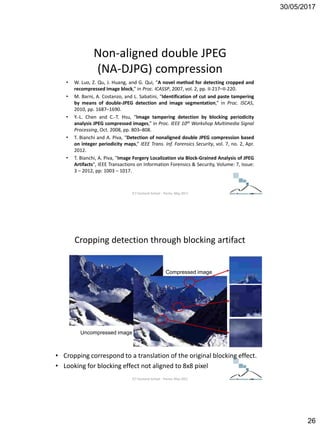

Cropping detection through blocking artifact
• Cropping correspond to a translation of the original blocking effect.
• Looking for blocking effect not aligned to 8x8 pixel
Uncompressed image
Compressed image

30/05/2017
27

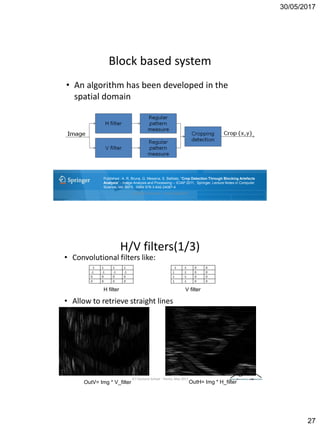

Block based system
• An algorithm has been developed in the
spatial domain
Published : A. R. Bruna, G. Messina, S. Battiato, “Crop Detection Through Blocking Artefacts
Analysis” - Image Analysis and Processing -- ICIAP 2011, Springer, Lecture Notes in Computer
Science, Vol. 6979, ISBN 978-3-642-24087-4
H/V filters(1/3)
• Convolutional filters like:
• Allow to retrieve straight lines
1 1 1 1
-1 -1 -1 -1
0 0 0 0
0 0 0 0
1 -1 0 0
1 -1 0 0
1 -1 0 0
1 -1 0 0
H filter V filter
OutV= Img * V_filter OutH= Img * H_filter

30/05/2017
28

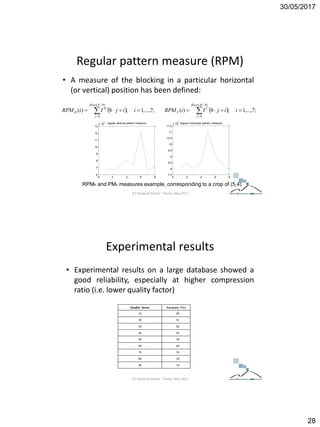

Regular pattern measure (RPM)
• A measure of the blocking in a particular horizontal
(or vertical) position has been defined:
  ;7,...,1;8)(
)8/(
0
'
 
iijIiRPM
Nfloor
j
H
H   ;7,...,1;8)(
)8/(
0
'
 
iijIiRPM
Mfloor
j
V
V
0 2 4 6 8
6
7
8
9
10
11
12
13
x 10
4
regular vertical pattern measure
0 2 4 6 8
7.5
8
8.5
9
9.5
10
10.5
11
11.5
x 10
4
regular horizontal pattern measure
RPMh and PMv measures example, corresponding to a crop of (5,4)
Experimental results
• Experimental results on a large database showed a
good reliability, especially at higher compression
ratio (i.e. lower quality factor)
Quality factor Accuracy (%)
10 99
20 91
30 80
40 69
50 58
60 46
70 39
80 28
90 16

30/05/2017
29

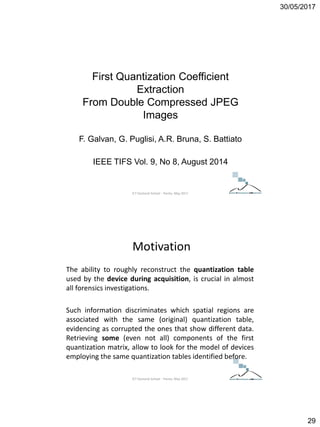

First Quantization Coefficient
Extraction
From Double Compressed JPEG
Images
F. Galvan, G. Puglisi, A.R. Bruna, S. Battiato
IEEE TIFS Vol. 9, No 8, August 2014
Motivation
The ability to roughly reconstruct the quantization table
used by the device during acquisition, is crucial in almost
all forensics investigations.
Such information discriminates which spatial regions are
associated with the same (original) quantization table,
evidencing as corrupted the ones that show different data.
Retrieving some (even not all) components of the first
quantization matrix, allow to look for the model of devices
employing the same quantization tables identified before.

30/05/2017
30
Motivation
• Specifically, when the second compression is lighter than the
first one, retrieving the first quantization step is often possible.
This can be done taking advantage of some interesting
properties of integer numbers, that occurs whenever they are
quantized (that means rounded) more than once.
• The main novelties of the proposed approach are related to the
filtering strategy (split noise), adopted to reduce the amount of
noise in the input data (DCT histograms), and on the design of a
novel function with a satisfactory q1-localization property.
Software
• FourandSix
• Authenticate
• Belkasoft Forgery Detection

30/05/2017
31
The Approach:
• characterizes features that occur in DCT histograms of individual
coefficients due to double compression.
• exploits errors introduced from the rounding function;
• Neural Network as a classifier;
• separate network for each value of the second quantization step.
Results and Limitations:
• good performances ( ~ 1% of error rate) for D01D10D11;
• worst results as frequency increase;
• no results about DC term.

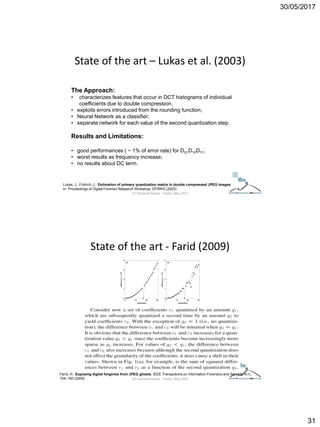

Lukas, J., Fridrich, J.: Estimation of primary quantization matrix in double compressed JPEG images.
In: Proceedings of Digital Forensic Research Workshop, DFRWS (2003)
.
State of the art – Lukas et al. (2003)

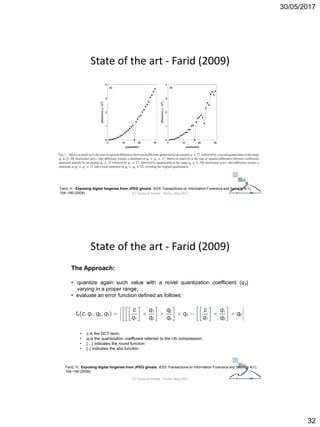

Farid, H.: Exposing digital forgeries from JPEG ghosts. IEEE Transactions on Information Forensics and Security 4(1),
154–160 (2009)
State of the art - Farid (2009)

30/05/2017
32
154–160 (2009)
The Approach:
• quantize again such value with a novel quantization coefficient (q3)
varying in a proper range;
• evaluate an error function defined as follows:
154–160 (2009)
• c is the DCT term;
• qi is the quantization coefficient referred to the i-th compression,
• […] indicates the round function
• |..| indicates the abs function

30/05/2017
33

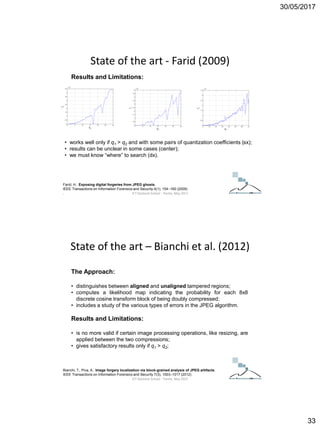

• works well only if q1 > q2 and with some pairs of quantization coefficients (sx);
• results can be unclear in some cases (center);
• we must know “where” to search (dx).
Farid, H.: Exposing digital forgeries from JPEG ghosts.
IEEE Transactions on Information Forensics and Security 4(1), 154–160 (2009)
.
The Approach:
• distinguishes between aligned and unaligned tampered regions;
• computes a likelihood map indicating the probability for each 8x8
discrete cosine transform block of being doubly compressed;
• includes a study of the various types of errors in the JPEG algorithm.
• is no more valid if certain image processing operations, like resizing, are
applied between the two compressions;
• gives satisfactory results only if q1 > q2;
Bianchi, T., Piva, A.: Image forgery localization via block-grained analysis of JPEG artifacts.
IEEE Transactions on Information Forensics and Security 7(3), 1003–1017 (2012)
State of the art – Bianchi et al. (2012)

30/05/2017
34

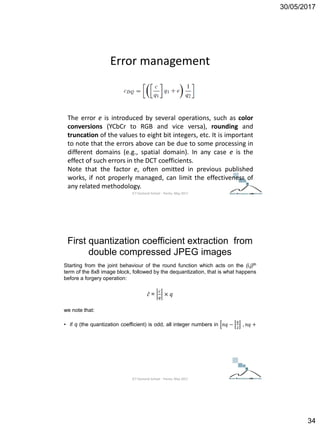

Error management
The error e is introduced by several operations, such as color
conversions (YCbCr to RGB and vice versa), rounding and
truncation of the values to eight bit integers, etc. It is important
to note that the errors above can be due to some processing in
different domains (e.g., spatial domain). In any case e is the
effect of such errors in the DCT coefficients.
Note that the factor e, often omitted in previous published
works, if not properly managed, can limit the effectiveness of
any related methodology.
Starting from the joint behaviour of the round function which acts on the (i,j)th
term of the 8x8 image block, followed by the dequantization, that is what happens
before a forgery operation:
𝑐 =
𝑐
𝑞
× 𝑞
we note that:
• if q (the quantization coefficient) is odd, all integer numbers in 𝑛𝑞 −
𝑞
2
, 𝑛𝑞 +
F. Galvan, G. Puglisi, A. R. Bruna, and S. Battiato, “First quantization coefficient extraction
from double compressed JPEG images,” in International Conference on Image Analysis and
Processing (ICIAP), ser. Lecture Notes in Computer Science, vol. 8156, 2013, pp. 783–792.
First quantization coefficient extraction from
double compressed JPEG images

30/05/2017
35
examples of the effect of rounding function when q is even.

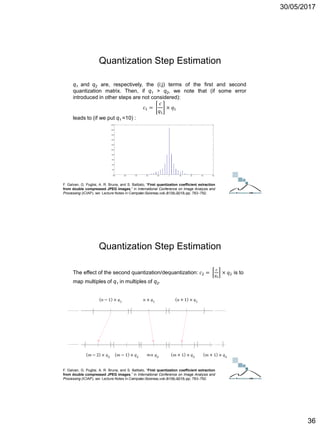

Quantization Step Estimation
Histogram of all the DCT terms in position (i;j) in all the 8x8 blocks of an
image:

30/05/2017
36
q1 and q2 are, respectively, the (i;j) terms of the first and second
quantization matrix. Then, if q1 > q2, we note that (if some error
introduced in other steps are not considered):
𝑐1 =
𝑐
𝑞1
× 𝑞1
leads to (if we put q1 =10) :
The effect of the second quantization/dequantization: 𝑐2 =
𝑐
𝑞2
× 𝑞2 is to
map multiples of q1 in multiples of q2.

30/05/2017
37

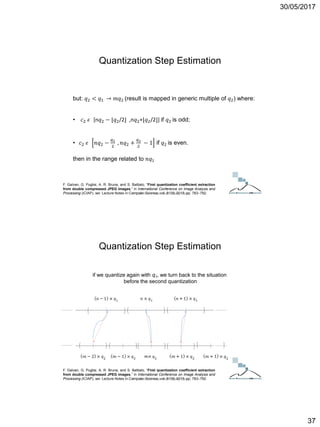

but: 𝑞2 < 𝑞1 → 𝑚𝑞2 (result is mapped in generic multiple of 𝑞2) where:
• 𝑐2 𝜖 [n𝑞2 − ⌊𝑞2/2⌋ ,n𝑞2+⌊𝑞2/2⌋] if 𝑞2 is odd;
• 𝑐2 𝜖 𝑛𝑞2 −
𝑞2
2
, 𝑛𝑞2 +
𝑞2
2
− 1 if 𝑞2 is even.
then in the range related to 𝑛𝑞1
if we quantize again with q1, we turn back to the situation
before the second quantization

30/05/2017
38

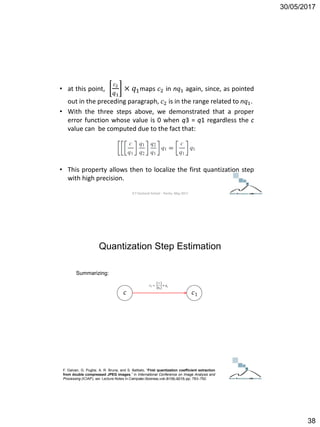

• at this point,
𝑐2
𝑞1
× 𝑞1maps 𝑐2 in n𝑞1 again, since, as pointed
out in the preceding paragraph, 𝑐2 is in the range related to n𝑞1.
• With the three steps above, we demonstrated that a proper
error function whose value is 0 when q3 = q1 regardless the c
value can be computed due to the fact that:
• This property allows then to localize the first quantization step
with high precision.
Summarizing:

30/05/2017
39
Summarizing:
Summarizing:

30/05/2017
40

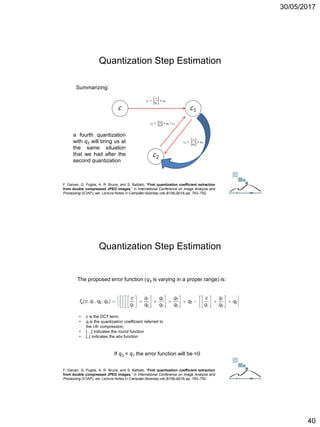

Summarizing:
a fourth quantization
with q2 will bring us at
the same situation
that we had after the
second quantization
The proposed error function (q3 is varying in a proper range) is:
If q3 = q1 the error function will be =0
• c is the DCT term;
• qi is the quantization coefficient referred to
the i-th compression,
• […] indicates the round function
• |..| indicates the abs function

30/05/2017
41

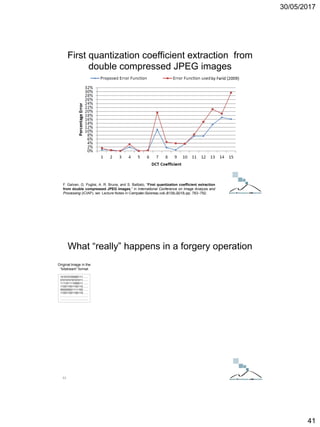

First quantization coefficient extraction from
double compressed JPEG images
101010100000111……
010101010101011……
111101111000011……
110011001100110……
000000001111100……
110011001100110……
………………………….
………………………….
Original Image in the
“bitstream” format

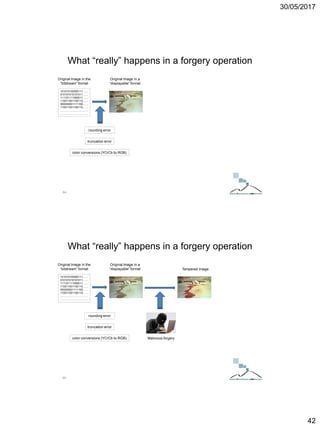

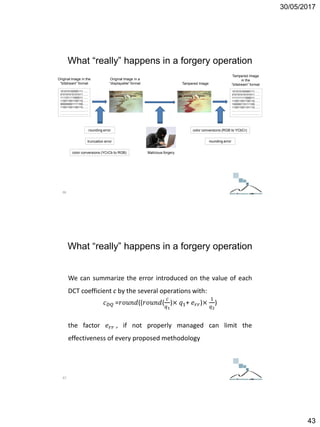

What “really” happens in a forgery operation
83

30/05/2017
42
101010100000111……
010101010101011……
111101111000011……
110011001100110……
000000001111100……
110011001100110……
………………………….
………………………….
Original Image in a
“displayable” format
rounding error
truncation error
color conversions (YCrCb to RGB)
84
101010100000111……
010101010101011……
111101111000011……
110011001100110……
000000001111100……
110011001100110……
………………………….
………………………….
Original Image in a
rounding error
truncation error
color conversions (YCrCb to RGB) Malicious forgery
Tampered Image
85

30/05/2017
43
101010100000111……
010101010101011……
111101111000011……
110011001100110……
000000001111100……
110011001100110……
………………………….
………………………….
Original Image in a
rounding error
truncation error
color conversions (YCrCb to RGB)
101010100000111……
010101010101011……
111111111000011……
110011001100110……
100000110111100……
110011001101110……
………………………….
………………………….
Malicious forgery
color conversions (RGB to YCbCr)
rounding error
Tampered Image
Tampered Image
in the
86
We can summarize the error introduced on the value of each
DCT coefficient c by the several operations with:
𝑐 𝐷𝑄 =𝑟𝑜𝑢𝑛𝑑((𝑟𝑜𝑢𝑛𝑑(
𝑐
𝑞1
)× 𝑞1+ 𝑒 𝑟𝑟)×
1
𝑞2
)
the factor 𝑒 𝑟𝑟 , if not properly managed can limit the
effectiveness of every proposed methodology
87

30/05/2017
44
depending on both
first and second
quantization factor
(q1 and q2), we can
obtain different
histograms for
every position in the
8x8 block.

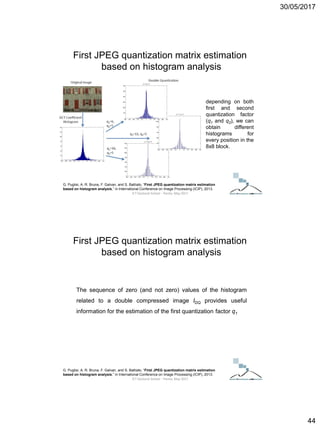

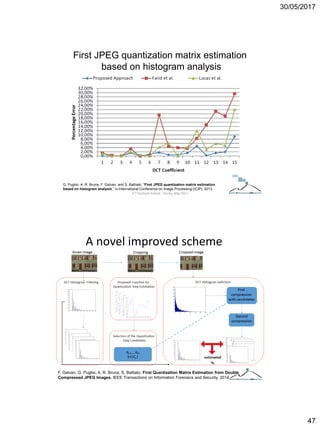

G. Puglisi, A. R. Bruna, F. Galvan, and S. Battiato, “First JPEG quantization matrix estimation
based on histogram analysis,” in International Conference on Image Processing (ICIP), 2013.
First JPEG quantization matrix estimation
based on histogram analysis
The sequence of zero (and not zero) values of the histogram
related to a double compressed image IDQ provides useful
information for the estimation of the first quantization factor q1

30/05/2017
45

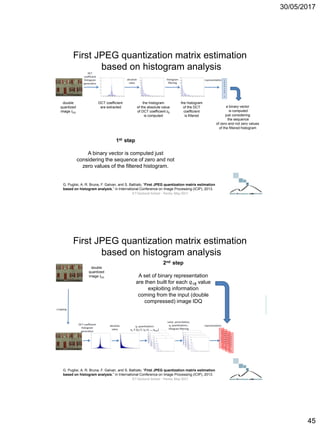

a binary vector is computed just considering the sequence of zero and not zero values of the
filtered histogram
double
quantized
image IDQ
DCT coefficient
are extracted
the histogram
of the absolute value
of DCT coefficient cfj
is computed
the histogram
of the DCT
coefficient
is filtered
a binary vector
is computed
just considering
the sequence
of zero and not zero values
of the filtered histogram
1st step
A binary vector is computed just
considering the sequence of zero and not
zero values of the filtered histogram.
A set of binary representation are then built for each q1ifj
double
quantized
image IDQ
2nd step
A set of binary representation
are then built for each q1ifj value
exploiting information
coming from the input (double
compressed) image IDQ

30/05/2017
46
3rd step
Based on the similarity
between the generated
representations and the
one of the IDQ, a set of q1ifj
candidates are then
selected (Cfj ).
4th step
the refined histograms Hq1s, related to the simulated double quantization
with q1s ∈ Cfj are compared with Hreal obtained from IDQ and the closest one
is selected as follows:
𝑞1𝑓 𝑗
= min
𝑞1𝑠∈𝐶 𝑓𝑗
𝑖=1
𝑁
min(𝑚𝑎𝑥 𝑑𝑖𝑓𝑓 𝐻𝑟𝑒𝑎𝑙 𝑖 − 𝐻 𝑞1𝑠(𝑖) )
Where 𝑞1𝑓 𝑗
indicates the estimated q1 value

30/05/2017
47
A novel improved scheme
F. Galvan, G. Puglisi, A. R. Bruna, S. Battiato, First Quantization Matrix Estimation from Double
Compressed JPEG Images, IEEE Transactions on Information Forensics and Security, 2014.

30/05/2017
48

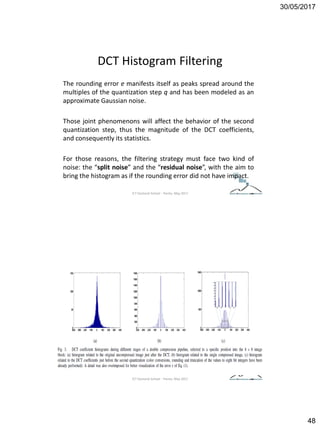

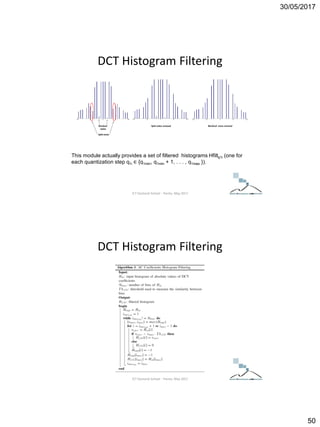

DCT Histogram Filtering
The rounding error e manifests itself as peaks spread around the
multiples of the quantization step q and has been modeled as an
approximate Gaussian noise.
Those joint phenomenons will affect the behavior of the second
quantization step, thus the magnitude of the DCT coefficients,
and consequently its statistics.
For those reasons, the filtering strategy must face two kind of
noise: the “split noise” and the “residual noise”, with the aim to
bring the histogram as if the rounding error did not have impact.

30/05/2017
49

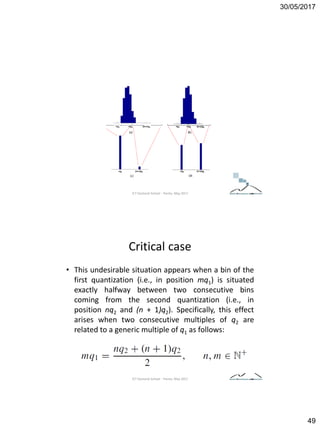

Critical case
• This undesirable situation appears when a bin of the
first quantization (i.e., in position mq1) is situated
exactly halfway between two consecutive bins
coming from the second quantization (i.e., in
position nq2 and (n + 1)q2). Specifically, this effect
arises when two consecutive multiples of q2 are
related to a generic multiple of q1 as follows:

30/05/2017
50
This module actually provides a set of filtered histograms Hfiltq1i (one for
each quantization step q1i ∈ {q1min, q1min + 1, . . . , q1max }).

30/05/2017
51

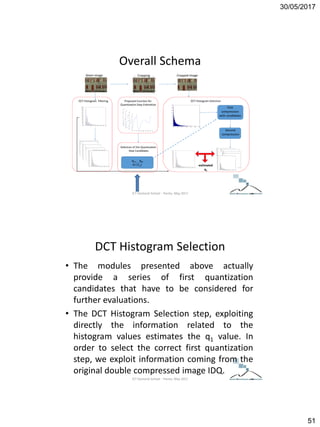

Overall Schema
DCT Histogram Selection
• The modules presented above actually
provide a series of first quantization
candidates that have to be considered for
further evaluations.
• The DCT Histogram Selection step, exploiting
directly the information related to the
histogram values estimates the q1 value. In
order to select the correct first quantization
step, we exploit information coming from the
original double compressed image IDQ.

30/05/2017
52

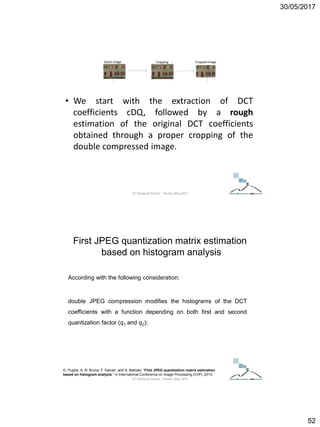

• We start with the extraction of DCT
coefficients cDQ, followed by a rough
estimation of the original DCT coefficients
obtained through a proper cropping of the
double compressed image.
According with the following consideration:
double JPEG compression modifies the histograms of the DCT
coefficients with a function depending on both first and second
quantization factor (q1 and q2);

30/05/2017
53

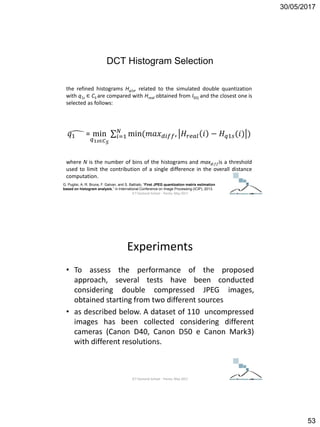

the refined histograms Hq1s, related to the simulated double quantization
with q1s ∈ CS are compared with Hreal obtained from IDQ and the closest one is
selected as follows:
𝑞1 = min
𝑞1𝑠∈𝐶 𝑆
𝑖=1
𝑁
min(𝑚𝑎𝑥 𝑑𝑖𝑓𝑓, 𝐻𝑟𝑒𝑎𝑙 𝑖 − 𝐻 𝑞1𝑠(𝑖) )
where N is the number of bins of the histograms and maxdi f f is a threshold
used to limit the contribution of a single difference in the overall distance
computation.
DCT Histogram Selection
Experiments
• To assess the performance of the proposed
approach, several tests have been conducted
considering double compressed JPEG images,
obtained starting from two different sources
• as described below. A dataset of 110 uncompressed
images has been collected considering different
cameras (Canon D40, Canon D50 e Canon Mark3)
with different resolutions.

30/05/2017
54

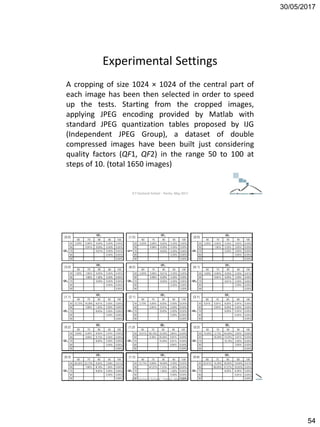

Experimental Settings
A cropping of size 1024 × 1024 of the central part of
each image has been then selected in order to speed
up the tests. Starting from the cropped images,
applying JPEG encoding provided by Matlab with
standard JPEG quantization tables proposed by IJG
(Independent JPEG Group), a dataset of double
compressed images have been built just considering
quality factors (QF1, QF2) in the range 50 to 100 at
steps of 10. (total 1650 images)

30/05/2017
55

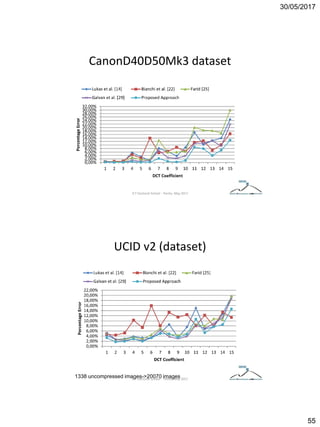

CanonD40D50Mk3 dataset
UCID v2 (dataset)
1338 uncompressed images->20070 imagesICT Doctoral School - Trento, May 2017

30/05/2017
56
Conclusions
In this work we proposed a novel algorithm for the estimation
of the first quantization steps from double compressed JPEG
images. The proposed approach, combining a filtering strategy
and an error function with a good q1-localization property,
obtains satisfactory results outperforming the other state-of-
the-art approaches both for low and high frequencies.
Future works will be devoted to cope with the case when q1 <
q2, and to exploit the proposed approach to recover the
overall initial quantization matrix considering a double
compression process achieved by applying actual quantization
tables used by camera devices and common photo-retouching
software (e.g., Photoshop, Gimp, etc.).
Recent Works
• Singh, G. & Singh, K. Forensics for partially double compressed doctored JPEG images -
Multimed Tools Appl (2016). doi:10.1007/s11042-016-4290-5
• Abstract. Digital image forensics is required to investigate unethical use of doctored images by
recovering the historic information of an image. Most of the cameras compress the image using
JPEG standard. When this image is decompressed and recompressed with different quantization
matrix, it becomes double compressed. Although in certain cases, e.g. after a cropping attack, the
image can be recompressed with the same quantization matrix too. This JPEG double compression
becomes an integral part of forgery creation. The detection and analysis of double compression in
an image help the investigator to find the authenticity of an image. In this paper, a two-stage
technique is proposed to estimate the first quantization matrix or steps from the partial double
compressed JPEG images. In the first stage of the proposed approach, the detection of the
double compressed region through JPEG ghost technique is extended to the automatic isolation
of the doubly compressed part from an image. The second stage analyzes the doubly
compressed part to estimate the first quantization matrix or steps. In the latter stage, an
optimized filtering scheme is also proposed to cope with the effects of the error. The results of
proposed scheme are evaluated by considering partial double compressed images based on the
two different datasets. The partial double compressed datasets have not been considered in the
previous state-of-the-art approaches. The first stage of the proposed scheme provides an average
percentage accuracy of 95.45%. The second stage provides an error less than 1.5% for the first 10
DCT coefficients, hence, outperforming the existing techniques. The experimental results consider
the partial double compressed images in which the recompression is done with different
quantization matrix.

30/05/2017
57

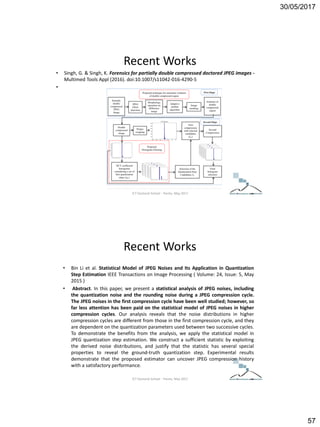

Recent Works
• Singh, G. & Singh, K. Forensics for partially double compressed doctored JPEG images -
Multimed Tools Appl (2016). doi:10.1007/s11042-016-4290-5
•
Recent Works
• Bin Li et al. Statistical Model of JPEG Noises and Its Application in Quantization
Step Estimation IEEE Transactions on Image Processing ( Volume: 24, Issue: 5, May
2015 )
• Abstract. In this paper, we present a statistical analysis of JPEG noises, including
the quantization noise and the rounding noise during a JPEG compression cycle.
The JPEG noises in the first compression cycle have been well studied; however, so
far less attention has been paid on the statistical model of JPEG noises in higher
compression cycles. Our analysis reveals that the noise distributions in higher
compression cycles are different from those in the first compression cycle, and they
are dependent on the quantization parameters used between two successive cycles.
To demonstrate the benefits from the analysis, we apply the statistical model in
JPEG quantization step estimation. We construct a sufficient statistic by exploiting
the derived noise distributions, and justify that the statistic has several special
properties to reveal the ground-truth quantization step. Experimental results
demonstrate that the proposed estimator can uncover JPEG compression history
with a satisfactory performance.

30/05/2017
58
Recent Works
• Bin Li et al. Revealing the Trace of High-Quality JPEG Compression Through
Quantization Noise Analysis IEEE Transactions on Information Forensics and
Security ( Volume: 10, Issue: 3, March 2015 )
• Abstract. To identify whether an image has been JPEG compressed is an important
issue in forensic practice. The state-of-the-art methods fail to identify high-quality
compressed images, which are common on the Internet. In this paper, we provide a
novel quantization noise-based solution to reveal the traces of JPEG compression.
Based on the analysis of noises in multiple-cycle JPEG compression, we define a
quantity called forward quantization noise. We analytically derive that a
decompressed JPEG image has a lower variance of forward quantization noise than
its uncompressed counterpart. With the conclusion, we develop a simple yet very
effective detection algorithm to identify decompressed JPEG images. We show that
our method outperforms the state-of-the-art methods by a large margin especially
for high-quality compressed images through extensive experiments on various
sources of images. We also demonstrate that the proposed method is robust to
small image size and chroma subsampling. The proposed algorithm can be applied
in some practical applications, such as Internet image classification and forgery
detection. ICT Doctoral School - Trento, May 2017
Recent Works
• Taimori, A., Razzazi, F., Behrad, A. et al. A novel forensic image analysis tool for
discovering double JPEG compression clues Multimed Tools Appl (2017) 76: 7749.
doi:10.1007/s11042-016-3409-z
• Abstract. This paper presents a novel technique to discover double JPEG
compression traces. Existing detectors only operate in a scenario that the image
under investigation is explicitly available in JPEG format. Consequently, if
quantization information of JPEG files is unknown, their performance dramatically
degrades. Our method addresses both forensic scenarios which results in a fresh
perceptual detection pipeline. We suggest a dimensionality reduction algorithm to
visualize behaviors of a big database including various single and double
compressed images. Based on intuitions of visualization, three bottom-up, top-
down and combined top-down/bottom-up learning strategies are proposed. Our
tool discriminates single compressed images from double counterparts, estimates
the first quantization in double compression, and localizes tampered regions in a
forgery examination. Extensive experiments on three databases demonstrate results
are robust among different quality levels. F1-measure improvement to the best
state-of-the-art approach reaches up to 26.32 %. An implementation of algorithms
is available upon request to fellows.ICT Doctoral School - Trento, May 2017

30/05/2017
59

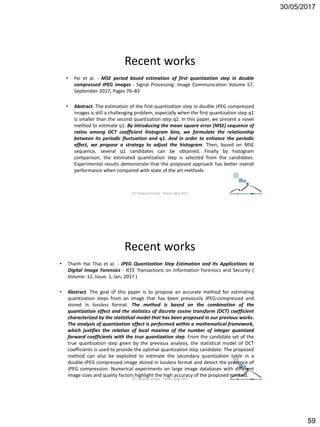

Recent works
• Fei et al. - MSE period based estimation of first quantization step in double
compressed JPEG images - Signal Processing: Image Communication Volume 57,
September 2017, Pages 76–83
• Abstract. The estimation of the first quantization step in double JPEG compressed
images is still a challenging problem, especially when the first quantization step q1
is smaller than the second quantization step q2. In this paper, we present a novel
method to estimate q1. By introducing the mean square error (MSE) sequence of
ratios among DCT coefficient histogram bins, we formulate the relationship
between its periodic fluctuation and q1. And in order to enhance the periodic
effect, we propose a strategy to adjust the histogram. Then, based on MSE
sequence, several q1 candidates can be obtained. Finally by histogram
comparison, the estimated quantization step is selected from the candidates.
Experimental results demonstrate that the proposed approach has better overall
performance when compared with state of the art methods.
Recent works
• Thanh Hai Thai et al. - JPEG Quantization Step Estimation and Its Applications to
Digital Image Forensics - IEEE Transactions on Information Forensics and Security (
Volume: 12, Issue: 1, Jan. 2017 )
• Abstract. The goal of this paper is to propose an accurate method for estimating
quantization steps from an image that has been previously JPEG-compressed and
stored in lossless format. The method is based on the combination of the
quantization effect and the statistics of discrete cosine transform (DCT) coefficient
characterized by the statistical model that has been proposed in our previous works.
The analysis of quantization effect is performed within a mathematical framework,
which justifies the relation of local maxima of the number of integer quantized
forward coefficients with the true quantization step. From the candidate set of the
true quantization step given by the previous analysis, the statistical model of DCT
coefficients is used to provide the optimal quantization step candidate. The proposed
method can also be exploited to estimate the secondary quantization table in a
double-JPEG compressed image stored in lossless format and detect the presence of
JPEG compression. Numerical experiments on large image databases with different
image sizes and quality factors highlight the high accuracy of the proposed method.

30/05/2017
60

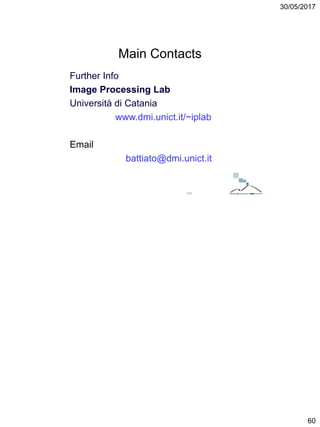

Main Contacts
Further Info
Image Processing Lab
Università di Catania
www.dmi.unict.it/~iplab
Email
battiato@dmi.unict.it
120

Multimedia Security - JPEG Artifact details

More Related Content

What's hot

Viewers also liked

Similar to Multimedia Security - JPEG Artifact details

More from Sebastiano Battiato

Recently uploaded

Multimedia Security - JPEG Artifact details
