IJSRD - International Journal for Scientific Research & Development| Vol. 3, Issue 10, 2015 | ISSN (online): 2321-0613
All rights reserved by www.ijsrd.com 147
A Review on Image Compression using DCT and DWT
Madhu Ahuja1
Sanjivani Shantaiya2
1,2
Department of Computer Science & Engineering
1,2
DIMAT, Raipur, India
Abstract— Image Compression addresses the matter of
reducing the amount of data needed to represent the digital
image. There are several transformation techniques used for
data compression. Discrete Cosine Transform (DCT) and
Discrete Wavelet Transform (DWT) is mostly used
transformation. The Discrete cosine transform (DCT) is a
method for transform an image from spatial domain to
frequency domain. DCT has high energy compaction
property and requires less computational resources. On the
other hand, DWT is multi resolution transformation. The
research paper includes various approaches that have been
used by different researchers for Image Compression. The
analysis has been carried out in terms of performance
parameters Peak signal to noise ratio, Bit error rate,
Compression ratio, Mean square error. and time taken for
decomposition and reconstruction.
Key words: Compression, DCT, DWT, MSE, SNR, PSNR
I. INTRODUCTION
An image can be defined as a matrix of pixel or intensity
values. Image compression is used to reduce the redundancy
and randomness present in the image because to increase the
storing capacity and efficiency level of the images.
Therefore it is essential to compress the images by storing
only the required information needed to reconstruct the
image. To compress any image, redundancy must be
removed. Sometimes images having large areas of same
color will have large redundancies and similarly images that
have frequent and large changes in color will be less
redundant and harder to compress.
II. FUNDAMENTALS OF IMAGE COMPRESSION TECHNIQUES
A digital image, or "bitmap", consists of a grid of dots, or
"pixels", with each pixel defined by a numeric value that
represents its colour. A Typical characteristic of most
images is that the neighboring pixels are correlated and
therefore contain redundant information. The foremost task
then is to find less correlated representation of the image. In
general, there are three types of redundancy:
A. Coding Redundancy
Use smaller code words for the commonly used gray levels
and longer code words for the less commonly used gray
levels. This is an example of Variable Length Coding. To
reduce coding redundancy from an image we use Huffman
technique where we assign fewer bits to the more probable
gray levels than to the less probable ones to achieve
sufficient data compression[10]
B. Inter Pixel Redundancy
Another important type of data redundancy is inter pixel
redundancy, which is directly related to the inter pixel
correlations within an image. Because the value for any
given pixel can be reasonable predicted from the value of its
neighbours, the information carried by individual pixels is
relatively small. Much of the visual contribution of a single
pixel to an image is redundant; it could have been guessed
on the basis of its neighbor’s values. A variety of names,
including spatial redundancy, geometric redundancy, and
inter frame Redundancies have been given to refer to these
inter pixel dependencies.[10]
C. Psycho Visual Redundancy
Human perception of the information in an image normally
doesn't involve quantitative analysis of every pixel or
luminance value in the image. In general, an observer
searches for distinguishing features such as edges or textural
regions and mentally combines them into recognizable
groupings. The brain then correlates these groupings with
prior knowledge in order to complete the image
interpretation process. So eye doesn't respond with equal
sensitivity to all visual information. Certain information
simply has less relative importance than other information in
normal visual processing. This information is called psycho
visually redundant. To reduce psycho visual redundancy
quantizer is used. Therefore, the elimination of psycho
visually redundant.[10]
III. WHAT ARE THE DIFFERENT CLASSES OF COMPRESSION
TECHNIQUES?
Two ways of classifying compression techniques are
mentioned here.
A. Lossless vs. Lossy compression
In lossless compression schemes, After compression the
reconstructed image is numerically identical to the original
image. However lossless compression can only achieve a
modest amount of compression. In lossy compression An
image reconstructed is degraded relative to the original. This
is because lossy compression scheme completely discards
redundant information. However, lossy schemes are capable
of achieving much higher data compression. Under normal
viewing conditions, no visible loss is perceived (visually
lossless).
B. Predictive vs. Transform coding
In predictive coding, information already available or sent is
used to predict future values, and the difference is coded.
Since this is done in the image or spatial domain, it is
relatively simple to implement and is readily adapted to
local image characteristics. Differential Pulse Code
Modulation (DPCM) is an example of predictive coding[4].
Transform coding, on the other hand, first transforms the
image from its spatial domain representation to a different
type of representation using transformation techniques and
then codes the transformed values (coefficients). This
method provides greater data compression compared to
predictive methods, although at the expense of greater
computation.
A Review on Image Compression using DCT and DWT
(IJSRD/Vol. 3/Issue 10/2015/032)
All rights reserved by www.ijsrd.com 148
IV. VARIOUS COMPRESSION TECHNIQUES
A. DCT-Based Image Coding Standard
Discrete Cosine Transform (DCT) exploits cosine functions,
it transform a signal from spatial representation into
frequency domain. The DCT represents an image as a sum
of sinusoids of varying magnitudes and frequencies. DCT
has the property that, for a typical image most of the
visually significant information about an image is
concentrated in just few coefficients of DCT .
1) Forward DCT
1 1
0 0
2 (2 1) (2 1)
( , ) ( ) ( ) ( , )cos cos
2 2
for 0,..., 1 and 0,..., 1
1/ 2 for 0
where 8 and ( )
1 otherwise
N N
x y
x u y v
F u v C u C v f x y
N N N
u N v N
k
N C k
  
 
    
    
   
   
 
  


2) Inverse DCT:
1 1
0 0
2 (2 1) (2 1)
( , ) ( ) ( ) ( , )cos cos
2 2
for 0,..., 1 and 0,..., 1 where 8
N N
u v
x u y v
f x y C u C v F u v
N N N
x N y N N
  
 
    
    
   
    

Nageswara Rao Thota et al. (2008) [3] proposes Image
Compression Using Discrete Cosine Transform. DCT
images are divided into blocks of 8x8 or 16x16 or bigger.
The problem with these blocks is that when the image is
reduced to higher compression ratios, these blocks become
visible One of the main problems and the limitation of the
DCT is the blocking effect. The following table1 shows the
test reports in the image compression using DCT
The following table1 shows the test reports in the
image compression using DCT
Maneesha Gupta et al. ( 2012) [5] proposes some
simple functions to compute the DCT and to compress
images. Image Compression is studied using 2-D DCT. The
original image is transformed in 8-by-8 blocks and then
inverse transformed in 8-by-8 blocks to form the
reconstructed image. The inverse DCT would be performed
using the subset of DCT coefficients. The error image (the
difference between the original and reconstructed image)
would be displayed. The results shows that DCT exploits
inter pixel redundancies to render excellent decorrelation for
most natural images. Therefore all transform coefficients
can be encoded independently without compromising
coding efficiency. In addition, the DCT packs energy in the
low frequency coefficients. Therefore, some of the high
frequency coefficients can be discarded without degradation
in image quality.
B. Image Compression by Wavelet Transform:
A "wavelet" mathematical function is used to divide a given
function or continuous-time signal into different wave
signals. It is the delegation of a function by wavelets. The
Haar wavelet is the simplest wavelet. The limitation of the
Haar wavelet is that it is not continuous, and therefore not
differentiable. The Haar wavelet's mother wavelet function
ψ(t) can be described as
and its scaling function φ(t) can be described as
Sonja Grgic, et al. (2009) [6] proposes a set of
wavelet functions (wavelets) for implementation in image
compression system and to highlight the benefit of this
transform relating to new methods. The consequences of
different wavelet functions, image contents and compression
ratios are assessed. A comparison with a discrete-cosine-
transform-based compression system is given. The final
choice of optimal wavelet in image compression application
depends on image quality and computational complexity.
Amina Khatun et al. (2012) [7] have proposed the
new image compression scheme with pruning based on
discrete wavelet transformation (DWT). The effectiveness
of the algorithm has been justified over some real images,
and the performance of the algorithm has been compared
with different common compression standards.
Experimental results demonstrate that the proposed
technique provides sufficient high compression ratios
compared to different compression techniques. A new image
compression scheme based on discrete wavelet transform is
proposed which provides high compression ratios with no
considerable degradation of image quality. The effectiveness
and robustness of this approach has been justified using a set
of real images. To demonstrate the performance of the
proposed method, a comparison between the proposed
technique and other common compression techniques has
been revealed. From the experimental results it is evident
that, the proposed compression technique gives better
performance compared to other traditional techniques. Both
DCT and DWT are very popular compression techniques for
colour and grey level images. There are many flavours in
each technique. In this a hybridised form of the techniques
are implemented for compressing images.
Aisha Fernandes, Wilson Jeberson et al(2014)[11]
proposes wavelet transform and the Antonini 7/9 filter [5]
for compressing an image. It is thus seen that images
compressed decompressed using the proposed wavelet based
compression algorithm (WCP) produces consistently better
images and a higher PSNR (Peak signal to noise ratio) than
the jpeg compression algorithm at the same compression
percentage.
(a) (b) (c)
A Review on Image Compression using DCT and DWT
(IJSRD/Vol. 3/Issue 10/2015/032)
All rights reserved by www.ijsrd.com 149
Fig. 1: Comparison of visual image quality for the test
image cameraman.bmp at a compression ratio of 9:1. (a)
Original image (b) wcp compressed image (c) Jpeg
compressed image.
C. Hybridised DCT and DWT Compression
Prabhakar.Telagarapu, A.Lakshmi.Prasanthi, G.Vijaya
Santhi, V.Jagan Naveen et al (2011)[1] proposes an DCT
and DWT for image compression and decompression. By
taking several images as inputs, it is observed that Mean
Square Error is low and Peak Signal to Noise Ratio is high
in DWT than DCT based compression. From the results it is
concluded that on the basis of compression ratio overall
performance of DWT is better than DCT. In Discrete Cosine
Transform image need to be “blocked”, correlation is found
across the block boundaries which can't eliminated which
results in noticeable and annoying, blocking artifacts‟
particularly at low bit rates. Wavelets are good to represent
the point singularities and it cannot represent line
singularities.
(a) (b)
Fig. 2: shows (a) Original Image (b) Original Histogram
(a) (b)
Fig 3: shows (a) DCT decompressed image (b) DCT
decompressed histogram
(a) (b)
Fig. 4: shows (a) DWT decompressed image (b) DWT
decompressed histogram
Vellaiappan Elamaran et al. (2012) [2] proposes a
Comparison of DCT and Wavelets in Image coding. Fourier
based transforms (e.g. DCT and DFT) are efficient in
exploiting the low frequency nature of an image. The high
frequency coefficients are coarsely quantized, and therefore
the reconstructed image at the edges will have poor quality.
On the other hand, wavelets are efficient in representing non
stationary signals because of the adaptive time-frequency
window. So the Discrete Wavelet Transform (DWT) is
applied in an image and the PSNR of both DCT and DWT is
compared. A comparison and analysis and of image
compression using DCT and DWT is demonstrated.
K.Saraswathy et al. (2013) [4] have proposes an orthogonal
approximation for the 8 point Discrete Cosine Transform
(DCT). The proposed transformation matrix contains only
ones and zeros. Bit shift operations and multiplication
operations are absent. The approximate transform of DCT is
obtained to meet the low complexity requirements. The
hybrid results obtained from the work will shows clearly the
efficiency of the proposed transform in image compression.
Finally, the new approximation offers the users another
options for mathematical analysis and circuit
implementations. The new approximate transform matrix
has rows constructed from a different mathematical structure
when compared to DCT. These rows can be considered in
the design of hybrid algorithm which take advantage of the
best matrix rows from the existing algorithm aiming at novel
improved approximate transform.
According to Author Ch.Sathi Raju and D.V.Rama
Koti Reddy et al (2015) [12] Compression is a serious
problem in capsule endoscopy applications. It dictates the
power consumption characteristics and the capsule life. In
this paper a hybrid DCT and DWT compression method is
employed to capitalise the advantages of both the
techniques. It involves in applying a three level DWT on the
input image. The DWT compressed image is taken for
quantization and further zeros are eliminated from the
matrices. Further is subjected to compression using
arithmetic coding(AC). Now 1D DCT is applied to the LL3
image and followed by the process of quantization and
eliminating zeros and applying arithmetic coding is repeated
for satisfactory compression. The color data is extracted
from the compressed image. This color data is further serves
as input to the decompression section. The decompression
process is simply reverse to the compression process. The
results pertaining to the simulated experiment are presented
in this section. Lena images are considered initially and the
proposed technique is applied on it. The corresponding
original and decompressed images are presented in Fig.5
(a) (b)
Fig. 5: 'Lena' image (a) Original and (b) decompressed
V. CONCLUSION AND FUTURE WORK
This paper represents the concept of compression and varied
technologies used in the image compression comparing the
performance of compression technique identical data sets
and performance measure are used. In this paper

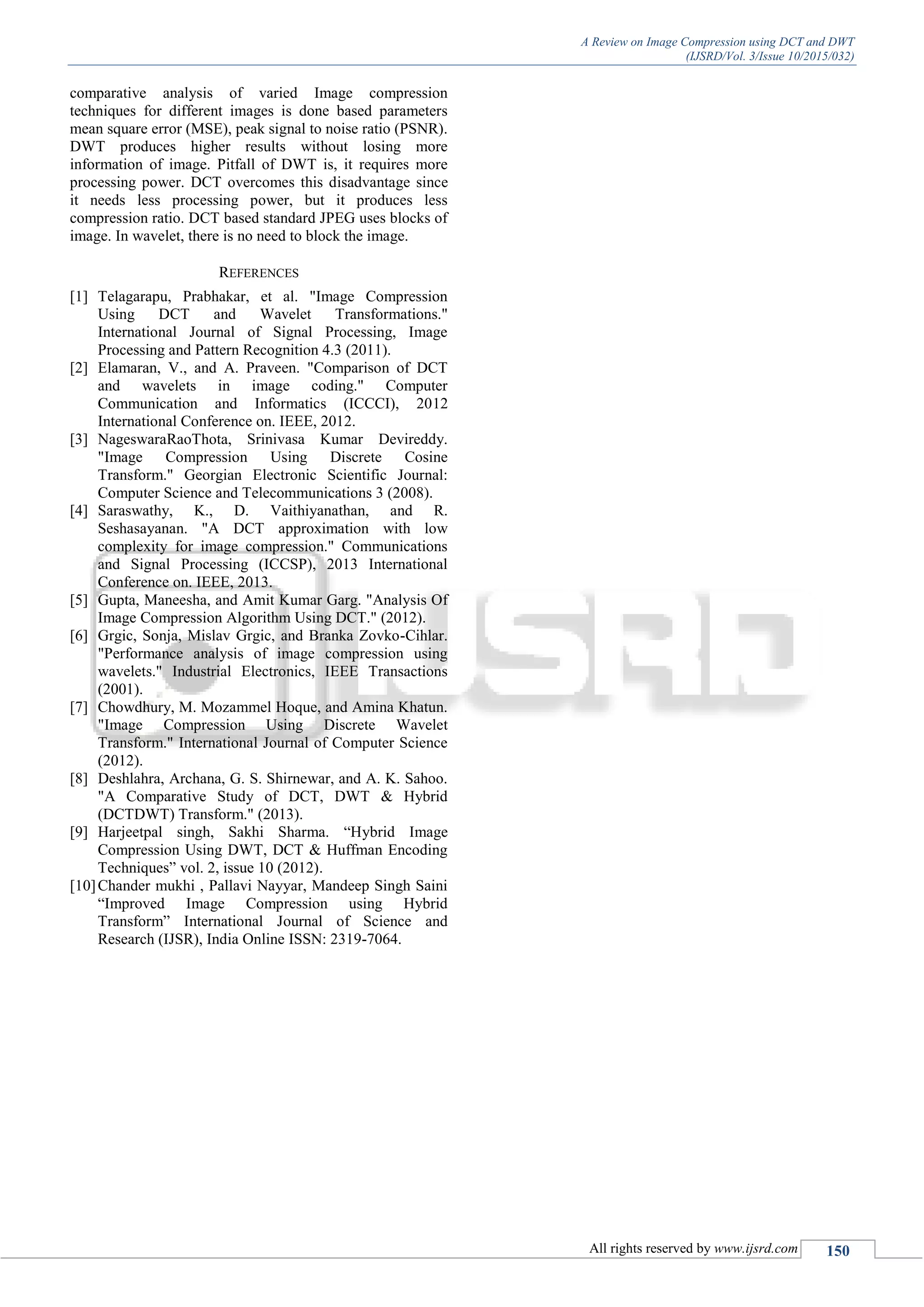

A Review on Image Compression using DCT and DWT
(IJSRD/Vol. 3/Issue 10/2015/032)
All rights reserved by www.ijsrd.com 150
comparative analysis of varied Image compression
techniques for different images is done based parameters
mean square error (MSE), peak signal to noise ratio (PSNR).
DWT produces higher results without losing more
information of image. Pitfall of DWT is, it requires more
processing power. DCT overcomes this disadvantage since
it needs less processing power, but it produces less
compression ratio. DCT based standard JPEG uses blocks of
image. In wavelet, there is no need to block the image.
REFERENCES
[1] Telagarapu, Prabhakar, et al. "Image Compression
Using DCT and Wavelet Transformations."
International Journal of Signal Processing, Image
Processing and Pattern Recognition 4.3 (2011).
[2] Elamaran, V., and A. Praveen. "Comparison of DCT
and wavelets in image coding." Computer
Communication and Informatics (ICCCI), 2012
International Conference on. IEEE, 2012.
[3] NageswaraRaoThota, Srinivasa Kumar Devireddy.
"Image Compression Using Discrete Cosine
Transform." Georgian Electronic Scientific Journal:
Computer Science and Telecommunications 3 (2008).
[4] Saraswathy, K., D. Vaithiyanathan, and R.
Seshasayanan. "A DCT approximation with low
complexity for image compression." Communications
and Signal Processing (ICCSP), 2013 International
Conference on. IEEE, 2013.
[5] Gupta, Maneesha, and Amit Kumar Garg. "Analysis Of
Image Compression Algorithm Using DCT." (2012).
[6] Grgic, Sonja, Mislav Grgic, and Branka Zovko-Cihlar.
"Performance analysis of image compression using
wavelets." Industrial Electronics, IEEE Transactions
(2001).
[7] Chowdhury, M. Mozammel Hoque, and Amina Khatun.
"Image Compression Using Discrete Wavelet
Transform." International Journal of Computer Science
(2012).
[8] Deshlahra, Archana, G. S. Shirnewar, and A. K. Sahoo.
"A Comparative Study of DCT, DWT & Hybrid
(DCTDWT) Transform." (2013).
[9] Harjeetpal singh, Sakhi Sharma. “Hybrid Image
Compression Using DWT, DCT & Huffman Encoding
Techniques” vol. 2, issue 10 (2012).
[10]Chander mukhi , Pallavi Nayyar, Mandeep Singh Saini
“Improved Image Compression using Hybrid
Transform” International Journal of Science and
Research (IJSR), India Online ISSN: 2319-7064.

More Related Content

What's hot

Discrete cosine transform
Discrete cosine transform   Discrete cosine transform
Discrete cosine transform
Rashmi Karkra

Multimedia image compression standards
Multimedia image compression standardsMultimedia image compression standards
Multimedia image compression standards
Mazin Alwaaly

Medical Image Compression
Medical Image CompressionMedical Image Compression
Medical Image Compression
Paramjeet Singh Jamwal

Jpeg
JpegJpeg
Multimedia lossy compression algorithms
Multimedia lossy compression algorithmsMultimedia lossy compression algorithms
Multimedia lossy compression algorithms
Mazin Alwaaly

Data compression using huffman coding
Data compression using huffman codingData compression using huffman coding
Data compression using huffman coding
SATYENDRAKUMAR279

Presentation of Lossy compression
Presentation of Lossy compressionPresentation of Lossy compression
Presentation of Lossy compression
Omar Ghazi

Jpeg image compression using discrete cosine transform a survey
Jpeg image compression using discrete cosine transform   a surveyJpeg image compression using discrete cosine transform   a survey
Jpeg image compression using discrete cosine transform a survey
IJCSES Journal

Image compression using discrete cosine transform
Image compression using discrete cosine transformImage compression using discrete cosine transform
Image compression using discrete cosine transform
manoj kumar

Image compression introductory presentation
Image compression introductory presentationImage compression introductory presentation
Image compression introductory presentation
Tariq Abbas

Project004
Project004Project004
Project004
Chad Weiss

Image Processing Basics
Image Processing BasicsImage Processing Basics
Image Processing Basics
Nam Le

Efficient Image Compression Technique using JPEG2000 with Adaptive Threshold
Efficient Image Compression Technique using JPEG2000 with Adaptive ThresholdEfficient Image Compression Technique using JPEG2000 with Adaptive Threshold
Efficient Image Compression Technique using JPEG2000 with Adaptive Threshold
CSCJournals

JPEG Image Compression
JPEG Image CompressionJPEG Image Compression
JPEG Image Compression
Aishwarya K. M.

Medical image compression
Medical image compressionMedical image compression
Medical image compression
Paramjeet Singh Jamwal

JPEG
JPEGJPEG
Introduction of image processing
Introduction of image processingIntroduction of image processing
Introduction of image processing
Avani Shah

Intelligent Parallel Processing and Compound Image Compression
Intelligent Parallel Processing and Compound Image CompressionIntelligent Parallel Processing and Compound Image Compression
Intelligent Parallel Processing and Compound Image Compression
DR.P.S.JAGADEESH KUMAR

Performance Analysis of Compression Techniques Using SVD, BTC, DCT and GP
Performance Analysis of Compression Techniques Using SVD, BTC, DCT and GPPerformance Analysis of Compression Techniques Using SVD, BTC, DCT and GP
Performance Analysis of Compression Techniques Using SVD, BTC, DCT and GP
IOSR Journals

Multimedia communication jpeg
Multimedia communication jpegMultimedia communication jpeg
Multimedia communication jpeg
Dr. Kapil Gupta


What's hot (20)

Discrete cosine transform
Discrete cosine transform   Discrete cosine transform
Discrete cosine transform

Multimedia image compression standards
Multimedia image compression standardsMultimedia image compression standards
Multimedia image compression standards

Medical Image Compression
Medical Image CompressionMedical Image Compression
Medical Image Compression

Jpeg
JpegJpeg
Jpeg

Multimedia lossy compression algorithms
Multimedia lossy compression algorithmsMultimedia lossy compression algorithms
Multimedia lossy compression algorithms

Data compression using huffman coding
Data compression using huffman codingData compression using huffman coding
Data compression using huffman coding

Presentation of Lossy compression
Presentation of Lossy compressionPresentation of Lossy compression
Presentation of Lossy compression

Jpeg image compression using discrete cosine transform a survey
Jpeg image compression using discrete cosine transform   a surveyJpeg image compression using discrete cosine transform   a survey
Jpeg image compression using discrete cosine transform a survey

Image compression using discrete cosine transform
Image compression using discrete cosine transformImage compression using discrete cosine transform
Image compression using discrete cosine transform

Image compression introductory presentation
Image compression introductory presentationImage compression introductory presentation
Image compression introductory presentation

Project004
Project004Project004
Project004

Image Processing Basics
Image Processing BasicsImage Processing Basics
Image Processing Basics

Efficient Image Compression Technique using JPEG2000 with Adaptive Threshold
Efficient Image Compression Technique using JPEG2000 with Adaptive ThresholdEfficient Image Compression Technique using JPEG2000 with Adaptive Threshold
Efficient Image Compression Technique using JPEG2000 with Adaptive Threshold

JPEG Image Compression
JPEG Image CompressionJPEG Image Compression
JPEG Image Compression

Medical image compression
Medical image compressionMedical image compression
Medical image compression

JPEG
JPEGJPEG
JPEG

Introduction of image processing
Introduction of image processingIntroduction of image processing
Introduction of image processing

Intelligent Parallel Processing and Compound Image Compression
Intelligent Parallel Processing and Compound Image CompressionIntelligent Parallel Processing and Compound Image Compression
Intelligent Parallel Processing and Compound Image Compression

Performance Analysis of Compression Techniques Using SVD, BTC, DCT and GP
Performance Analysis of Compression Techniques Using SVD, BTC, DCT and GPPerformance Analysis of Compression Techniques Using SVD, BTC, DCT and GP
Performance Analysis of Compression Techniques Using SVD, BTC, DCT and GP

Multimedia communication jpeg
Multimedia communication jpegMultimedia communication jpeg
Multimedia communication jpeg


Viewers also liked

Image Compression
Image CompressionImage Compression
Image Compression
Paramjeet Singh Jamwal

image compression ppt
image compression pptimage compression ppt
image compression ppt
Shivangi Saxena

discrete wavelet transform
discrete wavelet transformdiscrete wavelet transform
discrete wavelet transform
piyush_11

An efficient image compression algorithm using dct biorthogonal wavelet trans...
An efficient image compression algorithm using dct biorthogonal wavelet trans...An efficient image compression algorithm using dct biorthogonal wavelet trans...
An efficient image compression algorithm using dct biorthogonal wavelet trans...
eSAT Journals

Image compression
Image compressionImage compression
Image compression
Ale Johnsan

Image compression
Image compressionImage compression
Image compression
partha pratim deb

The Top Skills That Can Get You Hired in 2017
The Top Skills That Can Get You Hired in 2017The Top Skills That Can Get You Hired in 2017
The Top Skills That Can Get You Hired in 2017
LinkedIn


Viewers also liked (7)

Image Compression
Image CompressionImage Compression
Image Compression

image compression ppt
image compression pptimage compression ppt
image compression ppt

discrete wavelet transform
discrete wavelet transformdiscrete wavelet transform
discrete wavelet transform

An efficient image compression algorithm using dct biorthogonal wavelet trans...
An efficient image compression algorithm using dct biorthogonal wavelet trans...An efficient image compression algorithm using dct biorthogonal wavelet trans...
An efficient image compression algorithm using dct biorthogonal wavelet trans...

Image compression
Image compressionImage compression
Image compression

Image compression
Image compressionImage compression
Image compression

The Top Skills That Can Get You Hired in 2017
The Top Skills That Can Get You Hired in 2017The Top Skills That Can Get You Hired in 2017
The Top Skills That Can Get You Hired in 2017


Similar to A Review on Image Compression using DCT and DWT

Iaetsd performance analysis of discrete cosine
Iaetsd performance analysis of discrete cosineIaetsd performance analysis of discrete cosine
Iaetsd performance analysis of discrete cosine
Iaetsd Iaetsd

3 d discrete cosine transform for image compression
3 d discrete cosine transform for image compression3 d discrete cosine transform for image compression
3 d discrete cosine transform for image compression
Alexander Decker

www.ijerd.com
www.ijerd.comwww.ijerd.com
www.ijerd.com
IJERD Editor

A COMPARATIVE STUDY OF IMAGE COMPRESSION ALGORITHMS
A COMPARATIVE STUDY OF IMAGE COMPRESSION ALGORITHMSA COMPARATIVE STUDY OF IMAGE COMPRESSION ALGORITHMS
A COMPARATIVE STUDY OF IMAGE COMPRESSION ALGORITHMS
Kate Campbell

Digital Image Compression using Hybrid Scheme using DWT and Quantization wit...
Digital Image Compression using Hybrid Scheme using DWT  and Quantization wit...Digital Image Compression using Hybrid Scheme using DWT  and Quantization wit...
Digital Image Compression using Hybrid Scheme using DWT and Quantization wit...
IRJET Journal

I017125357
I017125357I017125357
I017125357
IOSR Journals

Comparative Study between DCT and Wavelet Transform Based Image Compression A...
Comparative Study between DCT and Wavelet Transform Based Image Compression A...Comparative Study between DCT and Wavelet Transform Based Image Compression A...
Comparative Study between DCT and Wavelet Transform Based Image Compression A...
IOSR Journals

Medical Image Compression using DCT with Entropy Encoding and Huffman on MRI ...
Medical Image Compression using DCT with Entropy Encoding and Huffman on MRI ...Medical Image Compression using DCT with Entropy Encoding and Huffman on MRI ...
Medical Image Compression using DCT with Entropy Encoding and Huffman on MRI ...
Associate Professor in VSB Coimbatore

11.0003www.iiste.org call for paper_d_discrete cosine transform for image com...
11.0003www.iiste.org call for paper_d_discrete cosine transform for image com...11.0003www.iiste.org call for paper_d_discrete cosine transform for image com...
11.0003www.iiste.org call for paper_d_discrete cosine transform for image com...
Alexander Decker

H0144952
H0144952H0144952
H0144952
Shetty Brothers

Comparison and improvement of image compression
Comparison and improvement of image compressionComparison and improvement of image compression
Comparison and improvement of image compression
IAEME Publication

Comparison and improvement of image compression
Comparison and improvement of image compressionComparison and improvement of image compression
Comparison and improvement of image compression
IAEME Publication

Comparison and improvement of image compression
Comparison and improvement of image compressionComparison and improvement of image compression
Comparison and improvement of image compression
IAEME Publication

Jv2517361741
Jv2517361741Jv2517361741
Jv2517361741
IJERA Editor

Jv2517361741
Jv2517361741Jv2517361741
Jv2517361741
IJERA Editor

REGION OF INTEREST BASED COMPRESSION OF MEDICAL IMAGE USING DISCRETE WAVELET ...
REGION OF INTEREST BASED COMPRESSION OF MEDICAL IMAGE USING DISCRETE WAVELET ...REGION OF INTEREST BASED COMPRESSION OF MEDICAL IMAGE USING DISCRETE WAVELET ...
REGION OF INTEREST BASED COMPRESSION OF MEDICAL IMAGE USING DISCRETE WAVELET ...
ijcsa

BIG DATA-DRIVEN FAST REDUCING THE VISUAL BLOCK ARTIFACTS OF DCT COMPRESSED IM...
BIG DATA-DRIVEN FAST REDUCING THE VISUAL BLOCK ARTIFACTS OF DCT COMPRESSED IM...BIG DATA-DRIVEN FAST REDUCING THE VISUAL BLOCK ARTIFACTS OF DCT COMPRESSED IM...
BIG DATA-DRIVEN FAST REDUCING THE VISUAL BLOCK ARTIFACTS OF DCT COMPRESSED IM...
IJDKP

Wavelet based Image Coding Schemes: A Recent Survey
Wavelet based Image Coding Schemes: A Recent Survey  Wavelet based Image Coding Schemes: A Recent Survey
Wavelet based Image Coding Schemes: A Recent Survey
ijsc

International Journal on Soft Computing ( IJSC )
International Journal on Soft Computing ( IJSC )International Journal on Soft Computing ( IJSC )
International Journal on Soft Computing ( IJSC )
ijsc

An approach for color image compression of bmp and tiff images using dct and dwt
An approach for color image compression of bmp and tiff images using dct and dwtAn approach for color image compression of bmp and tiff images using dct and dwt
An approach for color image compression of bmp and tiff images using dct and dwt
IAEME Publication


Similar to A Review on Image Compression using DCT and DWT (20)

Iaetsd performance analysis of discrete cosine
Iaetsd performance analysis of discrete cosineIaetsd performance analysis of discrete cosine
Iaetsd performance analysis of discrete cosine

3 d discrete cosine transform for image compression
3 d discrete cosine transform for image compression3 d discrete cosine transform for image compression
3 d discrete cosine transform for image compression

www.ijerd.com
www.ijerd.comwww.ijerd.com
www.ijerd.com

A COMPARATIVE STUDY OF IMAGE COMPRESSION ALGORITHMS
A COMPARATIVE STUDY OF IMAGE COMPRESSION ALGORITHMSA COMPARATIVE STUDY OF IMAGE COMPRESSION ALGORITHMS
A COMPARATIVE STUDY OF IMAGE COMPRESSION ALGORITHMS

Digital Image Compression using Hybrid Scheme using DWT and Quantization wit...
Digital Image Compression using Hybrid Scheme using DWT  and Quantization wit...Digital Image Compression using Hybrid Scheme using DWT  and Quantization wit...
Digital Image Compression using Hybrid Scheme using DWT and Quantization wit...

I017125357
I017125357I017125357
I017125357

Comparative Study between DCT and Wavelet Transform Based Image Compression A...
Comparative Study between DCT and Wavelet Transform Based Image Compression A...Comparative Study between DCT and Wavelet Transform Based Image Compression A...
Comparative Study between DCT and Wavelet Transform Based Image Compression A...

Medical Image Compression using DCT with Entropy Encoding and Huffman on MRI ...
Medical Image Compression using DCT with Entropy Encoding and Huffman on MRI ...Medical Image Compression using DCT with Entropy Encoding and Huffman on MRI ...
Medical Image Compression using DCT with Entropy Encoding and Huffman on MRI ...

11.0003www.iiste.org call for paper_d_discrete cosine transform for image com...
11.0003www.iiste.org call for paper_d_discrete cosine transform for image com...11.0003www.iiste.org call for paper_d_discrete cosine transform for image com...
11.0003www.iiste.org call for paper_d_discrete cosine transform for image com...

H0144952
H0144952H0144952
H0144952

Comparison and improvement of image compression
Comparison and improvement of image compressionComparison and improvement of image compression
Comparison and improvement of image compression

Comparison and improvement of image compression
Comparison and improvement of image compressionComparison and improvement of image compression
Comparison and improvement of image compression

Comparison and improvement of image compression
Comparison and improvement of image compressionComparison and improvement of image compression
Comparison and improvement of image compression

Jv2517361741
Jv2517361741Jv2517361741
Jv2517361741

Jv2517361741
Jv2517361741Jv2517361741
Jv2517361741

REGION OF INTEREST BASED COMPRESSION OF MEDICAL IMAGE USING DISCRETE WAVELET ...
REGION OF INTEREST BASED COMPRESSION OF MEDICAL IMAGE USING DISCRETE WAVELET ...REGION OF INTEREST BASED COMPRESSION OF MEDICAL IMAGE USING DISCRETE WAVELET ...
REGION OF INTEREST BASED COMPRESSION OF MEDICAL IMAGE USING DISCRETE WAVELET ...

BIG DATA-DRIVEN FAST REDUCING THE VISUAL BLOCK ARTIFACTS OF DCT COMPRESSED IM...
BIG DATA-DRIVEN FAST REDUCING THE VISUAL BLOCK ARTIFACTS OF DCT COMPRESSED IM...BIG DATA-DRIVEN FAST REDUCING THE VISUAL BLOCK ARTIFACTS OF DCT COMPRESSED IM...
BIG DATA-DRIVEN FAST REDUCING THE VISUAL BLOCK ARTIFACTS OF DCT COMPRESSED IM...

Wavelet based Image Coding Schemes: A Recent Survey
Wavelet based Image Coding Schemes: A Recent Survey  Wavelet based Image Coding Schemes: A Recent Survey
Wavelet based Image Coding Schemes: A Recent Survey

International Journal on Soft Computing ( IJSC )
International Journal on Soft Computing ( IJSC )International Journal on Soft Computing ( IJSC )
International Journal on Soft Computing ( IJSC )

An approach for color image compression of bmp and tiff images using dct and dwt
An approach for color image compression of bmp and tiff images using dct and dwtAn approach for color image compression of bmp and tiff images using dct and dwt
An approach for color image compression of bmp and tiff images using dct and dwt


More from IJSRD

#IJSRD #Research Paper Publication
#IJSRD #Research Paper Publication#IJSRD #Research Paper Publication
#IJSRD #Research Paper Publication
IJSRD

Maintaining Data Confidentiality in Association Rule Mining in Distributed En...
Maintaining Data Confidentiality in Association Rule Mining in Distributed En...Maintaining Data Confidentiality in Association Rule Mining in Distributed En...
Maintaining Data Confidentiality in Association Rule Mining in Distributed En...
IJSRD

Performance and Emission characteristics of a Single Cylinder Four Stroke Die...
Performance and Emission characteristics of a Single Cylinder Four Stroke Die...Performance and Emission characteristics of a Single Cylinder Four Stroke Die...
Performance and Emission characteristics of a Single Cylinder Four Stroke Die...
IJSRD

Preclusion of High and Low Pressure In Boiler by Using LABVIEW
Preclusion of High and Low Pressure In Boiler by Using LABVIEWPreclusion of High and Low Pressure In Boiler by Using LABVIEW
Preclusion of High and Low Pressure In Boiler by Using LABVIEW
IJSRD

Prevention and Detection of Man in the Middle Attack on AODV Protocol
Prevention and Detection of Man in the Middle Attack on AODV ProtocolPrevention and Detection of Man in the Middle Attack on AODV Protocol
Prevention and Detection of Man in the Middle Attack on AODV Protocol
IJSRD

Comparative Analysis of PAPR Reduction Techniques in OFDM Using Precoding Tec...
Comparative Analysis of PAPR Reduction Techniques in OFDM Using Precoding Tec...Comparative Analysis of PAPR Reduction Techniques in OFDM Using Precoding Tec...
Comparative Analysis of PAPR Reduction Techniques in OFDM Using Precoding Tec...
IJSRD

Evaluation the Effect of Machining Parameters on MRR of Mild Steel
Evaluation the Effect of Machining Parameters on MRR of Mild SteelEvaluation the Effect of Machining Parameters on MRR of Mild Steel
Evaluation the Effect of Machining Parameters on MRR of Mild Steel
IJSRD

Filter unwanted messages from walls and blocking nonlegitimate user in osn
Filter unwanted messages from walls and blocking nonlegitimate user in osnFilter unwanted messages from walls and blocking nonlegitimate user in osn
Filter unwanted messages from walls and blocking nonlegitimate user in osn
IJSRD

Keystroke Dynamics Authentication with Project Management System
Keystroke Dynamics Authentication with Project Management SystemKeystroke Dynamics Authentication with Project Management System
Keystroke Dynamics Authentication with Project Management System
IJSRD

Diagnosing lungs cancer Using Neural Networks
Diagnosing lungs cancer Using Neural NetworksDiagnosing lungs cancer Using Neural Networks
Diagnosing lungs cancer Using Neural Networks
IJSRD

A Survey on Sentiment Analysis and Opinion Mining
A Survey on Sentiment Analysis and Opinion MiningA Survey on Sentiment Analysis and Opinion Mining
A Survey on Sentiment Analysis and Opinion Mining
IJSRD

A Defect Prediction Model for Software Product based on ANFIS
A Defect Prediction Model for Software Product based on ANFISA Defect Prediction Model for Software Product based on ANFIS
A Defect Prediction Model for Software Product based on ANFIS
IJSRD

Experimental Investigation of Granulated Blast Furnace Slag ond Quarry Dust a...
Experimental Investigation of Granulated Blast Furnace Slag ond Quarry Dust a...Experimental Investigation of Granulated Blast Furnace Slag ond Quarry Dust a...
Experimental Investigation of Granulated Blast Furnace Slag ond Quarry Dust a...
IJSRD

Product Quality Analysis based on online Reviews
Product Quality Analysis based on online ReviewsProduct Quality Analysis based on online Reviews
Product Quality Analysis based on online Reviews
IJSRD

Solving Fuzzy Matrix Games Defuzzificated by Trapezoidal Parabolic Fuzzy Numbers
Solving Fuzzy Matrix Games Defuzzificated by Trapezoidal Parabolic Fuzzy NumbersSolving Fuzzy Matrix Games Defuzzificated by Trapezoidal Parabolic Fuzzy Numbers
Solving Fuzzy Matrix Games Defuzzificated by Trapezoidal Parabolic Fuzzy Numbers
IJSRD

Study of Clustering of Data Base in Education Sector Using Data Mining
Study of Clustering of Data Base in Education Sector Using Data MiningStudy of Clustering of Data Base in Education Sector Using Data Mining
Study of Clustering of Data Base in Education Sector Using Data Mining
IJSRD

Fault Tolerance in Big Data Processing Using Heartbeat Messages and Data Repl...
Fault Tolerance in Big Data Processing Using Heartbeat Messages and Data Repl...Fault Tolerance in Big Data Processing Using Heartbeat Messages and Data Repl...
Fault Tolerance in Big Data Processing Using Heartbeat Messages and Data Repl...
IJSRD

Investigation of Effect of Process Parameters on Maximum Temperature during F...
Investigation of Effect of Process Parameters on Maximum Temperature during F...Investigation of Effect of Process Parameters on Maximum Temperature during F...
Investigation of Effect of Process Parameters on Maximum Temperature during F...
IJSRD

Review Paper on Computer Aided Design & Analysis of Rotor Shaft of a Rotavator
Review Paper on Computer Aided Design & Analysis of Rotor Shaft of a RotavatorReview Paper on Computer Aided Design & Analysis of Rotor Shaft of a Rotavator
Review Paper on Computer Aided Design & Analysis of Rotor Shaft of a Rotavator
IJSRD

A Survey on Data Mining Techniques for Crime Hotspots Prediction
A Survey on Data Mining Techniques for Crime Hotspots PredictionA Survey on Data Mining Techniques for Crime Hotspots Prediction
A Survey on Data Mining Techniques for Crime Hotspots Prediction
IJSRD


More from IJSRD (20)

#IJSRD #Research Paper Publication
#IJSRD #Research Paper Publication#IJSRD #Research Paper Publication
#IJSRD #Research Paper Publication

Maintaining Data Confidentiality in Association Rule Mining in Distributed En...
Maintaining Data Confidentiality in Association Rule Mining in Distributed En...Maintaining Data Confidentiality in Association Rule Mining in Distributed En...
Maintaining Data Confidentiality in Association Rule Mining in Distributed En...

Performance and Emission characteristics of a Single Cylinder Four Stroke Die...
Performance and Emission characteristics of a Single Cylinder Four Stroke Die...Performance and Emission characteristics of a Single Cylinder Four Stroke Die...
Performance and Emission characteristics of a Single Cylinder Four Stroke Die...

Preclusion of High and Low Pressure In Boiler by Using LABVIEW
Preclusion of High and Low Pressure In Boiler by Using LABVIEWPreclusion of High and Low Pressure In Boiler by Using LABVIEW
Preclusion of High and Low Pressure In Boiler by Using LABVIEW

Prevention and Detection of Man in the Middle Attack on AODV Protocol
Prevention and Detection of Man in the Middle Attack on AODV ProtocolPrevention and Detection of Man in the Middle Attack on AODV Protocol
Prevention and Detection of Man in the Middle Attack on AODV Protocol

Comparative Analysis of PAPR Reduction Techniques in OFDM Using Precoding Tec...
Comparative Analysis of PAPR Reduction Techniques in OFDM Using Precoding Tec...Comparative Analysis of PAPR Reduction Techniques in OFDM Using Precoding Tec...
Comparative Analysis of PAPR Reduction Techniques in OFDM Using Precoding Tec...

Evaluation the Effect of Machining Parameters on MRR of Mild Steel
Evaluation the Effect of Machining Parameters on MRR of Mild SteelEvaluation the Effect of Machining Parameters on MRR of Mild Steel
Evaluation the Effect of Machining Parameters on MRR of Mild Steel

Filter unwanted messages from walls and blocking nonlegitimate user in osn
Filter unwanted messages from walls and blocking nonlegitimate user in osnFilter unwanted messages from walls and blocking nonlegitimate user in osn
Filter unwanted messages from walls and blocking nonlegitimate user in osn

Keystroke Dynamics Authentication with Project Management System
Keystroke Dynamics Authentication with Project Management SystemKeystroke Dynamics Authentication with Project Management System
Keystroke Dynamics Authentication with Project Management System

Diagnosing lungs cancer Using Neural Networks
Diagnosing lungs cancer Using Neural NetworksDiagnosing lungs cancer Using Neural Networks
Diagnosing lungs cancer Using Neural Networks

A Survey on Sentiment Analysis and Opinion Mining
A Survey on Sentiment Analysis and Opinion MiningA Survey on Sentiment Analysis and Opinion Mining
A Survey on Sentiment Analysis and Opinion Mining

A Defect Prediction Model for Software Product based on ANFIS
A Defect Prediction Model for Software Product based on ANFISA Defect Prediction Model for Software Product based on ANFIS
A Defect Prediction Model for Software Product based on ANFIS

Experimental Investigation of Granulated Blast Furnace Slag ond Quarry Dust a...
Experimental Investigation of Granulated Blast Furnace Slag ond Quarry Dust a...Experimental Investigation of Granulated Blast Furnace Slag ond Quarry Dust a...
Experimental Investigation of Granulated Blast Furnace Slag ond Quarry Dust a...

Product Quality Analysis based on online Reviews
Product Quality Analysis based on online ReviewsProduct Quality Analysis based on online Reviews
Product Quality Analysis based on online Reviews

Solving Fuzzy Matrix Games Defuzzificated by Trapezoidal Parabolic Fuzzy Numbers
Solving Fuzzy Matrix Games Defuzzificated by Trapezoidal Parabolic Fuzzy NumbersSolving Fuzzy Matrix Games Defuzzificated by Trapezoidal Parabolic Fuzzy Numbers
Solving Fuzzy Matrix Games Defuzzificated by Trapezoidal Parabolic Fuzzy Numbers

Study of Clustering of Data Base in Education Sector Using Data Mining
Study of Clustering of Data Base in Education Sector Using Data MiningStudy of Clustering of Data Base in Education Sector Using Data Mining
Study of Clustering of Data Base in Education Sector Using Data Mining

Fault Tolerance in Big Data Processing Using Heartbeat Messages and Data Repl...
Fault Tolerance in Big Data Processing Using Heartbeat Messages and Data Repl...Fault Tolerance in Big Data Processing Using Heartbeat Messages and Data Repl...
Fault Tolerance in Big Data Processing Using Heartbeat Messages and Data Repl...

Investigation of Effect of Process Parameters on Maximum Temperature during F...
Investigation of Effect of Process Parameters on Maximum Temperature during F...Investigation of Effect of Process Parameters on Maximum Temperature during F...
Investigation of Effect of Process Parameters on Maximum Temperature during F...

Review Paper on Computer Aided Design & Analysis of Rotor Shaft of a Rotavator
Review Paper on Computer Aided Design & Analysis of Rotor Shaft of a RotavatorReview Paper on Computer Aided Design & Analysis of Rotor Shaft of a Rotavator
Review Paper on Computer Aided Design & Analysis of Rotor Shaft of a Rotavator

A Survey on Data Mining Techniques for Crime Hotspots Prediction
A Survey on Data Mining Techniques for Crime Hotspots PredictionA Survey on Data Mining Techniques for Crime Hotspots Prediction
A Survey on Data Mining Techniques for Crime Hotspots Prediction


Recently uploaded

How to Add Colour Kanban Records in Odoo 17 Notebook
How to Add Colour Kanban Records in Odoo 17 NotebookHow to Add Colour Kanban Records in Odoo 17 Notebook
How to Add Colour Kanban Records in Odoo 17 Notebook
Celine George

Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
MysoreMuleSoftMeetup

Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at  Pangkabuhayan 1: Personal HygieneEdukasyong Pantahanan at  Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
MJDuyan

eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
siemaillard

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book
lakitawilson

No, it's not a robot: prompt writing for investigative journalism
No, it's not a robot: prompt writing for investigative journalismNo, it's not a robot: prompt writing for investigative journalism
No, it's not a robot: prompt writing for investigative journalism
Paul Bradshaw

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx
monicaaringo1

DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
thanhluan21

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17
Celine George

ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUMENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
HappieMontevirgenCas

AI_in_HR_Presentation Part 1 2024 0703.pdf
AI_in_HR_Presentation Part 1 2024 0703.pdfAI_in_HR_Presentation Part 1 2024 0703.pdf
AI_in_HR_Presentation Part 1 2024 0703.pdf
SrimanigandanMadurai

Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptxChapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Brajeswar Paul

Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)
Liyana Rozaini

National Learning Camp Grade 7 ENGLISH 7-LESSON 7.pptx
National Learning Camp Grade 7 ENGLISH 7-LESSON 7.pptxNational Learning Camp Grade 7 ENGLISH 7-LESSON 7.pptx
National Learning Camp Grade 7 ENGLISH 7-LESSON 7.pptx
EdsNatividad

Webinar Innovative assessments for SOcial Emotional Skills
Webinar Innovative assessments for SOcial Emotional SkillsWebinar Innovative assessments for SOcial Emotional Skills
Webinar Innovative assessments for SOcial Emotional Skills
EduSkills OECD

NC Public Schools Involved in NCDPI, Zipline Partnership
NC Public Schools Involved in NCDPI, Zipline PartnershipNC Public Schools Involved in NCDPI, Zipline Partnership
NC Public Schools Involved in NCDPI, Zipline Partnership
Mebane Rash

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website
Celine George

Unlocking Educational Synergy-DIKSHA & Google Classroom.pptx
Unlocking Educational Synergy-DIKSHA & Google Classroom.pptxUnlocking Educational Synergy-DIKSHA & Google Classroom.pptx
Unlocking Educational Synergy-DIKSHA & Google Classroom.pptx
bipin95

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Murugan Solaiyappan

Year-to-Date Filter in Odoo 17 Dashboard
Year-to-Date Filter in Odoo 17 DashboardYear-to-Date Filter in Odoo 17 Dashboard
Year-to-Date Filter in Odoo 17 Dashboard
Celine George


Recently uploaded (20)

How to Add Colour Kanban Records in Odoo 17 Notebook
How to Add Colour Kanban Records in Odoo 17 NotebookHow to Add Colour Kanban Records in Odoo 17 Notebook
How to Add Colour Kanban Records in Odoo 17 Notebook

Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...
Configuring Single Sign-On (SSO) via Identity Management | MuleSoft Mysore Me...

Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at  Pangkabuhayan 1: Personal HygieneEdukasyong Pantahanan at  Pangkabuhayan 1: Personal Hygiene
Edukasyong Pantahanan at Pangkabuhayan 1: Personal Hygiene

eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book

No, it's not a robot: prompt writing for investigative journalism
No, it's not a robot: prompt writing for investigative journalismNo, it's not a robot: prompt writing for investigative journalism
No, it's not a robot: prompt writing for investigative journalism

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx

DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17

ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUMENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM
ENGLISH-7-CURRICULUM MAP- MATATAG CURRICULUM

AI_in_HR_Presentation Part 1 2024 0703.pdf
AI_in_HR_Presentation Part 1 2024 0703.pdfAI_in_HR_Presentation Part 1 2024 0703.pdf
AI_in_HR_Presentation Part 1 2024 0703.pdf

Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptxChapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx
Chapter-2-Era-of-One-party-Dominance-Class-12-Political-Science-Notes-2 (1).pptx

Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)

National Learning Camp Grade 7 ENGLISH 7-LESSON 7.pptx
National Learning Camp Grade 7 ENGLISH 7-LESSON 7.pptxNational Learning Camp Grade 7 ENGLISH 7-LESSON 7.pptx
National Learning Camp Grade 7 ENGLISH 7-LESSON 7.pptx

Webinar Innovative assessments for SOcial Emotional Skills
Webinar Innovative assessments for SOcial Emotional SkillsWebinar Innovative assessments for SOcial Emotional Skills
Webinar Innovative assessments for SOcial Emotional Skills

NC Public Schools Involved in NCDPI, Zipline Partnership
NC Public Schools Involved in NCDPI, Zipline PartnershipNC Public Schools Involved in NCDPI, Zipline Partnership
NC Public Schools Involved in NCDPI, Zipline Partnership

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website

Unlocking Educational Synergy-DIKSHA & Google Classroom.pptx
Unlocking Educational Synergy-DIKSHA & Google Classroom.pptxUnlocking Educational Synergy-DIKSHA & Google Classroom.pptx
Unlocking Educational Synergy-DIKSHA & Google Classroom.pptx

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...

Year-to-Date Filter in Odoo 17 Dashboard
Year-to-Date Filter in Odoo 17 DashboardYear-to-Date Filter in Odoo 17 Dashboard
Year-to-Date Filter in Odoo 17 Dashboard


A Review on Image Compression using DCT and DWT

  • 1. IJSRD - International Journal for Scientific Research & Development| Vol. 3, Issue 10, 2015 | ISSN (online): 2321-0613 All rights reserved by www.ijsrd.com 147 A Review on Image Compression using DCT and DWT Madhu Ahuja1 Sanjivani Shantaiya2 1,2 Department of Computer Science & Engineering 1,2 DIMAT, Raipur, India Abstract— Image Compression addresses the matter of reducing the amount of data needed to represent the digital image. There are several transformation techniques used for data compression. Discrete Cosine Transform (DCT) and Discrete Wavelet Transform (DWT) is mostly used transformation. The Discrete cosine transform (DCT) is a method for transform an image from spatial domain to frequency domain. DCT has high energy compaction property and requires less computational resources. On the other hand, DWT is multi resolution transformation. The research paper includes various approaches that have been used by different researchers for Image Compression. The analysis has been carried out in terms of performance parameters Peak signal to noise ratio, Bit error rate, Compression ratio, Mean square error. and time taken for decomposition and reconstruction. Key words: Compression, DCT, DWT, MSE, SNR, PSNR I. INTRODUCTION An image can be defined as a matrix of pixel or intensity values. Image compression is used to reduce the redundancy and randomness present in the image because to increase the storing capacity and efficiency level of the images. Therefore it is essential to compress the images by storing only the required information needed to reconstruct the image. To compress any image, redundancy must be removed. Sometimes images having large areas of same color will have large redundancies and similarly images that have frequent and large changes in color will be less redundant and harder to compress. II. FUNDAMENTALS OF IMAGE COMPRESSION TECHNIQUES A digital image, or "bitmap", consists of a grid of dots, or "pixels", with each pixel defined by a numeric value that represents its colour. A Typical characteristic of most images is that the neighboring pixels are correlated and therefore contain redundant information. The foremost task then is to find less correlated representation of the image. In general, there are three types of redundancy: A. Coding Redundancy Use smaller code words for the commonly used gray levels and longer code words for the less commonly used gray levels. This is an example of Variable Length Coding. To reduce coding redundancy from an image we use Huffman technique where we assign fewer bits to the more probable gray levels than to the less probable ones to achieve sufficient data compression[10] B. Inter Pixel Redundancy Another important type of data redundancy is inter pixel redundancy, which is directly related to the inter pixel correlations within an image. Because the value for any given pixel can be reasonable predicted from the value of its neighbours, the information carried by individual pixels is relatively small. Much of the visual contribution of a single pixel to an image is redundant; it could have been guessed on the basis of its neighbor’s values. A variety of names, including spatial redundancy, geometric redundancy, and inter frame Redundancies have been given to refer to these inter pixel dependencies.[10] C. Psycho Visual Redundancy Human perception of the information in an image normally doesn't involve quantitative analysis of every pixel or luminance value in the image. In general, an observer searches for distinguishing features such as edges or textural regions and mentally combines them into recognizable groupings. The brain then correlates these groupings with prior knowledge in order to complete the image interpretation process. So eye doesn't respond with equal sensitivity to all visual information. Certain information simply has less relative importance than other information in normal visual processing. This information is called psycho visually redundant. To reduce psycho visual redundancy quantizer is used. Therefore, the elimination of psycho visually redundant.[10] III. WHAT ARE THE DIFFERENT CLASSES OF COMPRESSION TECHNIQUES? Two ways of classifying compression techniques are mentioned here. A. Lossless vs. Lossy compression In lossless compression schemes, After compression the reconstructed image is numerically identical to the original image. However lossless compression can only achieve a modest amount of compression. In lossy compression An image reconstructed is degraded relative to the original. This is because lossy compression scheme completely discards redundant information. However, lossy schemes are capable of achieving much higher data compression. Under normal viewing conditions, no visible loss is perceived (visually lossless). B. Predictive vs. Transform coding In predictive coding, information already available or sent is used to predict future values, and the difference is coded. Since this is done in the image or spatial domain, it is relatively simple to implement and is readily adapted to local image characteristics. Differential Pulse Code Modulation (DPCM) is an example of predictive coding[4]. Transform coding, on the other hand, first transforms the image from its spatial domain representation to a different type of representation using transformation techniques and then codes the transformed values (coefficients). This method provides greater data compression compared to predictive methods, although at the expense of greater computation.
  • 2. A Review on Image Compression using DCT and DWT (IJSRD/Vol. 3/Issue 10/2015/032) All rights reserved by www.ijsrd.com 148 IV. VARIOUS COMPRESSION TECHNIQUES A. DCT-Based Image Coding Standard Discrete Cosine Transform (DCT) exploits cosine functions, it transform a signal from spatial representation into frequency domain. The DCT represents an image as a sum of sinusoids of varying magnitudes and frequencies. DCT has the property that, for a typical image most of the visually significant information about an image is concentrated in just few coefficients of DCT . 1) Forward DCT 1 1 0 0 2 (2 1) (2 1) ( , ) ( ) ( ) ( , )cos cos 2 2 for 0,..., 1 and 0,..., 1 1/ 2 for 0 where 8 and ( ) 1 otherwise N N x y x u y v F u v C u C v f x y N N N u N v N k N C k                               2) Inverse DCT: 1 1 0 0 2 (2 1) (2 1) ( , ) ( ) ( ) ( , )cos cos 2 2 for 0,..., 1 and 0,..., 1 where 8 N N u v x u y v f x y C u C v F u v N N N x N y N N                          Nageswara Rao Thota et al. (2008) [3] proposes Image Compression Using Discrete Cosine Transform. DCT images are divided into blocks of 8x8 or 16x16 or bigger. The problem with these blocks is that when the image is reduced to higher compression ratios, these blocks become visible One of the main problems and the limitation of the DCT is the blocking effect. The following table1 shows the test reports in the image compression using DCT The following table1 shows the test reports in the image compression using DCT Maneesha Gupta et al. ( 2012) [5] proposes some simple functions to compute the DCT and to compress images. Image Compression is studied using 2-D DCT. The original image is transformed in 8-by-8 blocks and then inverse transformed in 8-by-8 blocks to form the reconstructed image. The inverse DCT would be performed using the subset of DCT coefficients. The error image (the difference between the original and reconstructed image) would be displayed. The results shows that DCT exploits inter pixel redundancies to render excellent decorrelation for most natural images. Therefore all transform coefficients can be encoded independently without compromising coding efficiency. In addition, the DCT packs energy in the low frequency coefficients. Therefore, some of the high frequency coefficients can be discarded without degradation in image quality. B. Image Compression by Wavelet Transform: A "wavelet" mathematical function is used to divide a given function or continuous-time signal into different wave signals. It is the delegation of a function by wavelets. The Haar wavelet is the simplest wavelet. The limitation of the Haar wavelet is that it is not continuous, and therefore not differentiable. The Haar wavelet's mother wavelet function ψ(t) can be described as and its scaling function φ(t) can be described as Sonja Grgic, et al. (2009) [6] proposes a set of wavelet functions (wavelets) for implementation in image compression system and to highlight the benefit of this transform relating to new methods. The consequences of different wavelet functions, image contents and compression ratios are assessed. A comparison with a discrete-cosine- transform-based compression system is given. The final choice of optimal wavelet in image compression application depends on image quality and computational complexity. Amina Khatun et al. (2012) [7] have proposed the new image compression scheme with pruning based on discrete wavelet transformation (DWT). The effectiveness of the algorithm has been justified over some real images, and the performance of the algorithm has been compared with different common compression standards. Experimental results demonstrate that the proposed technique provides sufficient high compression ratios compared to different compression techniques. A new image compression scheme based on discrete wavelet transform is proposed which provides high compression ratios with no considerable degradation of image quality. The effectiveness and robustness of this approach has been justified using a set of real images. To demonstrate the performance of the proposed method, a comparison between the proposed technique and other common compression techniques has been revealed. From the experimental results it is evident that, the proposed compression technique gives better performance compared to other traditional techniques. Both DCT and DWT are very popular compression techniques for colour and grey level images. There are many flavours in each technique. In this a hybridised form of the techniques are implemented for compressing images. Aisha Fernandes, Wilson Jeberson et al(2014)[11] proposes wavelet transform and the Antonini 7/9 filter [5] for compressing an image. It is thus seen that images compressed decompressed using the proposed wavelet based compression algorithm (WCP) produces consistently better images and a higher PSNR (Peak signal to noise ratio) than the jpeg compression algorithm at the same compression percentage. (a) (b) (c)
  • 3. A Review on Image Compression using DCT and DWT (IJSRD/Vol. 3/Issue 10/2015/032) All rights reserved by www.ijsrd.com 149 Fig. 1: Comparison of visual image quality for the test image cameraman.bmp at a compression ratio of 9:1. (a) Original image (b) wcp compressed image (c) Jpeg compressed image. C. Hybridised DCT and DWT Compression Prabhakar.Telagarapu, A.Lakshmi.Prasanthi, G.Vijaya Santhi, V.Jagan Naveen et al (2011)[1] proposes an DCT and DWT for image compression and decompression. By taking several images as inputs, it is observed that Mean Square Error is low and Peak Signal to Noise Ratio is high in DWT than DCT based compression. From the results it is concluded that on the basis of compression ratio overall performance of DWT is better than DCT. In Discrete Cosine Transform image need to be “blocked”, correlation is found across the block boundaries which can't eliminated which results in noticeable and annoying, blocking artifacts‟ particularly at low bit rates. Wavelets are good to represent the point singularities and it cannot represent line singularities. (a) (b) Fig. 2: shows (a) Original Image (b) Original Histogram (a) (b) Fig 3: shows (a) DCT decompressed image (b) DCT decompressed histogram (a) (b) Fig. 4: shows (a) DWT decompressed image (b) DWT decompressed histogram Vellaiappan Elamaran et al. (2012) [2] proposes a Comparison of DCT and Wavelets in Image coding. Fourier based transforms (e.g. DCT and DFT) are efficient in exploiting the low frequency nature of an image. The high frequency coefficients are coarsely quantized, and therefore the reconstructed image at the edges will have poor quality. On the other hand, wavelets are efficient in representing non stationary signals because of the adaptive time-frequency window. So the Discrete Wavelet Transform (DWT) is applied in an image and the PSNR of both DCT and DWT is compared. A comparison and analysis and of image compression using DCT and DWT is demonstrated. K.Saraswathy et al. (2013) [4] have proposes an orthogonal approximation for the 8 point Discrete Cosine Transform (DCT). The proposed transformation matrix contains only ones and zeros. Bit shift operations and multiplication operations are absent. The approximate transform of DCT is obtained to meet the low complexity requirements. The hybrid results obtained from the work will shows clearly the efficiency of the proposed transform in image compression. Finally, the new approximation offers the users another options for mathematical analysis and circuit implementations. The new approximate transform matrix has rows constructed from a different mathematical structure when compared to DCT. These rows can be considered in the design of hybrid algorithm which take advantage of the best matrix rows from the existing algorithm aiming at novel improved approximate transform. According to Author Ch.Sathi Raju and D.V.Rama Koti Reddy et al (2015) [12] Compression is a serious problem in capsule endoscopy applications. It dictates the power consumption characteristics and the capsule life. In this paper a hybrid DCT and DWT compression method is employed to capitalise the advantages of both the techniques. It involves in applying a three level DWT on the input image. The DWT compressed image is taken for quantization and further zeros are eliminated from the matrices. Further is subjected to compression using arithmetic coding(AC). Now 1D DCT is applied to the LL3 image and followed by the process of quantization and eliminating zeros and applying arithmetic coding is repeated for satisfactory compression. The color data is extracted from the compressed image. This color data is further serves as input to the decompression section. The decompression process is simply reverse to the compression process. The results pertaining to the simulated experiment are presented in this section. Lena images are considered initially and the proposed technique is applied on it. The corresponding original and decompressed images are presented in Fig.5 (a) (b) Fig. 5: 'Lena' image (a) Original and (b) decompressed V. CONCLUSION AND FUTURE WORK This paper represents the concept of compression and varied technologies used in the image compression comparing the performance of compression technique identical data sets and performance measure are used. In this paper
  • 4. A Review on Image Compression using DCT and DWT (IJSRD/Vol. 3/Issue 10/2015/032) All rights reserved by www.ijsrd.com 150 comparative analysis of varied Image compression techniques for different images is done based parameters mean square error (MSE), peak signal to noise ratio (PSNR). DWT produces higher results without losing more information of image. Pitfall of DWT is, it requires more processing power. DCT overcomes this disadvantage since it needs less processing power, but it produces less compression ratio. DCT based standard JPEG uses blocks of image. In wavelet, there is no need to block the image. REFERENCES [1] Telagarapu, Prabhakar, et al. "Image Compression Using DCT and Wavelet Transformations." International Journal of Signal Processing, Image Processing and Pattern Recognition 4.3 (2011). [2] Elamaran, V., and A. Praveen. "Comparison of DCT and wavelets in image coding." Computer Communication and Informatics (ICCCI), 2012 International Conference on. IEEE, 2012. [3] NageswaraRaoThota, Srinivasa Kumar Devireddy. "Image Compression Using Discrete Cosine Transform." Georgian Electronic Scientific Journal: Computer Science and Telecommunications 3 (2008). [4] Saraswathy, K., D. Vaithiyanathan, and R. Seshasayanan. "A DCT approximation with low complexity for image compression." Communications and Signal Processing (ICCSP), 2013 International Conference on. IEEE, 2013. [5] Gupta, Maneesha, and Amit Kumar Garg. "Analysis Of Image Compression Algorithm Using DCT." (2012). [6] Grgic, Sonja, Mislav Grgic, and Branka Zovko-Cihlar. "Performance analysis of image compression using wavelets." Industrial Electronics, IEEE Transactions (2001). [7] Chowdhury, M. Mozammel Hoque, and Amina Khatun. "Image Compression Using Discrete Wavelet Transform." International Journal of Computer Science (2012). [8] Deshlahra, Archana, G. S. Shirnewar, and A. K. Sahoo. "A Comparative Study of DCT, DWT & Hybrid (DCTDWT) Transform." (2013). [9] Harjeetpal singh, Sakhi Sharma. “Hybrid Image Compression Using DWT, DCT & Huffman Encoding Techniques” vol. 2, issue 10 (2012). [10]Chander mukhi , Pallavi Nayyar, Mandeep Singh Saini “Improved Image Compression using Hybrid Transform” International Journal of Science and Research (IJSR), India Online ISSN: 2319-7064.
