Moving Toward Deep Learning Algorithms on HPCC Systems

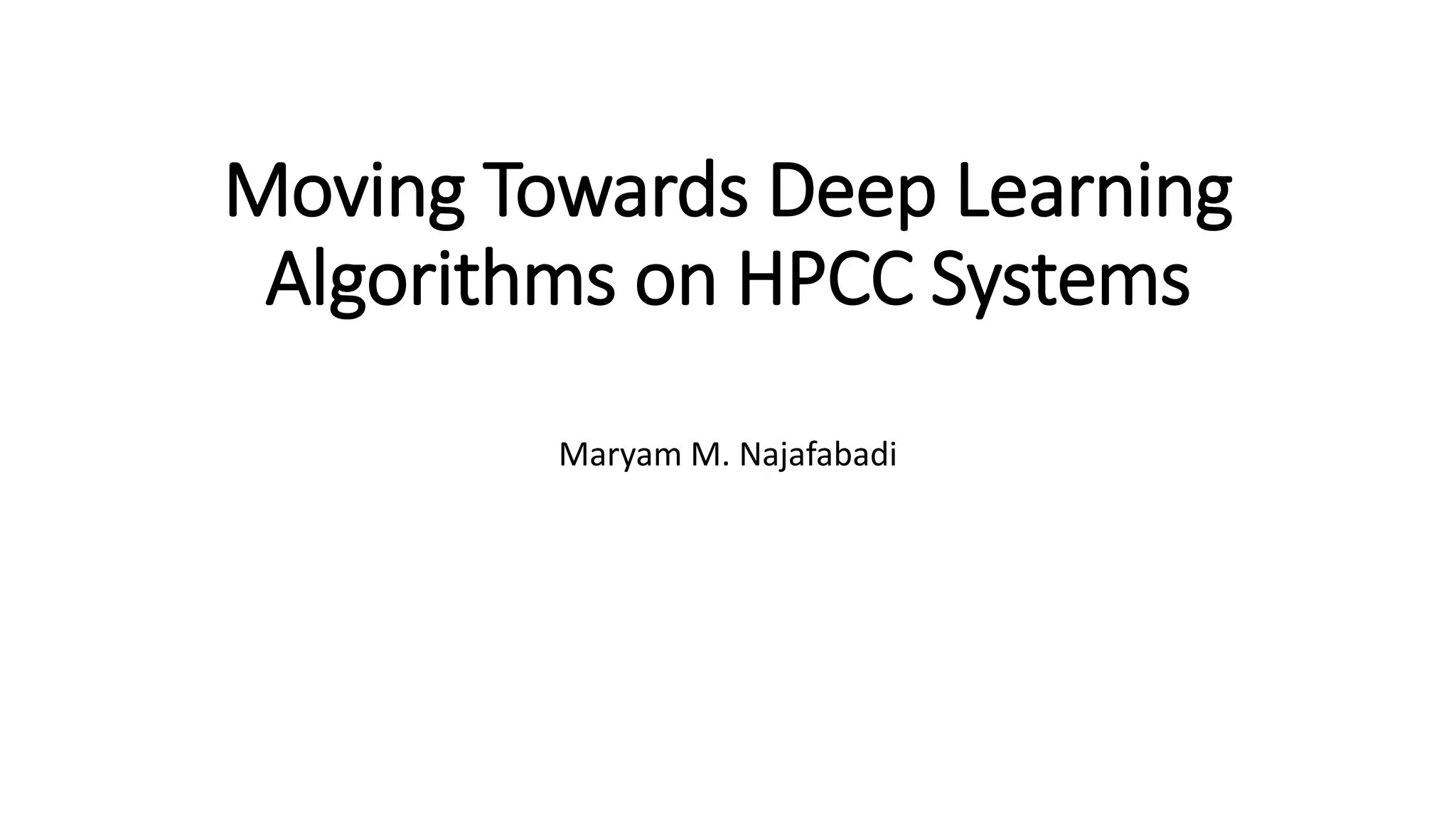

Moving Towards Deep Learning
Algorithms on HPCC Systems
Maryam M. Najafabadi

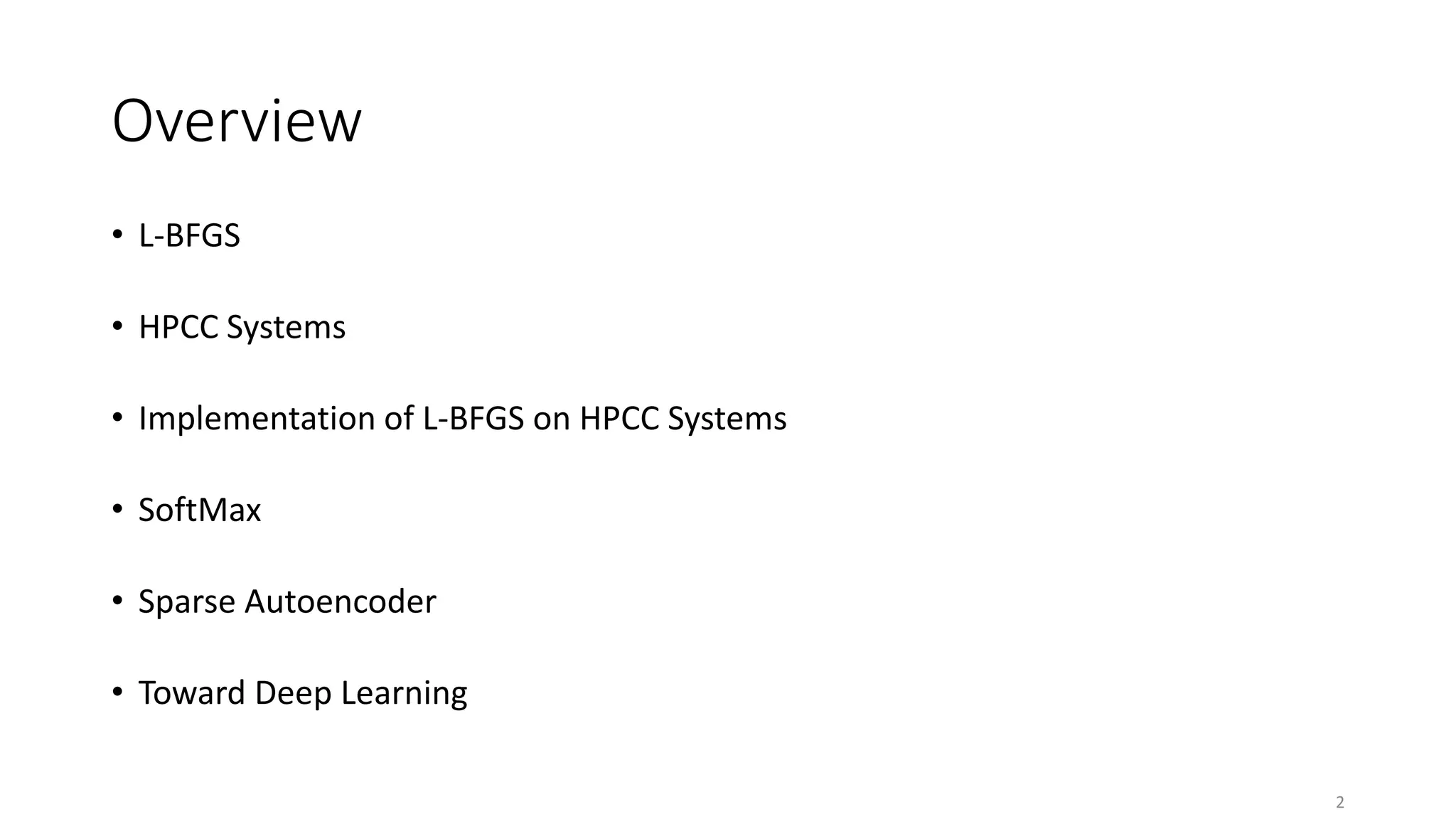

Overview
• L-BFGS
• HPCC Systems
• Implementation of L-BFGS on HPCC Systems
• SoftMax
• Sparse Autoencoder
• Toward Deep Learning
2

Mathematical optimization
• Minimizing/Maximizing a function
Minimum
3

Optimization Algorithms in Machine Learning
• Linear Regression
Minimize Errors
4

• SVM
Maximize Margin
5

• Collaborative filtering
• K-means
• Maximum likelihood estimation
• Graphical models
• Neural Networks
• Deep Learning
6

Formulate Training as an Optimization Problem
• Training model: finding parameters that minimize some objective
function
Define Parameters
Define an Objective
Function
Find values for the parameters that
minimize the objective function
Cost term Regularization term
Optimization
Algorithm
7

How they work
Search Direction
Step Length
8

Gradient Descent
• Step length
• Constant value
• Search direction
• Negative gradient
9

Gradient Descent
• Step length
• Constant value
Small Step Length
10

Gradient Descent
• Step length
• Constant value
Large Step Length
11

Newton Methods
• Step length
• Use a line search
• Use Curative Information (Inverse of Hessian Matrix)
12

Quasi Newton Methods
• Problem with large n in Newton methods
• Calculation of inverse of Hessian matrix too expensive
• Continuously updating an approximation of the inverse of the Hessian
matrix in each iteration
13

BFGS
• Broyden, Fletcher, Goldfarb, and Shanno
• Most popular Quasi Newton Method
• Uses Wolfe line search to find step length
• Needs to keep n×n matrix in memory
14

L-BFGS
• Limited-memory: only a few vectors of length n (m×n instead of n×n)
• m << n
• Useful for solving large problems (large n)
• More stable learning
• Uses curvature information to take a more direct route
• faster convergence
15

How to use
• Define a function that calculates Objective value and Gradient
ObjectiveFunc (x, ObjectiveFunc_params, TrainData , TrainLabel)
16

Why L-BFGS?
• Toward Deep Learning
• Optimization is heart of DL and many other ML algorithms
• Popular
• Advantages over SGD
17

HPCC Systems
• Open source, massive parallel-processing computing platform for big
data processing and analytics
• LexisNexis Risk Solutions
• Uses commodity clusters of hardware running on top of the Linux
operating system
• Based on DataFlow programming model
• THOR-ROXIE
• ECL
18

DataFlow Analysis
• Main focus is how the data is being changed
• A Graph represents a transformation on the data
• Each node is an operation
• Edges show the data flow
20

A DataFlow example
21
Id value
1 2
1 3
2 5
1 10
3 4
2 9
Id value
1 2
1 3
1 10
2 5
2 9
3 4
Id value
1 10
2 9
3 4
MAX

ECL
• Enterprise Control Language
• Compiled into optimized C++ code
• Declarative Language provides parallel and distributed DataFlow
oriented processing
22

ECL
oriented processing
23

Declarative
• What to accomplish, rather than How to accomplish
• You’re describing what you’re trying to achieve, without instructing
how to do it
24

ECL
oriented processing
25

ECL
oriented processing
26

27
Id value
1 2
1 3
2 5
1 10
3 4
2 9

28
Id value
2 5
2 9
Node 1
Node 2
READ
Id value
1 2
1 3
3 4
1 10

29
Id value
2 5
2 9
Node 1
Node 2
LOCAL SORT
Id value
1 2
1 3
1 10
3 4
Id value
2 5
2 9
Node 1
Node 2
READ
Id value
1 2
1 3
3 4
1 10

30
Id value
2 5
2 9
Node 1
Node 2
LOCAL SORT
Id value
1 2
1 3
1 10
3 4
Id value
2 5
2 9
Node 1
Node 2
READ
Id value
1 2
1 3
3 4
1 10
Id value
1 2
1 3
1 10
3 4
Id value
2 5
2 9
Node 1
Node 2
LOCAL GROUP

31
Id value
2 5
2 9
Node 1
Node 2
LOCAL SORT
Id value
1 2
1 3
1 10
3 4
Id value
2 5
2 9
Node 1
Node 2
READ
Id value
1 2
1 3
3 4
1 10
Id value
1 2
1 3
1 10
3 4
Id value
2 5
2 9
Node 1
Node 2
LOCAL GROUP
Id value
1 10
3 4
Id value
2 9
Node 1
Node 2
LOCAL AGG/MAX

Back to L-BFGS
• Minimize f(x)
• Start with an initialized x : x0
• Repeatedly update: xk+1 = xk + αkpk
32
Wolfe line search L-BFGS

• If x too large it does not fit in memory of one machine
• Needs m × n memory
• Distribute x on different machines
• Try to do computations locally
• Do global computations as necessary
33

34

35
. . .

36
. . .
. . .

• Dot Product
38
1, 3, 6, 8, 10, 9, 1, 2, 3, 9, 8
2, 3, 3, 8, 3, 11, 1, 2, 5, 9, 5

• Dot Product
39
1, 3, 6, 8
3, 11, 1, 2
10, 9, 1, 2 3, 9, 8
Node 1 Node 2 Node 3
5, 9, 52, 3, 3, 8

• Dot Product
40
1, 3, 6, 8
3, 11, 1, 2
10, 9, 1, 2 3, 9, 8
5, 9, 52, 3, 3, 8
LCOAL Dot Product 120 134 136

• Dot Product
41
1, 3, 6, 8
3, 11, 1, 2
10, 9, 1, 2 3, 9, 8
5, 9, 52, 3, 3, 8
LCOAL Dot Product
Global Summation
120 134 136
390

Using ECL for implementing L-BFGS
42
0.1, 0.3, 0.6, 0.8, 0.2, 0.7, 0.5, 0.5, 0.5, 0.3, 0.4, 0.6, 0.7, 0.7x

43
0.1, 0.3, 0.6, 0.8, 0.2, 0.7, 0.5, 0.5, 0.5, 0.3, 0.4, 0.6, 0.7, 0.7x

44
0.1, 0.3, 0.6, 0.8, 0.2, 0.7, 0.5, 0.5, 0.5, 0.3, 0.4, 0.6, 0.7, 0.7x
Node1 Node2 Node3 Node4
Node_id partition_values
1 0.1, 0.3, 0.6, 0.8
2 0.2, 0.7, 0.5, 0.5
3 0.5, 0.3, 0.4, 0.6
4 0.7, 0.7

45
0.1, 0.3, 0.6, 0.8, 0.2, 0.7, 0.5, 0.5, 0.5, 0.3, 0.4, 0.6, 0.7, 0.7x
Node1 Node2 Node3 Node4
1 0.1, 0.3, 0.6, 0.8
2 0.2, 0.7, 0.5, 0.5
3 0.5, 0.3, 0.4, 0.6
4 0.7, 0.7
Node 1
Node 4
Node 2
Node 3

46
0.1, 0.3, 0.6, 0.8, 0.2, 0.7, 0.5, 0.5, 0.5, 0.3, 0.4, 0.6, 0.7, 0.7x
1 0.1, 0.3, 0.6, 0.8
2 0.2, 0.7, 0.5, 0.5
3 0.5, 0.3, 0.4, 0.6
4 0.7, 0.7
Node 1
Node 4
Node 2
Node 3

Example of LOCAL operations
• Scale
47

• Scale
48
1 0.1, 0.3, 0.6, 0.8
2 0.2, 0.7, 0.5, 0.5
3 0.5, 0.3, 0.4, 0.6
4 0.7, 0.7
Node 1
Node 4
Node 2
Node 3
x

• Scale
49
1 1, 3, 68
2 2, 7, 5, 5
3 5, 3, 4, 6
4 7, 7
Node 1
Node 4
Node 2
Node 3
x_10

Example of Global operation
• Dot Product
50
1 0.1, 0.3, 0.6, 0.8
2 0.2, 0.7, 0.5, 0.5
3 0.5, 0.3, 0.4, 0.6
4 0.7, 0.7
Node 1
Node 4
Node 2
Node 3
1 1, 3, 68
2 2, 7, 5, 5
3 5, 3, 4, 6
4 7, 7
Node 1
Node 4
Node 2
Node 3
x x_10

• Dot Product
51
1 0.1, 0.3, 0.6, 0.8
2 0.2, 0.7, 0.5, 0.5
3 0.5, 0.3, 0.4, 0.6
4 0.7, 0.7
Node 1
Node 4
Node 2
Node 3
1 1, 3, 6, 8
2 2, 7, 5, 5
3 5, 3, 4, 6
4 7, 7
Node 1
Node 4
Node 2
Node 3
x x_10

• Dot Product
52
Node_id dot_value
1 2.27
2 1.39
3 1.67
4 0.98
dot_local

• Dot Product
53
Node_id dot_value
1 2.27
2 1.39
3 1.67
4 0.98
dot_local

L-BFGS based Implementations
• Softmax
54

SoftMax Regression
• Generalizes logistic regression
• More than two classes
• MNIST -> 10 different classes
55

Formulate to an optimization problem
• Parameters
• K × f variables
• Objective function
• Generalize logistic regression objective function
• Define a function to calculate objective value and Gradient at a give
point
56

SoftMax Results
• Lshtc-large
• 410 GB
• 61 itr, 81 fun
• 1 hour
• Wikipedia-medium
• 1,048 GB
• 12 itr, 21 fun
• Half an hour
58
400 Nodes

More Examples
• Parameter matrix in SoftMax: K × f
• Data Matrix: f × m
• Multiply these two matrix
• Result is K × m
59

If parameter matrix is small
61
K
f
f
m

64
Node1 Node2 Node3
K
f
f
m1 m2 m3

65
Node1 Node2 Node3
K
f
f
m1 m2 m3
LOCAL JOIN
K×m1 K×m2 K×m3

66
Node1 Node2 Node3
K
f
f
m1 m2 m3
LOCAL JOIN
K×m1 K×m2 K×m3
K×m

If both matrices big
67
K
f
f
m

68
f1
f
m2
K
m1
m3
f2 f3

69
f1
f
m
K
f2 f3
f1
f2
f3
K×m

70
f1
f
m
K
f2 f3
f1
f2
f3
K×m K×m

71
f1
f
m
K
f2 f3
f1
f2
f3
K×m K×m K×m

72
f1
f
m
K
f2 f3
f1
f2
f3
K×m K×m K×m ROLLUP

Sparse Autoencoder
• Autoencoder
• Output is the same as the input
• Sparsity
• constraint the hidden neurons to be inactive most of the time
• Stacking them up makes a Deep Network
73

Formulate to an optimization problem
• Parameters
• Weight and bias values
• Objective function
• Difference between output and expected output
• Penalty term to impose sparsity
• Define a function to calculate objective value and Gradient at a give
point
74

Sparse Autoencoder results
• 10,000 samples of randomly 8×8 selected patches
75

Sparse Autoencoder results
• MNIST dataset
76

Toward Deep Learning
• Provide learned features from one layer to another sparse
autoencoder
• …. Stack up to build a deep network
• Fine tuning
• Using forward propagation to calculate cost value and back propagation to
calculate gradients
• Use L-BFGS to fine tune
77

SUMMARY
• HPCC Systems allows implementation of Large-scale ML algorithms
• Optimization Algorithms an important aspect for advanced machine
learning problems
• L-BFGS implemented on HPCC Systems
• SoftMax
• Implement other algorithms by calculating objective value and gradient
• Toward deep learning
78

• HPCC Systems
• https://hpccsystems.com/
• ECL-ML Library
• https://github.com/hpcc-systems/ecl-ml
• My GitHub
• https://github.com/maryamregister
• My Email
• mmousaarabna2013@fau.edu
79
