This was presented by Louis Ledoux and Marc Casas at OpenPOWER summit EU 2019. The original one is uploaded at: https://static.sched.com/hosted_files/opeu19/1a/presentation_louis_ledoux_posit.pdf

1. 1
Accelerating DL
inference with
(Open)CAPI and posit
numbers
Louis Ledoux
Marc Casas
Lyon – OpenPOWER Summit

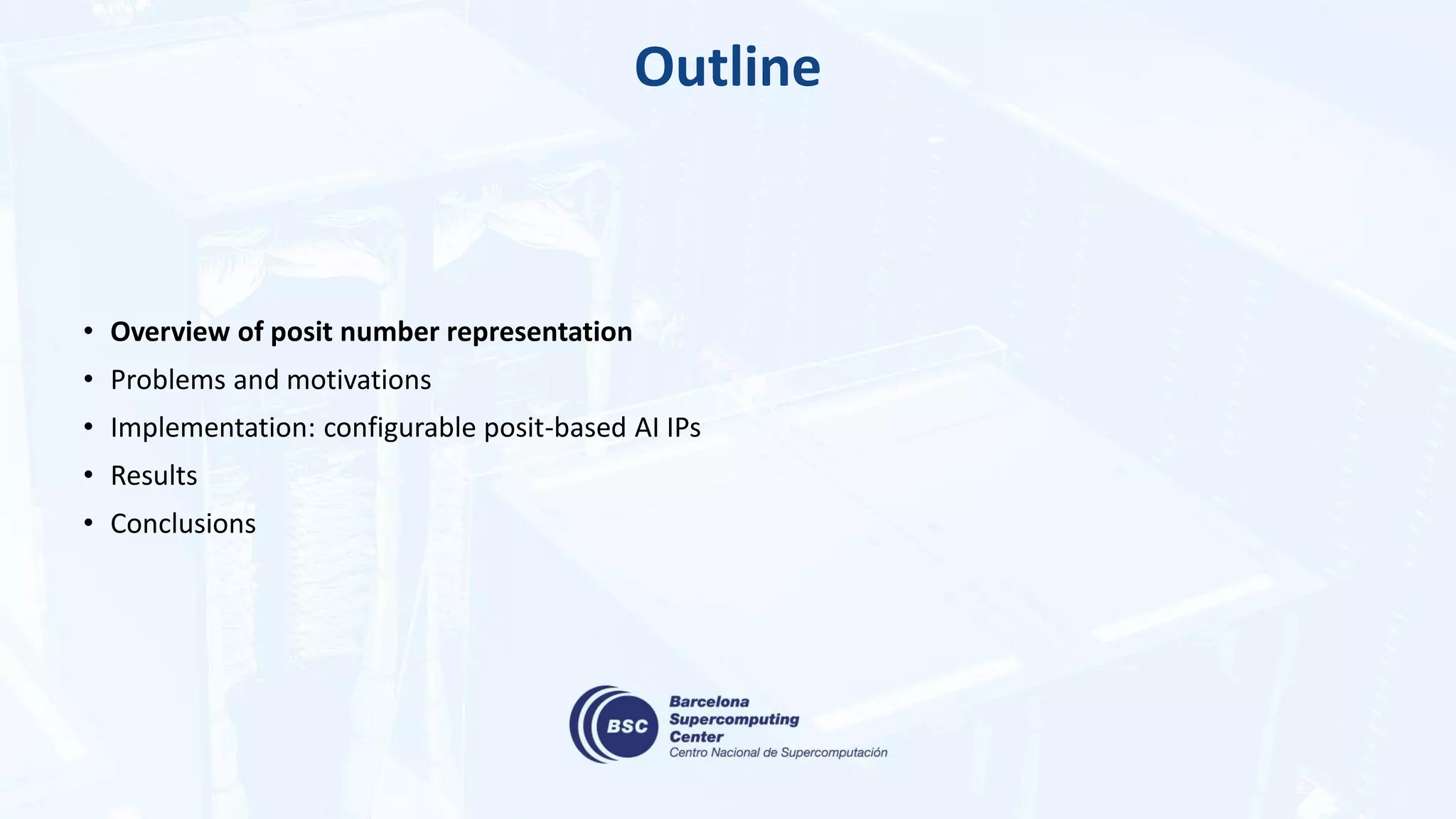

2. 2
Outline
• Overview of posit number representation
• Problems and motivations
• Implementation: configurable posit-based AI IPs
• Results
• Conclusions

3. 3
Ideas behind posit numbers (1)
• Like IEEE-754 Floating Points, they intend to represent real numbers
• The claim: to be a drop-in replacement of the classical floating point
• More precision and dynamic range in many cases
• The main ideas:
• Less bits per datum by augmenting the entropy of these ones
• Arithmetic driven by an application / use case
• Tackle design flaws of an old standard from the 80’s
• Repeatable / portable
• Laws of algebra (associativity, distributivity)
• Wasted patterns (NaNs)
• Et caetera...
• A standardized Kulisch-like accumulator : the Quire
• Fused Dot Product
[1] Gustafson, John L, and Isaac Yonemoto. ‘Beating Floating Point at Its Own Game: Posit
Arithmetic’
[1]

4. 4
posit representation
• Many configurations of posits
• denoted posit<N,ES> where N is the width of a posit and ES is exponent size
• allows to choose the most suitable configuration for a specific use case
• aka tapered precision
• Golomb-Rice exponent encoding
• Variable-length internal fields
• sign (1b)
• regime
• exponent (if any)
• fraction (if any)
[1] Gustafson, John L, and Isaac Yonemoto. ‘Beating Floating Point at Its Own Game: Posit
Arithmetic’
[1]

5. 5
Ideas behind posit numbers (2)
• Fine tuning (tapering) the arithmetic leads to saving bits for:
• exponent(dynamic range)
• mantissa(precision)
• Example: 32 bits posit could beat 64 bits IEEE754 Floating Point in a scientific application, reducing:
• amount of caches, memory, and storage
• needed throughput to and from processors
• Hardware resources in compute units (still being discussed) [1]
• Power consumption
[1] Yohann Uguen, Luc Forget, Florent de Dinechin. Evaluating the hardware cost of the posit numbersystem. FPL 2019 - 29th International
Conference on Field-Programmable Logic and Applications(FPL), Sep 2019, Barcelona, Spain. pp.1-8. ffhal-02130912v4f
[2] Gustafson, John L, and Isaac Yonemoto. ‘Beating Floating Point at Its Own Game: Posit Arithmetic’
[2]

6. 6
Outline
• Overview of posit number representation
• Problems and motivations
• Implementation: configurable posit-based AI IPs
• Results
• Conclusions

7. 7
Communication dominates arithmetic
• Plethora of µArch sharing a common aspect:
• Non data/memory-centric, the computation is performed far away from the data itself
• As a consequence: energy waste + performance loss
• 62.7% of the total system energy is spent on data movement [1]
[1] Amirali Boroumand, Saugata Ghose, Youngsok Kim, Rachata Ausavarungnirun, Eric Shiu, Rahul Thakur, Daehyun Kim, Aki Kuusela, Allan
Knies, Parthasarathy Ranganathan, and Onur Mutlu, "Google Workloads for Consumer Devices: Mitigating Data Movement Bottlenecks"
Proceedings of the 23rd InternationalConference on Architectural Support for Programming Languages and Operating Systems (ASPLOS),
Williamsburg, VA, USA, March 2018
[2] M. Horowitz. 1.1 computing’s energy problem (and what we can do about it). In 2014 IEEE International Solid-State Circuits Conference
Digest of Technical Papers (ISSCC), pages 10–14, Feb 2014
[2]
[2]

8. 8
Problems seen as motivations
• Reducing communications ?
• in/near-memory computing
• Quantization
• Transprecision
• Study impacts of arithmetic on an overall System
• Our focus is AI
• Data is increasing, thus the interest for Neural Networks
• Posits are good candidates for neural networks
• Activation functions and the “golden zone” (1)
• Fast sigmoid (2)
• Large vector dot products (3)
• Not too much focus on Compute Units Hardware cost
“How the denser representation of numbers offered by posits
tackle the aforementioned problems ?”

9. 9
1° Activation functions and the “golden zone”
• IEEE-754
• Accuracy is constant & large (80 orders of magnitude)
• Induces low entropy/bit
• Posits
• Pyramid shape, normal/Gaussian distribution
• Due to Golomb-Rice
• Match NN weights distribution
• Activation functions allows rescaling into the golden zone
• Improves the information amount carried per bit
• Entropy/bit
• More information/datum
• Less communication (PCI-e / DDR)
• Less storage, stay on chip
• Compression Ratio
• Shannon entropy
[1]
[1] Gustafson, John L, and Isaac Yonemoto. ‘Beating Floating Point at Its Own Game: Posit Arithmetic’

10. 10
2° Fast sigmoid
• IEEE-754 have HW tricks (0x5F3759DF [1])… but posits also
• 𝜎 𝑥 =
1
1+𝑒−𝑥
• Popular activation function in neural networks
• Approximate sigmoid
• 1. negate sign bit (MSB)
• 2. logical right shift by 2
• “Et voilà”: few gates/LUTs and ~1 clock
• Example
• a = 0 = Posit<8,0>(0b00000000)
• 1. tmp = 10000000
• 2. res = 00100000
• Posit<8,0>(00100000) = 1/2
[1] https://en.wikipedia.org/wiki/Fast_inverse_square_root

11. 11
3° Large vector dot products
• Most common computation in NNs is MAC [1]
• Neuron (basic node)  MAC unit / large vector dot product
• The rounding error is also accumulated
• After each product and accumulation
• After each accumulation when FMA is used
• The hardware yields an inexact result
• The posit standard proposes an Exact MAC unit : QUIRE
• Postpone rounding, 1 rounding
• Suits well with very low precision (<8 bits)
[1] A Dynamic Approach to Accelerate Deep Learning
Training. Submitted to International conference on Learning
Representations. 2020. Under review.

12. 12
Outline
• Overview of posit number representation
• Problems and motivations
• Implementation: configurable posit-based AI IPs
• Results
• Conclusions

13. 13
Our complete system
• MareNostrum 4
• AC922
• 2xPOWER9 SMT4 Monza
• 512GiB DDR4-2666
• 2xAlpha-Data 9V3
• XCVU3P-2
• 788k FFs
• 394k LUTs
• 2280 DSPs
• 25.3Mb BRAM
• 90.0Mb URAM
• 8GiB DDR4-2400
• PCI Express® Gen3 x16 / Gen4 x8 or OpenCAPI

14. 14
Accelerating the acceleration

15. 15
Accelerating the acceleration: CAPI

16. 16
Accelerating the acceleration: SNAP

17. 17
Accelerating the acceleration: My helpers

18. 18
Verification methodology
• 1 Testbench/module
• PSLSE

19. 19
Multi Layer Perceptron (MLP)

20. 20
Multi Layer Perceptron (MLP) Hardware
• SDFG
• Direct mapping
• EMAC unit  Neuron
• 1 big pipeline
• AXI-Stream
• FC IP layer configurable

21. 21
Neuron<N,ES> 1: QUIRE
𝜎
0=𝑖
𝑁−1
𝑥𝑖 𝑤𝑖 + 𝑏

22. 22
Neuron<N,ES> 2: NO FMA / NO QUIRE
𝜎
0=𝑖
𝑁−1
𝑥𝑖 𝑤𝑖 + 𝑏

23. 23
Neuron<N,ES> 2: NO FMA / NO QUIRE
𝜎
0=𝑖
𝑁−1
𝑥𝑖 𝑤𝑖 + 𝑏

24. 24
Mult<N,ES>

25. 25
Outline
• Overview of posit number representation
• Problems and motivations
• Implementation: configurable posit-based AI IPs
• Results
• Conclusions

26. 26
Results: Resource utilization
Module LUTs FFs
Neuron<8,0,NOQUIRE> 336 126
Decoder<8,0> 27 0
Mult<8,0> 82 32
Adder<8,0> 133 57
Encoder+Round<8,0> 38 0
Module LUTs FFs
Neuron<4,0,QUIRE> 116 72
Decoder<4,0> 3 0
Mult<4,0> 6 0
Quire19<4,0> 88 56
Encoder+Round<4,0> 7 0
• These 2 versions maintain >
90% accuracy
• Framework allows to
evaluate all combinations of
neurons
• How many bits per datum
can we save with an exact
accumulator ?

27. 27
Saturate the PCI-e link: Data parallelism
• loopback @250MHz and 512b words
• ≈ 16 𝐺𝐵/𝑠 in theory
• ≈ 𝟏𝟐, 𝟓 𝑮𝑩/𝒔 in real life
• But a MLP consumes only a N bits word
• instantiate many of them
• Frames per second
• 𝑙𝑒𝑡 𝑀, 𝑡ℎ𝑒 𝑛𝑢𝑚𝑏𝑒𝑟 𝑜𝑓 𝑁𝑁𝑠
• 𝑚𝑎𝑥𝑁𝑁 =
512
𝑁
• 𝑓𝑝𝑠 𝑛, 𝑀 ≈
𝑀
𝑚𝑎𝑥𝑁𝑁
∗
12,5𝐺𝐵/𝑠
784∗
𝑛
8
𝐵/𝑓𝑟𝑎𝑚𝑒
• Why saturate the link ?
• Show that for a given throughput, lower the
precision is, more FPS there is.
• Use the full power enabled by CAPI+SNAP

28. 28
Overall system performance: 16 MLPs
Accuracy Mem Alloc size Throughput Bandwidth
occupancy
FPS
posit<4,0,quire> ~91% ~23,5MB ~1,56 GB/s 12.5% 3,8 × 106
posit<8,0,noquire> ~91% ~47MB ~3,1 GB/s 25% 3,8 × 106
posit<8,0,quire> ~91% ~47MB ~3,1 GB/s 25% 3,8 × 106
posit<16,0,quire> ~91% ~94MB ~6,2 GB/s 50% 3,8 × 106
ieee<4,1> ~10% ~23,5MB ~1,56 GB/s 12.5% 3,8 × 106
ieee<8,4> ~50% ~47MB ~3,1 GB/s 25% 3,8 × 106
ieee<16,5> ~91% ~94MB ~6,2 GB/s 50% 3,8 × 106
ieee<32,8> ~91% ~189MB ~12,5 GB/s 100% 3,8 × 106

29. 29
Ideal Hardware (12,5GBps) / fictive max MLPs
Accuracy Mem Alloc size # MLPs FPS
posit<4,0,quire> ~91% ~23,5MB 128 𝟑𝟎, 𝟔 × 𝟏𝟎 𝟔
posit<8,0,noquire> ~91% ~47MB 64 15,3 × 106
posit<8,0,quire> ~91% ~47MB 64 15,3 × 106
posit<16,0,quire> ~91% ~94MB 32 7,65 × 106
ieee<4,1> ~10% ~23,5MB 128 30,6 × 106
ieee<8,4> ~50% ~47MB 64 15,3 × 106
ieee<16,5> ~91% ~94MB 32 𝟕, 𝟔𝟓 × 𝟏𝟎 𝟔
ieee<32,8> ~91% ~189MB 16 3,8 × 106

30. 30
A bit of colors: Floorplanning 16 MLP<8,0,QUIRE>

31. 31
Outline
• Overview of posit number representation
• Problems and motivations
• Implementation: configurable posit-based AI IPs
• Results
• Conclusions

32. 32
Conclusions
• CAPI+SNAP allow very fast implementation of RTL logic in a working and powerful System
• We built a framework to evaluate impacts of arithmetic
• Only posits
• Early results look promising
• Need to go further on the evaluation (Specially with IEEE Floating points)
• Same accuracy with 4x less bits
• 4x less memory storage
• 4x less power consumption
• 4x less communication time
• So: “Communication dominates less arithmetic”
• Lack of data concerning power consumption of the System

33. 33
Thank you
louis.ledoux@bsc.es

34. 34
Example of posit decoding
• 𝑥 =
0 𝑤ℎ𝑒𝑛 0. . . 0
±∞ 𝑤ℎ𝑒𝑛 10. . . 0
(−1) 𝑠× 𝑢𝑠𝑒𝑒𝑑 𝑘 × 2 𝑒 × 1 +
𝑓 𝑚−1...𝑓0
2 𝑚 𝑜𝑡ℎ𝑒𝑟𝑤𝑖𝑠𝑒
• 𝑤ℎ𝑒𝑟𝑒 𝑢𝑠𝑒𝑒𝑑 = 22 𝑒𝑠
, 𝑚 = 𝑓𝑟𝑎𝑐𝑡𝑖𝑜𝑛 𝑤𝑖𝑑𝑡ℎ, 𝑘 = 𝑟𝑒𝑔𝑖𝑚𝑒 𝑟𝑢𝑛𝑙𝑒𝑛𝑔𝑡ℎ
• Chosen posit: posit<5,1>(0b00101)
• 𝑘 = −1 𝑏𝑒𝑐𝑎𝑢𝑠𝑒 1 𝑟 𝑏𝑖𝑡 0 𝑓𝑜𝑙𝑙𝑜𝑤𝑒𝑑 𝑏𝑦 𝑡ℎ𝑒 𝑟 𝑏𝑖𝑡(1)
• 𝑥 = (−1)0× (221
)−1 × 20 × 1 +
1
21
• 𝑥 = 1 ×
1
4
× 1 ×
3
2
• 𝑥 =
3
8
Picutres from: Gustafson, John L, and Isaac Yonemoto. ‘Beating Floating Point at Its Own Game:
Posit Arithmetic’

35. 35
Accuracy / values distribution

36. 36
Posits now
• Rex computing
• LLNL showed good performance for LULESH and Euler2D

37. 37
Overall system performance
• Baseline: ≈ 12𝐺𝐵/𝑠 with a pipelined loopback @250MHz and 512b words
• To saturate the PCIe link we use data parallelism, 1 MLP / picture
• Can classify x pictures independently
• For posit<8,0>: x = 512/8 = 64 MLPs
• For posit<4,0>: x = 512/4 = 128 MLPs
• Frame per second
• 𝑓𝑝𝑠 𝑛 ≈
12𝐺𝐵/𝑠
784∗
𝑛
8
𝐵/𝑓𝑟𝑎𝑚𝑒
• 𝑓𝑝𝑠 4 ≈ 𝟑𝟎, 𝟔 × 𝟏𝟎 𝟔
• 𝑓𝑝𝑠 8 ≈ 𝟏𝟓, 𝟑 × 𝟏𝟎 𝟔
• Time spent in PCI-e transfer divided by 2
• Allocation size on HOST DDR divided by 2
• Last results show that Half-precision IEEE float is needed to maintain 90% accuracy
• 𝑓𝑝𝑠 16 ≈ 7,6 × 106
“Communication dominates less arithmetic”

38. 38
1 MLP
Accuracy Mem Alloc size Throughput Bandwidth
occupancy
FPS
posit<4,0,quire> ~91% ~23,5MB ~0,096 GB/s 0,8% 2,4 × 105
posit<8,0,noquire> ~91% ~47MB ~0,19 GB/s 1,6% 2,4 × 105
posit<8,0,quire> ~91% ~47MB ~0,19 GB/s 1,6% 2,4 × 105
posit<16,0,quire> ~91% ~94MB ~0,39 GB/s 3,2% 2,4 × 105
ieee<4,1> ~10% ~23,5MB ~0,096 GB/s 0,8% 2,4 × 105
ieee<8,4> ~50% ~47MB ~0,19 GB/s 1,6% 2,4 × 105
ieee<16,5> ~91% ~94MB ~0,39 GB/s 3,6% 2,4 × 105
ieee<32,8> ~91% ~189MB ~0,8 GB/s 6,4% 2,4 × 105
