1. 2019 HPCC
Systems®
Community Day
Challenge Yourself –
Challenge the Status Quo
Xiaoming Wang
Senior Consulting SWE
HPCC Systems Platform
Godson Fortil
Software Engineer I
HPCC Systems Platform

2. Getting Started with HPCC Systems®
Platform Docker Container & Kubernetes
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 2

3. Introduction
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 3
• What is Docker?
• Docker provides a way to run applications securely isolated in a container, packaged with all its
dependencies and libraries
• What is Kubernetes?
• Kubernetes is an open-source container orchestration system for automating application deployment,
scaling, and management
• Main features include:
• Container grouping using pod
• Self-healing
• Auto-scalability
• DNS management
• Load balancing
• Rolling update or rollback
• Resource monitoring and logging

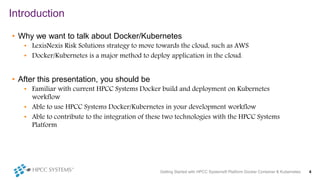

4. Introduction
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 4
• Why we want to talk about Docker/Kubernetes
• LexisNexis Risk Solutions strategy to move towards the cloud, such as AWS
• Docker/Kubernetes is a major method to deploy application in the cloud.
• After this presentation, you should be
• Familiar with current HPCC Systems Docker build and deployment on Kubernetes
workflow
• Able to use HPCC Systems Docker/Kubernetes in your development workflow
• Able to contribute to the integration of these two technologies with the HPCC Systems
Platform

5. HPCC-Docker
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 5

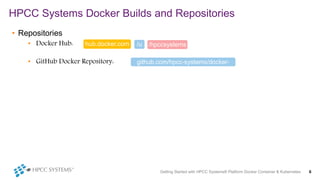

6. • Repositories
• Docker Hub:
• GitHub Docker Repository:
HPCC Systems Docker Builds and Repositories
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 6
hub.docker.com /hpccsystems/u
github.com/hpcc-systems/docker-
hpcc

7. • What’s in the box?
• Community version
• Docker file
• Base
• Internal version
HPCC Systems Docker Builds and Repositories
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 7

8. • Platform Docker Image Build file:
HPCC Systems Docker Builds and Repositories
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 8
platform/CE/Dockerfile
Download
platform
community
version

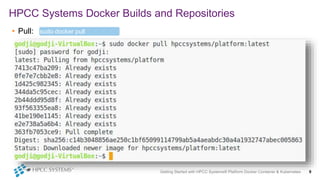

9. • Pull:
HPCC Systems Docker Builds and Repositories
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 9
sudo docker pull
<repo>:<tag>

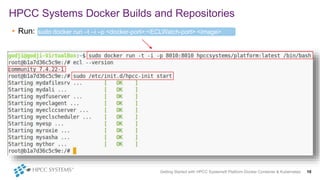

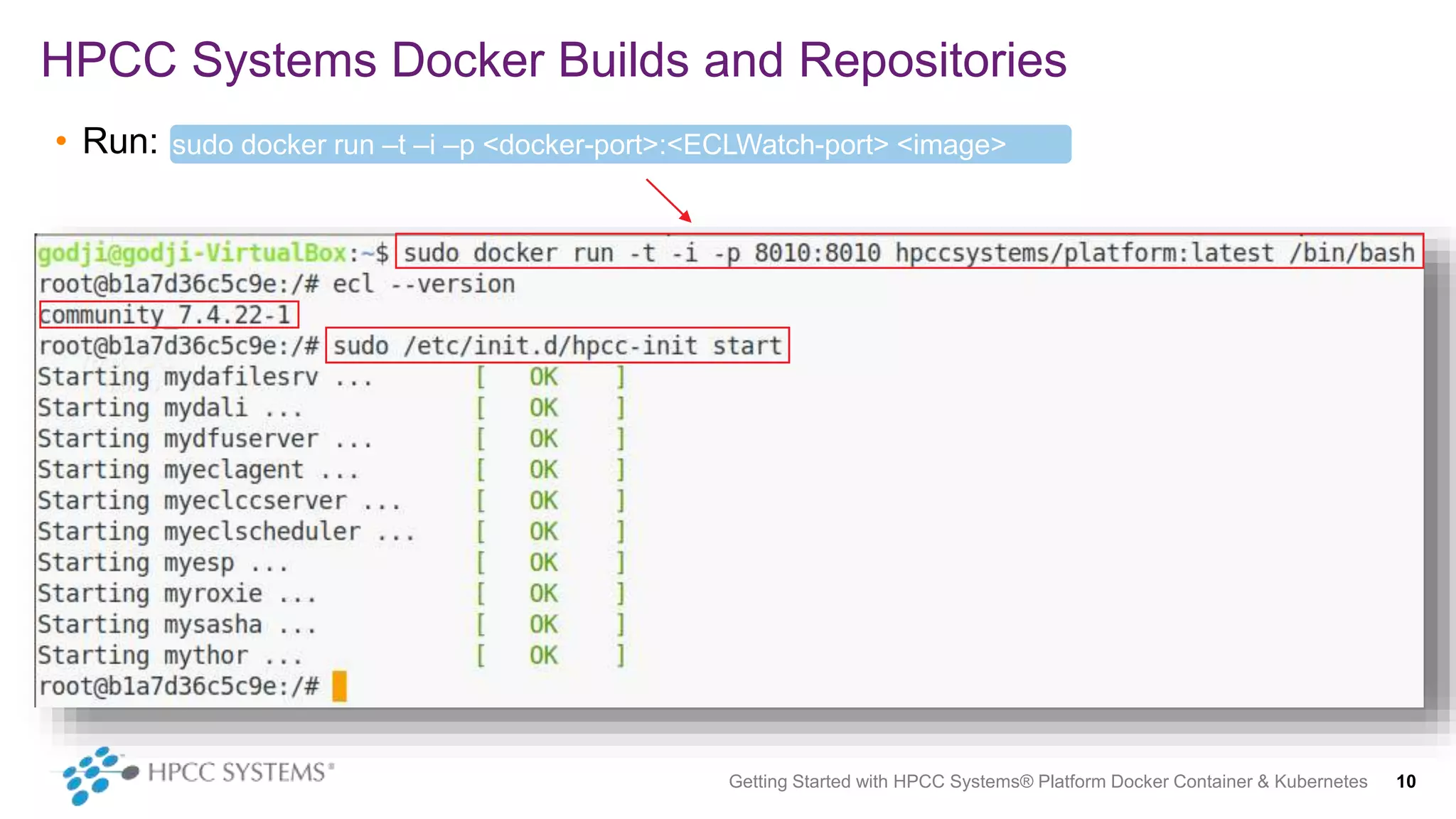

10. • Run:
HPCC Systems Docker Builds and Repositories
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 10
sudo docker run –t –i –p <docker-port>:<ECLWatch-port> <image>
/bin/bash

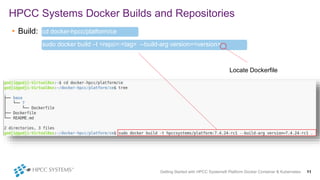

11. • Build:
HPCC Systems Docker Builds and Repositories
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 11
sudo docker build –t <repo>:<tag> --build-arg version=<version> .
cd docker-hpcc/platform/ce
Locate Dockerfile

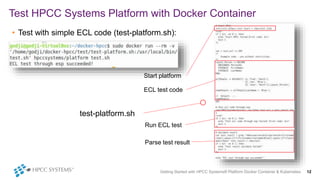

12. • Test with simple ECL code (test-platform.sh):
Test HPCC Systems Platform with Docker Container
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 12
test-platform.sh
Start platform
ECL test code
Run ECL test
Parse test result

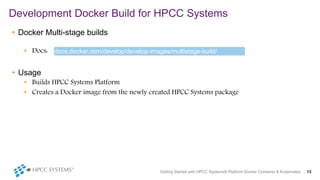

13. • Docker Multi-stage builds
• Docs:
• Usage
• Builds HPCC Systems Platform
• Creates a Docker image from the newly created HPCC Systems package
Development Docker Build for HPCC Systems
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 13
docs.docker.com/develop/develop-images/multistage-build/

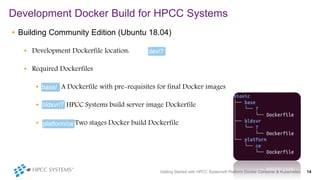

14. • Building Community Edition (Ubuntu 18.04)
• Development Dockerfile location:
• Required Dockerfiles
• A Dockerfile with pre-requisites for final Docker images
• HPCC Systems build server image Dockerfile
• Two stages Docker build Dockerfile
Development Docker Build for HPCC Systems
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 14
dev/7
base/
7
bldsvr/7
platform/ce

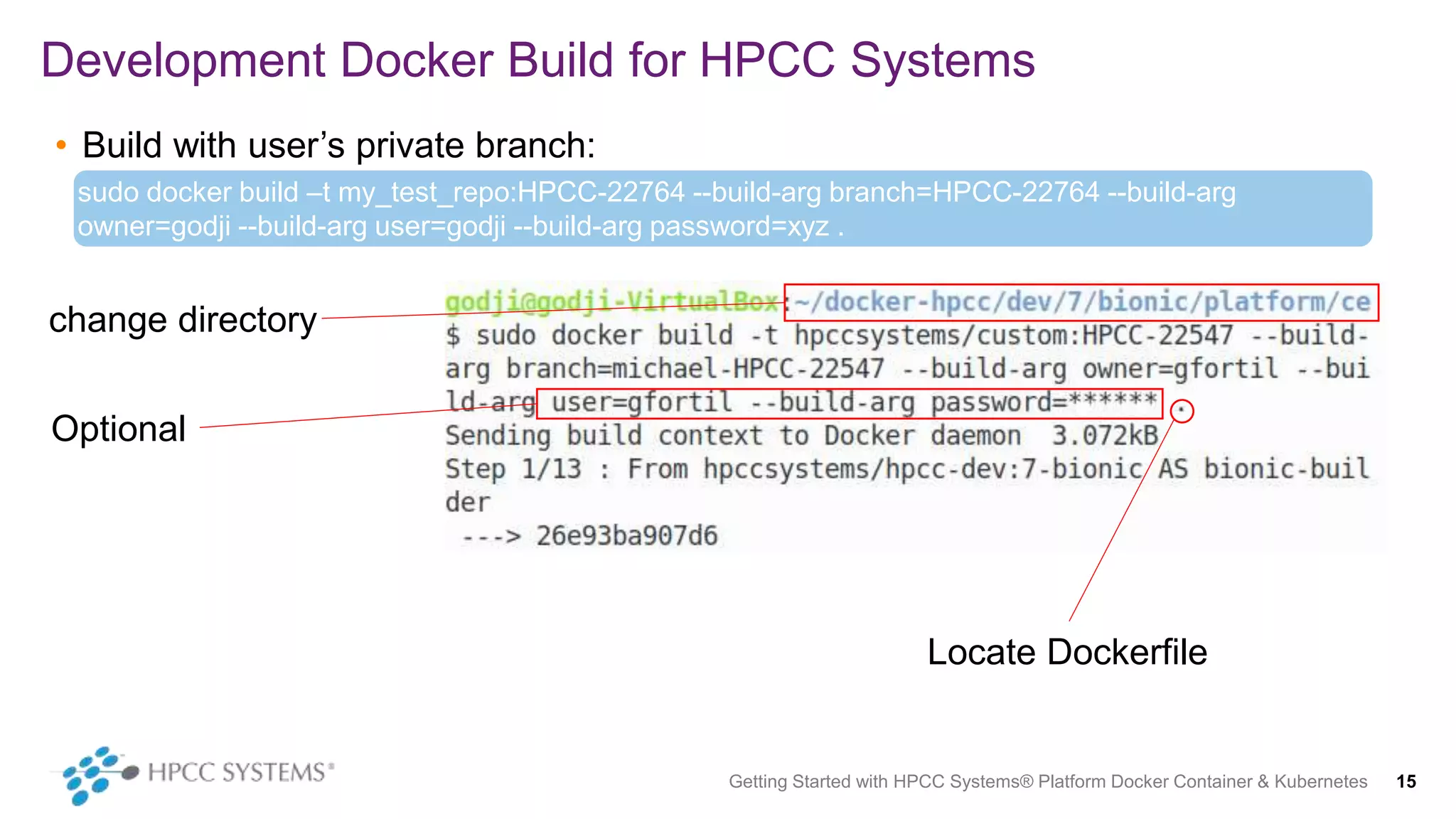

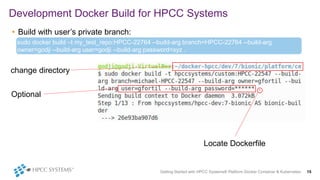

15. • Build with user’s private branch:
Development Docker Build for HPCC Systems
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 15
sudo docker build –t my_test_repo:HPCC-22764 --build-arg branch=HPCC-22764 --build-arg
owner=godji --build-arg user=godji --build-arg password=xyz .
change directory
Optional
Locate Dockerfile

16. • Image Repo:
• Github Repo:
• AWS ECR:
Conclusion
Getting Started with HPCC Systems® Platform Docker Container &
Kubernetes
16
hub.docker.com/u/hpccsytems
github.com/hpcc-systems/docker-hpcc
hpcc-systems-platform/us-east-2

17. HPCC-Kube
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 17

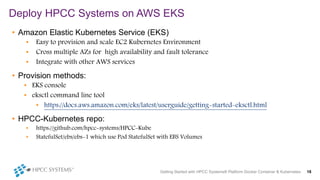

18. Deploy HPCC Systems on AWS EKS
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 18
• Amazon Elastic Kubernetes Service (EKS)
• Easy to provision and scale EC2 Kubernetes Environment
• Cross multiple AZs for high availability and fault tolerance
• Integrate with other AWS services
• Provision methods:
• EKS console
• eksctl command line tool
• https://docs.aws.amazon.com/eks/latest/userguide/getting-started-eksctl.html
• HPCC-Kubernetes repo:
• https://github.com/hpcc-systems/HPCC-Kube
• StatefulSet/ebs/ebs-1 which use Pod StatefulSet with EBS Volumes

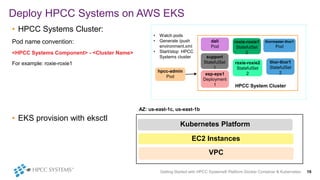

19. Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 19
Deploy HPCC Systems on AWS EKS
• HPCC Systems Cluster:
Pod name convention:
<HPCC Systems Component> - <Cluster Name>
For example: roxie-roxie1
• EKS provision with eksctl
• Watch pods
• Generate /push
environment.xml
• Start/stop HPCC
Systems cluster
HPCC System Cluster
dali
Pod
roxie-roxie1
StatefulSet
2
thormaster-thor1
Pod
support
StatefulSet
1
roxie-roxie2
StatefulSet
2
thor-thor1
StatefulSet
2esp-eps1
Deployment
1
hpcc-admin
Pod
AZ: us-east-1c, us-east-1b
Kubernetes Platform
EC2 Instances
VPC

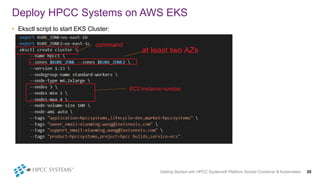

20. Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 20
Deploy HPCC Systems on AWS EKS
• Eksctl script to start EKS Cluster:
at least two AZs
EC2 Instance number
command

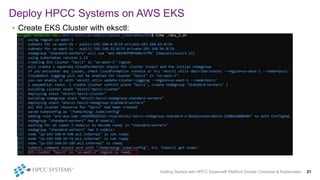

21. • Create EKS Cluster with eksctl:
Deploy HPCC Systems on AWS EKS
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 21

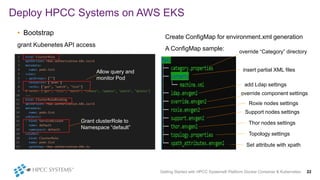

22. Create ConfigMap for environment.xml generation
A ConfigMap sample:
In
Deploy HPCC Systems on AWS EKS
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 22
• Bootstrap
grant Kubenetes API access
Allow query and
monitor Pod
Grant clusterRole to
Namespace “default”
override “Category” directory
insert partial XML files
add Ldap settings
override component settings
Roxie nodes settings
Support nodes settings
Thor nodes settings
Topology settings
Set attribute with xpath

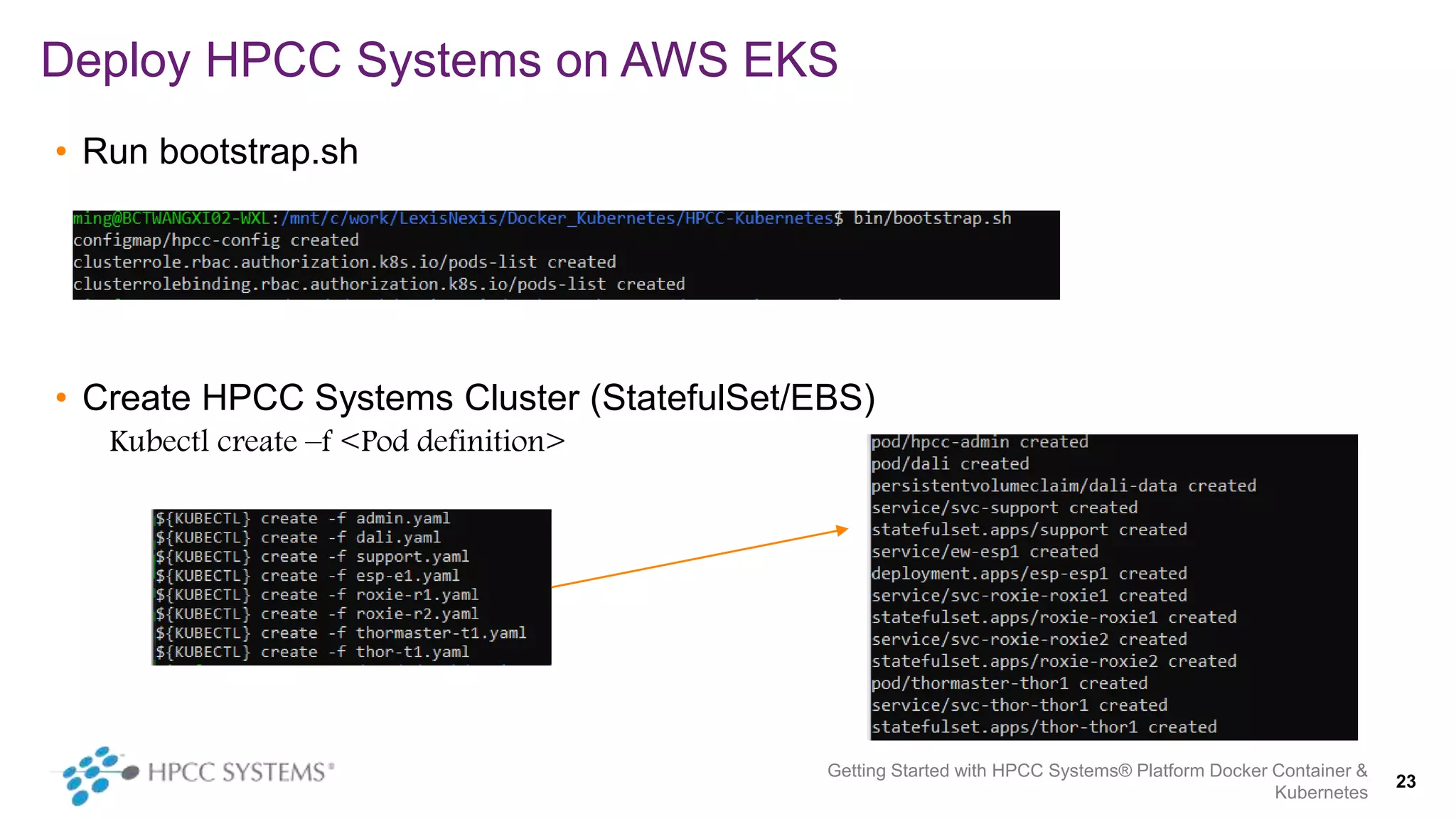

23. • Run bootstrap.sh
• Create HPCC Systems Cluster (StatefulSet/EBS)
Kubectl create –f <Pod definition>
Deploy HPCC Systems on AWS EKS
Getting Started with HPCC Systems® Platform Docker Container &
Kubernetes
23

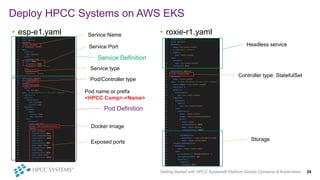

24. Deploy HPCC Systems on AWS EKS
• esp-e1.yaml • roxie-r1.yaml
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 24
Service Name
Service Port
Pod name or prefix
<HPCC Comp>-<Name>
Docker Image
Exposed ports
Pod/Controller type
Service type
Headless service
Service Definition
Pod Definition
Storage
Controller type: StatefulSet

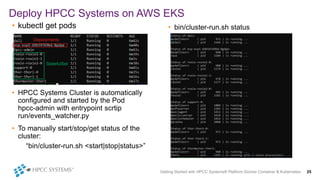

25. Deploy HPCC Systems on AWS EKS
• kubectl get pods
• HPCC Systems Cluster is automatically
configured and started by the Pod
hpcc-admin with entrypoint scrtip
run/events_watcher.py
• To manually start/stop/get status of the
cluster:
“bin/cluster-run.sh <start|stop|status>”
• bin/cluster-run.sh status
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 25
Deployments
StatefulSet

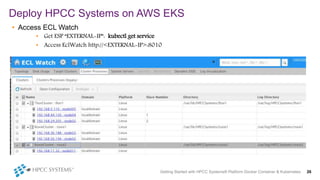

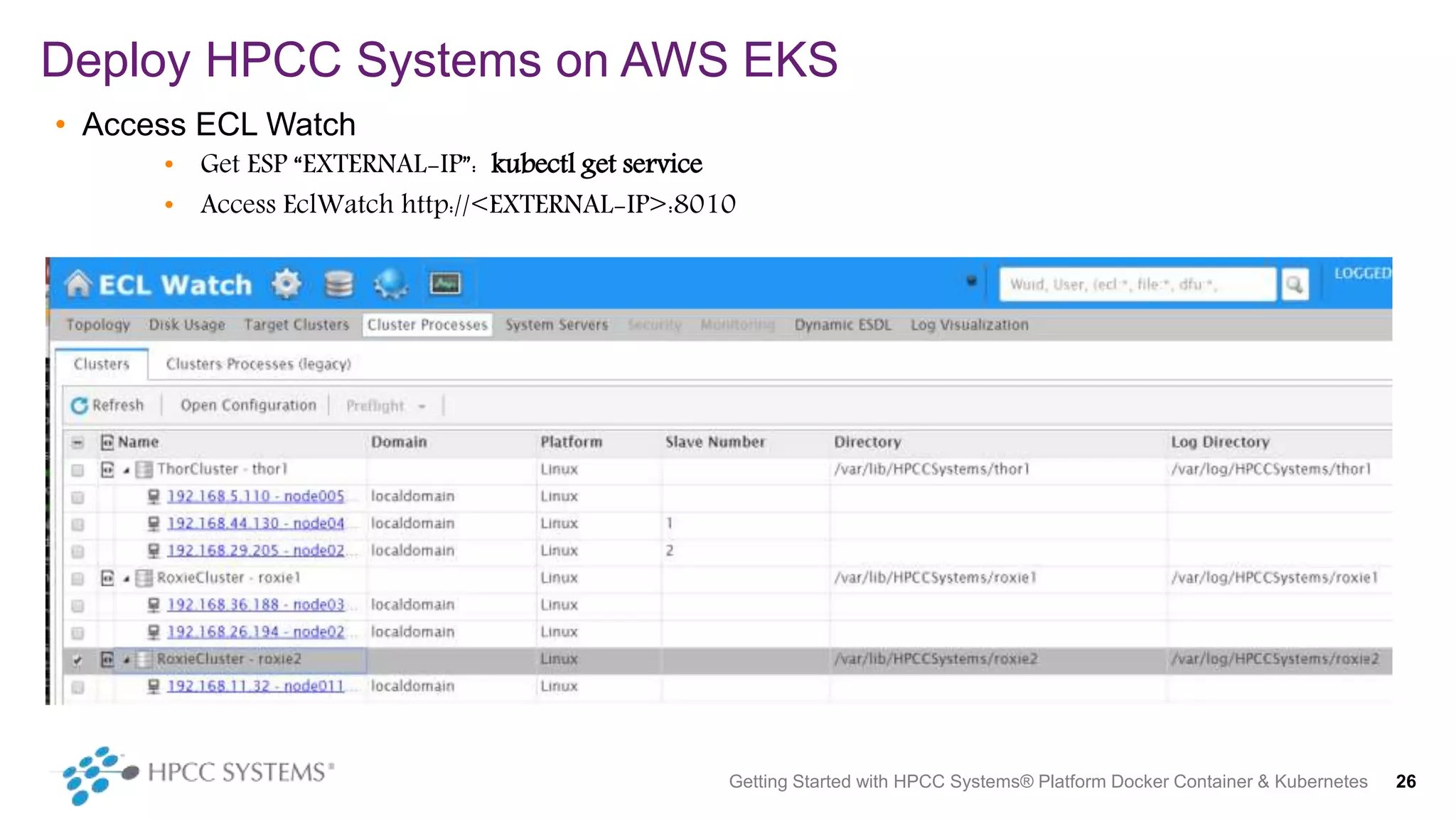

26. • Access ECL Watch
• Get ESP “EXTERNAL-IP”: kubectl get service
• Access EclWatch http://<EXTERNAL-IP>:8010
Deploy HPCC Systems on AWS EKS
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 26

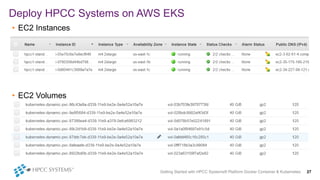

27. • EC2 Instances
• EC2 Volumes
Deploy HPCC Systems on AWS EKS
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 27

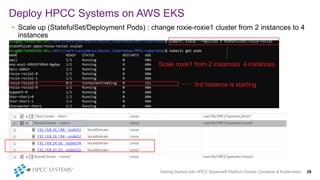

28. • Scale up (StatefulSet/Deployment Pods) : change roxie-roxie1 cluster from 2 instances to 4
instances
Deploy HPCC Systems on AWS EKS
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 28
Scale roxie1 from 2 instances 4 instances
3rd instance is starting

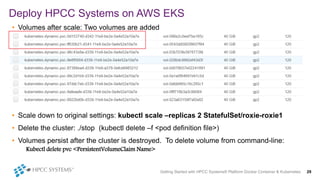

29. • Volumes after scale: Two volumes are added
• Scale down to original settings: kubectl scale –replicas 2 StatefulSet/roxie-roxie1
• Delete the cluster: ./stop (kubectl delete –f <pod definition file>)
• Volumes persist after the cluster is destroyed. To delete volume from command-line:
Kubectl delete pvc <PersistentVolumeClaim Name>
Deploy HPCC Systems on AWS EKS
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 29

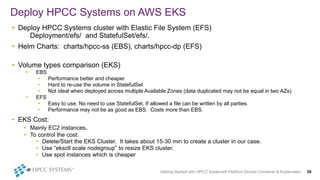

30. Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 30
• Deploy HPCC Systems cluster with Elastic File System (EFS)
Deployment/efs/ and StatefulSet/efs/.
• Helm Charts: charts/hpcc-ss (EBS), charts/hpcc-dp (EFS)
• Volume types comparison (EKS)
• EBS
• Performance better and cheaper
• Hard to re-use the volume in StatefulSet
• Not ideal when deployed across multiple Available Zones (data duplicated may not be equal in two AZs)
• EFS
• Easy to use. No need to use StatefulSet. If allowed a file can be written by all parties.
• Performance may not be as good as EBS. Costs more than EBS.
• EKS Cost:
• Mainly EC2 instances.
• To control the cost:
• Delete/Start the EKS Cluster. It takes about 15-30 min to create a cluster in our case.
• Use “eksctl scale nodegroup” to resize EKS cluster.
• Use spot instances which is cheaper
Deploy HPCC Systems on AWS EKS

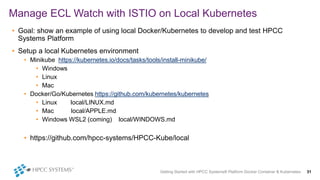

31. Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 31
Manage ECL Watch with ISTIO on Local Kubernetes
• Goal: show an example of using local Docker/Kubernetes to develop and test HPCC
Systems Platform
• Setup a local Kubernetes environment
• Minikube https://kubernetes.io/docs/tasks/tools/install-minikube/
• Windows
• Linux
• Mac
• Docker/Go/Kubernetes https://github.com/kubernetes/kubernetes
• Linux local/LINUX.md
• Mac local/APPLE.md
• Windows WSL2 (coming) local/WINDOWS.md
• https://github.com/hpcc-systems/HPCC-Kube/local

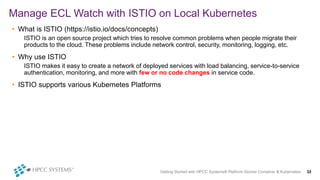

32. Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 32
Manage ECL Watch with ISTIO on Local Kubernetes
• What is ISTIO (https://istio.io/docs/concepts)
ISTIO is an open source project which tries to resolve common problems when people migrate their
products to the cloud. These problems include network control, security, monitoring, logging, etc.
• Why use ISTIO
ISTIO makes it easy to create a network of deployed services with load balancing, service-to-service
authentication, monitoring, and more with few or no code changes in service code.
• ISTIO supports various Kubernetes Platforms

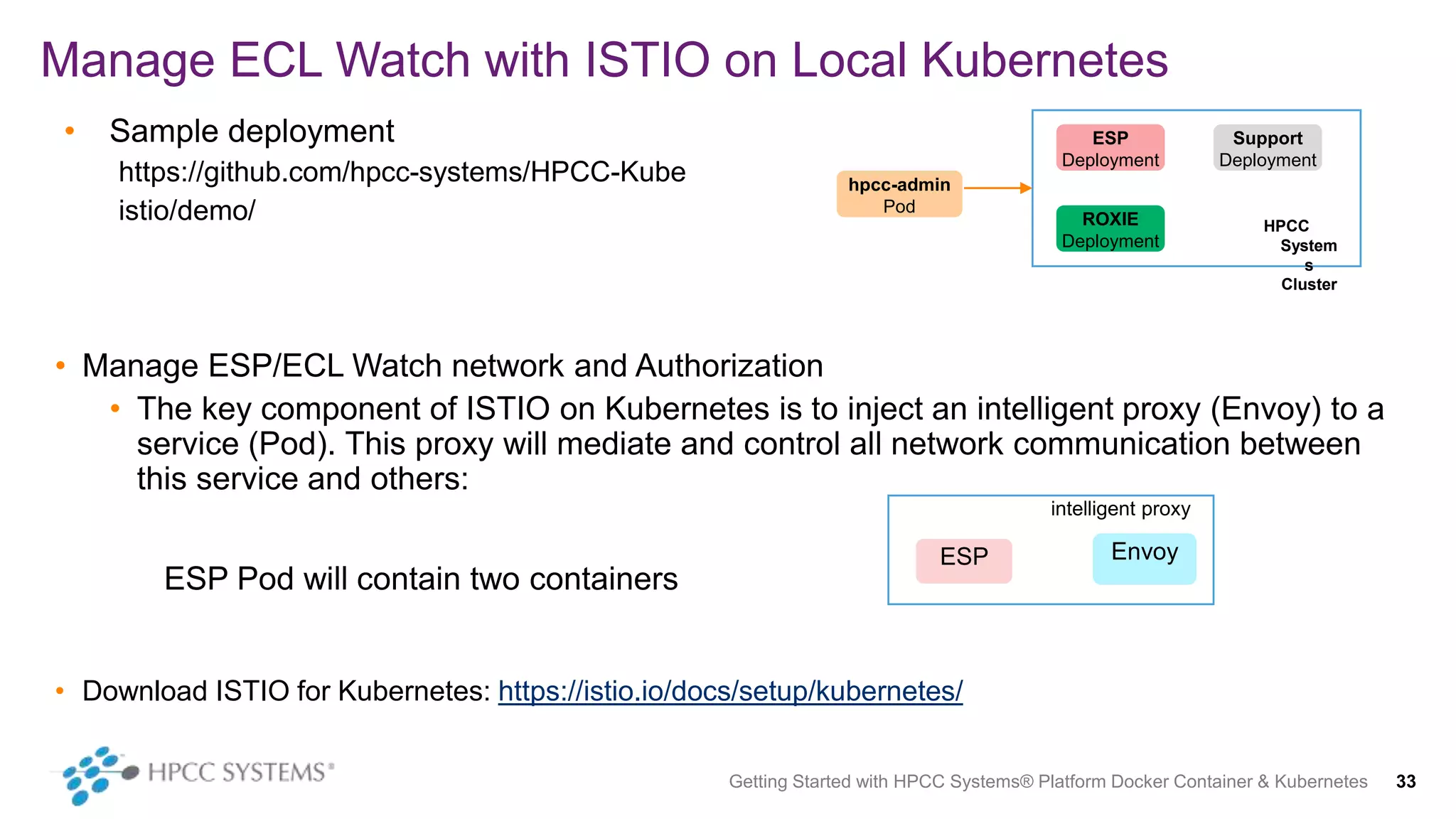

33. Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 33
Manage ECL Watch with ISTIO on Local Kubernetes
• Sample deployment
https://github.com/hpcc-systems/HPCC-Kube
istio/demo/
• Manage ESP/ECL Watch network and Authorization
• The key component of ISTIO on Kubernetes is to inject an intelligent proxy (Envoy) to a
service (Pod). This proxy will mediate and control all network communication between
this service and others:
ESP Pod will contain two containers
• Download ISTIO for Kubernetes: https://istio.io/docs/setup/kubernetes/
Support
Deployment
ESP
Deployment
hpcc-admin
Pod
ROXIE
Deployment
HPCC
System
s
Cluster
ESP Envoy
intelligent proxy

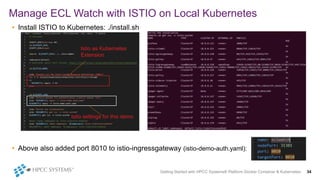

34. • Install ISTIO to Kubernetes: ./install.sh
• Above also added port 8010 to istio-ingressgateway (istio-demo-auth.yaml):
Manage ECL Watch with ISTIO on Local Kubernetes
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 34
Istio as Kubernetes
Extension
Istio settings for this demo

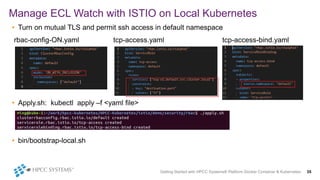

35. • Turn on mutual TLS and permit ssh access in default namespace
rbac-config-ON.yaml tcp-access.yaml tcp-access-bind.yaml
• Apply.sh: kubectl apply –f <yaml file>
• bin/bootstrap-local.sh
Manage ECL Watch with ISTIO on Local Kubernetes
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 35

36. • Deploy cluster
• Start HPCC Systems Cluster. Notice there are two containers in the ESP Pod
• Make sure HPCC Systems, particularly ESP is started:
Manage ECL Watch with ISTIO on Local Kubernetes
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 36
ESP + Envoy
Inject envoy

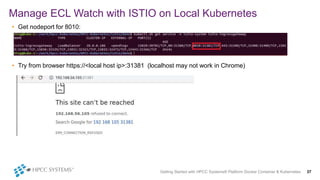

37. • Get nodeport for 8010:
• Try from browser https://<local host ip>:31381 (localhost may not work in Chrome)
Manage ECL Watch with ISTIO on Local Kubernetes
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 37

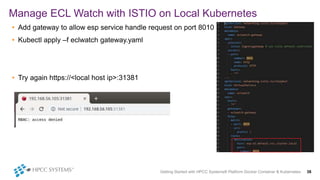

38. • Add gateway to allow esp service handle request on port 8010
• Kubectl apply –f eclwatch gateway.yaml
• Try again https://<local host ip>:31381
Manage ECL Watch with ISTIO on Local Kubernetes
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 38

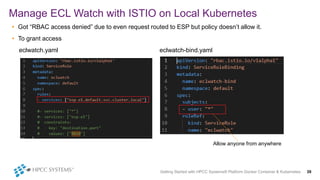

39. • Got “RBAC access denied” due to even request routed to ESP but policy doesn’t allow it.
• To grant access
eclwatch.yaml eclwatch-bind.yaml
Manage ECL Watch with ISTIO on Local Kubernetes
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 39
Allow anyone from anywhere

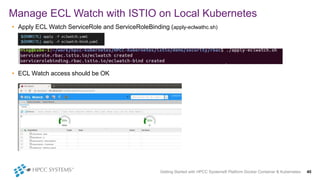

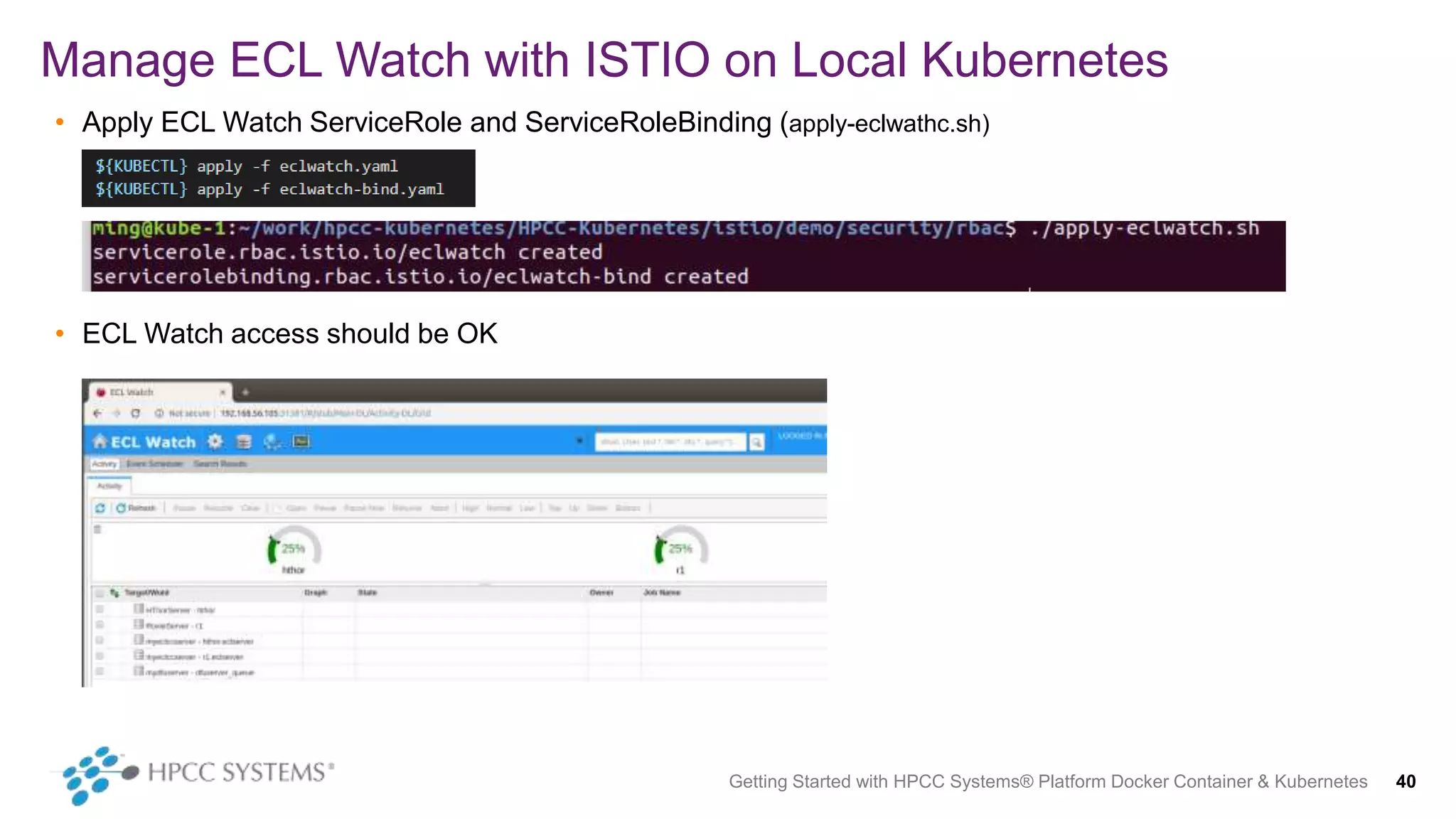

40. • Apply ECL Watch ServiceRole and ServiceRoleBinding (apply-eclwathc.sh)
• ECL Watch access should be OK
Manage ECL Watch with ISTIO on Local Kubernetes
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 40

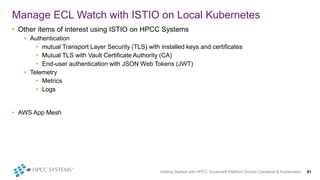

41. Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 41
Manage ECL Watch with ISTIO on Local Kubernetes
• Other items of interest using ISTIO on HPCC Systems
• Authentication
• mutual Transport Layer Security (TLS) with installed keys and certificates
• Mutual TLS with Vault Certificate Authority (CA)
• End-user authentication with JSON Web Tokens (JWT)
• Telemetry
• Metrics
• Logs
• AWS App Mesh

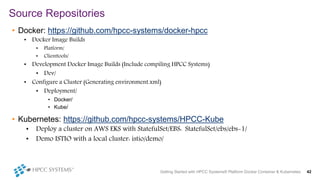

42. • Docker: https://github.com/hpcc-systems/docker-hpcc
• Docker Image Builds
• Platform/
• Clienttools/
• Development Docker Image Builds (Include compiling HPCC Systems)
• Dev/
• Configure a Cluster (Generating environment.xml)
• Deployment/
• Docker/
• Kube/
• Kubernetes: https://github.com/hpcc-systems/HPCC-Kube
• Deploy a cluster on AWS EKS with StatefulSet/EBS: StatefulSet/ebs/ebs-1/
• Demo ISTIO with a local cluster: istio/demo/
Source Repositories
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 42

43. Questions & Suggestions
HPCC Systems Docker Repository:
https://github.com/hpcc-systems/docker-hpcc
HPCC Systems Kubernetes Repository:
https://github.com/hpcc-systems/HPCC-Kube
Getting Started with HPCC Systems® Platform Docker Container &
Kubernetes
43

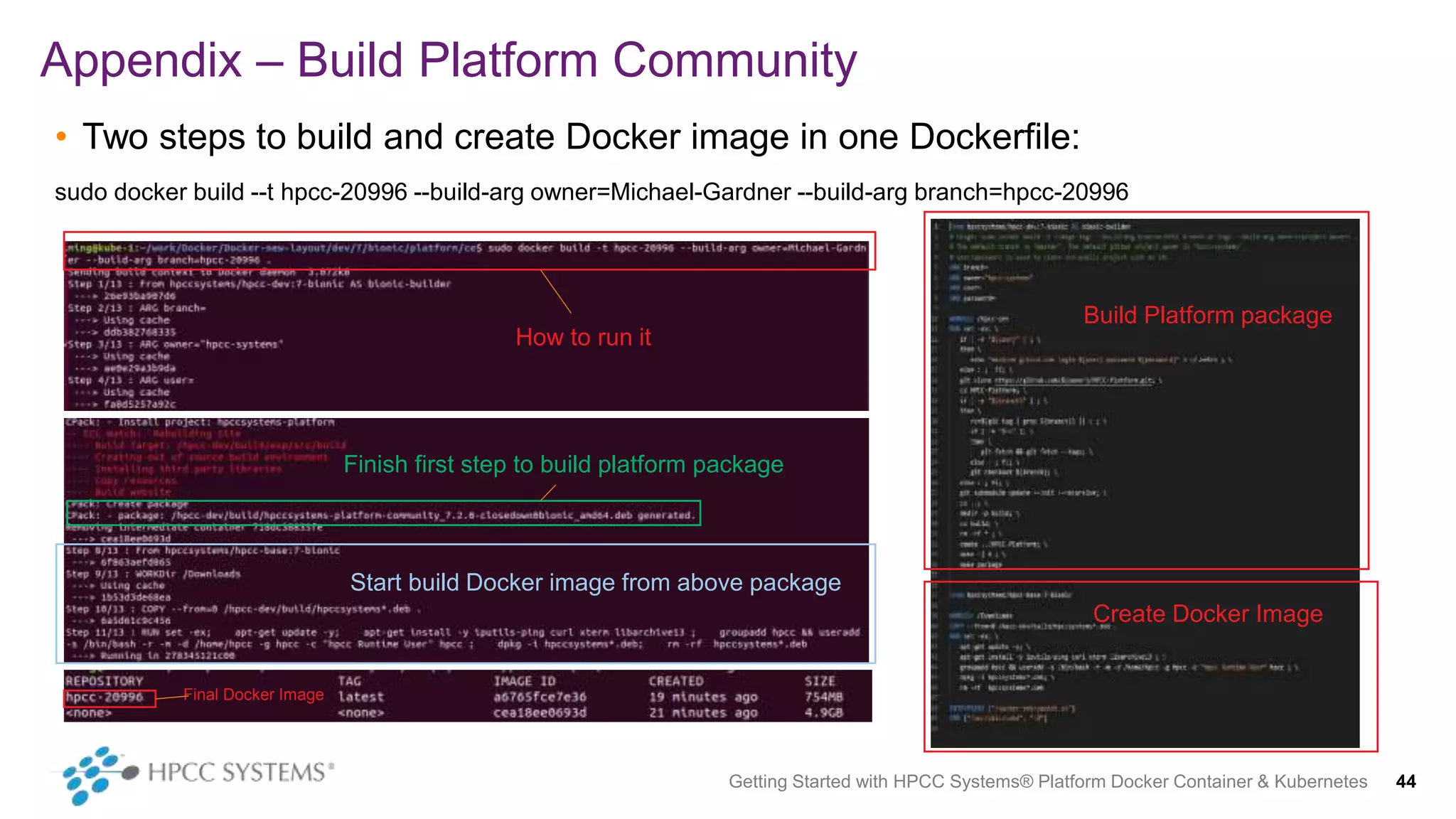

44. • Two steps to build and create Docker image in one Dockerfile:
sudo docker build --t hpcc-20996 --build-arg owner=Michael-Gardner --build-arg branch=hpcc-20996
Appendix – Build Platform Community
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 44
How to run it
Finish first step to build platform package
Start build Docker image from above package
Build Platform package
Create Docker Image
Final Docker Image

45. • Two steps build for LexisNexis Risk Solutions
This is similar but with more build arguments:
Dockerfile is under dev/7/el7/platform/ln which is only for CentOS 7 now.
Appendix – Build Platform Internal
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 45
dev/7/el7/platform/ln

46. Appendix – Bootstrap
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 46

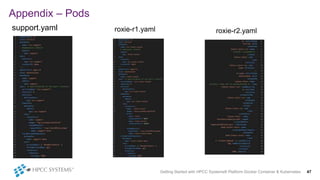

47. Appendix – Pods
support.yaml roxie-r2.yaml
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 47
roxie-r1.yaml

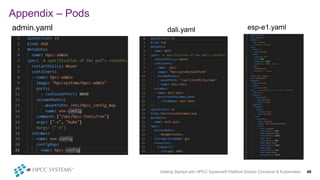

48. Appendix – Pods
admin.yaml esp-e1.yaml
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 48
dali.yaml

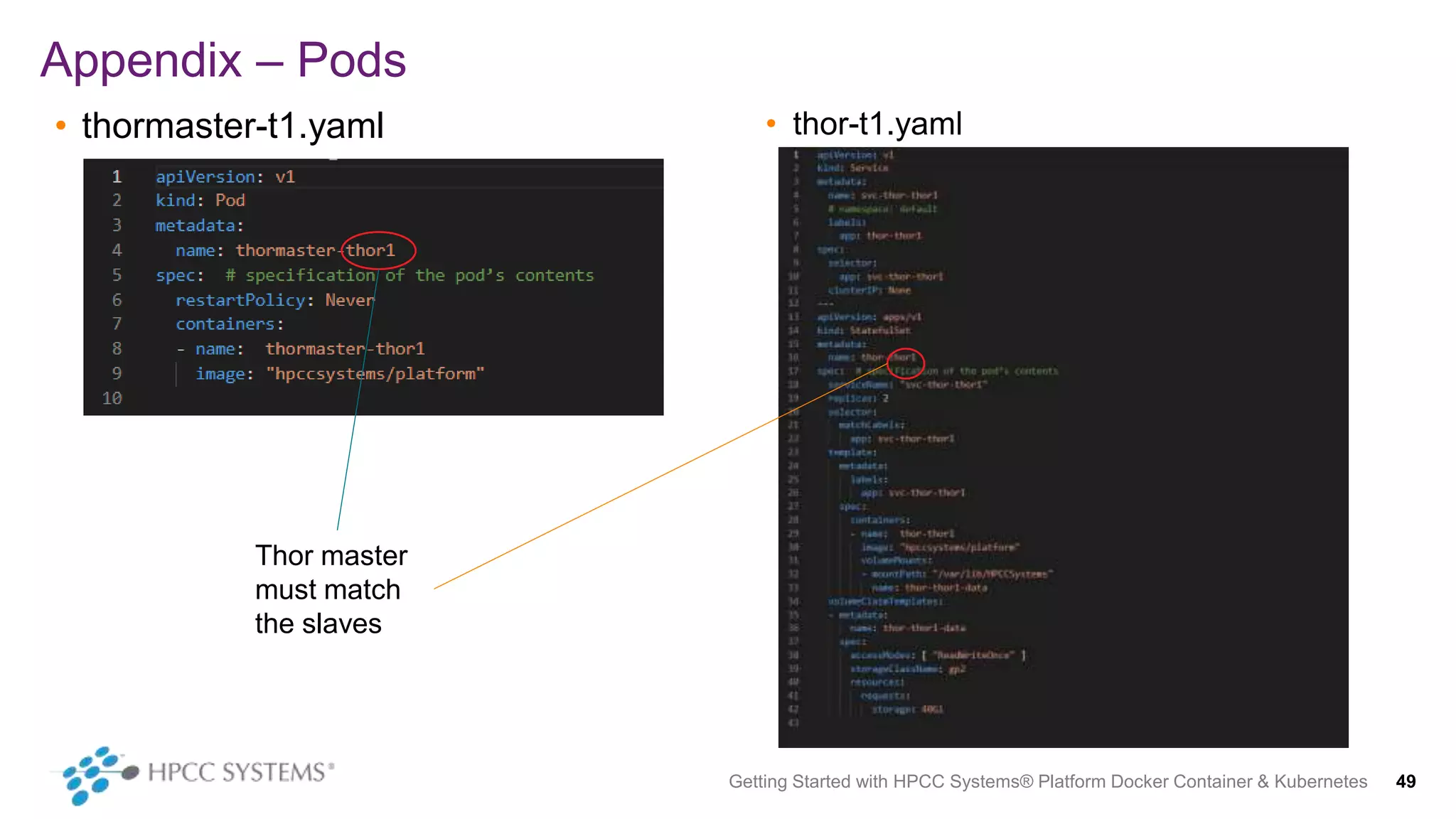

49. Appendix – Pods
• thormaster-t1.yaml • thor-t1.yaml
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 49
Thor master
must match
the slaves

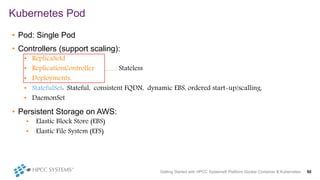

50. • Pod: Single Pod
• Controllers (support scaling):
• ReplicaSetd
• ReplicationController Stateless
• Deployments:
• StatefulSet: Stateful, consistent FQDN, dynamic EBS, ordered start-up/scalling,
• DaemonSet
• Persistent Storage on AWS:
• Elastic Block Store (EBS)
• Elastic File System (EFS)
Kubernetes Pod
Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 50

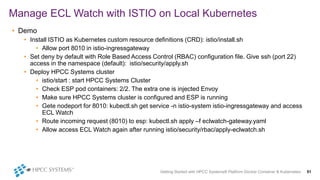

51. Getting Started with HPCC Systems® Platform Docker Container & Kubernetes 51
Manage ECL Watch with ISTIO on Local Kubernetes
• Demo
• Install ISTIO as Kubernetes custom resource definitions (CRD): istio/install.sh
• Allow port 8010 in istio-ingressgateway
• Set deny by default with Role Based Access Control (RBAC) configuration file. Give ssh (port 22)
access in the namespace (default): istio/security/apply.sh
• Deploy HPCC Systems cluster
• istio/start : start HPCC Systems Cluster
• Check ESP pod containers: 2/2. The extra one is injected Envoy
• Make sure HPCC Systems cluster is configured and ESP is running
• Gete nodeport for 8010: kubectl.sh get service -n istio-system istio-ingressgateway and access
ECL Watch
• Route incoming request (8010) to esp: kubectl.sh apply –f eclwatch-gateway.yaml
• Allow access ECL Watch again after running istio/security/rbac/apply-eclwatch.sh

52. Getting Started with HPCC Systems® Platform Docker Container &
Kubernetes
52
View this presentation on YouTube:
https://www.youtube.com/watch?v=bp1fSv_KrPc&list=PL-
8MJMUpp8IKH5-d56az56t52YccleX5h&index=9&t=0s
