1. Modernizing the Ext
JS Class System
Don Griffin
@dongryphon

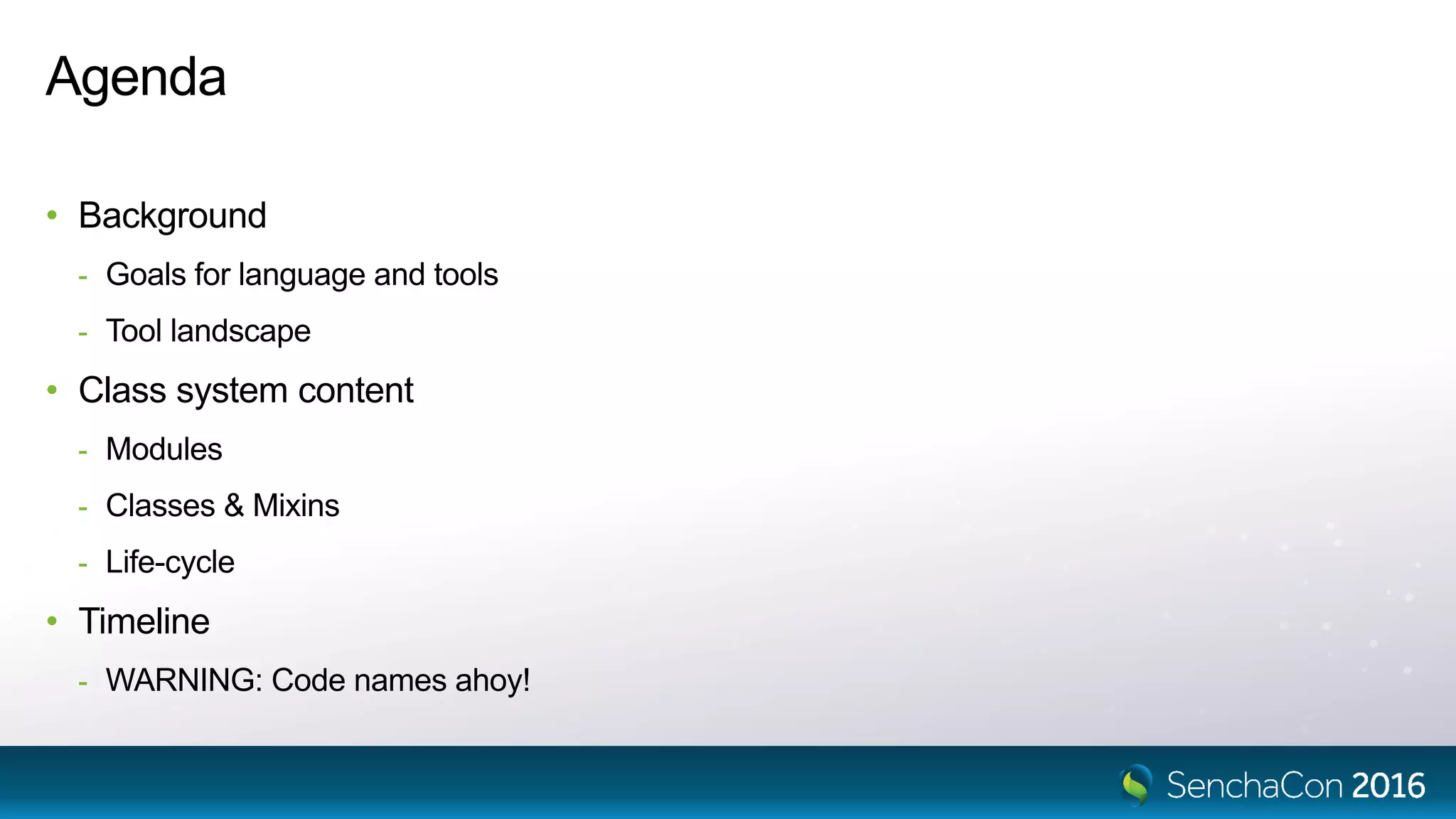

2. Agenda
• Background
- Goals for language and tools
- Tool landscape
• Class system content
- Modules
- Classes & Mixins
- Life-cycle
• Timeline
- WARNING: Code names ahoy!

3. Goals

4. Future-proofing
Balance Between…
Compatibility

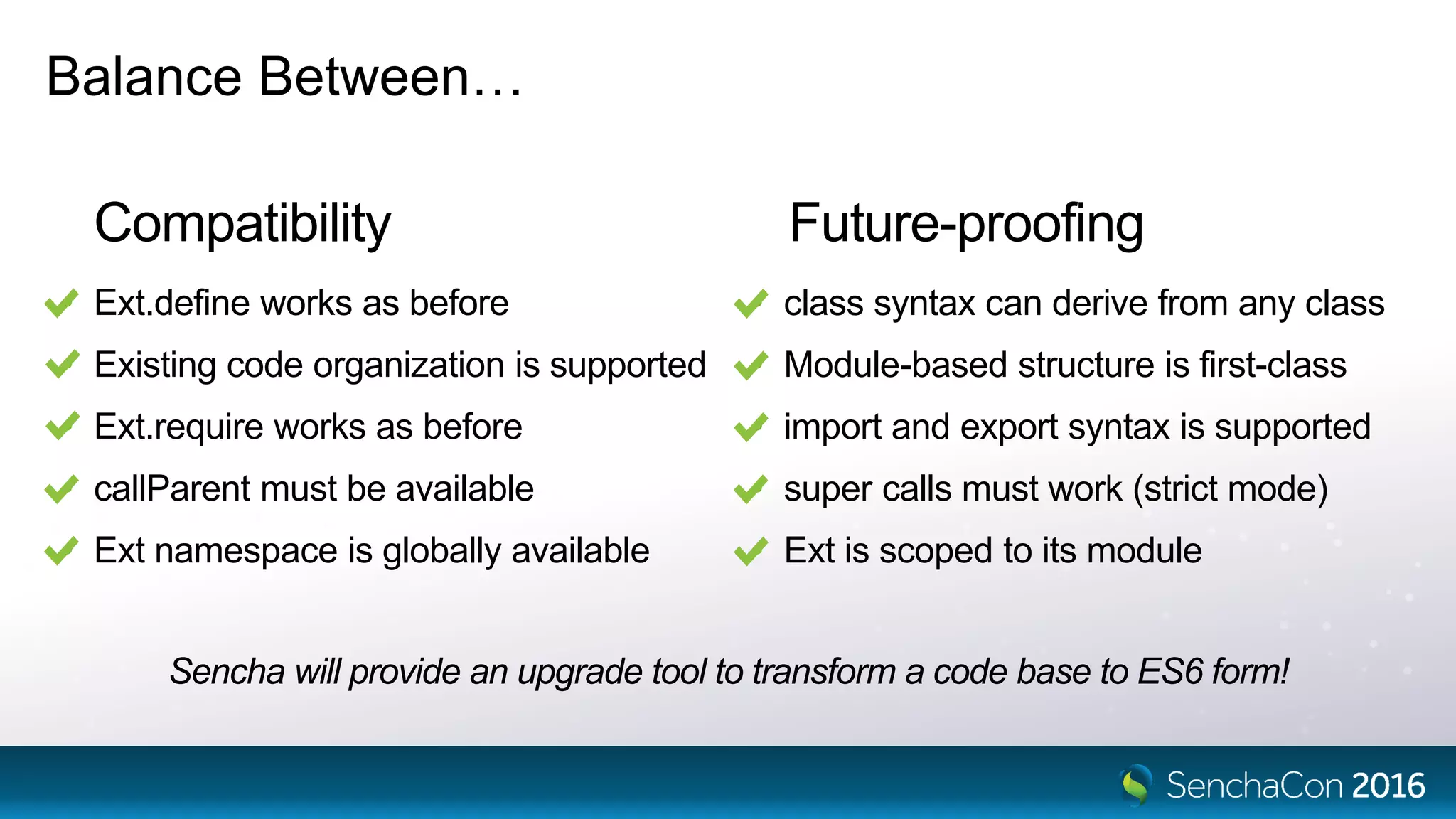

5. Future-proofing
Balance Between…
Compatibility
• Ext.define works as before
• Existing code organization is supported
• Ext.require works as before
• callParent must be available
• Ext namespace is globally available
• class syntax can derive from any class
• Module-based structure is first-class
• import and export syntax is supported
• super calls must work (strict mode)
• Ext is scoped to its module
Sencha will provide an upgrade tool to transform a code base to ES6 form!

6. Language Standards

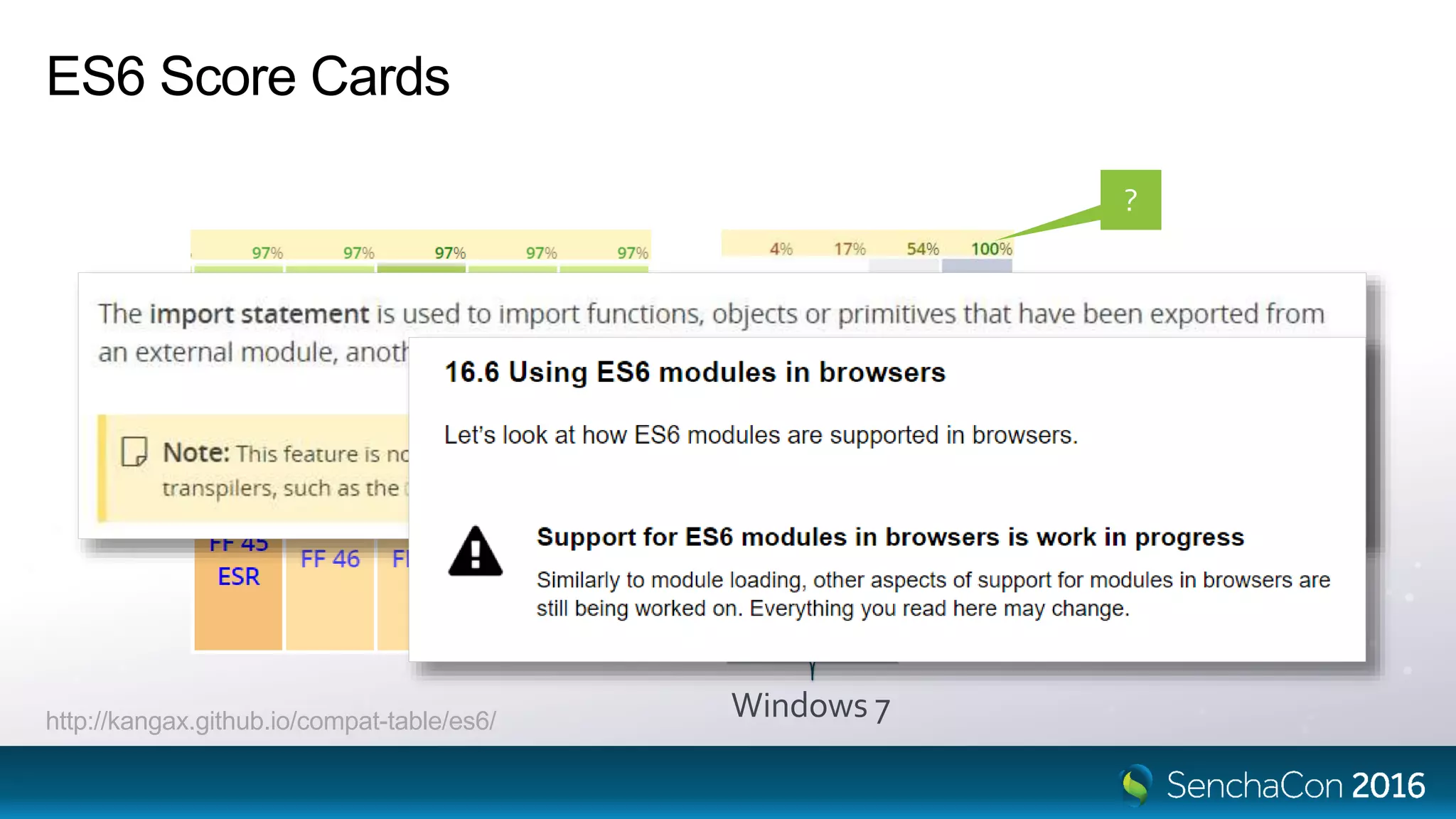

7. ES6 Score Cards
Windows 7http://kangax.github.io/compat-table/es6/
?

8. Tools Enable Language Adoption

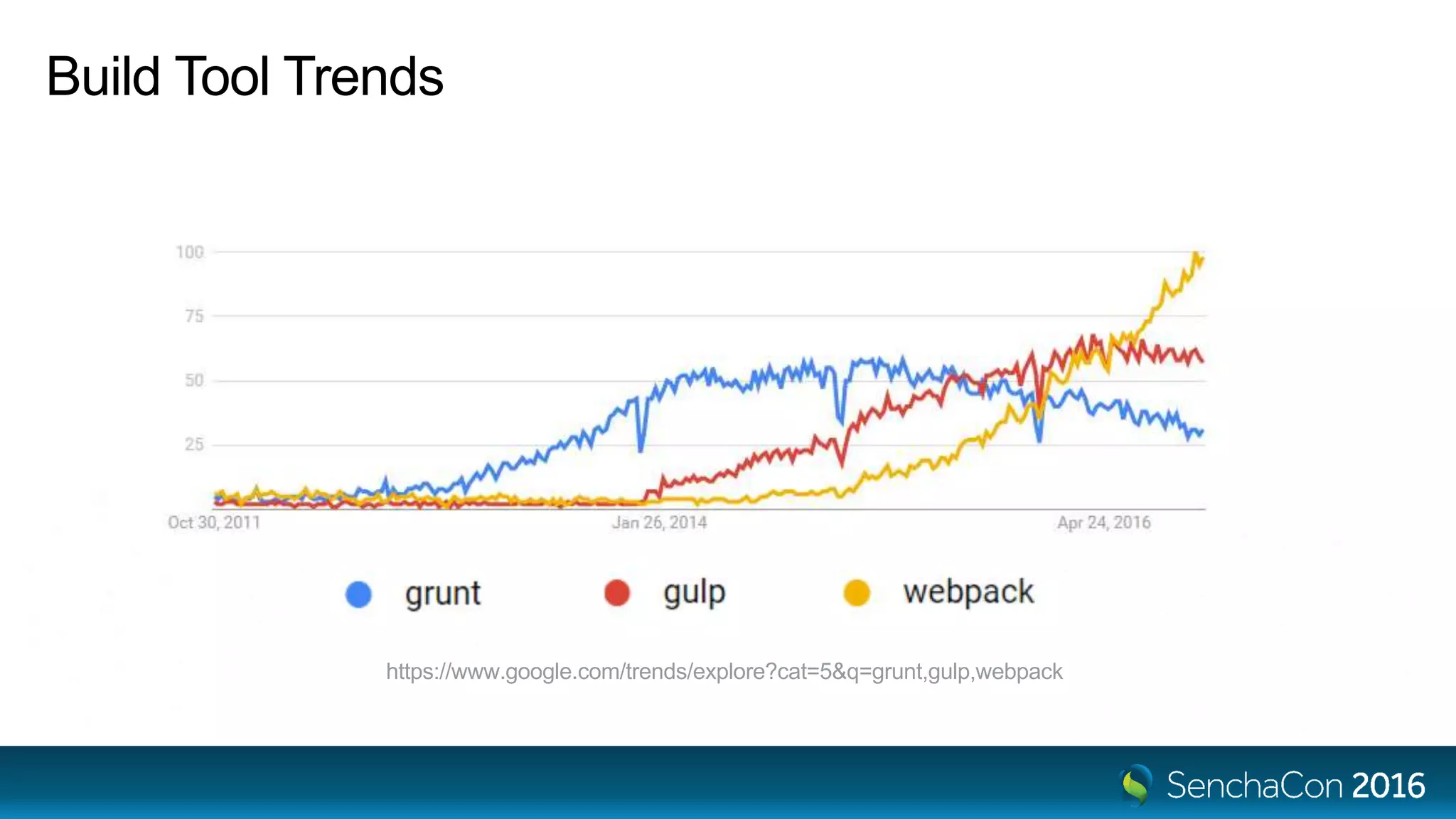

9. Build Tool Trends
https://www.google.com/trends/explore?cat=5&q=grunt,gulp,webpack

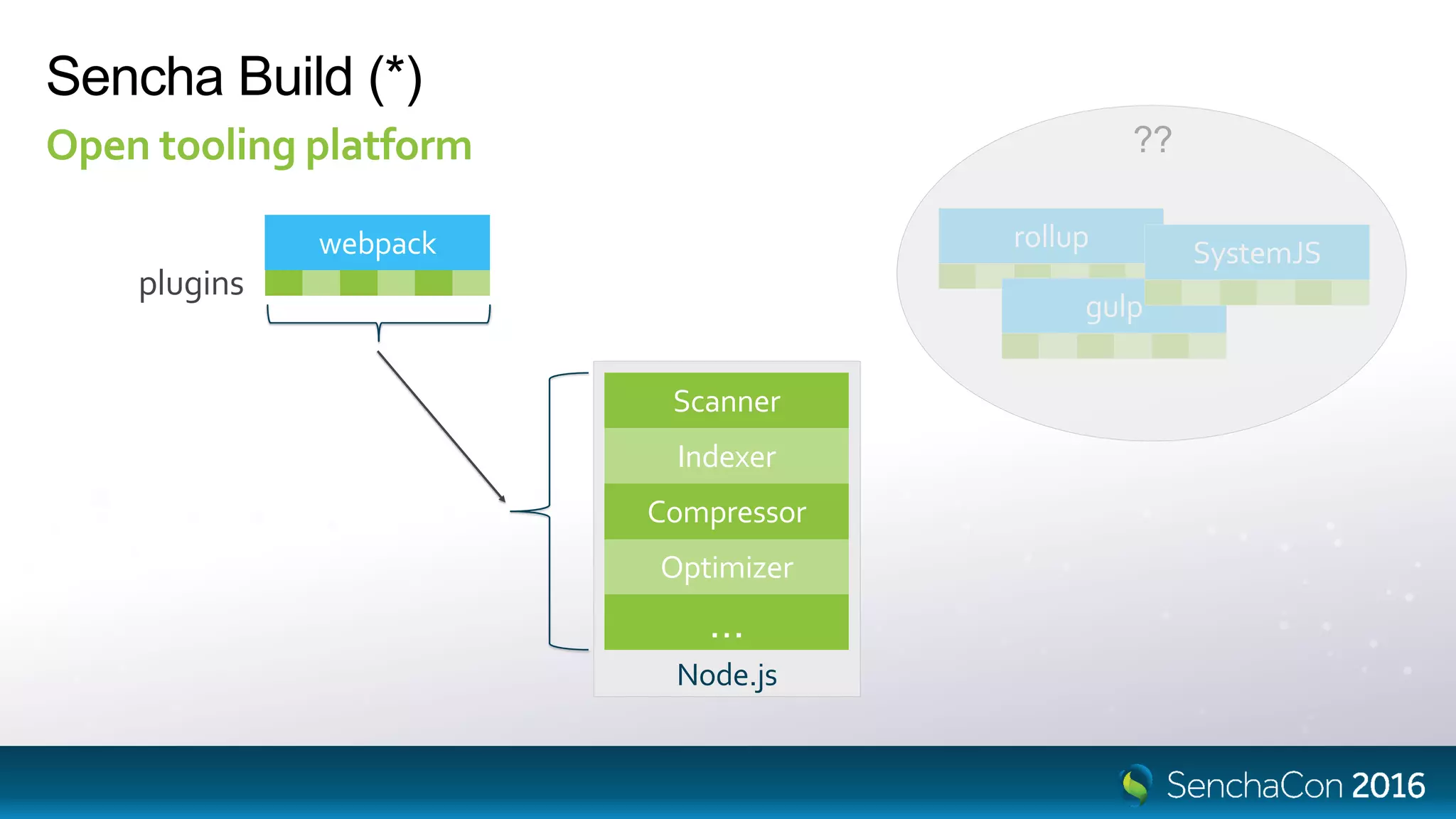

10. Node.js
Sencha Build (*)
Open tooling platform
Scanner
Optimizer
Indexer
Compressor
…
webpack
plugins
rollup
gulp
SystemJS
??

11. Transpilers and Source Maps

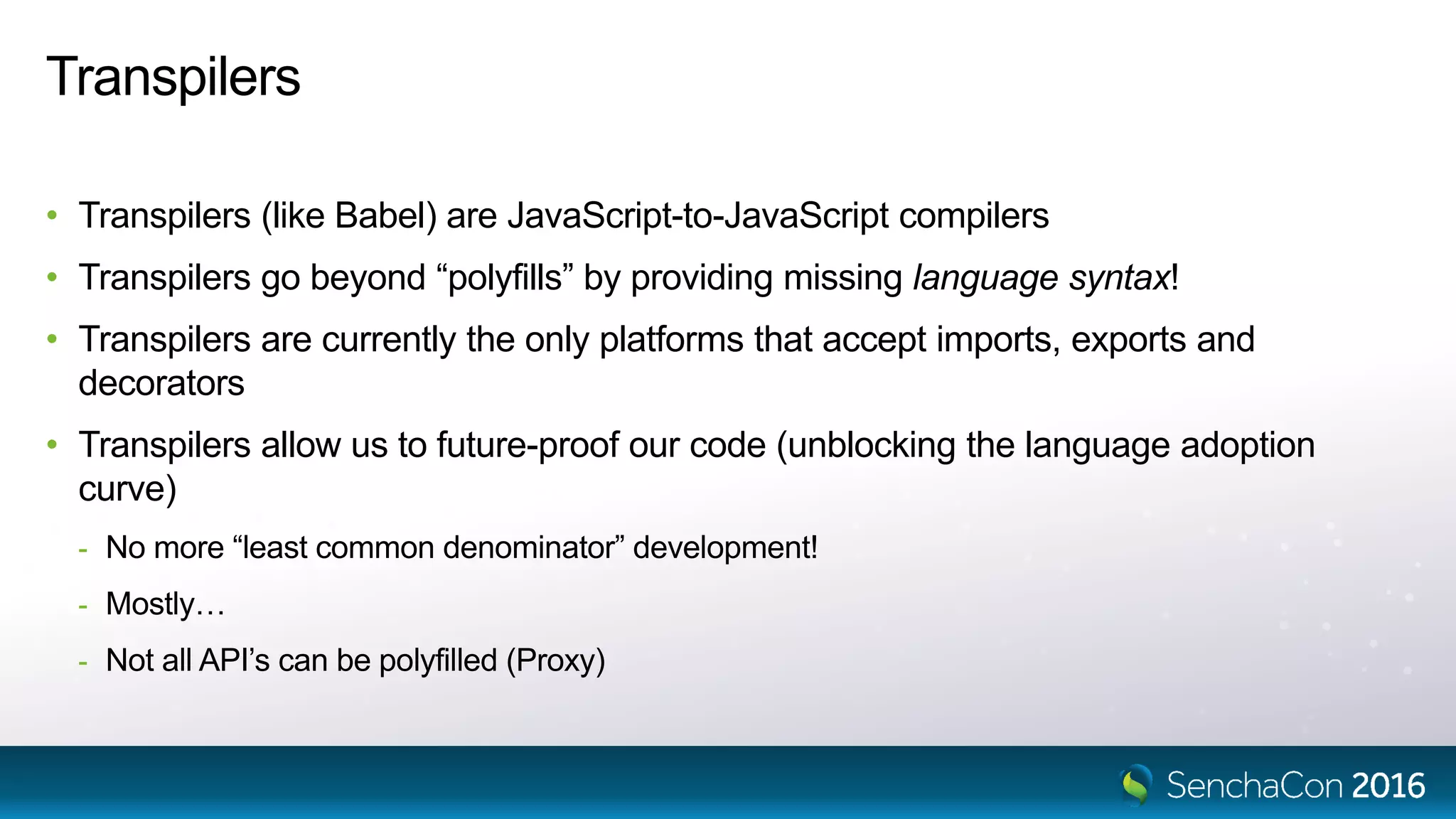

12. Transpilers
• Transpilers (like Babel) are JavaScript-to-JavaScript compilers
• Transpilers go beyond “polyfills” by providing missing language syntax!
• Transpilers are currently the only platforms that accept imports, exports and
decorators
• Transpilers allow us to future-proof our code (unblocking the language adoption
curve)
- No more “least common denominator” development!
- Mostly…
- Not all API’s can be polyfilled (Proxy)

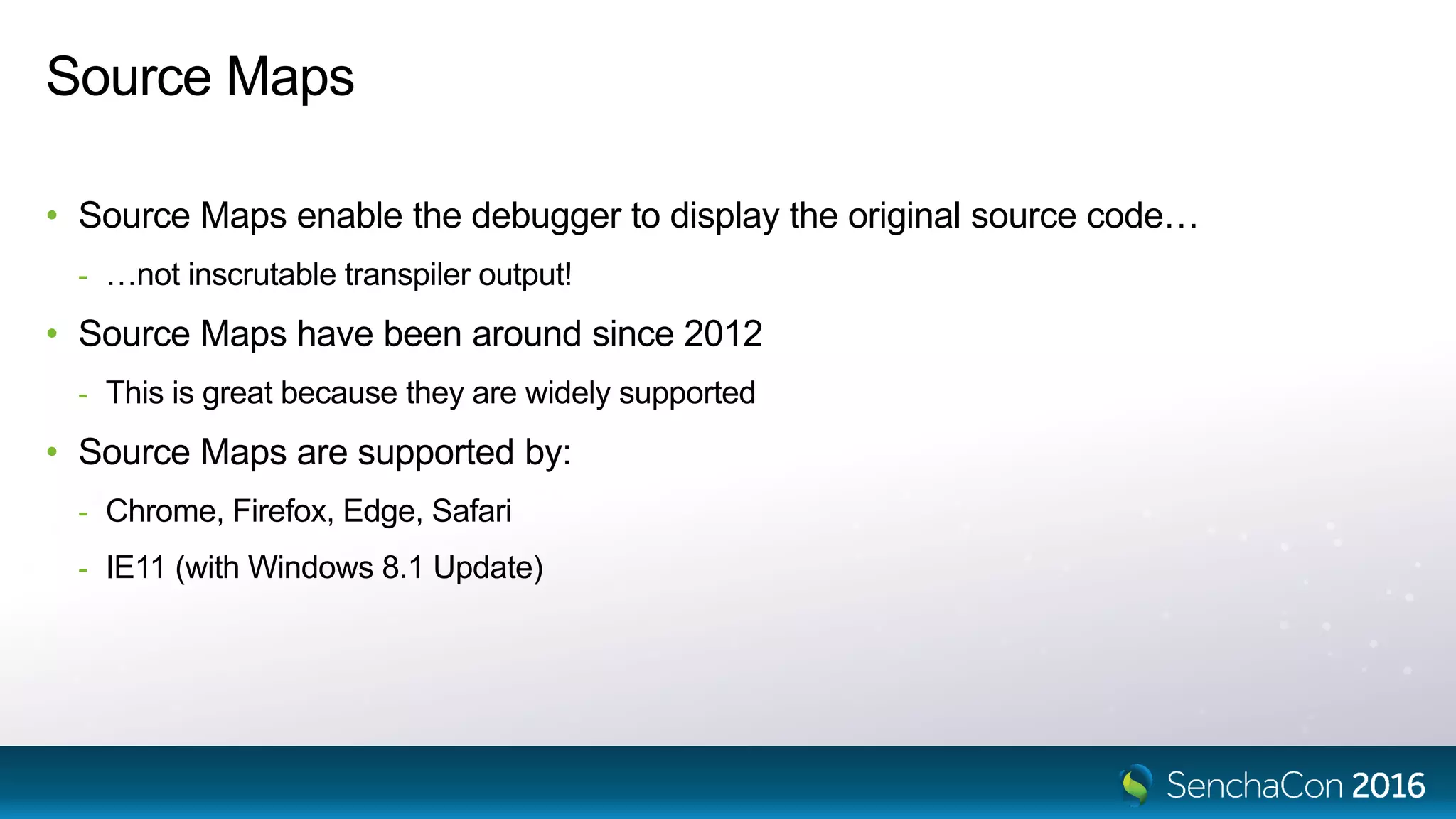

13. Source Maps
• Source Maps enable the debugger to display the original source code…
- …not inscrutable transpiler output!
• Source Maps have been around since 2012
- This is great because they are widely supported
• Source Maps are supported by:
- Chrome, Firefox, Edge, Safari
- IE11 (with Windows 8.1 Update)

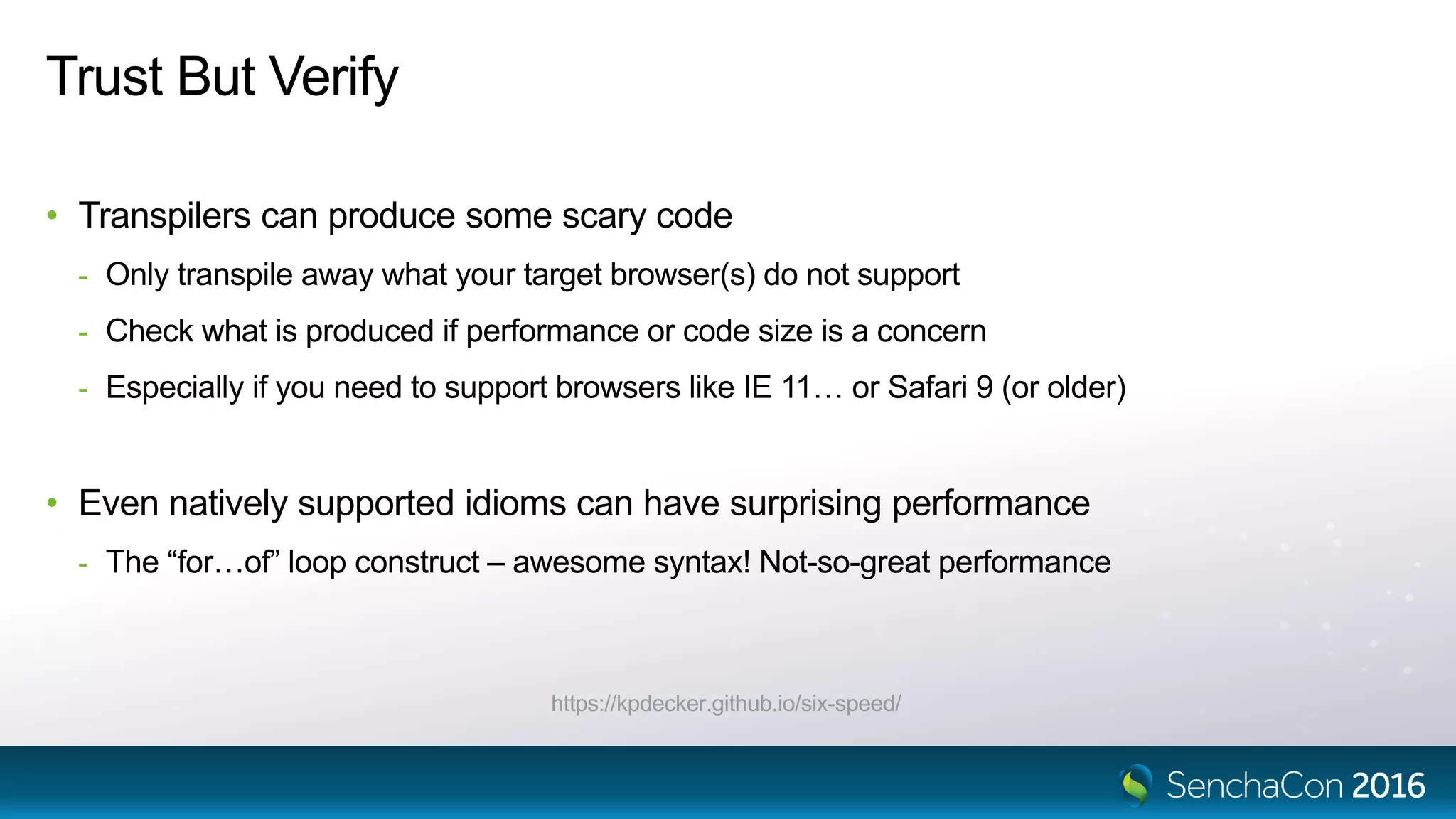

14. Trust But Verify
• Transpilers can produce some scary code
- Only transpile away what your target browser(s) do not support
- Check what is produced if performance or code size is a concern
- Especially if you need to support browsers like IE 11… or Safari 9 (or older)
• Even natively supported idioms can have surprising performance
- The “for…of” loop construct – awesome syntax! Not-so-great performance
https://kpdecker.github.io/six-speed/

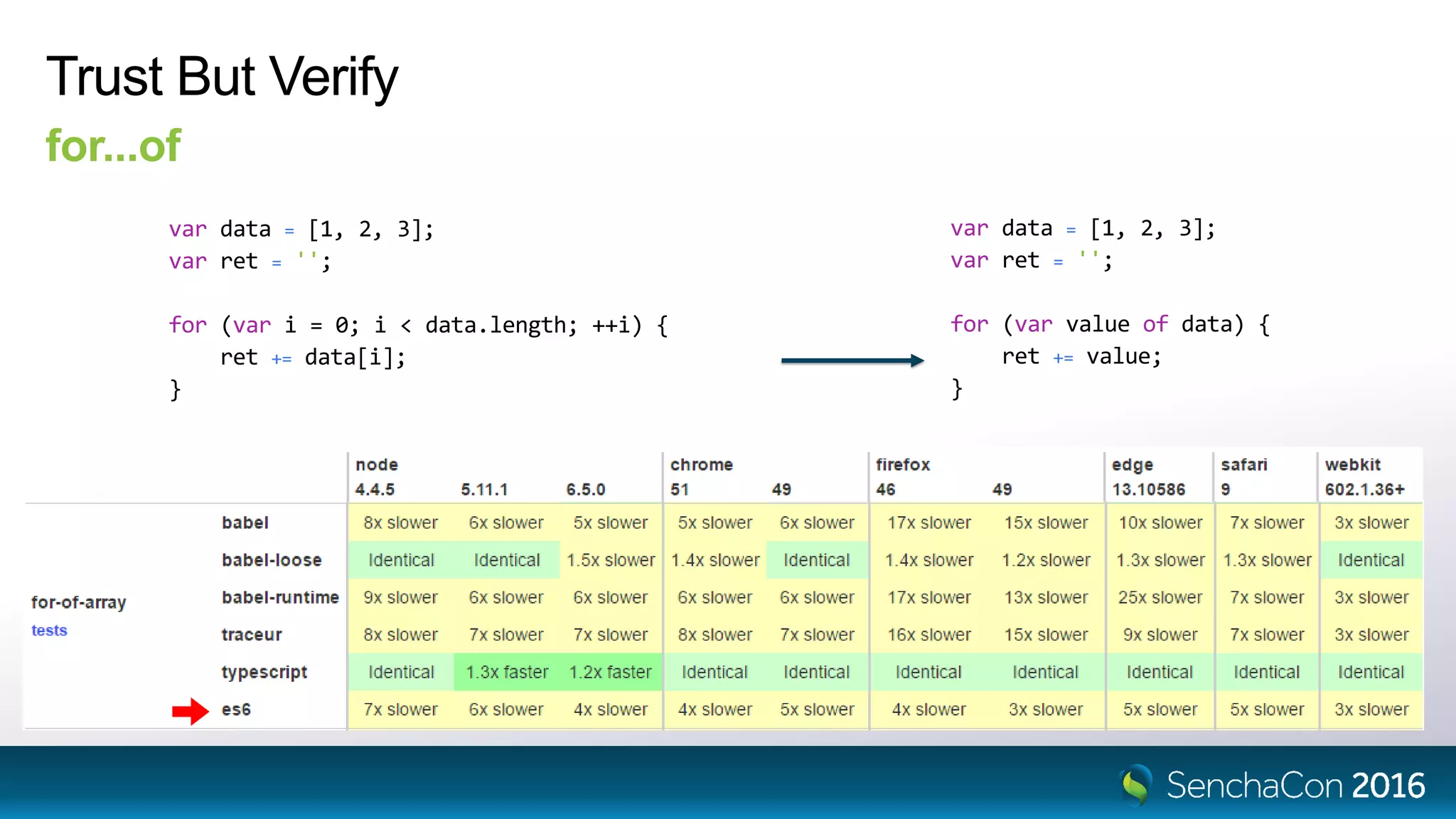

15. Trust But Verify
for...of
var data = [1, 2, 3];
var ret = '';
for (var value of data) {
ret += value;
}
var data = [1, 2, 3];
var ret = '';
for (var i = 0; i < data.length; ++i) {
ret += data[i];
}

16. Class System Contents

17. Namespaces vs Modules

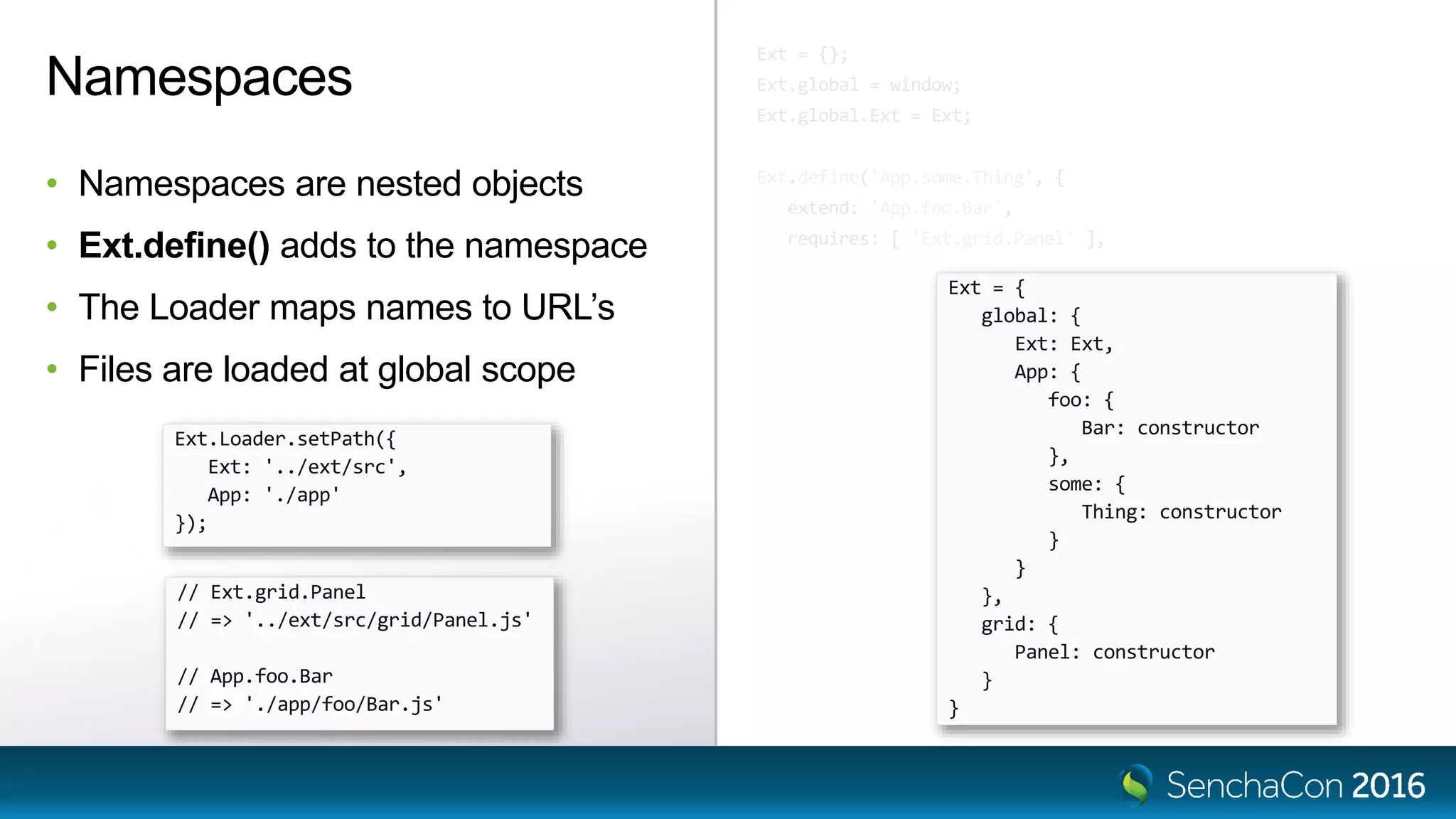

18. Ext = {};
Ext.global = window;
Ext.global.Ext = Ext;
Ext.define('App.some.Thing', {
extend: 'App.foo.Bar',
requires: [ 'Ext.grid.Panel' ],
Namespaces
• Namespaces are nested objects
• Ext.define() adds to the namespace
• The Loader maps names to URL’s
• Files are loaded at global scope
Ext = {
global: {
Ext: Ext,
App: {
foo: {
Bar: constructor
},
some: {
Thing: constructor
}
}
},
grid: {
Panel: constructor
}
}
Ext.Loader.setPath({
Ext: '../ext/src',
App: './app'
});
// Ext.grid.Panel
// => '../ext/src/grid/Panel.js'
// App.foo.Bar
// => './app/foo/Bar.js'

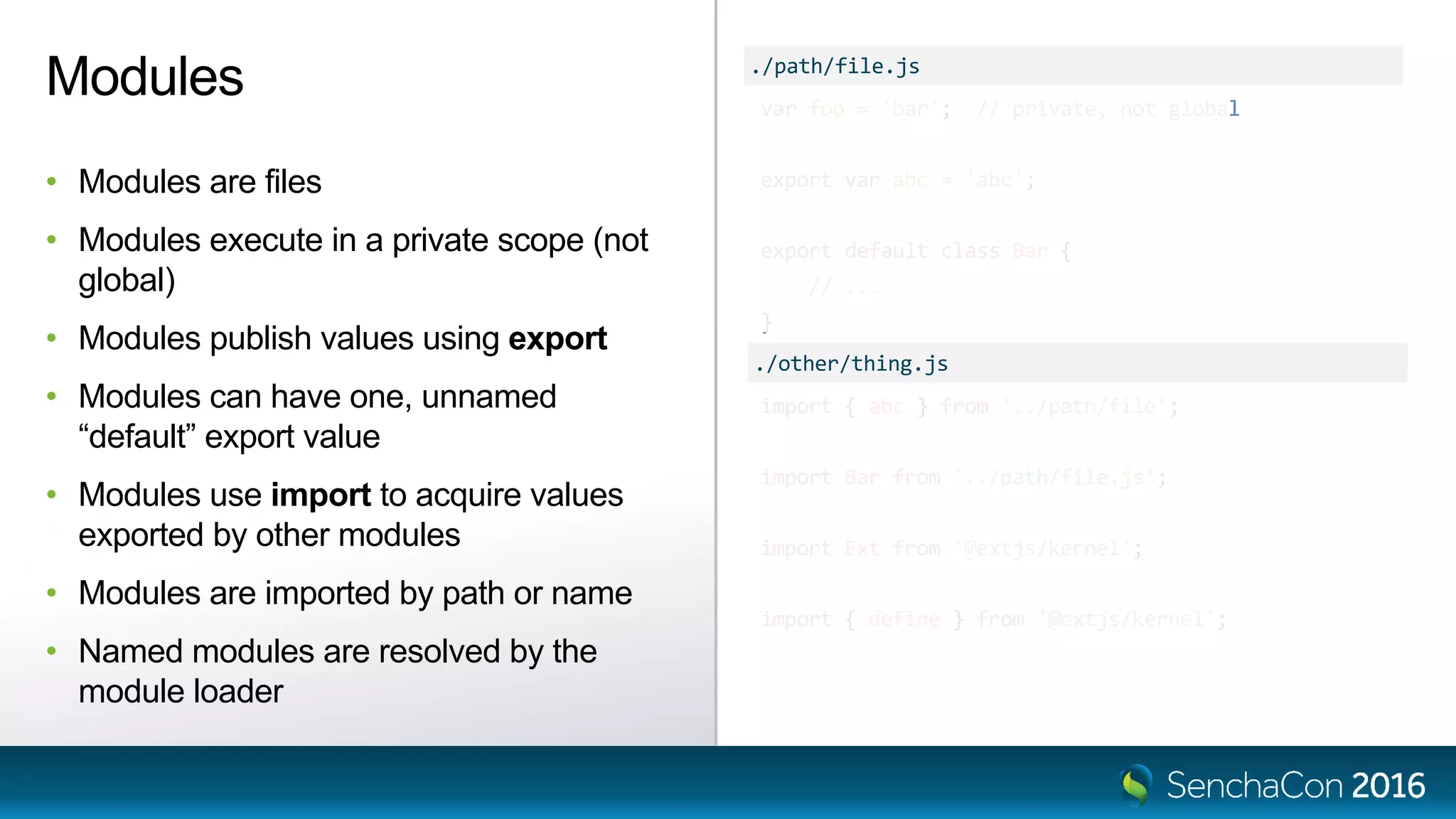

19. var foo = 'bar'; // private, not global
export var abc = 'abc';
export default class Bar {
// ...
}
Modules
• Modules are files
• Modules execute in a private scope (not
global)
• Modules publish values using export
• Modules can have one, unnamed
“default” export value
• Modules use import to acquire values
exported by other modules
• Modules are imported by path or name
• Named modules are resolved by the
module loader
import { abc } from '../path/file';
import Bar from '../path/file.js';
import Ext from '@extjs/kernel';
import { define } from '@extjs/kernel';
./path/file.js
./other/thing.js

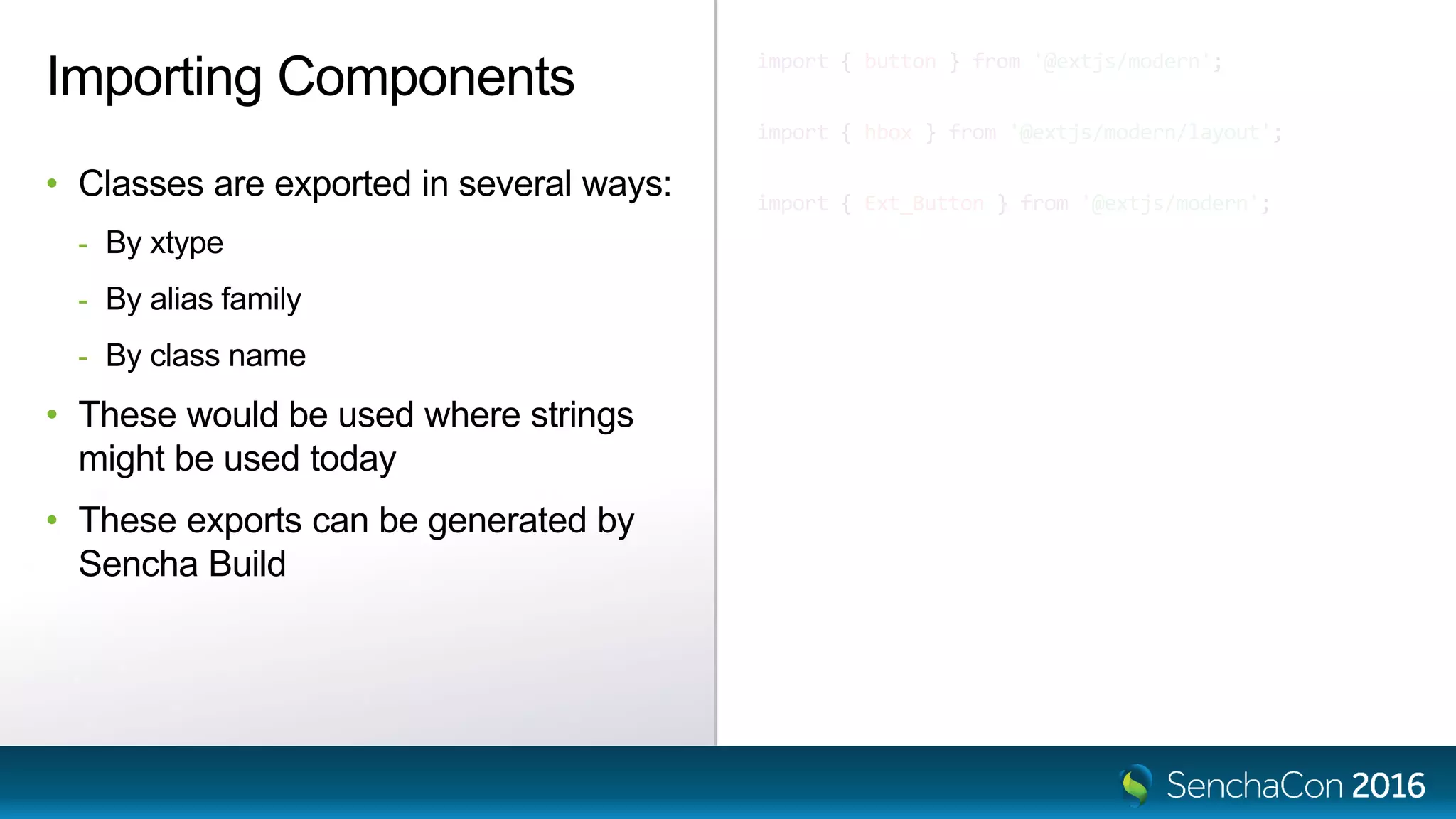

20. import { button } from '@extjs/modern';
import { hbox } from '@extjs/modern/layout';
import { Ext_Button } from '@extjs/modern';
Importing Components
• Classes are exported in several ways:
- By xtype
- By alias family
- By class name
• These would be used where strings
might be used today
• These exports can be generated by
Sencha Build

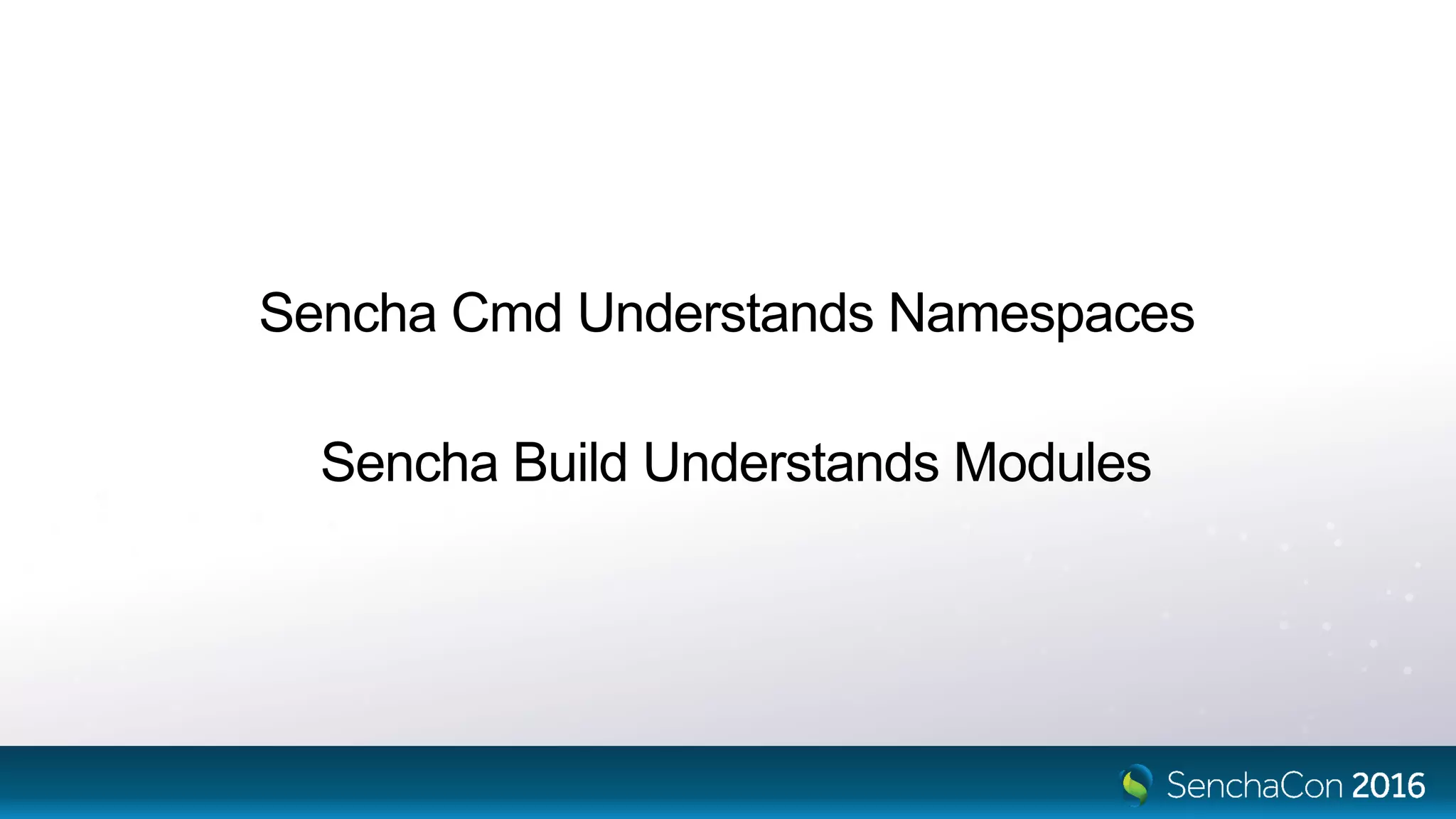

21. Sencha Cmd Understands Namespaces
Sencha Build Understands Modules

22. Classes

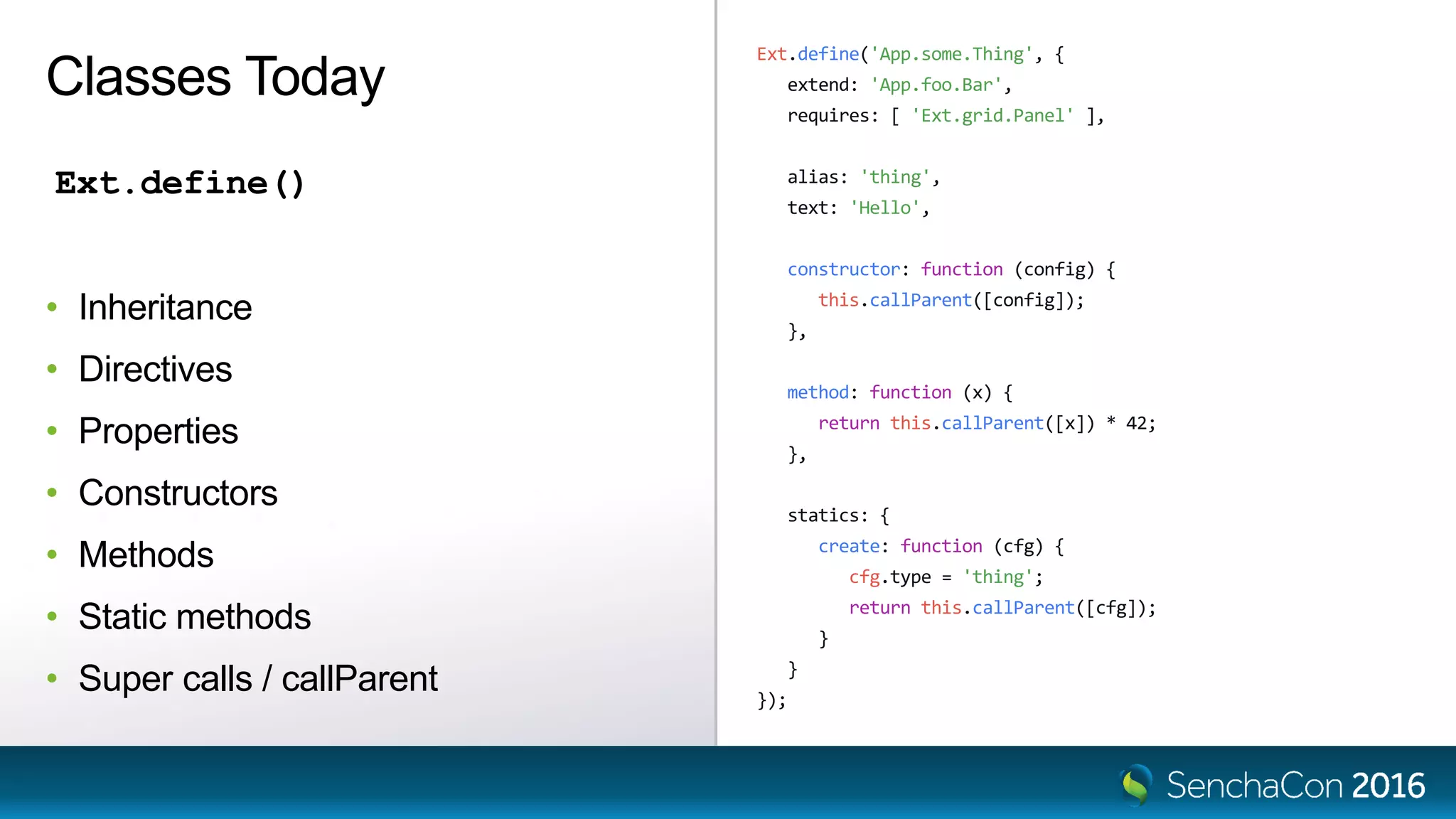

23. Ext.define('App.some.Thing', {
extend: 'App.foo.Bar',
requires: [ 'Ext.grid.Panel' ],
alias: 'thing',
text: 'Hello',
constructor: function (config) {
this.callParent([config]);
},
method: function (x) {
return this.callParent([x]) * 42;
},
statics: {
create: function (cfg) {
cfg.type = 'thing';
return this.callParent([cfg]);
}
}
});
Classes Today
Ext.define()
• Inheritance
• Directives
• Properties
• Constructors
• Methods
• Static methods
• Super calls / callParent

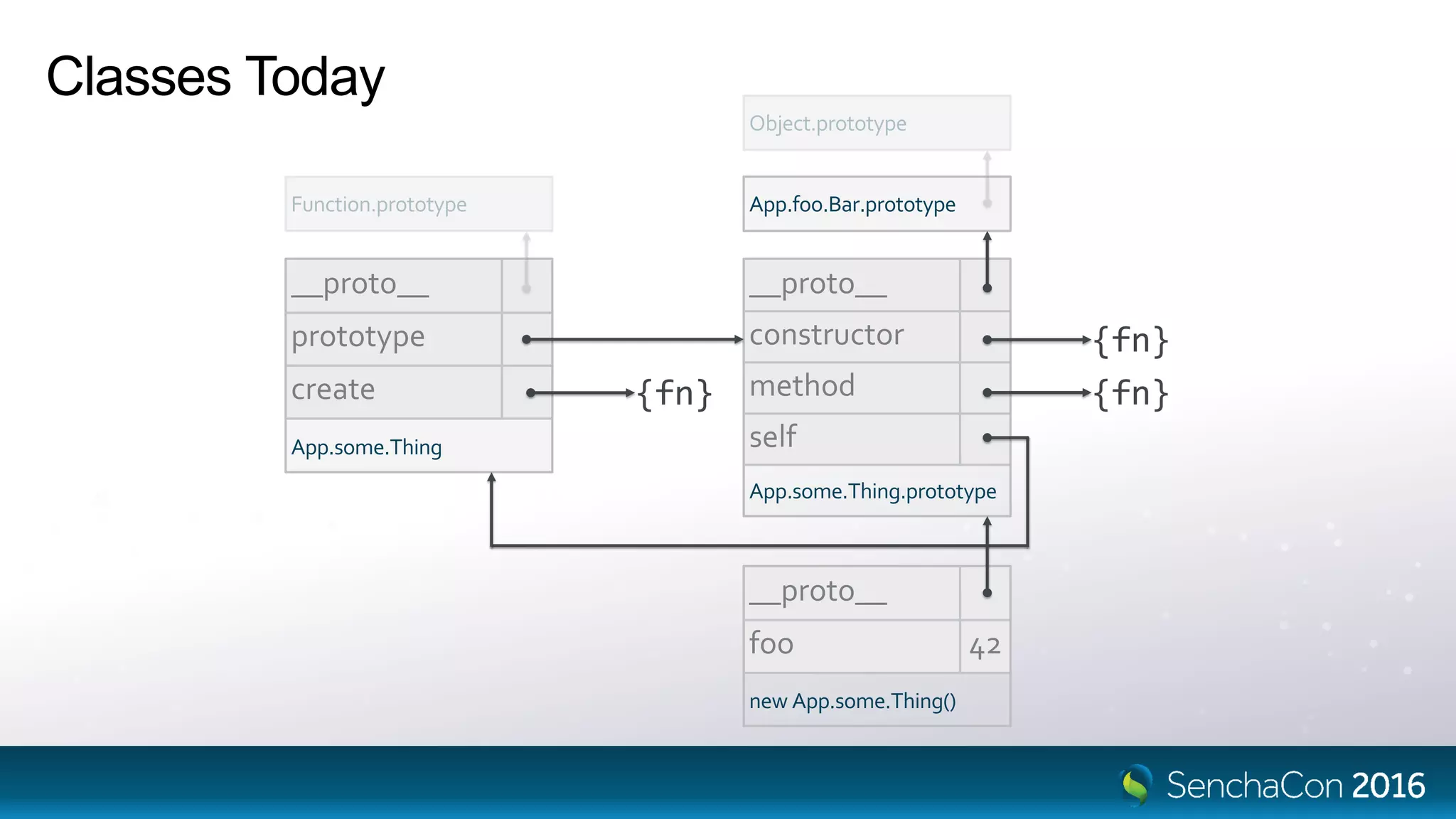

24. Classes Today
__proto__
prototype
create
App.some.Thing
__proto__
constructor
method
self
App.some.Thing.prototype
{fn} {fn}
{fn}
App.foo.Bar.prototype
__proto__
foo 42
new App.some.Thing()

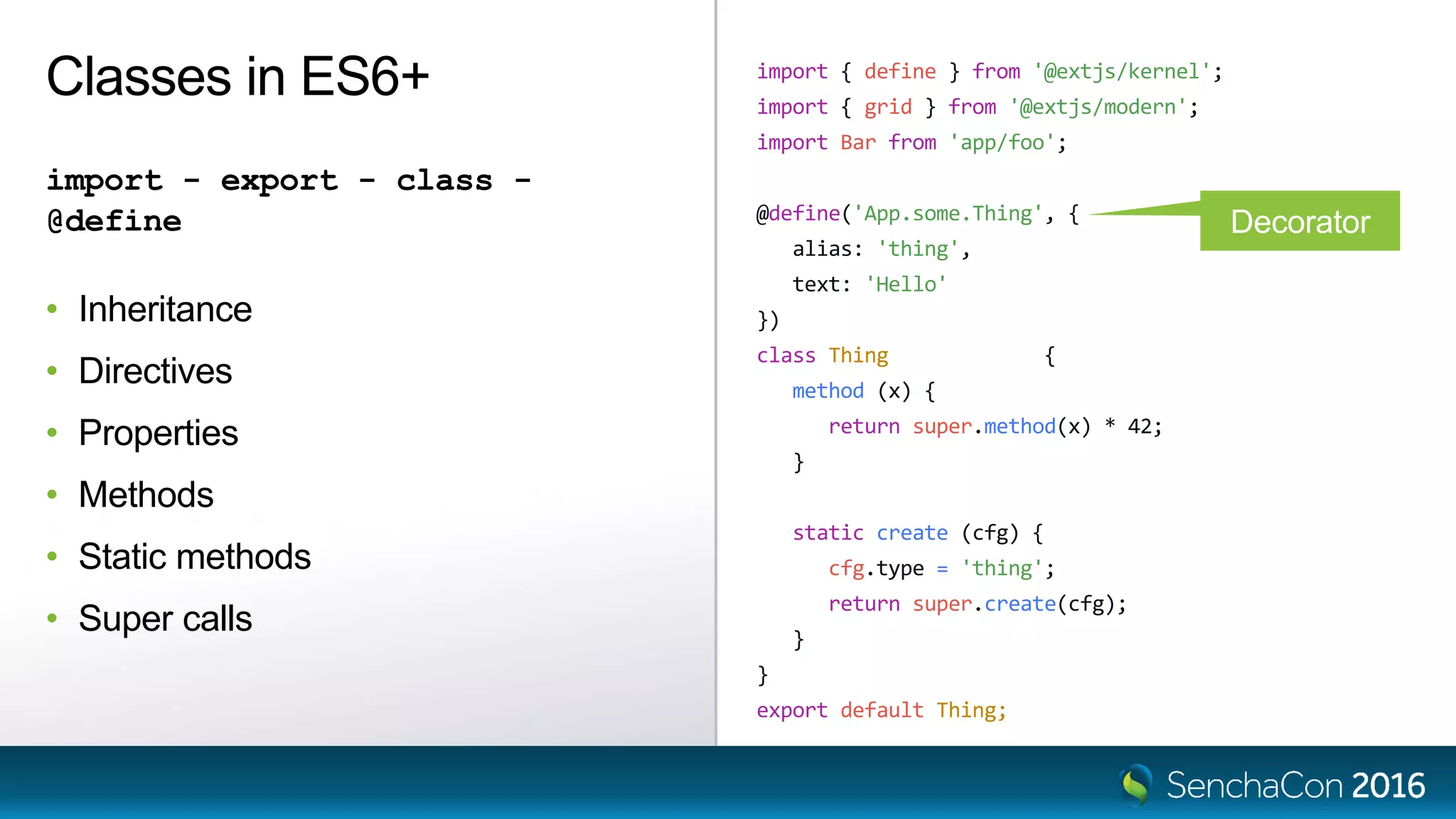

25. import { define } from '@extjs/kernel';
import { grid } from '@extjs/modern';
import Bar from 'app/foo';
@define('App.some.Thing', {
alias: 'thing',
text: 'Hello'
})
class Thing extends Bar {
method (x) {
return super.method(x) * 42;
}
static create (cfg) {
cfg.type = 'thing';
return super.create(cfg);
}
}
export default Thing;
Classes in ES6+
import - export - class -
@define
• Inheritance
• Directives
• Properties
• Methods
• Static methods
• Super calls
Decorator

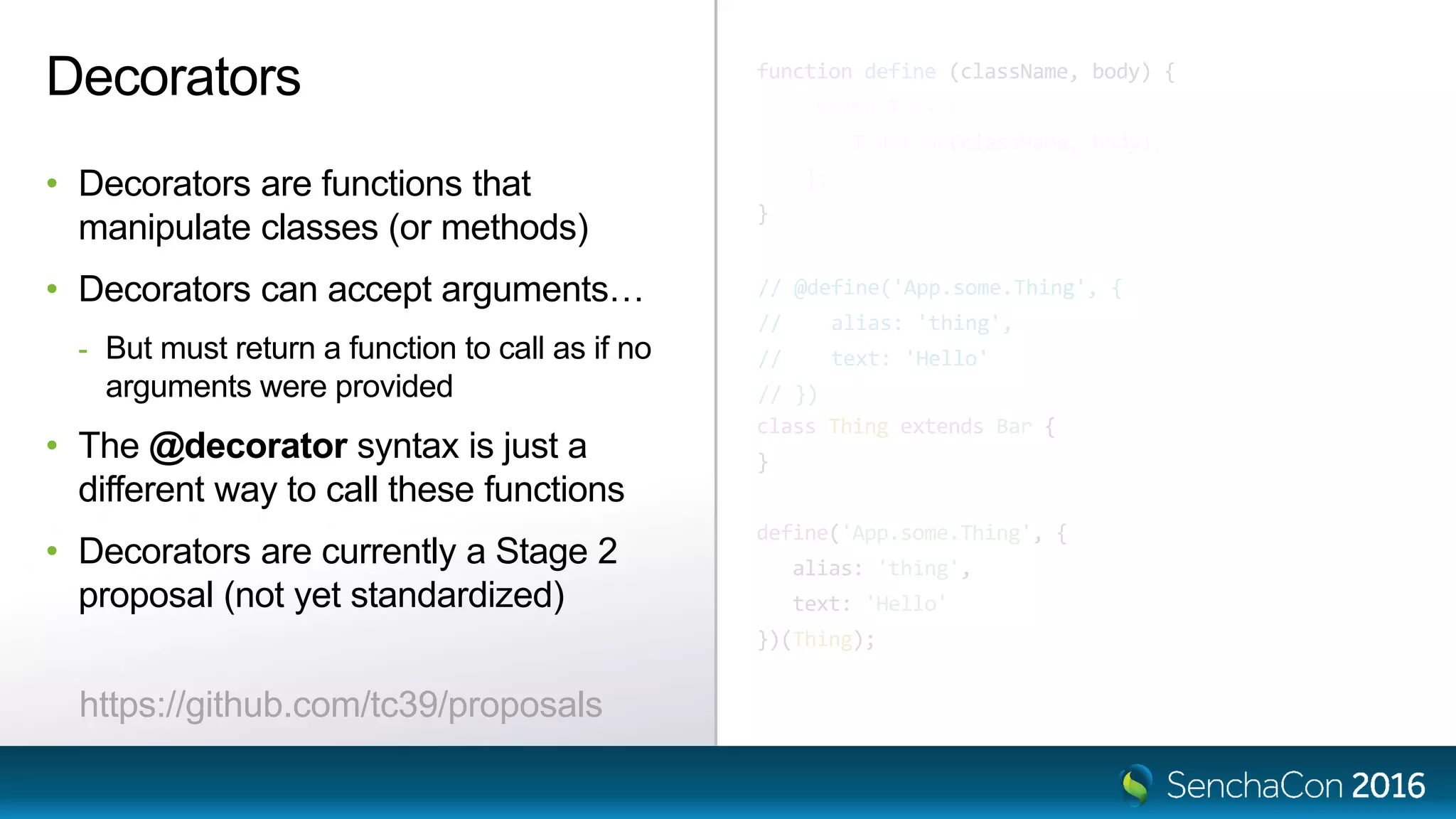

26. function define (className, body) {
return T => {
T.define(className, body);
};
}
@define('App.some.Thing', {
alias: 'thing',
text: 'Hello'
})
class Thing extends Bar {
}
define('App.some.Thing', {
alias: 'thing',
text: 'Hello'
})(Thing);
Decorators
• Decorators are functions that
manipulate classes (or methods)
• Decorators can accept arguments…
- But must return a function to call as if no
arguments were provided
• The @decorator syntax is just a
different way to call these functions
• Decorators are currently a Stage 2
proposal (not yet standardized)
// @define('App.some.Thing', {
// alias: 'thing',
// text: 'Hello'
// })
https://github.com/tc39/proposals

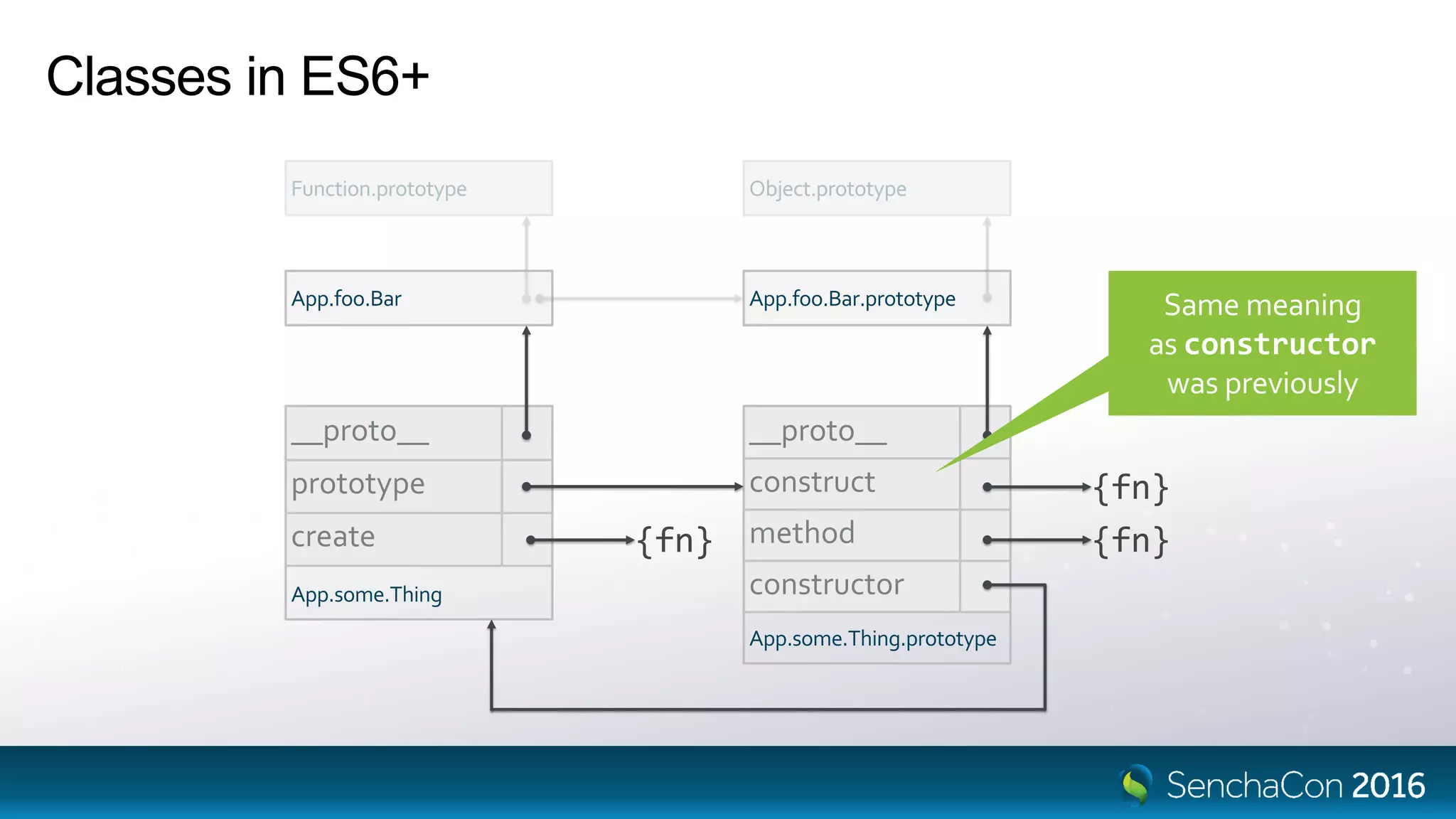

27. Classes in ES6+
__proto__
prototype
create
App.some.Thing
__proto__
construct
method
constructor
App.some.Thing.prototype
{fn} {fn}
{fn}
App.foo.Bar.prototypeApp.foo.Bar Same meaning
as constructor
was previously

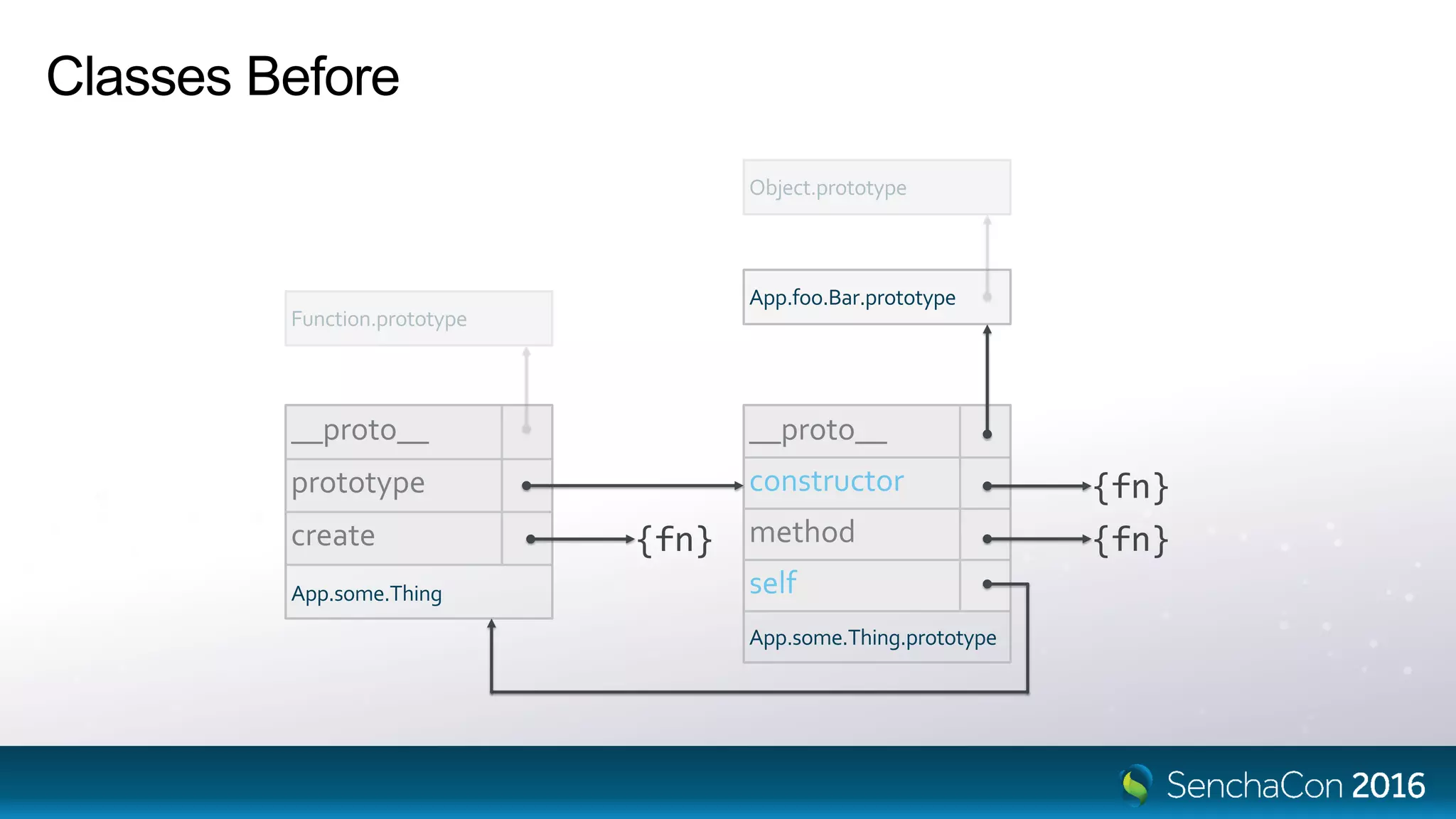

28. Classes Before
__proto__
prototype
create
App.some.Thing
__proto__
constructor
method
self
App.some.Thing.prototype
{fn} {fn}
{fn}
App.foo.Bar.prototype

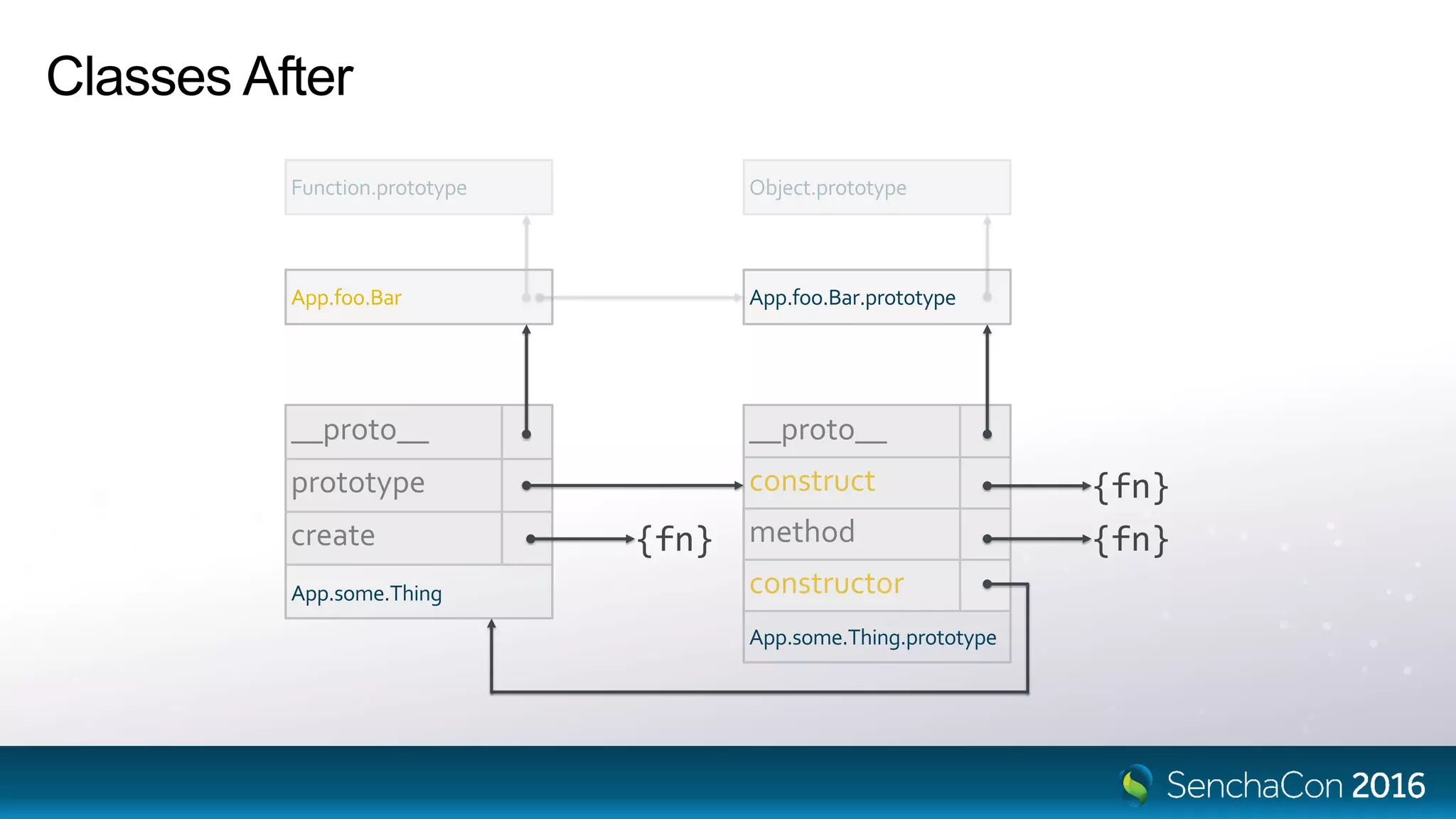

29. Classes After
__proto__
prototype
create
App.some.Thing
__proto__
construct
method
constructor
App.some.Thing.prototype
{fn} {fn}
{fn}
App.foo.Bar.prototypeApp.foo.Bar

30. class Foo {
constructor (x) {
this.x = 42;
}
}
new Foo(42);
let obj = {};
Foo.call(obj, 42);

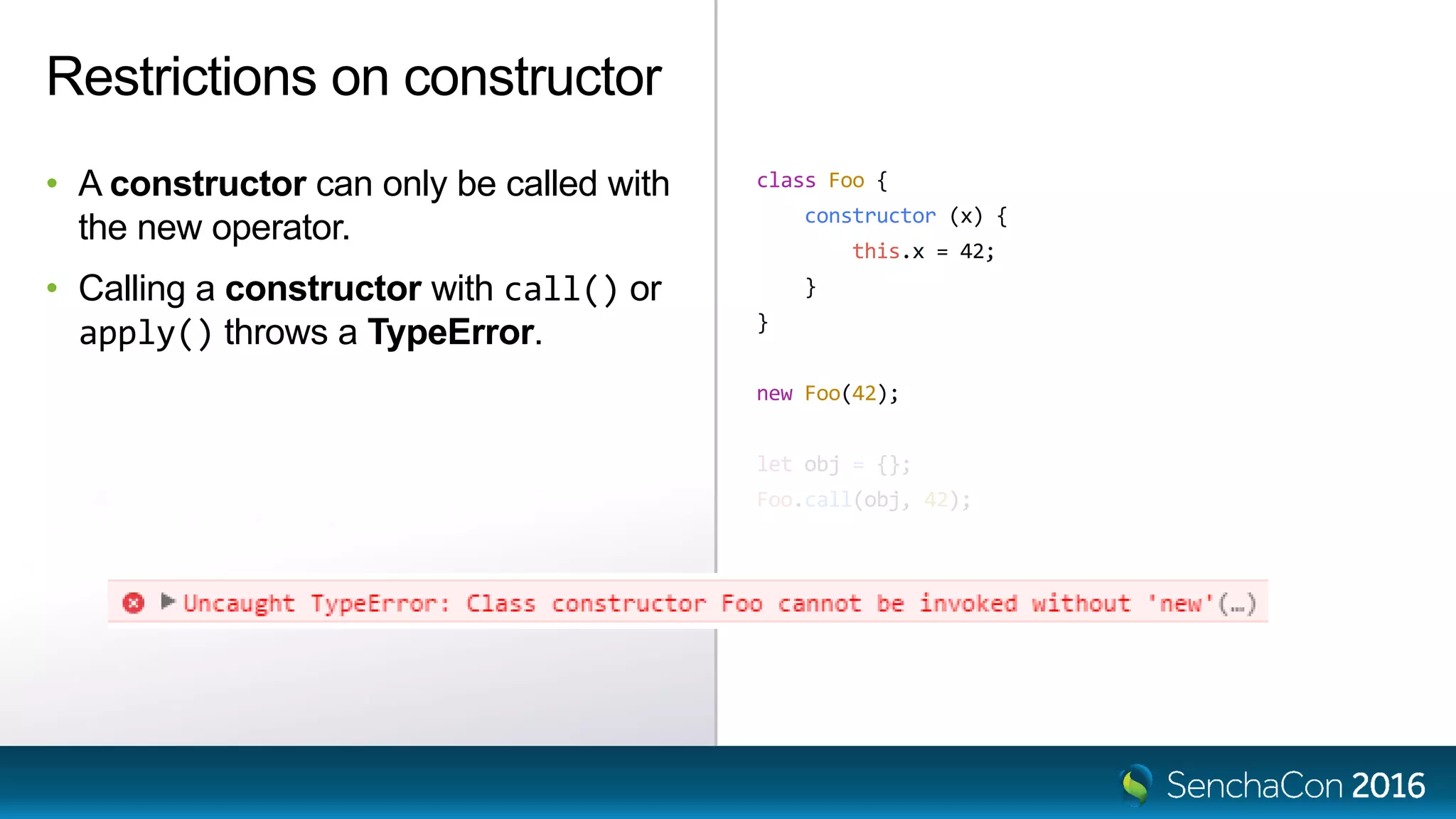

Restrictions on constructor
• A constructor can only be called with
the new operator.
• Calling a constructor with call() or
apply() throws a TypeError.

31. Mixins

32. Ext.define('App.mixin.Foo', {
method: function (x) {
return x * 42;
}
});
Ext.define('App.some.Thing', {
extend: 'App.foo.Bar',
mixins: [ 'App.mixin.Foo' ],
});
Ext.define('App.some.OtherThing', {
extend: 'App.foo.Bar',
mixins: [ 'App.mixin.Foo' ],
method: function (x) {
return 10 * this.mixins.foo.method.call(this, x);
}
});
Mixins Today
• Mixins ≈ multiple inheritance
• Mixins are classes
• Methods from the mixin prototype are
copied to the target class prototype
• Unless there is already a method
present
• The mixins object references the
various mixin prototypes
thing.method(2);
this.mixins.observable.constructor.call(this);this.mixins.observable.construct.call(this);

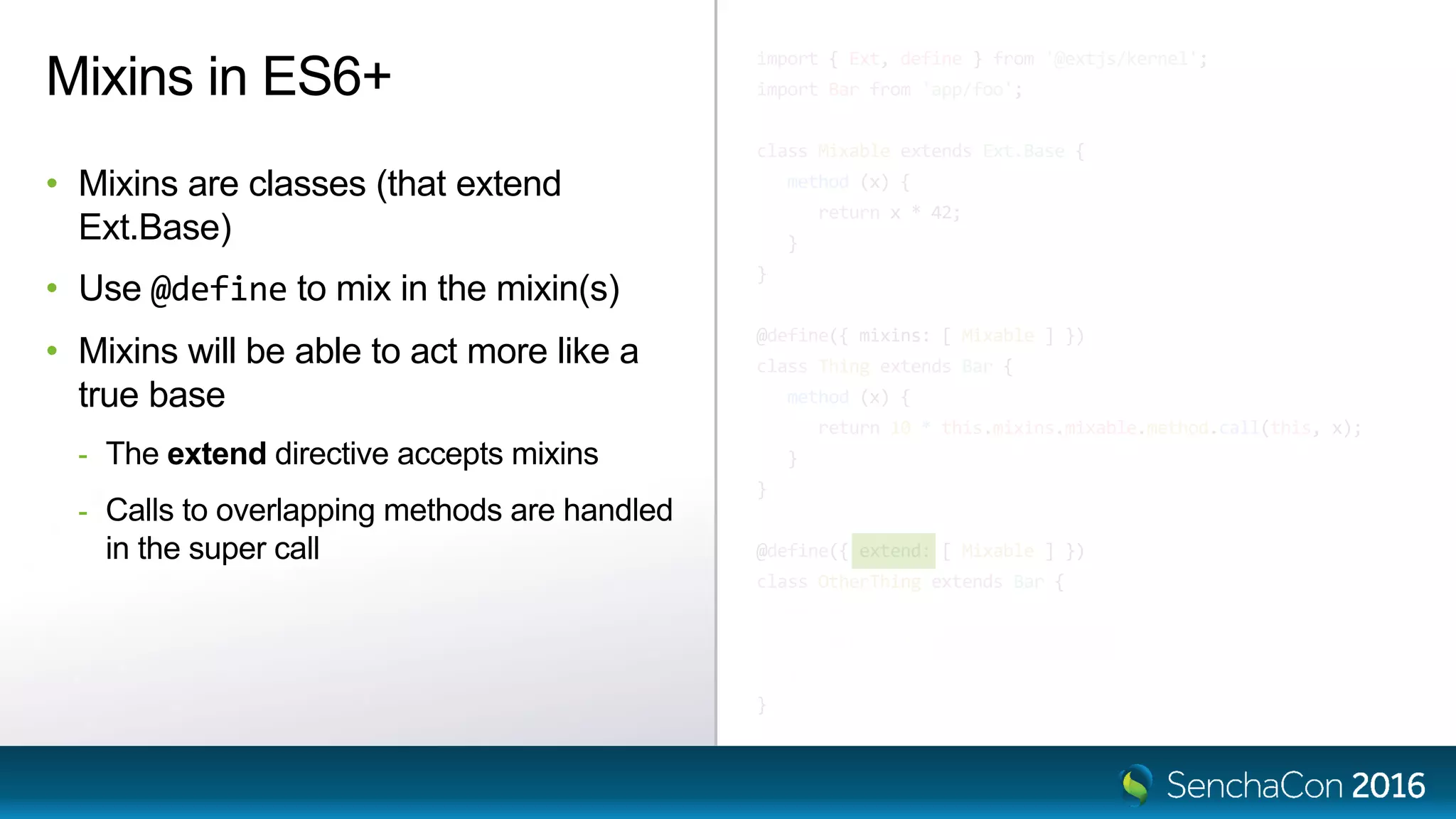

33. import { Ext, define } from '@extjs/kernel';
import Bar from 'app/foo';
class Mixable extends Ext.Base {
method (x) {
return x * 42;
}
}
@define({ mixins: [ Mixable ] })
class Thing extends Bar {
method (x) {
return 10 * this.mixins.mixable.method.call(this, x);
}
}
@define({ extend: [ Mixable ] })
class OtherThing extends Bar {
method (x) {
return 10 * super.method(x);
}
}
Mixins in ES6+
• Mixins are classes (that extend
Ext.Base)
• Use @define to mix in the mixin(s)
• Mixins will be able to act more like a
true base
- The extend directive accepts mixins
- Calls to overlapping methods are handled
in the super call

34. Common Object Life-cycle

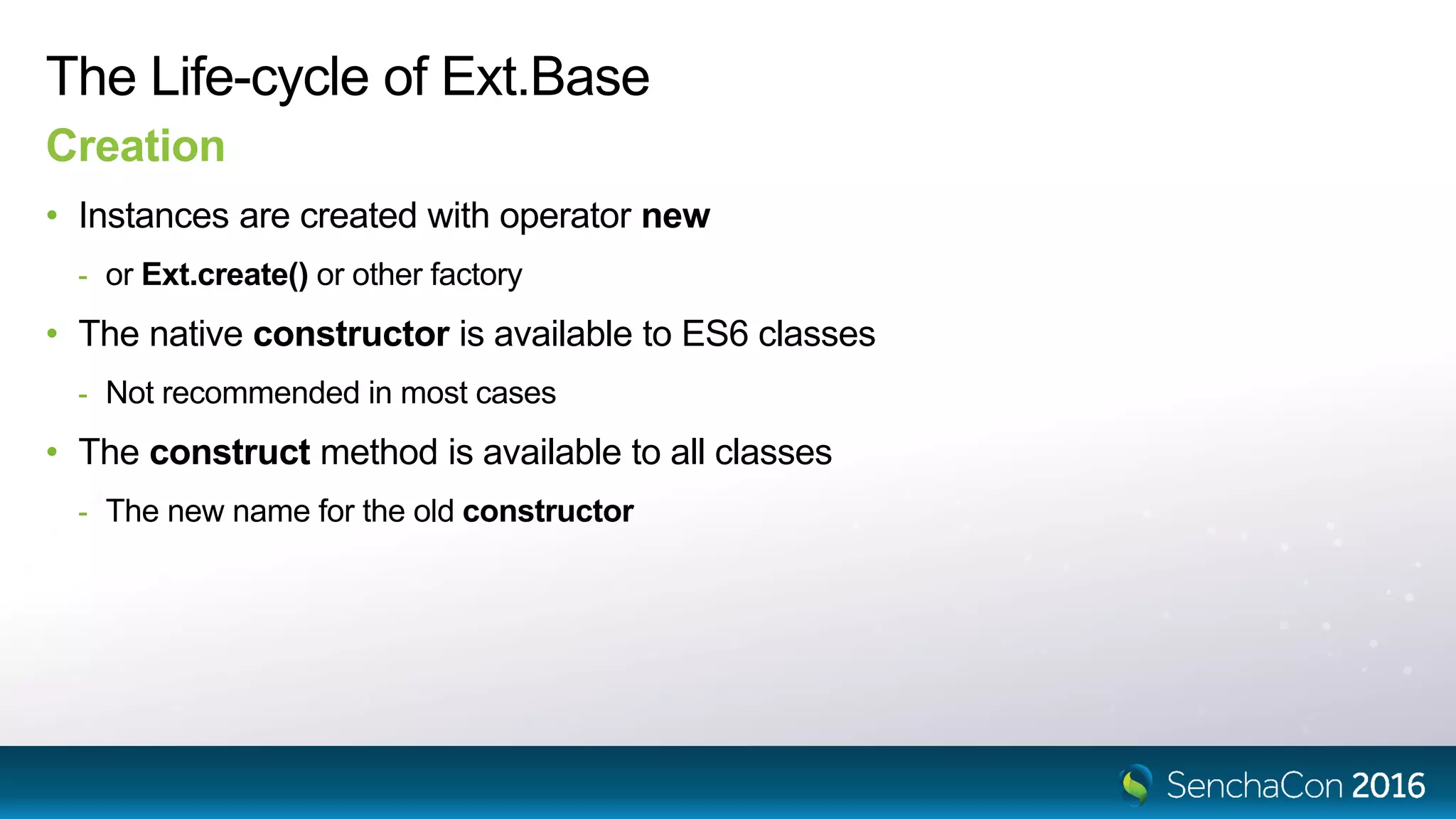

35. The Life-cycle of Ext.Base
Creation
• Instances are created with operator new
- or Ext.create() or other factory
• The native constructor is available to ES6 classes
- Not recommended in most cases
• The construct method is available to all classes
- The new name for the old constructor

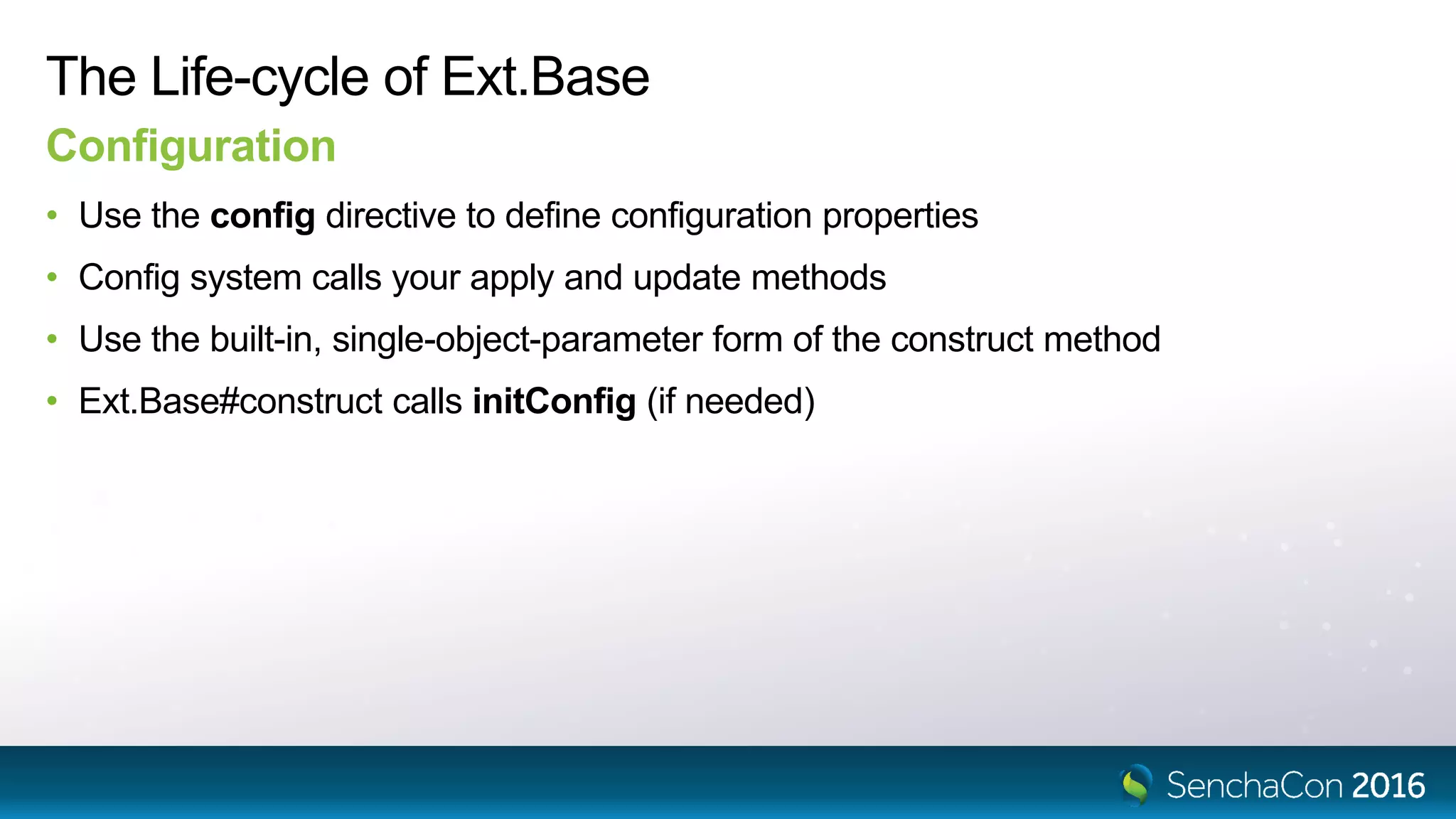

36. The Life-cycle of Ext.Base
Configuration
• Use the config directive to define configuration properties
• Config system calls your apply and update methods
• Use the built-in, single-object-parameter form of the construct method
• Ext.Base#construct calls initConfig (if needed)

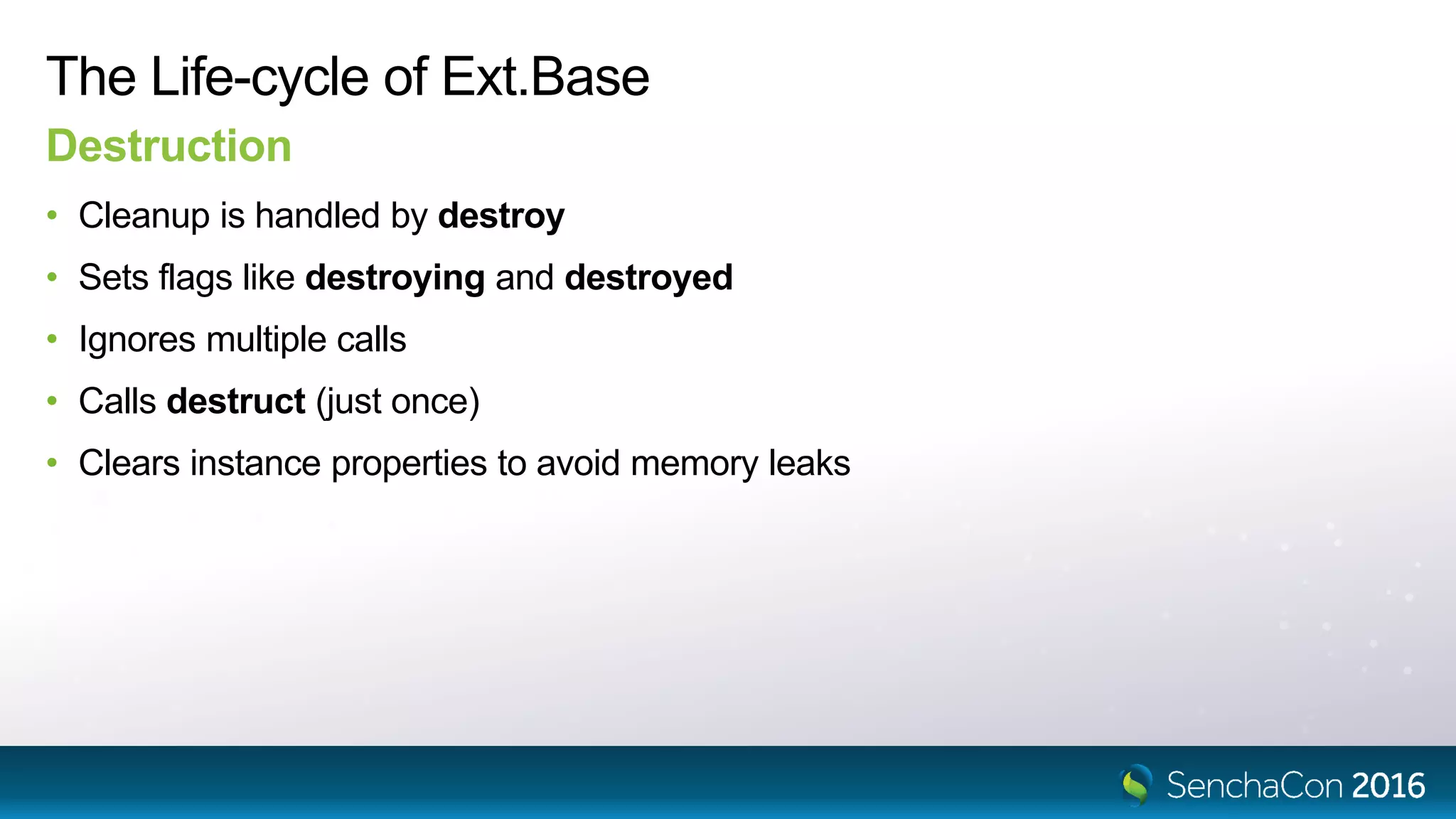

37. The Life-cycle of Ext.Base
Destruction
• Cleanup is handled by destroy
• Sets flags like destroying and destroyed
• Ignores multiple calls
• Calls destruct (just once)
• Clears instance properties to avoid memory leaks

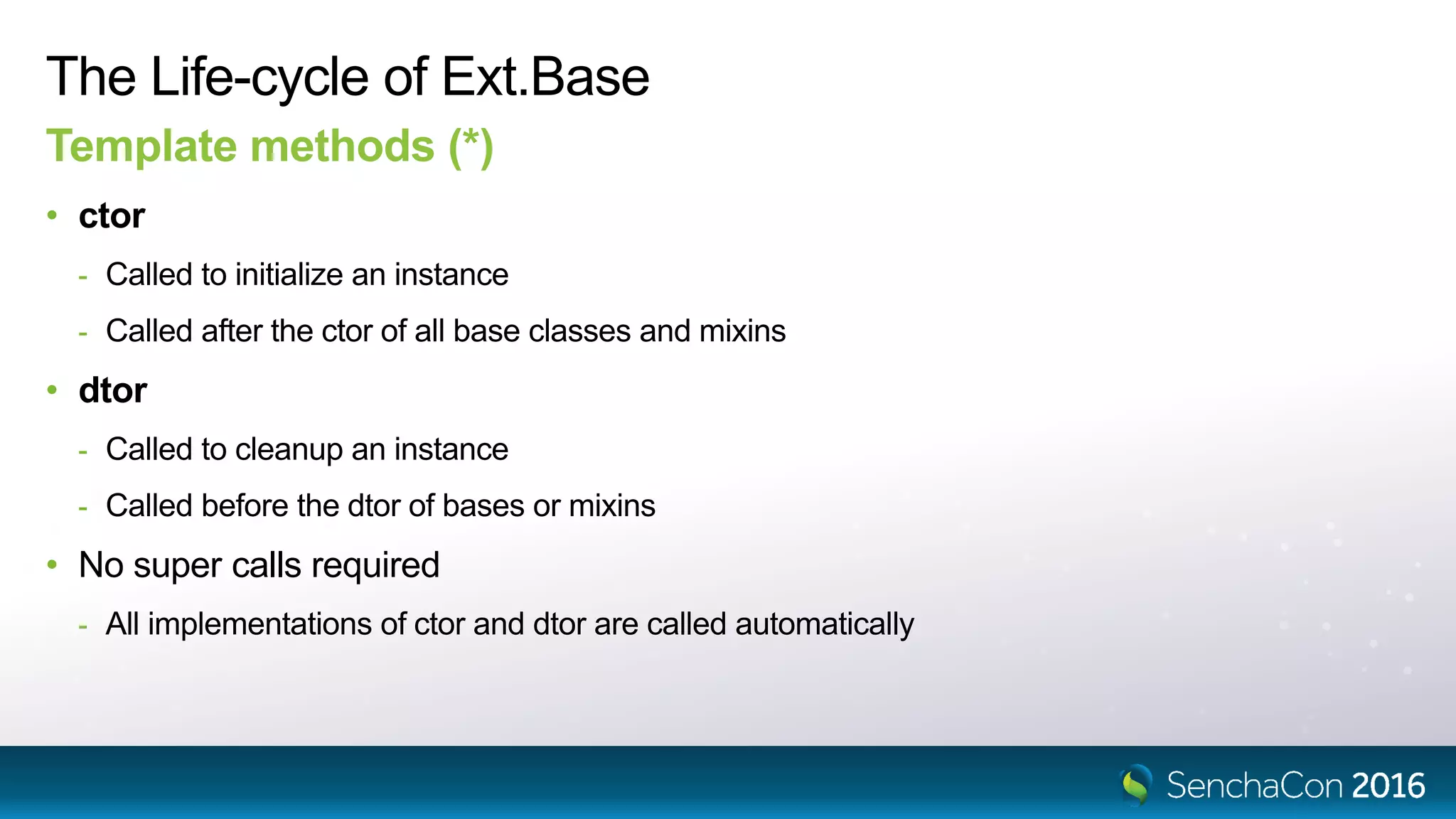

38. The Life-cycle of Ext.Base
Template methods (*)
• ctor
- Called to initialize an instance
- Called after the ctor of all base classes and mixins
• dtor
- Called to cleanup an instance
- Called before the dtor of bases or mixins
• No super calls required
- All implementations of ctor and dtor are called automatically

39. import Ext from '@extjs/kernel';
class A extends Ext.Base {
construct (x) {
super.construct();
this.x = 42;
this.x2 = this.x * 10;
}
}
class B extends A {
construct (x, y) {
super.construct(x);
this.y = y;
this.y2 = y * 427;
}
}
@define({ mixins: [ B ] })
class C extends Ext.Base {
construct (x, y) {
super.construct();
this.mixins.b.construct(x, y);
this.c = this.x + this.y + this.x2 + this.y2;
}
}
new C(4, 42);

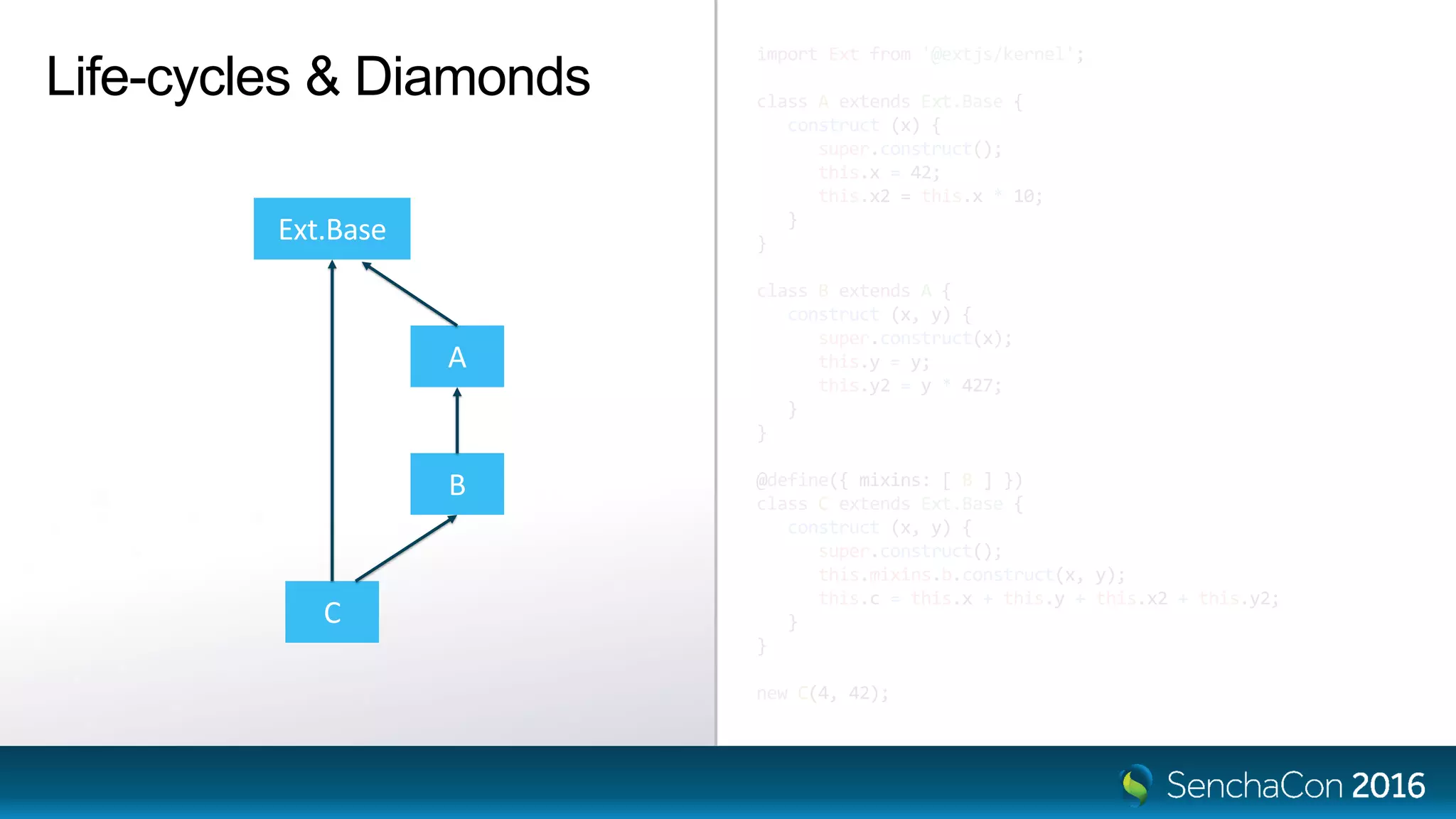

Life-cycles & Diamonds
A
Ext.Base
B
C

40. import { Ext, define } from '@extjs/kernel';
@define({
config: {
x: 0
}
})
class A extends Ext.Base {
updateX (x) {
this.x2 = x * 10;
}
}
class B extends A {
ctor () {
this.y2 = this.y * 427;
}
}
@define({ mixins: [ B ] })
class C extends Ext.Base {
ctor () {
this.c = this.getX() + this.y + this.x2 + this.y2;
}
}
new C({ x: 2, y: 42 });
Life-cycles & Diamonds
A
Ext.Base
B
C

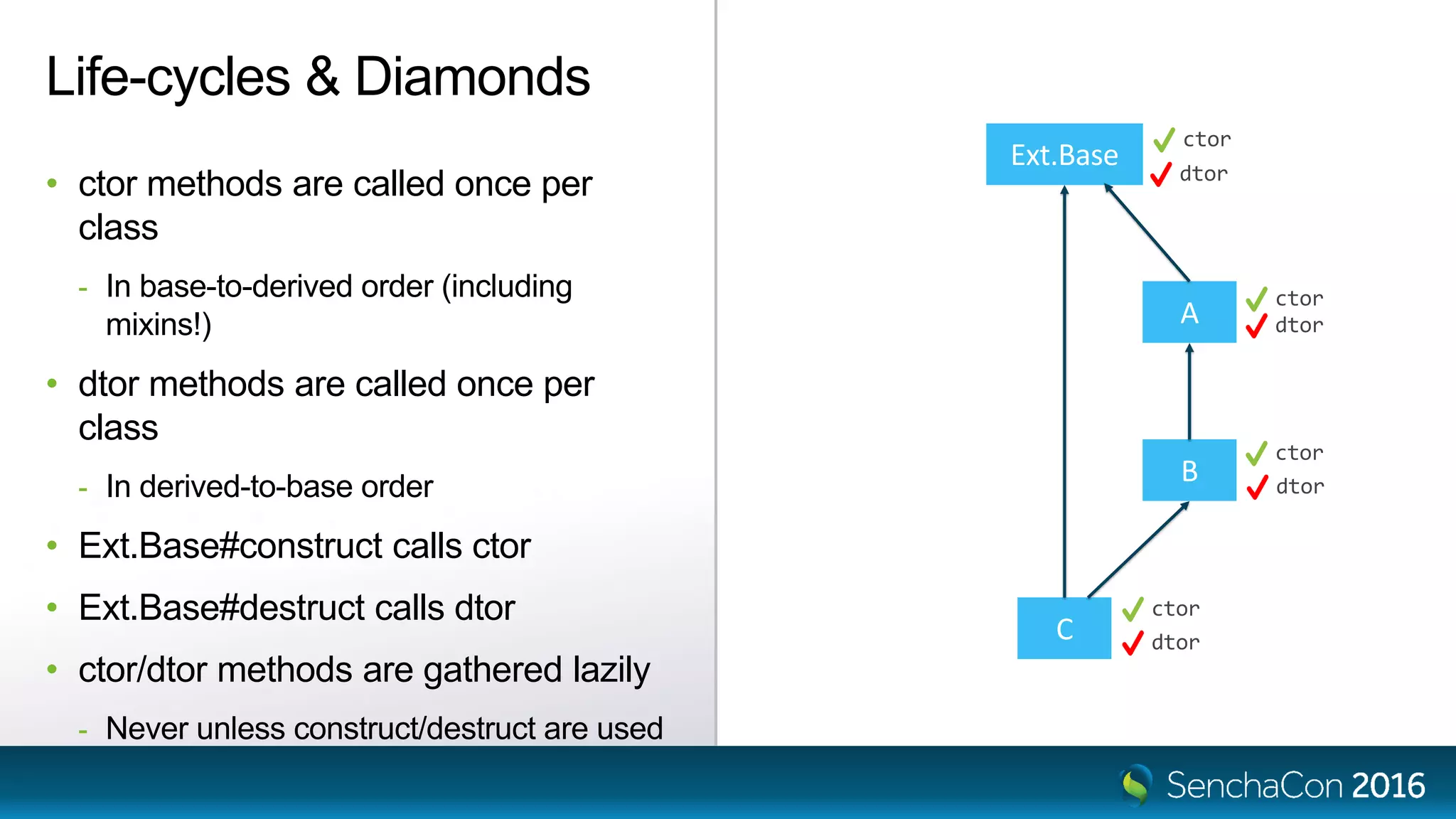

41. Life-cycles & Diamonds
A
Ext.Base
B
C
• ctor methods are called once per
class
- In base-to-derived order (including
mixins!)
• dtor methods are called once per
class
- In derived-to-base order
• Ext.Base#construct calls ctor
• Ext.Base#destruct calls dtor
• ctor/dtor methods are gathered lazily
- Never unless construct/destruct are used
ctor
ctor
ctor
ctor
dtor
dtor
dtor
dtor

42. The Road Ahead

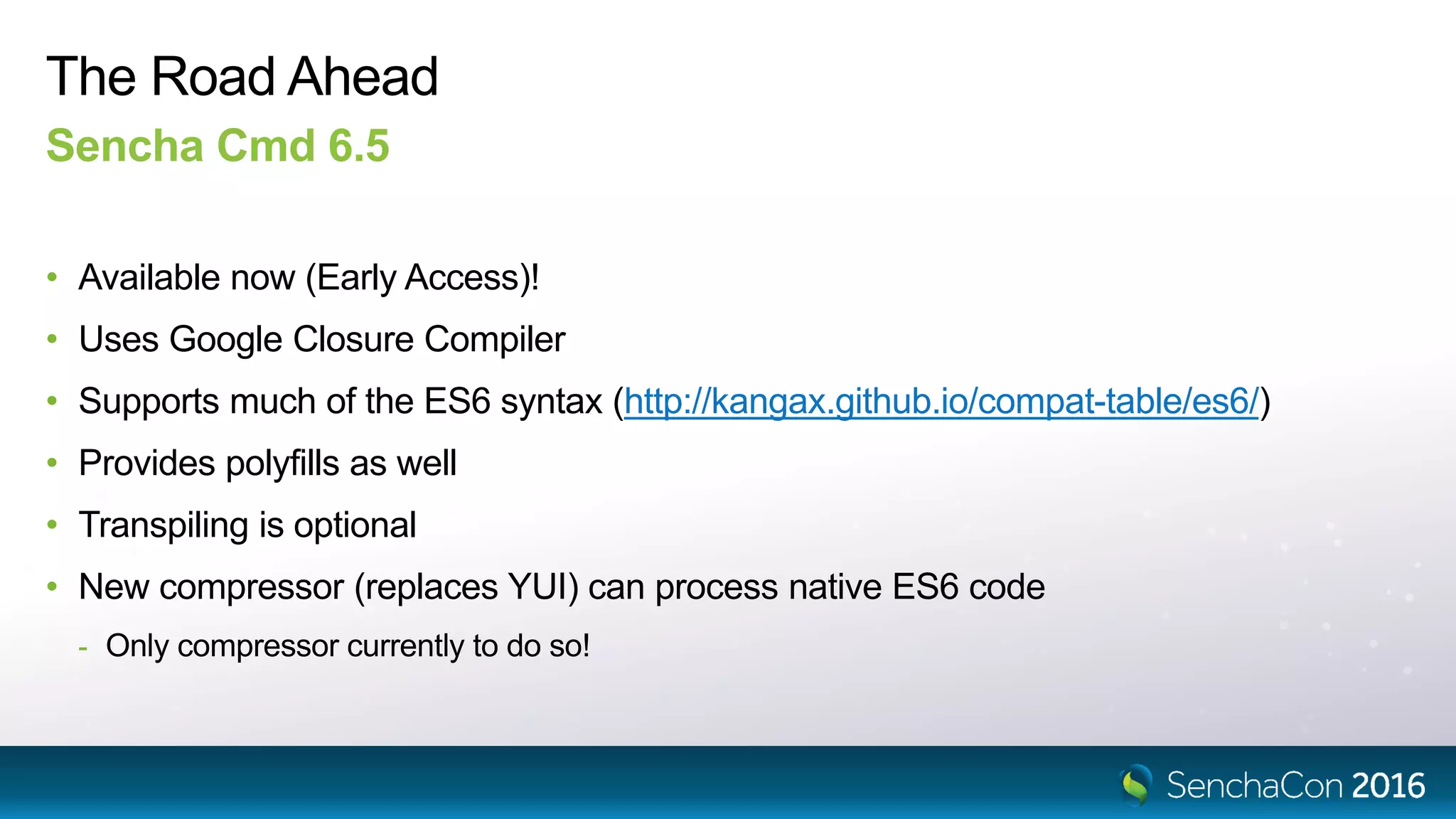

43. The Road Ahead
Sencha Cmd 6.5
• Available now (Early Access)!
• Uses Google Closure Compiler
• Supports much of the ES6 syntax (http://kangax.github.io/compat-table/es6/)
• Provides polyfills as well
• Transpiling is optional
• New compressor (replaces YUI) can process native ES6 code
- Only compressor currently to do so!

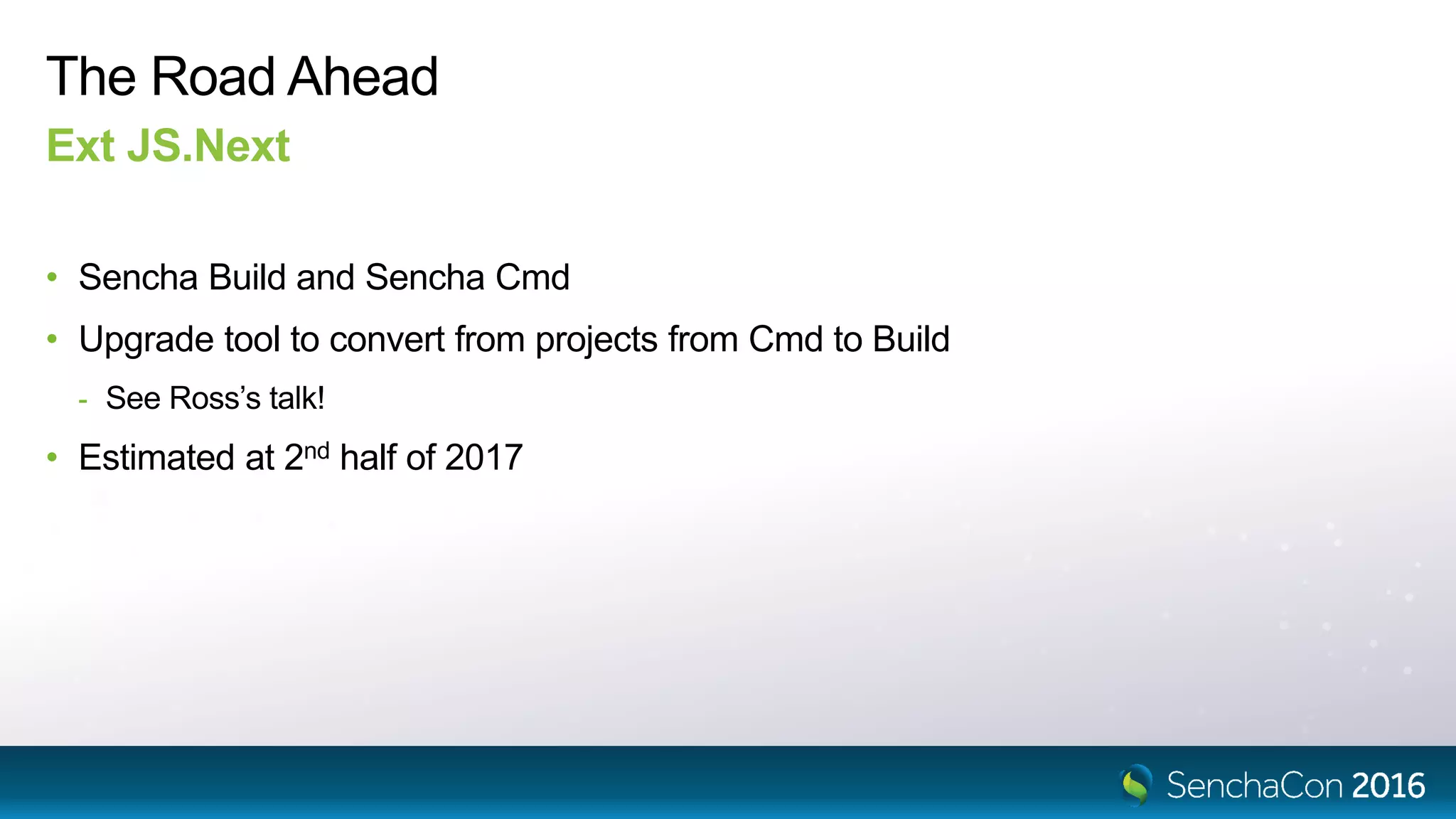

44. The Road Ahead
Ext JS.Next
• Sencha Build and Sencha Cmd
• Upgrade tool to convert from projects from Cmd to Build
- See Ross’s talk!
• Estimated at 2nd half of 2017
