In this class, Jay Garcia describes how classes work on a fundamental level all the way up to the new Ext JS 4.0 class system.

1. Ext JS classes and Scoping

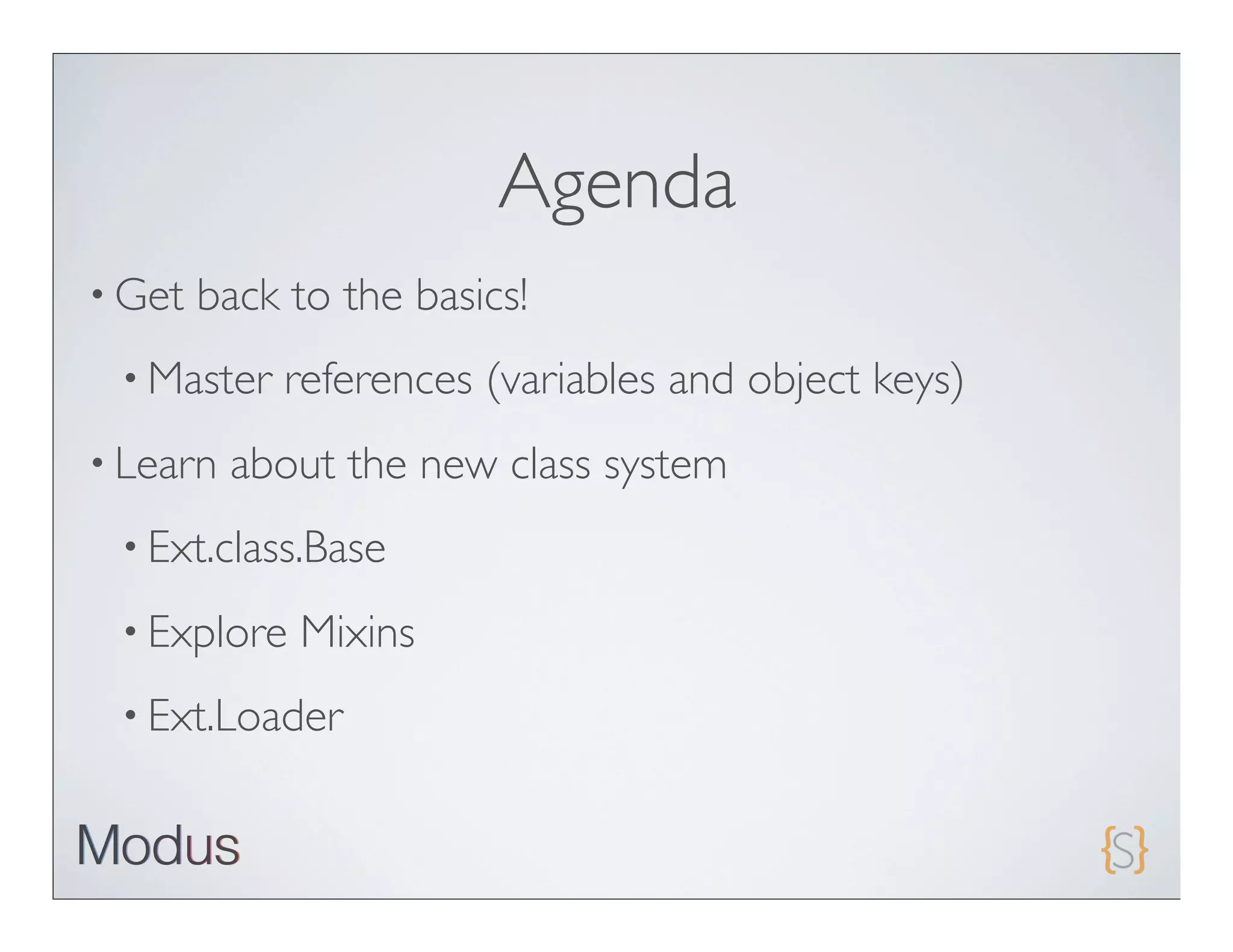

2. Agenda
• Get back to the basics!
• Master references (variables and object keys)
• Learn about the new class system
• Ext.class.Base
• Explore Mixins
• Ext.Loader

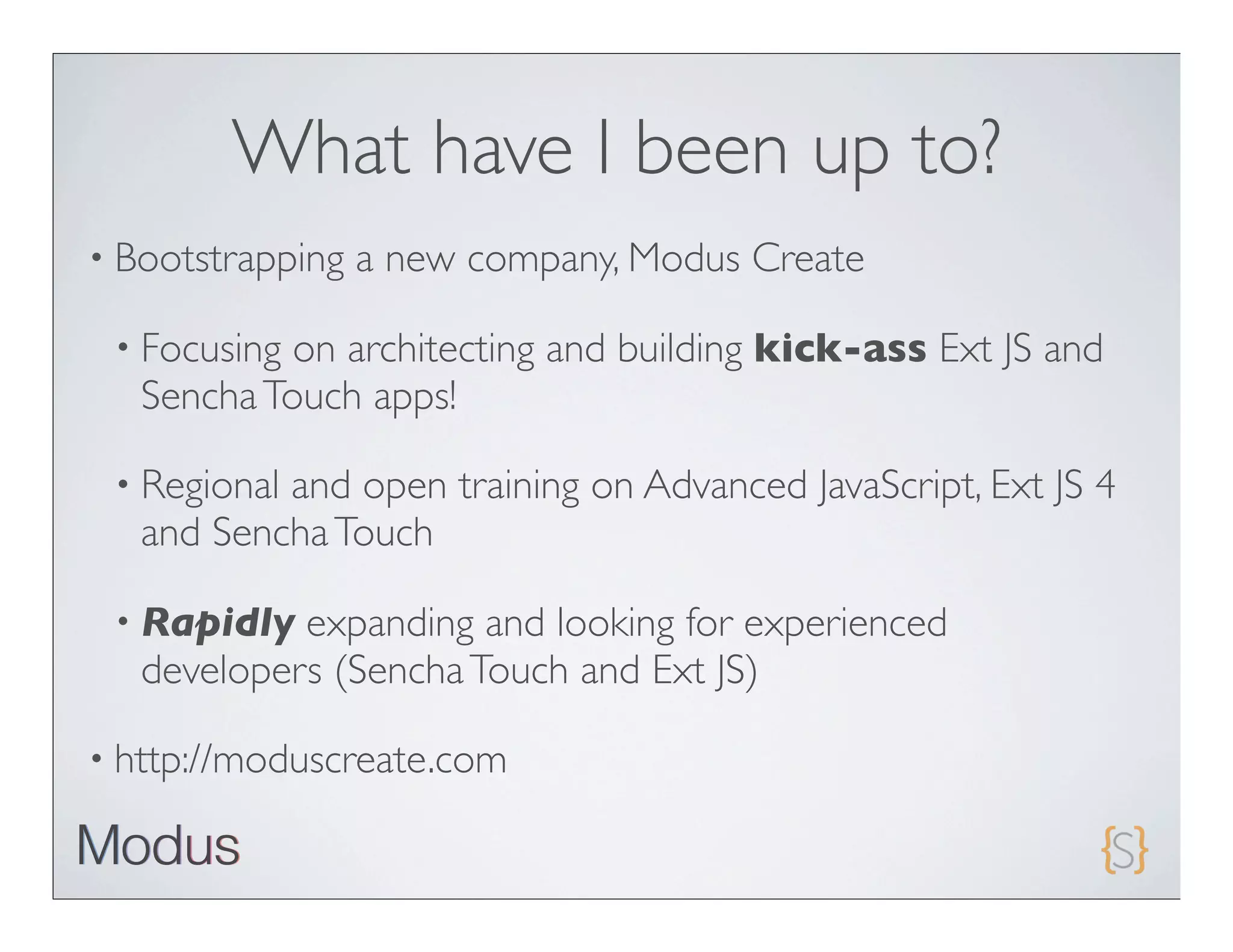

3. What have I been up to?
• Bootstrapping a new company, Modus Create
• Focusing on architecting and building kick-ass Ext JS and
Sencha Touch apps!
• Regionaland open training on Advanced JavaScript, Ext JS 4
and Sencha Touch
• Rapidly expanding and looking for experienced
developers (Sencha Touch and Ext JS)
• http://moduscreate.com

4. On the book front...
• Earlyaccess to Sencha Touch
in Action available.
• Chapters 1-3 being
distributed
• Chapter 7 is next to be
published
• Chapter4 will be published in
about 2 weeks
• Chapters
5 and 6 are being
worked on

5. On the book front...
• Codefor Chapter 1 is being
worked on.
• Expect TOC revisions to cover
the latest changes to Ext JS
• Anyoneinterested in working
with me on this project?

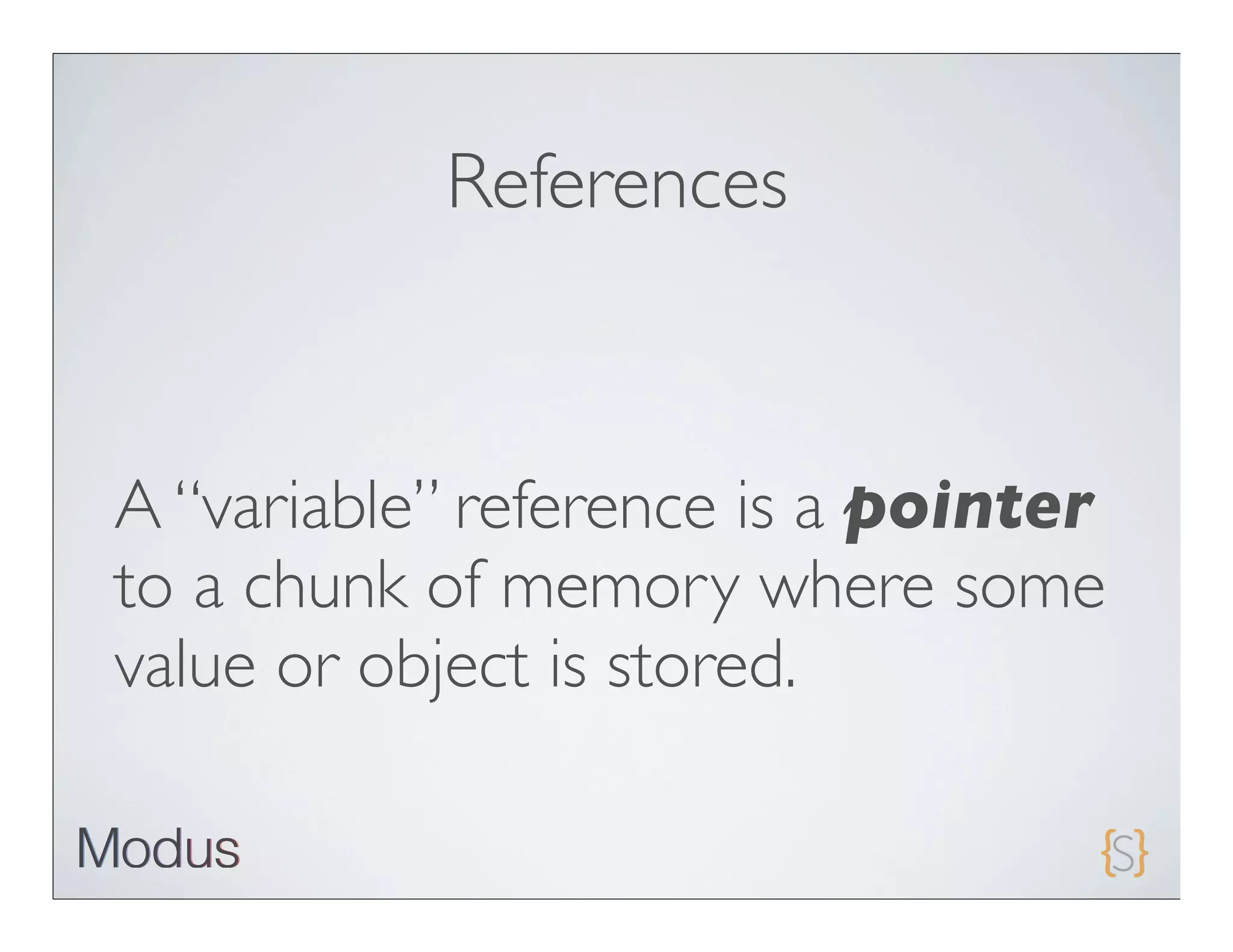

6. References
A “variable” reference is a pointer
to a chunk of memory where some
value or object is stored.

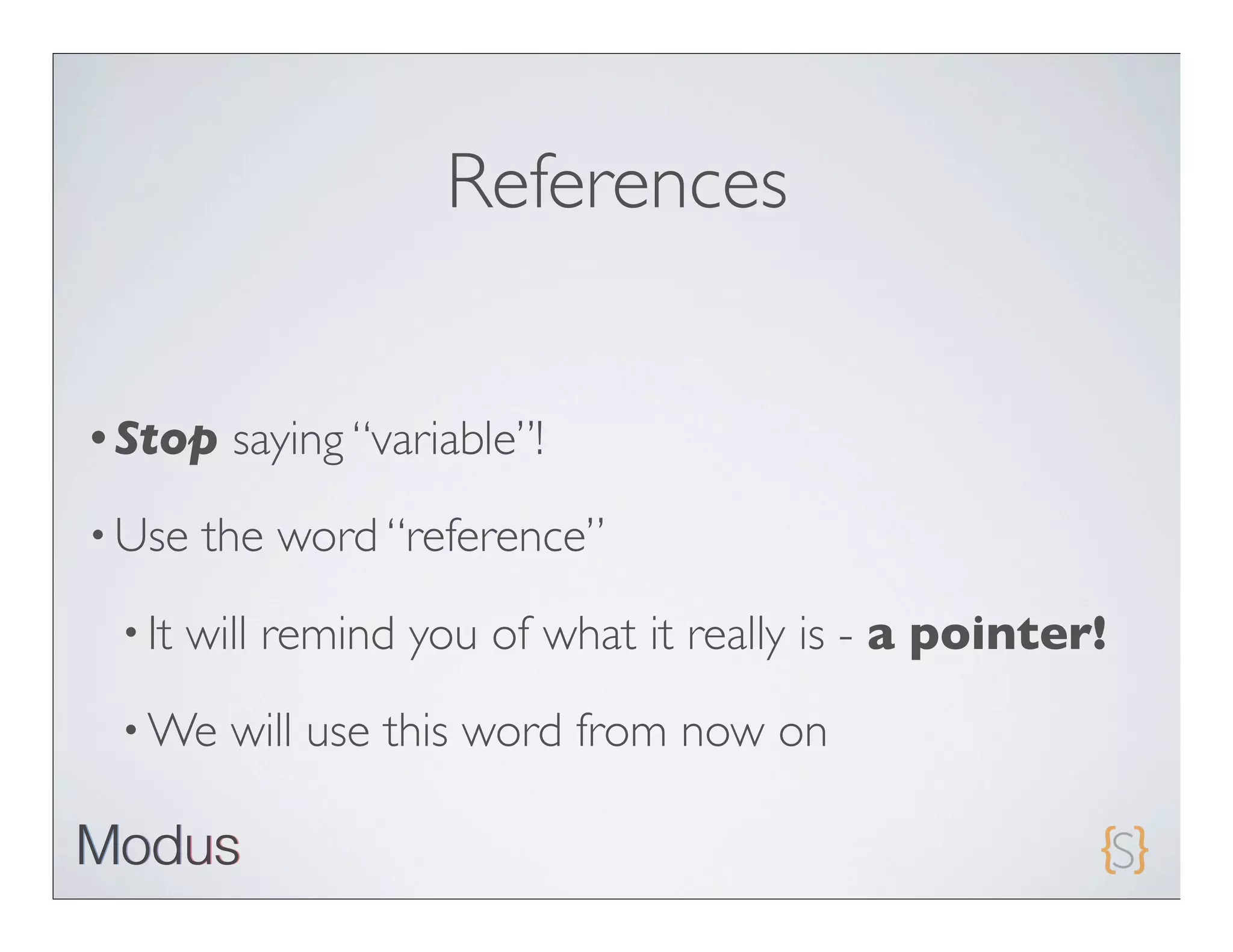

7. References
• Stop saying “variable”!
• Use the word “reference”
• It will remind you of what it really is - a pointer!
• We will use this word from now on

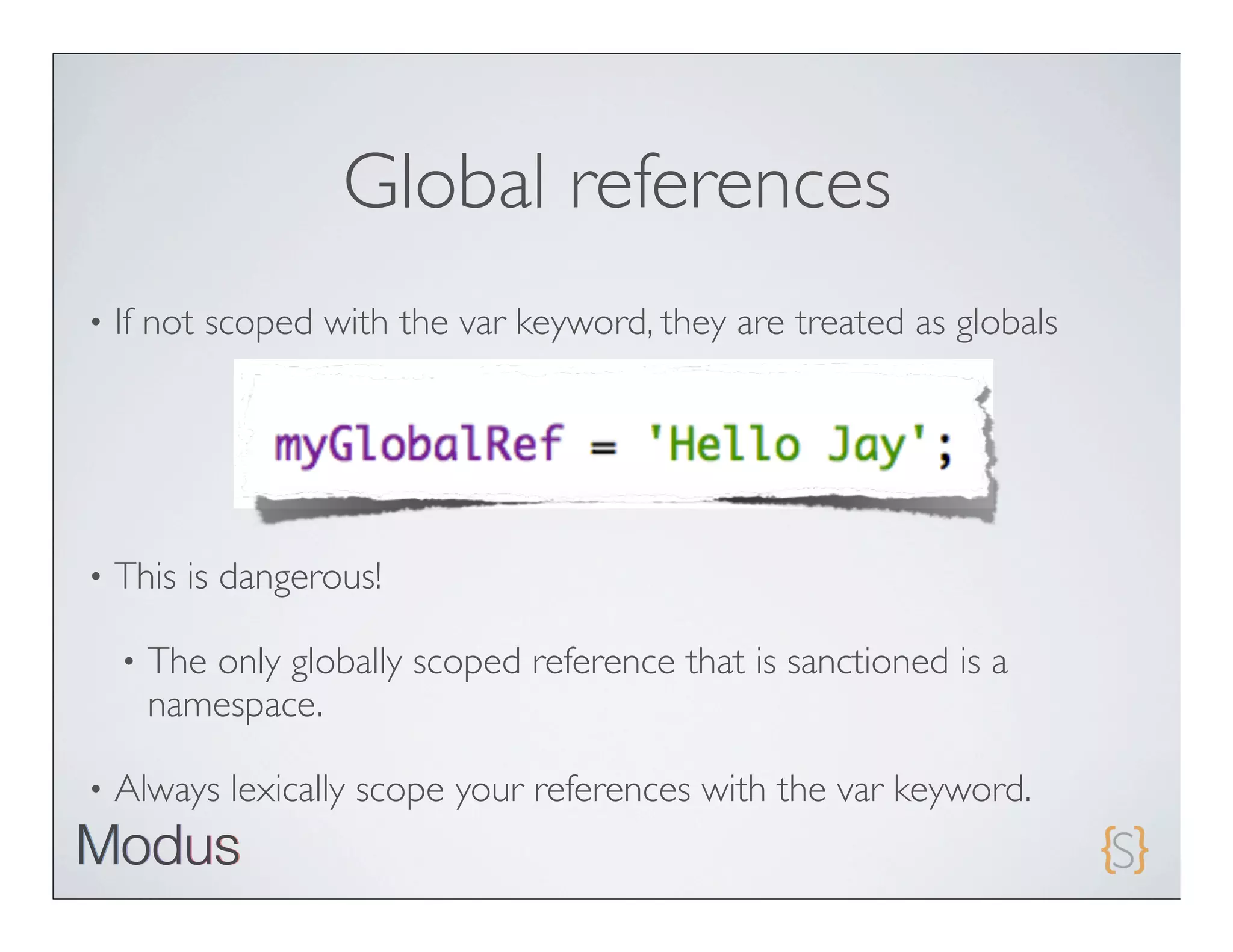

8. Global references
• If not scoped with the var keyword, they are treated as globals
• This is dangerous!
• The only globally scoped reference that is sanctioned is a
namespace.
• Always lexically scope your references with the var keyword.

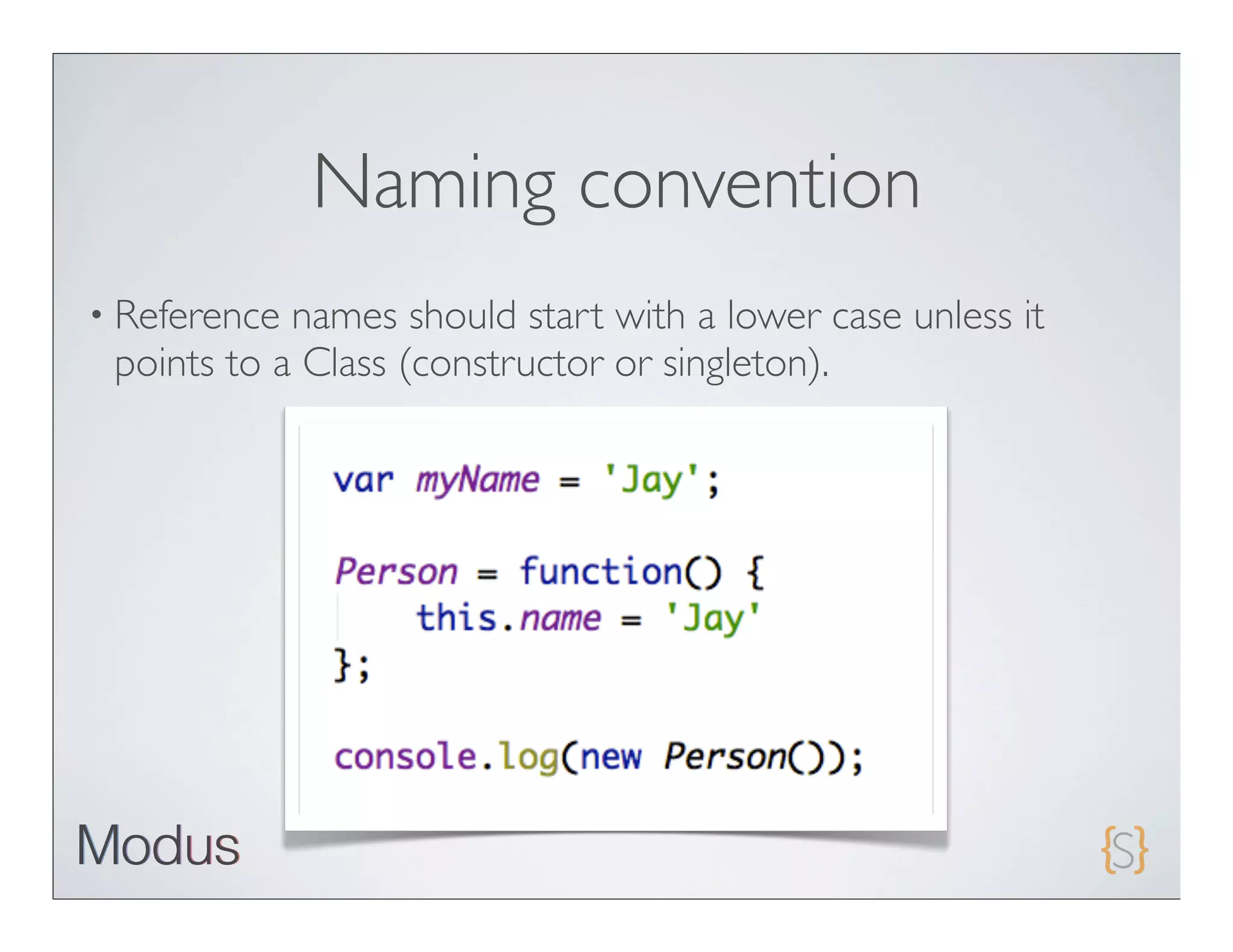

9. Naming convention
• Reference names should start with a lower case unless it
points to a Class (constructor or singleton).

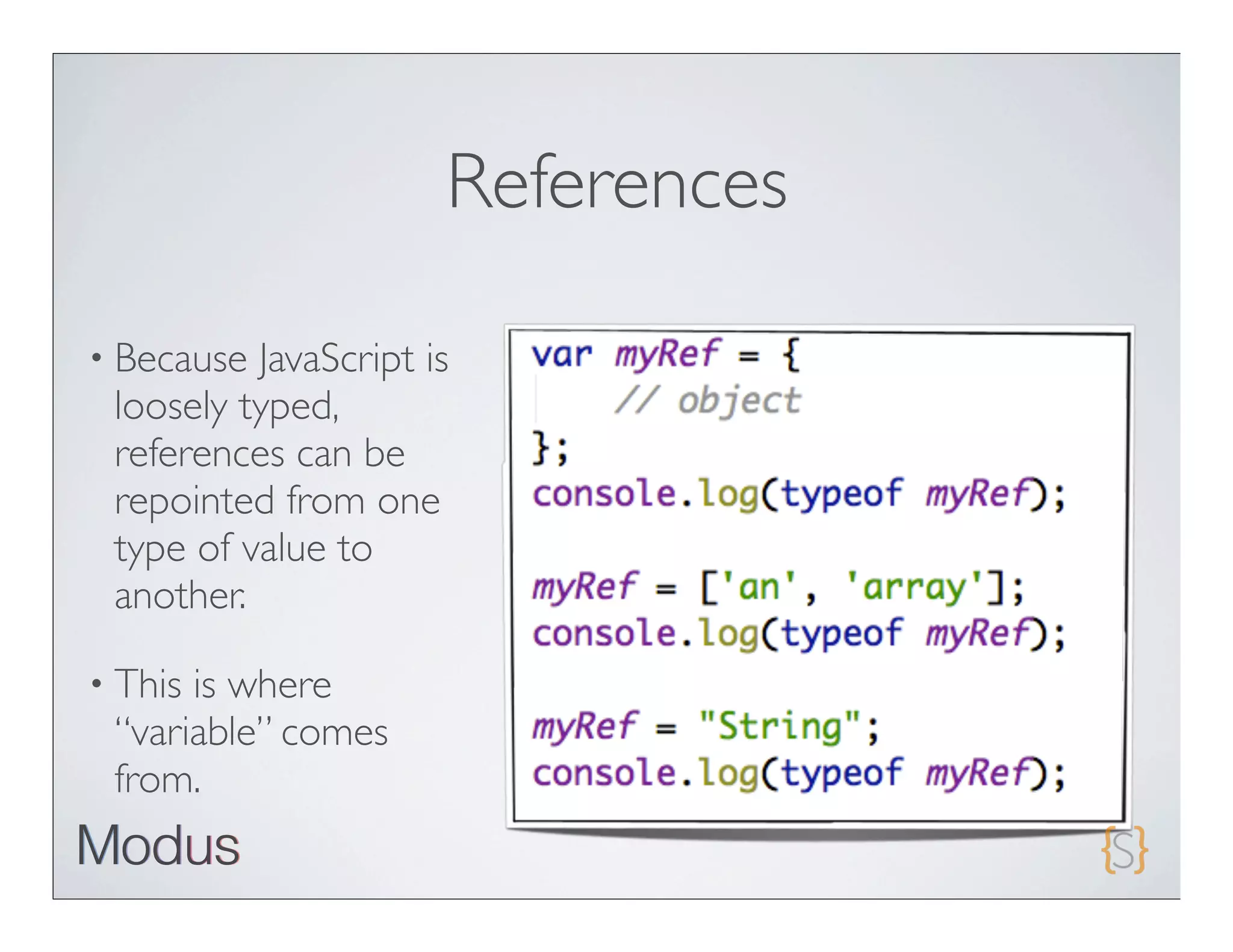

10. References
• Because JavaScript is
loosely typed,
references can be
repointed from one
type of value to
another.
• Thisis where
“variable” comes
from.

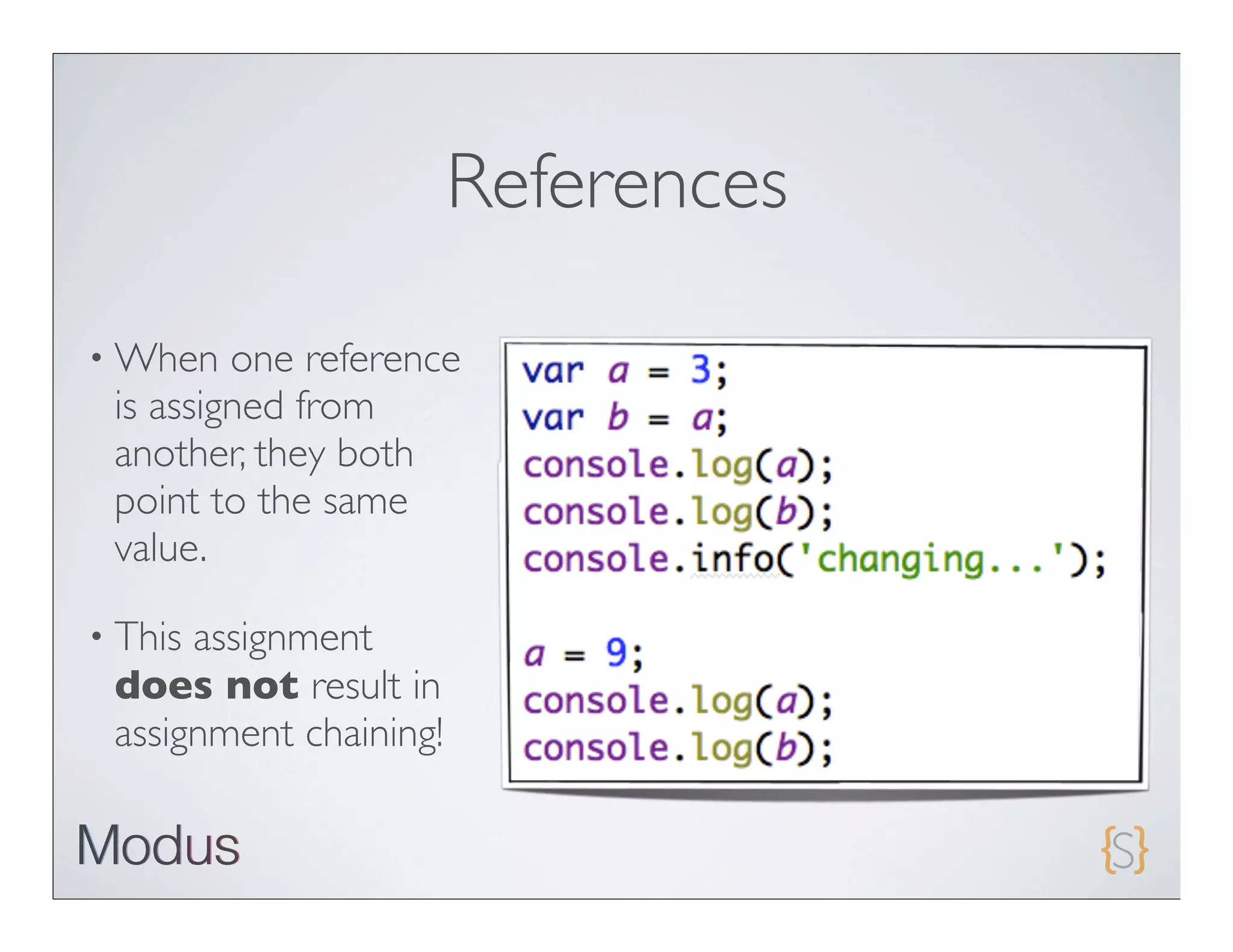

11. References
• When one reference
is assigned from
another, they both
point to the same
value.
• Thisassignment
does not result in
assignment chaining!

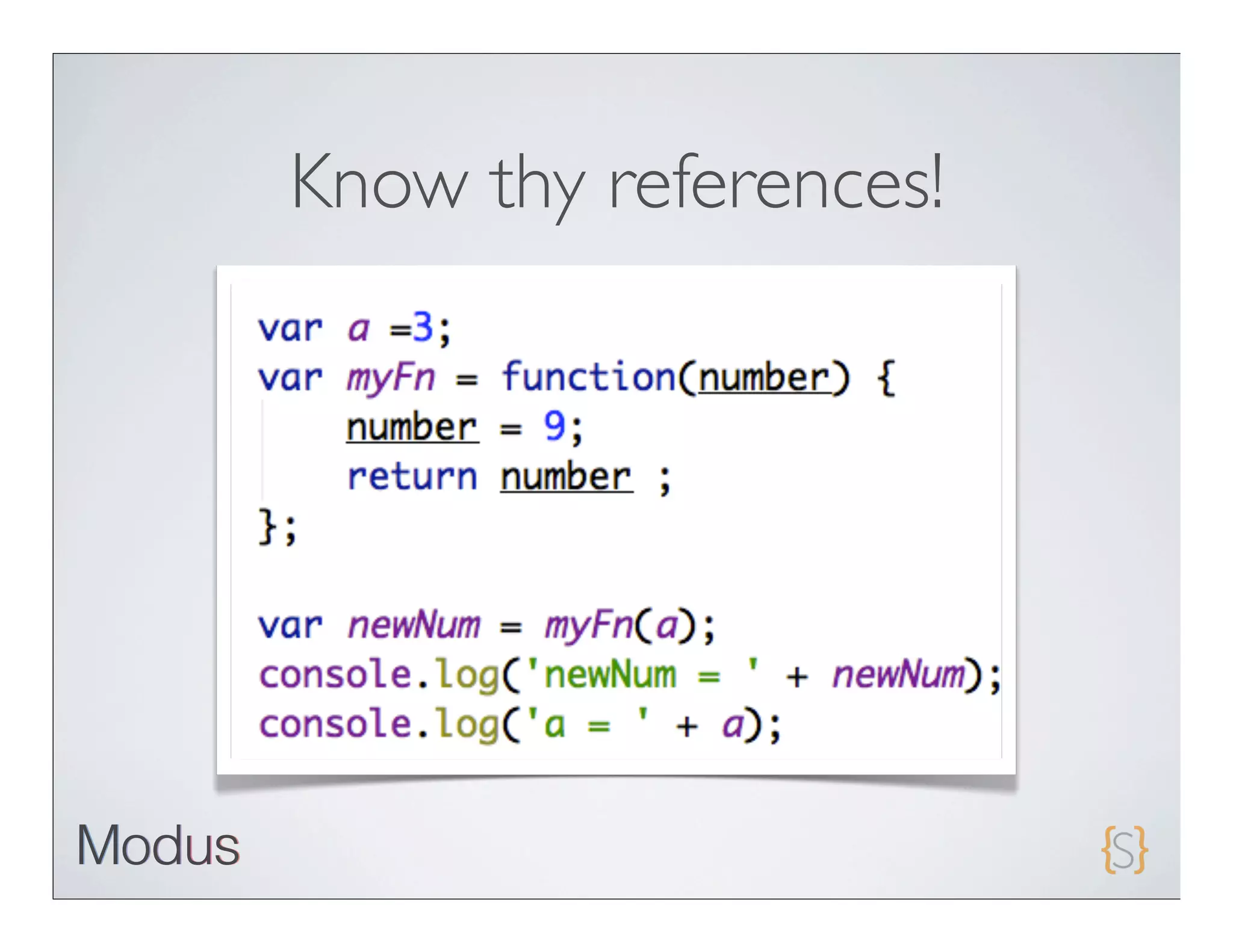

12. Know thy references!

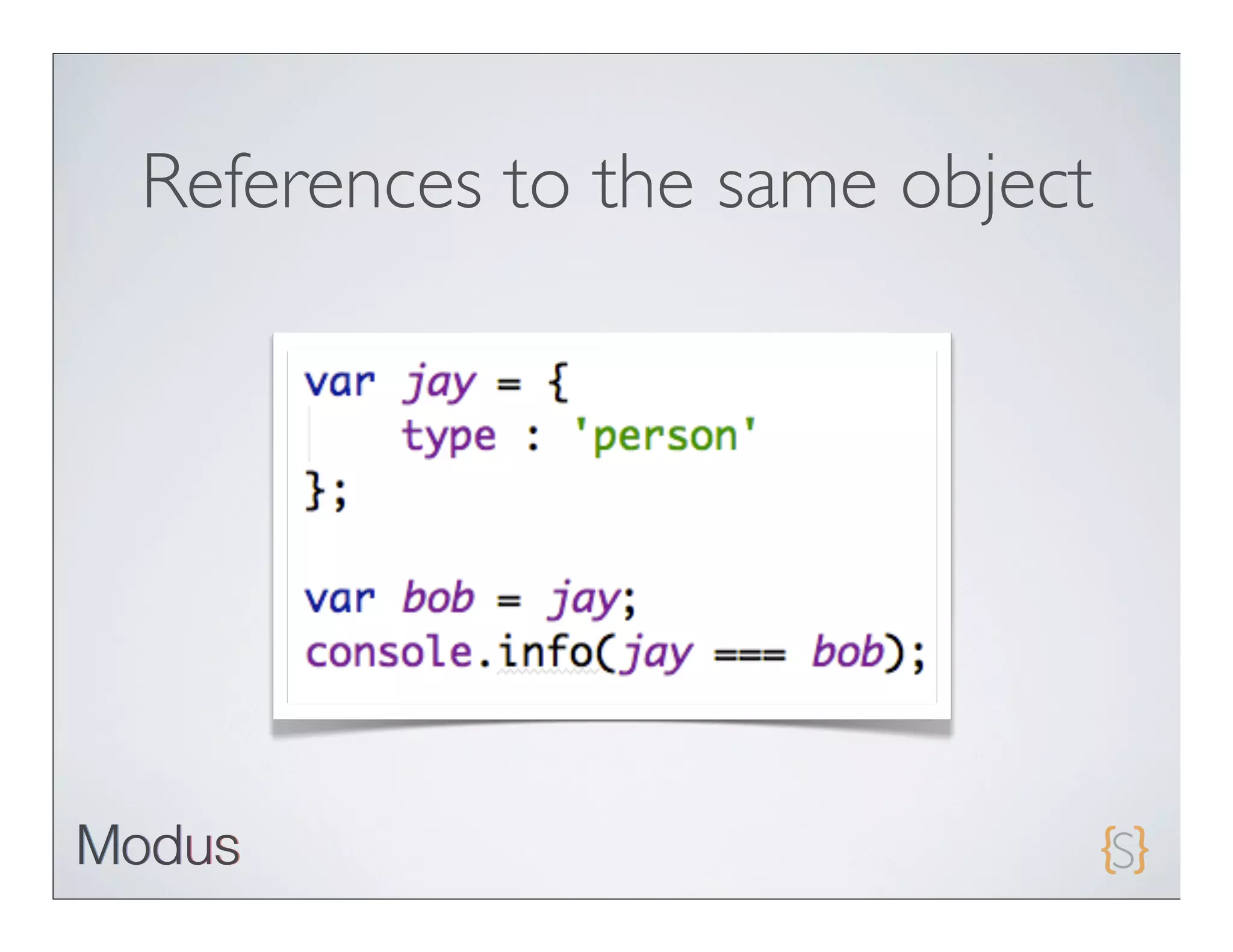

13. References to the same object

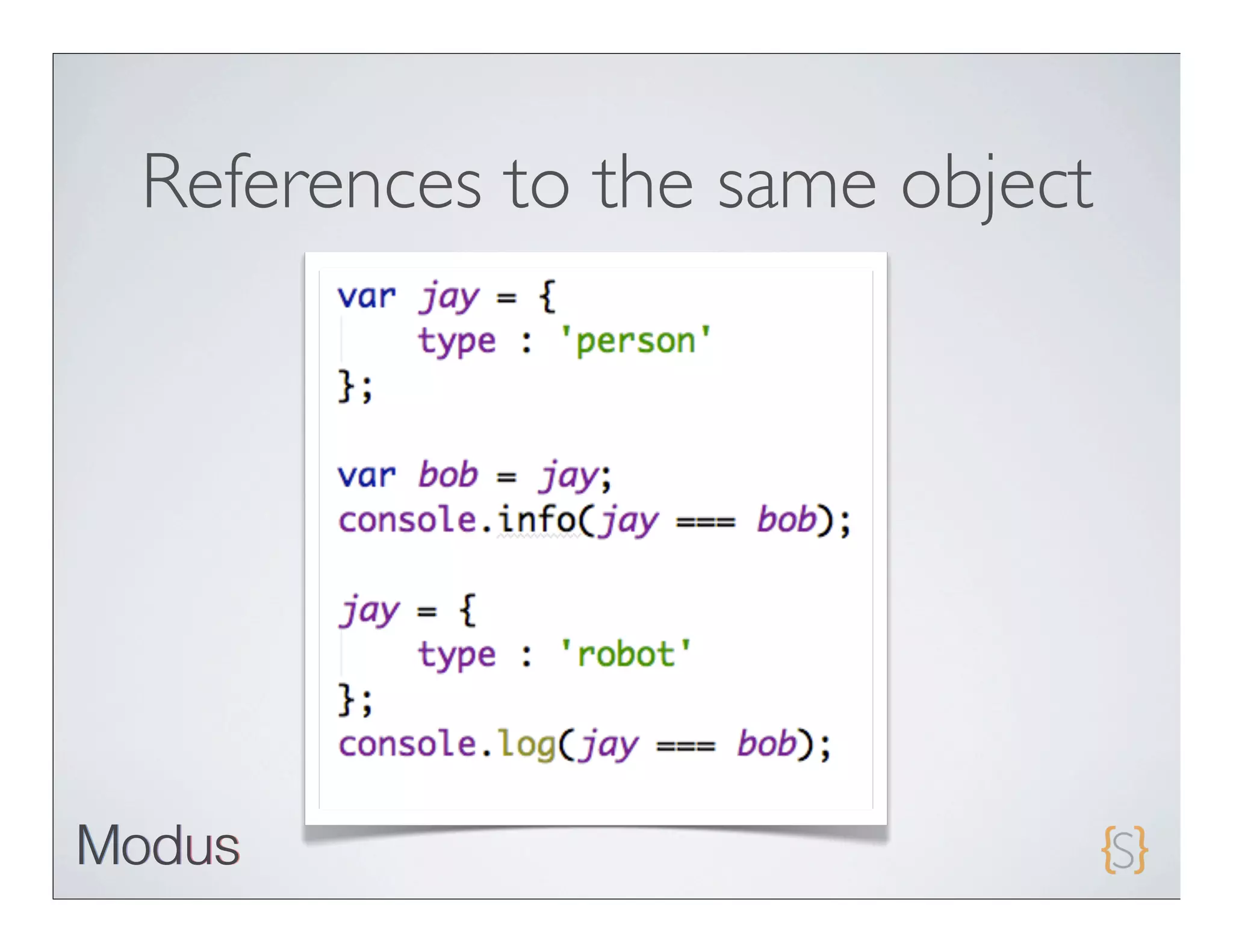

14. References to the same object

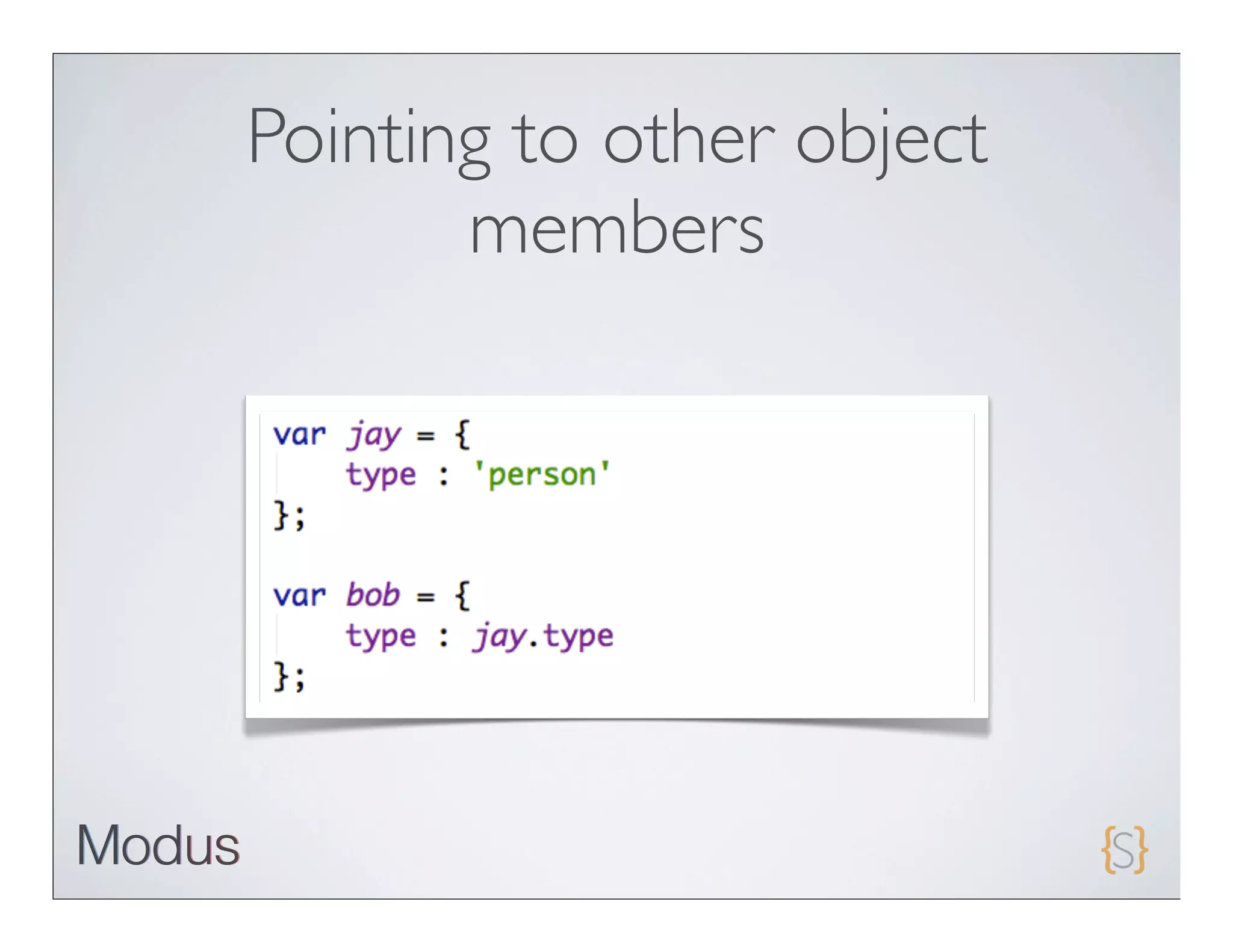

15. Pointing to other object
members

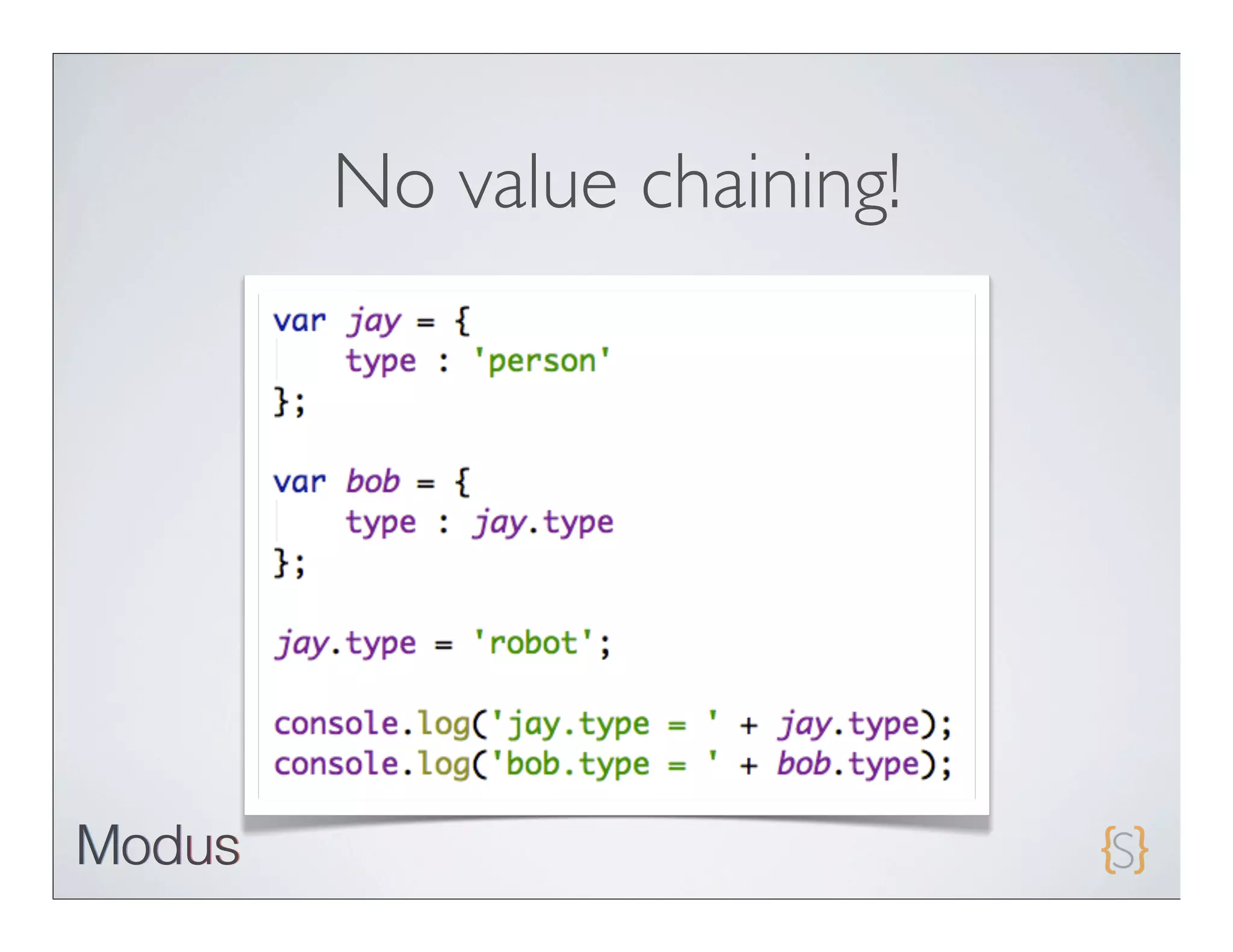

16. No value chaining!

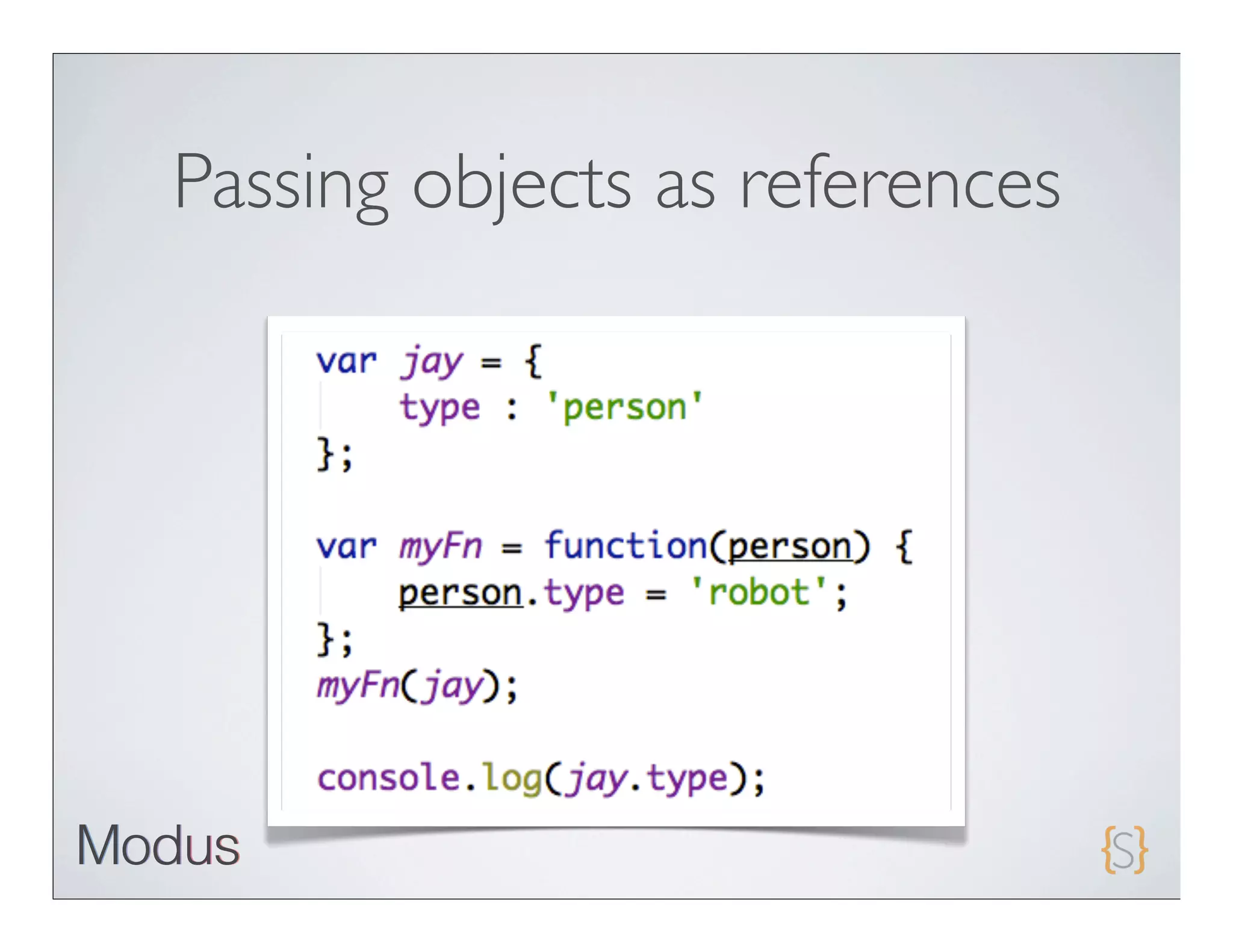

17. Passing objects as references

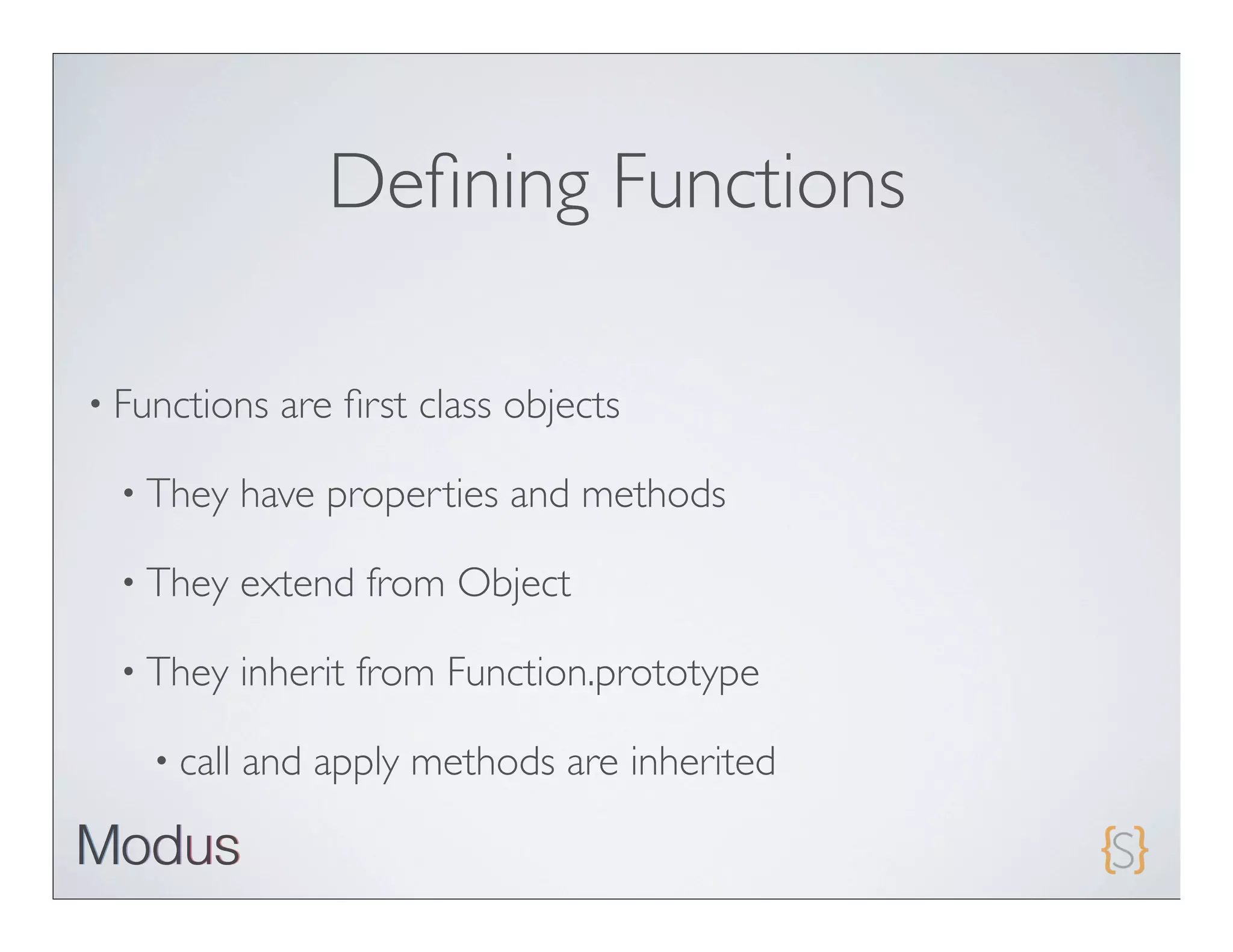

18. Defining Functions
• Functions are first class objects
• They have properties and methods
• They extend from Object
• They inherit from Function.prototype
• call and apply methods are inherited

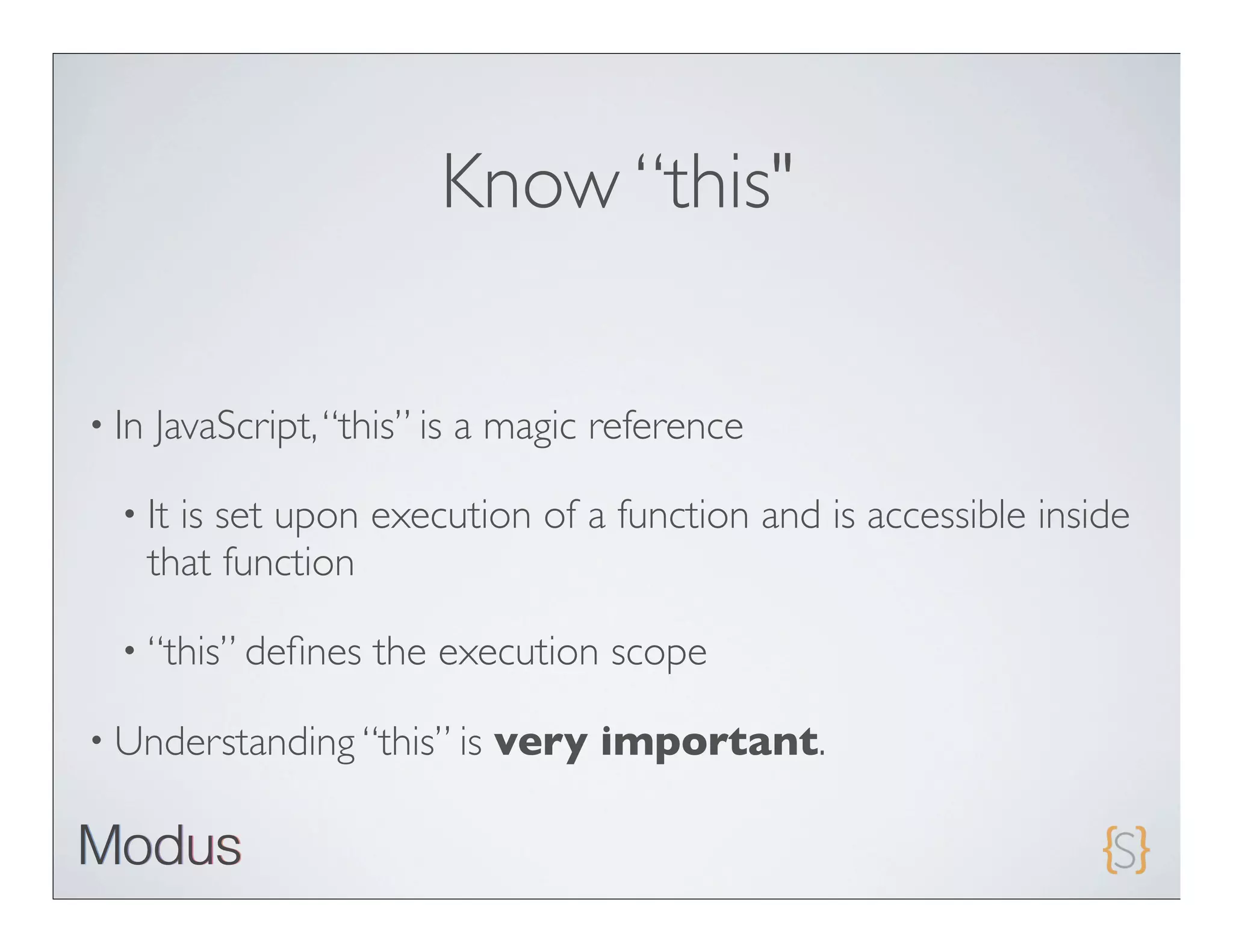

19. Know “this"
• In JavaScript, “this” is a magic reference
• It is set upon execution of a function and is accessible inside
that function
• “this” defines the execution scope
• Understanding “this” is very important.

20. Execution scope defined
• When a function is executed via a var
reference, the default execution context
(“this”) is “window”.
• When a function is executed via an object
key, the execution context (“this”) is the
object for which the key belongs.

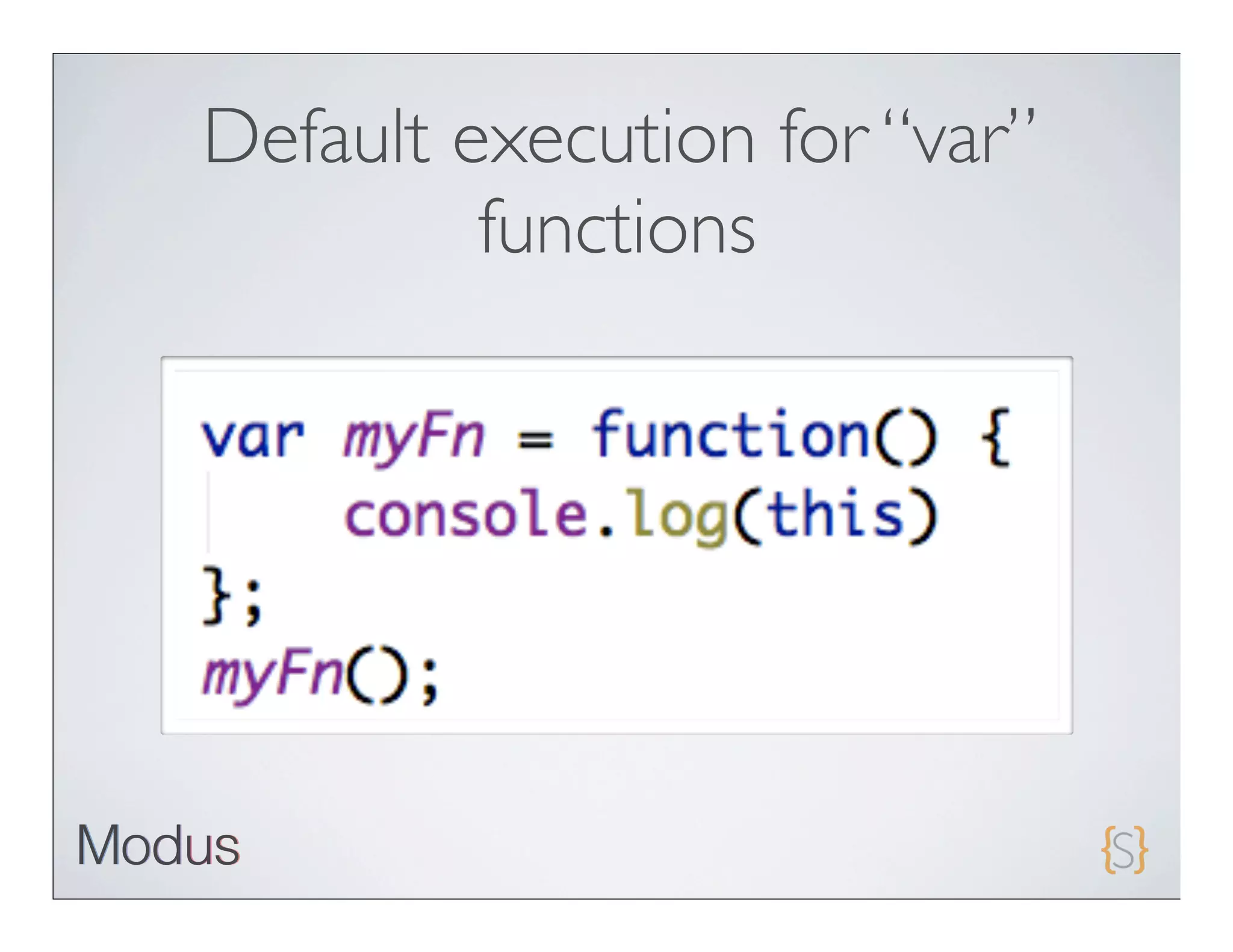

21. Default execution for “var”
functions

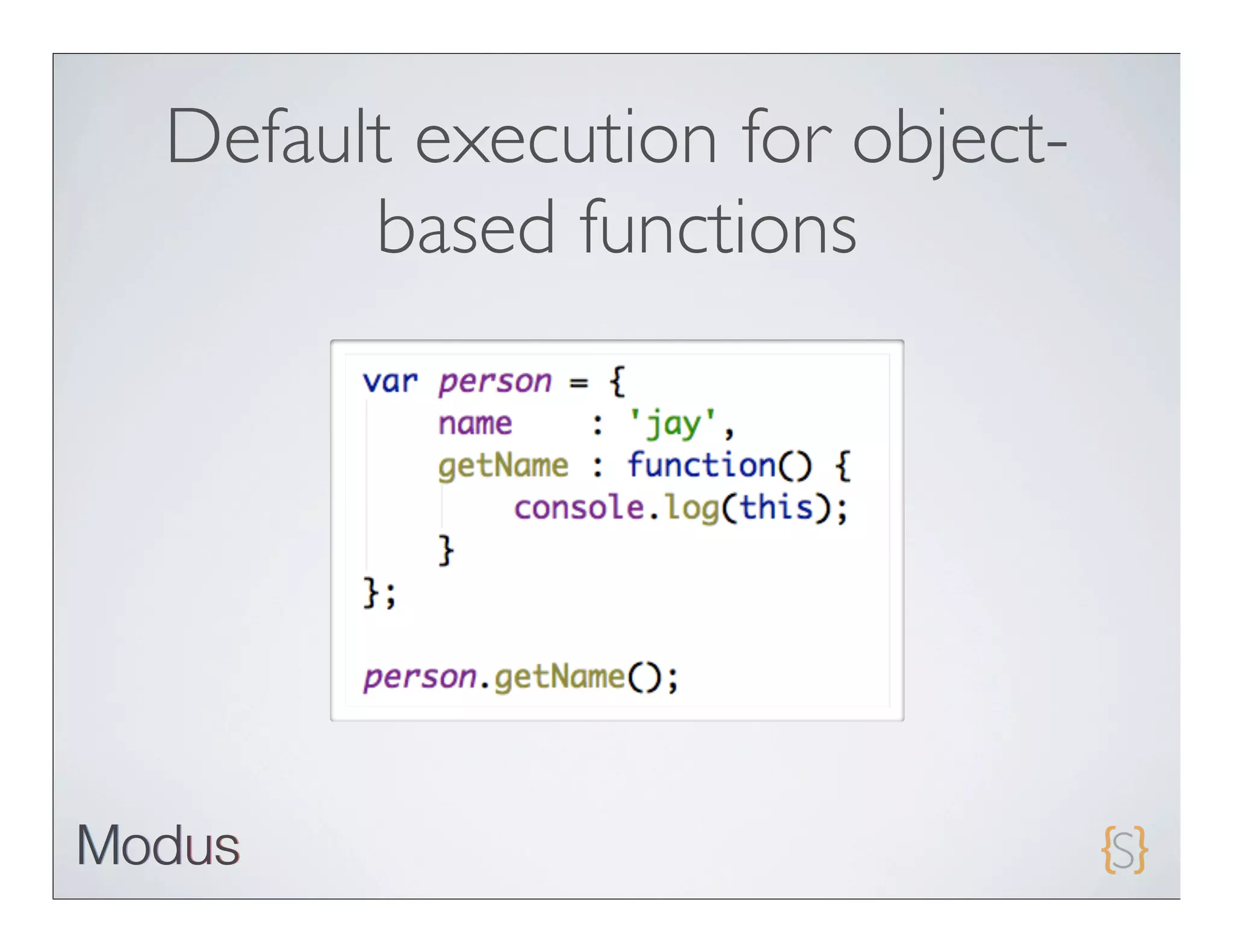

22. Default execution for object-
based functions

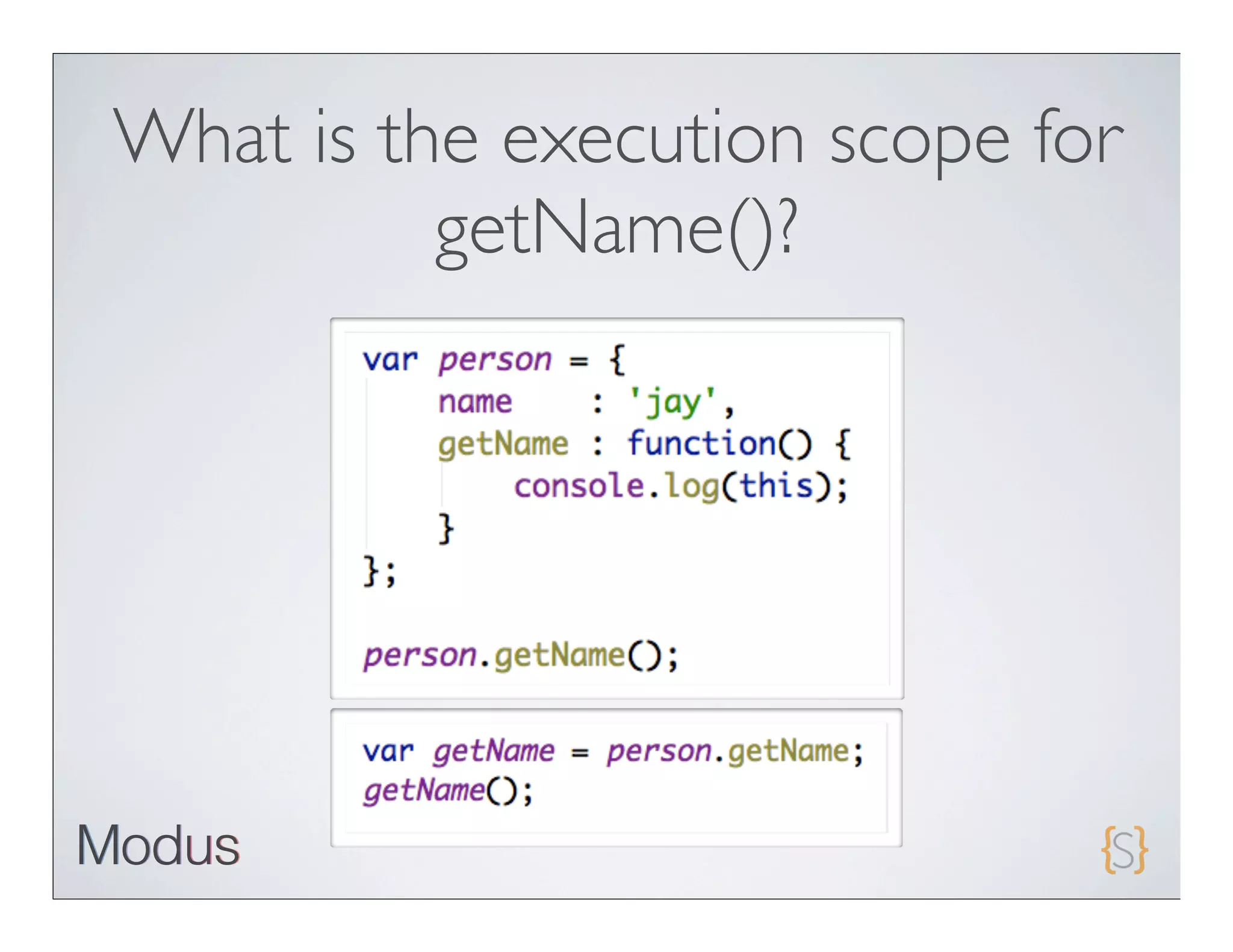

23. What is the execution scope for
getName()?

24. Execution scope defined
• When a function is executed via a var
reference, the default execution context
(“this”) is “window”.
• When a function is executed via an object
key, the execution context (“this”) is the
object for which the key belongs.

25. What is the execution scope for
getName()?

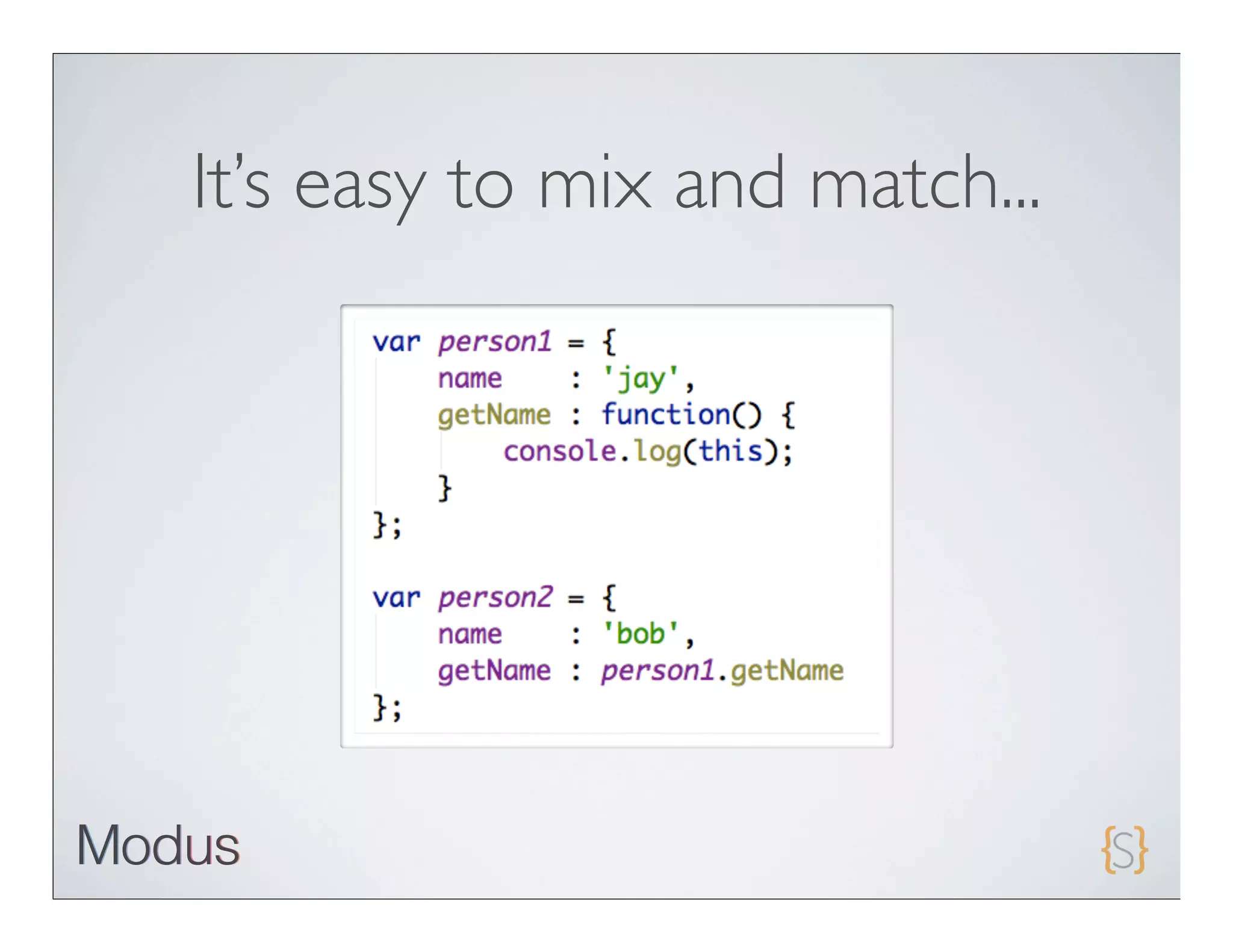

26. It’s easy to mix and match...

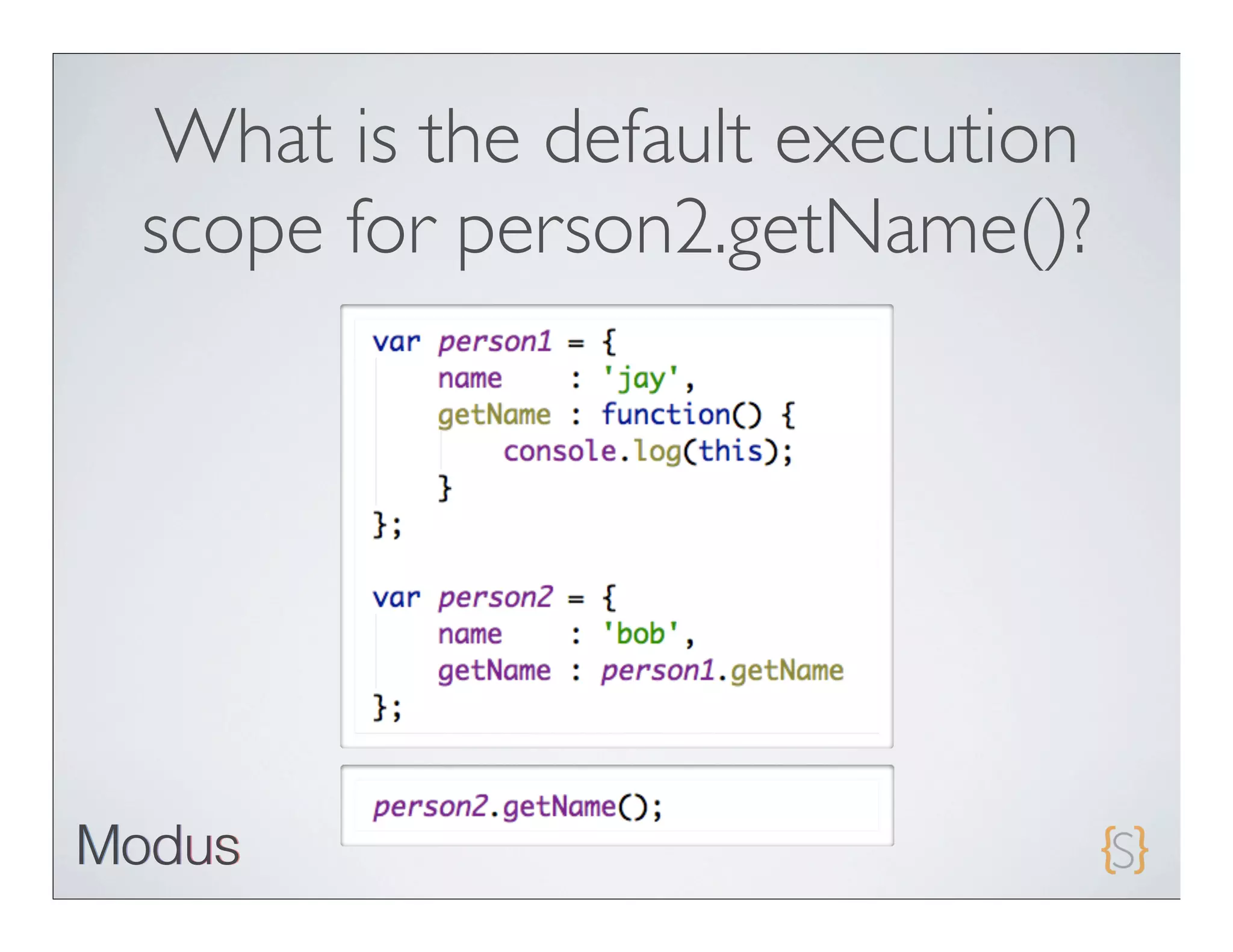

27. What is the default execution
scope for person2.getName()?

28. Forcing scope execution
• call and apply can be used to force scope execution.
• Inother words, you have full control over the execution scope
of any function in JavaScript.

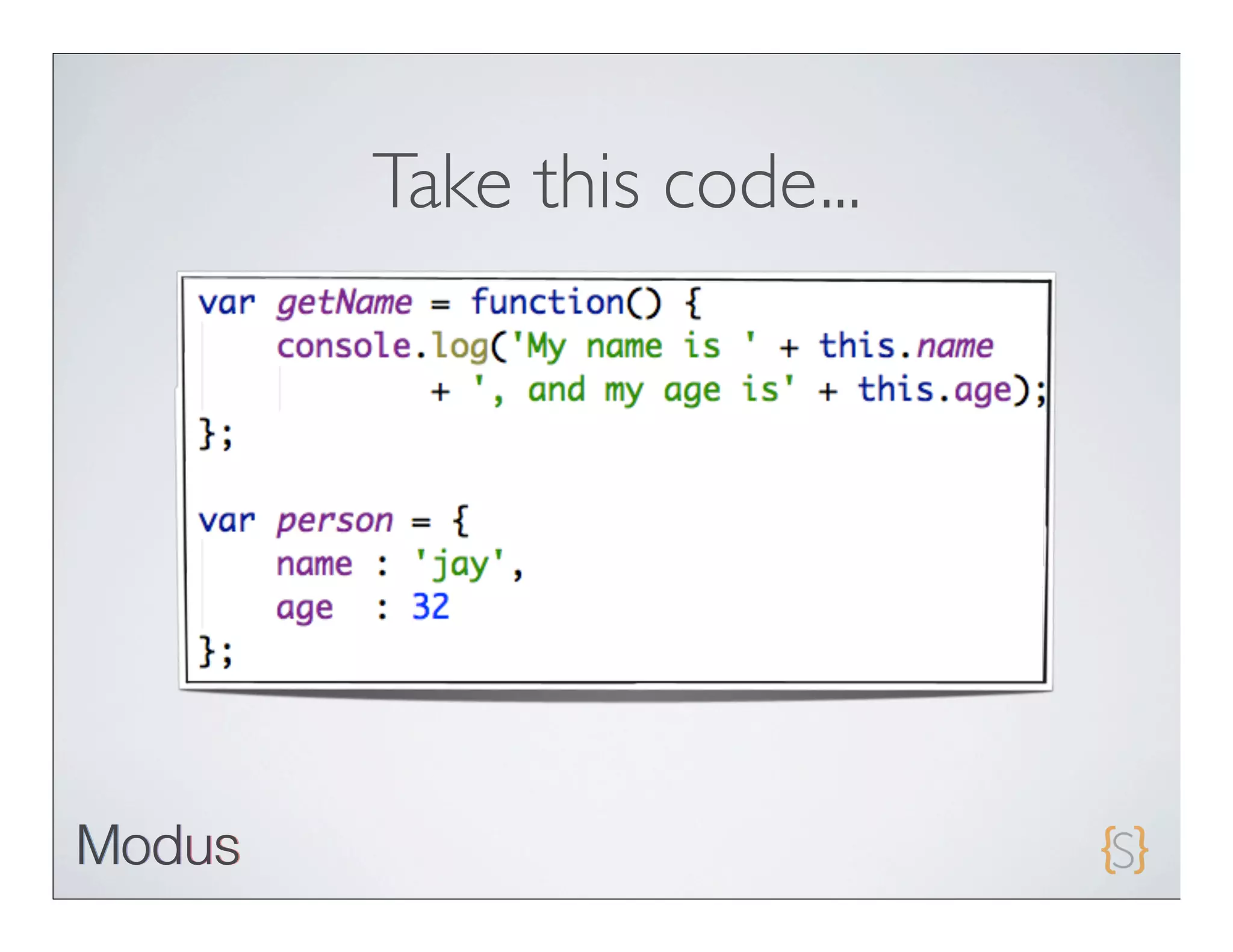

29. Take this code...

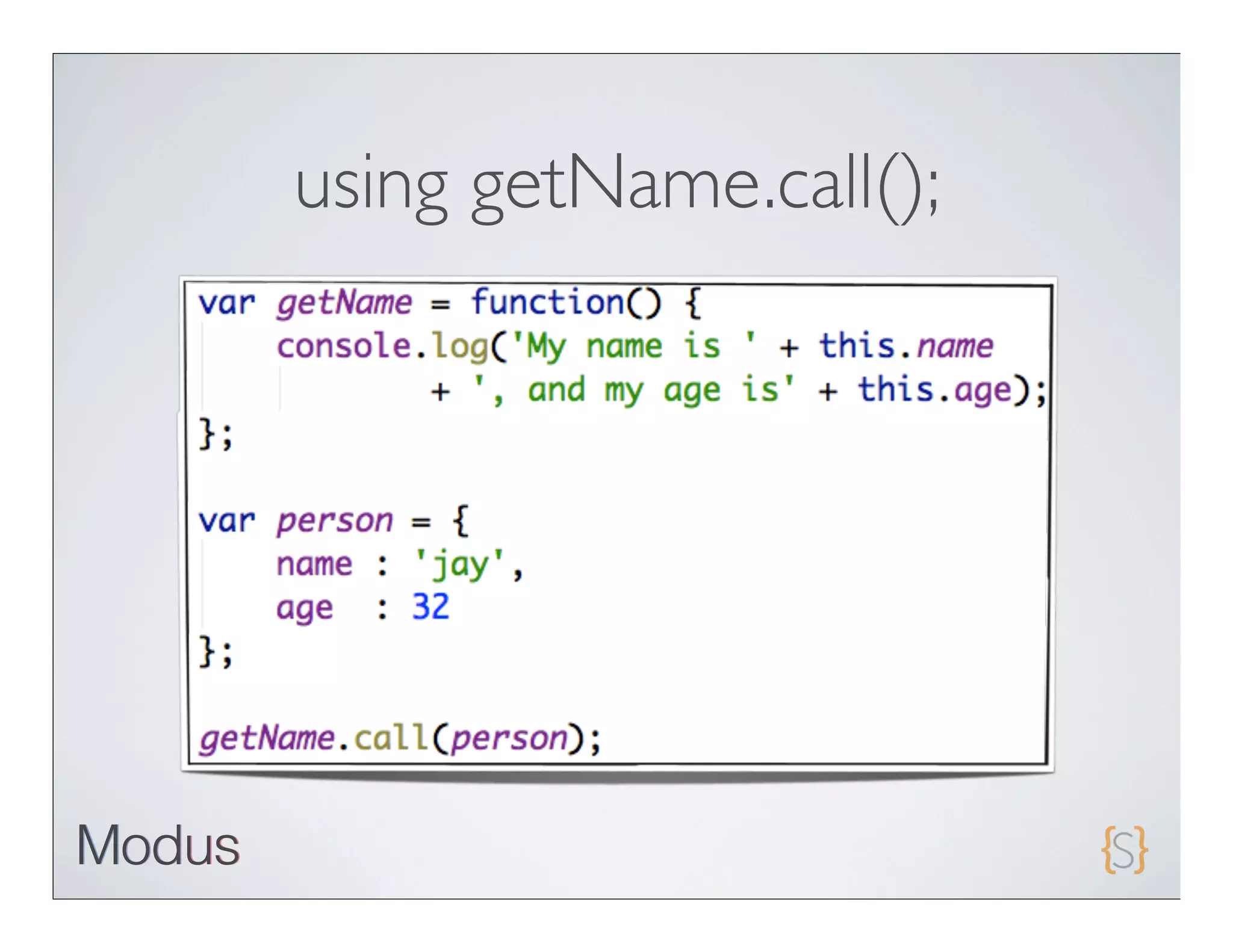

30. using getName.call();

31. Take this code...

32. Execute person2.getName();

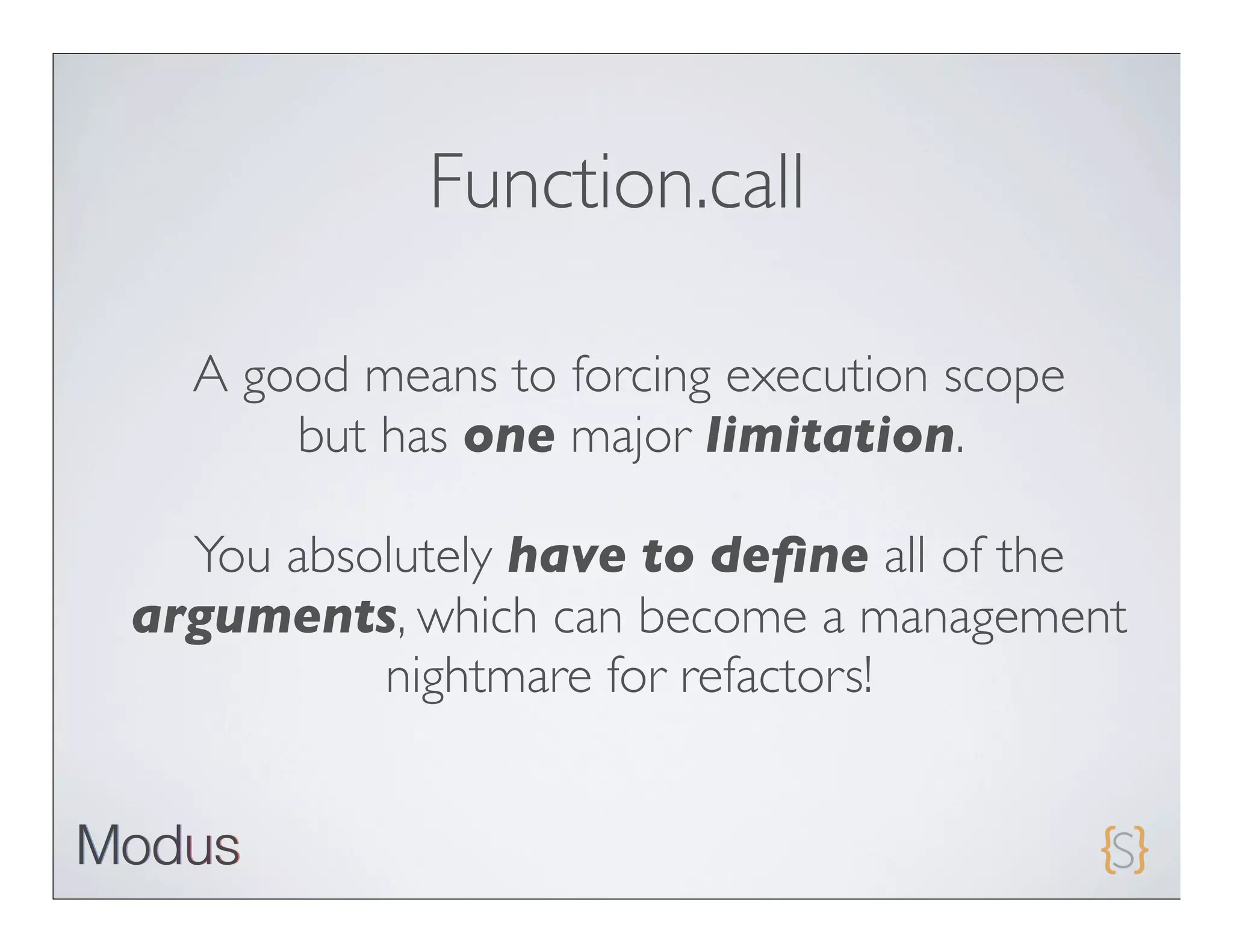

33. Function.call
A good means to forcing execution scope
but has one major limitation.
You absolutely have to define all of the
arguments, which can become a management
nightmare for refactors!

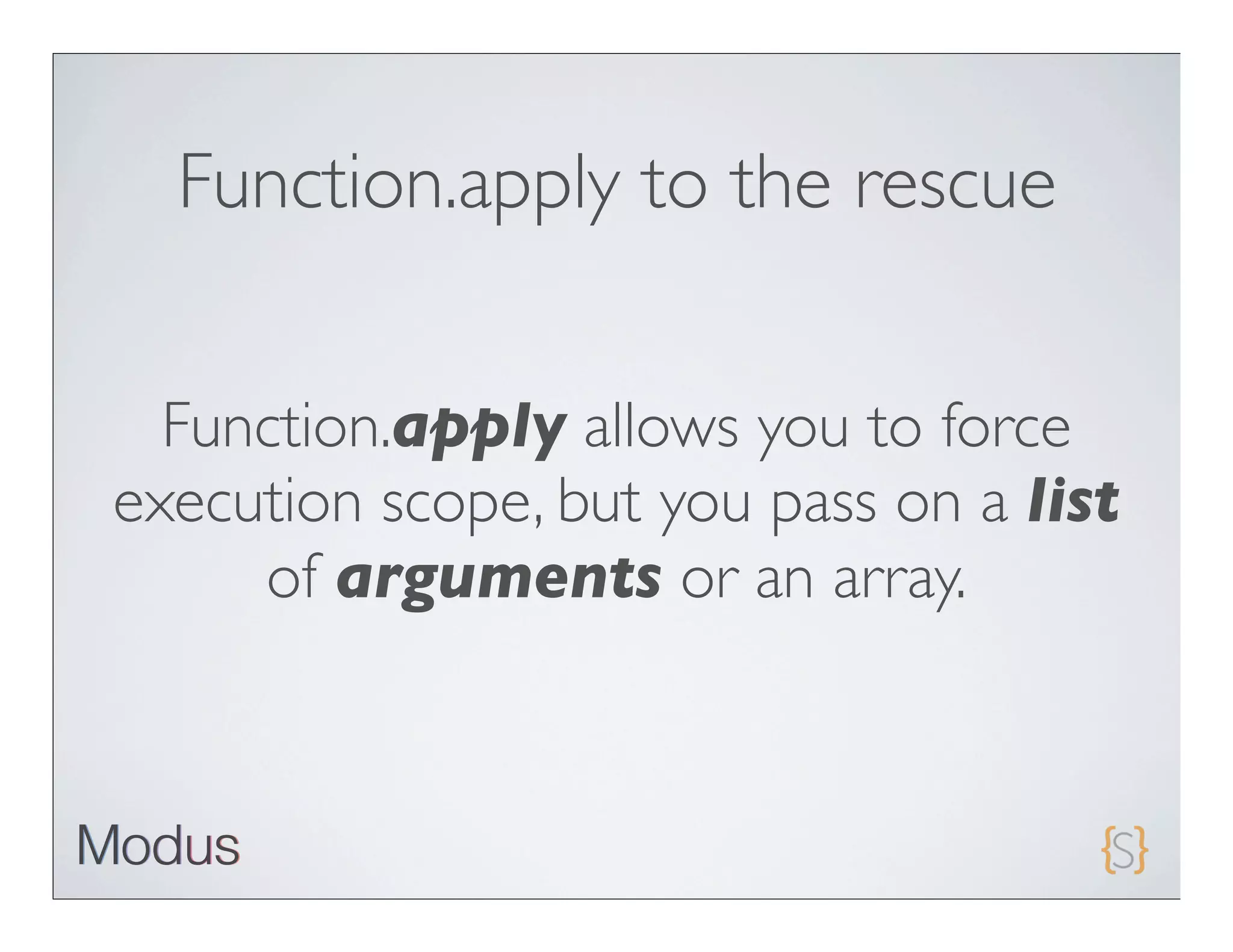

34. Function.apply to the rescue
Function.apply allows you to force
execution scope, but you pass on a list
of arguments or an array.

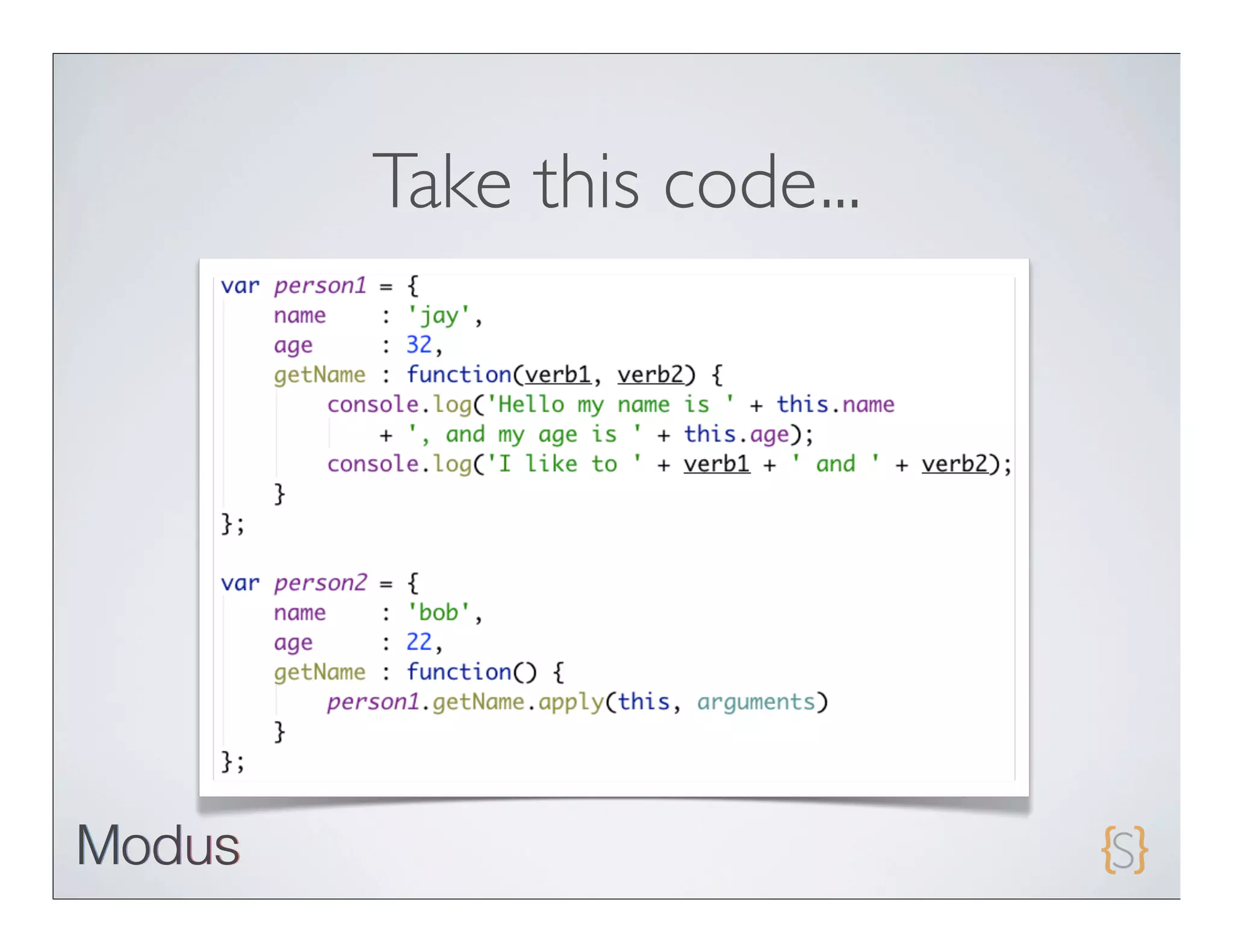

35. Take this code...

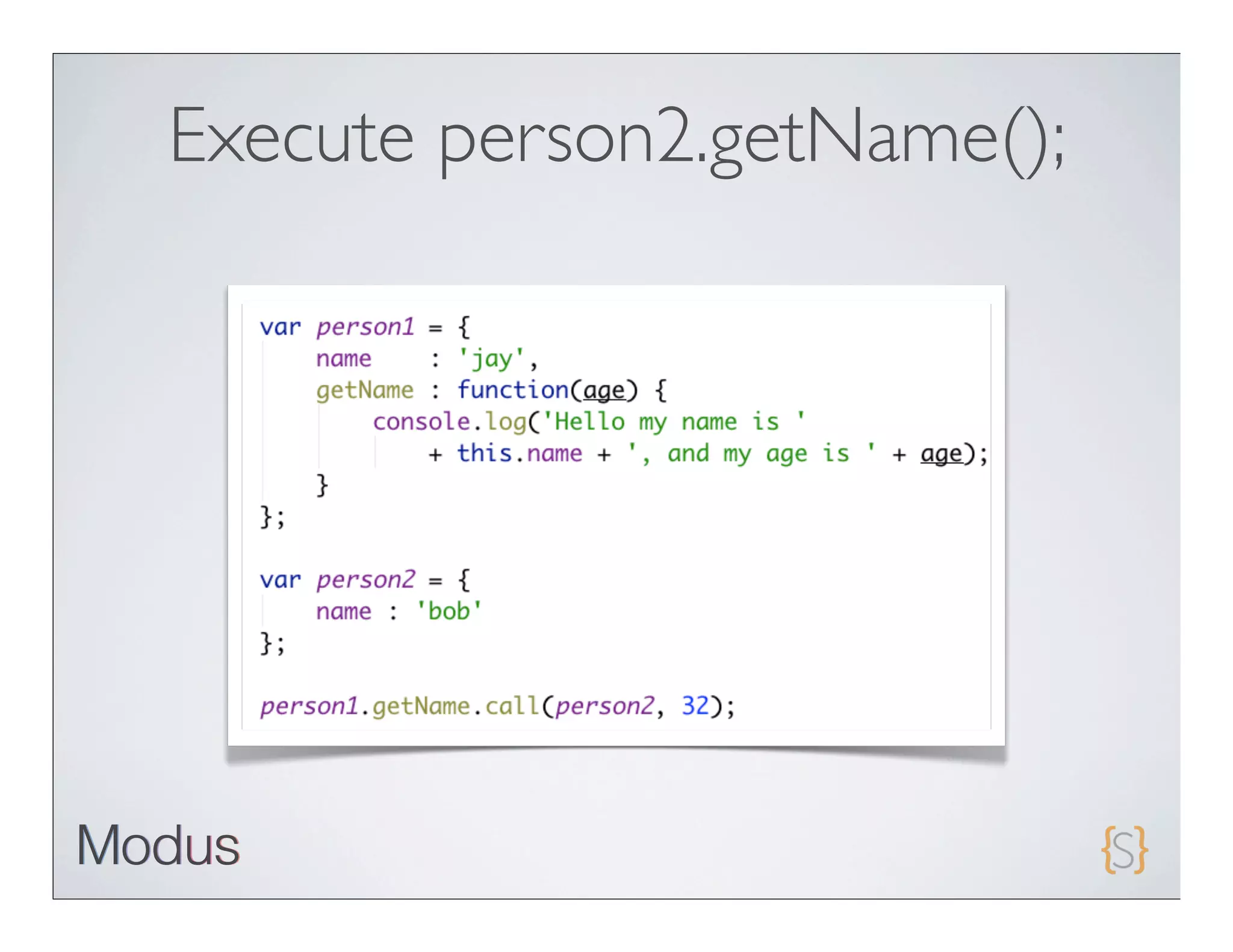

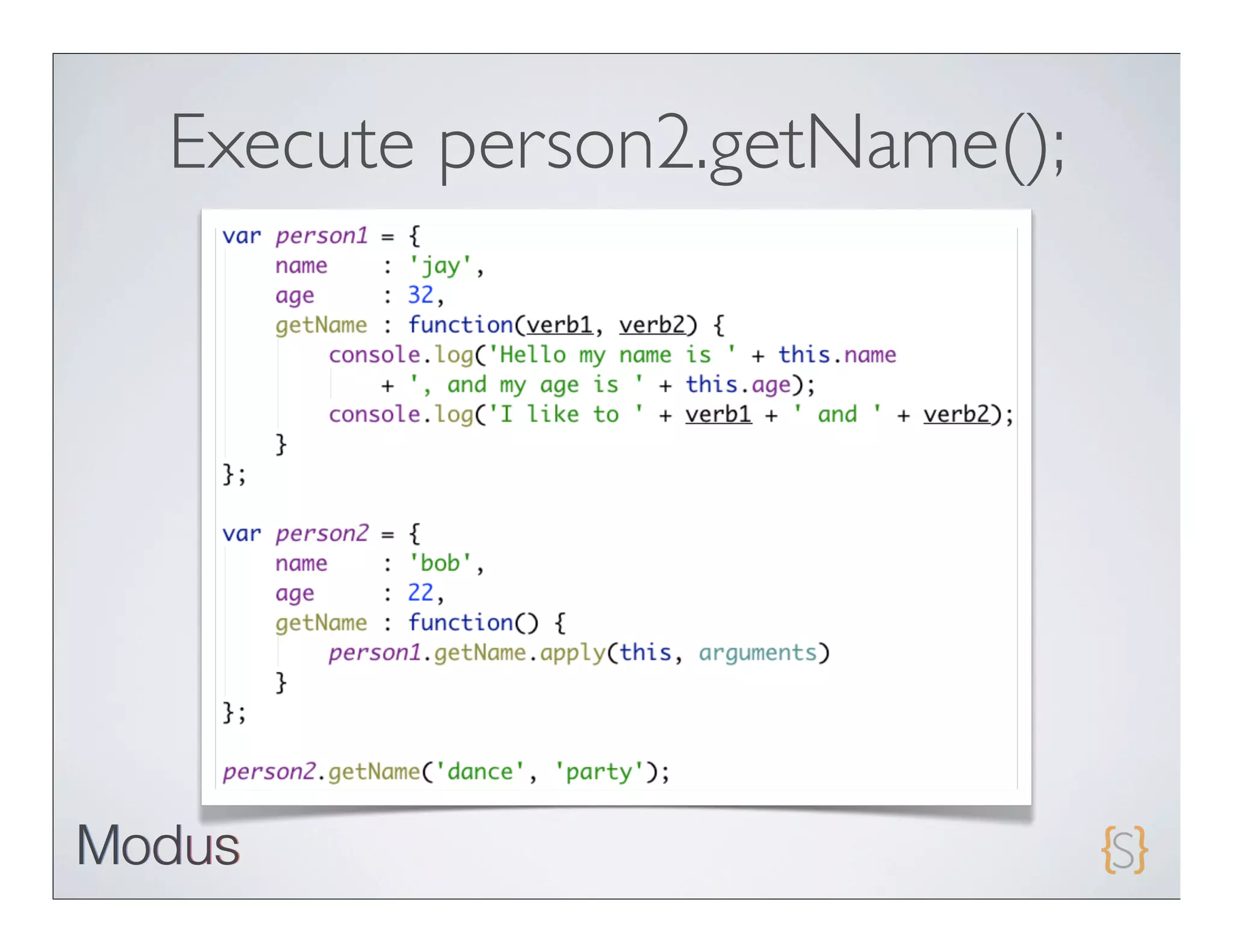

36. Execute person2.getName();

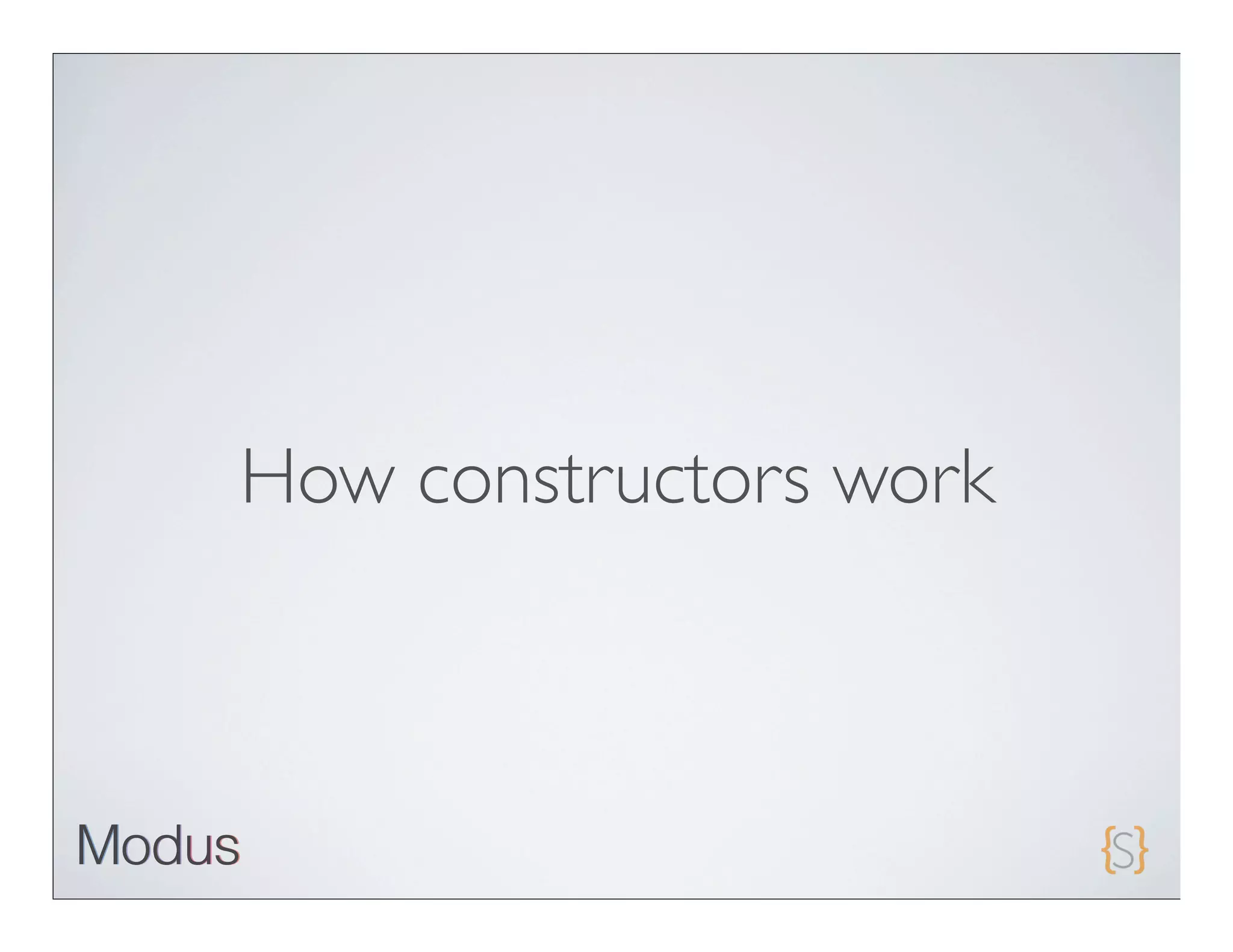

37. How constructors work

38. Objects == root?
• Object is the base “class” for just about everything inside of
JavaScript.
• Just
about all of the values that you code and interact with
extend from Object.
• Strings, Arrays, Functions,etc
• Usingthe DOM API method document.getElementByID
returns an element reference that ultimately extends Object.

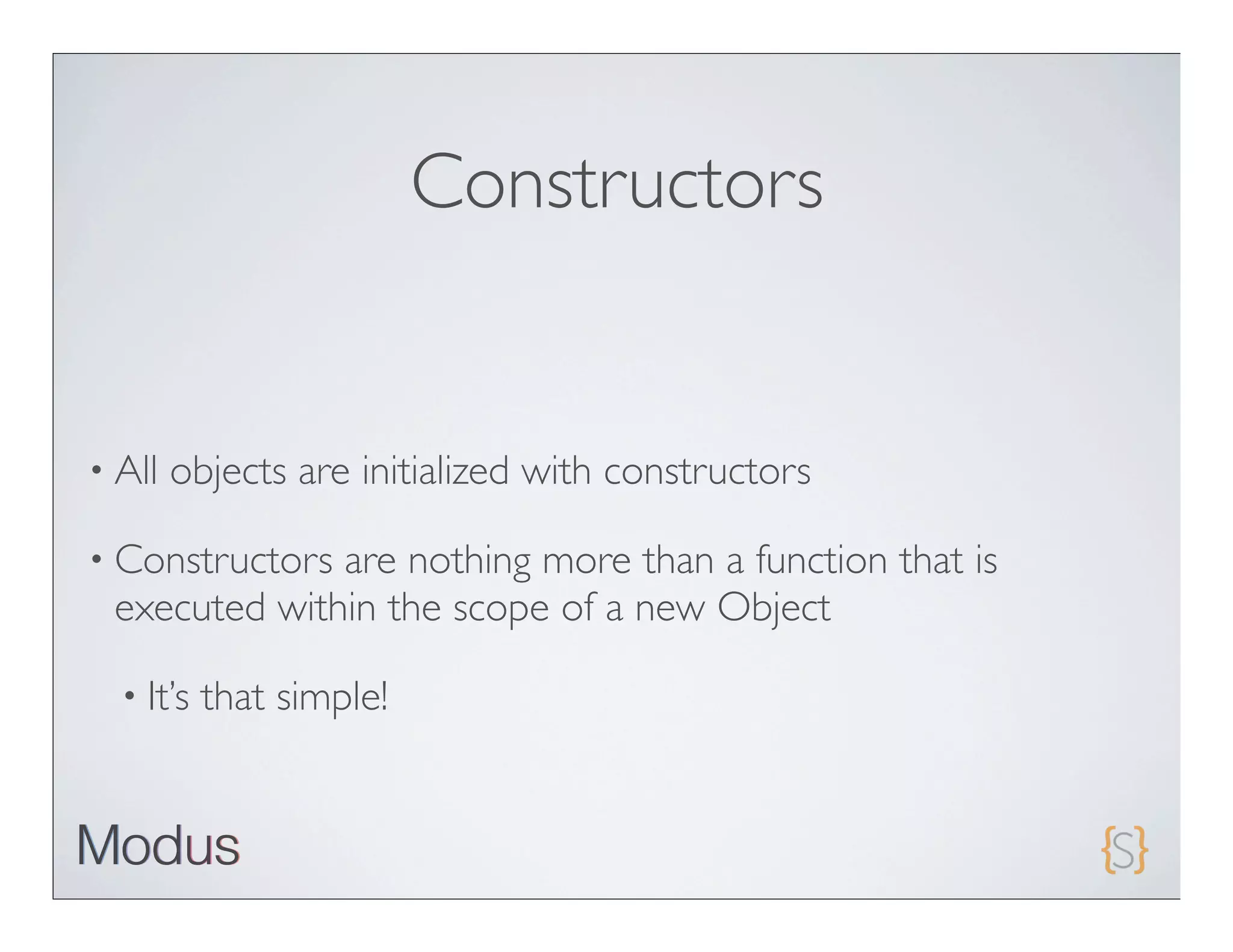

39. Constructors
• All objects are initialized with constructors
• Constructorsare nothing more than a function that is
executed within the scope of a new Object
• It’s that simple!

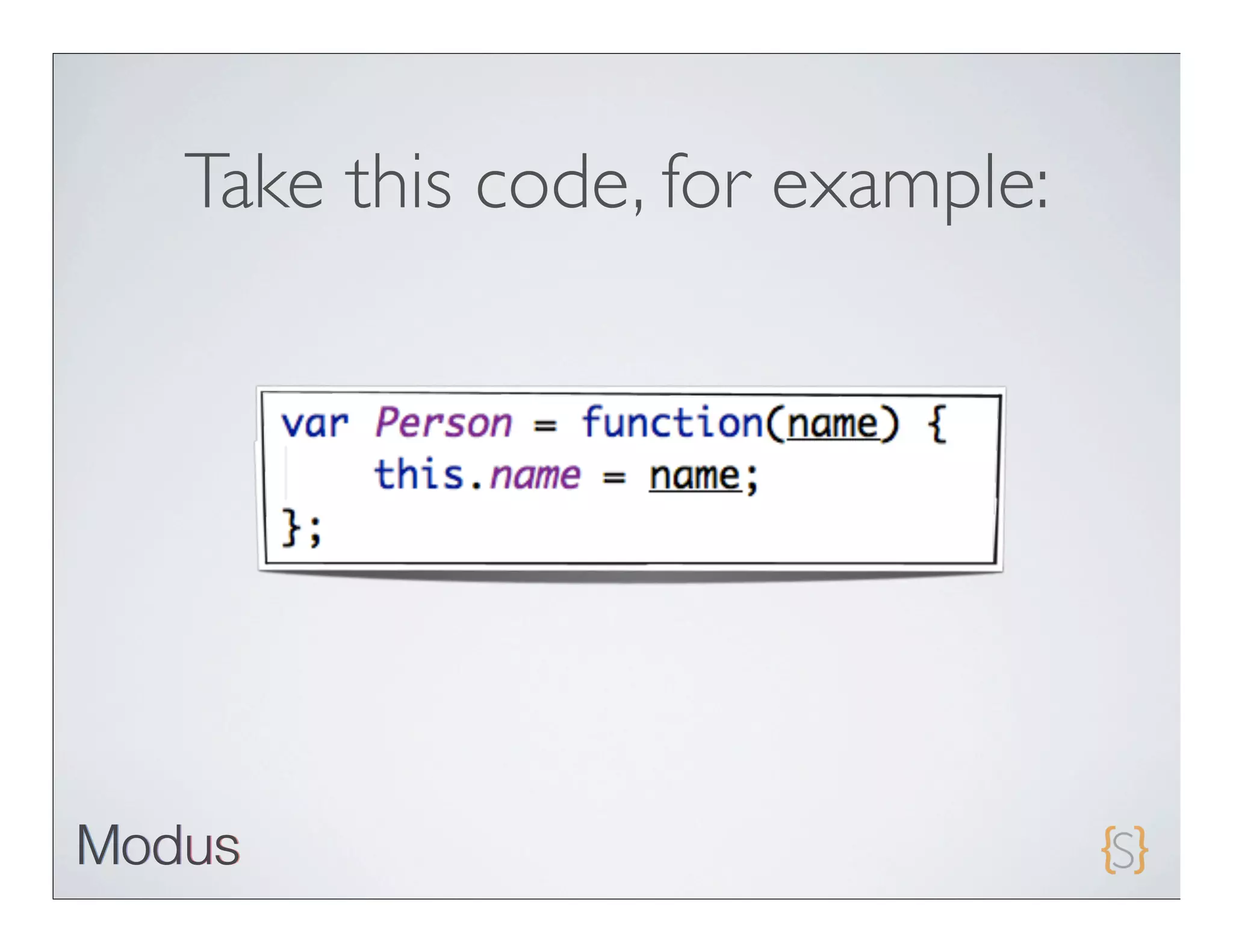

40. Take this code, for example:

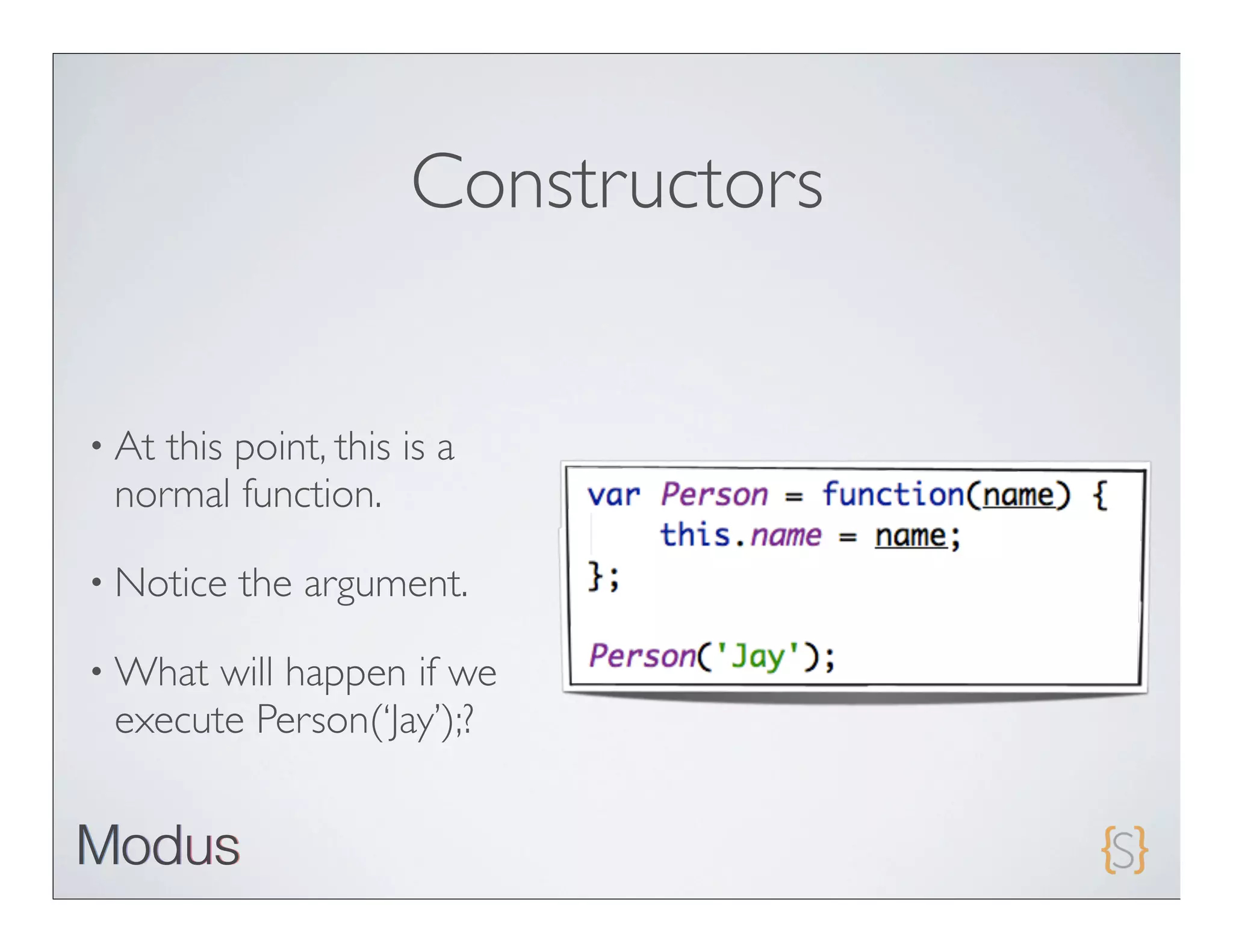

41. Constructors
• Atthis point, this is a
normal function.
• Notice the argument.
• What will happen if we
execute Person(‘Jay’);?

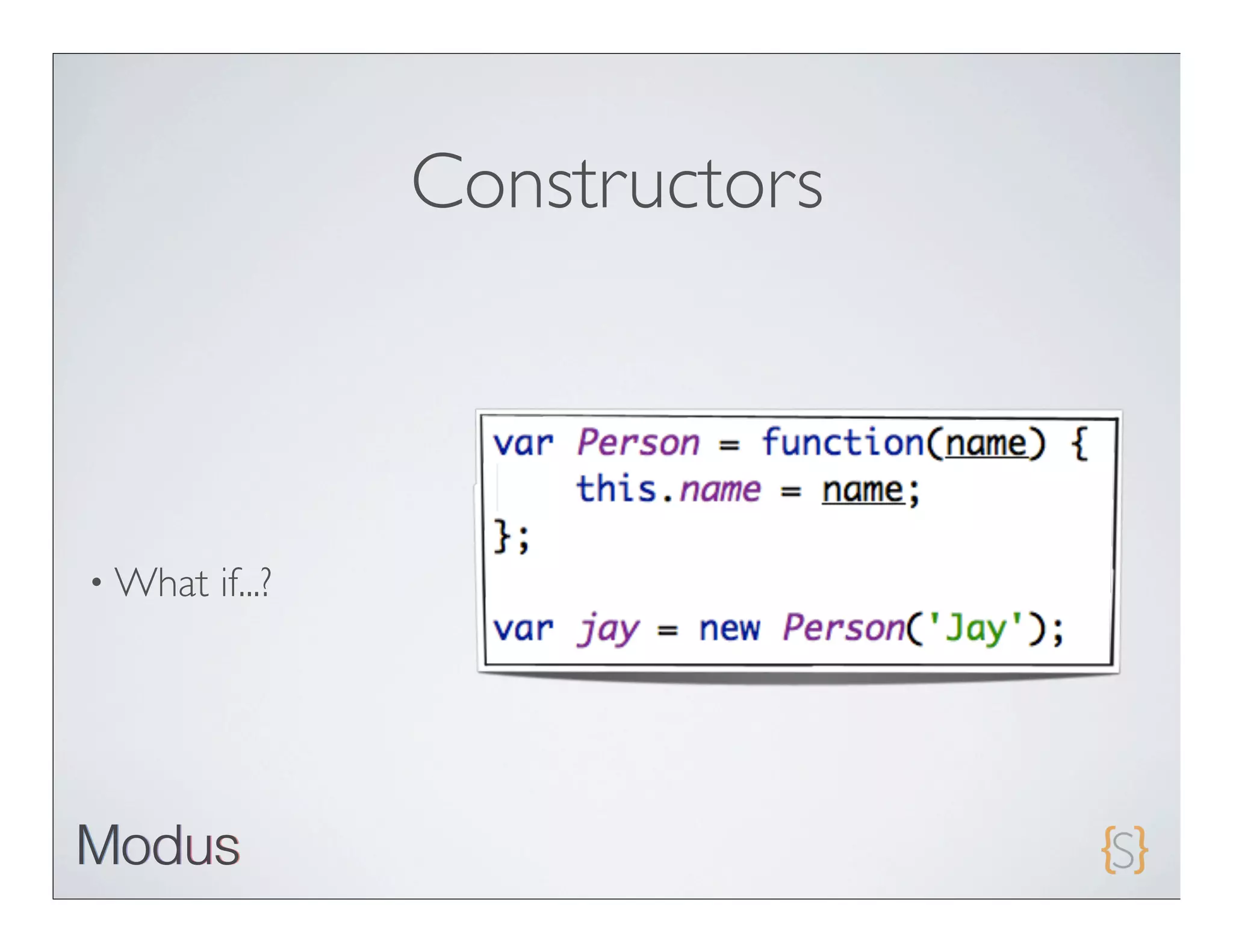

42. Constructors
• What if...?

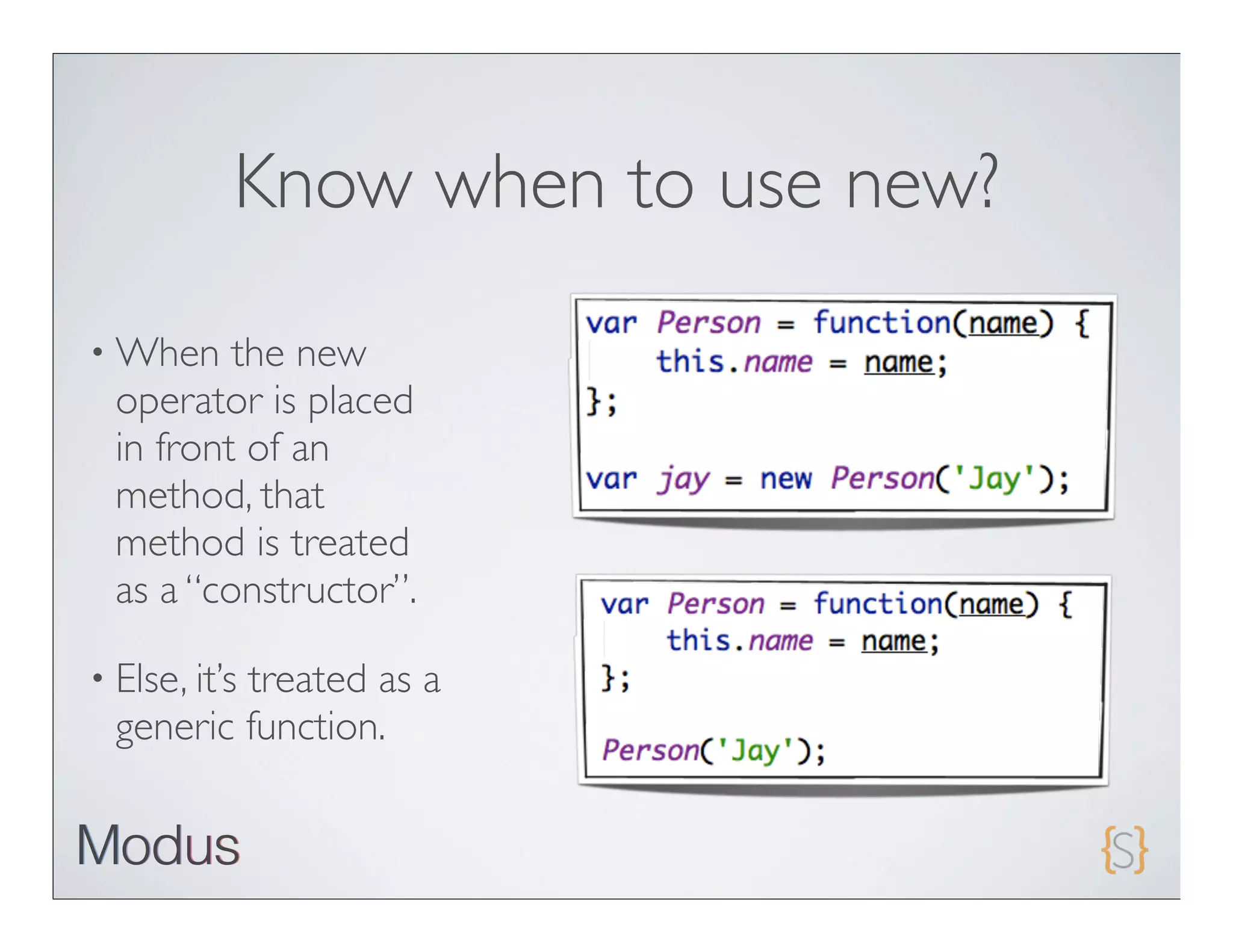

43. Know when to use new?
• When the new
operator is placed
in front of an
method, that
method is treated
as a “constructor”.
• Else, it’s
treated as a
generic function.

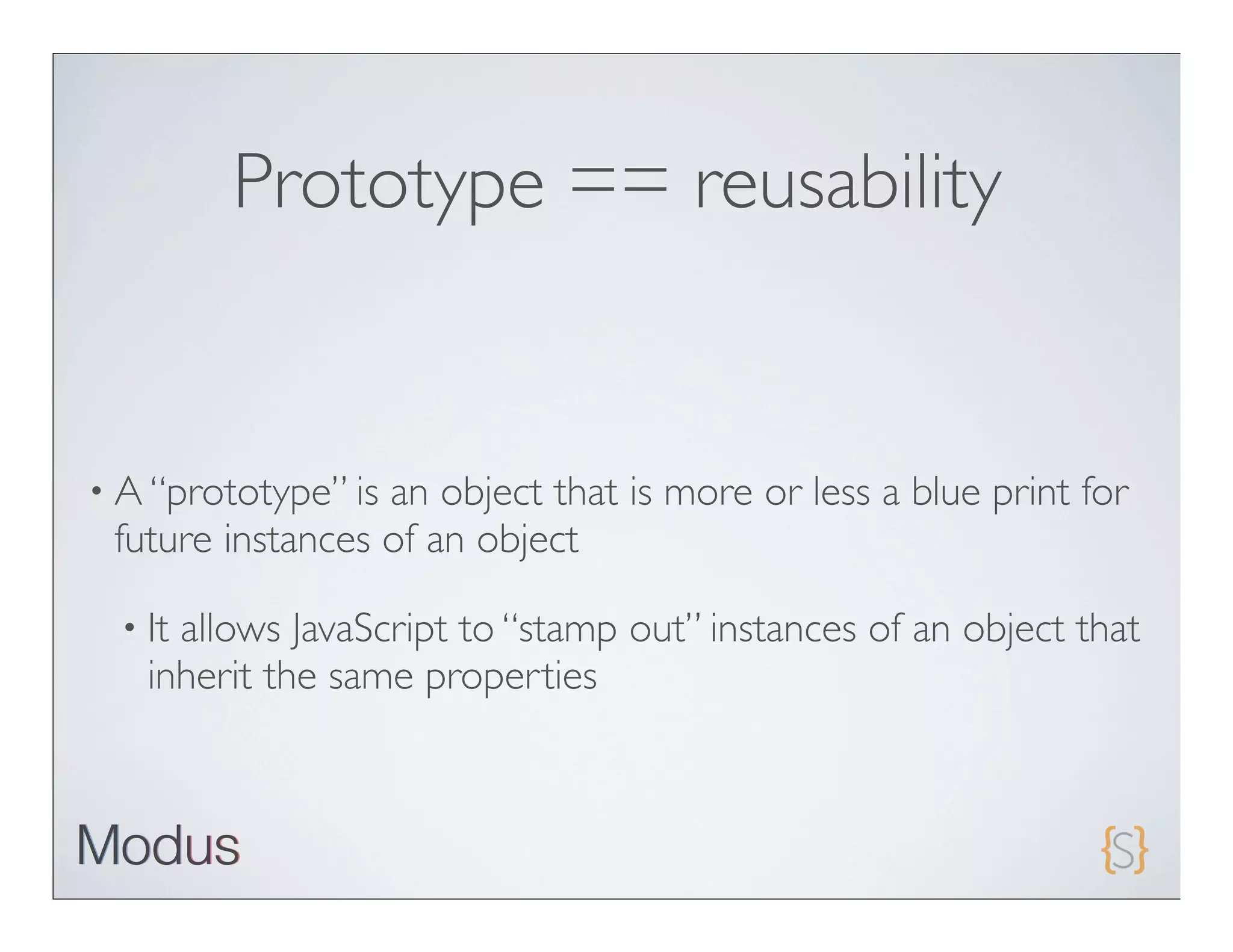

44. Prototype == reusability
• A “prototype” isan object that is more or less a blue print for
future instances of an object
• Itallows JavaScript to “stamp out” instances of an object that
inherit the same properties

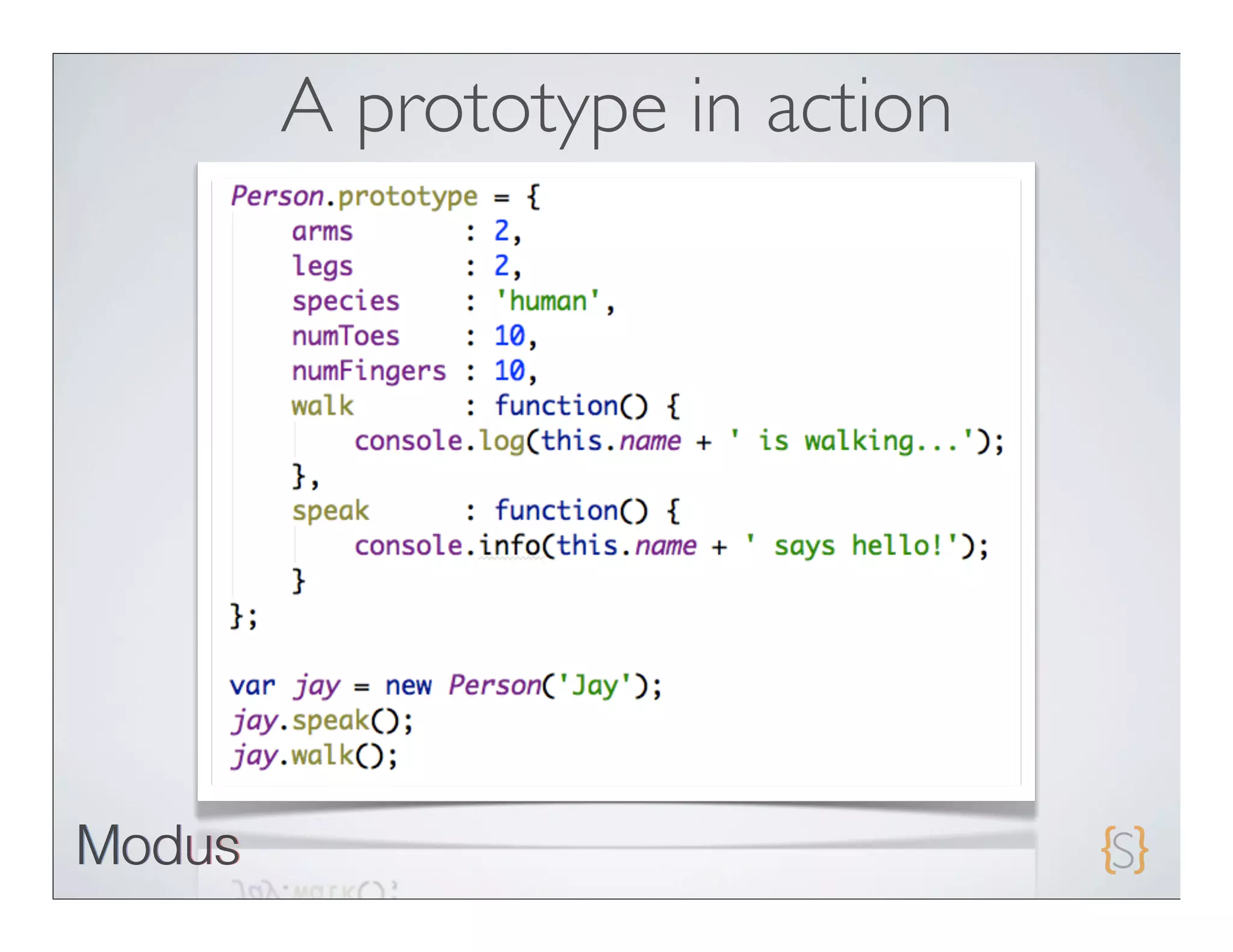

45. A prototype in action

46. Ext JS 4.0 Class System
• Completely revised from 3.0
• No use for the “new” keyword
• Use Ext.create

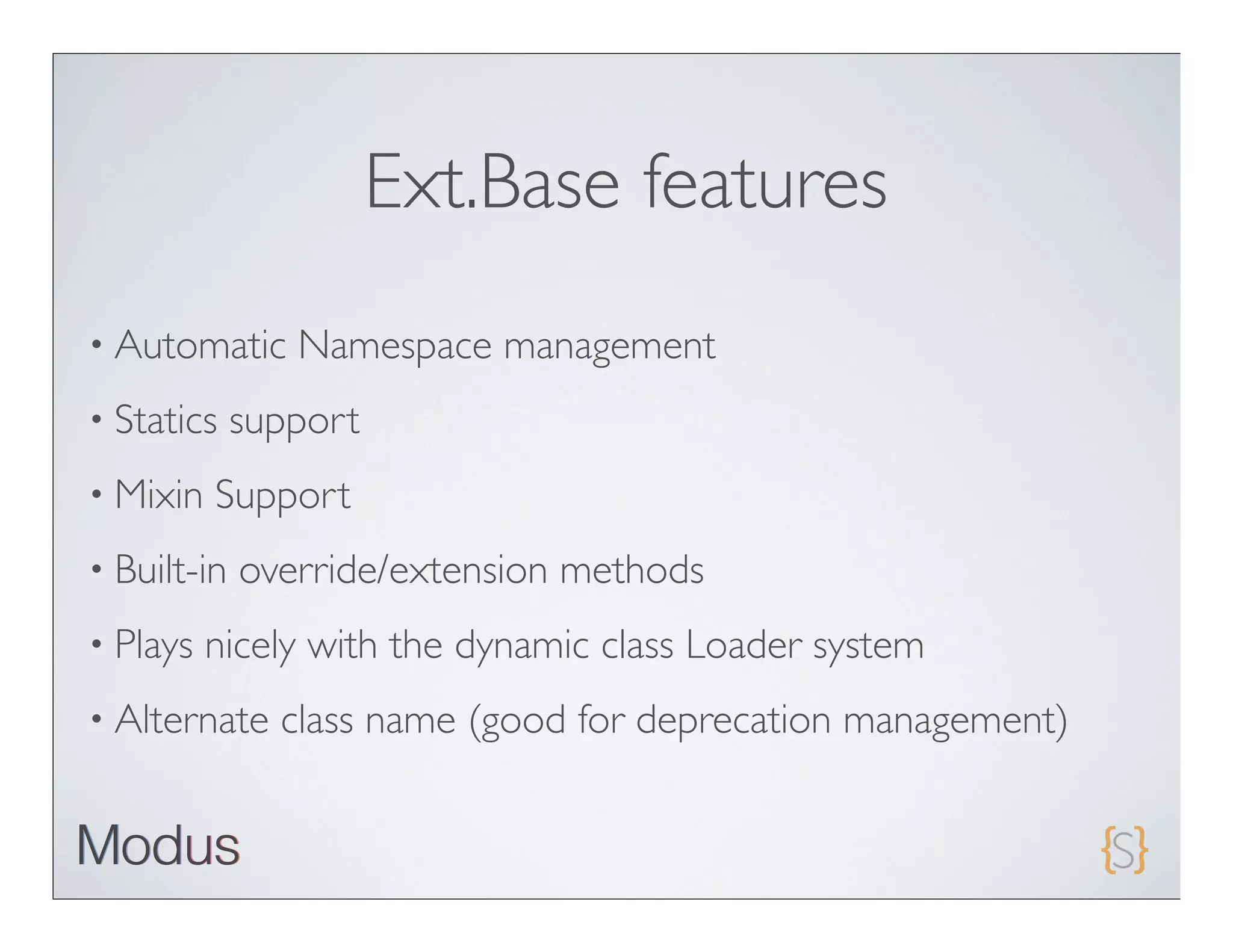

47. Ext.Base features
• Automatic Namespace management
• Statics support
• Mixin Support
• Built-in override/extension methods
• Plays nicely with the dynamic class Loader system
• Alternate class name (good for deprecation management)

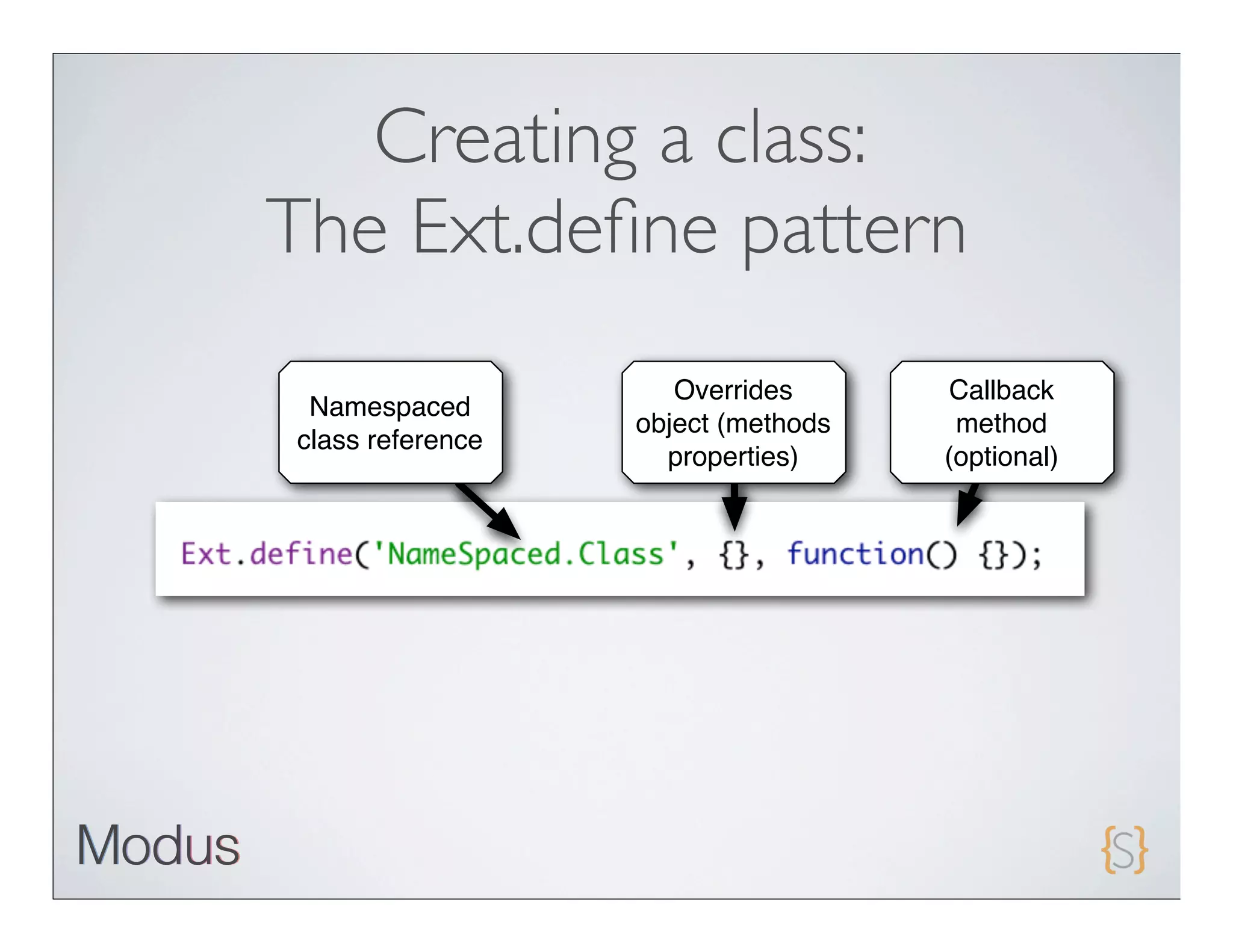

48. Creating a class:
The Ext.define pattern
Overrides Callback
Namespaced
object (methods method
class reference
properties) (optional)

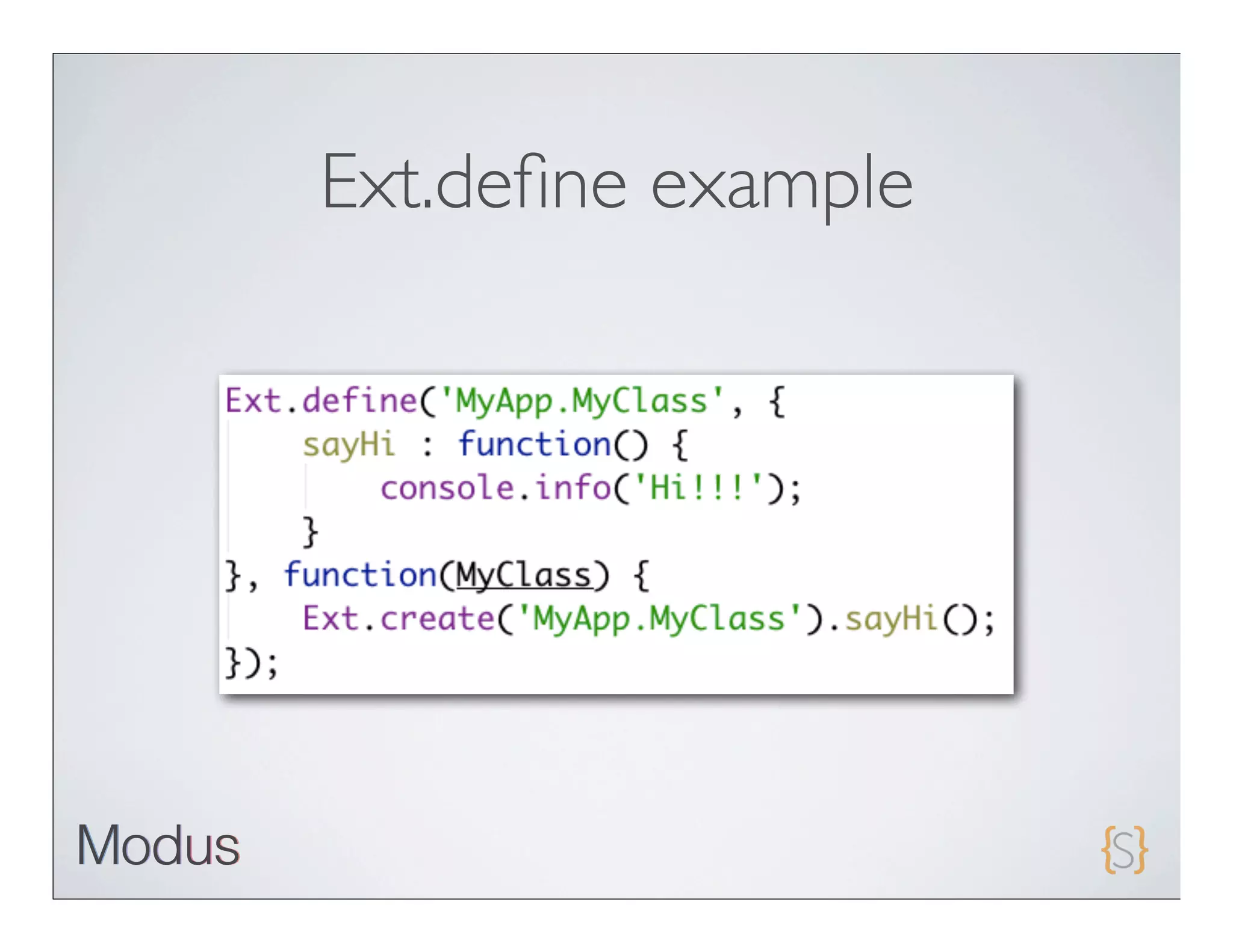

49. Ext.define example

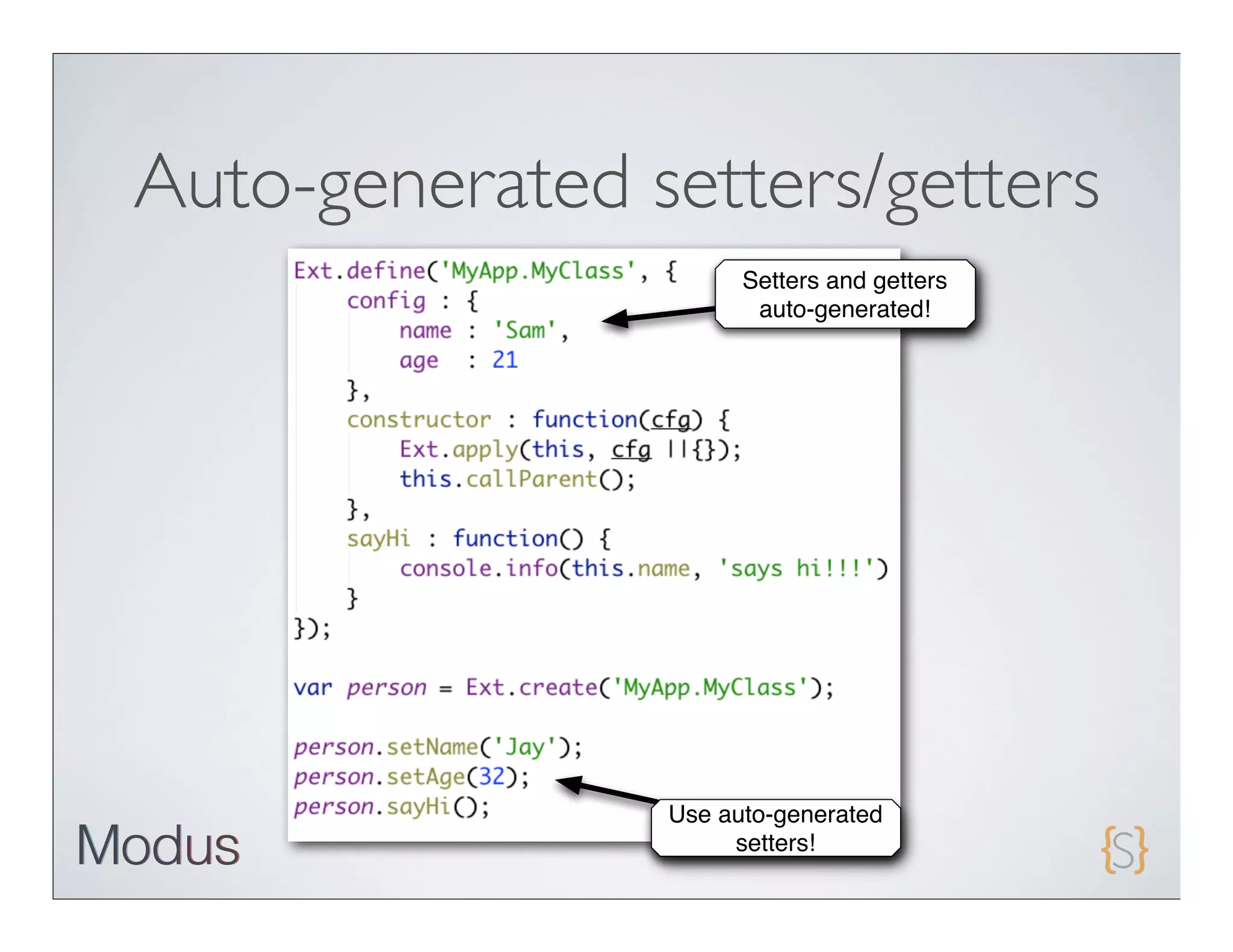

50. Auto-generated setters/getters
Setters and getters
auto-generated!
Use auto-generated
setters!

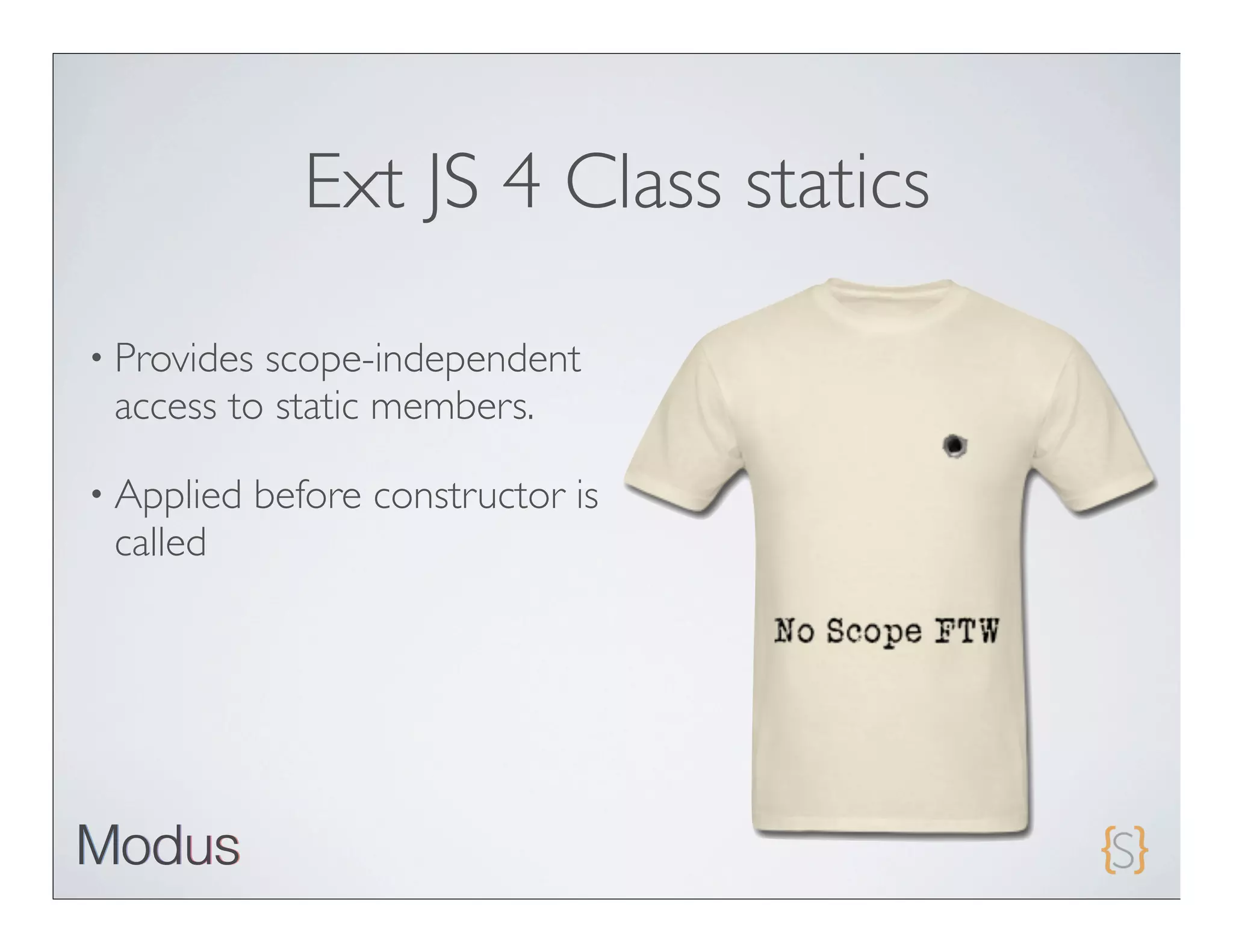

51. Ext JS 4 Class statics
• Providesscope-independent
access to static members.
• Applied before constructor is
called

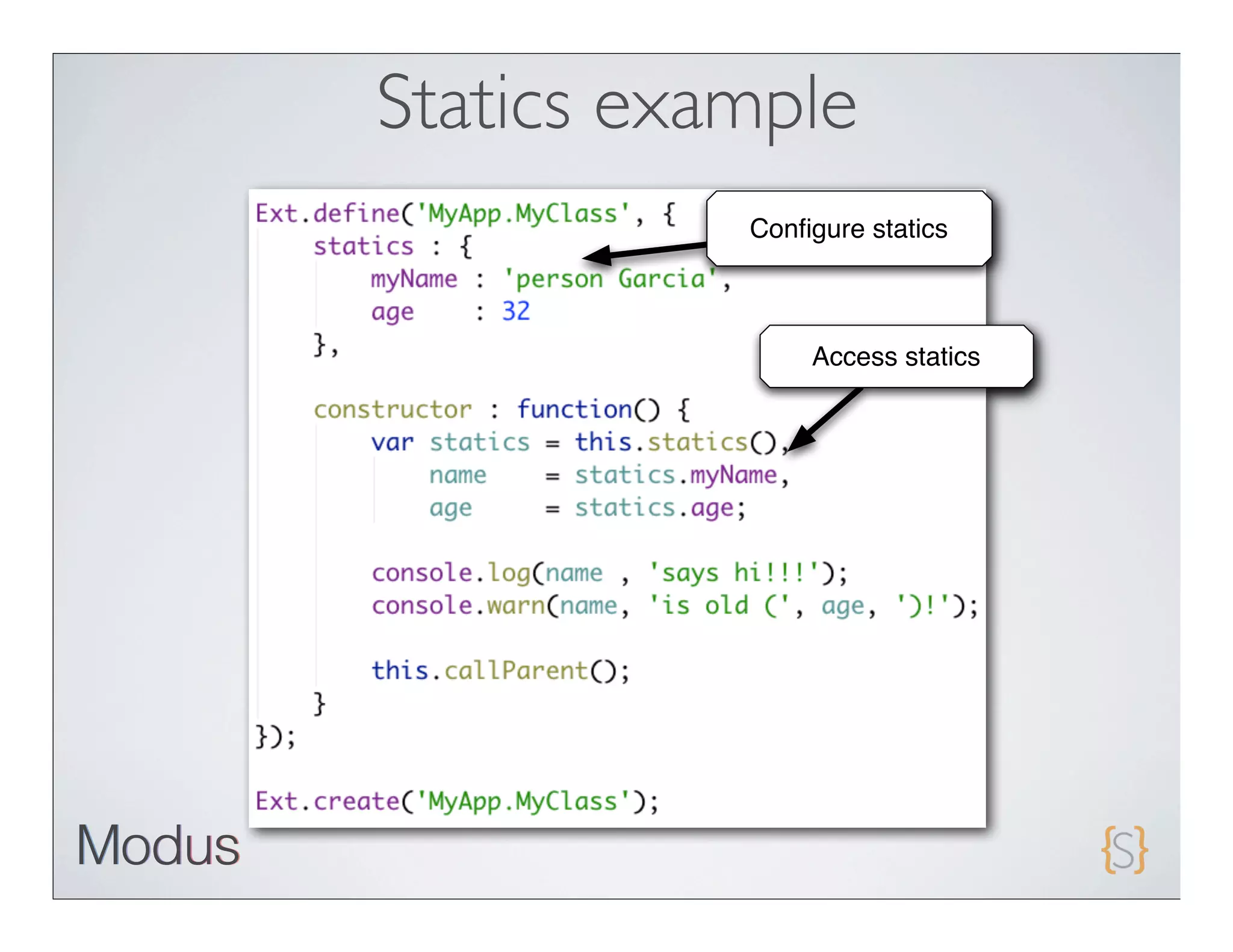

52. Statics example
Configure statics
Access statics

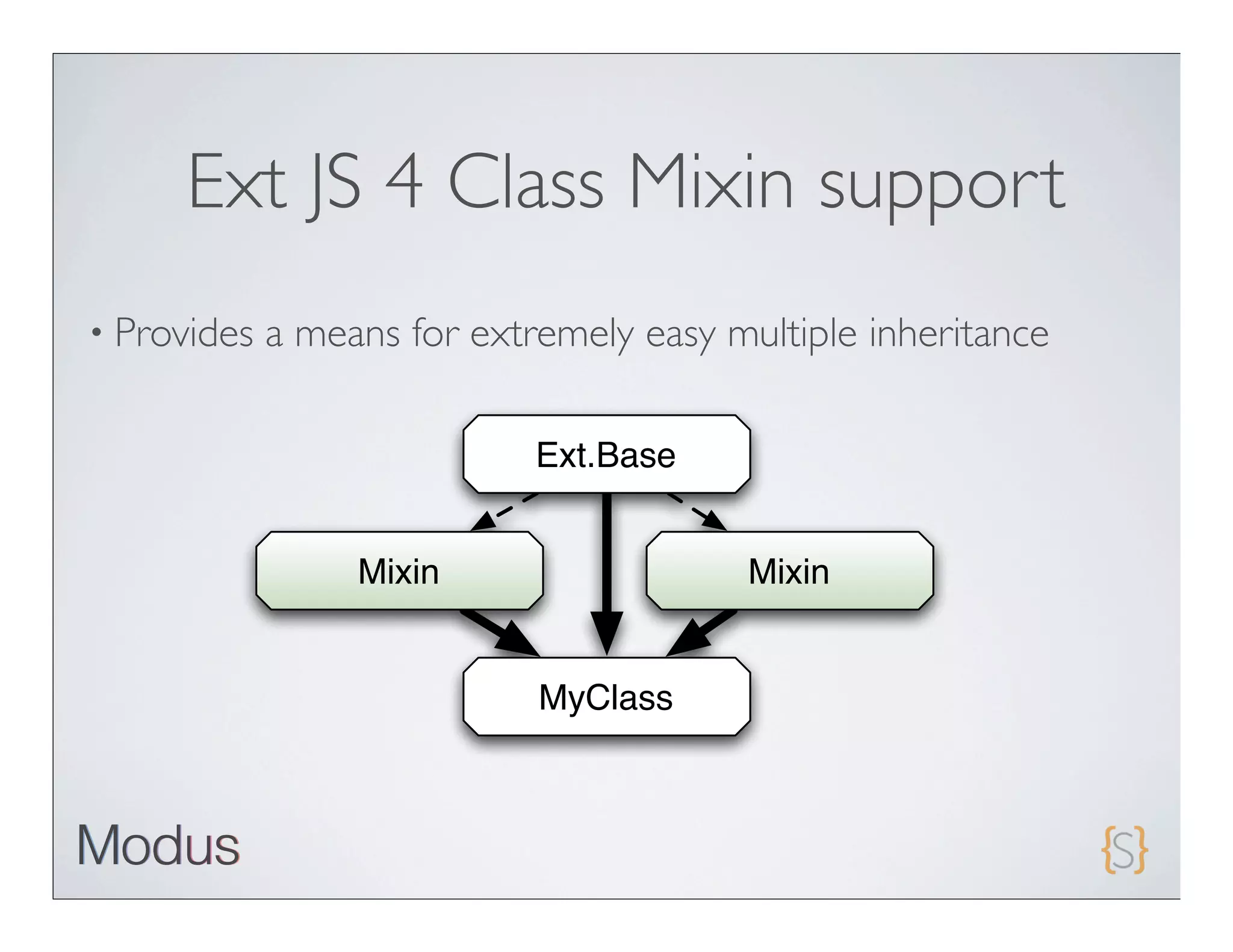

53. Ext JS 4 Class Mixin support
• Provides a means for extremely easy multiple inheritance
Ext.Base
Mixin Mixin
MyClass

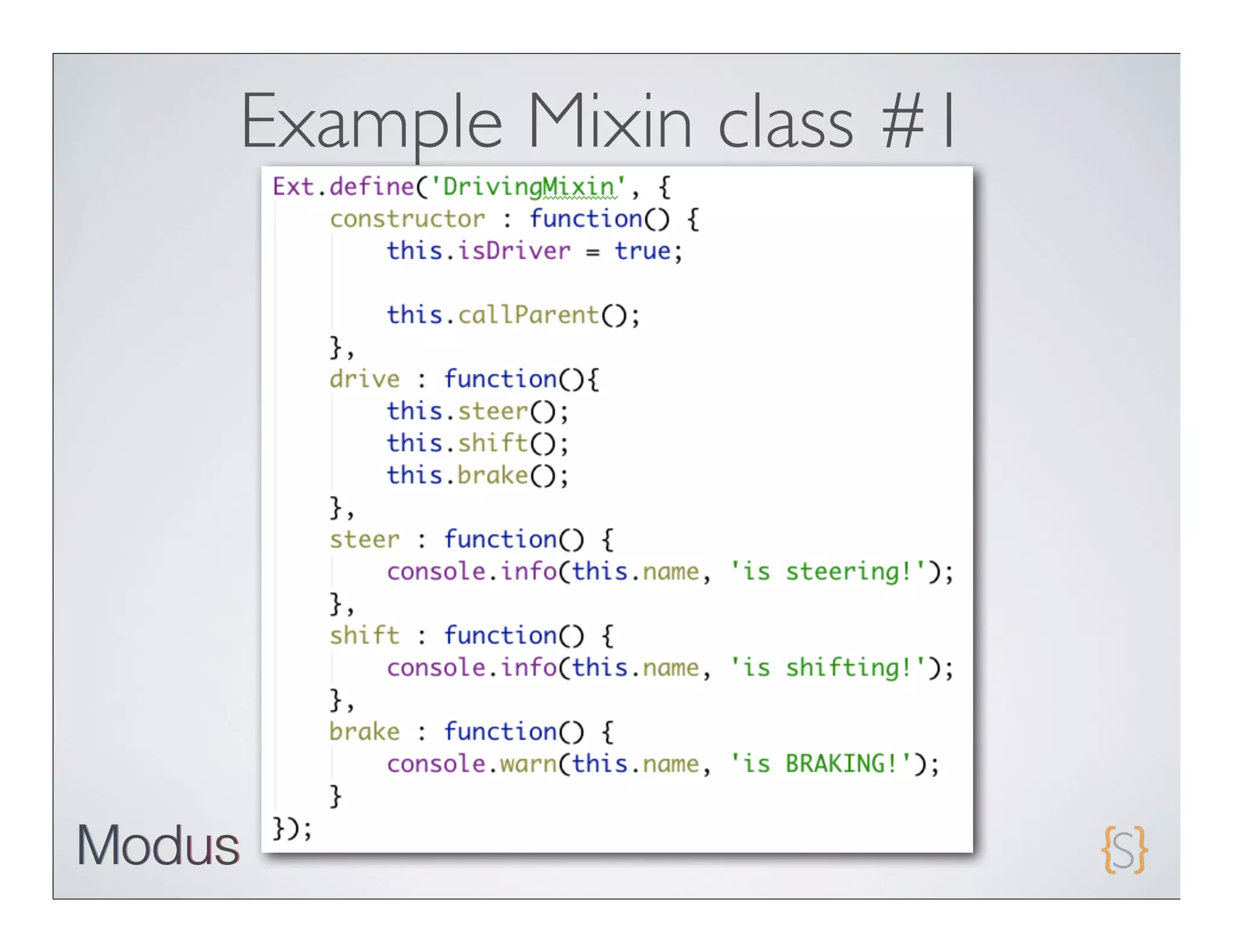

54. Example Mixin class #1

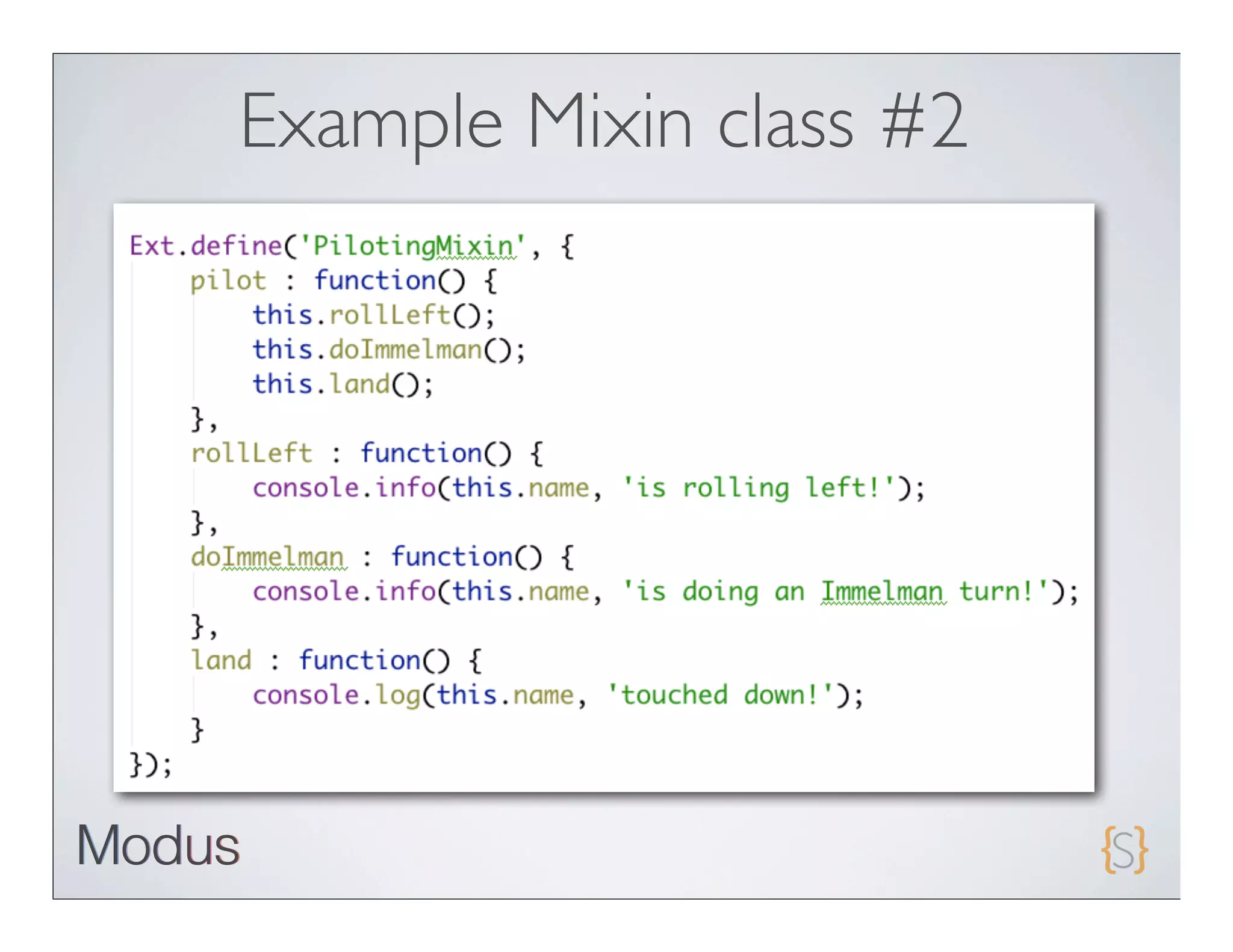

55. Example Mixin class #2

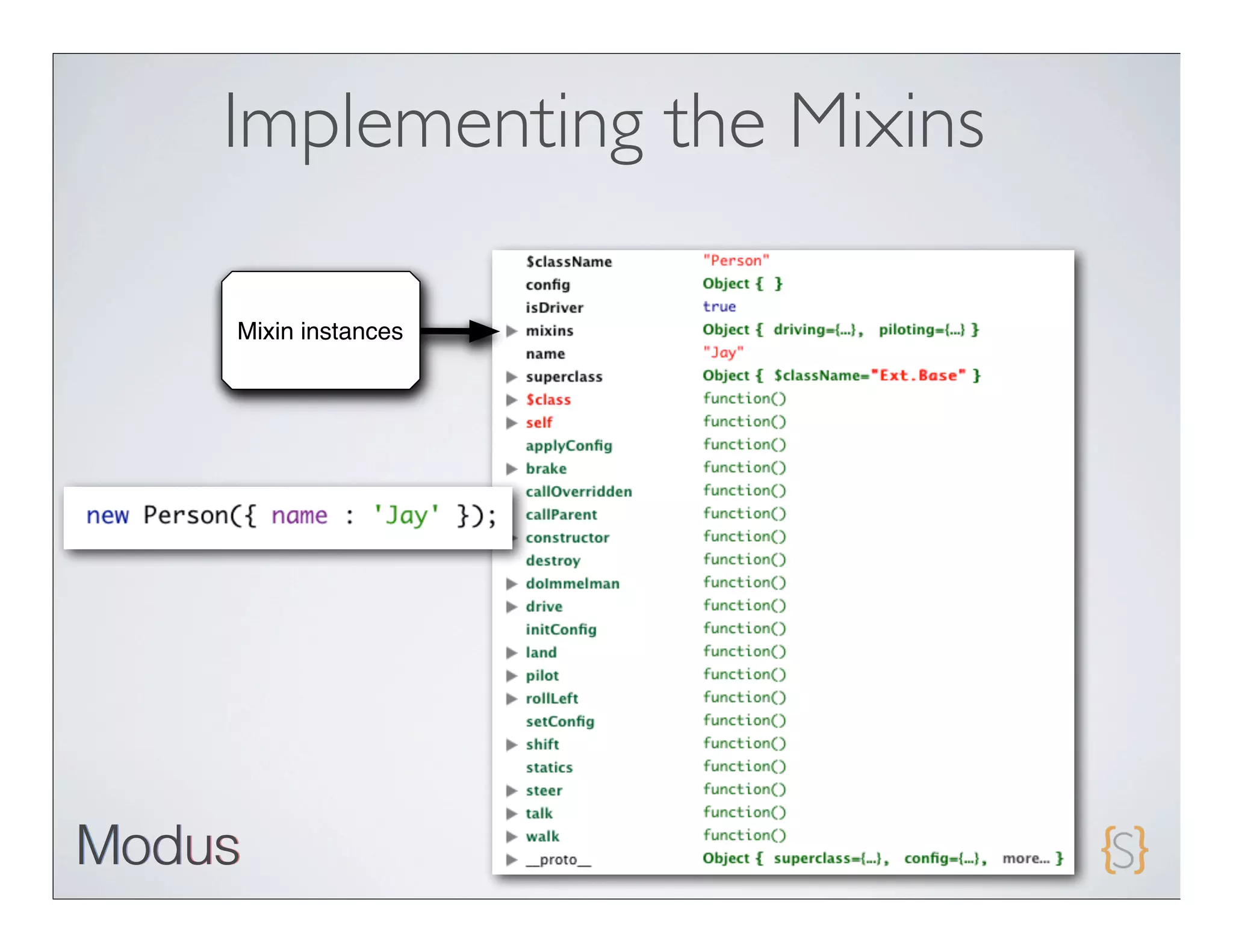

56. Implementing the Mixins
Mixin instances

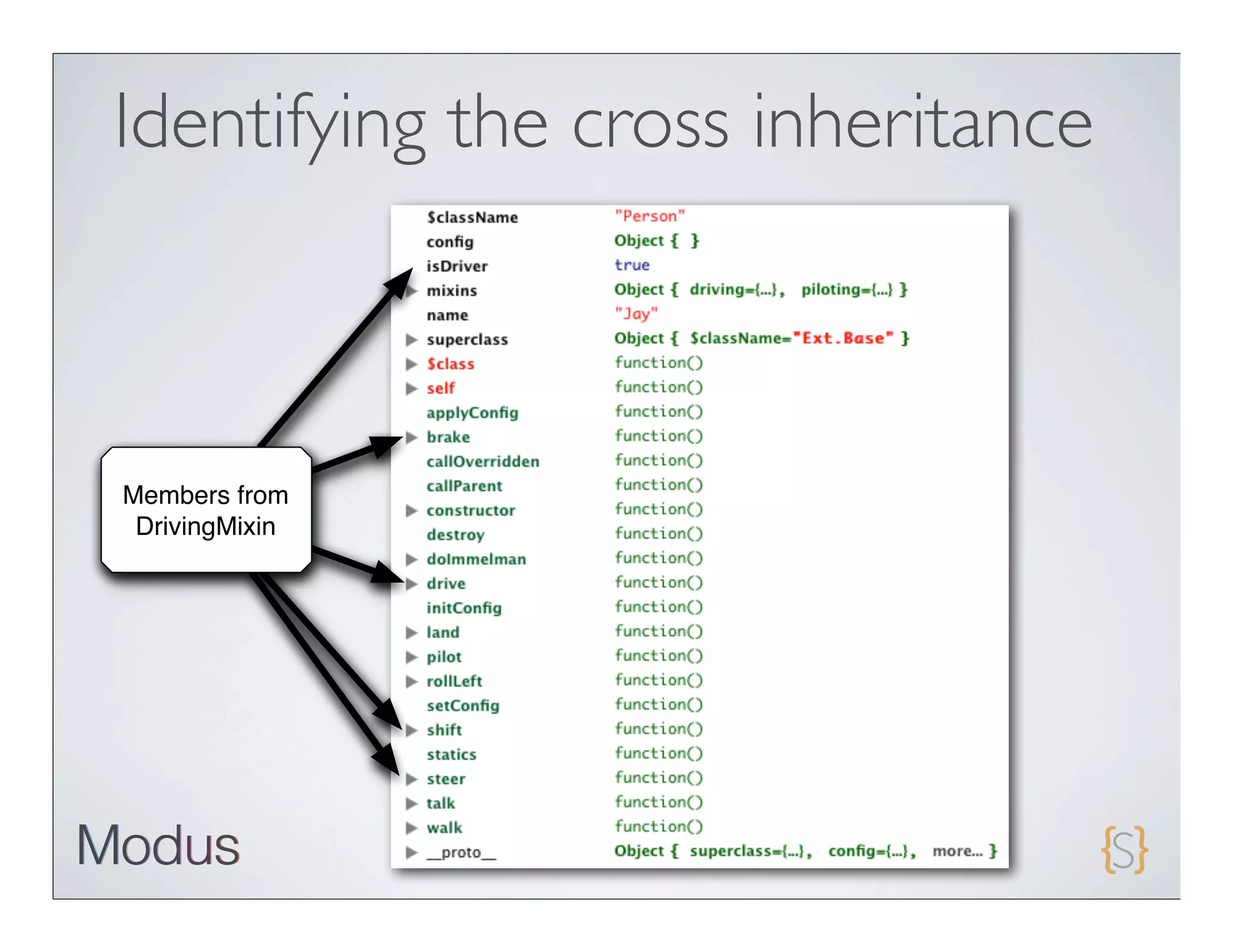

57. Identifying the cross inheritance
Members from
DrivingMixin

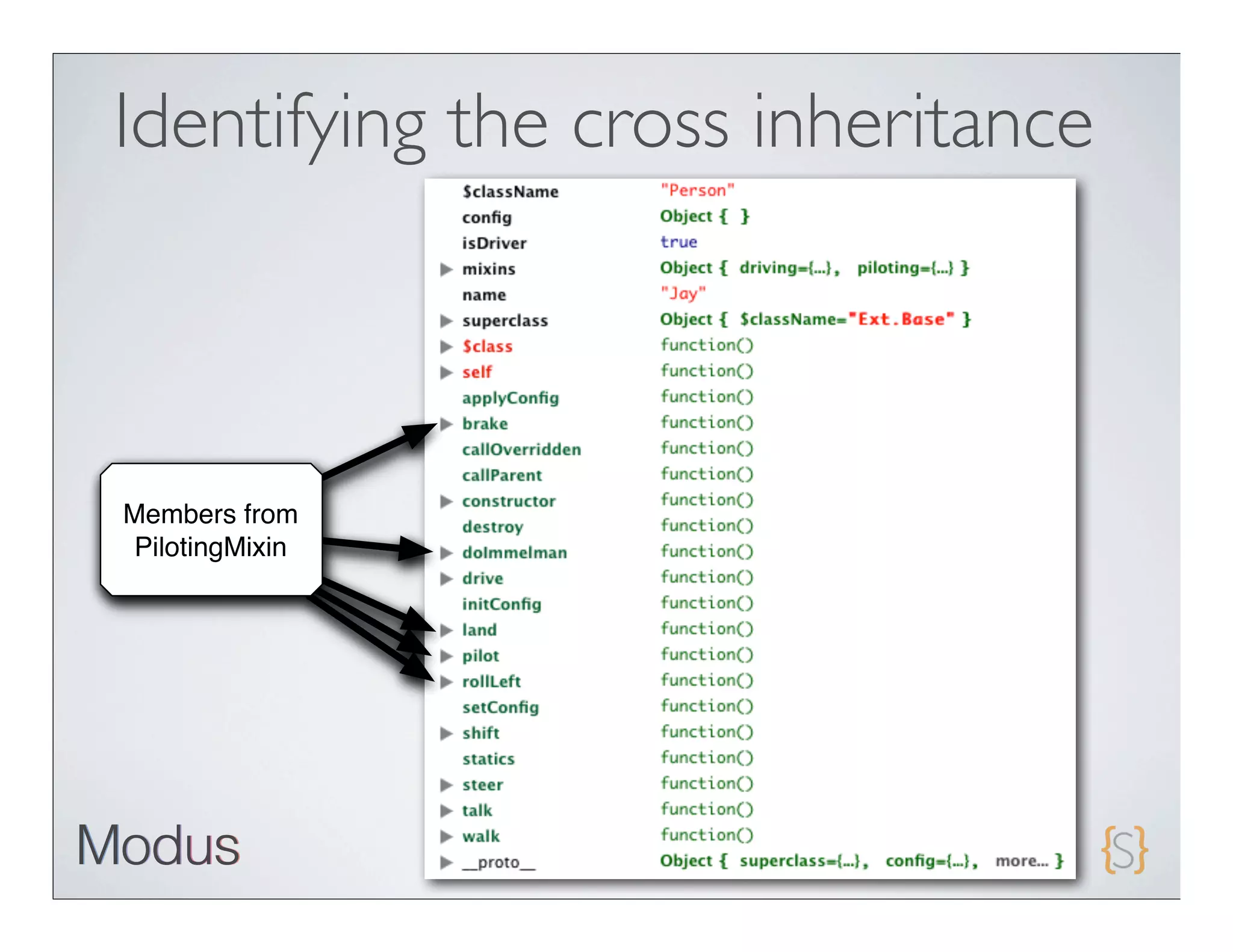

58. Identifying the cross inheritance
Members from
PilotingMixin

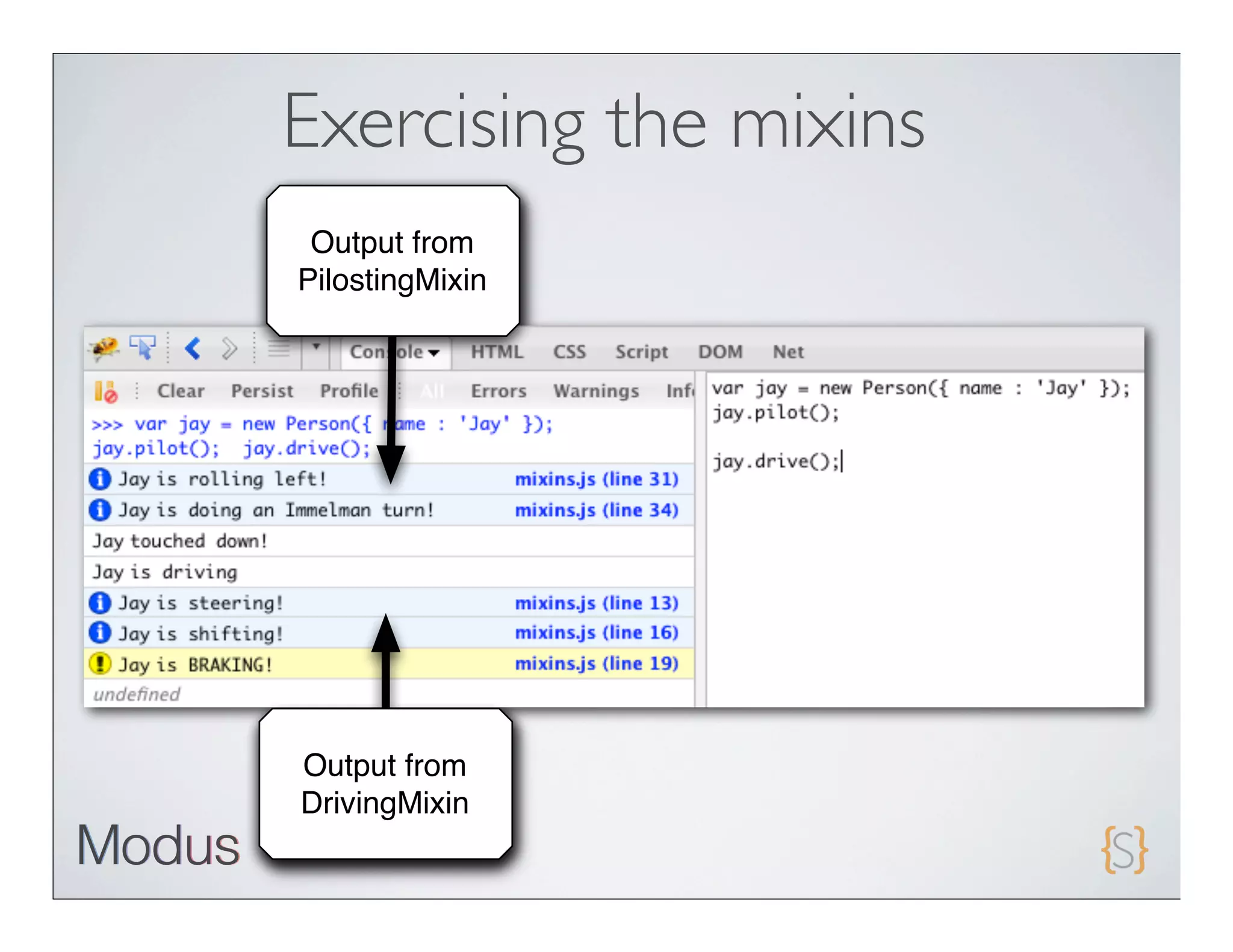

59. Exercising the mixins
Output from
PilostingMixin
Output from
DrivingMixin
