1. Multi-Tenancy With Django
Scott Crespo
Software Engineer
Director, Orlando Data Science
Scott@OrlandoDS.com

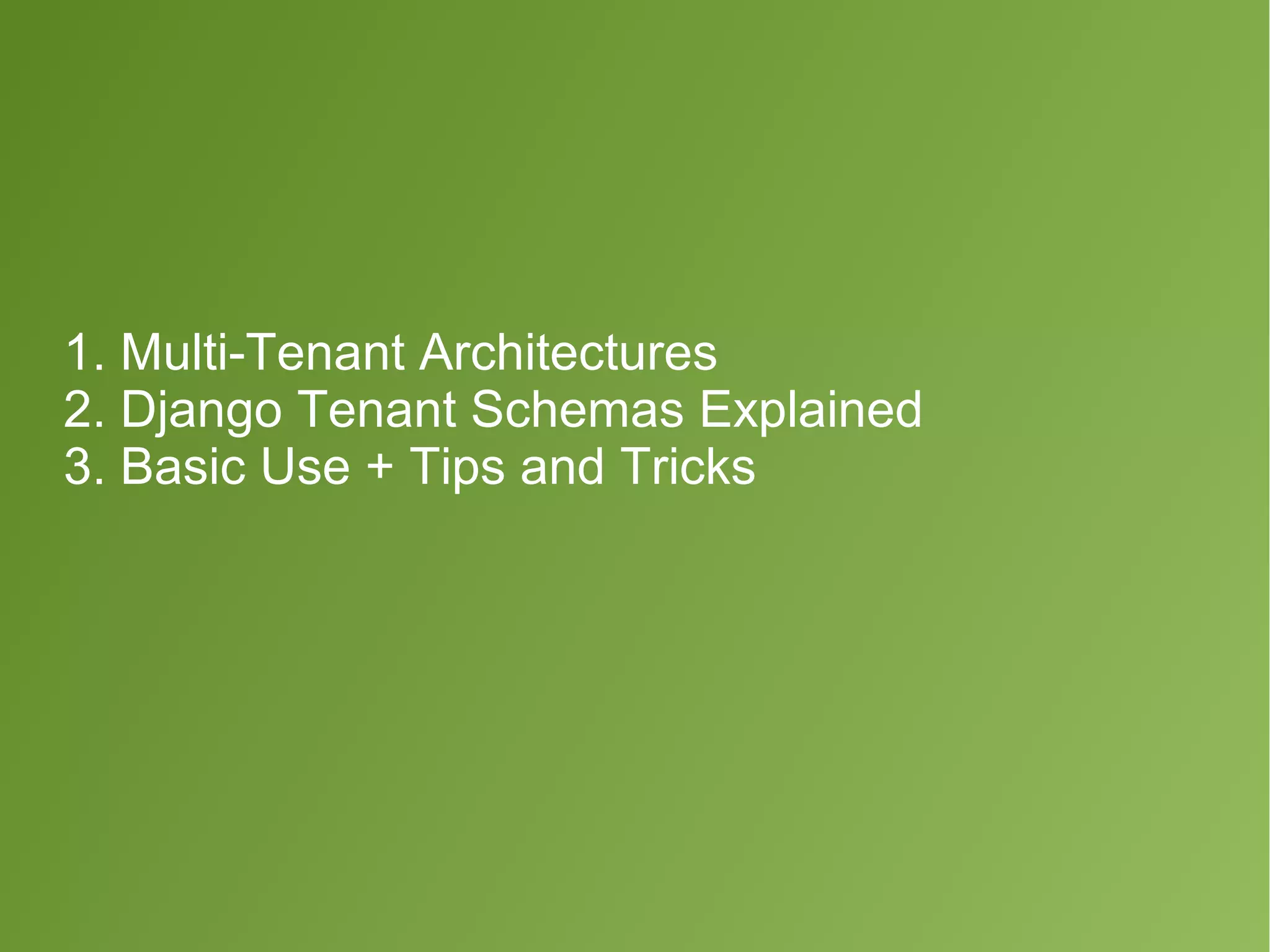

2. 1. Multi-Tenant Architectures
2. Django Tenant Schemas Explained
3. Basic Use + Tips and Tricks

3. Definition
Multi-Tenancy:
A software architecture where a single application
instance enables multiple organizations
(tenants) to view their data.
*This is a key component of XaaS (i.e. Something
as a Service)

4. Architectures
Multi-tenant architectures can be placed on a continuum
Shared Separate

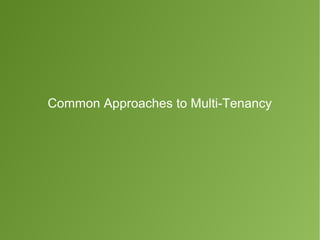

5. Common Approaches to Multi-Tenancy

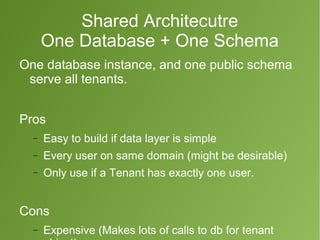

6. Shared Architecutre
One Database + One Schema
One database instance, and one public schema
serve all tenants.
Pros
- Easy to build if data layer is simple
- Every user on same domain (might be desirable)
- Only use if a Tenant has exactly one user.
Cons
- Expensive (Makes lots of calls to db for tenant
object)

7. Isolated Architecture
Multiple Databases
Each tenant has their own database instance
Pros
- Most Secure
- Easier disaster recovery
- Not expensive for compute resources
Cons
- Difficult to scale
- Expensive storage resources
- Difficult to share data across tenants

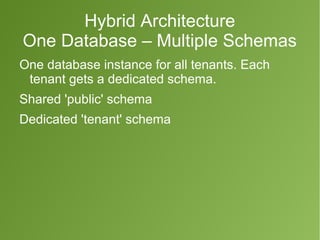

8. Hybrid Architecture
One Database – Multiple Schemas
One database instance for all tenants. Each
tenant gets a dedicated schema.
Shared 'public' schema
Dedicated 'tenant' schema

9. What's a Schema?
Acts as a namespace in Postgres
Adds an additional layer of organization/isolation
to the database
(Database → Schema → Table)
ex) SELECT * FROM schema_name.table
When a schema is not specified in the connection
or query – only the 'public' schema is accessed
Schemas to be queried can be specified in the
app's database connection via
'SEARCH_PATH' parameter

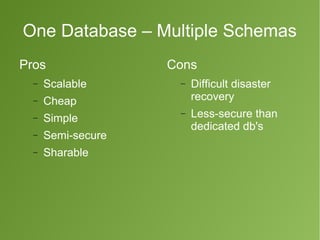

10. One Database – Multiple Schemas
Pros
- Scalable
- Cheap
- Simple
- Semi-secure
- Sharable
Cons
- Difficult disaster
recovery
- Less-secure than
dedicated db's

11. Django Tenant Schemas
Implements Multi-Schema Approach
Requires PostgreSQL
Installation:
$ pip install django-tenant-schemas
Docs:
Django-tenant-schemas.readthedocs.org

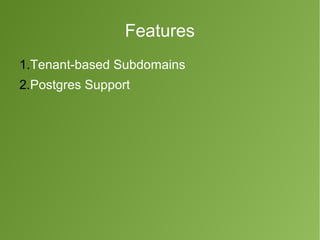

12. Features
1.Tenant-based Subdomains
2.Postgres Support

13. The Tenant Object
Stored on the 'public' schema
Contains 2 Critical Fields
- domain_url – the tenant's domain (foo.bar.com)
- schema_name – the schema where the Tenant's
isolated data is stored (tenant_jw8j23jp)

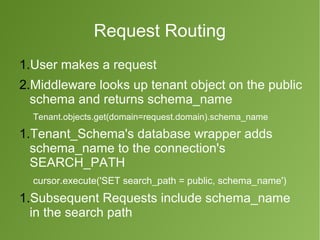

14. Request Routing
1.User makes a request
2.Middleware looks up tenant object on the public
schema and returns schema_name
Tenant.objects.get(domain=request.domain).schema_name
1.Tenant_Schema's database wrapper adds
schema_name to the connection's
SEARCH_PATH
cursor.execute('SET search_path = public, schema_name')
1.Subsequent Requests include schema_name
in the search path

16. Basic Use
Settings.py
Specify TENANT and SHARED apps
 Caution! Don't include new tenant registration on tenants' apps
Use the tenant_schemas postgres backend
Use the tenant schemas middleware

17. Basic use
models.py
 Create a tenant app that contains your tenant model
(i.e. organization, company, etc).
 Use tenant_schema's mixin
- domain_url
- schema_name
from tenant_schemas.models import TenantMixin
class Company(TenantMixin)
company_name =models.CharField(max_length=255L)
about = models.TextField(blank=True)
auto_create_schema = True

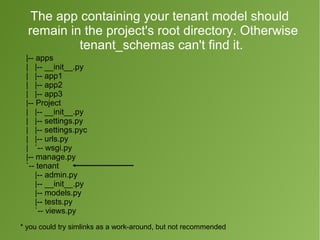

18. The app containing your tenant model should
remain in the project's root directory. Otherwise
tenant_schemas can't find it.
|-- apps
| |-- __init__.py
| |-- app1
| |-- app2
| |-- app3
|-- Project
| |-- __init__.py
| |-- settings.py
| |-- settings.pyc
| |-- urls.py
| `-- wsgi.py
|-- manage.py
`-- tenant
|-- admin.py
|-- __init__.py
|-- models.py
|-- tests.py
`-- views.py
* you could try simlinks as a work-around, but not recommended

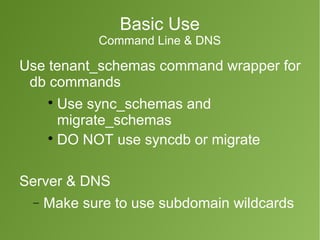

19. Basic Use
Command Line & DNS
Use tenant_schemas command wrapper for
db commands
 Use sync_schemas and
migrate_schemas
 DO NOT use syncdb or migrate
Server & DNS
- Make sure to use subdomain wildcards

20. Basic Use
Custom Commands
Create a 'make_tenants' custom command
- Must create a public tenant and a
private tenant to complete creation of
the database

21. Custom Command:
make_tenants.py
from lawfirm.models import LawFirm
from django.core.management.base import NoArgsCommand
import os
if os.environ['DJANGO_SETTINGS_MODULE'] == 'settings.base':
from settings.base import BASE_URL
else:
from settings.dev import BASE_URL
class Command(NoArgsCommand):
def handle_noargs(self,**options):
# create your public tenant
LawFirm(domain_url=BASE_URL,
schema_name='public',
firm_name='LawCRM',
).save()
#test tenant to verify sub-domain routing
LawFirm(domain_url='test.'+BASE_URL,
schema_name='test',
firm_name='Test Firm',
).save()

22. Schema Naming Schemes
Auto-generate tenant schema names and
enforce uniqueness.
Prefix with 'tenant_'
Append a hash to the end
*Schema name must begin with a letter, $, or
underscore
Example Database:
- public
- test
dev

23. Modify Search Path on the Fly
(this took time to figure out)
from django.db import connection
connection.set_tenant(tenant)
# set_tenant() accepts tenant object, NOT
# tenant_name!

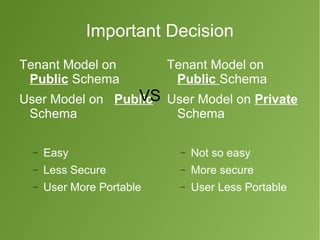

24. Important Decision
Tenant Model on
Public Schema
User Model on Public
Schema
- Easy
- Less Secure
- User More Portable
Tenant Model on
Public Schema
User Model on Private
Schema
- Not so easy
- More secure
- User Less Portable
VS

25. Thanks!
Scott Crespo
scott@orlandods.com
