2. Build Progressive Web Apps
with Ext JS and Cmd
Olga Petrova

3. Agenda
PWA definition•
PWA vs Hybrid vs Native•
PWA architecture•
Web Application Manifest-
Caching using Service Worker-
Web Push Notifications-
Access to Native Hardware-
3

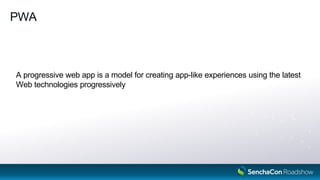

4. PWA
A progressive web app is a model for creating app-like experiences using the latest
Web technologies progressively
4

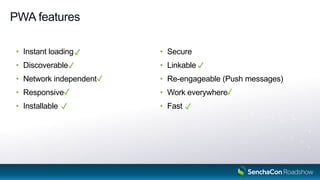

5. PWA features
• Instant loading
• Discoverable
• Network independent
• Responsive
• Installable
• Secure
• Linkable
• Re-engageable (Push messages)
• Work everywhere
• Fast
5
✔️
✔️
✔️
✔️
✔️
✔️
✔️

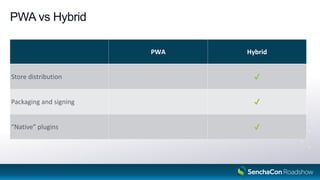

6. PWA vs Hybrid
6
PWA Hybrid
Store distribution
Packaging and signing
“Native” plugins

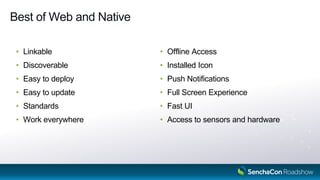

7. Best of Web and Native
Linkable•
Discoverable•
Easy to deploy•
Easy to update•
Standards•
Work everywhere•
Offline Access•
Installed Icon•
Push Notifications•
Full Screen Experience•
Fast UI•
Access to sensors and hardware•
7

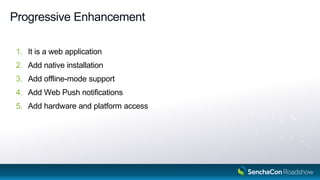

8. Progressive Enhancement
It is a web application1.
Add native installation2.
Add offline3. -mode support
Add Web Push notifications4.
Add hardware and platform access5.
8

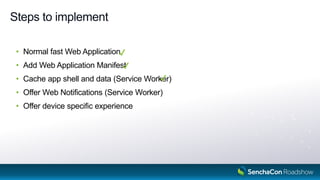

9. Steps to implement
• Normal fast Web Application
• Add Web Application Manifest
• Cache app shell and data (Service Worker)
• Offer Web Notifications (Service Worker)
• Offer device specific experience
9

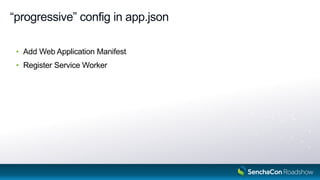

10. “progressive” config in app.json
• Add Web Application Manifest
• Register Service Worker
10

11. Web Application Manifest

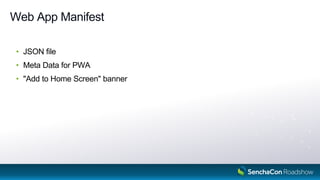

12. Web App Manifest
JSON file•
Meta Data for PWA•
"Add to Home Screen" banner•
12

13. "Add to Home Screen" banner requirements
Service Worker•
Web App Manifest•
HTTPS•
Second visit in a short period of time•
13

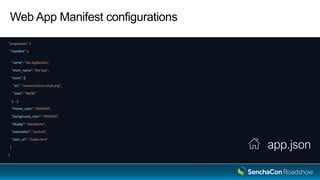

14. Web App Manifest configurations
"progressive": {
"manifest": {
"name": "My Application",
"short_name": "My App",
"icons": [{
"src": "resources/icon-small.png",
"sizes": "96x96"
}, …],
"theme_color": "#054059",
"background_color": "#054059",
"display": "standalone",
"orientation": "portrait",
"start_url": "/index.html"
}
}
app.json

15. Service Worker

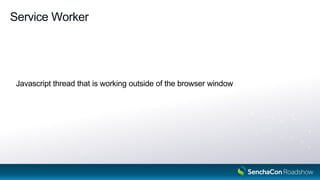

16. Service Worker
Javascript thread that is working outside of the browser window
16

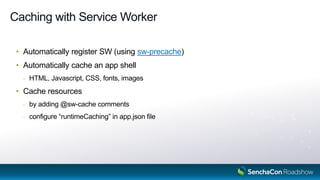

17. Caching with Service Worker
• Automatically register SW (using sw-precache)
• Automatically cache an app shell
- HTML, Javascript, CSS, fonts, images
• Cache resources
- by adding @sw-cache comments
- configure “runtimeCaching” in app.json file
17

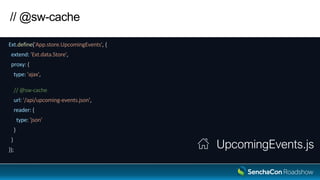

18. // @sw-cache
Ext.define('App.store.UpcomingEvents', {
extend: 'Ext.data.Store',
proxy: {
type: 'ajax',
// @sw-cache
url: '/api/upcoming-events.json',
reader: {
type: 'json'
}
}
});
UpcomingEvents.js

19. // @sw-cache
Ext.define('App.model.Event', {
extend: 'Ext.data.Model',
fields: ['id', 'name', 'date'],
proxy: {
type: 'rest',
// @sw-cache { urlPattern: "/api/events/d+" }
url : '/events'
}
}); Event.js

20. Controlling Cache Behavior
urlPattern•
handler:• networkFirst / cacheFirst / fastest / cacheOnly / networkOnly
options•
debug-
networkTimeoutSeconds-
cache-
name•
maxEntries•
maxAgeSeconds•
20

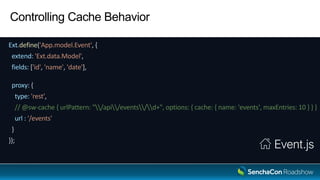

21. Controlling Cache Behavior
Ext.define('App.model.Event', {
extend: 'Ext.data.Model',
fields: ['id', 'name', 'date'],
proxy: {
type: 'rest',
// @sw-cache { urlPattern: "/api/events/d+", options: { cache: { name: 'events', maxEntries: 10 } } }
url : '/events'
}
});
Event.js

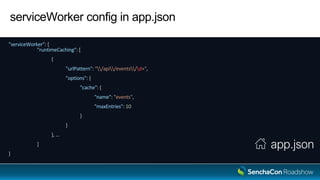

22. serviceWorker config in app.json
"serviceWorker": {
"runtimeCaching": [
{
"urlPattern": "/api/events/d+",
"options": {
"cache": {
"name": "events",
"maxEntries": 10
}
}
}, …
]
}
app.json

23. Web Push Notifications

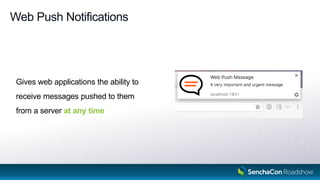

24. Web Push Notifications
Gives web applications the ability to
receive messages pushed to them
from a server at any time

25. Round 1: Service Worker Registration
WebApp
Service Worker
Browser
Push ServerApp Server
Register
ServiceWorkerRegistration
Page Load

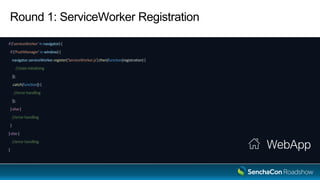

26. Round 1: ServiceWorker Registration
if ('serviceWorker' in navigator) {
if ('PushManager' in window) {
navigator.serviceWorker.register('ServiceWorker.js').then(function(registration) {
//state initializing
});
.catch(function() {
//error handling
});
} else {
//error handling
}
} else {
//error handling
}
WebApp

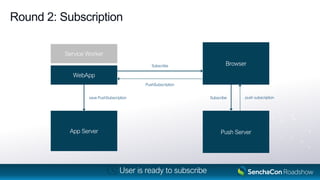

27. Round 2: Subscription
WebApp
Service Worker
Browser
Push ServerApp Server
Subscribe
PushSubscription
Subscribe push subscriptionsave PushSubscription
User is ready to subscribe

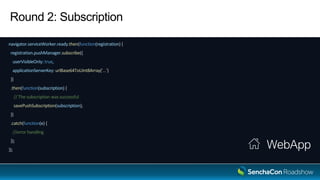

28. Round 2: Subscription
navigator.serviceWorker.ready.then(function(registration) {
registration.pushManager.subscribe({
userVisibleOnly: true,
applicationServerKey: urlBase64ToUint8Array('...')
})
.then(function(subscription) {
// The subscription was successful
savePushSubscription(subscription);
})
.catch(function(e) {
//error handling
});
});
WebApp

29. Round 3: Push Message
WebApp
Service Worker
Browser
Push ServerApp Server
push message
push message
push message
Something urgent and relevant happened

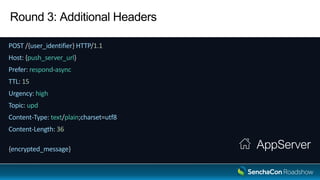

30. Round 3: Additional Headers
POST /{user_identifier} HTTP/1.1
Host: {push_server_url}
Prefer: respond-async
TTL: 15
Urgency: high
Topic: upd
Content-Type: text/plain;charset=utf8
Content-Length: 36
{encrypted_message} AppServer

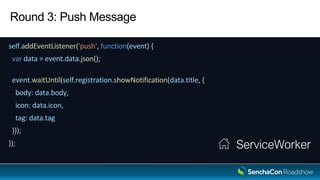

31. Round 3: Push Message
self.addEventListener('push', function(event) {
var data = event.data.json();
event.waitUntil(self.registration.showNotification(data.title, {
body: data.body,
icon: data.icon,
tag: data.tag
}));
}); ServiceWorker

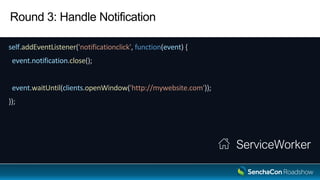

32. Round 3: Handle Notification
self.addEventListener('notificationclick', function(event) {
event.notification.close();
event.waitUntil(clients.openWindow('http://mywebsite.com'));
});
ServiceWorker

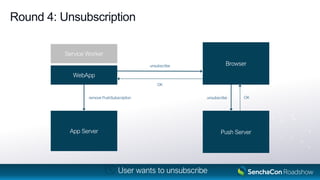

33. Round 4: Unsubscription
WebApp
Service Worker
Browser
Push ServerApp Server
unsubscribe
OK
unsubscribe OKremove PushSubscription
User wants to unsubscribe

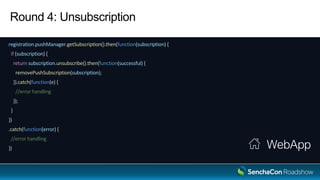

34. Round 4: Unsubscription
registration.pushManager.getSubscription().then(function(subscription) {
if (subscription) {
return subscription.unsubscribe().then(function(successful) {
removePushSubscription(subscription);
}).catch(function(e) {
//error handling
});
}
})
.catch(function(error) {
//error handling
}) WebApp

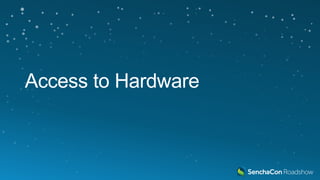

35. Access to Hardware

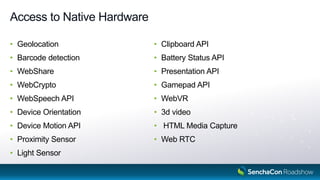

36. Access to Native Hardware
• Geolocation
• Barcode detection
• WebShare
• WebCrypto
• WebSpeech API
• Device Orientation
• Device Motion API
• Proximity Sensor
• Light Sensor
• Clipboard API
• Battery Status API
• Presentation API
• Gamepad API
• WebVR
• 3d video
• HTML Media Capture
• Web RTC

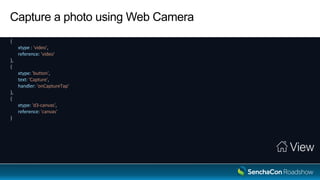

37. Capture a photo using Web Camera
View
{
xtype : 'video',
reference: 'video'
},
{
xtype: 'button',
text: 'Capture',
handler: 'onCaptureTap'
},
{
xtype: 'd3-canvas',
reference: 'canvas'
}

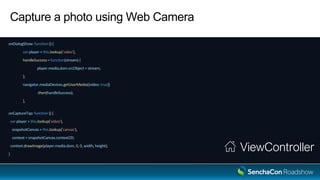

38. Capture a photo using Web Camera
onDialogShow: function () {
var player = this.lookup('video'),
handleSuccess = function(stream) {
player.media.dom.srcObject = stream;
};
navigator.mediaDevices.getUserMedia({video: true})
.then(handleSuccess);
},
onCaptureTap: function () {
var player = this.lookup('video'),
snapshotCanvas = this.lookup('canvas'),
context = snapshotCanvas.context2D;
context.drawImage(player.media.dom, 0, 0, width, height);
}
ViewController

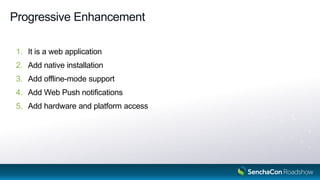

39. Progressive Enhancement
1. It is a web application
2. Add native installation
3. Add offline-mode support
4. Add Web Push notifications
5. Add hardware and platform access
39

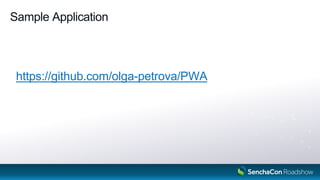

40. Sample Application
https://github.com/olga-petrova/PWA
40
