This document provides an introduction to using QuartzCore and CoreText to build high-performance table views on iOS. It begins by explaining why fast scrolling is important for the iPhone experience. It then outlines three different methods for compositing table view cells (subviews, direct drawing, hybrid) and their pros and cons. The document dives into using QuartzCore and CoreText to render text and images within table view cells, providing examples of using CALayers, CATextLayers, and NSAttributedStrings. It concludes with performance tips for working with these frameworks like using dispatch_once.

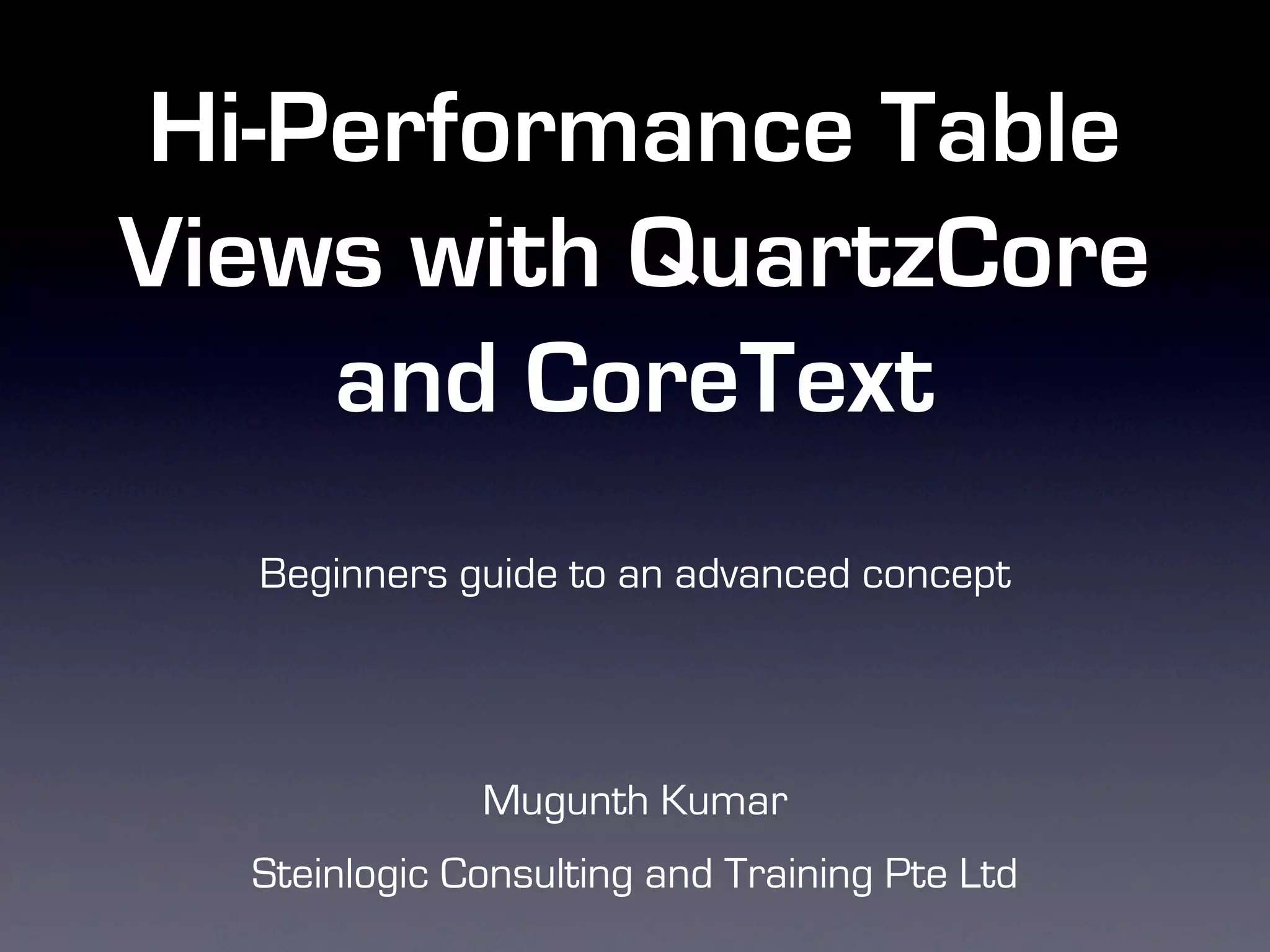

1. Hi-Performance Table
Views with QuartzCore
and CoreText
Beginners guide to an advanced concept
Mugunth Kumar
Steinlogic Consulting and Training Pte Ltd

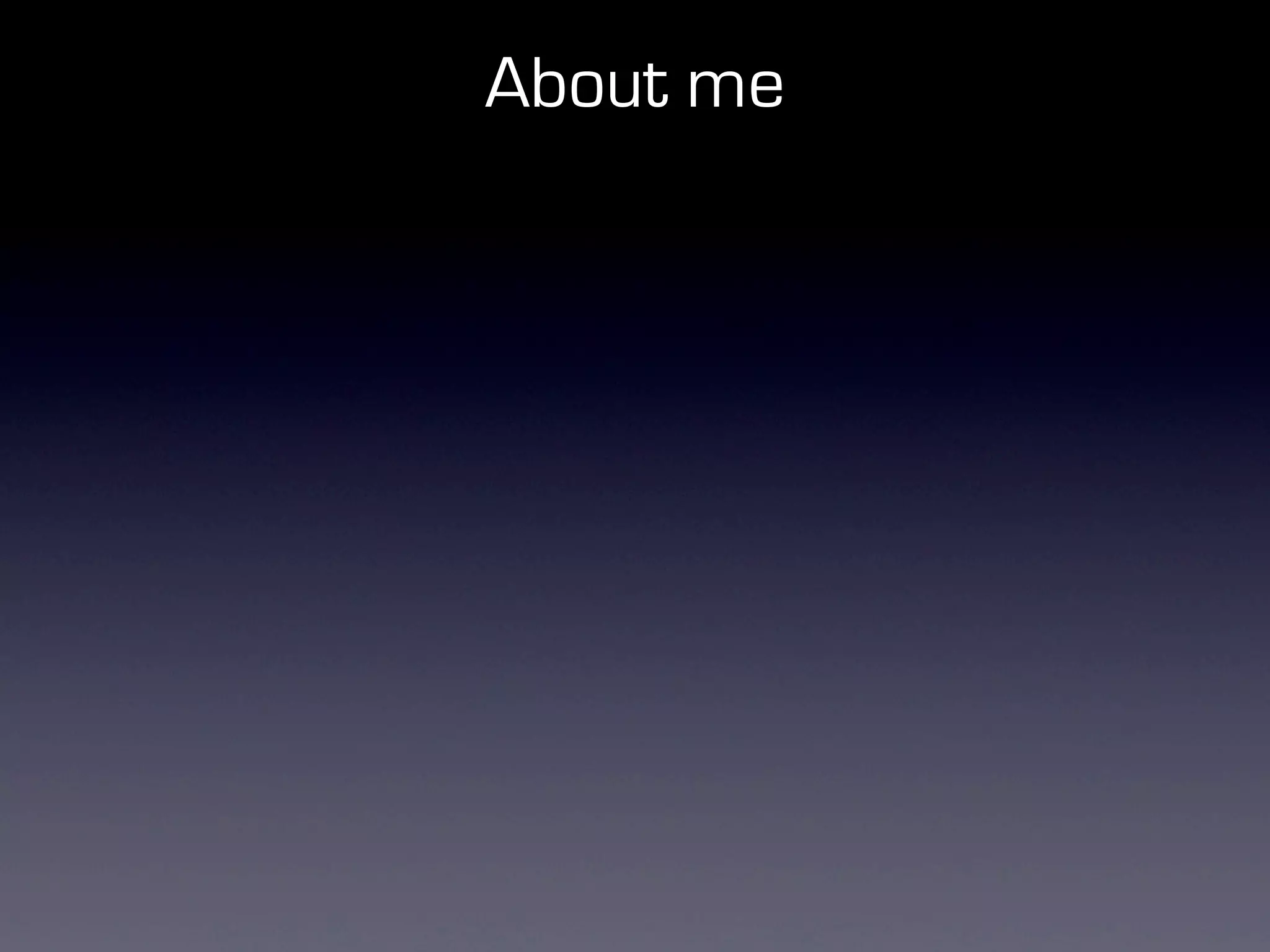

2. About me

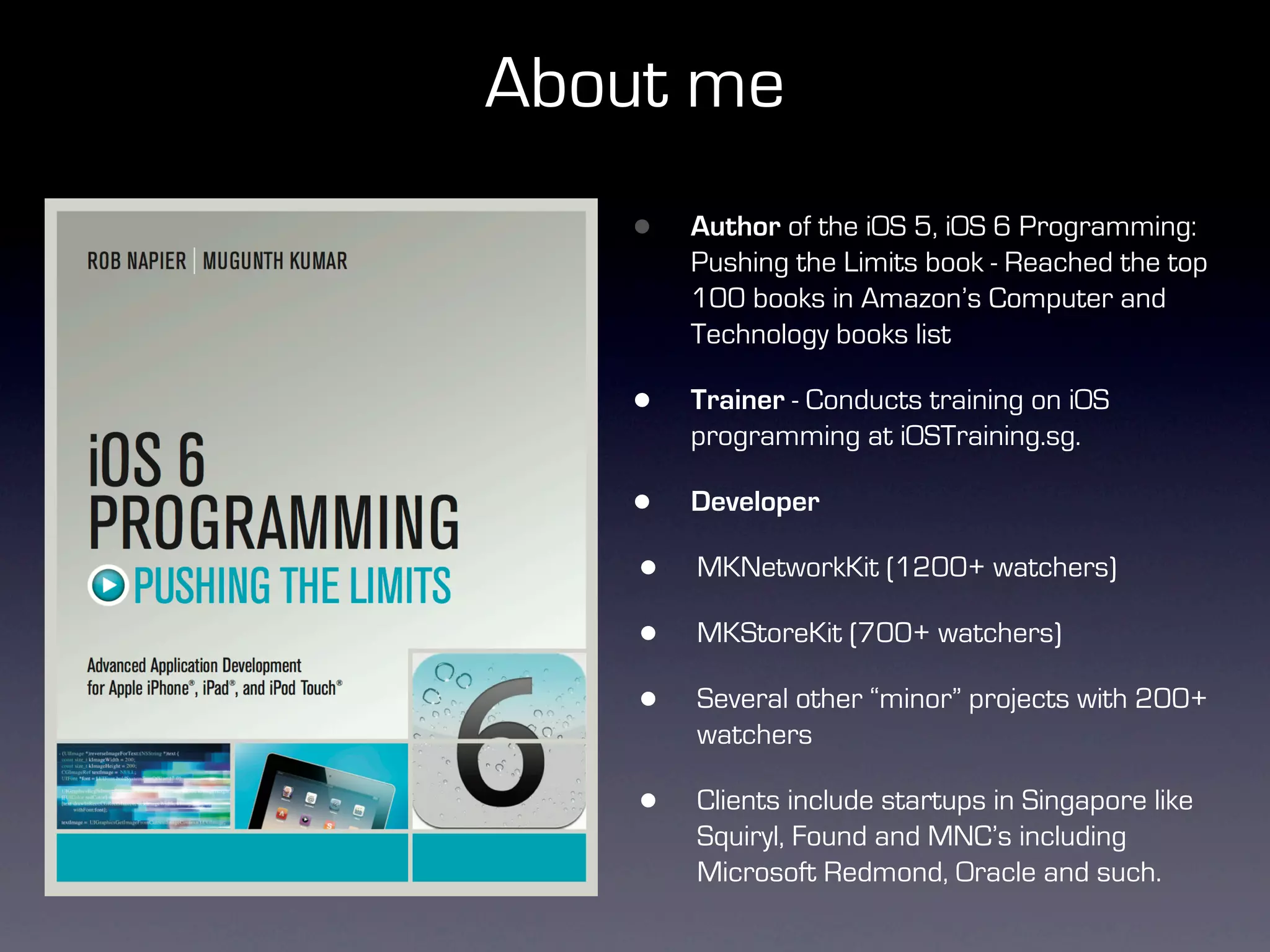

3. About me
• Author of the iOS 5, iOS 6 Programming:
Pushing the Limits book - Reached the top
100 books in Amazon’s Computer and
Technology books list
• Trainer - Conducts training on iOS
programming at iOSTraining.sg.
• Developer
• MKNetworkKit (1200+ watchers)
• MKStoreKit (700+ watchers)
• Several other “minor” projects with 200+
watchers
• Clients include startups in Singapore like
Squiryl, Found and MNC’s including
Microsoft Redmond, Oracle and such.

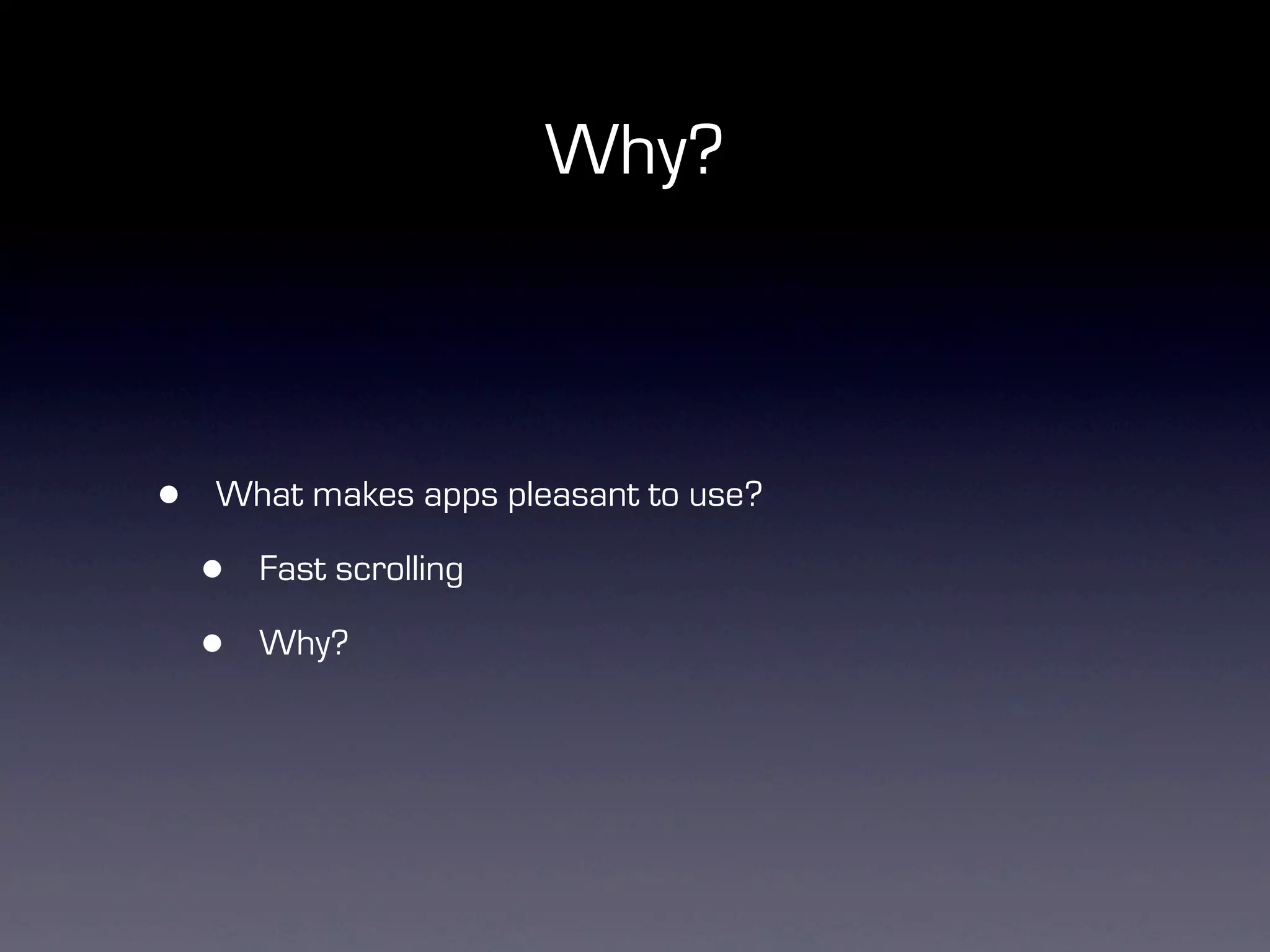

4. Why?
• What makes apps pleasant to use?
• Fast scrolling
• Why?

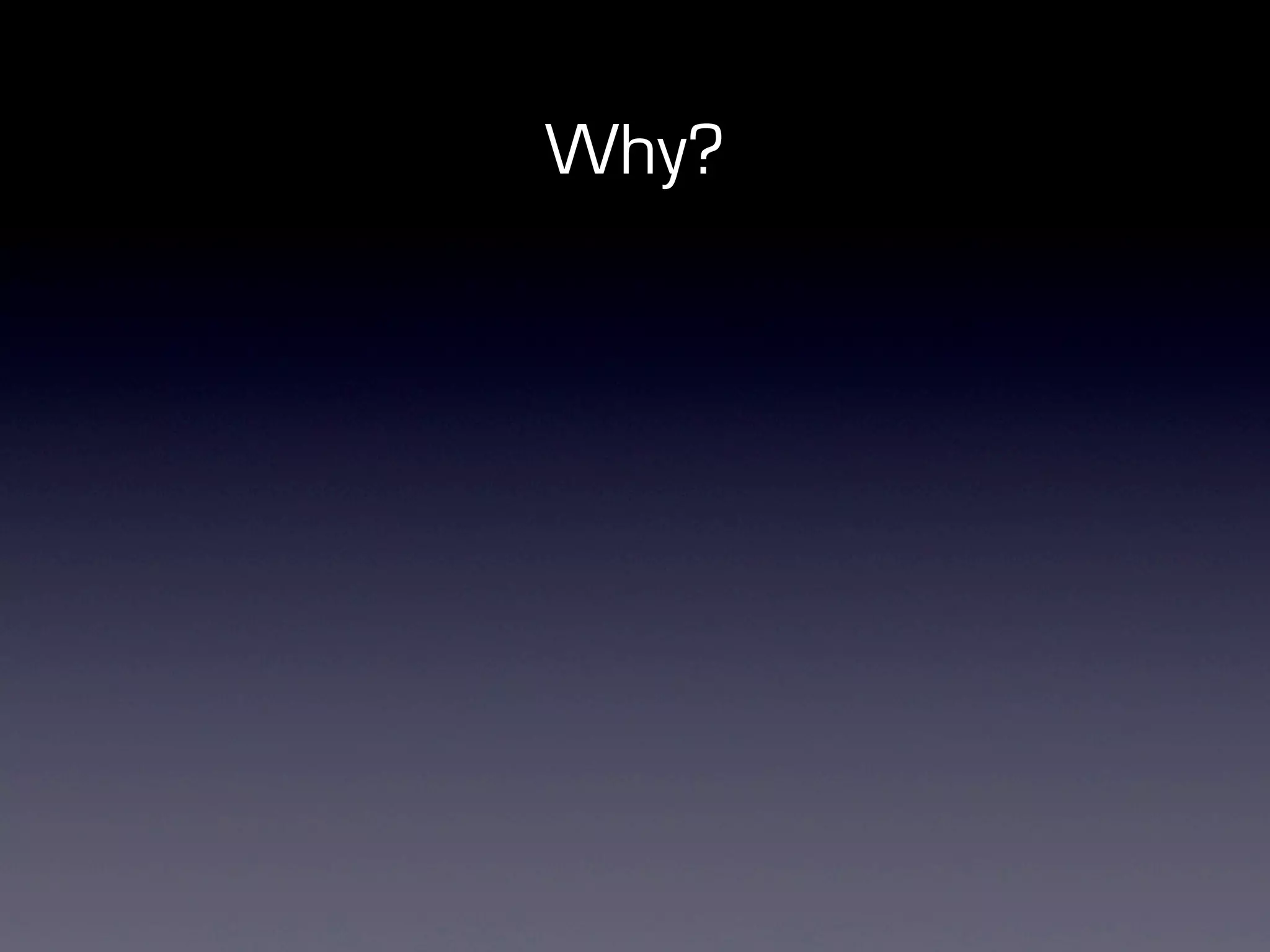

5. Why?

6. Why?
• iPhone is a direct manipulation device

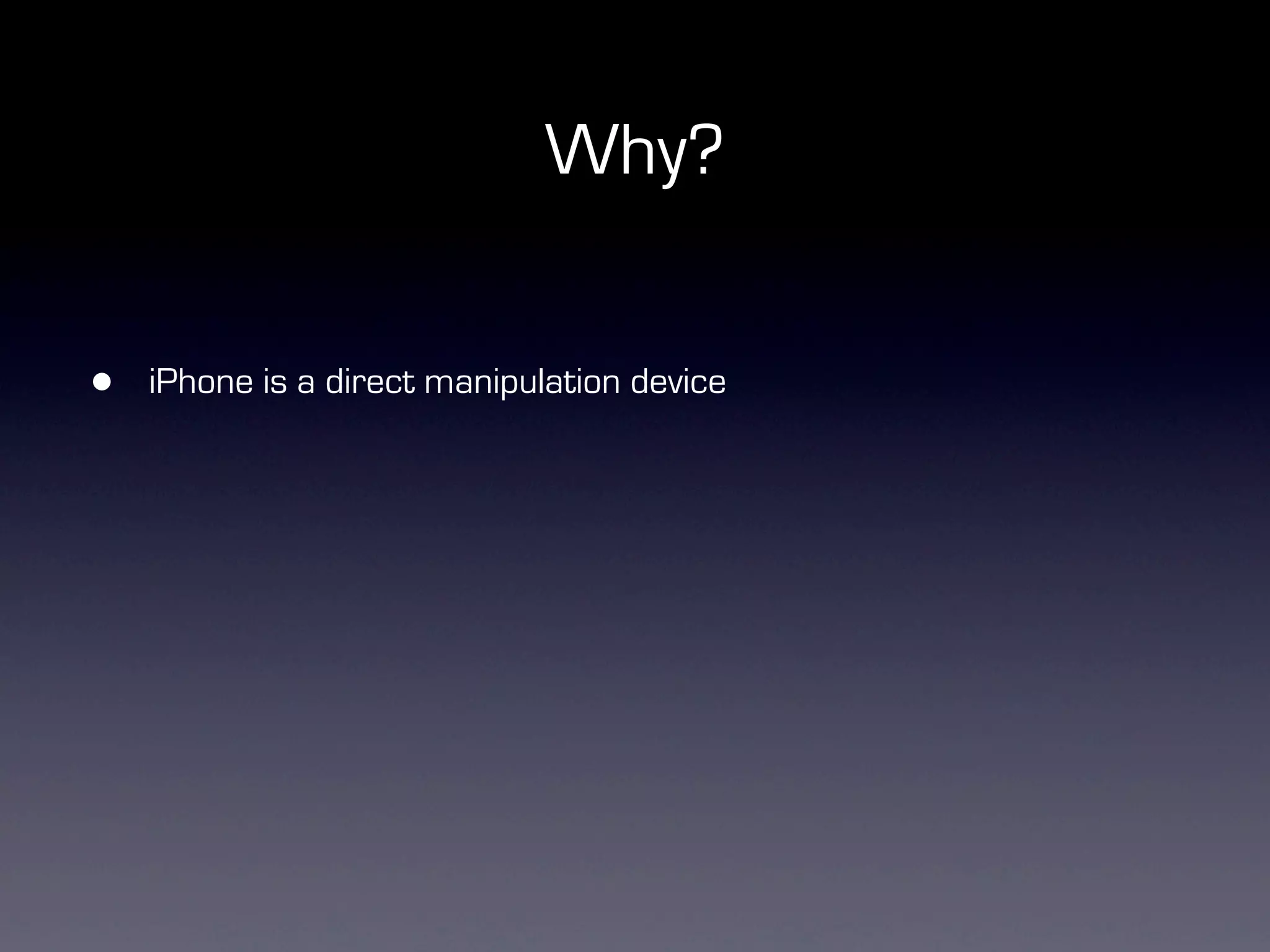

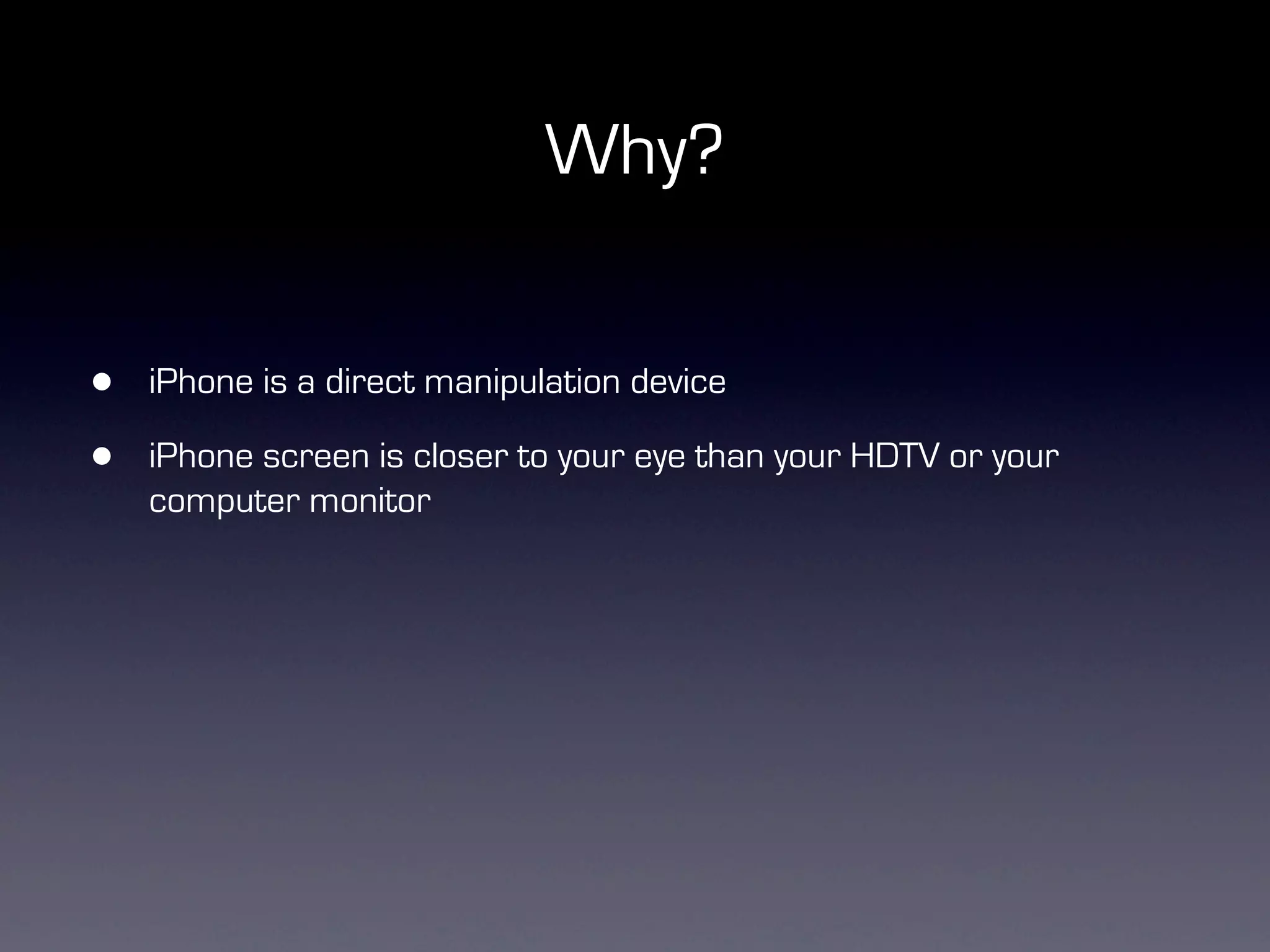

7. Why?
• iPhone is a direct manipulation device
• iPhone screen is closer to your eye than your HDTV or your
computer monitor

8. Why?

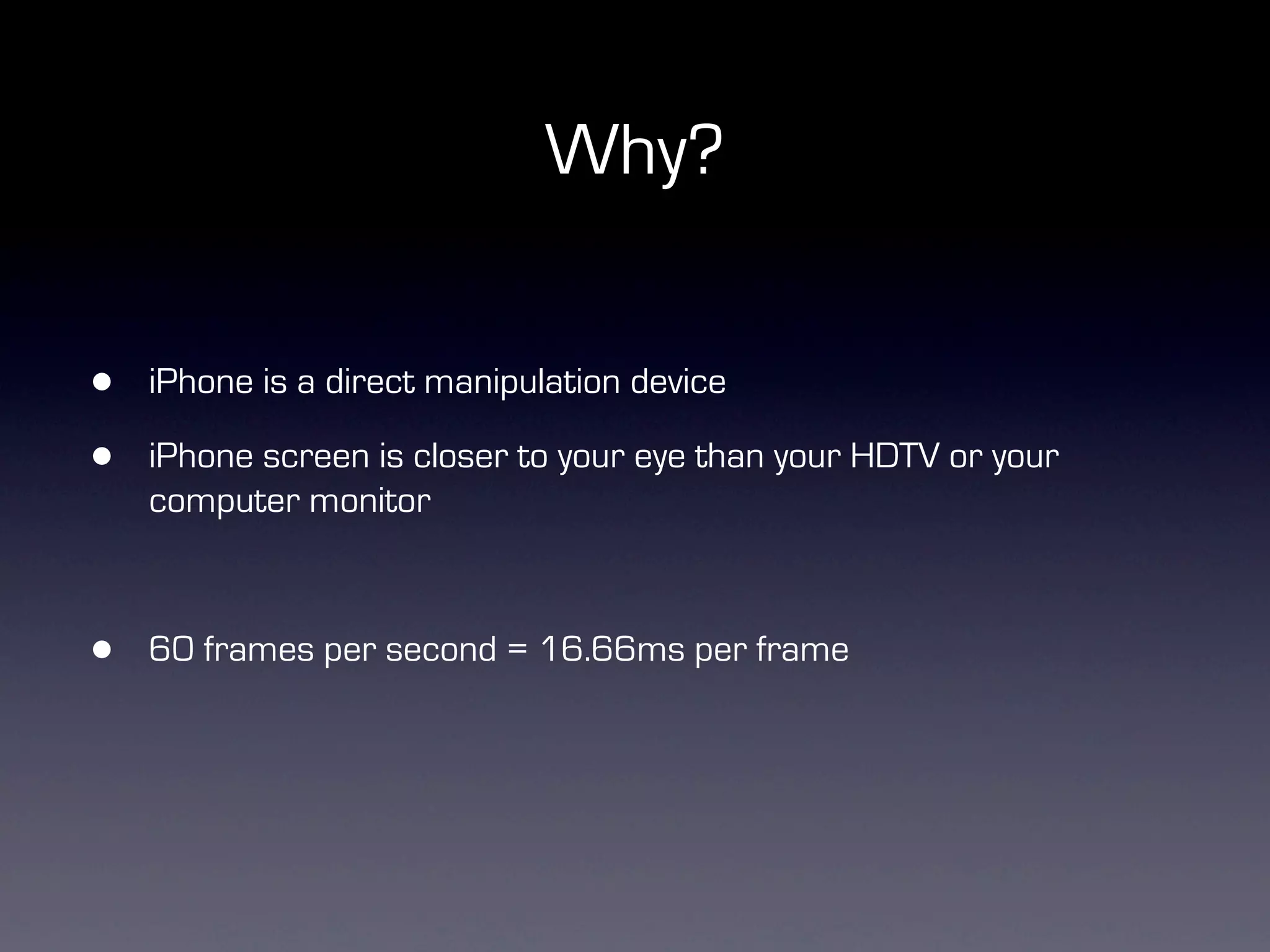

• iPhone is a direct manipulation device
• iPhone screen is closer to your eye than your HDTV or your
computer monitor
• 60 frames per second = 16.66ms per frame

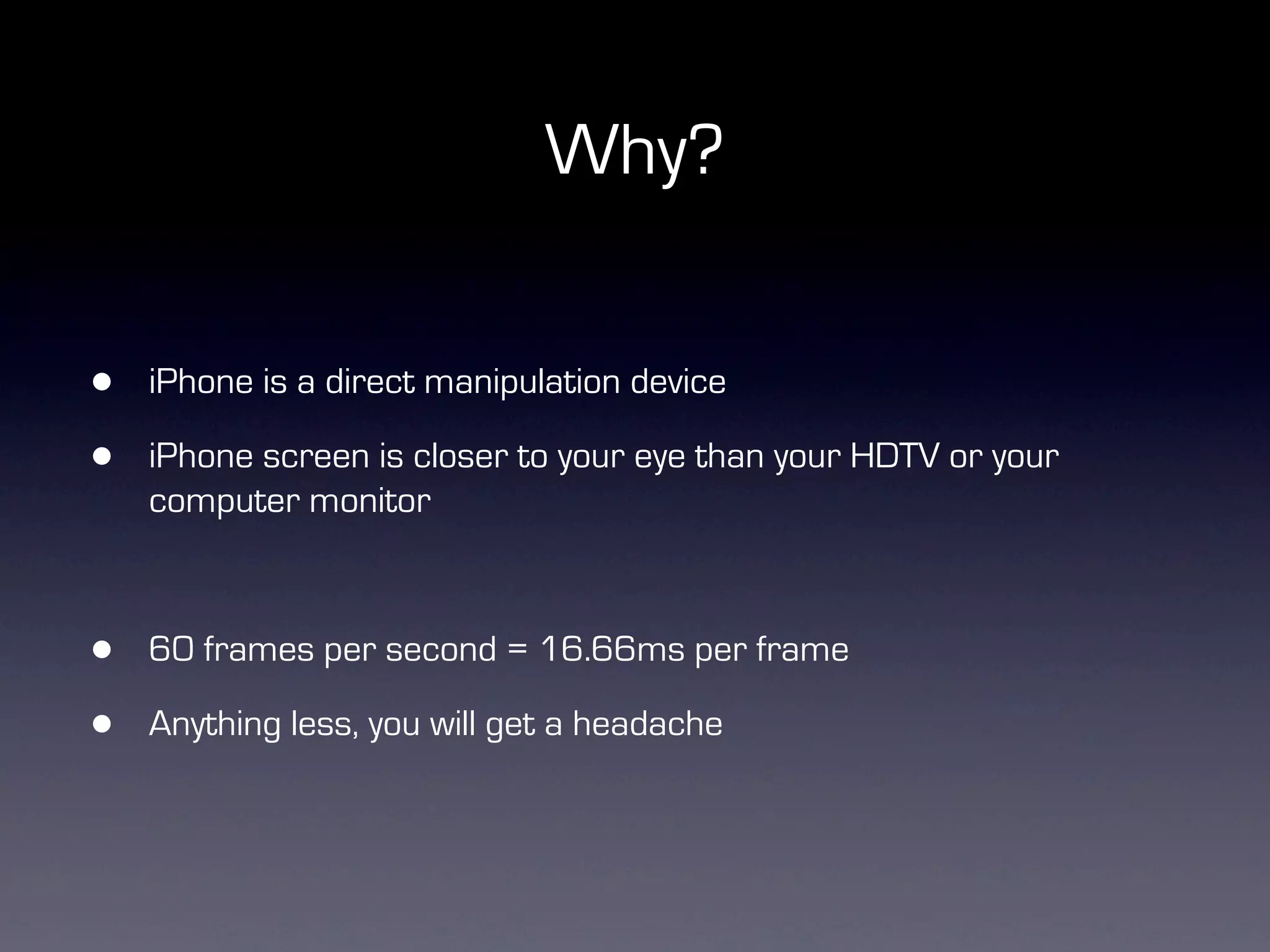

9. Why?
• iPhone is a direct manipulation device
• iPhone screen is closer to your eye than your HDTV or your
computer monitor
• 60 frames per second = 16.66ms per frame
• Anything less, you will get a headache

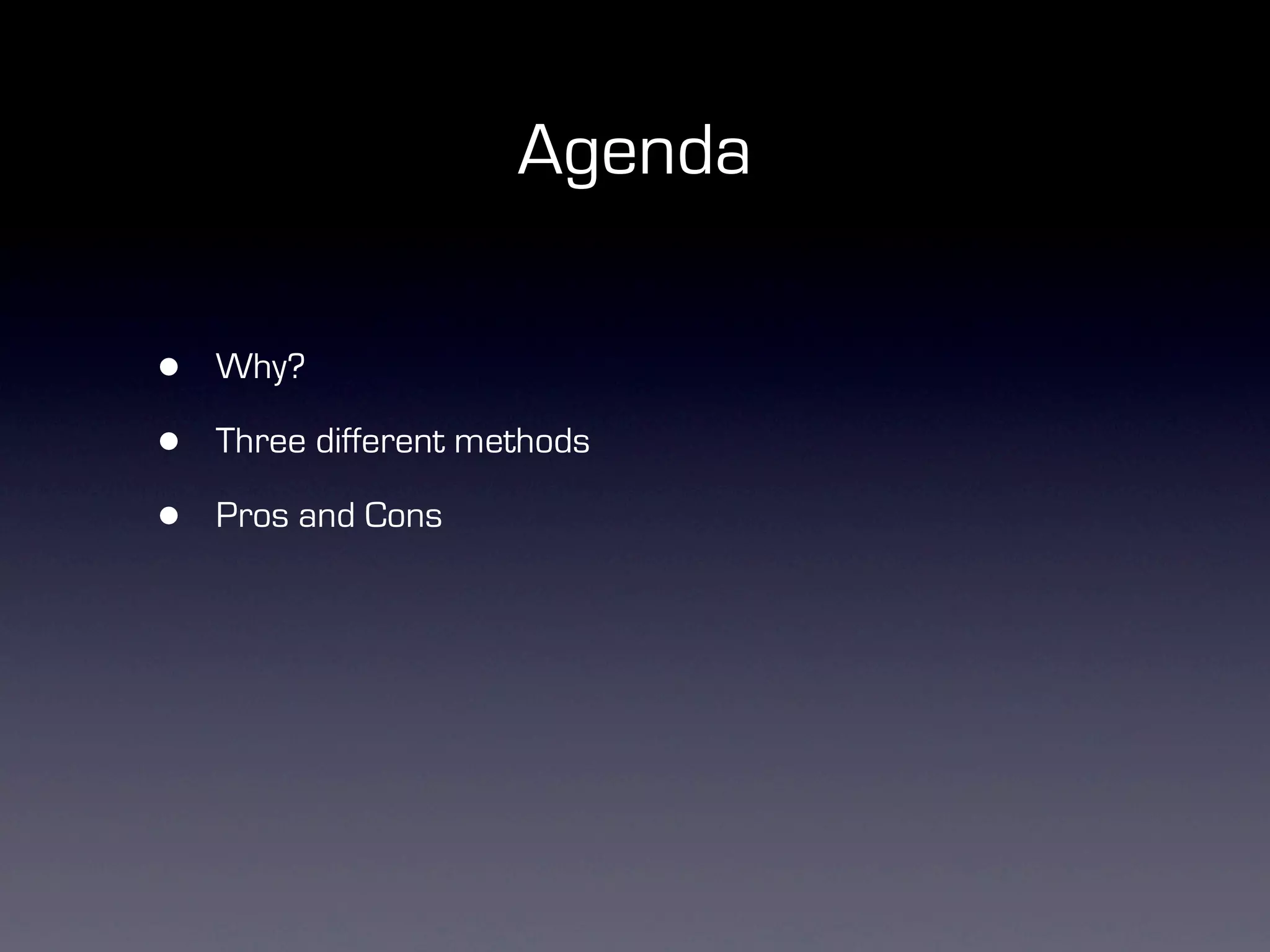

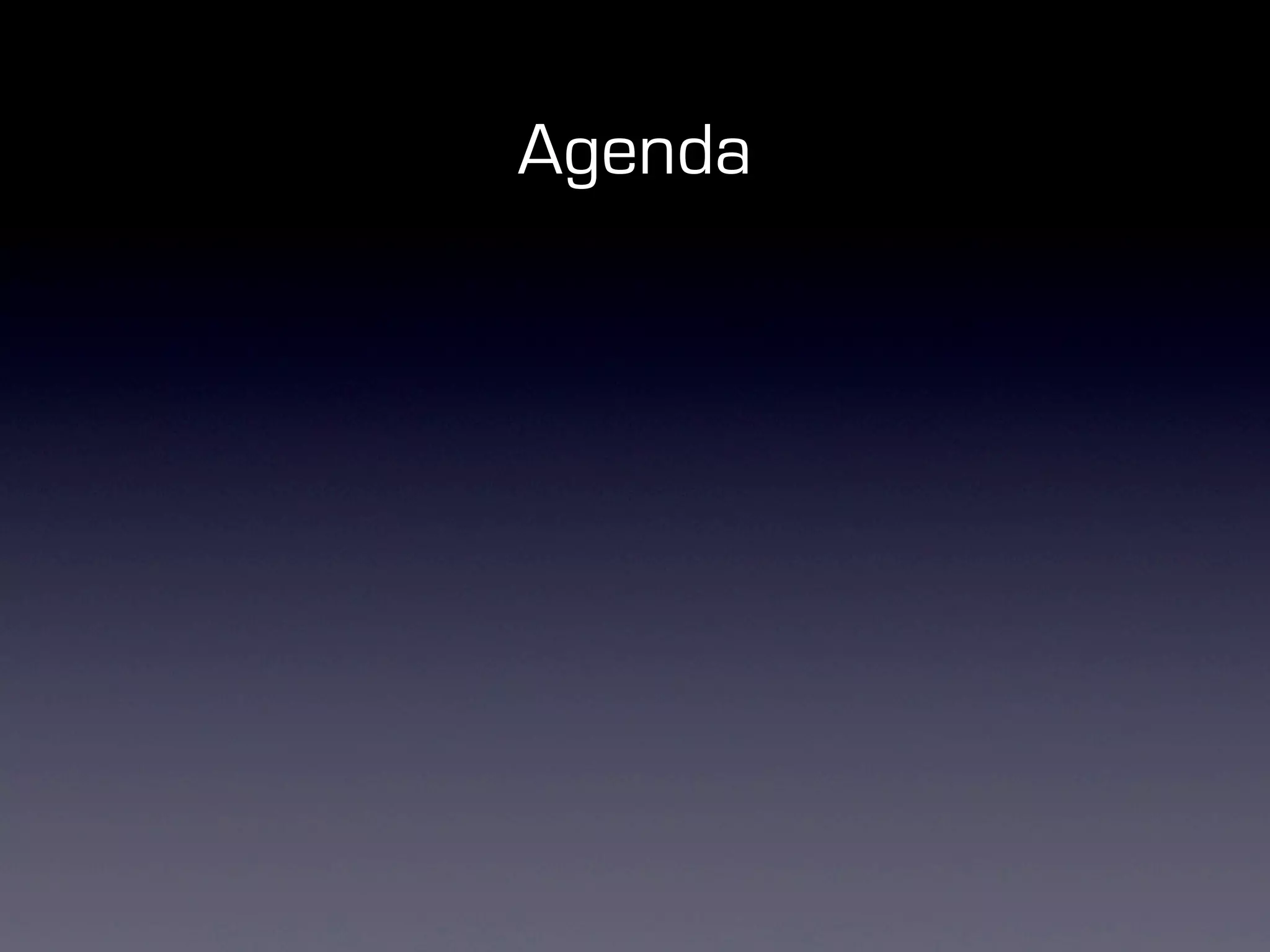

10. Agenda

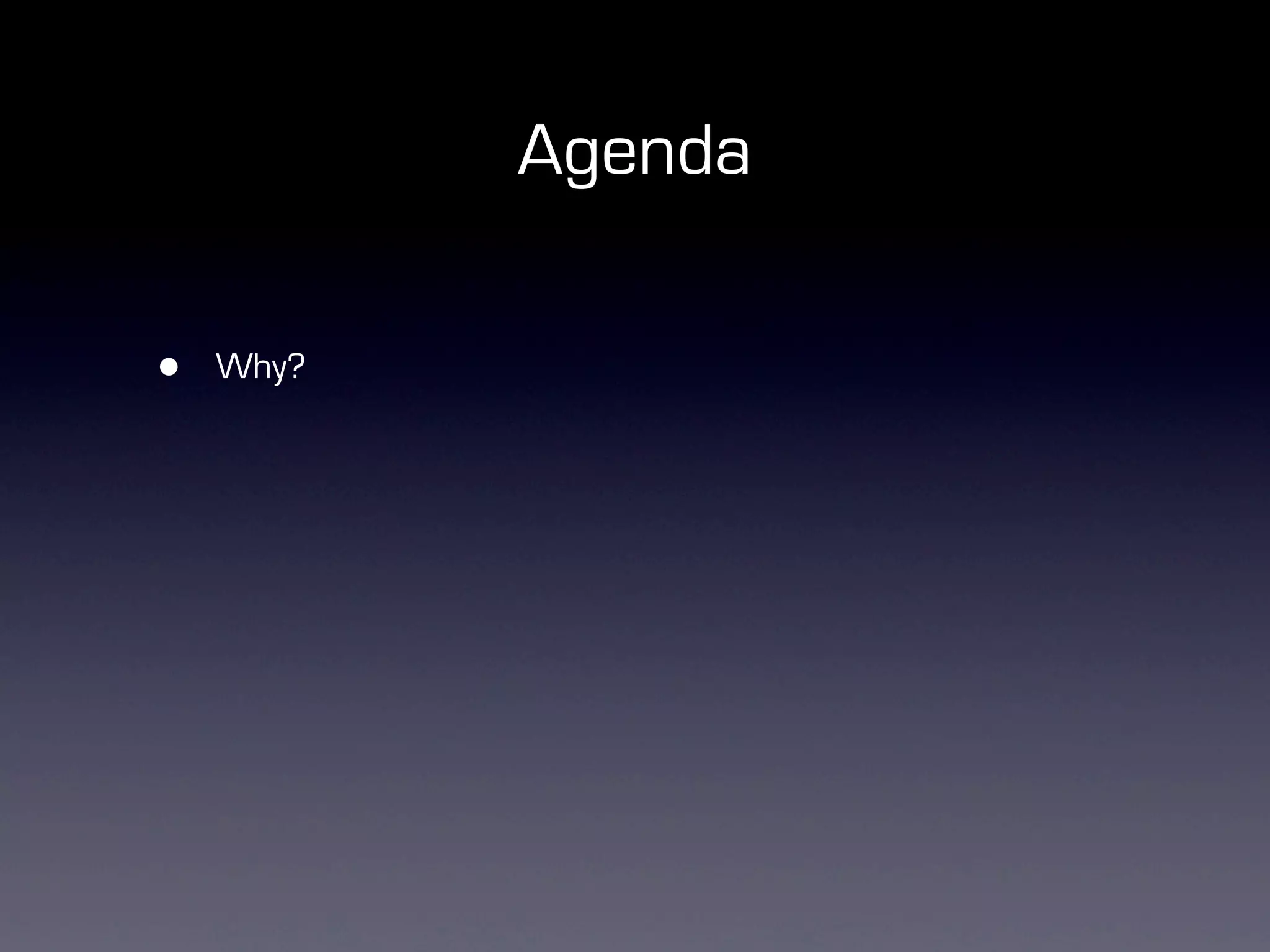

11. Agenda
• Why?

12. Agenda
• Why?
• Three different methods

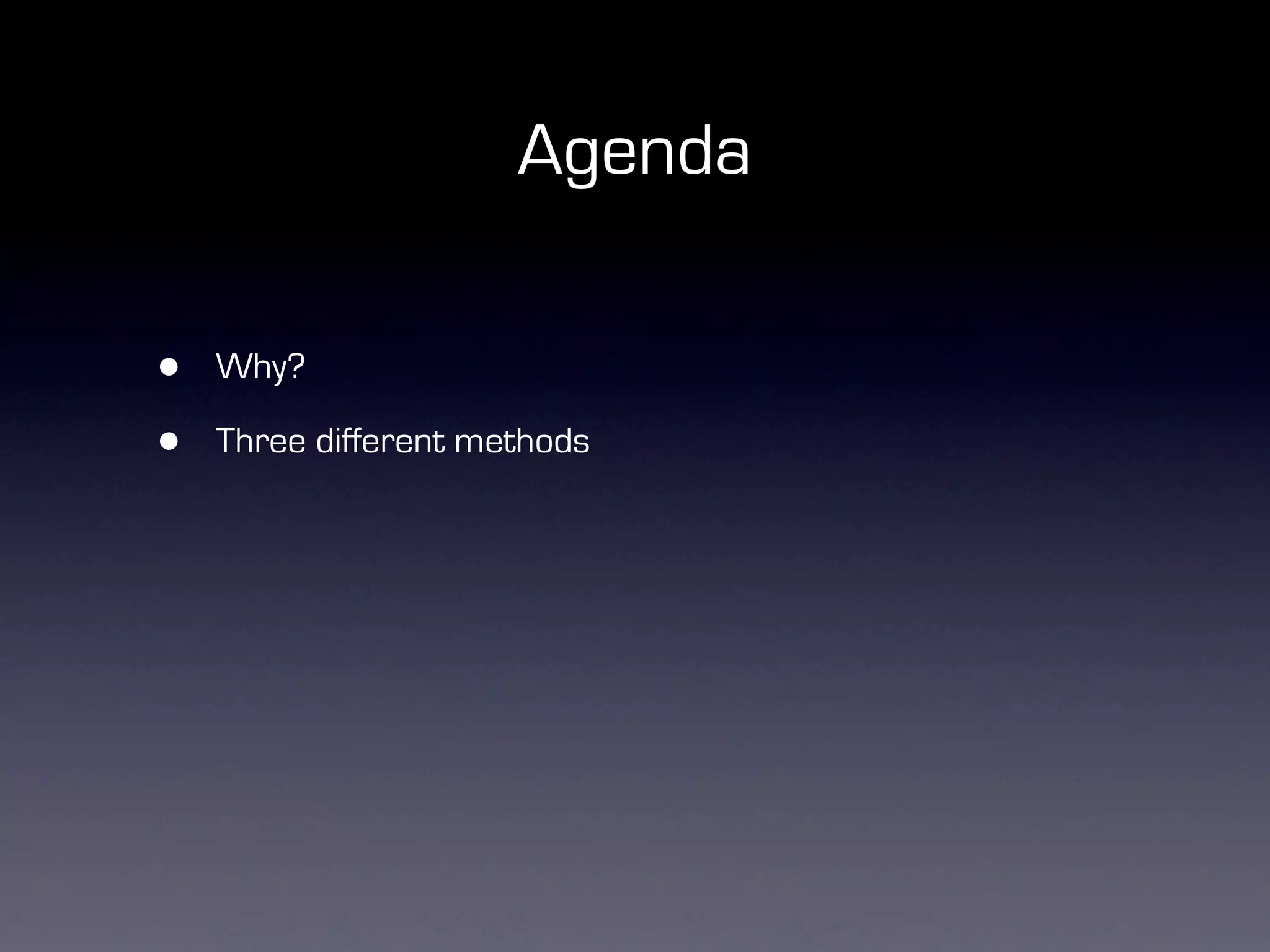

13. Agenda
• Why?
• Three different methods
• Pros and Cons

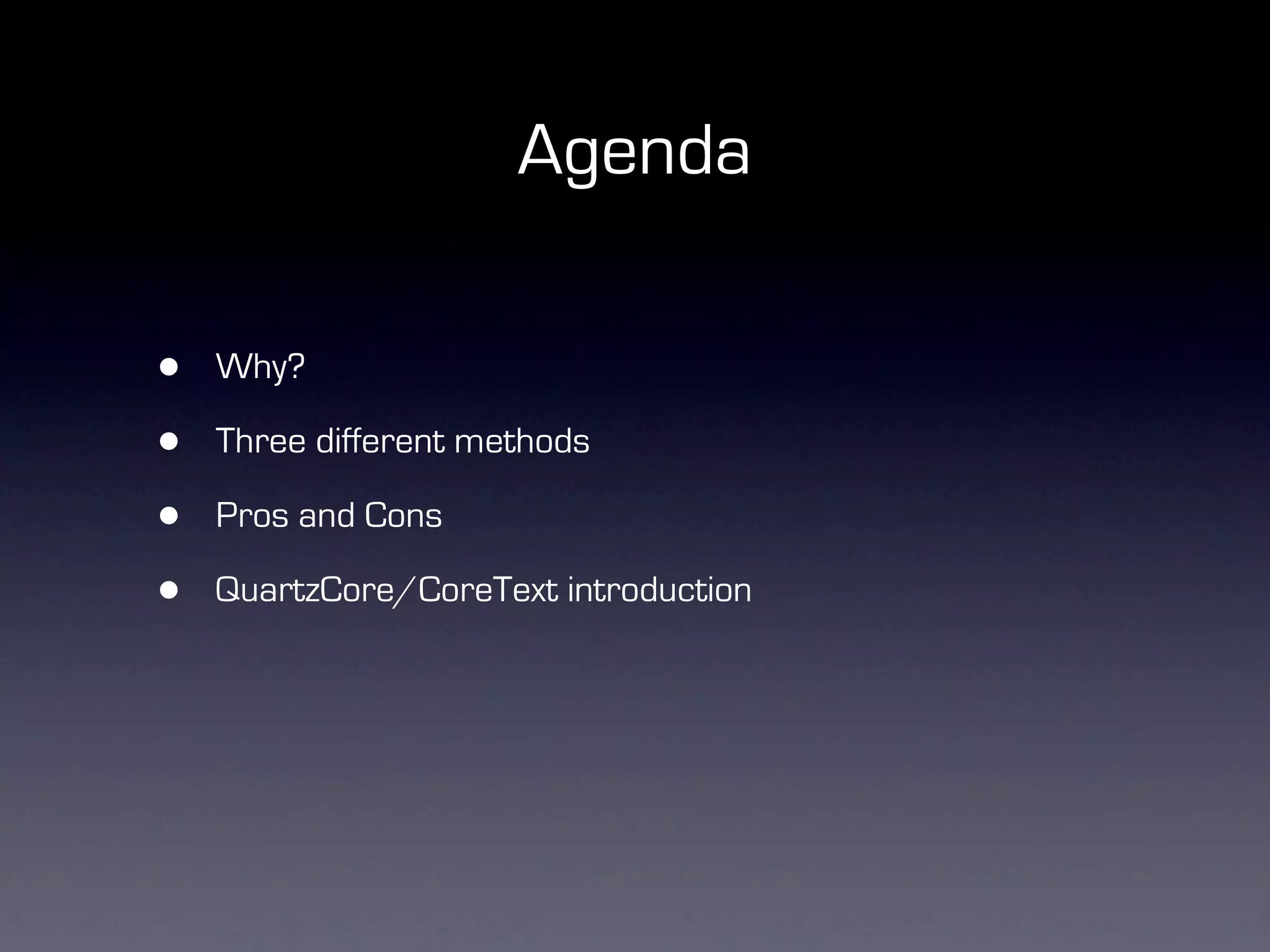

14. Agenda
• Why?
• Three different methods
• Pros and Cons
• QuartzCore/CoreText introduction

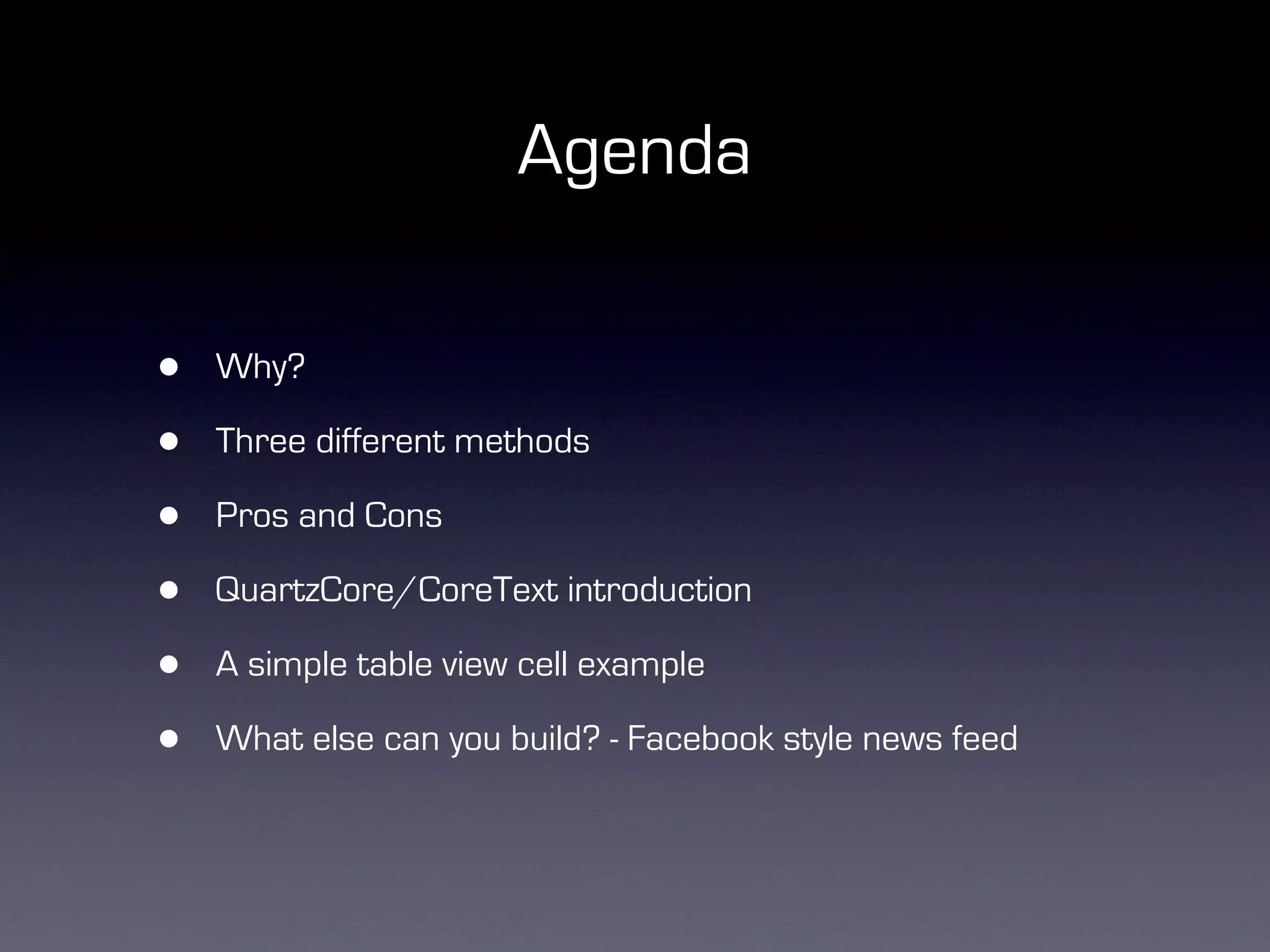

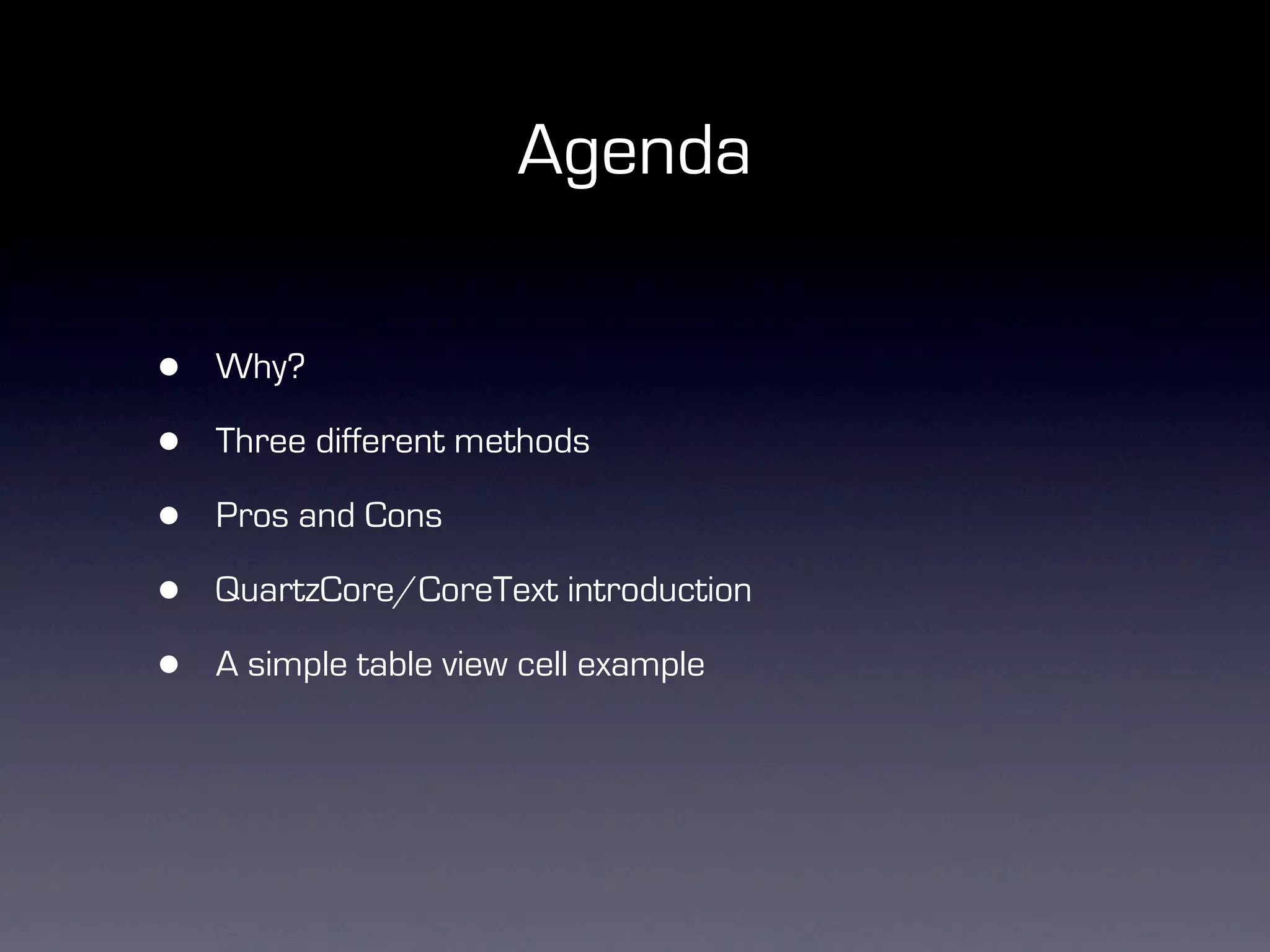

15. Agenda
• Why?
• Three different methods
• Pros and Cons
• QuartzCore/CoreText introduction
• A simple table view cell example

16. Agenda
• Why?
• Three different methods
• Pros and Cons
• QuartzCore/CoreText introduction
• A simple table view cell example
• What else can you build? - Facebook style news feed

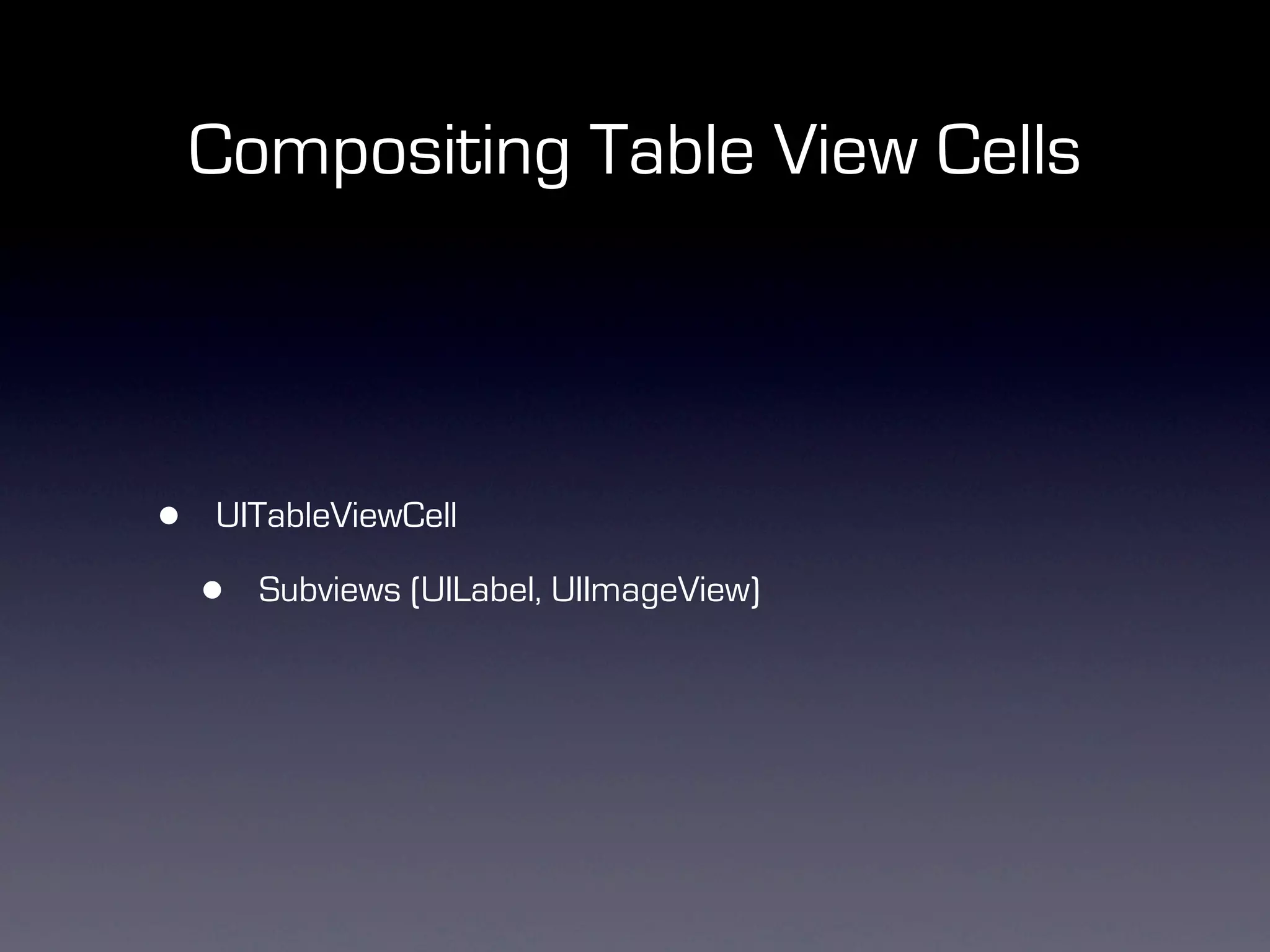

17. Compositing Table View Cells
• UITableViewCell
• Subviews (UILabel, UIImageView)

18. Pros/Cons

19. Pros/Cons

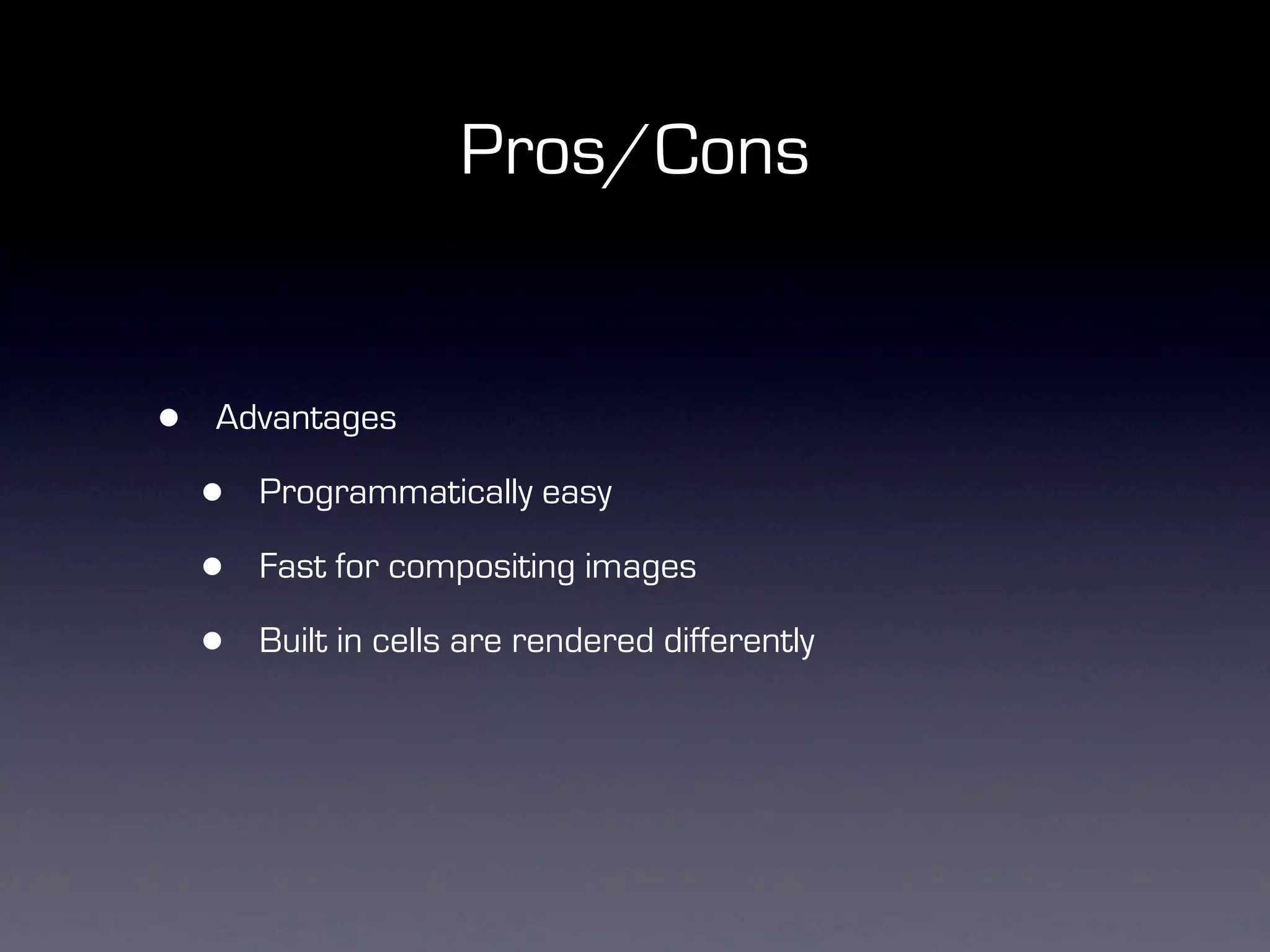

• Advantages
• Programmatically easy
• Fast for compositing images
• Built in cells are rendered differently

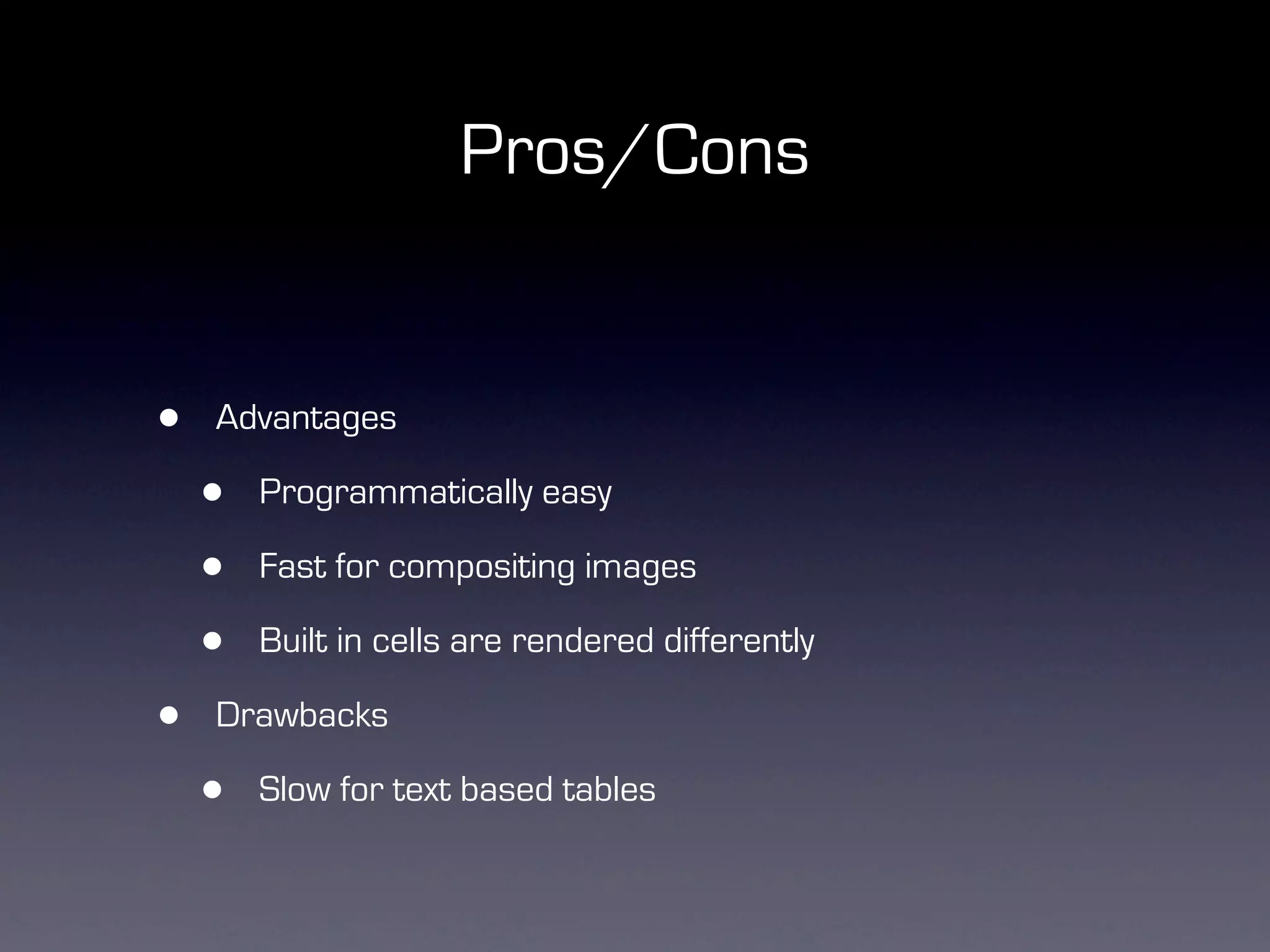

20. Pros/Cons
• Advantages
• Programmatically easy
• Fast for compositing images
• Built in cells are rendered differently
• Drawbacks
• Slow for text based tables

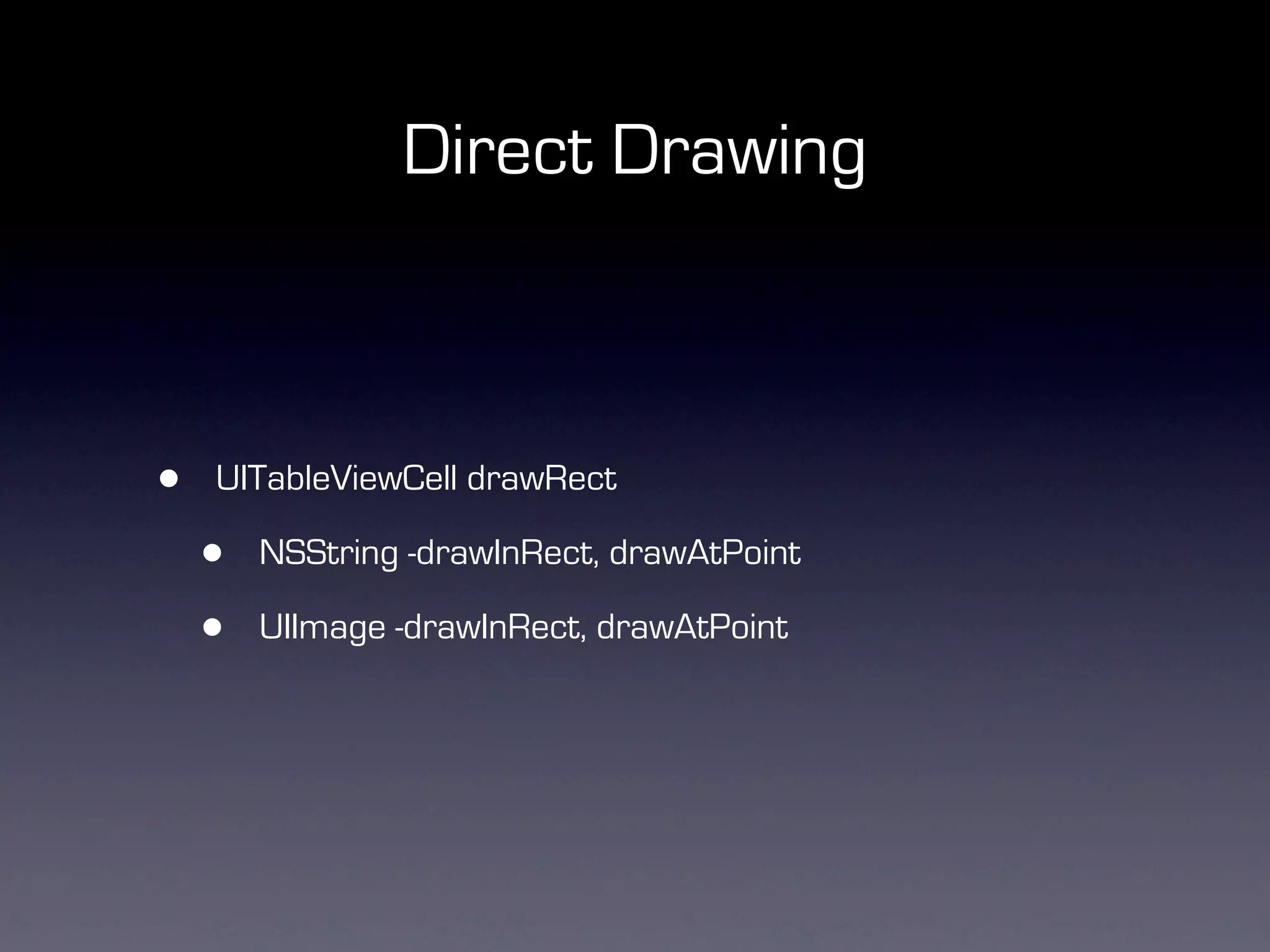

21. Direct Drawing
• UITableViewCell drawRect
• NSString -drawInRect, drawAtPoint
• UIImage -drawInRect, drawAtPoint

22. Pros/Cons

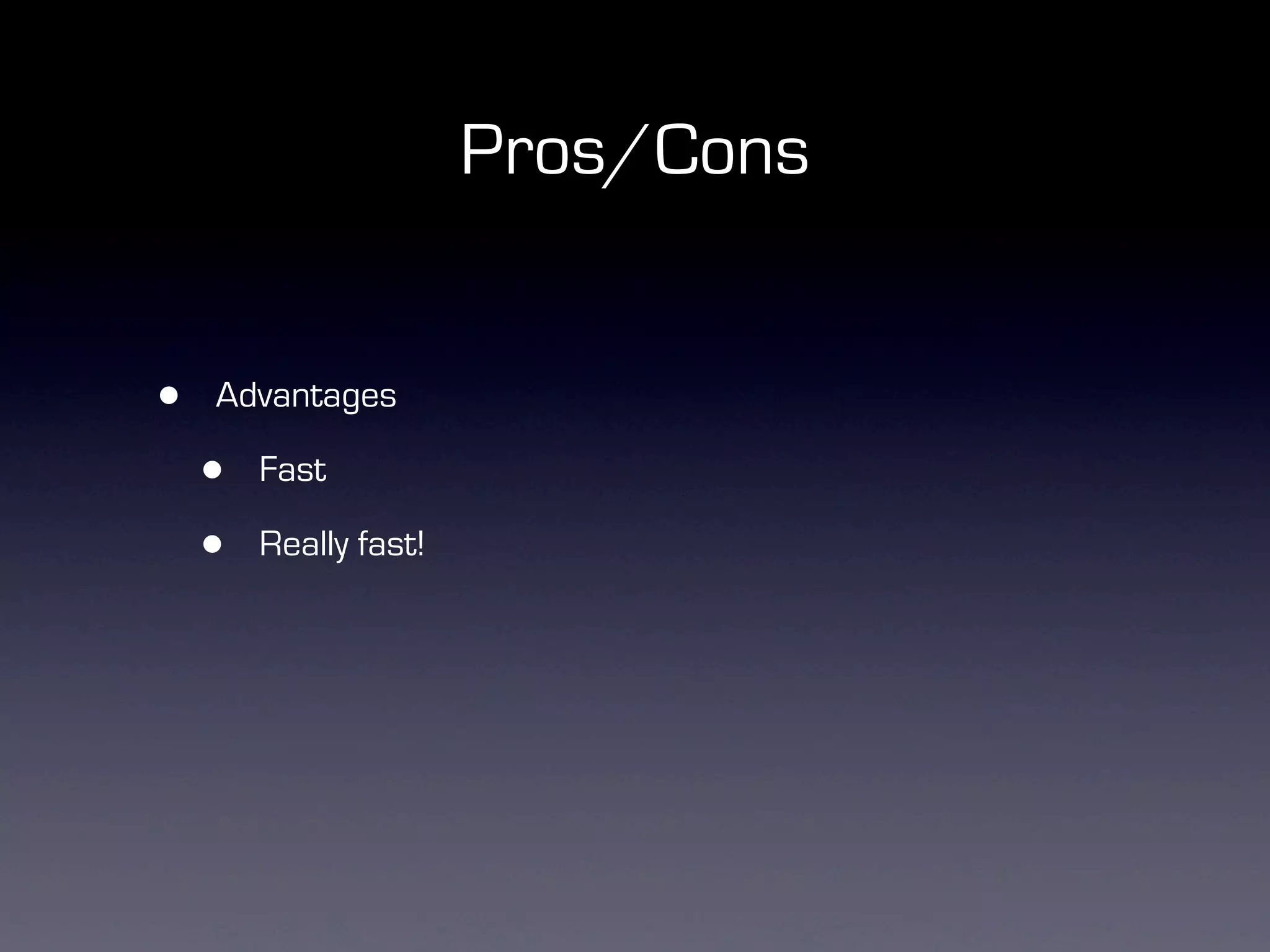

23. Pros/Cons
• Advantages
• Fast
• Really fast!

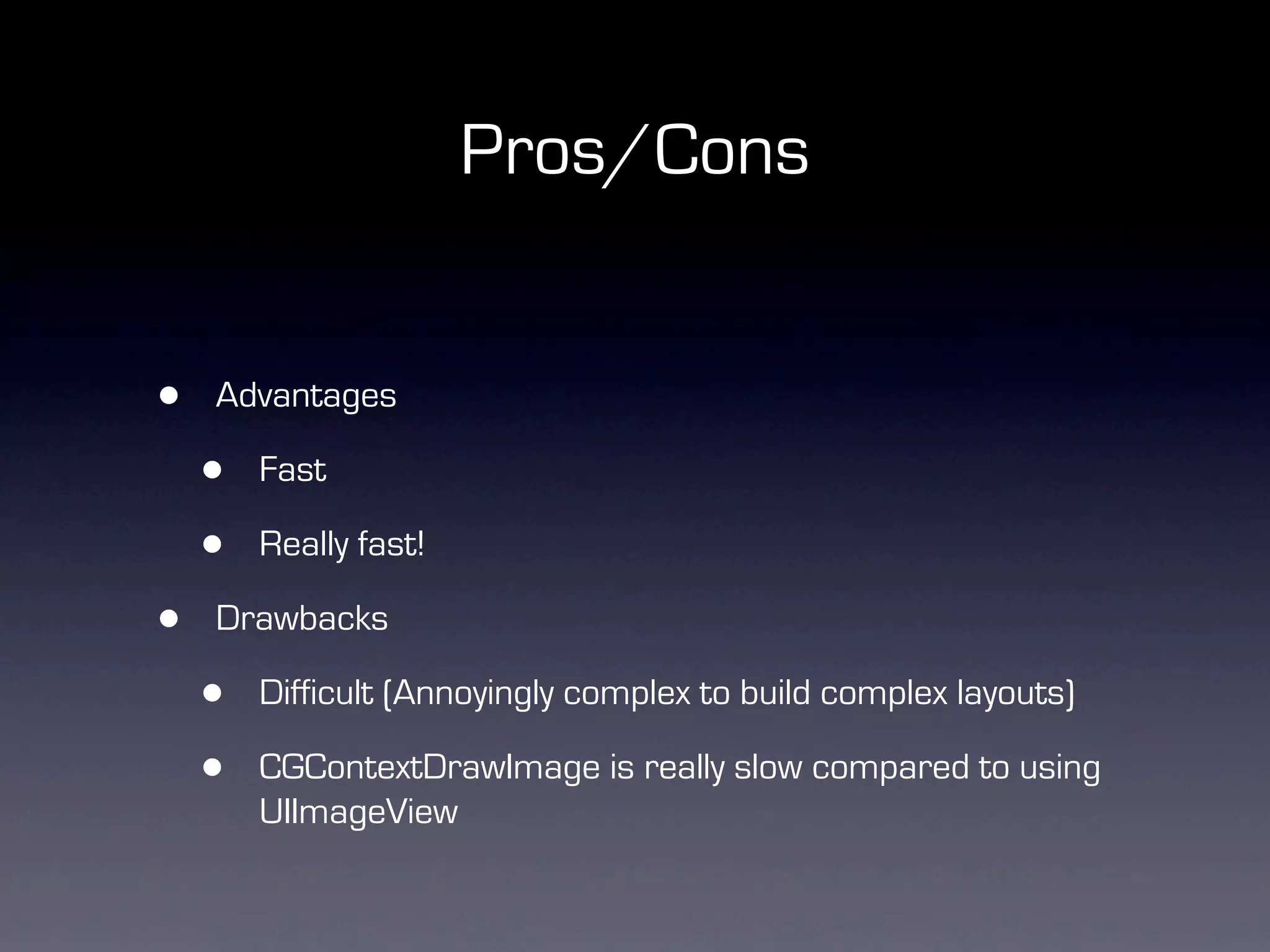

24. Pros/Cons
• Advantages
• Fast
• Really fast!
• Drawbacks
• Difficult (Annoyingly complex to build complex layouts)
• CGContextDrawImage is really slow compared to using
UIImageView

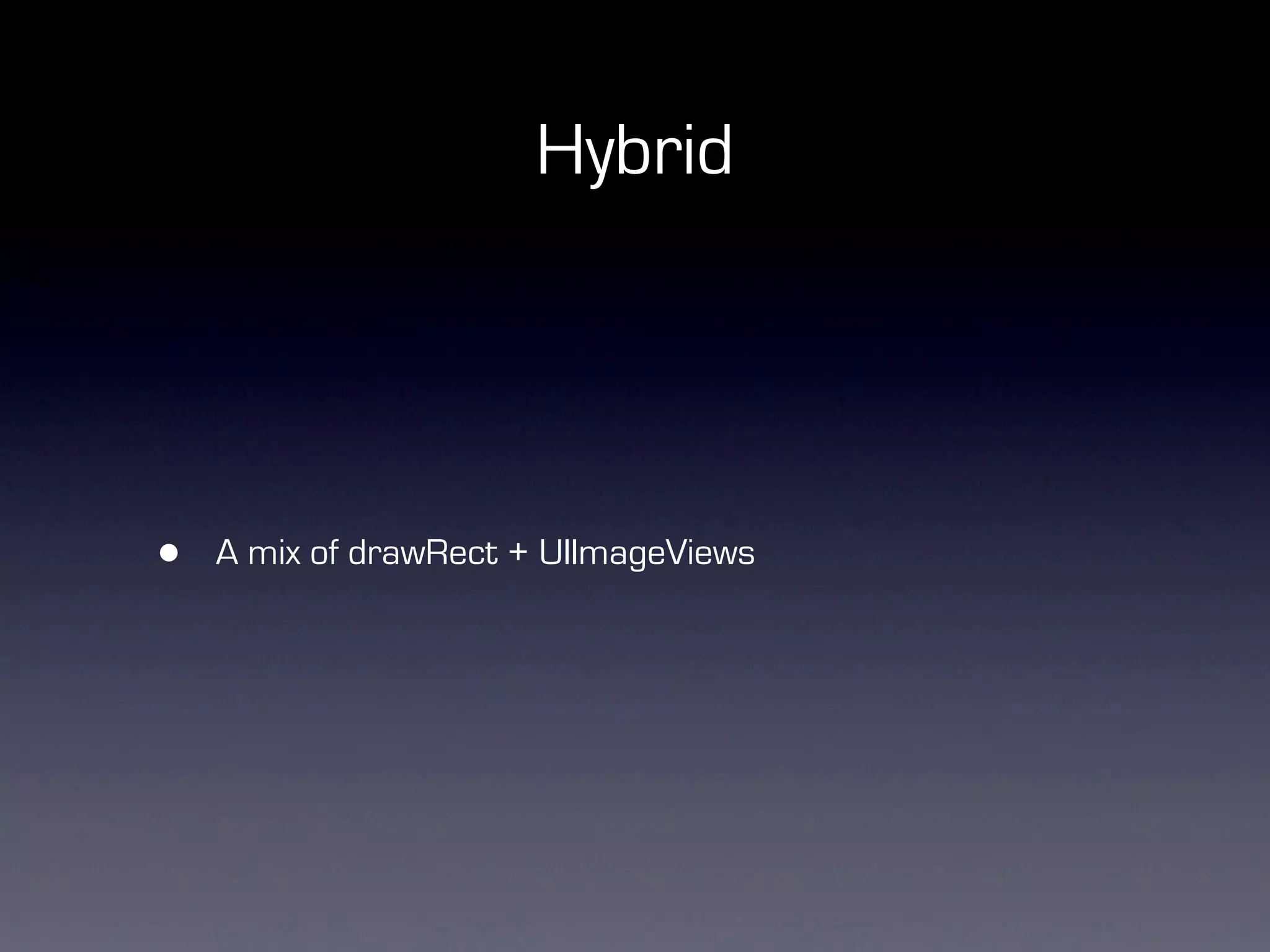

25. Hybrid
• A mix of drawRect + UIImageViews

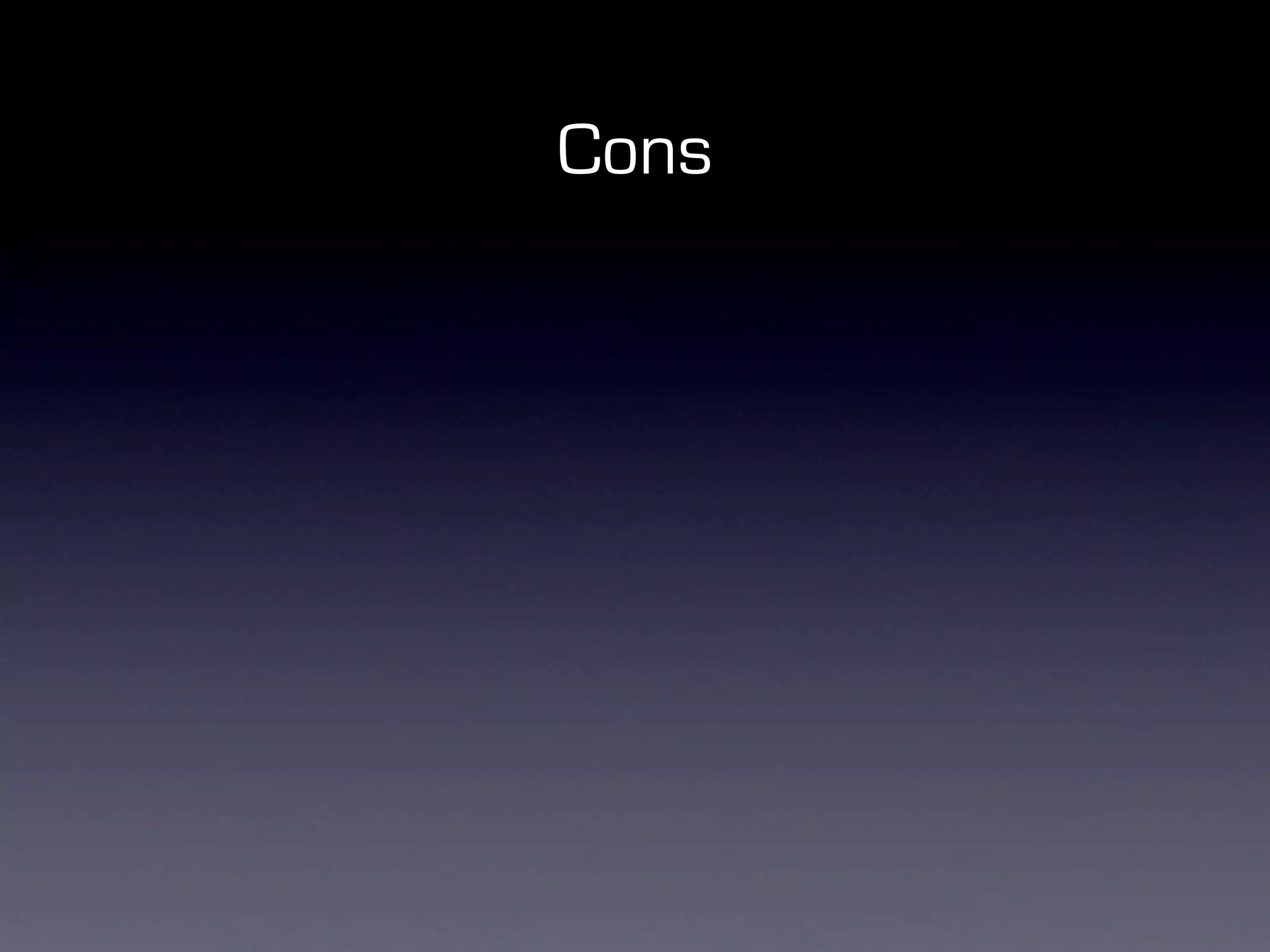

26. Cons

27. Cons

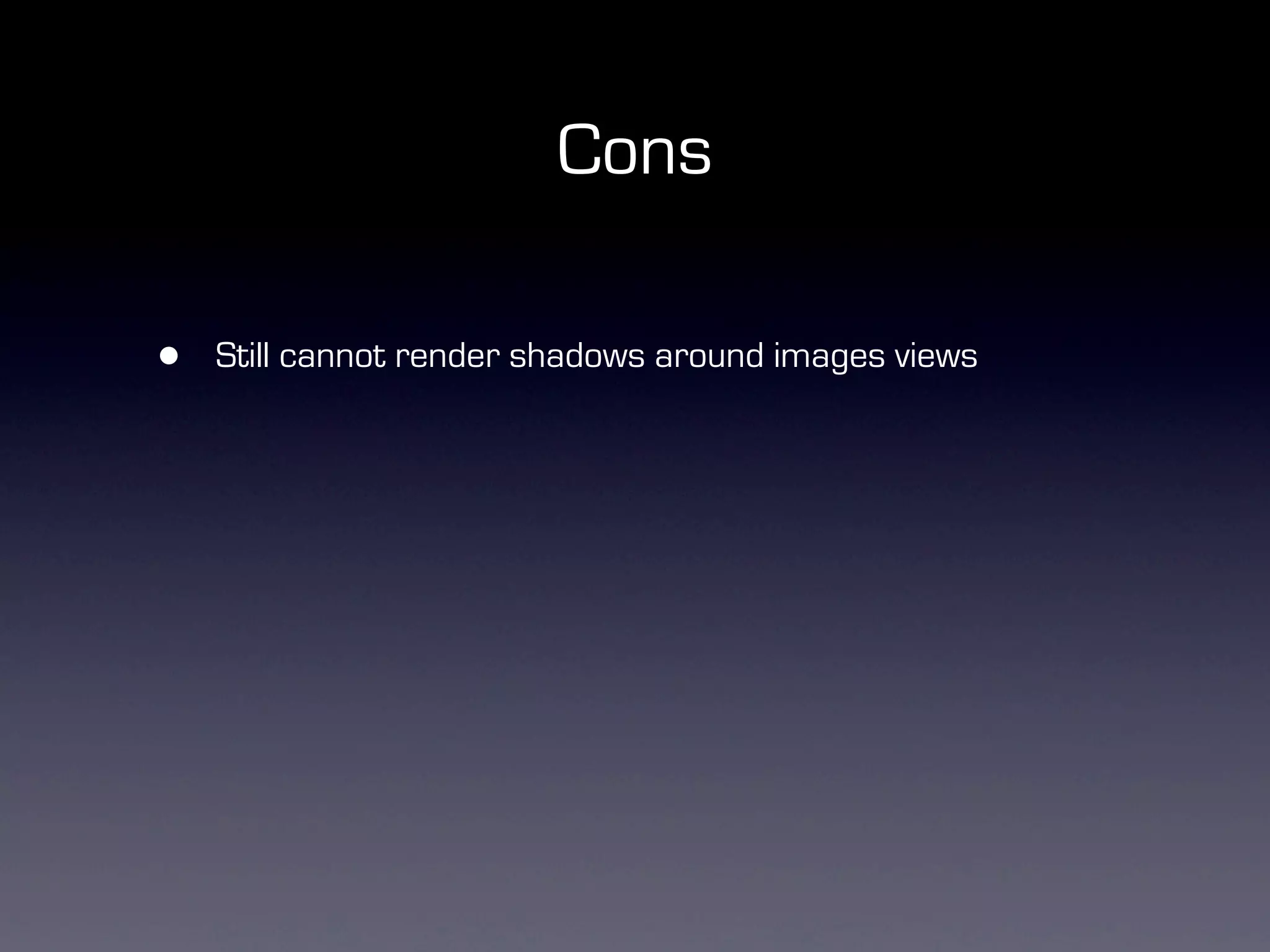

• Still cannot render shadows around images views

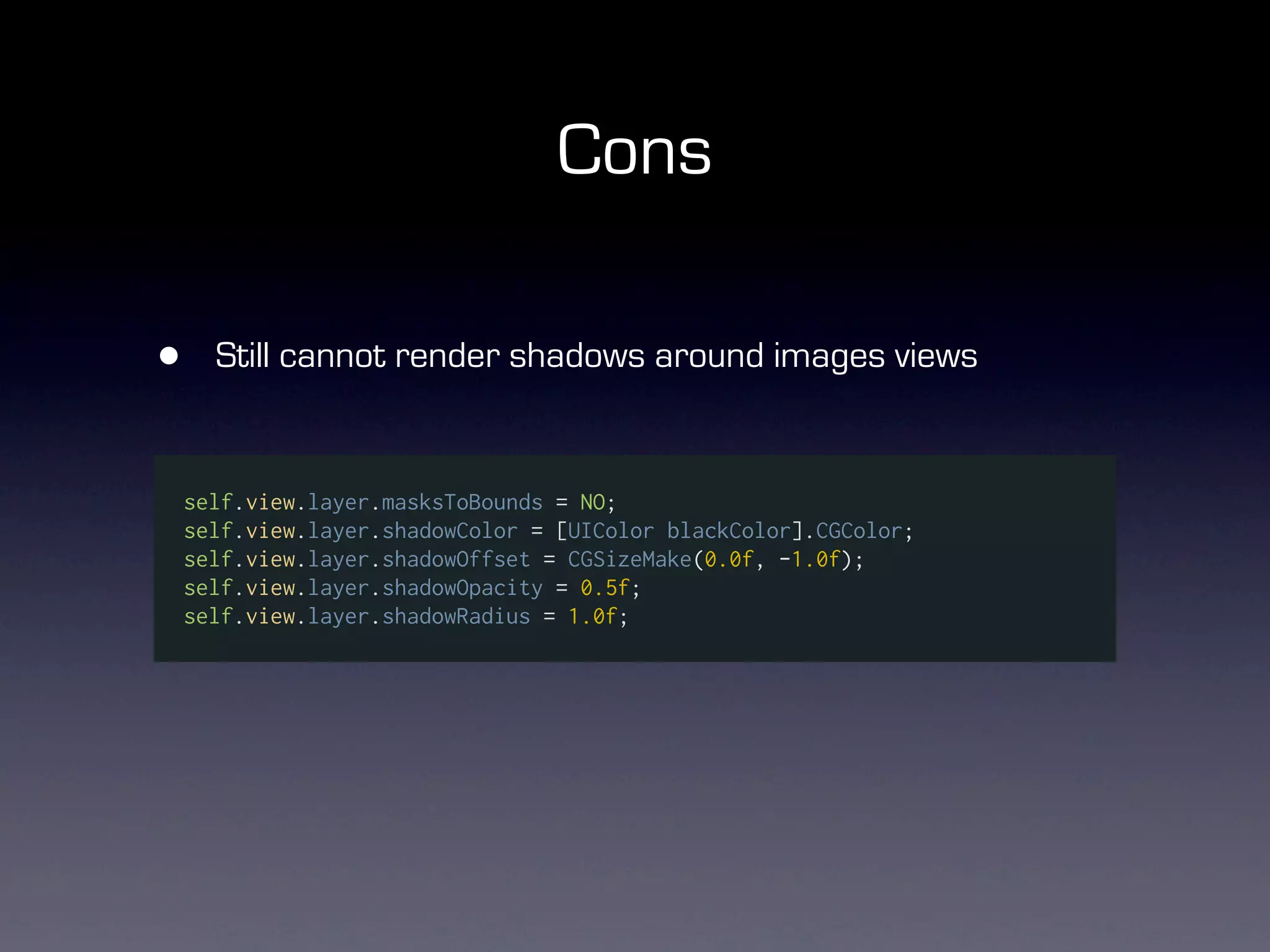

28. Cons
• Still cannot render shadows around images views
self.view.layer.masksToBounds = NO;
self.view.layer.shadowColor = [UIColor blackColor].CGColor;
self.view.layer.shadowOffset = CGSizeMake(0.0f, -1.0f);
self.view.layer.shadowOpacity = 0.5f;
self.view.layer.shadowRadius = 1.0f;

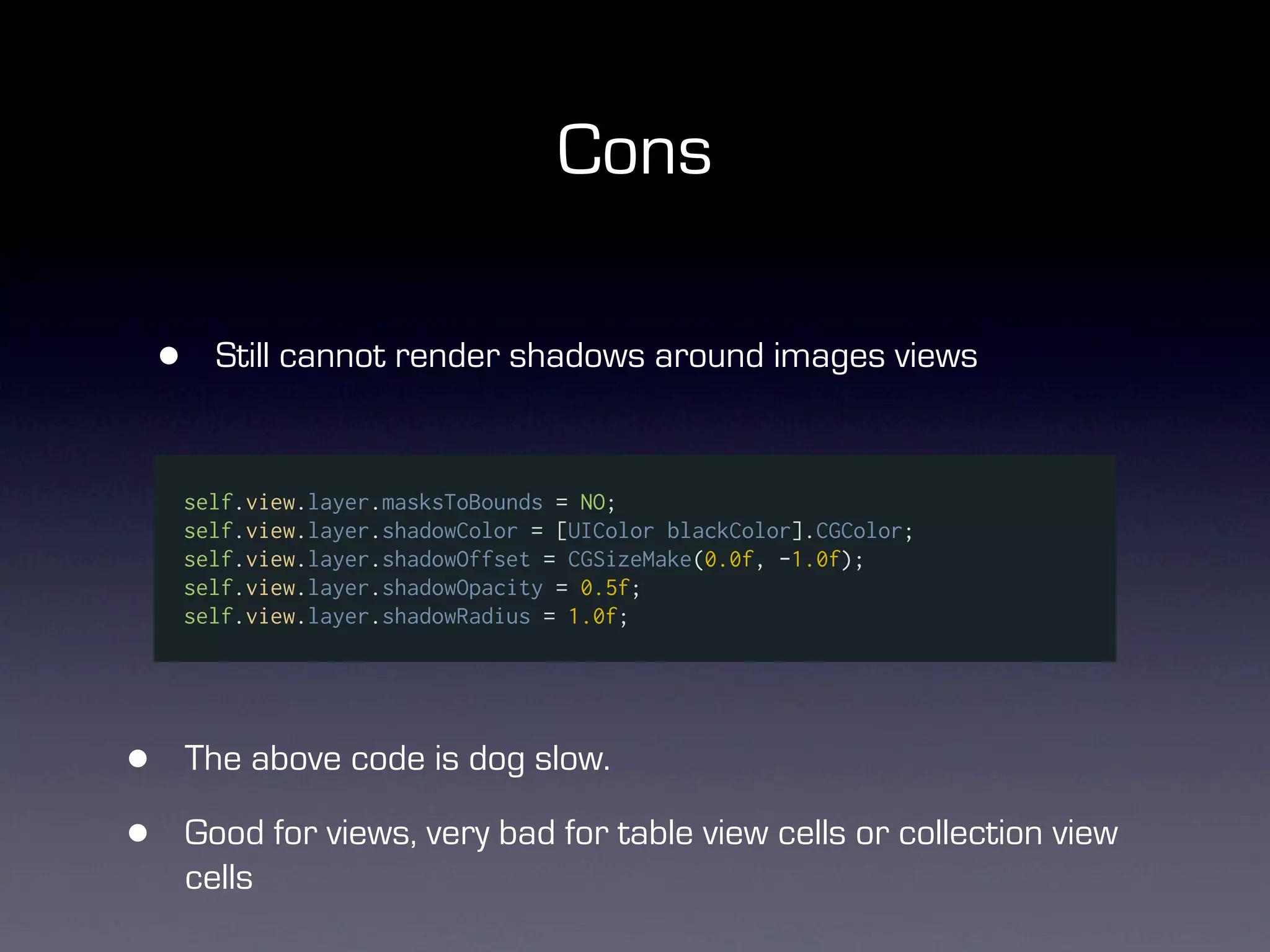

29. Cons
• Still cannot render shadows around images views
self.view.layer.masksToBounds = NO;
self.view.layer.shadowColor = [UIColor blackColor].CGColor;
self.view.layer.shadowOffset = CGSizeMake(0.0f, -1.0f);
self.view.layer.shadowOpacity = 0.5f;
self.view.layer.shadowRadius = 1.0f;
• The above code is dog slow.
• Good for views, very bad for table view cells or collection view
cells

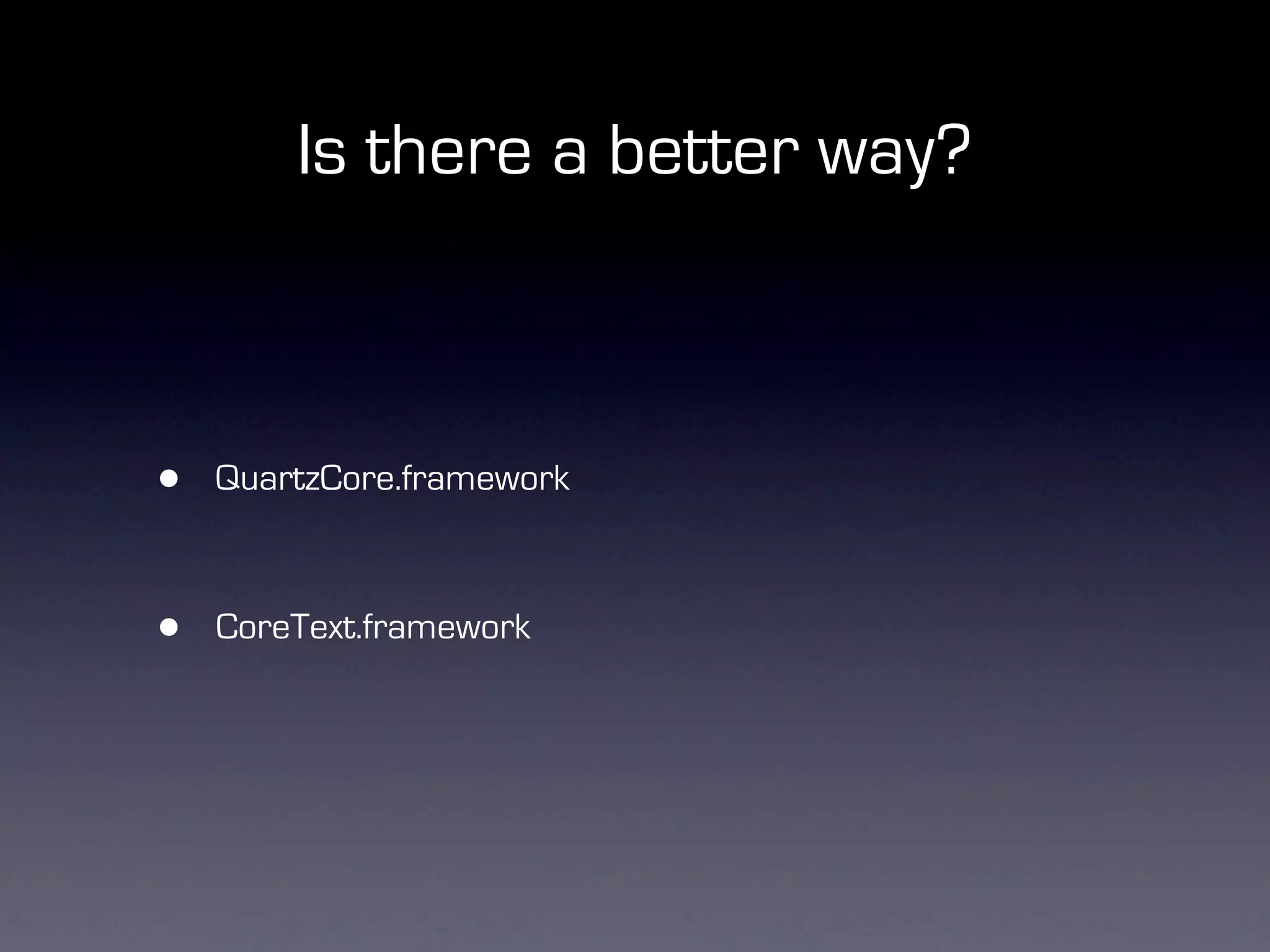

30. Is there a better way?
• QuartzCore.framework
• CoreText.framework

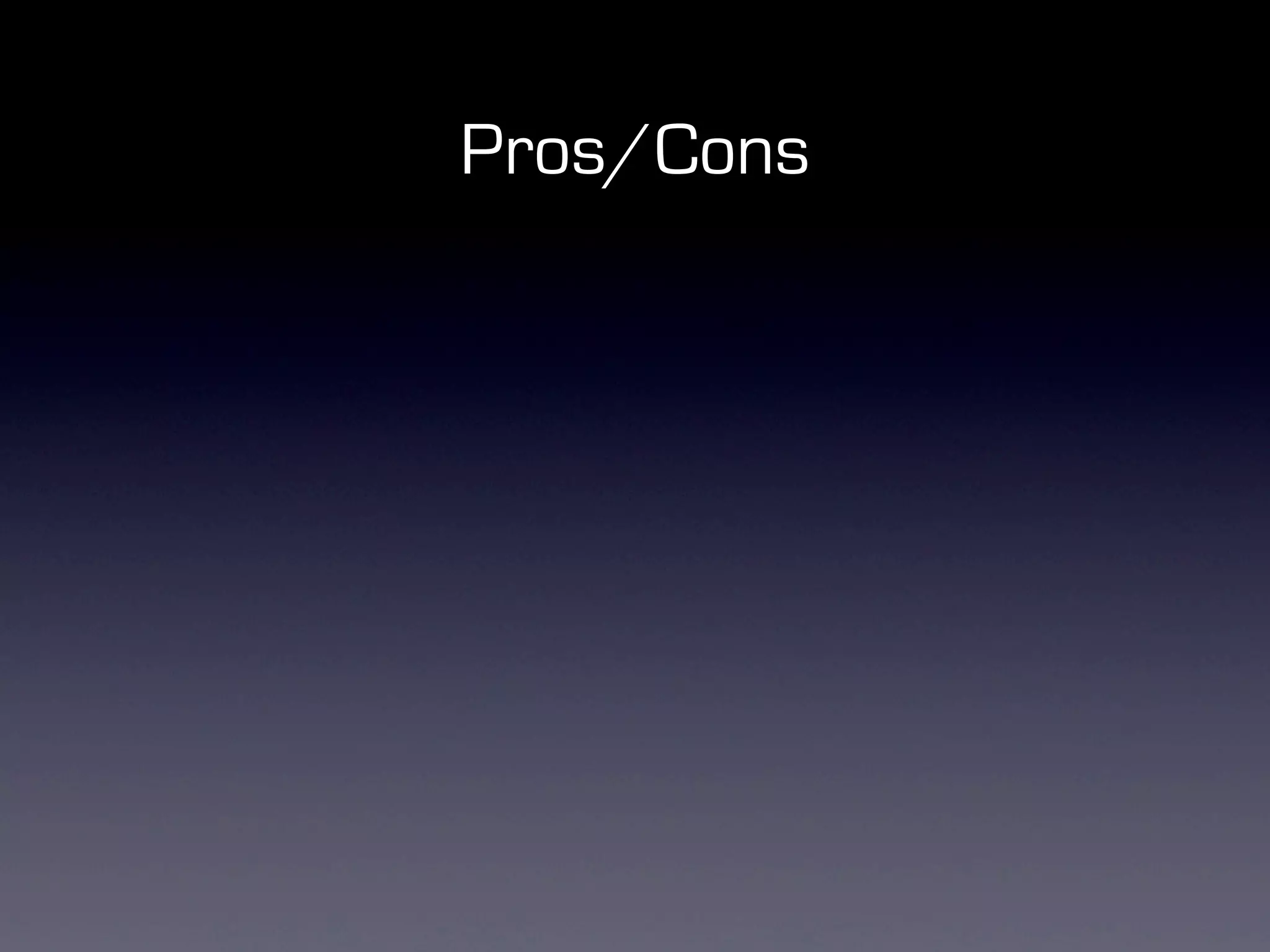

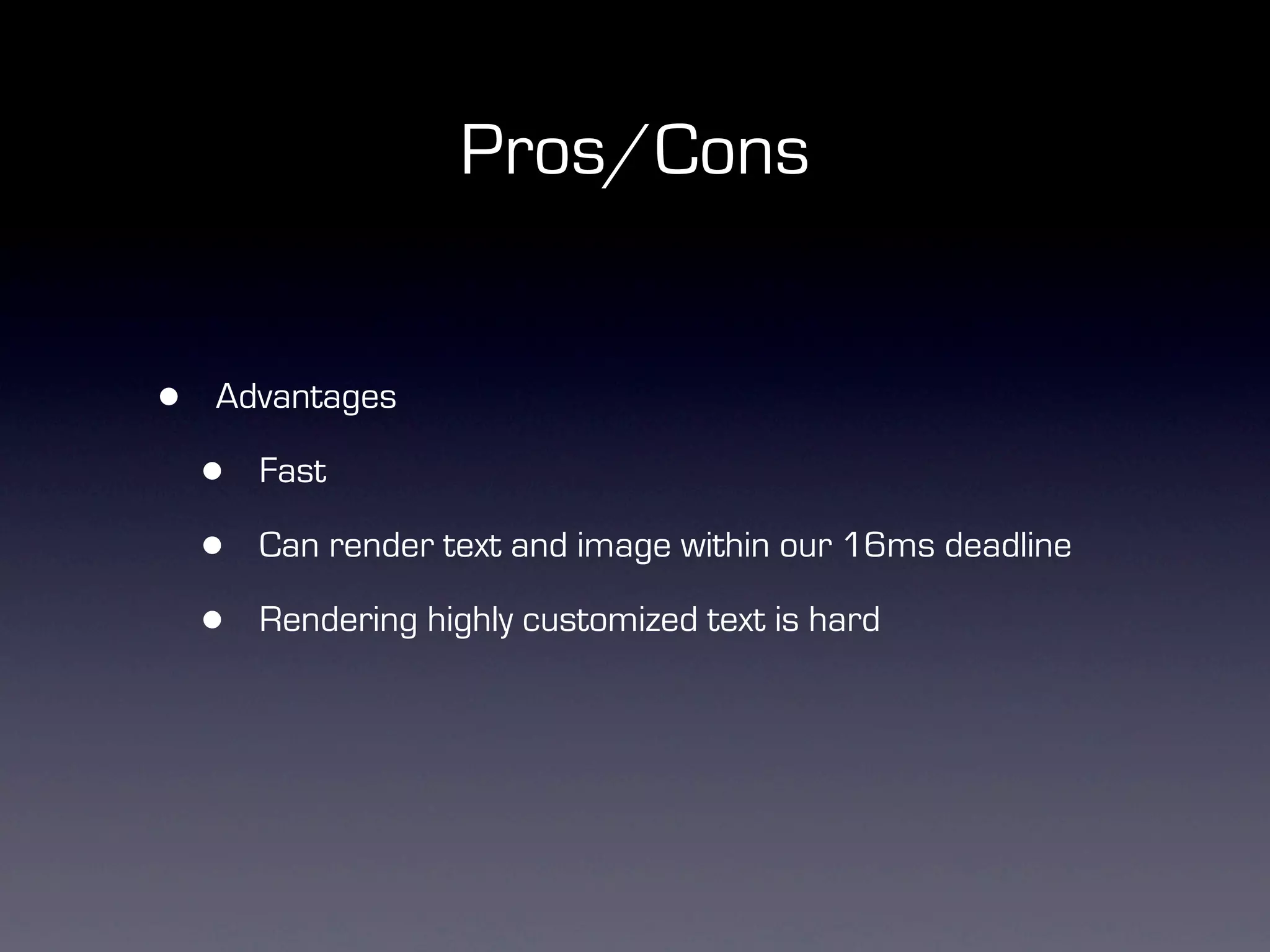

31. Pros/Cons

32. Pros/Cons
• Advantages
• Fast
• Can render text and image within our 16ms deadline
• Rendering highly customized text is hard

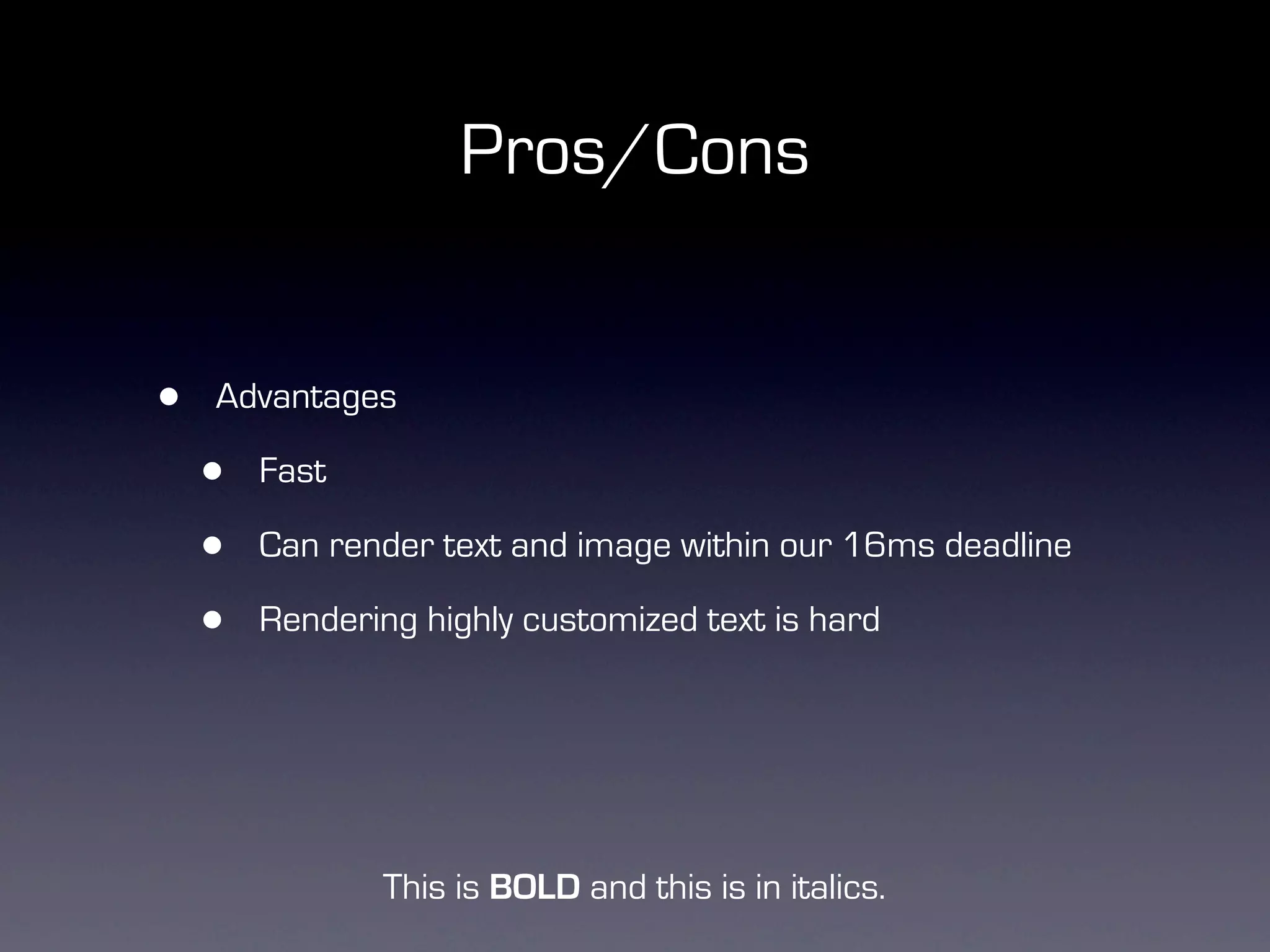

33. Pros/Cons
• Advantages
• Fast
• Can render text and image within our 16ms deadline
• Rendering highly customized text is hard
This is BOLD and this is in italics.

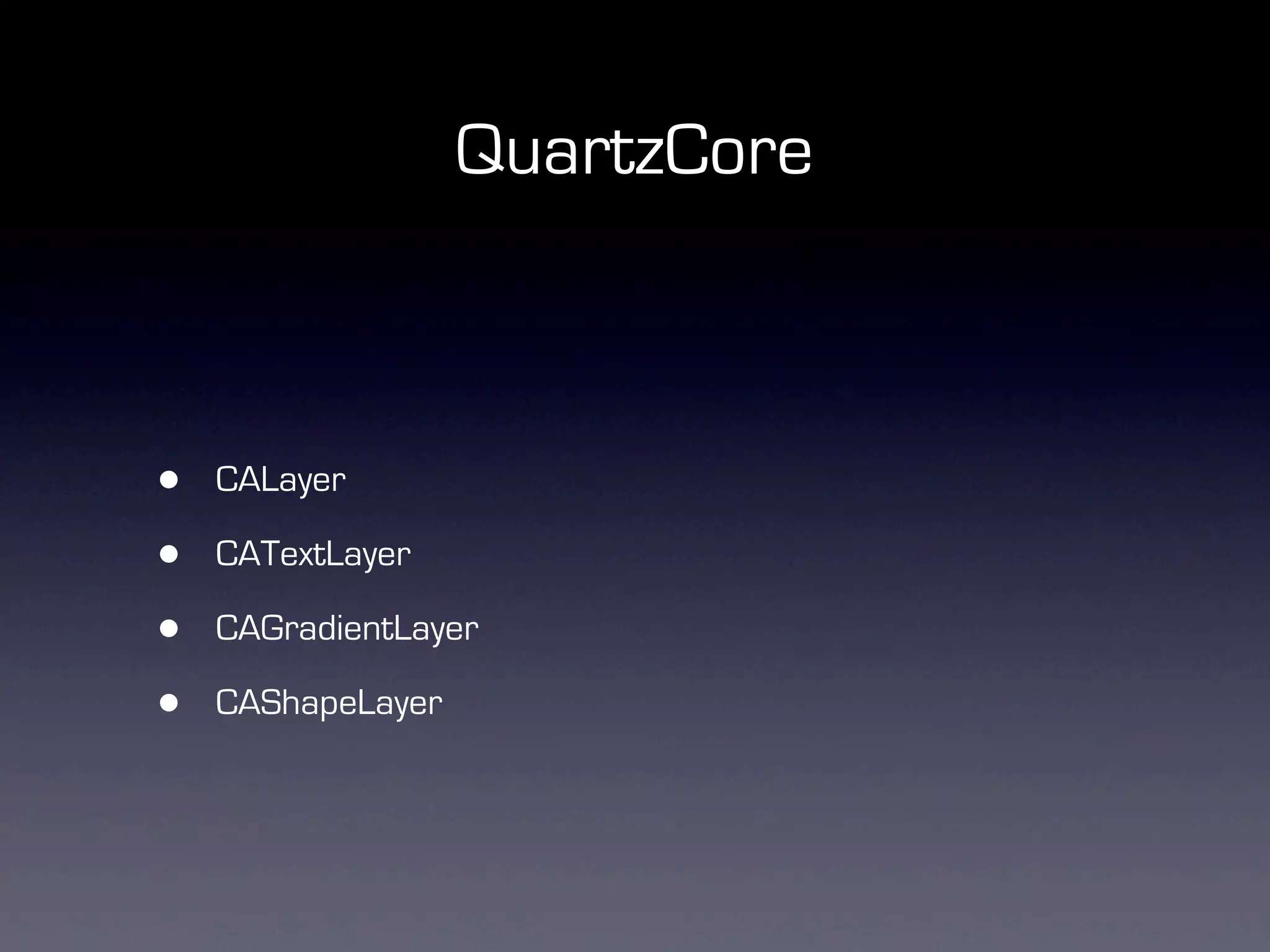

34. QuartzCore
• CALayer
• CATextLayer
• CAGradientLayer
• CAShapeLayer

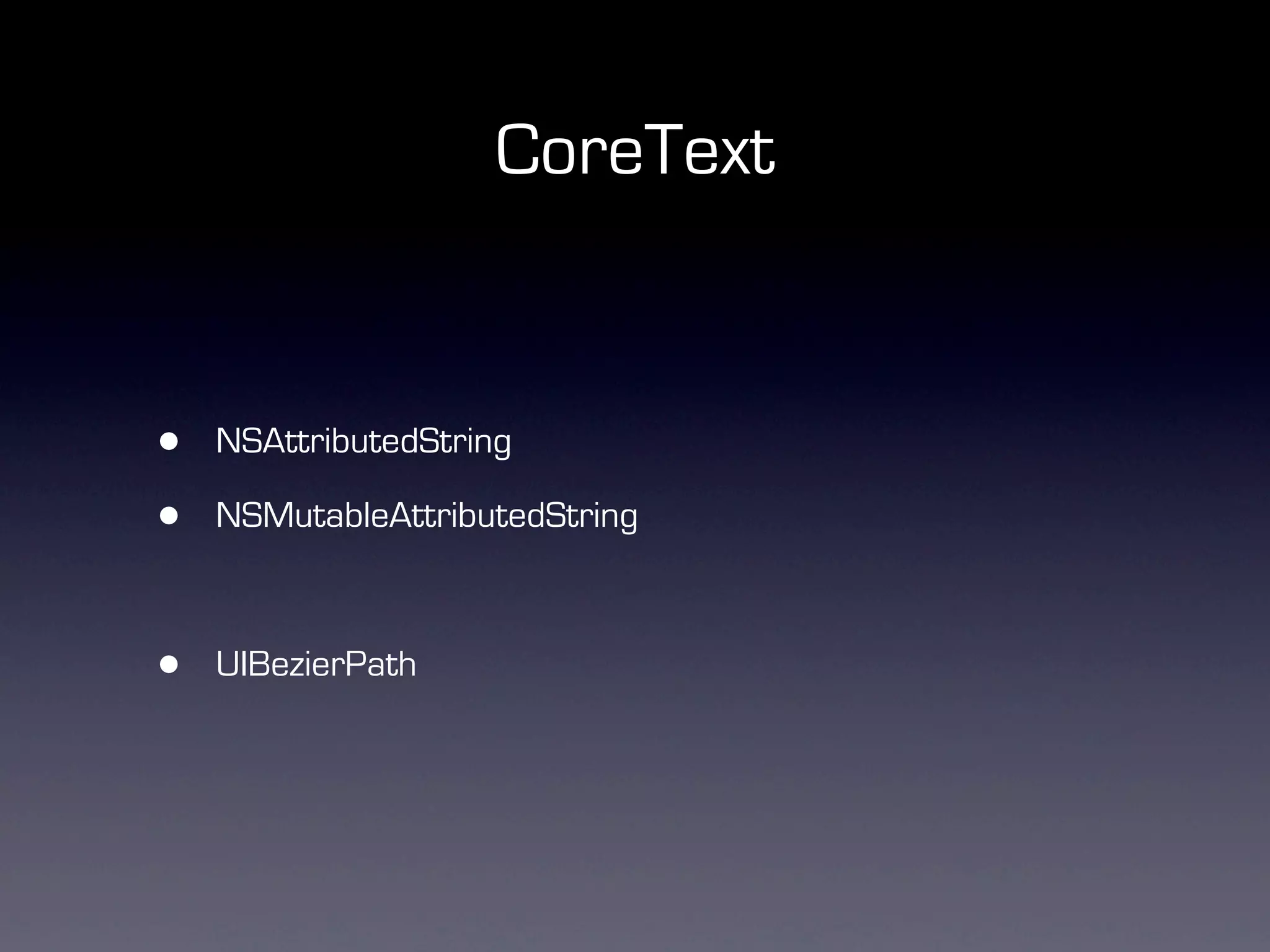

35. CoreText
• NSAttributedString
• NSMutableAttributedString
• UIBezierPath

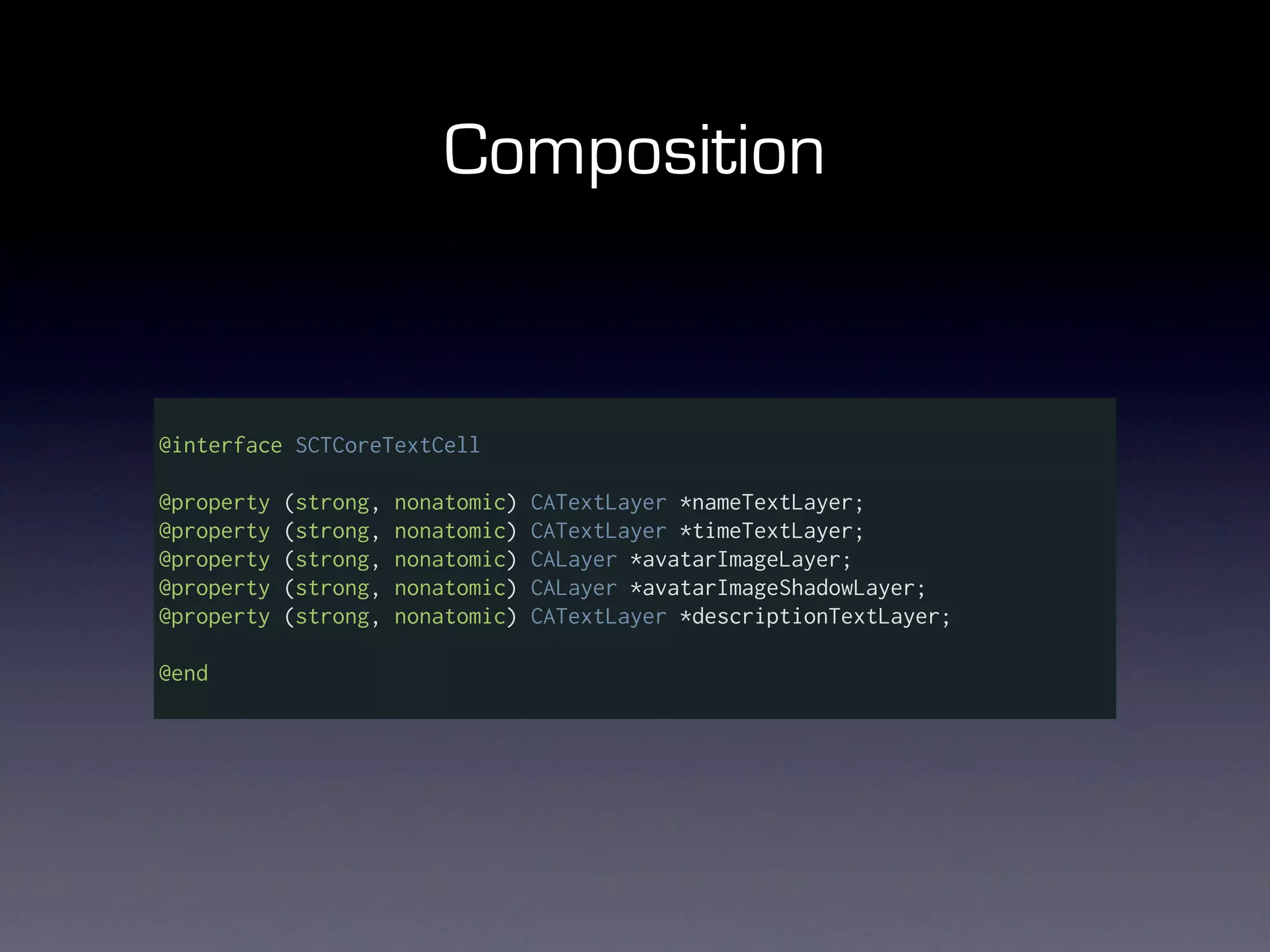

36. Composition
@interface SCTCoreTextCell
@property (strong, nonatomic) CATextLayer *nameTextLayer;
@property (strong, nonatomic) CATextLayer *timeTextLayer;
@property (strong, nonatomic) CALayer *avatarImageLayer;
@property (strong, nonatomic) CALayer *avatarImageShadowLayer;
@property (strong, nonatomic) CATextLayer *descriptionTextLayer;
@end

37. CALayer - Images

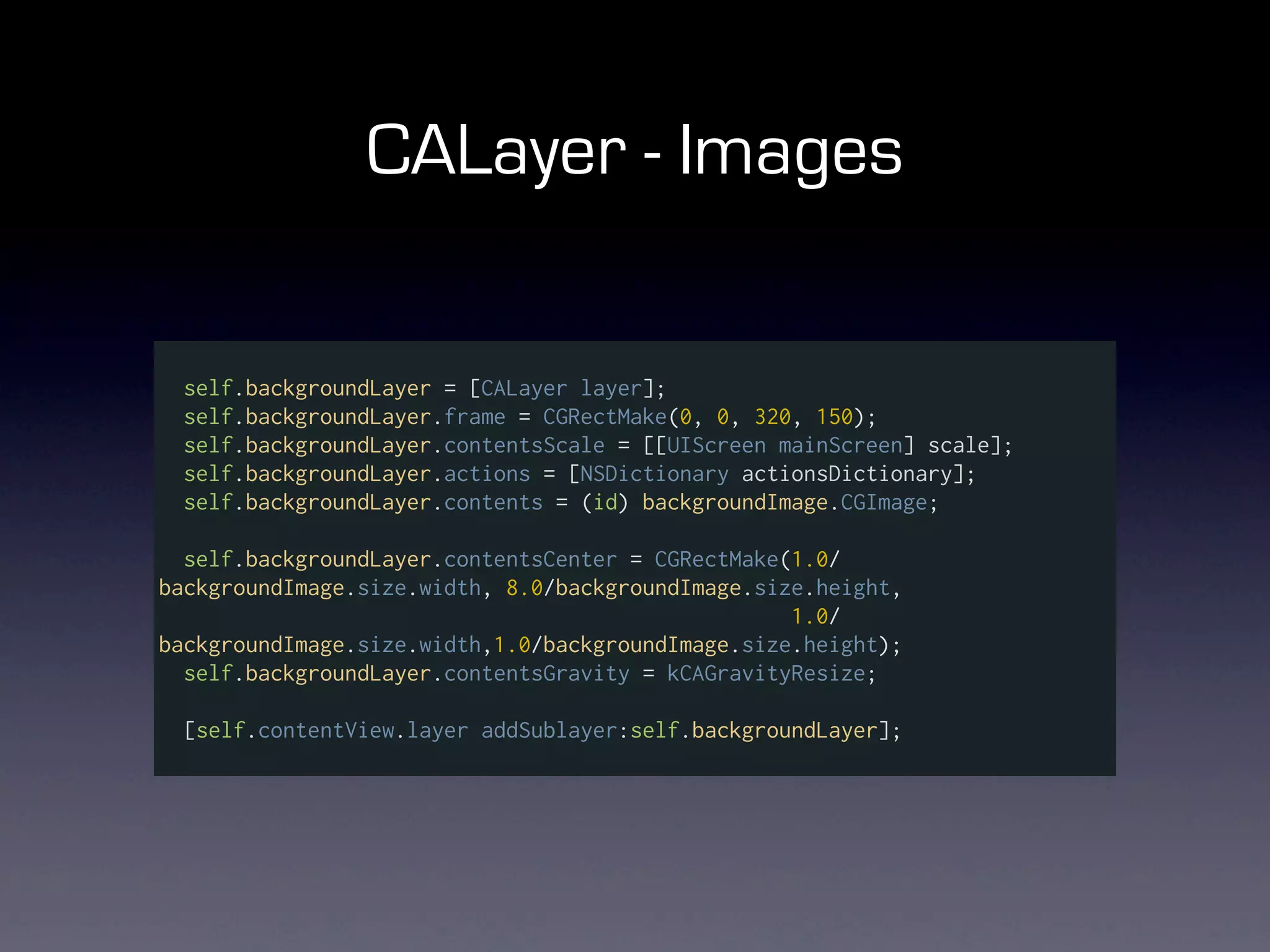

self.backgroundLayer = [CALayer layer];
self.backgroundLayer.frame = CGRectMake(0, 0, 320, 150);
self.backgroundLayer.contentsScale = [[UIScreen mainScreen] scale];
self.backgroundLayer.actions = [NSDictionary actionsDictionary];
self.backgroundLayer.contents = (id) backgroundImage.CGImage;
self.backgroundLayer.contentsCenter = CGRectMake(1.0/
backgroundImage.size.width, 8.0/backgroundImage.size.height,
1.0/
backgroundImage.size.width,1.0/backgroundImage.size.height);
self.backgroundLayer.contentsGravity = kCAGravityResize;
[self.contentView.layer addSublayer:self.backgroundLayer];

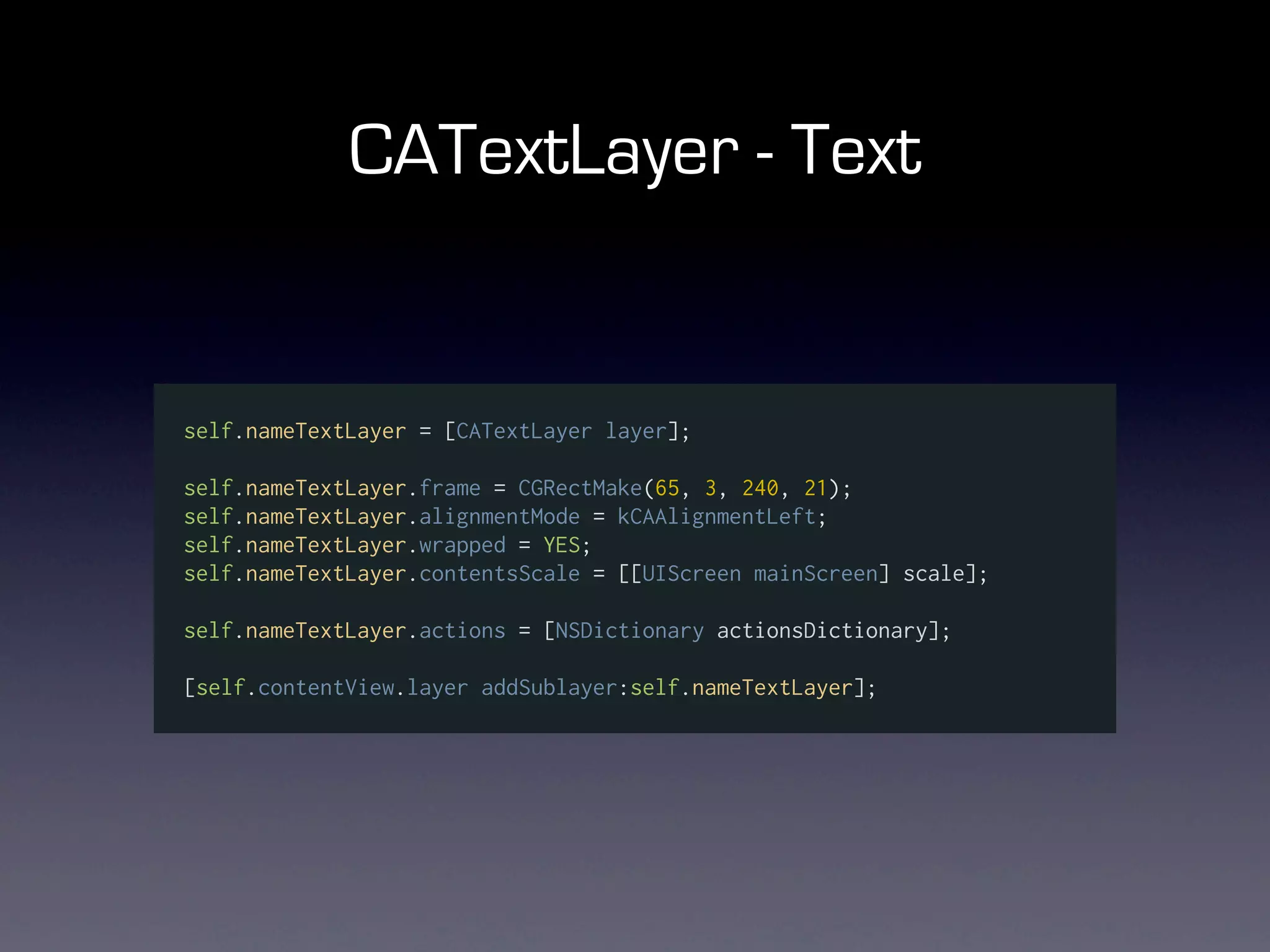

38. CATextLayer - Text
self.nameTextLayer = [CATextLayer layer];
self.nameTextLayer.frame = CGRectMake(65, 3, 240, 21);
self.nameTextLayer.alignmentMode = kCAAlignmentLeft;
self.nameTextLayer.wrapped = YES;
self.nameTextLayer.contentsScale = [[UIScreen mainScreen] scale];
self.nameTextLayer.actions = [NSDictionary actionsDictionary];
[self.contentView.layer addSublayer:self.nameTextLayer];

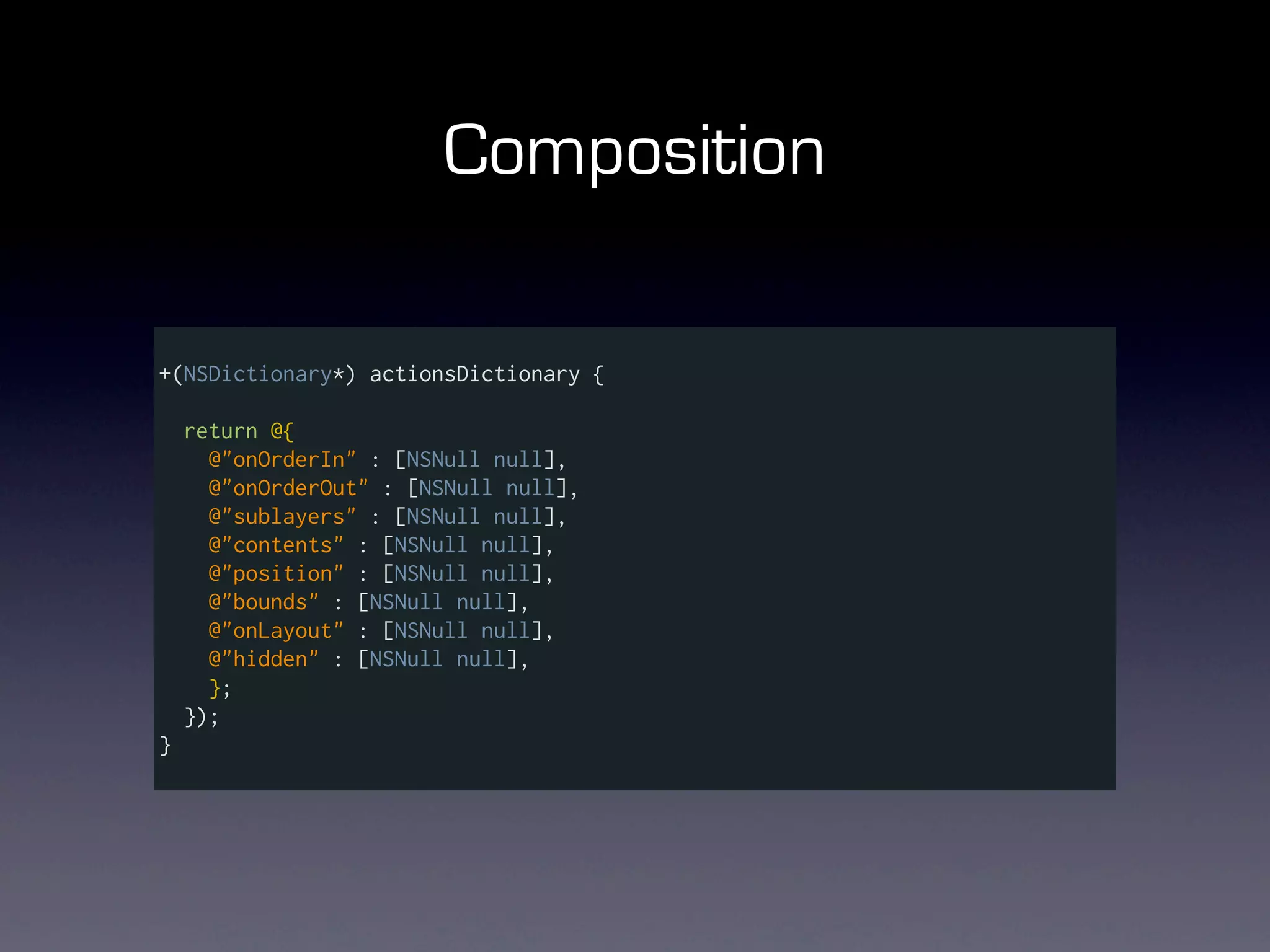

39. Composition
+(NSDictionary*) actionsDictionary {
return @{
@"onOrderIn" : [NSNull null],
@"onOrderOut" : [NSNull null],
@"sublayers" : [NSNull null],
@"contents" : [NSNull null],
@"position" : [NSNull null],
@"bounds" : [NSNull null],
@"onLayout" : [NSNull null],
@"hidden" : [NSNull null],
};
});
}

40. Contents

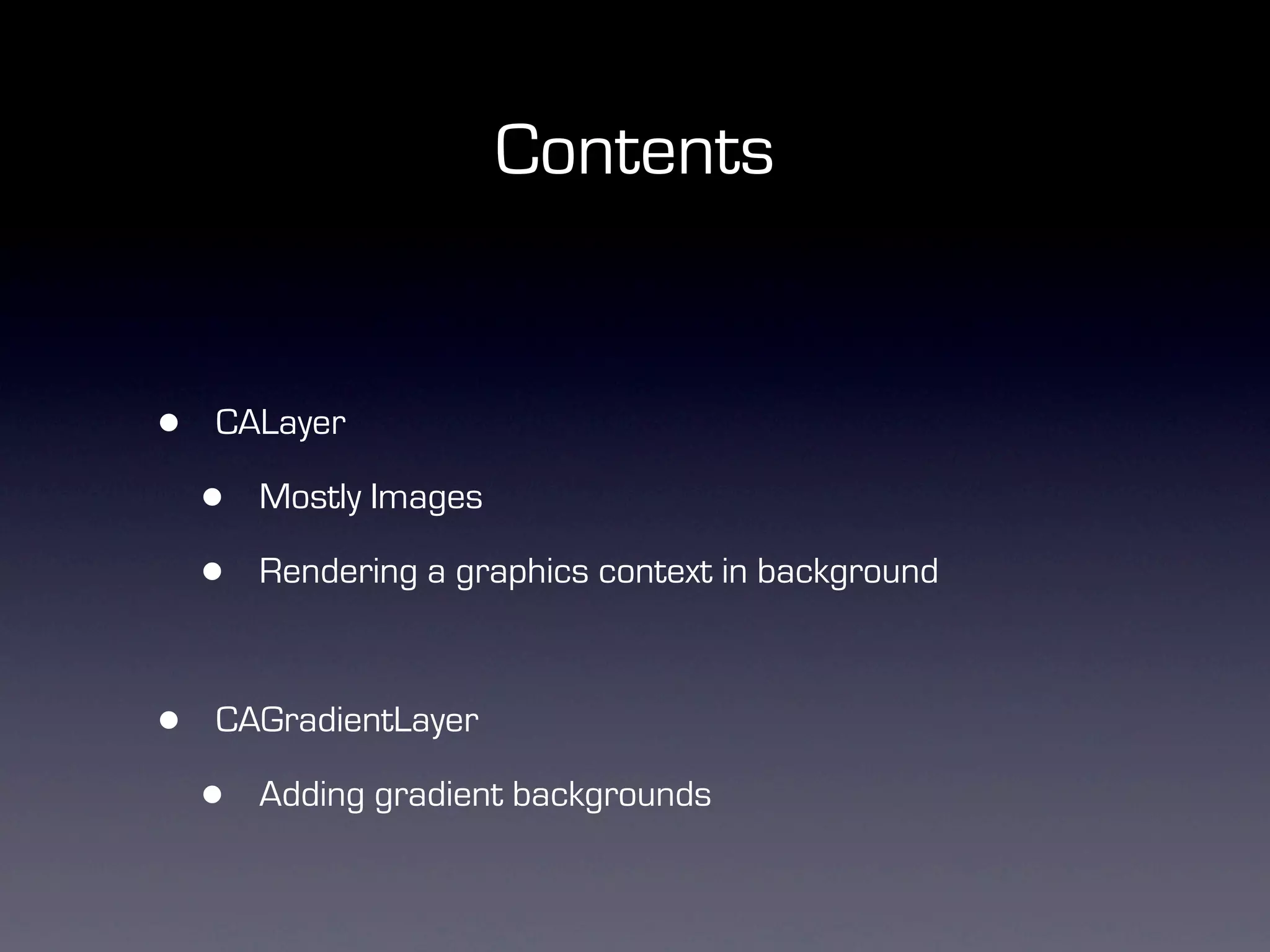

41. Contents

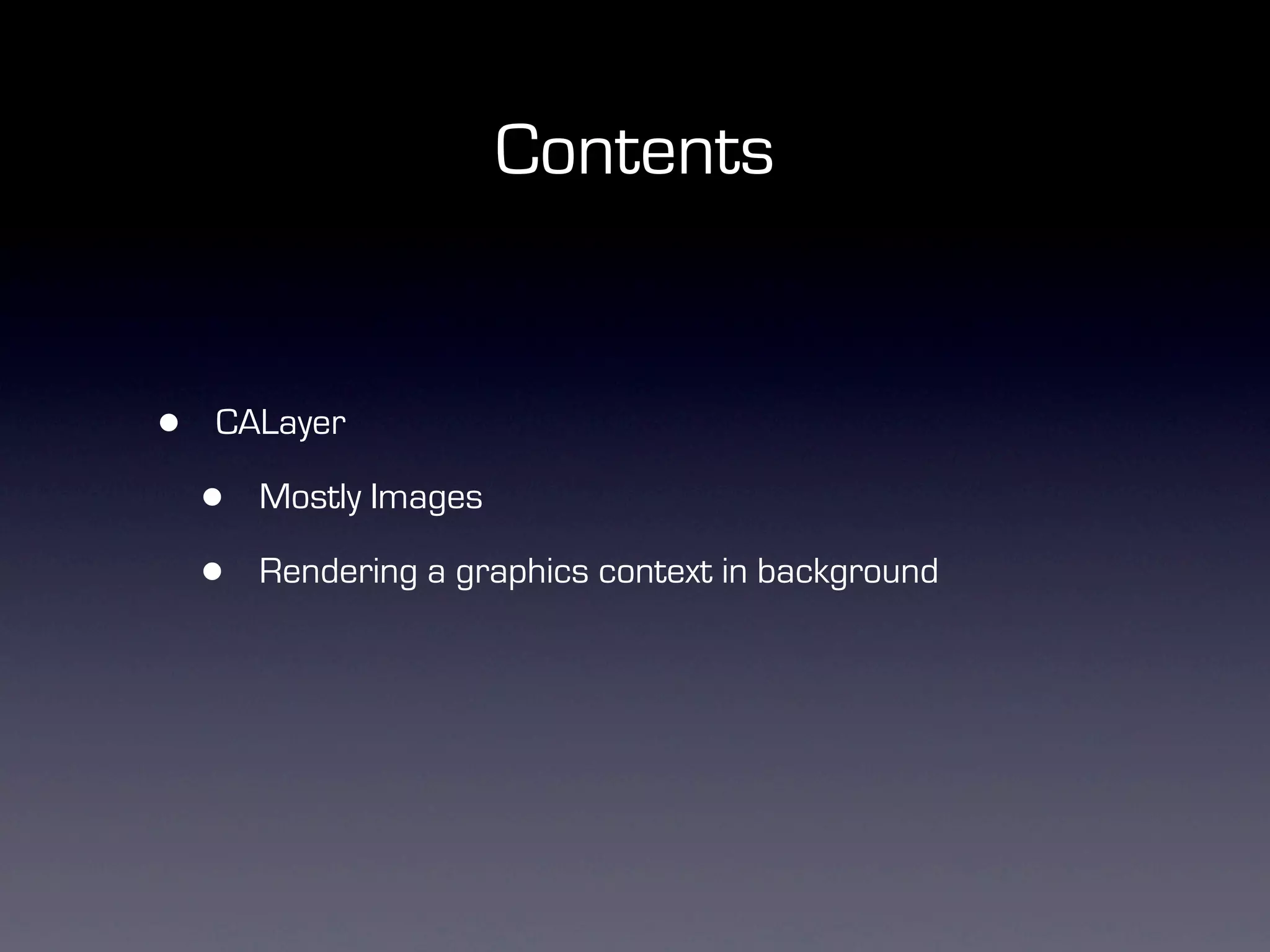

• CALayer
• Mostly Images
• Rendering a graphics context in background

42. Contents
• CALayer
• Mostly Images
• Rendering a graphics context in background

43. Contents
• CALayer
• Mostly Images
• Rendering a graphics context in background
• CAGradientLayer
• Adding gradient backgrounds

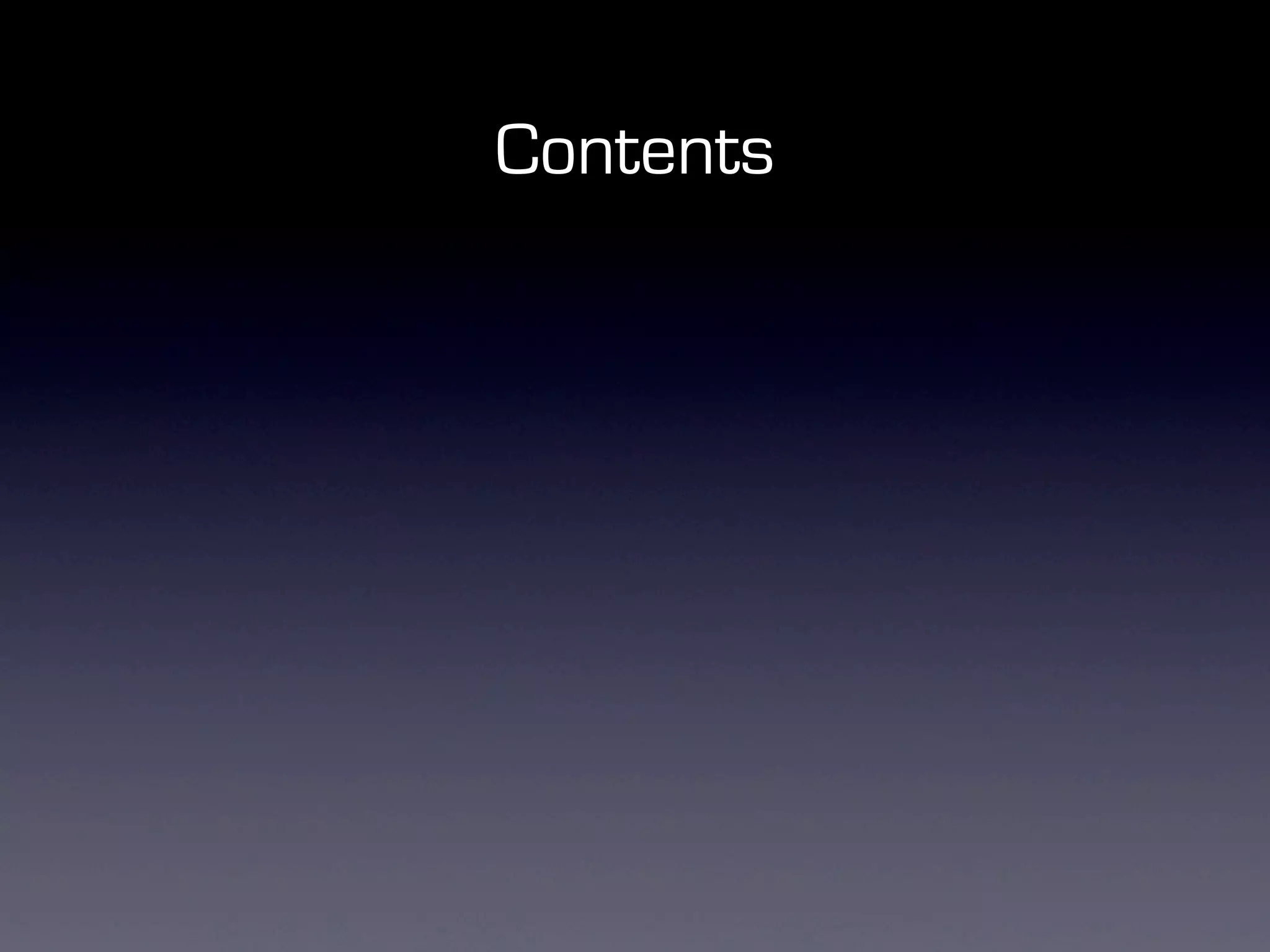

44. Contents

45. Contents

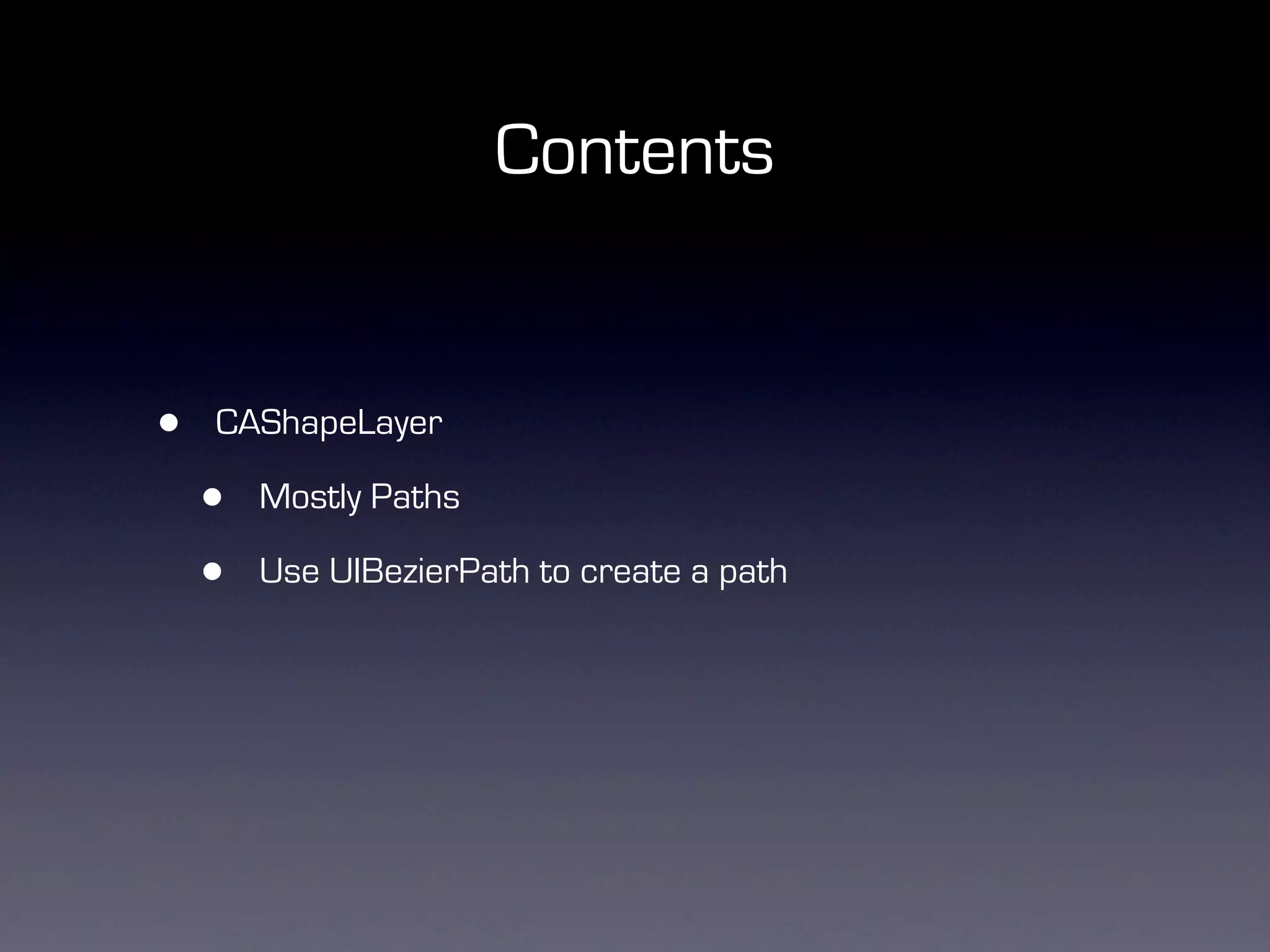

• CAShapeLayer
• Mostly Paths
• Use UIBezierPath to create a path

46. Contents
• CAShapeLayer
• Mostly Paths
• Use UIBezierPath to create a path

47. Contents
• CAShapeLayer
• Mostly Paths
• Use UIBezierPath to create a path

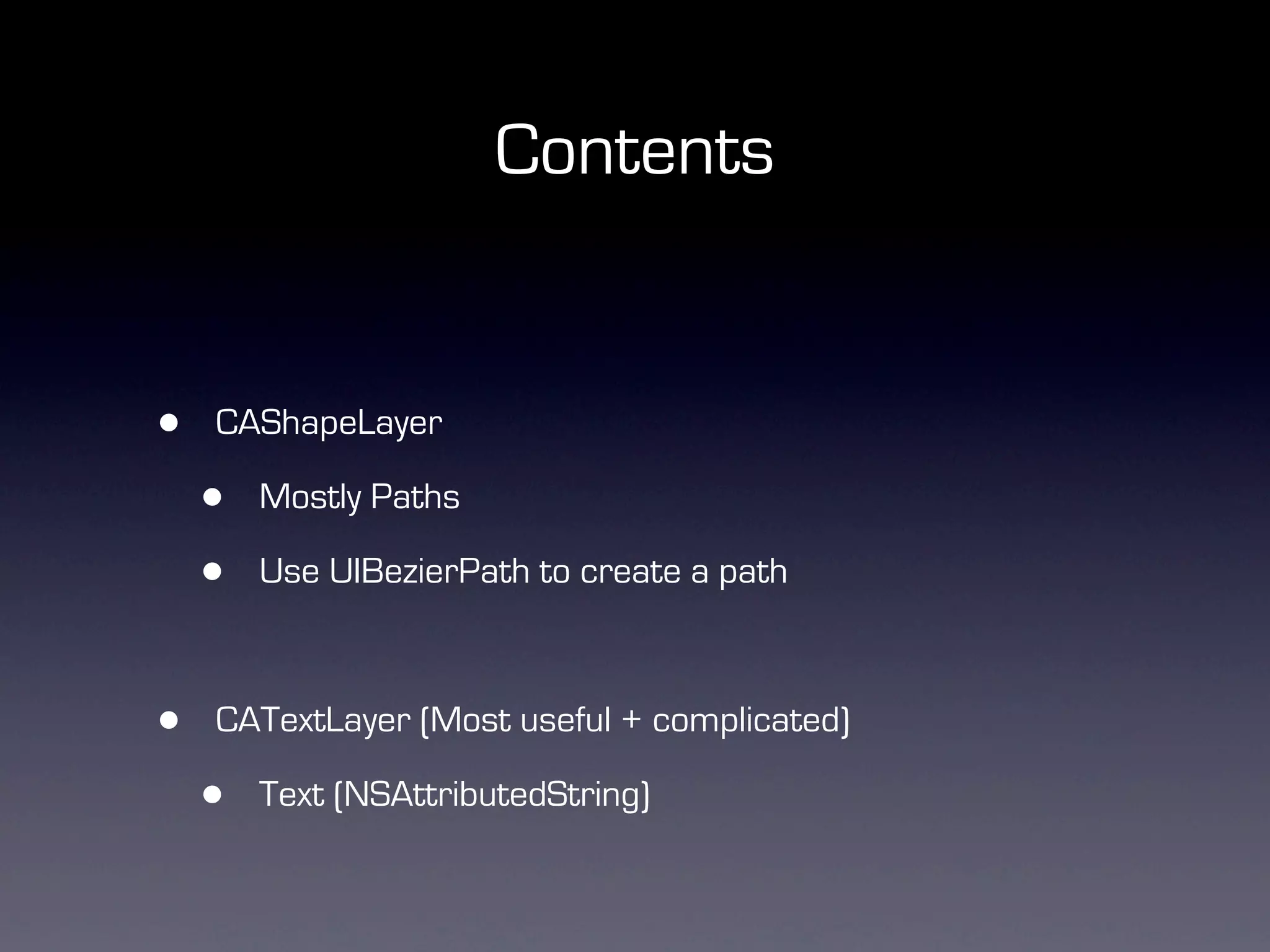

• CATextLayer (Most useful + complicated)
• Text (NSAttributedString)

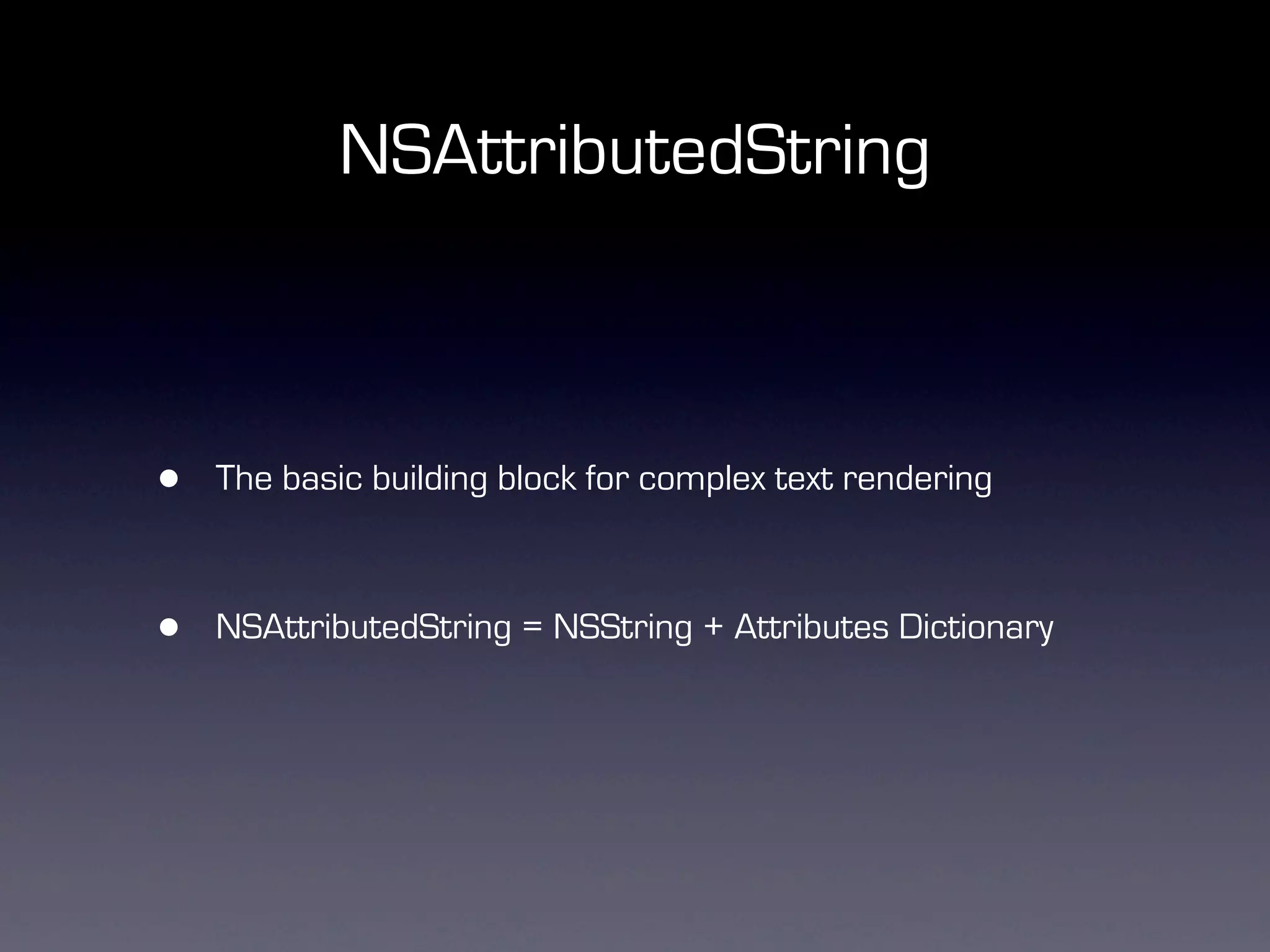

48. NSAttributedString
• The basic building block for complex text rendering
• NSAttributedString = NSString + Attributes Dictionary

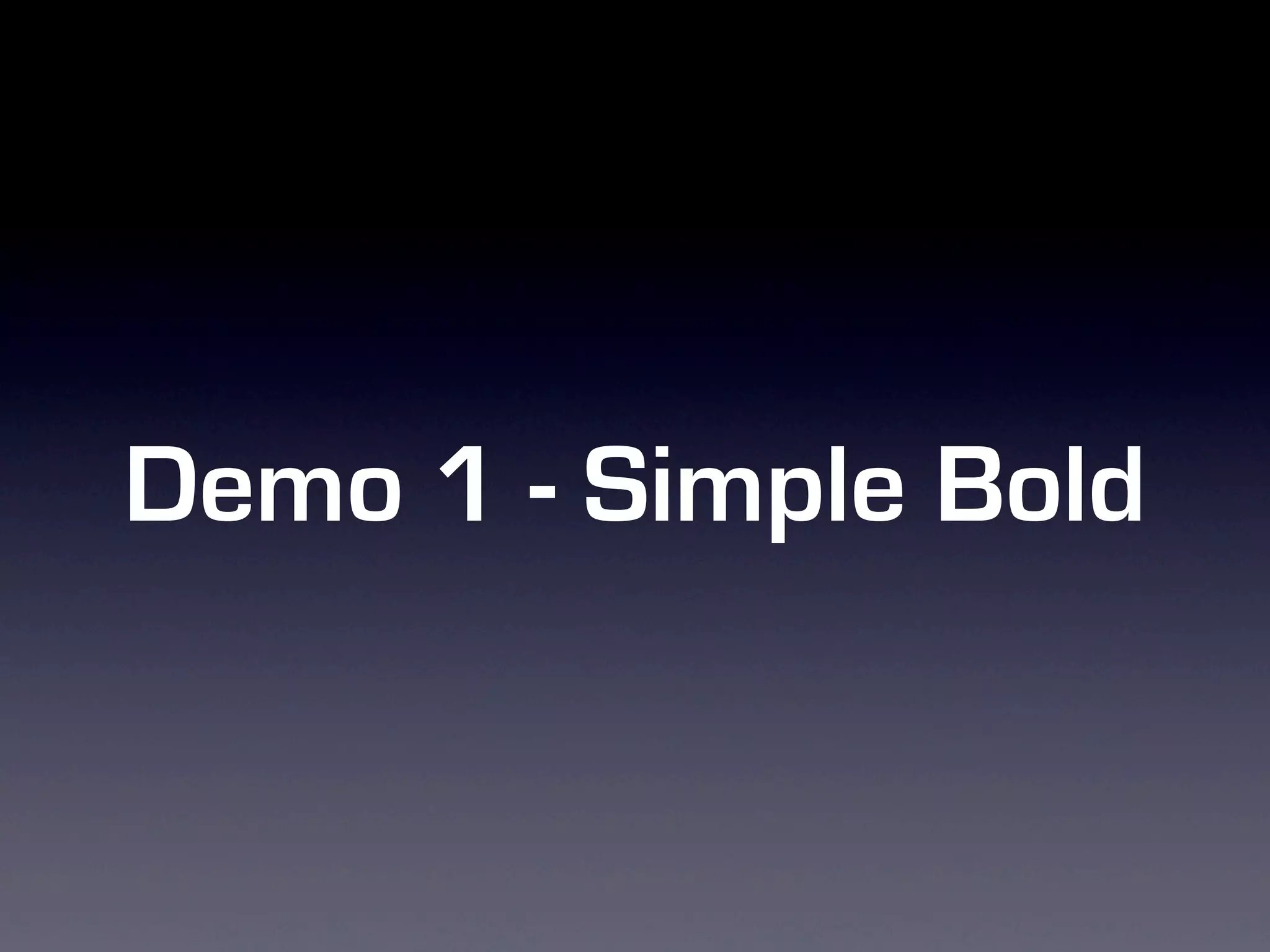

49. Demo 1 - Simple Bold

50. Composition

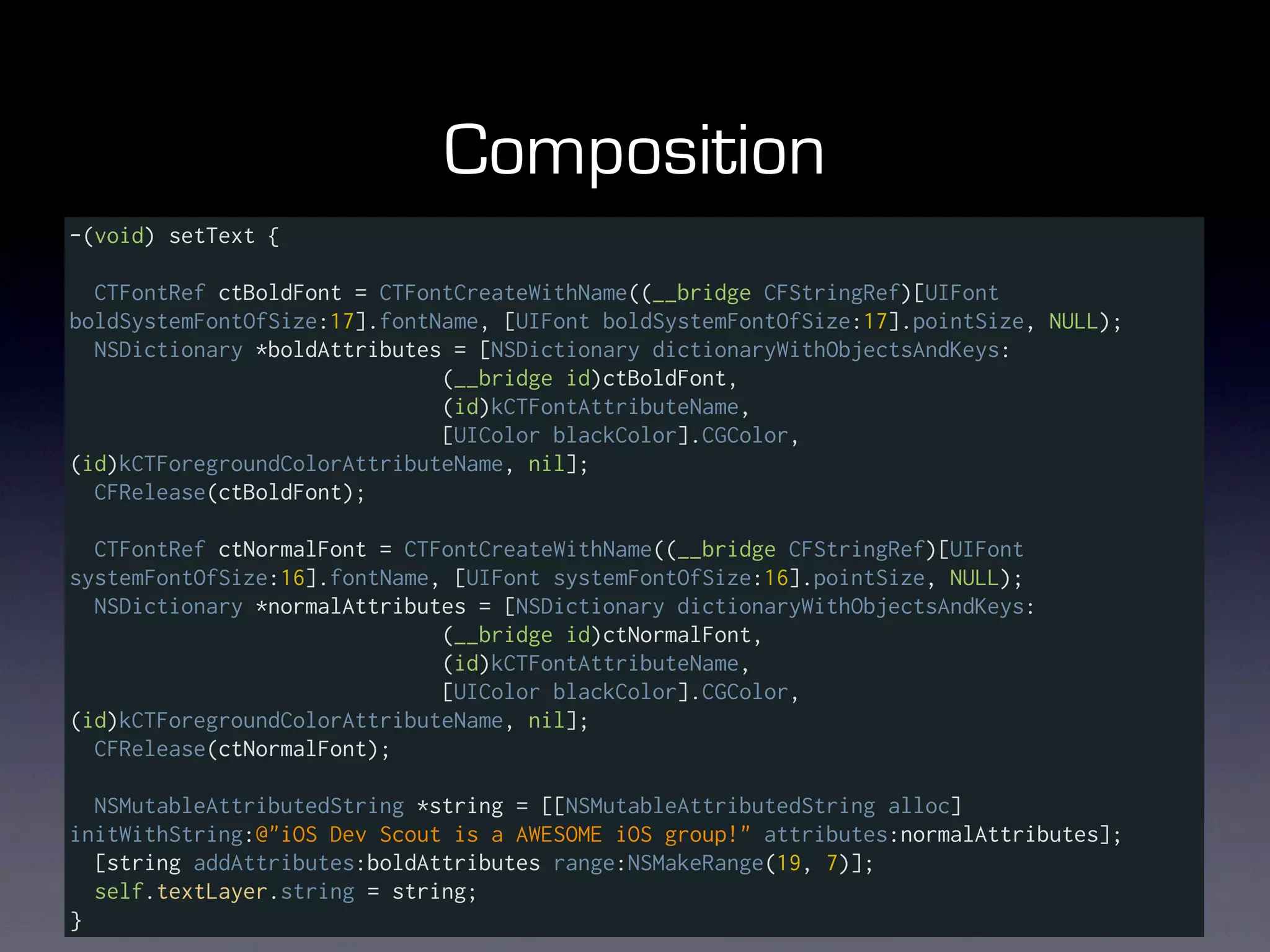

-(void) setText {
CTFontRef ctBoldFont = CTFontCreateWithName((__bridge CFStringRef)[UIFont
boldSystemFontOfSize:17].fontName, [UIFont boldSystemFontOfSize:17].pointSize, NULL);
NSDictionary *boldAttributes = [NSDictionary dictionaryWithObjectsAndKeys:
(__bridge id)ctBoldFont,
(id)kCTFontAttributeName,
[UIColor blackColor].CGColor,
(id)kCTForegroundColorAttributeName, nil];
CFRelease(ctBoldFont);
CTFontRef ctNormalFont = CTFontCreateWithName((__bridge CFStringRef)[UIFont
systemFontOfSize:16].fontName, [UIFont systemFontOfSize:16].pointSize, NULL);
NSDictionary *normalAttributes = [NSDictionary dictionaryWithObjectsAndKeys:
(__bridge id)ctNormalFont,
(id)kCTFontAttributeName,
[UIColor blackColor].CGColor,
(id)kCTForegroundColorAttributeName, nil];
CFRelease(ctNormalFont);
NSMutableAttributedString *string = [[NSMutableAttributedString alloc]
initWithString:@"iOS Dev Scout is a AWESOME iOS group!" attributes:normalAttributes];
[string addAttributes:boldAttributes range:NSMakeRange(19, 7)];
self.textLayer.string = string;
}

51. Composition

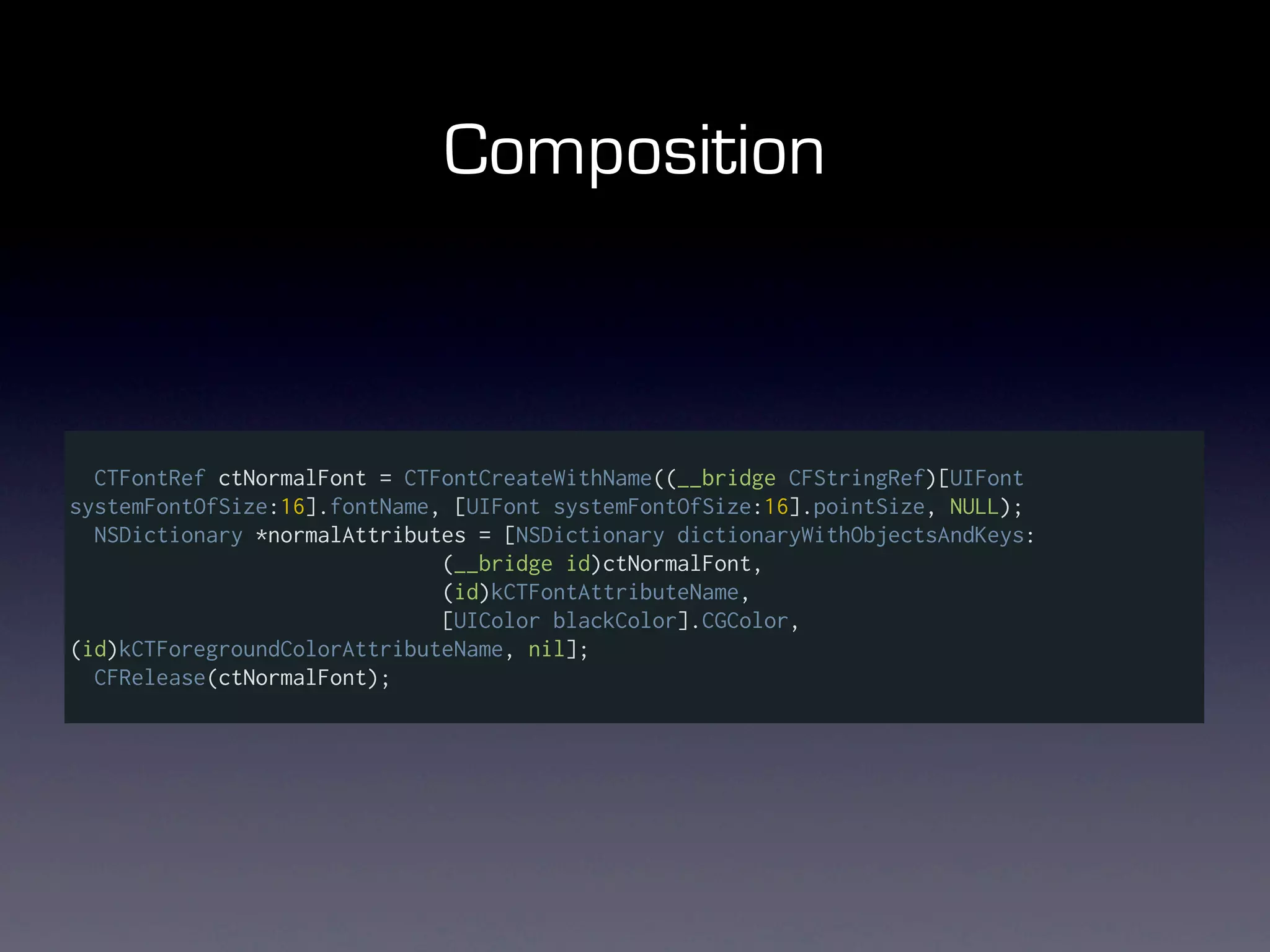

CTFontRef ctNormalFont = CTFontCreateWithName((__bridge CFStringRef)[UIFont
systemFontOfSize:16].fontName, [UIFont systemFontOfSize:16].pointSize, NULL);
NSDictionary *normalAttributes = [NSDictionary dictionaryWithObjectsAndKeys:
(__bridge id)ctNormalFont,
(id)kCTFontAttributeName,
[UIColor blackColor].CGColor,
(id)kCTForegroundColorAttributeName, nil];
CFRelease(ctNormalFont);

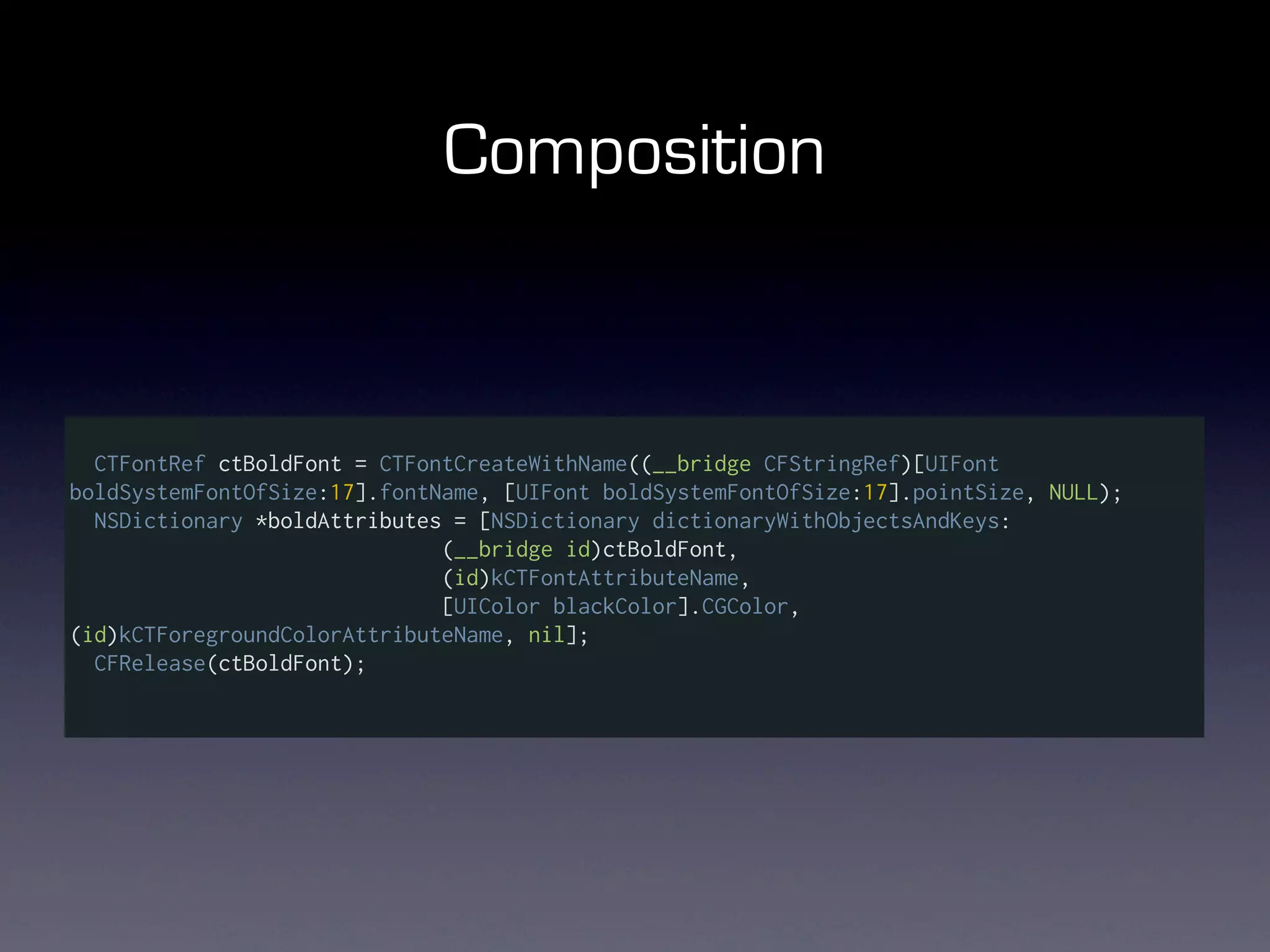

52. Composition
CTFontRef ctBoldFont = CTFontCreateWithName((__bridge CFStringRef)[UIFont
boldSystemFontOfSize:17].fontName, [UIFont boldSystemFontOfSize:17].pointSize, NULL);
NSDictionary *boldAttributes = [NSDictionary dictionaryWithObjectsAndKeys:
(__bridge id)ctBoldFont,
(id)kCTFontAttributeName,
[UIColor blackColor].CGColor,
(id)kCTForegroundColorAttributeName, nil];
CFRelease(ctBoldFont);

53. Composition

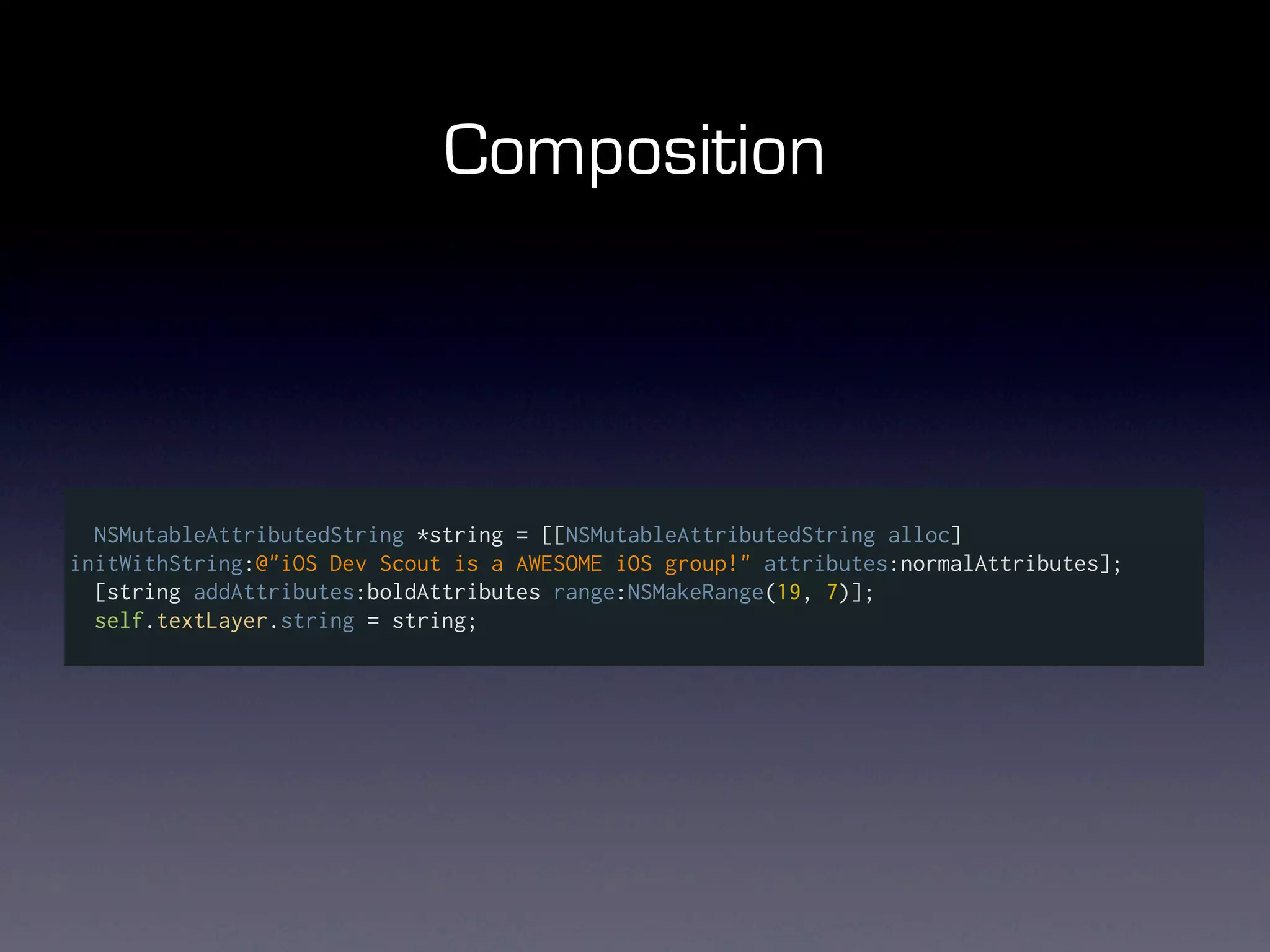

NSMutableAttributedString *string = [[NSMutableAttributedString alloc]
initWithString:@"iOS Dev Scout is a AWESOME iOS group!" attributes:normalAttributes];
[string addAttributes:boldAttributes range:NSMakeRange(19, 7)];
self.textLayer.string = string;

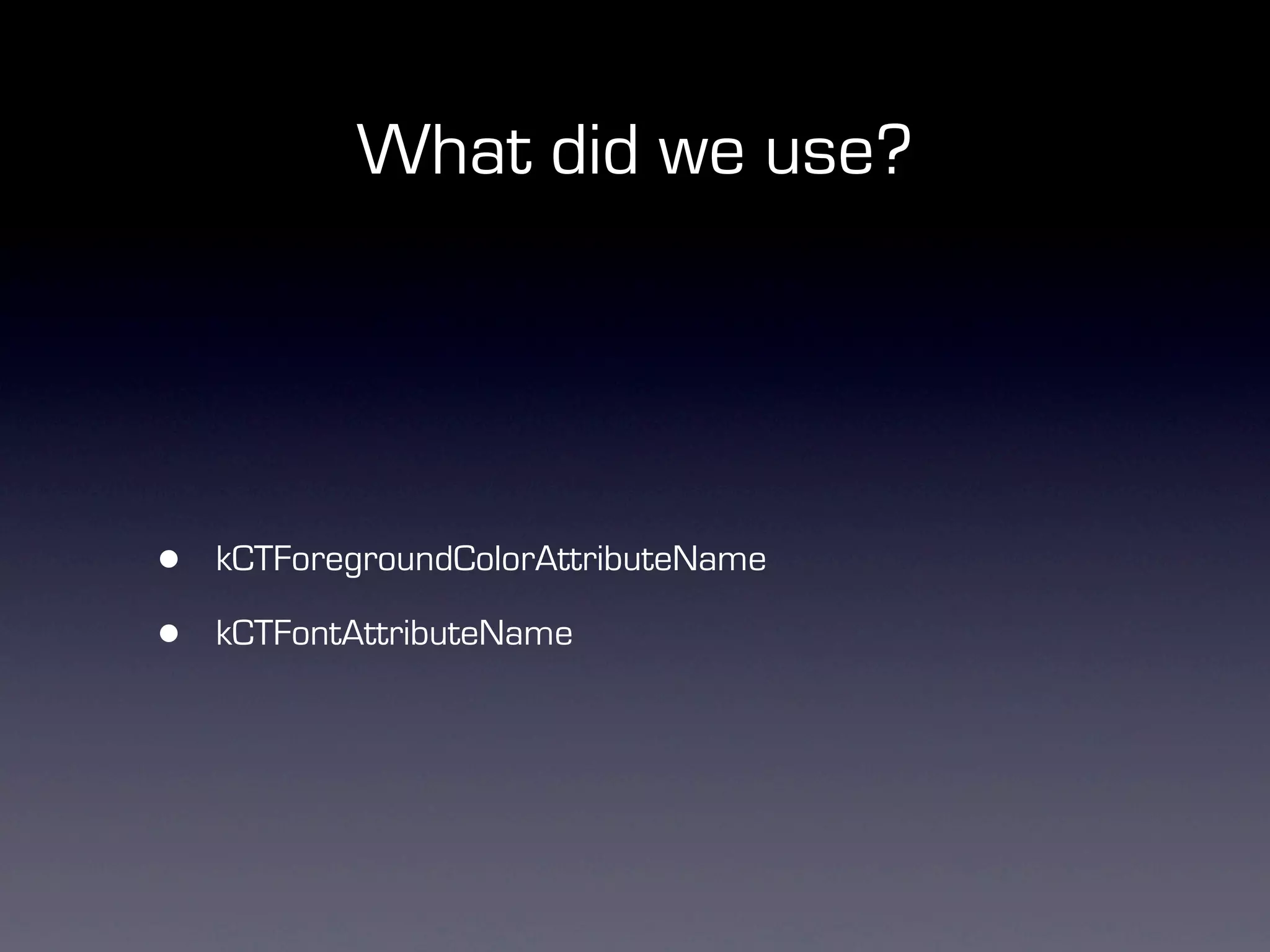

54. What did we use?
• kCTForegroundColorAttributeName
• kCTFontAttributeName

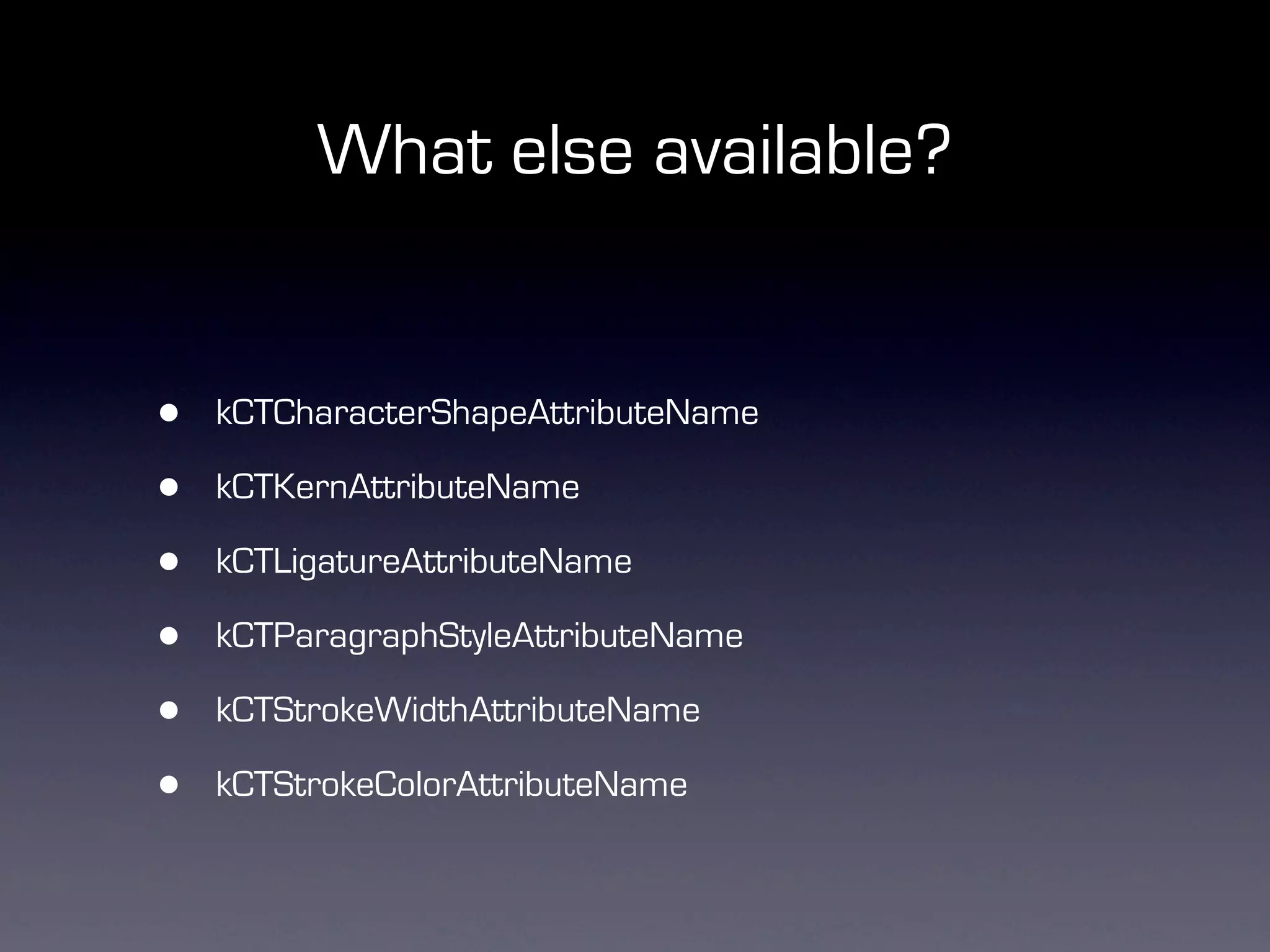

55. What else available?
• kCTCharacterShapeAttributeName
• kCTKernAttributeName
• kCTLigatureAttributeName
• kCTParagraphStyleAttributeName
• kCTStrokeWidthAttributeName
• kCTStrokeColorAttributeName

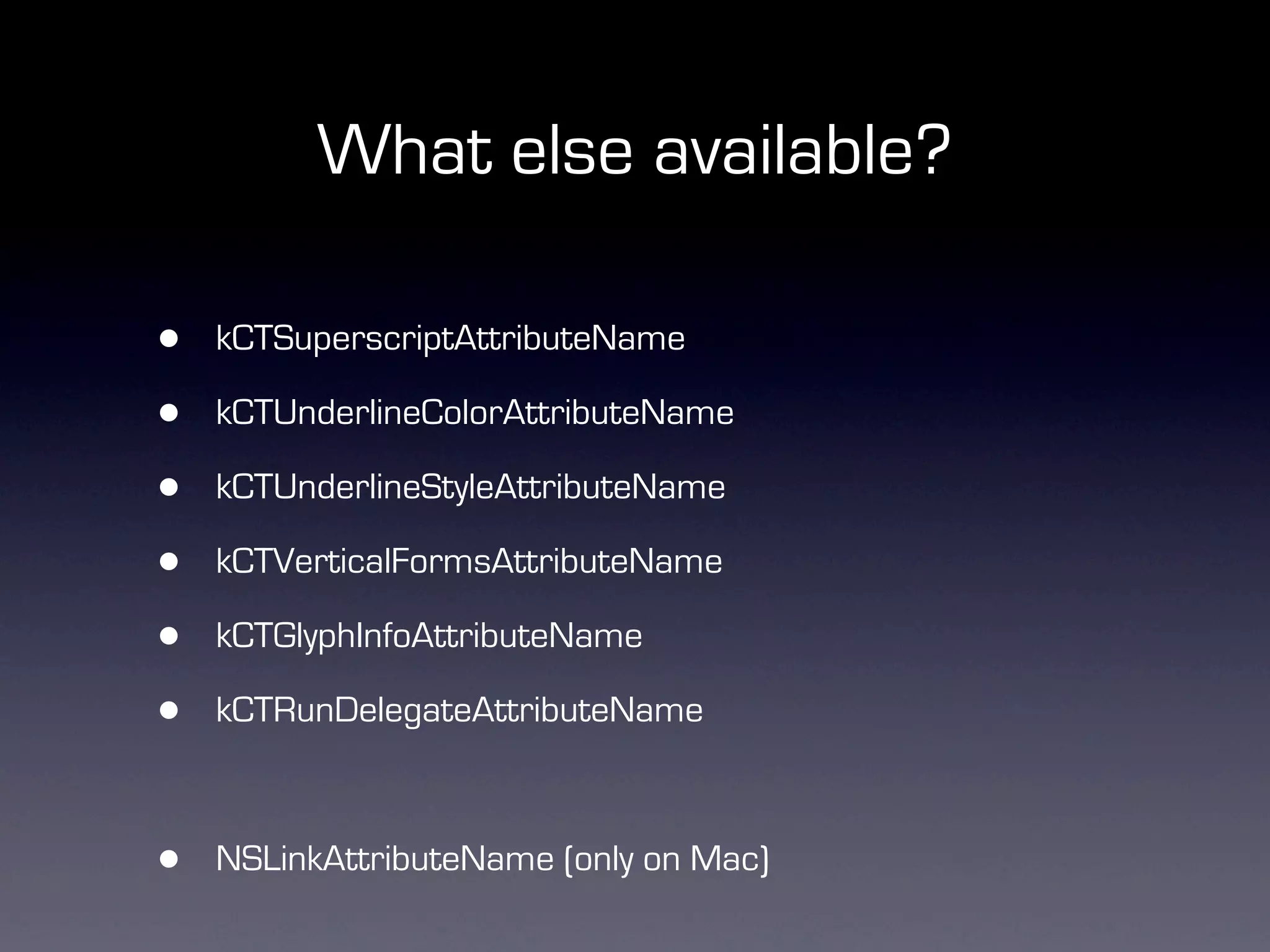

56. What else available?
• kCTSuperscriptAttributeName
• kCTUnderlineColorAttributeName
• kCTUnderlineStyleAttributeName
• kCTVerticalFormsAttributeName
• kCTGlyphInfoAttributeName
• kCTRunDelegateAttributeName
• NSLinkAttributeName (only on Mac)

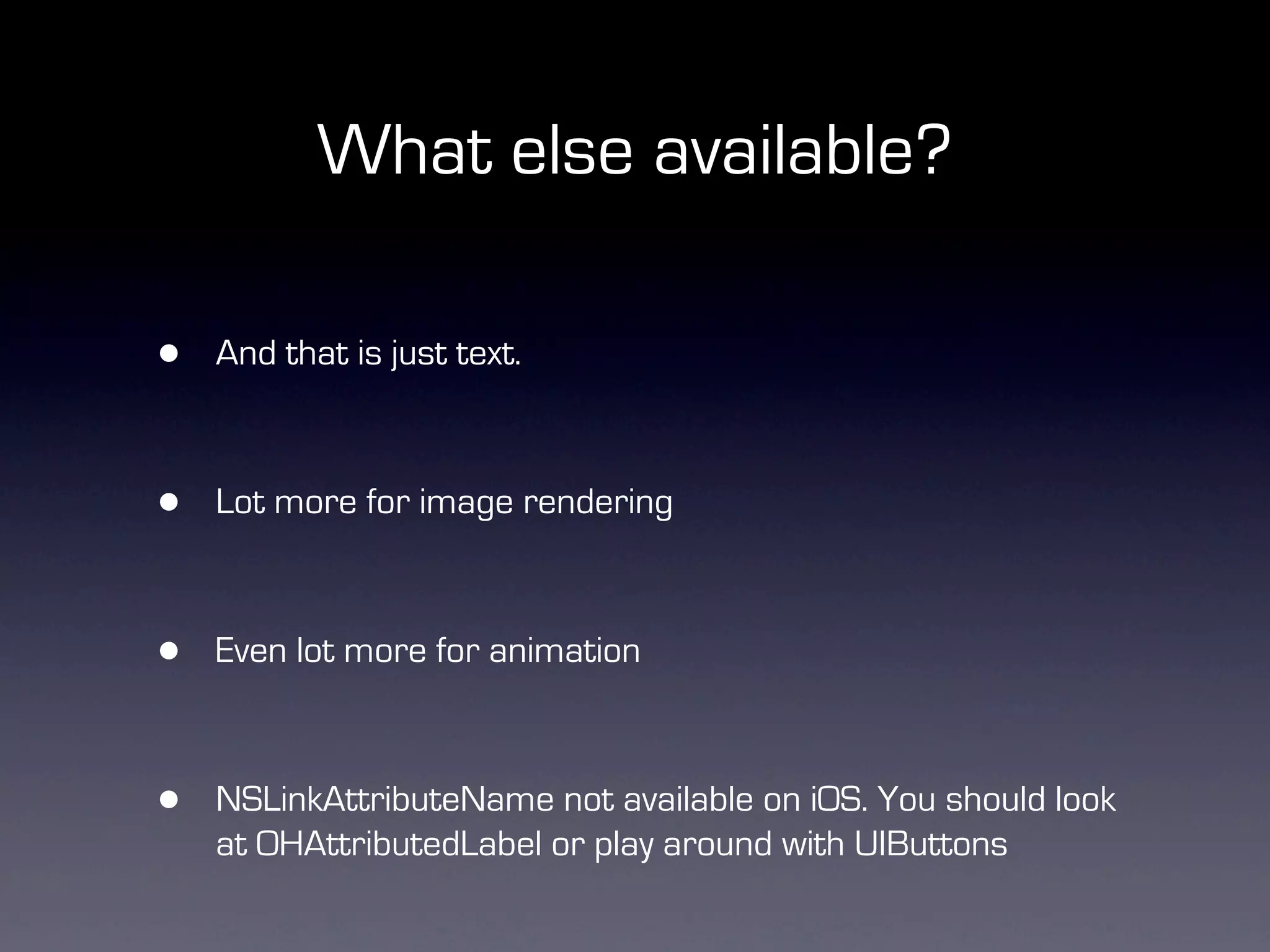

57. What else available?
• And that is just text.
• Lot more for image rendering
• Even lot more for animation
• NSLinkAttributeName not available on iOS. You should look
at OHAttributedLabel or play around with UIButtons

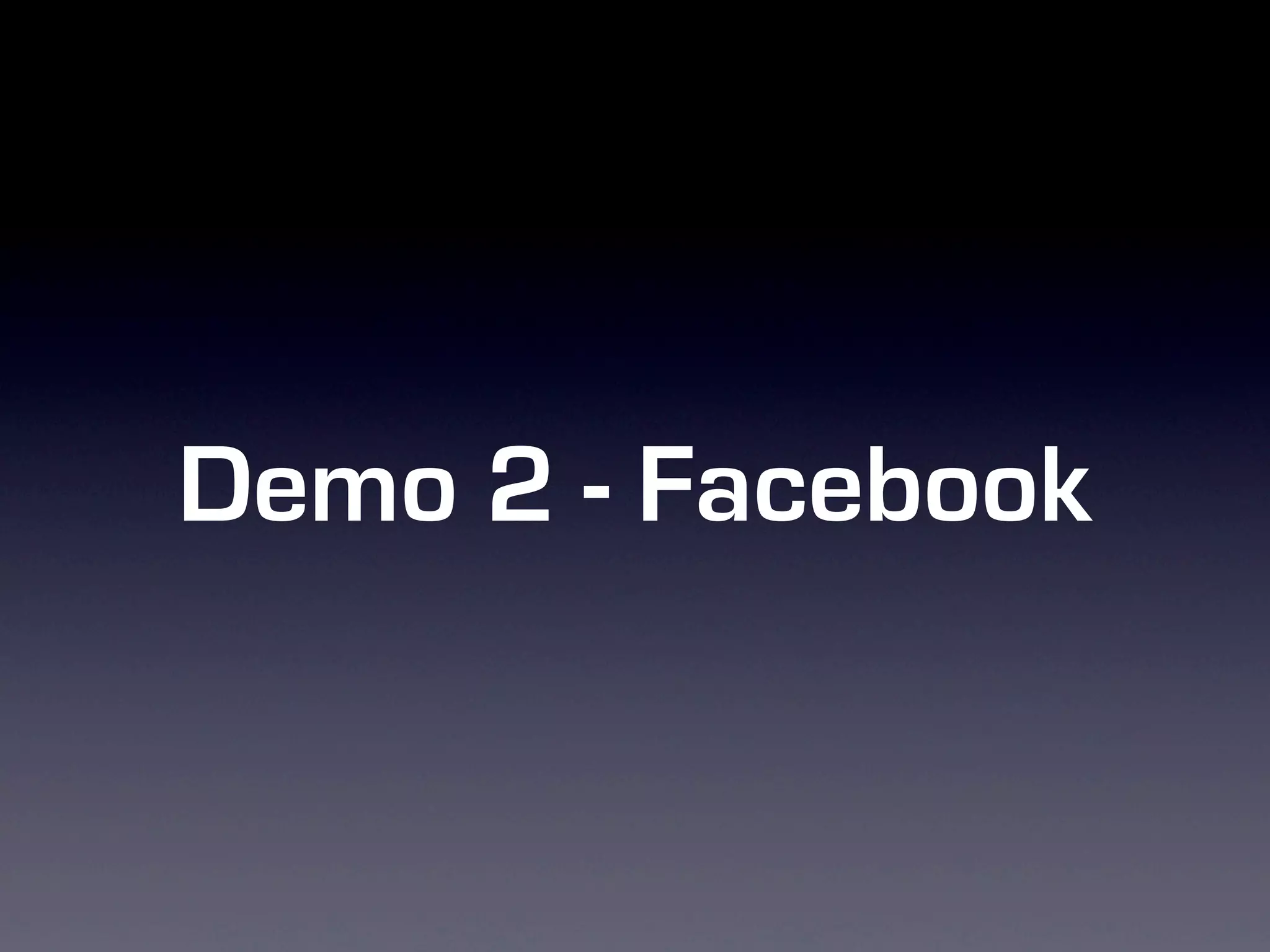

58. Demo 2 - Facebook

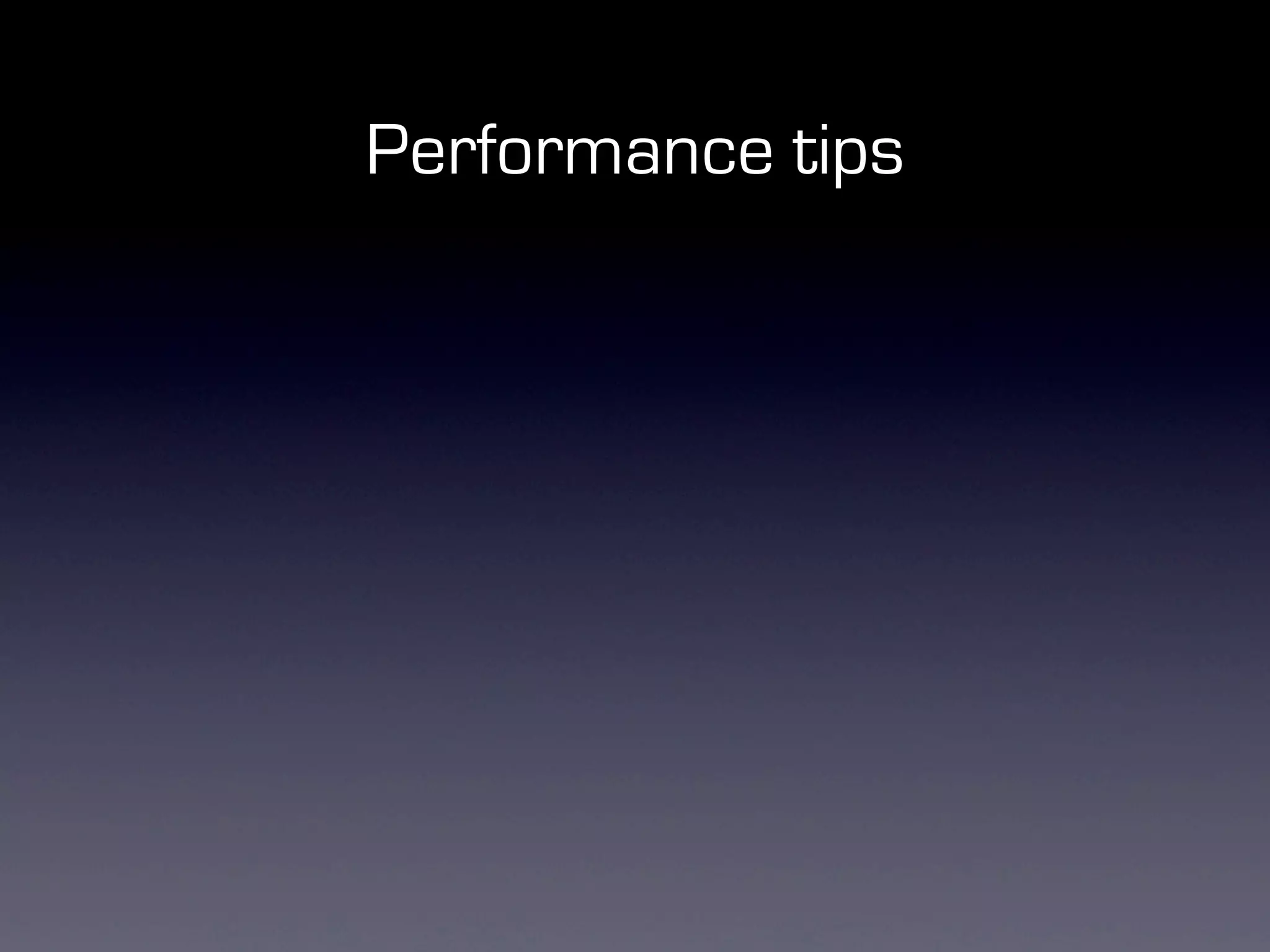

59. Performance tips

60. Performance tips

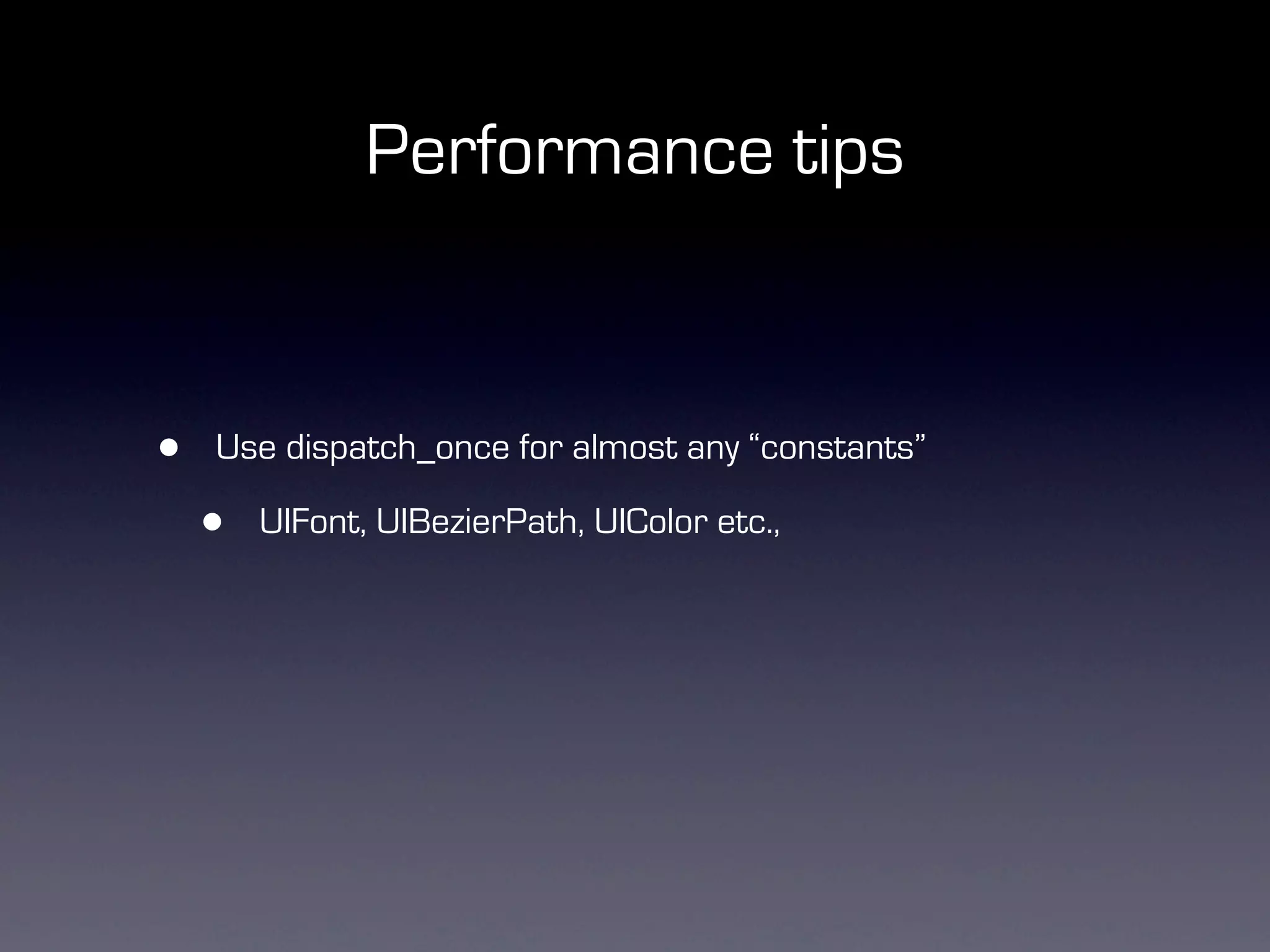

• Use dispatch_once for almost any “constants”
• UIFont, UIBezierPath, UIColor etc.,

61. Performance tips
• Use dispatch_once for almost any “constants”
• UIFont, UIBezierPath, UIColor etc.,

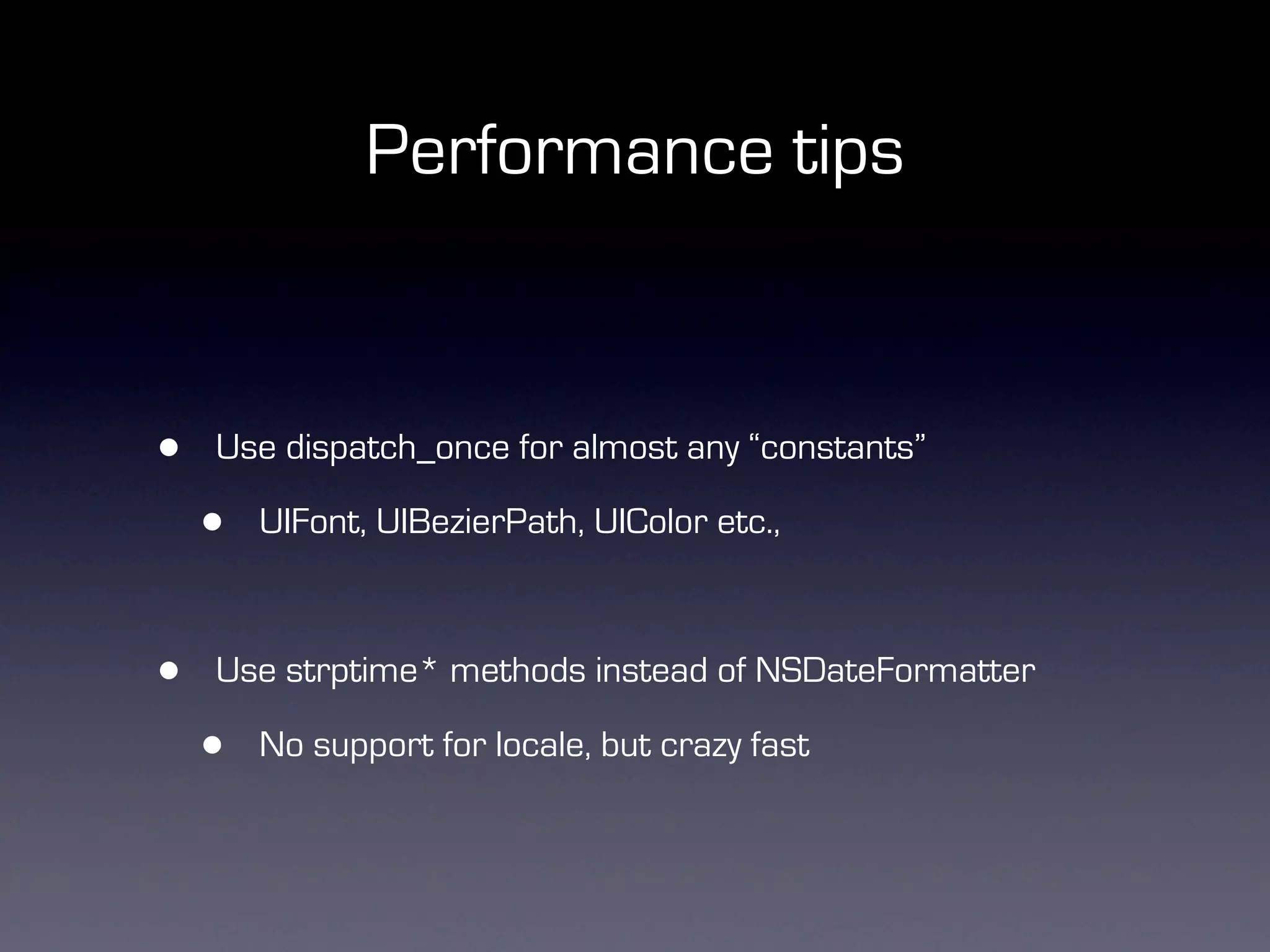

62. Performance tips
• Use dispatch_once for almost any “constants”
• UIFont, UIBezierPath, UIColor etc.,
• Use strptime* methods instead of NSDateFormatter
• No support for locale, but crazy fast
