The document discusses the use of ExtJS with Elasticsearch in building applications for Ubisoft, particularly a faceted catalog for video game assets. It outlines the functionalities of products like Flare and Portfolio, providing insights on technical implementation, challenges faced, and lessons learned. The presenters share their experience with ExtJS features such as view models, stores, routing, and dynamic template loading, culminating in a Q&A session.

1. Using ExtJS with
Elasticsearch
Sam Imberman & Karim Besbes

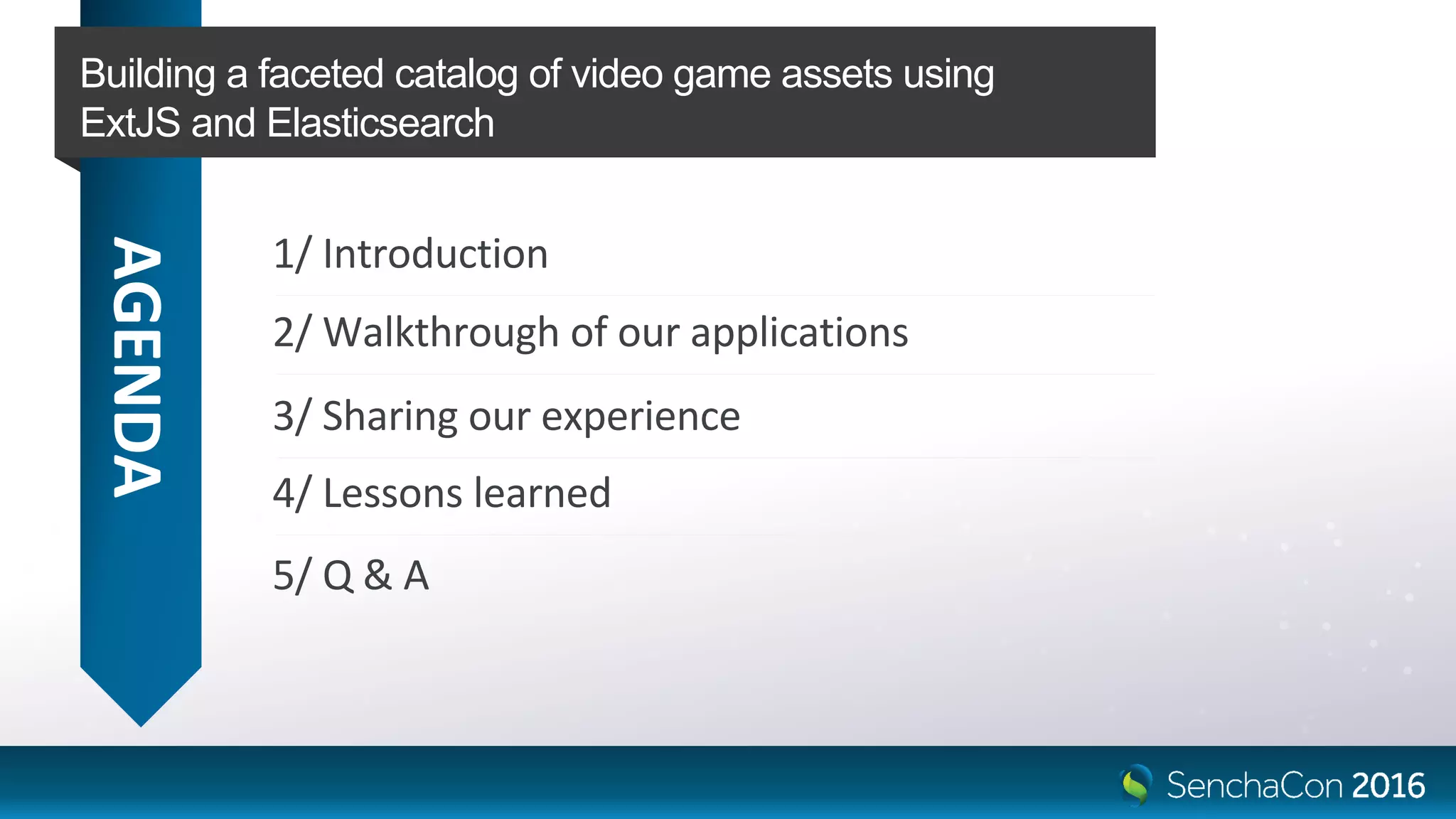

2. AGENDA
1/ Introduction
Building a faceted catalog of video game assets using
ExtJS and Elasticsearch
2/ Walkthrough of our applications
3/ Sharing our experience
4/ Lessons learned

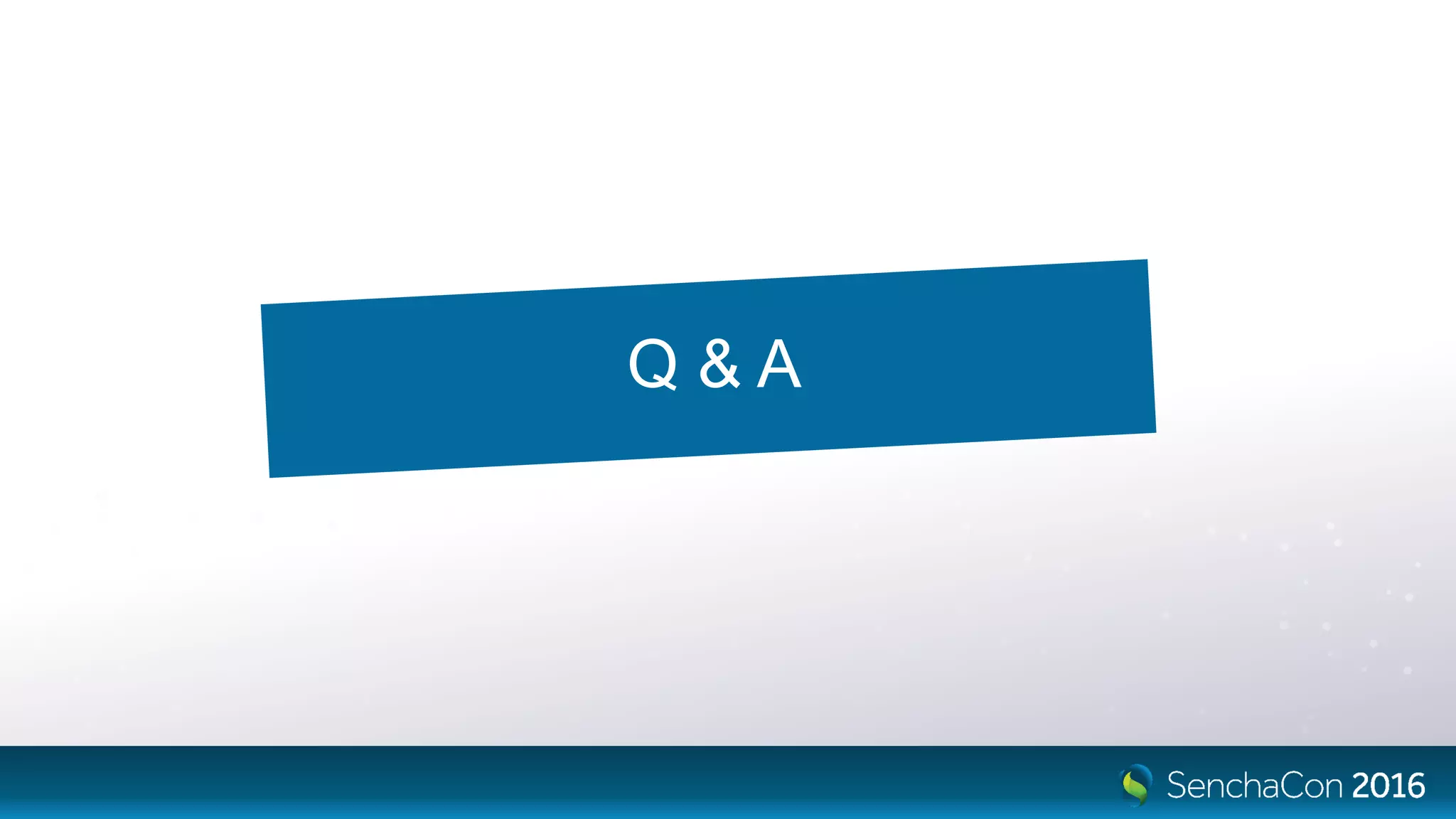

5/ Q & A

3. INTRODUCTION

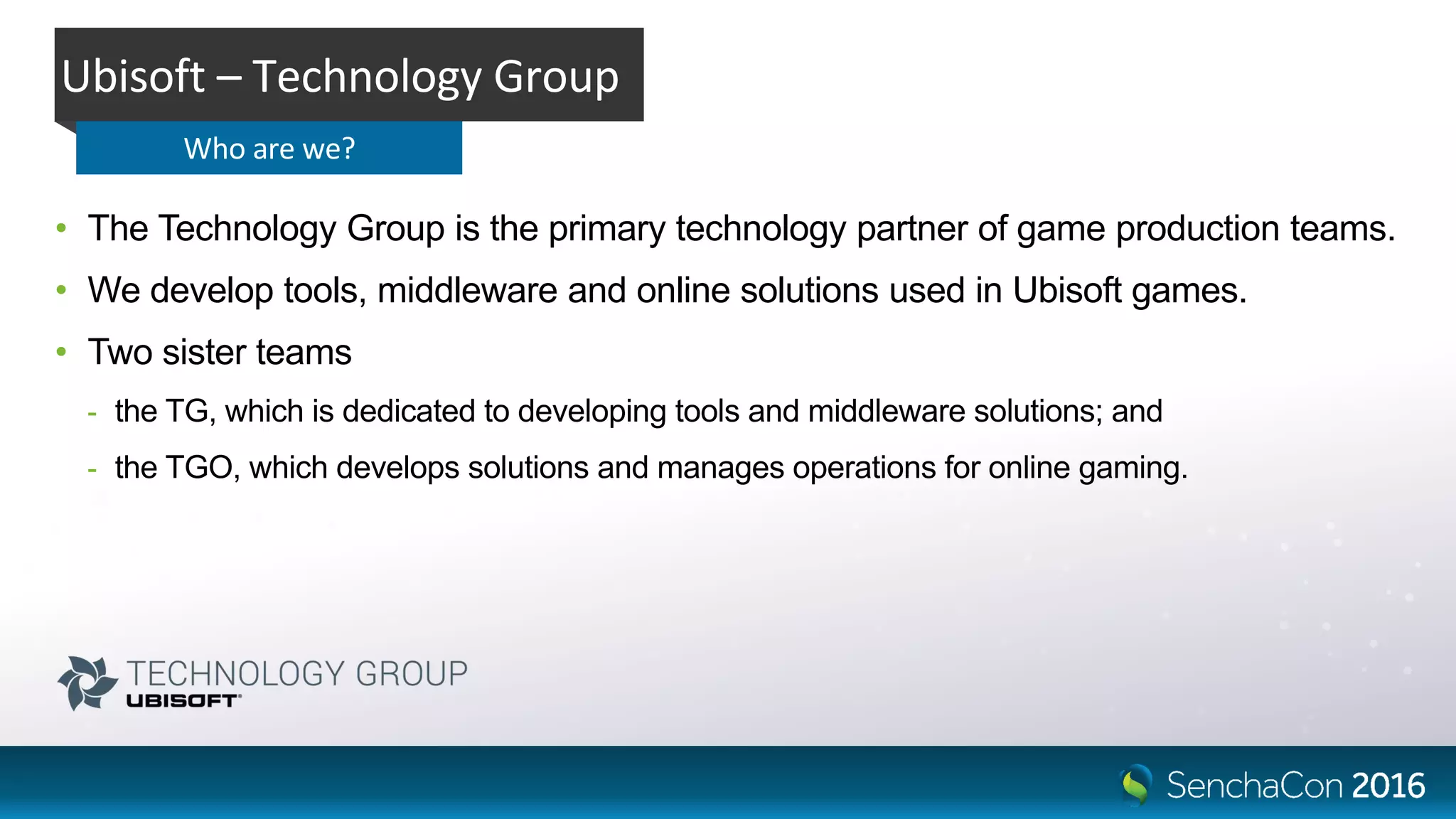

4. • The Technology Group is the primary technology partner of game production teams.
• We develop tools, middleware and online solutions used in Ubisoft games.
• Two sister teams
- the TG, which is dedicated to developing tools and middleware solutions; and
- the TGO, which develops solutions and manages operations for online gaming.
Ubisoft – Technology Group
Who are we?

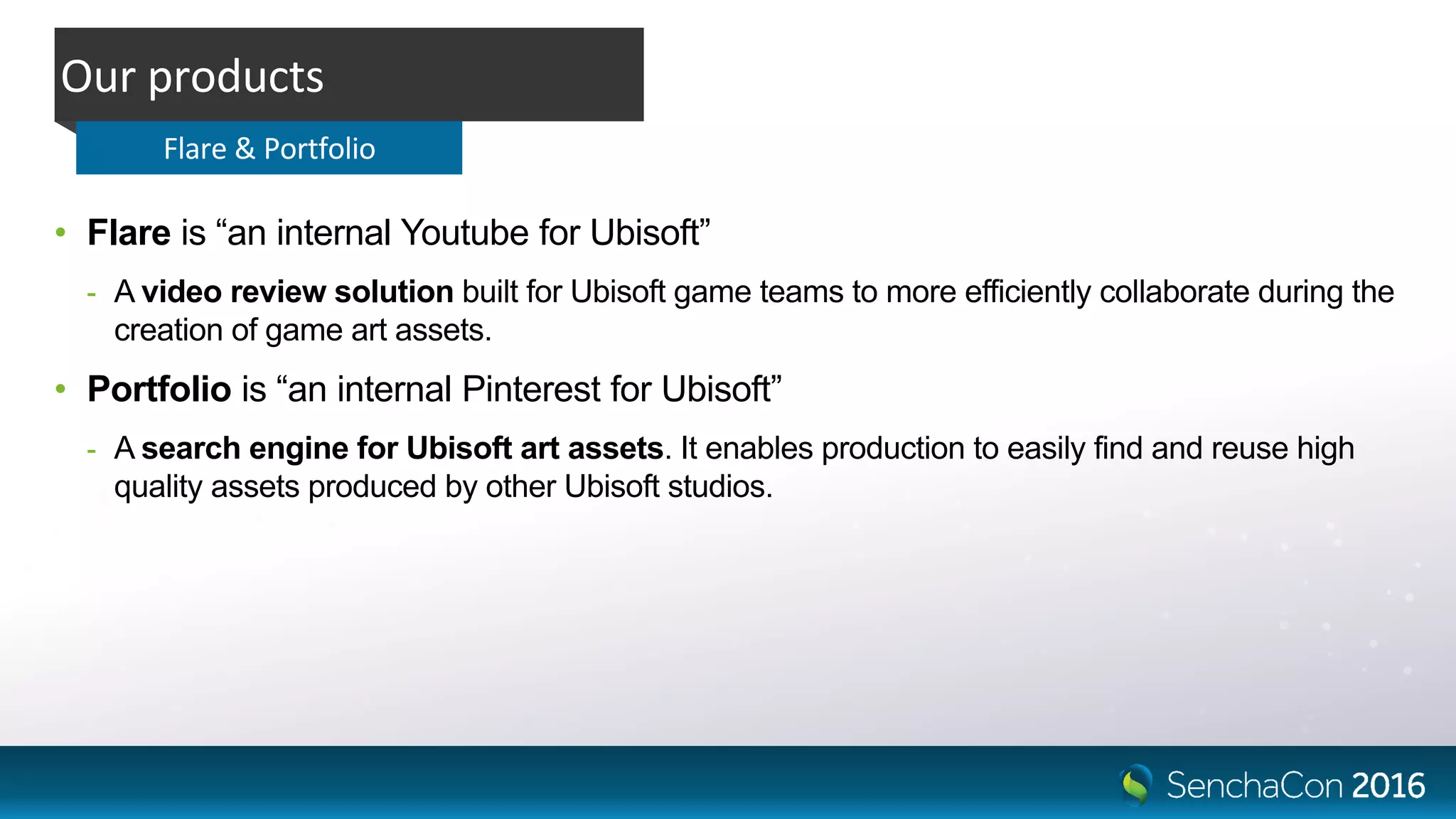

5. • Flare is “an internal Youtube for Ubisoft”
- A video review solution built for Ubisoft game teams to more efficiently collaborate during the
creation of game art assets.
• Portfolio is “an internal Pinterest for Ubisoft”
- A search engine for Ubisoft art assets. It enables production to easily find and reuse high
quality assets produced by other Ubisoft studios.
Our products
Flare & Portfolio

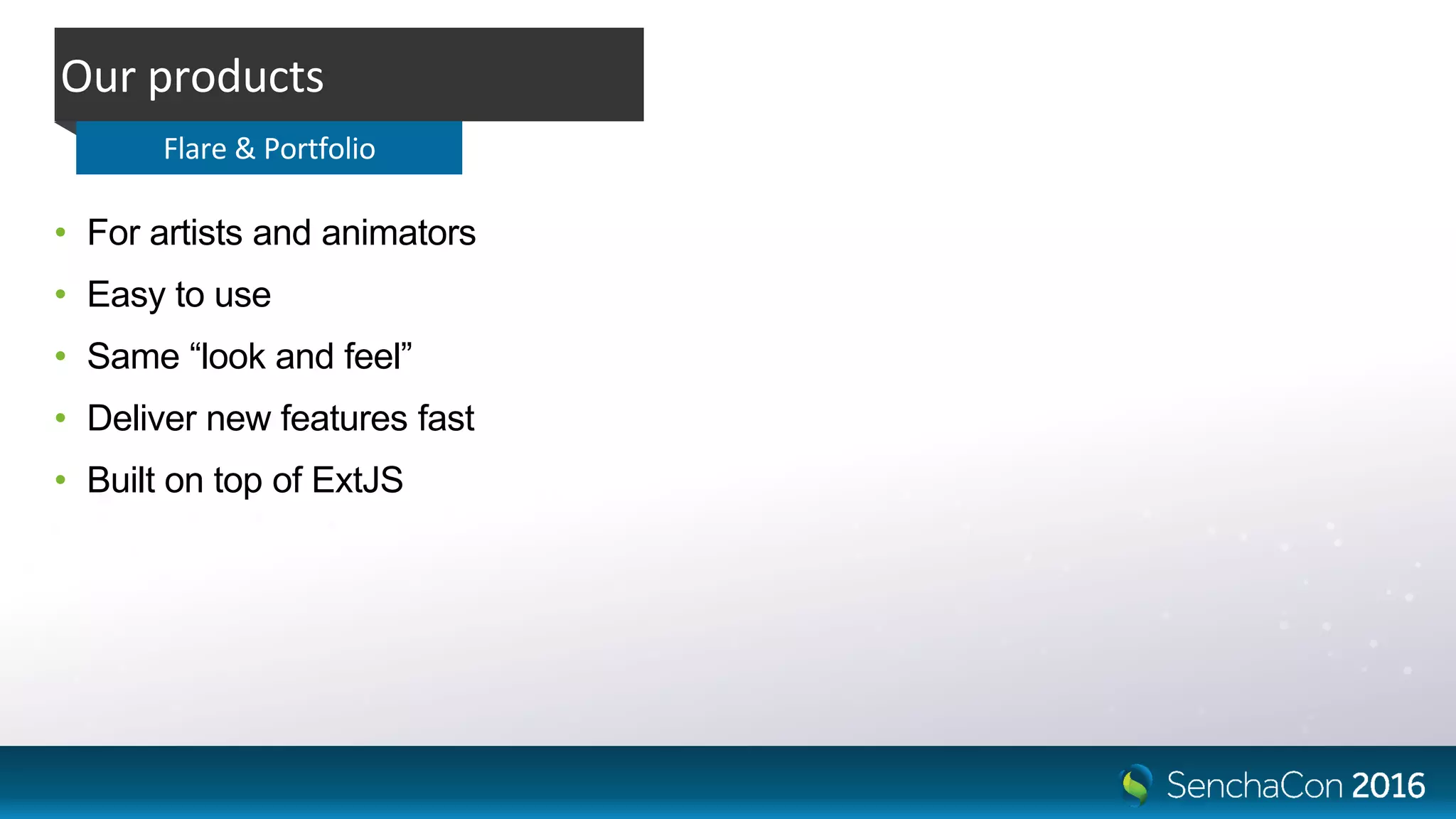

6. • For artists and animators
• Easy to use
• Same “look and feel”
• Deliver new features fast
• Built on top of ExtJS
Our products
Flare & Portfolio

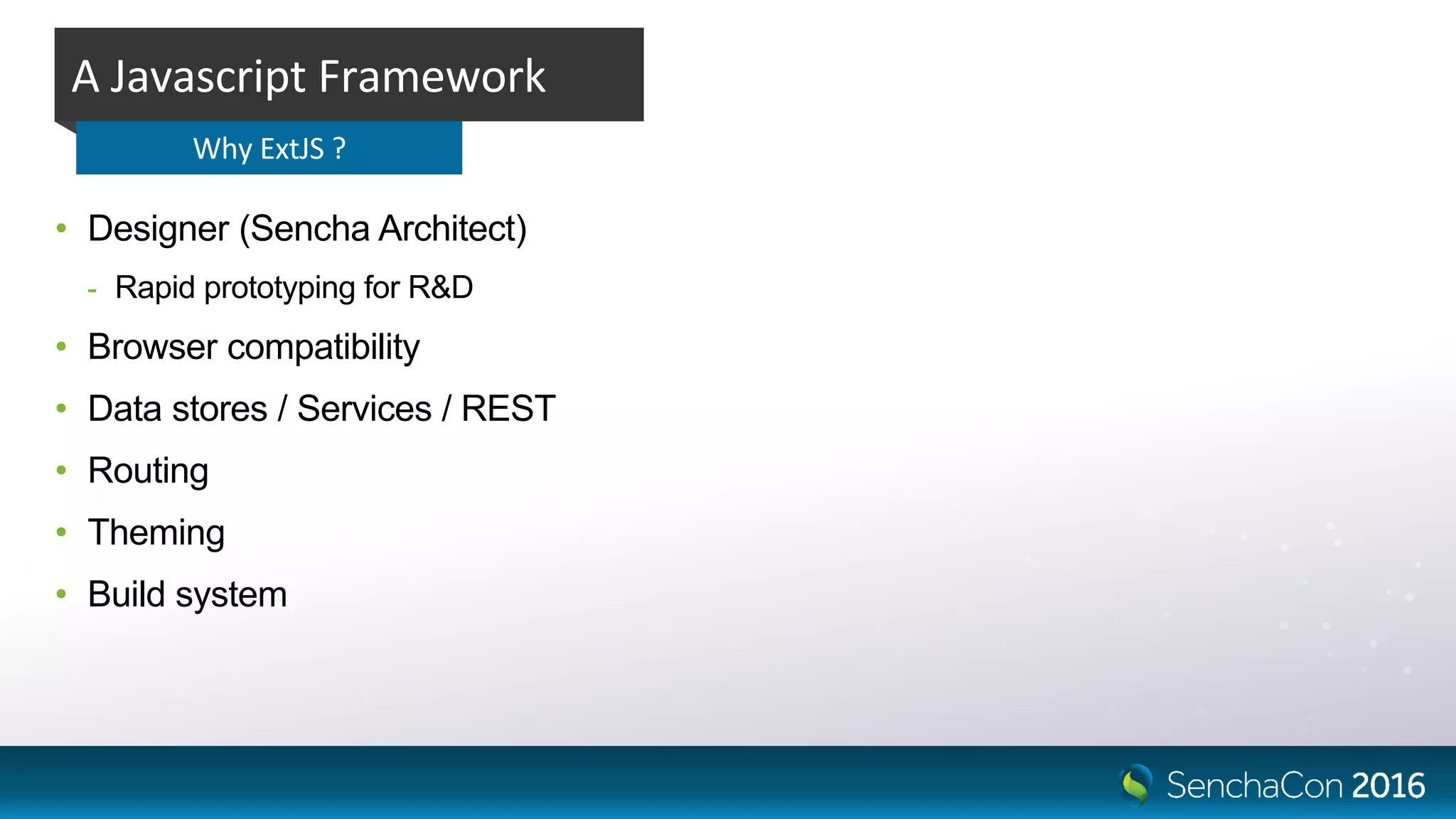

7. • Designer (Sencha Architect)
- Rapid prototyping for R&D
• Browser compatibility
• Data stores / Services / REST
• Routing
• Theming
• Build system
A Javascript Framework
Why ExtJS ?

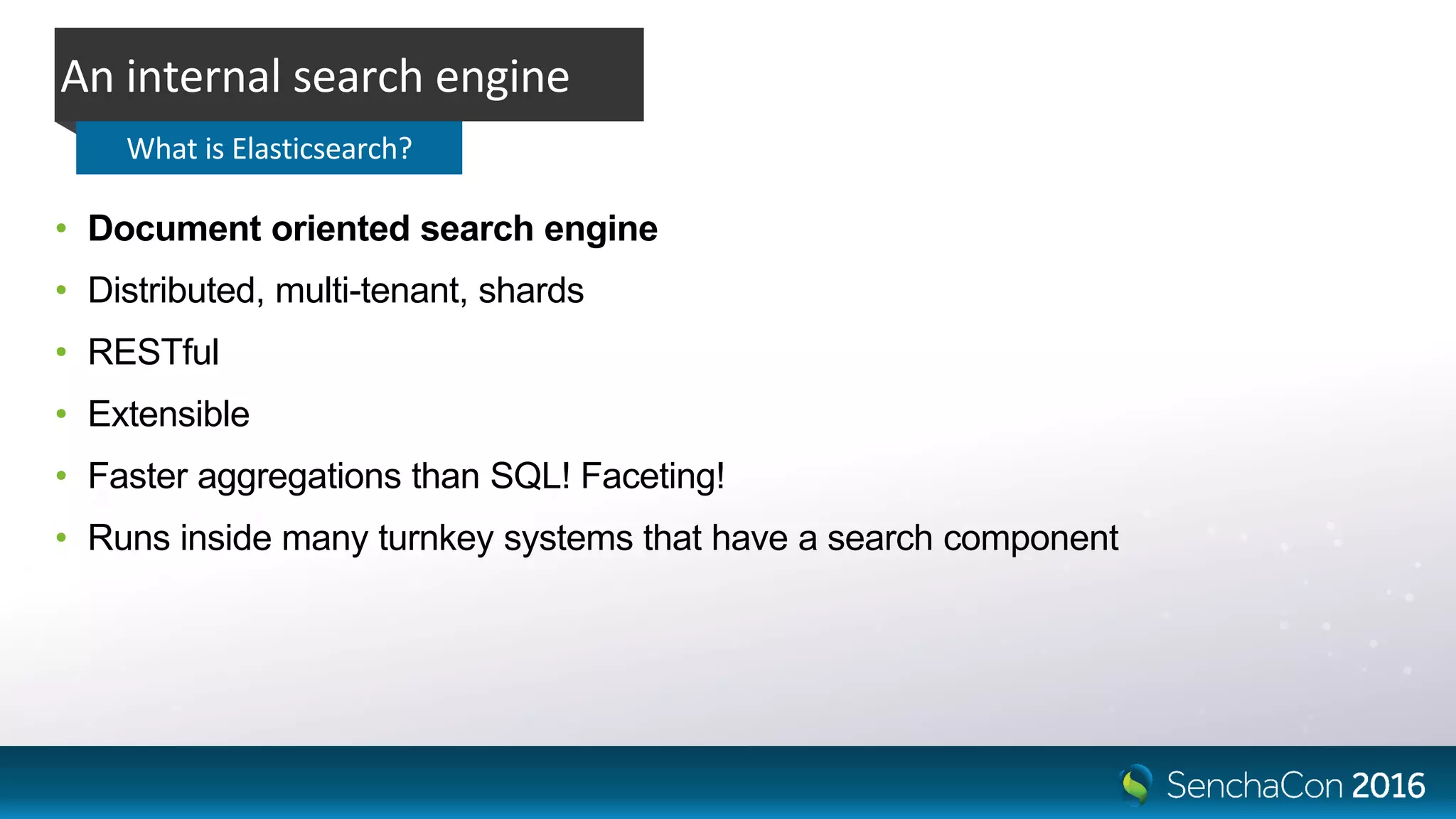

8. • Document oriented search engine
• Distributed, multi-tenant, shards
• RESTful
• Extensible
• Faster aggregations than SQL! Faceting!
• Runs inside many turnkey systems that have a search component
An internal search engine
What is Elasticsearch?

9. An internal search engine

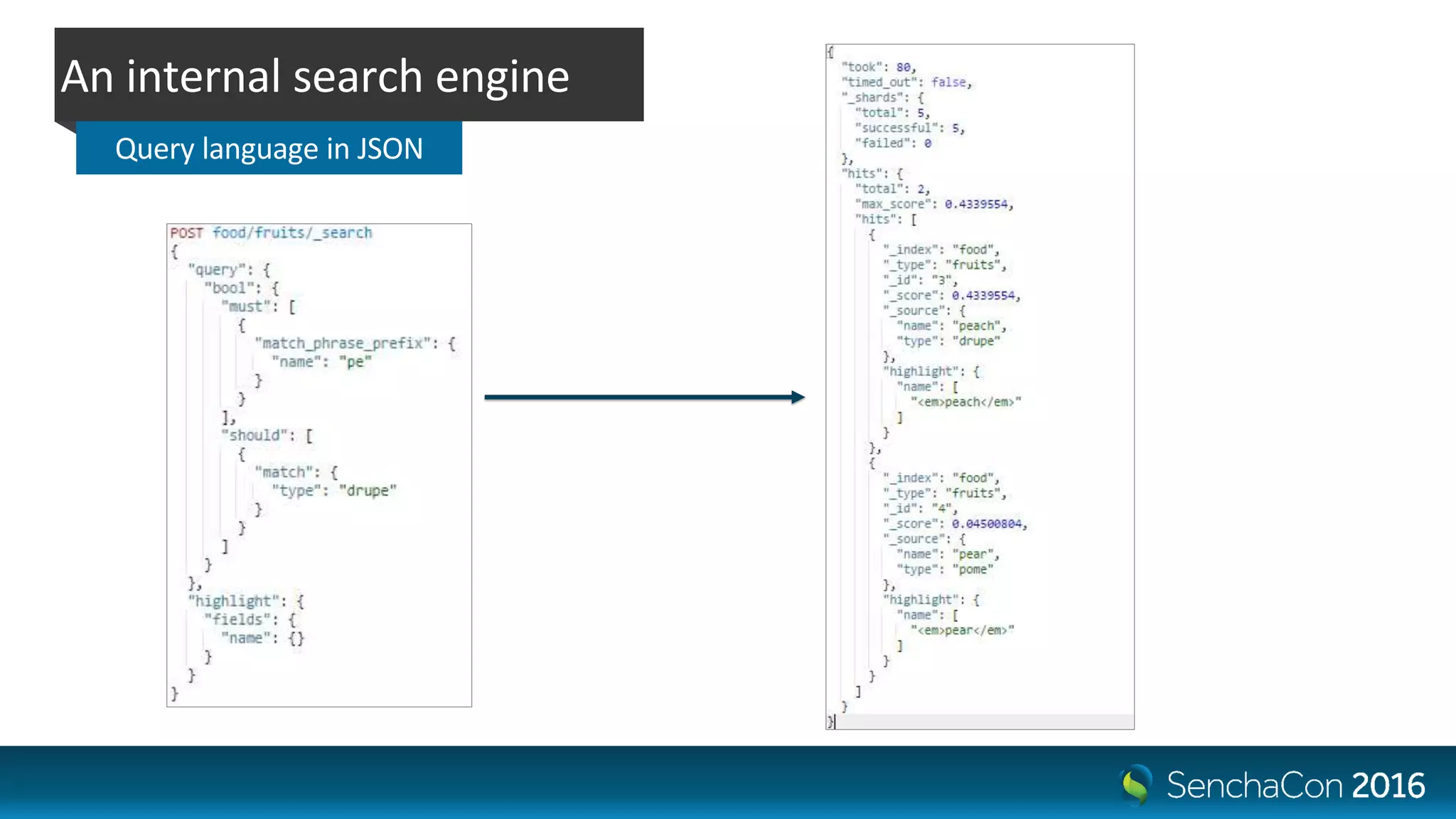

Query language in JSON

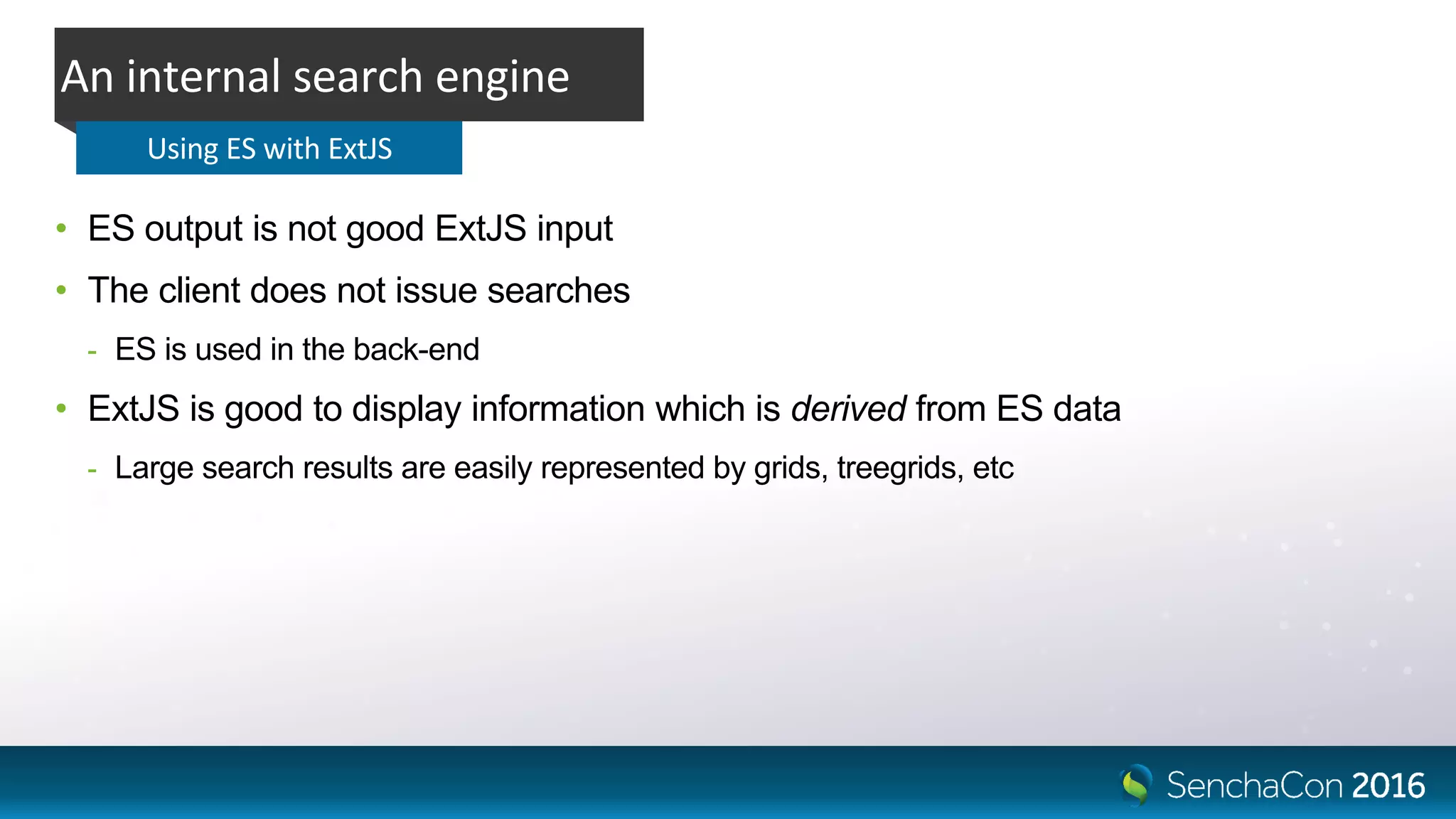

10. • ES output is not good ExtJS input
• The client does not issue searches
- ES is used in the back-end
• ExtJS is good to display information which is derived from ES data
- Large search results are easily represented by grids, treegrids, etc
An internal search engine
Using ES with ExtJS

11. DEMO APPLICATION &
WALKTHROUGH

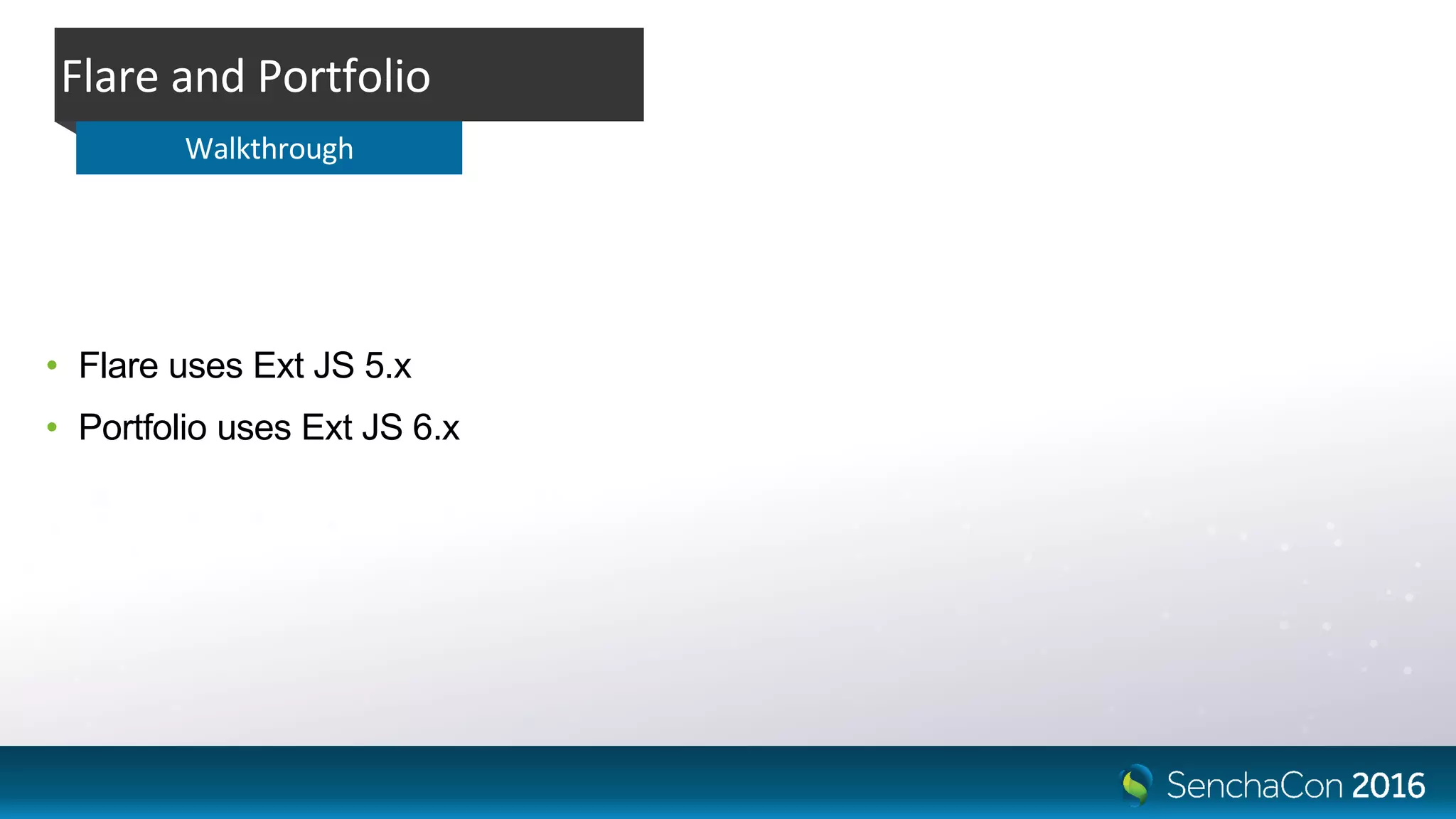

12. Flare and Portfolio
Walkthrough
• Flare uses Ext JS 5.x
• Portfolio uses Ext JS 6.x

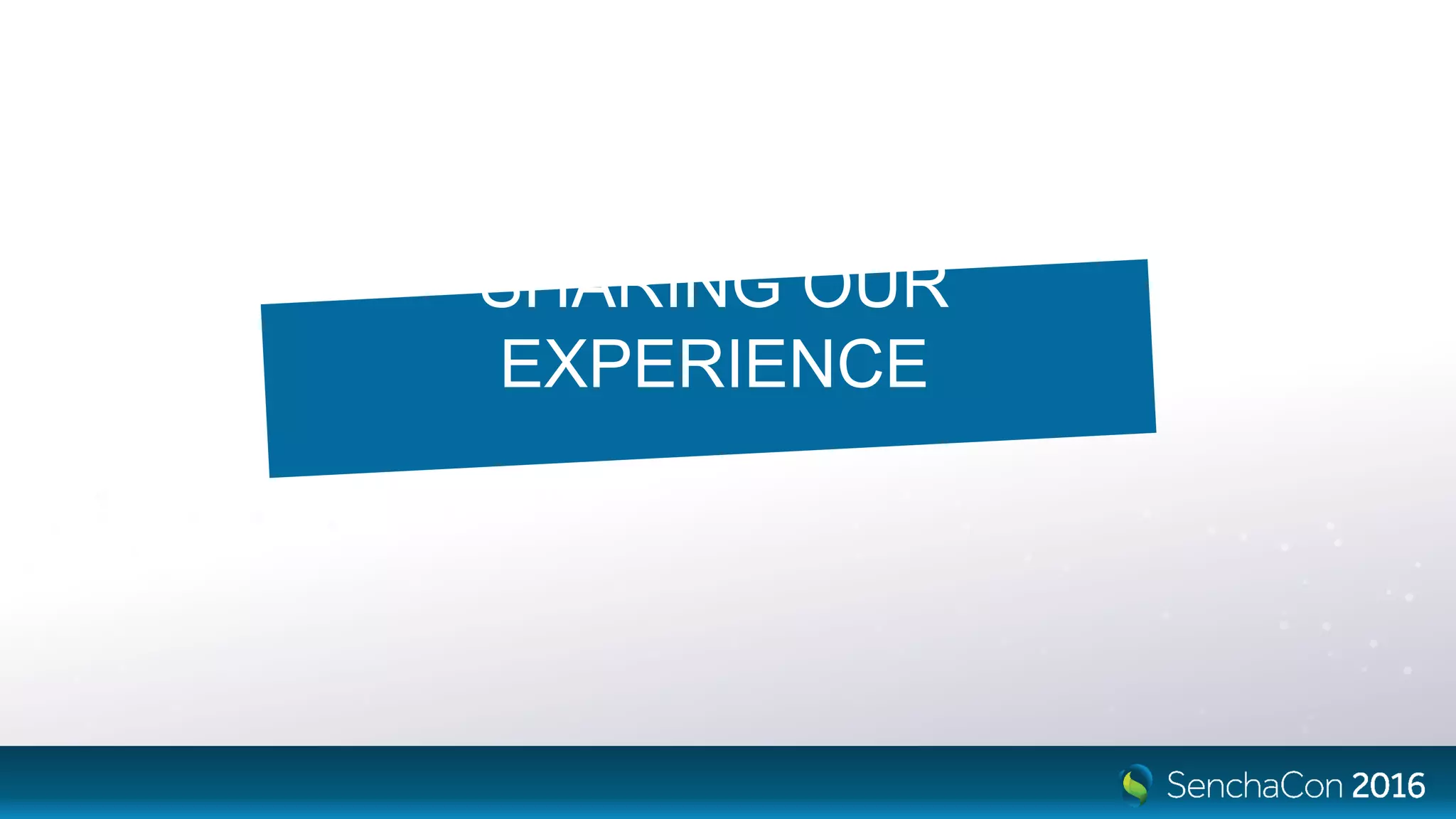

13. SHARING OUR
EXPERIENCE

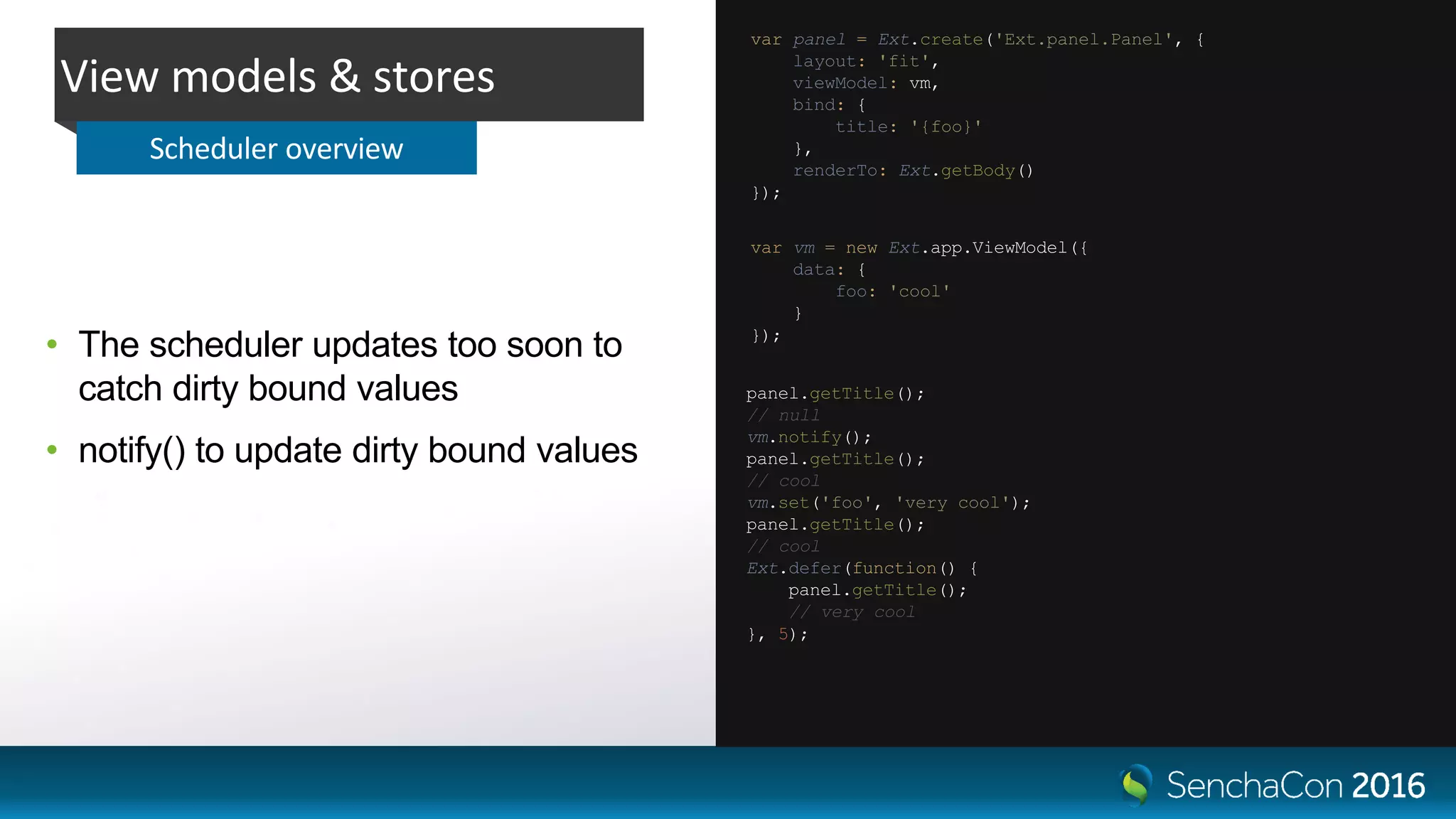

14. • The scheduler updates too soon to
catch dirty bound values
• notify() to update dirty bound values
View models & stores
Scheduler overview
var panel = Ext.create('Ext.panel.Panel', {
layout: 'fit',
viewModel: vm,
bind: {
title: '{foo}'
},
renderTo: Ext.getBody()
});
var vm = new Ext.app.ViewModel({
data: {
foo: 'cool'
}
});
panel.getTitle();
// null
vm.notify();
panel.getTitle();
// cool
vm.set('foo', 'very cool');
panel.getTitle();
// cool
Ext.defer(function() {
panel.getTitle();
// very cool
}, 5);

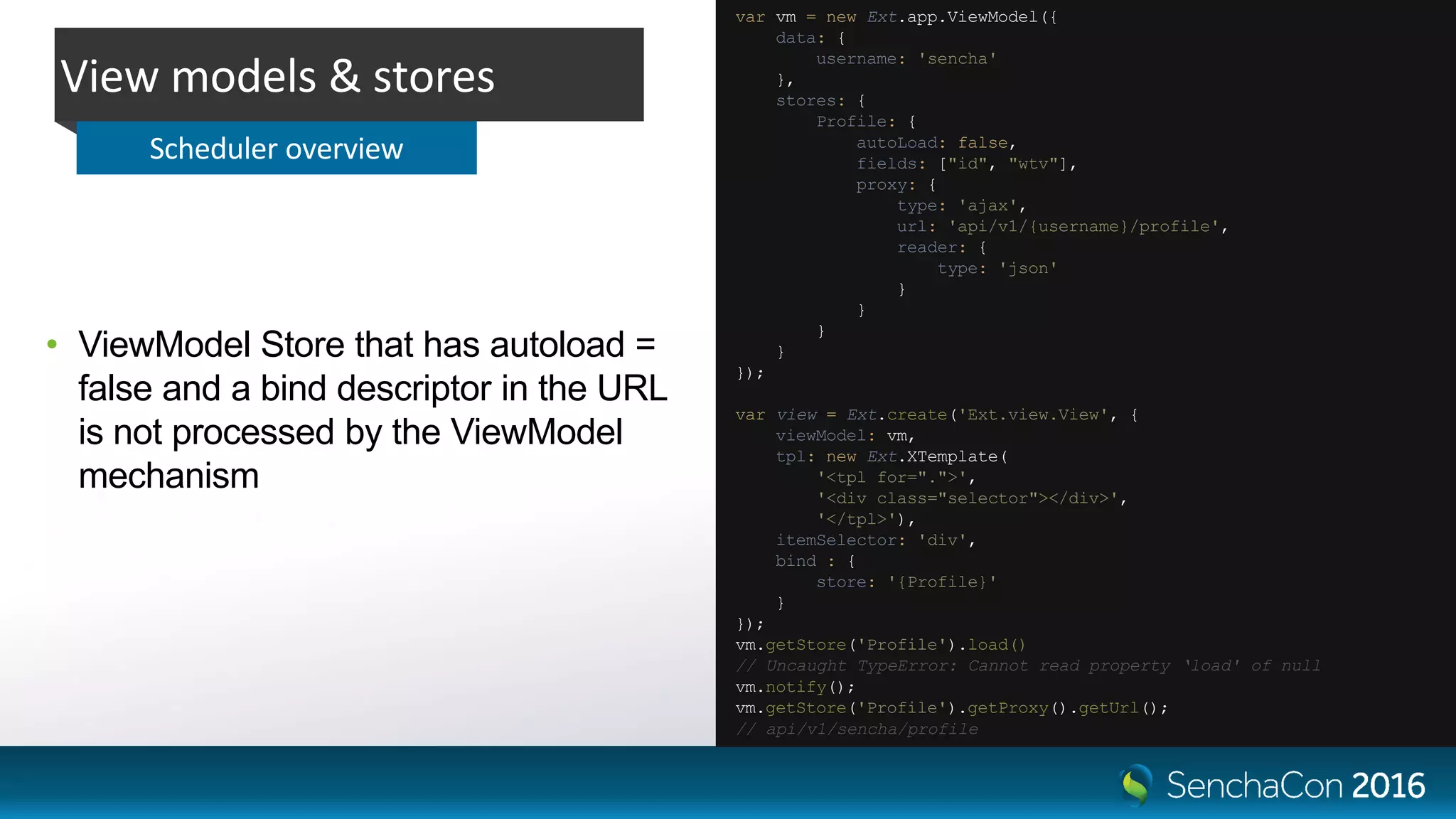

15. • ViewModel Store that has autoload =
false and a bind descriptor in the URL
is not processed by the ViewModel
mechanism
View models & stores
Scheduler overview
var vm = new Ext.app.ViewModel({
data: {
username: 'sencha'
},
stores: {
Profile: {
autoLoad: false,
fields: ["id", "wtv"],
proxy: {
type: 'ajax',
url: 'api/v1/{username}/profile',
reader: {
type: 'json'
}
}
}
}
});
var view = Ext.create('Ext.view.View', {
viewModel: vm,
tpl: new Ext.XTemplate(
'<tpl for=".">',
'<div class="selector"></div>',
'</tpl>'),
itemSelector: 'div',
bind : {
store: '{Profile}'
}
});
vm.getStore('Profile').load()
// Uncaught TypeError: Cannot read property ‘load' of null
vm.notify();
vm.getStore('Profile').getProxy().getUrl();
// api/v1/sencha/profile

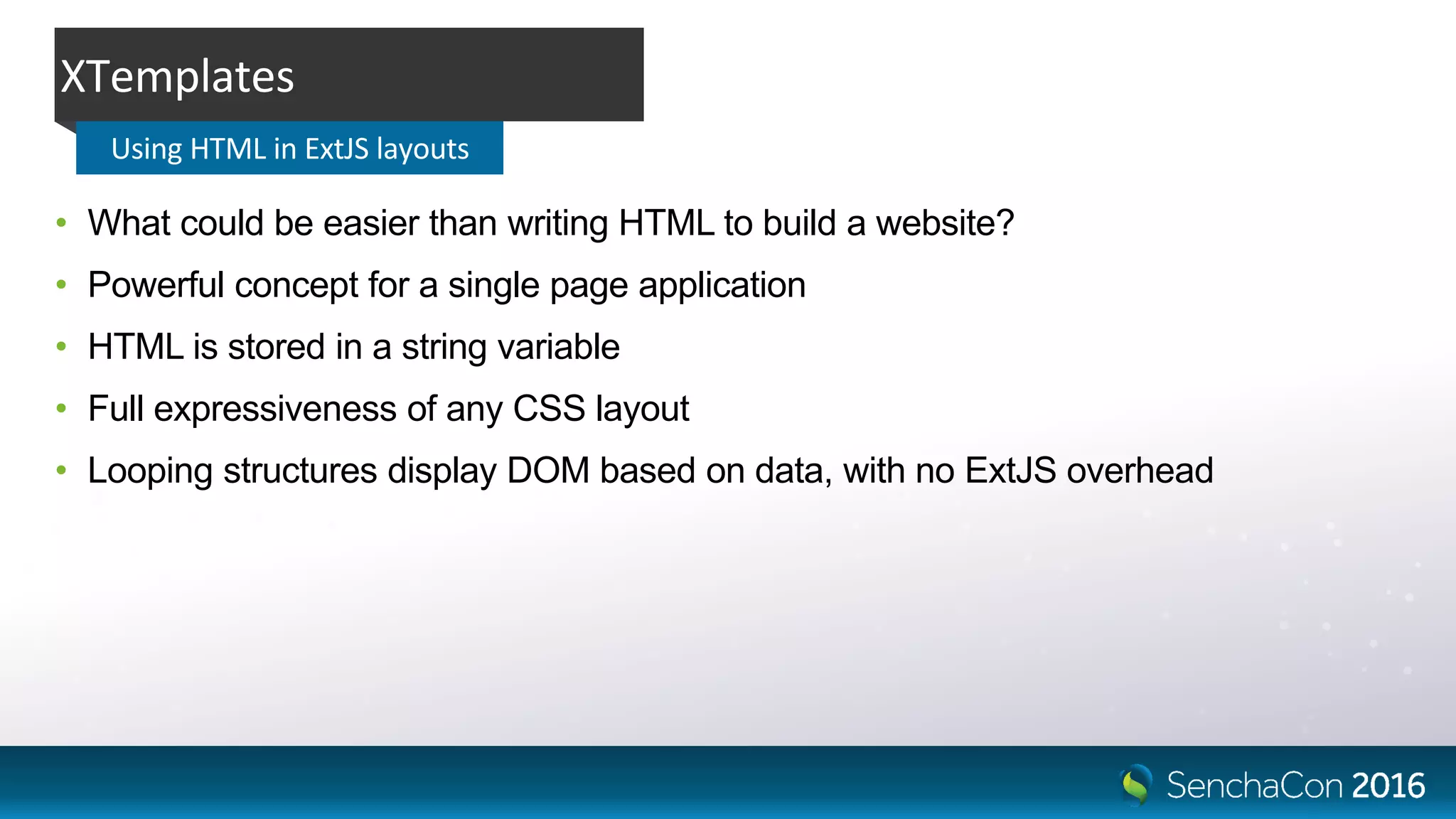

16. • What could be easier than writing HTML to build a website?
• Powerful concept for a single page application
• HTML is stored in a string variable
• Full expressiveness of any CSS layout
• Looping structures display DOM based on data, with no ExtJS overhead
XTemplates
Using HTML in ExtJS layouts

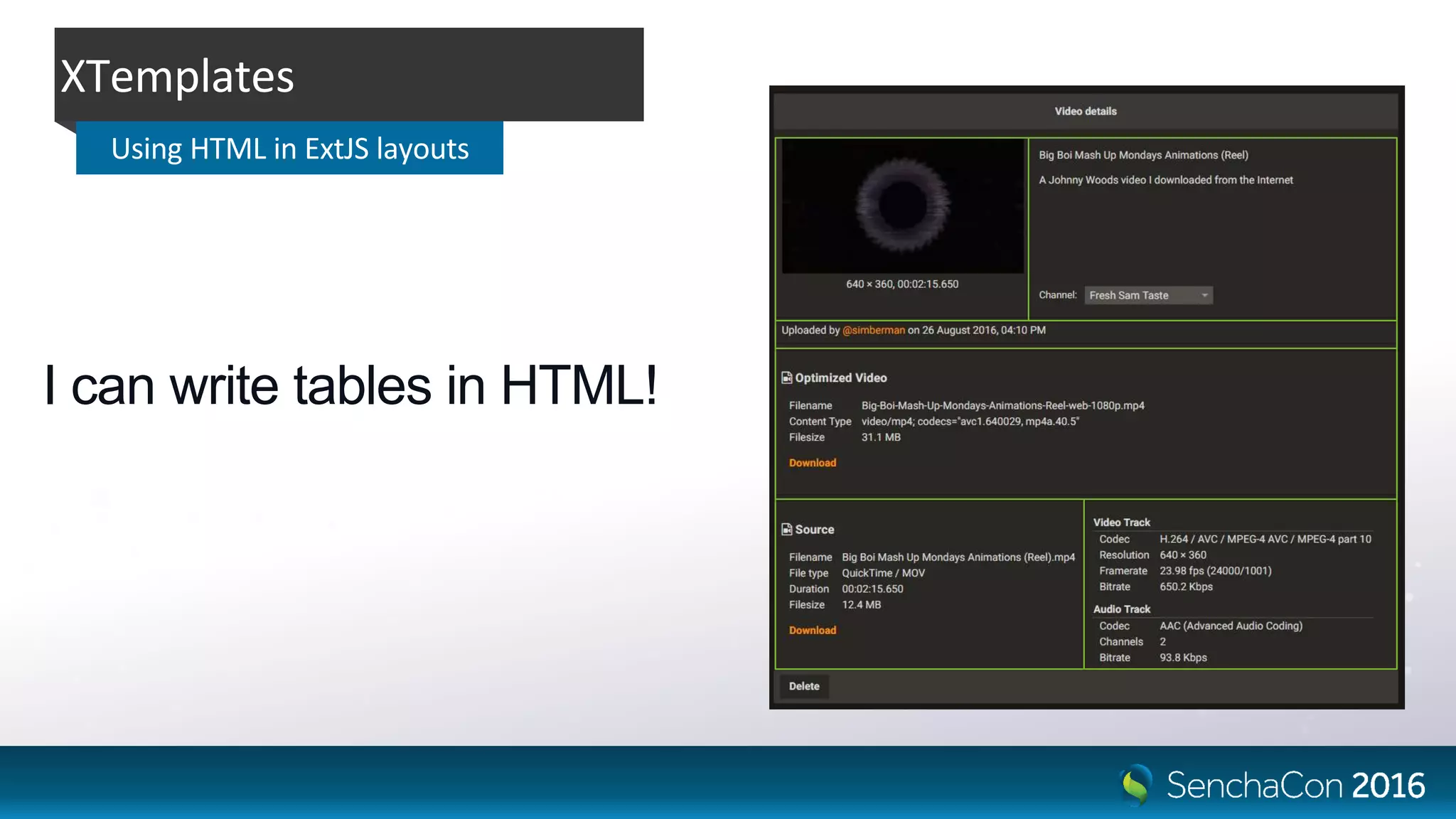

17. I can write tables in HTML!
XTemplates
Using HTML in ExtJS layouts

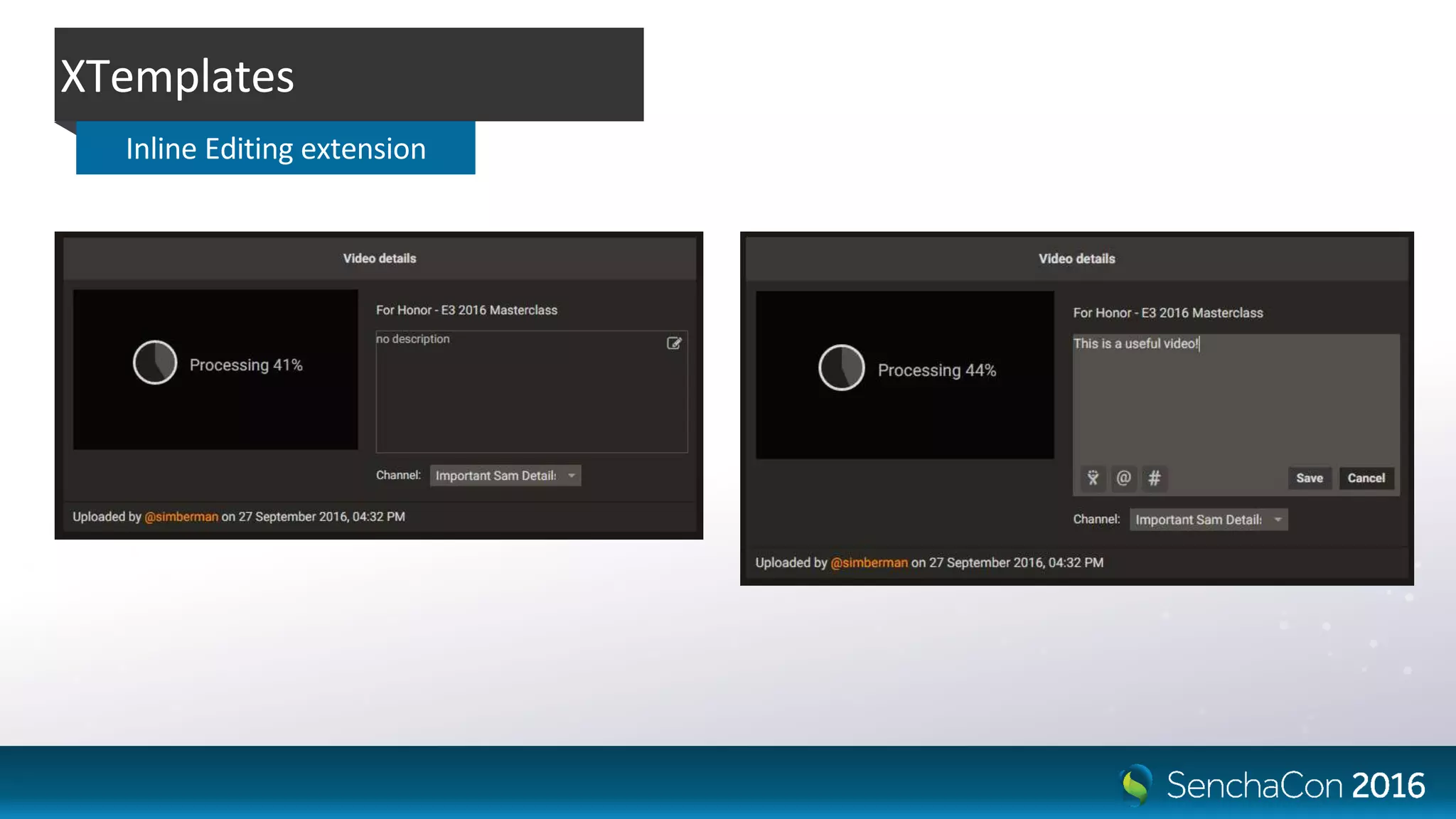

18. XTemplates
Inline Editing extension

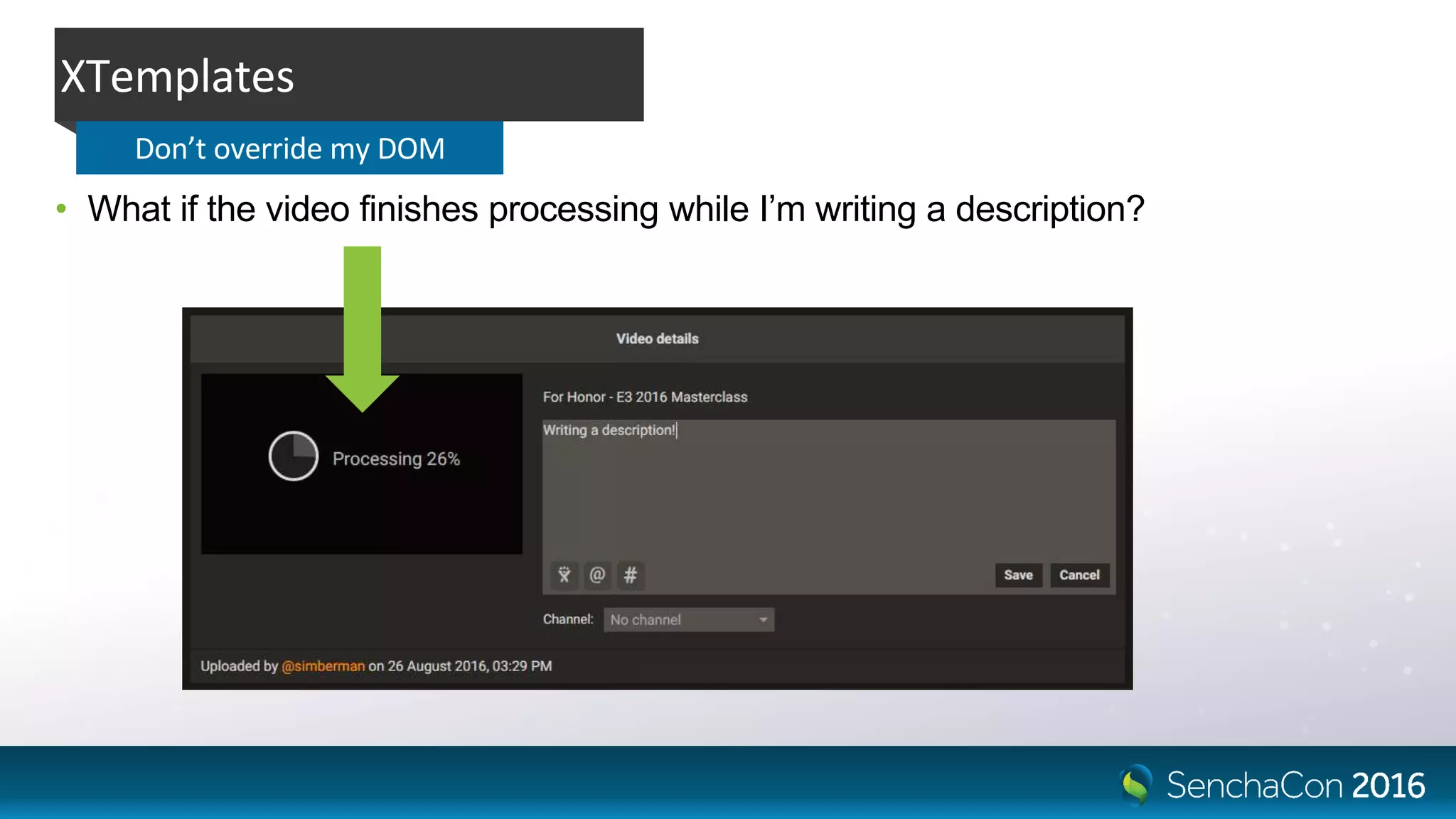

19. • What if the video finishes processing while I’m writing a description?
XTemplates
Don’t override my DOM

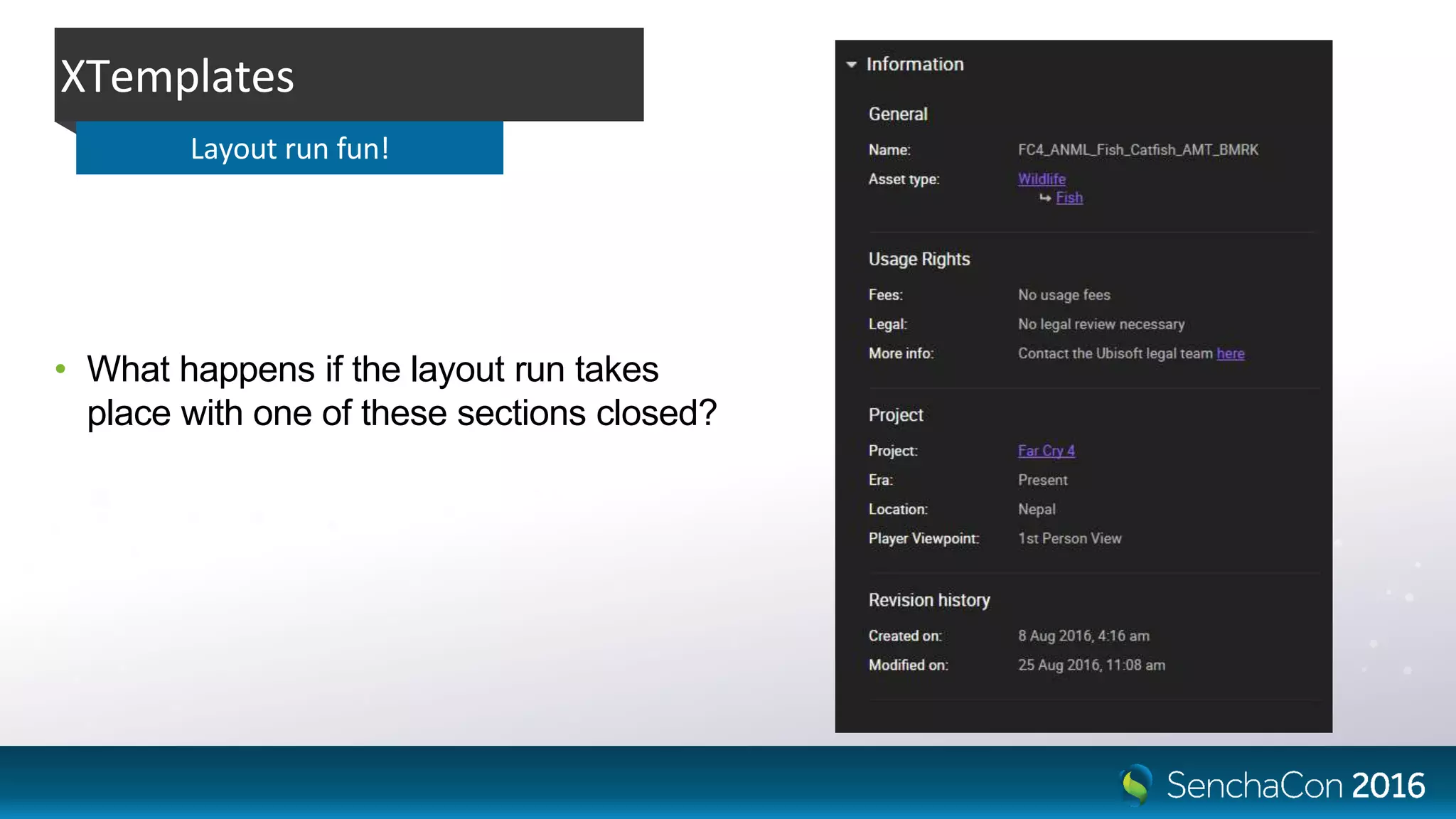

20. • What happens if the layout run takes
place with one of these sections closed?
XTemplates
Layout run fun!

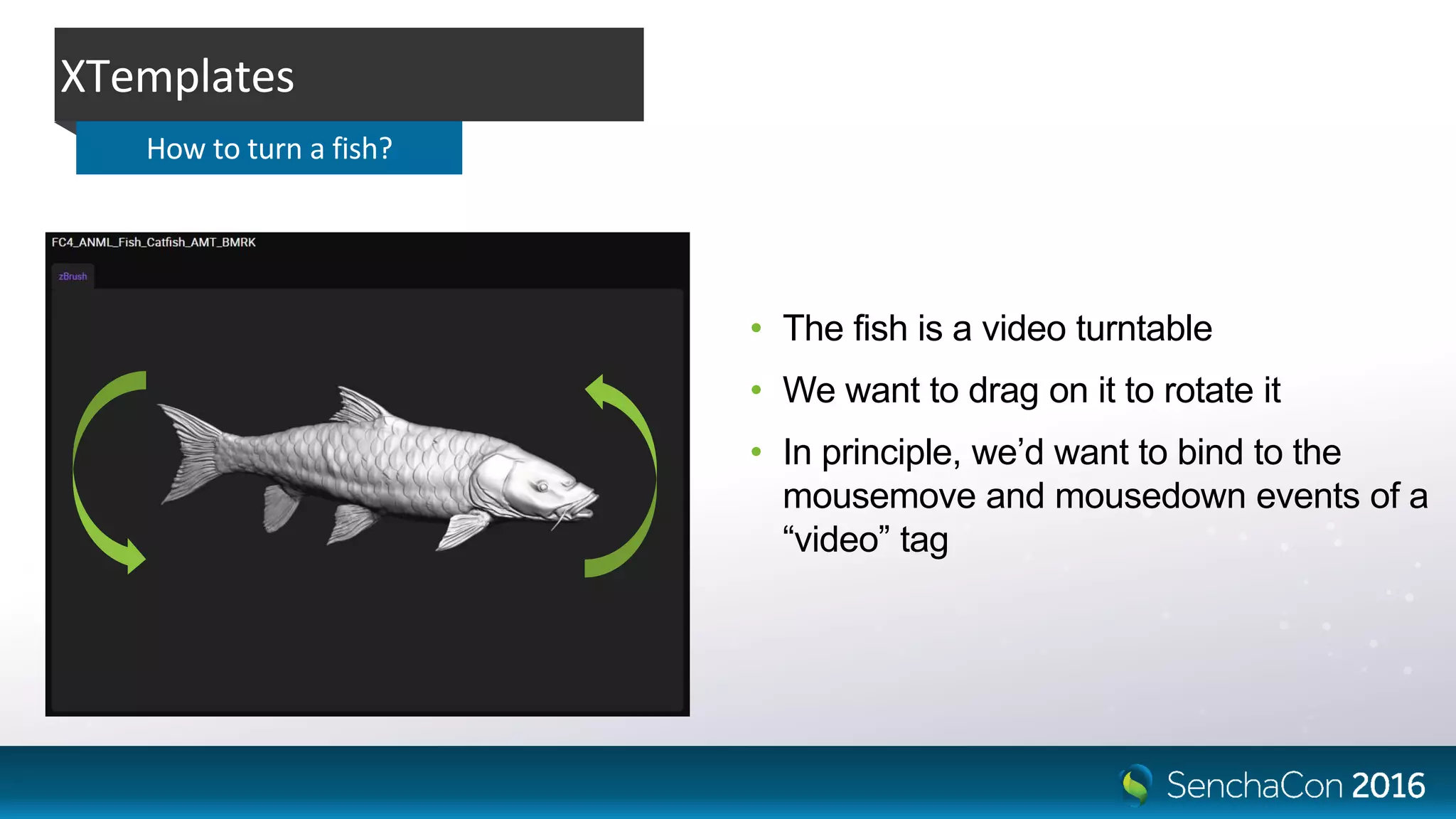

21. • The fish is a video turntable
• We want to drag on it to rotate it
• In principle, we’d want to bind to the
mousemove and mousedown events of a
“video” tag
XTemplates
How to turn a fish?

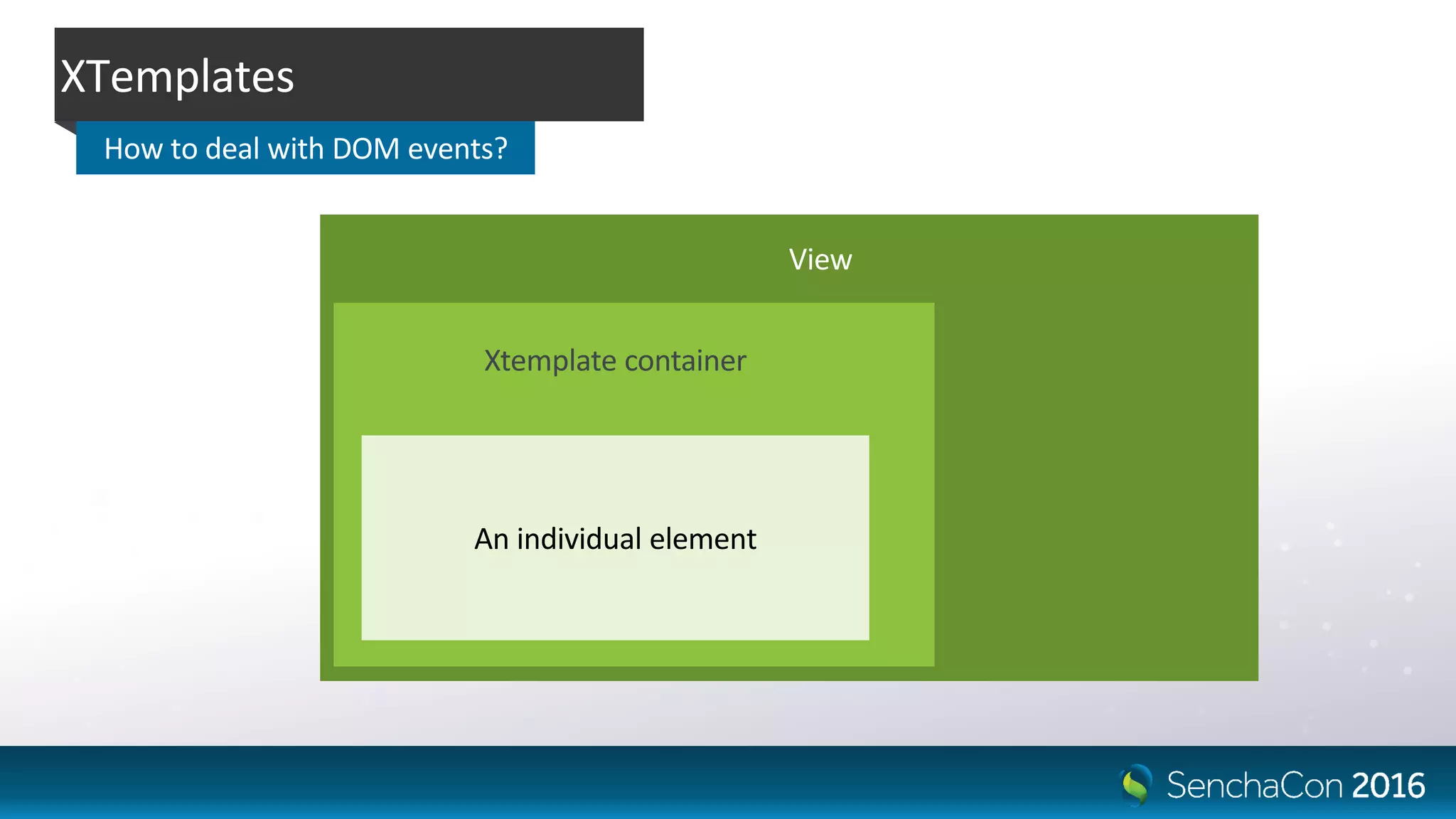

22. XTemplates
How to deal with DOM events?
An individual element
Xtemplate container
View

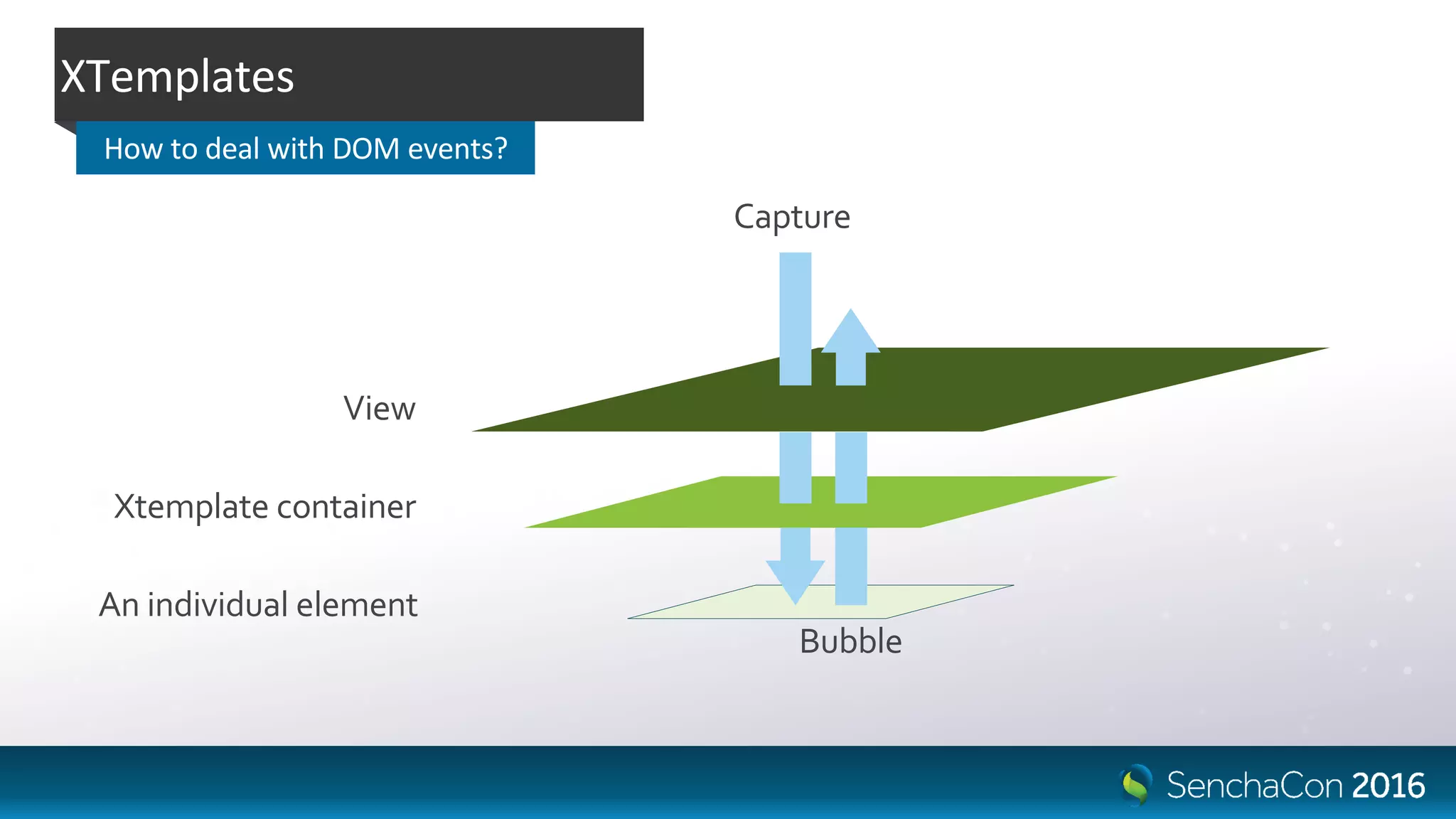

23. Capture
Bubble
Xtemplate container
View
An individual element
XTemplates
How to deal with DOM events?

24. Bind events here?
Capture
Bubble
Xtemplate container
View
An individual element
XTemplates
How to deal with DOM events?

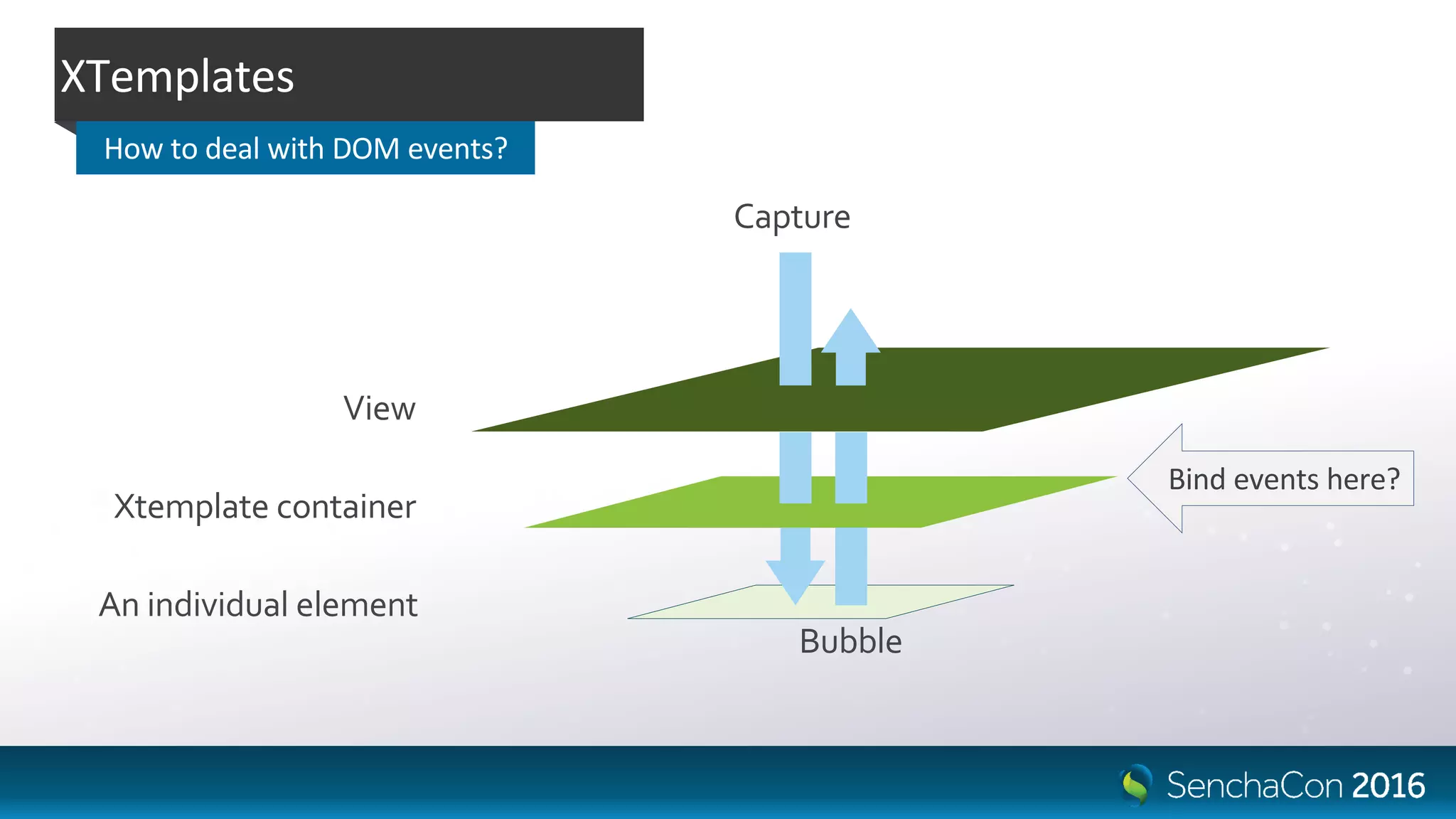

25. Bind events here?
Capture
Bubble
Xtemplate container
View
An individual element
XTemplates
How to deal with DOM events?

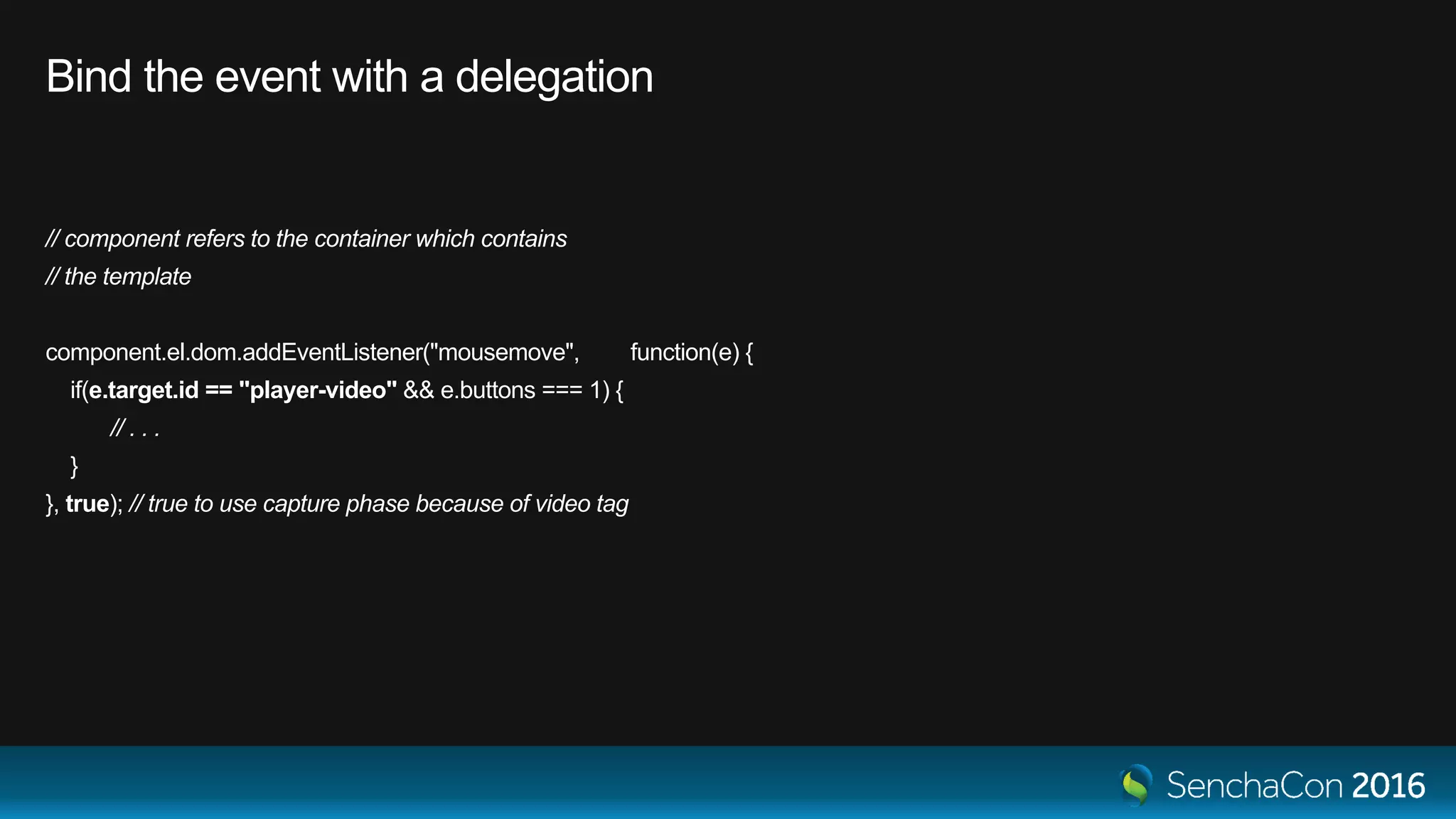

26. Bind the event with a delegation
// component refers to the container which contains
// the template
component.el.dom.addEventListener("mousemove", function(e) {
if(e.target.id == "player-video" && e.buttons === 1) {
// . . .
}
}, true); // true to use capture phase because of video tag

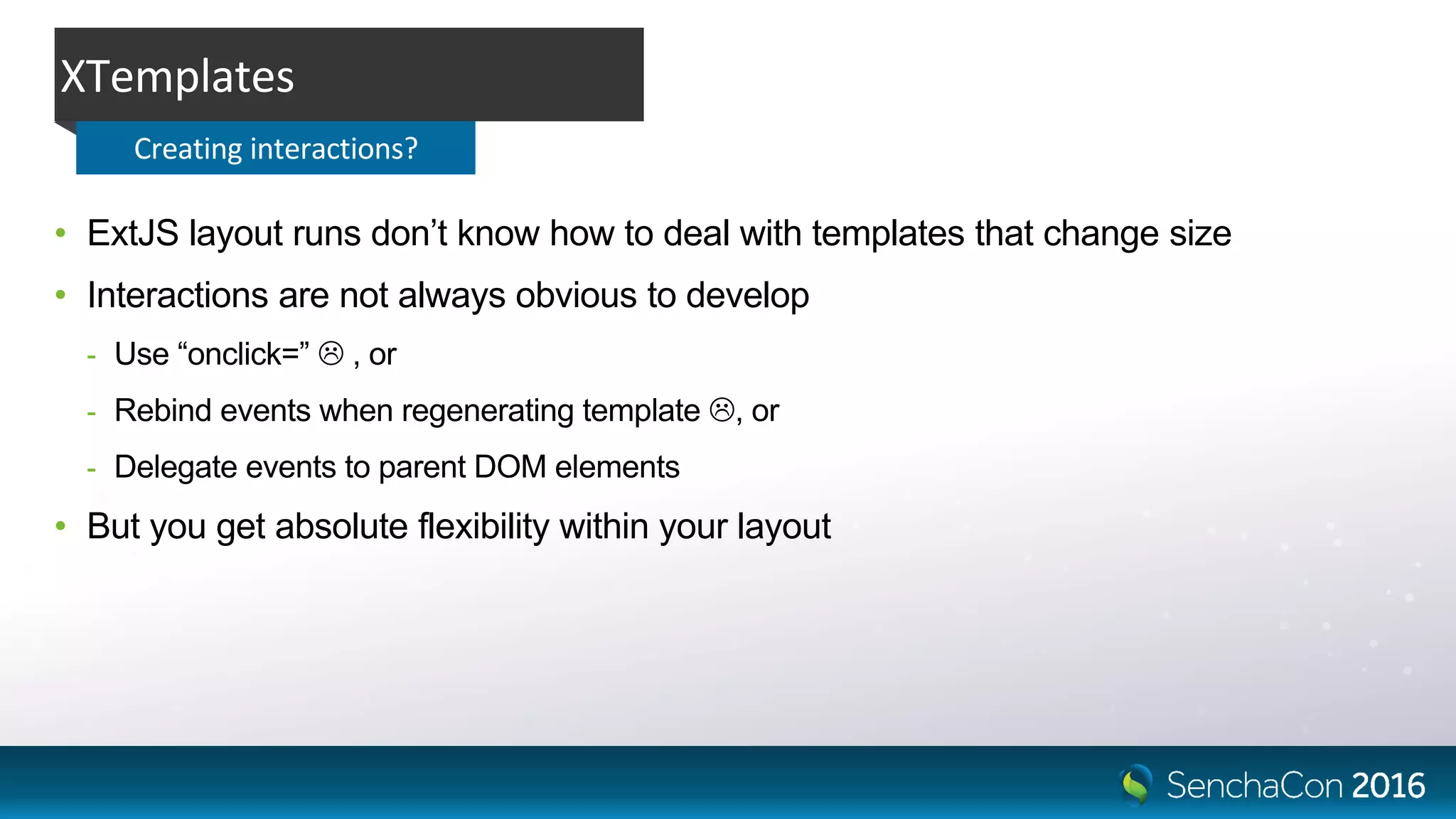

27. • ExtJS layout runs don’t know how to deal with templates that change size
• Interactions are not always obvious to develop
- Use “onclick=”  , or
- Rebind events when regenerating template , or
- Delegate events to parent DOM elements
• But you get absolute flexibility within your layout
XTemplates
Creating interactions?

28. • Hard to maintain large chunks of HTML in XTemplates
• Why not load them separately?
• Load templates asynchronously
XTemplates
Dynamic loading extension

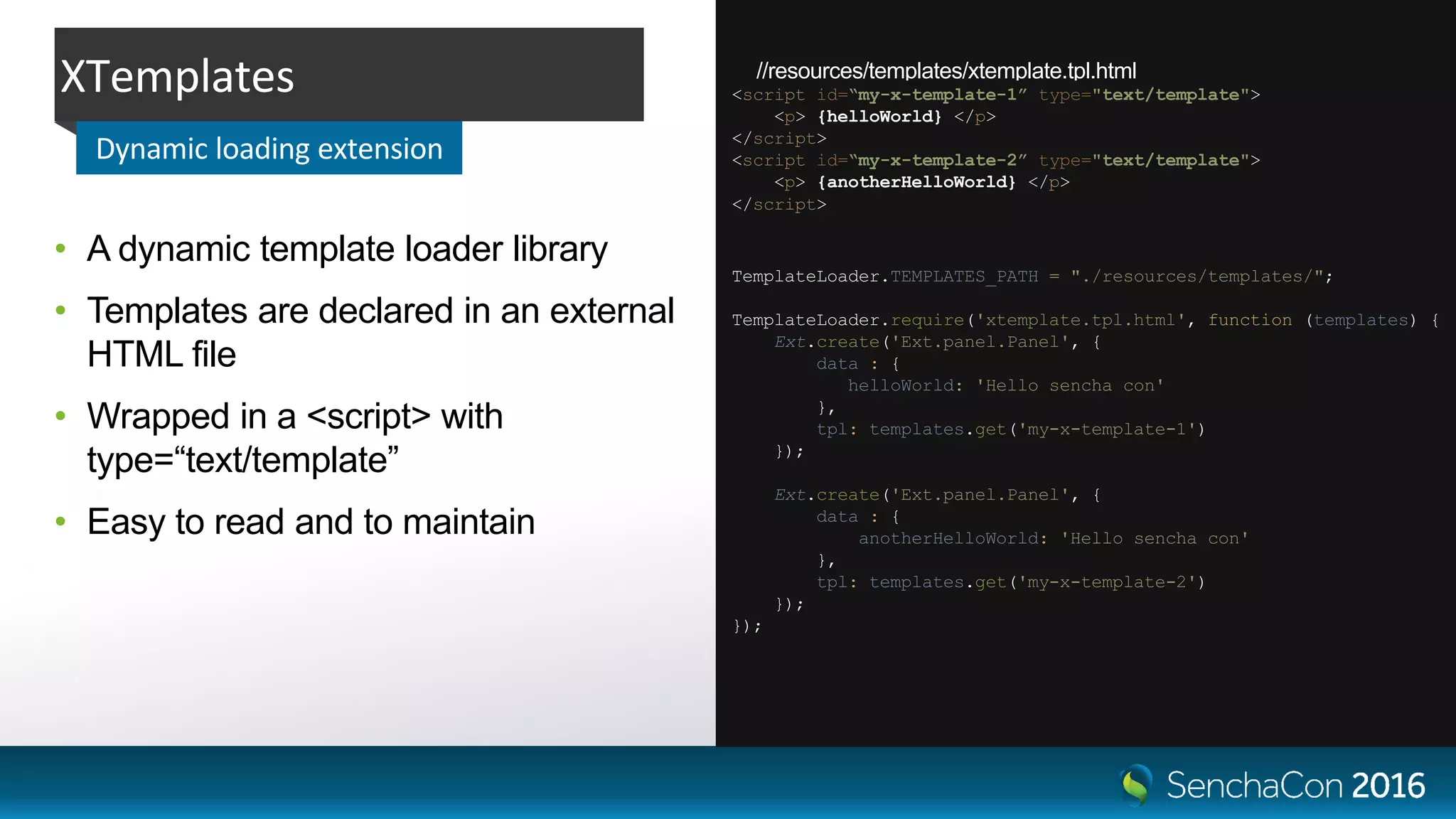

29. //resources/templates/xtemplate.tpl.html
// script.js
• A dynamic template loader library
• Templates are declared in an external
HTML file
• Wrapped in a <script> with
type=“text/template”
• Easy to read and to maintain
XTemplates
Dynamic loading extension
TemplateLoader.TEMPLATES_PATH = "./resources/templates/";
TemplateLoader.require('xtemplate.tpl.html', function (templates) {
Ext.create('Ext.panel.Panel', {
data : {
helloWorld: 'Hello sencha con'
},
tpl: templates.get('my-x-template-1')
});
Ext.create('Ext.panel.Panel', {
data : {
anotherHelloWorld: 'Hello sencha con'
},
tpl: templates.get('my-x-template-2')
});
});
<script id=“my-x-template-1” type="text/template">
<p> {helloWorld} </p>
</script>
<script id=“my-x-template-2” type="text/template">
<p> {anotherHelloWorld} </p>
</script>

30. Ext JS routing
Route nomenclature

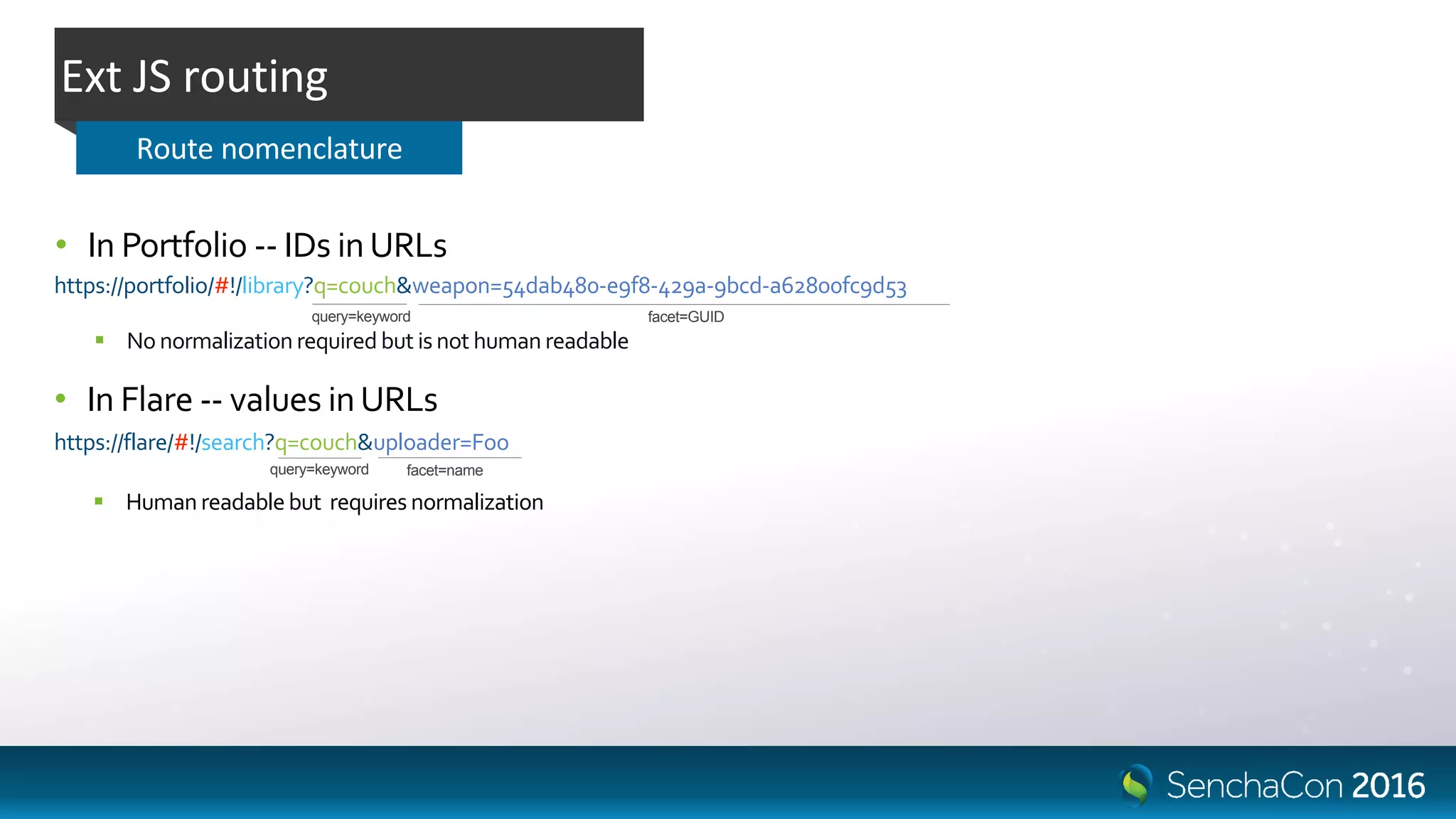

https://portfolio/#!/library?q=couch&weapon=54dab480-e9f8-429a-9bcd-a62800fc9d53
• In Portfolio -- IDs inURLs
• In Flare -- values inURLs
facet=GUIDquery=keyword
https://flare/#!/search?q=couch&uploader=Foo
 No normalization required but is not human readable
 Human readable but requires normalization
facet=namequery=keyword

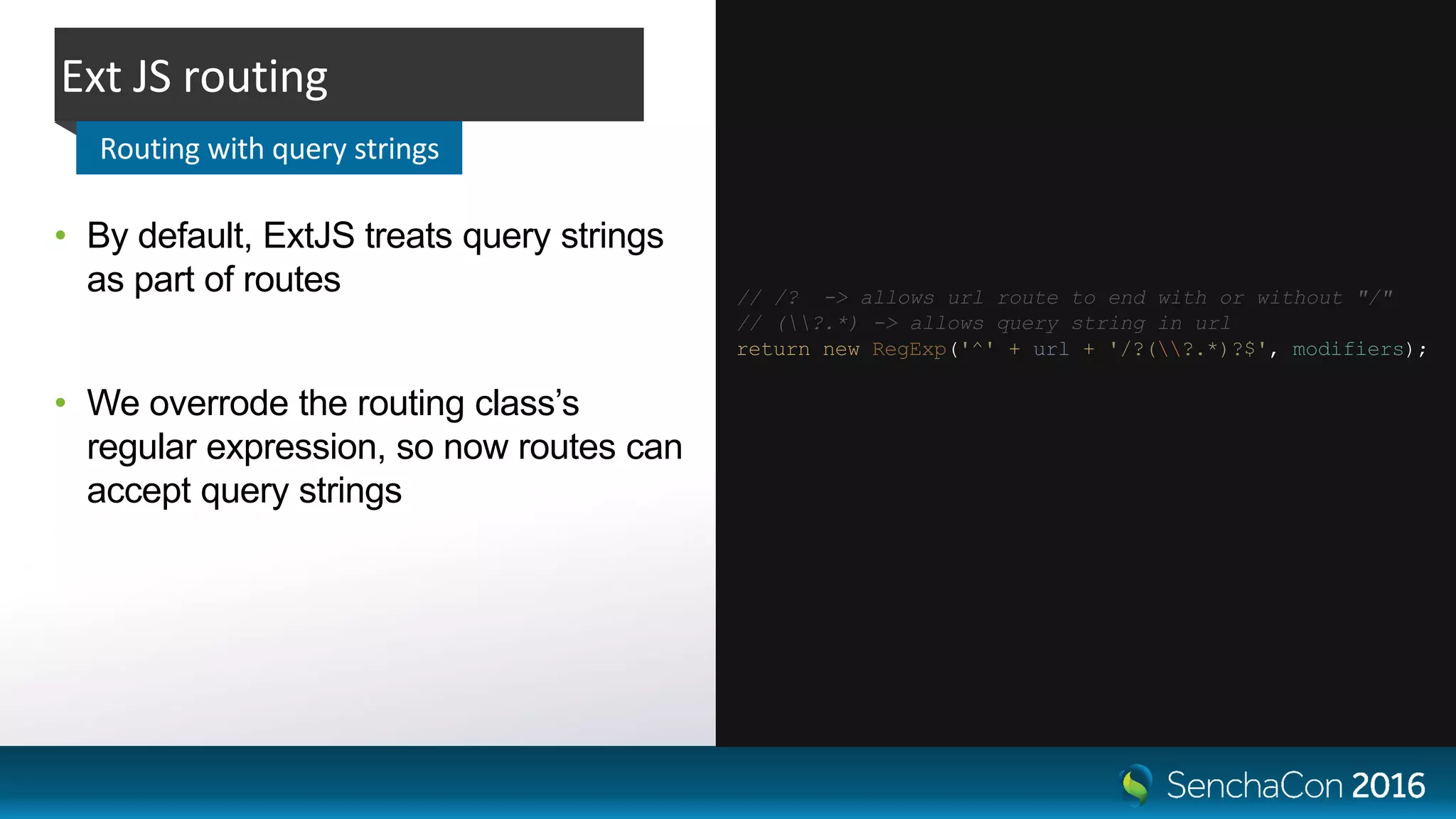

31. • By default, ExtJS treats query strings
as part of routes
• We overrode the routing class’s
regular expression, so now routes can
accept query strings
Ext JS routing
Routing with query strings
// /? -> allows url route to end with or without "/"
// (?.*) -> allows query string in url
return new RegExp('^' + url + '/?(?.*)?$', modifiers);

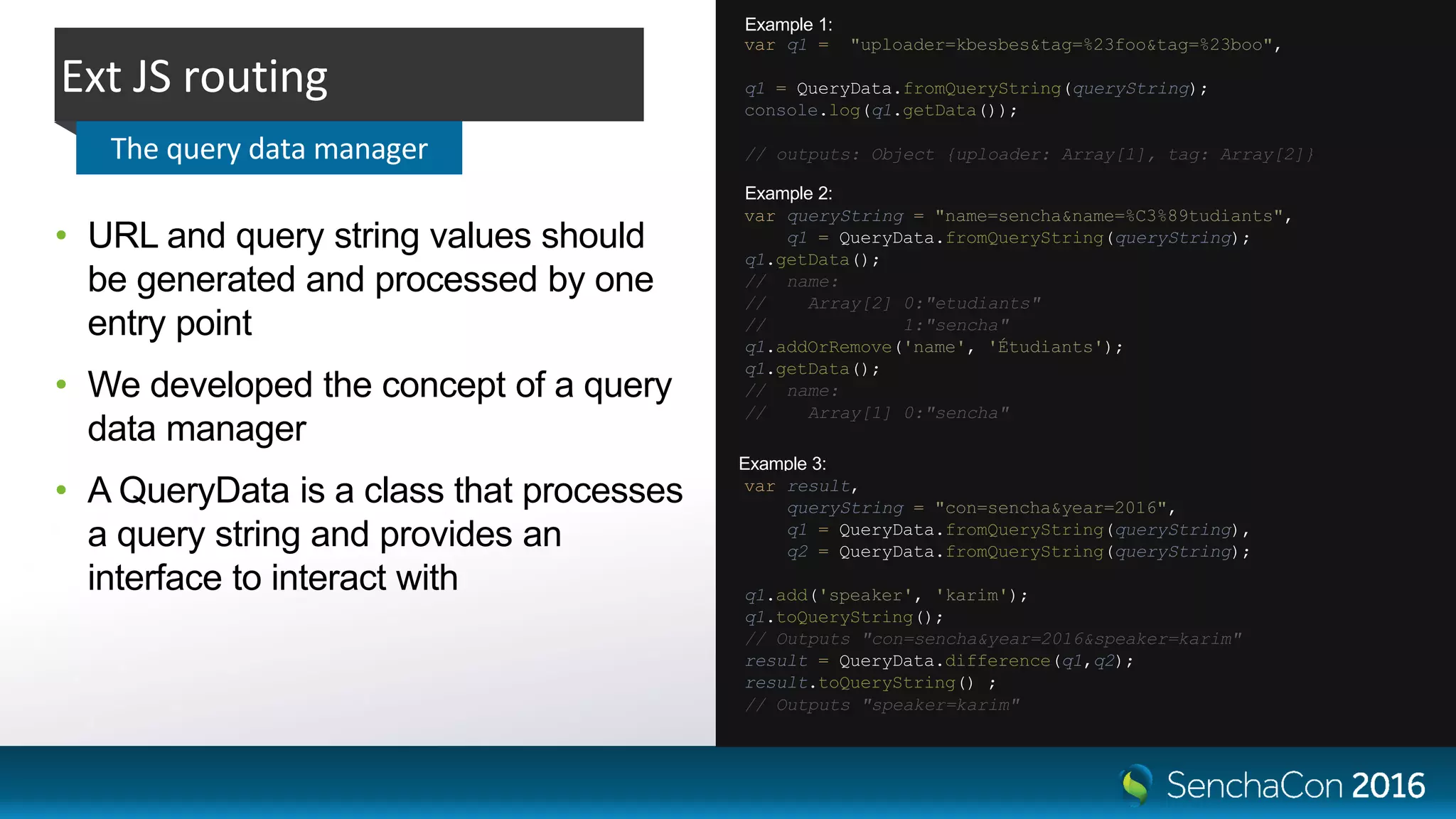

32. Ext JS routing
The query data manager
• URL and query string values should
be generated and processed by one
entry point
• We developed the concept of a query
data manager
• A QueryData is a class that processes
a query string and provides an
interface to interact with
var q1 = "uploader=kbesbes&tag=%23foo&tag=%23boo",
q1 = QueryData.fromQueryString(queryString);
console.log(q1.getData());
// outputs: Object {uploader: Array[1], tag: Array[2]}
var queryString = "name=sencha&name=%C3%89tudiants",
q1 = QueryData.fromQueryString(queryString);
q1.getData();
// name:
// Array[2] 0:"etudiants"
// 1:"sencha"
q1.addOrRemove('name', 'Étudiants');
q1.getData();
// name:
// Array[1] 0:"sencha"
Example 1:
Example 2:
Example 3:
var result,
queryString = "con=sencha&year=2016",
q1 = QueryData.fromQueryString(queryString),
q2 = QueryData.fromQueryString(queryString);
q1.add('speaker', 'karim');
q1.toQueryString();
// Outputs "con=sencha&year=2016&speaker=karim"
result = QueryData.difference(q1,q2);
result.toQueryString() ;
// Outputs "speaker=karim"

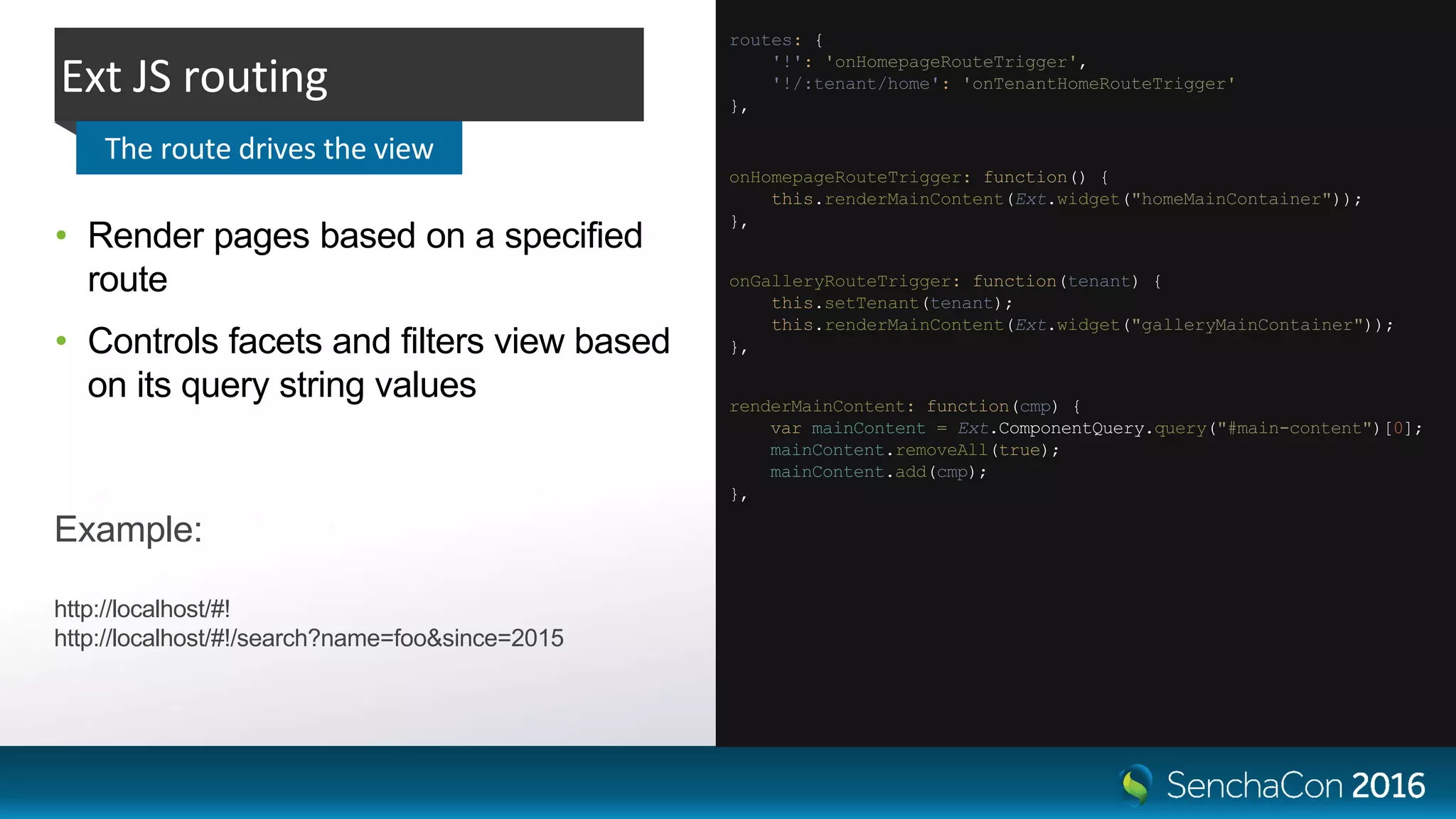

33. • Render pages based on a specified
route
• Controls facets and filters view based
on its query string values
Ext JS routing
The route drives the view
renderMainContent: function(cmp) {
var mainContent = Ext.ComponentQuery.query("#main-content")[0];
mainContent.removeAll(true);
mainContent.add(cmp);
},
onHomepageRouteTrigger: function() {
this.renderMainContent(Ext.widget("homeMainContainer"));
},
routes: {
'!': 'onHomepageRouteTrigger',
'!/:tenant/home': 'onTenantHomeRouteTrigger'
},
onGalleryRouteTrigger: function(tenant) {
this.setTenant(tenant);
this.renderMainContent(Ext.widget("galleryMainContainer"));
},
Example:
http://localhost/#!
http://localhost/#!/search?name=foo&since=2015

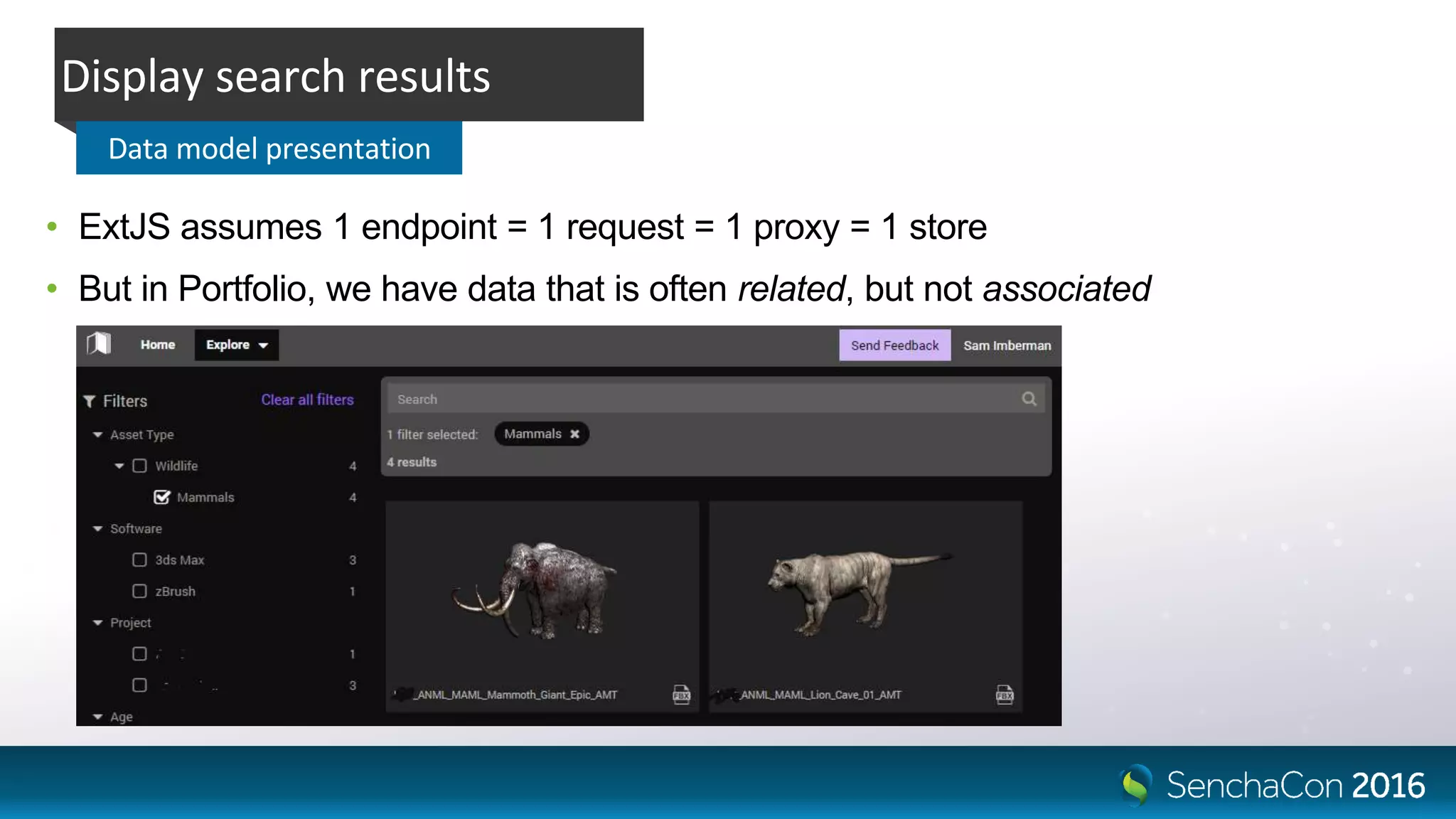

34. • ExtJS assumes 1 endpoint = 1 request = 1 proxy = 1 store
• But in Portfolio, we have data that is often related, but not associated
Display search results
Data model presentation

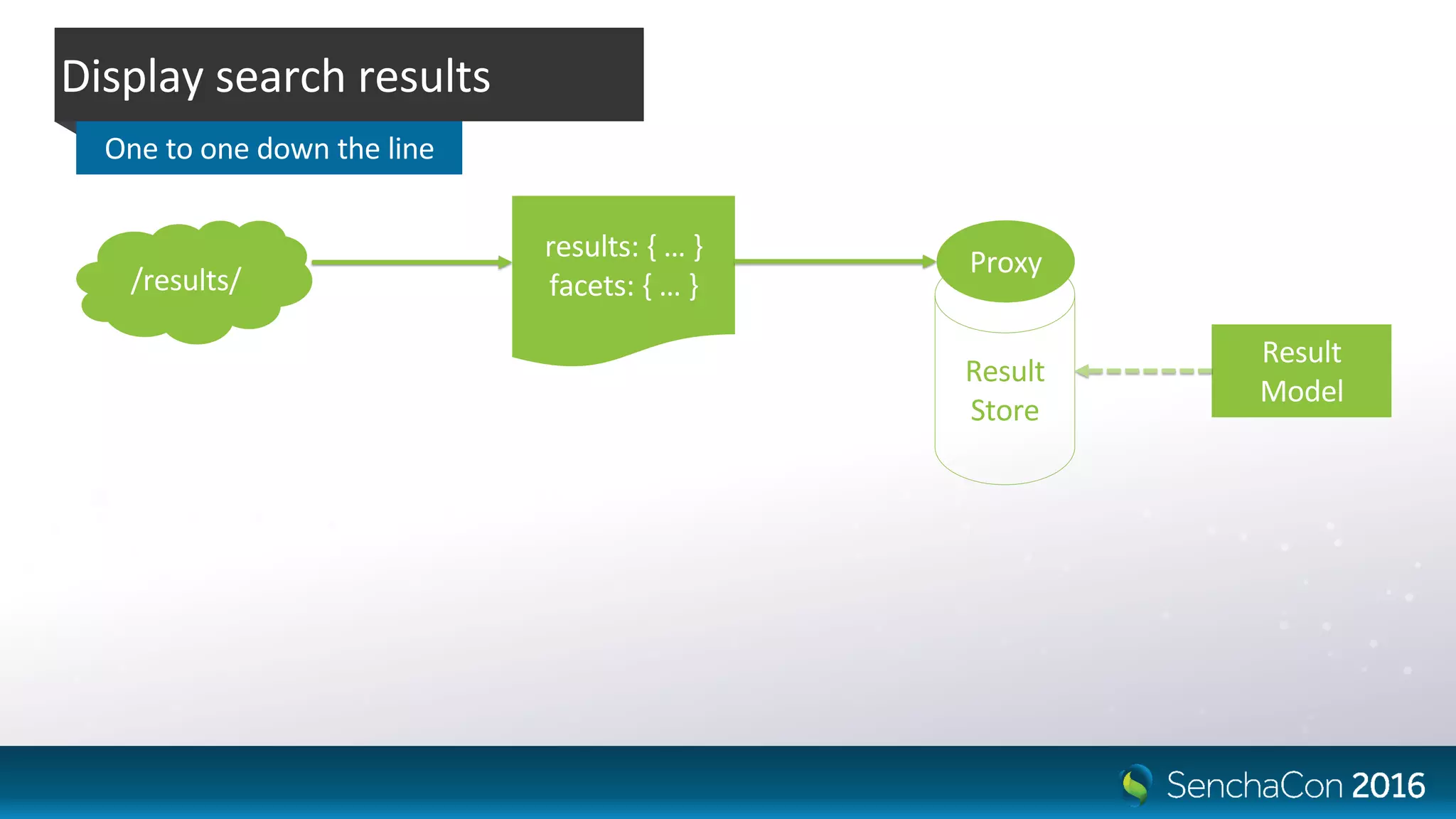

35. Display search results
One to one down the line
Result
Store
Proxy
Result
Model
/results/
results: { … }
facets: { … }

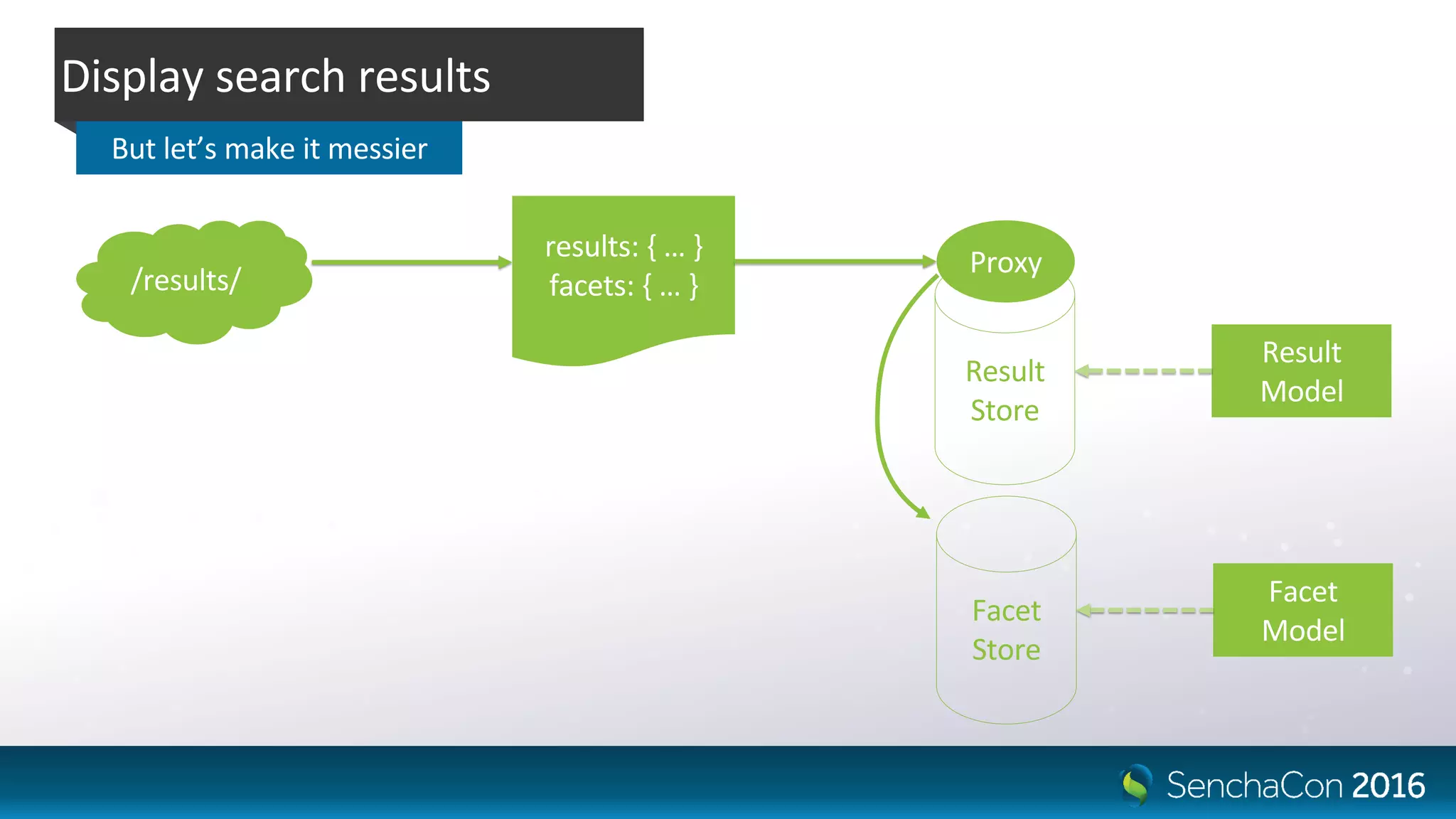

36. Result
Store
Proxy
Result
Model
/results/
results: { … }
facets: { … }
Facet
Store
Facet
Model
Display search results
But let’s make it messier

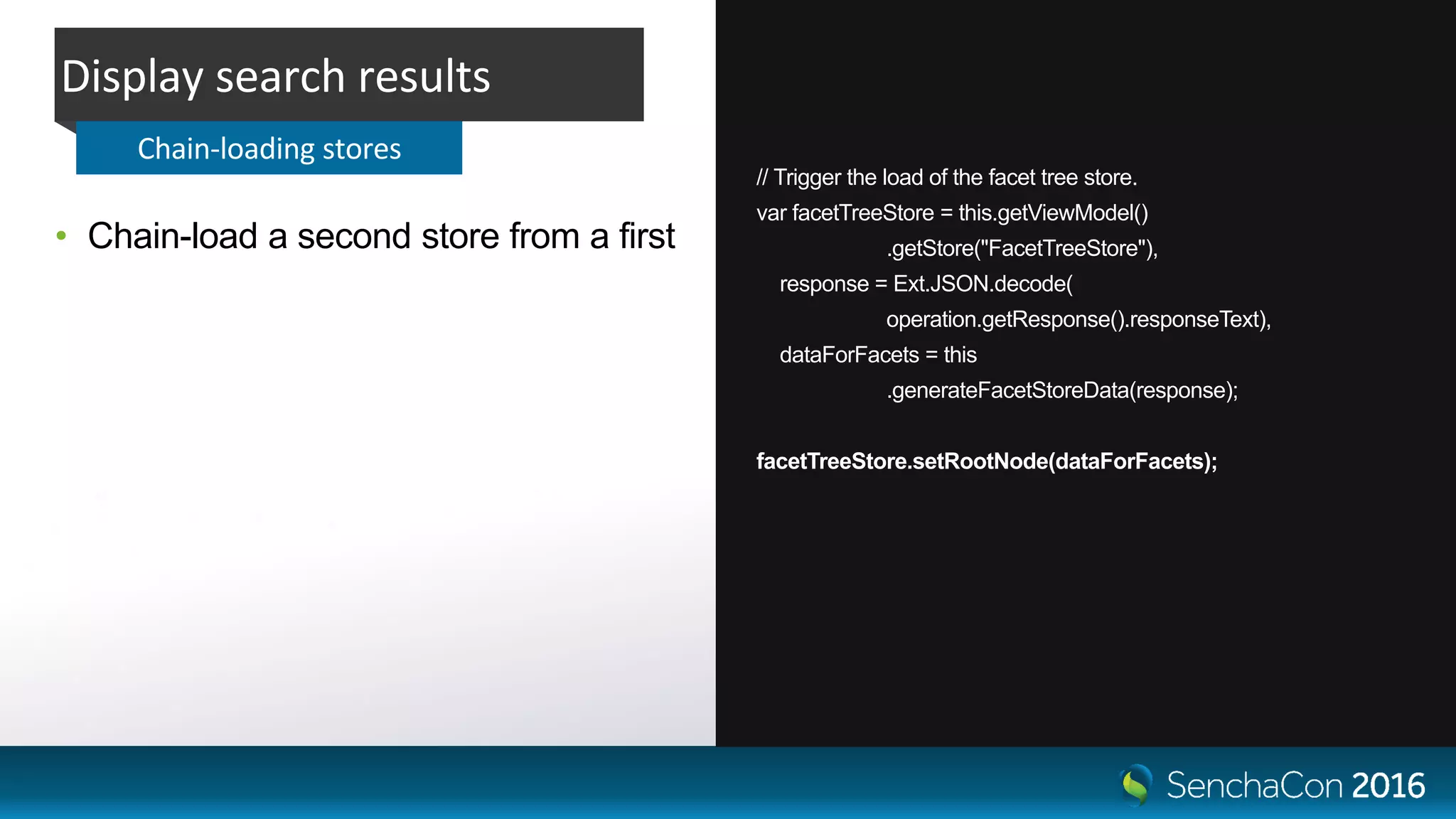

37. // Trigger the load of the facet tree store.
var facetTreeStore = this.getViewModel()
.getStore("FacetTreeStore"),
response = Ext.JSON.decode(
operation.getResponse().responseText),
dataForFacets = this
.generateFacetStoreData(response);
facetTreeStore.setRootNode(dataForFacets);
• Chain-load a second store from a first
Display search results
Chain-loading stores

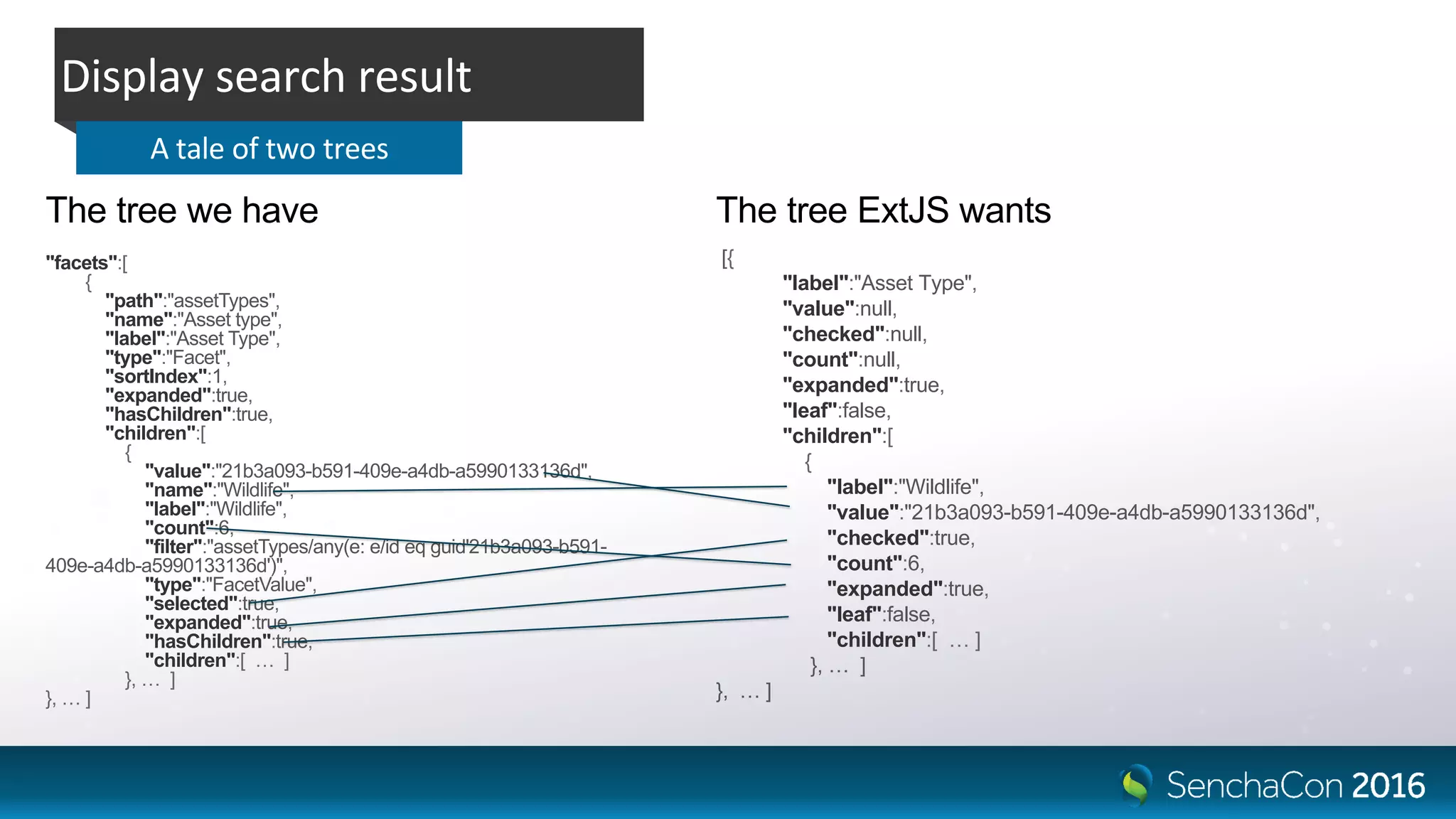

38. The tree we have The tree ExtJS wants
"facets":[
{
"path":"assetTypes",
"name":"Asset type",
"label":"Asset Type",
"type":"Facet",
"sortIndex":1,
"expanded":true,
"hasChildren":true,
"children":[
{
"value":"21b3a093-b591-409e-a4db-a5990133136d",
"name":"Wildlife",
"label":"Wildlife",
"count":6,
"filter":"assetTypes/any(e: e/id eq guid'21b3a093-b591-
409e-a4db-a5990133136d')",
"type":"FacetValue",
"selected":true,
"expanded":true,
"hasChildren":true,
"children":[ … ]
}, … ]
}, … ]
[{
"label":"Asset Type",
"value":null,
"checked":null,
"count":null,
"expanded":true,
"leaf":false,
"children":[
{
"label":"Wildlife",
"value":"21b3a093-b591-409e-a4db-a5990133136d",
"checked":true,
"count":6,
"expanded":true,
"leaf":false,
"children":[ … ]
}, … ]
}, … ]
Display search result
A tale of two trees

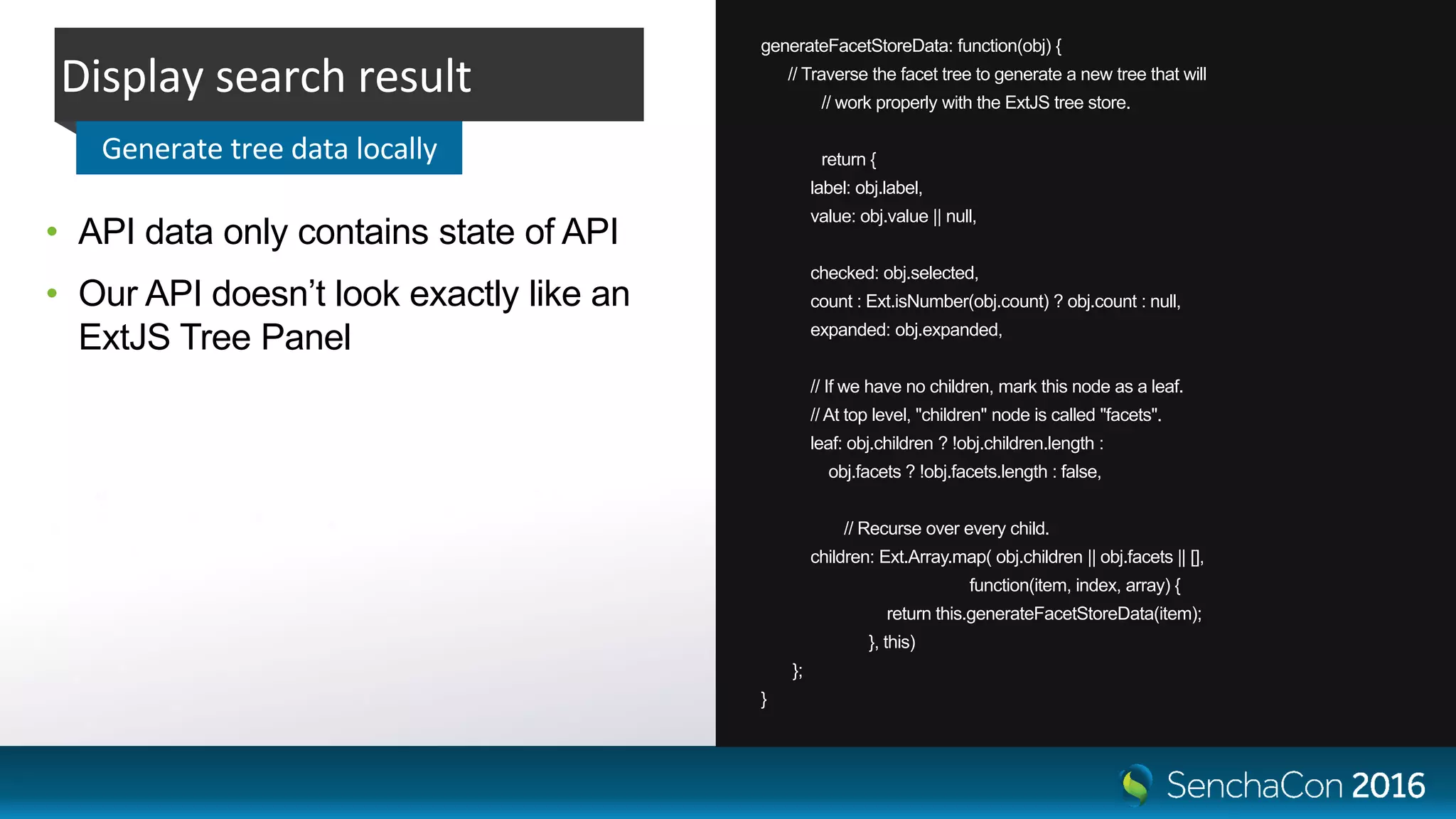

39. generateFacetStoreData: function(obj) {
// Traverse the facet tree to generate a new tree that will
// work properly with the ExtJS tree store.
return {
label: obj.label,
value: obj.value || null,
checked: obj.selected,
count : Ext.isNumber(obj.count) ? obj.count : null,
expanded: obj.expanded,
// If we have no children, mark this node as a leaf.
// At top level, "children" node is called "facets".
leaf: obj.children ? !obj.children.length :
obj.facets ? !obj.facets.length : false,
// Recurse over every child.
children: Ext.Array.map( obj.children || obj.facets || [],
function(item, index, array) {
return this.generateFacetStoreData(item);
}, this)
};
}
• API data only contains state of API
• Our API doesn’t look exactly like an
ExtJS Tree Panel
Display search result
Generate tree data locally

40. LESSONS LEARNED

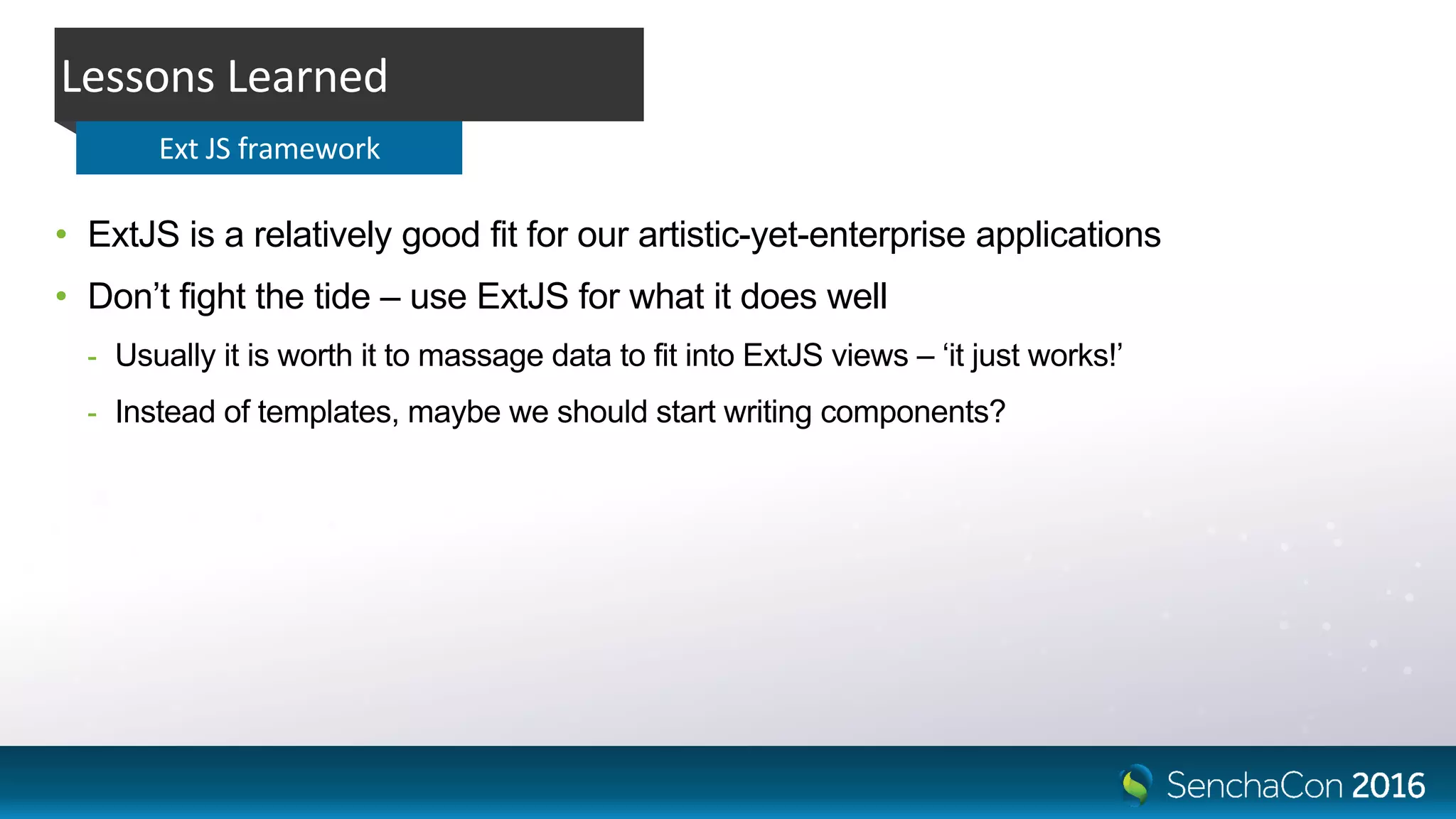

41. • ExtJS is a relatively good fit for our artistic-yet-enterprise applications
• Don’t fight the tide – use ExtJS for what it does well
- Usually it is worth it to massage data to fit into ExtJS views – ‘it just works!’
- Instead of templates, maybe we should start writing components?
Lessons Learned
Ext JS framework

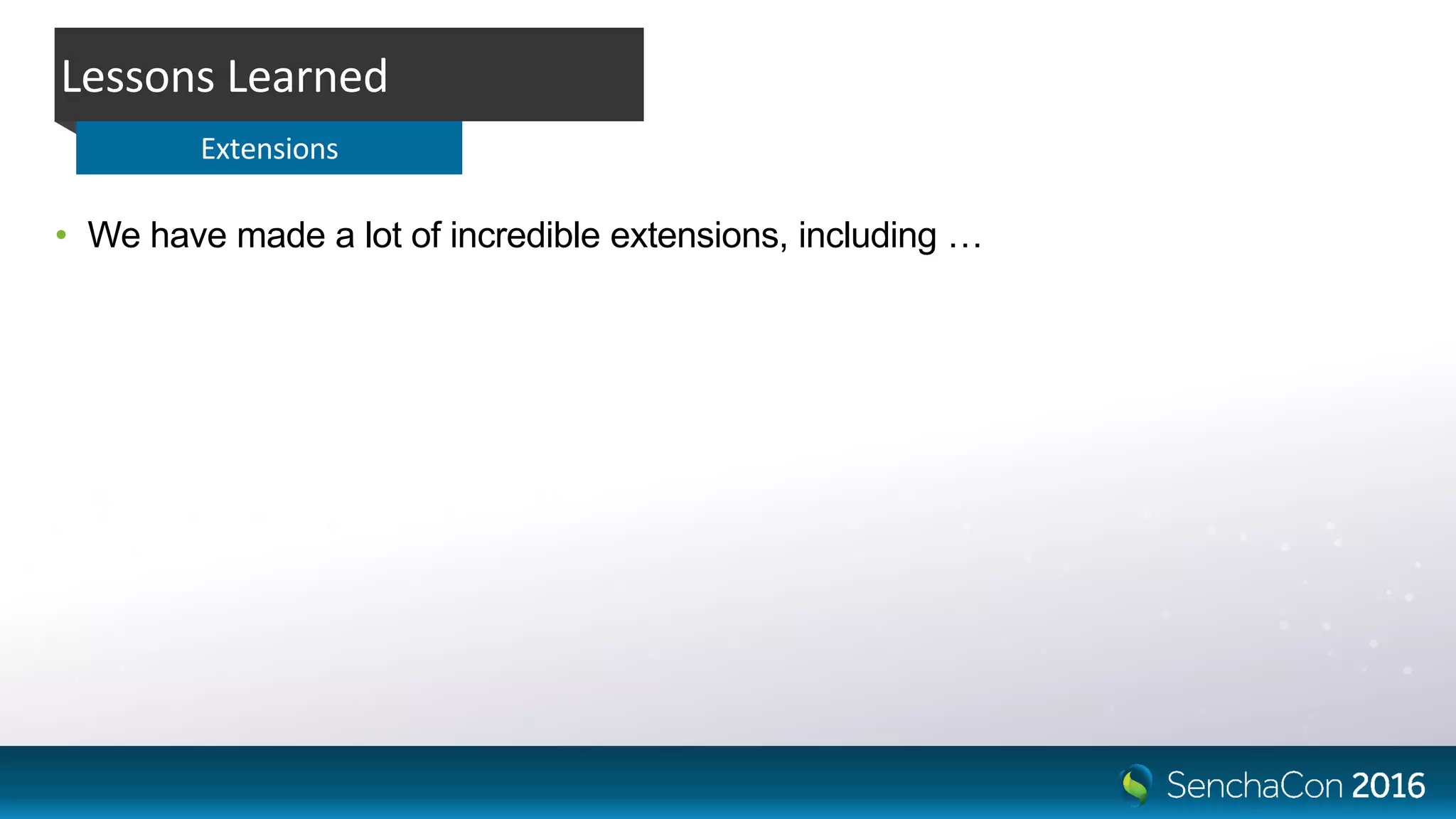

42. • We have made a lot of incredible extensions, including …
Lessons Learned
Extensions

43. Q & A
