The document provides an introduction to Sencha Touch 2.0, a high-performance HTML5 mobile application framework designed for building applications across various platforms such as iOS, Android, and Blackberry. It highlights the company Folio3's expertise in software solutions and mobile application development as well as a case study of the SixthSense app developed for Merck's sales personnel. Key components of Sencha Touch, including MVC architecture, different types of components, and layout management, are explained to assist developers in getting started with the framework.

1. An Introduction to Sencha
Touch 2.0
www.folio3.com@folio_3

2. www.folio3.com
www.folio3.com

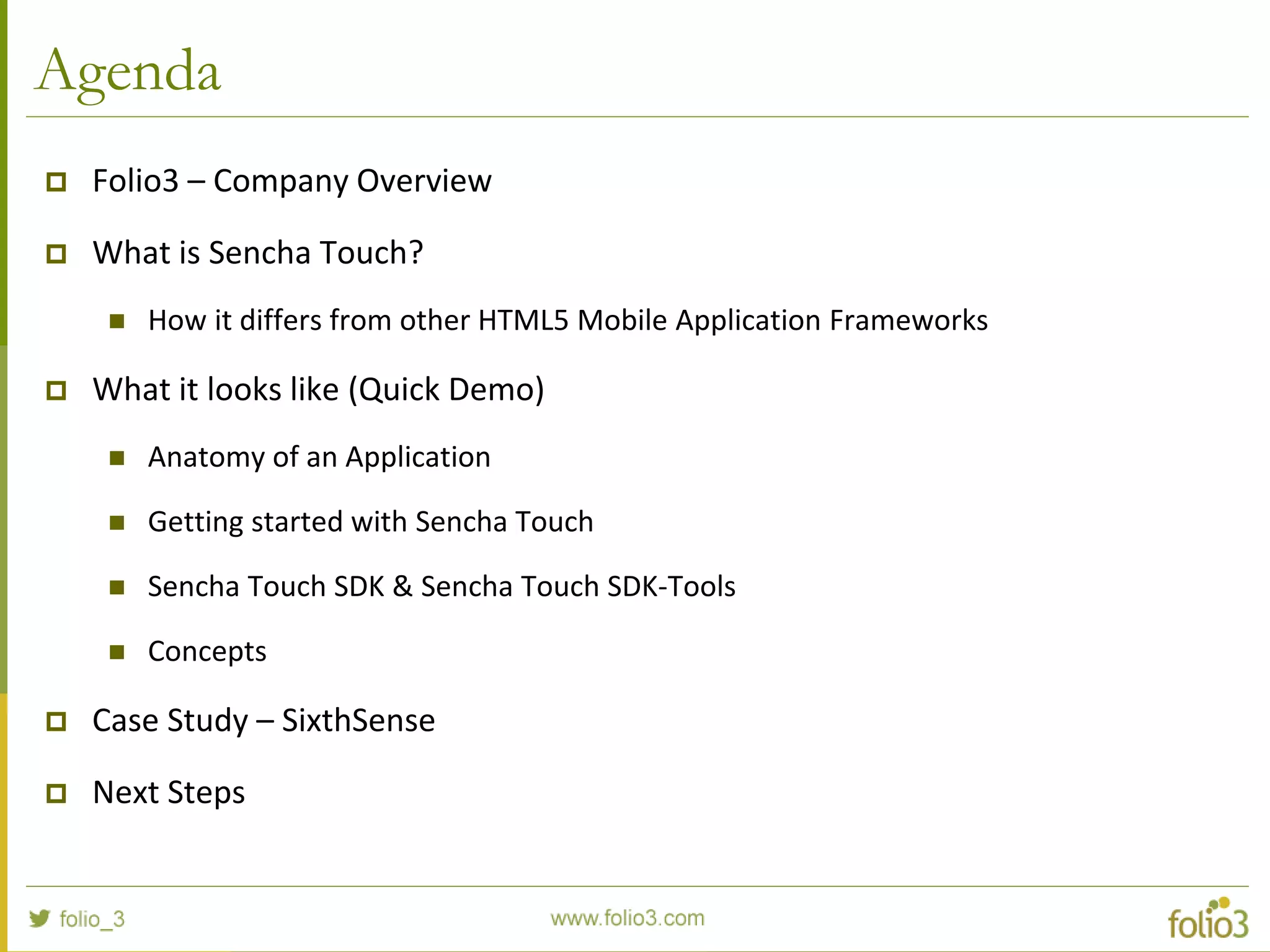

Agenda
 Folio3 – Company Overview
 What is Sencha Touch?
 How it differs from other HTML5 Mobile Application Frameworks
 What it looks like (Quick Demo)
 Anatomy of an Application
 Getting started with Sencha Touch
 Sencha Touch SDK & Sencha Touch SDK-Tools
 Concepts
 Case Study – SixthSense
 Next Steps

3. Folio3 – An Overview
www.folio3.com@folio_3

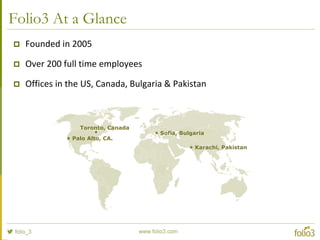

4. Folio3 At a Glance
 Founded in 2005
 Over 200 full time employees
 Offices in the US, Canada, Bulgaria & Pakistan
 Palo Alto, CA.
 Sofia, Bulgaria
 Karachi, Pakistan
Toronto, Canada

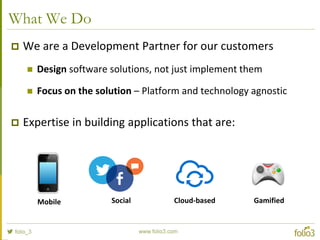

5. What We Do
 We are a Development Partner for our customers
 Design software solutions, not just implement them
 Focus on the solution – Platform and technology agnostic
 Expertise in building applications that are:
Mobile Social Cloud-based Gamified

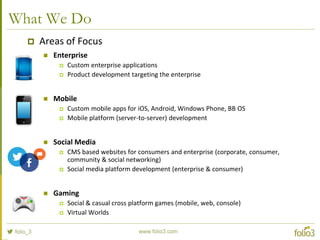

6. What We Do
 Areas of Focus
 Enterprise
 Custom enterprise applications
 Product development targeting the enterprise
 Mobile
 Custom mobile apps for iOS, Android, Windows Phone, BB OS
 Mobile platform (server-to-server) development
 Social Media
 CMS based websites for consumers and enterprise (corporate, consumer,
community & social networking)
 Social media platform development (enterprise & consumer)
 Gaming
 Social & casual cross platform games (mobile, web, console)
 Virtual Worlds

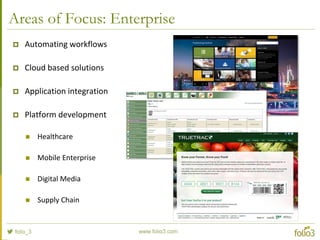

7. Areas of Focus: Enterprise
 Automating workflows
 Cloud based solutions
 Application integration
 Platform development
 Healthcare
 Mobile Enterprise
 Digital Media
 Supply Chain

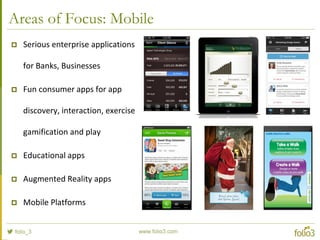

8. Areas of Focus: Mobile
 Serious enterprise applications
for Banks, Businesses
 Fun consumer apps for app
discovery, interaction, exercise
gamification and play
 Educational apps
 Augmented Reality apps
 Mobile Platforms

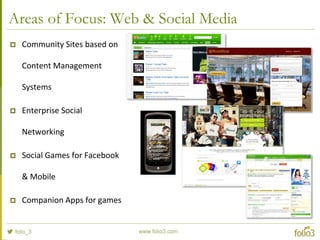

9. Areas of Focus: Web & Social Media
 Community Sites based on
Content Management
Systems
 Enterprise Social
Networking
 Social Games for Facebook
& Mobile
 Companion Apps for games

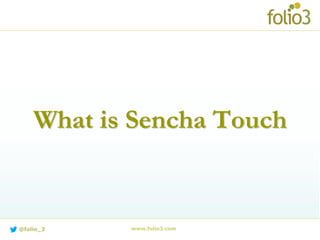

10. What is Sencha Touch
www.folio3.com@folio_3

11. What is Sencha Touch?
 Sencha Touch, a high-performance HTML5 mobile application
framework, is the cornerstone of the Sencha HTML5 platform.
 Built for enabling world-class user experiences.
 Sencha Touch is the framework that enables developers to build
fast and impressive apps that work on iOS, Android, BlackBerry,
Kindle Fire and more.
 Business Ready Apps for every platform!

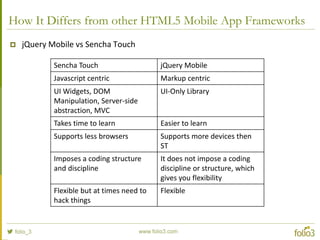

12. How It Differs from other HTML5 Mobile App Frameworks
 jQuery Mobile vs Sencha Touch
Sencha Touch jQuery Mobile
Javascript centric Markup centric
UI Widgets, DOM
Manipulation, Server-side
abstraction, MVC
UI-Only Library
Takes time to learn Easier to learn
Supports less browsers Supports more devices then
ST
Imposes a coding structure
and discipline
It does not impose a coding
discipline or structure, which
gives you flexibility
Flexible but at times need to
hack things
Flexible

13. What It Looks Like
www.folio3.com@folio_3

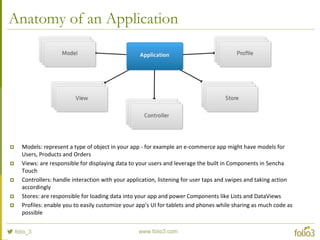

14. Anatomy of an Application
 Models: represent a type of object in your app - for example an e-commerce app might have models for
Users, Products and Orders
 Views: are responsible for displaying data to your users and leverage the built in Components in Sencha
Touch
 Controllers: handle interaction with your application, listening for user taps and swipes and taking action
accordingly
 Stores: are responsible for loading data into your app and power Components like Lists and DataViews
 Profiles: enable you to easily customize your app's UI for tablets and phones while sharing as much code as
possible

15. Getting Started With Sencha Touch
Sencha Touch SDK
http://www.sencha.com/products/touch/download/
&
Sencha Touch SDK-Tools
http://www.sencha.com/products/sdk-tools/download

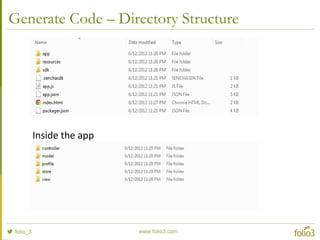

16. Generate Code – Directory Structure
Inside the app

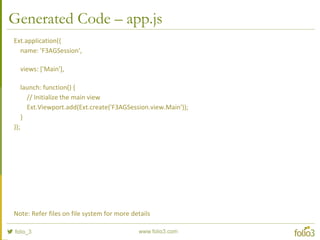

17. Generated Code – app.js
Ext.application({
name: 'F3AGSession',
views: ['Main'],
launch: function() {
// Initialize the main view
Ext.Viewport.add(Ext.create('F3AGSession.view.Main'));
}
});
Note: Refer files on file system for more details

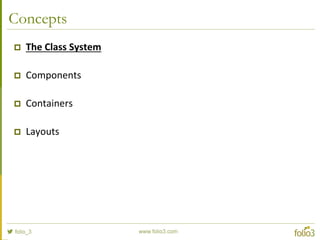

18. Concepts
 The Class System
 Components
 Containers
 Layouts

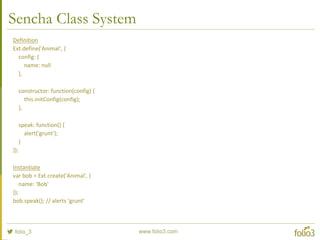

19. Sencha Class System
Definition
Ext.define('Animal', {
config: {
name: null
},
constructor: function(config) {
this.initConfig(config);
},
speak: function() {
alert('grunt');
}
});
Instantiate
var bob = Ext.create('Animal', {
name: 'Bob'
});
bob.speak(); // alerts ‘grunt’

20. Sencha Class System – Inheritance
Definition
Ext.define('Human', {
extend: 'Animal',
speak: function() {
alert(this.getName());
}
});
Instantiate
var bob = Ext.create('Human', {
name: 'Bob'
});
bob.speak(); //alerts 'Bob'

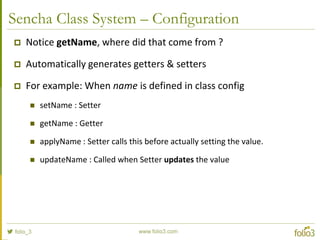

21. Sencha Class System – Configuration
 Notice getName, where did that come from ?
 Automatically generates getters & setters
 For example: When name is defined in class config
 setName : Setter
 getName : Getter
 applyName : Setter calls this before actually setting the value.
 updateName : Called when Setter updates the value

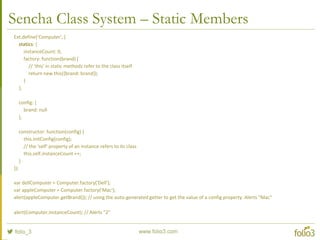

22. Sencha Class System – Static Members
Ext.define('Computer', {
statics: {
instanceCount: 0,
factory: function(brand) {
// 'this' in static methods refer to the class itself
return new this({brand: brand});
}
},
config: {
brand: null
},
constructor: function(config) {
this.initConfig(config);
// the 'self' property of an instance refers to its class
this.self.instanceCount ++;
}
});
var dellComputer = Computer.factory('Dell');
var appleComputer = Computer.factory('Mac');
alert(appleComputer.getBrand()); // using the auto-generated getter to get the value of a config property. Alerts "Mac"
alert(Computer.instanceCount); // Alerts "2"

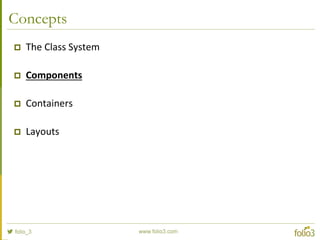

23. Concepts
 The Class System
 Components
 Containers
 Layouts

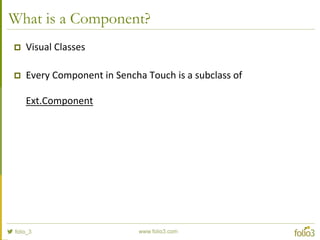

24. What is a Component?
 Visual Classes
 Every Component in Sencha Touch is a subclass of
Ext.Component

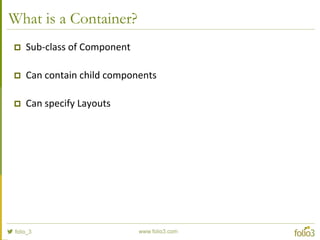

25. What is a Container?
 Sub-class of Component
 Can contain child components
 Can specify Layouts

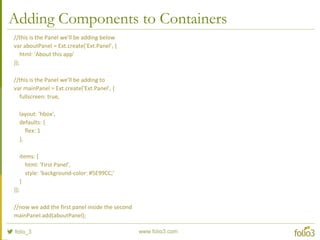

26. Adding Components to Containers
//this is the Panel we'll be adding below
var aboutPanel = Ext.create('Ext.Panel', {
html: 'About this app'
});
//this is the Panel we'll be adding to
var mainPanel = Ext.create('Ext.Panel', {
fullscreen: true,
layout: 'hbox',
defaults: {
flex: 1
},
items: {
html: 'First Panel',
style: 'background-color: #5E99CC;'
}
});
//now we add the first panel inside the second
mainPanel.add(aboutPanel);

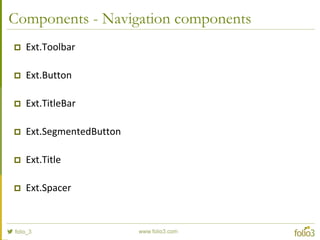

27. Components - Navigation components
 Ext.Toolbar
 Ext.Button
 Ext.TitleBar
 Ext.SegmentedButton
 Ext.Title
 Ext.Spacer

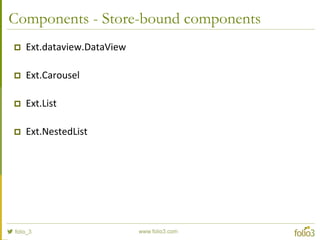

28. Components - Store-bound components
 Ext.dataview.DataView
 Ext.Carousel
 Ext.List
 Ext.NestedList

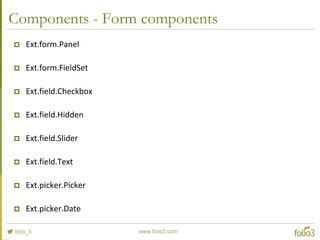

29. Components - Form components
 Ext.form.Panel
 Ext.form.FieldSet
 Ext.field.Checkbox
 Ext.field.Hidden
 Ext.field.Slider
 Ext.field.Text
 Ext.picker.Picker
 Ext.picker.Date

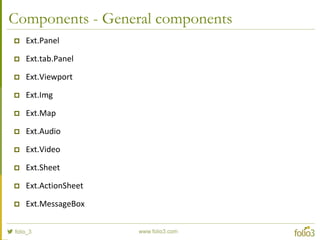

30. Components - General components
 Ext.Panel
 Ext.tab.Panel
 Ext.Viewport
 Ext.Img
 Ext.Map
 Ext.Audio
 Ext.Video
 Ext.Sheet
 Ext.ActionSheet
 Ext.MessageBox

31. Concepts
 The Class System
 Components
 Containers
 Layouts

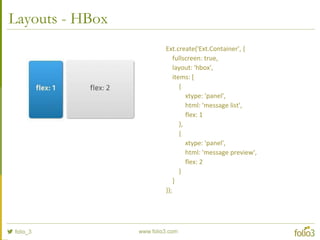

32. Layouts - HBox
Ext.create('Ext.Container', {
fullscreen: true,
layout: 'hbox',
items: [
{
xtype: 'panel',
html: 'message list',
flex: 1
},
{
xtype: 'panel',
html: 'message preview',
flex: 2
}
]
});

33. Layouts - VBox
Ext.create('Ext.Container', {
fullscreen: true,
layout: 'vbox',
items: [
{
xtype: 'panel',
html: 'message list',
flex: 1
},
{
xtype: 'panel',
html: 'message preview',
flex: 2
}
]
});

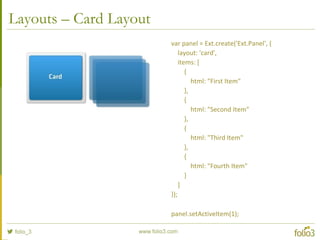

34. Layouts – Card Layout
var panel = Ext.create('Ext.Panel', {
layout: 'card',
items: [
{
html: "First Item"
},
{
html: "Second Item"
},
{
html: "Third Item"
},
{
html: "Fourth Item"
}
]
});
panel.setActiveItem(1);

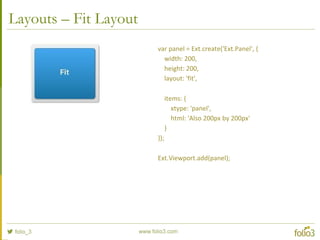

35. Layouts – Fit Layout
var panel = Ext.create('Ext.Panel', {
width: 200,
height: 200,
layout: 'fit',
items: {
xtype: 'panel',
html: 'Also 200px by 200px'
}
});
Ext.Viewport.add(panel);

36. MVC
 Model extends Ext.data.Model
 View extends Ext.Component
 Controller extends Ext.app.Controller

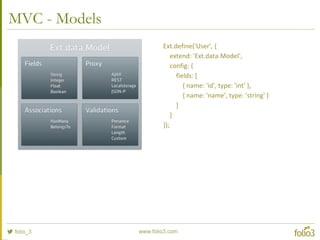

37. MVC - Models
Ext.define('User', {
extend: 'Ext.data.Model',
config: {
fields: [
{ name: 'id', type: 'int' },
{ name: 'name', type: 'string' }
]
}
});

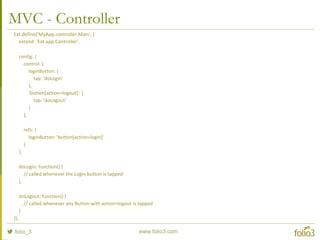

38. MVC - Controller
Ext.define('MyApp.controller.Main', {
extend: 'Ext.app.Controller',
config: {
control: {
loginButton: {
tap: 'doLogin'
},
'button[action=logout]': {
tap: 'doLogout'
}
},
refs: {
loginButton: 'button[action=login]'
}
},
doLogin: function() {
// called whenever the Login button is tapped
},
doLogout: function() {
// called whenever any Button with action=logout is tapped
}
});

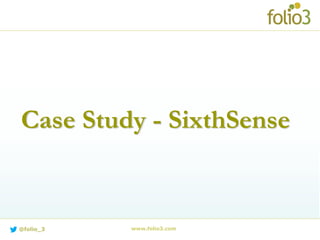

39. Case Study - SixthSense
www.folio3.com@folio_3

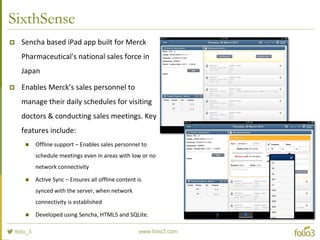

40. SixthSense
 Sencha based iPad app built for Merck
Pharmaceutical's national sales force in
Japan
 Enables Merck’s sales personnel to
manage their daily schedules for visiting
doctors & conducting sales meetings. Key
features include:
 Offline support – Enables sales personnel to
schedule meetings even in areas with low or no
network connectivity
 Active Sync – Ensures all offline content is
synced with the server, when network
connectivity is established
 Developed using Sencha, HTML5 and SQLite.

41. Next Steps
www.folio3.com@folio_3

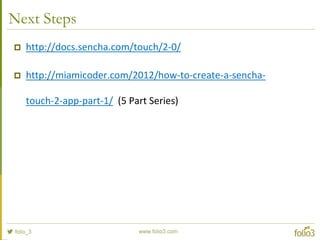

42. Next Steps
 http://docs.sencha.com/touch/2-0/
 http://miamicoder.com/2012/how-to-create-a-sencha-
touch-2-app-part-1/ (5 Part Series)

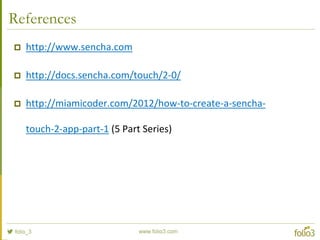

43. References
 http://www.sencha.com
 http://docs.sencha.com/touch/2-0/
 http://miamicoder.com/2012/how-to-create-a-sencha-
touch-2-app-part-1 (5 Part Series)

44. Contact
 For more details about our cross platform, mobile app
development services, please get in touch with us.
contact@folio3.com
US Office: (408) 365-4638
www.folio3.com
