This document discusses building workflow applications using Ext JS. It describes how a workflow application uses a graphical designer to visually represent business processes. The backend uses Activiti software to execute workflows, while the frontend uses Ext JS and its Draw package to build the graphical designer interface. Key aspects covered include implementing the data model and store, adding selection and drag/drop capabilities, and defining basic and composite elements to represent different workflow steps.

1. Improve Workflow Driven
Applications with Ext JS
Draw Package
Jovan Cvetkovic

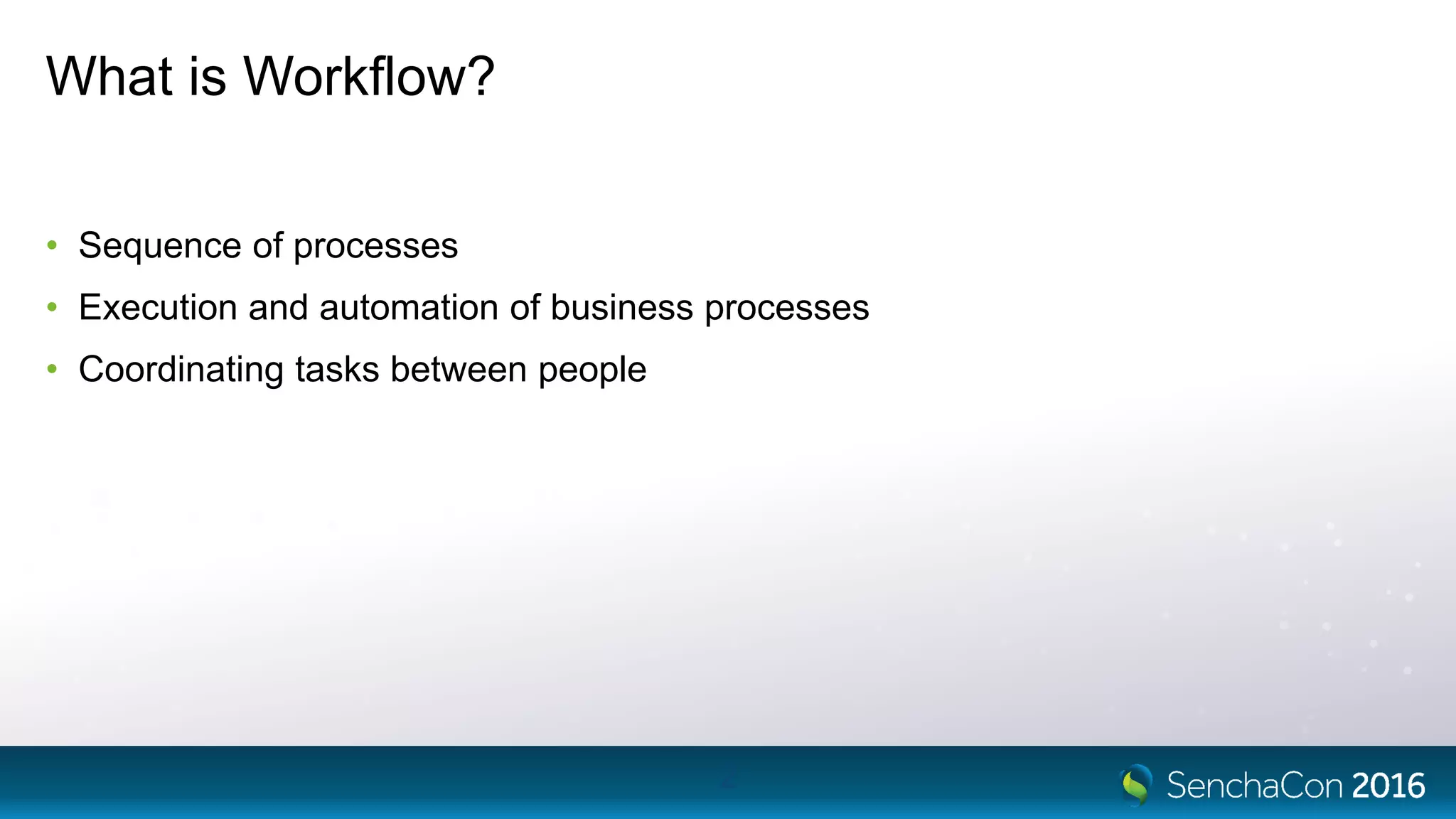

2. What is Workflow?
• Sequence of processes
• Execution and automation of business processes
• Coordinating tasks between people
2

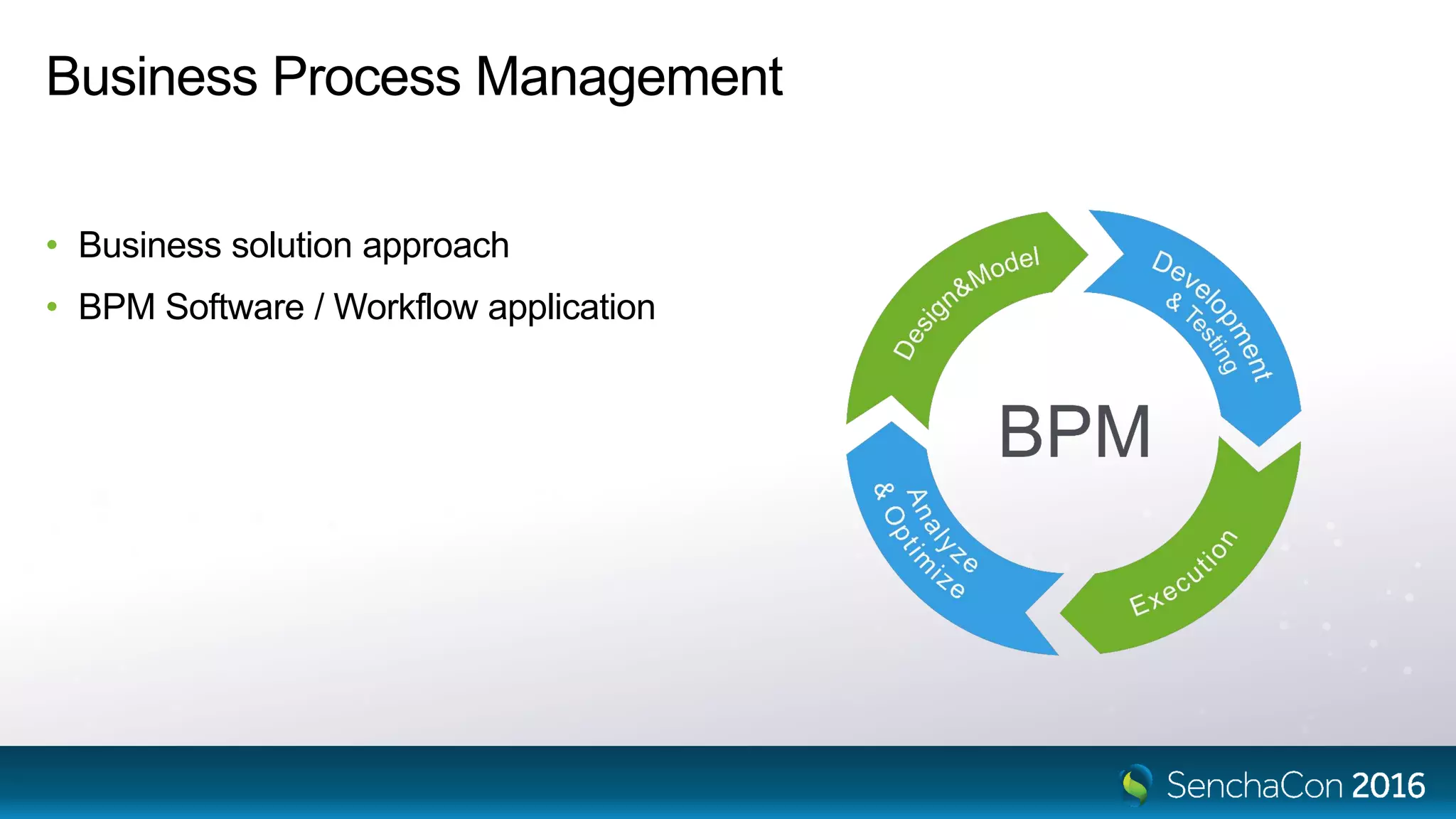

3. Business Process Management
• Business solution approach
• BPM Software / Workflow application

4. Workflow application

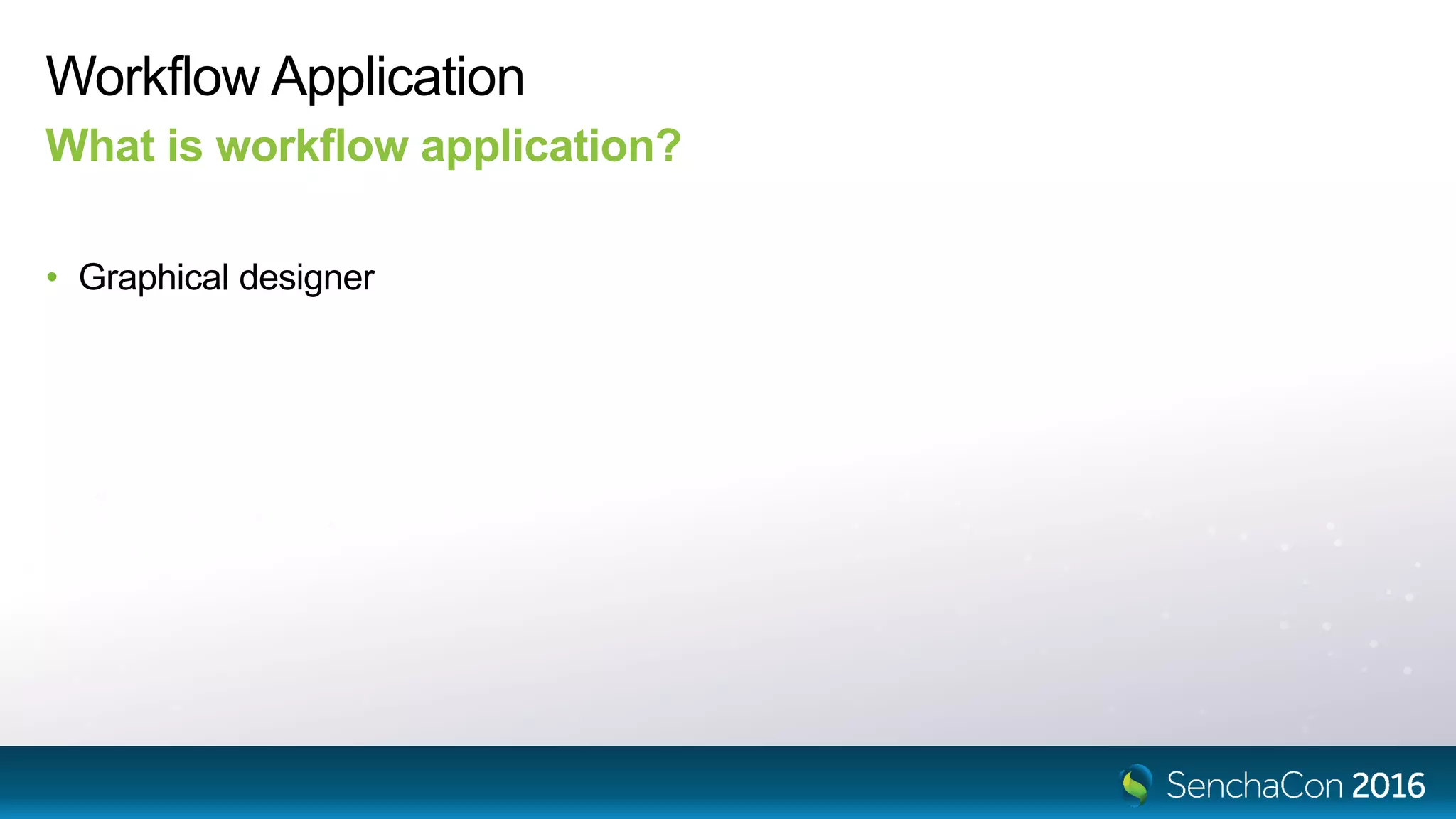

5. Workflow Application
What is workflow application?
• Graphical designer

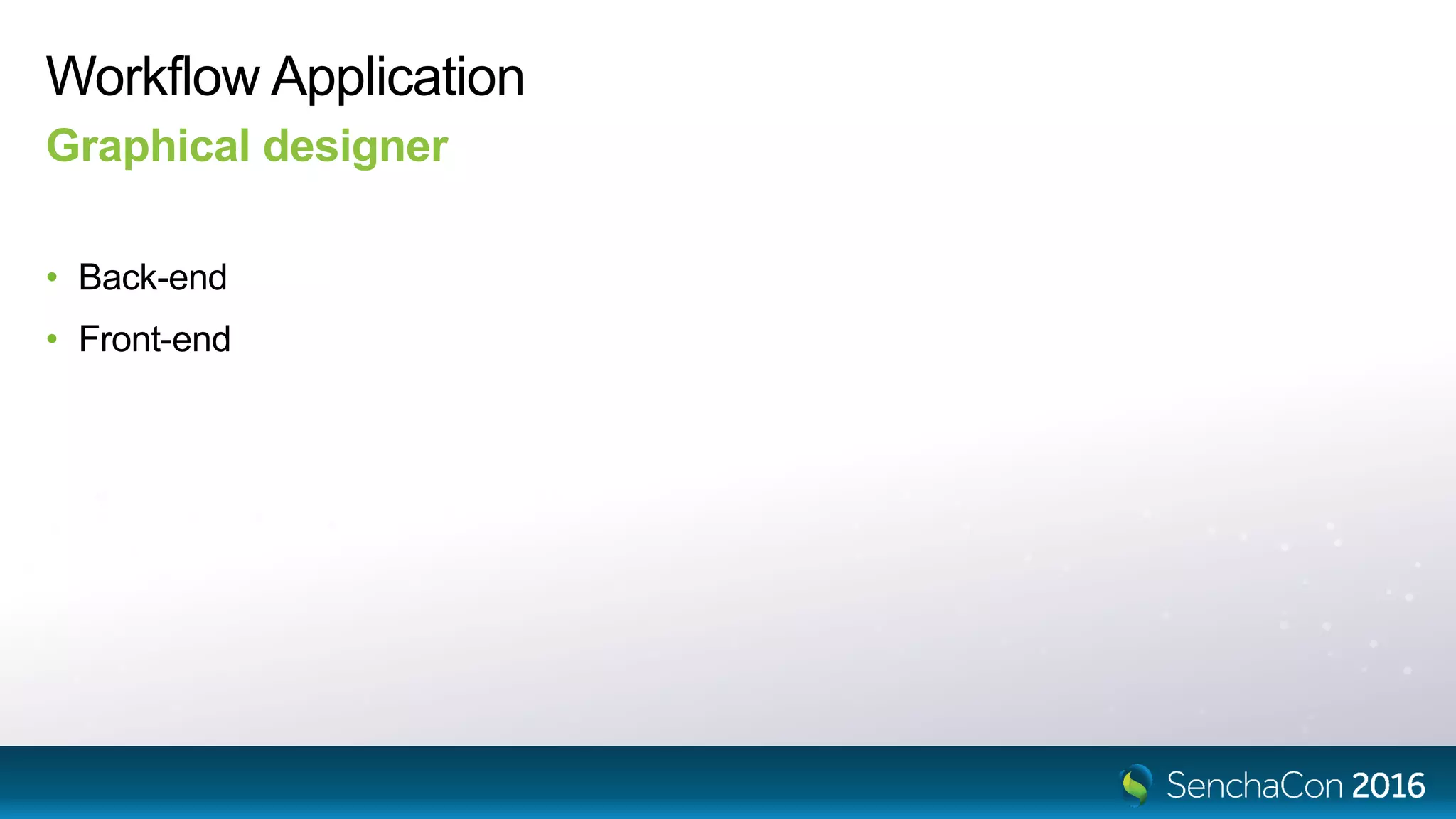

6. Workflow Application
Graphical designer
• Back-end
• Front-end

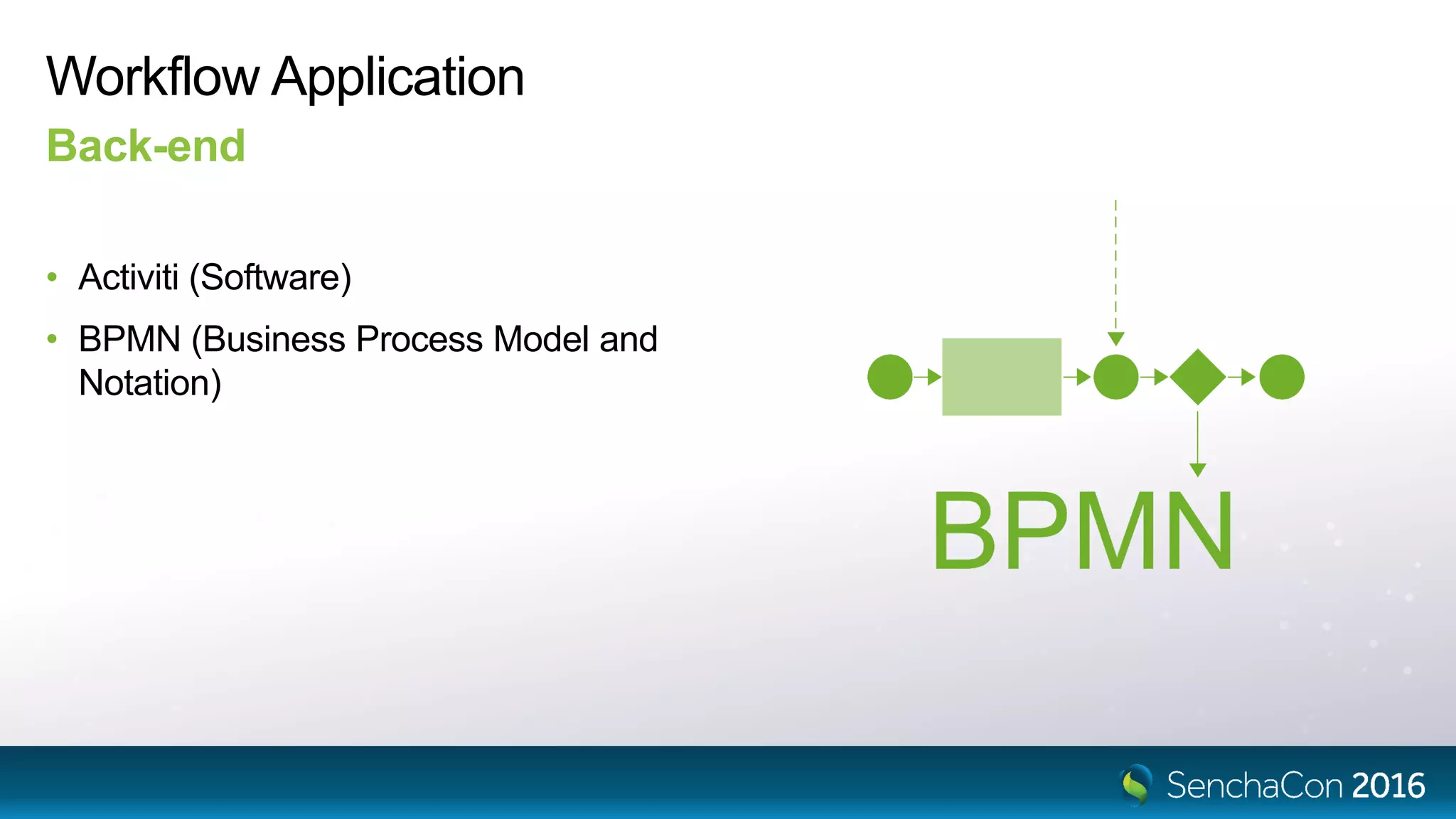

7. Workflow Application
• Activiti (Software)
• BPMN (Business Process Model and
Notation)
Back-end

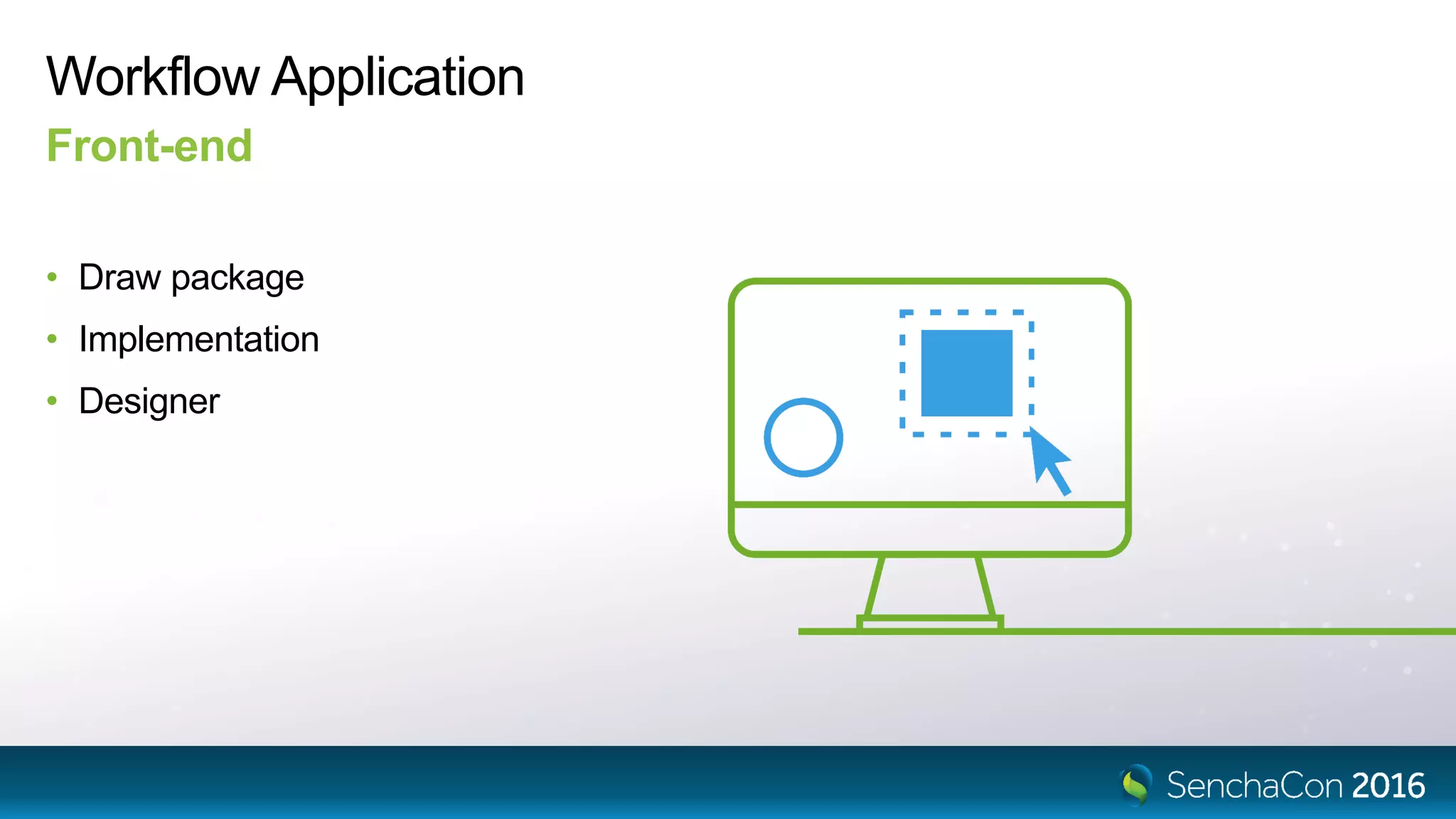

8. Workflow Application
• Draw package
• Implementation
• Designer
Front-end

9. Draw package

10. Draw Package
• Basic shapes (rectangle, circle, text, image,
path…)
• Transformations (translate, rotate, scale)

11. Implementation

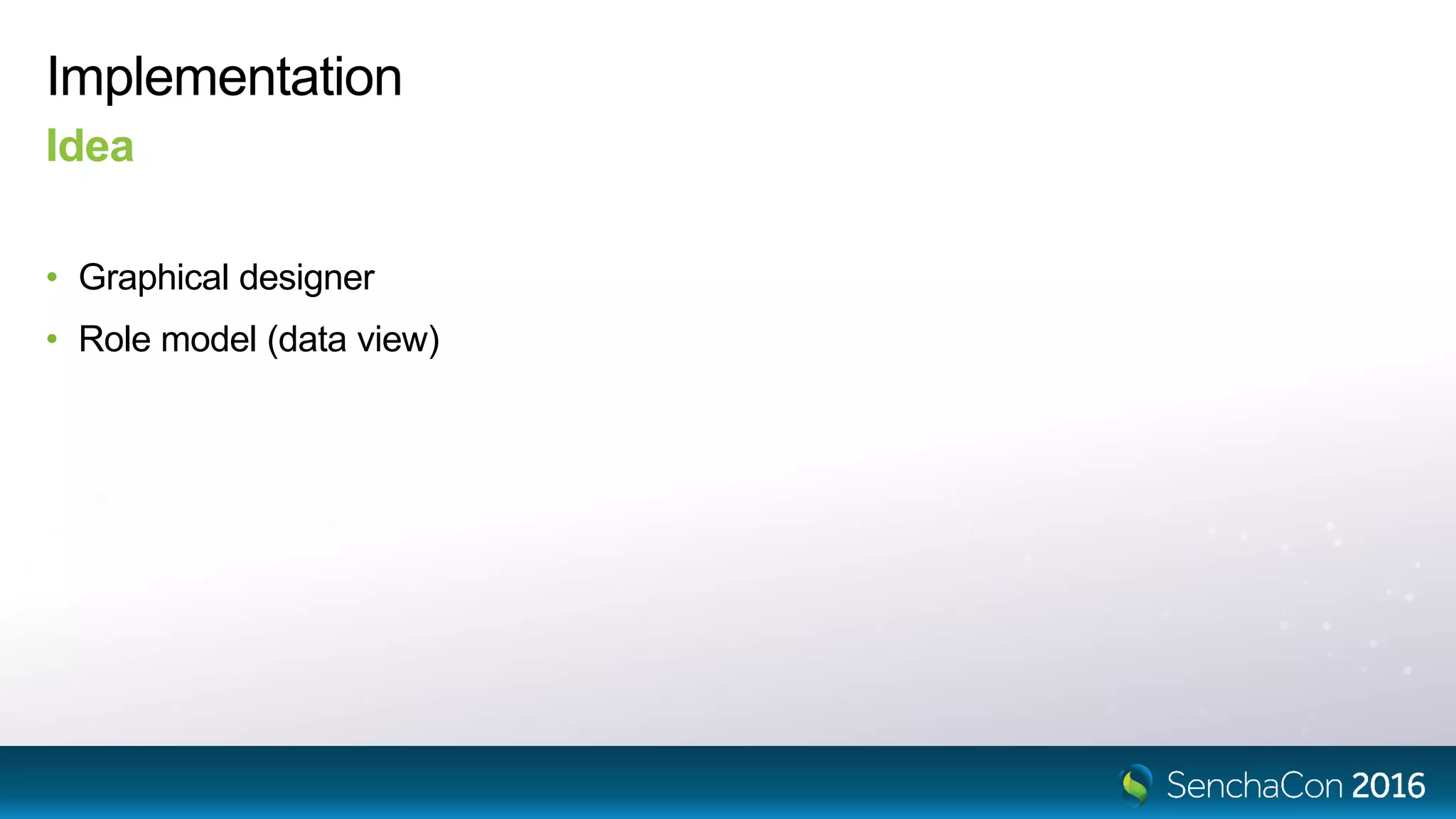

12. Implementation
• Graphical designer
• Role model (data view)
Idea

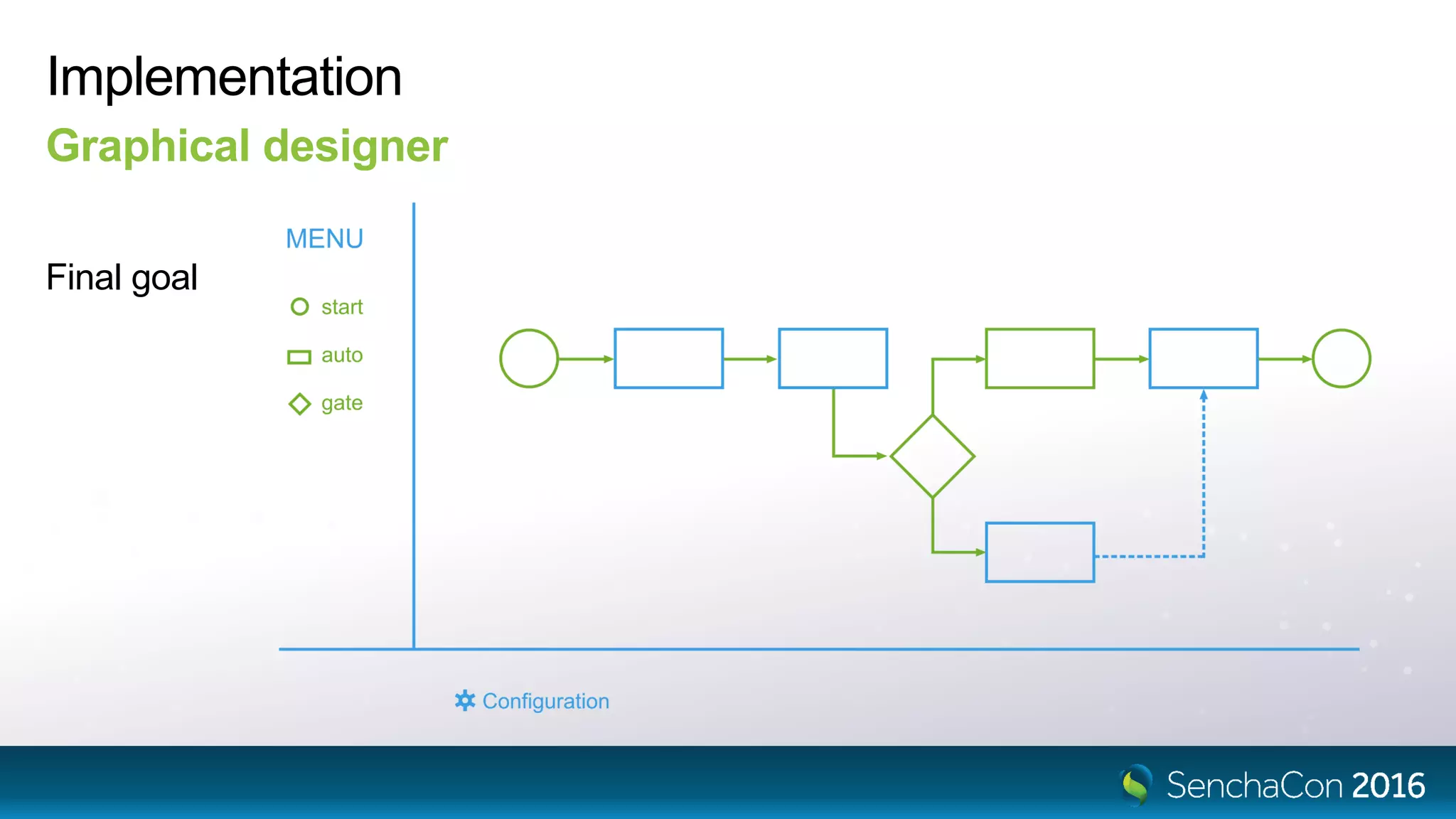

13. Implementation
Final goal
Graphical designer

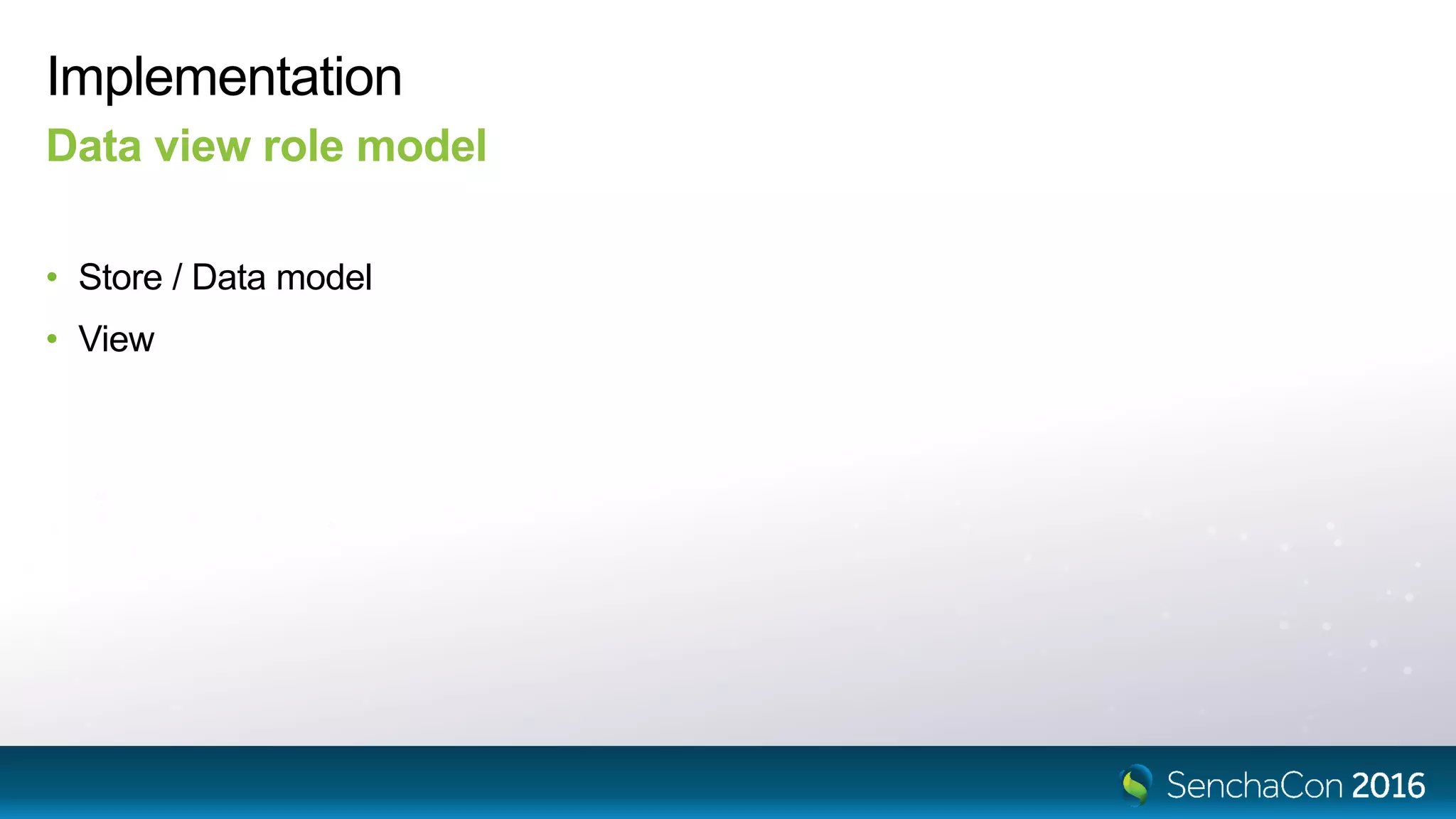

14. Implementation
• Store / Data model
• View
Data view role model

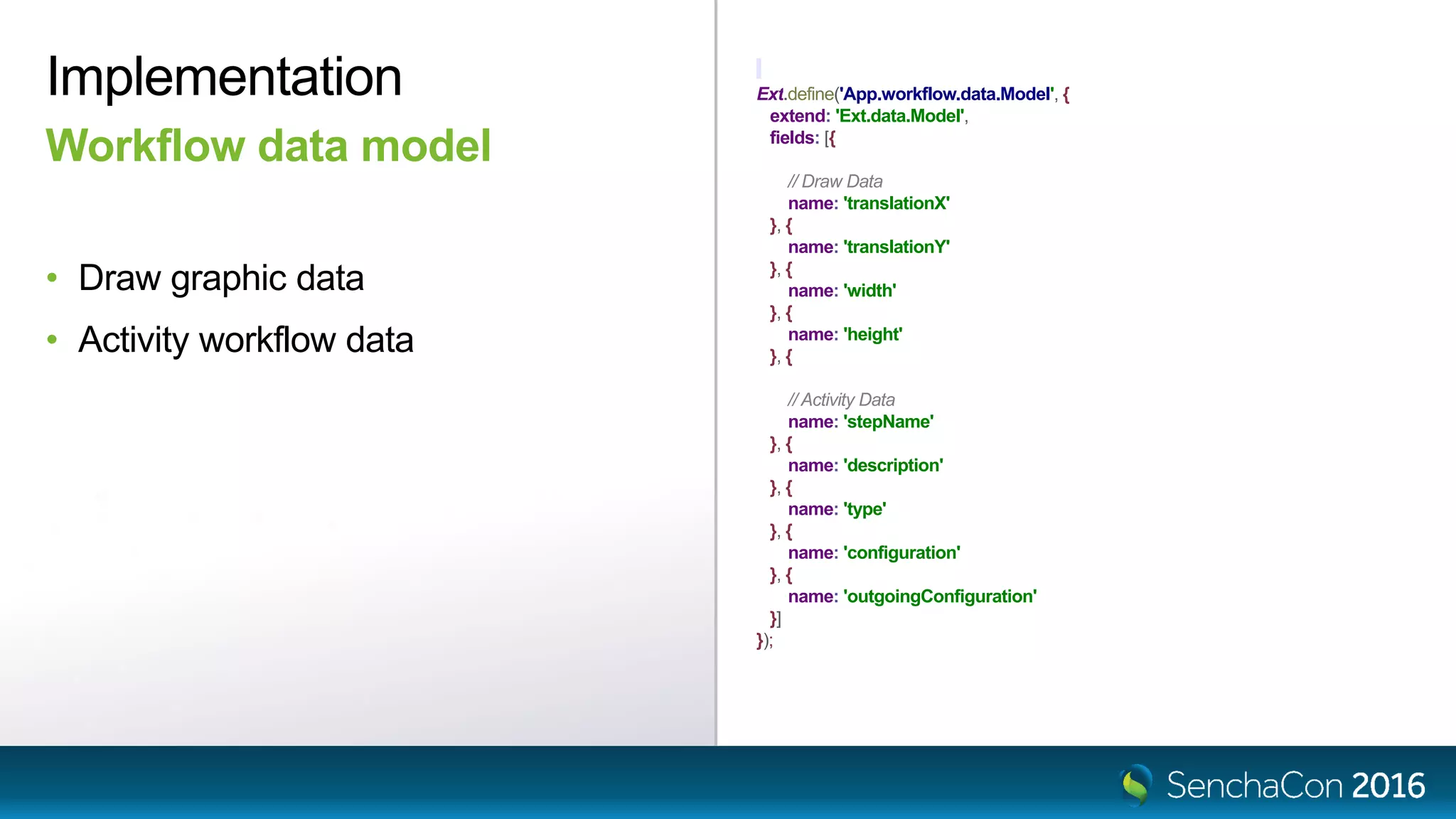

15. Ext.define('App.workflow.data.Model', {
extend: 'Ext.data.Model',
fields: [{
// Draw Data
name: 'translationX'
}, {
name: 'translationY'
}, {
name: 'width'
}, {
name: 'height'
}, {
// Activity Data
name: 'stepName'
}, {
name: 'description'
}, {
name: 'type'
}, {
name: 'configuration'
}, {
name: 'outgoingConfiguration'
}]
});
• Draw graphic data
• Activity workflow data
Implementation
Workflow data model

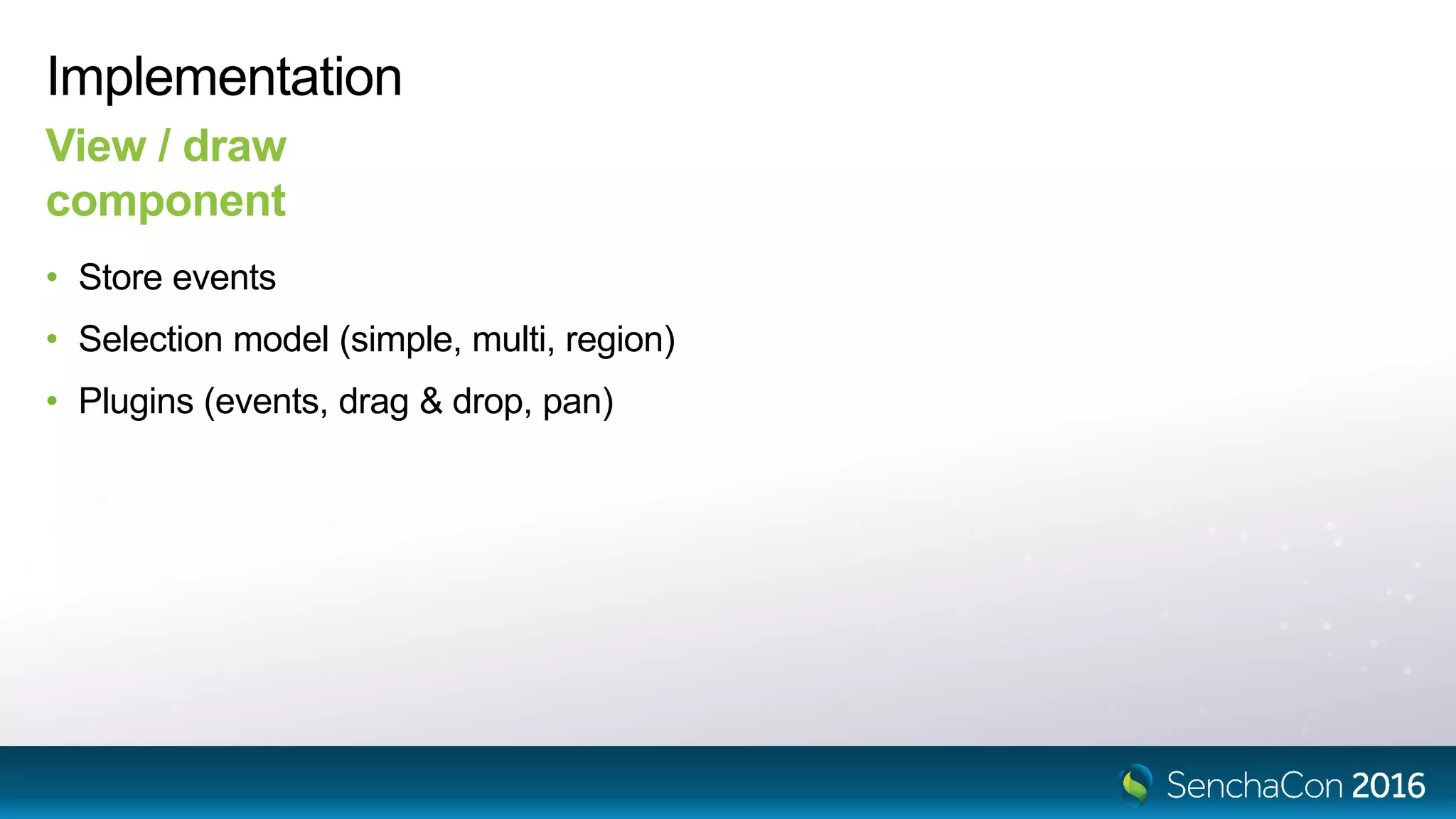

16. Implementation
• Store events
• Selection model (simple, multi, region)
• Plugins (events, drag & drop, pan)
View / draw
component

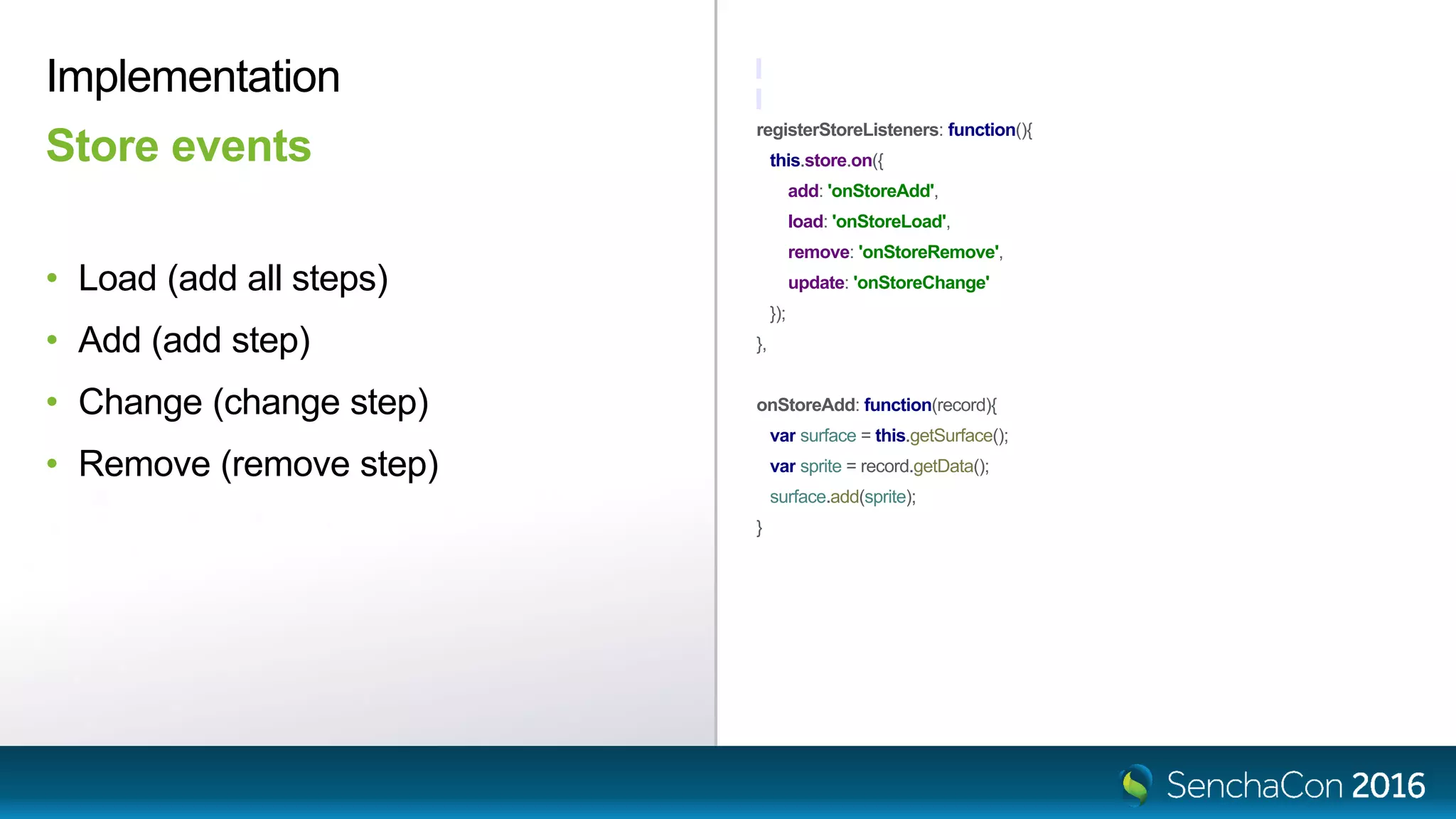

17. registerStoreListeners: function(){
this.store.on({
add: 'onStoreAdd',
load: 'onStoreLoad',
remove: 'onStoreRemove',
update: 'onStoreChange'
});
},
onStoreAdd: function(record){
var surface = this.getSurface();
var sprite = record.getData();
surface.add(sprite);
}
• Load (add all steps)
• Add (add step)
• Change (change step)
• Remove (remove step)
Implementation
Store events

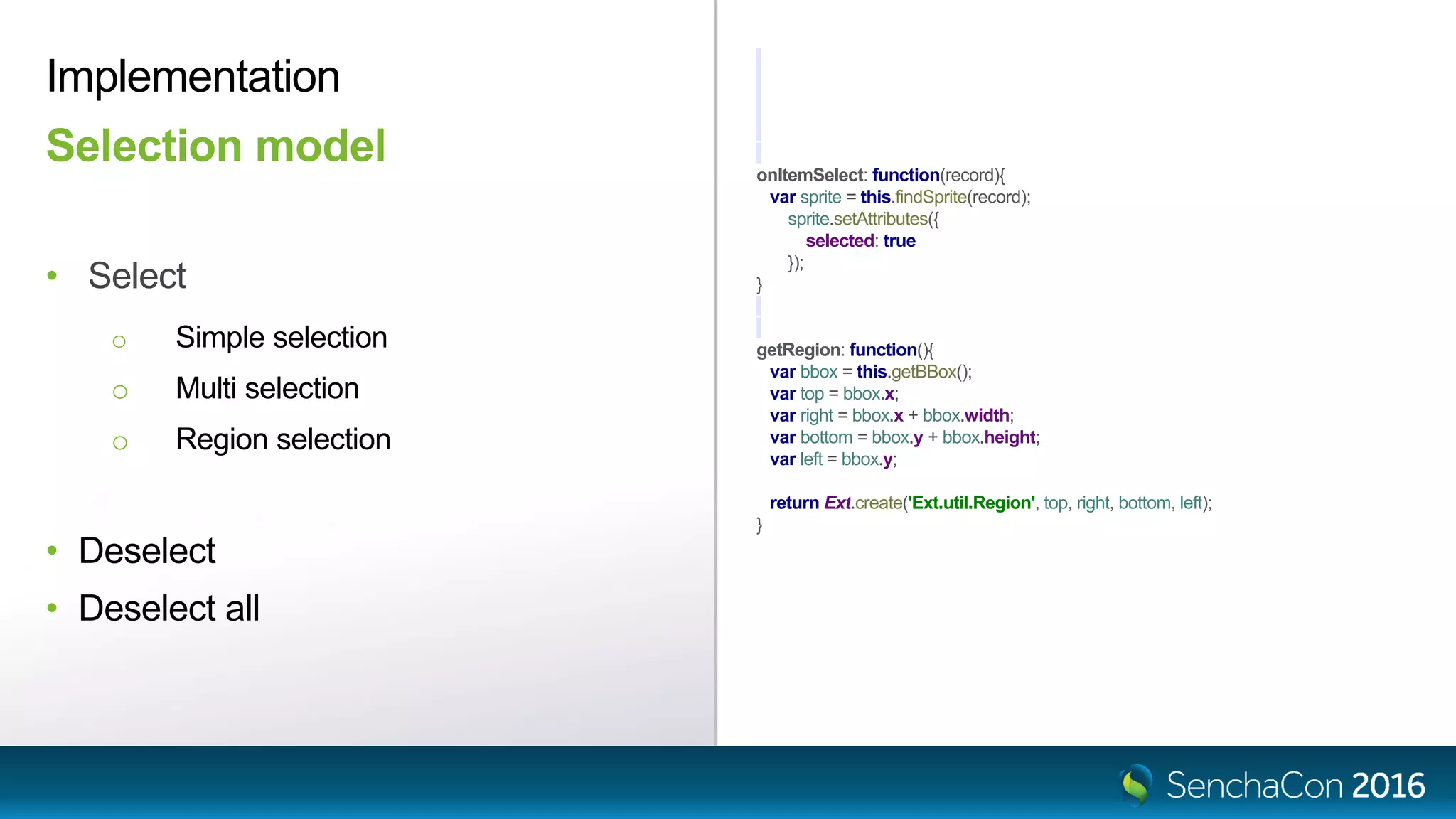

18. onItemSelect: function(record){
var sprite = this.findSprite(record);
sprite.setAttributes({
selected: true
});
}
getRegion: function(){
var bbox = this.getBBox();
var top = bbox.x;
var right = bbox.x + bbox.width;
var bottom = bbox.y + bbox.height;
var left = bbox.y;
return Ext.create('Ext.util.Region', top, right, bottom, left);
}
• Select
o Simple selection
o Multi selection
o Region selection
• Deselect
• Deselect all
Selection model
Implementation

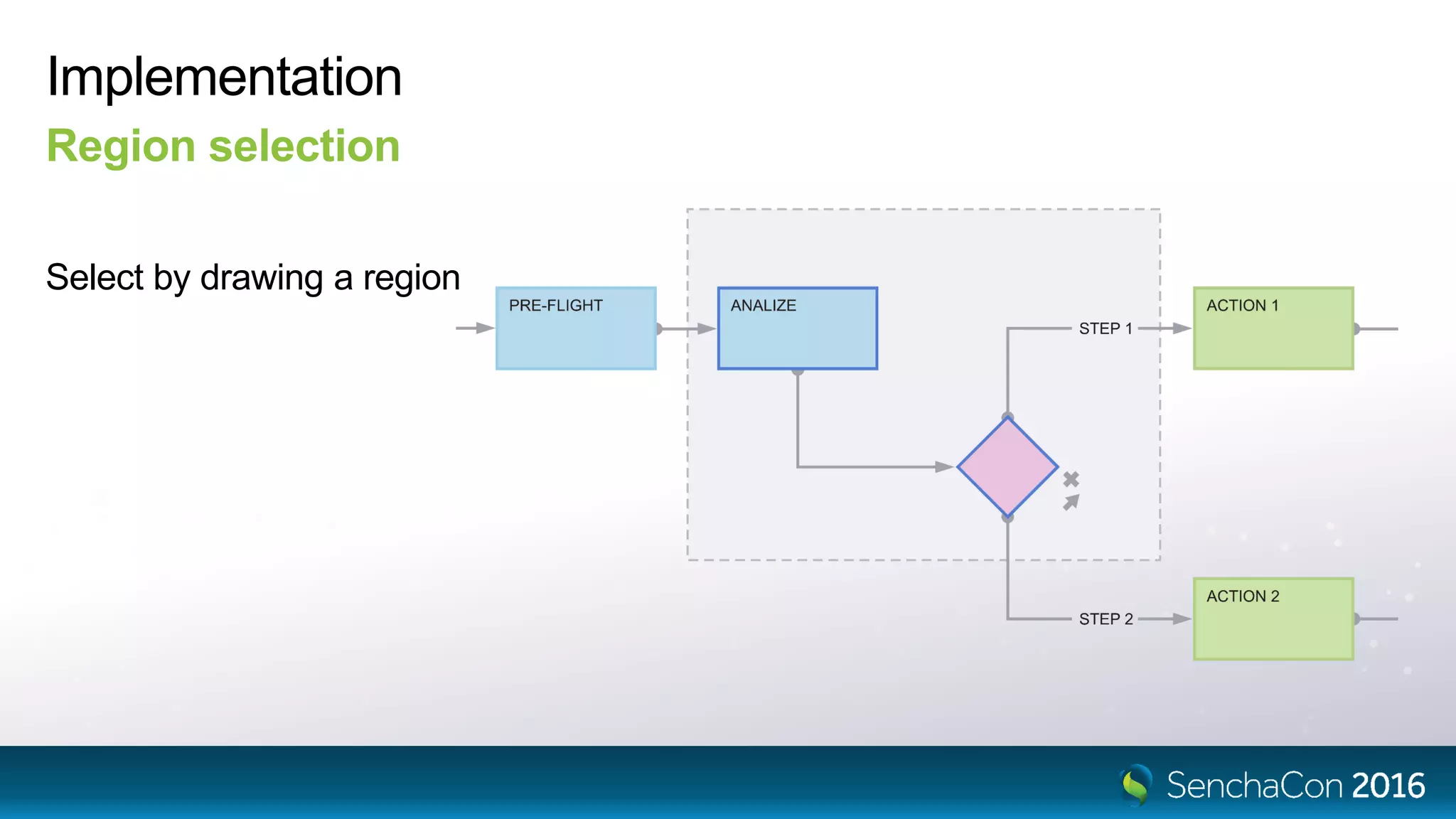

19. Implementation
Select by drawing a region
Region selection

20. Implementation
• Events (mouse events, click, hover…)
• Drag & Drop
• Pan (move surface)
Plugins

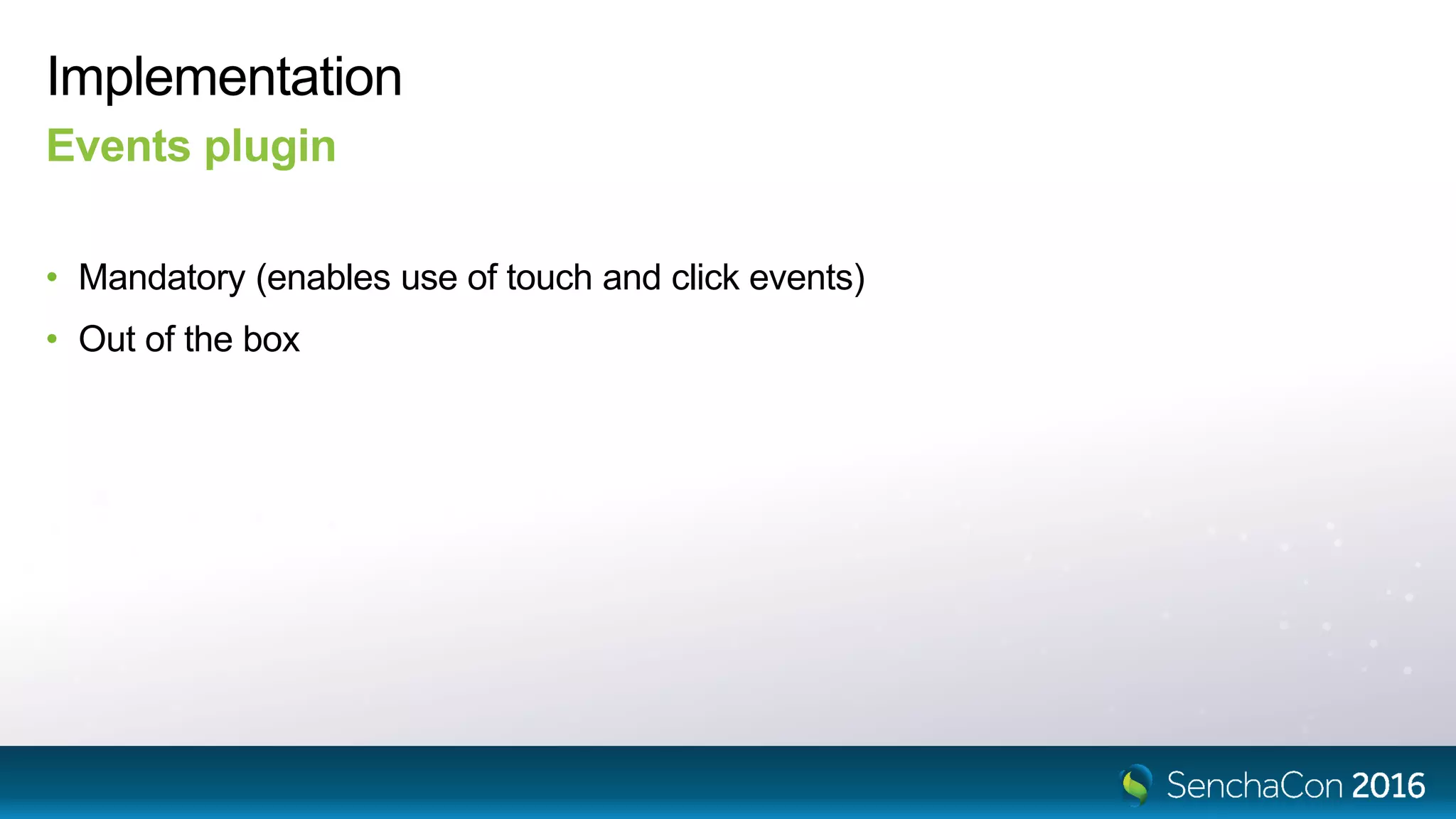

21. Implementation
• Mandatory (enables use of touch and click events)
• Out of the box
Events plugin

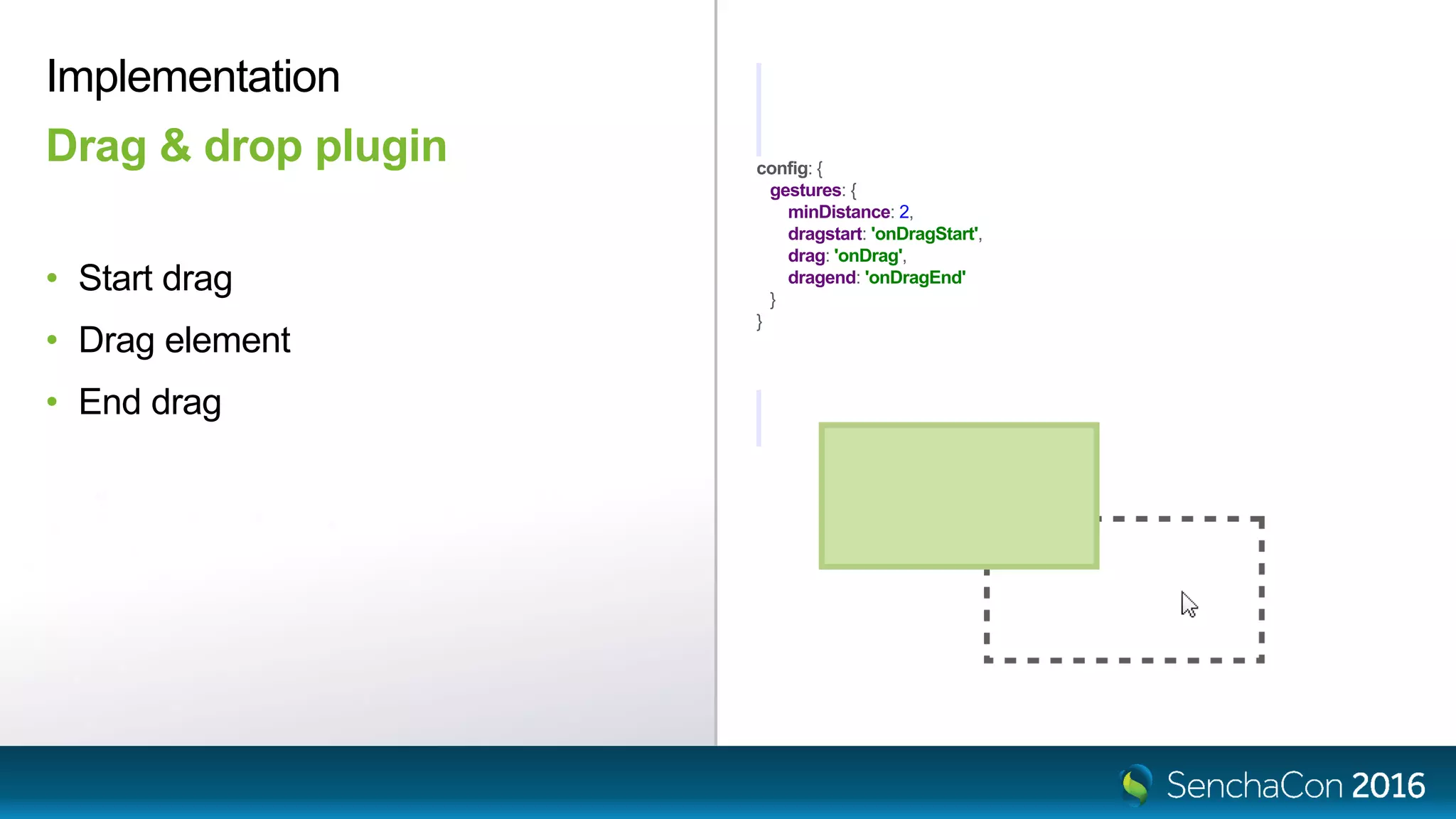

22. config: {
gestures: {
minDistance: 2,
dragstart: 'onDragStart',
drag: 'onDrag',
dragend: 'onDragEnd'
}
}
• Start drag
• Drag element
• End drag
Implementation
Drag & drop plugin

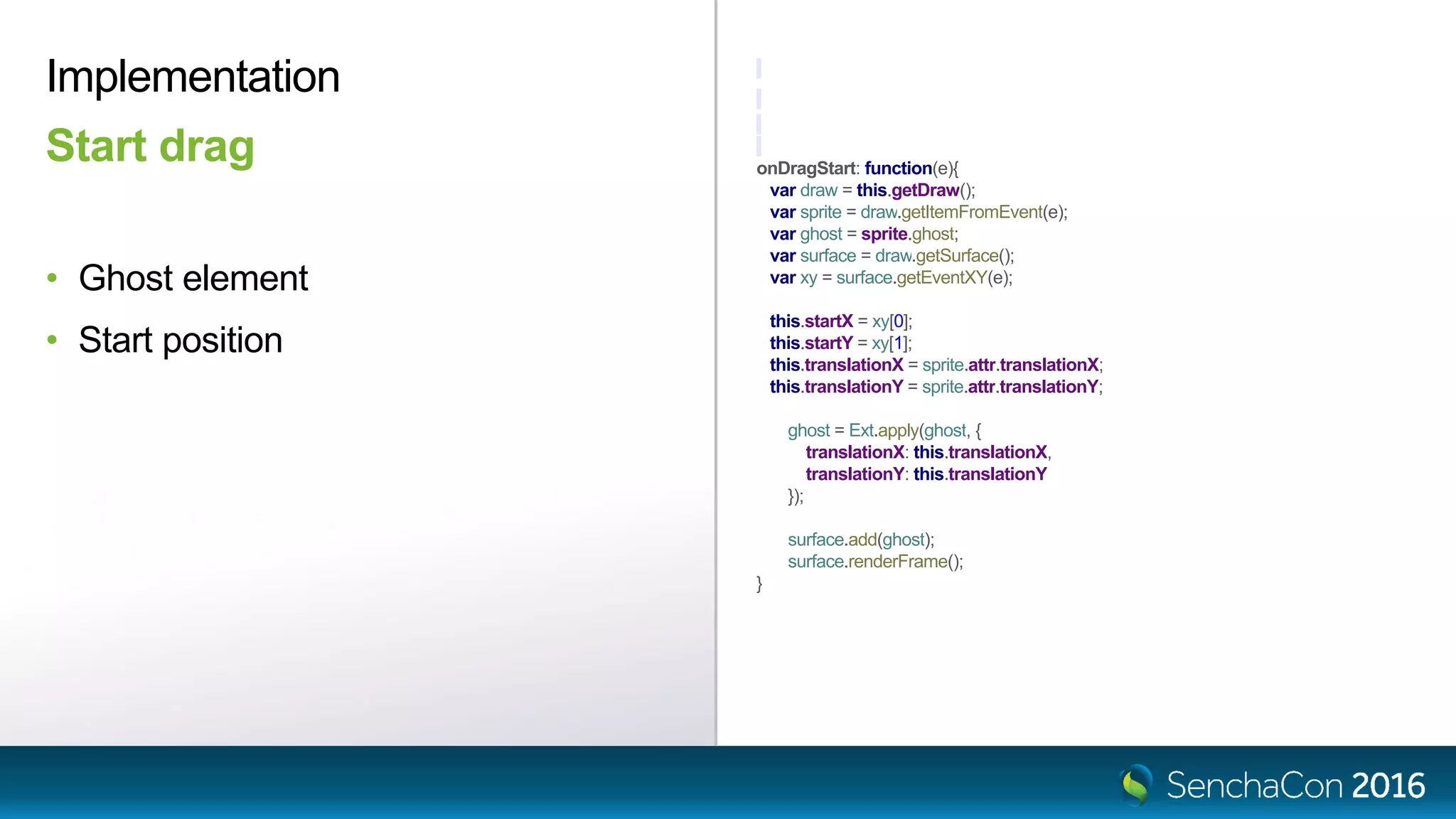

23. onDragStart: function(e){
var draw = this.getDraw();
var sprite = draw.getItemFromEvent(e);
var ghost = sprite.ghost;
var surface = draw.getSurface();
var xy = surface.getEventXY(e);
this.startX = xy[0];
this.startY = xy[1];
this.translationX = sprite.attr.translationX;
this.translationY = sprite.attr.translationY;
ghost = Ext.apply(ghost, {
translationX: this.translationX,
translationY: this.translationY
});
surface.add(ghost);
surface.renderFrame();
}
• Ghost element
• Start position
Start drag
Implementation

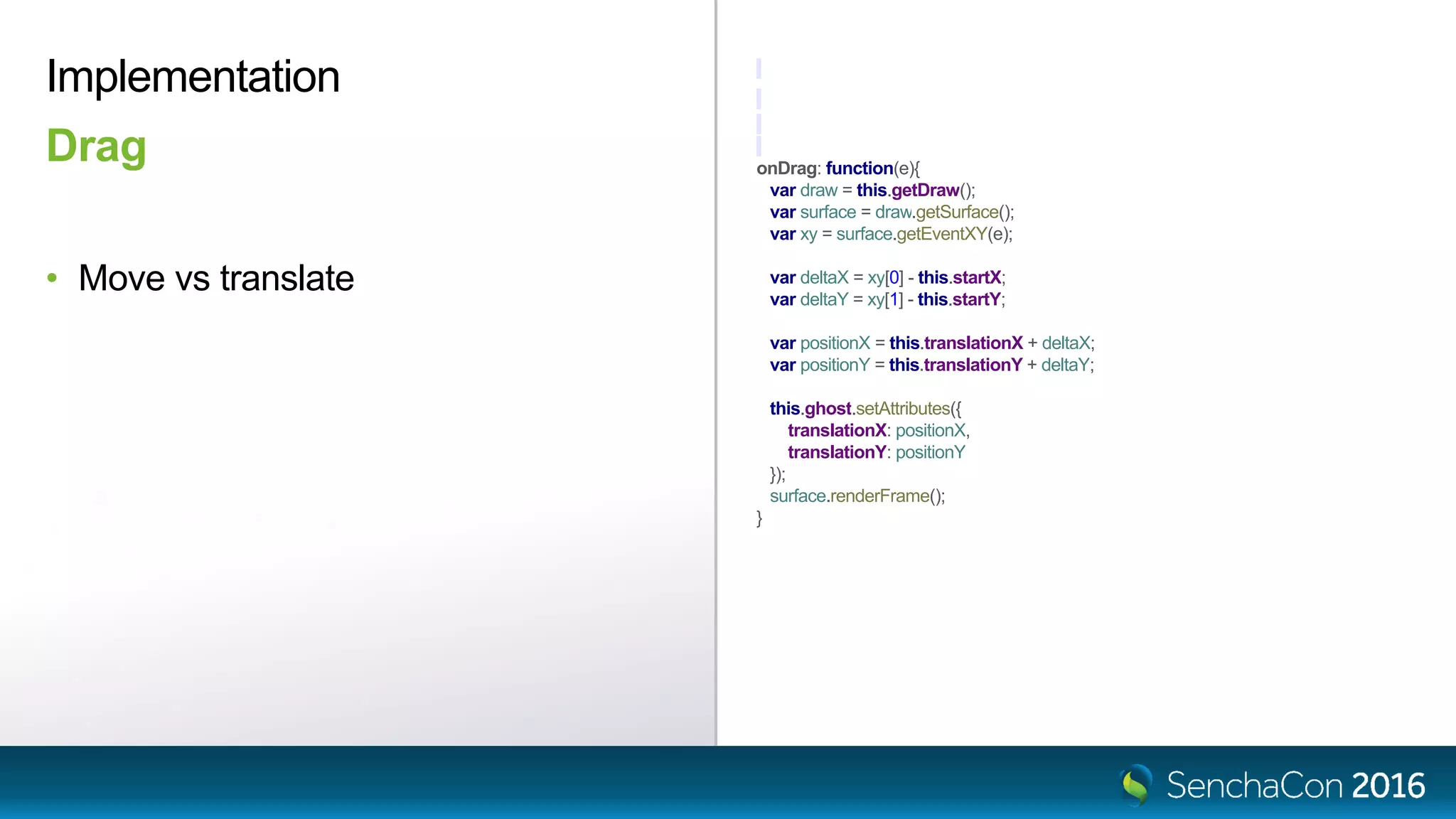

24. onDrag: function(e){
var draw = this.getDraw();
var surface = draw.getSurface();
var xy = surface.getEventXY(e);
var deltaX = xy[0] - this.startX;
var deltaY = xy[1] - this.startY;
var positionX = this.translationX + deltaX;
var positionY = this.translationY + deltaY;
this.ghost.setAttributes({
translationX: positionX,
translationY: positionY
});
surface.renderFrame();
}
Implementation
Drag
• Move vs translate

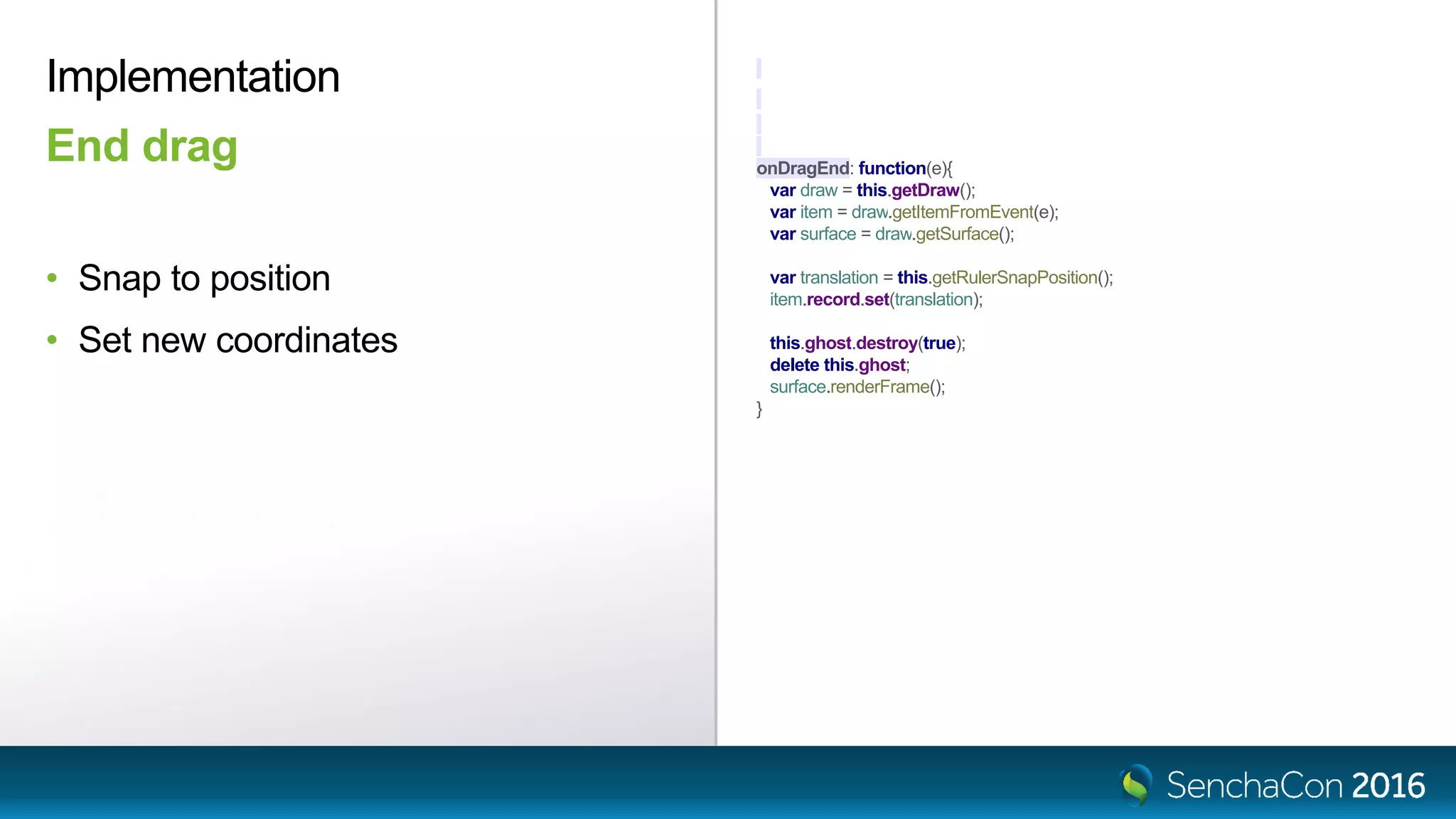

25. onDragEnd: function(e){
var draw = this.getDraw();
var item = draw.getItemFromEvent(e);
var surface = draw.getSurface();
var translation = this.getRulerSnapPosition();
item.record.set(translation);
this.ghost.destroy(true);
delete this.ghost;
surface.renderFrame();
}
Implementation
End drag
• Snap to position
• Set new coordinates

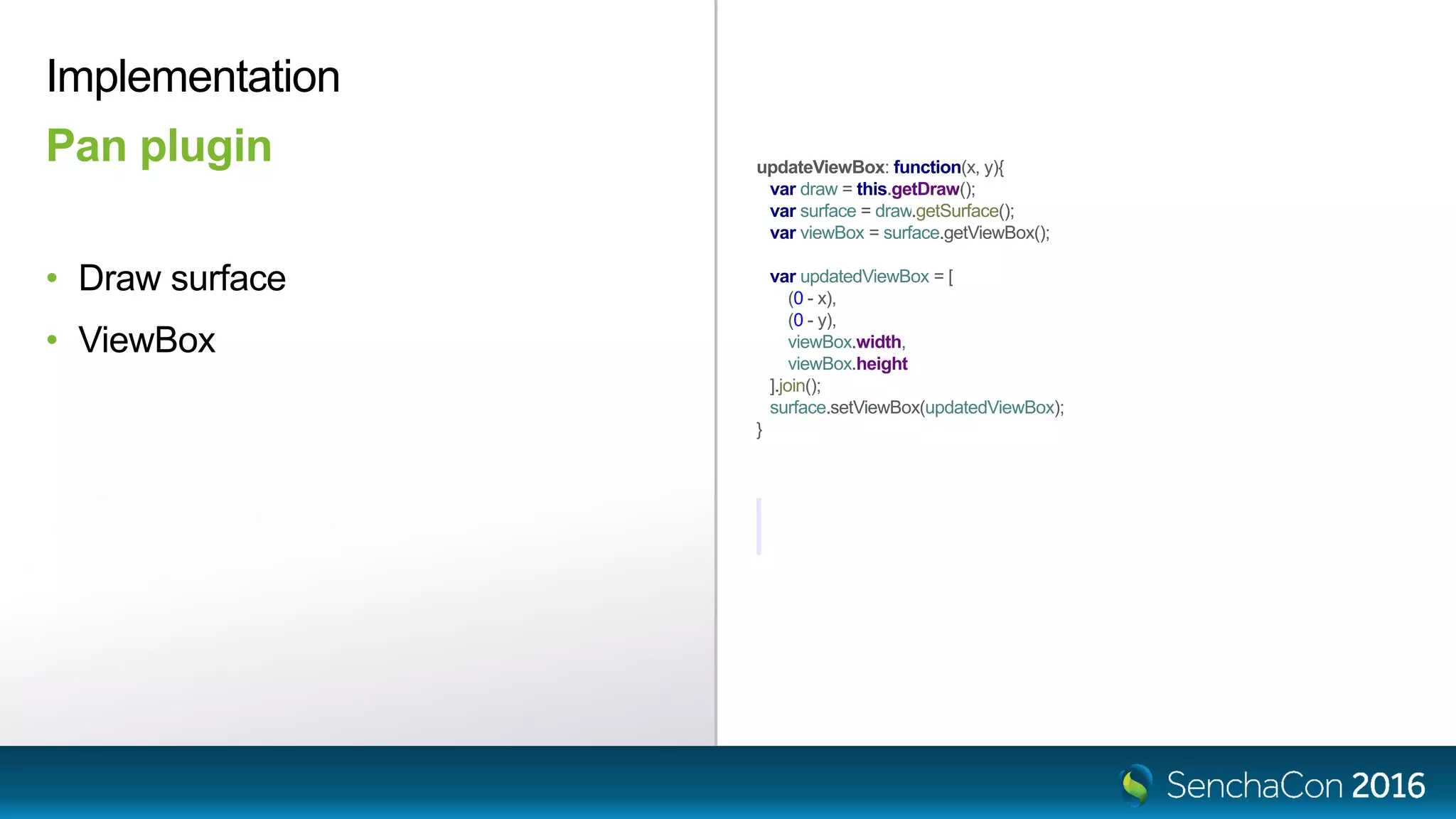

26. updateViewBox: function(x, y){
var draw = this.getDraw();
var surface = draw.getSurface();
var viewBox = surface.getViewBox();
var updatedViewBox = [
(0 - x),
(0 - y),
viewBox.width,
viewBox.height
].join();
surface.setViewBox(updatedViewBox);
}
Implementation
Pan plugin
• Draw surface
• ViewBox

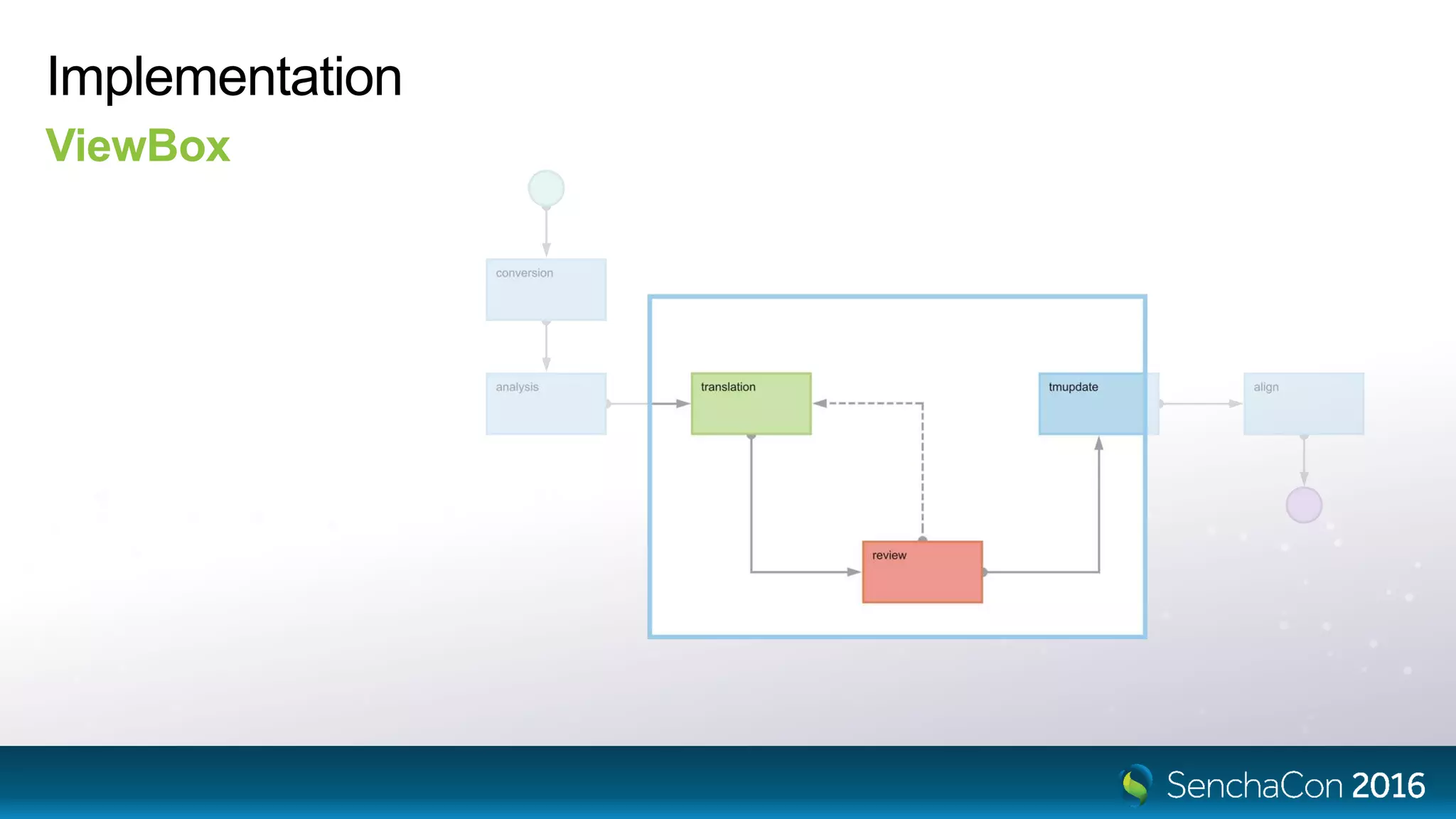

27. Implementation
ViewBox

28. Designer

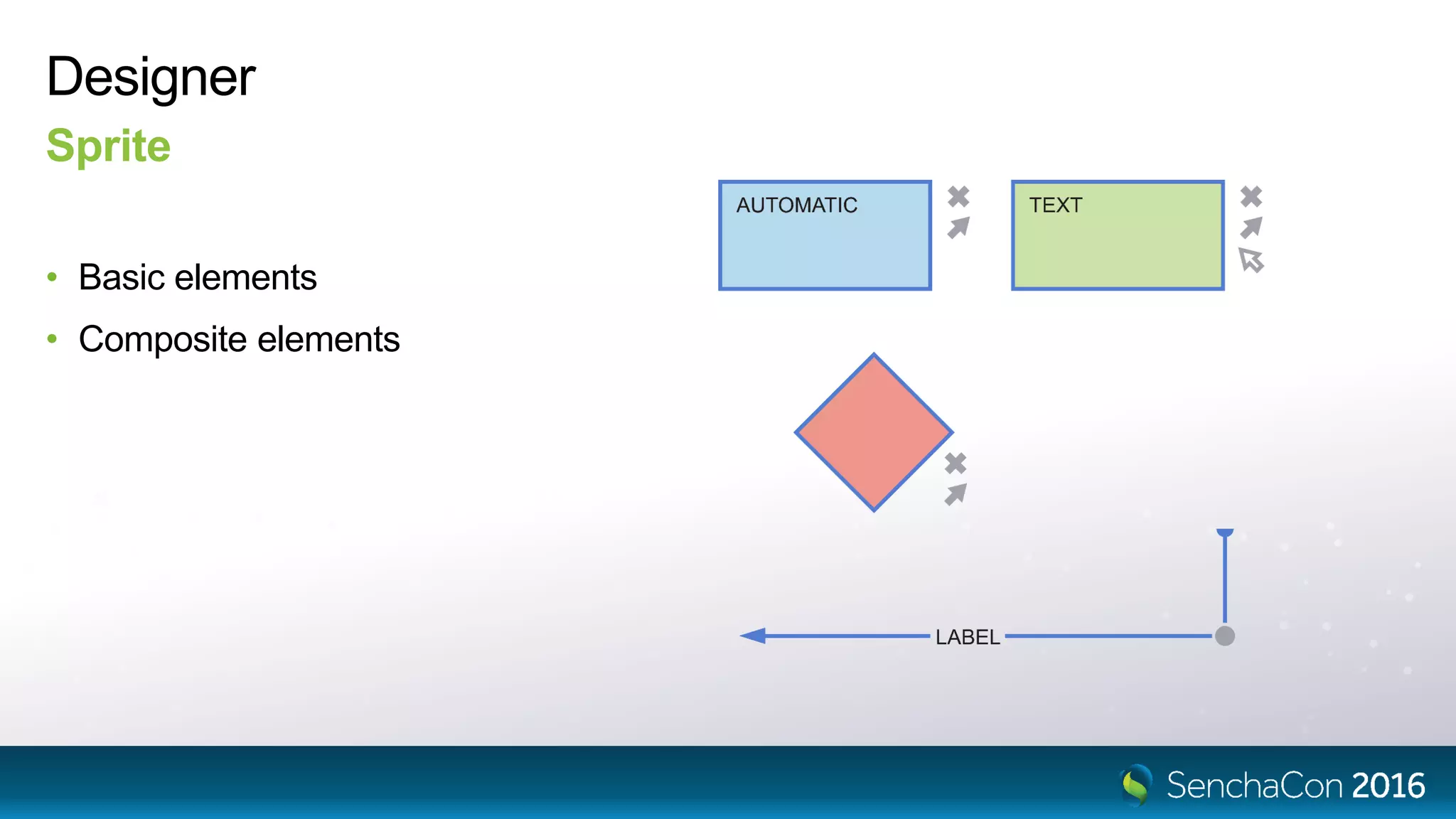

29. Designer
• Basic elements
• Composite elements
Sprite

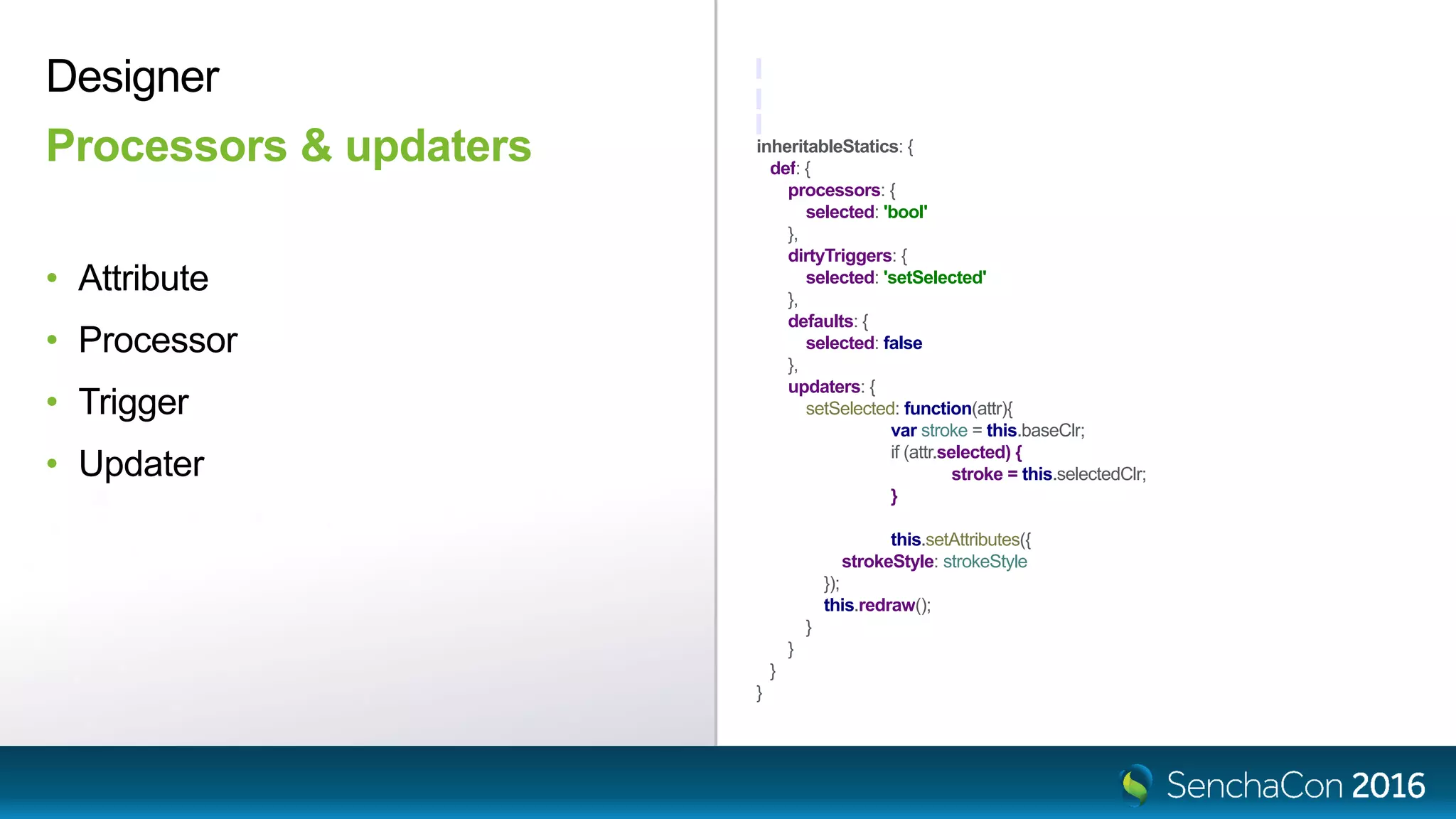

30. inheritableStatics: {
def: {
processors: {
selected: 'bool'
},
dirtyTriggers: {
selected: 'setSelected'
},
defaults: {
selected: false
},
updaters: {
setSelected: function(attr){
var stroke = this.baseClr;
if (attr.selected) {
stroke = this.selectedClr;
}
this.setAttributes({
strokeStyle: strokeStyle
});
this.redraw();
}
}
}
}
Designer
Processors & updaters
• Attribute
• Processor
• Trigger
• Updater

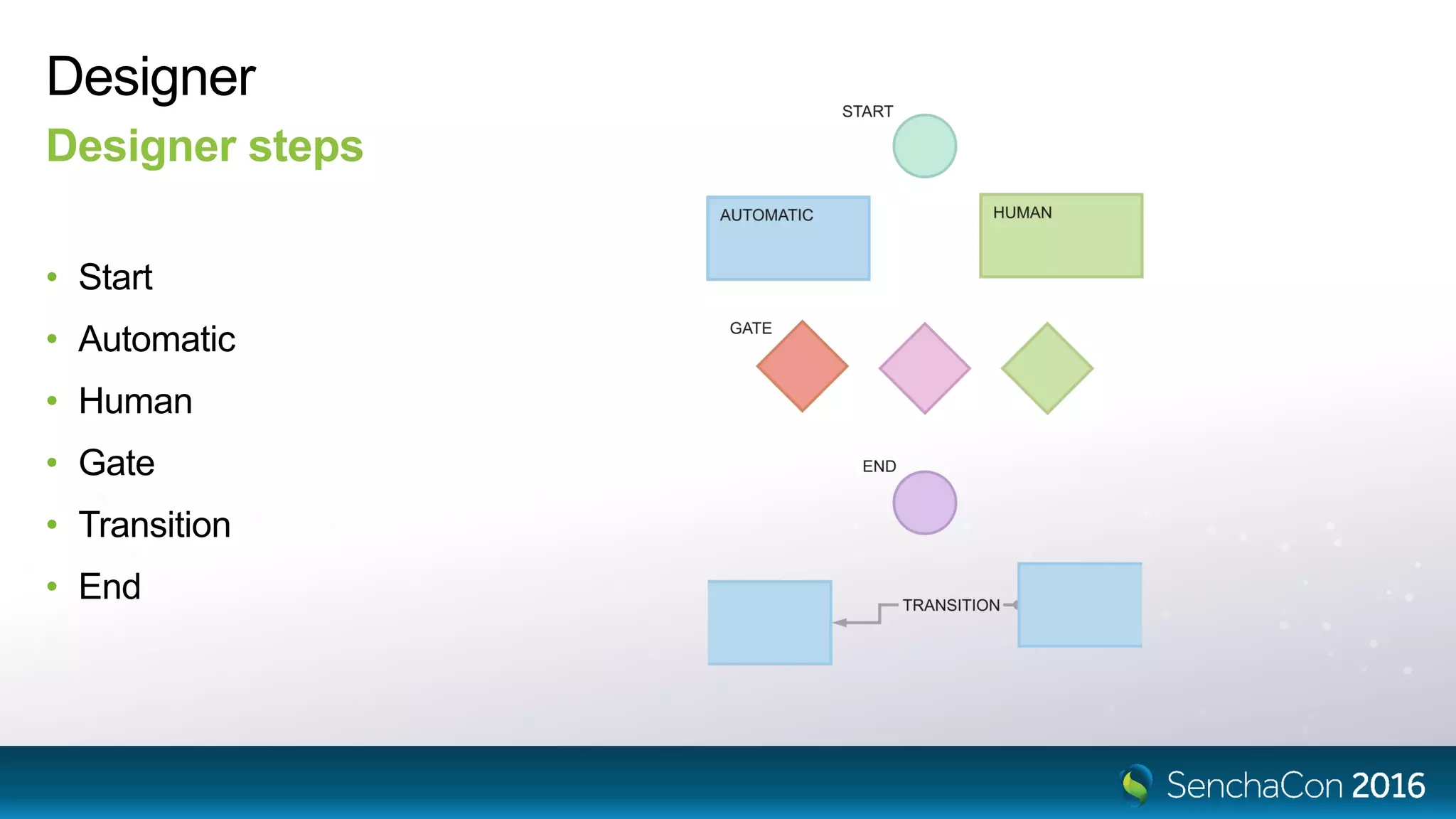

31. Designer
• Start
• Automatic
• Human
• Gate
• Transition
• End
Designer steps

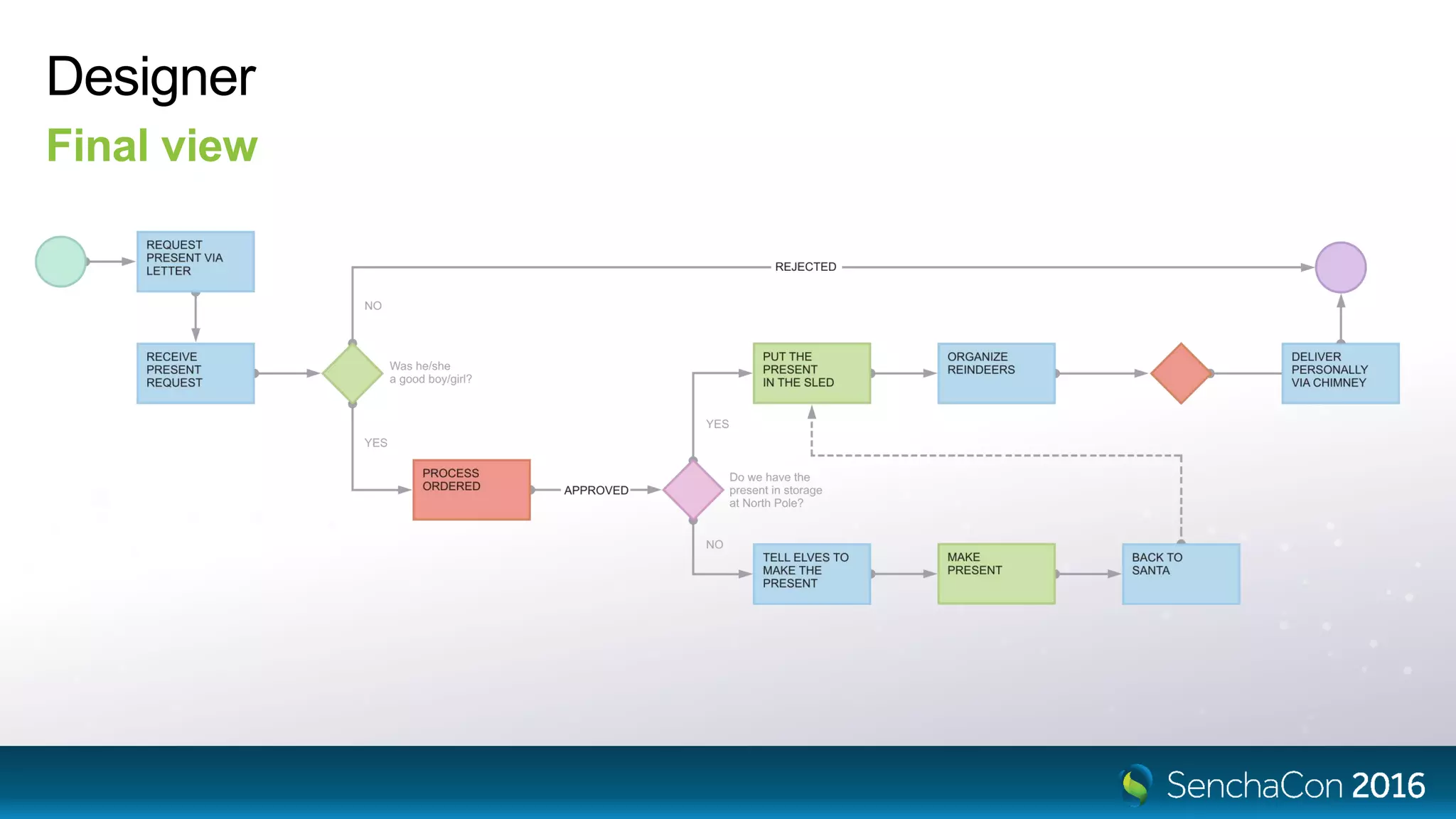

32. Designer
Final view
