AudioCodes MobilityPLUS allows mobile business employees to make VoIP calls from their smartphones by extending Microsoft Lync functionality. It provides seamless communication via Wi-Fi and cellular networks with single identity and reachability. The solution includes a Mobility Server that integrates with Lync for presence, IM, and routing calls between mobile and desk phones, and a Mobile Client app supporting various platforms. AudioCodes' ecosystem simplifies deploying Lync unified communications across networks.

1. AudioCodes MobilityPLUS
and SmartTAP
For Microsoft Unified
Communications Solutions
Steve Hopkins
Pre Sales SE January 2012
© 2011 AudioCodes Ltd.
All rights reserved.
AudioCodes Confidential Proprietary

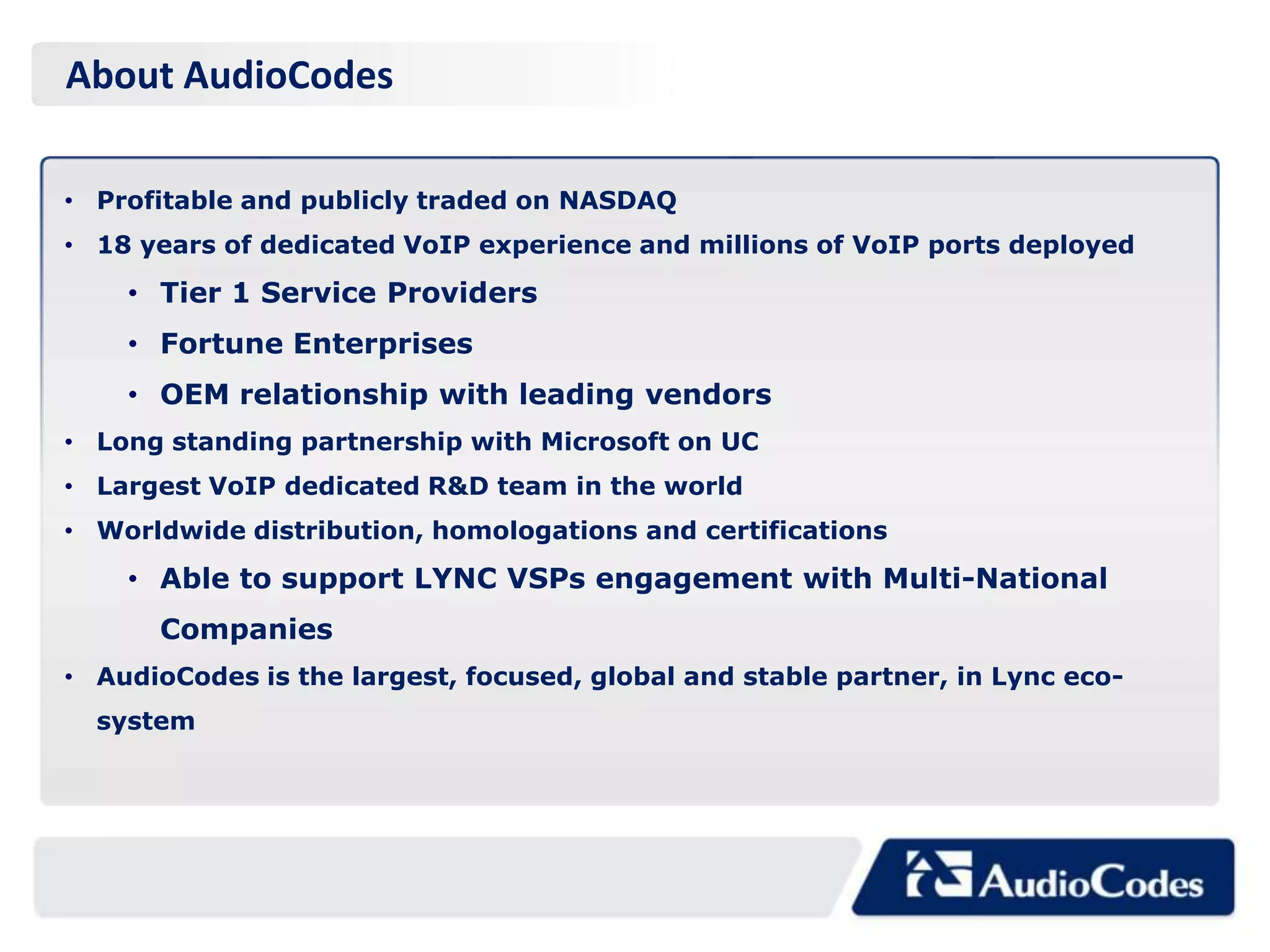

2. About AudioCodes
• Profitable and publicly traded on NASDAQ
• 18 years of dedicated VoIP experience and millions of VoIP ports deployed
• Tier 1 Service Providers
• Fortune Enterprises
• OEM relationship with leading vendors
• Long standing partnership with Microsoft on UC
• Largest VoIP dedicated R&D team in the world
• Worldwide distribution, homologations and certifications
• Able to support LYNC VSPs engagement with Multi-National
Companies
• AudioCodes is the largest, focused, global and stable partner, in Lync eco-
system

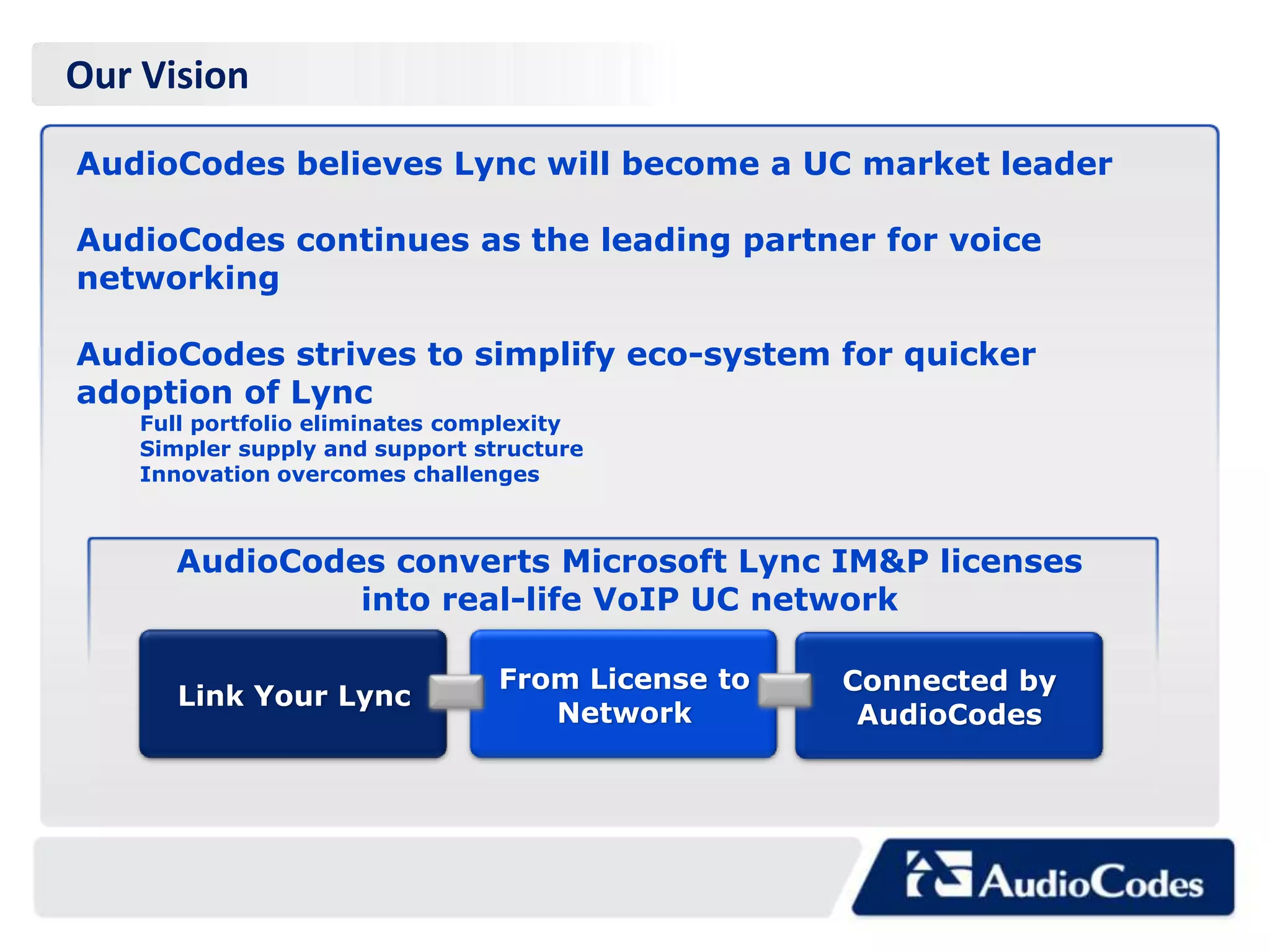

3. Our Vision
AudioCodes believes Lync will become a UC market leader
AudioCodes continues as the leading partner for voice
networking
AudioCodes strives to simplify eco-system for quicker
adoption of Lync
Full portfolio eliminates complexity
Simpler supply and support structure
Innovation overcomes challenges
AudioCodes converts Microsoft Lync IM&P licenses
into real-life VoIP UC network
From License to Connected by
Link Your Lync
Network AudioCodes

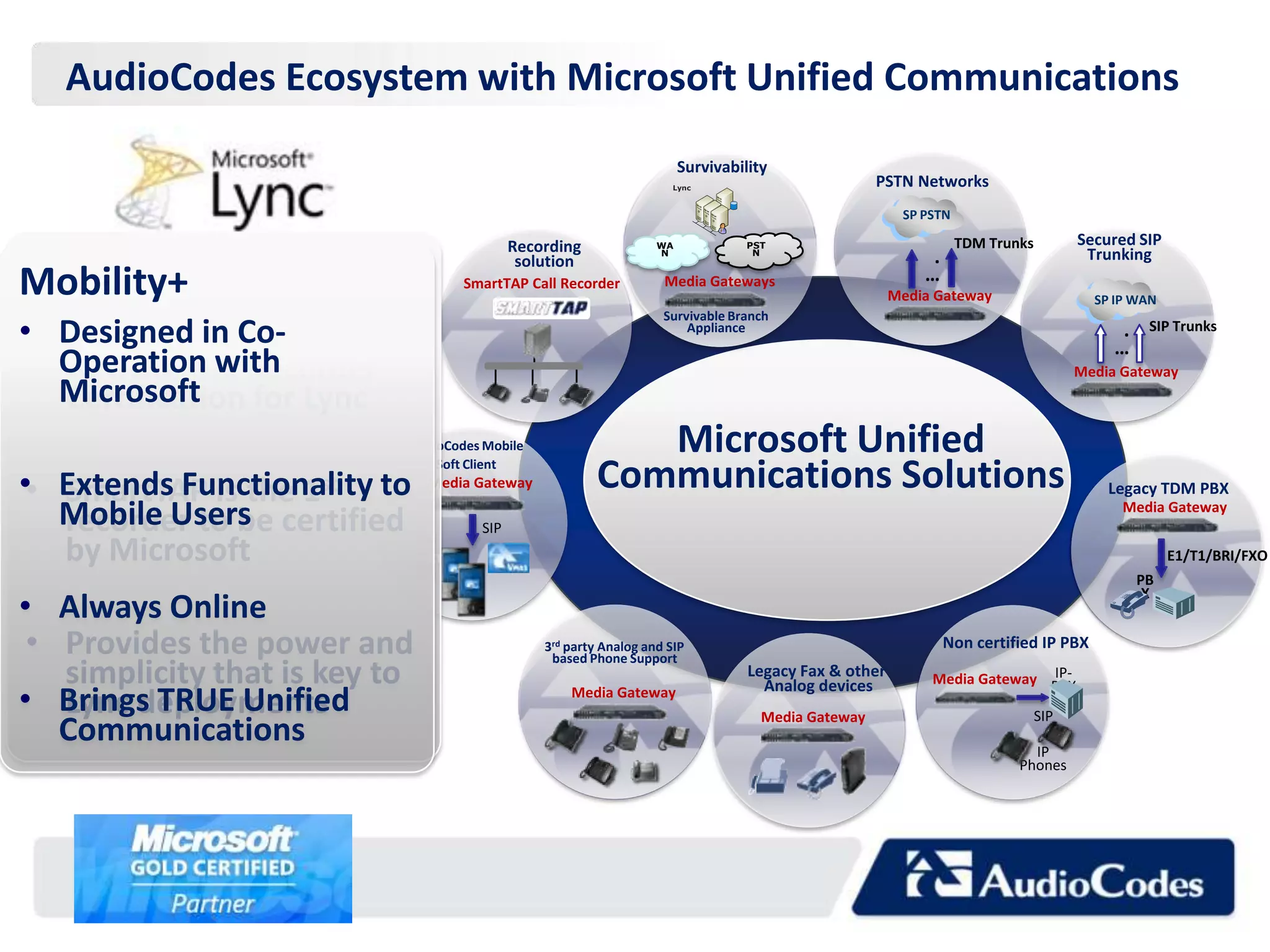

4. AudioCodes Ecosystem with Microsoft Unified Communications
Survivability
Lync
PSTN Networks
SP PSTN
Recording WA PST TDM Trunks Secured SIP
solution
N N . Trunking
Mobility+
SmartTAP SmartTAP Call Recorder Media Gateways
…
Media Gateway SP IP WAN
Survivable Branch
•• Designed in Co- helped
AudioCodes has Appliance . SIP Trunks
Operation with
…
to write the Recorder Media Gateway
Microsoft for Lync
Certification
AudioCodes Mobile Microsoft Unified
•• Extends Functionality to
SmartTAP is the 1st
Soft Client
Media Gateway Communications Solutions Legacy TDM PBX
Mobile Users certified
recorder to be SIP
Media Gateway
by Microsoft E1/T1/BRI/FXO
PB
• Always Online
X
• Provides the power and 3rd party Analog and SIP
based Phone Support
Non certified IP PBX
simplicity that is key to Legacy Fax & other
Analog devices
IP-
Media Gateway PBX
• Brings TRUE Unified
Lync deployments Media Gateway
Media Gateway SIP
Communications IP
Phones

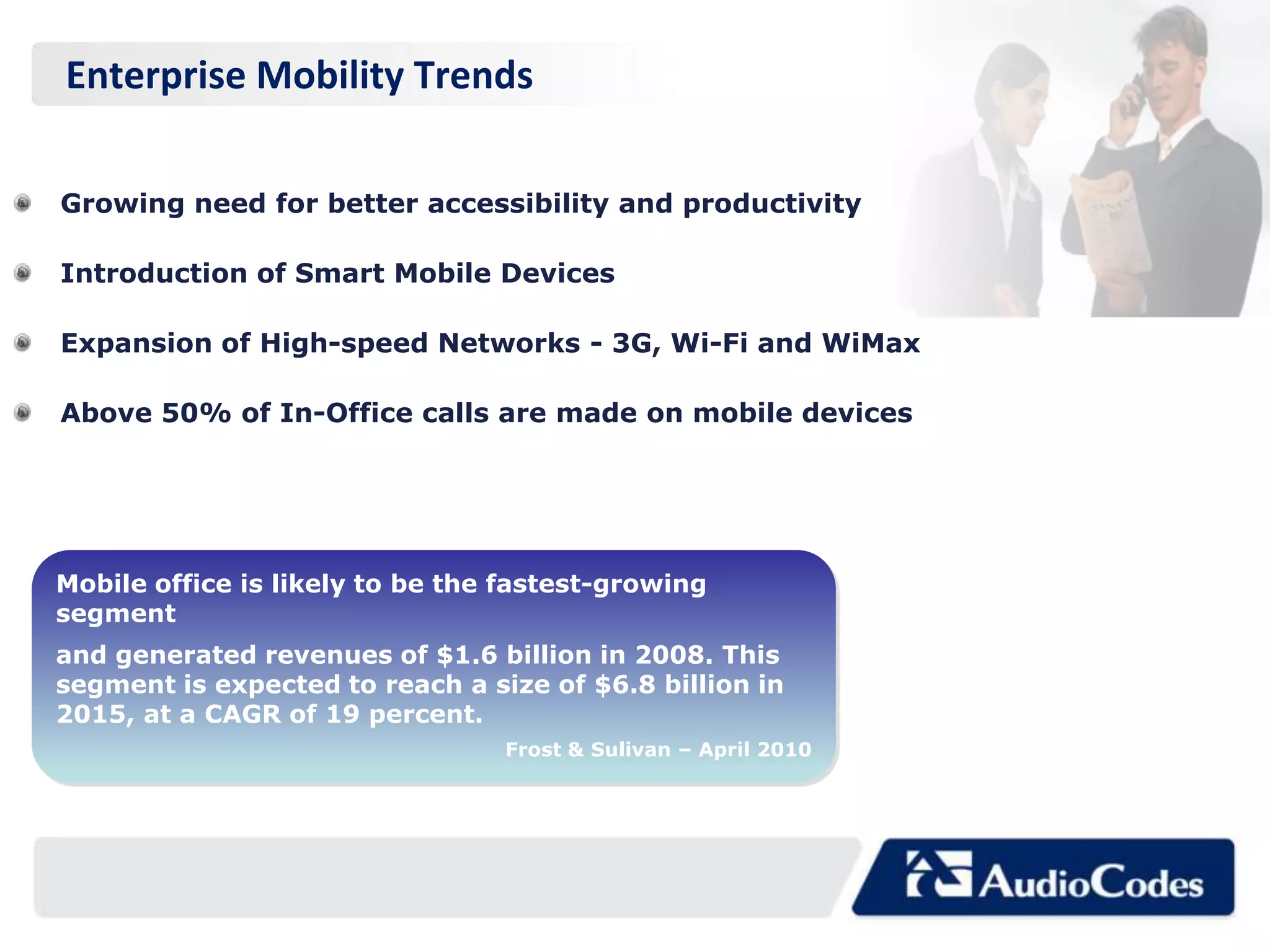

5. Enterprise Mobility Trends
Growing need for better accessibility and productivity
Introduction of Smart Mobile Devices
Expansion of High-speed Networks - 3G, Wi-Fi and WiMax
Above 50% of In-Office calls are made on mobile devices
Mobile office is likely to be the fastest-growing
segment
and generated revenues of $1.6 billion in 2008. This
segment is expected to reach a size of $6.8 billion in
2015, at a CAGR of 19 percent.
Frost & Sulivan – April 2010

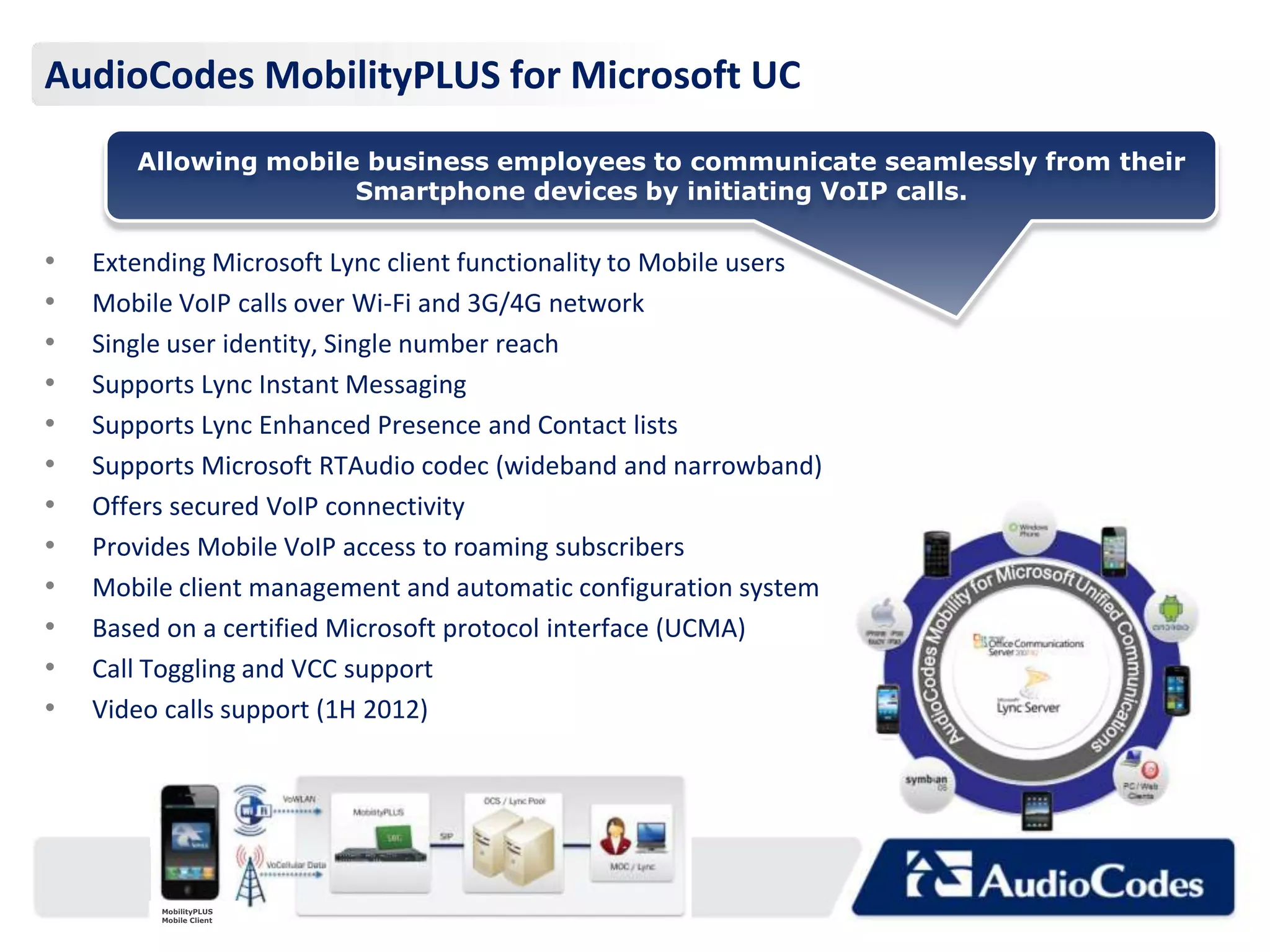

6. AudioCodes MobilityPLUS for Microsoft UC
Allowing mobile business employees to communicate seamlessly from their
Smartphone devices by initiating VoIP calls.
• Extending Microsoft Lync client functionality to Mobile users
• Mobile VoIP calls over Wi-Fi and 3G/4G network
• Single user identity, Single number reach
• Supports Lync Instant Messaging
• Supports Lync Enhanced Presence and Contact lists
• Supports Microsoft RTAudio codec (wideband and narrowband)
• Offers secured VoIP connectivity
• Provides Mobile VoIP access to roaming subscribers
• Mobile client management and automatic configuration system
• Based on a certified Microsoft protocol interface (UCMA)
• Call Toggling and VCC support
• Video calls support (1H 2012)
MobilityPLUS
Mobile Client

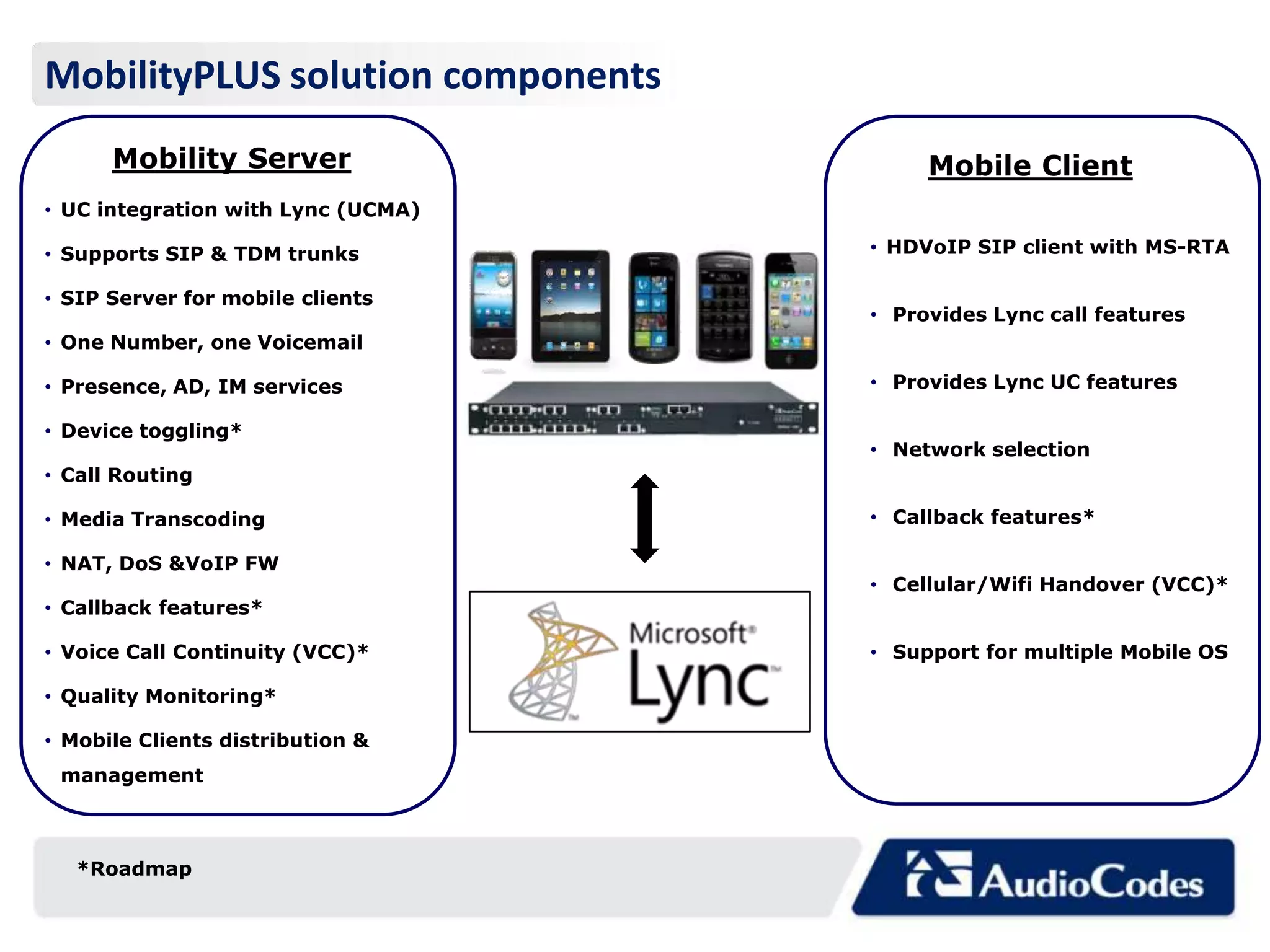

7. MobilityPLUS solution components
Mobility Server Mobile Client
• UC integration with Lync (UCMA)
• Supports SIP & TDM trunks • HDVoIP SIP client with MS-RTA
• SIP Server for mobile clients
• Provides Lync call features
• One Number, one Voicemail
• Presence, AD, IM services • Provides Lync UC features
• Device toggling*
• Network selection
• Call Routing
• Media Transcoding • Callback features*
• NAT, DoS &VoIP FW
• Cellular/Wifi Handover (VCC)*
• Callback features*
• Voice Call Continuity (VCC)* • Support for multiple Mobile OS
• Quality Monitoring*
• Mobile Clients distribution &
management
*Roadmap

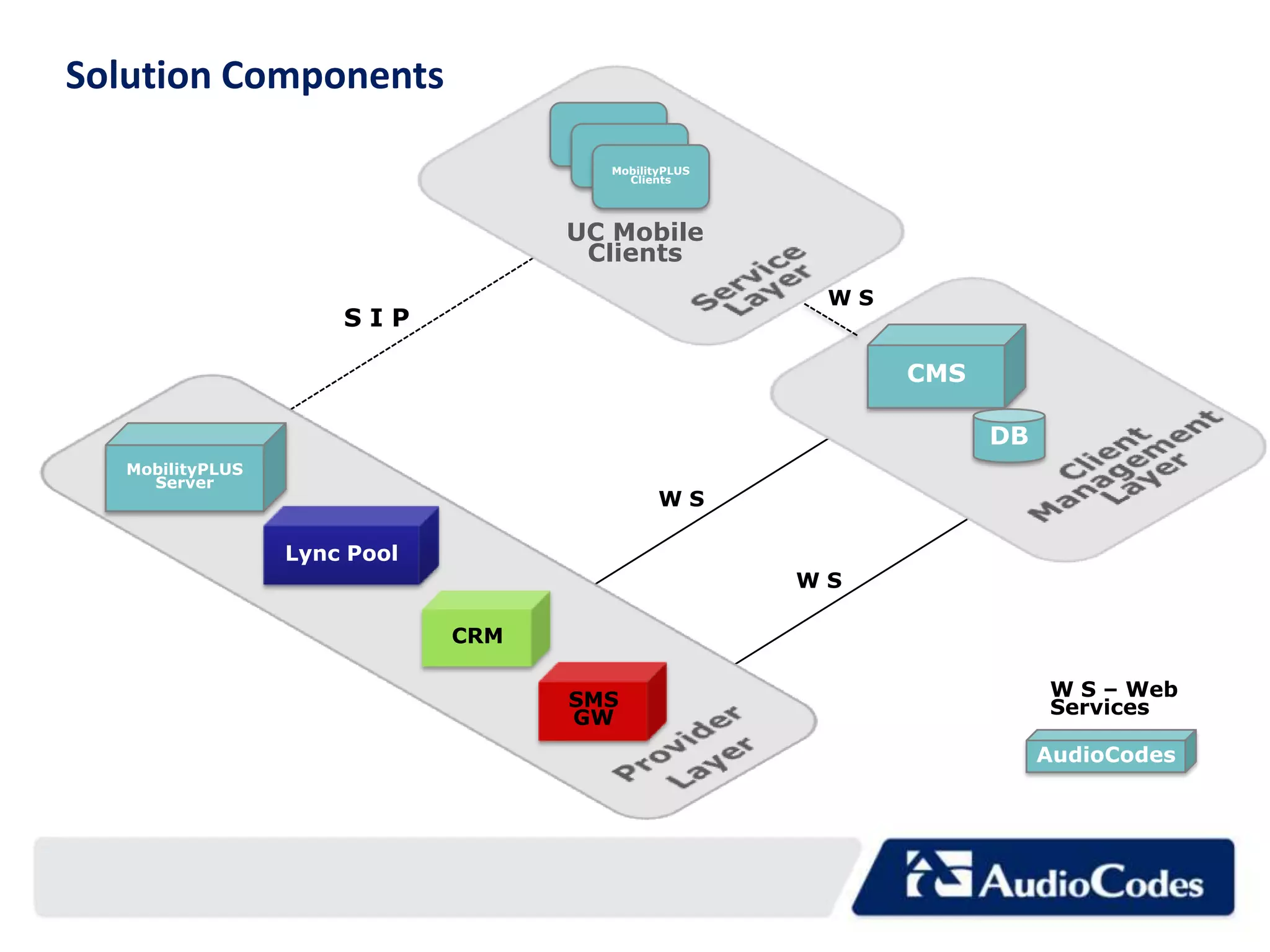

8. Solution Components
MobilityPLUS
Clients
UC Mobile
Clients
WS
SIP
CMS
DB
MobilityPLUS
Server
WS
Lync Pool
WS
CRM
SMS W S – Web
GW Services
AudioCodes

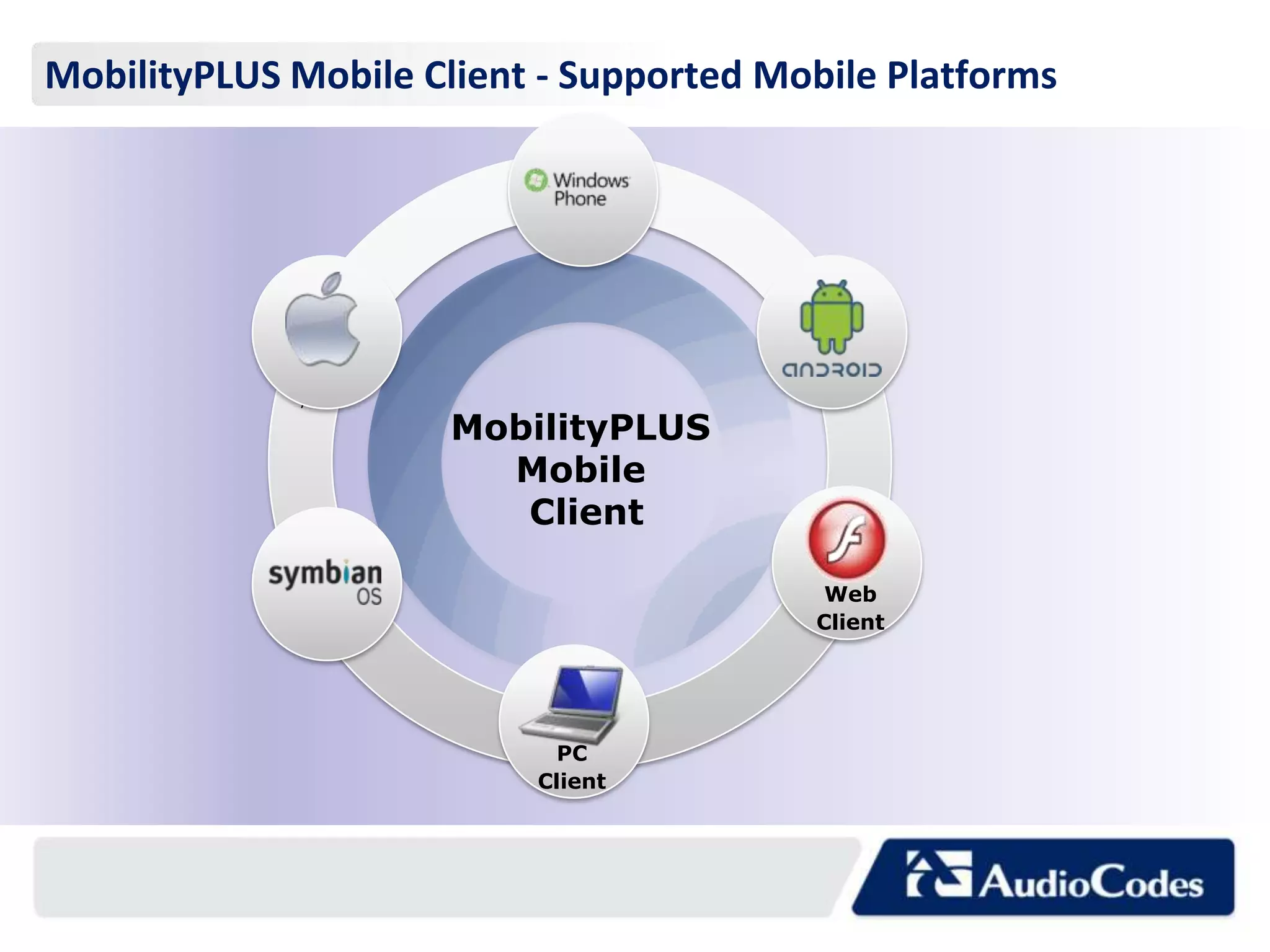

9. MobilityPLUS Mobile Client - Supported Mobile Platforms
iPhone
,iPad
MobilityPLUS
Mobile
Client
Web
Client
PC
Client

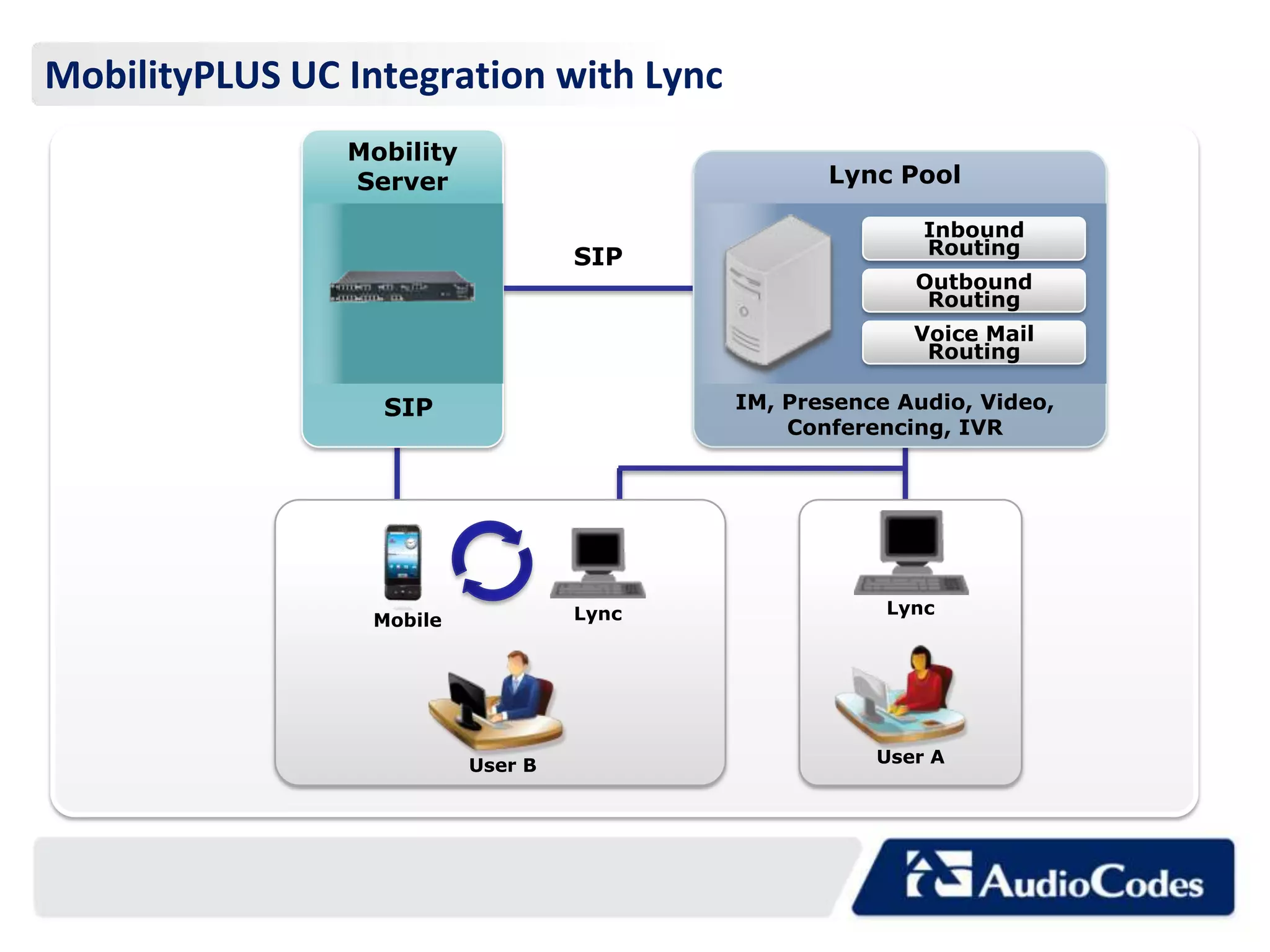

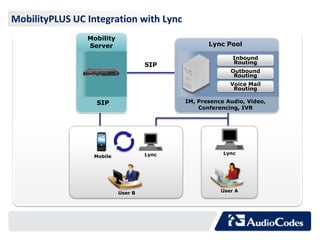

10. MobilityPLUS UC Integration with Lync
Mobility
Server Lync Pool
Inbound
SIP Routing
Outbound
Routing
Voice Mail
Routing
SIP IM, Presence Audio, Video,
Conferencing, IVR
Lync Lync
Mobile
User B User A

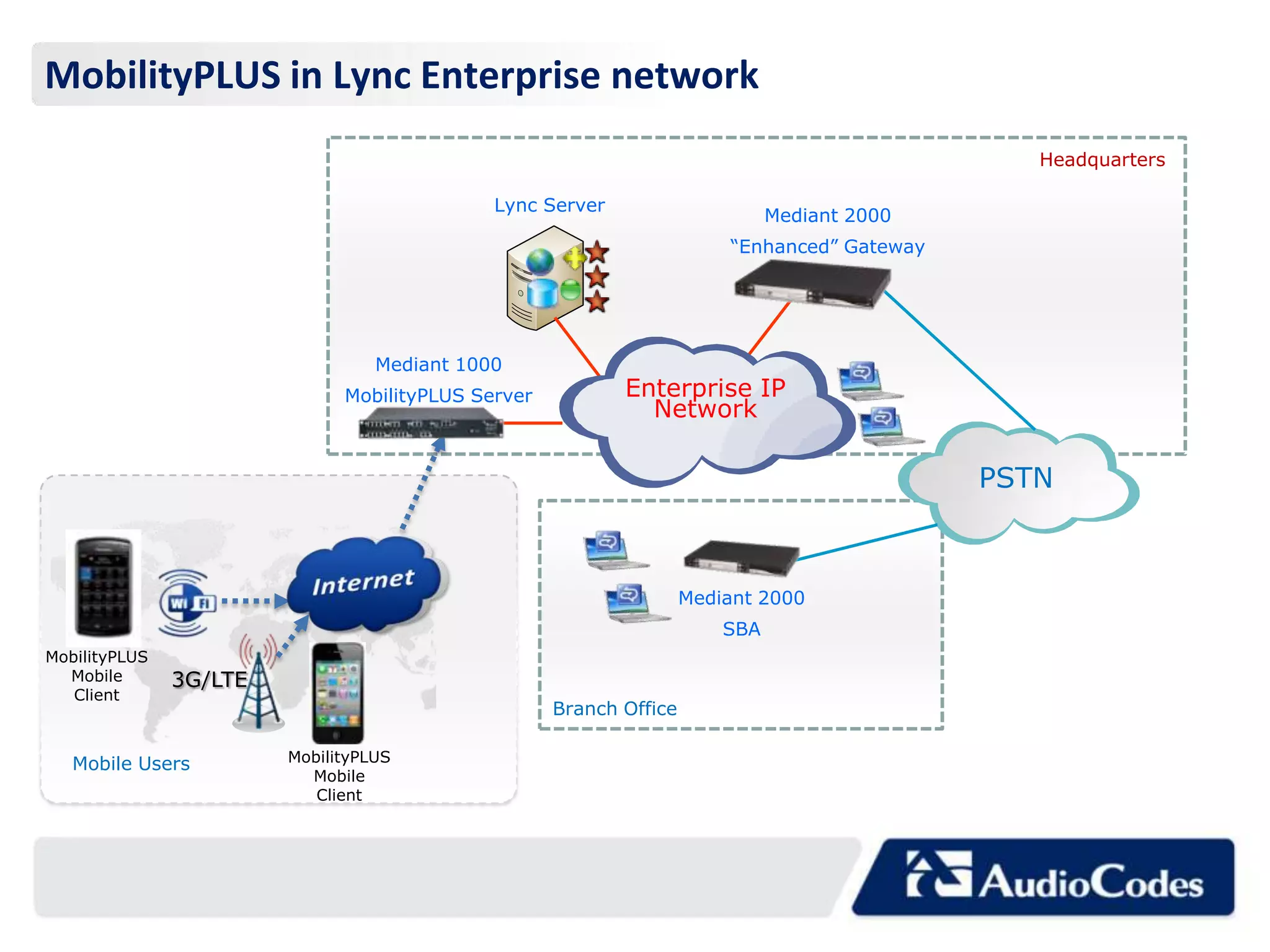

11. MobilityPLUS in Lync Enterprise network
Headquarters
Lync Server
Mediant 2000
“Enhanced” Gateway
Mediant 1000
MobilityPLUS Server Enterprise IP
Network
PSTN
Mediant 2000
SBA
MobilityPLUS
Mobile 3G/LTE
Client
Branch Office
Mobile Users MobilityPLUS
Mobile
Client

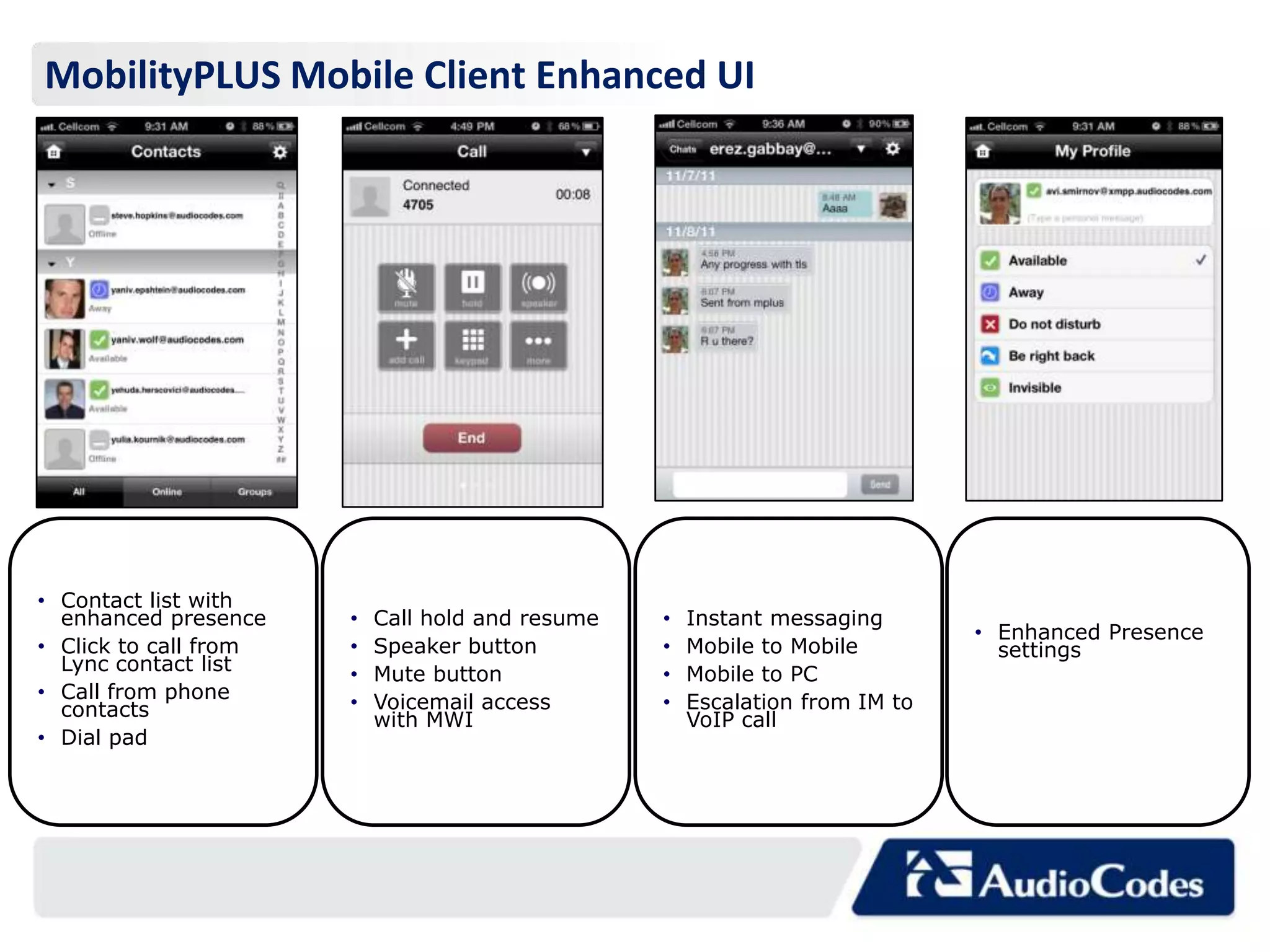

12. MobilityPLUS Mobile Client Enhanced UI
• Contact list with
enhanced presence • Call hold and resume • Instant messaging
• Enhanced Presence
• Click to call from • Speaker button • Mobile to Mobile settings
Lync contact list • Mute button • Mobile to PC
• Call from phone • Voicemail access • Escalation from IM to
contacts with MWI VoIP call
• Dial pad

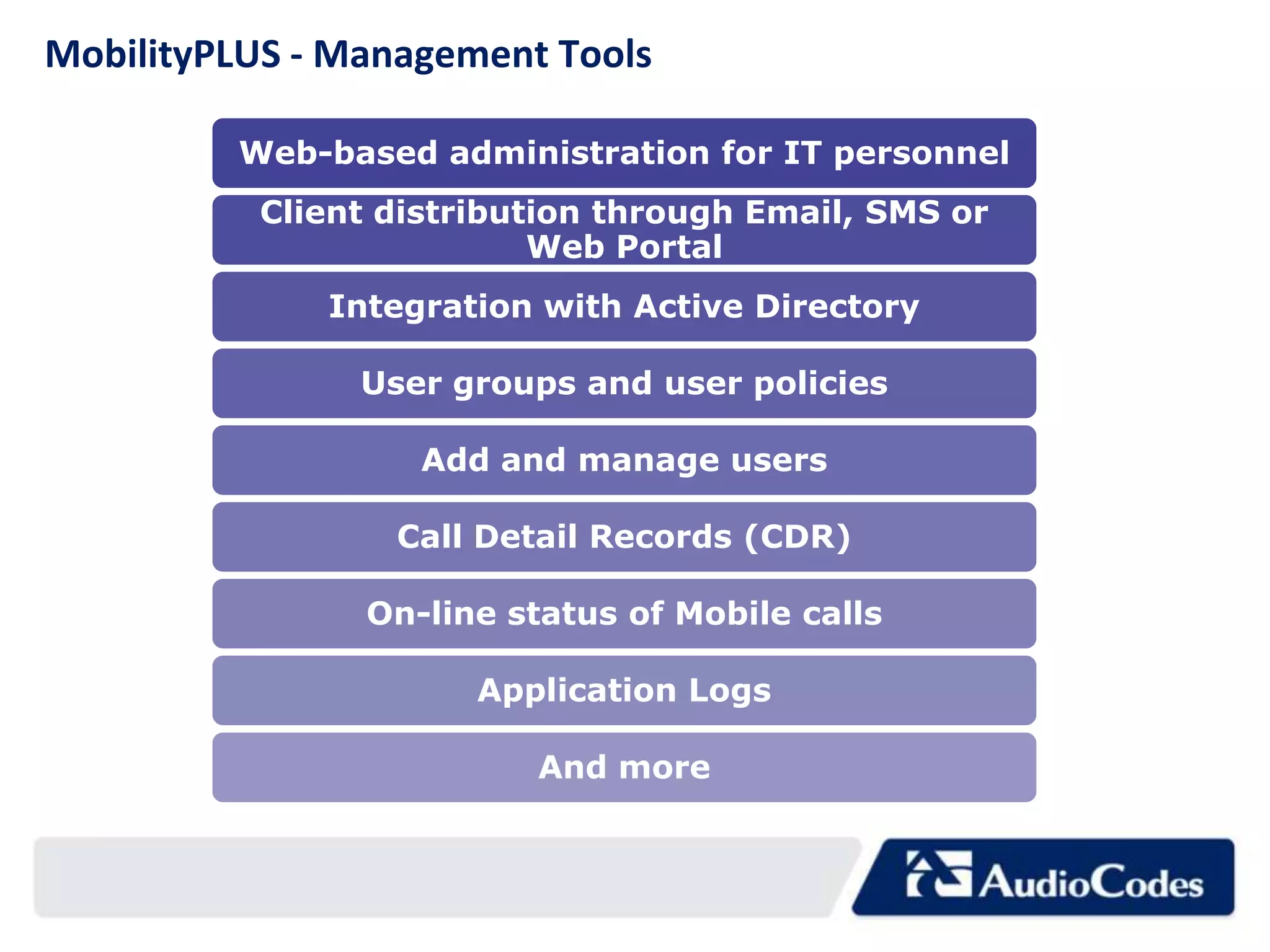

13. MobilityPLUS - Management Tools
Web-based administration for IT personnel
Client distribution through Email, SMS or
Web Portal
Integration with Active Directory
User groups and user policies
Add and manage users
Call Detail Records (CDR)
On-line status of Mobile calls
Application Logs
And more

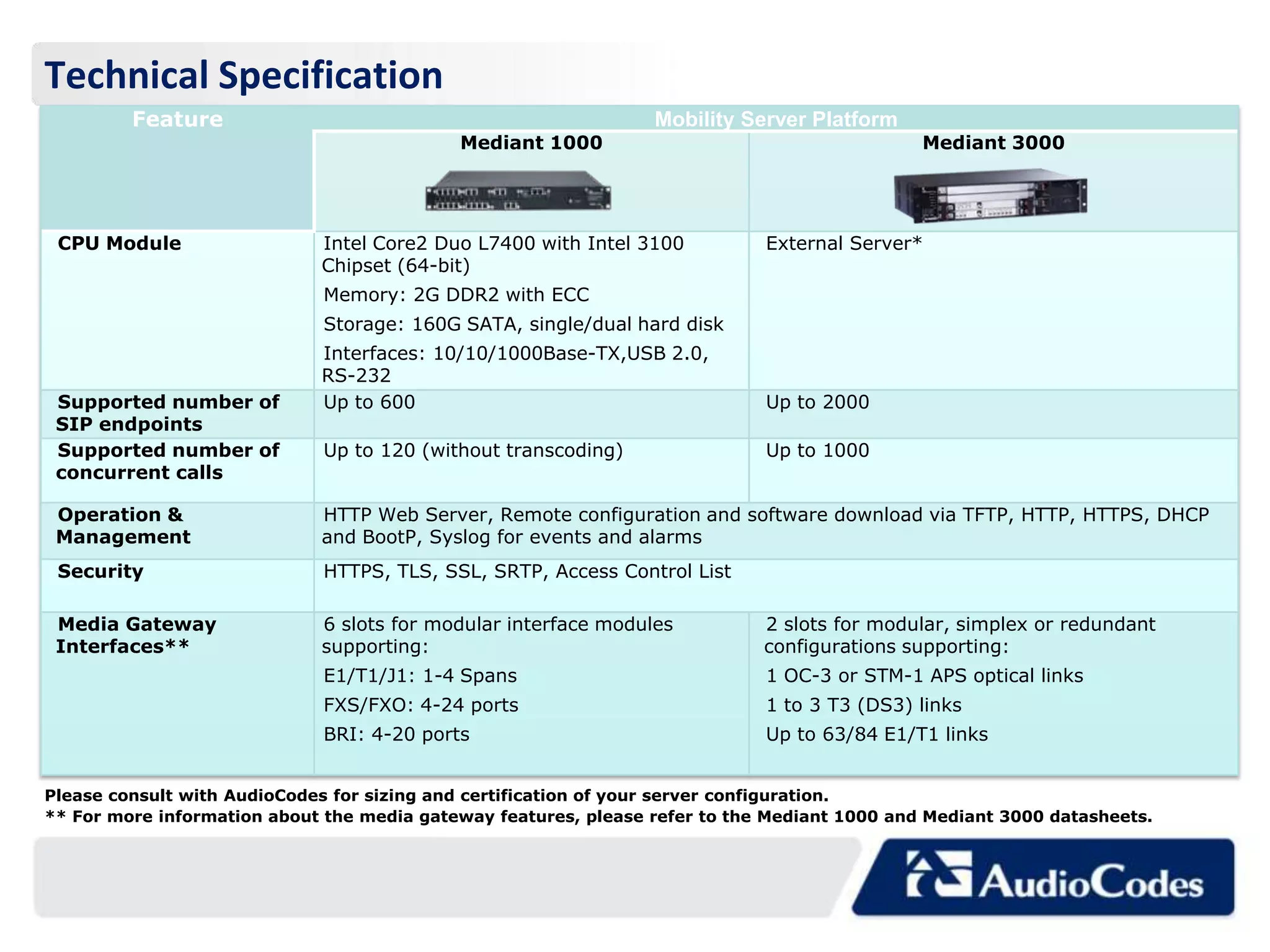

14. Technical Specification
Feature Mobility Server Platform
Mediant 1000 Mediant 3000
CPU Module Intel Core2 Duo L7400 with Intel 3100 External Server*
Chipset (64-bit)
Memory: 2G DDR2 with ECC
Storage: 160G SATA, single/dual hard disk
Interfaces: 10/10/1000Base-TX,USB 2.0,
RS-232
Supported number of Up to 600 Up to 2000
SIP endpoints
Supported number of Up to 120 (without transcoding) Up to 1000
concurrent calls
Operation & HTTP Web Server, Remote configuration and software download via TFTP, HTTP, HTTPS, DHCP
Management and BootP, Syslog for events and alarms
Security HTTPS, TLS, SSL, SRTP, Access Control List
Media Gateway 6 slots for modular interface modules 2 slots for modular, simplex or redundant
Interfaces** supporting: configurations supporting:
E1/T1/J1: 1-4 Spans 1 OC-3 or STM-1 APS optical links
FXS/FXO: 4-24 ports 1 to 3 T3 (DS3) links
BRI: 4-20 ports Up to 63/84 E1/T1 links
Please consult with AudioCodes for sizing and certification of your server configuration.
** For more information about the media gateway features, please refer to the Mediant 1000 and Mediant 3000 datasheets.

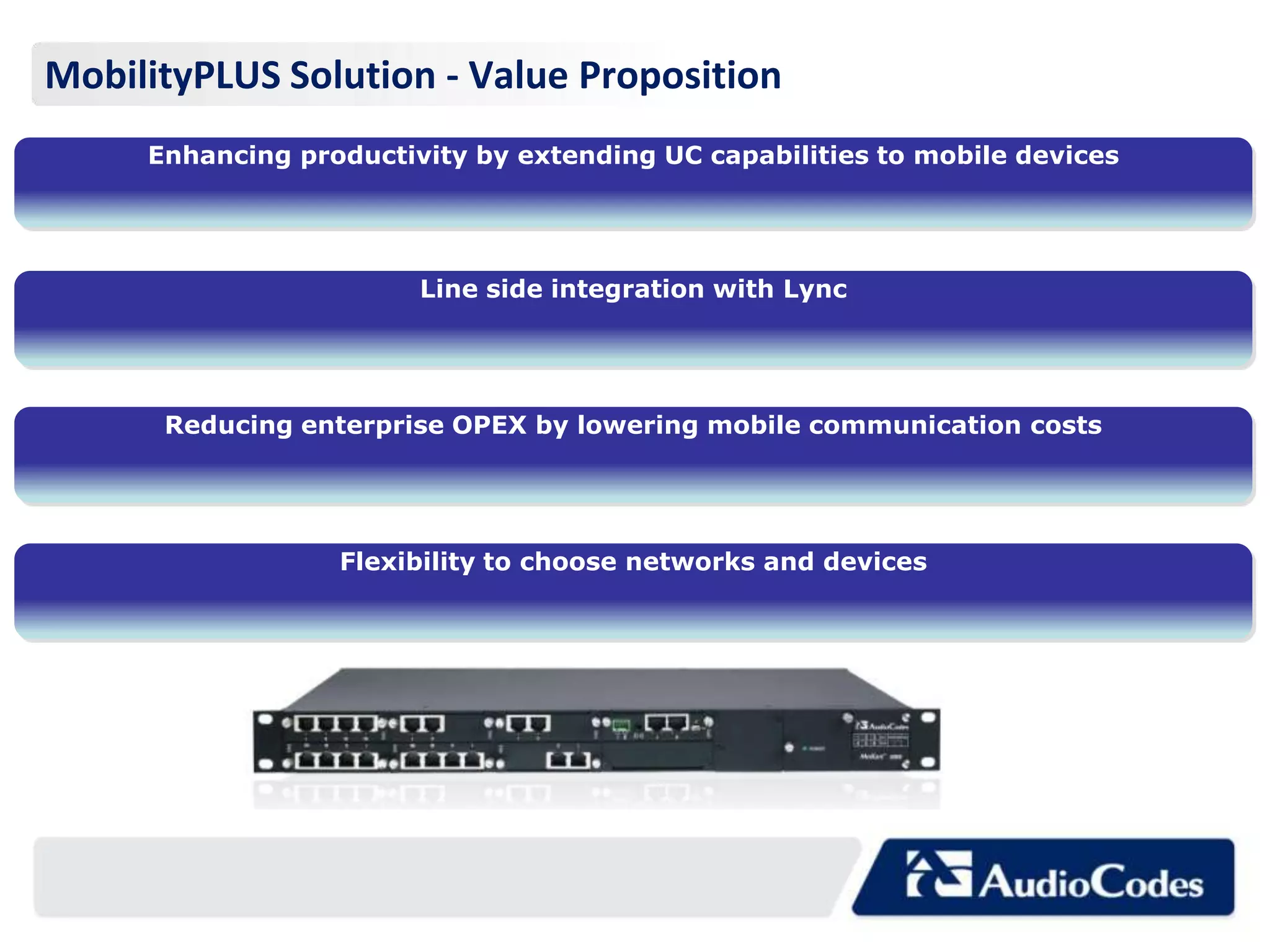

15. MobilityPLUS Solution - Value Proposition
Enhancing productivity by extending UC capabilities to mobile devices
Line side integration with Lync
Reducing enterprise OPEX by lowering mobile communication costs
Flexibility to choose networks and devices

16. Recording Solutions Overview
January 2012
© 2011 AudioCodes Ltd.
All rights reserved.
AudioCodes Confidential Proprietary

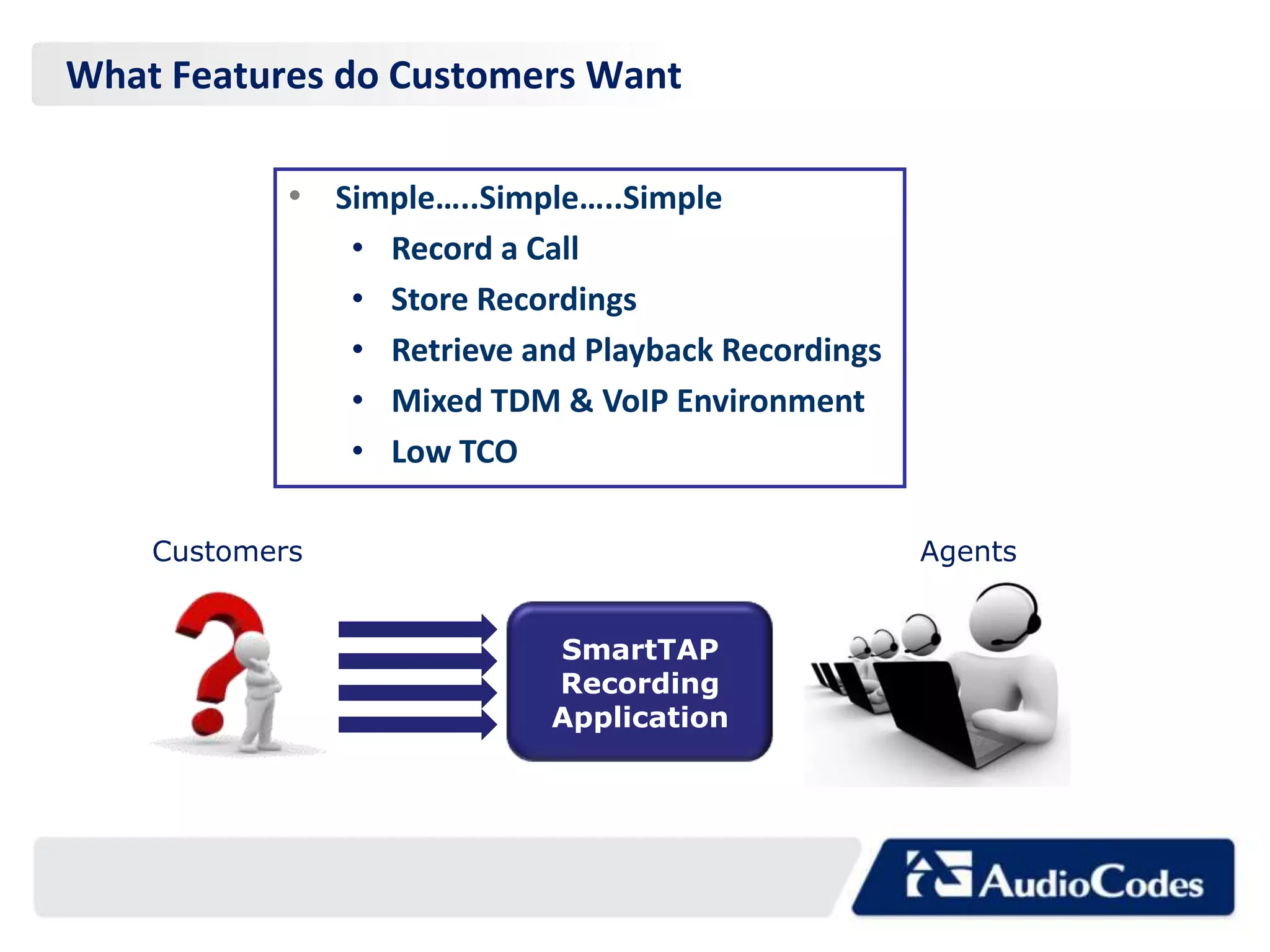

17. What Features do Customers Want
• Simple…..Simple…..Simple
• Record a Call
• Store Recordings
• Retrieve and Playback Recordings
• Mixed TDM & VoIP Environment
• Low TCO
Customers Agents
SmartTAP
Recording
Application

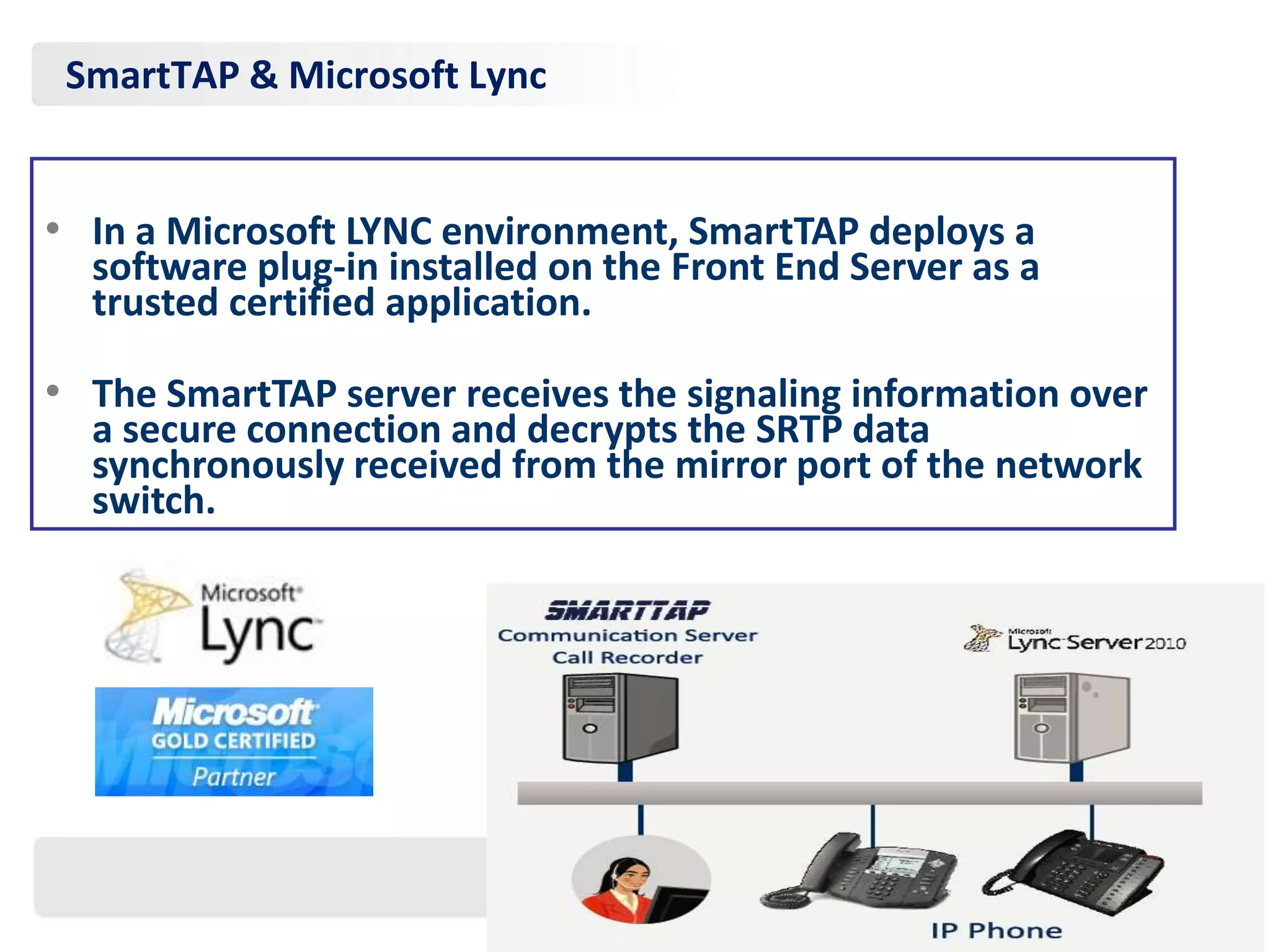

18. SmartTAP & Microsoft Lync
• In a Microsoft LYNC environment, SmartTAP deploys a
software plug-in installed on the Front End Server as a
trusted certified application.
• The SmartTAP server receives the signaling information over
a secure connection and decrypts the SRTP data
synchronously received from the mirror port of the network
switch.

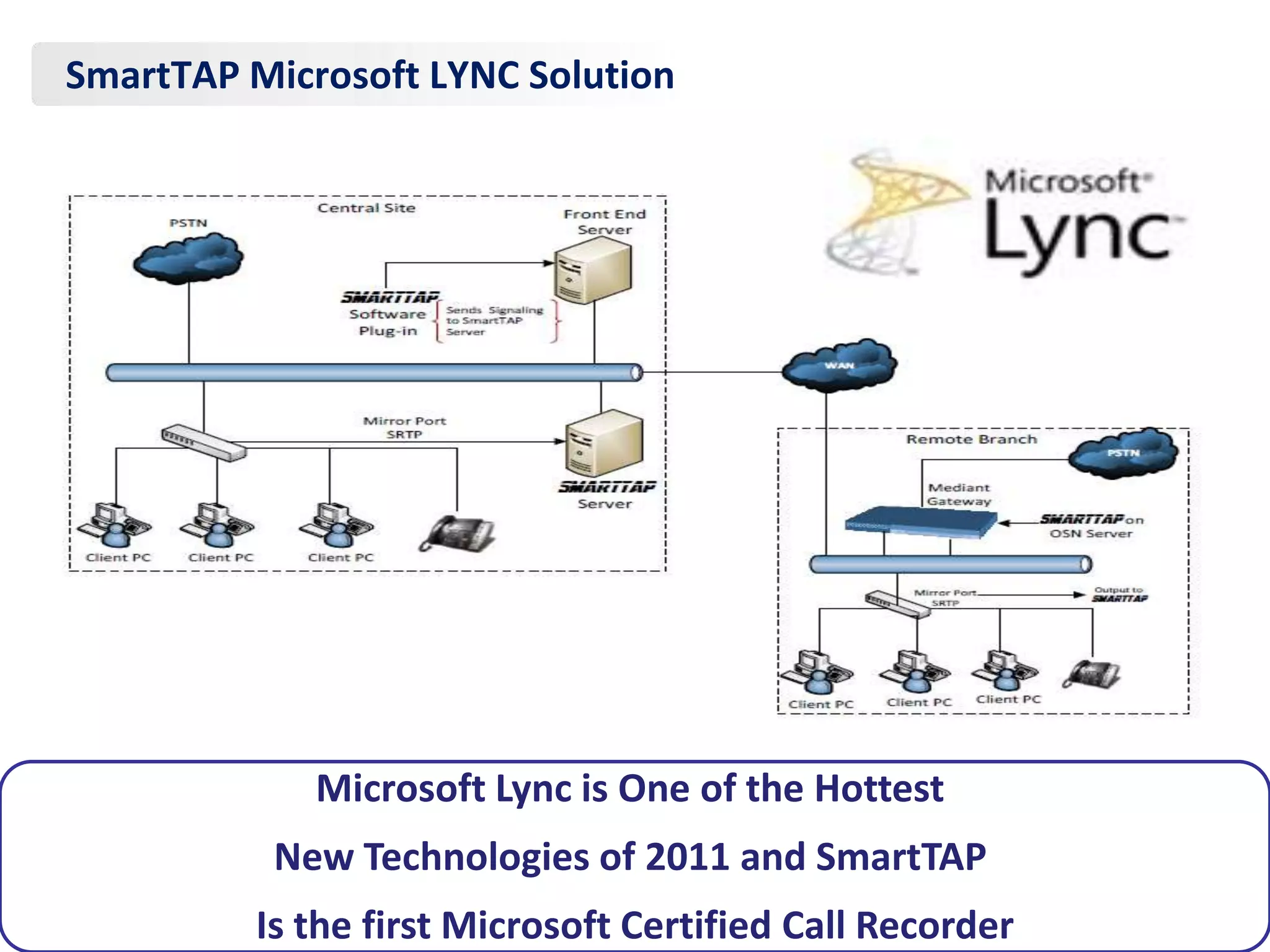

19. SmartTAP Microsoft LYNC Solution
Microsoft Lync is One of the Hottest
New Technologies of 2011 and SmartTAP
Is the first Microsoft Certified Call Recorder

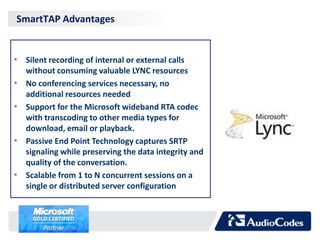

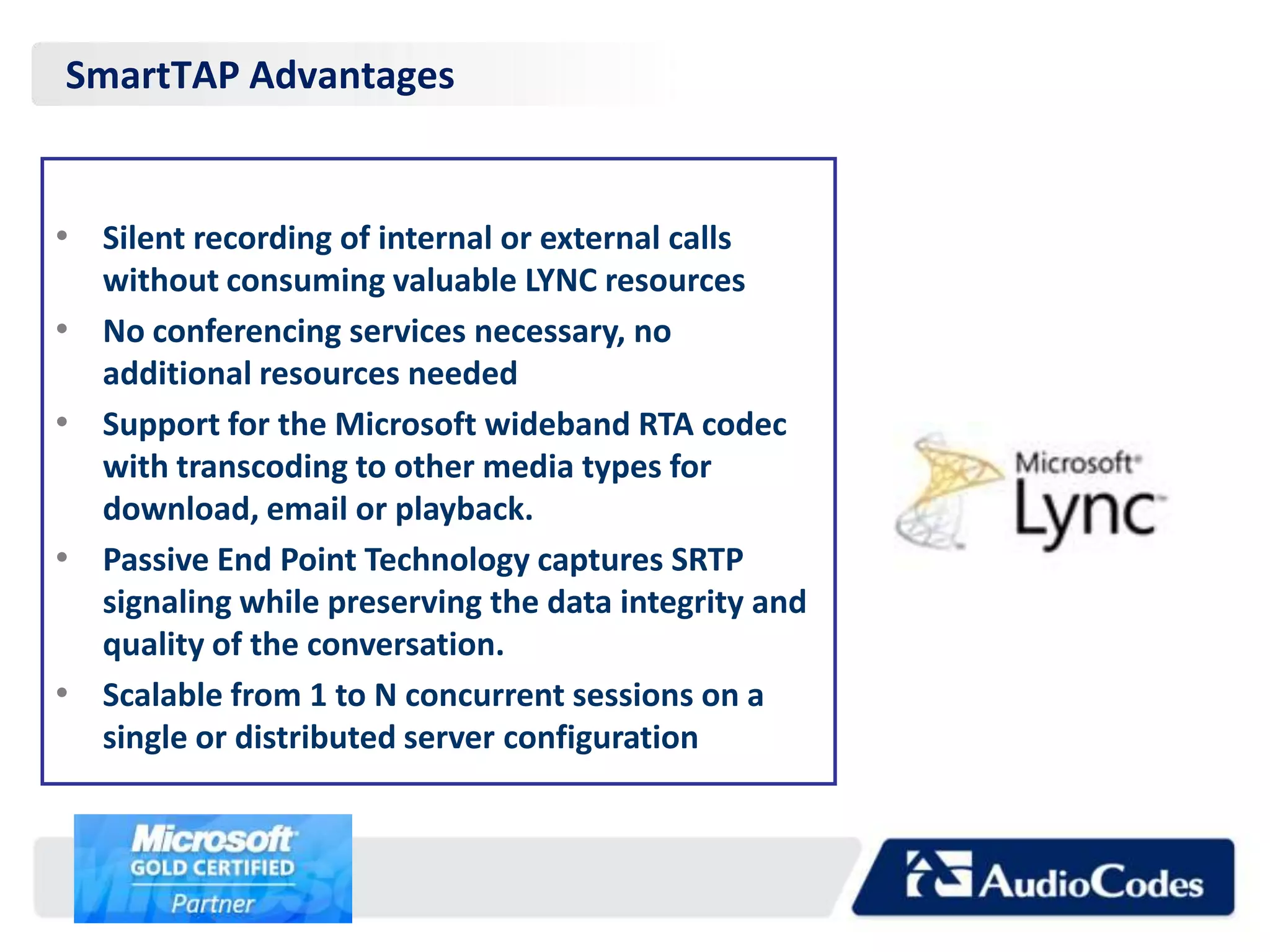

20. SmartTAP Advantages
• Silent recording of internal or external calls
without consuming valuable LYNC resources
• No conferencing services necessary, no
additional resources needed
• Support for the Microsoft wideband RTA codec
with transcoding to other media types for
download, email or playback.
• Passive End Point Technology captures SRTP
signaling while preserving the data integrity and
quality of the conversation.
• Scalable from 1 to N concurrent sessions on a
single or distributed server configuration

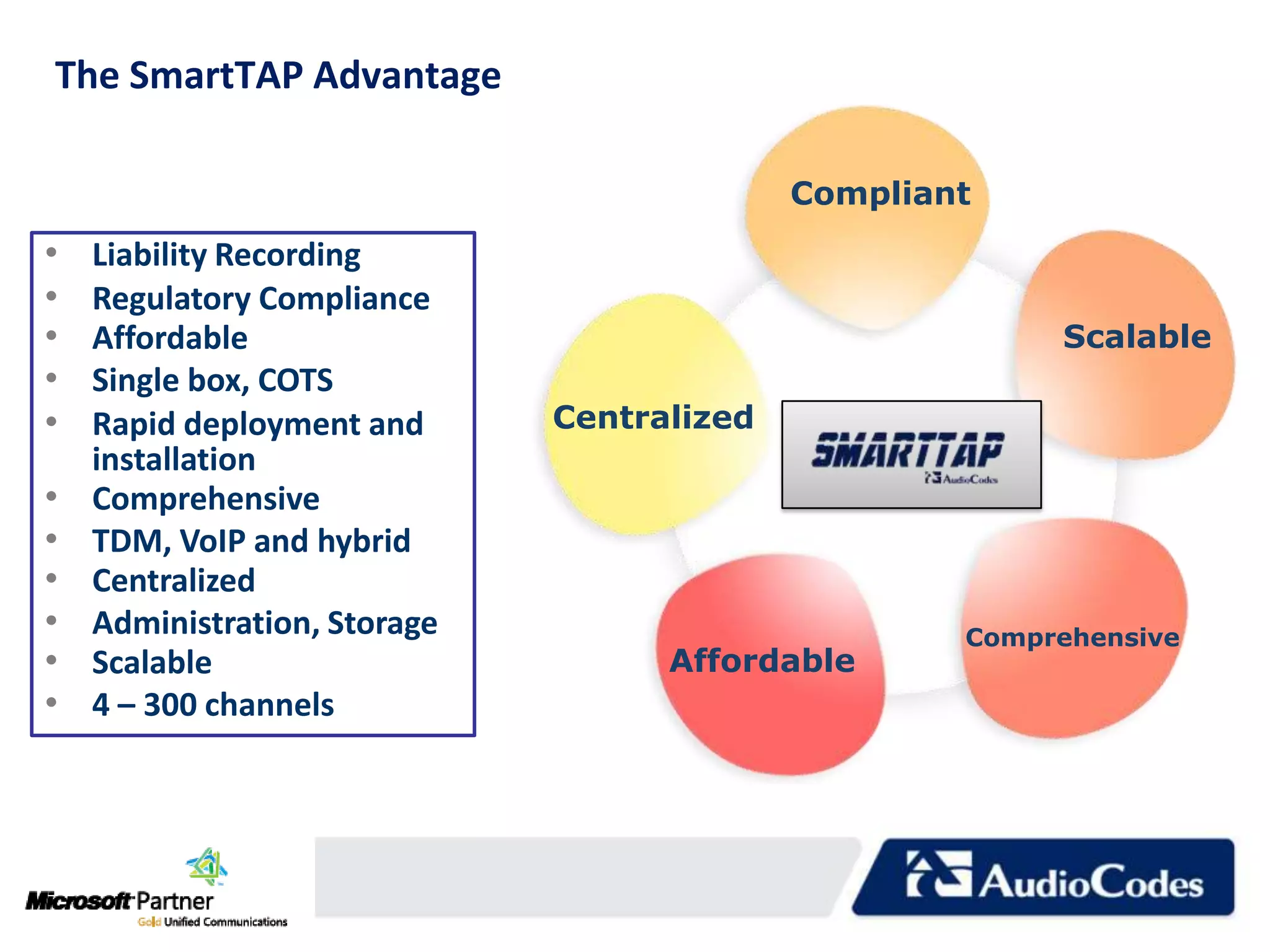

21. SmartTAP Key Benefits
The SmartTAP Advantage
Compliant
• Liability Recording
• Regulatory Compliance
• Affordable Scalable
• Single box, COTS
• Rapid deployment and Centralized
installation
• Comprehensive
• TDM, VoIP and hybrid
• Centralized
• Administration, Storage Comprehensive
• Scalable Affordable
• 4 – 300 channels


22. Thank you
AudioCodes Your “One-Stop-Shop” Vendor for
Microsoft Unified Communications
