1. Lync to the Future : Skype,
Mobile, Meetings & Video
Ruben Nauwelaers, Johan Delimon

2. Ruben Nauwelaers
Technical Consultant UC
Uw ICT Partner BVBA
rnauwelaers@uwictpartner.be
@rnauwelaers

3. Johan Delimon
MCM Lync Server / MVP Lync Server
Ordina Belgium N.V.
Johan.delimon@ordina.be
@jdelimon

4. http://www.pro-lync.be
http://www.pro-exchange.be
http://www.pro-lync.be
http://www.pro-office365.be

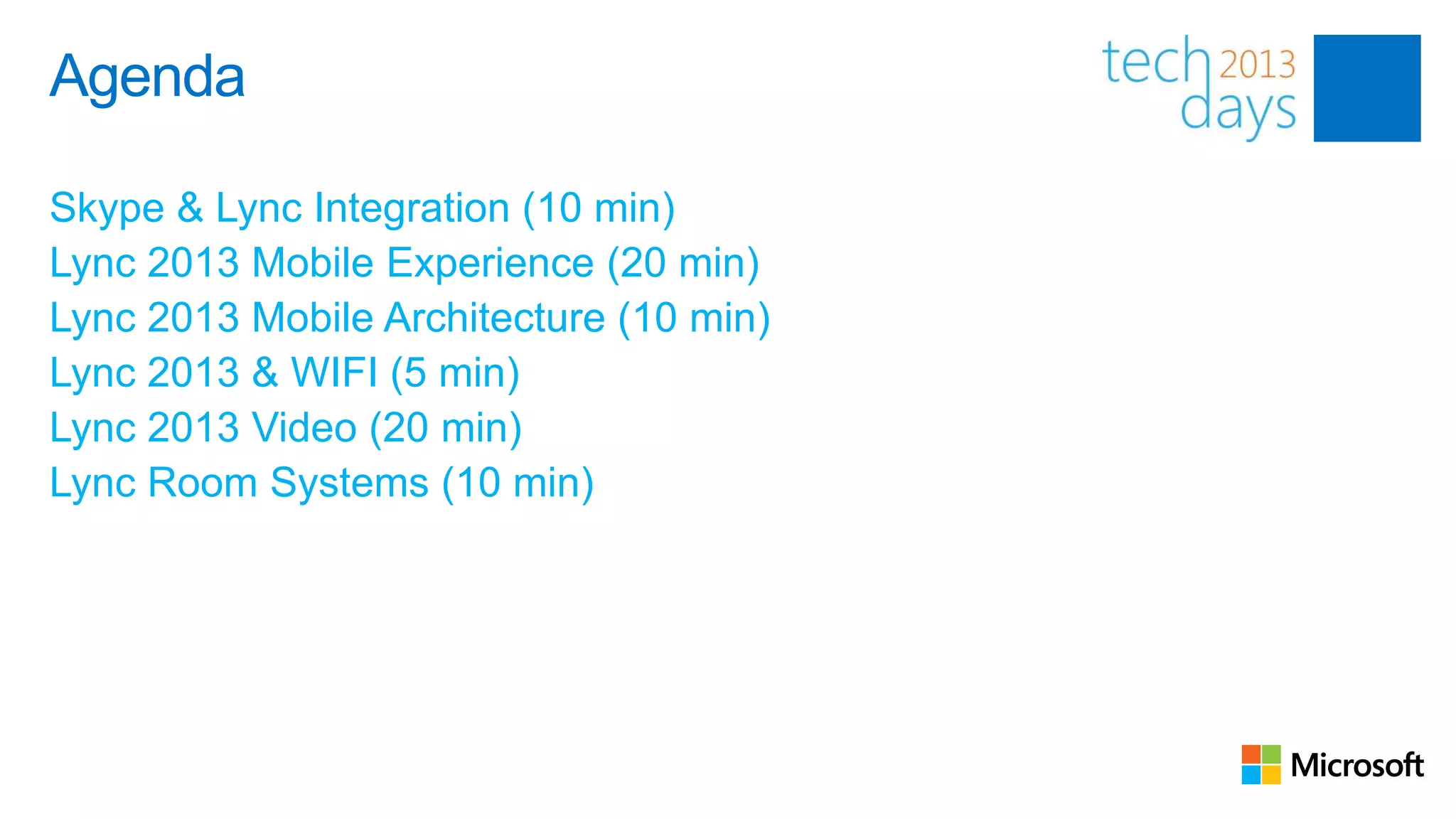

5. Agenda
Skype & Lync Integration (10 min)
Lync 2013 Mobile Experience (20 min)
Lync 2013 Mobile Architecture (10 min)
Lync 2013 & WIFI (5 min)
Lync 2013 Video (20 min)
Lync Room Systems (10 min)

6. Lync & Skype
Combining Consumer Reach
with Enterprise Controls

7. Skype’s
mission:
To be the global
280 m connected
users
communication
s provider that
billions of
300bn 40 mconcurrent
users
~50% 1/3
minutes of video and voice minutes
people depend
on everyday for
sharing of all Skype-to-Skype minutes include video
of international calling minutes
(combining PSTN and Skype-to-
Skype) are Skype-to-Skype minutes
experiences

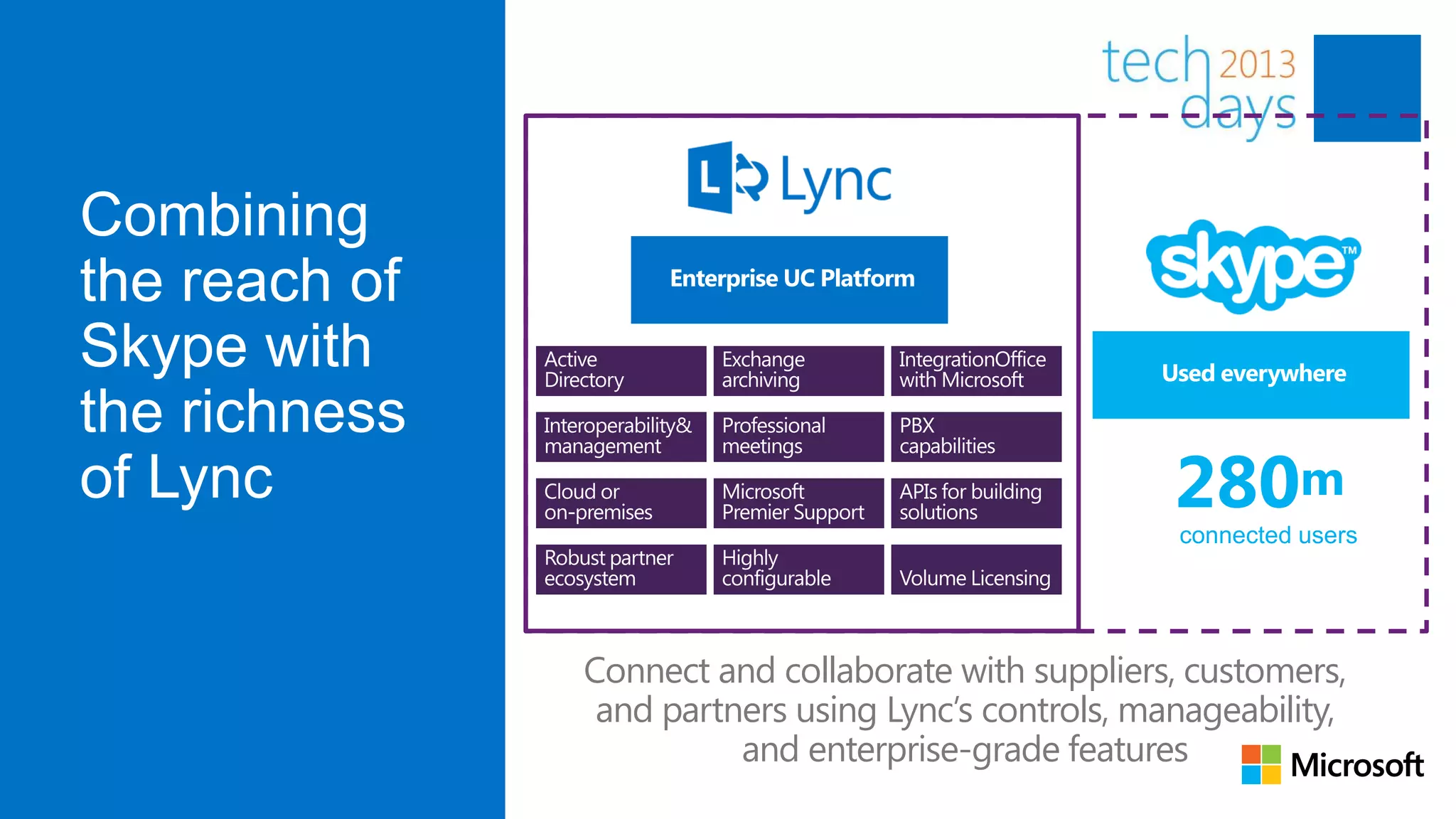

8. Combining
the reach of Enterprise UC Platform
Skype with Used everywhere
the richness
of Lync 280m
connected users
Connect and collaborate with suppliers, customers,
and partners using Lync’s controls, manageability,
and enterprise-grade features

9. Enable new ways to collaborate…
Our first
step:
federated
presence,
audio
calling, and
instant
messaging

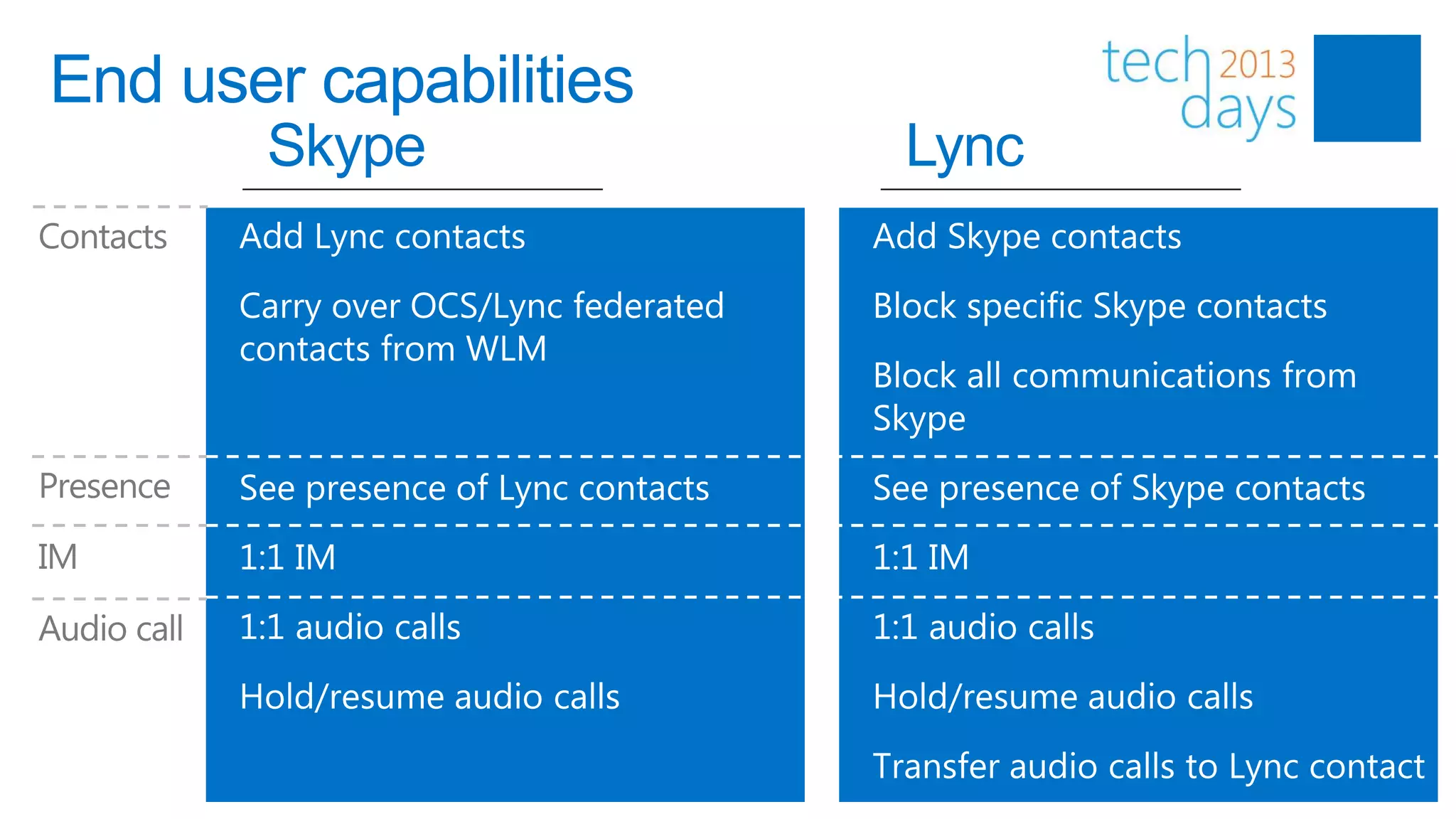

10. End user capabilities

11. End user base requirements

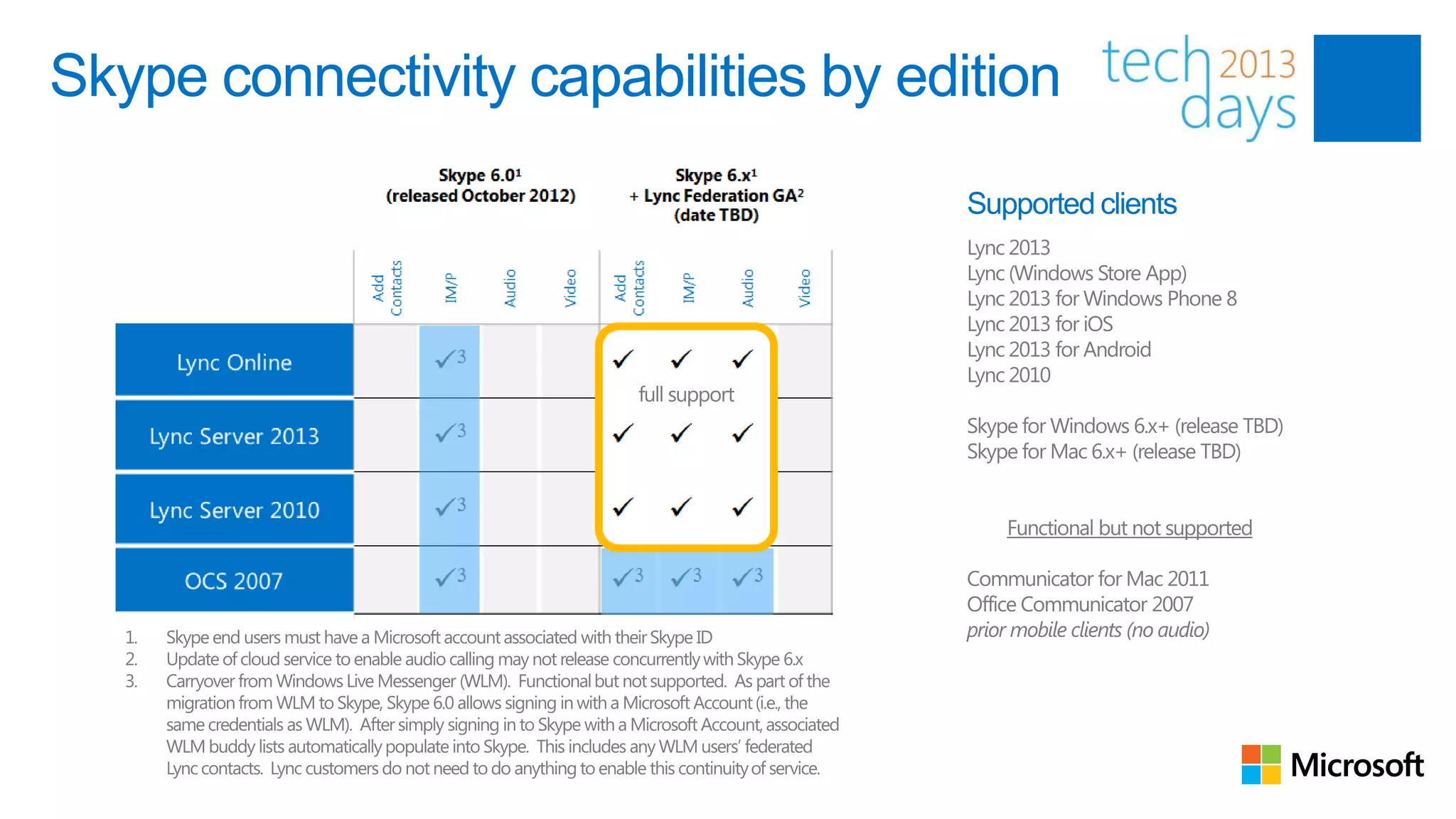

12. Skype connectivity capabilities by edition

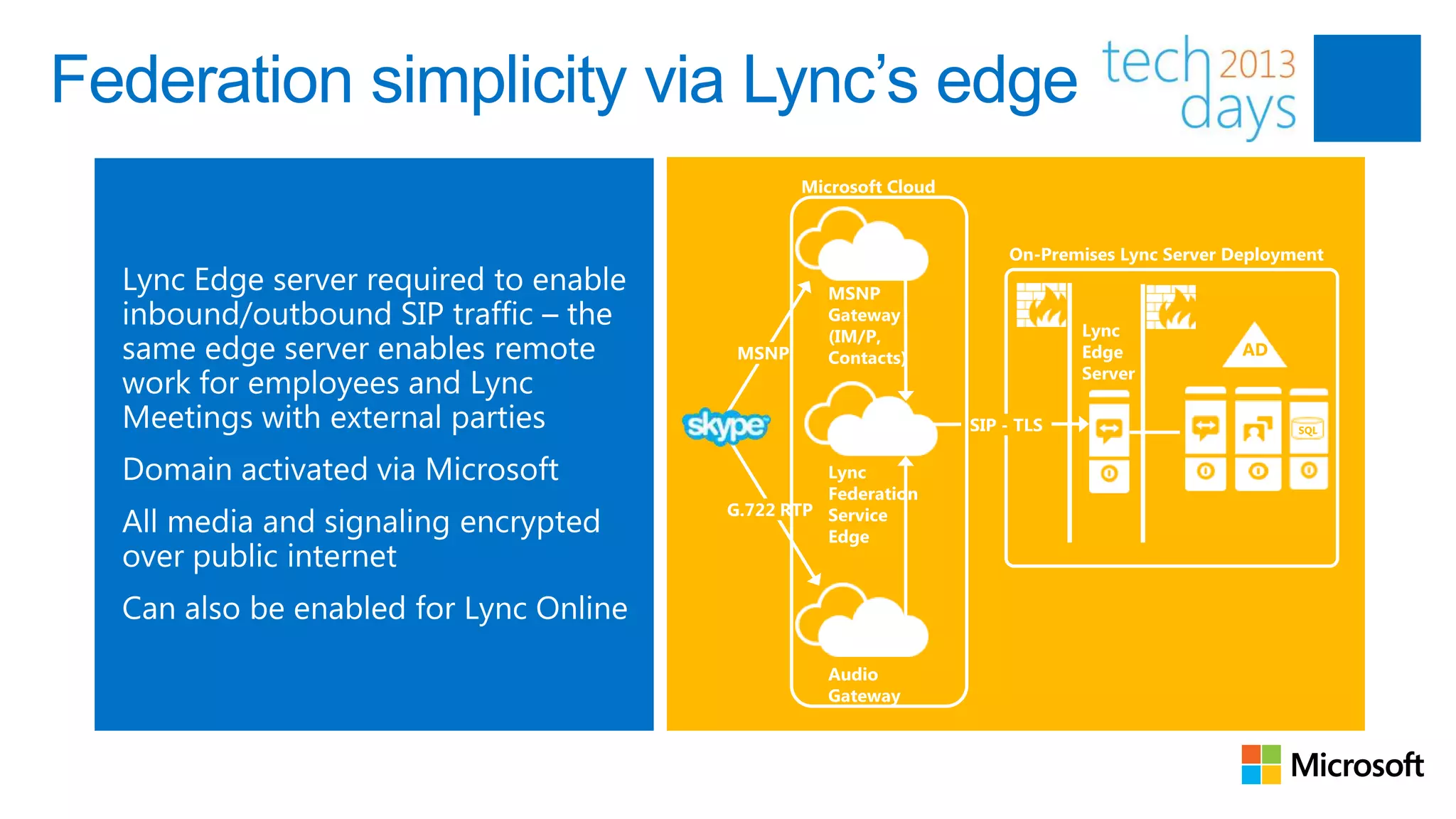

13. Federation simplicity via Lync’s edge
Microsoft Cloud
On-Premises Lync Server Deployment
MSNP
Gateway
(IM/P, Lync
MSNP Contacts) Edge AD
Server
SIP - TLS SQL
Lync
Federation
G.722 RTP Service
Edge
Audio
Gateway

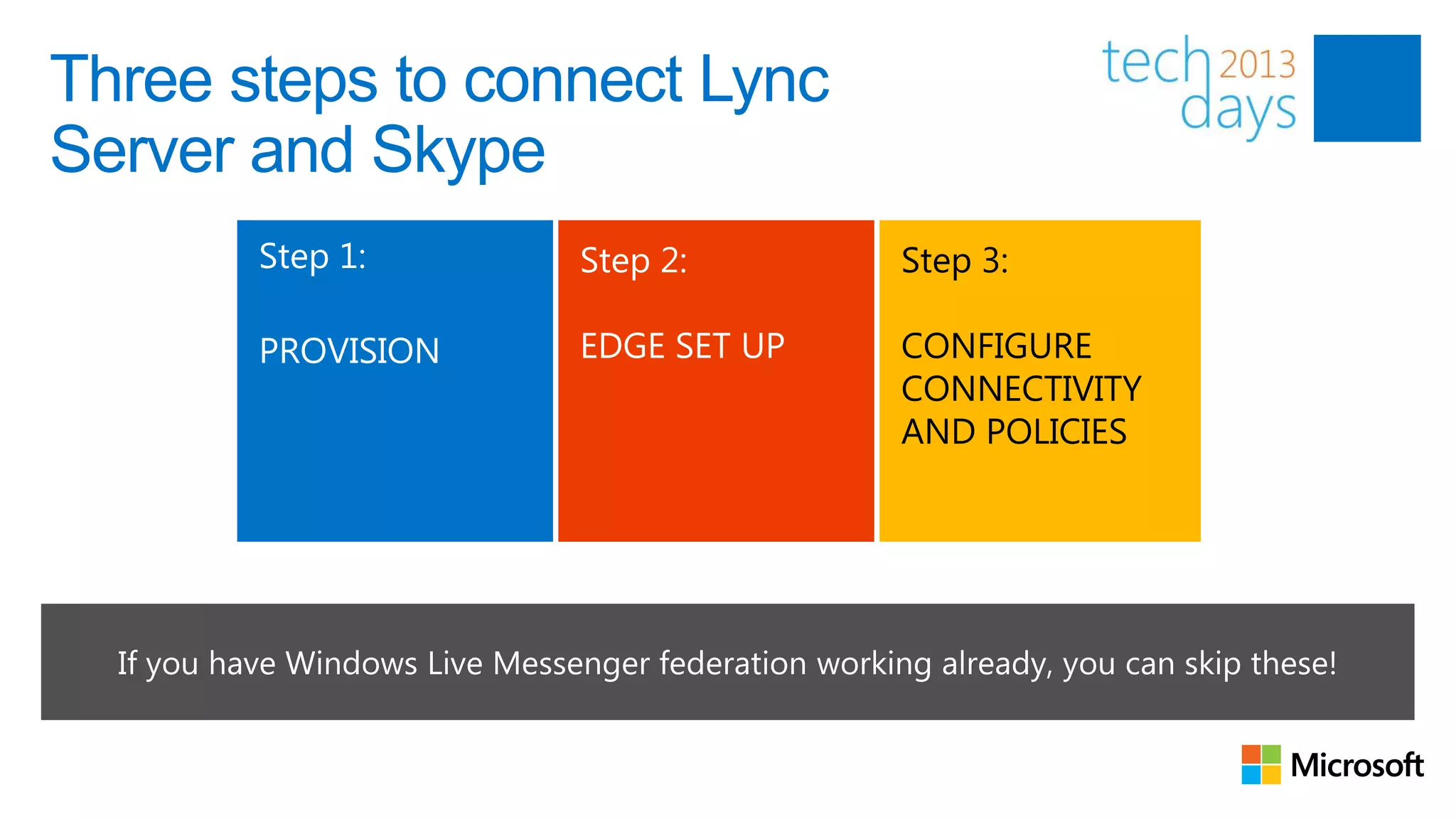

14. Three steps to connect Lync
Server and Skype
Step 1: Step 3:
PROVISION CONFIGURE
CONNECTIVITY
AND POLICIES

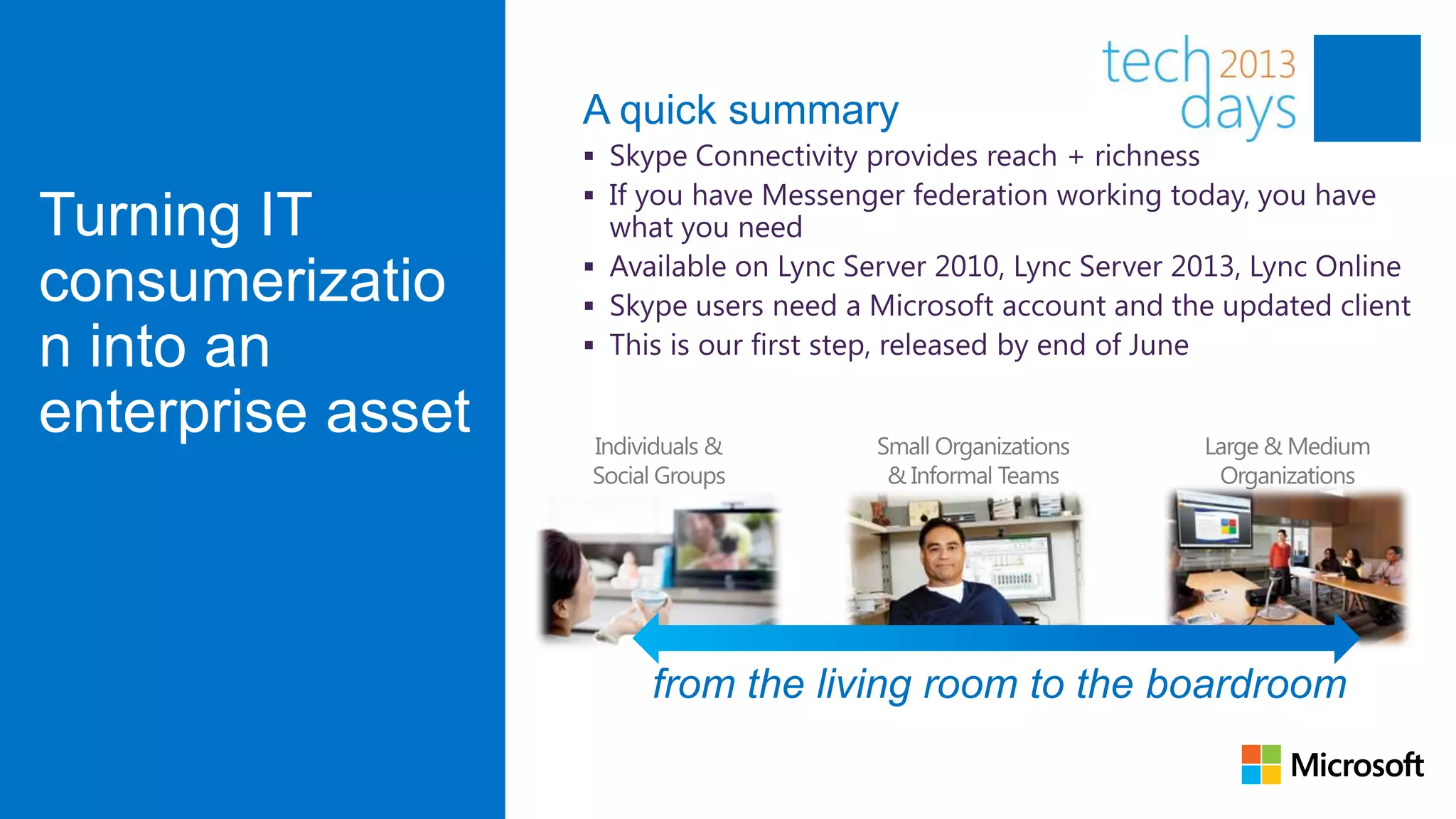

16. A quick summary
Turning IT
consumerizatio
n into an
enterprise asset
from the living room to the boardroom

17. Lync 2013 Mobile Experience

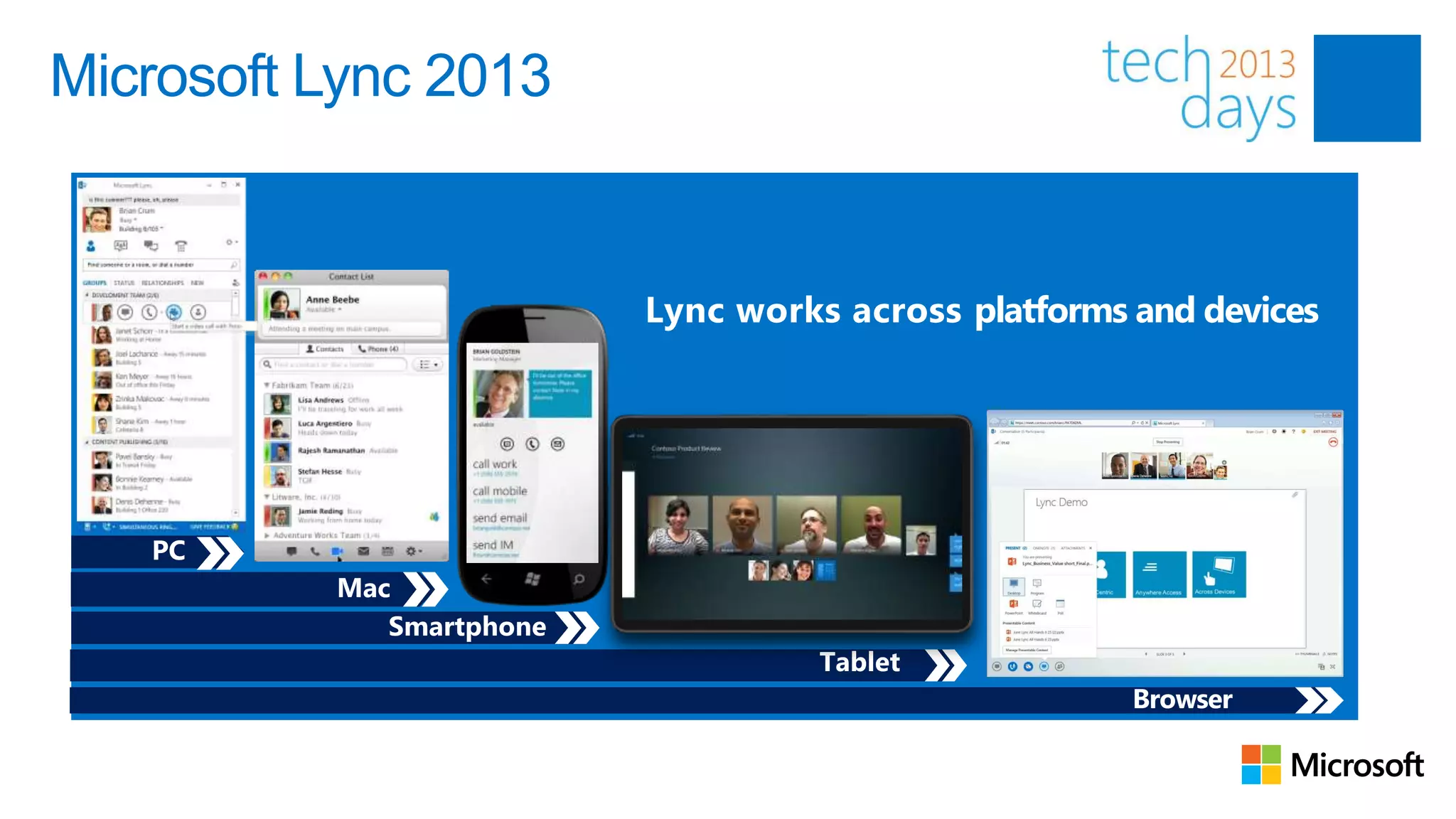

18. Microsoft Lync 2013
Lync works across platforms and devices
PC
Mac
Smartphone
Tablet
Browser

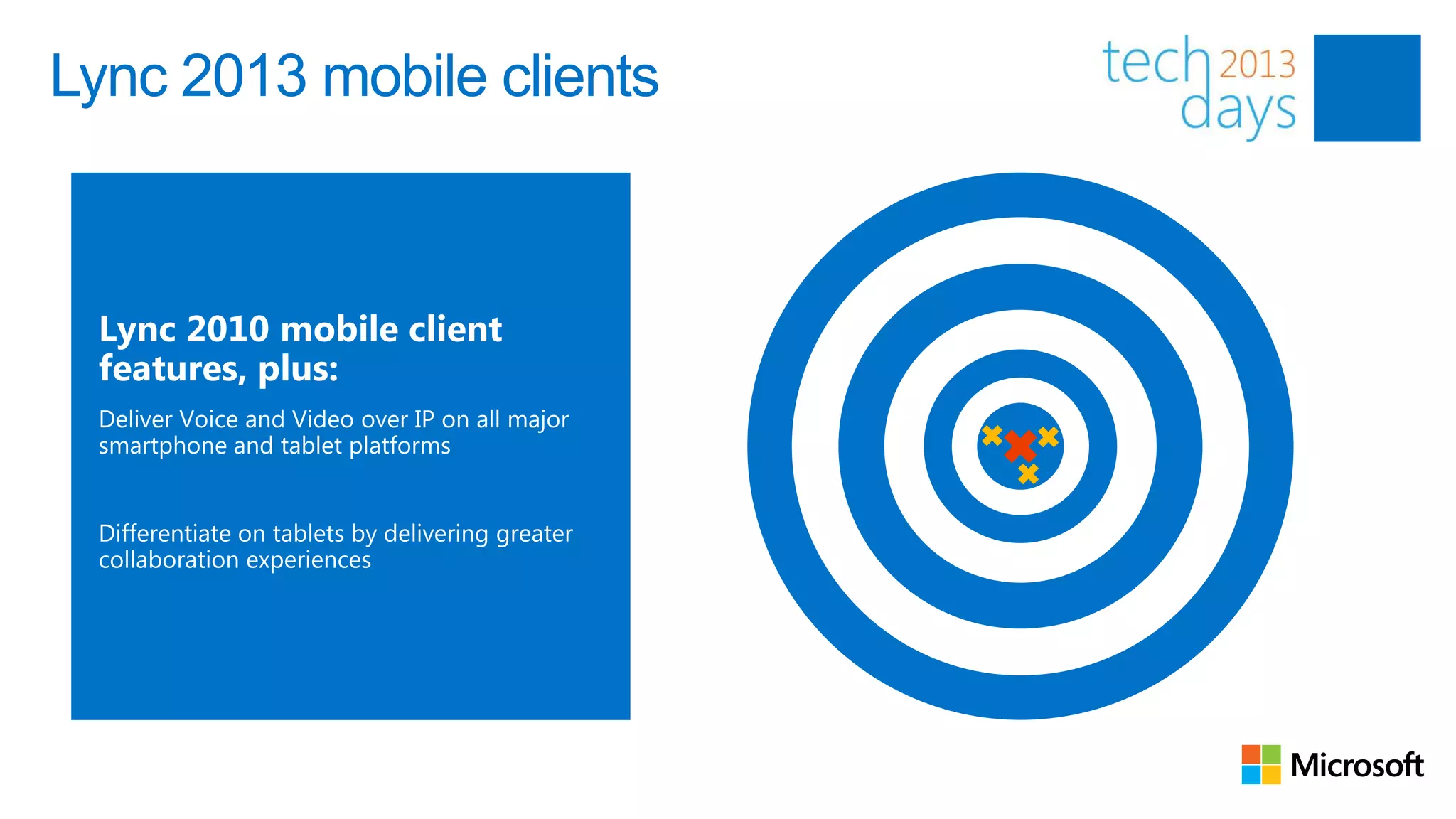

19. Lync 2013 mobile clients

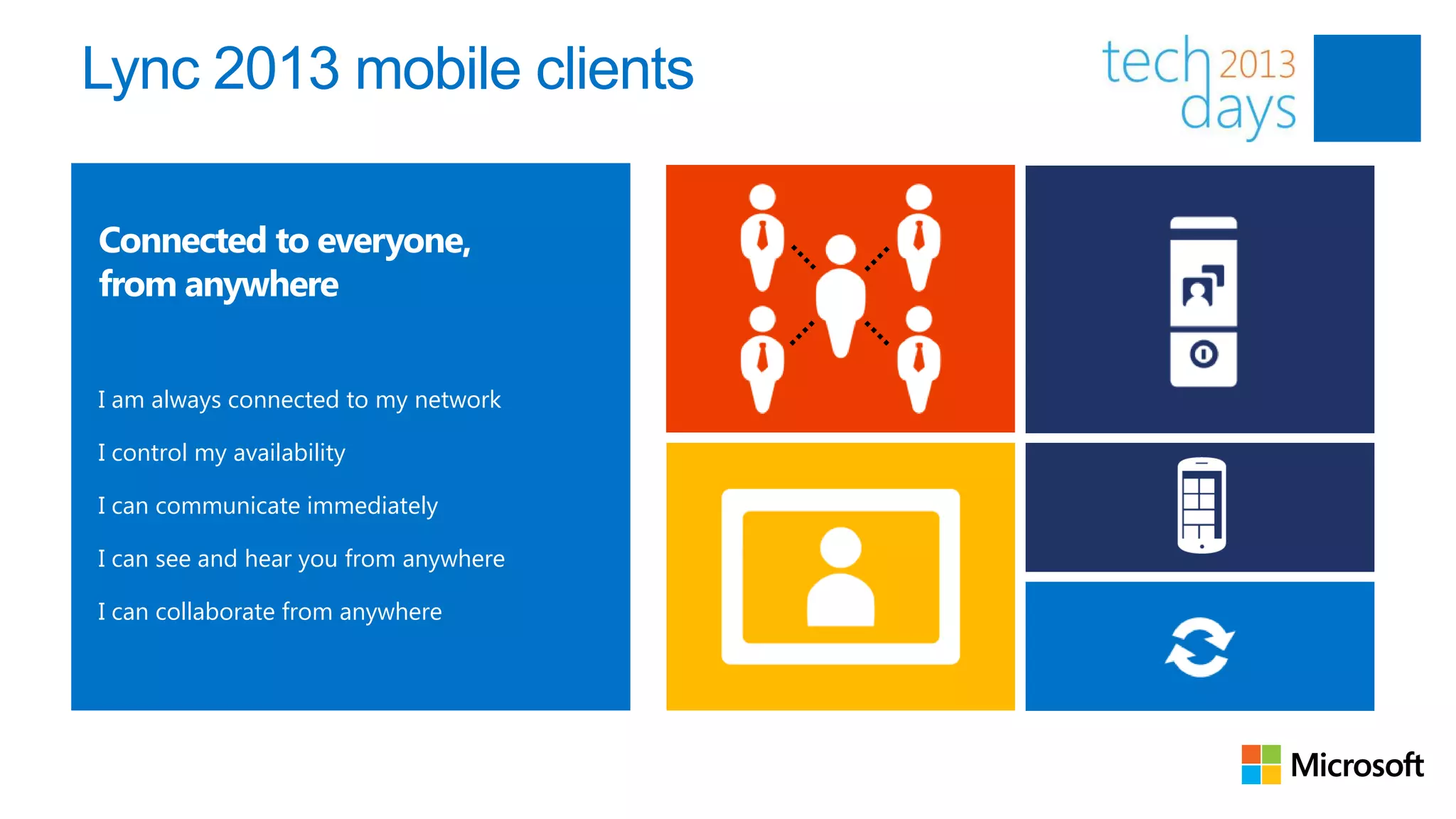

20. Lync 2013 mobile clients
Connected to everyone,
from anywhere
I am always connected to my network
I control my availability
I can communicate immediately
I can see and hear you from anywhere
I can collaborate from anywhere

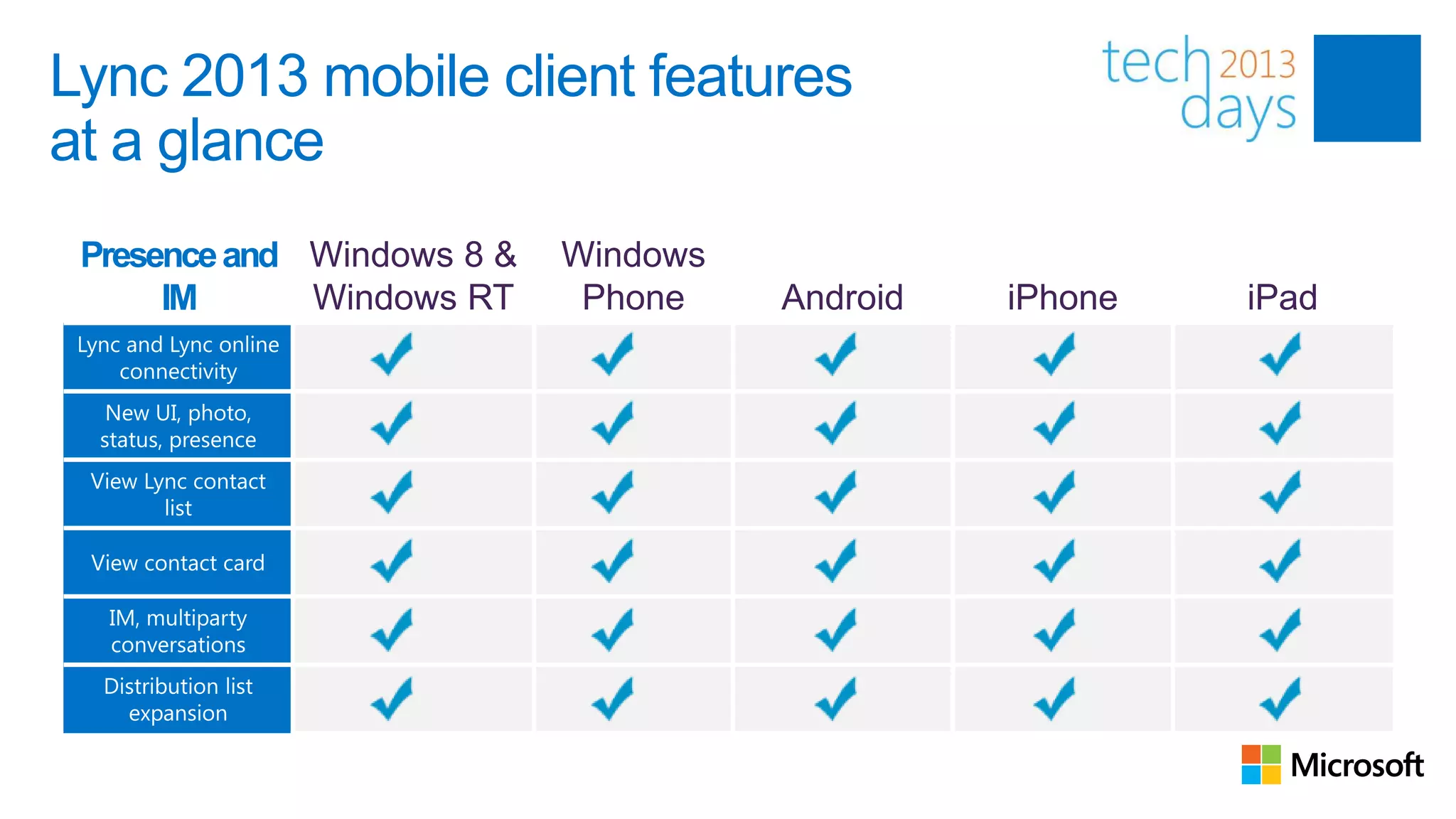

21. Lync 2013 mobile client features
at a glance
Presence and
IM

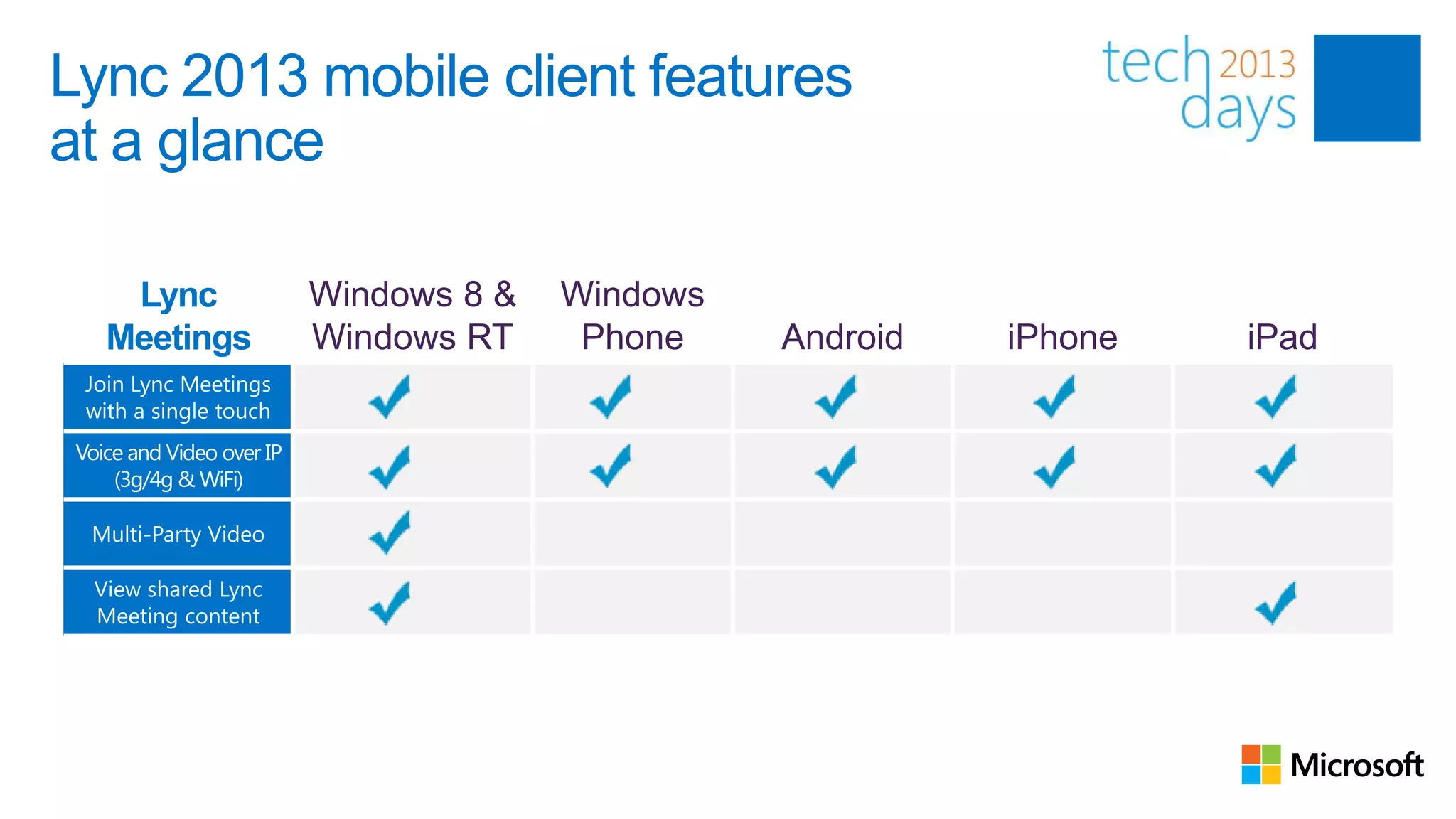

22. Lync 2013 mobile client features
at a glance
Lync
Meetings

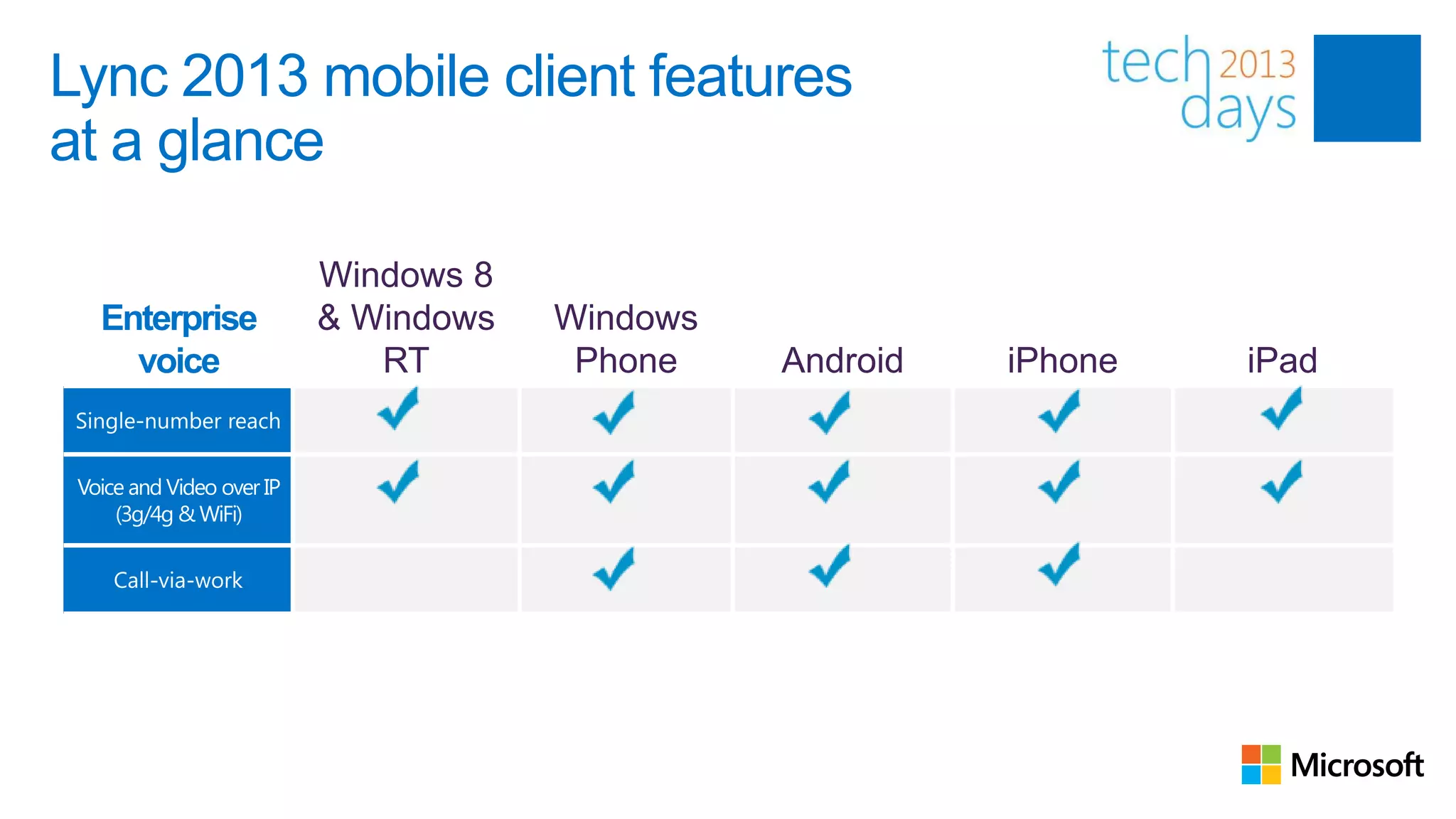

23. Lync 2013 mobile client features
at a glance
Enterprise
voice

25. Lync 2013 Mobile Architecture

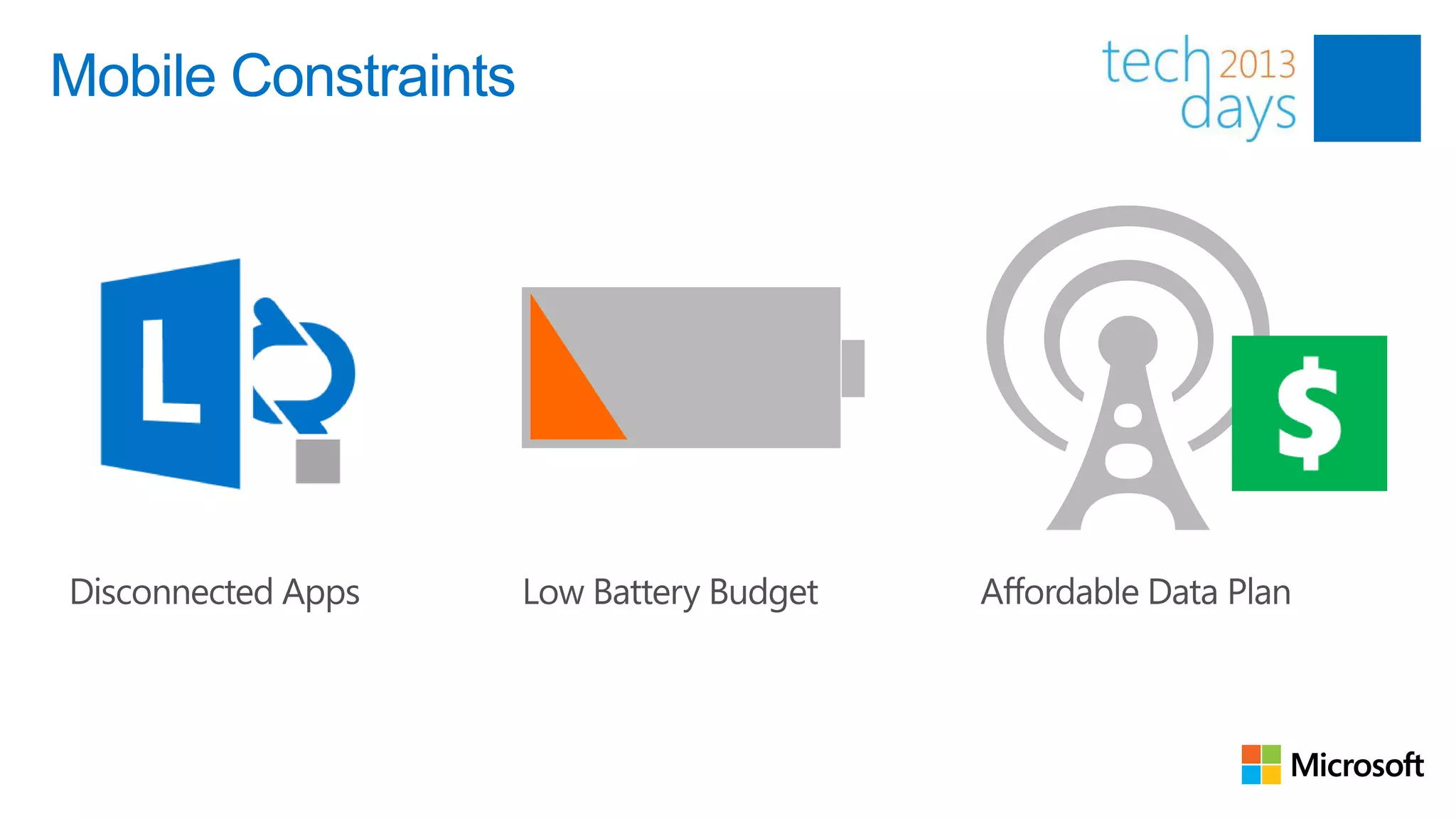

26. Mobile Constraints

27. Mobility/ Web updates at a glance
Nov, 2011: June, 2012: Feb, 2013:
Oct, 2010: Lync Server 2010, Lync Server 2010, Oct, 2012: Lync Server 2013,
Lync Server 2010 Mobility Service Mobile Update Lync Server 2013 CU”1”
• Communicat • Contacts & • PowerPoint UCWA/ Lync Web UCWA/ Lync Mobile
or Mobile for Groups Viewing (in App with with
WM 6.x, • Presence iPad) • VoIP • VoIP
Nokia • IM • Video/ Multi- • Video (H264)
devices • Call-via- View • App/ Desktop
Work • App/ Desktop Sharing (iPad only)
Sharing • PowerPoint viewing
• Data (iPad only)
Collaboration

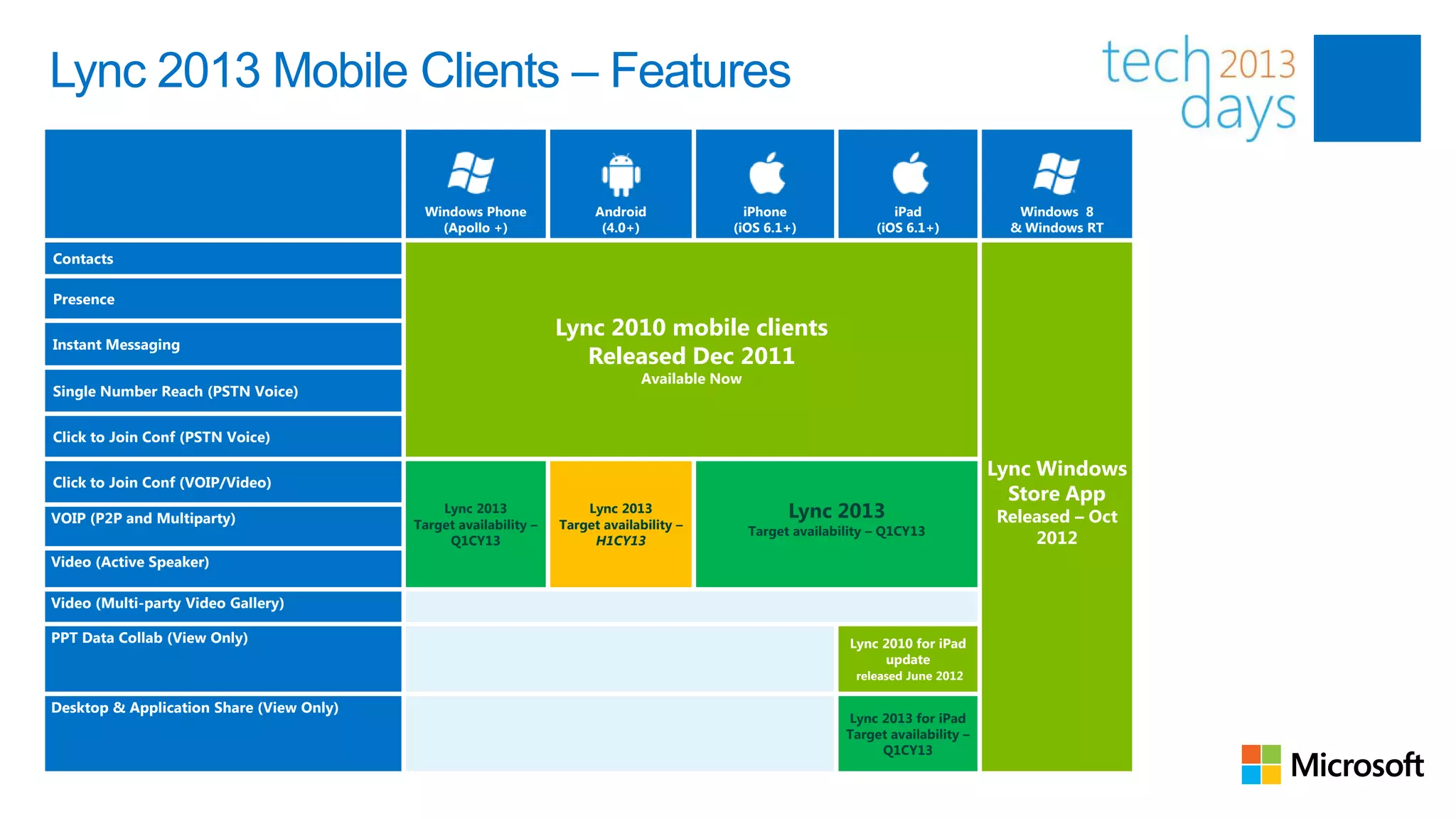

28. Lync 2013 Mobile Clients – Features
Windows Phone Android iPhone iPad Windows 8
(Apollo +) (4.0+) (iOS 6.1+) (iOS 6.1+) & Windows RT
Contacts
Presence
Lync 2010 mobile clients
Instant Messaging
Released Dec 2011
Available Now
Single Number Reach (PSTN Voice)
Click to Join Conf (PSTN Voice)
Lync Windows
Click to Join Conf (VOIP/Video)
Store App
VOIP (P2P and Multiparty)
Lync 2013 Lync 2013 Lync 2013 Released – Oct
Target availability – Target availability – Target availability – Q1CY13
Q1CY13 H1CY13 2012
Video (Active Speaker)
Video (Multi-party Video Gallery)
PPT Data Collab (View Only) Lync 2010 for iPad
update
released June 2012
Desktop & Application Share (View Only)
Lync 2013 for iPad
Target availability –
Q1CY13

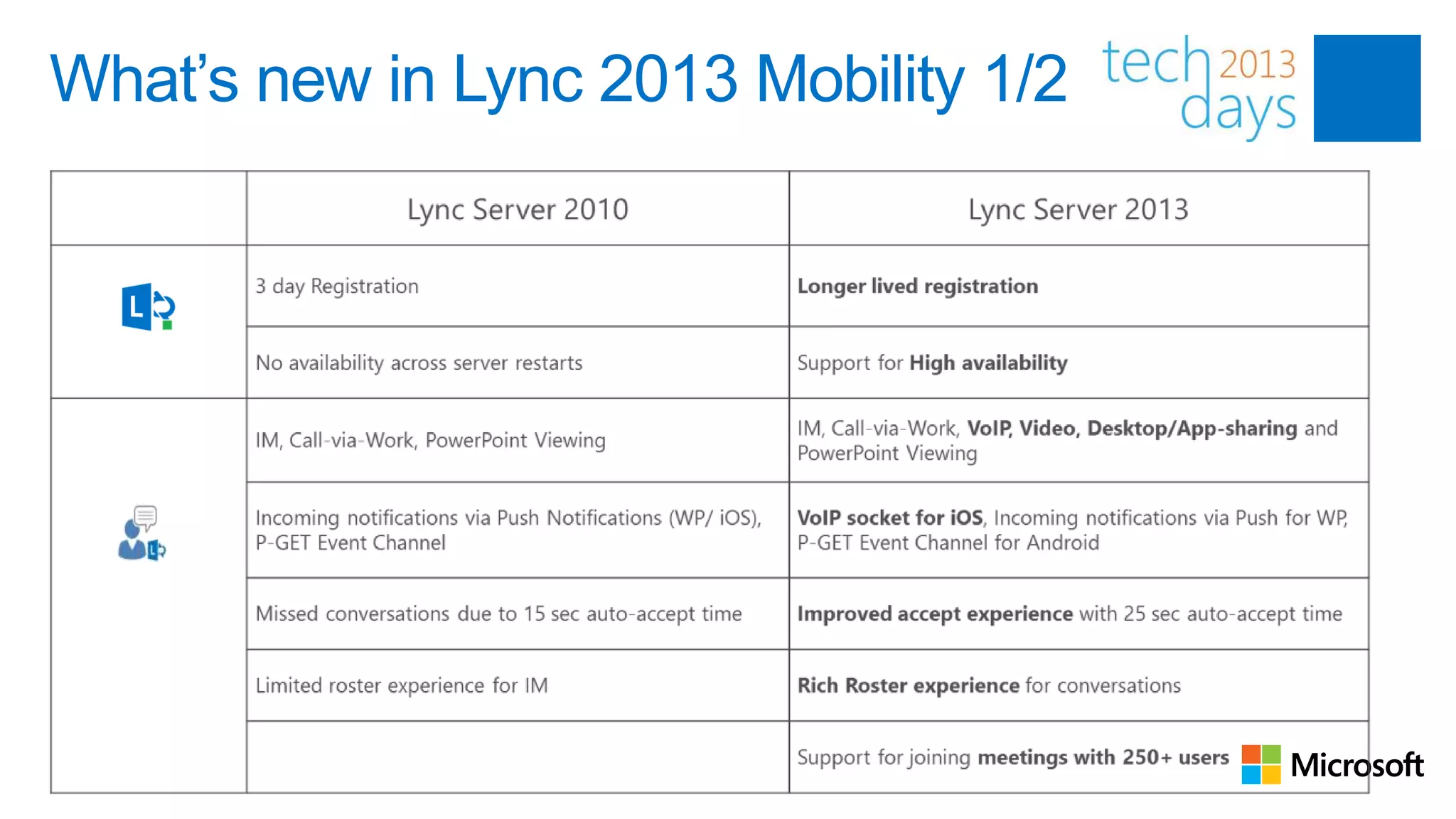

29. What’s new in Lync 2013 Mobility 1/2
Availability
Communications

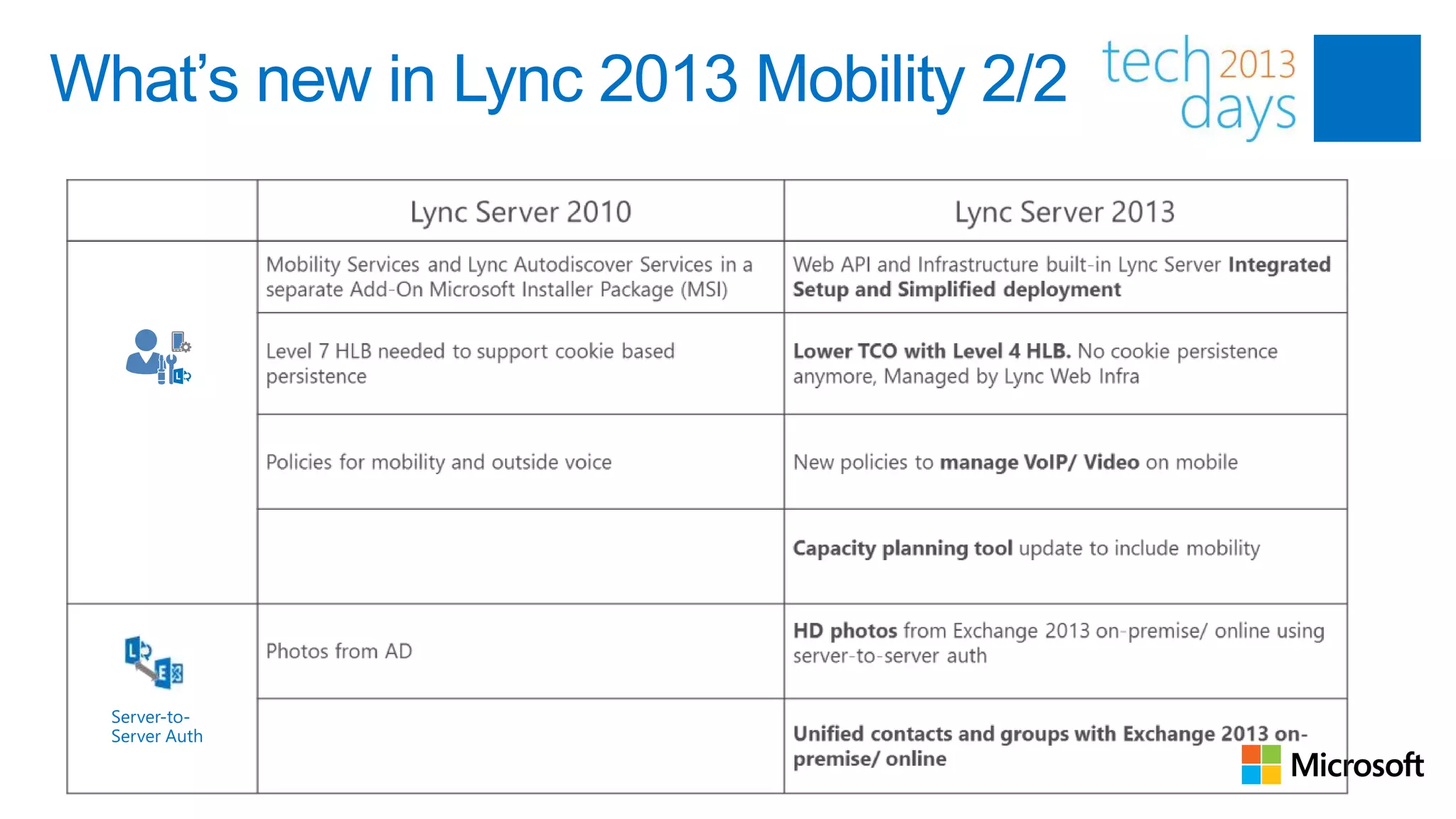

30. What’s new in Lync 2013 Mobility 2/2
Mobile Setup &
Deployment
Server-to-
Server Auth

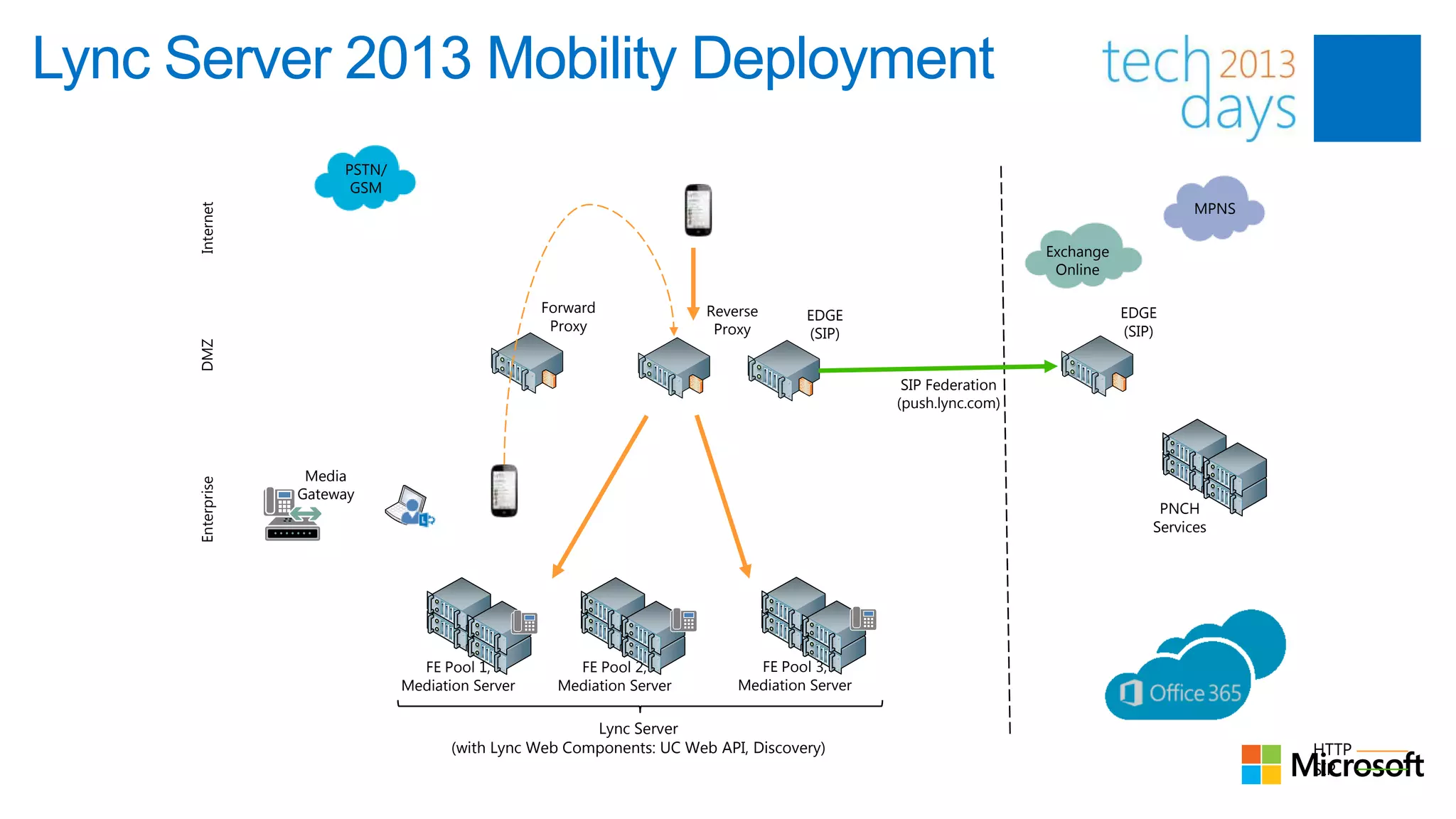

31. Lync Server 2013 Mobility Deployment
PSTN/
GSM
Internet MPNS
Exchange
Online
Forward Reverse EDGE EDGE
Proxy Proxy (SIP) (SIP)
DMZ
SIP Federation
(push.lync.com)
Media
Enterprise
Gateway
PNCH
Services
FE Pool 1, FE Pool 2, FE Pool 3,
Mediation Server Mediation Server Mediation Server
Lync Server
(with Lync Web Components: UC Web API, Discovery) HTTP
SIP

32. Client – Server Interop (1 of 2)
Client Device * Server **
Lync 2010
for
Windows
Phone
Windows Lync
Phone Server
7.5 2010
Lync 2013
for
Windows
Phone
Windows Lync
Phone 8 Server
2013 CU1
* Note: This scenario highlights Windows Phone support, though the same scenarios apply to Android and iOS (Ex: iPad version 1 doesn’t support iOS6)
** Or Lync Online / Office 365 service environment (Office 365 MT will be enabled for mobility at GA; Office 365 Dedicated support timing still TBD)

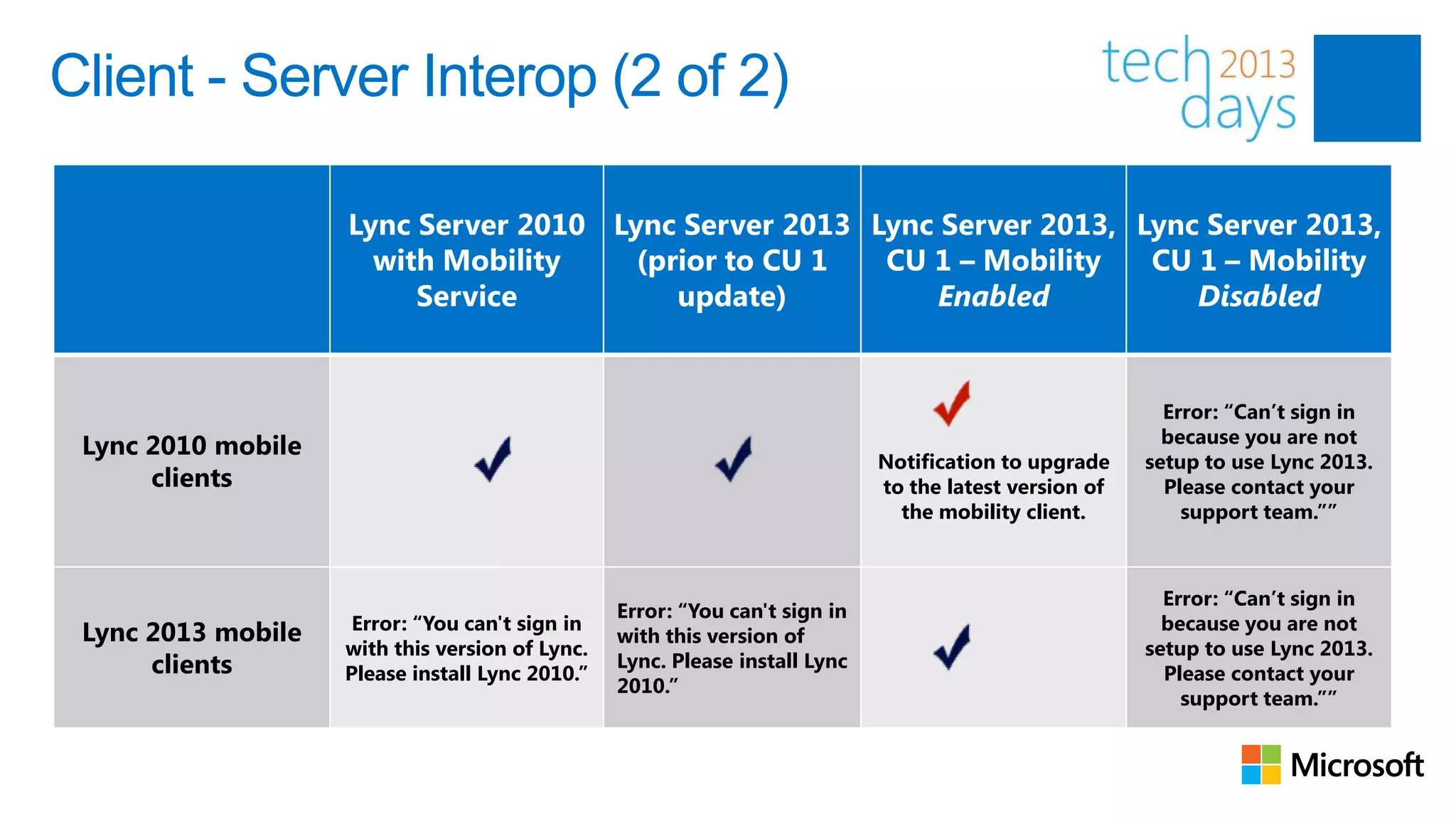

33. Client - Server Interop (2 of 2)
Lync Server 2010 Lync Server 2013 Lync Server 2013, Lync Server 2013,
with Mobility (prior to CU 1 CU 1 – Mobility CU 1 – Mobility
Service update) Enabled Disabled
Error: “Can’t sign in
because you are not
Lync 2010 mobile
Notification to upgrade setup to use Lync 2013.
clients to the latest version of Please contact your
the mobility client. support team.””
Error: “Can’t sign in
Error: “You can't sign in
Error: “You can't sign in because you are not
Lync 2013 mobile with this version of
with this version of Lync. setup to use Lync 2013.
clients Please install Lync 2010.”
Lync. Please install Lync
Please contact your
2010.”
support team.””

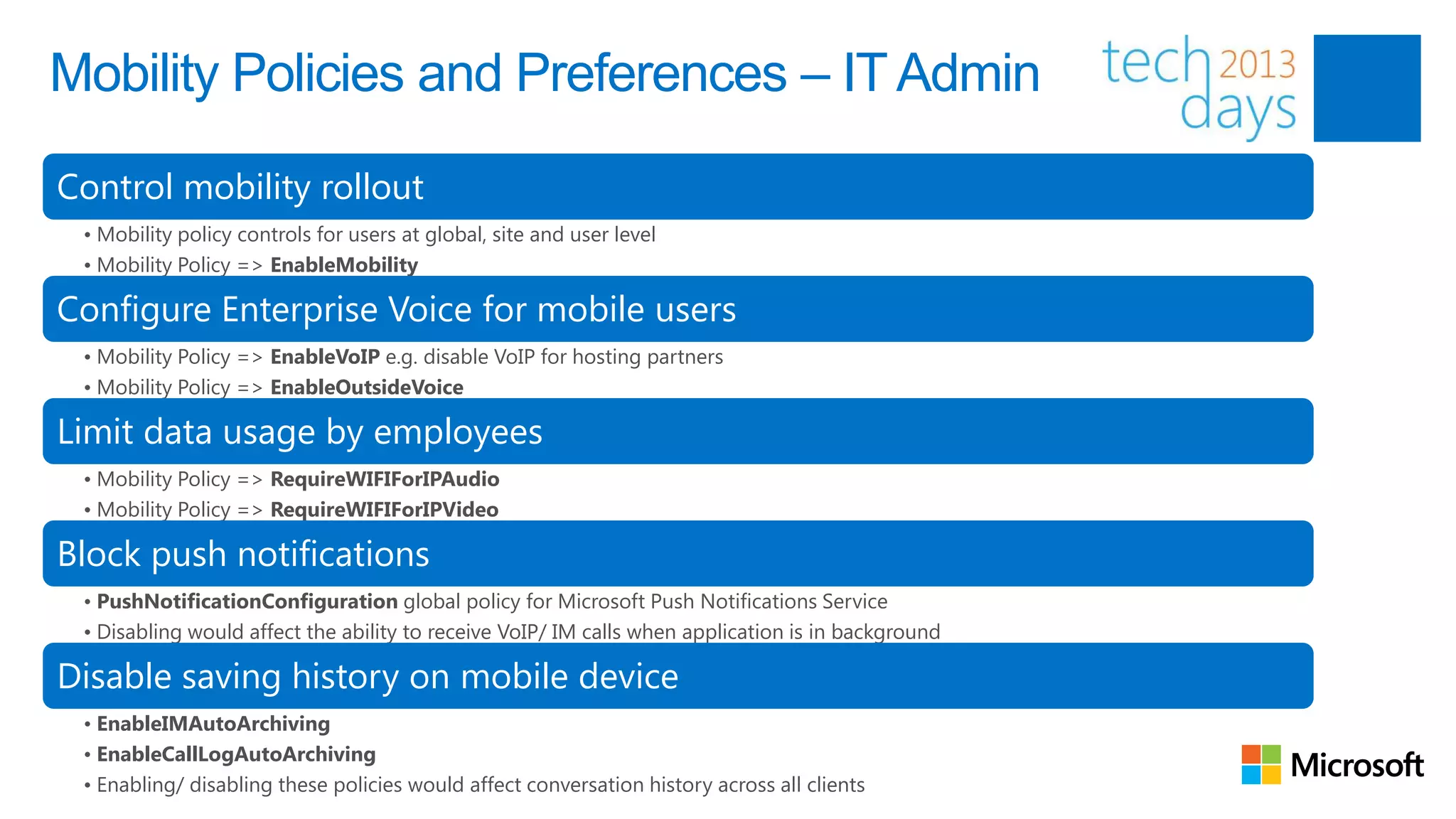

34. Mobility Policies and Preferences – IT Admin
Control mobility rollout
• Mobility policy controls for users at global, site and user level
• Mobility Policy => EnableMobility
Configure Enterprise Voice for mobile users
• Mobility Policy => EnableVoIP e.g. disable VoIP for hosting partners
• Mobility Policy => EnableOutsideVoice
Limit data usage by employees
• Mobility Policy => RequireWIFIForIPAudio
• Mobility Policy => RequireWIFIForIPVideo
Block push notifications
• PushNotificationConfiguration global policy for Microsoft Push Notifications Service
• Disabling would affect the ability to receive VoIP/ IM calls when application is in background
Disable saving history on mobile device
• EnableIMAutoArchiving
• EnableCallLogAutoArchiving
• Enabling/ disabling these policies would affect conversation history across all clients

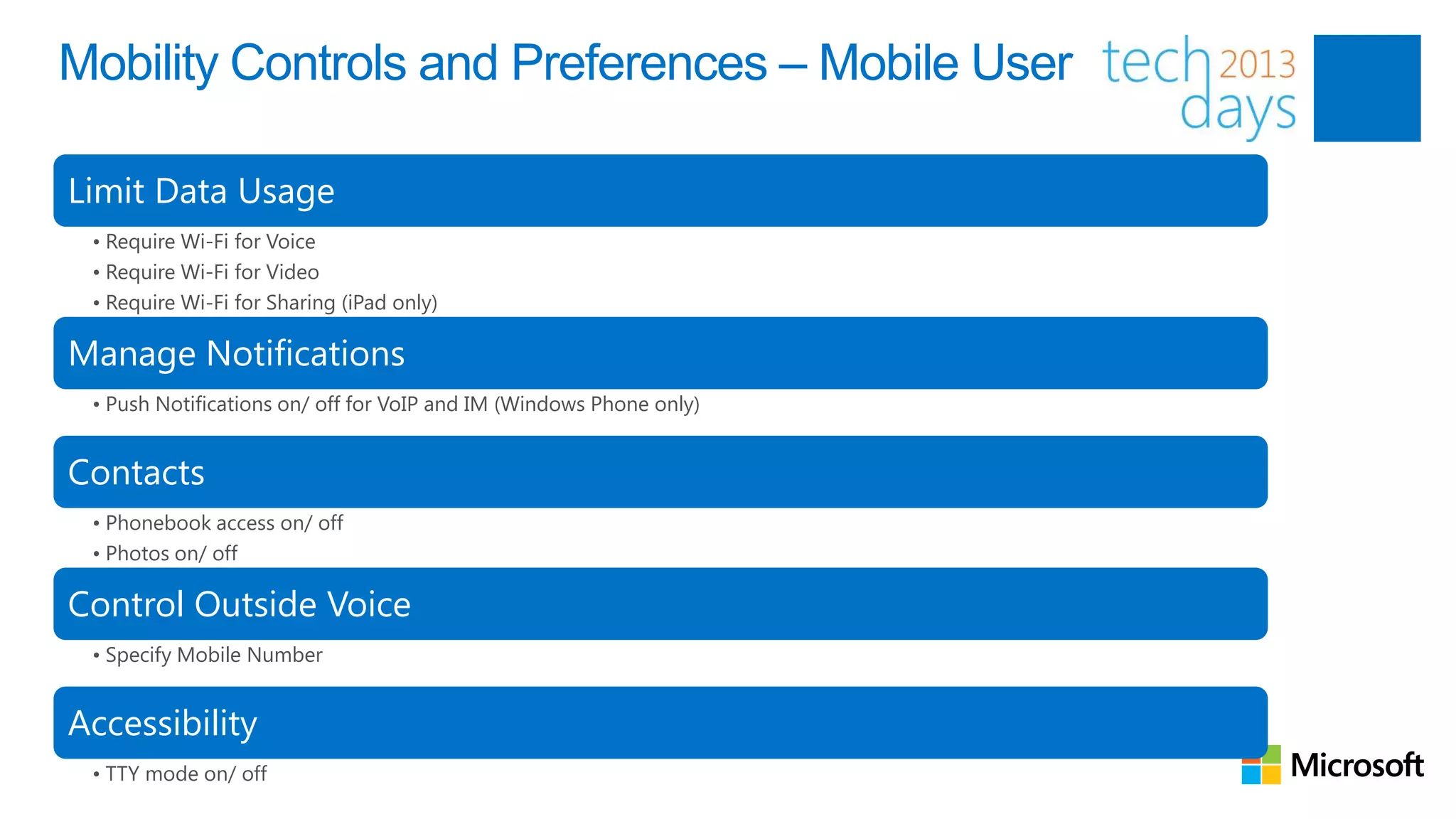

35. Mobility Controls and Preferences – Mobile User
Limit Data Usage
• Require Wi-Fi for Voice
• Require Wi-Fi for Video
• Require Wi-Fi for Sharing (iPad only)
Manage Notifications
• Push Notifications on/ off for VoIP and IM (Windows Phone only)
Contacts
• Phonebook access on/ off
• Photos on/ off
Control Outside Voice
• Specify Mobile Number
Accessibility
• TTY mode on/ off

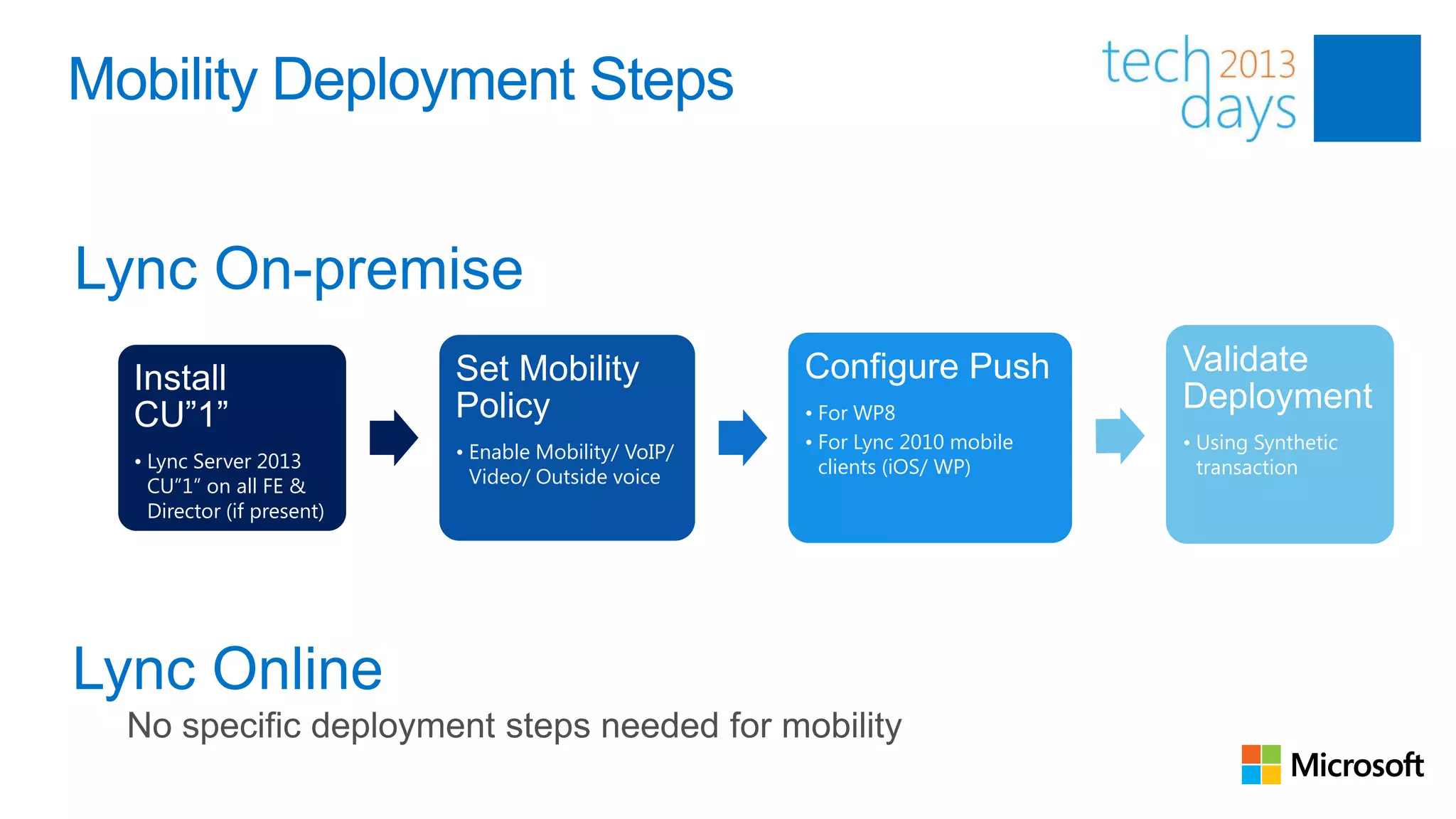

36. Mobility Deployment Steps
Set Mobility Configure Push Validate
Install
Policy Deployment
CU”1” • For WP8
• Enable Mobility/ VoIP/ • For Lync 2010 mobile • Using Synthetic
• Lync Server 2013 clients (iOS/ WP) transaction
CU”1” on all FE & Video/ Outside voice
Director (if present)

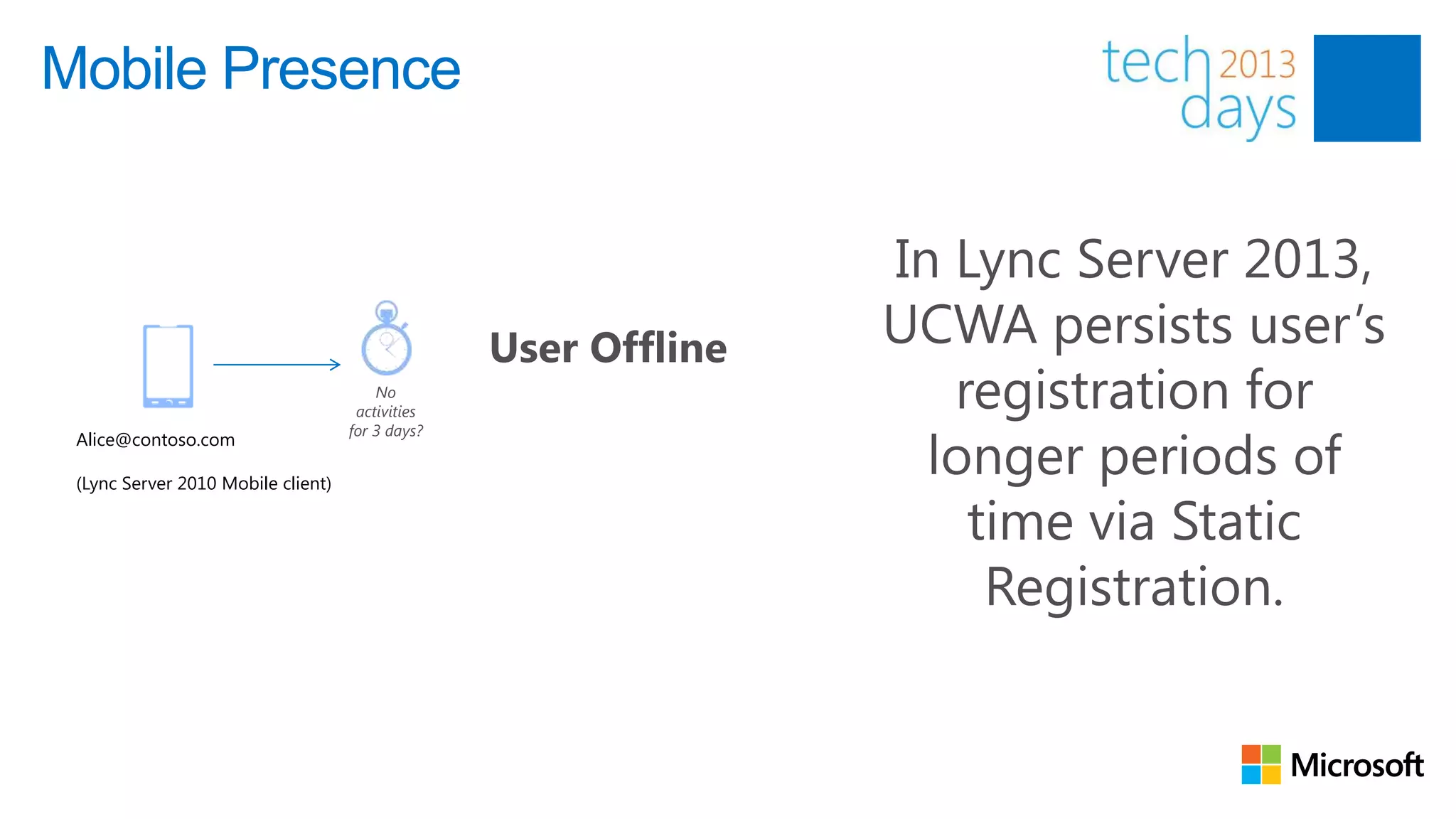

37. Mobile Presence
In Lync Server 2013,
User Offline UCWA persists user’s
No
activities
registration for
longer periods of
for 3 days?
Alice@contoso.com
(Lync Server 2010 Mobile client)
time via Static
Registration.

38. Lync Server 2010 – Mobile Presence
Alice@contoso.com
Available - Mobile
Inactive--Mobile
Offline Mobile
Away
Alice presses home button Alice navigatessigned from to mobile
Alice’s presence changes the
Alice’s is away out of
the ‘Away’ afterher presence changes to
app and another 5 min of
app which changes her
presence to ‘Inactive’ afterher only
inactivity within the is 5
‘Offline’ if mobile mobile
Bob@contoso.com minapp active client after 3 days of
Sign-in inactivity within the mobile app
Mobility
Service No Bob invites Alice
activities
Lync Server CreateUser for 3 days?
(Home Pool) unavailable
Delete
endpoint
User end point
Alice@Contoso.com
X
1 app = 1 endpoint  Resource consuming

39. Lync Server 2013 – Mobile Presence
Alice@contoso.com
In a call - Mobile
Away - Mobile
Available - Mobile
Inactive
Alice presses home button Alice navigates away from in up to
Alice’s stays signed the
Alice’s presence changes to
which days of inactivity within
15 changes her
app‘Away’ after another 5 min of
presence tomobile app mobile app
the ‘Inactive’ after 5
inactivity within the
Bob@contoso.com min
Sign-in
Wake up
UCWA client-app
No activity Bob invites Alice
Lync Server Delete for 10
(Home Pool) Create days?
Re-create
X
User end point
User end point
Static
Alice@Contoso.com
Alice@Contoso.com registration
1 static registration per user/ device

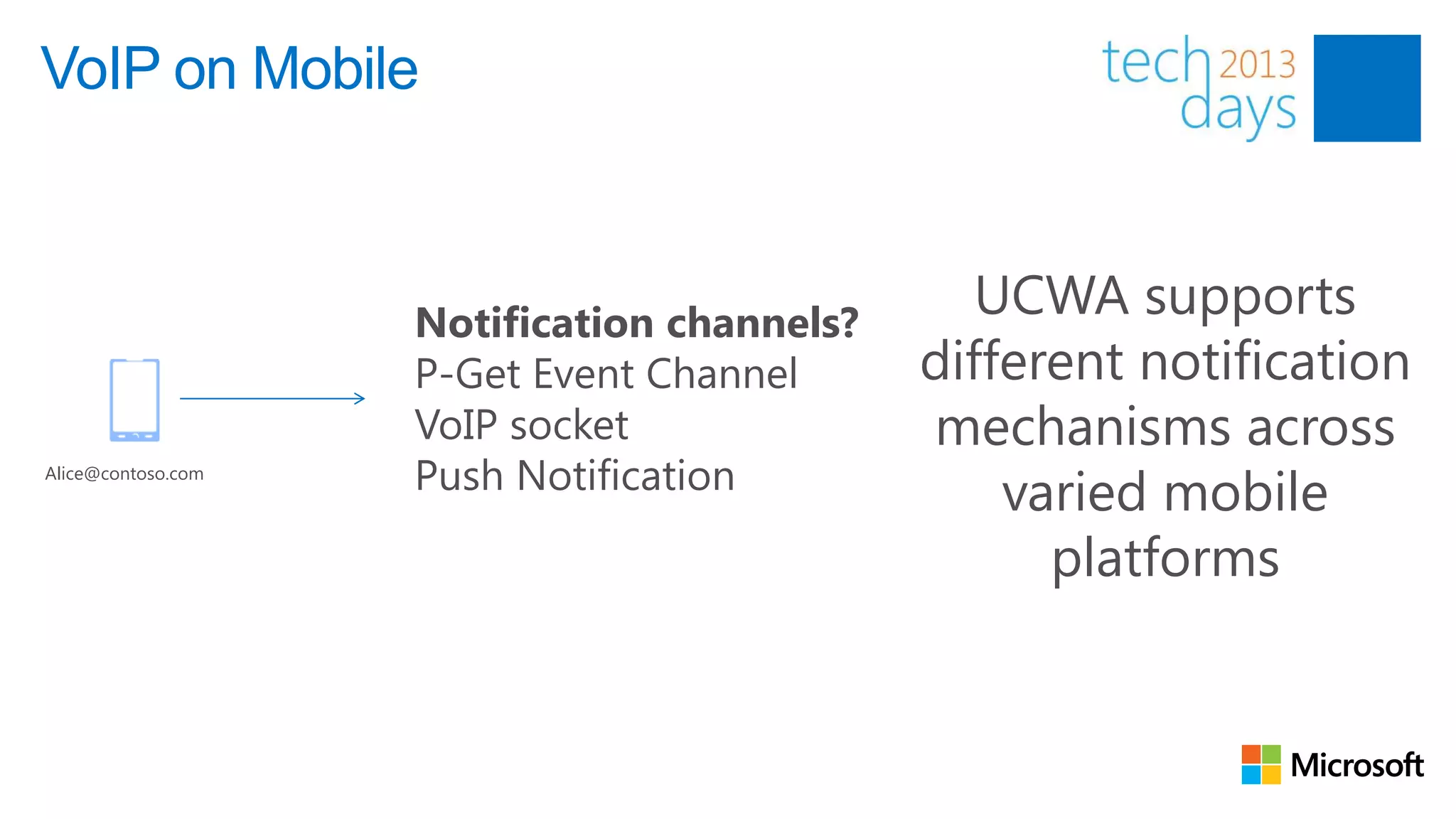

40. VoIP on Mobile
Notification channels?
UCWA supports
P-Get Event Channel different notification
VoIP socket mechanisms across
Alice@contoso.com
Push Notification varied mobile
platforms

41. Lync 2013 & Wifi

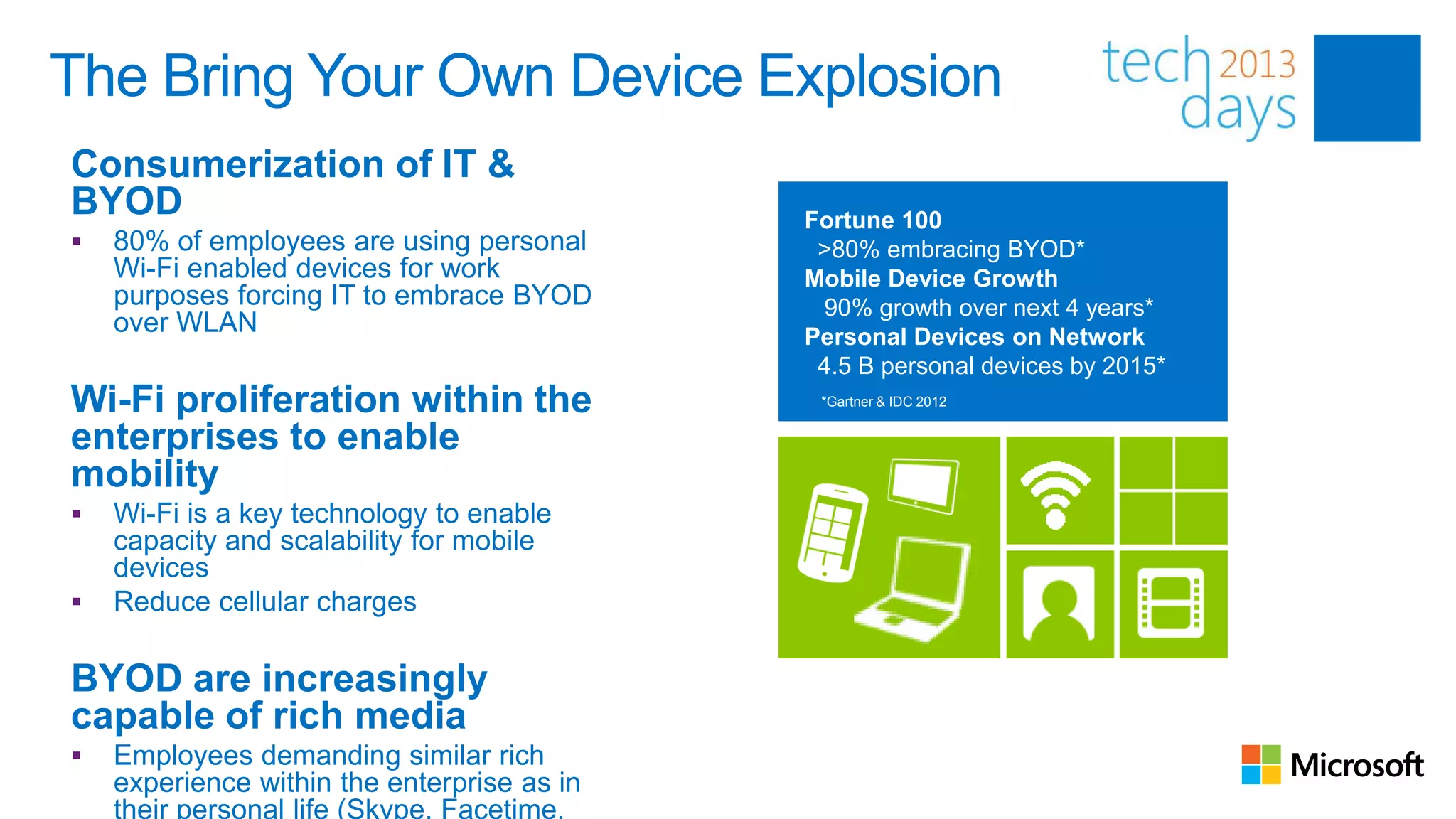

42. The Bring Your Own Device Explosion
Consumerization of IT &
BYOD Fortune 100
 80% of employees are using personal >80% embracing BYOD*
Wi-Fi enabled devices for work Mobile Device Growth
purposes forcing IT to embrace BYOD 90% growth over next 4 years*
over WLAN Personal Devices on Network
4.5 B personal devices by 2015*
Wi-Fi proliferation within the *Gartner & IDC 2012
enterprises to enable
mobility
 Wi-Fi is a key technology to enable
capacity and scalability for mobile
devices
 Reduce cellular charges
BYOD are increasingly
capable of rich media
 Employees demanding similar rich
experience within the enterprise as in
their personal life (Skype, Facetime,

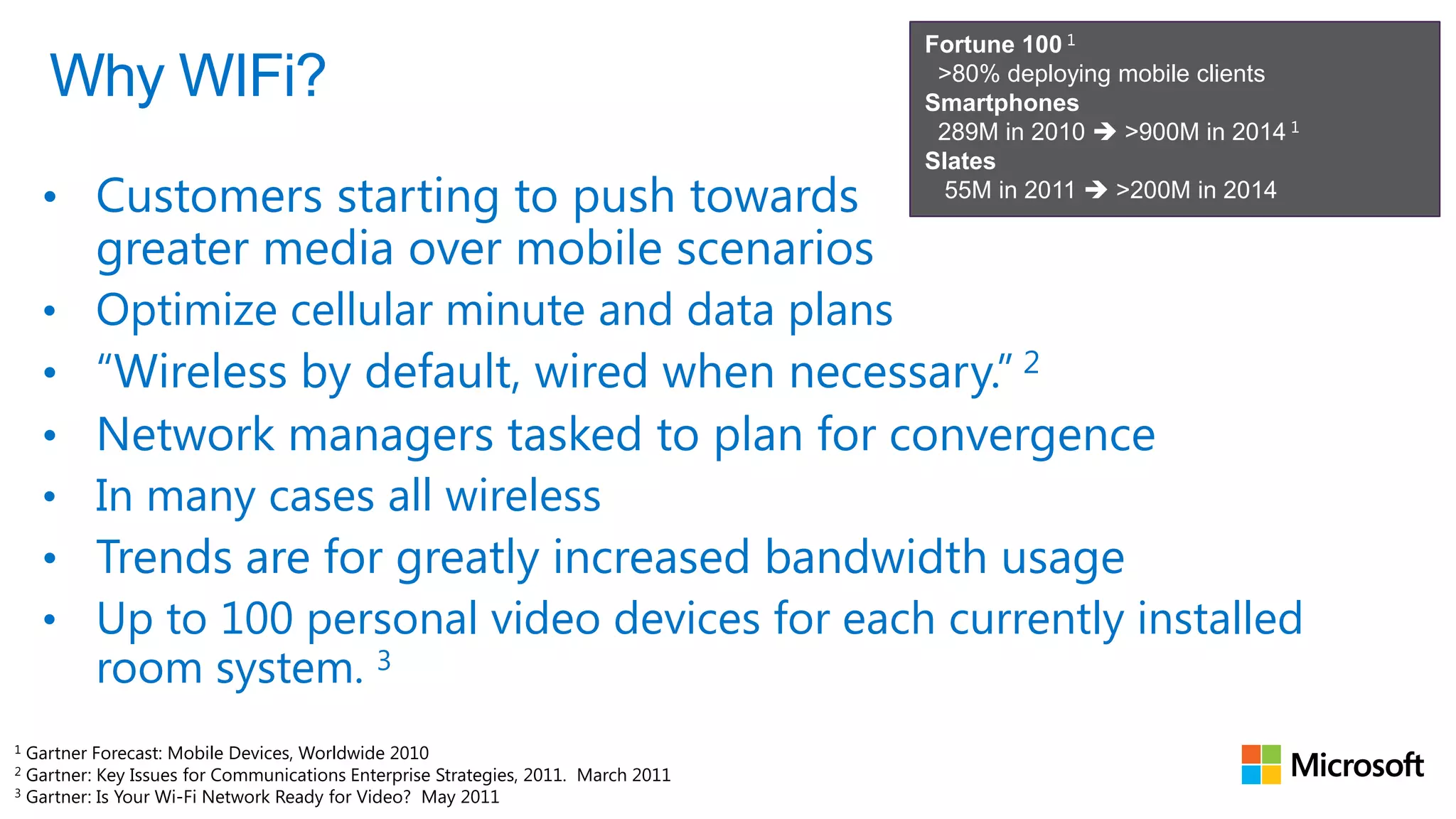

43. Fortune 100 1
Why WIFi? >80% deploying mobile clients
Smartphones
289M in 2010  >900M in 2014 1
Slates
• Customers starting to push towards 55M in 2011  >200M in 2014
greater media over mobile scenarios
• Optimize cellular minute and data plans
• “Wireless by default, wired when necessary.” 2
• Network managers tasked to plan for convergence
• In many cases all wireless
• Trends are for greatly increased bandwidth usage
• Up to 100 personal video devices for each currently installed
room system. 3
1
1 Gartner Forecast: Mobile Devices, Worldwide 2010
2
2 Gartner: Key Issues for Communications Enterprise Strategies, 2011. March 2011
3 Gartner: Is Your Wi-Fi Network Ready for Video? May 2011
3

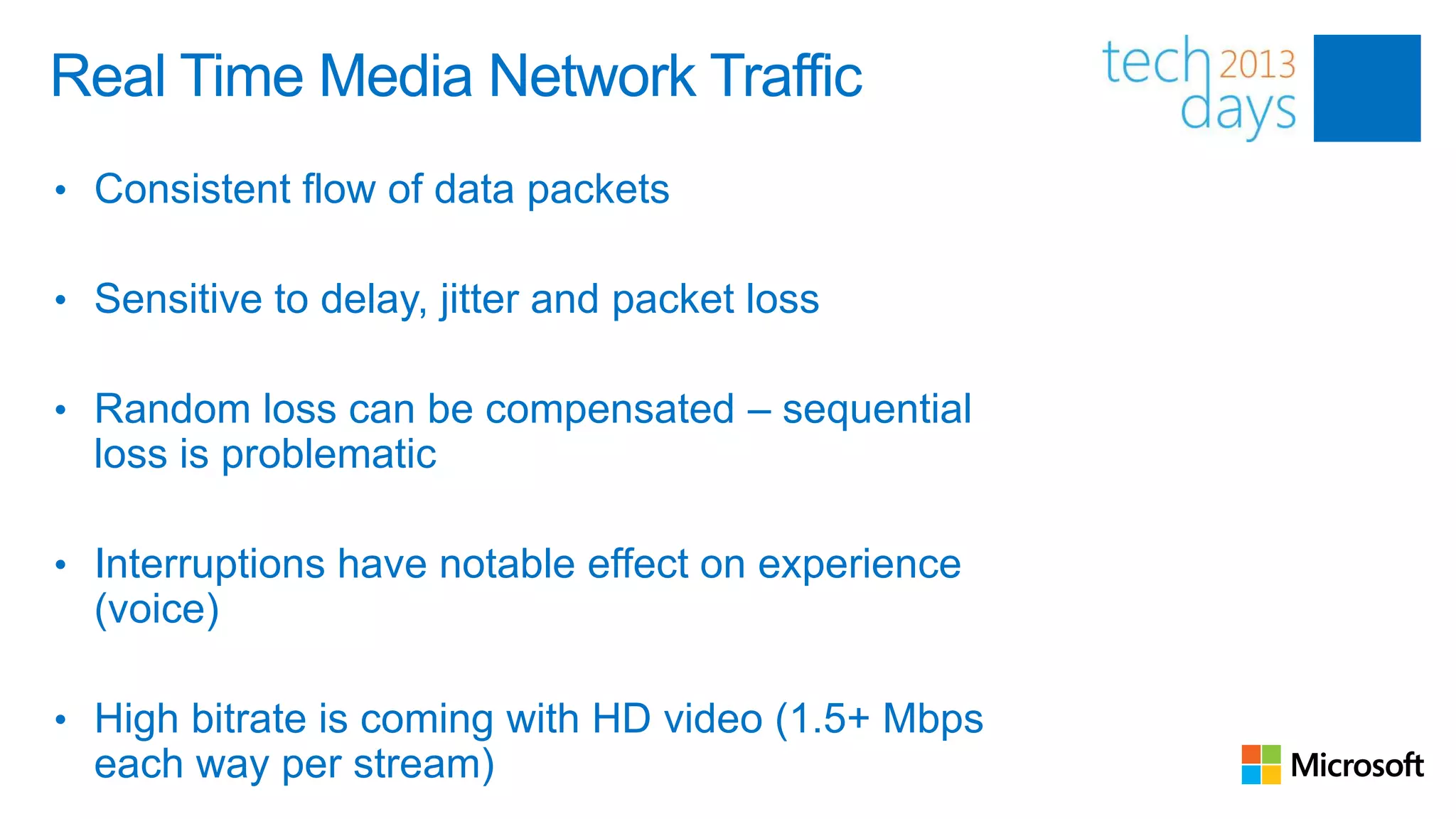

44. Real Time Media Network Traffic
• Consistent flow of data packets
• Sensitive to delay, jitter and packet loss
• Random loss can be compensated – sequential
loss is problematic
• Interruptions have notable effect on experience
(voice)
• High bitrate is coming with HD video (1.5+ Mbps
each way per stream)

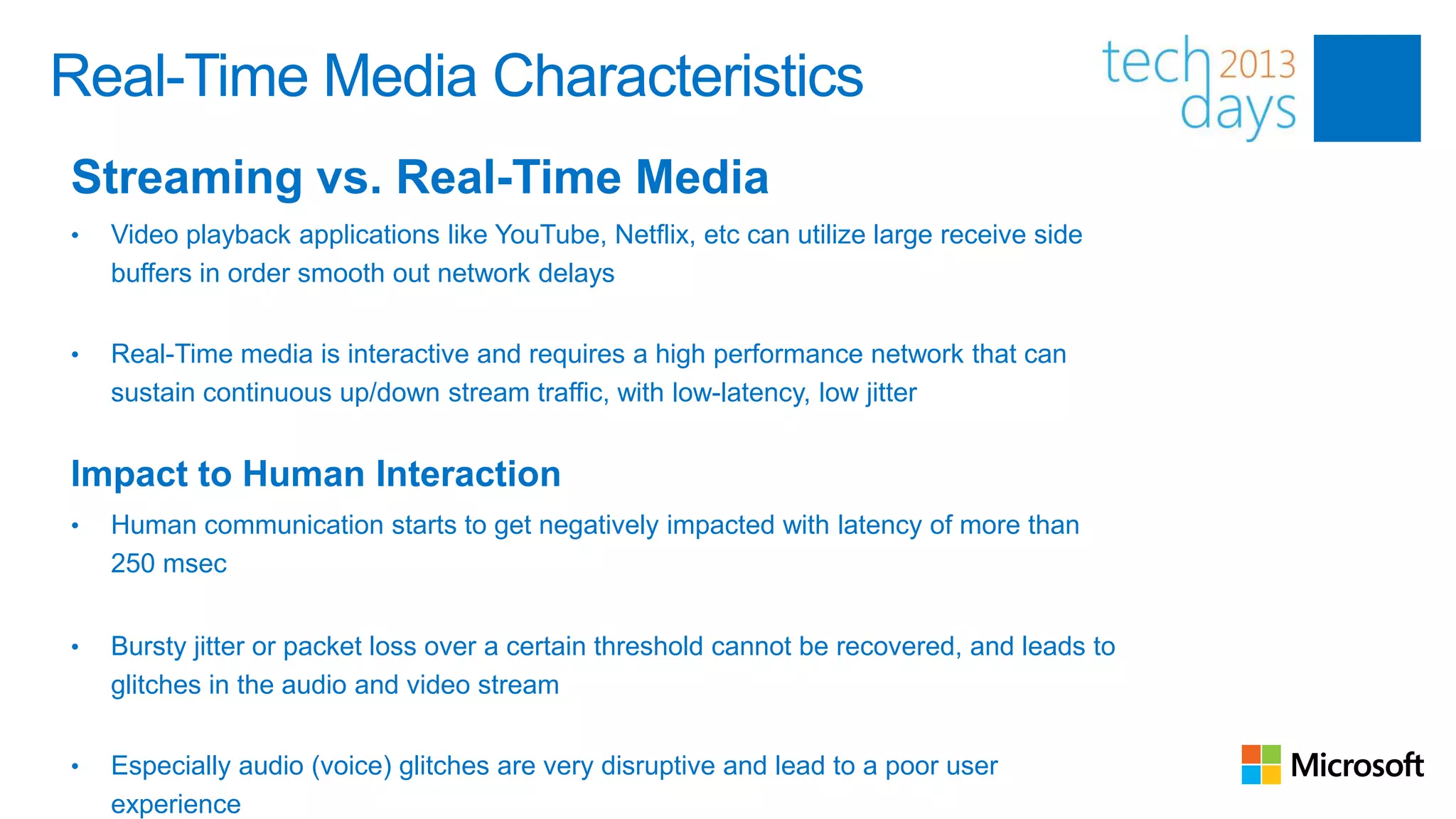

45. Real-Time Media Characteristics
Streaming vs. Real-Time Media
• Video playback applications like YouTube, Netflix, etc can utilize large receive side
buffers in order smooth out network delays
• Real-Time media is interactive and requires a high performance network that can
sustain continuous up/down stream traffic, with low-latency, low jitter
Impact to Human Interaction
• Human communication starts to get negatively impacted with latency of more than
250 msec
• Bursty jitter or packet loss over a certain threshold cannot be recovered, and leads to
glitches in the audio and video stream
• Especially audio (voice) glitches are very disruptive and lead to a poor user
experience

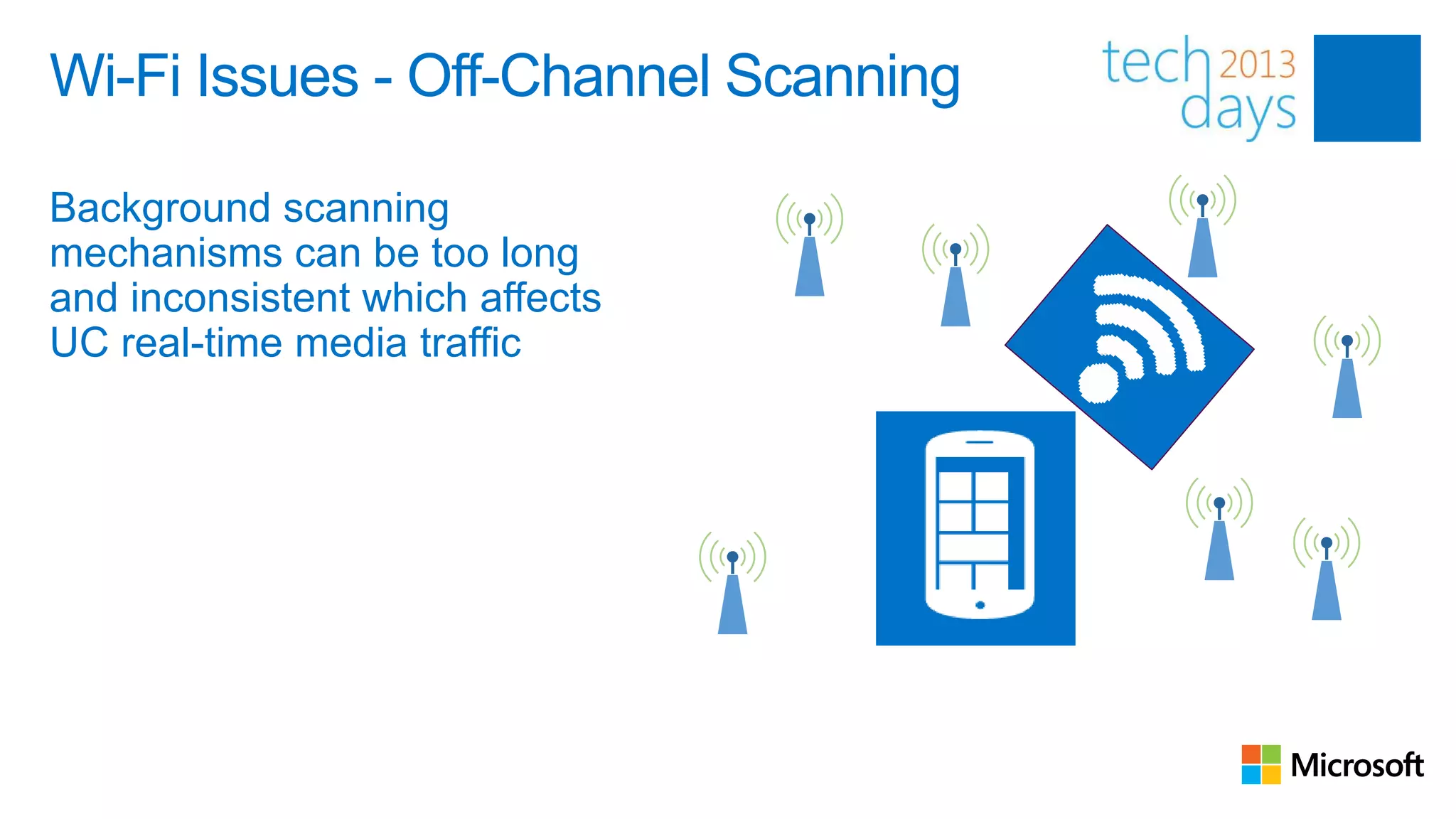

46. Wi-Fi Issues - Off-Channel Scanning
Background scanning
mechanisms can be too long
and inconsistent which affects
UC real-time media traffic

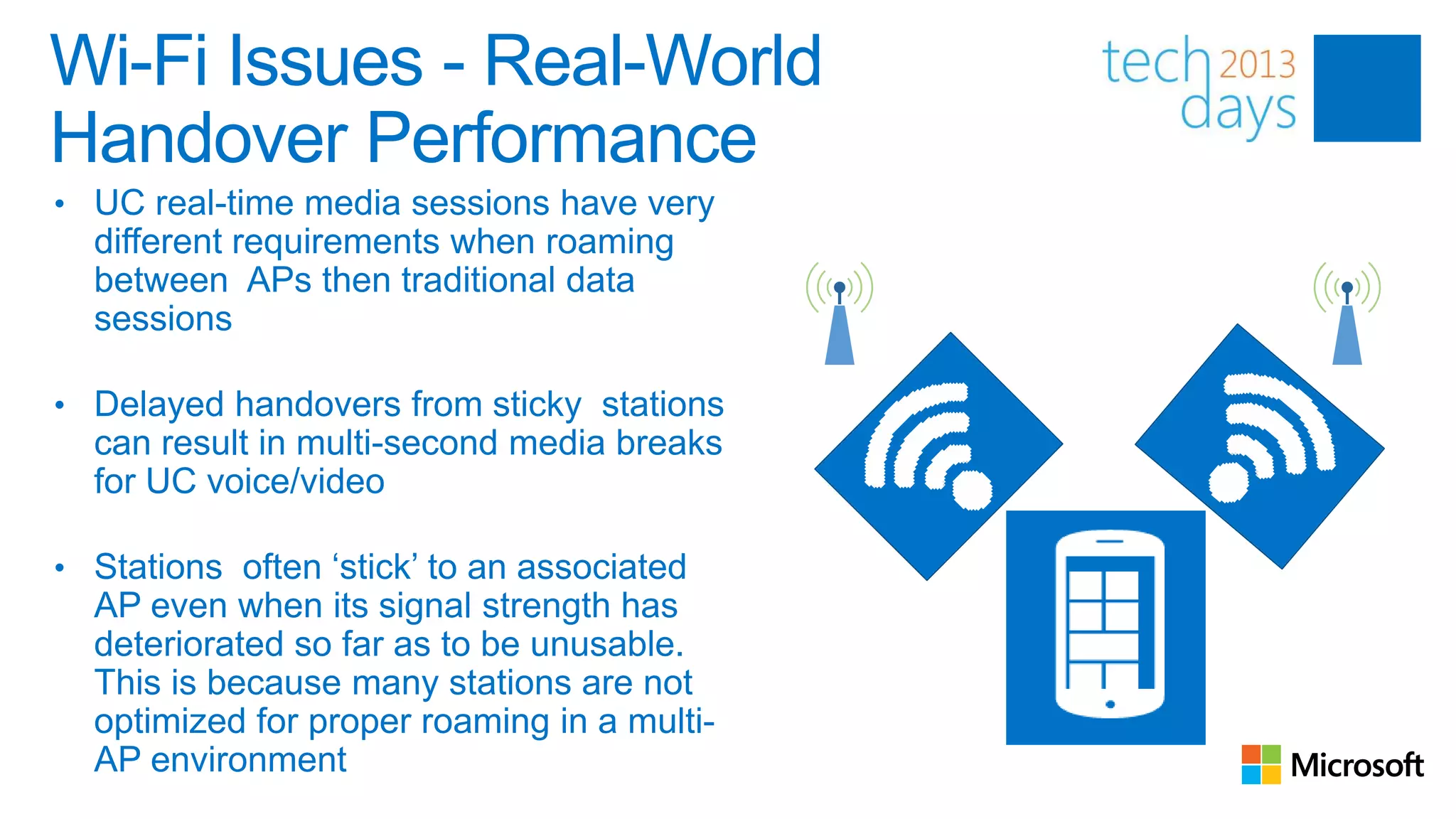

47. Wi-Fi Issues - Real-World
Handover Performance
• UC real-time media sessions have very
different requirements when roaming
between APs then traditional data
sessions
• Delayed handovers from sticky stations
can result in multi-second media breaks
for UC voice/video
• Stations often ‘stick’ to an associated
AP even when its signal strength has
deteriorated so far as to be unusable.
This is because many stations are not
optimized for proper roaming in a multi-
AP environment

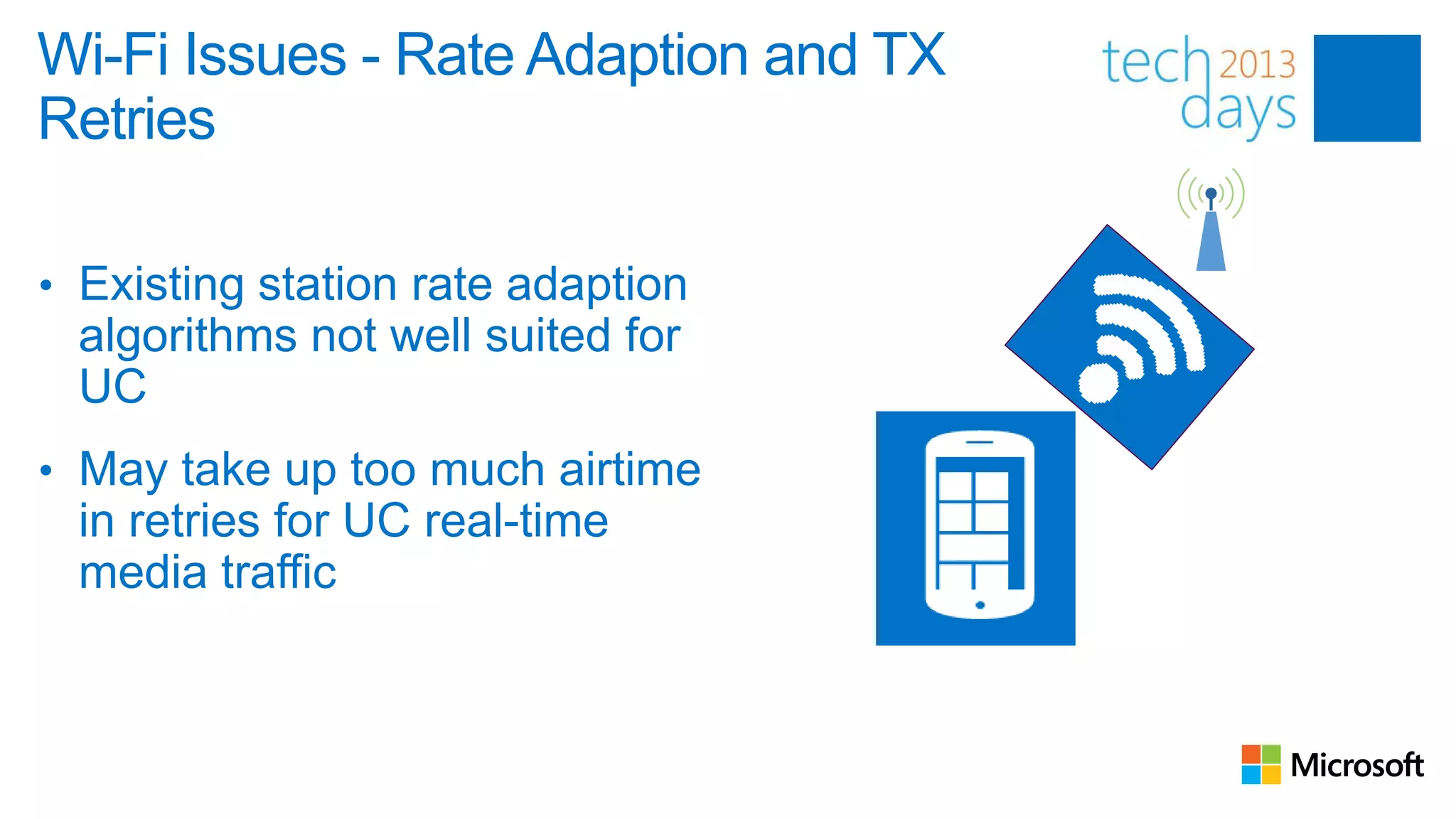

48. Wi-Fi Issues - Rate Adaption and TX
Retries
• Existing station rate adaption
algorithms not well suited for
UC
• May take up too much airtime
in retries for UC real-time
media traffic

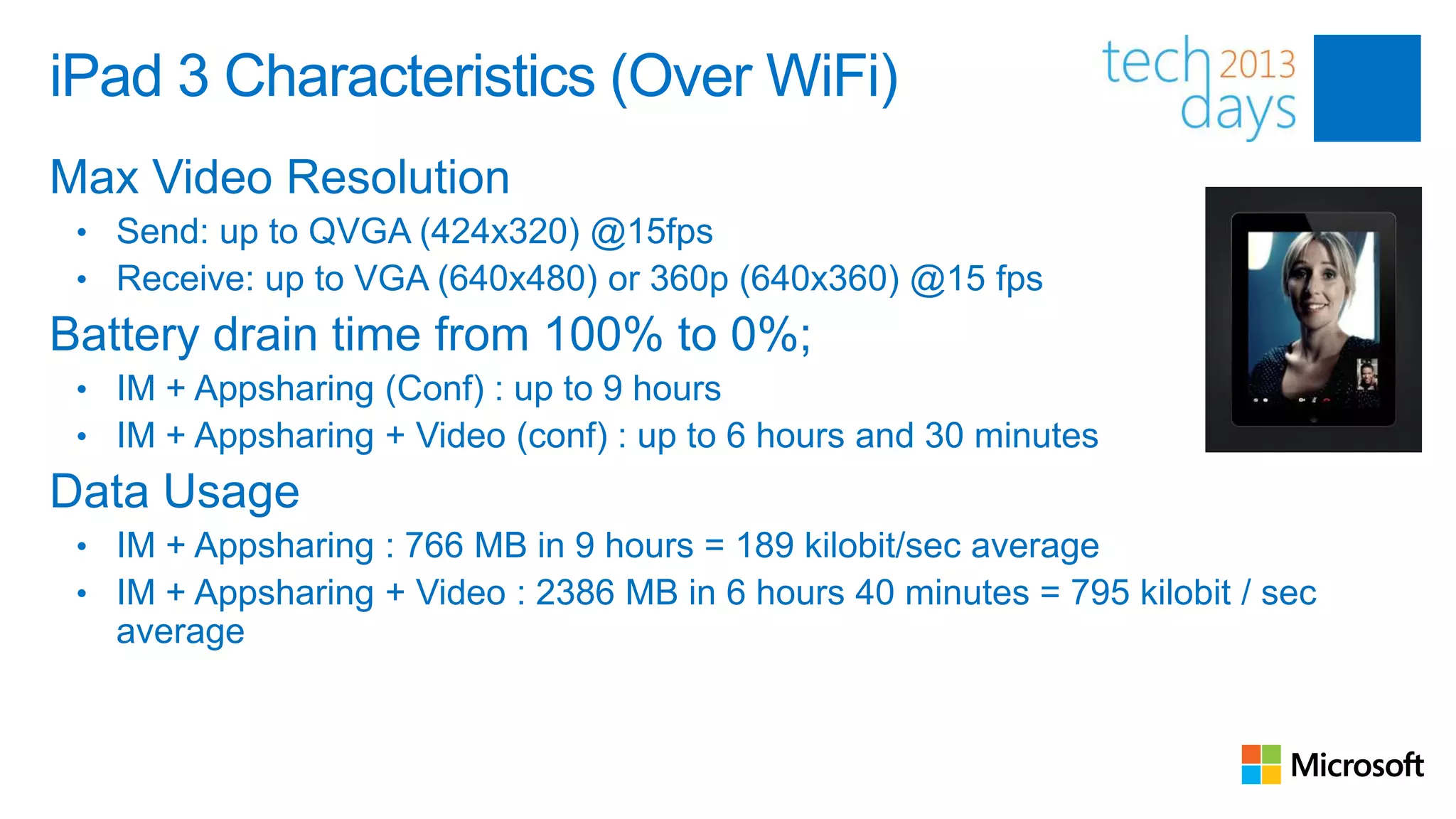

49. iPad 3 Characteristics (Over WiFi)
Max Video Resolution
• Send: up to QVGA (424x320) @15fps
• Receive: up to VGA (640x480) or 360p (640x360) @15 fps
Battery drain time from 100% to 0%;
• IM + Appsharing (Conf) : up to 9 hours
• IM + Appsharing + Video (conf) : up to 6 hours and 30 minutes
Data Usage
• IM + Appsharing : 766 MB in 9 hours = 189 kilobit/sec average
• IM + Appsharing + Video : 2386 MB in 6 hours 40 minutes = 795 kilobit / sec
average

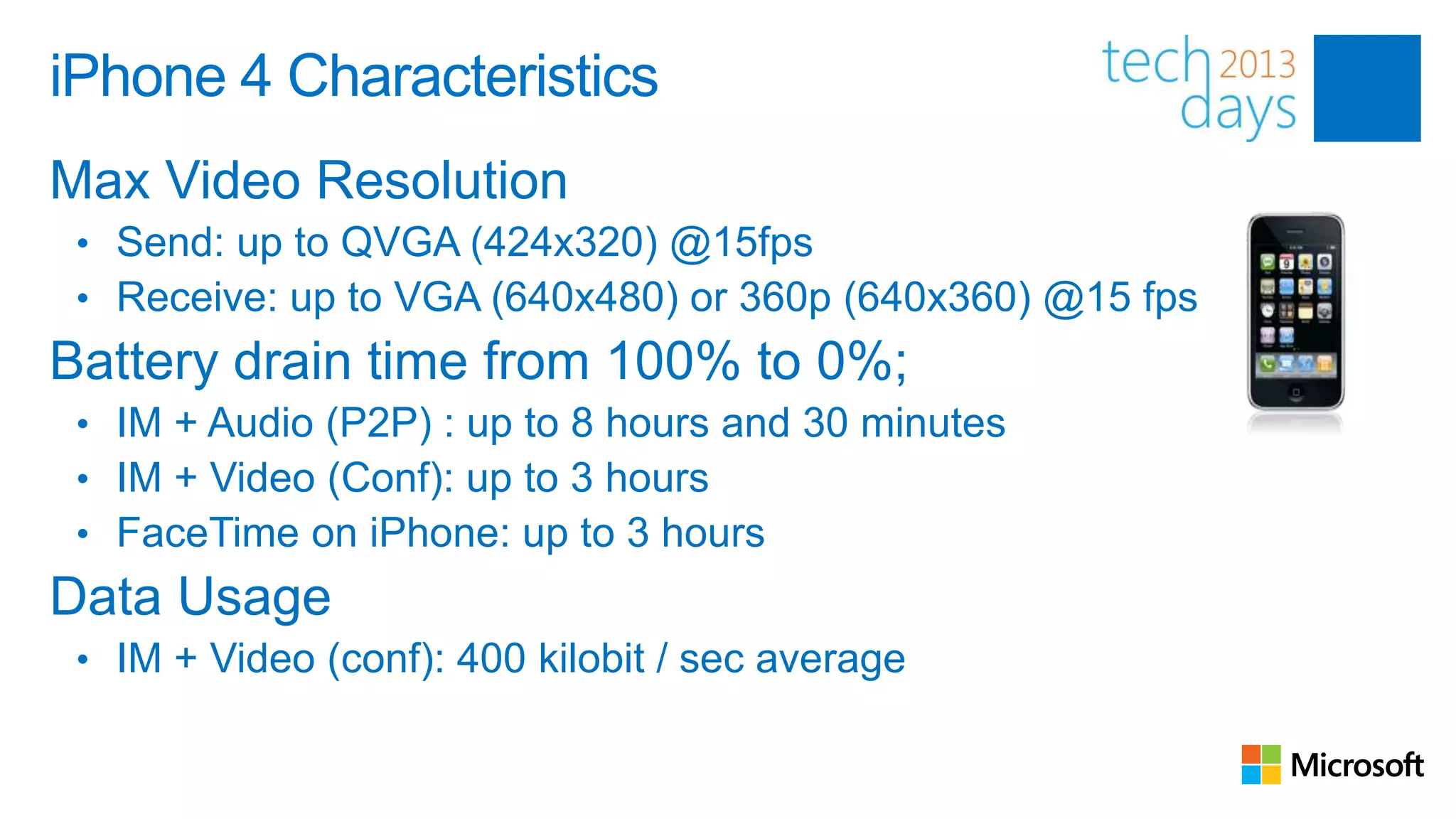

50. iPhone 4 Characteristics
Max Video Resolution
• Send: up to QVGA (424x320) @15fps
• Receive: up to VGA (640x480) or 360p (640x360) @15 fps
Battery drain time from 100% to 0%;
• IM + Audio (P2P) : up to 8 hours and 30 minutes
• IM + Video (Conf): up to 3 hours
• FaceTime on iPhone: up to 3 hours
Data Usage
• IM + Video (conf): 400 kilobit / sec average

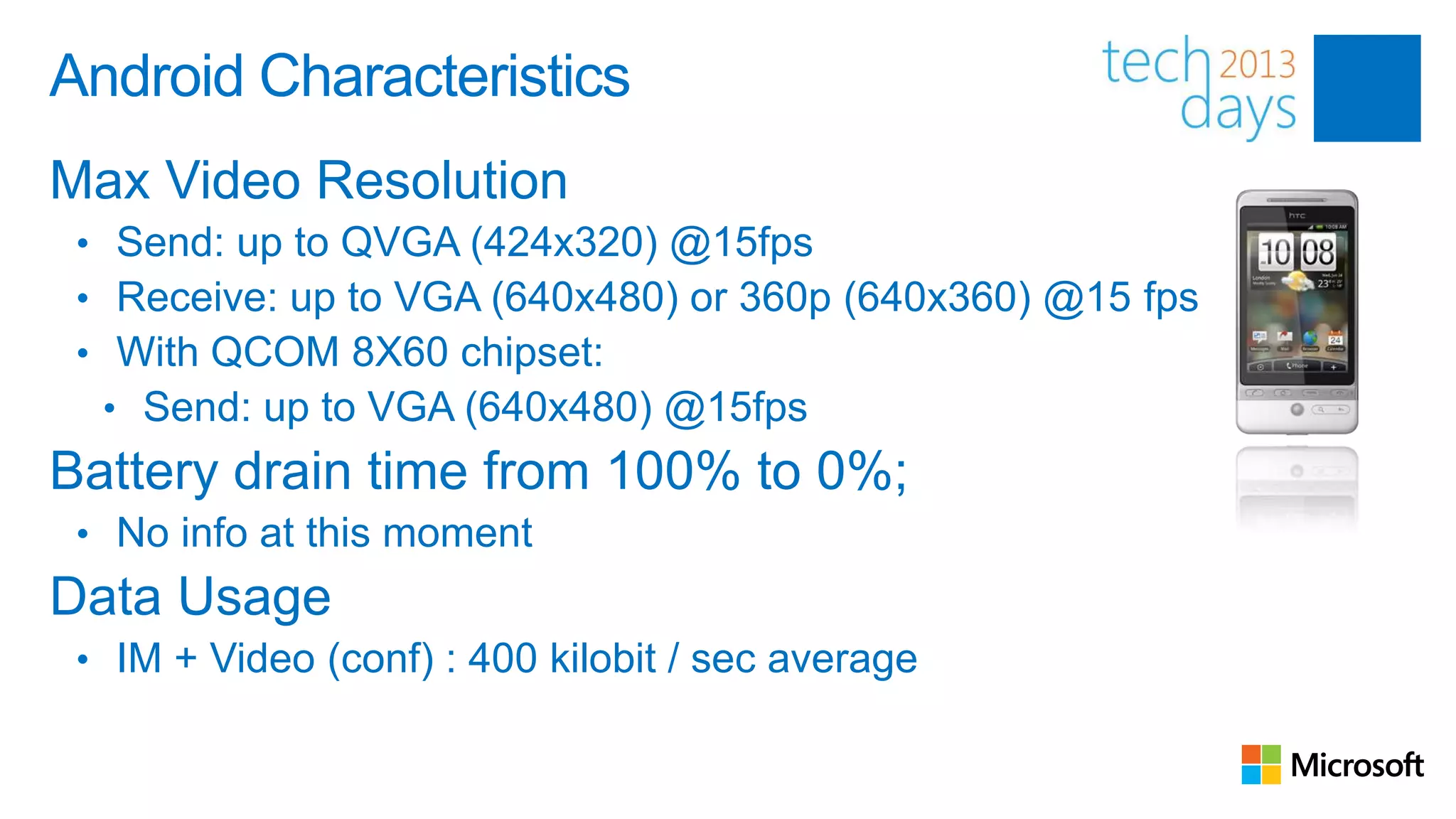

51. Android Characteristics
Max Video Resolution
• Send: up to QVGA (424x320) @15fps
• Receive: up to VGA (640x480) or 360p (640x360) @15 fps
• With QCOM 8X60 chipset:
• Send: up to VGA (640x480) @15fps
Battery drain time from 100% to 0%;
• No info at this moment
Data Usage
• IM + Video (conf) : 400 kilobit / sec average

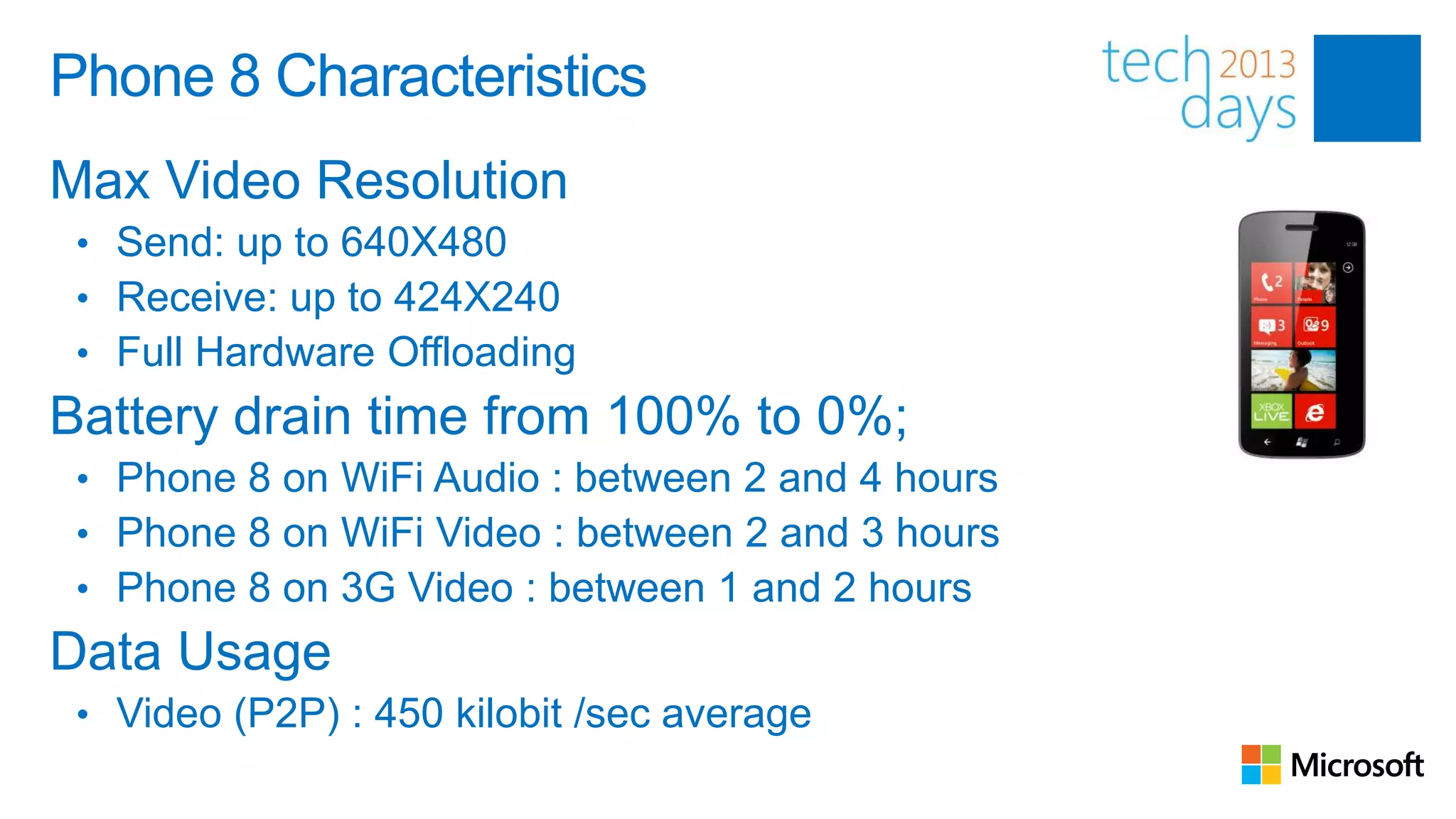

52. Phone 8 Characteristics
Max Video Resolution
• Send: up to 640X480
• Receive: up to 424X240
• Full Hardware Offloading
Battery drain time from 100% to 0%;
• Phone 8 on WiFi Audio : between 2 and 4 hours
• Phone 8 on WiFi Video : between 2 and 3 hours
• Phone 8 on 3G Video : between 1 and 2 hours
Data Usage
• Video (P2P) : 450 kilobit /sec average

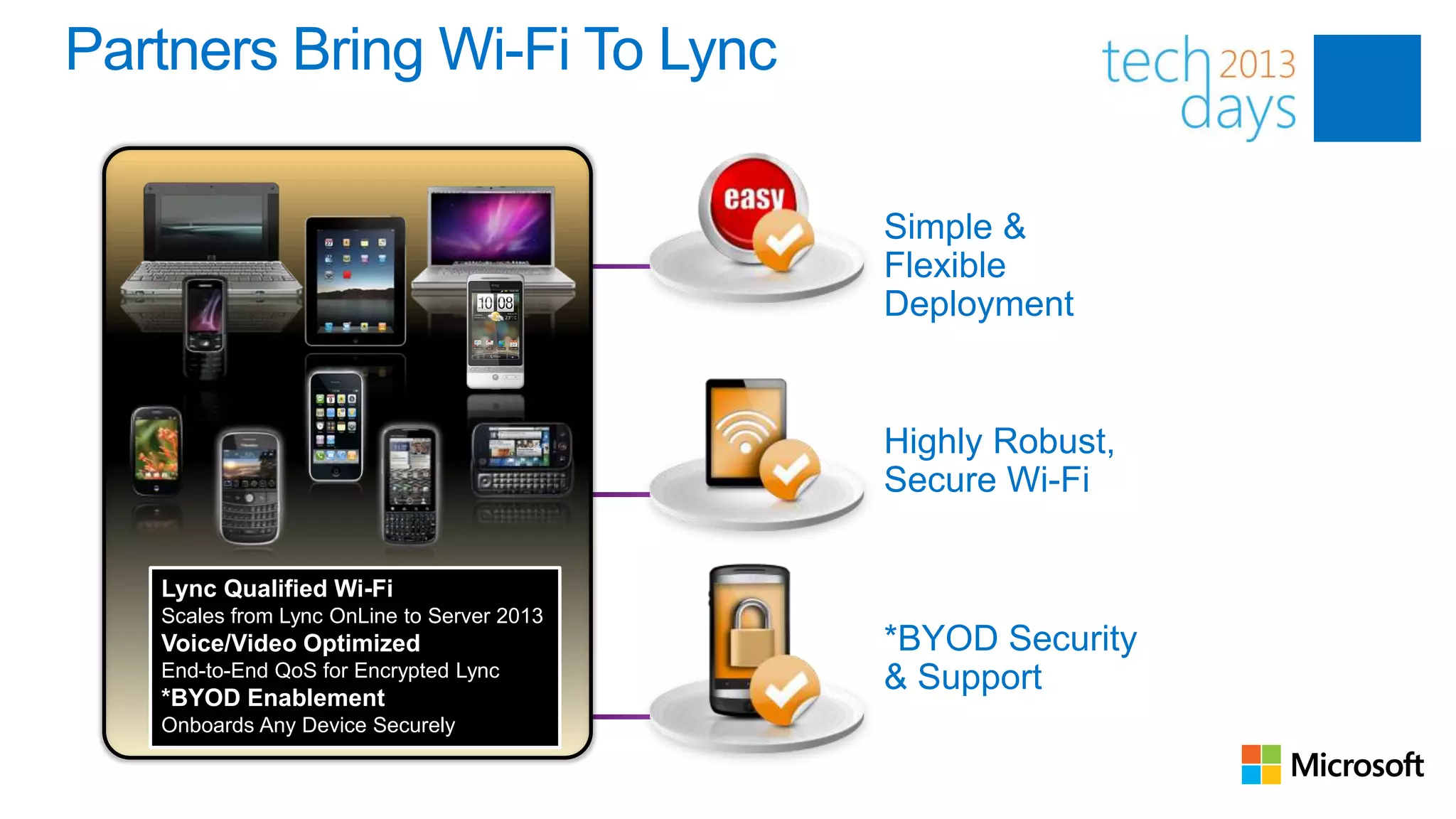

53. Partners Bring Wi-Fi To Lync
Simple &
Flexible
Deployment
Highly Robust,
Secure Wi-Fi
Lync Qualified Wi-Fi
Scales from Lync OnLine to Server 2013
Voice/Video Optimized *BYOD Security
End-to-End QoS for Encrypted Lync
*BYOD Enablement
& Support
Onboards Any Device Securely

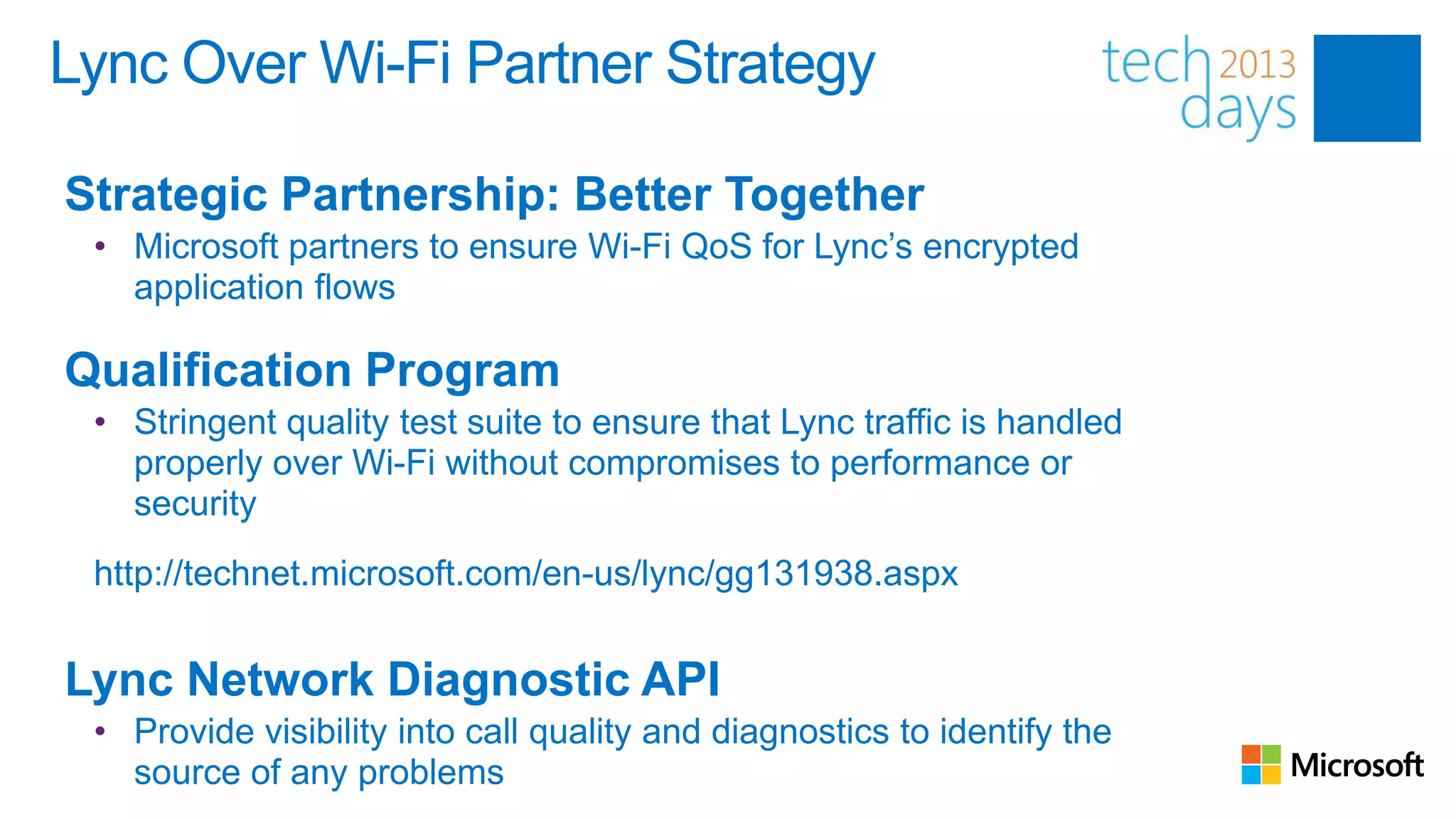

54. Lync Over Wi-Fi Partner Strategy
Strategic Partnership: Better Together
• Microsoft partners to ensure Wi-Fi QoS for Lync’s encrypted
application flows
Qualification Program
• Stringent quality test suite to ensure that Lync traffic is handled
properly over Wi-Fi without compromises to performance or
security
http://technet.microsoft.com/en-us/lync/gg131938.aspx
Lync Network Diagnostic API
• Provide visibility into call quality and diagnostics to identify the
source of any problems

55. Lync 2013 Video & Meetings

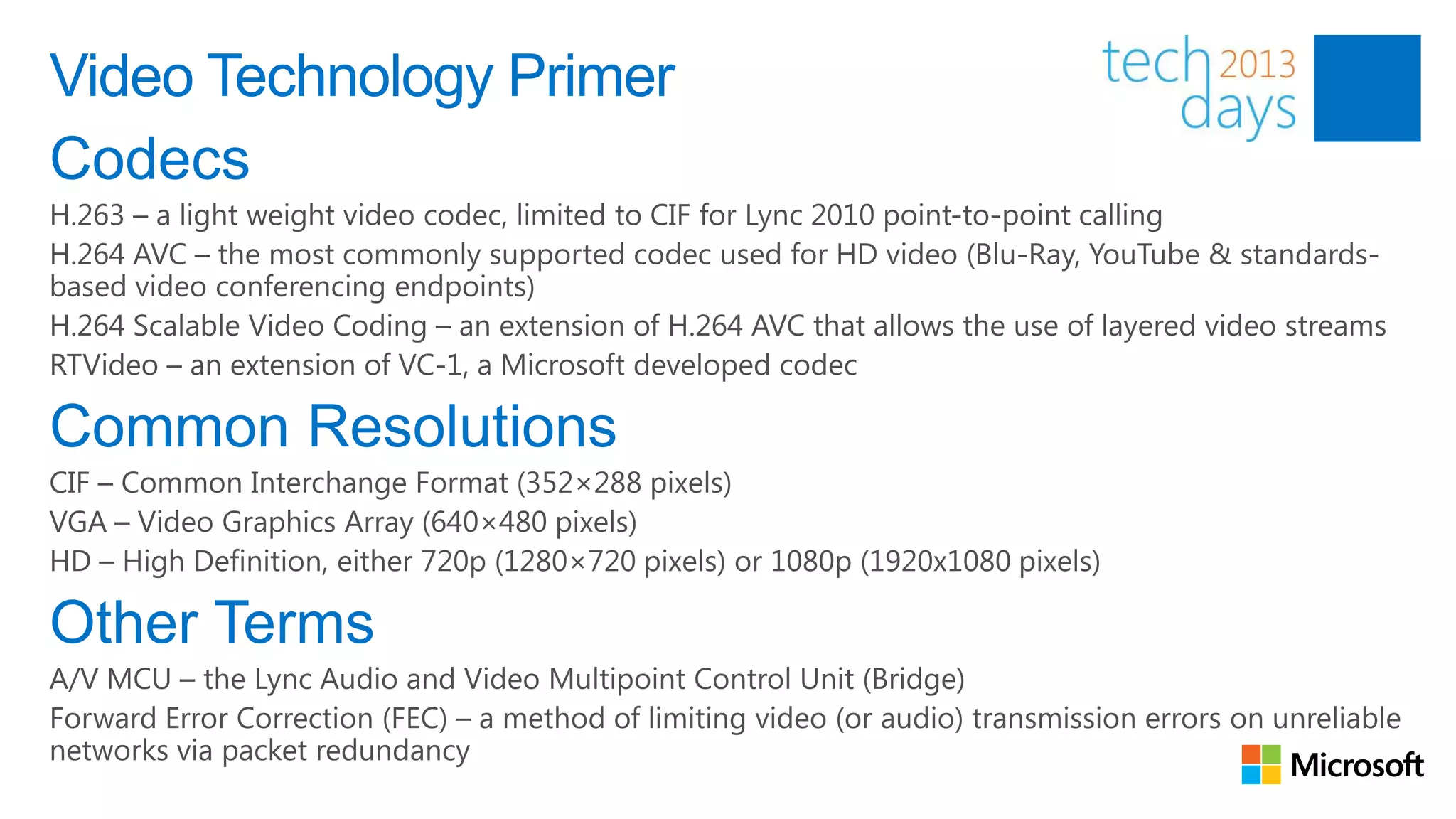

56. Video Technology Primer

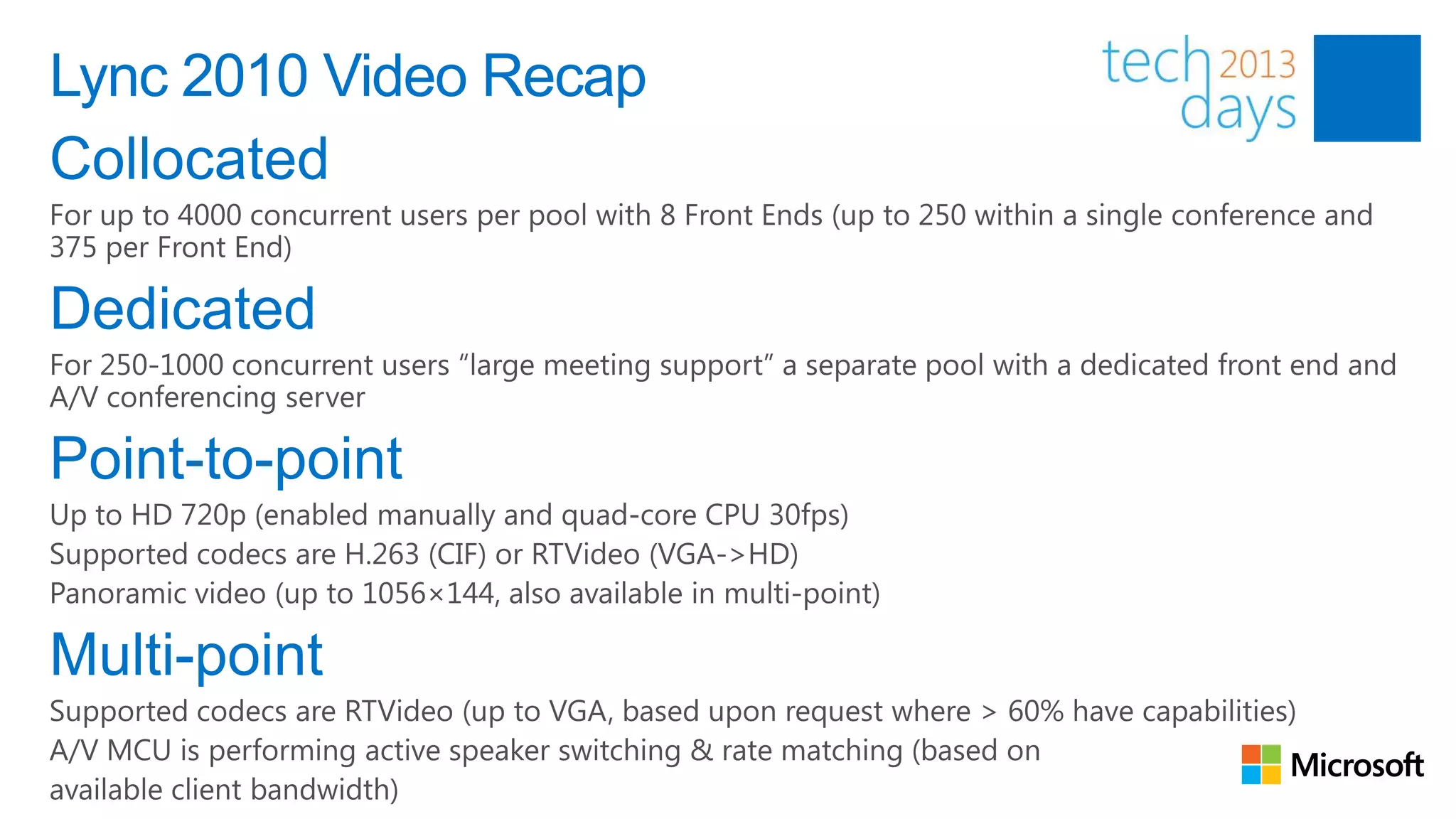

57. Lync 2010 Video Recap

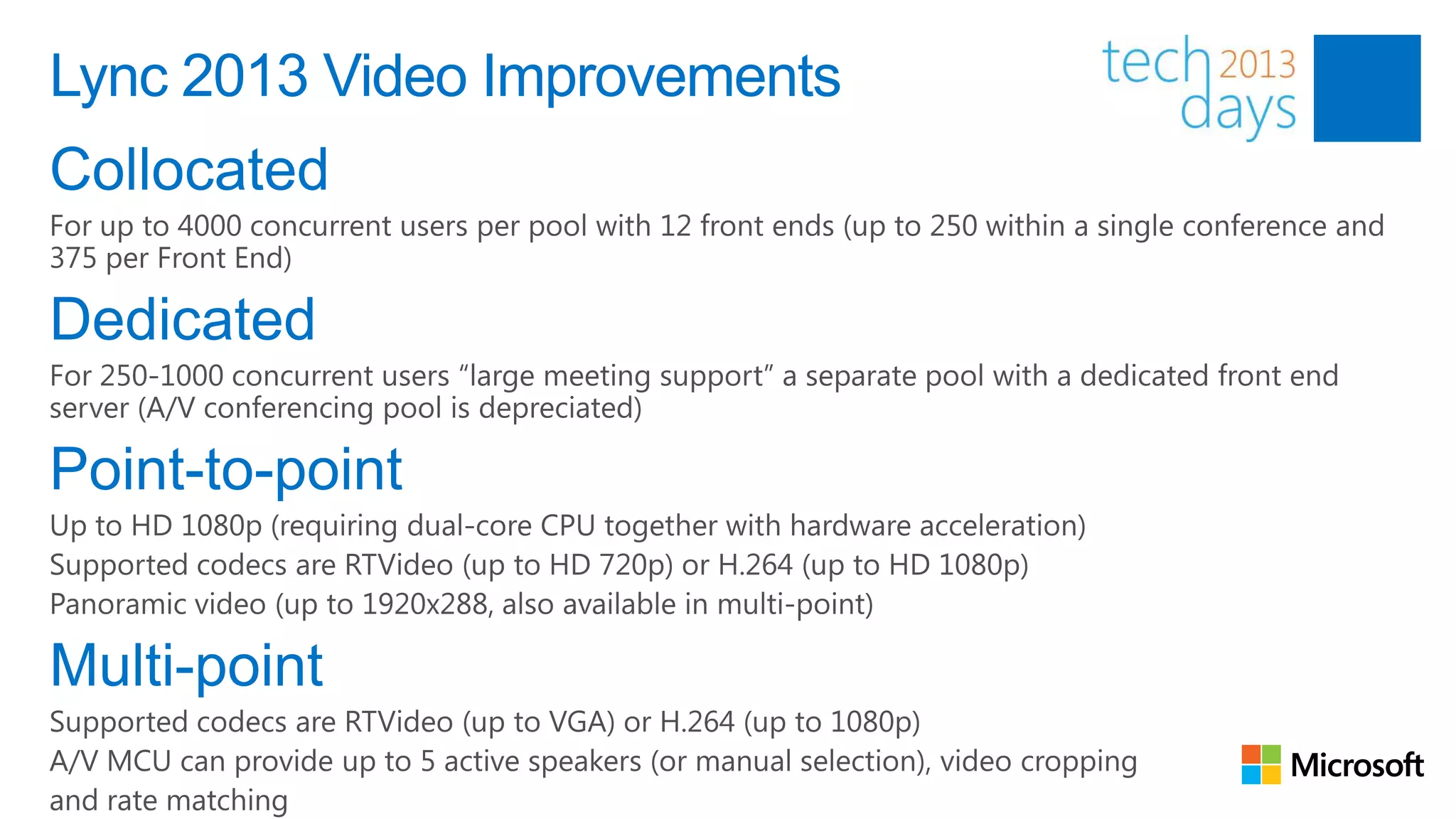

58. Lync 2013 Video Improvements

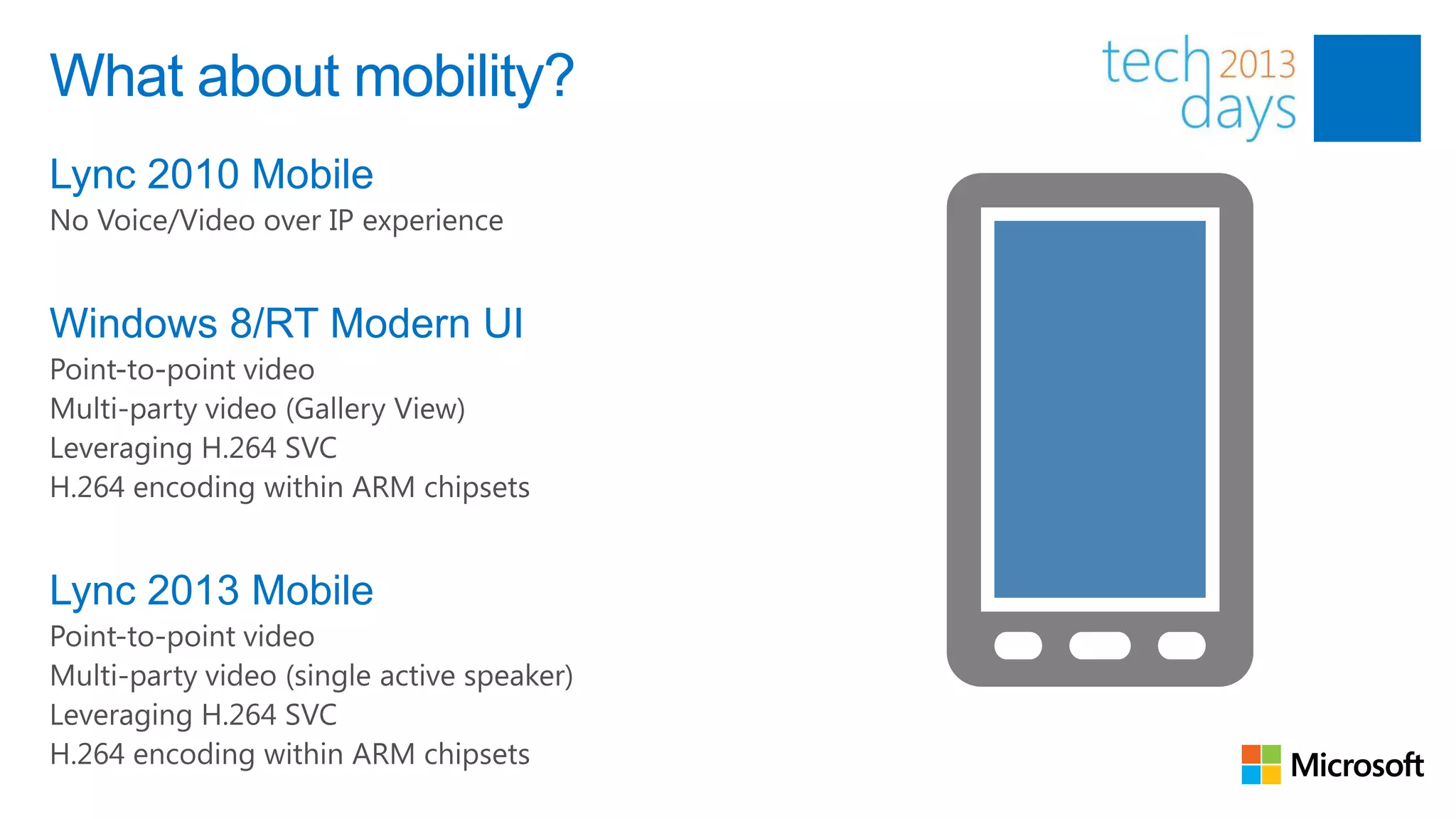

59. What about mobility?
Lync 2010 Mobile
Windows 8/RT Modern UI
Lync 2013 Mobile

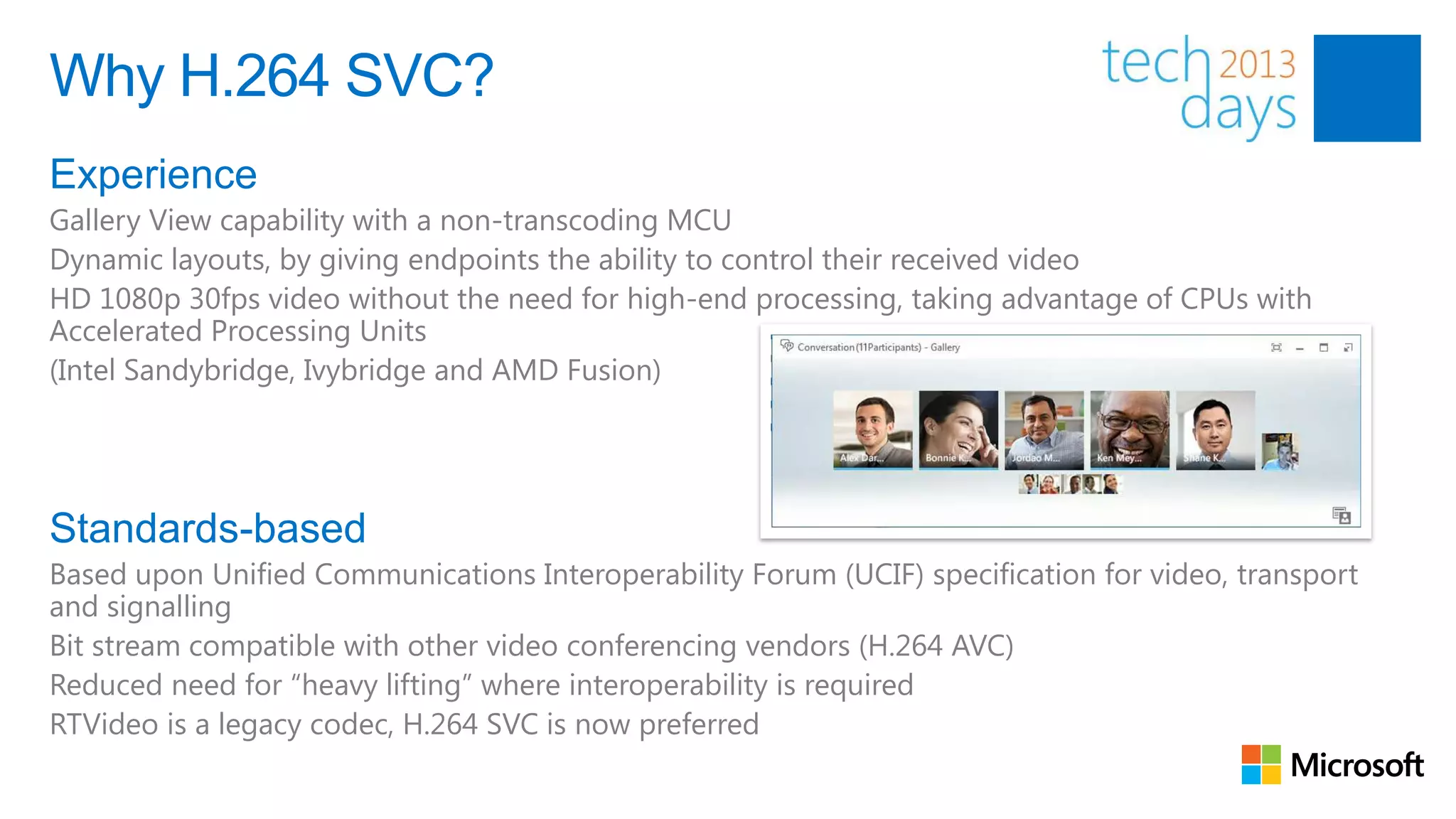

60. Why H.264 SVC?
Experience
Gallery View capability with a non-transcoding MCU
Dynamic layouts, by giving endpoints the ability to control their received video
HD 1080p 30fps video without the need for high-end processing, taking advantage of CPUs with
Accelerated Processing Units
(Intel Sandybridge, Ivybridge and AMD Fusion)
Standards-based
Based upon Unified Communications Interoperability Forum (UCIF) specification for video, transport
and signalling
Bit stream compatible with other video conferencing vendors (H.264 AVC)
Reduced need for “heavy lifting” where interoperability is required
RTVideo is a legacy codec, H.264 SVC is now preferred

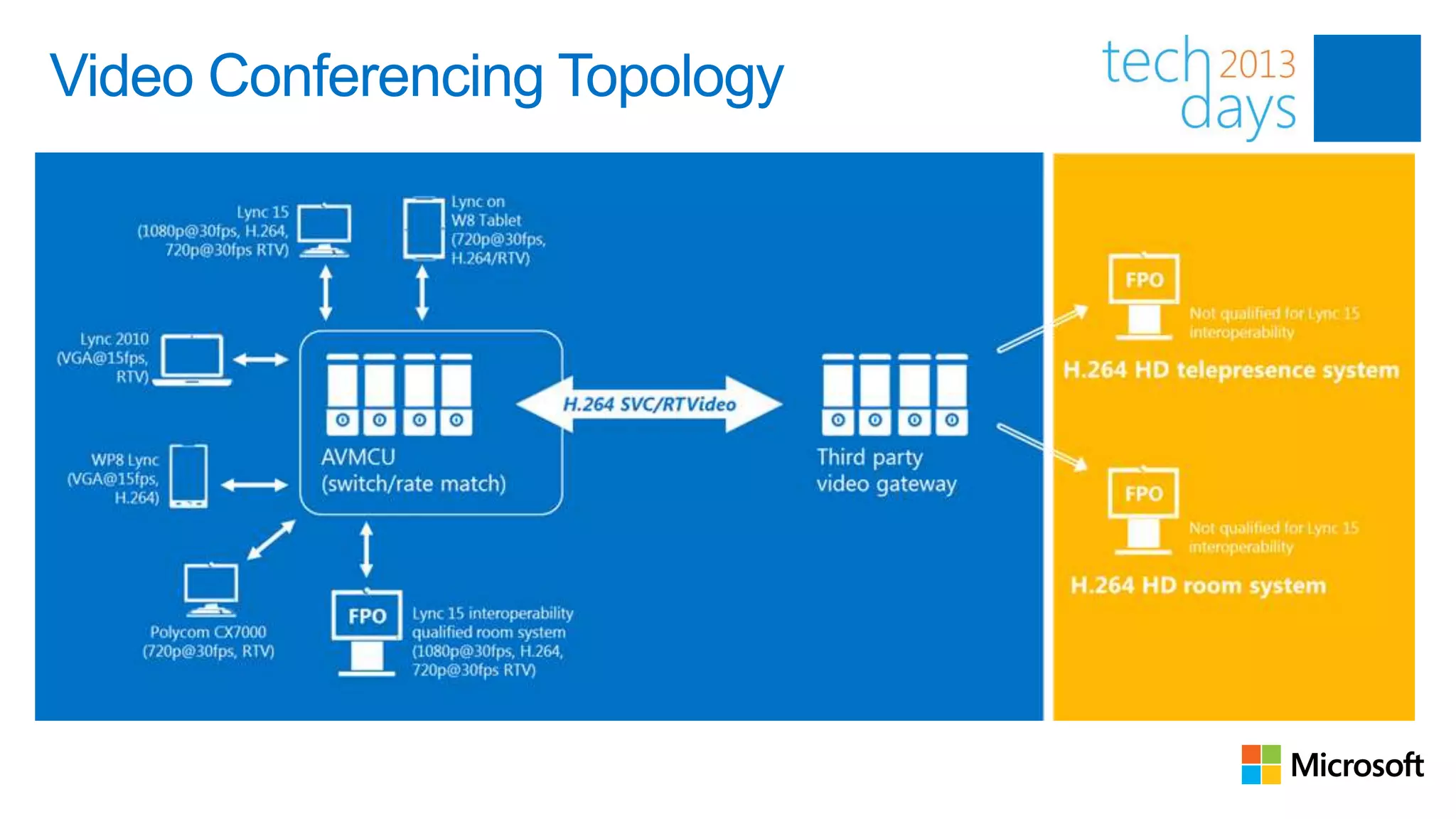

61. Video Conferencing Topology
AVMCU (Switch/Rate Match)

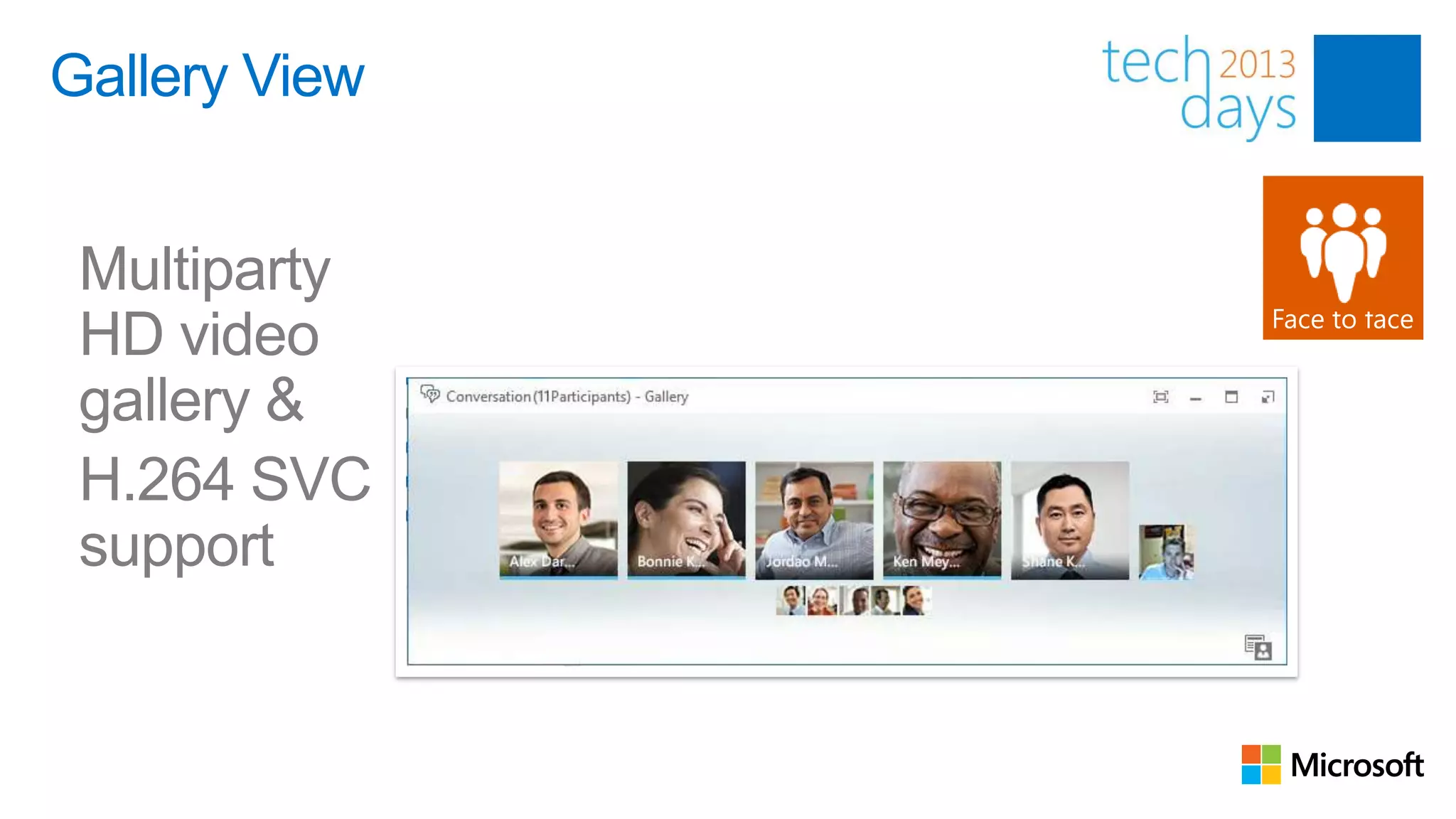

62. Gallery View
Multiparty
HD video
gallery &
H.264 SVC
support

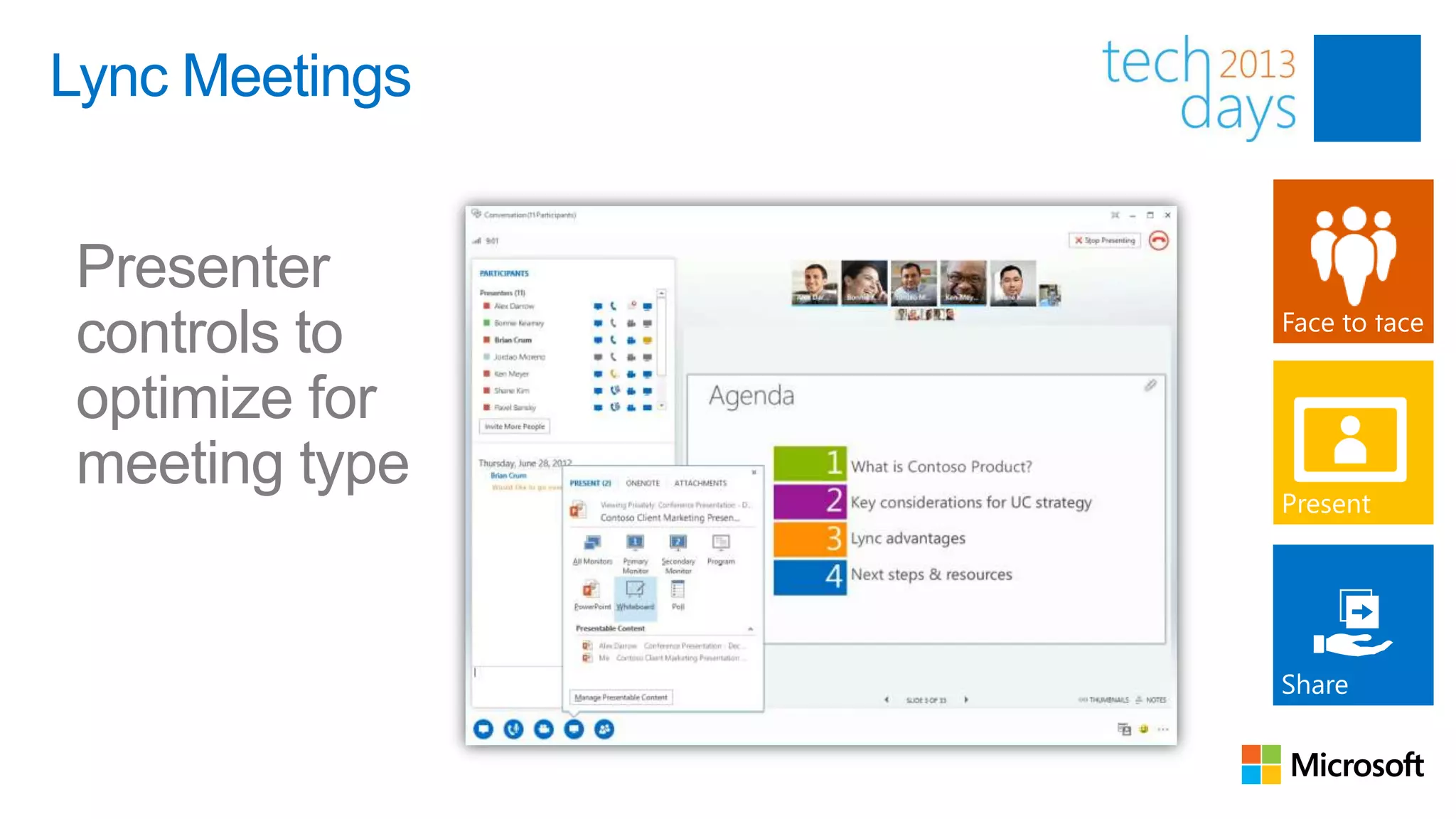

63. Lync Meetings
Presenter
controls to
optimize for
meeting type

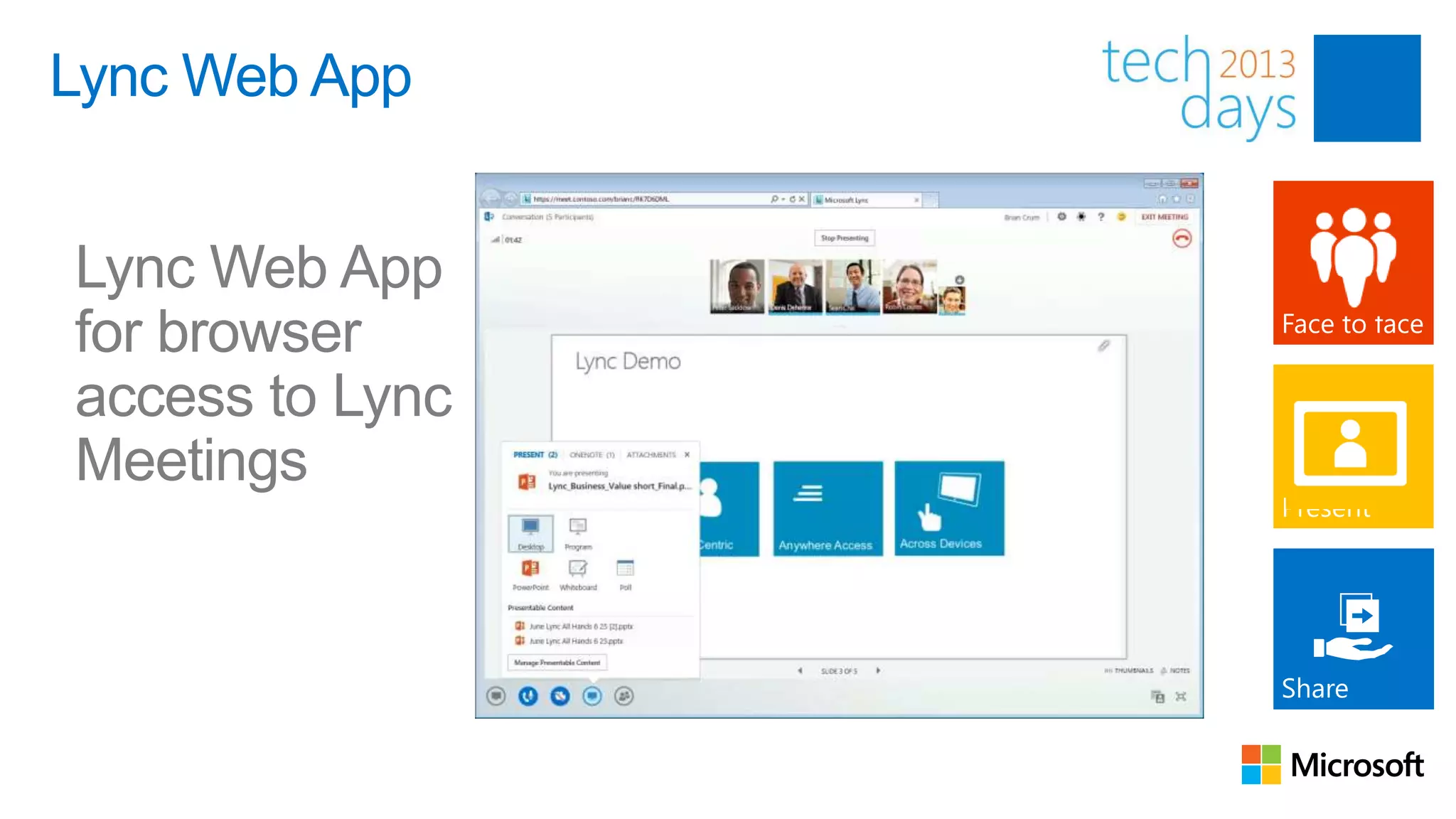

64. Lync Web App
Lync Web App
for browser
access to Lync
Meetings

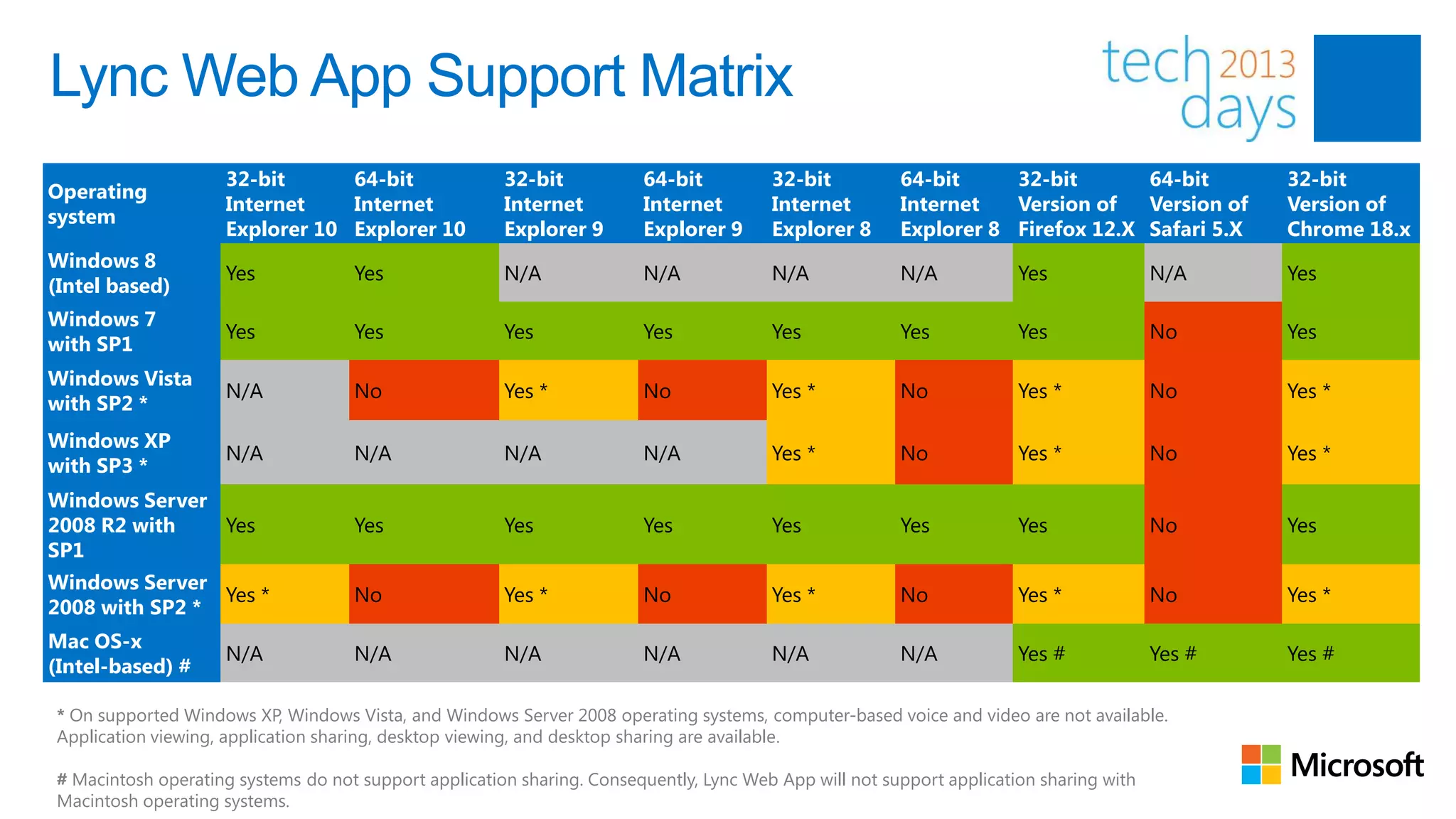

65. Lync Web App Support Matrix
32-bit 64-bit 32-bit 64-bit 32-bit 64-bit 32-bit 64-bit 32-bit
Operating
Internet Internet Internet Internet Internet Internet Version of Version of Version of
system
Explorer 10 Explorer 10 Explorer 9 Explorer 9 Explorer 8 Explorer 8 Firefox 12.X Safari 5.X Chrome 18.x
Windows 8
Yes Yes N/A N/A N/A N/A Yes N/A Yes
(Intel based)
Windows 7
Yes Yes Yes Yes Yes Yes Yes No Yes
with SP1
Windows Vista
N/A No Yes * No Yes * No Yes * No Yes *
with SP2 *
Windows XP
N/A N/A N/A N/A Yes * No Yes * No Yes *
with SP3 *
Windows Server
2008 R2 with Yes Yes Yes Yes Yes Yes Yes No Yes
SP1
Windows Server
Yes * No Yes * No Yes * No Yes * No Yes *
2008 with SP2 *
Mac OS-x
N/A N/A N/A N/A N/A N/A Yes # Yes # Yes #
(Intel-based) #
* On supported Windows XP, Windows Vista, and Windows Server 2008 operating systems, computer-based voice and video are not available.
Application viewing, application sharing, desktop viewing, and desktop sharing are available.
# Macintosh operating systems do not support application sharing. Consequently, Lync Web App will not support application sharing with
Macintosh operating systems.

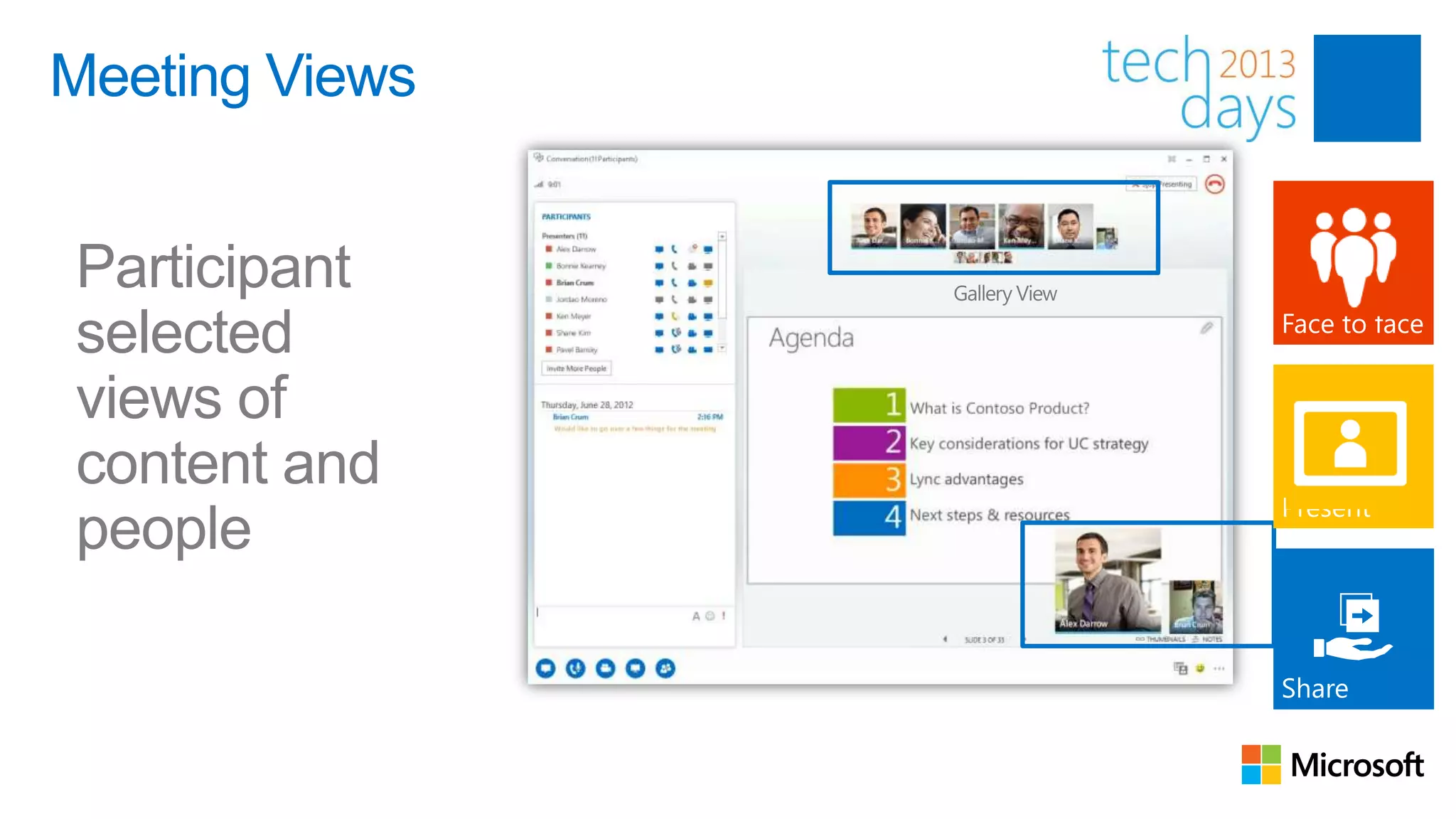

66. Meeting Views
Participant
selected
views of
content and
people

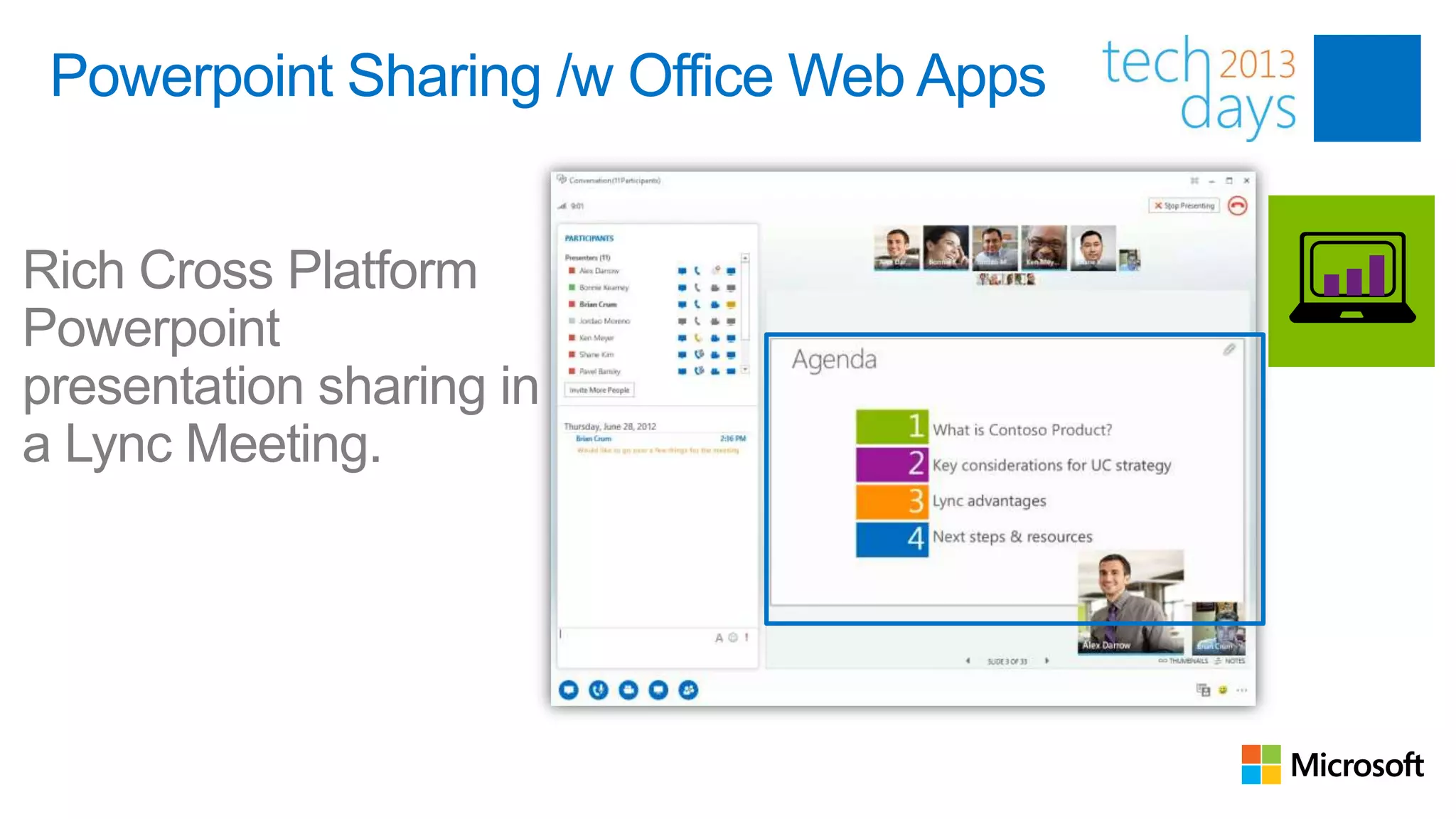

67. Powerpoint Sharing /w Office Web Apps
Rich Cross Platform
Powerpoint
presentation sharing in
a Lync Meeting.

69. Lync Room System

70. Meeting rooms today…
..a synonym for struggle
and technology has not helped
 Setup takes 8-10 minutes on average
 Videoconferencing equipment is not well utilized
 Remote attendees feel isolated
 Meeting resources are hard to manage
83

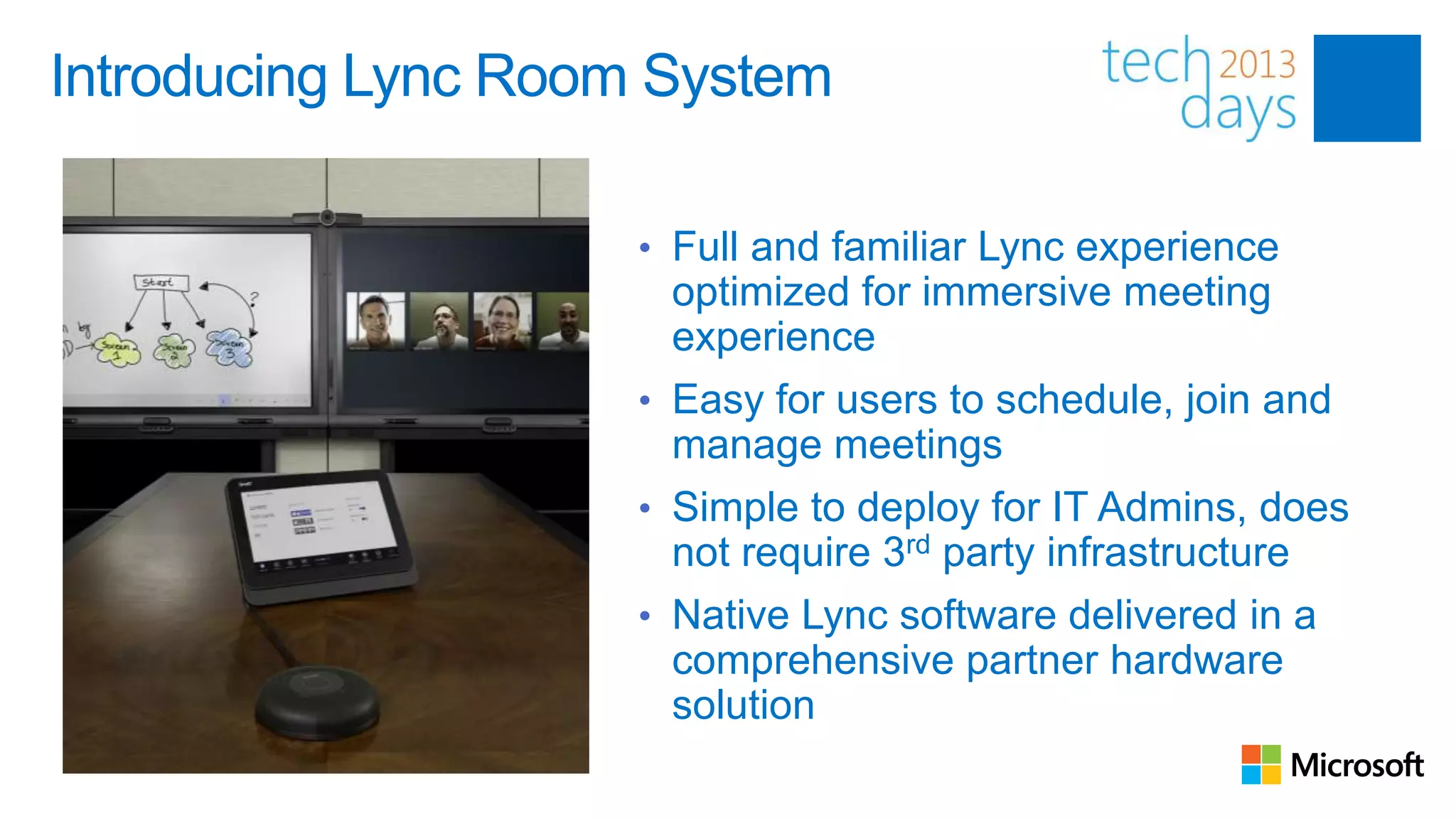

71. Introducing Lync Room System
• Full and familiar Lync experience
optimized for immersive meeting
experience
• Easy for users to schedule, join and
manage meetings
• Simple to deploy for IT Admins, does
not require 3rd party infrastructure
• Native Lync software delivered in a
comprehensive partner hardware
solution

72. Lync Room System goals
Start meetings with 1 click In room attendees can see Easy to switch between
and hear remote attendees presenters
Scheduled or Ad Hoc
Meeting Remote attendees can see Easy to access meeting
and hear in room activities content
Laptop Free or Laptop
Driven Meeting Easy to manage meeting
Automated hardware controls
startup
85

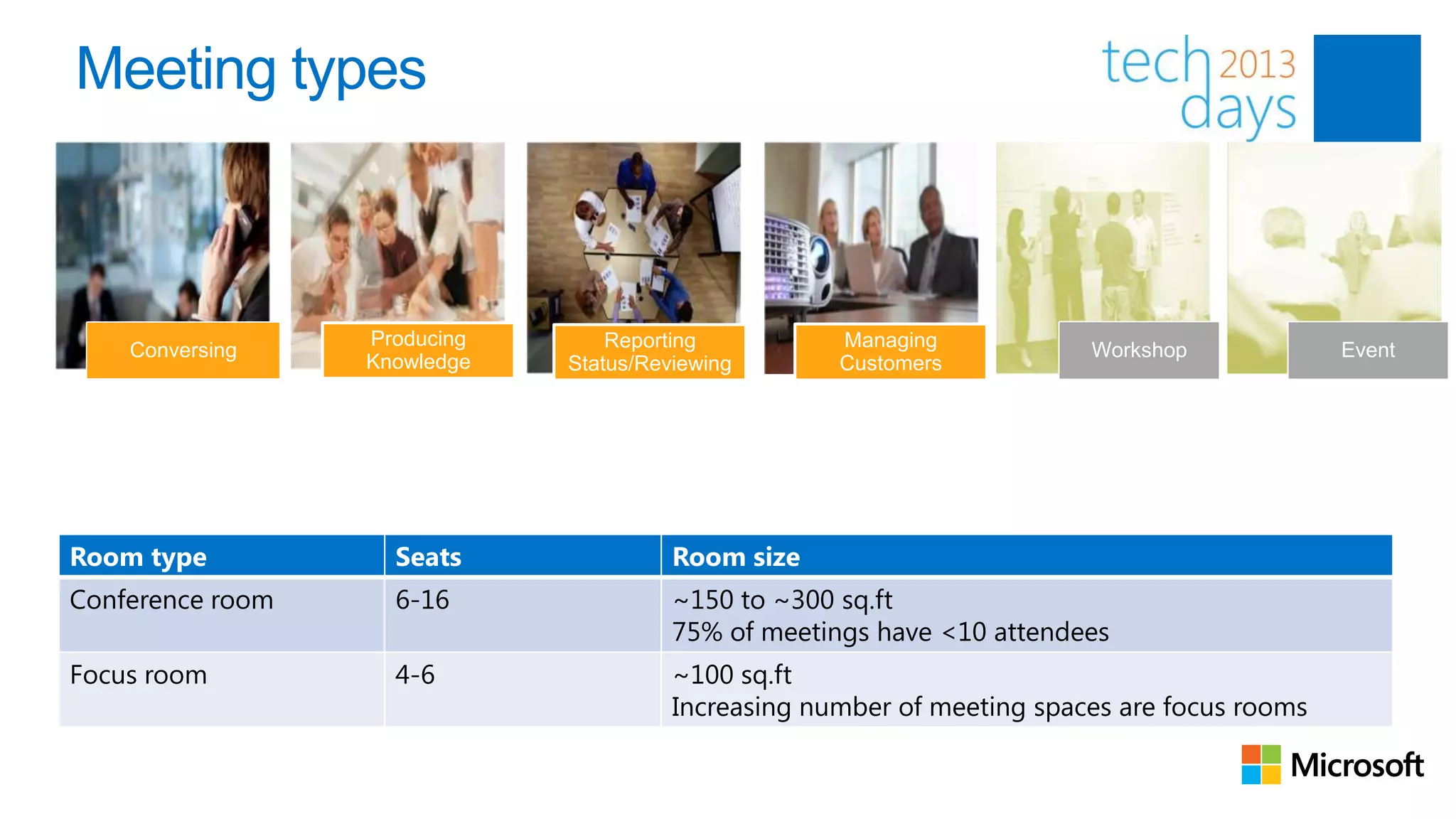

73. Meeting types
Producing Reporting Managing
Conversing Workshop Event
Knowledge Status/Reviewing Customers
Room type Seats Room size
Conference room 6-16 ~150 to ~300 sq.ft
75% of meetings have <10 attendees
Focus room 4-6 ~100 sq.ft
Increasing number of meeting spaces are focus rooms
86

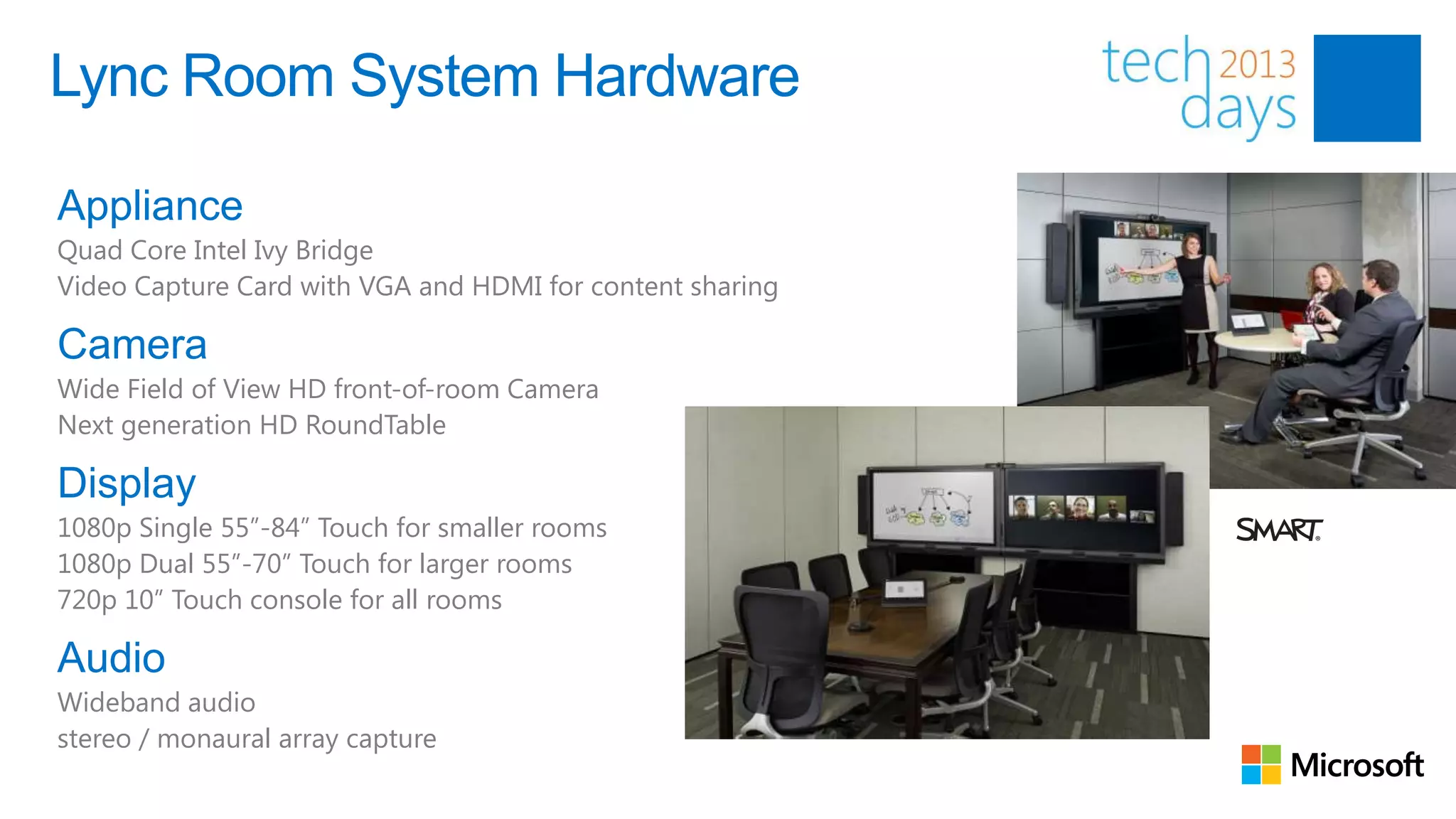

74. Lync Room System Hardware
Appliance
Quad Core Intel Ivy Bridge
Video Capture Card with VGA and HDMI for content sharing
Camera
Wide Field of View HD front-of-room Camera
Next generation HD RoundTable
Display
1080p Single 55”-84” Touch for smaller rooms
1080p Dual 55”-70” Touch for larger rooms
720p 10” Touch console for all rooms
Audio
Wideband audio
stereo / monaural array capture

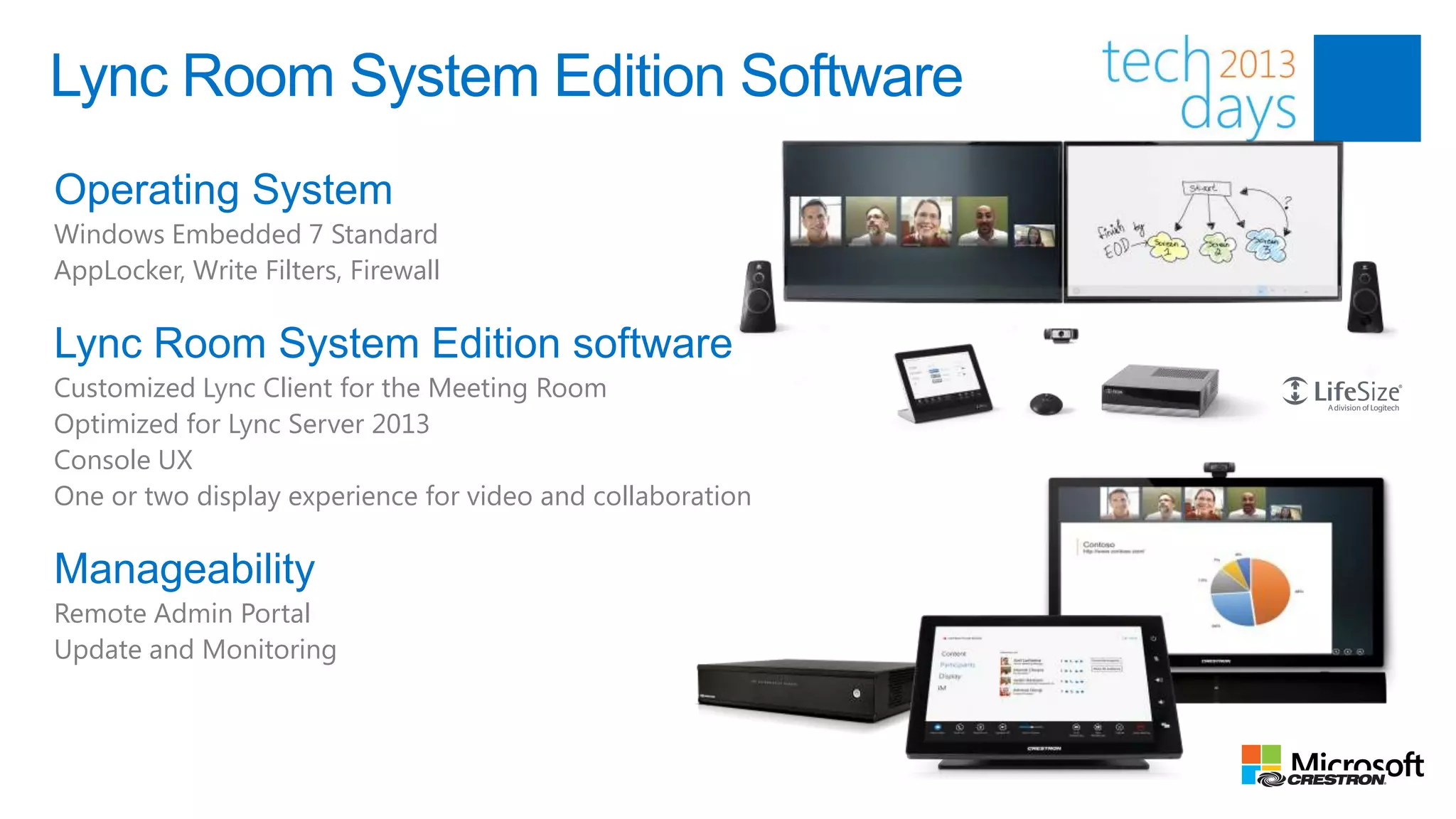

75. Lync Room System Edition Software
Operating System
Windows Embedded 7 Standard
AppLocker, Write Filters, Firewall
Lync Room System Edition software
Customized Lync Client for the Meeting Room
Optimized for Lync Server 2013
Console UX
One or two display experience for video and collaboration
Manageability
Remote Admin Portal
Update and Monitoring

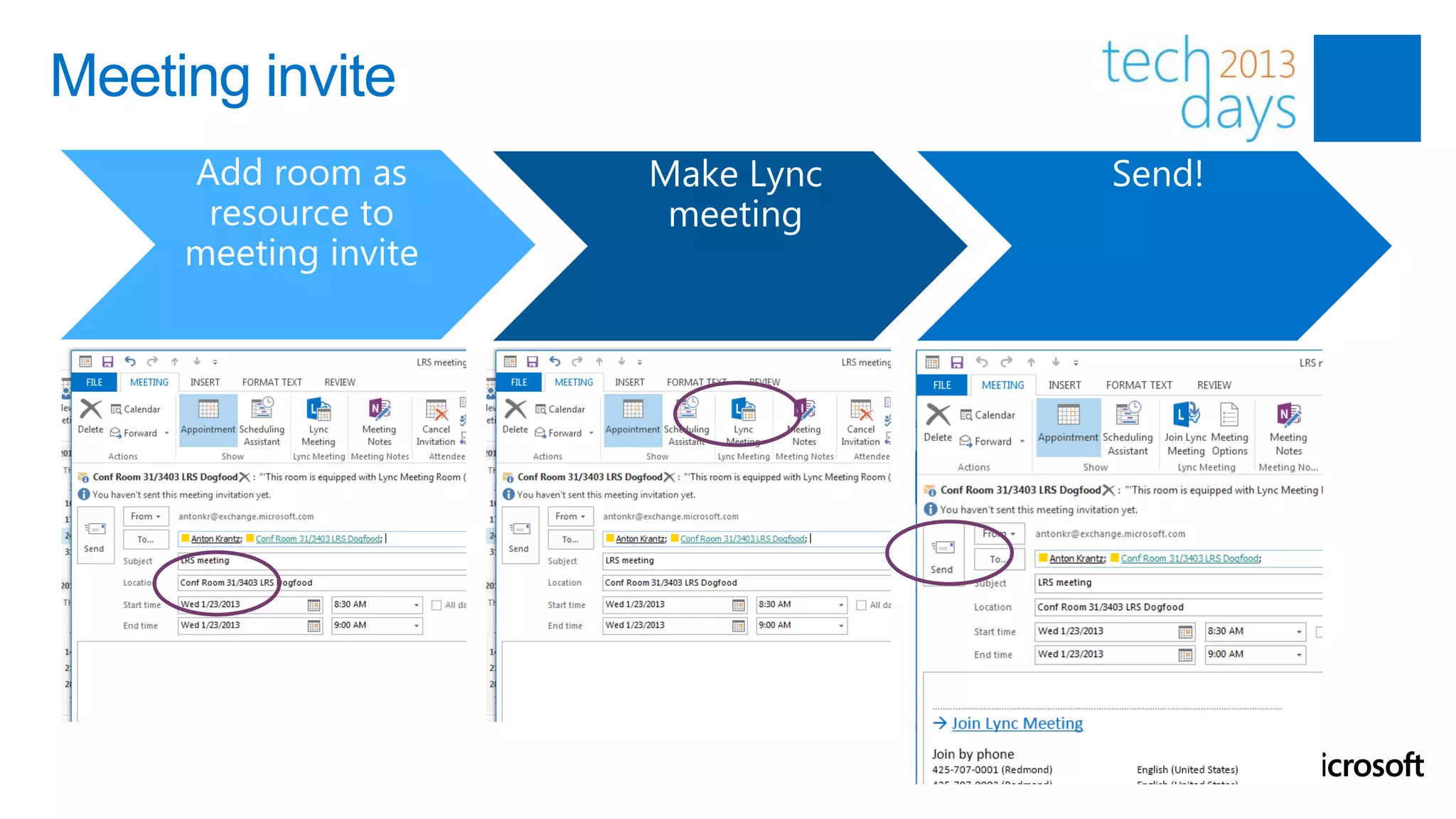

76. Meeting invite
Add room as Make Lync Send!
resource to meeting
meeting invite

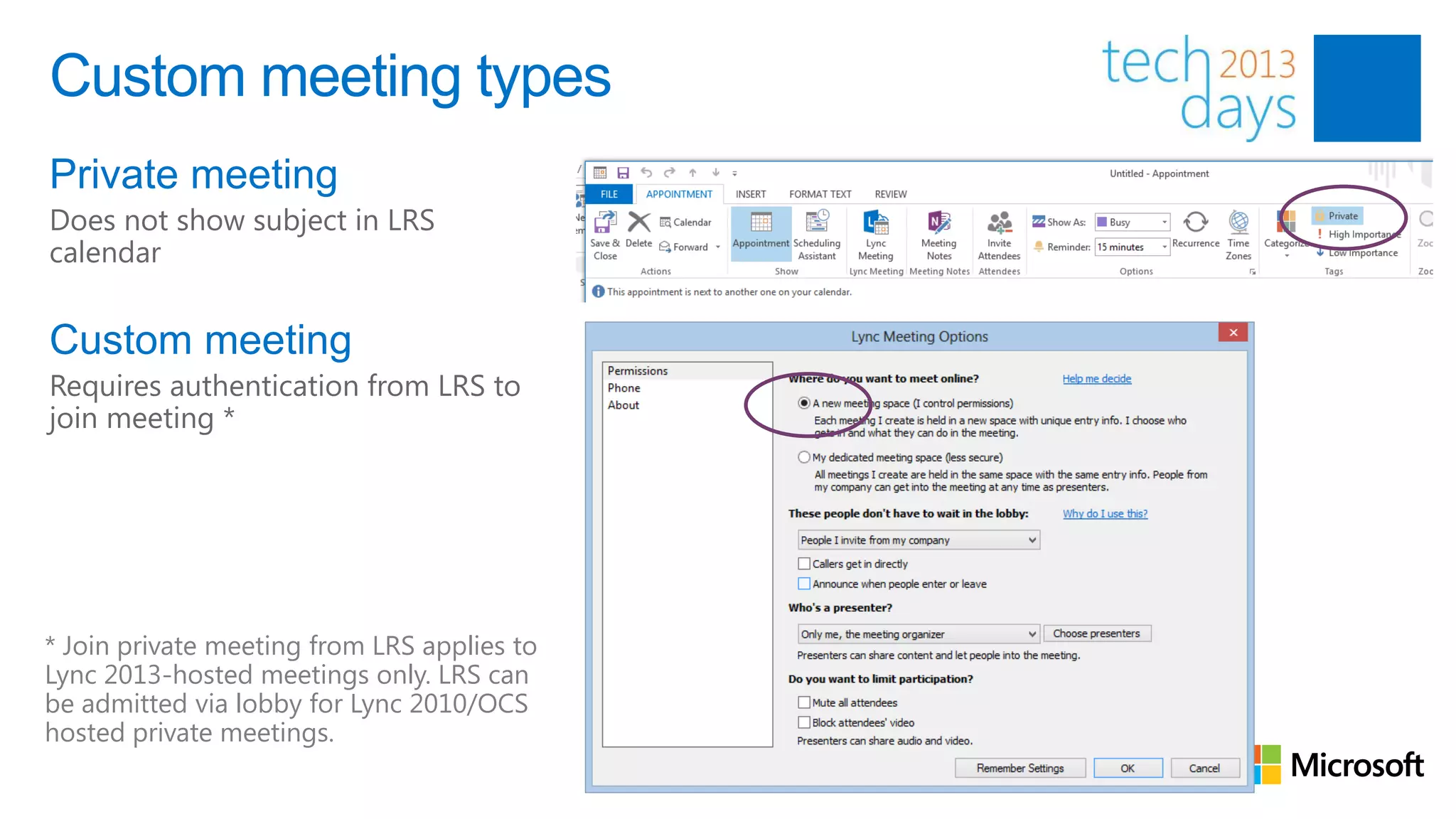

77. Custom meeting types
Private meeting
Does not show subject in LRS
calendar
Custom meeting
Requires authentication from LRS to
join meeting *
* Join private meeting from LRS applies to
Lync 2013-hosted meetings only. LRS can
be admitted via lobby for Lync 2010/OCS
hosted private meetings.

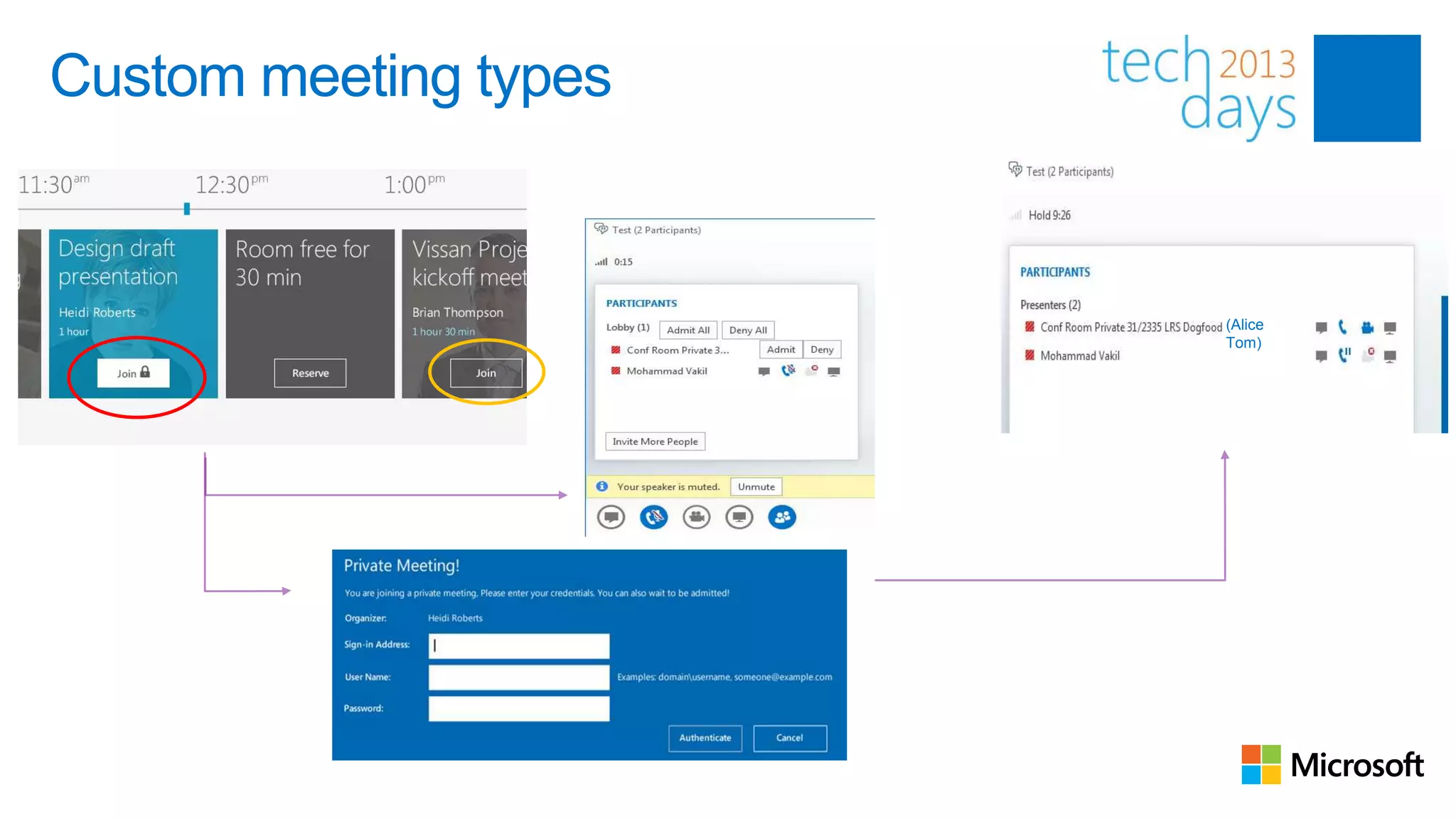

78. Custom meeting types
(Alice
Tom)

79. Lync Room System Partners

81. Q&A
Ask the Experts Tonight 19h00 – 21h00
Johan Delimon : johan.delimon@ordina.be
Ruben Nauwelaers : rnauwelaers@uwictpartner.be
http://www.pro-lync.be
