MOA is a framework for online learning from data streams. It is closely related to WEKA and includes tools for evaluation such as boosting, bagging, and Hoeffding Trees. MOA deals with evolving data streams and is easy to use and extend.

1. MOA: {M}assive {O}nline {A}nalysis.
University of Waikato
Hamilton, New Zealand

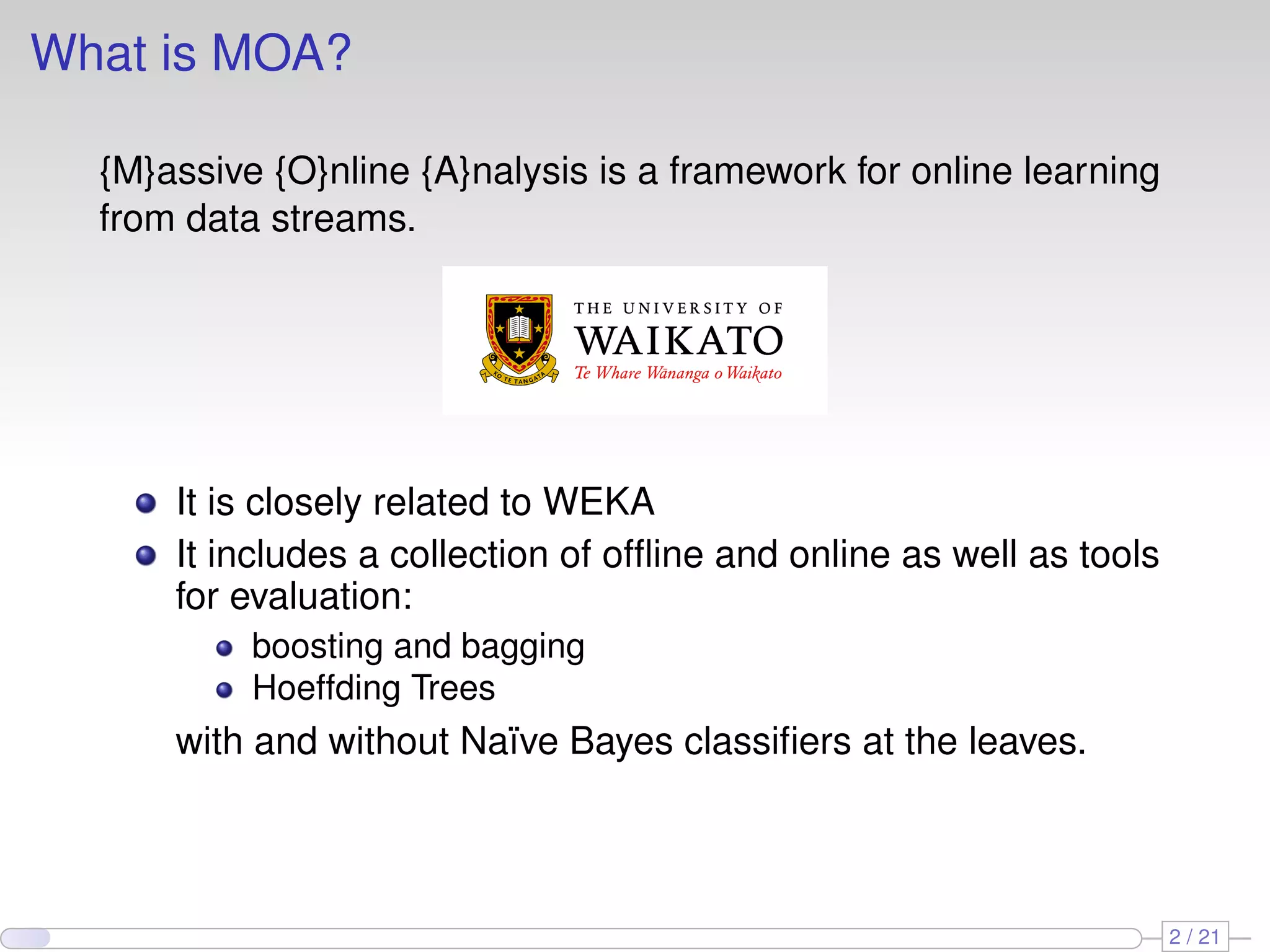

2. What is MOA?
{M}assive {O}nline {A}nalysis is a framework for online learning
from data streams.
It is closely related to WEKA
It includes a collection of offline and online as well as tools
for evaluation:
boosting and bagging
Hoeffding Trees
with and without Naïve Bayes classifiers at the leaves.
2 / 21

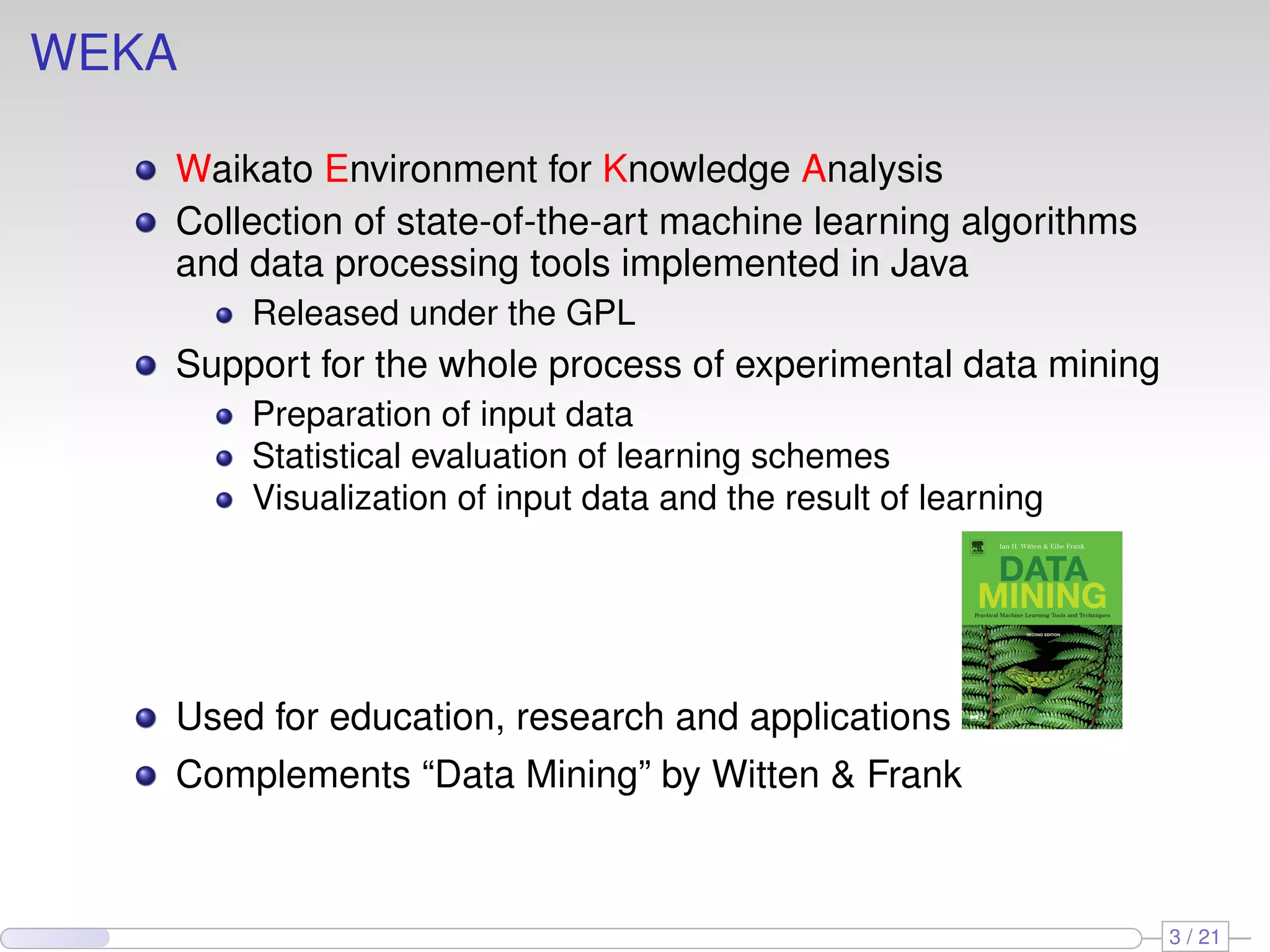

3. WEKA
Waikato Environment for Knowledge Analysis
Collection of state-of-the-art machine learning algorithms
and data processing tools implemented in Java
Released under the GPL
Support for the whole process of experimental data mining
Preparation of input data
Statistical evaluation of learning schemes
Visualization of input data and the result of learning
Used for education, research and applications
Complements “Data Mining” by Witten & Frank
3 / 21

4. WEKA: the bird
4 / 21

5. MOA: the bird
The Moa (another native NZ bird) is not only flightless, like the
Weka, but also extinct.
5 / 21

6. MOA: the bird
The Moa (another native NZ bird) is not only flightless, like the
Weka, but also extinct.
5 / 21

7. MOA: the bird
The Moa (another native NZ bird) is not only flightless, like the
Weka, but also extinct.
5 / 21

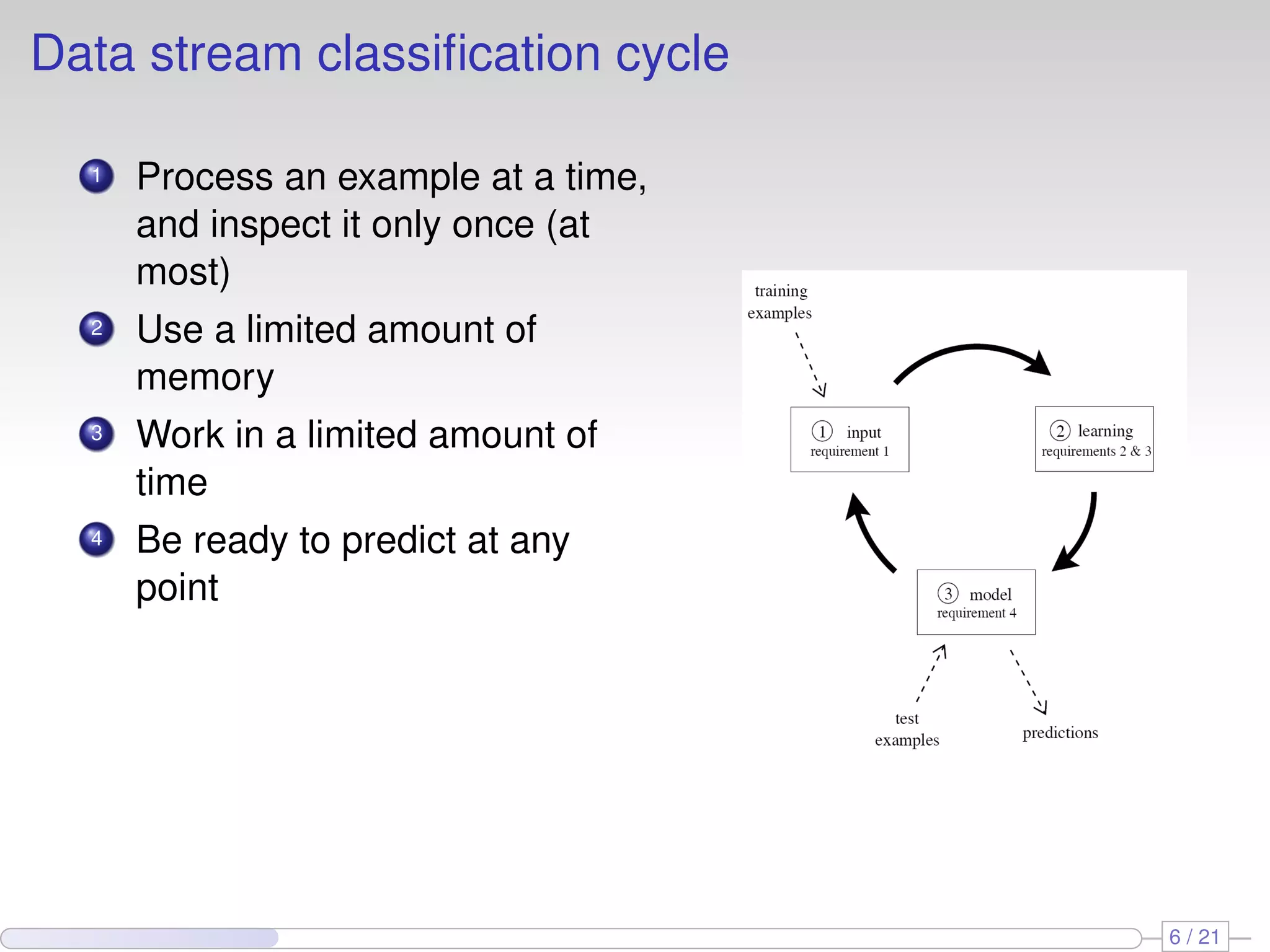

8. Data stream classification cycle
1 Process an example at a time,
and inspect it only once (at
most)
2 Use a limited amount of
memory
3 Work in a limited amount of
time
4 Be ready to predict at any
point
6 / 21

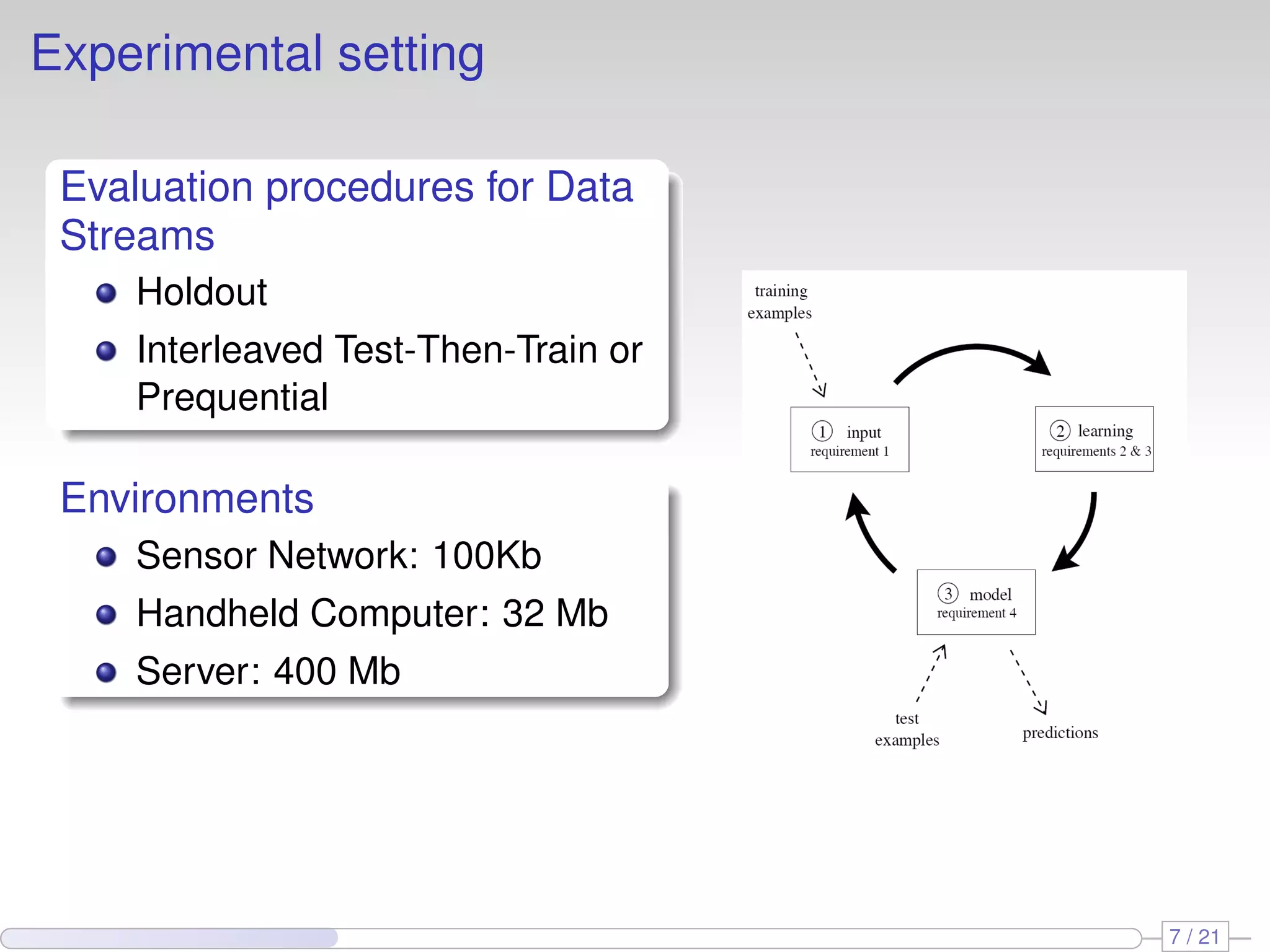

9. Experimental setting
Evaluation procedures for Data
Streams
Holdout
Interleaved Test-Then-Train or
Prequential
Environments
Sensor Network: 100Kb
Handheld Computer: 32 Mb
Server: 400 Mb
7 / 21

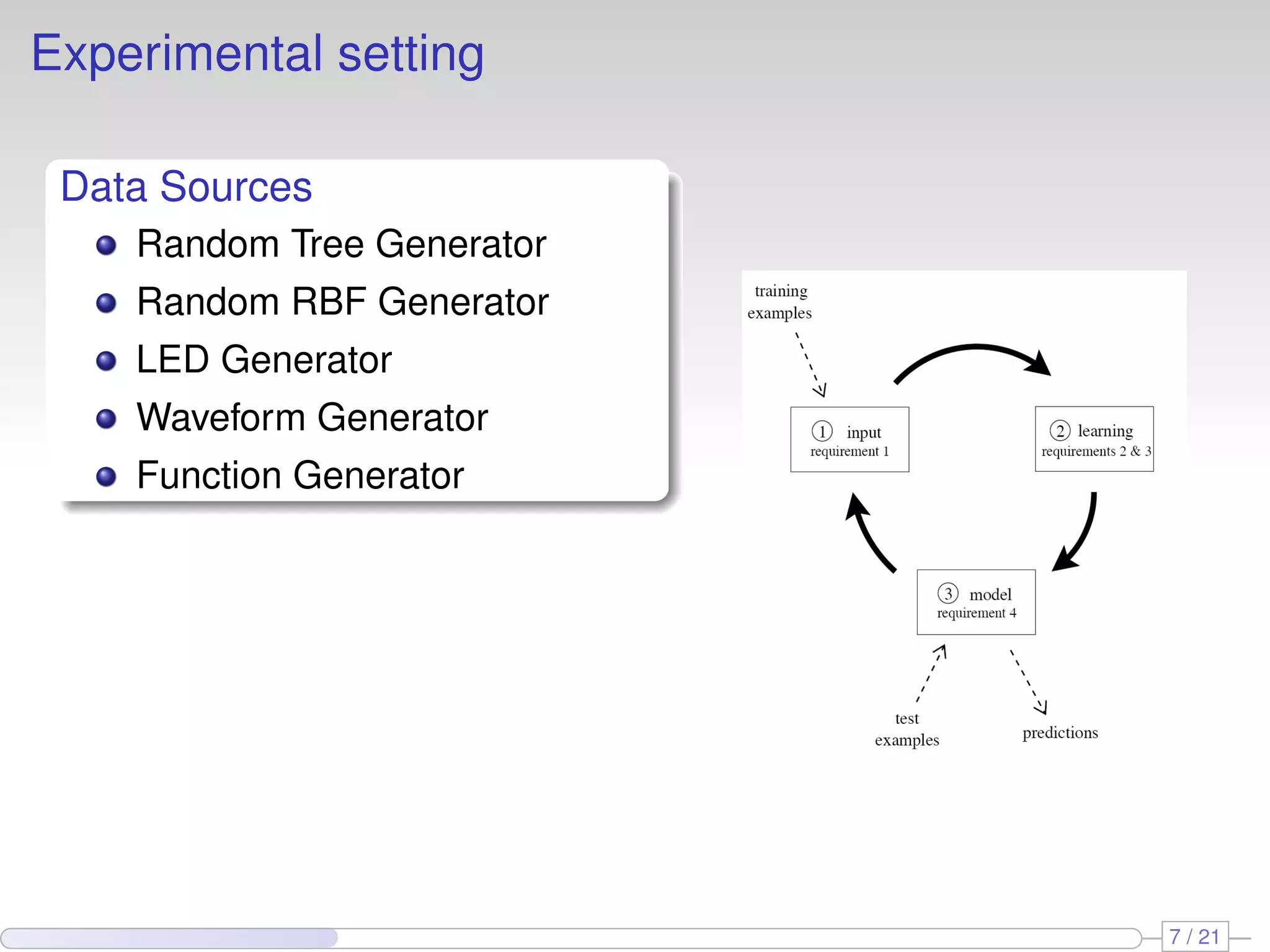

10. Experimental setting
Data Sources
Random Tree Generator
Random RBF Generator
LED Generator
Waveform Generator
Function Generator
7 / 21

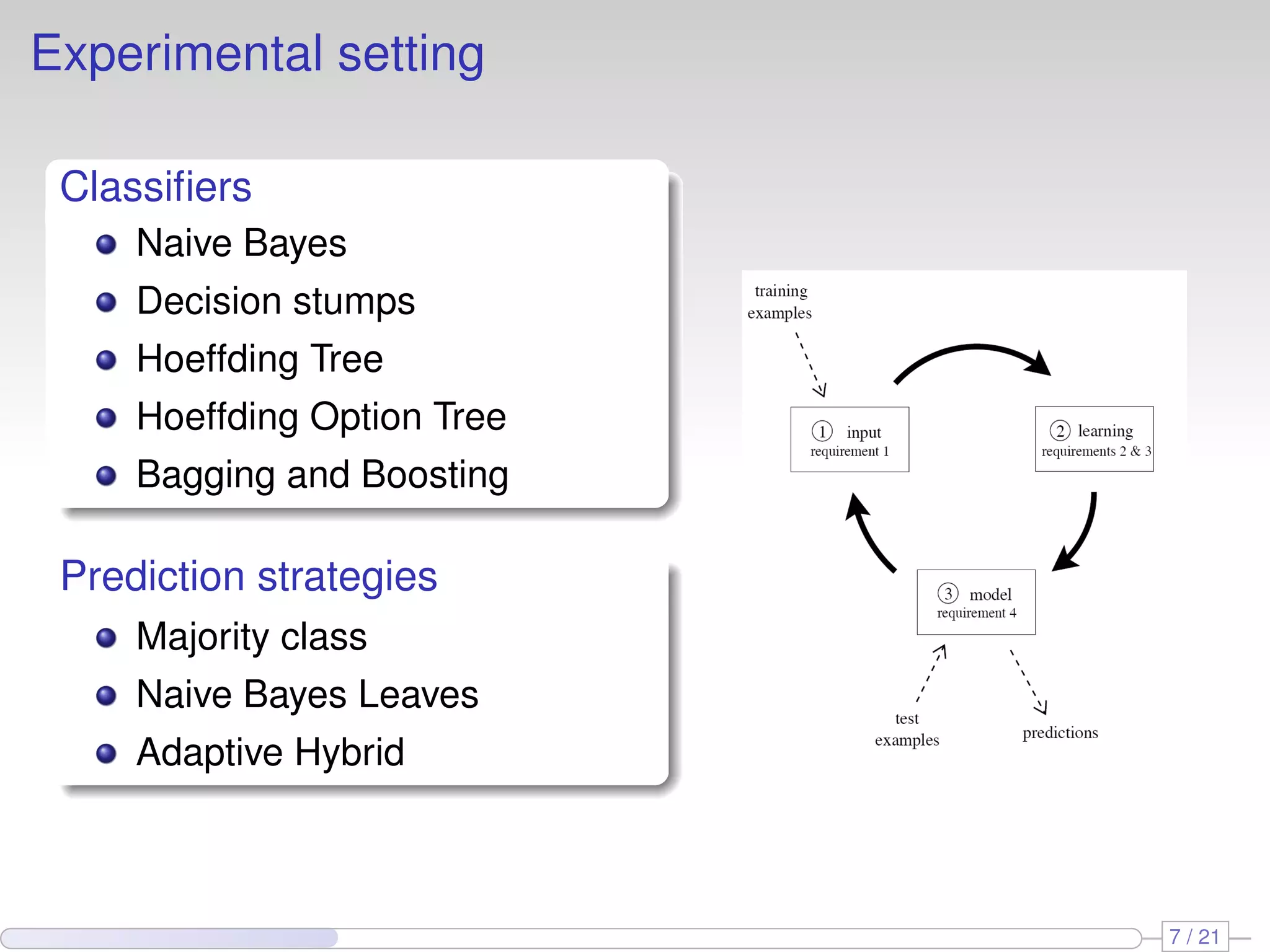

11. Experimental setting
Classifiers
Naive Bayes
Decision stumps
Hoeffding Tree
Hoeffding Option Tree
Bagging and Boosting
Prediction strategies
Majority class
Naive Bayes Leaves
Adaptive Hybrid
7 / 21

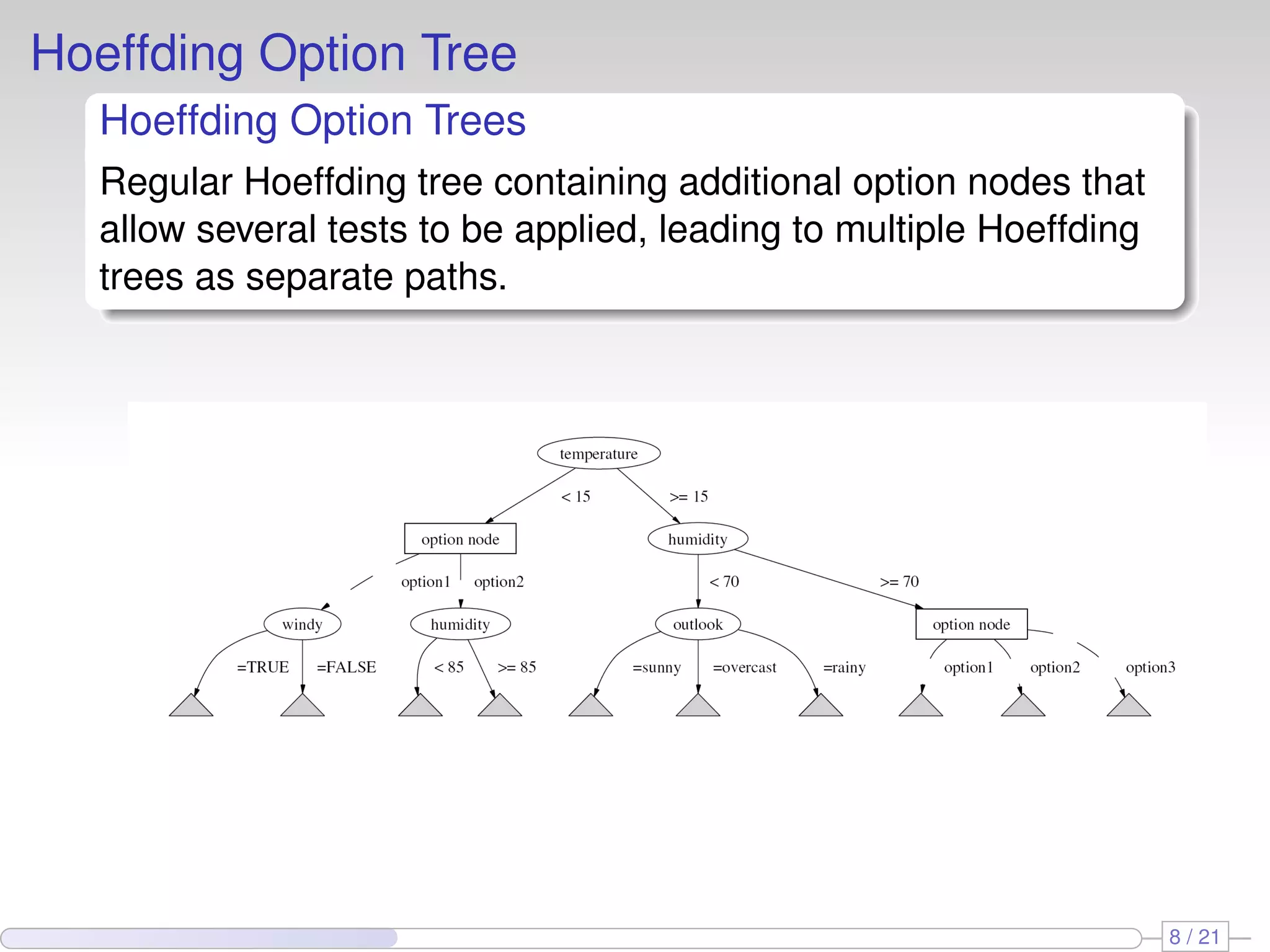

12. Hoeffding Option Tree
Hoeffding Option Trees
Regular Hoeffding tree containing additional option nodes that
allow several tests to be applied, leading to multiple Hoeffding
trees as separate paths.
8 / 21

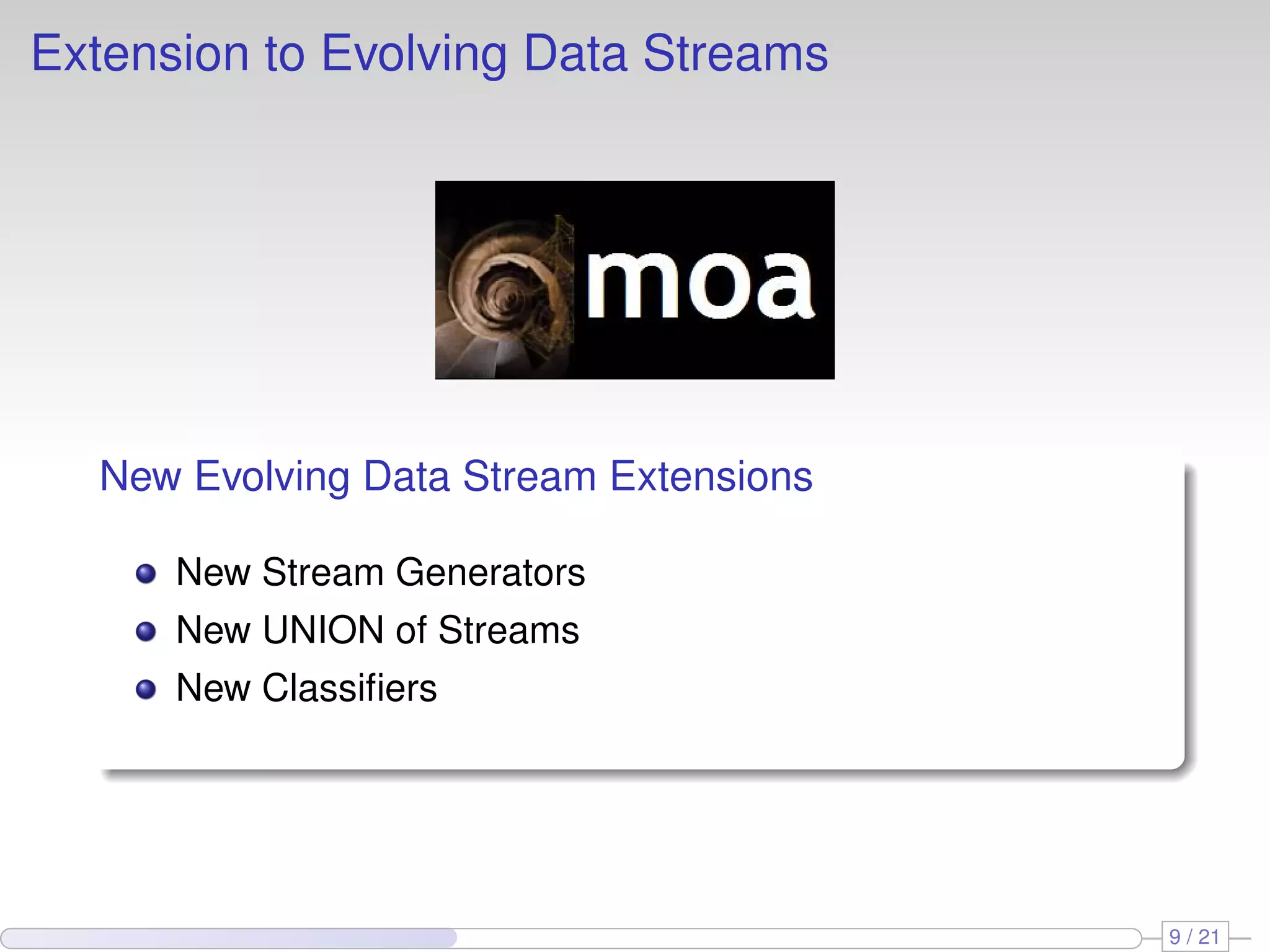

13. Extension to Evolving Data Streams
New Evolving Data Stream Extensions
New Stream Generators
New UNION of Streams
New Classifiers
9 / 21

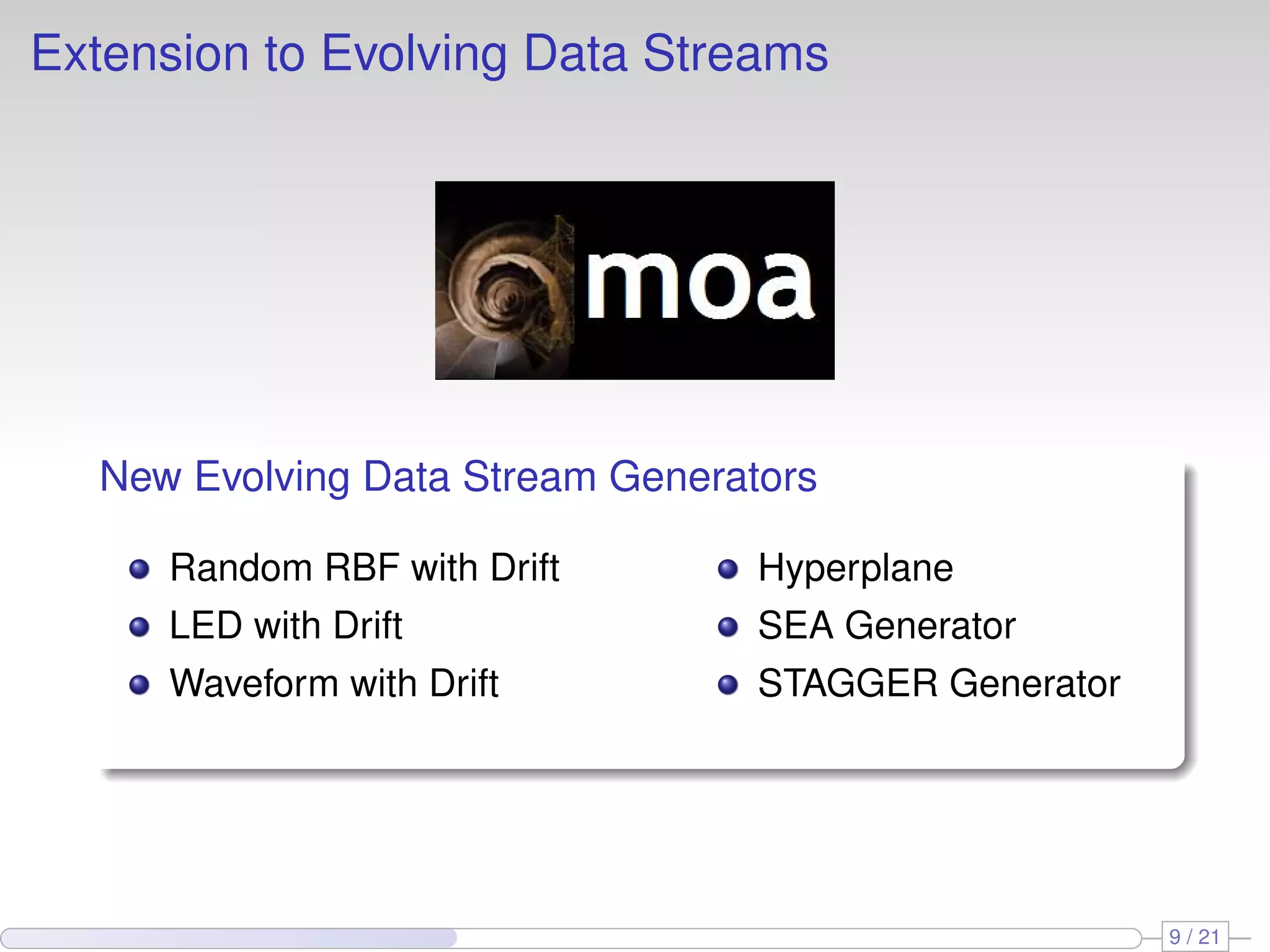

14. Extension to Evolving Data Streams
New Evolving Data Stream Generators
Random RBF with Drift Hyperplane
LED with Drift SEA Generator
Waveform with Drift STAGGER Generator
9 / 21

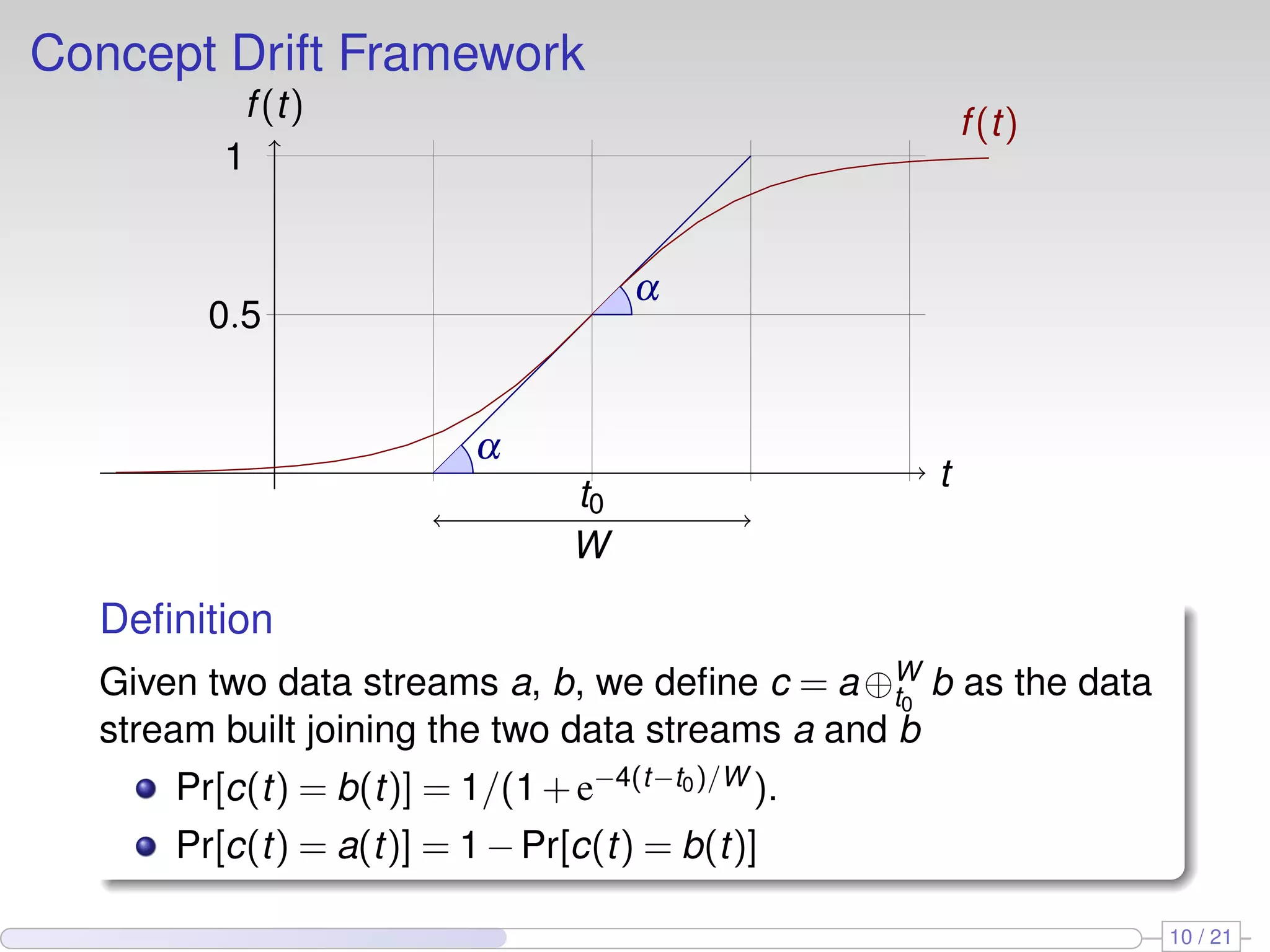

15. Concept Drift Framework
f (t) f (t)
1
α
0.5
α
t
t0
W
Definition
Given two data streams a, b, we define c = a ⊕W b as the data
t0
stream built joining the two data streams a and b
Pr[c(t) = b(t)] = 1/(1 + e−4(t−t0 )/W ).
Pr[c(t) = a(t)] = 1 − Pr[c(t) = b(t)]
10 / 21

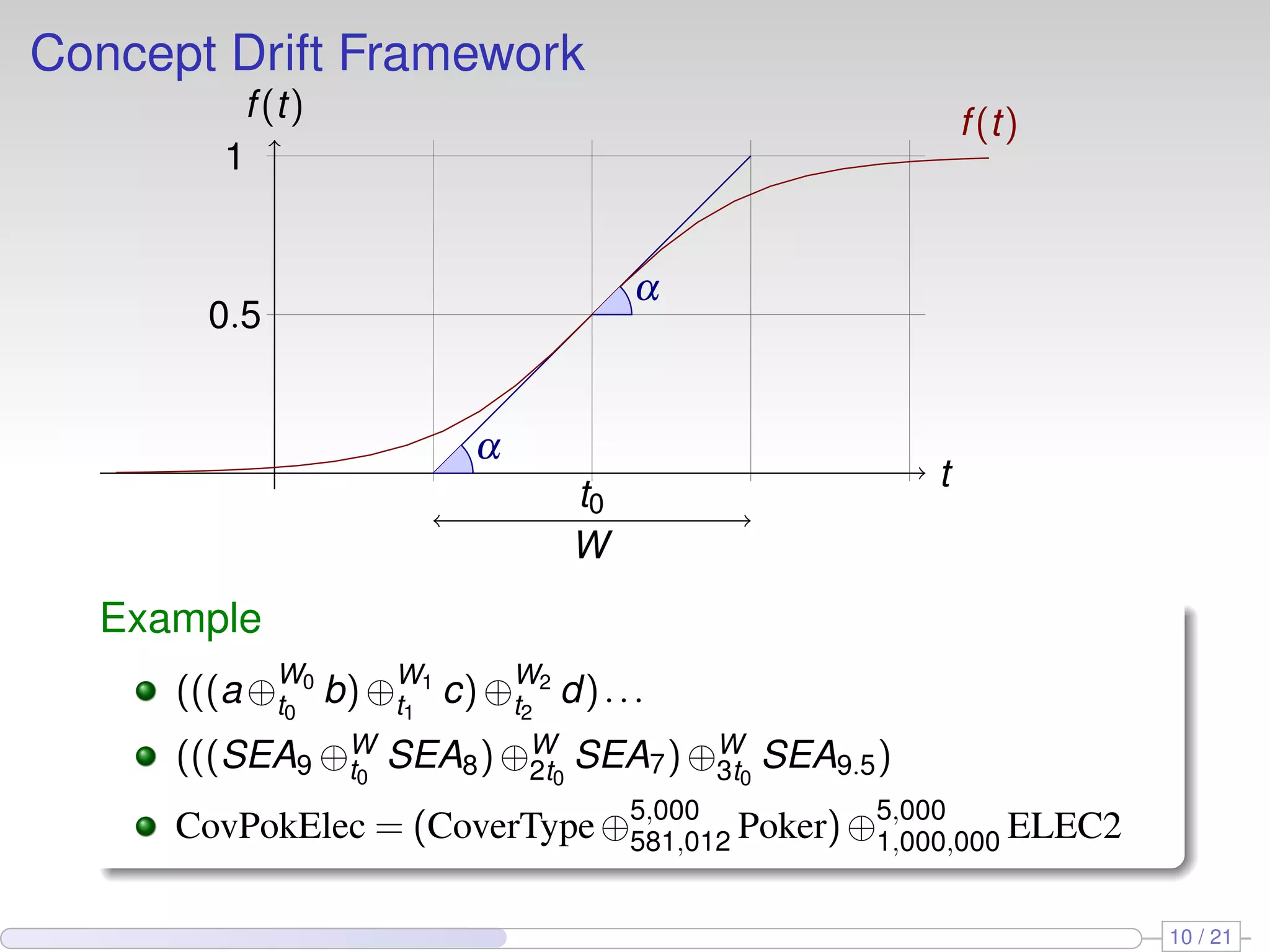

16. Concept Drift Framework
f (t) f (t)
1
α
0.5
α
t
t0
W
Example
(((a ⊕W0 b) ⊕W1 c) ⊕W2 d) . . .
t0 t1 t2
(((SEA9 ⊕W SEA8 ) ⊕W0 SEA7 ) ⊕W0 SEA9.5 )
t0 2t 3t
CovPokElec = (CoverType ⊕5,000 Poker) ⊕5,000
581,012 1,000,000 ELEC2
10 / 21

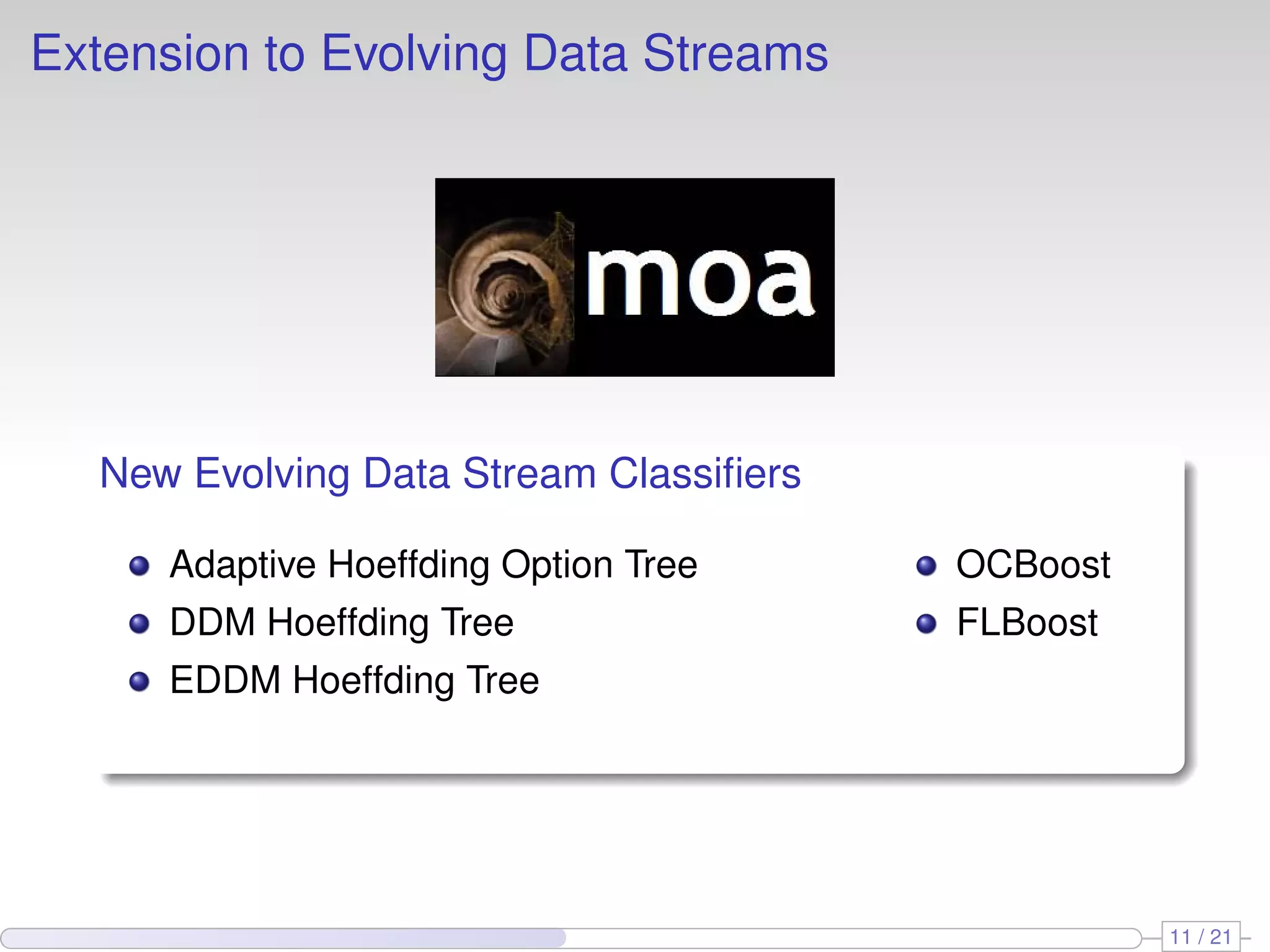

17. Extension to Evolving Data Streams
New Evolving Data Stream Classifiers
Adaptive Hoeffding Option Tree OCBoost
DDM Hoeffding Tree FLBoost
EDDM Hoeffding Tree
11 / 21

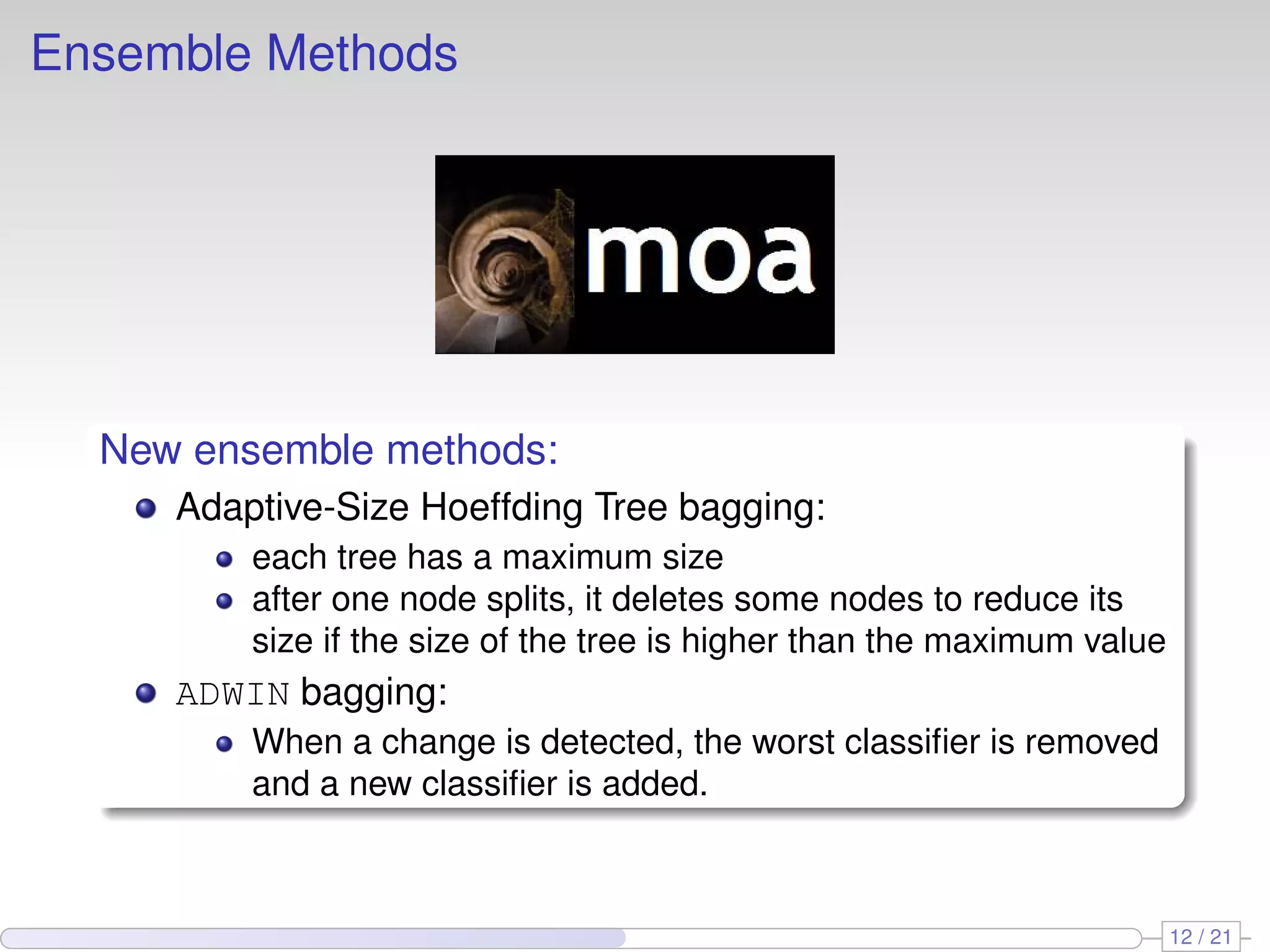

18. Ensemble Methods
New ensemble methods:
Adaptive-Size Hoeffding Tree bagging:
each tree has a maximum size
after one node splits, it deletes some nodes to reduce its
size if the size of the tree is higher than the maximum value
ADWIN bagging:
When a change is detected, the worst classifier is removed
and a new classifier is added.
12 / 21

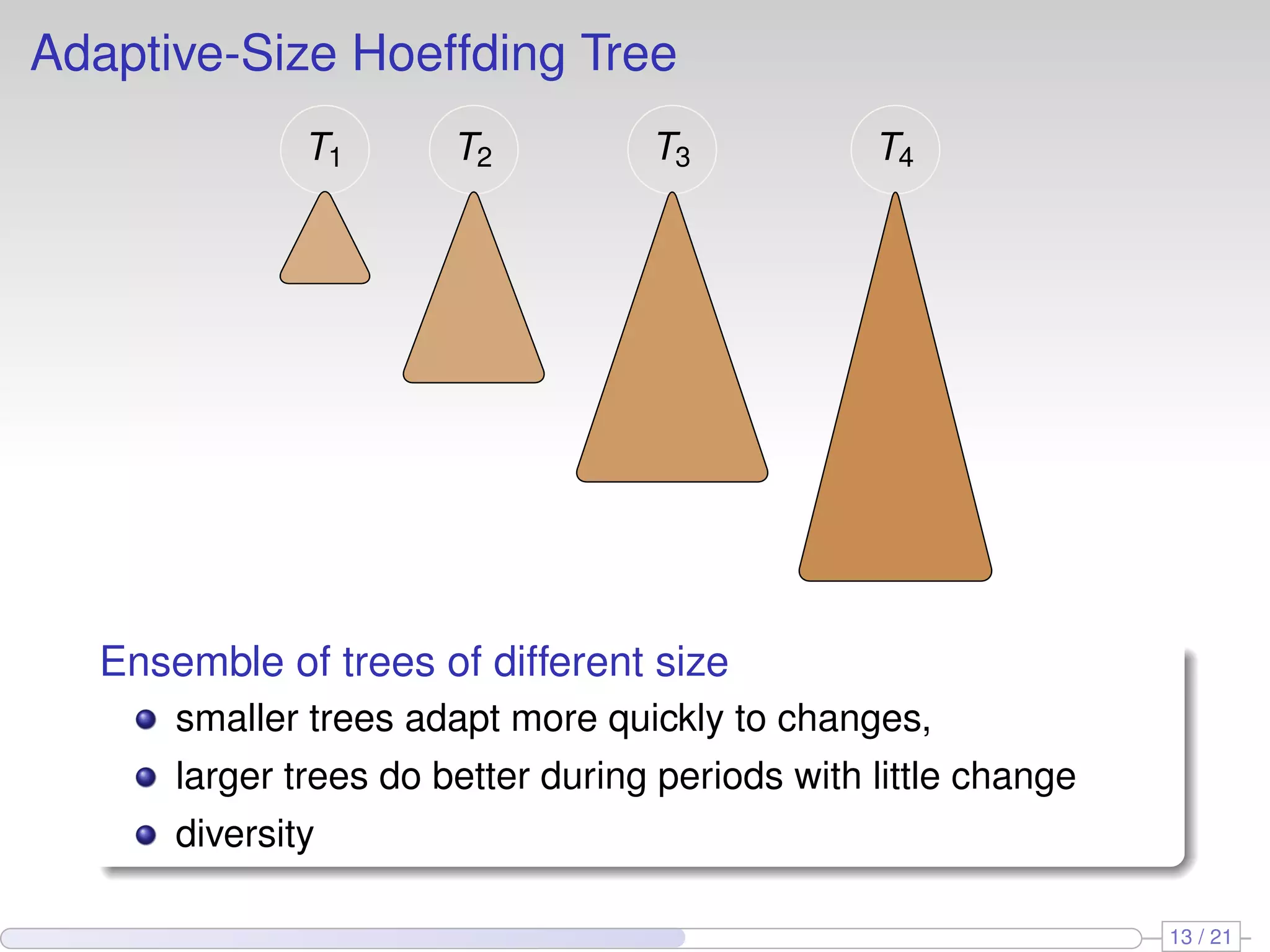

19. Adaptive-Size Hoeffding Tree
T1 T2 T3 T4
Ensemble of trees of different size
smaller trees adapt more quickly to changes,
larger trees do better during periods with little change
diversity
13 / 21

20. Adaptive-Size Hoeffding Tree
0,3 0,28
0,29
0,275
0,28
0,27
0,27
0,26
Error
Error
0,25 0,265
0,24
0,26
0,23
0,22
0,255
0,21
0,2 0,25
0 0,1 0,2 0,3 0,4 0,5 0,6 0,1 0,12 0,14 0,16 0,18 0,2 0,22 0,24 0,26 0,28 0,3
Kappa Kappa

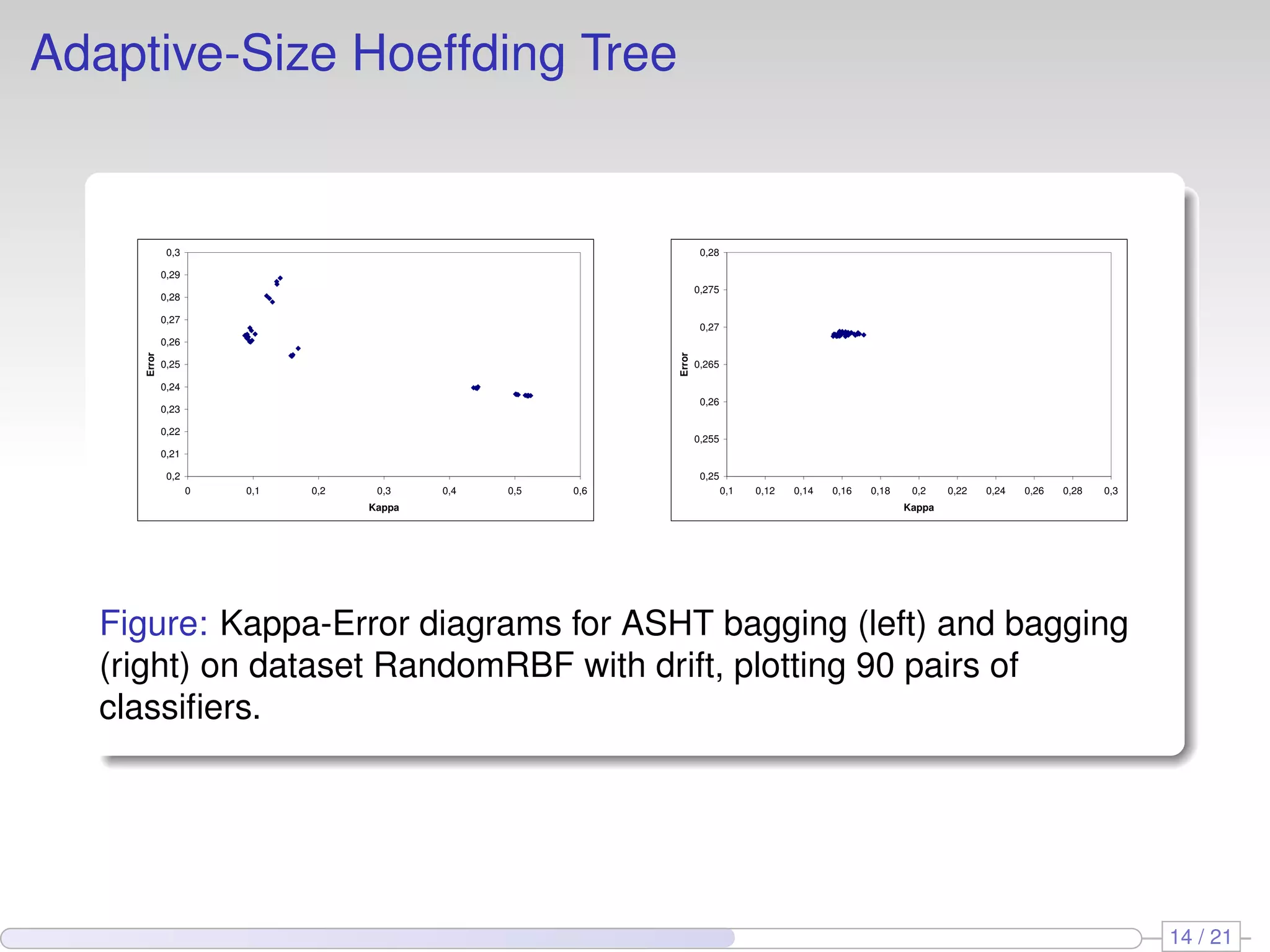

Figure: Kappa-Error diagrams for ASHT bagging (left) and bagging
(right) on dataset RandomRBF with drift, plotting 90 pairs of
classifiers.
14 / 21

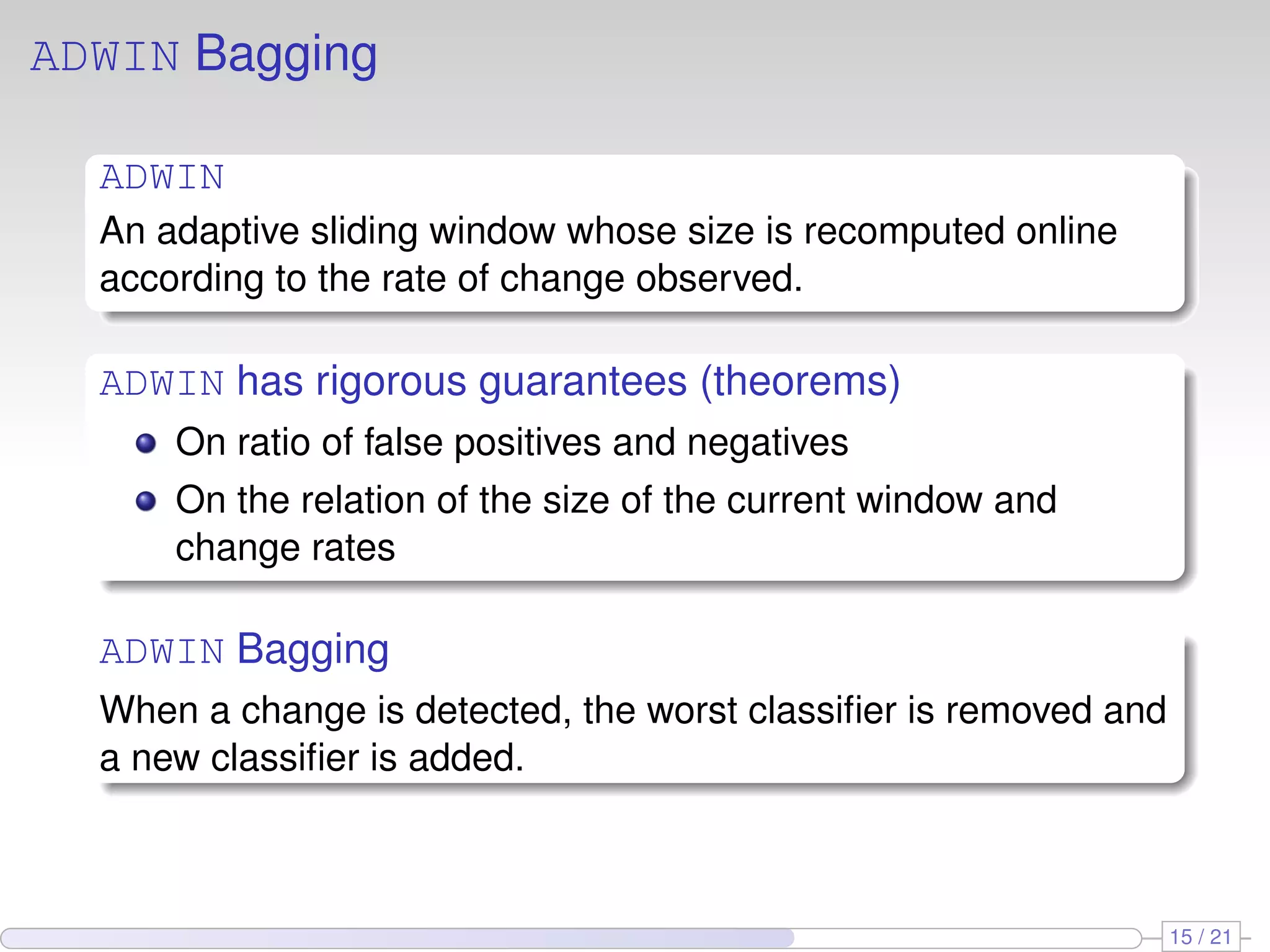

21. ADWIN Bagging
ADWIN
An adaptive sliding window whose size is recomputed online
according to the rate of change observed.
ADWIN has rigorous guarantees (theorems)
On ratio of false positives and negatives
On the relation of the size of the current window and
change rates
ADWIN Bagging
When a change is detected, the worst classifier is removed and
a new classifier is added.
15 / 21

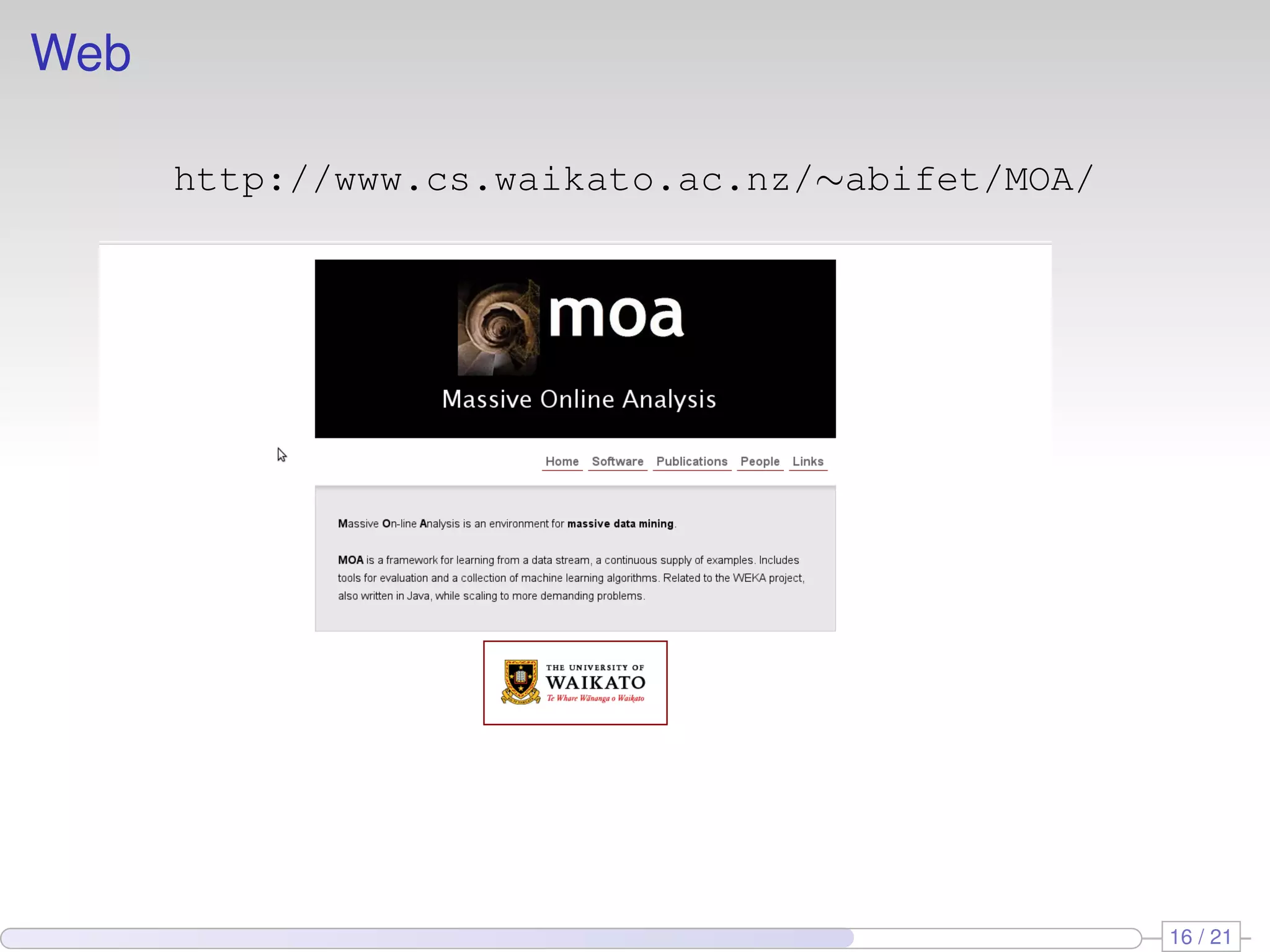

22. Web
http://www.cs.waikato.ac.nz/∼abifet/MOA/
16 / 21

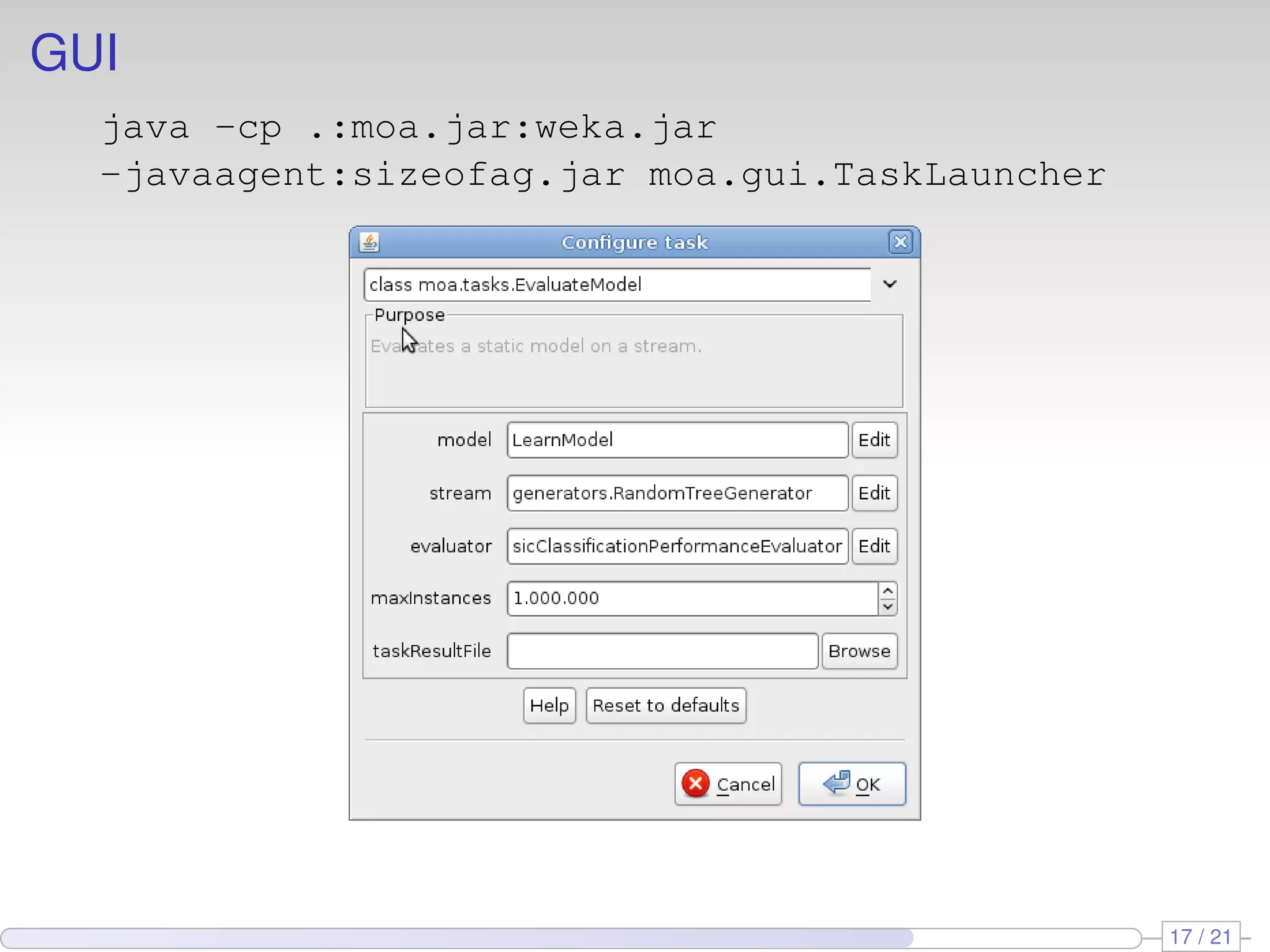

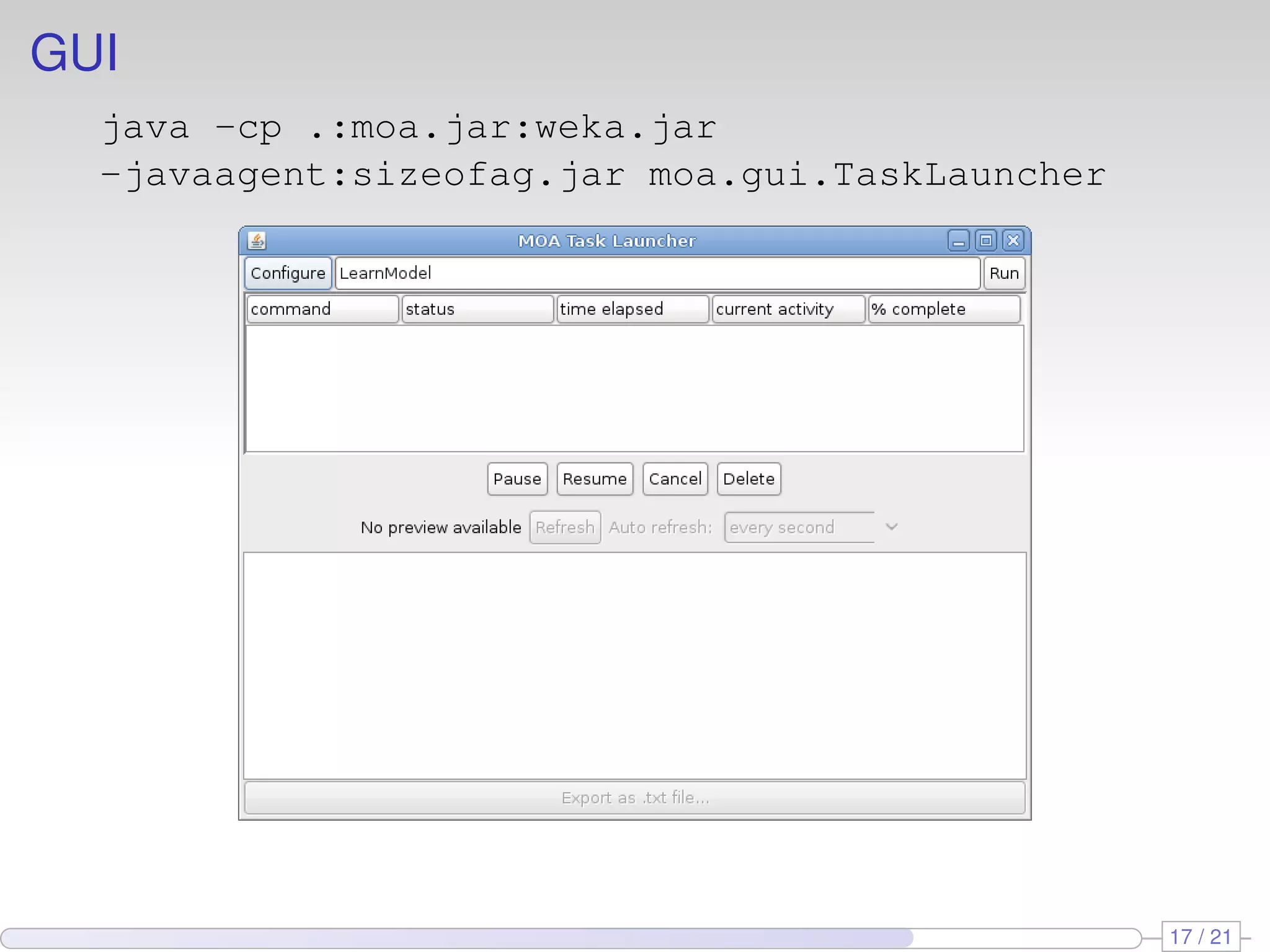

23. GUI
java -cp .:moa.jar:weka.jar
-javaagent:sizeofag.jar moa.gui.TaskLauncher
17 / 21

24. GUI
java -cp .:moa.jar:weka.jar
-javaagent:sizeofag.jar moa.gui.TaskLauncher
17 / 21

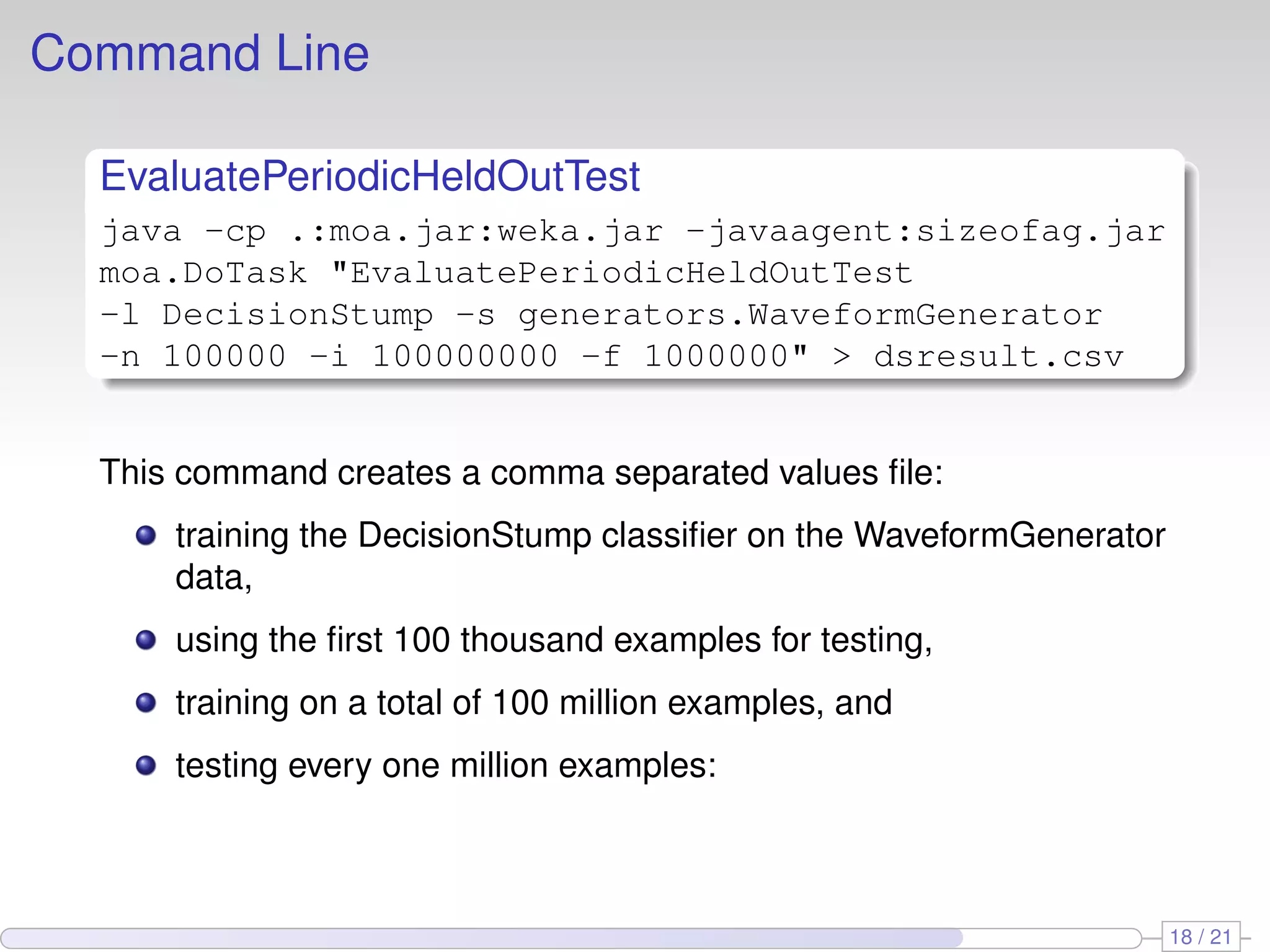

25. Command Line
EvaluatePeriodicHeldOutTest
java -cp .:moa.jar:weka.jar -javaagent:sizeofag.jar
moa.DoTask "EvaluatePeriodicHeldOutTest
-l DecisionStump -s generators.WaveformGenerator
-n 100000 -i 100000000 -f 1000000" > dsresult.csv
This command creates a comma separated values file:
training the DecisionStump classifier on the WaveformGenerator
data,
using the first 100 thousand examples for testing,
training on a total of 100 million examples, and
testing every one million examples:
18 / 21

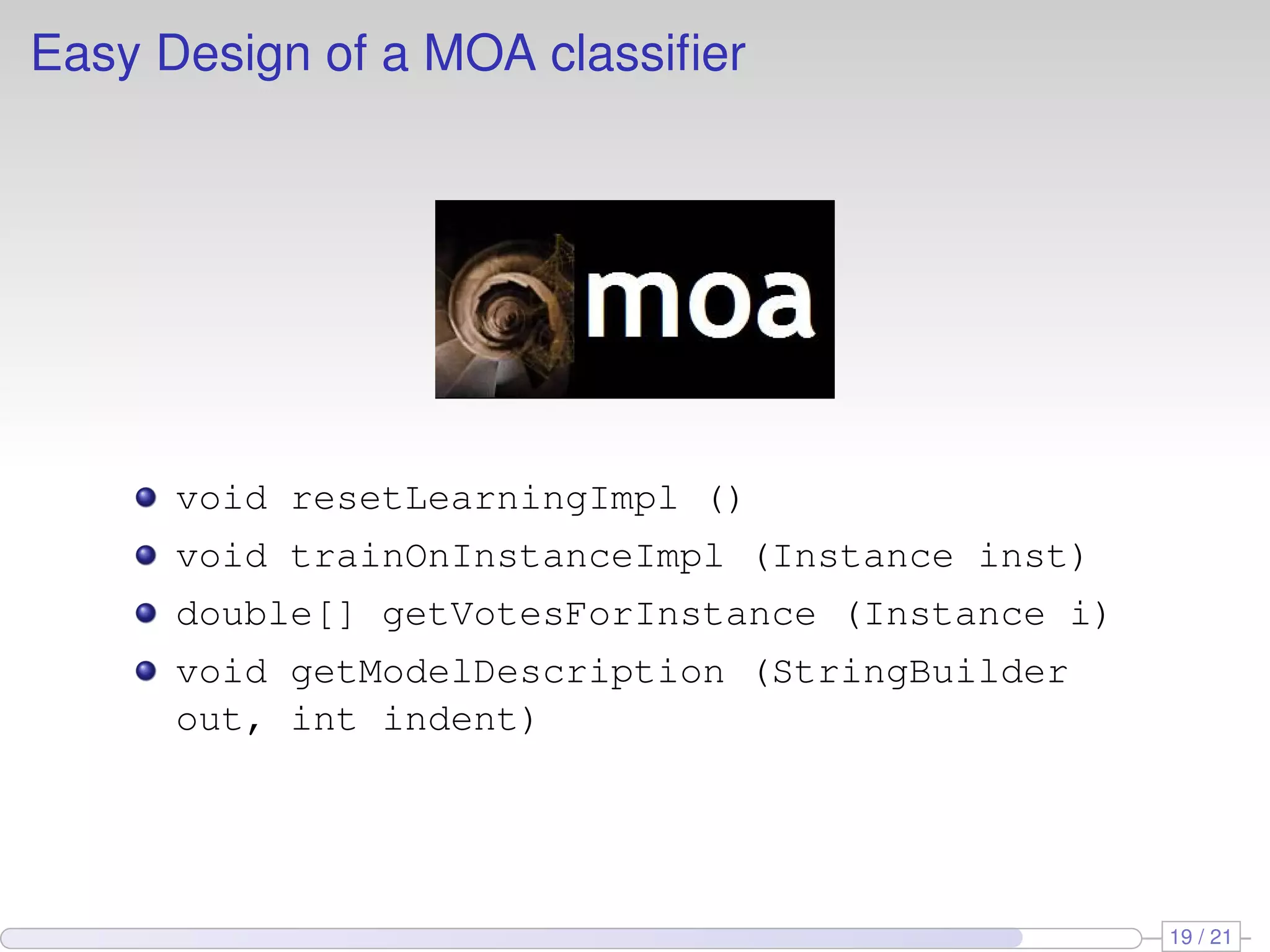

26. Easy Design of a MOA classifier
void resetLearningImpl ()
void trainOnInstanceImpl (Instance inst)
double[] getVotesForInstance (Instance i)
void getModelDescription (StringBuilder
out, int indent)
19 / 21

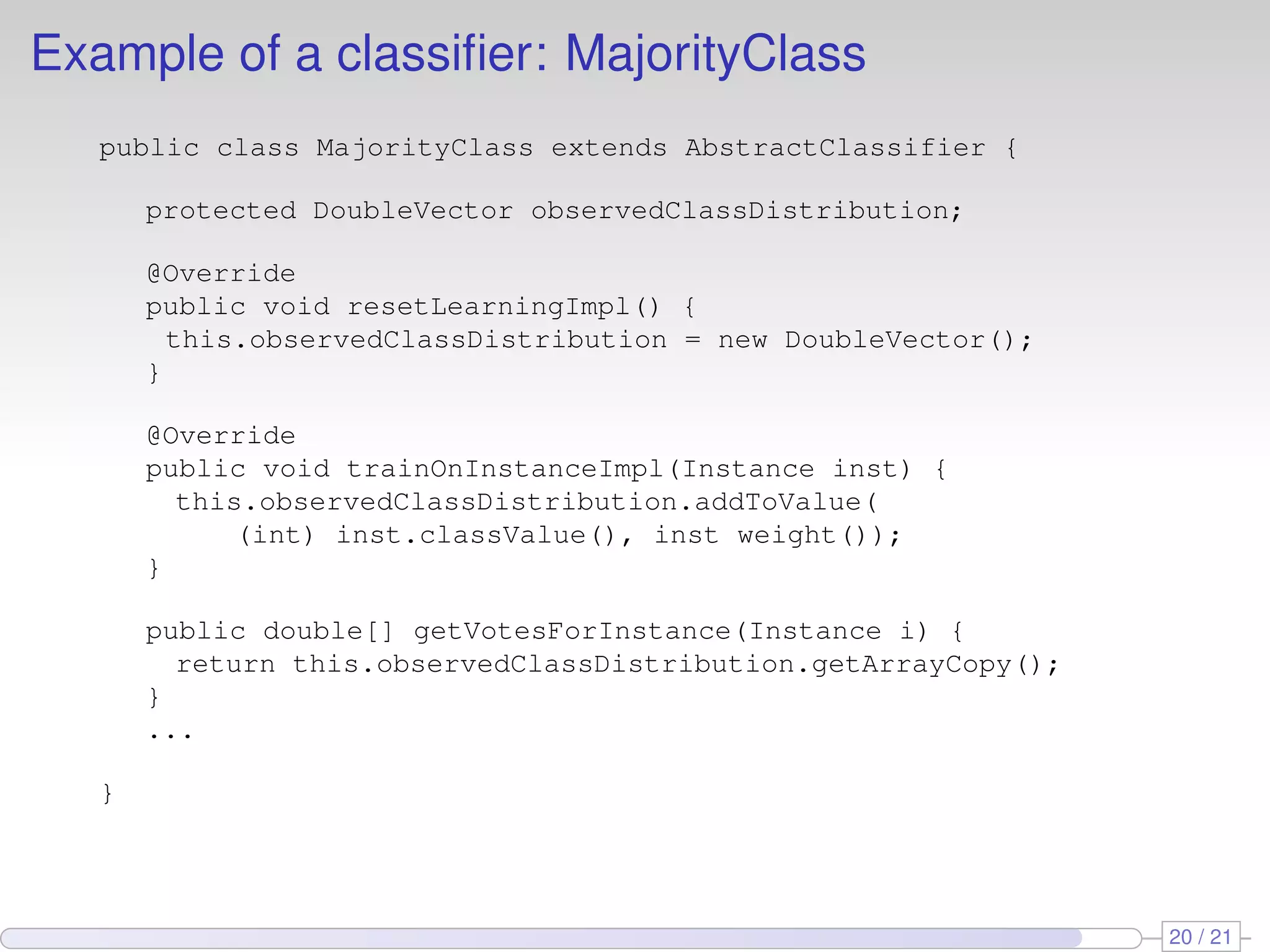

27. Example of a classifier: MajorityClass
public class MajorityClass extends AbstractClassifier {
protected DoubleVector observedClassDistribution;
@Override
public void resetLearningImpl() {
this.observedClassDistribution = new DoubleVector();
}
@Override
public void trainOnInstanceImpl(Instance inst) {
this.observedClassDistribution.addToValue(
(int) inst.classValue(), inst weight());
}
public double[] getVotesForInstance(Instance i) {
return this.observedClassDistribution.getArrayCopy();
}
...
}
20 / 21

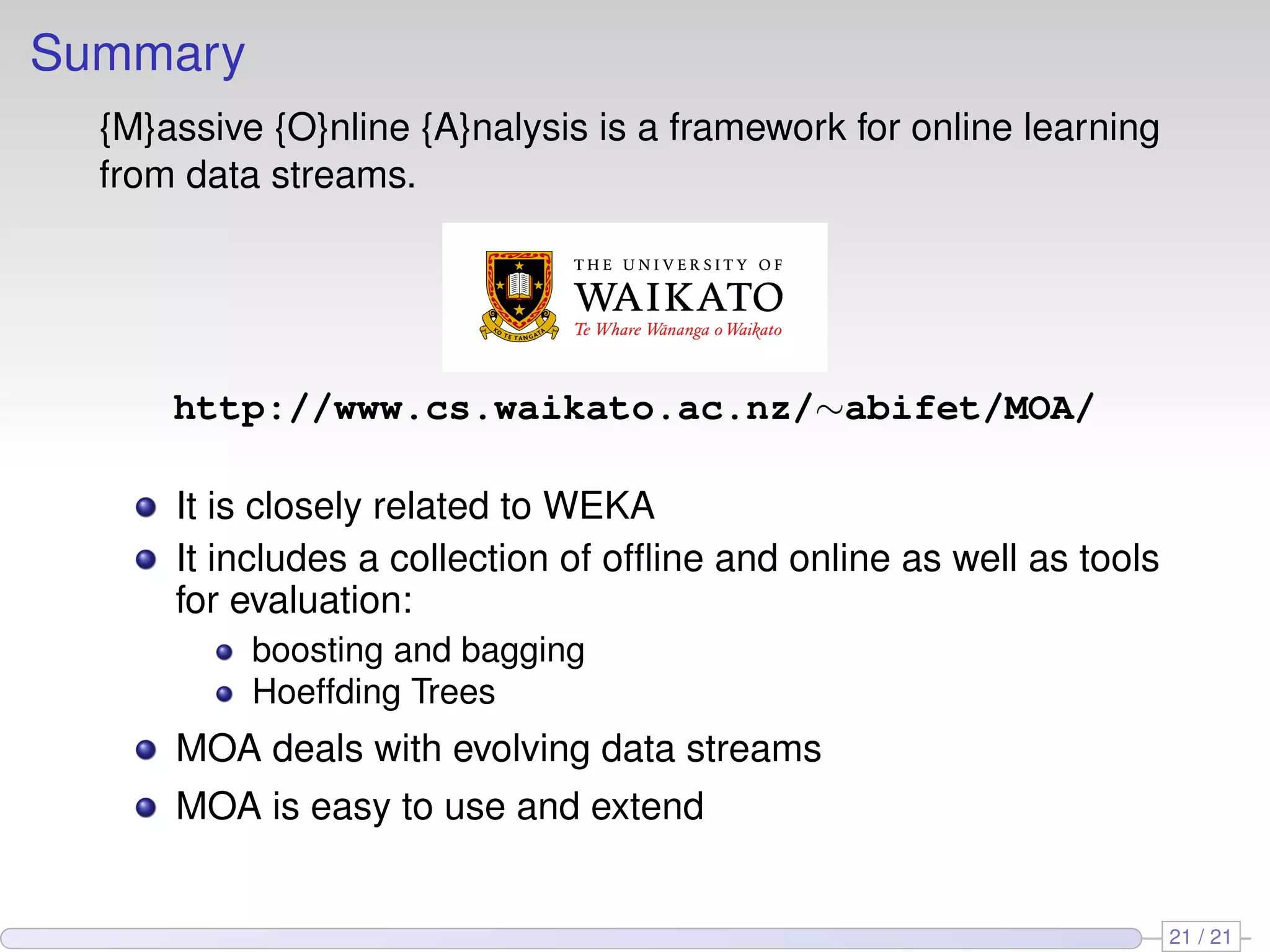

28. Summary
{M}assive {O}nline {A}nalysis is a framework for online learning
from data streams.
http://www.cs.waikato.ac.nz/∼abifet/MOA/
It is closely related to WEKA
It includes a collection of offline and online as well as tools
for evaluation:
boosting and bagging
Hoeffding Trees
MOA deals with evolving data streams
MOA is easy to use and extend
21 / 21
