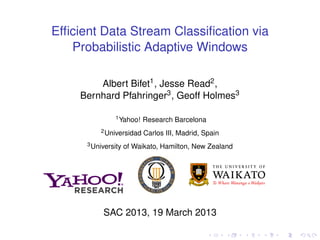

Efficient Data Stream Classification via
Probabilistic Adaptive Windows
Albert Bifet1, Jesse Read2,
Bernhard Pfahringer3, Geoff Holmes3
1Yahoo! Research Barcelona
2Universidad Carlos III, Madrid, Spain
3University of Waikato, Hamilton, New Zealand
SAC 2013, 19 March 2013
Data Streams
Big Data & Real Time
Data Streams
Data Streams
Sequence is potentially infinite
High amount of data: sublinear space
High speed of arrival: sublinear time per example
Once an element from a data stream has been processed
it is discarded or archived
Big Data & Real Time
Data Streams
Approximation algorithms
Small error rate with high probability
An algorithm ( , δ)−approximates F if it outputs ˜F for which
Pr[|˜F − F| > F] < δ.
Big Data & Real Time
Data Stream Sliding Window
Sampling algorithms
Giving equal weight to old and new examples: RESERVOIR
SAMPLING
Giving more weight to recent examples: PROBABILISTIC
APPROXIMATE WINDOW
Big Data & Real Time
8 Bits Counter
1 0 1 0 1 0 1 0
What is the largest number we can
store in 8 bits?
8 Bits Counter
What is the largest number we can
store in 8 bits?
8 Bits Counter
0 20 40 60 80 100
0
20
40
60
80
100
x
f(x) = log(1 + x)/ log(2)
f(0) = 0, f(1) = 1
8 Bits Counter
0 2 4 6 8 10
0
2
4
6
8
10
x
f(x) = log(1 + x)/ log(2)
f(0) = 0, f(1) = 1
8 Bits Counter
0 2 4 6 8 10
0
2
4
6
8
10
x
f(x) = log(1 + x/30)/ log(1 + 1/30)
f(0) = 0, f(1) = 1
8 Bits Counter
0 20 40 60 80 100
0
20
40
60
80
100
x
f(x) = log(1 + x/30)/ log(1 + 1/30)
f(0) = 0, f(1) = 1
8 bits Counter
MORRIS APPROXIMATE COUNTING ALGORITHM
1 Init counter c ← 0
2 for every event in the stream
3 do rand = random number between 0 and 1
4 if rand < p
5 then c ← c + 1
What is the largest number we can
store in 8 bits?
8 bits Counter
MORRIS APPROXIMATE COUNTING ALGORITHM
1 Init counter c ← 0
2 for every event in the stream
3 do rand = random number between 0 and 1
4 if rand < p
5 then c ← c + 1
With p = 1/2 we can store 2 × 256
with standard deviation σ = n/2
8 bits Counter
MORRIS APPROXIMATE COUNTING ALGORITHM
1 Init counter c ← 0
2 for every event in the stream
3 do rand = random number between 0 and 1
4 if rand < p
5 then c ← c + 1
With p = 2−c
then E[2c
] = n + 2 with
variance σ2
= n(n + 1)/2
8 bits Counter
MORRIS APPROXIMATE COUNTING ALGORITHM
1 Init counter c ← 0
2 for every event in the stream
3 do rand = random number between 0 and 1
4 if rand < p
5 then c ← c + 1
If p = b−c
then E[bc
] = n(b − 1) + b,
σ2
= (b − 1)n(n + 1)/2
PROBABILISTIC APPROXIMATE WINDOW
1 Init window w ← ∅
2 for every instance i in the stream
3 do store the new instance i in window w
4 for every instance j in the window
5 do rand = random number between 0 and 1
6 if rand > b−1
7 then remove instance j from window w
PAW maintains a sample of instances
in logarithmic memory, giving greater
weight to newer instances
Experiments: Methods
Abbr. Classifier Parameters
NB Naive Bayes
HT Hoeffding Tree
HTLB Leveraging Bagging with HT n = 10
kNN k Nearest Neighbour w = 1000, k = 10
kNNW kNN with PAW w = 1000, k = 10
kNNWA
kNN with PAW+ADWIN w = 1000, k = 10
kNNLB
W Leveraging Bagging with kNNW n = 10
The methods we consider. Leveraging Bagging
methods use n models. kNNWA
empties its
window (of max w) when drift is detected (using
the ADWIN drift detector).
Experimental Evaluation
Table : The window size for kNN and corresponding performance.
Accuracy
−w 100 −w 500 −w 1000 −w 5000
Real Avg. 77.88 77.78 79.59 78.23
Synth. Avg. 57.99 81.93 84.74 86.03
Overall Avg. 62.53 80.28 82.59 83.11
Results
Experimental Evaluation
Table : The window size for kNN and corresponding performance.
Time (seconds)
−w 100 −w 500 −w 1000 −w 5000
Real Tot. 297 998 1754 7900
Synth. Tot. 371 1297 2313 10671
Overall Tot. 668 2295 4067 18570
Results
Experimental Evaluation
Table : The window size for kNN and corresponding performance.
RAM Hours
−w 100 −w 500 −w 1000 −w 5000
Real Tot. 0.007 0.082 0.269 5.884
Synth. Tot. 0.002 0.026 0.088 1.988
Overall Tot. 0.009 0.108 0.357 7.872
Results
Experimental Evaluation
Table : Summary of Efficiency: Accuracy and RAM-Hours.
NB HT HTLB kNN kNNW kNNWA
kNNLB
W
Accuracy 56.19 73.95 83.75 82.59 82.92 83.19 84.67
RAM-Hrs 0.02 1.57 300.02 0.36 8.08 8.80 250.98
Results
Conclusions
Sampling algorithms for kNN
Giving equal weight to old and new examples: RESERVOIR
SAMPLING
Giving more weight to recent examples: PROBABILISTIC
APPROXIMATE WINDOW
Big Data & Real Time
Thanks!
