Multimedia Communication Lab Manual (3361106)
GP, Dahod. Page 1
Date:

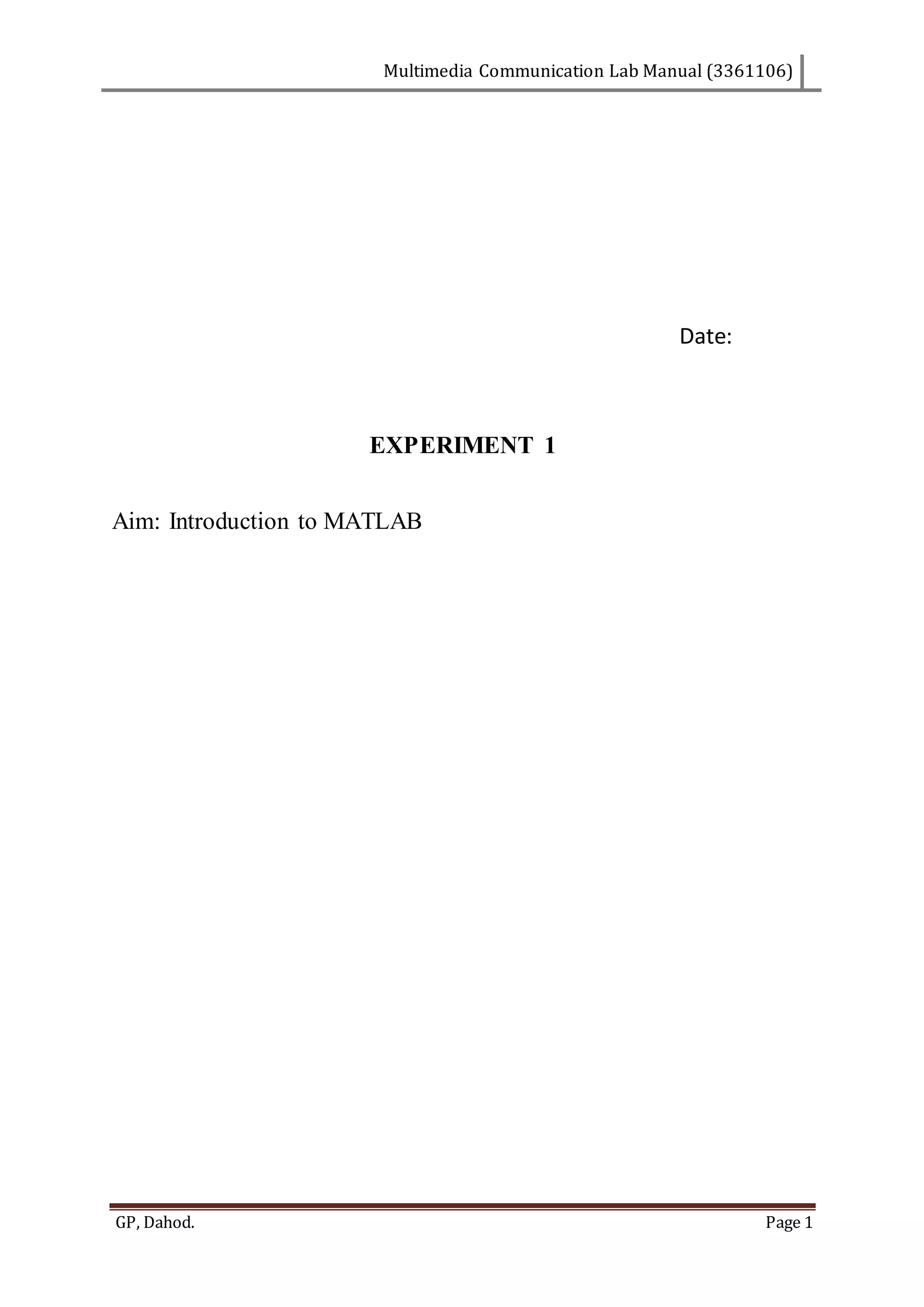

EXPERIMENT 1
Aim: Introduction to MATLAB

GP, Dahod. Page 2

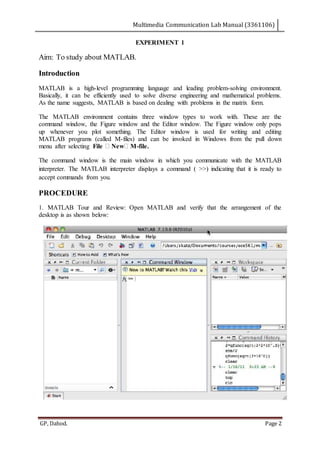

EXPERIMENT 1
Aim: To study about MATLAB.
Introduction
MATLAB is a high-level programming language and leading problem-solving environment.
Basically, it can be efficiently used to solve diverse engineering and mathematical problems.
As the name suggests, MATLAB is based on dealing with problems in the matrix form.
The MATLAB environment contains three window types to work with. These are the
command window, the Figure window and the Editor window. The Figure window only pops
up whenever you plot something. The Editor window is used for writing and editing
MATLAB programs (called M-files) and can be invoked in Windows from the pull down
menu after selecting File New M-file.
The command window is the main window in which you communicate with the MATLAB
interpreter. The MATLAB interpreter displays a command ( >>) indicating that it is ready to
accept commands from you.
PROCEDURE
1. MATLAB Tour and Review: Open MATLAB and verify that the arrangement of the
desktop is as shown below:

GP, Dahod. Page 3

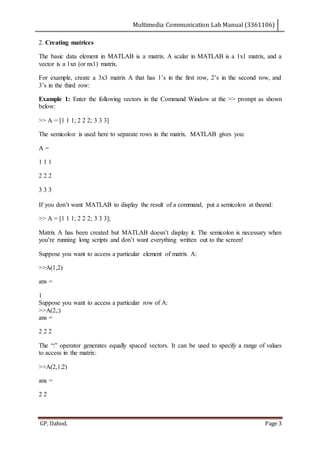

2. Creating matrices
The basic data element in MATLAB is a matrix. A scalar in MATLAB is a 1x1 matrix, and a
vector is a 1xn (or nx1) matrix.
For example, create a 3x3 matrix A that has 1’s in the first row, 2’s in the second row, and
3’s in the third row:
Example 1: Enter the following vectors in the Command Window at the >> prompt as shown
below:
>> A = [1 1 1; 2 2 2; 3 3 3]
The semicolon is used here to separate rows in the matrix. MATLAB gives you:
A =
1 1 1
2 2 2
3 3 3
If you don’t want MATLAB to display the result of a command, put a semicolon at theend:
>> A = [1 1 1; 2 2 2; 3 3 3];
Matrix A has been created but MATLAB doesn’t display it. The semicolon is necessary when
you’re running long scripts and don’t want everything written out to the screen!
Suppose you want to access a particular element of matrix A:
>>A(1,2)
ans =
1
Suppose you want to access a particular row of A:
>>A(2,:)
ans =
2 2 2
The “:” operator generates equally spaced vectors. It can be used to specify a range of values
to access in the matrix:
>>A(2,1:2)
ans =
2 2

GP, Dahod. Page 4

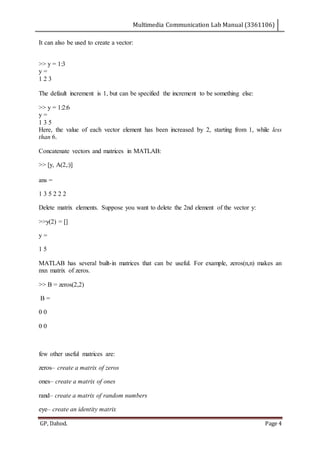

It can also be used to create a vector:
>> y = 1:3
y =
1 2 3
The default increment is 1, but can be specified the increment to be something else:
>> y = 1:2:6
y =
1 3 5
Here, the value of each vector element has been increased by 2, starting from 1, while less
than 6.
Concatenate vectors and matrices in MATLAB:
>> [y, A(2,:)]
ans =
1 3 5 2 2 2
Delete matrix elements. Suppose you want to delete the 2nd element of the vector y:
>>y(2) = []
y =
1 5
MATLAB has several built-in matrices that can be useful. For example, zeros(n,n) makes an
nxn matrix of zeros.
>> B = zeros(2,2)
B =
0 0
0 0
few other useful matrices are:
zeros– create a matrix of zeros
ones– create a matrix of ones
rand– create a matrix of random numbers
eye– create an identity matrix

GP, Dahod. Page 5

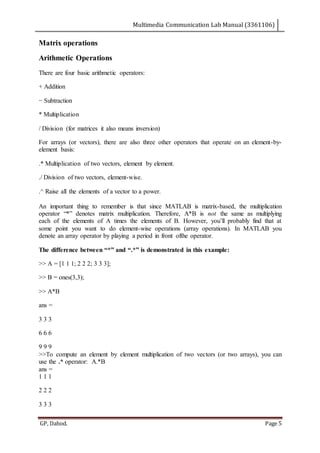

Matrix operations
Arithmetic Operations
There are four basic arithmetic operators:
+ Addition
− Subtraction
* Multiplication
/ Division (for matrices it also means inversion)
For arrays (or vectors), there are also three other operators that operate on an element-by-
element basis:
.* Multiplication of two vectors, element by element.
./ Division of two vectors, element-wise.
.^ Raise all the elements of a vector to a power.
An important thing to remember is that since MATLAB is matrix-based, the multiplication
operator “*” denotes matrix multiplication. Therefore, A*B is not the same as multiplying
each of the elements of A times the elements of B. However, you’ll probably find that at
some point you want to do element-wise operations (array operations). In MATLAB you
denote an array operator by playing a period in front ofthe operator.
The difference between “*” and “.*” is demonstrated in this example:
>> A = [1 1 1; 2 2 2; 3 3 3];
>> B = ones(3,3);
>> A*B
ans =
3 3 3
6 6 6
9 9 9
>>To compute an element by element multiplication of two vectors (or two arrays), you can
use the .* operator: A.*B
ans =
1 1 1
2 2 2
3 3 3

GP, Dahod. Page 6

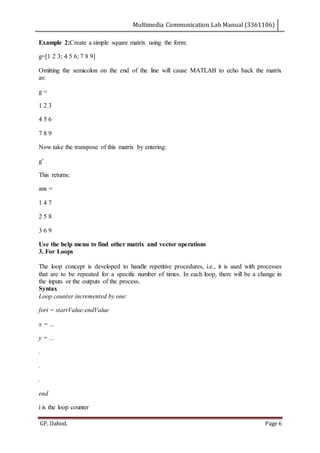

Example 2:Create a simple square matrix using the form:
g=[1 2 3; 4 5 6; 7 8 9]
Omitting the semicolon on the end of the line will cause MATLAB to echo back the matrix
as:
g =
1 2 3
4 5 6
7 8 9
Now take the transpose of this matrix by entering:
g’
This returns:
ans =
1 4 7
2 5 8
3 6 9
Use the help menu to find other matrix and vector operations
3. For Loops
The loop concept is developed to handle repetitive procedures, i.e., it is used with processes
that are to be repeated for a specific number of times. In each loop, there will be a change in
the inputs or the outputs of the process.
Syntax
Loop counter incremented by one:
fori = startValue:endValue
x = ...
y = ...
.
.
.
end
i is the loop counter

GP, Dahod. Page 7

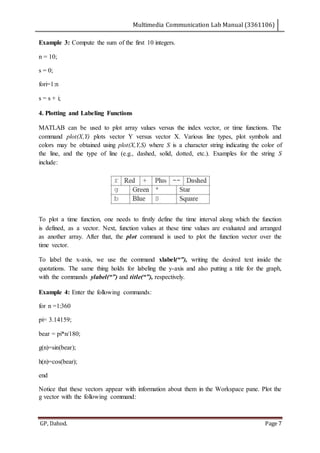

Example 3: Compute the sum of the first 10 integers.
n = 10;
s = 0;
fori=1:n
s = s + i;
4. Plotting and Labeling Functions
MATLAB can be used to plot array values versus the index vector, or time functions. The
command plot(X,Y) plots vector Y versus vector X. Various line types, plot symbols and
colors may be obtained using plot(X,Y,S) where S is a character string indicating the color of
the line, and the type of line (e.g., dashed, solid, dotted, etc.). Examples for the string S
include:
To plot a time function, one needs to firstly define the time interval along which the function
is defined, as a vector. Next, function values at these time values are evaluated and arranged
as another array. After that, the plot command is used to plot the function vector over the
time vector.
To label the x-axis, we use the command xlabel(“”), writing the desired text inside the
quotations. The same thing holds for labeling the y-axis and also putting a title for the graph,
with the commands ylabel(“”) and title(“”), respectively.
Example 4: Enter the following commands:
for n =1:360
pi= 3.14159;
bear = pi*n/180;
g(n)=sin(bear);
h(n)=cos(bear);
end
Notice that these vectors appear with information about them in the Workspace pane. Plot the
g vector with the following command:

GP, Dahod. Page 8

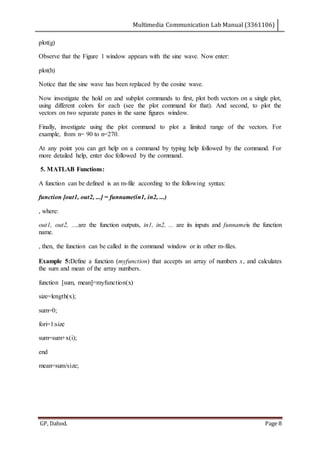

plot(g)
Observe that the Figure 1 window appears with the sine wave. Now enter:
plot(h)
Notice that the sine wave has been replaced by the cosine wave.
Now investigate the hold on and subplot commands to first, plot both vectors on a single plot,
using different colors for each (see the plot command for that). And second, to plot the
vectors on two separate panes in the same figures window.
Finally, investigate using the plot command to plot a limited range of the vectors. For
example, from n= 90 to n=270.
At any point you can get help on a command by typing help followed by the command. For
more detailed help, enter doc followed by the command.
5. MATLAB Functions:
A function can be defined is an m-file according to the following syntax:
function [out1, out2, ...] = funname(in1, in2, ...)
, where:
out1, out2, ...,are the function outputs, in1, in2, ... are its inputs and funnameis the function
name.
, then, the function can be called in the command window or in other m-files.
Example 5:Define a function (myfunction) that accepts an array of numbers x, and calculates
the sum and mean of the array numbers.
function [sum, mean]=myfunction(x)
size=length(x);
sum=0;
fori=1:size
sum=sum+x(i);
end
mean=sum/size;

GP, Dahod. Page 9

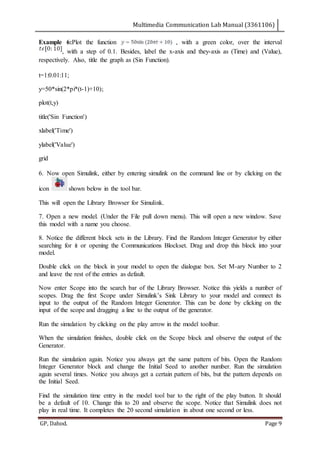

Example 6:Plot the function , with a green color, over the interval
, with a step of 0.1. Besides, label the x-axis and they-axis as (Time) and (Value),
respectively. Also, title the graph as (Sin Function).
t=1:0.01:11;
y=50*sin(2*pi*(t-1)+10);
plot(t,y)
title('Sin Function')
xlabel('Time')
ylabel('Value')
grid
6. Now open Simulink, either by entering simulink on the command line or by clicking on the
icon shown below in the tool bar.
This will open the Library Browser for Simulink.
7. Open a new model. (Under the File pull down menu). This will open a new window. Save
this model with a name you choose.
8. Notice the different block sets in the Library. Find the Random Integer Generator by either
searching for it or opening the Communications Blockset. Drag and drop this block into your
model.
Double click on the block in your model to open the dialogue box. Set M-ary Number to 2
and leave the rest of the entries as default.
Now enter Scope into the search bar of the Library Browser. Notice this yields a number of
scopes. Drag the first Scope under Simulink’s Sink Library to your model and connect its
input to the output of the Random Integer Generator. This can be done by clicking on the
input of the scope and dragging a line to the output of the generator.
Run the simulation by clicking on the play arrow in the model toolbar.
When the simulation finishes, double click on the Scope block and observe the output of the
Generator.
Run the simulation again. Notice you always get the same pattern of bits. Open the Random
Integer Generator block and change the Initial Seed to another number. Run the simulation
again several times. Notice you always get a certain pattern of bits, but the pattern depends on
the Initial Seed.
Find the simulation time entry in the model tool bar to the right of the play button. It should
be a default of 10. Change this to 20 and observe the scope. Notice that Simulink does not
play in real time. It completes the 20 second simulation in about one second or less.

GP, Dahod. Page 10

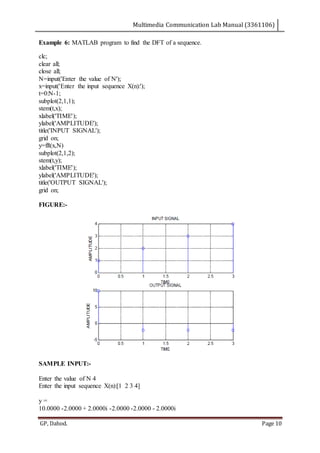

Example 6: MATLAB program to find the DFT of a sequence.
clc;
clear all;
close all;
N=input('Enter the value of N');
x=input('Enter the input sequence X(n):');
t=0:N-1;
subplot(2,1,1);
stem(t,x);
xlabel('TIME');
ylabel('AMPLITUDE');
title('INPUT SIGNAL');
grid on;
y=fft(x,N)
subplot(2,1,2);
stem(t,y);
xlabel('TIME');
ylabel('AMPLITUDE');
title('OUTPUT SIGNAL');
grid on;
FIGURE:-
SAMPLE INPUT:-
Enter the value of N 4
Enter the input sequence X(n):[1 2 3 4]
y =
10.0000 -2.0000 + 2.0000i -2.0000 -2.0000 - 2.0000i

GP, Dahod. Page 11

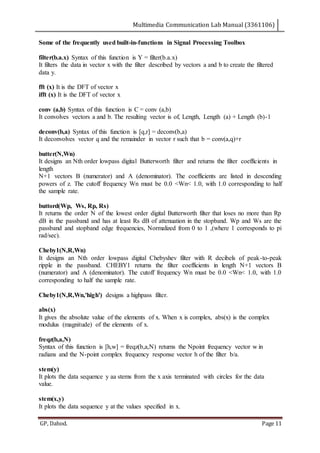

Some of the frequently used built-in-functions in Signal Processing Toolbox
filter(b.a.x) Syntax of this function is Y = filter(b.a.x)
It filters the data in vector x with the filter described by vectors a and b to create the filtered
data y.
fft (x) It is the DFT of vector x
ifft (x) It is the DFT of vector x
conv (a,b) Syntax of this function is C = conv (a,b)
It convolves vectors a and b. The resulting vector is of, Length, Length (a) + Length (b)-1
deconv(b,a) Syntax of this function is [q,r] = deconv(b,a)
It deconvolves vector q and the remainder in vector r such that b = conv(a,q)+r
butter(N,Wn)
It designs an Nth order lowpass digital Butterworth filter and returns the filter coefficients in
length
N+1 vectors B (numerator) and A (denominator). The coefficients are listed in descending
powers of z. The cutoff frequency Wn must be 0.0 <Wn< 1.0, with 1.0 corresponding to half
the sample rate.
buttord(Wp, Ws, Rp, Rs)
It returns the order N of the lowest order digital Butterworth filter that loses no more than Rp
dB in the passband and has at least Rs dB of attenuation in the stopband. Wp and Ws are the
passband and stopband edge frequencies, Normalized from 0 to 1 ,(where 1 corresponds to pi
rad/sec).
Cheby1(N,R,Wn)
It designs an Nth order lowpass digital Chebyshev filter with R decibels of peak-to-peak
ripple in the passband. CHEBY1 returns the filter coefficients in length N+1 vectors B
(numerator) and A (denominator). The cutoff frequency Wn must be 0.0 <Wn< 1.0, with 1.0
corresponding to half the sample rate.
Cheby1(N,R,Wn,'high') designs a highpass filter.
abs(x)
It gives the absolute value of the elements of x. When x is complex, abs(x) is the complex
modulus (magnitude) of the elements of x.
freqz(b,a,N)
Syntax of this function is [h,w] = freqz(b,a,N) returns the Npoint frequency vector w in
radians and the N-point complex frequency response vector h of the filter b/a.
stem(y)
It plots the data sequence y aa stems from the x axis terminated with circles for the data
value.
stem(x,y)
It plots the data sequence y at the values specified in x.

GP, Dahod. Page 12

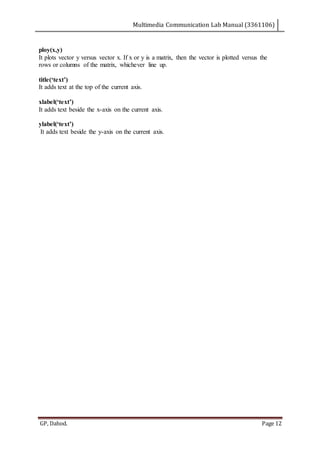

ploy(x,y)
It plots vector y versus vector x. If x or y is a matrix, then the vector is plotted versus the
rows or columns of the matrix, whichever line up.
title(‘text’)
It adds text at the top of the current axis.
xlabel(‘text’)
It adds text beside the x-axis on the current axis.
ylabel(‘text’)
It adds text beside the y-axis on the current axis.

GP, Dahod. Page 13
Date:
EXPERIMENT 2
Aim: Write a program to get information about a graphic file using
imread() function of MATLAB.

GP, Dahod. Page 14
EXPERIMENT 2
Aim: Write a program to get information about a graphic file using imread() function of
MATLAB.
Syntax:
% Read RGB image from graphics file.
im = imread('street2.jpg');
% Display image with true aspect ratio.
image(im); axis image
% Use ginput to select corner points of a rectangular region.
p = ginput(2);
% Get the x and y corner coordinates as integers
sp(1) = min(floor(p(1)), floor(p(2))); %xmin
sp(2) = min(floor(p(3)), floor(p(4))); %ymin
sp(3) = max(ceil(p(1)), ceil(p(2))); %xmax
sp(4) = max(ceil(p(3)), ceil(p(4))); %ymax
% Index into the original image to create the new image
MM = im(sp(2):sp(4), sp(1): sp(3),:);
% Display the subsetted image with appropriate axis ratio
figure; image(MM); axis image
% Write image to graphics file.
imwrite(MM,'street2_cropped.tif')

GP, Dahod. Page 15

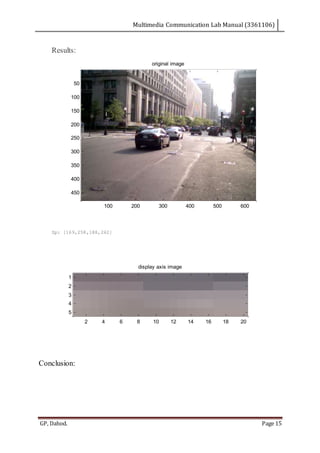

Results:
Sp: [169,258,188,262]
Conclusion:
original image
100 200 300 400 500 600
50
100
150
200
250
300
350
400
450
display axis image
2 4 6 8 10 12 14 16 18 20
1
2
3
4
5

GP, Dahod. Page 16

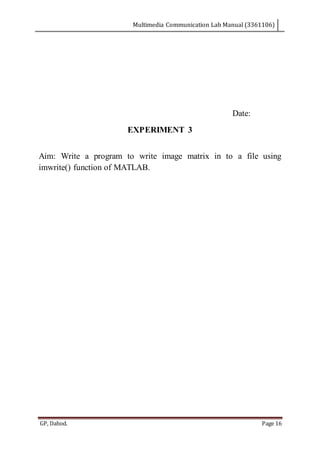

Date:
EXPERIMENT 3
Aim: Write a program to write image matrix in to a file using
imwrite() function of MATLAB.

GP, Dahod. Page 17

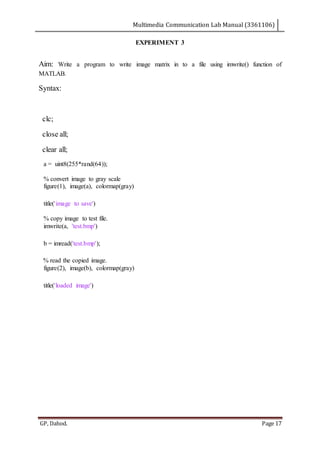

EXPERIMENT 3
Aim: Write a program to write image matrix in to a file using imwrite() function of
MATLAB.
Syntax:
clc;
close all;
clear all;
a = uint8(255*rand(64));
% convert image to gray scale
figure(1), image(a), colormap(gray)
title('image to save')
% copy image to test file.
imwrite(a, 'test.bmp')
b = imread('test.bmp');
% read the copied image.
figure(2), image(b), colormap(gray)
title('loaded image')

GP, Dahod. Page 18

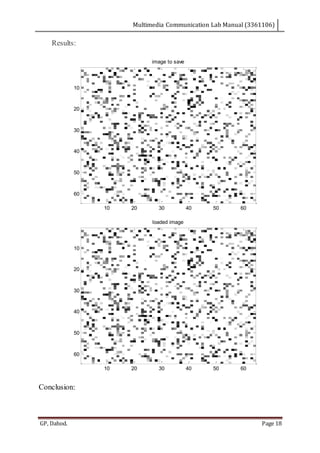

Results:
Conclusion:
image to save
10 20 30 40 50 60
10
20
30
40
50
60
loaded image
10 20 30 40 50 60
10
20
30
40
50
60

GP, Dahod. Page 19
Date:
EXPERIMENT 4
Aim: Write a program to read audio file to WAV format in matrix
form.

GP, Dahod. Page 20
EXPERIMENT 4
Aim: Write a program to read audio file to WAV format in matrix form.
Read WAVE (.wav) sound file.
Syntax
y = wavread(filename)
[y, Fs] = wavread(filename)
[y, Fs, nbits] = wavread(filename)
[y, Fs, nbits, opts] = wavread(filename)
[___] = wavread(filename, N)
[___] = wavread(filename, [N1N2])
[___] = wavread(___, fmt)
siz = wavread(filename,'size')
Description
y = wavread(filename) loads a WAVE file specified by the string filename, returning the
sampled data in y. If filename does not include an extension, wavread appends .wav.
[y, Fs] = wavread(filename) returns the sample rate (Fs) in Hertz used to encode the data in
the file.
[y, Fs, nbits] = wavread(filename) returns the number of bits per sample (nbits).
[y, Fs, nbits, opts] = wavread(filename) returns a structure opts of additional information
contained in the WAV file. The content of this structure differs from file to file. Typical
structure fields include opts.fmt (audio format information) and opts.info (text that describes
the title, author, etc.).
[___] = wavread(filename, N) returns only the first N samples from each channel in the file.
[___] = wavread(filename, [N1N2]) returns only samples N1 through N2 from each channel
in the file.
[___] = wavread(___, fmt) specifies the data format of y used to represent samples read from
the file. fmt can be either of the
siz = wavread(filename,'size') returns the size of the audio data contained in filename instead
of the actual audio data, returning the vector siz = [sampleschannels].
'double' Double-precision normalized samples (default).
'native' Samples in the native data type found in the file.

GP, Dahod. Page 21

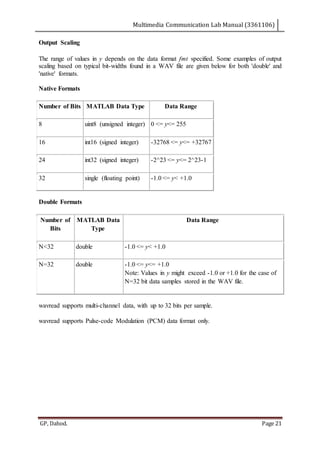

Output Scaling
The range of values in y depends on the data format fmt specified. Some examples of output
scaling based on typical bit-widths found in a WAV file are given below for both 'double' and
'native' formats.
Native Formats
Number of Bits MATLAB Data Type Data Range
8 uint8 (unsigned integer) 0 <= y<= 255
16 int16 (signed integer) -32768 <= y<= +32767
24 int32 (signed integer) -2^23 <= y<= 2^23-1
32 single (floating point) -1.0 <= y< +1.0
Double Formats
Number of
Bits
MATLAB Data
Type
Data Range
N<32 double -1.0 <= y< +1.0
N=32 double -1.0 <= y<= +1.0
Note: Values in y might exceed -1.0 or +1.0 for the case of
N=32 bit data samples stored in the WAV file.
wavread supports multi-channel data, with up to 32 bits per sample.
wavread supports Pulse-code Modulation (PCM) data format only.

GP, Dahod. Page 22

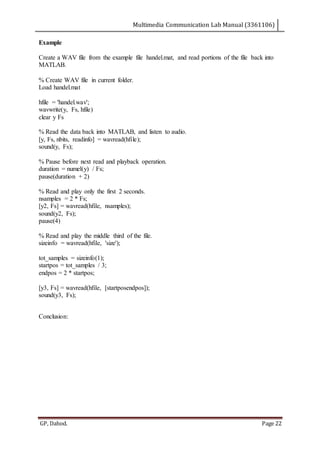

Example
Create a WAV file from the example file handel.mat, and read portions of the file back into
MATLAB.
% Create WAV file in current folder.
Load handel.mat
hfile = 'handel.wav';
wavwrite(y, Fs, hfile)
clear y Fs
% Read the data back into MATLAB, and listen to audio.
[y, Fs, nbits, readinfo] = wavread(hfile);
sound(y, Fs);
% Pause before next read and playback operation.
duration = numel(y) / Fs;
pause(duration + 2)
% Read and play only the first 2 seconds.
nsamples = 2 * Fs;
[y2, Fs] = wavread(hfile, nsamples);
sound(y2, Fs);
pause(4)
% Read and play the middle third of the file.
sizeinfo = wavread(hfile, 'size');
tot_samples = sizeinfo(1);
startpos = tot_samples / 3;
endpos = 2 * startpos;
[y3, Fs] = wavread(hfile, [startposendpos]);
sound(y3, Fs);
Conclusion:

GP, Dahod. Page 23

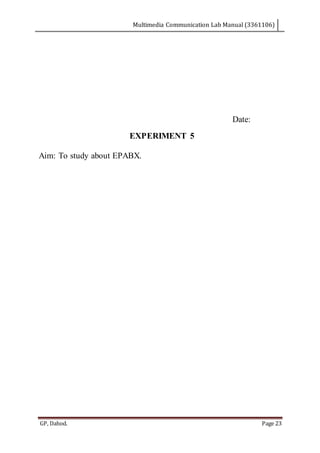

Date:
EXPERIMENT 5
Aim: To study about EPABX.

GP, Dahod. Page 24

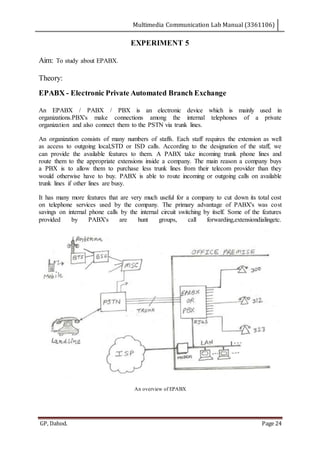

EXPERIMENT 5
Aim: To study about EPABX.
Theory:
EPABX - Electronic Private Automated Branch Exchange
An EPABX / PABX / PBX is an electronic device which is mainly used in
organizations.PBX's make connections among the internal telephones of a private
organization and also connect them to the PSTN via trunk lines.
An organization consists of many numbers of staffs. Each staff requires the extension as well
as access to outgoing local,STD or ISD calls. According to the designation of the staff, we
can provide the available features to them. A PABX take incoming trunk phone lines and
route them to the appropriate extensions inside a company. The main reason a company buys
a PBX is to allow them to purchase less trunk lines from their telecom provider than they
would otherwise have to buy. PABX is able to route incoming or outgoing calls on available
trunk lines if other lines are busy.
It has many more features that are very much useful for a company to cut down its total cost
on telephone services used by the company. The primary advantage of PABX's was cost
savings on internal phone calls by the internal circuit switching by itself. Some of the features
provided by PABX's are hunt groups, call forwarding,extensiondialingetc.
An overview of EPABX

GP, Dahod. Page 25
Private branch exchange
A private branch exchange (PBX) is a telephone exchange or switching system that serves
a private organization and performs concentration of central office lines or trunks and
provides intercommunication between a large number of telephone stations in the
organization. The central office lines provide connections to the public switched telephone
network and the concentration aspect of a PBX permits the shared use of these lines between
all stations in the organization. The intercommunication aspect allows two or more stations to
establish telephone or conferencing calls between them without using the central office
equipment.
PBX switching system
Each PBX-connected station, such as a telephone set, a fax machine, or a computer modem,
is often referred to as an extension and has a designated extension telephone number that may
or may not be mapped automatically to the numbering plan of the central office and the
telephone number block allocated to the PBX.
Initially, the primary advantage of a PBX was the cost savings for internal phone calls:
handling the circuit switching locally reduced charges for telephone service via the central
office lines. As PBX systems gained popularity, they were equipped with services that were
not available in the public network, such as hunt groups, call forwarding, and extension
dialing. In the 1960s a simulated PBX known as Centrex provided similar features from the
central telephone exchange.
A PBX is differentiated from a key telephone system (KTS) in that users of a key system
manually select their own outgoing lines on special telephone sets that control buttons for this
purpose, while PBXs select the outgoing line automatically or, formerly, by an operator. The
telephone sets connected to a PBX do not normally have special keys for central office line

GP, Dahod. Page 26

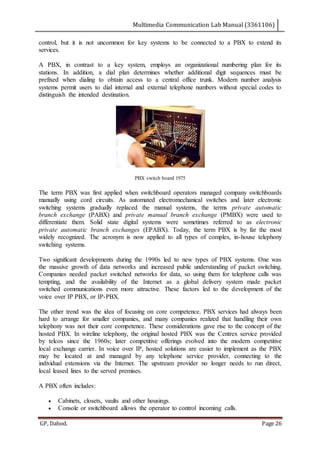

control, but it is not uncommon for key systems to be connected to a PBX to extend its
services.
A PBX, in contrast to a key system, employs an organizational numbering plan for its
stations. In addition, a dial plan determines whether additional digit sequences must be
prefixed when dialing to obtain access to a central office trunk. Modern number analysis
systems permit users to dial internal and external telephone numbers without special codes to
distinguish the intended destination.
PBX switch board 1975
The term PBX was first applied when switchboard operators managed company switchboards
manually using cord circuits. As automated electromechanical switches and later electronic
switching systems gradually replaced the manual systems, the terms private automatic
branch exchange (PABX) and private manual branch exchange (PMBX) were used to
differentiate them. Solid state digital systems were sometimes referred to as electronic
private automatic branch exchanges (EPABX). Today, the term PBX is by far the most
widely recognized. The acronym is now applied to all types of complex, in-house telephony
switching systems.
Two significant developments during the 1990s led to new types of PBX systems. One was
the massive growth of data networks and increased public understanding of packet switching.
Companies needed packet switched networks for data, so using them for telephone calls was
tempting, and the availability of the Internet as a global delivery system made packet
switched communications even more attractive. These factors led to the development of the
voice over IP PBX, or IP-PBX.
The other trend was the idea of focusing on core competence. PBX services had always been
hard to arrange for smaller companies, and many companies realized that handling their own
telephony was not their core competence. These considerations gave rise to the concept of the
hosted PBX. In wireline telephony, the original hosted PBX was the Centrex service provided
by telcos since the 1960s; later competitive offerings evolved into the modern competitive
local exchange carrier. In voice over IP, hosted solutions are easier to implement as the PBX
may be located at and managed by any telephone service provider, connecting to the
individual extensions via the Internet. The upstream provider no longer needs to run direct,
local leased lines to the served premises.

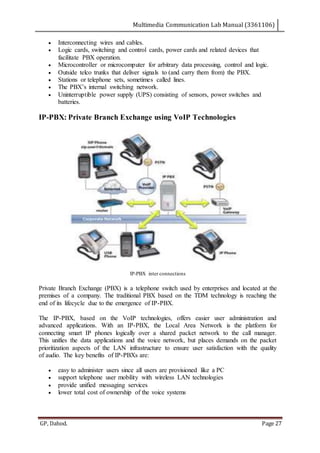

A PBX often includes:
 Cabinets, closets, vaults and other housings.
 Console or switchboard allows the operator to control incoming calls.

GP, Dahod. Page 27
 Interconnecting wires and cables.
 Logic cards, switching and control cards, power cards and related devices that
facilitate PBX operation.
 Microcontroller or microcomputer for arbitrary data processing, control and logic.
 Outside telco trunks that deliver signals to (and carry them from) the PBX.
 Stations or telephone sets, sometimes called lines.
 The PBX’s internal switching network.
 Uninterruptible power supply (UPS) consisting of sensors, power switches and
batteries.
IP-PBX: Private Branch Exchange using VoIP Technologies
IP-PBX inter connections
Private Branch Exchange (PBX) is a telephone switch used by enterprises and located at the
premises of a company. The traditional PBX based on the TDM technology is reaching the
end of its lifecycle due to the emergence of IP-PBX.
The IP-PBX, based on the VoIP technologies, offers easier user administration and
advanced applications. With an IP-PBX, the Local Area Network is the platform for
connecting smart IP phones logically over a shared packet network to the call manager.
This unifies the data applications and the voice network, but places demands on the packet
prioritization aspects of the LAN infrastructure to ensure user satisfaction with the quality
of audio. The key benefits of IP-PBXs are:
 easy to administer users since all users are provisioned like a PC
 support telephone user mobility with wireless LAN technologies
 provide unified messaging services
 lower total cost of ownership of the voice systems

GP, Dahod. Page 28

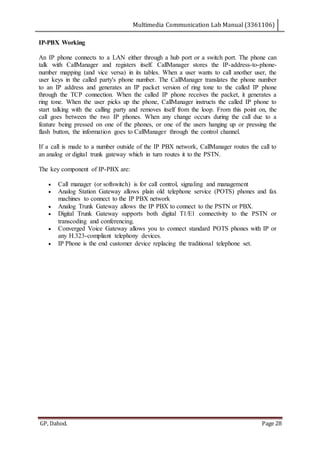

IP-PBX Working
An IP phone connects to a LAN either through a hub port or a switch port. The phone can
talk with CallManager and registers itself. CallManager stores the IP-address-to-phone-
number mapping (and vice versa) in its tables. When a user wants to call another user, the
user keys in the called party's phone number. The CallManager translates the phone number
to an IP address and generates an IP packet version of ring tone to the called IP phone
through the TCP connection. When the called IP phone receives the packet, it generates a
ring tone. When the user picks up the phone, CallManager instructs the called IP phone to
start talking with the calling party and removes itself from the loop. From this point on, the
call goes between the two IP phones. When any change occurs during the call due to a
feature being pressed on one of the phones, or one of the users hanging up or pressing the
flash button, the information goes to CallManager through the control channel.
If a call is made to a number outside of the IP PBX network, CallManager routes the call to
an analog or digital trunk gateway which in turn routes it to the PSTN.
The key component of IP-PBX are:
 Call manager (or softswitch) is for call control, signaling and management
 Analog Station Gateway allows plain old telephone service (POTS) phones and fax
machines to connect to the IP PBX network
 Analog Trunk Gateway allows the IP PBX to connect to the PSTN or PBX.
 Digital Trunk Gateway supports both digital T1/E1 connectivity to the PSTN or
transcoding and conferencing.
 Converged Voice Gateway allows you to connect standard POTS phones with IP or
any H.323-compliant telephony devices.
 IP Phone is the end customer device replacing the traditional telephone set.

GP, Dahod. Page 29
Date:

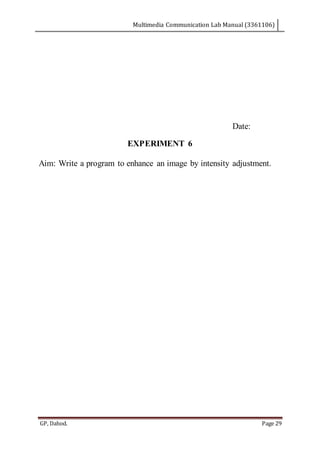

EXPERIMENT 6
Aim: Write a program to enhance an image by intensity adjustment.

GP, Dahod. Page 30

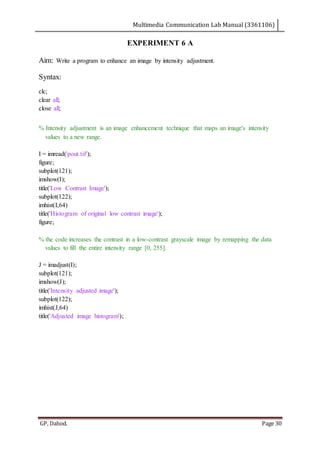

EXPERIMENT 6 A
Syntax:
clc;
clear all;
close all;
% Intensity adjustment is an image enhancement technique that maps an image's intensity
values to a new range.
I = imread('pout.tif');
figure;
subplot(121);
imshow(I);
title('Low Contrast Image');
subplot(122);
imhist(I,64)
title('Histogram of original low contrast image');
figure;
% the code increases the contrast in a low-contrast grayscale image by remapping the data
values to fill the entire intensity range [0, 255].
J = imadjust(I);
subplot(121);
imshow(J);
title('Intensity adjusted image');
subplot(122);
imhist(J,64)
title('Adjusted image histogram');

GP, Dahod. Page 31

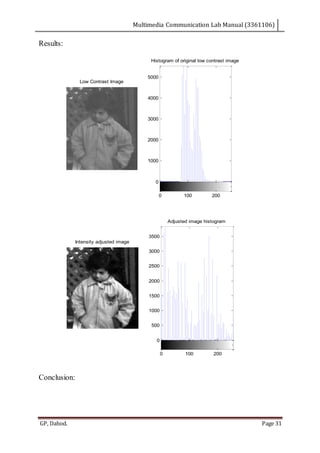

Results:
Conclusion:
Low Contrast Image
0
1000
2000
3000
4000
5000
Histogram of original low contrast image
0 100 200
Intensity adjusted image
0
500
1000
1500
2000
2500
3000
3500
Adjusted image histogram
0 100 200

GP, Dahod. Page 32

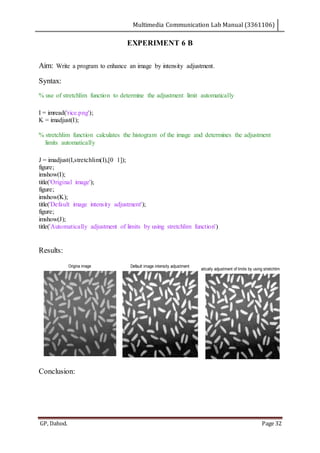

EXPERIMENT 6 B
Syntax:
% use of stretchlim function to determine the adjustment limit automatically
I = imread('rice.png');
K = imadjust(I);
% stretchlim function calculates the histogram of the image and determines the adjustment
limits automatically
J = imadjust(I,stretchlim(I),[0 1]);
figure;
imshow(I);
title('Original image');
figure;
imshow(K);
title('Default image intensity adjustment');
figure;
imshow(J);
title('Automatically adjustment of limits by using stretchlim function')
Results:
Conclusion:
Origina image Default image intensity adjustment
Automatically adjustment of limits by using stretchlim function

GP, Dahod. Page 33
Date:

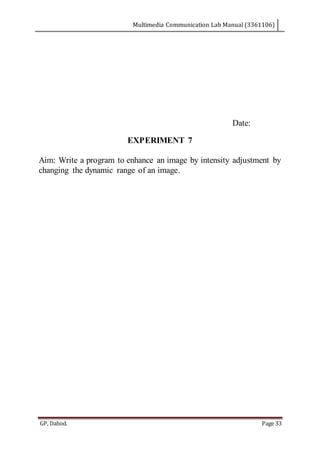

EXPERIMENT 7
Aim: Write a program to enhance an image by intensity adjustment by
changing the dynamic range of an image.

GP, Dahod. Page 34

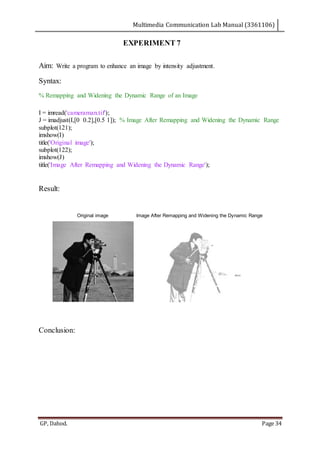

EXPERIMENT 7
Syntax:
% Remapping and Widening the Dynamic Range of an Image
I = imread('cameraman.tif');
J = imadjust(I,[0 0.2],[0.5 1]); % Image After Remapping and Widening the Dynamic Range
subplot(121);
imshow(I)
title('Original image');
subplot(122);
imshow(J)
title('Image After Remapping and Widening the Dynamic Range');
Result:
Conclusion:
Original image Image After Remapping and Widening the Dynamic Range

GP, Dahod. Page 35
Date:

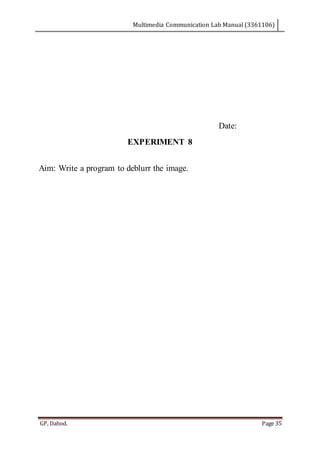

EXPERIMENT 8
Aim: Write a program to deblurr the image.

GP, Dahod. Page 36

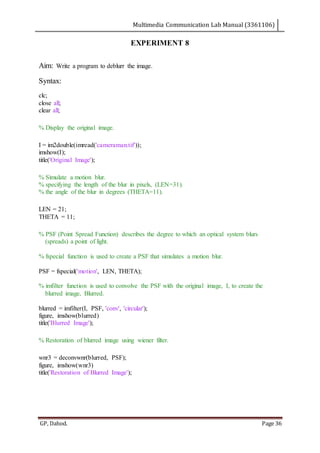

EXPERIMENT 8
Aim: Write a program to deblurr the image.
Syntax:
clc;
close all;
clear all;
% Display the original image.
I = im2double(imread('cameraman.tif'));
imshow(I);
title('Original Image');
% Simulate a motion blur.
% specifying the length of the blur in pixels, (LEN=31).
% the angle of the blur in degrees (THETA=11).
LEN = 21;
THETA = 11;
% PSF (Point Spread Function) describes the degree to which an optical system blurs
(spreads) a point of light.
% fspecial function is used to create a PSF that simulates a motion blur.
PSF = fspecial('motion', LEN, THETA);
% imfilter function is used to convolve the PSF with the original image, I, to create the
blurred image, Blurred.
blurred = imfilter(I, PSF, 'conv', 'circular');
figure, imshow(blurred)
title('Blurred Image');
% Restoration of blurred image using wiener filter.
wnr3 = deconvwnr(blurred, PSF);
figure, imshow(wnr3)
title('Restoration of Blurred Image');

GP, Dahod. Page 37

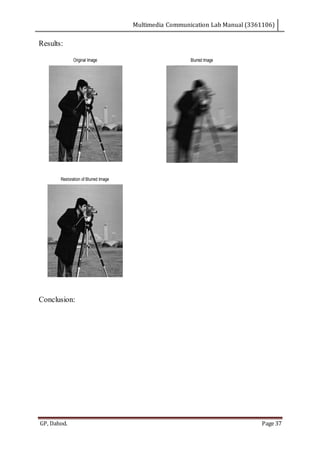

Results:
Conclusion:
Original Image Blurred Image
Restoration of Blurred Image

GP, Dahod. Page 38
Date:

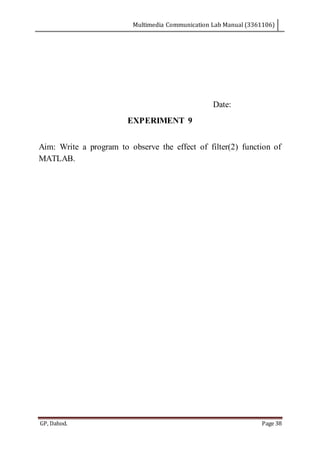

EXPERIMENT 9
Aim: Write a program to observe the effect of filter(2) function of
MATLAB.

GP, Dahod. Page 39

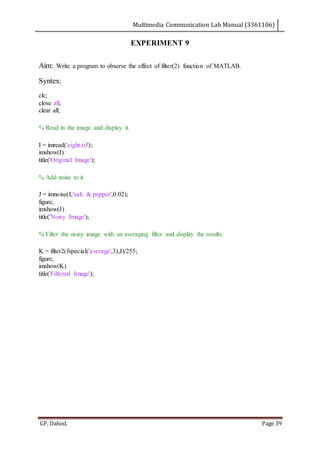

EXPERIMENT 9
Aim: Write a program to observe the effect of filter(2) function of MATLAB.
Syntex:
clc;
close all;
clear all;
% Read in the image and display it.
I = imread('eight.tif');
imshow(I)
title('Original Image');
% Add noise to it.
J = imnoise(I,'salt & pepper',0.02);
figure,
imshow(J)
title('Noisy Image');
% Filter the noisy image with an averaging filter and display the results.
K = filter2(fspecial('average',3),J)/255;
figure,
imshow(K)
title('Filtered Image');

GP, Dahod. Page 40

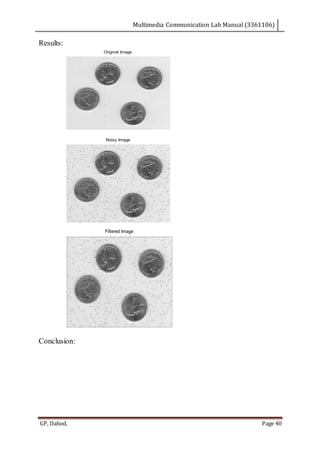

Results:
Conclusion:
Original Image
Noisy Image
Filtered Image

GP, Dahod. Page 41
Date:

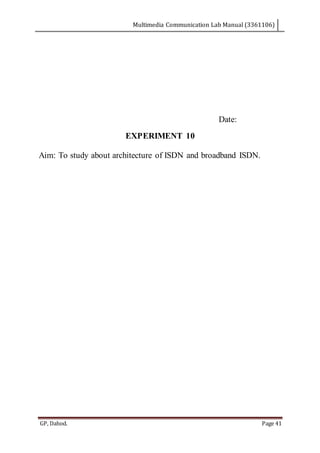

EXPERIMENT 10
Aim: To study about architecture of ISDN and broadband ISDN.

GP, Dahod. Page 42
EXPERIMENT 10
Aim: To study about architecture of ISDN and broadband ISDN.
Theory:
 ISDN - Integrated Services Digital Network - communication technology intended to pack all
existing and arising services.
Integrated services digital network
 ISDN provides:
1. End-to-end digital connectivity
2. Enhanced subscriber signaling
3. A wide variety of new services (due to 1 and 2)
4. Standardized access interfaces and terminals

GP, Dahod. Page 43

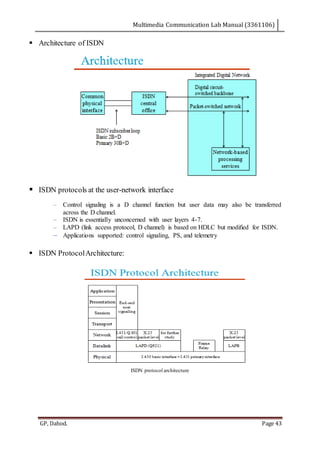

 Architecture of ISDN
 ISDN protocols at the user-network interface
– Control signaling is a D channel function but user data may also be transferred
across the D channel.
– ISDN is essentially unconcerned with user layers 4-7.
– LAPD (link access protocol, D channel) is based on HDLC but modified for ISDN.
– Applications supported: control signaling, PS, and telemetry
 ISDN ProtocolArchitecture:
ISDN protocol architecture

GP, Dahod. Page 44

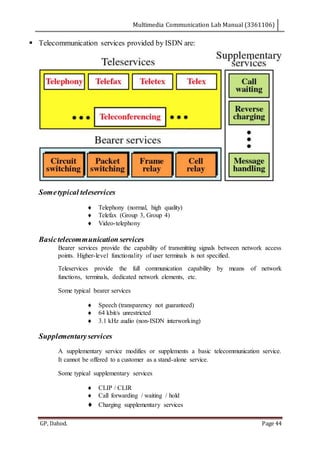

 Telecommunication services provided by ISDN are:
Sometypical teleservices
 Telephony (normal, high quality)
 Telefax (Group 3, Group 4)
 Video-telephony
Basictelecommunication services
Bearer services provide the capability of transmitting signals between network access
points. Higher-level functionality of user terminals is not specified.
Teleservices provide the full communication capability by means of network
functions, terminals, dedicated network elements, etc.
Some typical bearer services
 Speech (transparency not guaranteed)
 64 kbit/s unrestricted
 3.1 kHz audio (non-ISDN interworking)
Supplementaryservices
A supplementary service modifies or supplements a basic telecommunication service.
It cannot be offered to a customer as a stand-alone service.
Some typical supplementary services
 CLIP / CLIR
 Call forwarding / waiting / hold
 Charging supplementary services

GP, Dahod. Page 45

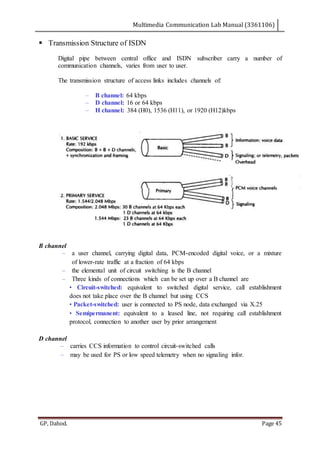

 Transmission Structure of ISDN
Digital pipe between central office and ISDN subscriber carry a number of
communication channels, varies from user to user.
The transmission structure of access links includes channels of:
– B channel: 64 kbps
– D channel: 16 or 64 kbps
– H channel: 384 (H0), 1536 (H11), or 1920 (H12)kbps
B channel
– a user channel, carrying digital data, PCM-encoded digital voice, or a mixture
of lower-rate traffic at a fraction of 64 kbps
– the elemental unit of circuit switching is the B channel
– Three kinds of connections which can be set up over a B channel are
• Circuit-switched: equivalent to switched digital service, call establishment
does not take place over the B channel but using CCS
• Packet-switched: user is connected to PS node, data exchanged via X.25
• Semipermanent: equivalent to a leased line, not requiring call establishment
protocol, connection to another user by prior arrangement
D channel
– carries CCS information to control circuit-switched calls
– may be used for PS or low speed telemetry when no signaling infor.

GP, Dahod. Page 46

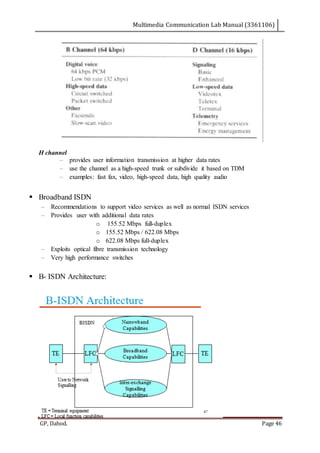

H channel
– provides user information transmission at higher data rates
– use the channel as a high-speed trunk or subdivide it based on TDM
– examples: fast fax, video, high-speed data, high quality audio
 Broadband ISDN
– Recommendations to support video services as well as normal ISDN services
– Provides user with additional data rates
o 155.52 Mbps full-duplex
o 155.52 Mbps / 622.08 Mbps
o 622.08 Mbps full-duplex
– Exploits optical fibre transmission technology
– Very high performance switches
 B- ISDN Architecture:

GP, Dahod. Page 47

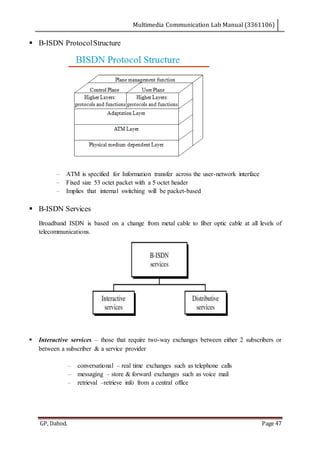

 B-ISDN ProtocolStructure
– ATM is specified for Information transfer across the user-network interface
– Fixed size 53 octet packet with a 5 octet header
– Implies that internal switching will be packet-based
 B-ISDN Services
Broadband ISDN is based on a change from metal cable to fiber optic cable at all levels of
telecommunications.
 Interactive services – those that require two-way exchanges between either 2 subscribers or
between a subscriber & a service provider
– conversational – real time exchanges such as telephone calls
– messaging – store & forward exchanges such as voice mail
– retrieval –retrieve info from a central office

GP, Dahod. Page 48

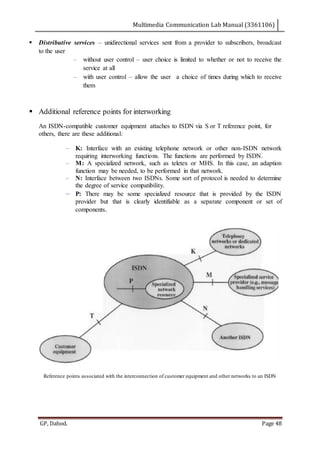

 Distributive services – unidirectional services sent from a provider to subscribers, broadcast
to the user
– without user control – user choice is limited to whether or not to receive the
service at all
– with user control – allow the user a choice of times during which to receive
them
 Additional reference points for interworking
An ISDN-compatible customer equipment attaches to ISDN via S or T reference point, for
others, there are these additional:
– K: Interface with an existing telephone network or other non-ISDN network
requiring interworking functions. The functions are performed by ISDN.
– M: A specialized network, such as teletex or MHS. In this case, an adaption
function may be needed, to be performed in that network.
– N: Interface between two ISDNs. Some sort of protocol is needed to determine
the degree of service compatibility.
– P: There may be some specialized resource that is provided by the ISDN
provider but that is clearly identifiable as a separate component or set of
components.
Reference points associated with the interconnection of customer equipment and other networks to an ISDN

GP, Dahod. Page 49
Date:

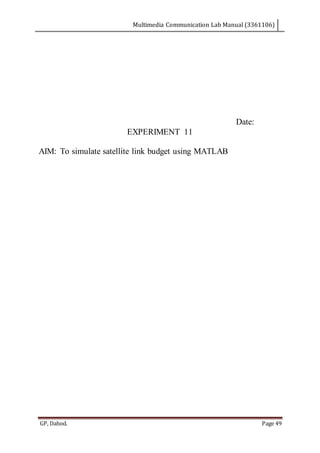

EXPERIMENT 11

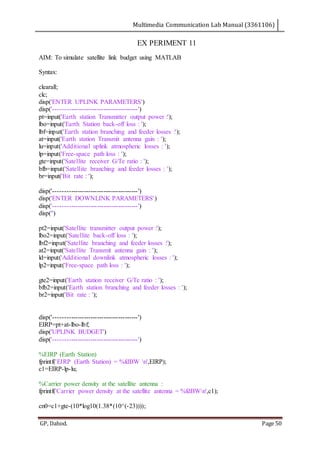

AIM: To simulate satellite link budget using MATLAB

GP, Dahod. Page 50
EX PERIMENT 11
AIM: To simulate satellite link budget using MATLAB
Syntax:
clearall;
clc;
disp('ENTER UPLINK PARAMETERS')
disp('---------------------------------------')
pt=input('Earth station Transmitter output power :');
lbo=input('Earth Station back-off loss : ');
lbf=input('Earth station branching and feeder losses :');
at=input('Earth station Transmit antenna gain : ');
lu=input('Additional uplink atmospheric losses : ');
lp=input('Free-space path loss : ');
gte=input('Satellite receiver G/Te ratio : ');
bfb=input('Satellite branching and feeder losses : ');
br=input('Bit rate : ');
disp('---------------------------------------')
disp('ENTER DOWNLINK PARAMETERS')
disp('---------------------------------------')
disp('')
pt2=input('Satellite transmitter output power :');
lbo2=input('Satellite back-off loss : ');
lbf2=input('Satellite branching and feeder losses :');
at2=input('Satellite Transmit antenna gain : ');
ld=input('Additional downlink atmospheric losses : ');
lp2=input('Free-space path loss : ');
gte2=input('Earth station receiver G/Te ratio : ');
bfb2=input('Earth station branching and feeder losses : ');
br2=input('Bit rate : ');
disp('---------------------------------------')
EIRP=pt+at-lbo-lbf;
disp('UPLINK BUDGET')
disp('---------------------------------------')
%EIRP (Earth Station)
fprintf('EIRP (Earth Station) = %fdBW n',EIRP);
c1=EIRP-lp-lu;
%Carrier power density at the satellite antenna :
fprintf('Carrier power density at the satellite antenna = %fdBWn',c1);
cn0=c1+gte-(10*log10(1.38*(10^(-23))));

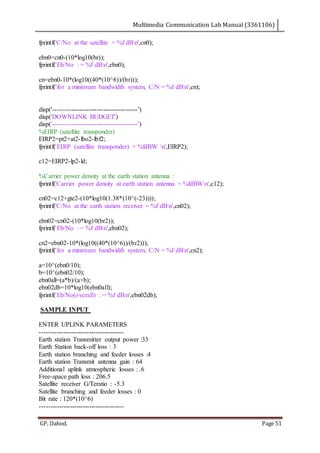

GP, Dahod. Page 51
fprintf('C/No at the satellite = %f dBn',cn0);
ebn0=cn0-(10*log10(br));
fprintf('Eb/No : = %f dBn',ebn0);
cn=ebn0-10*(log10((40*(10^6))/(br)));
fprintf('for a minimum bandwidth system, C/N = %f dBn',cn);
disp('---------------------------------------')
disp('DOWNLINK BUDGET')
disp('---------------------------------------')
%EIRP (satellite transponder)
EIRP2=pt2+at2-lbo2-lbf2;
fprintf('EIRP (satellite transponder) = %fdBW n',EIRP2);
c12=EIRP2-lp2-ld;
%Carrier power density at the earth station antenna :
fprintf('Carrier power density at earth station antenna = %fdBWn',c12);
cn02=c12+gte2-(10*log10(1.38*(10^(-23))));
fprintf('C/No at the earth station receiver = %f dBn',cn02);
ebn02=cn02-(10*log10(br2));
fprintf('Eb/No : = %f dBn',ebn02);
cn2=ebn02-10*(log10((40*(10^6))/(br2)));
fprintf('for a minimum bandwidth system, C/N = %f dBn',cn2);
a=10^(ebn0/10);
b=10^(ebn02/10);
ebn0all=(a*b)/(a+b);
ebn02db=10*log10(ebn0all);
fprintf('Eb/No(overall) : = %f dBn',ebn02db);
SAMPLE INPUT
ENTER UPLINK PARAMETERS
---------------------------------------
Earth station Transmitter output power :33
Earth Station back-off loss : 3
Earth station branching and feeder losses :4
Earth station Transmit antenna gain : 64
Additional uplink atmospheric losses : .6
Free-space path loss : 206.5
Satellite receiver G/Teratio : -5.3
Satellite branching and feeder losses : 0
Bit rate : 120*(10^6)
---------------------------------------

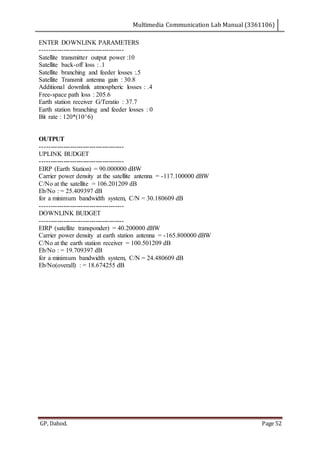

GP, Dahod. Page 52
ENTER DOWNLINK PARAMETERS
---------------------------------------
Satellite transmitter output power :10
Satellite back-off loss : .1
Satellite branching and feeder losses :.5
Satellite Transmit antenna gain : 30.8
Additional downlink atmospheric losses : .4
Free-space path loss : 205.6
Earth station receiver G/Teratio : 37.7
Earth station branching and feeder losses : 0
Bit rate : 120*(10^6)
OUTPUT
---------------------------------------
UPLINK BUDGET
---------------------------------------
EIRP (Earth Station) = 90.000000 dBW
Carrier power density at the satellite antenna = -117.100000 dBW
C/No at the satellite = 106.201209 dB
Eb/No : = 25.409397 dB
for a minimum bandwidth system, C/N = 30.180609 dB
---------------------------------------
DOWNLINK BUDGET
---------------------------------------
EIRP (satellite transponder) = 40.200000 dBW
Carrier power density at earth station antenna = -165.800000 dBW
C/No at the earth station receiver = 100.501209 dB
Eb/No : = 19.709397 dB
for a minimum bandwidth system, C/N = 24.480609 dB
Eb/No(overall) : = 18.674255 dB

GP, Dahod. Page 53

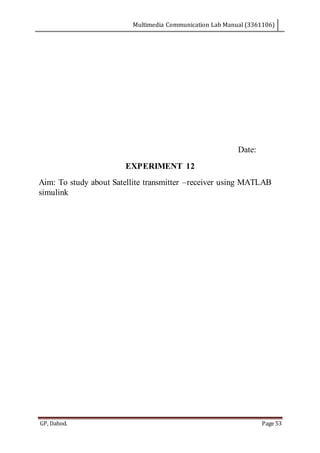

Date:
EXPERIMENT 12
Aim: To study about Satellite transmitter –receiver using MATLAB
simulink

GP, Dahod. Page 54

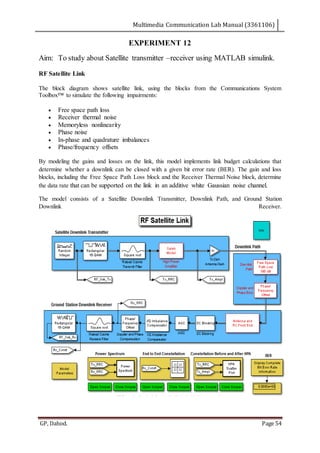

EXPERIMENT 12
Aim: To study about Satellite transmitter –receiver using MATLAB simulink.
RF Satellite Link
The block diagram shows satellite link, using the blocks from the Communications System
Toolbox™ to simulate the following impairments:
 Free space path loss
 Receiver thermal noise
 Memoryless nonlinearity
 Phase noise
 In-phase and quadrature imbalances
 Phase/frequency offsets
By modeling the gains and losses on the link, this model implements link budget calculations that
determine whether a downlink can be closed with a given bit error rate (BER). The gain and loss
blocks, including the Free Space Path Loss block and the Receiver Thermal Noise block, determine
the data rate that can be supported on the link in an additive white Gaussian noise channel.
The model consists of a Satellite Downlink Transmitter, Downlink Path, and Ground Station
Downlink Receiver.

GP, Dahod. Page 55

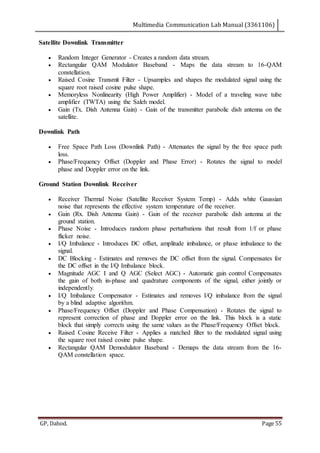

Satellite Downlink Transmitter
 Random Integer Generator - Creates a random data stream.
 Rectangular QAM Modulator Baseband - Maps the data stream to 16-QAM
constellation.
 Raised Cosine Transmit Filter - Upsamples and shapes the modulated signal using the
square root raised cosine pulse shape.
 Memoryless Nonlinearity (High Power Amplifier) - Model of a traveling wave tube
amplifier (TWTA) using the Saleh model.
 Gain (Tx. Dish Antenna Gain) - Gain of the transmitter parabolic dish antenna on the
satellite.
Downlink Path
 Free Space Path Loss (Downlink Path) - Attenuates the signal by the free space path
loss.
 Phase/Frequency Offset (Doppler and Phase Error) - Rotates the signal to model
phase and Doppler error on the link.
Ground Station Downlink Receiver
 Receiver Thermal Noise (Satellite Receiver System Temp) - Adds white Gaussian
noise that represents the effective system temperature of the receiver.
 Gain (Rx. Dish Antenna Gain) - Gain of the receiver parabolic dish antenna at the
ground station.
 Phase Noise - Introduces random phase perturbations that result from 1/f or phase
flicker noise.
 I/Q Imbalance - Introduces DC offset, amplitude imbalance, or phase imbalance to the
signal.
 DC Blocking - Estimates and removes the DC offset from the signal. Compensates for
the DC offset in the I/Q Imbalance block.
 Magnitude AGC I and Q AGC (Select AGC) - Automatic gain control Compensates
the gain of both in-phase and quadrature components of the signal, either jointly or
independently.
 I/Q Imbalance Compensator - Estimates and removes I/Q imbalance from the signal
by a blind adaptive algorithm.
 Phase/Frequency Offset (Doppler and Phase Compensation) - Rotates the signal to
represent correction of phase and Doppler error on the link. This block is a static
block that simply corrects using the same values as the Phase/Frequency Offset block.
 Raised Cosine Receive Filter - Applies a matched filter to the modulated signal using
the square root raised cosine pulse shape.
 Rectangular QAM Demodulator Baseband - Demaps the data stream from the 16-
QAM constellation space.

GP, Dahod. Page 56

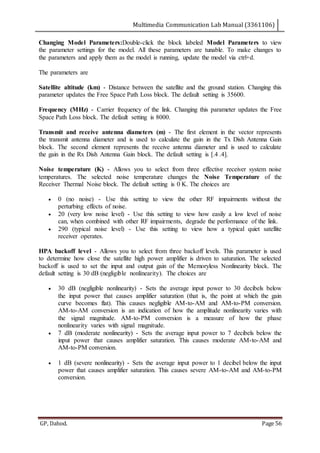

Changing Model Parameters:Double-click the block labeled Model Parameters to view
the parameter settings for the model. All these parameters are tunable. To make changes to
the parameters and apply them as the model is running, update the model via ctrl+d.
The parameters are
Satellite altitude (km) - Distance between the satellite and the ground station. Changing this
parameter updates the Free Space Path Loss block. The default setting is 35600.
Frequency (MHz) - Carrier frequency of the link. Changing this parameter updates the Free
Space Path Loss block. The default setting is 8000.
Transmit and receive antenna diameters (m) - The first element in the vector represents
the transmit antenna diameter and is used to calculate the gain in the Tx Dish Antenna Gain
block. The second element represents the receive antenna diameter and is used to calculate
the gain in the Rx Dish Antenna Gain block. The default setting is [.4 .4].
Noise temperature (K) - Allows you to select from three effective receiver system noise
temperatures. The selected noise temperature changes the Noise Temperature of the
Receiver Thermal Noise block. The default setting is 0 K. The choices are
 0 (no noise) - Use this setting to view the other RF impairments without the
perturbing effects of noise.
 20 (very low noise level) - Use this setting to view how easily a low level of noise
can, when combined with other RF impairments, degrade the performance of the link.
 290 (typical noise level) - Use this setting to view how a typical quiet satellite
receiver operates.
HPA backoff level - Allows you to select from three backoff levels. This parameter is used
to determine how close the satellite high power amplifier is driven to saturation. The selected
backoff is used to set the input and output gain of the Memoryless Nonlinearity block. The
default setting is 30 dB (negligible nonlinearity). The choices are
 30 dB (negligible nonlinearity) - Sets the average input power to 30 decibels below
the input power that causes amplifier saturation (that is, the point at which the gain
curve becomes flat). This causes negligible AM-to-AM and AM-to-PM conversion.
AM-to-AM conversion is an indication of how the amplitude nonlinearity varies with
the signal magnitude. AM-to-PM conversion is a measure of how the phase
nonlinearity varies with signal magnitude.
 7 dB (moderate nonlinearity) - Sets the average input power to 7 decibels below the
input power that causes amplifier saturation. This causes moderate AM-to-AM and
AM-to-PM conversion.
 1 dB (severe nonlinearity) - Sets the average input power to 1 decibel below the input
power that causes amplifier saturation. This causes severe AM-to-AM and AM-to-PM
conversion.

GP, Dahod. Page 57

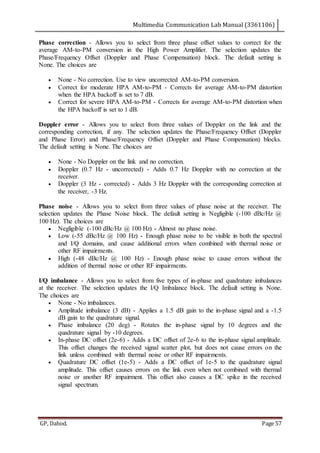

Phase correction - Allows you to select from three phase offset values to correct for the
average AM-to-PM conversion in the High Power Amplifier. The selection updates the
Phase/Frequency Offset (Doppler and Phase Compensation) block. The default setting is
None. The choices are
 None - No correction. Use to view uncorrected AM-to-PM conversion.
 Correct for moderate HPA AM-to-PM - Corrects for average AM-to-PM distortion
when the HPA backoff is set to 7 dB.
 Correct for severe HPA AM-to-PM - Corrects for average AM-to-PM distortion when
the HPA backoff is set to 1 dB.
Doppler error - Allows you to select from three values of Doppler on the link and the
corresponding correction, if any. The selection updates the Phase/Frequency Offset (Doppler
and Phase Error) and Phase/Frequency Offset (Doppler and Phase Compensation) blocks.
The default setting is None. The choices are
 None - No Doppler on the link and no correction.
 Doppler (0.7 Hz - uncorrected) - Adds 0.7 Hz Doppler with no correction at the
receiver.
 Doppler (3 Hz - corrected) - Adds 3 Hz Doppler with the corresponding correction at
the receiver, -3 Hz.
Phase noise - Allows you to select from three values of phase noise at the receiver. The
selection updates the Phase Noise block. The default setting is Negligible (-100 dBc/Hz @
100 Hz). The choices are
 Negligible (-100 dBc/Hz @ 100 Hz) - Almost no phase noise.
 Low (-55 dBc/Hz @ 100 Hz) - Enough phase noise to be visible in both the spectral
and I/Q domains, and cause additional errors when combined with thermal noise or
other RF impairments.
 High (-48 dBc/Hz @ 100 Hz) - Enough phase noise to cause errors without the
addition of thermal noise or other RF impairments.
I/Q imbalance - Allows you to select from five types of in-phase and quadrature imbalances
at the receiver. The selection updates the I/Q Imbalance block. The default setting is None.
The choices are
 None - No imbalances.
 Amplitude imbalance (3 dB) - Applies a 1.5 dB gain to the in-phase signal and a -1.5
dB gain to the quadrature signal.
 Phase imbalance (20 deg) - Rotates the in-phase signal by 10 degrees and the
quadrature signal by -10 degrees.
 In-phase DC offset (2e-6) - Adds a DC offset of 2e-6 to the in-phase signal amplitude.
This offset changes the received signal scatter plot, but does not cause errors on the
link unless combined with thermal noise or other RF impairments.
 Quadrature DC offset (1e-5) - Adds a DC offset of 1e-5 to the quadrature signal
amplitude. This offset causes errors on the link even when not combined with thermal
noise or another RF impairment. This offset also causes a DC spike in the received
signal spectrum.

GP, Dahod. Page 58

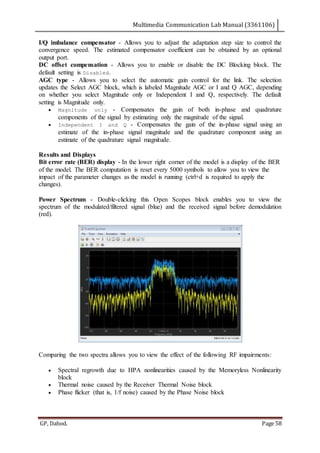

I/Q imbalance compensator - Allows you to adjust the adaptation step size to control the
convergence speed. The estimated compensator coefficient can be obtained by an optional
output port.
DC offset compensation - Allows you to enable or disable the DC Blocking block. The
default setting is Disabled.
AGC type - Allows you to select the automatic gain control for the link. The selection
updates the Select AGC block, which is labeled Magnitude AGC or I and Q AGC, depending
on whether you select Magnitude only or Independent I and Q, respectively. The default
setting is Magnitude only.
 Magnitude only - Compensates the gain of both in-phase and quadrature
components of the signal by estimating only the magnitude of the signal.
 Independent I and Q - Compensates the gain of the in-phase signal using an
estimate of the in-phase signal magnitude and the quadrature component using an
estimate of the quadrature signal magnitude.
Results and Displays
Bit error rate (BER) display - In the lower right corner of the model is a display of the BER
of the model. The BER computation is reset every 5000 symbols to allow you to view the
impact of the parameter changes as the model is running (ctrl+d is required to apply the
changes).
Power Spectrum - Double-clicking this Open Scopes block enables you to view the
spectrum of the modulated/filtered signal (blue) and the received signal before demodulation
(red).
Comparing the two spectra allows you to view the effect of the following RF impairments:
 Spectral regrowth due to HPA nonlinearities caused by the Memoryless Nonlinearity
block
 Thermal noise caused by the Receiver Thermal Noise block
 Phase flicker (that is, 1/f noise) caused by the Phase Noise block

GP, Dahod. Page 59

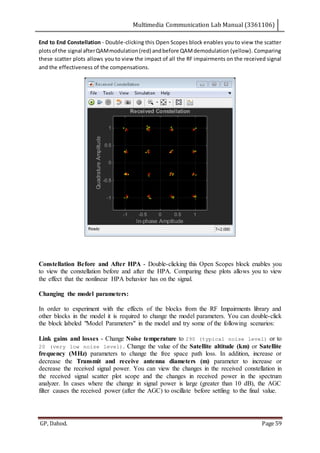

End to End Constellation - Double-clicking this Open Scopes block enables you to view the scatter
plotsof the signal afterQAMmodulation(red) andbefore QAMdemodulation (yellow). Comparing
these scatter plots allows you to view the impact of all the RF impairments on the received signal
and the effectiveness of the compensations.
Constellation Before and After HPA - Double-clicking this Open Scopes block enables you
to view the constellation before and after the HPA. Comparing these plots allows you to view
the effect that the nonlinear HPA behavior has on the signal.
Changing the model parameters:
In order to experiment with the effects of the blocks from the RF Impairments library and
other blocks in the model it is required to change the model parameters. You can double-click
the block labeled "Model Parameters" in the model and try some of the following scenarios:
Link gains and losses - Change Noise temperature to 290 (typical noise level) or to
20 (very low noise level). Change the value of the Satellite altitude (km) or Satellite
frequency (MHz) parameters to change the free space path loss. In addition, increase or
decrease the Transmit and receive antenna diameters (m) parameter to increase or
decrease the received signal power. You can view the changes in the received constellation in
the received signal scatter plot scope and the changes in received power in the spectrum
analyzer. In cases where the change in signal power is large (greater than 10 dB), the AGC
filter causes the received power (after the AGC) to oscillate before settling to the final value.

GP, Dahod. Page 60

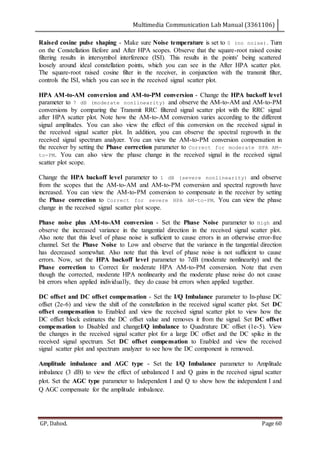

Raised cosine pulse shaping - Make sure Noise temperature is set to 0 (no noise). Turn
on the Constellation Before and After HPA scopes. Observe that the square-root raised cosine
filtering results in intersymbol interference (ISI). This results in the points' being scattered
loosely around ideal constellation points, which you can see in the After HPA scatter plot.
The square-root raised cosine filter in the receiver, in conjunction with the transmit filter,
controls the ISI, which you can see in the received signal scatter plot.
HPA AM-to-AM conversion and AM-to-PM conversion - Change the HPA backoff level
parameter to 7 dB (moderate nonlinearity) and observe the AM-to-AM and AM-to-PM
conversions by comparing the Transmit RRC filtered signal scatter plot with the RRC signal
after HPA scatter plot. Note how the AM-to-AM conversion varies according to the different
signal amplitudes. You can also view the effect of this conversion on the received signal in
the received signal scatter plot. In addition, you can observe the spectral regrowth in the
received signal spectrum analyzer. You can view the AM-to-PM conversion compensation in
the receiver by setting the Phase correction parameter to Correct for moderate HPA AM-
to-PM. You can also view the phase change in the received signal in the received signal
scatter plot scope.
Change the HPA backoff level parameter to 1 dB (severe nonlinearity) and observe
from the scopes that the AM-to-AM and AM-to-PM conversion and spectral regrowth have
increased. You can view the AM-to-PM conversion to compensate in the receiver by setting
the Phase correction to Correct for severe HPA AM-to-PM. You can view the phase
change in the received signal scatter plot scope.
Phase noise plus AM-to-AM conversion - Set the Phase Noise parameter to High and
observe the increased variance in the tangential direction in the received signal scatter plot.
Also note that this level of phase noise is sufficient to cause errors in an otherwise error-free
channel. Set the Phase Noise to Low and observe that the variance in the tangential direction
has decreased somewhat. Also note that this level of phase noise is not sufficient to cause
errors. Now, set the HPA backoff level parameter to 7dB (moderate nonlinearity) and the
Phase correction to Correct for moderate HPA AM-to-PM conversion. Note that even
though the corrected, moderate HPA nonlinearity and the moderate phase noise do not cause
bit errors when applied individually, they do cause bit errors when applied together.
DC offset and DC offset compensation - Set the I/Q Imbalance parameter to In-phase DC
offset (2e-6) and view the shift of the constellation in the received signal scatter plot. Set DC
offset compensation to Enabled and view the received signal scatter plot to view how the
DC offset block estimates the DC offset value and removes it from the signal. Set DC offset
compensation to Disabled and changeI/Q imbalance to Quadrature DC offset (1e-5). View
the changes in the received signal scatter plot for a large DC offset and the DC spike in the
received signal spectrum. Set DC offset compensation to Enabled and view the received
signal scatter plot and spectrum analyzer to see how the DC component is removed.
Amplitude imbalance and AGC type - Set the I/Q Imbalance parameter to Amplitude
imbalance (3 dB) to view the effect of unbalanced I and Q gains in the received signal scatter
plot. Set the AGC type parameter to Independent I and Q to show how the independent I and
Q AGC compensate for the amplitude imbalance.

GP, Dahod. Page 61

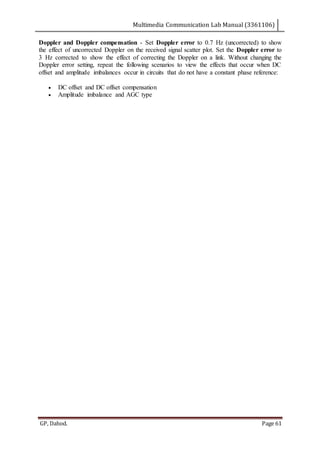

Doppler and Doppler compensation - Set Doppler error to 0.7 Hz (uncorrected) to show
the effect of uncorrected Doppler on the received signal scatter plot. Set the Doppler error to
3 Hz corrected to show the effect of correcting the Doppler on a link. Without changing the
Doppler error setting, repeat the following scenarios to view the effects that occur when DC
offset and amplitude imbalances occur in circuits that do not have a constant phase reference:
 DC offset and DC offset compensation
 Amplitude imbalance and AGC type

Mmc manual

More Related Content

What's hot

Viewers also liked

Similar to Mmc manual

Recently uploaded

Mmc manual
