- 1. Resources (with answer keys) for the Microscope Parts PowerPoint can be found at my TPT store and can be purchased separately….. Please enjoy this FREE Microscope Parts PowerPoint. PowerPoint Worksheet Crossword Review Worksheet Quiz Task Cards
- 2. ….or purchased all together as a LESSON BUNDLE, at 25% OFF. Please enjoy this FREE Microscope Parts PowerPoint. 1) 3 page PowerPoint Worksheet 2) 2 page Review Worksheet 3) 1 Crossword 4) 40 Task Cards 5) 1 Quiz
- 3. Please enjoy this FREE Microscope Parts PowerPoint. 2) The History of Microscope Development. 3) A Comparison of 4 Microscope types in a Chart as well as examples of the images produced. (Compound light microscope, dissecting microscope, SEM and TEM.) 4) How to Calculate Magnification. 5) How to Make a Wet Mount (includes video). 1) The Function of Microscopes. If you would like to purchase the more ADVANCED MICROSCOPE POWERPOINT LESSON, it includes 31 more slides on these additional topics:
- 4. Please enjoy this FREE Microscope Parts PowerPoint. The Advanced PowerPoint also comes with resources that can be purchased separately or as a LESSON BUNDLE for 25% OFF. If you would like to purchase the more ADVANCED MICROSCOPE POWERPOINT LESSON, it includes 31 more slides on these additional topics: PowerPoint Worksheet Test Flash Cards Review Worksheet Crossword

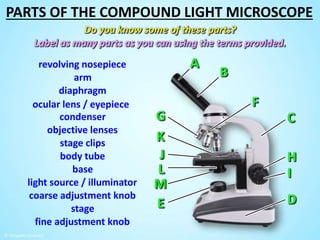

- 6. ocular lens / eyepiece objective lenses body tube base coarse adjustment knob fine adjustment knob stage stage clips diaphragm arm revolving nosepiece light source / illuminator condenser PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 7. ocular lens/eyepiece objective lenses body tube base coarse adjustment knob fine adjustment knob stage stage clips diaphragm arm revolving/rotating nosepiece light source/ illuminator condenser PARTS OF THE COMPOUND LIGHT MICROSCOPE

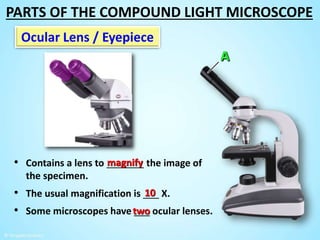

- 8. Ocular Lens / Eyepiece • Contains a lens to _______ the image of the specimen. • The usual magnification is ___ X. magnify 10 PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 9. Ocular Lens / Eyepiece • Contains a lens to _______ the image of the specimen. • The usual magnification is ___ X. • Some microscopes have ___ ocular lenses. magnify 10 two PARTS OF THE COMPOUND LIGHT MICROSCOPE

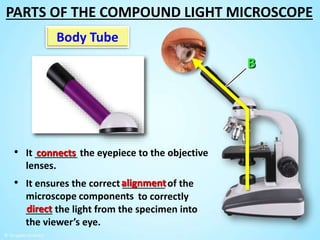

- 10. to correctly _____ the light from the specimen into the viewer’s eye. Body Tube • It ________ the eyepiece to the objective lenses. connects • It ensures the correct ________ of the microscope components alignment direct PARTS OF THE COMPOUND LIGHT MICROSCOPE

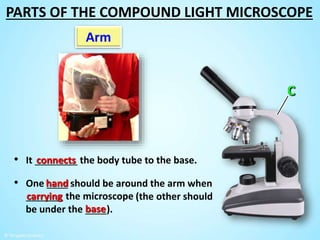

- 11. (the other should be under the ____). • One ____ should be around the arm when _______ the microscope Arm • It ________ the body tube to the base.connects hand carrying base PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 12. • One ____ should be around the arm when _______ the microscope • It ________ the body tube to the base.connects hand carrying Arm (the other should be under the ____).base PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 13. (the other hand should be holding the arm). • It contains the _________ and __________. • It ________ the weight of the microscope. • One hand should be _____ the base while _______ the microscope Base supports electronics carrying light source under PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 14. • It contains the _________ and __________. • It ________ the weight of the microscope. Base supports electronics light source (the other hand should be holding the arm). • One hand should be _____ the base while _______ the microscopecarrying under PARTS OF THE COMPOUND LIGHT MICROSCOPE

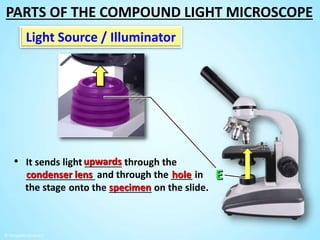

- 15. and through the ____ in the stage onto the ________ on the slide. Light Source / Illuminator • It sends light _______ through the _____________ hole specimen condenser lens upwards PARTS OF THE COMPOUND LIGHT MICROSCOPE

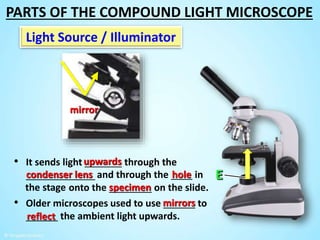

- 16. and through the ____ in the stage onto the ________ on the slide. Light Source / Illuminator • It sends light _______ through the _____________ • Older microscopes used to use ______ to ______ the ambient light upwards. hole specimen condenser lens mirrors upwards mirror reflect PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 17. Revolving/Rotating Nose Piece • The _____________ are attached to it. • _______ the nose piece allows you to _____ between the different lenses. objective lenses Rotating switch PARTS OF THE COMPOUND LIGHT MICROSCOPE

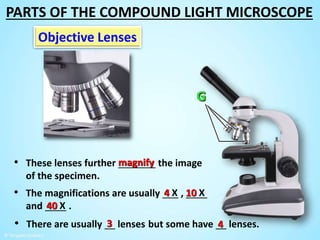

- 18. Objective Lenses • These lenses further _______ the image of the specimen. magnify • The magnifications are usually ___ , ____ and ____ . 4 X 10 X 40 X 4 X 10 X 40 X • There are usually __ lenses3 PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 19. Objective Lenses • These lenses further _______ the image of the specimen. magnify • There are usually __ lenses3 but some have __ lenses.4 • The magnifications are usually ___ , ____ and ____ . 4 X 10 X 40 X PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 20. but the field of view (visible area) becomes _______. Objective Lenses PARTS OF THE COMPOUND LIGHT MICROSCOPE • As the power increases, the magnification becomes _____ ,larger smaller
- 21. • The ____ knob you should use, and always under ___ power. Never use it in ____ power. Coarse Adjustment Knob low first high PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 22. • The ____ knob you should use, and always under ___ power. Never use it in ____ power. to help put the specimen in _____. • Both knobs move the _____ up and down focus • The ______ knob you should use under ______ power second higher stage Fine Adjustment Knob low first high exactfor _____ focusing. PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 23. • Some microscopes have the two knobs located ___________________. Fine Adjustment Knob one on top of the other PARTS OF THE COMPOUND LIGHT MICROSCOPE • The smaller one on the bottom is always the ____ adjustment knob.fine
- 24. Stage • The stage is where you place the ____ which contains the ________. slide specimen • It contains a ____ that allows ____ to pass through the stage and onto the specimen. hole light PARTS OF THE COMPOUND LIGHT MICROSCOPE

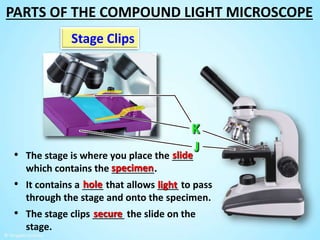

- 25. Stage Clips • The stage is where you place the ____ which contains the ________. slide specimen • The stage clips ______ the slide on the stage. secure • It contains a ____ that allows ____ to pass through the stage and onto the specimen. hole light PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 26. • The lens under the stage that ___________ from the illuminator through to the ____ in the stage. focuses light Condenser Lens hole PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 27. • The lens under the stage that ___________ from the illuminator through to the ____ in the stage. focuses light Diaphragm hole • It contains a dial that rotates to _____ the _____________ that reaches the specimen. adjust amount of light PARTS OF THE COMPOUND LIGHT MICROSCOPE
- 29. Created by Anh-Thi Tang – Tangstar Science Copyright © April 2013 Anh-Thi Tang (a.k.a. Tangstar Science) All rights reserved by author. This document is for personal classroom use only. This entire document, or any parts within, may not be electronically distributed or posted to any website.
