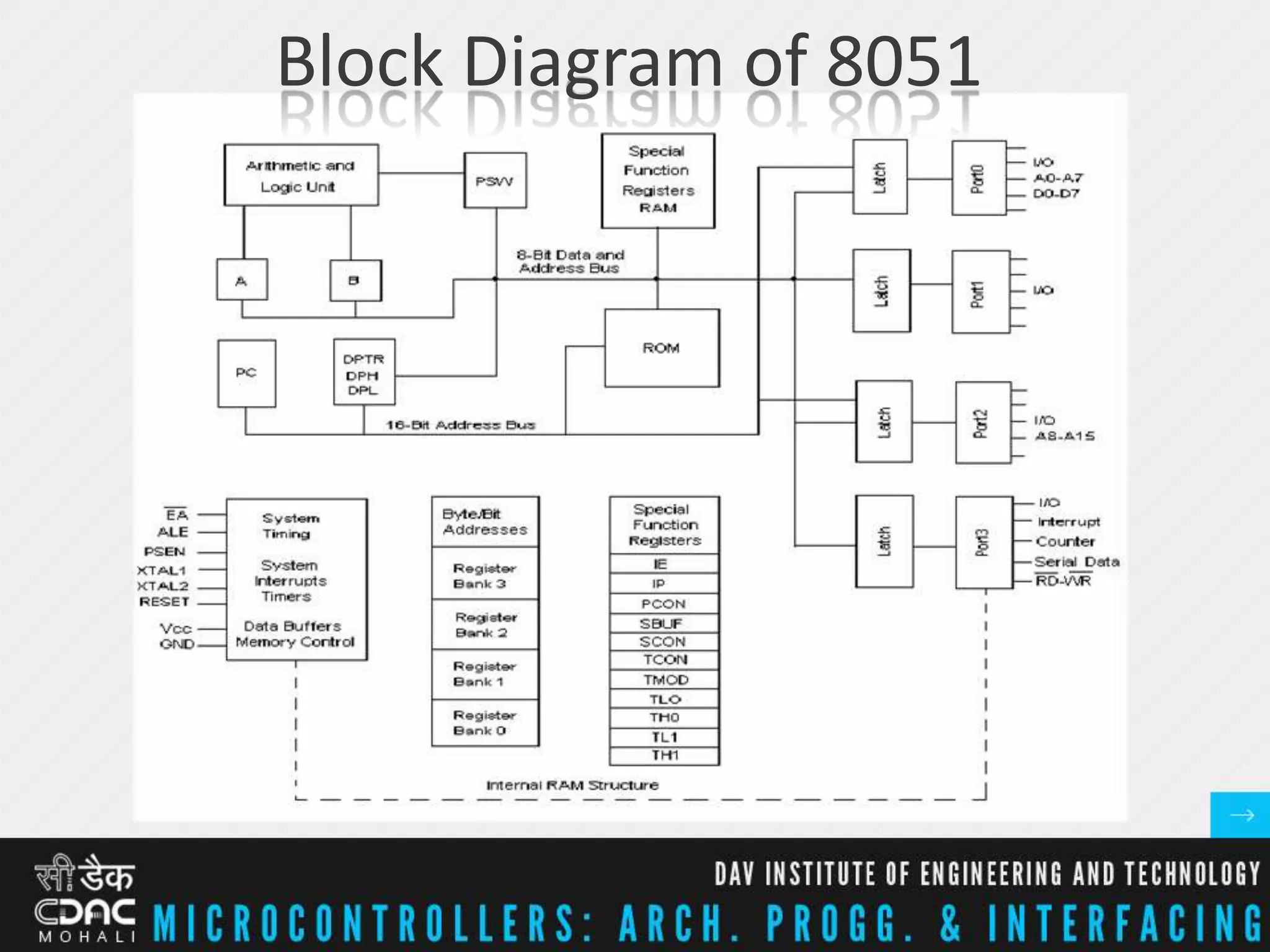

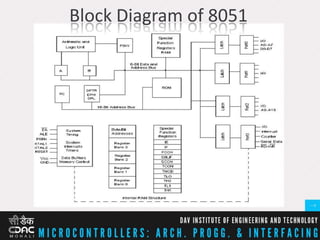

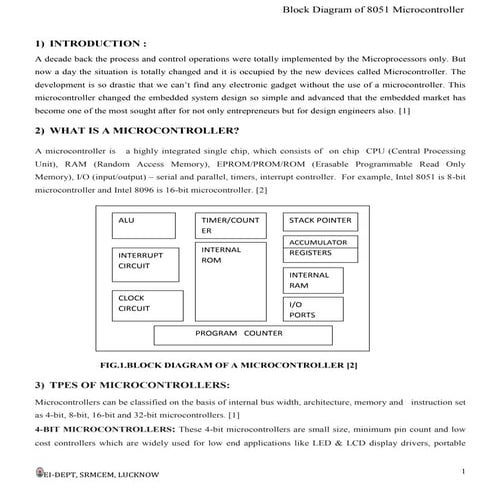

The block diagram of 8051 micro controller architecture shows that 8051 micro controller consists of a CPU, RAM, (SFRs and Data Memory),
Flash (EEPROM), I/O ports and control logic for communication between the peripherals
The Art Pastor's Guide to Sabbath | Steve ThomasonSteve Thomason
What is the purpose of the Sabbath Law in the Torah. It is interesting to compare how the context of the law shifts from Exodus to Deuteronomy. Who gets to rest, and why?
Ethnobotany and Ethnopharmacology:
Ethnobotany in herbal drug evaluation,
Impact of Ethnobotany in traditional medicine,
New development in herbals,
Bio-prospecting tools for drug discovery,
Role of Ethnopharmacology in drug evaluation,
Reverse Pharmacology.
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
How to Create Map Views in the Odoo 17 ERPCeline George
The map views are useful for providing a geographical representation of data. They allow users to visualize and analyze the data in a more intuitive manner.
This is a presentation by Dada Robert in a Your Skill Boost masterclass organised by the Excellence Foundation for South Sudan (EFSS) on Saturday, the 25th and Sunday, the 26th of May 2024.
He discussed the concept of quality improvement, emphasizing its applicability to various aspects of life, including personal, project, and program improvements. He defined quality as doing the right thing at the right time in the right way to achieve the best possible results and discussed the concept of the "gap" between what we know and what we do, and how this gap represents the areas we need to improve. He explained the scientific approach to quality improvement, which involves systematic performance analysis, testing and learning, and implementing change ideas. He also highlighted the importance of client focus and a team approach to quality improvement.
Unit 8 - Information and Communication Technology (Paper I).pdfThiyagu K
This slides describes the basic concepts of ICT, basics of Email, Emerging Technology and Digital Initiatives in Education. This presentations aligns with the UGC Paper I syllabus.
Unit 8 - Information and Communication Technology (Paper I).pdf
Microcontroller architecture programming and interfacing
1.

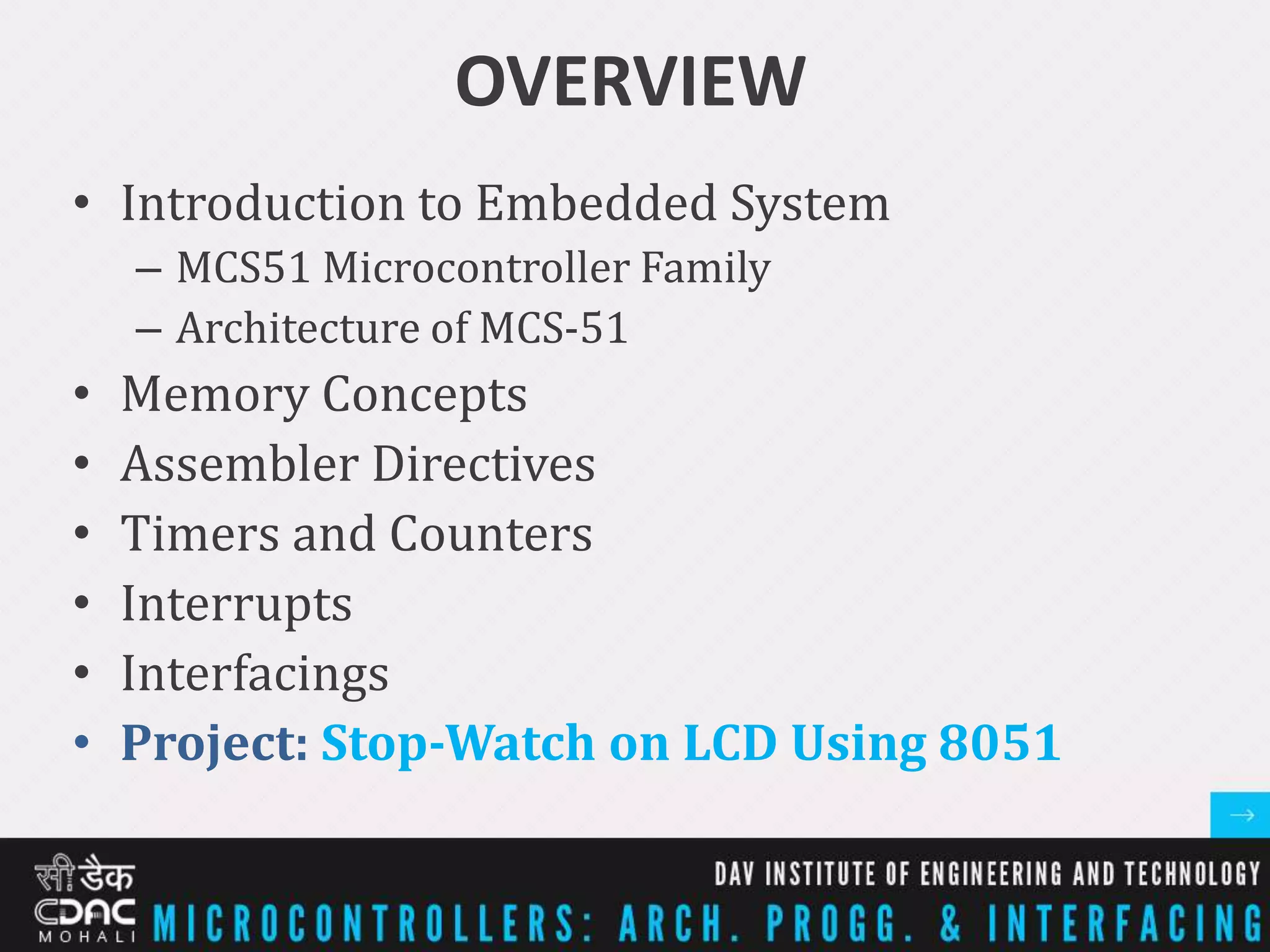

2. OVERVIEW
• Introduction to Embedded System
– MCS51 Microcontroller Family
– Architecture of MCS-51
• Memory Concepts
• Assembler Directives

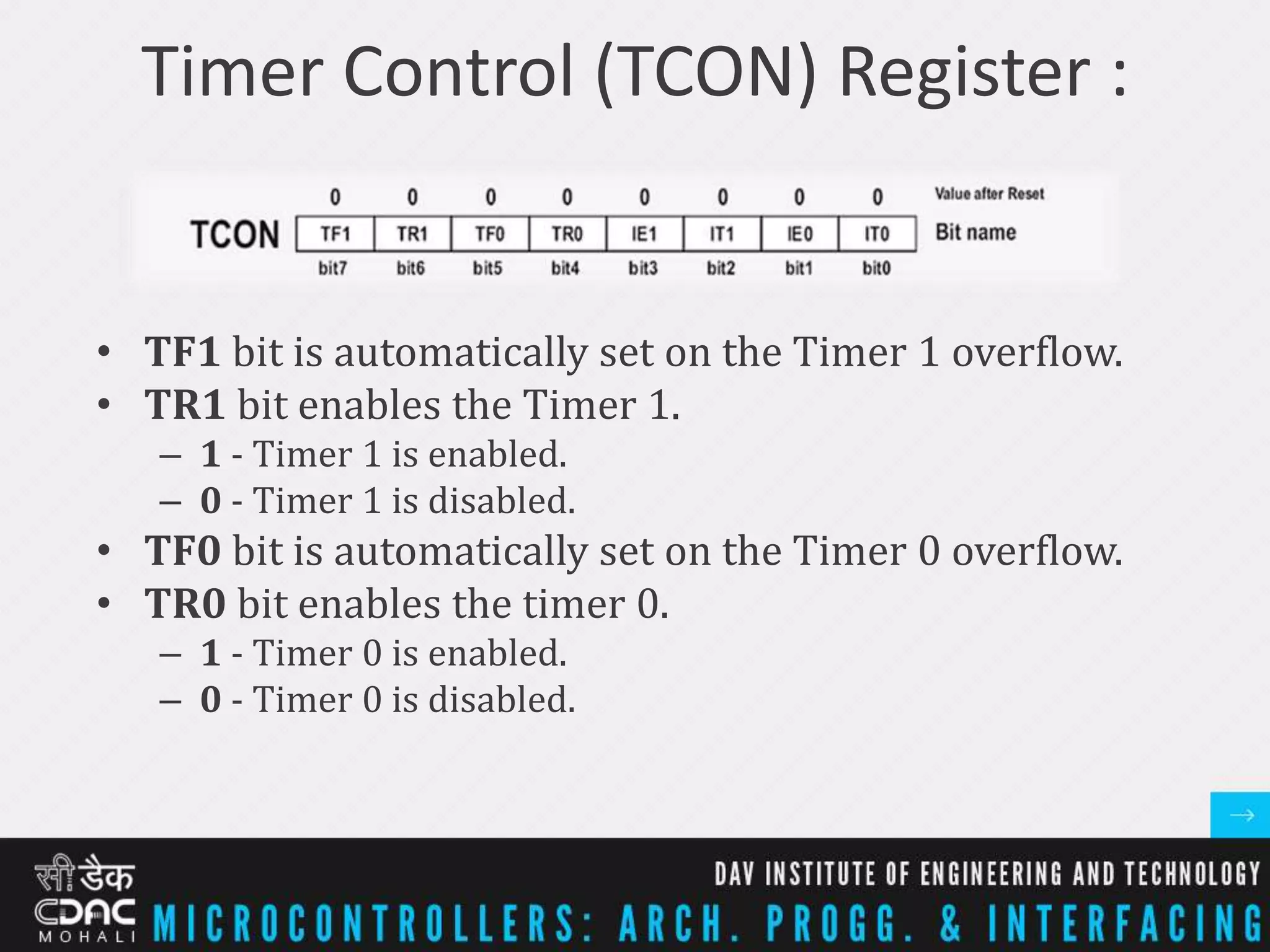

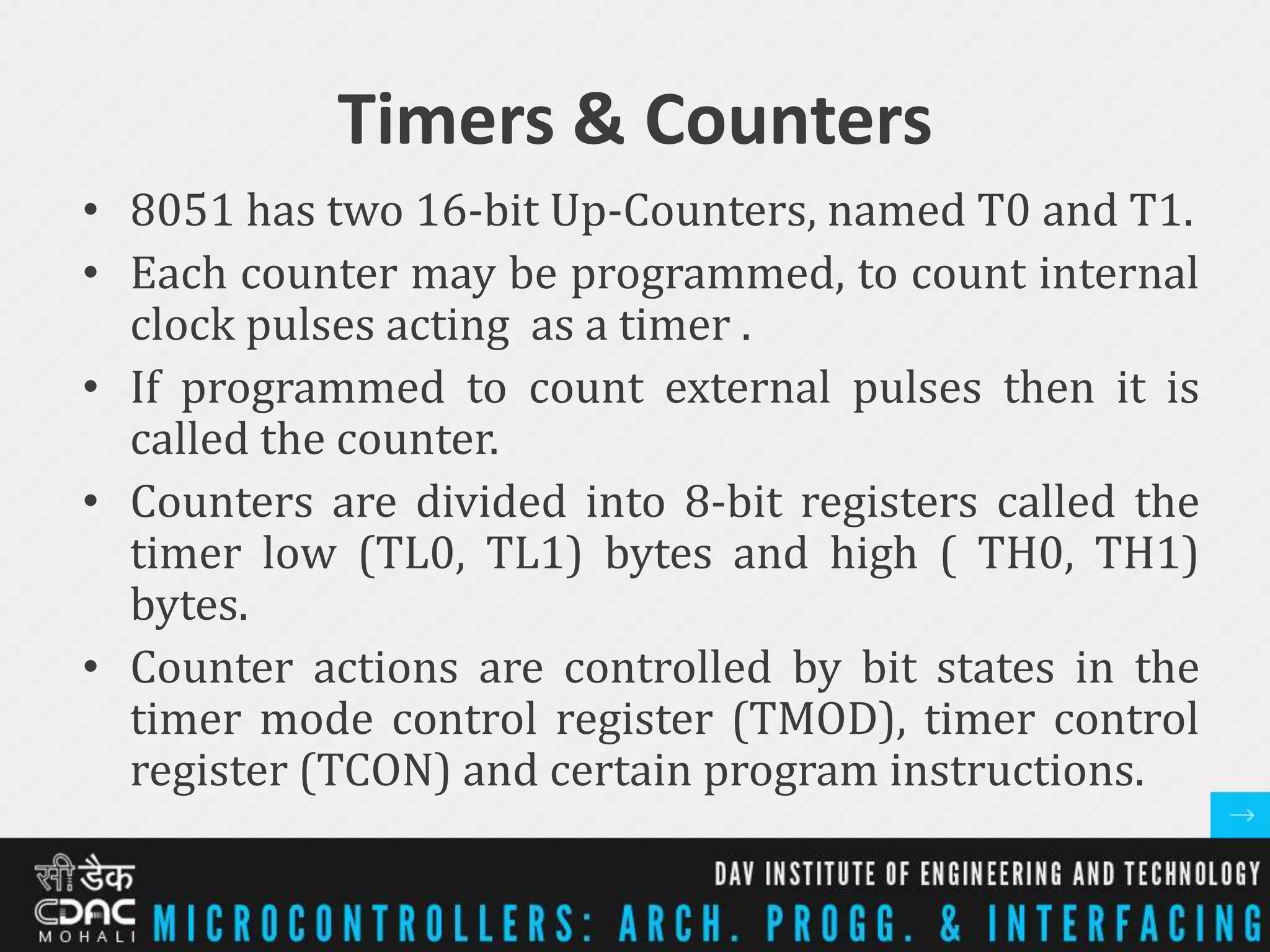

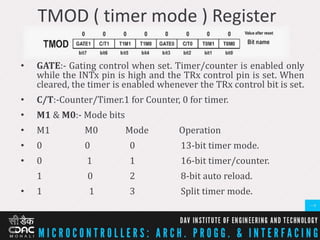

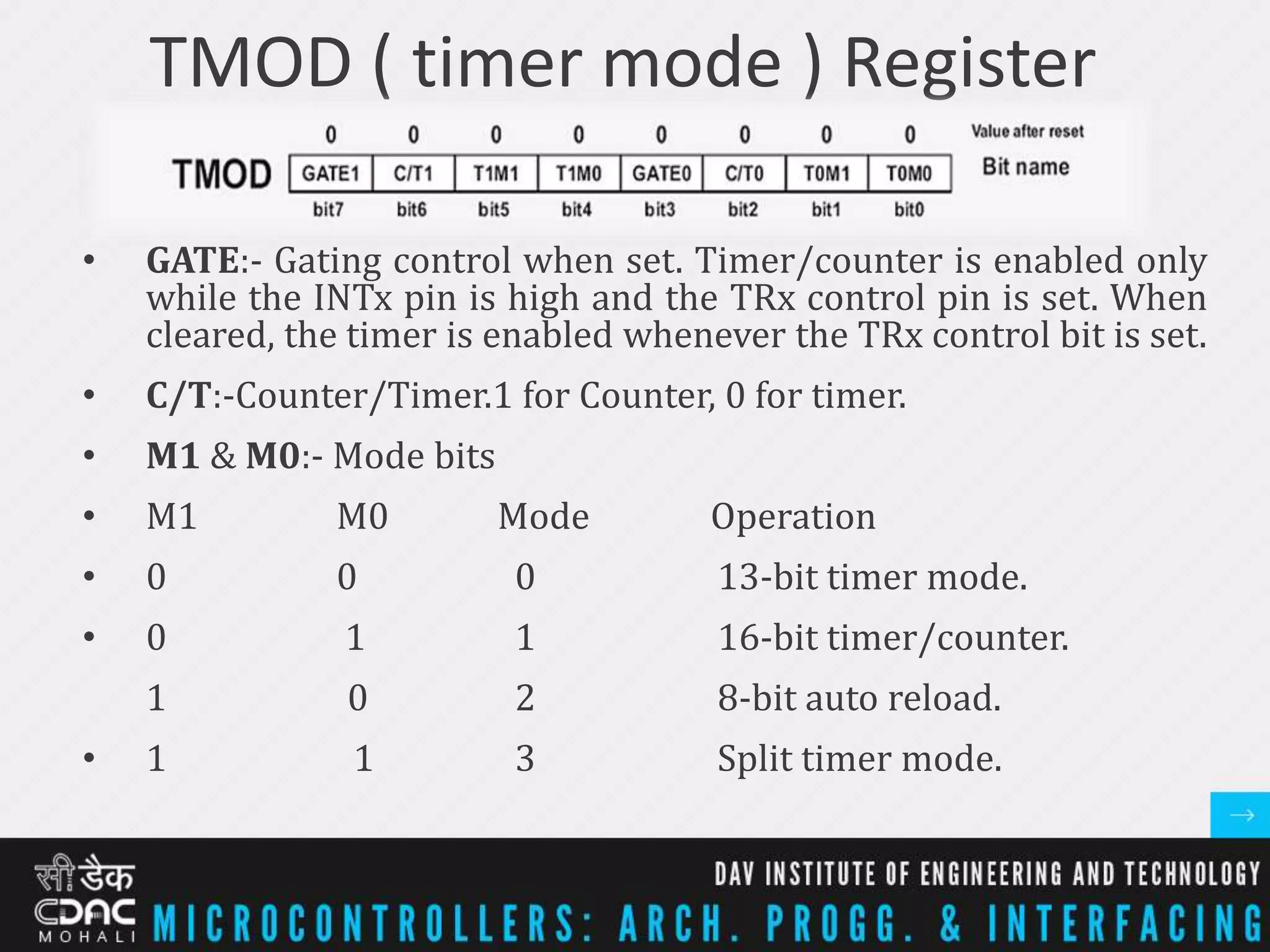

• Timers and Counters

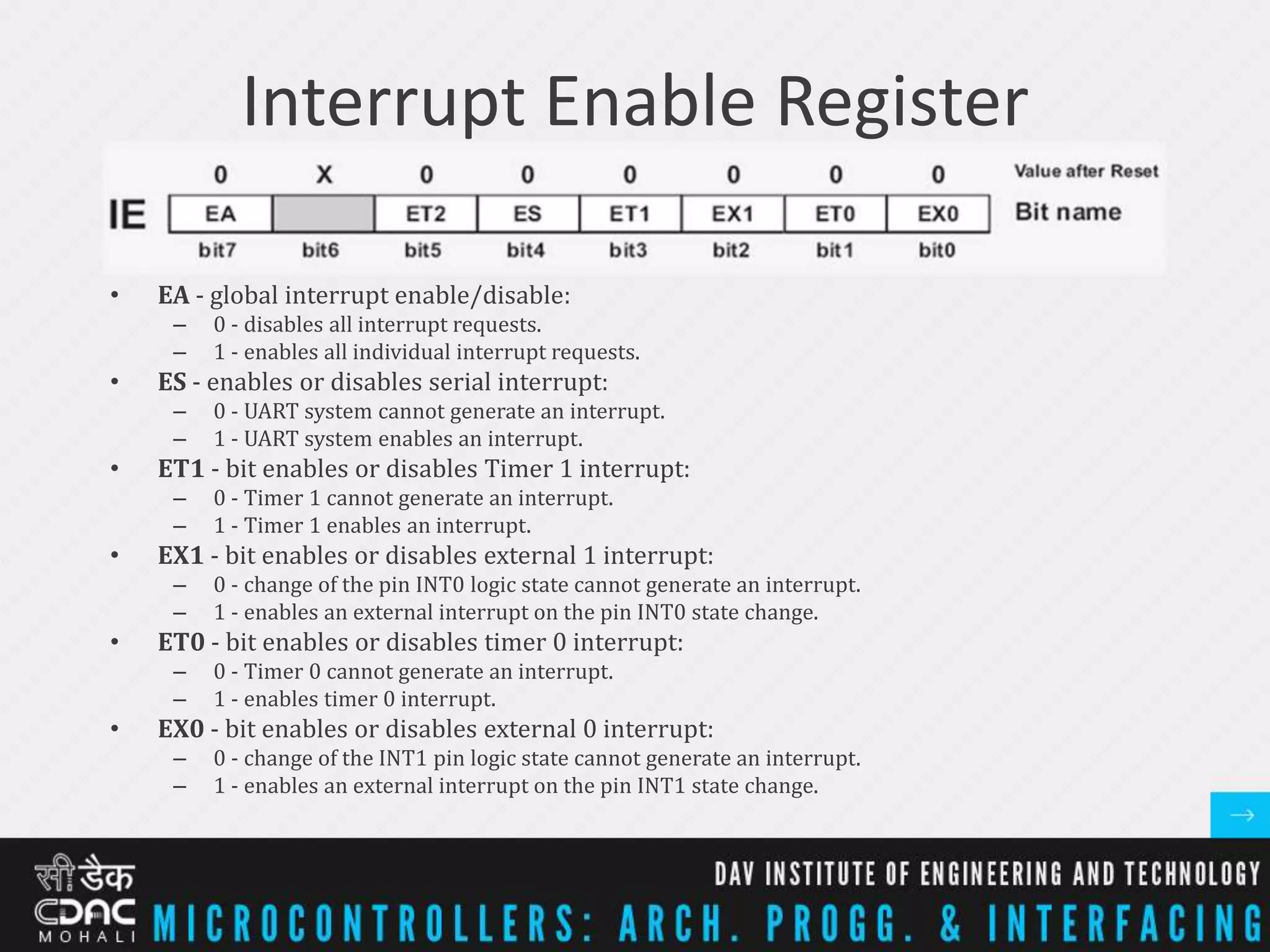

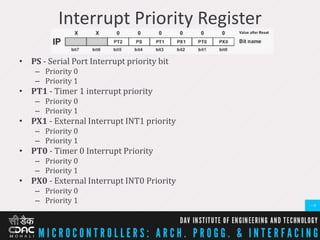

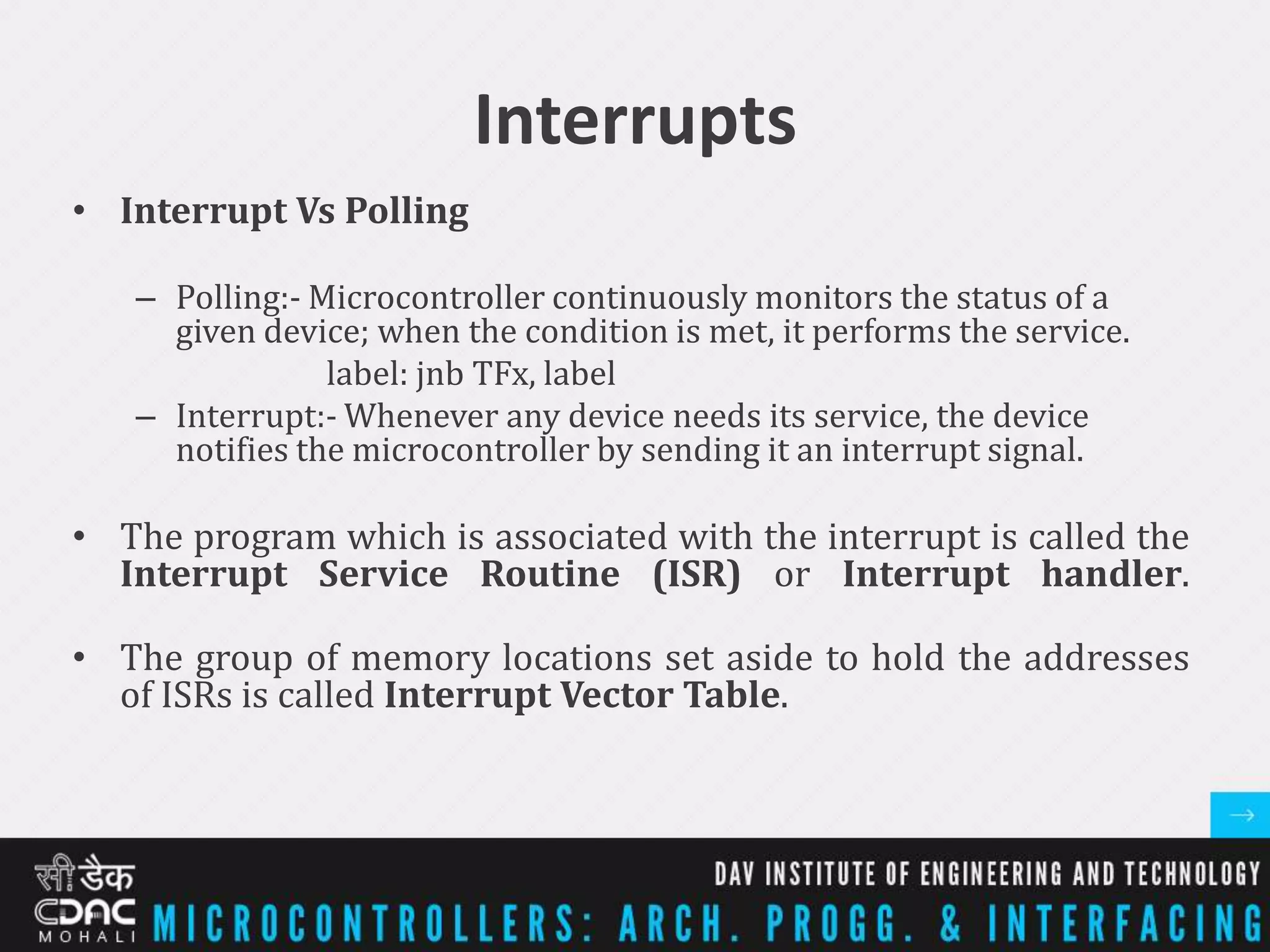

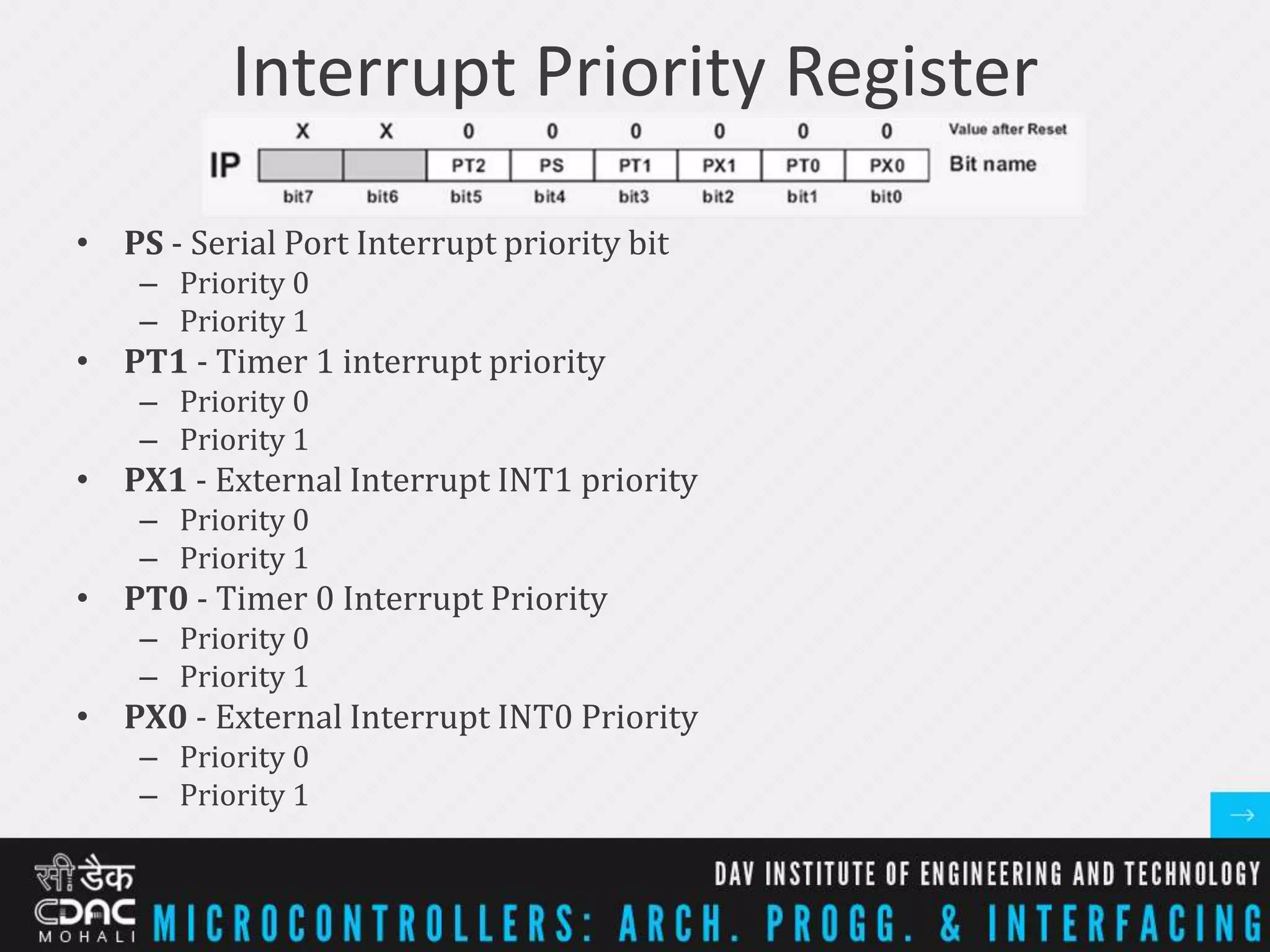

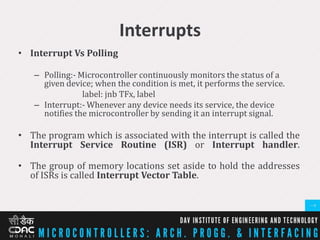

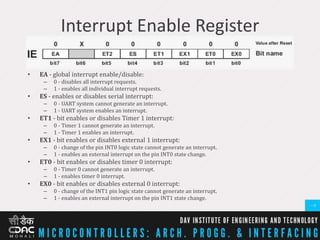

• Interrupts

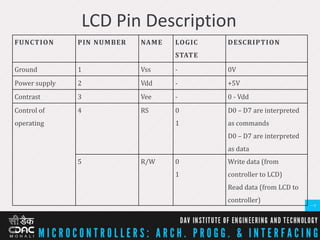

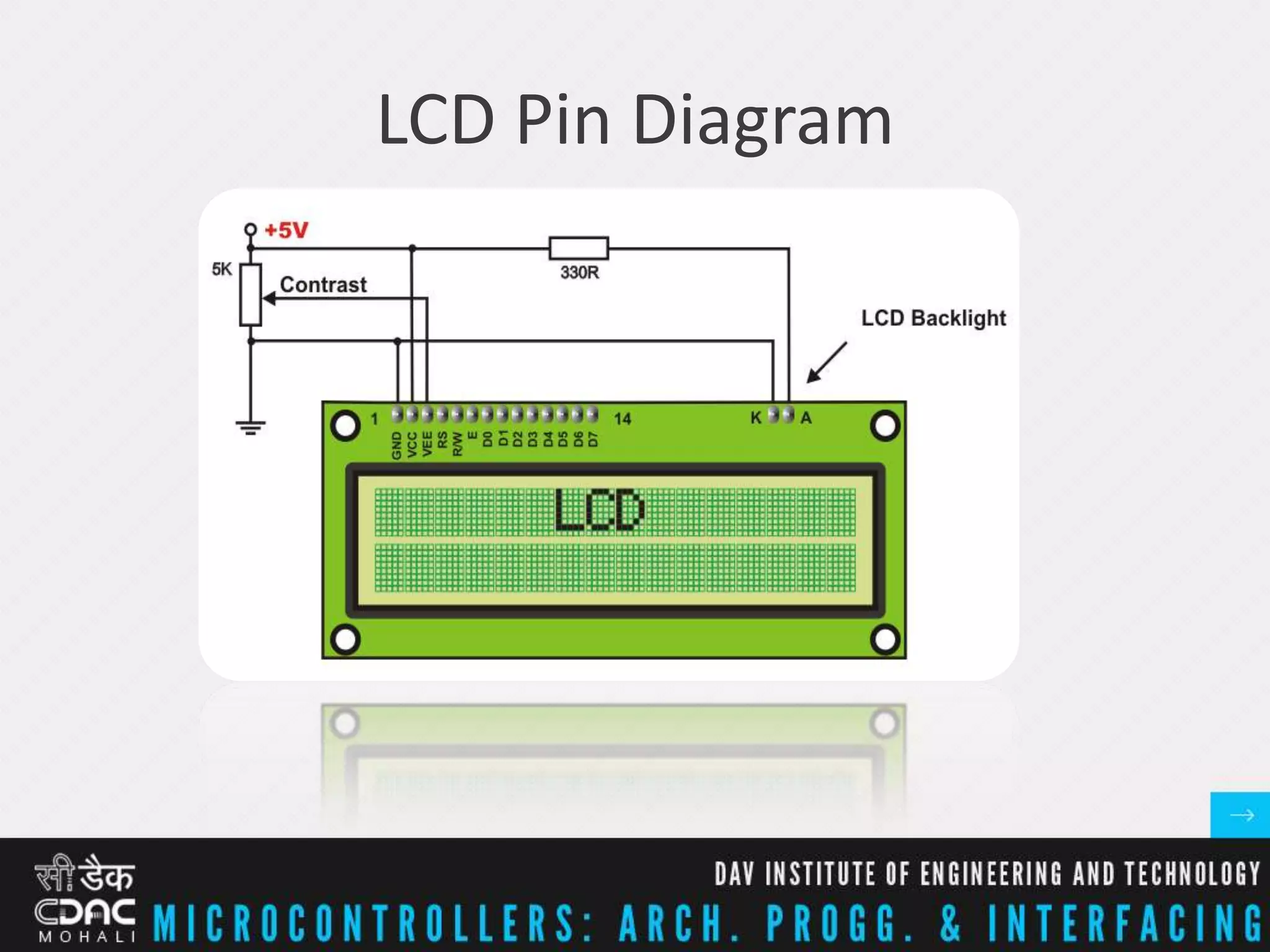

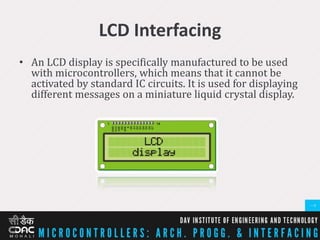

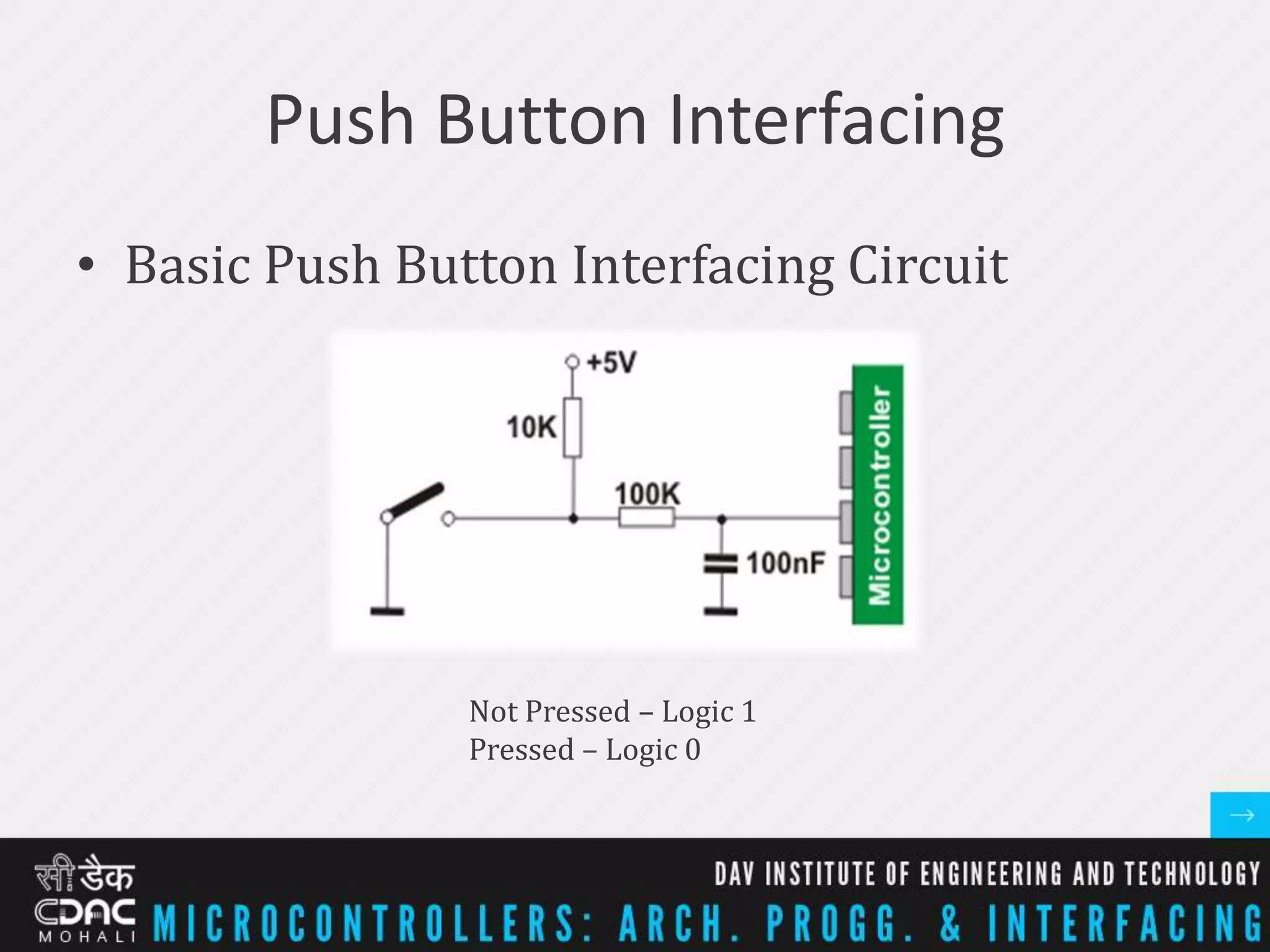

• Interfacings

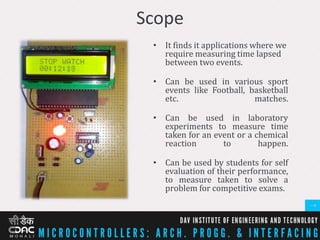

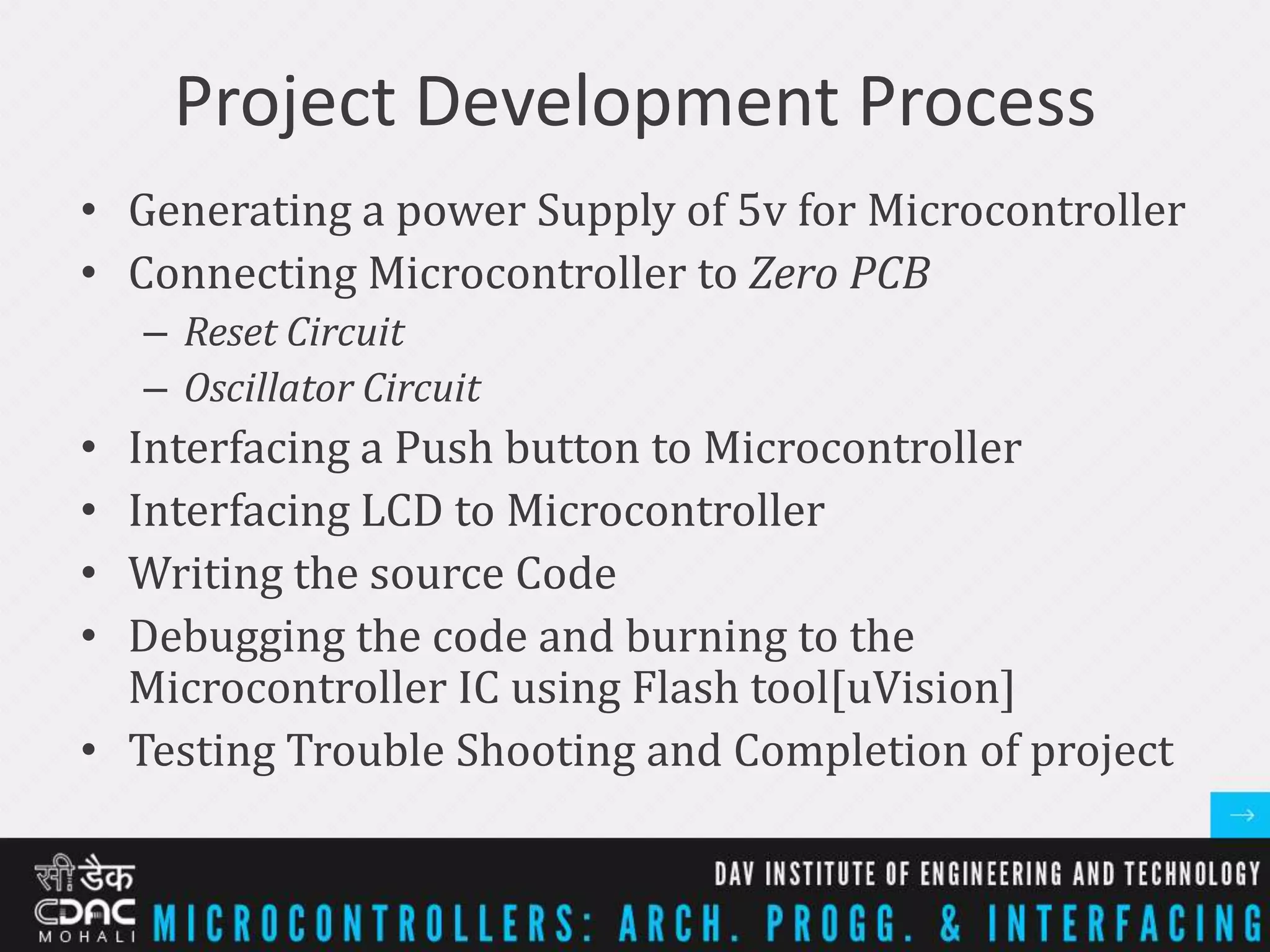

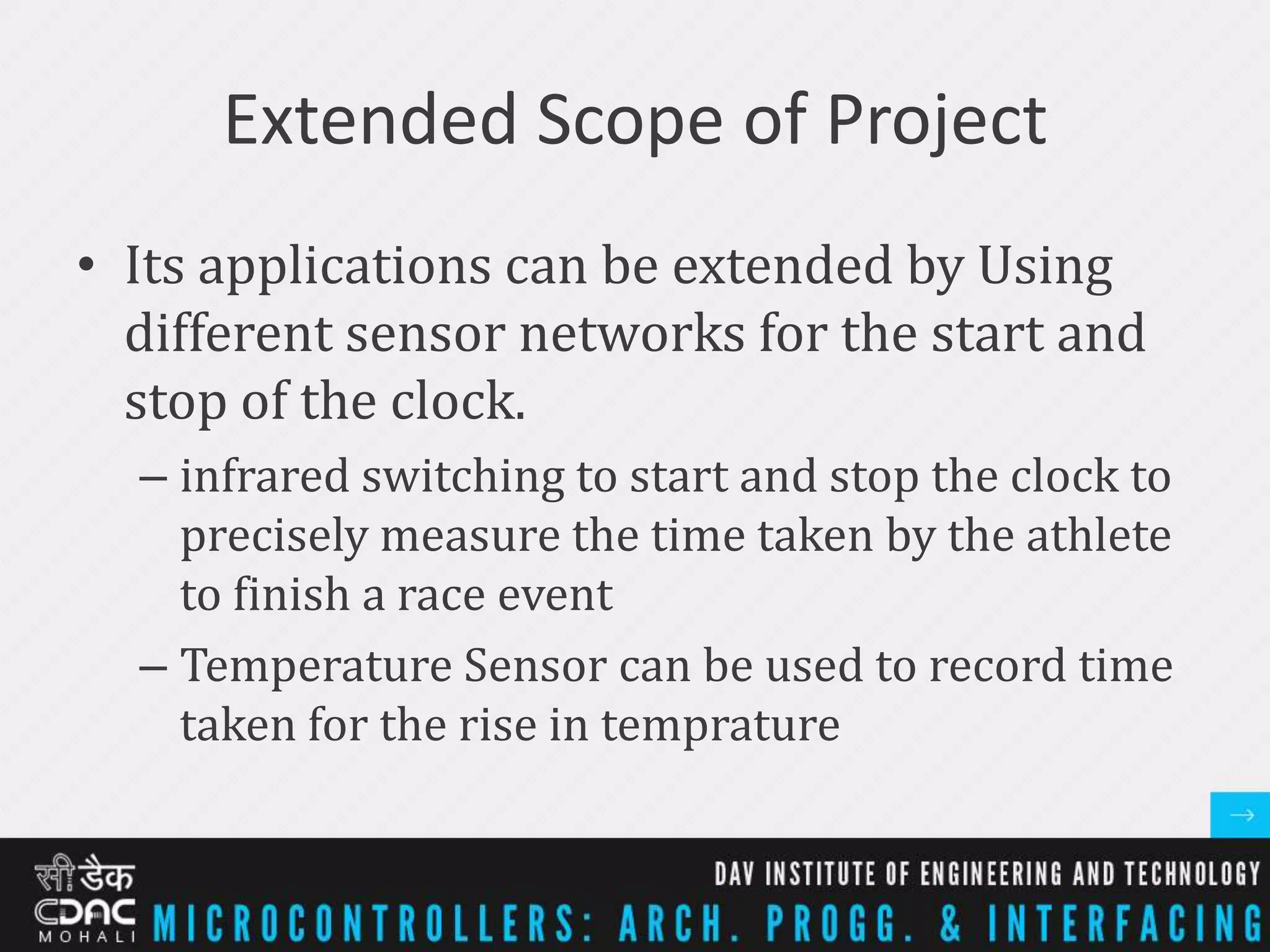

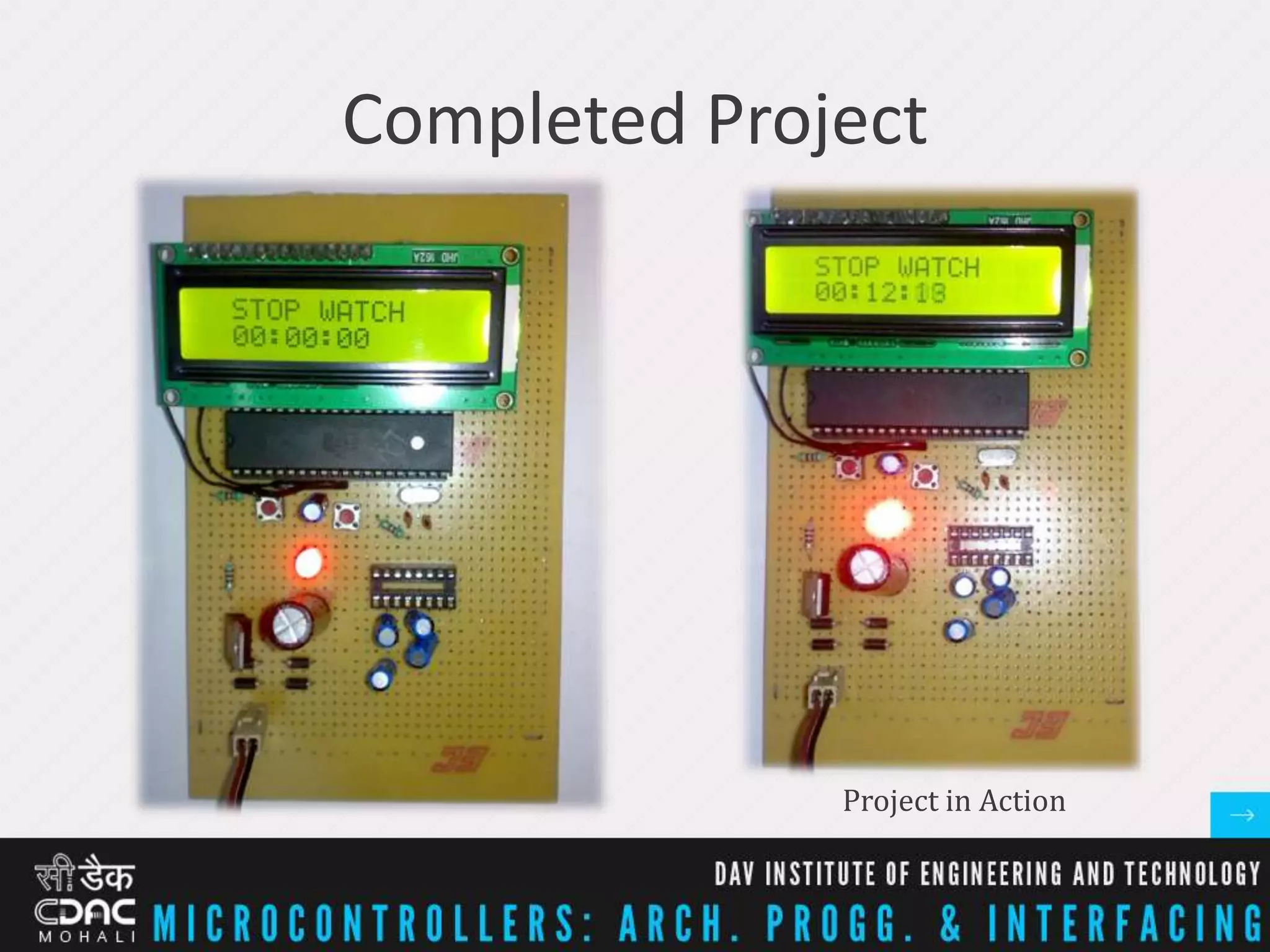

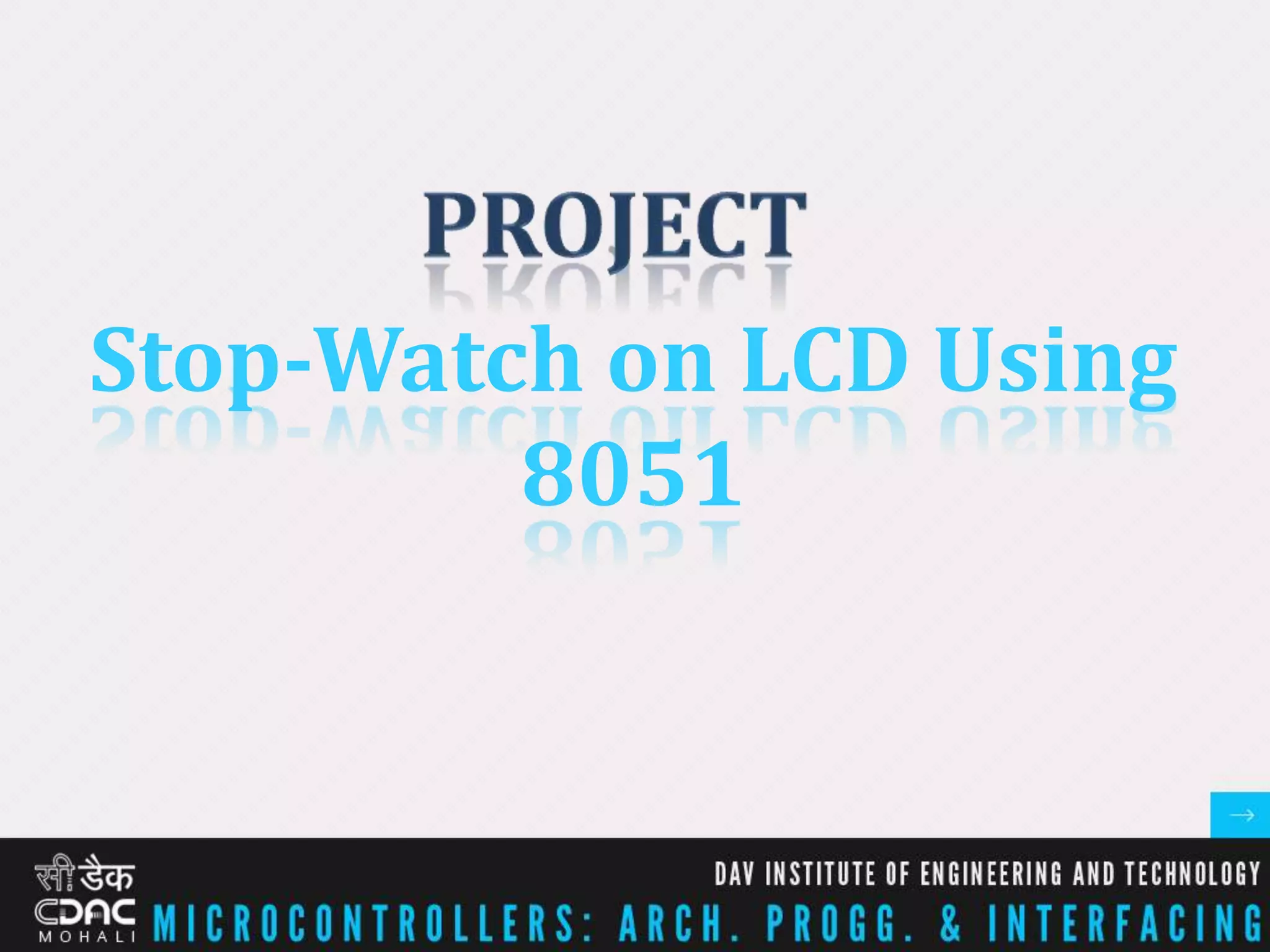

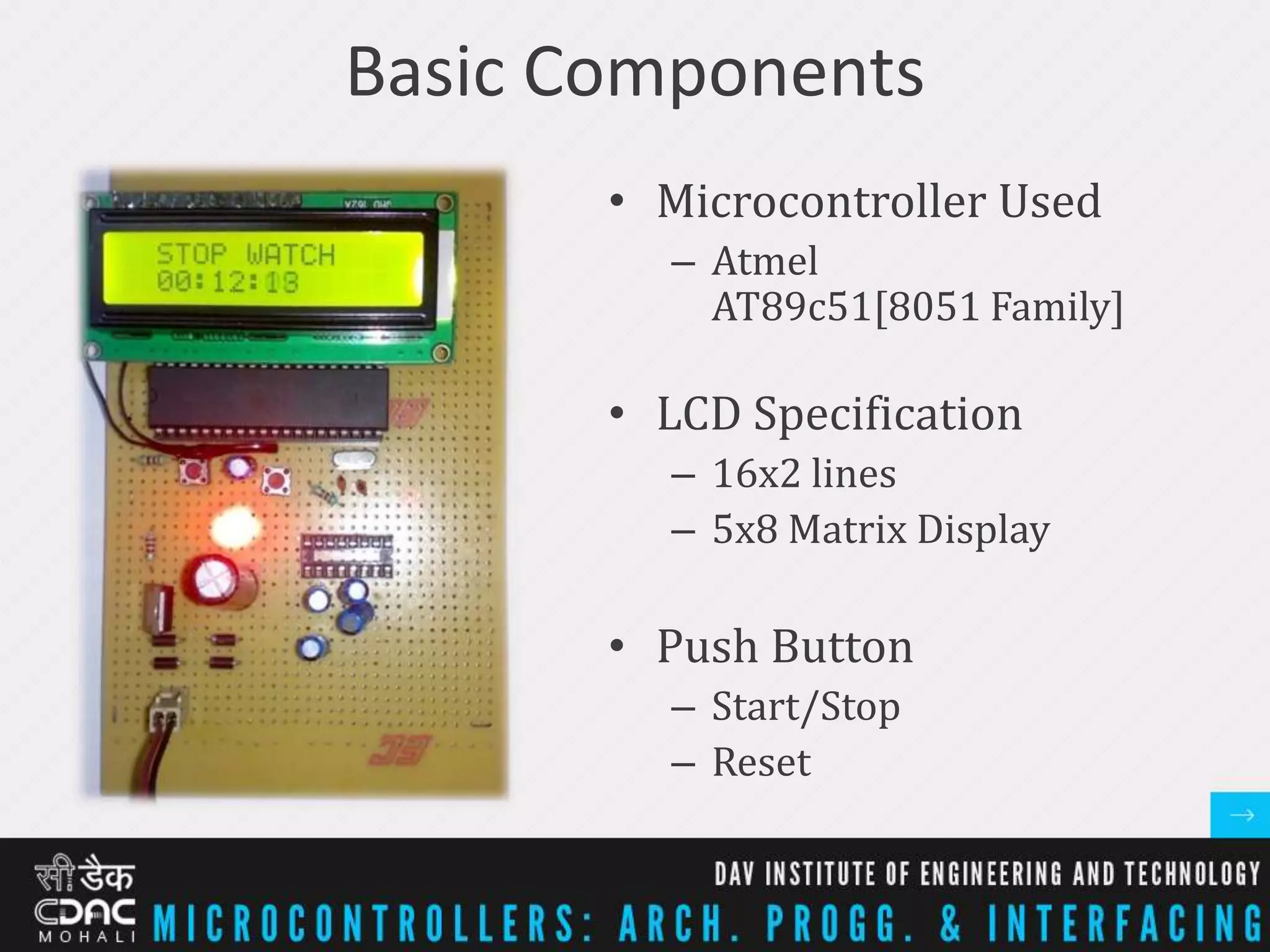

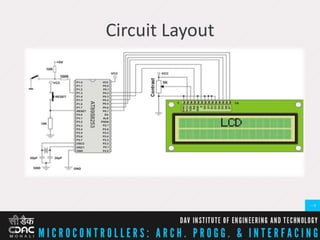

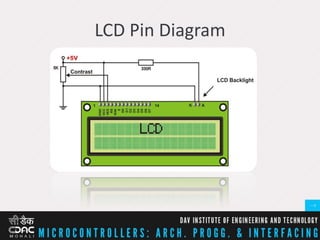

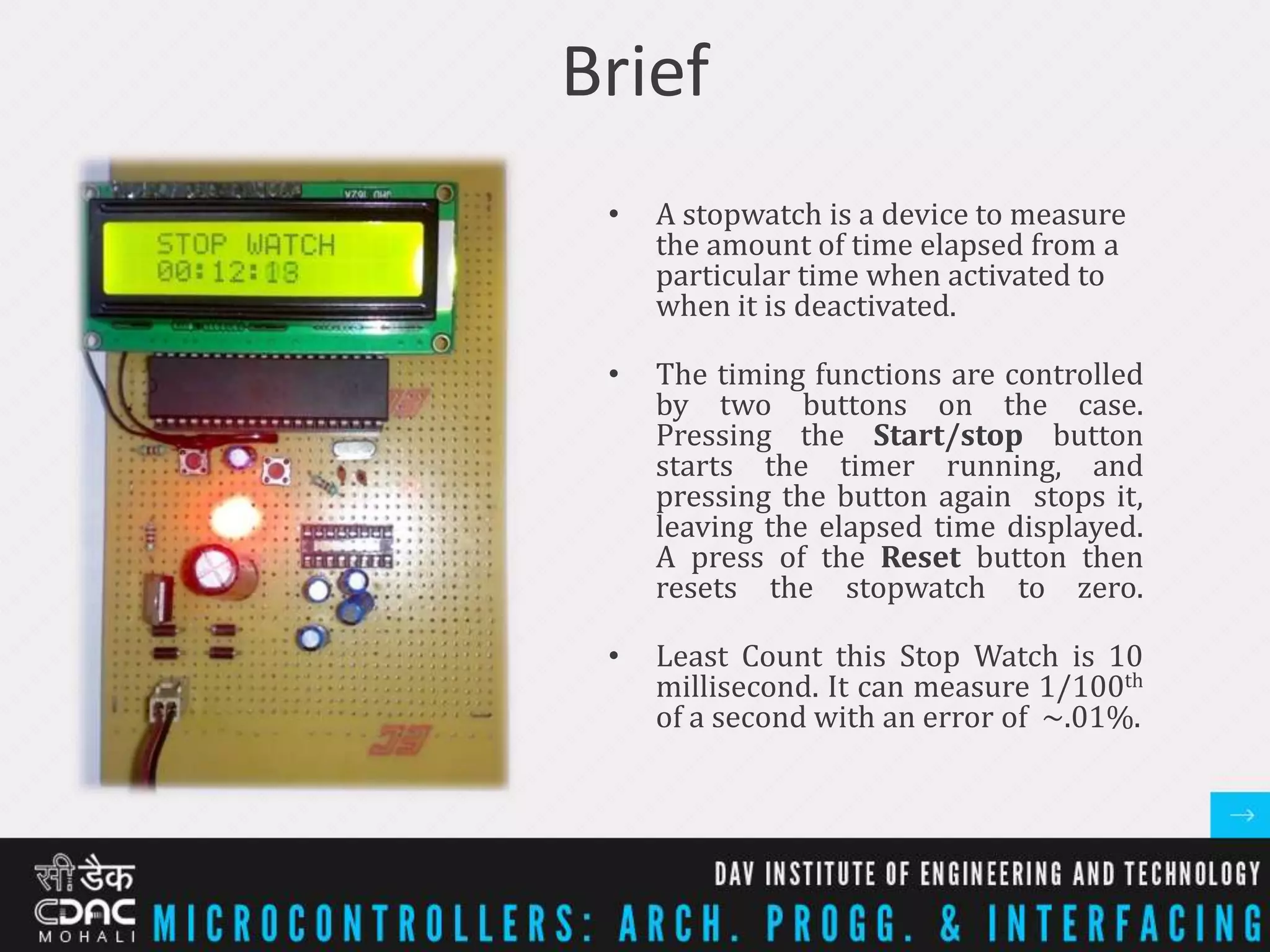

• Project: Stop-Watch on LCD Using 8051

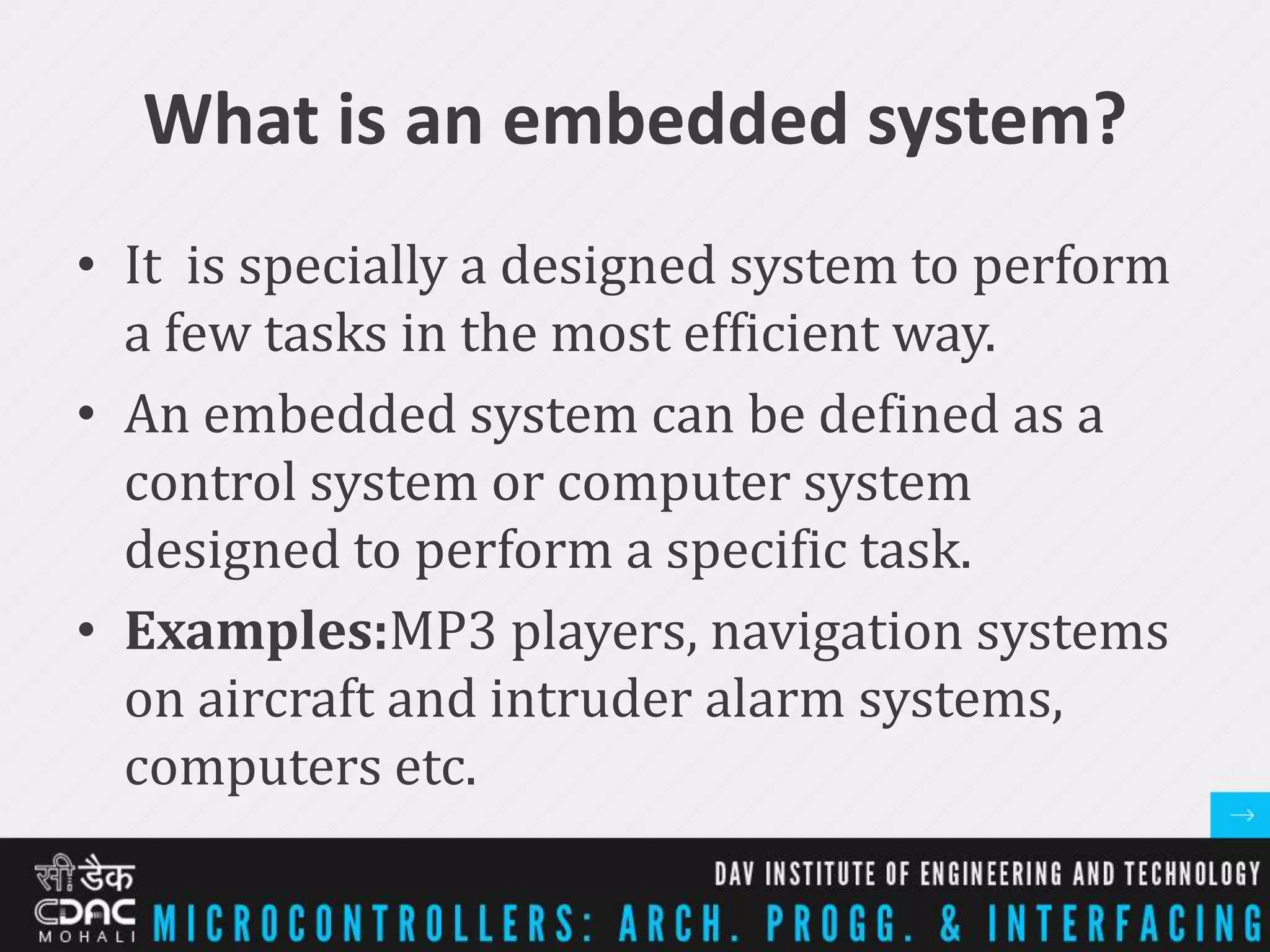

3. What is an embedded system?
• It is specially a designed system to perform
a few tasks in the most efficient way.
• An embedded system can be defined as a
control system or computer system
designed to perform a specific task.
• Examples:MP3 players, navigation systems
on aircraft and intruder alarm systems,
computers etc.

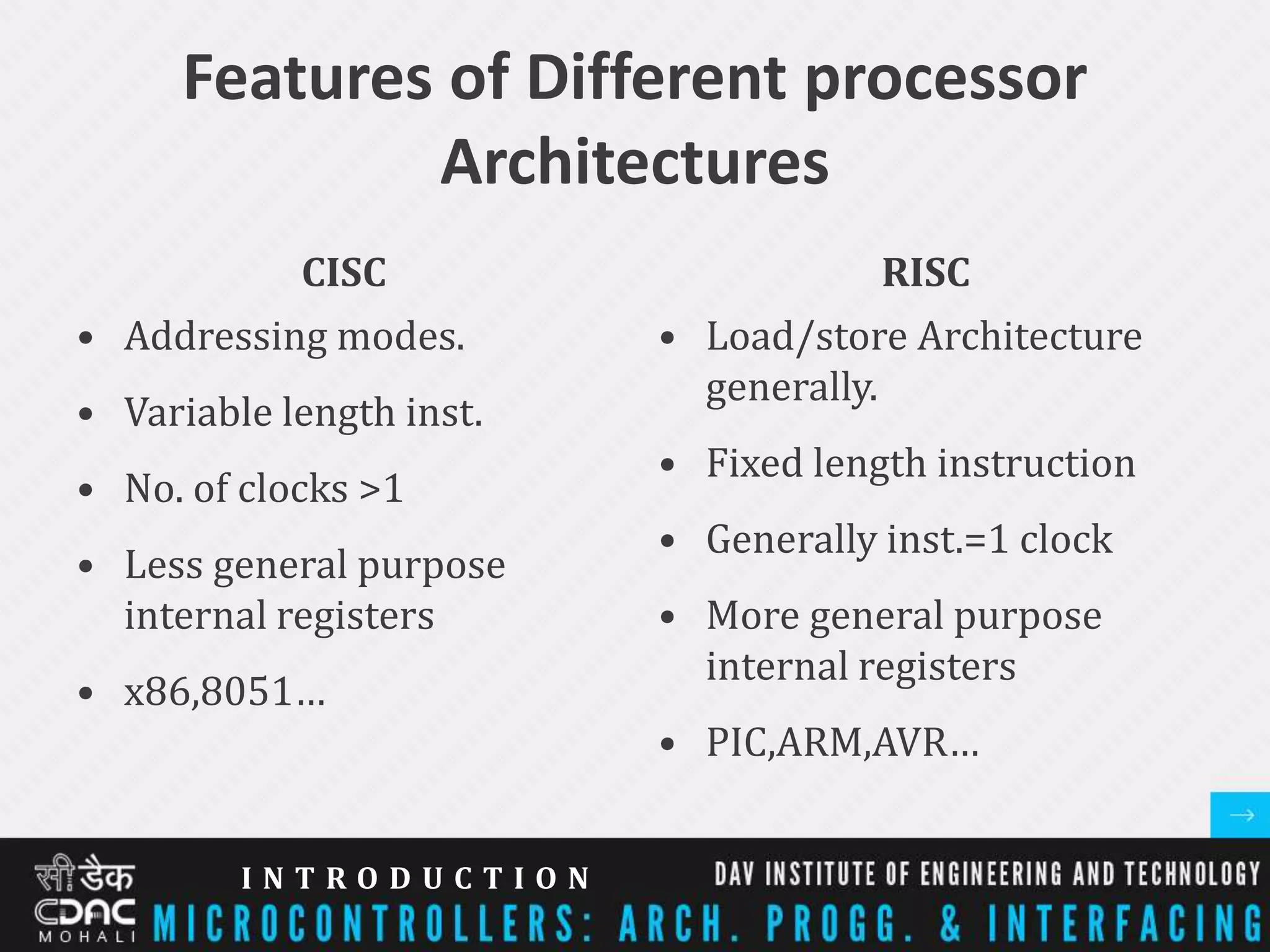

4. Features of Different processor
Architectures
CISC RISC
• Addressing modes. • Load/store Architecture
generally.
• Variable length inst.
• Fixed length instruction
• No. of clocks >1
• Generally inst.=1 clock
• Less general purpose
internal registers • More general purpose
internal registers
• x86,8051…
• PIC,ARM,AVR…
INTRODUCTION

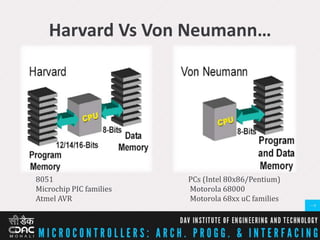

5. Harvard Vs Von Neumann…
8051 PCs (Intel 80x86/Pentium)
Microchip PIC families Motorola 68000
Atmel AVR Motorola 68xx uC families

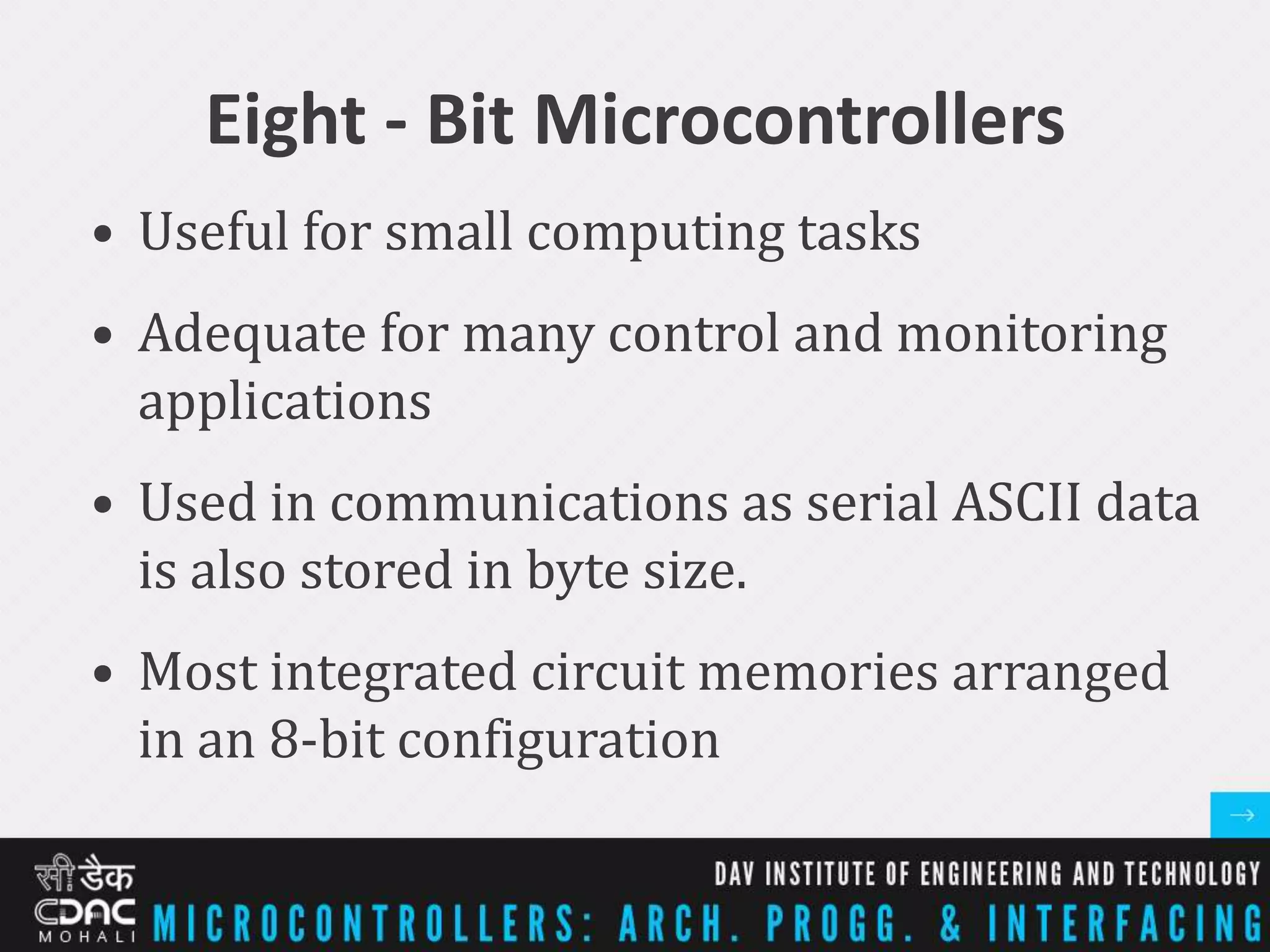

6. Eight - Bit Microcontrollers
• Useful for small computing tasks
• Adequate for many control and monitoring
applications
• Used in communications as serial ASCII data
is also stored in byte size.
• Most integrated circuit memories arranged
in an 8-bit configuration

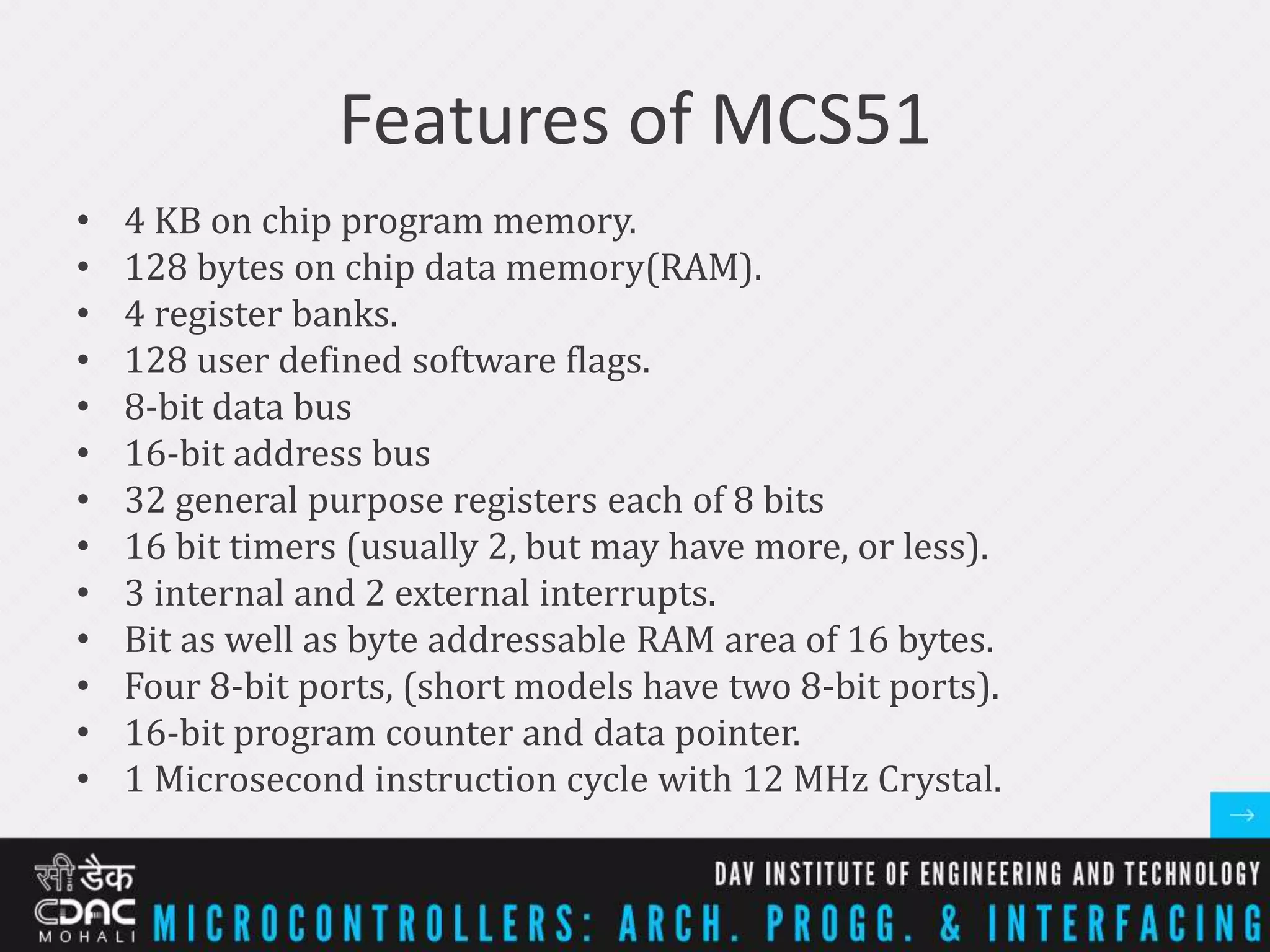

7. Features of MCS51
• 4 KB on chip program memory.
• 128 bytes on chip data memory(RAM).
• 4 register banks.
• 128 user defined software flags.
• 8-bit data bus
• 16-bit address bus
• 32 general purpose registers each of 8 bits
• 16 bit timers (usually 2, but may have more, or less).
• 3 internal and 2 external interrupts.
• Bit as well as byte addressable RAM area of 16 bytes.
• Four 8-bit ports, (short models have two 8-bit ports).
• 16-bit program counter and data pointer.
• 1 Microsecond instruction cycle with 12 MHz Crystal.

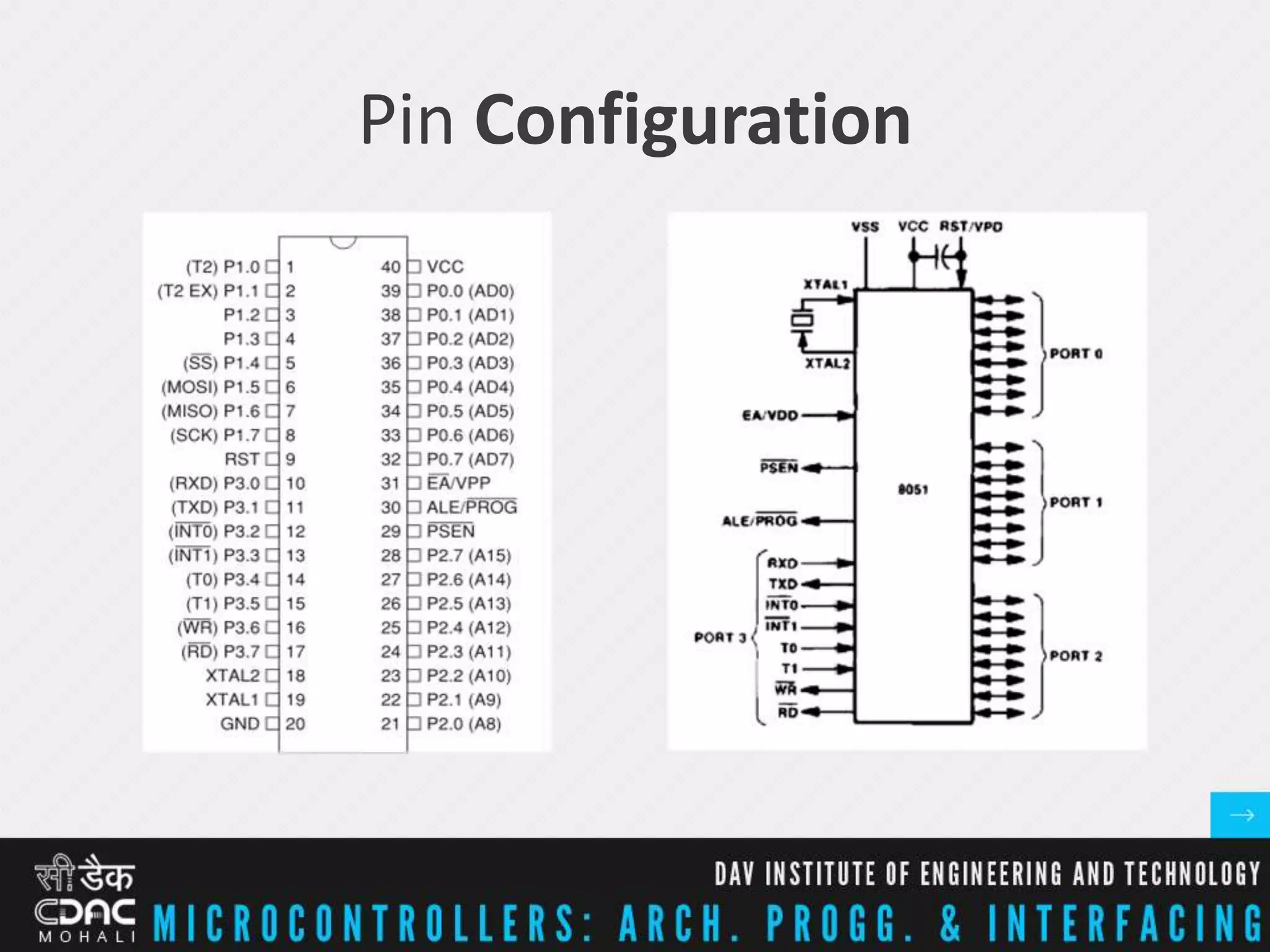

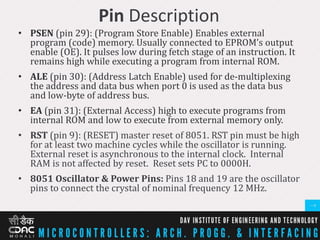

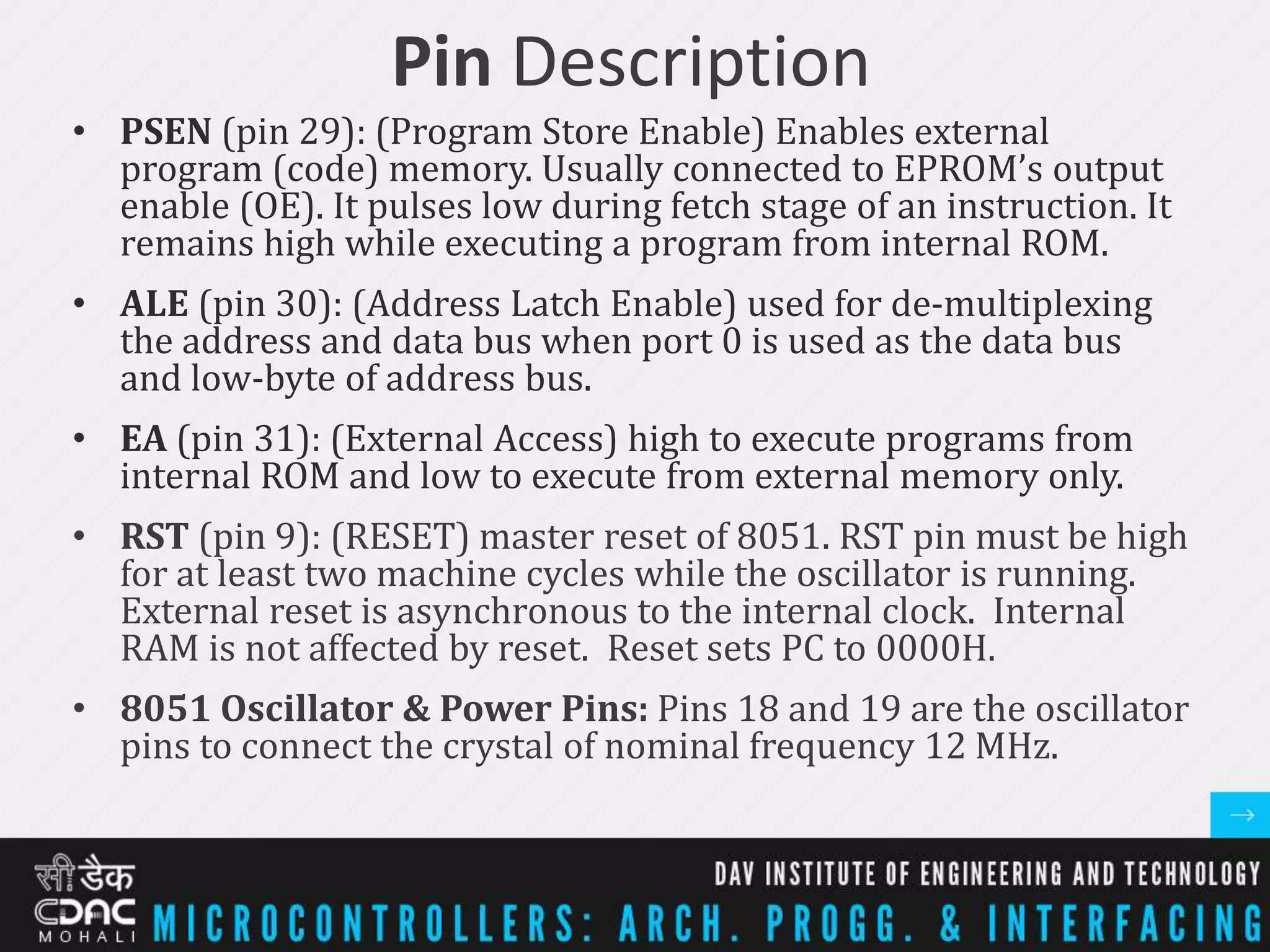

10. Pin Description
• PSEN (pin 29): (Program Store Enable) Enables external
program (code) memory. Usually connected to EPROM’s output
enable (OE). It pulses low during fetch stage of an instruction. It
remains high while executing a program from internal ROM.
• ALE (pin 30): (Address Latch Enable) used for de-multiplexing
the address and data bus when port 0 is used as the data bus
and low-byte of address bus.
• EA (pin 31): (External Access) high to execute programs from
internal ROM and low to execute from external memory only.
• RST (pin 9): (RESET) master reset of 8051. RST pin must be high
for at least two machine cycles while the oscillator is running.
External reset is asynchronous to the internal clock. Internal
RAM is not affected by reset. Reset sets PC to 0000H.
• 8051 Oscillator & Power Pins: Pins 18 and 19 are the oscillator
pins to connect the crystal of nominal frequency 12 MHz.

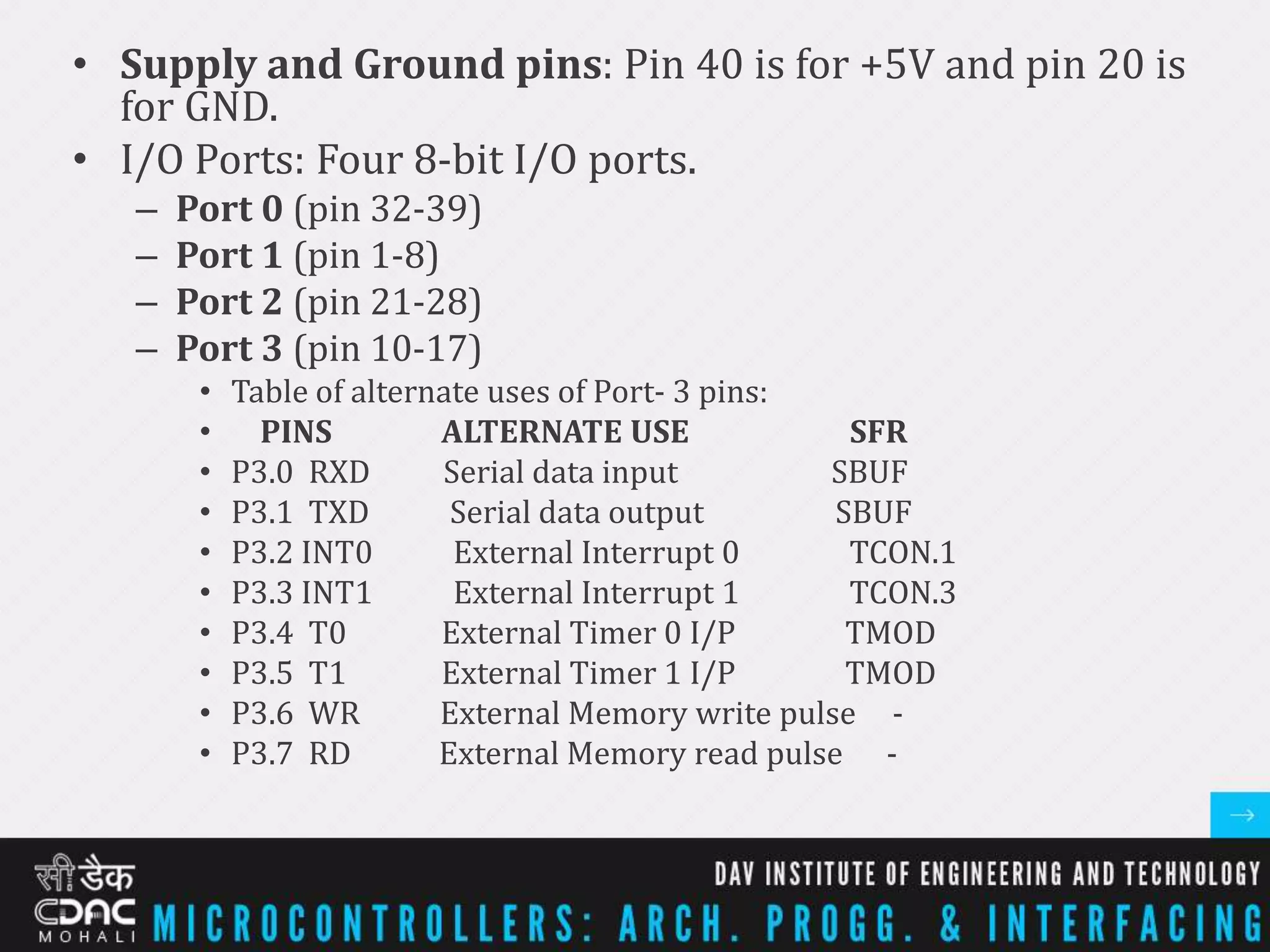

11. • Supply and Ground pins: Pin 40 is for +5V and pin 20 is
for GND.
• I/O Ports: Four 8-bit I/O ports.
– Port 0 (pin 32-39)
– Port 1 (pin 1-8)
– Port 2 (pin 21-28)
– Port 3 (pin 10-17)
• Table of alternate uses of Port- 3 pins:
• PINS ALTERNATE USE SFR
• P3.0 RXD Serial data input SBUF
• P3.1 TXD Serial data output SBUF
• P3.2 INT0 External Interrupt 0 TCON.1
• P3.3 INT1 External Interrupt 1 TCON.3
• P3.4 T0 External Timer 0 I/P TMOD
• P3.5 T1 External Timer 1 I/P TMOD
• P3.6 WR External Memory write pulse -
• P3.7 RD External Memory read pulse -

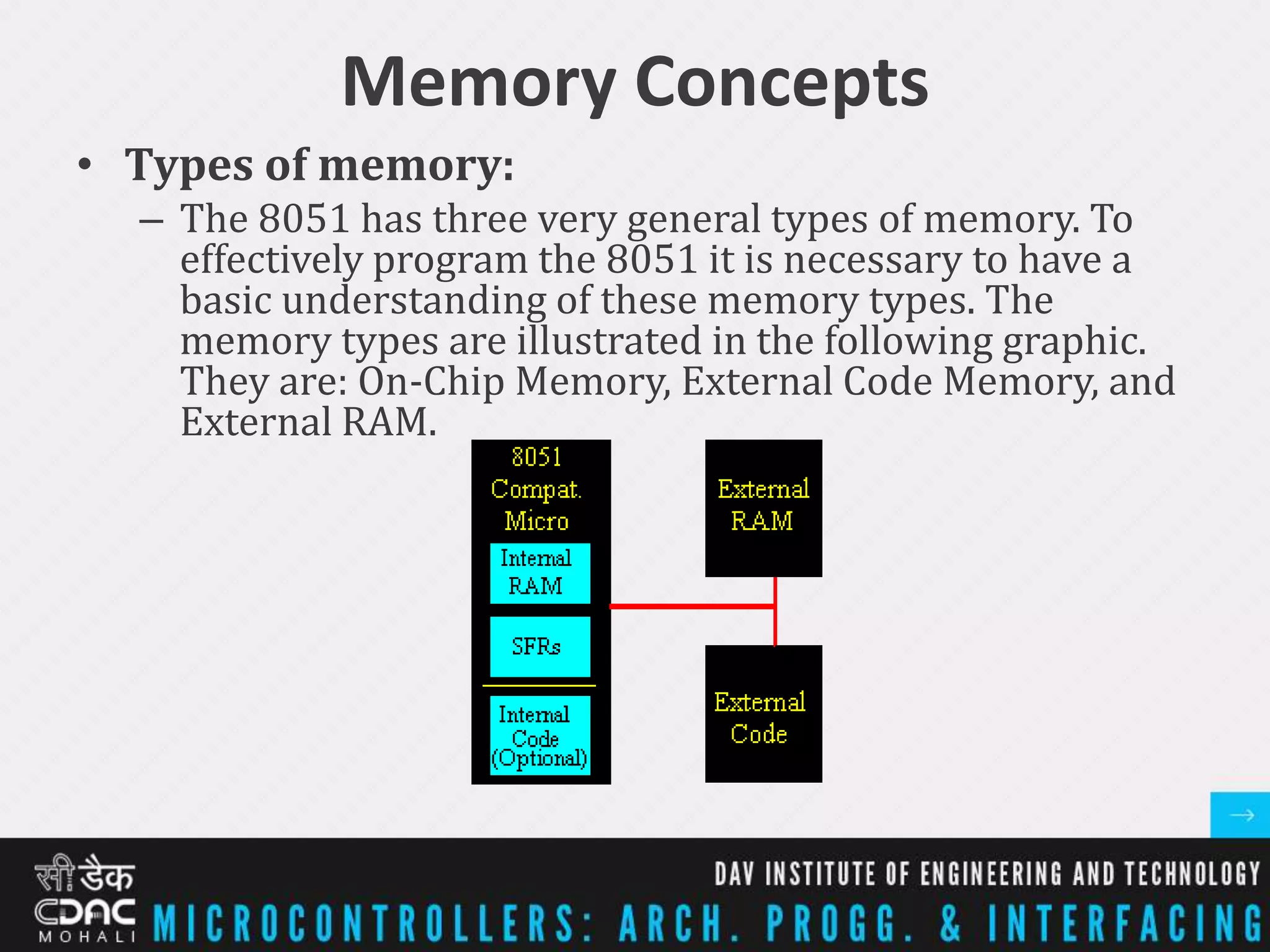

12. Memory Concepts
• Types of memory:
– The 8051 has three very general types of memory. To
effectively program the 8051 it is necessary to have a
basic understanding of these memory types. The
memory types are illustrated in the following graphic.
They are: On-Chip Memory, External Code Memory, and
External RAM.

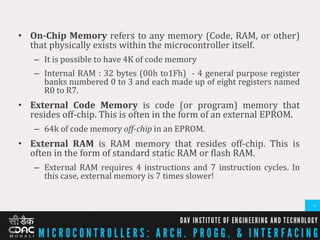

13. • On-Chip Memory refers to any memory (Code, RAM, or other)
that physically exists within the microcontroller itself.
– It is possible to have 4K of code memory

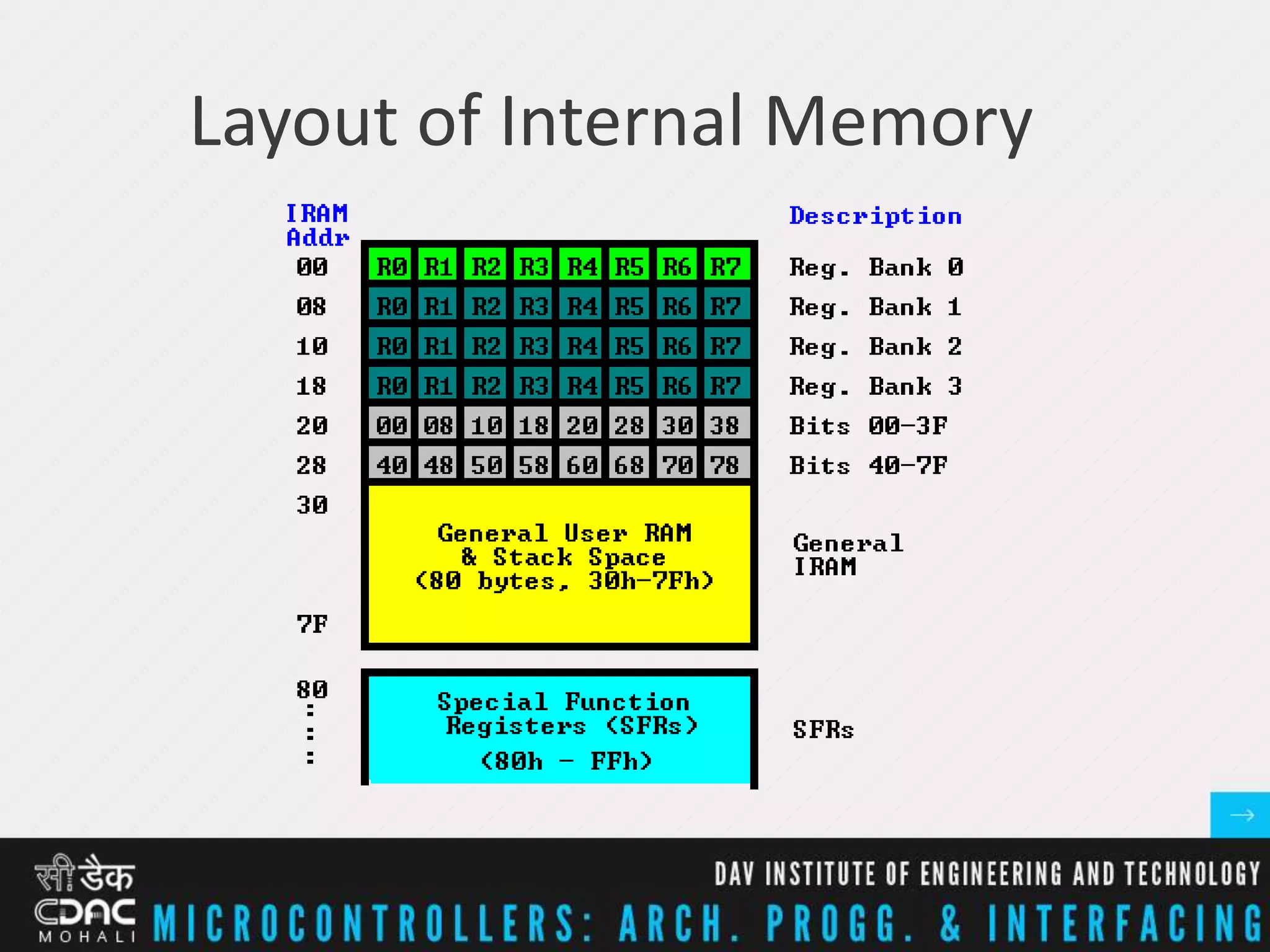

– Internal RAM : 32 bytes (00h to1Fh) - 4 general purpose register
banks numbered 0 to 3 and each made up of eight registers named
R0 to R7.
• External Code Memory is code (or program) memory that
resides off-chip. This is often in the form of an external EPROM.
– 64k of code memory off-chip in an EPROM.
• External RAM is RAM memory that resides off-chip. This is
often in the form of standard static RAM or flash RAM.
– External RAM requires 4 instructions and 7 instruction cycles. In
this case, external memory is 7 times slower!

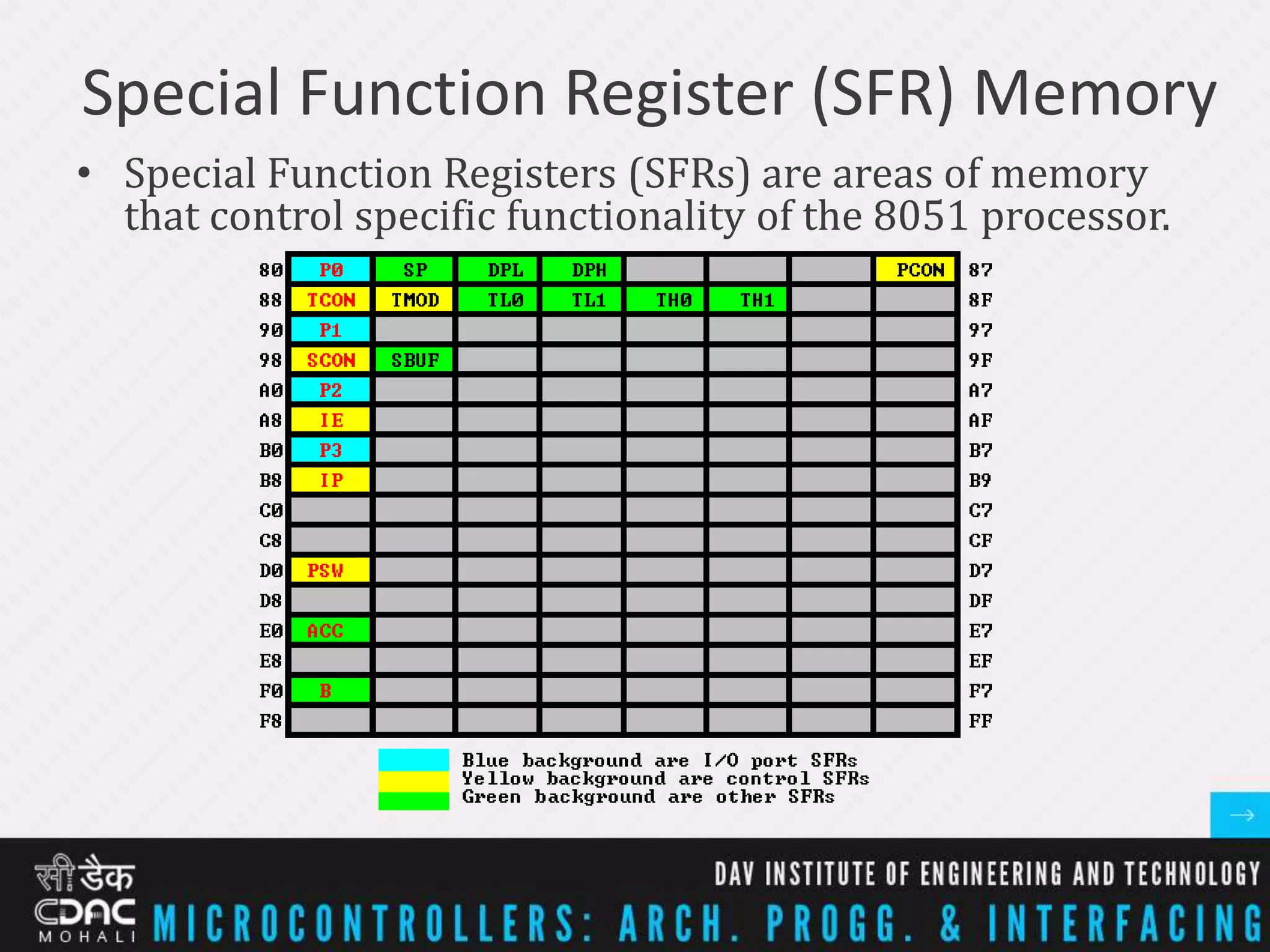

15. Special Function Register (SFR) Memory
• Special Function Registers (SFRs) are areas of memory
that control specific functionality of the 8051 processor.

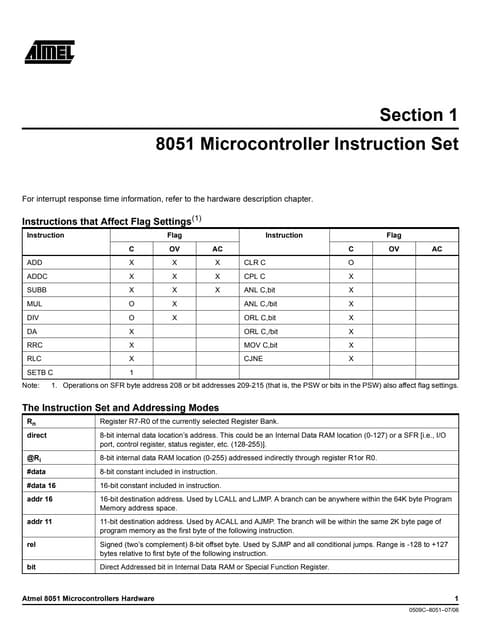

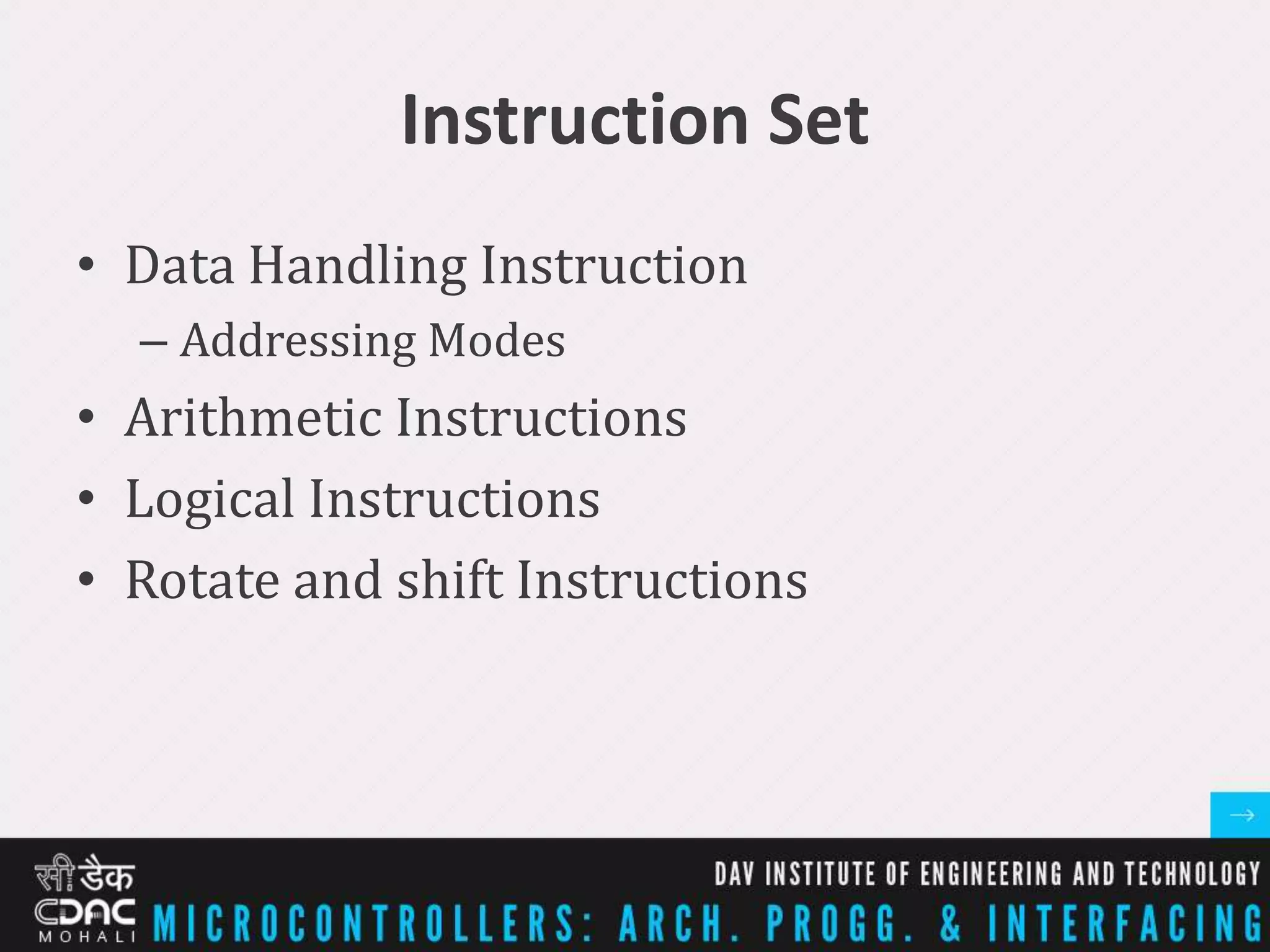

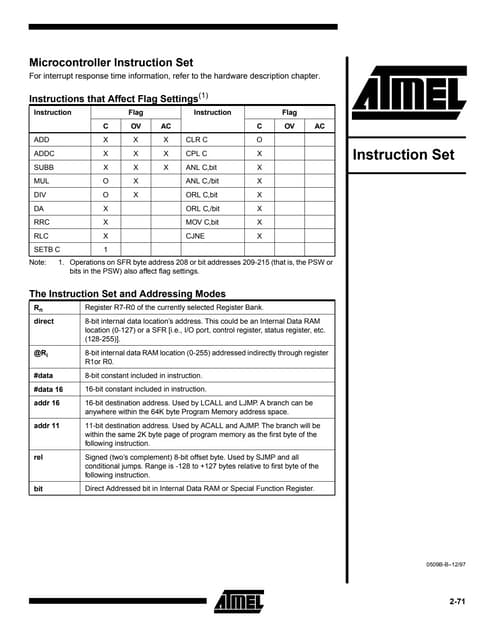

16. Instruction Set
• Data Handling Instruction

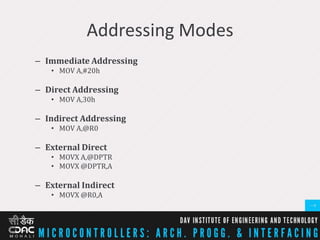

– Addressing Modes
• Arithmetic Instructions
• Logical Instructions
• Rotate and shift Instructions

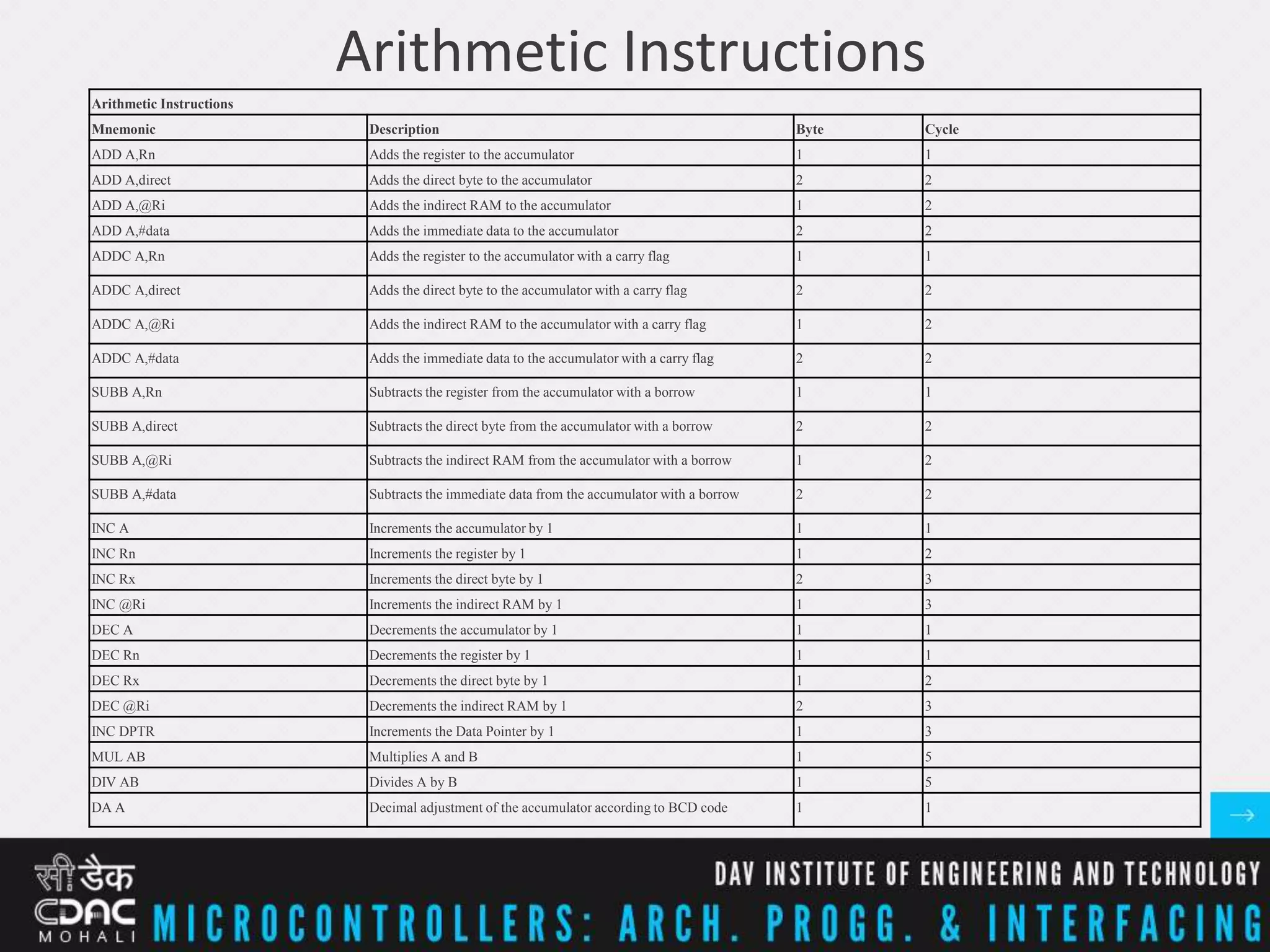

18. Arithmetic Instructions
Arithmetic Instructions
Mnemonic Description Byte Cycle
ADD A,Rn Adds the register to the accumulator 1 1
ADD A,direct Adds the direct byte to the accumulator 2 2
ADD A,@Ri Adds the indirect RAM to the accumulator 1 2
ADD A,#data Adds the immediate data to the accumulator 2 2
ADDC A,Rn Adds the register to the accumulator with a carry flag 1 1
ADDC A,direct Adds the direct byte to the accumulator with a carry flag 2 2
ADDC A,@Ri Adds the indirect RAM to the accumulator with a carry flag 1 2
ADDC A,#data Adds the immediate data to the accumulator with a carry flag 2 2
SUBB A,Rn Subtracts the register from the accumulator with a borrow 1 1
SUBB A,direct Subtracts the direct byte from the accumulator with a borrow 2 2
SUBB A,@Ri Subtracts the indirect RAM from the accumulator with a borrow 1 2
SUBB A,#data Subtracts the immediate data from the accumulator with a borrow 2 2
INC A Increments the accumulator by 1 1 1
INC Rn Increments the register by 1 1 2
INC Rx Increments the direct byte by 1 2 3
INC @Ri Increments the indirect RAM by 1 1 3
DEC A Decrements the accumulator by 1 1 1
DEC Rn Decrements the register by 1 1 1
DEC Rx Decrements the direct byte by 1 1 2
DEC @Ri Decrements the indirect RAM by 1 2 3
INC DPTR Increments the Data Pointer by 1 1 3
MUL AB Multiplies A and B 1 5
DIV AB Divides A by B 1 5
DA A Decimal adjustment of the accumulator according to BCD code 1 1

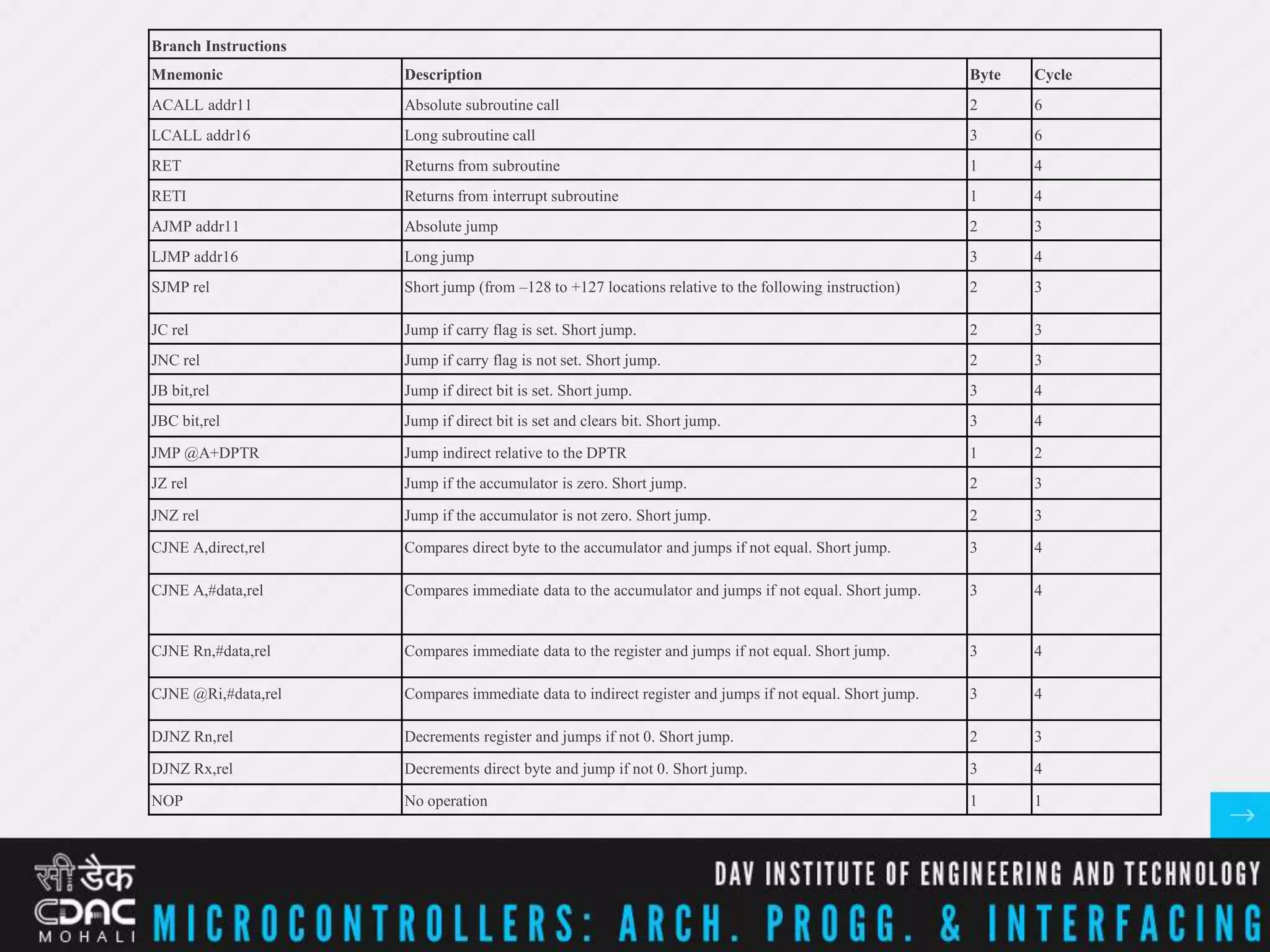

19. Branch Instructions
Mnemonic Description Byte Cycle
ACALL addr11 Absolute subroutine call 2 6
LCALL addr16 Long subroutine call 3 6
RET Returns from subroutine 1 4
RETI Returns from interrupt subroutine 1 4
AJMP addr11 Absolute jump 2 3
LJMP addr16 Long jump 3 4
SJMP rel Short jump (from –128 to +127 locations relative to the following instruction) 2 3
JC rel Jump if carry flag is set. Short jump. 2 3
JNC rel Jump if carry flag is not set. Short jump. 2 3
JB bit,rel Jump if direct bit is set. Short jump. 3 4
JBC bit,rel Jump if direct bit is set and clears bit. Short jump. 3 4
JMP @A+DPTR Jump indirect relative to the DPTR 1 2
JZ rel Jump if the accumulator is zero. Short jump. 2 3
JNZ rel Jump if the accumulator is not zero. Short jump. 2 3
CJNE A,direct,rel Compares direct byte to the accumulator and jumps if not equal. Short jump. 3 4
CJNE A,#data,rel Compares immediate data to the accumulator and jumps if not equal. Short jump. 3 4
CJNE Rn,#data,rel Compares immediate data to the register and jumps if not equal. Short jump. 3 4
CJNE @Ri,#data,rel Compares immediate data to indirect register and jumps if not equal. Short jump. 3 4
DJNZ Rn,rel Decrements register and jumps if not 0. Short jump. 2 3
DJNZ Rx,rel Decrements direct byte and jump if not 0. Short jump. 3 4
NOP No operation 1 1

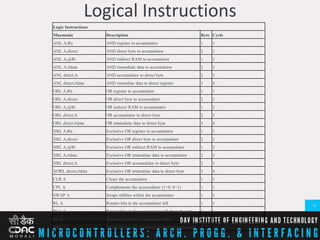

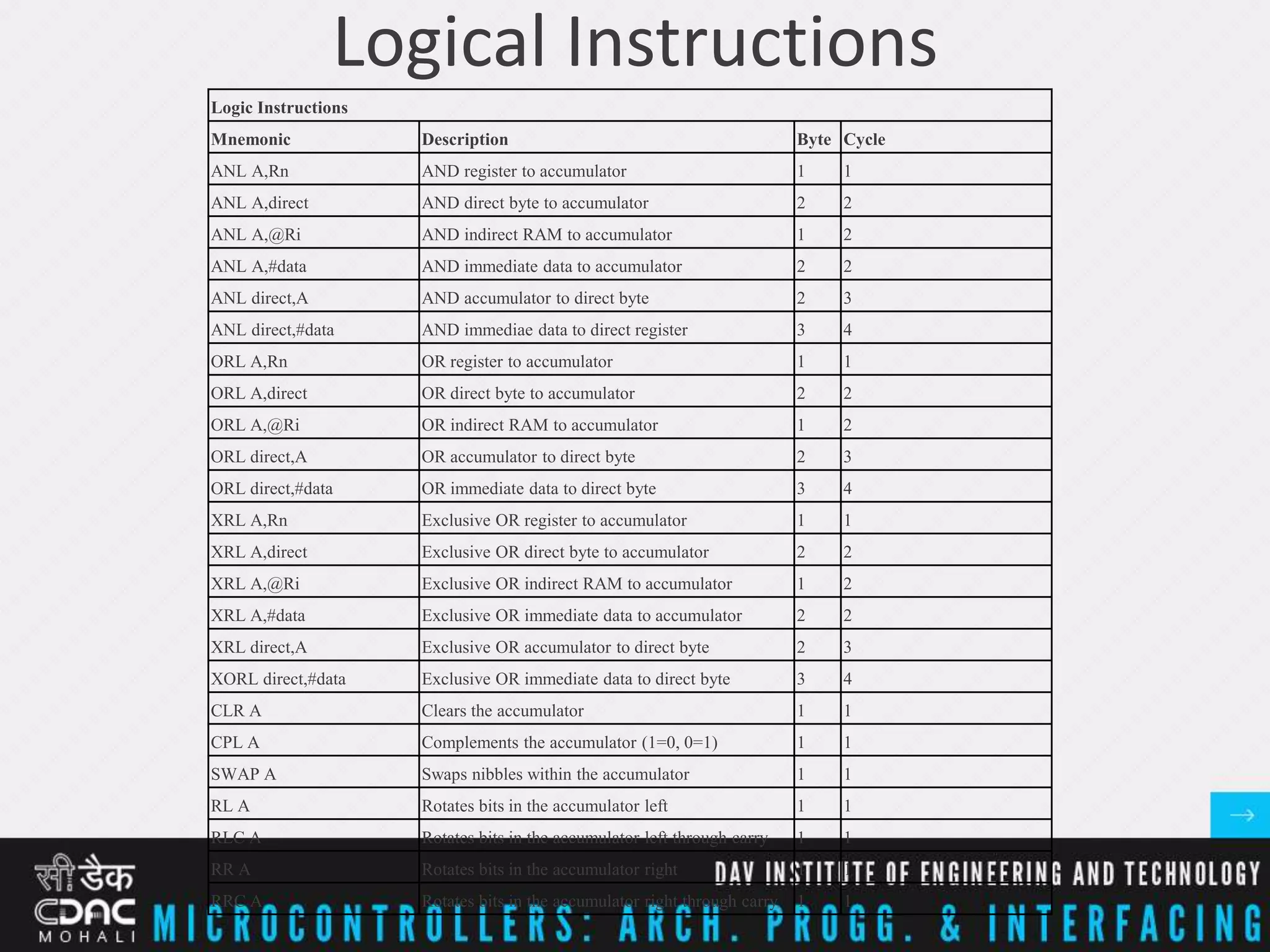

20. Logical Instructions
Logic Instructions
Mnemonic Description Byte Cycle
ANL A,Rn AND register to accumulator 1 1
ANL A,direct AND direct byte to accumulator 2 2
ANL A,@Ri AND indirect RAM to accumulator 1 2
ANL A,#data AND immediate data to accumulator 2 2
ANL direct,A AND accumulator to direct byte 2 3
ANL direct,#data AND immediae data to direct register 3 4
ORL A,Rn OR register to accumulator 1 1
ORL A,direct OR direct byte to accumulator 2 2
ORL A,@Ri OR indirect RAM to accumulator 1 2
ORL direct,A OR accumulator to direct byte 2 3
ORL direct,#data OR immediate data to direct byte 3 4
XRL A,Rn Exclusive OR register to accumulator 1 1
XRL A,direct Exclusive OR direct byte to accumulator 2 2
XRL A,@Ri Exclusive OR indirect RAM to accumulator 1 2
XRL A,#data Exclusive OR immediate data to accumulator 2 2
XRL direct,A Exclusive OR accumulator to direct byte 2 3
XORL direct,#data Exclusive OR immediate data to direct byte 3 4
CLR A Clears the accumulator 1 1
CPL A Complements the accumulator (1=0, 0=1) 1 1
SWAP A Swaps nibbles within the accumulator 1 1
RL A Rotates bits in the accumulator left 1 1
RLC A Rotates bits in the accumulator left through carry 1 1
RR A Rotates bits in the accumulator right 1 1
RRC A Rotates bits in the accumulator right through carry 1 1

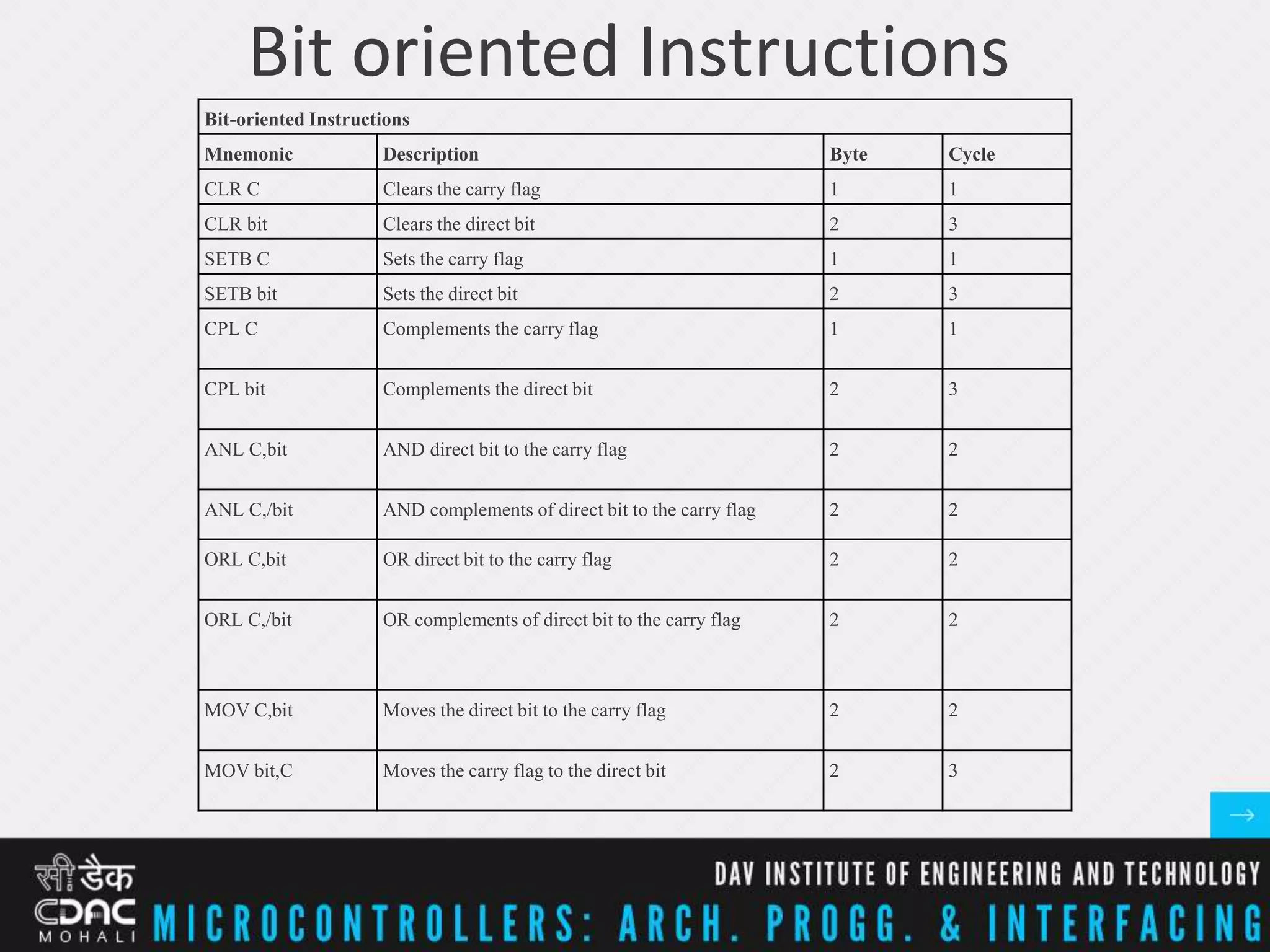

21. Bit oriented Instructions
Bit-oriented Instructions
Mnemonic Description Byte Cycle
CLR C Clears the carry flag 1 1
CLR bit Clears the direct bit 2 3
SETB C Sets the carry flag 1 1
SETB bit Sets the direct bit 2 3
CPL C Complements the carry flag 1 1
CPL bit Complements the direct bit 2 3
ANL C,bit AND direct bit to the carry flag 2 2
ANL C,/bit AND complements of direct bit to the carry flag 2 2
ORL C,bit OR direct bit to the carry flag 2 2
ORL C,/bit OR complements of direct bit to the carry flag 2 2
MOV C,bit Moves the direct bit to the carry flag 2 2
MOV bit,C Moves the carry flag to the direct bit 2 3
22. Timers & Counters
• 8051 has two 16-bit Up-Counters, named T0 and T1.
• Each counter may be programmed, to count internal
clock pulses acting as a timer .
• If programmed to count external pulses then it is
called the counter.
• Counters are divided into 8-bit registers called the
timer low (TL0, TL1) bytes and high ( TH0, TH1)
bytes.
• Counter actions are controlled by bit states in the
timer mode control register (TMOD), timer control
register (TCON) and certain program instructions.
23. TMOD ( timer mode ) Register
• GATE:- Gating control when set. Timer/counter is enabled only
while the INTx pin is high and the TRx control pin is set. When
cleared, the timer is enabled whenever the TRx control bit is set.
• C/T:-Counter/Timer.1 for Counter, 0 for timer.
• M1 & M0:- Mode bits
• M1 M0 Mode Operation
• 0 0 0 13-bit timer mode.
• 0 1 1 16-bit timer/counter.
1 0 2 8-bit auto reload.
• 1 1 3 Split timer mode.
24. Timer Control (TCON) Register :
• TF1 bit is automatically set on the Timer 1 overflow.
• TR1 bit enables the Timer 1.
– 1 - Timer 1 is enabled.
– 0 - Timer 1 is disabled.
• TF0 bit is automatically set on the Timer 0 overflow.
• TR0 bit enables the timer 0.
– 1 - Timer 0 is enabled.
– 0 - Timer 0 is disabled.
25. Interrupts
• Interrupt Vs Polling
– Polling:- Microcontroller continuously monitors the status of a
given device; when the condition is met, it performs the service.
label: jnb TFx, label
– Interrupt:- Whenever any device needs its service, the device
notifies the microcontroller by sending it an interrupt signal.
• The program which is associated with the interrupt is called the
Interrupt Service Routine (ISR) or Interrupt handler.
• The group of memory locations set aside to hold the addresses
of ISRs is called Interrupt Vector Table.
26. Interrupt Enable Register
• EA - global interrupt enable/disable:
– 0 - disables all interrupt requests.
– 1 - enables all individual interrupt requests.
• ES - enables or disables serial interrupt:
– 0 - UART system cannot generate an interrupt.
– 1 - UART system enables an interrupt.
• ET1 - bit enables or disables Timer 1 interrupt:
– 0 - Timer 1 cannot generate an interrupt.
– 1 - Timer 1 enables an interrupt.
• EX1 - bit enables or disables external 1 interrupt:
– 0 - change of the pin INT0 logic state cannot generate an interrupt.
– 1 - enables an external interrupt on the pin INT0 state change.
• ET0 - bit enables or disables timer 0 interrupt:
– 0 - Timer 0 cannot generate an interrupt.
– 1 - enables timer 0 interrupt.
• EX0 - bit enables or disables external 0 interrupt:
– 0 - change of the INT1 pin logic state cannot generate an interrupt.
– 1 - enables an external interrupt on the pin INT1 state change.
29. Brief
• A stopwatch is a device to measure
the amount of time elapsed from a
particular time when activated to
when it is deactivated.
• The timing functions are controlled
by two buttons on the case.
Pressing the Start/stop button
starts the timer running, and
pressing the button again stops it,
leaving the elapsed time displayed.
A press of the Reset button then
resets the stopwatch to zero.
• Least Count this Stop Watch is 10
millisecond. It can measure 1/100th
of a second with an error of ~.01%.
30. Scope
• It finds it applications where we
require measuring time lapsed
between two events.
• Can be used in various sport
events like Football, basketball
etc. matches.
• Can be used in laboratory
experiments to measure time
taken for an event or a chemical
reaction to happen.
• Can be used by students for self
evaluation of their performance,
to measure taken to solve a
problem for competitive exams.

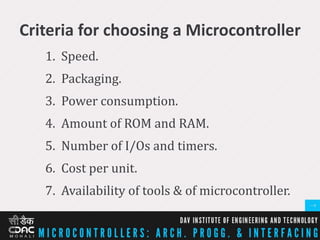

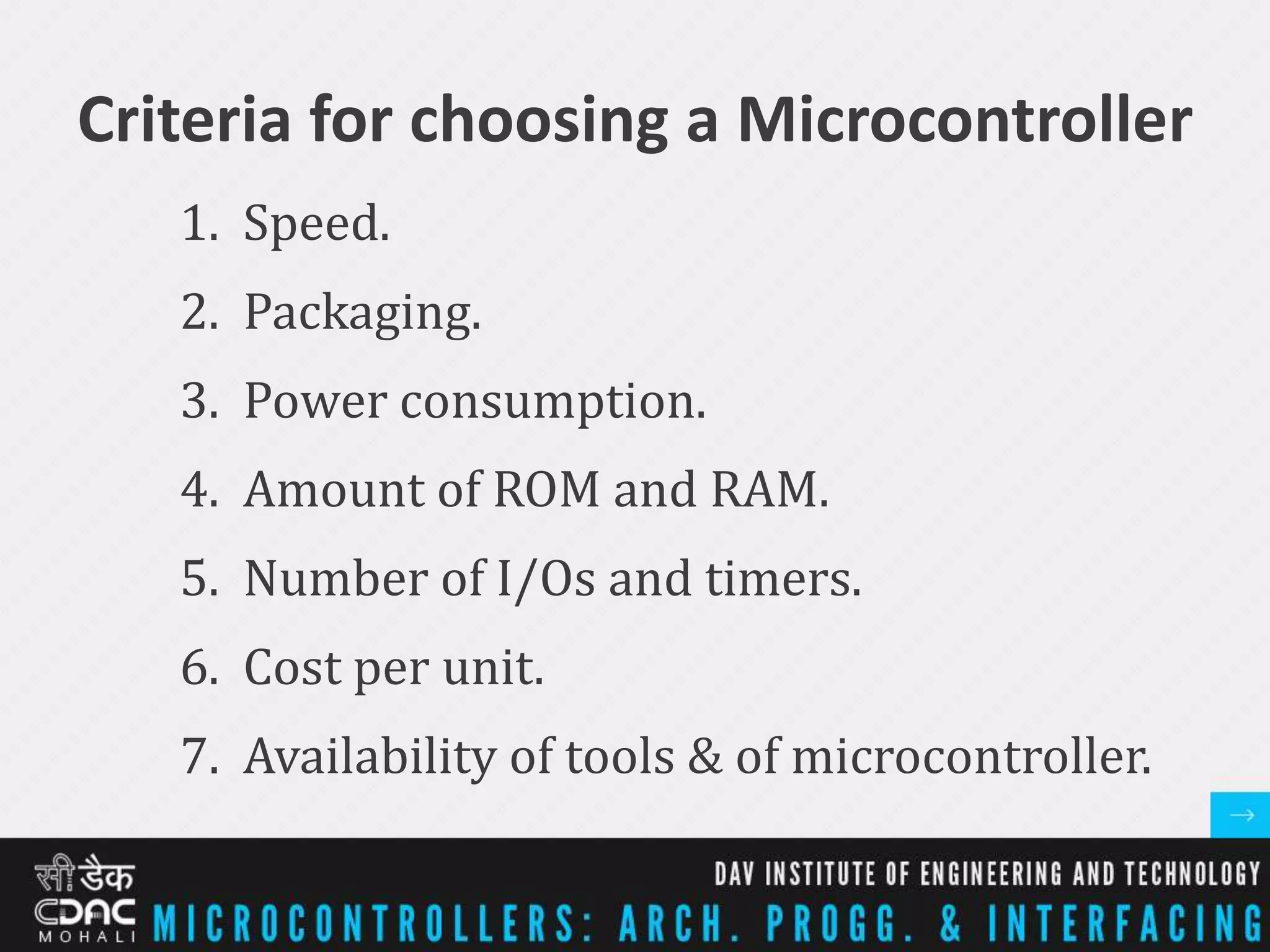

31. Criteria for choosing a Microcontroller
1. Speed.
2. Packaging.
3. Power consumption.
4. Amount of ROM and RAM.
5. Number of I/Os and timers.
6. Cost per unit.
7. Availability of tools & of microcontroller.
33. Project Development Process
• Generating a power Supply of 5v for Microcontroller
• Connecting Microcontroller to Zero PCB
– Reset Circuit
– Oscillator Circuit
• Interfacing a Push button to Microcontroller
• Interfacing LCD to Microcontroller
• Writing the source Code
• Debugging the code and burning to the
Microcontroller IC using Flash tool[uVision]
• Testing Trouble Shooting and Completion of project

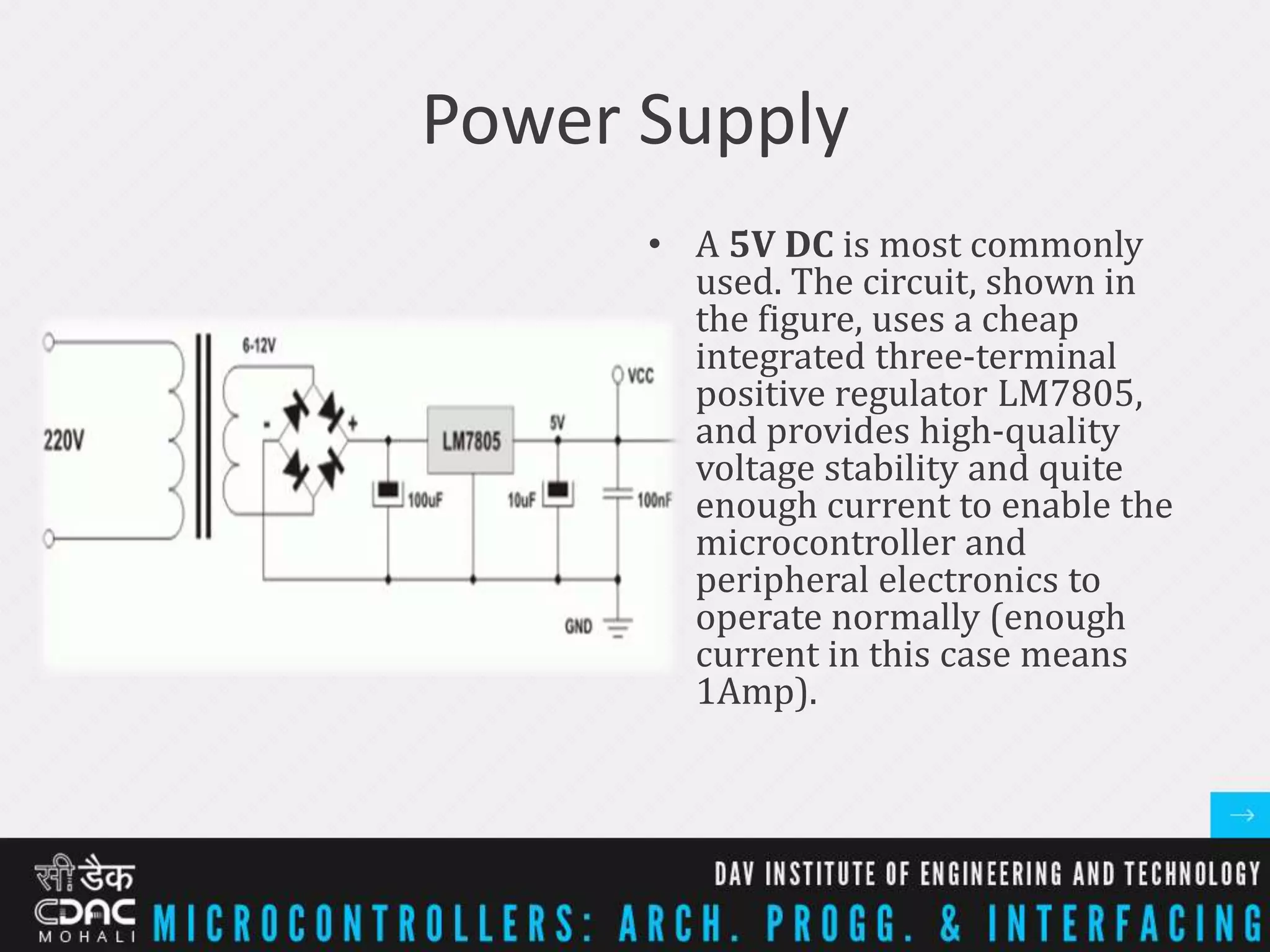

35. Power Supply
• A 5V DC is most commonly
used. The circuit, shown in
the figure, uses a cheap
integrated three-terminal
positive regulator LM7805,
and provides high-quality
voltage stability and quite
enough current to enable the
microcontroller and
peripheral electronics to
operate normally (enough
current in this case means
1Amp).

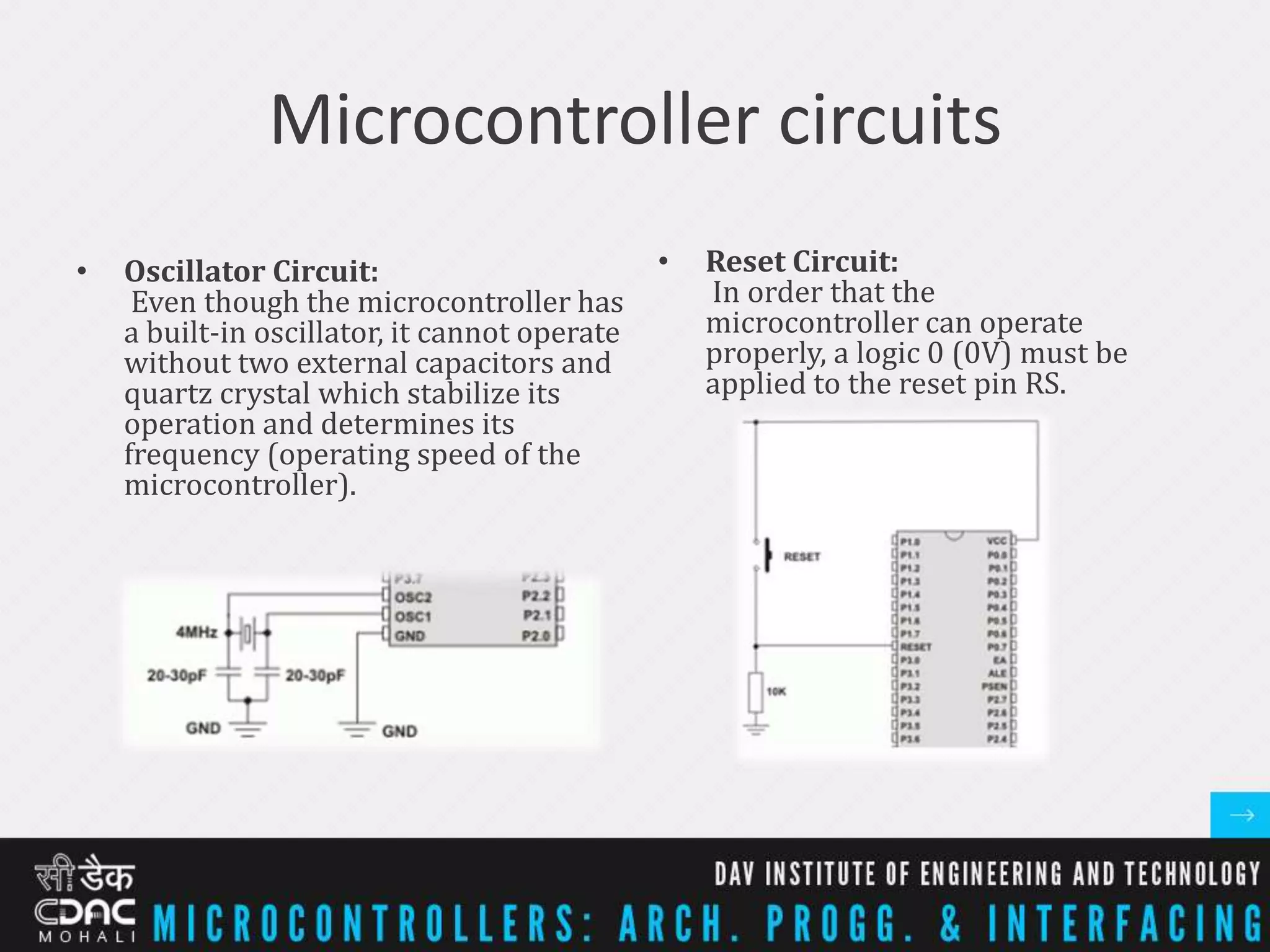

36. Microcontroller circuits
• Oscillator Circuit: • Reset Circuit:
Even though the microcontroller has In order that the
a built-in oscillator, it cannot operate microcontroller can operate
without two external capacitors and properly, a logic 0 (0V) must be
quartz crystal which stabilize its applied to the reset pin RS.
operation and determines its
frequency (operating speed of the
microcontroller).
38. LCD Interfacing
• An LCD display is specifically manufactured to be used
with microcontrollers, which means that it cannot be
activated by standard IC circuits. It is used for displaying
different messages on a miniature liquid crystal display.
40. LCD Pin Description
FUNCTI ON PIN NUMBER NAME LOGIC DESCRIPTION
STATE
Ground 1 Vss - 0V
Power supply 2 Vdd - +5V
Contrast 3 Vee - 0 - Vdd
Control of 4 RS 0 D0 – D7 are interpreted
operating 1 as commands
D0 – D7 are interpreted
as data
5 R/W 0 Write data (from
1 controller to LCD)
Read data (from LCD to
controller)

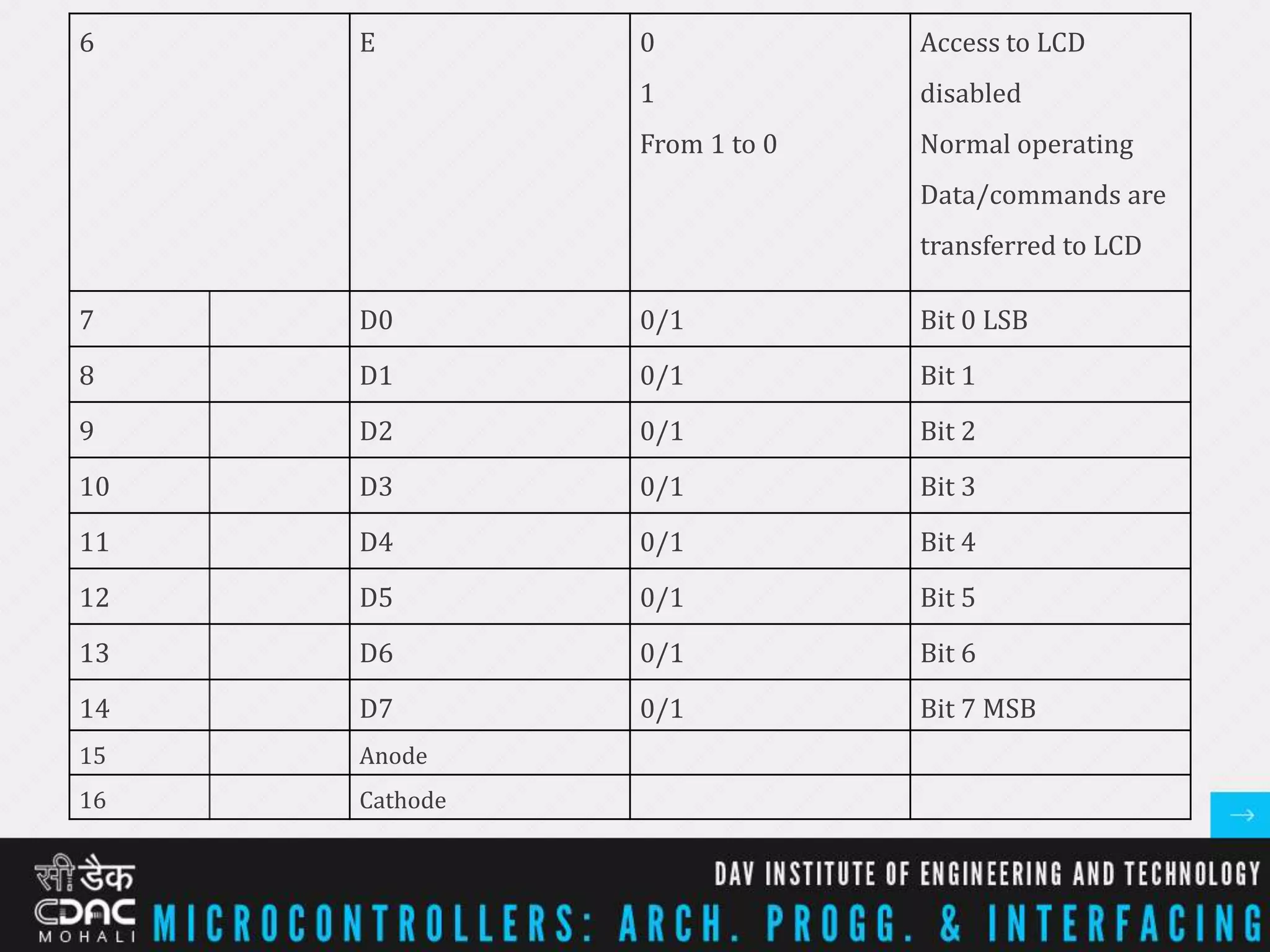

41. 6 E 0 Access to LCD
1 disabled
From 1 to 0 Normal operating
Data/commands are
transferred to LCD
7 D0 0/1 Bit 0 LSB
8 D1 0/1 Bit 1
9 D2 0/1 Bit 2
10 D3 0/1 Bit 3
11 D4 0/1 Bit 4
12 D5 0/1 Bit 5
13 D6 0/1 Bit 6
14 D7 0/1 Bit 7 MSB
15 Anode
16 Cathode

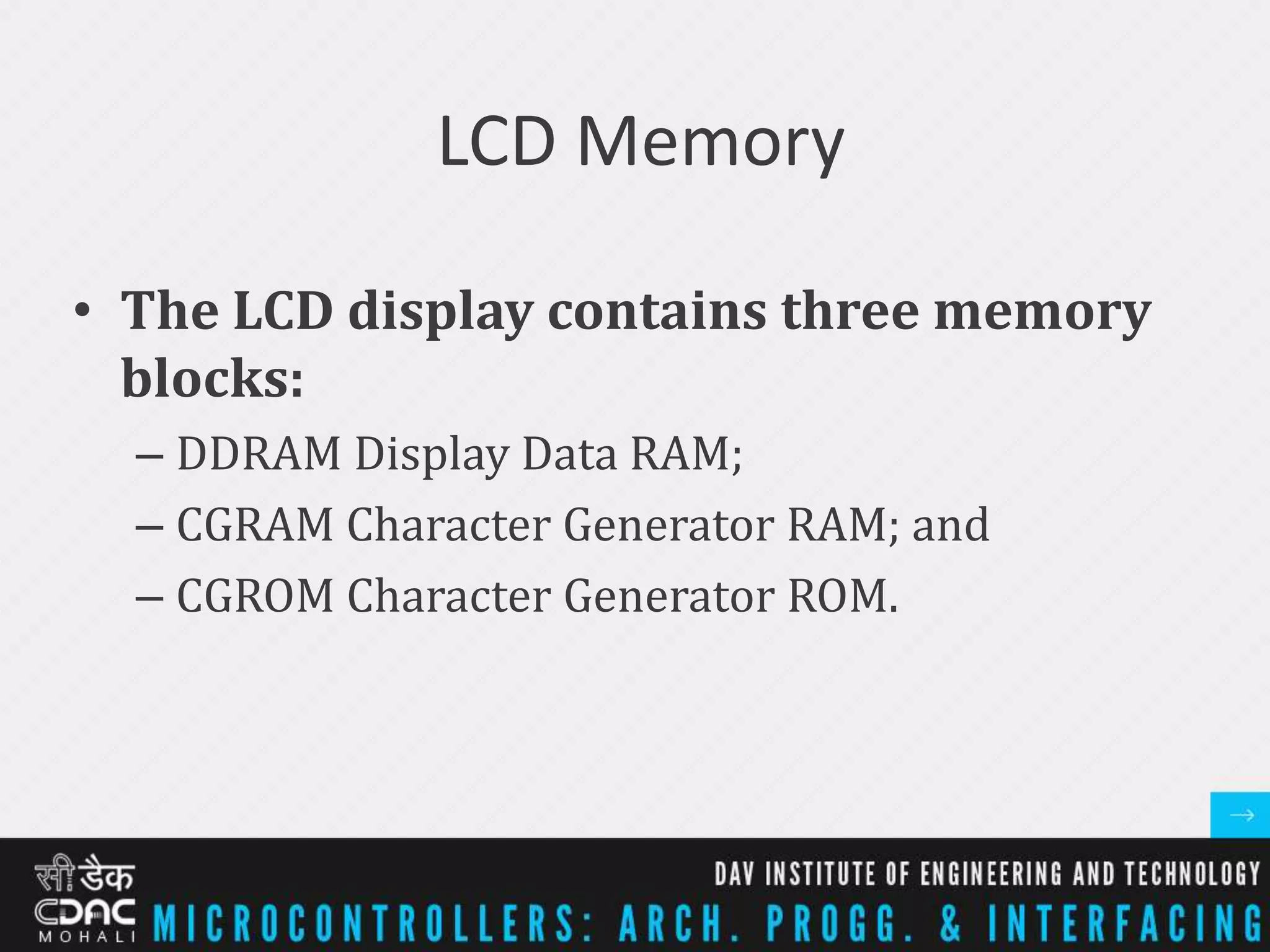

42. LCD Memory
• The LCD display contains three memory
blocks:
– DDRAM Display Data RAM;
– CGRAM Character Generator RAM; and
– CGROM Character Generator ROM.

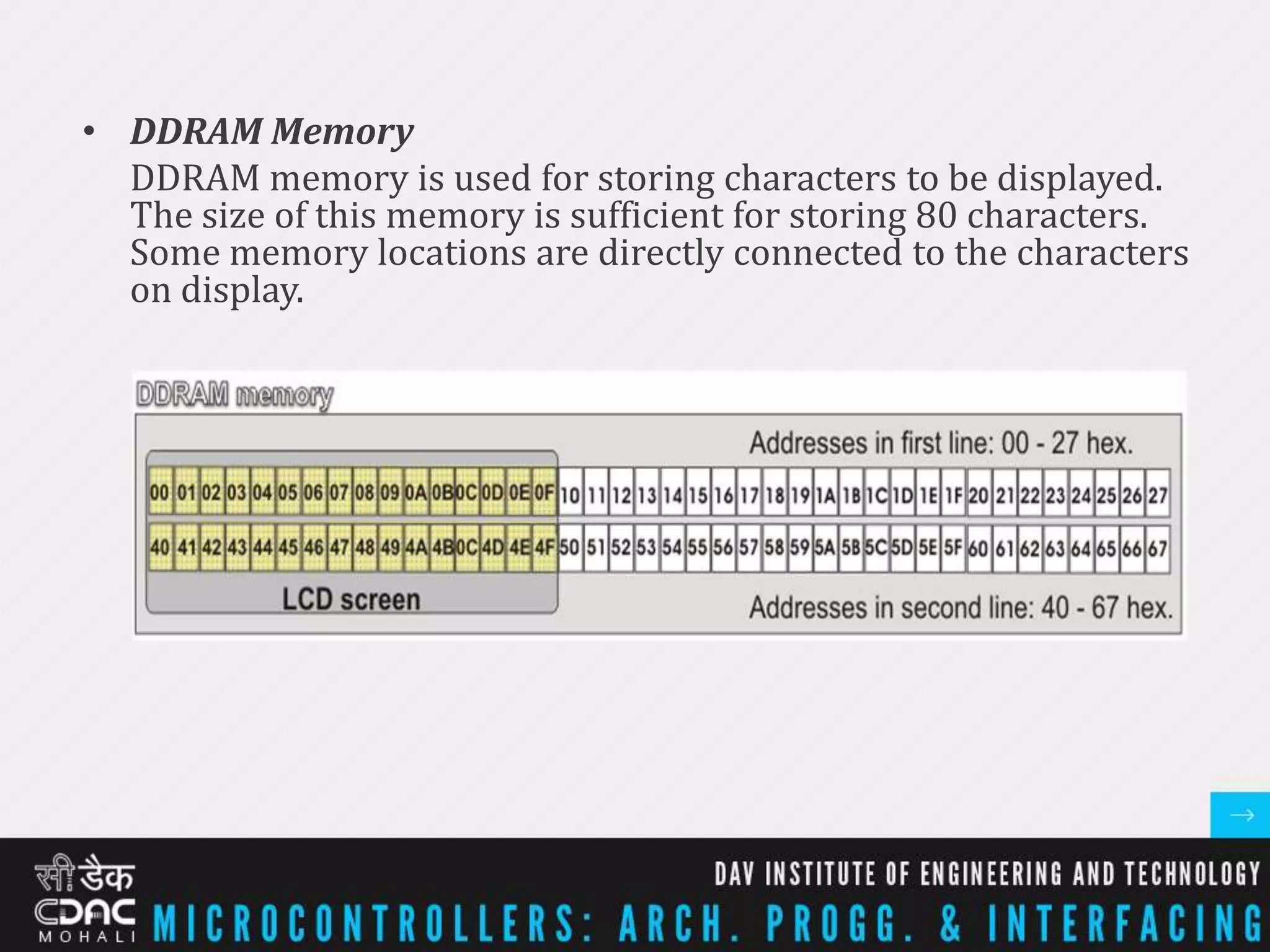

43. • DDRAM Memory
DDRAM memory is used for storing characters to be displayed.
The size of this memory is sufficient for storing 80 characters.
Some memory locations are directly connected to the characters
on display.

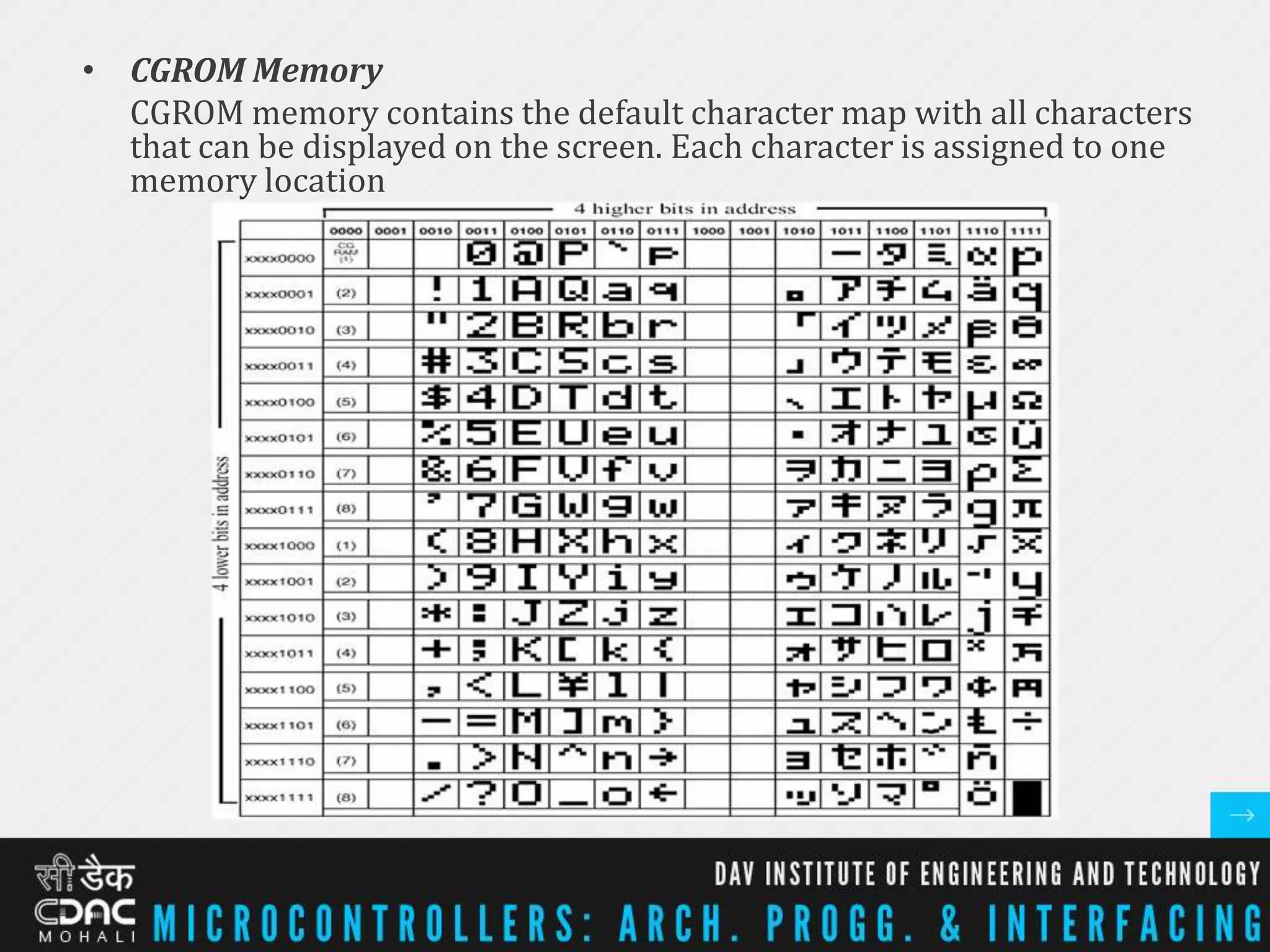

44. • CGROM Memory
CGROM memory contains the default character map with all characters
that can be displayed on the screen. Each character is assigned to one
memory location

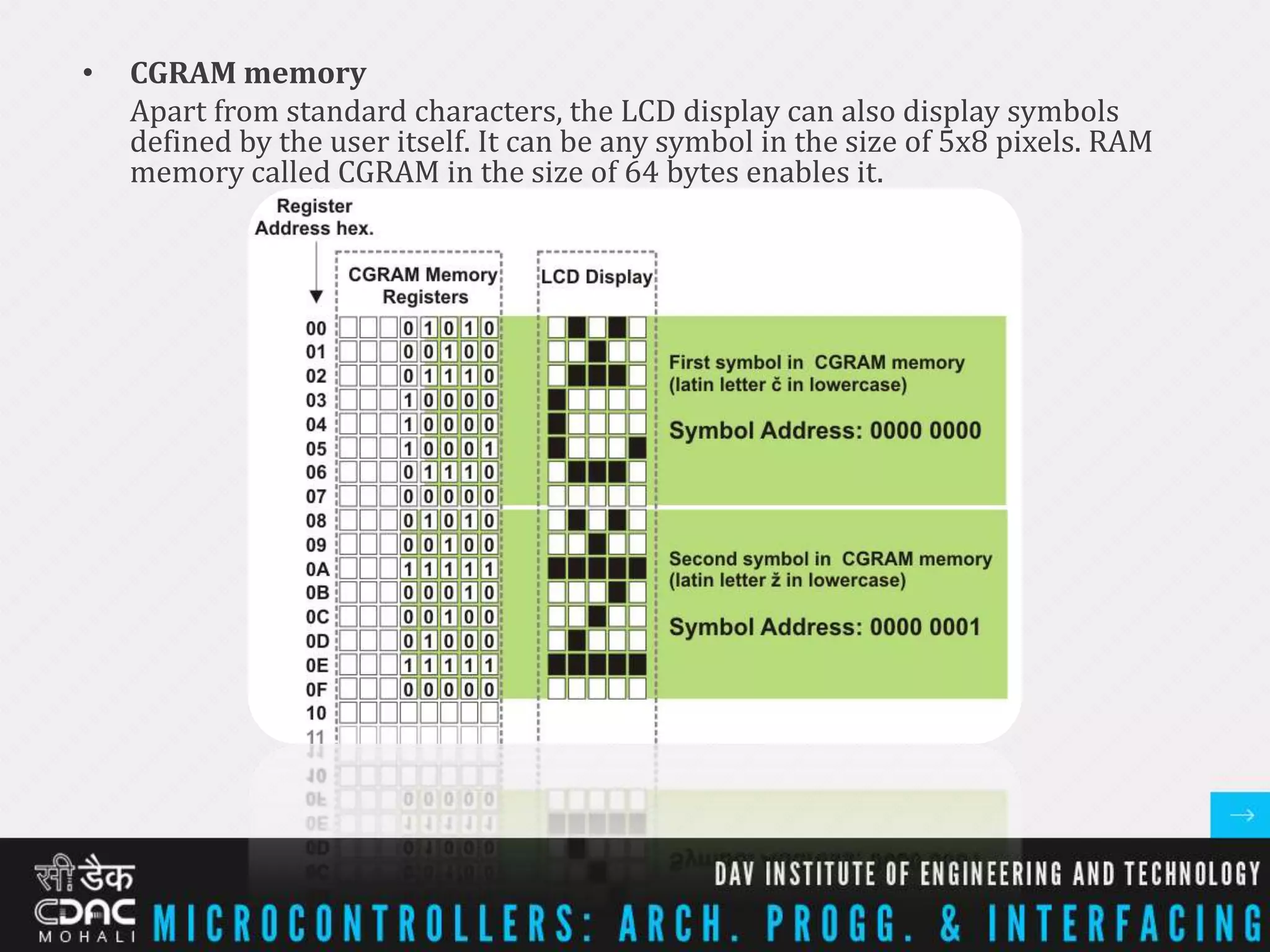

45. • CGRAM memory
Apart from standard characters, the LCD display can also display symbols
defined by the user itself. It can be any symbol in the size of 5x8 pixels. RAM
memory called CGRAM in the size of 64 bytes enables it.

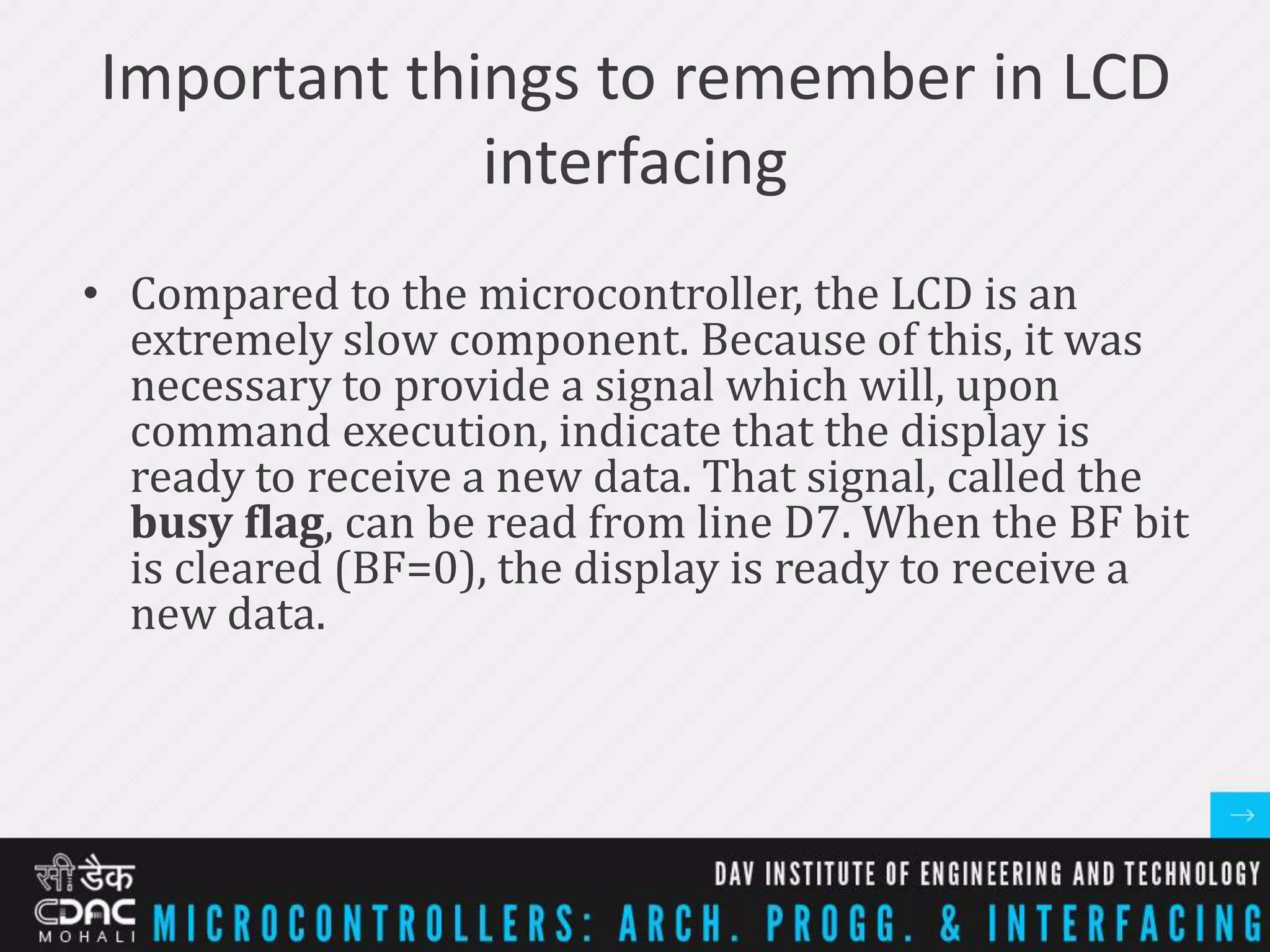

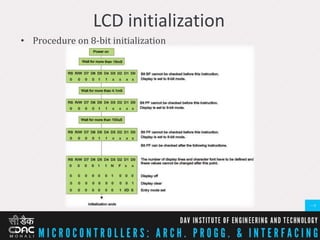

46. Important things to remember in LCD
interfacing
• Compared to the microcontroller, the LCD is an
extremely slow component. Because of this, it was
necessary to provide a signal which will, upon
command execution, indicate that the display is
ready to receive a new data. That signal, called the
busy flag, can be read from line D7. When the BF bit
is cleared (BF=0), the display is ready to receive a
new data.

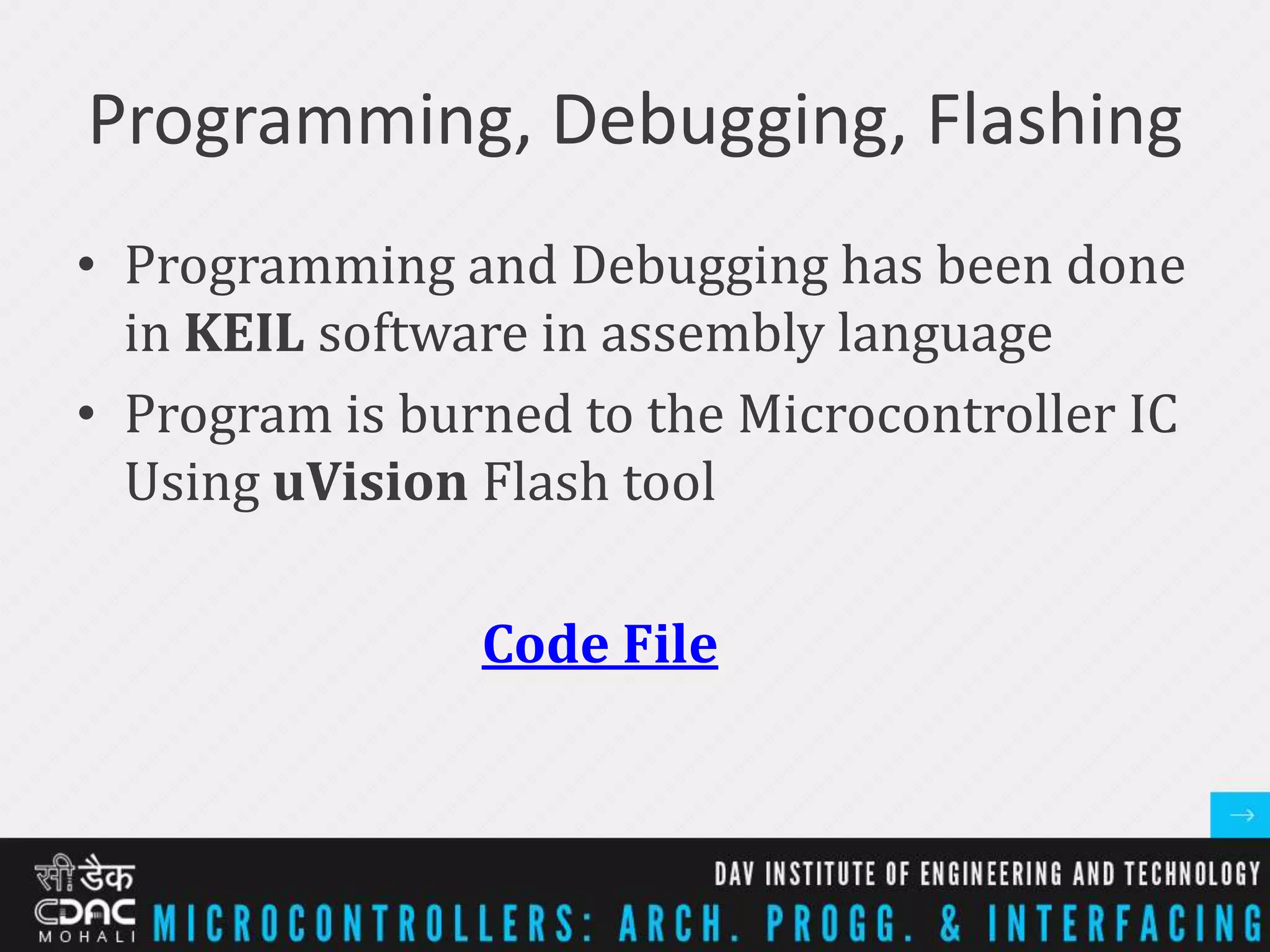

48. Programming, Debugging, Flashing
• Programming and Debugging has been done
in KEIL software in assembly language
• Program is burned to the Microcontroller IC
Using uVision Flash tool
Code File
50. Extended Scope of Project
• Its applications can be extended by Using
different sensor networks for the start and
stop of the clock.
– infrared switching to start and stop the clock to
precisely measure the time taken by the athlete
to finish a race event
– Temperature Sensor can be used to record time
taken for the rise in temprature
