The document discusses the ATmega32 microcontroller. It begins by defining a microcontroller as a small computer containing a processor, memory, and programmable input/output pins. It then lists some key features of the ATmega32 microcontroller, which include 32 I/O pins, 32KB of flash memory, 1024 bytes of EEPROM, and the ability to handle 3 external interrupts. The document also briefly covers the Von Neumann and Harvard architectures and how the ATmega32 is programmed using languages like Assembly, C, and C++ through the AVR studio software.

1. Trained by- Er. Ravindra
@ ITDP, CRISP. Bhopal

2. Contents
Microcontroller & ITS USE.
Key Features Of Avr atmega32.
A Brief Focus On Von Neumann & Harvard Architecture.
Pin Configuration Of Avr atmega32 μcontroller.
Architecture Of atmega32.
Programing for Avr atmega32

3. What is a microcontroller..?
A microcontroller (μC) is a small computer on a single
integrated circuit containing a processor, memory, and
programmable input/output Pins.
ATmega32 is an 8-bit high performance microcontroller manufactured By an American
semiconducting company corporation.
Use..?
Microcontrollers are used in automatically controlled
products & devices such as:-
 Automobile engine control systems
 Automatic medical devices
 Remote controlled toys
 Industrial tools and other embedded systems

4. Key features of atmega32
μcontroller
 32 input/output configurable pins.
4portsx8pins=32pins
 32 Kbytes Programmable flash memory.
With 10,000 read/write cycles
 1024 Bytes EEPROM
With 100,000 read/write cycles
 Can handle 3 external interrupts.

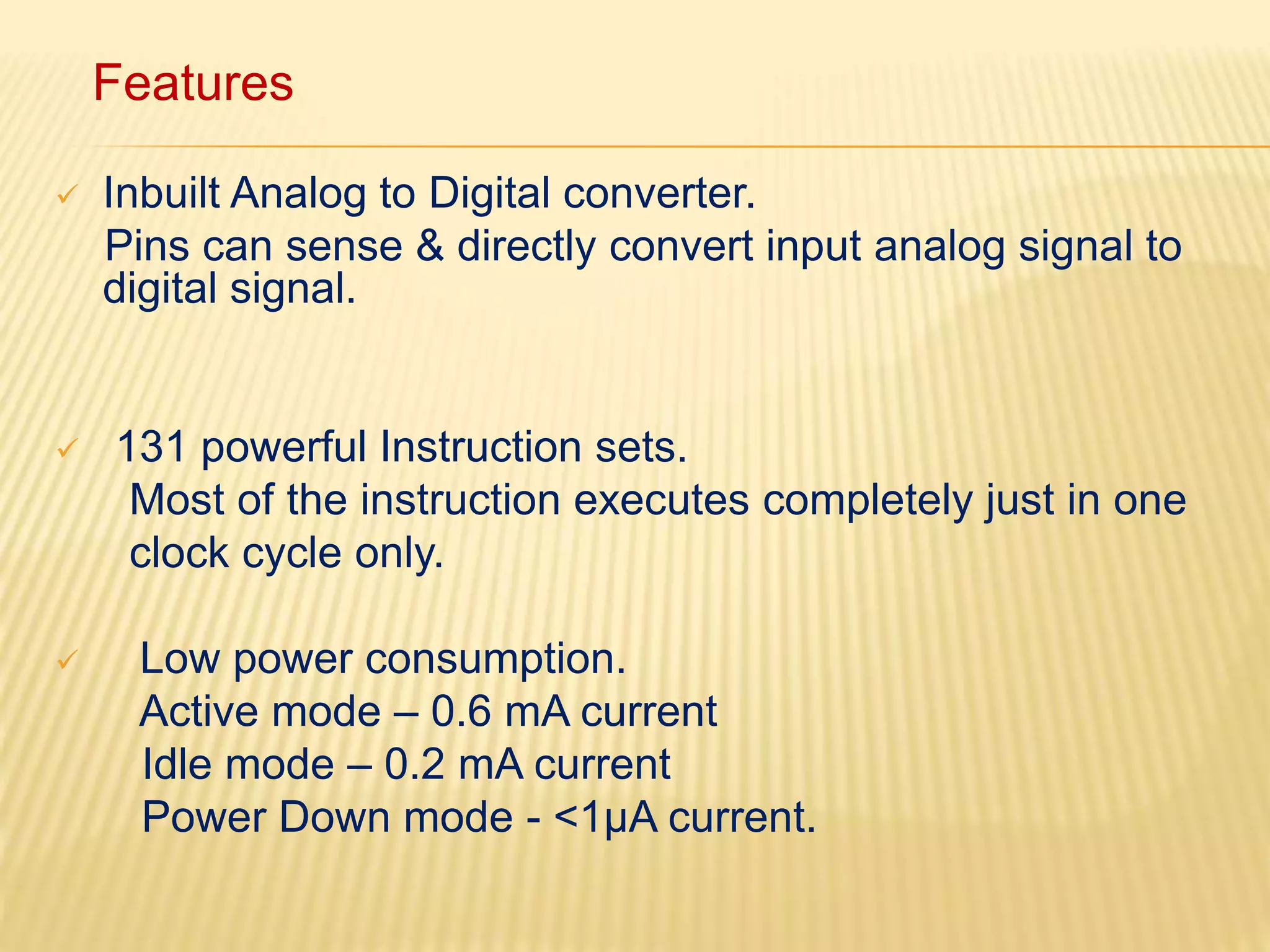

5. Features
 Inbuilt Analog to Digital converter.
Pins can sense & directly convert input analog signal to
digital signal.
 131 powerful Instruction sets.
Most of the instruction executes completely just in one
clock cycle only.
 Low power consumption.
Active mode – 0.6 mA current
Idle mode – 0.2 mA current
Power Down mode - <1μA current.

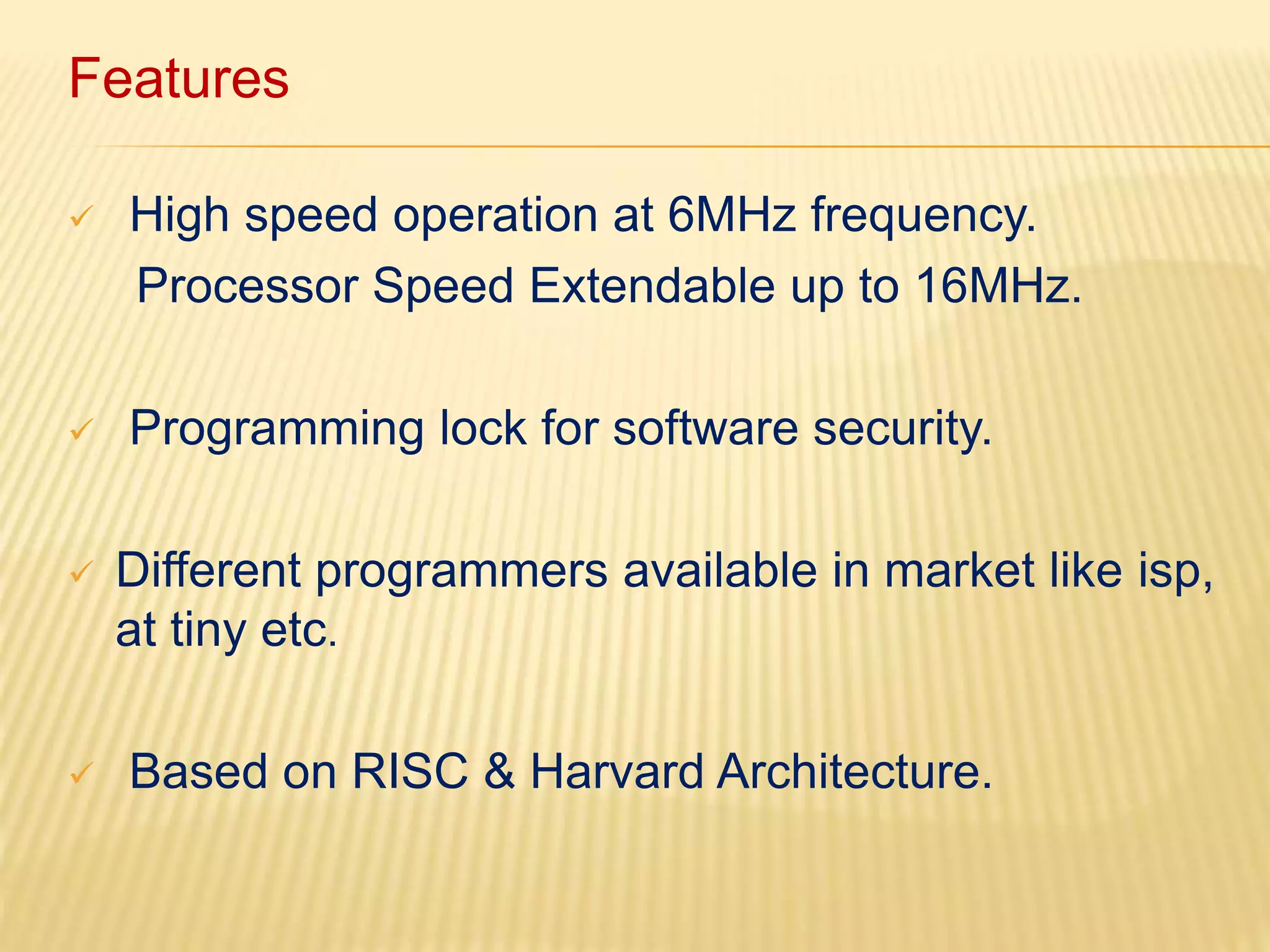

6. Features
 High speed operation at 6MHz frequency.
Processor Speed Extendable up to 16MHz.
 Programming lock for software security.
 Different programmers available in market like isp,
at tiny etc.
 Based on RISC & Harvard Architecture.

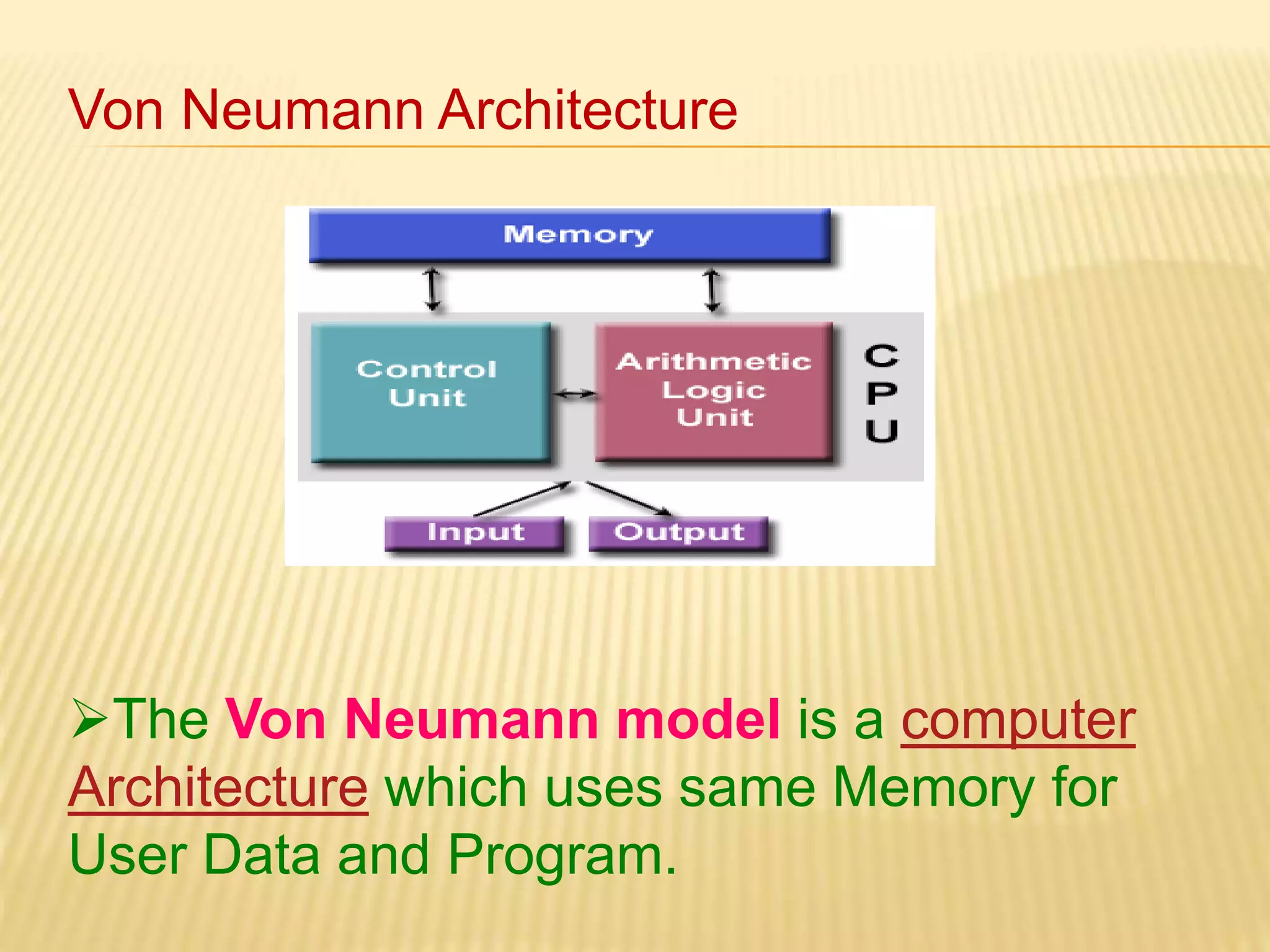

7. Von Neumann Architecture
The Von Neumann model is a computer
Architecture which uses same Memory for
User Data and Program.

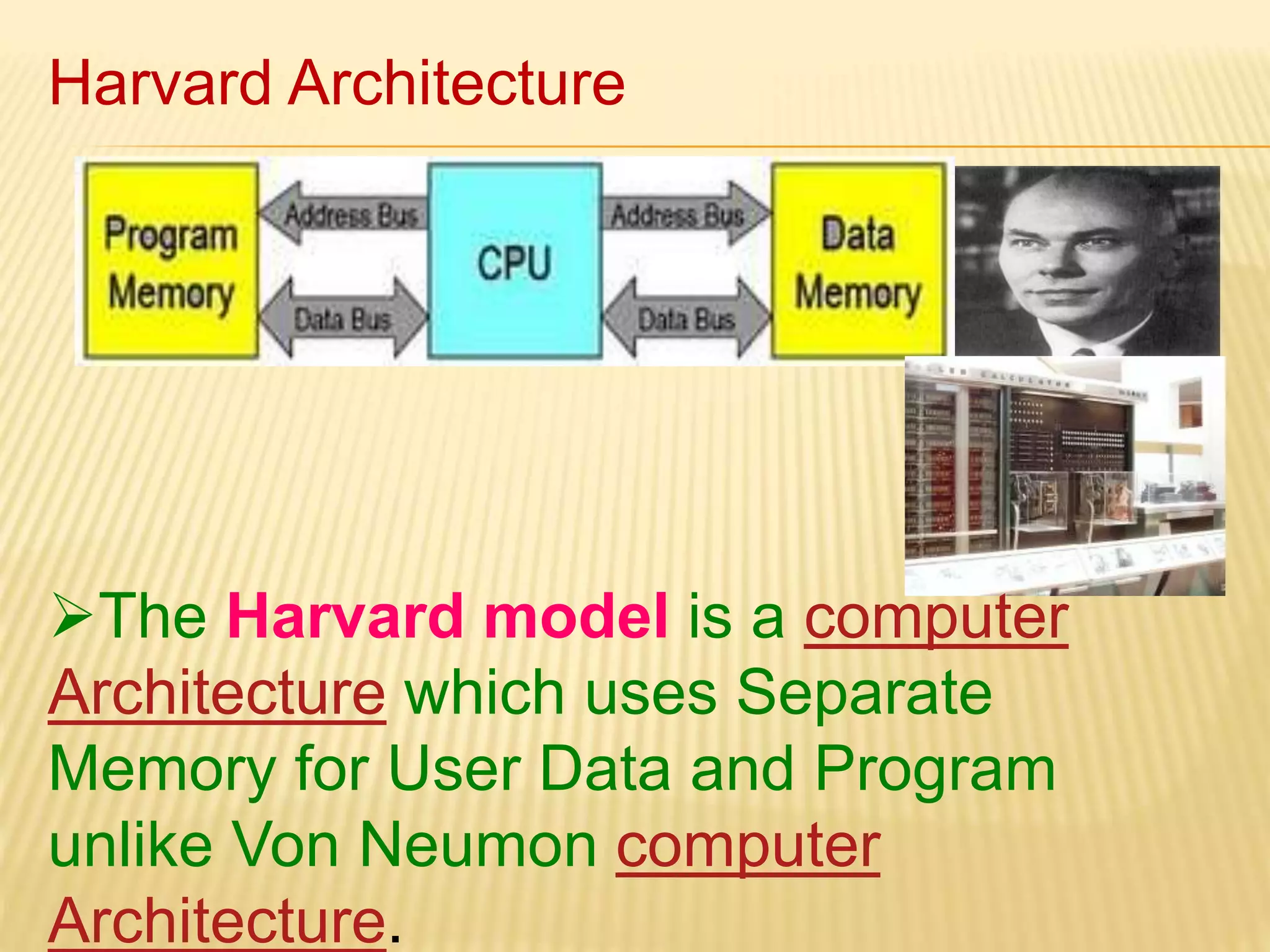

8. Harvard Architecture
The Harvard model is a computer
Architecture which uses Separate
Memory for User Data and Program
unlike Von Neumon computer
Architecture.

9. PIN CONFIGURATION

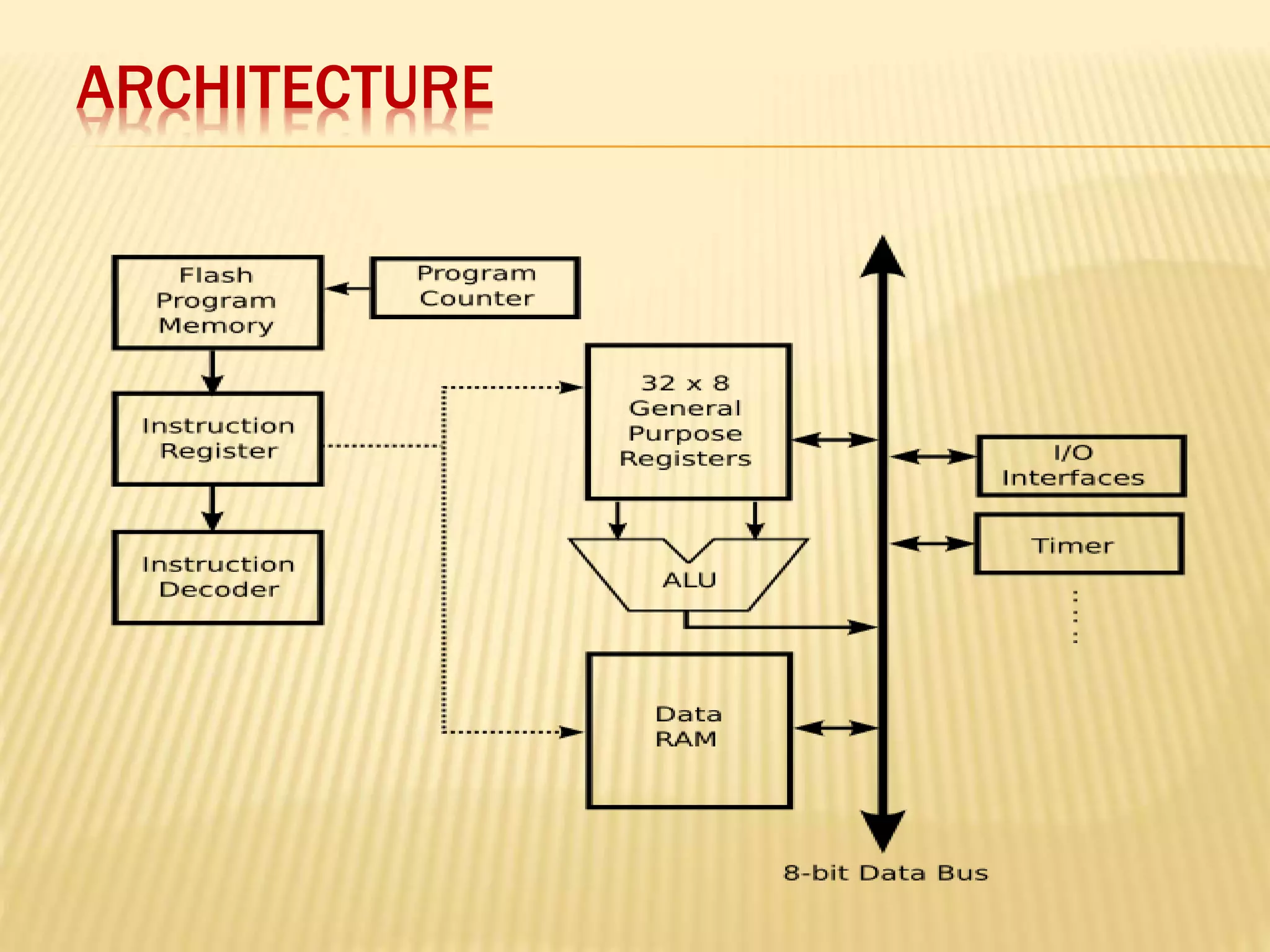

10. ARCHITECTURE

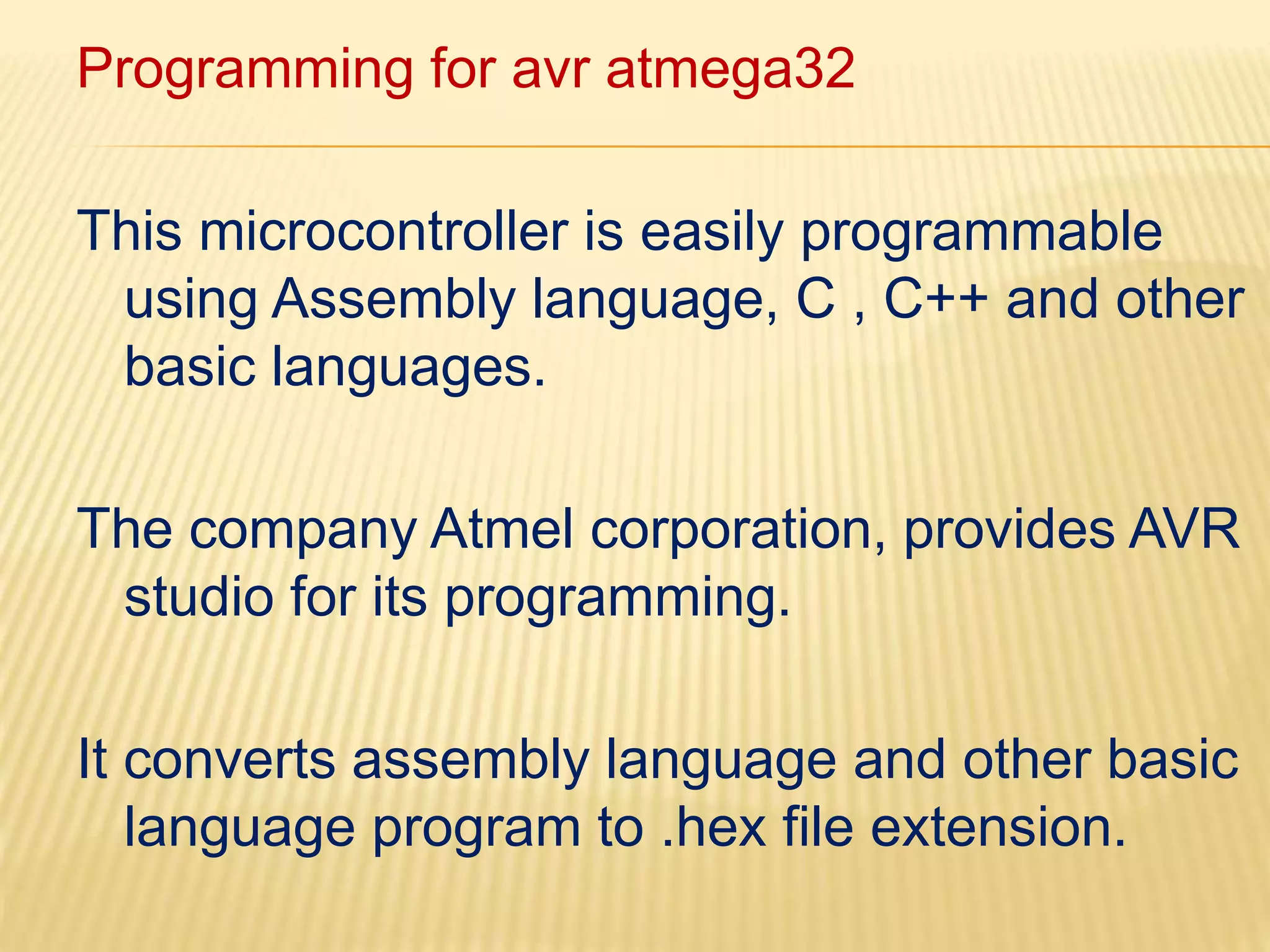

11. Programming for avr atmega32
This microcontroller is easily programmable
using Assembly language, C , C++ and other
basic languages.
The company Atmel corporation, provides AVR
studio for its programming.
It converts assembly language and other basic
language program to .hex file extension.

12. Queries ….if any….??

13. Thank you…..
With warm regard from
Vikram kumar Jha
7th sem.
EC, MITS
