The document provides an overview of AVR microcontrollers, including their history, architecture, types, and common peripherals. AVR microcontrollers were developed by Atmel beginning in 1996 and use on-chip flash memory for program storage. They are available in three categories - Tiny, Mega, and Xmega - with the Mega being the most popular. The AVR architecture employs 32 general purpose registers, static RAM, EEPROM, flash memory, timers/counters, and I/O ports. Common peripherals that can be interfaced include LEDs, 7-segment displays, switches, DC motors, and LCDs. Timers and interrupts are also discussed.

1. 1

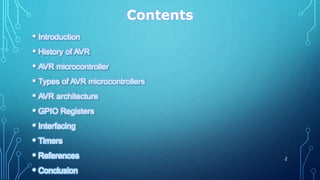

2. Contents
• Introduction
• History of AVR
• AVR microcontroller
• Types of AVR microcontrollers
• AVR architecture
• GPIO Registers
• Interfacing
• Timers
• References
• Conclusion
2

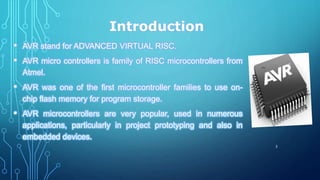

3. Introduction
• AVR stand for ADVANCED VIRTUAL RISC.
• AVR micro controllers is family of RISC microcontrollers from
Atmel.
• AVR was one of the first microcontroller families to use on-
chip flash memory for program storage.
• AVR microcontrollers are very popular, used in numerous
applications, particularly in project prototyping and also in
embedded devices.
3

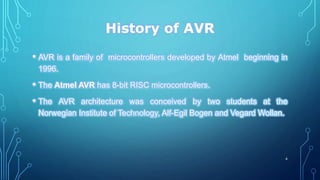

4. History of AVR
• AVR is a family of microcontrollers developed by Atmel beginning in
1996.
• The Atmel AVR has 8-bit RISC microcontrollers.
• The AVR architecture was conceived by two students at the
Norwegian Institute of Technology, Alf-Egil Bogen and Vegard Wollan.
4

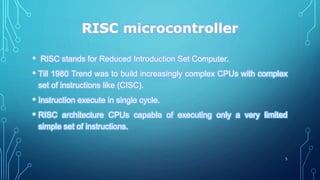

5. RISC microcontroller
• RISC stands for Reduced Introduction Set Computer.
• Till 1980 Trend was to build increasingly complex CPUs with complex
set of instructions like (CISC).
• Instruction execute in single cycle.
• RISC architecture CPUs capable of executing only a very limited
simple set of instructions.
5

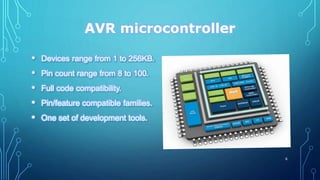

6. AVR microcontroller
• Devices range from 1 to 256KB.
• Pin count range from 8 to 100.
• Full code compatibility.
• Pin/feature compatible families.
• One set of development tools.
6

7. Types of AVR microcontrollers
AVR microcontrollers are obtainable in three
categories:-
• Tiny AVR
• Mega AVR
• Xmega AVR
7

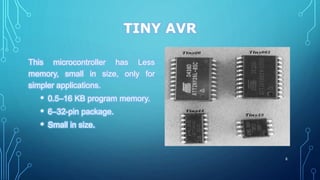

8. TINY AVR
This microcontroller has Less
memory, small in size, only for
simpler applications.
• 0.5–16 KB program memory.
• 6–32-pin package.
• Small in size.
8

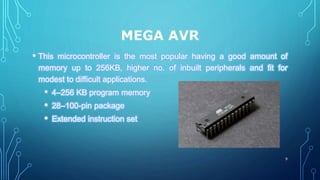

9. MEGA AVR
• This microcontroller is the most popular having a good amount of
memory up to 256KB, higher no. of inbuilt peripherals and fit for
modest to difficult applications.
• 4–256 KB program memory
• 28–100-pin package
• Extended instruction set
9

10. ATMEGA16 PIN DIAGRAM
• Atmega16 have total of 40 pins in which 32 are I/O
pins.
• VCC (PIN10) - Digital supply voltage.
• GND (PIN11) - Ground
• Port A (PA7..PA0) - Port A serves as the analog
inputs to the A/D Converter Port A also serves as an
8-bit bi-directional I/O port, if the A/D Converter is not
used.
•
10

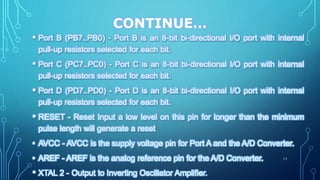

11. CONTINUE…
• Port B (PB7..PB0) - Port B is an 8-bit bi-directional I/O port with internal
pull-up resistors selected for each bit.
• Port C (PC7..PC0) - Port C is an 8-bit bi-directional I/O port with internal
pull-up resistors selected for each bit.
• Port D (PD7..PD0) - Port D is an 8-bit bi-directional I/O port with internal
pull-up resistors selected for each bit.
• RESET - Reset Input a low level on this pin for longer than the minimum
pulse length will generate a reset
• AVCC - AVCC is the supply voltage pin for Port A and the A/D Converter.
• AREF - AREF is the analog reference pin for the A/D Converter.
• XTAL 2 - Output to Inverting Oscillator Amplifier.
11

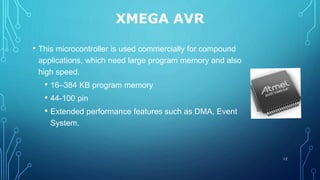

12. XMEGA AVR
• This microcontroller is used commercially for compound
applications, which need large program memory and also
high speed.
• 16–384 KB program memory
• 44-100 pin
• Extended performance features such as DMA, Event
System.
12

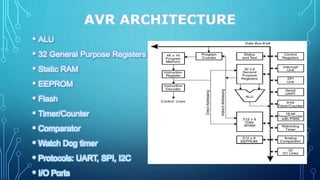

13. AVR ARCHITECTURE
• ALU
• 32 General Purpose Registers
• Static RAM
• EEPROM
• Flash
• Timer/Counter
• Comparator
• Watch Dog timer
• Protocols: UART, SPI, I2C
• I/O Ports
13

14. Table 1: Basic registers of ATmega16
GPIO Registers
14

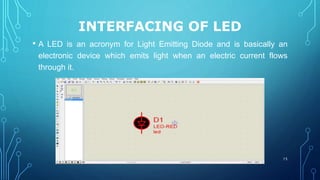

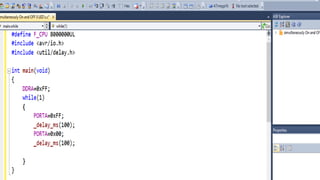

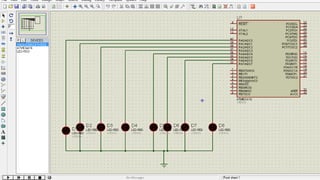

15. INTERFACING OF LED
• A LED is an acronym for Light Emitting Diode and is basically an
electronic device which emits light when an electric current flows
through it.
15

16. 16

17. 17

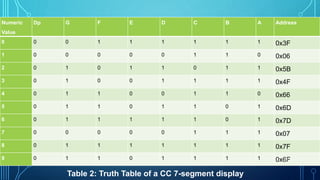

18. Numeric
Value
Dp G F E D C B A Address
0 0 0 1 1 1 1 1 1 0x3F
1 0 0 0 0 0 1 1 0 0x06
2 0 1 0 1 1 0 1 1 0x5B
3 0 1 0 0 1 1 1 1 0x4F
4 0 1 1 0 0 1 1 0 0x66
5 0 1 1 0 1 1 0 1 0x6D
6 0 1 1 1 1 1 0 1 0x7D
7 0 0 0 0 0 1 1 1 0x07
8 0 1 1 1 1 1 1 1 0x7F
9 0 1 1 0 1 1 1 1 0x6F18
Table 2: Truth Table of a CC 7-segment display

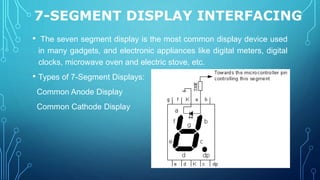

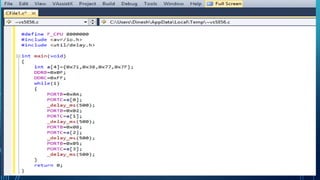

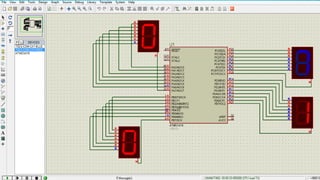

19. 7-SEGMENT DISPLAY INTERFACING
19
• The seven segment display is the most common display device used
in many gadgets, and electronic appliances like digital meters, digital
clocks, microwave oven and electric stove, etc.
• Types of 7-Segment Displays:
Common Anode Display
Common Cathode Display

20. 20

21. 21

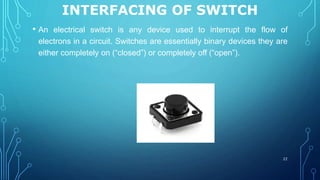

22. INTERFACING OF SWITCH
• An electrical switch is any device used to interrupt the flow of
electrons in a circuit. Switches are essentially binary devices they are
either completely on (“closed”) or completely off (“open”).
22

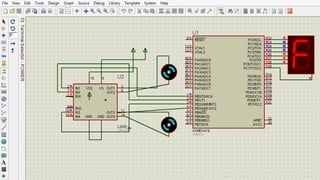

23. DC MOTOR INTERFACING
• An electric motor is an electrical machine that converts electrical
energy into mechanical energy.
23

24. 24

25. 25

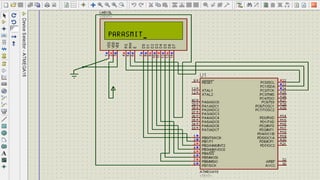

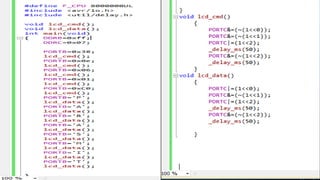

26. LCD INTERFACING
• LCD (Liquid Crystal Display) screen is
an electronic display module and find a
wide range of applications. A 16x2 LCD
display is very basic module and is very
commonly used in various devices and
circuits.
26

27. 27

28. 28

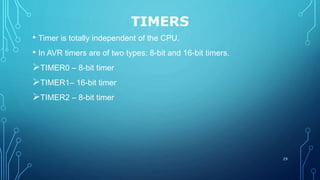

29. TIMERS
• Timer is totally independent of the CPU.
• In AVR timers are of two types: 8-bit and 16-bit timers.
TIMER0 – 8-bit timer
TIMER1– 16-bit timer
TIMER2 – 8-bit timer
29

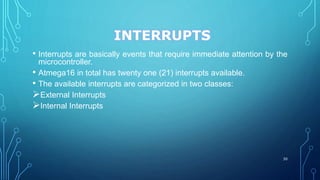

30. INTERRUPTS
• Interrupts are basically events that require immediate attention by the
microcontroller.
• Atmega16 in total has twenty one (21) interrupts available.
• The available interrupts are categorized in two classes:
External Interrupts
Internal Interrupts
30

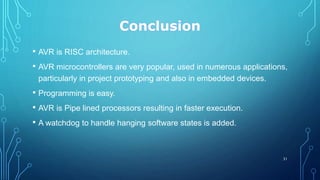

31. Conclusion
• AVR is RISC architecture.
• AVR microcontrollers are very popular, used in numerous applications,
particularly in project prototyping and also in embedded devices.
• Programming is easy.
• AVR is Pipe lined processors resulting in faster execution.
• A watchdog to handle hanging software states is added.
31

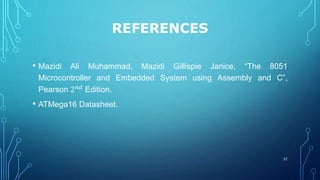

32. REFERENCES
• Mazidi Ali Muhammad, Mazidi Gillispie Janice, “The 8051
Microcontroller and Embedded System using Assembly and C”,
Pearson 2 𝑛𝑑 Edition.
• ATMega16 Datasheet.
32
