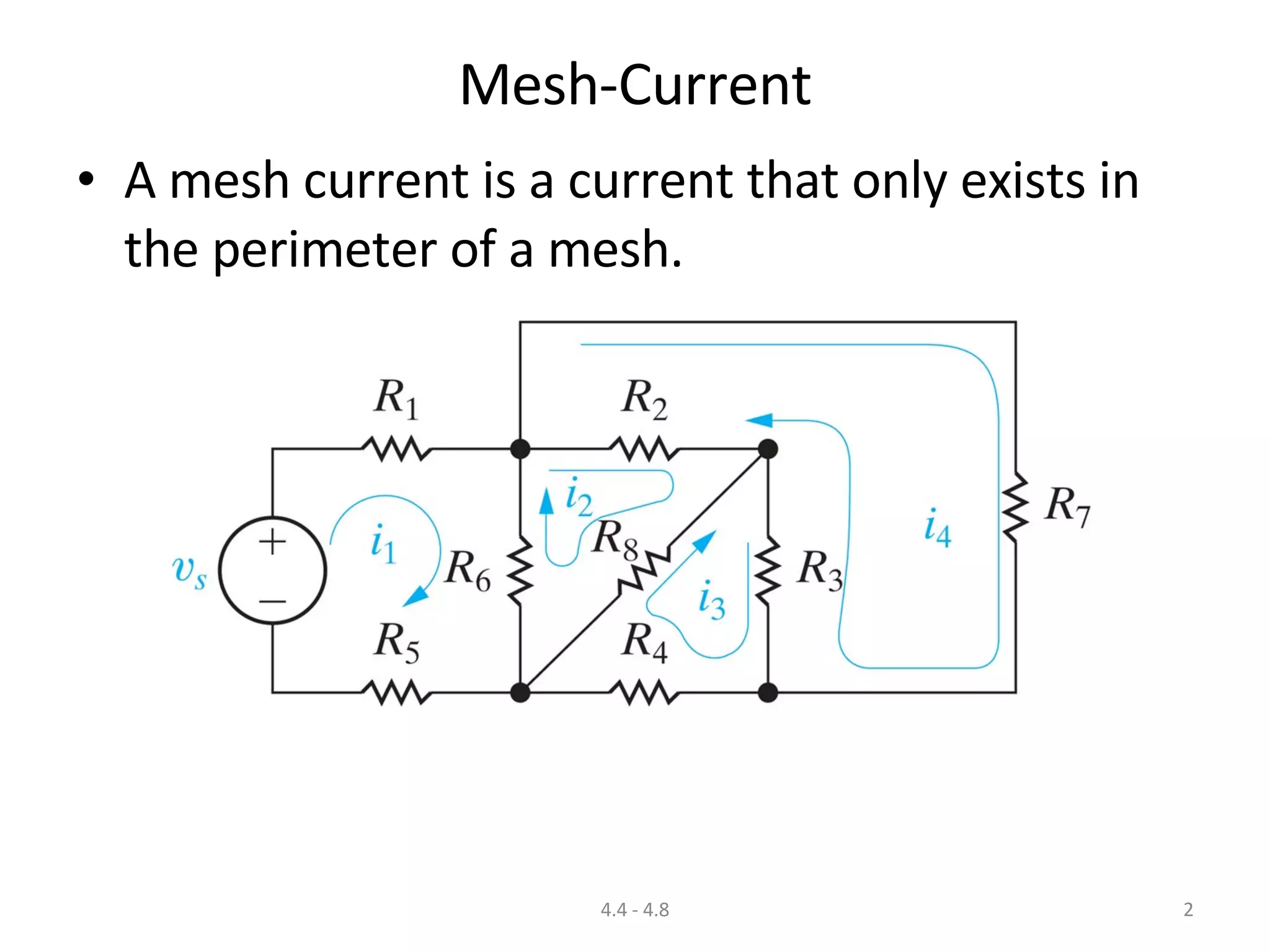

This document discusses mesh current analysis, which is a technique for analyzing electrical circuits. It defines a mesh current as a current that exists only around the perimeter of a closed loop or mesh in a circuit. It provides examples of using mesh current analysis to determine the current through resistors and the power delivered by a current source. It also discusses using mesh currents to analyze circuits containing dependent sources and solving circuits using both mesh currents and node-voltage analysis methods.

1. Mesh-Current Chapter 4.5 – 4.8

3. Lecture Example: Determine current through the 6 Ω and the 12 Ω resistors using Mesh Current. 4.4 - 4.8

4. Mesh-Current: Supermesh 4.4 - 4.8

5. Mesh-Current: Dependent Sources Determine v Δ . 4.4 - 4.8

6. Lecture Example: Solve for v 0 using node-voltage. 4.4 - 4.8

7. Lecture Example: Determine the power delivered to the circuit by the 12 A current source using mesh-current. 4.4 - 4.8
