1. Text into Data
Prof Alvarado
MDST 3705
19 February 2013

2. Business
• Quiz 1 graded
– Let me know if you have questions
• Readings
– Apologies for mis-posting!

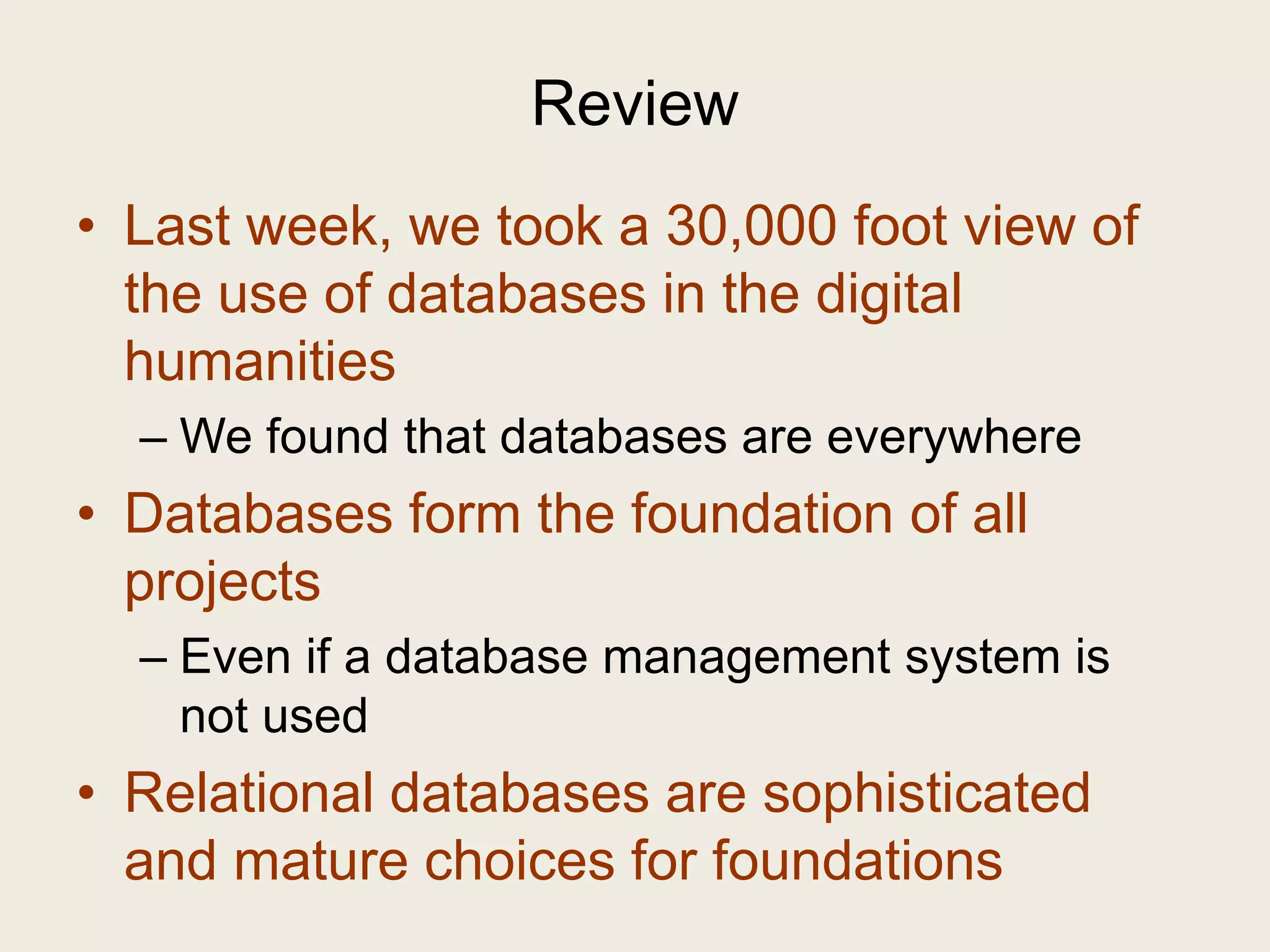

3. Review
• Last week, we took a 30,000 foot view of
the use of databases in the digital
humanities
– We found that databases are everywhere
• Databases form the foundation of all
projects
– Even if a database management system is
not used
• Relational databases are sophisticated
and mature choices for foundations

4. Overview
• We began this course by looking at code
as language
– Code structured like natural language
– Code implies, models, and creates a world
• We then looked at the opposite process –
looking at language, and the products of
culture, as code
– We called this “reverse engineering”
• Today we continue this and look
specifically at text

5. What do you remember when
you read a book?

6. We remember scenes, images, plot lines,
values, etc.
We sometimes remember verbatim
passages
We don’t normally remember the words

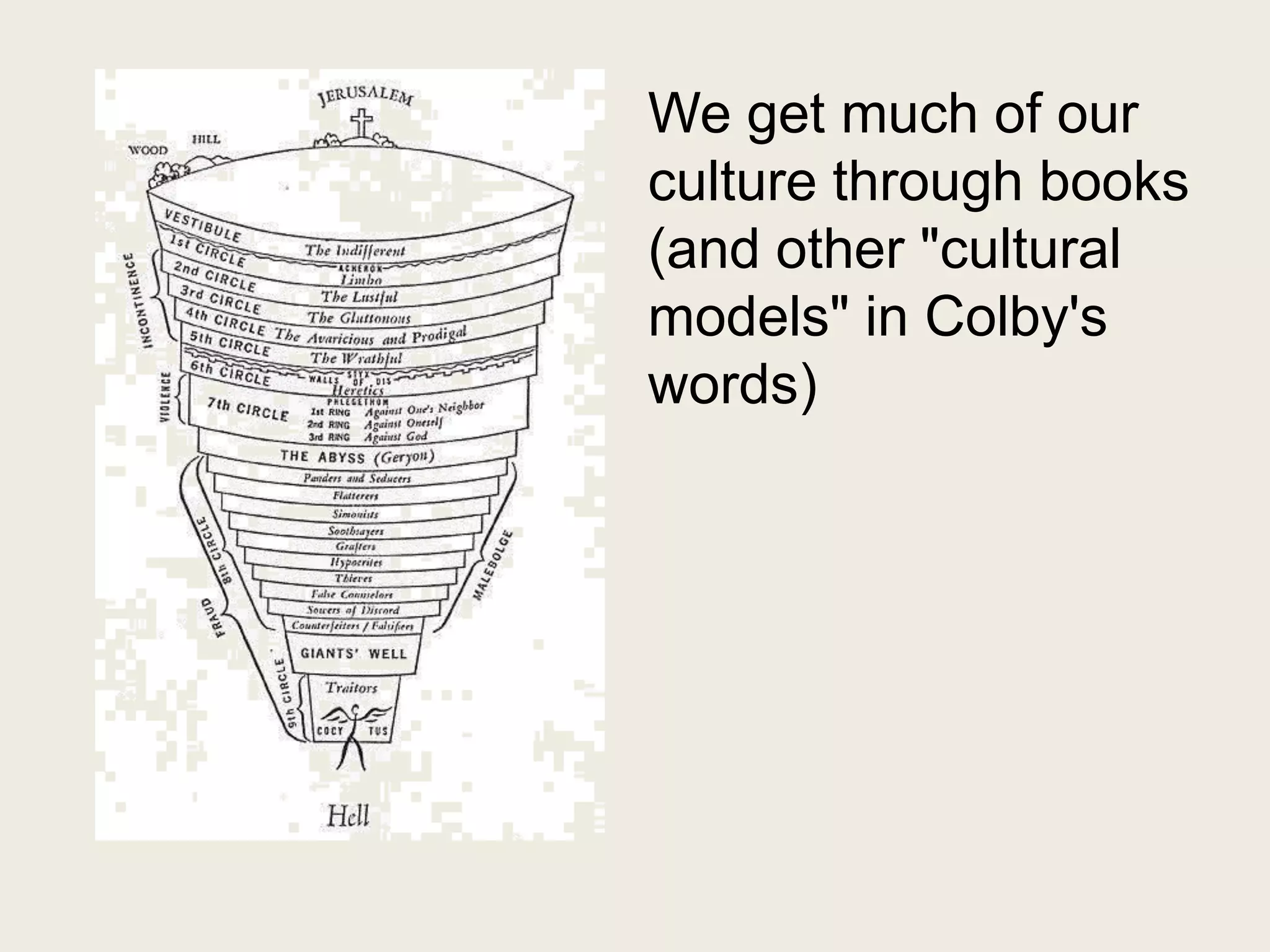

7. We get much of our
culture through books
(and other "cultural
models" in Colby's
words)

8. Like cigarettes,
books are a delivery
mechanism
(not of nicotine, but
of culture)

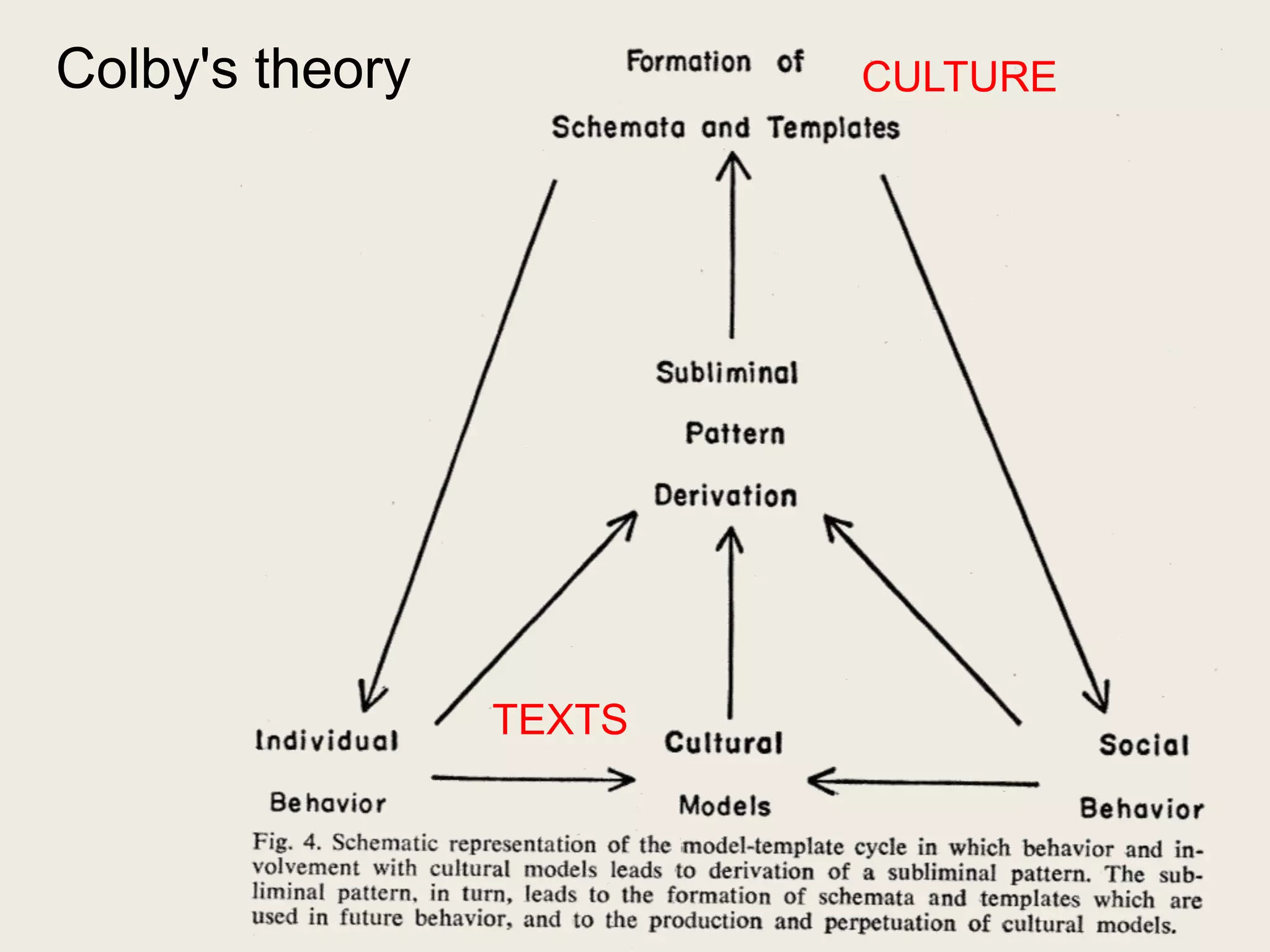

9. Colby's theory CULTURE
TEXTS

10. If texts contain cultural meanings . . .
How do we get to them?
How do we represent them?

11. Models of Text

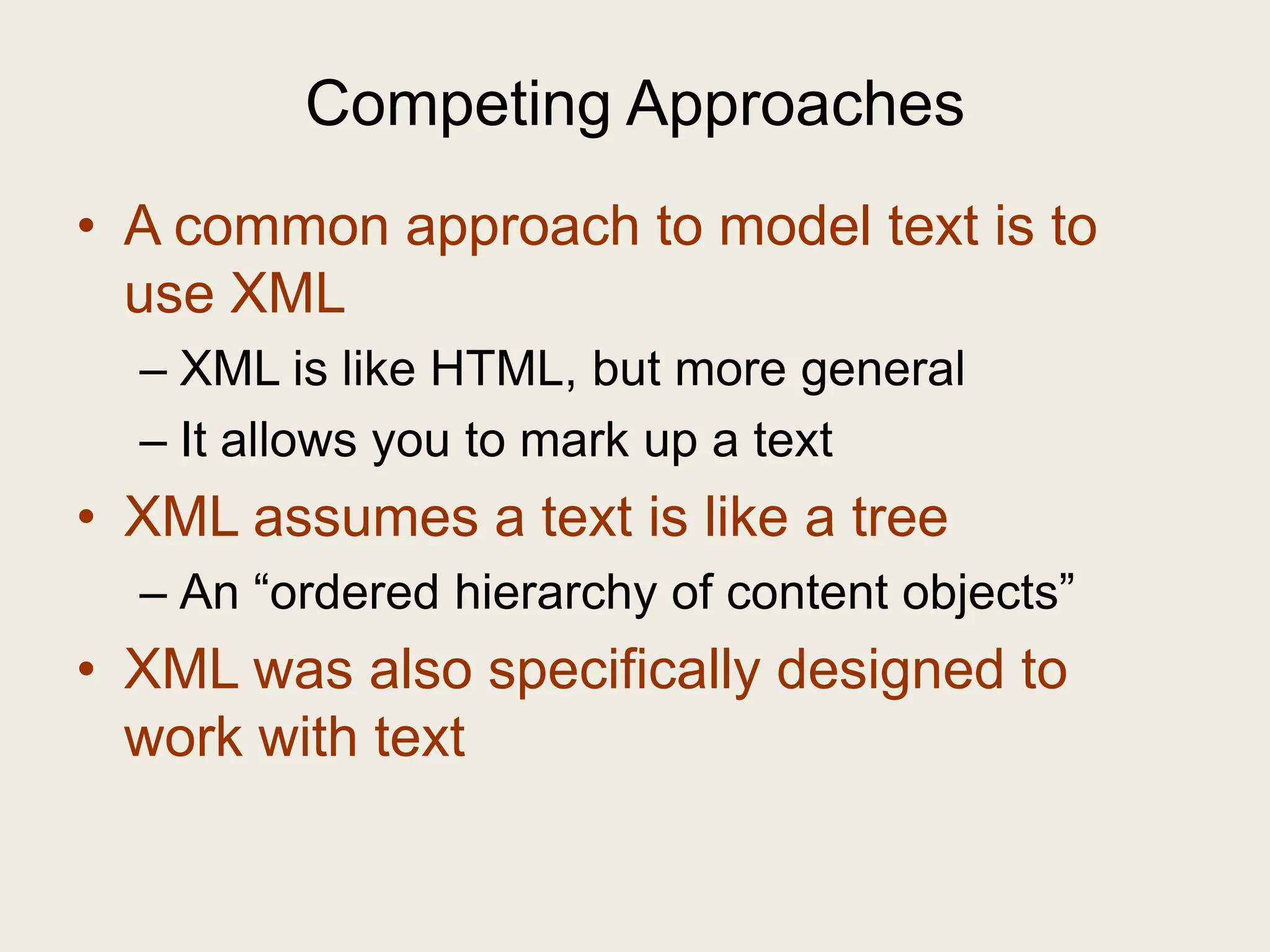

12. Competing Approaches
• A common approach to model text is to
use XML
– XML is like HTML, but more general
– It allows you to mark up a text
• XML assumes a text is like a tree
– An “ordered hierarchy of content objects”
• XML was also specifically designed to
work with text

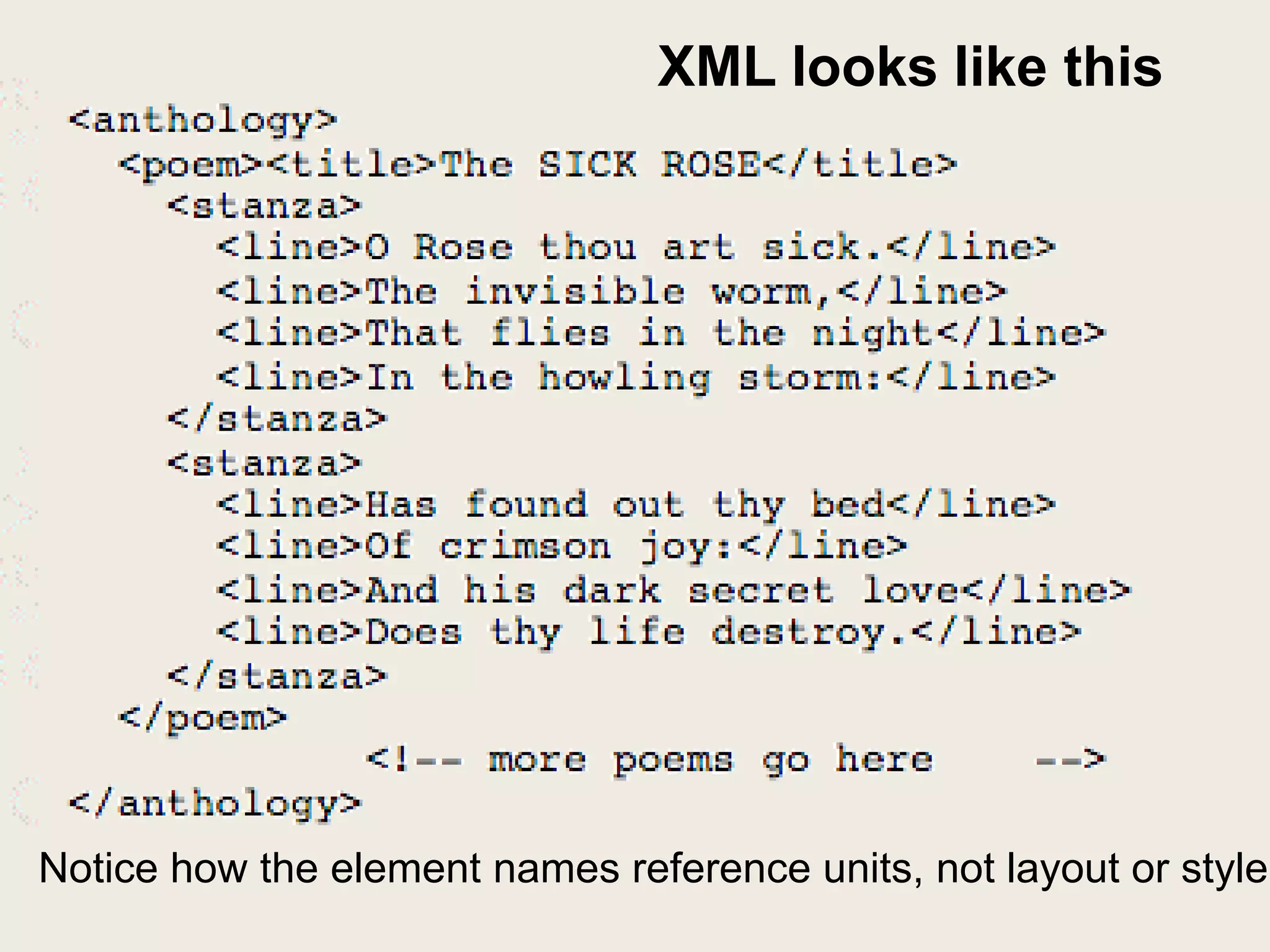

13. XML looks like this
Notice how the element names reference units, not layout or style

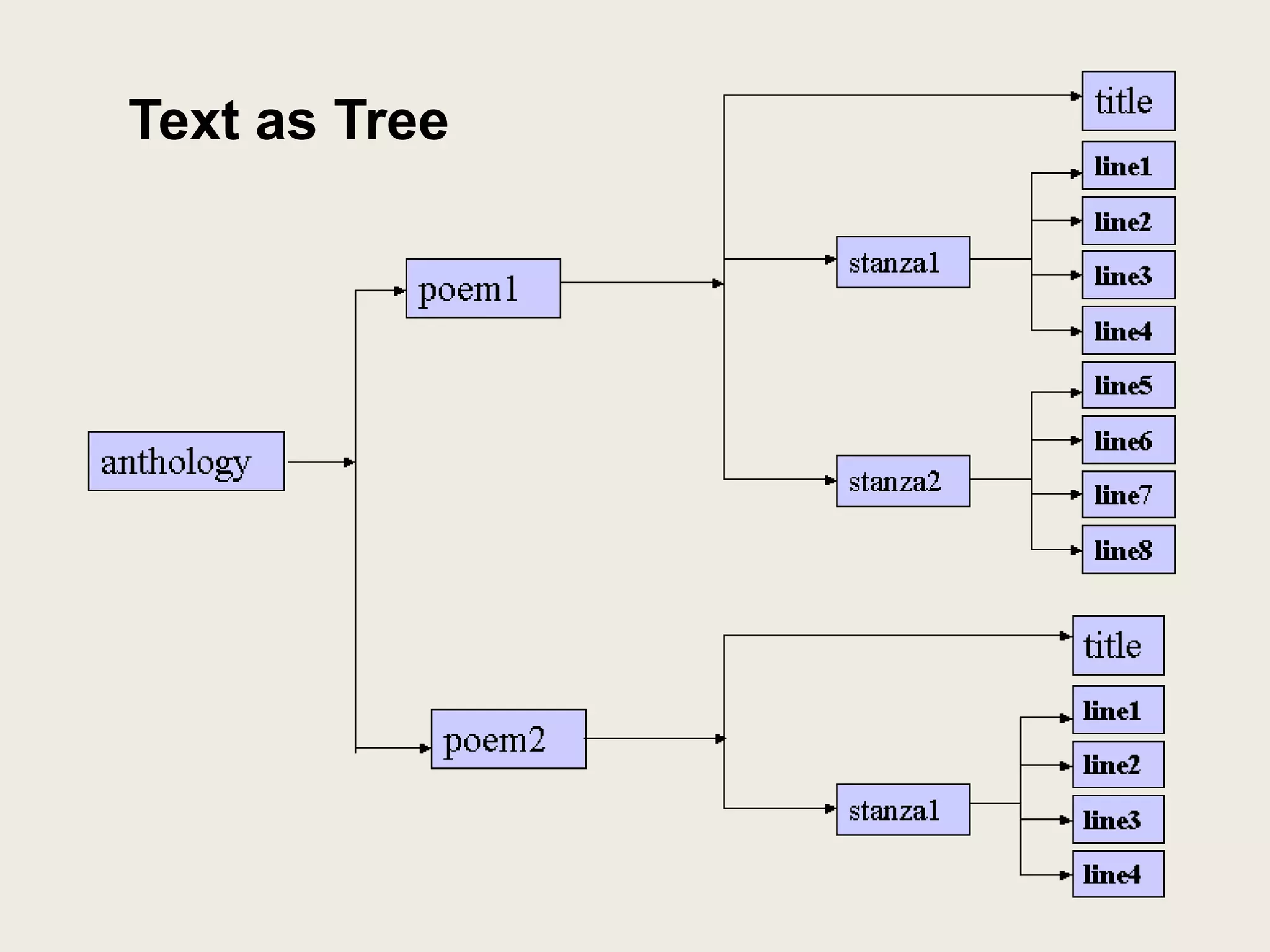

14. Text as Tree

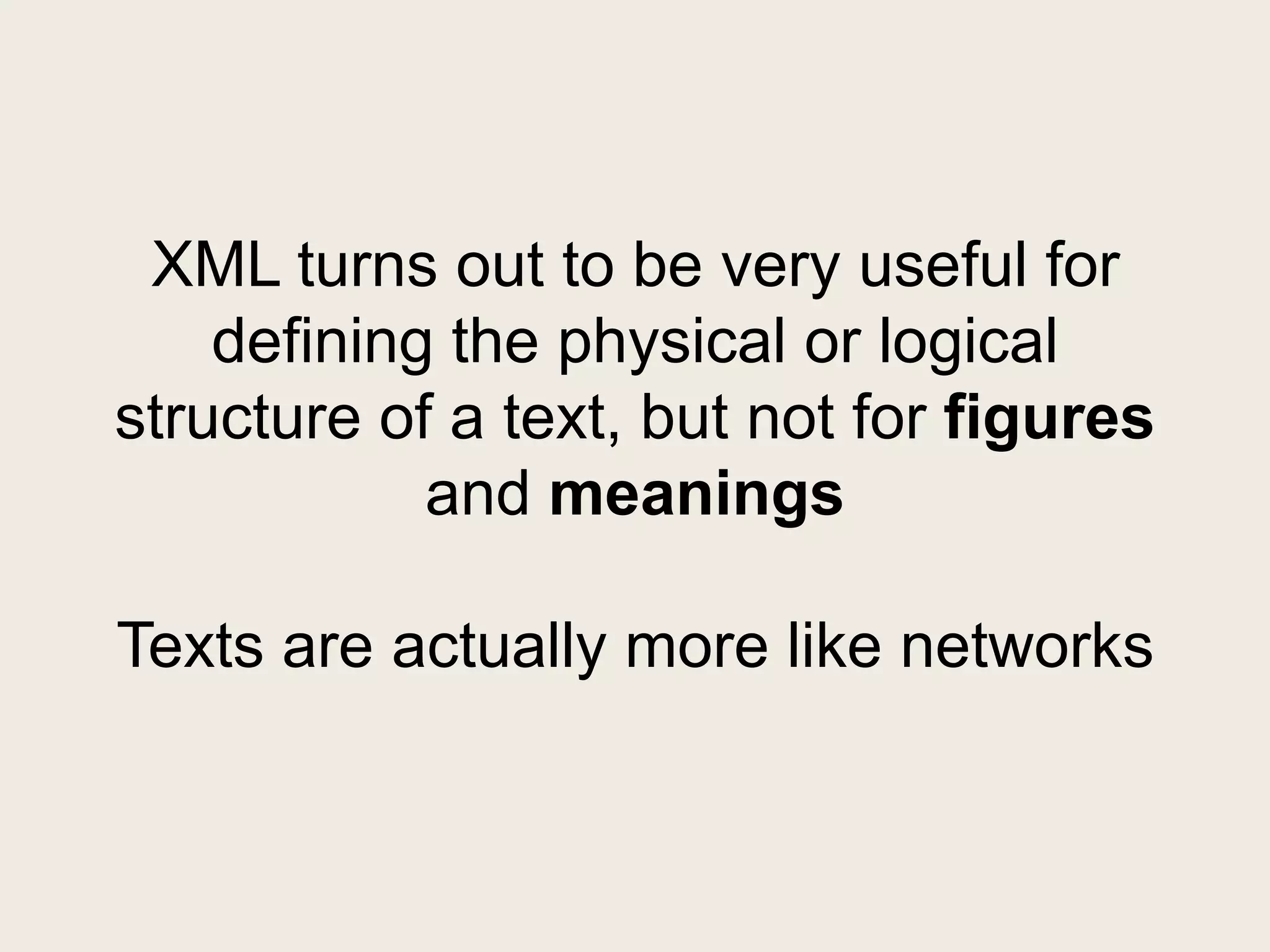

15. XML turns out to be very useful for
defining the physical or logical
structure of a text, but not for figures
and meanings
Texts are actually more like networks

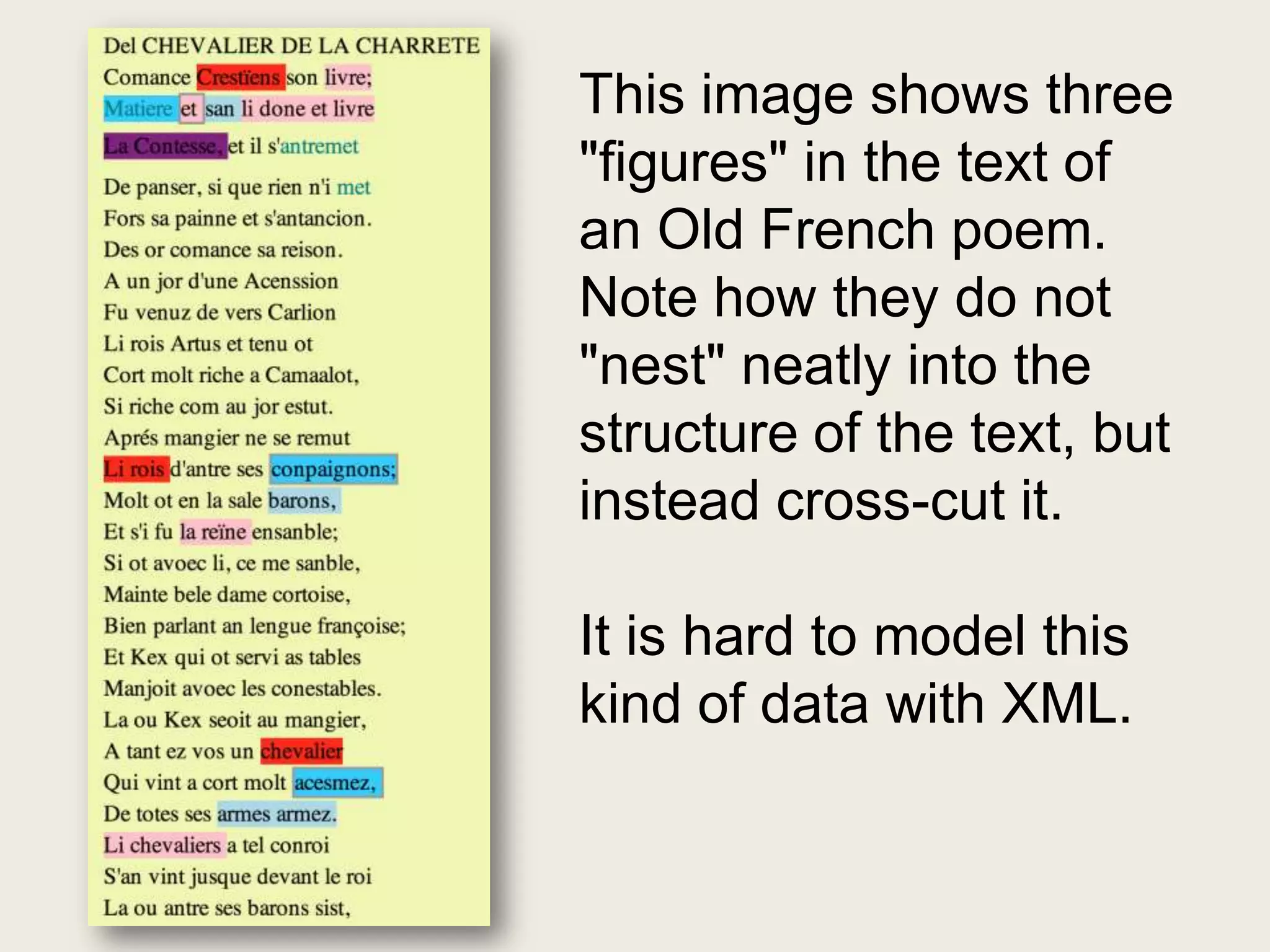

16. This image shows three
"figures" in the text of
an Old French poem.
Note how they do not
"nest" neatly into the
structure of the text, but
instead cross-cut it.
It is hard to model this
kind of data with XML.

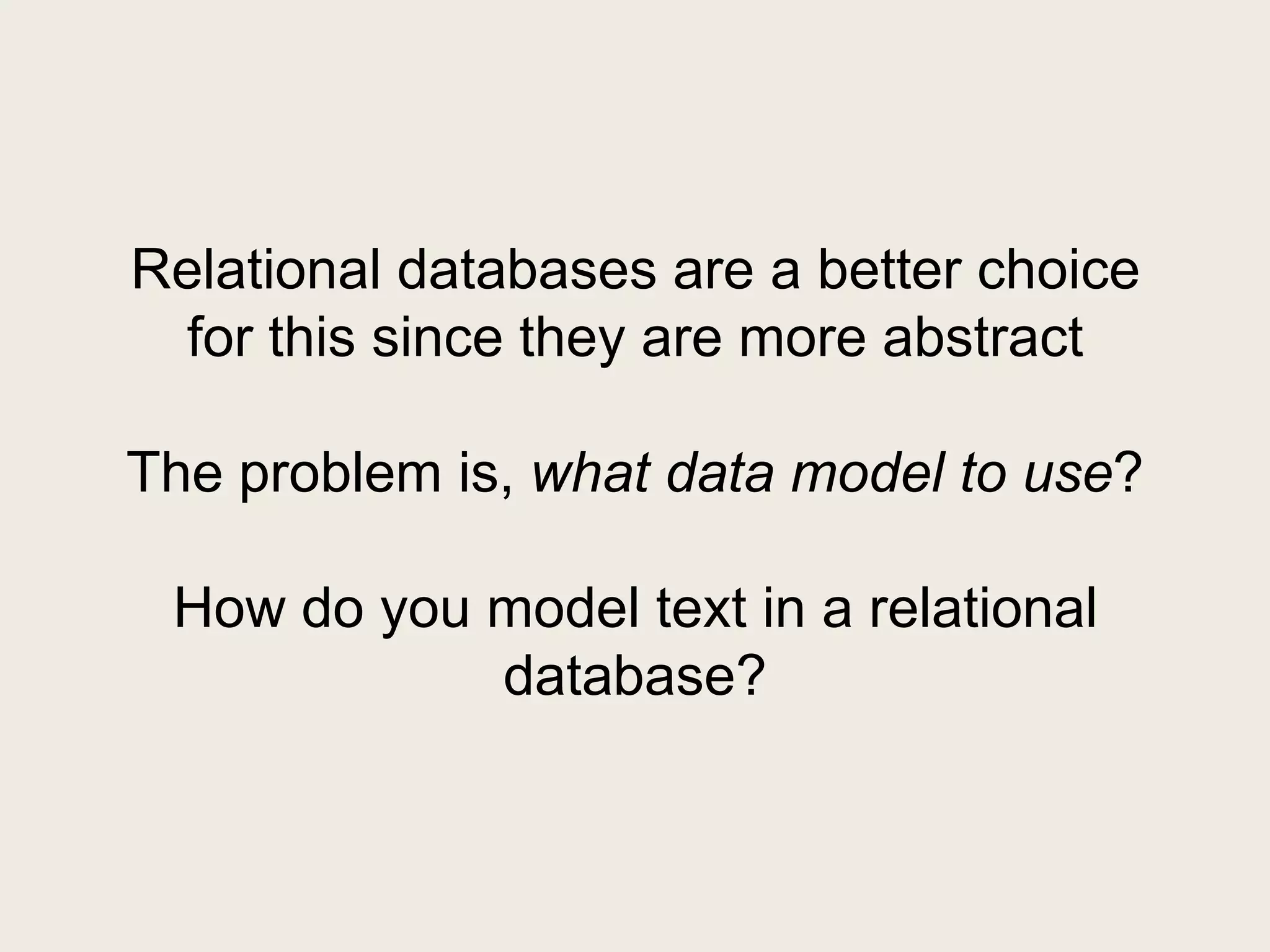

17. Relational databases are a better choice
for this since they are more abstract
The problem is, what data model to use?
How do you model text in a relational
database?

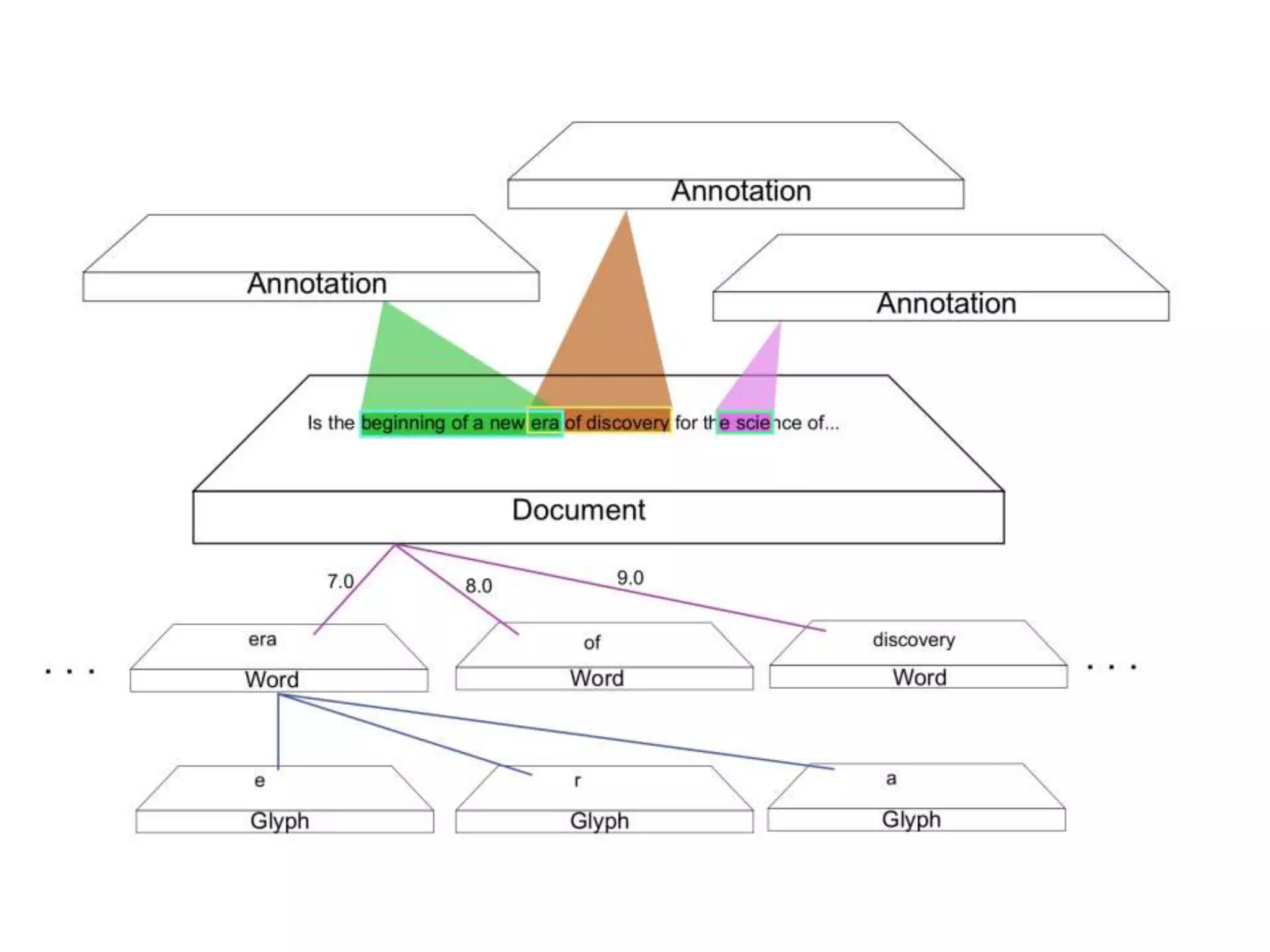

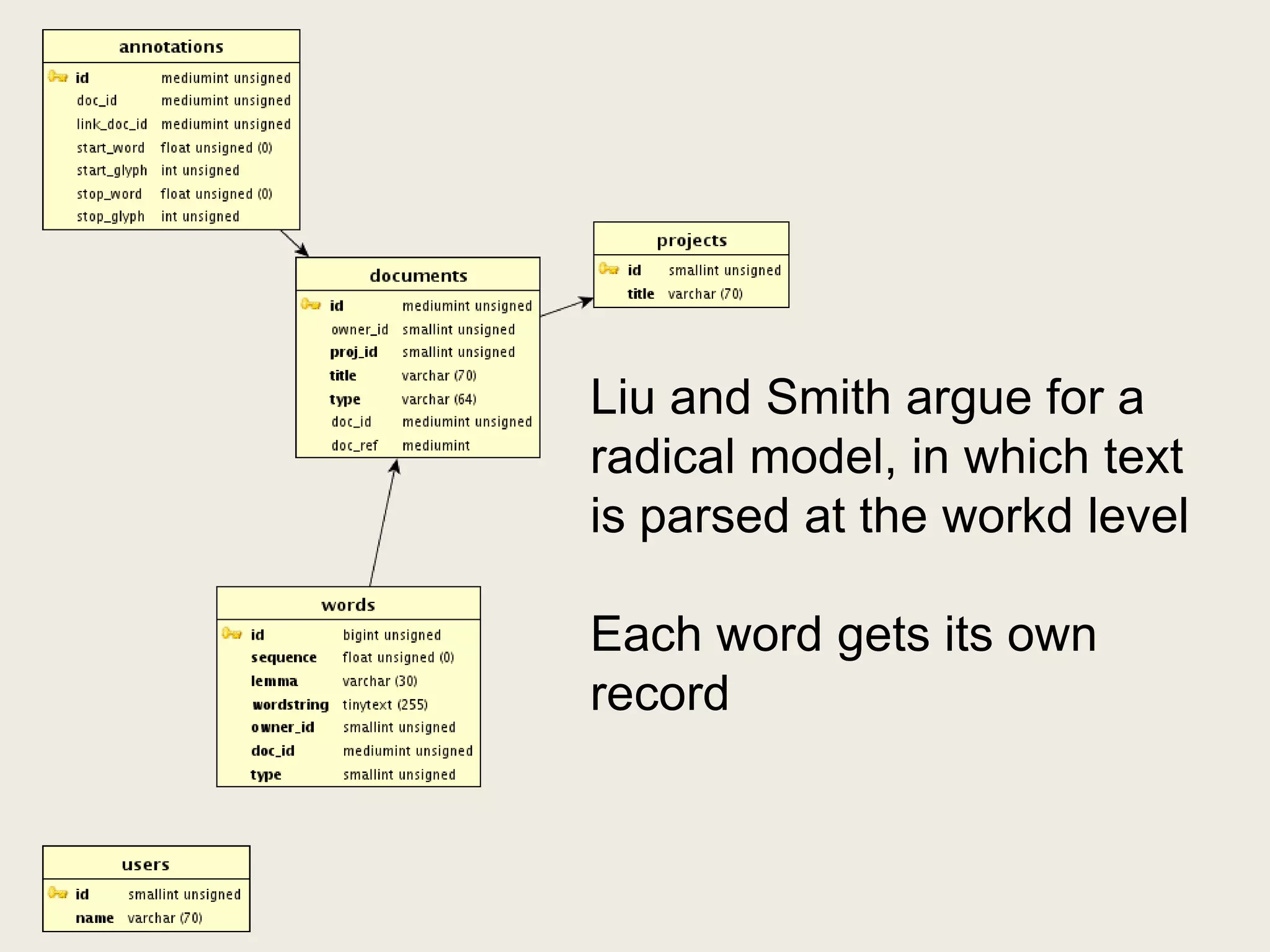

18. Liu and Smith argue for a
radical model, in which text
is parsed at the workd level
Each word gets its own
record

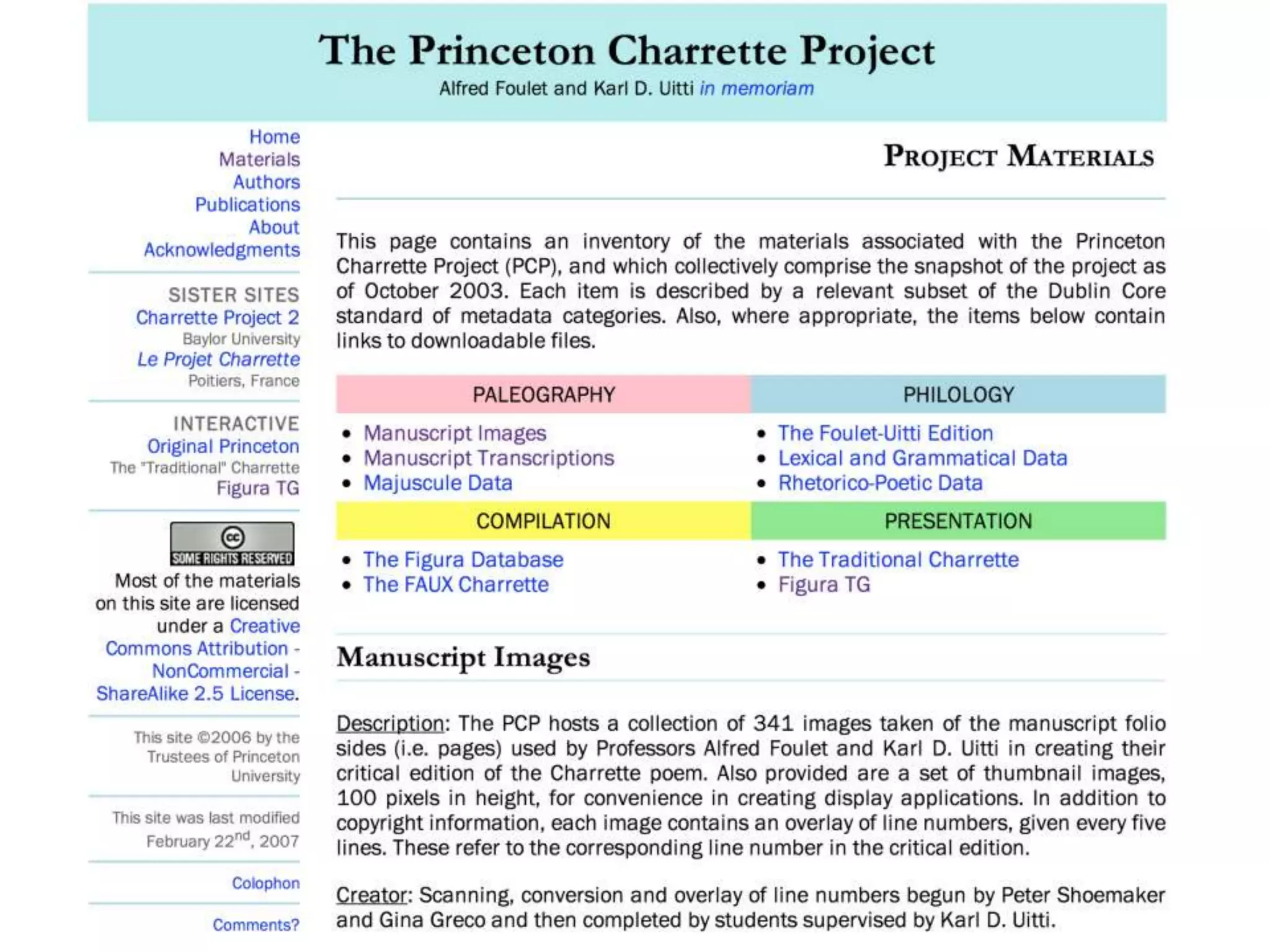

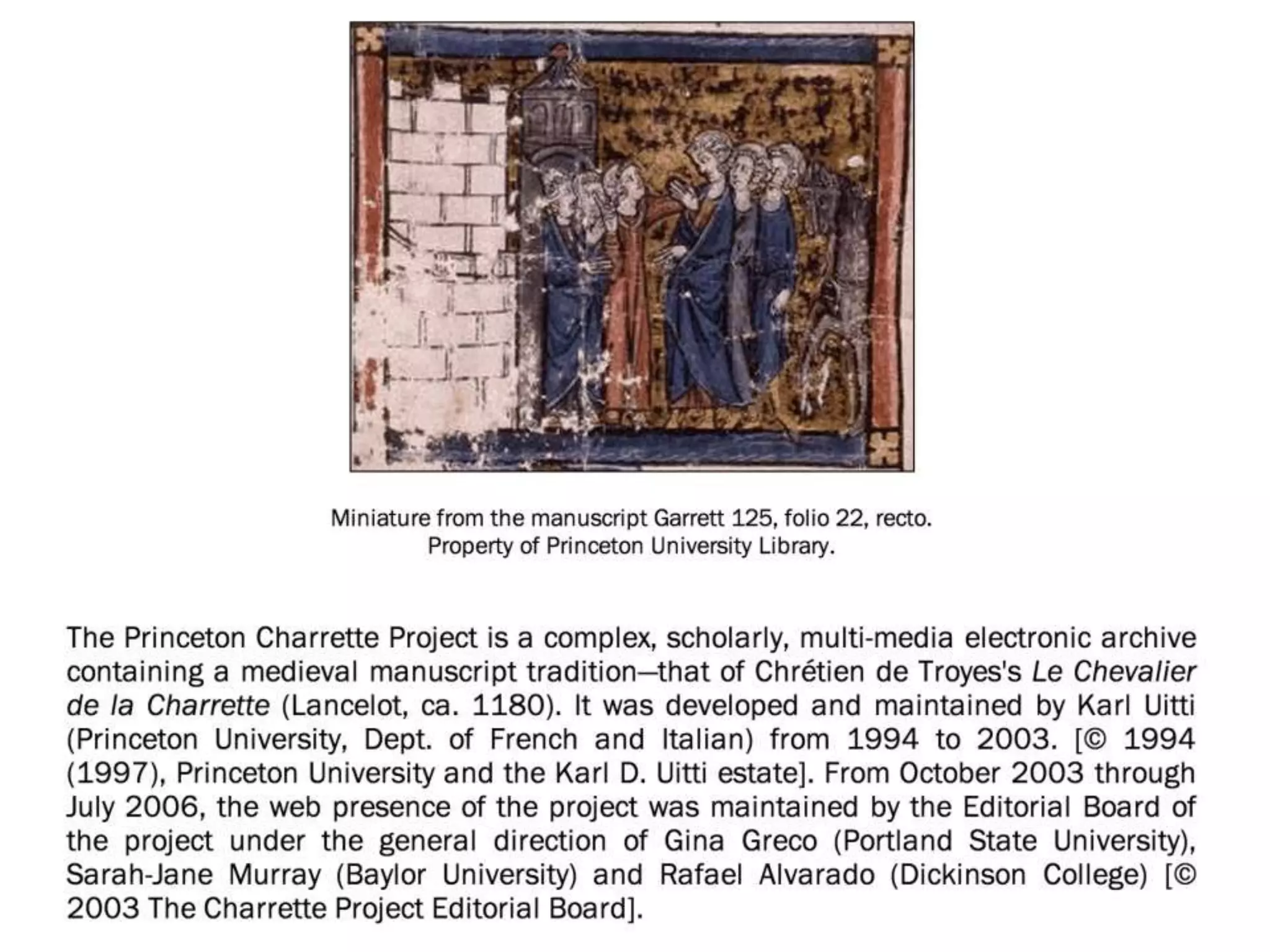

20. The Princeton Charrette Project used a
database-driven application called Figura
It was designed to represent the critical
edition of an Old French poem along with
the figural annotations of the text made
by scholars
A “figure” is a figure of speech or
rhetorical device, like rhyming or the use
of chiasmus

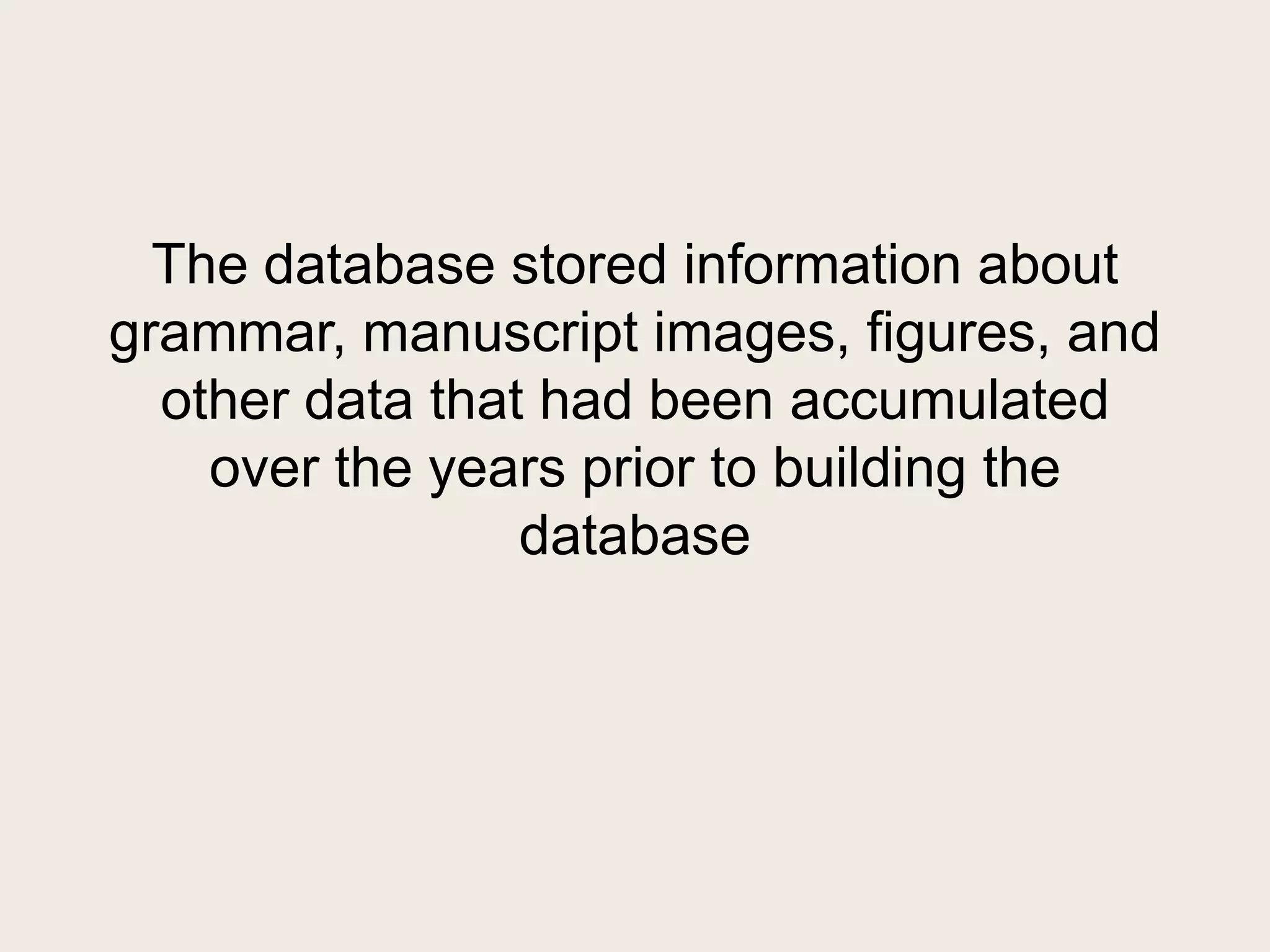

23. The database stored information about
grammar, manuscript images, figures, and
other data that had been accumulated
over the years prior to building the
database

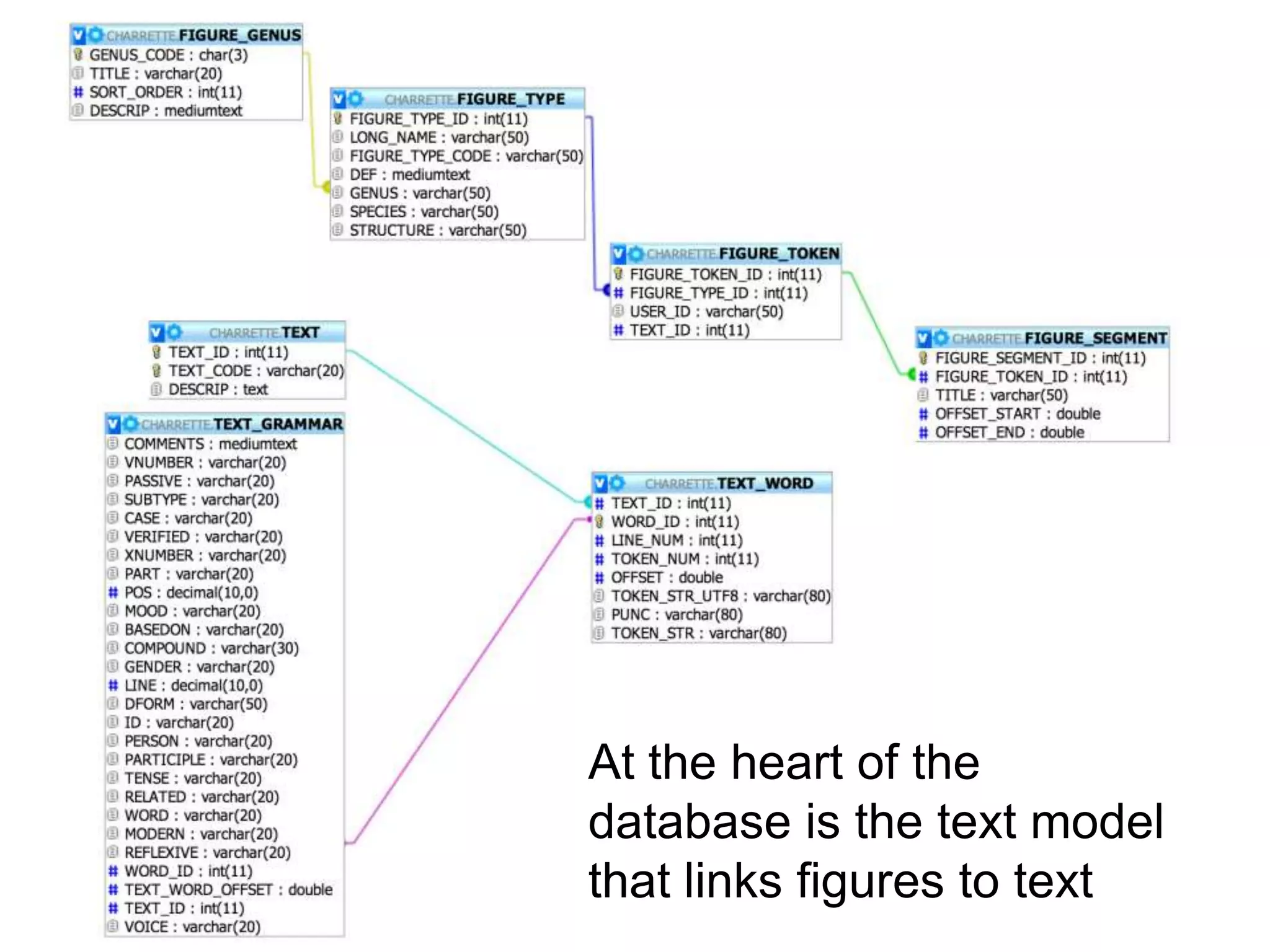

24. At the heart of the
database is the text model
that links figures to text

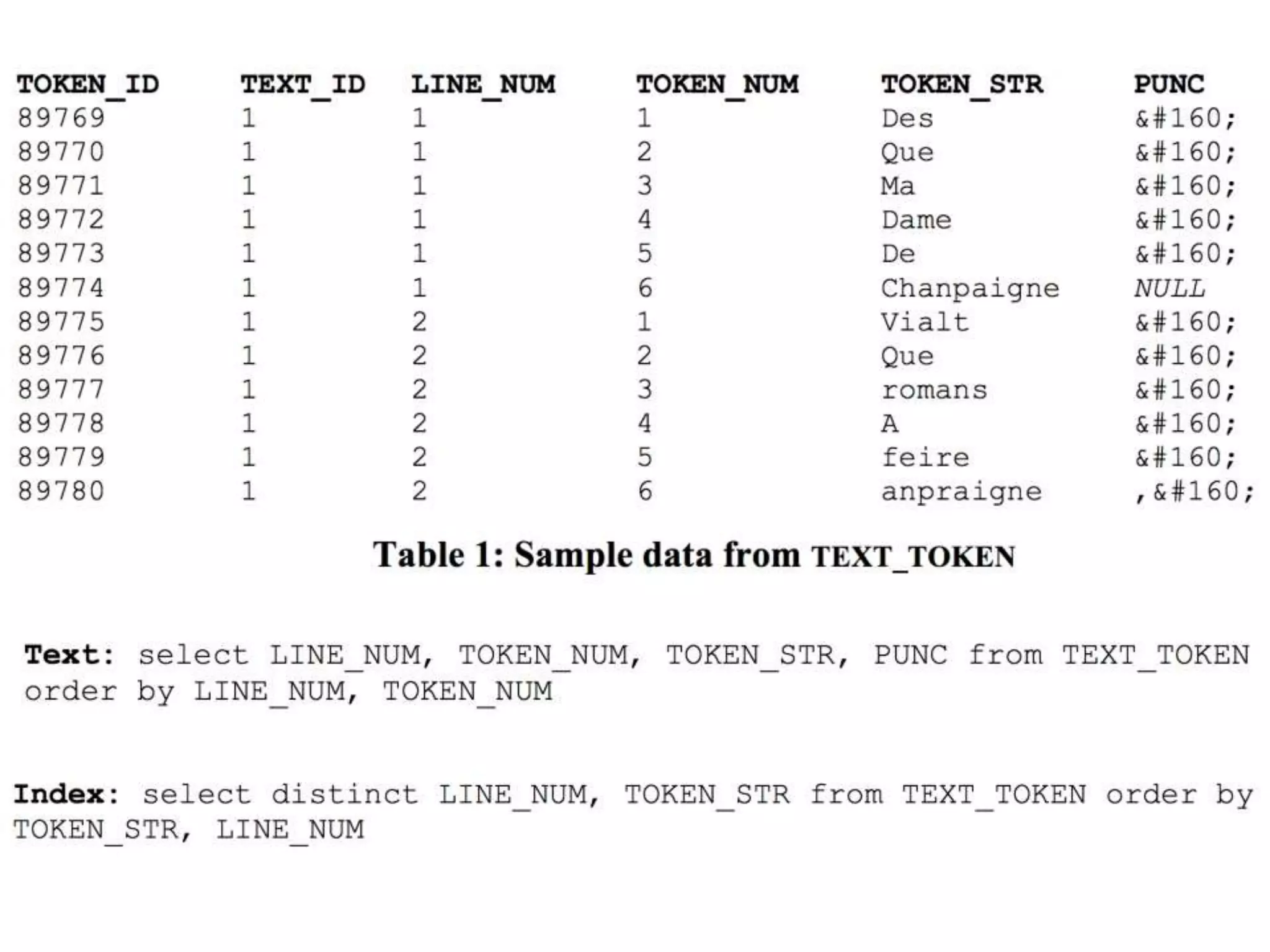

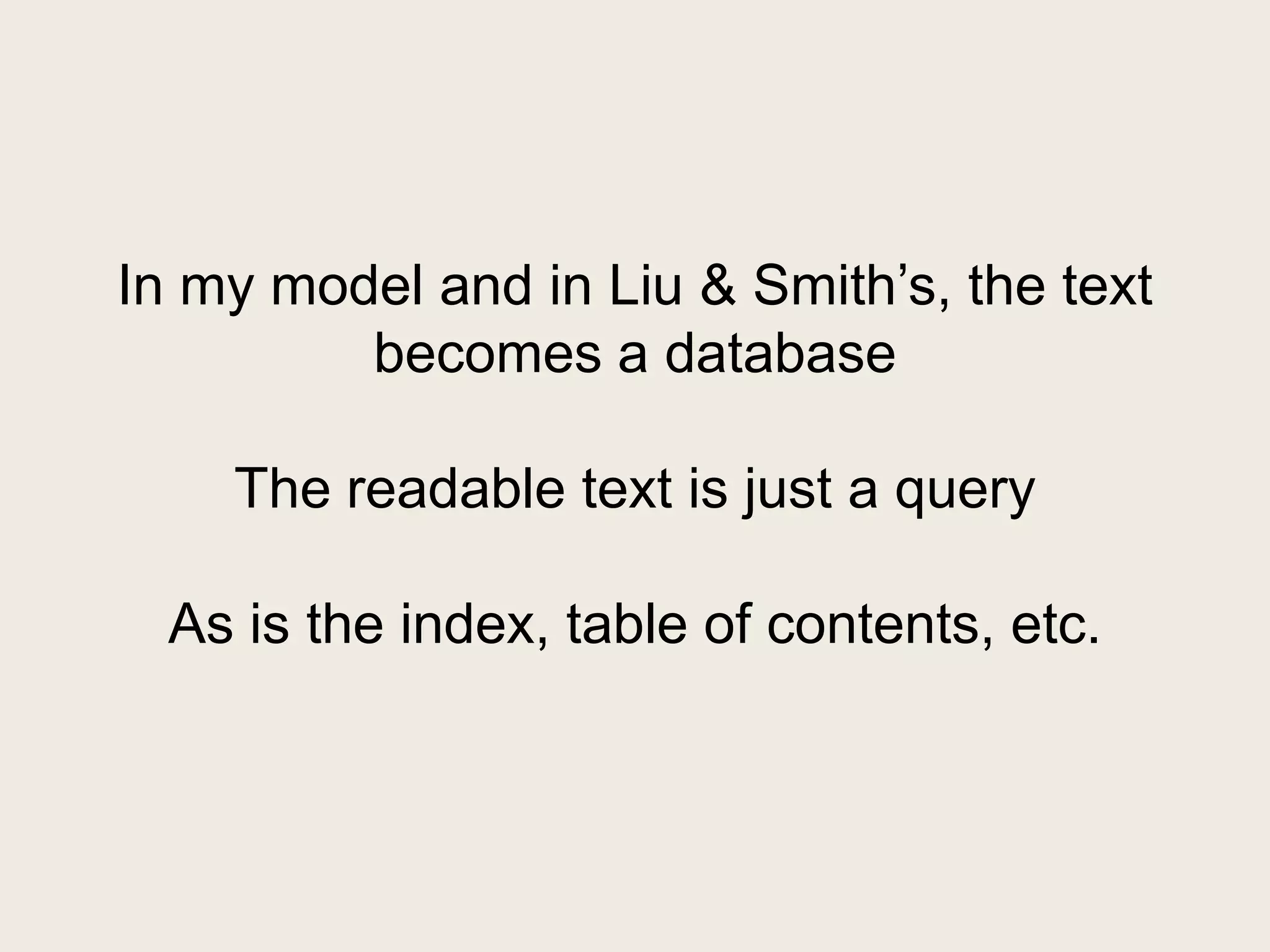

25. In my model and in Liu & Smith’s, the text
becomes a database
The readable text is just a query
As is the index, table of contents, etc.

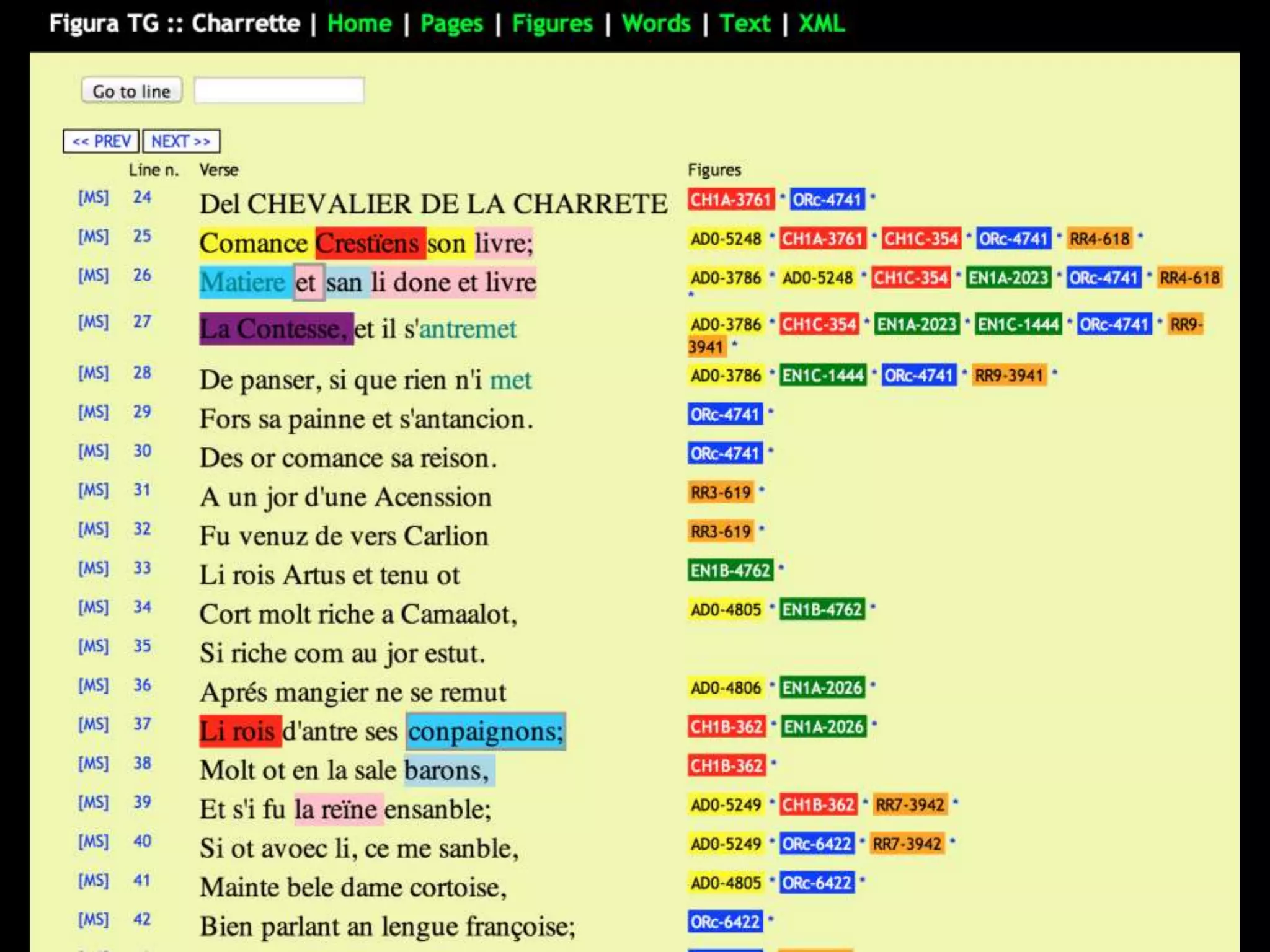

27. The database of words and figures
can be read by a program to
generate a visually rich and
interactive edition on the web

29. But it can also be used to discover
patterns in the text not visible to the
reader
It can help us discover the cultural
patterns that are “delivered” by the
text to our brains

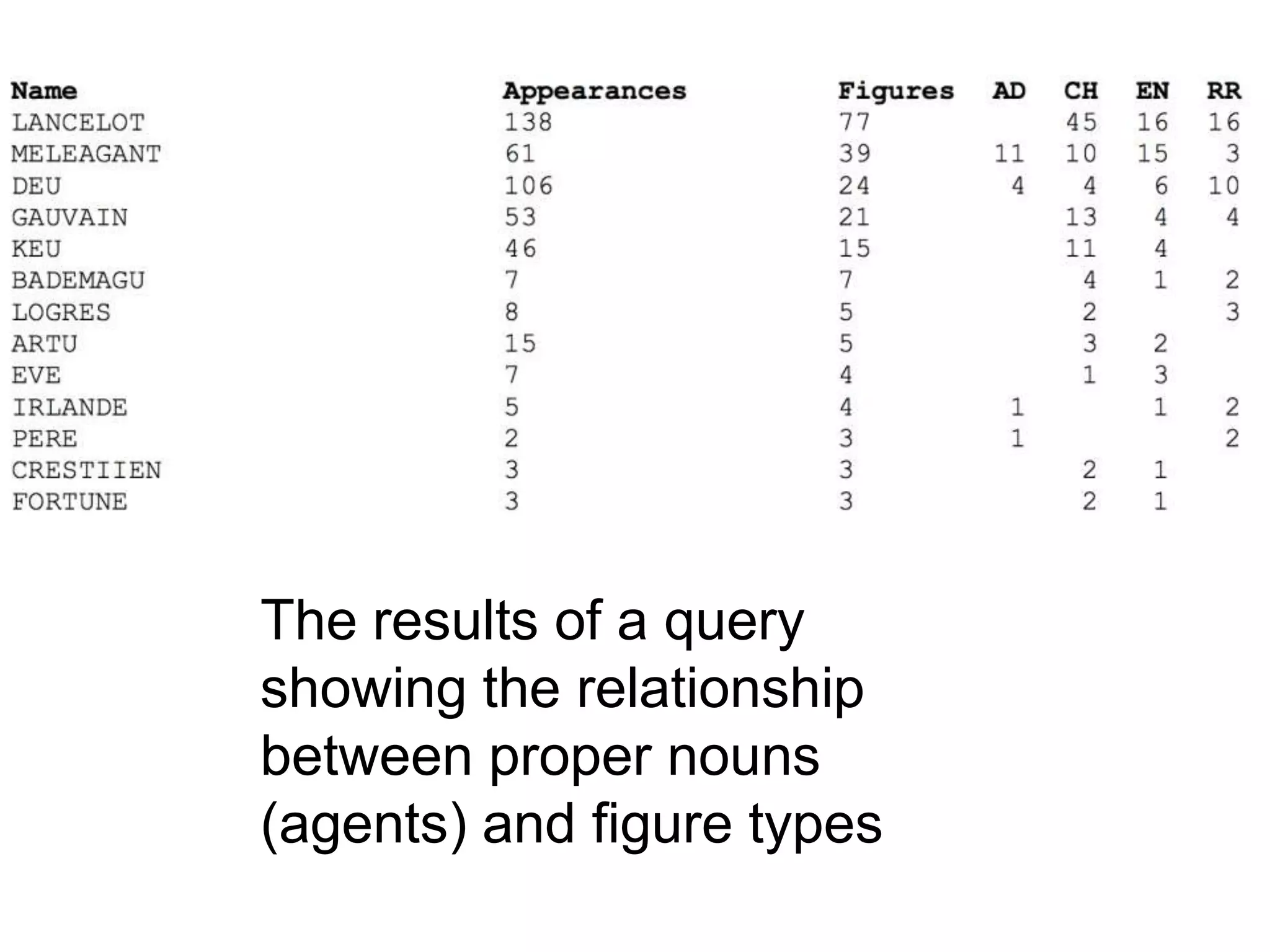

30. The results of a query
showing the relationship
between proper nouns
(agents) and figure types

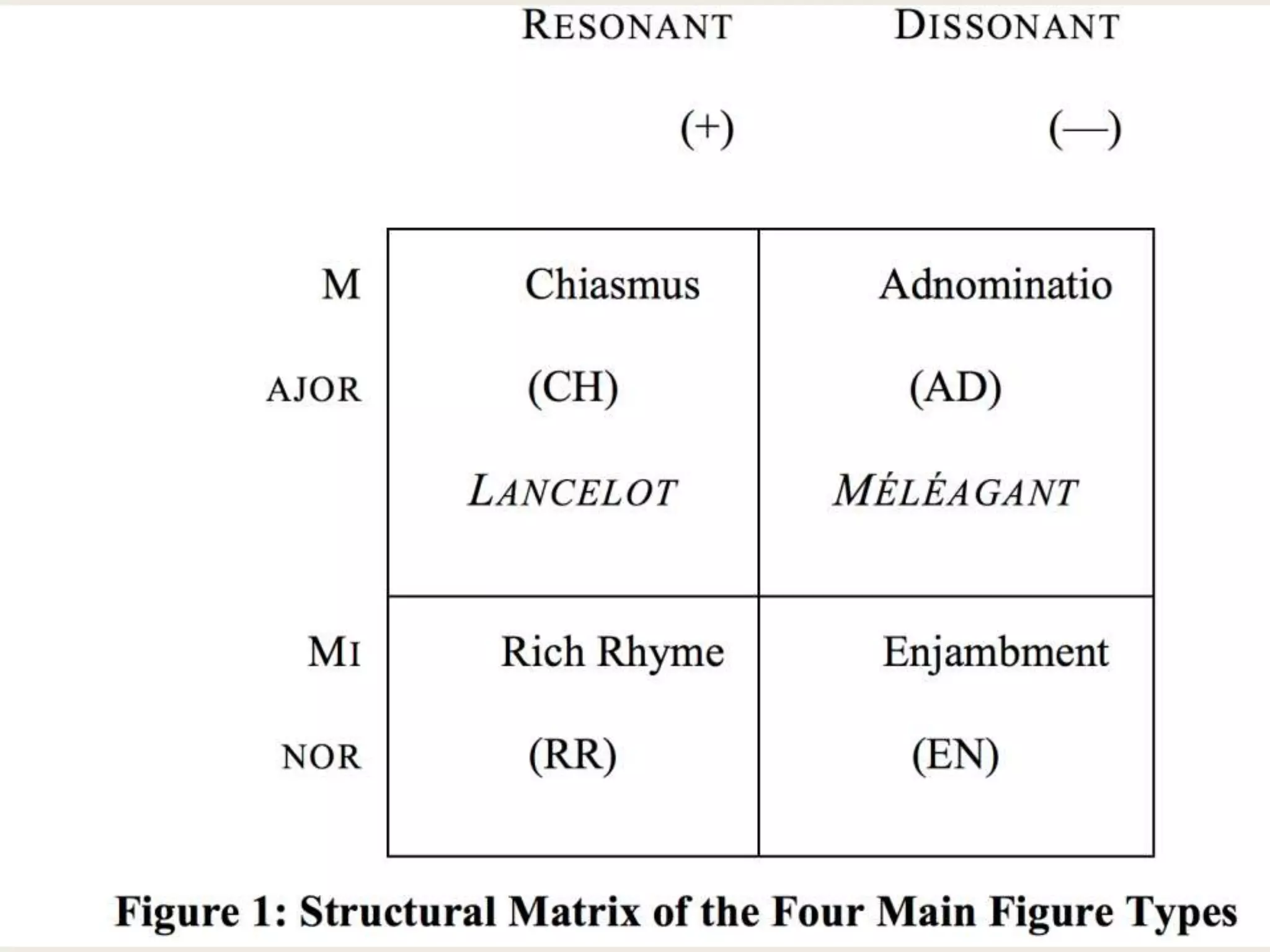

31. A structural reading of the data

33. Form and content are interwoven, each
reinforcing the other
Form – the delivery system – is used to
transmit the meaningful content, the
stuff that remains in your brain after
reading or hearing the story

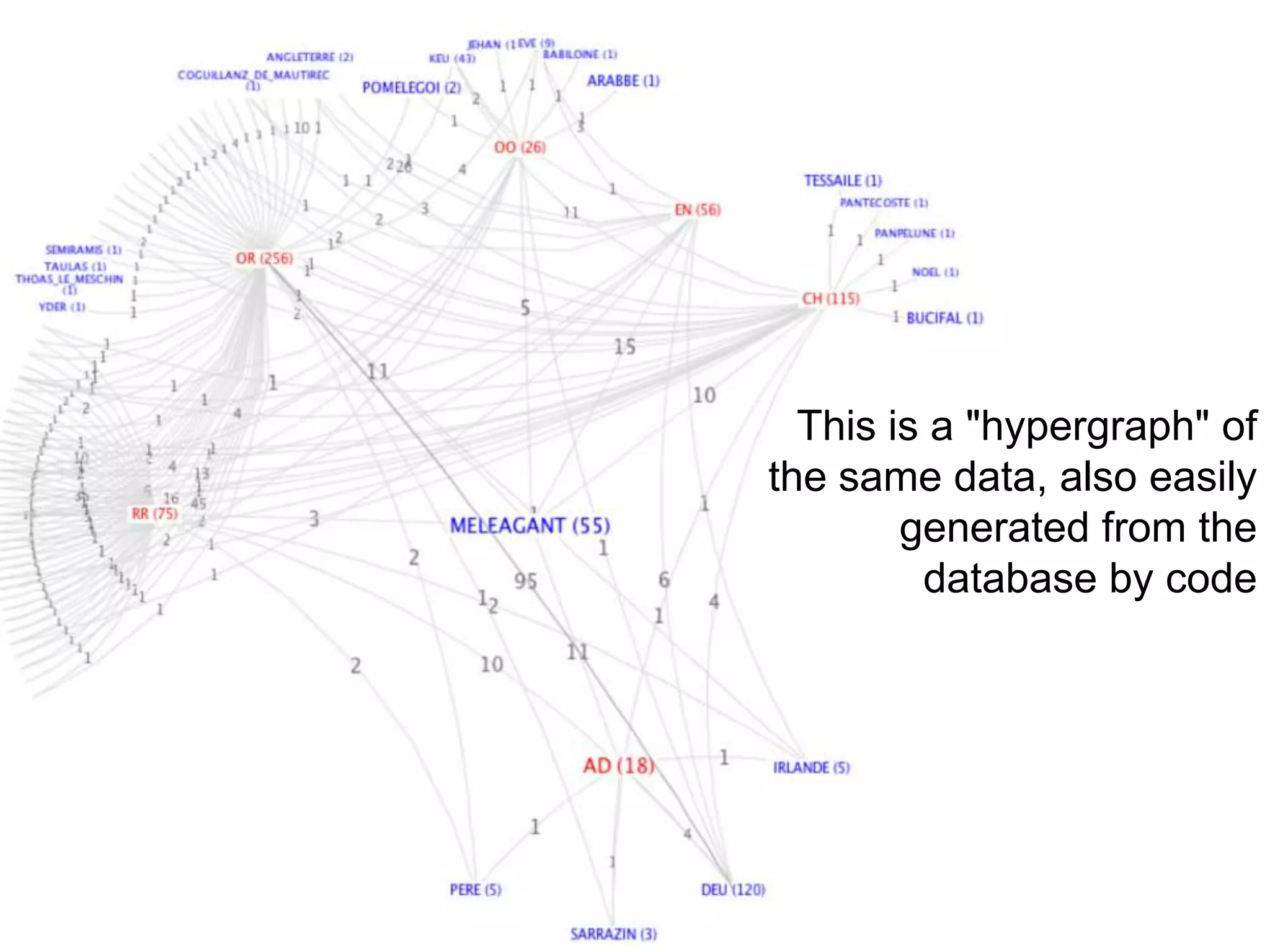

34. This is a "hypergraph" of
the same data, also easily
generated from the
database by code

36. Text is like this
http://anthonyflo.tumblr.com/post/7590868323/photographer-and-self-described-geek-of-maps

37. A text is a signal
Culture is a transmitter
