This document discusses different techniques for code generation from models or abstract syntax trees. It covers printing code as strings, string composition, template engines, string interpolation, composing abstract syntax trees, and concrete object syntax patterns. Advantages and disadvantages of each technique are described. The schedule section announces assignments and deadlines for upcoming work.

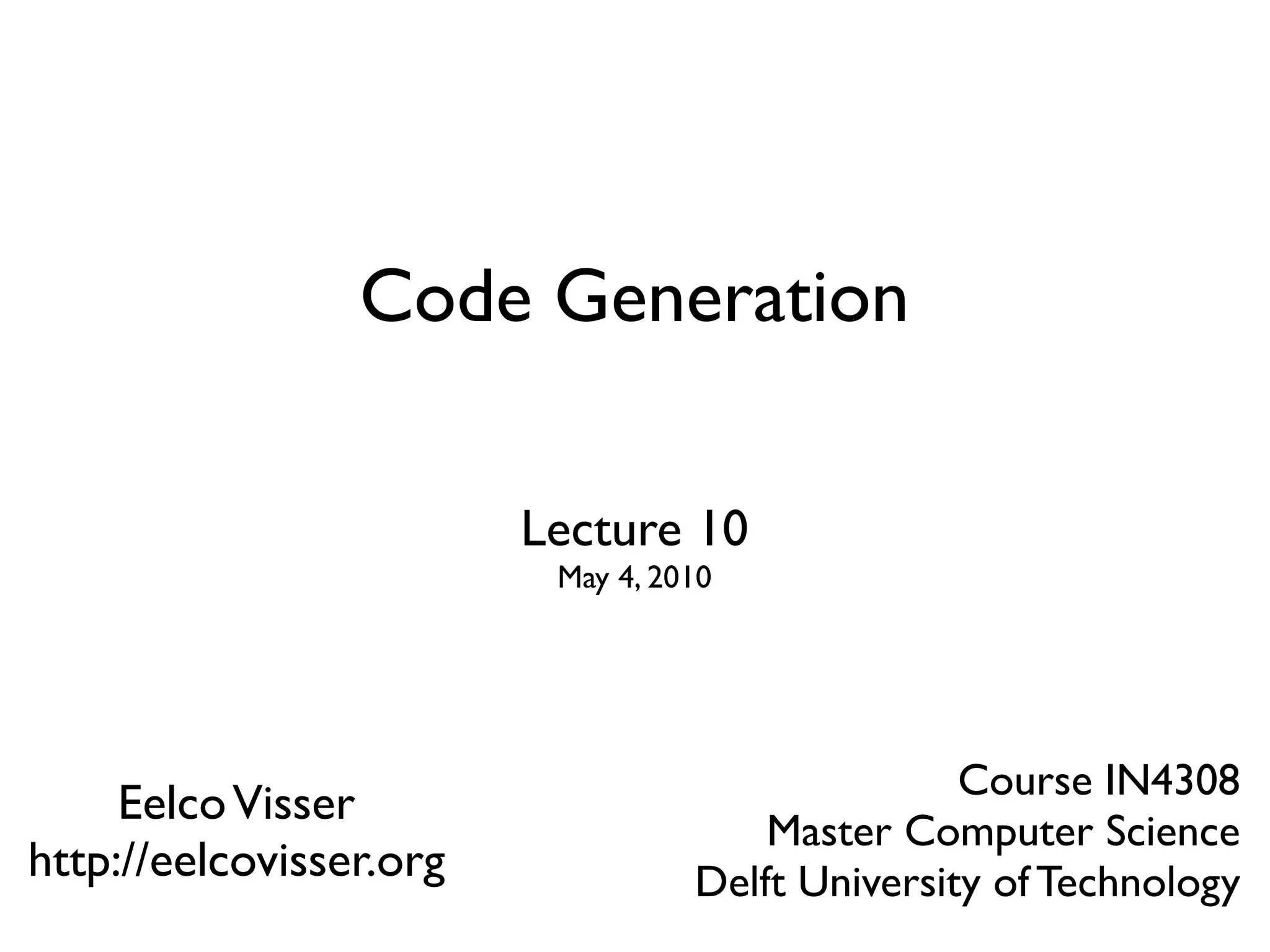

1. Code Generation
Lecture 10
May 4, 2010
Course IN4308
Eelco Visser
Master Computer Science
http://eelcovisser.org Delft University of Technology

2. Coming up
Lecture 8: Context-sensitive transformation
★ design 2
★ transformation with dynamic rewrite rules
Lecture 9: Static analysis & error checking
★ name resolution, reference resolution
★ type analysis
Lecture 10: Code generation
★ string templates, code generation by model transformation
★ concrete object syntax
Lecture 11: Code generation strategies
★ customization of generated code

3. Code Generation

4. Code Generation: From Model to Code
Model
★ structured representation (abstract syntax)
★ produced by parser
★ checked for consistency
★ transformed to core language
Code
★ program text
★ no structure
★ for consumption by interpreter or compiler

5. Example: Data Model to Database Schema
entity Blog {
name :: String
entries :: List<BlogEntry>
}
CREATE TABLE IF NOT EXISTS ‘Blog‘ (
‘id‘ int(11) NOT NULL auto_increment,
‘name‘ text,
PRIMARY KEY (‘id‘)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 AUTO_INCREMENT=1 ;
CREATE TABLE IF NOT EXISTS ‘Blog_entries_BlogEntry‘ (
‘parent‘ int(11) NOT NULL,
‘value‘ int(11) NOT NULL
) ENGINE=MyISAM DEFAULT CHARSET=latin1 ;

6. Traversing Abstract Syntax Trees
Pattern matching
Field(name, SimpleType(x))
Accessor Functions
if(t instanceof Field) {
name := t.name();
if(t.type() instanceof SimpleType) {
...
}
}

7. Print Statements

8. Printing Code
entity-to-sql =
?Entity(name, fields);
<printstring> "DROP TABLE IF EXISTS ‘";
<printstring> name;
<printstring> "‘;n";
<printstring> "CREATE TABLE IF NOT EXISTS ‘";
<printstring> name;
<printstring> "‘ ( n";
<printstring> "‘id‘ int(11) NOT NULL auto_increment;n";
<map(field-to-sql(|name); printstring> fields;
<printstring> "PRIMARY KEY (‘id‘)n";
<printstring> ") ENGINE=MyISAM DEFAULT CHARSET=latin1 ";
<printstring> "AUTO_INCREMENT=1 ;nn"

9. Printing Code
Advantages
★ accessible (easy to implement in any language)
★ concrete syntax
★ good performance
Disadvantages
★ order of evaluation
★ code fragments disrupted to splice meta-data
★ no formatting

10. Composing Strings

11. String Composition
entity-to-sql :
Entity(name, fields) ->
<concat-strings>
["DROP TABLE IF EXISTS ‘",name,"‘;n",
"CREATE TABLE IF NOT EXISTS ‘",name,"‘ ( n",
"‘id‘ int(11) NOT NULL auto_increment, n",
<map(field-to-sql(|name));concat-strings> fields,
"PRIMARY KEY (‘id‘)n",
") ENGINE=MyISAM DEFAULT AUTO_INCREMENT=1 ;nn"
]
field-to-sql(|entity) :
Field(name, SimpleType(type)) ->
<concat-strings>["‘",name,"‘ ",<type-to-sqltype> type,",n"]

12. String Composition
Advantages
★ concrete syntax
★ assembly of code fragments independent of order of evaluation
Disadvantages
★ disrupted code fragments
★ quotes
★ escapes

13. Template Engine

14. Template Engine
<<DEFINE entity_to_sql FOR entity>>
DROP TABLE IF EXISTS ‘<<entity.name>>‘;
CREATE TABLE IF NOT EXISTS ‘<<entity.name>>‘ (
‘id‘ int(11) NOT NULL auto_increment,
<<EXPAND type_to_sqltype FOREACH entity.fields>>
PRIMARY KEY (‘id‘)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 AUTO_INCREMENT=1;
<<ENDDEFINE>
DSL for model to text generation

15. Template Engine
Advantages
★ concrete syntax
★ less quoting
★ long code fragments
★ anti-quotation instead of string concatenation
★ no escapes of string meta characters
Disadvantages
★ no syntax check
★ result is string / printed
★ no structure
★ integrate separate language

16. String Interpolation

17. String Interpolation
entity-to-sql :
Entity(name, fields) ->
$[DROP TABLE IF EXISTS ‘[name]‘;
CREATE TABLE IF NOT EXISTS ‘[name]‘ (
‘id‘ int(11) NOT NULL auto_increment,
[<map(field-to-sql(|name))> fields]
PRIMARY KEY (‘id‘)
) ENGINE=MyISAM DEFAULT AUTO_INCREMENT=1;
]
field-to-sql(|entity) :
Field(name, SimpleType(type)) ->
$[‘[name]‘ [<type-to-sqltype> type]]

18. String Interpolation
Advantages
★ concrete syntax
★ assembly of code fragments independent of order of evaluation
★ long code fragments
★ anti-quotation instead of string concatenation
★ no escapes of string meta characters
★ formatting, relative indentation
Disadvantages
★ escaping of string interpolation meta characters

19. Composing ASTs

20. Code Generation by Model Transformation
Code represented as AST
★ (typechecked) structured representation
Text generation by pretty-printing
★ separate code formatting from code generation
Apply transformations after generation
★ aspect weaving
★ optimization

21. Composing Abstract Syntax Trees
grammar-to-signature :
Grammar(ss, ps) -> Signature(ss, cds)
where cds := <map(production-to-consdecl)> ps
production-to-consdecl :
Prod(symbols, sym, annos) -> ConsDecl(x, types, sort)
where x := <annos-to-constructor> annos
; types := <filter(symbol-to-type)> symbols
; sort := sym
annos-to-constructor :
[Anno(Application("cons", [Constant(c)]))] -> constr
where constr := <unescape; un-double-quote> c

22. Composing Abstract Syntax Trees
Advantages
★ syntax check through type system (if available)
★ automatic formatting
★ transformation after generation
Disadvantages
★ no concrete syntax

23. Deriving Rewrite Rules

24. private $name;
How does this scale? function getName(){
return $this->name;
}
function setName($val){
$this->name = $val;
}
generate-entity-field-code :
Field(name, SimpleType(t)) ->
[ InstanceVariable(Modifiers([Private()]),[Normal(Variable(Simple(name)))])
, FunctionDecl(get, [], [
Return(Some(ObjectAccess(Variable(Simple("this")),
ObjectProperty(Simple(name)))))])
, FunctionDecl(set, [Param(Variable(Simple("val")))], [
Expr(Assign(ObjectAccess(Variable(Simple("this")),
ObjectProperty(Simple(name))),
Variable(Simple("val"))))])
]
with get := <camelcase>["get",name]
with set := <camelcase>["set",name]

25. Concrete Object Syntax

26. Concrete Syntax Patterns
generate-entity-field-code :
FieldDefinition(str_name, type) -> php-member* |[
private $str_name ;
function str_get() {
return $this->str_name;
}
function str_set($val) {
$this->str_name = $val;
}
]|
where <is-primitive-type> type
with str_get := <camelcase>["get",str_name]
with str_set := <camelcase>["set",str_name]

27. Concrete Syntax Ingredients
Quotation of code fragment
★ |[ .... ]|
Disambiguation through tagging
★ php-member*|[ ... ]|
Meta-variables
★ $this->str_name = $val

28. Implementing Concrete Object Syntax
Extending meta-language
★ Stratego + PHP
Parsing meta-programs
Normalizing to core syntax

29. Extending the Meta-Language (1)
module Stratego
exports
context-free syntax
Int -> Term {cons("Int")}
String -> Term {cons("Str")}
Var -> Term {cons("Var")}
Id "(" {Term ","}* ")" -> Term {cons("Op")}
Term "->" Term -> Rule {cons("RuleNoCond")}
Term "->" Term "where" Strategy -> Rule {cons("Rule")}

30. Extending the Meta-Language (2)
module StrategoPHP
imports PHP
exports
context-free syntax
"php-member" "|[" ClassMember "]|" -> Term{cons("ToMetaExpr")}
"php-member*""|[" ClassMember* "]|" -> Term{cons("ToMetaExpr")}
variables
"expr_"[A-Za-z0-9_]+ -> Expr {prefer}
"str_"[A-Za-z0-9_]+ -> String {prefer}

31. Parsing Concrete Object Syntax
Field(name, SimpleType(t)) -> php-member|[ private $str_name; ]|
==> parse
Rule(Op("Field", [Var("name"), Op("SimpleType",[Var("t")])]),
ToMetaExpr(InstanceVariable(Modifiers([Private()]),
[Normal(Variable(Simple(meta-var("str_name"))))])))
==> meta-explode
Rule(Op("Field", [Var("name"), Op("SimpleType",[Var("t")])]),
Op("InstanceVariable",[
Op("Modifiers", [Op("Cons",[Op("Private",[]),Op("Nil",[])])]),
Op("Cons", [Op("Normal",[Op("Variable",[Op("Simple",
[Var("str_name")])])]),
Op("Nil",[])])]))
==> pretty-print
Field(name, SimpleType(t)) ->
InstanceVariable(Modifiers([Private()]),[Normal(Variable(Simple(str_name)))])

32. Summary of Code Generation Techniques
Print statements String interpolation
★ easy ★ template engine built-in
String composition Abstract syntax
★ out of order evaluation ★ precise, transformation
after generation
Template engines
Concrete object syntax
★ less quoting
★ precise
★ concrete
