1. Textual Modeling Framework
Jan Koehnlein - Sven Efftinge
itemis
Wednesday, March 25, 2009

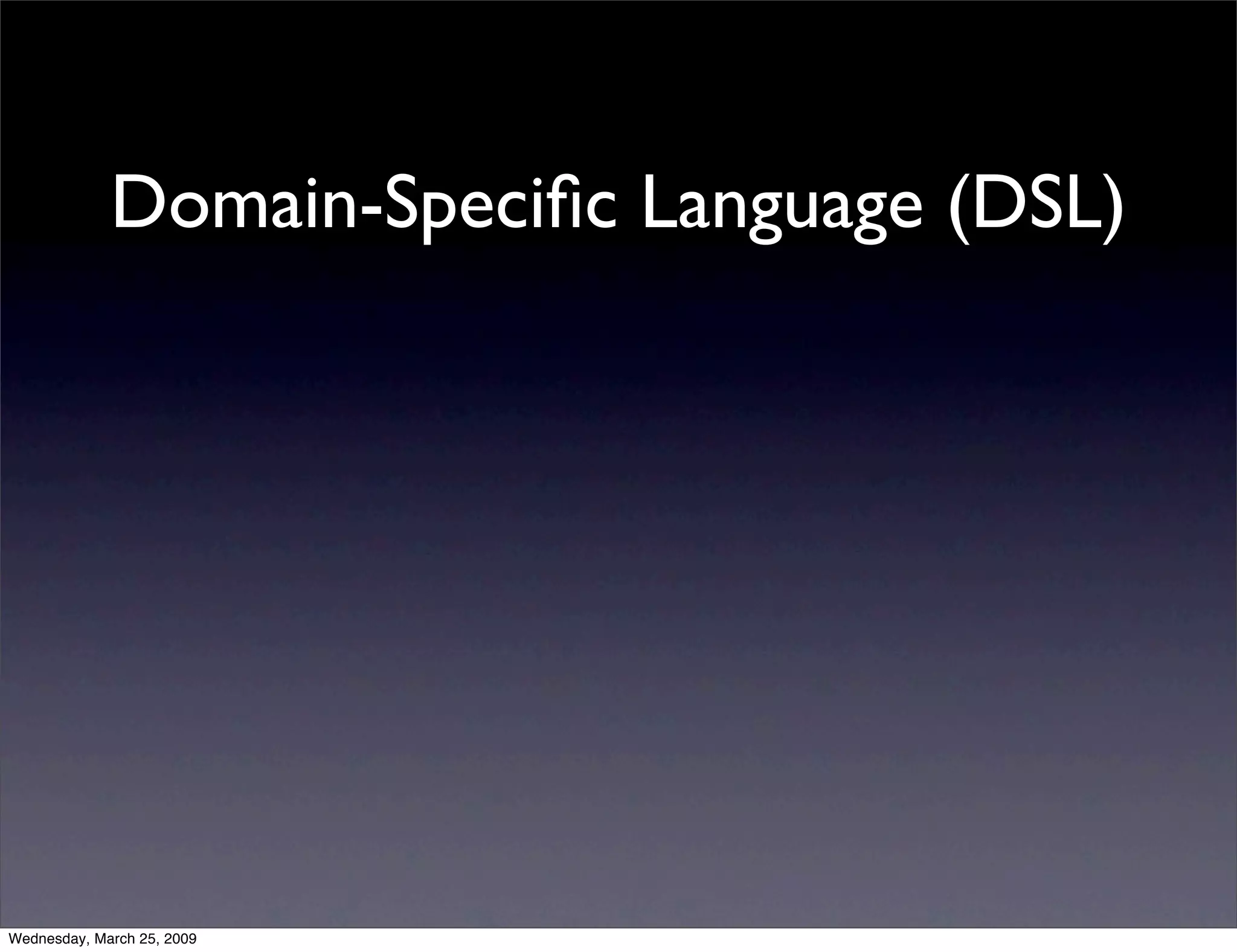

2. Domain-Specific Language (DSL)
Wednesday, March 25, 2009

3. Domain-Specific Language (DSL)
A DSL is a formal, processable language
targeting at a specific viewpoint or
aspect of a software system.
Wednesday, March 25, 2009

4. Domain-Specific Language (DSL)
A DSL is a formal, processable language
targeting at a specific viewpoint or
aspect of a software system.
It’s semantics, flexibility and notation is
designed in order to support working
with that viewpoint as good as possible.
Wednesday, March 25, 2009

5. Why DSLs?
• higher abstractions
• avoid redundancy
• separation of concerns
• use domain concepts
(Ubiquitous Language)
Wednesday, March 25, 2009

6. The challenge
Wednesday, March 25, 2009

7. Complicated
Wednesday, March 25, 2009

8. Complicated & Expensive ?
Wednesday, March 25, 2009

9. licensed by http://www.wordle.net/
Wednesday, March 25, 2009

10. How we address this with
Wednesday, March 25, 2009

11. Convenience
Wednesday, March 25, 2009

12. Wednesday, March 25, 2009

13. Wednesday, March 25, 2009

14. Wednesday, March 25, 2009

15. Wednesday, March 25, 2009

16. Wednesday, March 25, 2009

17. Wednesday, March 25, 2009

18. Wednesday, March 25, 2009

19. Wednesday, March 25, 2009

20. Wednesday, March 25, 2009

21. grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Model:
(types+=Type)*;
Type:
Datatype | Entity;
Datatype:
'datatype' name=ID;
Entity:
'entity' name=ID '{'
(features+=Feature)*
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

22. Grammar Definition
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Model:
(types+=Type)*;
Type:
Datatype | Entity;
Datatype:
'datatype' name=ID;
Entity:
'entity' name=ID '{'
(features+=Feature)*
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

23. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Model:
(types+=Type)*;
Type:
Datatype | Entity;
Datatype:
'datatype' name=ID;
Entity:
'entity' name=ID '{'
(features+=Feature)*
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

24. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
Derived with org.eclipse.xtext.common.Terminals
Metamodel generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Model:
(types+=Type)*;
Type:
Datatype | Entity;
Datatype:
'datatype' name=ID;
Entity:
'entity' name=ID '{'
(features+=Feature)*
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

25. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
Derived with org.eclipse.xtext.common.Terminals
Metamodel generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Model:
Parser (types+=Type)*;
Rules Type:
Datatype | Entity;
Datatype:
'datatype' name=ID;
Entity:
'entity' name=ID '{'
(features+=Feature)*
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

26. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
Derived with org.eclipse.xtext.common.Terminals
Metamodel generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Containment
Reference
Model:
Parser (types+=Type)*;
Rules Type:
Datatype | Entity;
Datatype:
'datatype' name=ID;
Entity:
'entity' name=ID '{'
(features+=Feature)*
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

27. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
Derived with org.eclipse.xtext.common.Terminals
Metamodel generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Containment
Reference
Model:
Parser (types+=Type)*;
Cardinality
Rules Type:
Datatype | Entity;
Datatype:
'datatype' name=ID;
Entity:
'entity' name=ID '{'
(features+=Feature)*
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

28. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
Derived with org.eclipse.xtext.common.Terminals
Metamodel generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Containment
Reference
Model:
Parser (types+=Type)*;
Cardinality
Rules Type:
Datatype | Entity;
Alternatives
Datatype:
'datatype' name=ID;
Entity:
'entity' name=ID '{'
(features+=Feature)*
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

29. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
Derived with org.eclipse.xtext.common.Terminals
Metamodel generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Containment
Reference
Model:
Parser (types+=Type)*;
Cardinality
Rules Type:
Datatype | Entity;
Alternatives
Datatype:
'datatype' name=ID;
Call to
Entity:
Terminal
'entity' name=ID '{'
(features+=Feature)*
Rule
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

30. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
Derived with org.eclipse.xtext.common.Terminals
Metamodel generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Containment
Reference
Model:
Parser (types+=Type)*;
Cardinality
Rules Type:
Datatype | Entity;
Alternatives
Datatype:
'datatype' name=ID;
Call to
Entity:
Keywords Terminal
'entity' name=ID '{'
(features+=Feature)*
Rule
'}';
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

31. Grammar Definition Terminal Rule Import
grammar org.xtext.example.MyDsl
Derived with org.eclipse.xtext.common.Terminals
Metamodel generate myDsl quot;http://www.xtext.org/example/MyDslquot;
Containment
Reference
Model:
Parser (types+=Type)*;
Cardinality
Rules Type:
Datatype | Entity;
Alternatives
Datatype:
'datatype' name=ID;
Call to
Entity:
Keywords Terminal
'entity' name=ID '{'
(features+=Feature)*
Cross Rule
'}';
Reference
Feature:
type=[Type] name=ID;
Wednesday, March 25, 2009

32. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

33. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

34. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

35. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

36. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

37. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

38. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

39. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

40. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

41. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

42. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

43. Metamodel Derivation
MyDsl
grammar org.xtext.example.MyDsl
with org.eclipse.xtext.common.Terminals
Model
generate myDsl
quot;http://www.xtext.org/example/MyDslquot;
Model: *
Type
(types+=Type)*;
name: String
Type:
Datatype | Entity;
Datatype: Datatype Entity
'datatype' name=ID;
Entity:
'entity' name=ID '{' type
(features+=Feature)* *
'}'; Feature
*
name: String
Feature:
type=[Datatype] name=ID;
Wednesday, March 25, 2009

44. licensed by http://www.wordle.net/
Wednesday, March 25, 2009

45. Based on
the grammar and Ecore models,
Xtext provides you with sensible
default implementations.
licensed by http://www.wordle.net/
Wednesday, March 25, 2009

46. Validation
Wednesday, March 25, 2009

47. Wednesday, March 25, 2009

48. Wednesday, March 25, 2009

49. Wednesday, March 25, 2009

50. Wednesday, March 25, 2009

51. Customizing the LabelProvider
public class MySpecialLabelProvider
extends DefaultLabelProvider {
public String label(Feature f) {
return f.getName()+quot;:quot;+f.getType().getName();
}
}
‣Naming Convention
‣Polymorphic Dispatch
‣Fault tolerance
Wednesday, March 25, 2009

52. Flexibility
Wednesday, March 25, 2009

53. licensed by http://www.wordle.net/
Wednesday, March 25, 2009

54. Dependency management
licensed by http://www.wordle.net/
Wednesday, March 25, 2009

55. Dependency management
licensed by http://www.wordle.net/
Wednesday, March 25, 2009

56. Dependency management
licensed by http://www.wordle.net/
Wednesday, March 25, 2009

57. Dependency management
licensed by http://www.wordle.net/
Wednesday, March 25, 2009

58. Dependency management
licensed by http://www.wordle.net/
Wednesday, March 25, 2009

59. MyCustomLabelProvider
licensed by http://www.wordle.net/
Wednesday, March 25, 2009

60. Dependency Injection
with Google fGuice
Wednesday, March 25, 2009

61. Dependency Injection
with Google fGuice
Wednesday, March 25, 2009

62. Dependency Injection
with Google fGuice
‣No dependency to concrete implementation
Wednesday, March 25, 2009

63. Dependency Injection
with Google fGuice
‣No dependency to concrete implementation
‣No explicit construction
Wednesday, March 25, 2009

64. Dependency Injection
with Google fGuice
‣No dependency to concrete implementation
‣No explicit construction
‣Easy testing
Wednesday, March 25, 2009

65. Dependency Injection
with Google fGuice
‣No dependency to concrete implementation
‣No explicit construction
‣Easy testing
‣Easy composition
Wednesday, March 25, 2009

66. Configuration of
Components in Xtext
AbstractDeclarativeModule
DefaultRuntimeModule DefaultUIModule
From Xtext
Your Project
GeneratedRuntimeModule GeneratedUIModule
RuntimeModule UIModule
Wednesday, March 25, 2009

67. Configuration of
Components in Xtext
/**
* used to register components to be used within the IDE.
*/
public class DomainmodelUiModule
extends GeneratedDomainmodelUiModule {
@Override
public Class<? extends ILabelProvider> bindILabelProvider() {
return MySpecialLabelProvider.class;
}
}
Wednesday, March 25, 2009

68. and Equinox
Injector is created during Bundle.start(...)
@Override
public void start(BundleContext context) throws Exception {
super.start(context);
INSTANCE = this;
injector = Guice.createInjector(
new DomainmodelRuntimeModule(),
new DomainmodelUiModule());
}
Wednesday, March 25, 2009

69. and Equinox
ExecutableExtensions are created via
IExecutableExtensionFactory
<extension
point=quot;org.eclipse.emf.ecore.extension_parserquot;>
<parser class=quot;my.pack.DomainmodelExecutableExtensionFactory:
org.eclipse.xtext.resource.XtextResourceFactoryquot;
type=quot;dmodelquot;>
</parser>
</extension>
Wednesday, March 25, 2009

70. Composable
Code Generator
‣ generator is composed of “fragments”
Wednesday, March 25, 2009

71. Composable
Code Generator
‣ generator is composed of “fragments”
‣ fragments can contribute to:
Wednesday, March 25, 2009

72. Composable
Code Generator
‣ generator is composed of “fragments”
‣ fragments can contribute to:
‣ Manifest.MF
Wednesday, March 25, 2009

73. Composable
Code Generator
‣ generator is composed of “fragments”
‣ fragments can contribute to:
‣ Manifest.MF
‣ plugin.xml
Wednesday, March 25, 2009

74. Composable
Code Generator
‣ generator is composed of “fragments”
‣ fragments can contribute to:
‣ Manifest.MF
‣ plugin.xml
‣ Guice modules
Wednesday, March 25, 2009

75. Composable
Code Generator
‣ generator is composed of “fragments”
‣ fragments can contribute to:
‣ Manifest.MF
‣ plugin.xml
‣ Guice modules
‣ Add your own fragments
Wednesday, March 25, 2009

76. Future Plans
Wednesday, March 25, 2009

77. Galileo
Wednesday, March 25, 2009

78. Galileo
• Index
Wednesday, March 25, 2009

79. Galileo
• Index
• Enum Rules
Wednesday, March 25, 2009

80. Galileo
• Index
• Enum Rules
• Bug fixing / Performance Tuning
Wednesday, March 25, 2009

81. Galileo
• Index
• Enum Rules
• Bug fixing / Performance Tuning
• Documentation
Wednesday, March 25, 2009

82. Galileo
• Index
• Enum Rules
• Bug fixing / Performance Tuning
• Documentation
• Sugar (Wizards, Tutorials, etc.)
Wednesday, March 25, 2009

83. Post Galileo
Wednesday, March 25, 2009

84. Post Galileo
‣ More UI features
Wednesday, March 25, 2009

85. Post Galileo
‣ More UI features
‣Basic Language Libraries
Wednesday, March 25, 2009

86. Post Galileo
‣ More UI features
‣Basic Language Libraries
‣“Eat your own dog food”
continued
Wednesday, March 25, 2009

87. Thank you very much for listening
Visit the project’s web site :
www.xtext.org
Copyright 2009 by itemis
Wednesday, March 25, 2009

88. Convenient & Flexible
Wednesday, March 25, 2009
