1. Building DSLs with
The Spoofax Language Workbench
Eelco Visser
Delft University of Technology
http://eelcovisser.org
Joint work with Lennart Kats, Karl-Trygve Kalleberg, Maartje de Jonge, and many others

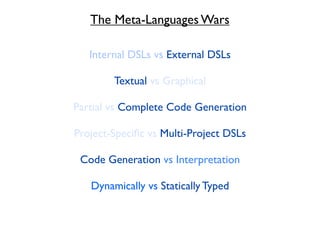

2. The Meta-Languages Wars
Internal DSLs vs External DSLs
Textual vs Graphical
Partial vs Complete Code Generation
Project-Specific vs Multi-Project DSLs
Code Generation vs Interpretation
Dynamically vs Statically Typed

3. The Meta-Languages Wars
Internal DSLs vs External DSLs
Textual vs Graphical
Partial vs Complete Code Generation
Project-Specific vs Multi-Project DSLs
Code Generation vs Interpretation
Dynamically vs Statically Typed

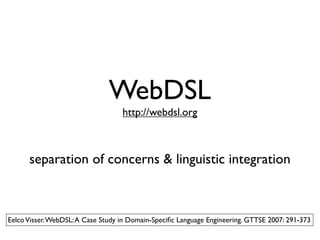

4. WebDSL
http://webdsl.org
separation of concerns & linguistic integration
Eelco Visser. WebDSL: A Case Study in Domain-Specific Language Engineering. GTTSE 2007: 291-373

5. 1,190,303
publications
http://researchr.org

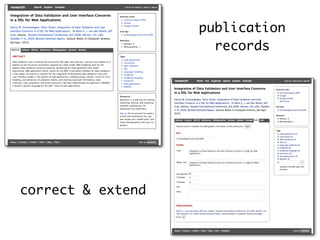

6. publication
records
correct & extend

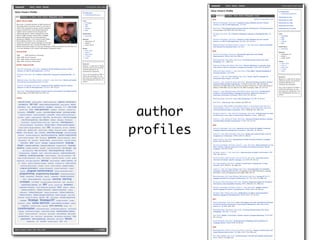

7. author
profiles

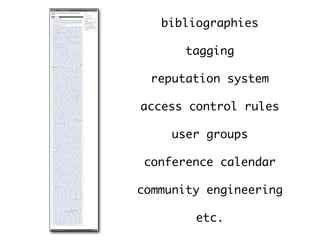

8. bibliographies
tagging
reputation system
access control rules
user groups
conference calendar
community engineering
etc.

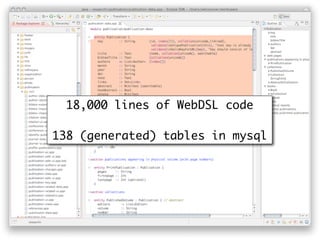

9. 18,000 lines of WebDSL code
138 (generated) tables in mysql

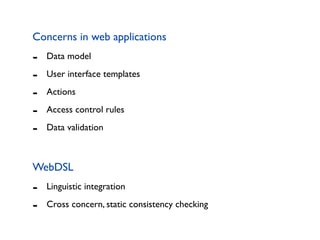

10. Concerns in web applications
- Data model
- User interface templates
- Actions
- Access control rules
- Data validation
WebDSL
- Linguistic integration
- Cross concern, static consistency checking

11. WebLib: a model of researchr

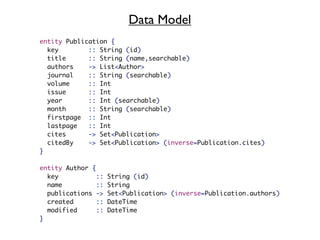

12. Data Model
entity Publication {
key :: String (id)
title :: String (name,searchable)
authors -> List<Author>
journal :: String (searchable)
volume :: Int
issue :: Int
year :: Int (searchable)
month :: String (searchable)
firstpage :: Int
lastpage :: Int
cites -> Set<Publication>
citedBy -> Set<Publication> (inverse=Publication.cites)
}
entity Author {
key :: String (id)
name :: String
publications -> Set<Publication> (inverse=Publication.authors)
created :: DateTime
modified :: DateTime
}

13. User Interface

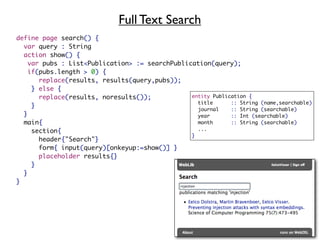

14. Full Text Search
define page search() {
var query : String
action show() {
var pubs : List<Publication> := searchPublication(query);
if(pubs.length > 0) {
replace(results, results(query,pubs));
} else {
replace(results, noresults()); entity Publication {
title :: String (name,searchable)
}
journal :: String (searchable)
} year :: Int (searchable)
main{ month :: String (searchable)
section{ ...
}
header{"Search"}
form{ input(query)[onkeyup:=show()] }
placeholder results{}
}
}
}

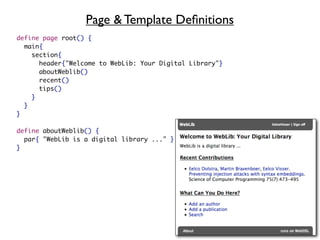

15. Page & Template Definitions
define page root() {
main{
section{
header{"Welcome to WebLib: Your Digital Library"}
aboutWeblib()
recent()
tips()
}
}
}
define aboutWeblib() {
par{ "WebLib is a digital library ..." }
}

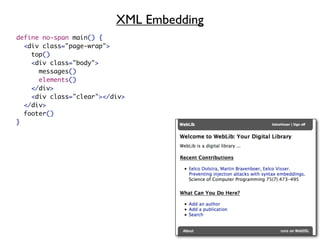

16. XML Embedding
define no-span main() {
<div class="page-wrap">
top()
<div class="body">
messages()
elements()
</div>
<div class="clear"></div>
</div>
footer()
}

17. Page Navigation
define tips() {
section{
header{"What Can You Do Here?"}
list{
listitem{ navigate(newauthor()){ "Add an author" } }
listitem{ navigate(newpublication()){ "Add a publication" } }
listitem{ navigate(search()){ "Search" } }
}
}
}
define page search() { ... }

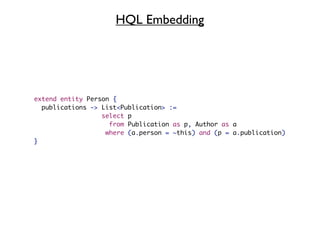

18. HQL Embedding
extend entity Person {
publications -> List<Publication> :=
select p
from Publication as p, Author as a
where (a.person = ~this) and (p = a.publication)
}

19. Forms & Data Binding
define page editpublication(pub : Publication) {
main{
section{
header{"Edit Publication '" output(pub.title) "'"}
form{
group{
label("Key:" ){ input(pub.key) }
label("Title:" ){ input(pub.title) }
label("Authors:"){ input(pub.authors) }
...
}
submit action{
pub.modified := now();
return publication(pub);
} { "Save" }
}
}
}
}

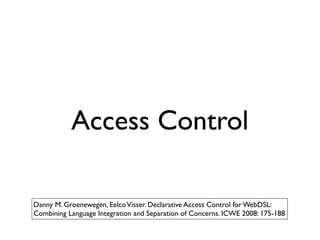

20. Access Control
Danny M. Groenewegen, Eelco Visser. Declarative Access Control for WebDSL:
Combining Language Integration and Separation of Concerns. ICWE 2008: 175-188

21. Access Control Rules
define showReview(review : Review) {
action delete() { ... }
section{ ...
navigate(editReview(review)){"[Edit]"}
submitlink delete() {"[X]"}
}
}

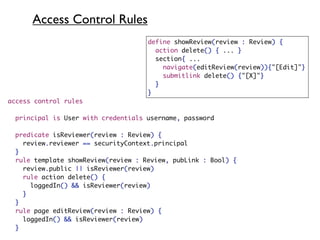

22. Access Control Rules
define showReview(review : Review) {
action delete() { ... }
section{ ...
navigate(editReview(review)){"[Edit]"}
submitlink delete() {"[X]"}
}
}
access control rules
principal is User with credentials username, password
predicate isReviewer(review : Review) {
review.reviewer == securityContext.principal
}
rule template showReview(review : Review, pubLink : Bool) {
review.public || isReviewer(review)
rule action delete() {
loggedIn() && isReviewer(review)
}
}
rule page editReview(review : Review) {
loggedIn() && isReviewer(review)
}

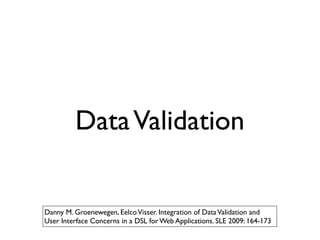

23. Data Validation
Danny M. Groenewegen, Eelco Visser. Integration of Data Validation and
User Interface Concerns in a DSL for Web Applications. SLE 2009: 164-173

24. Data Validation: Form Input Validation
label("Acronym (without year)"){
input(acronym){
validate(!isEmptyString(acronym),
"Provide acronym")
validate(!(/[ ]/.find(acronym)),
"Acronym should not contain spaces")
validate(!(/[0-9][0-9][0-9][0-9]/.find(acronym)),
"Acronym should not contain year")
}
}

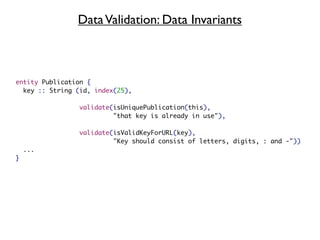

25. Data Validation: Data Invariants
entity Publication {
key :: String (id, index(25),
validate(isUniquePublication(this),
"that key is already in use"),
validate(isValidKeyForURL(key),
"Key should consist of letters, digits, : and -"))
...
}

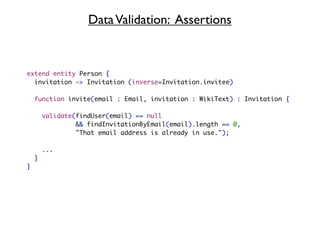

26. Data Validation: Assertions
extend entity Person {
invitation -> Invitation (inverse=Invitation.invitee)
function invite(email : Email, invitation : WikiText) : Invitation {
validate(findUser(email) == null
&& findInvitationByEmail(email).length == 0,
"That email address is already in use.");
...
}
}

27. Concerns in web applications
- Data model
- User interface templates
- Actions
- Access control rules
- Data validation
WebDSL
- Linguistic integration
- Cross concern, static consistency checking

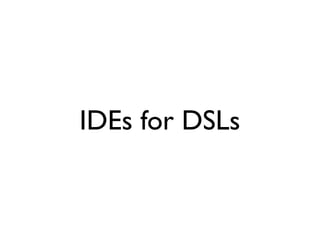

28. IDEs for DSLs

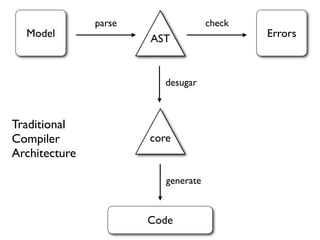

29. parse check
Model AST Errors
desugar
Traditional
Compiler core
Architecture
generate
Code

30. Compiler Ingredients
Syntax definition
★ concrete syntax
★ abstract syntax
Static semantics
★ error checking
★ name resolution
★ type analysis
Model-to-model transformation
★ express constructs in core language
Code generation
★ translate core language models to implementation

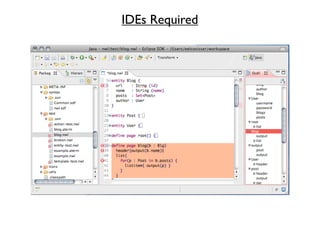

31. IDEs Required

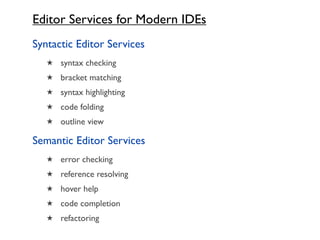

32. Editor Services for Modern IDEs
Syntactic Editor Services
★ syntax checking
★ bracket matching
★ syntax highlighting
★ code folding
★ outline view
Semantic Editor Services
★ error checking
★ reference resolving
★ hover help
★ code completion
★ refactoring

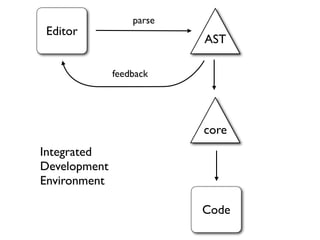

33. parse
Editor
AST
feedback
core
Integrated
Development
Environment
Code

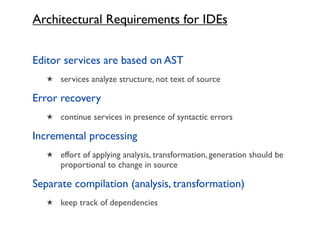

34. Architectural Requirements for IDEs
Editor services are based on AST
★ services analyze structure, not text of source
Error recovery
★ continue services in presence of syntactic errors
Incremental processing
★ effort of applying analysis, transformation, generation should be
proportional to change in source
Separate compilation (analysis, transformation)
★ keep track of dependencies

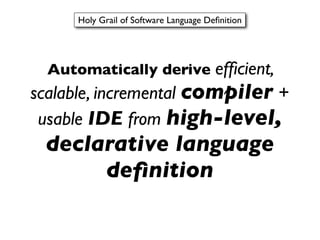

35. Holy Grail of Software Language Definition
Automatically derive efficient,
scalable, incremental compiler +
usable IDE from high-level,
declarative language
definition

36. The Spoofax
Language Workbench

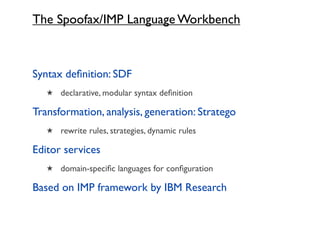

37. The Spoofax/IMP Language Workbench
Syntax definition: SDF
★ declarative, modular syntax definition
Transformation, analysis, generation: Stratego
★ rewrite rules, strategies, dynamic rules
Editor services
★ domain-specific languages for configuration
Based on IMP framework by IBM Research

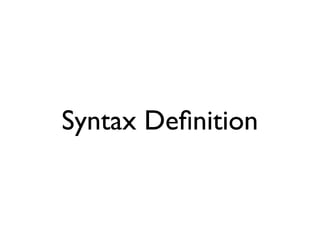

38. Syntax Definition

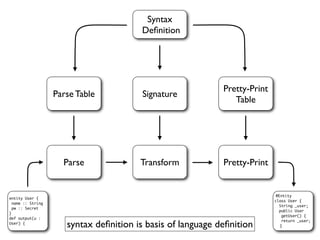

39. Syntax
Definition
Pretty-Print
Parse Table Signature
Table
Parse Transform Pretty-Print
@Entity
entity User {
class User {
name :: String
String _user;
pw :: Secret
public User
}
getUser() {
def output(u :
syntax definition is basis of language definition
return _user;
User) {
}

40. Lexical & Context-Free Syntax

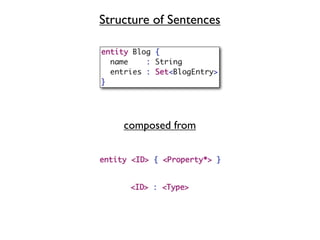

41. Structure of Sentences
composed from

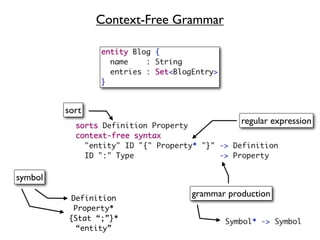

42. Context-Free Grammar
sort
regular expression
symbol
Definition
grammar production
Property*
{Stat “;”}*
“entity”

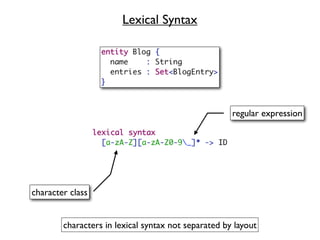

43. Lexical Syntax
regular expression
character class
characters in lexical syntax not separated by layout

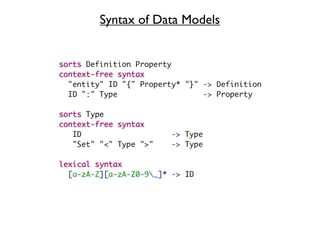

44. Syntax of Data Models

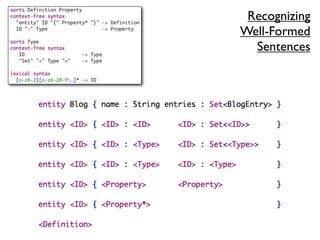

45. Recognizing
Well-Formed
Sentences

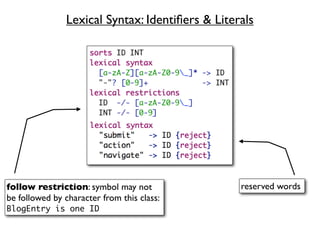

46. Lexical Syntax: Identifiers & Literals
follow restriction: symbol may not reserved words
be followed by character from this class:
BlogEntry is one ID

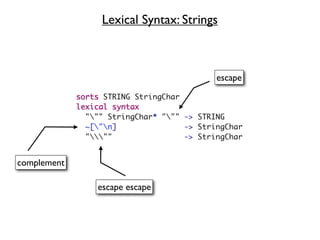

47. Lexical Syntax: Strings
escape
complement
escape escape

48. Lexical Syntax: Whitespace
LAYOUT? is inserted between symbols in CF productions
normalize

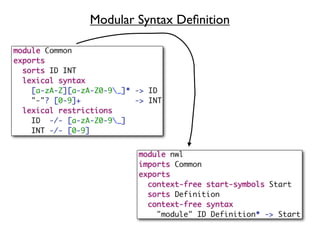

49. Modular Syntax Definition

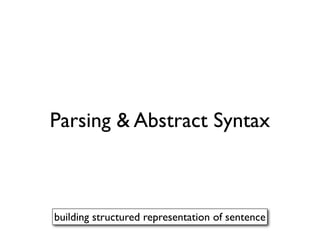

50. Parsing & Abstract Syntax
building structured representation of sentence

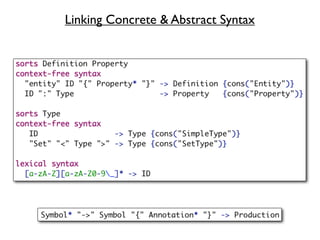

51. Linking Concrete & Abstract Syntax

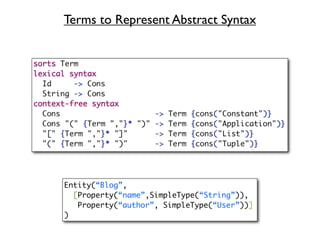

52. Terms to Represent Abstract Syntax
Entity(“Blog”,
[Property(“name”,SimpleType(“String”)),
Property(“author”, SimpleType(“User”))]
)

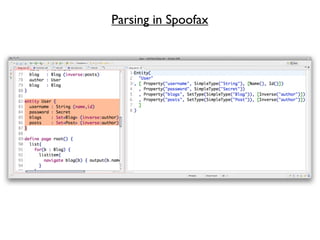

53. Parsing in Spoofax

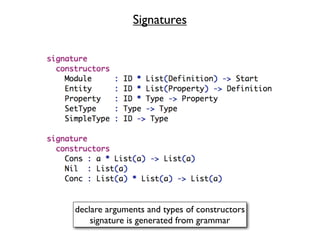

54. Signatures
defining the structure of abstract syntax terms

55. Syntax
Definition
Pretty-Print
Parse Table Signature
Table
Parse Transform Pretty-Print
@Entity
entity User {
class User {
name :: String
String _user;
pw :: Secret
public User
}
getUser() {
def output(u :
syntax definition is basis of language definition
return _user;
User) {
}

56. Signatures
declare arguments and types of constructors
signature is generated from grammar

57. Disambiguation

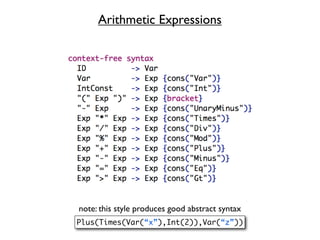

58. Arithmetic Expressions
note: this style produces good abstract syntax
Plus(Times(Var(“x”),Int(2)),Var(“z”))

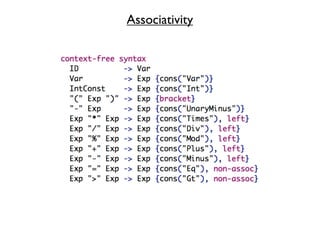

60. Associativity

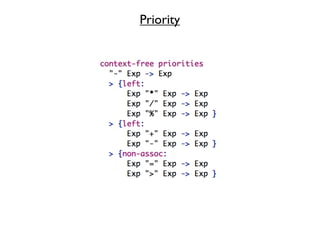

61. Priority

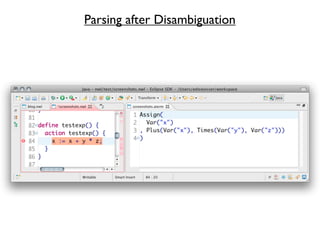

62. Parsing after Disambiguation

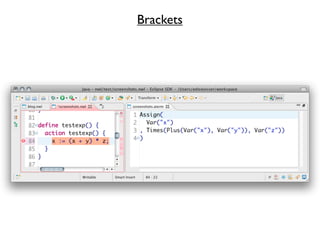

63. Brackets

64. Language Composition

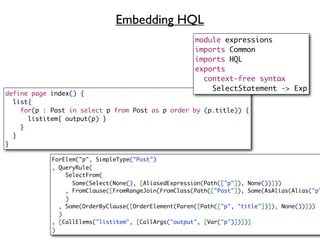

65. Embedding HQL
module expressions
imports Common
imports HQL
exports
context-free syntax
SelectStatement -> Exp
define page index() {
list{
for(p : Post in select p from Post as p order by (p.title)) {
listitem{ output(p) }
}
}
}
ForElem("p", SimpleType("Post")
, QueryRule(
SelectFrom(
Some(Select(None(), [AliasedExpression(Path(["p"]), None())]))
, FromClause([FromRangeJoin(FromClass(Path(["Post"]), Some(AsAlias(Alias("p"
)
, Some(OrderByClause([OrderElement(Paren([Path(["p", "title"])]), None())]))
)
, [CallElems("listitem", [CallArgs("output", [Var("p")])])]
)

66. Presentational
Editor Services

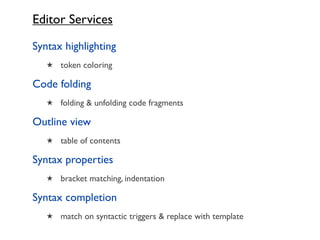

67. Editor Services
Syntax highlighting
★ token coloring
Code folding
★ folding & unfolding code fragments
Outline view
★ table of contents
Syntax properties
★ bracket matching, indentation
Syntax completion
★ match on syntactic triggers & replace with template

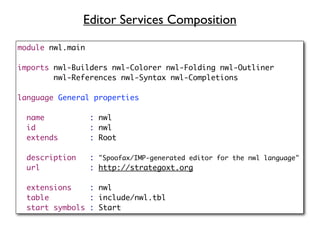

68. Editor Services Composition
module nwl.main
imports nwl-Builders nwl-Colorer nwl-Folding nwl-Outliner
nwl-References nwl-Syntax nwl-Completions
language General properties
name : nwl
id : nwl
extends : Root
description : "Spoofax/IMP-generated editor for the nwl language"
url : http://strategoxt.org
extensions : nwl
table : include/nwl.tbl
start symbols : Start

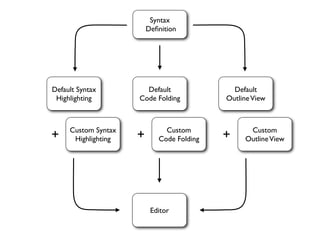

69. Syntax
Definition
Default Syntax Default Default
Highlighting Code Folding Outline View
Custom Syntax Custom Custom
+ Highlighting + Code Folding + Outline View
Editor

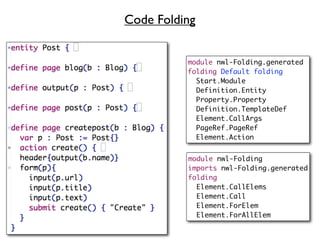

70. Code Folding
module nwl-Folding.generated
folding Default folding
Start.Module
Definition.Entity
Property.Property
Definition.TemplateDef
Element.CallArgs
PageRef.PageRef
Element.Action
module nwl-Folding
imports nwl-Folding.generated
folding
Element.CallElems
Element.Call
Element.ForElem
Element.ForAllElem

71. Outline View
module nwl-Outliner.generated
outliner Default outliner
Start.Module
Definition.Entity
Property.Property
Definition.TemplateDef
Element.CallArgs
Exp.MethodCall
Element.CallElems
Element.Call
Element.ForElem
Element.ForAllElem
PageRef.PageRef
Element.Action
Statement.For
Statement.While
Statement.If
Element.Submit
Element.XmlElem

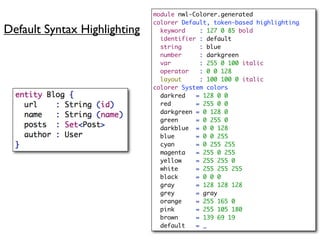

72. module nwl-Colorer.generated
colorer Default, token-based highlighting
Default Syntax Highlighting keyword : 127 0 85 bold
identifier : default
string : blue
number : darkgreen
var : 255 0 100 italic
operator : 0 0 128
layout : 100 100 0 italic
colorer System colors
darkred = 128 0 0
red = 255 0 0
darkgreen = 0 128 0
green = 0 255 0
darkblue = 0 0 128
blue = 0 0 255
cyan = 0 255 255
magenta = 255 0 255
yellow = 255 255 0
white = 255 255 255
black = 0 0 0
gray = 128 128 128
grey = gray
orange = 255 165 0
pink = 255 105 180
brown = 139 69 19
default = _

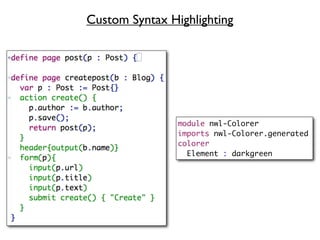

73. Custom Syntax Highlighting
module nwl-Colorer
imports nwl-Colorer.generated
colorer
Element : darkgreen

74. Syntax Properties
module nwl-Syntax.generated
language Syntax properties (static defaults)
// Comment constructs:
line comment : "//"
block comment : "/*" * "*/"
// Fences (used for matching,
// inserting, indenting brackets):
fences : [ ]
( )
{ }
// Automatic indent hints
// (indent after these tokens):
indent after : "="
":"
// Regular expression for identifiers:
identifier lexical : "[A-Za-z0-9_]+"

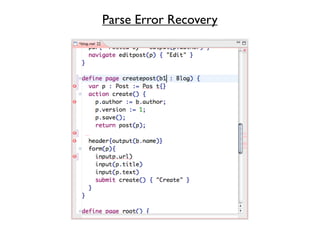

75. Parse Error Recovery

76. Parse Error Recovery
also for composite languages

77. Builders
Semantic Editor Services

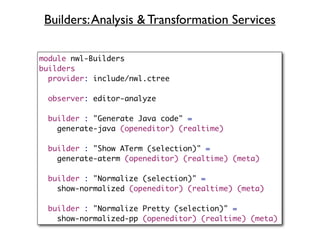

78. Builders: Analysis & Transformation Services
module nwl-Builders
builders
provider: include/nwl.ctree
observer: editor-analyze
builder : "Generate Java code" =
generate-java (openeditor) (realtime)

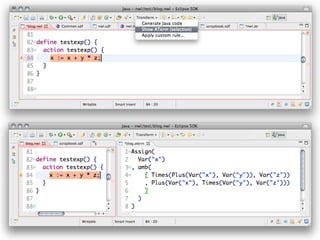

builder : "Show ATerm (selection)" =
generate-aterm (openeditor) (realtime) (meta)
builder : "Normalize (selection)" =
show-normalized (openeditor) (realtime) (meta)
builder : "Normalize Pretty (selection)" =
show-normalized-pp (openeditor) (realtime) (meta)

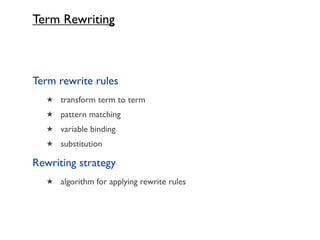

79. Term Rewriting

80. Term Rewriting
Term rewrite rules
★ transform term to term
★ pattern matching
★ variable binding
★ substitution
Rewriting strategy
★ algorithm for applying rewrite rules

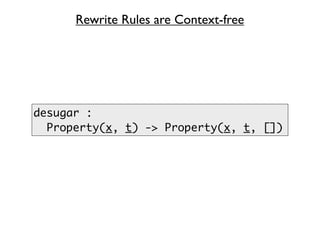

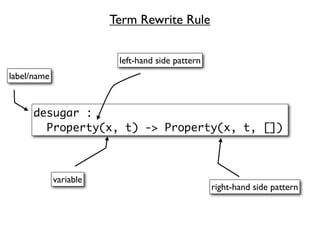

81. Term Rewrite Rule
left-hand side pattern
label/name
desugar :
Property(x, t) -> Property(x, t, [])
variable
right-hand side pattern

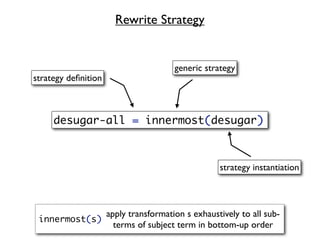

82. Rewrite Strategy
generic strategy
strategy definition
desugar-all = innermost(desugar)
strategy instantiation
apply transformation s exhaustively to all sub-
innermost(s)
terms of subject term in bottom-up order

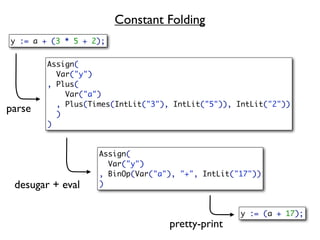

83. Constant Folding
y := a + (3 * 5 + 2);
Assign(
Var("y")
, Plus(
Var("a")
, Plus(Times(IntLit("3"), IntLit("5")), IntLit("2"))
parse )
)
Assign(
Var("y")
, BinOp(Var("a"), "+", IntLit("17"))
desugar + eval )
y := (a + 17);
pretty-print

84. Constant Folding Rules
strategies
eval-all = innermost(desugar + eval)
rules
eval :
BinOp(IntLit(x), "+", IntLit(y)) -> IntLit(<addS>(x, y))
eval :
BinOp(IntLit(x), "-", IntLit(y)) -> IntLit(<subtS>(x, y))
eval :
BinOp(IntLit(x), "*", IntLit(y)) -> IntLit(<mulS>(x, y))
eval :
BinOp(IntLit(x), "/", IntLit(y)) -> IntLit(<divS>(x, y))

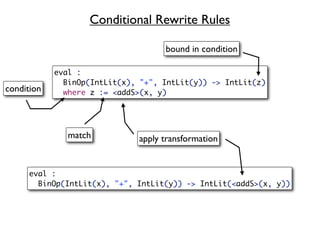

85. Conditional Rewrite Rules
bound in condition
eval :
BinOp(IntLit(x), "+", IntLit(y)) -> IntLit(z)
condition where z := <addS>(x, y)
match apply transformation
eval :
BinOp(IntLit(x), "+", IntLit(y)) -> IntLit(<addS>(x, y))

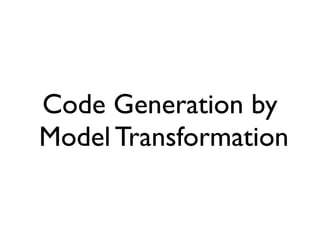

86. Code Generation by
Model Transformation

87. Rewriting with Concrete Object Syntax
elem-to-java-servlet :
tc@elem|[ x(e)[passign*]{elem*} ]| ->
<wrap-input-render-java-code>
bstm* |[
String x_temp = ident+"~inputident"+uniqueid;
~*<render-error-messages-with-error-template(|java:expr|[ x_temp ]|,
<ErrorTemplateInput>)> bstm*|[
bstm_call*
]|
]|
where <is-input-template> tc
with inputident := <get-inputnumber> tc
; x_temp := <newname> "temp"
; bstm_call* := <control-flow-tcall-helper(|"render",expr|[ x_temp ]|)> tc
Stratego + embedded Java

88. Consistency Checking

89. Consistency Checking
Syntax definition
★ what are well-formed sentences?
Static analysis
★ not all ‘well-formedness’ properties are context-free
★ consistency of compositions
★ consistency of expressions wrt declarations
Error reporting
★ indicate errors in editor
★ use sensible error message

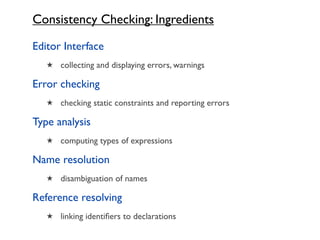

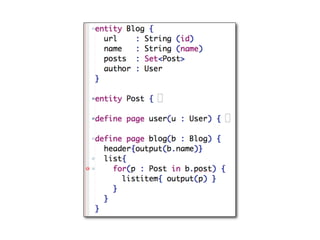

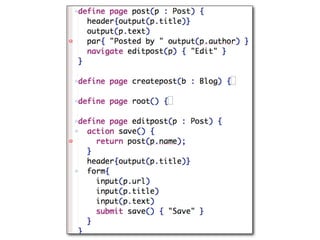

92. Consistency Checking: Ingredients
Editor Interface
★ collecting and displaying errors, warnings
Error checking
★ checking static constraints and reporting errors
Type analysis
★ computing types of expressions
Name resolution
★ disambiguation of names
Reference resolving
★ linking identifiers to declarations

93. Consistency Checking: Generic Approach
Rename
★ make identifiers unique
Map
★ map identifiers to declarations
Project
★ compute properties of declarations, expressions
Check
★ check constraints

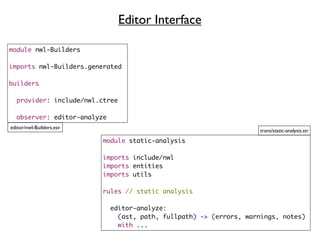

94. Editor Interface
module nwl-Builders
imports nwl-Builders.generated
builders
provider: include/nwl.ctree
observer: editor-analyze
editor/nwl-Builders.esv
trans/static-analysis.str
module static-analysis
imports include/nwl
imports entities
imports utils
rules // static analysis
editor-analyze:
(ast, path, fullpath) -> (errors, warnings, notes)
with ...

95. Editor Interface

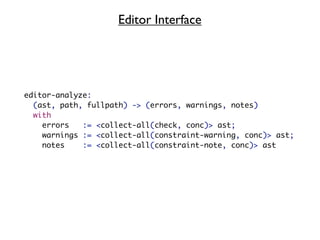

editor-analyze:
(ast, path, fullpath) -> (errors, warnings, notes)
with
errors := <collect-all(check, conc)> ast;
warnings := <collect-all(constraint-warning, conc)> ast;
notes := <collect-all(constraint-note, conc)> ast

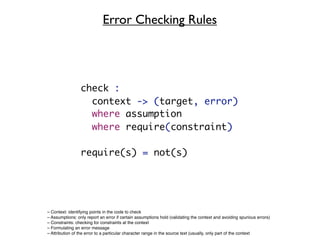

96. Error Checking Rules
check :
context -> (target, error)
where assumption
where require(constraint)
require(s) = not(s)
– Context: identifying points in the code to check
– Assumptions: only report an error if certain assumptions hold (validating the context and avoiding spurious errors)
– Constraints: checking for constraints at the context
– Formulating an error message
– Attribution of the error to a particular character range in the source text (usually, only part of the context

97. Error Checking: Binary Operators
check :
e@BinOp(e1, op, e2) ->
(e, $[operator [op] not defined for [<pp>t1] and [<pp>t2]])
where t1 := <type-of> e1
where t2 := <type-of> e2
where require(<type-of> e)

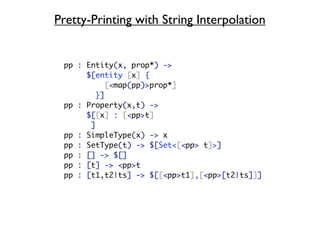

98. Pretty-Printing with String Interpolation
pp : Entity(x, prop*) ->
$[entity [x] {
[<map(pp)>prop*]
}]
pp : Property(x,t) ->
$[[x] : [<pp>t]
]
pp : SimpleType(x) -> x
pp : SetType(t) -> $[Set<[<pp> t]>]
pp : [] -> $[]
pp : [t] -> <pp>t
pp : [t1,t2|ts] -> $[[<pp>t1],[<pp>[t2|ts]]]

99. Type Analysis
type-of : e -> t
compute type of expression

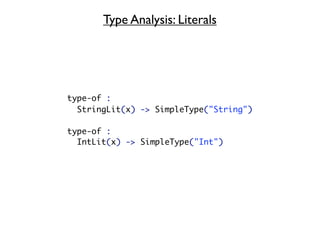

100. Type Analysis: Literals
type-of :
StringLit(x) -> SimpleType("String")
type-of :
IntLit(x) -> SimpleType("Int")

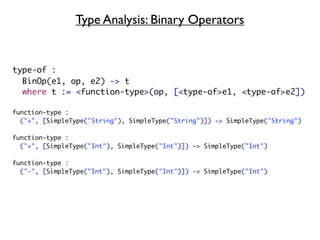

101. Type Analysis: Binary Operators
type-of :
BinOp(e1, op, e2) -> t
where t := <function-type>(op, [<type-of>e1, <type-of>e2])
function-type :
("+", [SimpleType("String"), SimpleType("String")]) -> SimpleType("String")
function-type :
("+", [SimpleType("Int"), SimpleType("Int")]) -> SimpleType("Int")
function-type :
("-", [SimpleType("Int"), SimpleType("Int")]) -> SimpleType("Int")

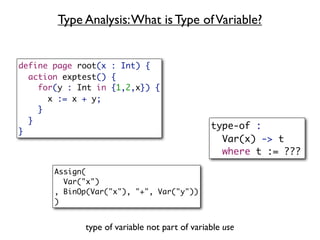

102. Type Analysis: What is Type of Variable?
define page root(x : Int) {
action exptest() {
for(y : Int in {1,2,x}) {
x := x + y;
}
}
type-of :
}
Var(x) -> t
where t := ???
Assign(
Var("x")
, BinOp(Var("x"), "+", Var("y"))
)
type of variable not part of variable use

103. Variables: Map
declare-all =
alltd(declare)
declare :
Param(x, t) -> Param(x, t)
with rules(
TypeOf : x -> t
)
type-of :
Var(x) -> t
where t := <TypeOf> x

104. Scope

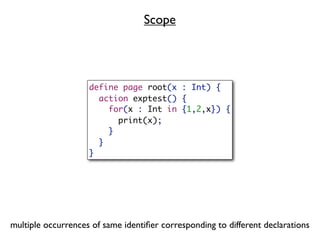

define page root(x : Int) {
action exptest() {
for(x : Int in {1,2,x}) {
print(x);
}
}
}
multiple occurrences of same identifier corresponding to different declarations

105. Variables: Map + Rename
rename-all = alltd(rename)
rename :
Param(x, t) -> Param(y, t)
with y := <rename-var>(x, t)
unique annotation
rename-var :
(x, t) -> y
with y := x{<new>};
map variable to type
rules(
TypeOf : y -> t
RenameId : x -> y
)
rename occurrences
rename :
Var(x) -> Var(y) where y := <RenameId> x
type-of :
Var(x) -> t where t := <TypeOf> x

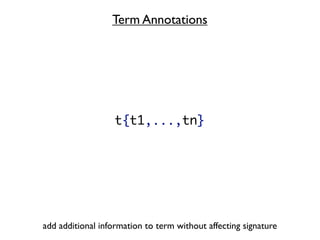

106. Term Annotations
t{t1,...,tn}
add additional information to term without affecting signature

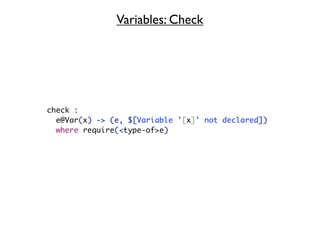

107. Variables: Check
check :
e@Var(x) -> (e, $[Variable '[x]' not declared])
where require(<type-of>e)

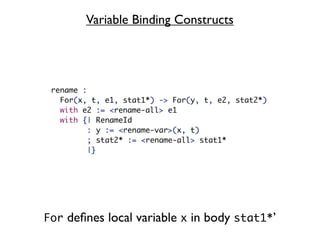

108. Variable Binding Constructs
rename :
For(x, t, e1, stat1*) -> For(y, t, e2, stat2*)
with e2 := <rename-all> e1
with {| RenameId
: y := <rename-var>(x, t)
; stat2* := <rename-all> stat1*
|}
For defines local variable x in body stat1*’

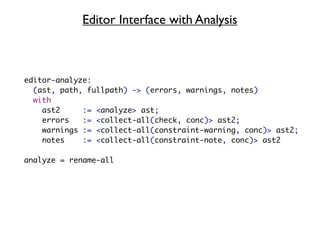

109. Editor Interface with Analysis
editor-analyze:
(ast, path, fullpath) -> (errors, warnings, notes)
with
ast2 := <analyze> ast;
errors := <collect-all(check, conc)> ast2;
warnings := <collect-all(constraint-warning, conc)> ast2;
notes := <collect-all(constraint-note, conc)> ast2
analyze = rename-all

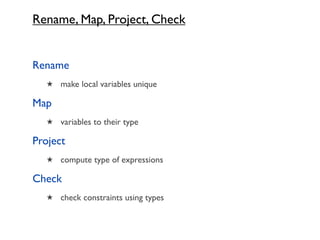

110. Rename, Map, Project, Check
Rename
★ make local variables unique
Map
★ variables to their type
Project
★ compute type of expressions
Check
★ check constraints using types

111. Reference Resolution

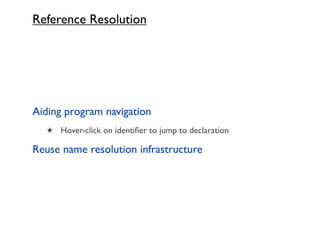

112. Reference Resolution
Aiding program navigation
★ Hover-click on identifier to jump to declaration
Reuse name resolution infrastructure

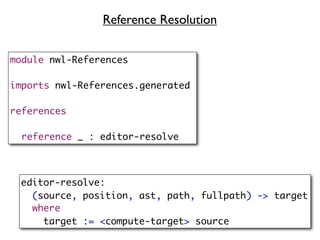

113. Reference Resolution
module nwl-References
imports nwl-References.generated
references
reference _ : editor-resolve
editor-resolve:
(source, position, ast, path, fullpath) -> target
where
target := <compute-target> source

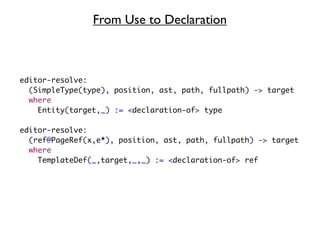

114. From Use to Declaration
editor-resolve:
(SimpleType(type), position, ast, path, fullpath) -> target
where
Entity(target,_) := <declaration-of> type
editor-resolve:
(ref@PageRef(x,e*), position, ast, path, fullpath) -> target
where
TemplateDef(_,target,_,_) := <declaration-of> ref

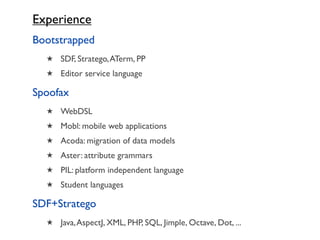

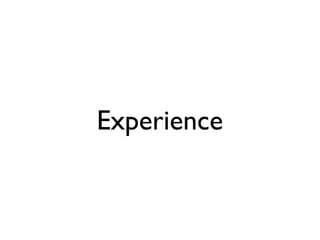

115. Experience

116. Experience
Bootstrapped
★ SDF, Stratego, ATerm, PP
★ Editor service language
Spoofax
★ WebDSL
★ Mobl: mobile web applications
★ Acoda: migration of data models
★ Aster: attribute grammars
★ PIL: platform independent language
★ Student languages
SDF+Stratego
★ Java, AspectJ, XML, PHP, SQL, Jimple, Octave, Dot, ...

117. Future Work (in progress)
Higher-level definition of scope & type system
★ cover scope systems of real languages
Refactoring
★ layout preservation, generic refactoring strategies
Systematic language design
★ how do we decide that a language design is good?
Interaction design
★ higher-level specifications of interaction
Combining textual and visual
Textual IDE in the browser

118. - the end -
Lennart C. L. Kats, Eelco Visser. The Spoofax Language Workbench. Rules
for Declarative Specification of Languages and IDEs. OOPSLA 2010
http://spoofax.org
http://webdsl.org http://mobl.org

119. Context-sensitive
Transformation

120. define page blog(b : Blog) {
Template Inlining header{output(b.name)}
list{
for(p : Post in b.posts) {
listitem{ outputPost(p) }
}
}
}
define outputPost(pst : Post) {
navigate post(pst) { output(pst.name) }
}
define list() { <ul> elements </ul> }
define listitem() { <li> elements </li> }
define header() { <h1> elements </h1> }
define page blog ( b : Blog ) {
<h1>
output(b.name)
</h1>
<ul>
for ( p : Post in b.posts ) {
<li>
navigate post(p) { output(p.name) }
</li>
}
</ul>
}

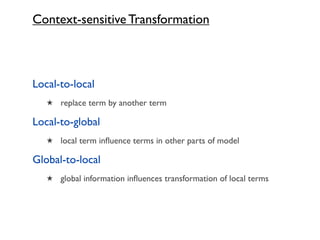

121. Context-sensitive Transformation
Local-to-local
★ replace term by another term
Local-to-global
★ local term influence terms in other parts of model
Global-to-local
★ global information influences transformation of local terms

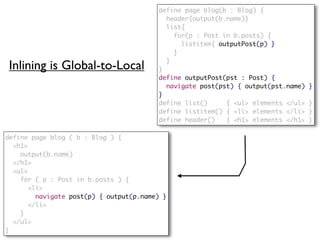

122. define page blog(b : Blog) {
header{output(b.name)}
list{
for(p : Post in b.posts) {
listitem{ outputPost(p) }
}
}
Inlining is Global-to-Local }
define outputPost(pst : Post) {
navigate post(pst) { output(pst.name) }
}
define list() { <ul> elements </ul> }
define listitem() { <li> elements </li> }
define header() { <h1> elements </h1> }
define page blog ( b : Blog ) {
<h1>
output(b.name)
</h1>
<ul>
for ( p : Post in b.posts ) {
<li>
navigate post(p) { output(p.name) }
</li>
}
</ul>
}

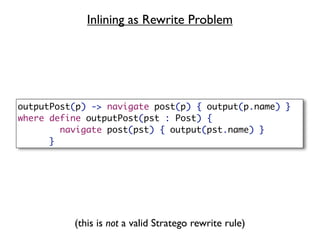

123. Inlining as Rewrite Problem
outputPost(p) -> navigate post(p) { output(p.name) }
where define outputPost(pst : Post) {
navigate post(pst) { output(pst.name) }
}
(this is not a valid Stratego rewrite rule)

124. Rewrite Rules are Context-free
desugar :
Property(x, t) -> Property(x, t, [])

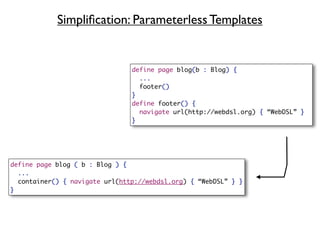

125. Simplification: Parameterless Templates
define page blog(b : Blog) {
...
footer()
}
define footer() {
navigate url(http://webdsl.org) { “WebDSL” }
}
define page blog ( b : Blog ) {
...
container() { navigate url(http://webdsl.org) { “WebDSL” } }
}

126. Rewrite in Context
Inline :
[def@TemplateDef(f,[],elem1*) | def1*] -> [def | def2*]
where def2* := <alltd((Call(f) -> Call("container", elem1*)))> def1*
local traversal bound in context
container needed to replace single call with multiple elements

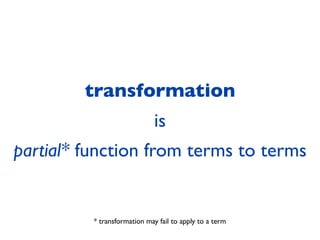

127. Intermezzo:
Rewriting Strategies

128. transformation
is
partial* function from terms to terms
* transformation may fail to apply to a term

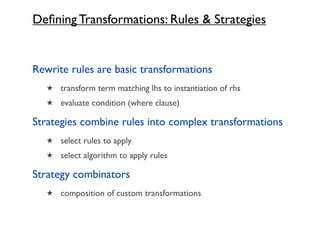

129. Defining Transformations: Rules & Strategies
Rewrite rules are basic transformations
★ transform term matching lhs to instantiation of rhs
★ evaluate condition (where clause)
Strategies combine rules into complex transformations
★ select rules to apply
★ select algorithm to apply rules
Strategy combinators
★ composition of custom transformations

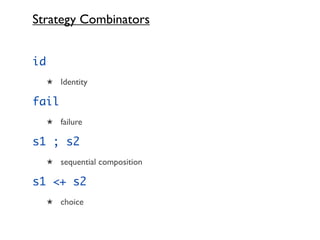

130. Strategy Combinators
id
★ Identity
fail
★ failure
s1 ; s2
★ sequential composition
s1 <+ s2
★ choice

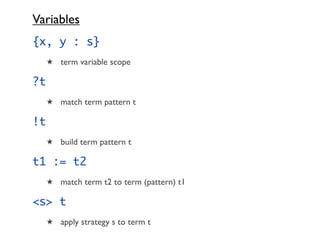

131. Variables
{x, y : s}
★ term variable scope
?t
★ match term pattern t
!t
★ build term pattern t
t1 := t2
★ match term t2 to term (pattern) t1
<s> t
★ apply strategy s to term t

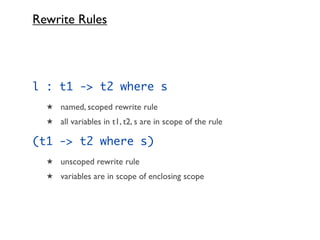

132. Rewrite Rules
l : t1 -> t2 where s
★ named, scoped rewrite rule
★ all variables in t1, t2, s are in scope of the rule
(t1 -> t2 where s)
★ unscoped rewrite rule
★ variables are in scope of enclosing scope

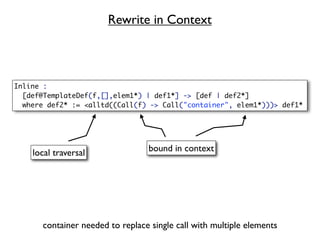

133. Rewrite in Context
Inline :
[def@TemplateDef(f,[],elem1*) | def1*] -> [def | def2*]
where def2* := <alltd((Call(f) -> Call("container", elem1*)))> def1*
bound in context

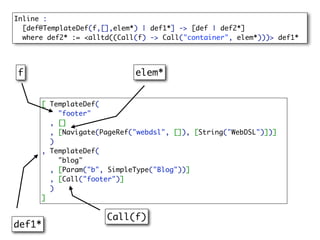

134. Inline :
[def@TemplateDef(f,[],elem*) | def1*] -> [def | def2*]
where def2* := <alltd((Call(f) -> Call("container", elem*)))> def1*
f elem*
[ TemplateDef(
"footer"
, []
, [Navigate(PageRef("webdsl", []), [String("WebDSL")])]
)
, TemplateDef(
"blog"
, [Param("b", SimpleType("Blog"))]
, [Call("footer")]
)
]
Call(f)
def1*

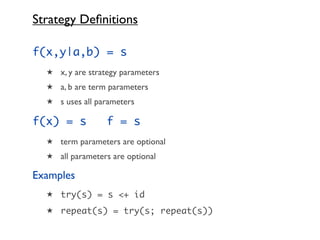

135. Strategy Definitions
f(x,y|a,b) = s
★ x, y are strategy parameters
★ a, b are term parameters
★ s uses all parameters
f(x) = s f = s
★ term parameters are optional
★ all parameters are optional
Examples
★ try(s) = s <+ id
★ repeat(s) = try(s; repeat(s))

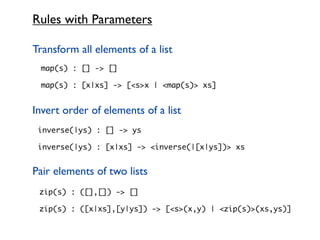

136. Rules with Parameters
Transform all elements of a list
map(s) : [] -> []
map(s) : [x|xs] -> [<s>x | <map(s)> xs]
Invert order of elements of a list
inverse(|ys) : [] -> ys
inverse(|ys) : [x|xs] -> <inverse(|[x|ys])> xs
Pair elements of two lists
zip(s) : ([],[]) -> []
zip(s) : ([x|xs],[y|ys]) -> [<s>(x,y) | <zip(s)>(xs,ys)]

137. Traversal Combinators

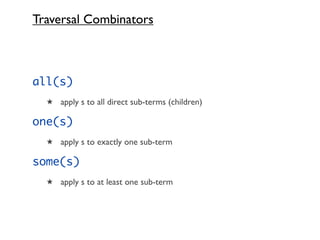

all(s)
★ apply s to all direct sub-terms (children)
one(s)
★ apply s to exactly one sub-term
some(s)
★ apply s to at least one sub-term

138. Traversal Strategies
topdown(s) = s; all(topdown(s))
★ apply s to all sub-terms in top-down order
bottomup(s) = all(bottomup(s)); s
★ apply s to all sub-terms in bottom-up order
oncetd(s) = s <+ one(oncetd(s))
★ apply s to one sub-term
alltd(s) = s <+ all(alltd(s))
★ apply s to frontier

139. Rewrite in Context: Local Traversal
Inline :
[def@TemplateDef(f,[],elem1*) | def1*] -> [def | def2*]
where def2* := <alltd((Call(f) -> Call("container", elem1*)))> def1*
local traversal

140. Dynamic Rewrite Rules

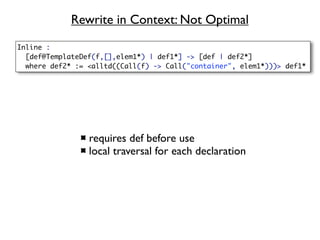

141. Rewrite in Context: Not Optimal
Inline :
[def@TemplateDef(f,[],elem1*) | def1*] -> [def | def2*]
where def2* := <alltd((Call(f) -> Call("container", elem1*)))> def1*
requires def before use
local traversal for each declaration

142. Dynamic Rewrite Rules
Inline :
[def@TemplateDef(f,[],elem1*) | def1*] -> [def | def2*]
where def2* := <alltd((Call(f) -> Call("container", elem1*)))> def1*

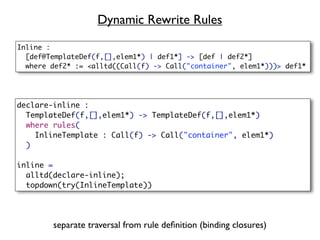

declare-inline :
TemplateDef(f,[],elem1*) -> TemplateDef(f,[],elem1*)
where rules(
InlineTemplate : Call(f) -> Call("container", elem1*)
)
inline =
alltd(declare-inline);
topdown(try(InlineTemplate))
separate traversal from rule definition (binding closures)

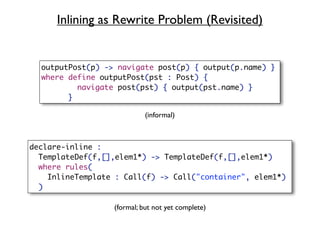

143. Inlining as Rewrite Problem (Revisited)
outputPost(p) -> navigate post(p) { output(p.name) }
where define outputPost(pst : Post) {
navigate post(pst) { output(pst.name) }
}
(informal)
declare-inline :
TemplateDef(f,[],elem1*) -> TemplateDef(f,[],elem1*)
where rules(
InlineTemplate : Call(f) -> Call("container", elem1*)
)
(formal; but not yet complete)

144. define page blog(b : Blog) {
Template Parameter header{output(b.name)}
list{
for(p : Post in b.posts) {
listitem{ outputPost(p) }
}
}
}
define outputPost(pst : Post) {
navigate post(pst) { output(pst.name) }
}
define list() { <ul> elements </ul> }
define listitem() { <li> elements </li> }
define header() { <h1> elements </h1> }
define page blog ( b : Blog ) {
<h1>
output(b.name)
</h1>
<ul>
for ( p : Post in b.posts ) {
<li>
navigate post(p) { output(p.name) }
</li>
}
</ul>
}

145. Inlining Templates with Parameters
declare-inline :
def@TemplateDef(mod*,f,param*,elem1*) -> def
where rules(
InlineTemplate :
Call(f, e*, []) -> Call("container", [], elem3*)
where elem3* := <substitute> (param*, e*, elem1*)
)
substitute :
(param*, e*, elem1*) -> elem2*
where {| Subst
: <zip(bind-arg)> (param*, e*)
; elem2* := <alltd(Subst)> elem1*
|}
bind-arg :
(Param(x, t), e) -> (Param(x, t), e)
where rules( Subst : Var(x) -> e )

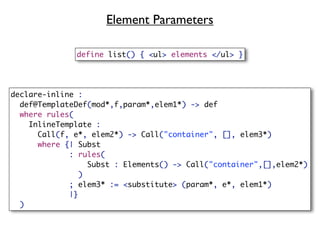

146. Element Parameters
define list() { <ul> elements </ul> }
declare-inline :
def@TemplateDef(mod*,f,param*,elem1*) -> def
where rules(
InlineTemplate :
Call(f, e*, elem2*) -> Call("container", [], elem3*)
where {| Subst
: rules(
Subst : Elements() -> Call("container",[],elem2*)
)
; elem3* := <substitute> (param*, e*, elem1*)
|}
)

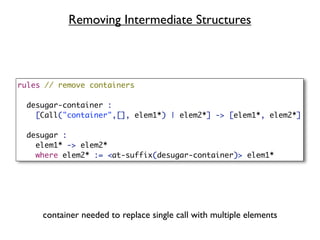

147. Removing Intermediate Structures
rules // remove containers
desugar-container :
[Call("container",[], elem1*) | elem2*] -> [elem1*, elem2*]
desugar :
elem1* -> elem2*
where elem2* := <at-suffix(desugar-container)> elem1*
container needed to replace single call with multiple elements

148. Inlining Strategy
module template-inlining
imports libstratego-lib
imports include/nwl
imports desugar
strategies
inline-all =
desugar-all;
alltd(declare-inline);
innermost(desugar <+ InlineTemplate)
rules
declare-inline : ...

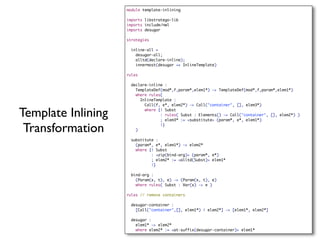

149. module template-inlining
imports libstratego-lib
imports include/nwl
imports desugar
strategies
inline-all =
desugar-all;
alltd(declare-inline);
innermost(desugar <+ InlineTemplate)
rules
declare-inline :
TemplateDef(mod*,f,param*,elem1*) -> TemplateDef(mod*,f,param*,elem1*)
where rules(
InlineTemplate :
Call(f, e*, elem2*) -> Call("container", [], elem3*)
Template Inlining where {| Subst
: rules( Subst : Elements() -> Call("container", [], elem2*) )
; elem3* := <substitute> (param*, e*, elem1*)
Transformation )
|}
substitute :
(param*, e*, elem1*) -> elem2*
where {| Subst
: <zip(bind-arg)> (param*, e*)
; elem2* := <alltd(Subst)> elem1*
|}
bind-arg :
(Param(x, t), e) -> (Param(x, t), e)
where rules( Subst : Var(x) -> e )
rules // remove containers
desugar-container :
[Call("container",[], elem1*) | elem2*] -> [elem1*, elem2*]
desugar :
elem1* -> elem2*
where elem2* := <at-suffix(desugar-container)> elem1*
