Composing Domain-Specific Languages
The document discusses the creation and implementation of domain-specific languages (DSLs) for software engineering, highlighting the importance of linguistic integration and separation of concerns. It emphasizes challenges such as loose coupling, consistency checks, and code generation while examining web application architectures and data validation strategies. Additionally, it showcases various entity models and templates to illustrate the integration of access control and navigation in data-driven applications.
More Related Content
Similar to Composing Domain-Specific Languages
Composing Domain-Specific Languages
- 1. Composing Domain-Specific Languages Eelco Visser Delft University of Technology http://eelcovisser.org 12/11/2009 Technical University Eindhoven

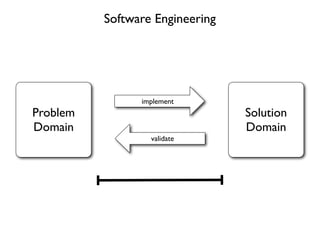

- 2. Software Engineering implement Problem Solution Domain Domain validate
- 3.

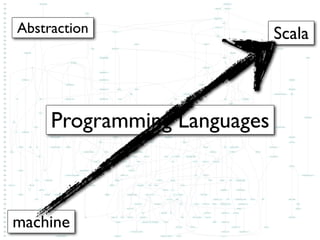

- 4. Abstraction Scala Programming Languages machine
- 5. Abstraction Scala garbage collection objects Programming Languages expressions structured control-flow procedures machine
- 6. Problem GPL Machine Domain
- 7. The Next Levelof Abstraction? Formal Methods
- 8. Spec Problem GPL Machine Domain

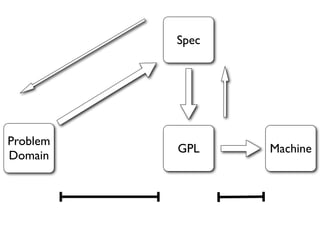

- 9. Spec Problem GPL Machine Domain
- 10. The Next Levelof Abstraction? Domain-Specific Languages

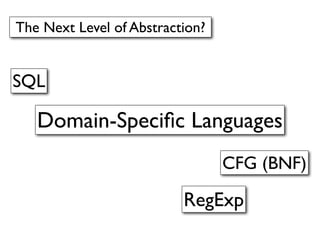

- 11. The Next Levelof Abstraction? SQL Domain-Specific Languages CFG (BNF) RegExp
- 12. Problem DSL GPL Machine Domain Domain-Specific Languages: Specialization

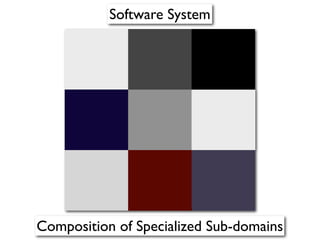

- 13. Software System Composition ofSpecialized Sub-domains

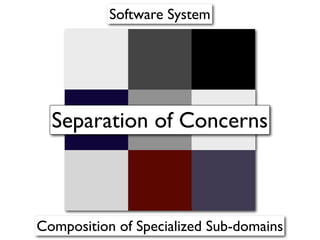

- 14. Software System Separation of Concerns Composition of Specialized Sub-domains

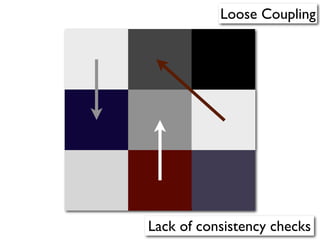

- 15. Loose Coupling Lack ofconsistency checks
- 16. Thesis Separation of Concerns requires Linguistic Integration
- 17. Case Study World Wide Web

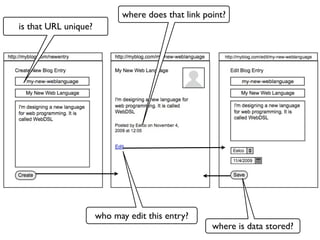

- 19. where does thatlink point? is that URL unique? who may edit this entry? where is data stored?

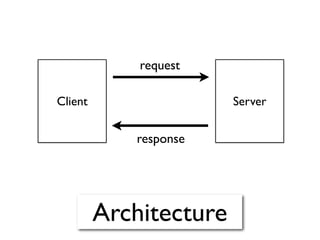

- 20. request Client Server response Architecture

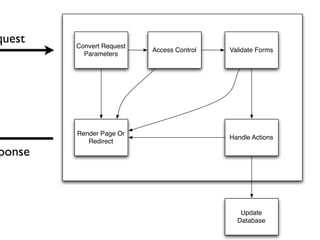

- 21. quest Convert Request Access Control Validate Forms Parameters Render Page Or Handle Actions Redirect ponse Update Database

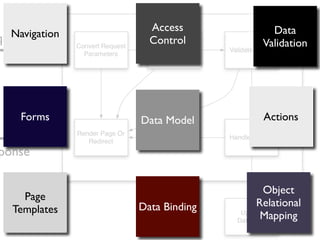

- 22. Access Data Navigation quest Convert Request Control Validation Access Control Validate Forms Parameters Forms Data Model Actions Render Page Or Handle Actions Redirect ponse Object Page Data Binding Relational Templates Mapping Update Database

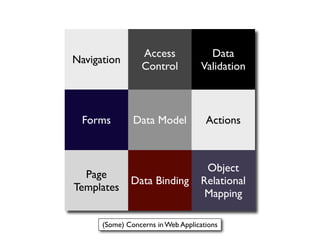

- 23. Access Data Navigation Control Validation Forms Data Model Actions Object Page Data Binding Relational Templates Mapping (Some) Concerns in Web Applications
- 24. Access Data Navigation Control Validation Data Forms Actions Model Object Page Data Relational Templates Binding Mapping data model entity class classes orm JPA active record actions Java/Seam Ruby data validation navigation servlets controllers page templates JavaServer Faces forms JSF tags embedded html data binding JSF + Seam access control Acegi
- 25. Access Data Navigation Control Validation Data Forms Actions Model Object Page Data Relational Templates Binding Mapping <s:link view="/entry.xhtml" value="#{entry.title}" propagation="none"> <f:param name="entry" value="#{entry.id}"/> </s:link> @Name("entry") public class EntryBean implements EntryBeanInterface { @RequestParameter("entry") private Long entryId; }

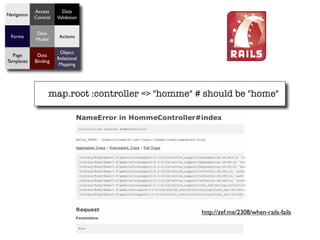

- 26. Access Data Navigation Control Validation Data Forms Actions Model Object Page Data Relational Templates Binding Mapping map.root :controller => "homme" # should be "home" http://zef.me/2308/when-rails-fails

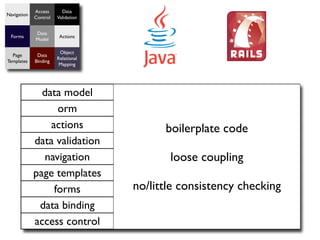

- 27. Access Data Navigation Control Validation Data Forms Actions Model Object Page Data Relational Templates Binding Mapping data model entity class classes orm JPA active record actions Java/Seam boilerplate code Ruby data validation navigation loose coupling servlets controllers page templates JavaServer Faces forms no/little consistency checking JSF tags embedded html data binding JSF + Seam access control Acegi
- 28. Access Data Navigation Control Validation Data Forms Actions Model Object Page Data Relational Templates Binding Mapping - separate languages for separate concerns - linguistically integrated - compile-time consistency checking - 100% code generation (no scaffolding)

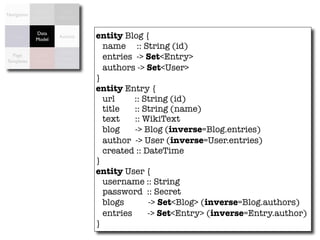

- 29. Access Data Navigation Control Validation Forms Data Model Actions entity Blog { name :: String (id) Object Page Templates Data Binding Relational entries -> Set<Entry> Mapping authors -> Set<User> } entity Entry { url :: String (id) title :: String (name) text :: WikiText blog -> Blog (inverse=Blog.entries) author -> User (inverse=User.entries) created :: DateTime } entity User { username :: String password :: Secret blogs -> Set<Blog> (inverse=Blog.authors) entries -> Set<Entry> (inverse=Entry.author) }
- 30. Access Data Navigation Control Validation Data Forms Actions Model Object Page Data Relational Templates Binding Mapping define page entry(e : Entry) { header{output(e.title)} output(e.text) “Posted by “ output(e.author) “ on “ output(e.created) navigate(editentry(e)){“Edit”} }

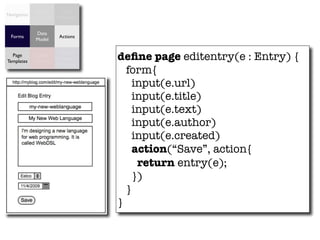

- 31. Access Data Navigation Control Validation Data Forms Actions Model define page editentry(e : Entry) { Object Page Data Relational Templates Binding Mapping form{ input(e.url) input(e.title) input(e.text) input(e.author) input(e.created) action(“Save”, action{ return entry(e); }) } }

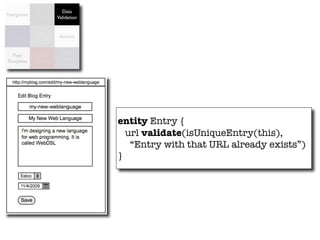

- 32. Access Data Navigation Control Validation Data Forms Actions Model Object Page Data Relational Templates Binding Mapping entity Entry { url validate(isUniqueEntry(this), “Entry with that URL already exists”) }

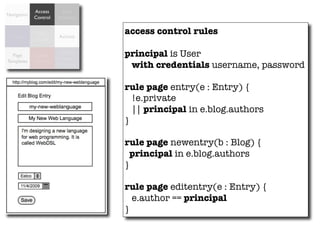

- 33. Access Data Navigation Control Validation Forms Data Actions access control rules Model Page Data Object Relational principal is User Templates Binding Mapping with credentials username, password rule page entry(e : Entry) { !e.private || principal in e.blog.authors } rule page newentry(b : Blog) { principal in e.blog.authors } rule page editentry(e : Entry) { e.author == principal }
- 34. Access Data Navigation Control Validation Data Forms Actions Model Object Page Data Relational Templates Binding Mapping - separate languages for separate concerns - linguistically integrated - compile-time consistency checking - 100% code generation (no scaffolding) - order of magnitude decrease in code size
- 35.

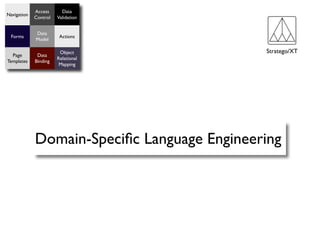

- 36. Access Data Navigation Control Validation Data Forms Actions Model Object Stratego/XT Page Data Relational Templates Binding Mapping Domain-Specific Language Engineering
- 37. Access Data Navigation Control Validation Data Forms Actions Model Object Stratego/XT Page Data Relational Templates Binding Mapping WebDSL Java

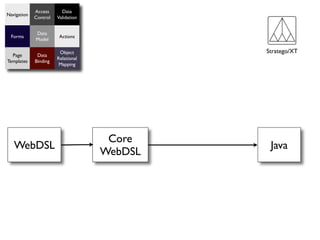

- 38. Access Data Navigation Control Validation Data Forms Actions Model Object Stratego/XT Page Data Relational Templates Binding Mapping Core WebDSL Java WebDSL

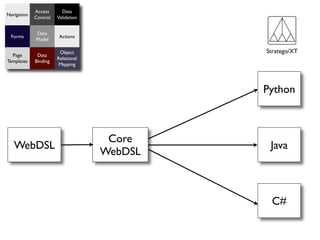

- 39. Access Data Navigation Control Validation Data Forms Actions Model Object Stratego/XT Page Data Relational Templates Binding Mapping Python Core WebDSL Java WebDSL C#

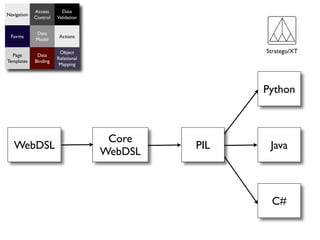

- 40. Access Data Navigation Control Validation Data Forms Actions Model Object Stratego/XT Page Data Relational Templates Binding Mapping Python Core WebDSL PIL Java WebDSL C#
- 41. Access Data Navigation Control Validation Data Forms Actions Model Object Stratego/XT Page Data Relational Templates Binding Mapping Component-Based Language Engineering DM PIL Python UI PIL AC PIL + WebDSL Core WebDSL PIL Java C# DV PIL
- 42. Access Data Navigation Control Validation Data Forms Actions Model Page Data Object Relational - separate languages for separate concerns Templates Binding Mapping - linguistically integrated - compile-time consistency checking - 100% code generation (no scaffolding) - order of magnitude decrease in code size http://webdsl.org http://strategoxt.org http://researchr.org
