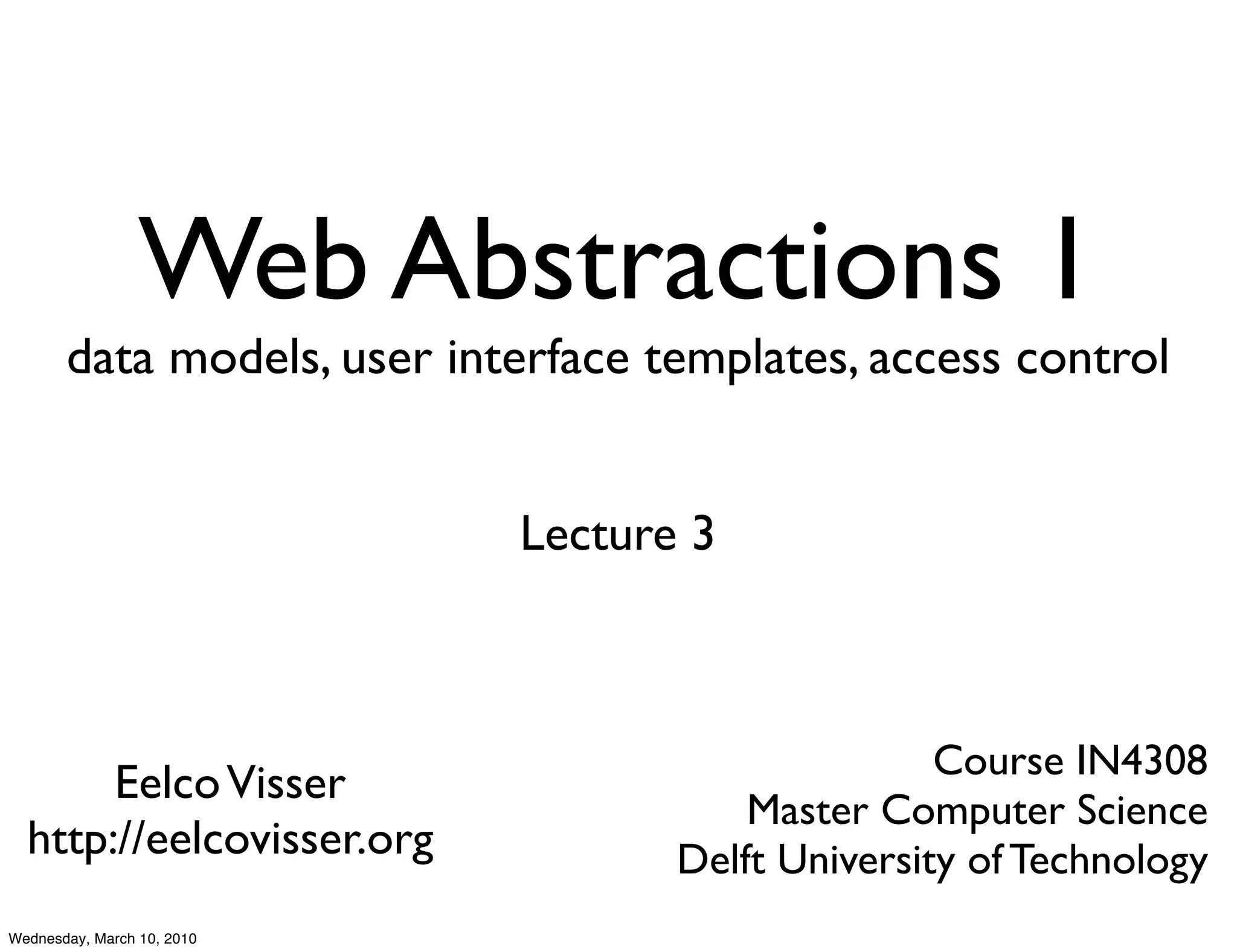

- 1. Web Abstractions 1 data models, user interface templates, access control Lecture 3 Course IN4308 Eelco Visser Master Computer Science http://eelcovisser.org Delft University of Technology Wednesday, March 10, 2010

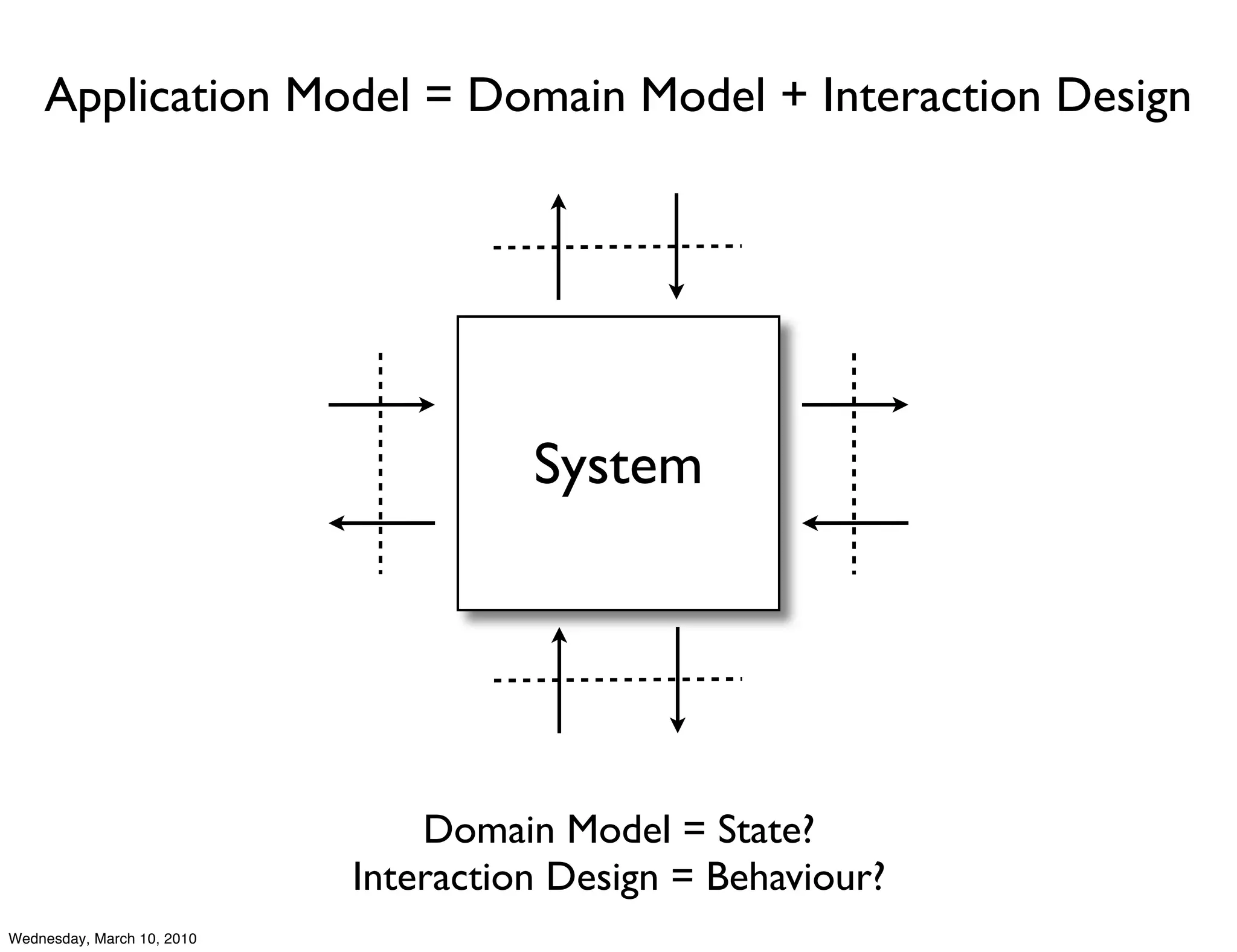

- 2. Application Model =Domain Model + Interaction Design System Domain Model = State? Interaction Design = Behaviour? Wednesday, March 10, 2010

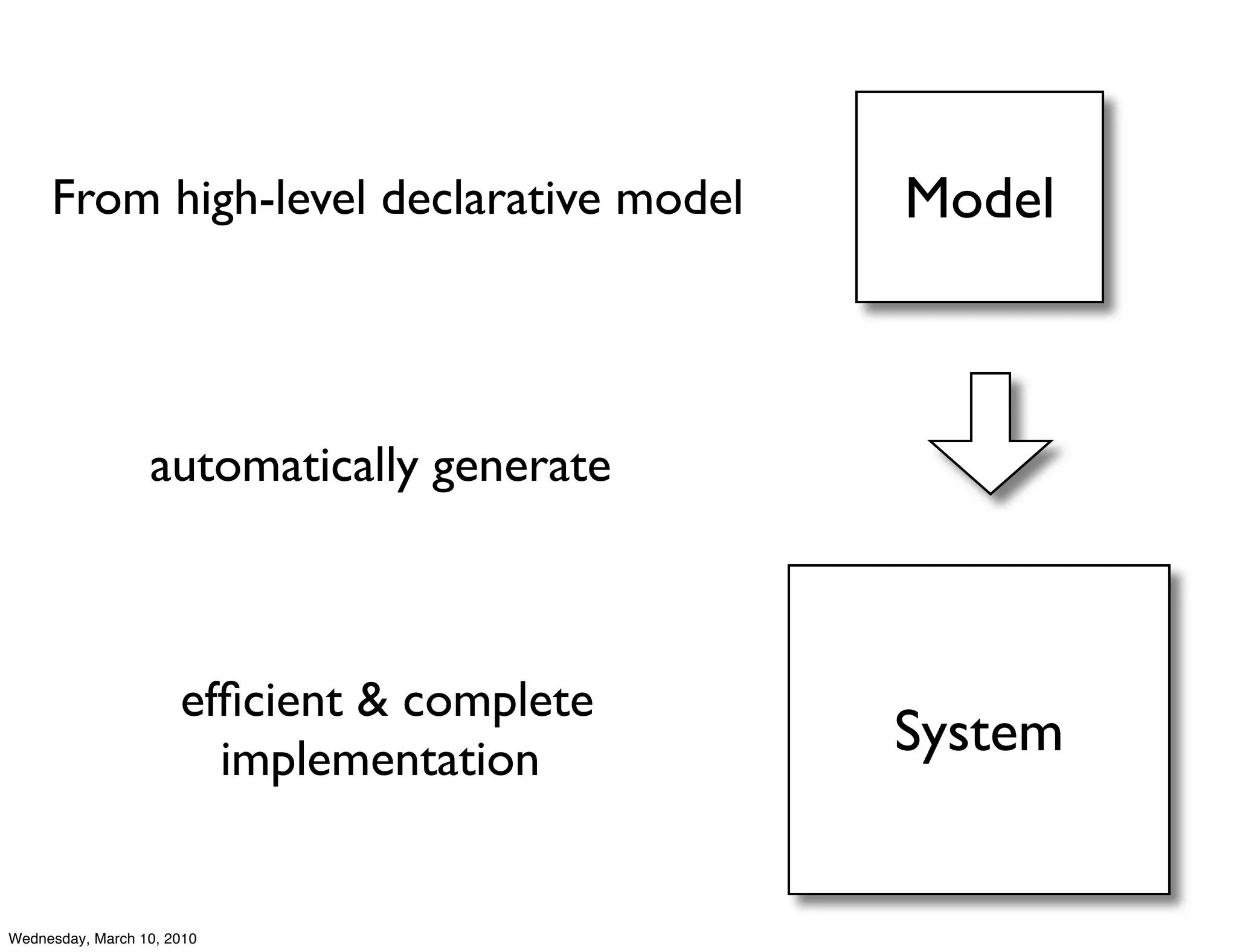

- 3. From high-level declarativemodel Model automatically generate efficient & complete implementation System Wednesday, March 10, 2010

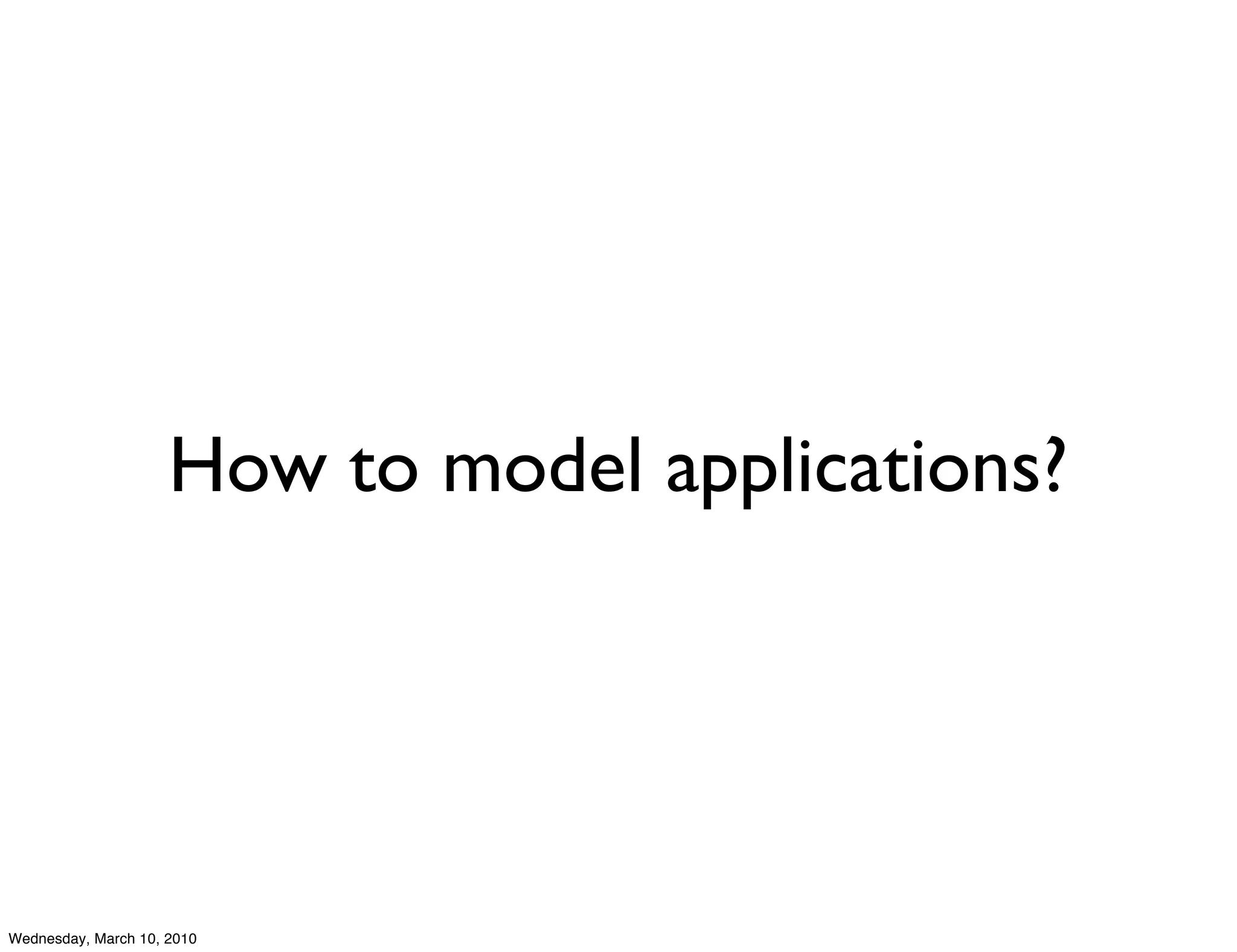

- 4. How to modelapplications? Wednesday, March 10, 2010

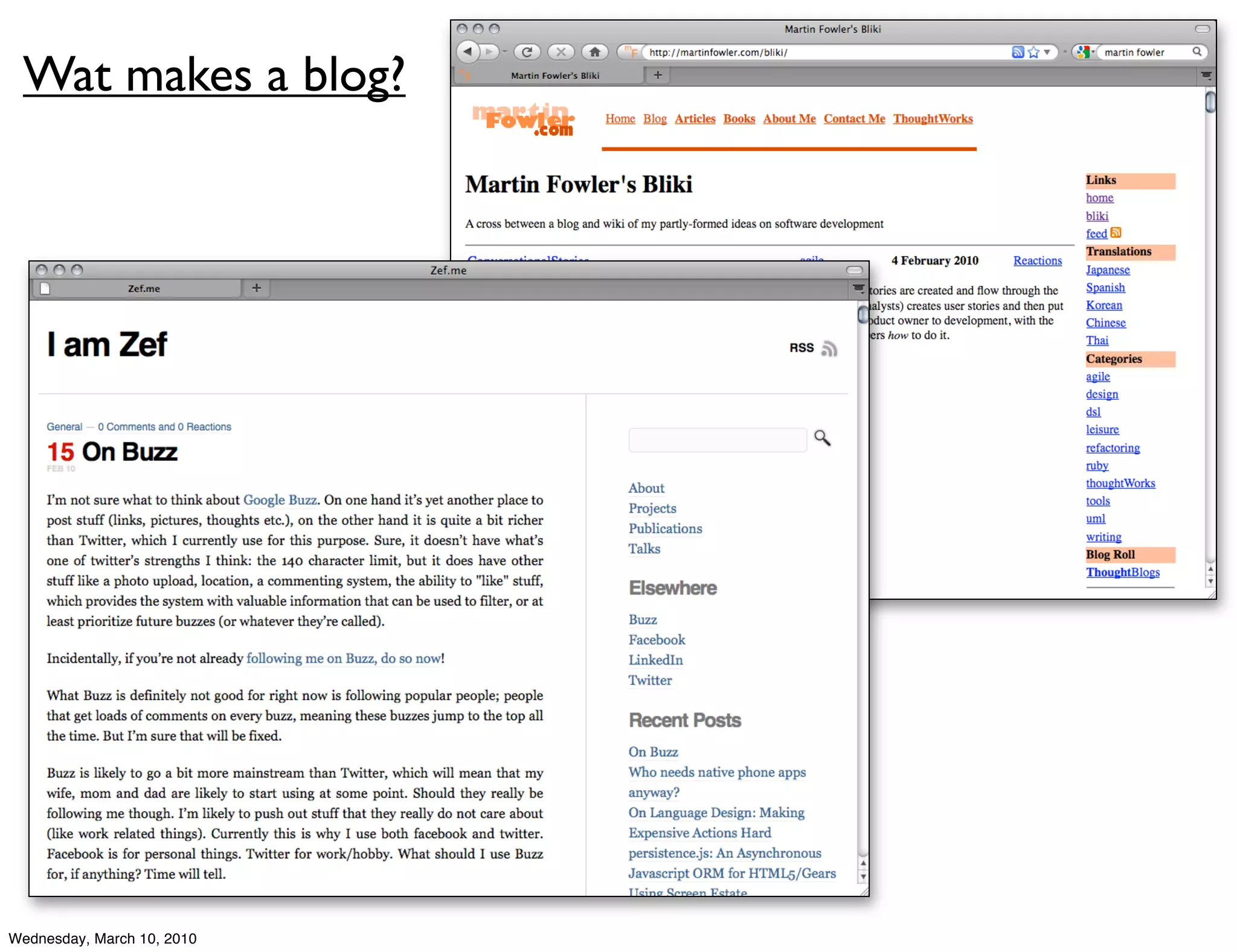

- 5. Wat makes ablog? Wednesday, March 10, 2010

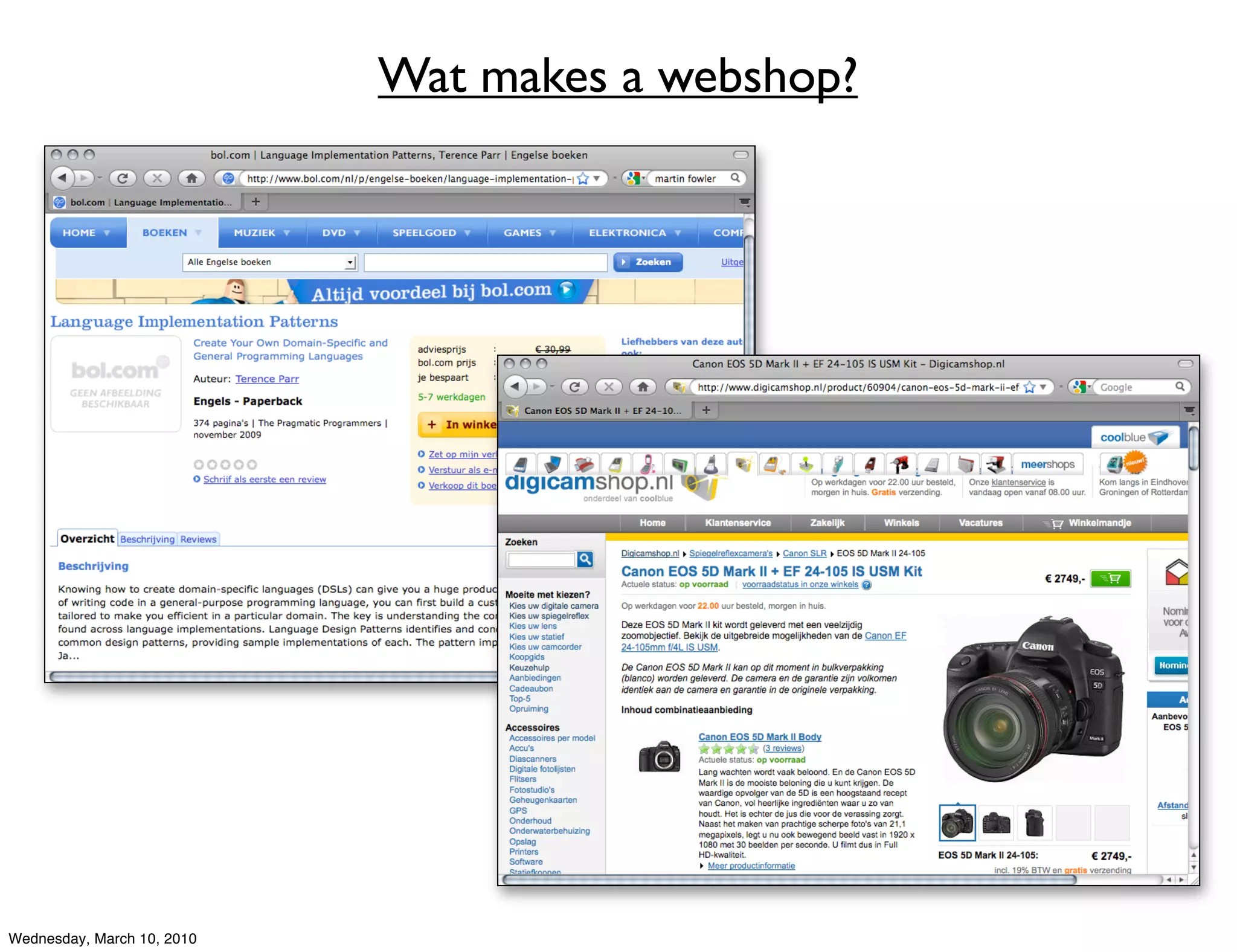

- 6. Wat makes awebshop? Wednesday, March 10, 2010
- 7. Wat makes achair? Wednesday, March 10, 2010
- 8. Wat makes achair? Wednesday, March 10, 2010
- 9. Purpose => Features ? Wednesday, March 10, 2010

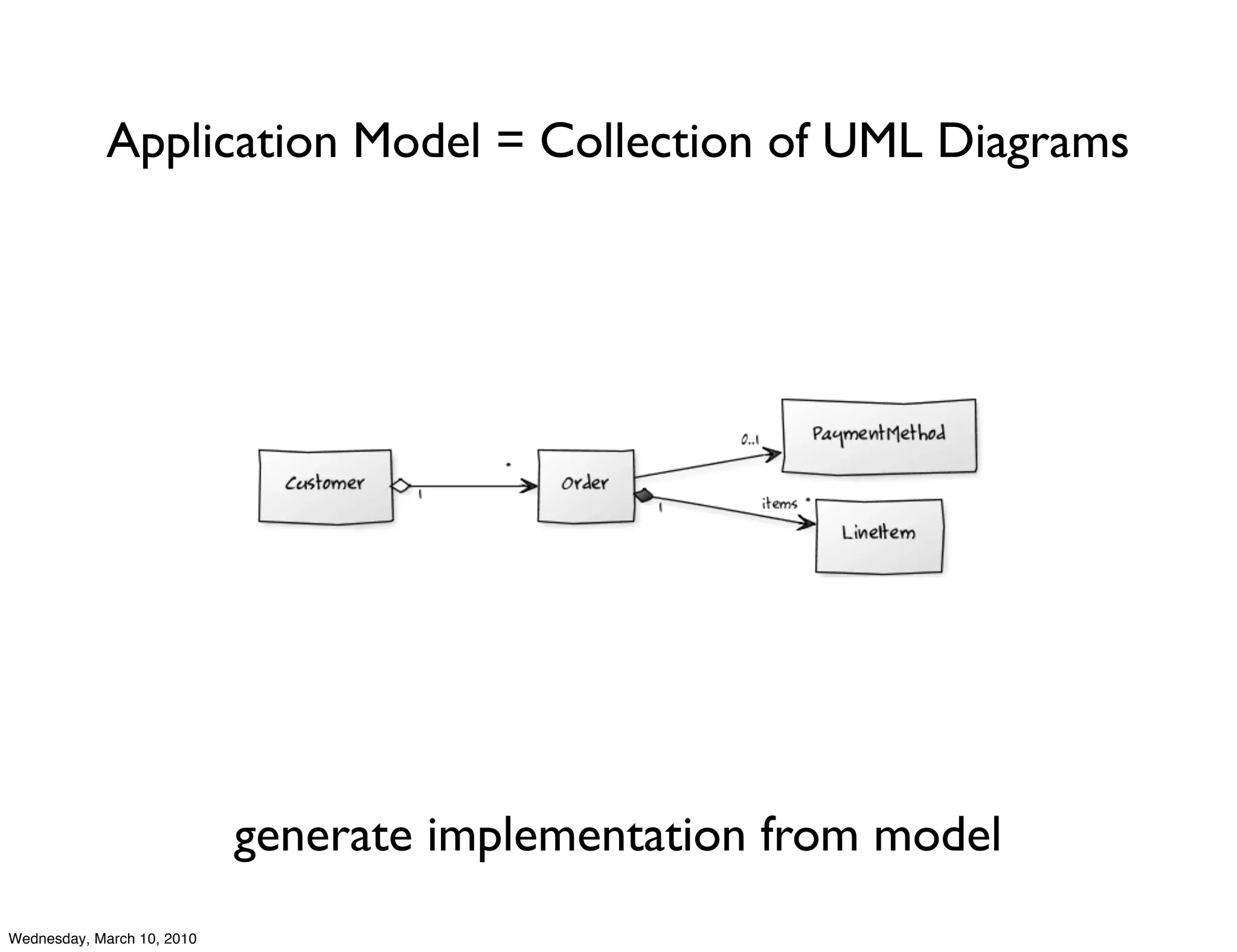

- 10. Application Model =Collection of UML Diagrams generate implementation from model Wednesday, March 10, 2010

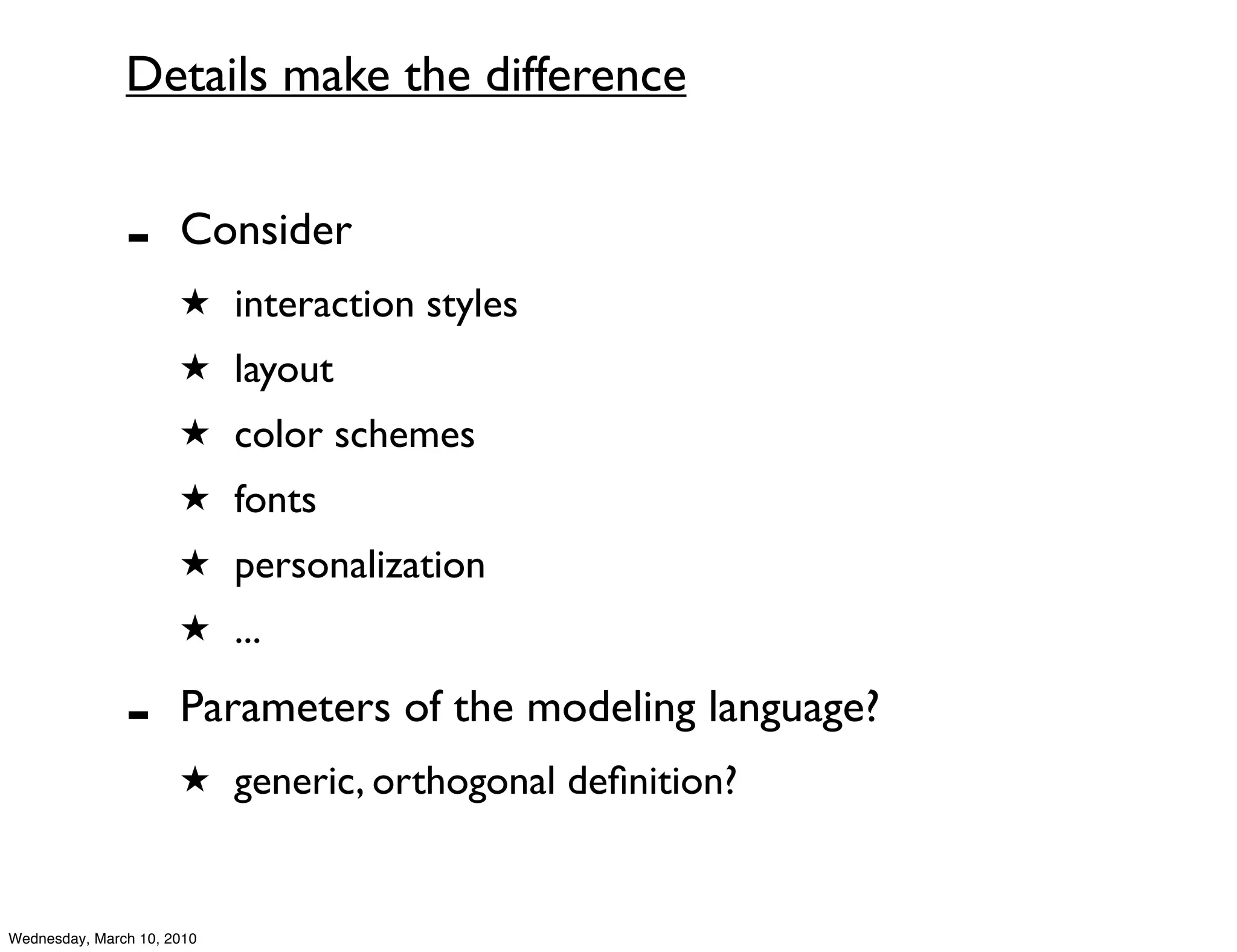

- 11. Details make thedifference - Consider ★ interaction styles ★ layout ★ color schemes ★ fonts ★ personalization ★ ... - Parameters of the modeling language? ★ generic, orthogonal definition? Wednesday, March 10, 2010

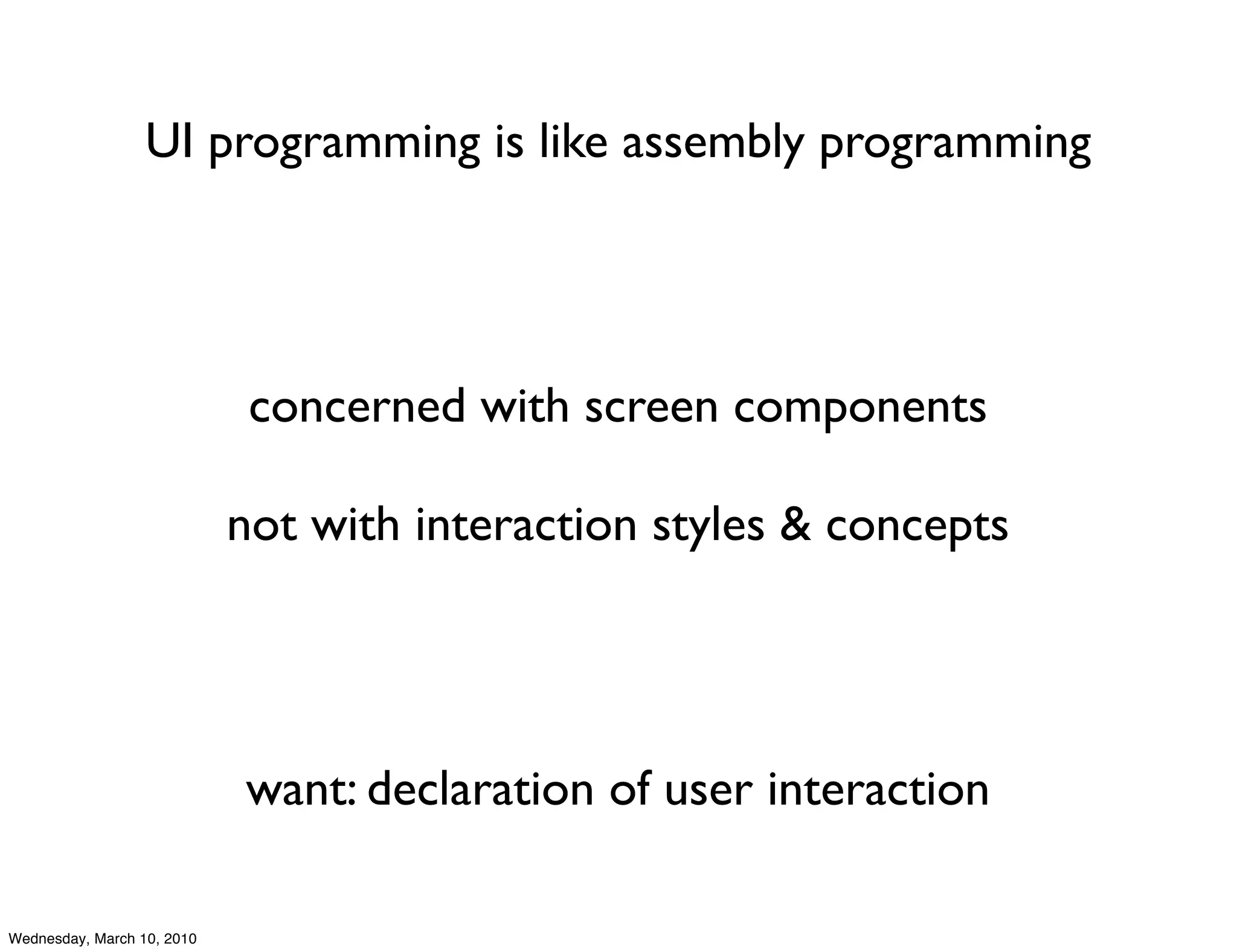

- 12. UI programming islike assembly programming concerned with screen components not with interaction styles & concepts want: declaration of user interaction Wednesday, March 10, 2010

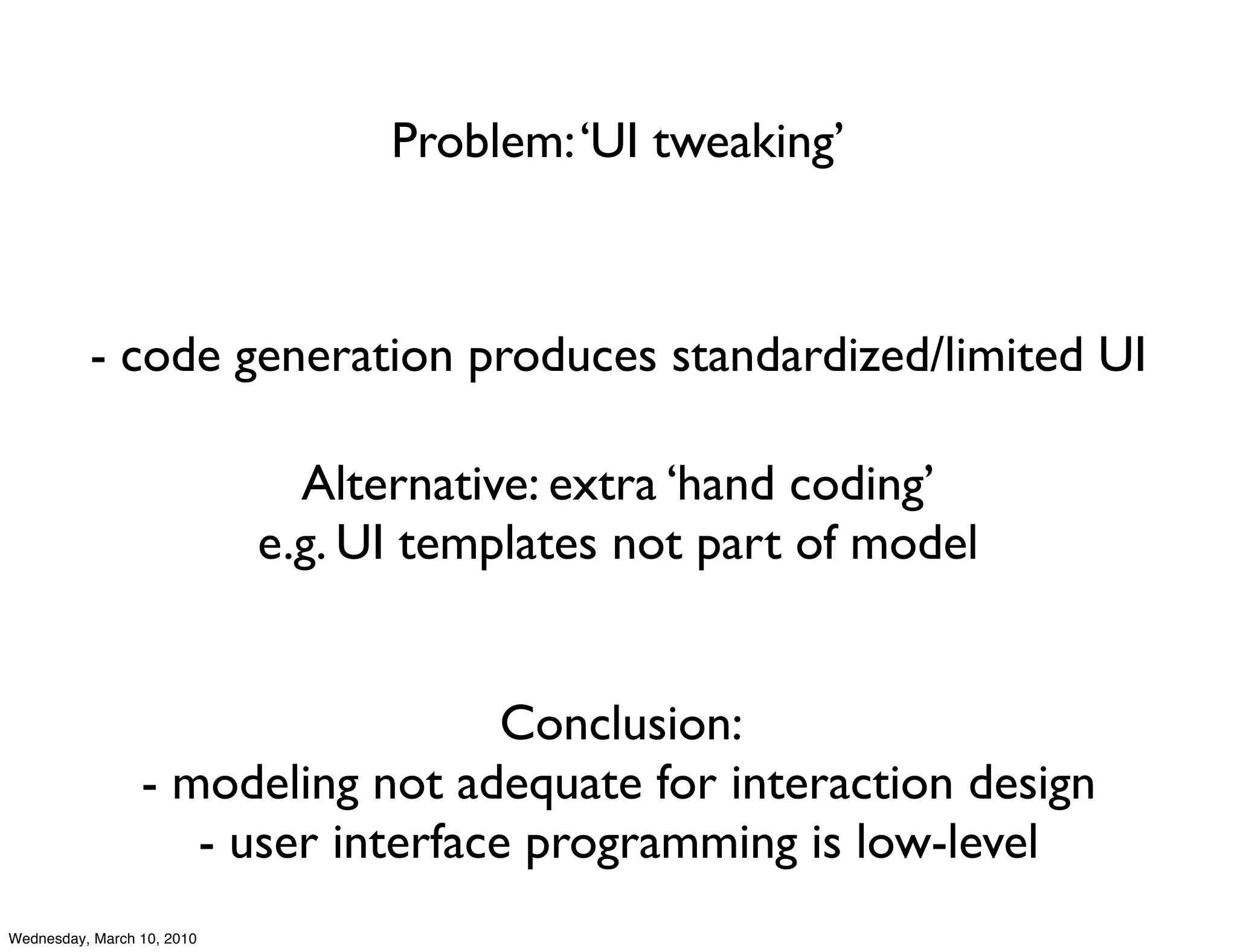

- 13. Problem: ‘UI tweaking’ - code generation produces standardized/limited UI Alternative: extra ‘hand coding’ e.g. UI templates not part of model Conclusion: - modeling not adequate for interaction design - user interface programming is low-level Wednesday, March 10, 2010

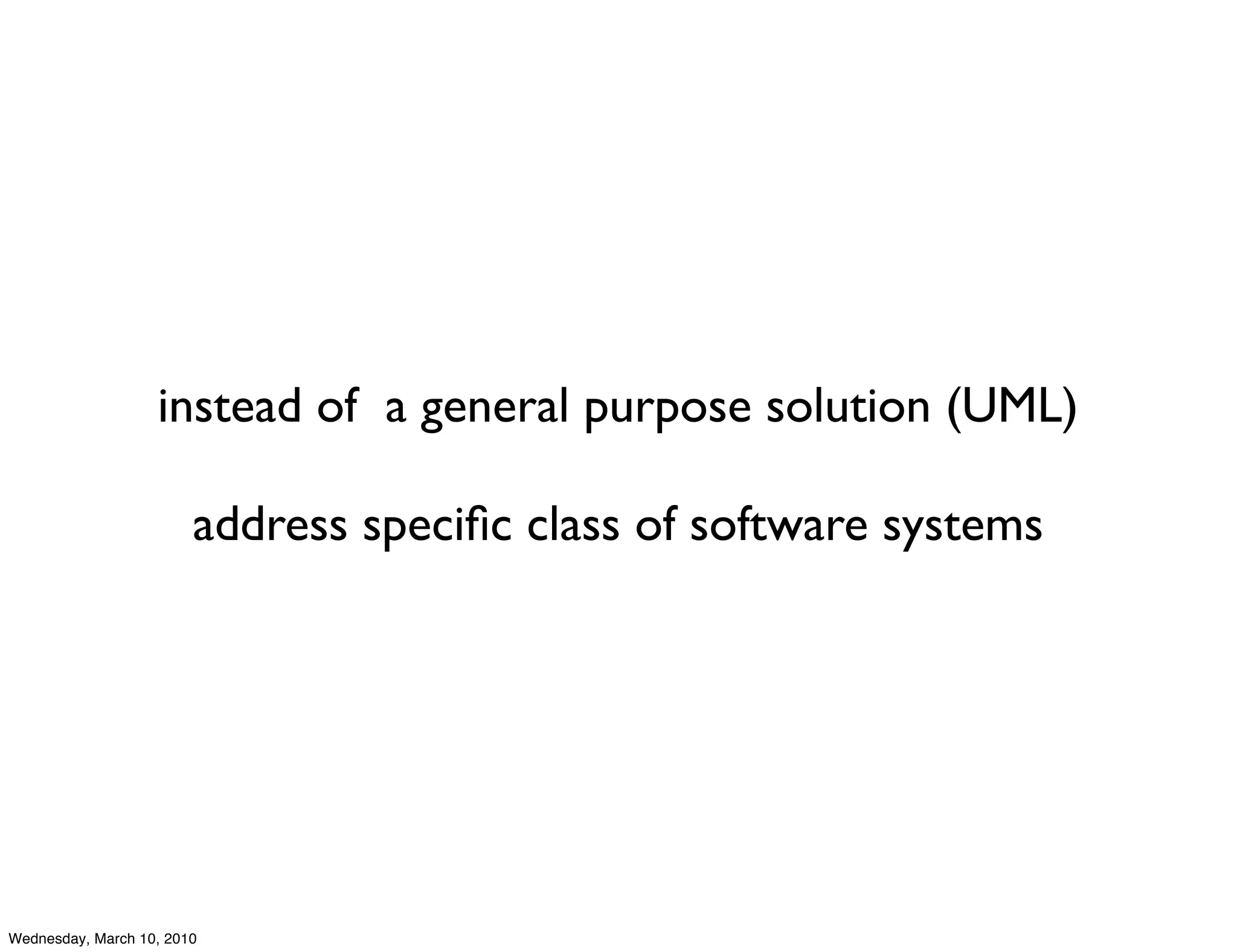

- 14. instead of ageneral purpose solution (UML) address specific class of software systems Wednesday, March 10, 2010

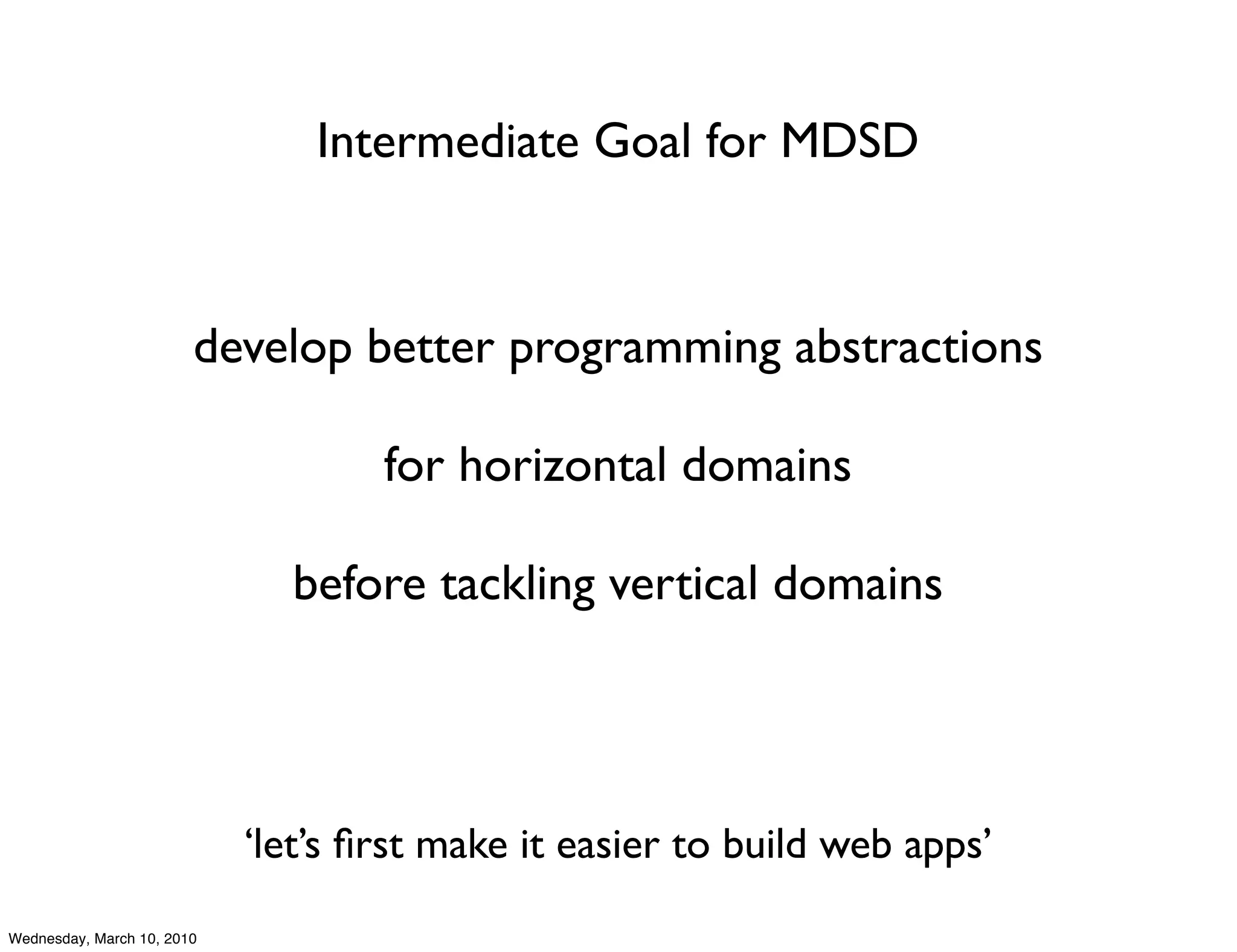

- 15. Intermediate Goal forMDSD develop better programming abstractions for horizontal domains before tackling vertical domains ‘let’s first make it easier to build web apps’ Wednesday, March 10, 2010

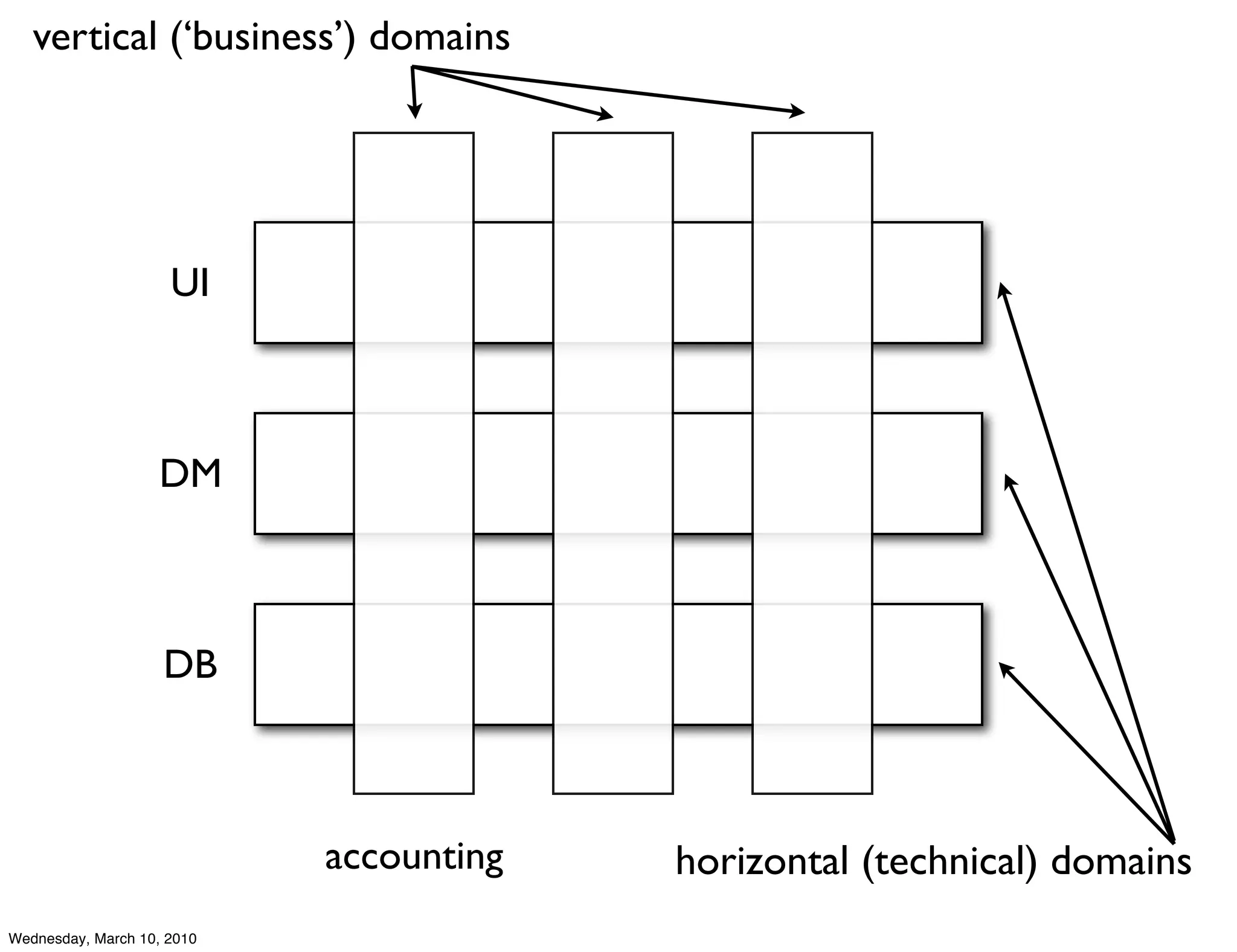

- 16. vertical (‘business’) domains UI DM DB accounting horizontal (technical) domains Wednesday, March 10, 2010

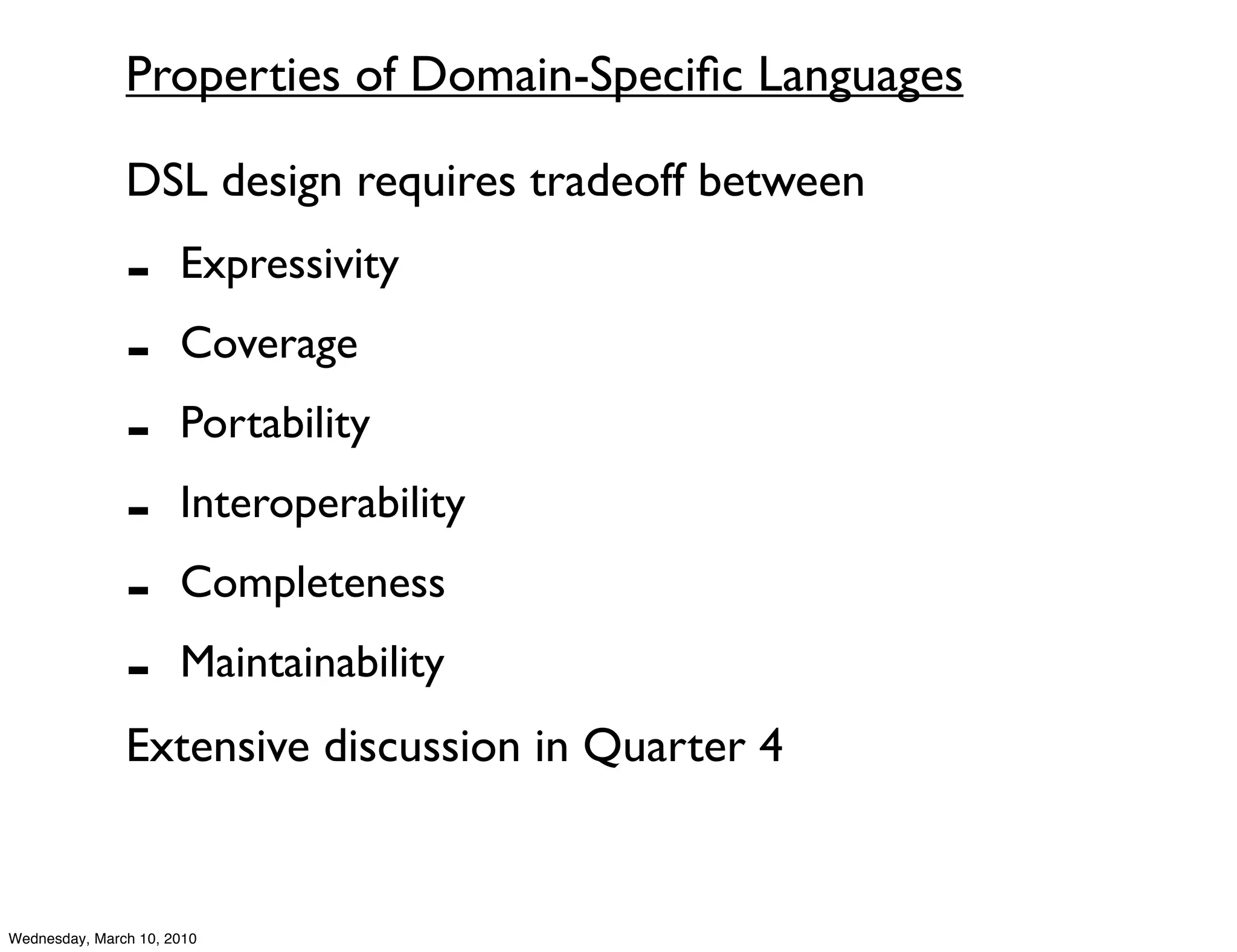

- 17. Properties of Domain-SpecificLanguages DSL design requires tradeoff between - Expressivity - Coverage - Portability - Interoperability - Completeness - Maintainability Extensive discussion in Quarter 4 Wednesday, March 10, 2010
- 18. The Web Domain Wednesday,March 10, 2010

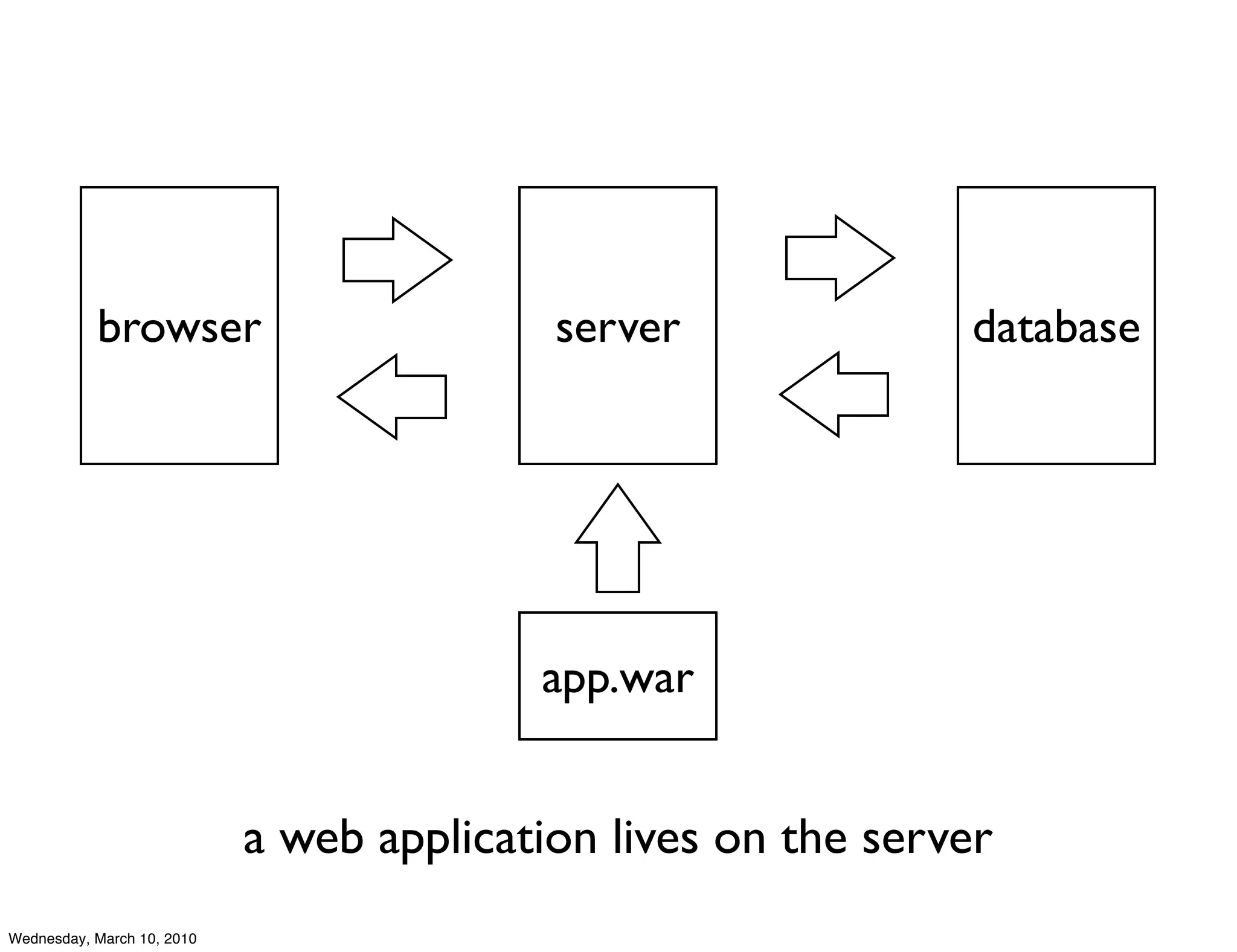

- 19. browser server database app.war a web application lives on the server Wednesday, March 10, 2010

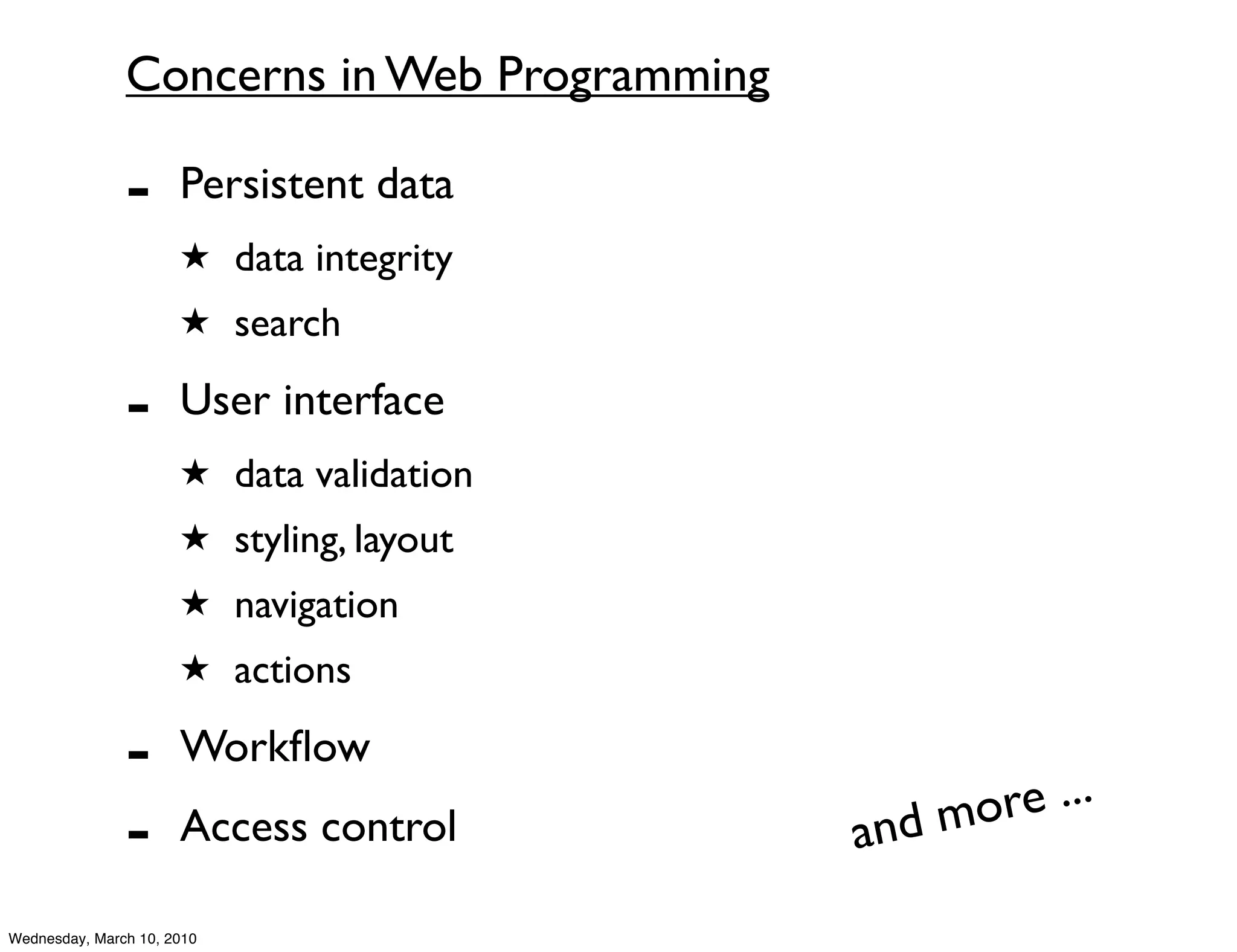

- 20. Concerns in WebProgramming - Persistent data ★ data integrity ★ search - User interface ★ data validation ★ styling, layout ★ navigation ★ actions - Workflow d mo re ... - Access control an Wednesday, March 10, 2010

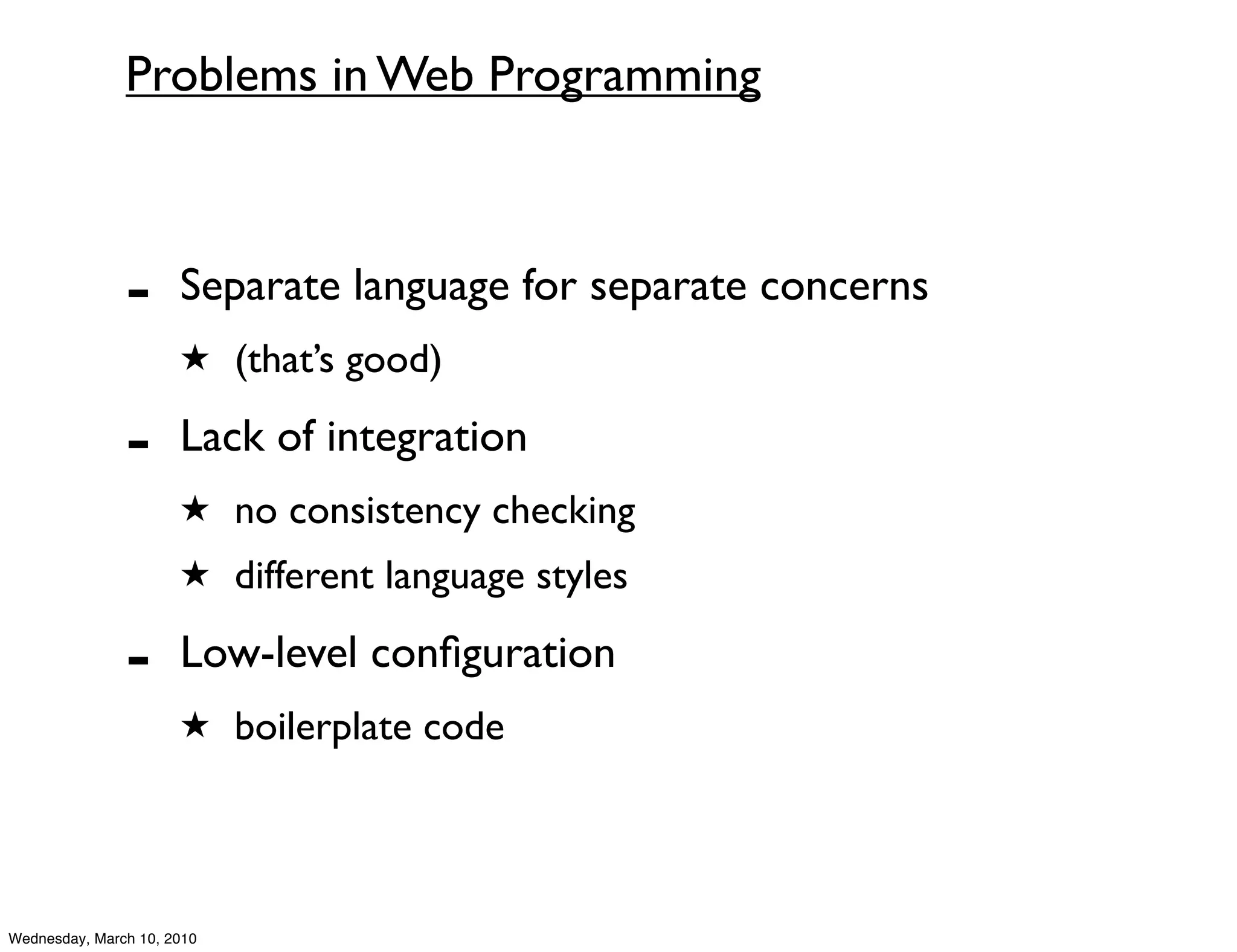

- 21. Problems in WebProgramming - Separate language for separate concerns ★ (that’s good) - Lack of integration ★ no consistency checking ★ different language styles - Low-level configuration ★ boilerplate code Wednesday, March 10, 2010

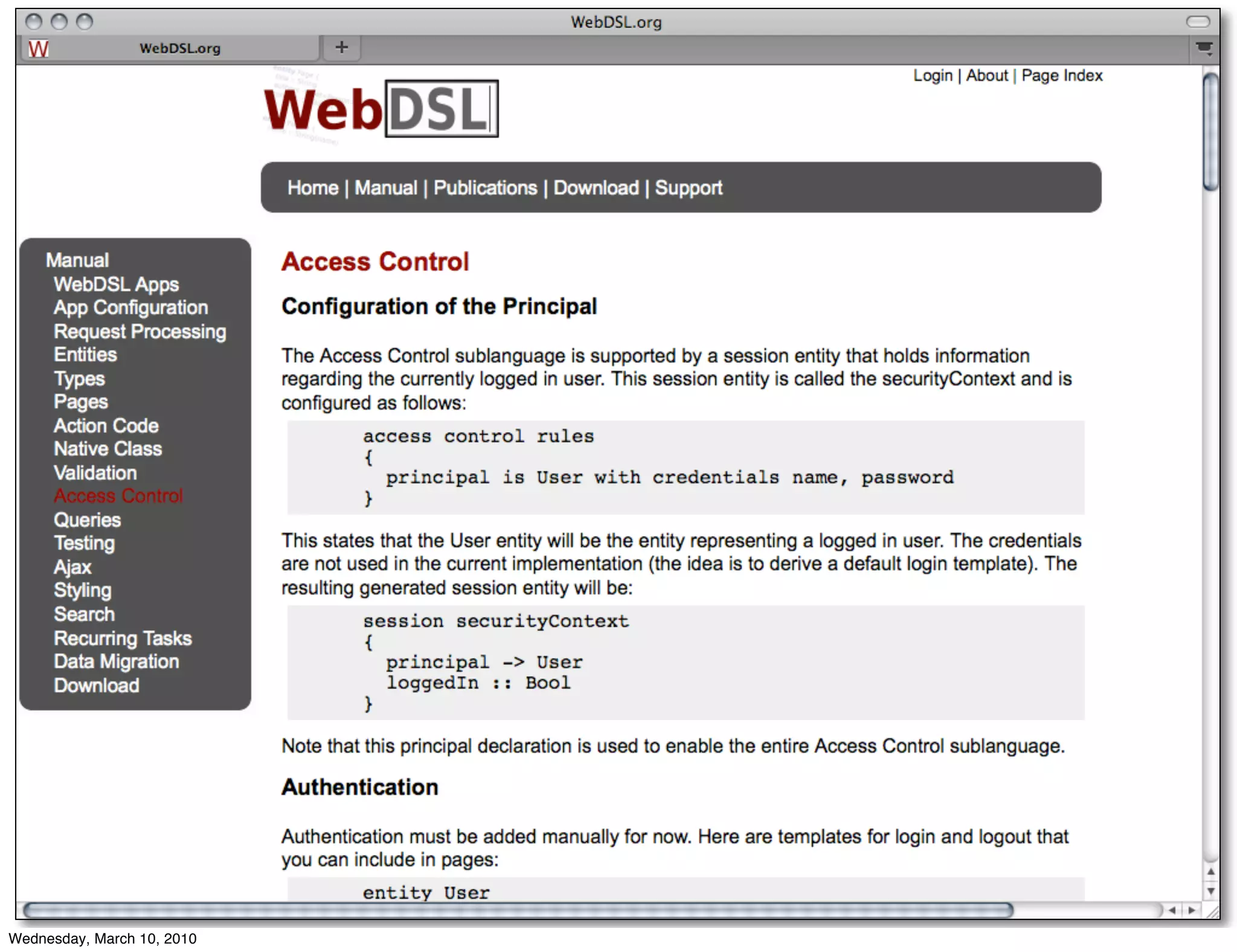

- 22. WebDSL a domain-specific language for web applications separation of concerns & linguistic integration Wednesday, March 10, 2010

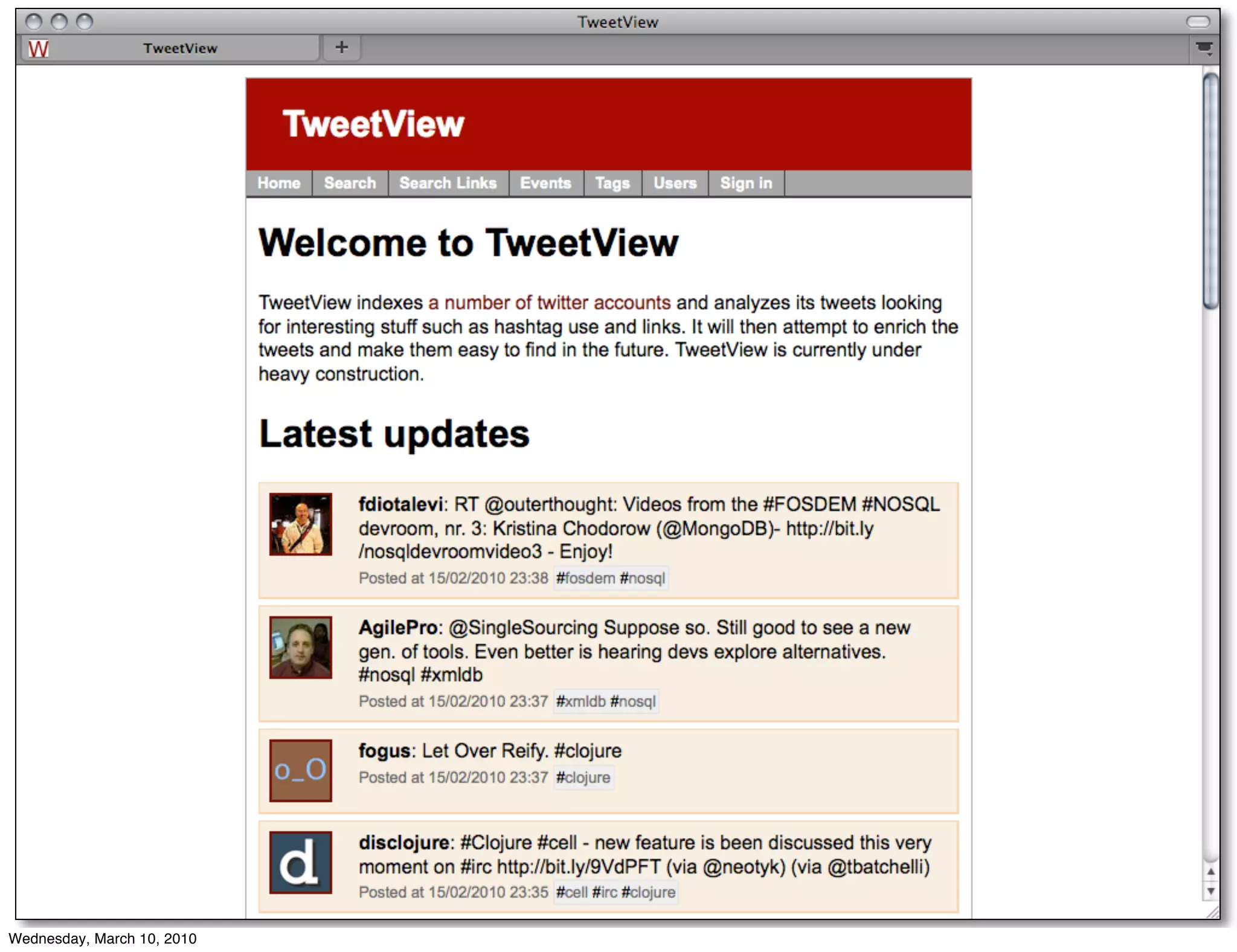

- 23.

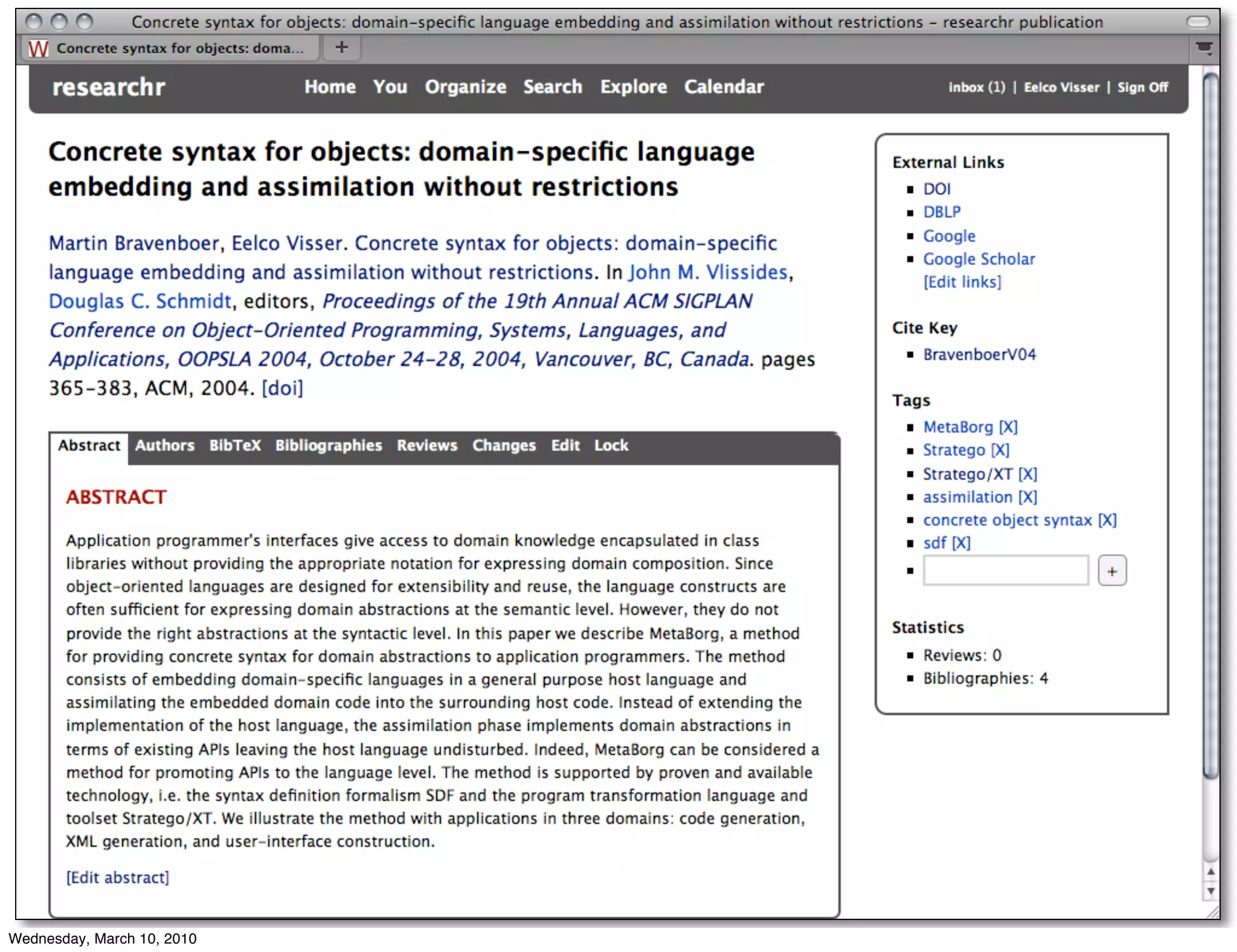

- 24.
- 25.

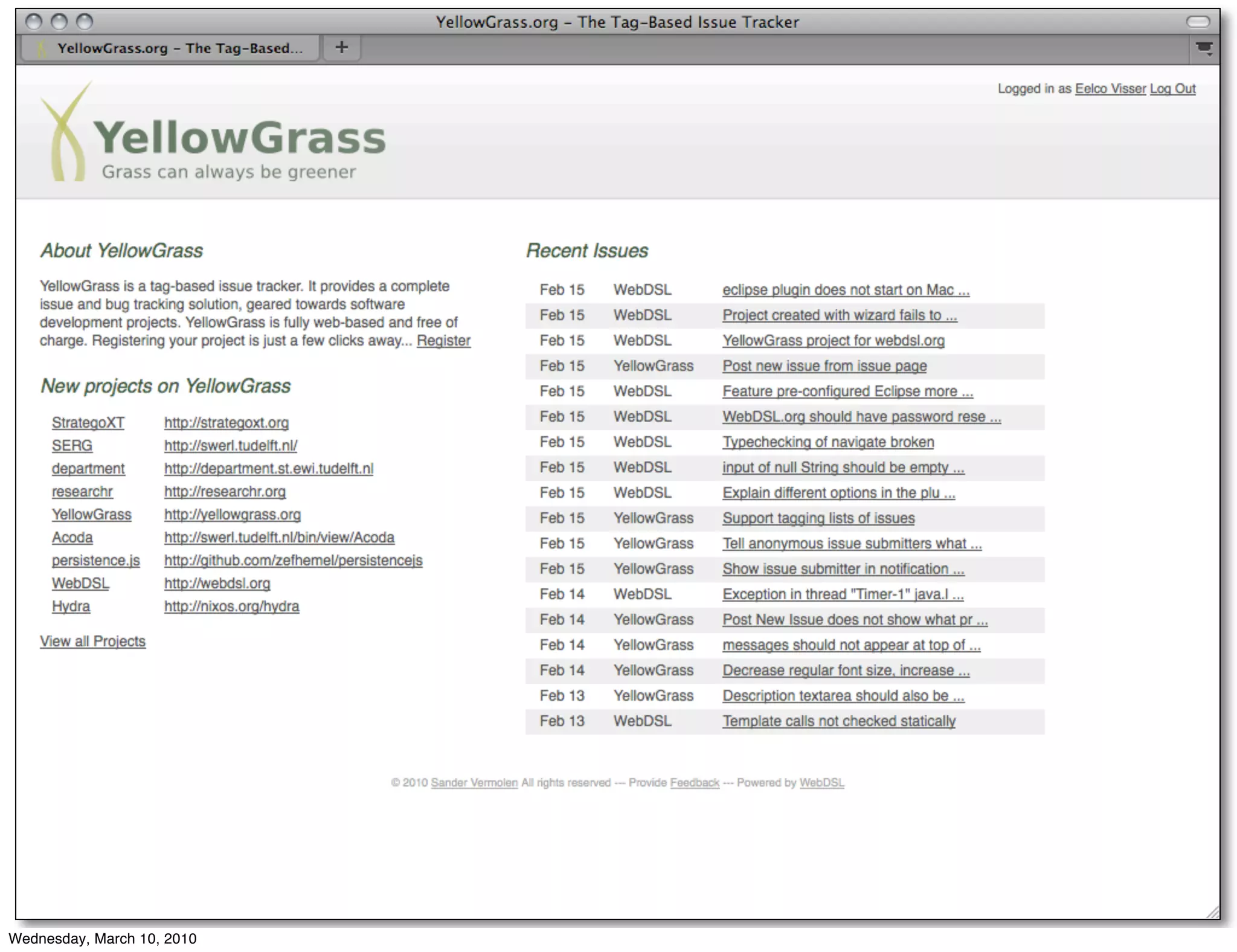

- 26.

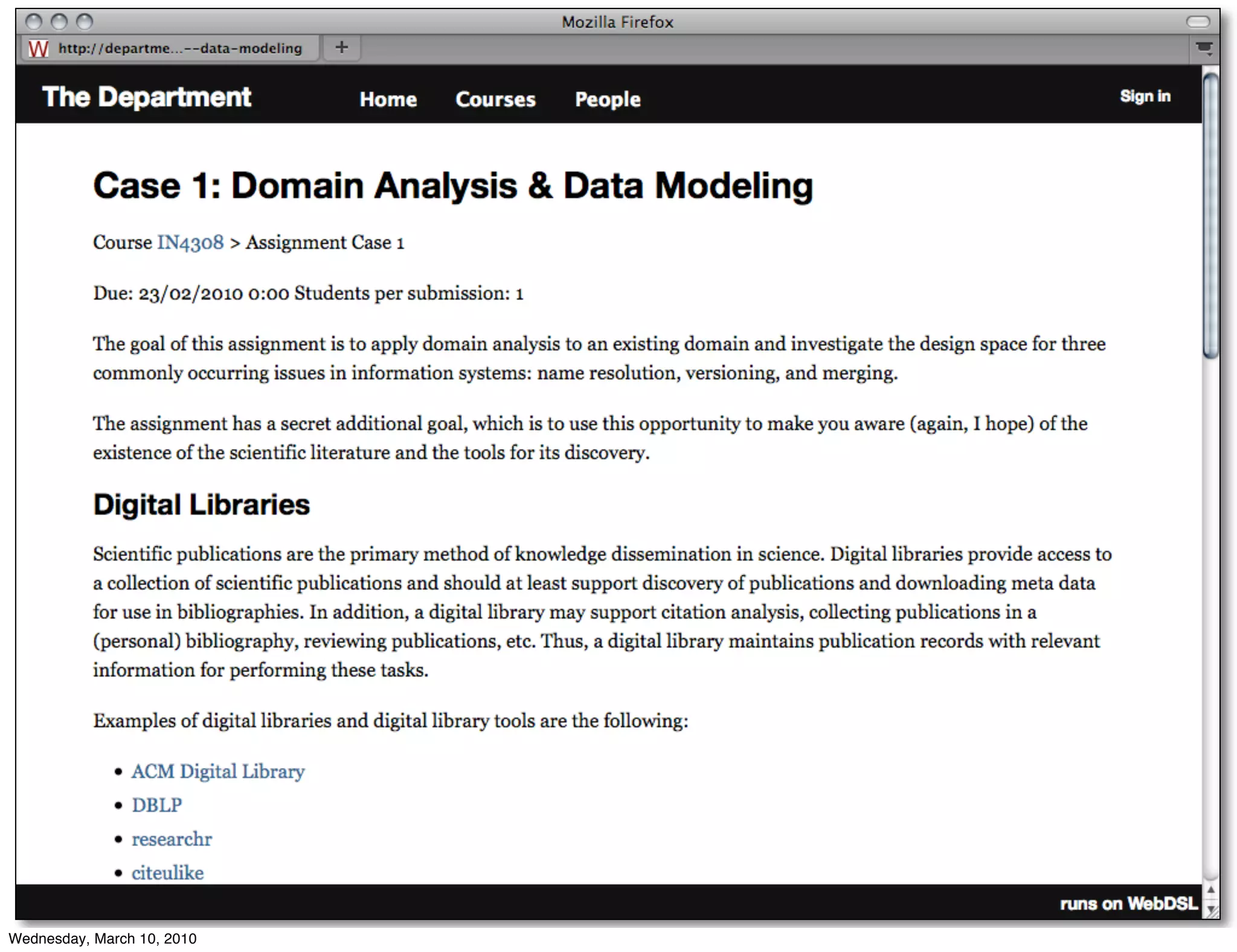

- 27.
- 28. Web Abstractions from a declarative point of view (we’ll investigate underlying mechanisms later) Eelco Visser. WebDSL: A Case Study in Domain-Specific Language Engineering. GTTSE 2008: 291-373 Wednesday, March 10, 2010

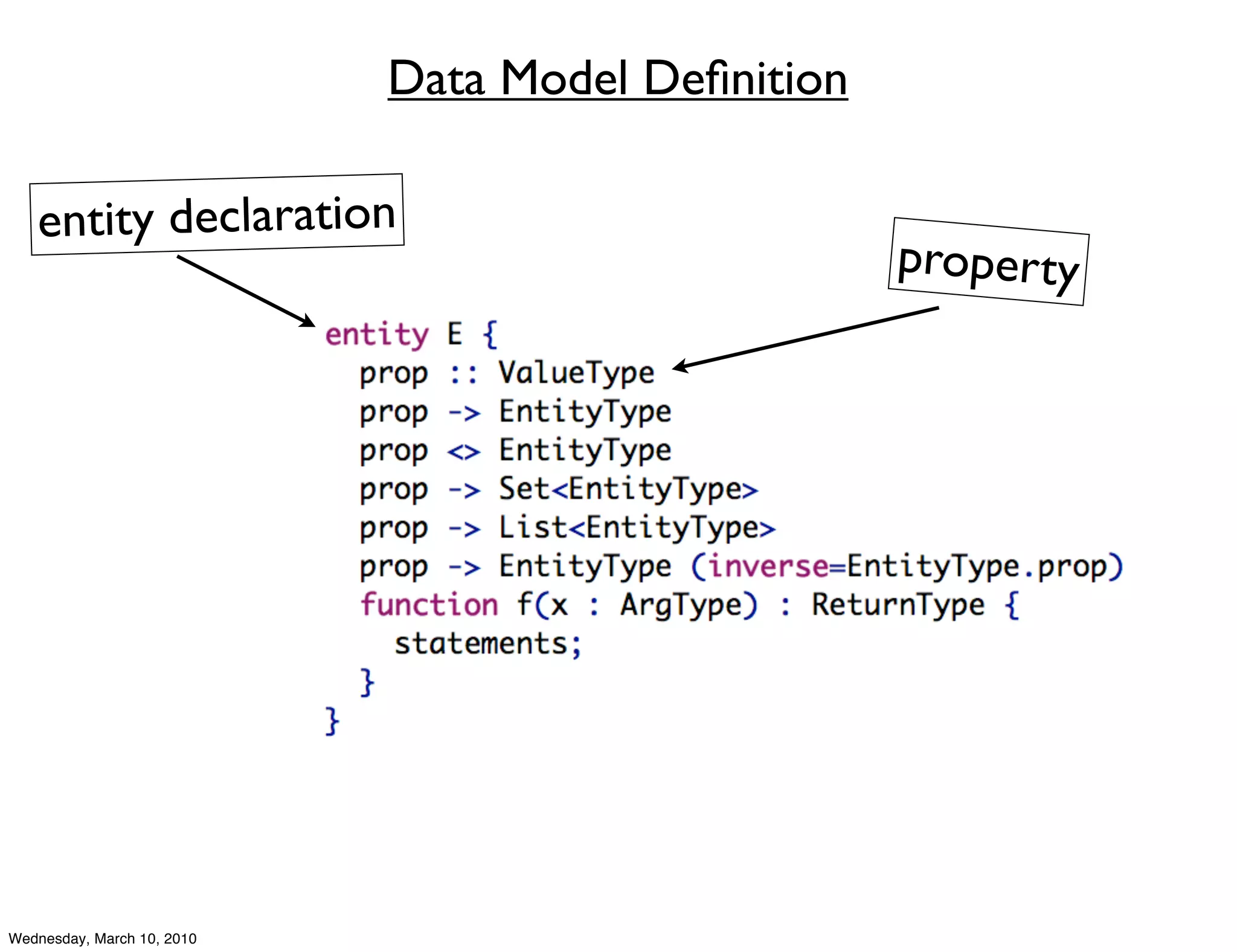

- 29. Data Model Definition entity declaration property Wednesday, March 10, 2010

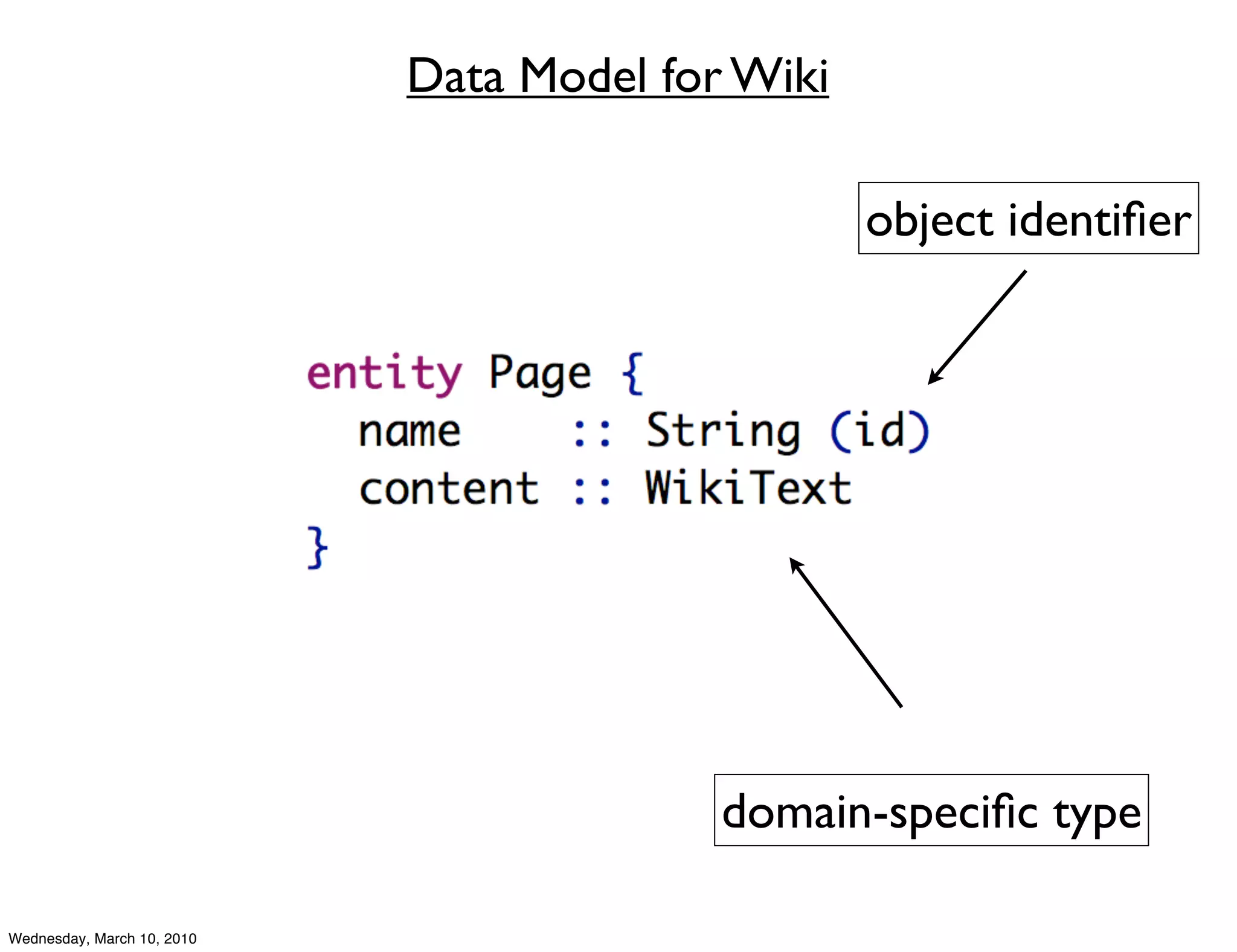

- 30. Data Model forWiki object identifier domain-specific type Wednesday, March 10, 2010

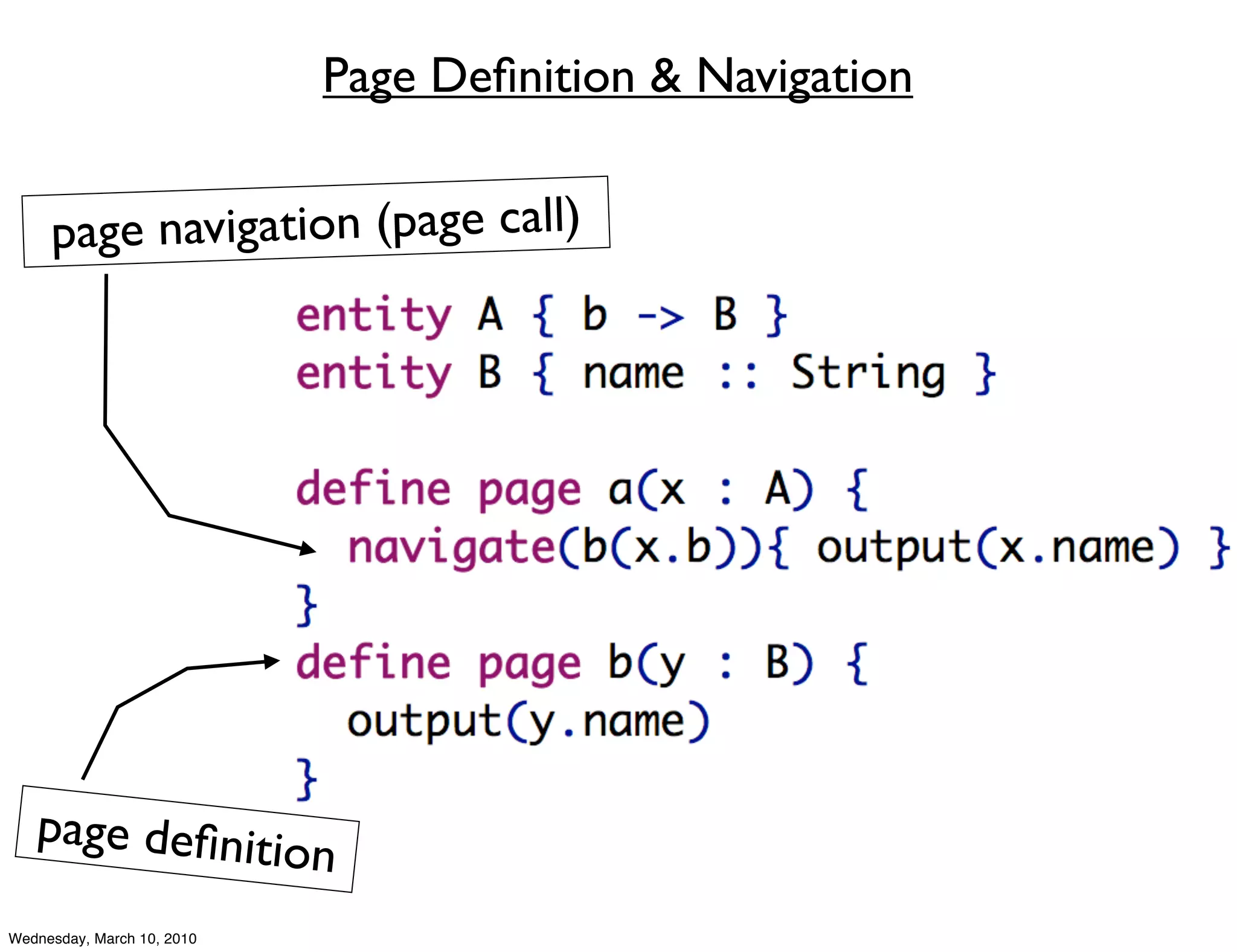

- 31. Page Definition &Navigation page navigation (page call) page definiti on Wednesday, March 10, 2010

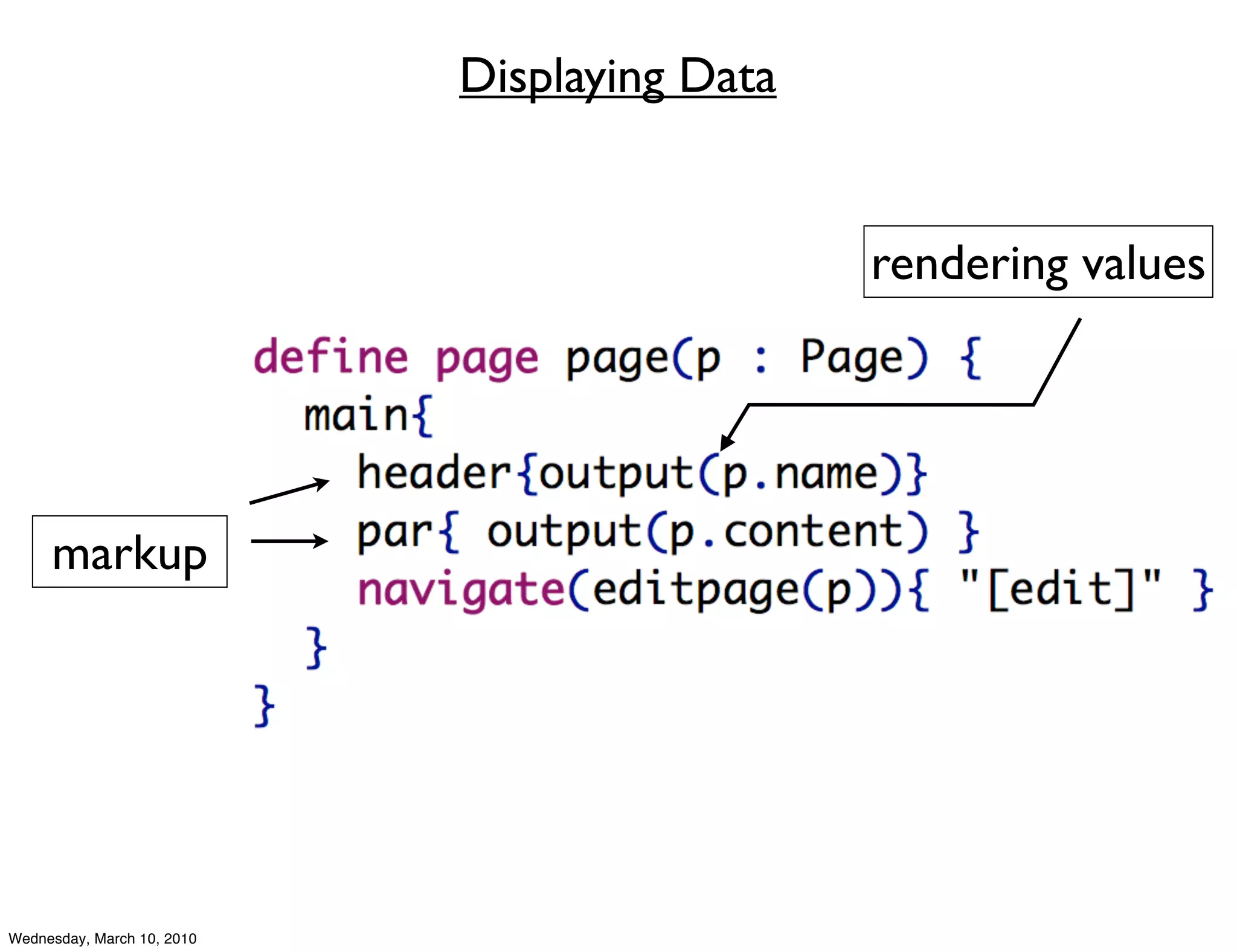

- 32. Displaying Data rendering values markup Wednesday, March 10, 2010

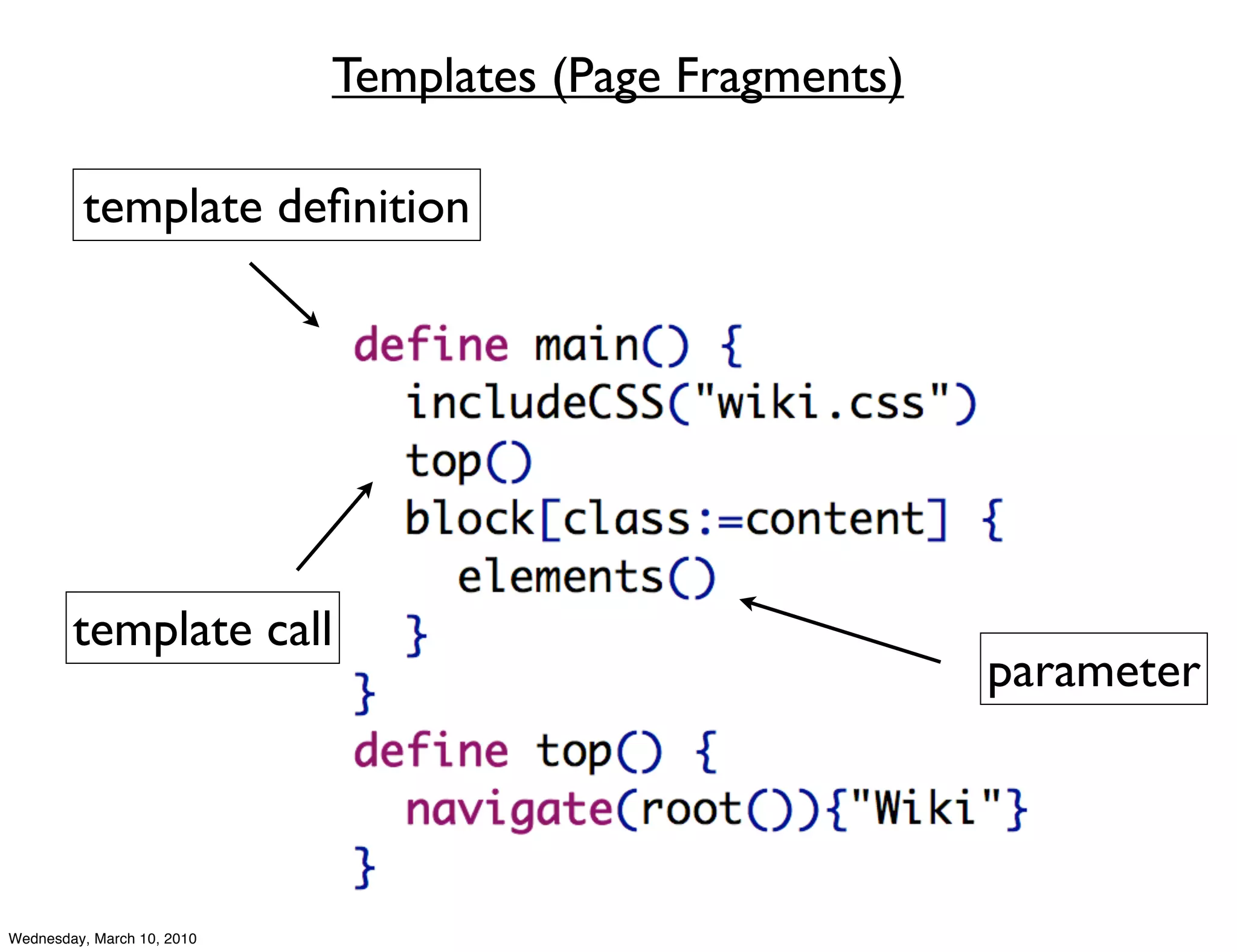

- 33. Templates (Page Fragments) template definition template call parameter Wednesday, March 10, 2010

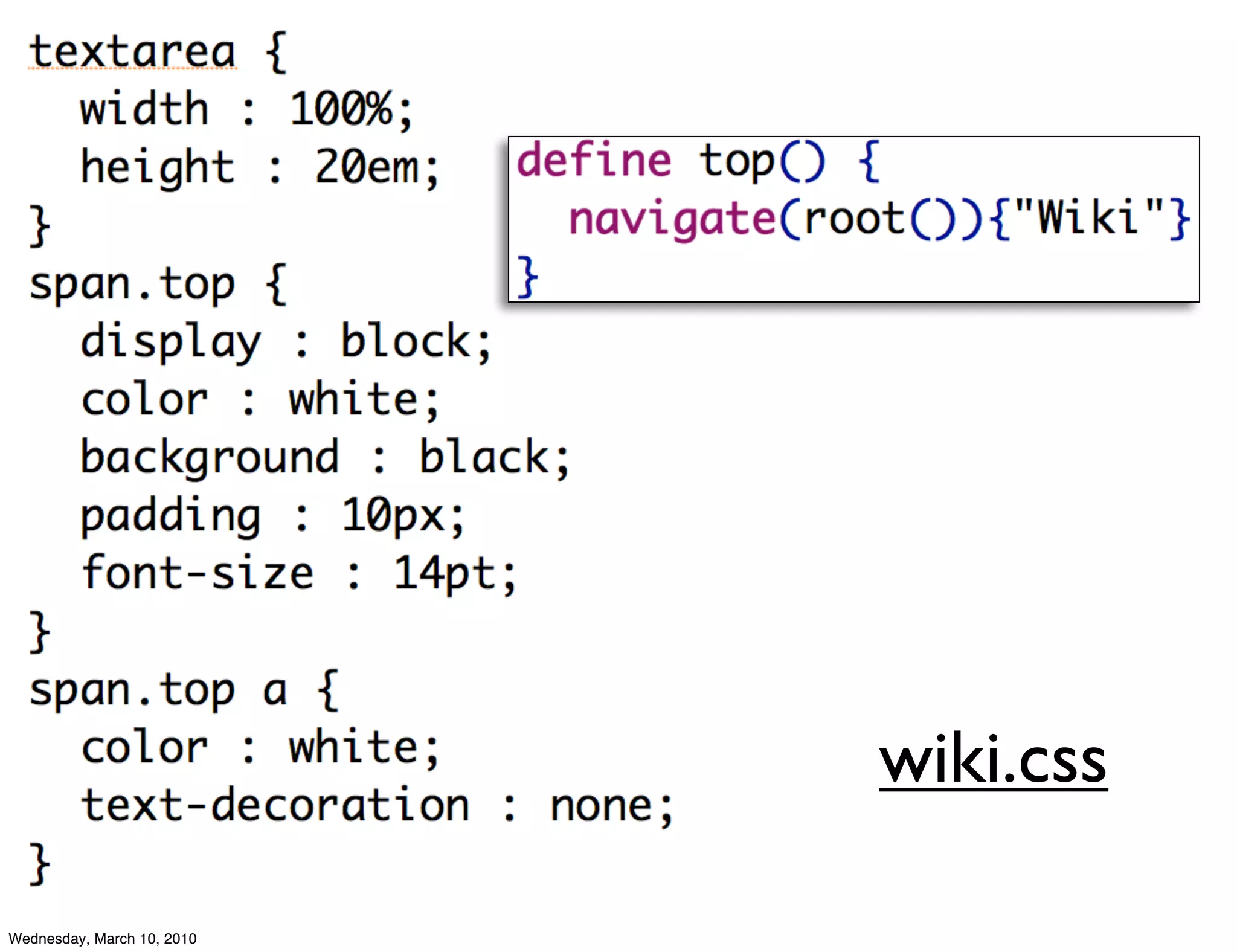

- 34.

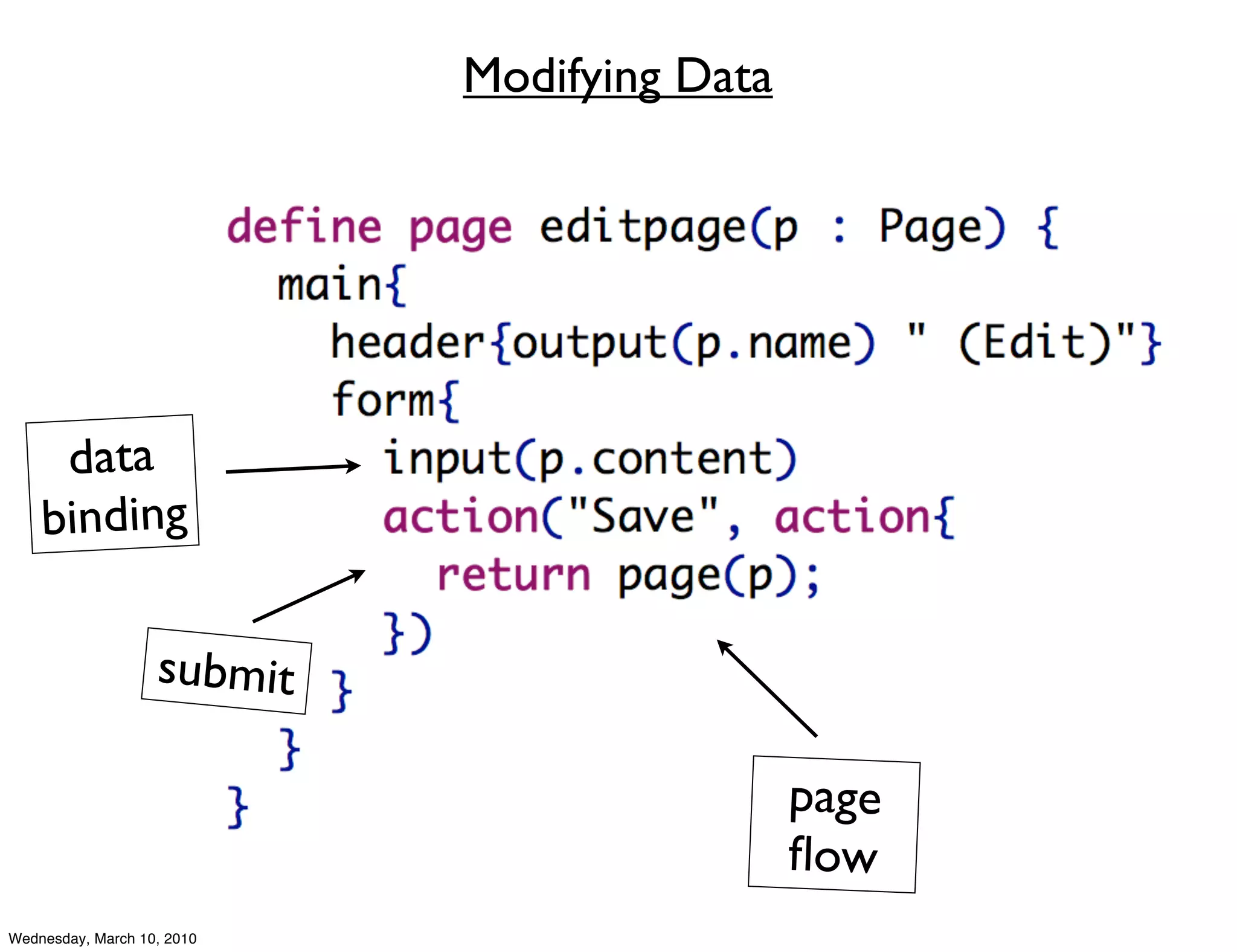

- 35. Modifying Data data binding submit page flow Wednesday, March 10, 2010

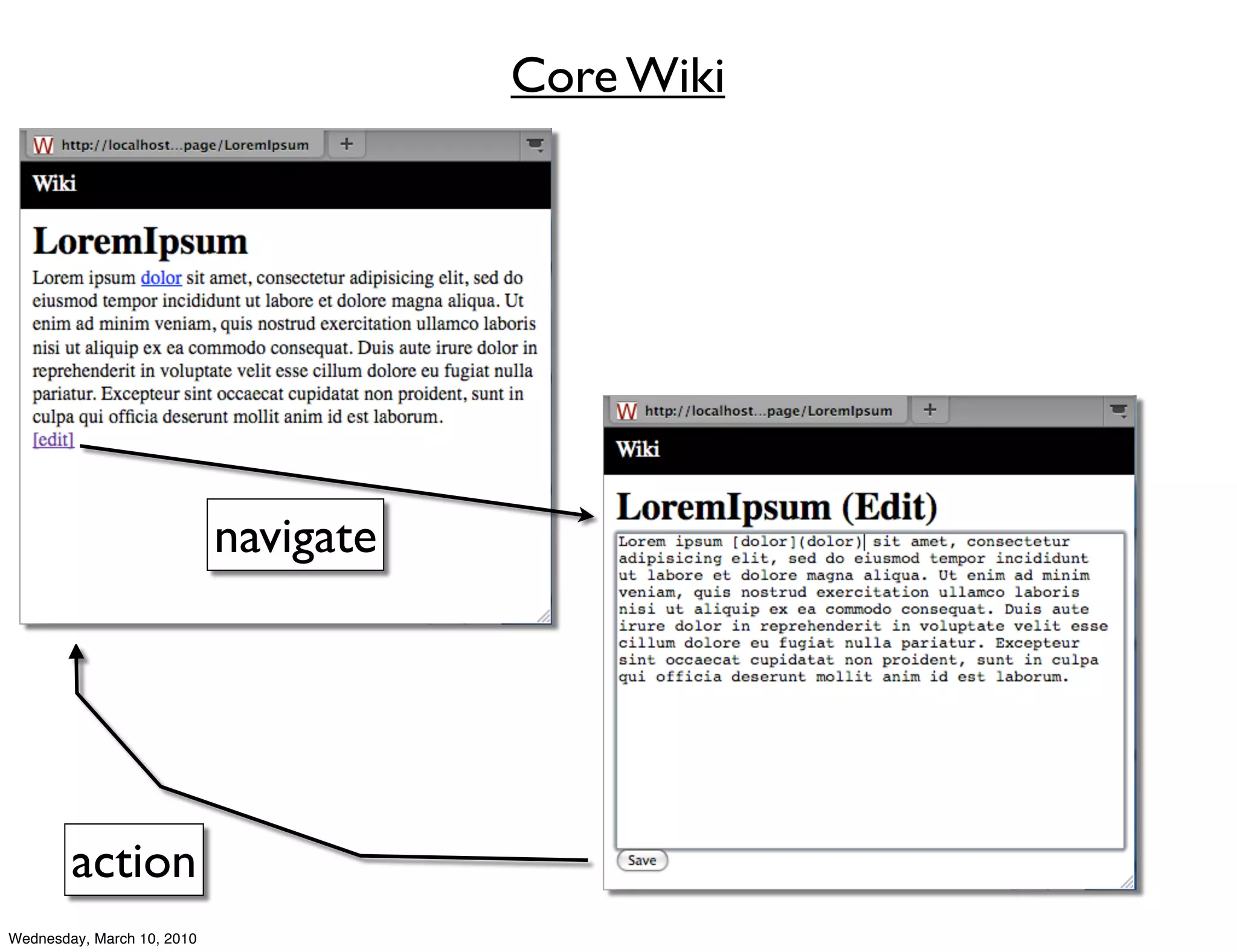

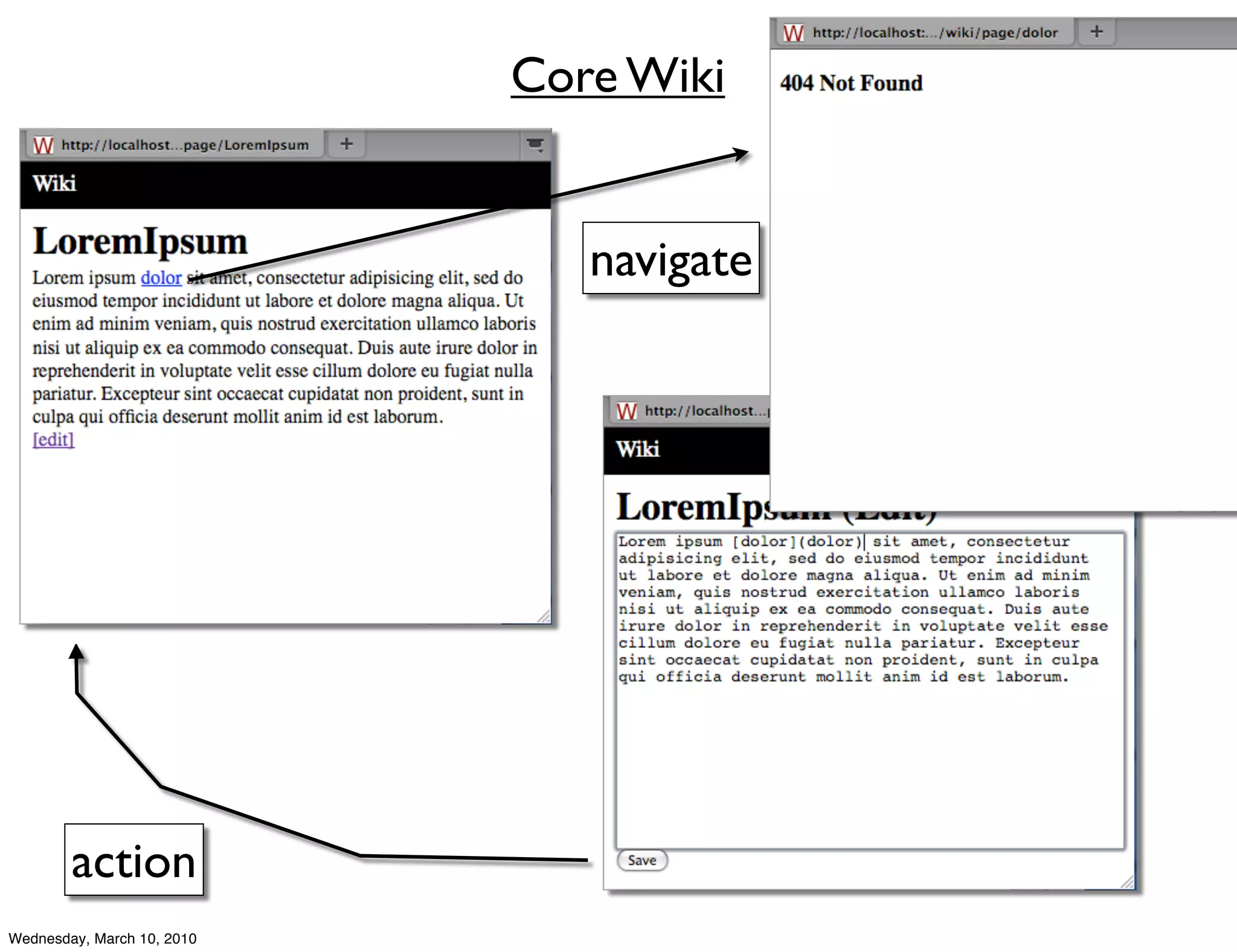

- 36. Core Wiki navigate action Wednesday, March 10, 2010
- 37. Core Wiki navigate action Wednesday, March 10, 2010

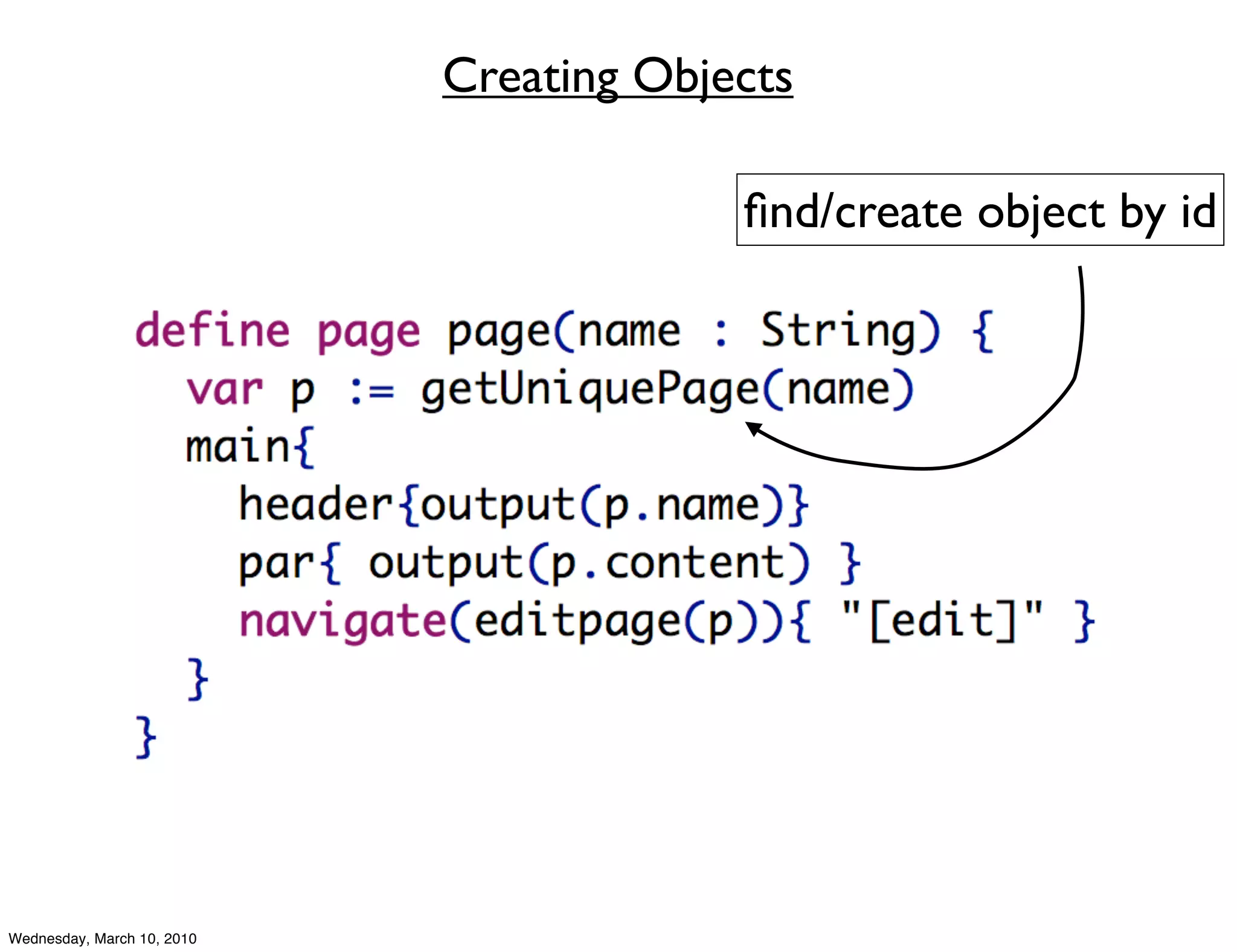

- 38. Creating Objects find/create object by id Wednesday, March 10, 2010

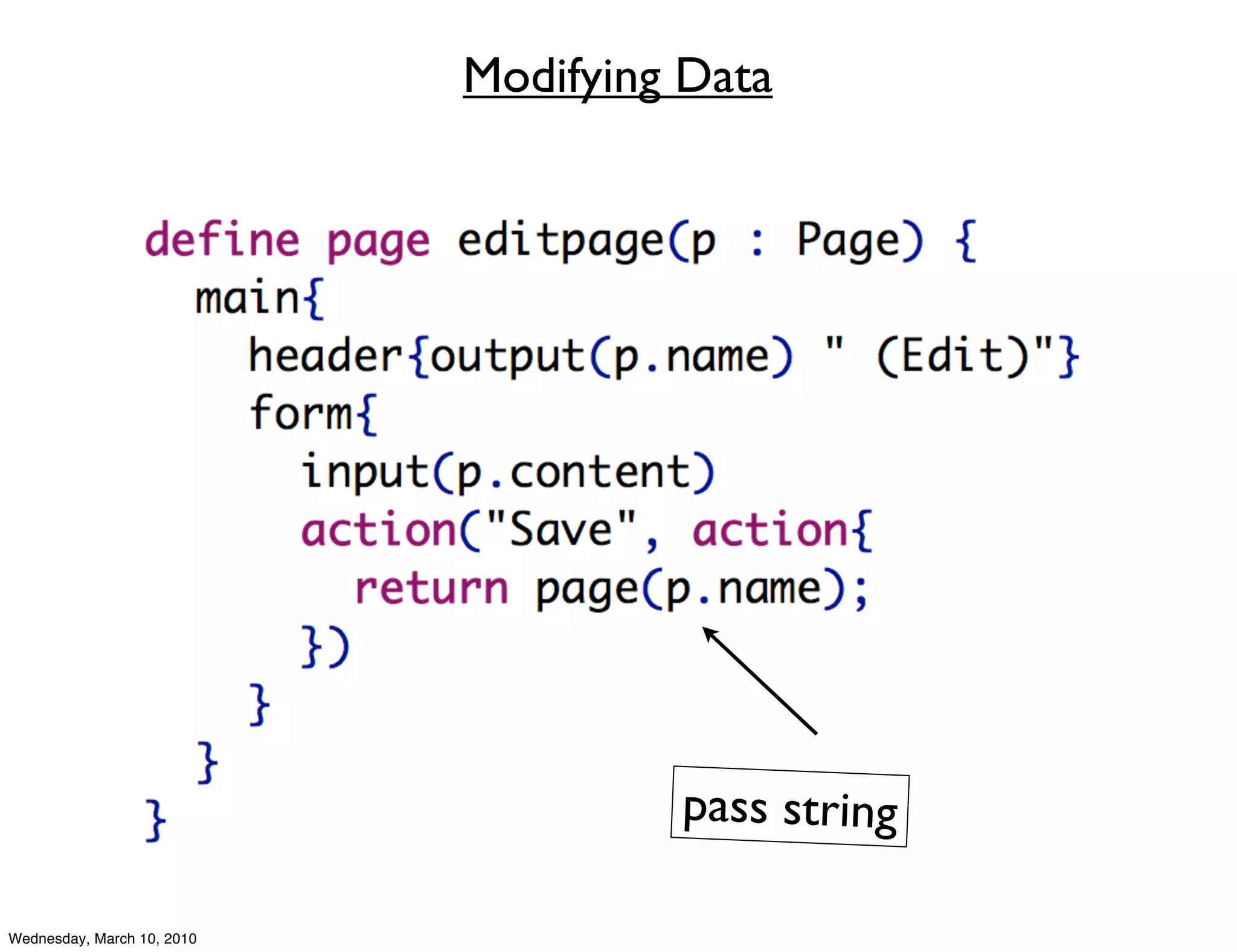

- 39. Modifying Data pass string Wednesday, March 10, 2010

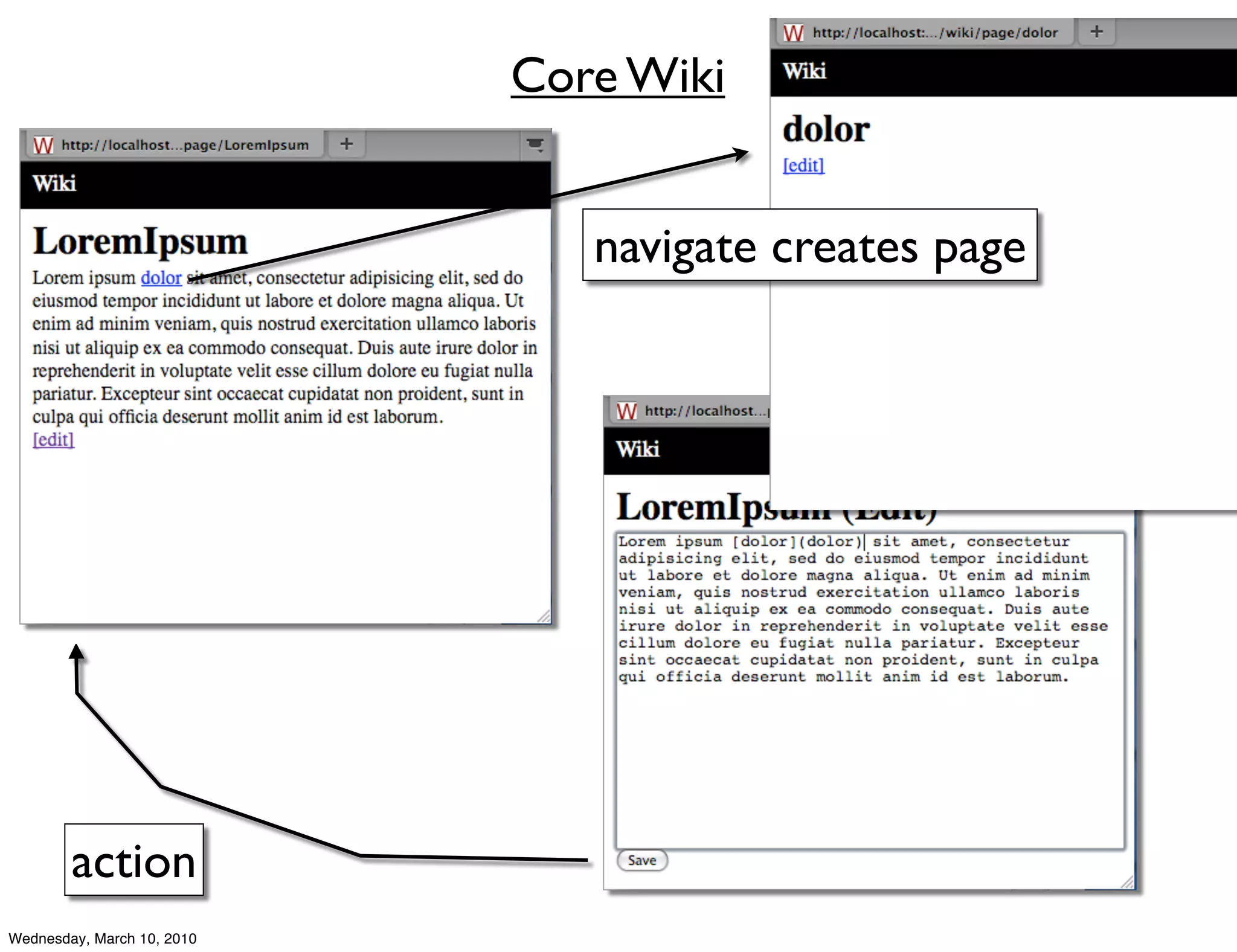

- 40. Core Wiki navigate creates page action Wednesday, March 10, 2010

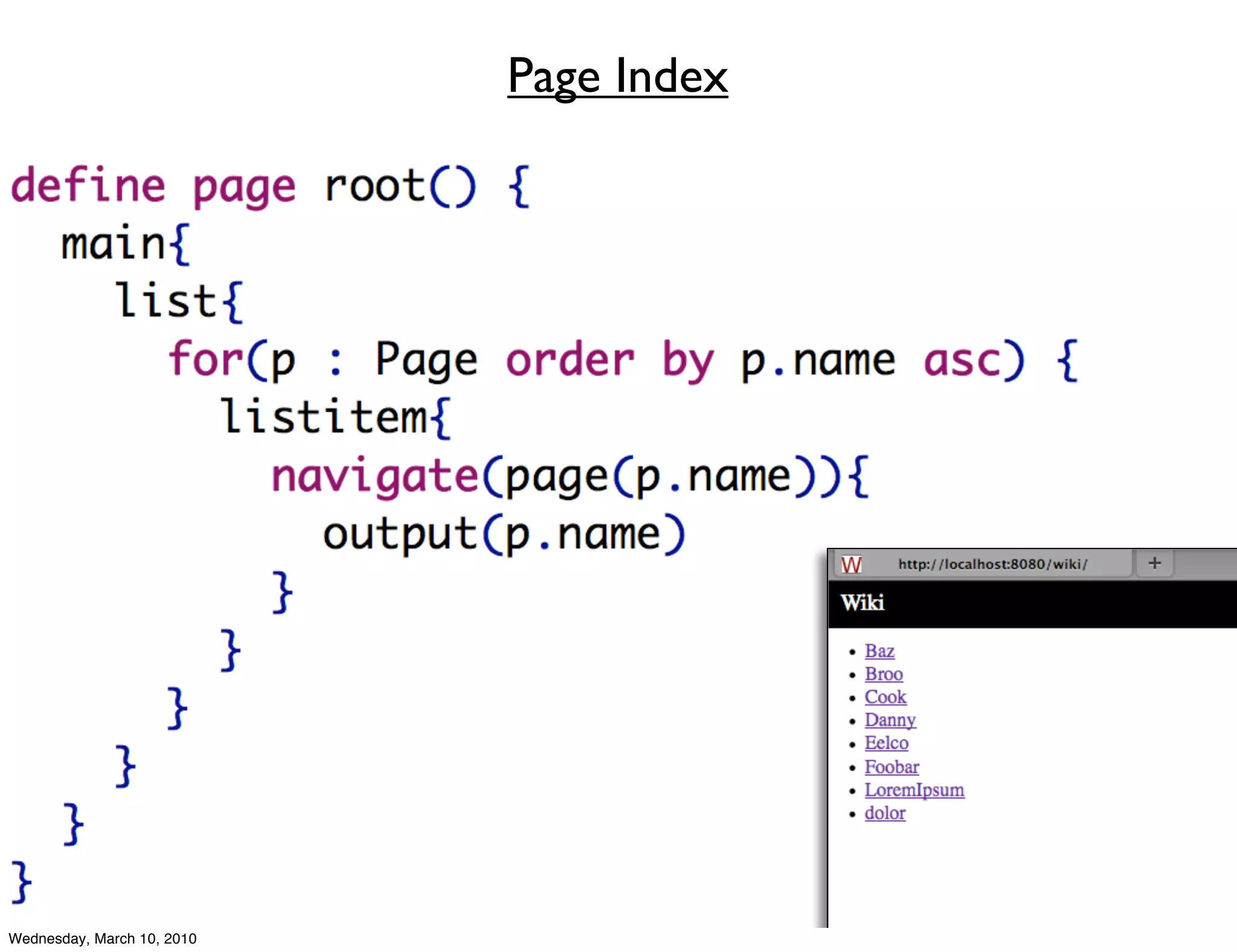

- 41. Page Index Wednesday, March10, 2010

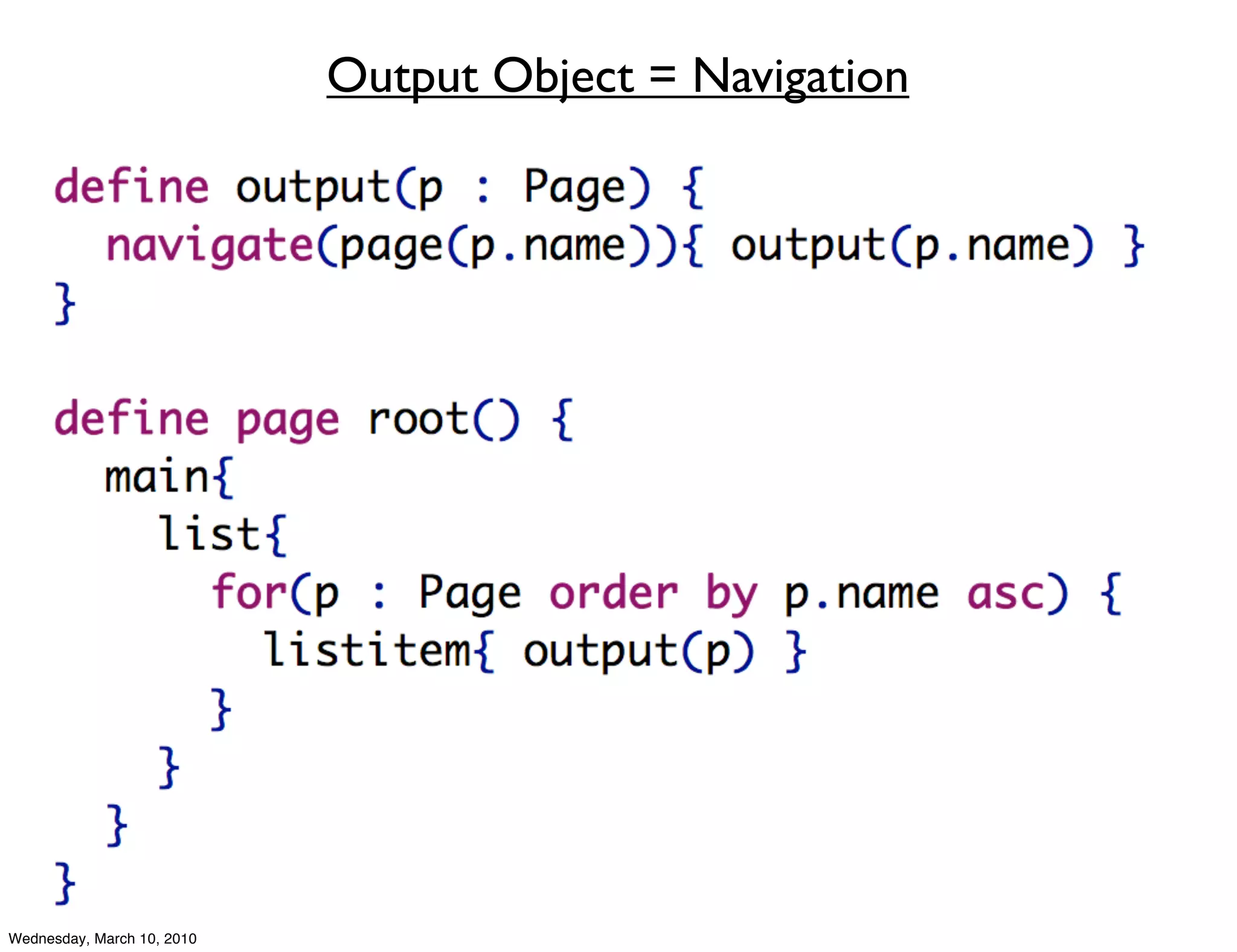

- 42. Output Object =Navigation Wednesday, March 10, 2010

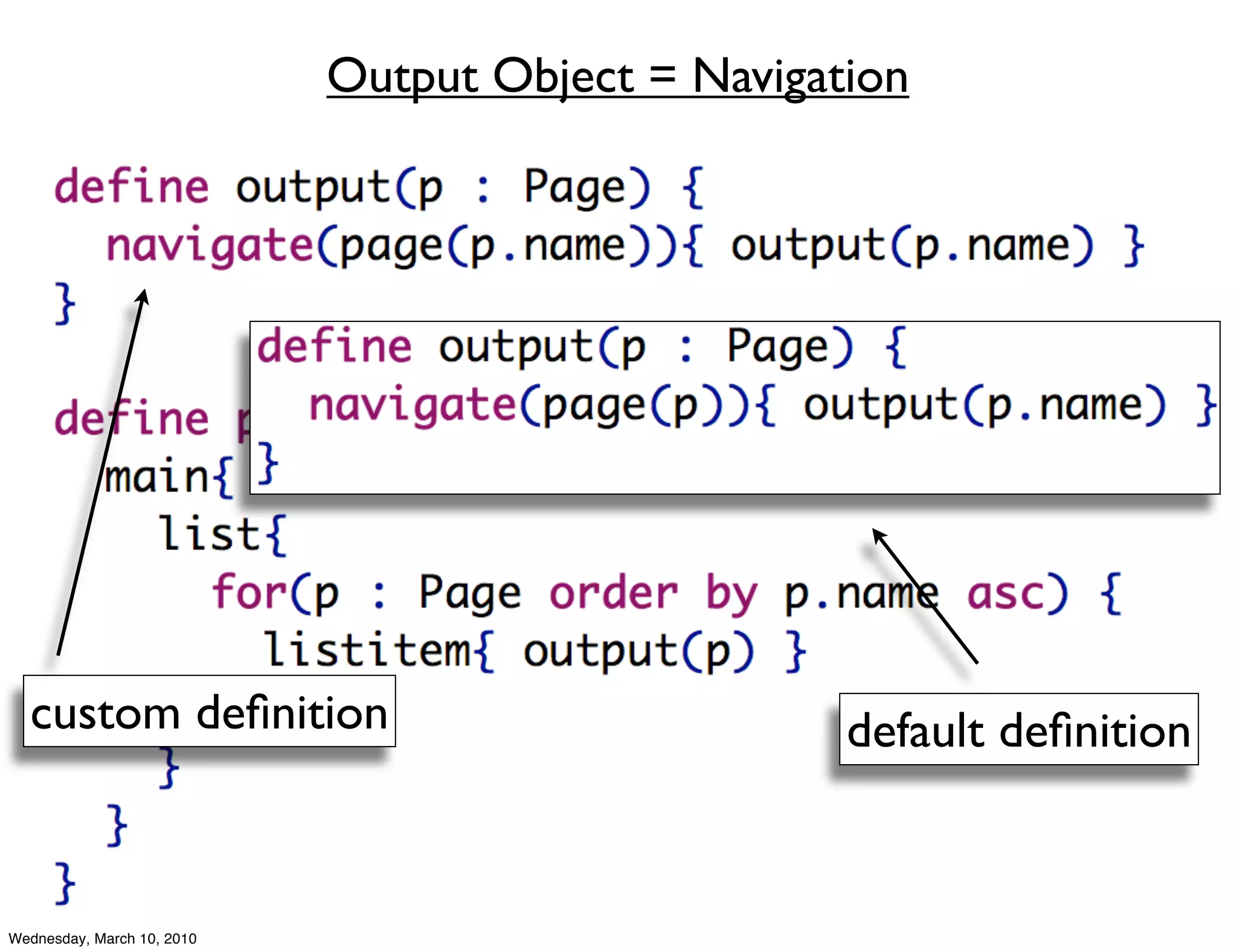

- 43. Output Object =Navigation custom definition default definition Wednesday, March 10, 2010

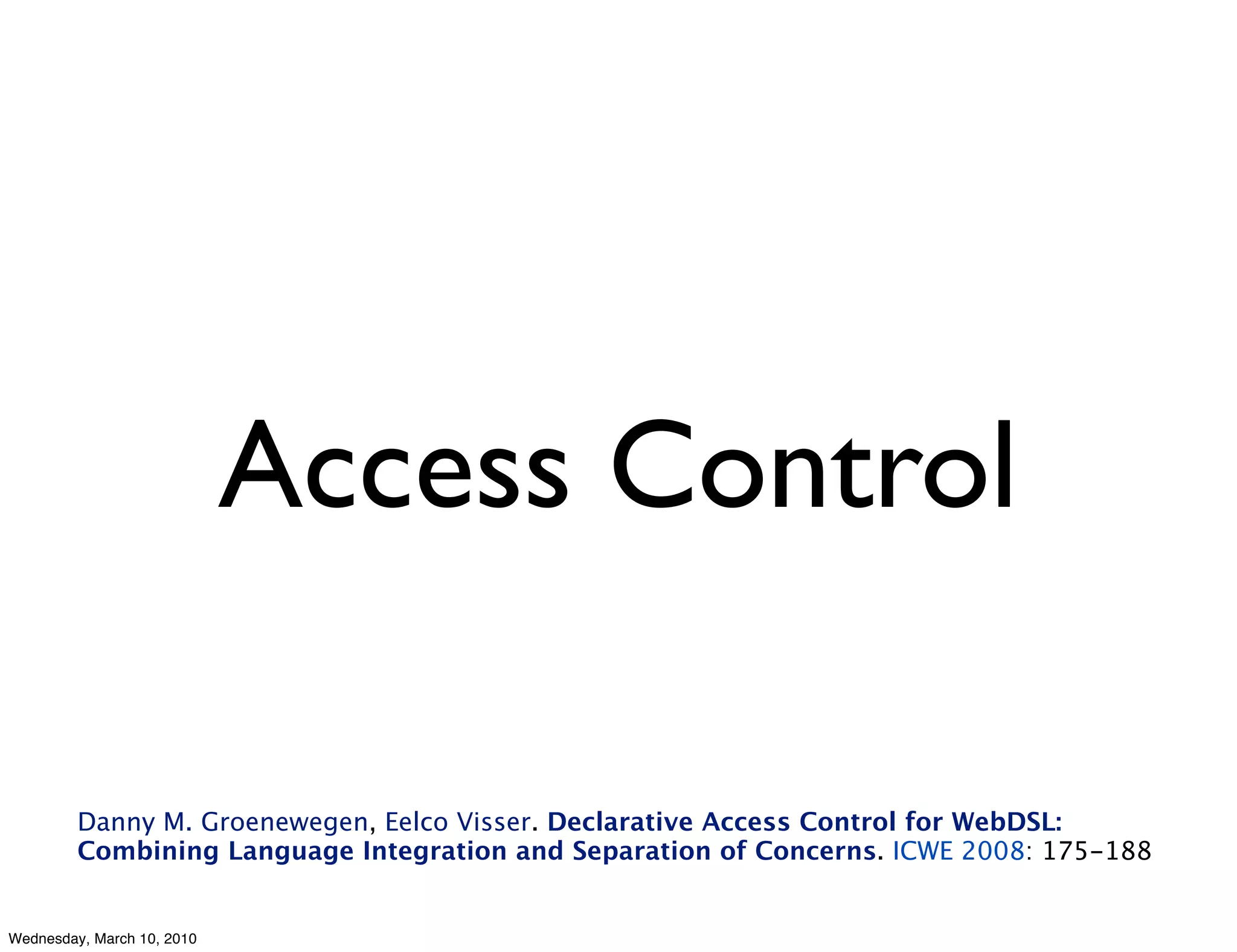

- 44. Access Control Danny M. Groenewegen, Eelco Visser. Declarative Access Control for WebDSL: Combining Language Integration and Separation of Concerns. ICWE 2008: 175-188 Wednesday, March 10, 2010

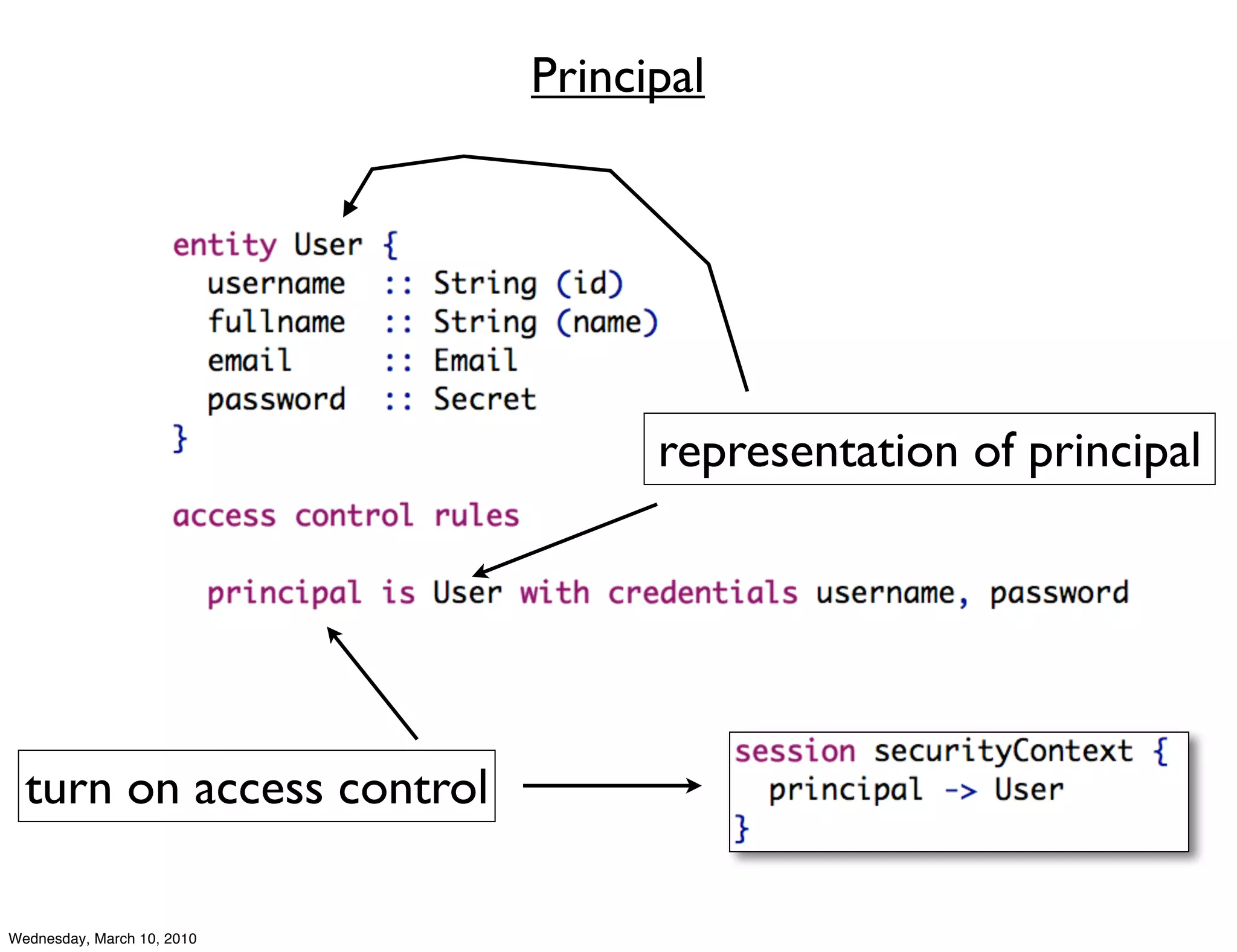

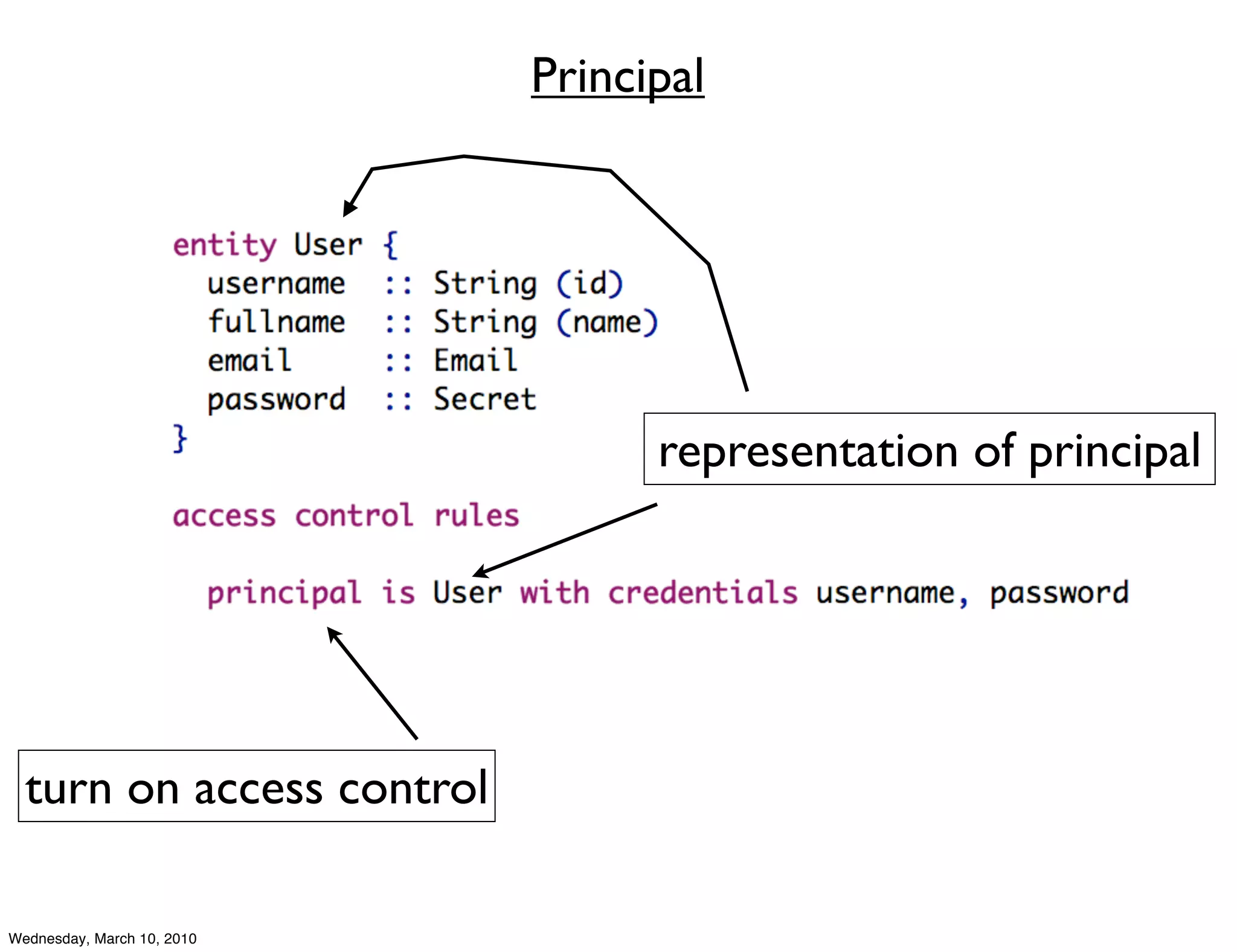

- 45. Principal representation of principal turn on access control Wednesday, March 10, 2010
- 46. Principal representation of principal turn on access control Wednesday, March 10, 2010

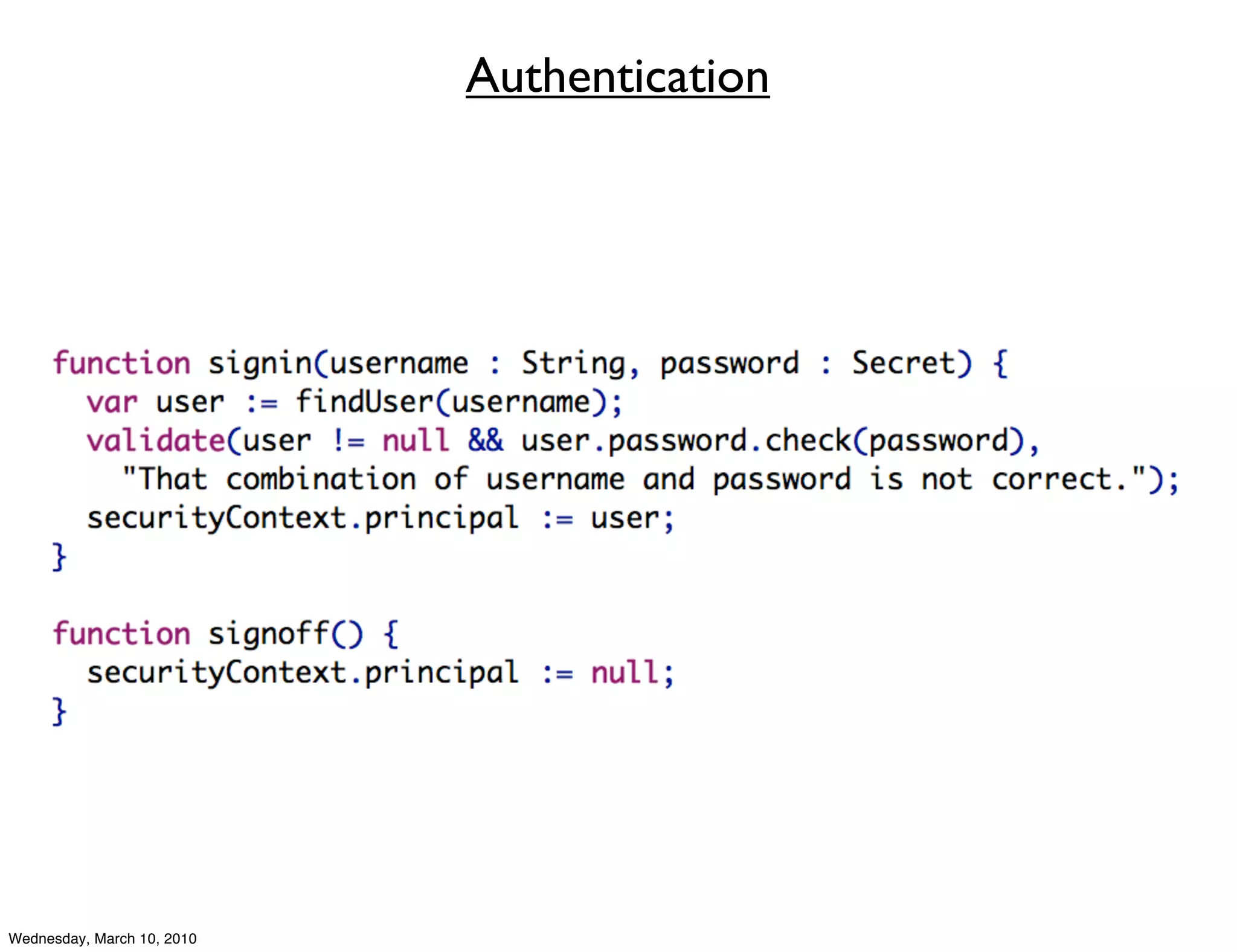

- 47.

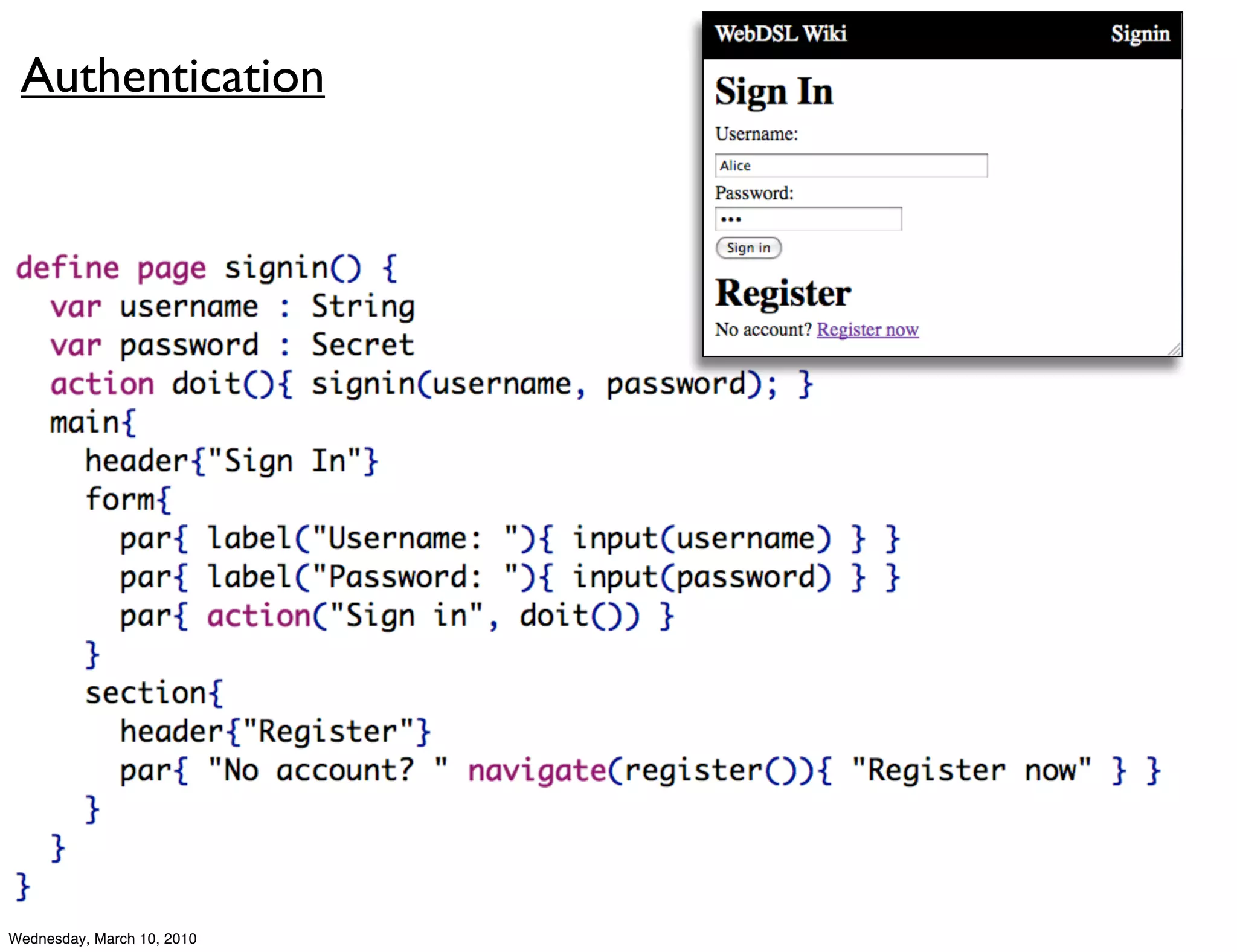

- 48.

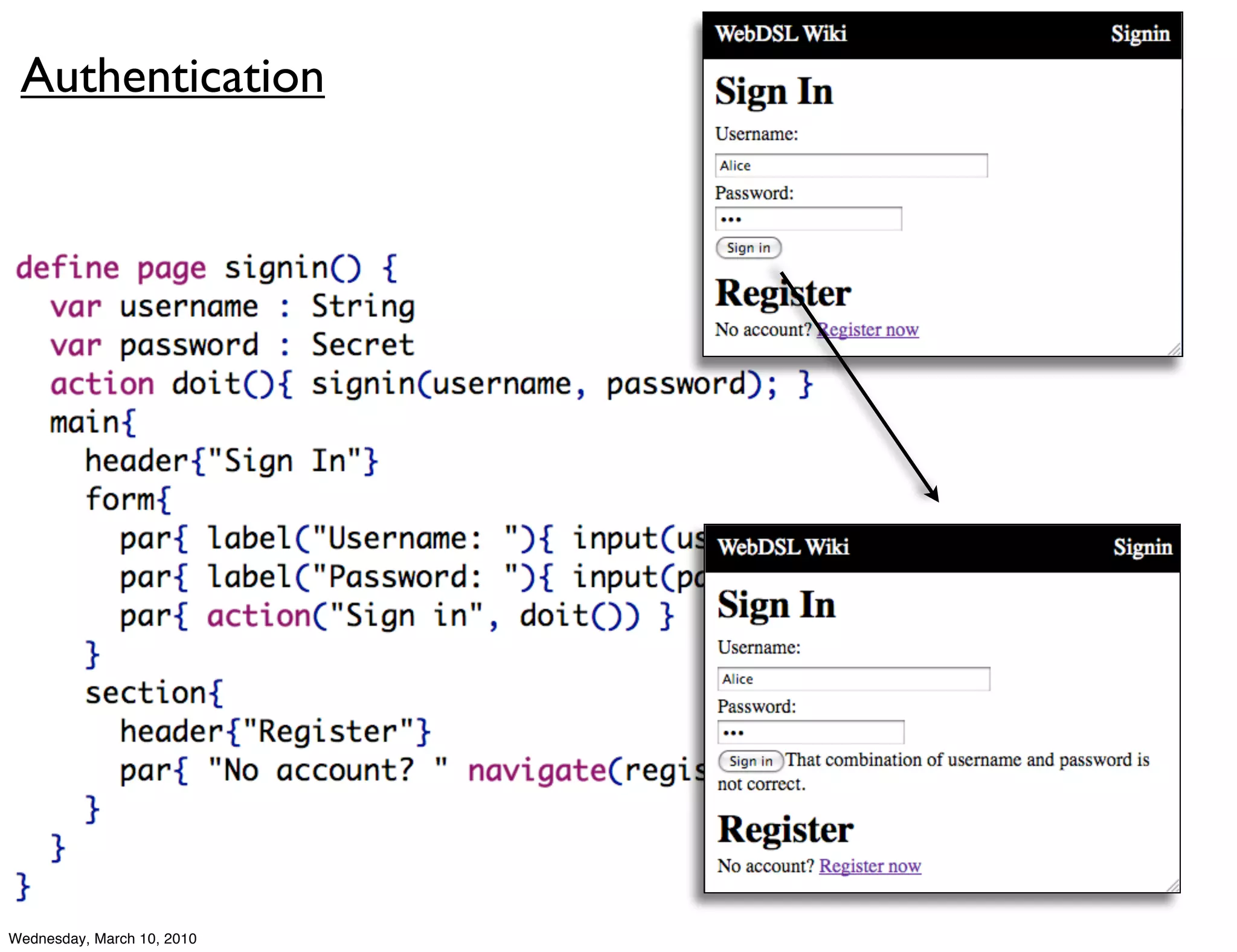

- 49.

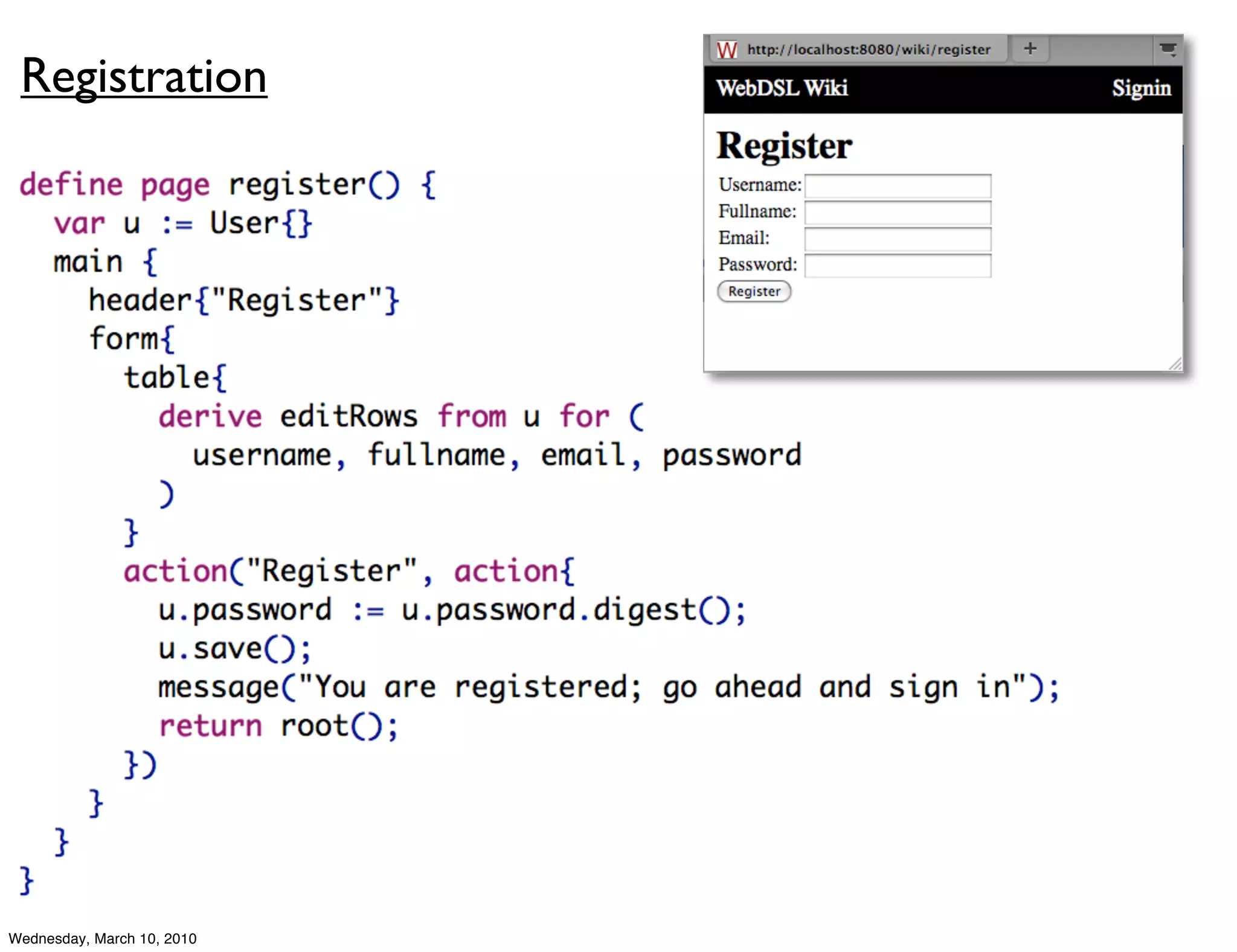

- 50.

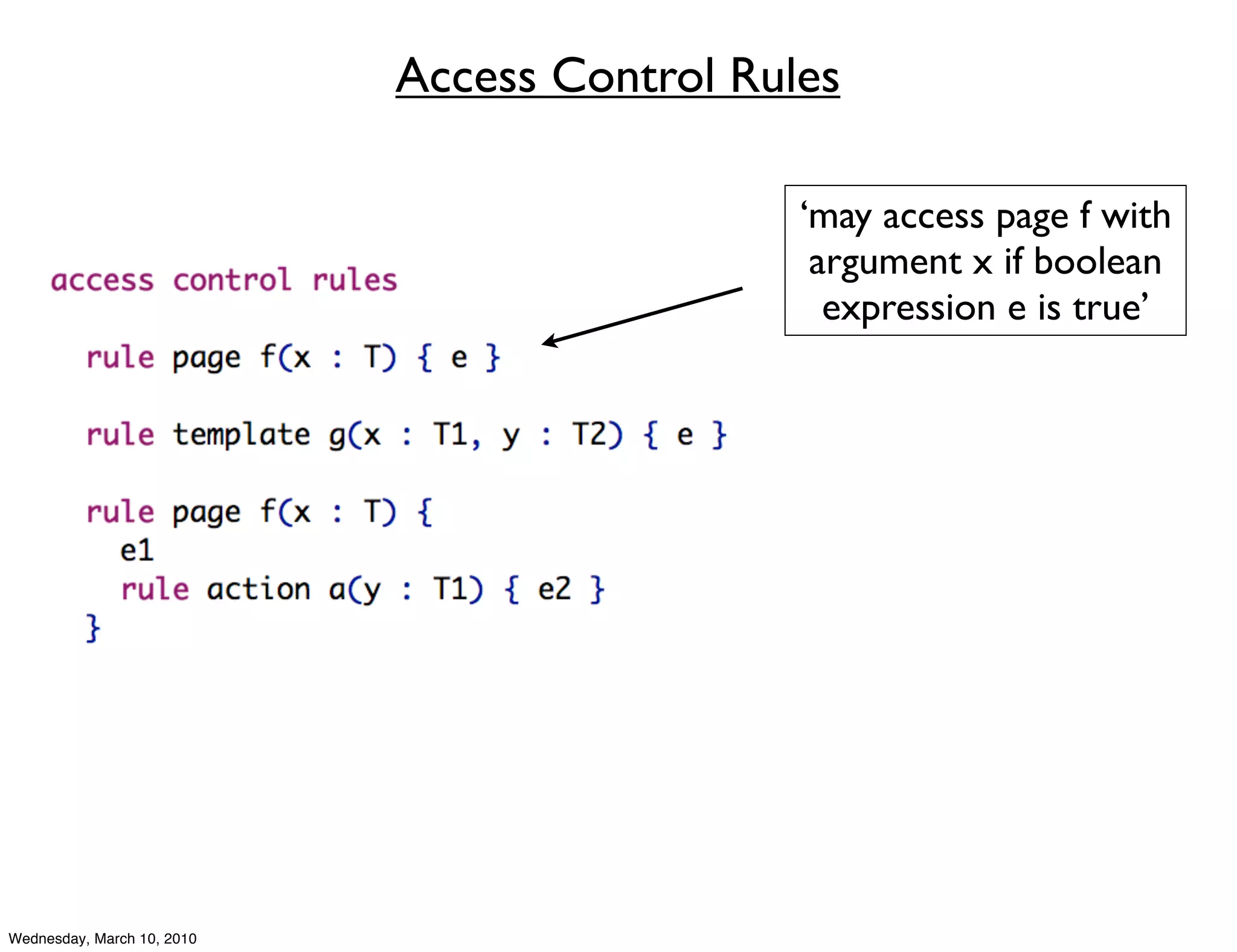

- 51. Access Control Rules ‘may access page f with argument x if boolean expression e is true’ Wednesday, March 10, 2010

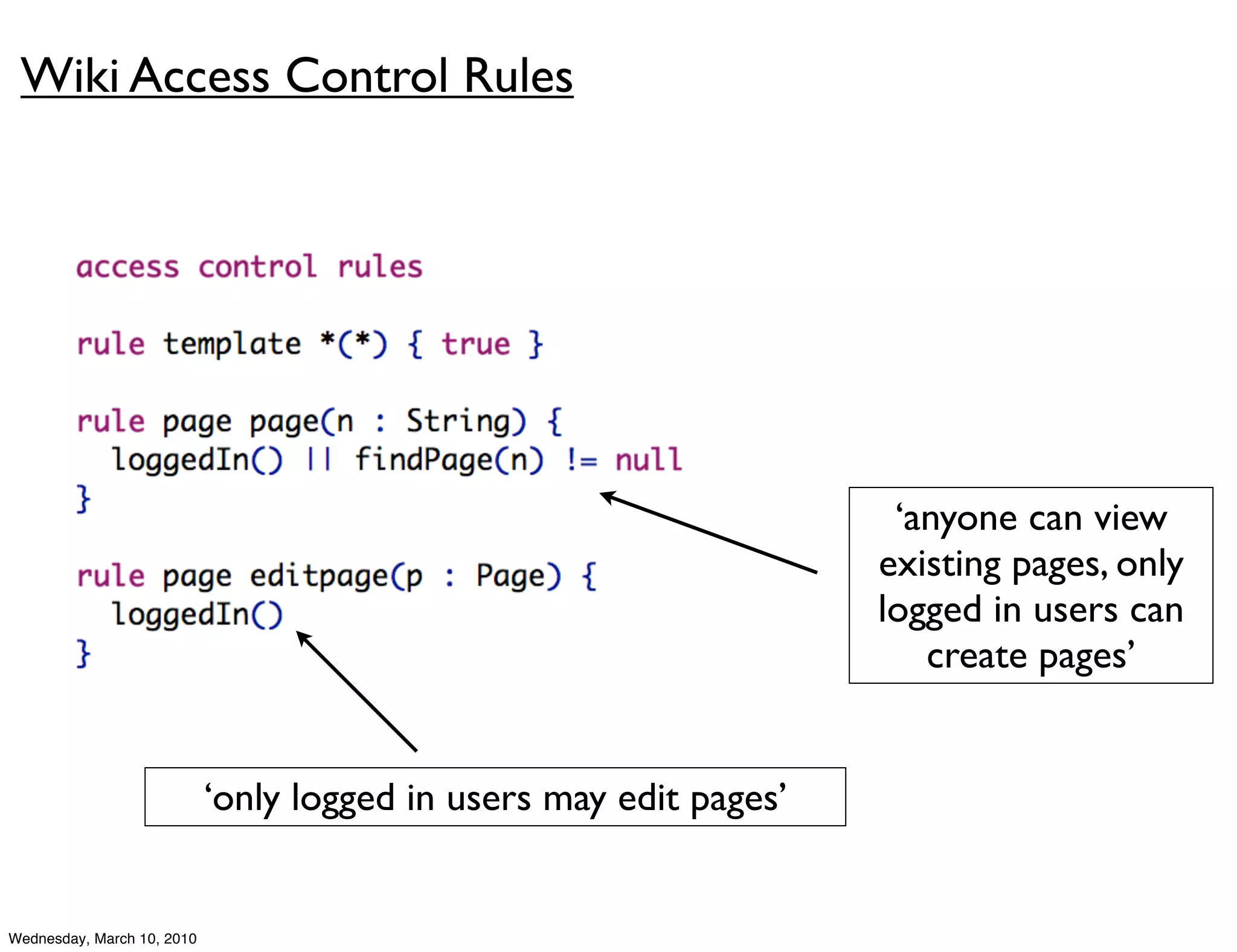

- 52. Wiki Access ControlRules ‘anyone can view existing pages, only logged in users can create pages’ ‘only logged in users may edit pages’ Wednesday, March 10, 2010

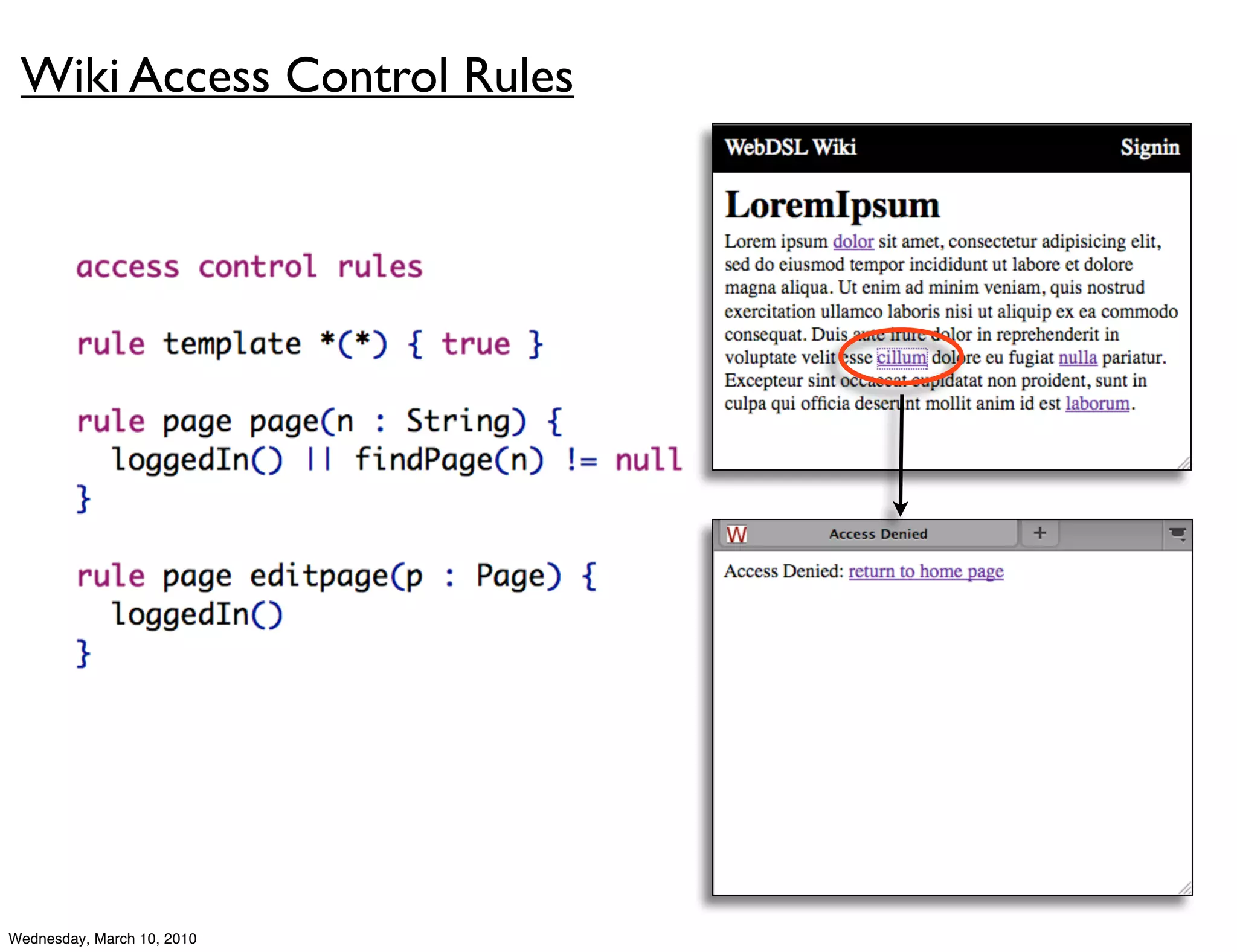

- 53. Wiki Access ControlRules Wednesday, March 10, 2010

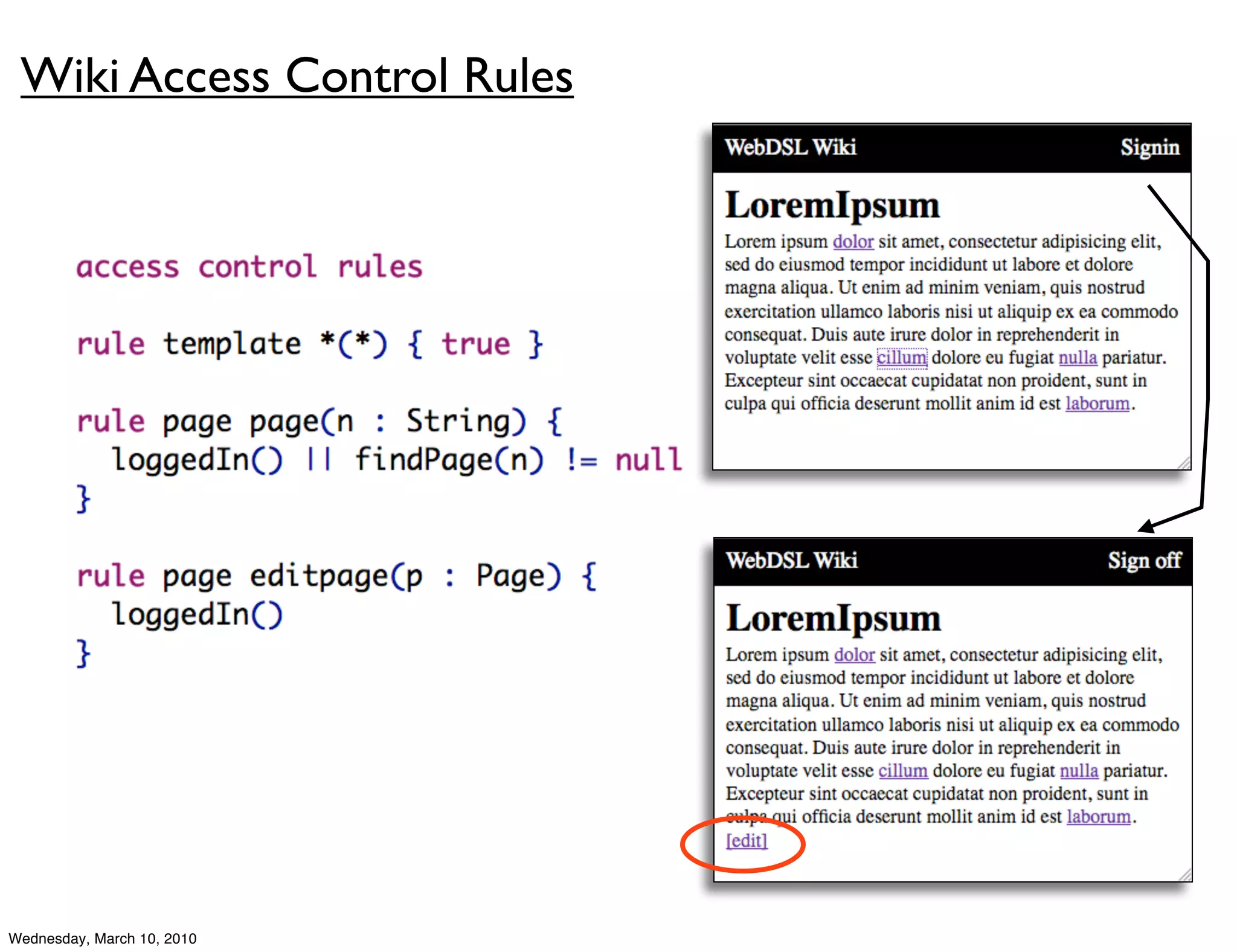

- 54. Wiki Access ControlRules Wednesday, March 10, 2010

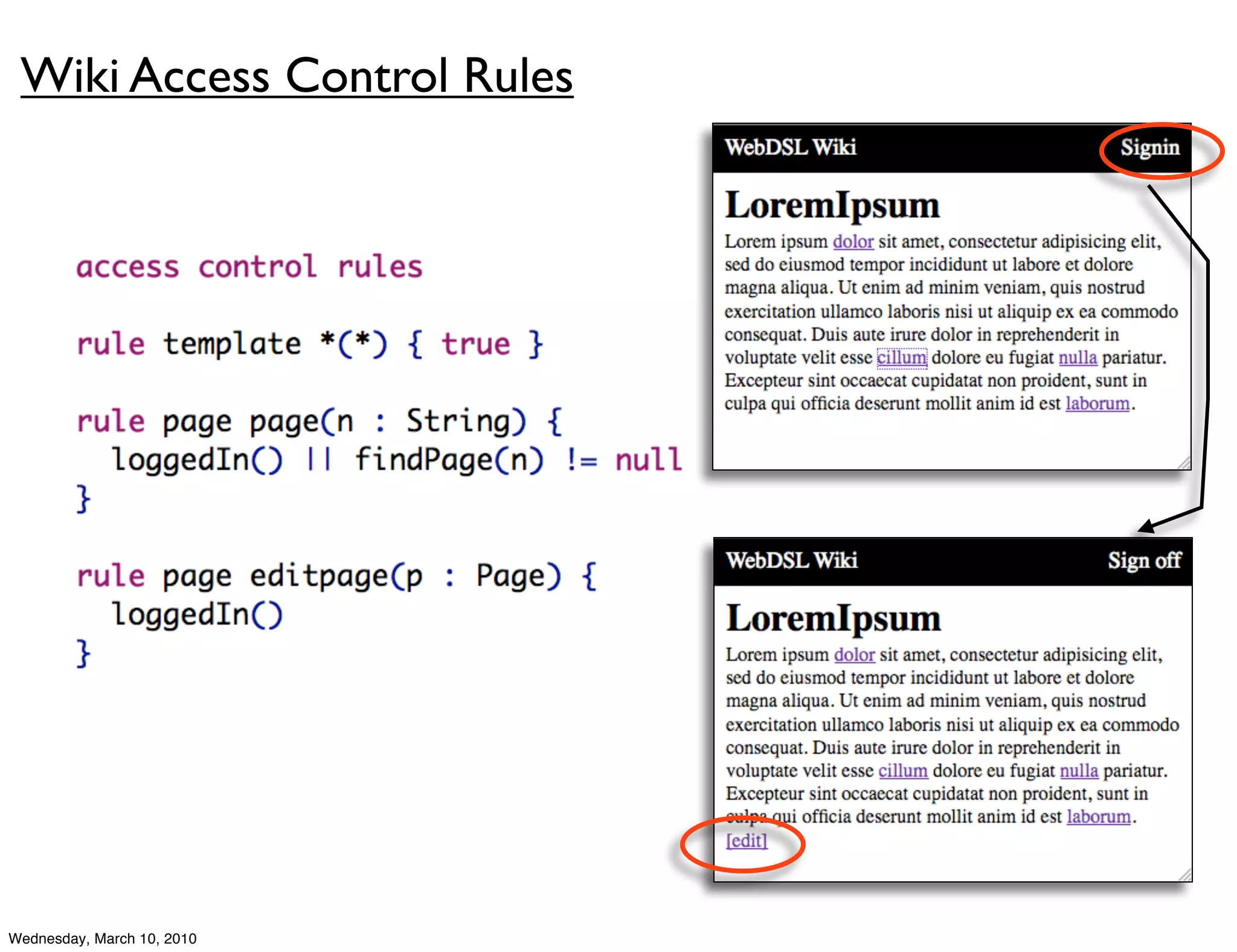

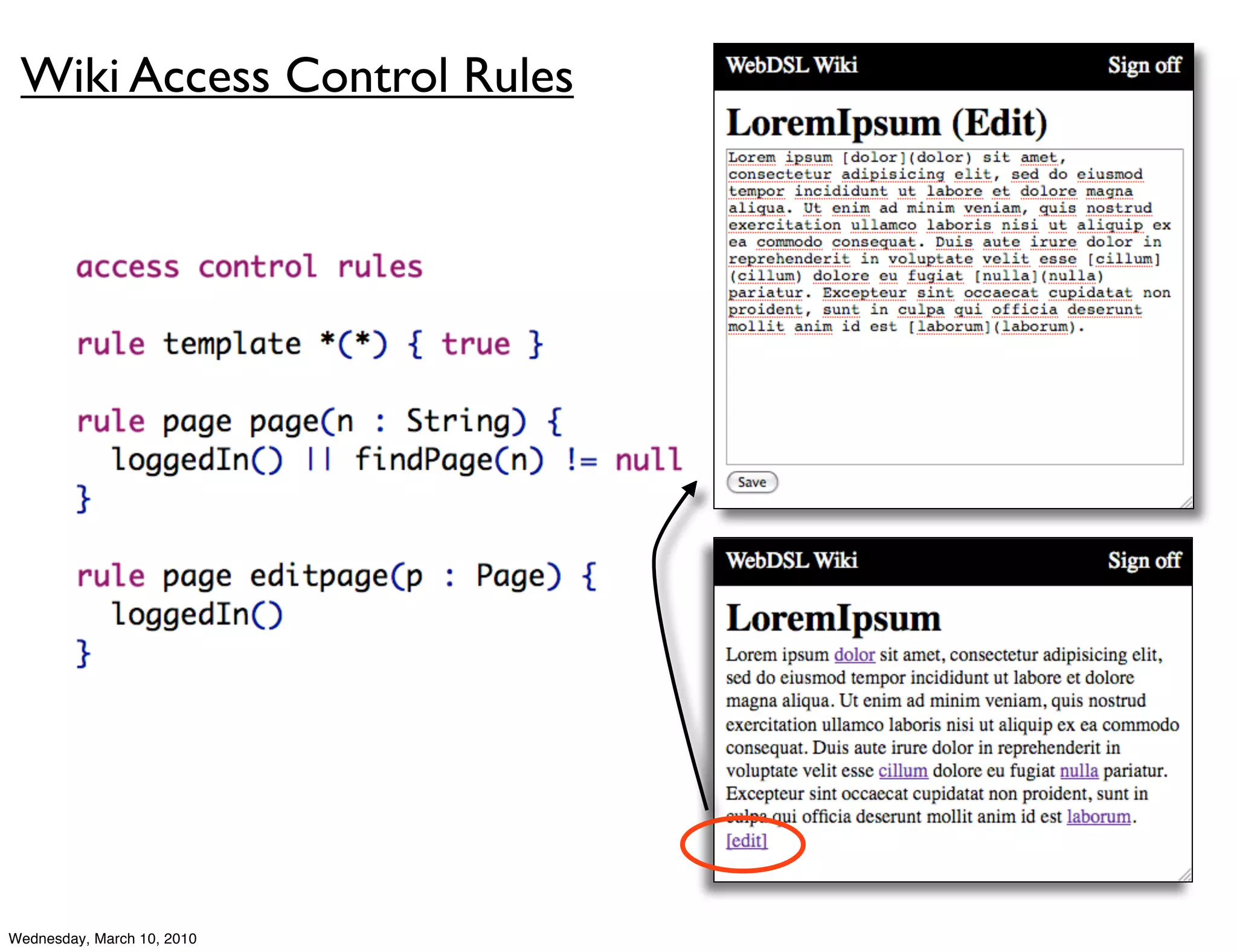

- 55. Wiki Access ControlRules Wednesday, March 10, 2010
- 56. Wiki Access ControlRules Wednesday, March 10, 2010

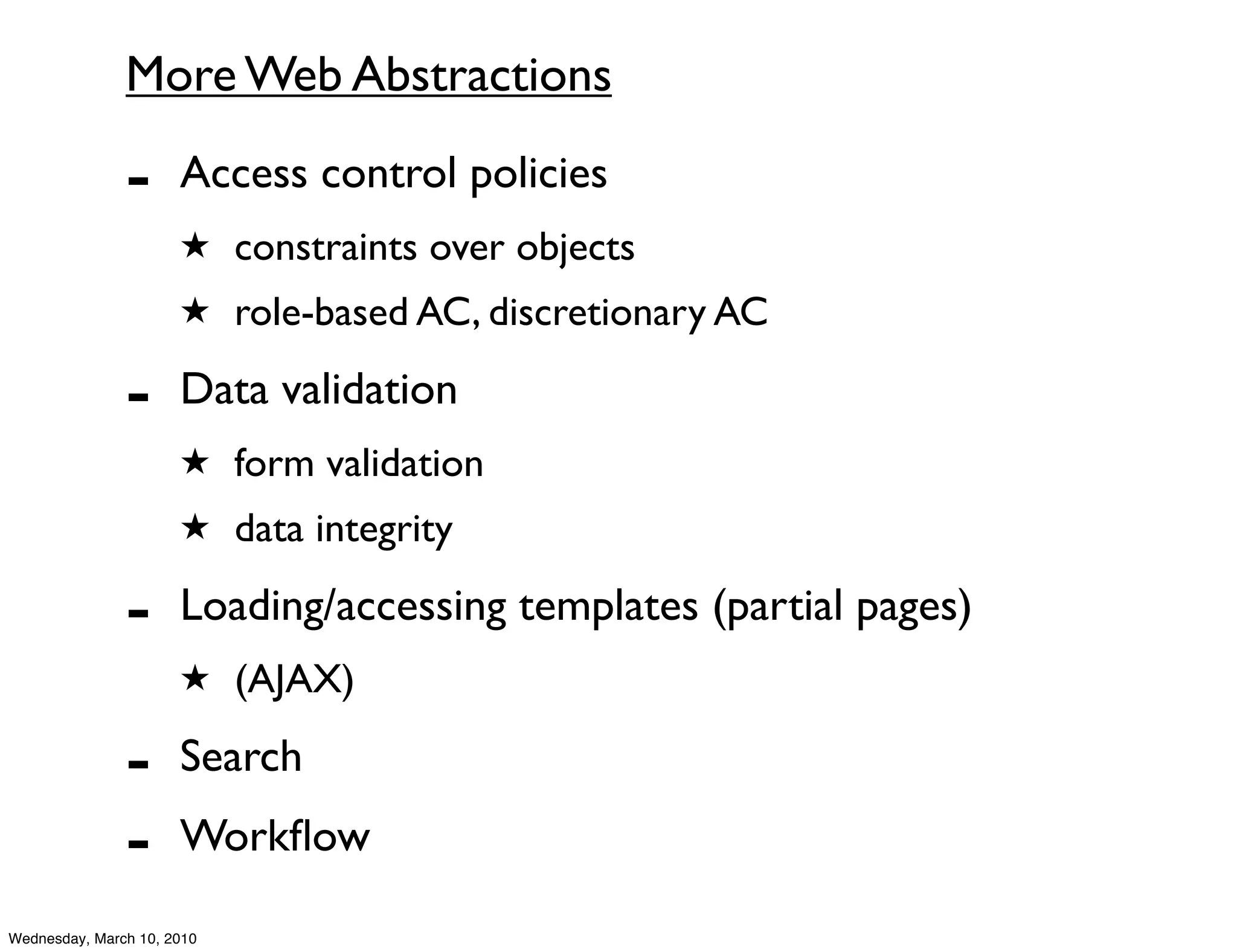

- 57. More Web Abstractions - Access control policies ★ constraints over objects ★ role-based AC, discretionary AC - Data validation ★ form validation ★ data integrity - Loading/accessing templates (partial pages) ★ (AJAX) - Search - Workflow Wednesday, March 10, 2010

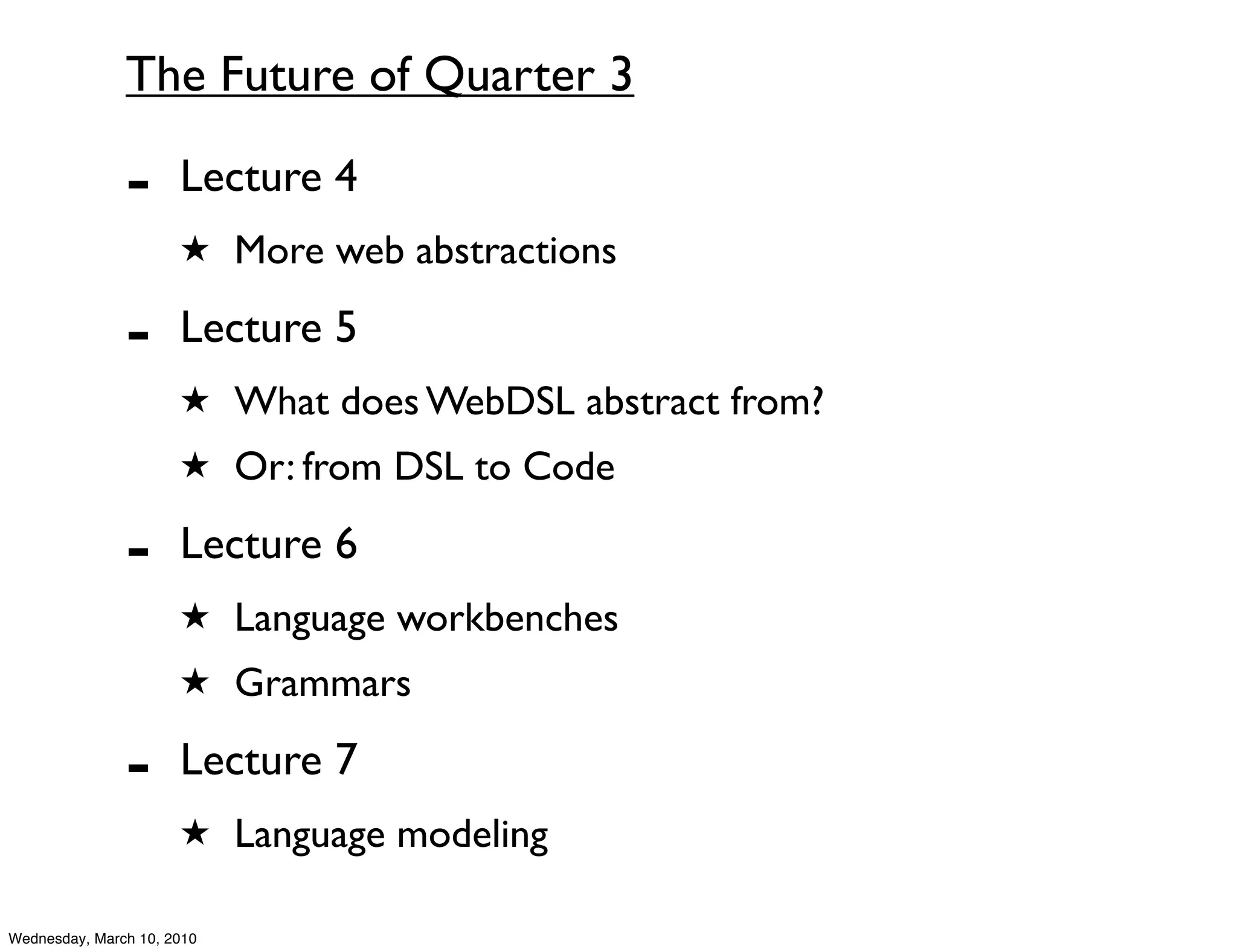

- 58. The Future ofQuarter 3 - Lecture 4 ★ More web abstractions - Lecture 5 ★ What does WebDSL abstract from? ★ Or: from DSL to Code - Lecture 6 ★ Language workbenches ★ Grammars - Lecture 7 ★ Language modeling Wednesday, March 10, 2010
