- 1. OpenStack Networking Mark McClain OpenStackNetworking Program Technical Lead mark.mcclain@dreamhost.com

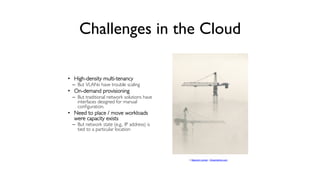

- 2. Challenges in theCloud • High-density multi-tenancy – But VLANs have trouble scaling • On-demand provisioning – But traditional network solutions have interfaces designed for manual configuration. • Need to place / move workloads were capacity exists – But network state (e.g., IP address) is tied to a particular location © Malcolm Leman | Dreamstime.com

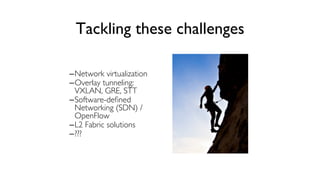

- 3. Tackling these challenges – Networkvirtualization – Overlay tunneling: VXLAN, GRE, STT – Software-defined Networking (SDN) / OpenFlow – L2 Fabric solutions – ???
- 4.

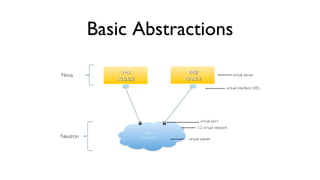

- 5. Basic Abstractions Nova VM2 10.0.0.2 VM1 10.0.0.2 virtual server virtualinterface (VIF) virtual port Neutron L2 virtual network Net1 10.0.0.0/24 virtual subnet

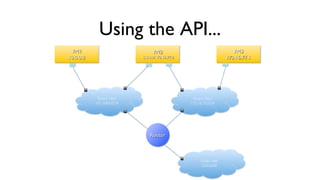

- 6. Using the API... VM1 10.0.0.2 VM2 VM3 172.16.77.1 10.0.0.2/172.16.77.2 TenantNet1 192.168.0.0/24 Tenant Net2 172.16.77.0/24 Router Public Net 10.0.0.0/8

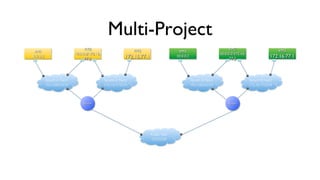

- 7. Multi-Project VM2 10.0.0.2/172.16. 77.2 VM1 10.0.0.2 VM3 VM1 10.0.0.2 172.16.77.1 Tenant A Net1 192.168.0.0/24 VM2 10.0.0.2/172.16. 77.2 TenantB Net2 172.16.77.0/24 Router Router Public Net 10.0.0.0/8 172.16.77.1 Tenant B Net1 192.168.0.0/24 Tenant A Net2 172.16.77.0/24 VM3
- 8. Architecture Generic OpenStack APIs OperatorSelected Backends KVM ML2 Plugin Ceph Compute API Network API Tenant Tools (GUI, CLI, API code) Storage API

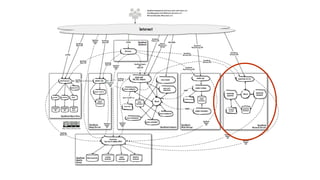

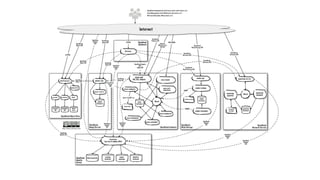

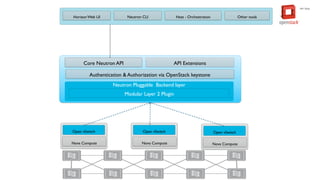

- 11. Neutron CLI Horizon WebUI Heat - Orchestration Other tools Core Neutron API API Extensions Authentication Authorization via OpenStack keystone Neutron Pluggable Backend layer Modular Layer 2 Plugin Nova Compute Open vSwitch Nova Compute Open vSwitch Nova Compute Open vSwitch API Tools

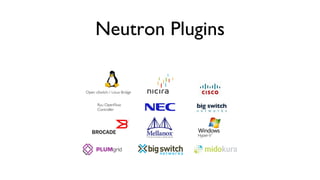

- 12. Neutron Plugins Open vSwitch/ Linux Bridge Ryu OpenFlow Controller

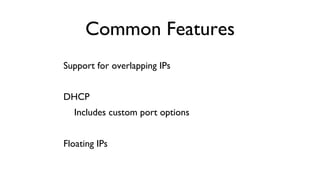

- 13. Common Features Support foroverlapping IPs DHCP Includes custom port options Floating IPs

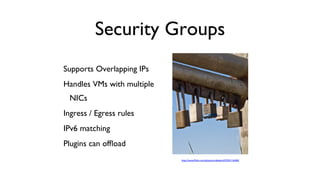

- 14. Security Groups Supports OverlappingIPs Handles VMs with multiple NICs Ingress / Egress rules IPv6 matching Plugins can offload http://www.flickr.com/photos/mikebaird/2354116406/

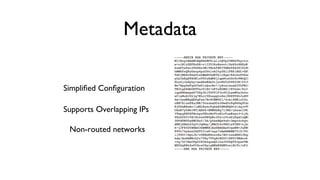

- 15. Metadata Simplified Configuration Supports OverlappingIPs Non-routed networks
- 16. Modular Layer 2 DriverBased Combines OVS and Linuxbridge Plugins Other Mechanism Drivers Available Arista, Cisco, Hyper-V, Tail-F NCS
- 17.
- 18. Load Balancing asService Multiple Implementations Open Source - HAProxy Proprietary Drivers Available

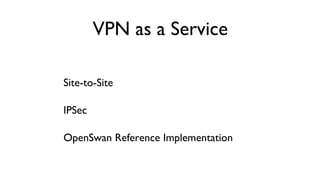

- 19. VPN as aService Site-to-Site IPSec OpenSwan Reference Implementation

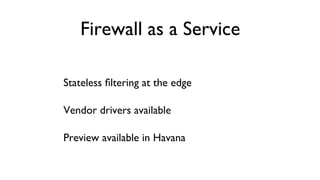

- 20. Firewall as aService Stateless filtering at the edge Vendor drivers available Preview available in Havana
- 21.

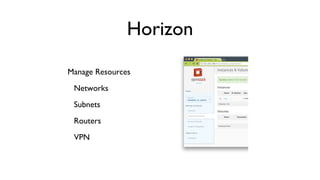

- 22. Horizon Select NICs whenbooting

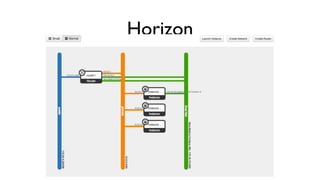

- 23.

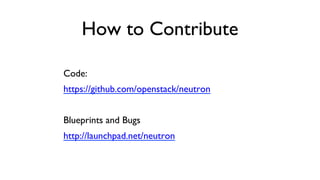

- 24. How to Contribute Code: https://github.com/openstack/neutron Blueprintsand Bugs http://launchpad.net/neutron

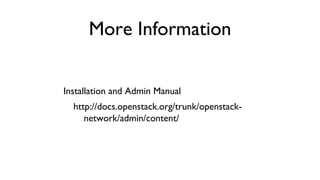

- 25. More Information Installation andAdmin Manual http://docs.openstack.org/trunk/openstacknetwork/admin/content/

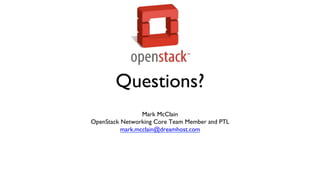

- 26. Questions? Mark McClain OpenStack NetworkingCore Team Member and PTL mark.mcclain@dreamhost.com
